BLUETOOTH MINI TOWER SPEAKER
INSTRUCTION MANUAL
MODEL: SP269PL-ASST
PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT
![](/img.php?id=2223914&img=bg2.png)
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.
FCC NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not Installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC WARNING:
To assure continued compliance, follow the attached
installation instructions and use only shielded cables
when connecting to other devices. Modifications not
authorized by the manufacturer may void user`s authority
to operate this device.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
1
WARNING:
To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. The apparatus shall
not be exposed to dripping or splashing and that objects
filled with liquids, such as
vases shall not be placed on
apparatus.
The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
![](/img.php?id=2223914&img=bg3.png)
Before using the unit, be sure to read all operating instructions carefully. Please note that these
are general precautions and may not pertain to your unit.
1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.
2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen
sink or laundry tub; in a wet basement; or near a swimming pool.
6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure
reliable operation of the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11)Only use attachments/accessories specified by the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stop, excessive force and uneven surfaces may cause the
appliance and cart combination to overturn.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and power-line surges.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture does not operate normally, or has been dropped.
15) Power source
This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your appliance dealer or local
power company. For products intended to operate from battery power, or other source, refer to the
operation instructions.
For example, this unit may not have the capability to be connected to an outdoor antenna.
2
![](/img.php?id=2223914&img=bg4.png)
1
2
3

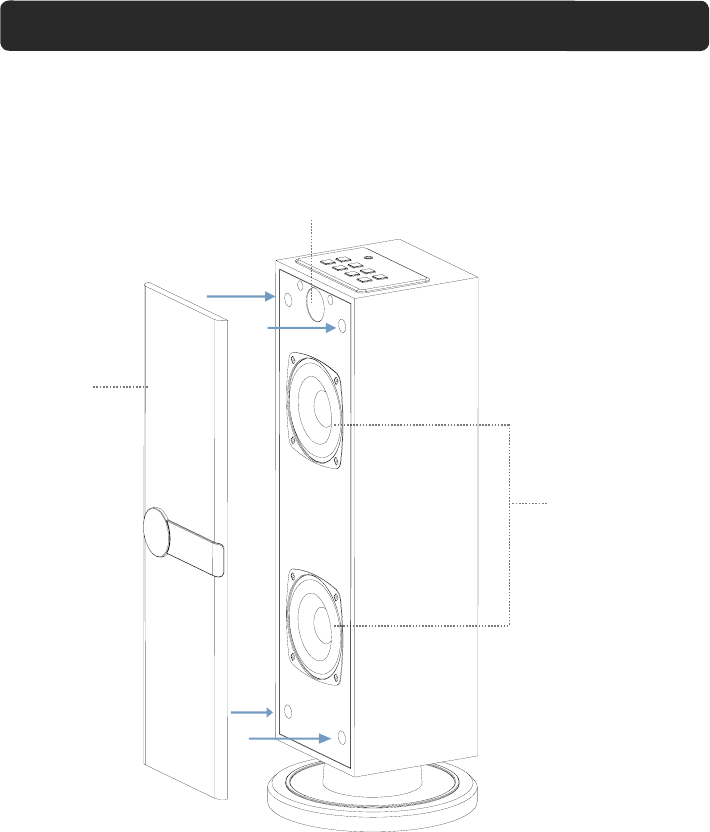

1. Remote Sensor
2. Speakers
3. Speaker Net
Note:
The Speaker Net can be taken out and reassembled as Figure above.
INSTALLATION
3
![](/img.php?id=2223914&img=bg5.png)

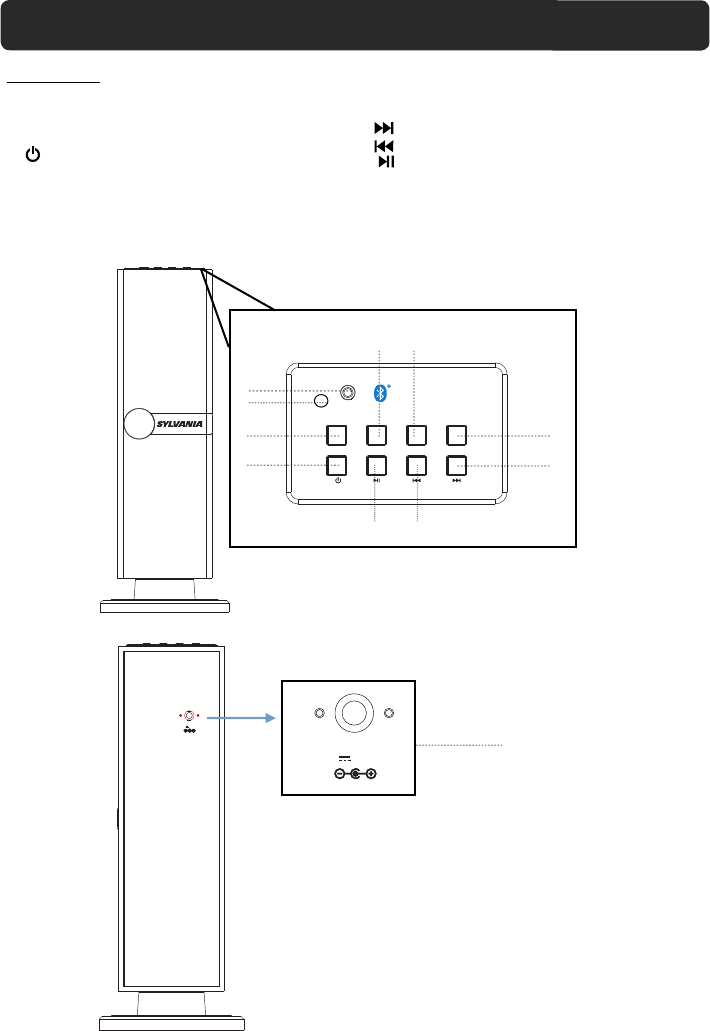

MAIN UNIT
11
1
10
8
7
9
2
3
4
56
3. EQ(Equalizer)button
5. SOURCE button
6. VOL- (Volume Down) button
7. VOL+ (Volume Up) button
1. AUX IN jack 8. (Next) button
9. (Previous) button
10. (Play/Pause) button
4. POWER button
2. Indicator
11. DC IN Jack
LOCATION OF CONTROLS
4
DC IN
DC 12V, 1A
DC IN
DC 12V, 1A
AUX IN
EQ SOUR CE VOL+VOL-
![](/img.php?id=2223914&img=bg6.png)

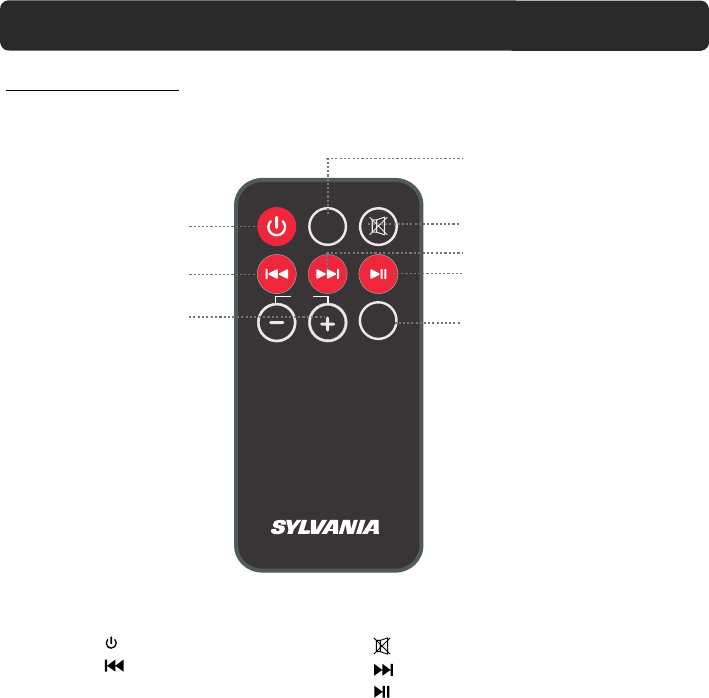

REMOTE CONTROL
2
3
SOURCE
EQ
VOL
POWER
8
7
6
5
4
1
2
3
1. POWER button
2. (Previous) button
3. VOL (Volume)+/- buttons
4. SOURCE button
5. (Mute) button
6. (Next) button
7. (Play/Pause) button
8. EQ (Equalizer) button
LOCATION OF CONTROLS
5
![](/img.php?id=2223914&img=bg7.png)
BATTERY PRECAUTIONS
Approx.15 feet
Fig.1 Fig.2 Fig.3
Remote Sensor

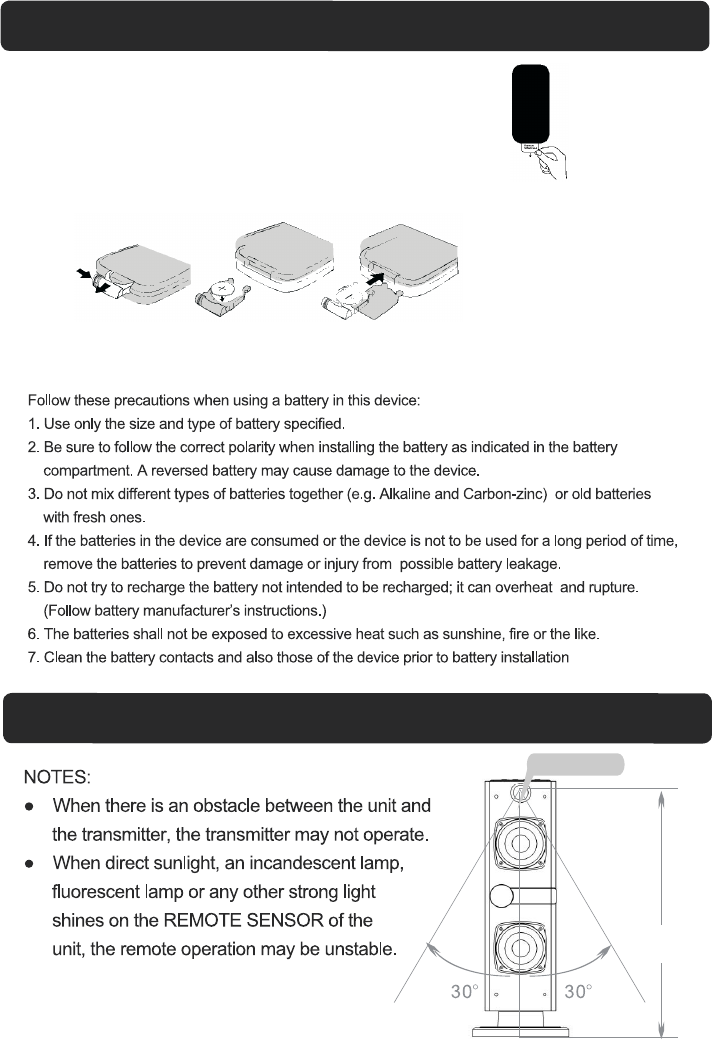

BATTERY INSTALLATION--- REMOTE CONTROL
EFFECTIVE DISTANCE OF REMOTE TRANSMITTER
-First Time Use
Remove and discard the insulation tab as figure on the right
-Replacing Batteries For Remote Control
1. Push and slide out the battery holder as figure 1 below.
3. Close the battery holder.
2. Replace the battery with a new CR2025 button cell as the polarity
markings on the rear of the Remote Control.
6
![](/img.php?id=2223914&img=bg8.png)
~ Green: AUX IN
~ Blue: Bluetooth
4. During Playback:
~ Press the VOL (Volume) buttons to adjust volume level as desired.
~ Press the EQ button repeatedly to select and set equalizer mode as desired.
~ Press (Mute) button on the Remote Control to turn off the sound. Press again to resume.
to shut off the unit if no using for long period of time.
NOTE:
Pull out the AC/DC Adapter plug
GENERAL OPERATIONS
1. Insert the AC/DC Adapter plug into a conveniently located AC outlet having 100-240V~50/60Hz.
The Indicate (Red) will light.
2. Press the Power button on the unit or remote control to power on the unit.
corresponding color as below:
3. Press the SOURCE button repeatedly to switch to desired mode.The color of Indicator turns
to
5. When finished listening, press the Power button to power off the unit.The indicator will
turn Red.
7
~ Press the or button to skip track.
~ Press the (Play/Pause) button to pause. Press again to resume normal playback.
~ Press the EQ button on unit or on remote control to change the EQ mode.
![](/img.php?id=2223914&img=bg9.png)
X I
4. Press the SOURCE button repeatedly until the color of Indicator turns to Green.
3. Power ON the unit.

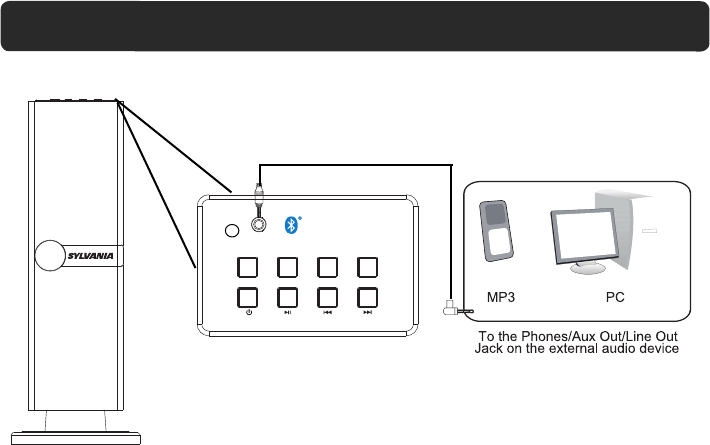

1. Connect one end of supplied audio connection cable to the AUX IN jack on the top of the unit
2. Connect the other end to the Audio out/Line out/Phone jack on the external player (such like
iPhone, iPad, MP3 player, Discman... etc.).
5. Play the music in the external player as usual.
LISTEN TO EXTERNAL AUDIO DEVICES
as the figure above.
8
AUX IN
EQ SOUR CE VOL+VOL-
![](/img.php?id=2223914&img=bga.png)
1. Power ON the unit.
3. Turn on the BT function on the external BT device and play the music as usual.
4. During palyback:
Press the VOL (Volume) +/- buttons to adjust volume level.
Press the or button to skip track.
Press the (Play/Pause) button to pause. Press again to resume normal playback.
NOTES:
BLUETOOTH PARING AND PLAYBACK
In first time use, pairing the external BT device as below:
A. Power ON the unit, press the SOURCE button repeatedly until the color of
B. Power ON the external BT player and enter to searching mode. Start pairing as the on screen
instructions on the external BT Player (For details pairing procedures, please refer to the user’s
manual of your BT device.).
C. When the external BT player searched the Speaker, our model number “SP269PL” will appear
2. Press the SOURCE button on the unit or remote control until the color of Indicator changed to
Blue.
Indicator turned to
Blue and blinking.
9
on the display of external BT device. Select it and make pairing.
D. Pairing code “0000” may need to enter.
E. After successful connection, play music as usual.
![](/img.php?id=2223914&img=bgb.png)
Check the followings before requesting service
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
desired mode.
Press the SOURCE button repeatedly to
set the input source to the desired mode
TROUBLESHOOTING GUIDE
No power
No sound
Sound distortion
Remote not
working
Bluetooth
reception failure
Have not paired
The external device is far from
the unit
The batterry
is consumed
Volume level too high
Bass level of the connected
device too high
Input source incorrect
The connected device is not
in payback mode
Volume in minimum position
wall outlet Plug to the wall outlet.
Raise volume level by pressing the VOL
(Volume) + button
Play the music/movie in the connected
device as usual and make sure the
volume level of it is in high level
Reduce the bass level of the connected
device
VOL (Volume ) - button
Reduce the volume level by pressing
the
Replace with new battery
Put the external BT device close to the
unit
Pair both units as BT pairing page
AC/DC adapter plug not
connected to the
10
![](/img.php?id=2223914&img=bgc.png)
Accessories
Remote Working Distance...........................................................................................Up to 15 feet
TECHNICAL SPECIFICATIONS
Speakers ...............................................................................................................................3W x 2
Bluetooth Working Distance.........................................................................................Up to 30 feet
(Measured in open area. Wall
and structures may affect the effective range.)
1 x Remote Control
1 x AUX IN Cable
1 x User Manual
1 x AC/DC Adapter
AC/DC Adapter
Input........................................................................................................AC 100-240V~50/60Hz
Output...............................................................................................DC 12V 1 A
11
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
