Keeson Technology WF02D Wi-Fi Control Box User Manual
Keeson Technology Corporation Limited Wi-Fi Control Box Users Manual
Users Manual
![](/img.php?id=3826583&img=bg1.png)
WF02D User Manual

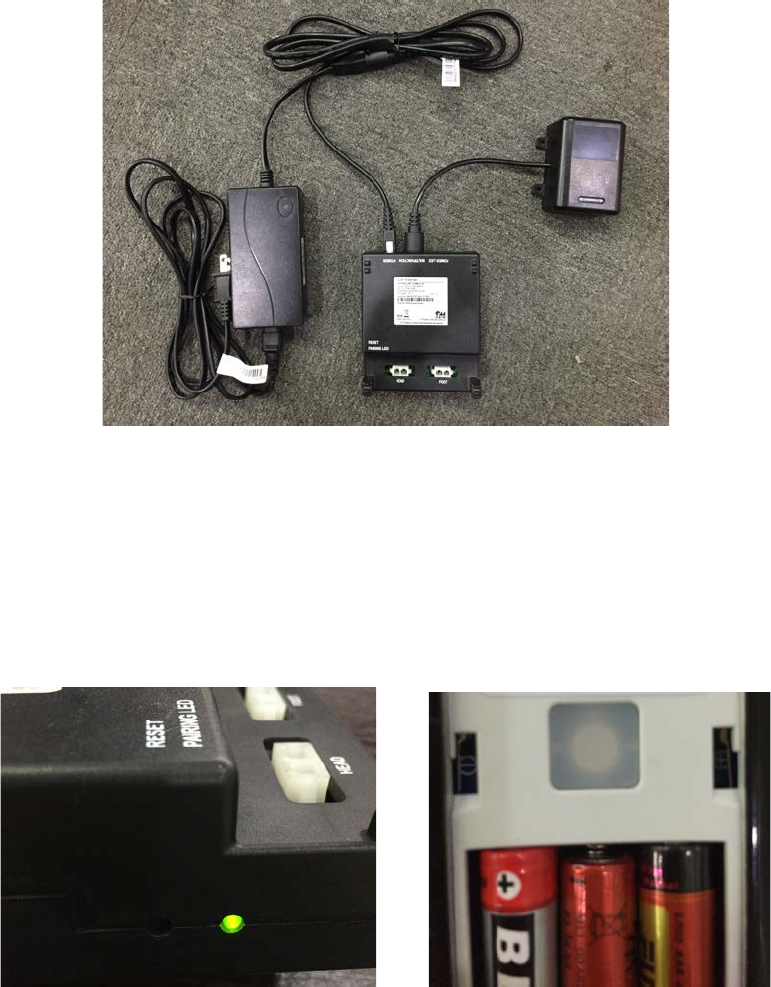

1. Connect the WiFi box cable to the control box Multifunction interface. Connect
the control box to the 220V through the power supply.
2. Double click reset key, the LED will be on. Long press the back button of the
remote, the LED will be flash. When two LEDs are off, the connection of the
remote and the control box is completed.
![](/img.php?id=3826583&img=bg2.png)
3. APP download
APP name: Ergo WiFi
iOS:
https://itunes.apple.com/us/app/ergowifi/id1234525549?l=zh&ls=1&mt=8
android:
https://play.google.com/store/apps/details?id=com.keeson.smartbed&hl=en

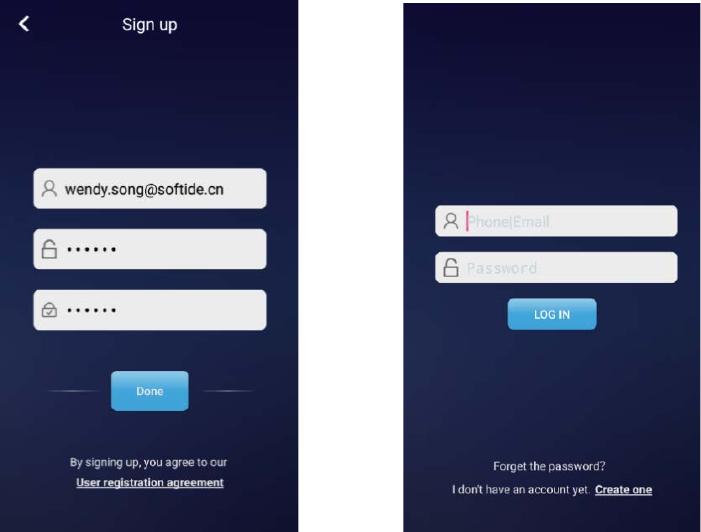

4. User register(via email)
Remember the email and password, will be used for logging APP and Alexa
voice control.
![](/img.php?id=3826583&img=bg3.png)

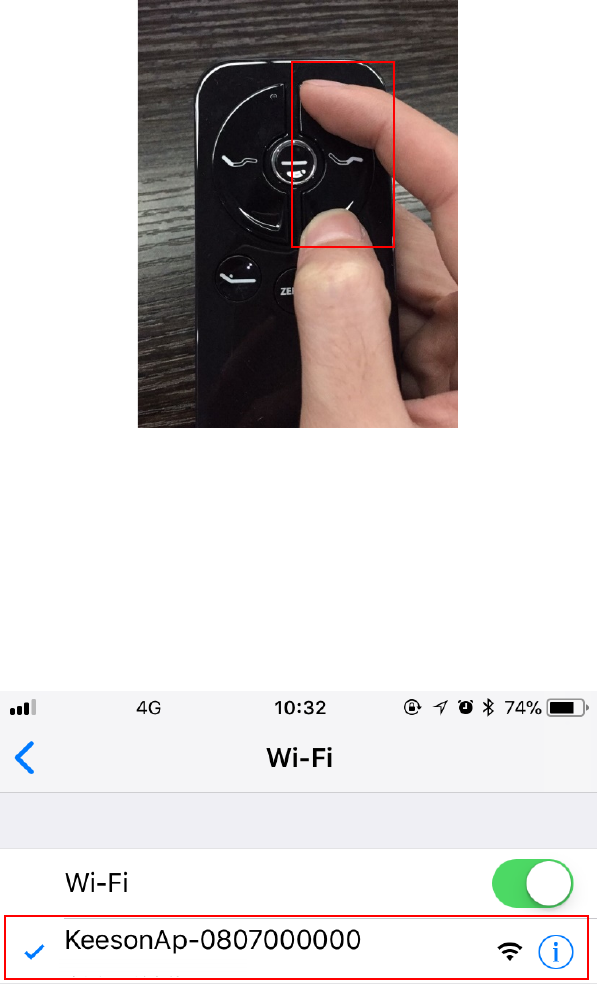

5. Press two buttons of foot-up and foot-down on the remote about 5 seconds.
The blue LED will flash, and the buzzer will make a sound of “Bee” every 3
seconds.
6. Open the WiFi settings interface on the phone. Select the WiFi with the name of
“KeesonAp-xxxxxxxx”. Wait for the WiFi connection to complete.
Chhina Mobile
Set
Insecure networks
![](/img.php?id=3826583&img=bg4.png)

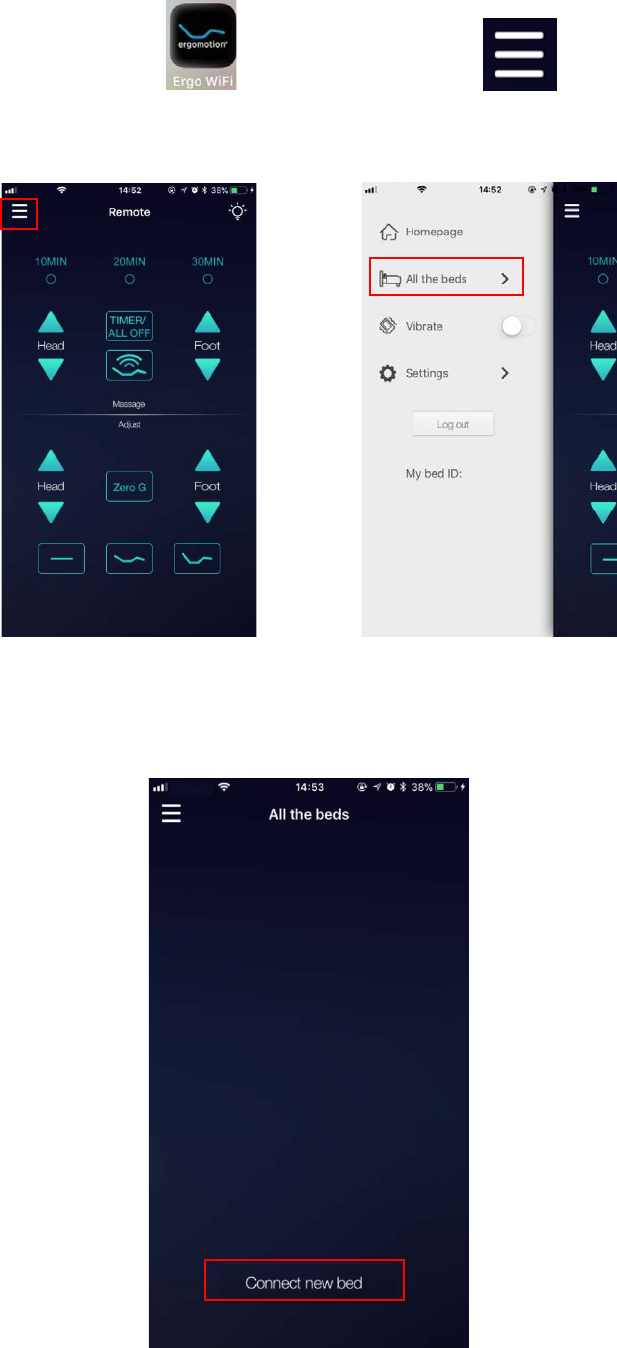

7. Open the Ergo WiFi APP . Push the menu button . Select All the
beds option.
8. On the All the beds interface, push the Connect new bed button to enter the
Connect bed interface.
China Mobile China Mobile
China Mobile
![](/img.php?id=3826583&img=bg5.png)

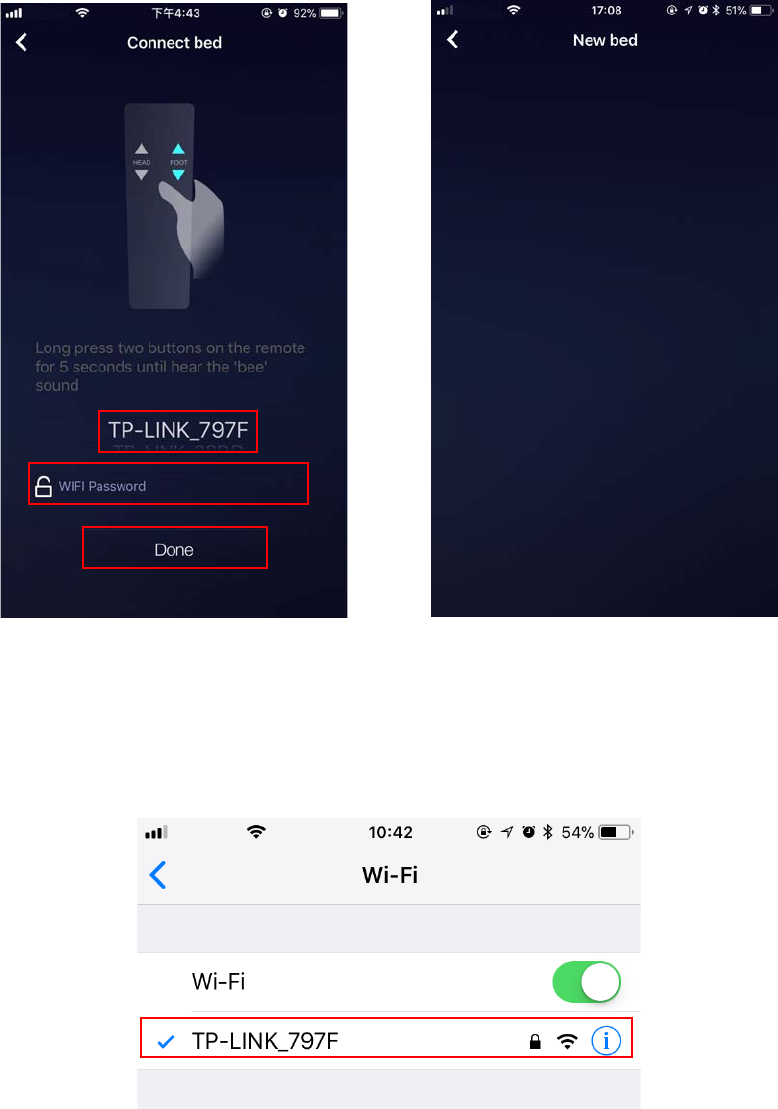

9. On the Connect bed interface, select the WiFi name that the WiFi box will
connect to. Input WiFi Password, push the Done button to enter the New bed
interface. Wait for the WiFi box connect to the WiFi signal. When the WiFi box
makes sound of “Bee-Bee”, it completes the connection.
10. Open the WiFi settings interface on the phone. Select the WiFi name that the
WiFi box has connected.
China Mobile China Mobile
China Mobile
Set
![](/img.php?id=3826583&img=bg6.png)

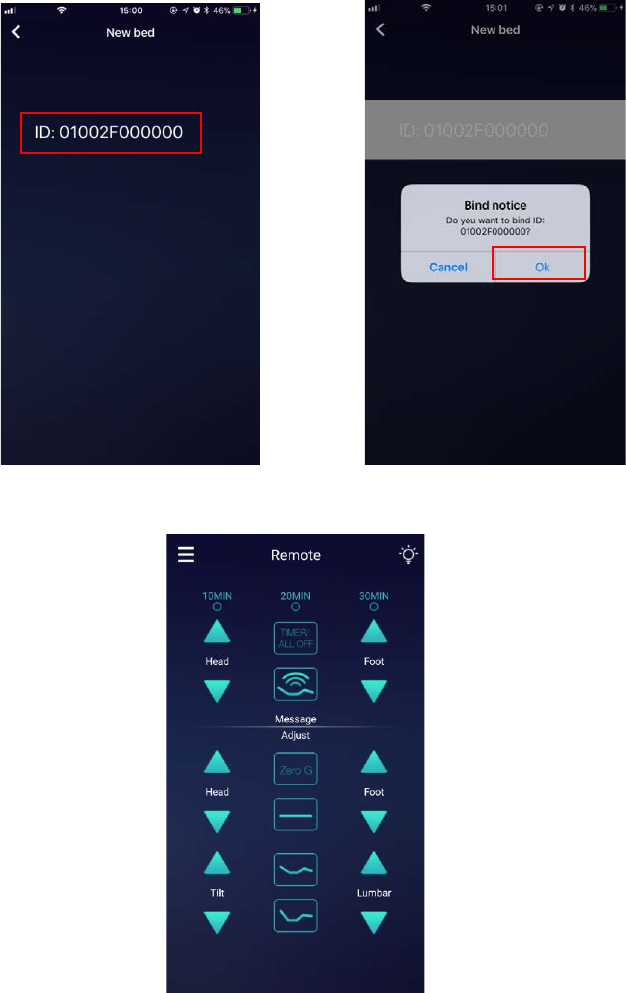

11. Return to the APP, on the New bed interface, wait for a moment, the WiFi box
will be found, the ID will be displayed. Click the ID number, then click the Ok on
the Bind notice to complete the connection operation.
12. Return to the APP main interface to control the bed.
FAQ
Now WiFi dongle only support 2.4G WiFi network.
China Mobile China Mobile
FCCStatement
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe
user’sauthoritytooperatetheequipment.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This
devicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
ISEDRSSWarning:
ThisdevicecomplieswithInnovation,ScienceandEconomicDevelopmentCanadalicence‐exemptRSSstandard(s).
Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevice
mustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.
LeprésentappareilestconformeauxCNRd'ISEDapplicablesauxappareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest
susceptibled'encompromettrelefonctionnement.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator& your
body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Le rayonnement de la classe b repecte ISED fixaient un environnement non contrôlés.Installation et mise en œuvre de ce
matériel devrait avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas coexister cette
antenne ou capteurs avec d’autres.
