ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

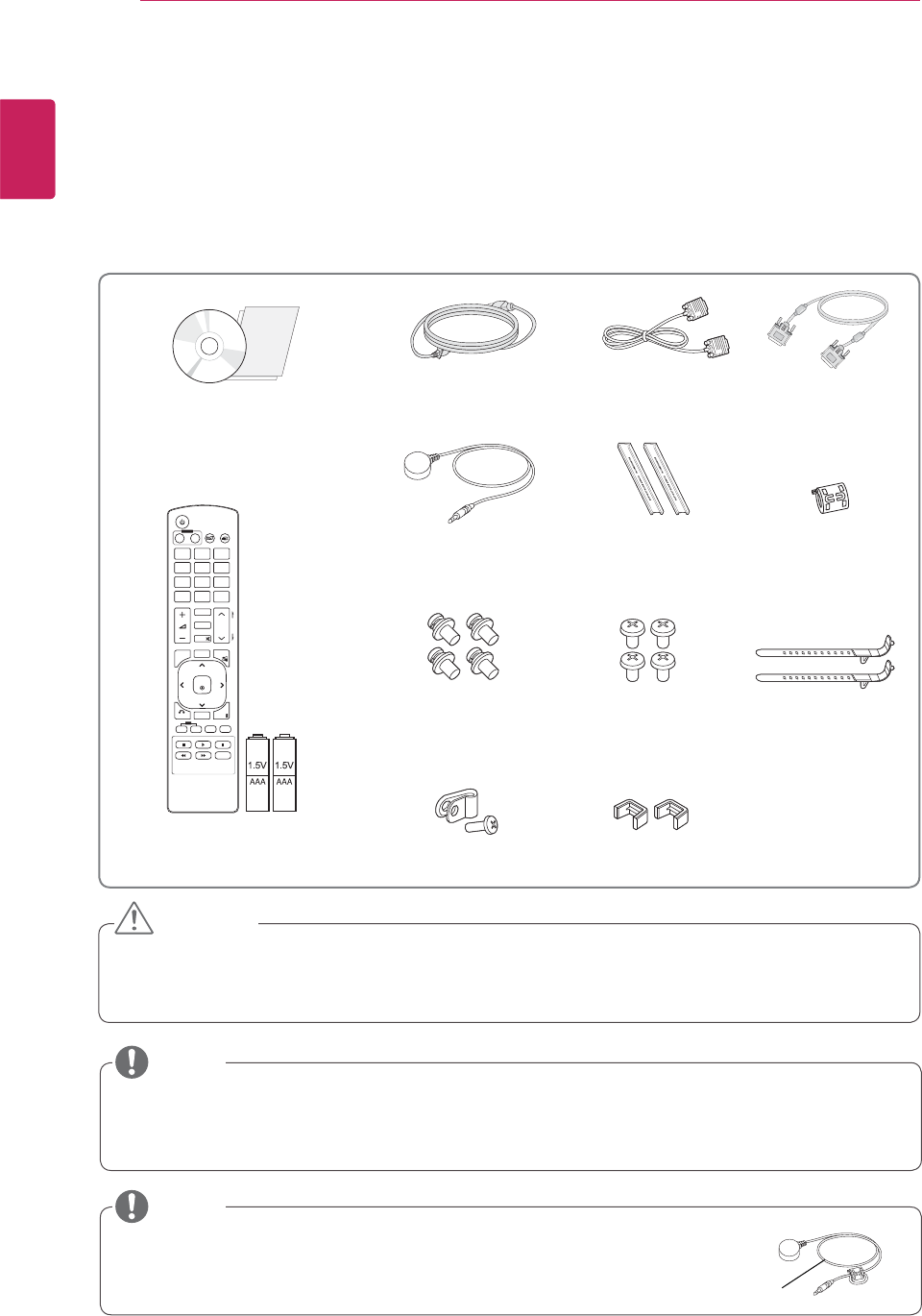

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y Do not use any pirated items to ensure the safety and product life span.
y Any damages or injuries by using pirated items are not covered by the warranty.
y The accessories supplied with your product may vary depending on the model.
y Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
NOTE
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
BACK TILE
ON OFF
EXIT
Remote control and Batteries
Power Cord DVI Cable
IR Reciver Guide bracket
M4 x 10L
Screw (4ea)
Power cable holder U-shaped fixture
M6 x 10L
Screw (4ea)
IR Reciver
Cable holder
(2ea)
CD (Owner's Manual) /
Card
RGB Cable
How to Use a Ring Core
A ring core reduces electromagnetic waves emitted from the IR receiver.
Loop the cable through the core once, before using it as illustrated. Ring Core
![](/img.php?id=1441218&img=bg6.png)
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
y You can set the Power indicator to on or off by selecting OPTION in the main menus.
Parts

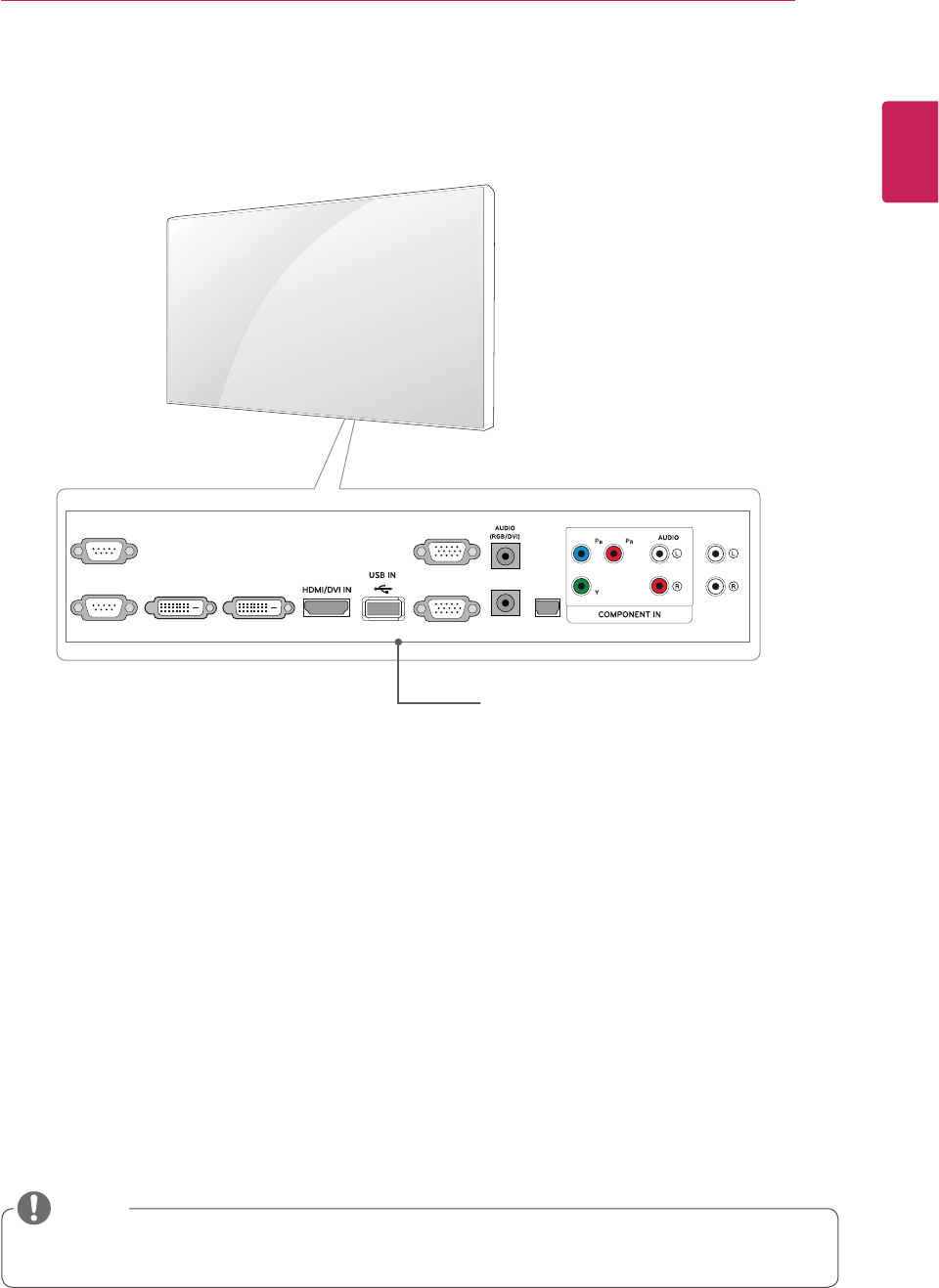

Connection panel (See p.44 to p.45)
NOTE
RS-232C OUT
RS-232C IN DVI OUT DVI IN
RGB OUT SPEAKER
RGB IN LAN
REMOTE
CONTROL IN
![](/img.php?id=1441218&img=bg7.png)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install Portrait
- Only on some models.

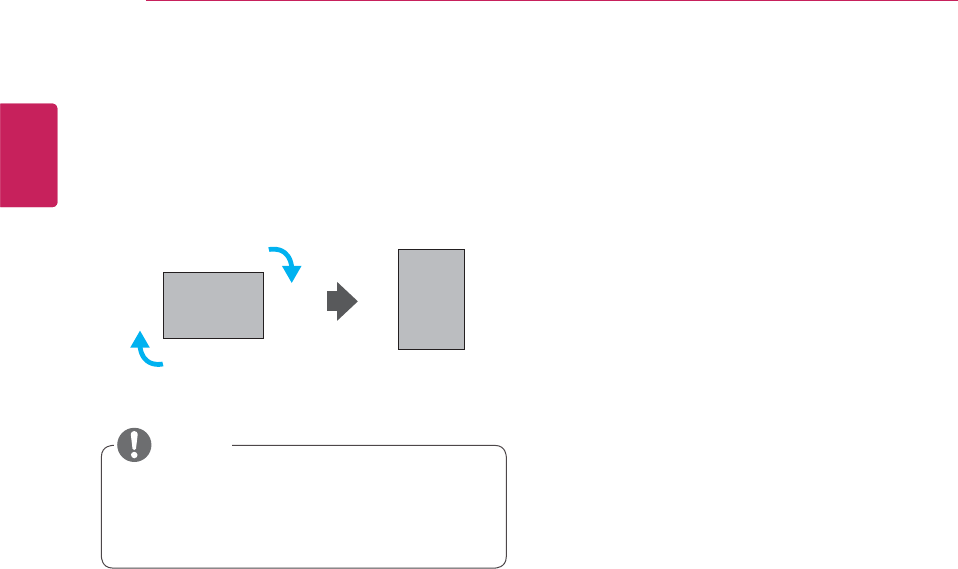

When installing Portrait, rotate it clockwise based
on its front.
y When using the wall mounting bracket or
the portrait scene mode, the opening can be
covered by the stand hole cover.
NOTE
![](/img.php?id=1441218&img=bg8.png)
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving the device in a vertical
position
HANDLE
Moving the device in a horizontal
position

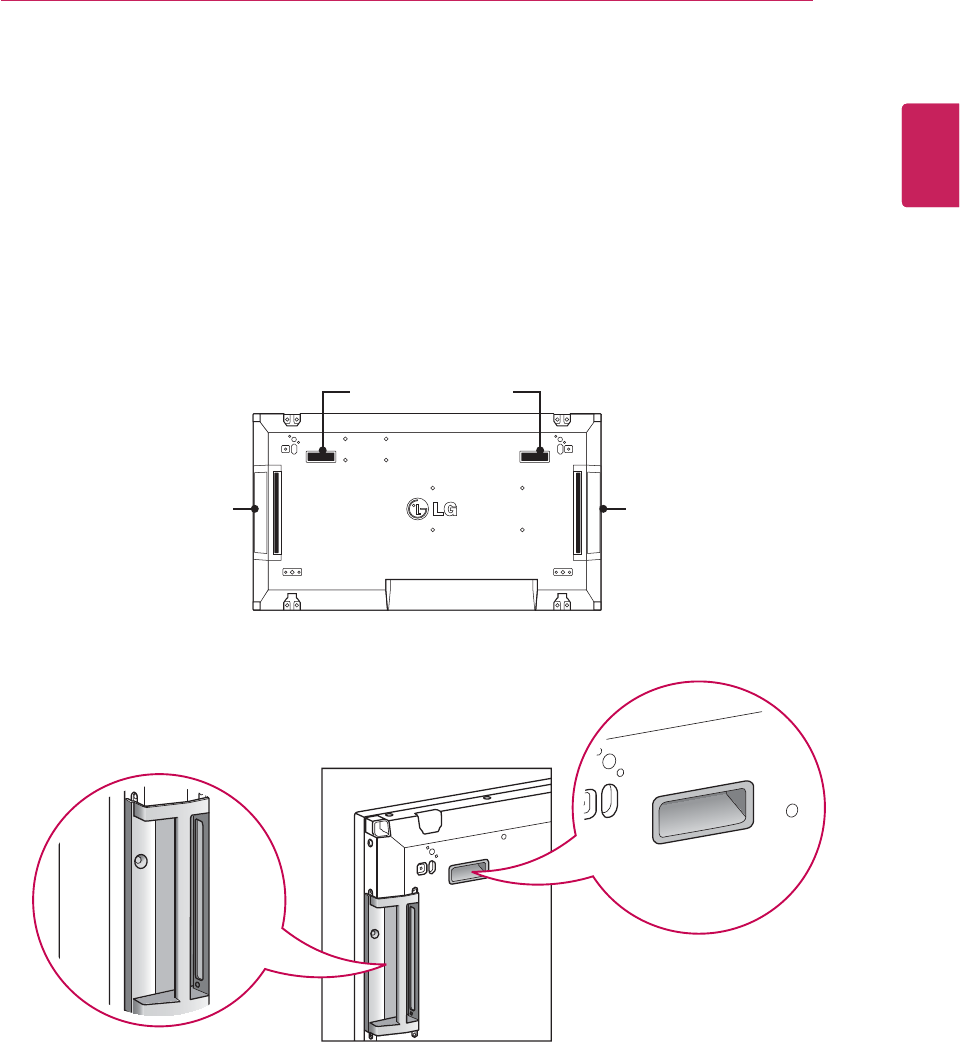

Hold the vertical handles on the left and right
sides or the left and right handles at the back of
the display.
Have the screen facing down and hold the vertical
handles on the left and right sides.
Left and right handles
at the back
Vertical handle
on the side
Vertical handle
on the side
![](/img.php?id=1441218&img=bg9.png)
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Correct Method Incorrect Method
STORAGE METHOD FOR PANEL PROTECTION
Panel
Panel
Cushion
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully for
the panel not to touch the floor. (The setting
upright of the set is possible with the outer frame)
When laying down the product, lay a cushion on a
flat floor, and put the product on it with the panel
of the product facing down.
When there is no cushion, let the panel face
upward. At this time, be careful for objects not to
fall on the panel.
Panel
Panel
If the product is tilted to the side of the panel, the
bottom of the panel may be damaged.
If the product is tilted to the edge of the panel, the
edge of the panel may be damaged.
![](/img.php?id=1441218&img=bga.png)
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
y Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y Use the screws that are listed on the VESA
standard screw specifications.
y The wall mount kit includes an installation
manual and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
NOTE
When installing the product in an enclosed
space, an adequate ventilation system is
required.

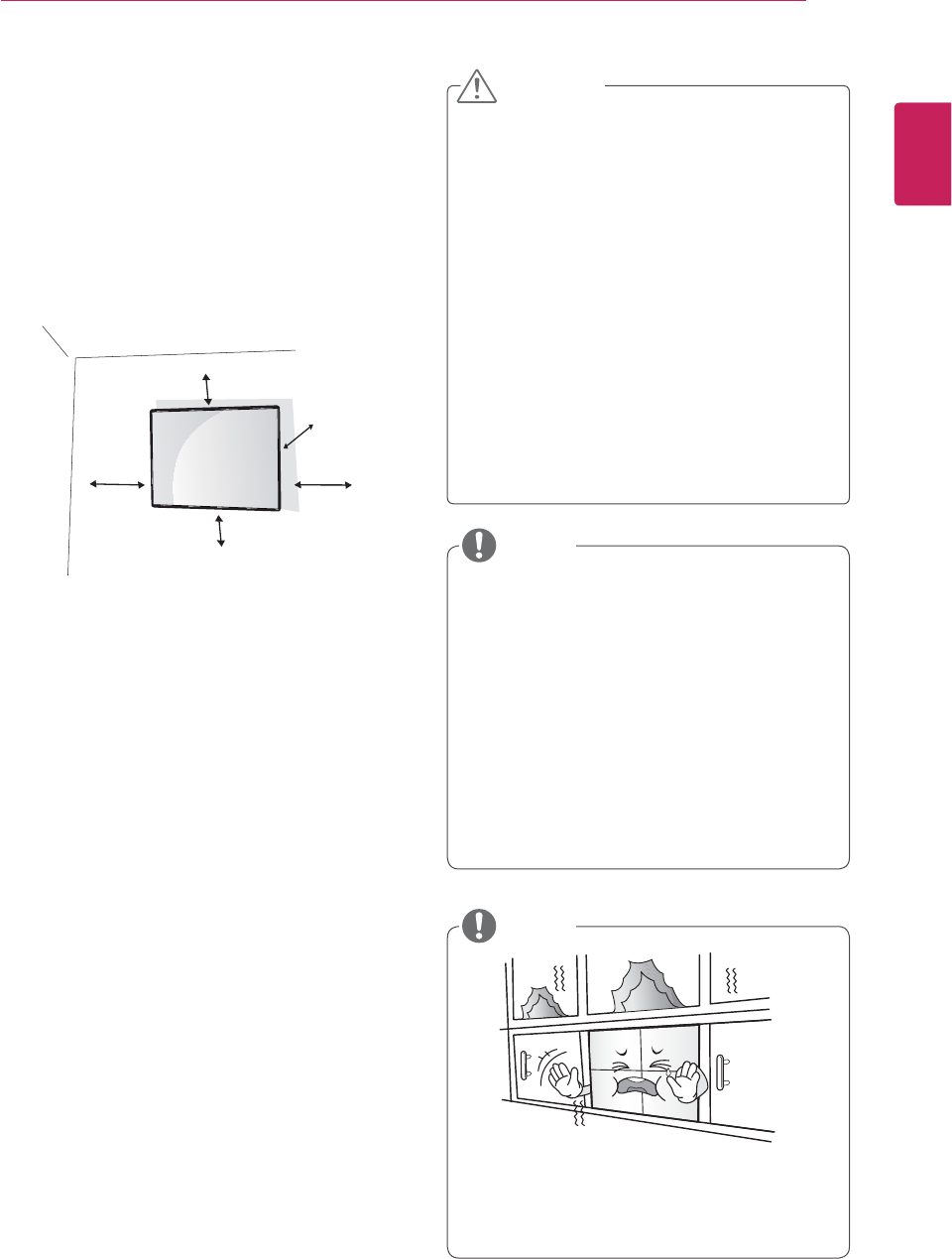

If you want to mount the monitor on the wall (op-
tional), attach the wall mounting bracket to the rear
of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
Use the wall mount plate and screws that comply
with the VESA standard as specified below.
y 784.8 mm (30.9 inch) or less
* Thickness of the wall mount plate: 2.6 mm
* Fastening screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
y 787.4 mm (31.0 inch) or greater
* Use the wall mount plate and screws con-
forming to the VESA standard.
Installing on a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm 10 cm
20 cm
![](/img.php?id=1441218&img=bgb.png)
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
EXTERNAL EQUIPMENT SETUP
IR RECEIVER

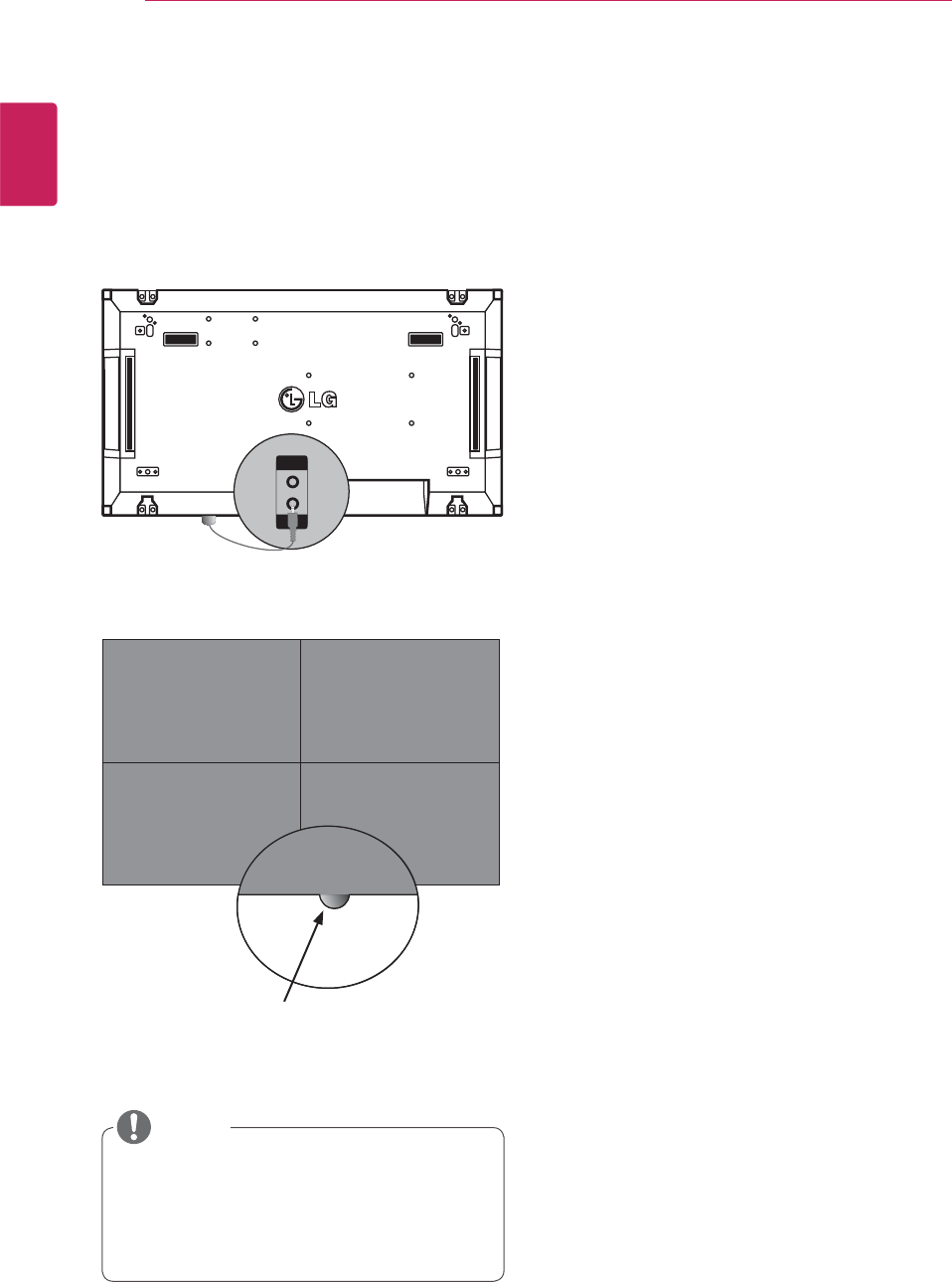

It has the role of enabling to receive the signal of
the remote control by connecting to the set.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
Front
Remote Control Sensor
y Install the IR receiver in the first set
connected to the computer and the RS-
232C cable.
y The IR signal of the remote control is sent
through the RS-232C cable in cascade.
NOTE
![](/img.php?id=1441218&img=bgc.png)
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
How to Join Sets - Installing Set 1
Tiling Displays
*Example of 2 x 2 tiling

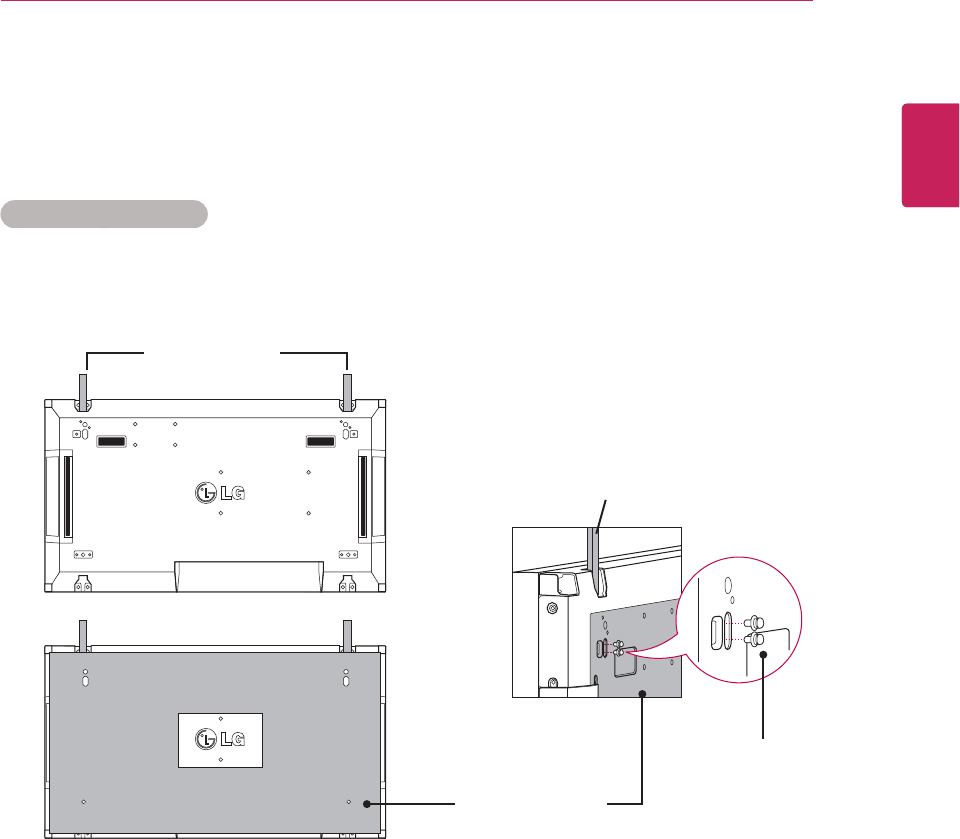

Set the guide bracket into the bracket groove using screws and mount the set to the wall mount plate or
the wall.
* The wall mount plate is shaded in gray in the illustration to help you see it.
Guide bracket
Guide bracket
Wall mount plate
Screws for fixing
the guide bracket
![](/img.php?id=1441218&img=bgd.png)
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

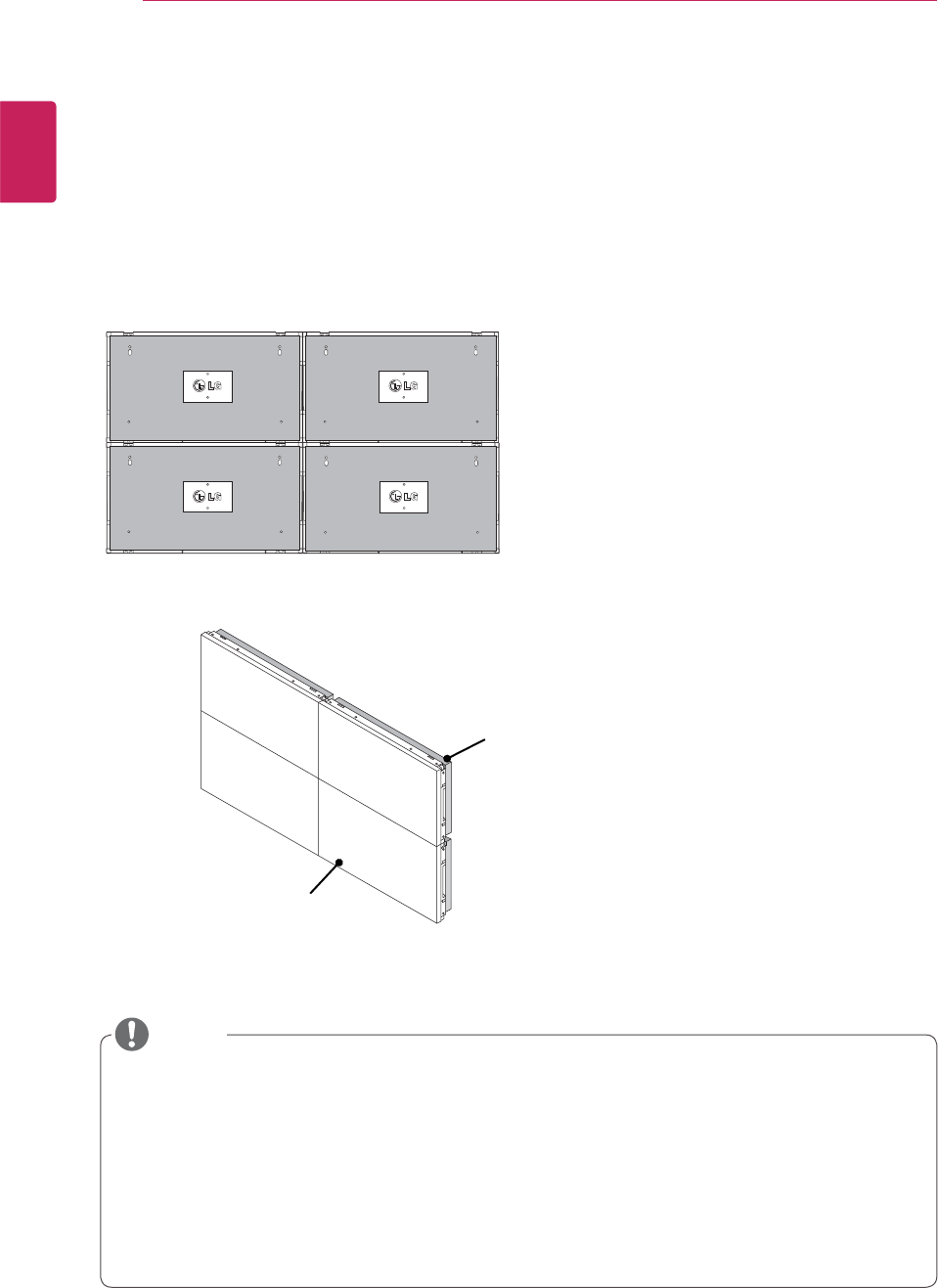

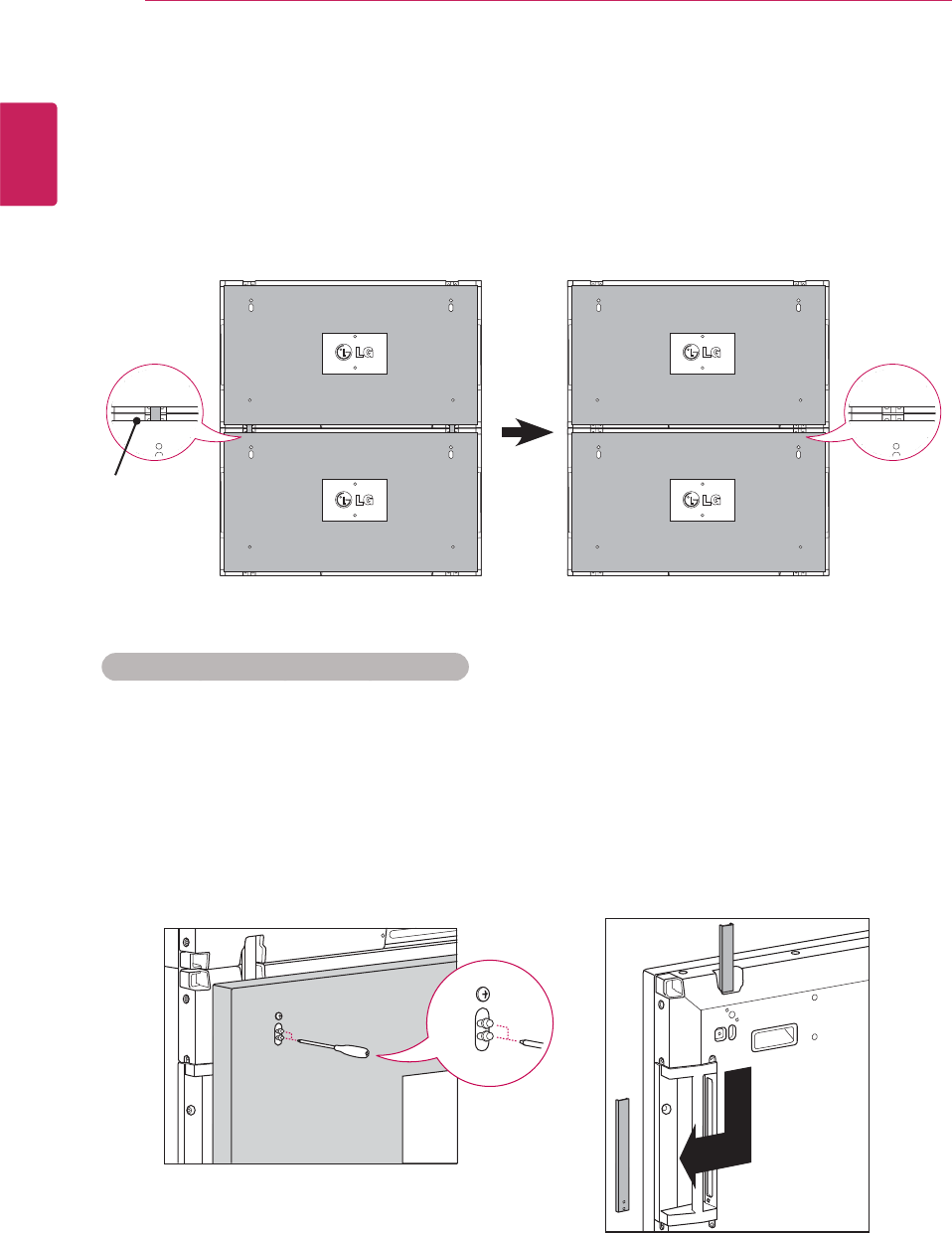

<The sets joined with the guide brackets> <The sets after removing the guide brackets>
<Removing the guide bracket through
the side gap>
How to Join Sets - Installing Set 2
How to remove the guide brackets
* Unscrew the guide bracket screws from the rear of the set and remove the guide brackets.
* Once the screws are removed, the guide brackets will drop. You need to remove them through the gap
on the sides of the set.
* This can be done only when there is enough space between the set and the wall mount plate or the wall
to unscrew the screws. (Please check whether there is enough space to remove the screws before fixing
the guide brackets.)
Join Set 2 to Set 1 using the guide brackets on the top side of Set 1 and mount the two sets to the wall
mount plate or the wall.
Remove the guide brackets after mounting the sets.
Guide bracket
![](/img.php?id=1441218&img=bge.png)
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
<Joined Sets 1 and 2> <Set 3 to be joined>
Fix the guide brackets to Set 3 following the steps above, and loosely mount the set to the wall mount
plate or the wall.
Minimize the space between the sides of the sets using the U-shaped fixture.
When the sets are joined with the minimum amount of space between them, firmly mount them to the wall
mount plate or the wall.
When the sets are firmly mounted to the wall, remove the U-shaped fixtures.
How to Join Sets - Installing Set 3
![](/img.php?id=1441218&img=bgf.png)
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Set 4 joined to the rest of the sets
(2 x 2 tiling)
Wall mount plate or wall
Display set
Loosely mount Set 4 to the wall mount plate or the wall and minimize the space between the sets using
the U-shaped fixtures. (Use the same mounting steps as those for Sets 2 and 3.)
When Set 4 is firmly mounted to the wall, remove the U-shaped fixtures.
Remove the guide brackets. See <How to remove the guide brackets>.
Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
How to Join Sets - Installing Set 4
y *The guide brackets for tiling should only be used to join sets and should be removed once they are joined.
y *The guide brackets should only be used as the assisting tool when tiling sets. The load applied to each set
should be supported by the wall mount plate or the wall using a VESA wall mount (800 x 400).
y (Each set must be firmly mounted to the wall mount plate or the wall.)
y The guide brackets must be removed once the sets are joined. Defects or damage caused by not removing the
guide brackets is not covered by the warranty.
y The U-shaped fixtures must also be removed after mounting the set to the wall mount plate or the wall.
y You may mount the set without using the guide brackets or the U-shaped fixtures; this does not affect the
performance of the device.
NOTE
![](/img.php?id=1441218&img=bg10.png)
15
ENG
ENGLISH
ASSEMBLING AND PREPARING

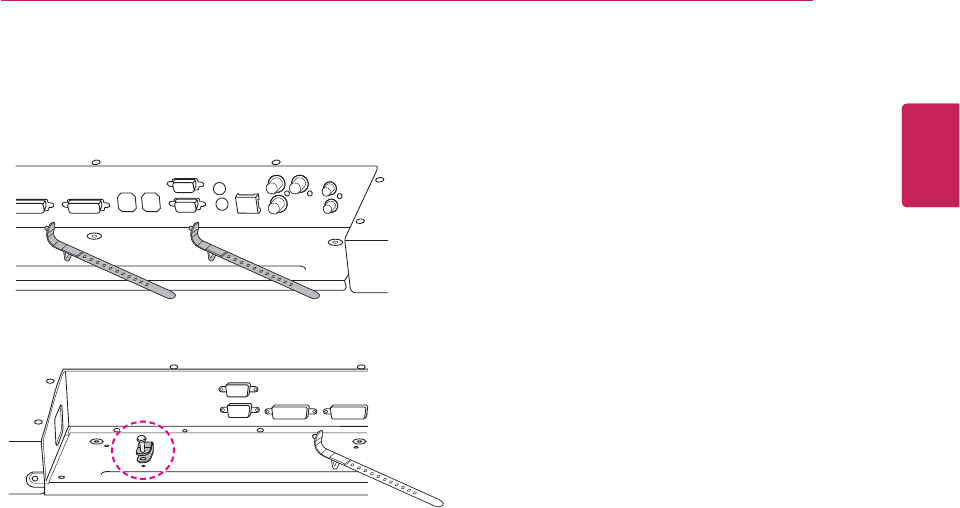

As illustrated, insert two cable holders into the
holes on the bottom rear of the set to organize the
cable bundles.
As illustrated, screw the power cable holder into
the hole on the bottom rear of the set to hold the
power cables together. (This is to put the power
cables inside the holder.)
Inserting the Cable Holder
![](/img.php?id=1441218&img=bg11.png)
16
ENG
ENGLISH

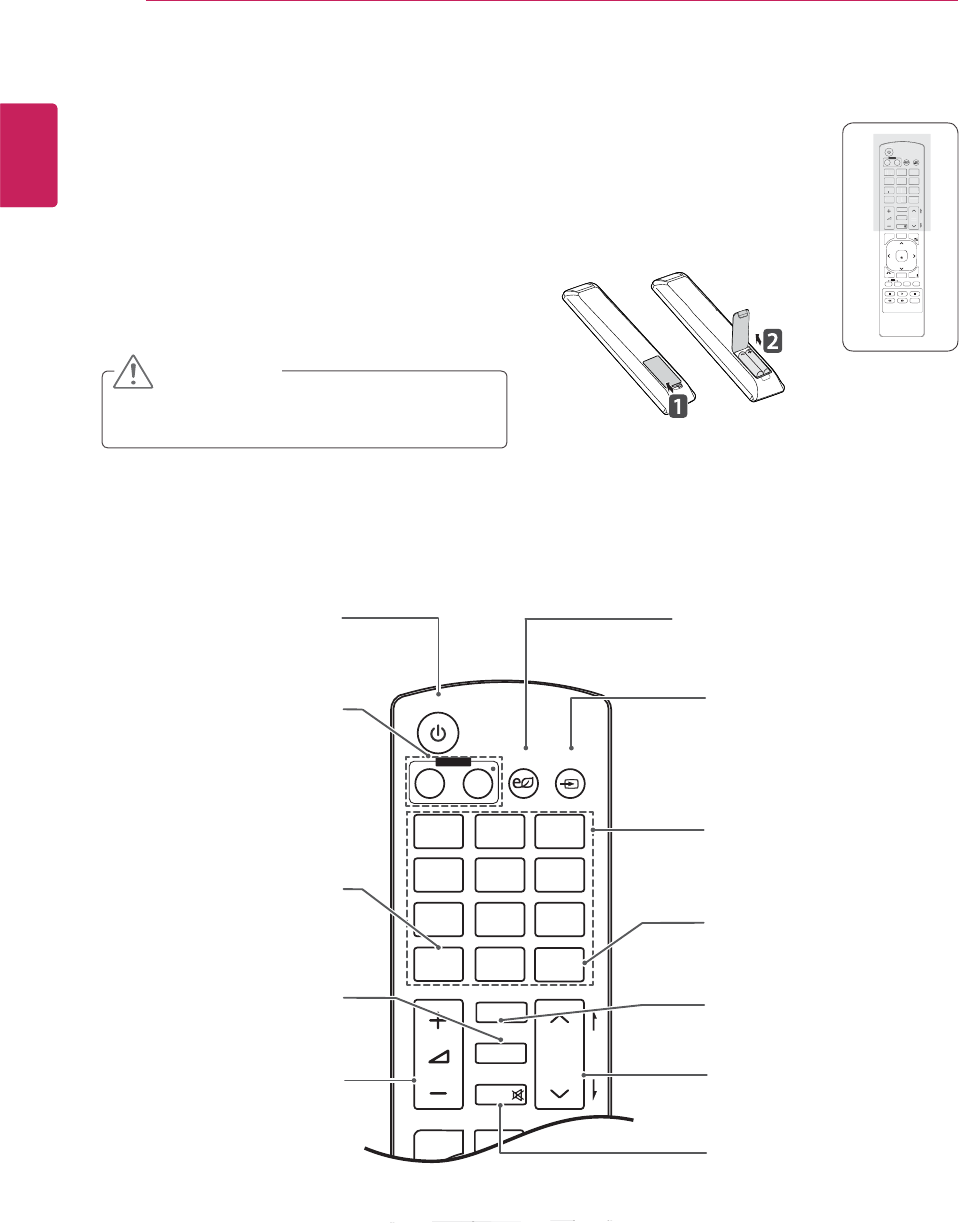

REMOTE CONTROL
REMOTE CONTROL
1. Open the battery compartment cover on the
back side and install the batteries matching
correct polarity (+ with +,- with -)
2. Install two 1.5 V AAA batteries. Don’t mix old or
used batteries with new ones.
3. Close cover.
4. To remove the batteries, perform the installation
actions in reverse.
Make sure to point the remote control to the remote control sensor on the Monitor set.
CAUTION
y Do not mix old and new batteries, as this
may damage the remote control.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
S
AVIN
G
MARK
ARC
.
,
!
ABC
D
E
F
G
HI
J
KL
M
N
O
PQ
R
S
T
U
V
1/a/A
-
*
#
WXYZ
C
LEA
R
O
N
OFF
MONITOR
MONITOR
PSM
MUTE
BRI
G
HT
N
ESS
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
Power On / Off Button
Switches the set on from
standby or off to standby.
Monitor On / Off Button
(See p.26)
Turn off the monitor and then
turn it back on.
1/a/A Button (See p.<?>)
This button selection is not
applicable.
Energy Saving Button
Adjust the Energy Saving
mode of the SET.
INPUT Select Button
If you press the button once, the
following Input Signal Window
will appear. Select the signal
type you want using the button.
Number and Alphabet Buttons
Type numbers.
The alphabet selection is not
applicable.
Clear button
This button selection is not
applicable.
PSM Button
Selects the Picture Status
Mode.
Volume Up/Down Button)
Adjusts the volume.
ARC Button
Selects the Aspect Ratio Mode.
BRIGHTNESS
Moves to the previous or next
screen.
MUTE Button
Switches the sound on or off.
![](/img.php?id=1441218&img=bg12.png)
17
ENG
ENGLISH

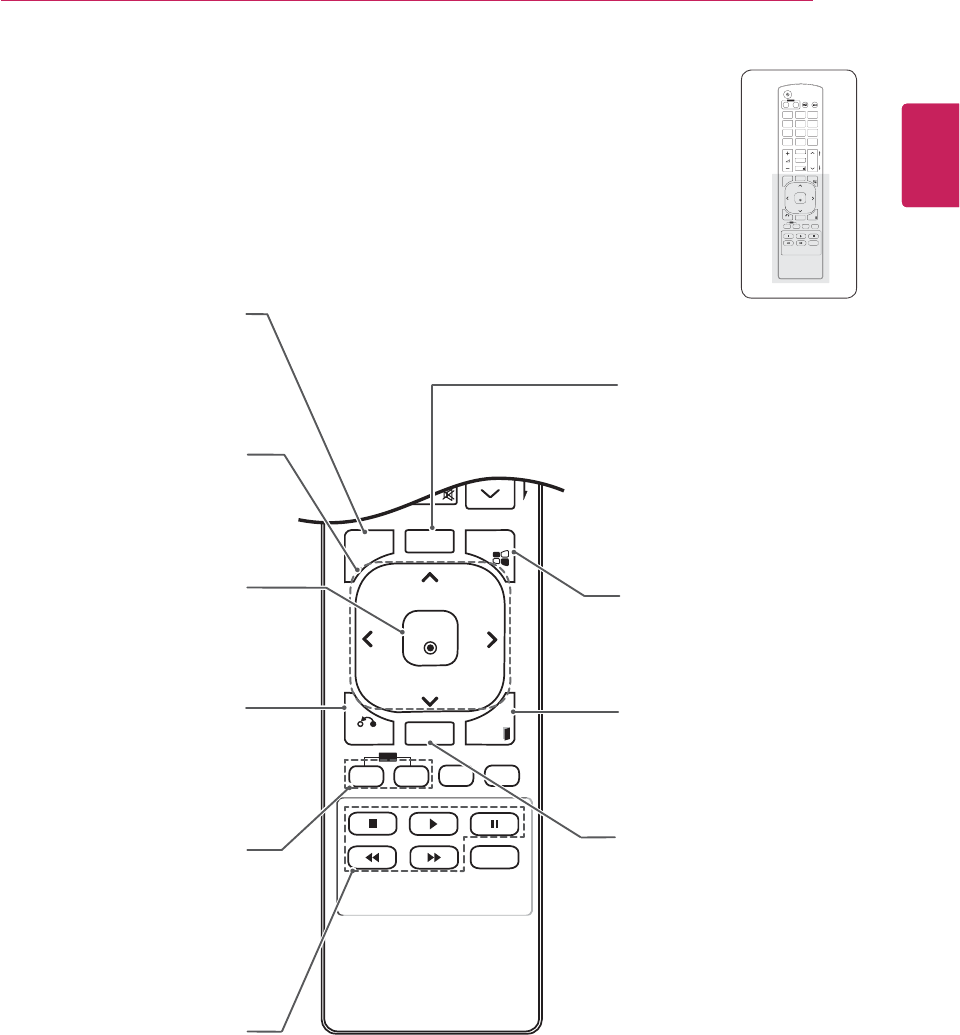

REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
OK
S
.MEN
U
AUTO
MEN
U
ID
BA
C
K
T
IL
E
ON OFF
E
XIT
E
OK
S.MENU
AUTO
MUTE
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
S.MENU Button (SuperSign
Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.
TILE button
Selects the TILE Mode.
MENU Button(See p.25)
Selects a menu.
Clears all on-screen displays
and returns to Set viewing
from any menu.
Up/Down/Left/Right Buttons
Allows you to navigate the
on-screen menus and adjust
the system settings to your
preferenc.
OK Button
Accepts your selection or
displays the current mode.
BACK button
Allows the user to move
return one step in an
interactive application.
USB Menu control buttons
Adjust the USB menu(Photo
List, Music List and Movie List ).
ID ON/OFF Button
When the number of input ID
is equal to the number of ID
Mode, you can control the
monitor which you want in the
multi display condition.
AUTO Button
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
![](/img.php?id=1441218&img=bg13.png)
18
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports the Plug & Play* feature
and has the built-in speakers with Surround X that
reproduces sound clearly with a rich bass.
* Plug & Play: The function when a PC recognizes
a connected device that users connect to a PC
and turn on, without device configuration or user
intervention.
y It is recommended to use the Monitor set
with the HDMI connection for the best
image quality.
y If you want to use an optional external
speaker instead of the built-in speaker, set
the Monitor set speaker feature to off.
NOTE

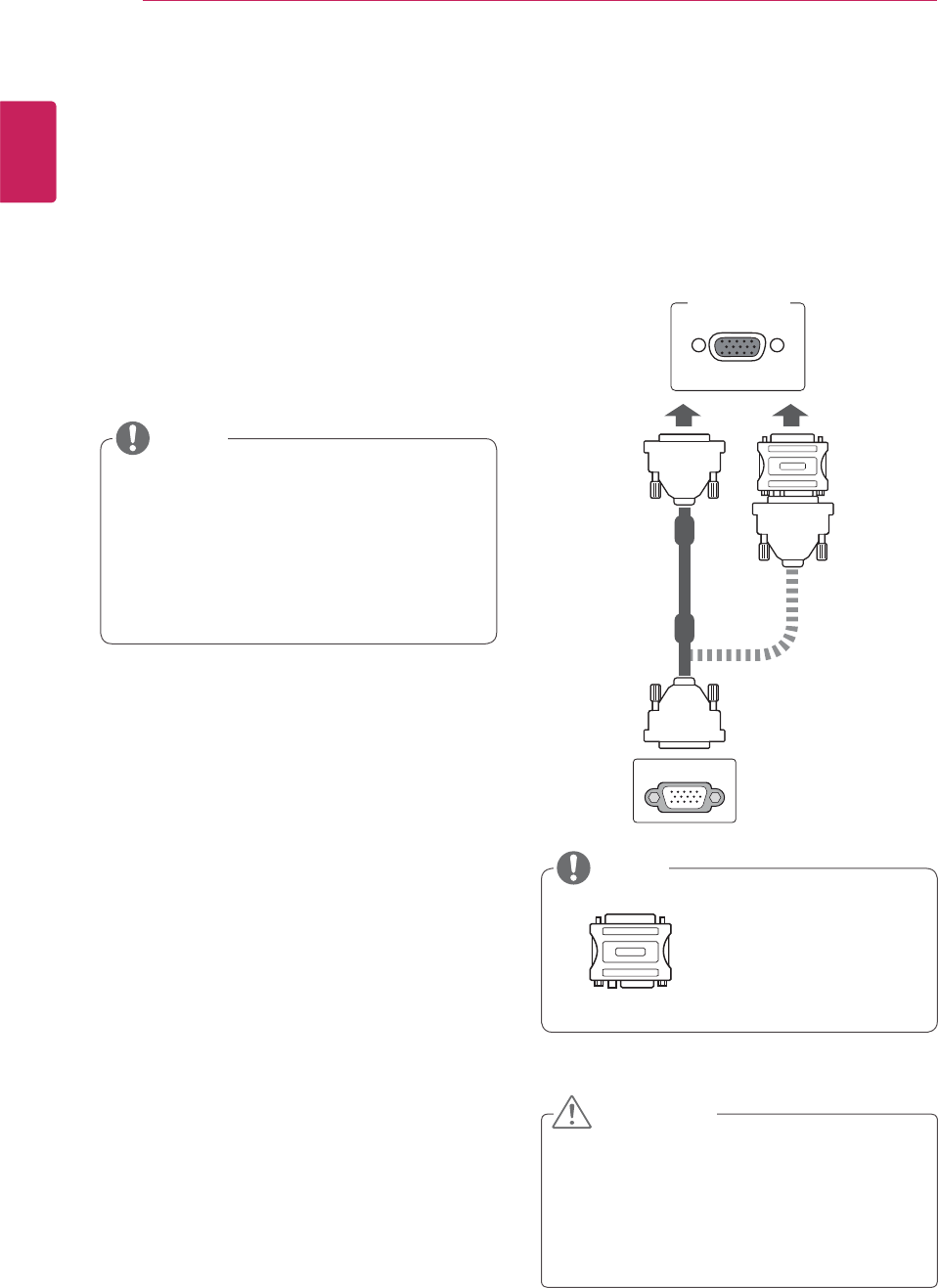

RGB connection
Transmits the analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the D-sub 15 pin cable as shown the
following illustrations.
RGB OUT
PC
y Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
y Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
y Use the standard
Macintosh adapter
since an incompatible
adapter is available in
the market. (Different
signaling system)
NOTE
![](/img.php?id=1441218&img=bg14.png)
19
ENG
ENGLISH
USING THE MONITOR SET
DVI IN
HDMI/DVI IN
y If you do not use an optional external
speaker, connect the PC to the Monitor set
with the supplied audio cable.
y Use a shielded signal interface cable, such
as D-sub 15 pin signal cable and DVI to
HDMI cable, with a ferrite core to maintain
standard compliance for the product.
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
y Connect the signal
input cable and tighten
it by turning the screws
clockwise.
NOTE
CAUTION
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations. You should set PC as
an input label to connect the PC to the Monitor set
with an HDMI connection.

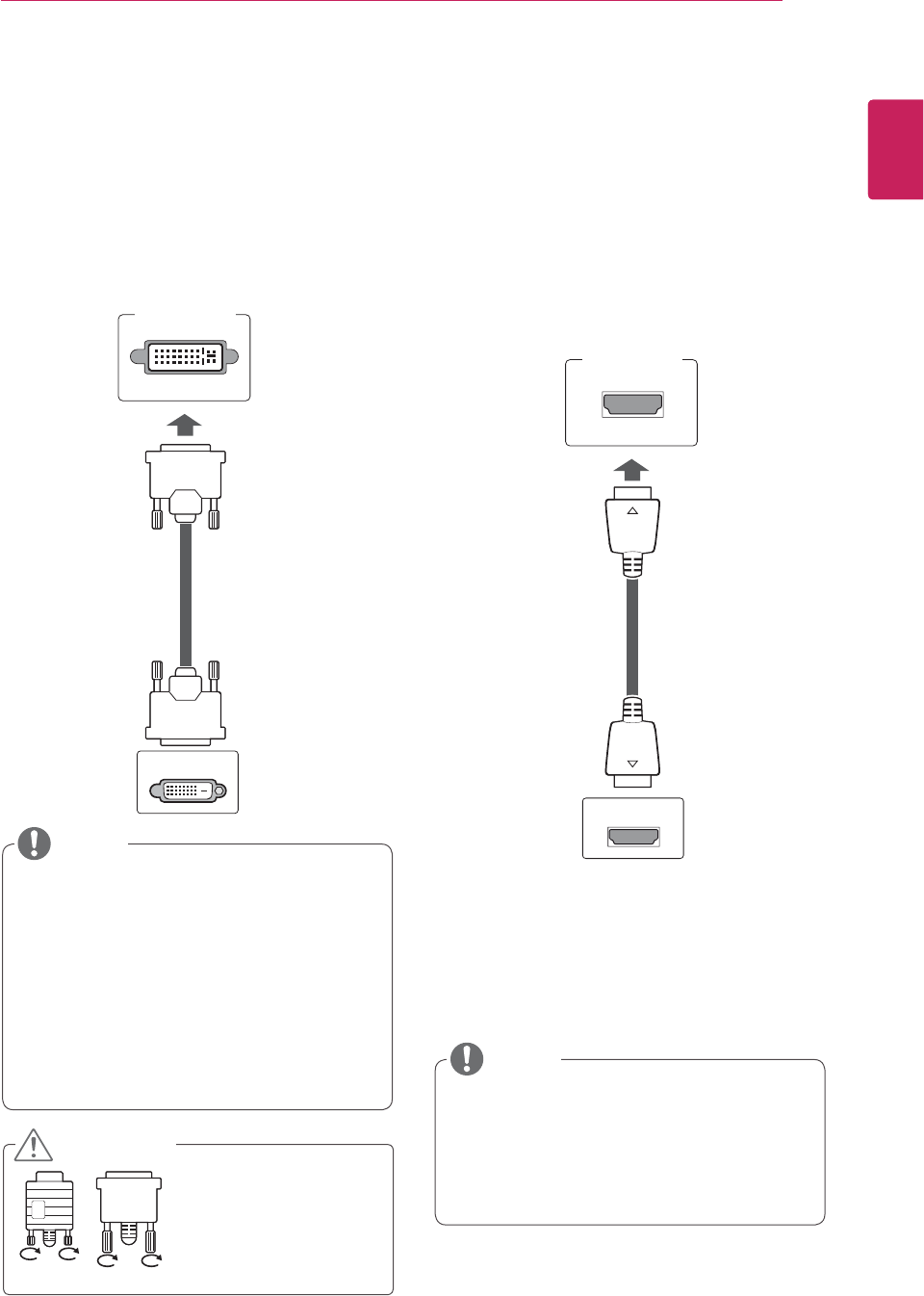

DVI to DVI connection
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the DVI to DVI cable as shown the
following illustrations.
y Use a High Speed HDMI™ Cable.
y Please check the PC environment if you
cannot hear the sound in HDMI mode.
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
NOTE
PC
PC
![](/img.php?id=1441218&img=bg15.png)
20
ENG
ENGLISH
USING THE MONITOR SET

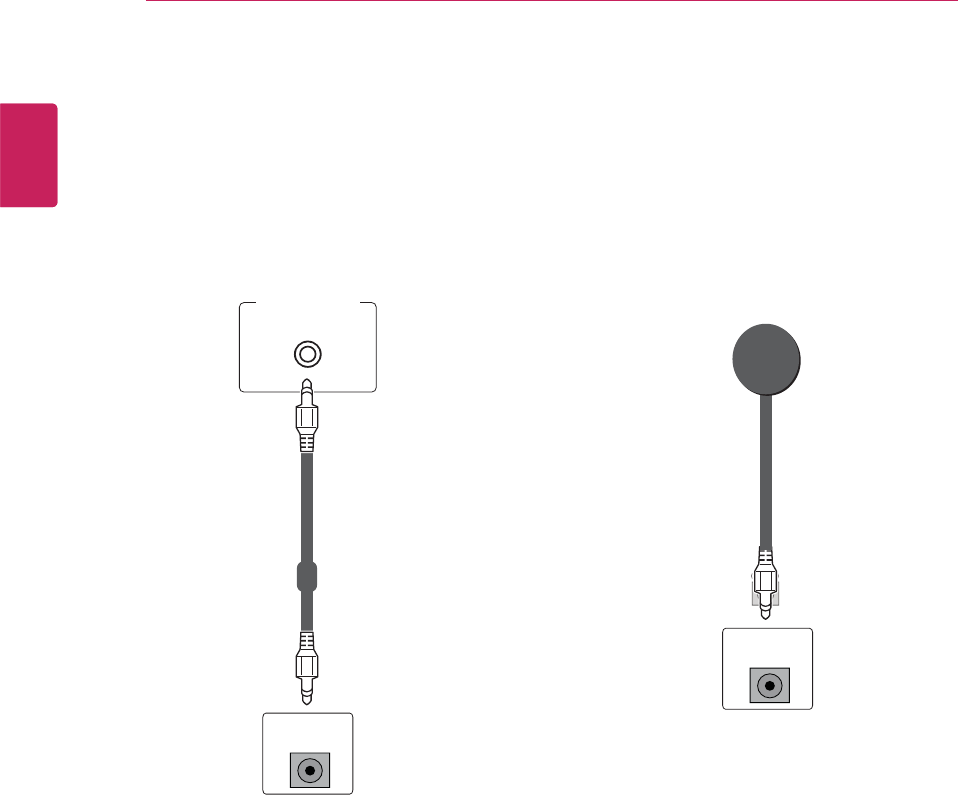

AUDIO
(RGB/DVI)
Audio connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the Audio cable as shown in
the following illustrations. You should set PC as
an input label to connect the PC to the Monitor set
with an Audio connection.
IR Receiver connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the Audio cable as shown in
the following illustrations. You should set PC as
an input label to connect the PC to the Monitor set
with an Audio connection.
PC
REMOTE
CONTROL IN
![](/img.php?id=1441218&img=bg16.png)
21
ENG
ENGLISH
USING THE MONITOR SET
Adjusting the screen
Selecting an image mode
Display images in its optimized settings by
selecting one of the preset image modes.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Picture Mode and press OK.
4 Press the Navigation buttons to scroll to an
image mode you want and press OK.
Mode Description
Vivid Adjusts the video image for the
retail environment by enhancing the
Contrast, Brightness, Colour, and
Sharpness.
Standard Adjusts the image for the normal
environment.
Cinema Optimizes the video image for the
cinematic look and enjoy movies as if
you are in a movie theater.
Sport Optimizes the video image for high
and dynamic actions by emphasizing
primary Colours such as white, grass,
or sky blue.
Game Optimizes the video image for a
fast gaming screen such as PCs or
games.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Customizing image options
Customize basic and advanced options of each
image mode for the best screen performance.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Picture Mode and press OK.
4 Press the Navigation buttons to scroll to an
image mode you want and press OK.
5 Select and adjust following options, and then
press OK.
Option Description
Backlight Adjusts the brightness of the
screen by controlling the LCD
backlight. If you decrease the
brightness level, the screen
becomes darker and the power
consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the
gradient of the video signal.
You may use Contrast when
the bright part of the image is
saturated.
Brightness Adjusts the base level of the
signal in the image. You may use
Brightness when the dark part of
the image is saturated.
Sharpness Adjusts the level of crispness in
the edges between the light and
dark areas of the picture. The
lower the level, the softer the
image.
Colour Adjusts intensity of all Colours.
Tint Adjusts the balance between Red
and Green levels.
Color
Temperature
Set to warm to enhance hotter
colours such as red, or set to cool
to make picture bluish.
Advanced
Control
Customizes the advanced
options. See more information
about advanced options See p.58.
Reset
Restores the options to the
default setting.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
![](/img.php?id=1441218&img=bg17.png)
22
ENG
ENGLISH
USING THE MONITOR SET
Customizing PC display options
Customize options of each image mode for the
best image quality.
y This function works in the following mode:
RGB[PC] mode.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Screen and press OK.
4 Select and adjust following options, and then
press OK.
Option Description
Resolution Selects a proper Resolution.
Auto
Configure
Sets to adjust the screen Position,
Size and Phase automatically. The
displayed image may be unstable for
a few seconds while the configuration
is in progress.
Position/
Size/Phase
Adjusts the options when the
image is not clear, especially when
characters are shaky, after the auto
configuration.
Reset Restores the options to the default
setting.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Adjusting the sound
Selecting an sound mode
Play the sound in its optimized settings by
selecting one of the preset sound modes.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound
Mode and press OK.
4 Press the Navigation buttons to scroll to a
sound mode you want and press OK.
Mode Description
Standard Selects when you want standard-
quality sound.
Music Selects when you listen to music.
Cinema Selects when you watch movies.
Sport Selects when you watch sports
events.
Game Selects when you play games.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Customizing sound options
Customize options of each sound mode for the
best sound quality.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound
Mode and press OK.
4 Press the Navigation buttons to scroll to a
sound mode you want and press OK.
5 Select and adjust following options, and then
press OK.
Option Description
Infinite
Sound
LG's Infinity Sound option provides
5.1 channel stereo sound from two
speakers.
Treble Controls the dominant sounds in the
output. When you turn up the treble,
it will increase the output to the
higher frequency range.
Bass Controls the softer sounds in the
output. When you turn up the bass,
it will increase the output to the
lower frequency range.
Reset Resets the sound mode to the
default setting.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
![](/img.php?id=1441218&img=bg18.png)
23
ENG
ENGLISH
USING THE MONITOR SET
- 4:3: The following selection will allow you to view
a picture with an original 4:3 aspect ratio, gray
bars will appear on both the left and right of the
screen.
- Zoom: The following selection will allow you to
view the picture without any alteration, while
filling the entire screen. However, the top and
bottom of the picture will be cropped.
- Cinema Zoom1: Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion.
Note: When enlarging or reducing the picture,
the image may become distorted.
y < or > button: Adjust enlarge proportion of
Cinema Zoom. The adjustment range is 1 to
16.
y or button: Move the screen.
Using additional options

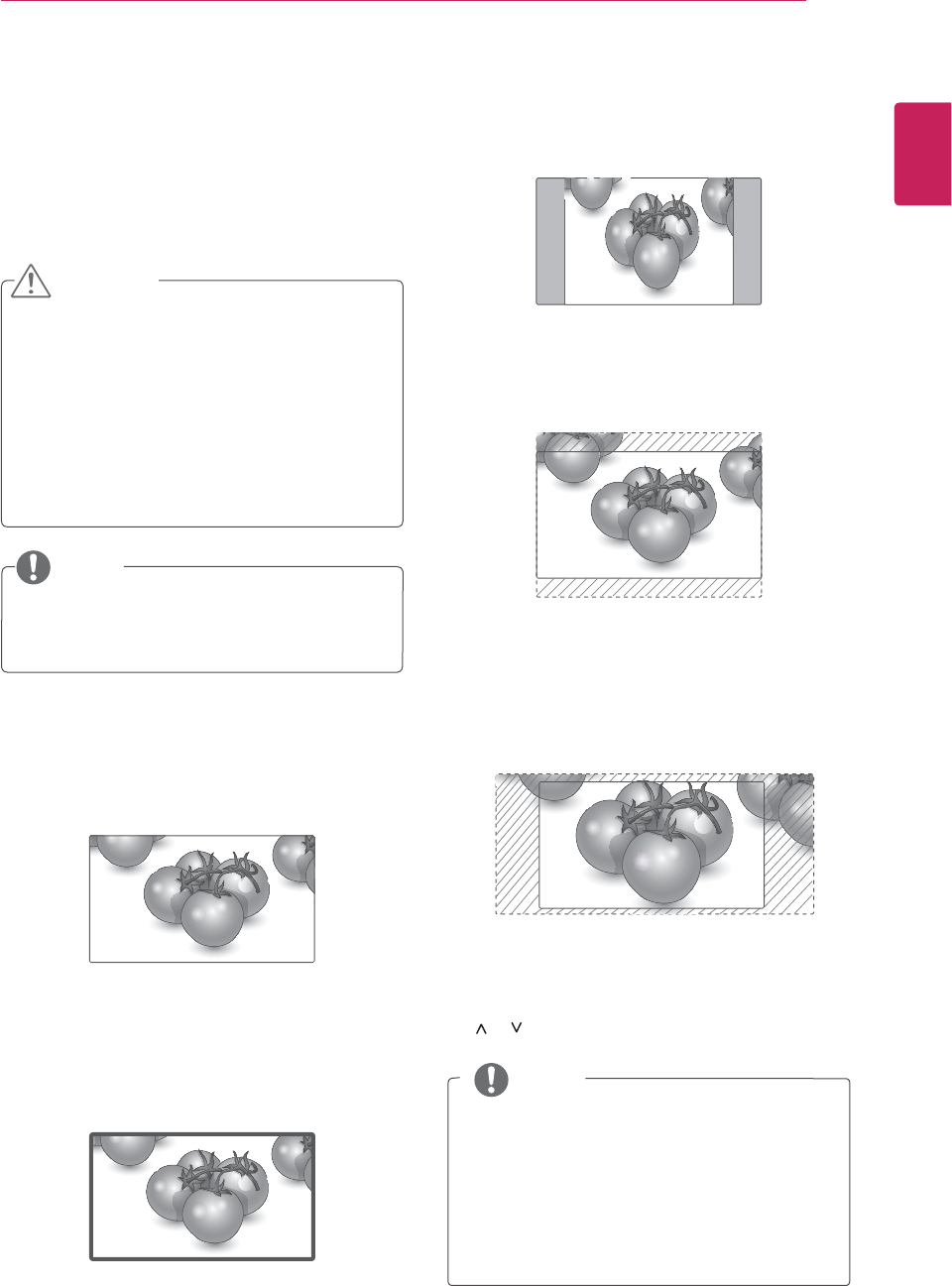

Adjusting aspect ratio
Resize the image to view the image at its optimal
size by pressing RATIO or Q.MENU while you are
watching Monitor set.
y If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
y If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on
the letterboxed area of the screen.
CAUTION
You can also change the image size by
accessing the quick menus or the main menus.
NOTE
- 16:9: The following selection will allow you
to adjust the picture horizontally, in linear
proportion, to fill the entire screen(useful for
viewing 4:3 formatted DVDs).
- Just Scan: Following Selection will lead to you
view the picture of best quality without loss of
original picture in high resolution image.
Note: If there is noise in original Picture, You
can see the noise at the edge.
Just Scan
y You can only select 16:9, Just Scan, 4:3,
Zoom, Cinema Zoom1 in Component and
HDMI mode.
y You can only select 4:3, 16:9 in RGB-PC,
HDMI-PC mode only.
y In HDMI/DVI-DTV, Component (over 720p)
mode, Just Scan is available.
NOTE
![](/img.php?id=1441218&img=bg19.png)
24
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a wired network
(Depending on model)

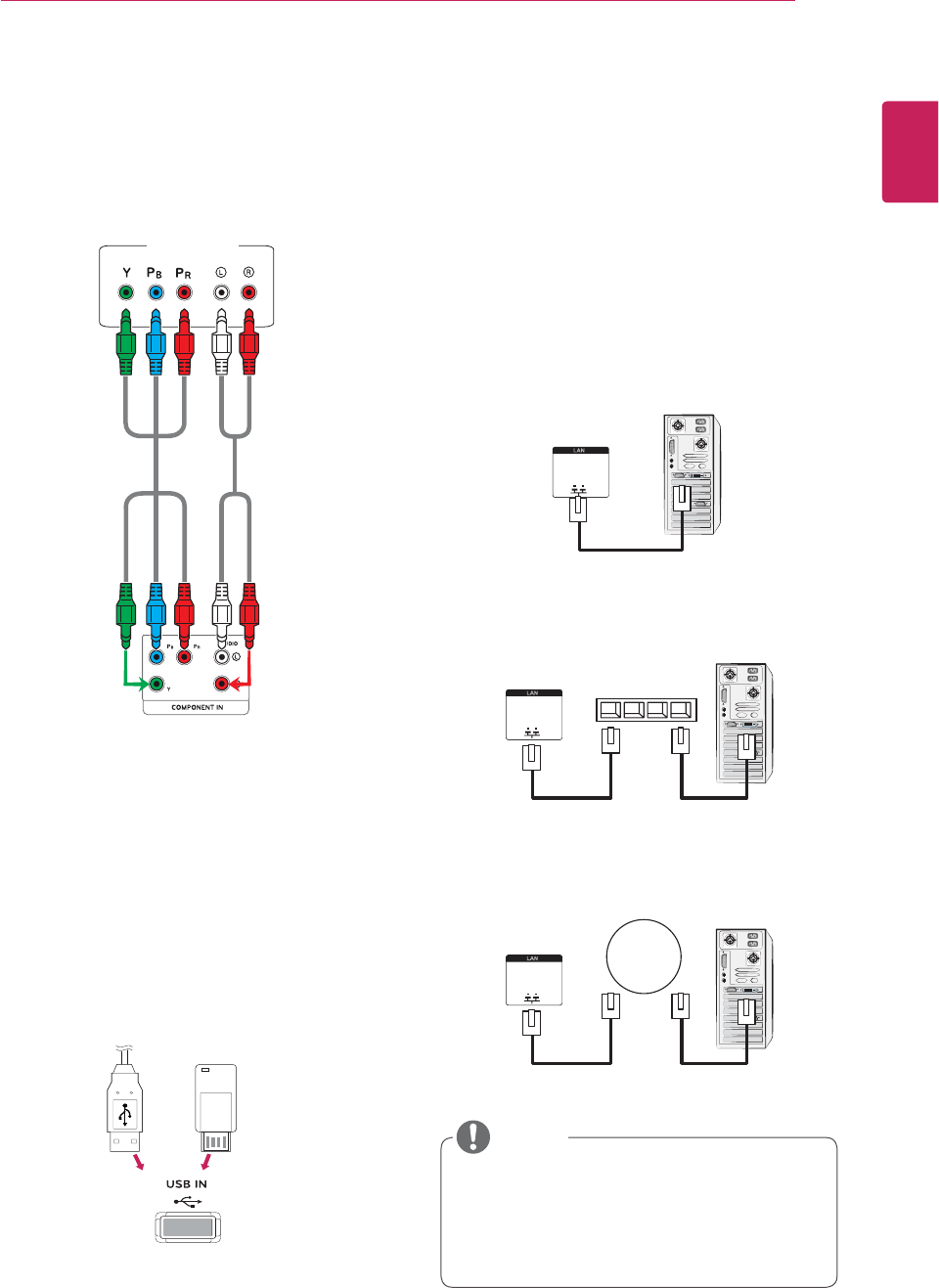

Connect the TV to a local area network (LAN) via
the LAN port as shown on the following illustration
and set up the network settings.
If wired and wireless networks are both available,
wired is the preferred method.
After making a physical connection, a small number
of home networks may require the TV network set-
tings to be adjusted. For most home networks, the
TV will connect to automatically without any adjust-
ments.
For detail information, contact your internet provid-
er or router manual.
y Do not connect a modular phone cable to
the LAN port.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
CAUTION
To set up the network seetings: (Even if your TV
has already connected automatically, running setup
again will not harm anything),
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to SETUP
and press OK.
3 Press the Navigation buttons to scroll to NET-
WORK and press OK.
4 Press the Navigation buttons to select Network
Setting and press OK.
5 If wired and wireless are simultaneously con-
nected, press the Navigation buttons to select
Wired and press OK.
6 If you already set Network Setting, select Re-
setting. The new connection settings resets the
current network settings.
7 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the Navi-
gation and Number buttons. IP addresses will
need to be input manually.
- IP Auto Setting: Select this if there is a DHCP
server (Router) on the local area network
(LAN) via wired connection, the TV will auto-
matically be allocated an IP address. If you’re
using a broadband router or broadband mo-
dem that has a DHCP (Dynamic Host Con-
figuration Protocol) server function. The IP ad-
dress will automatically be determined.
8 When you are finished, press EXIT.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
![](/img.php?id=1441218&img=bg1a.png)
25
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly
on your TV, the broadband internet con-
nection should always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
y If you do not complete the network set-
tings, the network may not work properly.
NOTE
Tips for Network setting
y Use a standard LAN cable with this TV. Cat5 or
better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router or
modem. After connecting the player to the home
network, quickly power off and/or disconnect the
power cable of the home network router or ca-
ble modem. Then power on and/or connect the
power cable again.
y Depending on the internet service provider (ISP),
the number of devices that can receive internet
service may be limited by the applicable terms of
service. For details, contact your ISP.
y LG is not responsible for any malfunction of the
TV and/or the internet connection feature due to
communication errors/malfunctions associated
with your broadband internet connection, or other
connected equipment.
y LG is not responsible for problems within your in-
ternet connection.
y Some content available through the network con-
nection may not be compatible with the TV. If you
have questions about such content, please con-
tact the producer of the content.
y You may experience undesired results if the net-
work connection speed does not meet the re-
quirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
y A 10 Base-T or 100 Base-TX LAN port is required
when using a wired connection to this TV. If your
internet service does not allow for such a connec-
tion, you will not be able to connect the TV.
y A DSL modem is required to use DSL service and
a cable modem is required to use cable modem
service. Depending on the access method of and
subscriber agreement with your ISP, you may not
be able to use the internet connection feature
contained in this TV or you may be limited to the
number of devices you can connect at the same
time. (If your ISP limits sub-scription to one de-
vice, this TV may not be allowed to connect when
a PC is already connected.)
y The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Network
Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test Test the current network status after
setting the network.
Close Return to the previous menu.
![](/img.php?id=1441218&img=bg1b.png)
26
ENG
ENGLISH
ENTERTAINMENT

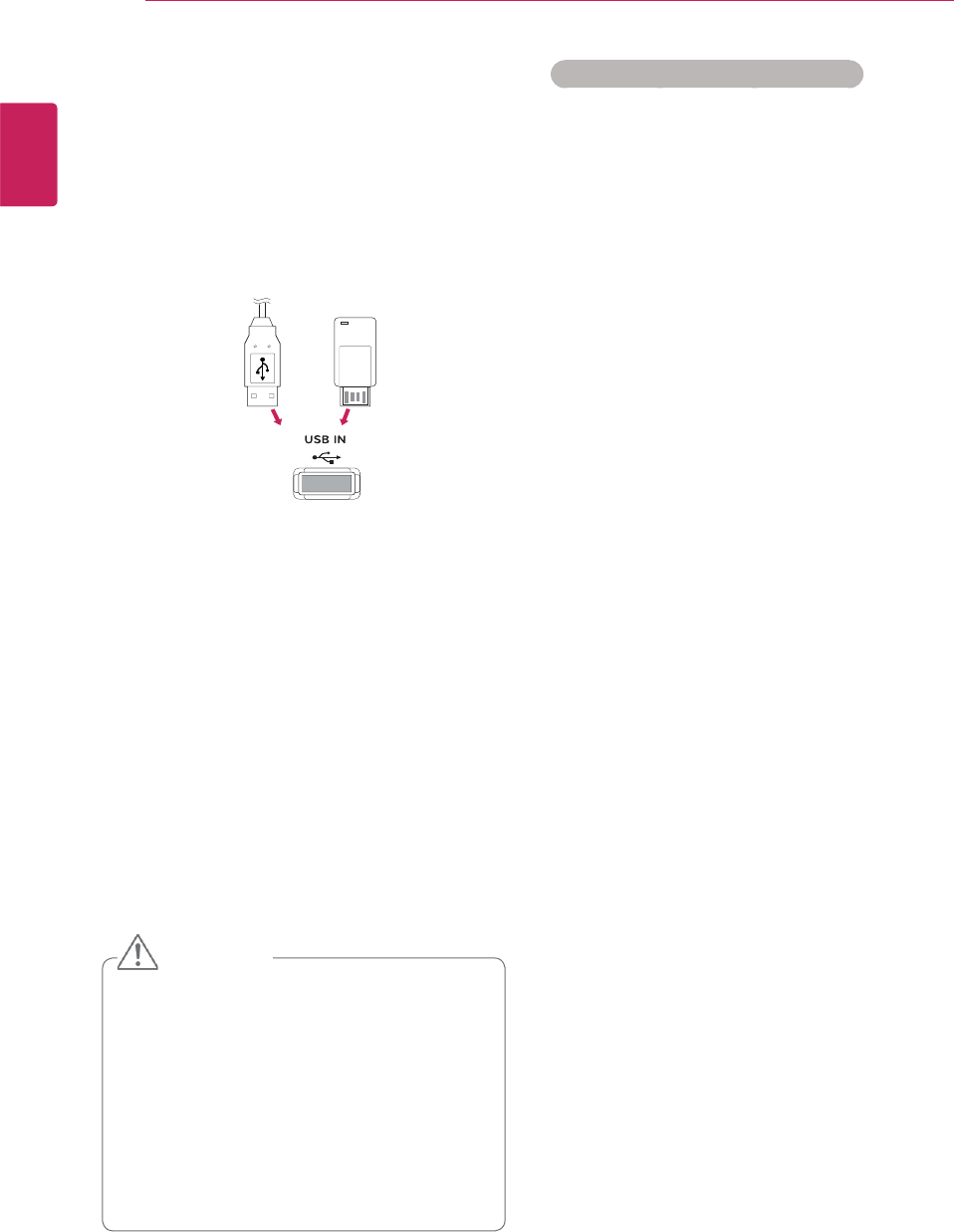

Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic rec-
ognition programme may not be recognized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage de-
vice may depend on each device.
y Please do not turn off the TV or unplug the
USB device when the connected USB stor-
age device is working. When such device is
suddenly separated or unplugged, the stored
files or the USB storage device may be dam-
aged.
y Please do not connect the USB storage de-
vice which was artificially maneuvered on the
PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has
normal music files, image files or movie files.
y Please use only a USB storage device which
was formatted as a FAT32 file system, NTFS
file system provided with the Windows oper-
ating system. In case of a storage device for-
matted as a different utility programme which
is not supported by Windows, it may not be
recognized.
y Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable offered by the device maker.
y Some USB storage devices may not be sup-
ported or operated smoothly.
y File alignment method of USB storage device
is similar to Window XP and filename can rec-
ognize up to 100 English characters.
y Be sure to back up important files since data
stored in a USB memory device may be dam-
aged. We will not be responsible for any data
loss.
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
Connecting USB storage devices
Connect USB storage devices such as a USB flash
memory, external hard drive to the TV and use mul-
timedia features (See “Browsing files”on p.55).
Connect a USB flash memory or USB memory card
reader to the TV as shown on the following illustra-
tion. The My media screen appears.
To disconnect a USB storage device,
make sure to end the connection properly to pre-
vent damages to the TV or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB
Device and press OK.
3 Press the Navigation buttons to scroll to Eject
and press OK.
4 Disconnect the USB storage device only when
the message says that it is safe to remove.
y Do not turn the TV off or remove a USB
storage device while the USB storage de-
vice is connected to the TV, as this could
result in loss of files or damage to the USB
storage device.
y Back up your files saved on a USB stor-
age device frequently, as you may lose or
damage the files and this may be not cov-
ered by the warranty.
CAUTION
or
![](/img.php?id=1441218&img=bg1c.png)
27
ENG
ENGLISH
ENTERTAINMENT
cable for an external power source.
y If your USB memory device has multiple parti-
tions, or if you use a USB multi-card reader,
you can use up to 4 partitions or USB memory
devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be loaded
when the TV is turned on.
y The recommended capacity is 1 TB or less for
a USB external hard disk and 32 GB or less
for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Energy
Saving” function does not work, turn the hard
disk off and on again to make it work properly.
y USB storage devices below USB 2.0 are sup-
ported as well. But they may not work properly
in the movie list.
y Maximum of 999 folders or files can be recog-
nized under one folder.

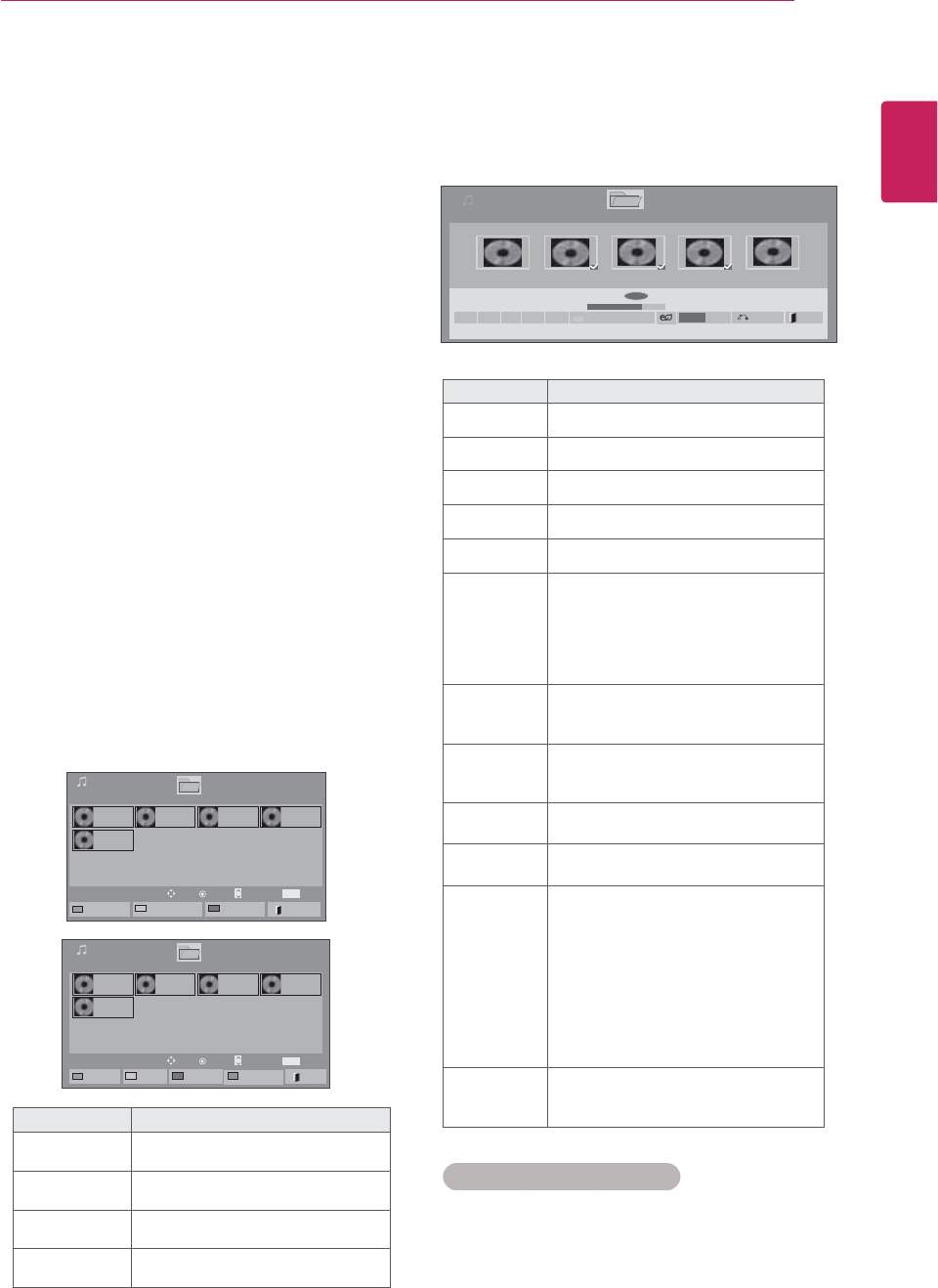

Browsing files
Access the photo, music, or movie lists and browse
files.
1 Connect a USB storage device.
2 Press Home to scroll to main menus.
3 Press the Navigation buttons to scroll to My
Media and press OK.
4 Press Navigation buttons to scroll to PHOTO
LIST, MUSIC LIST, or MOVIE LIST and press
OK.

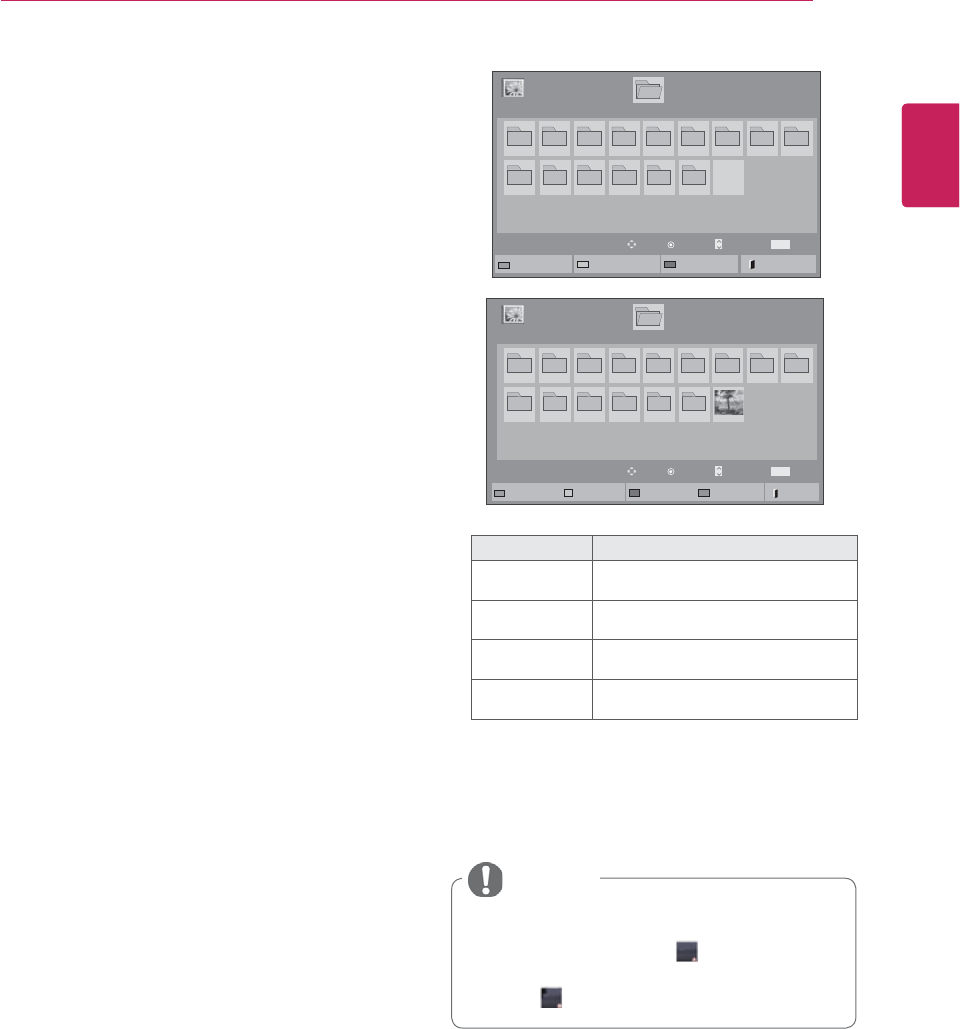

Movie List Music ListPhoto List
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
Mark
MARK
View
Page
Change
Move P
11 2
3
4
5
No. Description
1Moves to upper level folder
2Current page/Total pages
3Corresponding buttons on the
remote control
4
Current page/ total pages of
contents under the folder
focused on 1
5Contents under the folder
focused on 1
Buttom Description
Green
button
Repeatedly, press the GREEN button to
converted to Photo List->Music List,
Music List->Movie List or Movie List-
>Photo List.
Yellow
button
A method to view in 5 large thumbnail
or simple list.
Blue
button Convert to Mark Mode.
![](/img.php?id=1441218&img=bg1d.png)
28
ENG
ENGLISH
ENTERTAINMENT
Supported file format
Type Supported file format
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,
TS,TRP,TP,ASF,WMV,FLV)
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.
vob/*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.
wmv/*.flv/*.avi(motion-jpeg)/*.
mp4(motion-jpeg)/*.mkv(motion-jpeg))sup-
porting file
Video format : DivX3.11, DivX4.12, DivX5.x,
DivX6, Xvid1.00, Xvid1.01, Xvid1.02,
Xvid1.03, Xvid1.10 beta-1/beta-2,
Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg,
MP3, LPCM, HE-AAC, ADPCM, WMA
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub
(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is
the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
yYou can play JPEG files only.
yNon-supported files are displayed in the
form of predefined icon.
Only 3D Models
File
Extensions
Item Profile
2D jpeg
jpg
jpe
supported
file format
ySOF0:
baseline
ySOF1:
Extend
Sequential
ySOF2:
Progressive
photo size
yMin:
64 X 64
yMax-Normal
Type:
15360
(W) X 8640 (H)
yProgressive
Type:
1920
(W) X 1440 (H)
3D mpo supported
file format
mpo
photo size
y4:3 size:
3,648 x 2,736
2,592 x 1,944
2,048 x 1,536
y3:2 size:
3,648 x 2,432
Music MP3
Bit rate 32 to 320
ySampling rate MPEG1 Layer3 : 32 kHz,
44.1 kHz, 48 kHz
ySampling rate MPEG2 Layer3 : 16 kHz,
22.05 kHz, 24 kHz
ySampling rate MPEG2.5 Layer3 : 8 kHz,
11.025 kHz, 12 kHz
Viewing movies
Play video files on the TV. Your TV displays all of
the video files saved in a USB storage device or
shared folder on a PC.
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Select Drive1 to access the connected USB
storage device.
4 Press the Navigation buttons to scroll to a folder
you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
Page 1/1
Movie List
USB External Drive1 Page 1/1
Mark
MARK
Play
Page
Change
Move P
To Photo List Change Numbers
Mark Mode
Exit
003
001 002 004
005 006
Page 1/1
Movie List
USB External Drive1 Page 1/1
Mark
MARK
Mark
Page
Change
Move P
Play Marked Mark All
Unmark All
Exit
003
001 002 004
005 006
Mark Mode
Exit Mark Mode
051. Apple_ ......
02:30:25
Menu Description
Play Marked
Play the selected movie file.
Once a movie file finishes playing,
the next selected one will be played
automatically.
Mark All Mark all movie files on the screen.
Unmark All Deselect all marked movie files.
Exit Mark Mode Exit the Mark Mode.
![](/img.php?id=1441218&img=bg1e.png)
29
ENG
ENGLISH
ENTERTAINMENT

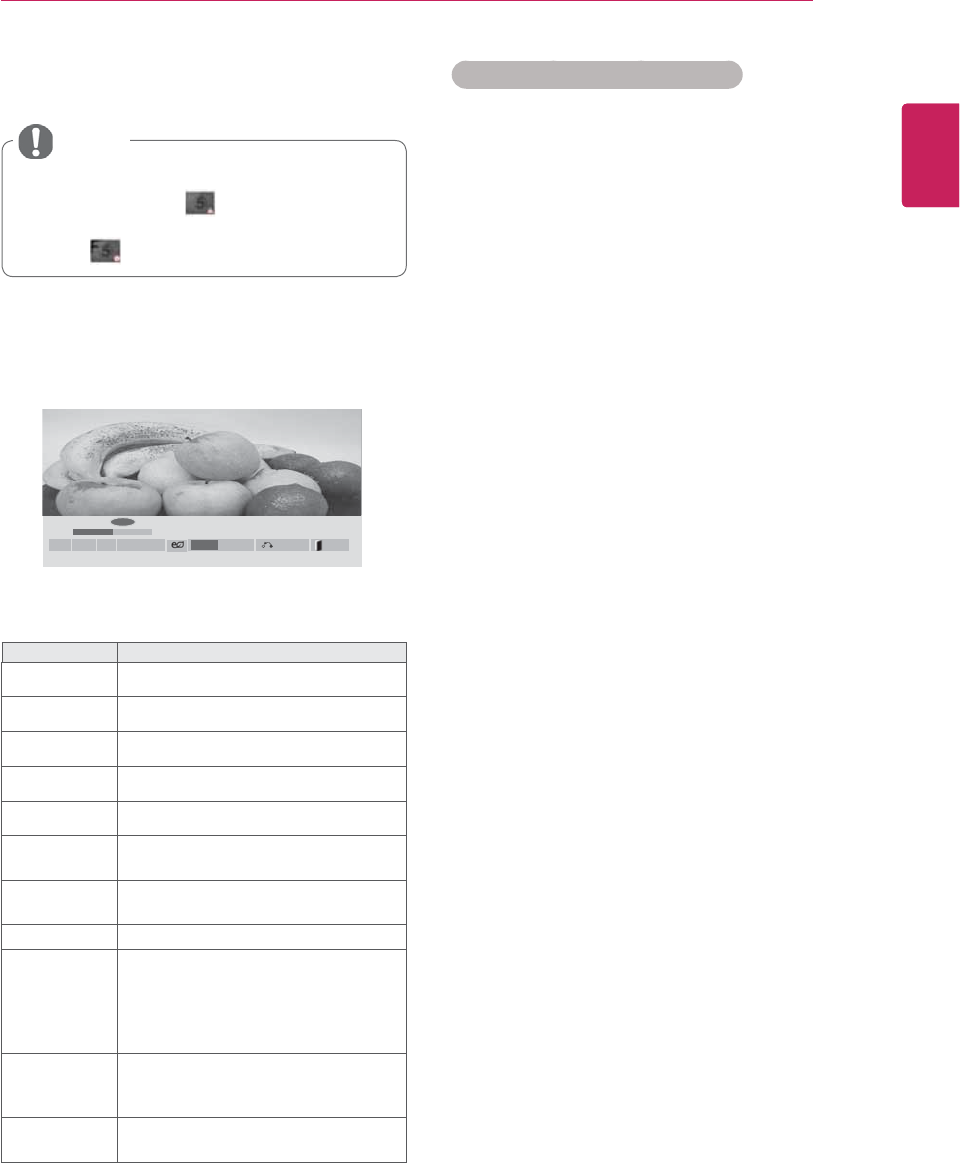

7 Control playback by using the following buttons.
01:02:30 / 02:30:25
Option
Q.MENU
II Hide Exit
Button Description
rStops the playback
sPlays a video
tPauses or resumes the playback
vScans backward in a file
wScans forward in a file
Home or
Q.MENU Show the Option menu.
BACK Hide the menu on the full-sized
screen.
EXIT Return to Movie List.
< or >
Skips to specific points in a file dur-
ing playback. The time of a specific
point will appear on the status bar.
In some files, this function may not
work properly.
ENERGY
SAVING
Press the ENERGY SAVING but-
ton repeatedly to increase the
brightness of your screen.
AV MODE Press the AV MODE button repeat-
edly to select the desired source.
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported in
subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played cor-
rectly, or some player functions may not be
usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y HD videos with a maximum of
1920x1080@25/30P or 1280x720@50/60P
are supported, depending on the frame.
y Videos with resolutions higher than
1920X1080@25/30P or 1280x720@50/60P
may not work properly depending on the
frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is not
supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion Com-
pensation) may not be played.
y When you are watching the movie by Movie
List function, you can adjust an image by En-
ergy Saving and AV Mode key on the remote
control. User setup for each image mode
does not operate.
6 Play a movie.
NOTE
y Non-supported files are displayed the preview
image by icon only .
y Abnormal files are displayed in the form of
bitmap .
![](/img.php?id=1441218&img=bg1f.png)
30
ENG
ENGLISH
MAINTENANCE
Sync Adjusts the time synchronisation
of the subtitle from -10 secs to +10
secs by steps of 0.5 secs during
movie play.
Position Changes the position of the
subtitle either up or down during
movie play.
Size Selects your desired Subtitle size
during movie play.
Repeat Turn on/off repeat function of
movie playback. When turned
on, the file within the folder will
be played back repeatedly. Even
when the repeated playback
is turned off, it can run the play-
back if the file name is similar to
the previous file.
Subtitle Lan-
guage
Support Language
Latin1 English, Spanish, French, Ger-
man, Italian, Swedish, Finnish,
Dutch, Portuguese, Danish, Ro-
manian,
Norwegian, Albanian, Gaelic,
Welsh, Irish, Catalan,Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian, Hun-
garian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Turkish Turkish
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the Pic-
ture Size by pressing the RATIO button.
NOTE
Video options
1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
When you select the Set Video Play,,
1 Press the Navigation buttons to scroll to show
the Picture Size, Audio Language, Subtitle
Language or Repeat.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
y When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio Lan-
guage
Changes the Language Group of
the audio during movie play. Files
with a single audio track cannot be
selected.
Subtitle Lan-
guage
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
![](/img.php?id=1441218&img=bg20.png)
31
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,,
1 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.67)
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Auto Volume, Clear Voice II
or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.72)
Viewing photos
View image files saved in a USB storage device or
shared folder on a PC through the network connec-
tion. The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Photo
List and press OK.
3 Press the Navigation buttons to select Drive1 to
access the connected USB storage device.
4 Press the Navigation buttons to scroll to a folder
you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
6 View photos.
NOTE
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
Mark
MARK
View
Page
Change
Move P
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
Mark
MARK
Mark
Page
Change
Move P
Mark Mode
View Marked Mark All
Unmark All
Exit
Exit Mark Mode
Menu Description
View Marked Display the selected photo file.
Mark All Mark all photo files on the screen.
Unmark All Deselect all marked photo files.
Exit Mark Mode Exit the Mark Mode.
![](/img.php?id=1441218&img=bg21.png)
32
ENG
ENGLISH
MAINTENANCE
Photo options
1 Press Q. MENU or Home to show the Option
menus.
2 Press the Navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Photo View,
1 Press the Navigation buttons to scroll to select
Slide Speed or BGM..
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Option Description
Slideshow Starts or stops a slideshow with
selected photos.
If there are no selected photos, all
photos saved in the current folder
display during a slideshow.
To set a slideshow speed, select
Option.
BGM Turns the background music on or
off. To set the background music
folder, select Option.
You can adjust Option by Q.MENU
or Home button on the remote
control.
(Rotate) Rotates photos clockwise (90°,
180°, 270°, 360°).
y The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than the
supported resolution size.
NOTE
View the photo by zoom in 2, 4
times.
ENERGY
SAVING
Press the ENERGY SAVING button
repeatedly to change the brightness
of your screen.

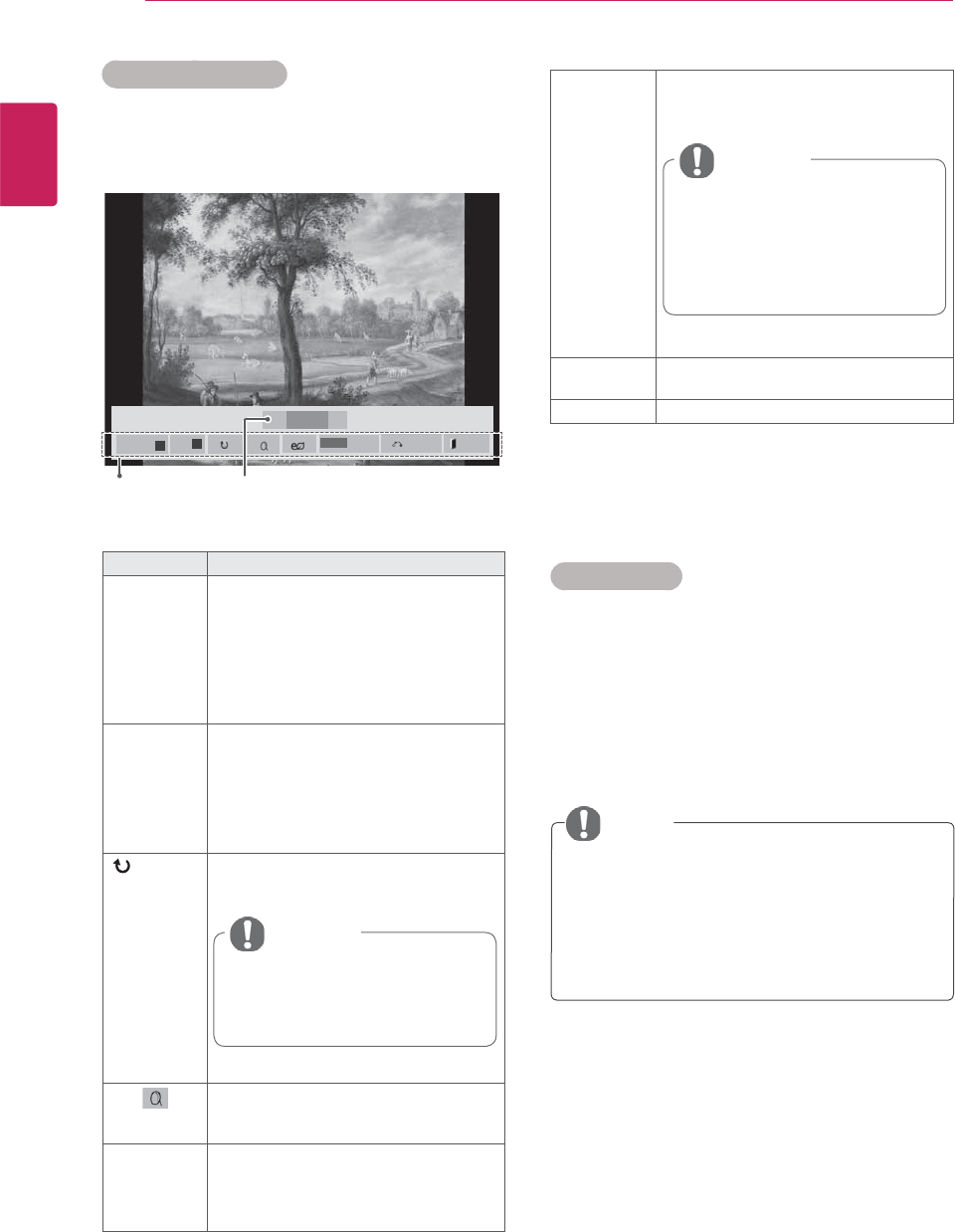

Using photo options
Use the following options while viewing photos.
2008/12/10
1920 x 1080
479 KB
2/13
Slideshow BGM
Hide
Option
Q.MENU
Number of selected photosOptions
Option ySlide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
yBGM: Selects a music folder for the
background music.
y You cannot change the music
folder while the background
music is playing.
y You can only select the MP3
folder saved on the device that
currently displays the photo.
NOTE
Hide Hides the option window.
To display the options, press OK.
EXIT Return to Photo List.
Exit
![](/img.php?id=1441218&img=bg22.png)
33
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,
1 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.67)
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Auto Volume, Clear Voice II
or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments. (See p.72)
6 Play music.
7 Control playback by using the following buttons.
Page 1/1
Music List
Drive1 Page 1/1
004. - B04.mp3
00:00
005. - B05.mp3
00:00
006. - B06.mp3
00:00
007. - B07.mp3
00:00
008. - B08.mp3
00:00
005. - B05.mp3 02:30 / 03:25
Hide Exit
Option
Q.MENU
Play with Photo
II
Button Description
rStops playback
sPlays a music file
tPauses or resumes playback
wSkips to the next file
vSkips to the previous file
v or wWhen playing,
When you press the v button,
the previous music file will be
played.
When you press the w button,
the next music file will be played.
Green
button
Start playing the selected music
files and then move to the Photo
List.
ENERGY
SAVING
Press the ENERGY SAVING
button repeatedly to change the
brightness of your screen.
Home or
Q.MENU Show the Option menu.
Hide Hides the option window.
To display the options, press OK.
EXIT
When you press the EXIT but-
ton while the Music player is dis-
played, only the music will be
stopped and the player will not re-
turn to normal TV viewing.
When you press the EXIT but-
ton while the music is stopped or
while the music player is hidden,
the player will return to normal TV
viewing.
< or >
When using the < or > button dur-
ing playback a cursor indicating
the position can be played.
Listening to music
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Press the Navigation buttons to select Drive1 to
access the connected USB storage device.
4 Press the Navigation buttons to scroll to a folder
you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
To Movie List
Change Numbers
Mark Mode
Exit
Mark
MARK
Play
Page
Change
Move P
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
Play Marked
Mark All
Unmark All
Exit
Mark
MARK
Mark
Page
Change
Move P
Mark Mode
Exit Mark Mode
Menu Description
Play Marked Display the selected music file.
Mark All Mark all music files on the screen.
Unmark All Deselect all marked music files.
Exit Mark Mode Exit the Mark Mode.
Tips for playing music files
y This unit cannot support the ID3 Tag
embedded MP3 files.
![](/img.php?id=1441218&img=bg23.png)
34
ENG
ENGLISH
MAINTENANCE
1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Au-
dio Play. or Set Audio. and press OK.
Music options
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Audio Play.,
1 Press the Navigation buttons to scroll to select
the Repeat or Random.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to select
the Sound Mode, Auto Volume, Clear Voice II
or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.(See p.72)
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
y A damaged or corrupted music does not play
but displays 00:00 in playtime.
y A music downloaded from a paid service with
copyright protection does not start but dis-
plays inappropriate information in playtime.
y If you press OK, r buttons, screen saver
is stopped.
y The PLAY(s), Pause(t), r , w, v
buttons on the remote control are also avail-
able in this mode.
y You can use the w button to select the next
music and the v button to select the previ-
ous music.
NOTE
002. B02.mp3
Time elapsed /Duration
file name
![](/img.php?id=1441218&img=bg24.png)
35
ENG
ENGLISH
MAINTENANCE
DivX registration code
Registering the DivX code
Check and register the DivX registration code of
your TV so that you can rent or purchase the lat-
est movies at www.divx.com/vod. To play a rented
or purchased DivX file, the file’s registration code
should be same with your TV’s DivX registration
code.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Reg. Code and press OK.
5 View the registration code of your TV.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
y Movie files are supported as follows
Resolution : under 1920x1080 WxH pixels
Frame rate : under 30 frames/
sec(1920x1080), under 60 frames/
sec(under 1280x720)
y Video Codec : MPEG 1, MPEG 2, MPEG
4, H.264/AVC, DivX 3.11, DivX 4.12,
DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1,
Xvid 1.10-beta2, JPEG, VC1, Sorenson
H.263/H.264.
NOTE
Deactivating the DivX feature
Deactivate all of the devices through the web server
and block devices from activating.
Delete the existing authentication information to re-
ceive a new DivX user authentication for the TV.
Once this function is executed, a DivX user authen-
tication is required again to see DivX DRM files.
1 Press Home to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to Deacti-
vation and press OK.
5 Press the Navigation buttons to select Yes to
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
![](/img.php?id=1441218&img=bg25.png)
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing main menus
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to one of the following
menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option
you want and press OK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
OPTION
AUDIO
NETWORK
TIME
MY MEDIA
OPTION (See p.41)
Customizes the general settings
AUDIO (See p.39)
Adjusts the sound quality,
effect, or volume level
PICTURE (See p.37)
Adjusts the image size,
quality, or effect
TIME (See p.40)
Sets the time, date or
Timer feature
MY MEDIA
(See p.26)
Display and play
movie, photo and
music content
stored on your USB
NETWORK (See p.42)
Sets up the network
setting.
![](/img.php?id=1441218&img=bg26.png)
37
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and
press OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available picture settings are described in the following:
Move OK
Energy Saving : Off
UJ
ZF
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.23).
Energy Saving Sets to automatically adjust the screen brightness corresponding to the surroundings.
Option
Off The backlight is off.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen off The screen turns off in 3 seconds.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Colour, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colours such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
SCREEN
(In RGB-PC
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution Selects a proper resolution. See "Specification" See p.50 for the recommended
resolution for each model.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default setting.
![](/img.php?id=1441218&img=bg27.png)
38
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark
part of the picture is saturated.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Colour Adjusts intensity of all Colours.
Tint Adjusts the balance between red and green levels.
Colour Temperature Set to warm to enhance hotter colours such as red, or set to cool to make picture bluish.
Advanced Control Customizes the advanced options.
Picture Reset Restores the options to the default setting.
Advanced image options
Setting Description
Dynamic Contrast
(Low/High/Off)
Optimizes the contrast automatically according to the brightness of the reflection.
(This function can be used only under AV and Component.)
Dynamic Colour
(Low/High/Off)
Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.(This function can be used only under AV and Component.)
Noise Reduction
(Low/Medium/High/Off)
Removing the noise up to the point where it does not damage the original picture. (This
function can be used only under AV and Component.)
Clear White
(Low/Medium/High/Off)
Make the white area of screen brighter and more white.
Digital Noise
Reduction (On/Off)
This option reduces the noise produced while creating digital video signals.
Skin Color It detects the skin area of video and adjusts it to express a natural skin color.
Gamma
(Low/Medium/High)
Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma values display
high contrast images.
Black Level
(Auto/High/Low)
»Low: The reflection of the screen gets darker.
»High: The reflection of the screen gets brighter.
Function works in the following mode - AV, Component, HDMI-DTV adjusts the contrast and
the brightness of the screen using the black level of the screen.
![](/img.php?id=1441218&img=bg28.png)
39
ENG
ENGLISH
CUSTOMIZING SETTINGS
AUDIO settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press
OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available audio options are described in the following:
Move OK
AUDIO
OU
Setting Description
Clear Voice ll By differentiating the human sound range from others,it helps users listen to human voices better.
Balance Use this function to balance sound from the left and right speakers.
Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Mode
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to
the music.
Cinema Select this option to enjoy sublime sound.
Sport Select this option to watch sports broadcasting.
Game To enjoy dynamic sound when playing a game.
Option
Infinite Sound LG's Infinity Sound option provides 5.1 channel stereo sound
from two speakers.
Treble Controls the dominant sounds in the output. When you turn up
the treble, it will increase the output to the higher frequency
range.
Bass Controls the softer sounds in the output. When you turn up the
bass, it will increase the output to the lower frequency range.
Reset Resets the sound mode to the default setting.
Speaker Turns on the internal speaker of the Monitor set when using an external Hi-Fi system. You can use
the speaker as an audio output device even if there is no video input.
NOTE
If sound quality or volume is not at the level you want, it is recommended to use a separate
![](/img.php?id=1441218&img=bg29.png)
40
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to TIME and press
SET.
3 Press the Navigation buttons to scroll to the setting or option
you want and press SET.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press EXIT.
The available time settings are described in the following:
Move OK
TIME
Setting Description
Clock If the current time is incorrect, reset the clock manually.
1) Press the MENU button and then use button to select the Time menu,input OK button to enter.
2) Press the button and then use button to select clock menu.
3) Press the button and then use button to select date
4) Press the button and then use button to set the hour(00h to 23h).
5) Press the button and then use button to set the minutes(00 min to 59 min).
On/Off Time The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use button to select the Time menu,input OK button to enter.
2) Press the button and then use button to select On/Off Timer.
3) Press the button and then use button to select date
4) Press the button and then use button to set the hour(00h to 23h).
5) Press the button and then use button to set the minutes(00 min to 59 min).
6) Press the button ,According to the personal needs, choose to add button.
Sleep Timer The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use button to select the Time menu,input OK button to
enter
2) Press the button and then use button to select Sleep timer menu.
3) Press the button and then use button to select the minutes(Off to 240 min).
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on individually
to prevent overload.
![](/img.php?id=1441218&img=bg2a.png)
41
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press
SET.
3 Press the Navigation buttons to scroll to the setting or
option you want and press SET.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
EXIT.
The available option settings are described in the following:
Move OK
OPTION
Setting Description
Menu Language To choose the language in which the control names are displayed.
ISM Method Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when the product is not used, turn off
the power. Burn-in and related problems are not covered by the warranty on this product.
Setting
Normal Sets it if image sticking is never a problem
White wash Removes a ghost image on the screen.
Use sparingly. Watch the sets normally for a while before using this feature to
see if the ghost image disappears on its own.
Color wash Removes a ghost image on the screen.
The color block with the screen moved a little and the white pattern are
alternately displayed. It is difficult to see the after image on all colors.
Once it has been corrected it will not be visible in any color.
Factory Reset Select this option to return to the default factory settings.
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 99) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
Tile Mode Setting
Tile Mode You can display the image on multiple sets and view it in a larger size. To use
the Tile Mode on multiple sets with same signal, connect them in RGB/DVI.
Auto Config. This option optimizes the screen when you connect the set to a new computer
or change to a different mode. If you are not satisfied with the adjustment, you
can manually change the "Position" or "Size".
PC Position You can set the PC position.
PC size You can set the PC size.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
FAN Setting
Mode This option indicates the monitor's internal temperature and controls the fan.
Hysterisis The difference in temperature between when the fan is switched on and when
it is off.
Set Temperature Set the temperature at which the fan is switched on.
Current
Temperature
Current temperature inside the set.
Information This option shows information about the set.
![](/img.php?id=1441218&img=bg2b.png)
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
NETWORK settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NETWORK and
press OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move OK
NETWORK
Setting Description
Network Setting Configure the network settings.(See p.24)
Network Status Display the network status.(See p.25)
![](/img.php?id=1441218&img=bg2c.png)
43
ENG
ENGLISH

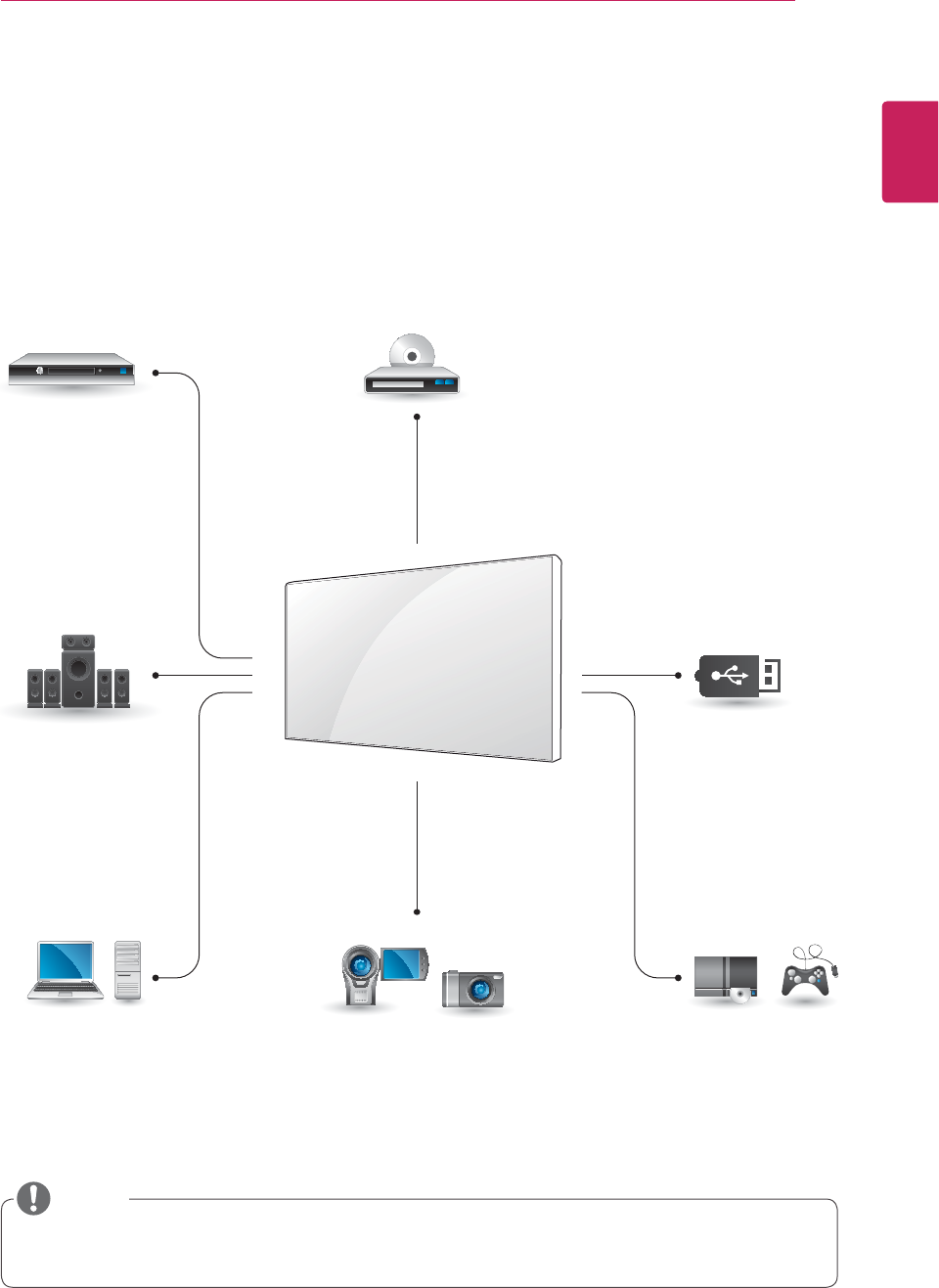

MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
1 Find an external device you want to connect to your Monitor set shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
y If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
NOTE
HD Receiver
Speaker
PC Gaming device
USB
Camcorder/Camera
DVD
HDMI
DVI
Component
HDMI
DVI
RGB
HDMI
DVI
Component
HDMI
DVI
Component
Memory storage
Memory card reader
HDMI
Component
![](/img.php?id=1441218&img=bg2d.png)
44
ENG
ENGLISH
MAKING CONNECTIONS
HDMI/DVI IN
HDMI/DVI IN AUDIO
(RGB/DVI)
Connecting to a HD receiver,
DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
DVI - HDMI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI-HDMI
cable as shown in the following illustration. To
transmit an audio signal, connect an optional audio
cable.
y Use a High Speed HDMI™ Cable.
y High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
y Dolby Digital is not supported.
NOTE
PC
PC
y When connecting
an HDMI cable as
illustrated, remove
the screw on the
HDMI connector first.
CAUTION
![](/img.php?id=1441218&img=bg2e.png)
45
ENG
ENGLISH
MAKING CONNECTIONS
AV connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
Connecting to the LAN
Use an optional external audio system instead of
the built-in speaker.
y Using LAN establishes communication
between your PC and the monitor and
enables to use the OSD menus on the PC as
well as on the monitor.
LAN connection
Connect the LAN cable and install the eZ-Net
Manager program on the CD-ROM.
For more information about the program, please
refer to eZ-Net Guide in the enclosed CD-ROM.
A Connect PC to Monitor directly.
B Using a router(Switch)
PCProduct
LAN
Network
PC
Product
LAN
PC
Product
LAN Switch
C Using the Internet.
NOTE
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor set and
access the USB menu to use various multimedia
files. "Connecting USB storage devices" on See
p.15 and “Browsing files” on See p.16
or
PC
![](/img.php?id=1441218&img=bg2f.png)
46
ENG
ENGLISH
MAKING CONNECTIONS
DVI-INDVI-OUT DVI-INDVI-OUTDVI-INDVI-OUT
Daisy Chain Monitors
Use this function when displaying ANALOG RGB inputs of a PC to the other product.
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
DVI Cable
RGB Cable
15-pin D-Sub Signal Cable
(Max 3m)
DVI Cable
(Max 3m)
y When multi-connecting in/out cascade format, no loss cables are recommended.
y We recommend that you should use cable distributor.
NOTE
![](/img.php?id=1441218&img=bg30.png)
47
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
General
No image is displayed
Problem Resolution
Is the product power cord
connected?
y See if the power cord is properly connected to the outlet.
Is the power indicator light on?
ySee if the power switch is turned on.
yMay need service.
Power is on, power indicator is blue
but the screen appears extremely
dark.
y Adjust brightness and contrast again.
y Backlight may need repair.
The power indicator amber?
y If the product is in power saving mode, move the mouse or press any
key.
yTurn both devices off and then back on.
Does the 'Out of range' message
appear?
y The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution
RGB : 1366 x 768 @ 60 Hz
HDMI/DVI : 1366 x 768 @ 60 Hz
Does the 'Check signal cable'
message appear?
y The signal cable between PC and product is not connected. Check
the signal cable.
y Press the 'INPUT' menu in the remote Control to check the input
signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y Install the product driver, which is provided with the product, or
download it from the web site. (http://www.lg.com)
y See if the plug&play function is supported by referring to the video
card user manual.
y Vertical frequency: To enable the user to watch the product display, screen image should be changed
tens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the times
of image display per second. The unit is Hz.
y Horizontal frequency: The horizontal interval is the time to display one vertical line. When 1 is divided
by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as
the horizontal frequency. The unit is kHz.
NOTE
![](/img.php?id=1441218&img=bg31.png)
48
ENG
ENGLISH
TROUBLESHOOTING
'Key Lock On' message appears.
Problem Resolution
The 'Key Lock On' message
appears when pressing the Menu
button.
yThe control locking function prevents unintentional OSD setting
change due to careless usage. To unlock the controls, simultaneously
cannot set this function using the remote control buttons. You can set
this function in the product only.)
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
ySee if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Clock OSD
menu.
Horizontal noise appears or the
characters look blurred.
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
The screen is displayed abnormally.
y The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
yIf you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
The audio function does not work.
Problem Resolution
No sound?
ySee if the audio cable is connected properly.
yAdjust the volume.
y See if the sound is set properly.
Sound is too dull.
ySelect the appropriate equalize sound.
Sound is too low.
y Adjust the volume.
![](/img.php?id=1441218&img=bg32.png)
49
ENG
ENGLISH
TROUBLESHOOTING
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or mono-
colored.
yCheck the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
yIs the sleep timer set?
y Check the power control settings. Power interrupted.
y"CAUTION! FAN STOP!"
If the power is turned off after this message appears, it means that
the fan is out of order.In this case, contact your local service center.
![](/img.php?id=1441218&img=bg33.png)
50
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type 1192.8 mm Wide (46.96 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1192.8 mm
Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)
Video Signal Max. Resolution RGB : 1366 x 768 @60Hz
HDMI/DVI : 1366 x 768 @60Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB : 1366 x 768 @60Hz
HDMI/DVI : 1366 x 768 @60Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 68 kHz
HDMI/DVI : 30kHz to 68 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI : 56 Hz to 63 Hz
Synchronization Type Separate Sync, Composite Sync, Digital, SOG
Input Connector 15-pin D-Sub type, HDMI (digital), Composite Video,
RS-232C, LAN, USB
Power Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.2 A
Power Consumption On Mode : 220 W Max.
Dimensions
(Width x Height x
Depth) / Weight
1046.8 mm (4.12 inch) x 591.6 mm (2.33 inch) x 91.1 mm (0.36 inch) / 29 kg (63.93 lb)
Environmental
conditions
Operating Temperature
Operating Humidity
5 °C to 35 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
H
W
D
![](/img.php?id=1441218&img=bg34.png)
SPECIFICATIONS 51
ENG
ENGLISH
RGB (PC) supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
1720 x 400 31.468 70.8
*2 640 x 480 31.469 59.94
*3 800 x 600 37.879 60.317
4832 x 624 49.725 74.55
*5 1024 x 768 48.363 60
*6 1280 x 720 44.772 59.855
*7 1360 x 768 47.72 59.799
81366 x 768 47.71 59.79
*9 1280 x 1024 63.981 60.02
DTV Mode
Resolution HDMI/DTV
480i x
576i x
480p o
576p o
720p o
1080i o
![](/img.php?id=1441218&img=bg35.png)
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
As an ENERGY STAR Partner LGE U. S. A.,Inc. has
determined that this product meets the ENERGY STAR
ENERGY STAR is a set of power-saving
guidelines issued by the U.S. Environmental
Protection Agency(EPA).
![](/img.php?id=1441218&img=bg36.png)
Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice
(for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950-1 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
TCO'99 (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO’99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally
adapted electronics products.
![](/img.php?id=1441218&img=bg37.png)
Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. With the growing
manufacture and usage of electronic equipment
throughout the world, there is a recognized concern for the
materials and substances used by electronic products
with regards to their eventual recycling and disposal. By
proper selection of these materials and substances, the
impact on the environment can be minimized.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Electronic equipment in offices is often left
running continuously, resulting in unnecessary
consumption of large amounts of energy and additional
power generation. From the standpoint of carbon dioxide
emissions alone, it is vital to save energy.
What does labelling involve?
The product meets the requirements for the TCO’99
scheme which provides for international and environmental
labelling of personal computers and/or displays.
The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and
Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues:
ecology, ergonomics, emission of electrical and magnetical
fields, energy consumption and electrical safety.
Ecological criteria impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame
retardants, and other substances. The product must be
prepared for recycling and the manufacturing site(s) shall
be certified according to ISO14001 or EMAS registered.
Energy requirements include a demand that the system
unit and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level in one
or more stages. The length of time to reactivate the system
unit shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electrical and magnetical fields as well as work load and
visual ergonomics.
Below you will find a brief summary of the ecological
requirements met by this product. The complete
ecological criteria document can be found at TCO
Development’s website http://www.tcodevelopment.com
or may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: +46 8 782 92 07
Email : development@tco.se
Information regarding TCO’99 approved and labelled
products may also be obtained at
http://www.tcodevelopment.com
Ecological requirements
Flame retardants
Flame retardants may be present in printed wiring board
laminates, cables, and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
by weight of the plastic in a computer casing can consist of
flame retardant substances. Many flame retardants
contain bromine or chlorine, and these flame retardants
are chemically related to PCBs (polychlorinated
biphenyls). Both the flame retardants containing bromine
or chlorine and the PCBs are suspected of giving rise to
health effects, including reproductive damage in fish-
eating birds and mammals, due to the bio-accumulative*
processes when not disposed of in accordance with strict
standards for disposal.
TCO’99 requires that plastic components weighing more
than 25 grams shall not contain flame retardants with
organically bound bromine or chlorine. Flame retardants
are allowed in the printed wiring board laminates due to
the lack of commercially available alternatives.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
TCO’99 requires that batteries, the colour-generating
layers of display screens, and the electrical or electronics
components shall not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. TCO’99 requires that batteries shall not contain
any mercury. It also demands that mercury is not present
in any of the electrical or electronics components
associated with the labelled unit. There is however one
![](/img.php?id=1441218&img=bg38.png)
Regulatory Information cont.
03
exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on
removing this exception when a mercury free alternative is
available.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. TCO’99 permits the use of lead
due to the lack of commercially available alternatives, but
in future requirements TCO Development aims at
restricting the use of lead.
_____________________________________________
* Bio-accumulative is defined as substances which
accumulate in living organisms.
**Lead, Cadmium and Mercury are heavy metals
which are bio-accumulative.
TCO’03
(TCO’03 applied model only)
Congratulations!
The display you have just purchased carries the TCO’03
Displays label.
This means that your display is designed,manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a
high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to
improve the working environment for the user and to
reduce sight and strain problems. Important
parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial
both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the
manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001
• Restrictions on
chlorinated and brominated flame retardants and
polymers
heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been
developed by TCO Development in co-operation with
scientists, experts, users as well as manufacturers all over
the world. Since the end of the 1980s TCO has been
involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started
with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Information for Environmental Preservation
LGE. announced the 'LG Declaration for a Cleaner
Environment' in 1994, and this ideal has served as a
guiding managerial principle ever since. The Declaration is
a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration
of economic, environmental, and social aspects.
We promote activities for environmental preservation, and
we specifically develop our products to embrace the
concept of environment-friendly.
We minimize the hazardous materials contained in our
products. For example, there is no cadmium to be found in
our monitors.
Information for recycling
This monitor may contain parts which could be hazardous
to the environment. It is important that this monitor be
recycled after use.
LGE. handles all waste monitors through an
environmentally acceptable recycling method. There are
several take-back and recycling systems currently in
English
![](/img.php?id=1441218&img=bg39.png)
Regulatory Information cont.
04
operation worldwide. Many parts will be reused and
recycled, while harmful substances and heavy metals are
treated by an environmentally friendly method.
If you want to find out more information about our
recycling program, please contact your local LG vendor or
a corporate representative of LG.
We set our vision and policies on a cleaner world by
selecting the issue of the global environment as a task for
corporate improvement. Please visit our website for more
information about our ‘green’ policies.
http://www.lge.com/about/environment/html/Recycling.jsp
Informationen zur Erhaltung der Umwelt
Im Jahr 1994 verkündete LGE die 'LG Declaration for a
Cleaner Environment' (LG Erklärung für eine sauberere
Umwelt). Seitdem dient dieses Ideal als führendes Prinzip
des Unternehmens. Diese Erklärung war die Basis für die
Durchführung von
umweltfreundlichen Aktivitäten, wobei wirtschaftliche,
umweltbezogene und soziale Aspekte in die
Überlegungen mit einbezogen wurden.
Wir fördern Aktivitäten zum Schutz der Umwelt und die
Entwicklung unserer Produkte ist darauf ausgerichtet,
unserem Konzept bezüglich Umweltfreundlichkeit gerecht
zu werden.
Wir sind darauf bedacht, den Anteil der in unseren
Produkten enthaltenen schädlichen Materialien zu
minimieren. So ist in unseren Monitoren beispielsweise
kein Kadmium zu finden.
Informationen zum Thema Recycling
Dieser Monitor enthält Teile, die umweltschädlich sein
können. Es ist unbedingt erforderlich, dass der Monitor
recycelt wird, nachdem er außer Dienst gestellt wurde.
Bei LGE. werden alle ausrangierten Monitore in einem
unter umweltbezogenen Aspekten geeigneten Verfahren
recycelt. Augenblicklich sind weltweit mehrere
Rücknahme- und Recyclingsysteme im Einsatz. Viele
Teile werden wieder verwendet und recycelt. Schädliche
Substanzen und Schwermetalle werden durch
umweltverträgliche Verfahren behandelt.
Falls Sie mehr über unser Recyclingprogramm erfahren
möchten, wenden Sie sich bitte an Ihren lokalen LG-
Händler oder einen Unternehmensvertreter von LG.
Wir richten unsere Firmenpolitik auf eine sauberere
Umwelt hin aus, indem wir umweltspezifische Aspekte als
wichtigen Punkt in die Weiterentwicklung unseres
Unternehmens einfließen lassen. Zusätzliche
Informationen über unsere ‘grüne’ Firmenpolitik erhalten
Sie auf unserer Website.
http://www.lge.com/about/environment/html/Recycling.jsp
Information sur la protection del’environnement
LGE. a publié sa 'Déclaration en faveur d’un
environnement plus propre' en 1994 et celle-ci est restée,
depuis lors, un principe directeur de notre entreprise.
Cette déclaration a servi de base à notre réflexion et nous
a permis de prendre en compte à la fois les aspects
économiques et sociaux de nos activités, tout en
respectant l’environnement.
Nous encourageons les activités en faveur de la
préservation de l’environnement et c’est dans cet esprit
que nous développons nos produits : nous réduisons au
minimum les matières dangereuses qui entrent dans leur
composition et l’on ne trouve pas de cadmium, par
exemple, dans nos moniteurs.
Information sur le recyclage
Ce moniteur peut contenir des composants qui présentent
un risque pour l’environnement. Il est donc important que
celui-ci soit recyclé après usage.
LGE. traite les moniteurs en fin de cycle conformément à
une méthode de recyclage respectueuse de
l’environnement. Nous reprenons nos produits et les
recyclons dans plusieurs sites répartis dans le monde
entier. De nombreux composants sont réutilisés et
recyclés, et les matières dangereuses, ainsi que les
métaux lourds, sont traités selon un procédé écologique.
Si vous souhaitez plus de renseignements sur notre
programme de recyclage, veuillez contacter votre
revendeur LG ou un l’un de nos représentants.
Nous voulons agir pour un monde plus propre et croyons
au rôle de notre entreprise dans l’amélioration de
l’environnement. Pour plus de renseignements sur notre
politique “verte”, rendez visite à notre site :
http://www.lge.com/about/environment/html/Recycling.jsp
Deutsch
Français
![](/img.php?id=1441218&img=bg3a.png)
05
Regulatory Information cont.
Informazioni per la tutela dell’ambiente
La LGE. ha annunciato nel 1994 la cosiddetta 'LG
Declaration for a Cleaner Environment' (Dichiarazione di
LG a favore di un ambiente più pulito), un ideale che da
allora funge da principio ispiratore della gestione
aziendale. La dichiarazione rappresenta il fondamento che
consente di intraprendere attività a favore dell'ambiente
tenendo conto degli aspetti economici, ambientali e
sociali.Noi della LG, promuoviamo attività a favore della
tutela dell'ambiente sviluppando appositamente i nostri
prodotti per cogliere il concetto del rispetto dell’ambiente
riducendo i materiali dannosi presenti nei nostri prodotti.
Ad esempio nei nostri monitor non è presente il cadmio.
Informazioni per il riciclaggio
Il monitor può presentare componenti che potrebbero
risultare eventualmente dannosi per l'ambiente. È
importante che il monitor sia riciclato al termine del suo
utilizzo.
La LGE. gestisce tutti i monitor di rifiuto con un metodo di
riciclaggio soddisfacente dal punto di vista ambientale. In
tutto il mondo sono attualmente in funzione numerosi
sistemi di riciclaggio e recupero. I diversi componenti sono
riutilizzati e riciclati, mentre le sostanze dannose e i metalli
pesanti vengono trattati con un metodo rispettoso
dell’ambiente.
Se si desiderano maggiori informazioni in merito al
programma di riciclaggio, è consigliabile rivolgersi al
proprio rivenditore LG o ad un rappresentante aziendale
della LG.
Noi della LG impostiamo la nostra visione e le nostre
politiche a favore di un mondo più pulito ponendo la
questione dell'ambiente dal punto di vista globale come
una mansione rivolta al miglioramento della nostra
azienda. Vi invitiamo a visitare il nostro sito internet per
ulteriori informazioni sulla nostra politica “verde”.
http://www.lge.com/about/environment/html/Recycling.jsp
Información para la conservación
medioambiental
LGE. presentó la 'Declaración para un entorno más limpio
de LG' en 1994 y este ideal ha servido para guiar nuestros
principios empresariales desde entonces. La Declaración
es la base que nos ha permitido llevar a cabo tareas que
respetan el medio ambiente siempre teniendo en cuenta
aspectos sociales,
económicos y medioambientales.
Promocionamos actividades orientadas a la conservación
del medio ambiente y desarrollamos nuestros productos
específicamente para que se ajusten a la filosofía que
protege el entorno.
Reducimos al máximo el uso de materiales de riesgo en
nuestros productos. Un ejemplo de ello es la ausencia
total de cadmio en nuestros monitores.
Información para el reciclaje
Este monitor puede contener piezas que entrañen riesgos
medioambientales. Es importante reciclar este monitor
después de su utilización.
LGE. trata todos los monitores usados siguiendo un
método de reciclaje que no daña al entorno. Contamos
con diversos sistemas de recuperación y reciclaje que
funcionan a nivel mundial en la actualidad. Es posible
reciclar y reutilizar muchas de las piezas, mientras que las
sustancias dañinas y los metales pesados se tratan
siguiendo un método que no perjudique al medio
ambiente. Si desea obtener más información acerca del
programa de reciclaje, póngase en contacto con su
proveedor local de LG o con un representante empresarial
de nuestra marca.
Basamos nuestra visión y nuestras políticas en un mundo
más limpio y para ellos optamos por un entorno global
como tarea principal de nuestra evolución como empresa.
Visite nuestra página Web para obtener más información
sobre nuestras políticas ecológicas.
http://www.lge.com/about/environment/html/Recycling.jsp
Informações relacionadas à preservação
ambiental
A LGE. anunciou a 'LG Declaration for a Cleaner
Environment' (Declaração da LG para um ambiente mais
limpo) em 1994 e esse ideal tem servido desde então
como um princípio administrativo de orientação. A
Declaração é a base que nos tem permitido realizar
atividades favoráveis ao ambiente com consideração
atenta aos aspectos econômicos, ambientais e sociais.
Promovemos atividades de preservação ambiental e
desenvolvemos nossos produtos para englobar
Italiano
Espanõl
Português
![](/img.php?id=1441218&img=bg3b.png)
06
Regulatory Information cont.
especificamente o conceito de favorável ao ambiente.
Reduzimos os materiais perigosos contidos em nossos
produtos. Por exemplo, não há cádmio em nossos
monitores.
Informações relacionadas à reciclagem
Este monitor pode conter peças que podem representar
riscos ao ambiente. É importante que ele seja reciclado
após o uso.
A LGE. cuida de todos os monitores descartados através
de um método de reciclagem agradável ao ambiente. Há
vários sistemas de devolução e reciclagem atualmente
em operação no mundo. Muitas peças serão reutilizadas
e recicladas e as substâncias nocivas e os metais
pesados passarão por tratamento através de um método
favorável ao ambiente.
Para obter mais informações sobre nosso programa de
reciclagem, entre em contato com seu fornecedor LG
local ou com um representante corporativo da LG.
Definimos nossa visão e nossas políticas relacionadas a
um mundo mais limpo selecionando a questão do
ambiente global como uma tarefa de aprimoramento
corporativo. Visite nosso site para obter mais informações
sobre nossas políticas de meio ambiente.
http://www.lge.com/about/environment/html/Recycling.jsp
Informatie met betrekking tot het behoud van
het milieu
LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner
Environment' (de LG-verklaring met betrekking tot een
schoner milieu). Deze verklaring en het ideaal van een
schoner milieu fungeren sindsdien als een bestuurlijke
leidraad voor onze onderneming. Op basis van deze
verklaring ontplooien wij milieuvriendelijke activiteiten,
waarbij er zowel met sociale en economische aspecten,
als met milieuaspecten zorgvuldig rekening wordt
gehouden.
Wij ondersteunen activiteiten die zijn gericht op het
behoud van het milieu en wij houden bij het ontwikkelen
onze producten specifiek rekening met de
milieuvriendelijkheid van onze producten.
Wij minimaliseren het gebruik van schadelijke stoffen in
onze producten. Er wordt bijvoorbeeld geen cadmium
verwerkt in onze monitors.
Nederlands
Informatie met betrekking tot recycling
Deze monitor bevat materialen die schadelijk zouden
kunnen zijn voor het milieu. Het is belangrijk dat deze
monitor aan het einde van zijn levensduur wordt
gerecycled.
LGE. verwerkt alle afvalmonitors via een milieuvriendelijke
recyclingmethode. Hiervoor worden er momenteel
wereldwijd verscheidene inname- en recyclingsystemen
gehanteerd. Een groot aantal onderdelen wordt opnieuw
gebruikt en gerecycled, waarbij schadelijke stoffen en
zware metalen volgens een milieuvriendelijke methode
worden verwerkt.
Voor meer informatie over ons recyclingprogramma kunt u
contact opnemen met uw plaatselijke LG-
vertegenwoordiger of een LG-vestiging.
Onze visie en ons beleid met betrekking tot een schonere
wereld vloeien voort uit het feit dat wij het milieu hebben
aangemerkt als een onderwerp dat speciale aandacht
verdient binnen onze onderneming. Bezoek onze website
voor meer informatie over ons 'groene' beleid.
http://www.lge.com/about/environment/html/Recycling.jsp
»ÌÙÓχˆËˇ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚
¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡
'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚',
ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ
ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË
Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ
·ÂÁÓÔ‡ÒÌÓÒÚ¸ ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÔË ˝ÚÓÏ
‰ÓÎÊÌÓ ‚ÌËχÌË ˝ÍÓÌÓÏ˘ÂÒÍËÏ, ˝ÍÓÎӄ˘ÂÒÍËÏ Ë
ÒӈˇθÌ˚Ï ‡ÒÔÂÍÚ‡Ï.
Ã˚ ÒÚËÏÛÎËÛÂÏ ‰ÂˇÚÂθÌÓÒÚ¸ ÔÓ Óı‡ÌÂ
ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÓÒÓ·Ó ‚ÌËχÌËÂ
‡Á‡·ÓÚÍ ̇¯ÂÈ ÔÓ‰Û͈ËË ‚ ÒÓÓÚ‚ÂÚÒÚ‚ËË Ò
ÍÓ̈ÂÔˆËÂÈ ˝ÍÓÎӄ˘ÂÒÍÓÈ ·ÂÁÓÔ‡ÒÌÓÒÚË.
Ã˚ Ò‚Ó‰ËÏ Í ÏËÌËÏÛÏÛ ÒÓ‰ÂʇÌË ÓÔ‡ÒÌ˚ı
‚¢ÂÒÚ‚ ‚ ̇¯ÂÈ ÔÓ‰Û͈ËË. Õ‡ÔËÏÂ, ‚ ̇¯Ëı
ÏÓÌËÚÓ‡ı ‚˚ Ì ̇ȉÂÚ ͇‰Ïˡ.
»ÌÙÓχˆËˇ ÔÓ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚
›ÚÓÚ ÏÓÌËÚÓ ÏÓÊÂÚ ÒÓ‰Âʇڸ ÍÓÏÔÓÌÂÌÚ˚,
ÍÓÚÓ˚ ÏÓ„ÛÚ Ì‡ÌÂÒÚË Û˘Â· ÓÍÛʇ˛˘ÂÈ Ò‰Â.
Russian
![](/img.php?id=1441218&img=bg3c.png)
07
Regulatory Information cont.
EPA
(EPA applied model only)
ENERGY STAR
is a set of power-saving guidelines
issued by the U.S. Environmental Protection
Agency(EPA).
NOM MARK (Mexico only)
ÕÂÓ·ıÓ‰ËÏÓ ÛÚËÎËÁËÓ‚‡Ú¸ ÏÓÌËÚÓ ÔÓÒÎÂ
ËÒÔÓθÁÓ‚‡Ìˡ.
KÓÔÓ‡ˆËˇ LGE Ô‡·‡Ú˚‚‡ÂÚ ‚Ò ·‡ÍÓ‚‡ÌÌ˚Â
ÏÓÌËÚÓ˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË ÔËÂÏÎÂÏÓ„Ó
ÏÂÚÓ‰‡ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚. œÓ ‚ÒÂÏÛ ÏËÛ
‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡
ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚
·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ
‚ÂÏˇ Í‡Í ‚‰Ì˚ ‚¢ÂÒÚ‚‡ Ë ÚˇÊÂÎ˚ ÏÂÚ‡ÎÎ˚
·Û‰ÛÚ Ó·‡·ÓÚ‡Ì˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË
ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡.
«‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ
ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í
ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ
ÍÓÔÓ‡ˆËË LG.
Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ
·ÂÁÓÔ‡ÒÌÓÒÚË, ÒÚ‡‚ˇ Ò· ˆÂθ˛ „ÎÓ·‡Î¸ÌÛ˛ Á‡˘ËÚÛ
ÓÍÛʇ˛˘ÂÈ Ò‰˚. ƒÓÔÓÎÌËÚÂθÌÛ˛ ËÌÙÓχˆË˛
Ó Ì‡¯ÂÈ ÔÓÎËÚËÍ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚ ‚˚
ÏÓÊÂÚ ̇ÈÚË Ì‡ ̇¯ÂÏ Ò‡ÈÚÂ:
http://www.lge.com/about/environment/html/Recycling.jsp
As an ENERGY STAR Partner LGE U. S.
A.,Inc. has determined that this product
meets the ENERGY STAR guidelines for
energy efficiency.
![](/img.php?id=1441218&img=bg3d.png)
08
Regulatory Information cont.
1.When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the
European Directive 2002/96/EC.
2.All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed by
the government or the local authorities.
3.The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4.For more detailed information about disposal of your
old appliance, please contact your city office, waste
disposal service or the shop where you purchased the
product.
Disposal of your old appliance
1.Quando su un prodotto è riportato il simbolo di
1.När den här symbolen med en överkryssad
soptunna på hjul sitter på en produkt innebär det
att den regleras av European Directive
2002/96/EC.
2.Alla elektriska och elektroniska produkter bör
kasseras via andra vägar än de som finns för
hushållsavfall, helst via för ändamålet avsedda
uppsamlingsanläggningar som myndigheterna
utser.
3.Om du kasserar din gamla apparat på rätt sätt
så bidrar du till att förhindra negativa
konsekvenser för miljön och människors hälsa.
4.Mer detaljerad information om kassering av din
gamla apparat kan får av kommunen,
renhållningsverket eller den butik där du köpte
produkten.
1.Als het symbool met de doorgekruiste verrijdbare
afvalbak op een product staat, betekent dit dat
het product valt onder de Europese Richtlijn
2002/96/EC.
2.Elektrische en elektronische producten mogen
niet worden meegegeven met het huishoudelijk
afval, maar moeten worden ingeleverd bij
speciale inzamelingspunten die door de lokale of
landelijke overheid zijn aangewezen.
3.De correcte verwijdering van uw oude toestel
helpt negatieve gevolgen voor het milieu en de
menselijke gezondheid voorkomen.
Smaltimento delle apparecchiature obsolete
Kassering av din gamla apparat
Uw oude toestel wegdoen
1.Ce symbole, représentant une poubelle sur
roulettes barrée d'une croix, signifie que le
produit est couvert par la directive européenne
2002/96/EC.
2.Les éléments électriques et électroniques
doivent être jetés séparément, dans les vide-
ordures prévus à cet effet par votre municipalité.
3.Une élimination conforme aux instructions aidera
à réduire les conséquences négatives et risques
éventuels pour l'environnement et la santé
humaine.
4.Pour plus d'information concernant l'élimination
de votre ancien appareil, veuillez contacter votre
mairie, le service des ordures ménagères ou
encore la magasin où vous avez acheté ce
produit.
Élimination de votre ancien appareil
un bidone della spazzatura barrato da una croce
significa che il prodotto è coperto dalla direttiva
europea 2002/96/EC.
2.Tutti i prodotti elettrici ed elettronici dovrebbero
essere smaltiti separatamente rispetto alla
raccolta differenziata municipale, mediante
impianti di raccolta specifici designati dal
governo o dalle autorità locali.
3.Il corretto smaltimento delle apparecchiature
obsolete contribuisce a prevenire possibili
conseguenze negative sulla salute umana e
sull'ambiente.
4.Per informazioni più dettagliate sullo smaltimento
delle apparecchiature obsolete, contattare il
comune, il servizio di smaltimento rifiuti o il
negozio in cui è stato acquistato il prodotto.
English
French
Italian
Swedish
Dutch
WEEE (for Europe )
![](/img.php?id=1441218&img=bg3e.png)
Regulatory Information cont.
09
1.Wenn dieses Symbol eines durchgestrichenen
Abfalleimers auf einem Produkt angebracht ist,
unterliegt dieses Produkt der europäischen
Richtlinie 2002/96/EC.
2.Alle Elektro- und Elektronik-Altgeräte müssen
getrennt vom Hausmüll über dafür staatlich
vorgesehenen Stellen entsorgt werden.
3.Mit der ordnungsgemäßen Entsorgung des alten
Geräts vermeiden Sie Umweltschäden und eine
Gefährdung der persönlichen Gesundheit.
4.Weitere Informationen zur Entsorgung des alten
Geräts erhalten Sie bei der Stadtverwaltung,
beim Entsorgungsamt oder in dem Geschäft, wo
Sie das Produkt erworben haben.
1.ŸÙ·Ó ¤Ó· ÚÔ˚fiÓ ‰È·ı¤ÙÂÈ ÙÔ ‰‡Ì‚ÔÏÔ ÂÓfi˜
‰È·ÁÚ·Ì̤ÓÔ˘ οϷıÔ˘ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÙfiÙ ÙÔ ÚÔ˚fiÓ
ηχÙÂÙ·È ·fi ÙËÓ E˘Úˆ·˚΋ O‰ËÁ›· 2002/96/EOK.
2.H ·fiÚÚÈ„Ë fiÏˆÓ ÙˆÓ ËÏÂÎÙÚÈÎÒÓ Î·È ËÏÂÎÙÚÔÓÈÎÒÓ
ÚÔ˚fiÓÙˆÓ Ú¤ÂÈ Ó· Á›ÓÂÙ·È ¯ˆÚÈÛÙ¿ ·fi Ù· ÁÂÓÈο
ÔÈÎȷο ·ÔÚÚ›ÌÌ·Ù· ̤ۈ ηıÔÚÈṲ̂ӈÓ
ÂÁηٷÛÙ¿ÛÂˆÓ Û˘ÏÏÔÁ‹˜ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÔÈ Ôԛ˜
¤¯Ô˘Ó ‰ËÌÈÔ˘ÚÁËı› ›Ù ·fi ÙËÓ Î˘‚¤ÚÓËÛË ‹ ·fi ÙȘ
ÙÔÈΤ˜ ·Ú¯¤˜.
3.H ÛˆÛÙ‹ ·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜ ı·
‚ÔËı‹ÛÂÈ ÛÙËÓ ·ÔÙÚÔ‹ Èı·ÓÒÓ ·ÚÓËÙÈÎÒÓ Û˘ÓÂÈÒÓ
ˆ˜ ÚÔ˜ ÙÔ ÂÚÈ‚¿ÏÏÔÓ Î·È ÙËÓ ˘Á›· ÙÔ˘ ·ÓıÚÒÔ˘.
4.°È· ÈÔ ÏÂÙÔÌÂÚ›˜ ÏËÚÔÊÔڛ˜ Û¯ÂÙÈο Ì ÙËÓ
·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜, ÂÈÎÔÈÓˆÓ‹ÛÙ ÌÂ
ÙÔ ·ÚÌfi‰›Ô ÙÔÈÎfi ÁÚ·Ê›Ô, ˘ËÚÂÛ›· ‰È¿ıÂÛ˘ ÔÈÎÈ·ÎÒÓ
·ÔÚÚÈÌÌ¿ÙˆÓ ‹ ÙÔ Ì·Á·Í› ·fi ÙÔ ÔÔ›Ô ·ÁÔÚ¿Û·ÙÂ ÙÔ
ÚÔ˚fiÓ.
1.Tämä merkki tuotteessa tarkoittaa, että tuote
kuuluu sähkö- ja elektroniikkalaiteromusta
annetun EU-direktiivin 2002/96/EY
soveltamisalaan.
2.Kaikki elektroniset laitteet ovat ongelmajätettä,
joten ne on toimitettava paikalliseen
keräyspisteeseen.
3.Vanhan laitteen asianmukainen hävittäminen
ehkäisee mahdollisia ympäristöön ja
terveyteen kohdistuvia haittavaikutuksia.
4.Lisätietoa vanhan laitteen hävittämisestä saat
ottamalla yhteyden paikallisiin viranomaisiin,
kierrätyskeskukseen tai myymälään, josta ostit
laitteen.
1.Når der er et tegn med et kryds over en
skraldespand, betyder det, at produktet er
omfattet af EU-direktiv 2002/96/EC.
2.Alle elektriske og elektroniske produkter skal
smides ud et andet sted end gennem den
kommunale affaldsordning ved hjælp af specielle
indsamlingsfaciliteter, der er organiseret af staten
1.Si en un producto aparece el símbolo de un contenedor
de basura tachado, significa que éste se acoge a la
Directiva 2002/96/CE.
2.Todos los aparatos eléctricos o electrónicos se deben
desechar de forma distinta del servicio municipal de
recogida de basura, a través de puntos de recogida
designados por el gobierno o las autoridades locales.
3.La correcta recogida y tratamiento de los dispositivos
inservibles contribuye a evitar riesgos potenciales para el
medio ambiente y la salud pública.
4.Para obtener más información sobre cómo deshacerse de
sus aparatos eléctricos y electrónicos viejos, póngase en
contacto con su ayuntamiento, el servicio de recogida de
basuras o el establecimiento donde adquirió el producto.
Vanhojen laitteiden hävittäminen
Entsorgung von Altgeräten
Sådan smider du dit gamle apparat ud
∞fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜
Cómo deshacerse de aparatos eléctricos y
electrónicos viejos
eller de lokale myndigheder.
3.Korrekt bortskaffelse af dit gamle apparat er med
til at forhindre mulige skadevirkninger på miljøet
og menneskelig sundhed.
4.Mere detaljerede oplysninger om bortskaffelse af
dit gamle apparat kan fås ved at kontakte dit
lokale kommunekontor, renovationsselskab eller
den butik, hvor du købte produktet.
Finnish
German
Danish
Greek
Spanish
4.Wilt u meer informatie over de verwijdering van
uw oude toestel? Neem dan contact op met uw
gemeente, de afvalophaaldienst of de winkel
waar u het product hebt gekocht.
![](/img.php?id=1441218&img=bg3f.png)
Regulatory Information cont.
10
Portuguese
Slovak
Czech
Croatian
Hungarian
Polish
![](/img.php?id=1441218&img=bg40.png)
Regulatory Information cont.
11
Estonian
Latvian
Lithuanian
