Product Name : Bluetooth 4.2 Module
Model Name : WB1NB7 (TWBU-Y303D)
![](/img.php?id=3206788&img=bg2.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 1 / 9
Copyrightⓒ. 2016. All Rights Reserved.
Table of Contents
No Description Page
1. Features …………….…………………………………………………....…………... 2
2. Module Photo …..……………………………………………………….…………… 2
3. Block Diagram .. ……………………………………………………………………… 3
4. Storage Conditions ….……………………………………………………………….. 4
5. Operating Conditions ….……………..……………………………………….……... 4
6. Interface Specification ……………..………………………………………….……... 5
7. Pin Description ………..………………………………………………………………. 6
8. Outline Drawing …………………………………………………………………….. 7
9. Packing Information ………………………………………………………….……… 8
![](/img.php?id=3206788&img=bg3.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 2 / 9
Copyrightⓒ. 2016. All Rights Reserved.
1. Features
- Complied with Bluetooth 4.2 specification with EDR function
- Internal printed antenna on PCB
- UART with maximum rate of 4Mbps interface
- 12pin SMD connector (connected with FFC)
- Size 34 x 19 x 2.9 mm
- Applied Airoha AB1520 for Main chipset
- RoHS compliant

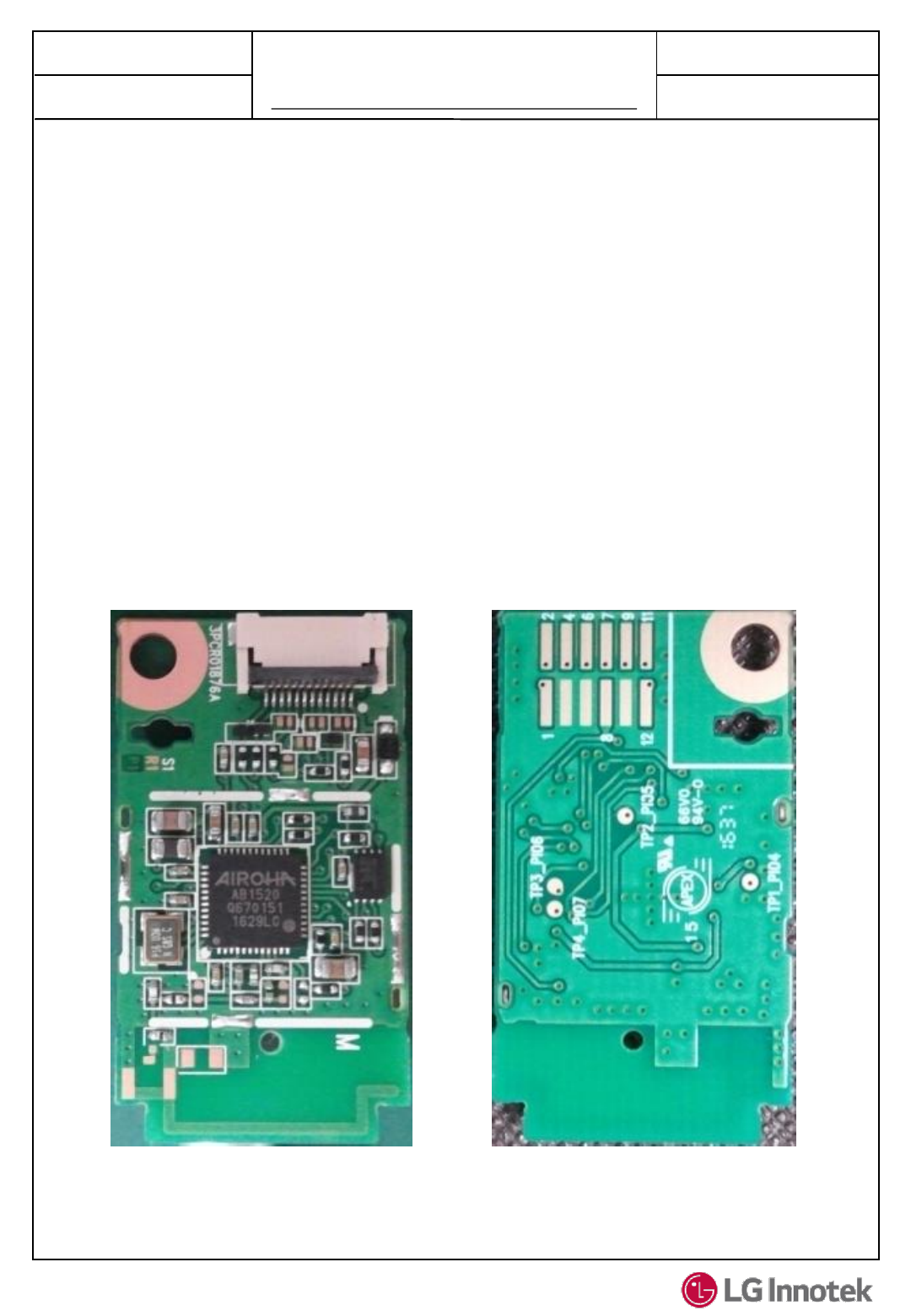

2. Module Photo
< TOP View > < Bottom View >
![](/img.php?id=3206788&img=bg4.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 4 / 9
Copyrightⓒ. 2016. All Rights Reserved.
5. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - +60 ℃
Operating Humidity (40℃) - - 85 %
Supply Voltage 3.15 3.3 3.45 Vdc
4. Storage Conditions
Parameter Min. Max. Unit
Storage Temperature -10 +80 ℃
Storage Humidity (@ 40℃) - 90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
•Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃ and 20 to 60%.
![](/img.php?id=3206788&img=bg5.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 5 / 9
Copyrightⓒ. 2016. All Rights Reserved.
6. Interface Specification
Configuration Parameter Supported Values
Data Length 8 Bits
Flow control Hardware RTS/CTS
None
Parity
Even
Odd
None
Number of stop bits 1 or 2
Baud rate
1200
2400
4800
9600
19200
38400
57600
76800
115200
230400
460800
921600
1843200
The UART interface supports flexible configuration as listed below.
There are local FIFOs and DMA which can achieve high throughputs serial communications.
![](/img.php?id=3206788&img=bg6.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 6 / 9
Copyrightⓒ. 2016. All Rights Reserved.

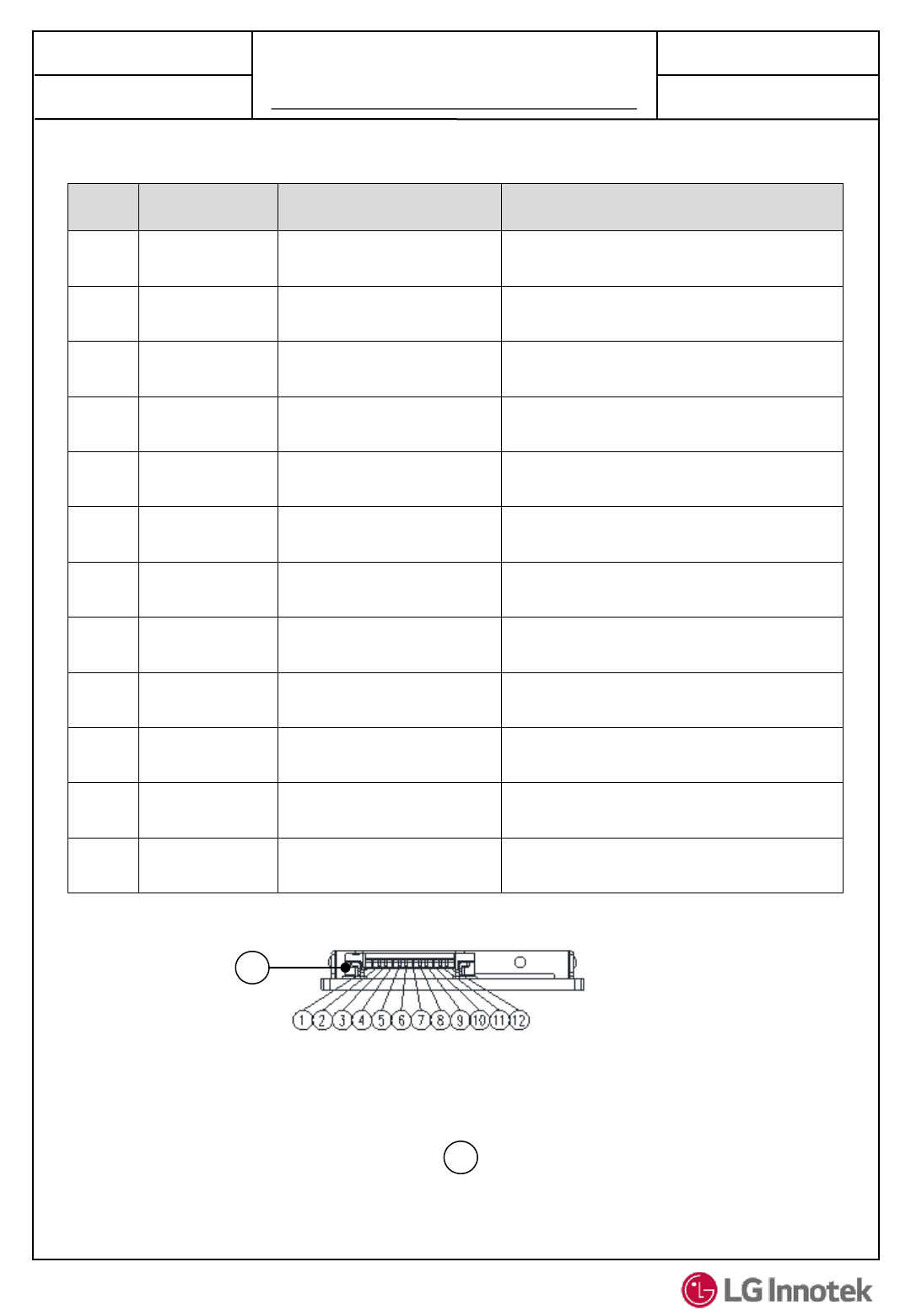

7. Pin Description
A
PIN No.
Pin Name Type Pin Description
1 +3.3V POWER +3.3V Supply for BT IC
2 RESET INPUT,DIGITAL Power on Reset
3 GND - Ground
4 SPDIF_OUT INPUT/OUTPUT,DIGITAL Crystal Trim/Digital Audio Output/PIO12
5 GND - Ground
6 BT_STANDBY INPUT/OUTPUT,DIGITAL BT Standby/PIO24
7 CALIBRATION INPUT/OUTPUT,DIGITAL Engineering Test Mode/SDA
8 WAKE INPUT,DIGITAL BT Wake
9 MODE_SEL INPUT/OUTPUT,DIGITAL Test Mode Selection/PIO3
10 GND - Ground
11 UART_TX OUTPUT,DIGITAL UART Transmitter
12 UART_RX INPUT,DIGITAL UART Receiver
A
Note.
1) Recommend a Module install sequence for prevent operation failure
- Supply 3.3V power
- Connect to pins
2) Connector : 12 Pin SMD Connector
-
![](/img.php?id=3206788&img=bg7.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 7 / 9
Copyrightⓒ. 2016. All Rights Reserved.

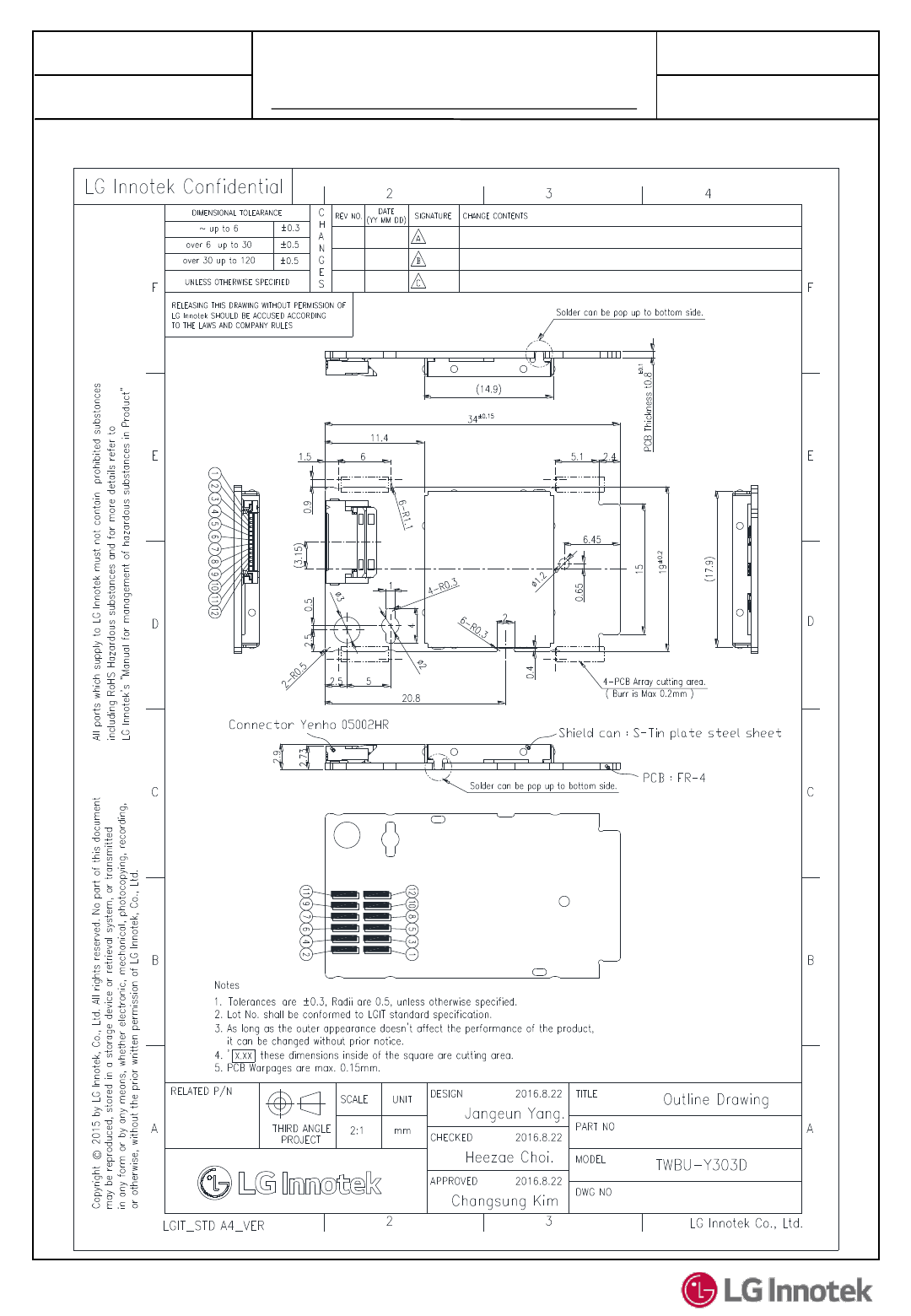

8. Outline Drawing
![](/img.php?id=3206788&img=bg8.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 8 / 9
Copyrightⓒ. 2016. All Rights Reserved.

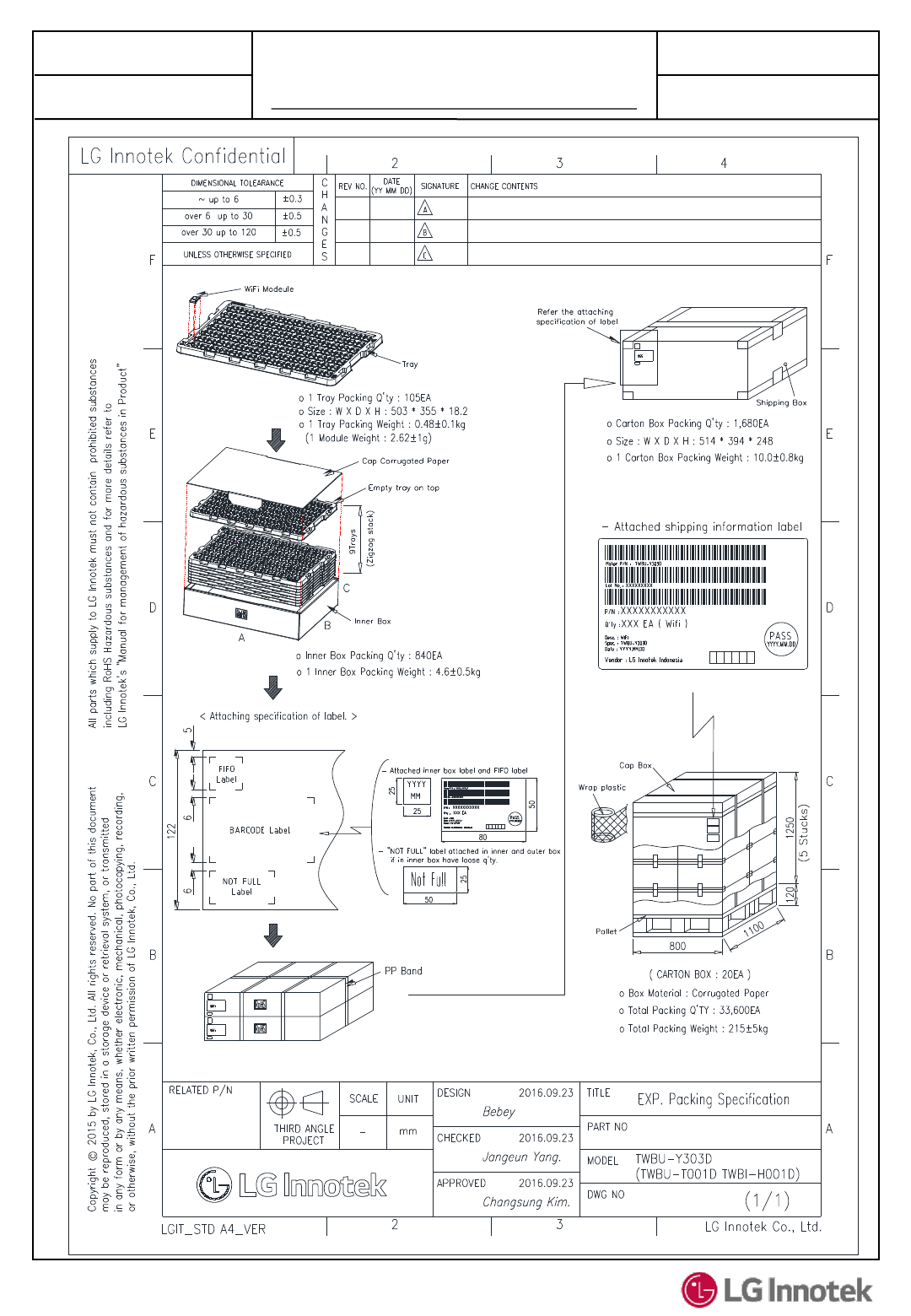

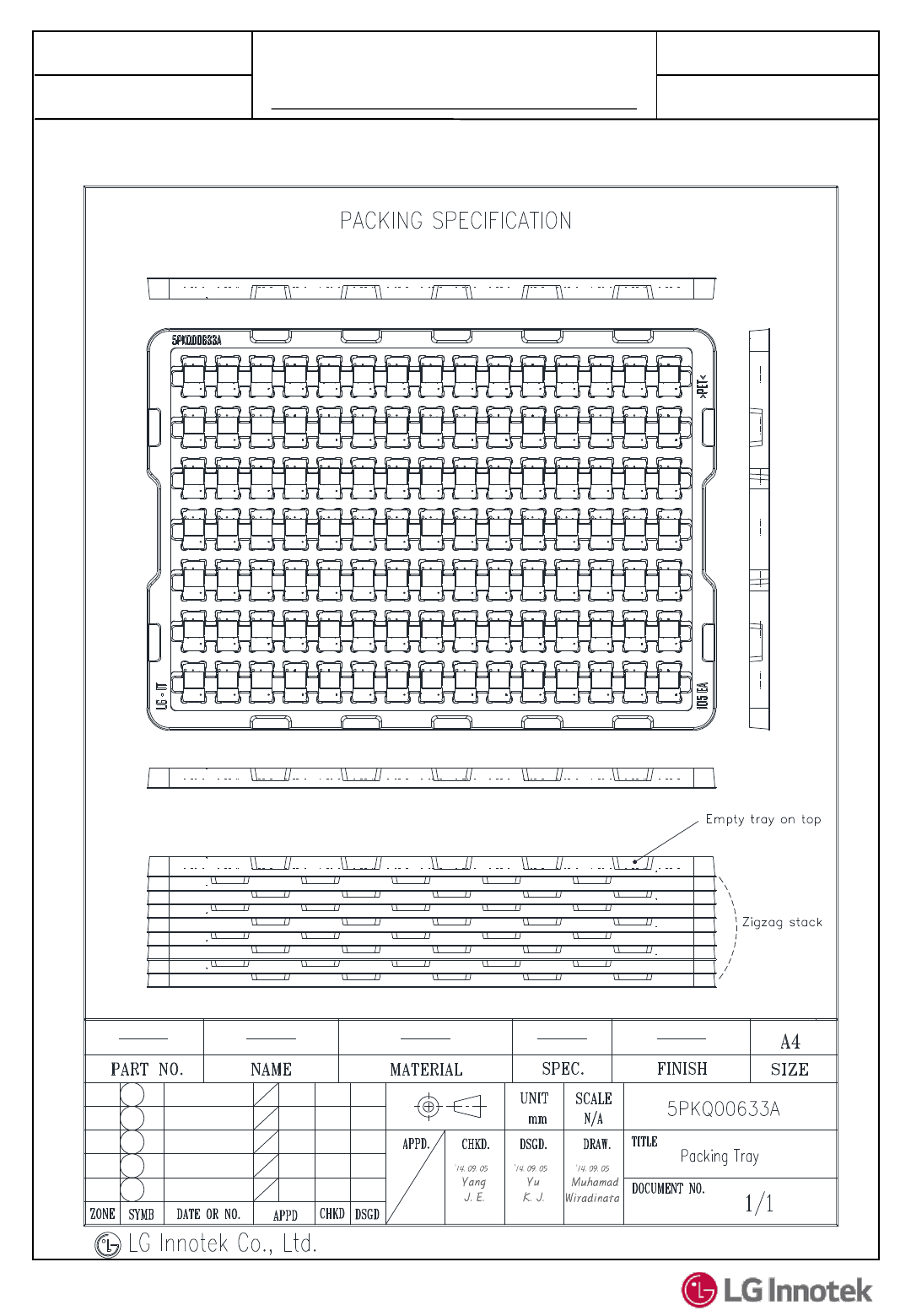

9. Packing Information
![](/img.php?id=3206788&img=bg9.png)
User Manual
Reg. Date : 2016. 09. 28
Model Name : WB1NB7(TWBU-Y303D)
Rev. Date :
Rev. No. : 1 . 0
Page : 9 / 9
Copyrightⓒ. 2016. All Rights Reserved.
