MEIAN Technology MD-210R Wireless magnetic contact User Manual
Shenzhen Meian Technology Co.,Ltd . Wireless magnetic contact
User Manual
![](/img.php?id=1853455&img=bg1.png)
Model:MD-210R
Wireless sending distance(open area):inset
antenna 150m.
Code: 28-digi t ID, 8-digit function code, 36
digits data code in total
Working frequency: 433MHz(optional)
Working voltage:3V lithium battery
Battery life: about 1 year
Current: static 5uA, alarm:7-12mA (433MHz)
static 5uA, alarm:35-45mA
Note This product use Cr123 lithium battery no battery set in when leave factory please set in
battery before using.
1 Press lightly the snap near the led, and open the cover;
2 Set in battery with right positive and negative poles;
3 code with the panel
A Set the wireless control pane at "auto code" mode.
B Let MD-210R enter working mode parallel put transmitter and magnetic stripe together,
move the magnetic stripe at the moment of pressing the ensure key on the panel and let the
detector send wireless signal. Then the panel will study the code of detector.

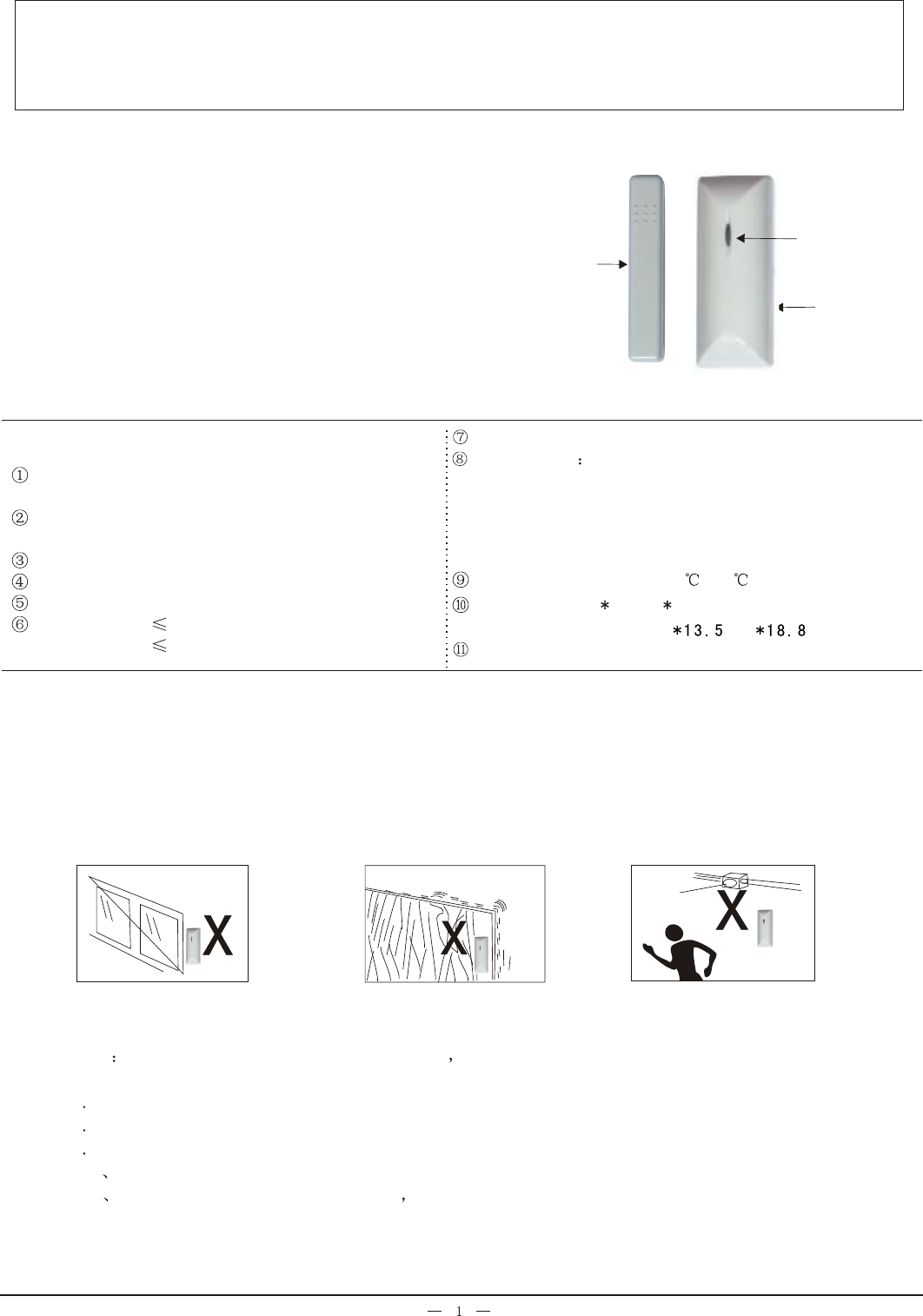

Product appearance
When use as wireless detector, do
not mount near strong magnetism
item.
Do not mount at the loose placeDo not mount on the place possiblely to be
destroyed outdoor.
Indication LED
Transmitter
Magnetic
stripe
Alarm output: alarm, tamper
3.2 Installation
Pay attention to these following points.
3.3 Installation introduction
The MD-210R is a fully supervised mini style magnetic
contact transmitter. It features door/ window close/open
instant alarm function. It can be connected to the control
panel. It can transmit strong wireless signal, having
strong intensity in 15m area. Pleas code it to the control
panel before using, enrolling the only one address code
to the control panel. When the distance between the
magnetic stripe and transmitter beyond 2.5cm the
transmitter will send alarm information to the panel. This
detector can change wired signal to wireless signal,
1. Introduction
A. Adopted low consumption CPU
B. Adopted unique Mutil codes
C. Auto status report
Buzzer
The installation guide for users of MD-210R
wireless magnetic switch
D. Anti-lost report
E. Open door/window indication
Status report after fist electro motion or reset the
detector the magnetic switch report the working status
to the control panel separately after 30 seconds, 2
minutes,6minutes. And report working status every
two hours to the control panel.
Color: White
Working Temeprature:-10 ~50
Dimesion:81(L) 32(W) 25(H)mm
Magnetic stripe:74.5 (L) (W) (H)mm
2. Specification
3.1 Main functions
3.The main function and installation
Working as a transmitter.
![](/img.php?id=1853455&img=bg2.png)
P/N 20101217-3
C The user also can enter address code manually, that will reduce error rate, set the control panel
at manual code mode , then enter the 9-digit code on the label of transmitter.
4 Testing magnetic switch parallel move magnetic stripe and inductor. MD-210R will send signal
once to the control panel, and the LED on the transmitter flick 5 times.
5 Fix the cover

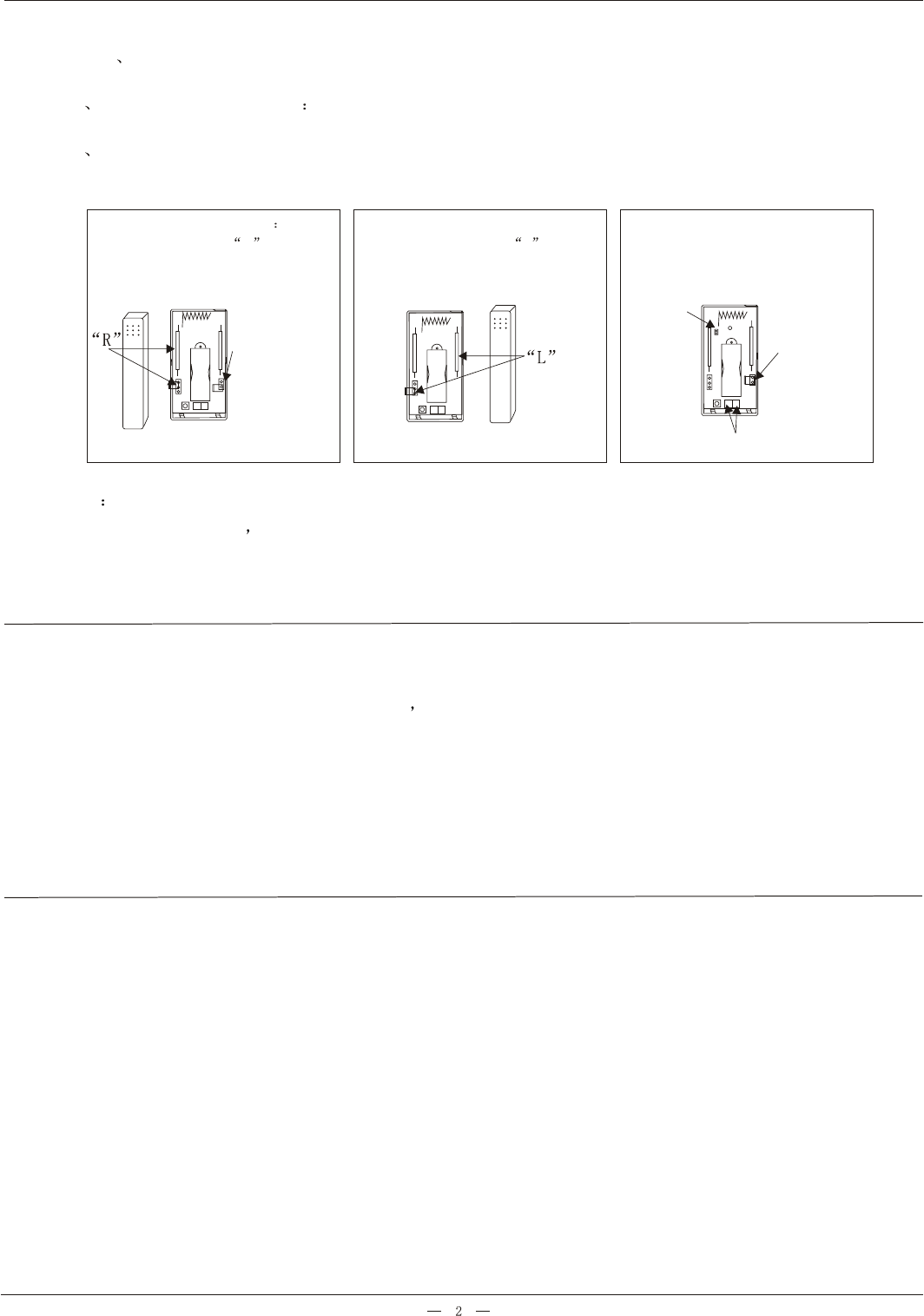

4 Install follow the pictures
1.If not drill on the wall please use strong double side glue or other strong Bonding agent to fix the
magnetic stripe and transmitter on the right place.
2. Do not mount on the base-loose place, possible to be destroyed place or with strong magnetic
interference(eg.loudspeaker, high voltage cable)
Note
Choose short circuit place when
magnetic fix on the R side of
reed switch. The jumper jump to the
R side of contact pin.
When use as
detector, these
jumper keep
opening.
Choose short circuit jumper:when
magnetic fix on the L side of
reed switch. The jumper jump to
the L side of contact pin.
when use as transmitter, connect
the alarm terminal to the wired
terminal of the magnetic.
Wired terminal
When use as
transmitter,
these jumper
keep short
circuit.
6. Miscellaneous Comments
Our wireless products are very reliable and tested to high standards. However, due to low transmitting
power and limited range(required by regulatory authorities , there are some limitations to be considered.
it will course the panel to make alarm at any alarm situation, following are some common examples
1. voltage instability for the control panel;
2.under voltage of detector etc.
These problem are not so difficult to solve, if needing help please contact the supplier.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
4.1 Change battery
The working life of battery is about one year change battery when the signal between the detector and
control panel become weak.
1.Open cover;
2.Take out used up battery and put in new battery rightly;
3.Test battery, parallel move the magnetic from transmitter, then the control panel will make alarm
information.
4.2 Clean and fix the cover
The surface of the detector will be dusty when used for a long time, please use wet cloth to clean it.
5.maintance
Open loop is NO;
Close loop is NC.
