MEIAN Technology MD-211R Wireless magnetic Contact User Manual
Shenzhen Meian Technology Co.,Ltd . Wireless magnetic Contact Users Manual
Users Manual
![](/img.php?id=3434759&img=bg1.png)
Model:MD-211R
①Wireless sending distance(open area):inset
antenna 150m.
②Working frequency: 433MHz
③Working voltage:3V lithium battery
④Current: static ≤10uA, alarm:≤50mA
⑤ Alarm output: Police intelligence report, Recovery
Report, tamper report, Low battery report with a status
report.
— 1 —
Note:This product use CR123A lithium battery,no battery set in when leave factory please set in
battery before using.
1.Press lightly the snap near the led, and open the cover;
2.Set in battery with right positive and negative poles;
3.Code with the panel
A、Set the wireless control pane at "auto code" mode.
B、Let MD-211R enter working mode,parallel put transmitter and magnetic stripe together,
move the magnetic stripe at the moment of pressing the ensure key on the panel and let the
detector send wireless signal. Then the panel will study the code of detector.

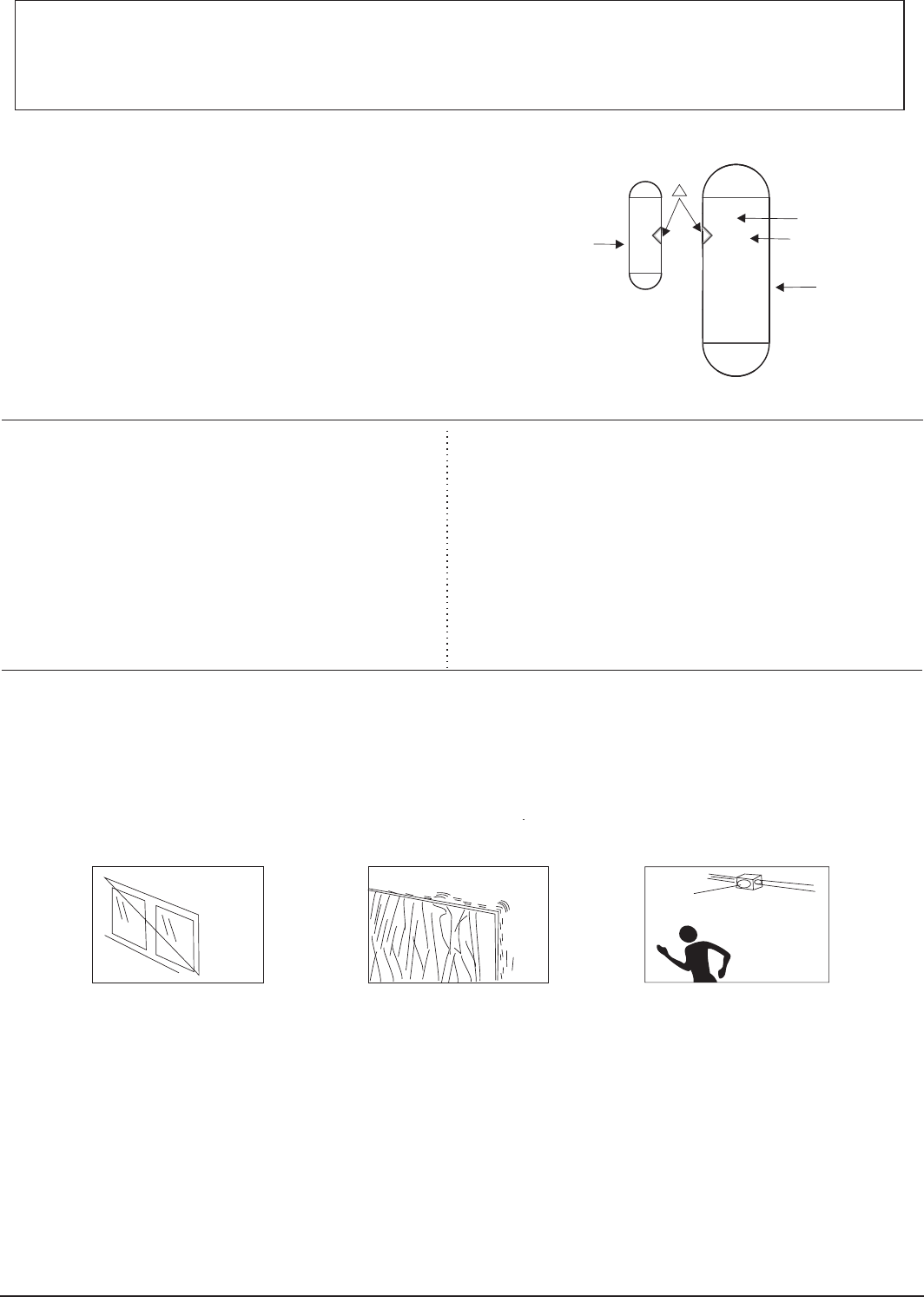

Product appearance
When use as wireless detector, do
not mount near strong magnetism
item.
Do not mount at the loose placeDo not mount on the place possiblely to be
destroyed outdoor.
Indication LED
Transmitter
Magnetic
stripe
⑥
⑦Working Temeprature:-10℃~50℃
⑧Dimesion:69.5(L)*21.2(W)*19.5(H)mm
Color: White
Status Report: Initial power-up or reset of the transmitter
after the operation, door Send a working status report to
the host every 50 minutes.
⑨
Magnetic stripe:34.5(L)*10(W)*13.2(H)mm
3.2 Installation
Pay attention to these following points.
3.3 Installation introduction
MD-211R is a "mini" wireless door detectors, the company
is currently Health Produced with the newest radio series host
supporting the use of detectors. The detector outside Type novel,
smooth lines, and the installation environment can be integrated,
as a family with jewelry.
Strong emission capacity of the wireless door sensor detector
signal, the host range of a radius of 150 meters.It has a high
sensitivity inner circle. Before use, the need to code with the host,
which is the only Address code learning to the host. "△" sign at
the host and the corresponding magnetic stripe needs place.
This detector is a separate triggered when the magnetic stripe
and the emitter position about 2.5cm When the transmitter that
is emitting an alarm signal to the alarm host, in order to prevent
an attempt to dive from windows and doors, etc.The intruder.
1. Introduction
A. Adopted low consumption CPU
B. Adopted unique Mutil codes
C. Auto status report
The installation guide for users of MD-211R
wireless magnetic contact
D. Anti-lost report
E. Open door/window indication
2. Specification
3.1 Main functions
3.The main function and installation
P/N:20160827A001
X
Buzzer
X
X
Tamper switch (back)
![](/img.php?id=3434759&img=bg2.png)
— 2 —
C、The user also can enter address code manually, that will reduce error rate, set the control panel
at manual code mode , then enter the 9-digit code on the label of transmitter.
4、Testing magnetic switch:parallel move magnetic stripe and transmiter. MD-211R will send signal
once to the control panel, and the LED on the transmitter flick 5 times.
5、Fix the cover.
3.4 Install Note:
1.If not drill on the wall,please use strong double side glue or other strong Bonding agent to fix the
magnetic stripe and transmitter on the right place.
2. Do not mount on the base-loose place, possible to be destroyed place or with strong magnetic
interference(eg.loudspeaker, high voltage cable)
5. Miscellaneous Comments
Our wireless products are very reliable and tested to high standards. However, due to low transmitting
power and limited range(required by regulatory authorities , there are some limitations to be considered.
it will course the panel to make alarm at any alarm situation, following are some common examples
1. voltage instability for the control panel;
2.under voltage of detector etc.
These problem are not so difficult to solve, if needing help please contact the supplier.
4.1 Change battery
The working life of battery is about one year,change battery when the signal between the detector and
control panel become weak.
1.Open cover;
2.Take out used up battery and put in new battery rightly;
3.Test battery, parallel move the magnetic from transmitter, then the control panel will make alarm
information.
4.2 Clean and fix the cover
The surface of the detector will be dusty when used for a long time, please use wet cloth to clean it.
4.maintance
