MEIAN Technology PB-433R Wireless Remote Control User Manual
Shenzhen Meian Technology Co.,Ltd . Wireless Remote Control Users Manual
Users Manual
![](/img.php?id=2291339&img=bg1.png)
P/N
PB-433R Wireless Remote Control
PB-433R is mini wireless remote control with 4 keys; it is one
of important accession of our company,With special out look,
it can be decoration and convenient for taking along. Easy to
operate,has high sensibility in 100 meters.With the function to
arm,disarm.emergency help.
1.INTRODUCTION
Model:PB-433R
Effective area:100m in open air
Frequency:433MHZ
Code:28bit ID.8bits function code,36 bits date code
Voltage:6V.With two CR2032 Lithium batteries.
working life is about one year
Information emission:LED light on
Temperature:-10℃~50℃
Size:62*32.5*13mm
Weight:25g
A. 4 independent function keys
B. For fast arm/disarm, easy and convenient,emergency
call,safe and covert.
C. Exquisite design, with pictures for key functions easy
explain
D. Scientific address code with millions of combination,
which enable all the remoter controller to be exclusive one,
without permitting, it is impossible to copy our wireless
products.
E. Low consumption for transmitting, indication for signal
out put visible
F. Compatible with all our 433MHz\868MHz wireless products.
2.SPECIFICATION 3.MAIN FUNCTION

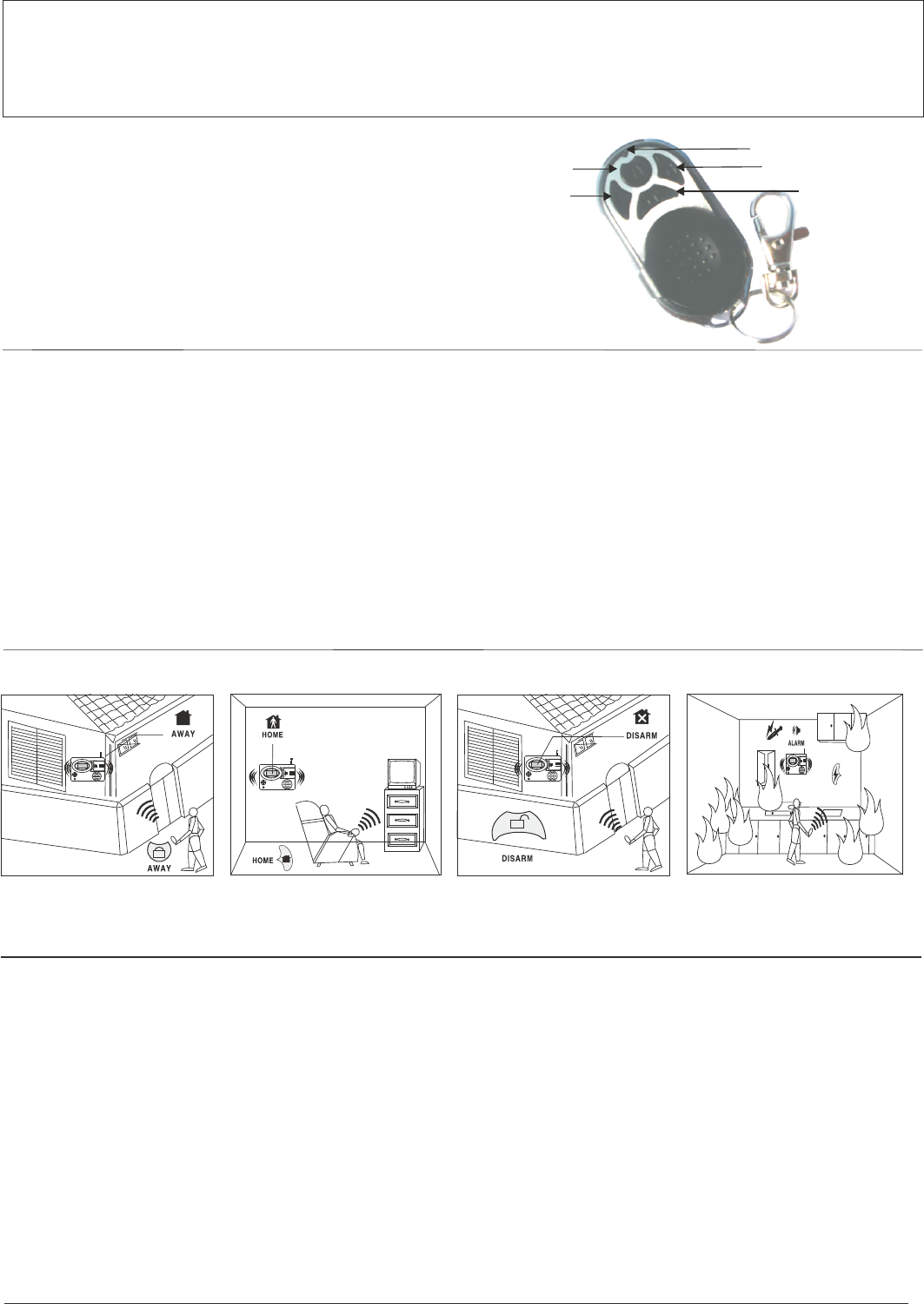

4.USING
LED
Away
Emergency
help
Home
Disarm
1.For away arm,press the key
AWAY for 2 seconds
2.For at home arm, press the key
HOME for 2 seconds
3.For disarm,press the key DISARM
for 2 seconds
4.The emergency help is safe and cobert.
press the key HELP for 3 to 4 seconds to
realize this function
E M E R G E N C Y H E L P
20110228-2
5.TEST AND MAITENANCE
5.1 Coding
1.Set the control panel to the enroll wireless device status.
2.Let the remode on coding mode,and press any key of the remote at the moment the panel on remote coding mode.
5.2 Test
When finished in the factory,PB-433R has build-in batteries.Before testing,we will need to code wireless producte
with PB-433R,for the coding details,please view the CODE SETTING of the manual of wireless products.The testing
process as following;
1.Keep the distance of PB-433R from the wireless products above 3 meters;pressthe key with lock picture
on the remoter controller for 2 seconds,the lamp for checking receiver's state should light twice.
2.confirm the wireless products have the same response, such as hear the hint voice SYSTEM ALARM.
3.Operate in the corner of covered zone of wireless products,such as the place blocke by will and large object,
to see if the system has the sanme hint voice
![](/img.php?id=2291339&img=bg2.png)

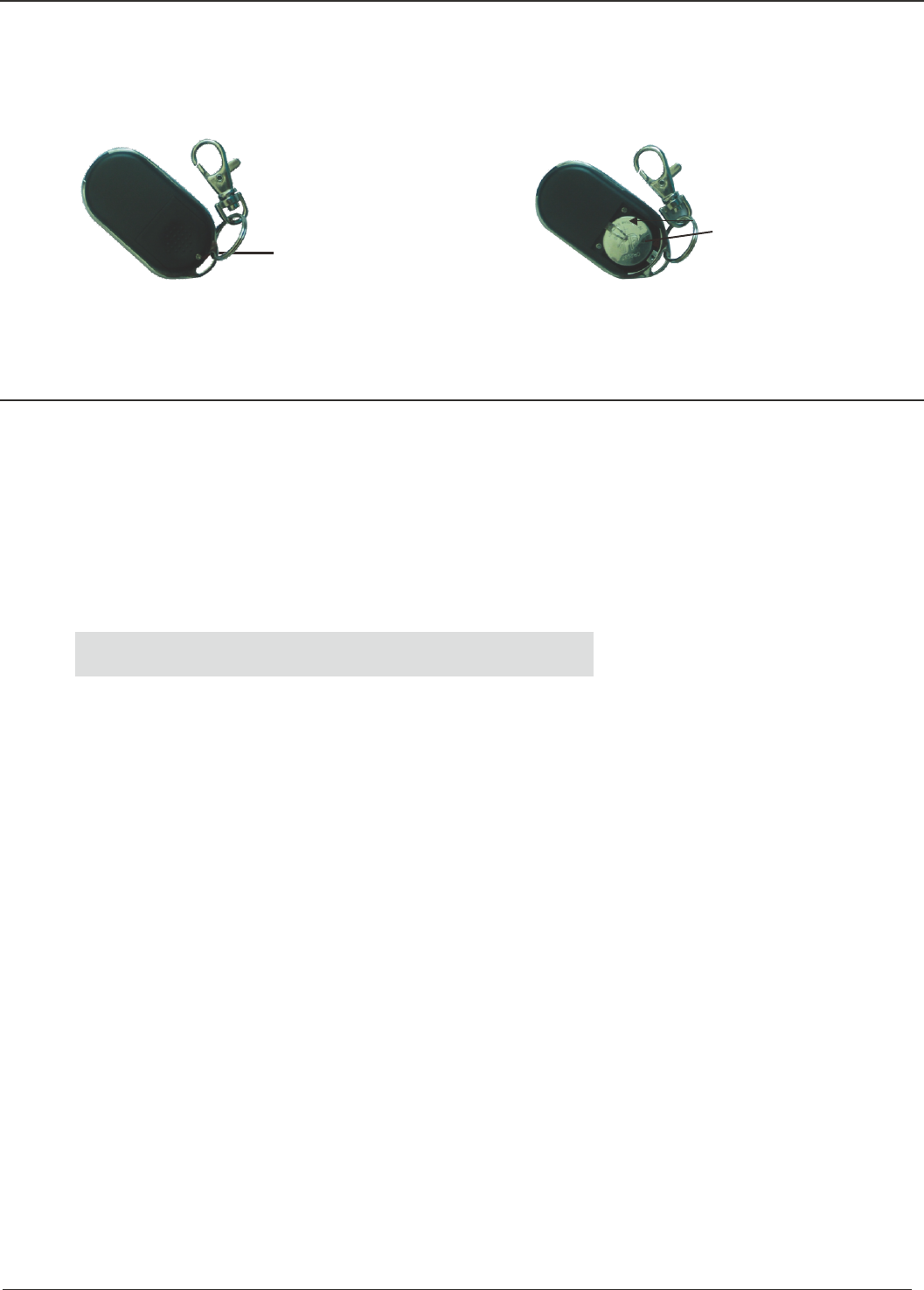

5.3.Change batteries
Change new battery when the signal become fade in the process of transmitting.
Please follow the below steps to change the batteries.
1.Use small screw driver to open the small screw on the back of the remoter controller. Keep the screw carefully
2.Fetch the back cover and pull out the old batteries.
3.Input the new batteries,pay attention to the anode and cathode.
4.Fix the back cover with the screw.
5.Test the installed batteries;press any key,the LED lamp on the remoter controller lighting, the control panel
will response correspondingly.
6.SYSTEM LIMITED
Our wireless products are reliable,while in certain situation,our system will be limited, the situation can be some
one as below;
1.When the control panel is not stable,or the remoter controller is not in the covered range, it may lead to signal
sending not success.
2.Undervoltage of the remote controller,etc.
For any requirement for help,please contact with our company
Note:without getting permission from corresponding person to
change the products at will,may lose the right of using this product
Screw
CR2032 batteries
(Battery pole
up:positive
down:negative)
P/N 20110228-2
