MINEW TECHNOLOGIES E2 Digital Broadcasting Device (iBeacon/Eddystone) User Manual Manual

Shenzhen Minew Technologies Co.,Ltd. Digital Broadcasting Device (iBeacon/Eddystone) Manual

Manual

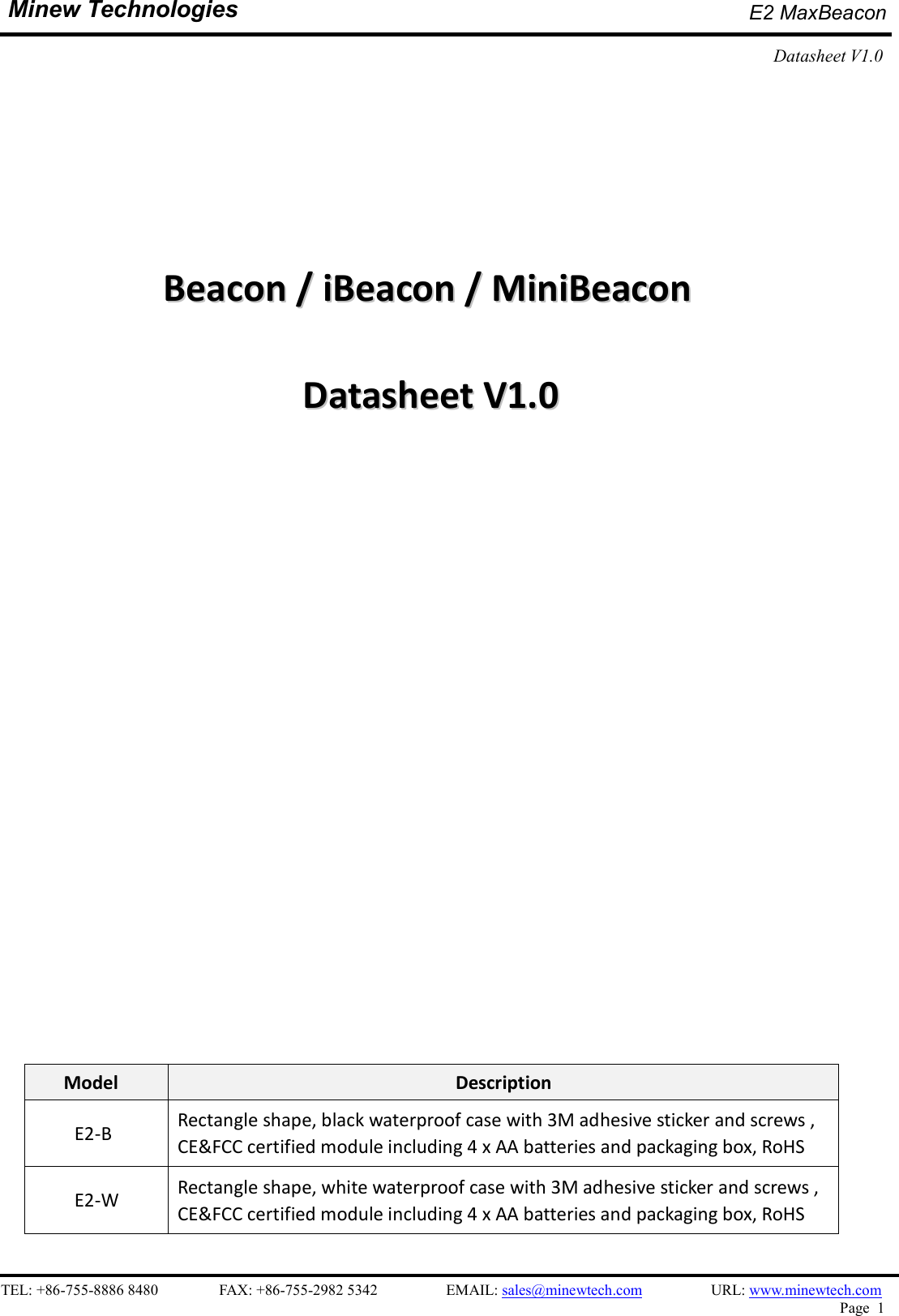

   TEL: +86-755-8886 8480                FAX: +86-755-2982 5342                  EMAIL: sales@minewtech.com                  URL: www.minewtech.com Page  1  Minew Technologies E2 MaxBeacon   Datasheet V1.0                            BBeeaaccoonn  //  iiBBeeaaccoonn  //  MMiinniiBBeeaaccoonn    DDaattaasshheeeett  VV11..00                           Model  Description     E2-B  Rectangle shape, black waterproof case with 3M adhesive sticker and screws , CE&FCC certified module including 4 x AA batteries and packaging box, RoHS     E2-W  Rectangle shape, white waterproof case with 3M adhesive sticker and screws , CE&FCC certified module including 4 x AA batteries and packaging box, RoHS

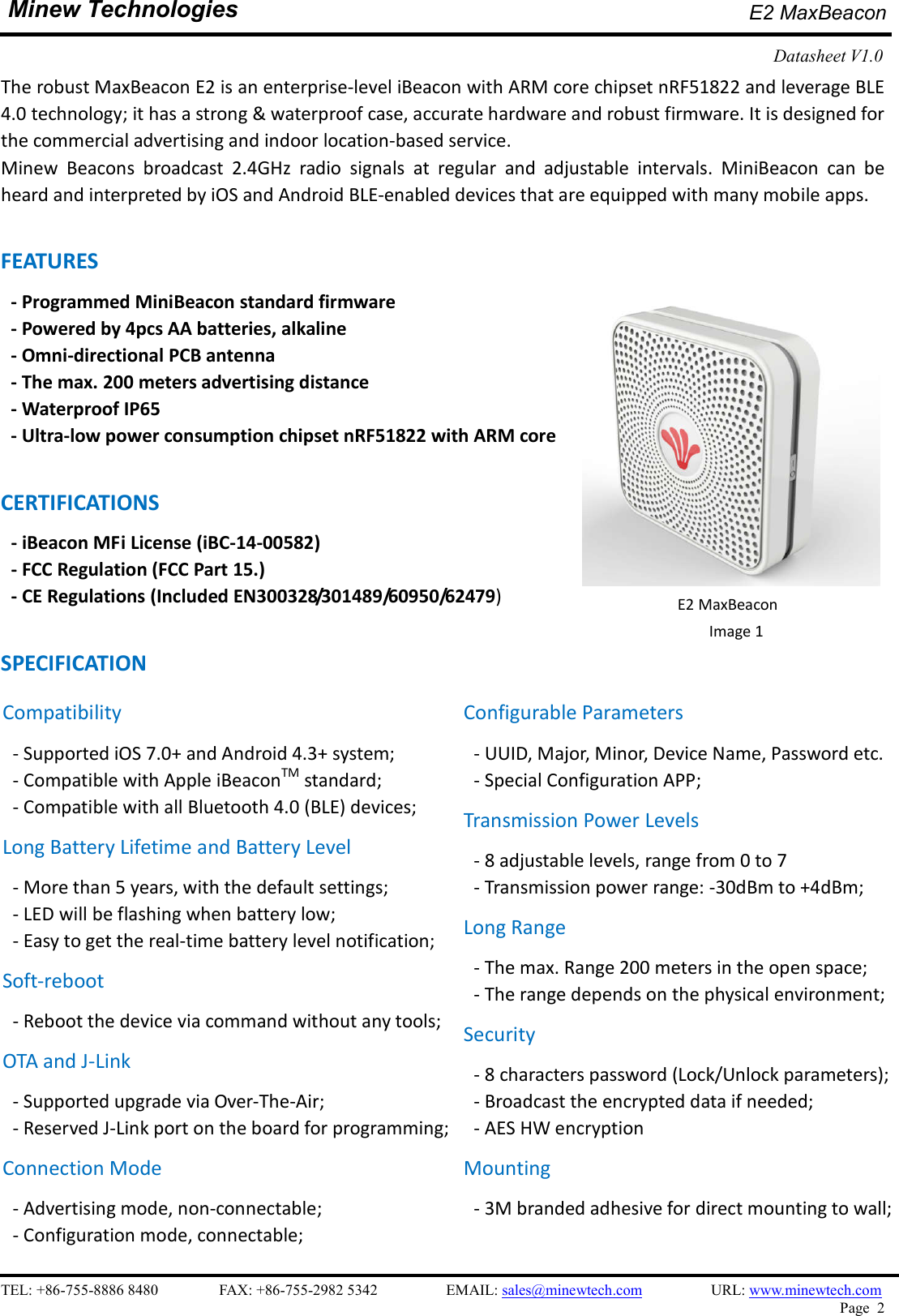

   TEL: +86-755-8886 8480                FAX: +86-755-2982 5342                  EMAIL: sales@minewtech.com                  URL: www.minewtech.com Page  2  Minew Technologies E2 MaxBeacon   Datasheet V1.0    The robust MaxBeacon E2 is an enterprise-level iBeacon with ARM core chipset nRF51822 and leverage BLE 4.0 technology; it has a strong & waterproof case, accurate hardware and robust firmware. It is designed for the commercial advertising and indoor location-based service. Minew  Beacons  broadcast  2.4GHz  radio  signals  at  regular  and  adjustable  intervals.  MiniBeacon  can  be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.  FEATURES - Programmed MiniBeacon standard firmware   - Powered by 4pcs AA batteries, alkaline - Omni-directional PCB antenna - The max. 200 meters advertising distance - Waterproof IP65 - Ultra-low power consumption chipset nRF51822 with ARM core  CERTIFICATIONS - iBeacon MFi License (iBC-14-00582)   - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479)  SPECIFICATION                                                     E2 MaxBeacon Image 1   Compatibility - Supported iOS 7.0+ and Android 4.3+ system; - Compatible with Apple iBeaconTM standard;   - Compatible with all Bluetooth 4.0 (BLE) devices; Long Battery Lifetime and Battery Level - More than 5 years, with the default settings; - LED will be flashing when battery low; - Easy to get the real-time battery level notification; Soft-reboot   - Reboot the device via command without any tools;   OTA and J-Link - Supported upgrade via Over-The-Air;   - Reserved J-Link port on the board for programming;   Connection Mode - Advertising mode, non-connectable;   - Configuration mode, connectable;   Configurable Parameters - UUID, Major, Minor, Device Name, Password etc. - Special Configuration APP; Transmission Power Levels - 8 adjustable levels, range from 0 to 7 - Transmission power range: -30dBm to +4dBm;   Long Range - The max. Range 200 meters in the open space;   - The range depends on the physical environment; Security - 8 characters password (Lock/Unlock parameters);   - Broadcast the encrypted data if needed; - AES HW encryption Mounting - 3M branded adhesive for direct mounting to wall;

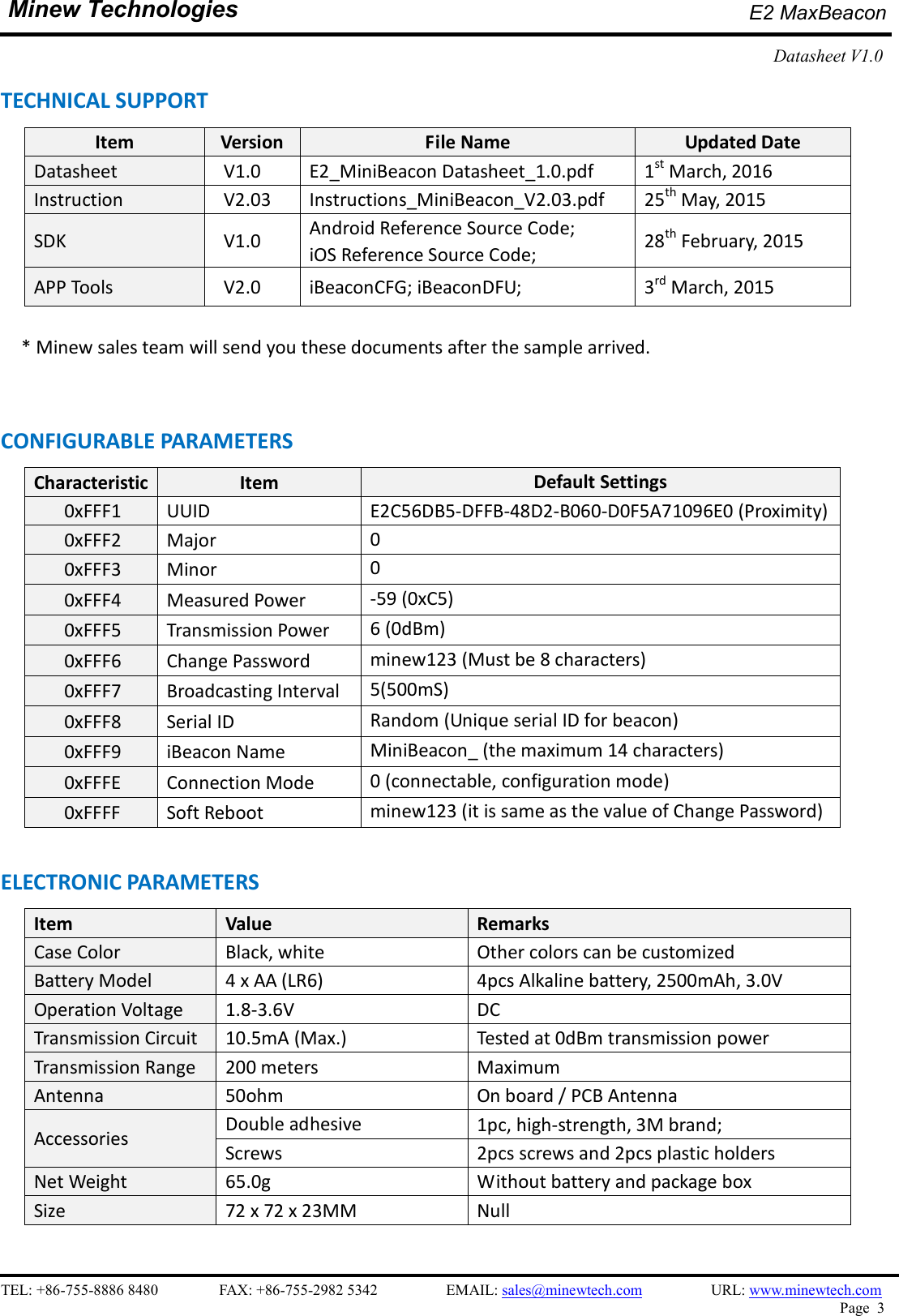

   TEL: +86-755-8886 8480                FAX: +86-755-2982 5342                  EMAIL: sales@minewtech.com                  URL: www.minewtech.com Page  3  Minew Technologies E2 MaxBeacon   Datasheet V1.0    TECHNICAL SUPPORT Item  Version  File Name  Updated Date Datasheet  V1.0  E2_MiniBeacon Datasheet_1.0.pdf  1st March, 2016 Instruction  V2.03  Instructions_MiniBeacon_V2.03.pdf  25th May, 2015 SDK    V1.0  Android Reference Source Code;   iOS Reference Source Code;  28th February, 2015 APP Tools    V2.0  iBeaconCFG; iBeaconDFU;  3rd March, 2015     * Minew sales team will send you these documents after the sample arrived.  CONFIGURABLE PARAMETERS                                                 Characteristic Item  Default Settings 0xFFF1  UUID    E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)       0xFFF2  Major  0       0xFFF3  Minor  0       0xFFF4  Measured Power  -59 (0xC5)       0xFFF5  Transmission Power  6 (0dBm)       0xFFF6  Change Password  minew123 (Must be 8 characters)       0xFFF7  Broadcasting Interval  5(500mS)       0xFFF8  Serial ID  Random (Unique serial ID for beacon)       0xFFF9  iBeacon Name  MiniBeacon_ (the maximum 14 characters)       0xFFFE  Connection Mode  0 (connectable, configuration mode)       0xFFFF  Soft Reboot    minew123 (it is same as the value of Change Password)  ELECTRONIC PARAMETERS Item    Value  Remarks Case Color  Black, white  Other colors can be customized Battery Model  4 x AA (LR6)  4pcs Alkaline battery, 2500mAh, 3.0V Operation Voltage  1.8-3.6V  DC Transmission Circuit  10.5mA (Max.)  Tested at 0dBm transmission power Transmission Range  200 meters  Maximum Antenna  50ohm  On board / PCB Antenna Accessories  Double adhesive  1pc, high-strength, 3M brand; Screws  2pcs screws and 2pcs plastic holders Net Weight  65.0g  Without battery and package box Size  72 x 72 x 23MM  Null
   TEL: +86-755-8886 8480                FAX: +86-755-2982 5342                  EMAIL: sales@minewtech.com                  URL: www.minewtech.com Page  4  Minew Technologies  E2 MaxBeacon   Datasheet V1.0   APPDENDIX 1. J-LINK Programmer Kit;   2. Over-the-Air Function;  Please contact Minew sales team to ask more related information if needed.  DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet.     FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.     -- Increase the separation between the equipment and receiver.       -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   -- Consult the dealer or an experienced radio/TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
