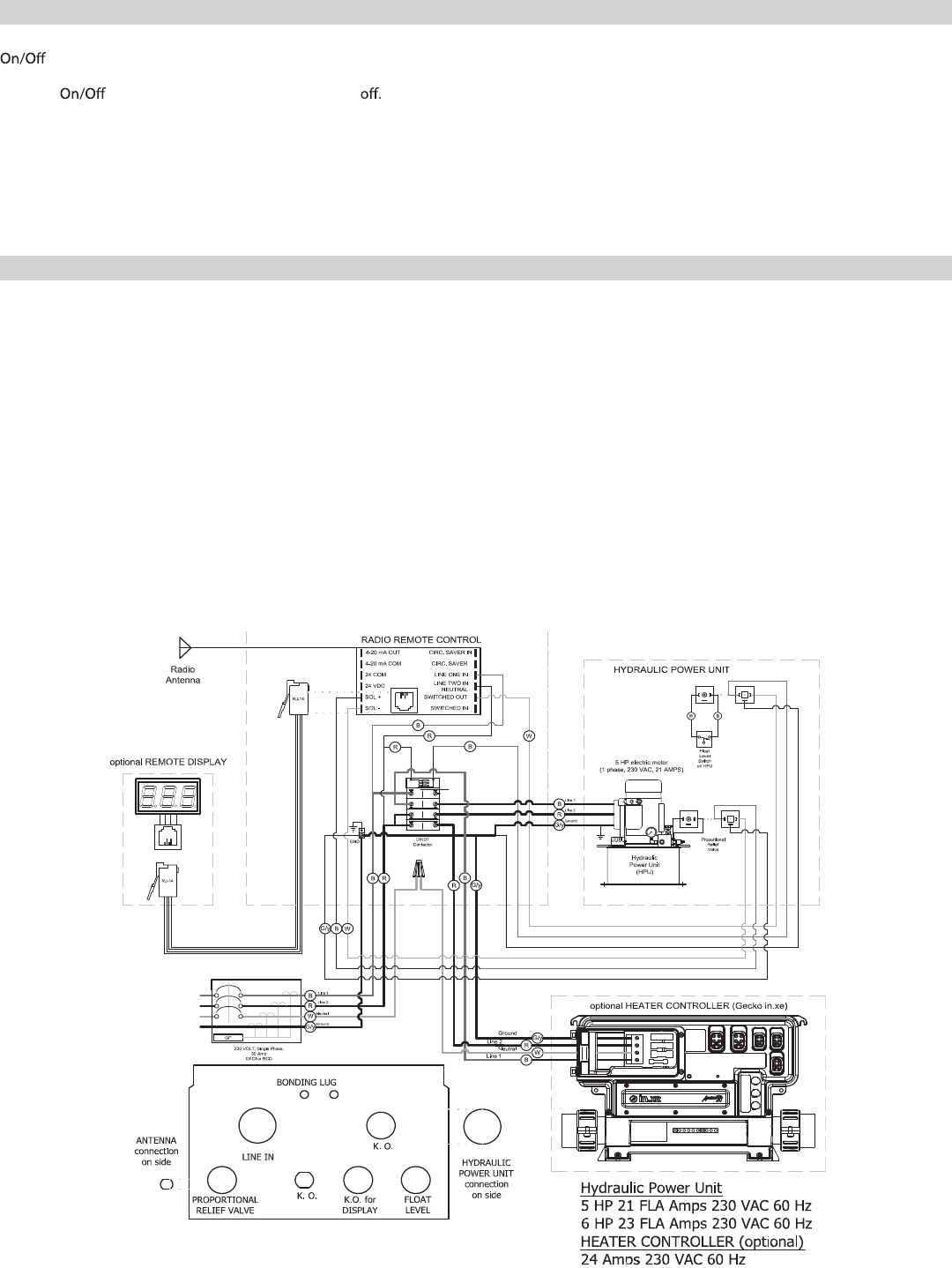

Remote Control:Transmitter
The remote control transmitter has three buttons . Press and hold the
button to turn the swim current on. Press and hold the Up or
Down button to addjust the current to the desired speed . Press and
hold the button while the current is on to turn
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesi red operation .
MODEL: EP-1g - 230 VAC, 24 AMPS, 60 Hz.
IP25 RATED RAINPROOF (TYPE 3R) ENCLOSURE SUITABLE FOR
INDOOR OR OUTDOOR USE
THIS UNIT REQUIRES 30 AMP 230 VOLT AC, SINGLE PHASE WITH
NEUTRAL, 60 Hz. (THREE COPPER WIRES PLUS GROUND)
Hydraulic Power Unit
5 HP 21 FLA Amps 230 VAC 60 Hz
6 HP 23 FLA Amps 230 VAC 60 Hz
HEATER CONTROLLER (optional)
24 Amps 230 VAC 60 Hz
Controller
IMPORTANT SAFETY INSTRUCTIONS: Read and follow all instruc-
tions. To reduce the risk of injury, do not permit child ren to use this
product unless supe rvised at all times. This control panel must be
installed according to local electric code requi rements . A GFCI
(Ground Fault Circuit Interrupter) or RCD (Residual Current Device)
circuit breaker must be used in the service panel and tested before
each use in accordance with the manufactu rer's instructions . The line-in
wire whip should be connected to a safety disconnect in sight of all
equipment , but at least 5 feet away from the pool. This controller must
be installed at least 5 feet away from the pool and all conductors must
not sha re boxes, conduits or enclosu res with non GFCI or RCD pro-
tected wiring . All wires must be coppe r. Box must be mounted with
conduit down.
9
WARNING: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
