Moxa WE2100T Wireless to Serial Module User Manual NE 4100 Series User s Manual
Moxa Inc. Wireless to Serial Module NE 4100 Series User s Manual
Moxa >
User manual
WE-2100T Series User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in
accordance with the terms of that agreement.
Copyright Notice
Copyright © 2007 Moxa Technologies Co., Ltd.
All rights reserved.
Reproduction without permission is prohibited.
Trademarks
MOXA is a registered trademark of The Moxa Group.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the
part of Moxa.
Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Table of Contents
Overview.................................................................................................................................1-2
Package Checklist....................................................................................................................1-2
Product Features......................................................................................................................1-2
Product Specifications.............................................................................................................1-3
Specification and dimension....................................................................................................2-2
Pin Assignments......................................................................................................................2-4
WE-2100T LED Indicators .....................................................................................................2-5
Wiring Requirements...............................................................................................................3-2

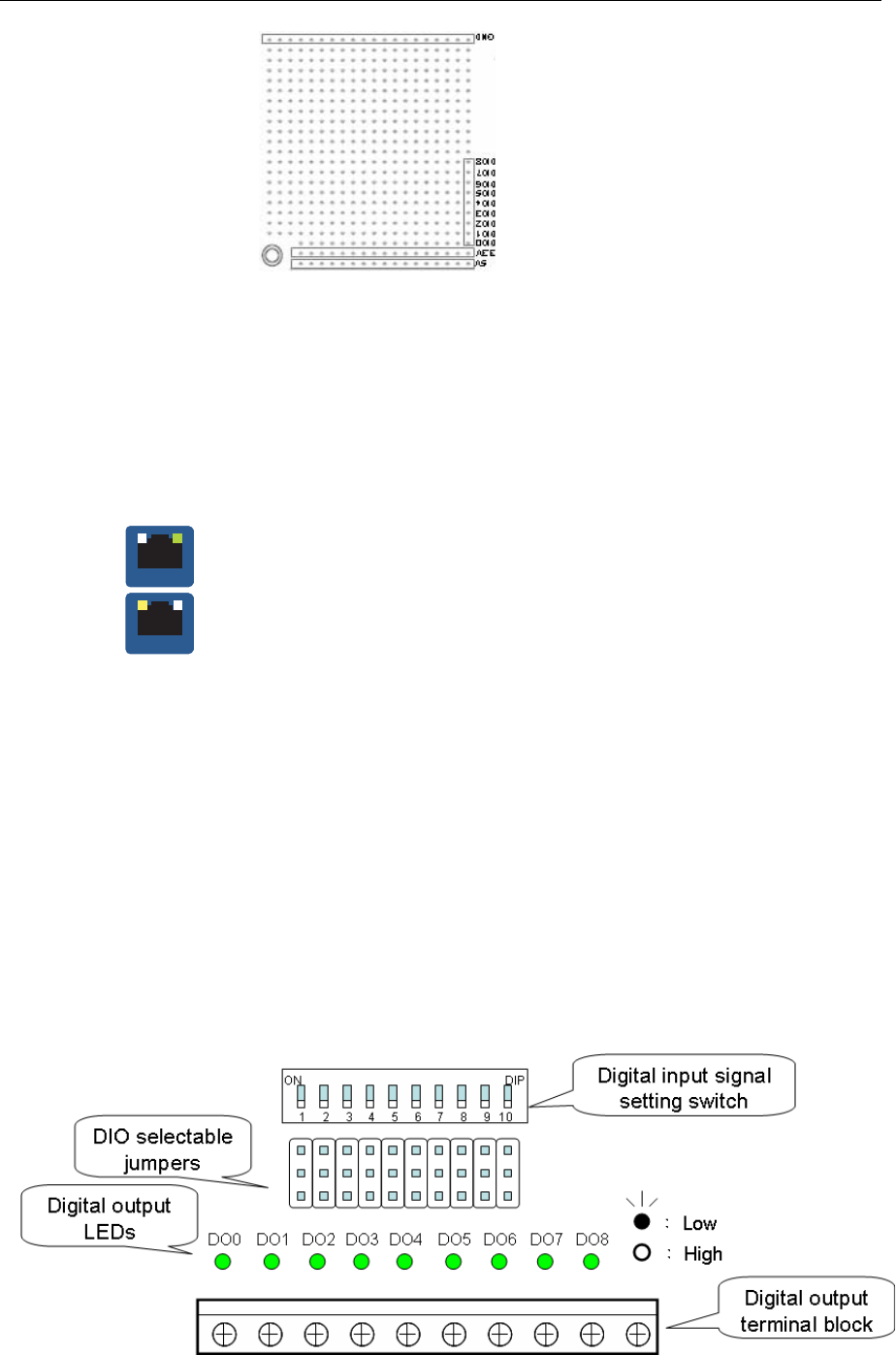

Attaching WE-2100T to the Evaluation Board........................................................................3-2
Circuit Pad for External Connection .......................................................................................3-3
Connecting the Power..............................................................................................................3-4
Connecting to the Network......................................................................................................3-4
Connecting to a Serial Device.................................................................................................3-4

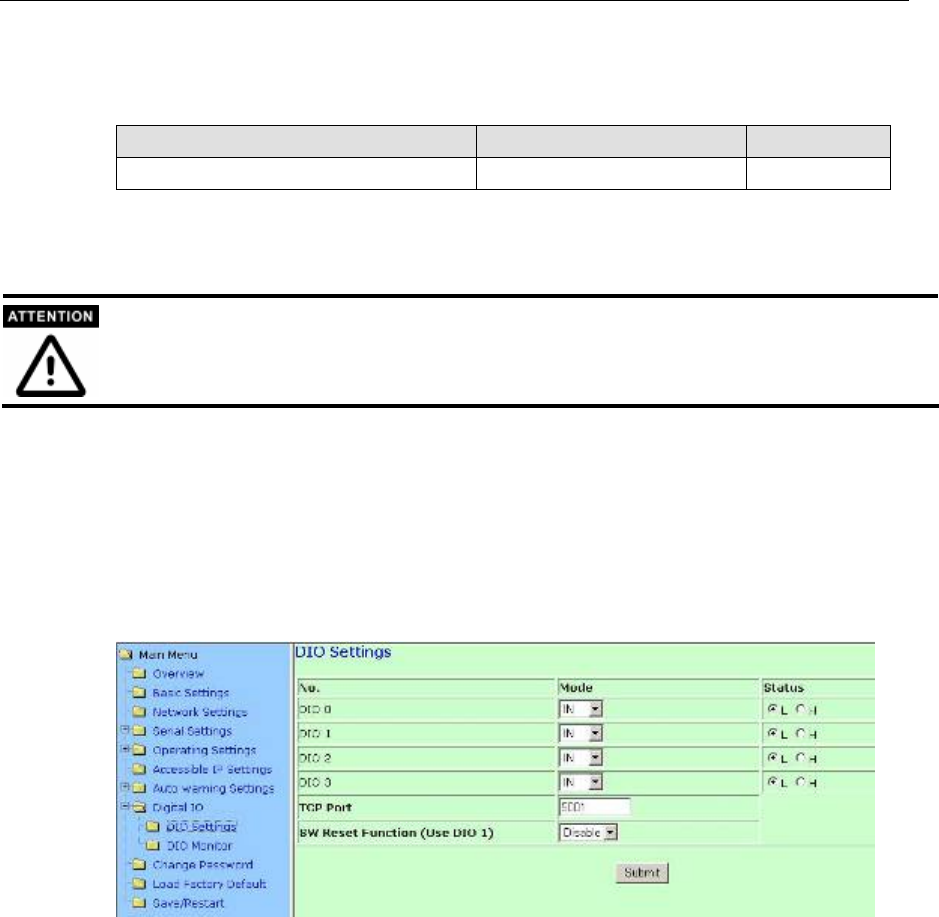

DI/O Settings...........................................................................................................................3-4
Digital Output LED Circuit Design..............................................................................3-5
Overview.................................................................................................................................4-2

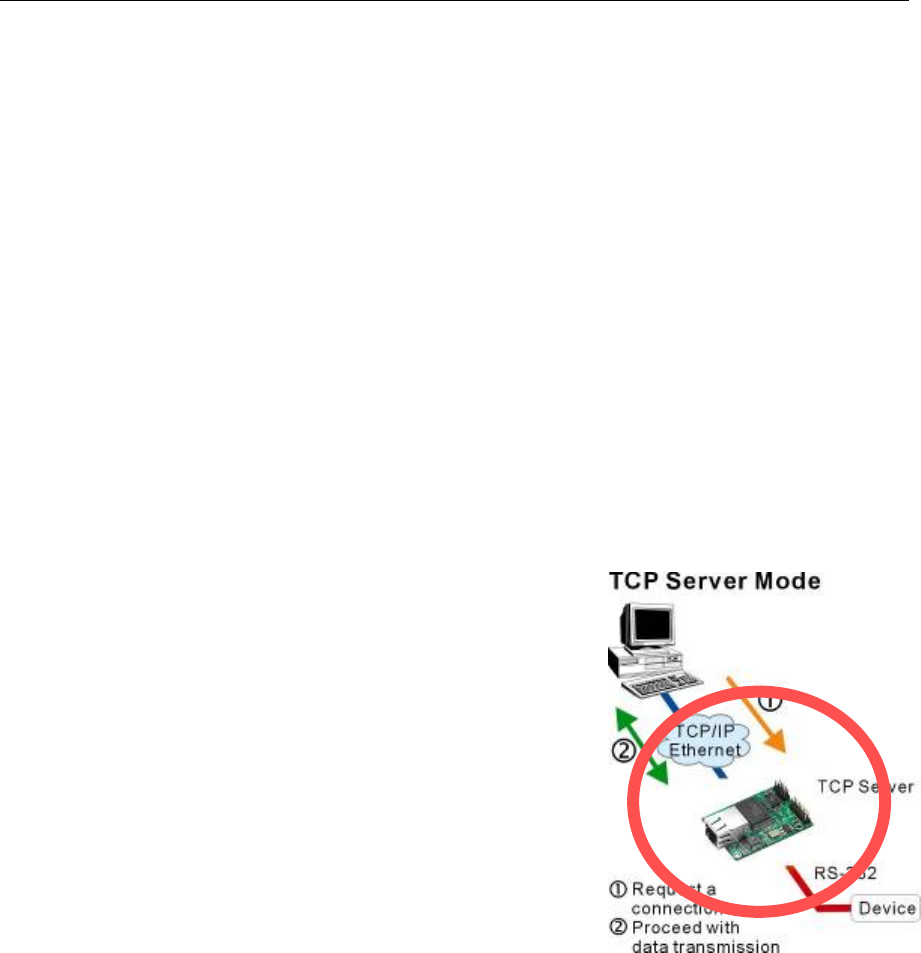

TCP Server Mode....................................................................................................................4-2

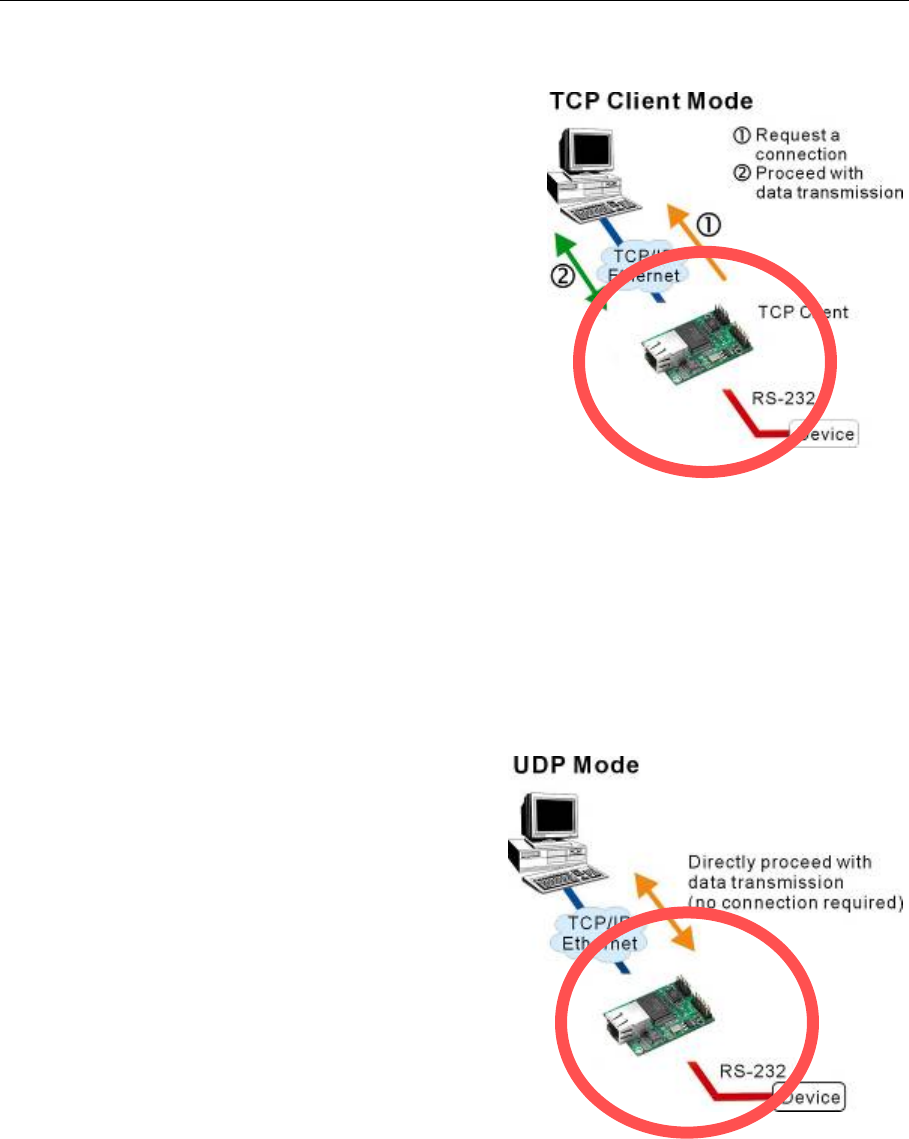

TCP Client Mode.....................................................................................................................4-3
UDP Mode...............................................................................................................................4-3

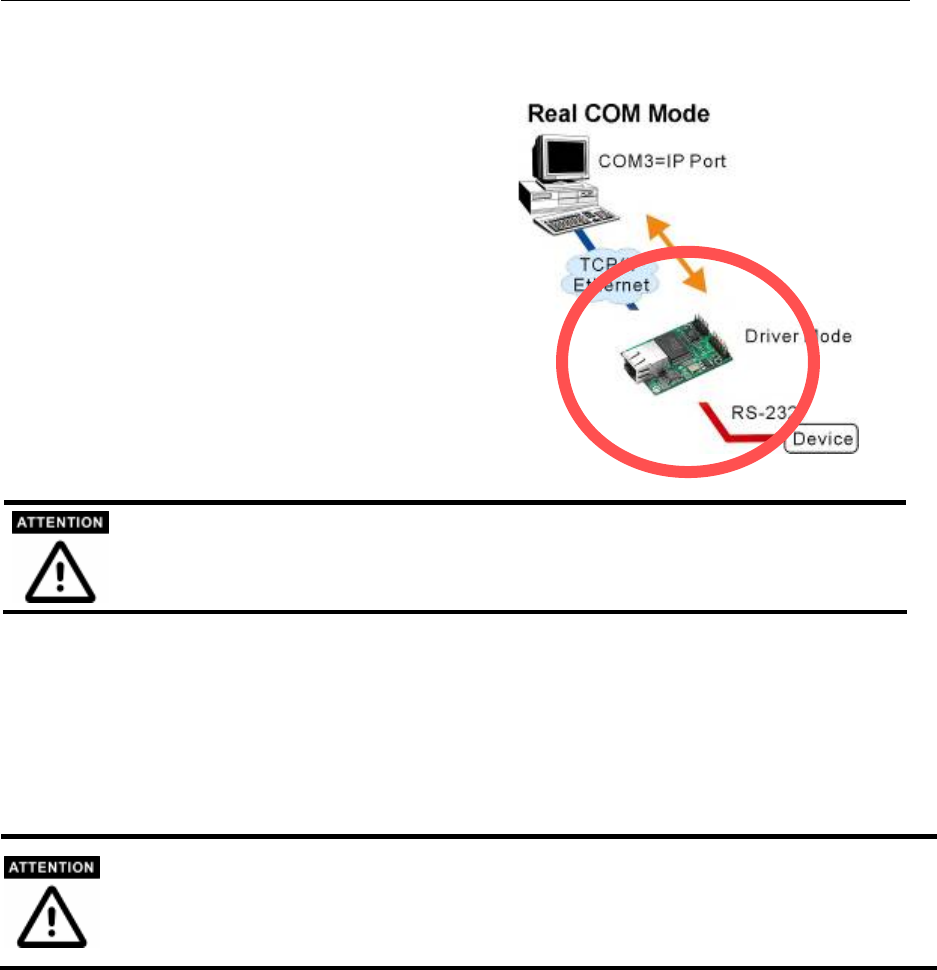

Real COM Mode .....................................................................................................................4-4
Initializing WE-2100T’s IP Address........................................................................................5-2
Factory Default IP Address......................................................................................................5-2
WE-2100T Series Administration Suite ..................................................................................5-2
ARP.........................................................................................................................................5-2

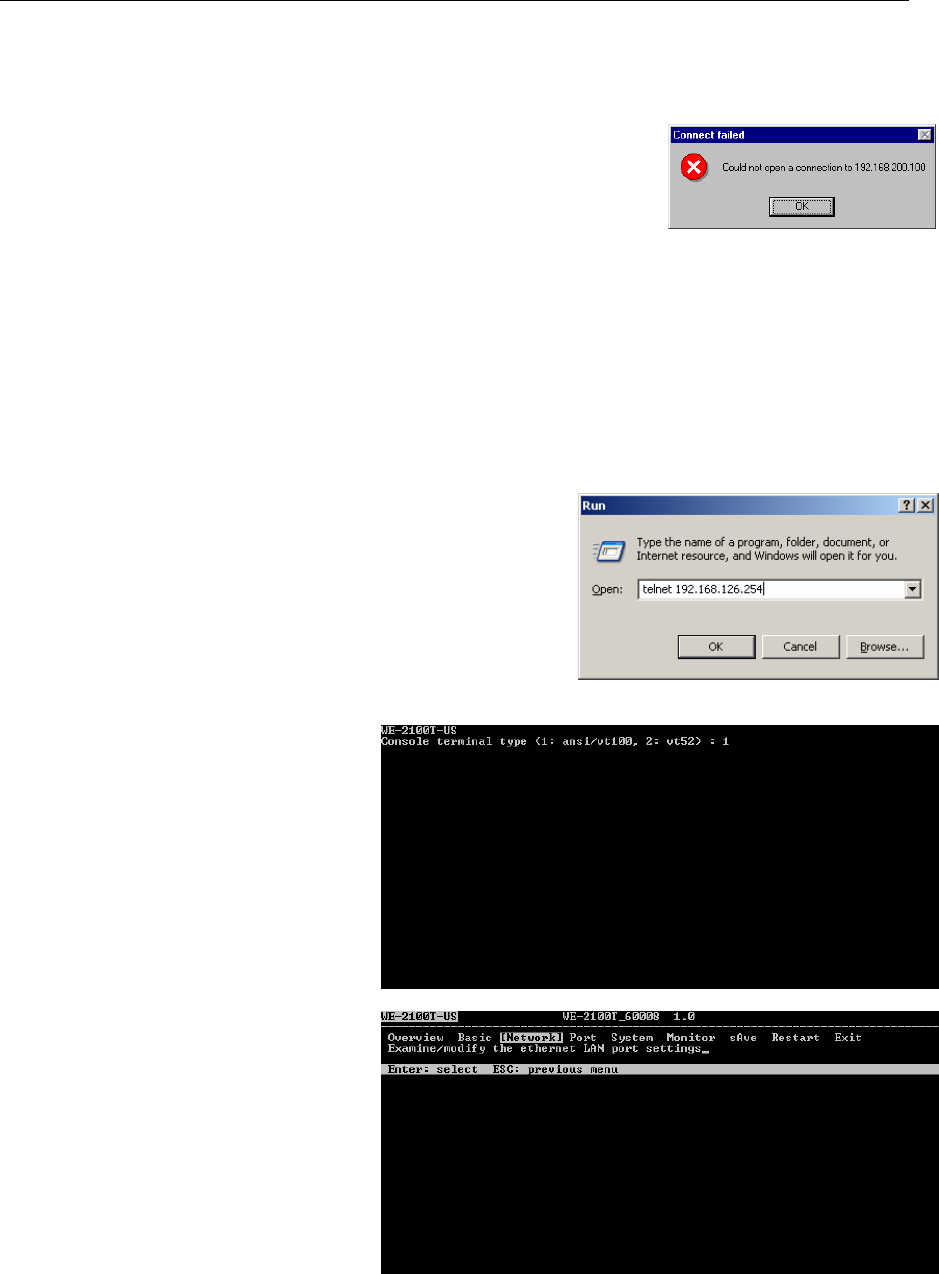

Telnet Console.........................................................................................................................5-3

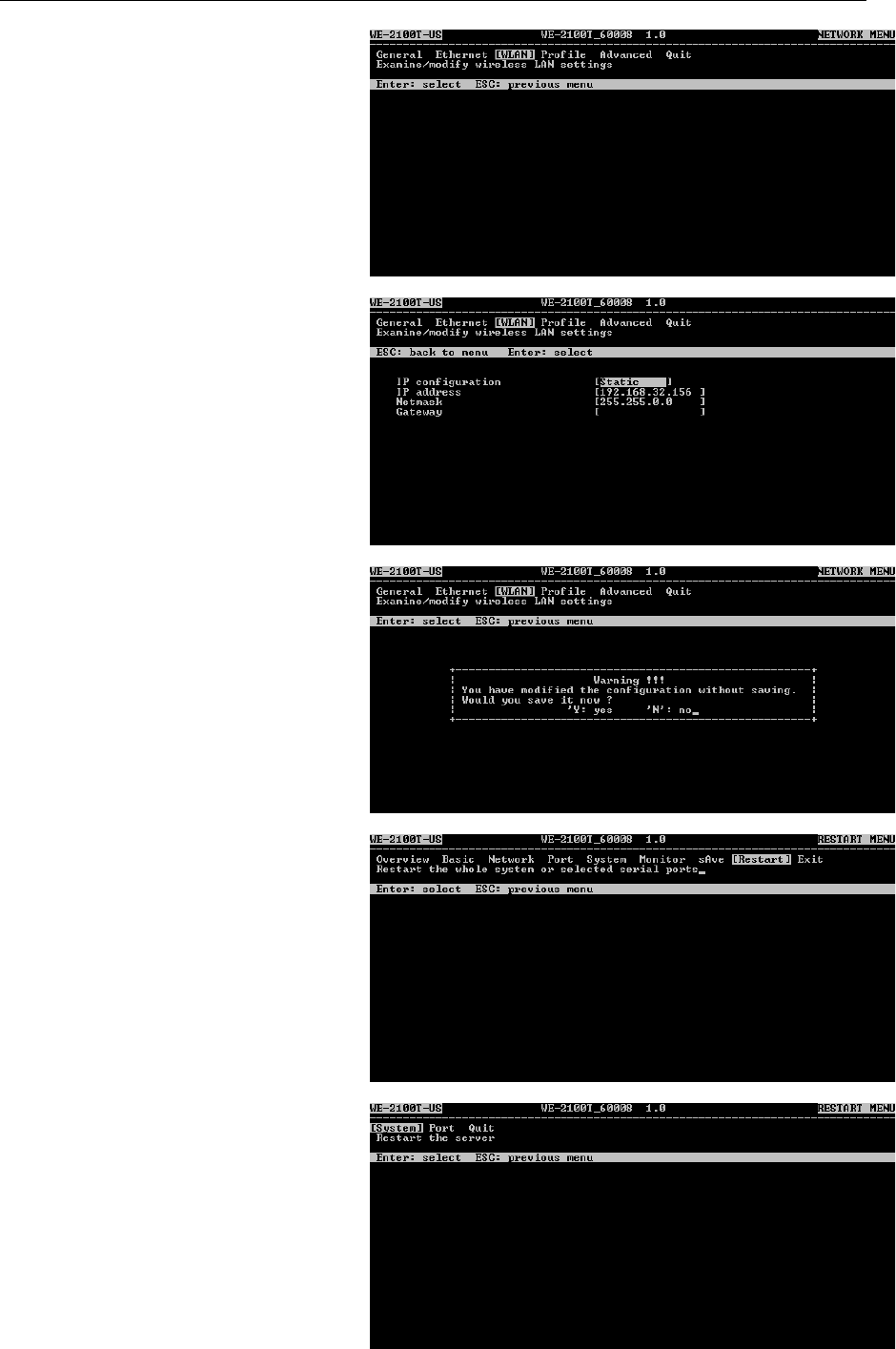

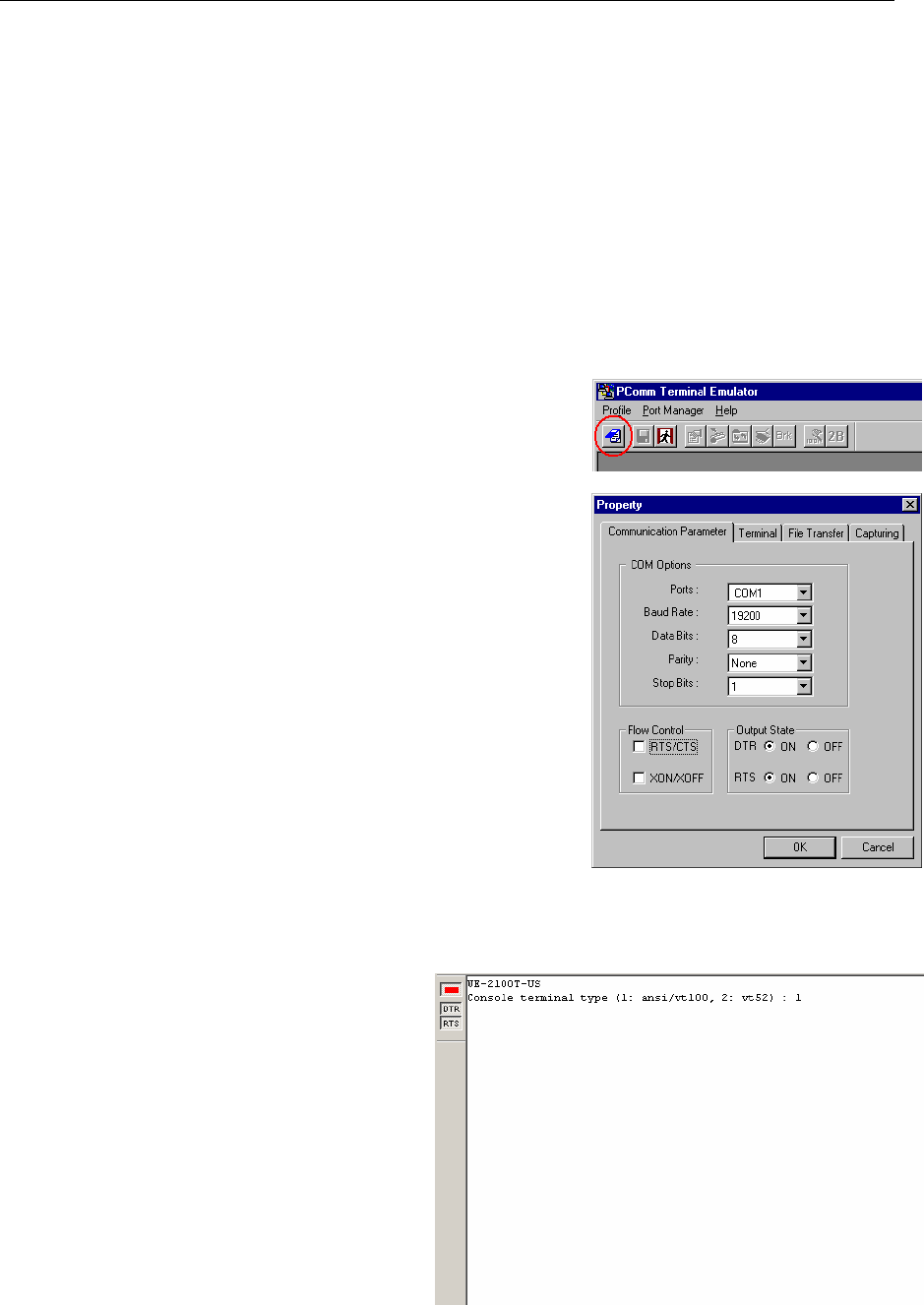

Serial Console (19200, n, 8, 1)................................................................................................5-6

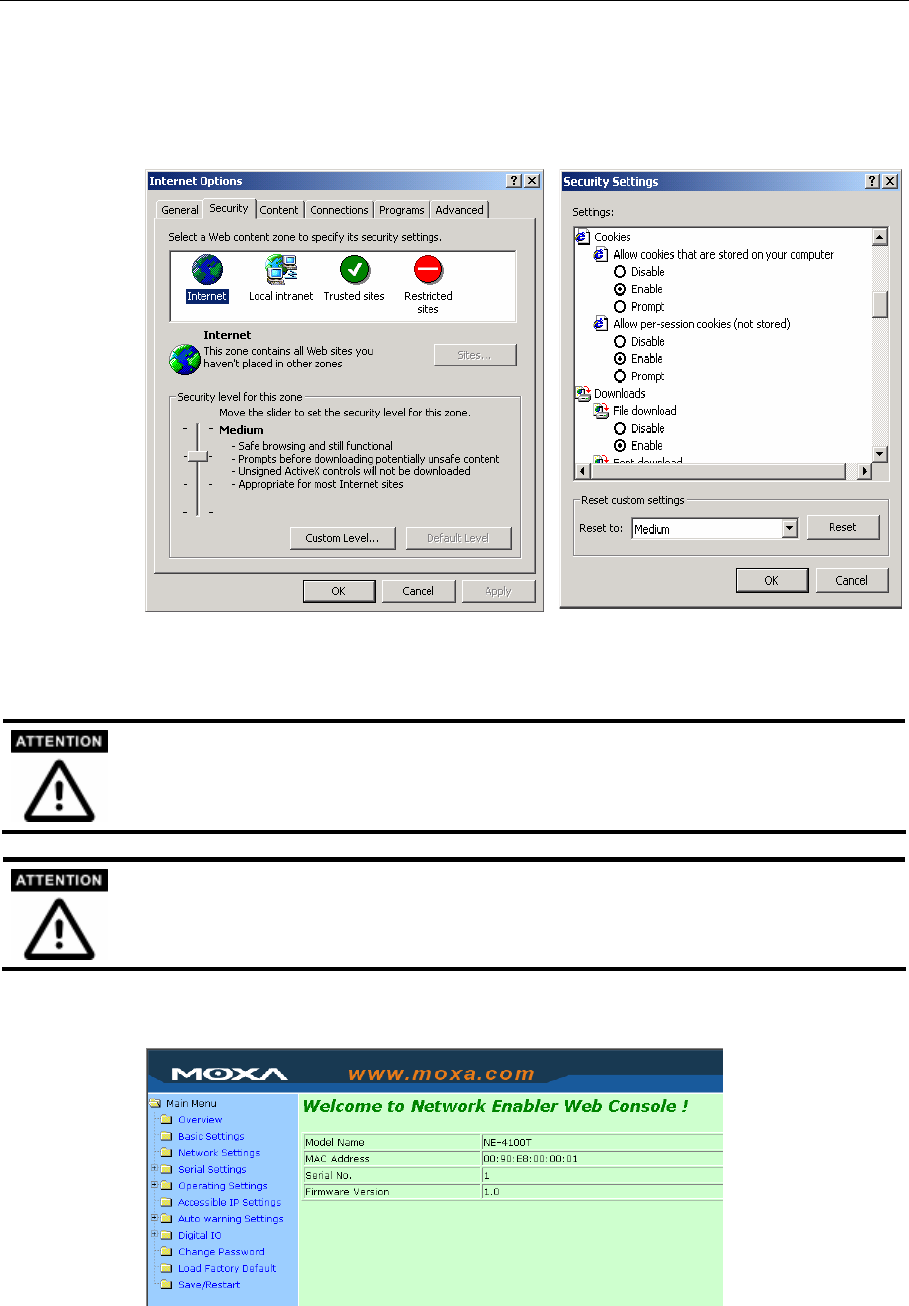

Opening Your Browser............................................................................................................6-2

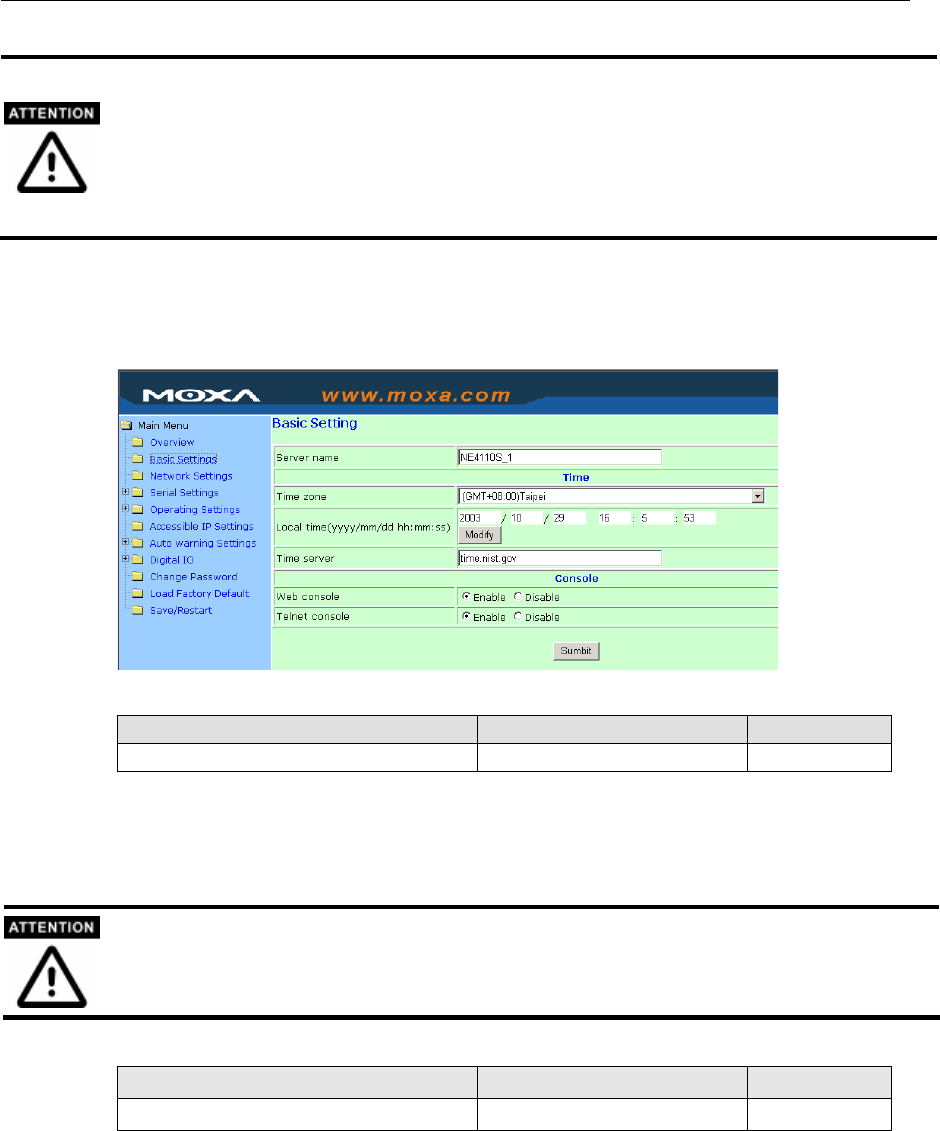

Basic Settings ..........................................................................................................................6-3

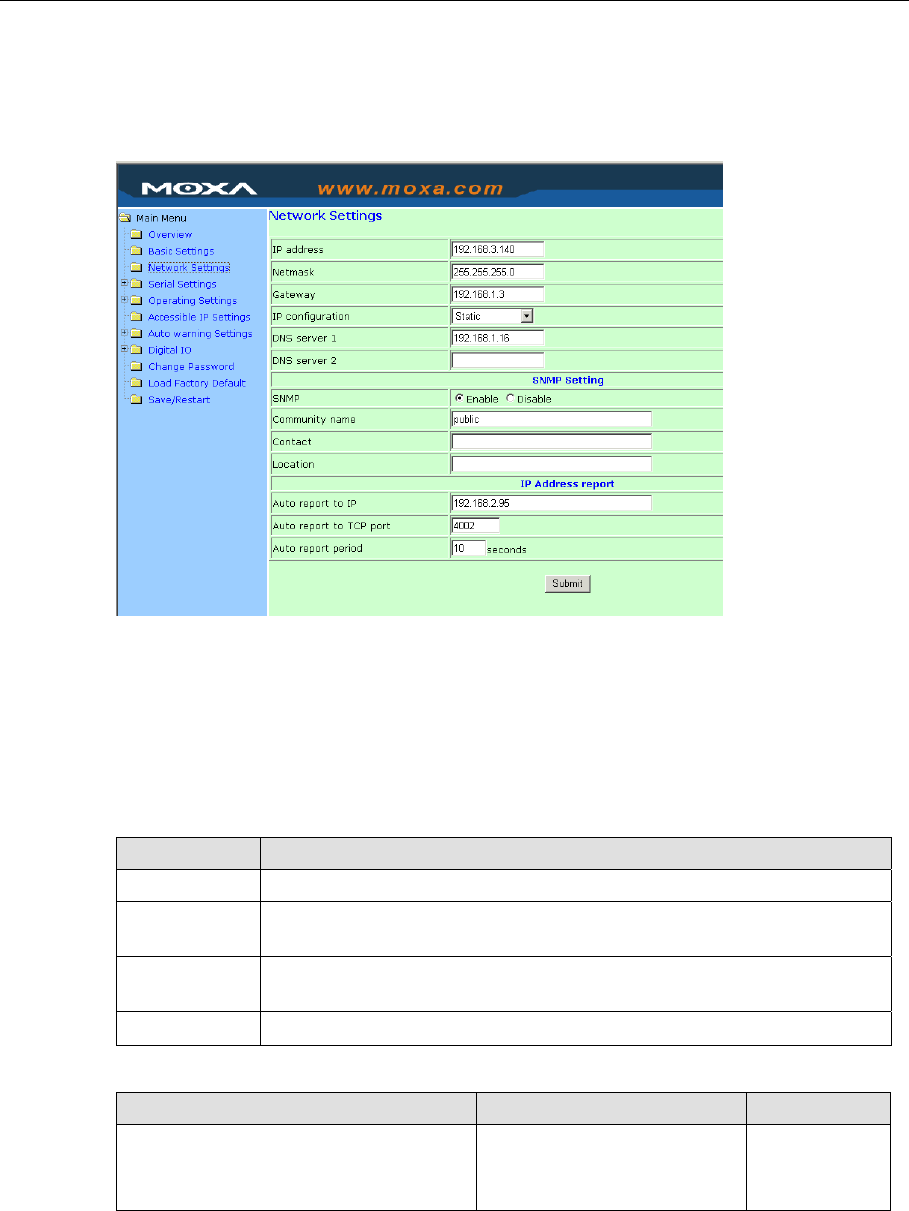

Network Settings.....................................................................................................................6-5
Serial Settings..........................................................................................................................6-7

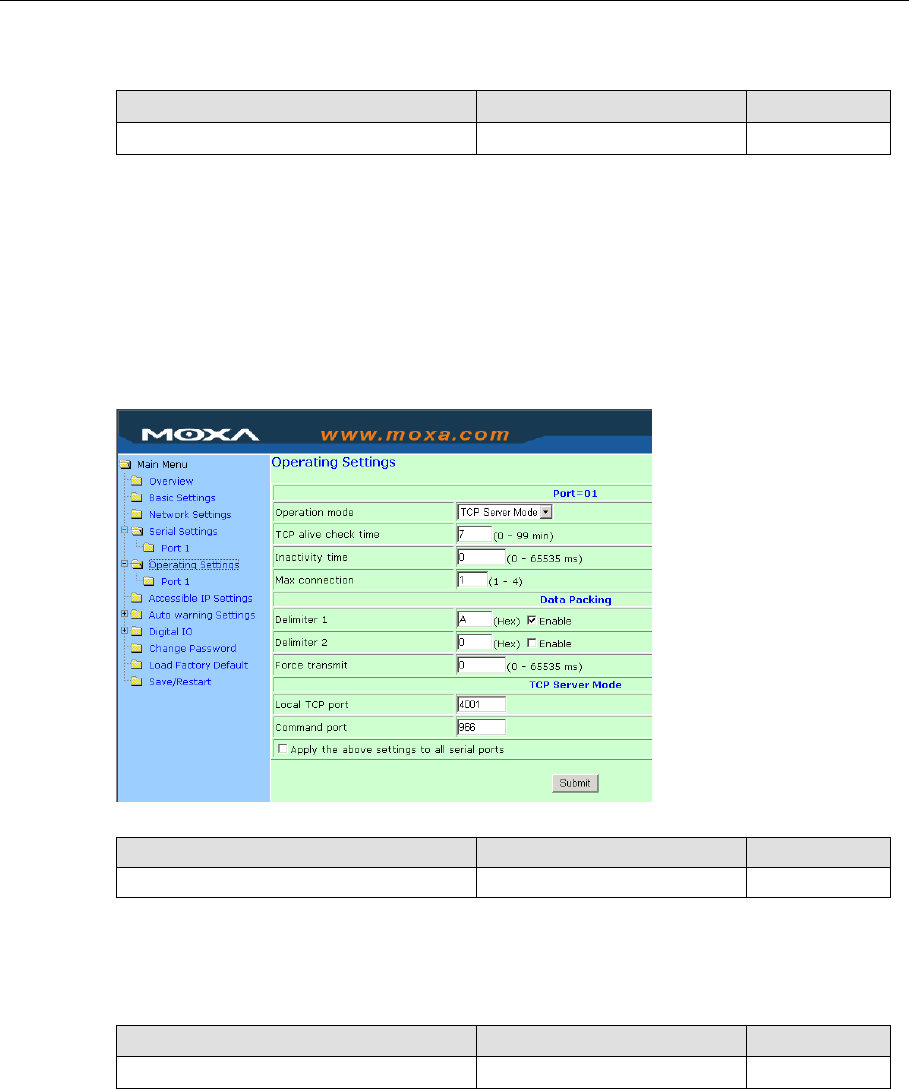

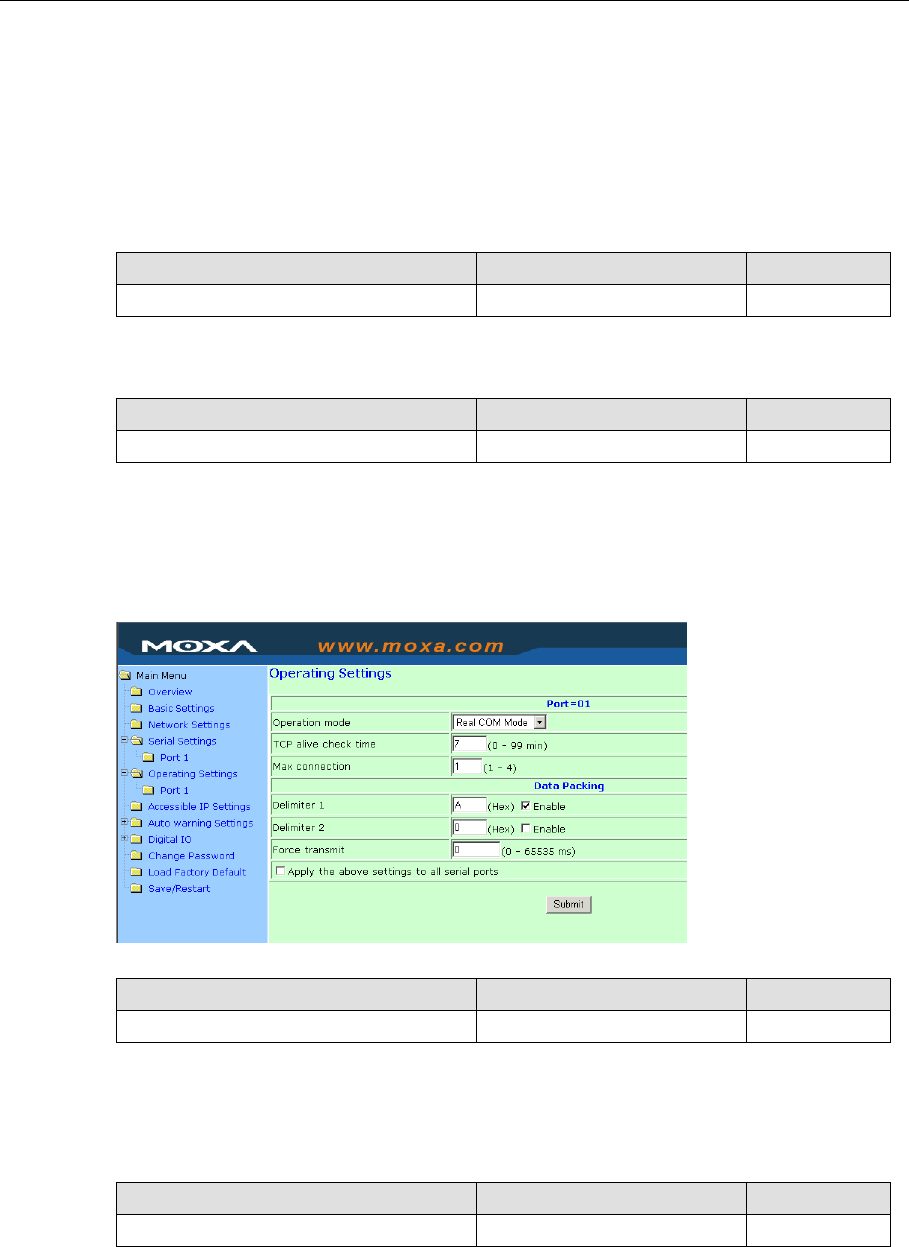

Operating Settings...................................................................................................................6-9
TCP Server Mode.........................................................................................................6-9
Real COM Mode........................................................................................................6-11
TCP Client Mode .......................................................................................................6-13

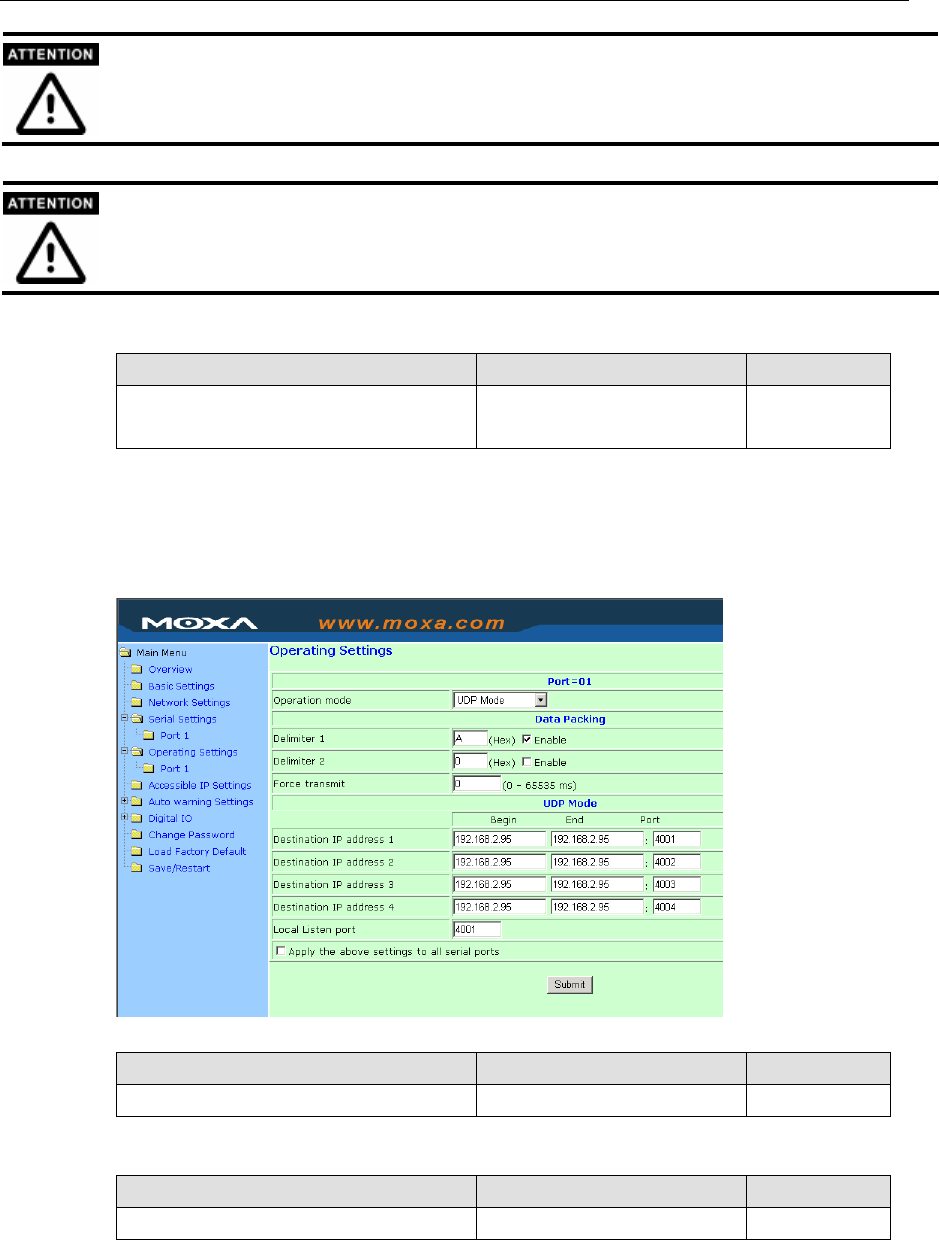

UDP Mode .................................................................................................................6-15

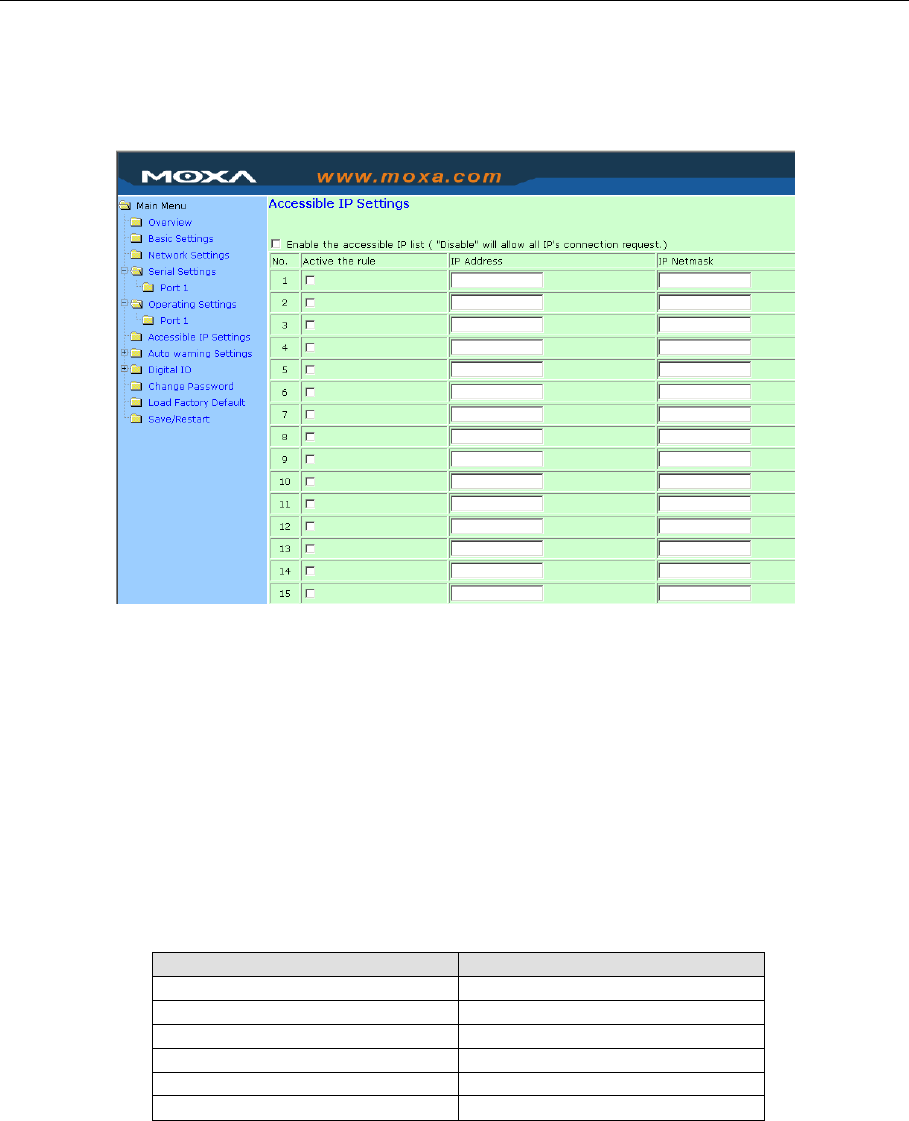

Accessible IP Settings ...........................................................................................................6-17
Auto Warning Settings...........................................................................................................6-18

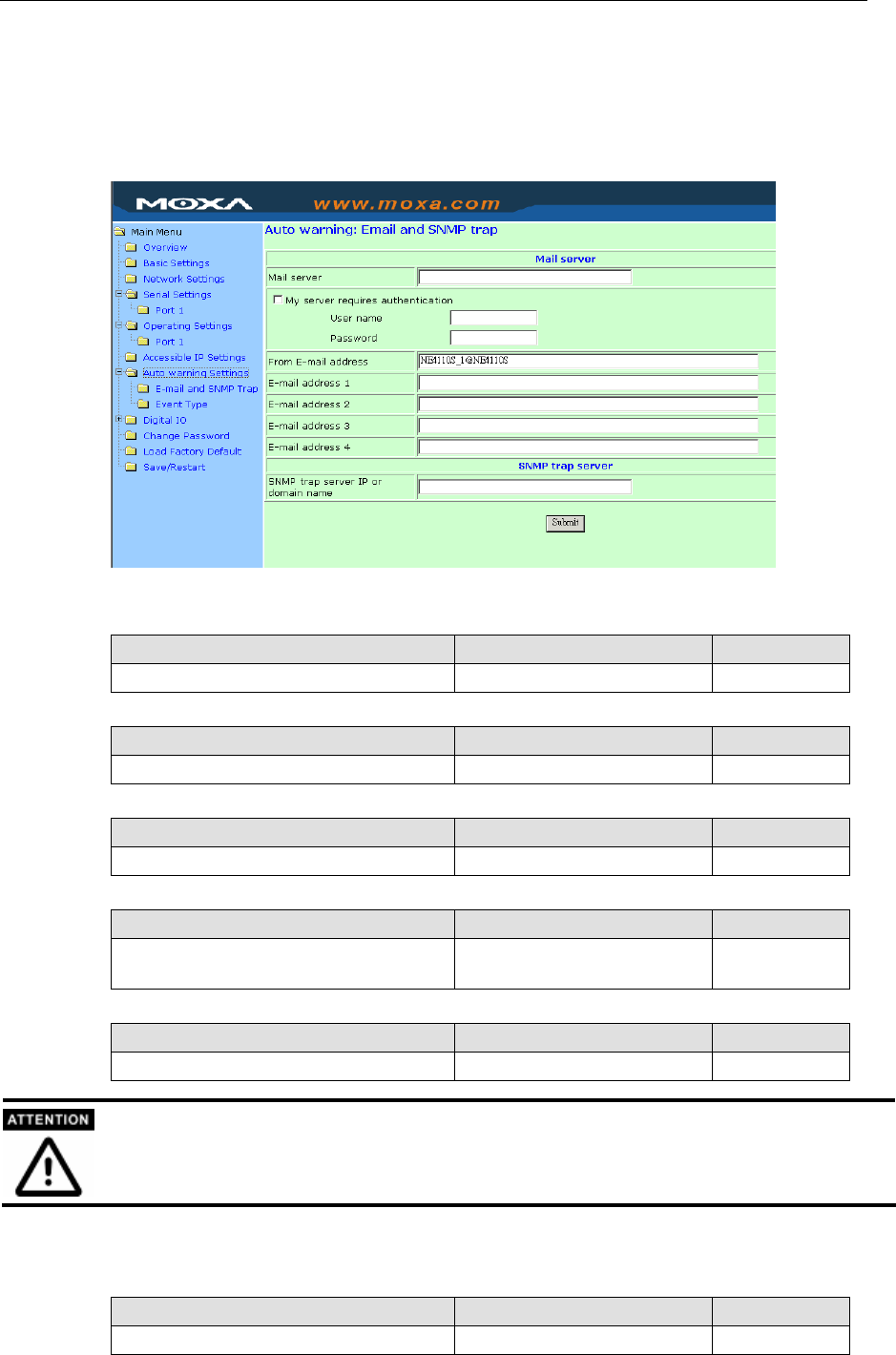

E-mail and SNMP Trap..............................................................................................6-18

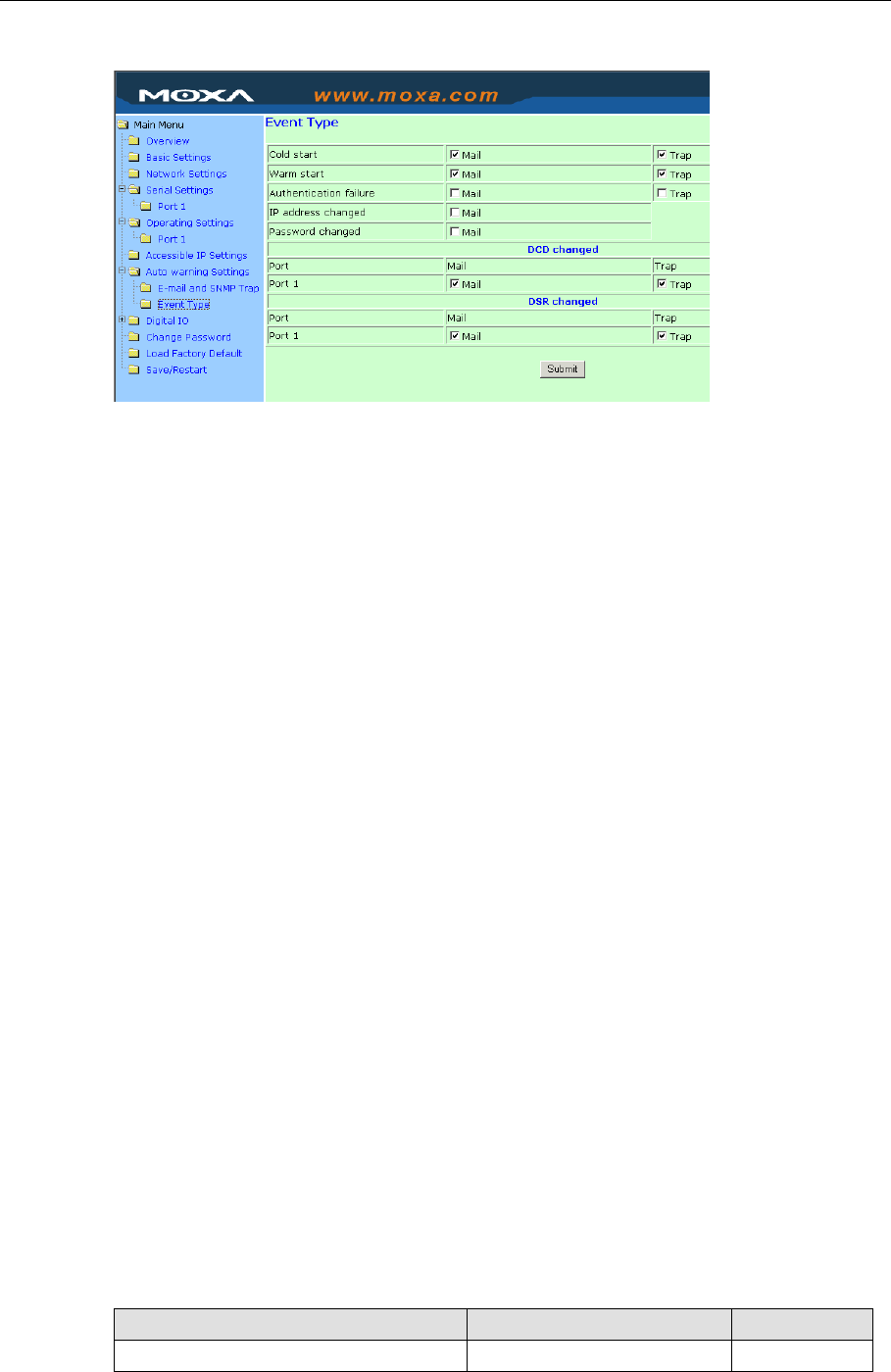

Event Type.................................................................................................................6-19
Digital IO...............................................................................................................................6-20
DIO Monitor...............................................................................................................6-20
Change Password ..................................................................................................................6-21

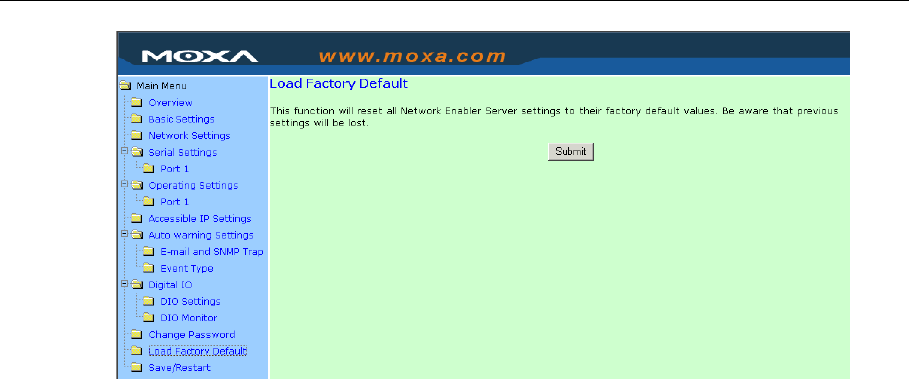

Load Factory Defaults...........................................................................................................6-21

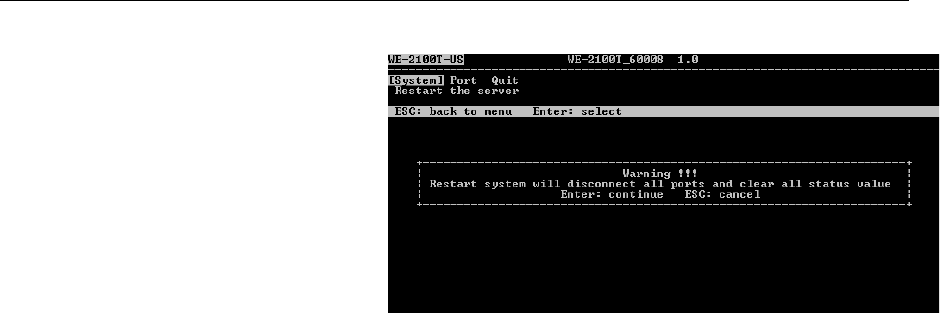

Save/Restart...........................................................................................................................6-22
Overview.................................................................................................................................7-2

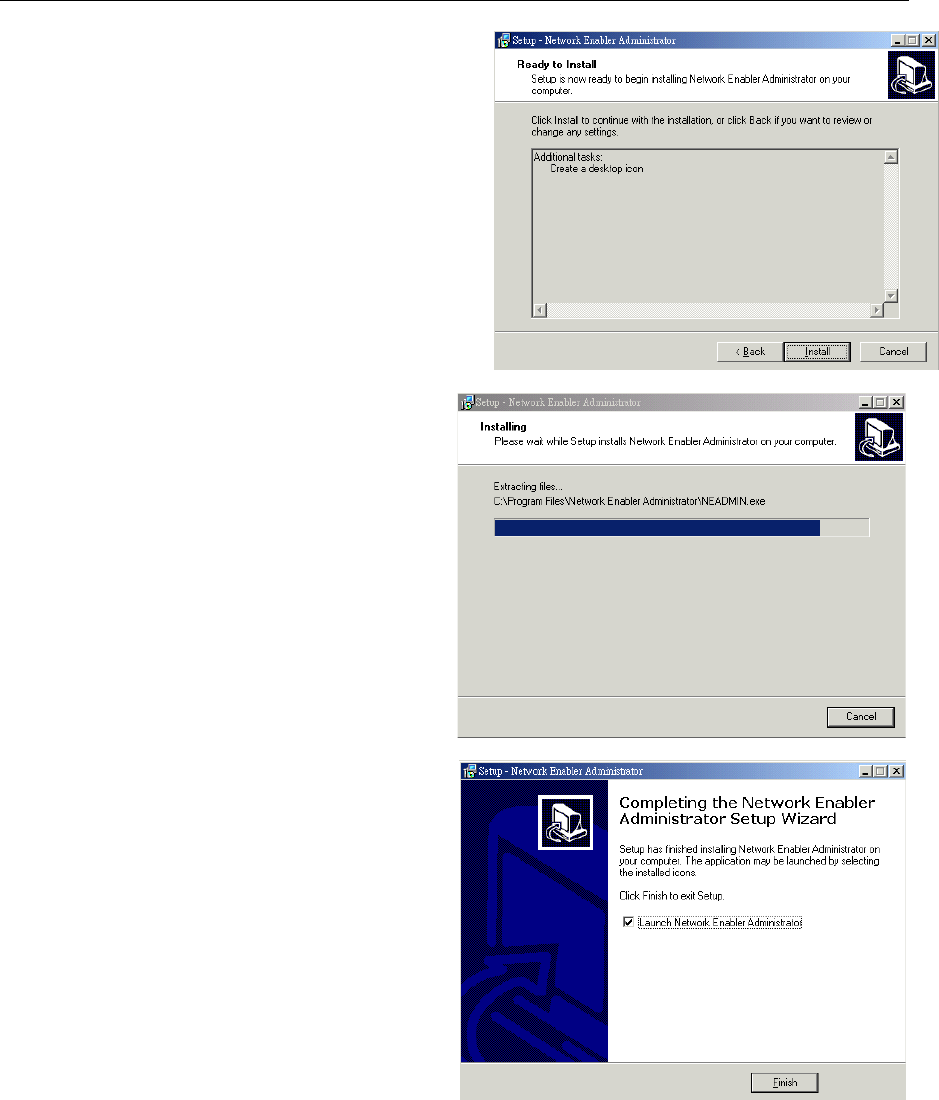

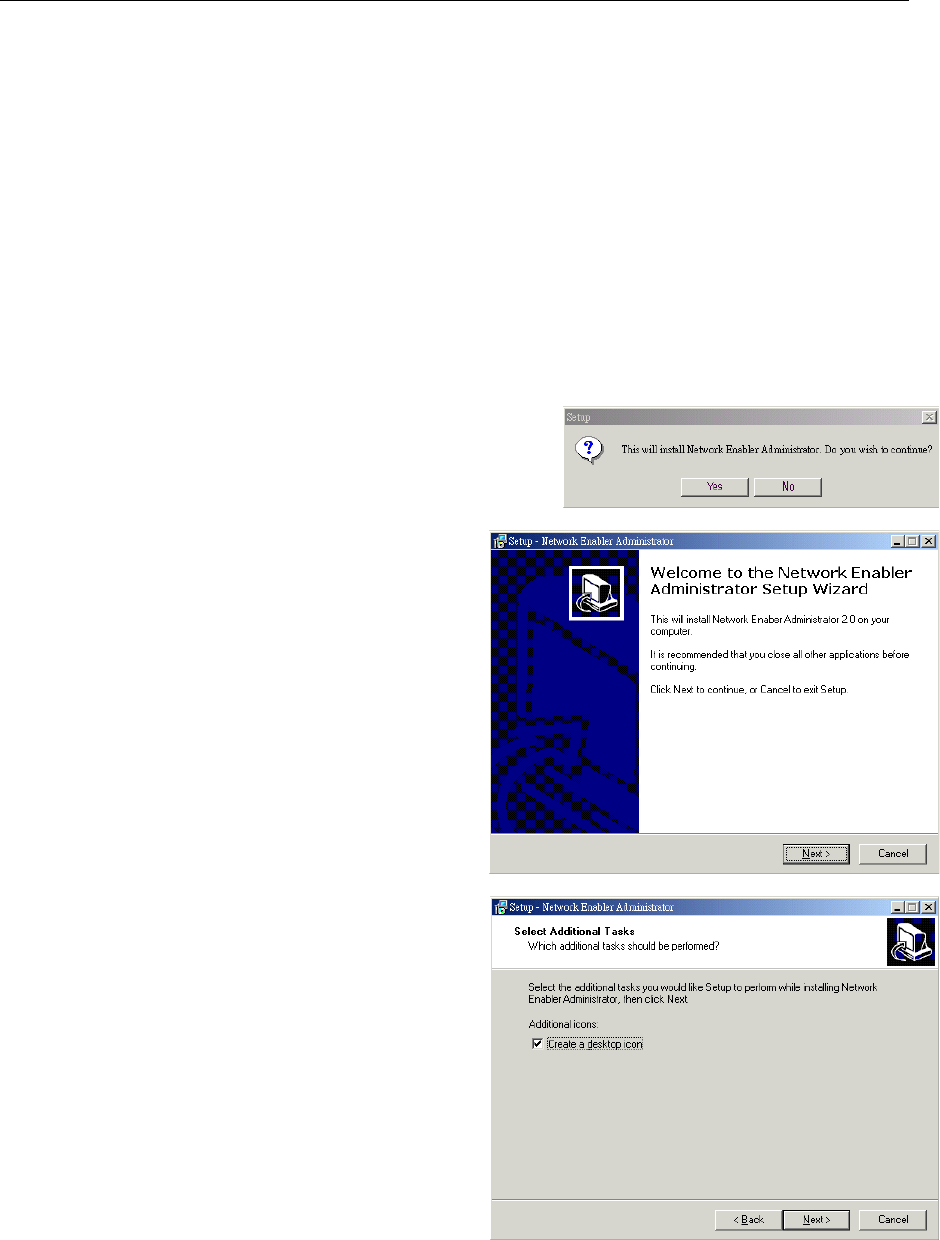

Installing Network Enabler Administrator...............................................................................7-2

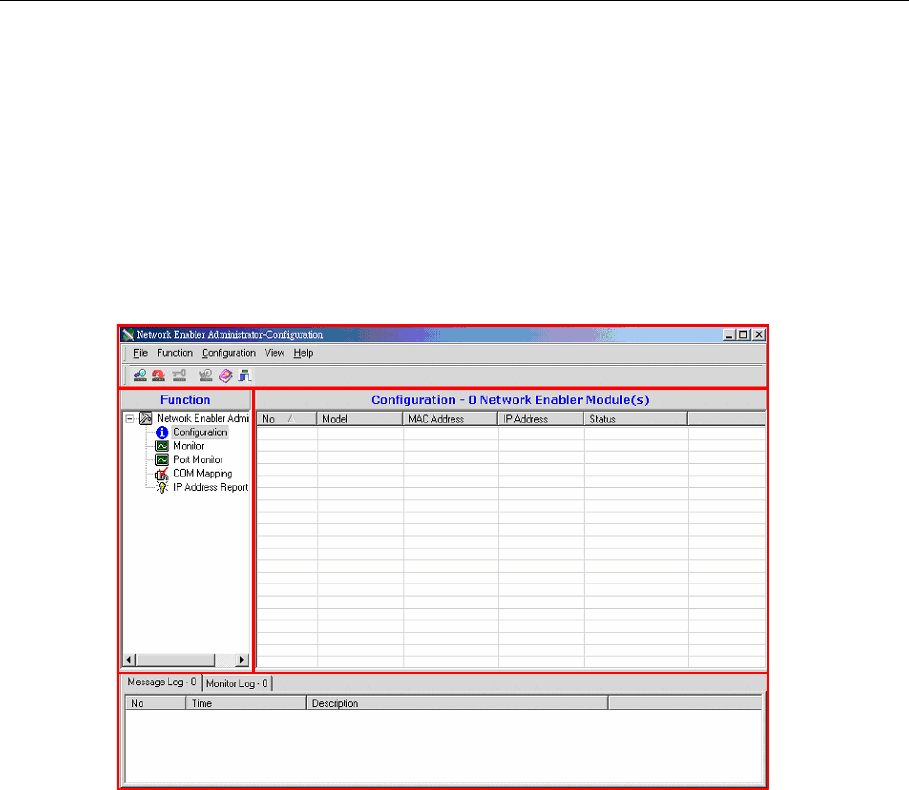

Starting the Configuration .......................................................................................................7-4

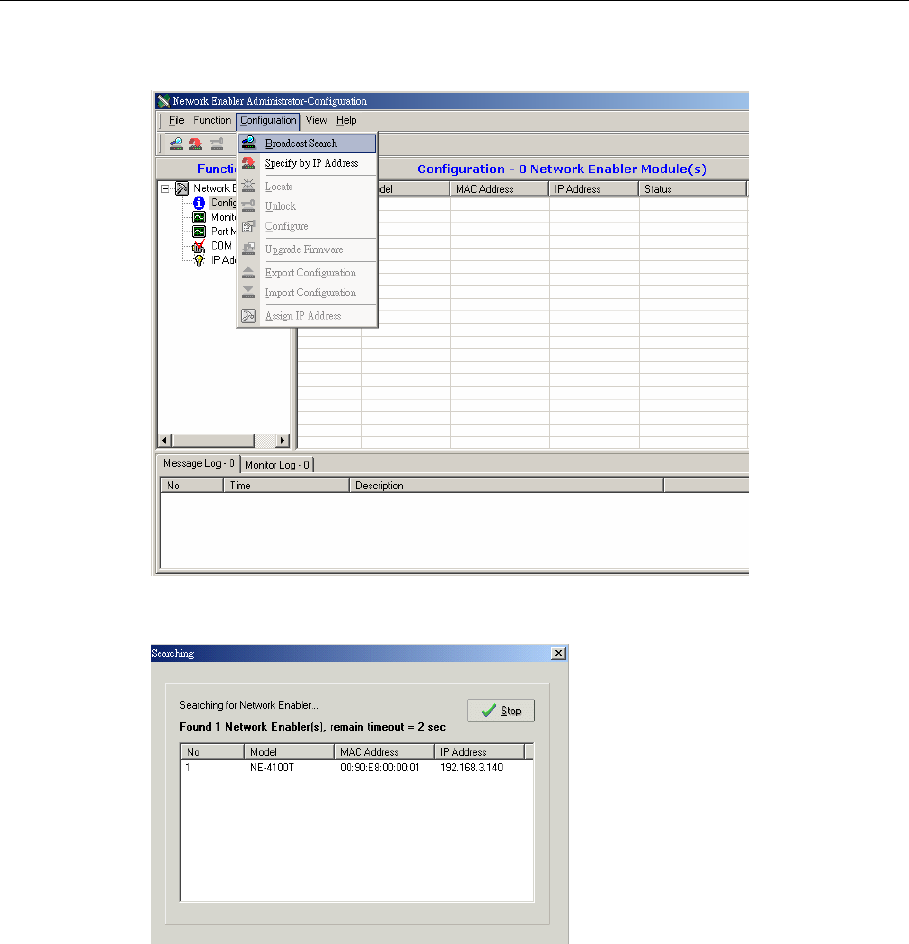

Broadcast Search..........................................................................................................7-4

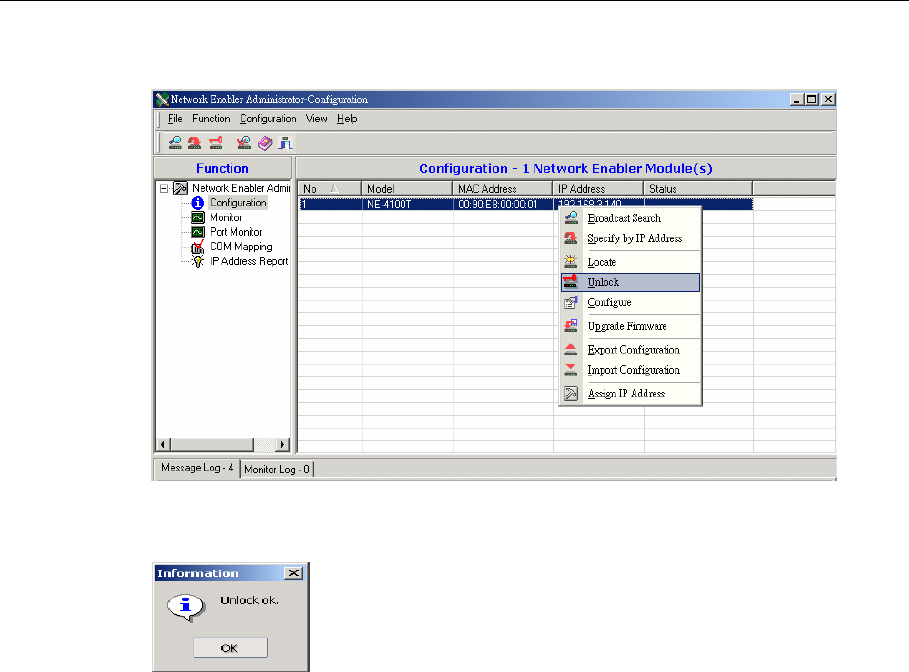

Unlock Password Protection ........................................................................................7-6
Configuring WE-2100T ...............................................................................................7-8

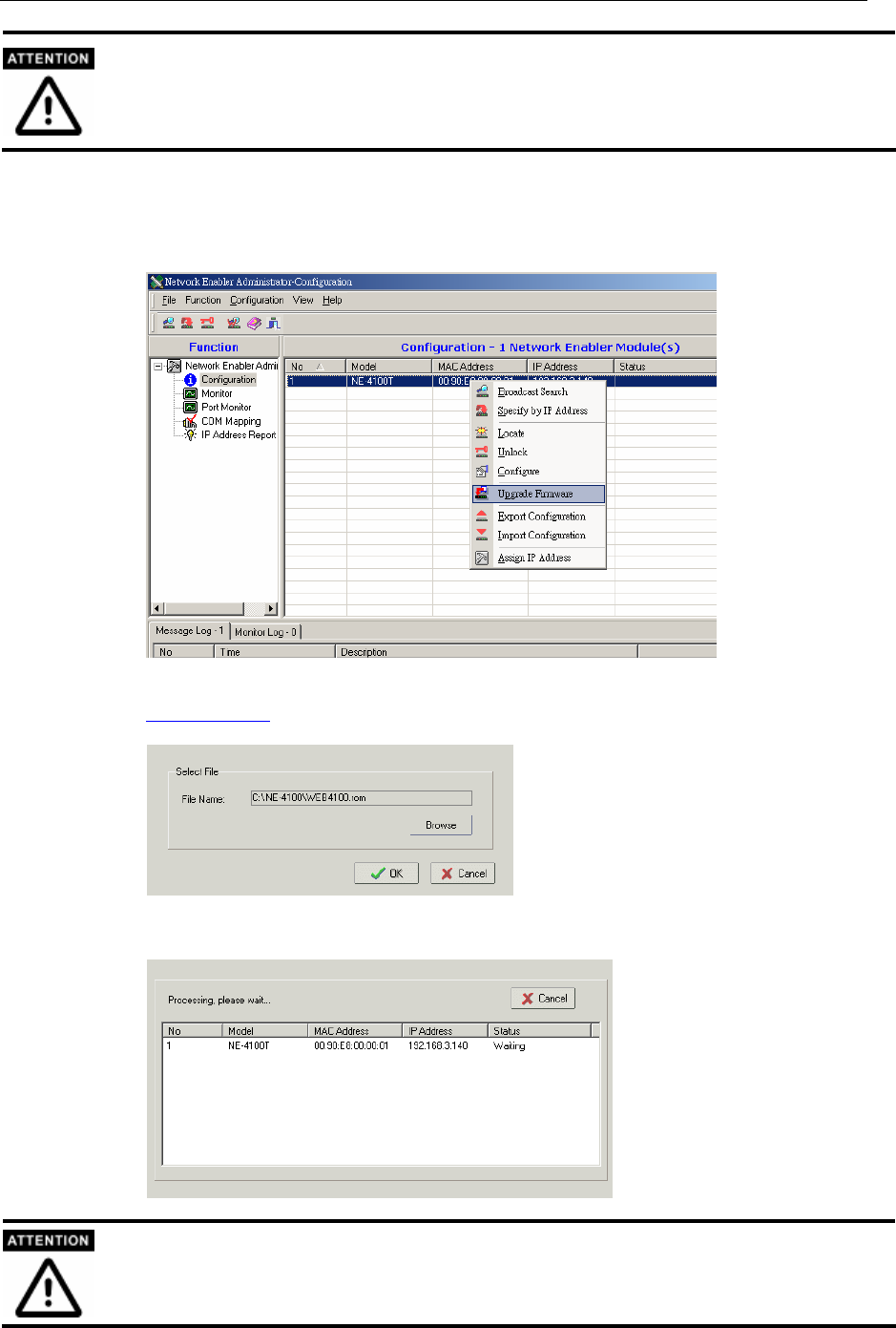

Upgrading the Firmware ..............................................................................................7-9
Export/Import.............................................................................................................7-10

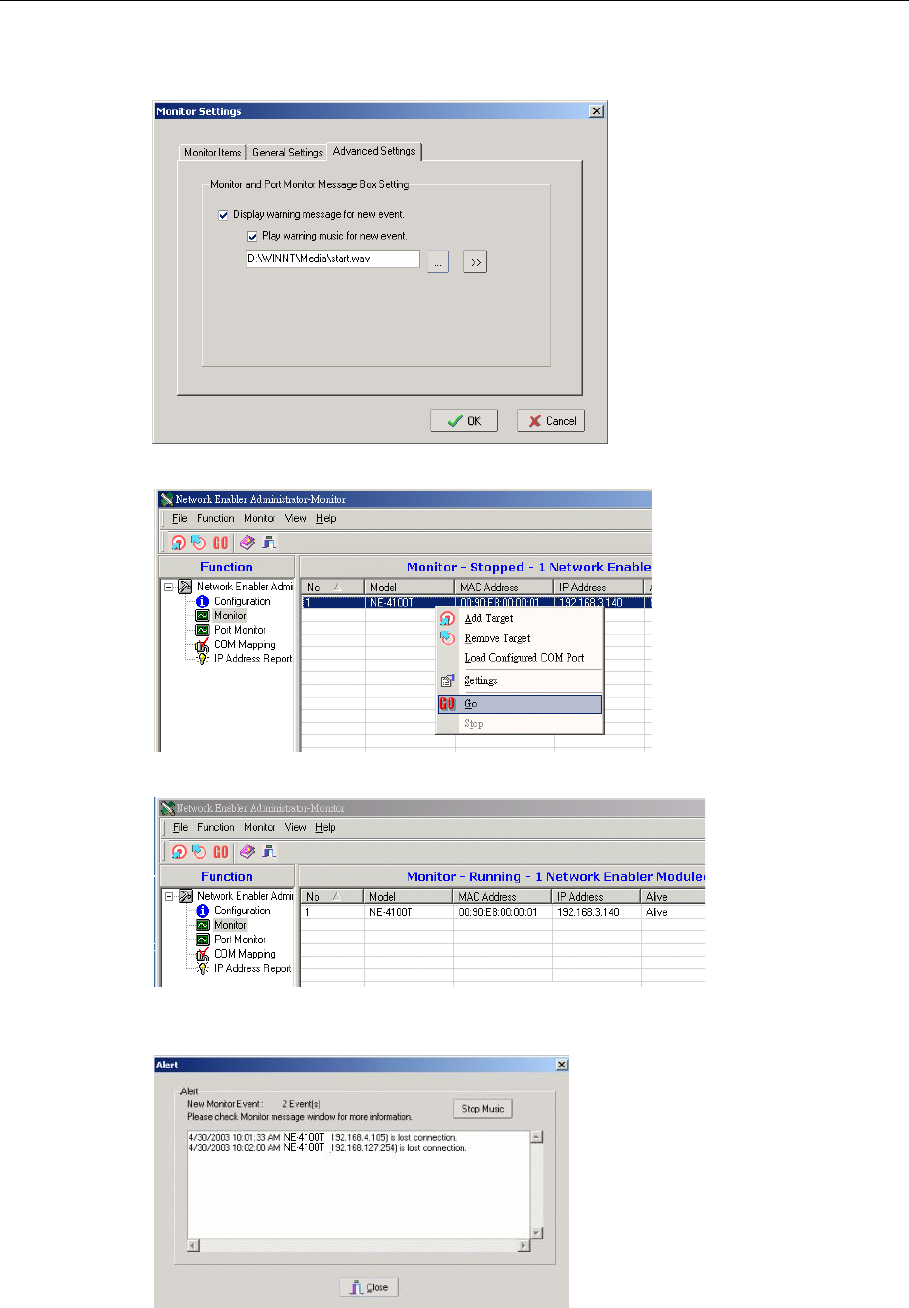

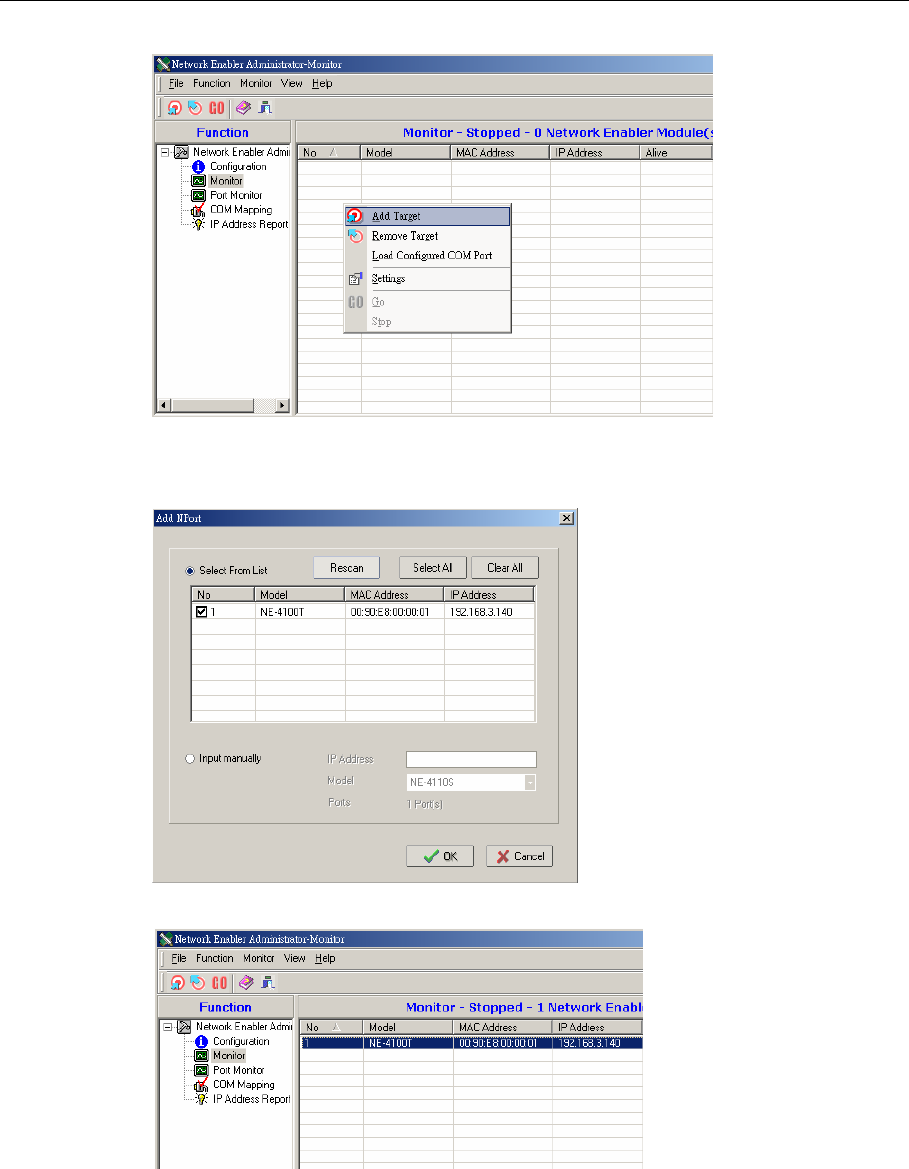

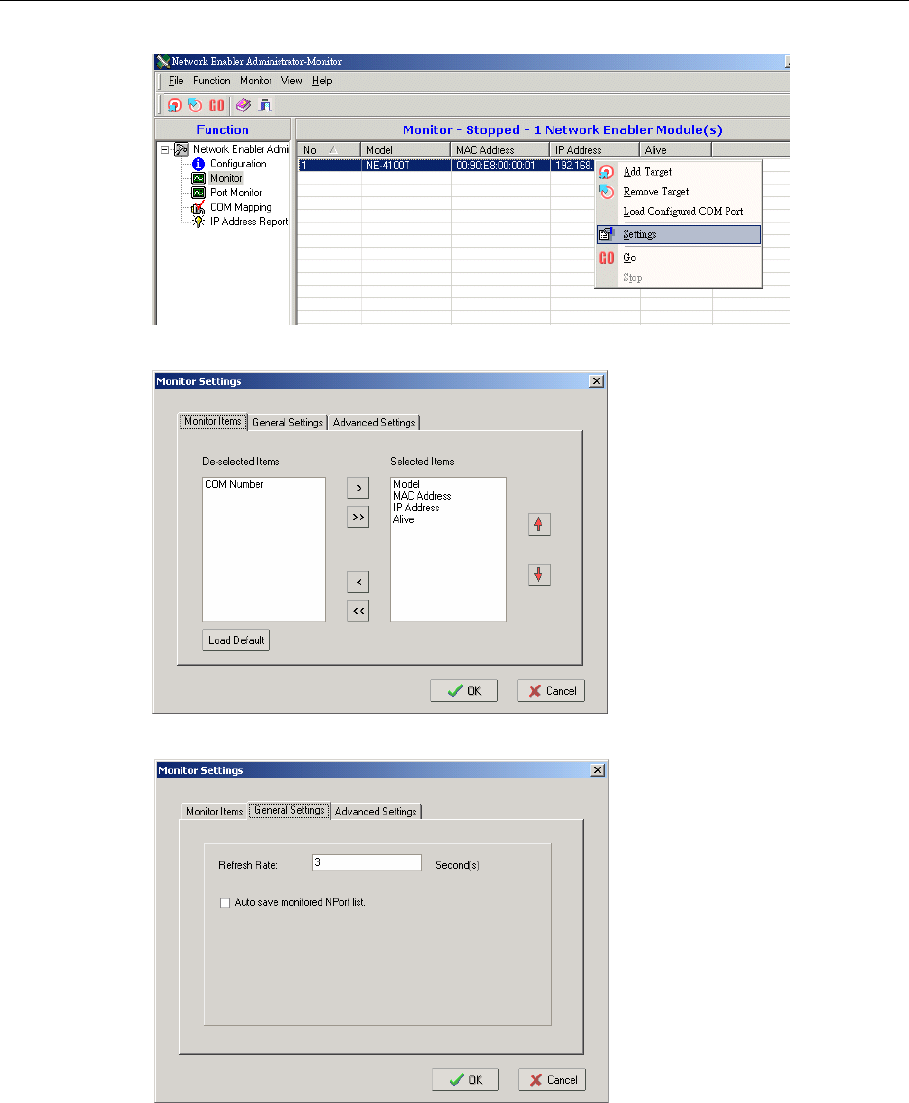

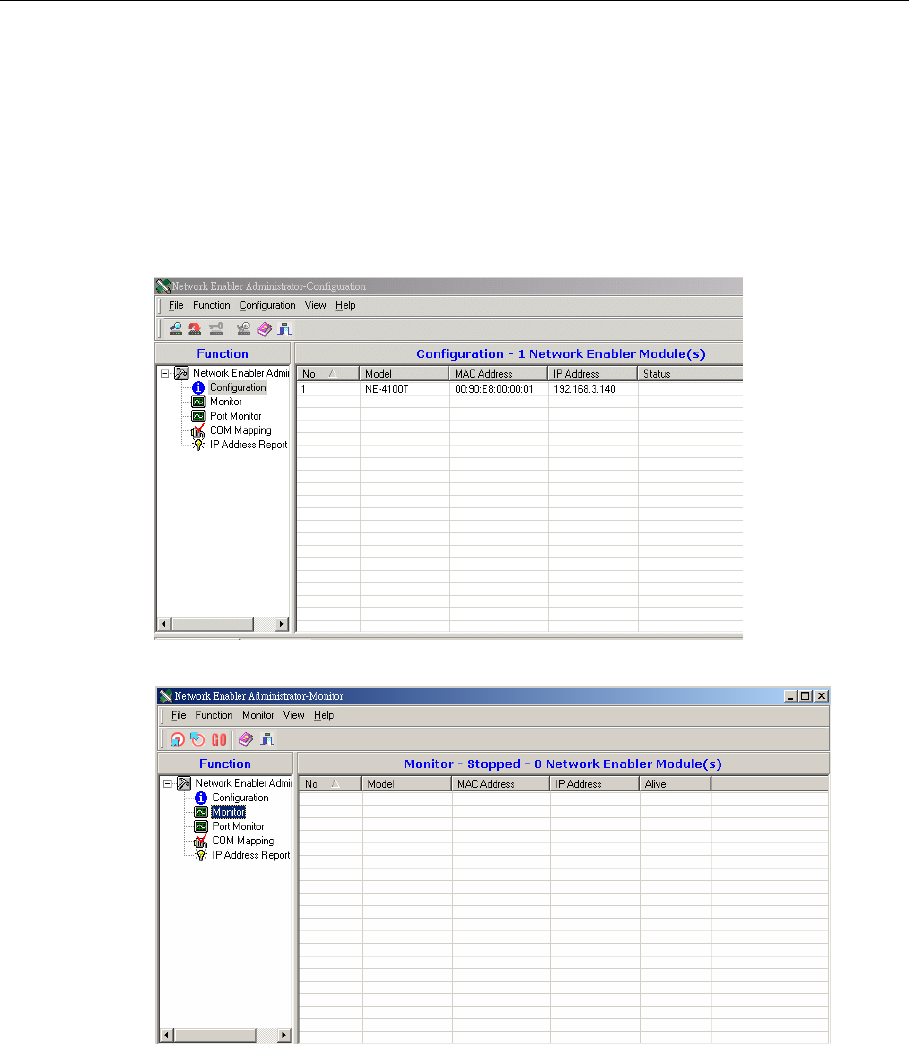

Monitor..................................................................................................................................7-11

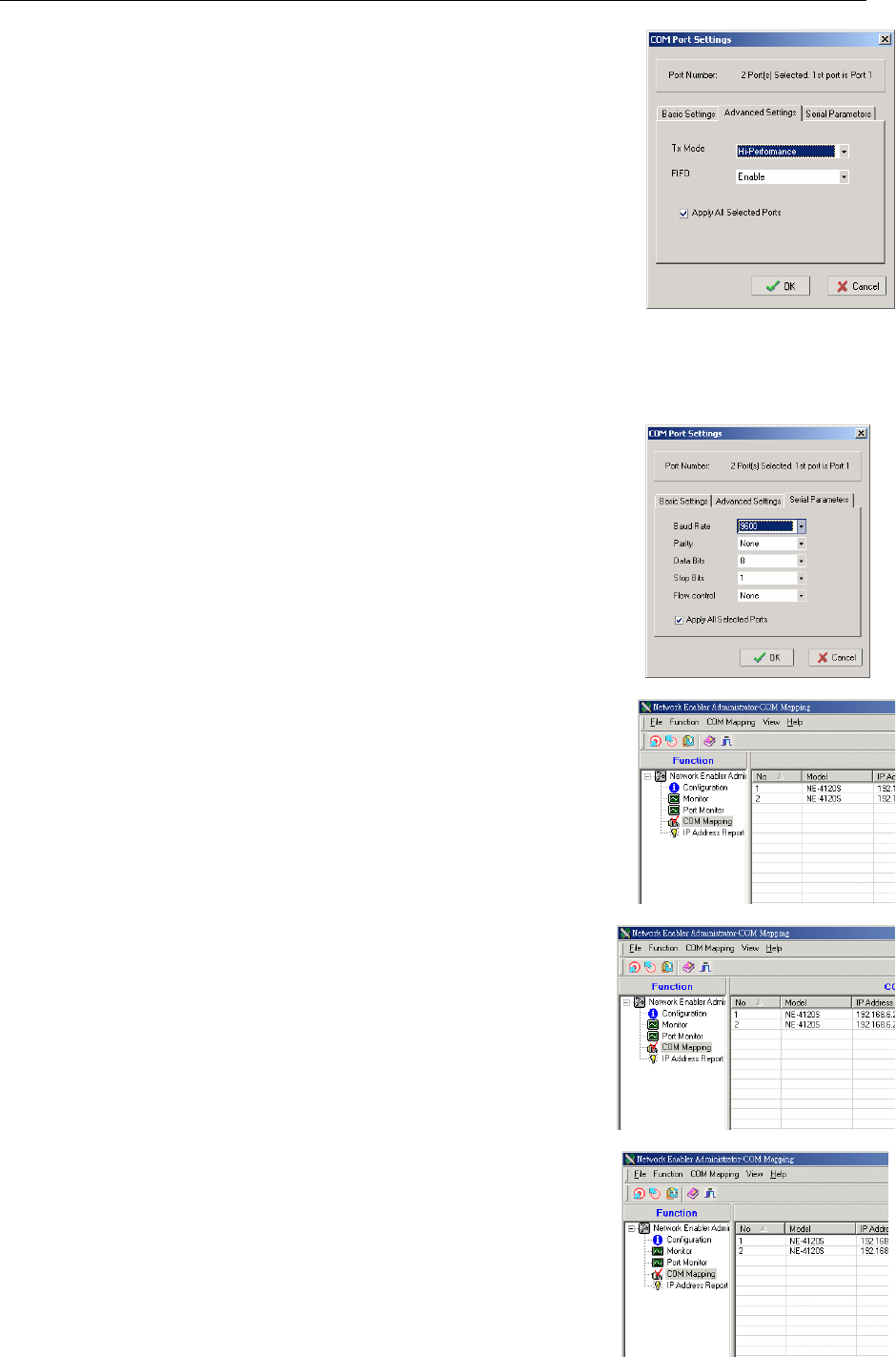

Port Monitor ..........................................................................................................................7-15

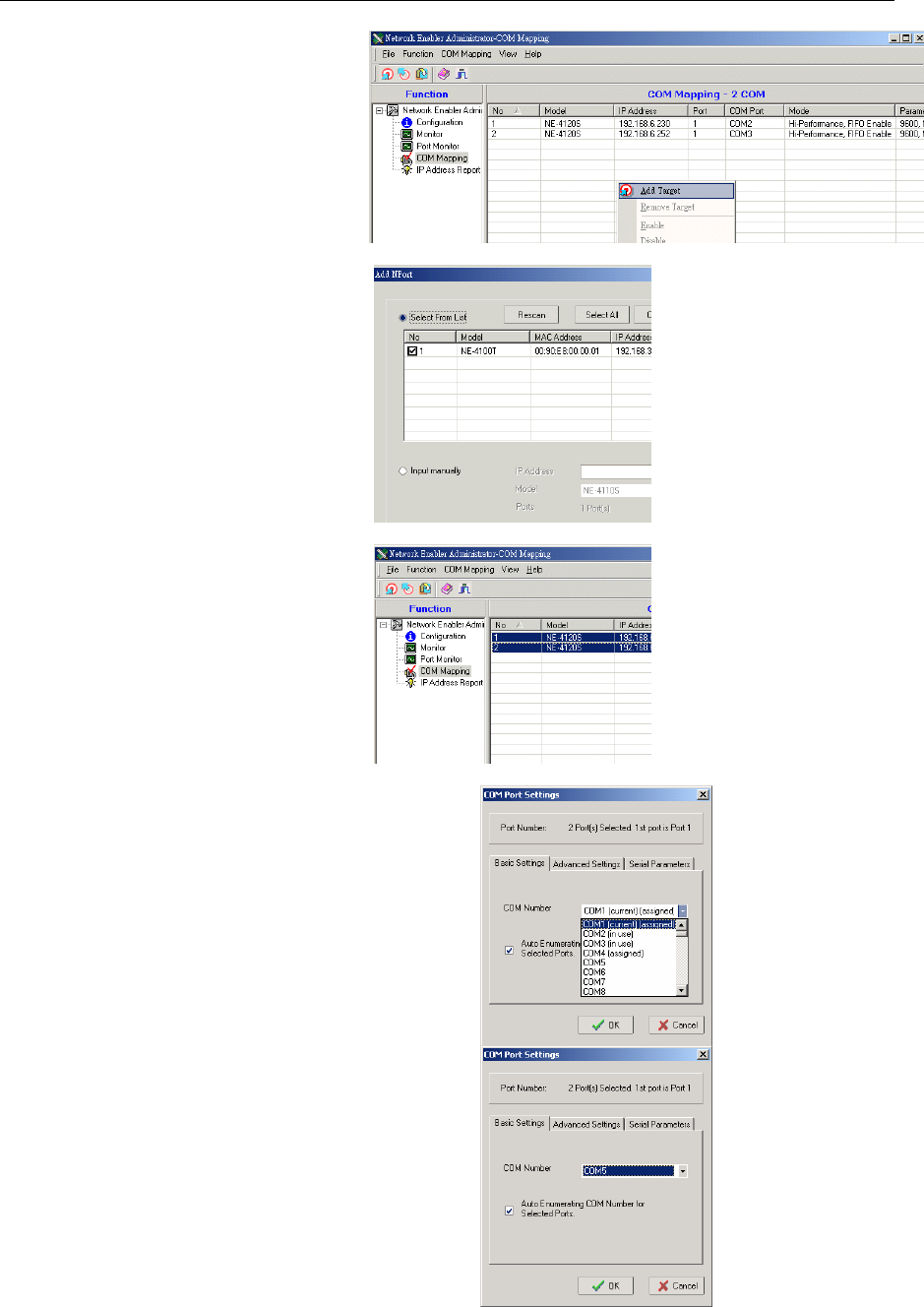

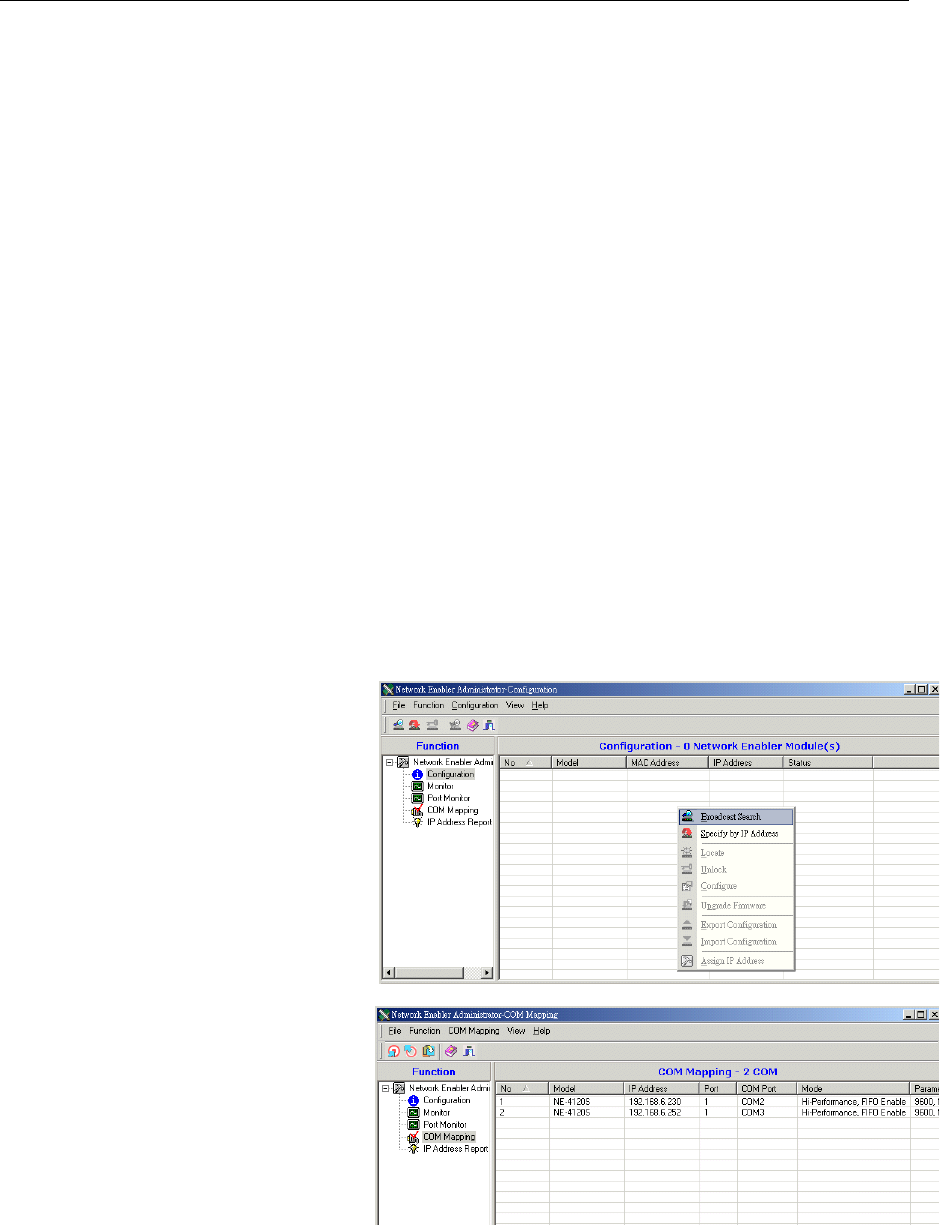

COM Mapping ......................................................................................................................7-16
On-line COM Mapping..............................................................................................7-16
Off-line COM Mapping .............................................................................................7-19
MOXA Internet Services........................................................................................................ E-2
Problem Report Form.............................................................................................................E-3
Product Return Procedure....................................................................................................... E-4
![](/img.php?id=819430&img=bg5.png)
1
1
Chapter 1 Introduction
Moxa’s WE-2100T Serial-to-WLAN Embedded Network Enabler is compact sized embedded
modules that let you wireless-network-enable your serial devices. WE-2100T module comes
equipped with built-in TCP/IP and wireless security/authentication protocols for fast integration,
saving you time and energy on programming.
The following topics are covered in this chapter:
Overview
Package Checklist
Product Features
Product Specifications
![](/img.php?id=819430&img=bg6.png)
WE-2100T Series User’s Manual Introduction
1-2
Overview
WE-2100T is very compact—around half the size of a credit card. With such a small size, these
Embedded Network Enablers fit into almost any kind of serial device to make the serial device
Wireless LAN ready. These products also come with a built-in TCP/IP stack for fast integration
with your serial devices. This means that your engineers no longer need to spend a lot of time on
TCP/IP programming and wireless know-how, but instead can focus on developing other major
features, shortening your product’s time to market. The reliable TCP/IP communication firmware
that comes with WE-2100T can be configured easily with a user-friendly Windows utility, Web
browser, serial console, or telnet console. In addition, a Windows-based NECI (Network Enabler
Configuration Interface) Library is available to help you develop your own Windows utilities.
An integration kit and a complete development kit containing a development board, documents,
sample code, cables, and accessories are available for evaluation and development use.
Package Checklist
y 1 WE-2100T Series module (depending on which model you order)
y 1 WE-2100T-ST (the evaluation board )
y WE-2100T Series Documentation & Software CD
y 1 Power Adaptor
y 1 Power Cords
y 1 null modem cable
y 1 cross-over Ethernet cable
y Product Warranty Booklet
y Quick Installation Guide
NOTE: Notify your sales representative if any of the above items is missing or damaged.
Product Features
WE-2100T Series products have the following features:
y Compliant to 802.11 a/b/g standards
y TTL to 10/100 Mbps auto-sensing Ethernet interface
y Compact size with ready-to-go design
y Ready-to-use TCP/IP firmware for fast integration
y TCP Server, TCP Client, UDP, Real COM, RFC2217 operation modes
y Serial command to configure via data port
y Easy configuration with Web browser, serial console, Windows utility, or telnet console
y 9 GPIOs for users’ applications
y Software reset function
![](/img.php?id=819430&img=bg7.png)
WE-2100T Series User’s Manual Introduction
1-3
Product Specifications
WLAN
Spread Spectrum Technology DSSS,CCK,OFDM
Standard Compliance 802.11 a/b/g
Tx Power
5.18~5.24GHz: 15dBm@6Mbps; 12dBm@54Mbps
5.745~5.805GHz:15dBm@6Mbps; 12dBm@54Mbps
2.412~2.483GHz:17dBm@6Mbps; 15dBm@54Mbps
2.412~2.472GHz:18dBm@1~11Mbps
Transmission Distance Up to 100 meters (in open areas)
Security AES, WEP 64/128-bit, WPA, WPA2, 802.11i
Network Modes Infrastructure for 802.11 a/b/g
Ad-Hoc for 802.11 b/g
Authentications
PEAP, EAP-TLS, EAP-TTLS, PEAP/MSCHAPv2,
PEAP/TLS, PEAP/GTC, PEAP/MD5, EAP-TTLS/
EAP-MD5, EAP-TTLS/EAP-GTC, EAPTTLS,
EAP-TTLS/EAP-MSCHAPv2, EAP-TTLS/EAP-TLS,
EAP-TTLS/ MSCHAPv2, EAP-TTLS/MSCHAP
Security AES, WEP 64/128-bit, WPA, WPA2, 802.11i
LAN
Ethernet 10/100 Mbps
Serial
Interface TTL
Digital I/O 9
Serial Communication Parameters
Parity None, Even, Odd, Space, Mark
Data Bits 5, 6, 7, 8
Stop Bit 1, 1.5, 2
Flow Control RTS/CTS, XON/XOFF, DTR/DSR
Transmission
Speed 50 to 921.6K bps (standard baudrates), 250K and 500K bps (nonstandard
baudrates)
Software Features
Protocols ICMP, IP, TCP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, SSH, HTTPS
Operating
Mode TCP Server, TCP Client, UDP, Real COM, RFC2217 mode
Utilities Windows utility for Windows 98/ME/2000/XP/2003/Vista
COM Driver Windows 95/ 98/ ME/ NT/ 2000/ XP/ 2003/ XP x64/ 2003 x64/ Vista
Linux Real TTY driver, SCO Unix, SCO OpenServer 5, UnixWare 7,
UnixWare 2.1.x, SVR4.2, QNX
Configuration Web Browser, Serial Console, Telnet Console, or Windows Utility, Serial
command
Power Requirements
Power Input 3.3V ± 5% VDC
Power
Consumption 950 mA @ 3.3 VDC (Max.)
Environmental
![](/img.php?id=819430&img=bg8.png)
WE-2100T Series User’s Manual Introduction
1-4
Operating
Temperature 0 to 55 °C (32 to 131 °F), 5 to 95% RH
Storage
Temperature -20 to 85 °C (-4 to 185 °F), 5 to 95% RH
Regulatory Approvals
EMC CE EN550022 Class A
FCC Part 15, Subpart B, Class A
Safety: EN60950, CUL, TUV
Wireless
CE ETSI EN 301 489-17
CE ETSI EN 301 489-1
FCC Part 15, Subpart B, Class A
FCC Part 15 Subpart C and Subpart E
Warranty 5 years
![](/img.php?id=819430&img=bg9.png)
2
2
Chapter 2 Panel Layout and Pin Assignments
This chapter includes information about the panel layouts and pin assignments for WE-2100T.
The layouts and reference circuit diagrams for the evaluation boards are also covered. The
evaluation boards are used for evaluation and development of applications for WE-4100T.
The following topics are covered in this chapter:
Specification and dimension
¾ WE-2100T
¾ WE-2100T-ST
Pin Assignments
WE-2100T LED Indicators
![](/img.php?id=819430&img=bga.png)
WE-2100T Series User’s Manual Panel Layout and Pin Assignments
2-2
Specification and dimension
WE-2100T
Unit: mm
![](/img.php?id=819430&img=bgb.png)
WE-2100T Series User’s Manual Panel Layout and Pin Assignments
2-3

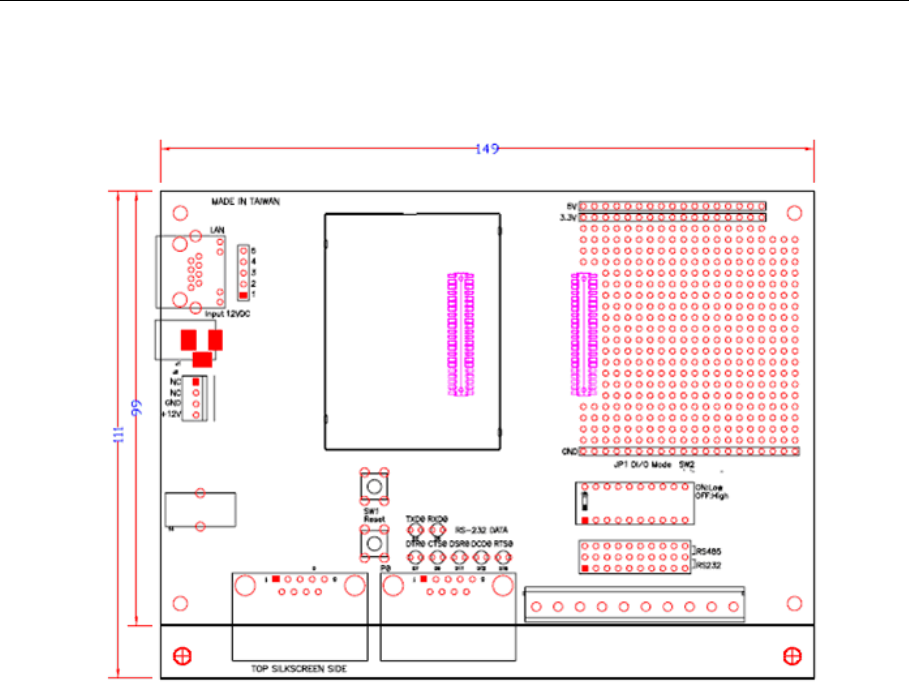

WE-2100T-ST
Unit: mm
![](/img.php?id=819430&img=bgc.png)
WE-2100T Series User’s Manual Panel Layout and Pin Assignments
2-4
Pin Assignments
Pin Function pin Function pin function pin function
1 3.3V 12 Console_DSR 23 Data_RTS 34 SW_RESET
2 GND 13 PIO0 24 Data_RxD 35 Eth_Center_TAP
3 3.3V 14 Console_DCD 25 Data_DTR 36 HW_RESET
4 GND 15 PIO1 26 Data_CTS 37 Eth_Center_TAP
5 3.3V 16 PIO4(WLAN
strength 1) 27 Ready_LED 38 Eth_100M_LED
6 GND 17 PIO2 28 Data_DSR 39 Eth_Rx+
7 Console_TxD 18 PIO5(WLAN
strength 2) 29 Fault_LED 40 Eth_10M_LED
8 Console_RxD 19 PIO3 30 Data_DCD 41 Eth_Rx-
9 Console_RTS 20 PIO6(WLAN
strength 3) 31 Eth_Tx+ 42 Reserved
10 Console_CTS 21 Data_TxD 32 WLAN_Link_LED 43 PIO0(WLAN
strength 0)
11 Console_DTR 22 PIO7(WLAN
strength 4) 33 Eth_Tx- 44 Reserved
![](/img.php?id=819430&img=bgd.png)
WE-2100T Series User’s Manual Panel Layout and Pin Assignments
2-5
WE-2100T LED Indicators
Type Color Status Meaning
Power is off.
WE-2100T is booting or rebooting.
Off Off
IP error condition occurs.
Stead On WE-2100T is functioning normally.
WE-2100T is located by NEAdmin’s
Location function.
Ready
Green Blinking SW Reset is hold within 5 seconds.
Power is off.
Off Off WE-2100T is functioning normally.
Steady On WE-2100T is booting or rebooting.
Fault Red Blinking IP conflict, DHCP or BOOTP server did not
respond properly.
Off Off WE-2100T was booted with Ethernet cable
plugged.
WLAN Green Steady On
Wireless LAN is activated. (WE-2100T was
booted with Ethernet cable unplugged.)
Off Off JP3 is opened.
WLAN Strength Green/Off Steady
On/Off
JP3 is shorted; five LEDs represent WLAN
signal strength of 20%~100%, in 20%
scale.
Off Off Ethernet cable is unplugged.
Orange Stead On 10M Ethernet conneced.
Ethernet
Green Stead On 100M Ethernet connected.
Off Off No data is transmitted from WE-2100T.
Serial TXD Green On Data is transmitted from WE-2100T.
Off Off No data is transmitted to WE-2100T.
Serial RXD Yellow On Data is transmitted to WE-2100T.
GPIO is input
JP2 DO is opened.
Off Off
GPIO mode is output, and state is high.
DO0~DO8
Green Stead On JP2 DO is shorted, GPIO mode is output,
and state is low.
![](/img.php?id=819430&img=bge.png)
3
3
Chapter 3 Getting Started
This chapter includes information about installing WE-2100T.
The following topics are covered in this chapter:
Wiring Requirements
Attaching WE-2100T to the Evaluation Board
Circuit Pad for External Connection
Connecting the Power
Connecting to the Network
Connecting to a Serial Device
DI/O Settings
¾ Digital Output LED Circuit Design
![](/img.php?id=819430&img=bgf.png)
WE-2100T Series User’s Manual Getting Started
3-2
Wiring Requirements
This section describes some important safety precautions that you should pay attention to before
proceeding with any installation.
Safety First!
Be sure to disconnect the power cord before installing and/or wiring your evaluation boards for the
WE-2100T module.
Wiring Caution!
Calculate the maximum possible current in each power wire and common wire. Observe all electrical
codes dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to
your equipment.
Temperature Caution!
Please take care when handling the evaluation boards. When plugged in, the evaluation boards’
internal components generate heat, and consequently the board may feel hot to the touch.
You should also pay attention to the following points:
z Use separate paths to route wiring for power and devices. If power wiring and device wiring
paths must cross, make sure the wires are perpendicular at the intersection point.
NOTE: Do not run signal or communication wiring and power wiring in the same wire
conduit. To avoid interference, wires with different signal characteristics should be routed
separately.
z You can use the type of signal transmitted through a wire to determine which wires should be
kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can
be bundled together.
z Keep input wiring and output wiring separate.
z Where necessary, it is strongly advised that you label wiring to all devices in the system.
Attaching WE-2100T to the Evaluation Board
Before connecting your WE-2100T-ST to the power supply, network, and serial device, you first
need to attach WE-2100T to the WE-2100T-ST evaluation board. In the center of the evaluation
boards, there is a square with 2 rows of male pins on one of its sides. The WE-2100T board also
has 2 rows of female sockets on its bottom. When attaching your WE-2100T to WE-2100T-ST,
make sure the pins and the socket match with each other, as shown in the following figure.
![](/img.php?id=819430&img=bg10.png)
WE-2100T Series User’s Manual Getting Started
3-3
Circuit Pad for External Connection
The circuit pad located on the left side of the evaluation boards is used to develop additional
application circuits. The circuit pad is circled in red in the figure below. As shown in the second
figure, the bottom row of the circuit pad is for connecting a 5V power supply, whereas the upper
row is for connecting a 3.3V power supply. There are totally 9 digital I/O pins on the right side.
The top row of the circuit pad is for grounding.
![](/img.php?id=819430&img=bg11.png)
WE-2100T Series User’s Manual Getting Started
3-4
Connecting the Power
Connect the 12 VDC power line with the evaluation boards’ power jack.
Connecting to the Network
In the development stage, you may want to configure the WE-2100T with Ethernet since the
wireless LAN may not work before properly configured. If you are using WE-2100T, connect one
end of the Ethernet cable to the WE-2100T-ST’s RJ45 Ethernet port, and the other end of the
cable to the Ethernet network. If the cable is properly connected, the RJ45 connector will indicate
a valid connection to the Ethernet in the following ways:
LAN
The green indicator LED in the upper right corner blinks when the cable is properly
connected to a 100 Mbps Ethernet network, and data is being transmitted.
LAN
The yellow indicator LED in the upper left corner blinks when the cable is properly
connected to a 10 Mbps Ethernet network, and data is being transmitted.
Connecting to a Serial Device
Connect the serial data cable between the evaluation boards and the serial device. The “Console
Port” or “P1” is used as serial console interface and the “Data Port” or “P2” is used as data
interface.
DI/O Settings
WE-2100T supports up to 9 digital I/Os. All 9 digital I/Os are GPIO (General Purpose I/O) that
allow you to set to “digital output” or “digital input” mode by software. On the evaluation board,
LEDs are used to simulate output loading whereas the DIP switch simulates an input device.
DIO mode for physical wiring is selected by the DIO mode jumper. For example, when the DIO
mode of DIO1 is set to DI, the circuit of DIO1 on the WE-2100T is connected to Digital Input
DIP switch, digit 1. When the firmware of the WE-2100T sets DIO1 to digital input mode, you
can check the DIO1 status with the Windows utility or Web browser. When you change digit 1 of
the switch, the changes appear on the Web browser.
![](/img.php?id=819430&img=bg12.png)
WE-2100T Series User’s Manual Getting Started
3-5

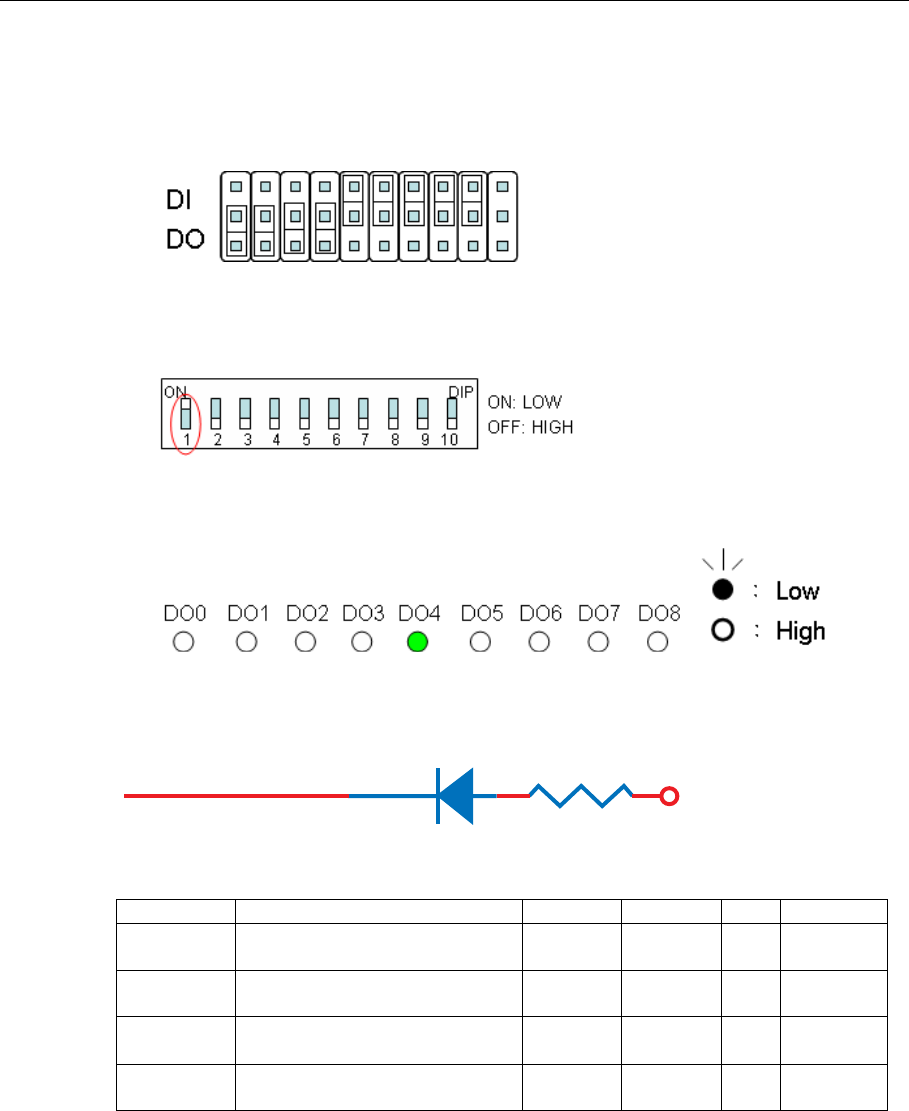

1. First, use the DIO selectable jumpers to set the D/O modes, as shown below.
2. After the DIO modes are set, use the Digital Input DIP Switches to configure the status for
DI0 – DI3. You can either configure the status to “Low” or “High.” If you wish to configure
DI0’s status to “Low” and the others to “High,” set DIP Switch 1 to the “ON” position and
the others to the “OFF” position, as shown below.
3. DO4 – DO8’s status must be configured with the Web Console. If you configure DO4’status
to “Low” and the others to “High,” the DO4’s LED will show solid green, and the other
LEDs will not light up. Refer to chapter 6 for more configuration details.
Digital Output LED Circuit Design
The figure shown below is the digital output LED circuit design. The design is called “Sink.”
3.3V
Dout
For developing your own applications, you need to be aware of the voltage limits shown below.
The output electric circuit is 1 mA
Min. Max. Unit Conditions
Low-level
Input Voltage Maximum voltage when DI is set
to “Low” status. ----- 0.3xVCC V
High-level
Input Voltage Minimum voltage when DI is set
to “High” status. 0.7xVCC ----- V
Low-level
Input Voltage Maximum voltage when DO is set
to “Low” status. ----- 0.4 V
High-level
Input Voltage Minimum voltage when DO is set
to “High” status 2.4 ----- V
Digital Output’s output current carries only 1 mA.
![](/img.php?id=819430&img=bg13.png)
4
4
Chapter 4 Choosing the Proper Operation Mode
In this section, we describe the various WE-2100T operation modes. The options include an
operation mode that uses a driver installed on the host computer, and operation modes that rely on
TCP/IP socket programming concepts. After choosing the proper operating mode in this chapter,
refer to subsequent chapters for detailed configuration parameter definitions.
Overview
TCP Server Mode
TCP Client Mode
UDP Mode
Real COM Mode
RFC2217 Mode
![](/img.php?id=819430&img=bg14.png)
NE-4100 Series User’s Manual Choosing the Proper Operation Mode
4-2
Overview
WE-2100T Series Embedded Wireless Network Enablers act as a bridge to connect your serial
devices to the wireless LAN. The built-in TCP/IP stack saves you a lot of time on programming
networking protocols. One simple step allows you to choose the proper operating mode, and then
use your computer to access, manage, and configure your serial device over the Internet from
anywhere in the world.
Traditional SCADA and data collection systems rely on serial ports (RS-232/422/485) to collect
data from various kinds of instruments. Since WE-2100T is equipped with the ability to convert
between serial and Ethernet signals, your SCADA and data collection system will be able to
access all devices connected to a standard TCP/IP network, regardless of whether the devices are
used locally or at a remote site.
Three different socket modes—TCP Server, TCP Client, and UDP Server/Client—, one real COM
and RFC-2217 modes are available. The main difference between the TCP and UDP protocols is
that TCP guarantees delivery of data by requiring the recipient to send an acknowledgement to the
sender. UDP does not require this type of verification, making it possible to offer speedier
delivery. UDP also allows multicasting of data to groups of IP addresses.
TCP Server Mode
In TCP Server mode, WE-2100T provides a unique
IP:Port address on a TCP/IP network. WE-2100T wait
passively to be contacted by the host computer, allowing
the host computer to establish a connection with and get
data from the serial device. This operation mode also
supports up to 8 simultaneous connections, so that
multiple hosts can collect data from the same serial
device—at the same time.
As illustrated in the figure, data transmission proceeds
as follows:
1. The host connects to the WE-2100T configured for
TCP Server Mode.
2. Once the connection is established, data can be
transmitted in both directions—from the host to the
WE-2100, and from the WE-4100T to the host.
![](/img.php?id=819430&img=bg15.png)
NE-4100 Series User’s Manual Choosing the Proper Operation Mode
4-3
TCP Client Mode
In TCP Client mode, WE-2100T can actively
establish a TCP connection to a set of (max. 4)
pre-defined host computer when serial data
arrives.
After the data has been transferred, WE-2100T
can automatically disconnect from the host
computer by using the TCP alive check time or
Inactivity time settings. Refer to the following
chapters for more details.
As illustrated in the figure, data transmission
proceeds as follows:
1. The WE-2100T running TCP Client Mode
actively establishes a connection based on
the conditions set in the firmware. You can
let the WE-2100T connect to a remote host
on start up, or connect later when data from
serial device arrives.
2. Once the connection is established, data can
be transmitted in both directions—from the
host to the WE-2100T, and from the
WE-2100T to the host.
UDP Mode
Compared to TCP communication, UDP is
faster and more efficient. In UDP mode,
you can multicast data from the serial
device to multiple host computers, and the
serial device can also receive data from
multiple host computers, making this mode
ideal for message display applications.
![](/img.php?id=819430&img=bg16.png)
NE-4100 Series User’s Manual Choosing the Proper Operation Mode
4-4
Real COM Mode
WE-2100T comes equipped with COM
drivers that work with Windows
95/98/ME/NT/2000/XP/Vista and
UNIX-like systems. The driver establishes
a transparent connection between host and
serial device by mapping the IP:Port of the
WE-2100T’s serial port to a local COM
port on the host computer.
The driver used for Real COM Mode comes with the Network Enabler Administrator which is
installed automatically on your computer when you install the Network Enabler Administration
Suite.
Real COM Mode allows users to continue using RS-232/422/485 serial communications software
that was written for pure serial communications applications. The driver intercepts data sent to the
host’s COM port, packs it into a TCP/IP packet, and then redirects it through the host’s Ethernet
card or wireless interface. At the other end of the connection, the WE-2100T accept the WLAN
frame, unpack the TCP/IP packet, and then transparently send it to the appropriate serial device
attached to the WE-2100T’s serial port.
Real COM Mode allows several hosts to have access control of the same WE-2100T. The Moxa
driver that comes with your WE-2100T controls host access to attached serial devices by checking
the host’s IP address.
Modify the Accessible IP Setting table when a public IP address is required for your application.
RFC2271 Mode
RFC-2217 mode is similar to Real COM mode. That is, a driver is used to establish a transparent connection
between a host computer and a serial device by mapping the serial port on the WE-2100T to a local COM port
on the host computer. RFC2217 defines general COM port control options based on the Telnet protocol. Third
party drivers supporting RFC-2217 are widely available on the Internet and can be used to implement Virtual
COM mapping to your WE-2100T serial port.
![](/img.php?id=819430&img=bg17.png)
5
5
Chapter 5 Initial IP Address Configuration
When setting up your WE-2100T module for the first time, the first thing you should do is
configure the IP address. This chapter introduces the methods that can be used to configure the
WE-2100T’s IP address. For more details about network settings, see the Network Settings section
from Chapter 6, Web Console Configuration.
This chapter includes the following sections:
Initializing WE-2100T’s IP Address
Factory Default IP Address
Network Enabler Administration Suite Å recommended configuration method
ARP
Telnet Console
Serial Console (19200, n, 8, 1)
![](/img.php?id=819430&img=bg18.png)
NE-4100 Series User’s Manual Initial IP Address Configuration
5-2
Initializing WE-2100T’s IP Address
1. Determine whether your WE-2100T will use a Static IP or Dynamic IP (either DHCP or
BOOTP application).
2. If WE-2100T is used in a Static IP environment, you can use Network Enabler
Administration Suite, ARP, Web Console, Telnet Console, or Serial Console to configure the
new IP address.
3. If WE-2100T is used in a Dynamic IP environment, you can use Network Enabler
Administration suite, Web Console, Telnet Console, or Serial Console to configure
WE-2100T to get an IP address dynamically with DHCP, DHCP/BOOTP, or BOOTP.
Consult your network administrator on how to reserve a fixed IP address (for your WE-2100T) in the
MAC-IP mapping table when using a DHCP Server or BOOTP Server. In most applications, you
should assign a fixed IP address to your WE-2100T module.
Factory Default IP Address
WE-2100T is configured with the following default private IP address:
Ethernet default IP address: 192.168.126.254
WLAN default IP address: 192.168.127.254
(IP addresses of the form 192.168.xxx.xxx are referred to as private IP addresses, since it is not
possible to directly access a device configured with a private IP address from a public network.
For example, you would not be able to ping such a device from an outside Internet connection.
WE-2100T applications that require sending data over a public network, such as the Internet,
require setting up the server with a valid public IP address, which can be leased from a local ISP.)
Network Enabler Administration Suite
Network Enabler Administration Suite consists of some useful utilities that are used to configure
and manage your WE-2100T embedded module.
See Chapter 7 for details on how to install Network Enabler Administration Suite, and how
to use this suite of useful utilities to set up IP addresses and configure your WE-2100T
embedded module.
ARP
You can use the ARP (Address Resolution Protocol) command to set up an IP address for your
WE-2100T. The ARP command tells your computer to associate the WE-2100T’s MAC address
with the intended IP address. You must then use Telnet to access the WE-2100T, at which point
the WE-2100T’s IP address will be reconfigured.
In order to use this setup method, both your computer and WE-2100T must be connected to the same
LAN.
You may also use a cross-over Ethernet cable to connect the WE-2100T directly to your computer’s
Ethernet card.
Your WE-2100T must be configured with the factory default IP address—192.168.127.254—before
executing the ARP command, as described below.
Take the following steps to use ARP to configure the IP address:
1. Obtain a valid IP address for your WE-2100T from your network administrator.
2. Obtain the WE-2100T’s MAC address from the label on the module.
3. Execute the ‘arp -s’ command from your computer’s MS-DOS prompt by typing:
![](/img.php?id=819430&img=bg19.png)
NE-4100 Series User’s Manual Initial IP Address Configuration
5-3
arp –s 192.168.200.100 00-90-E8-xx-xx-xx
This is where 192.168.200.100 is the new IP address and 00-90-E8-xx-xx-xx is the MAC address
for your WE-2100T. You will need to use both numbers, as described above in points 1 and 2.
4. Next, execute a special Telnet command by typing:
telnet 192.168.200.100 6000
After issuing this command, a Connect failed message will
appear, as shown here. After the WE-2100T module reboots,
its IP address should be updated to the new address, and you
can reconnect using Telnet, Web, or Administrator to check
that the update was successful.
Telnet Console
Depending on how your computer and network are configured, you may find it convenient to use
network access to set up your WE-2100T module’s IP address. This can be done using the Telnet
program.
1. From the Windows desktop, click on Start and then select Run.
2. Type telnet 192.168.126.254 (use the
correct IP address if different from the default) in
the Open text input box, and then click OK.
3. Type Enter to select
terminal type.
4. Press N to select Network
and then press Enter.
![](/img.php?id=819430&img=bg1a.png)
NE-4100 Series User’s Manual Initial IP Address Configuration
5-4
5. Press E to select Ethernet
or W to select WLAN and
press Enter.
6. Use Up/Down key to move
the cursor to the IP address
field, and then modify it.
7. Press Esc twice to quit the
configuration page. When
you see the configuration
change warning, press Y to
save to flash.
8. Press R to select Restart
and then press Enter.
9. Press S to select System
and then press Enter.
![](/img.php?id=819430&img=bg1b.png)
NE-4100 Series User’s Manual Initial IP Address Configuration
5-5
10. Press Enter to restart
WE-2100T.
![](/img.php?id=819430&img=bg1c.png)
NE-4100 Series User’s Manual Initial IP Address Configuration
5-6
Serial Console (19200, n, 8, 1)
You may use the RS-232 console port to configure the IP address for WE-2100T Series modules.
We suggest using MOXA PComm Terminal Emulator, which is available free of charge as part of
the MOXA PComm Lite program suite, to carry out the installation procedure, although other
similar utilities may also be used. (Please go to www.moxa.com to download the installation
program for PComm Lite.)
To begin with, use the serial cable to connect the WE-2100T module to your computer’s serial
port.
1. Connect the RS-232 Console (P1) port located on the evaluation board for WE-2100T directly
to your computer’s male RS-232 serial port.
2. From the Windows desktop click on Start Æ Programs Æ PComm Lite Æ Terminal
Emulator.
3. When the PComm Terminal Emulator window
opens, first click on the Port Manager menu item and
select Open, or simply click on the Open icon.
4. The Property window opens automatically. From the
Communication Parameter page, select the
appropriate COM port for the connection, COM1 in
this example, and 19200 for Baud Rate, 8 for Data
Bits, None for Parity, and 1 for Stop Bits.
5. From the Property window’s Terminal page, select
ANSI or VT100 for Terminal Type and then click
OK.
If you select Dumb Terminal as the terminal type,
the console functions may not work properly.
6. Type any character to switch automatically from data mode to console mode.
7. Start configuring the IP address.
Refer to step 3, Telnet Console.
![](/img.php?id=819430&img=bg1d.png)
6
6
Chapter 6 Web Console Configuration
The Web Console is the most user-friendly way to configure your WE-2100T. This chapter
introduces the Web Console function groups and function definitions.
Opening Your Browser
Basic Settings
Network Settings
Serial Settings
Operating Settings
¾ TCP Server Mode
¾ Real COM Mode
¾ TCP Client Mode
¾ UDP Mode
Accessible IP Settings
Auto Warning Settings
¾ E-mail and SNMP Trap
¾ Event Type
Digital IO
¾ DIO Monitor
Change Password
Load Factory Defaults
Save/Restart
Description in this
chapter is out of date!
Please copy the chapter
5 of “NPort 6000 User’s
Manual” and let’s modify
it then.
Thanks.
![](/img.php?id=819430&img=bg1e.png)
NE-4100 Series User’s Manual Web Console Configuration
6-2
Opening Your Browser
1. Open your browser with the cookie function enabled. (To enable your browser for cookies,
right click on your desktop Internet Explorer icon, select Properties, click on the Security tab,
and then select the three Enable options as shown in the figure below.)
2. Type 192.168.127.254 in the Address box (use the correct IP address if different from the
default), and then press Enter.
If you use other web browsers, remember to enable the functions to “allow cookies that are stored
on your computer” or “allow per-session cookies.”
NE-4100 Series only uses cookies for “password” transmission.
Refer to Chapter 5, “Initial IP Address Configuration,” for IP configuration. The examples used in
this chapter use the Factory Default IP Address (192.168.127.254).
3. The WE-2100T homepage will open. On this page, you can see a brief description of the Web
Console’s eleven function groups.
![](/img.php?id=819430&img=bg1f.png)
NE-4100 Series User’s Manual Web Console Configuration
6-3
If you can’t remember the password, the ONLY way to configure the WE-2100T is to load factory
defaults by using the Reset button located near the evaluation boards’ DB9 male serial port.
Remember to use Network Enabler Administrator to export the configuration file when you have
finished the configuration. After using the Reset button to load factory defaults, your configuration
can be easily reloaded into WE-2100T by using the Network Enabler Administrator Import function.
Refer to Chapter 7 for more details about using the Export and Import functions.
Basic Settings
Click on the Basic Settings link on the left side of the screen to open the Basic Settings screen.
Make necessary changes to the settings and click on submit to validate the modifications.
Server name
Setting Factory Default Necessity
1 to 39 characters NP[model name]_[Serial No.] Optional
This option is useful for specifying the location or application of different WE-2100T.
Time
WE-2100T has a built-in Real-Time Clock for time calibration functions. Functions such as Auto
warning “Email” or “SNMP Trap” can add real-time information to the message.
First time users should select the time zone first. The Console will display the “real time” according to
the time zone compared to GMT.
If you would like to modify the real time clock, select “Local Time.” The WE-2100T’s firmware will
modify the GMT time according to the Time Zone.
Time zone
Setting Factory Default Necessity
User selectable time zone GMT (Greenwich Mean Time) Optional
![](/img.php?id=819430&img=bg20.png)
NE-4100 Series User’s Manual Web Console Configuration
6-4
Local time
Setting Factory Default Necessity
User adjustable time. GMT (Greenwich Mean Time) Optional

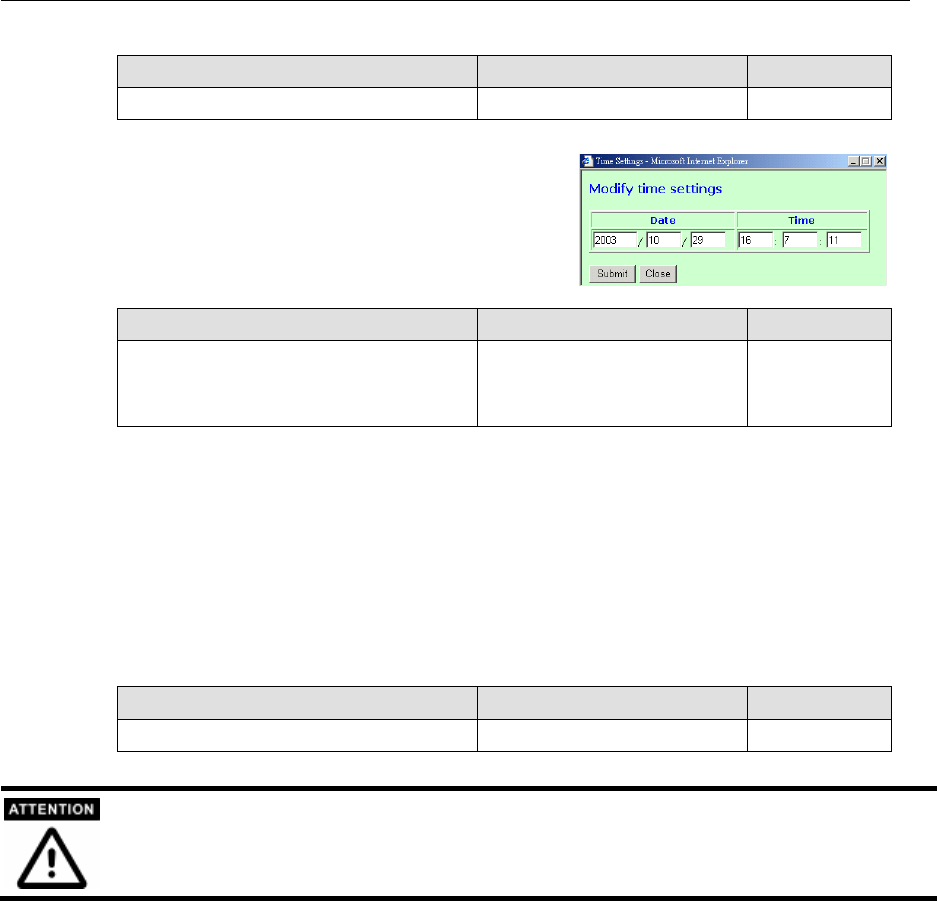

Click on the Modify button to open the Modify time
settings window to input the correct local time.
Time server
Setting Factory Default Necessity
IP or Domain address
(E.g., 192.168.1.1, time.stdtime.gov.tw, or
time.nist.gov)
None Optional
WE-2100T uses SNTP (RFC-1769) for auto time calibration.
Input the correct “Time Server” IP address or domain address. Once WE-2100T is configured
with the correct Time Server address, WE-2100T will request time information from the “Time
Server” every 10 minutes.
Console
The “Disable” option for Web Console and Telnet Console is included for security reasons. In
some cases, you may want to Disable one or both of these Console utilities as an extra precaution
to prevent unauthorized users from accessing your WE-2100T. The factory default for both Web
Console and Telnet Console is Enable.
Setting Factory Default Necessity
Enable or Disable Enable Required
If you disable both the “Web Console” and “Telnet Console,” you can still use the Serial Console to
configure WE-2100T locally, or Network Enabler Administrator to configure WE-2100T either
locally or remotely over the network.
![](/img.php?id=819430&img=bg21.png)
NE-4100 Series User’s Manual Web Console Configuration
6-5
Network Settings
Click on the Network Settings link on the left side of the screen to open the Networking
Settings screen. Make necessary changes to the settings and click on Submit to validate the
modifications.
You must assign a valid IP address to WE-2100T before it will work in your network environment.
Your network system administrator should provide you with an IP address and related settings for
your network. The IP address must be unique within the network (otherwise, WE-2100T will not
have a valid connection to the network). First time users can refer to Chapter 5, Initial IP address
Configuration, for more information.
You can choose from four possible IP Configuration modes—Static, DHCP, DHCP/BOOTP,
and BOOTP—located under the web console screen’s IP configuration drop-down box.
Method Function Definition
Static User defined IP address, Netmask, Gateway.
DHCP DHCP Server assigned IP address, Netmask, Gateway, DNS, and Time
Server
DHCP/BOOTP DHCP Server assigned IP address, Netmask, Gateway, DNS, and Time
Server, or BOOTP Server assigned IP address
BOOTP BOOTP Server assigned IP address
IP Address
Setting Factory Default Necessity
E.g., 192.168.1.1
(IP addresses of the form x.x.x.0 and
x.x.x.255 are invalid.)
192.168.127.254 Required
An IP address is a number assigned to a network device (such as a computer) as a permanent
address on the network. Computers use the IP address to identify and talk to each other over the
network. Choose a proper IP address which is unique and valid in your network environment.
![](/img.php?id=819430&img=bg22.png)
NE-4100 Series User’s Manual Web Console Configuration
6-6
Netmask
Setting Factory Default Necessity
E.g., 255.255.255.0 255.255.255.0 Required
A subnet mask represents all the network hosts at one geographic location, in one building, or on
the same local area network. When a packet is sent out over the network, the WE-2100T module
will use the subnet mask to check whether the desired TCP/IP host specified in the packet is on a
local network segment. If the address is on the same network segment as the WE-2100T, a
connection is established directly from the WE-2100T. Otherwise, the connection is established
through the given default gateway.
Gateway
Setting Factory Default Necessity
E.g., 192.168.1.1 None Optional
A gateway is a network gateway that acts as an entrance to another network. Usually, the
computers that control traffic within the network or at the local Internet service provider are
gateway nodes. WE-2100T needs to know the IP address of the default gateway computer in order
to communicate with the hosts outside the local network environment. For correct gateway IP
address information, consult the network administrator.
IP configuration
Setting Factory Default Necessity
Static
DHCP
DHCP/BOOTP
BOOTP
Static Required
In Dynamic IP environments, the firmware will retry 3 times every 30 seconds until network settings
are assigned by the DHCP or BOOTP server. The Timeout for each try increases from 1 second, to 3
seconds, to 5 seconds.
If the DHCP/BOOTP Server is unavailable, the firmware will use the default IP address,
192.168.127.254, Netmask, and Gateway for IP settings.
DNS server 1 / DNS sever 2
Setting Factory Default Necessity
E.g., 192.168.1.1
(IP addresses of the form x.x.x.0 and
x.x.x.255 are invalid.)
None Optional
When the user wants to visit a particular website, the computer asks a Domain Name System
(DNS) server for the website’s correct IP address, and the computer uses the response to connect
to the web server. DNS is the way that Internet domain names are identified and translated into IP
addresses. A domain name is an alphanumeric name, such as moxa.com, that it is usually easier to
remember. A DNS server is a host that translates this kind of text-based domain name into the
numeric IP address used to establish a TCP/IP connection.
In order to use WE-2100T’s DNS feature, you need to set the IP address of the DNS server to be
able to access the host with the domain name. WE-2100T provides DNS server 1 and DNS
server 2 configuration items to configure the IP address of the DNS server. DNS server 2 is
included for use when DNS sever 1 is unavailable.
NE-4100 plays the role of DNS client. WE-2100T functions that support domain name are Time
Sever IP Address, TCP Client-Destination IP Address, Mail Server, SNMP Trap IP Address,
and IP Location Server.
![](/img.php?id=819430&img=bg23.png)
NE-4100 Series User’s Manual Web Console Configuration
6-7
SNMP Settings
Community name
Setting Factory Default Necessity
1 to 39 characters
(E.g., Support, 886-89191230 #300) public Optional
A community name is a plain-text password mechanism that is used to weakly authenticate
queries to agents of managed network devices.
Contact
Setting Factory Default Necessity
1 to 39 characters
(E.g., Support, 886-89191230 #300) None Optional
The SNMP contact information usually includes an emergency contact name and telephone or
pager number.
Location
Setting Factory Default Necessity
1 to 39 characters
(E.g., Floor 1, office 2) None Optional
Specify the location string for SNMP agents such as WE-2100T Series. This string is usually set
to the street address where the WE-2100T is physically located.
IP Address Report
When WE-2100T is used in a dynamic IP environment, users must spend more time with IP
management tasks. For example, WE-2100T works as a server (TCP or UDP), and the host, which
acts as a client, must know the IP address of the server. If the DHCP server assigns a new IP
address to the server, the host must take care of what happens when the IP changes. WE-2100T
helps out by periodically reporting their IP address to the IP location server, in case the dynamic
IP has changed. The parameters shown below are used to configure the Auto IP report function.
There are two ways to develop an “Auto IP report Server” to receive WE-2100T’s Auto IP report.
1. Use Network Enabler Administrator’s IP Address Report function.
2. Refer to Appendix C for the “Auto IP report protocol” to develop your own software.
Auto report to IP
Setting Factory Default Necessity
E.g., 192.168.1.1 or URL
(IP addresses of the form x.x.x.0 and
x.x.x.255 are invalid.)
None Optional
Reports generated by the Auto report function will be sent automatically to this IP address.
Auto report to TCP port
Setting Factory Default Necessity
E.g., 4001 4002 Optional
Auto report period
Setting Factory Default Necessity
Time interval (in seconds) 10 Optional
Serial Settings
![](/img.php?id=819430&img=bg24.png)
NE-4100 Series User’s Manual Web Console Configuration
6-8
Click on the Serial Settings link on the left side of the screen to display serial settings. Make
necessary changes to the settings and click on submit to validate the modifications.
Port alias
Setting Factory Default Necessity
1 to 15 characters
(E.g., PLC-No.1)
None Optional
Port Alias is specially designed to allow easy identification of the serial devices which are
connected to NE-4100 Series’ serial port.
Serial Parameters
Check the serial communication parameters in your Serial Device’s user’s manual. You should set up
WE-2100T’s serial parameters with the same communication parameters used by your serial devices.
Baud rate
Setting Factory Default Necessity
50 bps to 921.6 Kbps 115.2 Kbps Required
WE-2100T supports a baud rate setting from 50 bps to 921.62 Kbps.
Data bits
Setting Factory Default Necessity
5, 6, 7, 8 8 Required
When the user sets Data bits to 5 bits, the stop bits setting will automatically change to 1.5 bits.
Stop bits
Setting Factory Default Necessity
1, 2 1 Required
Stop bits will be set to 1.5 when Data bits is set to 5 bits.
Parity
Setting Factory Default Necessity
None, Even, Odd, Space, Mark None Required
Flow control
Setting Factory Default Necessity
None, RTS/CTS, DTR/DSR, XON/XOFF RTS/CTS Required
![](/img.php?id=819430&img=bg25.png)
NE-4100 Series User’s Manual Web Console Configuration
6-9
FIFO
Setting Factory Default Necessity
Enable, Disable Enable Required
WE-2100T’s serial ports provide a 128-byte FIFO both in the Tx and Rx directions. Disable the
FIFO setting when your serial device does not have a FIFO to prevent data loss during
communication.
Operating Settings
Click on the Operating Settings link on the left side of the screen to display operating settings.
Make necessary changes to the settings and then click on Submit to validate the modifications.
TCP Server Mode
TCP alive check time
Setting Factory Default Necessity
0 to 99 min 7 min Optional
0 min: TCP connection is not closed due to an idle TCP connection.
1 to 99 min: WE-2100T automatically closes the TCP connection if there is no TCP activity for
the given time. After the connection is closed, WE-2100T starts listening for another host’s TCP
connection.
Inactivity time
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0 ms: TCP connection is not closed due to an idle serial line.
0-65535 ms: WE-2100T automatically closes the TCP connection if there is no serial data activity
for the given time. After the connection is closed, NE-4100 starts listening for another host’s TCP
connection.
This parameter defines the maintenance status as Closed or Listen on the TCP connection. The
connection is closed if there is no incoming or outgoing data through the serial port during the
specific Inactivity time.
If the value of inactivity time is set to 0, the current TCP connection is maintained until there is a
connection close request. Although inactivity time is disabled, the WE-2100T will check the
connection status between the WE-2100T and remote host by sending “keep alive” packets
periodically. If the remote host does not respond to the packet, it assumes that the connection was
closed down unintentionally. WE-2100T will then force the existing TCP connection to close.
![](/img.php?id=819430&img=bg26.png)
NE-4100 Series User’s Manual Web Console Configuration
6-10
The Inactivity time should at least be set larger than that of Force Transmit timeout. To prevent the
unintended loss of data due a session getting disconnected, it is highly recommended that this value is
set large enough so that the intended data transfer is completed.
Max connection
Setting Factory Default Necessity
1, 2, 3, 4 1 Required
Max connection is usually used when the user needs to receive data from different hosts
simultaneously. The factory default only allows 1 connection at a time.
Max. connection 1:
WE-2100T only allows 1 host to open the TCP connection to the specific serial port.
Max connection 2 to 4:
Allows requests from between 2 and 4 host’s TCP connection to open the specific WE-2100T
serial port, at the same time. When multiple hosts establish a TCP connection to the specific serial
port at the same time, WE-2100T will duplicate the serial data and transmit to all of the hosts.
Ethernet data is sent on a first-in-first-out basis to the serial port when data comes into WE-2100T
from the Ethernet interface.
Delimiter 1
Setting Factory Default Necessity
00 to FF “0” for None Optional
Delimiter 2
Setting Factory Default Necessity
00 to FF “0” for None Optional
Once the WE-2100T receives both delimiters through its serial port, it immediately packs all data
currently in its buffer and sends it out the WE-2100T’s Ethernet port.
Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of
the serial data received is greater than 1K, the WE-2100T will automatically pack the data and send it
to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter 1. If
Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work properly.
Force transmit
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0: Disable the force transmit timeout.
1 to 65535: Forces the WE-2100T’s TCP/IP protocol software to try to pack serial data received
during the specified time into the same data frame.
This parameter defines the time interval during which WE-2100T fetches the serial data from its
internal buffer. If data is being received through the serial port, the WE-2100T stores the data in
its internal buffer. WE-2100T transmits data stored in the buffer via TCP/IP, but only if the
internal buffer is full or if the force transmit time interval reaches the time specified as Force
Transmit timeout.
Optimal force transmit timeout differs according to your application, but it must be at least as
large as one character interval within the specified baud rate. For example, assume that the serial
port is set to 1200 bps, 8 data bits, 1 stop bit, and no for parity. In this case, the total number of
bits required to send a character is 10 bits and the time required to transfer one character is
![](/img.php?id=819430&img=bg27.png)
NE-4100 Series User’s Manual Web Console Configuration
6-11
( 10 bits / 1200 bits/s ) * 1000 = 8.3 ms.
Therefore, you should set Force Transmit timeout to be larger than 8.3 ms. Force Transmit
timeout is specified in milliseconds and must be larger than 10 ms.
If the user wants to send a series of characters in a packet, the serial device attached to the
WE-2100T should send characters without time delay larger than the Force Transmit timeout
between characters, and the total length of data must be smaller than or equal to the WE-2100T
module’s internal buffer size. WE-2100T’s serial communication buffer size is 1 Kbyte per port.
Local TCP port
Setting Factory Default Necessity
1 to 65535 4001 Required
The TCP port that WE-2100T uses to listen to connections, and that other devices must use to
contact WE-2100T. To avoid conflicts with well known TCP ports, the default is set to 4001.
Command port
Setting Factory Default Necessity
1 to 65535 966 Optional
The command port is a listen TCP port for IP-Serial Lib commands from the host. In order to
prevent a TCP port conflict with other applications, the user can adjust the command port to
another port if needed. The IP-Serial Lib will automatically check out the Command Port on
WE-2100T so that the user does not need to configure the program.
Real COM Mode
TCP alive check time
Setting Factory Default Necessity
0 to 99 min 7 min Optional
0 min: TCP connection is not closed due to an idle TCP connection.
1 to 99 min: WE-2100T automatically closes the TCP connection if there is no TCP activity for
the given time. After the connection is closed, WE-2100T starts listening for another Real COM
driver’s connection from another host.
Max Connection
Setting Factory Default Necessity
1, 2, 3, 4 1 Required
Max connection is usually used when the user needs to receive data from different hosts
simultaneously. The factory default only allows 1 connection at a same. When Max Connection is
set to 1, the Real COM driver on the specific host has full control.
Max. connection 1:
Allows only 1 host’s Real COM driver to open the specific WE-2100T serial port.
![](/img.php?id=819430&img=bg28.png)
NE-4100 Series User’s Manual Web Console Configuration
6-12
Max connection 2 to 4:
Allows 2 to 4 host’s Real COM drivers to open the specific WE-2100T serial port, at the same
time. When multiple hosts’ Real COM drivers open the serial port at the same time, the COM
driver only provides a pure data tunnel without control ability.
Application software that is based on the COM driver will receive a driver response of “success”
when the software uses any of the Win32 API functions. The firmware will only send the data
back to the driver on the host.
Data will be sent first-in-first-out when data comes into the WE-2100T from the Ethernet
interface.
When Max Connection is not 1, it also means that WE-2100T will be in “multi connection
application.” In the “multi connection application,” when one of two to four hosts closes the COM
port, WE-2100T will suspend receiving or sending serial data until the host successfully closes the
COM port.
In multi connection applications, WE-2100T will use the serial communication parameters set in the
console. If the host opens the COM with parameters different from WE-2100T’s console setting, data
communication may not work properly.
Delimiter 1
Setting Factory Default Necessity
00 to FF “0” for None Optional
Delimiter 2
Setting Factory Default Necessity
00 to FF “0” for None Optional
Once the WE-2100T receives both delimiters through its serial port, it immediately packs all data
currently in its buffer and sends it out the WE-2100T’s Ethernet port.
Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of
the serial data received is greater than 1K, the WE-2100T will automatically pack the data and send it
to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter 1. If
Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work properly.
Force Transmit
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0: Disable the force transmit timeout.
1 to 65535: Forces the WE-2100T’s TCP/IP protocol software to try to pack serial data received
during the specified time into the same data frame.
This parameter defines the time interval during which WE-2100T fetches the serial data from its
internal buffer. If data is incoming through the serial port, NE-4100 stores the data in the internal
buffer. WE-2100T transmits data stored in the buffer via TCP/IP, but only if the internal buffer is
full or if the force transmit time interval reaches the time specified under Force Transmit timeout.
Optimal force transmit timeout differs according to your application, but it must be at least larger
than one character interval within the specified baud rate. For example, assume that the serial port
is set to 1200 bps, 8 data bits, 1 stop bit, and no parity. In this case, the total number of bits
needed to send a character is 10 bits, and the time required to transfer one character is
( 10 bits / 1200 bits/s ) * 1000 = 8.3 ms.
Therefore, you should set Force Transmit timeout to be larger than 8.3 ms. Force Transmit
timeout is specified in milliseconds and must be larger than 10 ms.
If the user wants to send the series of characters in a packet, the serial device attached to the
![](/img.php?id=819430&img=bg29.png)
NE-4100 Series User’s Manual Web Console Configuration
6-13
WE-2100T should send characters without time delay larger than Force Transmit timeout between
characters and the total length of data must be smaller than or equal to WE-2100T’s internal
buffer size. The serial communication buffer size of NE-4100 series is 1 Kbyte per port.
TCP Client Mode
TCP alive check time
Setting Factory Default Necessity
0 to 99 min 7 min Optional
0 min: TCP connection is not closed due to an idle TCP connection.
1 to 99 min: WE-2100T automatically closes the TCP connection if there is no TCP activity for
the given time.
Inactivity time
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0 ms: TCP connection is not closed due to an idle serial line.
0-65535 ms: WE-2100T automatically closes the TCP connection, if there is no serial data
activity for the given time.
This parameter defines the maintenance status as Closed or Listen on the TCP connection. The
connection is closed if there is no incoming or outgoing data through the serial port during the
specific Inactivity time.
If the value of inactivity time is set to 0, the current TCP connection is maintained until a
connection close request is received. Although the inactivity time is disabled, the WE-2100T will
check the connection status between the WE-2100T and remote host by sending “keep alive”
packets periodically. If the remote host does not respond to the packets, it treats the connection as
being down unintentionally. WE-2100T will then force the existing TCP connection to close.
The Inactivity time should at least be set larger than that of the Force Transmit timeout. To prevent the
unintended loss of data due to the session being disconnected, it is highly recommended that this value
is set large enough so that the intended data transfer is completed.
![](/img.php?id=819430&img=bg2a.png)
NE-4100 Series User’s Manual Web Console Configuration
6-14
Inactivity time is ONLY active when “TCP connection on” is set to “Any character.”
Delimiter 1
Setting Factory Default Necessity
00 to FF “0” for None Optional
Delimiter 2
Setting Factory Default Necessity
00 to FF “0” for None Optional
Once the WE-2100T receives both delimiters through its serial port, it immediately packs all data
currently in its buffer and sends it out the WE-2100T’s Ethernet port.
Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of
the serial data received is greater than 1K, the WE-2100T will automatically pack the data and send it
to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter 1. If
Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work properly.
Force transmit
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0: Disable the force transmit timeout.
1 to 65535: Forces the WE-2100T’s TCP/IP protocol software to try to pack serial data received
during the specified time into the same data frame.
This parameter defines the interval during which WE-2100T fetches the serial data from its
internal buffer. If there is incoming data through the serial port, WE-2100T stores data in the
internal buffer. WE-2100T transmits data stored in the buffer via TCP/IP, but only if the internal
buffer is full or if the force transmit time interval reaches the time specified as Force Transmit
timeout.
Optimal force transmit timeout differs according to your application, but it must be at least as
large as one character interval within the specified baud rate. For example, assume that the serial
port is set to 1200 bps, 8 data bits, 1 stop bit, and no for parity. In this case, the total number of
bits required to send a character is 10 bits, and the time required to transfer one character is
( 10 bits / 1200 bits/s ) * 1000 = 8.3 ms.
Therefore, you should set Force Transmit timeout to be larger than 8.3 ms. Force Transmit
timeout is specified in milliseconds and must be larger than 10 ms.
If the user wants to send a series of characters in a packet, the serial device attached to WE-2100T
should send characters without time delay larger than Force Transmit timeout between characters
and the total length of data must be smaller than or equal to NE-4100’s internal buffer size. The
serial communication buffer size of WE-2100T is 1 Kbyte per port.
Destination IP address 1/2/3/4
Setting Factory Default Necessity
IP address or domain name
(e.g., 192.168.1.1) None Required
Allows WE-2100T to connect actively to the remote host whose address is set by this parameter.
![](/img.php?id=819430&img=bg2b.png)
NE-4100 Series User’s Manual Web Console Configuration
6-15
Up to 4 connections can be established between WE-2100T and hosts. The connection speed or
throughput may be low if one of the four connections is slow. In this case, the other 3 connections will
be delayed while waiting for the slowest connection to finish transmitting or receiving.
The “Destination IP address” parameter can use both IP address and Domain address. For some
applications, the user may need to send the data actively to the remote destination domain address.
TCP connection on
Setting Factory Default Necessity
Start up,
Any Character
Start up Optional
Start up: Attempts to establish a TCP connection as soon as the WE-2100T is powered on.
Any Character: Attempts to establish a TCP connection as soon as the WE-2100T starts receiving
serial data.
UDP Mode
Delimiter 1
Setting Factory Default Necessity
00 to FF “0” for None Optional
Delimiter 2
Setting Factory Default Necessity
00 to FF “0” for None Optional
Once the WE-2100T receives both delimiters through the serial port, it immediately packs all data
currently in its buffer and sends it to the WE-2100T’s Ethernet port.
Note: Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer.
![](/img.php?id=819430&img=bg2c.png)
NE-4100 Series User’s Manual Web Console Configuration
6-16
Delimiter 2 is optional. If left blank, then Delimiter 1 alone trips clearing of the buffer. If the size of
the serial data received is greater than 1K, the WE-2100T will automatically pack the data and send it
to the Ethernet. However, to use the delimiter function, you must at least enable Delimiter 1. If
Delimiter 1 is left blank and Delimiter 2 is enabled, the delimiter function will not work properly.
Force Transmit
Setting Factory Default Necessity
0 to 65535 ms 0 ms Optional
0: Disable the force transmit timeout.
1 to 65535: Forces the WE-2100T’s TCP/IP protocol software to try to pack serial data received
during the specified time into the same data frame.
This parameter defines the interval during which WE-2100T fetches the serial data from its
internal buffer. If there is incoming data through the serial port, WE-2100T stores the data in the
internal buffer. WE-2100T transmits data stored in the buffer via TCP/IP, but only if the internal
buffer is full or if the force transmit time interval reaches the time specified as Force Transmit
timeout.
Optimal force transmit timeout differs according to your application, but it must be at least as
large as one character interval within the specified baud rate. For example, assume that the serial
port is set to 1200 bps, 8 data bits, 1 stop bit, and no for parity. In this case, the total number of
bits required to send a character is 10 bits and the time required to transfer one character is
( 10 bits / 1200 bits/s ) * 1000 = 8.3 ms.
Therefore, you should set the Force Transmit timeout to be larger than 8.3 ms. Force Transmit
timeout is specified in milliseconds and must be larger than 10 ms.
If the user wants to send a series of characters in a packet, the serial device attached to WE-2100T
should send characters without time delay larger than Force Transmit timeout between characters
and the total length of data must be smaller than or equal to WE-2100T’s internal buffer size. The
serial communication buffer size of WE-2100T is 1 Kbyte per port.
Destination IP address 1/2/3/4
Setting Factory Default Necessity
IP address range
E.g., Begin: 192.168.1.1
End: 192.168.1.10
None Required
Local Listen port
Setting Factory Default Necessity
1 to 65535 4001 Required
The UDP port that WE-2100T listens to, and that other devices must use to contact WE-2100T. To
avoid conflicts with well known UDP ports, the default is set to 4001.
![](/img.php?id=819430&img=bg2d.png)
NE-4100 Series User’s Manual Web Console Configuration
6-17
Accessible IP Settings
Click on the Accessible IP Settings link on the left side of the screen to display serial settings.
Make necessary changes to the settings and click on Submit to validate the modifications.
WE-2100T has an IP address based filtering method to control access to the WE-2100T.
Accessible IP Settings allows you to add or remove “Legal” remote host IP addresses to prevent
unauthorized access. Access to WE-2100T is controlled by IP address. That is, if a host’s IP
address is in the accessible IP table, then the host will be allowed access to the WE-2100T. You
can allow one of the following cases by setting the parameter.
z Only one host with a specific IP address can access the WE-2100T
Enter “IP address/255.255.255.255” (e.g., “192.168.1.1/255.255.255.255”).
z Hosts on a given subnet can access the WE-2100T
Enter “IP address/255.255.255.0” (e.g., “192.168.1.0/255.255.255.0”).
z Any host can access the WE-2100T
Disable this function. Refer to the following table for more details about the configuration
example.
Allowable Hosts Input format
Any host Disable
192.168.1.120 192.168.1.120 / 255.255.255.255
192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0
192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0
192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128
192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128
![](/img.php?id=819430&img=bg2e.png)
NE-4100 Series User’s Manual Web Console Configuration
6-18
Auto Warning Settings
Click on the Auto Warning Settings link on the left side of the screen to display serial settings.
Make necessary changes to the settings and click on Submit to validate the modifications.
E-mail and SNMP Trap
Mail server
Mail server
Setting Factory Default Necessity
IP or Domain Name None Optional
User name
Setting Factory Default Necessity
1 to 15 characters None Optional
Password
Setting Factory Default Necessity
1 to 15 characters None Optional
From E-mail address
Setting Factory Default Necessity
1 to 63 characters NE_[Serial No.]@[WE-2100T
Series Module Name] Optional
E-mail address 1/2/3/4
Setting Factory Default Necessity
1 to 63 characters None Optional
Consult your network administrator or ISP for the proper mail server settings. The Auto warning
function may not work properly if not set up properly. WE-2100T SMTP AUTH supports LOGIN,
PLAIN, CRAM-MD5 (RFC 2554).
SNMP trap server
SNMP trap server IP or domain name
Setting Factory Default Necessity
IP or Domain Name None Optional
![](/img.php?id=819430&img=bg2f.png)
NE-4100 Series User’s Manual Web Console Configuration
6-19
Event Type
Cold start
This refers to starting the system from power off (contrast this with warm start). When performing
a cold start, WE-2100T will automatically issue an Auto warning message by e-mail, or send an
SNMP trap after rebooting.
Warm start
This refers to restarting the computer without turning the power off. It’s the opposite of cold start.
When performing a warm start, WE-2100T will automatically send an e-mail, or send an SNMP
trap after rebooting.
Authentication failure
The user inputs a wrong password from the Console or Administrator. When authentication
failure occurs, WE-2100T will immediately send an e-mail or send an SNMP trap.
IP address changed
The user has changed WE-2100T’s IP address. When the IP address changes, WE-2100T will
send an e-mail with the new IP address before WE-2100T reboots. If the WE-2100T fails to send
mail to the mail server after 15 seconds, WE-2100T will reboot directly and abort the mail auto
warning.
Password changed
The user has changed WE-2100T’s password. When the password changes, WE-2100T will send
an e-mail with the password change notice before WE-2100T reboots. If the WE-2100T fails to
send mail to the mail server after 15 seconds, WE-2100T will reboot directly and abort the mail
auto warning.
DCD changed
The DCD (Data Carrier Detect) signal has changed, also indicating that the modem connection
status has changed. For example, a DCD change to high also means “Connected” between local
modem and remote modem. If the DCD signal changes to low, it also means that the connection
line is down.
When the DCD changes, WE-2100T will immediately send an e-mail or send an SNMP trap.
DSR changed
The DSR (Data Set Ready) signal has changed, also indicating that the data communication
equipment’s power is off. For example, a DSR change to high also means that the DCE is
powered ON. If the DSR signal changes to low, it also means that the DCE is powered off.
When the DSR changes, WE-2100T will immediately send an e-mail or send an SNMP trap.
Mail
Setting Factory Default Necessity
Enable, Disable Disable Optional
This feature helps the administrator manage the WE-2100T. WE-2100T sends mail to pre-defined
![](/img.php?id=819430&img=bg30.png)
NE-4100 Series User’s Manual Web Console Configuration
6-20
mail boxes when the enabled events—such as Cold start, Warm start, Authentication failure,
etc.—occur. To configure this feature, click on the event type box.
Trap
Setting Factory Default Necessity
Enable, Disable Disable Optional
This feature helps the administrator manage the WE-2100T. WE-2100T sends SNMP Trap to a
pre-defined SNMP Trap server when the enabled events—such as Cold start, Warm start,
Authentication failure, etc.—occur. To configure this feature, you need to click on the event type
box.
DCD changed and DSR changed events are only supported by those models that have these two
signals.
Digital IO
Click on the Digital IO link on the left side of the screen to open the DIO Settings window.
There are 2 options for selecting DIO modes: IN and OUT. When you set the mode to IN, you
will not be able to set the Status to H or L. You can only monitor the DIOs’ status. But when you
set the mode to OUT, you can configure the Status to H or L. Make necessary changes to the
settings and click on submit to validate the modifications.
Refer to Chapter 8 for information about the SW Reset Function.
DIO Monitor
You can monitor the DIO status from the web page shown below. To do so, click on the DIO
Monitor link on the left side of the screen to open the DIO Monitor window.
![](/img.php?id=819430&img=bg31.png)
NE-4100 Series User’s Manual Web Console Configuration
6-21
Change Password
Click on the Change Password link on the left side of the screen to display the Change
Password window. Make necessary changes to the settings and click on Submit to validate the
modifications.
Input the “Old password” and “New password” to change the password. Leave the password
boxes blank to erase the password. In this case, the WE-2100T will not have password protection.
If you forget the password, the ONLY way to configure WE-2100T is by using the Reset button on
the WE-2100T’s evaluation boards to “Load Factory Defaults.”
Remember to export the configuration file using Network Enabler Administrator when you finish the
configuration. By using the Import function of Network Enabler Administrator, your configuration
can be re-loaded into WE-2100T after using “Load Factory Default.” Refer to Chapter 7 for more
details about the Export and Import function.
Load Factory Defaults
To load the factory default settings, click on the Load Factory Default link on the left side of the
screen and then click on Submit to restore the factory default settings. Note that by doing so the
modifications you made before will be lost.
![](/img.php?id=819430&img=bg32.png)
NE-4100 Series User’s Manual Web Console Configuration
6-22
Save/Restart
Click on the Save/Restart link on the left side of the screen if you would like to restart the
configuration. After all changes have been made and applied, click on Submit to exit the system.
![](/img.php?id=819430&img=bg33.png)
7
7
Chapter 7 Network Enabler Administrator
In addition to using Web Console, Serial Console, and Telnet Console to configure WE-2100T,
another useful configuration tool that can be used is Network Enabler Administrator. In this
chapter, we will discuss how to use Network Enabler Administrator to configure your WE-2100T.
This chapter includes the following sections:
Overview
Installing Network Enabler Administrator
Starting the Configuration
¾ Broadcast Search
¾ Unlock Password Protection
¾ Configuring WE-2100T
¾ Upgrading the Firmware
¾ Export/Import
Monitor
Port Monitor
COM Mapping
¾ On-line COM Mapping
¾ Off-line COM Mapping
Pictures in this chapter
may need re-captured.
![](/img.php?id=819430&img=bg34.png)
NE-4100 Series User’s Manual Web Console Configuration
7-2
Overview
We understand the importance of software as the foundation of your application, and with this in
mind, we designed Network Enabler Administrator to let you easily install and configure your
WE-2100T Series products over the network. Network Enabler Administrator provides five
function groups that ease the installation process, allows off-line COM mapping, and provides
monitoring and IP location server functions.
Network Enabler Administrator is an integrated software suite that bundles Network Enabler
Administrator and the IP Serial Library, and provides everything you need to remotely manage,
monitor, and modify your WE-2100T—hassle free.
Installing Network Enabler Administrator
1. Once the Setup program starts running, click on
Yes to proceed.
2. Click on Next when the Welcome
window opens to proceed with the
installation.
3. Click on Next when the Select
Additional Tasks window opens to
proceed with the installation.
![](/img.php?id=819430&img=bg35.png)
NE-4100 Series User’s Manual Web Console Configuration
7-3
4. Click on Install to install program files
in the default directory.
5. The Installing window reports the
progress of the installation.
6. Click on Finish to complete the
installation of Network Enabler
Administrator Suite.
![](/img.php?id=819430&img=bg36.png)
NE-4100 Series User’s Manual Web Console Configuration
7-4
Starting the Configuration
The Network Enabler Administrator-Configuration window is divided into four parts.
z The top part is the function list and online help area. (Windows NT does not support
this .chm file format.)
z The left part lists the five Administrator function groups.
z The right part gives the list of WE-2100Ts that can be selected to process user requirements.
z The bottom part is the Log area, which shows useful messages that record the user’s
processing history.
Broadcast Search
The Broadcast Search function is used to locate all WE-2100T modules that are connected to the
same LAN as your computer. Since the Broadcast Search function searches by MAC address and
not IP address, all WE-2100T modules connected to the LAN will be located, regardless of
whether or not they are part of the same subnet as the host.
1. Click on the Network Enabler Administrator icon or click on StartÆProgramsÆNetwork
Enabler AdministratorÆNetwork Enabler Administrator to start the Network Enabler
Administrator program.
![](/img.php?id=819430&img=bg37.png)
NE-4100 Series User’s Manual Web Console Configuration
7-5
2. Click on Configuration from the menu bar, and then select Broadcast Search from the
drop-down menu.
3. A Searching window will open, showing that the program is searching for WE-2100Ts
connected to this network.
![](/img.php?id=819430&img=bg38.png)
NE-4100 Series User’s Manual Web Console Configuration
7-6
4. After the search is finished, all WE-2100Ts that were found will be shown in the right panel
of the Configuration window. If you locate more than one module connected to this network,
refer to the MAC address on the module(s) to determine which modules are the ones you wish
to configure.
Before modifying an WE-2100T’s configuration, use Broadcast Search or Specify by IP Address to
locate the WE-2100T.
Unlock Password Protection
If the WE-2100T is password protected, then you will not be able to use the right click or double
click method to open the configuration page. Before you can make any modifications to the
WE-2100T configuration, you need to unlock the WE-2100T.
![](/img.php?id=819430&img=bg39.png)
NE-4100 Series User’s Manual Web Console Configuration
7-7
1. Select the WE-2100T that you would like to unlock. Right click the mouse and then select
Unlock from the drop down list.
2. After inputting the correct password, the following window will open.
The meanings of the six states are as follows (note that the term Fixed is borrowed from the
standard fixed IP address networking terminology):
Lock
The WE-2100T is password protected, “Broadcast Search” was used to locate it, and the password
has not yet been entered from within the current Administrator session.
Unlock
The WE-2100T is password protected, “Broadcast Search” was used to locate it, and the password
has been entered from within the current Administrator session. Henceforth during this
Administrator session, activating various utilities for this WE-2100T will not require re-entering
the password.
Blank
The WE-2100T is not password protected, and “Broadcast Search” was used to locate it.
Fixed
The WE-2100T is not password protected, and “Search by IP address” was used to locate it.
Lock Fixed
The WE-2100T is password protected, “Specify by IP address” was used to locate it, and the
password has not yet been entered from within the current Administrator session.
Unlock Fixed
The WE-2100T is password protected, “Specify IP Address” was used to locate it, and the
password has been entered from within the current Administrator session. Henceforth during this
Administrator session, activating various utilities for this WE-2100T will not require re-entering
the password.
![](/img.php?id=819430&img=bg3a.png)
NE-4100 Series User’s Manual Web Console Configuration
7-8
Configuring WE-2100T
1. Select the WE-2100T module you wish to configure, click the right mouse button, and then
select Configure from the drop down list.
2. The next window to open shows that Configurator is processing the configuration of that
WE-2100T.
3. After the processing is done, the Configurator window will open.
The Configurator window has nine tabs—Basic, Network, Serial, Operating Mode, Accessible
IPs, Auto Warning, IP Address Report, Password, and Digital IO—that allow the user to view
and modify basic parameters related to the WE-2100T operation. Refer to Chapter 6 for each
parameter’s function definition. To modify the configuration, you must first click in the Modify
box to activate the parameter setting box.
![](/img.php?id=819430&img=bg3b.png)
NE-4100 Series User’s Manual Web Console Configuration
7-9
You can simultaneously modify the configurations of multiple WE-2100Ts that are of the same
model.
To select multiple WE-2100Ts, hold down the Ctrl key when selecting additional WE-2100Ts, or hold
down the Shift key to select a group of WE-2100Ts.
Upgrading the Firmware
1. Input the password to Unlock the WE-2100T, and then right click on a specific module and
select the Upgrade Firmware function to start upgrading the firmware.
2. Select the correct ROM file to be downloaded to the WE-2100T. Visit Moxa’s website at
www.moxa.com for the latest firmware release.
3. Wait patiently while the Upgrade Firmware action is being processed.
You can simultaneously upgrade the firmware of multiple WE-2100Ts that are of the same model.
To select multiple WE-2100Ts, hold down the Ctrl key when selecting an additional WE-2100T, or
hold down the Shift key to select a block of WE-2100Ts.
![](/img.php?id=819430&img=bg3c.png)
NE-4100 Series User’s Manual Web Console Configuration
7-10
Export/Import
1. Right click on a specific WE-2100T and select the Export function to start exporting the
configuration file. The Export Configuration function is a handy tool that can be used to
produce a text file containing the current configuration of a particular WE-2100T.
2. The Import Configuration function is used to import an WE-2100T configuration from a file
into one or more of the same model of WE-2100T. To import a configuration, first select the
target modules, click on the right mouse, and select Import Configuration from the drop
down menu.
You can simultaneously import the same configuration file into multiple WE-2100Ts that are of the
same model.
To select multiple WE-2100Ts, hold down the Ctrl key when selecting an additional WE-2100T, or
hold down the Shift key to select a block of WE-2100Ts.
![](/img.php?id=819430&img=bg3d.png)
NE-4100 Series User’s Manual Web Console Configuration
7-11
Monitor
Two methods can be used to activate the Monitor function.
1. First use Broadcast Search under the Configuration Function group, and then click on
Monitor Æ Add Target Æ Select From List.
2. First click on Monitor, and then Add Target Æ Rescan.
To use the Monitor function, follow the steps described below.
1. Select Broadcast under the Configuration function group.
2. Click on Monitor.
![](/img.php?id=819430&img=bg3e.png)
NE-4100 Series User’s Manual Web Console Configuration
7-12
3. Select Add Target.
4. When you select add target, you will see an WE-2100T list that looks the same as when using
Configuration Æ Broadcast Search. Checkmark the WE-2100T modules you would like to
Monitor, and then click on OK.
5. The WE-2100T list will appear on the Monitor Screen.
![](/img.php?id=819430&img=bg3f.png)
NE-4100 Series User’s Manual Web Console Configuration
7-13
6. Right click the panel and select Settings.
7. Select Monitor items.
8. Select a Refresh Rate (the default is 3 seconds).
![](/img.php?id=819430&img=bg40.png)
NE-4100 Series User’s Manual Web Console Configuration
7-14
9. Select Display warning message or Play the warning music in WAV format when a new
event occurs. New event means one of the WE-2100Ts in the monitor is “Alive” or “Not
Alive,” or has lost its connection with the Monitor program.
10. Press Go to start Monitor.
11. In this example, the WE-2100T shown in the list will be monitored.
12. When one of the WE-2100Ts loses connection with the Monitor program, a warning will be
displayed automatically. The warning music will be played at the same time.
![](/img.php?id=819430&img=bg41.png)
NE-4100 Series User’s Manual Web Console Configuration
7-15
13. If the WE-2100T gets reconnected, a warning will be displayed to remind the user that the
WE-2100T is now “Alive.”
Port Monitor
The process is the same as in the previous “Monitor” section. The only difference is that you can
select more items under Port Monitor than under port status.
Select the Monitor Items.
![](/img.php?id=819430&img=bg42.png)
NE-4100 Series User’s Manual Web Console Configuration
7-16
COM Mapping
Network Enabler Administrator Suite comes with Windows 95/98/ME/NT/2000/XP/Vista Real
COM drivers. After you install Network Enabler Administrator Suite, there are two ways to set up
the WE-2100T’s serial port as your host’s remote COM port.
The first way is On-line COM Mapping. On-line COM Mapping will check to make sure the
WE-2100T is connected correctly to the network and then install the driver on the host computer.
The second way is Off-line COM Installation, with does not require connecting the WE-2100T
to the network first. Off-line COM Mapping can decrease the system integrator’s effort by solving
different field problems. With off-line installation, users can process the host software installation
and then install the WE-2100T to different fields.
Use the following procedure to map COM ports:
1. On-line COM Mapping:
Connect WE-2100T to the network Æ Set WE-2100T to the proper IP address Æ Map COMs
to your host Æ Apply Change.
2. Off-line COM Mapping:
Map COMs to your host Æ Apply Change Æ Connect WE-2100T to the network Æ
Configure WE-2100T’s IP address.
On-line COM Mapping
1. Broadcast Search for
WE-2100Ts on the
network.
2. Select the COM Mapping
function group.
![](/img.php?id=819430&img=bg43.png)
NE-4100 Series User’s Manual Web Console Configuration
7-17
3. Add the target that you
would like to map COM
ports to.
4. The WE-2100T list that
appears is based on the
Broadcast Search. Select
the WE-2100T that you
would like to map COM
ports to.
5. Select COM Setting to
modify COM No., default
setting, etc.
6. Select the COM No. Those “in use,”
“assigned” COM ports will also be
indicated in this window.
If you select multiple serial ports or
multiple WE-2100Ts, remember to
check the “Auto Enumerating” function
to use the COM No. you select as the
first COM No.
![](/img.php?id=819430&img=bg44.png)
NE-4100 Series User’s Manual Web Console Configuration
7-18
7. Hi-performance mode is the default for Tx mode. If the driver
completes sending data from the host to the WE-2100T, the
driver will respond to the program with “Tx Empty.”
Under Classical mode, the driver will not notify the user’s
program that a Tx has completed until all Tx data has been sent
out from the WE-2100T; this mode will case lower throughput.
If you want to ensure that all data is sent out before further
processing, classical mode is recommended.
Enable/Disable Tx/Rx FIFO. If disabled, WE-2100T will send
one byte each time the Tx FIFO becomes empty, and an Rx
interrupt will be generated for each incoming byte. This will
cause a faster response and lower throughput. If you want to
use XON/XOFF flow control, we recommend setting FIFO to
Disable.
8. The Serial Parameter settings shown here are the default
settings when the WE-2100T is powered on. The program can
define the serial parameter after the program opens the port via
Win32API with the specific serial parameters.
9. After setting the COM Mapping, remember to select Apply
Change to save the information in the host system registry.
The host computer will not be able to use the COM port until
after selecting Apply Change.
10. Select Discard Change to tell Administrator to NOT save
the COM Mapping information to the host.
11. To save the configuration to a text file, select Export COM
Mapping. You will then be able to import this
configuration file to another host and use the same COM
Mapping settings in the other host.
![](/img.php?id=819430&img=bg45.png)
NE-4100 Series User’s Manual Web Console Configuration
7-19

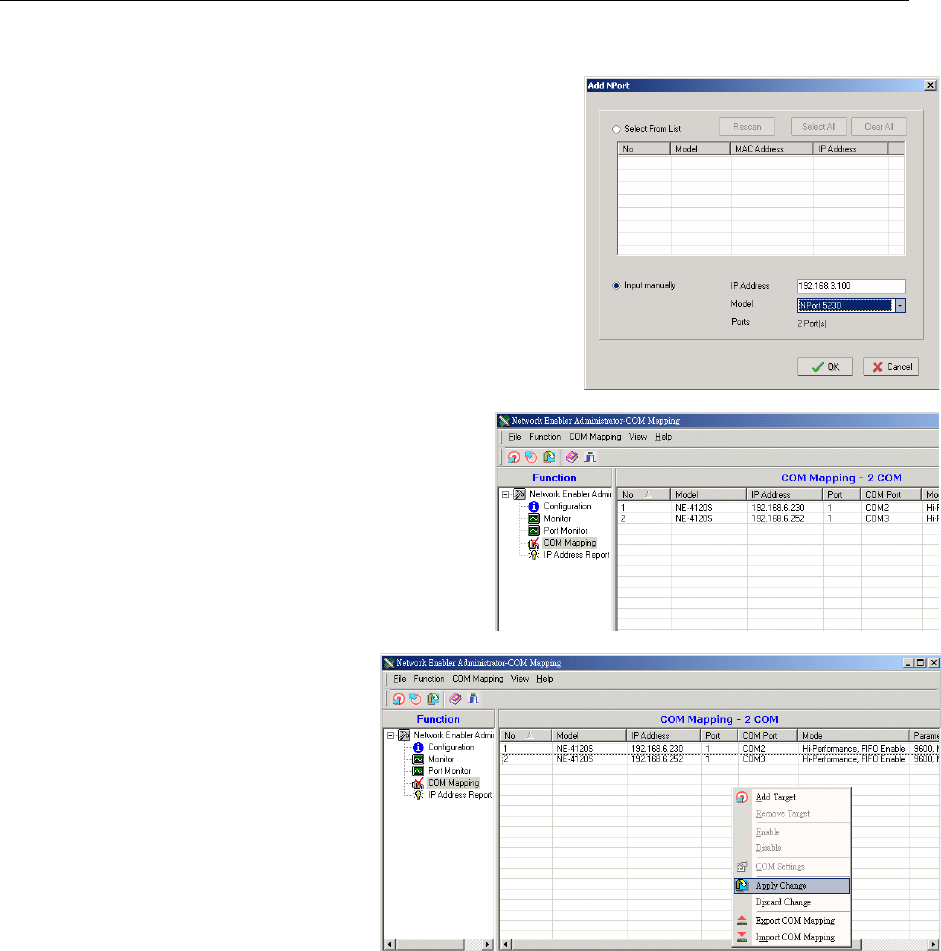

Off-line COM Mapping
1. Add a target by inputting the IP address and
selecting the Model Name without physically
connecting the WE-2100T to the network.
2. Apply change.
![](/img.php?id=819430&img=bg46.png)
9
9
Chapter 8 Serial Command Mode
Same as NE with some
additional commands.
Could you help to copy
from NE users’ manual
and we will add the
additional part on it
directly?
![](/img.php?id=819430&img=bg47.png)
A
A
Appendix A Well Known Port Numbers
This appendix is included for your reference. Listed below are Well Known Port Numbers that
may cause network problems if you configure WE-2100T for the same port. Refer to RFC 1700
for Well Know Port Numbers or refer to the following introduction from IANA.
The port numbers are divided into three ranges: the Well Known Ports, the Registered Ports, and
the Dynamic and/or Private Ports.
The Well Known Ports are those from 0 through 1023.
The Registered Ports are those from 1024 through 49151.
The Dynamic and/or Private Ports are those from 49152 through 65535.
The Well Known Ports are assigned by IANA, and on most systems, can only be used by system
processes or by programs executed by privileged users. The following table shows famous port
numbers among the well-known port numbers. For more details, please visit the IANA website at
http://www.iana.org/assignments/port-numbers.
TCP Socket Application Service
0 reserved
1 TCP Port Service Multiplexor
2 Management Utility
7 Echo
9 Discard
11 Active Users (systat)
13 Daytime
15 Netstat
20 FTP data port
21 FTP CONTROL port
23 Telnet
25 SMTP (Simple Mail Transfer Protocol)
37 Time (Time Server)
42 Host name server (names server)
43 Whois (nickname)
49 (Login Host Protocol) (Login)
53 Domain Name Server (domain)
79 Finger protocol (Finger)
![](/img.php?id=819430&img=bg48.png)
NE-4100 Series User’s Manual Well Known Port Numbers
A-2
TCP Socket Application Service
80 World Wibe Web HTTP
119 Netword news Transfer Protocol (NNTP)
123 Network Time Protocol
213 IPX
160 – 223 Reserved for future use
UDP Socket Application Service
0 reserved
2 Management Utility
7 Echo
9 Discard
11 Active Users (systat)
13 Daytime
35 Any private printer server
39 Resource Location Protocol
42 Host name server (names server)
43 Whois (nickname)
49 (Login Host Protocol) (Login)
53 Domain Name Server (domain)
69 Trivial Transfer Protocol (TETP)
70 Gopler Protocol
79 Finger Protocol
80 World Wide Web HTTP
107 Remote Telnet Service
111 Sun Remote Procedure Call (Sunrpc)
119 Network news Tcanster Protocol (NNTP)
123 Network Time protocol (nnp)
161 SNMP (Simple Network Mail Protocol)
162 SNMP Traps
213 IPX (Used for IP Tunneling)
![](/img.php?id=819430&img=bg49.png)
B
B
Appendix B NECI Library
NECI (Network Enabler Configuration Interface) is a set of APIs that run in the Windows
95/98/ME/NT/2000/XP/Vista system to search, locate, and configure the WE-2100T over the
network. The WE-2100T library can be found in the folder .\NECI_ LIB\ on the CD enclosed
with WE-2100T. For more information, refer to NECI.chm in that directory, and examples
located in .\NECI_LIB\VC\ConsoleExample.
![](/img.php?id=819430&img=bg4a.png)
C
C
Appendix C DIO Commands
In this appendix, we give the reference DIO commands used to access the Digital I/O status of the
Network Enabler from an Ethernet network. The Digital I/O status can be accessed by a specific
TCP port (default 5001) on the Network Enabler.
Command Packet Format:
Length (Bytes) 4 1 – 255
Format *Header Data
Send the Command packet to the Network Enabler. “Data” field is command specific.
ACK Packet Format:
Length (Bytes) 4 1 -255
Format *Header Data
The Network Enabler returns by ACK packet. You can get the Digital I/O status and input/output
operation mode by checking the “Data” field of the packet.
*Header Format:
Length (Bytes) 1 1 1 1
Format Command Version
(must be 2) Command Status Length (for data)
Check the “Command Status” to get the result after sending the Command packet.
Command: This field defines the command code. For example, 1(hex) represents “read single D
I/O.” For more information, please refer to following content.
Command Status: This field returns the status of the command.
0 – OK
1 – Command error; may be unknown
2 – Version error; not supported by this version
3 – Length error; the length member does not match the attached data
4 – Operation error; you cannot set the DIO mode to input mode, and set the DO status at
the same time
5 – “Packet too short” error
6 – DIO number error; might not support request DIO number
0xFF – other unknown error
Data Structure Definition:
C code example:
//define DIO Header format
typedef struct _DIO_Header_Struct {
char command;
char version; /* This specification is version 2 */
char status;
char length;
} DIOHeaderStruct, *pDIOHeaderStruct;
![](/img.php?id=819430&img=bg4b.png)
NE-4100 Series User’s Manual DIO Commands
C-2
//define DIO Packet format
//Used for Command and ACK packet
typedef struct _DIO_Packet_Struct {
DIOHeaderStruct header;
char data[255];
} DIOPacketStruct, *pDIOPacketStruct;
Command Code Usage
1. Reading Single DIO
Parameters:
Command code: 1(hex)
Version: 2(hex)
Command Status: doesn’t matter
Length of data: 1(hex), represents one byte.
data[0]: Fill in the number of the DIO you wish to access. The DIO number starts from 0(hex).
Return:
Command Status: Check the Command Status code on the previous page.
Length of data: 3(hex). Must be 3 bytes of return code in this mode.
data[0]: The number of the DIO you wish to access.
data[1]: DIO mode(hex), 0 for IN, 1 for OUT
data[2]: DIO status(hex), 0 for LOW, 1 for HIGH
C code example:
BOOL ReadSingleDIO(int port, int *mode, int *status)
{
DIOPacketStruct packet;
packet.header.command = 1; // read single DIO command
packet.header.version = 2; // DIO protocol version
packet.header.length = 1; // data length
packet.data[0] = (char)port; // Number of the DIO
send(SocketFd, (char *)&packet, sizeof(DIOHeaderStruct)+1, 0); //Send TCP Packet
// Process the returned data here.
return TRUE;
}
2. Writing a Single DIO
Parameters:
Command code: 2(hex)
Version: 2(hex)
Command Status: doesn’t matter
Length of data: 3(hex); represents three bytes.
data[0]: The number of the DIO you wish to access.
data[1]: DIO mode(hex), 0 for IN, 1 for OUT
data[2]: DIO status(hex), 0 for LOW, 1 for HIGH
Return:
Command Status: Check the Command Status code on the previous page.
Length of data: 3(hex). Must be 3 bytes of return code in this mode.
data[0]: The number of the DIO you wish to access.
data[1]: DIO mode(hex), 0 for IN, 1 for OUT
data[2]: DIO status(hex), 0 for LOW, 1 for HIGH
![](/img.php?id=819430&img=bg4c.png)
NE-4100 Series User’s Manual DIO Commands
C-3
C code example:
void WriteSingleDIO(int port, int mode, int status)
{
DIOPacketStruct packet;
packet.header.command = 2; // write single DIO command
packet.header.version = 2; // DIO protocol version
packet.header.length = 3; // data length
packet.data[0] = (char)port; // number of the DIO
packet.data[1] = (char)mode; // DIO mode
packet.data[2] = (char)status; // DIO status;
send(SocketFd, (char *)&packet, sizeof(DIOHeaderStruct)+3, 0); //Send TCP packet
//Process the returned data here
}
3. Reading Multiple DIOs
Parameter:
Command code: 5(hex)
Version: 2(hex)
Command status: doesn’t matter
Length of data: 2(hex); represents two bytes.
data[0]: Number of the DIO you wish to access first.
data[1]: The last number of the DIO you wish to access.
Return:
Command Status : Check the Command Status code on the previous page.
Length of data: (end-start+1)*2
data[0]: mode of start DIO
data[1]: status of start DIO
data[2]: mode of (start+1) DIO
data[3]: status of (start+1) DIO
….
data[(end-start)*2]: mode of end DIO
data[(end-start)*2+1]: status of end DIO
C code example:
BOOL ReadMultipleDIO(int start, int end, int *mode, int *status)
{
DIOPacketStruct packet;
packet.header.command = 5; // Read Multiple DIO Commands
packet.header.version = 2; // DIO protocol command version
packet.header.length = 2; // data length
packet.data[0] = start; // start of the DIO number
packet.data[1] = end; // end of the DIO number
send(SocketFd, (char *)&packet, sizeof(DIOHeaderStruct)+2, 0); //Send TCP packet
//Process the returned data here
return TRUE;
}
![](/img.php?id=819430&img=bg4d.png)
NE-4100 Series User’s Manual DIO Commands
C-4
4. Writing Multiple DIOs
Parameters:
Command code: 6(hex)
Version: 2(hex)
Command status: doesn’t matter
Length of data: (end-start+1)*2 + 2
data[0]: Number of the DIO you wish to access first.
data[1]: The last number of the DIO you wish to access
data[2]: mode of start DIO
data[3]: status of start DIO
data[4]: mode of (start+1) DIO
data[5]: status of (start+1) DIO
….
data[(end-start)*2+2]: mode of end DIO
data[(end-start)*2+3]: status of end DIO
Return:
Command Status: Check the Command Status code on the previous page.
Length of data : (end-start+1)*2
data[0]: mode of start DIO
data[1]: status of start DIO
data[2]: mode of (start+1) DIO
data[3]: status of (start+1) DIO
….
data[(end-start)*2]: mode of end DIO
data[(end-start)*2+1]: status of end DIO
C code example:
void WriteMultipleDIO(int start, int end, int* mode, int* status)
{
DIOPacketStruct packet;
packet.header.command = 6; // Write Multiple DIO Command Codes
packet.header.version = 2; // DIO protocol version
packet.header.length = (end-start+1)*2+2; // data length
packet.data[0] = start; // start DIO number
packet.data[1] = end; // end DIO number
int i, len;
for ( i=0; i<(end-start+1);i++ ) {
packet.data[i+2] = mode[i];
packet.data[i+3] = status[i];
}
send(SocketFd, )(char*)&packet,( end-start+1)*2+2+sizeof(DIOHeaderStruct), 0); //Send TCP
packet
//Process the returned data here
}
Note: A utility that can be used to test the DIO access commands can be found on the CD-ROM.
![](/img.php?id=819430&img=bg4e.png)
D
D
Appendix D SNMP Agent with MIB II & RS-232
Like Group
WE-2100T has a built-in SNMP (Simple Network Management Protocol) agent software. It
supports SNMP Trap, RFC1317 RS-232 like group and RFC 1213 MIB-II. The following table
lists the standard MIB-II groups, as well as the variable implementations for WE-2100T.
RFC1213 MIB-II supported SNMP variables:
System MIB Interfaces MIB IP MIB ICMP MIB
SysDescr itNumber ipForwarding IcmpInMsgs
SysObjectID ifIndex ipDefaultTTL IcmpInErrors
SysUpTime ifDescr ipInreceives IcmpInDestUnreachs
SysContact ifType ipInHdrErrors IcmpInTimeExcds
SysName ifMtu ipInAddrErrors IcmpInParmProbs
SysLocation ifSpeed ipForwDatagrams IcmpInSrcQuenchs
SysServices ifPhysAddress ipInUnknownProtos IcmpInRedirects
ifAdminStatus ipInDiscards IcmpInEchos
ifOperStatus ipInDelivers IcmpInEchoReps
ifLastChange ipOutRequests IcmpInTimestamps
ifInOctets ipOutDiscards IcmpTimestampReps
ifInUcastPkts ipOutNoRoutes IcmpInAddrMasks
ifInNUcastPkts ipReasmTimeout IcmpOutMsgs
ifInDiscards ipReasmReqds IcmpOutErrors
ifInErrors ipReasmOKs IcmpOutDestUnreachs
![](/img.php?id=819430&img=bg4f.png)
NE-4100 Series User’s Manual SNMP Agent with MIB II and RS-232 Like Group
D-2
System MIB Interfaces MIB IP MIB ICMP MIB
SysServices ifInUnknownProtos ipReasmFails IcmpOutTimeExcds
ifOutOctets ipFragOKs IcmpOutParmProbs
ifOutUcastPkts ipFragFails IcmpOutSrcQuenchs
ifOutNUcastPkts ipFragCreates IcmpOutRedirects
ifOutDiscards ipAdEntAddr IcmpOutEchos
ifOutErrors ipAdEntIfIndex IcmpOutEchoReps
ifOutQLen ipAdEntNetMask IcmpOutTimestamps
ifSpecific ipAdEntBcastAddr IcmpOutTimestampReps
ipAdEntReasmMaxSize IcmpOutAddrMasks
IpNetToMediaIfIndex IcmpOutAddrMaskReps
IpNetToMediaPhysAddress
IpNetToMediaNetAddress
IpNetToMediaType
IpRoutingDiscards
UDP MIB TCP MIB SNMP MIB
UdpInDatagrams tcpRtoAlgorithm snmpInPkts
UdpNoPorts tcpRtoMin snmpOutPkts
UdpInErrors tcpRtoMax snmpInBadVersions
UdpOutDatagrams tcpMaxConn snmpInBadCommunityNames
UdpLocalAddress tcpActiveOpens snmpInASNParseErrs
UdpLocalPort tcpPassiveOpens snmpInTooBigs
tcpAttempFails snmpInNoSuchNames
Address Translation MIB tcpEstabResets snmpInBadValues
AtIfIndex tcpCurrEstab snmpInReadOnlys
AtPhysAddress tcpInSegs snmpInGenErrs
AtNetAddress tcpOutSegs snmpInTotalReqVars
![](/img.php?id=819430&img=bg50.png)
E
E
Appendix E Service Information
This appendix shows you how to contact Moxa for information about this and other products, and
how to report problems.
In this appendix, we cover the following topics.
MOXA Internet Services
Problem Report Form
Product Return Procedure
![](/img.php?id=819430&img=bg51.png)
NE-4100 Series User’s Manual Service Information
E-2
MOXA Internet Services
Customer satisfaction is our number one concern, and to ensure that customers receive the full
benefit of our products, Moxa Internet Services has been set up to provide technical support,
driver updates, product information, and user’s manual updates.
The following services are provided
E-mail for technical support...............................support@moxa.com.tw
World Wide Web (WWW) Site for product information:
............................http://www.moxa.com
![](/img.php?id=819430&img=bg52.png)
NE-4100 Series User’s Manual Service Information
E-3
Problem Report Form
MOXA WE-2100T
Customer name:
Company:
Tel: Fax:
Email: Date:
1. Moxa Product: WE-2100T WE-2100T-ST
2. Serial Number: _________________
Problem Description: Please describe the symptoms of the problem as clearly as possible, including any error
messages you see. A clearly written description of the problem will allow us to reproduce the symptoms, and
expedite the repair of your product.
![](/img.php?id=819430&img=bg53.png)
NE-4100 Series User’s Manual Service Information
E-4
Product Return Procedure
For product repair, exchange, or refund, the customer must:
Provide evidence of original purchase.
Obtain a Product Return Agreement (PRA) from the sales representative or dealer.
Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter
product repair time.
Carefully pack the product in an anti-static package, and send it, pre-paid, to the dealer. The
PRA should be visible on the outside of the package, and include a description of the problem,
along with the return address and telephone number of a technical contact.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This equipment must not be co-located or operating in conjunction with any other antenna
or transmitter.
