NetComm Wireless 3G39W HSPA+Wi-Fi Router User Manual
NetComm Wireless Limited HSPA+Wi-Fi Router Users Manual
Users Manual
![](/img.php?id=1595050&img=bg1.png)

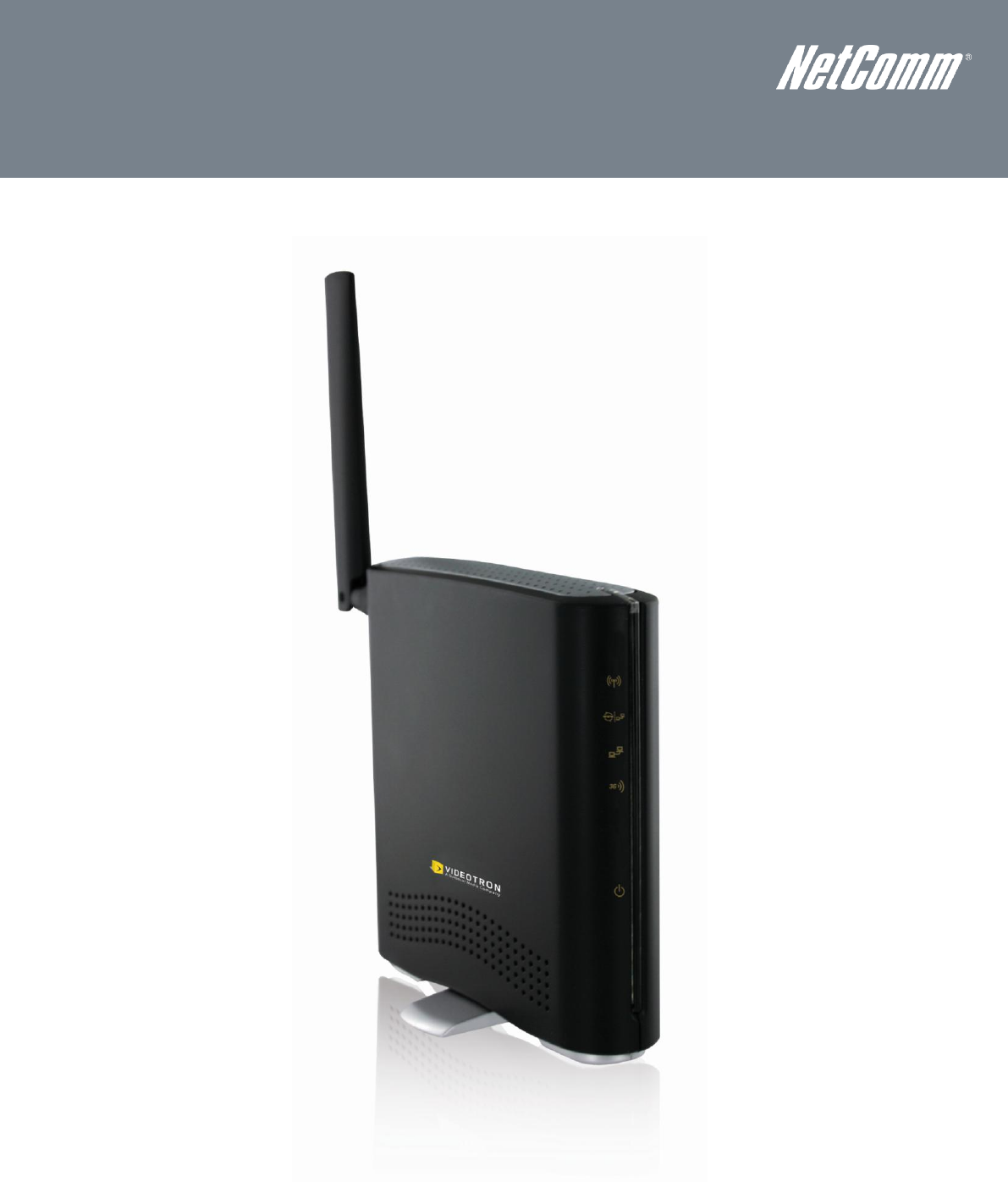

Videotron 3G39W-V
USER GUIDE
![](/img.php?id=1595050&img=bg2.png)
Videotron – 3G39W-V
2
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Copyright
Copyright©2011 NetComm Limited. All rights reserved.
The information contained herein is proprietary to NetComm Limited. No part of this document may be translated, transcribed,
reproduced, in any form, or by any means without prior written consent of NetComm Limited.
Please note: This document is subject to change without notice.
Save Our Environment
When this equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separately from
domestic waste.
The cardboard box, the plastic contained in the packaging, and the parts that make up this device can be recycled in accordance
with regionally established regulations. Never dispose of this electronic equipment along with your household waste. You may be
subject to penalties or sanctions under the law. Instead, ask for disposal instructions from your municipal government.
Please be responsible and protect our environment.
This manual covers the following products:
NetComm 3G39W-V
DOCUMENT VERSION
DATE
1.0 - Initial document release
09/09/2011
Table 1 - Document Revision History
![](/img.php?id=1595050&img=bg3.png)
www.netcomm.com.au
3G39W-V User Guide
3
YML39W-VX
Table of Contents
Overview ........................................................................................................................................................................................ 4
Introduction ................................................................................................................................................................................................... 4
Target Users .................................................................................................................................................................................................. 4
Prerequisites.................................................................................................................................................................................................. 4
Notation ........................................................................................................................................................................................................ 4
Product Introduction ..................................................................................................................................................................... 5
Product Overview .......................................................................................................................................................................................... 5
Package Contents ......................................................................................................................................................................................... 5
Product Features ........................................................................................................................................................................................... 5
Physical Dimensions and Indicators ............................................................................................................................................ 6
LED Indicators ............................................................................................................................................................................................... 6
Integrated Interfaces ..................................................................................................................................................................... 6
Physical Dimensions ...................................................................................................................................................................................... 7
3G39W-V Default Settings ............................................................................................................................................................................. 7
Safety and Product Care ............................................................................................................................................................... 8
Transport and Handling ................................................................................................................................................................. 8
Installation and Configuration of the 3G39W-V ............................................................................................................................ 9
Placement of your 3G39W-V .......................................................................................................................................................................... 9
Hardware installation.................................................................................................................................................................................... 10
Connecting via a cable ................................................................................................................................................................................. 10
Connecting wirelessly .................................................................................................................................................................................. 10
First Time Simple Configuration Wizard ......................................................................................................................................................... 11
Management Console Login Procedure ........................................................................................................................................................ 13
Management Console .................................................................................................................................................................................. 14
Advanced Features ...................................................................................................................................................................................... 16
Technical Data ............................................................................................................................................................................. 41
Electrical Specifications ................................................................................................................................................................................ 41
Environmental Specifications / Tolerances .................................................................................................................................................... 41
FAQ .............................................................................................................................................................................................. 42
Appendix A: Tables...................................................................................................................................................................... 43
Legal & Regulatory Information................................................................................................................................................... 44
Contact......................................................................................................................................................................................... 46
![](/img.php?id=1595050&img=bg4.png)
Videotron – 3G39W-V
4
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Overview
Introduction
This manual provides information related to the installation, operation, and utilisation of the 3G39W-V.
Target Users
The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts.
Prerequisites
Before continuing with the installation of your 3G39W-V, please confirm that you comply with the minimum system requirements
below.
An activated 3G SIM card.
Computer with Windows, Macintosh, or Linux-based operating systems with a working Ethernet adapter with TCP/IP
Protocol installed.
A Web Browser such as Internet Explorer, Netscape Navigator, Mozilla Firefox, Opera, Safari etc.
Wireless Computer System Requirements:
o Computer with a working 802.11b, 802.11g or 802.11n wireless adapter.
Notation
The following symbols are utilised in this user manual:
-
The following note requires attention
-
The following note provides a warning
-
The following note provides relevant information
![](/img.php?id=1595050&img=bg5.png)
www.netcomm.com.au
3G39W-V User Guide
5
YML39W-VX
Product Introduction
Product Overview
Multi-mode cellular modem for 3G/2G mobile broadband connectivity supporting HSPA/EDGE/GPRS
Quad-band 3G/WCDMA network support: 850/AWS/1900/2100 MHz
Quad-band 2G/GSM network support: 850/900/1800/1900 MHz
Downloads up to 7.2 Mbps1 - HSDPA category 8
Uploads up to 5.76 Mbps1 - HSUPA category 6
EDGE Multi Slot Class 12 – up to 236 Mbps1
1 x LAN Ethernet 10/100 port
1x LAN/WAN Ethernet 10/100 port for alternate Internet connection (ADSL/Cable/Satellite)
Wireless LAN access point IEEE 802.11n (backwards compatible with IEEE 802.11b/g devices)
Support for auto Internet fallback to 3G
2 x Internal Wi-Fi antennas
Detachable cellular antenna (SMA)
Wi-Fi Protected Setup (WPS) for wireless connectivity
Browser based interface for configuration and management
Advanced Firewall and wireless security - WEP, WPA, WPA2
1. Speeds are dependent on network coverage. See your 3G provider coverage maps for more details. The total number of Wi-Fi users can also affect data speeds.
Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and 802.11n specifications. Actual wireless speed and coverage are
dependent on network and environmental conditions included but not limited to volume of network traffic, building materials and construction/layout.
Package Contents
The 3G39W-V package consists of:
3G39W-V – Videotron 3G Wi-Fi Router
12VDC~1.5A Power Adapter
RJ-45 LAN Cable
Quick Setup Guide
Wireless Security Card
If any of these items are missing or damaged, please contact NetComm Support immediately by visiting the NetComm Support
website at: http://www.netcomm.com.au/contact-us/technical-support
Product Features
The 3G39W-V creates a secure Wi-Fi network, providing Internet access using a 3G network. With a quick and easy setup, simply
insert an active 3G SIM card into the slot on the rear panel and get instant access to a 3G Internet connection within seconds.
The 3G39W incorporates a Wireless LAN 802.11b/g/n access point, two Ethernet 10/100Mbps ports. It features the latest security
options such as WPA and WPA2 data encryption, SPI (Stateful Packet Inspection) Firewall and VPN pass through.
![](/img.php?id=1595050&img=bg6.png)
Videotron – 3G39W-V
6
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Physical Dimensions and
Indicators
LED Indicators
The 3G39W-V has been designed to be placed on a desktop. All of the cables exit from the rear for better organization. The display
is visible on the front of the 3G39W-V to provide you with information about network activity and the device status. See below for an
explanation of each of the indicator lights.
LED INDICATOR
ICON
DEFINITION
Wi-Fi
Solid blue light when WLAN is enabled. Blinks on traffic (data transfer)
WAN/LAN
LAN mode: Solid blue light when the router is connected via the LAN
Ethernet Port
WAN mode: Lights up when the router is connected to the internet via
a fixed line WAN connection
LAN
Solid blue light when specific LAN connection is established. Blinks on
LAN port traffic
3G
Solid blue light when the 3G39W-V is connected via 3G, blinks on
traffic
Power
Solid amber light when device is powered on. Blinking during device
start up.
Table 2 - LED Indicators
Integrated Interfaces
The following integrated interfaces are available on the 3G39W-V:
INTERFACE
FUNCTION
SIM Slot
Insert your SIM card here (until you hear a click). Please be careful to insert the SIM in the
correct orientation by viewing the printed icon.
3G Antenna
Attach in the 3G Antenna here in a clockwise direction.
LAN/WAN
Switchable LAN/ WAN Ethernet port for Fixed Line (ADSL/Cable/Satellite) connection or
wired Ethernet clients (Computers, Laptops, etc)
LAN
LAN Port for wired Ethernet clients (Computers, Laptops, etc)
Reset/WPS
Hold this button down for over 10 seconds to reset to factory defaults. Hold and release this
button for less than 10 seconds to enable the WPS push-button-connect function.
Power
Power connector, connects to a DC 12V 1.5A Power Adapter
Table 3 - Rear Panel Ports
![](/img.php?id=1595050&img=bg7.png)
www.netcomm.com.au
3G39W-V User Guide
7
YML39W-VX
Physical Dimensions
The following page lists the physical dimensions of the 3G39W-V.
Figure 1 - 3G39W-V Dimensions
3G39W-V
Length
133 mm
Height
137 mm
Width
34 mm
Weight
250 grams
Table 4 - Device Dimensions
3G39W-V Default Settings
The following tables list the default settings for the 3G39W-V.
LAN (MANAGEMENT)
Static IP Address:
192.168.20.1
Subnet Mask:
255.255.255.0
Default Gateway:
192.168.20.1
Table 5 - LAN Management Default Settings
WAN (INTERNET)
WAN mode:
DHCP
Table 6 - WAN Port Default Settings
WIRELESS (WI-FI)
SSID:
(Refer to the included wireless security card)
Security:
WPA2-PSK
Security Key:
(Refer to the included wireless security card)
Table 7 - Wi-Fi Default Settings
For security purpose, each 3G39W-V comes with a unique SSID that varies by a 4 digit number at the end. e.g. SSID: ‚VIDEOTRON1234.‛
3G39W-V WEB INTERFACE ACCESS
Username:
admin
Password:
No Password Set
Table 8 - Web Interface Default Settings
![](/img.php?id=1595050&img=bg8.png)
Videotron – 3G39W-V
8
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Safety and Product Care
With reference to unpacking, installation, use and maintenance of your electronic device, the following basic guidelines are
recommended:
Do not use or install this product near water to avoid fire or shock hazard. For example, near a bathtub, kitchen sink,
laundry tub, or near a swimming pool. Also, do not expose the equipment to rain or damp areas (e.g. a wet basement).
Do not connect the power supply cord on elevated surfaces. Allow it to lie freely. There should be no obstructions in its
path and no heavy items should be placed on the cord. In addition, do not walk on, step on or mistreat the cord.
To safeguard the equipment against overheating, make sure that all openings in the unit that offer exposure to air are
unobstructed.
WARNING
Disconnect the power line from the device before servicing.
Transport and Handling
When transporting the 3G39W-V, it is recommended to return the product in the original packaging. This ensures the product will
not be damaged.
In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent
damage during courier transport.
![](/img.php?id=1595050&img=bg9.png)
www.netcomm.com.au
3G39W-V User Guide
9
YML39W-VX
Installation and Configuration of
the 3G39W-V
Placement of your 3G39W-V
Just like your mobile phone, the 3G39W-V’s location will affect its signal strength to the 3G Base Station (Cell Tower). The data
speed achievable from the 3G39W-V is relative to this signal strength, which is affected by many environmental factors. Please keep
in mind that the 3G39W-V will need adequate signal strength in order to provide Internet connectivity whilst choosing a location to
place your 3G39W-V.
Similarly, the wireless connection between your 3G39W-V and your Wi-Fi devices will be stronger the closer your connected
devices are to your 3G39W-V. Your wireless connection and performance will degrade as the distance between your 3G39W-V and
connected devices increases. This may or may not be directly noticeable, and is greatly affected by the individual installation
environment.
If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the
computer to a position between three to five meters from the 3G39W-V in order to see if distance is the problem.
Please note: While some of the items listed below can affect network performance, they will not prohibit your wireless
network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this
checklist may help. Please ensure that your 3G39W-V’s 3G external antenna is positioned vertically (toward the ceiling).
If you experience difficulties connecting wirelessly between your Wi-Fi Devices and your 3G39W-V, please try the following steps:
In multi-storey homes, place the 3G39W-V on a floor that is as close to the centre of the home as possible. This may
mean placing the 3G39W-V on an upper floor.
Try not to place the 3G39W-V near a cordless telephone that operates at the same radio frequency as the 3G39W-V
(2.4GHz).
Avoid obstacles and interference
Avoid placing your 3G39W-V near devices that may emit radio ‚noise,‛ such as microwave ovens. Dense objects that can inhibit
wireless communication include:
Refrigerators
Washers and/or dryers
Metal cabinets
Large aquariums
Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such as those listed above are not blocking
the signal’s path (between your devices and the 3G39W-V).
Cordless Phones
If the performance of your wireless network is impaired after considering the above issues, and you have a cordless phone:
Try moving cordless phones away from your 3G39W-V and your wireless-enabled computers.
Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may be interfering with the 3G39W-V.
If your phone supports channel selection, change the channel on the phone to the farthest channel from your wireless
network. For example, change the phone to channel 1 and move your 3G39W-V to channel 11. See your phone’s
user manual for detailed instructions.
If necessary, consider switching to a 900MHz or 5GHz cordless phone.
Choose the ‚Quietest‛ Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with your wireless network. Use the Site Survey capabilities found in the Wireless Utility of your
wireless adapter to locate any other wireless networks that are available (see your wireless adapter’s user manual), and switch your
Router and computers to a channel as far away from other networks as possible.
Experiment with more than one of the available channels, in order to find the clearest connection and avoid interference from
neighbouring cordless phones or other wireless devices.
![](/img.php?id=1595050&img=bga.png)
Videotron – 3G39W-V
10
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Hardware installation
1. Attach the supplied antenna to the port marked 3G Antenna. [This should be attached in a clockwise direction.]
2. Insert your SIM card (until you hear a click) into the SIM slot.
3. Connect the power adapter to the Power socket on the back of the 3G39W-V.
4. Plug the power adapter into the wall socket and switch on the power.
5. Wait approximately 60 seconds for the 3G39W-V to power up.
Connecting via a cable
1. Connect the yellow Ethernet cable provided to the port marked LAN at the back of the 3G39W-V.
2. Connect the other end of the yellow Ethernet cable to your computer.
3. Wait approximately 30 seconds for the connection to establish.
4. Open your Web browser, http://my.router or http://192.168.20.1 into the address bar and press enter.
5. Follow the steps to set up your 3G39W-V.
Connecting wirelessly
1. Ensure Wi-Fi is enabled on your device (computer/laptop/Smartphone).
2. Scan for wireless networks in your area and connect to the network name that matches the Wireless network name found
on the Wireless Security Card (included in the box).
Figure 2 - Included Security Card
Please note: For security purposes, each 3G39W-V has a unique SSID (such as VIDEOTRON6444) and Wireless Security
Key. The included Wireless Security Card lists these instead of the xxxxx’s shown in the screenshot above.
3. When prompted for your wireless security settings, enter the Wireless security key listed on your Wireless Security Card.
4. Wait approximately 30 seconds for the connection to establish.
5. Open your Web browser, type http://my.router or http://192.168.20.1 into the address bar and press enter.
6. Follow the steps to set up your 3G39W-V.
![](/img.php?id=1595050&img=bgb.png)
www.netcomm.com.au
3G39W-V User Guide
11
YML39W-VX
First Time Simple Configuration Wizard
Once you have logged in to your 3G39W-V for the first time, you will be presented with the option of running the 3G39W-V ‚Set-up
Wizard‛. Clicking the ‚Yes, lets get started with the Wizard‛ button will then display the first setup step as shown in the screenshot
below. This wizard can be skipped by clicking on the ‚No thanks, take me to the Basic Interface‛ button. You can re-run the Setup
Wizard later by selecting the ‚Startup Wizard‛ option under ‚Administration‛ tab in the Advanced View of the management console.
Please note: The system language defaults to utilising French. To change the system language to English, please see the
Management section detailed on page 36.
Figure 3 - Startup Wizard - Language and Time Zone Settings
Select your Language Preference and Time Zone then click ‚Next‛;
Figure 4 - Startup Wizard - Web Configuration Username and Password Settings
This page allows you to customize the username and password required to administer your 3G39W-V. It is recommended that you
choose a unique password for added security. Please enter a user name and password that you wish to use, or leave these fields
unchanged to use the default username of admin with no password set. Click ‚Next‛ to continue.
![](/img.php?id=1595050&img=bgc.png)
Videotron – 3G39W-V
12
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Figure 5 - Startup Wizard - Wi-Fi Settings
The next page allows you to configure basic Wi-Fi settings.
Wireless (Wi-Fi):
Wi-Fi is set to ‚On‛ by default. Changing this option to ‚Off‛ will turn off the wireless feature and you will not be able to connect to
your 3G39W-V via Wi-Fi.
SSID Broadcast:
Select ‘Disable’ to hide the SSID of your 3G39W-V. If disabled, other people will not be able scan and detect your 3G39W-V’s
SSID.
SSID Broadcast Name (Max 32 Characters):
The SSID (Service Set Identifier) is the name of your wireless network. Use a unique name to identify your wireless network so that
you can easily connect from your wireless clients. This field is case sensitive and can be up to 32 characters. You should change
the default SSID for added security.
Figure 6 - Startup Wizard - Wi-Fi Security Settings
This page allows you to configure Wi-Fi security settings for your 3G39W-V. Setting a strong wireless security level (such as WPA2-
PSK - AES) can prevent unauthorized access to your wireless network. Please enter the Security Key that you wish to use, or leave
this field unchanged to use the default Security Key. Click ‚Next‛ to continue.
![](/img.php?id=1595050&img=bgd.png)
www.netcomm.com.au
3G39W-V User Guide
13
YML39W-VX
Figure 7 - Startup Wizard - Review your settings
Review your settings then click ‚Finish‛ to save configuration. Click ‚Back‛ if you want to make changes.
After clicking Finish, the 3G39W-V will save your configuration and reboot itself. Please wait as this process takes about 2 minutes.
You will be guided back to the management console once the process is complete.
Management Console Login Procedure
After first time setup, the management console will be password protected to prevent unauthorized access to the configuration
settings of your 3G39W-V.
To log in to the management console and view the status and make changes to your 3G39W-V, please follow the steps below:
1. Open your web browser (e.g. Internet Explorer/Firefox/Safari) and navigate to http://192.168.20.1 or http://my.router
2. Enter the username and password configured during the first time setup and click submit. The default username admin with
a blank password if the details haven’t been customized. Click Login to continue.
Please Note: If you forget the username and password you selected during the 3G39W-V set-up process, holding the
reset button for over 10 seconds will restart the unit with the original settings (username: admin / no password).
Figure 8 - Management Console Login
![](/img.php?id=1595050&img=bge.png)
Videotron – 3G39W-V
14
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Management Console
Basic Status Overview
The basic status page provides basic system related information. It is shown after logging in to the 3G39W-V, and can also be
accessed by selecting Basic Status from the menu.
Figure 9 - Basic View – Status
The status page shows the 3G connection status, Signal Strength (dBm) and SIM Status.
Internet
Figure 10 - Basic View - Internet
The 3G Operation Mode can be configured on this page. This allows for automatic failover to be configured if desired. Please see
the table below for options allowed for the 3G operation mode:
OPTION
DEFINITION
‘Always ON’
Enables the 3G internet connection and, does not disconnect, even if idle.
‘OFF’
The 3G39W-V will not connect to the Internet
‘Automatic 3G Backup’
The Automatic 3G Backup feature of the 3G39W-V is designed to provide a backup 3G Internet connection
when you use the WAN connection as your primary, when the primary fails. The Internet connection will
automatically switch back to your WAN connection once your WAN Internet connection is back online. To use
this feature, you will need both an Ethernet WAN connection (from an xDSL modem/ISDN/Satellite etc) and a
3G connection. To configure your WAN settings according to your network environment, please switch to
advanced view ‚Internet Settings‛ then select ‛WAN‛.
Table 9 - Basic View - Internet Settings
![](/img.php?id=1595050&img=bgf.png)
www.netcomm.com.au
3G39W-V User Guide
15
YML39W-VX
Wireless
Figure 11 - Basic View - Wireless
This page allows you to configure basic Wi-Fi settings for this device such as enabling/disabling the Wi-Fi functionality, changing the
Wireless Network Name (SSID) or the Wireless Security key.
OPTION
DEFINITION
Wireless (WiFi) ON/ OFF:
Changing this option to Off will turn off the WiFi feature on the 3G39W-V and you will not be able to connect to
your 3G39W-V wirelessly.
SSID Broadcast Name (SSID):
The SSID (Service Set Identifier) is the name of your wireless network. Use a unique name to identify your
wireless device so that you can easily connect to it from your wireless clients. This field is case sensitive and
can be up to 32 characters.
SSID Broadcast:
Select ‘Disabled’ to hide the SSID of your 3G39W-V. If disabled, other people will not be able to easily see your
3G39W-V’s SSID. To add wireless clients with broadcast disabled, the SSID will need to be manually
configured on each wireless client.
Security key:
Enter your chosen Wireless Security key here. The default WPA-PSK key is printed on the wireless security
card and on the Product ID on the bottom of the 3G39W-V. Please note that whilst the key can be customized
on this page, the key will revert to the default if the 3G39W-V is reset to factory default.
Table 10 - Basic View - Wi-Fi Settings
![](/img.php?id=1595050&img=bg10.png)
Videotron – 3G39W-V
16
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Advanced Features
The basic configuration interface is intended to provide access to all the settings that most people will want to use on their 3G39W-
V. There are advanced settings available if desired which are accessible by viewing the advanced settings pages. Click ‚Switch to
Advanced View‛ for configuring the advanced features of your 3G39W-V.
Status
The status page provides system related information and is displayed when you login to the 3G39W-V management console and
switch to Advanced View. By default, the status page will show System Info, Local Network, WWAN, Connection Status and
Ethernet Status.
To view either WAN, PPPoE or PPTP status individually, click on their relevant buttons below the green menu bar. To view them all,
click on the All Status button.

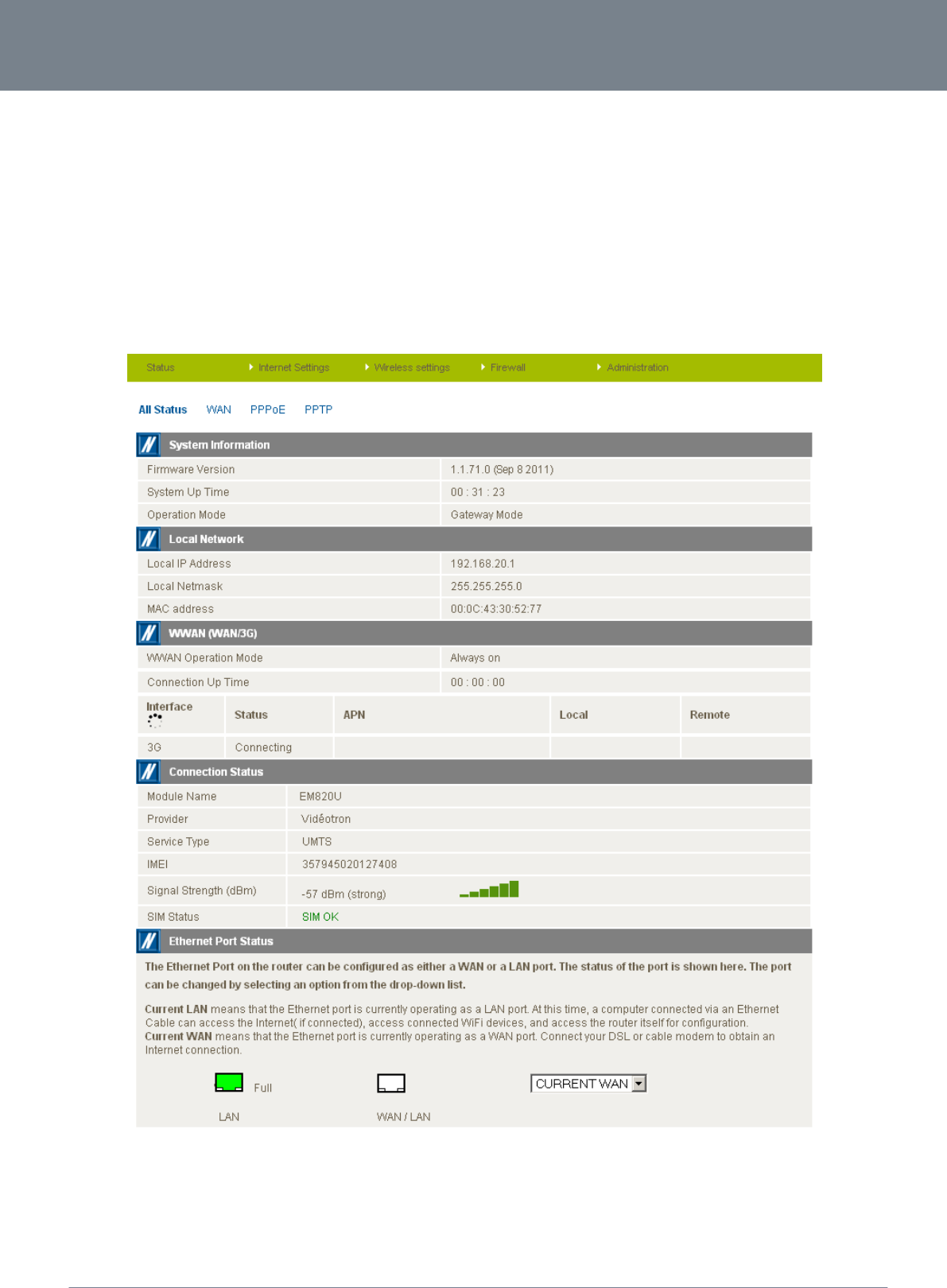

Figure 12 - Advanced View – Status
![](/img.php?id=1595050&img=bg11.png)
www.netcomm.com.au
3G39W-V User Guide
17
YML39W-VX
Internet Settings
WWAN
This page allows you to setup your WWAN (Wireless Wide Area Network) connection.
Figure 13 - Advanced View – WWAN Settings
OPTION
DEFINITION
Profile Name
Description for the profile
APN
Please enter the APN name you wish to connect to in this field. Please don’t edit this unless you are aware of
what effect it will have.
3G NAT
Enabled by Default, this option allows you to switch NAT (Network Address Translation) on or off.
Interface Metric
This field allows you to customize the metric of the 3G interface. This setting will have no effect for most users,
but may be required for advanced routing configurations (Static Routes, RIP, VPN, etc)
Operation Mode; There are 3 Options:
‘Always ON’
Keeps the Internet connection alive, does not disconnect
‘OFF’
Does not connect to the Internet
‘Automatic 3G Backup’
The Automatic 3G Backup feature of the 3G39W-V is designed to provide a backup 3G Internet connection
when you use the WAN connection as your primary, when the primary fails. The Internet connection will
automatically switch back to your WAN connection once your WAN Internet connection is back online. To use
this feature, you will need both an Ethernet WAN connection (from an xDSL modem/ISDN/Satellite etc) and a
3G connection.
Data Roaming
Select to enable or disable data roaming on your 3G connection
PIN
Enter the PIN for your SIM card here (if required)
Confirm PIN
Re-enter the PIN for your SIM card here (If required)
Remember PIN
Set the 3G39W-V to remember the SIM PIN. This prevents it needing to be entered each time the 3G39W-V
starts up.
PIN Protection
Select to enable or disable PIN protection on your SIM card
Table 11 - Advanced View - Internet Settings
![](/img.php?id=1595050&img=bg12.png)
Videotron – 3G39W-V
18
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
WAN
The WAN page allows you to configure the optional WAN Ethernet port. Select the WAN connection type suitable for your
environment and configure parameters according to the selected connection type.
STATIC (fixed IP)
If your WAN connection uses a static IP address, please select ‚STATIC (fixed IP)‛ and fill in the required information in the fields
provided.
Figure 14 - Advanced View - WAN - Static IP Settings
NAME
DESCRIPTION
IP Address:
Type in the IP address assigned by your Internet Service Provider
Netmask:
Type in the Subnet mask assigned by your Internet Service Provider
Gateway:
Type in the WAN Gateway assigned by your Internet Service Provider
Primary/ Secondary DNS:
Type in the DNS address assigned by your Internet Service Provider
MAC Clone:
Please input the MAC address of your computer here if your service provider only
permits computers with a certain MAC address to access the Internet. If you are using
the computer which used to connect to the Internet via a cable modem, you can simply
press the ‘Default’ button to fill the MAC address field with the MAC address of your
computer.
NAT Configuration
Enable or disable Network Address Translation for this connection type
Table 12 - Advanced View - WAN Settings - Static IP
Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature.
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg13.png)
www.netcomm.com.au
3G39W-V User Guide
19
YML39W-VX
DHCP
This connection will get the IP address from the Internet service provider. Leave everything as default unless instructed by your
Internet Service Provider.
Figure 15 - Advanced View - WAN - DHCP Settings
NAME
DESCRIPTION
Host Name
Please input the host name of your computer. This is optional, and only required if your service provider asks you to do so.
Mac Clone
Please input the MAC address of your computer here if your service provider only permits computers with a certain MAC
address to access the Internet. If you are using a computer which used to connect to Internet via a cable modem, you can
simply press the ‘Default’ button to fill the MAC address field with the MAC address of your computer.
NAT Configuration
Enable or disable Network Address Translation for this connection type
Table 13 - Advanced View - WAN Settings - DHCP
Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature.
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg14.png)
Videotron – 3G39W-V
20
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
PPPoE (ADSL)
Most ADSL/ADSL2+ services use the PPP over Ethernet protocol. Use this if you are utilising a fixed line broadband service.
Figure 16 - Advanced View - WAN - PPPoE Settings
NAME
DESCRIPTION
Username/Password
Type in your PPPoE account username and password.
Operation Mode; There are 3 options:
‘Always on’
Keeps the Internet connection alive, does not disconnect.
‘On Demand’
Only connects to the Internet when there’s a connect attempt
‘OFF’
Only connects to the Internet when the ‘Connect’ button on this page is pressed, and disconnects
when the ‘Disconnect’ button is pressed.
MAC Clone
Please input the MAC address of your computer here if your service provider only permits computers
with a certain MAC address to access the Internet. If you are using the computer which used to
connect to the Internet via cable modem, you can simply press the ‘Default’ button to fill the MAC
address field with the MAC address of your computer.
NAT Configuration
Enable or disable Network Address Translation for this connection type
Table 14 - Advanced View - WAN Settings - PPPoE
Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature.
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg15.png)
www.netcomm.com.au
3G39W-V User Guide
21
YML39W-VX
PPTP
This connection type enables the 3G39W-V to connect to a VPN server via a bridged WAN device. Any device connected to the
3G39W-V can then access the VPN based resources available.
Figure 17 - Advanced View - WAN - PPTP Settings
NAME
DESCRIPTION
Server IP
Type in the server IP address assigned by your Internet Service Provider.
User Name/Password
Type in the username and password assigned by your provider.
Address Mode
Select Dynamic if your service uses a DHCP server, or select Static and type in the IP address, Subnet Mask and Default
Gateway assigned by your Internet Service Provider.
Operation Mode; There are 3 options:
‘Always On’
Keeps the Internet connection alive, does not disconnect.
‘On Demand’
Only connects to Internet when there’s a connection attempt
‘OFF’
Only connects to the Internet when the ‘Connect’ button on this page is pressed, and disconnects when the
‘Disconnect’ button is pressed.
Mac Clone
Please input the MAC address of your computer here if your service provider only permits computers with a certain MAC
address to access the Internet. If you are using a computer which used to connect to the Internet via a cable modem,
you can simply press the ‘Default’ button to fill the MAC address field with the MAC address of your computer.
NAT Configuration
Enable or disable Network Address Translation for this connection type
Table 15 - Advanced View - WAN Settings - PPTP
Please refer to the WAN Failover Backup section on page 22 for information on configuring the WAN failover feature.
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg16.png)
Videotron – 3G39W-V
22
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
WAN Failover Backup
The WAN Failover Backup feature of the 3G39W-V is designed to provide a backup 3G Internet connection in case your primary
connection should fail. To use this feature, you will need both an Ethernet WAN connection (from an xDSL modem/ISDN/Satellite
etc) and a 3G WAN connection.
To set up WAN failover on your 3G39W-V, first tick ‚Enable automatic 3G backup‛, then fill in the fields that appear.
Figure 18 - Advanced View - WAN Failover Settings
NAME
DESCRIPTION
Automatic 3G Backup
Default setting is ‚Disable‛. Set it to ‚Enable‛ if you intend to turn on the Automatic 3G Backup
function.
3G NAT
Enable NAT on the 3G connection
Interface Metric
The default value is 20; please enter the valid value from 1 to 9999 suitable for your network
environment
Internet Host
Enter an Internet address here to check the Internet Connection. The default value is
www.netcomm.com.au.
Second Address
Enter an Internet address here to check the Internet Connection. This should be a high
availability address. For example: www.google.com
Table 16 - Advanced View - WAN Failover Settings
Click’ Apply’ to save the settings.
![](/img.php?id=1595050&img=bg17.png)
www.netcomm.com.au
3G39W-V User Guide
23
YML39W-VX
LAN
LAN functionality of the 3G39W-V can be configured from this page. Using this page, a user can change the LAN Subnet, gateway
IP address, DHCP settings, Static DHCP Lease settings, and many others.
Figure 19 - Advanced View - LAN Settings
NAME
DESCRIPTION
IP Address
The local IP address of 3G39W-V
Netmask
The subnet mask for the local network.
LAN 2
Used to configure a secondary LAN IP Address (optional)
LAN 2 IP Address
The local IP address of the secondary LAN IP Address
LAN2 Subnet Mask
The subnet mask of the secondary IP Address
DHCP Type
Please leave this set to ‚Server‛ unless you have another DHCP server on the same network.
Start IP Address
The Start IP address of your DHCP IP Pool.
End IP Address
The End IP address of your DHCP IP Pool.
Netmask
The subnet mask of the IP Address
Primary DNS Server/ Secondary DNS Server
This Feature allows you to manually assign DNS Servers
Gateway
The default is the IP of your 3G39W-V
Lease Time
DHCP Lease time of the DHCP Client of your 3G39W-V
Statically Assigned
This feature allows you to statically assign IP addresses to the MAC Addresses. The Format of
MAC address is XX:XX:XX:XX:XX:XX
802.11d Spanning Tree
The default is ‚Disable‛, select ‚Enable‛ to enable this feature.
LLTD
Link Layer Topology Discovery (LLTD). The default is ‚Disable‛, select ‚Enable‛ to enable this
feature.
IGMP Proxy
Internet Group Management Protocol (IGMP), The default is ‚Disable‛, select ‚Enable‛ to
enable this feature.
UPnP
Universal Plug and Play (UPnP), The default is ‚Enabled‛, select ‚Disable‛ to disable this
feature.
Router Advertisement
The default is ‚Disable‛, select ‚Enable‛ to enable it.
PPPoE relay
The default is ‚Disable‛, select ‚Enable‛ to enable it.
DNS Proxy
The default is ‚Enable‛, select ‚Disable‛ to disable it.
Table 17 - Advanced View - LAN Settings
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg18.png)
Videotron – 3G39W-V
24
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Advanced Routing
This page allows you to configure static and dynamic routing rules for your 3G39W-V.

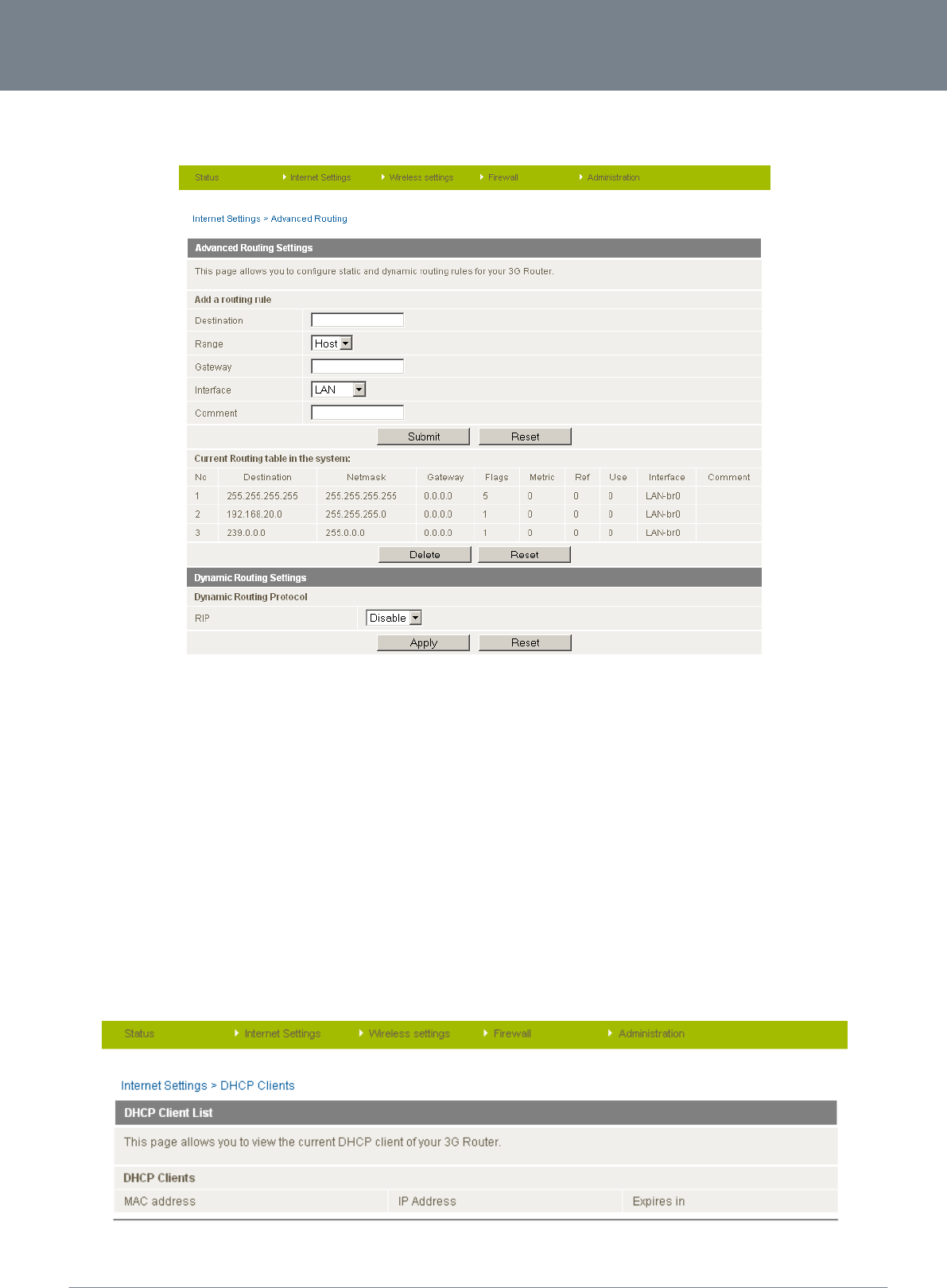

Figure 20 - Advanced View - Advanced Routing Settings
Advanced Routing – Static
Static Routing allows computers that are connected to your 3G39W-V to communicate with computers on another LAN segment
which are connected to it via another router. To set a rule, you need to specify the following:
Destination
Range – Select from Host (255.255.255.255) or Net (and then enter the appropriate subnet mask)
Gateway
Interface
Comment to identify the route entered (optional)
Advanced Routing – Dynamic
Dynamic Routing uses the RIP protocol to allow the 3G39W-V to adapt to changes in the network. RIP enables the device to
determine the best route for each packet based on the ‚hop count‛ or number of hops between Source and Destination. To enable
Dynamic Routing, select Enable from the drop box and click Apply.
DHCP Client List
This page allows you to view the current DHCP clients that have obtained IP leases from your 3G39W-V. The MAC address,
assigned IP address and the expiry period is shown for all computers who have automatically obtained addresses from the 3G39W-
V. Please note that this list is stored in the device’s volatile memory, and is therefore cleared if the device is reset or if any changed
are applied to configuration.
Figure 21 – Advanced View – DHCP Client List
![](/img.php?id=1595050&img=bg19.png)
www.netcomm.com.au
3G39W-V User Guide
25
YML39W-VX
Wireless Settings
Basic
This page allows you to define the basic wireless settings for the 3G39W-V.
Figure 22 – Advanced View – Wi-Fi Settings
Radio On/Off:
Wi-Fi is turned on by default. Changing this option to OFF will turn OFF the wireless functionality on the 3G39W-V and you will not
be able to connect to your 3G39W-V wirelessly.
OPTION
DEFINITION
Network Mode; There are 5 modes to select from:
11b/g mixed mode:
Both 802.11b and 802.11g wireless devices are allowed to connect to your 3G39W-V.
11b only:
Select this if all of your wireless clients are 802.11b.
11g only:
Select this if all of your wireless clients are 802.11g.
11n only:
Select this if all of your wireless clients are 802.11n.
11/b/g/n Mixed mode:
Select this if 802.11b and 802.11g and 802.11n wireless devices are in your network.
Network Name (SSID):
The SSID (Service Set Identifier) is the name of your wireless network. Use a unique name to identify your wireless device so that
you can easily connect to it from your wireless clients. This field is case sensitive and can be up to 32 characters. You should
change the default SSID for added security.
Frequency (Channel):
This setting configures the frequency that the Wireless Radio uses for wireless connectivity. Select one channel that you wish to
use from the drop down list.
WDS Mode:
WDS (Wireless Distribution System) is a system that enables the wireless interconnection of access points, and allows a wireless
network to be expanded using multiple access points without a wired backbone to link them. Each WDS Access Point needs to
be set with the same channel and encryption type.
Table 18 - Advanced View - Wi-Fi Settings
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg1a.png)
Videotron – 3G39W-V
26
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Advanced
This page allows you to modify the advanced wireless settings for your 3G39W-V. These settings should not be changed unless
you are aware of what effect they will have.
Figure 23 - Advanced View - Advanced Wi-Fi Settings
OPTION
DEFINITION
Beacon Interval:
Interval of time in which the wireless router broadcasts a beacon which is used to synchronize the wireless
network.
Data Beacon Rate (DTIM):
Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM). A DTIM is a countdown
informing clients of the next window for listening to broadcast and multicast messages
Fragment Threshold:
This specifies the maximum size of a packet during the fragmentation of data to be transmitted. If you set this
value too low, it will result in bad performance.
RTS Threshold:
When the packet size is smaller than the RTS threshold, the wireless router will not use the RTS/CTS
mechanism to send this packet.
AP Isolation:
This feature allows you to isolate clients on your wireless network. To enable communication between the
wireless clients connected to your 3G39W-V, select Disabled. To terminate the communication between the
wireless clients, please choose Enabled.
TX Power:
This determines the output power of the antenna
WMM Capable:
WMM (WiFi MultiMedia) if enabled, supports QoS for experiencing better audio, video and voice in
applications
WMM Parameters:
Click on the WMM Configuration button to configure the WMM parameters
Broadcast Network Name (SSID):
Select ‘Disabled’ to hide the SSID of your 3G39W-V. If disabled, other people will not be able scan and
detect this product’s SSID.
Table 19 - Advanced View - Advanced Wi-Fi Settings
Click Apply to save the settings.
![](/img.php?id=1595050&img=bg1b.png)
www.netcomm.com.au
3G39W-V User Guide
27
YML39W-VX

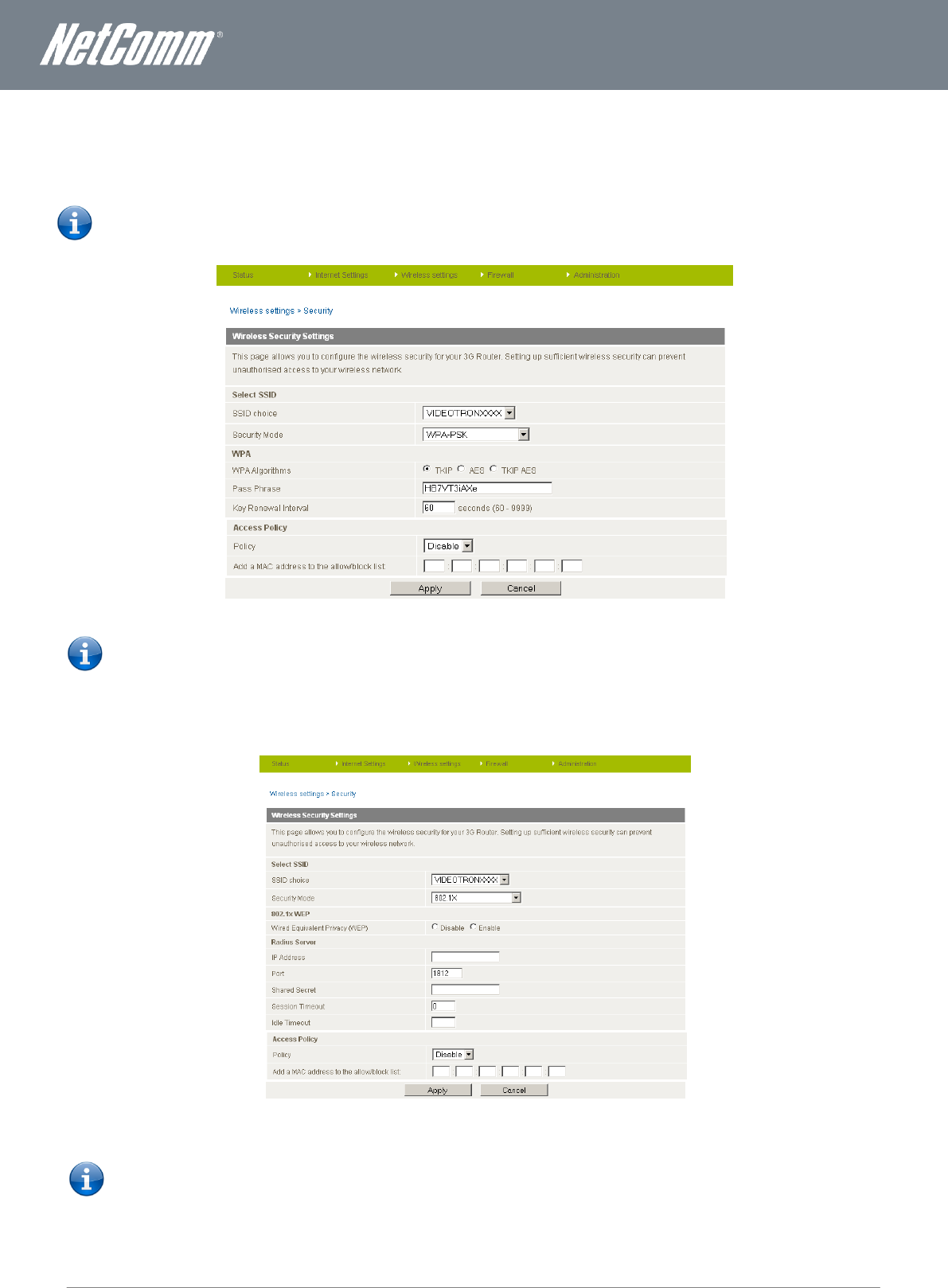

Security
This page allows you to configure the wireless security for your 3G39W-V. Setting up sufficient wireless security can prevent
unauthorized access to your wireless network.
Figure 24 - Advanced View - Wi-Fi Security Settings
OPTION
DEFINITION
SSID Choice:
Select the SSID that you wish to configure the security settings of.
Security Mode:
Select the security mode for the wireless network. See below for more information
Access Policy:
This feature allows MAC Address Control, which prevents unauthorized clients from accessing your wireless
network. Select whether to allow/block users on the policy list, and add their MAC addresses to the list on the
format XX:XX:XX:XX:XX:XX
Table 20 - Advanced View - Wi-Fi Security Settings
Security Mode
You may choose from the following wireless security options:
Disabled
Open
Shared
WEP AUTO
WPA
WPA-PSK
WPA2
WPA2- PSK
WPA-PSK-WPA2-PSK
WPA1-WPA2
802.1x.
![](/img.php?id=1595050&img=bg1c.png)
Videotron – 3G39W-V
28
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
WEP
WEP (Wired Equivalent Privacy) helps prevent against unwanted wireless users accessing your 3G39W-V. It offers a lower level of
security in comparison to WPA-PSK and WPA2-PSK. Enter the Security Key you would like to use in the WEP Key 1 field.
Click Apply to save the settings.

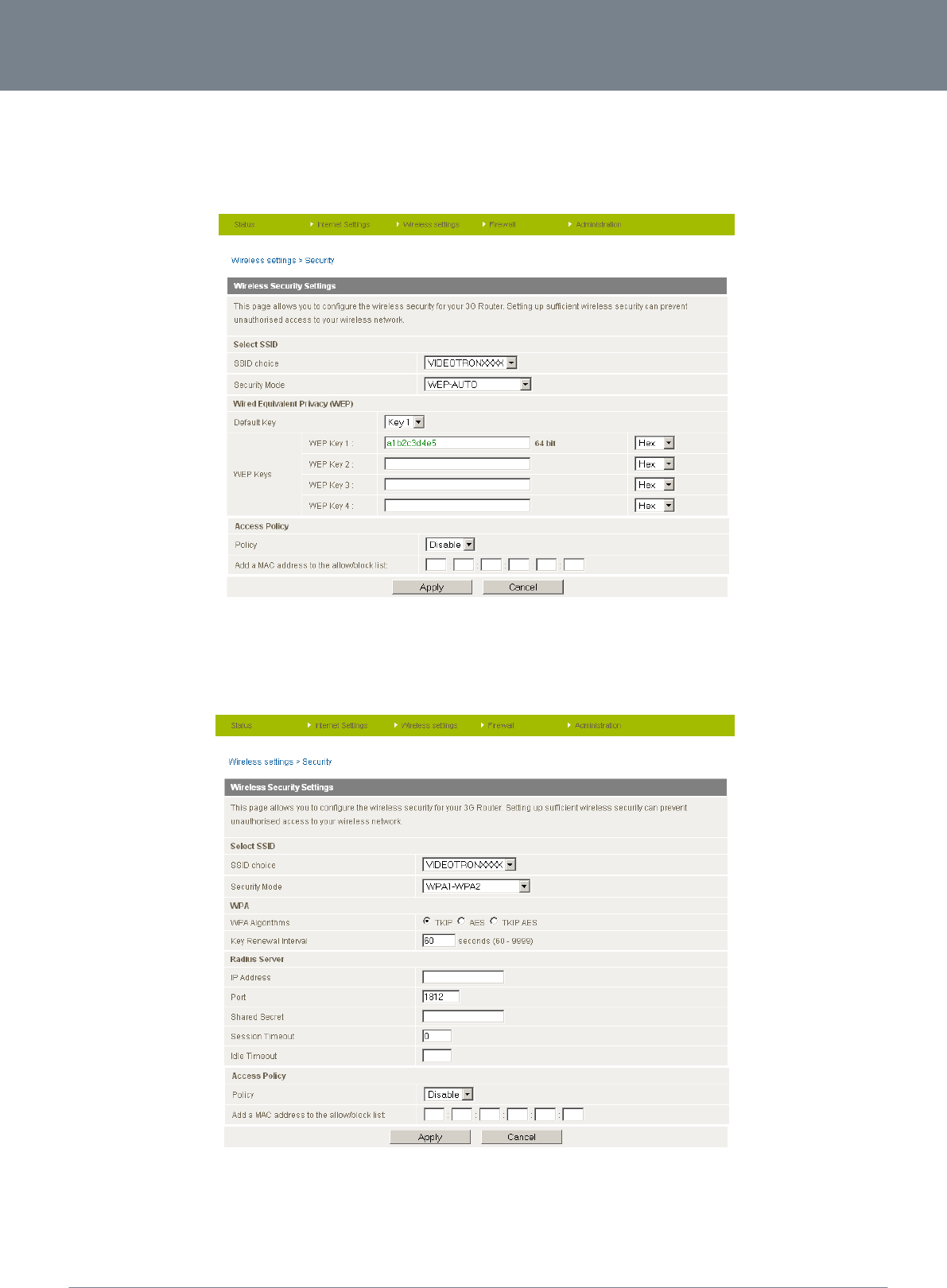

Figure 25 - Advanced View - Wi-Fi Security Settings - WEP
WPA1/WPA2
WPA (Wi-Fi Protected Access) authentication is suitable for enterprise applications. It must be used in conjunction with an
authentication server such as RADIUS to provide centralized access control and management. It provides a stronger encryption and
authentication solution.
Figure 26 - Advanced View - Wi-Fi Security Settings - WPA1/WPA2
![](/img.php?id=1595050&img=bg1d.png)
www.netcomm.com.au
3G39W-V User Guide
29
YML39W-VX
WPA-PSK/WPA2-PSK
A newer type of security is WPA-PSK (TKIP) and WPA2-PSK (AES). This type of security gives a more secure network compare to
WEP. Use TKIP Encryption Type for WPA-PSK and AES for WPA2-PSK. After that, please enter the key in the Passphrase field. The
key needs to be more than 8 characters and less than 63 characters and it can be any combination of letters and numbers.
Please note that the configuration for WPA-PSK and WPA2-PSK is identical.
Figure 27 - Advanced View - Wi-Fi Security Settings - WPA-PSK/WPA2-PSK
Your 3G39W-V uses WPA2-PSK by default. Check your Wireless Security Card or the device label on the bottom of the
3G39W-V for your default SSID and Security key to begin connecting your wireless devices.
802.1x
In order to use 802.1X security, you need to have a RADIUS server on your network that will act as the authentication server. Please
type in the details for your RADIUS server in the fields required.
Figure 28 - Advanced View - Wi-Fi Security Settings - 802.1x
Please note: After configuring wireless security, you also need to configure your wireless adapter to use the same security
settings before you can connect wirelessly. Not all wireless adapters support WPA-PSK/WPA2-PSK/WPA/WPA2 security;
Please refer to your wireless adapter user guide for more details. It is strongly recommended to set up a simple wireless
security such as WPA-PSK (when the wireless client supports WPA-PSK) in order to secure your network.
Most wireless adapters in computers and laptops support at least WEP and WPA.
![](/img.php?id=1595050&img=bg1e.png)
Videotron – 3G39W-V
30
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
WPS
WPS is the simplest way to establish a connection between wireless clients and your 3G39W-V. This method removes the need to
manually select the encryption mode and fill in the passphrase. You only need to press a button on both wireless client and the
3G39W-V, and the WPS will do the rest for you. The 3G39W-V supports two types of WPS:
OPTION
DEFINITION
WPS via Push Button
you have to push a specific button on the wireless client or in your wireless client utility to start the WPS mode. Then
switch the 3G39W-V to WPS mode. You can simply push the WPS button of the wireless router, or click the ‘Apply’
button in the web configuration interface.
WPS via PIN code
you have to know the PIN code of the wireless client and switch it to WPS mode, then input the wireless client PIN to
the 3G39W-V web interface.
Table 21 - Advanced View - Enable or Disable WPS
Figure 29 - Advanced View - WPS Settings - Disabled
Use the drop box to either enable or disable the WPS function.
Figure 30 - Advanced View - WPS Settings - Enabled
OPTION
DEFINITION
Status:
If the wireless security (encryption) function of this wireless router is properly set, you will see a ‘Success’ message
here. Otherwise, you will see ‘Idle’.
SSID:
This is the network broadcast name (SSID) of the router.
WPS Auth Mode:
It shows the active authentication mode for the wireless connection.
WPS PIN:
This is the WPS PIN code of the wireless router. You may need this information when connecting to other WPS-
enabled wireless devices.
WPS Mode:
Select either PIN mode or PBC (which is the WPA via Push Button).
Table 22 - Advanced View - WPS Settings
![](/img.php?id=1595050&img=bg1f.png)
www.netcomm.com.au
3G39W-V User Guide
31
YML39W-VX

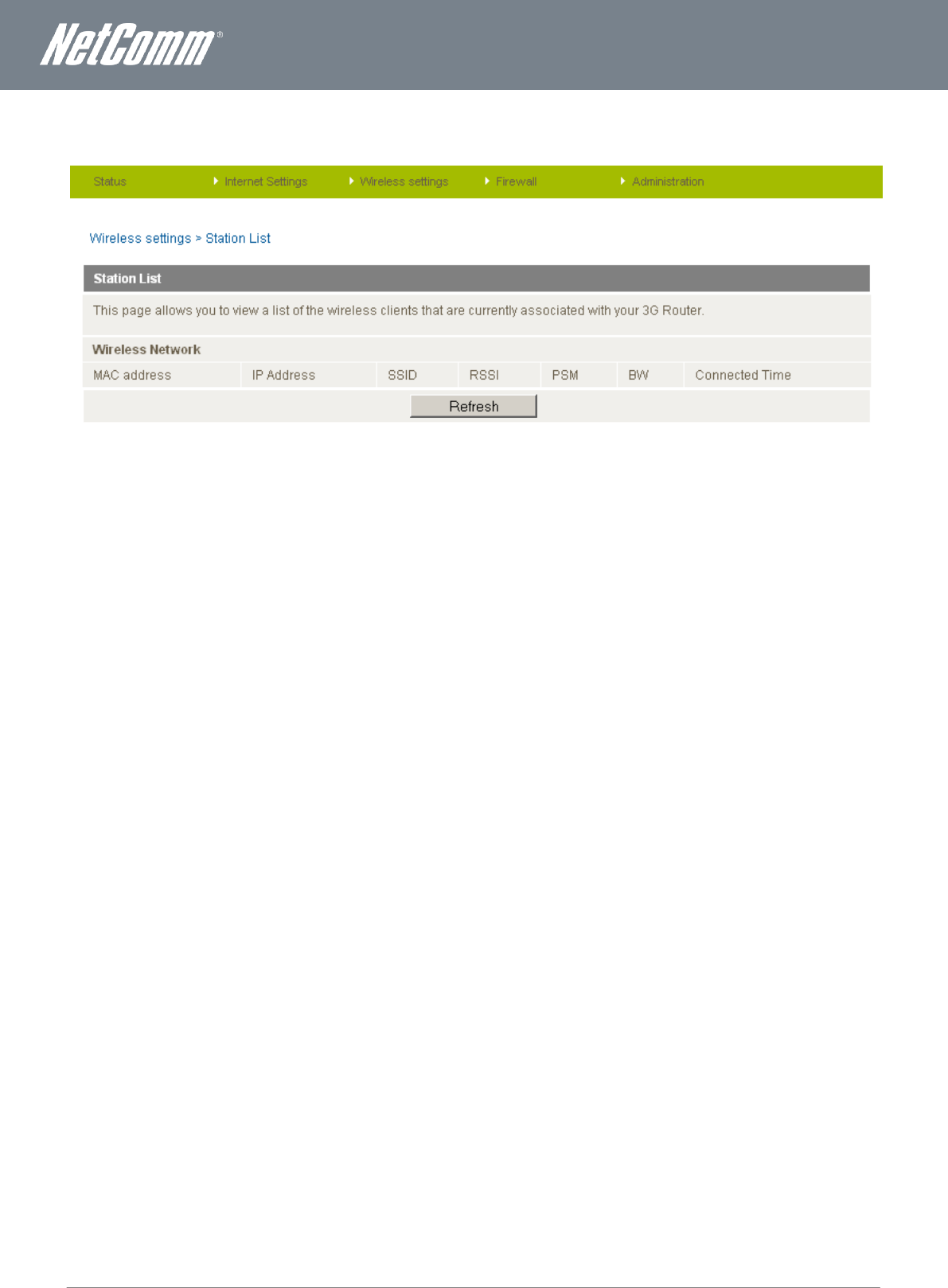

Station List
The Station List shows the wireless clients currently associated with your 3G39W-V.
Figure 31 - Advanced View - Wi-Fi Station List
![](/img.php?id=1595050&img=bg20.png)
Videotron – 3G39W-V
32
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Firewall
Mac/IP/Port Filtering
This page allows you to setup MAC, IP and port filtering rules to protect your network from malicious activity. The filtering rules can
be used to either allow or block certain users and/or ports from accessing the Internet.
Figure 32 - Advanced View - Port Filtering Settings
Basic Settings
MAC/IP/Port Filtering: Select Enable to enable MAC/IP/Port Filtering
Default Policy: Select whether packets that do not match any rules are accepted or dropped
MAC/IP/Port Filtering Settings
OPTION
DEFINITION
MAC Address:
MAC address of a local computer
Dest IP Address:
Destination IP Address for the filter rule
Source IP Address:
Source IP Address for the filter rule
Protocol:
Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default
‚TCP&UDP‛ setting
Dest Port Range:
Destination Port Range of the filter rule
Source Port Range:
Source Port Range of the filter rule
Action:
Either accept or drop the packet that matches the rule
Comment:
Add a comment to identify the rule (optional)
Table 23 - Advanced View - Port Filtering Settings
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg21.png)
www.netcomm.com.au
3G39W-V User Guide
33
YML39W-VX
Port Forwarding
This page allows you to configure port forwarding rules to allow remote users to access services such as Web (HTTP) or FTP on
your local computers. This allows you to redirect a particular port number (from the Internet/WAN port) to a particular LAN IP
address.
Figure 33 - Advanced View - Port Forwarding Settings
OPTION
DEFINITION
Virtual Server Settings:
Enable/Disable port forwarding.
IP Address:
The LAN IP address that the public port number packet will be sent to.
Port Range:
The public port numbers to be sent to the specific LAN IP address.
Protocol:
Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it as the default
‚TCP&UDP‛ setting
Comment:
Add a comment to identify the rule (optional)
Table 24 - Advanced View - Port Forwarding Settings
Click’ Apply’ to save the settings.
![](/img.php?id=1595050&img=bg22.png)
Videotron – 3G39W-V
34
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
DMZ
If you have a client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can
open up the firewall restrictions to allow unrestricted two-way Internet access by defining a DMZ Host.
The DMZ function allows you to re-direct all packets going to your WAN port IP address, to a particular IP address in your LAN. The
difference between the virtual server and the DMZ function is that the virtual server re-directs a particular service/Internet application
(e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-directs all packets (regardless of services) going to your WAN
IP address to a particular LAN client/server.
Figure 34 - Advanced View - DMZ Settings
OPTION
DEFINITION
DMZ Settings:
Enable/disable DMZ.
DMZ IP Address:
Fill in the IP address of a particular host in your LAN Network that will receive all the packets originally
going to the WAN port/Public IP address of your 3G39W-V.
Table 25 - Advanced View - DMZ Settings
Click ‘Apply’ to save the above configurations.
System Security
This page allows you to improve the security of your 3G39W-V through the SPI (Stateful Packet Inspection) firewall and remote
access settings.
Figure 35 - Advanced View - System Security Settings
OPTION
DEFINITION
Remote Management (via WAN / 3G):
Enable/Disable remote management on the WAN interface.
Deny ping from WAN / 3G interface:
Select Enable to deny ICMP packets received on the WAN interface. Otherwise, select ‚Disable‛ to allow
ICMP packets received on the WAN interface.
SPI Firewall
Enable/Disable the SPI (Stateful Packet Inspection) firewall to improve the security of your 3G39W-V.
Table 26 – Advanced View – System Security Settings
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg23.png)
www.netcomm.com.au
3G39W-V User Guide
35
YML39W-VX
Content Filtering
This page allows you to configure content, URL and host filters to restrict improper content access from LAN computers
Figure 36 – Advanced View – Content Filtering Settings
OPTION
DEFINITION
Content Filter Settings
Select which connection type the content filtering applies to.
Web Content Filter:
Tick the boxes to enable Proxy, Java or ActiveX content filtering. Click ‚Apply‛ to save the settings.
URL Filter:
Block access to a website by entering its full URL address and clicking Add. Rules can be deleted at any time
via this page.
Host Filter:
Block access to certain websites by entering a keyword. Rules can be deleted at any time via this page.
Table 27 - Advanced View - Content Filtering Settings
![](/img.php?id=1595050&img=bg24.png)
Videotron – 3G39W-V
36
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Administration
Start Wizard
If you wish to re-run the initial setup wizard, you can do so by moving the mouse over Administration, and clicking on ‚Start Wizard‛.
Management
This page allows you to configure administrator system settings including the system language, administrator username and
password, NTP settings, and DDNS settings.
Figure 37 - Advanced View - Management Settings
OPTION
DEFINITION
Language Settings
Select which languge you would like the management console to utilise
Administrator Settings (account/password):
Configure a new administrator username and password.
NTP Settings:
The NTP (Network Time Protocol) settings allow your router to synchronize its internal clock with
the global Internet Time. These settings will affect functions such as System Log entries and
Firewall settings.
Green AP:
To provide optional reduction in power usage, you can assign a particular time to reduce the WiFi
power output. Please note that a reduction in the WiFi power output can potentially reduce
coverage, data throughput speeds, and stability. If you are having problems with your WiFi
coverage, stability, or throughput speed, please disable the Green AP functionality.
DDNS Settiongs:
DDNS (Dynamic Domain Name Service) allows you to map a static domain name to a dynamic IP
address. To use this features, you must sign up for an account from a DDNS service provider.
This router supports DynDNS, FreeDNS, and other common DDNS service providers.
Enter the account details provided by your Dynamic DNS service provider and click Apply.
Table 28 - Advanced View - Management Settings
Click ‘Apply’ to save the settings.
![](/img.php?id=1595050&img=bg25.png)
www.netcomm.com.au
3G39W-V User Guide
37
YML39W-VX
System Monitor
Figure 38 - Advanced View - System Monitor Settings
The Periodic Ping Reset Monitor configures the 3G39W-V to transmit controlled ping packets to user specified IP addresses. If the
router does not receive a response to the pings the router will reboot. The purpose of this feature is to ensure recovery of the device
if the internet connection disconnects and does not reconnect for some reason.
This feature works as follows:-
Every ‚Periodic Ping Timer‛ value in seconds, the 3G39W-V sends 3 consecutive pings to the ‚Destination Address‛.
If all 3 pings fail the 3G39W-V sends 3 consecutive pings to the ‚Second Address‛.
The 3G39W-V then sends 3 consecutive pings to the ‚Destination Address‛ and 3 consecutive pings to the ‚Second
Address‛ every ‚Periodic Ping Accelerated Timer‛ seconds.
If all accelerated pings in step D fail, the 3G39W-V reboots after waiting the amount of time entered in the ‚Fail Count‛
times.
If any of the pings succeed, the 3G39W-V returns to step A and does not reboot.
Please note: The ‚Periodic Ping Timer‛ should never be set to a value less than 60 seconds; this is to allow the 3G39W-V
time to reconnect to the cellular network following a reboot.
To disable the Periodic Ping Reset Monitor simply set to ‚Fail Count‛ 0
The 3G39W-V can be configured to automatically reboot on a periodic interval specified in minutes. While this is not necessary, it
does ensure that in the case of remote installations it will reboot the 3G39W-V if some anomaly occurs.
The default value is 0 which disables the Periodic Reset Timer.
The maximum value is 65535 minutes.
![](/img.php?id=1595050&img=bg26.png)
Videotron – 3G39W-V
38
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Settings Manager
This page allows you to import/export the system settings, reset your 3G39W-V to factory defaults, or reboot your 3G39W-V.
Figure 39 - Advanced View - Settings Manager Settings
OPTION
DEFINITION
Export Settings
Select to export the current configuration of the 3G39W-V. You can also encrypt the export settings file
by selecting ‘Encryption’ and then entering a password.
Import Settings
Select the file to import the configuration from.
Load Factory Defaults
Reset the 3G39W-V to factory defaults.
Reboot Router
Reboot the 3G39W-V.
![](/img.php?id=1595050&img=bg27.png)
www.netcomm.com.au
3G39W-V User Guide
39
YML39W-VX
Statistics
This page allows you to view the LAN, WAN and wireless statistics of your 3G39W-V.
Figure 40 - Advanced View - System Statistics
![](/img.php?id=1595050&img=bg28.png)
Videotron – 3G39W-V
40
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
System Log
All important system events are logged. You can use this page to check the log of your 3G39W-V for troubleshooting and
diagnostic purposes.
Figure 41 - Advanced View - System Log Settings
OPTION
DEFINITION
Remote Log Server IP Address
Enter the address of a remote syslog server. The syslog contents will be
forwarded to this address.
Remote Log Server IP Port
Enter the port the remote syslog server is running on.
System Log
The current contents of the 3G39W-V system log.
![](/img.php?id=1595050&img=bg29.png)
www.netcomm.com.au
3G39W-V User Guide
41
YML39W-VX
Technical Data
The following table lists the hardware specifications of the 3G39W-V.
MODEL
3G39W-V
CPU
Ralink RT3052F
Modem Chipset/Module
EM820U
UMTS bands
Quad-band HSPA+/HSUPA/HSDPA/WCDMA (850/AWS/1900/2100MHz)
GSM bands
Quad-band GSM/GPRS (850/900/1800/1900MHz)
Maximum Data Throughput /
3G Radio interface
Up to 7.2 Mbps downlink (HSDPA Cat 8)
Up to 5.76 Mbps uplink (HSUPA Cat 6)
EDGE Multi Slot Class 12 – up to 236 Mbps
Connectivity
3G WWAN x 1, 10/100 Ethernet LAN x 1, 10/100 Ethernet WAN/LAN x 1, WLAN
Antenna connector
SMA (female connector)
LED Indicators
Power, 3G, Wi-Fi, Internet/WAN, LAN
Operating Temperature
0 ~ 50 degrees Celsius (operating temperature)
Power input
12VDC – 1.5A
Dimensions & Weight
133 mm (L) x 137 mm (H) x 34 mm (W)
250 grams
Regulatory Compliancy
PTCRB
FCC
IC
ROHS
Table 29 - Technical Specifications for the 3G39W-V
Electrical Specifications
A suitable power supply is available on request or via direct purchase from the NetComm Online shop. It is recommended that the
3G39W-V be powered using the 12VDC/1.5A power supply which is included with the device.
Environmental Specifications / Tolerances
The 3G39W-V makes it able to operate over a wide variety of temperatures from 0˚C ~ 50˚C (ambient).
![](/img.php?id=1595050&img=bg2a.png)
Videotron – 3G39W-V
42
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
FAQ
1. I cannot seem to access the web page interface
The default IP address of the unit is 192.168.20.1, so first try to open a web browser to this address. Also check that your
laptop/ PC is on the same subnet as the router’s Ethernet port.
2. The router was connected but cannot get back online
You may need to enable the periodic ping timer using the System Monitor Link from the Management Console. This
ensures that if the connection drops (i.e outage on the network) that the router will reboot after so many failed pings and
then force a re-connect. Set the timer to around 15 mins should be sufficient.
Please note: The traffic generated by the periodic ping feature is counted as chargeable usage, please keep this in mind
when selecting how often to ping.
3. Router is rebooting frequently
Check the Modem Link on the web page and see if the Periodic Reset timeout is set to something other than 0. If it is set
to 1 this means the unit will reboot every minute regardless of what happens. Reset it to 0 if you don’t want this feature or
something quite large if you don’t want the router to reboot so often.
4. Router has connection but cannot access the internet
Check that DNS Masquerade is enabled by clicking on the LAN link on the configuration interface. Make sure that DHCP
DNS server address 1 IP address is set to the same address as that of the Ethernet port.
5. I cannot seem to get a 3G WAN connection
Click on the 3G Internet Settings link on the webpage interface and check that the correct APN settings are entered.
Also check that the username and password credentials are correct if the APN in use requires these.
Make sure that Auto Connect is enabled on the PPP Profile Connect section on the Data Connection page.
Check you have suitable 3G signal strength and that your SIM is active and does not require a PIN code to be
entered.
6. The SIM status indicates that the SIM is ‚not installed or reboot required‛ on the home page
If a SIM is installed correctly this may indicate that the SIM has been removed or inserted whilst the unit is powered up. In
this case you must reboot the unit. The Reset button on the home page will reboot the router.
![](/img.php?id=1595050&img=bg2b.png)
www.netcomm.com.au
3G39W-V User Guide
43
YML39W-VX
Appendix A: Tables
Table 1 - Document Revision History ........................................................................................................................................... 2
Table 2 - LED Indicators ................................................................................................................................................................ 6
Table 3 - Rear Panel Ports ............................................................................................................................................................ 6
Table 4 - Device Dimensions ......................................................................................................................................................... 7
Table 5 - LAN Management Default Settings ............................................................................................................................... 7
Table 6 - WAN Port Default Settings............................................................................................................................................. 7
Table 7 - Wi-Fi Default Settings .................................................................................................................................................... 7
Table 8 - Web Interface Default Settings ...................................................................................................................................... 7
Table 9 - Basic View - Internet Settings ..................................................................................................................................... 14
Table 10 - Basic View - Wi-Fi Settings ........................................................................................................................................ 15
Table 11 - Advanced View - Internet Settings ............................................................................................................................ 17
Table 12 - Advanced View - WAN Settings - Static IP ............................................................................................................... 18
Table 13 - Advanced View - WAN Settings - DHCP ................................................................................................................... 19
Table 14 - Advanced View - WAN Settings - PPPoE .................................................................................................................. 20
Table 15 - Advanced View - WAN Settings - PPTP .................................................................................................................... 21
Table 16 - Advanced View - WAN Failover Settings .................................................................................................................. 22
Table 17 - Advanced View - LAN Settings .................................................................................................................................. 23
Table 18 - Advanced View - Wi-Fi Settings ................................................................................................................................ 25
Table 19 - Advanced View - Advanced Wi-Fi Settings ............................................................................................................... 26
Table 20 - Advanced View - Wi-Fi Security Settings .................................................................................................................. 27
Table 21 - Advanced View - Enable or Disable WPS ................................................................................................................. 30
Table 22 - Advanced View - WPS Settings ................................................................................................................................. 30
Table 23 - Advanced View - Port Filtering Settings .................................................................................................................... 32
Table 24 - Advanced View - Port Forwarding Settings .............................................................................................................. 33
Table 25 - Advanced View - DMZ Settings ................................................................................................................................. 34
Table 26 - Advanced View - System Security Settings .............................................................................................................. 34
Table 27 - Advanced View - Content Filtering Settings ............................................................................................................. 35
Table 28 - Advanced View - Management Settings ................................................................................................................... 36
Table 29 - Technical Specifications for the 3G39W-V ................................................................................................................ 41
![](/img.php?id=1595050&img=bg2c.png)
Videotron – 3G39W-V
44
3G39W-V User Guide
www.netcomm.com.au
YML39W-VX
Legal & Regulatory Information
1. Intellectual Property Rights
All intellectual property rights (including copyright and trade mark rights) subsisting in, relating to or arising out this Manual are
owned by and vest in NetComm Limited (ACN 002490486) (NetComm) (or its licensors). This Manual does not transfer any right,
title or interest in NetComm’s (or its licensors’) intellectual property rights to you.
You are permitted to use this Manual for the sole purpose of using the NetComm product to which it relates. Otherwise no part of
this Manual may be reproduced, stored in a retrieval system or transmitted in any form, by any means, be it electronic, mechanical,
recording or otherwise, without the prior written permission of NetComm.
NetComm is a trademark of NetComm. All other trademarks are acknowledged to be the property of their respective owners.
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
IC Regulations:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement."
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
The County Code Selection feature is disabled for products marketed in the US/Canada.
For product available in the USA/ Canada markets, only channel 1~11 can be operated. Selection of
other channels is not possible.
