Netgear orporated 10300138 11n wireless AP User Manual
Netgear Incorporated 11n wireless AP
User Manual
![](/img.php?id=1363735&img=bg1.png)
350 East Plumeria Drive
San Jose, CA 95134
USA
September 2010
202-10724-01
v1.0
ProSafe Wireless-N Access
Point WNAP320
Reference Manual
FOR CERTIFICATION ONLY
![](/img.php?id=1363735&img=bg2.png)
2 |
ProSafe Wireless-N Access Point WNAP320 Reference Manual
©2010 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,
visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): See Support information card.
Trademarks
NETGEAR, the NETGEAR logo, ReadyNAS, ProSafe, Smart Wizard, Auto Uplink, X-RAID2, and NeoTV are
trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are
registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or
trademarks of their respective holders.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.
Revision History
Publication Part Number Version Publish Date Comments
202-10724-01 v1.0 September 2010 First publication
![](/img.php?id=1363735&img=bg3.png)
Contents | 3
Contents
Chapter 1 Introduction
About the ProSafe Wireless Access Point . . . . . . . . . . . . . . . . . . . . . . . . . .7
What Is In the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Key Features and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Supported Standards and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . .9
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
802.11b/g/n Standards–based Wireless Networking . . . . . . . . . . . . . . .11
Autosensing Ethernet Connections with Auto Uplink . . . . . . . . . . . . . . .11
Hardware Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Chapter 2 Installation and Configuration
Wireless Equipment Placement and Range Guidelines. . . . . . . . . . . . . . .15
Understanding WNAP320 Wireless Security Options . . . . . . . . . . . . . . . .16
Setting Up the Wireless ProSafe Wireless Access Point . . . . . . . . . . . .17
Configuring Lan and Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . .17
Configuring Your Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Deploying the ProSafe Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . 23
Verifying Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Logging In Using the Default IP Address . . . . . . . . . . . . . . . . . . . . . . . .24
Mounting the ProSafe Wireless Access Point Using the Wall Mount Kit ) .25
Configuring and Testing Your PCs for Wireless Connectivity . . . . . . . .26
Logging In to the ProSafe Wireless Access Point . . . . . . . . . . . . . . . . .26
Setting Basic IP Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Configuring 802.11b/g/n Wireless Settings . . . . . . . . . . . . . . . . . . . . . .29
Configuring QoS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting Up and Testing Basic Wireless Connectivity . . . . . . . . . . . . . . . . .32
Understanding Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
SSID and WEP/WPA Settings Setup Form . . . . . . . . . . . . . . . . . . . . . . 36
Configuring the RADIUS Server Settings . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting Up a Security Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Restricting Wireless Access by MAC Address . . . . . . . . . . . . . . . . . . . .48
Chapter 3 Management
Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Remote Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
![](/img.php?id=1363735&img=bg4.png)
4 | Contents
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Management Using Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Upgrading the Wireless Access Point Software . . . . . . . . . . . . . . . . . . . . . 54
Managing the Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Saving the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Restoring the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Restoring the WNAP320 to the Factory Default Settings. . . . . . . . . . . . . .57
Changing the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Enabling the Syslog Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using Activity Log Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Viewing General Summary Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Viewing Network Traffic Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Viewing Available Wireless Station Statistics. . . . . . . . . . . . . . . . . . . . . . . 65
Enabling Rogue AP Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Importing a Rogue AP List from a File . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Viewing and Saving AP Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Viewing AP Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Creating AP Lists Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Chapter 4 Advanced Configuration
802.1Q VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Hotspot Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Configuring Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Configuring Advanced QoS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Enabling Wireless Bridging and Repeating . . . . . . . . . . . . . . . . . . . . . . . . 77
Configuring a WNAP320 as a Point-to-Point Bridge . . . . . . . . . . . . . . . 79
Configuring a Point-to-Multi-Point Wireless Bridge . . . . . . . . . . . . . . . . 80
Configuring the WNAP320 as a Wireless Repeater. . . . . . . . . . . . . . . . 81
Configuring the WNAP320 for Client Mode . . . . . . . . . . . . . . . . . . . . . . 83
Chapter 5 Troubleshooting and Debugging
No lights are lit on the product family. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
The Wireless LAN LED does not light up. . . . . . . . . . . . . . . . . . . . . . . . . . 85
The Ethernet LAN LED is not lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
I cannot access the Internet or the LAN with a wireless-capable computer. 86
I cannot connect to the WNAP320 to configure it. . . . . . . . . . . . . . . . . . . . 86
When I enter a URL or IP address, I get a time-out error. . . . . . . . . . . . . . 86
Using the Restore Factory Settings Button to Restore Default Settings . . 87
Appendix A Supplemental Information
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Appendix B Compliance Notification
Index
![](/img.php?id=1363735&img=bg5.png)
Chapter 1. Introduction | 6
1
1. Introduction
This chapter introduces the NETGEAR ProSafe Wireless-N Access Point WNAP320 and
describes some of the key features.
This chapter includes the following:
• minimum prerequisites for installation
• package contents (What Is In the Box? on page 8),
• description of the front and back panels of the WNAP320
![](/img.php?id=1363735&img=bg6.png)
Chapter 1. Introduction | 7
ProSafe Wireless-N Access Point WNAP320 Reference Manual
About the ProSafe™ Wireless-N Access Point WNAP320
The NETGEAR ProSafe Wireless-N Access Point WNAP320 is the basic building block of a
wireless LAN infrastructure. It provides connectivity between Ethernet wired networks and
radio-equipped wireless notebook systems, desktop systems, print servers, and other
devices.
The access point provides wireless connectivity to multiple wireless network devices within a
fixed range or area of coverage—interacting with a wireless network interface card (NIC)
through an antenna. Typically, an individual in-building access point provides a maximum
connectivity area of about a 500 foot radius. Consequently, the NETGEAR ProSafe
Wireless-N Access Point WNAP320 can support a small group of users in a range of several
hundred feet. Most access points can handle between 10 to 30 users simultaneously.
The NETGEAR ProSafe Wireless-N Access Point WNAP320 acts as a bridge between the
wired LAN and wireless clients. Connecting multiple ProSafe Wireless Access Points through
a wired Ethernet backbone can further increase the wireless network coverage. As a mobile
computing device moves out of the range of one access point, it moves into the range of
another. As a result, wireless clients can freely roam from one access point to another and
still maintain seamless connection to the network.
The auto-sensing capability of the NETGEAR ProSafe Wireless-N Access Point WNAP320
allows packet transmission at up to 300 Mbps, or at reduced speeds to compensate for
distance or electromagnetic interference.
![](/img.php?id=1363735&img=bg7.png)
8 | Chapter 1. Introduction
ProSafe Wireless-N Access Point WNAP320 Reference Manual
What Is In the Box?
The product package should contain the following items:
• NETGEAR ProSafe Wireless-N Access Point WNAP320
• Power adapter and cord (12Vdc, 1.0A)
• Straight-through Category 5 Ethernet cable
• NETGEAR WNAP320 Wireless-N Access Point Installation Guide
• Resource CD, which includes this manual
• Vertical stand feet (2)
• Wall mount kit made up of brackets (2) and hardware
Contact your reseller or customer support in your area if there are any missing or damaged
parts.
Refer to the for the the NETGEAR, Inc., website at http://kbserver.netgear.com/main.asp for the
telephone number of customer support in your area. You should keep the Installation Guide,
along with the original packing materials, and use the packing materials to repack the access
point if you need to return it for repair.
To qualify for product updates and product warranty, NETGEAR encourages you to register
on the NETGEAR Web site at http://my.netgear.com/registration/login.aspx.
![](/img.php?id=1363735&img=bg8.png)
Chapter 1. Introduction | 9
ProSafe Wireless-N Access Point WNAP320 Reference Manual
System Requirements
Before installing the access point, make sure that your system meets these requirements:
• A 10/100/1000 Mbps local area network device such as a hub or switch
• The Category 5 UTP straight-through Ethernet cable with RJ-45 connector included in the
package, or one like it
• A 100–120 V, 50–60 Hz AC power source
• A Web browser for configuration such as Microsoft Internet Explorer 5.0 or later, or
Mozilla 3.0 or later
• At least one computer with the TCP/IP protocol installed
• 802.11b/g- or 802.11b/g-compliant devices, such as the NETGEAR WG511 Wireless
Adapter
![](/img.php?id=1363735&img=bg9.png)
10 | Chapter 1. Introduction
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Key Features and Standards
The ProSafe Wireless Access Point is easy to use and provides solid wireless and
networking support. It also offers a wide range of security options.
Supported Standards and Conventions
The following standards and conventions are supported:
• Standards Compliance. The wireless access point complies with the IEEE 802.11 b/g
standards for wireless LANs, and is WiFi certified for 802.11n draft 2.0 standard.
• Full WPA and WPA2 support. The wireless access point provides WPA and WPA2
enterprise-class strong security with RADIUS and certificate authentication as well as
dynamic encryption key generation. The WPA-PSK and WPA2-PSK preshared key
authentication is without the overhead of RADIUS servers but with all of the strong
security of WPA.
• Multiple BSSIDs. The access point supports multiple BSSIDs. When a product family is
connected to a wired network and a set of wireless stations, it is called a Basic Service
Set (BSS). The Basic Service Set Identifier (BSSID) is a unique identifier attached to the
header of packets sent over a WLAN that differentiates one WLAN from another when a
mobile device tries to connect to the network.
The multiple BSSID feature allows you to configure up to eight SSIDs per radio mode on
your access point and assign different configuration settings to each SSID. All the
configured SSIDs are active, and the network devices can connect to the access point by
using any of these SSIDs.
• DHCP client support. DHCP provides a dynamic IP address to PCs and other devices
upon request. The access point can act as a client and obtain information from your
DHCP server; it can also act as a DHCP server and provide network information for
wireless clients.
• SNMP Support. Support for Simple Network Management Protocol (SNMP)
Management Information Base (MIB) management.
• 802.1Q VLAN (virtual LAN) support. A network of computers that behave as if they are
connected to the same network even though they might actually be physically located on
different segments of a LAN. VLANs are configured through software rather than
hardware, which makes them extremely flexible. VLANs are very useful for user and host
management, bandwidth allocation, and resource optimization.
![](/img.php?id=1363735&img=bga.png)
Chapter 1. Introduction | 11
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Key Features
The WNAP320 Access Point provides solid functionality, including the following features:
• Multiple operating modes:
-Wireless Access Point. Operates as a standard 802.11b/g/n access point.
-Point-to-Point Bridge. In this mode, the access point communicates only with another
bridge-mode wireless station or access point. Network authentication should be used
to protect this communication.
-Point-to-Multi-Point Bridge. Select this only if this access point is the “master” for a
group of bridge-mode wireless stations. The other bridge-mode wireless stations
send all traffic to this master, and do not communicate directly with each other.
Network authentication should be used to protect this traffic.
-Wireless Repeater. In this mode, the access point does not function as an access
point. It communicates only with Repeater mode, Point-to-Point Bridge mode, and
Point-to-Multi-point-bridge-mode wireless stations. Network authentication should be
used to protect this communication.

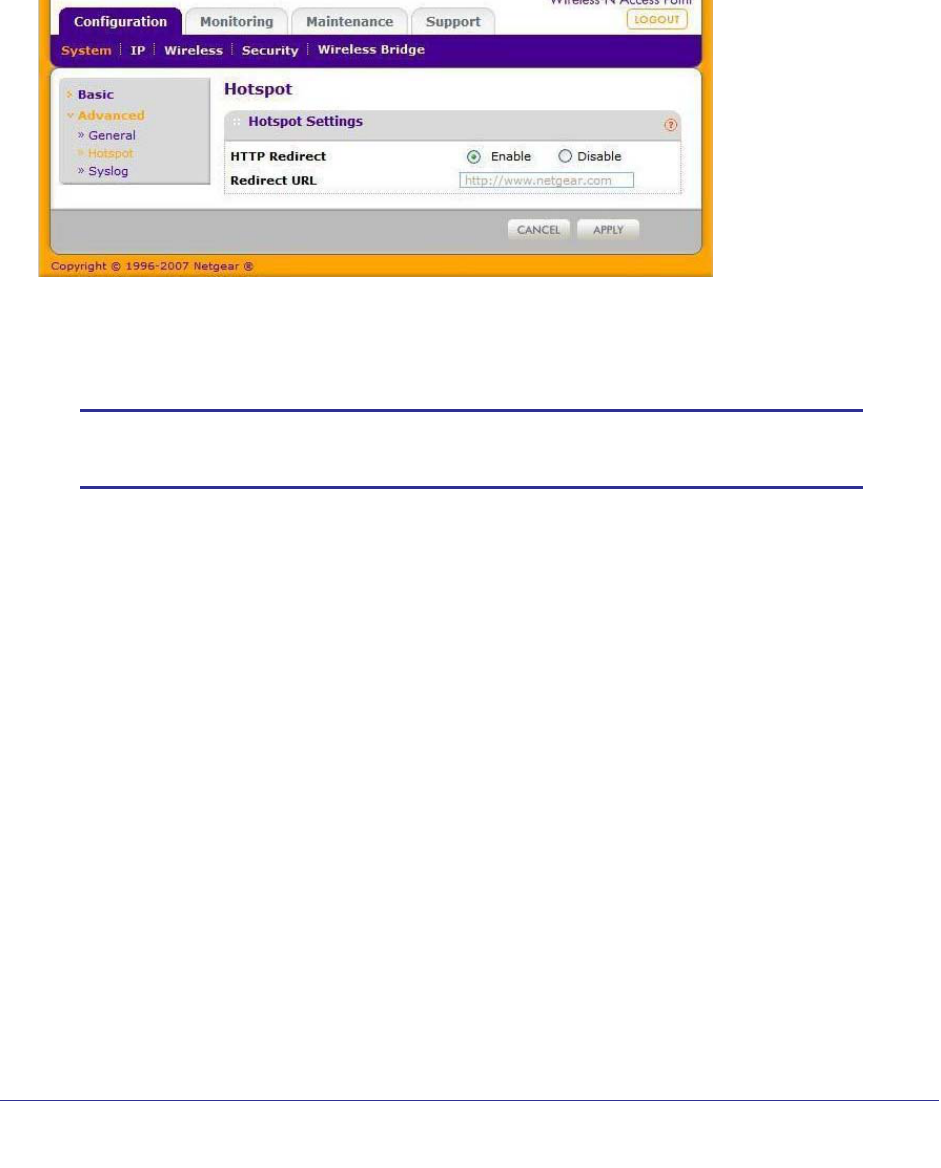

• Hotspot settings. You can allow all HTTP (TCP, port 80) requests to be captured and
redirected to the URL you specify.

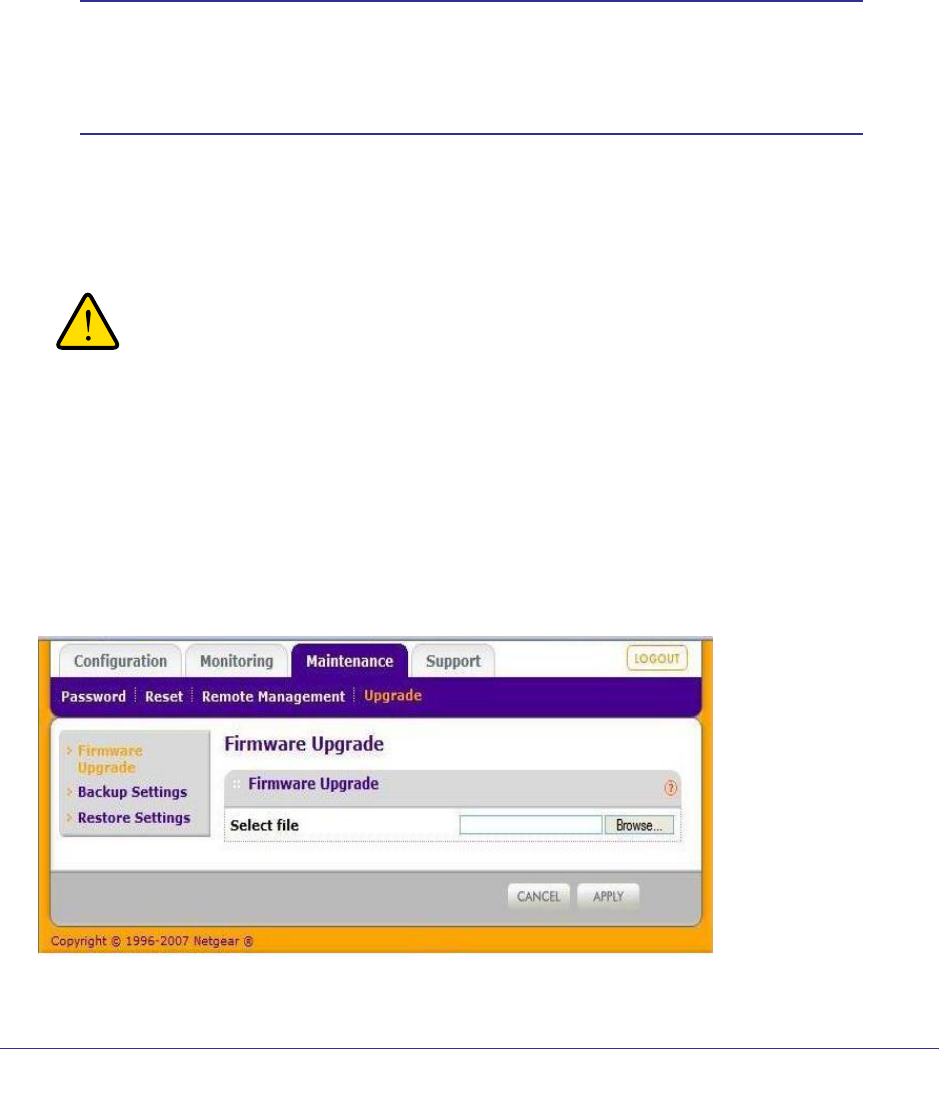

• Upgradeable firmware. Firmware is stored in a flash memory, you can upgrade it easily,
using only your Web browser, and you can upgrade it remotely. You can also use the
command-line interface.

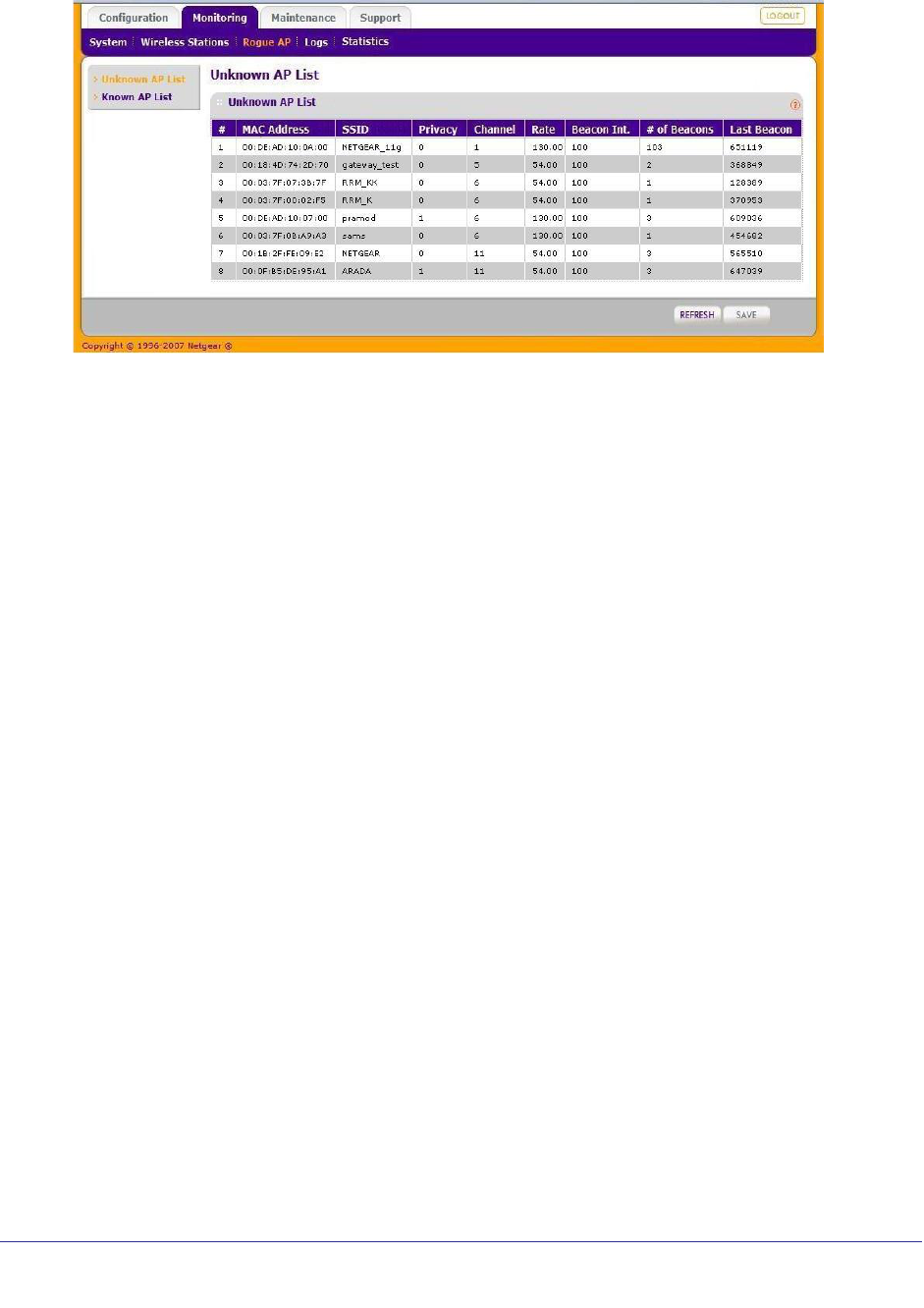

• Rogue AP detection. The Rogue AP filtering feature ensures that unknown APs are not
given access to any part of the LAN.
• Access Control. The Access Control MAC address filtering feature can ensure that only
trusted wireless stations can use the access point to gain access to your LAN.
• Security profiles. When using multiple BSSIDs, you can configure unique security
settings (encryption, SSID, and so on) for each BSSID.
• Hidden mode. The SSID is not broadcast, assuring only clients configured with the
correct SSID can connect.
• Configuration backup. Configuration settings can be backed up to a file and restored.
• Secure and economical operation. Adjustable power output allows more secure or
economical operation.
• Power over Ethernet. Power can be supplied to the access point over the Ethernet port
from any 802.3af-compliant mid-span or end-span source.
• Autosensing Ethernet connection with Auto Uplink™ interface. Connects to
10/100/1000 Mbps IEEE 802.3 Ethernet networks.
• LED indicators. Power, Test, LAN speed, LAN activity, and wireless activity for each
radio mode are easily identified.
• Wireless Multimedia (WMM) support. WMM is a subset of the 802.11e standard. WMM
allows wireless traffic to have a range of priorities, depending on the kind of data.
Time-dependent information, like video or audio, has a higher priority than normal traffic.
For WMM to function correctly, wireless clients must also support WMM.
![](/img.php?id=1363735&img=bgb.png)
12 | Chapter 1. Introduction
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• Quality of Service (QoS) Support. You can configure parameters that affect traffic flowing
from the product family to the client station and traffic flowing from the client station to the
product family. The QoS feature allows you to prioritize traffic, such as voice and video
traffic, so that packets do not get dropped.
• VLAN security profiles. Each security profile is automatically allocated a VLAN ID when
the security profile is modified.
802.11b/g/n Standards–based Wireless Networking
The NETGEAR ProSafe Wireless-N Access Point WNAP320 provides a bridge between
Ethernet wired LANs and 802.11b/g and 802.11 draft n–compatible wireless LAN networks. It
provides connectivity between Ethernet wired networks and radio-equipped wireless
notebook systems, desktop systems, print servers, and other devices. Additionally, the
access point supports the following wireless features:
• Aggregation support
• Reduced InterFrame spacing support
• Multiple input, multiple output (MIMO) support
• Distributed coordinated function (CSMA/CA, back-off procedure, ACK procedure,
retransmission of unacknowledged frames)
• RTS/CTS handshake
• Beacon generation
• Packet fragmentation and reassembly
• Auto or long preamble
• Roaming among access points on the same subnet
Autosensing Ethernet Connections with Auto Uplink
The access point can connect to a standard Ethernet network. The LAN interface is
autosensing and capable of full-duplex or half-duplex operation.
The product family incorporates Auto UplinkTM technology. The Ethernet port automatically
senses whether the Ethernet cable plugged in to the port should have a “normal” connection
such as to a computer or an “uplink” connection such as to a switch or hub. That port then
configures itself correctly. This feature also eliminates any concerns about crossover cables,
as Auto Uplink accommodates either type of cable to make the right connection.
![](/img.php?id=1363735&img=bgc.png)
Chapter 1. Introduction | 13
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Hardware Description
This section describes the front and rear hardware functions of the access point.
Front Panel
The WNAP320 hardware functions are described in the following figure and table.
1234
Figure 1.
The following table explains the LED:
Table 1. Front Panel LEDs
Item LED DESCRIPTION
1Power
Off. Power is off.
On. Power is on.
2Test
Blinking. The device is running a self-test or is loading software. This LED
may blink for a minute before going off. If it continues to blink, it indicates a
system fault.
3Ethernet LAN Speed
Off. A 10 Mbps or no link detected.
Amber. A 10/100 Mbps link detected.
Green. A 1000 Mbps link detected.
4WLAN
Blinking (Blue). Indicates Wireless activity has been detected.
![](/img.php?id=1363735&img=bgd.png)
14 | Chapter 1. Introduction
ProSafe Wireless-N Access Point WNAP320 Reference Manual

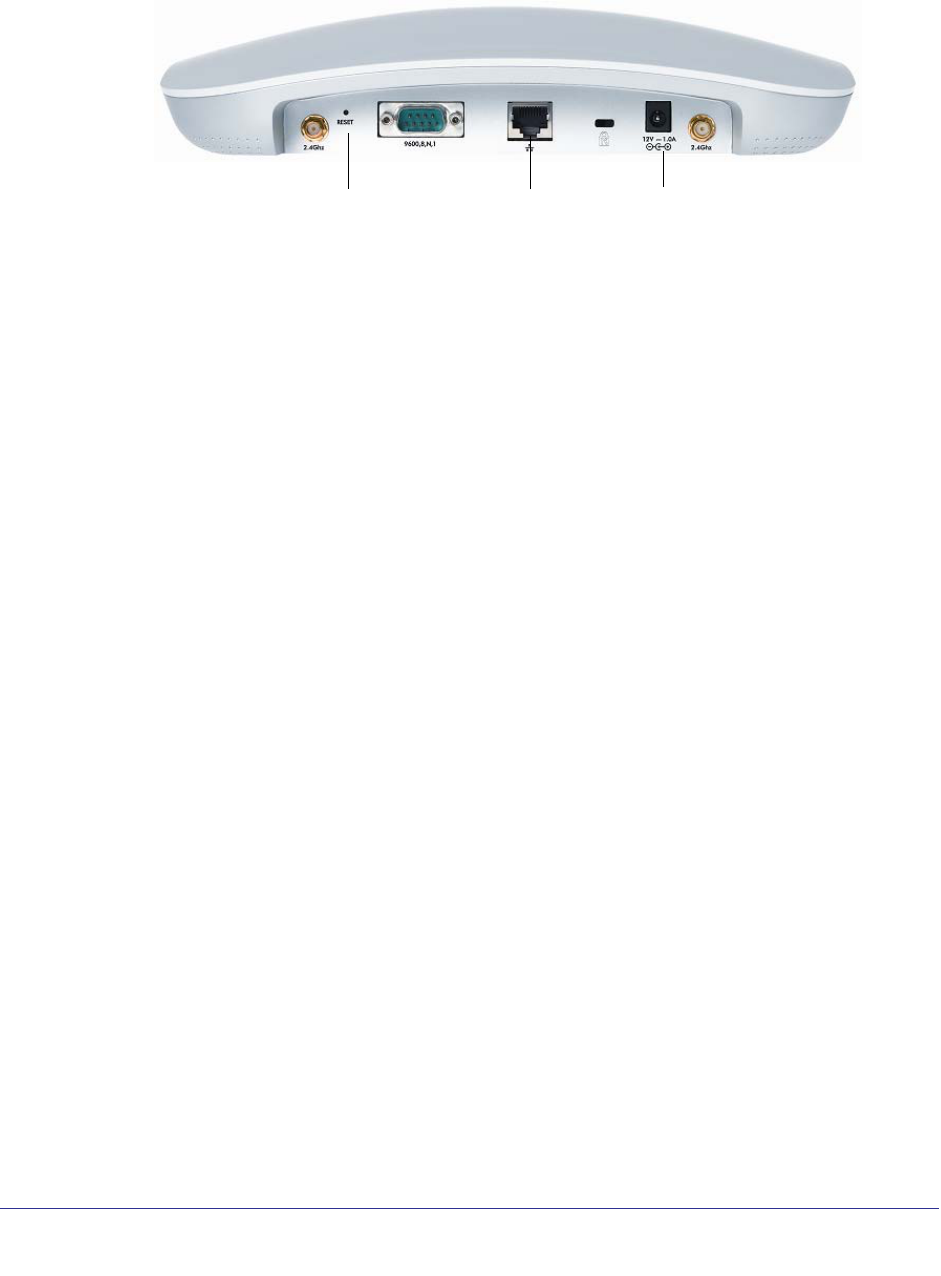

Rear Panel
1
32
Figure 2.
The access pointrear panel functions are described in the following list:
1. Power socket. This socket connects to the WNAP320 12V 1.0A power adapter.
2. RJ-45 Ethernet port. Use the WNAP320 Ethernet RJ-45 port to connect to an Ethernet LAN
through a device such as a hub, switch, router, or PoE switch.
3. Restore factory settings button. The restore to settings button restores the access point to
the factory default settings.
![](/img.php?id=1363735&img=bge.png)
Chapter 2. Installation and Configuration | 14
2
2. Installation and Configuration
This chapter describes how to set up your ProSafe Wireless-N Access Point WNAP320 for
wireless connectivity to your LAN. This basic configuration will enable computers with
802.11b/g/n wireless adapters to connect to the Internet, or access printers and files on your
LAN.
Note: Indoors, computers can connect over 802.11b/g/n wireless
networks at ranges of several hundred feet or more. This distance
allows others outside your area to access your network. It is
important to take appropriate steps to secure your network from
unauthorized access. The access point provides highly effective
security features, which are covered in detail in Understanding
WNAP320 Wireless Security Options on page 17. Deploy the
security features appropriate to your needs.
You need to prepare these three things before you can establish a connection through your
wireless access point:
• A location for the WNAP320 that conforms to the guidelines in the following section,
Wireless Equipment Placement and Range Guidelines on page 15.
• The wireless access point connected to your LAN through a device such as a hub,
switch, router, or cable/DSL gateway.
• One or more computers with correctly configured 802.11b/g/n wireless adapters.
![](/img.php?id=1363735&img=bgf.png)
Chapter 2. Installation and Configuration | 15
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Wireless Equipment Placement and Range Guidelines
The operating distance or range of your wireless connection can vary significantly based on
the physical placement of the product family. The latency, data throughput performance, and
notebook power consumption of wireless adapters also vary depending on your configuration
choices.
Note: Failure to follow these guidelines can result in significant
performance degradation or inability to wirelessly connect to the
access point. For complete performance specifications, see
Appendix A, Supplemental Information.
For best results, place your product family:
• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have
line-of-sight access (even if through walls).
• Away from sources of interference, such as PCs, microwaves, and 2.4 GHz cordless
phones.
• Away from large metal surfaces.
• Putting the antenna in a vertical position provides best side-to-side coverage. Putting the
antenna in a horizontal position provides best up-and-down coverage.

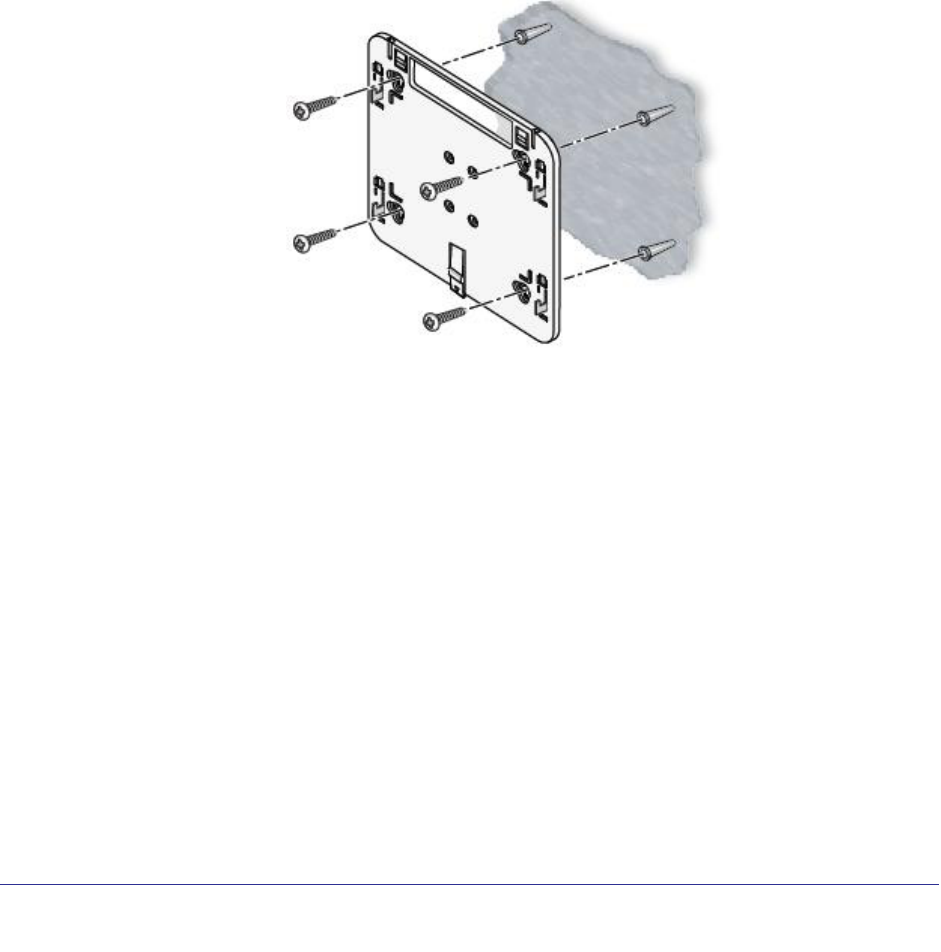

A wall mount kit is provided with your product family. For installation instructions, see
Mounting the ProSafe Wireless Access Point Using the Wall Mount Kit (Optional) on
page 26.
If using multiple access points, it is better if adjacent access points use different radio
frequency channels to reduce interference. The recommended channel spacing between
adjacent access points is five channels (for example, use channels 1 and 6, or 6 and 11).
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. Some types of security connections can take slightly longer to
establish and can consume more battery power on a notebook computer.
Cabling Requirements
The ProSafe Wireless Access Point connects to your LAN via twisted-pair Category 5
Ethernet cable with RJ-45 connectors.
Default Factory Settings

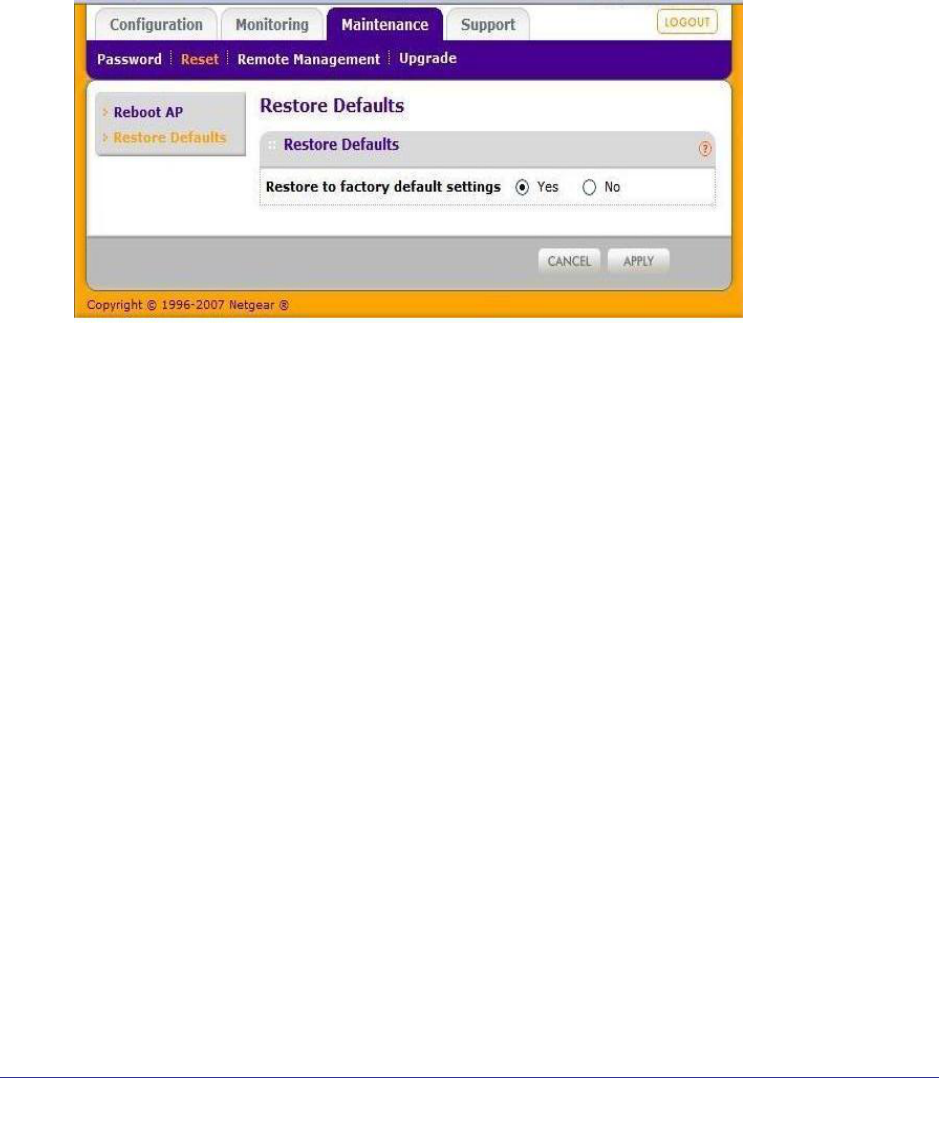

When you first receive your WNAP320, the default factory settings will be set. You can
restore these defaults with the Factory Default Restore switch on the rear panel .To restore
![](/img.php?id=1363735&img=bg10.png)
16 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
your default settings, see Appendix A, Supplemental Information for a list of default settings
and instructions on the use of the restore switch.
![](/img.php?id=1363735&img=bg11.png)
Chapter 2. Installation and Configuration | 17
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Understanding WNAP320 Wireless Security Options
Anyone wih a compatible wireless adapter can recieve your wireless data transmissions well
beyond your walls. For this reason, use the security features of your wireless equipment. The
access point provides highly effective security features, which are covered in detail in this
chapter. Deploy the security features appropriate to your needs.

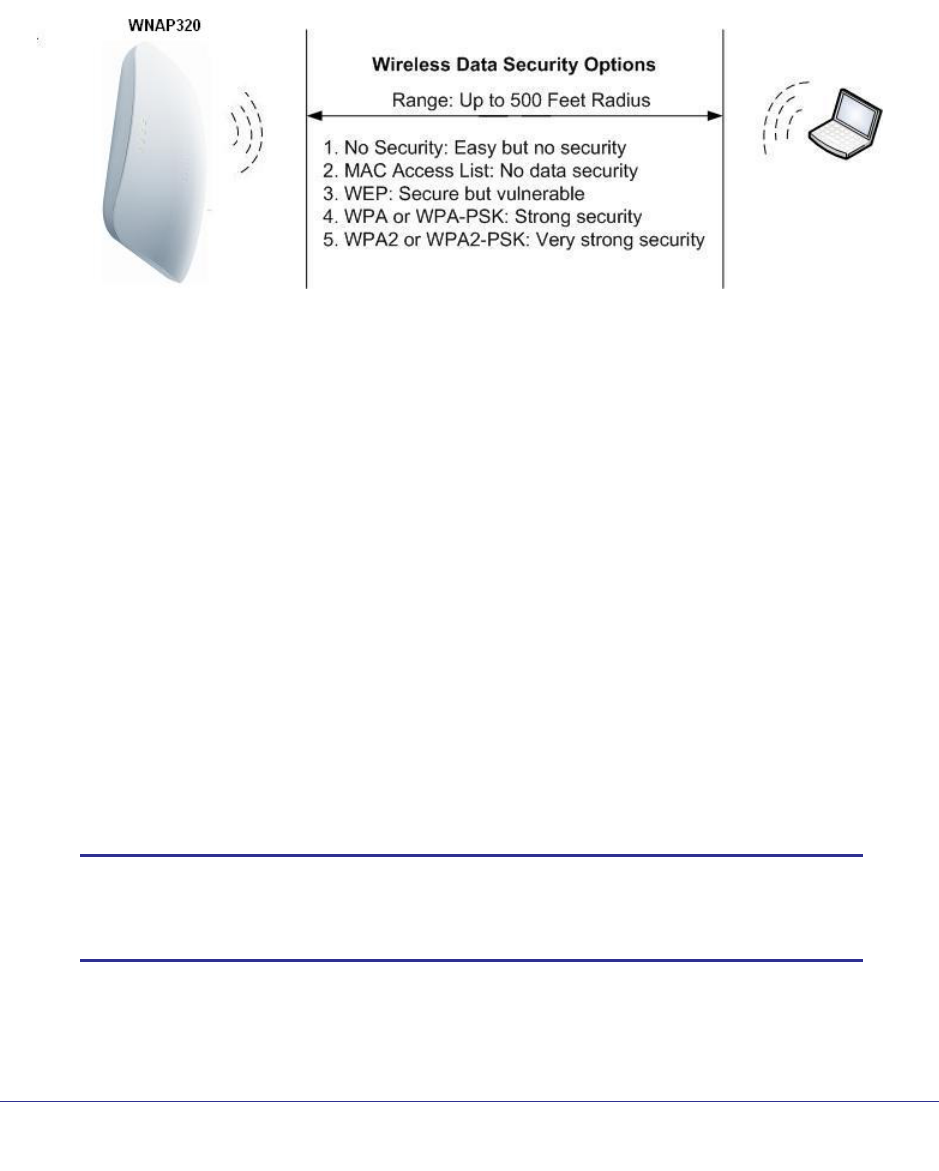

Figure 1.
There are several ways you can enhance the security of your wireless network:
• Restrict access based on MAC address. You can restrict access to only trusted PCs so
that unknown PCs cannot wirelessly connect to the access point. MAC address filtering
adds an obstacle against unwanted access to your network, but the data broadcast over
the wireless link is fully exposed.
• Turn off the broadcast of the wireless network name (SSID). If you disable broadcast
of the SSID, only devices that have the correct SSID can connect. This nullifies the
wireless network “discovery” feature of some products such as Windows XP, but the data
is still fully exposed to a determined snoop using specialized test equipment like wireless
sniffers.
• Use WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
open authentication and WEP data encryption will block all but the most determined
eavesdropper.
• Use WPA or WPA-PSK, WPA2, or WPA2-PSK. Wi-Fi Protected Access (WPA) data
encryption provides data security. The very strong authentication along with dynamic per
frame rekeying of WPA make it virtually impossible to compromise. Because this is a new
standard, wireless device driver and software availability might be limited.
Note: WEP and TKIP provide only legacy (slower) rates of operation.
AES encryption is recommended in order to use the 11n rates and
speed. See Table 1 on page 36.
![](/img.php?id=1363735&img=bg12.png)
18 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Installing theWireless Access Point
Before installing the ProSafe Wireless-N Access Point WNAP320, you should make sure that
your Ethernet network is up and working. You will be connecting the access point to the
Ethernet network so that computers with 802.11b/g/n wireless adapters will be able to
communicate with computers on the Ethernet network. For this to work correctly, you should
verify that you have met all of the system requirements.
Setting Up the ProSafe Wireless Access Point
Tip: Before mounting the access point in a high location, set up and test the
access point to verify wireless network connectivity.
To set up the access point:
1. Prepare a computer with an Ethernet adapter. If this computer is already part of your
network, record its TCP/IP settings.
2. Turn on your computer and configure it with a static IP address of 192.168.0.210 and a
subnet mask of 255.255.255.0.
3. Connect an Ethernet cable from the access point to the computer.
4. Connect the power adapter to the access point, and verify the following:
• The Power LED goes on.
• The Ethernet LAN LED is lit when connected to a powered-on computer.
• The WLAN LED is blinking.
Configuring Lan and Wireless Settings
To configure the access point for LAN access:
1. Connect to the access point by opening a browser window on your PC and entering
http://192.168.0.100 in the address field. The access point login screen displays.
2. Enter admin for the user name and password for the password, both in lower case letters.

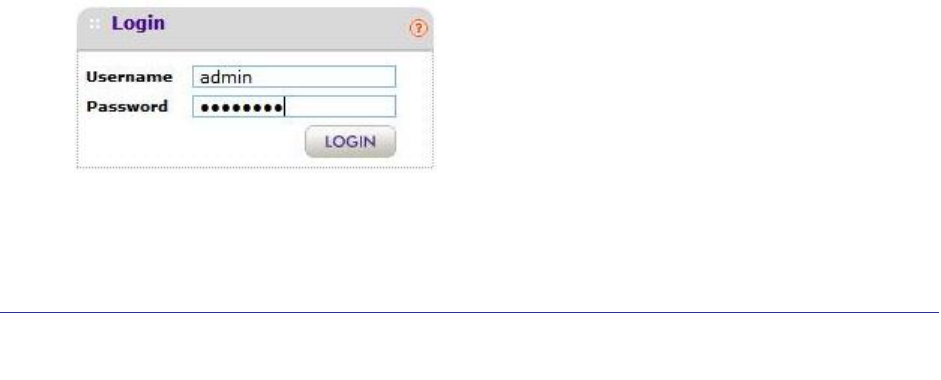

Figure 2.
![](/img.php?id=1363735&img=bg13.png)
Chapter 2. Installation and Configuration | 19
ProSafe Wireless-N Access Point WNAP320 Reference Manual
3. Login. The general screen of the the access point displays as shown in Figure 3, . The
default settings should be suitable for most users and environments.
• When the product family is connected to the Internet, you can select the
Documentation link under the Web Support menu to view the documentation for the
product family.
• Select LOGOUT to exit the access point setup screens. (You arel automatically
logged out of the product family after 5 minutes of no activity.)

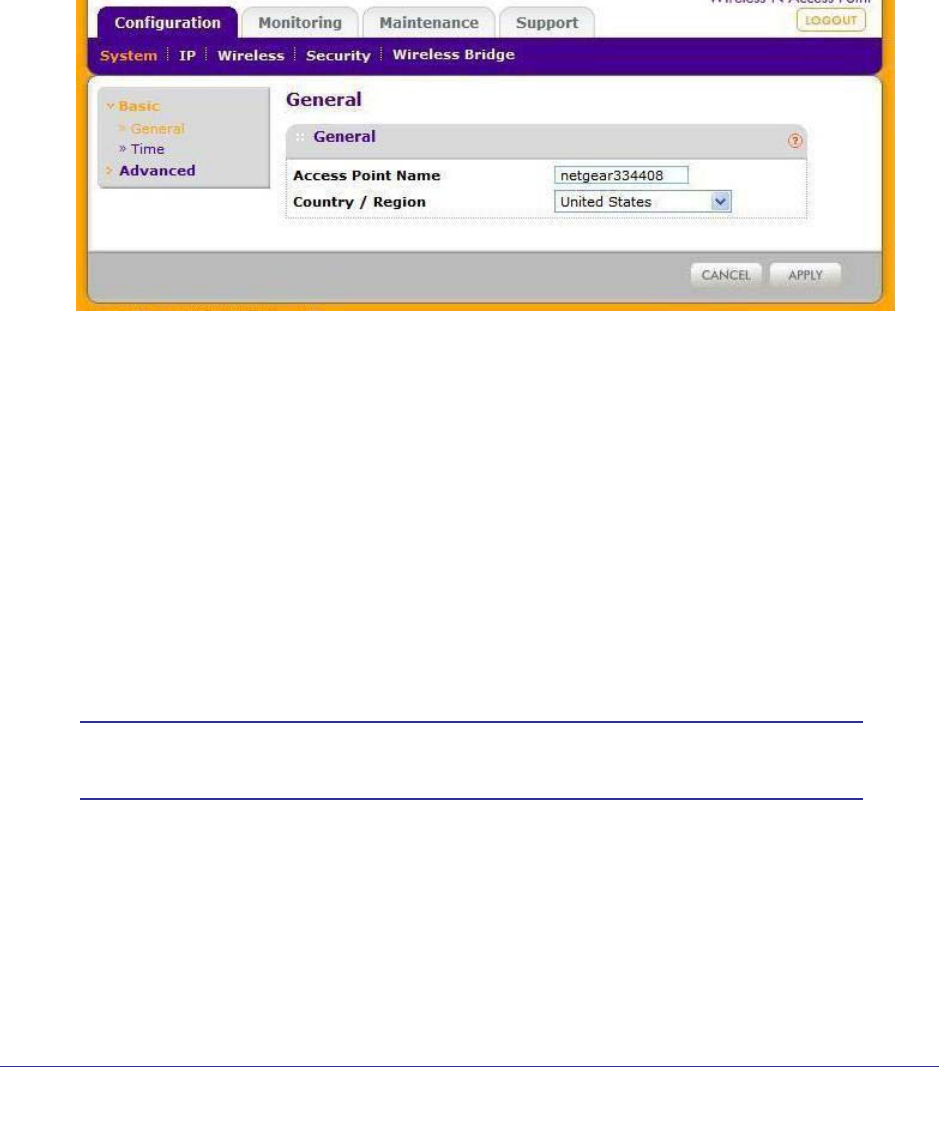

Figure 3.
4. Enter the access point name of the WNAP320.
This unique name is the access point NetBIOS name. The access point name is printed
on the rear label of the access point. The default is netgearxxxxxx, where xxxxxxx
represents the last 6 digits of the access point MAC address. You can replace the default
name with a unique name up to 15 characters long.
5. From the Country/Region drop-down menu, select the region where the access point will
be used (the Country/Region is not Configurable in the United States; but is configurable in
the rest of the world). Click Apply.
Note: If your country or region is not listed, please check with NETGEAR
Support.
1. Select System > Basic > Time.
![](/img.php?id=1363735&img=bg14.png)
20 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Figure 4.
• Time Zone. From the drop-down list, select the local time zone for your product family
from a list of all available time zones. The default is USA-Pacific. The product family
will get the current time from the connecting PC.
• NTP Client. Enable the NTP client to synchronize the time of the access point with an
NTP server. The default is Enable.
Note: You must have an Internet connection to get the current time using
an NTP client.
-Use Custom NTP Server. Select this check box if you have a custom NTP server.
The default is not selected.
-Hostname / IP Address. Enter the host name or the IP address of the custom NTP
server. The default is time-b.netgear.com.
2. Click Apply.
3. Select Configuration > IP to display IP Settings.
![](/img.php?id=1363735&img=bg15.png)
Chapter 2. Installation and Configuration | 21
ProSafe Wireless-N Access Point WNAP320 Reference Manual

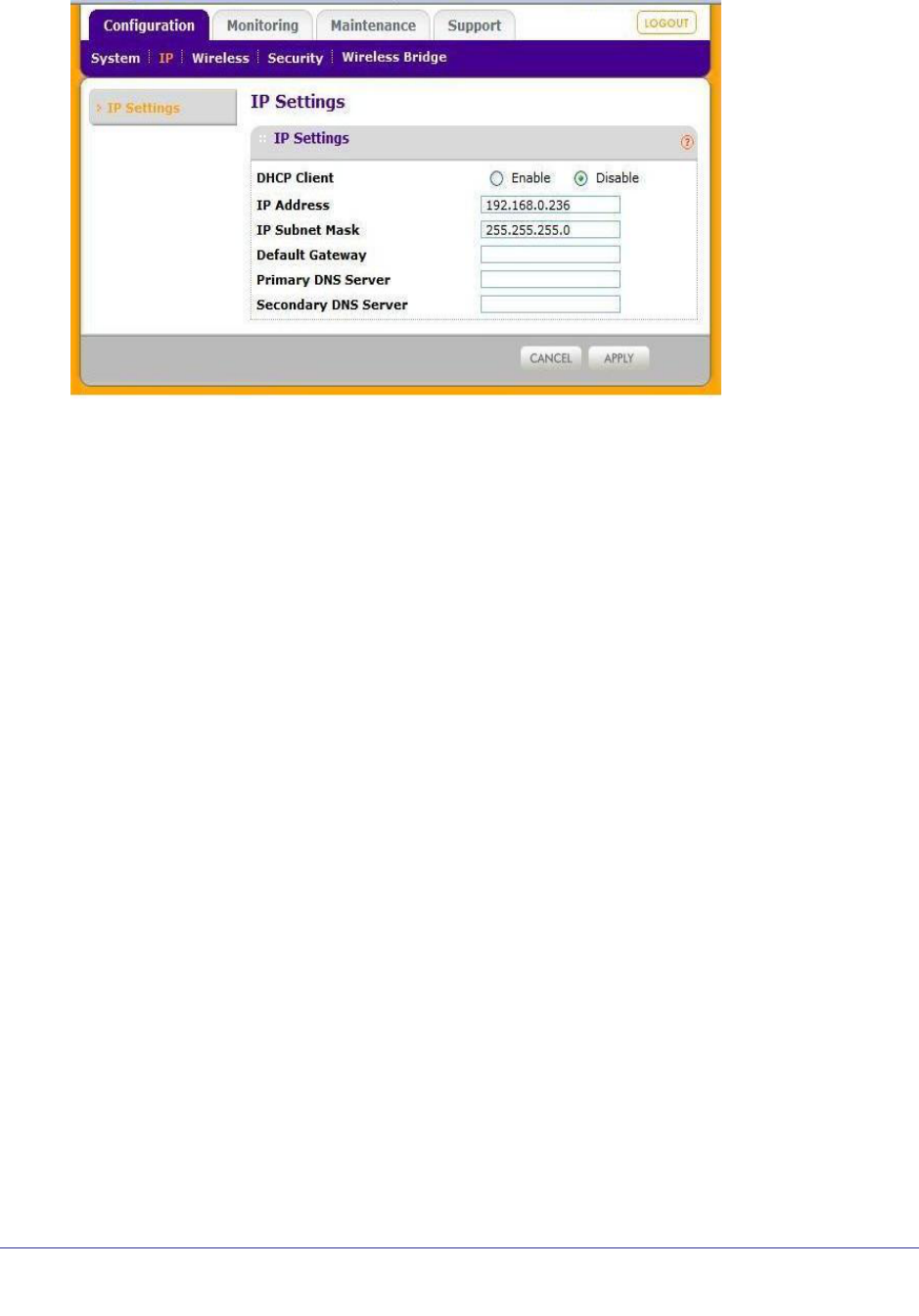

Figure 5.

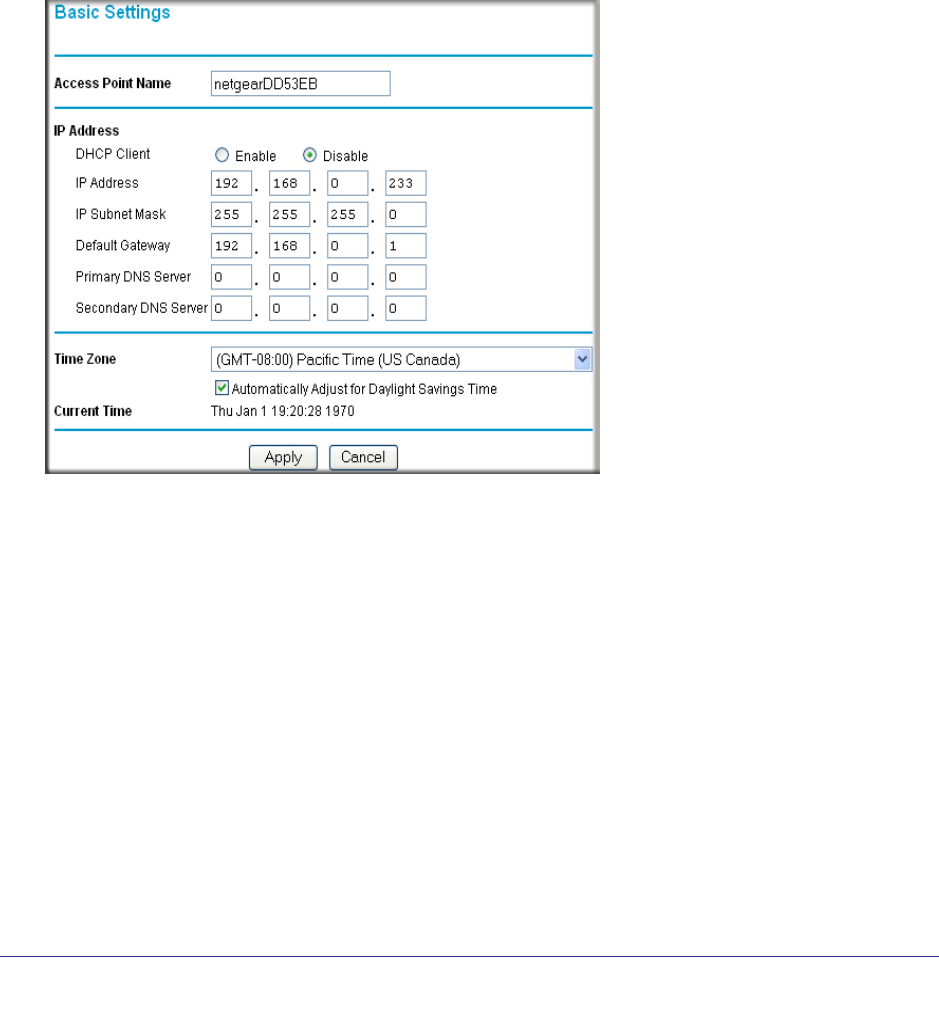

4. Fill in the IP address fields of the access point. (See the online help for more information
about how to specify the settings on this screen).
• DHCP Client. By default, the Dynamic Host Configuration Protocol (DHCP) client is
disabled. If you have a DHCP server on your LAN and you enable DHCP, the wireless
access point will get its IP address, subnet mask, and default gateway settings
automatically from the DHCP server on your network when you connect the access
point to your LAN.
• IP Address. Enter the IP Address of your product family.The default IP address is
192.168.0.100. To change it, enter an unused IP address from the address range
used on your LAN; or enable DHCP.
• IP Subnet Mask. The Access Point will automatically calculate the subnet mask
based on the IP address that you assign. Otherwise, you can use 255.255.255.0 (the
default) as the subnet mask.
• Default Gateway. Enter the IP address of the gateway for your LAN. For more
complex networks, enter the address of the router for the network segment to which
the product family is connected. The default is 0.0.0.0.
• Primary DNS Servers. The access point will use this IP address as the primary
Domain Name Server used by stations on your LAN. The default is 0.0.0.0.
• Secondary DNS Servers. The access point will use this IP address as the secondary
Domain Name Server used by stations on your LAN. The default is 0.0.0.0.
5. Click Apply to save your Basic IP settings.
![](/img.php?id=1363735&img=bg16.png)
22 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Note: If you change the default subnet of the LAN IP address, you will be
disconnected from the access point user interface. To reconnect,
reconfigure your computer with a static IP address within the new
LAN IP subnet.
By default, the access point is set with the DHCP client disabled. If your network uses
dynamic IP addresses, you must change this setting (see Logging In to the ProSafe Wireless
Access Point on page 27),
Configuring Your Wireless Settings
The following sections describe how to configure the wireless settings for 802.11b/g/n
operation.
To configure the access point wireless settings:
1. Select Configuration > Wireless.The Wireless Settings screen displays as shown in
Figure 6, .
.

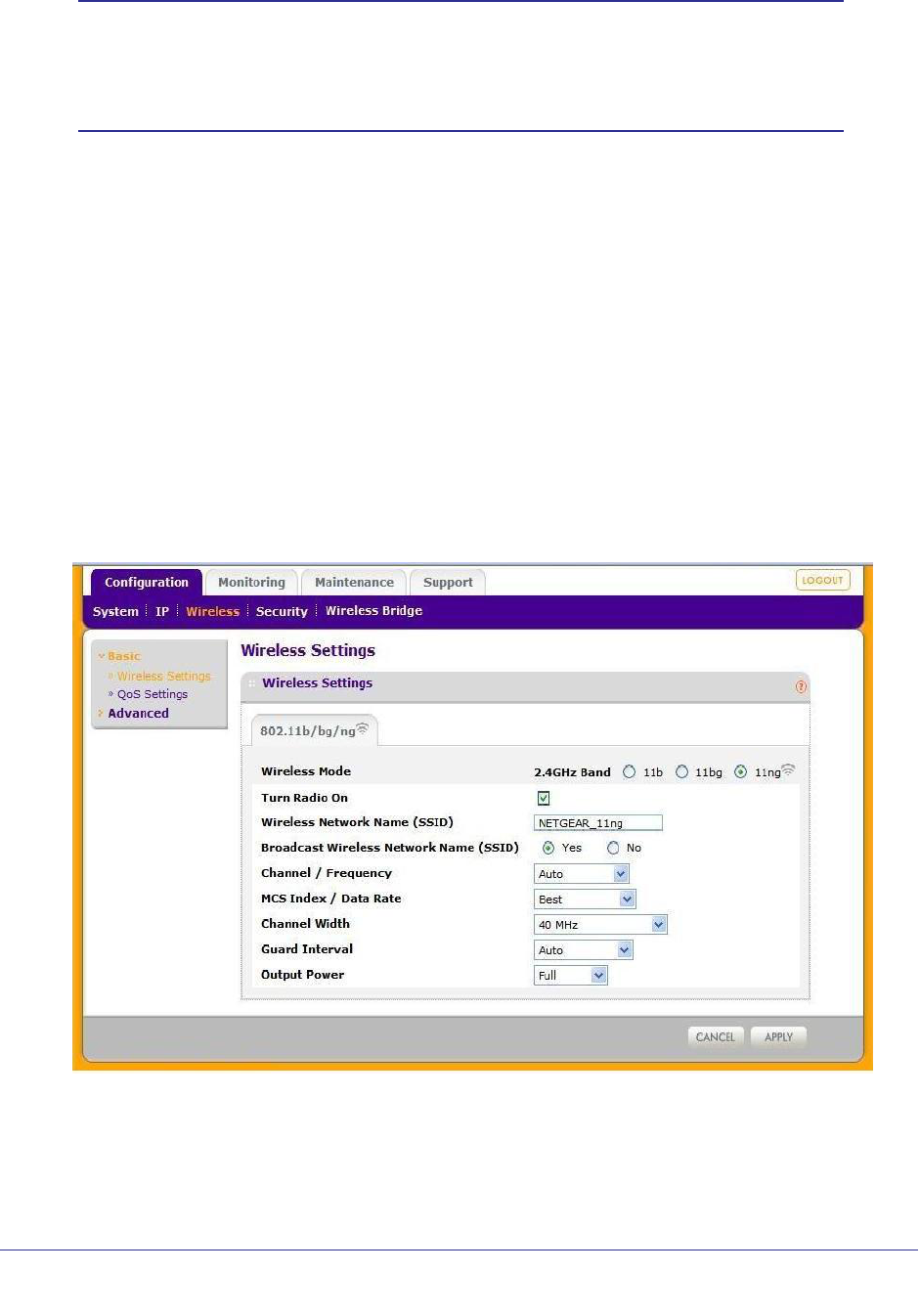

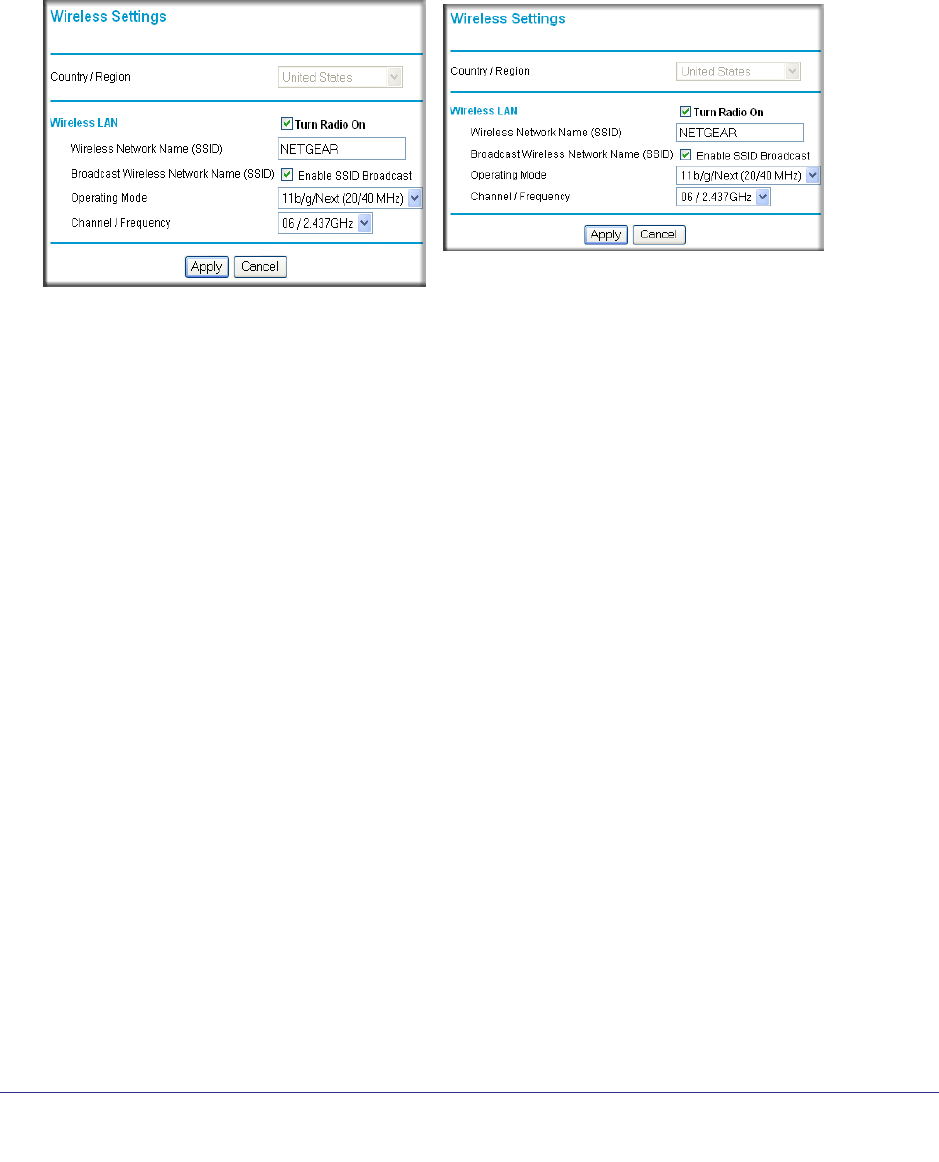

Figure 6.
2. Configure the Wireless LAN settings based on the following field descriptions:
• Wireless Mode. Select the wireless operating mode you want to use:
![](/img.php?id=1363735&img=bg17.png)
Chapter 2. Installation and Configuration | 23
ProSafe Wireless-N Access Point WNAP320 Reference Manual
- 11b. 802.11b wireless stations only.
- 11bg. Both 802.11b and 802.11g wireless stations can be used.
- 11ng. Both 802.11n, and 802.11g wireless stations can be used.
The default is 11ng.
• Turn Radio On. On by default, you can also turn off the radio to disable access
through this device. This can be helpful for configuration, network tuning, or
troubleshooting activities.
• Wireless Network Name (SSID). Enter a 32-character (maximum) service set ID in
this field; the characters are case-sensitive. When the product family is deployed in
“infrastructure” mode, the SSID assigned to a wireless device must match the product
family SSID for the wireless device to communicate with the access point. If they do
not match, you will not get a wireless connection to the access point. The default is
NETGEAR.
• Broadcast Wireless Network Name (SSID). If Yes, the access point broadcasts its
SSID allowing wireless stations which have a “null” (blank) SSID to adopt the correct
SSID. If set to No, the SSID is not broadcast. The default is Yes.
• Channel/Frequency. From the drop-down list, select the channel you wish to use on
your wireless LAN. The wireless channels to use in the United States. and Canada
are 1 to 11; for Europe and Australia, 1 to 13. The default is Auto.
It should not be necessary to change the wireless channel unless you experience
interference (shown by lost connections or slow data transfers). Should this happen,
you might want to experiment with different channels to see which is the best. See the
article “Wireless Networking Basics” available on the NETGEAR website. (A link to
this article and other articles of interest can be found in Related Documents in
Appendix A.
3. Click Apply to save your wireless settings.
![](/img.php?id=1363735&img=bg18.png)
24 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Deploying the ProSafe Wireless Access Point
Now that you have completed the setup steps, you can deploy the access point in your
network. If necessary, you can now reconfigure the computer you used in Step1 Installing
theWireless Access Point on page 18.
Tip: Before mounting the WNAP320 in a high location, first set up and test the
WNAP320 to verify wireless network connectivity.
To deploy the access point:
1. Disconnect the access point from the PC, and position it where it will be deployed. The
best location is elevated, such as on a wall or ceiling or on the top of a cubicle, at the
center of your wireless coverage area, and within line of sight of all the mobile devices.
2. Connect an Ethernet cable from your access point to a LAN port on your router, switch, or
hub.
Note: By default, access point is set with the DHCP client disabled. If your
network uses dynamic IP addresses, you must change this setting.
To connect to the access point after the DHCP server on your
network assigns it a new IP address, enter the product family name
in your Web browser. The default product family name is
netgearxxxxxx, where xxxxxx represents the last 6 bytes of the
MAC address. The default name is printed on the bottom label of the
access point.
3. If you are not using PoE, connect the power adapter to the wireless access point, and plug
the power adapter into a power outlet. The Power and LAN LEDs should be on, and the
WLAN LED should blink.
Verifying Wireless Connectivity
Follow the instructions in the next sections to set up and test basic wireless connectivity.
Once you have established basic wireless connectivity, you can enable security settings
appropriate to your needs (see Understanding WNAP320 Wireless Security Options on
page 17).
The default SSID for the 802.11b/g/n is NETGEAR-11g. The SSID of any wireless access
adapters must match the SSID configured in the ProSafe Wireless-N Access Point
WNAP320. If they do not match, no wireless connection will be made.
![](/img.php?id=1363735&img=bg19.png)
Chapter 2. Installation and Configuration | 25
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Note: If you are unable to connect, see Chapter 5, Troubleshooting and
Debugging.”
Logging In Using the Default IP Address
After you install the access point, log in to the product family to configure the basic settings
and the wireless settings. The access point is set, by default, with the IP address of
192.168.0.100 with DHCP disabled.
Note: The computer you are using to connect to the access point should
be configured with an IP address that starts with 192.168.0.x and a
subnet mask of 255.255.255.0.
To log in using the default IP Address:
1. Open a Web browser such as Internet Explorer, Mozilla Firefox, or Netscape Navigator.
Connect to the access point by entering its default address of http://192.168.0.100 into
your browser. Your Web browser should automatically find the access point and display
the home screen.
2. Enter admin for the user name and password for the password, both in lower case letters
or use a new LAN address and password if you have set them up.
3. Click Login.
4. Select Configuration > Wireless. Verify your operating mode, 11b, 11bg, or 11ng. Verify
that the correct (default) channel has been selected for your network.
It should not be necessary to change the wireless channel unless you notice interference
problems or are near another wireless access point. Select a channel that is not being
used by any other wireless networks within several hundred feet of your product family.
5. Click Apply to save any changes.
![](/img.php?id=1363735&img=bg1a.png)
26 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Mounting the ProSafe Wireless Access Point Using the Wall
Mount Kit (Optional)
Tip: Before mounting the access point in a high location, first set up and test
the access point to verify wireless network connectivity.
To install the mounting bracket:
1. Disconnect the access point and position it where it will be deployed. The best location
is elevated, such as on a wall or ceiling or the top of a cubicle, at the center of your
wireless coverage area, and within line of sight of all the mobile devices (see Figure 7
on page 26).
Figure 7.
2. Connect an Ethernet cable from your access point to a LAN port on your router, switch, or
hub. If power is not provided by PoE, connect the power adapter to the wireless access
point and plug the power adapter into a power outlet. The Power, LAN, and Wireless LAN
LEDs should light up.
Configuring and Testing Your PCs for Wireless Connectivity
Program the wireless adapter of your PCs to have the same SSID and channel that you
configured in the Wireless Settings for the access point. Check that they have a wireless
link and are able to obtain an IP address by DHCP from the access point.
![](/img.php?id=1363735&img=bg1b.png)
Chapter 2. Installation and Configuration | 27
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Note: If you are configuring the access point from a wireless computer and
you change the SSID, channel, or security profile settings, you will
lose your wireless connection when you click Apply. You must then
change the wireless settings of your computer to match the new
settings.
Once your PCs have basic wireless connectivity to the access point, you can deploy the
access point and configure the advanced wireless security functions.
Logging In to the ProSafe Wireless Access Point
The access pointis set by default with the IP address of 192.168.0.100 with DHCP disabled.
Note: If you log in using the default IP address, the computer you are
using to connect to the access point should be configured with an IP
address in the range 192.168.0.0 to 192.168.0.255 and a subnet
mask of 255.255.255.0.
If DHCP is enabled, there are two methods you can use to connect to the WNAP320 after the
DHCP server on your network assigns it a new IP address.
• If your product family is to be deployed on a local network, you can enter the NetBIOS
name in your Web browser. The default wireless access point name is netgearxxxxxx,
where xxxxxx represents the last 6 bytes of the MAC address. The MAC address is
printed on the rear label of the WNAP320. (Using the NetBIOS naming convention to
access your router across several network segments is known to be unreliable.)
• Reserve an IP address (based on the access point’s MAC address) on the DHCP server.
That way, if your router is deployed across several segments, you can configure the
product family with a static IP address, which you can always use to log in to make future
configuration changes.
To log in using the default IP aAddress:
1. Open a Web browser such as Mozilla Firefox, Internet Explorer, or Netscape Navigator.
2. Connect to the access point by entering the default address of http://192.168.0.100 into your
browser.
http://192.168.0.233
Figure 8.
![](/img.php?id=1363735&img=bg1c.png)
28 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual

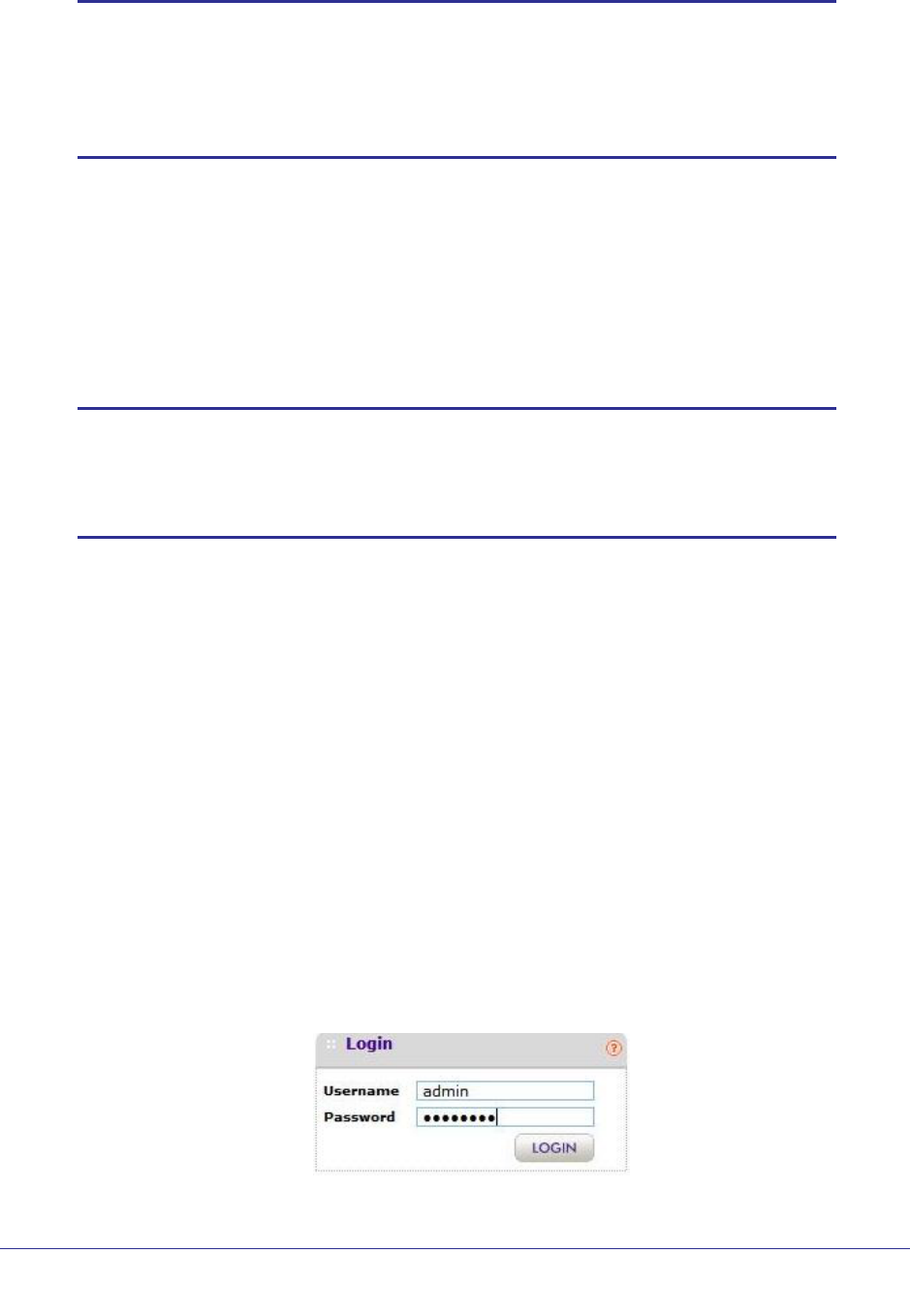

3. The login screen displays. Enter admin for the user name and password for the password,
both in lower case letters.
4. Click Login.
Your Web browser should automatically find the access point and display the home screen.
![](/img.php?id=1363735&img=bg1d.png)
Chapter 2. Installation and Configuration | 29
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Setting Basic IP Options
The basic settings for your wireless access point are entered on this screen. With the
exception of selecting the correct Country/Region, most of the other default settings will work
in most cases. However, if your wireless access point is part of a more complex LAN network,
then modify your settings to meet the requirements of your network based on the explanation
of the various fields.
To configure the basic settings of your wireless access point:
1. Click Basic Settings under Setup in the main menu. The Basic Settings menu will
appear as shown below:
Figure 9.
2. Enter the wireless access point name of the WNAP320:
This unique name is the access point NetBIOS name. The default Access Point Name is
located on the bottom label of WNAP320. The default is netgearxxxxxx, where xxxxxxx
represents the last 6 digits of the WNAP320 MAC address. You may modify the default
name with a unique name up to 15 characters long.
3. Enter the IP Address fields of the WNAP320:
– DHCP Client. By default, the Dynamic Host Configuration Protocol (DHCP) client is disabled. If
you have a DHCP server on your LAN and you enable DHCP, the wireless access point will get its
IP address, subnet mask and default gateway settings automatically from the DHCP server on your
network when you connect the WNAP320 to your LAN.
–IP Address: The default IP address is 192.168.0.100. If you want to change it, enter an unused IP
address from the address range used on your LAN; or enable DHCP.
![](/img.php?id=1363735&img=bg1e.png)
30 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
–IP Subnet Mask: Enter the subnet mask value used on your LAN. The default is 255.255.255.0.
–Default Gateway: Enter the IP address of your LAN Gateway. For more complex networks, enter
the address of the router for the network segment to which the wireless access point is connected.
The default is 0.0.0.0.
–Primary and Secondary DNS Servers: Enter the IP address of the Domain Name Server (DNS)
you wish to use. The default is 0.0.0.0.
4. Spanning Tree Protocol. Enable or disable spanning tree protocol. Spanning tree protocol
provides network traffic optimization in settings with multiple ProSafe Wireless Access
Points. The default is Enabled.
5. Enable 802.1Q VLAN. Check the radio box to accept 802.1Q VLAN to allow the WNAP320
to process VLAN membership. The default is disabled.
6. From the pull-down men, select the local Time Zone setting for your location.
7. Check the Adjust for Daylight Saving Time if your location uses daylight saving. The
default is no adjustment.
Note: You must have an Internet connection to get the current time.
8. Click Apply so save your Basic IP settings.
![](/img.php?id=1363735&img=bg1f.png)
Chapter 2. Installation and Configuration | 31
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring Wireless Settings
To configure the wireless settings of your wireless access point:
1. Click Wireless Settings under Setup in the main menu of the browser interface. The
Basic Wireless Settings menu will appear, as shown below.
Figure 10.
Enter
2. From the Country/Region menu, select the region where the WNAP320 can be used.
It may not be legal to operate the wireless features of the wireless access point in a
region other than one of those identified in this field. Unless a country domain is selected,
the channel cannot be changed (In the United States, the Country/Region is preset.)
3. The Turn Radio On radio box is checked and on by default.
You can also turn off the radio to disable access through this device. This can be helpful
for configuration, network tuning, or troubleshooting activities.
4. From the Operating Mode pull-down menu, select the desired wireless operating mode.
The options are:
– Auto (11g/11b): Both 802.11g and 802.11b wireless stations can be used (default setting).
–11g Only: Only 802.11g wireless stations can be used.
– 11b Only: All 802.11b wireless stations can be used. 802.11g wireless stations can still be used if
they can operate in 802.11b mode.
5. From the Channel/Frequency menu, select which operating frequency will be used. It
should not be necessary to change the wireless channel unless you notice interference
problems when setting up the WNAP320 near another access point. Some points to
consider:
-Access points use a fixed channel. You can select the channel used. This allows you
to choose a channel which provides the least interference and best performance. In
the USA and Canada, 11 channels are available.
-If using multiple access points, it is better if adjacent access points use different
channels to reduce interference. The recommended channel spacing between
![](/img.php?id=1363735&img=bg20.png)
32 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
adjacent access points is 5 channels (for example, use channels 1 and 6, or 6 and
11).
– In “Infrastructure” mode, wireless stations normally scan all channels, looking for an access point.
If more than one access point can be used, the one with the strongest signal is used. This can only
happen when the various access points are using the same SSID.
See Related Documents in Appendix A for links to more information on configuring
wireless channels.
6. From the Data Rate pull-down menu, select the transmit data rate of the wireless network.
The default is Best.
7. From the Output Power pull-down menu, set the transmit signal strength of the access
point. The options are full, half, quarter, eighth, and min. Decrease the transmit power if
more than one AP is collocated using the same channel frequency. The default is Full.
8. Click Apply to save your wireless settings.
9. From the main menu under Security, select Security Profile Settings.
![](/img.php?id=1363735&img=bg21.png)
Chapter 2. Installation and Configuration | 33
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring QoS Settings
Wireless Multimedia (WMM) is a subset of the 802.11e standard. WMM allows wireless traffic
to have a range of priorities, depending on the type of data.
Time-dependent information, such as video or audio, has a higher priority than normal traffic.
For WMM to function correctly, wireless clients must also support WMM.
To configure your wireless QoS settings for 11b/g/n operation:

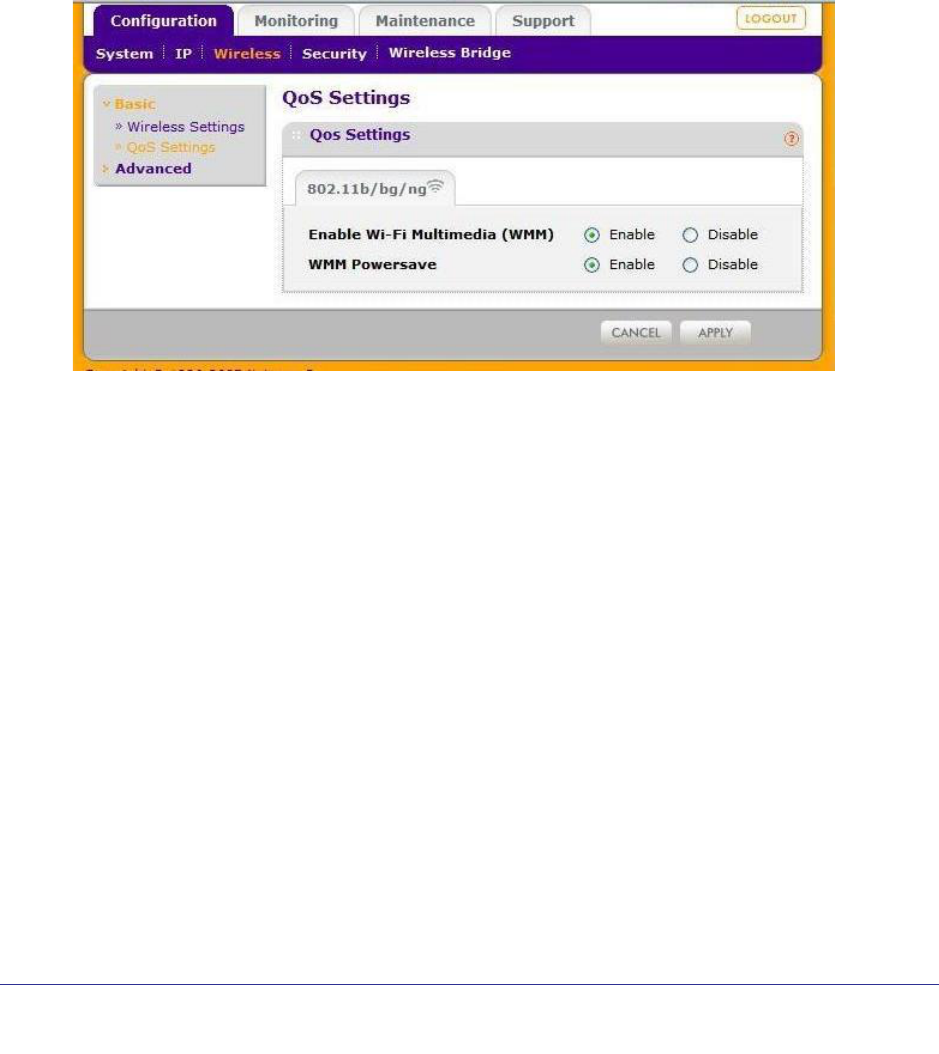

1. Select Configuration > Wireless > Basic > QoS Settings. The QoS Settings screen
displays, as shown in Figure 11, .
Figure 11.
2. Wi-FI Multimedia (WMM) is enabled by default. Select the Disable radio button to disable
WMM support.
3. Click Apply to save your settings.
![](/img.php?id=1363735&img=bg22.png)
34 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Setting Up and Testing Basic Wireless Connectivity
Follow the instructions in this section to set up and test basic wireless connectivity. Once you
have established basic wireless connectivity, you can enable security settings appropriate to
your needs.
1. From your Web browser, log in to the WNAP320 using its default address of
192.168.0.100. Use the default user name of admin and default password of password,
or use a new LAN address and password if you have set them up.
2. Select Configuration > System. Verify that the correct country/region in which the wireless
interface will operate has been selected.
3. Click Apply to save any changes.
4. Select Wireless, and ensure that the auto channel (default) feature is selected for your
network. This feature selects a channel that has the least interference.
It should not be necessary to change the wireless channel unless you notice interference
problems or are near another wireless access point. Select a channel that is not being
used by any other wireless networks within several hundred feet of your product family.
5. Click Apply to save any changes.
6. Select Security. For initial configuration and testing, the security profile settings for Profile 1
(the default profile) are set to Open System and the SSID is set to NETGEAR_11ng (see
Understanding Security Profiles on page 35 to configure a profile).
The SSID of any product family must match the SSID you configured in the access point.
If they do not match, you will not get a wireless connection to the WNAP320.
7. Click Apply to save any changes.
8. Configure and test your PCs for wireless connectivity.
Program the wireless adapter of your PCs to have the same SSID that you configured in
the WNAP320. Check that they have a wireless link and can obtain an IP address by
DHCP from the WNAP320.
Note: If you are configuring the WNAP320 from a wireless computer and
you change the SSID, channel, or security profile settings, you will
lose your wireless connection when you click Apply. You must then
change the wireless settings of your computer to match the new
settings.
Once your PCs have basic wireless connectivity to the WNAP320, you can configure the
advanced wireless security functions.
![](/img.php?id=1363735&img=bg23.png)
Chapter 2. Installation and Configuration | 35
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Understanding Security Profiles
Security profiles let you configure unique security settings for each SSID. You can configure
up to eight unique 802.11b/g/n wireless security profiles on the WNAP320. The Profile
Settings screen is shown in Figure 12, .
Note: If you are using a RADIUS server, configure the RADIUS settings
first, as described in the Configuring WPA with RADIUS on page 68.

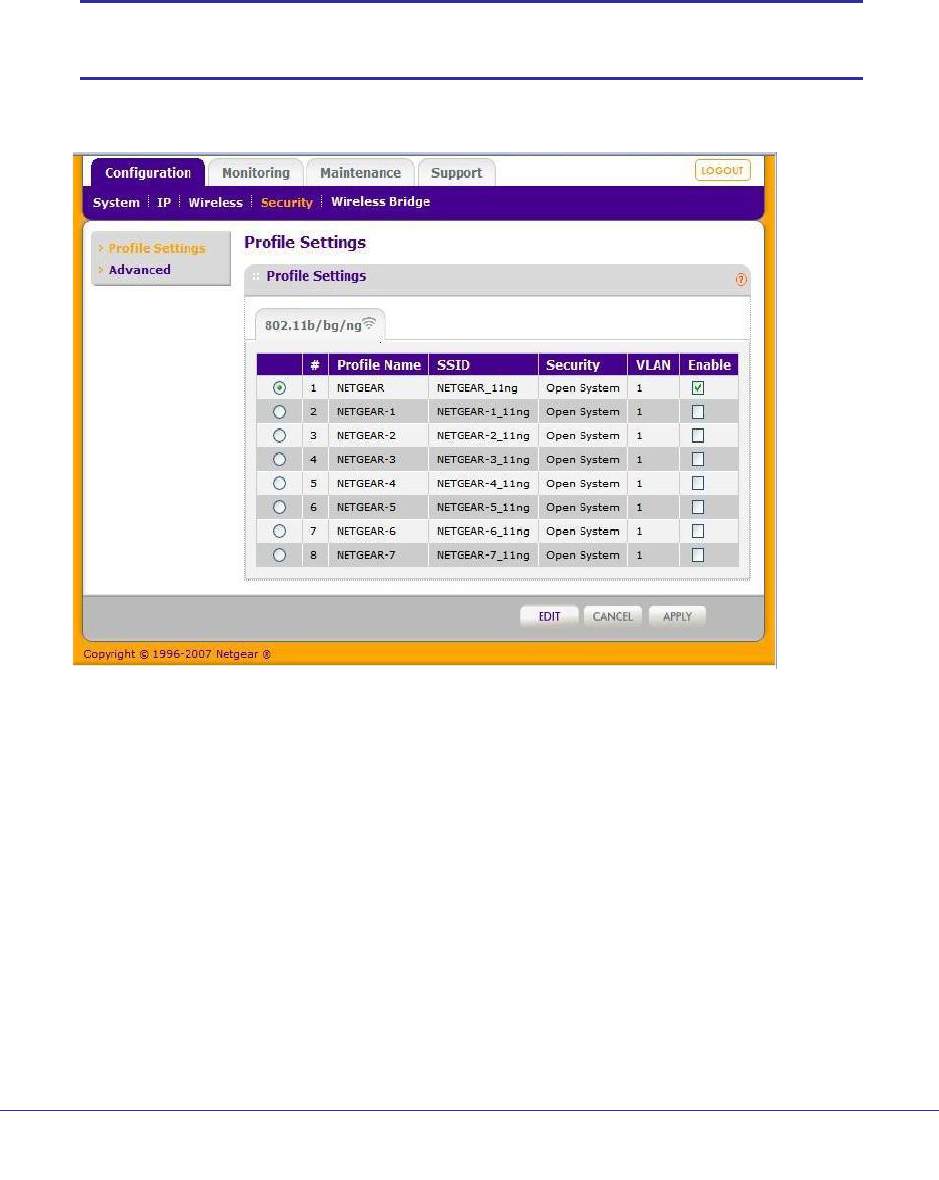

Figure 12.
An overview of the information that is required to set up a security profile follows—including a
description of the network authentication choices that are available:
• Profile definition. Specify the following settings:
-Security Profile Name. Use a name that makes it easy to recognize the profile—and
to tell profiles apart. (The default names are NETGEAR_11ng, NETGEAR-1_11ng,
NETGEAR-2_11ng, and so on.) You can enter a value of up to 32 alphanumeric
characters.
![](/img.php?id=1363735&img=bg24.png)
36 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Note: Only the first profile is enabled by default. The rest of the profiles are
disabled and must be enabled if configured.
-Wireless Network Name (SSID). This is the name of your wireless network. It is set
to the default name of NETGEAR_11ng for 802.11b/g/n.
-Broadcast Wireless Network Name (SSID). If you disable broadcast of the SSID,
only devices that have the correct SSID can connect. This nullifies the wireless
network “discovery” feature of some products such as Windows XP, but the data is
still fully exposed to a determined snoop using specialized test equipment like
wireless sniffers. The default is enabled.
• Authentication settings. Specify the following settings:
-Network Authentication. The WNAP320 access point is set by default as an open
system with no authentication. When setting up network authentication, bear in mind
the following:
• If you are using Access Point mode, then all options are available. In other modes
such as Repeater or Bridge, some options might be unavailable.
• Not all wireless adapters support WPA or WPA2. Windows XP and Windows 2000
with Service Pack 3 do include the client software that supports WPA. However,
client software is required on the client. Consult the product documentation for
your wireless adapter and WPA or WPA2 client software for instructions on
configuring WPA2 settings.
You can configure the WNAP320 to use the types of network authentication shown in
the table.
Table 1. Network Authentication Types
TypeaDescription
Open System Can be used with WEP encryption or no encryption.
Shared Key You must use WEP encryption and enter at least one shared key.
Legacy 802.1x You must configure the RADIUS Server Settings to use this option.
WPA with RADIUS You must configure the RADIUS server settings to use this option.
WPA2 with RADIUS
(WPA2 is a later version of WPA.)
Select this only if all clients support WPA2. If selected, you must use
AES encryption and configure the RADIUS server settings.
WPA and WPA2 with RADIUS This selection allows clients to use either WPA (with TKIP) or WPA2
(with AES). If selected, you must use TKIP + AES encryption and
configure the RADIUS server settings.
WPA-PSK You must use TKIP or TKIP + AES encryption and enter the WPA
passphrase (network key).
![](/img.php?id=1363735&img=bg25.png)
Chapter 2. Installation and Configuration | 37
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• Data Encryption. The available options depend on the network authentication setting
selected (see Table 1); otherwise, the default is None. The Data Encryption settings
are
• explained in the following table:
Table 2. Data Encryption Settings
Data Encryption Type Description
None No encryption is used.
Open WEP Can be used with WEP encryption or no encryption.
64 bits WEP Standard WEP encryption, using 40/64 bit encryption.
128 bits WEP Standard WEP encryption, using 104/128 bit encryption.
152 bits WEP Proprietary mode that will only work with other wireless devices that support
this mode.
TKIP This is the standard encryption method used with WPA and WPA2.
AES This is the standard encryption method for WPA2.
TKIP + AES This setting supports both WPA and WPA2. Broadcast packets use TKIP.
For unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2
clients use AES.
Passphrases and Keys are used in the following ways:
- Passphrase. To use the passphrase to generate the WEP keys, enter a
passphrase and click the Generate Keys button. You can also enter the keys
directly. These keys must match the other wireless stations.
- Key 1, Key 2, Key 3, Key 4. If you are using WEP, select the key to be used as
the default key. Data transmissions are always encrypted using the default key.
The other keys be used only to decrypt received data.
- WPA Preshared Key Passphrase. If you are using WPA-PSK, enter the
passphrase here. All wireless stations must use the same passphrase (network
key). The network key must be from 8 to 64 characters in length.
WPA2-PSK
(WPA2 is a later version of WPA )
Select this only if all clients support WPA2. If selected, you must use
AES and TKIP + AES encryption and enter the WPA passphrase
(Network key).
WPA-PSK and WPA2-PSK This selection allows clients to use either WPA (with TKIP) or WPA2
(with AES). If selected, you must use TKIP + AES encryption and
enter the WPA passphrase (network key).
a All options are available if you are using Access Point mode. In other modes (for example, Repeater
or Bridge) some options might be unavailable.
Table 1. Network Authentication Types
TypeaDescription
![](/img.php?id=1363735&img=bg26.png)
38 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• Wireless Client Security Separation. If this feature is enabled, the associated
wireless clients will not be able to communicate with each other. (This feature is
intended for hotspots and other public access situations.) The default is No.
• VLAN ID. If the hubs/switches on your LAN support the VLAN (802.1Q) standard and
this feature has been enabled, the default VLAN ID for WNAP320 will be associated
with each profile. The default profile VLAN ID must match the IDs used by other
network devices.
![](/img.php?id=1363735&img=bg27.png)
Chapter 2. Installation and Configuration | 39
ProSafe Wireless-N Access Point WNAP320 Reference Manual
SSID and WEP/WPA Settings Setup Form
For a new wireless network, print or copy this form and fill in the configuration parameters.
For an existing wireless network, the person who set up or is responsible for the network can
provide this information. Be sure to set the regulatory domain correctly as the first step.
• SSID: The service set identification (SSID) identifies the wireless local area network.
NETGEAR_11ng is the default WNAP320 SSID. However, you can customize it by using
up to 32 alphanumeric characters. Write your customized SSID here.
___________________________________
Note: The SSID in the product family is the SSID you configure in the wireless adapter card. All
wireless nodes in the same network must be configured with the same SSID.
• Authentication.
Circle one: Open System or Shared Key. (Choose Shared Key for more security.)
Note: If you select Shared Key, the other devices in the network will not connect unless
they are set to shared key as well and have the same keys in the same positions as those
in the WNAP320.
• WEP Encryption Keys.
Circle one: 64, 128, or 152 bits. (Enter all four 802.11b/g/n keys for the key size chosen.)
Key 1: ___________________________________
Key 2: ___________________________________
Key 3: ___________________________________
Key 4: ___________________________________
• WPA-PSK (Preshared Key)
Record the WPA-PSK key ___________________________________
• WPA RADIUS Settings. For WPA, record the following settings for the primary and
secondary RADIUS servers:
Server Name/IP Address: Primary _________________ Secondary
__________________
Port: ___________________________________
Shared Secret: ___________________________________
___________________________________
Use the procedures described in the following sections to configure the WNAP320. Store this
information in a safe place.
![](/img.php?id=1363735&img=bg28.png)
40 | Chapter 2. Installation and Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring the RADIUS Server Settings
You can set p or modify the RADIUS server settings to compliment network authentication
security options. The RADIUS server must be used with Legacy 802.1x, and can be used
with WPA and WPA2 network authentication. When using a RADIUS server, the RADIUS
server settings before completing the network authentication security profile (see Configuring
WPA with RADIUS on page 68, Configuring WPA2 with RADIUS on page 70, or Configuring
WPA and WPA2 with RADIUS on page 73 for specifics on implementing these security
options).
Note: The RADIUS server settings apply to all profiles. They o need to be
configured only once per product family.
To set up or modify the RADIUS server settings:
1. From your Web browser, log in to the WNAP320 using the default LAN address of
http://192.168.0.100, user name admin, and password password, or use the LAN
address and password that you set up.
2. Select Configuration > Security > Advanced > RADIUS Server Settings. The RADIUS
Server Settings screen displays, as shown in Figure 13, .

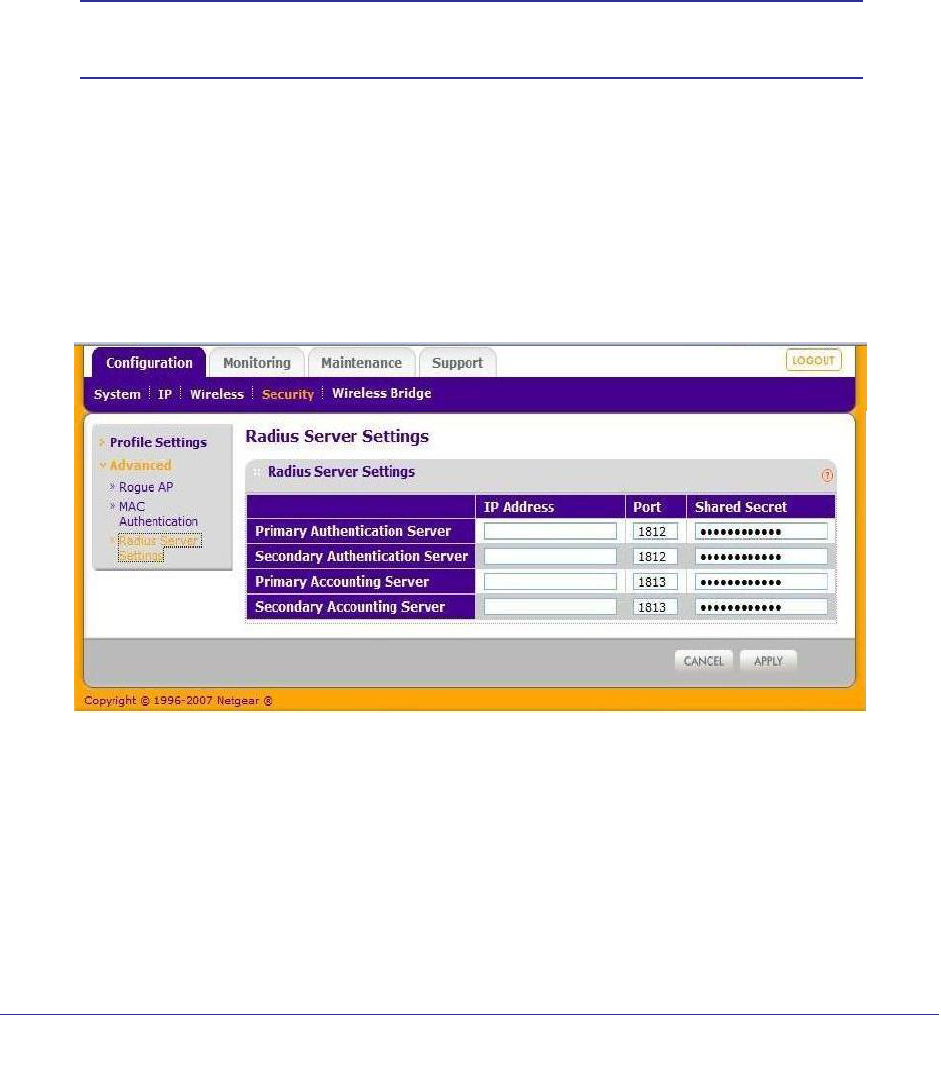

Figure 13.
3. Enter the following RADIUS server settings:
• Authentication Server. This configuration is required for authentication using a
RADIUS server.The IP address, port number, and shared secret are required for
communication with the primary RADIUS server. You can also configure a secondary
RADIUS server to use, if the primary RADIUS server fails.
- IP Address. The IP address of the RADIUS server. The default is 0.0.0.0.
![](/img.php?id=1363735&img=bg29.png)
Chapter 3. Management | 20
3
3. Management
This chapter describes how to use the management and monitoring features of your ProSafe
Wireless-N Access Point WNAP320. To access these features, connect to the WNAP320
access point as described in Logging In Using the Default IP Address on page 25. Then select
the Maintenance or Monitoring in the main menu of the browser interface.
![](/img.php?id=1363735&img=bg2a.png)
Chapter 3. Management | 21
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Remote Management
Both the SNMP and Remote Console are enabled by default, which allows for remote
management of the WNAP320 from a client running SNMP management software, as well as
from a secure Telnet console.
To set up an SNMP management interface:
1. Select Maintenance > Remote Management > SNMP. The SNMP screen displays, as
shown in Figure 1, .

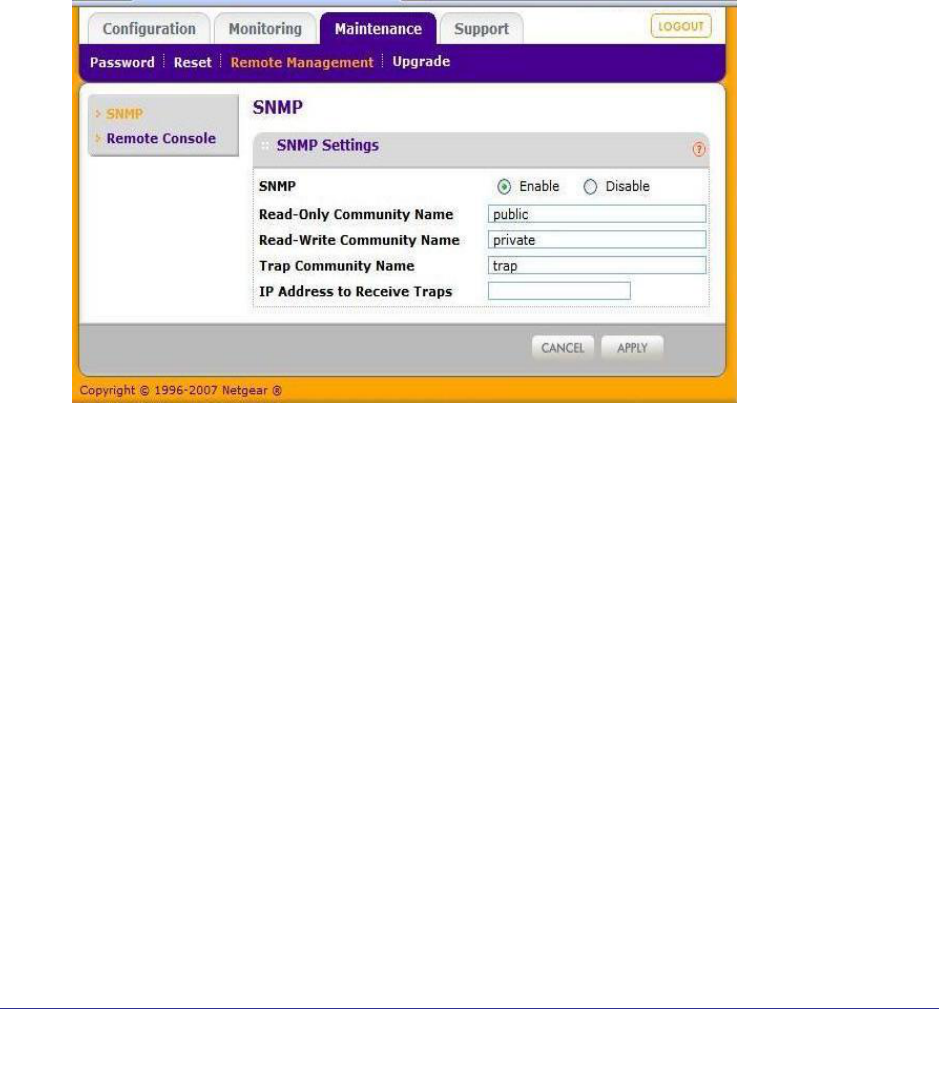

Figure 1.
2. Enter the following information in the SNMP fields:
• SNMP. Enable SNMP to allow the SNMP network management software, such as HP
OpenView, to manage the wireless access point through SNMPv1/v2 protocol.
• Read-Only Community Name. The community string to allow the SNMP manager to
read the wireless access point´s MIB objects. The default is Public.
• Read-Write Community Name. The community string to allow the SNMP manager
to read and write the wireless access point´s MIB objects. The default is Private.
• Trap Community Name. The community string to allow the SNMP manager to send
traps. The default is Trap.
• IP Address to Receive Traps. The IP address of the SNMP manager to receive
traps sent from the wireless access point. The default is 0.0.0.0.
3. Click Apply.
![](/img.php?id=1363735&img=bg2b.png)
22 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Remote Console
Remote Console configuration features are located under the Maintenance, Remote
Management, Remote Console. Enter the following information in the Remote Console
screen, as shown in Figure 2, :
• Secure Shell (SSH). If set to Enable, the wireless access point will allow remote access
only through Secure Shell and Secure Telnet. The default is Enable.
• Telnet. If set to Enable, the wireless access point will allow remote access through
Telnet. The default is Disable. If Telnet is enabled and the access point is accessed
using a browser, the Telnet access will be disconnected.

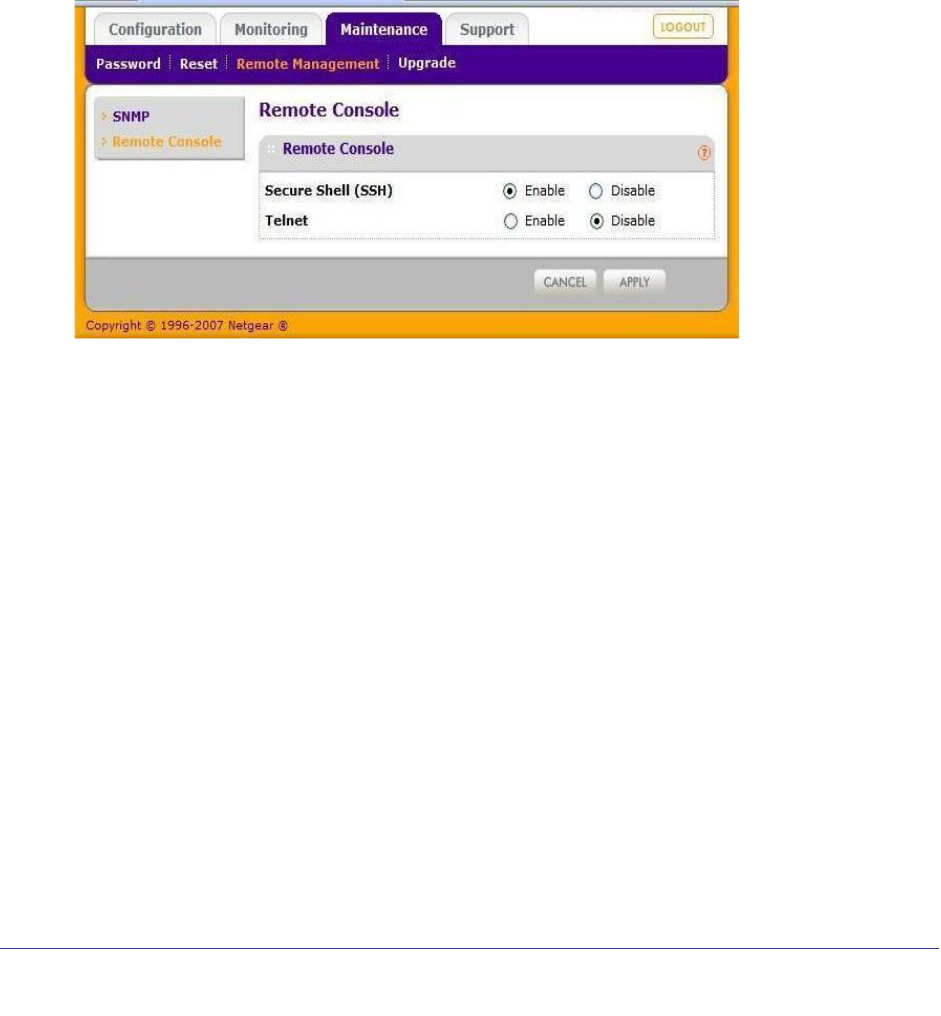

Figure 2.
4. Click Apply.
Management Using Telnet
1. Open a secure Telnet session from your computer to the access point. The screen
shown in Figure 3, should display.
![](/img.php?id=1363735&img=bg2c.png)
Chapter 3. Management | 23
ProSafe Wireless-N Access Point WNAP320 Reference Manual

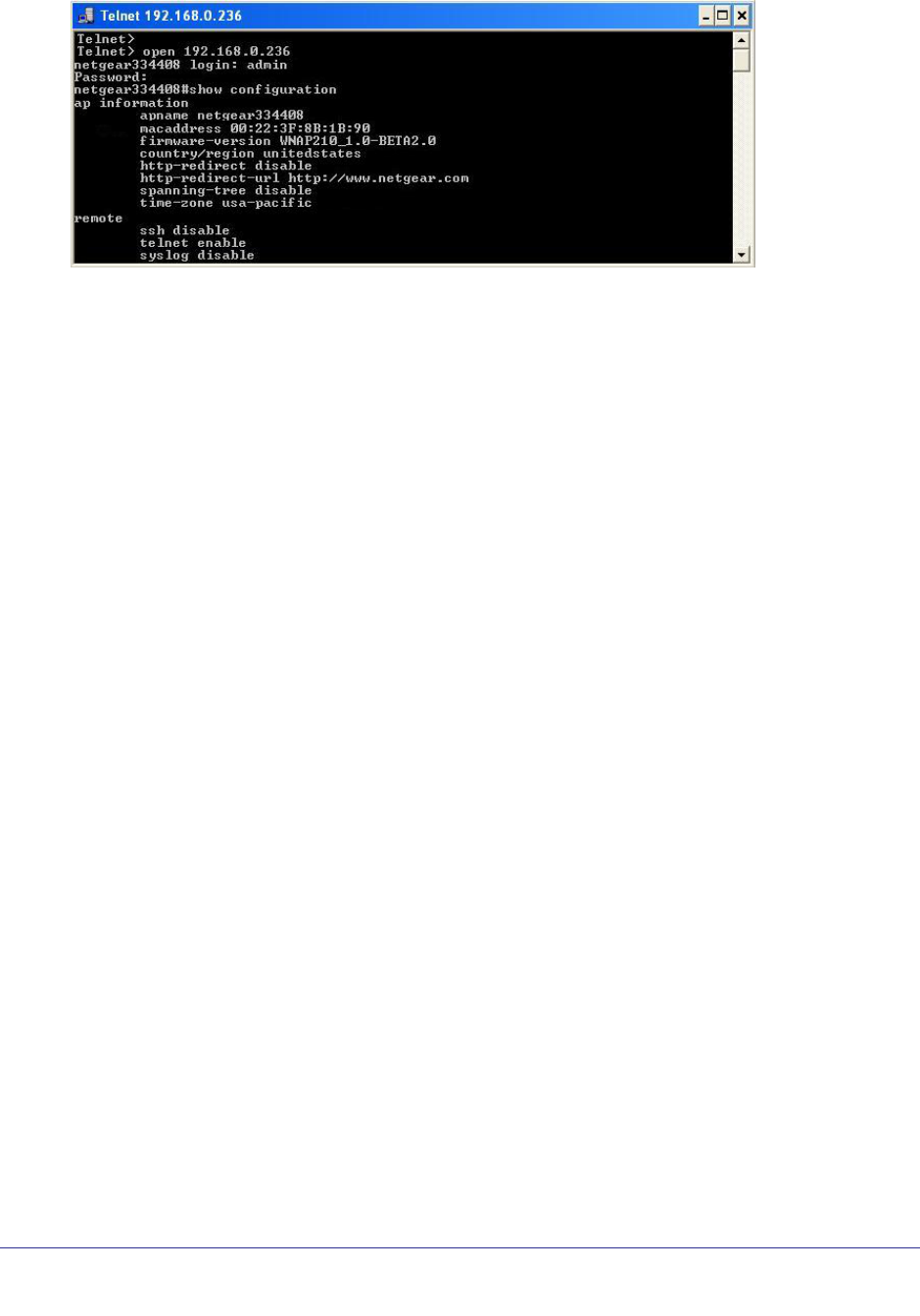

Figure 3.
2. Enter the login name and password (admin and password are the defaults).
After successful login, the <Access Point Name> prompt should appear. In this example,
the prompt is netgear334408.
3. Enter the desired CLI commands. You can enter help to display the CLI command help.
The CLI commands are listed in Appendix B, Command Line Reference.”
![](/img.php?id=1363735&img=bg2d.png)
24 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Upgrading the Wireless Access Point Software
The software of the ProSafe Wireless Access Point is stored in flash memory, and can be
upgraded as NETGEAR releases new software . You can download upgrade files from the
Netgear website. If the upgrade file is compressed (.zip file), you must first extract the image
(.rmt) file before sending it to the product family. You can send the upgrade file using your
browser.
Note: The Web browser used to upload new firmware into the WNAP320
access point must support HTTP uploads, such as Microsoft Internet
Explorer 6.0 or later, or Netscape Navigator 4.78 or later, or Mozilla
1.5 or later.
You cannot perform the software upgrade from a computer that is connected to the ProSafe
Wireless Access Point with a wireless link. You must use a computer that is connected to the
ProSafe Wireless Access Point with a Ethernet cable.
WARNING!
When uploading software to the ProSafe Wireless Access Point, it
is important not to interrupt the Web browser by closing the
window, clicking a link, or loading a new page. If the browser is
interrupted, the upload might fail, corrupt the software, and render
the WNAP320 access point completely inoperable.
The Web browser used to upload new firmware into the WNAP320 must support HTTP
uploads, such as Microsoft Internet Explorer 6.0 or above, or Netscape Navigator 4.78 or
above.
Figure 4.
![](/img.php?id=1363735&img=bg2e.png)
Chapter 3. Management | 25
ProSafe Wireless-N Access Point WNAP320 Reference Manual
To upgrade the WNAP320 firmware:
1. Download the new software file from the NETGEAR website, save it to your hard disk,
and unzip it.
2. Select Maintenance > Upgrade > Firmware Upgrade. The Firmware Upgrade screen
displays as shown in Figure 4, .
3. Click Browse and browse to the location of the image (.rmg) upgrade file.
4. Click Apply.
When the upload is completed, your product family automatically restarts. The upgrade
process typically takes at least 3 minutes.
![](/img.php?id=1363735&img=bg2f.png)
26 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuration File Management
The ProSafe Wireless Access Point settings are stored in the product family in a
configuration file. This file can be saved (backed up) to a user’s computer, retrieved
(restored) from the user’s computer, or reset to factory default settings.
The Configuration Backup/Restore Settings menu allows you to save or retrieve a file
containing your product family’s configuration settings.
Saving the Configuration
To save your settings:
1. Select Maintenance > Upgrade > Backup Settings to back up your current
settings.The Backup Settings screen displays. See Figure 5, .

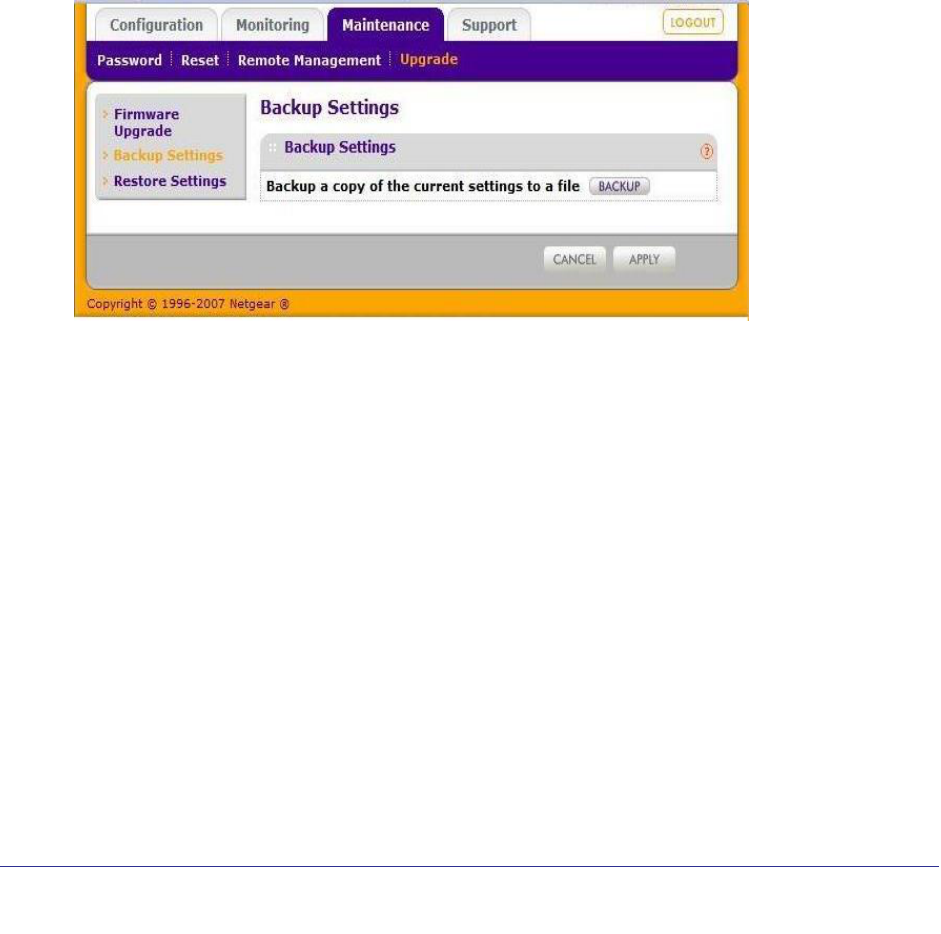

Figure 5.
2. Click Backup. Your browser will extract the configuration file from the product family and
prompt you for a location on your computer to store the file.
3. Give the file a meaningful name, such as WNAP320.cfg, and click Save.
Restoring the Configuration
To restore your settings from a saved configuration file:
1. Select Maintenance > Reset > Restore Defaults to restore your settings. The Restore
Defaults screen displays. See Figure 6, .
2. Select No for Restore to factory default settings and then Apply. This displays a dialog
allowing you to select a file where you have previously saved configuration settings.
3. Enter the full path to the file on your computer or click the Browse button to locate the file.
4. When you have located the file, click Restore to upload the file. After completing the upload,
the WNAP320 will reboot automatically.
![](/img.php?id=1363735&img=bg30.png)
Chapter 3. Management | 27
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Figure 6.
![](/img.php?id=1363735&img=bg31.png)
28 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Restoring the WNAP320 to the Factory Default Settings
You can restore the product family to the factory default settings using the Restore function..
To restore the factory settings:
1. Select Maintenance > Reset > Restore Defaults. The Restore Defaults screen
displays.

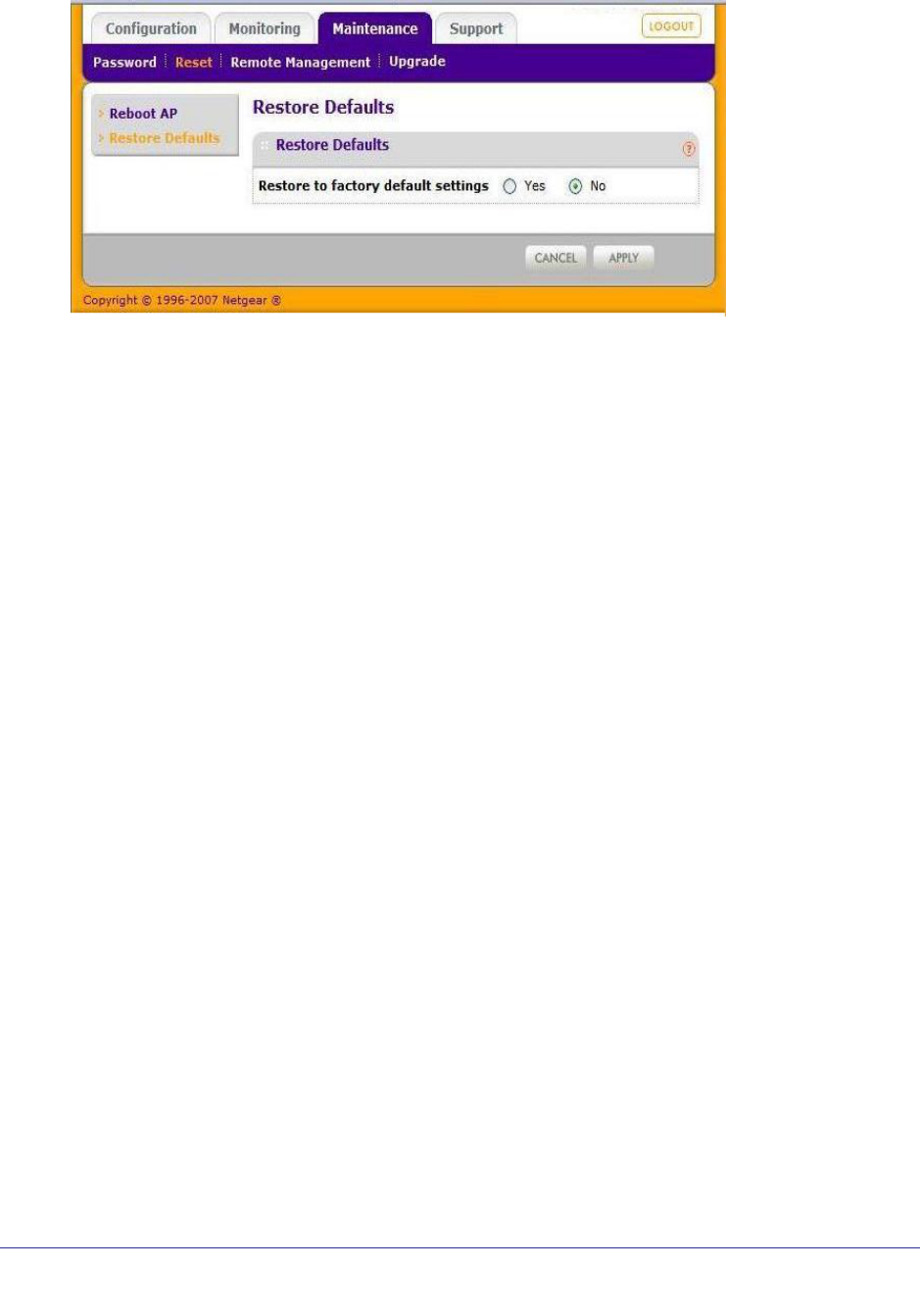

Figure 7.
2. On the Restore Defaults screen, select the Yes radio button, as shown in Figure 7, .
3. Click Apply to reset to the factory default settings.
After a restore, the product family password will be password, the WNAP320 DHCP client
will be disabled, the default LAN IP address will be 192.168.0.100, and the access point
name will reset to the name printed on the label on the bottom of the unit.
To restore the factory default configuration settings when you do not know the login
password or IP address, you must use the reset button on the rear panel of the product family
(see Figure 2 on page 14). The reset button has two functions:
• Reboot. When this button is pressed and released, the wireless access point reboots
(restarts).
• Reset to factory defaults. This button can also be used to clear all data and restore all
settings to the factory default values.
To clear all data and restore the factory default values:
1. Power off the WNAP320.
2. Using something with a small point, such as a pen, hold the restore settings button for 5
seconds while you power on the WNAP320.
3. Continue holding the restore settings button until the LEDs blink twice.
4. Release the restore settings button.
The factory default configuration has now been restored, and the WNAP320 is ready for
use.
![](/img.php?id=1363735&img=bg32.png)
Chapter 3. Management | 29
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Changing the Administrator Password
The default password is password. You should change this password to a more secure
password, since you cannot change the administrator login name.
To change the administrator password:
1. Select Maintenance > Password > Change Password. The Change Password screen
displays as shown in Figure 8, .

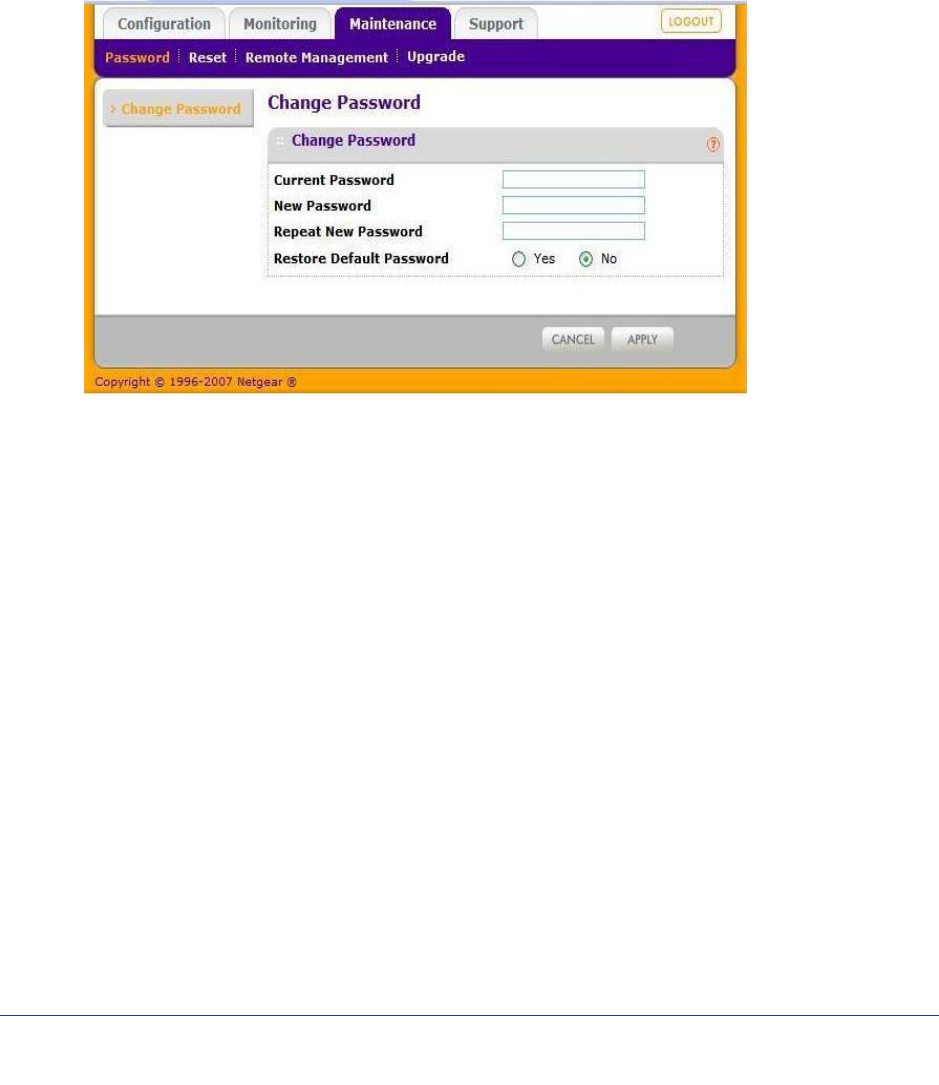

Figure 8.
2. First enter the old password in the Current Password field.
3. Then enter the new password twice—once in the New Password field and again in the
Repeat New Password field.
4. Click Apply to save your change.
![](/img.php?id=1363735&img=bg33.png)
30 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Enabling the Syslog Server
The Syslog screen allows you to enable the syslog option if you have a syslog server on your
LAN.
To enable a syslog server:
1. Select Configuration > System > Advanced > SysLog to display the Syslog screen.
See Figure 9, .

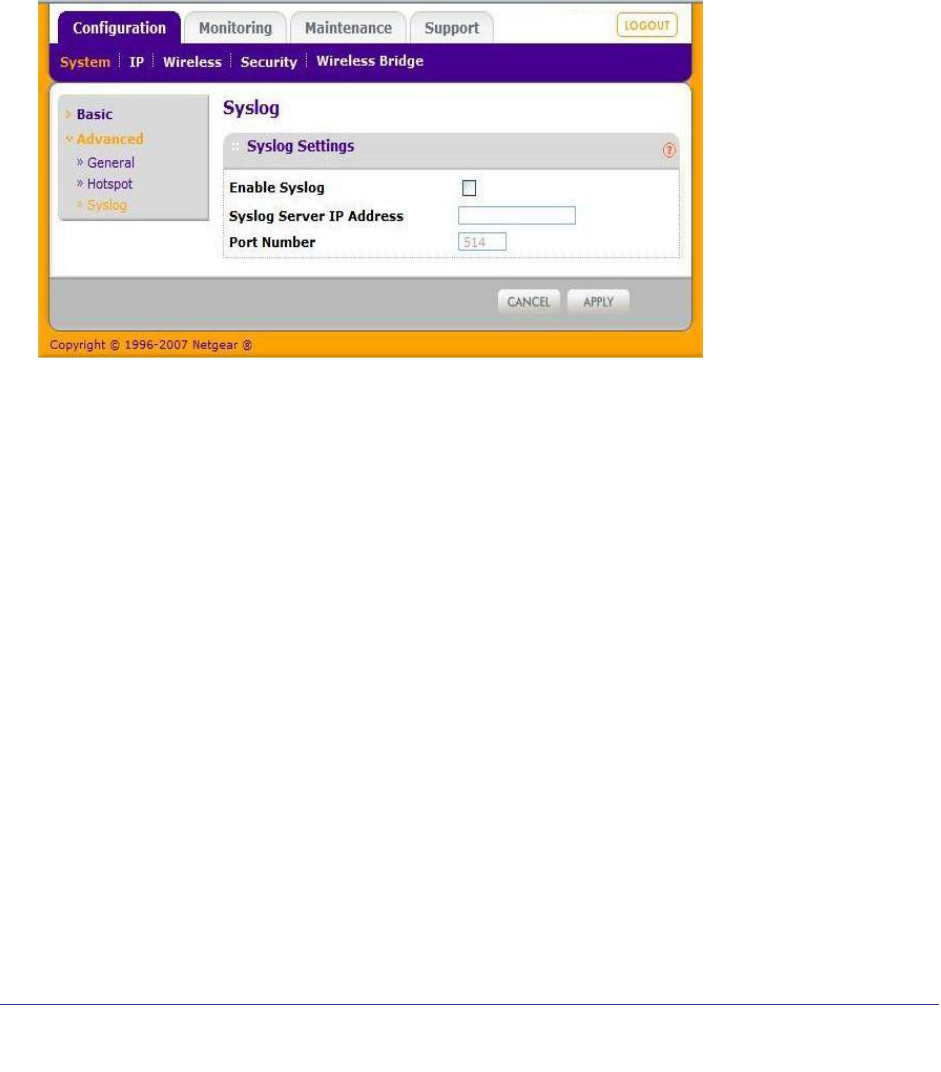

Figure 9.
2. Enable Syslog. Enable this option if you have a syslog server on your LAN. If this feature is
enabled, you must enter the IP address of your syslog server and the port number your
SysLog server is configured to use. The default is disabled.
3. Syslog Server IP Address.The access point will send all the syslog file to the specified IP
address if syslog option is enabled. The default is 0.0.0.0.
4. Port Number. The port number configured in the syslog server on your LAN. The default is
514.
5. Click Apply to save your syslog settings.
![](/img.php?id=1363735&img=bg34.png)
Chapter 3. Management | 31
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Using Activity Log Information
The Activity Log screen displays the access point system activity.
1. Select Monitoring > Logs. The Logs screen displays as shown in Figure 10, .

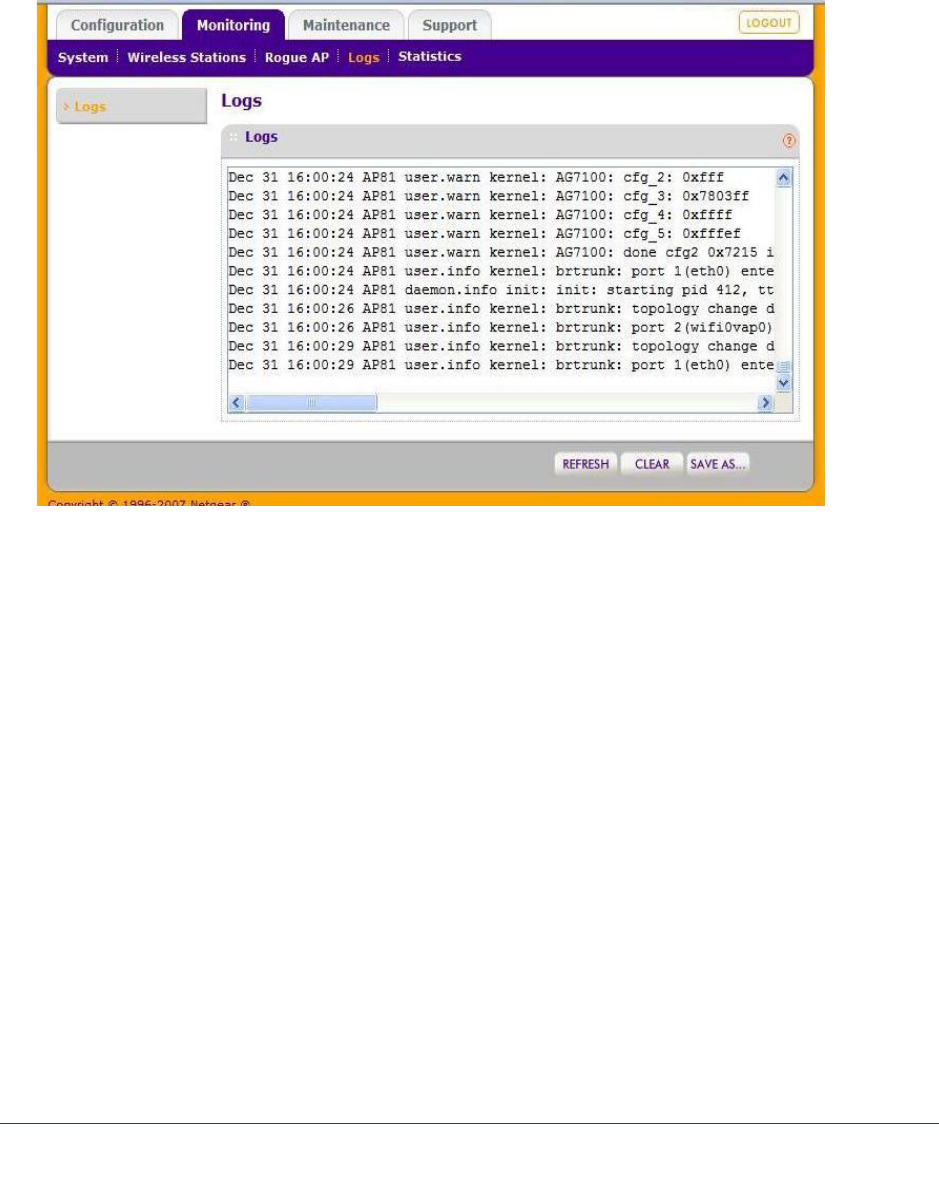

Figure 10.
2. Click Refresh to update the display, click Clear to clear the log content, or click Save As to
save the log contents into a file on your PC or to save the file to a disk drive.
![](/img.php?id=1363735&img=bg35.png)
32 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Viewing General Summary Information
The System screen, under the Monitoring tab provides a summary of the current WNAP320
configuration settings, including current IP settings and current wireless settings. This
information is read only, so any changes must be made on other screens.
To access the System screen:
1. Select Monitoring > System view the System screen, shown in Figure 11, . This screen
shows the parameters listed in Table 1:
Table 1. System Information Fields
Field Description
Access Point Information
Access Point Name Indicates the NetBIOS name. The default name can be changed, if you
wish.
MAC Address Displays the Media Access Control address (MAC address) of the product
family’s Ethernet port.
Country/Region Displays the domain or region for which the product family is licensed for
use. It might not be legal to operate this product family in a region other than
one of those identified in this field.
Firmware Version The version of the firmware currently installed.
Access Point Mode Identifies the operating mode of the WNAP320: Access Point, Point-to-point
bridge, Point-to-point bridge with Access Point, Multi-point bridge, or
Repeater.
Current IP Settings
IP Address The IP address of the product family.
Subnet Mask The subnet mask for the product family.
Default Gateway The default gateway for the product family communication.
DHCP Client Enabled indicates that the current IP address was obtained from a DHCP
server on your network. Disabled indicated a static IP configuration.
Current Wireless Settings for 802.11n/g
Operating Mode Identifies the 802.11 operating mode of the WNAP320.
Channel/Frequency Identifies the channel the wireless port is using. 11 is the default channel
setting. Channel frequencies used on each channel can be found in the
article, Wireless Networking Basics located in Related Documents in
Appendix A.
Rogue AP Detection Identifies whether the Rogue AP detection feature is enabled or disabled.
![](/img.php?id=1363735&img=bg36.png)
Chapter 3. Management | 33
ProSafe Wireless-N Access Point WNAP320 Reference Manual

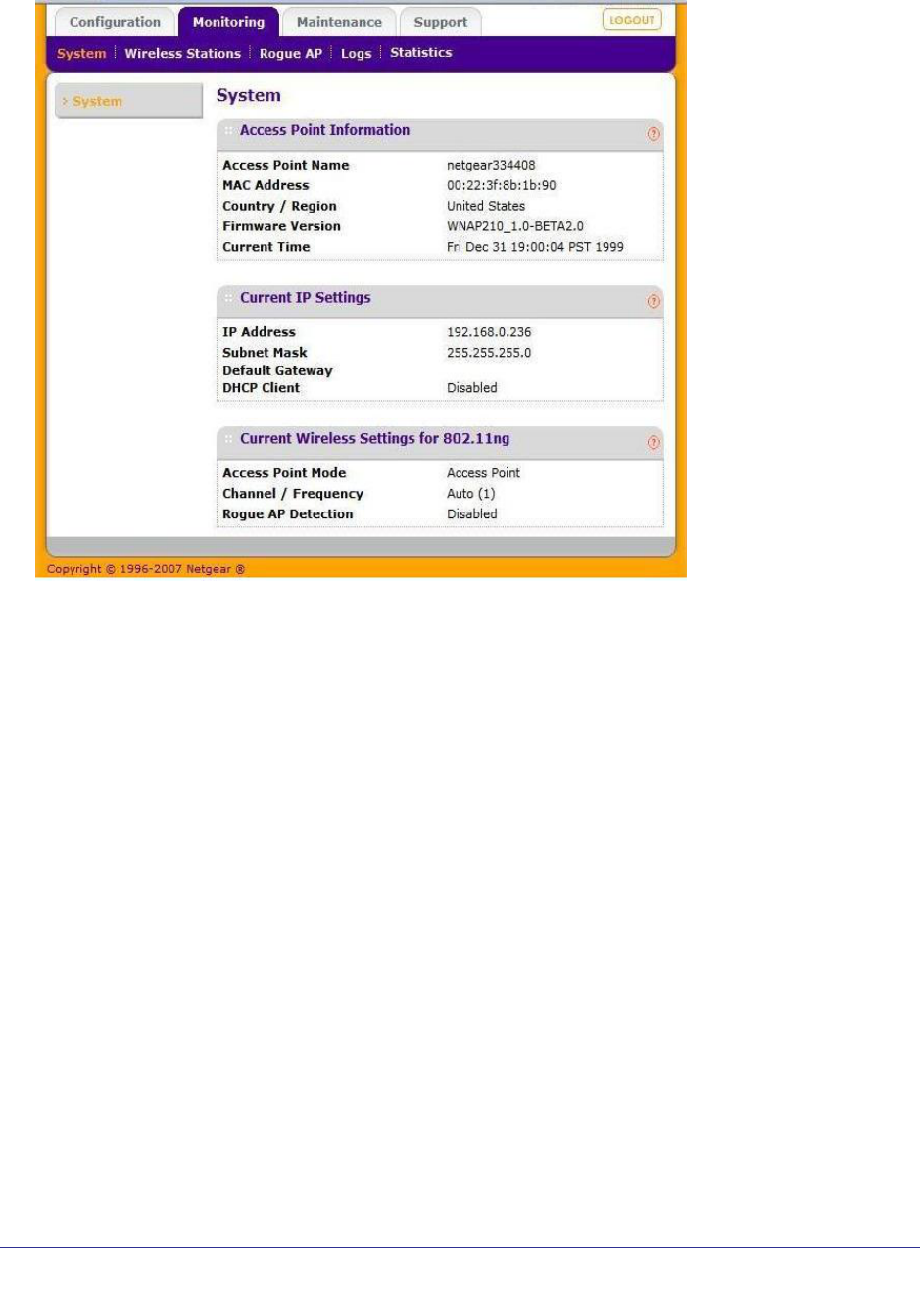

Figure 11.
![](/img.php?id=1363735&img=bg37.png)
34 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Viewing Network Traffic Statistics
The Statistics screen displays information for both wired (LAN) and wireless (WLAN)
interface network traffic.
To access statistics information:
1. Select Monitoring > Statistics. The Statistics screen displays, as shown in Figure 12, .
Figure 12.
2. Click Refresh to update the statistics information for each interface. .
Table 2 describes the information fields detailed on the Statistics screen.
Table 2. Statistics Fields
Field Description
Wired Ethernet
Packets The number of packets sent and received since the WNAP320 was
restarted.
Bytes The number of bytes sent and received since the WNAP320 was restarted.
Wireless 11n/g
![](/img.php?id=1363735&img=bg38.png)
Chapter 3. Management | 35
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Unicast Packets The unicast packets sent and received since the WNAP320 was restarted.
Broadcast Packets The broadcast packets sent and received since the WNAP320 was
restarted.
Multicast Packets Themulticast packets sent and received since the WNAP320 was restarted.
Total Packets The wireless packets sent and received since the WNAP320 was restarted.
Total Bytes The wireless bytes sent and received since the WNAP320 was restarted.
Table 2. Statistics Fields
Field Description
![](/img.php?id=1363735&img=bg39.png)
36 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Viewing Available Wireless Station Statistics
The Available Wireless Stations list contains a table of all IP devices associated with this
product family in the wireless network defined by the wireless network name (SSID). For
each device, the table shows the station ID, MAC address, IP address, BSSID, SSID, AID,
channel rate, Status (whether the device is allowed to communicate with the product family or
not), type, mode, and state.
Note: A wireless network can include multiple wireless access points, all
using the same network name (SSID). This extends the reach of the
wireless network and allows users to roam from one access point to
another, providing seamless network connectivity. Under these
circumstances, be aware that the Available Wireless Stations list
includes only the stations associated with this access point.
To view the Wireless Stations list:
1. Select Monitoring > Wireless Stations. The Wireless Stations list displays, as shown
in Figure 13, .
Figure 13.
2. Click Refresh to update the list.
Tip: If the product family is rebooted, the table data is lost until the product
family rediscovers the devices. To force the product family to look for
associated devices, click the Refresh button.
![](/img.php?id=1363735&img=bg3a.png)
Chapter 3. Management | 37
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Enabling Rogue AP Detection
The WNAP320 can detect rogue APs and wireless stations and can prevent them from
connecting to the WNAP320. The WNAP320 maintains a list of access points and wireless
stations that it detects in the area. Initially all detected access points are displayed in the
Unknown AP List. You restrict communication to approved access points by adding them to
the Known AP List and enabling rogue AP detection.
To enable rogue AP detection:
1. Select Configuration > Security > Advanced > Rogue AP. The Rogue AP screen
displays, as shown in Figure 8, below.
Figure 14.
2. Click Refresh to discover the APs. See Importing a Rogue AP List from a File on page 38
for more information.
3. Click Move to add APs in the Unknown AP List to the Known AP List.
4. Click Delete to remove APs from the Known AP List back to the Unknown AP List.
5. Select the Turn Rogue AP Detection On check box to enable rogue AP detection, and
click Apply.
If you enable rogue AP detection, the AP continuously scans the wireless network and
collects information about all APs heard on its channel.
![](/img.php?id=1363735&img=bg3b.png)
38 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Importing a Rogue AP List from a File
You can import the Known AP List from a file.
To replace the existing AP list:
1. Select the Replace radio button to replace the existing list of known APs, or select
Merge to add the new MAC addresses to the existing list.
2. Click Browse, and navigate to the location of the file containing the device list.
3. Select the file, and click Open.
4. Click Import to upload the list to the AP.
To merge a file with an existing AP list:
1. Select the Merge radio button to add the new MAC addresses to the existing list.
2. Click Browse, and navigate to the location of the file containing the device list.
3. Select the file, and click Open.
4. Click Import to upload the list to the AP.
![](/img.php?id=1363735&img=bg3c.png)
Chapter 3. Management | 39
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Viewing and Saving AP Lists
The WNAP320 detects nearby APs and wireless stations and maintains them in a list. You
can use this list to prevent them from connecting to the WNAP320 Wireless Access Point.
Viewing AP Lists
To view AP lists:
1. Select Monitoring > Rogue AP. Select Unknown AP List or Known AP List as
required. The respective screens display, as shown in Figure 15, and Figure 16, .
Figure 15.
![](/img.php?id=1363735&img=bg3d.png)
40 | Chapter 3. Management
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Figure 16.
2. In the Unknown AP List or the Known AP List sections, click Refresh to update the
corresponding list.
3. Click SAVE to export the list of unknown or known APs to a file. A window opens so you can
browse to the location where you want to save the file. The default file name is
WNAP320Rogue.cfg.
You can now import the saved lists into the Rogue AP screen.
Creating AP Lists Manually
You can create and save lists of devices manually:
Create a text file that contains the MAC address of each known AP, separated by a space.
The following example shows a list of six known APs that an administrator might upload to
the AP:
00:0c:41:d7:ee:a5 00:0f:b5:92:cd:49 00:12:17:70:85:3d
00:14:bf:ae:b1:e4 00:40:f4:f8:47:03 00:0c:41:d7:ee:b4
1. Select Configure > Security > Advanced > Rogue AP, and import the file.
![](/img.php?id=1363735&img=bg3e.png)
Chapter 4. Advanced Configuration | 20
4
4. Advanced Configuration
This chapter describes how to configure the advanced features of your ProSafe Wireless-N
Access Point WNAP320. The advanced configuration features are located under various
sub-menus under Configuration and provide the following functions:
• 802.1Q VLAN. Enabling untagged VLAN operation
• Hotspot settings. Enabling HTTP redirect
• Wireless settings. Configuring advanced wireless LAN parameters.
• Access point settings. Enabling wireless bridge and repeater modes.
![](/img.php?id=1363735&img=bg3f.png)
Chapter 4. Advanced Configuration | 21
ProSafe Wireless-N Access Point WNAP320 Reference Manual
802.1Q VLAN
The 802.1Q VLAN protocol on the access point logically separates traffic on the same
physical network. See Figure , .
• Untagged VLAN. When this check box is selected, one VLAN can be configured as an
untagged VLAN. When the access point sends frames associated with the untagged
VLAN out the LAN (Ethernet) interface, those frames will be untagged. When the access
point receives untagged traffic from the LAN (Ethernet) interface, those frames are
assigned to the untagged VLAN.
If this check box is not selected, the access point tags all outgoing LAN (Ethernet)
frames. Only incoming frames tagged with known VLAN IDs will be accepted.
Note: The Untagged VLAN check box should not be selected only if the
hubs or switches on your LAN support the VLAN (802.1Q) standard.
Likewise, the Untagged VLAN value should be changed only if the
hubs and switches on your LAN support the VLAN (802.1Q)
standard. Changing either of these values will result in a loss of IP
connectivity if the hubs and switches on your network have not yet
been configured with the corresponding VLANs.
• Management VLAN. Management VLANs are used for managing traffic (Telnet, SNMP,
and HTTP) to and from the access point.
Frames belonging to the management VLAN are not given any 802.1Q header when sent
over the trunk. If a port is in a single VLAN, it can be untagged. But if the port needs to be
a member of multiple VLANs, it must be tagged.
Figure 1.
![](/img.php?id=1363735&img=bg40.png)
22 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Hotspot Settings
If you want the product family to capture and redirect all HTTP (TCP, port 80) requests, use
this feature to redirect the requests to the specified URL. For example, a hotel might want all
wireless connections to go to its server to start a billing transaction.
Figure 2.
Note: The redirection will occur only the first time a wireless client opens a
web browser.
To set up a hotspot server:
1. Select Configuration > System > Advanced. The Hotspot screen displays, as shown
in Figure 2, .
2. For HTTP Redirect, enter the URL of the Web server to which you wish to redirect HTTP
(port 80) requests.
3. Click Apply. All port 80 requests will now be redirected to the specified URL.
![](/img.php?id=1363735&img=bg41.png)
Chapter 4. Advanced Configuration | 23
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring Advanced Wireless Settings
The Wireless Settings screen are used to configure and enable various wireless LAN
parameters for 11b/g/n mode. The default wireless LAN parameters usually work well.
However, you can use these settings to fine-tune the overall performance of your product
family for your environment.
To configure advanced wireless settings:
1. Select Configuration > Wireless > Advanced > Wireless Settings. The Wireless
Settings screen displays, as shown in Figure 3, .
Figure 3.
2. Enter the appropriate information in the following fields:
• RTS Threshold (0 - 2347). Request to Send Threshold. The packet size that is used
to determine if it should use the CSMA/CD (Carrier Sense Multiple Access with
Collision Detection) mechanism or the CSMA/CA mechanism for packet
transmission. With the CSMA/CD transmission mechanism, the transmitting station
sends out the actual packet as soon as it has waited for the silence period. With the
CSMA/CA transmission mechanism, the transmitting station sends out an RTS
packet to the receiving station, and waits for the receiving station to send back a CTS
(Clear to Send) packet before sending the actual packet data. The default is 2347.
![](/img.php?id=1363735&img=bg42.png)
24 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• Fragmentation Length (256 – 2346). This is the maximum packet size. Packets
larger than the size specified in this field will be fragmented. The Fragment length
value must be larger than the RTS Threshold value. The default is 2346.
• Beacon Interval (100 – 1000). The time interval between 100 ms and 1000 ms for
each beacon transmission, which allows the access point to synchronize the wireless
network. The default is 100.
• Aggregation Length (1024 – 65535). The aggregation length defines the size of
aggregated packets. Larger aggregation lengths can sometimes lead to better
network performance. The default is 65535.
• AMPDU. Aggregated MAC Protocol Data Unit. Aggregates several MAC frames into
a single large frame to achieve higher throughput. The default is enabled.
• RIFS Transmission. Reduced Interframe Space. RIFS transmissions are shorter
than other interframe spaces, and if this feature is enabled the access point will allow
transmission of successive frames at different transmit powers. The default is
disabled.
• DTIM Interval. The Delivery Traffic Indication Message. Specifies the data beacon
rate between 1 and 255. The default is 3.
• Preamble Type. A long transmit preamble can provide a more reliable connection or
a slightly longer range. A short transmit preamble gives better performance. The Auto
settings automatically handles both long and short preambles. The default is Auto.
3. Click Apply to enable the wireless settings.
![](/img.php?id=1363735&img=bg43.png)
Chapter 4. Advanced Configuration | 25
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring Advanced QoS Settings
Wireless Multimedia (WMM) is a subset of the 802.11e standard. WMM allows wireless traffic
to have a range of priorities, depending on the type of data. Time-dependent information,
such as video or audio, has a higher priority than normal traffic. For WMM to function
correctly, Wireless clients must also support WMM.
For most networks, the default QoS (Quality of Service) queue parameter settings work
well.You can specify parameters on multiple queues for increased throughput and better
performance of differentiated wireless traffic, like V oice-over-IP (VoIP), other types of audio,
video, and streaming media, as well as traditional IP data.Figure 4, shows the QoS screen.
Figure 4.
![](/img.php?id=1363735&img=bg44.png)
26 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
The QoS options on the WNAP320 are as follows:
• AP EDCA parameters. Specify the AP EDCA parameters for different types of data
transmitted from the access point to the wireless client.
• Station EDCA parameters. Specify the Station EDCA parameters for different types of
data transmitted from the wireless client to the access point. If WMM is disabled, you
cannot configure Station EDCA parameters.
Table 1 describes the settings for QoS queues.
Table 1. QoS Queues and Parameters
QoS Queue Description
Data 0 (Voice) High-priority queue, minimum delay. Time-sensitive data such as VoIP
and streaming media are automatically sent to this queue.
Data 1 (Video) High-priority queue, minimum delay. Time-sensitive video data is
automatically sent to this queue.
Data 2 (Best Effort) Medium-priority queue, medium throughput and delay. Most traditional
IP data is sent to this queue.
Data 3 (Background) Lowest-priority queue, high throughput. Bulk data that requires
maximum throughput and is not time-sensitive is sent to this queue
(FTP data, for example).
AIFS (Arbitration Inter-Frame
Space)
Specifies a wait time (in milliseconds) for data frames. Valid values for
AIFS are 1 through 255.
cwMin (Minimum Contention
Window)
Upper limit (in milliseconds) of a range from which the initial random
backoff wait time is determined. Valid values for the cwMin are 1, 3, 7,
15, 31, 63, 127, 255, 511, and 1024. The value for cwMin must be lower
than the value for cwMax.
cwMax (Maximum Contention
Window)
Upper limit (in milliseconds) for the doubling of the random backoff
value. Valid values for the cwMax are 1, 3, 7, 15, 31, 63, 127, 255, 511,
and 1024. The value for cwMax must be higher than the value for
cwMin.
Max. Burst Length Specifies (in milliseconds) the maximum burst length allowed for packet
bursts on the wireless network. A packet burst is a collection of multiple
frames transmitted without header information. Valid values for
maximum burst length are 0.0 through 999.9.
![](/img.php?id=1363735&img=bg45.png)
Chapter 4. Advanced Configuration | 27
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Enabling Wireless Bridging and Repeating
The ProSafe Wireless-N Access Point WNAP320 lets you build large bridged wireless
networks. Select the product family mode you want to use for your environment:
• Wireless Point-to-Point Bridge. In this mode, the WNAP320 can communicate with
another bridge-mode wireless station and with wireless clients if you select the Enable
Wireless Client Association check box. To associate wireless clients with this access
point, select clients from the list in the Enable Wireless Clients Association table, and
select the corresponding check box in the Enable column.
When you click the Edit button, you must enter the profile name and the MAC address
(physical address) of the other bridge-mode wireless station in the fields provided. WEP,
WPA-PSK, or WPA2-PSK are supported. WPA2-PSK can (and should) be used to protect
this communication.
• Wireless Point-to-Multi-Point Bridge. Select this only if this WNAP320 access point is
the master for a group of bridge-mode wireless stations. This mode supports default
association with wireless clients. To associate wireless clients with this Access Point,
choose clients from the list in the Enable Wireless Clients Association table, and select
the corresponding check box in the Enable column.
The other bridge-mode wireless stations must be set to point-to-point bridge mode, using
the MAC address of this WNAP320 access point. They then send all traffic to this master,
rather than communicate directly with each other.
When you click the Edit button, you must enter the profile name and the MAC address
(physical address) of the other bridge-mode wireless stations in the fields provided. WEP,
WPA-PSK, or WPA2-PSK are supported. WPA2-PSK can (and should) be used to protect
this communication.
These features are accessed by selecting Configuration > Wireless Bridge (see
Figure 5, below).
• Repeater. If this option is selected, this product family will operate as a repeater only, and
send all traffic to the remote access point.
Note: This option does not support communication with wireless clients,
that is, the client cannot associate with the access point when it is
operating as a repeater.
When you click the Edit button, you must enter the profile name and the MAC address
(physical address) of the other bridge-mode wireless station in the fields provided. WEP,
WPA-PSK, or WPA2-PSK are supported. WPA2-PSK can (and should) be used to protect
this communication.
• Client Mode. If selected, this product family will operate as a client bridge only, and send
all traffic to the remote access point or peer device. MAC Cloning can also be enabled in
Client Mode.
![](/img.php?id=1363735&img=bg46.png)
28 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Figure 5.
On the screen shown in Figure 5, , when you select the radio button for any option, an
Edit button displays. Click this button to edit the security profile of the wireless bridge
settings, as shown in Figure 6, .
Figure 6.
![](/img.php?id=1363735&img=bg47.png)
Chapter 4. Advanced Configuration | 29
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring a WNAP320 as a Point-to-Point Bridge
To configure a point-to-point bridge as shown in Figure 7, :
1. Select Configuration > Wireless Bridge > Bridging and Repeating. The Bridging and
Repeating screen displays.
2. Configure the WNAP320 access point (AP1) on LAN Segment 1 in Point-to-Point Bridge
mode.
Figure 7.
3. Configure the WNAP320 access point (AP2) on LAN Segment 2 in Point-to-Point Bridge
mode.
AP1 must have AP2’s MAC address in its Remote MAC Address field, and AP2 must
have AP1’s MAC address in its Remote MAC Address field.
4. Configure and verify the following parameters for both access points:
• Verify that both access points are configured to operate in the same LAN network
address range as the LAN devices.
• Both use the same ESSID (Extended Service Set Identification), channel,
authentication mode, if any, and security settings if security is in use.
![](/img.php?id=1363735&img=bg48.png)
30 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
5. Verify connectivity across the LAN 1 and LAN 2.
A computer on either LAN segment should be able to connect to the Internet or share files
and printers of any other PCs or servers connected to LAN Segment 1 or LAN Segment
2.
6. Click Apply to save your settings.
![](/img.php?id=1363735&img=bg49.png)
Chapter 4. Advanced Configuration | 31
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring a Point-to-Multi-Point Wireless Bridge
Figure 8. To configure a point-to-multi-point wireless bridge as shown in Figure 9, :
1. Select Configuration > Wireless Bridge > Bridging and Repeating. The Bridging and
Repeating screen displays.
Figure 9.
2. Configure the operating mode of the access points:
• Configure WNAP320 (AP1) on LAN Segment 1 in point-to-point bridge mode with the
remote MAC address of AP2.
• Because it is in the central location, configure WNAP320 (AP2) on LAN Segment 2 in
Point-to-Multi-Point Bridge mode. The MAC addresses of the adjacent APs are
required in AP2.
• Configure the WNAP320 (AP3) on LAN 3 in Point-to-Point Bridge mode with the
Remote MAC Address of AP2.
3. Verify the following parameters for all access points:
• Verify that both access points are configured to operate in the same LAN network
address range as the LAN devices.
• Only one access point is configured in Point-to-Multi-Point Bridge mode, and all the
others are in Point-to-Point Bridge mode.
![](/img.php?id=1363735&img=bg4a.png)
32 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• All access points must be on the same LAN. That is, all the APs LAN IP addresses
must be in the same network.
• If you are using DHCP, all of the access points should be set to Obtain an IP address
automatically (DHCP Client) in the IP address source portion of the Basic Settings
screen.
• All ProSafe Wireless Access Points use the same SSID, channel, authentication
mode, if any, and encryption.
• All point-to-point access points must have the AP2 MAC address in their Remote AP
MAC Address fields.
4. Verify connectivity across the LANs.
• A computer on any LAN segment should be able to connect to the Internet or share
files and printers with any other PCs or servers connected to any of the three LAN
segments.
• Wireless stations will be able to connect to the ProSafe Wireless Access Points in the
previous illustration. If you require wireless stations to access any LAN segment, you
can add additional access points configured in wireless bridge mode to any LAN
segment.
5. Click Apply to save your settings.
Note: You can extend this multi-point bridging by adding additional
WNAP320s configured in Point-to-Point Bridge mode for each
additional LAN segment. Furthermore, you can extend the range of
Configuring the WNAP320 as a Wireless Repeater
To configure the WNAP320 as a wireless repeater as shown in Figure 10, :
1. Select Configuration > Wireless Bridge > Bridging and Repeating. The Bridging
and Repeating screen displays.
2. Configure the operating mode of the access points.
• Configure WNAP320 (AP1) on LAN Segment 1 in Repeater mode with the remote
MAC address of AP2.
• Configure WNAP320 (AP2) in Repeater mode with MAC addresses of AP1 and AP3.
• Configure the WNAP320 (AP3) in Repeater mode with the remote MAC address of
AP2.
![](/img.php?id=1363735&img=bg4b.png)
Chapter 4. Advanced Configuration | 33
ProSafe Wireless-N Access Point WNAP320 Reference Manual

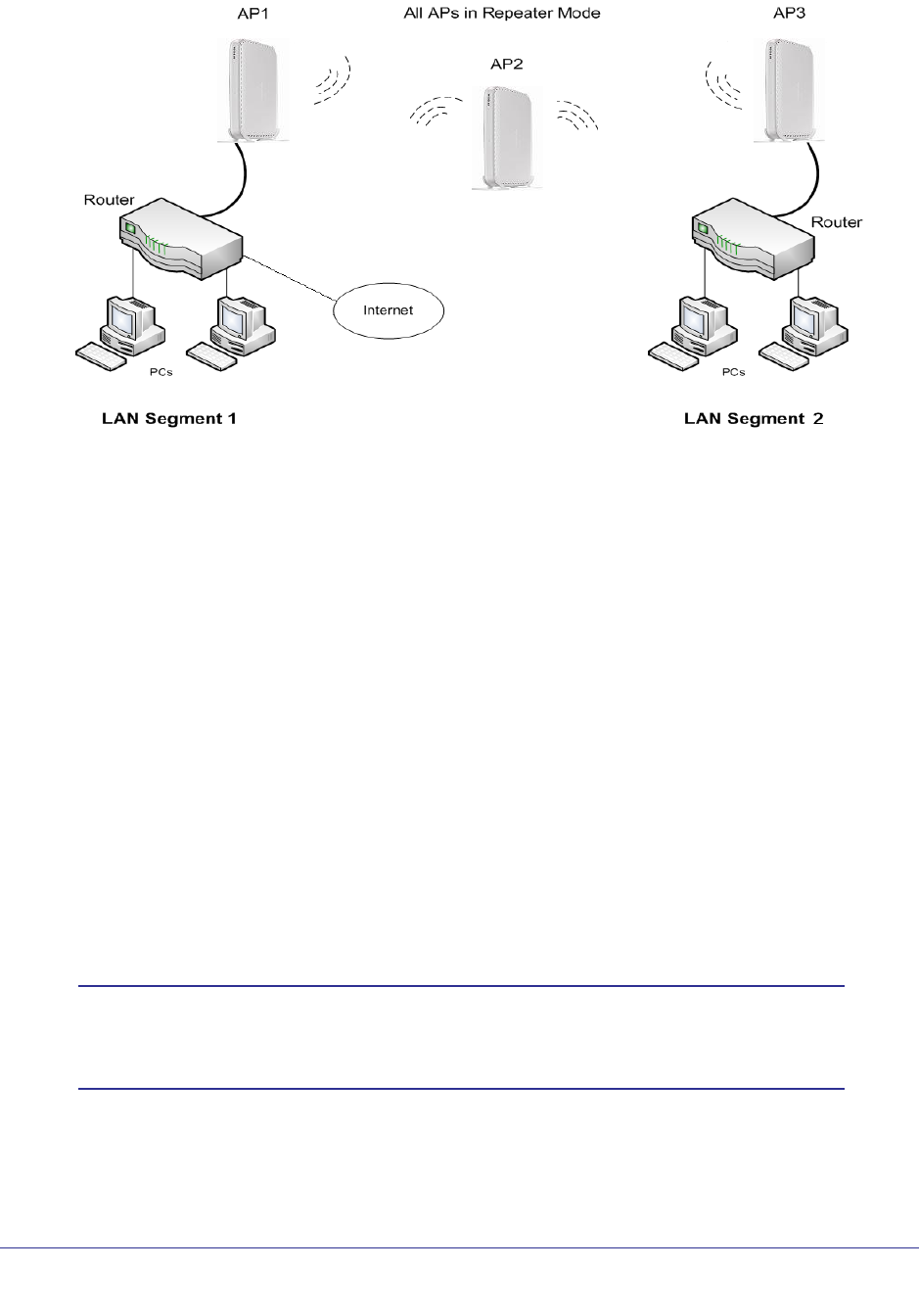

Figure 10.
3. Verify the following parameters for all access points:
• The access points are configured to operate in the same LAN network address range
as the LAN devices.
• All access points must be on the same LAN. That is, all the LAN IP addresses of the
access points must be in the same network.
• If you are using DHCP, all access points should be set to Obtain an IP address
automatically (DHCP Client) in the IP Address Source portion of the Basic Settings
screen.
• All ProSafe Wireless Access Points use the same SSID, channel, authentication
mode, if any, and encryption.
4. Verify connectivity across the LANs.
A computer on any LAN segment should be able to connect to the Internet or share files
and printers with any other PCs or servers connected to any of the three WLAN
segments.
5. Click Apply to save your settings.
Note: You can extend repeating by adding up to two additional
WNAP320s configured in Repeater mode. However, since repeater
configurations communicate in half-duplex mode, the bandwidth
![](/img.php?id=1363735&img=bg4c.png)
34 | Chapter 4. Advanced Configuration
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Configuring the WNAP320 for Client Mode
In Client mode the WNAP320 operates as a client bridge only and sends traffic to the
selected remote AP or peer device. To configure the WNAP320 for Client mode:
1. Select Configuration > Wireless Bridge > Bridging and Repeating. The Bridging and
Repeating screen displays. See Appendix 4

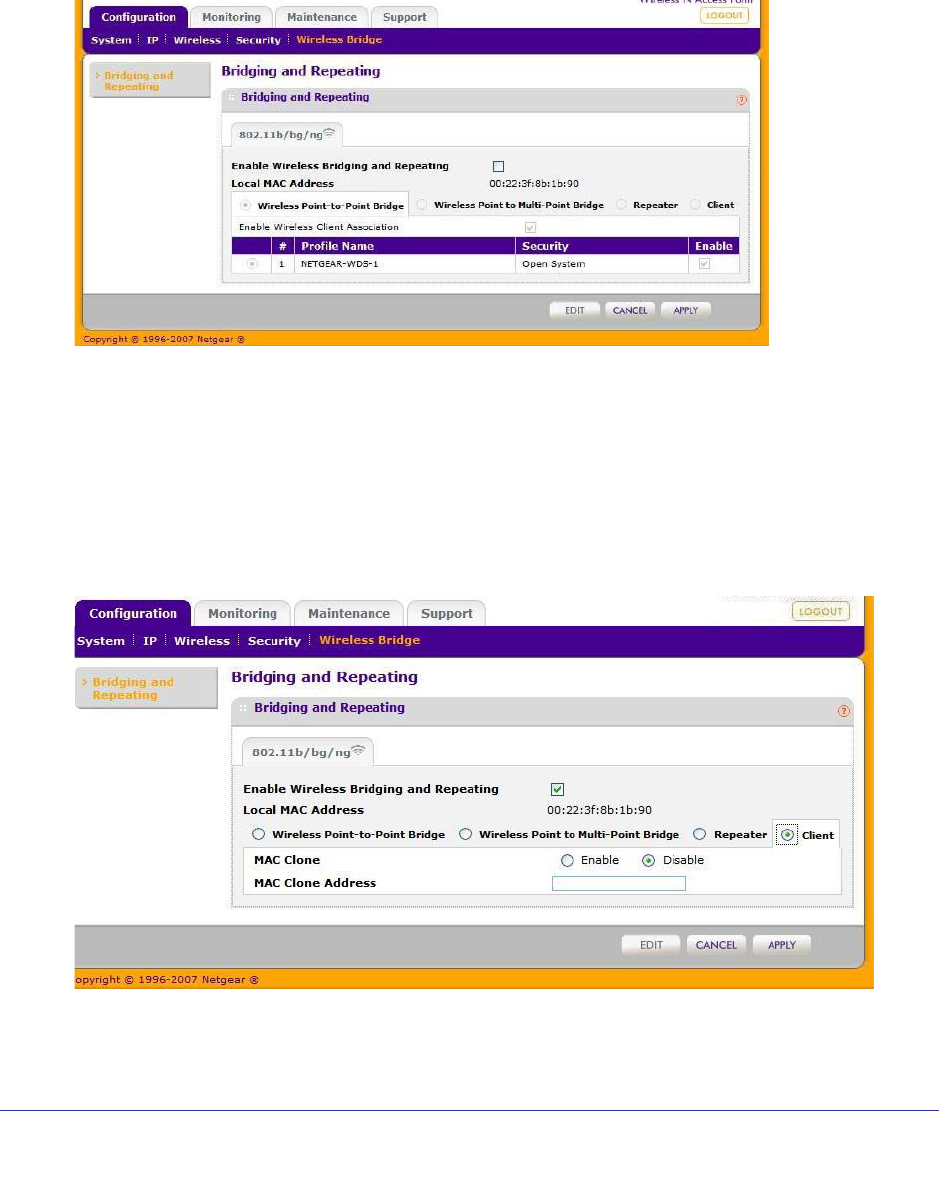

Figure 11.
Select the Enable Wireless Bridgeing and Repeating check box. This allows you to
select a bridging mode.
2. Select Client. You can now enable the MAC Clone feature. The default is Disable. If you
enable the MAC Clone feature, enter the MAC Clone address. See Figure 12, .
3. Click Apply.
Figure 12.
![](/img.php?id=1363735&img=bg4d.png)
Chapter 5. Troubleshooting and Debugging | 45
5
5. Troubleshooting and Debugging
This chapter provides information about troubleshooting your ProSafe Wireless-N Access Point
WNAP320. After each problem description, instructions are given to help you diagnose and
solve the problem. For the common problems listed, go to the section indicated.
• Is the WNAP320 on?
• Have I connected the product family correctly?
• I cannot remember the product family’s configuration password.
Go to Changing the Administrator Password on page 29.
Note: For up-to-date WNAP320 installation details and troubleshooting
guidance visit http://kbserver.netgear.com/products.
If you have trouble setting up your WNAP320, check the tips below.
![](/img.php?id=1363735&img=bg4e.png)
46 | Chapter 5. Troubleshooting and Debugging
ProSafe Wireless-N Access Point WNAP320 Reference Manual
No lights are lit on the product family.
It takes a few seconds for the Power LED to light. Wait a minute and check the Power LED on
the access point. If the access point has no power:
• Make sure that the power cord is connected to the access point.
• Make sure that the power adapter is connected to a functioning power outlet. If it is in a
power strip, make sure that the power strip is turned on. If it is plugged directly into the
wall, verify that it is not a switched outlet.
• Make sure that you are using the correct NETGEAR power adapter supplied with your
access point.
No lights are lit on the access point.
It takes a few seconds for the power indicator to light up. Wait a minute and check the power
light status on the access point. If the access point has no power.
• Make sure the power cord is connected to the access point.
• Make sure the power adapter is connected to a functioning power outlet. If it is in a power
strip, make sure the power strip is turned on. If it is plugged directly into the wall, verify
that it is not a switched outlet.
• Make sure you are using the correct NETGEAR power adapter supplied with your access
point.
The Wireless LAN LED does not light up.
The access point antennas are not working.
• If the Wireless LAN LED stays off, disconnect the adapter from its power source, and then
plug it in again.
• Make sure that the antennas are securely connected to the WNAP320.
• Contact NETGEAR Technical Support if the Wireless LAN LED remains off.
The Wireless LAN activity light does not light up.
The access point’s antenna is not working.
• If the Wireless LAN activity light stays off, disconnect the adapter from its power source
and then plug it in again.
• Make sure the antennas are tightly connected to the access point.
• Contact NETGEAR technical support if the Wireless LAN activity light remains off.
![](/img.php?id=1363735&img=bg4f.png)
Chapter 5. Troubleshooting and Debugging | 47
ProSafe Wireless-N Access Point WNAP320 Reference Manual
The Ethernet LAN LED is not lit.
There is a hardware connection problem.Check these items:
• Make sure that the cable connectors are securely plugged in at the access point and the
network device (hub, switch, or router). A switch, hub, or router must be installed between
the access point and the Ethernet LAN or broadband modem.
• The LAN LED does not light if the link is 10 Mbps. In such cases, the LAN LED will still
blink if there is activity.
• Make sure that the connected device is turned on.
• Make sure that the correct cable is used. Use a standard Category 5 Ethernet patch
cable. If the network device has Auto Uplink™ (MDI/MDIX) ports, you can use either a
crossover cable or a normal patch cable.
![](/img.php?id=1363735&img=bg50.png)
48 | Chapter 5. Troubleshooting and Debugging
ProSafe Wireless-N Access Point WNAP320 Reference Manual
I cannot access the Internet or the LAN with a
wireless-capable computer.
There is a configuration problem. Check these items:
• You might not have restarted the computer with the wireless adapter to have TCP/IP
changes take effect. Restart the computer.
• The computer with the wireless adapter might not have the correct TCP/IP settings to
communicate with the network. Restart the computer, and check that TCP/IP is set up
correctly for that network. In Windows, the usual setting for Network Properties is “Obtain
an IP address automatically (DHCP client).”
• The access point’s default values might not work with your network. Check the access
point default configuration against the configuration of other devices in your network.
![](/img.php?id=1363735&img=bg51.png)
Chapter 5. Troubleshooting and Debugging | 49
ProSafe Wireless-N Access Point WNAP320 Reference Manual
I cannot connect to the WNAP320 to configure it.
Check these items:
• The WNAP320 is installed correctly, LAN connections are OK, and it is powered on.
Check that the LAN port LED is green to verify that the Ethernet connection is OK.
• The default configuration of the WNAP320 is for a static IP address of 192.168.0.100 and
a subnet mask of 255.255.255.0 with DHCP disabled. Make sure that your network
configuration settings are correct.
• If you are using the NetBIOS name of the WNAP320 to connect, ensure that your
computer and the WNAP320 are on the same network segment or that there is a WINS
server on your network.
• If your computer is set to “Obtain an IP address automatically” (DHCP client), restart it.
• If your computer uses a fixed (static) IP address, ensure that it is using an IP address in
the range of the WNAP320. The default IP address is 192.168.0.100, and the default
subnet mask is 255.255.255.0.
![](/img.php?id=1363735&img=bg52.png)
50 | Chapter 5. Troubleshooting and Debugging
ProSafe Wireless-N Access Point WNAP320 Reference Manual
When I enter a URL or IP address, I get a time-out error.
A number of things could be causing this. Try the following troubleshooting steps.
• Check whether other PCs work. If they do, ensure that your PCs TCP/IP settings are
correct. If using a fixed (static) IP address, check the subnet mask, default gateway, DNS,
and IP addresses.
• If the PCs are configured correctly, but still not working, ensure that the WNAP320 is
connected and turned on. Connect to it, and check its settings. If you cannot connect to it,
check the LAN and power connections.
• If the WNAP320 is configured correctly, check your Internet connection (DSL/cable
modem, and so on.) to make sure that it is working correctly.
• Try again.
![](/img.php?id=1363735&img=bg53.png)
Chapter 5. Troubleshooting and Debugging | 51
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Using the Restore Factory Settings Button to Restore
Default Settings
The Restore factory settings button (see Rear Panel on page 14) has two functions:
• Reboot. When this button is pressed and released quickly, the WNAP320 reboots
(restarts).
• Reset to factory defaults. This button can also be used to clear all data and restore all
settings to the factory default values.
To clear all data and restore the factory default values:
1. Power off the WNAP320, and power it back on.
2. Use something with a small point, such as a pen, to press the restore settings button in and
hold it in for at least 5 seconds.
3. Release the restore settings button.
The factory default configuration has now been restored, and the WNAP320 is ready for use.
![](/img.php?id=1363735&img=bg55.png)
Appendix A. Supplemental Information | 53
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Table 1.
Document Link
ITCP/IP Networking Basics http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Networking Basics http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing your Network http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Glossary http://documentation.netgear.com/reference/enu/glossary/index.htm
![](/img.php?id=1363735&img=bg56.png)
54 | Appendix A. Supplemental Information
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Technical Specifications
Table 2. WNAP320 Technical Specifications
Parameter ProSafe Wireless-N Access Point WNAP320
802.11g Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (Auto-rate capable)
802.11ng Data Rates Data Rates for Channel Width=20MHz and Guard Interval=short (400ms): Best,
7.2 Mbps, 14.4 Mbps, 21.7 Mbps, 28.9 Mbps, 43.3 Mbps, 57.8 Mbps, 65 Mbps,
72.2 Mbps, 14.44 Mbps, 28.88 Mbps, 43.33 Mbps, 57.77 Mbps, 86.66 Mbps,
115.56 Mbps, 130 Mbps, 144.44 Mbps
Data Rates for Channel Width=40MHz and Guard Interval=short: Best, 15 Mbps,
30 Mbps, 45 Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 135 Mbps, 150 Mbps, 30
Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 180 Mbps, 240 Mbps, 270 Mbps, 300
Mbps
802.11b/bg/ng
Operating Frequencies
2.412 – 2.462 GHz (US), 2.457 – 2.462 GHz (Spain),
2.412 – 2.484 GHz (Japan), 2.457 – 2.472 GHz (France),
2.412 – 2.472 GHz (Europe ETSI)
802.11 b/bg/ng
Encryption
64 bits, 128 and 152 bits WEP, AES, TKIP data encryption
Network Management Web-based configuration and status monitoring
Maximum Clients Limited by the amount of wireless network traffic generated by each node;
maximum 64 supported.
Status LEDs Power/Test/Ethernet LAN/Wireless LAN
Power Adapter 12V DC, 1.0 A
Electromagnetic
Compliance
FCC Part 15 Class B and Class E, CE, and C-TICK
Environmental
Specifications
Operating temperature: 0 to 50° C
Operating humidity: 5-95%, non-condensing
![](/img.php?id=1363735&img=bg57.png)
Appendix A. Supplemental Information | 55
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Factory Default Settings
You can use the restore settings button located on the rear of your device to reset all settings
to their factory defaults. This is called a hard reset.
• To perform a hard reset, push and hold the restore settings button for approximately 5
seconds (until the Test LED blinks rapidly). Your device will return to the factory
configuration settings shown in Table 3.
• Pressing the restoresettings button for a shorter period of time simply causes your device
to reboot.
Table 3. Access Point Default Configuration Settings
Feature Description
AP Login
User Login URL 192.168.0.100
User Name (case-sensitive) admin
Login Password (case-sensitive) password
Ethernet Connection
Static IP Address 192.168.0.210
Ethernet MAC Address See bottom label.
Port Speed 10/100/1000
Local Network (LAN)
Lan IP 192.168.0.100
Subnet Mask 255.255.255.0
Gateway Address 0.0.0.0
DHCP Server Disabled
DHCP Client Disabled
Time Zone USA-Pacific
Time Zone Adjusted for Daylight Saving
Time
Disabled
SNMP Enabled, but trap forwarding disabled
Spanning Tree Protocol Disabled
Secure Telnet Enabled
Wireless
![](/img.php?id=1363735&img=bg58.png)
56 | Appendix A. Supplemental Information
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Operating Mode Access Point
Access Point Name netgearxxxxxx where xxxxxx are the last 6 digits of the
wireless access point MAC address.
Wireless Communication Enabled
11 b/g/n Wireless Network Name (SSID) NETGEAR_11ng
Broadcast Network Name SSID Enabled
Security Disabled
Transmission Speed Besta
Country/Region Varies by region
802.11gn Radio Frequency Channel Auto
Output Power Full
Wireless Card Access List All wireless stations allowed
WMM Support Enabled
a Maximum Wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data
throughput rate.
Table 3. Access Point Default Configuration Settings (Continued)
Feature Description
![](/img.php?id=1363735&img=bg59.png)
Appendix C. Compliance Notification | 72
C
C. Compliance Notification
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may
result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.
Note: This product’s firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only.
Any product changes or modifications will invalidate all applicable regulatory certifications and approvals
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration of Conformity
We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the
ProSafe Wireless-N Access Point WNAP320 complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=1363735&img=bg5a.png)
Appendix C. Compliance Notification | 73
ProSafe Wireless-N Access Point WNAP320 Reference Manual
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
• For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not
possible.
• This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware
programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 5.59 dB. Antenna having a
higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus, ProSafe Wireless-N Access Point WNAP320, does not exceed the Class B limits for radio-noise
emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Europe – EU Declaration of Conformity
Marking with the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC).
This equipment meets the following conformance standards:
• EN300 328 (2.4Ghz), EN301 489-17, EN301 893 (5Ghz), EN60950-1
• This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries, except in France and Italy where restrictive use applies.
![](/img.php?id=1363735&img=bg5b.png)
74 | Appendix C. Compliance Notification
ProSafe Wireless-N Access Point WNAP320 Reference Manual
• In Italy, the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to
use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
• This device may not be used for setting up outdoor radio links in France, and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information contact the
national spectrum authority in France.
For complete DoC, visit the NETGEAR EU Declarations of Conformity website at::
http://kb.netgear.com/app/answers/detail/a_id/11621/
Table 1. EDOC in Languages of the European Community
Language Statement
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se
základními požadavky a dalšími príslušnými ustanoveními smernice
1999/5/ES.
Dansk [Danish] Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr
Radiolan overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Eesti [Estonian] Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Español [Spanish] Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių [Lithuanian] Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
![](/img.php?id=1363735&img=bg5c.png)
Appendix C. Compliance Notification | 75
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Interference Reduction Table
The table below shows the Recommended Minimum Distance between NETGEAR equipment and household
appliances to reduce interference (in feet and meters).
Nederlands [Dutch] Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma
mal-htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] NETGEAR Inc. declara que este Radiolan está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak] NETGEAR Inc. týmto vyhlasuje, že Radiolan spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar NETGEAR Inc. att denna Radiolan står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska [Icelandic] Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk [Norwegian] NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med
de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Table 2. Interference Reduction Table
Household Appliance Recommended Minimum Distance
(in feet and meters)
Microwave ovens 30 feet / 9 meters
Baby Monitor - Analog 20 feet / 6 meters
Baby Monitor - Digital 40 feet / 12 meters
Cordless phone - Analog 20 feet / 6 meters
Table 1. EDOC in Languages of the European Community
Language Statement
![](/img.php?id=1363735&img=bg5d.png)
76 | Appendix C. Compliance Notification
ProSafe Wireless-N Access Point WNAP320 Reference Manual
Cordless phone - Digital 30 feet / 9 meters
Bluetooth devices 20 feet / 6 meters
ZigBee 20 feet / 6 meters
Table 2. Interference Reduction Table
Household Appliance Recommended Minimum Distance
(in feet and meters)
