Netgear orporated DG834GV2 Wireless ADSL Firewall Router User Manual FullManual
Netgear Incorporated Wireless ADSL Firewall Router FullManual
Users Manual
![](/img.php?id=450691&img=bg1.png)
SM-DG834GNA-1
October 2003
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone 1-888-NETGEAR
Reference Manual for the
Model DG834G Wireless
ADSL Firewall Router
![](/img.php?id=450691&img=bg2.png)
ii
© 2003 by NETGEAR, Inc. All rights reserved. October 2003.
Trademarks
NETGEAR is a trademark of NETGEAR, Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid
the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less
than 20 cm (8 inches) during normal operation.
EN 55 022 Declaration of Conformance
This is to certify that the DG834G Wireless ADSL Firewall Router is shielded against the generation of radio
interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by
the application of EN 55 022 Class B (CISPR 22).
![](/img.php?id=450691&img=bg3.png)
iii
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß das DG834G Wireless ADSL Firewall Router gemäß der im BMPT-AmtsblVfg 243/1991
und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B.
Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der
Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Certificate of the Manufacturer/Importer
It is hereby certified that the DG834G Wireless ADSL Firewall Router has been suppressed in accordance with the
conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example,
test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the
notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the second category (information equipment to be used in a residential area or an adjacent area
thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing
Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.
When used near a radio or TV receiver, it may become the cause of radio interference.
Read instructions for correct handling.
Customer Support
Refer to the Support Information Card that shipped with your DG834G Wireless ADSL Firewall Router.
World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL)
http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer
or Netscape are required.
![](/img.php?id=450691&img=bg4.png)
iv
![](/img.php?id=450691&img=bg5.png)
Contents v
Contents
Chapter 1
About This Guide
Audience, Conventions, Scope ......................................................................................1-1

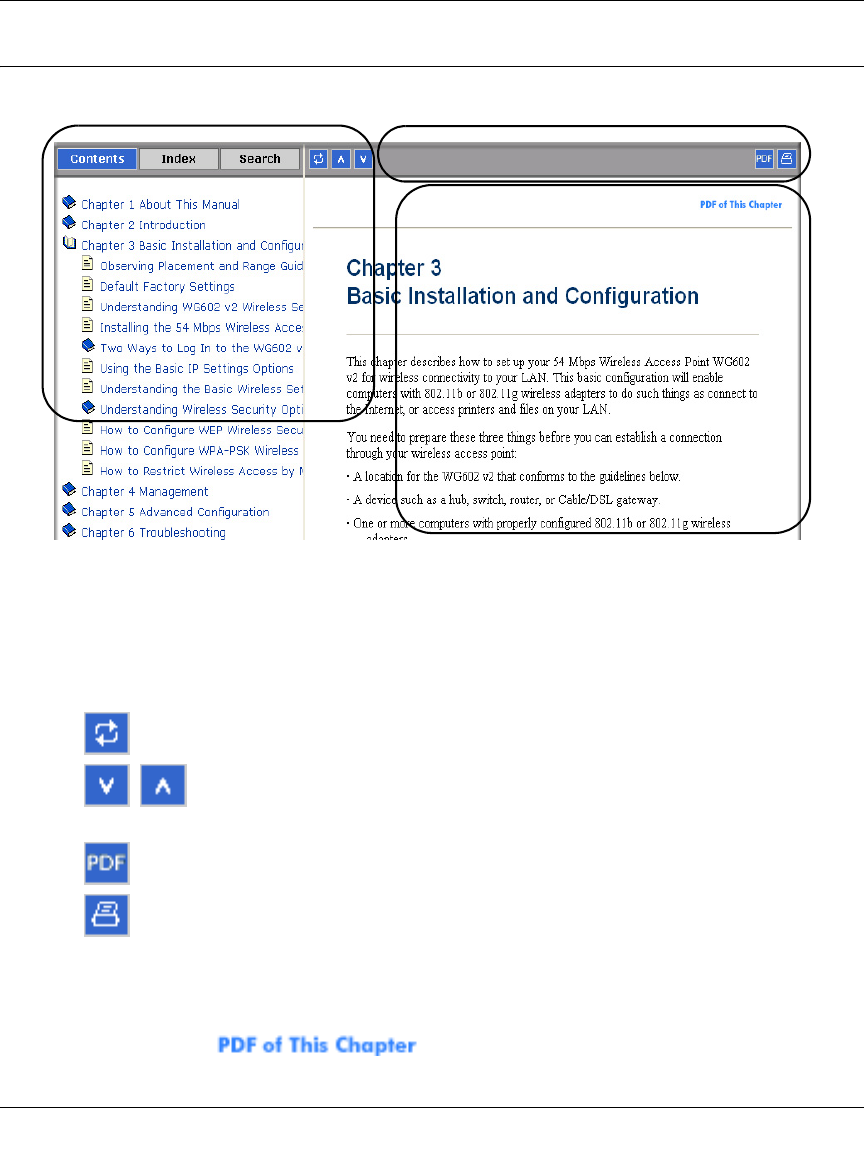

How to Use this Manual ..................................................................................................1-2
How to Print this Manual .................................................................................................1-3
Chapter 2
Introduction
About the Router ............................................................................................................2-1
Key Features ..................................................................................................................2-1
802.11b Standards-based Wireless Networking ......................................................2-2
A Powerful, True Firewall .........................................................................................2-2
Content Filtering .......................................................................................................2-3
Auto Sensing and Auto Uplink™ LAN Ethernet Connections ..................................2-3
Protocol Support ......................................................................................................2-3
Easy Installation and Management ..........................................................................2-4
What’s in the Box? ..........................................................................................................2-5
The Router’s Front Panel .........................................................................................2-5

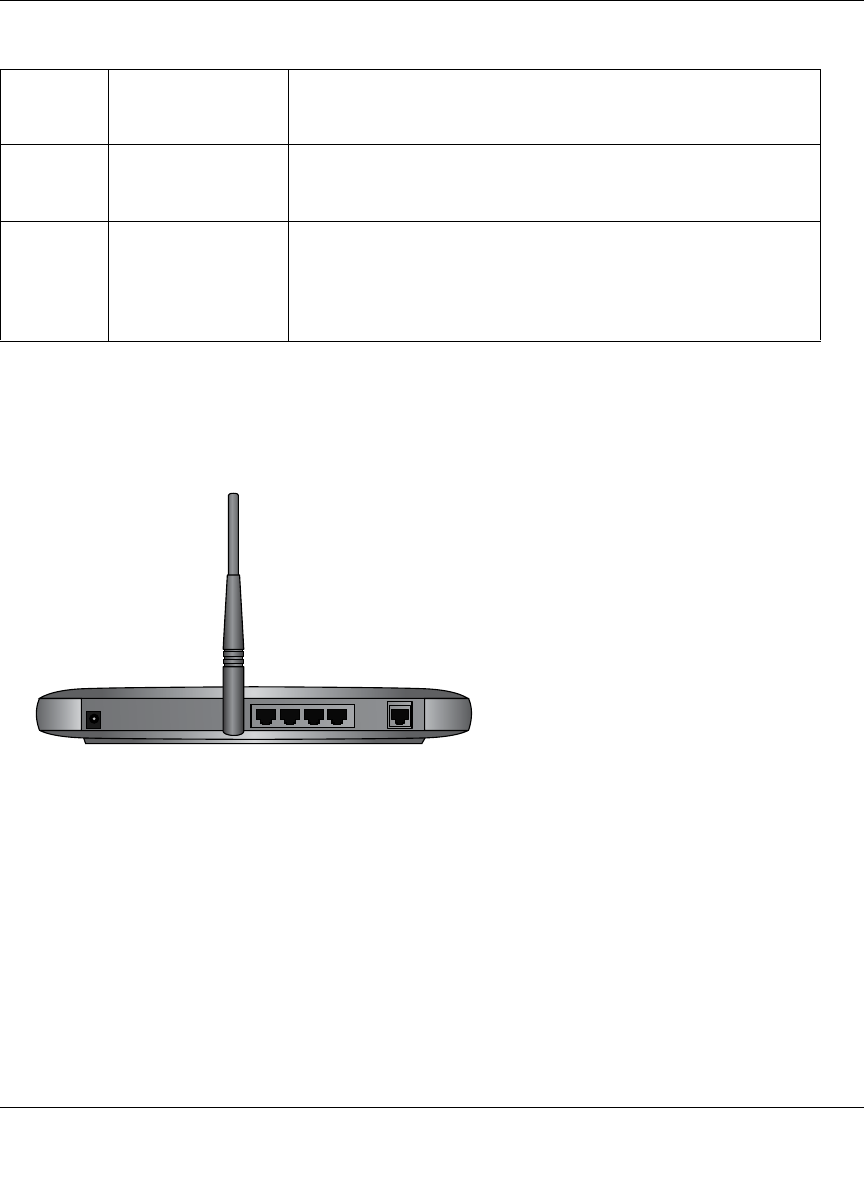

The Router’s Rear Panel .........................................................................................2-7
Chapter 3
Connecting the Router to the Internet
What You Need Before You Begin ..................................................................................3-1

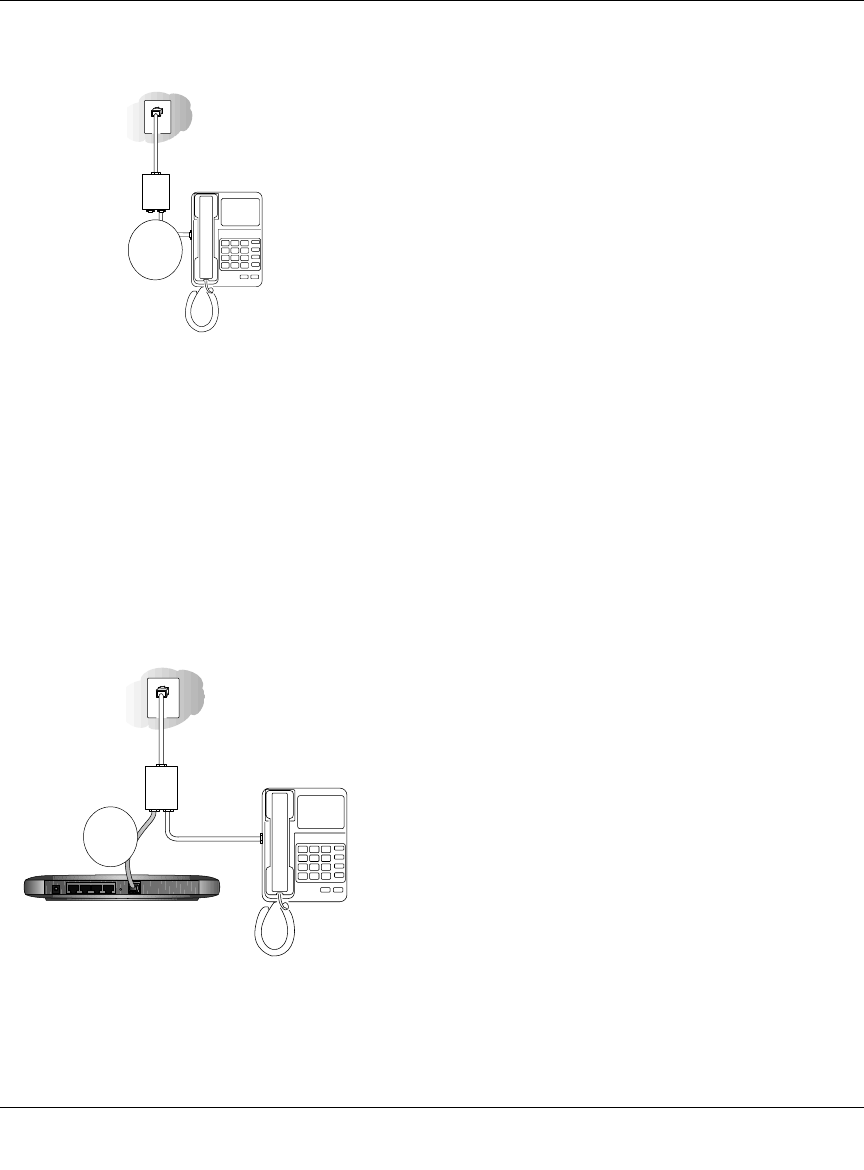

ADSL Microfilter Requirements ................................................................................3-1
ADSL Microfilter .................................................................................................3-1
ADSL Microfilter with Built-In Splitter .................................................................3-2
Ethernet Cabling Requirements ...............................................................................3-2
Computer Hardware Requirements .........................................................................3-2

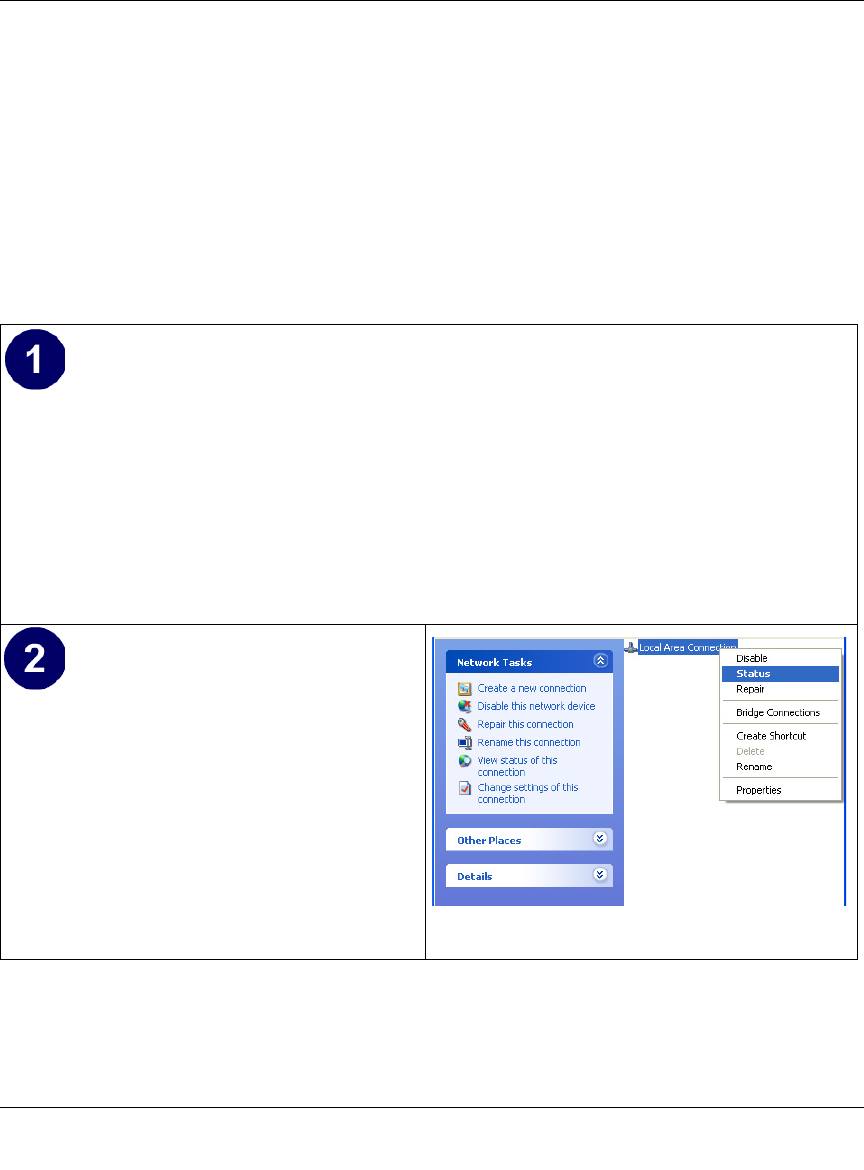

LAN Configuration Requirements ............................................................................3-2
Internet Configuration Requirements .......................................................................3-3
Where Do I Get the Internet Configuration Parameters? .........................................3-3
![](/img.php?id=450691&img=bg6.png)
vi Contents
Record Your Internet Connection Information ..........................................................3-3
Connecting the DG834G to Your LAN ............................................................................3-5
How to Connect the Router ......................................................................................3-5
Auto-Detecting Your Internet Connection Type ..............................................................3-9
Wizard-Detected PPPoE Login Account Setup ...................................................... 3-11
Wizard-Detected PPPoA Login Account Setup ...................................................... 3-11

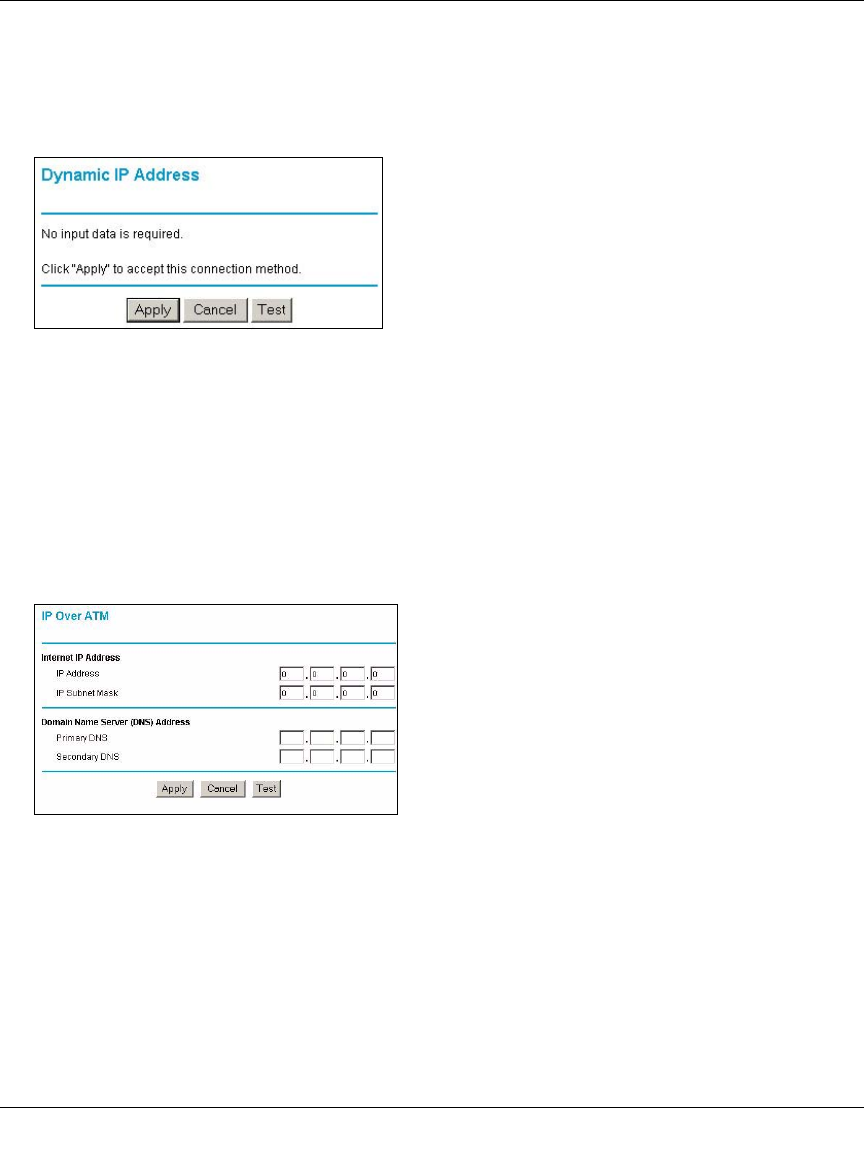

Wizard-Detected Dynamic IP Account Setup .........................................................3-12
Wizard-Detected IP Over ATM Account Setup ......................................................3-12
Wizard-Detected Fixed IP (Static) Account Setup ..................................................3-13
Testing Your Internet Connection ..................................................................................3-14
Manually Configuring Your Internet Connection ...........................................................3-15
How to Perform Manual Configuration ...................................................................3-15

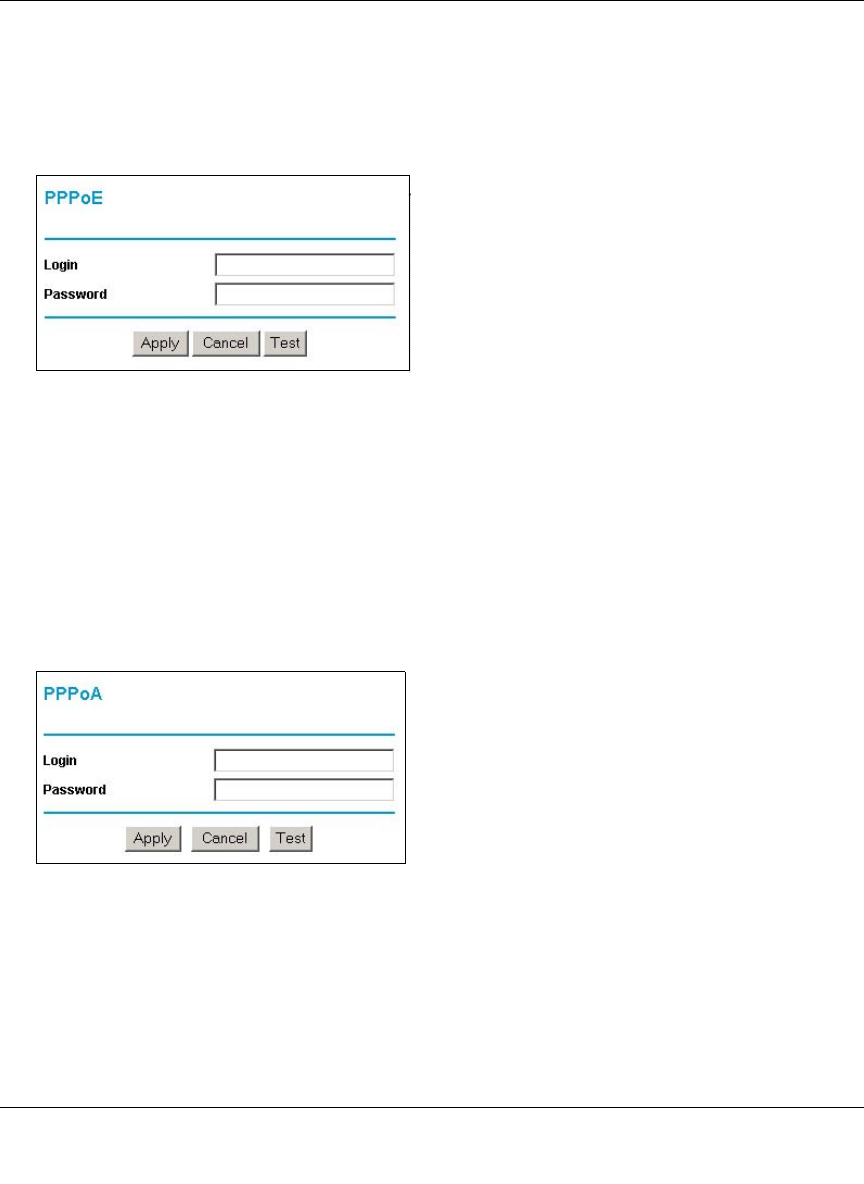

Internet Connection Requires Login and Uses PPPoE ...................................3-16
Internet Connection Requires Login and Uses PPPoA ...................................3-17
Internet Connection Does Note Require A Login ............................................3-18
ADSL Settings ........................................................................................................3-19
Chapter 4
Wireless Configuration
Considerations for a Wireless Network ..........................................................................4-1
Observe Performance, Placement, and Range Guidelines .....................................4-1
Implement Appropriate Wireless Security ................................................................4-2
Understanding Wireless Settings ...................................................................................4-3
How to Set Up and Test Basic Wireless Connectivity ..............................................4-4
Restricting Wireless Access to Your Network ..........................................................4-5
Restricting Access to Your Network by Turning Off Wireless Connectivity ........4-6
Restricting Wireless Access Based on the Wireless Network Name (SSID) .....4-6
Restricting Wireless Access Based on the Wireless Station Access List ..........4-6
Choosing WEP Authentication and Security Encryption Methods ...........................4-8
Authentication Type Selection ...........................................................................4-8
Encryption Choices ............................................................................................4-9

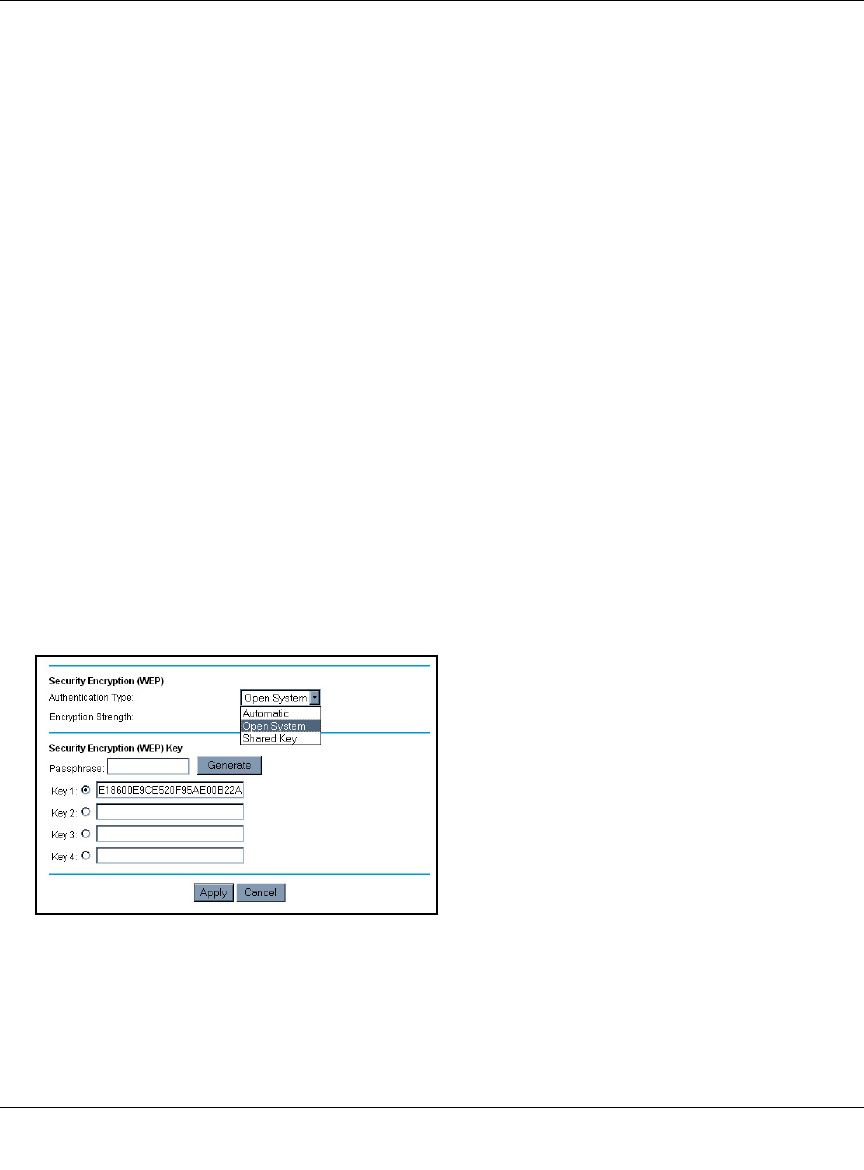

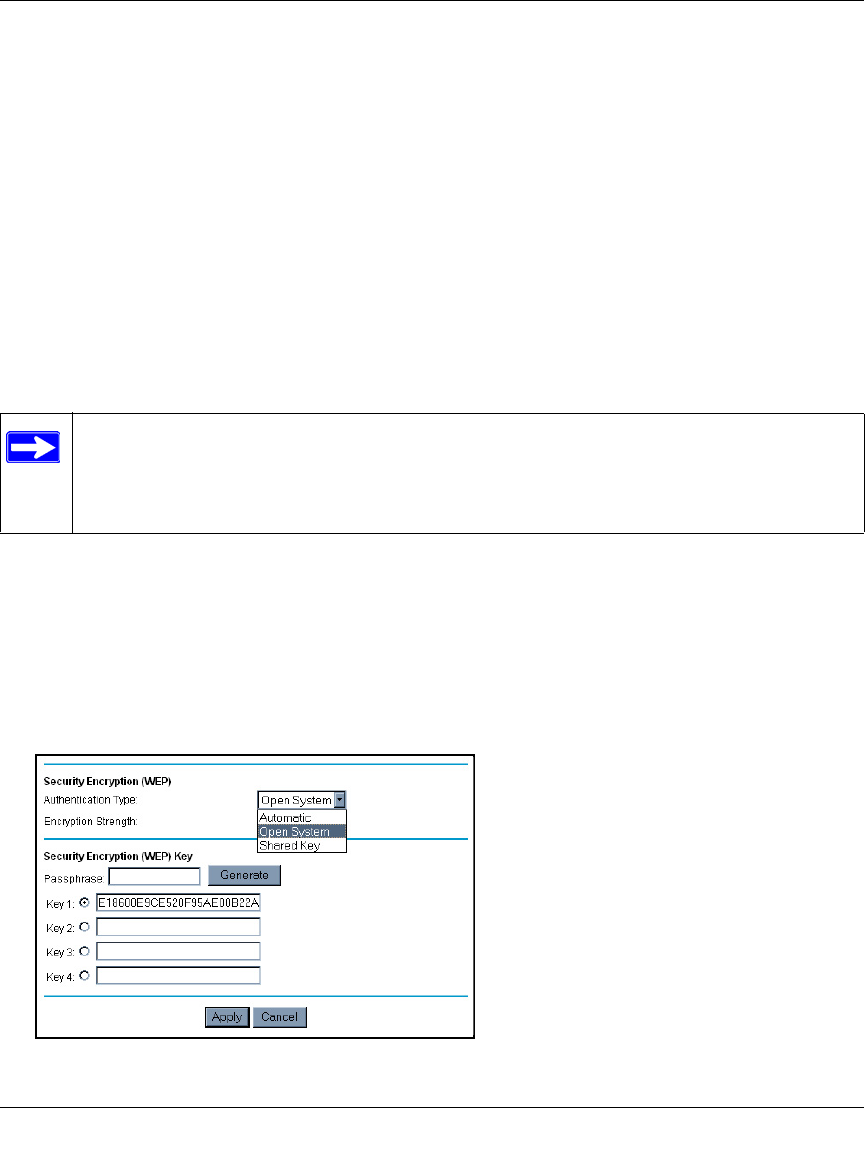

How to Configure WEP ..........................................................................................4-10
![](/img.php?id=450691&img=bg7.png)
Contents vii
Chapter 5
Protecting Your Network
Protecting Access to Your DG834G Wireless ADSL Firewall Router .............................5-1

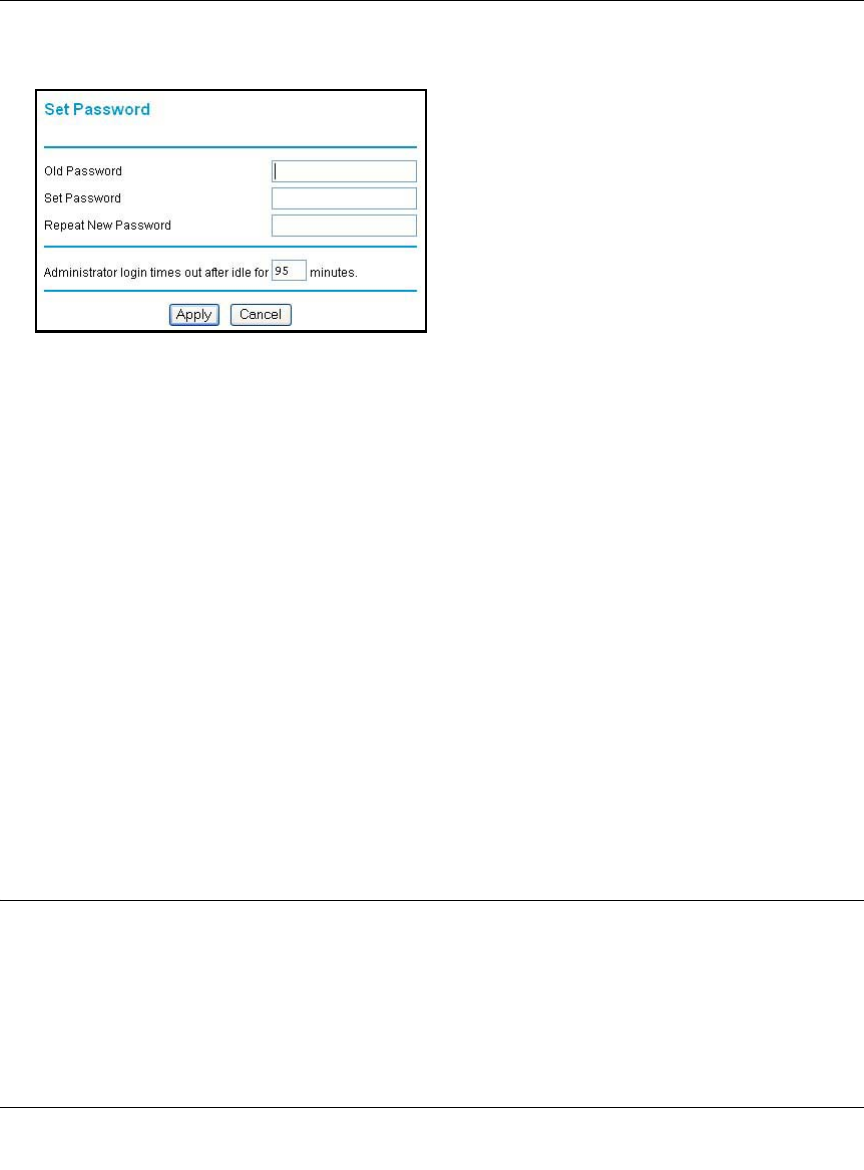

How to Change the Built-In Password .....................................................................5-1
Changing the Administrator Login Timeout ..............................................................5-2
Configuring Basic Firewall Services ...............................................................................5-2
Blocking Keywords, Sites, and Services ..................................................................5-3

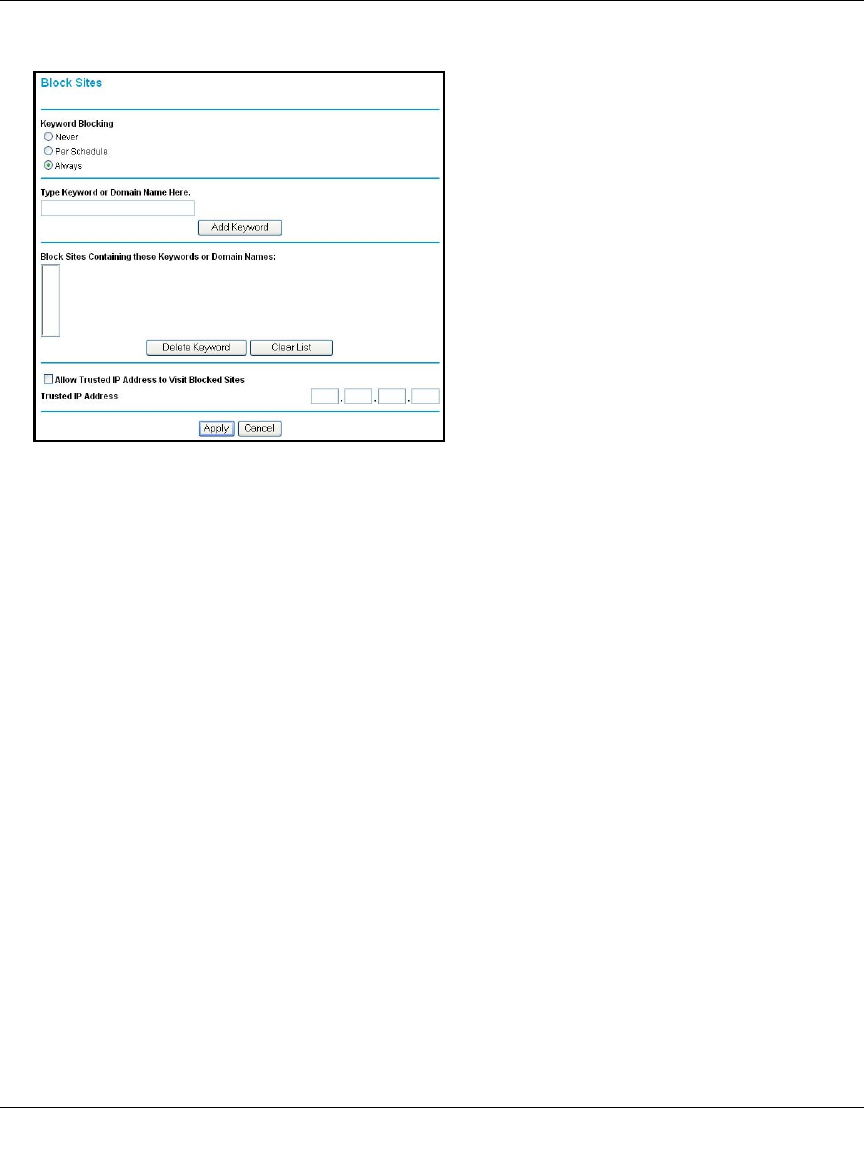

How to Block Keywords and Sites ...........................................................................5-3

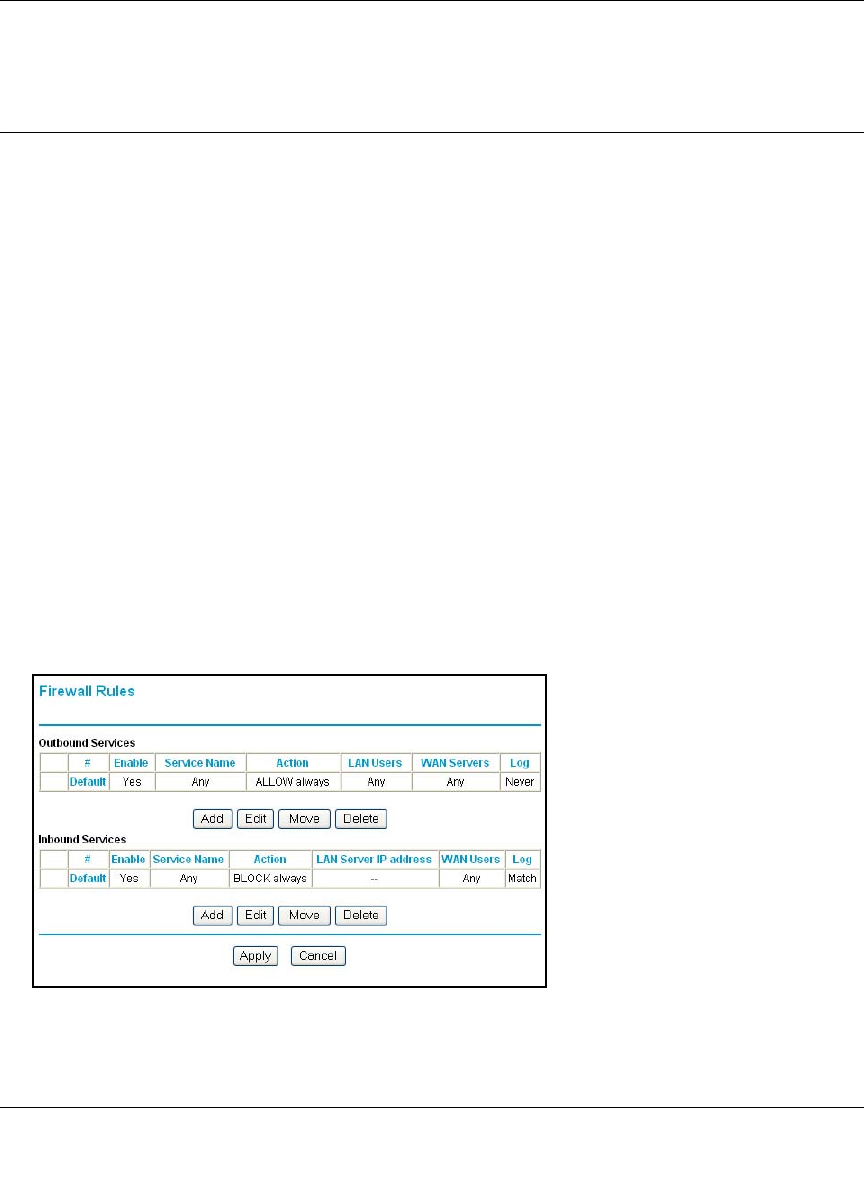

Firewall Rules .................................................................................................................5-5
Inbound Rules (Port Forwarding) .............................................................................5-6
Inbound Rule Example: A Local Public Web Server ..........................................5-7
Inbound Rule Example: Allowing Videoconferencing ........................................5-8
Considerations for Inbound Rules .....................................................................5-8
Outbound Rules (Service Blocking) .........................................................................5-9

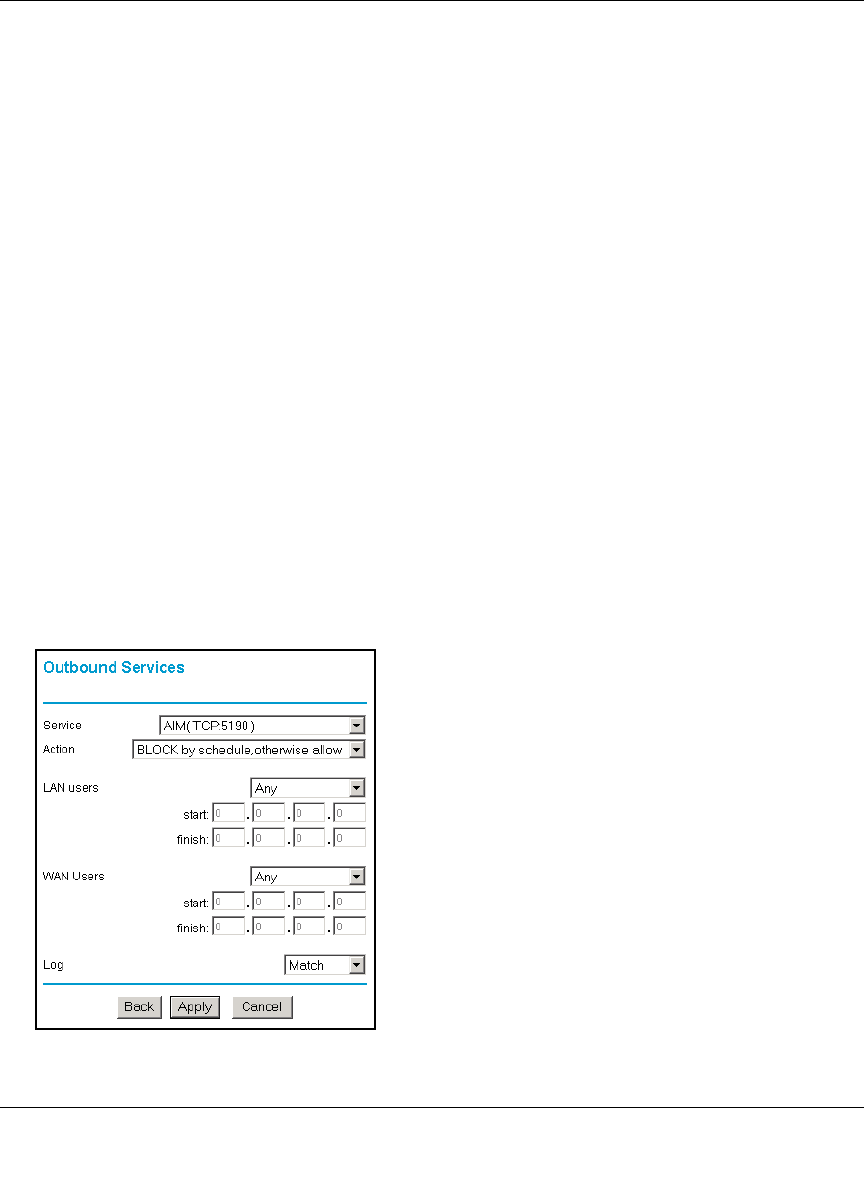

Outbound Rule Example: Blocking Instant Messenger ...................................5-10
Order of Precedence for Rules .............................................................................. 5-11
Services ........................................................................................................................5-12
How to Define Services ..........................................................................................5-12
Setting Times and Scheduling Firewall Services ..........................................................5-13
How to Set Your Time Zone ...................................................................................5-13
How to Schedule Firewall Services ........................................................................5-14
Chapter 6
Managing Your Network
Backing Up, Restoring, or Erasing Your Settings ...........................................................6-1
How to Back Up the Configuration to a File .............................................................6-1
How to Restore the Configuration from a File ..........................................................6-2
How to Erase the Configuration ...............................................................................6-2
Upgrading the Router’s Firmware ...................................................................................6-2
How to Upgrade the Router Firmware .....................................................................6-3
Network Management Information .................................................................................6-4
Viewing Router Status and Usage Statistics ............................................................6-4

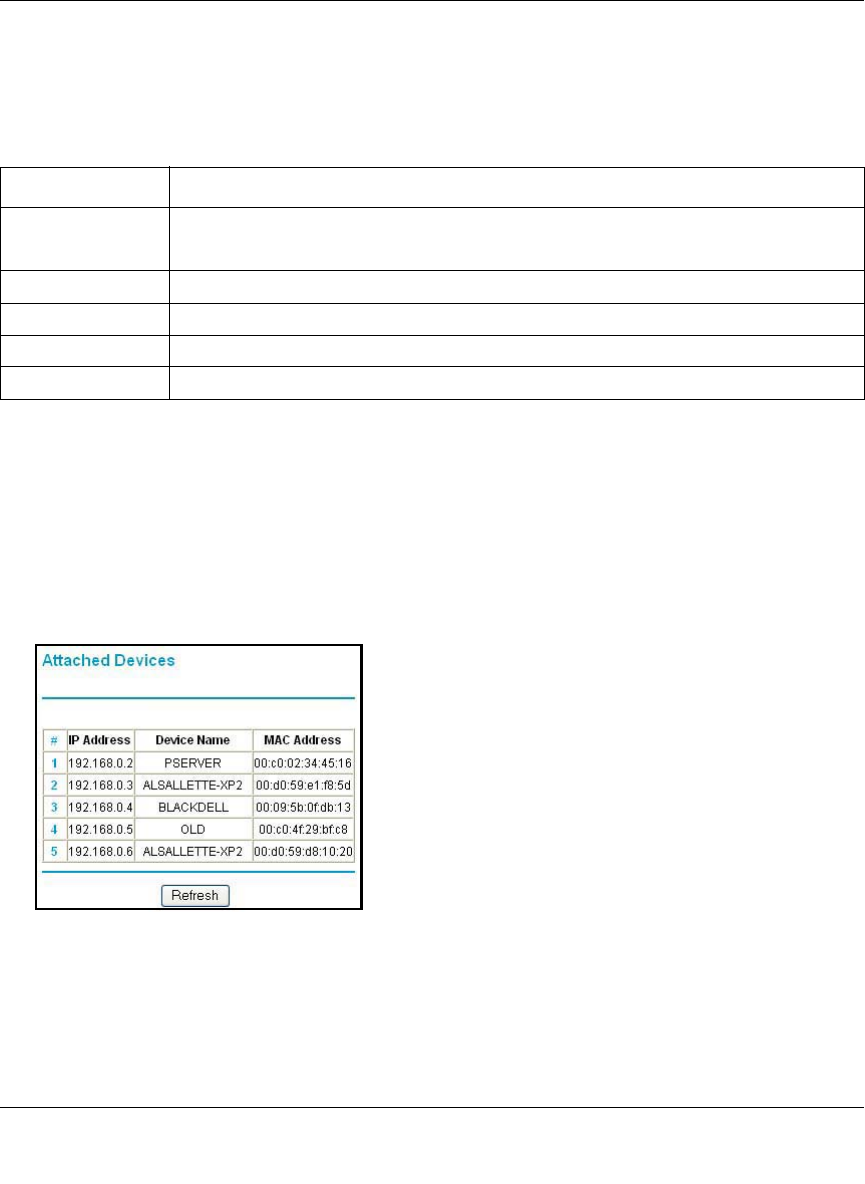

Viewing Attached Devices ........................................................................................6-9
Viewing, Selecting, and Saving Logged Information ..............................................6-10
Selecting What Information to Log .................................................................. 6-11
Saving Log Files on a Server ..........................................................................6-12
![](/img.php?id=450691&img=bg8.png)
viii Contents
Examples of Log Messages ...................................................................................6-12
Activation and Administration ..........................................................................6-12
Dropped Packets .............................................................................................6-12
Enabling Security Event E-mail Notification .................................................................6-13

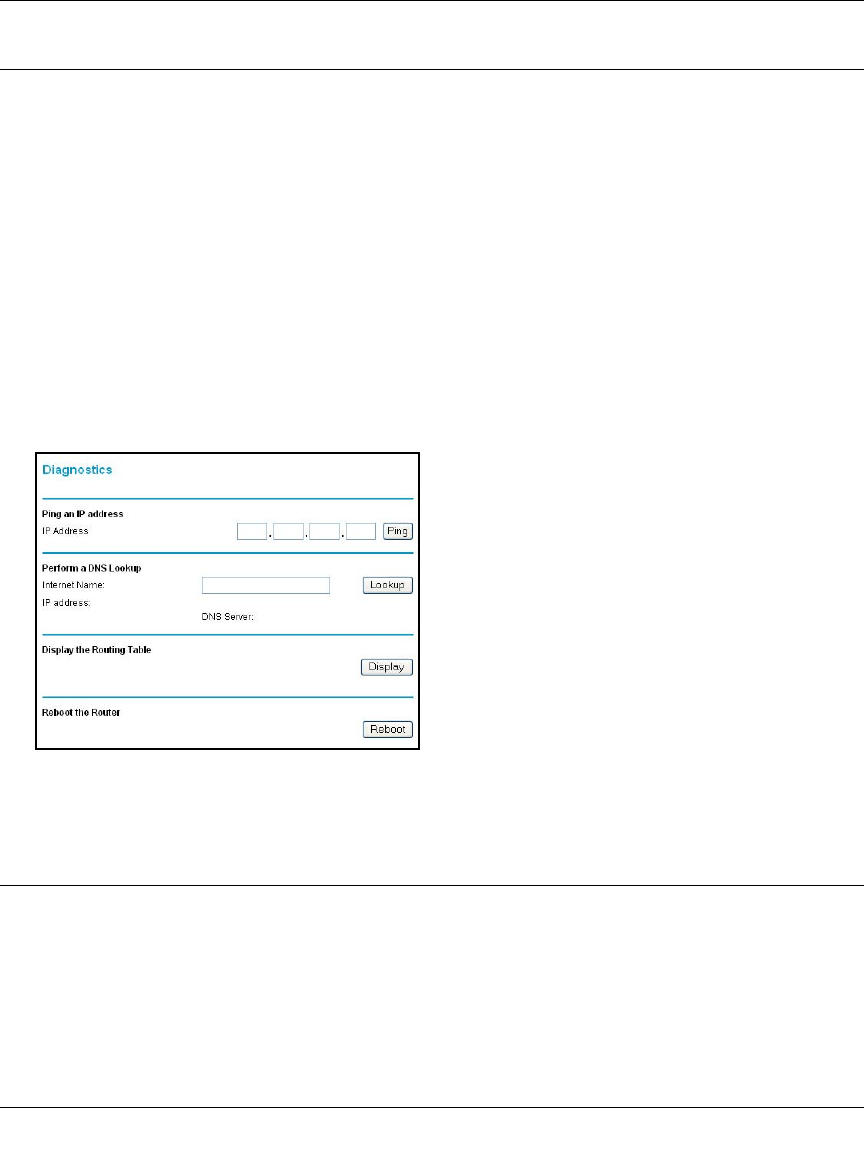

Running Diagnostic Utilities and Rebooting the Router ................................................6-14
Enabling Remote Management ....................................................................................6-14
Configuring Remote Management .........................................................................6-15
Chapter 7
Advanced Configuration
Configuring Advanced Security ......................................................................................7-1
Setting Up A Default DMZ Server ............................................................................7-1
How to Configure a Default DMZ Server ...........................................................7-2

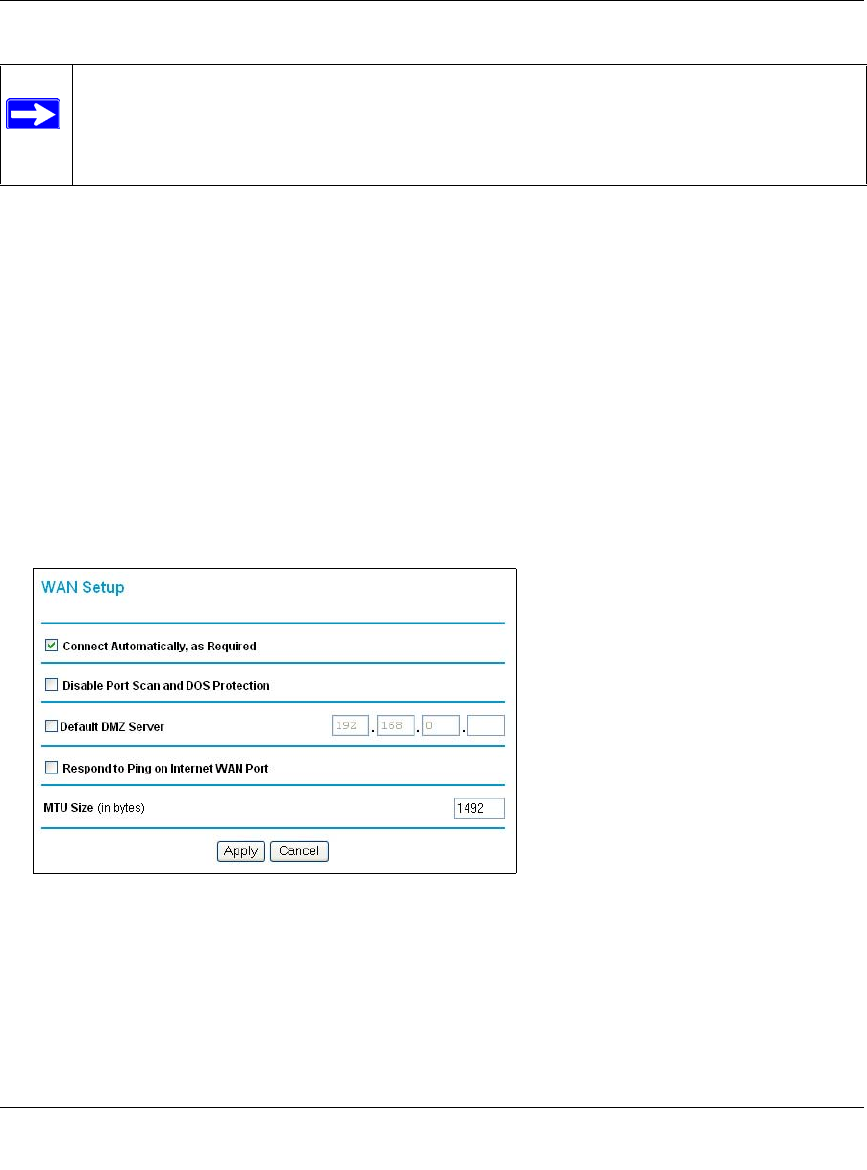

Connect Automatically, as Required ........................................................................7-3
Disable Port Scan and DOS Protection ...................................................................7-3
Respond to Ping on Internet WAN Port ...................................................................7-3
MTU Size .................................................................................................................7-3
Configuring LAN IP Settings ...........................................................................................7-3
DHCP .......................................................................................................................7-5
Use Router as DHCP server .............................................................................7-5
Reserved IP addresses .....................................................................................7-6
How to Configure LAN TCP/IP Settings ...................................................................7-7
Configuring Dynamic DNS .......................................................................................7-7
How to Configure Dynamic DNS ..............................................................................7-8
Using Static Routes ........................................................................................................7-9
Static Route Example ...............................................................................................7-9
How to Configure Static Routes .............................................................................7-10
Chapter 8
Troubleshooting
Basic Functioning ...........................................................................................................8-1
Power LED Not On ...................................................................................................8-2
Test LED Never Turns On or Test LED Stays On .....................................................8-2
LAN or WAN Port LEDs Not On ...............................................................................8-2
Troubleshooting the Web Configuration Interface ..........................................................8-3
Troubleshooting the ISP Connection ..............................................................................8-4
ADSL link .................................................................................................................8-4
![](/img.php?id=450691&img=bg9.png)
Contents ix
WAN LED Blinking Yellow ..................................................................................8-4
WAN LED Off .....................................................................................................8-4
Obtaining a WAN IP Address ...................................................................................8-5
Troubleshooting PPPoE or PPPoA ..........................................................................8-6
Troubleshooting Internet Browsing ..........................................................................8-6
Troubleshooting a TCP/IP Network Using the Ping Utility ..............................................8-7
Testing the LAN Path to Your Router .......................................................................8-7
Testing the Path from Your Computer to a Remote Device .....................................8-8
Restoring the Default Configuration and Password ........................................................8-9
Using the Reset button .............................................................................................8-9
Problems with Date and Time .........................................................................................8-9
Appendix A
Technical Specifications
Appendix B
Network and Routing Basics
Related Publications ...................................................................................................... B-1
Basic Router Concepts .................................................................................................. B-1
What is a Router? ................................................................................................... B-2
Routing Information Protocol ................................................................................... B-2
IP Addresses and the Internet ................................................................................. B-2
Netmask .................................................................................................................. B-4
Subnet Addressing .................................................................................................. B-5
Private IP Addresses ............................................................................................... B-7
Single IP Address Operation Using NAT ................................................................. B-8
MAC Addresses and Address Resolution Protocol ................................................. B-9
Related Documents ................................................................................................. B-9
Domain Name Server ............................................................................................ B-10
IP Configuration by DHCP .................................................................................... B-10
Internet Security and Firewalls .................................................................................... B-10
What is a Firewall? .................................................................................................B-11
Stateful Packet Inspection ......................................................................................B-11
Denial of Service Attack .........................................................................................B-11
Ethernet Cabling ...........................................................................................................B-11
Category 5 Cable Quality ...................................................................................... B-12
Inside Twisted Pair Cables .................................................................................... B-13
![](/img.php?id=450691&img=bga.png)
xContents
Uplink Switches, Crossover Cables, and MDI/MDIX Switching ............................ B-14
Appendix C
Preparing Your Network
Preparing Your Computers for TCP/IP Networking ....................................................... C-1
Configuring Windows 95, 98, and Me for TCP/IP Networking ....................................... C-2
Install or Verify Windows Networking Components ................................................. C-2
Enabling DHCP to Automatically Configure TCP/IP Settings in Windows 95B, 98, and Me
C-4
Selecting Windows’ Internet Access Method .......................................................... C-6
Verifying TCP/IP Properties .................................................................................... C-6
Configuring Windows NT4, 2000 or XP for IP Networking ............................................ C-7
Install or Verify Windows Networking Components ................................................. C-7
DHCP Configuration of TCP/IP in Windows XP, 2000, or NT4 ............................... C-8
DHCP Configuration of TCP/IP in Windows XP ..................................................... C-8
DHCP Configuration of TCP/IP in Windows 2000 ................................................ C-10
DHCP Configuration of TCP/IP in Windows NT4 .................................................. C-13
Verifying TCP/IP Properties for Windows XP, 2000, and NT4 .............................. C-15
Configuring the Macintosh for TCP/IP Networking ...................................................... C-16
MacOS 8.6 or 9.x .................................................................................................. C-16
MacOS X ............................................................................................................... C-16
Verifying TCP/IP Properties for Macintosh Computers ......................................... C-17
Verifying the Readiness of Your Internet Account ....................................................... C-18
Are Login Protocols Used? ................................................................................... C-18
What Is Your Configuration Information? .............................................................. C-18
Obtaining ISP Configuration Information for Windows Computers ....................... C-19
Obtaining ISP Configuration Information for Macintosh Computers ..................... C-20
Restarting the Network ................................................................................................ C-21
Appendix D
Wireless Networking Basics
Wireless Networking Overview ...................................................................................... D-1
Infrastructure Mode ................................................................................................. D-1
Ad Hoc Mode (Peer-to-Peer Workgroup) ................................................................ D-2
Network Name: Extended Service Set Identification (ESSID) ................................ D-2
Authentication and WEP ................................................................................................ D-3
802.11b Authentication ............................................................................................ D-3
Open System Authentication ................................................................................... D-4
![](/img.php?id=450691&img=bgb.png)
Contents xi
Shared Key Authentication ...................................................................................... D-4
Overview of WEP Parameters ................................................................................ D-5
Key Size .................................................................................................................. D-6
WEP Configuration Options .................................................................................... D-7
Wireless Channels ......................................................................................................... D-7
Glossary
Index
![](/img.php?id=450691&img=bgc.png)
xii Contents
![](/img.php?id=450691&img=bgd.png)
About This Guide 1
Chapter 1
About This Guide
Thank you for purchasing the NETGEAR™ DG834G Wireless ADSL Firewall Router.
Audience, Conventions, Scope
This reference manual assumes that the reader has basic-to-intermediate computer and Internet
skills. However, basic computer network, Internet, firewall, and networking technology tutorial
information is provided in the Appendices.
This guide uses the following typographical conventions:
This manual is written for the DG834G wireless router according to these specifications:
Table 1. Typographical conventions
italics Emphasis, books, CDs, URL names
bold times roman User input
courier font Screen text, file and server names, extensions, commands, IP addresses
Note: This format is used to highlight information of importance or special interest.
Table 1-1. Manual Specifications
Product Version DG834G Wireless ADSL Firewall Router
Manual Publication Date October 2003
Note: Product updates are available on the NETGEAR, Inc. Web site at http://
www.netgear.com/support/main.asp. Documentation updates are available on the
NETGEAR, Inc. Web site at http://www.netgear.com/docs.
![](/img.php?id=450691&img=bge.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2About This Guide
How to Use this Manual
The HTML version of this manual includes these features.
Figure 1 -1: HTML version of this manual
1. Left pane. Use the left pane to view the Contents, Index, Search, and Favorites tabs.
To view the HTML version of the manual, you must have a version 4 or later browser with
JavaScript enabled.
2. Toolbar buttons. Use the toolbar buttons across the top to navigate, print pages, and more.
–The Show in Contents button locates the current topic in the Contents tab.
–Previous/Next buttons display the previous or next topic.
–The PDF button links to a PDF version of the full manual.
–The Print button prints the current topic. Using this button when a step-by-step
procedure is displayed will send the entire procedure to your printer—you do not
have to worry about specifying the correct range of pages.
3. Right pane. Use the right pane to view the contents of the manual. Also, each page of the
manual includes a link at the top right which links to a PDF file
containing just the currently selected chapter of the manual.
12
3
![](/img.php?id=450691&img=bgf.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
About This Guide 3
How to Print this Manual
To print this manual you can choose one of the following several options, according to your needs.
•Printing a “How To” Sequence of Steps in the HTML View. Use the Print button on the
upper right side of the toolbar to print the currently displayed topic. Using this button when a
step-by-step procedure is displayed will send the entire procedure to your printer—you do not
have to worry about specifying the correct range of pages.
•Printing a Chapter. Use the link at the top right of any page.
– Click the “PDF of This Chapter” link at the top right of any page in the chapter you want
to print. A new browser window opens showing the PDF version of the chapter you were
viewing.
– Click the print icon in the upper left of the window.
–Tip: If your printer supports printing two pages on a single sheet of paper, you can save
paper and printer ink by selecting this feature.
•Printing the Full Manual. Use the PDF button in the toolbar at the top right of the browser
window.
– Click the PDF button. A new browser window opens showing the PDF version of the
chapter you were viewing.
– Click the print icon in the upper left side of the window.
–Tip: If your printer supports printing two pages on a single sheet of paper, you can save
paper and printer ink by selecting this feature.
![](/img.php?id=450691&img=bg10.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4About This Guide
![](/img.php?id=450691&img=bg11.png)
Introduction 2-1
Chapter 2
Introduction
This chapter describes the features of the NETGEAR DG834G Wireless ADSL Firewall Router.
The DG834G wireless router is a combination of a built-in ADSL modem, router, 4-port switch,
and firewall which enables your entire network to safely share an Internet connection that
otherwise is used by a single computer.
About the Router
The DG834G Wireless ADSL Firewall Router provides continuous, high-speed 10/100 Ethernet
access between your wireless and Ethernet devices. The DG834G wireless router enables your
entire network to share an Internet connection through the built-in ADSL modem that otherwise is
used by a single computer. With minimum setup, you can install and use the router within minutes.
The DG834G wireless router provides multiple Web content filtering options, plus e-mail
browsing activity reporting and instant alerts. Parents and network administrators can establish
restricted access policies based on time-of-day, Web site addresses and address keywords, and
share high-speed ADSL Internet access for up to 253 personal computers. The included firewall
and Network Address Translation (NAT) features protect you from hackers.
Note: If you are unfamiliar with networking and routing, refer to Appendix B, “Network
and Routing Basics”, to become more familiar with the terms and procedures used in this
manual.
![](/img.php?id=450691&img=bg12.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2-2 Introduction
Key Features
The DG834G wireless router provides the following features:
• A powerful, true firewall
• 802.11b standards-based wireless networking
• Content filtering
• Auto Sensing and Auto Uplink™ LAN Ethernet connections
• Extensive Internet protocol support
• Easy, Web-based setup for installation and management
• A built-in ADSL modem
These features are discussed below.
802.11b Standards-based Wireless Networking
The DG834G wireless router includes an 802.11b-compliant wireless access point, providing
continuous, high-speed 10/100 Mbps access between your wireless and Ethernet devices. The
access point provides:
• 802.11b Standards-based wireless networking at up to 100 Mbps
• 64-bit and 128-bit WEP encryption security
• WEP keys can be entered manually or generated by passphrase
• Wireless access can be restricted by MAC address.
A Powerful, True Firewall
Unlike simple Internet sharing NAT routers, the DG834G is a true firewall, using stateful packet
inspection to defend against hacker attacks. Its firewall features include:
• Denial of Service (DoS) protection
Automatically detects and thwarts Denial of Service (DoS) attacks such as Ping of Death,
SYN Flood, LAND Attack and IP Spoofing.
• Blocks unwanted traffic from the Internet to your LAN.
• Blocks access from your LAN to Internet locations or services that you specify as off-limits.
![](/img.php?id=450691&img=bg13.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Introduction 2-3
• Logs security incidents
The DG834G will log security events such as blocked incoming traffic, port scans, attacks,
and administrator logins. You can configure the router to email the log to you at specified
intervals. You can also configure the router to send immediate alert messages to your email
address or email pager whenever a significant event occurs.
Content Filtering
With its content filtering feature, the DG834G prevents objectionable content from reaching your
computers. The router allows you to control access to Internet content by screening for keywords
within Web addresses. You can configure the router to log and report attempts to access
objectionable Internet sites.
Auto Sensing and Auto Uplink™ LAN Ethernet Connections
With its internal 4-port 10/100 switch, the DG834G can connect to either a 10 Mbps standard
Ethernet network or a 100 Mbps Fast Ethernet network. The local LAN ports are autosensing and
capable of full-duplex or half-duplex operation.
The router incorporates Auto UplinkTM technology. Each local Ethernet port will automatically
sense whether the Ethernet cable plugged into the port should have a ‘normal’ connection such as
to a computer or an ‘uplink’ connection such as to a switch or hub. That port will then configure
itself to the correct configuration. This feature also eliminates the need to worry about crossover
cables, as Auto Uplink will accommodate either type of cable to make the right connection.
Protocol Support
The DG834G supports Transmission Control Protocol/Internet Protocol (TCP/IP) and Routing
Information Protocol (RIP). Appendix B, “Network and Routing Basics” provides further
information on TCP/IP.
• The Ability to Enable or Disable IP Address Sharing by NAT
The DG834G allows several networked computers to share an Internet account using only a
single IP address, which may be statically or dynamically assigned by your Internet service
provider (ISP). This technique, known as Network Address Translation (NAT), allows the use
of an inexpensive single-user ISP account. This feature can also be turned off completely for
using the DG834G if you want to manage the IP address scheme yourself.
![](/img.php?id=450691&img=bg14.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2-4 Introduction
• Automatic Configuration of Attached Computers by DHCP
The DG834G dynamically assigns network configuration information, including IP, gateway,
and domain name server (DNS) addresses, to attached computers on the LAN using the
Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies configuration
of computers on your local network.
• DNS Proxy
When DHCP is enabled and no DNS addresses are specified, the router provides its own
address as a DNS server to the attached computers. The router obtains actual DNS addresses
from the ISP during connection setup and forwards DNS requests from the LAN.
• Classical IP (RFC 1577)
Some Internet service providers, in Europe for example, use Classical IP in their ADSL
services. In such cases, the router is able to use the Classical IP address from the ISP.
• PPP over Ethernet (PPPoE)
PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an ADSL
connection by simulating a dial-up connection. This feature eliminates the need to run a login
program such as EnterNet or WinPOET on your computer.
• PPP over ATM (PPPoA)
PPP over ATM is a protocol for connecting remote hosts to the Internet over an ADSL
connection by simulating an ATM connection.

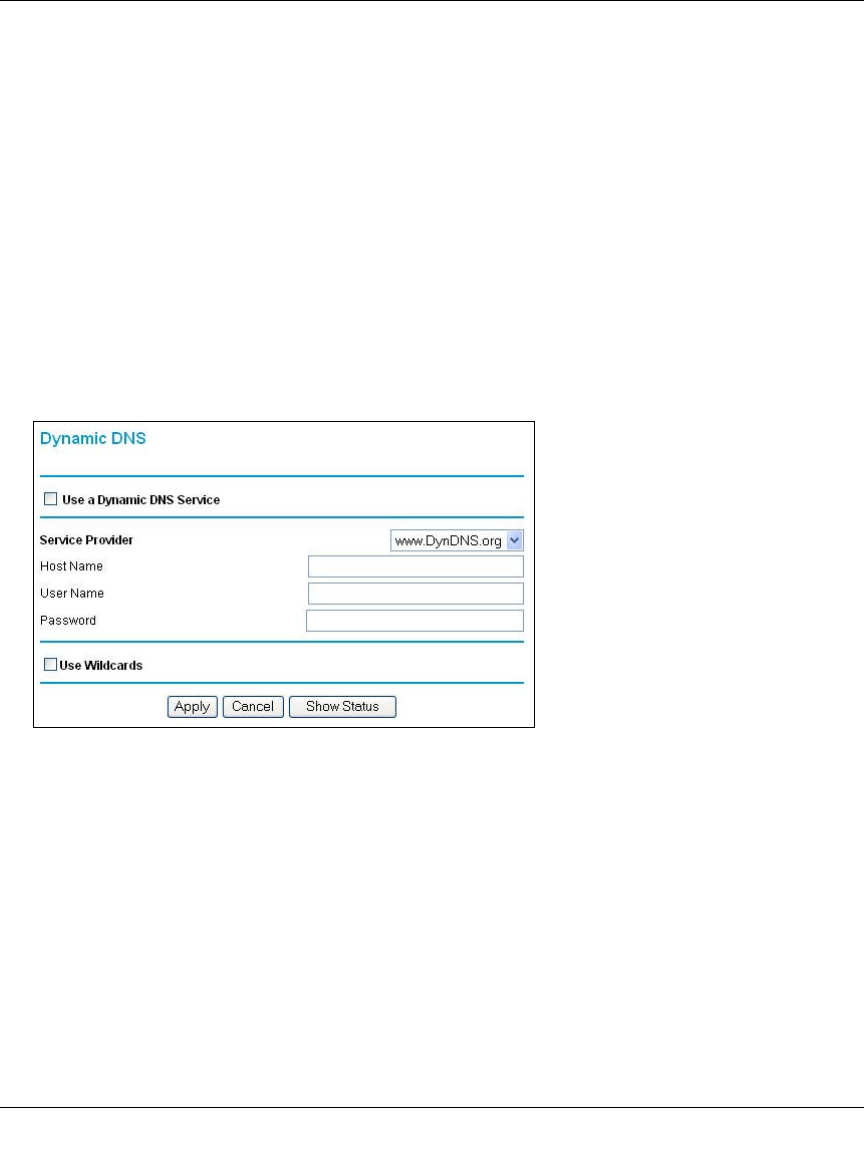

• Dynamic DNS
Dynamic DNS services allow remote users to find your network using a domain name when
your IP address is not permanently assigned. The router contains a client that can connect to
many popular Dynamic DNS services to register your dynamic IP address.
• Universal Plug and Play (UPnP)
UPnP is a networking architecture that provides compatibility among networking technology.
UPnP compliant routers provide broadband users at home and small businesses with a
seamless way to participate in online games, videoconferencing and other peer-to-peer
services.
Easy Installation and Management
You can install, configure, and operate the DG834G within minutes after connecting it to the
network. The following features simplify installation and management tasks:
![](/img.php?id=450691&img=bg15.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Introduction 2-5

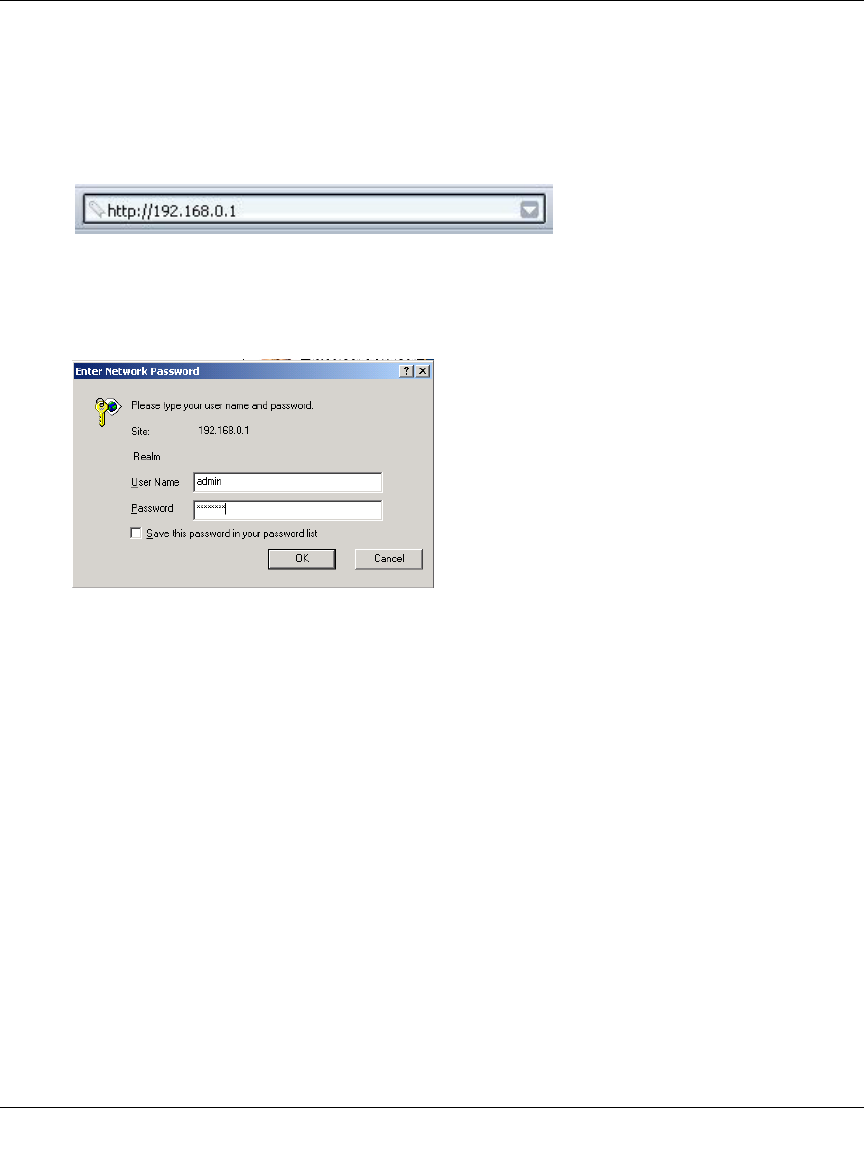

• Browser-based management
Browser-based configuration allows you to easily configure your router from almost any type
of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup Wizard is
provided and online help documentation is built into the browser-based Web Management
Interface.
• Smart Wizard
The router automatically senses the type of Internet connection, asking you only for the
information required for your type of ISP account.
• Remote management
The router allows you to login to the Web management interface from a remote location via
the Internet. For security, you can limit remote management access to a specified remote IP
address or range of addresses, and you can choose a nonstandard port number.
• Diagnostic functions
The router incorporates built-in diagnostic functions such as Ping, DNS lookup, and remote
reboot. These functions allow you to test Internet connectivity and reboot the router. You can
use these diagnostic functions directly from the DG834G when your are connect on the LAN
or when you are connected over the Internet via the remote management function.
• Visual monitoring
The router’s front panel LEDs provide an easy way to monitor its status and activity.
• Flash erasable programmable read-only memory (EPROM) for firmware upgrade
What’s in the Box?
The product package should contain the following items:
• DG834G Wireless ADSL Firewall Router
• AC power adapter (varies by region)
• Category 5 (Cat 5) Ethernet cable
• Telephone cable
• Microfilters (quantity and type vary by region)
•Wireless ADSL Firewall Router Resource CD, including:
—This guide
— Application Notes
• A printed Quick Installation Guide
• Warranty and Support Information cards
![](/img.php?id=450691&img=bg16.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2-6 Introduction
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
The Router’s Front Panel

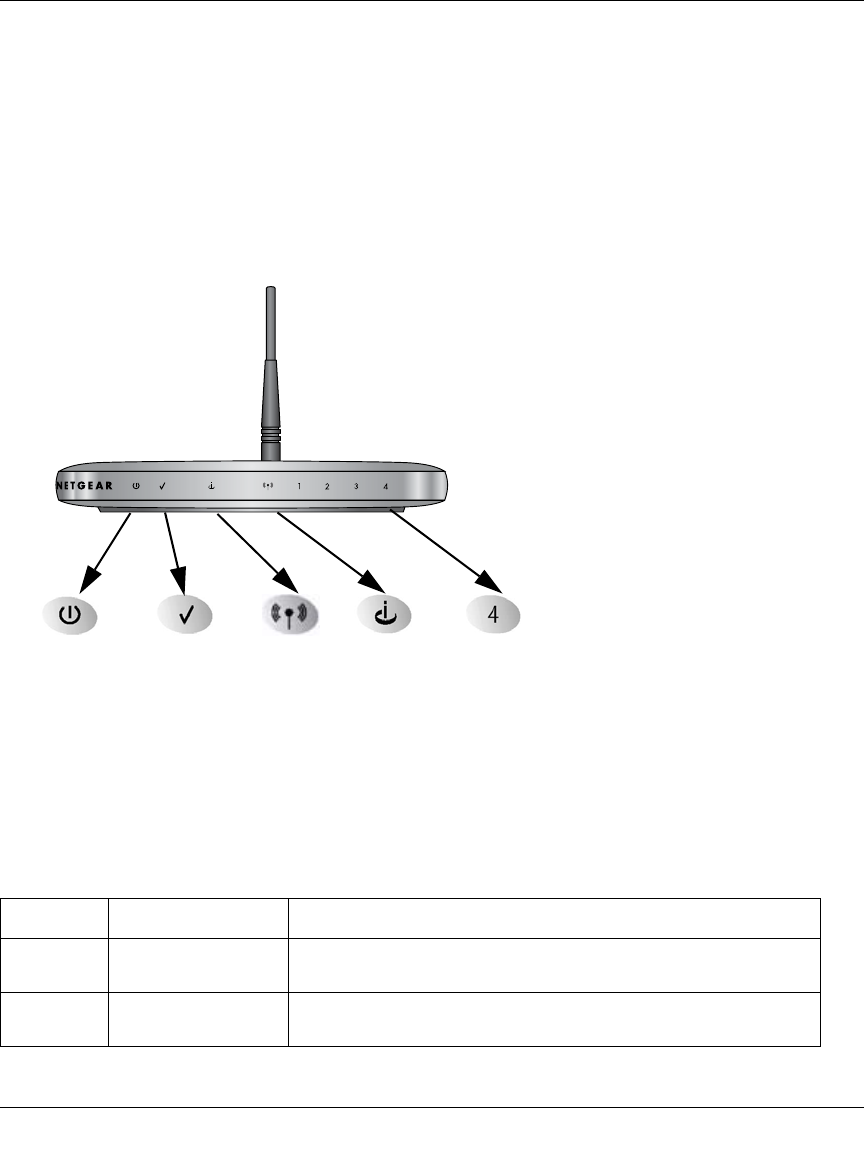

The DG834G Wireless ADSL Firewall Router front panel shown below contains status LEDs.
Figure 2-1: DG834G Front Panel
You can use the LEDs to verify various conditions. Table 2-1 lists and describes each LED on the
front panel of the router. These LEDs are green when lit.
Table 2-1. LED Descriptions
Label Activity Description
Power On
Off
Power is supplied to the router.
Power is not supplied to the router.
Tes t On
Off
The system is initializing.
The system is ready and running.
Wireless ADSL Modem Gateway DG834
G
Power Test Internet Wireless LAN
![](/img.php?id=450691&img=bg17.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Introduction 2-7
The Router’s Rear Panel
The rear panel of the DG834G Wireless ADSL Firewall Router (Figure 2-2) contains port
connections.
Figure 2-2: DG834G Rear Panel
Viewed from left to right, the rear panel contains the following elements:
• AC power adapter outlet
• Wireless antenna
• Four Local Ethernet RJ-45 ports for connecting the router to the local computers
• Factory Default Reset push button
• ADSL port for connecting the router to an ADSL line
Internet Blink -- Amber
On -- Green
Blink -- Green
Indicates ADSL training.
The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
Wireless On
Off
Indicates that the Wireless port is initialized.
The Wireless Access Point is turned off.
LAN On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local port has detected link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
Table 2-1. LED Descriptions
![](/img.php?id=450691&img=bg18.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2-8 Introduction
![](/img.php?id=450691&img=bg19.png)
Connecting the Router to the Internet 3-1
Chapter 3
Connecting the Router to the Internet
This chapter describes how to set up the router on your Local Area Network (LAN) and connect to
the Internet. It describes how to configure your DG834G Wireless ADSL Firewall Router for
Internet access using the Setup Wizard, or how to manually configure your Internet connection.
What You Need Before You Begin
You need to prepare the following before you can establish an Internet connection through your
router:
1. The router connected to an ADSL line and a computer properly connected to the router as
explained below.
2. Active Internet service such as that provided by an ADSL account.
3. The Internet Service Provider (ISP) configuration information for your DSL account.
Note: If you purchased the DG834G in a country where a microfilter is not included, you must
acquire one.
ADSL Microfilter Requirements
ADSL technology uses the same wires as your telephone service. However, ADSL adds signals to
the telephone lines which create noise in the telephone service. You must use ADSL microfilters to
filter out these signals before they reach your telephone.

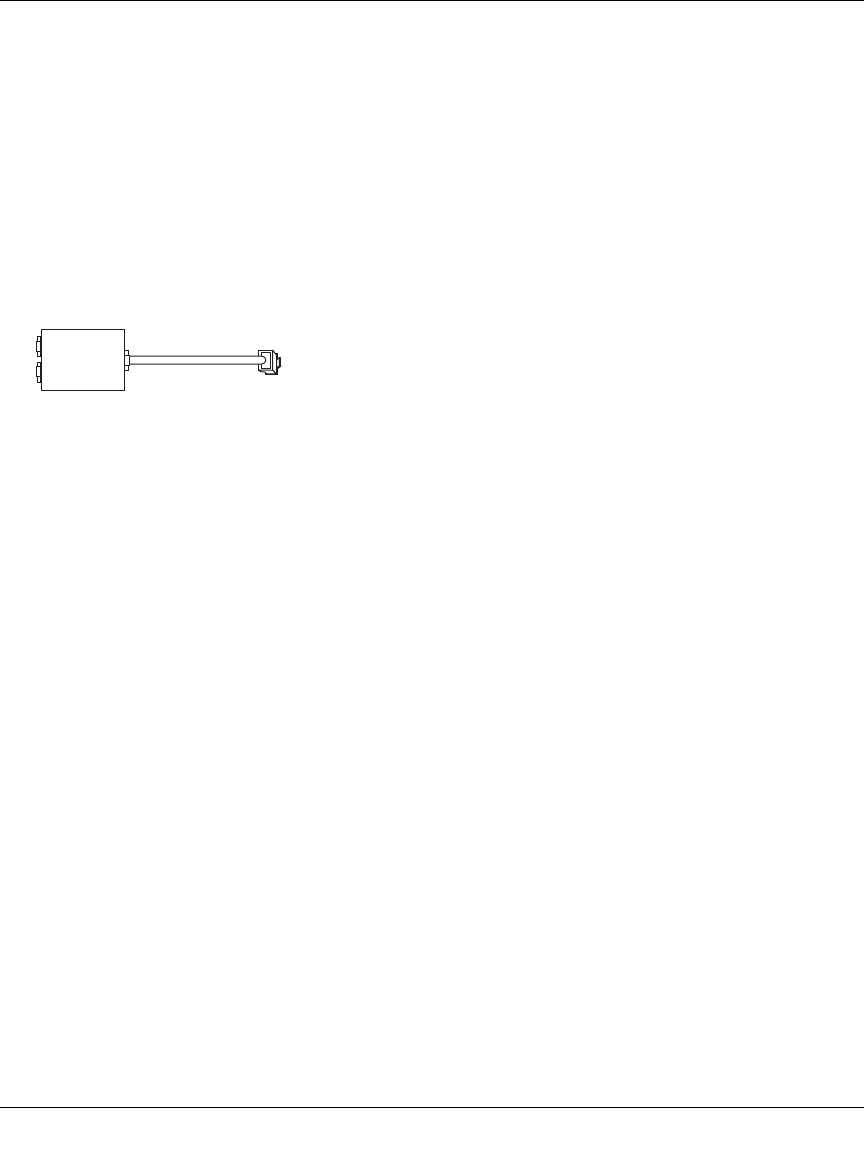

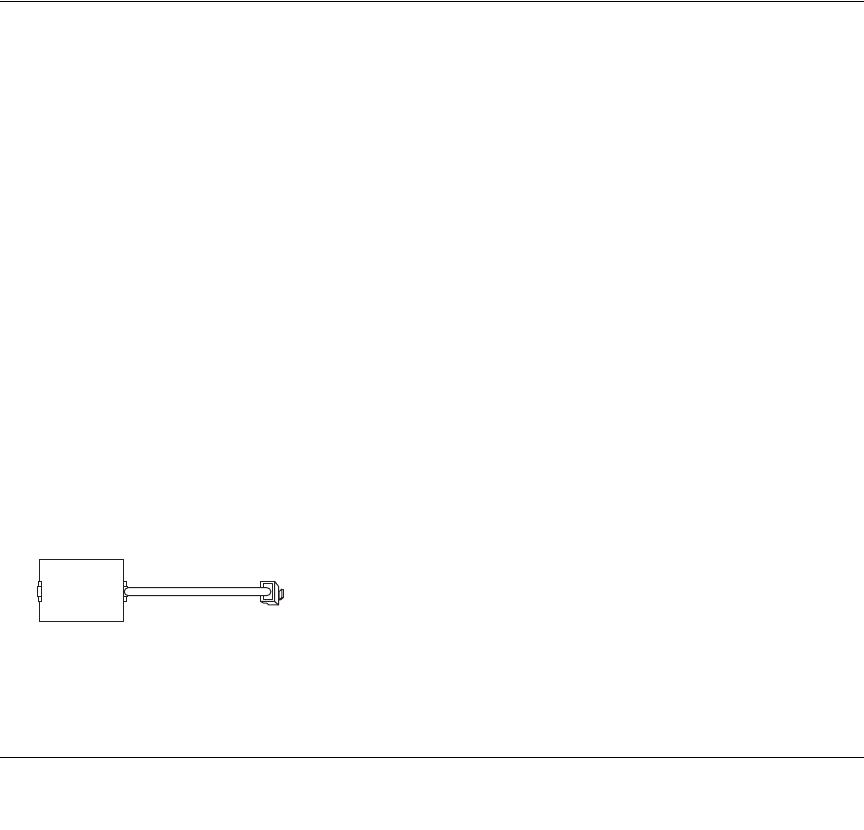

ADSL Microfilter
Figure 3-1: ADSL microfilter
Phone
![](/img.php?id=450691&img=bg1a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-2 Connecting the Router to the Internet
Each device such as a telephone, fax machine, answering machine, or caller ID display will require
an ADSL microfilter.
Note: Do not connect the DG834G to the ADSL line through a microfilter unless the microfilter is
a combination microfilter/splitter specifically designed for this purpose. Doing so will prevent the
built-in ADSL modem in the DG834G from establishing a connection to the Internet. If you have
any doubts about this, connect the DG834G directly to the ADSL line.

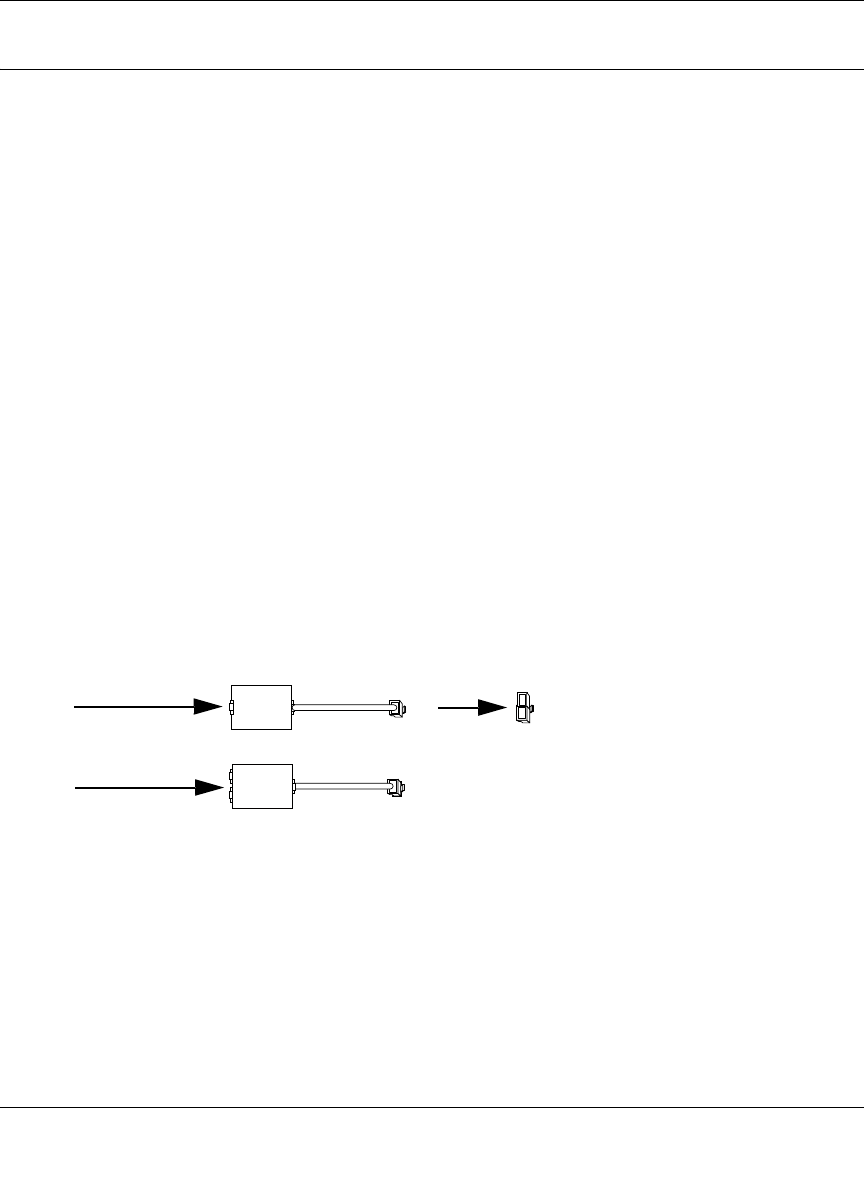

ADSL Microfilter with Built-In Splitter
Figure 3-2: ADSL microfilter with built-in splitter
Use an ADSL microfilter with built-in splitter when there is a single wall outlet which must
provide connectivity for both the DG834G and telephone equipment.

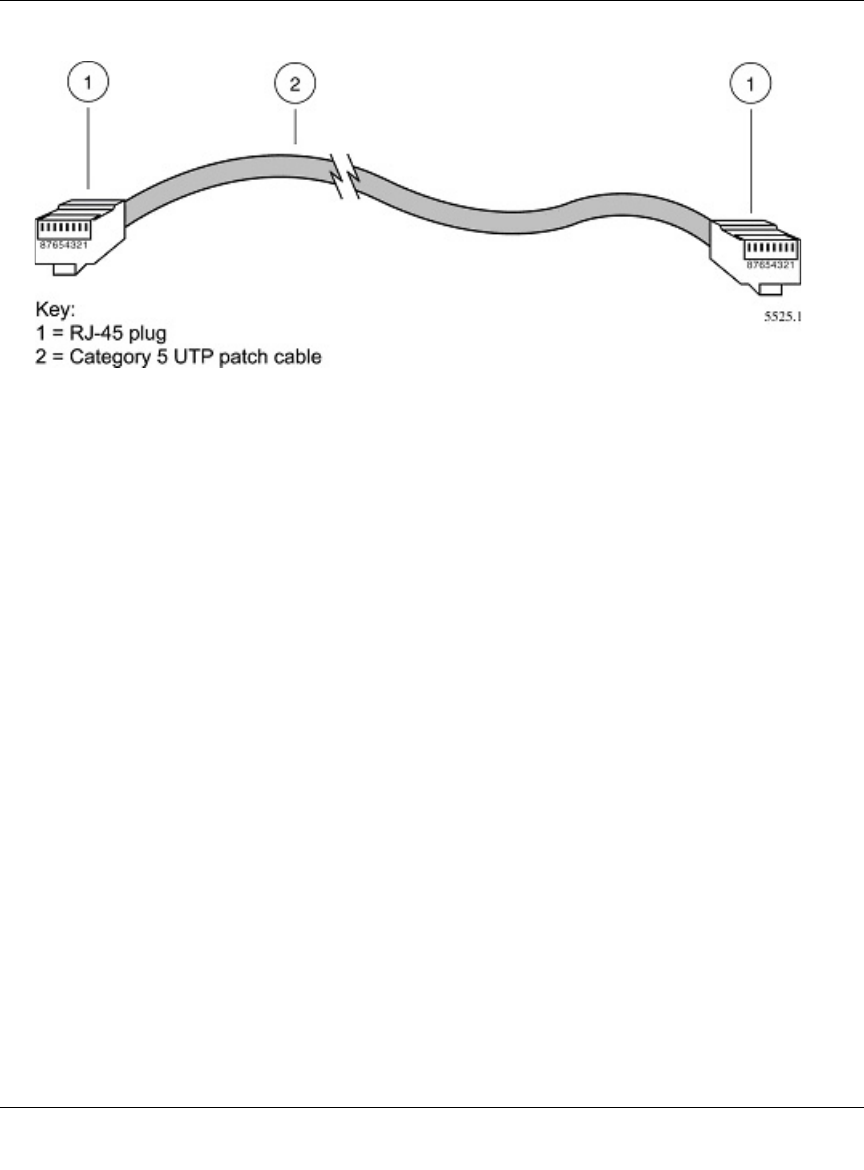

Ethernet Cabling Requirements
The DG834G wireless router connects to your Ethernet LAN via twisted-pair cables. If the
computer will connect to your network at 100 Mbps, you must use a Category 5 (CAT5) cable such
as the one provided with your router.
Computer Hardware Requirements
To use the DG834G wireless router on your network, each computer must have an installed
Ethernet adapter and an Ethernet cable, or a 802.11b wireless adapter.
LAN Configuration Requirements
For the initial connection to the Internet and configuration of your router, you need to connect a
computer to the router which is set to automatically get its TCP/IP configuration from the router
via DHCP.
Note: Please refer to Appendix C, “Preparing Your Network” for assistance with DHCP
configuration.
Phone
DSL
Line
![](/img.php?id=450691&img=bg1b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-3
Internet Configuration Requirements
Depending on how your ISP set up your Internet account, you need one or more of these
configuration parameters to connect your router to the Internet:
• Virtual Path Identifier (VPI)/Virtual Channel Indentifier (VCI) parameters
• Multiplexing Method
• Host and Domain Names
• ISP Login Name and Password
• ISP Domain Name Server (DNS) Addresses
• Fixed or Static IP Address
Where Do I Get the Internet Configuration Parameters?
There are several ways you can gather the required Internet connection information.
• Your ISP should have provided you with all the information needed to connect to the Internet.
If you cannot locate this information, you can ask your ISP to provide it or you can try one of
the options below.
• If you have a computer already connected using the active Internet access account, you can
gather the configuration information from that computer.

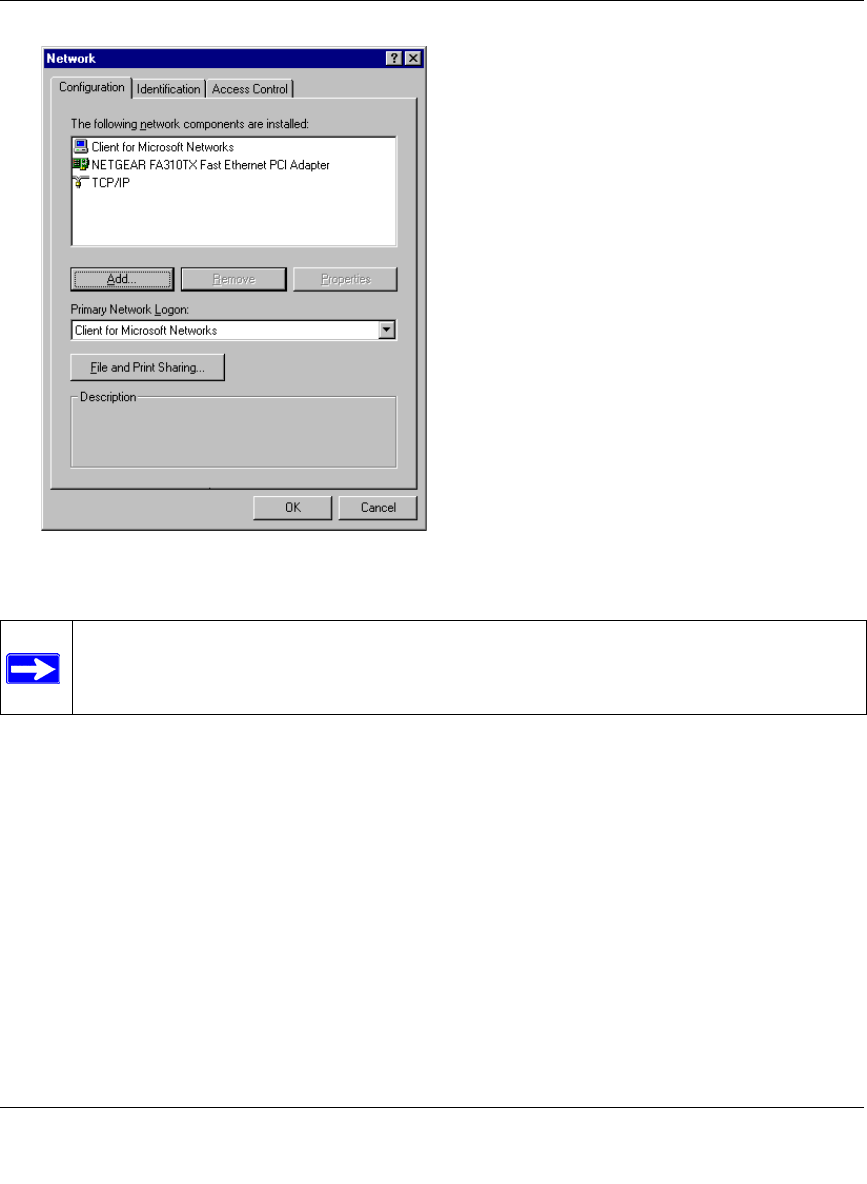

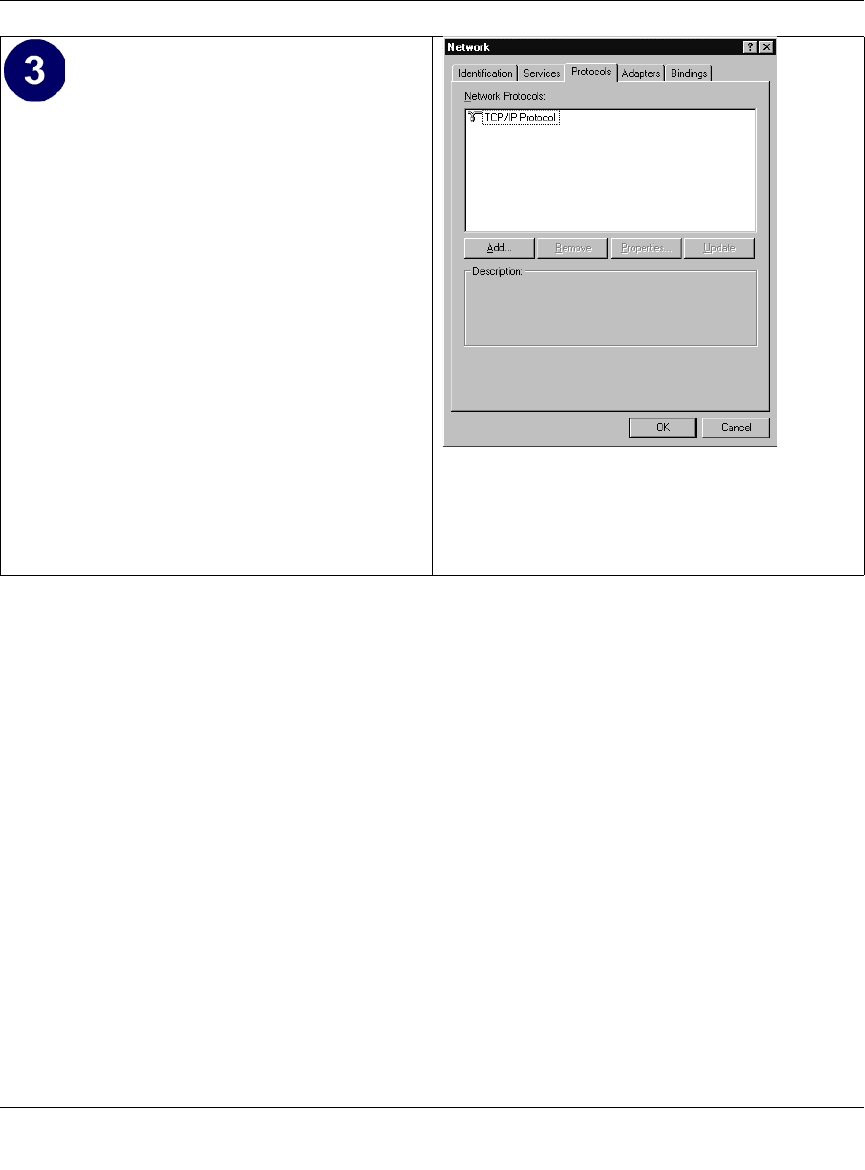

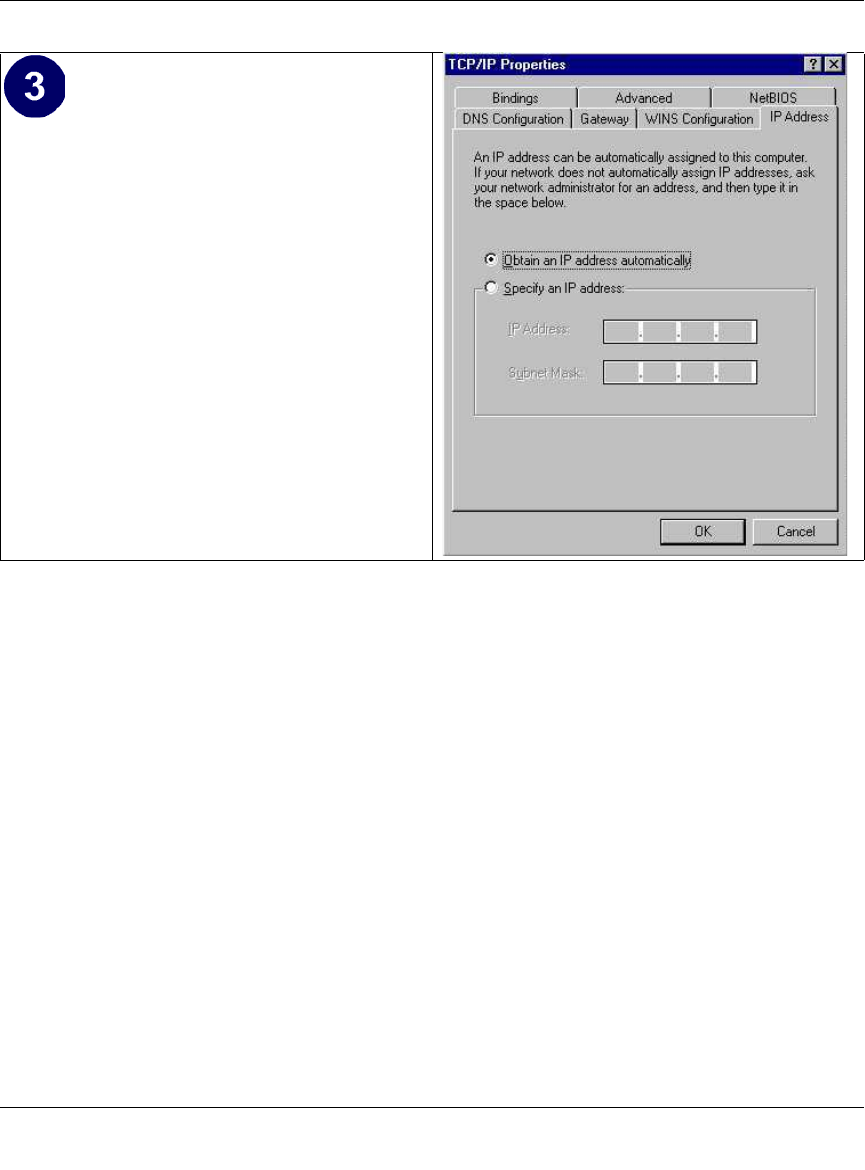

• For Windows 95/98/ME, open the Network control panel, select the TCP/IP entry for the
Ethernet adapter, and click Properties.

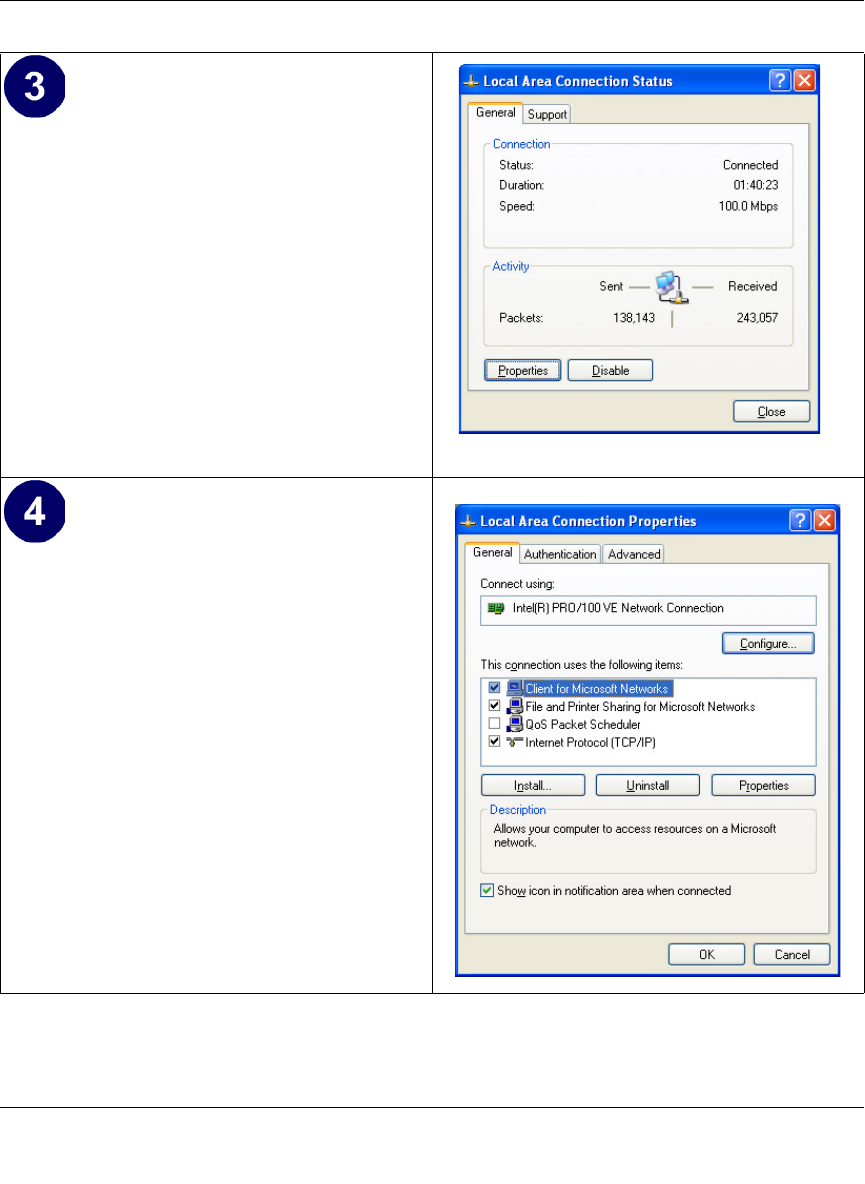

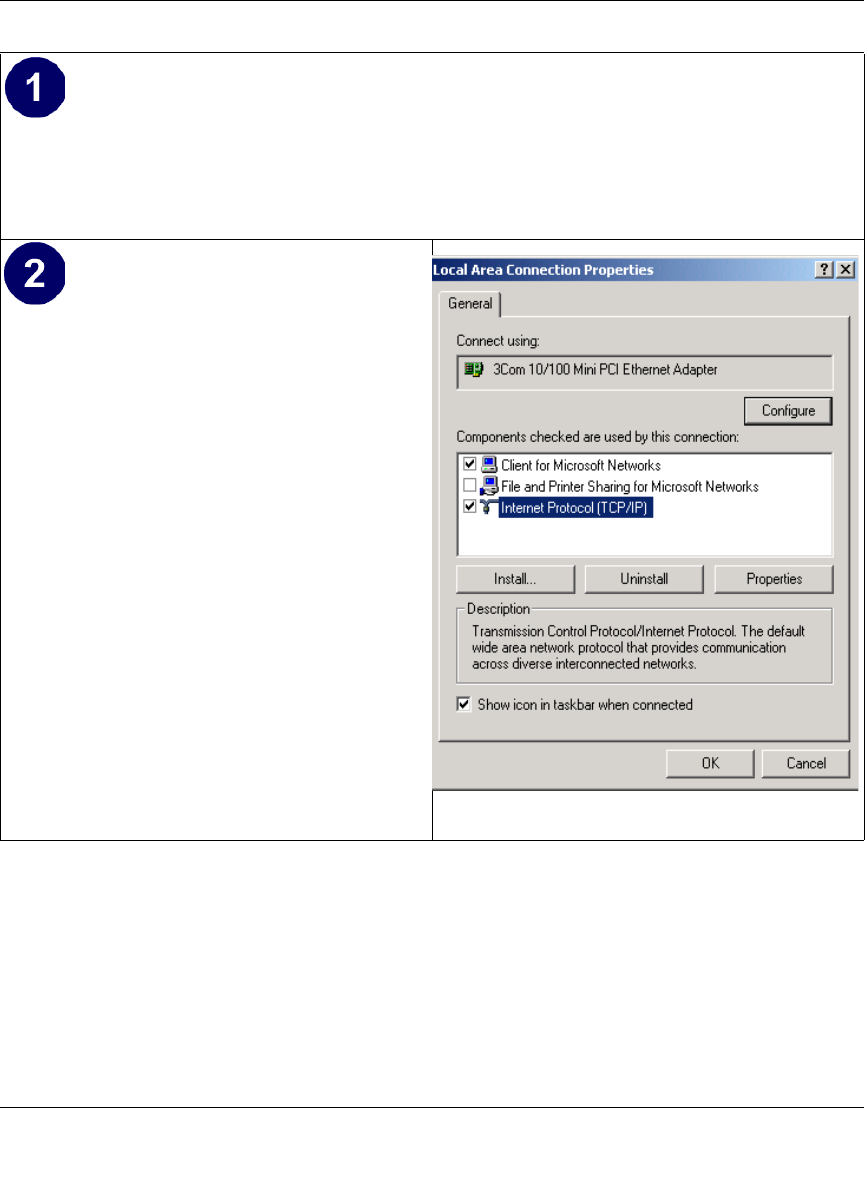

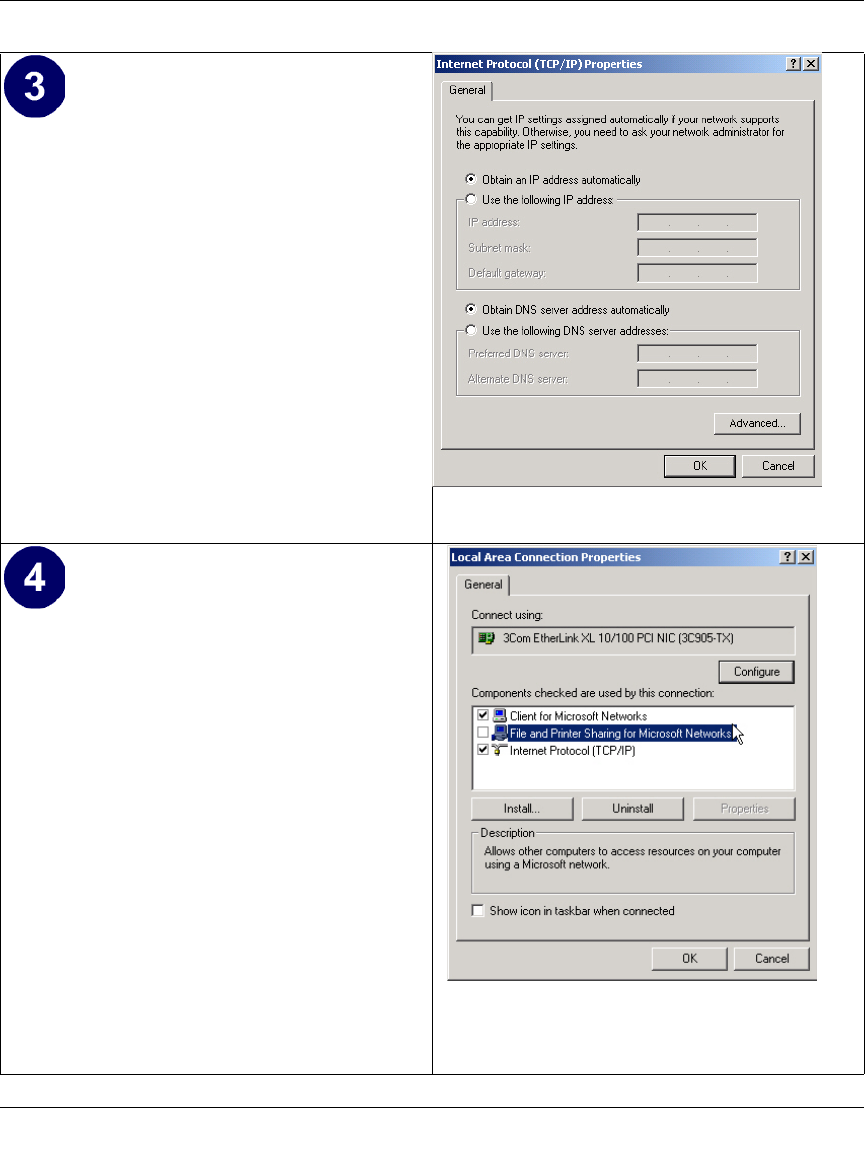

• For Windows 2000/XP, open the Local Area Network Connection, select the TCP/IP entry
for the Ethernet adapter, and click Properties.

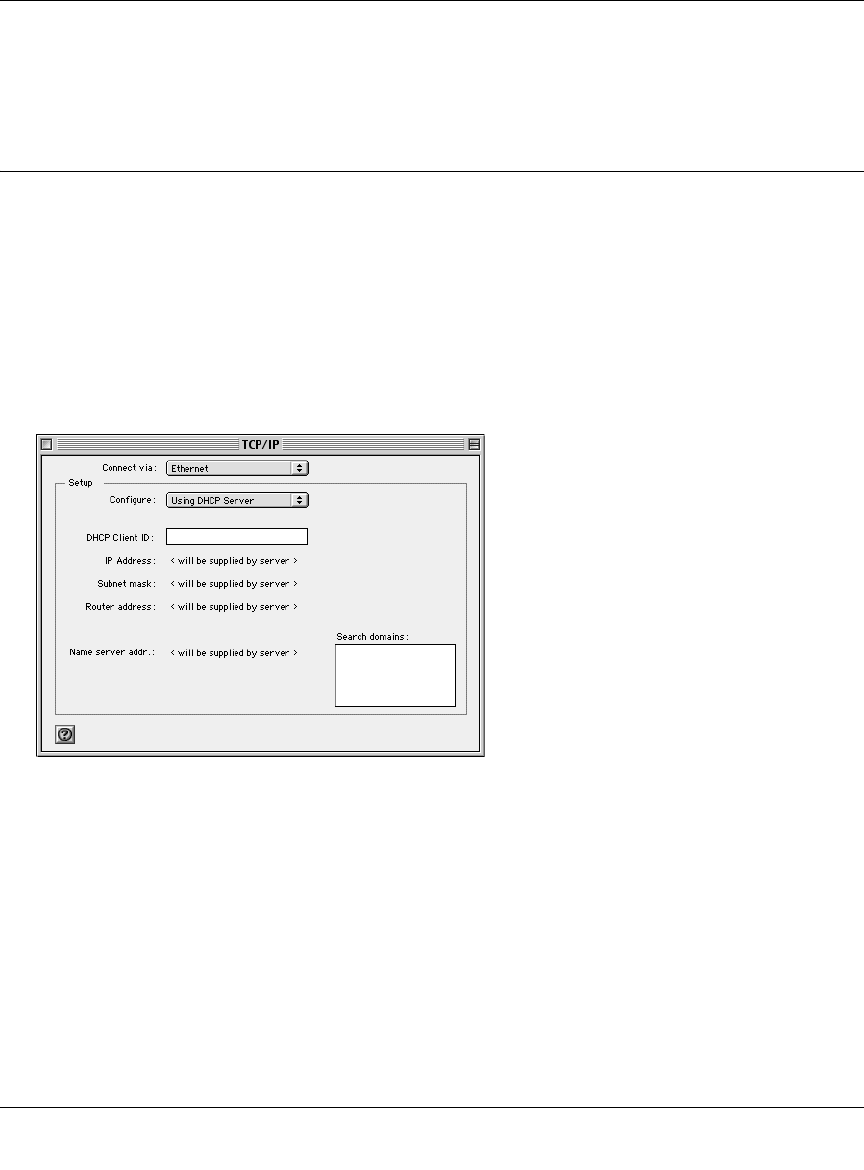

• For Macintosh computers, open the TCP/IP or Network control panel.
• You can also refer to the DG834G Resource CD for the NETGEAR Router ISP Guide which
provides Internet connection information for many ISPs.
Once you locate your Internet configuration parameters, you may want to record them on the page
below according to the instructions in “Record Your Internet Connection Information” on page
3-3.
Record Your Internet Connection Information
Print the following page. Fill in the configuration parameters from your Internet Service Provider
(ISP).
![](/img.php?id=450691&img=bg1c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-4 Connecting the Router to the Internet
ISP Multiplexing Method and Virtual Circuit Number: The default settings of your DG834G
Wireless ADSL Firewall Router will work fine for most ISPs. However, some ISPs use a specific
Multiplexing Method or a Virtual Circuit Number for either the Virtual Path Identifier (VPI) or
Virtual Channel Identifier (VCI). If your ISP provided you with a specific Multiplexing Method or
VPI/VCI number, then fill in the following:
Multiplexing Method, circle one: LLC-based or VC-based
VPI: ________ A number between 0 and 255. VCI: ___________ A number between 1 and
65535.
ISP Login Name: The login name and password are case sensitive and must be entered exactly as
given by your ISP. Some ISPs use your full e-mail address as the login name. The Service Name is
not required by all ISPs. If you use a login name and password, then fill in the following:
Login Name: ______________________________ Password: ____________________________
Service Name: _____________________________
Fixed or Static IP Address: If you have a static IP address, record the following information. For
example, 169.254.141.148 could be a valid IP address.
Fixed or Static Internet IP Address: ______ . ______ . ______ . ______
Router IP Address: ______ . ______ . ______ . ______
Subnet Mask: ______ . ______ . ______ . ______
ISP DNS Server Addresses: If you were given DNS server addresses, fill in the following:
Primary DNS Server IP Address: ______ . ______ . ______ . ______
Secondary DNS Server IP Address: ______ . ______ . ______ . ______
Host and Domain Names: Some ISPs use a specific host or domain name like CCA7324-A or
home. If you did not get host or domain names, use the following examples as a guide:
• If your main e-mail account with your ISP is aaa@yyy.com, then use aaa as your host name.
Your ISP might call this your account, user, host, computer, or system name.
• If your ISP’s mail server is mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.
ISP Host Name: _________________________ ISP Domain Name: _______________________
For Wireless Access: For configuration of the wireless network, record the following:
Wireless Network Name (SSID): __________________
WEP Authentication (circle one): Automatic, Open System, or Shared Key
WEP Encryption (circle one): 64 or 128; Passphrase or Key: ____________________
![](/img.php?id=450691&img=bg1d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-5
Connecting the DG834G to Your LAN
This section provides instructions for connecting the DG834G wireless router.
Note: The Resource CD included with your router contains an animated Installation Assistant to
help you through this procedure.
How to Connect the Router
There are four steps to connecting your firewall:
1. Connect the router to your ADSL line.
2. Connect the router to the computers on your network.
3. Log in to the router.
4. Connect to the Internet.
Follow the steps below to connect your router to your network. Before you begin, locate the ADSL
configuration information from your Internet Service Provider (ISP).
1. CONNECT THE DG834G TO THE ADSL LINE.
a. You need to install a filter on every telephone or device that shares the same phone
number as your ADSL router. Select the filter that came with your router.
Figure 3-3: ADSL microfilters
Note: If you purchased the DG834G in a country where the filter is not included, you must
acquire one.
b. Two-Line Filter Example. Insert the two-line filter into the phone outlet and connect the
phone to the phone line connector (A):
Phone
Phone
DSL
Line
One-Line Filter
Two-Line Filter
Splitter
With Splitter
![](/img.php?id=450691&img=bg1e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-6 Connecting the Router to the Internet
.
Figure 3-4: Connecting an ADSL microfilter and phone
Note: To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the filter.
2. CONNECT THE DG834G TO THE INTERNET.
Note: Improperly connecting a filter to your DG834G wireless router will block your ADSL
connection.
a. Turn off your computer.
b. Connect the ADSL port of the DG834G to the ADSL port (B) of the two-line filter:.
Figure 3-5: Connecting the DG834G wireless router to an ADSL microfilter and phone
Phone
DSL
Line
A
Phone
DSL
Line
B
![](/img.php?id=450691&img=bg1f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-7
c. Connect the Ethernet cable (C) from your DG834G’s LAN port to the Ethernet adapter in
your computer.

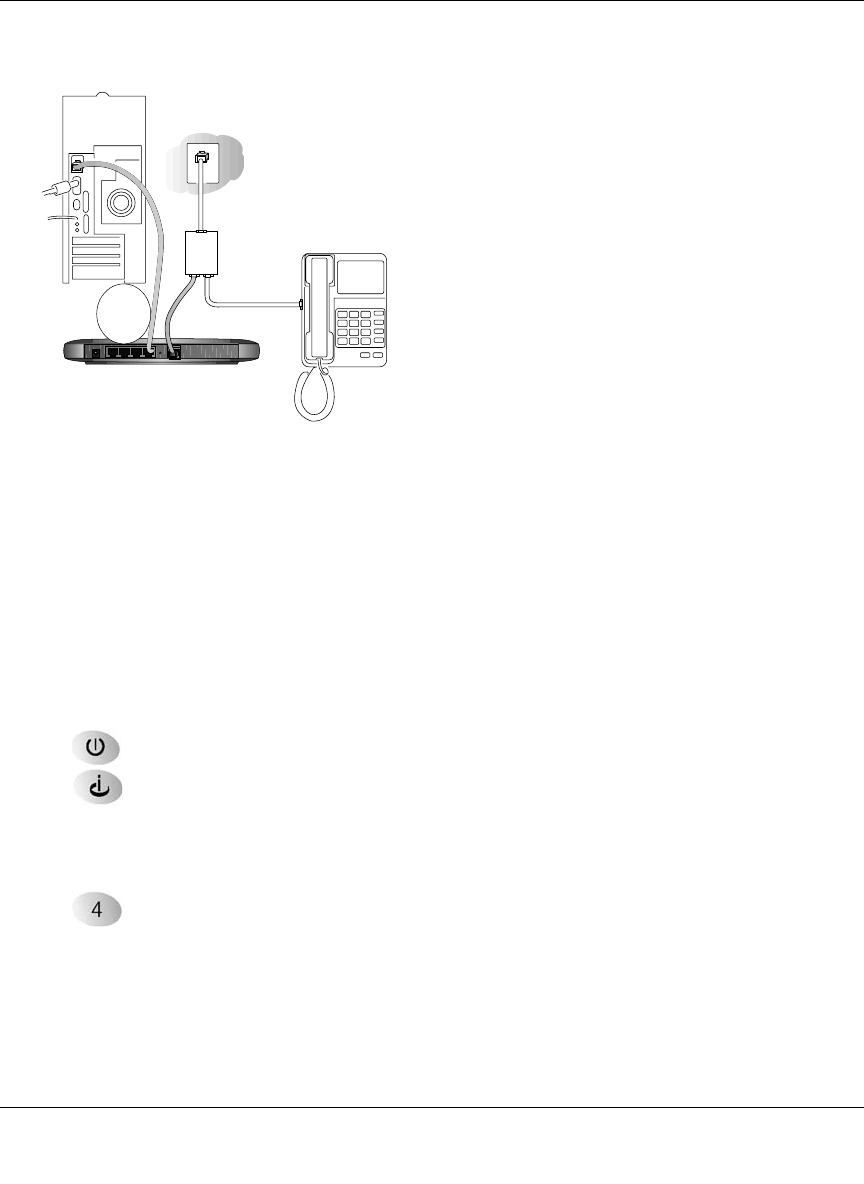

Figure 3-6: Connecting a computer to the DG834G wireless router

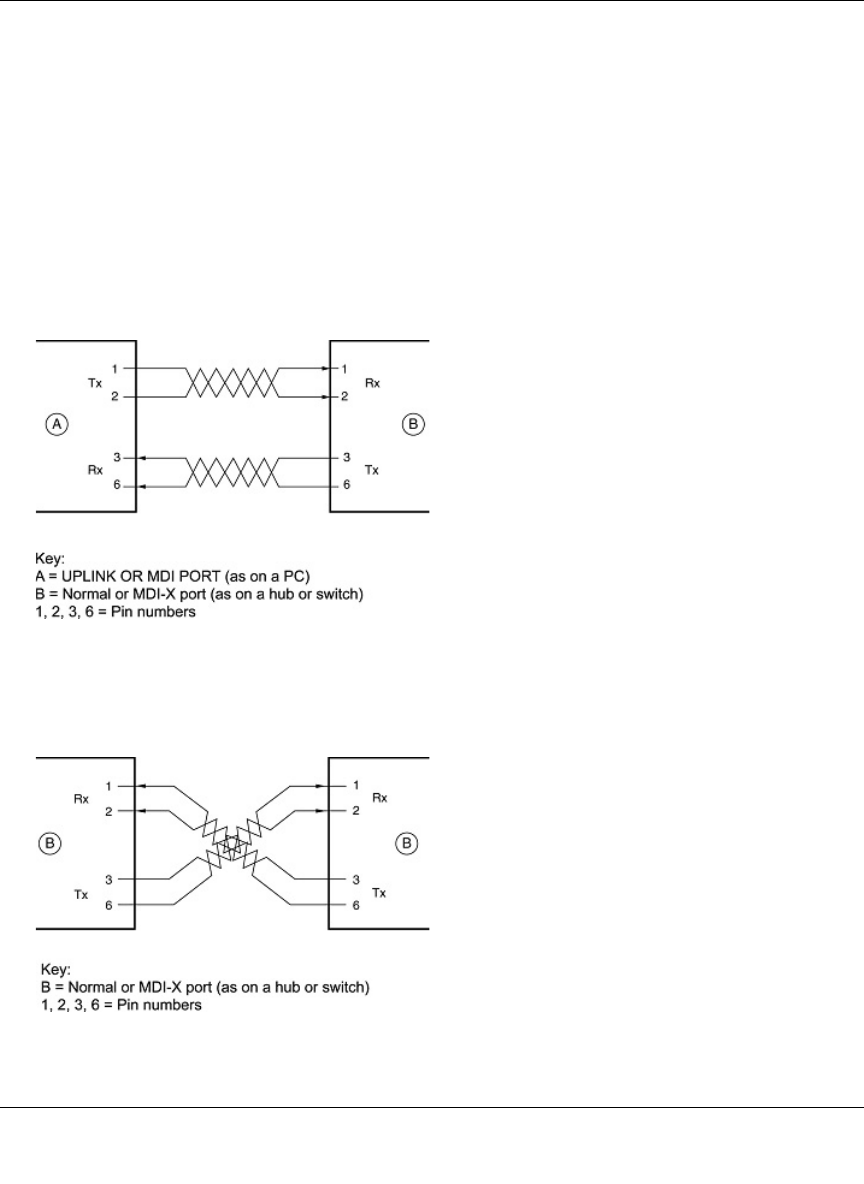

Note: The DG834G wireless router incorporates Auto UplinkTM technology. Each Ethernet
LAN port will automatically sense whether the cable plugged into the port should have a
'normal' connection (for example, connecting to a computer) or an 'uplink' connection (for
example, connecting to a switch or hub). That port will then configure itself to the correct
configuration. This feature also eliminates the need to worry about crossover cables, as Auto
Uplink will accommodate either type of cable to make the right connection.
d. Connect the power adapter to the router and plug it in to a power outlet. Verify the
following:
The power light is lit after turning on the router.
The ADSL link light is solid green, indicating a link has been established to the
ADSL network.
e. Now, turn on your computer. If software usually logs you in to your Internet connection,
do not run that software or cancel it if it starts automatically. Verify the following:
The local lights are lit for any connected computers.
Note: For instructions on connecting computers to the DG834G via wireless links, please
see the Chapter 4, “Wireless Configuration”.
Phone
DSL
Line
C
![](/img.php?id=450691&img=bg20.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-8 Connecting the Router to the Internet
3. LOG IN TO THE DG834G.
Note: Your computer needs to be configured for DHCP. For instructions on configuring for
DHCP, please see Appendix C, “Preparing Your Network”.
a. Connect to the router by typing http://192.168.0.1 in the address field of Internet Explorer
or Netscape® Navigator.
Figure 3-7: Connect to the router
A login window opens as shown below:
Figure 3-8: Login window
b. When prompted, enter admin for the user name and password for the password, both in
lower case letters. After logging in, you will see the menu below.
![](/img.php?id=450691&img=bg21.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-9
Figure 3-9: Setup Wizard
4. CONNECT TO THE INTERNET
The router is now properly attached to your network. You are now ready to configure your
router to connect to the Internet. There are two ways you can configure your router to connect
to the Internet:
a. Let the DG834G auto-detect the type of Internet connection you have and configure it. See
“Auto-Detecting Your Internet Connection Type” on page 3-9 for instructions.
b. Manually choose which type of Internet connection you have and configure it. See
“Manually Configuring Your Internet Connection” on page 3-15 for instructions.
These options are described below. In either case, unless your ISP automatically assigns your
configuration automatically via DHCP, you need the configuration parameters from your ISP you
recorded in “Record Your Internet Connection Information” on page 3-3.
Auto-Detecting Your Internet Connection Type
The Web Configuration Manager built in to the router contains a Setup Wizard that can
automatically determine your network connection type.
1. If your router has not yet been configured, the Setup Wizard shown in Figure 3-9 should
launch automatically.
![](/img.php?id=450691&img=bg22.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-10 Connecting the Router to the Internet
Note: If instead of the Setup Wizard menu, the main menu of the router’s Configuration
Manager as shown in Figure 3-15 appears, click the Setup Wizard link in the upper left to
bring up this menu.
2. You must select a country and language. Language choices are English, French, German, and
Italian. After you change the language, the remaining setup screens change to the language of
your choice.
3. Select Yes to allow the router to automatically determine your connection.
4. Click Next.
The Setup Wizard will now check for the following connection types:
• Dynamic IP assignment
• A login protocol such as PPPoE or PPPoA
• Classical IP over ATM (RFC1577)
• Fixed IP address assignment
Next, the Setup Wizard will report which connection type it has discovered, and then display
the appropriate configuration page. If the Setup Wizard finds no connection, you will be
prompted to check the physical connection between your router and the ADSL line. When the
connection is properly made, the router’s Internet LED should be on.
5. The ADSL settings for the multiplexing method and VPI/VCI will update with the preset
defaults. The multiplexing method preset default settings will usually work. Only change the
multiplexing method if you are sure your ISP requires Virtual Path Identifier (VPI) or Virtual
Channel Identifier (VCI) settings that are different from the default values.
Incorrect VPI or VCI settings will prevent you from connecting to the Internet. To change
these settings, click the ADSL Settings link on the main menu. See “ADSL Settings” on page
3-19 for more details.
The procedures for filling in the configuration page for each type of connection follow below.
![](/img.php?id=450691&img=bg23.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-11
Wizard-Detected PPPoE Login Account Setup
If the Setup Wizard determines that your Internet service account uses a login protocol such as
PPP over Ethernet (PPPoE), you will be directed to the PPPoE page shown in Figure 3-10:
Figure 3-10: Setup Wizard menu for PPPoE login accounts
Enter the PPPoE login user name and password.
Wizard-Detected PPPoA Login Account Setup
If the Setup Wizard determines that your Internet service account uses a login protocol such as
PPP over ATM (PPPoA), you will be directed to the PPPoA page shown in Figure 3-10 below:
Figure 3-11: Setup Wizard menu for PPPoA login accounts
Enter your login user name and password. These fields are case sensitive.
![](/img.php?id=450691&img=bg24.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-12 Connecting the Router to the Internet
Wizard-Detected Dynamic IP Account Setup
If the Setup Wizard determines that your Internet service account uses Dynamic IP assignment,
you will be directed to the page shown in Figure 3-12 below:
Figure 3-12: Setup Wizard menu for Dynamic IP address
Click Apply to set Dynamic IP as the connection method.
Wizard-Detected IP Over ATM Account Setup
If the Setup Wizard determines that your Internet service account uses IP Over ATM Classical IP
assignment (RFC1577), you will be directed to the page shown in Figure 3-13 below:
Figure 3-13: Setup Wizard menu for IP Over ATM (Classical IP) address
1. Enter your assigned IP Address and Subnet Mask. This information should have been
provided to you by your ISP. You need the configuration parameters from your ISP you
recorded in “Record Your Internet Connection Information” on page 3-3.
2. Enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is
available, enter it also.
![](/img.php?id=450691&img=bg25.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-13
DNS servers are required to perform the function of translating an Internet name such as
www.netgear.com to a numeric IP address. For a fixed IP address configuration, you must
obtain DNS server addresses from your ISP and enter them manually here.
3. Click Apply to save the settings.
4. Click the Test button to test your Internet connection. If the NETGEAR Web site does not
appear within one minute, refer to Chapter 7, “Troubleshooting”.
Wizard-Detected Fixed IP (Static) Account Setup
If the router determines that your Internet service account uses Fixed IP assignment, you will be
directed to the page shown in Figure 3-14 below:
Figure 3-14: Setup Wizard menu for Fixed IP address
1. If required, enter the Account Name and Domain Name from your ISP.
2. Choose “Use Static IP Address” or “Use IP Over ATM” (IPoA — RFC1483 Routed)
according to the information from your ISP. If you choose IPoA, the router will be able to
detect the gateway IP address but you still need to provide the router IP address.
3. Enter your assigned IP Address, Subnet Mask, and the IP Address of your ISP’s gateway
router. This information should have been provided to you by your ISP. You need the
configuration parameters from your ISP you recorded in “Record Your Internet Connection
Information” on page 3-3.
![](/img.php?id=450691&img=bg26.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-14 Connecting the Router to the Internet
4. Enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is
available, enter it also.
DNS servers are required to perform the function of translating an Internet name such as
www.netgear.com to a numeric IP address. For a fixed IP address configuration, you must
obtain DNS server addresses from your ISP and enter them manually here.
5. Click Apply to save the settings.
6. Click the Test button to test your Internet connection. If the NETGEAR Web site does not
appear within one minute, refer to Chapter 7, “Troubleshooting”.
Testing Your Internet Connection
After completing the Internet connection configuration, your can test your Internet connection.
Log in to the router, then, from the Basic Settings link in the Setup menu, click the Test button. If
the NETGEAR Web site does not appear within one minute, refer to Chapter 7,
“Troubleshooting”.
Your router is now configured to provide Internet access for your network. Your router
automatically connects to the Internet when one of your computers requires access. It is not
necessary to run a dialer or login application such as Dial-Up Networking or Enternet to connect,
log in, or disconnect. These functions are performed by the router as needed.
To access the Internet from any computer connected to your router, launch a browser such as
Microsoft Internet Explorer or Netscape Navigator. You should see the router’s Internet LED
blink, indicating communication to the ISP. The browser should begin to display a Web page.
The following chapters describe how to configure the Advanced features of your router, and how
to troubleshoot problems that may occur.
![](/img.php?id=450691&img=bg27.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-15
Manually Configuring Your Internet Connection
You can manually configure your router using the menu below, or you can allow the Setup Wizard
to determine your configuration as described in the previous section.
Figure 3-15: Basic Settings menu
How to Perform Manual Configuration
We recommend that you start the manual configuration from the Setup Wizard:
1. Select your country and language. Language choices are English, French, German, and Italian.
After you change the language, the remaining setup screens change to the language of your
choice.
2. Select No to manually configure your router connection.
3. Click Next.
ISP Does Not Require Login ISP Does Require Login
![](/img.php?id=450691&img=bg28.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-16 Connecting the Router to the Internet
4. Manually configure the router in the Basic Settings menu shown in Figure 3-15.
5. Follow the instructions below according to the encapsulation method and whether your
Internet connection requires a login. The following methods are available:
• Internet Connection Requires Login and Uses PPPoE
• Internet Connection Requires Login and Uses PPPoA
• Internet Connection Does Not Require a Login
6. Usually the default ADSL Settings work fine for most ISPs and you can skip this step. If you
have any problems with your connection, check the ADSL Settings. See “ADSL Settings” on
page 3-19 for more details.
Internet Connection Requires Login and Uses PPPoE
1. If your Internet connection does require login, select Yes and fill in the settings according to
the instructions below.
Note: You will no longer need to launch the ISP’s login program on your computer in order to
access the Internet. When you start an Internet application, your router automatically logs you
in.
2. Choose PPPoe for the encapsulation method your ISP uses.
3. Enter the login name (frequently the email address your ISP provided), password, and service
name (if required).
4. If you want to change the login timeout, enter a new value in minutes. This determines how
long the router keeps the Internet connection active after there is no Internet activity from the
LAN. Entering an Idle Timeout value of zero means never log out.
5. The DNS server is used to look up site addresses based on their names.
• Select “Get Automatically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign this address.
• Select “Use These DNS Servers” if your ISP gave you one or two DNS addresses. Type
the primary and secondary addresses.
6. You should only disable NAT if you are sure you do not require it. NAT automatically assigns
private IP addresses (192.168.0.x) to LAN connected devices. When NAT is disabled, only
standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834G uses. Classical
routing should selected only by experienced users.
![](/img.php?id=450691&img=bg29.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-17
Note: Disabling NAT will reboot the router and reset all the DG834G configuration settings to
the factory default. Disable NAT only if you plan to install the DG834G in a setting where you
will be manually administering the IP address space on the LAN side of the router.
Internet Connection Requires Login and Uses PPPoA
1. If your Internet connection does require login, select Yes and fill in the settings according to
the instructions below.
Note: You will no longer need to launch the ISP’s login program on your computer in order to
access the Internet. When you start an Internet application, your router automatically logs you
in.
2. Choose PPPoA for the encapsulation method your ISP uses.
3. Enter the login name (frequently the email address your ISP provided), and password.
4. If you want to change the login timeout, enter a new value in minutes. This determines how
long the router keeps the Internet connection active after there is no Internet activity from the
LAN. Entering an Idle Timeout value of zero means never log out.
5. Internet IP Address:
• Select “Get Dynamically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign these addresses.
• Select “Use Static IP Address” if your ISP has assigned you a permanent, fixed (static) IP
address. Enter the IP address that your ISP assigned.
6. The DNS server is used to look up site addresses based on their names.
• Select “Get Automatically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign this address.
• Select “Use These DNS Servers” if your ISP has assigned you DNS server addresses.
Enter the Primary and Secondary DNS server addresses that your ISP provided.
7. You should only disable NAT if you are sure you do not require it. NAT automatically assigns
private IP addresses (192.168.0.x) to LAN connected devices. When NAT is disabled, only
standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834G uses. Classical
routing should selected only by experienced users.
Note: Disabling NAT will reboot the router and reset all the DG834G configuration settings to
the factory default. Disable NAT only if you plan to install the DG834G in a setting where you
will be manually administering the IP address space on the LAN side of the router.
![](/img.php?id=450691&img=bg2a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-18 Connecting the Router to the Internet
Internet Connection Does Note Require A Login
1. If your Internet connection does not require a login, select No and fill in the settings according
to the instructions below.
2. Enter your Account Name (may also be called Host Name) and Domain Name.
These parameters may be necessary to access your ISP’s mail or news servers.
3. Internet IP Address:
• Select “Get Dynamically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign these addresses.
• Select “Use Static IP Address” if your ISP has assigned you a permanent, fixed (static) IP
address. Enter the IP address that your ISP assigned. Also enter the IP Subnet Mask and
the Gateway IP Address. The gateway is the ISP’s router to which your router will
connect.
• Select “IP Over ATM (IPoA)” if your ISP uses Classical IP Addresses (RFC1577). Enter
the IP address, IP Subnet Mask, and Gateway IP Addresses that your ISP assigned.
4. Domain Name Server (DNS) Address:
• Select “Get Dynamically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign this address.
• If you know that your ISP does not automatically transmit DNS addresses to the router
during login, select “Use these DNS servers” and enter the IP address of your ISP’s
Primary DNS Server. If a Secondary DNS Server address is available, enter it also.
A DNS server is a host on the Internet that translates Internet names (such as
www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP address of one
or two DNS servers to your router during login. If the ISP does not transfer an address, you
must obtain it from the ISP and enter it manually here.
5. You should only disable NAT if you are sure you do not require it. NAT automatically assigns
private IP addresses (192.168.0.x) to LAN connected devices. When NAT is disabled, only
standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834G uses. Classical
routing should selected only by experienced users.
Note: Disabling NAT will reboot the router and reset all the DG834G configuration settings to
the factory default. Disable NAT only if you plan to install the DG834G in a setting where you
will be manually administering the IP address space on the LAN side of the router
![](/img.php?id=450691&img=bg2b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Connecting the Router to the Internet 3-19
6. Router MAC Address:
This section determines the Ethernet MAC address that will be used by the router on the
Internet port. Some ISPs will register the Ethernet MAC address of the network interface card
in your computer when your account is first opened. They will then only accept traffic from
the MAC address of that computer. This feature allows your router to masquerade as that
computer by “cloning” its MAC address.
To change the MAC address, select “Use this Computer’s MAC address”. The router will then
capture and use the MAC address of the computer that you are now using. You must be using
the one computer that is allowed by the ISP. Alternatively, select “Use this MAC address” and
enter it.
7. Click Apply to save your settings.
8. Click the Test button to test your Internet connection.
If the NETGEAR Web site does not appear within one minute, refer to Chapter 7,
“Troubleshooting”.
ADSL Settings
The default settings of your DG834G Wireless ADSL Firewall Router will work fine for most
ISPs. However, some ISPs use a specific Multiplexing Method or a Virtual Circuit Number for
either the Virtual Path Identifier (VPI) or Virtual Channel Identifier (VCI).
Note: The correct country must be selected from the Setup Wizard’s first page for the default
ADSL Settings to work.
If your ISP provided you with a specific Multiplexing Method or VPI/VCI number, then fill in the
following:
1. Select the ADSL Settings link from the main menu.
2. For the Multiplexing Method, select LLC-based or VC-based.
3. Type a number between 0 and 255 for the VPI. The default is 8.
4. Type a number between 1 and 65535 for the VCI. The default is 35.
5. Click Apply.
![](/img.php?id=450691&img=bg2c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
3-20 Connecting the Router to the Internet
![](/img.php?id=450691&img=bg2d.png)
Wireless Configuration 4-1
Chapter 4
Wireless Configuration
This chapter describes how to configure the wireless features of your DG834G Wireless ADSL
Firewall Router.
Considerations for a Wireless Network
In planning your wireless network, you should consider the level of security required. You should
also select the physical placement of your router in order to maximize the network speed. For
further information, refer to Appendix D, “Wireless Networking Basics”.
To ensure proper compliance and compatibility between similar products in your area, the
operating channel and region must be set correctly.
Observe Performance, Placement, and Range Guidelines
The operating distance or range of your wireless connection can vary significantly based on the
physical placement of the wireless firewall. The latency, data throughput performance, and
notebook power consumption also vary depending on your configuration choices.
For best results, place your firewall:
• Near the center of the area in which your computers will operate
• In an elevated location such as a high shelf where the wirelessly connected computers have
line-of-sight access (even if through walls)
• Away from sources of interference, such as computers, microwaves, and cordless phones
• With the Antenna tight and in the upright position
• Away from large metal surfaces
Note: Failure to follow these guidelines can result in significant performance
degradation or inability to wirelessly connect to the router. For complete range/
performance specifications, please see Appendix A, “Technical Specifications”.
![](/img.php?id=450691&img=bg2e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-2 Wireless Configuration
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Implement Appropriate Wireless Security
Unlike wired network data, your wireless data transmissions can extend beyond your walls and
can be received by anyone with a compatible adapter. For this reason, use the security features of
your wireless equipment. The DG834G wireless router provides highly effective security features
which are covered in detail in this chapter. Deploy the security features appropriate to your needs.

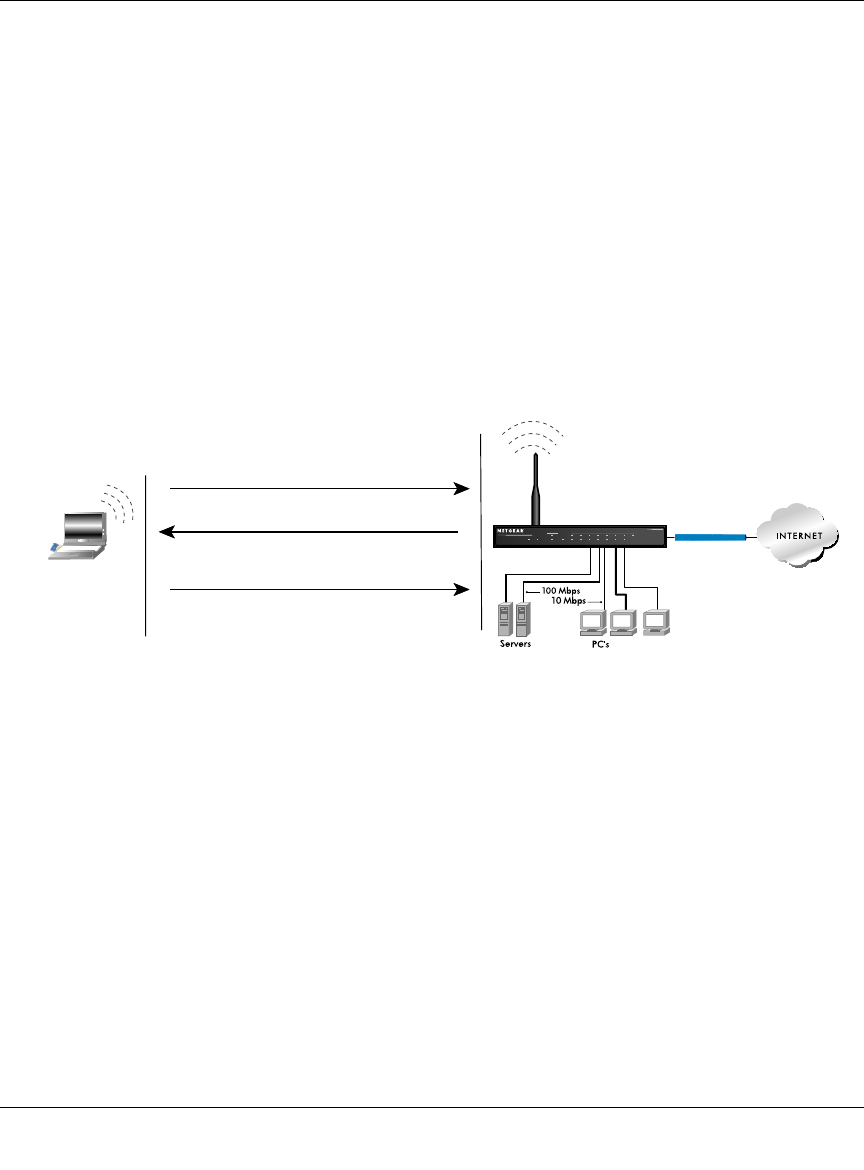

Figure 4-1: DG834G wireless data security options
Restricting access by MAC address filtering adds an obstacle against unwanted access to your
network, but the data broadcast over the wireless link is fully exposed. To block a determined
eavesdropper, you should use one of the data encryption options of the firewall. Wired Equivalent
Privacy (WEP) data encryption provides data security.
Note: Indoors, computers can connect over 802.11b wireless networks at a
maximum range of up to 300 feet. Such distances can allow for others outside of your
immediate area to access your network.
1) Open System: Easy but no security
2) MAC Access List: No data security
3) WEP: Security but some performance impact
Wireless Data
Security Options
Range: Up to 300 Feet
DG834G
![](/img.php?id=450691&img=bg2f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Configuration 4-3
Understanding Wireless Settings
To configure the Wireless interface of your router, click the Wireless link in the main menu of the
browser interface. The Wireless Settings menu will appear, as shown below:

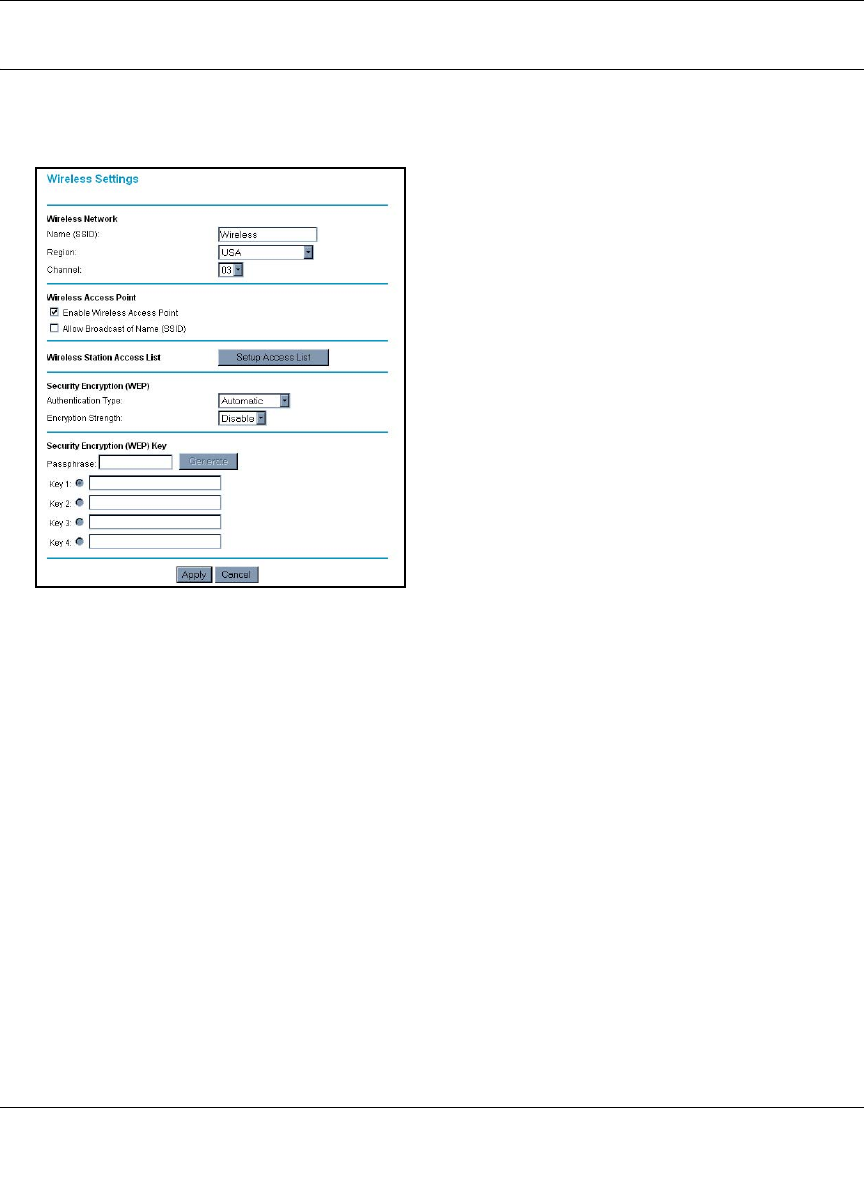

Figure 4-2: Wireless Settings menu
The following parameters are in the Wireless Settings menu:
•Wireless Network.
—Name (SSID). The Service Set ID, also known as the wireless network name. Enter a
value of up to 32 alphanumeric characters. The same Name (SSID) must be assigned to all
wireless devices in your network. The default SSID is Wireless, but NETGEAR strongly
recommends that you change your network Name to a different value.
Note: This value is case sensitive. For example, Wireless is not the same as wireless.
—Region. Select your region from the drop-down list. This field displays the region of
operation for which the wireless interface is intended. It may not be legal to operate the
router in a region other than the region shown here.
—Channel. This field determines which operating frequency will be used. It should not be
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
![](/img.php?id=450691&img=bg30.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-4 Wireless Configuration
•Wireless Access Point.
—Enable Wireless Access Point. This field lets you turn off or turn on the wireless access
point built in to the router. The wireless icon on the front of the router will also display the
current status of the Wireless Access Point to let you know if it is disabled or enabled. The
wireless access point must be enabled to allow wireless stations to access the Internet.
—Allow Broadcast of Name (SSID). If enabled, the SSID is broadcast to all Wireless
Stations. Stations which have no SSID (or a "null" value) can then adopt the correct SSID
for connections to this Access Point.
• Wireless Station Access List.
– By default, any wireless computer that is configured with the correct wireless network
name or SSID will be allowed access to your wireless network. For increased security, you
can restrict access to the wireless network to only specific computers based on their MAC
addresses. Click Setup Access List to display the Wireless Station Access List menu.
• Security Encryption (WEP)
— Authentication Type. Normally this can be left at the default value of "Automatic". If that
fails, select the appropriate value — "Open System" or "Shared Key". Check your
wireless card's documentation to see what method to use.
— Encryption Strength. Select the WEP Encryption level: Disable (no data encryption),
64-bit (sometimes called 40-bit) encryption, or 128-bit encryption.
• Security Encryption (WEP) Key
— If WEP is enabled, you can manually or automatically program the four data encryption
keys. These values must be identical on all PCs and Access Points in your network.
— Automatic Key Generation (Passphrase). Enter a word or group of printable characters in
the Passphrase box and click the Generate button to automatically configure the WEP
Key(s). If encryption strength is set to 64 bit, then each of the four key boxes will
automatically be populated with key values. If encryption strength is set to 128 bit, then
only the selected WEP key box will automatically be populated with key values.
— Manual Entry Mode. Select which of the four keys will be used and enter the matching
WEP key information for your network in the selected key box.
For 64 bit WEP, enter ten hexadecimal digits (any combination of 0-9, A-F).
For 128 bit WEP, enter twenty-six hexadecimal digits (any combination of 0-9, A-F).
![](/img.php?id=450691&img=bg31.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Configuration 4-5
How to Set Up and Test Basic Wireless Connectivity
Follow the instructions below to set up and test basic wireless connectivity. Once you have
established basic wireless connectivity, you can enable security settings appropriate to your needs.
1. Log in to the DG834G firewall at its default LAN address of http://192.168.0.1 with its default
user name of admin and default password of password, or using whatever LAN address and
password you have set up.
2. Click the Wireless Settings link in the main menu of the DG834G firewall.
3. Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box,
enter a value of up to 32 alphanumeric characters. The default SSID is Wireless.
Note: The SSID of any wireless access adapters must match the SSID you configure in the
DG834G Wireless ADSL Firewall Router. If they do not match, you will not get a wireless
connection to the DG834G.
4. Set the Region. Select the region in which the wireless interface will operate.
5. Set the Channel. The default channel is 6.
This field determines which operating frequency will be used. It should not be necessary to
change the wireless channel unless you notice interference problems with another nearby
wireless router or access point. Select a channel that is not being used by any other wireless
networks within several hundred feet of your firewall. For more information on the wireless
channel frequencies please refer to “Wireless Channels” on page D-7.
6. For initial configuration and test, leave the Wireless Card Access List set to allow everyone
access by making sure that “Turn Access Control On” is not selected in the Wireless Station
Access List. In addition, leave the Encryption Strength set to “Disabled.”
7. Click Apply to save your changes.
8. Configure and test your computers for wireless connectivity.
Program the wireless adapter of your computers to have the same SSID and channel that you
configured in the router. Check that they have a wireless link and are able to obtain an IP
address by DHCP from the firewall.
Note: If you are configuring the firewall from a wireless computer and you change the
firewall’s SSID, channel, or security settings, you will lose your wireless connection
when you click Apply. You must then change the wireless settings of your computer to
match the firewall’s new settings.
![](/img.php?id=450691&img=bg32.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-6 Wireless Configuration
Once your computers have basic wireless connectivity to the firewall, then you can configure the
advanced wireless security functions of the firewall.
Restricting Wireless Access to Your Network
By default, any wireless PC that is configured with the correct SSID will be allowed access to your
wireless network. For increased security, the DG834G Wireless ADSL Firewall Router provides
several ways to restrict wireless access to your network:
• Turn off wireless connectivity completely
• Restrict access based on the Wireless Network Name (SSID)
• Restrict access based on the Wireless Card Access List
These options are discussed below.

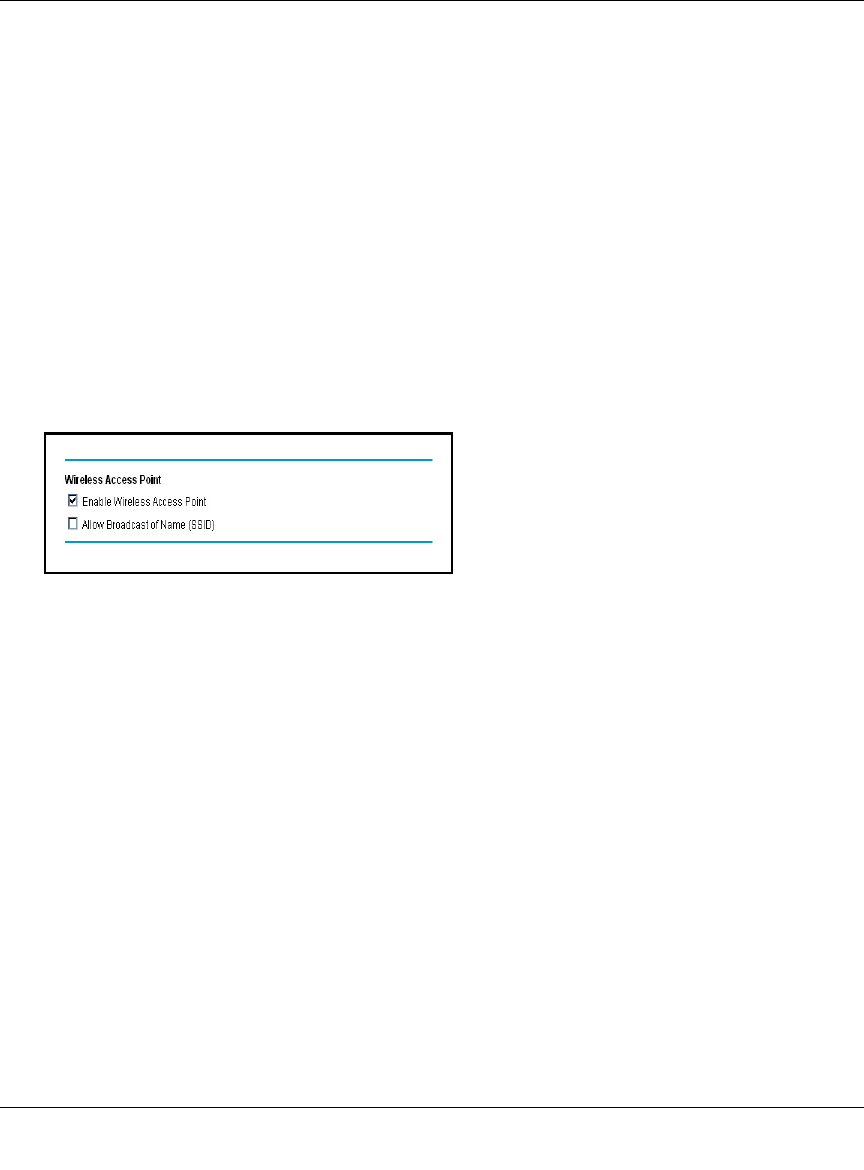

Figure 4-3: Wireless Access Point settings
Restricting Access to Your Network by Turning Off Wireless Connectivity
You can completely turn off the wireless portion of the DG834G. For example, if your notebook
computer is used to wirelessly connect to your router and you take a business trip, you can turn off
the wireless portion of the router while you are travelling. Other members of your household who
use computers connected to the router via Ethernet cables will still be able to use the router.
Restricting Wireless Access Based on the Wireless Network Name (SSID)
The DG834G can restrict wireless access to your network by not broadcasting the wireless
network name (SSID). However, by default, this feature is turned off. If you turn this feature on,
wireless devices will not ‘see’ your DG834G. You must configure your wireless devices to match
the wireless network name (SSID) you configure in the DG834G wireless router.
![](/img.php?id=450691&img=bg33.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Configuration 4-7
Note: The SSID of any wireless access adapters must match the SSID you configure in the
DG834G Wireless ADSL Firewall Router. If they do not match, you will not get a wireless
connection to the DG834G.
Restricting Wireless Access Based on the Wireless Station Access List
This list determines which wireless hardware devices will be allowed to connect to the firewall.
To restrict access based on MAC addresses, follow these steps:
1. Log in to the DG834G firewall at its default LAN address of http://192.168.0.1 with its default
user name of admin and default password of password, or using whatever LAN address and
password you have set up.
2. From the Wireless Settings menu, Wireless Station Access List section, click the Setup Access
List button to display the list, shown below:
Figure 4-4. Wireless Access menu
3. Select the Turn Access Control On check box to enable restricting wireless computers by their
MAC addresses.
![](/img.php?id=450691&img=bg34.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-8 Wireless Configuration
4. If the wireless station is currently connected to the network, you can select it from the
Available Wireless Stations list. Click Add to add the station to the Trusted Wireless Stations
list.
5. If the wireless station is not currently connected, you can enter its address manually. Enter the
MAC address of the authorized computer. The MAC address is usually printed on the wireless
card, or it may appear in the router’s DHCP table. The MAC address will be 12 hexadecimal
digits.
Click Add to save your entry.
Note: You can copy and paste the MAC addresses from the router’s Attached Devices menu
into the MAC Address box of this menu. To do this, configure each wireless computer to
obtain a wireless link to the router. The computer should then appear in the Attached Devices
menu.
6. Make sure the Turn Access Control On check box is selected, then click Apply.
Now, only devices on this list will be allowed to wirelessly connect to the DG834G. This prevents
unauthorized access to your network.
Choosing WEP Authentication and Security Encryption Methods
Figure 4-5. Security Encryption section
Note: If you are configuring the router from a wireless computer whose MAC address is
not in the Trusted Wireless Stations list, and you select Trusted Wireless Stations only,
you will lose your wireless connection when you click Apply. You must then access the
router from a wired computer to make any further changes.
![](/img.php?id=450691&img=bg35.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Configuration 4-9
Restricting wireless access prevents intruders from connecting to your network. However, the
wireless data transmissions are still vulnerable to snooping. Using the WEP data encryption
settings described below will prevent a determined intruder from eavesdropping on your wireless
data communications. Also, if you are using the Internet for such activities as purchases or
banking, those Internet sites use another level of highly secure encryption called SSL. You can tell
if a web site is using SSL because the web address begins with HTTPS rather than HTTP.
Authentication Type Selection
The DG834G lets you select the following wireless authentication schemes.
• Automatic
• Open System
• Shared key
Set your wireless adapter according to the authentication scheme you choose for the DG834G
wireless router. Please refer to “Authentication and WEP” on page D-3 for a full explanation of
each of these options, as defined by the IEEE 802.11b wireless communication standard.
Encryption Choices
Please refer to “Overview of WEP Parameters” on page D-5 for a full explanation of each of the
following choices, as defined by the IEEE 802.11b wireless communication standard. Choose the
encryption strength from the drop-down list:
Disable
No encryption will be applied. This setting is useful for troubleshooting your wireless connection,
but leaves your wireless data fully exposed.
64 or 128 bit WEP
When 64 Bit WEP or 128 Bit WEP is selected, WEP encryption will be applied.
Note: The authentication scheme is separate from the data encryption. You can choose
an authentication scheme which requires a shared key but still leave the data
transmissions unencrypted. If you require strong security, use both the Shared Key and
WEP encryption settings.
![](/img.php?id=450691&img=bg36.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-10 Wireless Configuration
WEP provides some degree of privacy, but can be defeated without great difficulty. If WEP is
enabled, you can manually or automatically program the four data encryption keys. These values
must be identical on all computers and access points in your network.
There are two methods for creating WEP encryption keys:
• Passphrase. Enter a word or group of printable characters in the Passphrase box and click the
Generate button.
• Manual. 64-bit WEP: Enter 10 hexadecimal digits (any combination of 0-9, a-f, or A-F).
128-bit WEP: Enter 26 hexadecimal digits (any combination of 0-9, a-f, or A-F).
Clicking the Default Key drop-down list selects which of the four keys will be active.
How to Configure WEP
To configure WEP data encryption, follow these steps:
1. Log in to the DG834G firewall at its default LAN address of http://192.168.0.1 with its default
user name of admin and default password of password, or using whatever LAN address and
password you have set up.
2. Click the Wireless Settings link in the main menu of the DG834G router.
3. Go to the Security Encryption portion of the page:
Figure 4-6. Wireless WEP menu
4. Select the Authentication Type.
5. Select the Encryption setting.
![](/img.php?id=450691&img=bg37.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Configuration 4-11
6. Enter the encryption keys. You can manually or automatically program the four data
encryption keys. These values must be identical on all computers and Access Points in your
network.
• Automatic — enter a word or group of printable characters in the Passphrase box and click
the Generate button. The four key boxes will be automatically populated with key values.
• Manual — enter hexadecimal digits (any combination of 0-9, a-f, or A-F)
Select which of the four keys will be active.
7. Click the Default Key drop-down list to select which of the four keys will be active.
Be sure you clearly understand how the WEP key settings are configured in your wireless
adapter. Wireless adapter configuration utilities such as the one included in Windows XP only
allow entry of one key which must match the default key you set in the DG834G.
8. Click Apply to save your settings.
Note: When configuring the router from a wireless computer, if you configure WEP
settings, you will lose your wireless connection when you click Apply. You must then
either configure your wireless adapter to match the router WEP settings or access the
router from a wired computer to make any further changes.
![](/img.php?id=450691&img=bg38.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4-12 Wireless Configuration
![](/img.php?id=450691&img=bg39.png)
Protecting Your Network 5-1
Chapter 5
Protecting Your Network
This chapter describes how to use the basic firewall features of the DG834G Wireless ADSL
Firewall Router to protect your network.
Protecting Access to Your DG834G Wireless ADSL Firewall
Router
For security reasons, the router has its own user name and password. Also, after a period of
inactivity for a set length of time, the administrator login will automatically disconnect. When
prompted, enter admin for the router User Name and password for the router Password. You can
use procedures below to change the router's password and the amount of time for the
administrator’s login timeout.
Note: The user name and password are not the same as any user name or password your may use
to log in to your Internet connection.
NETGEAR recommends that you change this password to a more secure password. The ideal
password should contain no dictionary words from any language, and should be a mixture of both
upper and lower case letters, numbers, and symbols. Your password can be up to 30 characters.
How to Change the Built-In Password
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
Figure 5-1: Log in to the router
![](/img.php?id=450691&img=bg3a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-2 Protecting Your Network
2. From the Main Menu of the browser interface, under the Maintenance heading, select Set
Password to bring up the menu shown in Figure 5-2.
Figure 5-2: Set Password menu
3. To change the password, first enter the old password, and then enter the new password twice.
4. Click Apply to save your changes.
Note: After changing the password, you will be required to log in again to continue the
configuration. If you have backed up the router settings previously, you should do a new backup so
that the saved settings file includes the new password.
Changing the Administrator Login Timeout
For security, the administrator's login to the router configuration will timeout after a period of
inactivity. To change the login timeout period:
1. In the Set Password menu, type a number in ‘Administrator login times out’ field. The
suggested default value is 5 minutes.
2. Click Apply to save your changes or click Cancel to keep the current period.
Configuring Basic Firewall Services
Basic firewall services you can configure include access blocking and scheduling of firewall
security. These topics are presented below.
![](/img.php?id=450691&img=bg3b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-3
Blocking Keywords, Sites, and Services
The router provides a variety of options for blocking Internet based content and communications
services. With its content filtering feature, the DG834G wireless router prevents objectionable
content from reaching your computers. The router allows you to control access to Internet content
by screening for keywords within Web addresses. Key content filtering options include:
• Keyword blocking of HTTP traffic.
• Outbound Service Blocking limits access from your LAN to Internet locations or services that
you specify as off-limits.
• Denial of Service (DoS) protection. Automatically detects and thwarts Denial of Service
(DoS) attacks such as Ping of Death, SYN Flood, LAND Attack and IP Spoofing.
• Blocks unwanted traffic from the Internet to your LAN.
The section below explains how to configure your router to perform these functions.
How to Block Keywords and Sites
The DG834G wireless router allows you to restrict access to Internet content based on functions
such as Web addresses and Web address keywords.
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
![](/img.php?id=450691&img=bg3c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-4 Protecting Your Network
2. Select the Block Sites link of the Security menu.
Figure 5-3: Block Sites menu
3. To enable keyword blocking, select one of the following:
• Per Schedule to turn on keyword blocking according to the settings on the Schedule page.
• Always to turn on keyword blocking all of the time, independent of the Schedule page.
4. Enter a keyword or domain in the Keyword box, click Add Keyword, then click Apply.
Some examples of Keyword application follow:
• If the keyword “XXX” is specified, the URL <http://www.badstuff.com/xxx.html> is
blocked.
• If the keyword “.com” is specified, only Web sites with other domain suffixes (such as
.edu or .gov) can be viewed.
• Enter the keyword “.” to block all Internet browsing access.
Up to 32 entries are supported in the Keyword list.
5. To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply.
6. To specify a trusted user, enter that computer’s IP address in the Trusted IP Address box and
click Apply.
You can specify one trusted user, which is a computer that will be exempt from blocking and
logging. Since the trusted user will be identified by an IP address, you should configure that
computer with a fixed IP address.
![](/img.php?id=450691&img=bg3d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-5
7. Click Apply to save your settings.
Firewall Rules
Firewall rules are used to block or allow specific traffic passing through from one side to the other.
Inbound rules (WAN to LAN) restrict access by outsiders to private resources, selectively allowing
only specific outside users to access specific resources. Outbound rules (LAN to WAN) determine
what outside resources local users can have access to.
A firewall has two default rules, one for inbound traffic and one for outbound. The default rules of
the DG834G are:
• Inbound: Block all access from outside except responses to requests from the LAN side.
• Outbound: Allow all access from the LAN side to the outside.
You can define additional rules that will specify exceptions to the default rules. By adding custom
rules, you can block or allow access based on the service or application, source or destination IP
addresses, and time of day. You can also choose to log traffic that matches or does not match the
rule you have defined.
You can change the order of precedence of rules so that the rule that applies most often will take
effect first. See “Order of Precedence for Rules” on page 11 for more details.
To access the rules configuration of the DG834G, click the Firewall Rules link on the main menu,
then click Add for either an Outbound or Inbound Service.
Figure 5-4: Rules menu
![](/img.php?id=450691&img=bg3e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-6 Protecting Your Network
• To edit an existing rule, select its button on the left side of the table and click Edit.
• To delete an existing rule, select its button on the left side of the table and click Delete.
• To move an existing rule to a different position in the table, select its button on the left side
of the table and click Move. At the script prompt, enter the number of the desired new
position and click OK.
Inbound Rules (Port Forwarding)
Because the DG834G uses Network Address Translation (NAT), your network presents only one
IP address to the Internet, and outside users cannot directly address any of your local computers.
However, by defining an inbound rule you can make a local server (for example, a Web server or
game server) visible and available to the Internet. The rule tells the router to direct inbound traffic
for a particular service to one local server based on the destination port number. This is also known
as port forwarding.
Remember that allowing inbound services opens holes in your firewall. Only enable those ports
that are necessary for your network. Following are two application examples of inbound rules:
Inbound Rule Example: A Local Public Web Server
If you host a public Web server on your local network, you can define a rule to allow inbound Web
(HTTP) requests from any outside IP address to the IP address of your Web server at any time of
day. This rule is shown in Figure 5-5:
Note: Some residential broadband ISP accounts do not allow you to run any server
processes (such as a Web or FTP server) from your location. Your ISP may periodically
check for servers and may suspend your account if it discovers any active services at
your location. If you are unsure, refer to the Acceptable Use Policy of your ISP.
![](/img.php?id=450691&img=bg3f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-7

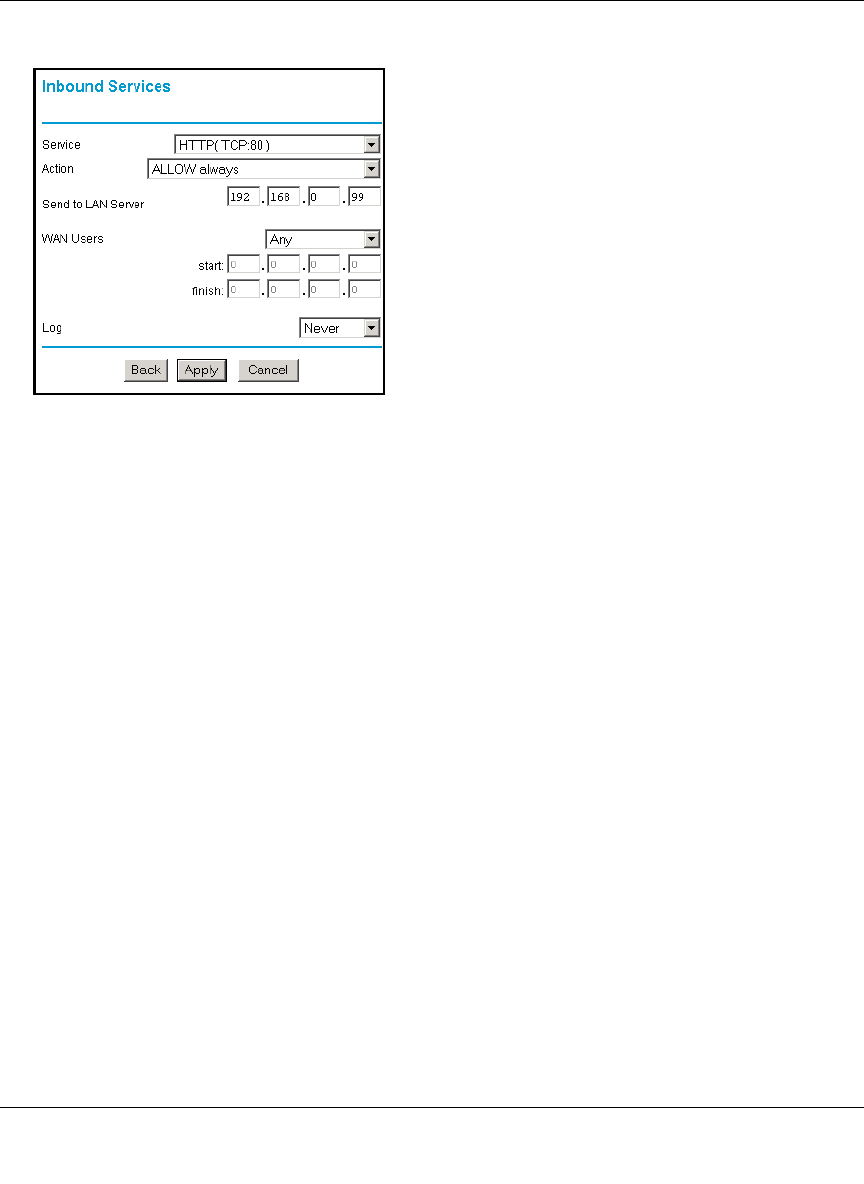

Figure 5-5: Rule example: A Local Public Web Server
The parameters are:
•Service
From this list, select the application or service to be allowed or blocked. The list already
displays many common services, but you are not limited to these choices. Use the Services
menu to add any additional services or applications that do not already appear.
• Action
Choose how you want this type of traffic to be handled. You can block or allow always, or
you can choose to block or allow according to the schedule you have defined in the
Schedule menu.
• Send to LAN Server
Enter the IP address of the computer or server on your LAN which will receive the
inbound traffic covered by this rule.
• WAN Users
These settings determine which packets are covered by the rule, based on their source
(WAN) IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range — if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start fields.
![](/img.php?id=450691&img=bg40.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-8 Protecting Your Network
•Log
You can select whether the traffic will be logged. The choices are:
• Never — no log entries will be made for this service.
• Always — any traffic for this service type will be logged.
• Match — traffic of this type which matches the parameters and action will be logged.
• Not match — traffic of this type which does not match the parameters and action will
be logged.
Inbound Rule Example: Allowing Videoconferencing
If you want to allow incoming videoconferencing to be initiated from a restricted range of outside
IP addresses, such as from a branch office, you can create an inbound rule. In the example shown
in Figure 5-6, CU-SeeMe connections are allowed only from a specified range of external IP
addresses. In this case, we have also specified logging of any incoming CU-SeeMe requests that
do not match the allowed parameters.

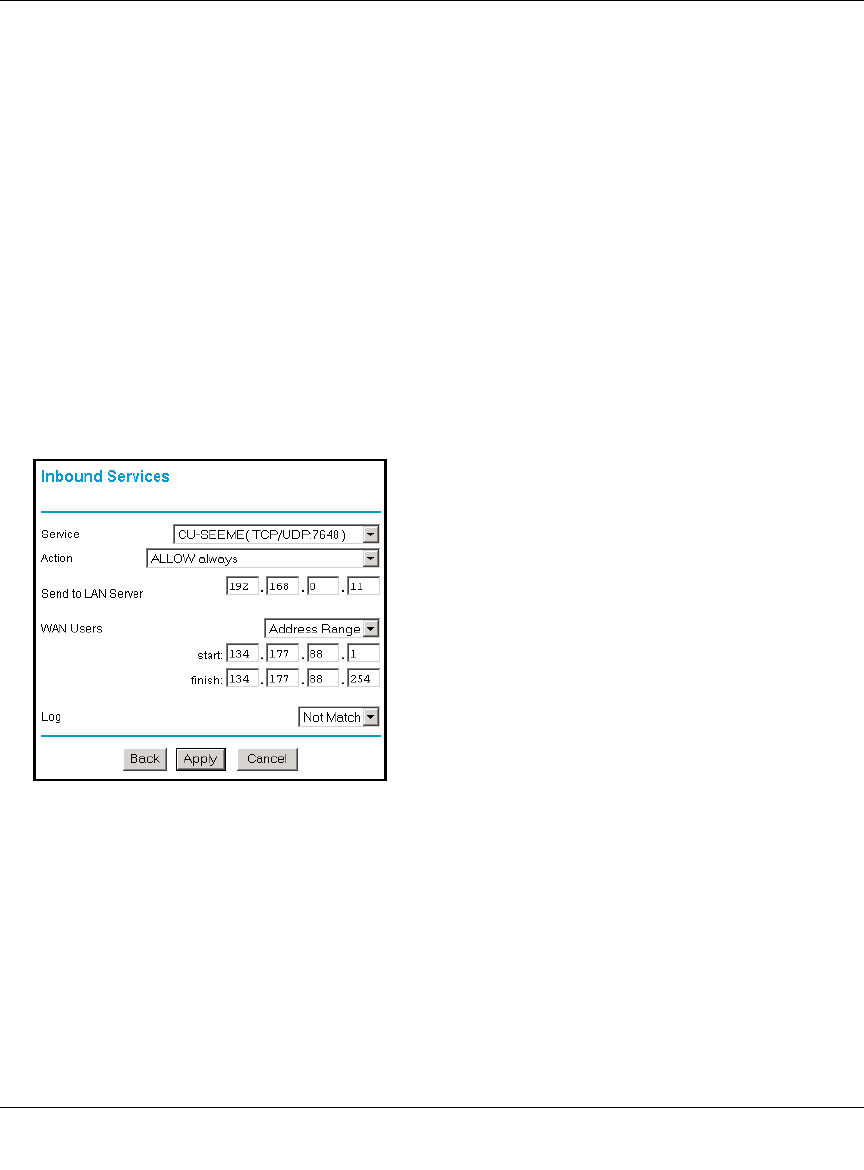

Figure 5-6: Rule example: Videoconference from Restricted Addresses
Considerations for Inbound Rules
• If your external IP address is assigned dynamically by your ISP, the IP address may change
periodically as the DHCP lease expires. Consider using the Dynamic DNS feature in the
Advanced menus so that external users can always find your network.
• If the IP address of the local server computer is assigned by DHCP, it may change when the
computer is rebooted. To avoid this, use the Reserved IP address feature in the LAN IP menu
to keep the computer’s IP address constant.
![](/img.php?id=450691&img=bg41.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-9
• Local computers must access the local server using the computer’s local LAN address
(192.168.0.11 in the example in Figure 5-6 above). Attempts by local computers to access the
server using the external WAN IP address will fail.
Outbound Rules (Service Blocking)
The DG834G allows you to block the use of certain Internet services by computers on your
network. This is called service blocking or port filtering. You can define an outbound rule to block
Internet access from a local computer based on:
• IP address of the local computer (source address)
• IP address of the Internet site being contacted (destination address)
•Time of day
• Type of service being requested (service port number)
Following is an application example of outbound rules:
Outbound Rule Example: Blocking Instant Messenger
If you want to block Instant Messenger usage by employees during working hours, you can create
an outbound rule to block that application from any internal IP address to any external address
according to the schedule that you have created in the Schedule menu. You can also have the router
log any attempt to use Instant Messenger during that blocked period.
Figure 5-7: Rule example: Blocking Instant Messenger
![](/img.php?id=450691&img=bg42.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-10 Protecting Your Network
The parameters are:
•Service
From this list, select the application or service to be allowed or blocked. The list already
displays many common services, but you are not limited to these choices. Use the Add
Custom Service feature to add any additional services or applications that do not already
appear.
• Action
Choose how you want this type of traffic to be handled. You can block or allow always, or
you can choose to block or allow according to the schedule you have defined in the
Schedule menu.
• LAN Users
These settings determine which packets are covered by the rule, based on their source
LAN IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range — if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start fields.
• WAN Users
These settings determine which packets are covered by the rule, based on their destination
WAN IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range —if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start fields.
•Log
You can select whether the traffic will be logged. The choices are:
• Never — no log entries will be made for this service.
• Always — any traffic for this service type will be logged.
• Match — traffic of this type that matches the parameters and action will be logged.
• Not match — traffic of this type that does not match the parameters and action will be
logged.
![](/img.php?id=450691&img=bg43.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-11
Order of Precedence for Rules
As you define new rules, they are added to the tables in the Rules menu, as shown in Figure 5-8:

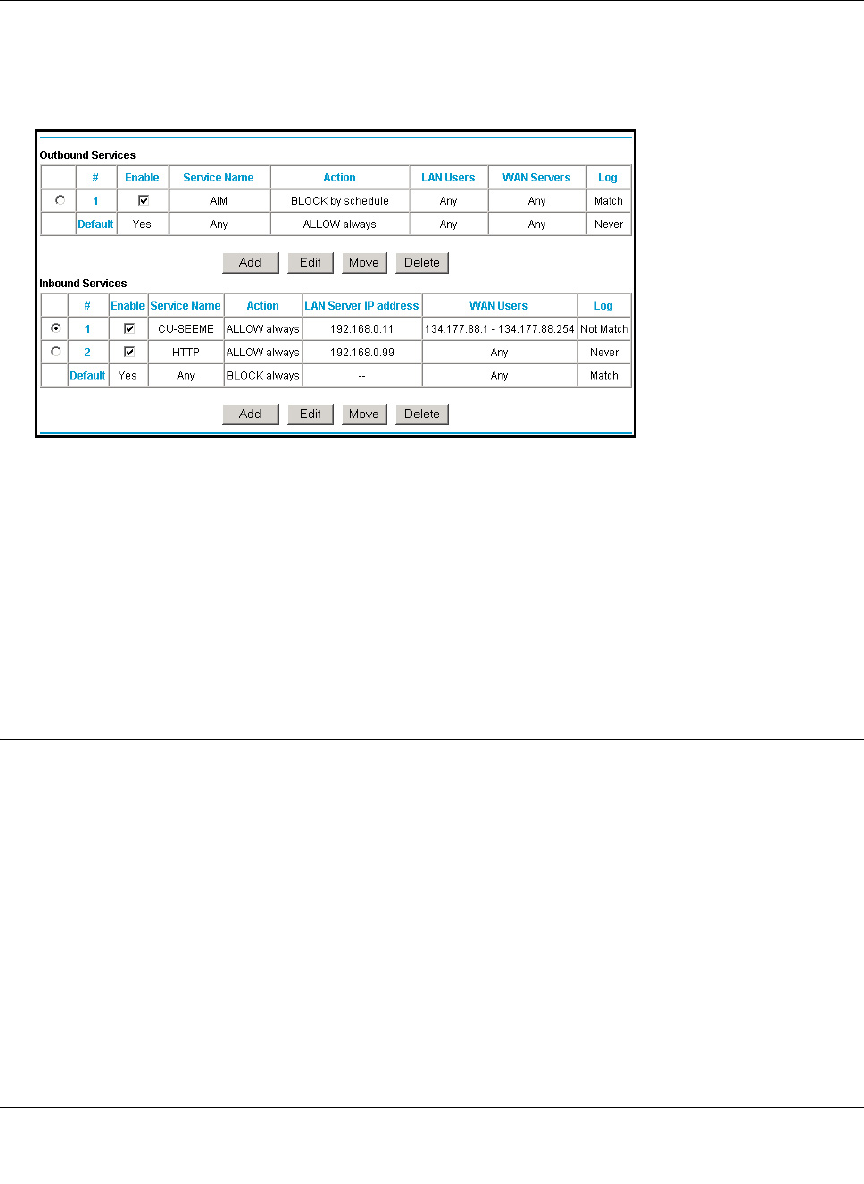

Figure 5-8: Rules table with examples
For any traffic attempting to pass through the firewall, the packet information is subjected to the
rules in the order shown in the Rules Table, beginning at the top and proceeding to the default rules
at the bottom. In some cases, the order of precedence of two or more rules may be important in
determining the disposition of a packet. The Move button allows you to relocate a defined rule to a
new position in the table.
Services
Services are functions performed by server computers at the request of client computers. For
example, Web servers serve Web pages, time servers serve time and date information, and game
hosts serve data about other players’ moves. When a computer on the Internet sends a request for
service to a server computer, the requested service is identified by a service or port number. This
number appears as the destination port number in the transmitted IP packets. For example, a packet
that is sent with destination port number 80 is an HTTP (Web server) request.
The service numbers for many common protocols are defined by the Internet Engineering Task
Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other
applications are typically chosen from the range 1024 to 65535 by the authors of the application.
![](/img.php?id=450691&img=bg44.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-12 Protecting Your Network
Although the DG834G already holds a list of many service port numbers, you are not limited to
these choices. Use the procedure below to create your own service definitions.
How to Define Services
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
2. Select the Services link of the Security menu to display the Services menu shown in
Figure 5-9:
Figure 5-9: Services menu
• To create a new Service, click the Add Custom Service button.
• To edit an existing Service, select its button on the left side of the table and click Edit
Service.
• To delete an existing Service, select its button on the left side of the table and click Delete
Service.
3. Use the page shown below to define or edit a service.
Figure 5-10: Add Services menu
![](/img.php?id=450691&img=bg45.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Protecting Your Network 5-13
4. Click Apply to save your changes.
Setting Times and Scheduling Firewall Services
The DG834G wireless router uses the Network Time Protocol (NTP) to obtain the current time and
date from one of several Network Time Servers on the Internet.
How to Set Your Time Zone
In order to localize the time for your log entries, you must specify your Time Zone:
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
2. Select the Schedule link of the Security menu to display menu shown below.

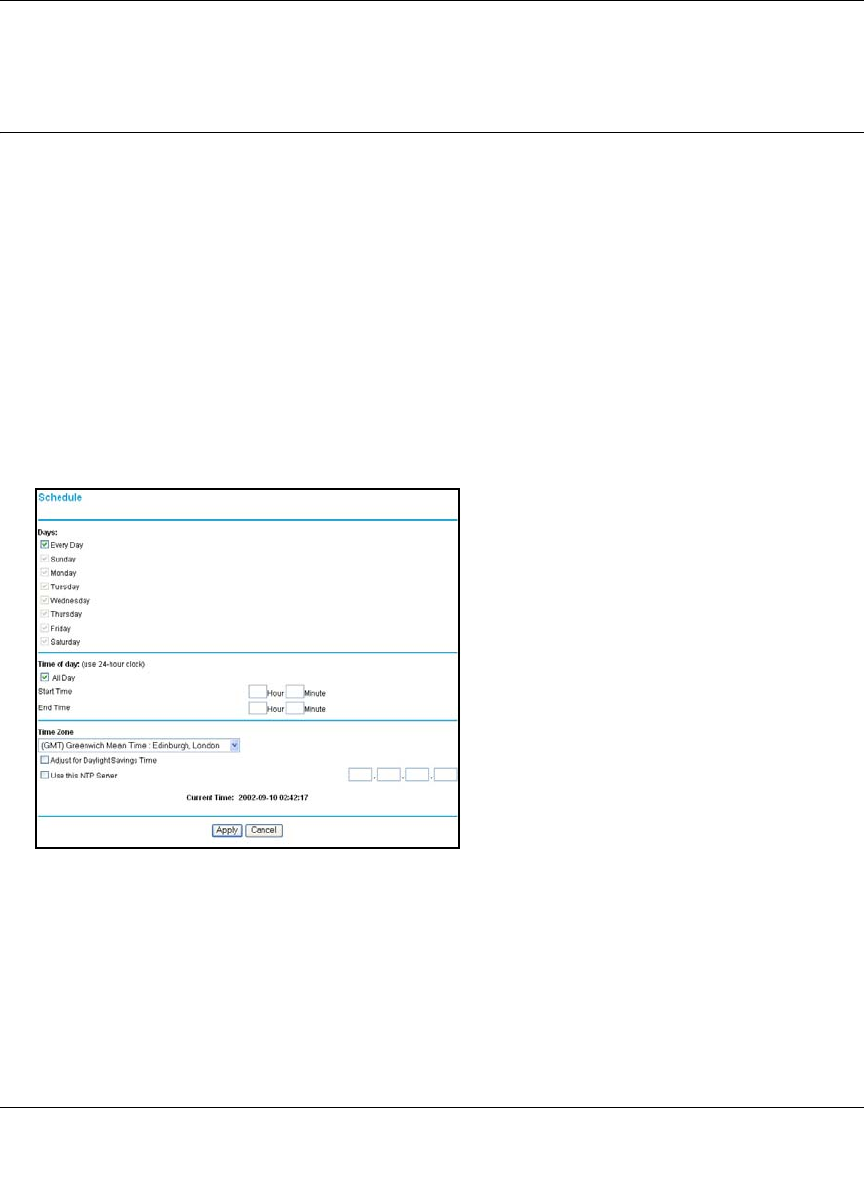

Figure 5-11: Schedule Services menu
3. Select your Time Zone. This setting will be used for the blocking schedule according to your
local time zone and for time-stamping log entries.
Select the Adjust for daylight savings time box if your time zone is currently in daylight
savings time.
![](/img.php?id=450691&img=bg46.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
5-14 Protecting Your Network
Note: If your region uses Daylight Savings Time, you must manually select Adjust for
Daylight Savings Time on the first day of Daylight Savings Time, and clear this check box at
the end. Enabling Daylight Savings Time will cause one hour to be added to the standard time.
4. The router has a list of NETGEAR NTP servers. If you prefer to use a particular NTP server as
the primary server, enter its IP address under Use this NTP Server.
5. Click Apply to save your settings.
How to Schedule Firewall Services
If you enabled services blocking in the Block Services menu or Port forwarding in the Ports menu,
you can set up a schedule for when blocking occurs or when access is not restricted.
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
2. Select the Schedule link of the Security menu to display menu shown above in the Schedule
Services menu.
3. To block Internet services based on a schedule, select Every Day or select one or more days. If
you want to limit access completely for the selected days, select All Day. Otherwise, to limit
access during certain times for the selected days, enter Start Blocking and End Blocking times.
Note: Enter the values in 24-hour time format. For example, 10:30 am would be 10 hours and
30 minutes and 10:30 pm would be 22 hours and 30 minutes. If you set the start time after the
end time, the schedule will be effective through midnight the next day.
4. Click Apply to save your changes.
![](/img.php?id=450691&img=bg47.png)
Managing Your Network 6-1
Chapter 6
Managing Your Network
This chapter describes how to perform network management tasks with your DG834G Wireless
ADSL Firewall Router.
Backing Up, Restoring, or Erasing Your Settings
The configuration settings of the DG834G wireless router are stored in a configuration file in the
router. This file can be backed up to your computer, restored, or reverted to factory default
settings. The procedures below explain how to do these tasks.
How to Back Up the Configuration to a File
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Maintenance heading of the Main Menu, select the Backup Settings menu as seen in
Figure 6-1.
Figure 6-1: Backup Settings menu
3. Click Backup to save a copy of the current settings.
![](/img.php?id=450691&img=bg48.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-2 Managing Your Network
4. Store the .cfg file on a computer on your network.
How to Restore the Configuration from a File
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Maintenance heading of the Main Menu, select the Settings Backup menu as seen in
Figure 6-1.
3. Enter the full path to the file on your network or click the Browse button to locate the file.
4. When you have located the .cfg file, click the Restore button to upload the file to the router.
5. The router will then reboot automatically.
How to Erase the Configuration
It is sometimes desirable to restore the router to the factory default settings. This can be done by
using the Erase function.
1. To erase the configuration, from the Maintenance menu Settings Backup link, click the Erase
button on the screen.
2. The router will then reboot automatically.
After an erase, the router's password will be password, the LAN IP address will be
192.168.0.1, and the router's DHCP client will be enabled.
Note: To restore the factory default configuration settings without knowing the login password or
IP address, you must use the Default Reset button on the rear panel of the router. See “The
Router’s Rear Panel” on page 2-7.
Upgrading the Router’s Firmware
The software of the DG834G wireless router is stored in FLASH memory, and can be upgraded as
new software is released by NETGEAR.
Upgrade files can be downloaded from the NETGEAR Web site. If the upgrade file is compressed
(.ZIP file), you must first extract the binary (.BIN or .IMG) file before uploading it to the router.
![](/img.php?id=450691&img=bg49.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-3
How to Upgrade the Router Firmware
Note: NETGEAR recommends that you back up your configuration before doing a firmware
upgrade. After the upgrade is complete, you may need to restore your configuration settings.
1. Download and unzip the new software file from NETGEAR.
The Web browser used to upload new firmware into the router must support HTTP uploads.
NETGEAR recommends using Microsoft Internet Explorer 5.0 or above, or Netscape
Navigator 4.7 or above.
2. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
3. From the Main Menu of the browser interface, under the Maintenance heading, select the
Router Upgrade heading to display the menu shown in Figure 6-2.
Figure 6-2: Router Upgrade menu
4. In the Router Upgrade menu, click the Browse to locate the binary (.BIN or .IMG) upgrade
file.
5. Click Upload.
Note: When uploading software to the router, it is important not to interrupt the Web
browser by closing the window, clicking a link, or loading a new page. If the browser is
interrupted, it may corrupt the software. When the upload is complete, your router will
automatically restart. The upgrade process will typically take about one minute. In some
cases, you may need to clear the configuration and reconfigure the router after
upgrading.
![](/img.php?id=450691&img=bg4a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-4 Managing Your Network
Network Management Information
The DG834G provides a variety of status and usage information which is discussed below.
Viewing Router Status and Usage Statistics
From the Main Menu, under Maintenance, select Router Status to view the screen in Figure 6-3.
Figure 6-3: Router Status screen
The Router Status menu provides a limited amount of status and usage information.
This screen shows the following parameters:
![](/img.php?id=450691&img=bg4b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-5
Table 6-1. Menu 3.2 - Router Status Fields
Field Description
Account Name The Host Name assigned to the router in the Basic Settings menu.
Firmware Version This field displays the router firmware version.
ADSL Port These parameters apply to the Internet (ADSL) port of the router.
MAC Address This field displays the Ethernet MAC address being used by the Internet
(ADSL) port of the router.
IP Address This field displays the IP address being used by the Internet (ADSL) port
of the router. If no address is shown, the router cannot connect to the
Internet.
DHCP If None, the router will use a fixed IP address on the ADSL.
If Client, the router will obtain an IP address dynamically from the ISP
IP Subnet Mask This field displays the IP Subnet Mask being used by the Internet
(ADSL) port of the router.
Domain Name Server (DNS) This field displays the DNS Server IP addresses being used by the
router. These addresses are usually obtained dynamically from the ISP.
LAN Port These parameters apply to the Local (ADSL) port of the router.
MAC Address This field displays the Ethernet MAC address being used by the Local
(LAN) port of the router.
IP Address This field displays the IP address being used by the Local (LAN) port of
the router. The default is 192.168.0.1
DHCP If OFF, the router will not assign IP addresses to computers on the LAN.
If ON, the router will assign IP addresses to computers on the LAN.
IP Subnet Mask This field displays the IP Subnet Mask being used by the Local (LAN)
port of the router. The default is 255.255.255.0.
Modem These parameters apply to the Local (WAN) port of the router.
ADSL Firmware Version The version of the firmware.
Modem Status The connection status of the modem.
Downstream Speed The speed at which the modem is receiving data from the ADSL line.
Upstream Speed The speed at which the modem is transmitting data to the ADSL line.
VPI The Virtual Path Identifier setting.
VCI The Virtual Channel Identifier setting.
![](/img.php?id=450691&img=bg4c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-6 Managing Your Network
Click the Show Statistics button to display router usage statistics, as shown in Figure 6-3 below:
Figure 6-4: Router Statistics screen
This screen shows the following statistics:
Wireless Port These parameters apply to the wireless port of the router
Name (SSID) Wireless network name or Service Set Identifier
Region The region in which the wireless device is operating
Channel The operating frequency that is being used.
Wireless AP Displays whether wireless access points can connect.
Broadcast Name If enabled, the SSID is broadcast to all wireless stations.
Table 6-1. Menu 3.2 - Router Status Fields
Field Description
![](/img.php?id=450691&img=bg4d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-7
Click the Connection Status button to display router connection status, as shown in Figure 6-5 and
Figure 6-6.
Figure 6-5: Connection Status screen for Dynamic IP
Table 6-1. Router Statistics Fields
Field Description
WAN, LAN, or
Serial Port
The statistics for the WAN (Internet), LAN (local), and Serial ports. For each port, the
screen displays:
Status The link status of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current line utilization—percentage of current bandwidth used on this port.
Rx B/s The average line utilization for this port.
Up Time The time elapsed since the last power cycle or reset.
Poll Interval Specifies the interval at which the statistics are updated in this window. Click Stop to
freeze the display.
![](/img.php?id=450691&img=bg4e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-8 Managing Your Network
Clicking the Renew button updates the status information.
This screen shows the following statistics:
An alternate view of the Connection Status screen is shown in Figure 6-6 below:
Figure 6-6: Connection Status screen for PPPoA
Table 6-1. Connection Status Fields for Dynamic IP
Field Description
IP Address The IP Address assigned to the WAN port by the ADSL Internet Service Provider.
Subnet Mask Then Network Mask assigned to the WAN port by the ADSL Internet Service Provider.
Default Gateway Then default gateway router assigned to the WAN port by the ADSL Internet Service
Provider.
DHCP Server The DHCP server’s IP address.
DNS Server The DNS server’s IP address.
Lease Obtained Date and time the lease was obtained.
Lease Expires Date and time the lease expires.
![](/img.php?id=450691&img=bg4f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-9
Clicking the Renew button updates the status information.
This screen shows the following statistics:
Viewing Attached Devices
The Attached Devices menu contains a table of all IP devices that the router has discovered on the
local network. From the Main Menu of the browser interface, under the Maintenance heading,
select Attached Devices to view the table, shown in Figure 6-7
Figure 6-7: Attached Devices menu
For each device, the table shows the IP address, Device Name if available, and the Ethernet MAC
address. Note that if the router is rebooted, the table data is lost until the router rediscovers the
devices. To force the router to look for attached devices, click the Refresh button.
Table 6-1. Connection Status Fields for PPPoA
Field Description
Connection Time The time elapsed since the last connection to the Internet via the ADSL port.
Connection Method The method the ADSL port acquired its TCP/IP configuration.
Negotiation ON or OFF
Authentication ON or OFF
IP Address The IP Address assigned to the WAN port by the ADSL Internet Service Provider.
Network Mask Then Network Mask assigned to the WAN port by the ADSL Internet Service Provider.
![](/img.php?id=450691&img=bg50.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-10 Managing Your Network
Viewing, Selecting, and Saving Logged Information
The router will log security-related events such as denied incoming service requests, hacker
probes, and administrator logins. If you enabled content filtering in the Block Sites menu, the Logs
page can show you when someone on your network tries to access a blocked site. If you enabled
e-mail notification, you will receive these logs in an e-mail message. If you do not have e-mail
notification enabled, you can view the logs here.
An example of the logs file is shown below.
Figure 6-8: Security Logs menu
![](/img.php?id=450691&img=bg51.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-11
Log entries are described in Table 6-1 below:
Log action buttons are described in Table 6-2 below:
Selecting What Information to Log
Besides the standard information listed above, you can choose to log additional information. Those
optional selections are as follows:
• Attempted access to blocked site
• Connections to the Web-based interface of the router
• Router operation (start up, get time, etc.)
• Known DoS attacks and Port Scans
Table 6-1. Security Log entry descriptions
Field Description
Date and Time The date and time the log entry was recorded.
Description or Action The type of event and what action was taken if any.
Source IP The IP address of the initiating device for this log entry.
Source port and
interface
The service port number of the initiating device, and whether
it originated from the LAN or WAN
Destination The name or IP address of the destination device or Web site.
Destination port and
interface
The service port number of the destination device, and
whether it is on the LAN or WAN.
Table 6-2. Security Log action buttons
Field Description
Refresh Refresh the log screen.
Clear Log Clear the log entries.
Send Log Email the log immediately.
Apply Apply the current settings.
Cancel Clear the current settings.
![](/img.php?id=450691&img=bg52.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-12 Managing Your Network
Saving Log Files on a Server
You can choose to write the logs to a computer running a syslog program. To activate this feature,
select to Broadcast Lan or enter the IP address of the server where the Syslog file will be written.
Examples of Log Messages
Following are examples of log messages. In all cases, the log entry shows the timestamp as: Day,
Year-Month-Date Hour:Minute:Second
Activation and Administration
Tue, 2002-05-21 18:48:39 - NETGEAR activated
[This entry indicates a power-up or reboot with initial time entry.]
Tue, 2002-05-21 18:55:00 - Administrator login successful - IP:192.168.0.2
Thu, 2002-05-21 18:56:58 - Administrator logout - IP:192.168.0.2
[This entry shows an administrator logging in and out from IP address 192.168.0.2.]
Tue, 2002-05-21 19:00:06 - Login screen timed out - IP:192.168.0.2
[This entry shows a time-out of the administrator login.]
Wed, 2002-05-22 22:00:19 - Log emailed
[This entry shows when the log was emailed.]
Dropped Packets
Wed, 2002-05-22 07:15:15 - TCP packet dropped - Source:64.12.47.28,4787,WAN -
Destination:134.177.0.11,21,LAN - [Inbound Default rule match]
Sun, 2002-05-22 12:50:33 - UDP packet dropped - Source:64.12.47.28,10714,WAN -
Destination:134.177.0.11,6970,LAN - [Inbound Default rule match]
Sun, 2002-05-22 21:02:53 - ICMP packet dropped - Source:64.12.47.28,0,WAN -
Destination:134.177.0.11,0,LAN - [Inbound Default rule match]
[These entries show an inbound FTP (port 21) packet, User Datagram Protocol (UDP) packet
(port 6970), and Internet Control Message Protocol (ICMP) packet (port 0) being dropped as a
result of the default inbound rule, which states that all inbound packets are denied.]
![](/img.php?id=450691&img=bg53.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-13
Enabling Security Event E-mail Notification
In order to receive logs and alerts by e-mail, you must provide your e-mail information in the
E-mail section:
•Turn e-mail notification on. Select this box if you want to receive e-mail logs and alerts from
the router.
•Send alerts and logs via email. Enter the name or IP address of your ISP’s outgoing (SMTP)
mail server (such as mail.myISP.com). You may be able to find this information in the
configuration menu of your e-mail program. Enter the e-mail address to which logs and alerts
are sent. This e-mail address will also be used as the From address. If you leave this box blank,
log and alert messages will not be sent via e-mail.
•Send alert immediately. Select a box if you would like immediate notification of a significant
security event, such as a known attack, port scan, or attempted access to a blocked site.
•Send logs according to this schedule. Specifies how often to send the logs: Hourly, Daily,
Weekly, or When Full.
– Day for sending log
Specifies which day of the week to send the log. Relevant when the log is sent weekly or
daily.
– Time for sending log
Specifies the time of day to send the log. Relevant when the log is sent daily or weekly.
If the Weekly, Daily or Hourly option is selected and the log fills up before the specified
period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, it
is cleared from the router’s memory. If the router cannot e-mail the log file, the log buffer may
fill up. In this case, the router overwrites the log and discards its contents.
![](/img.php?id=450691&img=bg54.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-14 Managing Your Network
Running Diagnostic Utilities and Rebooting the Router
The DG834G wireless router has a diagnostics feature. You can use the diagnostics menu to
perform the following functions from the router:
• Ping an IP Address to test connectivity to see if you can reach a remote host.
• Perform a DNS Lookup to test if an Internet name resolves to an IP address to verify that the
DNS server configuration is working.
• Display the Routing Table to identify what other routers the router is communicating with.
• Reboot the router to enable new network configurations to take effect or to clear problems
with the router’s network connection.
From the Main Menu of the browser interface, under the Maintenance heading, select the Router
Diagnostics heading to display the menu shown in Figure 6-9.
Figure 6-9: Diagnostics menu
Enabling Remote Management
Using the Remote Management page, you can allow a user or users on the Internet to configure,
upgrade and check the status of your DG834G Wireless ADSL Firewall Router.
![](/img.php?id=450691&img=bg55.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Managing Your Network 6-15
Configuring Remote Management
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Advanced section of the main menu, select the Remote Management link.
3. Select the Turn Remote Management On check box.
4. Specify what external addresses will be allowed to access the router’s remote management.
For security, restrict access to as few external IP addresses as practical.
a. To allow access from any IP address on the Internet, select Everyone.
b. To allow access from a range of IP addresses on the Internet, select IP address range.
Enter a beginning and ending IP address to define the allowed range.
c. To allow access from a single IP address on the Internet, select Only this Computer.
Enter the IP address that will be allowed access.
5. Specify the Port Number that will be used for accessing the management interface.
Web browser access normally uses the standard HTTP service port 80. For greater security,
you can change the remote management Web interface to a custom port by entering that
number in the box provided. Choose a number between 1024 and 65535, but do not use the
number of any common service port. The default is 8080, which is a common alternate for
HTTP.
6. Click Apply to have your changes take effect.
When accessing your router from the Internet, you will type your router's WAN IP address in
your browser's Address (in IE) or Location (in Netscape) box, followed by a colon (:) and the
custom port number. For example, if your external address is 134.177.0.123 and you use port
number 8080, enter in your browser:
http://134.177.0.123:8080
Note: In this case, the http:// must be included in the address.
Note: Be sure to change the router's default password to a very secure password. The
ideal password should contain no dictionary words from any language, and should be a
mixture of letters (both upper and lower case), numbers, and symbols. Your password
can be up to 30 characters.
![](/img.php?id=450691&img=bg56.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
6-16 Managing Your Network
![](/img.php?id=450691&img=bg57.png)
Advanced Configuration 7-1
Chapter 7
Advanced Configuration
This chapter describes how to configure the advanced features of your DG834G Wireless ADSL
Firewall Router.
Configuring Advanced Security
The DG834G Wireless ADSL Firewall Router provides a variety of advanced features, such as:
• Setting up a Demilitarized Zone (DMZ) Server
• Connecting Automatically, as Required
• Disabling Port Scan and DOS Protection
• Responding to a Ping on the Internet WAN Port
•MTU Size
• The flexibility of configuring your LAN TCP/IP settings
• Using the Router as a DHCP Server
• Configuring Dynamic DNS
• Configuring Static Routes
These features are discussed below.
Setting Up A Default DMZ Server
The Default DMZ Server feature is helpful when using some online games and videoconferencing
applications that are incompatible with NAT. The router is programmed to recognize some of these
applications and to work properly with them, but there are other applications that may not function
well. In some cases, one local computer can run the application properly if that computer’s IP
address is entered as the Default DMZ Server.
![](/img.php?id=450691&img=bg58.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-2 Advanced Configuration
Incoming traffic from the Internet is normally discarded by the router unless the traffic is a
response to one of your local computers or a service that you have configured in the Ports menu.
Instead of discarding this traffic, you can have it forwarded to one computer on your network. This
computer is called the Default DMZ Server.
How to Configure a Default DMZ Server
To assign a computer or server to be a Default DMZ server, follow these steps:
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever Password and LAN address you
have chosen for the router.
2. From the Main Menu, under Advanced, click the WAN Setup link to view the page shown in
Figure 7-1
Figure 7-1: WAN Setup Page
3. Click Default DMZ Server.
4. Type the IP address for that server.
5. Click Apply to save your changes.
Note: For security reasons, you should avoid using the Default DMZ Server feature.
When a computer is designated as the Default DMZ Server, it loses much of the
protection of the firewall, and is exposed to many exploits from the Internet. If
compromised, the computer can be used to attack your network.
![](/img.php?id=450691&img=bg59.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Advanced Configuration 7-3
Connect Automatically, as Required
Normally, this option should be Enabled, so that an Internet connection will be made
automatically, whenever Internet-bound traffic is detected. If this causes high connection costs,
you can disable this setting.
If disabled, you must connect manually, using the sub-screen accessed from the "Connection
Status" button on the Status screen.
If you have an "Always on" connection, this setting has no effect.
Disable Port Scan and DOS Protection
The Firewall protects your LAN against Port Scans and Denial of Service (DOS) attacks. This
should be disabled only in special circumstances.
Respond to Ping on Internet WAN Port
If you want the router to respond to a 'ping' from the Internet, select the ‘Respond to Ping on
Internet WAN Port’ check box. This should only be used as a diagnostic tool, since it allows your
router to be discovered. Do not select this box unless you have a specific reason to do so.
MTU Size
The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 Bytes, or
1492 Bytes for PPPoE connections. For some ISPs you may need to reduce the MTU. But this is
rarely required, and should not be done unless you are sure it is necessary for your ISP connection.
Configuring LAN IP Settings
The LAN IP Setup menu allows configuration of LAN IP services such as DHCP and RIP. These
features can be found under the Advanced heading in the Main Menu of the browser interface.
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a
DHCP server. The router’s default LAN IP configuration is:
• LAN IP addresses—192.168.0.1
• Subnet mask—255.255.255.0
![](/img.php?id=450691&img=bg5a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-4 Advanced Configuration
These addresses are part of the Internet Engineering Task Force (IETF)-designated private address
range for use in private networks, and should be suitable in most applications. If your network has
a requirement to use a different IP addressing scheme, you can make those changes in this menu.

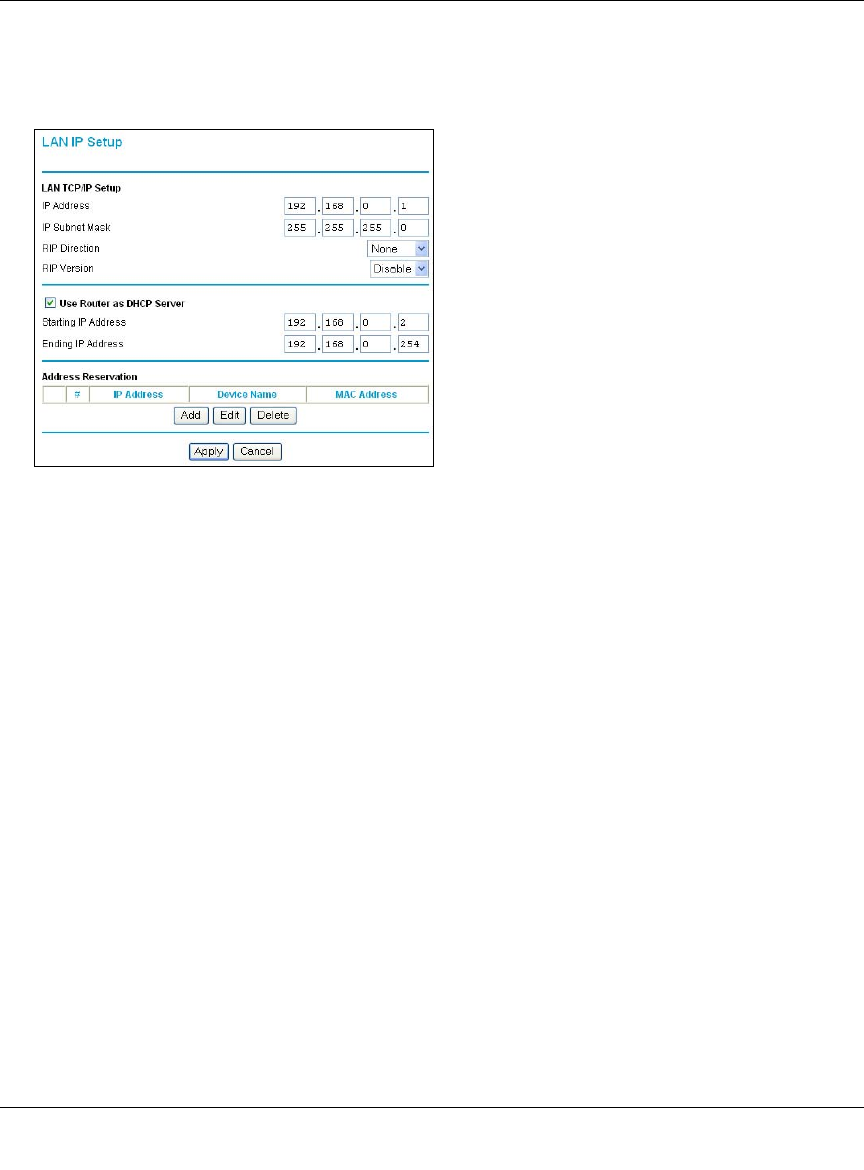

Figure 7-2: LAN IP Setup Menu
The LAN TCP/IP Setup parameters are:
• IP Address
This is the LAN IP address of the router.
• IP Subnet Mask
This is the LAN Subnet Mask of the router. Combined with the IP address, the IP Subnet Mask
allows a device to know which other addresses are local to it, and which must be reached
through a gateway or router.
• RIP Direction
RIP (Router Information Protocol) allows a router to exchange routing information with other
routers. The RIP Direction selection controls how the Gateway sends and receives RIP
packets. Both is the default.
— When set to Both or Out Only, the router will broadcast its routing table periodically.
— When set to Both or In Only, it will incorporate the RIP information that it receives.
— When set to None, it will not send any RIP packets and will ignore any RIP packets
received.
![](/img.php?id=450691&img=bg5b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Advanced Configuration 7-5
• RIP Version
This controls the format and the broadcasting method of the RIP packets that the router sends.
It recognizes both formats when receiving. By default, this is set for RIP-1.
— RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you
have an unusual network setup.
— RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2
format.
— RIP-2B uses subnet broadcasting.
— RIP-2M uses multicasting.
DHCP
By default, the router will function as a DHCP (Dynamic Host Configuration Protocol) server,
allowing it to assign IP, DNS server, and default gateway addresses to all computers connected to
the router's LAN. The assigned default gateway address is the LAN address of the router. IP
addresses will be assigned to the attached computers from a pool of addresses specified in this
menu. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN.
For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “IP
Configuration by DHCP” on page B-10 for an explanation of DHCP and information about how to
assign IP addresses for your network.
Use Router as DHCP server
If another device on your network will be the DHCP server, or if you will manually configure the
network settings of all of your computers, clear the ‘Use router as DHCP server’ check box.
Otherwise, leave it selected.
Specify the pool of IP addresses to be assigned by setting the Starting IP Address and Ending IP
Address. These addresses should be part of the same IP address subnet as the router’s LAN IP
address. Using the default addressing scheme, you should define a range between 192.168.0.2 and
192.168.0.254, although you may want to save part of the range for devices with fixed addresses.
The router will deliver the following parameters to any LAN device that requests DHCP:
Note: If you change the LAN IP address of the router while connected through the
browser, you will be disconnected. You must then open a new connection to the new IP
address and log in again.
![](/img.php?id=450691&img=bg5c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-6 Advanced Configuration
• An IP Address from the range you have defined
• Subnet Mask
• Gateway IP Address is the router’s LAN IP address
• Primary DNS Server, if you entered a Primary DNS address in the Basic Settings menu;
otherwise, the router’s LAN IP address
• Secondary DNS Server, if you entered a Secondary DNS address in the Basic Settings menu
• WINS Server, short for Windows Internet Naming Service Server, determines the IP address
associated with a particular Windows computer. A WINS server records and reports a list of
names and IP address of Windows PCs on its local network. If you connect to a remote
network that contains a WINS server, enter the server’s IP address here. This allows your PCs
to browse the network using the Network Neighborhood feature of Windows.
Reserved IP addresses
When you specify a reserved IP address for a computer on the LAN, that computer will always
receive the same IP address each time it access the router’s DHCP server. Reserved IP addresses
should be assigned to servers that require permanent IP settings.
To reserve an IP address:
1. Click the Add button.
2. In the IP Address box, type the IP address to assign to the computer or server.
Choose an IP address from the router’s LAN subnet, such as 192.168.0.x.
3. Type the MAC Address of the computer or server.
Tip: If the computer is already present on your network, you can copy its MAC address from
the Attached Devices menu and paste it here.
4. Click Apply to enter the reserved address into the table.
Note: The reserved address will not be assigned until the next time the computer contacts the
router's DHCP server. Reboot the computer or access its IP configuration and force a DHCP
release and renew.
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.
![](/img.php?id=450691&img=bg5d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Advanced Configuration 7-7
How to Configure LAN TCP/IP Settings
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu, under Advanced, click the LAN IP Setup link to view the menu, shown
in Figure 7-3 below:
Figure 7-3: LAN IP Setup Menu
3. Enter the TCP/IP, DHCP, or Reserved IP parameters.
4. Click Apply to save your changes.
Configuring Dynamic DNS
If your network has a permanently assigned IP address, you can register a domain name and have
that name linked with your IP address by public Domain Name Servers (DNS). However, if your
Internet account uses a dynamically assigned IP address, you will not know in advance what your
IP address will be, and the address can change frequently. In this case, you can use a commercial
dynamic DNS service that will allow you to register your domain to their IP address, and will
forward traffic directed at your domain to your frequently-changing IP address.
![](/img.php?id=450691&img=bg5e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-8 Advanced Configuration
The router contains a client that can connect to a dynamic DNS service provider. To use this
feature, you must select a service provider and obtain an account with them. After you have
configured your account information in the router, whenever your ISP-assigned IP address
changes, your router will automatically contact your dynamic DNS service provider, log in to your
account, and register your new IP address.
How to Configure Dynamic DNS
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu of the browser interface, under Advanced, select Dynamic DNS to
display the page below.
3. Access the Web site of one of the dynamic DNS service providers whose names appear in the
‘Service Provider’ box, and register for an account.
For example, for dyndns.org, go to www.dyndns.org.
4. Select the “Use a dynamic DNS service” check box.
5. Select the name of your dynamic DNS Service Provider.
6. Type the Host Name that your dynamic DNS service provider gave you.
The dynamic DNS service provider may call this the domain name. If your URL is
myName.dyndns.org, then your Host Name is “myName.”
7. Type the User Name for your dynamic DNS account.
8. Type the Password (or key) for your dynamic DNS account.
![](/img.php?id=450691&img=bg5f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Advanced Configuration 7-9
9. If your dynamic DNS provider allows the use of wildcards in resolving your URL, you can
select the Use wildcards check box to activate this feature.
For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same
IP address as yourhost.dyndns.org
10. Click Apply to save your configuration.
Using Static Routes
Static Routes provide additional routing information to your router. Under normal circumstances,
the router has adequate routing information after it has been configured for Internet access, and
you do not need to configure additional static routes. You must configure static routes only for
unusual cases such as multiple routers or multiple IP subnets located on your network.
Static Route Example
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where
you are employed. This router’s address on your LAN is 192.168.0.100.
• Your company’s network is 134.177.0.0.
When you first configured your router, two implicit static routes were created. A default route was
created with your ISP as the router, and a second static route was created to your local network for
all 192.168.0.x addresses. With this configuration, if you attempt to access a device on the
134.177.0.0 network, your router will forward your request to the ISP. The ISP forwards your
request to the company where you are employed, and the request will likely be denied by the
company’s firewall.
In this case you must define a static route, telling your router that 134.177.0.0 should be accessed
through the ISDN router at 192.168.0.100. The static route would look like Figure 7-5.
Note: If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x, the
dynamic DNS service will not work because private addresses will not be routed on the
Internet.
![](/img.php?id=450691&img=bg60.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-10 Advanced Configuration
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to
all 134.177.x.x addresses.
• The Gateway IP Address fields specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.0.100.
• A Metric value of 1 will work since the ISDN router is on the LAN.
This represents the number of routers between your network and the destination. This is a
direct connection so it is set to 1.
• Private is selected only as a precautionary security measure in case RIP is activated.
How to Configure Static Routes
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu of the browser interface, under Advanced, click Static Routes to view
the Static Routes menu, shown in Figure 7-4.

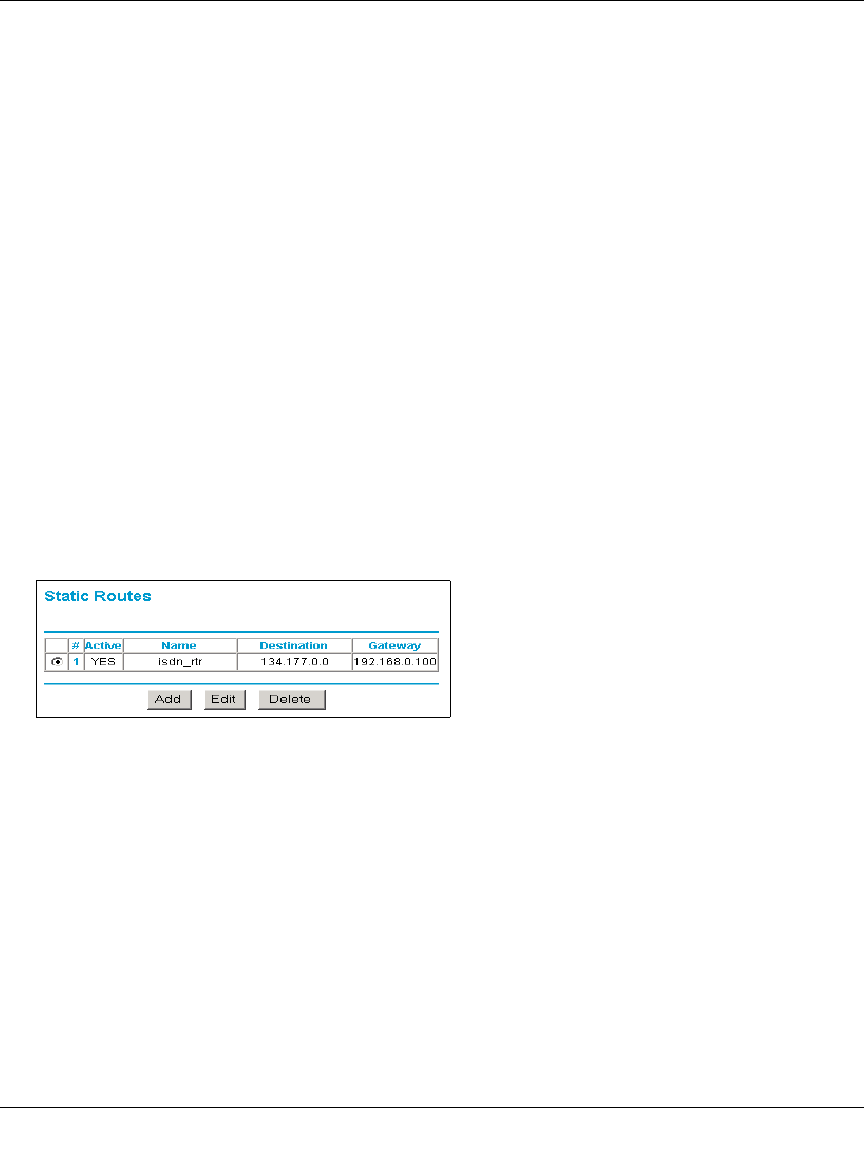

Figure 7-4: Static Routes Table
3. To add or edit a Static Route:
a. Click the Edit button to open the Edit Menu, shown in Figure 7-5.
![](/img.php?id=450691&img=bg61.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Advanced Configuration 7-11
Figure 7-5: Static Route Entry and Edit Menu
b. Type a route name for this static route in the Route Name box under the table.
This is for identification purpose only.
c. Select Private if you want to limit access to the LAN only.
The static route will not be reported in RIP.
d. Select Active to make this route effective.
e. Type the Destination IP Address of the final destination.
f. Type the IP Subnet Mask for this destination.
If the destination is a single host, type 255.255.255.255.
g. Type the Gateway IP Address, which must be a router on the same LAN segment as the
router.
h. Type a number between 1 and 15 as the Metric value.
This represents the number of routers between your network and the destination. Usually,
a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
4. Click Apply to have the static route entered into the table.
![](/img.php?id=450691&img=bg62.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
7-12 Advanced Configuration
![](/img.php?id=450691&img=bg63.png)
Troubleshooting 8-1
Chapter 8
Troubleshooting
This chapter gives information about troubleshooting your DG834G Wireless ADSL Firewall
Router. After each problem description, instructions are provided to help you diagnose and solve
the problem. For the common problems listed, go to the section indicated.
• Is the router on?
• Have I connected the router correctly?
Go to “Basic Functioning” on page 8-1.
• I can’t access the router’s configuration with my browser.
Go to “Troubleshooting the Web Configuration Interface” on page 8-3.
• I’ve configured the router but I can’t access the Internet.
Go to “Troubleshooting the ISP Connection” on page 8-4.
• I can’t remember the router’s configuration password.
• I want to clear the configuration and start over again.
Go to “Restoring the Default Configuration and Password” on page 8-9.
Basic Functioning
After you turn on power to the router, the following sequence of events should occur:
1. When power is first applied, verify that the Power LED is on (see “The Router’s Front Panel”
on page 2-6 for an illustration and explanation of the LEDs).
2. Verify that the Test LED lights within a few seconds, indicating that the self-test procedure is
running.
3. After approximately 10 seconds, verify that:
a. The Test LED is not lit.
b. The LAN port LEDs are lit for any local ports that are connected.
c. The WAN port LED is lit.
![](/img.php?id=450691&img=bg64.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
8-2 Troubleshooting
If a port’s LED is lit, a link has been established to the connected device. If a LAN port is
connected to a 100 Mbps device, verify that the port’s LED is green. If the port is 10 Mbps, the
LED will be amber.
If any of these conditions does not occur, refer to the appropriate following section.
Power LED Not On
If the Power and other LEDs are off when your router is turned on:
• Make sure that the power cord is properly connected to your router and that the power supply
adapter is properly connected to a functioning power outlet.
• Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product.
If the error persists, you have a hardware problem and should contact technical support.
Test LED Never Turns On or Test LED Stays On
When the router is turned on, the Test LED turns on for about 10 seconds and then turns off. If the
Test LED does not turn on, or if it stays on, there is a fault within the router.
If you experience problems with the Test LED:
• Cycle the power to see if the router recovers and the LED blinks for the correct amount of
time.
If all LEDs including the Test LED are still on one minute after power up:
• Cycle the power to see if the router recovers.
• Clear the router’s configuration to factory defaults. This will set the router’s IP address to
192.168.0.1. This procedure is explained in “Using the Reset button” on page 8-9.
If the error persists, you might have a hardware problem and should contact technical support.
LAN or WAN Port LEDs Not On
If either the LAN LEDs or WAN LED do not light when the Ethernet connection is made, check
the following:
• Make sure that the Ethernet cable connections are secure at the router and at the hub or
workstation.
![](/img.php?id=450691&img=bg65.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Troubleshooting 8-3
• Make sure that power is turned on to the connected hub or workstation.
• Be sure you are using the correct cable:
— When connecting the router’s WAN ADSL port, use the cable that was supplied with the
DG834G.
Troubleshooting the Web Configuration Interface
If you are unable to access the router’s Web Configuration interface from a computer on your local
network, check the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection between the
computer and the router as described in the previous section.
• Make sure your computer’s IP address is on the same subnet as the router. If you are using the
recommended addressing scheme, your computer’s address should be in the range of
192.168.0.2 to 192.168.0.254. Refer to “Verifying TCP/IP Properties” on page C-6 or
“Verifying TCP/IP Properties for Macintosh Computers” on page C-17 to find your
computer’s IP address. Follow the instructions in Appendix C to configure your computer.
Note: If your computer’s IP address is shown as 169.254.x.x:
Recent versions of Windows and MacOS will generate and assign an IP address if the
computer cannot reach a DHCP server. These auto-generated addresses are in the range of
169.254.x.x. If your IP address is in this range, check the connection from the computer to the
router and reboot your computer.
• If your router’s IP address was changed and you do not know the current IP address, clear the
router’s configuration to factory defaults. This will set the router’s IP address to 192.168.0.1.
This procedure is explained in “Using the Reset button” on page 8-9.
• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The factory default login name is
admin and the password is password. Make sure that CAPS LOCK is off when entering this
information.
If the router does not save changes you have made in the Web Configuration Interface, check the
following:
• When entering configuration settings, be sure to click the APPLY button before moving to
another menu or tab, or your changes are lost.
![](/img.php?id=450691&img=bg66.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
8-4 Troubleshooting
• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but
the Web browser may be caching the old configuration.
Troubleshooting the ISP Connection
If your router is unable to access the Internet, you should check the ADSL connection, then the
WAN TCP/IP connection.
ADSL link
If your router is unable to access the Internet, you should first determine whether you have an
ADSL link with the service provider. The state of this connection is indicated with the WAN LED.
WAN LED Green or Blinking Green
If your WAN LED is green or blinking green, then you have a good ADSL connection. You can be
confident that the service provider has connected your line correctly and that your wiring is
correct.
WAN LED Blinking Yellow
If your WAN LED is blinking yellow, then your gateway is attempting to make an ADSL
connection with the service provider. The LED should turn green within several minutes.
If the WAN LED does not turn green, disconnect all telephones on the line. If this solves the
problem, reconnect the telephones one at a time, being careful to use a microfilter on each
telephone. If the microfilters are connected correctly, you should be able to connect all your
telephones.
If disconnecting telephones does not result in a green WAN LED, there may be a problem with
your wiring. If the telephone company has tested the ADSL signal at your Network Interface
Device (NID), then you may have poor quality wiring in your house.
WAN LED Off
If the WAN LED is off, disconnect all telephones on the line. If this solves the problem, reconnect
the telephones one at a time, being careful to use a microfilter on each telephone. If the microfilters
are connected correctly, you should be able to connect all your telephones.
![](/img.php?id=450691&img=bg67.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Troubleshooting 8-5
If disconnecting telephones does not result in a green WAN LED the problem may be one of the
following:
• Check that the telephone company has made the connection to your line and tested it.
• Verify that you are connected to the correct telephone line. If you have more than one phone
line, be sure that you are connected to the line with the ADSL service. It may be necessary to
use a swapper if you ADSL signal is on pins 1 and 4 or the RJ-11 jack. The DG834G wireless
router uses pins 2 and 3.
Obtaining a WAN IP Address
If your gateway is unable to access the internet, and your WAN LED is green or blinking green,
you should determine whether the gateway is able to obtain a WAN IP address from the ISP.
Unless you have been assigned a static IP address, your gateway must request an IP address from
the ISP. You can determine whether the request was successful using the browser interface.
To check the WAN IP address from the browser interface:
1. Launch your browser and select an external site such as www.netgear.com.
2. Access the Main Menu of the gateway’s configuration at http://192.168.0.1.
3. Under the Maintenance heading check that an IP address is shown for the WAN Port.
If 0.0.0.0 is shown, your gateway has not obtained an IP address from your ISP.
If your router is unable to obtain an IP address from the ISP, the problem may be one of the
following:
• Your ISP may require a Multiplexing Method or Virtual Path Identifier/Virtual Channel
Identifier parameter.
Verify with your ISP the Multiplexing Method and parameter value, and update the router’s
ADSL Settings accordingly.
• Your ISP may require a login program.
Ask your ISP whether they require PPP over Ethernet (PPPoE) or PPP over ATM (PPPOA)
login.
• If you have selected a login program, you may have incorrectly set the Service Name, User
Name and Password. See “Troubleshooting PPPoE or PPPoA” , below.
• Your ISP may check for your computer's host name.
Assign the computer Host Name of your ISP account to the gateway in the browser-based
Setup Wizard.
![](/img.php?id=450691&img=bg68.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
8-6 Troubleshooting
• Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for
your computer’s MAC address. In this case:
Inform your ISP that you have bought a new network device, and ask them to use the router’s
MAC address.
OR
Configure your router to spoof your computer’s MAC address. This can be done in the Basic
Settings menu. Refer to “Manually Configuring Your Internet Connection” on page 3-15.
Troubleshooting PPPoE or PPPoA
The PPPoA or PPPoA connection can be debugged as follows:
1. Access the Main Menu of the router at http://192.168.0.1.
2. Under the Maintenance heading, select the Router Status link.
3. Click the Connection Status button.
4. If all of the steps indicate “OK” then your PPPoE or PPPoA connection is up and working.
5. If any of the steps indicates “Failed”, you can attempt to reconnect by clicking “Connect”. The
gateway will continue to attempt to connect indefinitely.
If you cannot connect after several minutes, you may be using an incorrect Service Name, User
Name or Password. There also may be a provisioning problem with your ISP.
Troubleshooting Internet Browsing
If your gateway can obtain an IP address but your computer is unable to load any Web pages from
the Internet:
• Your computer may not recognize any DNS server addresses.
Note: Unless you connect manually, the gateway will not authenticate using PPPoE or
PPPoA until data is transmitted to the network.
![](/img.php?id=450691&img=bg69.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Troubleshooting 8-7
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS
servers for your use. If you entered a DNS address during the gateway’s configuration, reboot
your computer and verify the DNS address as described in “Verifying TCP/IP Properties” on
page C-6. Alternatively, you can configure your computer manually with DNS addresses, as
explained in your operating system documentation.
• Your computer may not have the gateway configured as its TCP/IP gateway.
If your computer obtains its information from the gateway by DHCP, reboot the computer and
verify the gateway address as described in “Verifying TCP/IP Properties” on page C-6.
Troubleshooting a TCP/IP Network Using the Ping Utility
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet
to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP
network is made very easy by using the ping utility in your computer.
Testing the LAN Path to Your Router
You can ping the router from your computer to verify that the LAN path to your router is set up
correctly.
To ping the router from a PC running Windows 95 or later:
1. From the Windows toolbar, click the Start button and select Run.
2. In the field provided, type Ping followed by the IP address of the router, as in this example:
ping 192.168.0.1
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
![](/img.php?id=450691&img=bg6a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
8-8 Troubleshooting
• Wrong physical connections
— Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN
or WAN Port LEDs Not On” on page 8-2.
— Check that the corresponding Link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and router.
• Wrong network configuration
— Verify that the Ethernet card driver software and TCP/IP software are both installed
and configured on your PC or workstation.
— Verify that the IP address for your router and your workstation are correct and that the
addresses are on the same subnet.
Testing the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your computer to a remote
device. From the Windows run menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
— Check that your computer has the IP address of your router listed as the default gateway. If
the IP configuration of your computer is assigned by DHCP, this information will not be
visible in your computer’s Network Control Panel. Verify that the IP address of the router
is listed as the default gateway as described in “Verifying TCP/IP Properties” on page C-6.
— Check to see that the network address of your computer (the portion of the IP address
specified by the netmask) is different from the network address of the remote device.
— Check that your cable or DSL modem is connected and functioning.
— If your ISP assigned a host name to your computer, enter that host name as the Account
Name in the Basic Settings menu.
— Your ISP could be rejecting the Ethernet MAC addresses of all but one of your computers.
Many broadband ISPs restrict access by only allowing traffic from the MAC address of
your broadband modem, but some ISPs additionally restrict access to the MAC address of
a single computer connected to that modem. If this is the case, you must configure your
router to “clone” or “spoof” the MAC address from the authorized computer. Refer to
“Manually Configuring Your Internet Connection” on page 3-15.
![](/img.php?id=450691&img=bg6b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Troubleshooting 8-9
Restoring the Default Configuration and Password
This section explains how to restore the factory default configuration settings, changing the
router’s administration password to password and the IP address to 192.168.0.1. You can erase the
current configuration and restore factory defaults in two ways:
• Use the Erase function of the Web Configuration Manager (see “Backing Up, Restoring, or
Erasing Your Settings” on page 6-1).
• Use the Default Reset button on the rear panel of the router. Use this method for cases when
the administration password or IP address is not known.
Using the Reset button
To restore the factory default configuration settings without knowing the administration password
or IP address, you must use the Default Reset button on the rear panel of the router.
1. Press and hold the Default Reset button until the Test LED turns on (about 10 seconds).
2. Release the Default Reset button and wait for the router to reboot.
Problems with Date and Time
The E-mail menu in the Content Filtering section displays the current date and time of day. The
DG834G wireless router uses the Network Time Protocol (NTP) to obtain the current time from
one of several Network Time Servers on the Internet. Each entry in the log is stamped with the date
and time of day. Problems with the date and time function can include:
• Date shown is January 1, 2000
Cause: The router has not yet successfully reached a Network Time Server. Check that your
Internet access settings are configured correctly. If you have just completed configuring the
router, wait at least five minutes and check the date and time again.
• Time is off by one hour
Cause: The router does not automatically sense Daylight Savings Time. In the E-mail menu,
select or clear the box marked “Adjust for Daylight Savings Time”.
![](/img.php?id=450691&img=bg6c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
8-10 Troubleshooting
![](/img.php?id=450691&img=bg6d.png)
Technical Specifications A-1
Appendix A
Technical Specifications
This appendix provides technical specifications for the DG834G Wireless ADSL Firewall Router.
Network Protocol and Standards Compatibility
Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP, PPP over Ethernet (PPPoE) or
PPP over ATM (PPPoA), RFC 1483 Bridged or Routed
Ethernet, and RFC 1577 Classical IP over ATM
Power Adapter
North America: 120V, 60 Hz, input
United Kingdom, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
Japan: 100V, 50/60 Hz, input
All regions (output): 15 V AC @ 1.0A output, 30W maximum
Physical Specifications
Dimensions: 10" x 6.7" x 1.3"
255 mm x 169 mm x 34 mm
Weight: 1.4 lbs.
0.62 kg
Environmental Specifications
Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 90% maximum relative humidity, noncondensing
Electromagnetic Emissions
![](/img.php?id=450691&img=bg6e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
A-2 Technical Specifications
Meets requirements of: FCC Part 15 Class B
VCCI Class B
EN 55 022 (CISPR 22), Class B
Interface Specifications
LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: ADSL, Dual RJ-11, pins 2 and 3
T1.413, G.DMT, G.Lite
ITU Annex A or B
![](/img.php?id=450691&img=bg6f.png)
Network and Routing Basics B-1
Appendix B
Network and Routing Basics
This chapter provides an overview of IP networks, routing, and wireless networking.
Related Publications
As you read this document, you may be directed to various RFC documents for further
information. An RFC is a Request For Comment (RFC) published by the Internet Engineering
Task Force (IETF), an open organization that defines the architecture and operation of the Internet.
The RFC documents outline and define the standard protocols and procedures for the Internet. The
documents are listed on the World Wide Web at www.ietf.org and are mirrored and indexed at
many other sites worldwide.
Basic Router Concepts
Large amounts of bandwidth can be provided easily and relatively inexpensively in a local area
network (LAN). However, providing high bandwidth between a local network and the Internet can
be very expensive. Because of this expense, Internet access is usually provided by a slower-speed
wide-area network (WAN) link such as a cable or DSL modem. In order to make the best use of the
slower WAN link, a mechanism must be in place for selecting and transmitting only the data traffic
meant for the Internet. The function of selecting and forwarding this data is performed by a router.
![](/img.php?id=450691&img=bg70.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-2 Network and Routing Basics
What is a Router?
A router is a device that forwards traffic between networks based on network layer information in
the data and on routing tables maintained by the router. In these routing tables, a router builds up a
logical picture of the overall network by gathering and exchanging information with other routers
in the network. Using this information, the router chooses the best path for forwarding network
traffic.
Routers vary in performance and scale, number of routing protocols supported, and types of
physical WAN connection they support. The DG834G Wireless ADSL Firewall Router is a small
office router that routes the IP protocol over a single-user broadband connection.
Routing Information Protocol
One of the protocols used by a router to build and maintain a picture of the network is the Routing
Information Protocol (RIP). Using RIP, routers periodically update one another and check for
changes to add to the routing table.
The DG834G wireless router supports both the older RIP-1 and the newer RIP-2 protocols.
Among other improvements, RIP-2 supports subnet and multicast protocols. RIP is not required
for most home applications.
IP Addresses and the Internet
Because TCP/IP networks are interconnected across the world, every machine on the Internet must
have a unique address to make sure that transmitted data reaches the correct destination. Blocks of
addresses are assigned to organizations by the Internet Assigned Numbers Authority (IANA).
Individual users and small organizations may obtain their addresses either from the IANA or from
an Internet service provider (ISP). You can contact IANA at www.iana.org.
The Internet Protocol (IP) uses a 32-bit address structure. The address is usually written in dot
notation (also called dotted-decimal notation), in which each group of eight bits is written in
decimal form, separated by decimal points.
For example, the following binary address:
11000011 00100010 00001100 00000111
is normally written as:
195.34.12.7
![](/img.php?id=450691&img=bg71.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-3
The latter version is easier to remember and easier to enter into your computer.
In addition, the 32 bits of the address are subdivided into two parts. The first part of the address
identifies the network, and the second part identifies the host node or station on the network. The
dividing point may vary depending on the address range and the application.
There are five standard classes of IP addresses. These address classes have different ways of
determining the network and host sections of the address, allowing for different numbers of hosts
on a network. Each address type begins with a unique bit pattern, which is used by the TCP/IP
software to identify the address class. After the address class has been determined, the software
can correctly identify the host section of the address. The follow figure shows the three main
address classes, including network and host sections of the address for each address type.

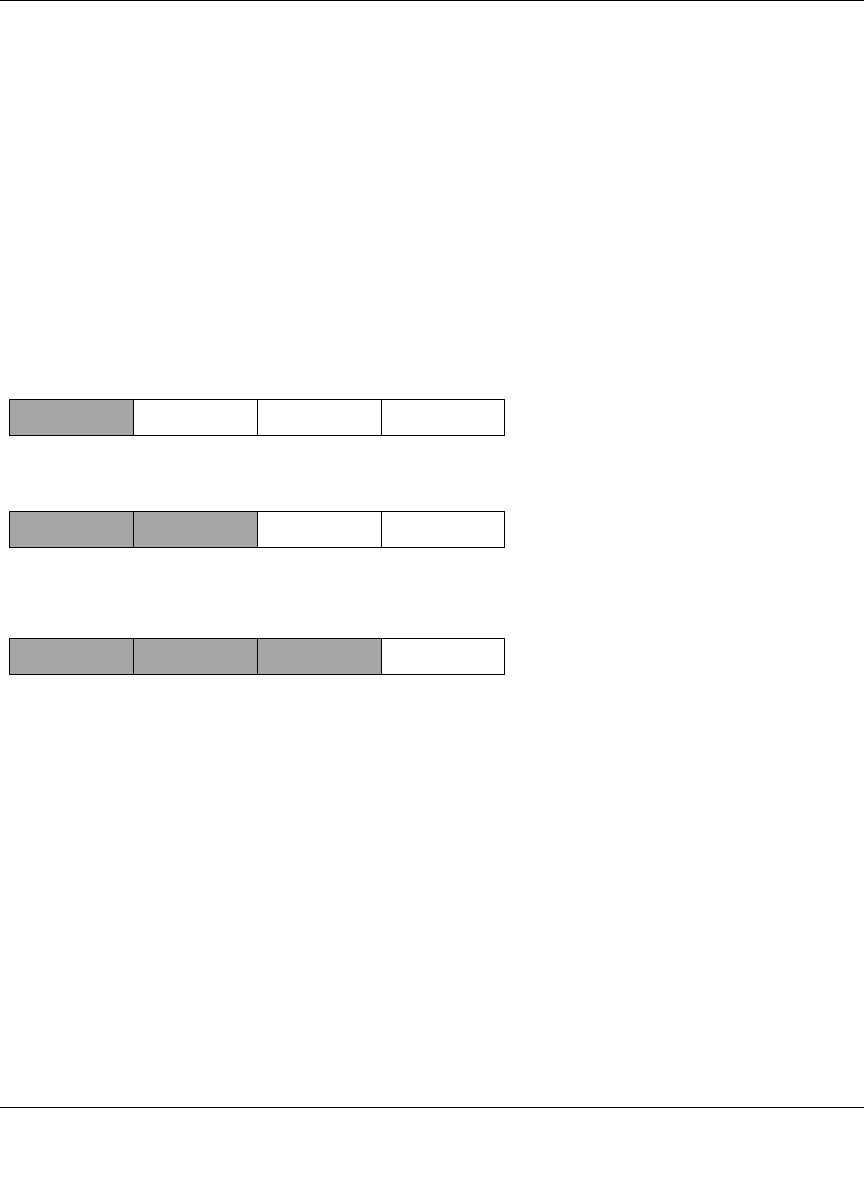

Figure 8-1: Three Main Address Classes
The five address classes are:
• Class A
Class A addresses can have up to 16,777,214 hosts on a single network. They use an eight-bit
network number and a 24-bit node number. Class A addresses are in this range:
1.x.x.x to 126.x.x.x.
• Class B
Class B addresses can have up to 65,354 hosts on a network. A Class B address uses a 16-bit
network number and a 16-bit node number. Class B addresses are in this range:
128.1.x.x to 191.254.x.x.
C
lass A
N
etwork Node
C
lass B
C
lass C
Network Node
Network Node
![](/img.php?id=450691&img=bg72.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-4 Network and Routing Basics
• Class C
Class C addresses can have 254 hosts on a network. Class C addresses use 24 bits for the
network address and eight bits for the node. They are in this range:
192.0.1.x to 223.255.254.x.
• Class D
Class D addresses are used for multicasts (messages sent to many hosts). Class D addresses are
in this range:
224.0.0.0 to 239.255.255.255.
• Class E
Class E addresses are for experimental use.
This addressing structure allows IP addresses to uniquely identify each physical network and each
node on each physical network.
For each unique value of the network portion of the address, the base address of the range (host
address of all zeros) is known as the network address and is not usually assigned to a host. Also,
the top address of the range (host address of all ones) is not assigned, but is used as the broadcast
address for simultaneously sending a packet to all hosts with the same network address.
Netmask
In each of the address classes previously described, the size of the two parts (network address and
host address) is implied by the class. This partitioning scheme can also be expressed by a netmask
associated with the IP address. A netmask is a 32-bit quantity that, when logically combined (using
an AND operator) with an IP address, yields the network address. For instance, the netmasks for
Class A, B, and C addresses are 255.0.0.0, 255.255.0.0, and 255.255.255.0, respectively.
For example, the address 192.168.170.237 is a Class C IP address whose network portion is the
upper 24 bits. When combined (using an AND operator) with the Class C netmask, as shown here,
only the network portion of the address remains:
11000000 10101000 10101010 11101101 (192.168.170.237)
combined with:
11111111 11111111 11111111 00000000 (255.255.255.0)
Equals:
11000000 10101000 10101010 00000000 (192.168.170.0)
![](/img.php?id=450691&img=bg73.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-5
As a shorter alternative to dotted-decimal notation, the netmask may also be expressed in terms of
the number of ones from the left. This number is appended to the IP address, following a backward
slash (/), as “/n.” In the example, the address could be written as 192.168.170.237/24, indicating
that the netmask is 24 ones followed by 8 zeros.
Subnet Addressing
By looking at the addressing structures, you can see that even with a Class C address, there are a
large number of hosts per network. Such a structure is an inefficient use of addresses if each end of
a routed link requires a different network number. It is unlikely that the smaller office LANs would
have that many devices. You can resolve this problem by using a technique known as subnet
addressing.
Subnet addressing allows us to split one IP network address into smaller multiple physical
networks known as subnetworks. Some of the node numbers are used as a subnet number instead.
A Class B address gives us 16 bits of node numbers translating to 64,000 nodes. Most
organizations do not use 64,000 nodes, so there are free bits that can be reassigned. Subnet
addressing makes use of those bits that are free, as shown below.
Figure 8-2: Example of Subnetting a Class B Address
A Class B address can be effectively translated into multiple Class C addresses. For example, the
IP address of 172.16.0.0 is assigned, but node addresses are limited to 255 maximum, allowing
eight extra bits to use as a subnet address. The IP address of 172.16.97.235 would be interpreted as
IP network address 172.16, subnet number 97, and node number 235. In addition to extending
the number of addresses available, subnet addressing provides other benefits. Subnet addressing
allows a network manager to construct an address scheme for the network by using different
subnets for other geographical locations in the network or for other departments in the
organization.
7262
C
lass B
Network Subnet Node
![](/img.php?id=450691&img=bg74.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-6 Network and Routing Basics
Although the preceding example uses the entire third octet for a subnet address, note that you are
not restricted to octet boundaries in subnetting. To create more network numbers, you need only
shift some bits from the host address to the network address. For instance, to partition a Class C
network number (192.68.135.0) into two, you shift one bit from the host address to the network
address. The new netmask (or subnet mask) is 255.255.255.128. The first subnet has network
number 192.68.135.0 with hosts 192.68.135.1 to 129.68.135.126, and the second subnet has
network number 192.68.135.128 with hosts 192.68.135.129 to 192.68.135.254.
The following table lists the additional subnet mask bits in dotted-decimal notation. To use the
table, write down the original class netmask and replace the 0 value octets with the dotted-decimal
value of the additional subnet bits. For example, to partition your Class C network with subnet
mask 255.255.255.0 into 16 subnets (4 bits), the new subnet mask becomes 255.255.255.240.
The following table displays several common netmask values in both the dotted-decimal and the
masklength formats.
Note: The number 192.68.135.127 is not assigned because it is the broadcast address
of the first subnet. The number 192.68.135.128 is not assigned because it is the network
address of the second subnet.
Table 8-1. Netmask Notation Translation Table for One Octet
Number of Bits Dotted-Decimal Value
1 128
2 192
3 224
4 240
5 248
6 252
7 254
8 255
Table 8-2. Netmask Formats
Dotted-Decimal Masklength
255.0.0.0 /8
255.255.0.0 /16
![](/img.php?id=450691&img=bg75.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-7
NETGEAR strongly recommends that you configure all hosts on a LAN segment to use the same
netmask for the following reasons:
• So that hosts recognize local IP broadcast packets
When a device broadcasts to its segment neighbors, it uses a destination address of the local
network address with all ones for the host address. In order for this scheme to work, all devices
on the segment must agree on which bits comprise the host address.
• So that a local router or bridge recognizes which addresses are local and which are remote
Private IP Addresses
If your local network is isolated from the Internet (for example, when using NAT), you can assign
any IP addresses to the hosts without problems. However, the IANA has reserved the following
three blocks of IP addresses specifically for private networks:
10.0.0.0 - 10.255.255.255
172.16.0.0 - 172.31.255.255
192.168.0.0 - 192.168.255.255
NETGEAR recommends that you choose your private network number from this range. The
DHCP server of the DG834G wireless router is preconfigured to automatically assign private
addresses.
255.255.255.0 /24
255.255.255.128 /25
255.255.255.192 /26
255.255.255.224 /27
255.255.255.240 /28
255.255.255.248 /29
255.255.255.252 /30
255.255.255.254 /31
255.255.255.255 /32
Table 8-2. Netmask Formats
![](/img.php?id=450691&img=bg76.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-8 Network and Routing Basics
Regardless of your particular situation, do not create an arbitrary IP address; always follow the
guidelines explained here. For more information about address assignment, refer to RFC 1597,
Address Allocation for Private Internets, and RFC 1466, Guidelines for Management of IP
Address Space. The Internet Engineering Task Force (IETF) publishes RFCs on its Web site at
www.ietf.org.
Single IP Address Operation Using NAT
In the past, if multiple PCs on a LAN needed to access the Internet simultaneously, you had to
obtain a range of IP addresses from the ISP. This type of Internet account is more costly than a
single-address account typically used by a single user with a modem, rather than a router. The
DG834G wireless router employs an address-sharing method called Network Address Translation
(NAT). This method allows several networked PCs to share an Internet account using only a single
IP address, which may be statically or dynamically assigned by your ISP.
The router accomplishes this address sharing by translating the internal LAN IP addresses to a
single address that is globally unique on the Internet. The internal LAN IP addresses can be either
private addresses or registered addresses. For more information about IP address translation, refer
to RFC 1631, The IP Network Address Translator (NAT).
The following figure illustrates a single IP address operation.

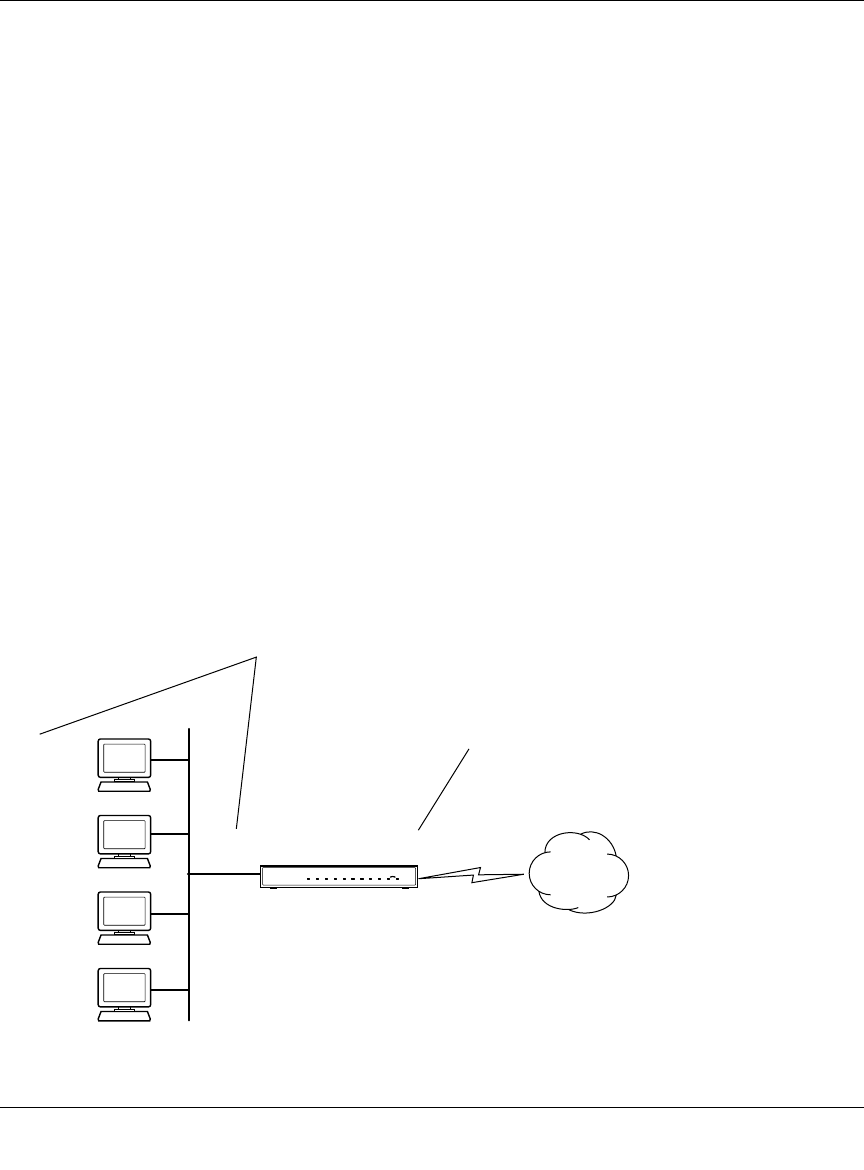

Figure 8-3: Single IP Address Operation Using NAT
7786EA
1
92.168.0.2
1
92.168.0.3
1
92.168.0.4
1
92.168.0.5
192.168.0.1 172.21.15.105
Private IP addresses
assigned by user
Internet
IP addresses
assigned by ISP
![](/img.php?id=450691&img=bg77.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-9
This scheme offers the additional benefit of firewall-like protection because the internal LAN
addresses are not available to the Internet through the translated connection. All incoming
inquiries are filtered out by the router. This filtering can prevent intruders from probing your
system. However, using port forwarding, you can allow one PC (for example, a Web server) on
your local network to be accessible to outside users.
MAC Addresses and Address Resolution Protocol
An IP address alone cannot be used to deliver data from one LAN device to another. To send data
between LAN devices, you must convert the IP address of the destination device to its media
access control (MAC) address. Each device on an Ethernet network has a unique MAC address,
which is a 48-bit number assigned to each device by the manufacturer. The technique that
associates the IP address with a MAC address is known as address resolution. Internet Protocol
uses the Address Resolution Protocol (ARP) to resolve MAC addresses.
If a device sends data to another station on the network and the destination MAC address is not yet
recorded, ARP is used. An ARP request is broadcast onto the network. All stations on the network
receive and read the request. The destination IP address for the chosen station is included as part of
the message so that only the station with this IP address responds to the ARP request. All other
stations discard the request.
Related Documents
The station with the correct IP address responds with its own MAC address directly to the sending
device. The receiving station provides the transmitting station with the required destination MAC
address. The IP address data and MAC address data for each station are held in an ARP table. The
next time data is sent, the address can be obtained from the address information in the table.
For more information about address assignment, refer to the IETF documents RFC 1597, Address
Allocation for Private Internets, and RFC 1466, Guidelines for Management of IP Address Space.
For more information about IP address translation, refer to RFC 1631, The IP Network Address
Translator (NAT).
![](/img.php?id=450691&img=bg78.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-10 Network and Routing Basics
Domain Name Server
Many of the resources on the Internet can be addressed by simple descriptive names such as
www.NETGEAR.com. This addressing is very helpful at the application level, but the descriptive
name must be translated to an IP address in order for a user to actually contact the resource. Just as
a telephone directory maps names to phone numbers, or as an ARP table maps IP addresses to
MAC addresses, a domain name system (DNS) server maps descriptive names of network
resources to IP addresses.
When a PC accesses a resource by its descriptive name, it first contacts a DNS server to obtain the
IP address of the resource. The PC sends the desired message using the IP address. Many large
organizations, such as ISPs, maintain their own DNS servers and allow their customers to use the
servers to look up addresses.
IP Configuration by DHCP
When an IP-based local area network is installed, each PC must be configured with an IP address.
If the PCs need to access the Internet, they should also be configured with a gateway address and
one or more DNS server addresses. As an alternative to manual configuration, there is a method by
which each PC on the network can automatically obtain this configuration information. A device
on the network may act as a Dynamic Host Configuration Protocol (DHCP) server. The DHCP
server stores a list or pool of IP addresses, along with other information (such as gateway and DNS
addresses) that it may assign to the other devices on the network. The DG834G wireless router has
the capacity to act as a DHCP server.
The DG834G wireless router also functions as a DHCP client when connecting to the ISP. The
gateway can automatically obtain an IP address, subnet mask, DNS server addresses, and a
gateway address if the ISP provides this information by DHCP.
Internet Security and Firewalls
When your LAN connects to the Internet through a router, an opportunity is created for outsiders
to access or disrupt your network. A NAT router provides some protection because by the very
nature of the Network Address Translation (NAT) process, the network behind the NAT router is
shielded from access by outsiders on the Internet. However, there are methods by which a
determined hacker can possibly obtain information about your network or at the least can disrupt
your Internet access. A greater degree of protection is provided by a firewall router.
![](/img.php?id=450691&img=bg79.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-11
What is a Firewall?
A firewall is a device that protects one network from another, while allowing communication
between the two. A firewall incorporates the functions of the NAT router, while adding features for
dealing with a hacker intrusion or attack. Several known types of intrusion or attack can be
recognized when they occur. When an incident is detected, the firewall can log details of the
attempt, and can optionally send email to an administrator notifying them of the incident. Using
information from the log, the administrator can take action with the ISP of the hacker. In some
types of intrusions, the firewall can fend off the hacker by discarding all further packets from the
hacker’s IP address for a period of time.
Stateful Packet Inspection
Unlike simple Internet sharing routers, a firewall uses a process called stateful packet inspection to
ensure secure firewall filtering to protect your network from attacks and intrusions. Since
user-level applications such as FTP and Web browsers can create complex patterns of network
traffic, it is necessary for the firewall to analyze groups of network connection states. Using
Stateful Packet Inspection, an incoming packet is intercepted at the network layer and then
analyzed for state-related information associated with all network connections. A central cache
within the firewall keeps track of the state information associated with all network connections.
All traffic passing through the firewall is analyzed against the state of these connections in order to
determine whether or not it will be allowed to pass through or rejected.
Denial of Service Attack
A hacker may be able to prevent your network from operating or communicating by launching a
Denial of Service (DoS) attack. The method used for such an attack can be as simple as merely
flooding your site with more requests than it can handle. A more sophisticated attack may attempt
to exploit some weakness in the operating system used by your router or gateway. Some operating
systems can be disrupted by simply sending a packet with incorrect length information.
Ethernet Cabling
Although Ethernet networks originally used thick or thin coaxial cable, most installations currently
use unshielded twisted pair (UTP) cabling. The UTP cable contains eight conductors, arranged in
four twisted pairs, and terminated with an RJ45 type connector. A normal straight-through UTP
Ethernet cable follows the EIA568B standard wiring as described below in Table B-1
![](/img.php?id=450691&img=bg7a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-12 Network and Routing Basics
.
Category 5 Cable Quality
Category 5 distributed cable that meets ANSI/EIA/TIA-568-A building wiring standards can be a
maximum of 328 feet (ft.) or 100 meters (m) in length, divided as follows:
20 ft. (6 m) between the hub and the patch panel (if used)
295 ft. (90 m) from the wiring closet to the wall outlet
10 ft. (3 m) from the wall outlet to the desktop device
The patch panel and other connecting hardware must meet the requirements for 100 Mbps
operation (Category 5). Only 0.5 inch (1.5 cm) of untwist in the wire pair is allowed at any
termination point.
A twisted pair Ethernet network operating at 10 Mbits/second (10BASE-T) will often tolerate low
quality cables, but at 100 Mbits/second (10BASE-Tx) the cable must be rated as Category 5, or
Cat 5, by the Electronic Industry Association (EIA). This rating will be printed on the cable jacket.
A Category 5 cable will meet specified requirements regarding loss and crosstalk. In addition,
there are restrictions on maximum cable length for both 10 and 100 Mbits/second networks.
Table B-1. UTP Ethernet cable wiring, straight-through
Pin Wire color Signal
1 Orange/White Transmit (Tx) +
2 Orange Transmit (Tx) -
3 Green/White Receive (Rx) +
4Blue
5 Blue/White
6 Green Receive (Rx) -
7 Brown/White
8Brown
![](/img.php?id=450691&img=bg7b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-13
Inside Twisted Pair Cables
For two devices to communicate, the transmitter of each device must be connected to the receiver
of the other device. The crossover function is usually implemented internally as part of the
circuitry in the device. Computers and workstation adapter cards are usually media-dependent
interface ports, called MDI or uplink ports. Most repeaters and switch ports are configured as
media-dependent interfaces with built-in crossover ports, called MDI-X or normal ports. Auto
Uplink technology automatically senses which connection, MDI or MDI-X, is needed and makes
the right connection.
Figure B-1 illustrates straight-through twisted pair cable.
Figure B-1: Straight-Through Twisted-Pair Cable
Figure B-2 illustrates crossover twisted pair cable.
Figure B-2: Crossover Twisted-Pair Cable
![](/img.php?id=450691&img=bg7c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-14 Network and Routing Basics
Figure B-3: Category 5 UTP Cable with Male RJ-45 Plug at Each End
Note: Flat “silver satin” telephone cable may have the same RJ-45 plug. However, using telephone
cable results in excessive collisions, causing the attached port to be partitioned or disconnected
from the network.
Uplink Switches, Crossover Cables, and MDI/MDIX Switching
In the wiring table above, the concept of transmit and receive are from the perspective of the PC,
which is wired as Media Dependant Interface (MDI). In this wiring, the PC transmits on pins 1 and
2. At the hub, the perspective is reversed, and the hub receives on pins 1 and 2. This wiring is
referred to as Media Dependant Interface - Crossover (MDI-X).
When connecting a PC to a PC, or a hub port to another hub port, the transmit pair must be
exchanged with the receive pair. This exchange is done by one of two mechanisms. Most hubs
provide an Uplink switch which will exchange the pairs on one port, allowing that port to be
connected to another hub using a normal Ethernet cable. The second method is to use a crossover
cable, which is a special cable in which the transmit and receive pairs are exchanged at one of the
two cable connectors. Crossover cables are often unmarked as such, and must be identified by
comparing the two connectors. Since the cable connectors are clear plastic, it is easy to place them
side by side and view the order of the wire colors on each. On a straight-through cable, the color
order will be the same on both connectors. On a crossover cable, the orange and blue pairs will be
exchanged from one connector to the other.
![](/img.php?id=450691&img=bg7d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Network and Routing Basics B-15
The DG834G wireless router incorporates Auto UplinkTM technology (also called MDI/MDIX).
Each LOCAL Ethernet port will automatically sense whether the Ethernet cable plugged into the
port should have a normal connection (e.g. connecting to a PC) or an uplink connection (e.g.
connecting to a router, switch, or hub). That port will then configure itself to the correct
configuration. This feature also eliminates the need to worry about crossover cables, as Auto
UplinkTM will accommodate either type of cable to make the right connection.
![](/img.php?id=450691&img=bg7e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
B-16 Network and Routing Basics
![](/img.php?id=450691&img=bg7f.png)
Preparing Your Network C-1
Appendix C
Preparing Your Network
This appendix describes how to prepare your network to connect to the Internet through the
DG834G Wireless ADSL Firewall Router and how to verify the readiness of broadband Internet
service from an Internet service provider (ISP).
Preparing Your Computers for TCP/IP Networking
Computers access the Internet using a protocol called TCP/IP (Transmission Control Protocol/
Internet Protocol). Each computer on your network must have TCP/IP installed and selected as its
networking protocol. If a Network Interface Card (NIC) is already installed in your PC, then TCP/
IP is probably already installed as well.
Most operating systems include the software components you need for networking with TCP/IP:
•Windows
® 95 or later includes the software components for establishing a TCP/IP network.
• Windows 3.1 does not include a TCP/IP component. You need to purchase a third-party TCP/
IP application package such as NetManage Chameleon.
• Macintosh Operating System 7 or later includes the software components for establishing a
TCP/IP network.
• All versions of UNIX or Linux include TCP/IP components. Follow the instructions provided
with your operating system or networking software to install TCP/IP on your computer.
Note: If an ISP technician configured your computer during the installation of a
broadband modem, or if you configured it using instructions provided by your ISP, you
may need to copy the current configuration information for use in the configuration of
your firewall. Write down this information before reconfiguring your computers. Refer
to “Obtaining ISP Configuration Information for Windows Computers” on page C-19 or
“Obtaining ISP Configuration Information for Macintosh Computers” on page C-20 for
further information.
![](/img.php?id=450691&img=bg80.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-2 Preparing Your Network
In your IP network, each PC and the firewall must be assigned a unique IP addresses. Each PC
must also have certain other IP configuration information such as a subnet mask (netmask), a
domain name server (DNS) address, and a default gateway address. In most cases, you should
install TCP/IP so that the PC obtains its specific network configuration information automatically
from a DHCP server during bootup. For a detailed explanation of the meaning and purpose of
these configuration items, refer to “Appendix B, “Network and Routing Basics.”
The DG834G wireless router is shipped preconfigured as a DHCP server. The firewall assigns the
following TCP/IP configuration information automatically when the PCs are rebooted:
• PC or workstation IP addresses—192.168.0.2 through 192.168.0.254
• Subnet mask—255.255.255.0
• Gateway address (the firewall)—192.168.0.1
These addresses are part of the IETF-designated private address range for use in private networks.
Configuring Windows 95, 98, and Me for TCP/IP Networking
As part of the PC preparation process, you need to manually install and configure TCP/IP on each
networked PC. Before starting, locate your Windows CD; you may need to insert it during the
TCP/IP installation process.
Install or Verify Windows Networking Components
To install or verify the necessary components for IP networking:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Network icon.
The Network window opens, which displays a list of installed components:
![](/img.php?id=450691&img=bg81.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-3
You must have an Ethernet adapter, the TCP/IP protocol, and Client for Microsoft Networks.
If you need to install a new adapter, follow these steps:
a. Click the Add button.
b. Select Adapter, and then click Add.
c. Select the manufacturer and model of your Ethernet adapter, and then click OK.
If you need TCP/IP:
a. Click the Add button.
b. Select Protocol, and then click Add.
c. Select Microsoft.
d. Select TCP/IP, and then click OK.
Note: It is not necessary to remove any other network components shown in the
Network window in order to install the adapter, TCP/IP, or Client for Microsoft
Networks.
![](/img.php?id=450691&img=bg82.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-4 Preparing Your Network
If you need Client for Microsoft Networks:
a. Click the Add button.
b. Select Client, and then click Add.
c. Select Microsoft.
d. Select Client for Microsoft Networks, and then click OK.
3. Restart your PC for the changes to take effect.
Enabling DHCP to Automatically Configure TCP/IP Settings in
Windows 95B, 98, and Me
After the TCP/IP protocol components are installed, each PC must be assigned specific
information about itself and resources that are available on its network. The simplest way to
configure this information is to allow the PC to obtain the information from a DHCP server in the
network.
You will find there are many similarities in the procedures for different Windows systems
when using DHCP to configure TCP/IP.
The following steps will walk you through the configuration process for each of these
versions of Windows.
Locate your Network Neighborhood icon.
• If the Network Neighborhood icon is on the Windows desktop, position your mouse
pointer over it and right-click your mouse button.
• If the icon is not on the desktop,
• Click Start on the task bar located at the bottom left of the window.
• Choose Settings, and then Control Panel.
• Locate the Network Neighborhood icon and click on it. This will open the Network
panel as shown below.
![](/img.php?id=450691&img=bg83.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-5
Verify the following settings as shown:
• Client for Microsoft Network exists
• Ethernet adapter is present
• TCP/IP is present
•Primary Network Logon is set to
Windows logon
Click on the Properties button. The
following TCP/IP Properties window will
display.
![](/img.php?id=450691&img=bg84.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-6 Preparing Your Network
Selecting Windows’ Internet Access Method
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Internet Options icon.
3. Select “I want to set up my Internet connection manually” or “I want to connect through a
Local Area Network” and click Next.
4. Select “I want to connect through a Local Area Network” and click Next.
5. Uncheck all boxes in the LAN Internet Configuration screen and click Next.
6. Proceed to the end of the Wizard.
Verifying TCP/IP Properties
After your PC is configured and has rebooted, you can check the TCP/IP configuration using the
utility winipcfg.exe:
1. On the Windows taskbar, click the Start button, and then click Run.
• By default, the IP Address tab is open on
this window.
• Verify the following:
Obtain an IP address automatically is
selected. If not selected, click in the radio
button to the left of it to select it. This
setting is required to enable the DHCP server
to automatically assign an IP address.
• Click OK to continue.
Restart the PC.
Repeat these steps for each PC with this
version of Windows on your network.
![](/img.php?id=450691&img=bg85.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-7
2. Type winipcfg, and then click OK.
The IP Configuration window opens, which lists (among other things), your IP address, subnet
mask, and default gateway.
3. From the drop-down box, select your Ethernet adapter.
The window is updated to show your settings, which should match the values below if you are
using the default TCP/IP settings that NETGEAR recommends for connecting through a
router or gateway:
• The IP address is between 192.168.0.2 and 192.168.0.254
• The subnet mask is 255.255.255.0
• The default gateway is 192.168.0.1
Configuring Windows NT4, 2000 or XP for IP Networking
As part of the PC preparation process, you may need to install and configure
TCP/IP on each networked PC. Before starting, locate your Windows CD; you may need to insert
it during the TCP/IP installation process.
Install or Verify Windows Networking Components
To install or verify the necessary components for IP networking:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Network and Dialup Connections icon.
3. If an Ethernet adapter is present in your PC, you should see an entry for Local Area
Connection. Double-click that entry.
4. Select Properties.
5. Verify that ‘Client for Microsoft Networks’ and ‘Internet Protocol (TCP/IP)’ are present. If
not, select Install and add them.
6. Select ‘Internet Protocol (TCP/IP)’, click Properties, and verify that “Obtain an IP address
automatically is selected.
7. Click OK and close all Network and Dialup Connections windows.
8. Then, restart your PC.
![](/img.php?id=450691&img=bg86.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-8 Preparing Your Network
DHCP Configuration of TCP/IP in Windows XP, 2000, or NT4
You will find there are many similarities in the procedures for different Windows systems when
using DHCP to configure TCP/IP.
The following steps will walk you through the configuration process for each of these versions of
Windows.
DHCP Configuration of TCP/IP in Windows XP
Locate your Network Neighborhood icon.
• Select Control Panel from the Windows XP new Start Menu.
• Select the Network Connections icon on the Control Panel. This will take you to the next
step.
• Now the Network Connection window
displays.
The Connections List that shows all the
network connections set up on the PC,
located to the right of the window.
• Right-click on the Connection you will
use and choose Status.
![](/img.php?id=450691&img=bg87.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-9
• Now you should be at the Local Area
Network Connection Status window. This
box displays the connection status, duration,
speed, and activity statistics.
• Administrator logon access rights are needed
to use this window.
• Click the Properties button to view details
about the connection.
• The TCP/IP details are presented on the
Support tab page.
• Select Internet Protocol, and click
Properties to view the configuration
information.
![](/img.php?id=450691&img=bg88.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-10 Preparing Your Network
DHCP Configuration of TCP/IP in Windows 2000
Once again, after you have installed the network card, TCP/IP for Windows 2000 is configured.
TCP/IP should be added by default and set to DHCP without your having to configure it.
However, if there are problems, follow these steps to configure TCP/IP with DHCP for Windows
2000.
• Verify that the Obtain an IP address
automatically radio button is selected.
• Verify that Obtain DNS server address
automatically radio button is selected.
• Click the OK button.
This completes the DHCP configuration of TCP/
IP in Windows XP.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=450691&img=bg89.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-11
• Click on the My Network Places icon on the Windows desktop. This will bring up a window
called Network and Dial-up Connections.
• Right click on Local Area Connection and select Properties.
•The Local Area Connection Properties
dialog box appears.
• Verify that you have the correct Ethernet
card selected in the Connect using: box.
• Verify that at least the following two items
are displayed and selected in the box of
“Components checked are used by this
connection:”
• Client for Microsoft Networks and
• Internet Protocol (TCP/IP)
• Click OK.
![](/img.php?id=450691&img=bg8a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-12 Preparing Your Network
• With Internet Protocol (TCP/IP) selected,
click on Properties to open the Internet
Protocol (TCP/IP) Properties dialogue box.
• Verify that
•Obtain an IP address automatically is
selected.
•Obtain DNS server address
automatically is selected.
• Click OK to return to Local Area
Connection Properties.
• Click OK again to complete the
configuration process for Windows 2000.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=450691&img=bg8b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-13
DHCP Configuration of TCP/IP in Windows NT4
Once you have installed the network card, you need to configure the TCP/IP environment for
Windows NT 4.0. Follow this procedure to configure TCP/IP with DHCP in Windows NT 4.0.
• Choose Settings from the Start Menu, and then select Control Panel.
This will display Control Panel window.
• Double-click the Network icon in the
Control Panel window.
The Network panel will display.
• Select the Protocols tab to continue.
![](/img.php?id=450691&img=bg8c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-14 Preparing Your Network
• Highlight the TCP/IP Protocol in the
Network Protocols box, and click on the
Properties button.
![](/img.php?id=450691&img=bg8d.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-15
Verifying TCP/IP Properties for Windows XP, 2000, and NT4
To check your PC’s TCP/IP configuration:
1. On the Windows taskbar, click the Start button, and then click Run.
The Run window opens.
2. Type cmd and then click OK.
A command window opens
3. Type ipconfig /all
Your IP Configuration information will be listed, and should match the values below if you are
using the default TCP/IP settings that NETGEAR recommends for connecting through a
router or gateway:
• The IP address is between 192.168.0.2 and 192.168.0.254
• The subnet mask is 255.255.255.0
•The TCP/IP Properties dialog box now
displays.
• Click the IP Address tab.
• Select the radio button marked Obtain an IP
address from a DHCP server.
• Click OK. This completes the configuration
of TCP/IP in Windows NT.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=450691&img=bg8e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-16 Preparing Your Network
• The default gateway is 192.168.0.1
4. Type exit
Configuring the Macintosh for TCP/IP Networking
Beginning with Macintosh Operating System 7, TCP/IP is already installed on the Macintosh. On
each networked Macintosh, you will need to configure TCP/IP to use DHCP.
MacOS 8.6 or 9.x
1. From the Apple menu, select Control Panels, then TCP/IP.
The TCP/IP Control Panel opens:
2. From the “Connect via” box, select your Macintosh’s Ethernet interface.
3. From the “Configure” box, select Using DHCP Server.
You can leave the DHCP Client ID box empty.
4. Close the TCP/IP Control Panel.
5. Repeat this for each Macintosh on your network.
MacOS X
1. From the Apple menu, choose System Preferences, then Network.
![](/img.php?id=450691&img=bg8f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-17
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.
Verifying TCP/IP Properties for Macintosh Computers
After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
• The IP Address is between 192.168.0.2 and 192.168.0.254
• The Subnet mask is 255.255.255.0
• The Router address is 192.168.0.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.
![](/img.php?id=450691&img=bg90.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-18 Preparing Your Network
Verifying the Readiness of Your Internet Account
For broadband access to the Internet, you need to contract with an Internet service provider (ISP)
for a single-user Internet access account using a cable modem or DSL modem. This modem must
be a separate physical box (not a card) and must provide an Ethernet port intended for connection
to a Network Interface Card (NIC) in a computer. Your firewall does not support a USB-connected
broadband modem.
For a single-user Internet account, your ISP supplies TCP/IP configuration information for one
computer. With a typical account, much of the configuration information is dynamically assigned
when your PC is first booted up while connected to the ISP, and you will not need to know that
dynamic information.
In order to share the Internet connection among several computers, your firewall takes the place of
the single PC, and you need to configure it with the TCP/IP information that the single PC would
normally use. When the firewall’s Internet port is connected to the broadband modem, the firewall
appears to be a single PC to the ISP. The firewall then allows the PCs on the local network to
masquerade as the single PC to access the Internet through the broadband modem. The method
used by the firewall to accomplish this is called Network Address Translation (NAT) or IP
masquerading.
Are Login Protocols Used?
Some ISPs require a special login protocol, in which you must enter a login name and password in
order to access the Internet. If you normally log in to your Internet account by running a program
such as WinPOET or EnterNet, then your account uses PPP over Ethernet (PPPoE).
When you configure your router, you will need to enter your login name and password in the
router’s configuration menus. After your network and firewall are configured, the firewall will
perform the login task when needed, and you will no longer need to run the login program from
your PC. It is not necessary to uninstall the login program.
What Is Your Configuration Information?
More and more, ISPs are dynamically assigning configuration information. However, if your ISP
does not dynamically assign configuration information but instead used fixed configurations, your
ISP should have given you the following basic information for your account:
• An IP address and subnet mask
![](/img.php?id=450691&img=bg91.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-19
• A gateway IP address, which is the address of the ISP’s router
• One or more domain name server (DNS) IP addresses
• Host name and domain suffix
For example, your account’s full server names may look like this:
mail.xxx.yyy.com
In this example, the domain suffix is xxx.yyy.com.
If any of these items are dynamically supplied by the ISP, your firewall automatically acquires
them.
If an ISP technician configured your PC during the installation of the broadband modem, or if you
configured it using instructions provided by your ISP, you need to copy the configuration
information from your PC’s Network TCP/IP Properties window or Macintosh TCP/IP Control
Panel before reconfiguring your PC for use with the firewall. These procedures are described next.
Obtaining ISP Configuration Information for Windows Computers
As mentioned above, you may need to collect configuration information from your PC so that you
can use this information when you configure the DG834G wireless router. Following this
procedure is only necessary when your ISP does not dynamically supply the account information.
To get the information you need to configure the firewall for Internet access:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Network icon.
The Network window opens, which displays a list of installed components.
3. Select TCP/IP, and then click Properties.
The TCP/IP Properties dialog box opens.
4. Select the IP Address tab.
If an IP address and subnet mask are shown, write down the information. If an address is
present, your account uses a fixed (static) IP address. If no address is present, your account
uses a dynamically-assigned IP address. Click “Obtain an IP address automatically”.
5. Select the Gateway tab.
If an IP address appears under Installed Gateways, write down the address. This is the ISP’s
gateway address. Select the address and then click Remove to remove the gateway address.
![](/img.php?id=450691&img=bg92.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-20 Preparing Your Network
6. Select the DNS Configuration tab.
If any DNS server addresses are shown, write down the addresses. If any information appears
in the Host or Domain information box, write it down. Click Disable DNS.
7. Click OK to save your changes and close the TCP/IP Properties dialog box.
You are returned to the Network window.
8. Click OK.
9. Reboot your PC at the prompt. You may also be prompted to insert your Windows CD.
Obtaining ISP Configuration Information for Macintosh
Computers
As mentioned above, you may need to collect configuration information from your Macintosh so
that you can use this information when you configure the DG834G wireless router. Following this
procedure is only necessary when your ISP does not dynamically supply the account information.
To get the information you need to configure the firewall for Internet access:
1. From the Apple menu, select Control Panels, then TCP/IP.
The TCP/IP Control Panel opens, which displays a list of configuration settings. If the
“Configure” setting is “Using DHCP Server”, your account uses a dynamically-assigned IP
address. In this case, close the Control Panel and skip the rest of this section.
2. If an IP address and subnet mask are shown, write down the information.
3. If an IP address appears under Router address, write down the address. This is the ISP’s
gateway address.
4. If any Name Server addresses are shown, write down the addresses. These are your ISP’s DNS
addresses.
5. If any information appears in the Search domains information box, write it down.
6. Change the “Configure” setting to “Using DHCP Server”.
7. Close the TCP/IP Control Panel.
![](/img.php?id=450691&img=bg93.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Preparing Your Network C-21
Restarting the Network
Once you’ve set up your computers to work with the firewall, you must reset the network for the
devices to be able to communicate correctly. Restart any computer that is connected to the firewall.
After configuring all of your computers for TCP/IP networking and restarting them, and
connecting them to the local network of your DG834G wireless router, you are ready to access and
configure the firewall.
![](/img.php?id=450691&img=bg94.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
C-22 Preparing Your Network
![](/img.php?id=450691&img=bg95.png)
Wireless Networking Basics D-1
Appendix D
Wireless Networking Basics
This chapter provides an overview of Wireless networking.
Wireless Networking Overview
The DG834G wireless router conforms to the Institute of Electrical and Electronics Engineers
(IEEE) 802.11b standard for wireless LANs (WLANs). On an 802.11b wireless link, data is
encoded using direct-sequence spread-spectrum (DSSS) technology and is transmitted in the
unlicensed radio spectrum at 2.5GHz. The maximum data rate for the wireless link is 11 Mbps, but
it will automatically back down from 11 Mbps to 5.5, 2, and 1 Mbps when the radio signal is weak
or when interference is detected. Also, 802.11g wireless adapters are compatible with 802.11b
networks.
The 802.11b standard is also called Wireless Ethernet or Wi-Fi by the Wireless Ethernet
Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standard group promoting
interoperability among 802.11b devices. The 802.11b standard offers two methods for configuring
a wireless network - ad hoc and infrastructure.
Infrastructure Mode
With a wireless Access Point, you can operate the wireless LAN in the infrastructure mode. This
mode provides wireless connectivity to multiple wireless network devices within a fixed range or
area of coverage, interacting with wireless nodes via an antenna.
![](/img.php?id=450691&img=bg96.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
D-2 Wireless Networking Basics
In the infrastructure mode, the wireless access point converts airwave data into wired Ethernet
data, acting as a bridge between the wired LAN and wireless clients. Connecting multiple Access
Points via a wired Ethernet backbone can further extend the wireless network coverage. As a
mobile computing device moves out of the range of one access point, it moves into the range of
another. As a result, wireless clients can freely roam from one Access Point domain to another and
still maintain seamless network connection.
Ad Hoc Mode (Peer-to-Peer Workgroup)
In an ad hoc network, computers are brought together as needed; thus, there is no structure or fixed
points to the network - each node can generally communicate with any other node. There is no
Access Point involved in this configuration. This mode enables you to quickly set up a small
wireless workgroup and allows workgroup members to exchange data or share printers as
supported by Microsoft networking in the various Windows operating systems. Some vendors also
refer to ad hoc networking as peer-to-peer group networking.
In this configuration, network packets are directly sent and received by the intended transmitting
and receiving stations. As long as the stations are within range of one another, this is the easiest
and least expensive way to set up a wireless network.
Network Name: Extended Service Set Identification (ESSID)
The Extended Service Set Identification (ESSID) is one of two types of Service Set Identification
(SSID). In an ad hoc wireless network with no access points, the Basic Service Set Identification
(BSSID) is used. In an infrastructure wireless network that includes an access point, the ESSID is
used, but may still be referred to as SSID.
An SSID is a thirty-two character (maximum) alphanumeric key identifying the name of the
wireless local area network. Some vendors refer to the SSID as network name. For the wireless
devices in a network to communicate with each other, all devices must be configured with the
same SSID.
![](/img.php?id=450691&img=bg97.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Networking Basics D-3
Authentication and WEP
The absence of a physical connection between nodes makes the wireless links vulnerable to
eavesdropping and information theft. To provide a certain level of security, the IEEE 802.11
standard has defined two types of authentication methods, Open System and Shared Key. With
Open System authentication, a wireless PC can join any network and receive any messages that are
not encrypted. With Shared Key authentication, only those PCs that possess the correct
authentication key can join the network. By default, IEEE 802.11 wireless devices operate in an
Open System network.
Wired Equivalent Privacy (WEP) data encryption is used when the wireless devices are configured
to operate in Shared Key authentication mode. There are two shared key methods implemented in
most commercially available products, 64-bit and 128-bit WEP data encryption.
802.11b Authentication
The 802.11b standard defines several services that govern how two 802.11b devices communicate.
The following events must occur before an 802.11b Station can communicate with an Ethernet
network through an access point such as the one built in to the DG834G:
1. Turn on the wireless station.
2. The station listens for messages from any access points that are in range.
3. The station finds a message from an access point that has a matching SSID.
4. The station sends an authentication request to the access point.
5. The access point authenticates the station.
6. The station sends an association request to the access point.
7. The access point associates with the station.
8. The station can now communicate with the Ethernet network through the access point.
An access point must authenticate a station before the station can associate with the access point or
communicate with the network. The IEEE 802.11b standard defines two types of authentication:
Open System and Shared Key.
• Open System Authentication allows any device to join the network, assuming that the device
SSID matches the access point SSID. Alternatively, the device can use the “ANY” SSID
option to associate with any available Access Point within range, regardless of its SSID.
![](/img.php?id=450691&img=bg98.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
D-4 Wireless Networking Basics
• Shared Key Authentication requires that the station and the access point have the same WEP
Key to authenticate. These two authentication procedures are described below.
Open System Authentication
The following steps occur when two devices use Open System Authentication:
1. The station sends an authentication request to the access point.
2. The access point authenticates the station.
3. The station associates with the access point and joins the network.
This process is illustrated in below.
Figure D-1: 802.11b open system authentication
Shared Key Authentication
The following steps occur when two devices use Shared Key Authentication:
1. The station sends an authentication request to the access point.
2. The access point sends challenge text to the station.
3. The station uses its configured 64-bit or 128-bit default key to encrypt the challenge text, and
sends the encrypted text to the access point.
4. The access point decrypts the encrypted text using its configured WEP Key that corresponds
to the station’s default key. The access point compares the decrypted text with the original
challenge text. If the decrypted text matches the original challenge text, then the access point
and the station share the same WEP Key and the access point authenticates the station.
INTERNET LOCAL
ACT
12345678
LNK
LNK/ACT
100
Cable/DSL ProSafeWirelessVPN Security Firewall
MODEL FVM318
PWR TEST
WLAN
Enable
Access Point
1) Authentication request sent to AP
2) AP authenticates
3) Client connects to network
802.11b Authentication
Open System Steps
Client
attempting
to connect
Router
![](/img.php?id=450691&img=bg99.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Networking Basics D-5
5. The station connects to the network.
If the decrypted text does not match the original challenge text (i.e., the access point and station do
not share the same WEP Key), then the access point will refuse to authenticate the station and the
station will be unable to communicate with either the 802.11b network or Ethernet network.
This process is illustrated in below.
Figure D-2: 802.11b shared key authentication
Overview of WEP Parameters
Before enabling WEP on an 802.11b network, you must first consider what type of encryption you
require and the key size you want to use. Typically, there are three WEP Encryption options
available for 802.11b products:
1. Do Not Use WEP: The 802.11b network does not encrypt data. For authentication purposes, the
network uses Open System Authentication.
2. Use WEP for Encryption: A transmitting 802.11b device encrypts the data portion of every
packet it sends using a configured WEP Key. The receiving 802.11b device decrypts the data using
the same WEP Key. For authentication purposes, the 802.11b network uses Open System
Authentication.
INTERNET LOCAL
ACT
12345678
LNK
LNK/ACT
100
Cable/DSL ProSafeWirelessVPN Security Firewall
MODEL FVM318
PWR TEST
WLAN
Enable
Access Point1) Authentication
request sent to AP
2) AP sends challenge text
3) Client encrypts
challenge text and
sends it back to AP
4) AP decrypts, and if correct,
authenticates client
5) Client connects to network
802.11b Authentication
Shared Key Steps
Client
attempting
to connect
Router
![](/img.php?id=450691&img=bg9a.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
D-6 Wireless Networking Basics
3. Use WEP for Authentication and Encryption: A transmitting 802.11b device encrypts the
data portion of every packet it sends using a configured WEP Key. The receiving 802.11b device
decrypts the data using the same WEP Key. For authentication purposes, the 802.11b network uses
Shared Key Authentication.
Note: Some 802.11b access points also support Use WEP for Authentication Only (Shared Key
Authentication without data encryption).
Key Size
The IEEE 802.11b standard supports two types of WEP encryption: 40-bit and 128-bit.
The 64-bit WEP data encryption method, allows for a five-character (40-bit) input. Additionally,
24 factory-set bits are added to the forty-bit input to generate a 64-bit encryption key. (The 24
factory-set bits are not user-configurable). This encryption key will be used to encrypt/decrypt all
data transmitted via the wireless interface. Some vendors refer to the 64-bit WEP data encryption
as 40-bit WEP data encryption since the user-configurable portion of the encryption key is 40 bits
wide.
The 128-bit WEP data encryption method consists of 104 user-configurable bits. Similar to the
forty-bit WEP data encryption method, the remaining 24 bits are factory set and not user
configurable. Some vendors allow passphrases to be entered instead of the cryptic hexadecimal
characters to ease encryption key entry.
128-bit encryption is stronger than 40-bit encryption, but 128-bit encryption may not be available
outside of the United States due to U.S. export regulations.
When configured for 40-bit encryption, 802.11b products typically support up to four WEP Keys.
Each 40-bit WEP Key is expressed as 5 sets of two hexadecimal digits (0-9 and A-F). For
example, “12 34 56 78 90” is a 40-bit WEP Key.
When configured for 128-bit encryption, 802.11b products typically support four WEP Keys but
some manufacturers support only one 128-bit key. The 128-bit WEP Key is expressed as 13 sets of
two hexadecimal digits (0-9 and A-F). For example, “12 34 56 78 90 AB CD EF 12 34 56 78 90”
is a 128-bit WEP Key.
Note: Typically, 802.11b access points can store up to four 128-bit WEP Keys but some 802.11b
client adapters can only store one. Therefore, make sure that your 802.11b access and client
adapters configurations match.
![](/img.php?id=450691&img=bg9b.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Wireless Networking Basics D-7
WEP Configuration Options
The WEP settings must match on all 802.11b devices that are within the same wireless network as
identified by the SSID. In general, if your mobile clients will roam between access points, then all
of the 802.11b access points and all of the 802.11b client adapters on the network must have the
same WEP settings.
Note: Whatever keys you enter for an AP, you must also enter the same keys for the client adapter
in the same order. In other words, WEP key 1 on the AP must match WEP key 1 on the client
adapter, WEP key 2 on the AP must match WEP key 2 on the client adapter, etc.
Note: The AP and the client adapters can have different default WEP Keys as long as the keys are
in the same order. In other words, the AP can use WEP key 2 as its default key to transmit while a
client adapter can use WEP key 3 as its default key to transmit. The two devices will communicate
as long as the AP’s WEP key 2 is the same as the client’s WEP key 2 and the AP’s WEP key 3 is
the same as the client’s WEP key 3.
Wireless Channels
IEEE 802.11 wireless nodes communicate with each other using radio frequency signals in the
ISM (Industrial, Scientific, and Medical) band between 2.4 GHz and 2.5 GHz. Neighboring
channels are 5 MHz apart. However, due to spread spectrum effect of the signals, a node sending
signals using a particular channel will utilize frequency spectrum 12.5 MHz above and below the
center channel frequency. As a result, two separate wireless networks using neighboring channels
(for example, channel 1 and channel 2) in the same general vicinity will interfere with each other.
Applying two channels that allow the maximum channel separation will decrease the amount of
channel cross-talk, and provide a noticeable performance increase over networks with minimal
channel separation.
The radio frequency channels used are listed in Table 8-1:
Table 8-1. 802.11 Radio Frequency Channels
Channel Center Frequency Frequency Spread
1 2412 MHz 2399.5 MHz - 2424.5 MHz
2 2417 MHz 2404.5 MHz - 2429.5 MHz
3 2422 MHz 2409.5 MHz - 2434.5 MHz
4 2427 MHz 2414.5 MHz - 2439.5 MHz
![](/img.php?id=450691&img=bg9c.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
D-8 Wireless Networking Basics
Note: The available channels supported by the wireless products in various countries are different.
The preferred channel separation between the channels in neighboring wireless networks is 25
MHz (5 channels). This means that you can apply up to three different channels within your
wireless network. There are only 11 usable wireless channels in the United States. It is
recommended that you start using channel 1 and grow to use channel 6, and 11 when necessary, as
these three channels do not overlap.
5 2432 MHz 2419.5 MHz - 2444.5 MHz
6 2437 MHz 2424.5 MHz - 2449.5 MHz
7 2442 MHz 2429.5 MHz - 2454.5 MHz
8 2447 MHz 2434.5 MHz - 2459.5 MHz
9 2452 MHz 2439.5 MHz - 2464.5 MHz
10 2457 MHz 2444.5 MHz - 2469.5 MHz
11 2462 MHz 2449.5 MHz - 2474.5 MHz
12 2467 MHz 2454.5 MHz - 2479.5 MHz
13 2472 MHz 2459.5 MHz - 2484.5 MHz
Table 8-1. 802.11 Radio Frequency Channels
Channel Center Frequency Frequency Spread
![](/img.php?id=450691&img=bg9d.png)
Glossary 1
Glossary
10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over twisted pair wiring.
100BASE-Tx IEEE 802.3 specification for 100 Mbps Ethernet over twisted pair wiring.
802.11b IEEE specification for wireless networking at 11 Mbps using direct-sequence
spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.5GHz.
ADSL See Asymmetric Digital Subscriber Line
Asymmetric Digital
Subscriber Line
A technology for sending data over regular telephone lines. ADSL allows data
rates up to 8 Mbps downstream and 640 Kbps upstream.
Denial of Service
attack
DoS. A hacker attack designed to prevent your computer or network from
operating or communicating.
DHCP See Dynamic Host Configuration Protocol.
DNS See Domain Name Server.
Domain Name A descriptive name for an address or group of addresses on the Internet.
Domain names are of the form of a registered entity name plus one of a
number of predefined top level suffixes such as .com, .edu, .uk, etc. For
example, in the address mail.NETGEAR.com, mail is a server name and
NETGEAR.com is the domain.
Domain Name Server A Domain Name Server (DNS) resolves descriptive names of network
resources (such as www.NETGEAR.com) to numeric IP addresses.
DSLAM DSL Access Multiplexor. The piece of equipment at the telephone company
central office that provides the ADSL signal.
Dynamic Host
Configuration
Protocol
DHCP. An Ethernet protocol specifying how a centralized DHCP server can
assign network configuration information to multiple DHCP clients. The
assigned information includes IP addresses, DNS addresses, and gateway
(router) addresses.
Gateway A local device, usually a router, that connects hosts on a local network to other
networks.
IP See Internet Protocol.
![](/img.php?id=450691&img=bg9e.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
2Glossary
IP Address A four-byte number uniquely defining each host on the Internet. Ranges of
addresses are assigned by Internic, an organization formed for this purpose.
Usually written in dotted-decimal notation with periods separating the bytes
(for example, 134.177.244.57).
IPSec Internet Protocol Security. IPSec is a series of guidelines for securing private
information transmitted over public networks. IPSec is a VPN method
providing a higher level of security than PPTP.
ISP Internet service provider.
Internet Protocol The main internetworking protocol used in the Internet. Used in conjunction
with the Transfer Control Protocol (TCP) to form TCP/IP.
LAN See local area network.
local area network LAN. A communications network serving users within a limited area, such as
one floor of a building. A LAN typically connects multiple personal
computers and shared network devices such as storage and printers. Although
many technologies exist to implement a LAN, Ethernet is the most common
for connecting personal computers.
MAC address Media Access Control address. A unique 48-bit hardware address assigned to
every Ethernet node. Usually written in the form 01:23:45:67:89:ab.
Mbps Megabits per second.
MSB See Most Significant Bit or Most Significant Byte.
MTU See Maximum Transmission Unit.
Maximum Transmit
Unit
The size in bytes of the largest packet that can be sent or received.
Most Significant Bit or
Most Significant Byte
The portion of a number, address, or field that is farthest left when written as a
single number in conventional hexadecimal ordinary notation. The part of the
number having the most value.
NAT See Network Address Translation.
Netmask A number that explains which part of an IP address comprises the network
address and which part is the host address on that network. It can be
expressed in dotted-decimal notation or as a number appended to the IP
address. For example, a 28-bit mask starting from the MSB can be shown as
255.255.255.192 or as /28 appended to the IP address.
![](/img.php?id=450691&img=bg9f.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
Glossary 3
Network Address
Translation
A technique by which several hosts share a single IP address for access to the
Internet.
packet A block of information sent over a network. A packet typically contains a
source and destination network address, some protocol and length
information, a block of data, and a checksum.
PPP See Point-to-Point Protocol.
PPPoA See PPP over ATM
PPPoE See PPP over Ethernet
PPP over ATM PPPoA. PPP over ATM is a protocol for connecting remote hosts to the
Internet over an always-on connection by simulating a dial-up connection.
PPP over Ethernet PPPoE. PPP over Ethernet is a protocol for connecting remote hosts to the
Internet over an always-on connection by simulating a dial-up connection.
PPTP Point-to-Point Tunneling Protocol. A method for establishing a virtual private
network (VPN) by embedding Microsoft’s network protocol into Internet
packets.
PSTN Public Switched Telephone Network.
Point-to-Point
Protocol
PPP. A protocol allowing a computer using TCP/IP to connect directly to the
Internet.
RFC Request For Comment. Refers to documents published by the Internet
Engineering Task Force (IETF) proposing standard protocols and procedures
for the Internet. RFCs can be found at www.ietf.org.
RIP See Routing Information Protocol.
router A device that forwards data between networks. An IP router forwards data
based on IP source and destination addresses.
Routing Information
Protocol
A protocol in which routers periodically exchange information with one
another so that they can determine minimum distance paths between sources
and destinations.
subnet mask See netmask.
UTP Unshielded twisted pair. The cable used by 10BASE-T and 100BASE-Tx
Ethernet networks.
![](/img.php?id=450691&img=bga0.png)
Reference Manual for the Model DG834G Wireless ADSL Firewall Router
4Glossary
VCI Virtual Channel Identifier. Together with the VPI, defines a Virtual Channel
through an ATM network. Used by ATM switching equipment to route data
through the network.
VPI Virtual Path Identifier. Together with the VCI, defines a Virtual Channel
through an ATM network. Used by ATM switching equipment to route data
through the network.
WAN See wide area network.
WEP Wired Equivalent Privacy. WEP is a data encryption protocol for 802.11b
wireless networks. All wireless nodes and access points on the network are
configured with a 64-bit or 128-bit Shared Key for data encryption.
wide area network WAN. A long distance link used to extend or connect remotely located local
area networks. The Internet is a large WAN.
Wi-Fi See 802.11b. A trade name for the 802.11b wireless networking standard,
given by the Wireless Ethernet Compatibility Alliance (WECA, see http://
www.wi-fi.net), an industry standard group promoting interoperability among
802.11b devices.
Windows Internet
Naming Service
WINS. Windows Internet Naming Service is a server process for resolving
Windows-based computer names to IP addresses. If a remote network
contains a WINS server, your Windows PCs can gather information from that
WINS server about its local hosts. This allows your PCs to browse that remote
network using Network Neighborhood.
WINS See Windows Internet Naming Service.
![](/img.php?id=450691&img=bga1.png)
Index 1
Numerics
64 or 128 bit WEP 4-9
802.11b D-1
A
Account Name 3-18
Address Resolution Protocol B-9
ad-hoc mode D-2
Auto MDI/MDI-X B-15
Auto Uplink 2-3, B-15
B
backup configuration 6-1
Basic Wireless Connectivity 4-4
BSSID D-2
C
Cabling B-11
Cat5 cable 3-2, B-12
Classical IP 2-4
configuration
automatic by DHCP 2-3
backup 6-1
erasing 6-2
router, initial 3-1
content filtering 2-3
crossover cable 2-3, B-14, B-15
customer support 1-iii
D
date and time 8-9
Daylight Savings Time 5-14, 8-9
daylight savings time 5-14
Default DMZ Server 7-1
default reset button 8-9
Denial of Service (DoS) protection 2-2, 5-3
denial of service attack B-11
DHCP 2-3, 7-5, B-10
DHCP Client ID C-16
DHCP Setup field, Ethernet Setup menu 6-5
DMZ Server 7-1
DNS Proxy 2-4
DNS server 3-18, C-20
DNS, dynamic 7-7
domain C-20
Domain Name 3-18
domain name server (DNS) B-10
DoS attack B-11
Dynamic DNS 2-4, 7-7
E
Encryption Strength 4-9
EnterNet C-18
EPROM, for firmware upgrade 2-5
ESSID 4-5, D-2
Ethernet 2-3
Ethernet cable B-11
F
factory settings, restoring 6-2
features 2-1
firewall features 2-2
Index
![](/img.php?id=450691&img=bga2.png)
2Index
FLASH memory 6-2
front panel 2-6
G
gateway address C-19, C-20
H
host name 3-18
I
IANA
contacting B-2
IETF B-1
Web site address B-8
inbound rules 5-6
infrastructure mode D-2
installation 2-4
Internet account
address information C-18
establishing C-18
Internet Service Provider 3-1, 3-5
IP addresses C-19, C-20
and NAT B-8
and the Internet B-2
assigning B-2, B-9
auto-generated 8-3
private B-7
translating B-9
IP configuration by DHCP B-10
IP networking
for Macintosh C-16
for Windows C-2, C-7
ISP 3-1, 3-5
L
LAN IP Setup Menu 7-4, 7-7
LEDs
description 2-6
troubleshooting 8-2
log
sending 6-13
Login 3-11
M
MAC address 8-8, B-9
spoofing 3-19, 8-6
MAC address filter 4-7
Macintosh C-19
configuring for IP networking C-16
DHCP Client ID C-16
Obtaining ISP Configuration Information C-20
masquerading C-18
MDI/MDI-X B-15
MDI/MDI-X wiring B-14
metric 7-11
multicasting 7-5
N
NAT C-18
NAT. See Network Address Translation
netmask
translation table B-6
Network Address Translation 2-3, B-8, C-18
Network Time Protocol 5-13, 8-9
NTP 5-13, 8-9
O
Open System authentication D-3
order of precedence 5-11
outbound rules 5-9
P
Passphrase 4-9, 4-10
passphrase 2-2
Password 3-11
password
restoring 8-9
PC, using to configure C-21
