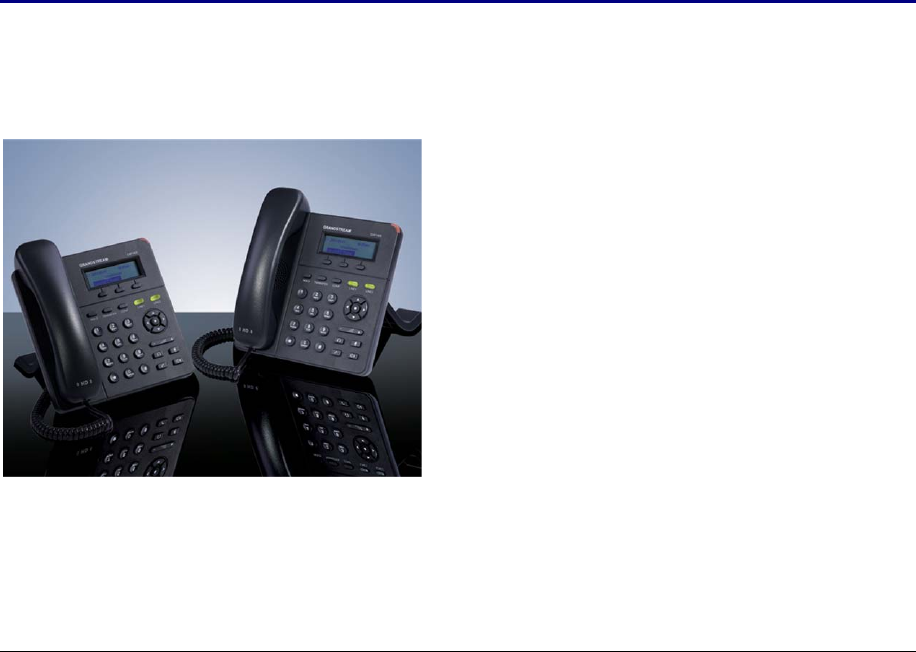

LXP100 USER MANUAL
LXP100
Small-Medium Business HD IP Phone
![](/img.php?id=1944406&img=bg2.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 2 of 61
LXP100 User Manual
Index
GNU GPL INFORMATION...........................................................................5
CHANGE LOG.............................................................................................6
FIRMWARE VERSION 1.0.5.23 ............................................................................................................6
WELCOME ..................................................................................................7
PRODUCT OVERVIEW...............................................................................8
FEATURE HIGHTLIGHTS .....................................................................................................................8
LXP100 TECHNICAL SPECIFICATIONS..............................................................................................8
INSTALLATION .........................................................................................10
EQUIPMENT PACKAGING .................................................................................................................10
CONNECTING YOUR PHONE............................................................................................................10
SAFETY COMPLIANCES....................................................................................................................12
WARRANTY.........................................................................................................................................12
USING THE LXP100..................................................................................13
GETTING FAMILAR WITH THE LCD..................................................................................................13
GETTING FAMILAR WITH THE KEYPAD...........................................................................................15
MAKING PHONE CALLS.....................................................................................................................16
HANDSET, SPEAKER AND HEADSET MODE ...........................................................................16
MULTIPLE SIP ACCOUNTS AND LINES.....................................................................................16
COMPLETING CALLS .................................................................................................................17
MAKING CALLS USING IP ADDRESSES ...................................................................................19
ANSWERING PHONE CALLS ............................................................................................................20
RECEIVING CALLS......................................................................................................................20
DO NOT DISTURB.......................................................................................................................20
DURING A PHONE CALL....................................................................................................................21
CALL WAITING/CALL HOLD .......................................................................................................21
MUTE............................................................................................................................................21
CALL TRANSFER ........................................................................................................................21
3-WAY CONFERENCING ............................................................................................................22
VOICE MESSAGES (MESSAGE WAITING INDICATOR)...........................................................24
SHARED CALL APPEARANCE (SCA) ........................................................................................24
CALL FEATURES ................................................................................................................................24
![](/img.php?id=1944406&img=bg3.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 3 of 61
CUSTOMIZED LCD SCREEN & XML .................................................................................................26
CONFIGURATION GUIDE.........................................................................27
CONFIGURATION VIA KEYPAD.........................................................................................................27
CONFIGURATION VIA WEB BROWSER ...........................................................................................31
DEFINITIONS ......................................................................................................................................31
STATUS PAGE DEFINITIONS .....................................................................................................32
ACCOUNTS PAGE DEFINITIONS...............................................................................................33
SETTINGS PAGE DEFINITIONS.................................................................................................41
NETWORK PAGE DEFINITIONS.................................................................................................47
MAINTENANCE PAGE DEFINITIONS.........................................................................................48
PHONEBOOK PAGE DEFINITIONS............................................................................................51
NAT SETTINGS ...................................................................................................................................53

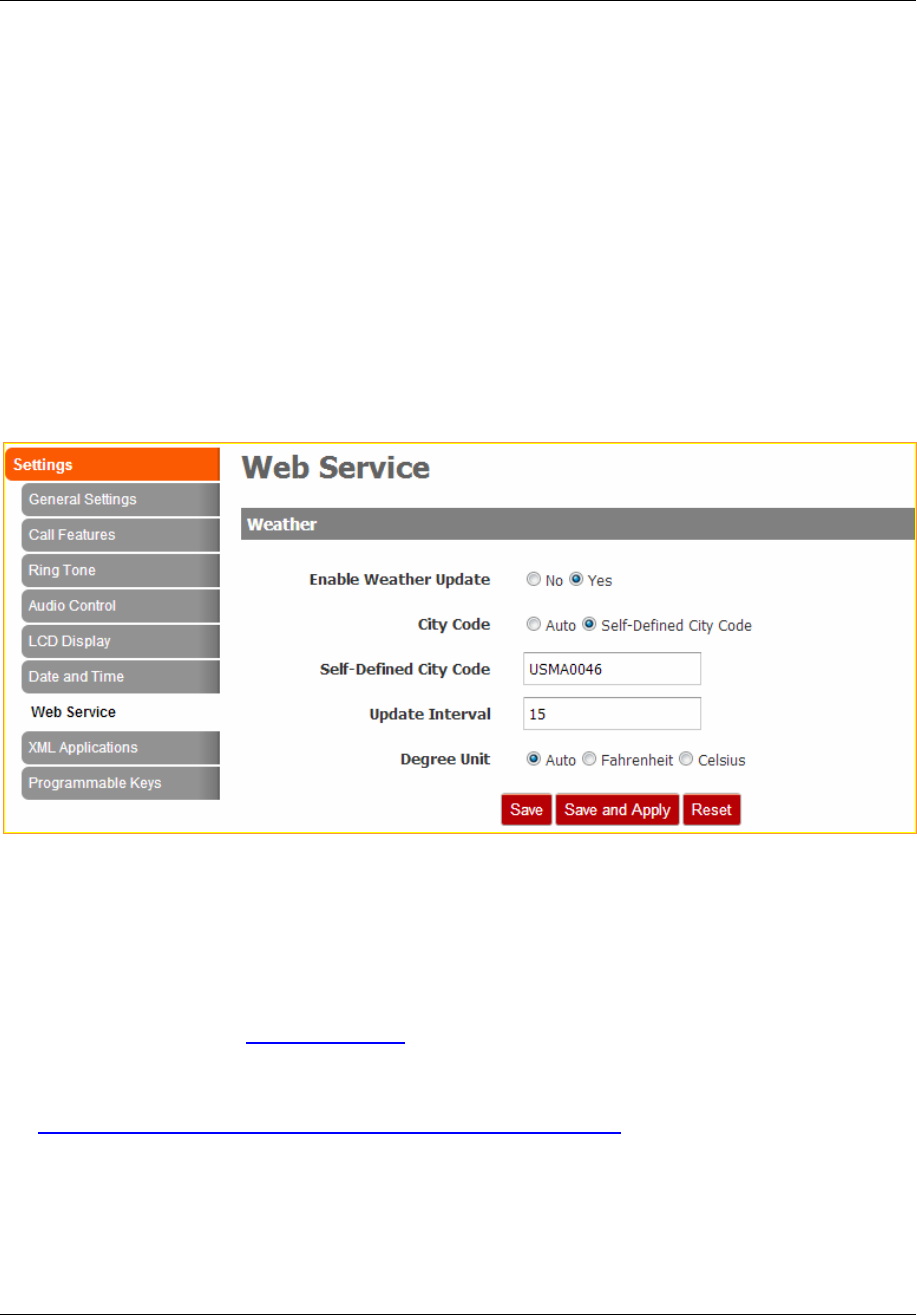

WEATHER UPDATE............................................................................................................................54
PUBLIC MODE ....................................................................................................................................55
EDITING CONTACTS AND CLICK-TO-DIAL ......................................................................................55
UPGRADING AND PROVISIONING.........................................................58
UPGRADE VIA KEYPAD MENU .........................................................................................................58
UPGRAGE VIA WEB GUI....................................................................................................................58
NO LOCAL TFTP/HTTP SERVERS ....................................................................................................59
CONFIGURATION FILE DOWNLOAD................................................................................................59
RESTORE FACTORY DEFAULT SETTINGS............................................61
Table of Tables
LXP100 User Manual
Table 1: LXP100 TECHNICAL SPECIFICATIONS........................................................................................8
Table 2: LXP100 EQUIPMENT PACKAGING .............................................................................................10
Table 3: LXP100 CONNECTORS ............................................................................................................... 11
Table 4: LCD DISPLAY DEFINITIONS........................................................................................................13
Table 5: LXP100 LCD ICONS .....................................................................................................................14
Table 6: KEYPAD DEFINITIONS ................................................................................................................15
Table 7: CALL FEATURES..........................................................................................................................25
Table 8: CONFIGURATION MENU.............................................................................................................27
![](/img.php?id=1944406&img=bg4.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 4 of 61
Table of Figures
LXP100 User Manual
Figure 1: LXP100 Ports...............................................................................................................................10
Figure 2: LXP100 Pin-out............................................................................................................................ 11
Figure 3: Keypad MENU Flow.....................................................................................................................30
Figure 4: Web GUI - Phonebook->Contacts ...............................................................................................56
Figure 5: Click-to-Dial..................................................................................................................................56
![](/img.php?id=1944406&img=bg5.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 5 of 61
GNUGPLINFORMATION
LXP100 firmware contains third-party software licensed under the GNU General Public License (GPL).
Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public
License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
![](/img.php?id=1944406&img=bg6.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 6 of 61
CHANGELOG
This section documents significant changes from previous versions of user manuals for LXP100. Only
major new features or major document updates are listed here. Minor updates for corrections or editing are
not documented here.
FIRMWAREVERSION1.0.5.23
This is the initial version.
![](/img.php?id=1944406&img=bg7.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 7 of 61
WELCOME
Thank you for purchasing LXP100 Small-Medium Business HD IP Phones. Your LXP100 IP phone is
feature-enriched, sophisticated, yet simple to use. It delivers superior HD audio quality, rich and leading
edge telephony features, personalized information and customizable application service, automated
provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with
most 3rd party SIP devices and leading SIP/NGN/IMS platforms.
The LXP100 supports a broad range of codecs, security protection, PoE, dual 10/100Mbps Ethernet ports,
along with customizable XML provisioning and application features. Users can expect superior audio
quality using the new high definition handset, hands-free speakerphone, or headset. Also, it can support
3-way conferencing, multi-languages and dual-color LEDs. It presents a large easy-to-read backlit
graphical display along with multiple XML keys to further enhance the user experience.
The LXP100 is a perfect choice for enterprise users looking for a high quality, feature rich 2-line IP phone
with the best values.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the LXP100 as it may cause damage to the products and
void the manufacturer warranty.
This document is subject to change without notice.
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
![](/img.php?id=1944406&img=bg8.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 8 of 61
PRODUCTOVERVIEW
FEATUREHIGHTLIGHTS
• 128x40 pixel graphical LCD display
• 2 line keys with dual-color LED (2 SIP accounts and up to 2 call appearances), 3 XML programmable
context-sensitive soft keys, 3-way conference
• HD wideband handset, hands-free speakerphone with advanced acoustic echo cancellation
• Phonebook with up to 500 contacts and call history with up to 200 records
• Automated personal information service (e.g., local weather), personalized music ring tone/ring back
tone
• Dual switched auto-sensing 10/100Mbps network port, integrated PoE
• Automated provisioning using TR-069 or AES encrypted XML configuration file, SRTP and TLS for
advanced security and privacy protection, 802.1x for media access control, LLDP, IPv6
LXP100TECHNICALSPECIFICATIONS
Table 1: LXP100 TECHNICAL SPECIFICATIONS
Protocols and
Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS
(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE,
TR-069, 802.1x, LLDP, IPv6, TLS, SRTP
Network Interfaces Dual switched 10/100Mbps port, integrated PoE
Graphic Display 128x40 graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context
sensitive soft keys, 5 navigation/menu keys, 8 dedicated function keys for HOLD,
TRANSFER, CONFERENCE, VOLUME, HEADSET, MUTE, SPEAKERPHONE,
SEND/REDIAL
Voice Codec Support for G.723.1, G.729A/B, G.711u/a, G.726-32, G.722 (wide-band), iLBC,
in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward, 3-way conference, call park, pickup,
shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable
phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records),
off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking,
personalized music ringtones, server redundancy and fail-over
HD Audio Yes, HD handset with support for wideband audio
Headset Jack RJ9 headset jack
![](/img.php?id=1944406&img=bg9.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 9 of 61
Base Stand Yes, 2-angle positions available
Wall Mountable Yes
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP, 802.1x media
access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
Simplified Chinese, traditional Chinese, Korean, Japanese, and etc
Upgrade and
Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or
AES encrypted XML configuration file
Power and Green
Energy Efficiency
Universal power adapter: Input: 100-240VAC 50-60Hz;
Output: 5VDC, 800mA
Integrated Power-over-Ethernet (802.3af);
Max power consumption 2.5W (power adapter) or 3W (PoE)
Physical
Unit dimension: 186mm (W) x 210mm (H) x 81mm (D)
Unit weight: 0.7kg
Package weight: 1.1kg
Operating
Temperature and
Humidity
32-104 oF / 0-40 oC, 10-90% (non-condensing)
Package Content LXP100 phone, handset with cord, base stand, wall mount spacers, universal
power supply, network cable, quick start guide
Compliance
FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3, EN60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS;
UL 60950 (power adapter)
![](/img.php?id=1944406&img=bga.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 10 of 61
INSTALLATION
EQUIPMENTPACKAGING
Table 2: LXP100 EQUIPMENT PACKAGING
Main Case Yes (1)
Handset Yes (1)
Phone Cord Yes (1)
Power Adaptor Yes (1)
Ethernet Cable Yes (1)
Phone Stand Yes (1)
Quick Start Guide Yes (1)
Wall Mount Spacers Yes (2)
CONNECTINGYOURPHONE

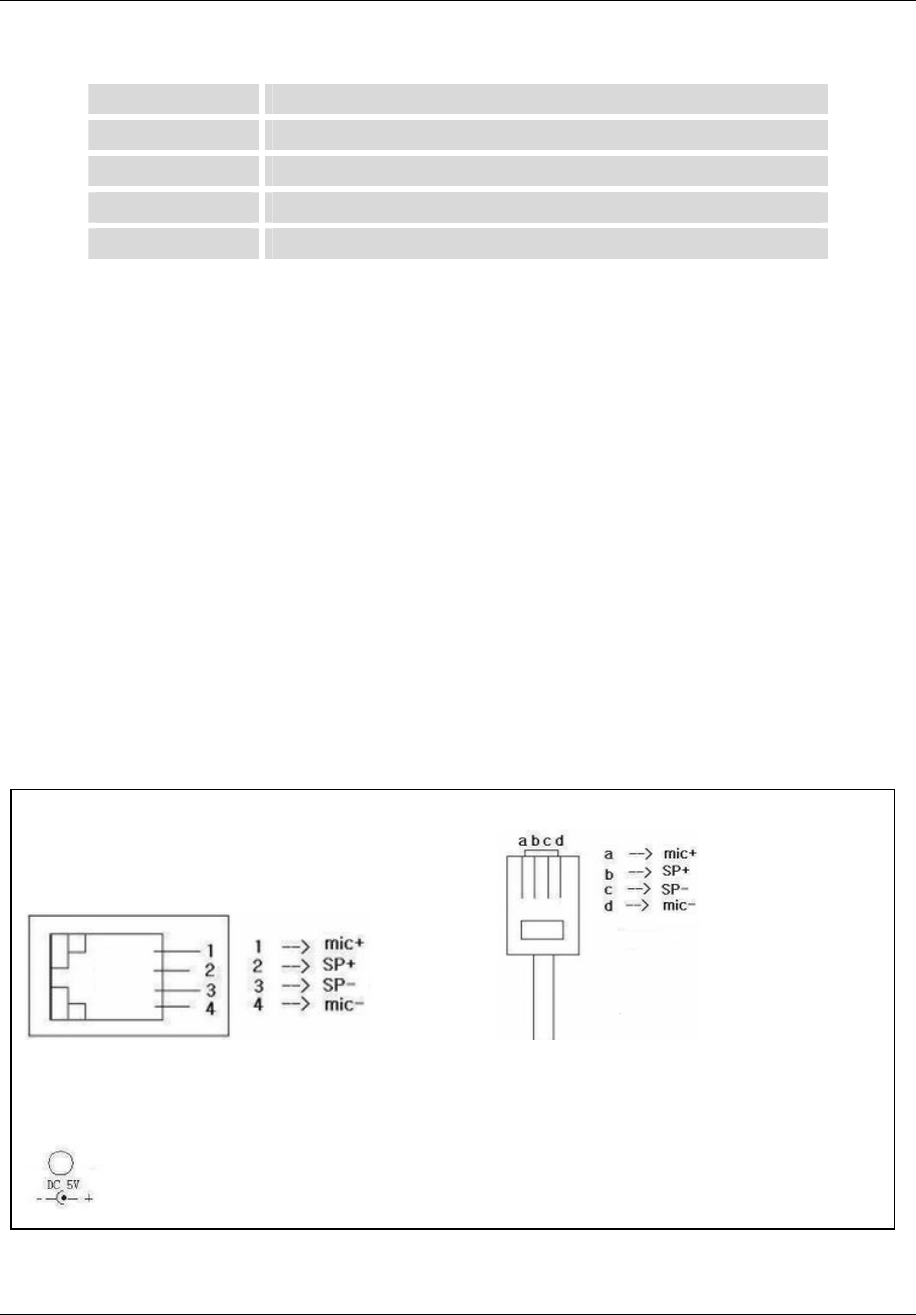

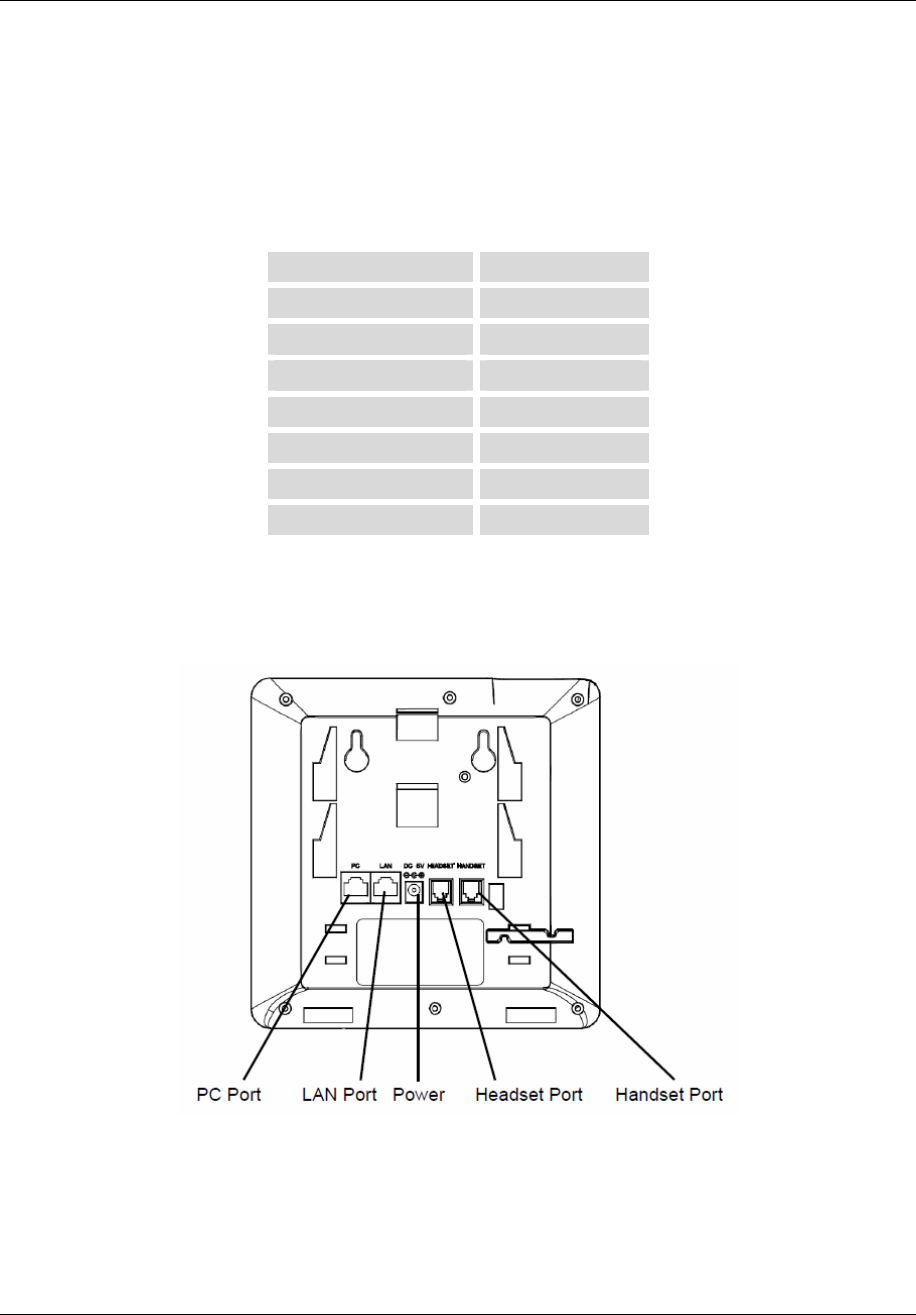

Figure 1: LXP100 Ports
![](/img.php?id=1944406&img=bgb.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 11 of 61
Table 3: LXP100 CONNECTORS
Handset Port RJ9 handset connector port
Headset Port RJ9 headset connector port
LAN Port 10/100Mbps RJ-45 port connecting to Ethernet, integrated PoE
PC Port 10/100Mbps RJ-45 port for PC connection
Power Jack 5V DC Power connector port
To set up the LXP100, follow the steps below:
1. Attach the phone stand or wall mount to the back of the phone where there are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded web server (Web GUI) by entering the IP
address in web browser, you can further configure the phone.
Please see below the pin-out information for LXP100.
Figure 2: LXP100 Pin-out
LXP100 Handset/Headset Jack LXP100 Handset/Headset Plug
LXP100 Power Jack
![](/img.php?id=1944406&img=bgc.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 12 of 61
SAFETYCOMPLIANCES
The LXP100 phone complies with FCC/CE and various safety standards. The LXP100 power adapter is
compliant with the UL standard. Use the universal power adapter provided with the LXP100 package only.
The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adapters.
WARRANTY
If the LXP100 phone was purchased from a reseller, please contact the company where the phone was
purchased for replacement, repair or refund. If the phone was purchased directly from Grandstream,
contact the Grandstream Sales and Service Representative for a RMA (Return Materials Authorization)
number before the product is returned. Grandstream reserves the right to remedy warranty policy without
prior notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may damage
the phone. This type of damage is not covered under warranty.
![](/img.php?id=1944406&img=bgd.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 13 of 61
USINGTHELXP100
GETTINGFAMILARWITHTHELCD
LXP100 has a dynamic and customizable screen. The screen displays differently depending on whether
the phone is idle or in use (active). The following table describes the items displayed on the LXP100 idle
screen.
Table 4: LCD DISPLAY DEFINITIONS
DATE AND TIME Displays the current date and time. It can be synchronized with
Internet time servers.
LOGO
Displays company logo name. This logo name can be customized via
xml screen customization. The maximum size for logo name is 26
characters in English (approximately).
NETWORK STATUS Shows the status of network in the middle of the screen. It will indicate
whether the network is down or starting.
STATUS BAR Shows the status of the phone for registration status, call features and
etc, using icons as shown in the next table.
SOFTKEYS in Idle Screen
The softkeys are context sensitive and will change depending on the
status of the phone. Typical functions assigned to softkeys are:
• NEXTSCR
Toggles among default idle screen, weather information, IP
Address and the SIP extension number.
• ForwardAll
Unconditionally forwards the phone line (account 1) to another
phone.
• MissedCalls
Shows up unanswered calls to this phone.
• Redial
Redials the last dialed number when there is existed dialed call
log.
![](/img.php?id=1944406&img=bge.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 14 of 61
SOFTKEYS in Call Screen
The softkeys are context sensitive and will change depending on the
call status of the phone. Here are the main softkeys in call screen.
• Redial
Redials the last dialed number after off hook when there is existed
call log.
• Dial
Dials the call out after off hook and entering the number.
• AnswerCall
Answers the incoming call when the phone is ringing.
• RejectCall
Rejects the incoming call when the phone is ringing.
• EndCall
Ends the active call.
• Transfer
Transfer softkey will show up after pressing TRAN button and
entering transfer target number. Press Transfer softkey to do blind
transfer.
• Split
In auto-attended transfer mode, after establishing the second call,
press Split to quit transfer and go back to normal talking status.
• ConfCall
Conferences the active calls.
• ReConf
Re-establish the conference among the calls on hold.

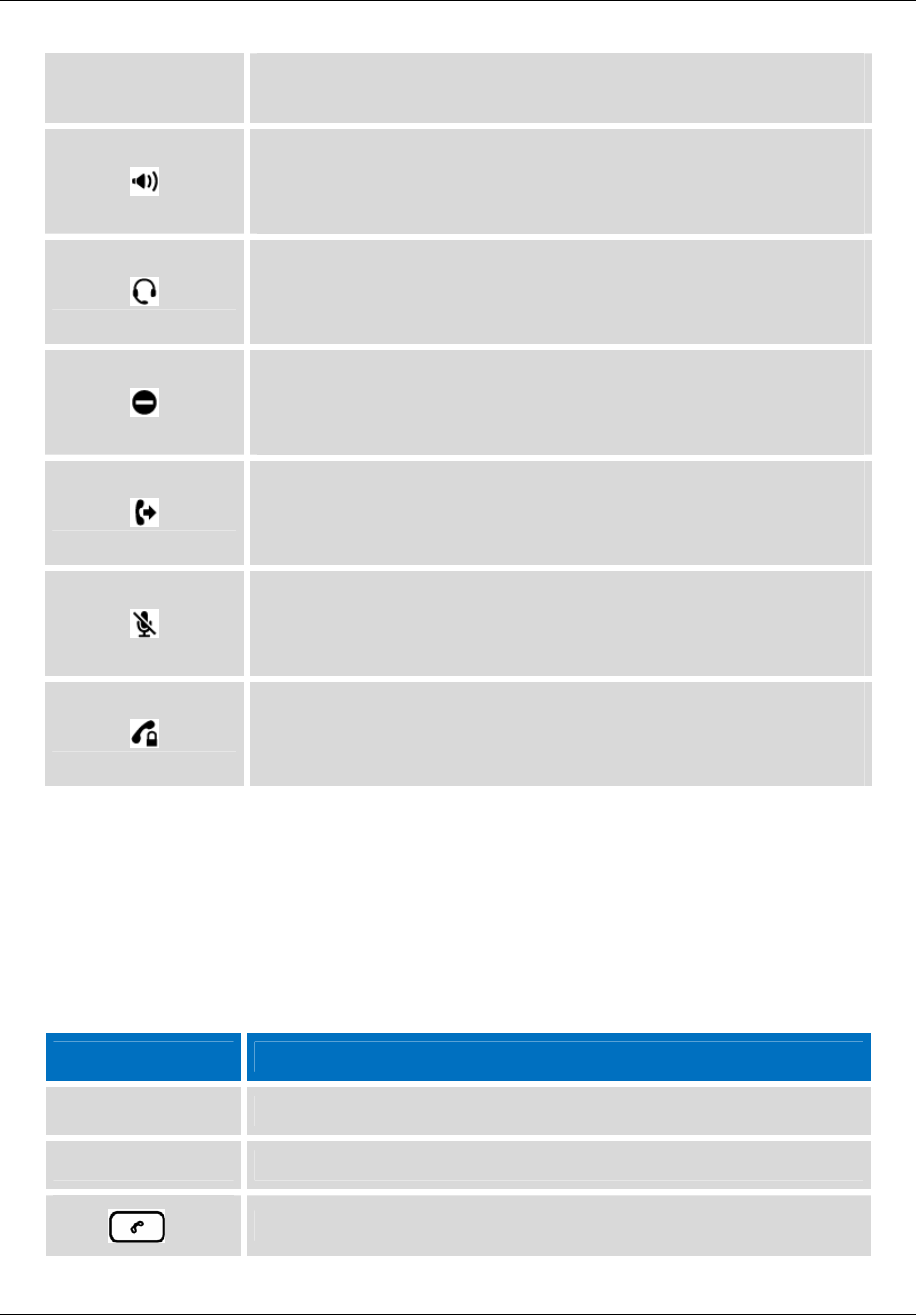

Table 5: LXP100 LCD ICONS
Registration Status: Registered.
Registration Status: Not Registered.
Handset Status.
![](/img.php?id=1944406&img=bgf.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 15 of 61
OFF - handset on hook
ON - handset off hook
Speaker Status.
OFF - speaker off
ON - speaker on
Headset Status.
OFF - headset off
ON - headset on
DND Status.
OFF - Do Not Disturb disabled
ON - Do Not Disturb enabled
Call Forward Status.
OFF - Call Forward feature disabled
ON - Call Forward feature enabled
MUTE Status.
OFF - The active call is not muted
ON - The active call is muted
SRTP Status.
OFF - SRTP is not used
ON - SRTP is used
GETTINGFAMILARWITHTHEKEYPAD

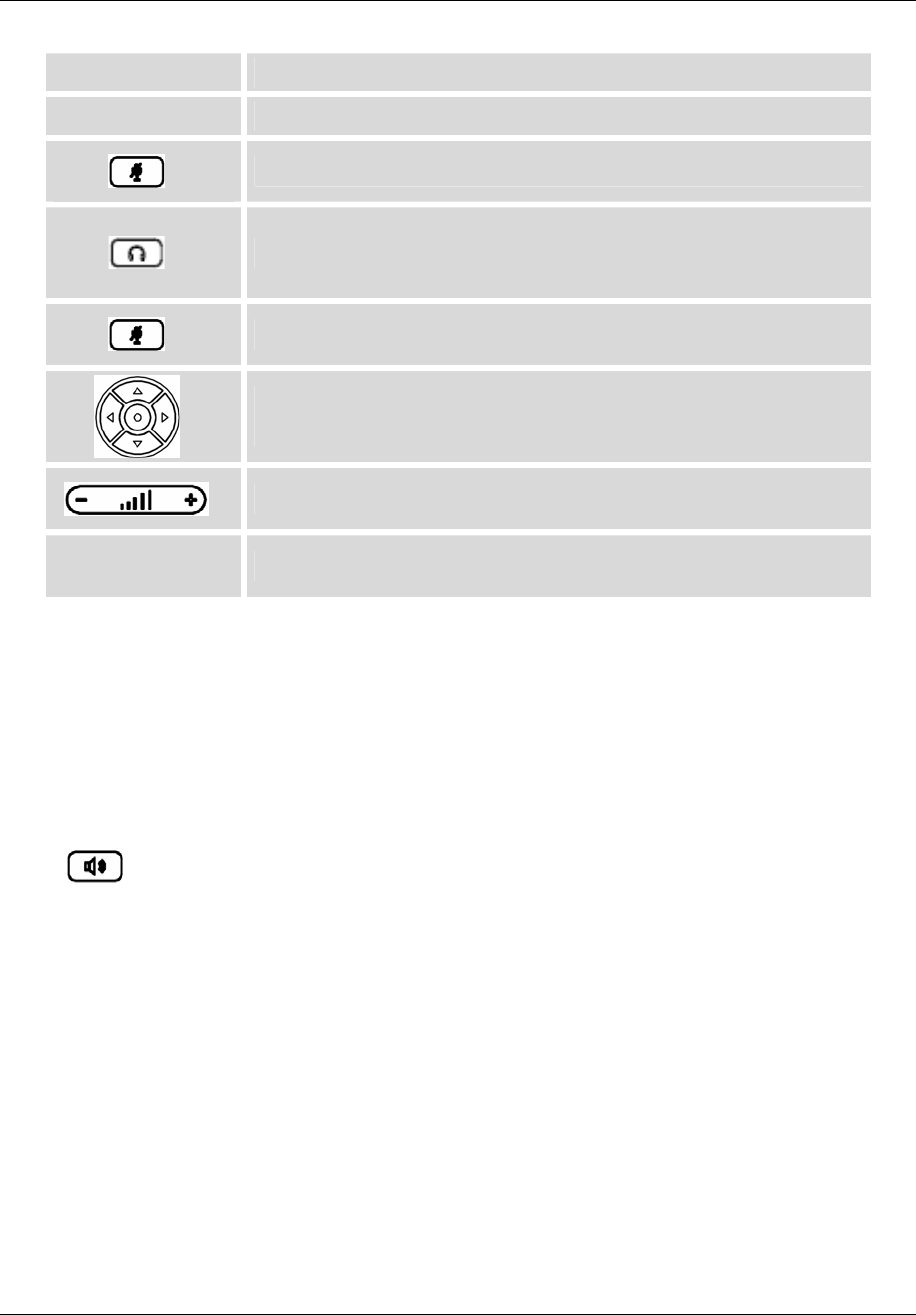

The following table describes the buttons used on the LXP100 keypad.
Table 6: KEYPAD DEFINITIONS
Key Definition
LINE 1/LINE 2 Open or switch line; resume the call on hold.
HOLD Place active call on hold, or resume the call on hold.
Send out the number, or redial.
![](/img.php?id=1944406&img=bg10.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 16 of 61
TRANSFER Transfer an active call to another number.
CONF Establish conference call with other parties.
During an active call, press to mute or unmute.
Headset.
When the phone is in idle, press to enable/disable DND feature.
• Press the 4 navigation keys to move up/down/left/right;
• Press the round button in the center for MENU/ENTER/OK.
Volume. Press "-" or "+" to adjust the volume.
0 - 9, *, # Standard phone keypad.
MAKINGPHONECALLS
HANDSET,SPEAKERANDHEADSETMODE
The LXP100 allows users to switch among handset, speaker or headset when making calls. Press the
Hook Switch to switch to handset; press the Headset button to switch to headset; or press the Speaker
button to switch to speaker.
MULTIPLESIPACCOUNTSANDLINES
LXP100 can support up to 2 independent accounts. Each account is capable of independent SIP server,
user and NAT settings. Each of the line buttons is "virtually" mapped to an individual SIP account. In off
hook state, select an idle line and the dial tone will be heard.
To make a call, select the line you wish to use. The corresponding LINE LED will light up in green. The
user can switch lines before dialing any number by pressing the LINE buttons.
For example: If 2 independent accounts are registered on LXP100, when LINE 1 is pressed, the LINE 1
LED will light up in green. If LINE 2 is pressed, the LINE 2 LED will light up in green and the subsequent
![](/img.php?id=1944406&img=bg11.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 17 of 61
call will be made through SIP account 2.
Incoming calls to a specific account will attempt to use its corresponding LINE if it is not in use. When the
"virtually" mapped line is in use, the phone will flash the other available LINE in red. A line is ACTIVE when
it is in use and the corresponding LED is red.
COMPLETINGCALLS
There are several ways to complete a call.
• On hook dialing. Enter the number when the phone is on hook and then send out.
¾ When the phone is in idle, enter the number to be dialed out;
¾ Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Select an available LINE key;
¾ The call will be dialed out.
• Off hook and dial. Off hook the phone, enter the number and send out.
¾ Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
¾ You shall hear dial tone after off hook;
¾ Enter the number;
¾ Press SEND key or # to dial out.
• Redial. Redial the last dialed number.
¾ Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker; or
When the phone is in idle;
¾ Press SEND key, or the REDIAL softkey.
• Via Call History. Dial the number logged in phone's call history.
¾ Press MENU button to bring up the main menu;
¾ Enter Call History and select "Answered Calls", "Missed Calls", "Transferred Calls" or "Forwarded
Calls";
¾ Select the entry you would like to call using the navigation arrow keys;
![](/img.php?id=1944406&img=bg12.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 18 of 61
¾ Press SEND button to dial out.
• Via Phonebook. Dial the number from the phonebook.
¾ Press MENU button to bring up the main menu;
¾ Select and enter Phonebook;
¾ Select the phonebook entry you would like to call using the navigation arrow key;
¾ Press SEND button to dial the selected contact.
• Speed Dial. Dial the number configured as Speed Dial on Line Key.
¾ Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Speed Dial. Select the account to dial from, enter the Name and User ID (the number to be dialed
out) for the Line Key. Click on "Update" at the bottom of the Web GUI page;
¾ Off hook the phone, or directly press the Speed Dial key to dial out.
• Call Return. Dial the last answered call.
¾ Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Call Return. Select the account to dial from, no Name or User ID has to be set on for Call Return;
¾ Off hook the phone, or directly press the Call Return key to dial out.
• Via Paging/Intercom.
¾ Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
¾ You shall hear dial tone after off hook;
¾ Press MENU button to switch the call screen from "Dialing" to "Paging";
¾ Enter the number;
¾ Press SEND key or # to dial out.
Note:
• After entering the number, the phone waits for the No Key Entry Timeout (Default timeout is 4 seconds,
configurable via Web GUI) before dialing out. Press SEND or # key to override the No Key Entry
Timeout;
• If digits have been entered after handset is off hook, the SEND key will works as SEND instead of
REDIAL;
• By default, # can be used as SEND to dial the number out. Users could disable it by setting "User # as
Dial Key" to "No" from Web GUI->Account X->Call Settings;
![](/img.php?id=1944406&img=bg13.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 19 of 61
• For Paging/Intercom, if the SIP Server/PBX supports the feature and has Paging/Intercom feature
code set up already, users do not necessarily need toggle to paging mode in the call screen. Simply
dial the feature code with extension as a normal call.
MAKINGCALLSUSINGIPADDRESSES
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
can be made between two phones if:
• Both phones have public IP addresses; or
• Both phones are on the same LAN/VPN using private or public IP addresses; or
• Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
To make a direct IP call, please follow the steps below:
• Press MENU button to bring up main menu;
• Select "Direct IP Call" using the navigation arrow keys;
• Press MENU to enter the Direct IP Call mode;
• Input the 12-digit target IP address (Please see example below);
• Press the "More" softkey to make sure the softkey selection "IPv4" or "IPv6" is correctly selected
depending on your network environment;
• Press "OK" softkey to dial.
For example:
If the target IP address is 192.168.1.60 and the port is 5062 (i.e., 192.168.1.60:5062), input the following:
192*168*1*60#5062. The * key represents the dot (.), the # key represents colon (:). Wait for about 4
seconds and the phone will initiate the call.
Quick IP Call Mode:
The LXP100 also supports Quick IP Call mode. This enables the phone to make direct IP calls using only
the last few digits (last octet) of the target phone's IP address. This is possible only if both phones are
under the same LAN/VPN. This simulates a PBX function using the CMSA/CD without a SIP server.
Controlled static IP usage is recommended.
To enable Quick IP Call Mode, go to phone's Web GUI->Settings->Call Features, set "Use Quick IP Call
Mode" to "Yes". Click on "Save and Apply" on the bottom of the Web GUI page to take the change. To
![](/img.php?id=1944406&img=bg14.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 20 of 61
make Quick IP Call, take the phone off hook first. Then dial #xxx where x is 0-9 and xxx<255. Press # or
SEND and a direct IP call to aaa.bbb.ccc.XXX will be completed. "aaa.bbb.ccc" is from the local IP address
regardless of subnet mask. The number #xx or #x are also valid. The leading 0 is not required (but it's OK).
For example:
• 192.168.0.2 calling 192.168.0.3 -- dial #3 followed by # or "SEND";
• 192.168.0.2 calling 192.168.0.23 -- dial #23 followed by # "SEND";
• 192.168.0.2 calling 192.168.0.123 -- dial #123 followed by # "SEND";
• 192.168.0.2: dial #3 and #03 and #003 results in the same call -- call 192.168.0.3.
Note:
• The # will represent colon ":" in direct IP call rather than SEND key as in normal phone call;
• If you have a SIP server configured, direct IP call still works. If you are using STUN, direct IP call will
also use STUN;
• Configure the "User Random Port" to "No" when completing direct IP calls.
ANSWERINGPHONECALLS
RECEIVINGCALLS
• Single incoming call. Phone rings with selected ring tone. The corresponding LINE key will flash in
red. Answer call by taking handset off hook, or using Speaker/Headset, or pressing the flashing LINE
key;
• Multiple incoming calls. When another call comes in while having an active call, the phone will
produce a Call Waiting tone (stutter tone). The other LINE key will flash in red. Answer the incoming
call by pressing the flashing LINE key. The current active call will be put on hold automatically.
DONOTDISTURB
Do Not Disturb can be enabled/disabled from phone's LCD. Press the MUTE button for DND function while
the phone is in idle.
Or users could set it from phone's Menu following the steps below:
• Press the Menu button and select "Preference" using navigation keys;
• Press Menu button again to get into Preference options;
• Select "Do Not Disturb" and press Menu button;
• Use arrow keys to select and press Menu button to enable or disable "Do Not Disturb" feature.
![](/img.php?id=1944406&img=bg15.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 21 of 61
When Do Not Disturb feature is turned on, the DND icon will appear on the right side of the LCD. The
incoming call will not be accepted or the call will directly go into voicemail.
DURINGAPHONECALL
CALLWAI TING/CAL LHOLD
• Hold. Place a call on hold by pressing the HOLD button. The active LINE key will blink in green;
• Resume. Resume call by pressing the blinking LINE key;
• Multiple calls. Automatically place active call on hold or switch between calls by pressing the LINE
key. Call waiting tone (stutter tone) will be audible on new incoming call during the active call.
MUTE
During an active call, press the MUTE button to mute/unmute the microphone. The LCD will show "Talking"
or "MUTE" to indicate the mute status, with Mute icon displayed on the screen.
CALLTRANSFER
LXP100 supports Blind Transfer, Attended Transfer and Auto-Attended Transfer.
• Blind Transfer.
¾ During the first active call, press TRAN key and dial the number to transfer to;
¾ Press SEND key or # to complete transfer of active call.
• Attended Transfer.
¾ During the first active call, press LINE key. The first call will be put on hold;
¾ Enter the number for the second call in the new line and establish the call;
¾ Press TRAN key;
¾ Press the other LINE key which is on hold to transfer the call.
![](/img.php?id=1944406&img=bg16.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 22 of 61
• Auto-Attended Transfer.
¾ Set "Auto-Attended Transfer" to "Yes" under Web GUI->Settings->Call Features. And then click
"Save and Apply" on the bottom of the page;
¾ Establish one call first;
¾ During the call, press TRAN key. A new line will be brought up and the first call will be
automatically placed on hold;
¾ Dial the number and press SEND or # to make a second call. (Once the number is entered, a
"Transfer" softkey will show. If "Transfer" softkey is pressed instead of SEND or #, a blind transfer
will be performed);
¾ Press TRAN key again. The call will be transferred.
¾ For Auto-Attended Transfer, after dialing out the number for the second call, a "Split" softkey will
show. If the second call is not established yet (ringing), pressing "Split" will hang up the second call.
If the second call is established (answered), pressing "Split" will resume the second call and keep
the first call on hold.
Note:
• To transfer calls across SIP domains, SIP service providers must support transfer across SIP domains.
3WAYCONFERENCING
The LXP100 can host 3-way conference call with other 2 parties (PCMU/PCMA).
• Initiate a conference call.
¾ Establish calls with 2 or more parties respectively;
¾ While 1 call is active, the other call will be put on hold with its LINE key blinking in green;
¾ Press CONF key;
¾ Press the desired LINE key on hold, the conference will be established.
• Cancel Conference.
¾ If after pressing the CONF key, the user decides not to conference, press Cancel softkey or the
current active LINE key (LED in solid green);
¾ This will resume the 2-way conversation with the current line.
• Split and Re-conference.
![](/img.php?id=1944406&img=bg17.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 23 of 61
¾ During the conference, press HOLD key. The conference call will be split and the calls will be put
on hold separately with the LINE keys blinking in green;
¾ Select 1 LINE key and press to resume the 2-way conversation;
¾ If users would like to re-establish conference call, before 1 separate LINE is selected, press the
ReConf softkey right after the conference call is held/split;
• End Conference.
¾ Press HOLD key to split the conference call. The conference call will be ended with both calls on
hold; Or
¾ Users could press the EndCall softkey or simply hang up the call to terminate the conference call.
LXP100 supports Easy Conference Mode, which can be used combined with the traditional way to
establish the conference.
• Initiate a conference call.
¾ Establish 1 call;
¾ Press CONF key and a new line will be brought up using the same account;
¾ Dial the number and press SEND key to establish the second call;
¾ Press CONF key or press the ConfCall softkey to establish the conference.
• Split and Re-conference.
¾ During the conference, press HOLD key. The conference call will be split and both calls will be put
on hold separately with 2 LINE keys blinking in green;
¾ Select 1 LINE key and press to resume the 2-way conversation;
¾ If users would like to re-establish conference call, before 1 separate LINE is selected, press the
ReConf softkey right after the conference call is split.
• Cancel Conference.
¾ If users decides not to conference after establishing the second call, press EndCall softkey instead
of the ConfCall softkey/CONF key;
¾ This will end the second call and the screen will show the first call on hold.
• End Conference.
¾ Press HOLD key to split the conference call. The conference call will be ended with both calls on
hold; Or
¾ Users could press the EndCall softkey or simply hang up the call to terminate the conference call.
Note:
• The party that starts the conference call has to remain in the conference for its entire duration, you can
put the party on mute but it must remain in the conversation. Also, this is not applicable when the
feature "Transfer on Conference Hangup" is turned on.
![](/img.php?id=1944406&img=bg18.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 24 of 61
• The option "Disable Conference" has to be set to "No" to establish conference.
• When using Easy Conference Mode, use SEND key to dial out the second call instead of using #,
even when # could be used as SEND in normal phone calls.
VOICEMESSAGES(MESSAGEWA ITINGINDICATOR)
A blinking red MWI (Message Waiting Indicator) on the top right corner of the phone indicates a message
is waiting. Dial into the voicemail box to retrieve the message by entering the voice mail number of the
server or pressing the Voicemail button (Voice Mail User ID has to be properly configured as the voice mail
number under Web GUI->Account x->General Settings). An IVR will prompt the user through the process
of message retrieval.
SHAREDCALLAPPEARANCE(SCA)
The LXP100 phone supports shared call appearance by Broadsoft standard. This feature allows members
of the SCA group to shared SIP lines and provides status monitoring (idle, active, progressing, hold) of the
shared line. When there is an incoming call designated for the SCA group, all of the members of the group
will be notified of an incoming call and will be able to answer the call from the phone with the SCA
extension registered.
All the users that belong to the same SCA group will be notified by visual indicator when a user seizes the
line and places an outgoing call, and all the users of this group will not be able to seize the line until the line
goes back to an idle state or when the call is placed on hold (with the exception of when multiple call
appearances are enabled on the server side).
In the middle of the conversation, there are two types of hold: Public Hold and Private Hold. When a
member of the group places the call on public hold, the other users of the SCA group will be notified of this
by the red-flashing button and they will be able to resume the call from their phone by pressing the line
button. However, if this call is placed on private-hold, no other member of the SCA group will be able to
resume that call.
To enable shared call appearance, the user would need to register the shared line account on the phone.
In addition, they would need to navigate to "Settings"->"Programmable Keys" on the web UI and set the
line key mode as "Shared Line". If the user requires more shared call appearances, the user can configure
multiple line buttons to be "shared line" buttons associated with the account.
CALLFEATURES
![](/img.php?id=1944406&img=bg19.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 25 of 61
The LXP100 supports traditional and advanced telephony features including caller ID, caller ID with caller
Name, call forward and etc.
Table 7: CALL FEATURES
*30
Block Caller ID (for all subsequent calls)
• Off hook the phone;
• Dial *30.
*31
Send Caller ID (for all subsequent calls)
• Off hook the phone;
• Dial *31.
*67
Block Caller ID (per call)
• Off hook the phone;
• Dial *67 and then enter the number to dial out.
*82
Send Caller ID (per call)
• Off hook the phone;
• Dial *82 and then enter the number to dial out.
*70
Disable Call Waiting (per Call)
• Off hook the phone;
• Dial *70 and then enter the number to dial out.
*71
Enable Call Waiting (per Call)
• Off hook the phone;
• Dial *71 and then enter the number to dial out.
*72
Unconditional Call Forward. To set up unconditional call forward:
• Off hook the phone;
• Dial *72 and then enter the number to forward the call;
• Press OK softkey or SEND key.
*73
Cancel Unconditional Call Forward. To cancel the unconditional call forward:
• Off hook the phone;
• Dial *73;
• Hang up the call.
*90 Busy Call Forward. To set up busy call forward:
![](/img.php?id=1944406&img=bg1a.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 26 of 61
• Off hook the phone;
• Dial *90 and then enter the number to forward the call;
• Press OK softkey or SEND key.
*91
Cancel Busy Call Forward. To cancel the busy call forward:
• Off hook the phone;
• Dial *91;
• Hang up the call.
*92
Delayed Call Forward. To set up delayed call forward:
• Off hook the phone;
• Dial *92 and then enter the number to forward the call;
• Press OK softkey or SEND key.
*93
Cancel Delayed Call Forward. To cancel the delayed call forward:
• Off hook the phone;
• Dial *93;
• Hang up the call.
CUSTOMIZEDLCDSCREEN&XML
The LXP100 IP phone supports the following XML applications. Please refer to the corresponding link for
documentation and templates.
• XML custom idle screen (customize idle screen logo, softkey layout, and etc.)
http://www.grandstream.com/products/gxp_series/general/documents/GXP2120/GXP2110/GXP2100_
14xx_XML_Screen_Customization.zip
• XML downloadable phonebook
http://www.grandstream.com/products/gxp_series/general/documents/gxp_wp_xml_phonebook.pdf
![](/img.php?id=1944406&img=bg1b.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 27 of 61
CONFIGURATIONGUIDE
The LXP100 can be configured via two ways:
• LCD Configuration Menu using the phone's keypad;
• Web GUI embedded on the phone using PC's web browser.
CONFIGURATIONVIAKEYPAD
To configure the LCD menu using phone's keypad, follow the instructions below:
• Enter MENU options. When the phone is in idle, press the round MENU button to enter the
configuration menu;
• Navigate in the menu options. Press the arrow keys up/down/left/right to navigate in the menu
options;
• Enter/Confirm selection. Press the round MENU button to enter the selected option;
• Exit. Press LEFT arrow key to exit to the previous menu;
• The phone automatically exits MENU mode with an incoming call, when the phone is off hook or the
MENU mode if left idle for more than 60 seconds.
• When the phone is in idle, pressing the navigation keys UP/DOWN/RIGHT can access the call history
entries:
UP - Missed Calls
DOWN - Dialed Calls
RIGHT - Answered Calls
The MENU options are listed in the following table.
Table 8: CONFIGURATION MENU
Call History Displays call logs for answered calls, dialed calls, missed calls, transferred calls
and forwarded calls.
Status Displays network status, account registration status, software version number,
MAC address, hardware version number, P/N number.
• Network status.
Press to enter the sub menu for IP setting information (DHCP/Static
IP/PPPoE), IPv4 address, IPv6 address, MAC address, Subnet Mask,
Gateway and DNS server.
![](/img.php?id=1944406&img=bg1c.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 28 of 61
Phone Book Displays phonebook. Users could add, edit, search and delete contacts/groups
here, or download phonebook XML to the phone.
LDAP Directory Searches LDAP directory and configures LDAP options.
Instant Messages Displays received instant messages.
Direct IP Call Makes direct IP call.
Preference Preference sub menu includes the following options:
• Do Not Disturb
Enables/disables Do Not Disturb on the phone.
• Forward Call
Configures call forward feature on selected account, forward type and number.
• Ring Tone
Configures different ring tones for incoming call.
• Ring Volume
Adjusts ring volume by pressing left/right arrow key.
• LCD Contrast
Adjusts LCD contrast by pressing left/right arrow key.
• Download SCR XML
Triggers the phone to download the XML idle screen file immediately. The XML
idle screen server path and downloading method need to be set up correctly
from Web GUI first.
• Erase Custom SCR
Erases custom XML idle screen previously loaded on the phone. After erasing
it, the phone will show default idle screen.
• Display Language
Selects the language to be displayed on the phone's LCD. Users could select
Automatic for local language based on IP location if available.
• Time Settings
Configures date and time on the phone.
• Star Key Lock
Turns on/off keypad lock feature and configures keypad lock password.
Config Config sub menu includes the following options:
• SIP
Configures SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth ID, SIP
![](/img.php?id=1944406&img=bg1d.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 29 of 61
Password, SIP Transport and Audio information to register SIP account on the
phone.
• Upgrade
Configures firmware server and config server for upgrading and provisioning
the phone.
• Factory Reset
Resets the phone to factory default settings.
• Layer 2 QoS
Configures 802.1Q/VLAN Tag and priority value.
Factory Functions Factory Functions sub menu includes the following options:
• Audio Loopback
Speak to the phone using speaker/handset/headset. If you can hear your
voice, your audio is working fine. Press Menu button to exit audio loopback
mode.
• Diagnostic Mode
All LEDs will light up. Press any key (except MENU key) on the keypad to
display the button name in the LCD. Lift and put back the handset or press
Menu button to exit diagnostic mode.
• Keyboard Diagnostic
Press all the available keys on the phone. The LCD will display the name for
the keys to be pressed to finish the keyboard diagnostic mode.
Network Selects IP mode (DHCP/Static IP/PPPoE); Configures PPPoE account ID and
password; Configures IP address, Netmask, Gateway, DNS Server 1 and DNS
Server 2; Configures 802.1X mode.
Call Features Configures call forward features for Forward All, Forward Busy, Forward No
Answer and No Answer Timeout.
Voice Mails Displays voicemail message information in the format below:
new messages/all messages (urgent messages/all urgent messages)
Reboot Reboot the phone.
Exit Exit from this menu.
The following picture shows the keypad MENU configuration flow.
![](/img.php?id=1944406&img=bg1e.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 30 of 61
Figure 3: Keypad MENU Flow
Call History
Status
Phone Book
LDAP
Directory
Instant
Messages
Direct IP Call
Preference
Config
Factory
Functions
Network
Call Features
Voice Mails
Reboot
Exit
MENU
Answered Calls
Dialed Calls
Missed Calls
Transferred Calls
Forwarded Calls
Clear All
Back
Groups
New Entry
Search
Download Phonebook XML
Delete All Entries
Back
First Name
Last Name
Number
Acct
Groups
Confirm Add
Cancel & Return
Search
LDAP Configuration
Back
Server Address
Port
Base
User Name
Password
LDAP Number Filter
LDAP Name Filter
LDAP Version
...
Do Not Disturb
Forward Call
Ring Tone
Ring Volume
LCD Contrast
Download SCR XML
Erase Custom SCR
Display Language
Time Settings
Star Key Lock
Back
SIP
Upgrade
Factory Reset
Layer 2 QoS
Back
Audio Loopback
Diagnostic Mode
Keyboard Diagnostic
Back
Enable DND
Disable DND
Back
Default Ring
Ring1
Ring2
Ring 3
Back
Account
SIP Proxy
Outbound Proxy
SIP User ID
SIP Auth ID
SIP Password
SIP Transport
Audio
Save
Cancel
Firmware Server
Config Server
Upgrade Via
Back
802.1Q/VLAN Tag
Priority value
Reset Vlan Config
Back
IP Setting
PPPoE Settings
IP
Netmask
Gateway
DNS Server 1
DNS Server 2
802.1X
Back
Account
X
Forward All
Forward Busy
Forward No Answer
No Answer Timeout
![](/img.php?id=1944406&img=bg1f.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 31 of 61
CONFIGURATIONVIAWEBBROWSER
The LXP100 embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML
pages allow a user to configure the IP phone through a Web browser such as Microsoft’s IE, Mozilla
Firefox and Google Chrome.
To access the Web GUI:
1. Connect the computer to the same network as the phone;
2. Make sure the phone is turned on and shows its IP address. You may check the IP address on the
LCD or go to MENU->Status;
3. Open a Web browser on your computer;
4. Enter the phone’s IP address in the address bar of the browser;
5. Enter the administrator’s login and password to access the Web Configuration Menu.
Note:
• The computer has to be connected to the same sub-network as the phone. This can be easily done by
connecting the computer to the same hub or switch as the phone connected to. In absence of a
hub/switch (or free ports on the hub/switch), please connect the computer directly to the PC port on the
back of the phone;
• If the phone is properly connected to a working Internet connection, the IP address of the phone will
display in MENU->Status. This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a
number from 0-255. Users will need this number to access the Web GUI. For example, if the phone
has IP address 192.168.40.154, please enter "http://192.168.40.154" in the address bar of the
browser;
• The default administrator password is set to "admin". The default end user password is set to "123".
• When changing any settings, always SUBMIT them by pressing the "Save" or "Save and Apply" button
on the bottom of the page. If the change is saved only but not applied, after making all the changes,
click on the "APPLY" button on top of the page to submit. After submitting the changes in all the Web
GUI pages, reboot the phone to have the changes take effect if necessary (All the options under
"Accounts" page and "Phonebook" page do not require reboot. Most of the options under "Settings"
page do not require reboot).
DEFINITIONS
This section describes the options in the phone's Web GUI. As mentioned, you can log in as an
administrator or an end user.
![](/img.php?id=1944406&img=bg20.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 32 of 61
• Status: Displays the Account status, Network status, and System Info of the phone;
• Account: To configure the SIP account;
• Network: To configure network settings;
• Settings: To configure call features, ring tone, LCD display, Web services, XML applications,
programmable keys, and etc;
• Maintenance: To configure web/Telnet access, upgrading and provisioning, language settings,
TR-069, security and etc.
STATUSPAGEDEFINITIONS
Status -> Account Status
Account x Account index.
SIP User ID Displays the configured SIP User ID.
SIP Server Displays the configured SIP Server address.
SIP Registration Displays SIP registration status YES/NO.
Status -> Network Status
MAC Address
Global unique ID of device, in HEX format. The MAC address will be used for
provisioning and can be found on the label coming with original box and on the
label located on the back of the device.
IP Setting DHCP, Static IP or PPPoE.
IPv4 Address The IPv4 address obtained on the phone.
IPv6 Address The IPv6 address obtained on the phone.
Subnet Mask The subnet mask obtained on the phone.
Gateway The gateway address obtained on the phone.
DNS Server 1 The DNS server address 1.
DNS Server 2 The DNS server address 2.
PPPoE Link Up PPPoE connection status.
NAT Traversal NAT traversal status for each account.
Status -> System Info
Product Model Product model of the phone.
Part Number Product part number.
Software Version
• Boot: boot version number;
• Core: core version number;
• Base: base version number;
• Prog: program version number. This is the main firmware release number,
![](/img.php?id=1944406&img=bg21.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 33 of 61
which is always used for identifying the software system of the phone;
• Aux: Aux version number;
• Dsp: DSP version number.
System Up Time System up time since the last reboot.
System Time Current system time on the phone system.
Service Status GUI and Phone service status.
Core Dump Core dump file that could be downloaded for troubleshooting purpose.
ACCOUNTSPAGEDEFINITIONS
Account x -> General Settings
Account Active Activates/deactivates account. The default setting is "Yes".
Account Name The name associated with the SIP account.
SIP Server The URL or IP address, and port of the SIP server. This is provided by your
VoIP service provider (ITSP).
Secondary SIP Server The URL or IP address, and port of the SIP server. This will be used when the
primary SIP server fails.
Outbound Proxy
IP address or Domain name of the Primary Outbound Proxy, Media Gateway,
or Session Border Controller. It's used by the phone for Firewall or NAT
penetration in different network environments. If a symmetric NAT is detected,
STUN will not work and ONLY an Outbound Proxy can provide a solution.
SIP User ID
User account information, provided by your VoIP service provider (ITSP). It's
usually in the form of digits similar to phone number or actually a phone
number.
Authenticate ID SIP service subscriber's Authenticate ID used for authentication. It can be
identical to or different from the SIP User ID.
Authenticate Password
The account password required for the phone to authenticate with the ITSP
(SIP) server before the account can be registered. After it is saved, this will
appear as hidden for security purpose.
Name The SIP server subscriber's name (optional) that will be used for Caller ID
display.
Voice Mail User ID
Allows you to access voice messages by pressing the MESSAGE button on
the phone. This ID is usually the VM portal access number. For example, in
Asterisk server, 8500 could be used.
Account x -> Network Settings
DNS Mode This parameter controls how the Search Appliance looks up IP addresses for
hostnames. There are four modes: A Record, SRV, NATPTR/SRV, Use
![](/img.php?id=1944406&img=bg22.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 34 of 61
Configured IP. The default setting is "A Record". If the user wishes to locate
the server by DNS SRV, the user may select "SRV" or "NATPTR/SRV". If "Use
Configured IP" is selected, please fill in the three fields below:
• Primary IP: The primary IP address where the phone sends DNS query
to;
• Backup IP 1;
• Backup IP 2.
NAT Traversal
This parameter configures whether the NAT traversal mechanism is activated.
Users could select the mechanism from No, STUN, Keep-Alive, UPnP, Auto or
VPN. If set to "STUN" and STUN server is configured, the phone will route
according to the STUN server. If NAT type is Full Cone, Restricted Cone or
Port-Restricted Cone, the phone will try to use public IP addresses and port
number in all the SIP&SDP messages. The phone will send empty SDP packet
to the SIP server periodically to keep the NAT port open if it is configured to be
"Keep-Alive". Configure this to be "No" if an outbound proxy is used. "STUN"
cannot be used if the detected NAT is symmetric NAT.
Proxy-Require
A SIP Extension to notify the SIP server that the phone is behind a
NAT/Firewall. Do not configure this parameter unless this feature is supported
on the SIP server.
Account x -> SIP Settings -> Basic Settings
TEL URI
If the phone has an assigned PSTN telephone number, this field should be set
to "User=Phone". Then a "User=Phone" parameter will be attached to the
Request-Line and "TO" header in the SIP request to indicate the E.164
number. If set to "Enable", "Tel:" will be used instead of "SIP:" in the SIP
request. The default setting is "Disable".
SIP Registration Selects whether or not the phone will send SIP Register messages to the
proxy/server. The default setting is "Yes".
Unregister On Reboot
If set to "Yes", the SIP user's registration information will be cleared when the
phone reboots. The SIP Contact header will contain "*" to notify the server to
unbind the connection. The default setting is "No".
Register Expiration
Specifies the frequency (in minutes) in which the phone refreshes its
registration with the specified registrar. The default value is 60 minutes. The
maximum value is 64800 minutes (about 45 days).
Reregister Before
Expiration
Specifies the time frequency (in seconds) that the phone sends
re-registration request before the Register Expiration. The default value is 0.
Local SIP Port
Defines the local SIP port used to listen and transmit. The default value is
5060 for Account 1, 5062 for Account 2, 5064 for Account 3, 5066 for Account
4, 5068 for Account 5, 5070 for Account 6.
![](/img.php?id=1944406&img=bg23.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 35 of 61
SIP Registration Failure
Retry Wait Time
Specifies the interval to retry registration if the process is failed. The default
value is 20 seconds.
SIP T1 Timeout SIP T1 Timeout. The default setting is 0.5 seconds.
SIP T2 interval SIP T2 Interval. The default setting is 4 seconds.
SIP Transport Determines the network protocol used for the SIP transport. Users can choose
from TCP, UDP and TLS.
SIP URI Scheme when
using TLS
Specifies if "sip:" or "sips:" will be used when TLS/TCP is selected for SIP
Transport. The default setting is "sips:".
Use Actual Ephemeral
Port in Contact with
TCP/TLS
Defines whether the actual ephemeral port in contact with TCP/TLS will be
used or not. This is used when TLS/TCP is selected for SIP Transfer. The
default setting is "No".
Remove OBP from route Configures to remove outbound proxy from route. This is used for the SIP
Extension to notify the SIP server that the device is behind a NAT/Firewall.
Support SIP Instance ID Defines whether SIP Instance ID is supported or not. The default setting is
"Yes".
SUBSCRIBE for MWI
When set to "Yes", a SUBSCRIBE for Message Waiting Indication will be sent
periodically. The phone supports synchronized and non-synchronized MWI.
The default setting is "No".
SUBSCRIBE for
Registration
When set to "Yes", a SUBSCRIBE for Registration will be sent out periodically.
The default setting is "No".
Enable 100rel
The use of the PRACK (Provisional Acknowledgment) method enables
reliability to SIP provisional responses (1xx series). This is very important in
order to support PSTN internetworking. To invoke a reliable provisional
response, the 100rel tag is appended to the value of the required header of the
initial signaling messages.
Caller ID Display
When set to "Auto", the phone will look for the caller ID in the order of
P-Asserted Identity Header, Remote-Party-ID Header and From Header in the
incoming SIP INVITE. When set to "Disabled", all incoming calls are displayed
with "Unavailable". When set to "From Header", the phone will display the
caller ID based on the From Header in the incoming SIP INVITE. The default
setting is "Auto".
Use Privacy Header
Controls whether the Privacy Header will present in the SIP INVITE message
or not. The default setting is "default", which is when "Huawei IMS" special
feature is on, the Privacy Header will not show in INVITE. If set to "Yes", the
Privacy Header will always show in INVITE. If set to "No", the Privacy Header
will not show in INVITE.
Use P-Preferred-Identity
Header
Controls whether the P-Preferred-Identity Header will present in the SIP
INVITE message or not. The default setting is "default", which is when
![](/img.php?id=1944406&img=bg24.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 36 of 61
"Huawei IMS" special feature is on, the P-Preferred-Identity Header will not
show in INVITE. If set to "Yes", the P-Preferred-Identity Header will always
show in INVITE. If set to "No", the P-Preferred-Identity Header will not show in
INVITE.
Account x -> SIP Settings -> Advanced Features
Broadsoft Call Center When set to "Yes", Feature Key Synchronization will be enabled regardless of
web settings. The default setting is "No".
Hoteling Event Enables Broadsoft Hoteling event feature. The default setting is "No".
Call Center Status When set to "Yes", the phone will send SUBSCRIBE to the server to obtain call
center status. The default setting is "No".
Publish to Call Center When set to "Yes", users could select "Away", "Online" or "Busy" from LCD
menu and publish it to call center. The default setting is "No".
Feature Key
Synchronization
This feature is used for Broadsoft call feature synchronization. When it's
enabled, DND and Call Forward features can be synchronized with Broadsoft
server. The default setting is "Disabled".
Line Seize Timeout Defines the interval (in seconds) before the line can be seized when Shared
Line is used. The default value is 15 seconds.
Eventlist BLF URI
Configures the eventlist BLF URI on the phone to monitor the extensions in the
list with Multi Purpose Key. If the server supports this feature, users need to
configure an eventlist BLF URI on the service side first (i.e.,
BLF1006@myserver.com) with a list of extension included. On the phone, in
this "eventlist BLF URI" field, fill in the URI without the domain (i.e., BLF1006).
To monitor the extensions in the list, under Web
GUI->Settings->Programmable Keys page, please select "eventlist BLF" in the
key mode, choose account, enter the value of each extension in the list.
Conference URI Configures the conference URI when using Broadsoft N-way calling feature.
Music On Hold URI Configures Music On Hold URI to call when a call is on hold. This feature has
to be supported on the server side.
BLF Call-pickup Prefix Configures the prefix prepended to the BLF extension when the phone picks
up a call with BLF key. The default setting is **.
PUBLISH for Presence Enables presence feature on the phone. The default setting is "No".
Special Feature
Different soft switch vendors have special requirements. Therefore users may
need select special features to meet these requirements. Users can choose
from Standard, Nortel MCS, Broadsoft, CBCOM, RNK, Sylantro or Huawei IMS
depending on the server type. The default setting is "Standard".
Account x -> SIP Settings -> Session Timer
Session Expiration The SIP Session Timer extension that enables SIP sessions to be periodically
![](/img.php?id=1944406&img=bg25.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 37 of 61
"refreshed" via a SIP request (UPDATE, or re-INVITE). If there is no refresh
via an UPDATE or re-INVITE message, the session will be terminated once
the session interval expires. Session Expiration is the time (in seconds) where
the session is considered timed out, provided no successful session refresh
transaction occurs beforehand. The default value is 180 seconds.
Min-SE The minimum session expiration (in seconds). The default value is 90
seconds.
Caller Request Timer If set to "Yes" and the remote party supports session timers, the phone will use
a session timer when it makes outbound calls.
Callee Request Timer If set to "Yes" and the remote party supports session timers, the phone will use
a session timer when it receives inbound calls.
Force Timer
If Force Timer is set to "Yes", the phone will use the session timer even if the
remote party does not support this feature. If Force Timer is set to "No", the
phone will enable the session timer only when the remote party supports this
feature. To turn off the session timer, select "No".
UAC Specify Refresher As a Caller, select UAC to use the phone as the refresher; or select UAS to
use the Callee or proxy server as the refresher.
UAS Specify Refresher As a Callee, select UAC to use caller or proxy server as the refresher; or select
UAS to use the phone as the refresher.
Force INVITE The Session Timer can be refreshed using the INVITE method or the UPDATE
method. Select "Yes" to use the INVITE method to refresh the session timer.
Account x -> SIP Settings -> Security Settings
Check Domain
Certificates
Defines whether the domain certificates will be checked or not when TLS/TCP
is used for SIP Transport. The default setting is "No".
Validate Incoming
Messages
Defines whether the incoming messages will be validated or not. The default
setting is "No".
Check SIP User ID for
incoming INVITE
If set to "Yes", SIP User ID will be checked in the Request URI of the incoming
INVITE. If it doesn't match the phone's SIP User ID, the call will be rejected.
The default setting is "No".
Accept Incoming SIP
from Proxy Only
When set to "Yes", the SIP address of the Request URL in the incoming SIP
message will be checked. If it doesn't match the SIP server address of the
account, the call will be rejected. The default setting is "No".
Authenticate Incoming
INVITE
If set to "Yes", the phone will challenge the incoming INVITE for authentication
with SIP 401 Unauthorized response. The default setting is "No".
Account x -> Audio Settings
Send DTMF Specifies the mechanism to transmit DTMF digits. There are 3 supported
modes: in audio which means DTMF is combined in the audio signal (not very
![](/img.php?id=1944406&img=bg26.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 38 of 61
reliable with low-bit-rate codecs), via RTP (RFC2833), or via SIP INFO.
DTMF Payload Type Configures the payload type for DTMF using RFC2833. The default value is
101.
Preferred Vocoder
7 different vocoder types are supported on the phone, including G.711 U-law
(PCMU), G.711 A-law (PCMA), G.723.1, G.729A/B, G.722 (wide band), iLBC
and G72-32. Users can configure vocoders in a preference list that is included
with the same preference order in SDP message.
Use First Matching
Vocoder in 200OK SDP
When set to "Yes", the device will use the first matching vocoder in the
received 200OK SDP as the codec. The default setting is "No".
SRTP Mode Enables the SRTP mode based on your selection. The default setting is
"Disabled".
Symmetric RTP Defines whether symmetric RTP is supported or not. The default setting is
"No".
Silence Suppression
Controls the silence suppression/VAD feature of the audio codec G.723 and
G.729. If set to "Yes", when silence is detected, a small quantity of VAD
packets (instead of audio packets) will be sent during the period of no talking.
If set to "No", this feature is disabled. The default setting is "No".
Voice Frames Per TX
Configures the number of voice frames transmitted per packet. When
configuring this, it should be noted that the "ptime" value for the SDP will
change with different configurations here. This value is related to the codec
used and the actual frames transmitted during the in payload call. For end
users, it is recommended to use the default setting, as incorrect settings may
influence the audio quality.
G723 Rate Selects encoding rate for G723 codec. The default value is 5.3kbps.
G.726-32 Packing Mode Selects "ITU" or "IETF" for G726-32 packing mode.
iLBC Frame Size Selects iLBC packet frame size. The default value is 30ms.
iLBC Payload Type Specifies iLBC Payload type. The default value is 97. The valid range is
between 96 and 127.
Jitter Buffer Type Selects either Fixed or Adaptive based on network conditions. The default
setting is "Adaptive".
Jitter Buffer Length Selects Low, Medium, or High based on network conditions. The default
setting is "Medium".
Account x -> Call Settings
Early Dial Selects whether or not to enable early dial. If it's set to "Yes", the SIP proxy
must support 484 response. The default setting is "No".
Dial Plan Prefix Sets the prefix added to each dialed number.
Dial Plan A dial plan establishes the expected number and pattern of digits for a
![](/img.php?id=1944406&img=bg27.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 39 of 61
telephone number. This parameter configures the allowed dial plan for the
phone.
Dial Plan Rules:
1. Accepted Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d;
2. Grammar: x - any digit from 0-9;
a) xx+ - at least 2 digit numbers
b) xx. - only 2 digit numbers
c) ^ - exclude
d) [3-5] - any digit of 3, 4, or 5
e) [147] - any digit of 1, 4, or 7
f) <2=011> - replace digit 2 with 011 when dialing
g) | - the OR operand
• Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, and 911 or any 10 digit numbers with leading digits 1617;
• Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 or add prefix 1617 for any dialed 7
digit numbers;
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
Allows any number with leading digit 1 followed by a 3 digit number, followed
by any number between 2 and 9, followed by any 7 digit number OR Allows
any length of numbers with leading digit 2, replacing the 2 with 011 when
dialed.
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900;
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by
dialing 7 numbers and 1617 area code will be added automatically;
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11
digits length;
• 011[2-9]x - allows international calls starting with 011;
• [3469]11 - allows dialing special and emergency numbers 311, 411, 611
and 911.
![](/img.php?id=1944406&img=bg28.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 40 of 61
Note:
In some cases where the user wishes to dial strings such as *123 to activate
voice mail or other applications provided by their service provider, the * should
be predefined inside the dial plan feature. An example dial plan will be: { *x+ }
which allows the user to dial * followed by any length of numbers.
Delayed Call Forward
Wait Time
Defines the timeout (in seconds) before the call is forwarded on no answer.
The default value is 20 seconds.
Enable Call Features
When enabled, Do No Disturb, Call Forward and other call features will be
supported locally provided ITSP support those features. The default setting is
"Yes". If set to "No", ForwardAll softkey will be hidden for Account 1.
Call Log
Configures Call Log setting on the phone. You can log all calls, only log
incoming/outgoing calls or disable call log. The default setting is "Log All
Calls".
Account Ring Tone Allows users to configure the ringtone for the account. Users can choose from
different ringtones from the dropdown menu.
Matching Incoming
Caller ID
Specifies matching rules with number, pattern or Alert Info text. When the
incoming caller ID or Alert Info matches the rule, the phone will ring with
selected distinctive ringtone. Matching rules:
• Specific caller ID number. For example, 8321123;
• A defined pattern with certain length using x and + to specify, where x
could be any digit from 0 to 9. Samples:
xx+ : at least 2-digit number;
xx : only 2-digit number;
[345]xx: 3-digit number with the leading digit of 3, 4 or 5;
[6-9]xx: 3-digit number with the leading digit from 6 to 9.
• Alert Info text
Users could configure the matching rule as certain text (e.g., priority) and
select the custom ring tone mapped to it. The custom ring tone will be
used if the phone receives SIP INVITE with Alert-Info header in the
following format:
Alert-Info: <http://127.0.0.1>; info=priority
Selects the distinctive ring tone for the matching rule. When the incoming
caller ID or Alert Info matches the rule, the phone will ring with the selected
ring.
Ring Timeout Defines the timeout (in seconds) for the rings on no answer. The default setting
is 60 seconds.
Send Anonymous If set to "Yes", the "From" header in outgoing INVITE messages will be set to
anonymous, essentially blocking the Caller ID to be displayed.
![](/img.php?id=1944406&img=bg29.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 41 of 61
Anonymous Call
Rejection If set to "Yes", anonymous calls will be rejected. The default setting is "No".
Auto Answer If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep.
Allow Auto Answer by
Call-Info
If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep, based on the SIP info
header sent from the server/proxy. The default setting is "No".
Refer-To Use Target
Contact
If set to "Yes", the "Refer-To" header uses the transferred target's Contact
header information for attended transfer. The default setting is "No".
Transfer on Conference
Hangup
Defines whether or not the call is transferred to the other party if the initiator of
the conference hangs up. The default setting is "No".
No Key Entry Timeout (s) Defines the timeout (in seconds) for no key entry. If no key is pressed after the
timeout, the digits will be sent out. The default value is 4 seconds.
Use # as Dial Key
Allows users to configure the "#" key as the "Send" key. If set to "Yes", the "#"
key will immediately dial out the input digits. In this case, this key is essentially
equivalent to the "Send" key. If set to "No", the "#" key is included as part of the
dialing string.
DND Call Feature On Configures DND feature code to turn on DND.
DND Call Feature Off Configures DND feature code to turn off DND.
SETTINGSPAGEDEFINITIONS
Settings -> General Settings
Local RTP Port
This parameter defines the local RTP port used to listen and transmit. It
is the base RTP port for channel 0. When configured, channel 0 will use
this port _value for RTP; channel 1 will use port_value+2 for RTP. Local
RTP port ranges from 1024 to 65400 and must be even. The default
value is 5004.
Use Random Port
When set to "Yes", this parameter will force random generation of both
the local SIP and RTP ports. This is usually necessary when multiple
phones are behind the same full cone NAT. The default setting is "Yes"
(This parameter must be set to "No" for Direct IP Calling to work).
Keep-alive Interval
Specifies how often the phone sends a blank UDP packet to the SIP
server in order to keep the "ping hole" on the NAT router to open. The
default setting is 20 seconds.
Use NAT IP The NAT IP address used in SIP/SDP messages. This field is blank at
the default settings. It should ONLY be used if it's required by your ITSP.
![](/img.php?id=1944406&img=bg2a.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 42 of 61
STUN Server
The IP address or Domain name of the STUN server. STUN resolution
results are displayed in the STATUS page of the Web GUI. Only
non-symmetric NAT routers work with STUN.
Public Mode
Configures to turn on/off public mode for hot desking feature on the
phone. If set to "Yes", users would need fill in the SIP Server address for
account 1 as well. Then reboot the phone. When the phone boots up,
users will need enter SIP User ID and Password on the LCD to login and
use the phone.
Note:
When the phone is in public mode login screen, press CONF button will
have the IP address of the phone displayed.
Settings -> Call Features
Off-hook Auto Dial
Configures a User ID/extension to dial automatically when the phone is
off hook. The phone will use the first account to dial out. The default
setting is "No".
Off-hook Timeout If configured, when the phone is on hook, it will go off hook after the
timeout (in seconds). The default value is 30 seconds.
Disable Call Waiting Disables the call waiting feature. The default setting is "No".
Disable Call Waiting Tone Disables the call waiting tone when call waiting is on. The default setting
is "No".
Disable Direct IP Call Disables Direct IP Call. The default setting is "No".
Use Quick IP Call mode
When set to "Yes", users can dial an IP address under the same
LAN/VPN segment by entering the last octet in the IP address. To dial
quick IP call, off hook the phone and dial #XXX (X is 0-9 and XXX
<=255), phone will make direct IP call to aaa.bbb.ccc.XXX where
aaa.bbb.ccc comes from the local IP address REGARDLESS of subnet
mask. #XX or #X are also valid so leading 0 is not required (but OK). No
SIP server is required to make quick IP call. The default setting is "No".
Disable Conference Disables the Conference function. The default setting is "No".
Disable in-call DTMF Display When it's set to "Yes", the DTMF digits entered during the call will not
display. The default setting is "No".
Enable MPK sending DTMF Enables Multi Purpose Key to send DTMF during the call. The default
setting is "No".
Disable DND Button If set to "Yes", the DND button will not set the phone to DND. The default
setting is "No".
Disable Transfer Disables the Transfer function. The default setting is "No".
![](/img.php?id=1944406&img=bg2b.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 43 of 61
In-call dial number on pressing
transfer key
Configures the number for the phone to dial as DTMF during the call
using TRAN button.
Auto-Attended Transfer If set to "Yes", the phone will use attended transfer by default. The default
setting is "No".
Do Not Escape # as %23 in
SIP URI
Specifies whether to replace # by %23 or not for some special situations.
The default setting is "No".
Click-To-Dial Feature Enables Click-To-Dial feature. The default setting is "Disabled".
Call History Flash Writing:
Write Timeout
Defines the interval (in seconds) to save the call history to phone's flash.
The default value is 300 seconds.
Call History Flash Writing:
Max Unsaved Log
Defines the number of unsaved logs before written to phone's flash. The
default value is 200 entries.
Settings -> Ring Tone
Call Progresses Tones:
System Ring Tone
Dial Tone
Message Waiting
Ring Back Tone
Call-Waiting Tone
Busy Tone
Reorder Tone
Configures ring or tone frequencies based on parameters from local
telecom. The default value is North American standard. Frequencies
should be configured with known values to avoid uncomfortable high
pitch sounds.
Syntax: f1=val,f2=val[,c=on1/off1[-on2/off2[-on3/off3]]];
(Frequencies are in Hz and cadence on and off are in 10ms)
ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous ring, OFF should be zero. Otherwise
it will ring ON ms and a pause of OFF ms and then repeat the pattern. Up
to three cadences are supported.
Call Waiting Tone Gain Configures the call waiting tone gain to adjust call waiting tone volume.
The default setting is "Low".
Settings -> Audio Control
Headset Key Mode
When headset is connected to the phone, users could use the HEADSET
button in "Default Mode" or "Toggle Headset/Speaker".
• Default Mode:
¾ When the phone is in idle, press HEADSET button to off hook
the phone and make calls by using headset. Headset icon will
display on the screen in dialing/talking status.
¾ When there is an incoming call, press HEADSET button to pick
up the call using headset.
¾ When there is an active call using headset, press HEADSET
button to hang up the call.
¾ When Speaker/Handset is being used in dialing/talking status,
![](/img.php?id=1944406&img=bg2c.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 44 of 61
press HEADSET button to switch to headset. Press it again to
hang up the call. Or press speaker/Handset to switch back to the
previous mode.
• Toggle Headst/Speaker:
¾ When the phone is in idle, press HEADSET button to switch to
Headset mode. The headset icon will display on the left side of
the screen. In this mode, if pressing Speaker button or Line key
to off hook the phone, headset will be used.
¾ When there is an active call, press HEADSET button to toggle
between Headset and Speaker.
Always Ring Speaker
Configures to enable or disable the speaker to ring when headset is used
on "Toggle Headset/Speaker" mode. If set to "Yes", when the phone is in
Headset "Toggle Headset/Speaker" mode, both headset and speaker will
ring on incoming call. The default setting is "No".
Headset TX gain Configures the transmission gain of the headset. The default value is
0dB.
Headset RX gain Configures the receiving gain of the headset. The default value is 0dB.
Handset TX gain Configures the transmission gain of the handset. The default value is 0
dB.
Settings -> LCD Display
LCD Contrast Configures the LCD contrast level (from 0 to 20). The default value is 10.
Settings -> Date and Time
NTP Server Defines the URL or IP address of the NTP server. The phone may obtain
the date and time from the server.
Allow DHCP Option 42
Override NTP Server
Defines whether DHCP Option 42 should override NTP server or not.
When enabled, DHCP Option 42 will override the NTP server if it's set up
on the LAN. The default setting is "Yes".
Time Zone Configures the date/time used on the phone according to the specified
time zone.
Self-Defined Time Zone
This parameter allows the users to define their own time zone.
The syntax is: std offset dst [offset], start [/time], end [/time]
Default is set to: MTZ+6MDT+5,M4.1.0,M11.1.0
MTZ+6MDT+5
This indicates a time zone with 6 hours offset with 1 hour ahead which is
U.S central time. If it is positive (+) if the local time zone is west of the
Prime Meridian (A.K.A: International or Greenwich Meridian) and
![](/img.php?id=1944406&img=bg2d.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 45 of 61
negative (-) if it is east.
M4.1.0,M11.1.0
The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday,
3rd Tuesday…)
The 3rd number indicates weekday: 0,1,2,..,6( for Sun, Mon,
Tues, ... ,Sat)
Therefore, this example is the DST which starts from the First Sunday of
April to the 1st Sunday of November.
Date Display Format
Configures the date display format on the LCD. The following formats are
supported:
• yyyy-mm-dd: 2012-07-02
• mm-dd-yyyy: 07-02-2012
• dd-mm-yyyy: 02-07-2012
• dddd, MMMM dd: Friday, October 12
• MMMM dd, dddd: October 12, Friday
Time Display Format Configures the time display in 12-hour or 24-hour format on the LCD. The
default setting is in 12-hour format.
Settings -> Web Service
Enable Weather Update
Configures to enable or disable weather update on the phone. The
default setting is "Yes". If set to "No", the weather information screen will
not show.
City Code
Configures weather city code for the phone to look up the weather
information. The default setting is "Automatic" and the weather
information will be obtained based on the IP location of the phone if
available. Otherwise, specify the self-defined city code. For example,
USCA0638 is the city code for Los Angeles, CA, United States.
Update Interval Specifies the weather update interval (in minutes). The default value is
15 minutes.
Degree Unit Specifies the degree unit for the weather information to display on the
phone.
Settings -> XML Applications
Idle Screen XML Download
Configures to enable idle screen XML download. Users could select
HTTP/HTTPS/TFTP to download the XML idle screen file. The default
setting is "No".
Download Screen XML At
Bootup
If set to "Yes", the idle screen XML file will be downloaded when the
phone boots up. The default setting is "No".
User Custom Filename Specifies the custom file for the idle screen XML file to be downloaded.
![](/img.php?id=1944406&img=bg2e.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 46 of 61
Idle Screen XML Server Path Configures the server path to download the idle screen XML file. This
field could be IP address or URL, with up to 256 characters.
Settings -> Programmable Keys
Line Key X
Assigns a function to the corresponding line key. The key mode options
are:
• Line
Regular line key to open up a line and switch line. The Value field
can be left blank.
• Shared Line
Share line for Shared Line Appearance feature. Select the Account
registered as Shared line for the line key. The Value field can be left
blank.
• Speed Dial
Select the Account to dial from. And enter the Speed Dial number in
the Value field to be dialed.
• Speed Dial via active account
Similar to Speed Dial but it will dial based on the current active
account. For example, if the phone is offhook and account 2 is active,
it will call the configured Speed Dial number using account 2.
• Dial DTMF
Enter a series of DTMF digits in the Value field to be dialed during
the call. "Enable MPK Sending DTMF" has to be set to "Yes" first.
• Voice Mail
Select Account and enter the Voice Mail access number in the Value
field.
• Call Return
The last answered calls can be dialed out by using Call Return. The
Value field should be left blank. Also, this option is not binding to the
account and the call will be returned based on the account with the
last answered call.
• Transfer
Select Account, and enter the number in the Value field to be
transferred (blind transfer) during the call.
• Intercom
Select Account, and enter the extension number in the Value field to
do the intercom.
• LDAP Search
This option is to narrow the LDAP search scope. Enter the LDAP
search base in the Name field. It could be the same or different from
the Base in LDAP configuration under Advanced Settings. The Base
![](/img.php?id=1944406&img=bg2f.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 47 of 61
in LDAP configuration will be used if the Name field is left blank.
Enter the LDAP Name/Number filter in the Value field.
NETWORKPAGE DEFINITIONS
Network -> Basic Settings
Internet Protocol Selects Prefer IPv4 or Prefer IPv6.
IPv4 Address Type
Allows users to configure the appropriate network settings on the phone to
obtain IPv4 address. Users could select "DHCP", "Static IP" or "PPPoE". By
default, it is set to "DHCP".
DHCP Host name
(Option 12)
Specifies the name of the client. This field is optional but may be required by
some Internet Service Providers.
DHCP Vendor Class ID
(Option 60) Used by clients and servers to exchange vendor class ID.
PPPoE Account ID Enter the PPPoE account ID.
PPPoE Password Enter the PPPoE Password.
PPPoE Service Name Enter the PPPoE Service Name.
IPv4 Address Enter the IP address when static IP is used.
Subnet Mask Enter the Subnet Mask when static IP is used for IPv4.
Gateway Enter the Default Gateway when static IP is used for IPv4.
DNS Server 1 Enter the DNS Server 1 when static IP is used for IPv4.
DNS Server 2 Enter the DNS Server 2 when static IP is used for IPv4.
Preferred DNS Server Enter the Preferred DNS Server for IPv4.
IPv6 Address Type
Allows users to configure the appropriate network settings on the phone to
obtain IPv6 address. Users could select "Auto-configured" or "Statically
configured" for the IPv6 address type.
Static IPv6 Address Enter the static IPv6 address when Full Static is used in "Statically configured"
IPv6 address type.
IPv6 Prefix Length Enter the IPv6 prefix length when Full Static is used in "Statically configured"
IPv6 address type.
IPv6 Prefix Enter the IPv6 Prefix (64 bits) when Prefix Static is used in "Statically
configured" IPv6 address type.
DNS Server 1 Enter the DNS Server 1 for IPv6.
DNS Server 2 Enter the DNS Server 2 for IPv6.
Preferred DNS server Enter the Preferred DNS Server for IPv6.
Network -> Advanced Settings
![](/img.php?id=1944406&img=bg30.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 48 of 61
802.1X mode
Allows the user to enable/disable 802.1X mode on the phone. The default
value is disabled. To enable 802.1X mode, this field should be set to
EAP-MD5.
802.1X Identity Enter the Identity for the 802.1X mode.
MD5 Password Enter the MD5 Password for the 802.1X mode.
802.1X CA Certificate Upload 802.1X CA certificate to the phone; or delete existed 802.1X CA
certificate from the phone.
802.1X Client Certificate Upload 802.1X Client certificate to the phone; or delete existed 802.1X Client
certificate from the phone.
HTTP Proxy Specifies the HTTP proxy URL for the phone to send packets to. The proxy
server will act as an intermediary to route the packets to the destination.
HTTPS Proxy Specifies the HTTPS proxy URL for the phone to send packets to. The proxy
server will act as an intermediary to route the packets to the destination.
Layer 3 QoS Defines the Layer 3 QoS parameter. This value is used for IP Precedence,
Diff-Serv or MPLS. The default value is 12.
Layer 2 QoS
802.1Q/VLAN Tag Assigns the VLAN Tag of the Layer 2 QoS packets. The default value is 0.
Layer 2 QoS 802.1p
Priority Value Assigns the priority value of the Layer2 QoS packets. The default value is 0.
PC Port Mode
Configures the PC port mode. When set to "Mirrored", the traffic in the LAN
port will go through PC port as well and packets can be captured by
connecting a PC to the PC port. The default setting is "Enable".
MAINTENANCEPAGEDEFINITIONS
Maintenance -> Web/Telnet Access
Disable Telnet Disables Telnet access. The default setting is "No".
End User Password Allows the administrator to set the password for user-level web GUI access.
This field is case sensitive with a maximum length of 30 characters.
Confirm Password Confirms the end user password field to be the same as above.
Admin Password
Allows users to change the admin password. The password field is purposely
hidden for security purpose. This field is case sensitive with a maximum length
of 30 characters.
Confirm Password Confirms the admin password field to be the same as above.
Maintenance -> Upgrade and Provisioning
Firmware Upgrade and Specifies how firmware upgrading and provisioning request to be sent: Always
![](/img.php?id=1944406&img=bg31.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 49 of 61
Provisioning Check for New Firmware, Check New Firmware only when F/W pre/suffix
changes, Always Skip the Firmware Check.
XML Config File
Password
The password for encrypting the XML configuration file using OpenSSL. This
is required for the phone to decrypt the encrypted XML configuration file.
HTTP/HTTPS User
Name The user name for the HTTP/HTTPS server.
HTTP/HTTPS Password The password for the HTTP/HTTPS server.
Upgrade Via Allows users to choose the firmware upgrade method: TFTP, HTTP or HTTPS.
Firmware Server Path Defines the server path for the firmware server. It could be different from the
configuration server for provisioning.
Config Server Path Defines the server path for provisioning. It could be different from the firmware
server for upgrading.
Firmware File Prefix
Enables your ITSP to lock firmware updates. If configured, only the firmware
with the matching encrypted prefix will be downloaded and flashed into the
phone.
Firmware File Postfix
Enables your ITSP to lock firmware updates. If configured, only the firmware
with the matching encrypted postfix will be downloaded and flashed into the
phone.
Config File Prefix
Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted prefix will be downloaded and
flashed into the phone.
Config File Postfix
Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted postfix will be downloaded and
flashed into the phone.
Allow DHCP Option 43
and Option 66 Override
Server
If DHCP option 66 is enabled on the LAN side, the TFTP server can be
redirected.
Allow DHCP Option 120
to override SIP Server
Enables DHCP Option 120 from local server to override the SIP Server on the
phone.
Automatic Upgrade Enables automatic upgrade and provisioning.
Hour of the Day (0-23) Defines the hour of the day to check the HTTP/TFTP server for firmware
upgrades or configuration files changes. The default value is 1.
Day of the Week (0-6) Defines the day of the week to check HTTP/TFTP server for firmware
upgrades or configuration files changes. The default value is 1.
Authenticate Conf File Authenticates configuration file before acceptance. The default setting is "No".
Maintenance -> Syslog
Syslog Server The URL or IP address of the syslog server for the phone to send syslog to.
![](/img.php?id=1944406&img=bg32.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 50 of 61
Syslog Level
Selects the level of logging for syslog. The default setting is "None". There are
4 levels: DEBUG, INFO, WARNING AND ERROR.
Syslog messages are sent based on the following events:
• product model/version on boot up (INFO level);
• NAT related info (INFO level);
• sent or received SIP message (DEBUG level);
• SIP message summary (INFO level);
• inbound and outbound calls (INFO level);
• registration status change (INFO level);
• negotiated codec (INFO level);
• ethernet link up (INFO level);
• SLIC chip exception (WARNING and ERROR levels);
• memory exception (ERROR level).
Send SIP Log Configures whether the SIP log will be included in the syslog messages or not.
The default setting is "No".
Auto Recover From
Abnormal
Configures whether auto recover or not when the phone is running abnormal.
The default setting is "Yes".
Maintenance -> Language
Display Language Selects display language on the phone.
Language File Postfix Specifies the language file postfix for downloaded language.
Maintenance -> TR-069
Enable TR-069 Enables TR-069. The default setting is "No".
ACS URL URL for TR-069 Auto Configuration Servers (ACS).
TR-069 Username ACS username for TR-069.
TR-069 Password ACS password for TR-069.
Periodic Inform Enable Enables periodic inform. If set to "Yes", device will send inform packets to the
ACS. The default setting is "No".
Periodic Inform Interval Sets up the periodic inform interval to send the inform packets to the ACS.
Connection Request
Username The user name for the ACS to connect to the phone.
Connection Request
Password The password for the ACS to connect to the phone.
Connection Request Port The port for the ACS to connect to the phone.
CPE SSL Certificate The Cert File for the phone to connect to the ACS via SSL.
CPE SSL Private Key The Cert Key for the phone to connect to the ACS via SSL.
Maintenance -> Security
![](/img.php?id=1944406&img=bg33.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 51 of 61
Configuration via Keypad
Menu
Configures the access control for the users to configure from keypad Menu.
There are three different options:
• Unrestricted. All the options can be accessed in keypad Menu.
• Basic settings only. The CONFIG option will not display for users to
access in keypad Menu.
• Constraint Mode. CONFIG, FACTORY FUNCTIONS and NETWORK
options will not display for users to access in keypad menu.
Enable STAR key
Keypad locking
If set to "Yes", the keypad can be locked by pressing and holding the STAR *
key for about 4 seconds. A lock icon will show indicating the keypad is locked.
The default setting is "Yes".
Note:
When the keypad is locked, users would need press and hold the STAR * key
for about 4 seconds again and then enter the password to unlock it.
Password to lock/unlock Configures the password to lock/unlock the keypad. The password field allows
number with up to 32 characters.
SSL TLS Certificate SSL Certificate used for SIP Transport in TLS/TCP.
SSL TLS Private Key SSL Private key used for SIP Transport in TLS/TCP.
SSL TLS Private Key
Password
SSL Private key password used for SIP Transport in TLS/TCP.
Download Device
Configuration Click to download the device configuration file in .txt format.
PHONEBOOKPAGEDEFINITIONS
Phonebook -> Phonebook Management
Enable Phonebook XML
Download
Configures to enable phonebook XML download. Users could select
HTTP/HTTPS/TFTP to download the phonebook file. The default setting is
"Disabled".
Phonebook XML Server
Path
Configures the server path to download the phonebook XML. This field could
be IP address or URL, with up to 256 characters.
Phonebook Download
Interval
Configures the phonebook download interval (in minutes). If it's set to 0, the
automatic download will be disabled. The default value is 0. The valid range is
5 to 720 minutes.
Remove Manually-edited
Entries on Download
If set to "Yes", when XML phonebook is downloaded, the entries added
manually will be automatically removed. The default setting is "Yes".
Download XML
Phonebook Click on "Download" to download the XML phonebook file to local PC.
![](/img.php?id=1944406&img=bg34.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 52 of 61
Upload XML Phonebook Click on "Upload" to upload local XML phonebook file to the phone.
Phonebook -> LDAP
Server Address Configures the IP address or DNS name of the LDAP server.
Port Configures the LDAP server port.
Base
Configures the LDAP search base. This is the location in the directory where
the search is requested to begin.
Example:
dc=grandstream, dc=com
ou=Boston, dc=grandstream, dc=com
User Name Configures the bind "Username" for querying LDAP servers. Some LDAP
servers allow anonymous binds in which case the setting can be left blank.
Password Configures the bind "Password" for querying LDAP servers. The field can be
left blank if the LDAP server allows anonymous binds.
LDAP Number Filter
Configures the filter used for number lookups.
Examples:
(|(telephoneNumber=%)(Mobile=%) returns all records which has the
"telephoneNumber" or "Mobile" field starting with the entered prefix;
(&(telephoneNumber=%) (cn=*)) returns all the records with the
"telephoneNumber" field starting with the entered prefix and "cn" field set.
LDAP Name Filter
Configures the filter used for name lookups.
Examples:
(|(cn=%)(sn=%)) returns all records which has the "cn" or "sn" field starting
with the entered prefix;
(!(sn=%)) returns all the records which do not have the "sn" field starting with
the entered prefix;
(&(cn=%) (telephoneNumber=*)) returns all the records with the "cn" field
starting with the entered prefix and "telephoneNumber" field set.
LDAP Version Selects the protocol version for the phone to send the bind requests. The
default setting is "Version 3".
LDAP Name Attributes
Specify the "name" attributes of each record which are returned in the LDAP
search result. This field allows the users to configure multiple space separated
name attributes.
Example:
gn
cn sn description
![](/img.php?id=1944406&img=bg35.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 53 of 61
LDAP Number Attributes
Specifies the "number" attributes of each record which are returned in the
LDAP search result. This field allows the users to configure multiple space
separated number attributes.
Example:
telephoneNumber
telephoneNumber Mobile
LDAP Display Name
Configures the entry information to be shown on phone's LCD. Up to 3 fields
can be displayed.
Example:
%cn %sn %telephoneNumber
Max. Hits Specifies the maximum number of results to be returned by the LDAP server. If
set to 0, server will return all search results. The default setting is 50.
Search Timeout Specifies the interval (in seconds) for the server to process the request and
client waits for server to return. The default setting is 30 seconds.
Sort Results Specifies whether the searching result is sorted or not. The default setting is
"No".
LDAP Lookup Configures to enable LDAP number searching when dialing and receiving
calls.
Lookup Display Name
Configures the display name when LDAP looks up the name for incoming call
or outgoing call. This field must be a subset of the LDAP Name Attributes.
Example:
gn
cn sn description
User Phonebook Key for
LDAP Search
If set to "Yes", the Phonebook Key will be used to bring up LDAP search. The
default setting is "No".
NATSETTINGS
If the devices are kept within a private network behind a firewall, we recommend using STUN Server. The
following settings are useful in the STUN Server scenario:
• STUN Server
Enter a STUN Server IP (or FQDN) that you may have, or look up a free public STUN Server on the
internet and enter it on this field. If using Public IP, keep this field blank.
• Use Random Ports
This setting depends on your network settings. When set to "Yes", it will force random generation of
both the local SIP and RTP ports. This is usually necessary when multiple LXPs are behind the
![](/img.php?id=1944406&img=bg36.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 54 of 61
same NAT. If using a Public IP address, set this parameter to "No".
• NAT Traversal
Default setting is "No". Enable the device to use NAT traversal when it is behind firewall on a private
network. Select Keep-Alive, Auto, STUN (with STUN server path configured too) or other option
according to the network setting.
WEATHERUPDATE
To customize LXP100 to display weather information for the preferred city, users could go to web
GUI->Settings->Web Service page and enter the city code in the following options:
By default the City Code is set to "Automatic", which allows the phone to obtain weather information
based on the IP location detected. To use "Self-Defined City Code" option, please follow the steps below
to obtain the correct city code:
• In a web browser, go to www.weather.com;
• Enter the city name in the search field. For example, Boston, MA. And click on "SEARCH";
• The searching result will show in a new window with URL in the browser's address bar. For example,
http://www.weather.com/weather/right-now/Boston+MA+USMA0046
• In the above link, USMA0046 is the city code to be filled in "Self-Defined City Code" option.
Users could then further configure the "Update Interval" and "Degree Unit" for weather information
display.
![](/img.php?id=1944406&img=bg37.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 55 of 61
PUBLICMODE
The LXP100 supports hot desking using public mode. Under public mode, users could login the phone with
the SIP account User ID and password. Please follow the steps below to configure the phone for public
mode:
• Fill up the SIP server address for account 1 first;
• Under Web GUI->Settings->General Settings, set "Public Mode" option to "Yes". Click "Save and
Apply" and reboot the phone;
• When the phone boots up, SIP User ID and Password to register to the configured SIP server in
account 1 will be required. Enter the correct account information to log in to the phone. When entering
the account information, press softkey "123"/"abc" to toggle input method;
• In login page, pressing CONF button on the phone will show phone's IP address;
• After using the phone, go to LCD MENU->LogOut to log off the public mode.
EDITINGCONTACTSANDCLICKTODIAL
From LXP100 Web GUI, users could view contacts, edit contacts, or dial out with Click-to-Dial feature
on the top of the Web GUI. In the following figure, the Contact page shows all the added contacts
(manually or downloaded via XML phonebook). Here users could add new contact, edit selected contact,
or dial the contact/number.
Before using the Click-To-Dial feature, make sure the option "Click-To-Dial Feature" under web
GUI->Settings->Call Features is turned on. By default it's disabled and the dialing icon in web GUI is in
grey .
When clicking on the icon on the top menu of the Web GUI, a new dialing window will show for you
to enter the number. Once Dial is clicked, the phone will go off hook and dial out the number from selected
account. Please see Figure 4 and Figure 5 in the following pages for more details.
Additionally, users could directly send the command for the phone to dial out by specifying the following
URL in PC's web browser, or in the field as required in other call modules.
http://ip_address/cgi-bin/api-make_call?phonenumber=1234&account=0&password=admin
In the above link, replace the fields with
• ip_address:
Phone's IP Address.
![](/img.php?id=1944406&img=bg38.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 56 of 61
• phonenumber=1234:
The number for the phone to dial out
• account=0:
The account index for the phone to make call. The index is 0 for account 1, 1 for account 2, 2 for
account 3, and etc.
• password=admin:
The admin login password of phone's Web GUI.
Figure 4: Web GUI - Phonebook->Contacts
Figure 5: Click-to-Dial
A
dd contacts. Edit contact.
Click to call this contact
from the phone.
Click to dial from
available lines.
![](/img.php?id=1944406&img=bg39.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 57 of 61
SAVINGTHECONFIGURATIONCHANGES
After users makes changes to the configuration, press the "Save" button will save but not apply the
changes until the "Apply" button on the top of web GUI page is clicked. Or, users could directly press
"Save and Apply" button. We recommend rebooting or powering cycle the phone after applying all the
changes.
REBOOTINGFROMREMOTELOCATIONS
Press the "Reboot" button on the top right corner of the web GUI page to reboot the phone remotely. The
web browser will then display a reboot message. Wait for about 1 minute to log in again.
![](/img.php?id=1944406&img=bg3a.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 58 of 61
UPGRADINGANDPROVISIONING
The LXP100 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the
TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP or
HTTP/HTTPS; the server name can be FQDN or IP address.
Examples of valid URLs:
firmware.grandstream.com
fw.ipvideotalk.com/gs
There are two ways to setup a software upgrade server: The LCD Keypad Menu or the Web Configuration
Interface.
UPGRADEVIAKEYPADMENU
Follow the steps below to configure the upgrade server path via phone's keypad menu:
• Press MENU button and navigate using Up/Down arrow to select Config;
• In the Config options, select Upgrade;
• Enter the firmware server path and select upgrade method. The server path could be in IP address
format or FQDN format;
• Press the "OK" softkey. A reboot message window will be prompt;
• Reboot the phone to have the change take effect.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restarts again. Please do not interrupt or power cycle the phone when the upgrading process is on.
UPGRAGEVIAWEBGUI
Open a web browser on PC and enter the IP address of the phone. Then, login with the administrator
username and password. Go to Maintenance->Upgrade and Provisioning page, enter the IP address or
the FQDN for the upgrade server in "Firmware Server Path" field and choose to upgrade via TFTP or
HTTP/HTTPS. Update the change by clicking the "Save and Apply" button. Then "Reboot" or power cycle
the phone to update the new firmware.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restart again. Please do not interrupt or power cycle the phone when the upgrading process is on.
![](/img.php?id=1944406&img=bg3b.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 59 of 61
Firmware upgrading takes around 60 seconds in a controlled LAN or 5-10 minutes over the Internet. We
recommend completing firmware upgrades in a controlled LAN environment whenever possible.
NOLOCALTFTP/HTTPSERVERS
Users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A free windows
version TFTP server is available for download from :
http://support.solarwinds.net/updates/New-customerFree.cfm
http://tftpd32.jounin.net/.
Instructions for local firmware upgrade via TFTP:
1. Unzip the firmware files and put all of them in the root directory of the TFTP server;
2. Connect the PC running the TFTP server and the phone to the same LAN segment;
3. Launch the TFTP server and go to the File menu->Configure->Security to change the TFTP server's
default setting from "Receive Only" to "Transmit Only" for the firmware upgrade;
4. Start the TFTP server and configure the TFTP server in the phone’s web configuration interface;
5. Configure the Firmware Server Path to the IP address of the PC;
6. Update the changes and reboot the phone.
End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use
Microsoft IIS web server.
CONFIGURATIONFILEDOWNLOAD
The LXP100 can be configured via the Web Interface as well as via a Configuration File (binary or XML)
through TFTP or HTTP/HTTPS. The "Config Server Path" is the TFTP or HTTP/HTTPS server path for the
configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The "Config
Server Path" can be the same or different from the "Firmware Server Path".
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with the "Admin Password" in the Web GUI->Maintenance->Web/Telnet
Access page. For a detailed parameter list, please refer to the corresponding firmware release
configuration template.
When the LXP100 boots up or reboots, it will issue a request to download a configuration XML file named
"cfgxxxxxxxxxxxx.xml" followed by a file named "cfgxxxxxxxxxxxx", where "xxxxxxxxxxxx" is the MAC
address of the phone, i.e., "cfg000b820102ab.xml" and "cfg000b820102ab". If the download of
![](/img.php?id=1944406&img=bg3c.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 60 of 61
"cfgxxxxxxxxxxxx.xml" file is not successful, the provision program will download a generic cfg.xml file. The
configuration file name should be in lower case letters.
For more details on XML provisioning, please refer to:
http://www.grandstream.com/general/gs_provisioning_guide_public.pdf
![](/img.php?id=1944406&img=bg3d.png)
FIRMWARE VERSION 1.0.5.23 LXP100 USER MANUAL Page 61 of 61
RESTOREFACTORYDEFAULTSETTINGS
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please
backup or print all the settings before you restore to the factory default settings.
Please follow the instructions below to reset the phone:
• Press MENU button to bring up the keypad configuration menu;
• Select "Config" and enter;
• Select "Factory Reset";
• A warning window will pop out to make sure a reset is requested and confirmed;
Press the "OK" softkey to confirm and the phone will reboot. To cancel the Reset, press Cancel softkey
instead.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
FCC 15.105 Class B
(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following
or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
•
