Philips Medical Systems North America M3813B Telemedicine Home Scale User Manual M3810 90096
Philips Medical Systems North America Co. Telemedicine Home Scale M3810 90096
users manual
![](/img.php?id=690806&img=bg1.png)
![](/img.php?id=690806&img=bg2.png)
Notice
2
Notice
Proprietary
Information Published by Philips Medical Systems, a division of Philips Electronics
North America Corporation.
Philips Medical Systems reserves the right to make changes to both this
Instructions for Use and to the product it describes. Product
specifications are subject to change without notice. Nothing contained
within this Instructions for Use is intended as any offer, warranty,
promise or contractual condition, and must not be taken as such.
© Koninklijke Philips Electronics N.V. 2006
All Rights are reserved. Reproduction in whole or in part in any form or
by any means, electrical, mechanical or otherwise, is prohibited without
the written consent of the copyright holder.
Document number:
M3810-90096
Issue number 2, July 2006
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810-1085
USA
Unauthorized copying of this publication is a copyright infringement and
will reduce the ability of Philips Medical Systems to provide accurate
and up-to-date information to users. Non-Philips product names may be
trademarks of their respective owners.
Published in the United States of America
Notice
3
Printing
History New editions of this document will incorporate all material updated since
the previous edition. Update packages may be issued between editions
and contain replacement and additional pages to be merged by a revision
date at the bottom of the page. Note that pages which are rearranged due
to changes on a previous page are not considered revised.
The documentation printing date and part number indicate its current
edition. The printing date changes when a new edition is printed. (Minor
corrections and updates which are incorporated at reprint do not cause
the date to change.) The document part number changes when extensive
technical changes are incorporated.
All Editions and Updates of this manual and their publication dates are
listed below.
First Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . October 2002
Second Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . July 2006
Notice
4
![](/img.php?id=690806&img=bg5.png)
Contents
Contents 1
1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
How the System Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Keeping the System Working. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Thank You!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Philips Telemonitoring Services System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Safety and Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Follow Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Bold Typeface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
2. Philips Telemonitoring Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Device Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

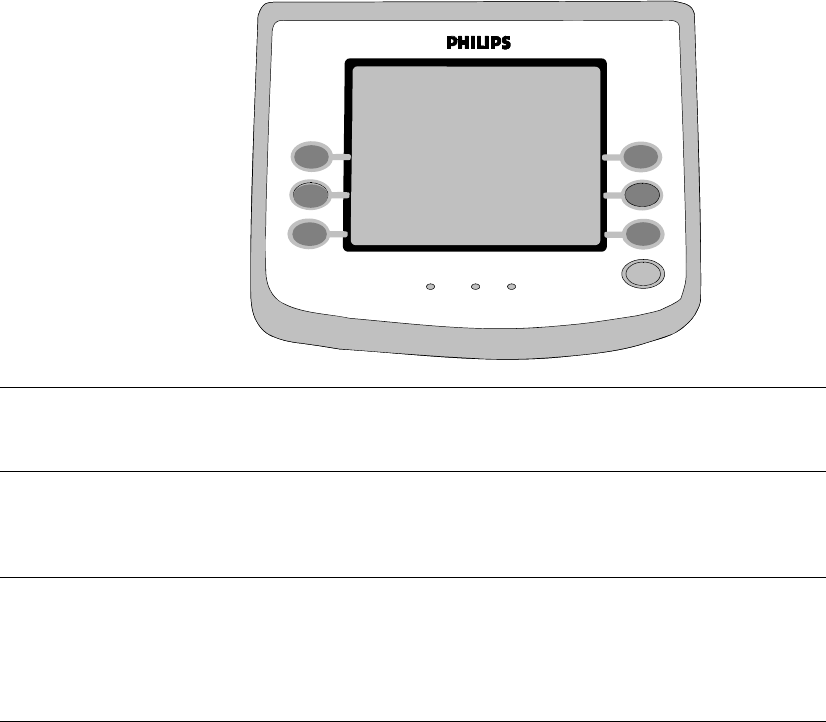

Home Hub/TeleStation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Front Panel Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Standard Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Steady Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Blood Pressure Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
BP Unit Display Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

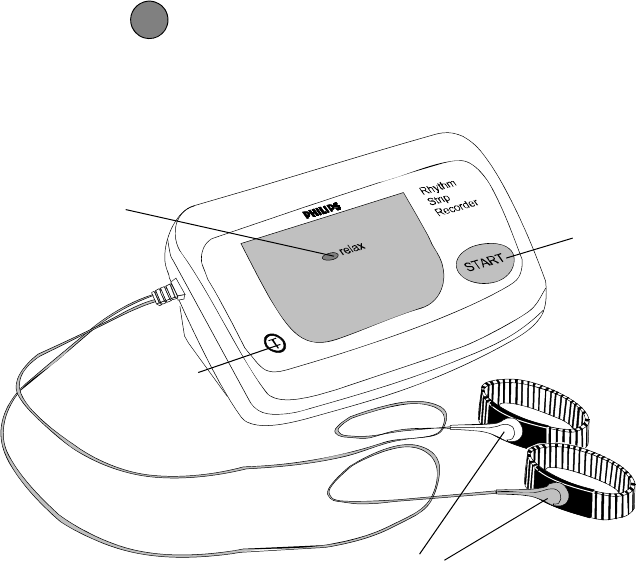

Rhythm Strip Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Rhythm Strip Recorder Display Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Contents 2
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Pulse Oximeter Display Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Device Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
HomeHub/TeleStation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Home Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
TeleStation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Answering Survey Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Entering Measurements Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Entering Glucose Meter Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Changing Glucose Meter Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Measuring Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

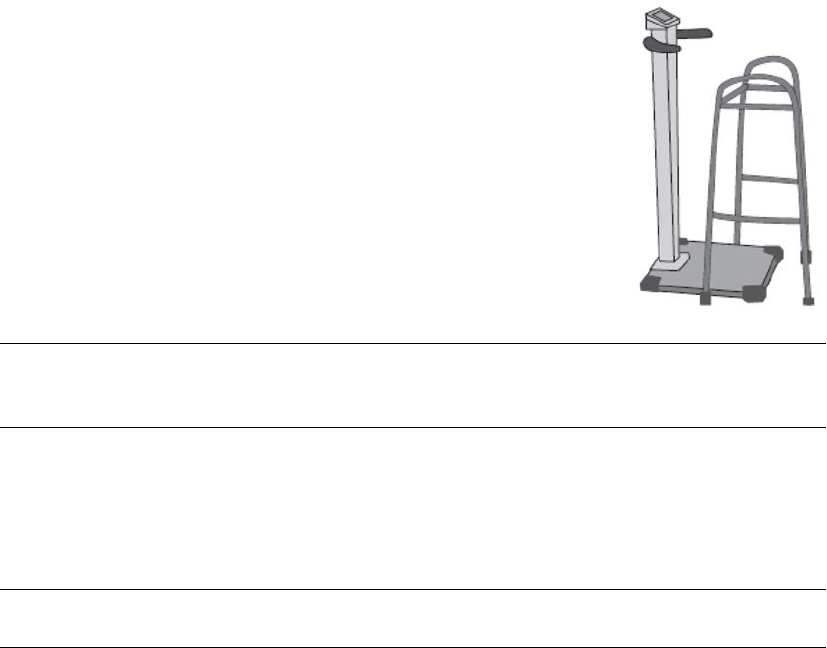

Measuring Weight with a Walker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Changing the Voice Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Changing the Weight Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
Changing Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Blood Pressure Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29
Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
Measuring Blood Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-31
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36
3. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Cleaning Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Storing Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Blood Pressure Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

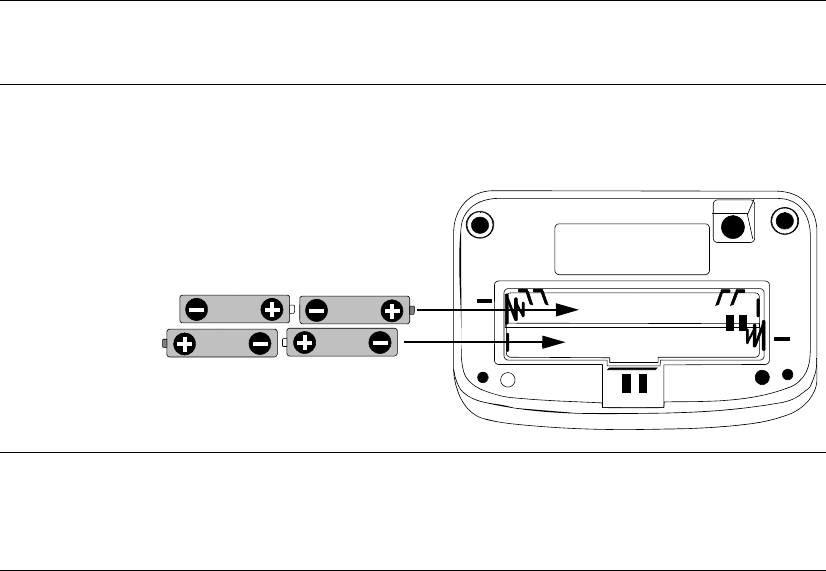

Replacing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Standard Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Steady Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
Blood Pressure Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Contents 3
4. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Radio Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Troubleshooting Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Home Hub/Telestation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Blood Pressure Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
5. Specifications and Regulatory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Home Hub/TeleStation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Standard Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Steady Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Blood Pressure Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Emissions and Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Avoiding Electromagnetic Interference Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Avoiding Static Electrical Discharges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
FCC Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Telephone Regulatory Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Contents 4
![](/img.php?id=690806&img=bg9.png)
Introduction 1-1
Introduction
1
Introduction
Welcome
Welcome to Philips Telemonitoring Services.
When you use this product, you’ll take a few minutes every day to
measure your weight, vital signs, and/or glucose.
These measurements will help you and your healthcare provider make
better decisions about your care. You are providing information that can
help improve you quality of life.
How the
System
Works
With this system, it’s easy to take your measurements from the comfort
of you home. The measurements are sent over your phone line to your
healthcare provider’s computer
Feel free to talk on you phone at any time -- the system is “smart”
enough to know when the phone line is open. It will wait and then send
the information after you hang up.
Keeping the
System
Working
If at any time you suspect something is wrong with any of the devices,
immediately contact your healthcare provider. Philips will replace any
defective device. You can also cross-check your results with another
device if additional measurement devices of the same type are available
to you.
This Guide contains easy-to-follow steps for taking your measurements.
It also shows you how to maintain the devices so that they will continue
to take true readings.
Thank You! Thank you for taking an active role in your home healthcare plan. Philips
and your healthcare provider applaud your efforts to actively participate
in you health care plan.
![](/img.php?id=690806&img=bga.png)

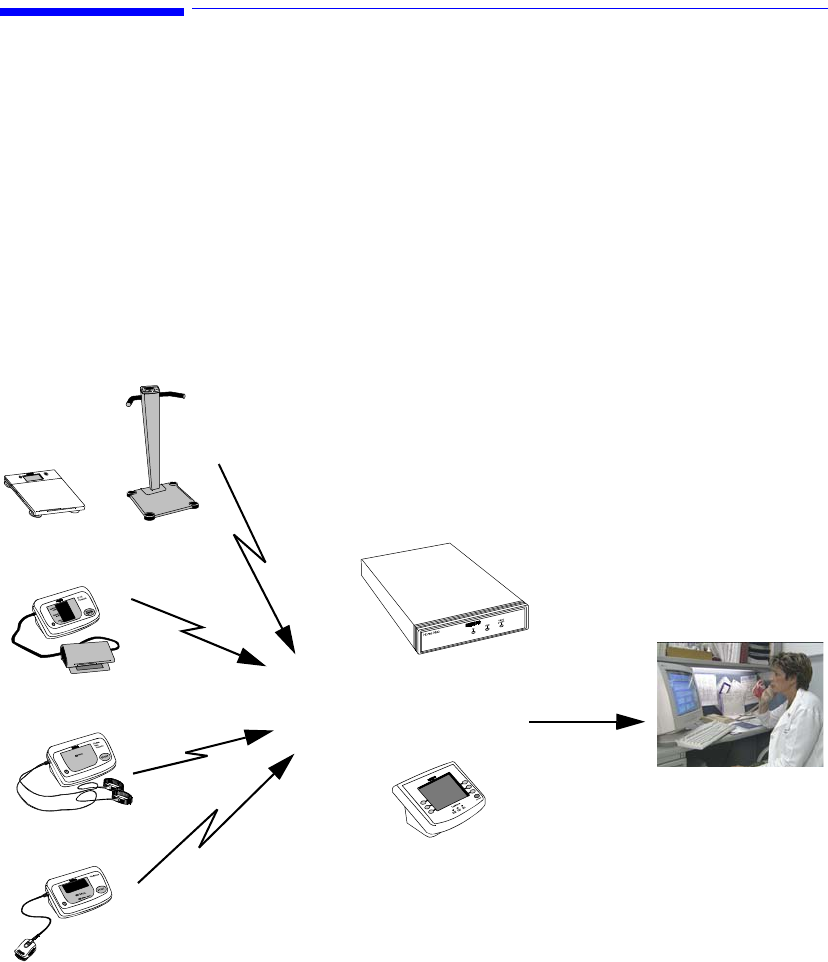

Philips Telemonitoring Services System
1-2 Introduction
Philips Telemonitoring Services System
Your Philips Telemonitoring Services system includes a set of
measurement devices known as the Patient Telemonitoring Set. Each
device takes an important measurement -- such as weight, blood
pressure and pulse, heart rhythm, %SpO2 -- and then wirelessly sends
that measurement to the Home Hub or TeleStation.
Your healthcare provider decides whether you will use one or all of the
measurement devices below. The HomeHub/TeleStation is the
"communications center." It receives your measurements from the
devices via radio transmission and sends them over your phone line to
your healthcare provider’s computer. The computer keeps a record of all
of your vital sign measurements for review by your healthcare provider.
Patient Telemonitoring Set
Scale
Blood Pressure Unit
Rhythm Strip Recorder
Pulse Oximeter
Radio Telephone
Home Hub
or
TeleStation
Healthcare
Transmission
Transmission
Provider
SteadyStandard or
![](/img.php?id=690806&img=bgb.png)
Safety and Precautions
Introduction 1-3
Safety and Precautions
Follow
Instructions Follow your doctor’s instructions about symptoms that require you to
contact your healthcare provider. Use of this device is not intended to
replace your existing therapy or drug administration. Remember, only
your healthcare provider is trained to interpret the results. He or she will
tell you when and how often to take your vital signs. Please read all of
the instructions in this guide before using the Philips Telemonitoring
System and follow the instructions carefully.
Document
Conventions The following conventions will be used in this Guide to alert you to
special or important information in the text.
Warnings Warnings are information you should know to avoid a hazard that
could result in severe injury or death.
Observe the following Warnings with all devices of the Philips
Telemonitoring System.
Warning •Do not let anyone else use these devices. They are provided for
your use only.
•Do not swap devices with a neighbor or family member who has
the same or similar system.
• These devices are not intended to be used to call for emergency
medical attention or response.
•Do not try to fix a device yourself. If there’s a problem, call your
healthcare provider.
•Do not use a device with the battery door removed.
• Avoid exposing the devices to extremes in temperature, humidity,
direct sunlight, shock, dust spill, or standing water.
•Do not let children use the device.
• Throw away packing materials and plastic bags right away. They
are a hazard for children.
![](/img.php?id=690806&img=bgc.png)
Safety and Precautions
1-4 Introduction
• Small parts that can be removed from a device and swallowed --
such as the Home Hub rubber feet and Home Hub power adapter
clip -- are hazards for children and pets.
• To prevent shock, connect cables only as described in this Guide.
•Do not connect anything to this system other than Philips
Telemonitoring Services devices or glucose meters approved by
your healthcare provider.
• To prevent shock, do not use devices during a lightning storm.
• Call your healthcare provider if you are inured using any of these
devices.
Cautions Cautions are information you should know to avoid a hazard that could
result in personal injury or property damage.
Observe the following Cautions with all devices of the Philips
Telemonitoring System.
Caution • Read this Guide carefully before using these devices.
• Use these devices only as directed by your healthcare provider.
• Follow your physician’s instructions regarding symptoms that
require direct contact with your healthcare provider.
• Use of these device is not a substitute for medical care.
Notes Notes contain additional information on usage of the Patient
Telemonitoring System and its devices.
Note
Bold
Typeface Objects of actions in procedures appear in bold typeface, as shown in the
following example:
Step 1. Select the Update button.
![](/img.php?id=690806&img=bgd.png)

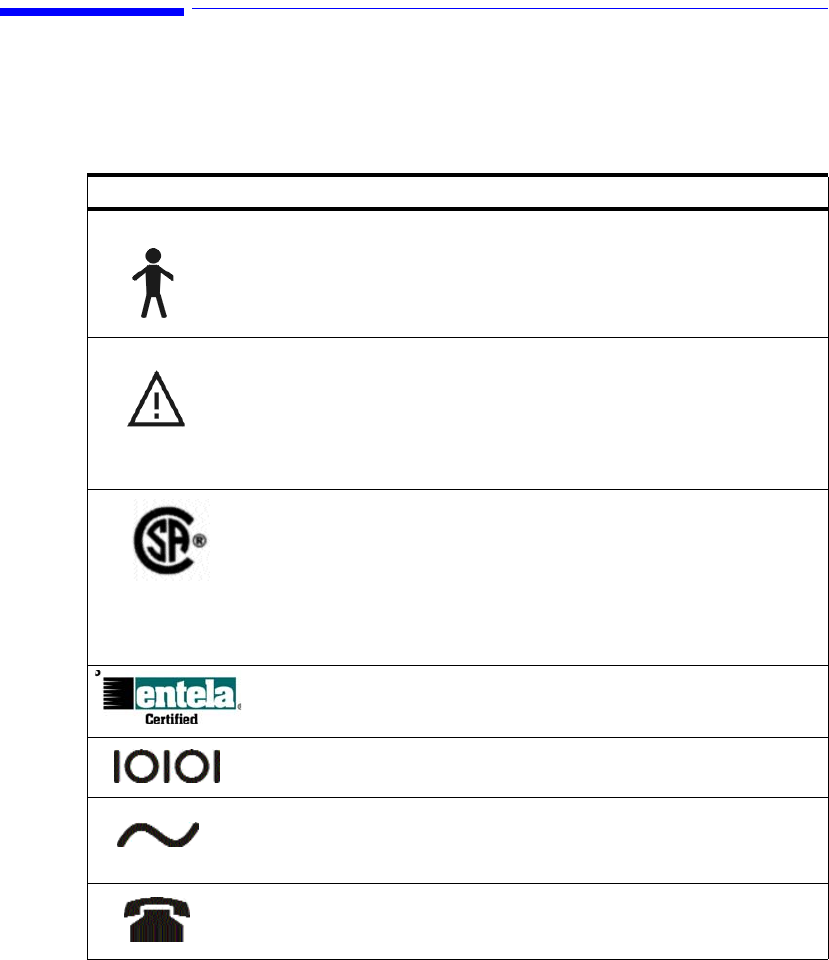

Display Symbols
Introduction 1-5
Display Symbols
A number of symbols are displayed on various devices or in
documentation of the Philips Telemonitoring System. Their meaning and
the devices on which they may appear are given in the following table.
Symbol Description Applicable Devices
Type B Patient Applied Parts as
defined in IEC 60601-1. Not suitable
for direct cardiac application.
Standard Scale
Steady Scale
Blood Pressure Unit
Rhythm Strip Recorder
Pulse Oximeter
Attention: Consult accompanying
documents. Home Hub/TeleStation
Standard Scale
Steady Scale
Blood Pressure Unit
Rhythm Strip Recorder
Pulse Oximeter
Meets UL-1950.
CSA-950, IEC-60950standards
Meets CSA IEC-60950-1 standards
Home Hub/TeleStation
Standard Scale
Steady Scale
Blood Pressure Unit
Rhythm Strip Recorder
Meets IEC-60601-1 standards. TeleStation
Pulse Oximeter
In TelePort serial data port for
connection to Philips devices only TeleStation
AC Power adapter connection
(9.0VAC/500mA
Use Philips-supplied adapter only)
TeleStation
Telephone or telephone line TeleStation
![](/img.php?id=690806&img=bge.png)
Display Symbols
1-6 Introduction
Meets Class B standards. Home Hub/TeleStation
Standard Scale
Steady Scale
Blood Pressure Unit
Rhythm Strip Recorder
Pulse Oximeter
Meets Part 15 standards. Standard Scale
Steady Scale
Blood Pressure Unit
Rhythm Strip Recorder
Pulse Oximeter
Meets Part 68 standards Home Hub/TeleStation
Symbol Description Applicable Devices
![](/img.php?id=690806&img=bgf.png)
Philips Telemonitoring Set 2-1
Introduction
2
Philips Telemonitoring Set
Overview
Chapter 2 provides a detailed description of the devices of the Philips
Telemonitoring Set and how to use them. It includes the following.
Page
Device Descriptions. . . . . . . . . . . . . . . . . . . . . . . 2-2
Home Hub/TeleStation . . . . . . . . . . . . . . . . . . 2-2
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Blood Pressure Unit. . . . . . . . . . . . . . . . . . . . . 2-7
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . . 2-9
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . 2-11
Device Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Home Hub/TeleStation . . . . . . . . . . . . . . . . . 2-13
Home Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
TeleStation . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Answering Survey Questions . . . . . . . . . . . . . . 2-14
Entering Measurements Manually . . . . . . . . . . 2-16
Entering Glucose Meter Results. . . . . . . . . . . . 2-18
Changing Glucose Meter Time and Date . . . . . 2-19
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Measuring Weight . . . . . . . . . . . . . . . . . . . . . . 2-20

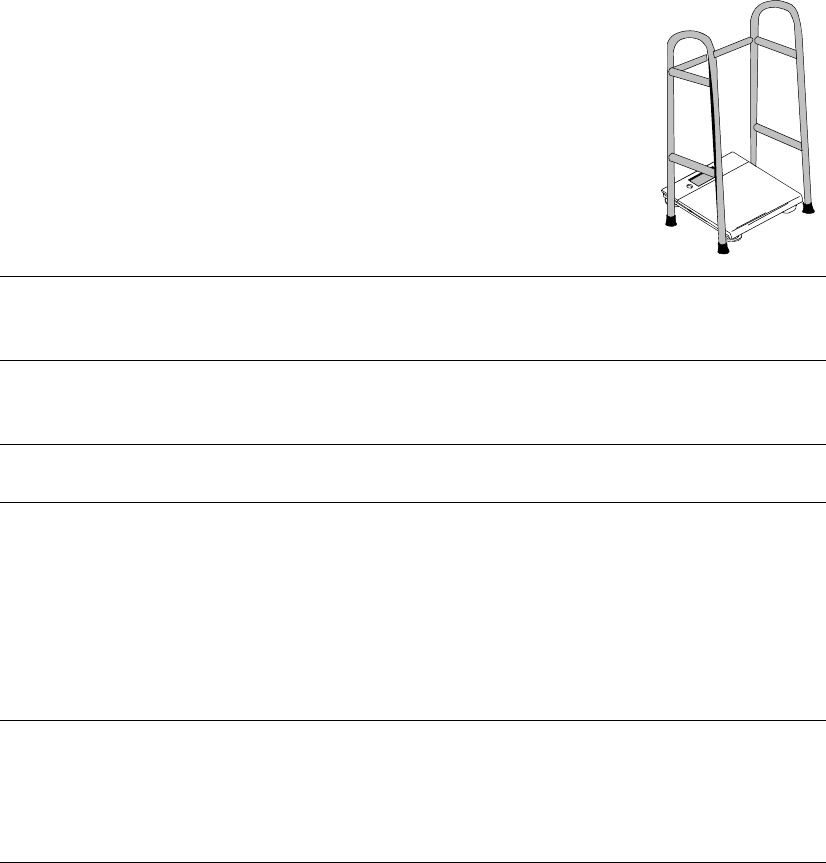

Measuring Weight with a Walker. . . . . . . . . . . 2-22
Changing the Voice Volume . . . . . . . . . . . . . . 2-25
Changing the Weight Units . . . . . . . . . . . . . . . 2-26
Changing Language . . . . . . . . . . . . . . . . . . . . 2-27
Blood Pressure Unit. . . . . . . . . . . . . . . . . . . . 2-29
Display Symbols. . . . . . . . . . . . . . . . . . . . . . 2-30
Measuring Blood Pressure . . . . . . . . . . . . . 2-31
Rhythm Strip Recorder . . . . . . . . . . . . . . . . . 2-34

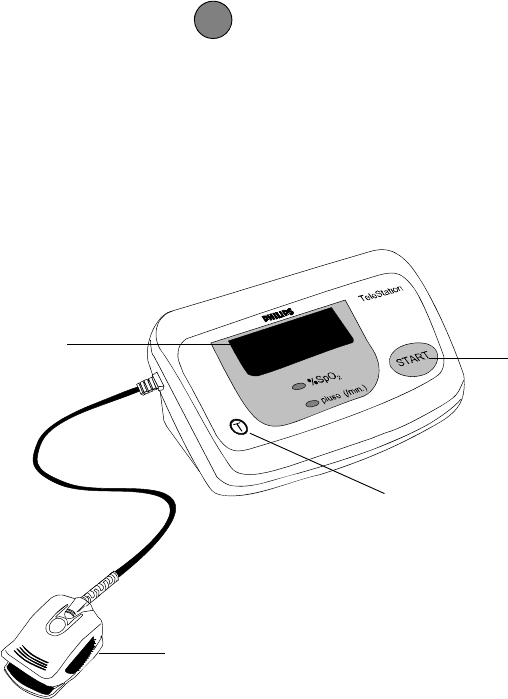

Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . . . 2-36
![](/img.php?id=690806&img=bg10.png)
Device Descriptions
2-2 Philips Telemonitoring Set
Device Descriptions
The Philips Telemonitoring Set consists of a Home Hub or
TeleStation, which serves as the "communications center" of the system,
and one or more devices that measure an important healthcare parameter
-- Scale (weight), Blood Pressure Unit (blood pressure), Rhythm Strip

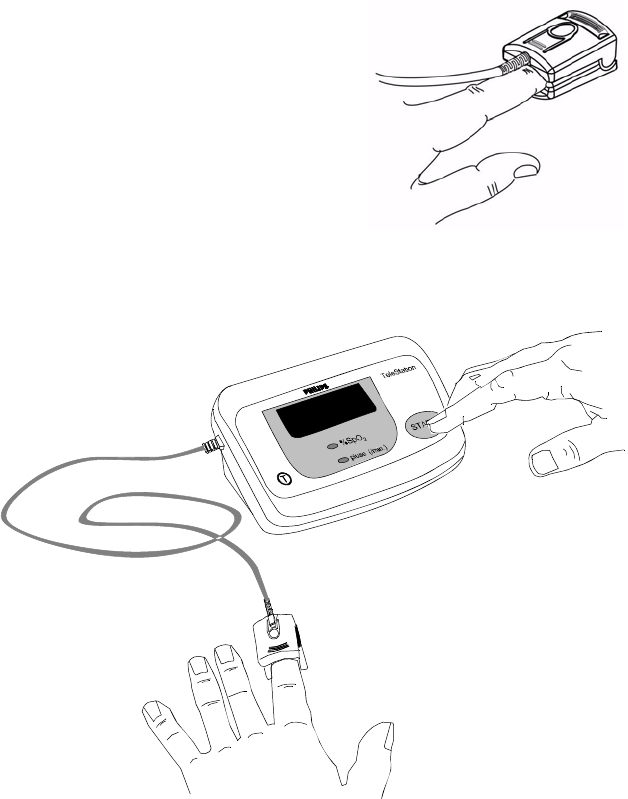

Recorder (heart rhythm), Pulse Oximeter (%SpO2, pulse rate).
This section provides a brief description of each of these devices. More
detailed descriptions of how to use each device to make its measurement
are given in the sections that follow.
Home Hub/
TeleStation You will have either a Home Hub or a TeleStation, depending on the
home healthcare plan designed for you.
After you take a measurement, such as weight, the Home Hub/
TeleStation receives the result. It then sends the result to your healthcare
provider’s computer when both telephone lines (yours and the
computer’s) are free.
If you pick up your telephone while the Home Hub/TeleStation is
dialing or sending the result, you will not hear a dial tone. Hang up the
phone and wait for 5 seconds. Then make your call. The Home Hub/
TeleStation will send the result at a later time, when the phone line is
open. Your healthcare provider will call you if your results are not
received.
Home Hub
on data using
phone
Home Hub
TeleStation
on data using
phone on/survey
waiting using
phone
holding
results
TeleStation
on/survey
waiting
go back
holding
results using
phone
![](/img.php?id=690806&img=bg11.png)
Device Descriptions
Philips Telemonitoring Set 2-3

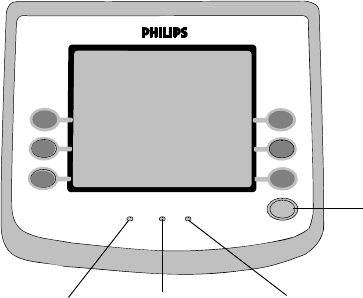

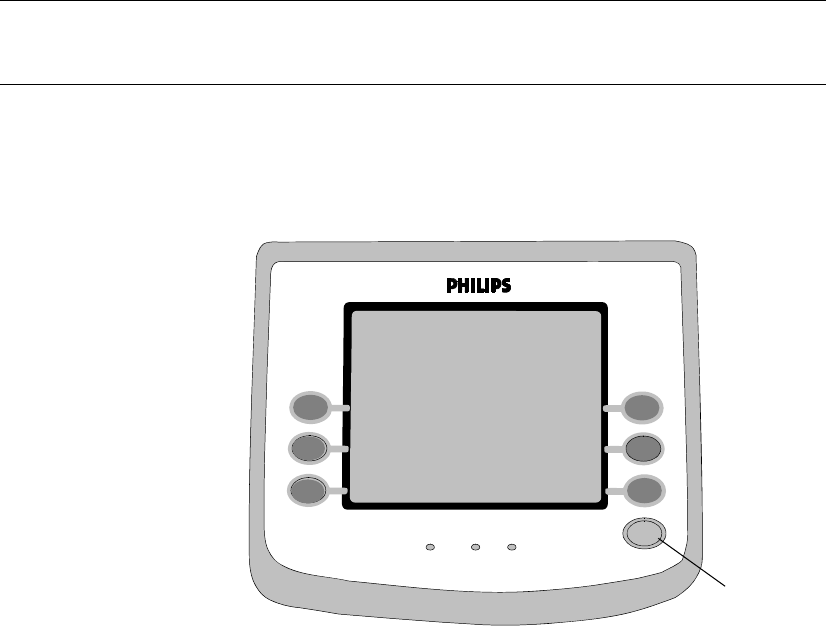

Front Panel
Lights The Home Hub and TeleStation have lights on the front that indicate
what it is currently doing.
The on or on/survey waiting light stays lit as long as the Home Hub/
TeleStation is plugged in.
If you have the TeleStation and the on/survey waiting light is
flashing, you have questions to answer.
If it is not flashing, there are no questions for you to answer.
The data or holding results light comes on when the Home Hub or
TeleStation receives your measurement results and stays on until those
results have been sent over the telephone.
The using phone light comes on when the Home Hub or TeleStation
is sending your results to your healthcare provider’s computer.
Warnings The following Warnings apply to the use of Home Hub/TeleStations.
Warning •Use only the Philips-supplied power adapter for the Home Hub/
TeleStation.
– Don’t place anything on top of the adapter.
– Plug the adapter into an outlet near the Home/Hub Telestation for
easy access.
– Unplug the adapter from the outlet to disconnect.
•Do not place the Home Hub/TeleStation where anyone, especially
children, can step on, trip over or get tangled in phone or power
adapter cords.
•Do not place the Home Hub/TeleStation near running water or
where liquids (for example, a cup of coffee or water in a vase of
flowers) might spill onto it.
• Unplug power and phone cords before cleaning the Home Hub/
TeleStation.and prior to an impending lightning storm
•Do not put lighted tobacco products or candles on Home Hub/
TeleStations.
•Do not overload circuits where Home Hub/TeleStation are
installed.
![](/img.php?id=690806&img=bg12.png)
Device Descriptions
2-4 Philips Telemonitoring Set
• If you have a personal response service (for example LifeLine®
Systems), it must be installed on its own phone line (not just a
separate telephone jack).
•Do not touch, use, clean, or handle the Home Hub/TeleStation or
your connected glucose meter during a thunderstorm.
Cautions The following Cautions apply to using the HomeHub or TeleStation.
Caution • Avoid placing the Home Hub/TeleStation on a metal surface or
inside a metal enclosure as it can interfere with the radio signal.
•Do not use electronic devices, such as cordless and cellular phones
and computers, near the Home Hub/TeleStation
• Avoid placing large appliances or metal furniture near the Home
Hub/TeleStation as they can block radio signals from the
measurement devices.
• High temperatures can affect the LCD screen of your TeleStation.
– Choose a location away from direct sunlight.
– Operate the TeleStation at room temperature.
• Make sure that the Home Hub/TeleStation is plugged into its
telephone jack and electrical outlet at all times, except when
cleaning or prior to an impending lightning storm.
• Make sure that a light switch or power strip does not turn off power
to the Home Hub/TeleStation.
• Clear voice mail messages. Telephone services that modify the dial
tone, such as voice mail, can interfere with transmissions made by
the Home Hub/TeleStation.

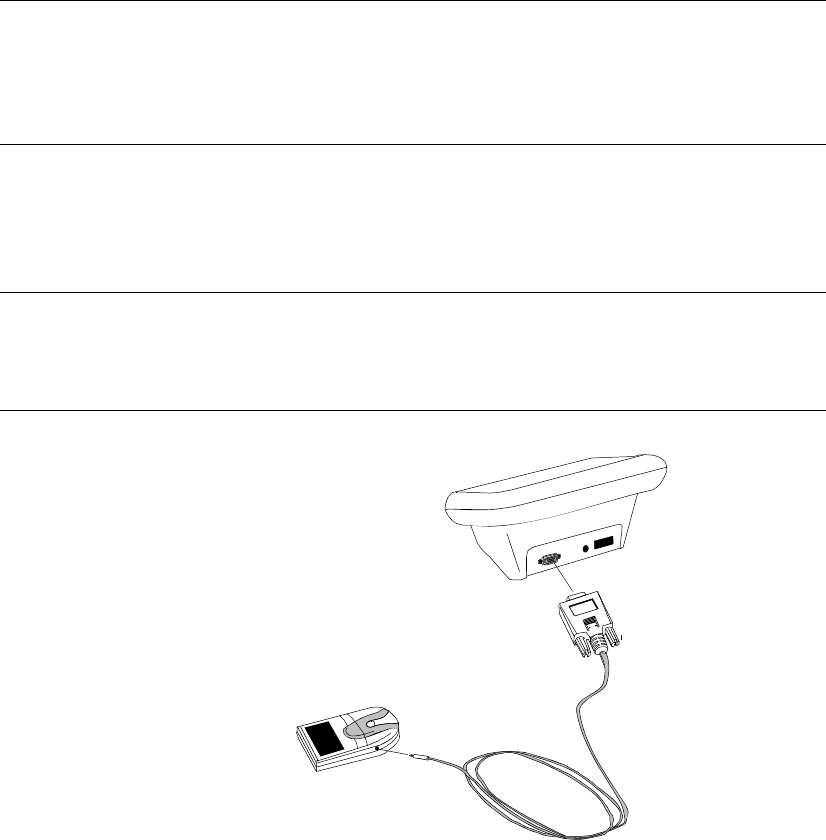

• If you are using a glucose meter connected to your TeleStation:
– Follow the glucose meter manufacturer’s instructions.
– Follow any additional instructions from your healthcare provider.
–Do not take glucose measurements while your glucose meter is
connected to your TeleStation.
![](/img.php?id=690806&img=bg13.png)
Device Descriptions
Philips Telemonitoring Set 2-5

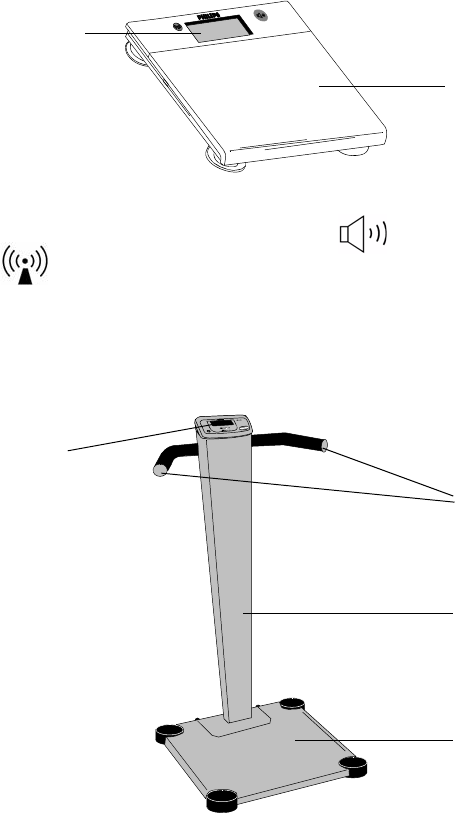

Scale You may have either a Standard Scale or a Steady Scale. Both scales
speak your weight.
Standard
Scale The Standard Scale is for people who can get on and off the Scale
without help. It has a maximum weight limit of 440 lbs (200 kgs).
The scale announces your weight (in English or Spanish).
The front panel has a Volume control button and a Radio Test
button .

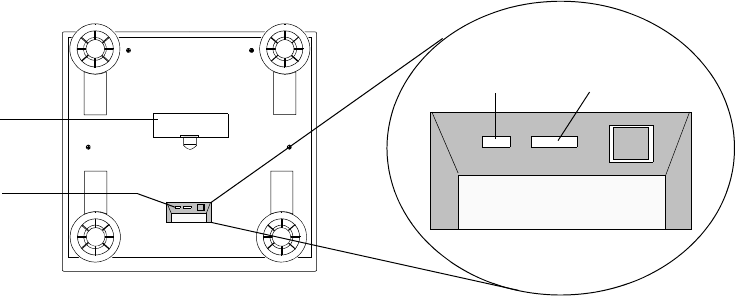

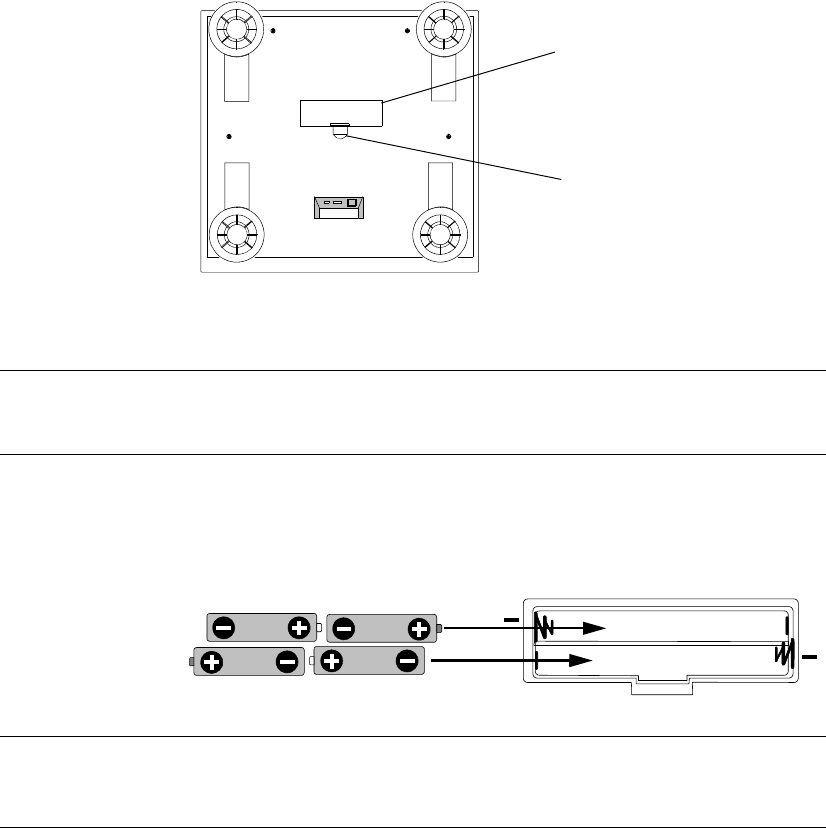

Batteries are stored underneath the platform.
Steady Scale The Steady Scale has a column with grab bars to help people keep their
balance when using the Scale. It has a maximum weight limit of 365 lbs
(166 kgs).
Display
Platform
Grab Bars
Column
Display
Platform
![](/img.php?id=690806&img=bg14.png)
Device Descriptions
2-6 Philips Telemonitoring Set
The Steady Scale announces your weight in English only.
The front panel has a Volume control and a Radio Test button .
Batteries are stored underneath the display case.
Warnings The following Warnings apply to use of the Scale.
Warning •Do not use the Scale in standing water.
•Do not store the Scale where children or pets could get hurt by
playing with the grab bars and knocking the Scale over.
Cautions The following Cautions apply to use of the Scale.
Caution •Do not use the Standard Scale if you weigh over 440 pounds
(220 kilograms).
•Do not use the Steady Scale if you weigh over 365 pounds
(166 kilograms).
• Keep the Scale in a dry, temperature controlled place,
not in the bathroom.
• Position the Scale away from metal objects, such as a refrigerator,
as they can block transmission to your Home Hub/TeleStation.
• Place the Scale on the floor between 1 to 3 inches (2.5 to 7.5 cm)
from a wall and facing it.
• Only one person should use the Scale.
•Do not use the Scale to measure anything other than yourself, such
as a package or pet, because all measurements are sent to your
healthcare provider.
•Do not drop or drag the Scale.
•Do not step on the Scale’s corners.
• Carpet feet may need to be installed on the Steady Scale if it is to
be used on carpet.
• Traveling with the Scale is not recommended.
Note If you don’t feel comfortable taking your weight using the Standard Scale,
contact your healthcare provider.
T
![](/img.php?id=690806&img=bg15.png)
Device Descriptions
Philips Telemonitoring Set 2-7
Blood
Pressure
Unit
You may have a Blood Pressure Unit if your home healthcare plan
includes measuring your blood pressure and pulse.

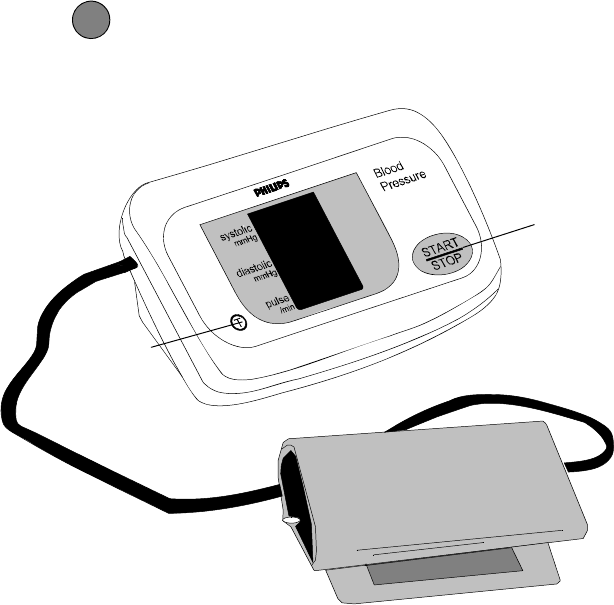

The Blood Pressure Unit (also called a BP Unit) is a plastic display case
with a removable blood pressure cuff. The BP Unit displays your blood
pressure and pulse.
The BP Unit has an air hose connector on the left side. The blood
pressure cuff has a metal D-ring (a metal bar that the cuff slides through
and loops over), an air hose, and an air connector.Batteries are stored
underneath the display case
BP Unit
Display Case The display case has a START/STOP button and a RADIO TEST
button .
T
START/
STOP
Button
RADIO
TEST
Button
BP Display Unit
Air Hose
Cuff
![](/img.php?id=690806&img=bg16.png)
Device Descriptions
2-8 Philips Telemonitoring Set
Warnings The following Warnings apply to use of the BP Unit.
Warning • Avoid storing the BP Unit where children or pets can get at it.
There is a risk of injury if they get tangled in the air hose or if the
cuff inflates.
Cautions The following Cautions apply to use of the BP Unit.
Caution • If you get an error message when taking your blood pressure or
think the reading may be wrong, wait 5 minutes, and then take it
again.
•Do not store the BP Unit inside a metal drawer or container, such
as a file cabinet. It will interfere with the radio signal to the Home
Hub/TeleStation.
•Do not store the BP Unit with the cuff assembly twisted or folded
tightly.
• Avoid tugging at the air hose or using it to carry the BP Unit.
• Watch the display when taking your blood pressure.
– If the numbers go up to 330 mmHg,
press the START/STOP button immediately.
– If the numbers drop down to 15 mmHg and stay that way for
more than 3 minutes,
press the START/STOP button again.
– Contact your healthcare provider.
![](/img.php?id=690806&img=bg17.png)
Device Descriptions
Philips Telemonitoring Set 2-9
Rhythm
Strip
Recorder
You may have a Rhythm Strip Recorder if your healthcare plan includes
recording your heart rhythm.
The Rhythm Strip Recorder is a plastic display case with an attached
dual cable with snap-on connectors. Each of the two metal wristbands
has a black plastic pad. One side of the pad has a metal snap and the
other side has a flat piece of metal. Batteries are stored underneath the
display case
Rhythm Strip
Recorder
Display Case
The display case has a START button, a RELAX light, and a RADIO
TEST button .
T
START
Button
RADIO
TEST
Button
Rhythm Strip Recorder Display Unit
Relax
Light
Wristbands
Snap-on
Connectors
Dual Cable
![](/img.php?id=690806&img=bg18.png)
Device Descriptions
2-10 Philips Telemonitoring Set
Warnings The following Warnings apply to use of the Rhythm Strip Recorder.
Warning •Do not store the Recorder where children or pets can get tangled in
the cables and the wristband.
• The wristbands may cause skin irritation, injury or an allergic
reaction to metal.
– Stop using the recorder if you have redness, rash, or other skin
problems.
– Contact your healthcare provider.
Cautions The following Cautions apply to use of the Rhythm Strip Recorder.
Caution •Do not store the Recorder inside a metal drawer or container, such
as a file cabinet. It will interfere with the radio signal to the Home
Hub/TeleStation.
• Store the Recorder so that the dual cable is not twisted or kinked.
• Avoid tugging at the dual cable or carrying the Recorder by the
cable.
![](/img.php?id=690806&img=bg19.png)
Device Descriptions
Philips Telemonitoring Set 2-11
Pulse
Oximeter The Pulse Oximeter is a plastic display case with a finger-clip sensor
attached to it. The front of the case has the following elements, as shown
in the figure below. The rear of the case has a compartment for batteries
that power the device.
Pulse
Oximeter
Display Case

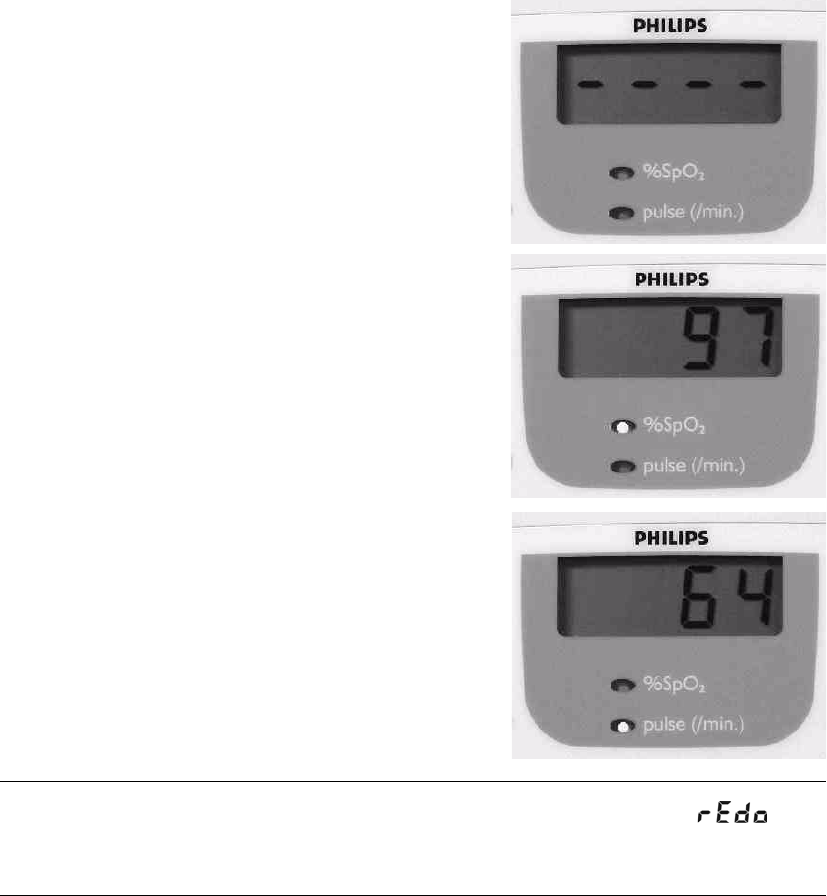

An LED display window shows the blood oxygen level (%SpO2) and
pulse rate (in beats per minute) measured from the end of your finger.
LEDs below the display window light to indicate which measurement is
being displayed -- %SpO2 or pulse (/min.).
Pushing the START button causes the Pulse Oximeter to begin taking a
measurement.
The Radio Test button is used to test the transmission of
measurements from the Pulse Oximeter to the Home Hub or TeleStation.
The Finger-clip sensor is used to measure your blood oxygen level
and pulse rate. The sensor is clipped on the end of one of your fingers.
The Finger-clip contains an LED light source that shines light on your
finger. Light transmitted through the blood in your finger is received by a
photo sensitive element and electronics in the display case uses the
transmitted light to determine your blood oxygen level and pulse rate.
T
START
button
Finger-clip
sensor
Display
Radio Test
button
![](/img.php?id=690806&img=bg1a.png)
Device Descriptions
2-12 Philips Telemonitoring Set
Warnings The following Warnings apply to use of the Pulse Oximeter.
Warning •Do not use a damaged sensor.
•Do not let children use the device.
• Avoid exposing the devices to extremes in temperature, humidity,
direct sunlight, shock, dust spill, or standing water.
• The sensor may cause skin irritation, injury or an allergic reaction.
•Do no use the device with the battery door removed.
• Stop using the Pulse Oximeter if you have redness, rash, or other
skin problems.
• Discontinue use if skin tear or damage occurs. Contact your
healthcare provider.
• To prevent shock, do not use devices during a lightning storm.
Cautions The following Cautions apply to use of the Pulse Oximeter.
Caution • Read the procedures carefully before using this device.
• Use this device only as directed by your healthcare provider.
• Follow your physician’s instructions regarding symptoms that
require direct contact with your healthcare provider.
• This device is not intended for continuous monitoring.
• This device may not work properly on all people. If you are unable
to achieve stable readings within 3 or 4 attempts, discontinue use
and contact your healthcare provider.
• Use of this device is not a substitute for medical care.
• If you have any questions regarding how to use your Pulse
Oximeter, please contact your healthcare provider.
• Abnormal hemoglobin may affect accuracy.
![](/img.php?id=690806&img=bg1b.png)
Device Usage
Philips Telemonitoring Set 2-13
Device Usage
This section describes how to use each of the devices of the Philips
Telemonitoring Set -- HomeHub/TeleStation, Scale, Blood Pressure
Unit, Rhythm Strip Recorder, and Pulse Oximeter.
Home Hub/
TeleStation The Home Hub or TeleStation is the communications center for your
Patient Telemonitoring Set. You may have a Home Hub or a TeleStation
depending on your healthcare plan.
Once the Home Hub/TeleStation is hooked up to your telephone and
plugged into the wall, it will send your measurements to your provider
when your phone line is free.
Note The Home Hub and TeleStation depend on your phone number to transmit
results. They are not made to travel.
Home Hub The Home Hub receives your measurement results from your
measurement devices by radio signals and automatically sends the results
to your healthcare provider’s computer. No actions are required by you
after you have made your measurement.
TeleStation TeleStations also have the capability of asking you questions about your
health and sending your answers to your healthcare provider. Some
TeleStations also have the ability to let you enter your measurements
manually and to receive results for some Glucose Meters. Procedures for
using these features are given in the following sections
![](/img.php?id=690806&img=bg1c.png)
Device Usage
2-14 Philips Telemonitoring Set
Answering Survey Questions
The front panel of the TeleStation has a number of buttons to assist you
in answering questions and lights to indicate when questions have been
sent as shown in the following figure.
If the on/survey waiting light flashes on the front of your TeleStation,
there are questions, chosen by your healthcare provider, waiting to be
answered.
If the on/survey waiting light is not flashing, there are no questions to
answer. Educational tips may pop up in response to one
To answer survey questions, use the following procedure
Step 1. Questions are shown on the screen with answer choices:
– Push the button next to the best answer.
– Choose only one. The answer will be highlighted.
If you make a mistake:
– Select the go back button and choose your answer again.
Step 2. 2.After you select an answer, the next question is displayed.
– Select and answer it by pushing a button.
– Answer all of the questions.
TeleStation
on/survey
waiting holding
results
using
phone
go back
go back
button
on/survey
waiting light using
phone light
holding
results light
![](/img.php?id=690806&img=bg1d.png)
Device Usage
Philips Telemonitoring Set 2-15
Step 3. If you want to change your answer to an earlier question:
–Push the go back button until you see that question again.
– Then push the button next to the correct answer.
Note If you go back to change an answer to an earlier question, you will then
need to answer all of the questions that follow again. The last question
will confirm that your responses are complete.
Step 4. When you have finished the survey, the holding results light
will come on followed by the using phone light, showing that
your results are being sent to your healthcare provider’s computer.
![](/img.php?id=690806&img=bg1e.png)
Device Usage
2-16 Philips Telemonitoring Set
Entering Measurements Manually
For TeleStations that permit manual entry of your measurements, the
procedure is as follows.
Note Your TeleStation may not have this feature. Consult your healthcare
provider if you want to use this feature.
Step 1. Take your measurements as directed by your healthcare provider
and write down the results.
Step 2. Press any button – except go back.
A menu screen appears showing the measurements you might take
Step 3. Press the button next to the measurement you want to enter,
or, press the More button to see other measurements.
TeleStation
go back
Please select a
Blood PressureWeight
Blood Sugar Temperature
Oxygen Level More
measurement to enter
do not
press
go back
on/survey
waiting holding
results using
phone
![](/img.php?id=690806&img=bg1f.png)
Device Usage
Philips Telemonitoring Set 2-17
The measurement entry screen appears, for example WEIGHT as shown
below.
Note If you make a mistake, press the go back button before you press the All
Finished button.
Step 4. Use the More and Less buttons to set the number on the screen
to match the measurement that you wrote down earlier.
Note To make big changes to a number, press the Next Number button one or
more times, then use the More or Less buttons.
When entering Blood Pressure and Oxygen Level measurements,
press Continue to move to the next part of the entry.
When you have finished entering your measurement:
Step 5. Press the All Finished button to store your measurement.
Step 6. Repeat Steps 3-5 to enter your other measurements.
TeleStation
on/survey
waiting holding
results
using
phone
go back
Please enter your
More
All Finished
WT 167. LBS
Less
Next Number
WEIGHT
3
TeleStation
on/survey
waiting holding
results using
phone
go back
Please enter your
More
All Finished
WT 167.3 LBS
Less
Next Number
WEIGHT
![](/img.php?id=690806&img=bg20.png)
Device Usage
2-18 Philips Telemonitoring Set
Several minutes after you store your last measurement, the screen will go
blank and the using phone light will turn on indicating that you
measurements are being sent to your healthcare provider’s computer.
Note If you get an invalid reading on your measurement device, do not enter it
in the TeleStation.
If you accidently turn on the measurement screen, do not press any
buttons. After a few minutes the screen will go blank.
Entering Glucose Meter Results
The TeleStation can read results from some Glucose Meters. Your
healthcare provider will tell you if your meter is one of these.
Notes Do not measure your glucose while your Glucose Meter is connected to
the TeleStation.
Clean your finger of blood before using the TeleStation.
TeleStation
Cable
Glucose
Meter
Device Usage
Philips Telemonitoring Set 2-19
Follow these steps to send your Glucose Meter results to your healthcare
provider’s computer via the TeleStation:
Step 1. Connect the large end of the cable to the.back of the TeleStation.
There is only one port where it will fit, marked 10101.
Step 2. Firmly connect the small plug end of the interface cable into the
data port on the Glucose Meter.
Step 3. Turn the Glucose Meter on.
The Glucose Meter will automatically send the results to the Telestation
and then turn off.
Step 4. Disconnect your meter from the cable. You may leave the cable
connected to the TeleStation.
The Philips Telemonitoring System relies on the Glucose Meter’s date
and time to calculate the actual date and time of the glucose reading. This
gives the clinician the most accurate time of measurement, regardless of
whether the meter time is set correctly. As long as the Glucose Meter time
doesn’t change, this System generates the correct time of measurement.
Changing Glucose Meter Time and Date
Any time it is necessary to change the time or date in your Glucose
Meter, follow the steps below to ensure that your glucose results and
their associated date and time are accurate when you transmit them via
the TeleStation.
Step 1. Connect your Glucose Meter to the TeleStation and transmit the
results as described above.
Step 2. Clear the Glucose Meter’s memory of all readings.
Step 3. Change the time and/or date on your Glucose Meter following the
procedure described for the unit.
![](/img.php?id=690806&img=bg22.png)
Device Usage
2-20 Philips Telemonitoring Set
Scale Two types of scale are available:
Standard Scale for people who can get on and off without help
Steady Scale with a column and grab bar to help keep your balance.
Notes If you have been given a Standard Scale and are having balance problems
standing on it, contact your healthcare provider. A Standard Scale can be
converted to a Steady Scale.
If you need the support of a walker, refer to the following section
Measuring Weight with a Walker.
Measuring
Weight Procedures for measuring your weight on both the Standard and Steady
Scales are as follows. Choose the procedure for your type of Scale.
Standard Scale
Step 1. Step on the Scale and stand on it without holding onto anything.
– Stand as much in the center of the platform as possible.
– Try not to step on the corners; you might damage the Scale.
Step 2. The Scale will say, “Please stand still”.Do not move.
Walking "-" will show on the display during the measurement.
Notes You will not hear the voice prompt if the volume is set to Silent.
After several seconds, the Scale will say “Please step off the Scale”.
Step 3. Step off the Scale.
About 5 seconds after you step off the Scale, the Scale will say your final
weight (unless the volume is set to Silent).
The Scale then turns off by itself.
Notes If the batteries in the Scale are weak, the Scale’s display will alternately
flash Lo and batt and will announce "Please replace the scale
batteries" for 3 measurement cycles.

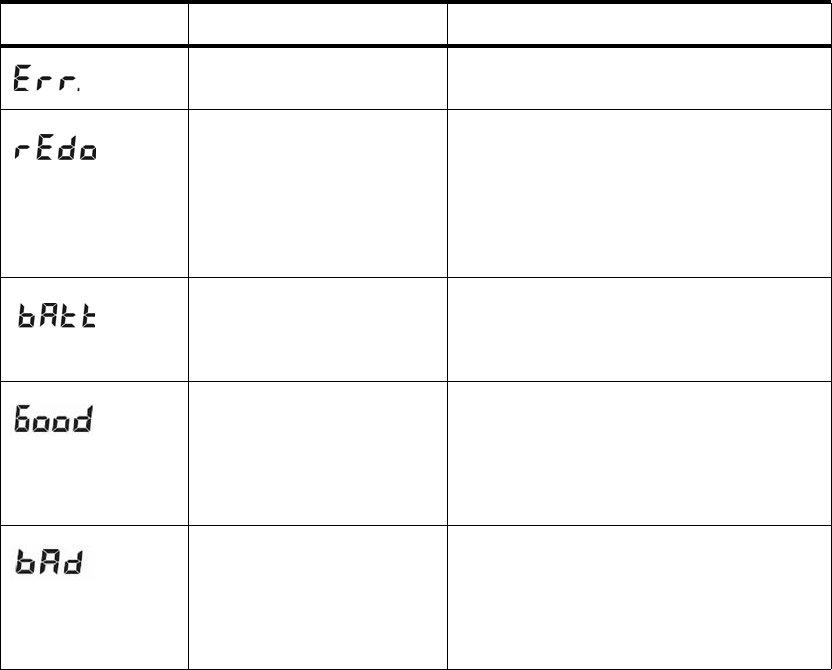

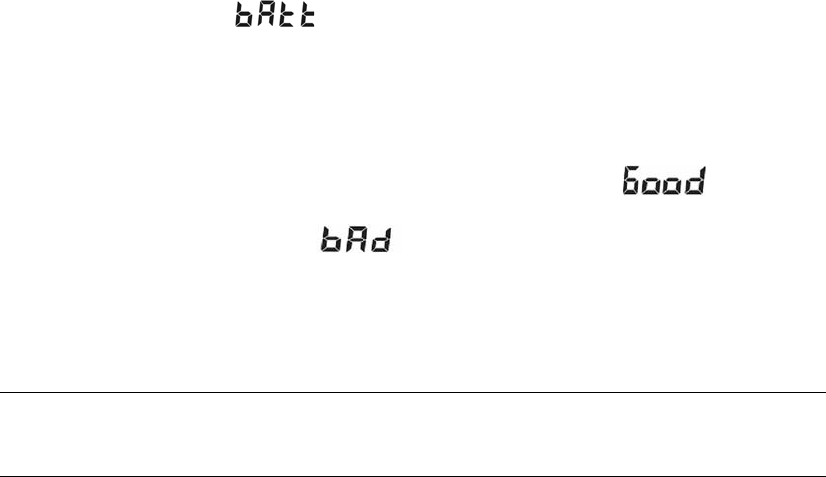

If these messages appear on the display, change the Scale’s batteries

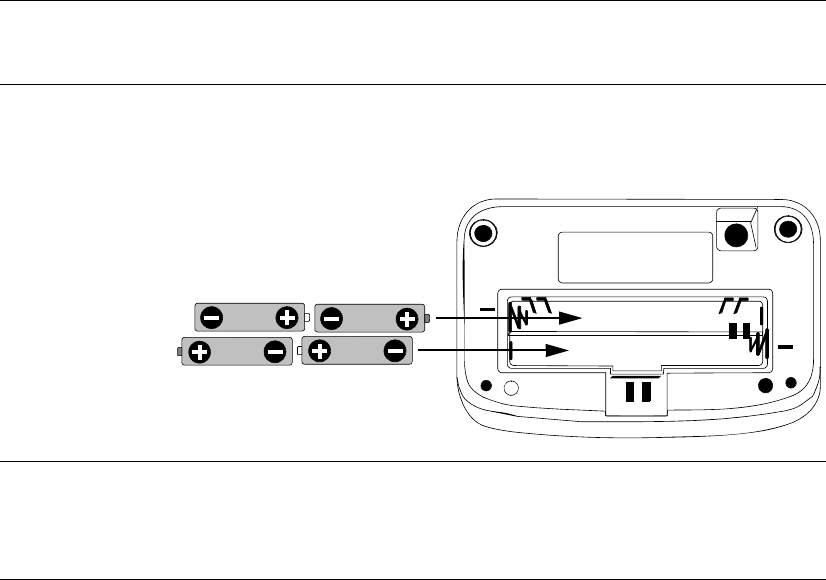

following the Replacing Batteries procedure on page 3-4.
![](/img.php?id=690806&img=bg23.png)
Device Usage
Philips Telemonitoring Set 2-21
Steady Scale
Step 1. Step on the Scale and stand on it holding the
grab bars as shown opposite. You can continue
holding the grab bars while taking your weight.
– Stand as much in the center of the platform
as possible.
– Try not to step on the corners; you might
damage the Scale.
Step 2. The Scale will say, “Please stand still”,
and the Stand Still light will come on.
Do not move.
Changing weight values will show on the
display.
The final weight displayed is the correct weight.
Notes You will not hear the voice prompt if the volume is set to Silent.
After several seconds, the Scale will say “Please step off the Scale”,
(unless the volume is set to Silent) and the Step Off light will come on.
Step 3. Step off the Scale.
About 5 seconds after you step off the Scale, the Scale will say (unless
the volume is set to Silent) and display your final weight.
The Scale then turns off by itself.
Notes If the batteries in the Scale are weak, the Scale’s Stand Still light will
flash instead of remaining on and the voice prompt is quiet even though
the volume is not set to Silent.
If these messages appear on the display, change the Scale’s batteries
following the Replacing Batteries procedure on page 3-4.
![](/img.php?id=690806&img=bg24.png)
Device Usage
2-22 Philips Telemonitoring Set
Measuring
Weight with a
Walker
If it is necessary to use a walker to steady yourself on the Scale, use the
following procedure for either the Standard Scale or Steady Scale.
Standard Scale
Step 1. Place the walker so its legs are on either
side of the Scale platform as shown opposite.
Step 1. Step on the Scale and stand using the walker
arms for balance.
– Stand as much in the center of the platform as
possible.
– Try not to step on the corners; you might
damage the Scale.
Step 2. Remove your hands from the walker arms.
Note You must remove your hands from your walker for the Scale to take your
true weight.
Step 3. The Scale will say, “Please stand still”. Do not move.
Walking "-" will show on the display during the measurement.
Notes You will not hear the voice prompt if the volume is set to Silent.
After several seconds, the Scale will say “Please step off the Scale”.
Step 4. Grasp the walker arms.
Step 5. Step off the Scale.
About 5 seconds after you step off the Scale, the Scale will say your final
weight (unless the volume is set to Silent).
The Scale then turns off by itself.
Notes If the batteries in the Scale are weak, the Scale’s display will flash Lo
and batt alternatingly instead of Walking "-".
If these messages appear on the display, change the Scale’s batteries
following the Replacing Batteries procedure on page 3-4.
![](/img.php?id=690806&img=bg25.png)
Device Usage
Philips Telemonitoring Set 2-23
Steady Scale
Step 1. Place the walker so its legs are on either
side of the Scale platform as shown opposite.
Step 1. Step on the Scale and stand using the
walker arms for balance.
– Stand as much in the center of the
platform as possible.
– Try not to step on the corners; you might
damage the Scale.
Step 2. Move your hands from the walker arms
to the Scale’s grab bars. You can continue
to use the Scale’s grab bars for balance
while you are taking your weight.
Note You must remove your hands from your walker for the Scale to take your
true weight.
Step 3. The Scale will say, “Please stand still”and the Stand Still light
will come on.
Do not move.
Changing weight values will show on the display. The final weight
displayed is the correct weight.
Notes You will not hear the voice prompt if the volume is set to Silent.
After several seconds, the Scale will say “Please step off the Scale”,
(unless the volume is set to Silent) and the Step Off light will come on.
Step 4. Move your hands from Scale’s grab bars to the walker arms.
Step 5. Step off the Scale.
About 5 seconds after you step off the Scale, the Scale will say (unless
the volume is set to Silent) and display your final weight.
The Scale then turns off by itself.
![](/img.php?id=690806&img=bg26.png)
Device Usage
2-24 Philips Telemonitoring Set
Notes If the batteries in the Scale are weak, the Scale’s Stand Still light will
flash instead of remaining on and the voice prompt is quiet even though
the volume is not set to Silent.
If these messages appear on the display, change the Scale’s batteries
following the Replacing Batteries procedure on page 3-4.
![](/img.php?id=690806&img=bg27.png)
Device Usage
Philips Telemonitoring Set 2-25
Changing the
Voice Volume The Scale’s voice has 4 volume settings, as follows:
Setting Volume
0 Silent
1Low
2 Medium
3High
The volume of the Scale’s voice can be changed as follows:
Note The procedure for changing the volume is identical for both scales.
The only difference is the label on the Volume button.
The Sandard Scale has a speaker icon .
The Steady Scale has the word Volume.
Step 1. Step off the Scale when changing the volume.
Step 2. Firmly press and release the Volume button. The volume will
move to the next setting. For example, the Scale may say “one”
and display 1 for Low.
Step 3. Firmly press and release the Volume button again. The volume
moves to the next setting. In this example, the Scale will say “two”
and display 2 for Medium.
Each time your press the Volume button, the volume moves to the next
setting.
Step 4. Stop the procedure when you reach the desired voice volume.
Note If you set the volume to Silent, there will be no voice prompt and you
must watch the Scale’s display for instruction lights and your weight
measurement.
![](/img.php?id=690806&img=bg28.png)
Device Usage
2-26 Philips Telemonitoring Set
Changing the
Weight Units The Scale can measure your weight in either pounds or kilograms. The
procedure for changing the weight units is different for the Standard
Scale and the Steady Scale.
Standard Scale
The procedure for changing the Weight Units on the Standard Scale is
as follows:

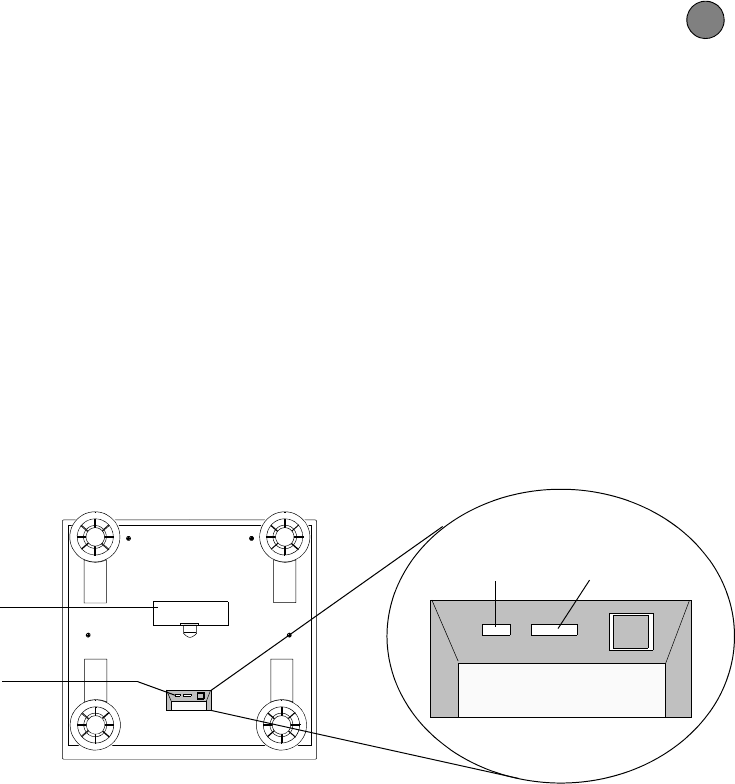

Step 1. Turn the Scale over to expose its under side, shown in the
following figure.
Step 2. Locate the Weight Change Switch in the opening below the
Battery Compartment.
Step 3.
Battery
Compartment
Switches
Weight
Change
Switch
Language
Change
Switch
![](/img.php?id=690806&img=bg29.png)
Device Usage
Philips Telemonitoring Set 2-27
Steady Scale
The procedure for changing the Weight Units on the Steady Scale is as
follows:
Step 1. Step off the Scale when changing the weight units.
Step 2. Firmly press both the Volume button and the Radio Test
button at the same time.
Hold both buttons down for at least 3 seconds.
If the Scale had been measuring pounds, the display will now show Kgs.
(for kilograms).
If the Scale was measuring kilograms, the scale will now show Lbs.
(for pounds).
The voice will also say the new weight units (unless the volume is set to
Silent).
Changing
Language The Standard Scale can speak your weight in either English or Spanish.
Standard Scale
The procedure for changing the language on the Standard Scale is as
follows:
Step 1. Turn the Scale over to expose its under side, shown in the
following figure.
Step 2. Locate the Language Change Switch in the opening below
the Battery Compartment.
T
Battery
Compartment
Switches
Weight
Change
Switch
Language
Change
Switch
Device Usage
2-28 Philips Telemonitoring Set
Step 3.
![](/img.php?id=690806&img=bg2b.png)
Device Usage
Philips Telemonitoring Set 2-29
Blood
Pressure
Unit
To get the most accurate and reliable readings from you Blood Pressure
Unit observe the following guidelines.
• Check the cuff size.
The Standard cuff fits upper arms 7.5 to 12.5 inches
(19 to 31.3 cm) around
The Large cuff fits upper arms 11.75 to 17.75 inches
(30 to 45 cm) around.
• Take your blood pressure at the same time or times each day in a
quiet place.
• Rest 10 minutes before taking your blood pressure.
• Do not take your blood pressure after exertion or drinking coffee or
during conversation.
•Sit within 20 feet of the Home Hub/TeleStation.
• Sit comfortably with uncrossed legs.
• Use the same arm each time.
• Remove any tight clothing on the arm you will use to measure your
blood pressure or roll up a loose garment sleeve.
Do not measure with the cuff over clothing.
• Place the cuff 1 inch above the elbow with the air hose on the
inside of your arm.
• Leave room for one finger under the cuff.
• Sit still and do not move your arm during the measurement.
Notes You can lie down while someone else takes your blood pressure, but it is
important to take your blood pressure the same way every time (either
sitting or lying down).
Report any changes in how you take your blood pressure to your
healthcare provider.
If you travel with the BP Unit, it will store up to 19 readings for up to 11
days with good batteries that remain in the device. When you return home
to your Home Hub/TeleStation, the readings will be sent automatically to
your healthcare provider’s computer.
![](/img.php?id=690806&img=bg2c.png)
Device Usage
2-30 Philips Telemonitoring Set
Display

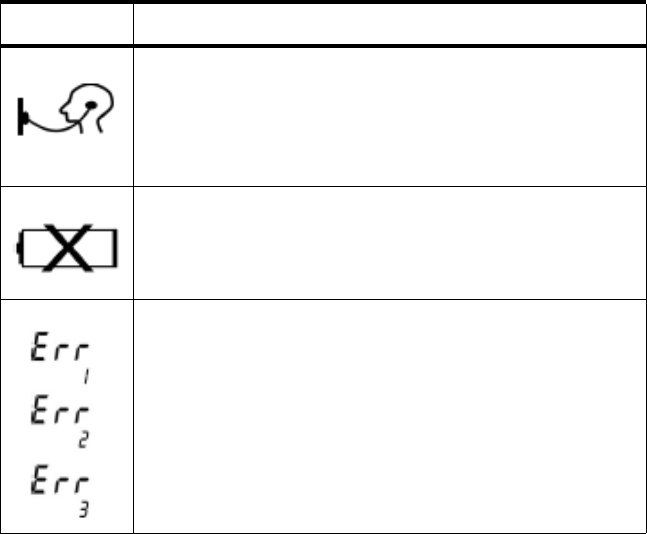

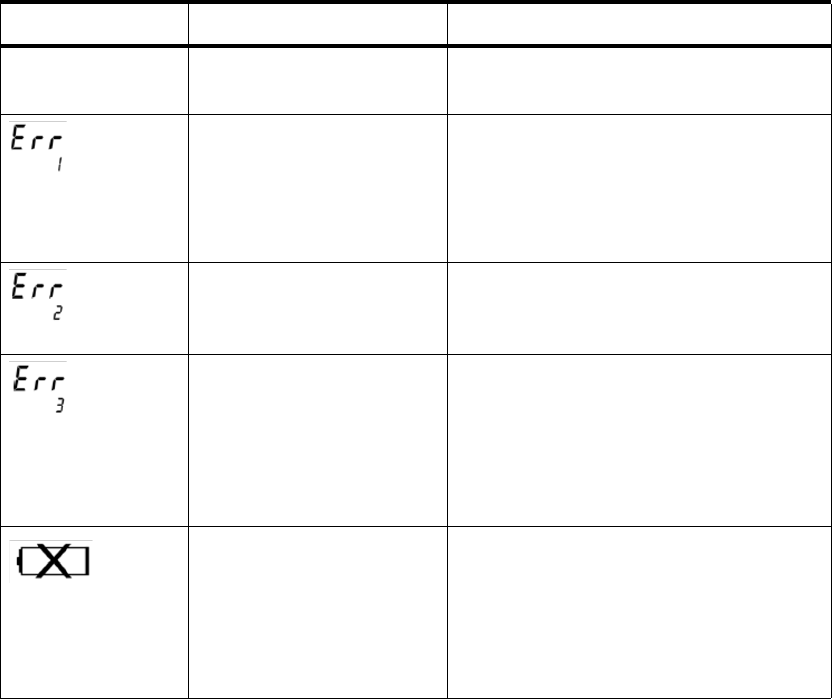

Symbols The following table explains symbols that you might see on the BP Unit
display.
Symbol Meaning
The blood pressure measurement is taking place.
The symbol blinks and beeps with each pulse beat.
The symbol may also appear briefly at the start of your
blood pressure measurement.
The batteries need to be replaced.
The symbol may also appear briefly at the start of your
measurement.
There may be a problem with your equipment.
Wait 15minutes and take your blood pressure again.
If there is still a problem, you may be able to fix the
problem by looking in the Troubleshooting section.
If not, call your healthcare provider.
![](/img.php?id=690806&img=bg2d.png)
Device Usage
Philips Telemonitoring Set 2-31
Measuring
Blood
Pressure
The procedure for measuring your Blood Pressure is as follows:
Step 1. Sit comfortably with your forearm resting on a flat surface and
your legs uncrossed. The center of your upper arm should be at
about the same height as your heart.

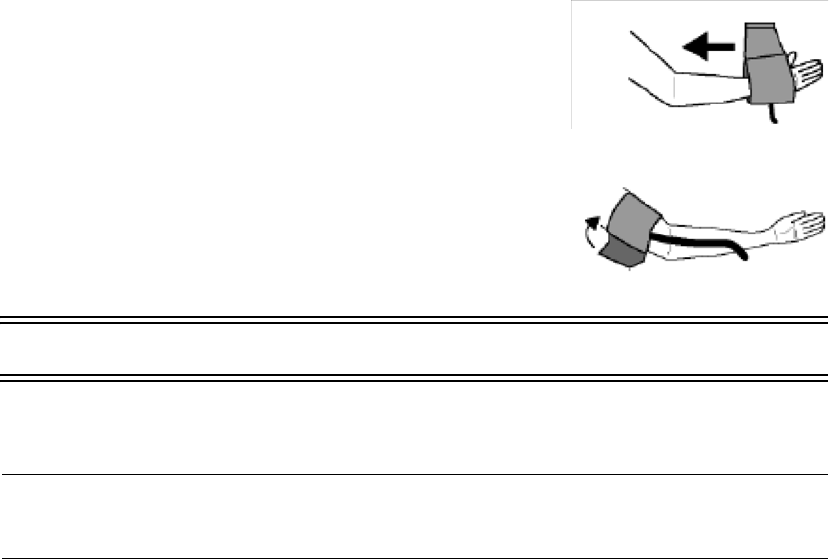

Step 2. Put your hand through the
cuff and slide the cuff up your
forearm.
Step 3. Move the cuff so it is on your
upper arm and the bottom of the cuff is
about 1 inch above your elbow.
Step 4. Position the air hose so it
dangles on the inside of your
arm.
Warning Do not allow the air hose to kink or twist.
Step 5. Pull on the end of the cuff to tighten it.
Then fold the cuff end back over the metal D-ring.
Note The cuff should be snug but not too tight. Leave room for one finger to fit
under the cuff.
Step 6. Fasten the end of the cuff to the Velcro® closure.
Step 7. Make sure that your hand is open, relaxed with the palm up.
Step 8. Press the START/STOP button. The cuff will inflates and feel
tight.
Sit still and do not move your arm during the measurement.
![](/img.php?id=690806&img=bg2e.png)
Device Usage
2-32 Philips Telemonitoring Set
Note If it feels too tight or to stop the measurement at any time:
– Press the START/STOP button.
– Wait 5 minutes.
– Take your blood pressure again.
If you are concerned at any time about the measurement, contact your
healthcare provider.
The BP Unit will display numbers that go up to just beyond 150 mmHg
for the initial pump. It may then resume pumping to higher pressures.
Warning Watch the display. If the numbers go up to 330 mmHg, press the
START/STOP button to immediately stop the measurement.
Contact your healthcare provider.
Step 9. As the cuff pressure slowly decreases, watch the display window.
The BP Unit will beep as the pressure decreases.
Warning Watch the display. If the numbers drop down to 15 mmHg and stay
there for more than 3 minutes, press the START/STOP button to stop
the measurement.
Contact your healthcare provider.
A long beep indicates that your blood pressure has been taken. The cuff
will deflates. The display window shows your final blood pressure and
pulse.
Note If an error message was displayed, you stopped the reading, or you feel
that the reading may be incorrect, wait 5 minutes and take your blood
pressure again.
If this happens a second time, contact your healthcare provider.
![](/img.php?id=690806&img=bg2f.png)
Device Usage
Philips Telemonitoring Set 2-33
Step 10. Slide the cuff off you arm. The BP Unit will turn off by itself.
Note Once properly adjusted, the cuff can be slid off without undoing the
Velcro.
Step 11. Store the BP Unit within 20 feet of the Home Hub/TeleStation
so it can send your readings to the Home Hub/TeleStation.
Note Refer to the Maintenance section for proper storage of your BP Unit.
![](/img.php?id=690806&img=bg30.png)
Device Usage
2-34 Philips Telemonitoring Set
Rhythm
Strip
Recorder
The following guidelines should be followed before you take your heart
rhythm to assure an accurate reading.
•Sit down within 20 feet of the Home Hub/TeleStation.
• Relax.
Notes It is important to be still and relaxed during the rhythm measurement.
You can lie down while you take your heart rhythm.
It is important to take your heart rhythm the same way every time (either
sitting or lying down).
Report any changes in how you take your heart rhythm to your healthcare
provider.
If you travel with your Recorder, it will store the most recent reading for
up to 11 days with good batteries that remain in the device. When you
return home to your Home Hub/TeleStation, the most recent reading will
be sent automatically to your healthcare provider’s computer.
Caution Do not talk or move during the measurement.
Measuring
Heart Ryhthm The procedure for measuring your Heart Rhythm is as follows:
Step 1. Sit back in a chair with your arms at your sides or on the chair
arms. Do not cross your legs. Keep your feet flat on the floor.
Step 2. Place the Recorder on the table next to you so you can see it and
listen to it without moving. If you have to move to see or hear the
Recorder, place the Recorder in your lap.
Step 3. Place the wristband with the white snap-on connector on your
right wrist. Make sure that the flat metal inside of the wristband
(on the other side of the black plastic pad) firmly touches the inside
of your wrist.
Step 4. Place the wristband with the red snap-on connector on your left
wrist. Make sure that the flat metal inside the wristband (on the
other side of the black plastic pad) firmly touches the inside of your
wrist.
![](/img.php?id=690806&img=bg31.png)
Device Usage
Philips Telemonitoring Set 2-35
Notes If the wristbands are loose, push them up each forearm until they feel
snug.
Be careful not to snag the hair on your arms.
Do not put the wristbands over clothing, bandages, or jewelry.
If you cannot fit the wristband on your arm, contact your healthcare
provider.
Step 5. Let your hands rest on the tabletop or your chair’s arms so that
your hands are open relaxed, and palms up.
Step 6. Press the START button.
The relax light will flash on and
off, and the Recorder will beep for
about 20 seconds as the
measurement is being made.
Notes If the Recorder beeps twice quickly before beginning the normal
beeping, this means that the batteries are low. Replace the batteries
within a week.
The beeps do not reflect your heart rate. They indicate that the Recorder
is working.
After another short pause, the relax light flashes on and off twice and
the Recorder will quickly beep twice.The Recorder has finished taking
your heart rhythm.
Step 7. Remove the wristbands. The Recorder will turn off by itself.
Step 8. Store the Recorder within 20 feet of the Home Hub/TeleStation
so it can send you measurements to the Home Hub/TeleStation.
Note Refer to the Maintenance section for proper storage of your Rhythm
Strip Recorder.
Rhythm
relax
T
START
Strip
Recorder
![](/img.php?id=690806&img=bg32.png)
Device Usage
2-36 Philips Telemonitoring Set
Pulse
Oximeter To get the most accurate readings from you Pulse Oximeter, observe the
following guidelines:
• The Pulse Oximeter may not work properly with a finger thickness
of less than 5/16 inches (0.8 cm) or more than 1 inch (2.5 cm).
• Dark colored nail polish or artificial nails will prevent the Pulse
Oximeter from making accurate measurements. Remove dark nail
polish and artificial nails from the finger you use to take your
measurement.
• Avoid exposing the finger sensor to very bright or changing light
while taking your measurement.
• Do not use your Pulse Oximeter on the same arm during or
immediately after taking your blood pressure. Use your other arm
or take your Pulse Oximeter measurement first.
• Use the same finger each time you make a measurement unless
your healthcare provider instructs otherwise.
• Do not use the sensor on a finger that has chronically poor
circulation or is injured.
• Be sure the inside of the finger sensor is dry before taking your
measurement.
• Be sure your finger is warm when you take your measurement. If
your finger is cold, warm or rub it before taking your measurement.
• Carefully place your finger in the sensor as far as it will
comfortably go. Do not press in so far that you can feel your finger
throbbing.
• Keep you finger relaxed and still while taking your measurement.
• If you have anemia, a low hemoglobin count, or arrhythmias, you
may not be able to get a correct reading. Contact your healthcare
provider.
Caution Do not use the Pulse Oximeter with the battery door open.
![](/img.php?id=690806&img=bg33.png)
Device Usage
Philips Telemonitoring Set 2-37
Measuring
Blood
Oxygen and
Pulse Rate
The following steps describe how to use the Pulse Oximeter to measure
your blood oxygen level (%SpO2) and pulse rate.
Step 1. Sit within 20 ft. of the Home Hub or TeleStation with your hand
resting on a flat surface and the Pulse Oximeter in front of you.
Step 2. Open the sensor and fully insert
your finger (index, middle, or ring,
but not your thumb) until the end of
your finger reaches the finger stop.
The cable should extend over your
finger toward your wrist as shown
in the figure.
Step 3. Sit comfortably with your hand
resting on the surface so that it
can remain still.
Step 4. Press the START button and hold your hand still during the
measurement.
Press Start button
Hold hand still
![](/img.php?id=690806&img=bg34.png)
Device Usage
2-38 Philips Telemonitoring Set
The measurement process is as follows:
- Dashes move across the display
during measurement.
- A double beep sounds after a
few seconds indicating that the
measurement is complete
- A tick sounds as the
% SpO2 measurement
displays and the yellow
light next to % SpO2
illuminates.
- A tock sounds as the pulse
rate displays and the green light
next to pulse (/min.)
illuminates.
- The tick-tock sequence repeats
several times and then turns off.
Note If the measurement was not made, a long beep sounds and
displays:
Warm your hand or use a different finger and try again.
![](/img.php?id=690806&img=bg35.png)
Maintenance 3-1
Introduction
3
Maintenance
Overview
Chapter 3 provides steps for cleaning and storing Patient
Telemonitoring devices, replacing batteries, and general maintenance of
the Patient Telemonitoring Set. You can help keep your devices in
working order by taking good care of them.
This chapter includes the following sections:
Page
Cleaning Devices . . . . . . . . . . . . . . . . . . . . . . 3-2
Storing Devices . . . . . . . . . . . . . . . . . . . . . . . 3-3
Blood Pressure Unit . . . . . . . . . . . . . . . . . 3-3
Rhythm Strip Recorder . . . . . . . . . . . . . . . 3-3
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . . 3-3
Replacing Batteries . . . . . . . . . . . . . . . . . . . . 3-4
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Standard Scale . . . . . . . . . . . . . . . . . . . . . . . .3-7
Steady Scale. . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Blood Pressure Unit . . . . . . . . . . . . . . . . . 3-9
Rhythm Strip Recorder . . . . . . . . . . . . . . 3-10
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . 3-11
![](/img.php?id=690806&img=bg36.png)
Cleaning Devices
3-2 Maintenance
Cleaning Devices
Telemonitoring devices should be cleaned only when necessary. The
following procedure should be followed to clean the devices.
Note Body fluids, such as blood or mucus, should be promptly removed using
a cloth dampened with plain tap water (no soap).
Caution Avoid spilling liquids on the devices.
Do not immerse devices in liquids to clean.
Do not use alcohol. harsh chemicals, caustic, or abrasive cleaning
agents to clean devices.
Step 1. Unplug the Home Hub/TeleStation from power and phone lines.
Step 2. Remove batteries from the measurement devices following
procedures given in the Replacing Batteries section.
Step 3. Clean all exposed device surfaces with a dry, soft cloth.
Note When cleaning the Pules Oximeter:
– Open the Finger-clip sensor and carefully wipe its inside surfaces
with a cloth dampened with a mild detergent.
– Allow the sensor to dry thoroughly before using.
Step 4. Plug the Home Hub/TeleStation back into power and phone
lines.
Step 5. Reinstall batteries into the measurement devices following
procedures given in the Replacing Batteries section.
![](/img.php?id=690806&img=bg37.png)
Storing Devices
Maintenance 3-3
Storing Devices
All measurement devices should be stored within 20 feet of the Home
Hub or TeleStation so they can send their results to the Home Hub or
TeleStation.
Caution Do not store devices inside or next to a metal drawer or container, such
as a file cabinet.
Do not store devices where children or pets could get tangled in the
hoses, dual cables. or wristband assemblies.
Blood
Pressure
Unit
• Store the BP Unit so that the hose and cuff assembly are not bent,
twisted, or folded tightly.
• Do not wrap the hose around the display case.
Rhythm Strip
Recorder • Store the Rhythm Strip Recorder so that the cable is not twisted or
folded tightly.
• The Recorder can be stored with its connectors attached to the
wristbands.
Pulse
Oximeter • Store the Pulse Oximeter so that its sensor cable is not twisted or
kinked.
• Avoid tugging at the sensor cable or carrying the Pulse Oximeter
by the sensor cable.
![](/img.php?id=690806&img=bg38.png)
Replacing Batteries
3-4 Maintenance
Replacing Batteries
Batteries in devices should be replaced as soon as the device indicates
that they are low or need to be replaced.
Caution When replacing batteries, replace all of the batteries with new ones
at the same time.
Use only Type AA (1.5 volt) alkaline batteries
Do not use rechargeable batteries.
Warning Do not use any device with its battery door removed.
Scale Replace the batteries in the Standard Scale every 12 months
or sooner if :
• the voice prompt is absent even though the volume was not set to
Silent
• the display screen alternately displays Lo and batt during a
measurement
• the Scale announces "Please replace the scale batteries" during
a measurement.
Replace the batteries in the Steady Scale every 6 months
or sooner if:
• the voice prompt is absent even though the volume was not set to
Silent
• the normally steady Stand Still light display flashes.
Both Scales use 4 AA alkaline batteries.
Procedures Procedures for replacing batteries in the Standard Scale and Steady Scale
are as follows. Use the procedure for your type of scale.
![](/img.php?id=690806&img=bg39.png)
Replacing Batteries
Maintenance 3-5
Standard Scale
Step 1. Lift and gently turn the scale upside down on a flat surface to
expose the Battery Compartment.
Step 2. Remove the cover of the Battery Compartment by lifting the tab.
Step 3. Remove the old batteries and properly dispose of them.
Note Check with your local authorities for the proper way to dispose of
batteries.
Step 4. Place the new batteries in the Battery Compartment so that the
positive (+) and negative (-) terminals match the diagram in the
compartment.
Notes To keep the batteries from popping out, insert the bottom row first.
Make sure that battery terminals are touching compartment terminals.
Battery
Compartment
Lift tab and
remove cover
2. Insert top row second
1. Insert bottom row first
+
+
-
![](/img.php?id=690806&img=bg3a.png)
Replacing Batteries
3-6 Maintenance
Step 5. Replace the cover by inserting its tabs into the slots and gently
pressing the cover into place.
Step 6. Return the Scale to its original spot following proper lifting
techniques given below.
Note Lifting the Scale requires good balance, the ability to grasp and lift up to
10 pounds, and safe lifting techniques.
Do not lift the Scale if you are unsteady or unable to follow proper
lifting techniques. Ask for assistance or contact your healthcare
provider for help.
When you lift or lower the Scale:
– Wear shoes with nonslip soles.
– Keep your feet apart and one foot a bit in front of the other, if
possible.
– Squat to lift and lower the Scale. Never bend at the waist.
– Keep the Scale close to your body.
– Lift with your legs, not your back.
– If you must turn, turn with your feet not your body.
Step 7. Perform the Radio Test described in the Troubleshooting
section.
Step 8. Step on the Scale and verify that it is working properly.
Note If the Scale does not seem to be operating properly or the Radio Test
fails, contact your healthcare provider.
![](/img.php?id=690806&img=bg3b.png)
Replacing Batteries
Maintenance 3-7
Steady Scale
Step 1. Firmly hold the display and pull it from the Scale to release it
from the plastic fastener strips that hold it in place.
Step 2. Turn the display over and unplug the cord inside the top of the
column.
Step 3. Gently push the Battery Compartment cover in the direction of
the arrow symbol and lift it off.
Step 4. Remove the old batteries and properly dispose of them.
Note Check with your local authorities on the proper way to dispose of
batteries.
Step 5. Place the new batteries in the Battery Compartment so that the
positive (+) and negative (-) terminals match the diagram in the
compartment.
Notes To keep the batteries from popping out, insert the bottom row first.
Make sure that the battery terminals are touching the compartment
terminals.
Step 6. Replace the cover by inserting its tabs into the slots and gently
pressing the cover into place.
The Stand Still and Step Off lights will turn on for about 6 seconds,
then turn off. If the device is face down, you may not see these lights.
2. Insert top row second
1. Insert bottom row first
+
+
-
![](/img.php?id=690806&img=bg3c.png)
Replacing Batteries
3-8 Maintenance
The display will then show 8.8.8.8 briefly, and the Step Off light will
flash slowly.
Step 7. Replace the display as follows:
– Place the connection cord through the display cutout.
– Hold the scale display above the top of the column with the
display facing you.
– Plug the cord into the adapter inside the top of the column.
– Center the display over the top of the column so that the plastic
fastener strips on the display and the column match.
– Press down on the display. The back of the display should rest
against the rim on the top of the column.
When the display is properly connected to the Scale:
–the Step Off light stops flashing.
– the Scale will say “zero pounds”, display 0.0, and then turn off.
Note Important: Do not step on the Scale while doing this step.
If the Step Off light does not stop flashing, check the cord connections
by unplugging the cord and replugging it in until it snaps into place.
Also check that the batteries are inserted the right way.
Step 8. Return the Scale to its original spot.
Caution Do not lift the Steady Scale.
If the Steady Scale must be moved, ask for assistance or call your
healthcare provider for help.
Step 9. Perform the Radio Test described in the Troubleshooting
section.
Step 10. Step on the Scale and verify that it is working properly.
Note If the Scale does not seem to be operating properly or the Radio Test
fails, contact your healthcare provider.
![](/img.php?id=690806&img=bg3d.png)
Replacing Batteries
Maintenance 3-9
Blood
Pressure
Unit
• Replace the batteries in the Blood Pressure Unit every 3 months or
sooner if required. The expected battery life for the BP Unit is
approximately 3 months with 1 daily reading.
• Replace the batteries in the BP Unit when you see the Low
Battery symbol on the BP Unit display.
• The Blood Pressure Unit uses 4 AA alkaline batteries.
Procedure To replace the batteries in the BP Unit:
Step 1. Turn the display over.
Step 2. Gently push the Battery Compartment cover in the direction of
the arrow symbol and lift it off.
Step 3. ,Remove the old batteries and throw them away.
Note Check with your local authorities on the best way to recycle or throw
away batteries.
Step 4. Place the new batteries in the Battery Compartment so that the
positive (+) and negative (-) terminals match the diagram in the
compartment.
Notes To keep the batteries from popping out, insert the bottom row first.
Make sure that the battery terminals are touching the compartment
terminals.
2. Insert top row second
1. Insert bottom row first
+
+
-
![](/img.php?id=690806&img=bg3e.png)
Replacing Batteries
3-10 Maintenance
Step 5. Replace the cover by inserting its tabs into the slots and gently
pressing the cover into place.
Step 6. Perform the Radio Test described in Troubleshooting.
Step 7. Take your Blood Pressure and verify that it is working properly.
Note If the Blood Pressure Unit does not seem to be operating properly or the
Radio Test fails, contact your healthcare provider.
Rhythm
Strip
Recorder
• Replace the batteries in the Rhythm Strip Recorder every 6 months
or sooner if required.
• If the Rhythm Strip Recorder beeps twice quickly before beginning
normal on and off beeping, the batteries are low and should be
replaced within a week.
• The Rhythm Strip Recorder uses 4 AA alkaline batteries.
Procedure To replace the batteries in the Rhythm Strip Recorder, follow the
procedure for the Blood Pressure Unit on page 3-9, except for Step 7.
The Recorder will make a series of beeps.
If the series ends with a rising tone, the batteries have been inserted
correctly.
If the series ends with a falling tone or no tone, the batteries have
been inserted the wrong way. Repeat the battery insertion steps.
After Step 6:
Step 7. Measure your heart rhythm with the Rhythm Strip Recorder to
verify that it is working properly.
Note If the Rhythm Strip Recorder does not seem to be operating properly or
the Radio Test fails, contact your healthcare provider.
![](/img.php?id=690806&img=bg3f.png)
Replacing Batteries
Maintenance 3-11
Pulse
Oximeter • Replace the batteries in the Pulse Oximeter every 6 months or
sooner if required.
• The batteries should be replaced when the Low Battery indicator
flashes on the Pulse Oximeter display.
• The Rhythm Strip Recorder uses 4 AA alkaline batteries.
Procedure To replace the batteries in the Rhythm Strip Recorder, follow Step 1
through Step 5 of the procedure for the Blood Pressure Unit on
page 3-9.
After successful battery replacement, the message should
appear.
If the message appears, replace the batteries with known good
batteries and try again.
After Step 5:
Step 6. Take your Pulse Oximeter measurement and verify that it is
working properly.
Note If the Pulse Oximeter does not seem to be operating properly, contact your
healthcare provider.
Replacing Batteries
3-12 Maintenance
![](/img.php?id=690806&img=bg41.png)
Troubleshooting 4-1
Introduction
4
Troubleshooting
Overview
Chapter 4 describes procedure to follow if you have problems with the
Patient Telemonitoring system or any of its devices. The tables on the
following pages can serve as a guide to help resolve problems that may
occur.
Caution Do not try to repair any device yourself.
If a problem cannot be resolved using the procedures given in this
chapter, contact your healthcare provider.
Each device provides an error message when some part of the system is
not working properly. If you see an error message on a device, the first
thing to do is to check the device and try the measurement again. Be sure
to follow the voice and light prompts provided by the device to assure
that the measurement is being made properly.
This chapter includes the following sections: Page
Radio Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Troubleshooting Tables. . . . . . . . . . . . . . . . . 4-3
Home Hub/Telestation. . . . . . . . . . . . . . . . 4-3
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Standard Scale . . . . . . . . . . . . . . . . . . . . . .4-8
Steady Scale . . . . . . . . . . . . . . . . . . . . . . . .4-9
Rhythm Strip Recorder . . . . . . . . . . . . . . 4-10
Blood Pressure Unit . . . . . . . . . . . . . . . . 4-11
Pulse Oximeter . . . . . . . . . . . . . . . . . . . . 4-12
![](/img.php?id=690806&img=bg42.png)
Overview
4-2 Troubleshooting

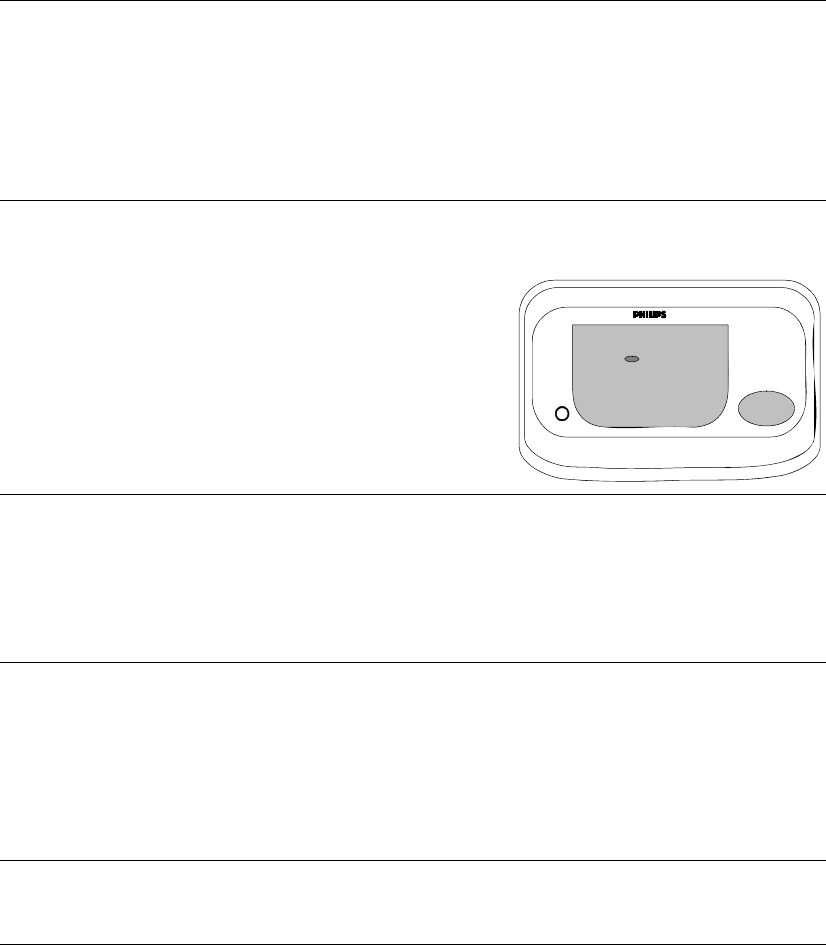

Radio Test If the remeasurement still does not seem to work properly and the error
message continues to appear, another step that can be taken is to
perform a Radio Test.
The Radio Test makes sure that your measurements are being properly
sent from the measurement device to the Home Hub/TeleStation. The
RADIO TEST button, { or }, is on the front of the device.
To perform the Radio Test, follow these steps:
Step 1. 1. Press and hold down the RADIO TEST button on the
measurement device for 3 to 5 seconds or until the Home Hub/
TeleStation starts beeping.
Note If the using phone light on the Home Hub/TeleStation lights, stop and
wait until it turns off before performing the Radio Test.
If the Radio Test is successful, the following messages will appear on
the indicated device.
The Scale display will show rF.
The Rhythm Strip Recorder’s RELAX light will flash once per
second.
The Home Hub/TeleStation will also beep:
If the Home Hub/TeleStation does not beep, do the following:
– see if there are any large objects between the measurement
device and the Home Hub/TeleStation.
If there are large objects, move the measurement device to a
different location.
If there are no large objects, move the measurement device
closer to the Home Hub/TeleStation.
– Make sure there are no cordless or cellular telephones or
computers in use near the Home Hub/TeleStation.
– Repeat the Radio Test
If the Radio Test is still not successful, refer to the following
Troubleshooting tables to try to further resolve the problem
T
![](/img.php?id=690806&img=bg43.png)
Troubleshooting Tables
Troubleshooting 4-3
Troubleshooting Tables
The following tables gives possible Problems that can occur,
Reasons why they may have occurred, and Possible Solutions that
should be tried to resolve the problem.
Find the Problem entry that seems to describe what you observe, and
then try the various Possible Solutions. If none of the solutions seem
to be successful, contact your healthcare provider for additional
suggestions.
Caution Do not try to repair any device yourself.
If a problem cannot be resolved using the procedures given in this
section, contact your healthcare provider.
Home Hub/
Telestation The following table describes problems that may occur with the Home
Hub or TeleStation.
Problem Reason Possible Solutions
The screen is
unreadable The Home Hub/TeleStation
may be hot from sitting in
sunlight or storage at a high
temperature
Let the Home Hub/TeleStation cool to room
temperature and the screen display may be
restored.
When taking a
measurement, the
data/holding
results light does
not turn on
There may be interference
from electronic devices, such
as cordless or cell phones or
computers.
Move any electronic devices away from the
Home Hub/TeleStation
The measurement device may
be too far from the Home
Hub/TeleStation
Move the measurement device closer to the
Home Hub/TeleStation.
Perform the Radio Test to determine if the
device signals are being received by the
Home Hub/TeleStation
![](/img.php?id=690806&img=bg44.png)
Troubleshooting Tables
4-4 Troubleshooting
When you take a
measurement, the
data/holding results
light remains on
There may be a problem with
your telephone service or you
healthcare provider’s
connection
Perform the CALL button test as follows:
- Find the CALL button on the far right of
the back panel of the Home Hub/
TeleStation
- Press the CALL button for less than 2
seconds. The Home Hub/TeleStation
should beep once.
(For some Home Hubs, you may need to
use a pen or other pointed object to depress
the CALL button)
- Release the CALL button.
- In 10 seconds, the using phone light
should turn on and the Home Hub/
TeleStation will dial your healthcare
provider.
- After a few minutes, the using phone
light and the data/holding results light
should turn off.
- If the data/holding results light turns
off, the Home Hub/TeleStation is operating
correctly. (It may take a few minutes for it
to turn off.)
- If the results above do not occur, contact
your healthcare provider.
Problem Reason Possible Solutions
![](/img.php?id=690806&img=bg45.png)
Troubleshooting Tables
Troubleshooting 4-5
When you take a
measurement, the
data/holding
results light
remains on
and you have a
special phone service
such as voice mail
or the data/
holding results
light stays on
There may be a conflict
between your special phone
service and the Home Hub/
TeleStation connection,
or a problem with your
telephone line or you
healthcare provider’s
connection.
- Have someone call and leave a message on
you special telephone service
Perform the CALL button test as follows:
Note: Keep your phone on the hook for
the following steps unless told otherwise.
- Find the CALL button on the far right of
the back panel of the Home Hub/
TeleStation
- Press the CALL button for less than 2
seconds. The Home Hub/TeleStation
should beep.
(For some Home Hubs, you may need to
use a pen or other pointed object to depress
the CALL button)
- Release the CALL button.
- In 10 seconds, the using phone light
should turn on and the Home Hub/
TeleStation will dial your healthcare
provider.
- After a few minutes, the using phone
light and the data/holding results light
should turn off.
- If the data/holding results light is still
on, listen to the saved message and then
delete it.
- Press the CALL button for less than 2
seconds. The Home Hub/TeleStation
should beep once.
- Release the CALL button.
- In 10 seconds, the using phone light
should turn on and the Home Hub/
TeleStation will dial your healthcare
provider.
Problem Reason Possible Solutions
![](/img.php?id=690806&img=bg46.png)
Troubleshooting Tables
4-6 Troubleshooting
Continued from
previous page - After a few minutes, the using phone
light and the data/holding results light
should turn off.
- If the data/holding results light turns
off, the Home Hub/TeleStation is operating
correctly. (It may take a few minutes for it
to turn off.)
However, your special phone service may
be interfering with the Home Hub/
TeleStation
- If the data/holding results light stays
on, there is probably not a conflict with
your special phone service.
However, there may be a problem with
your phone line or your healthcare
provider’s connection.
- If the results above suggest a problem,
contact your healthcare provider.
Problem Reason Possible Solutions
![](/img.php?id=690806&img=bg47.png)
Troubleshooting Tables
Troubleshooting 4-7
Liquid spilled onto
the Home Hub/
TeleStation
(for example, where
the wires connect to
the back)
The Home Hub/TeleStation
should be placed far from
liquids (especially a sink or
anywhere liquids might spill
onto the unit.)
For liquid spills, do the following:
- Unplug the Home Hub/TeleStation power
adapter from the wall or power strip.
- Unplug the phone connection cord from the
wall jack.
- Use a towel to dry off the Home Hub/
TeleStation, paying special attention to
connection points.
- Wait 3 hours for the unit to completely dry.
- Plug the connection cords back into the
Home Hub/TeleStation and the electrical
and phone lines. Make sure they snap into
place.
- Pick up your telephone receiver and listen
for a dial tone.
- If you do not hear a dial tone, hang up and
try again.
- If you still do not hear a dial tone, unplug
the Home Hub/TeleSTation.
- Connect your telephone directly to the
phone jack.
- Contact your healthcare provider.
Problem Reason Possible Solutions
![](/img.php?id=690806&img=bg48.png)
Troubleshooting Tables
4-8 Troubleshooting
Scale The following table describes problems that may occur with the each of
the two types of Scale -- Standard Scale and Steady Scale. Use the table
for your type of Scale.
Standard
Scale The following troubleshooting table applies to the Standard Scale.
Problem Reason Possible Solutions
Err.1 appears on the display
and it says "Please try again." You may have stepped off
the Scale too soon. Take your weight again and wait for the
voice prompt before stepping off the
Scale.
Err.2 appears on the display
and it says "Please try again." You may have moved
during the measurement Take your weight again and do not move
while the scale measures your weight
Err.3 appears on the display
and it says "Please try again." You may have stayed on the
scale too long. Take your weight again and step off the
scale as soon as you hear the voice
prompt.
Err.4 appears on the display
and it says "The maximum
weight was exceeded."
Your may have exceeded
the maximimum weight of
400 lbs (200 kgs)
Use a regular scale to see if your weight
exceeded 440 lbs (200 Kg).
No voice prompt when you
stand on the Scale and it is not
set to Silent
The Scale’s batteries are
low. Replace all 4 batters in the Scale as
described in Chapter 3
The display alternately flashes
Lo and batt
The Scale announces "Please
replace the scale batteries"
Scale does not turn on. The Scale is not properly
installed or the batteries are
low.
- Replace all 4 Scale batteries following
the procedure in Chapter 3.
- Move the Scale to a hard, flat surface.
- If it still des not turn on, contact your
healthcare provider.
The final weight reading keeps
changing or is incorrect. The Scale is on a carpeted
or irregular surface, or the
Scale is broken.
- Move the Scale to a hard, flat surface
and take your weight again.
- If this does not resolve the problem,
contact your healthcare provider.
![](/img.php?id=690806&img=bg49.png)
Troubleshooting Tables
Troubleshooting 4-9
Steady Scale The following troubleshooting table applies to the Steady Scale.
Problem Reason Possible Solutions
Err. appears on the
display You stepped off the Scale too
soon. Take your weight again and wait for the Step
Off light and voice prompts before stepping
off the Scale.
Err.1 or
Err.2 or
Err.6 appears on the
display
The Scale display is not
connected to the Scale
or there is a problem with the
Scale
Check the connection of the display to the
Scale.
If this does not resolve the problem, contact
your healthcare provider.
Err.3 appears on the
display You moved the scale
immediately after stepping off. Take your weight again and wait for the Step
Off light and voice prompt before stepping off
the Scale and do not touch the Scale.
Err.4 appears on the
display You moved during the weight
measurement. Take your weight again and remain still
during the measurement.
Err.5 appears on the
display The Scale was unable to read
the measurement. Use a regular scale to see if your weight
exceeded 365 lbs (166 Kg)
Err.6 appears on the
display You did not step off the Scale
when prompted. Take your weight again and when the Step
Off light and voice prompt occur, step off the
Scale.
Stand Still light
blinks when you stand
on the Scale.
The Scale’s batteries are low. Replace all 4 batters in the Scale as described
in Chapter.3
Stand Still light
blinks and there is no
voice prompt when
you stand on the
Scale and it is not set
to Silent.
The Scale’s batteries are low. Replace all 4 batters in the Scale as described
in Chapter.3
Step Off light
flashes slowly The Scale display is not
connected to the Scale. - Check the cord connection between the
platform and the display
- Unplug and replug the cord until it snaps
into place
![](/img.php?id=690806&img=bg4a.png)
Troubleshooting Tables
4-10 Troubleshooting
Rhythm
Strip
Recorder
The following table describes problems that may occur with the Rhythm
Strip Recorder.
Scale does not turn
on. The Scale is not properly
installed or the batteries are
low.
- Check the cord connection between the
platform and the display.
- Replace all 4 Scale batteries following the
procedure in Chapter 3.
- Move the Scale to a hard, flat surface.
- If it still des not turn on, contact your
healthcare provider.
The final weight
reading keeps
changing or is
incorrect.
The Scale is on a carpeted or
irregular surface, or the Scale
is broken.
- Move the Scale to a hard, flat surface and
take your weight again.
- If this does not resolve the problem, contact
your healthcare provider.
Problem Reason Possible Solutions
Problem Reason Possible Solutions
Poor heart rhythm
measurement, or
the Home Hub/
TeleStation is not
receiving the heart
rhythm
measurement.
The wrist bands are too loose
or not properly positioned. Push the wristbands up you arms until there
is a smooth, snug fit against the skin or you
inner wrists or arms.
The measurement device may
be too far from the Home
Hub/TeleStation
- Move the measurement device closer to the
Home Hub/TeleStation.
- Perform the Radio Test to determine if the
device signals are being received by the
Home Hub/TeleStation.
- If the Recorder is still not operating
properly, contact your healthcare provider.
![](/img.php?id=690806&img=bg4b.png)
Troubleshooting Tables
Troubleshooting 4-11
Blood
Pressure
Unit
The following table describes problems that may occur with the Blood
Pressure Unit.
Problem Reason Possible Solutions
Inaccurate blood
pressure readings. Improper blood measurement
procedure. Review the blood pressure tips in Chapter 2
and repeat the measurement.
appears on
the display The systolic and diastolic
measurements are within
10 mm Hg of each other.
There may be air leakage in
the air hose connections.
- Check that the air hose is properly
connected to the BP Unit and cuff by
unplugging it and then plug it back in,
pushing and twisting until it snaps into
place.
appears on
the display You moved during the
reading. - Wait 15 minutes.
- Take your blood pressure again, remaining
very still during the reading.
appears on
the display The pressure measurement
did not increase during cuff
inflation or the cuff is not
securely fastened.
- Check that the air hose is properly
connected to the BP Unit and cuff by
unplugging it and then plug it back in,
pushing and twisting until it snaps into
place.
- Make sure the cuff is securely fastened
appears
on the
display
The BP Unit batteries are
low. - Replace all 4 batteries in the BP Unit
following the procedure in Chapter 3.
Note: If the batteries need frequent
replacement, check the initial snugness of
the cuff. A loose cuff requires longer
pumping times and will shorten battery life.
![](/img.php?id=690806&img=bg4c.png)
Troubleshooting Tables
4-12 Troubleshooting
Pulse
Oximeter The following table describes problems that may occur with the Pulse
Oximeter.
Problem Reason Possible Solutions
appears on
the display A hardware malfunction is
detected. If condition persists, contact your healthcare
provider.
appears
on the
display
A reading was not obtained. - Reduce the light.
- Warm your finger.
- Keep your hand still.
- Repeat the measurement.
- If the condition persists, contact your
healthcare provider.
appears
on the
display
and flashes.
Batteries are too low for the
Pulse Oximeter to work
properly.
- Replace all 4 batteries following the
procedure in Chapter 3.
- Perform a Radio Test.
appears
on the
display
along with a rising
audio tone after
battery replacement
Indicates that the batteries are
good. No action required. Proceed with Pulse
Oximeter measurement.
appears
on the
display
along with a low
audio tone after
battery replacement.
There is a hardware
malfunction. - Replace all 4 batteries following the
procedure in Chapter 3.
- Perform a Radio Test.
- If condition persists, contact your
healthcare provider.
![](/img.php?id=690806&img=bg4d.png)
Specifications and Regulatory 5-1
Introduction
5
Specifications and Regulatory
Overview
Chapter 5 provides information about the Philips Telemonitoring Set of
devices that is required by law to completely describe their
characteristics, performance and compliance with regulatory
requirements. It includes the following sections.
Page
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Description . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Home Hub/TeleStation . . . . . . . . . . . . 5-2
Standard Scale . . . . . . . . . . . . . . . . . . 5-3
Steady Scale . . . . . . . . . . . . . . . . . . . . 5-3
Blood Pressure Unit. . . . . . . . . . . . . . . 5-4
Rhythm Strip Recorder . . . . . . . . . . . . 5-4
Pulse Oximeter . . . . . . . . . . . . . . . . . . 5-5
Technical Specifications . . . . . . . . . . . . . . 5-6
Physical . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Electrical . . . . . . . . . . . . . . . . . . . . . . . 5-6
Environmental . . . . . . . . . . . . . . . . . . . 5-7
Electromagnetic Compatibility . . . . . . . . . . . 5-8
Emissions and Immunity . . . . . . . . . . . . . . 5-8
FCC Regulations. . . . . . . . . . . . . . . . . . . 5-10
Regulatory Information . . . . . . . . . . . . . . . . 5-10
FCC Regulations . . . . . . . . . . . . . . . . . . . 5-10
Telephone Regulatory Notice . . . . . . . . . 5-11
![](/img.php?id=690806&img=bg4e.png)
Specifications
5-2 Specifications and Regulatory
Specifications
This section gives technical descriptions and specifications of the
Philips Telemonitoring Set devices, including physical, electrical, and
environmental.
Description Home Hub/TeleStation
Standard Scale
Model Home Hub: M3812A
TeleStation: M3812B
Type Class II equipment, continuous operation
Display LED lights on both models
Model M3813B
Type - Type B applied part
- IPXO ordinary equipment
- Internally powered continuous operation
Display - Digital, 2.0 in (51 mm) character height
- Weights displayed and announced simultaneously
Language English or Spanish
Audio Volume Voice readout of weight, prompts, and 4 settings
Measurement
Range 66 to 440lbs (30 to 200 kg)
Accuracy + 0.5% of loading
at maximum patient weight + 2.2 lbs (1.0 kg)
Display Units pounds (lbs) or kilograms (kg), user selectable
Maximum
Allowed Weight 440 lbs (200 kg)
Grab Bar and
Post check for availability
![](/img.php?id=690806&img=bg4f.png)
Specifications
Specifications and Regulatory 5-3
Steady Scale
Model M3813A
Type - Type B applied part
- IPXO ordinary equipment
- Internally powered continuous operation
Display - Digital, 0.71 in (18 mm) character height
- Weights displayed and announced simultaneously
Language English only
Audio Volume Voice readout of weight, prompts, and 4 settings
Measurement
Range 66 to 365lbs (30 to 166 kg)
Accuracy + 1% of loading + 1.1 lbs (0.5 kg)
at maximum patient weight + 4.8 lbs (2.2 kg)
Display Units pounds (lbs) or kilograms (kg), user selectable
Maximum
Allowed Weight 365 lbs (166 kg)
Grab Bar and
Post Removable attachment
![](/img.php?id=690806&img=bg50.png)
Specifications
5-4 Specifications and Regulatory
Blood Pressure Unit
Rhythm Strip Recorder
Model M3815A
Type - Type B applied part oscillometric
- IPXO ordinary equipment
- Internally powered continuous operation
Display - Digital, 0.63 in (16 mm) character height
- Pressure/pulse displayed simultaneously
Measurement
Range - Pressure: 20 to 280 mm Hg
- Pulse: 40 to 200 pulses per minute
Accuracy Pressure transducer: + 2% or + 3 mm Hg
Pressurization Automatic, using micropump
Depressurization Constant-air release-valve system
Deflation Automatic exhaust
Model M3816A
Type - 1-channel lead
- Oscillometric, Type B applied part
- IPXO ordinary equipment
- Internally powered continuous operation
Display LED light
![](/img.php?id=690806&img=bg51.png)
Specifications
Specifications and Regulatory 5-5
Pulse Oximeter
Model M3814A
Type - Type B applied part
- IPXO ordinary equipment
- internally powered continuous operation
(does not imply continuous monitoring
Display - Digital 0.7 in. (1.8 cm) character height
- SpO2 - Pulse displayed alternately
- SpO2 display range: 0 - 100%
Measurement
Range - SpO2: 70 - 100% (functional hemoglobin)
- Pulse: 18 to 300 beats per minute
Measurement
Accuracy -S pO2: 70 - 100%, + 2 digits (+ 1 Standard
Deviation a statistical measure)
- (SpO2 calibration range: 70 - 100% determined by
arterial blood measurement on a Co-oximeter
Test methods available upon request.)
- Pulse: + 3%, + 1 digit
Measurement
Wavelengths - 660 nanometers, 3 milliwatts (nominal)
- 910 nanometers, 3 milliwatts (nominal)
Biocompatibility Suitable for surface device, skin contact,
limited contact duration (up to 24 hours)
![](/img.php?id=690806&img=bg52.png)
Specifications
5-6 Specifications and Regulatory
Technical
Specifications Physical
Electrical
Philips Device Product
Part # Height
cm (in.) Width
cm (in.) Depth
cm (in.) Weight
kg. (lbs.)
Home Hub M3812A 3.8 (1.5) 20.0 (7.88) 28.0 (11) 0.9 (2.05)a
TeleStation M3812B 12.7 (5.0) 21.8 (8.6) 15.9 (6.25) 0.8 (1.7)a
Standard Scale M3813B 0.89 (2.25) 38.1 (15) 38.1 (15) 3.8 (8.4)b
Steady Scale M3813A 104 (45.7) 50.5 (20) 50.8 (20) 6.8 (15)
Blood Pressure Unit M3815A 104 (45.7) 50.5 (20) 50.8 (20) 6.8 (15)
Rhythm Strip Recorder M3816A 6.9 (2.7) 11.2 (4.4) 16.5 (6.5) 34 (0.75)b
Pulse Oximeter M3814A 16.5 (6.5) 11.2 (4.4) 16.5 (6.5) 3.7 (0.81)b
a. Net weight, without power module
b. Net weight, with batteries
Philips Device Product
Part # Power Source Battery Life
Home Hub M3812A 9.0VAC/ 500mA
(Use Philips-supplied power
adapter only)
n/a
TeleStation M3812B
Standard Scale M3813B 4 AA (1.5V) alkaline batteries
connected in series
for a total of 6 V
~ 12 months with
1 daily measurement
Steady Scale M3813A ~ 6 months with
1 daily measurement
Blood Pressure Unit M3815A ~ 3 months with
1 daily measurement
Rhythm Strip Recorder M3816A ~ 1 year with
1 daily measurement
Pulse Oximeter M3814A ~ 6 months with
1 daily measurement
![](/img.php?id=690806&img=bg53.png)
Specifications
Specifications and Regulatory 5-7
Environmental
Warning These devices are not suitable for use in the presence of flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
Temperature Atmospheric
Pressure Altitude Relative
Humidity
Philips Device Product
Part # Operating Storage Operating and
Storage
(hPa)
Operating and
Storage
(hPa)
(Non-
condensing)
Home Hub M3812A 10 - 40oC
(50 - 104oF) -9 - 54oC
(15 - 130oF) 572-1013 0-4600m
(0-15,000ft) less than
85%
TeleStation M3812B
Standard Scale M3813B
Steady Scale M3813A
Blood Pressure Unit M3815A
Rhythm Strip
Recorder
M3816A
Pulse Oximeter M3814A
![](/img.php?id=690806&img=bg54.png)
Electromagnetic Compatibility
5-8 Specifications and Regulatory
Electromagnetic Compatibility
When using the Philips Telemonitoring System, electromagnetic
compatibility with surrounding devices should be assessed.
A medical device can either generate or receive electromagnetic
interference. Testing for electromagnetic compatibility (EMC) has been
performed according to international medical device standards EN
60601-1-2.
These EMC standards describe tests for both emitted and received
interference. Emission tests deal with interference generated by the
device itself, whereas Immunity tests deal with determining
electromagnetic compatibility of the device while used in the presence of
surrounding electronic equipment or other external sources that may
generate interference.
Warning Radio frequency (RF) interference from nearby transmitting devices
may degrade performance of Philips Telemonitoring Set devices.
Electromagnetic compatibility with surrounding devices should be
assessed prior to using this equipment.
Philips Telemonitoring Set devices should not be used next to or
stacked with other equipment. If you must stack the device, check
that normal operation is possible.
Emissions
and
Immunity
The EMC standards state that manufacturers of patient-coupled
equipment must specify immunity levels for their devices when there is
reduced performance.
During the EN 61000-4-3 Radiated Immunity test, some reduced
performance was observed.
EN 61000-4-3 specifies that devices be subjected to a field of 3 Volts/
meter over a frequency range of 26 to 1000 MHz with no degradation of
performance or loss of function below the performance level specified
when equipment is operated as intended. Radio communication from the
Electromagnetic Compatibility
Specifications and Regulatory 5-9
Philips Telemonitoring Set devices may occasionally be interrupted when
subjected to frequencies in the 800 MHz - 942 MHz range at field
strength levels as low as 0.05 V/m. The phenomena discussed above are
not unique to this unit but are characteristic of radio instrumentation in
use today. The M3812A Home Hub and M3812B TeleStation are radio
receivers and their reception of Philips Telemonitoring Set device signals
can be degraded by electromagnetic interference.
Avoiding Electromagnetic Interference Problems
Eliminating the source of interference or moving it away can avoid
electromagnetic interference. Possible sources of interfering radio
frequency radiation are cellular telephones, cordless telephones, and
other products that contain radio transmitters.
Philips Telemonitoring Set devices have a Radio Test button that sends a
reduced strength test radio signal to the Home Hub or TeleStation, which
sounds an audio tone if the test signal is successfully received. This test
can be used to determine whether sources of interference are present.
These sources can be turned off or moved away to reduce their strength
and reduce interference. In addition, Philips Telemonitoring Set devices
and Home Hub or TeleStation can be placed closer to each other so that
the radio transmission from the Philips Telemonitoring Set devices to the
Home Hub or TeleStation has less distance to travel and interfering radio
signals have less effect. The radio transmission from the Philips
Telemonitoring Set devices is repeated periodically so that an
intermittent source of interference should only delay reception.
Avoiding Static Electrical Discharges
Static discharges to Philips Telemonitoring Set devices t may cause
temporary, unusual behavior. If a static discharge causes a temporary
malfunction, simply restart the measurement.
![](/img.php?id=690806&img=bg56.png)
Regulatory Information
5-10 Specifications and Regulatory
Regulatory Information
FCC
Regulations This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
provide reasonable protection against harmful interference in a
residential installation. Philips Telemonitoring Set devices generate, use,
and can radiate radio frequency energy. If not installed and used
according to instructions, it may interfere with radio communications.
However, there is no guarantee that interference will not occur if the
equipment is properly installed.
If this equipment causes interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct it by:
• relocating the Home Hub or TeleStation,
• increasing the separation between the Philips Telemonitoring Set
devices or the Home Hub or TeleStation and the device being
interfered with, for example, a TV,
• consulting your healthcare provider.
Notes Any changes or modifications to the equipment not expressly approved
by Philips could void the user’s authority to operate it.
The possibility of hazards arising from errors in the software program is
minimized by Philips’ use of a risk analysis and risk management process
as defined in Philips’ document CM RISK ANALYSIS PROCESS,
document number A-Q2920-00126.
Regulatory Information
Specifications and Regulatory 5-11
Telephone
Regulatory
Notice
Your Philips Home Hub is registered with the Federal Communications
Commission (FCC) and is in compliance with part 68 of the FCC Rules
and Regulations. The FCC requires Philips to provide you with the
following information. The Home Hub contains a 14.4 Kbps modem.
You must, upon request, provide the following information to your local
telephone company (this information is also printed on the bottom of the
device): FCC Part 68 ID Number: 2M6USA-33569-DT-E and Ringer
Equivalence Number (REN): 0.3A.
Your Philips TeleStation complies with Part 68 of the FCC rules and the
requirements adopted by the Administrative Council for Terminal
Attachments (ACTA). ACTA requires Philips to provide you with the
following information. The TeleStation contains a 14.4 Kbps modem.
You must, upon request, provide this information to your local telephone
company.
On the bottom of the device is a label that contains, among other
information, a product identifier in the format
US: AAAEQ##TXXXXX.
For products approved after July 23, 2001, the digits in the product
identifier represented by ## are the REN without a decimal point (for
example, 03 is a REN of 0.3). If requested, this number must be provided
to the telephone company.
The REN is useful to determine the number of devices you can connect
to your telephone line and still have all of these devices ring when your
telephone number is called. In most (but not all) areas, the sum of the
RENs of all devices connected to one line should not exceed 5. To be
certain of the number of devices connected to your line as determined by
the REN, contact your local telephone company.
Note: (a) The Home Hub or TeleStation may not be used on coin service
phones provided by the telephone company. (b) Party lines are subject to
state tariffs and, therefore, you may not be able to use your own
telephone equipment if you are on a party line. Check with your local
telephone company. (c) Notice must be given to the telephone company
upon permanent disconnection of your telephone from your line.
Regulatory Information
5-12 Specifications and Regulatory
Rights of the Telephone Company: Should your Home Hub or
TeleStation cause trouble on your line that may harm the telephone
network, the telephone company shall, if possible, notify you that
temporary discontinuation of service may be required. If advance notice
is not practical, the telephone company may discontinue service
immediately, but temporarily. In such case of discontinuance, the
telephone company must (1) promptly notify you of such temporary
discontinuance, (2) afford you the opportunity to correct the situation,
and (3) inform you of your right to bring a complaint to the FCC
pursuant to the procedures in Subpart E of Part 68, FCC Rules and
Regulations.
The telephone company may make changes in its communications
facilities, equipment, operations, or procedures where such action is
required in the operation of its business and not consistent with FCC
Rules and Regulations. If these changes are expected to affect the use or
performance of your Home Hub or TeleStation, the telephone company
must give you adequate notice, in writing, to allow you to maintain
uninterrupted service.
A plug and jack used to connect the TeleStation must comply with
applicable FCC Part 68 rules and requirements adopted by the ACTA. A
compliant telephone cord with a modular plug is provided with the
TeleStation. It is designed to be connected to a compatible modular jack
that is also compliant. See installation instructions for details.
Consult your telephone company or qualified installer if you are using a
TeleStation and have specially wired alarm equipment connected to your
telephone line.
Contact Philips Medical Systems at (978) 687-1501 for repair or
warranty information.
