Users Manual
![](/img.php?id=232292&img=bg1.png)
INSTALLATION AND
MAINTENANCE MANUAL
WIRELESS
FAST ETHERNET BRIDGES
(5.3/5.8, 5.3 and 5.8 GHz, U-NII/LE-LAN)
MAN-27700-003
![](/img.php?id=232292&img=bg3.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
i
Installation and Maintenance Manual
Copyright © 1999, 2000 & 2001 by Western Multiplex. All rights reserved. No part of this
manual may be reproduced without prior written permission from Western Multiplex.
The information contained in this manual is subject to change without notice. Western
Multiplex shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual or equipment
supplied with this manual. Western Multiplex makes no warranty of any kind with regard to
this manual or any equipment supplied with this manual, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose.
Heliax is a registered product of Andrews Corporation.
OpenView is a registered product of Hewlett Packard Corporation.
SmartBits is a registered product of NetCom Systems Inc.
Windows is a registered product of Microsoft Inc.
Chariot and Qcheck are a registered products of Ganymede Software Inc.
Gabriel HE or HES parabolic antennas are products of Gabriel Electronics Inc.
Other names are trademarks of their owners
Printed in the United States of America
Notice: Y2K (Year 2000 Issue)
All software supplied by and for Western Multiplex products adheres to the four-(4) digit year
nomenclature as required for Year 2000 compliance.
Western Multiplex
1196 Borregas Avenue
Sunnyvale, California
USA
Tel: +1 408 542-5200
Fax:: +1 408 542-5300
Our facility has been Registered to the International Organization for Standardization
ISO 9000 Series Standards for quality.
Issue: December 2001 Revision 003
![](/img.php?id=232292&img=bg4.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
ii
Revision history:
July 2000: Updated Section 2.1
Fixed Table 3-B title
Added TelNet detail (Section 4.11.5)
Added 100Mbps Model information
Added information on Ethernet Switches

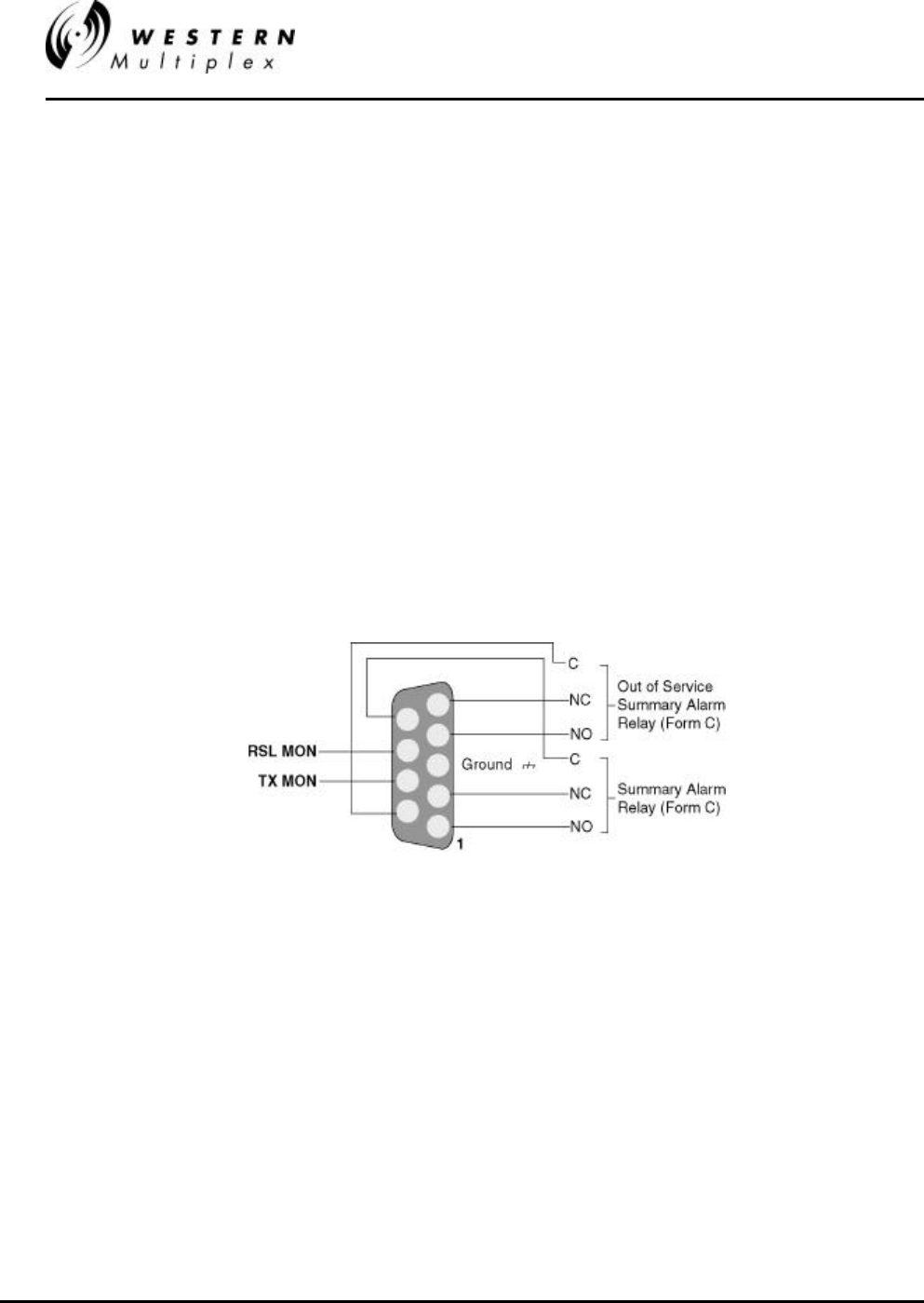

Fixed Alarm Diagram (Figures 3-10 & D-2)
November Added more 100Mb model detail
Clarified 802.1q (VPN) capabilities
Added single band 5.3GHz model

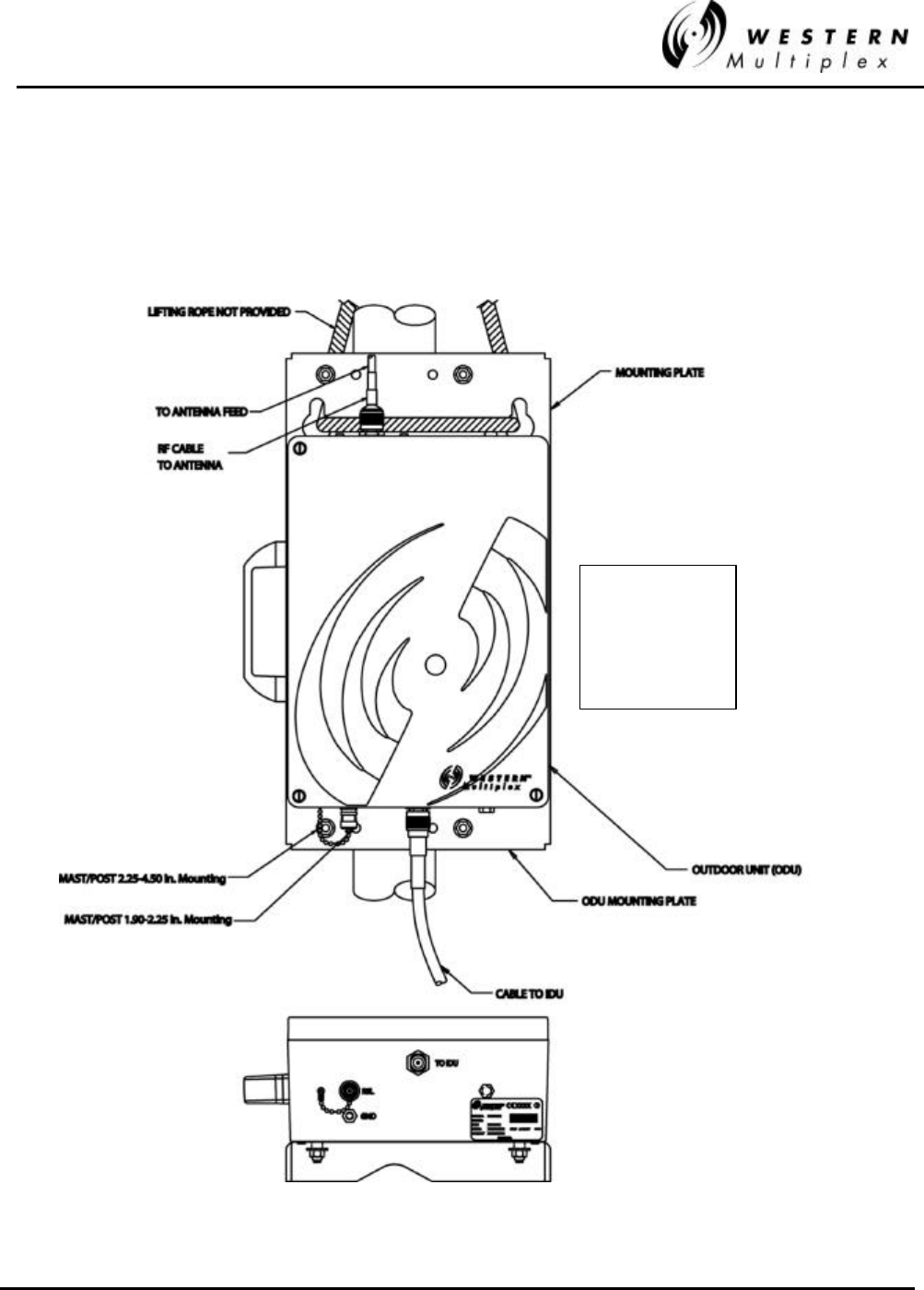

Added mounting details
January 2001 Added 100Mb (27720) HTTP NMS screens
April Added information on single band 5.3 GHz products
Added more detail on Tsunami interface criteria
Added using SNMP detail
Clarification on use of both fiber (F) and twisted pair (T) interfaces
Modified model 27710-52 details (2xE1s)
Added default Login for 100BaseT/F Model
June Added safety instructions (Section 1.3)
Added AUX port information
July Updated screen captures for new 45Mb w/E1s
December (v003)
Changed maximum receive level from –30 to –10 dBm
Added 100Mbps SB 2xE1 Model 28010
![](/img.php?id=232292&img=bg5.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
iii
Regulatory Notice
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC
regulations.
Changes or modifications not expressly approved in writing by Western Multiplex may void the user's
authority to operate this equipment.
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This device must be professionally installed.
![](/img.php?id=232292&img=bg6.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
iv
This page intentionally left blank
![](/img.php?id=232292&img=bg7.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
v W/CS97-1
GENERAL TERMS
1.1 All Definitions contained in Western Multiplex's Conditions of
Sale (Western Multiplex document number CS96-8), apply to the
Warranty.
1.2 Subject to the provisions of the Warranty, Western Multiplex
warrants that the equipment described in Paragraph 1.3 shall
conform to their specifications described in Paragraph 1.4 in all
material respects and that the equipment shall be free from
material defects in materials and workmanship.
1.3 This Warranty applies to all original purchases of Western
Multiplex manufactured equipment and accessories (collectively
the "Equipment").
1.4 This Warranty applies to the specifications contained in the most
recent version of the manual for the model of the Equipment
purchased (the "Specifications").
1.5 This Warranty does not apply to the following items of
Equipment which are covered by the Original Equipment
Manufacturer's warranty:
(a) antenna systems, including coax cable, waveguide,
connectors flex-sections, mounts, other parts of the antenna
system and installation materials;
(b) non-Western Multiplex manufactured rack mounted equipment
that is assembled wired and tested at Western Multiplex's
factory or supplied as part of a system, including orderwire
items, channel banks, multiplexers, fuse/alarm panels, remote
alarm items; and
(c) equipment which is not listed in Western Multiplex's price
book.
1.6 The effective period of this Warranty shall start on the date of
shipment of the Equipment and shall end:
(a) for all spread spectrum unlicensed radio products and for all
licensed digital microwave radio products, two (2) years later;
(b) for all analog microwave radio products, three (3) years later;
or
(c) for all baseband products, five (5) years later (in each case
the "Warranty Period").
1.7 The Customer acknowledges that Western Multiplex does not
represent or warrant that the services provided by Western
Multiplex under this Warranty will ensure uninterrupted or error-
free operation of the Equipment.
RETURN OF EQUIPMENT UNDER WARRANTY
2.1 If an item of Equipment malfunctions or fails in normal intended
usage and maintenance within the applicable Warranty Period:
(a) the Customer shall promptly notify Western Multiplex of the
problem and the serial number of the defective item;
(b) Western Multiplex shall, at its sole option, either resolve the
problem over the telephone or provide the Customer with a
Returned Materials Authorization number (RMA #) and the
address of the location to which the Customer may ship the
defective item;
(c) if the problem is not resolved over the telephone, the
Customer shall attach a label to each Returned item
describing the fault and the Customer's Return address. The
Customer shall, at its cost, properly pack the item to be
Returned, prepay the insurance and shipping charges, and
ship the item to the specified location;
(d) if the Western Multiplex product shall prove to be defective in
material or workmanship upon examination by Western
Multiplex, Western Multiplex shall either repair or replace the
Returned item at its sole option. The replacement item may be
new or refurbished; if refurbished, it shall be equivalent in
operation to new Equipment. If a Returned item is replaced by
Western Multiplex, the Customer agrees that the Returned
item shall become the property of Western Multiplex.
(e) Western Multiplex shall at its cost, ship the repaired item or
replacement to any destination within the United States of
America by carrier and method of delivery chosen by
Western Multiplex. If the Customer has requested some other
form of conveyance, such as express shipping, or is located
beyond the USA borders, then the Customer shall pay to the
cost of return shipment.
2.2 Equipment which is repaired or replaced by Western Multiplex
under this Warranty shall be covered under all of the provisions
of this Warranty for the remainder of the applicable Warranty
Period or ninety (90) days from the date of shipment of the
repaired item or replacement, whichever period is longer.
DEFAULT AND TERMINATION
3.1 Western Multiplex may immediately terminate this Warranty and
all of its performance under this Warranty, upon notification to
the Customer, if the Customer:
(a) makes any unauthorized modifications to the Equipment;
(b) assigns or transfers the Customer's rights or obligations under
this Warranty without the written consent of Western
Multiplex;
(c) becomes bankrupt or insolvent, or is put into receivership; or
(d) has not paid Western Multiplex all amounts for the Equipment,
services, or other additional charges within thirty (30) days of
receipt of written notice from Western Multiplex.
3.2 If this Warranty is terminated by Western Multiplex, the
Customer shall remain liable for all amounts due to Western
Multiplex.
FORCE MAJEURE
4.1 "Force Majeure" has the same meaning as defined in Western
Multiplex's Conditions of Sale (Western Multiplex document
number CS96-8).
4.2 Western Multiplex shall not be responsible for failure to
discharge its obligations under this Warranty due to Force
Majeure.
LIMITATIONS AND QUALIFICATIONS OF WARRANTY
5.1 This Warranty does not apply to any damage, defect or failure
caused by:
(a) any part of the Equipment having been modified, adapted,
repaired, or improperly installed, operated, maintained,
transported or relocated by any person other than Western
Multiplex personnel or a Western Multiplex authorized service
agent, without Western Multiplex's prior written consent;
(b) storage or environmental conditions which do not conform to the
applicable sections of the appropriate Western Multiplex
Equipment Manual;
(c) failure to conform with the Equipment Installation, Operating and
Maintenance Instructions of the appropriate Western Multiplex
Equipment Manual;
(d) external causes, including external electrical stress or lightning,
or use in conjunction with incompatible equipment, unless such
use was with Western Multiplex's prior written consent;
(e) cosmetic damage;
(f) accidental damage, negligence, neglect, mishandling, abuse or
misuse, other than by Western Multiplex personnel or a Western
Multiplex authorized service agent; or
(g) Force Majeure.
Please see reverse side for additional limitations on damages.
WARRANTY
![](/img.php?id=232292&img=bg8.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
W/CS97-1 vi
LIMITATIONS ON DAMAGES (North America)
6.1 THE WARRANTY STATED IN THIS DOCUMENT IS THE
CUSTOMER'S EXCLUSIVE WARRANTY FOR THE
EQUIPMENT; WESTERN MULTIPLEX SPECIFICALLY
DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES
OF FITNESS FOR A PARTICULAR PURPOSE AND OF
MERCHANTABILITY.
6.2 WESTERN MULTIPLEX SHALL NOT BE LIABLE IN TORT,
INCLUDING LIABILITY IN NEGLIGENCE OR STRICT
LIABILITY, AND SHALL HAVE NO LIABILITY AT ALL
FOR INJURY TO PERSONS OR PROPERTY. WESTERN
MULTIPLEX'S LIABILITY FOR FAILURE TO FULFIL ITS
OBLIGATIONS UNDER THIS WARRANTY OR ANY
OTHER LIABILITY UNDER OR IN CONNECTION WITH THE
EQUIPMENT SHALL BE LIMITED TO THE AMOUNT OF THE
PURCHASE PRICE OF THE EQUIPMENT. THE REMEDIES
STATED IN THIS WARRANTY ARE THE CUSTOMER'S
EXCLUSIVE REMEDIES AGAINST WESTERN MULTIPLEX
REGARDING THE EQUIPMENT.
6.3 EVEN IF WESTERN MULTIPLEX HAS BEEN ADVISED OF
THE POSSIBILITY OF THEM, WESTERN MULTIPLEX
SHALL NOT BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
INCLUDING THE COST OF LABOR BY THE CUSTOMER'S
OWN EMPLOYEES, AGENTS OR CONTRACTORS IN
IDENTIFYING, REMOVING OR REPLACING THE
DEFECTIVE ITEM; LOST PROFITS, AND REVENUES;
FAILURE TO REALIZE EXPECTED SAVINGS; ANY CLAIM
AGAINST A CUSTOMER BY A THIRD PARTY; OR ANY
OTHER COMMERCIAL OR ECONOMIC LOSSES OF ANY
KIND.
6.4 THESE LIMITATIONS AND DISCLAIMERS ARE NOT MADE
BY WESTERN MULTIPLEX WHERE PROHIBITED BY LAW.
LIMITATIONS ON DAMAGES (International)
6.1 THE WARRANTY STATED IN THIS DOCUMENT IS THE
CUSTOMER'S EXCLUSIVE WARRANTY FOR THE
EQUIPMENT; ALL OTHER WARRANTIES OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES
OF FITNESS FOR A PARTICULAR PURPOSE AND OF
MERCHANTABILITY ARE EXCLUDED TO THE FULLEST
EXTENT PERMITTED BY LAW.
6.2 WESTERN MULTIPLEX'S LIABILITY FOR FAILURE TO
FULFIL ITS OBLIGATIONS UNDER THIS WARRANTY OR
IN TORT OR AS A RESULT OF STRICT LIABILITY OR
ANY OTHER LIABILITY UNDER OR IN CONNECTION WITH
THE EQUIPMENT OR ITS SUPPLY SHALL BE LIMITED,
EXCEPT IN RESPECT OF DEATH AND PERSONAL INJURY
CAUSED BY WESTERN MULTIPLEX'S NEGLIGENCE, TO
THE AMOUNT OF THE PURCHASE PRICE OF THE
EQUIPMENT. THE REMEDIES STATED IN THIS
WARRANTY ARE THE CUSTOMER'S EXCLUSIVE
REMEDIES AGAINST WESTERN MULTIPLEX REGARDING
THE EQUIPMENT.
6.3 EVEN IF WESTERN MULTIPLEX HAS BEEN ADVISED OF
THE POSSIBILITY OF THEM, WESTERN MULTIPLEX
SHALL NOT BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
INCLUDING THE COST OF LABOR BY THE CUSTOMER'S
OWN EMPLOYEES, AGENTS OR CONTRACTORS IN
IDENTIFYING, REMOVING OR REPLACING THE
DEFECTIVE ITEM; LOST PROFITS, AND REVENUES;
FAILURE TO REALIZE EXPECTED SAVINGS; ANY CLAIM
AGAINST A CUSTOMER BY A THIRD PARTY; OR ANY
OTHER COMMERCIAL OR ECONOMIC LOSSES OF ANY
KIND.
![](/img.php?id=232292&img=bg9.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
vii W/CS97-1
DEFINITIONS
1.1 In these Conditions, unless there is something in the subject
matter or context necessarily inconsistent:
(a) "Western Multiplex" means Western Multiplex (d.b.a. Western
Multiplex), Sunnyvale, CA;
(b) "Equipment" means the equipment itemized on the
Quotation/Order Acknowledgment;
(c) "International" means any location other than United States of
America and Canada, including their territories and possessions;
(d) "North America" means any location in the United States of
America and Canada, including their territories and possessions;
(e) "Order Acknowledgment" means the sales order acknowledgment
provided by Western Multiplex to the Customer;
(f) "Payment Instructions" means Western Multiplex's payment
instructions, (Western Multiplex document P197-1);
(g) "Quotation" means the quotation signed by an authorized
representative of Western Multiplex and provided to the
Customer;
(h) "Shipping Date" means the actual date on which the Equipment
left Western Multiplex's factory at Sunnyvale, CA, U.S.A.;
(i) "Warranty" means Western Multiplex's warranty, document W97-
1;
(j) "Invoice" means the bill of goods prepared by Western Multiplex
for the equipment with the shipping and any insurance costs.
1.2 Headings have been inserted in these Conditions for
convenience of reference only and will not effect their
construction.
ENTIRE AGREEMENT
2.1 The Quotation, these Conditions of Sale, the Order
Acknowledgment, the Payment Instructions and the Warranty
shall apply to all sales made by Western Multiplex and shall
constitute the entire agreement by Western Multiplex and the
Customer (the "Agreement ").
2.2 Any terms and/or conditions of sale, which may be included on
the Customer's purchase order form or any communication from
the Customer, that are not identical with the terms and conditions
steed in this document shall NOT become a part of the
agreement of sale unless expressly agreed to in writing in the
Quotation.
2.3 Western Multiplex's failure to object to any terms and/or
conditions of sale contained in any communication from the
Customer shall not be considered as acceptance of such terms
and/or conditions or as a waiver of the terms and conditions of
sale contained herein.
2.4 Western Multiplex shall sell to the Customer, and the Customer
shall purchase from Western Multiplex, the Equipment in
accordance with the Agreement. Western Multiplex accepts the
Customer's purchase orders for Equipment and agrees to deliver
the Equipment to the Customer only on the terms of the
Agreement.
2.5 No variation of the Agreement shall be binding unless agreed to
in writing by authorized representatives of Western Multiplex and
the Customer.
PRICING
3.1 All prices in the Quotation are exclusive of all shipping charges
and all applicable taxes including but not limited to, federal, state,
local, excise, sales and use taxes.
3.2 All prices in the Quotation unless otherwise stated:
(a) for North American customers are FOB Sunnyvale, CA, USA.
(New York Uniform Commercial Code); or
(b) for international customers are Ex-Works, Sunnyvale, CA,
U.S.A. (Incoterms 1990).
3.3 All prices in the Quotation include standard domestic packing,
unless a separate line item is provided detailing export or special
packing charges.
SHIPPING AND INSURANCE
4.1 Western Multiplex shall arrange shipping and insurance when
requested by the Customer, and shall bill the Customer for the
Equipment with the shipping and any insurance costs as separate
items, on an invoice (the "Invoice").
4.2 Delivery dates quoted by Western Multiplex are to be considered
estimates only. In no event will Western Multiplex be liable for
any loss or damage resulting from its failure to deliver products
within a specified time.
CONDITIONS OF SALE
![](/img.php?id=232292&img=bga.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
W/CS97-1 viii
TERMS OF PAYMENT
5.1 The Customer shall pay for all Equipment, including shipping and
insurance in accordance with the terms of the Invoice.
5.2 All Invoices for North American Customers are due and payable
in thirty (30) days from the date of the Invoice.
5.3 International Customers shall make payments in accordance with
Western Multiplex's Payment Instructions by either:
(a) providing a wire transfer (telegraphic transfer) for the full amount
of the Equipment, shipping and insurance charges contained in
the Quotation or the pro-forma Invoice sent to the Customer,
prior to the Shipping Date; or
(b) establishing an acceptable Letter of Credit (LC) for the full
amount of the Equipment, shipping and insurance charges
contained in the Quotation prior to the order being booked and
accepted by Western Multiplex.
5.4 If a Customer fails to pay an Invoice when due, Western
Multiplex may, without prejudice to am other remedy, postpone
shipments, alter payment terms, terminate the Agreement and
charge interest on all overdue amounts the rate of 1.5% per
month compounded monthly (or if less, the maximum allowed by
law). Upon demand, the Customer shall pay all such interest
charges and all reasonable collection fees, including reasonable
legal expenses.
SECURITY FOR PAYMENT
6.1 If the Customer is located in North America, the Customer
grants to Western Multiplex a purchase money security interest
in the Equipment to secure the payment of the purchase price of
the Equipment and all other amounts due from the Customer.
6.2 If the Customer is not located in North America:
(a) despite delivery and passing of risk in the Equipment and any
other provision of these Conditions, the title in the Equipment
shall not pass to the Customer until Western Multiplex has
received payment in full of the purchase price of the Equipment
and all other amounts then due from the Customer, and
(b) until the title in the Equipment passes to the Customer:
(i) the Customer shall hold the equipment as Western Multiplex 's
fiduciary agent and bailee, and shall properly store, protect and
insure the Equipment and shall identify the Equipment as
Western Multiplex property;
(ii) if the Customer fails to pay Western Multiplex in accordance with
the agreed payment terms, Western Multiplex may require the
Customer to deliver up the Equipment to Western Multiplex, and,
if the Customer does not, Western Multiplex may enter on the
premises where the Equipment is stored and repossess the
Equipment; and
(iii) the Customer shall not pledge the Equipment by way of security
for any, indebtedness of the Customer, but if the Customer
does so all moneys owed by the Customer to Western Multiplex
shall, without prejudice to any other remedy of Western
Multiplex, immediately become due.
CHANGES TO PRODUCT SPECIFICATIONS
7.1 Western Multiplex may, without notice to the Customer, make
changes to the specifications of Equipment which do not
materially affect the quality or performance of the Equipment.
EQUIPMENT CONFIGURATION AND EXPEDITING CHARGES
8.1 At the Customer's request, Western Multiplex may, for a fee
agreed in advance:
(a) reconfigure the Equipment; or
(b) expedite the Customer's order.
![](/img.php?id=232292&img=bgb.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
ix W/CS97-1
SHORTAGES
9.1 The customer shall not make any claim for shortages (which are
items that the Invoice does not show are on back-order) after
twenty-one (21) days after the date of the Invoice.
RETURNS AND EXCHANGES
10.1 The return of defective Equipment is covered by the Warranty .
10.2 The Customer may only return Equipment that is not defective if:
(a) the Equipment does not correspond with the Customer's
purchase order; or
(b) the Equipment has been ordered in error by the Customer and
Western Multiplex has permitted the Customer to remedy the
mistake by ordering the correct equipment and resuming the
Equipment and the Customer obtains a Returned Materials
Authorization number ("RMA #") from Western Multiplex prior to
returning any Equipment.
10.3 Western Multiplex reserves the right to charge a fee for returned
equipment under Subparagraph 10.2(b) with the amount of the
fee being determined prior to an RMA # being given by Western
Multiplex.
10.4 Authorized returns of equipment under Paragraph 10.2 must be in
an undamaged condition, in the original configuration, in the
original packing materials and within a time period agreed to when
the RMA # was issued.
10.5 If the Customer does not comply with the provisions of
Paragraphs 10.2, 10.3, and 10.4, the Customer shall pay the full
amount of the Invoice.
10.6 The party liable for all shipping, insurance and any other
expenses incurred by the Customer in returning the Equipment
under Paragraph 10.2 and for all loss or damage to the
Equipment until received by Western Multiplex, shall be: (a) for
all items returned under Subparagraph 10.2(a), Western Multiplex
and (b) for all items resumed under Subparagraph 10.2(b), the
Customer.
CANCELLATION
11.1 If the Customer cancels an order before the Shipping Date,
Western Multiplex reserves the right to charge the Customer a
cancellation charge up to 100% of the amount of the order.
11.2 The Customer shall pay all cancellation charges within thirty (30)
days from date of the Invoice.
FORCE MAJEURE
12.1 Western Multiplex shall not be liable if its performance of the
Agreement becomes commercially impractical due to any
contingency beyond Western Multiplex's reasonable control,
including acts of God, fires, floods, wars, sabotage, civil unrest,
accidents, labor disputes or shortages, government laws, rules
and regulations, whether valid or invalid, inability to obtain
material, equipment or transportation, incorrect, delayed or
incomplete specifications, drawings or data supplied by the
Customer or others (collectively "Force Majeure"). In no event of
Force Majeure shall Western Multiplex be required to purchase
goods from others to enable it to deliver the Equipment under the
Agreement.
ENGINEERING AND SYSTEM DESIGN
13.1 The Customer is solely responsible for the engineering, design,
integration and normal preventative and remedial maintenance of
the Customer's system for which Western Multiplex supplies
Equipment.
13.2 Western Multiplex is not responsible for the satisfactory operation
of the Equipment in conjunction with other manufacturer's
equipment, nor for any losses which may occur as a result of a
failure of the Equipment to operate in conjunction with other
manufacturer's equipment.
WARRANTY
14.1 All Equipment is covered by the Warranty.
14.2 THE WARRANTY CONTAINS LlMITATIONS ON THE
CUSTOMER'S RIGHTS AND REMEDIES AGAINST WESTERN
MULTIPLEX UNDER THE AGREEMENT.
THE CUSTOMER ACKNOWLEDGES HAVING READ,
UNDERSTOOD AND AGREED TO THOSE LIMITATIONS.
![](/img.php?id=232292&img=bgc.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
W/CS97-1 x
DAMAGES FOR BREACH OF AGREEMENT
15.1 If either party is successful in any litigation between the parties
based on the Agreement, the successful party shall recover
from the other, in addition to direct damages, the successful
party's reasonable attorney's fees and other costs of litigation.
INSOLVENCY OF CUSTOMER, ETC.
16.1 Western Multiplex may cancel the Agreement and suspend any
further deliveries under the Agreement without any liability to the
Customer, and, if Equipment has been delivered but not paid for,
the price shall become immediately due and payable despite any
other agreement to the contrary if:
(a) any proceedings in bankruptcy, insolvency, receivership or
liquidation are taken against the Customer;
(b) the Customer makes an assignment for the benefit of
creditors or commits an act of bankruptcy or insolvency;
(c) the Customer ceases, or threatens to cease, to carry on
the ordinary course of its business, or transfers all or
substantially all of its property;
(d) the Equipment is seized under any legal process or
confiscated; or
(e) Western Multiplex in good faith believes that the ability of
the Customer to pay or perform any provision of the Agreement
is impaired, or that any of the events mentioned above is about
to occur.
NOTICE
17.1 All requests, instructions and notices from one party to the other
must be in writing and may be given via registered post or
facsimile transmission to the address of the parties shown on the
Quotation or Order Acknowledgment.
EXPORT PROVISIONS
18.1 The Customer shall not, whether directly or indirectly (including
facilitating a third party) export or re-export the Equipment
outside the country in which the Customer has stated these
items are to be used without obtaining the licenses required under
ail applicable rules. The Customer shall indemnify Western
Multiplex against any liability incurred by Western Multiplex due
to any violation by the Customer of any of the provisions of this
Section, but this indemnity shall not apply if the Customer
reasonably relies on information supplied to it by Western
Multiplex with respect to export licenses. Upon receipt of a
governmental consent to export the receiving party shall
immediately notify the other in writing.
MISCELLANEOUS
19.1 No waiver by Western Multiplex of any breach of this Agreement
shall be considered as a waiver of any subsequent breach of the
same or any other provision.
19.2 Any provision of the Agreement which is, or is deemed to be,
unenforceable in any jurisdiction shall be severable from the
Agreement in that jurisdiction without in any way invalidating the
remaining portions of the Agreement, and that unenforceability
shall not make that provision unenforceable in any other
jurisdiction.
19.3 The rights which accrue to Western Multiplex by virtue of the
Agreement shall inure for the benefit of and be binding upon the
successors and assigns of Western Multiplex.
19.4 The agreement shall be governed by the laws of the State of
California including the California Uniform Commercial Code.
However Western Multiplex may enforce the provisions of the
Agreement in accordance with the laws of the jurisdiction in which
the Equipment is situated. The United Nations Convention on the
Sale of Goods (The Vienna Convention) shall not apply to the
Agreement.
19.5 Les parties ont exigés que cette entente soit rédigée en anglais.
![](/img.php?id=232292&img=bgd.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
TOC & INTRODUCTION i
Table of Contents
1. HOW TO USE THIS MANUAL......................................................................................................................................1-1
1.1 MANUAL ORGANIZATION .......................................................................................................................................1-1
1.2 ICONS...........................................................................................................................................................................1-2
1.3 IMPORTANT SAFETY INSTRUCTIONS .............................................................................................................1-3
2. PRODUCT DESCRIPTION............................................................................................................................................2-1
2.1 GENERAL DESCRIPTION..............................................................................................................................................2-1
2.2 SPECIFICATIONS........................................................................................................................................................2-2
2.2.1 Transmitter....................................................................................................................................................... 2-2
2.2.2 Antenna / Antenna Coupling Unit............................................................................................................... 2-3
2.2.3 Receiver ............................................................................................................................................................ 2-3
2.2.4 System (Single Hop Performance)............................................................................................................... 2-4
2.2.5 Line Interfaces ................................................................................................................................................. 2-5
2.2.6 Auxiliary Connections................................................................................................................................... 2-6
2.2.7 Temperature and Environment..................................................................................................................... 2-7
2.2.8 Power ................................................................................................................................................................ 2-7
2.2.9 Regulatory Information ................................................................................................................................. 2-7
2.2.10 Mechanical ...................................................................................................................................................... 2-8
2.3 FRONT PANEL DESCRIPTION ..................................................................................................................................2-9
2.3.1 General ............................................................................................................................................................. 2-9
2.3.2 Test Points / Power Indicator.....................................................................................................................2-10
2.3.3 Alarm and Status Indicators (models with IDU only)............................................................................2-11
2.3.4 Alarm and Status Indicators (models with IDU and ODU)...................................................................2-12
2.3.5 Controls..........................................................................................................................................................2-13
2.3.6 Connections...................................................................................................................................................2-14
2.4 INSTALLATION ACCESSORIES...............................................................................................................................2-16
3. INSTALLATION & ADJUSTMENTS..........................................................................................................................3-1
3.1 SHIPPING CONTAINER..............................................................................................................................................3-1
3.2 PACKING ITEMS IDENTIFICATION..........................................................................................................................3-2
3.3 BEFORE INSTALLATION TASK LIST .......................................................................................................................3-3
3.3.1 Site Selection Requirements ......................................................................................................................... 3-3
3.3.2 Line-of-Sight and Path Clearance Guidelines.......................................................................................... 3-4
3.3.3 RSL Calculation and Link Budget .............................................................................................................. 3-5
3.3.4 Fade Margin Calculation............................................................................................................................. 3-6
3.3.5 Availability Calculation ............................................................................................................................... 3-6
3.3.6 Frequency Plan Determination.................................................................................................................... 3-7
3.3.7 Power Supply Planning................................................................................................................................. 3-8
3.3.8 Antenna Planning........................................................................................................................................... 3-8
3.4 TOOLS REQUIRED....................................................................................................................................................3-10
3.5 FREQUENCY CHANNEL PLANS..............................................................................................................................3-11
3.6 MOUNTING THE TSUNAMI .....................................................................................................................................3-12
3.7 POWER CONNECTION AND WIRING (MODELS W/O ODU)...............................................................................3-13
3.7.1 DC Power Wiring (Models w/o ODU).......................................................................................................3-14
3.7.2 AC Power Connection .................................................................................................................................3-16
3.8 MOUNTING THE RADIO W/ODU ..........................................................................................................................3-17
![](/img.php?id=232292&img=bge.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
ii TOC & INTRODUCTION
3.9 POWER CONNECTION AND WIRING IDU W/ODU MODEL(S)..........................................................................3-19
3.9.1 DC Power Wiring (Models w/ODU) ..........................................................................................................3-20
3.10 ANTENNA INSTALLATION & ALIGNMENT (MODELS W/ODU)......................................................................3-22

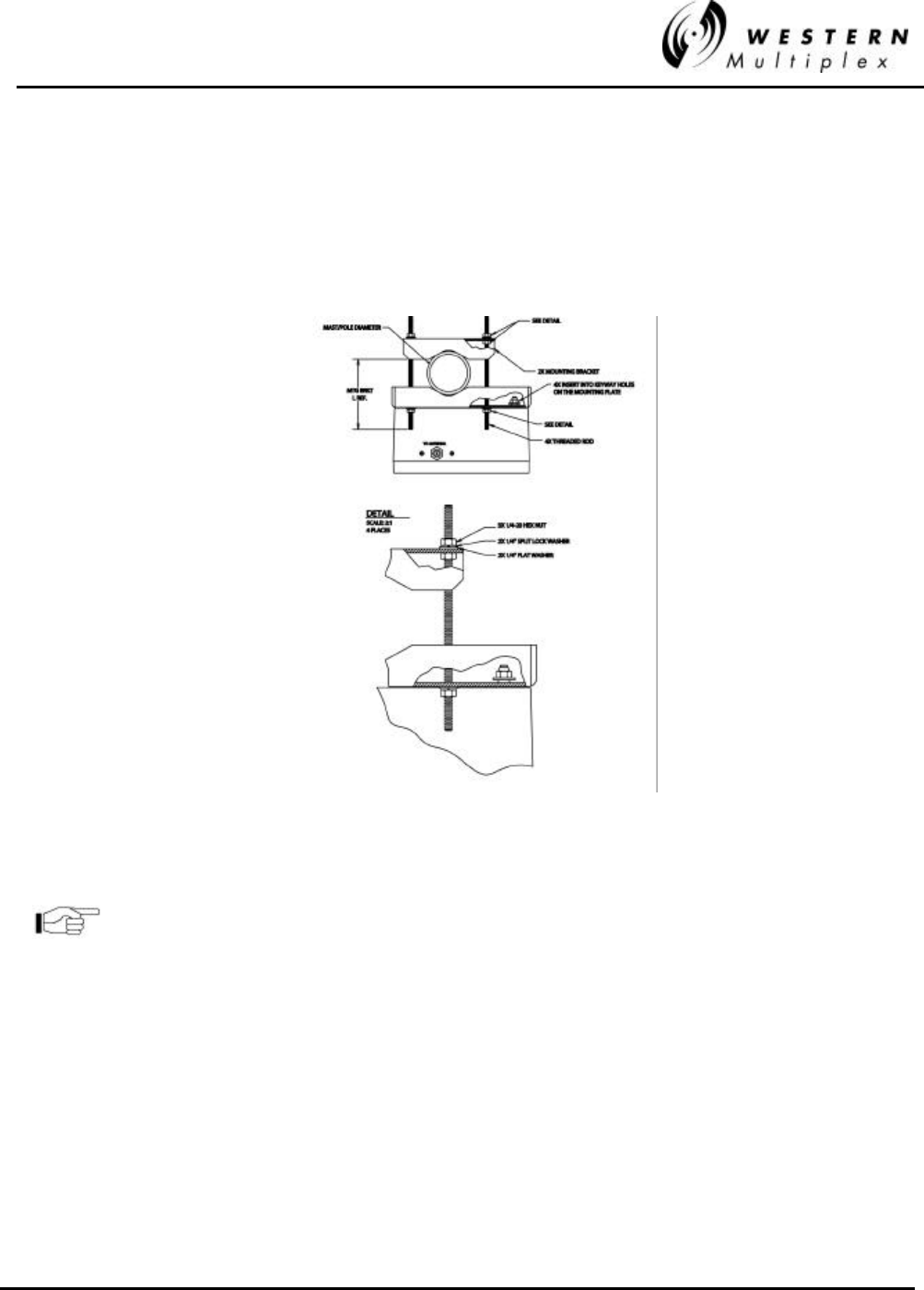

3.10.1 Mounting plate to pole mounting assembly:...........................................................................................3-23
3.10.2 Course Antenna Alignment.........................................................................................................................3-25
3.11 ANTENNA CONNECTION .......................................................................................................................................3-27
3.12 TRANSMISSION LINE CONNECTION......................................................................................................................3-28
3.13 ANTENNA INSTALLATION & ALIGNMENT ........................................................................................................3-29
3.14 ETHERNET INTERFACE CONNECTION.................................................................................................................3-32
3.15 SYSTEM TURN-UP TO SERVICE.............................................................................................................................3-33
3.16 OUTPUT POWER ADJUSTMENT ...........................................................................................................................3-38

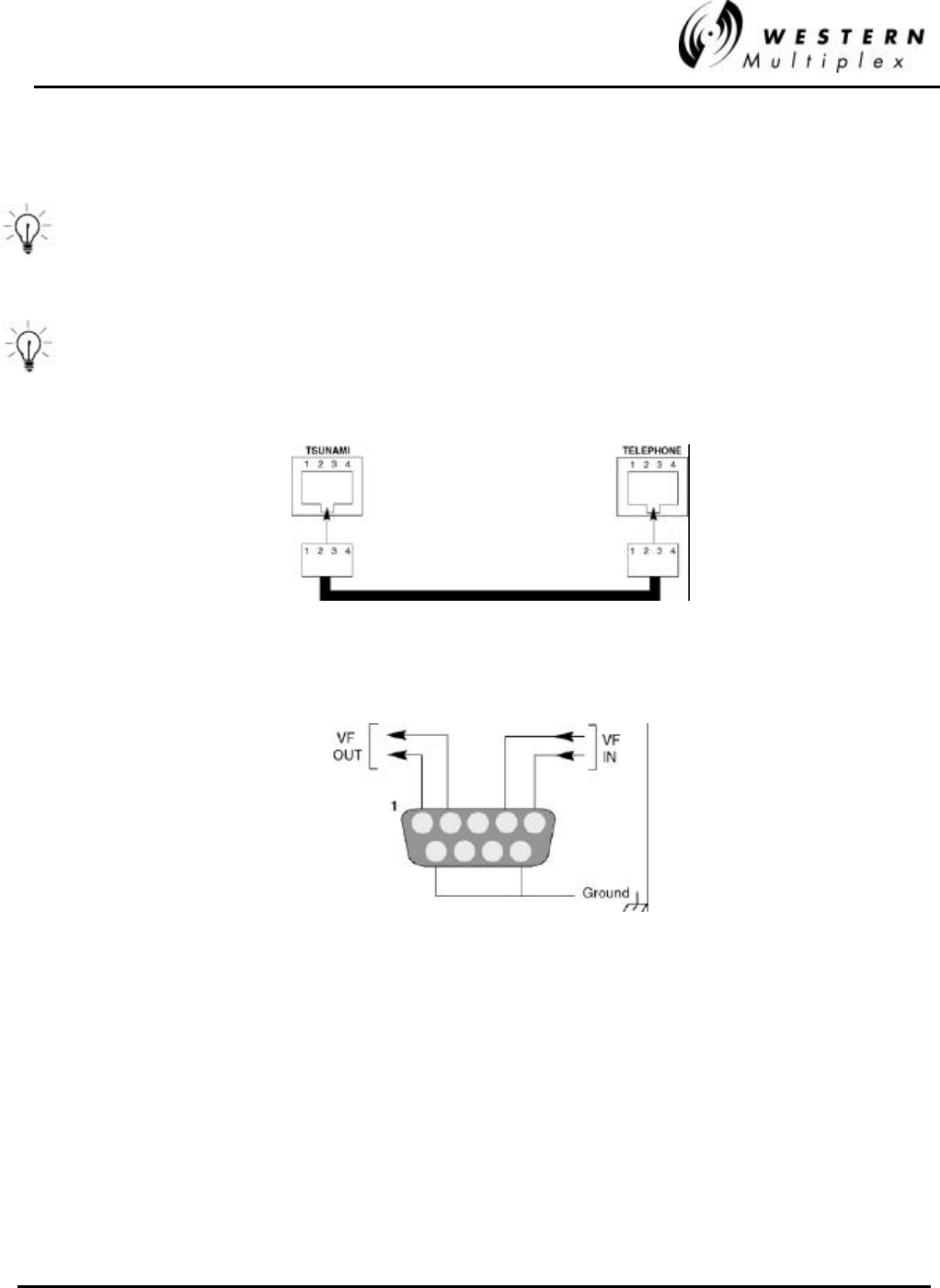

3.17.1 Orderwire Connection.................................................................................................................................3-40
3.17.2 Alarm Connections.......................................................................................................................................3-42
3.14.3 Configuration Port Operation ...................................................................................................................3-44
3.17.4 AUX DATA (Digital Service Channel) Connection ...............................................................................3-45
3.17.5 T1 (DSX-1) Interface Connection..............................................................................................................3-46
3.17.6 CEPT-1 (E1) InterfaceConnection............................................................................................................3-46
3.17.7 NMS Interface Connection..........................................................................................................................3-46
4. TROUBLESHOOTING....................................................................................................................................................4-1
4.1 REGULAR MAINTENANCE .......................................................................................................................................4-2
4.2 CHANGING FREQUENCY PLANS...............................................................................................................................4-3
4.3 USING A SPARE TERMINAL......................................................................................................................................4-4
4.4 TECHNICAL SUPPORT ..............................................................................................................................................4-5
4.5 REPAIR POLICY..........................................................................................................................................................4-6
4.6 FRONT PANEL STATUS LEDS..................................................................................................................................4-7
4.6.1 RF LINK Alarm................................................................................................................................................ 4-9
4.6.2 RADIO FAIL Alarm .......................................................................................................................................4-11
4.6.3 FAR END Alarm ............................................................................................................................................4-12
4.7 ERRORS IN THE DATA STREAM............................................................................................................................4-13
4.8 INTERFERENCE COUNTERMEASURES..................................................................................................................4-14
4.8.1 Use of a Spectrum Analyzer to Evaluate Potential Interference..........................................................4-16
4.9 BACK-TO-BACK TESTING.......................................................................................................................................4-17
4.10 LINK TESTING..........................................................................................................................................................4-19
4.11 NETWORK MANAGEMENT SYSTEM (NMS).......................................................................................................4-20
4.11.1 SNMP for the Tsunami 100Base-T 45 Mbps Radio ................................................................................4-20
4.11.2 Browser GUI...................................................................................................................................................4-33
4.11.3 In-band NMS Set-up.....................................................................................................................................4-33

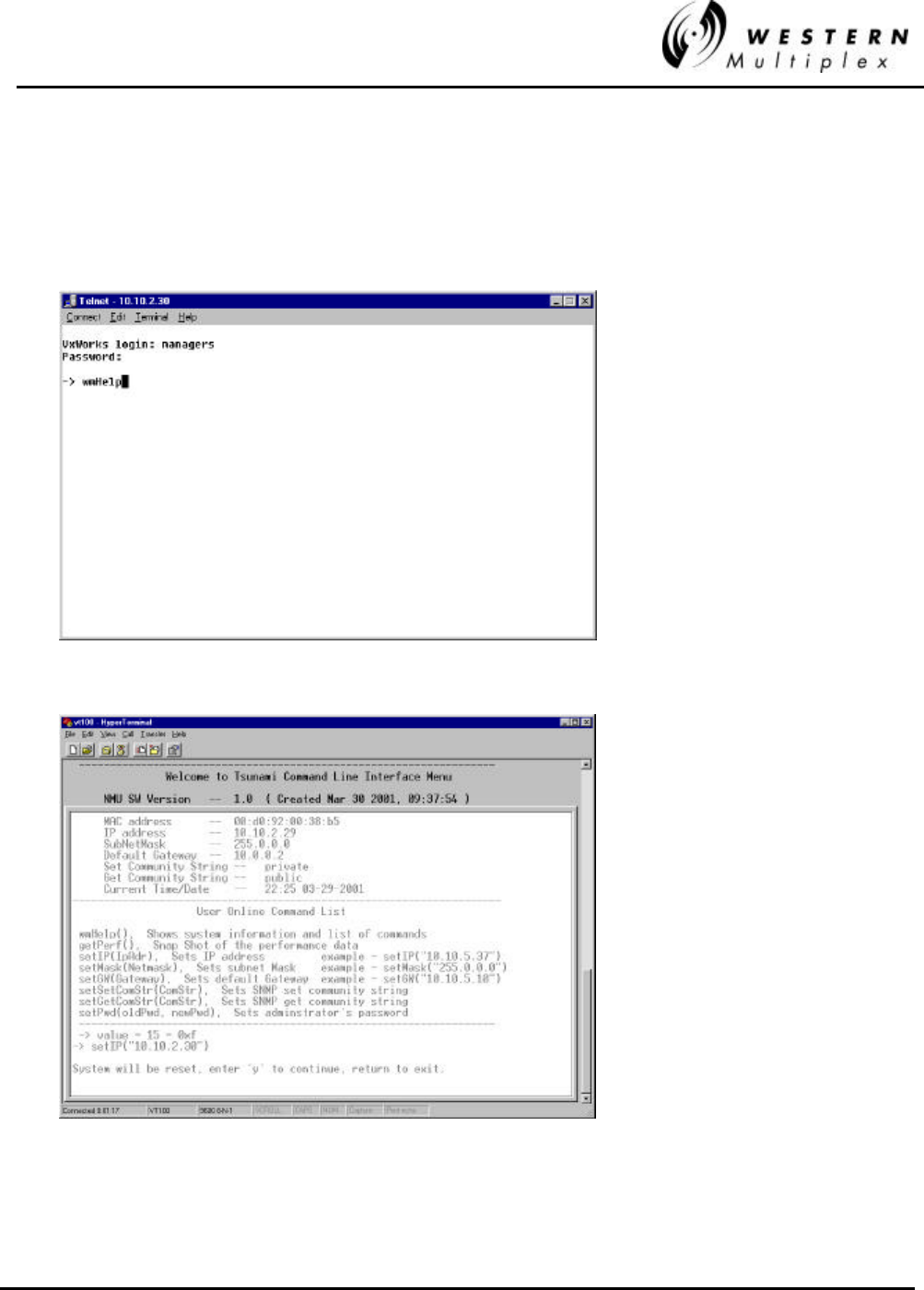

4.11.2 Tsunami Command Line Interface .............................................................................................................4-50
Alarm and Status Indicators (models with IDU and ODU) ....................................................................................4-55
4.11.4 Software Update Download Procedure....................................................................................................4-56
4.11.5 Serial Communication Mode......................................................................................................................4-57
5. APPENDICES....................................................................................................................................................................5-1
APPENDIX A - DIGITAL INTERFACE SPECIFICATIONS....................................................................................................5-1
1. General Characteristics ......................................................................................................................................... 5-1
2. Specifications........................................................................................................................................................... 5-1
APPENDIX B – 100BASET AND 10BASET CONNECTIONS................................................................................................5-2
APPENDIX C – NETWORKING Q&AS..................................................................................................................................5-3
APPENDIX D – AUXILIARY DATA CONNECTORS..........................................................................................................5-18
![](/img.php?id=232292&img=bgf.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
TOC & INTRODUCTION iii
APPENDIX E – INSTALLATION AND TROUBLESHOOTING GUIDE................................................................................5-20
Figures
FIGURE 1-1: PROPER EARTHING/GROUNDING........................................................................................................................1-4

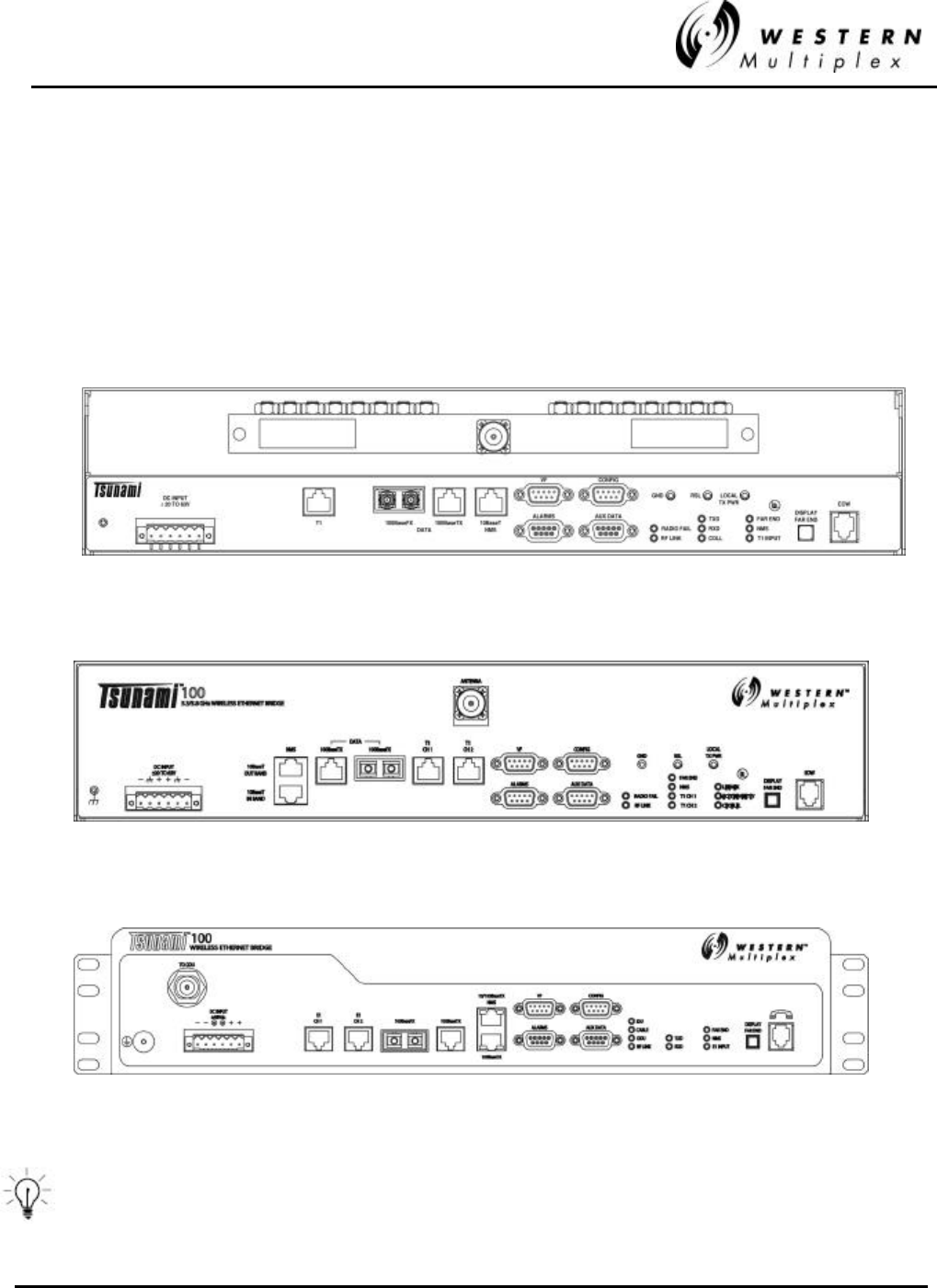

FIGURE 2-1: FRONT PANEL (45MBPS T1 MODELS)................................................................................................................2-9
FIGURE 2-2: FRONT PANEL (100MBPS MODEL 2XT1 & 45MBPS 1OR2 E1)........................................................................2-9
FIGURE 2-3: FRONT PANEL (100 MBPS WITH 2XE1)..............................................................................................................2-9

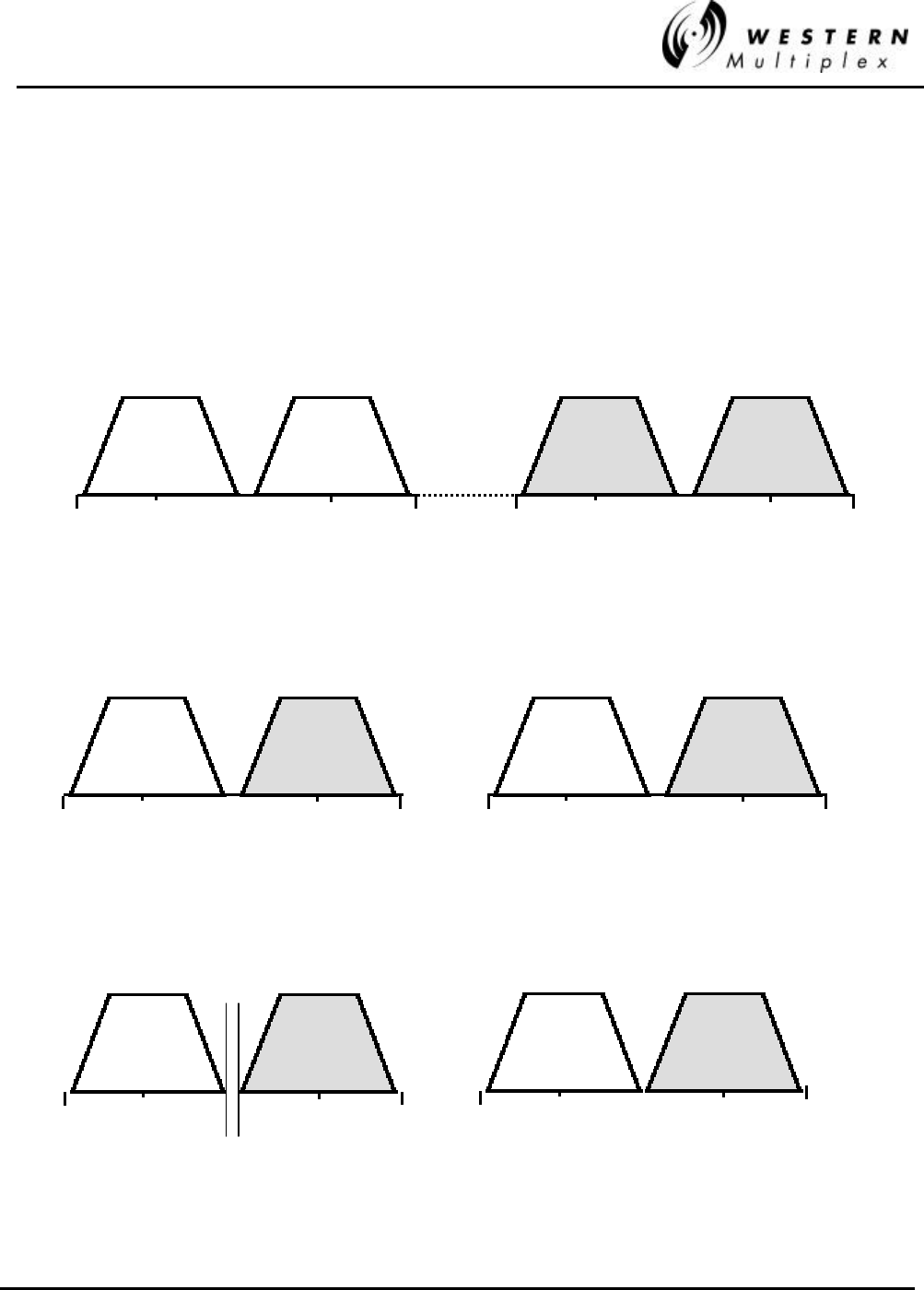

FIGURE 3-1: CHANNEL PLANS, DUAL-BAND (45 MBPS)......................................................................................................3-11
FIGURE 3-2: CHANNEL PLANS, SINGLE-BAND (45 MBPS)...................................................................................................3-11
FIGURE 3-3: CHANNEL PLANS, DUAL & SINGLE-BAND (100 MBPS).................................................................................3-11

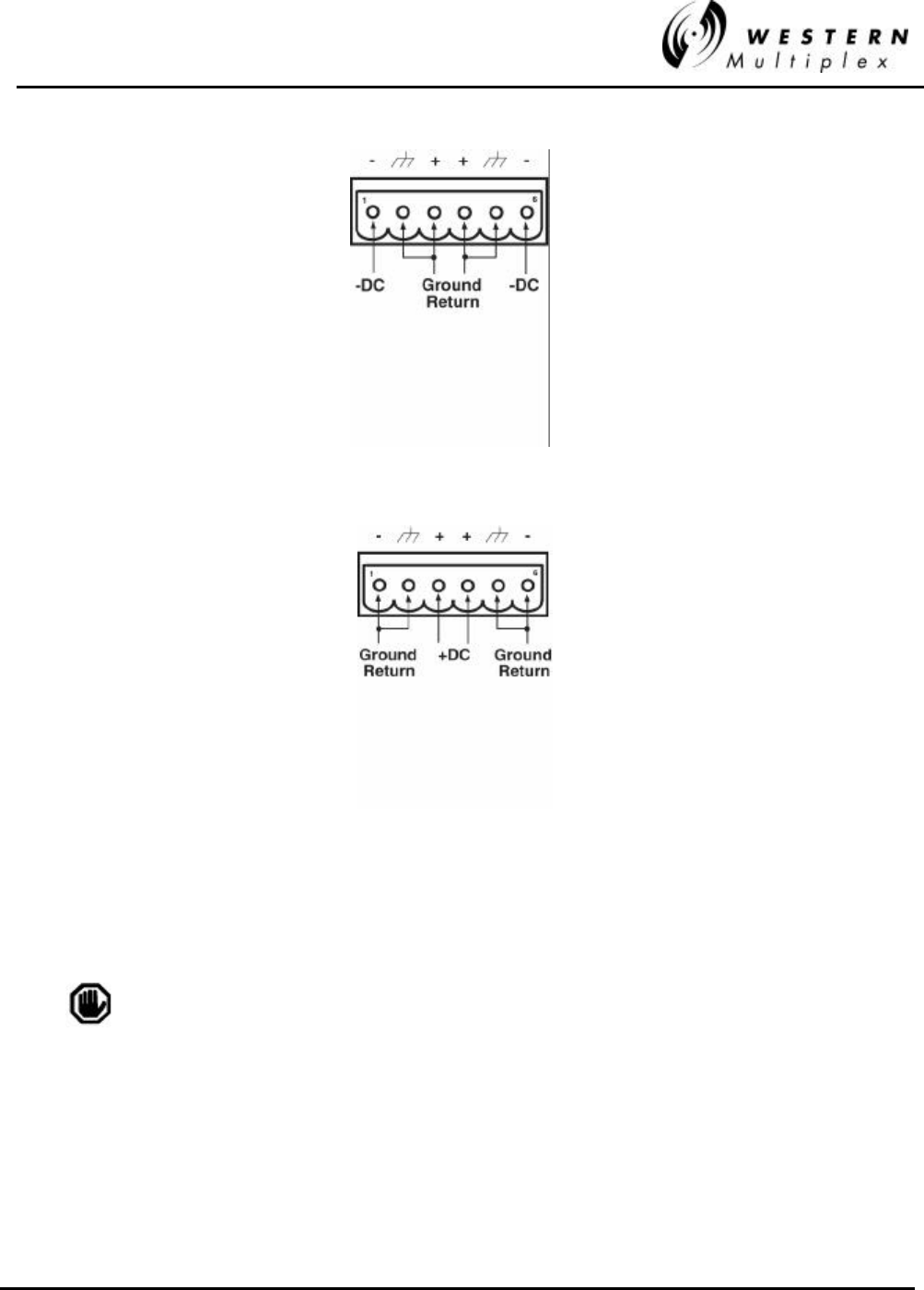

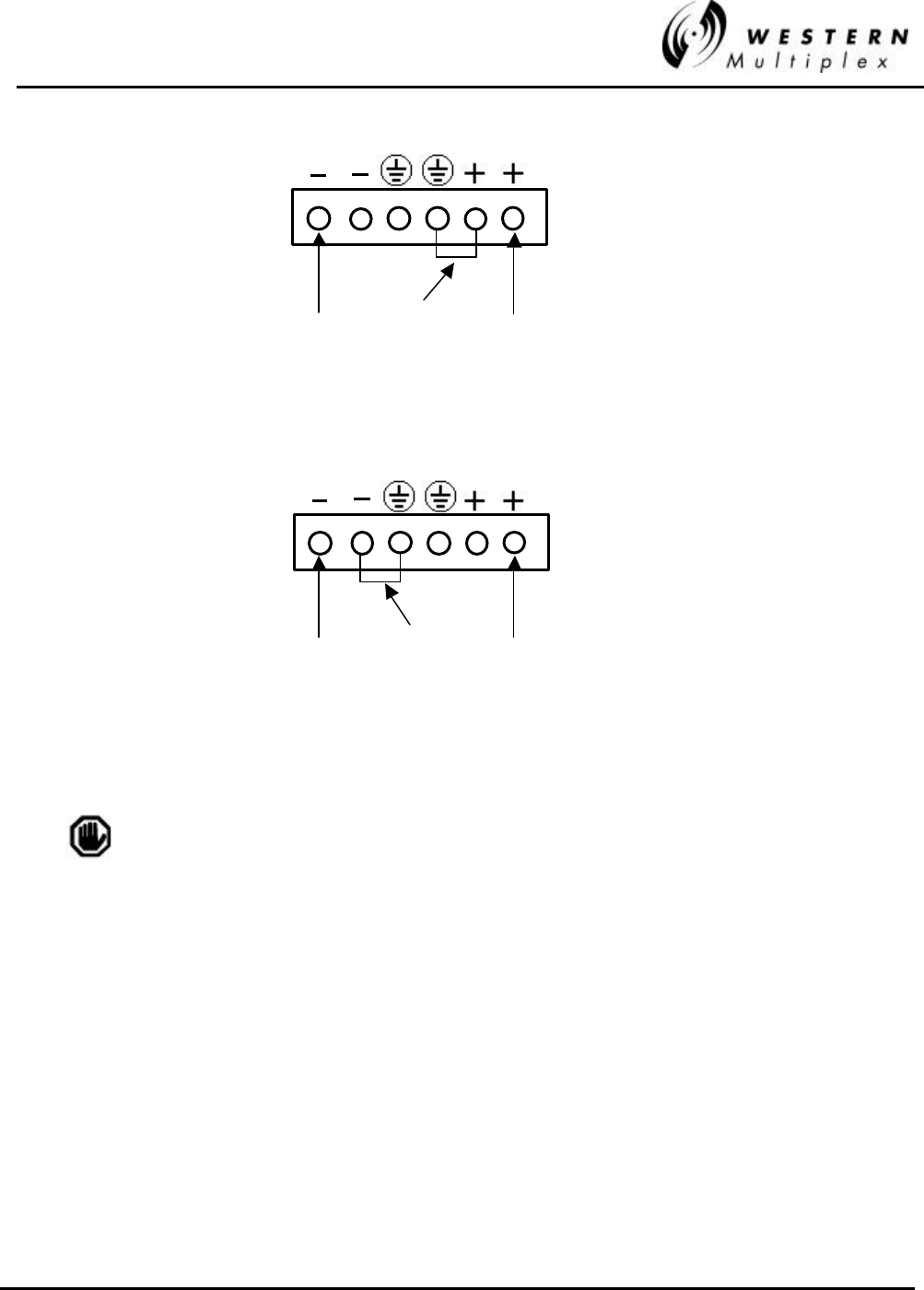

FIGURE 3-4: NEGATIVE VOLTAGE DC CONNECTION..........................................................................................................3-15
FIGURE 3-5: POSITIVE VOLTAGE DC CONNECTION ............................................................................................................3-15
FIGURE 3-6: AC CONNECTION (GENERIC RADIO – IDU) ....................................................................................................3-16

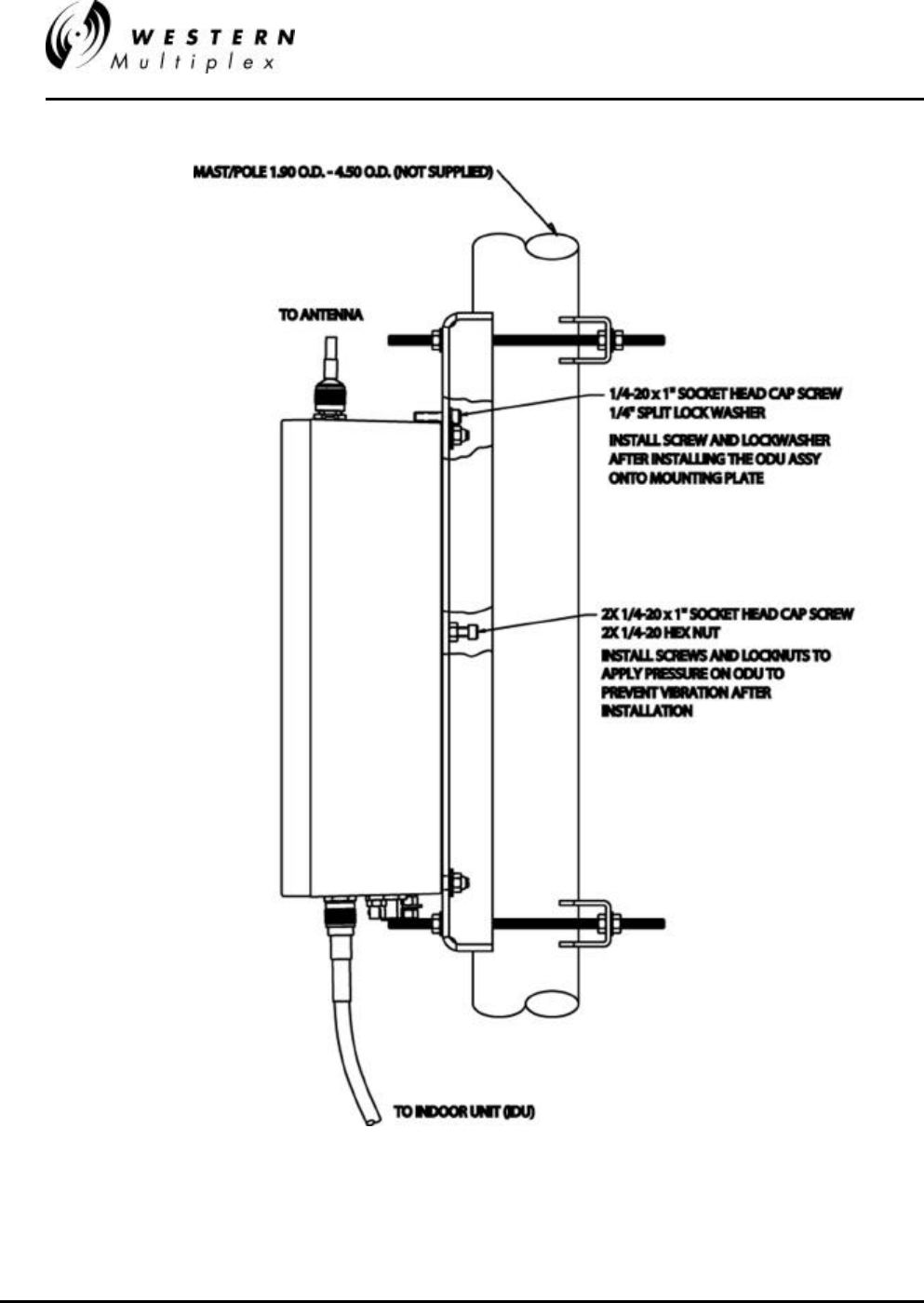

FIGURE 3-7: ODU MOUNTING DETAIL..................................................................................................................................3-17
FIGURE 3-8: ODU MOUNT – SIDE DETAIL...........................................................................................................................3-18
FIGURE 3-9: NEGATIVE VOLTAGE DC CONNECTION..........................................................................................................3-21
FIGURE 3-10: POSITIVE VOLTAGE DC CONNECTION ..........................................................................................................3-21
FIGURE 3-11: ODU MOUNTING DETAIL................................................................................................................................3-23
FIGURE 3-12: BRACKET ASSY. AND COAXIAL CONNECTIONS...........................................................................................3-24

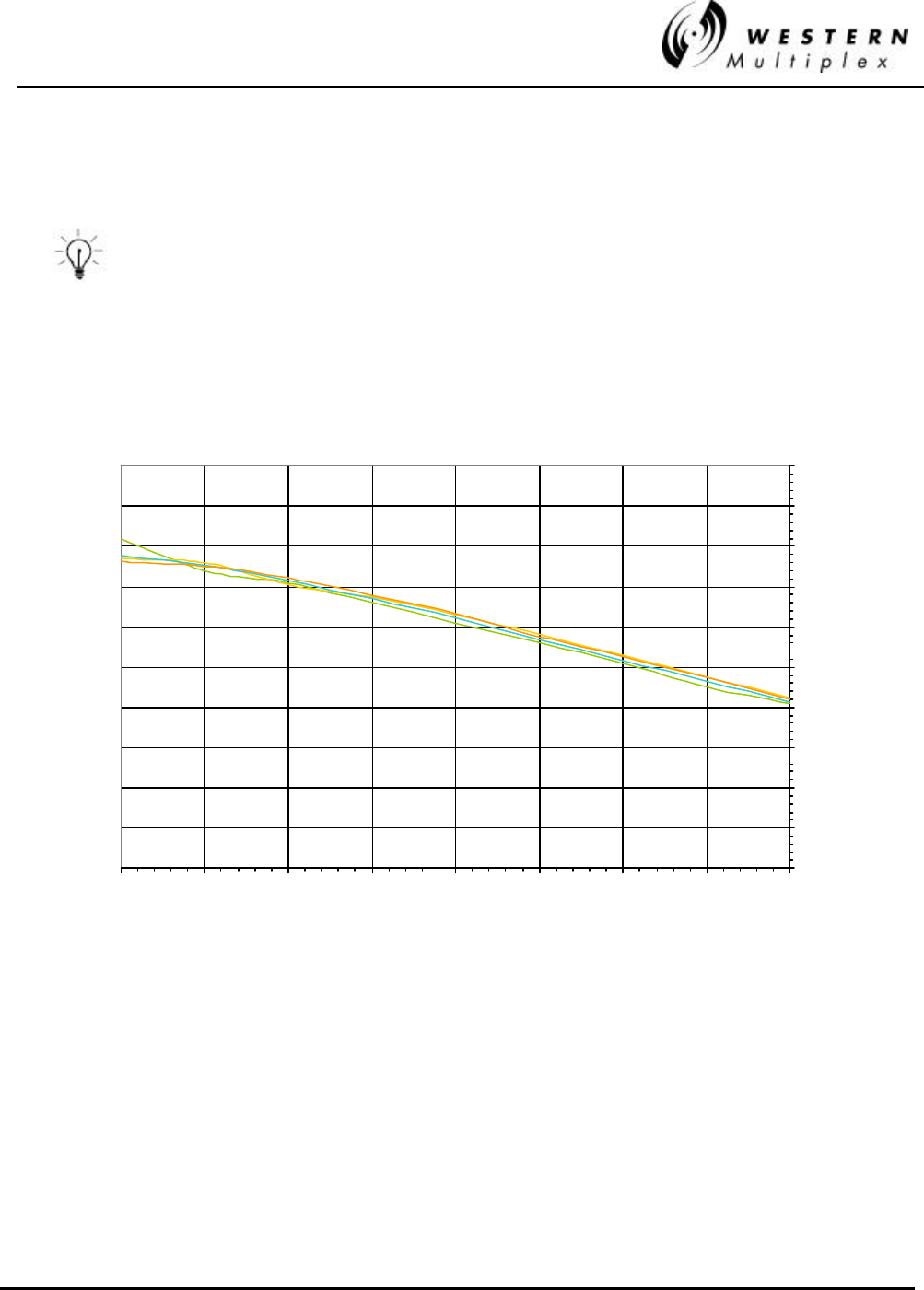

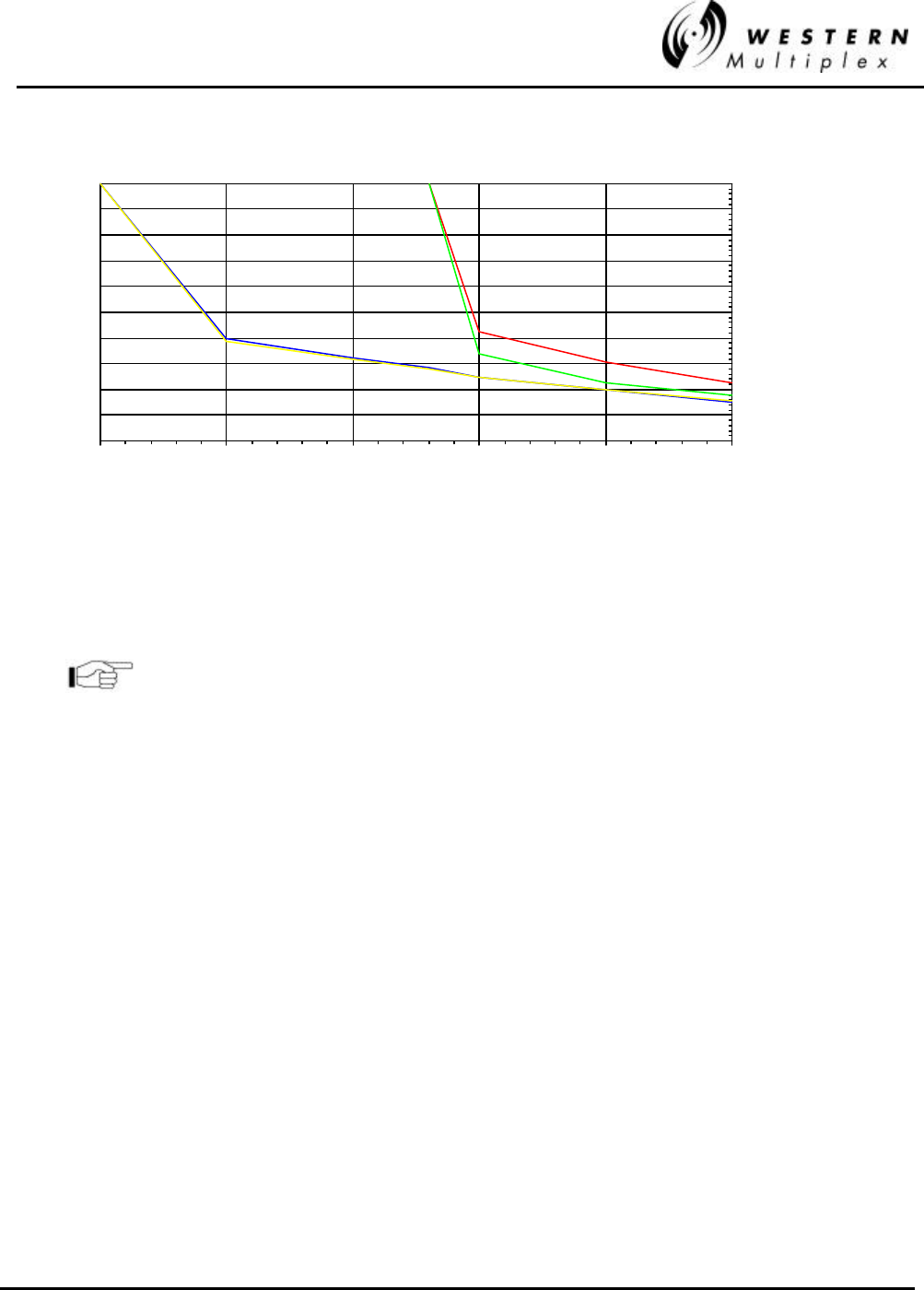

FIGURE 3-13: TYPICAL RSL VOLTAGE VERSUS RECEIVED SIGNAL LEVEL (RSL) - MODEL 28010...............................3-26
FIGURE 3-14: TYPICAL ODU RSL VOLTAGE VERSUS RECEIVED SIGNAL LEVEL (ALL EXCEPT 28010) ......................3-31
FIGURE 3-15: TYPICAL RF OUTPUT POWER VERSUS PWR VOLTAGE (ALL MODELS EXCEPT 28010).......................3-35
FIGURE 3-16: ORDERWIRE & VF PORT CONNECTION.........................................................................................................3-41
FIGURE 3-17: PIN CONNECTIONS, ALARM INTERFACE .....................................................................................................3-42
FIGURE 3-18: RS-232 CONFIG PORT CONNECTIONS.............................................................................................................3-44
FIGURE 4-1: BACK-TO-BACK TEST CONFIGURATION .........................................................................................................4-18
FIGURE 4-2: END-TO-END TEST CONFIGURATION...............................................................................................................4-19
FIGURE B-1: FAST ETHERNET & ETHERNET NMS CONNECTORS......................................................................................5-2
FIGURE D-1: VF PORT CONNECTION .....................................................................................................................................5-18
FIGURE D-2: ALARM PORT CONNECTIONS...........................................................................................................................5-18

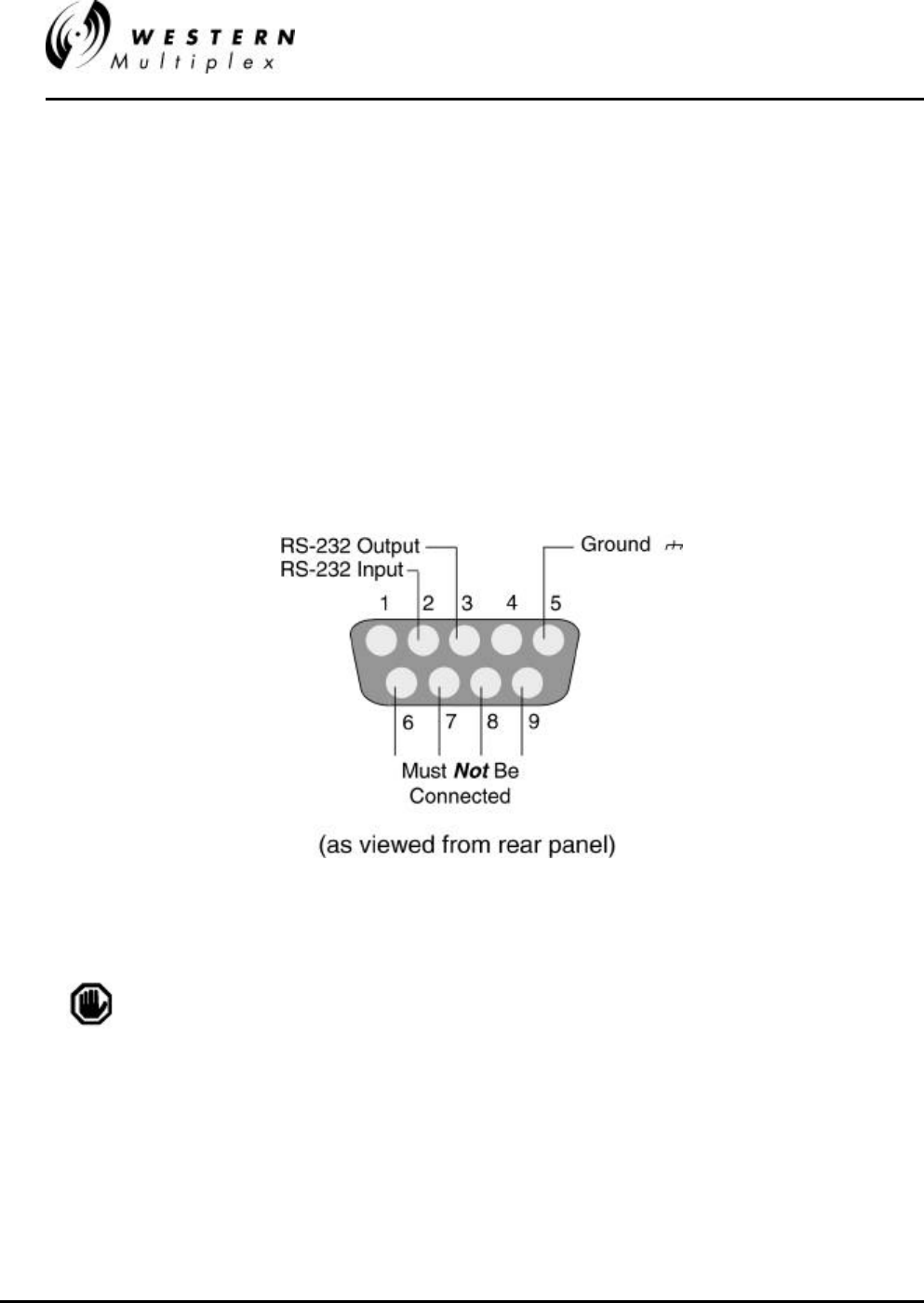

FIGURE D-3: CONFIG(URATION) PORT 9-PIN D-STYLE CONNECTOR ..............................................................................5-18
FIGURE D-4: AUX DATA PORT 9-PIN D-STYLE CONNECTOR.........................................................................................5-19
Tables
TABLE 3-A: DC POWER CONNECTION FOR NEGATIVE SUPPLY ......................................................................................3-13
TABLE 3-B: DC POWER CONNECTION FOR POSITIVE SUPPLY .........................................................................................3-13
TABLE 3-C: DC POWER CONNECTION FOR NEGATIVE SUPPLY.......................................................................................3-19
TABLE 3-D: DC POWER CONNECTION FOR POSITIVE SUPPLY.........................................................................................3-19
TABLE 3-E: ALARM INTERFACE CONNECTIONS..................................................................................................................3-43
![](/img.php?id=232292&img=bg10.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
iv TOC & INTRODUCTION
TABLE 4-A: FRONT PANEL LEDS (MODELS W/O ODUS)......................................................................................................4-7
TABLE 4-B: FRONT PANEL LEDS (MODELS W/ ODUS).........................................................................................................4-8
TABLE A-1: INTERCONNECTION SPECIFICATION.................................................................................................................5-1
![](/img.php?id=232292&img=bg11.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 1: HOW TO USE THIS MANUAL PAGE 1-1
1. How to Use This Manual
1.1 Manual Organization
The Installation and Maintenance Manual provides information required to install and maintain
Tsunami and to use its many features to the fullest advantage. This manual is divided into the
following sections:
Section 1 Provides instructions on how to most effectively utilize the information in
this manual.
Section 2 Provides a brief description and specifications of the Tsunami.
Section 3 Explains the Tsunami installation and adjustments in detail.
Section 4 Provides maintenance, repair and troubleshooting information for the
Tsunami Fast Ethernet radios.
Appendices Charts and diagrams are provided for radio connections and DIP switch
settings along with other general information.
This device must be professionally installed. Instructions on
setting the transmitter RF output power are contained in Section
3 of this Manual.
This device is to be used exclusively for fixed point-to-point
operation that employs directional antennas.
![](/img.php?id=232292&img=bg12.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 1-2 SECTION 1: HOW TO USE THIS MANUAL
1.2 Icons
Throughout this manual, the following icons are used to highlight areas of special interest and
importance.
Note Practical Tip Caution
![](/img.php?id=232292&img=bg13.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 1: HOW TO USE THIS MANUAL PAGE 1-3
1.3 IMPORTANT SAFETY INSTRUCTIONS
This product is intended to be installed, used and maintained by experienced telecommunications
personnel only.
This product has been evaluated to the U.S. and Canadian (Bi-National) Standard for Safety of
Information Technology Equipment, Including Electrical Business Equipment, CAN/CSA C22.2,
No. 950-95 * UL 1950, Third Edition, including revisions through revision date March 1, 1998, which
are based on the Fourth Amendment to IEC 950, Second Edition. In addition, this product was also
evaluated to the applicable requirements in UL 1950, Annex NAE.
WARNING - This unit is intended for installation in a Restricted Access location in accordance with
Articles 110-18, 110- 26, and 110-27 of the United States National Electric Code ANSI/NFPA 70.
This equipment should be installed in accordance with Article 810 of the United States National
Electrical Code.
When installed, this equipment is intended to be connected to a Lightning/Surge Protection Device
that meets all applicable national Safety requirements. TO AVOID INJURY, RISK OF FIRE, AND
DAMAGE, DO NOT CONNECT THIS PRODUCT DIRECTLY TO AN ANTENNA, AND ENSURE
THAT PROPER LIGHTNING ISOLATION IS ALSO PROVIDED BETWEEN THIS UNIT AND OTHER
EQUIPMENT.
Equipment is to be used and powered by the type of power source indicated on the marking label
only.
This product is intended to be connected to a + 24 VDC OR + 48 VDC power source which must be
electrically isolated from any ac sources and reliably earthed. Only a DC power source that
complies with the Safety Extra Low Voltage (SELV) requirements in the Standard for the Safety of
Information Technology Equipment, Including Electrical Business Equipment, CAN/CSA C22.2,
No. 950-95 * UL 1950, Third Edition, can be used with this product. A 15-Amp circuit breaker is
required at the power source. In addition, an easily accessible disconnect device should be
incorporated into the facility wiring. Always use copper conductors only for all power connections.
WARNING - This equipment is intended to be earthed. If you are not using the power supply
provided by Western Multiplex, you will need to connect the earthing conductor of your power
source to the earthing terminal located on the back of the unit; or, connect an earthing conductor
between the unit’s earthing terminal and your earthing point. See Ill. for instructions. For safe
operation, always ensure that the unit is earthed properly as described in this manual and per
Figure 1-1.
Do not connect or disconnect the power cable to the equipment when the other end of the cable is
connected to the dc power supply.
![](/img.php?id=232292&img=bg14.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 1-4 SECTION 1: HOW TO USE THIS MANUAL

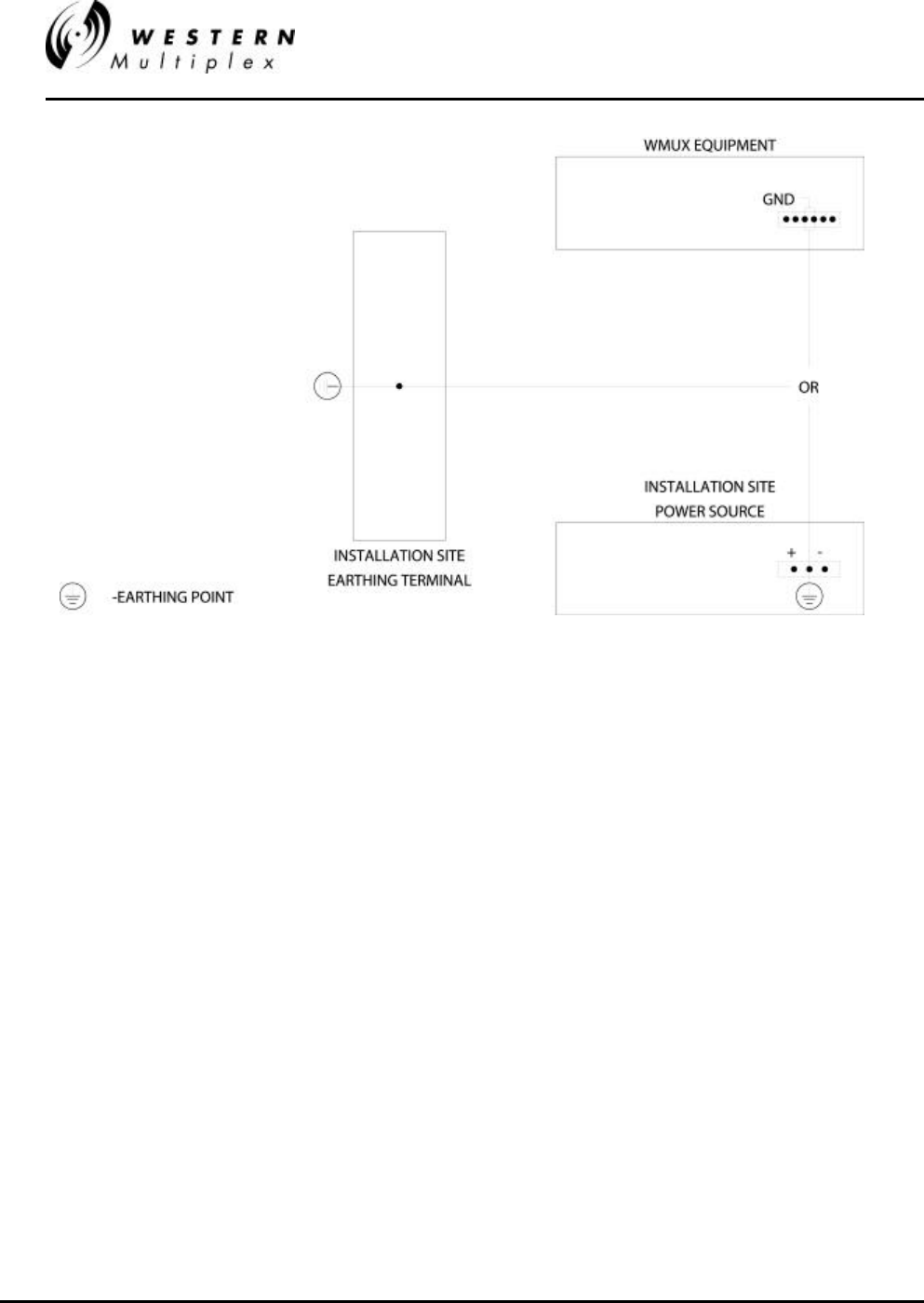

Figure 1-1: Proper Earthing/Grounding
Servicing of this product should be performed by trained personnel only. Do not disassemble this
product. By opening or removing any covers you may expose yourself to hazardous energy parts.
Incorrect re-assembly of this product can cause a malfunction, and/or electrical shock when the unit
is subsequently used.
Do not insert any objects of any shape or size inside this product while powered. Objects may
contact hazardous energy parts that could result in a risk of fire or personal injury.
Do not spill any liquids of any kind on or inside this product.
Side openings are provided for ventilation. To protect this product from overheating, do not cover or
block any of the openings.
Always ensure that sufficient amount of space is provided above and below this product.
This product can be installed in a standard 19 inch rack. Check the size and clearance
requirements for this product and ensure that enough clearance is provided for installation.
Considerations should be given to the mechanical loading of the rack and the equipment to avoid
potential hazards.
If this product is to be powered from the same source as other units, ensure that the power supply
circuit does not get overloaded.
![](/img.php?id=232292&img=bg15.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 1: HOW TO USE THIS MANUAL PAGE 1-5
When installed in a rack, always ensure that proper air flow is provided for this product.
The maximum room ambient temperature (Tmra) for this product is 65°C. When installed in a closed
or multi-unit rack, consideration should be given to installing this equipment in an environment
compatible with the Tmra.
Equipment is suitable for mounting on concrete or other noncombustible surface only.
If you are using a handset not provided by Western Multiplex with this product, ensure that the
handset is a UL-Listed (ITE) device, that has been evaluated to the Standard for the Safety of
Information Technology Equipment, Including Electrical Business Equipment, CAN/CSA C22.2,
No. 950-95 * UL 1950, Third Edition.
![](/img.php?id=232292&img=bg17.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-1
2. Product Description
2.1 General Description
The Tsunami license-free radios provide a new level of control and convenience in a digital
communications network.
These Tsunami radios provide 100BaseT intelligent bridging between two locations without the delay and
expense of installing cable or traditional microwave.
Because each owner controls the operation of the link, there is no reliance on any outside services.
Tsunami radio operators are able to operate instant links whenever needed, and to be in control of their
own network.
The Tsunami offers two primary benefits:
v CONVENIENCE Easy to install and operate with no user license
requirements or frequency coordination in the USA. (Other
countries may require a user license and/or frequency
coordination).
v CAPABILITY Full transparent Fast Ethernet connections with no
throughput reduction over any line-of-sight distance (within
legal limits of government regulation)
Tsunami radios are ISO Layer 2 Data Link Layer (use MAC address for filtering) devices where they
provide their full stated throughput. At level 2 (bridges) or 3/4 (routers) where hardware plays the major
part, the most common tester is the SmartBits 200 product from NetCom Systems. At Application Layer
7, you will see less than 40% throughput from the maximum capacity measured with SmartBits due to the
increased protocol/software overhead at that level. Layer 7 can be tested with software such as
Ganymede's Chariot or Qcheck product (www.qcheck.net/index.html). Use Qcheck (or equivalent), do
NOT use PING for throughput testing (www.qcheck.net/whyqcheck.html)!
As an example: testing copper CAT5 cable with SmartBits will test 100% throughput (let's say you can
send/rcv a full 100Mbps). At Layer 7 you will be transferring bits at the 100Mbps rate, but approximately
only 45Mbps of user data will transfer (Ethernet has a high overhead of bytes added to each data packet
frame each time you go up a layer). The advantage is the more complex overhead makes the data virtually
resilient to corruption and minor errors (i.e. collisions), it’s easy to reroute and the network can use
inexpensive plug/play devices like hubs/switches instead of multiplexers as used in the telco industry (i.e.
LYNX T1/E1/DS3 radios).
Western Multiplex tests for stated throughput at Layer 2/3 where bridges are defined. At layer 7
(application layer), you may see less than 50% or more depending on the other traffic that may be on the
LAN as this layer is more dependent on the type of data being sent (it does not matter if it's wire, fiber or
any Ethernet bridge -wired or wireless). Another way to look at it: the model 31145 12Mbps (10Mbps
10BaseT+T1/E1 wayside) bridge will test the same as a piece of CAT5 Ethernet cable.
![](/img.php?id=232292&img=bg18.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-2 SECTION 2: PRODUCT DESCRIPTION
2.2 Specifications
All specifications are subject to change without notice.
2.2.1 Transmitter
45 Mbps Models 100 Mbps Model
Frequency Dual-Band Single-Band Single-band Dual-Band
A1 5284 MHz 5750 MHz 5275 5300 MHz
A2 5759 MHz 5800 MHz 5325 5775 MHz
B1 5316 MHz N/A N/A N/A
B2 5791 MHz N/A N/A N/A
Model # 27700 27710 27750 27720
Output Power +10/+17 dBm +17 dBm +10 dBm +10/+17 dBm
(Note: output power is specified as guaranteed minimum before attenuation)
Control Range 16 dB min. 16 dB min. 16 dB min. 16 dB min.
100 Mbps Model
Frequency Single-Band
A1 5747 MHz
A2 5803 MHz
Model # 28010
Output Power +16 dBm
(Note: output power is specified as guaranteed minimum before attenuation)
Control Range 20 dB min.
DO NOT exceed the transmit power setting as set at the factory! Exceeding
the factory-set power level will degrade the specifications of the radio and may
also violate regulatory compliance. Output power may be attenuated from
factory setting to comply with regulatory EIRP limits.
![](/img.php?id=232292&img=bg19.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-3
2.2.2 Antenna / Antenna Coupling Unit
Mechanics External antenna
Antenna Connection N-type female
Impedance 50 ohms
Recommended 2 foot flat panel or
Antenna (ordered separately) 2, 4 or 6 foot parabolic
Gain & Beamwidth (3 dB)
2 ft Flat 28 dB / 4.6°
2 ft Parabolic 28.5 dB / 6°
4 ft Parabolic 35 dB / 3°
6 ft Parabolic 38 dB / 2.9°
2.2.3 Receiver
All Models
Nominal Receive Level -30 to -60 dBm
Maximum Receive Level -10 dBm error free, 0 dBm no damage (all other models)
-30 dBm error free, -20 dBm no damage (model 28010)
Frequency Selection Craft port selection with installer-removable 7-cavity RF
filter assembly
(No selection on Model 28010)
Threshold Rx Level (typ.) -79 dBm (Models 27700, 27710 & 27750)
(BER = 10-6) -76 dBm (Model 27720)
-73 dBm (Model 28010)
Bandwidths ~42 MHz (Models 27700, 27710 & 27750)
~97 MHz (Model 27720)
~27 MHz (Model 28010)
Frequency Range
Dual-band low channel 5250-5350 MHz
Dual-band high channel 5725-5825 MHz
Single-band channel (high-band) 5725-5825 MHz (5.8 GHz – model 27710 & 28010)
Single-band channel (low-band) 5250-5350 MHz (5.3 GHz – model 27750)
![](/img.php?id=232292&img=bg1a.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-4 SECTION 2: PRODUCT DESCRIPTION
2.2.4 System (Single Hop Performance)
Error Floor 10-11
Transmission delay
(radio only) 250 µsec, maximum
(10 mile path) 300 µsec, maximum
Transmit Frequencies
---------------- 45 Mbps Models ------------------ -------100 Mbps Models------
Dual-band Single-band Single-band Dual-band Single-band
A1 channel 5284 MHz 5750MHz 5275MHz 5300 MHz 5747 MHz
A2 channel 5759 MHz 5800 MHz 5325MHz 5775 MHz 5803 MHz
B1 channel 5316 MHz N/A N/A N/A N/A
B2 channel 5791 MHz N/A N/A N/A N/A
Receive Frequencies
Dual-band Single-band Single-band Dual-band Single-band
A1 channel 5759 MHz 5800 MHz 5325MHz 5775 MHz 5803 MHz
A2 channel 5284 MHz 5750 MHz 5275MHz 5300 MHz 5747 MHz
B1 channel 5791 MHz N/A N/A N/A N/A
B2 channel 5316 MHz N/A N/A N/A N/A
![](/img.php?id=232292&img=bg1b.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-5
2.2.5 Line Interfaces
Fast Ethernet Port:
Data Interface 100BaseT (fully compatible with IEEE 802.3u)
VPN (IEEE 802.1q) 45 Mbps Models 27700-51 & 27710-51 transfer jumbo frames
over 8500 bytes in size – for 27710-52, see below
Other models force the sending device to break up jumbo frames into legal
Ethernet frames that do not exceed the 1538 byte limit for Ethernet 802.3
(Models 27720, 27710-52 and 28010)
In all cases, 802.1q frames are passed through the bridge (IEEE 802.1d)
Connectors RJ-45/48c (wire) Pins:1=Tx+, 2=Tx-, 3=Rx+ & 6=Rx-
SC (fiber) 1300nm multimode to 2000m, either 50/125 or 62.5/125 fiber
Configuration Half duplex or full duplex on the WAN interface
On the 100Mbps Models 27720 and 28010, both the T and F ports can be
used at the same time if desired.
Filtering 15,000 packets per second theoretical, before forwarding
Buffer 4000 packets (200 kbytes)
LAN Table 1,024 MAC addresses
Self-learning Automatic learning and aging
Digital Capacity ~45 Mbps full or half duplex (90 Mbps total + T1s or E1s)
(ISO Layer 2) ~100 Mbps full or half duplex (200 Mbps total + T1s or E1s)
DS-1 (T1) Port: (on models with –51 suffix, some models may have more than one channel)
Data Rate 1.544 Mbps
Digital Interface * DSX-1
Connector 8-pin modular jack female (RJ-48C) Pins:1=TT, 2=TR, 4=RT & 5=RR
Line Code AMI / B8ZS (NMS selectable) – one choice for all T1s
Line Build Out 0-660 feet (NMS selectable)
Blue Code ** Alarm Indication Signal (AIS)
Loopback Near or far end (NMS selectable)
* Meets AT&T Pub 62411, Bellcore TR-TSY-000499.
** Signal is selectable (on/off) and is generated only on data loss or link failure when enabled.
![](/img.php?id=232292&img=bg1c.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-6 SECTION 2: PRODUCT DESCRIPTION
CEPT (E1) Port: (on models with –52 suffix, some models may have more than one channel)
Data Rate 2.048 Mbps
Digital Interface * CEPT-1
Connector RJ45/8 balanced, 120 ohm Pins:1=TT, 2=TR, 4=RT & 5=RR
(optional external 75 ohm, unbalanced balun available – consult factory)
Line Code HDB3
Blue Code ** Alarm Indication Signal (AIS)
Remote Loopback Available through software control
* Meets ITU-T G.703.
** Signal is selectable (on/off) and is generated only on data loss or link failure when selected.
2.2.6 Auxiliary Connections
Orderwire Interface 2-wire, 4-pin modular jack, female (RJ-11)
REN (Ringer Equivalency Number) 1.0 B
DTMF tones within ±1.5% of nominal freq. (+0-6 dB)
Ringing Voltage 48 VDC, typical
(use telephones with solid state ringers, NOT adequate for older style mechanical ringers)
VF Orderwire Bridge 600 ohm balanced, 4-wire, 0 dBm, DB-9, male
Config(uration) Port RS-232, DB-9, male
Aux Data (clear service channel) RS-232, ≤9600 baud, DB-9, female
Alarm 2 x Form C, DB-9, female
Test Points Output Power
Near-end and far-end received signal level (RSL)
10 (or 10/100)BaseT NMS Ethernet Port:
In/out of band 45Mbps models: the NMS port is out of band from the data port
100Mbps model: user choice of in or out of band with the data port
Note: if jumper for in-band is used, multicasting will appear in NMS channel
Data Interface 10BaseT (Model 28010 offers a 10/100BaseT port)
Connectors RJ-45/48c (wire)
Configuration Half duplex (10BaseT), Full Duplex (100BaseT)
![](/img.php?id=232292&img=bg1d.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-7
2.2.7 Temperature and Environment
Operating Temperature Range -10 to +50°C (IDU component)
-30 to +60°C (ODU component on Model 28010)
Humidity 95% non-condensing (IDU)
100%, all-weather (ODU on Model 28010)
Altitude 4,500 meters, maximum
2.2.8 Power
DC Input Voltage ±24 or ±48 VDC (Models with IDU only) ±10%
±48 VDC (Models with ODU) ±10%
Power Consumption < 55 watts (Models with IDU only)
< 100 watts (Models with IDU and ODU)
AC Adapter (optional) 100-250 VAC, 50-60 Hz
Connector Barrier strip, plug-in type
2.2.9 Regulatory Information
Dual-band Single-band (5.8) Single-band (5.3) Dual-band
FCC Identifier HZB-U5358-45 HZB-U58-45 HZB-U53-45 HZB-U5358-100
FCC Rule Parts 15.407 (UNII) 15.407 (UNII) 15.407 (UNII) 15.407 (UNII)
Industry Canada ID 5221021766A 5221021581A 2028104200A 20281032175A
IC Rule Parts RSS 210 (LE-LAN) RSS-210 (LE-LAN) RSS-210 (LE-LAN) RS-210 (LE-LAN)
Single-band
FCC Identifier HZB-U58-100
FCC Rule Parts 15.407 (UNII)
Industry Canada ID
IC Rule Parts RSS 210 (LE-LAN)
![](/img.php?id=232292&img=bg1e.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-8 SECTION 2: PRODUCT DESCRIPTION
2.2.10 Mechanical
Models 27700, 27710, 27720, 27750 and 28010’s IDU)
Width (for 19-inch EIA 437 mm (17.2") rack mounting brackets supplied
rack mounting)
Height 89 mm (3.5") (2RU)
Depth 368 mm (14.5")
Weight 5 kg. (11 lbs.)
Model 28010’s ODU
Width 229 mm (9”)
Height 330 mm (13")
Depth 127 mm (5")
Weight 6.8 kg. (15 lbs.)
![](/img.php?id=232292&img=bg1f.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-9
2.3 Front Panel Description
2.3.1 General
The Tsunami radio front panel (no user access on rear panel), as shown in Figure 2-1, has LED indicators,
test points, controls and connections that are used for installation, maintenance, operation and
troubleshooting. Prior to installation, it is best to be familiar with the front panel of your particular model.
Sections 2.3.2 through 2.3.5 briefly describe the front panel access and indicators.
Figure 2-1: Front Panel (45Mbps T1 Models)
Figure 2-2: Front Panel (100Mbps Model 2xT1 & 45Mbps 1or2 E1)
Figure 2-3: Front Panel (100 Mbps with 2xE1)
NMS Note: For out-of-band use, connect the NMS LAN to the OUT BAND
10BaseT connector.
For in-band use, connect a short crossed CAT5 cable between the OUT BAND
![](/img.php?id=232292&img=bg20.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-10 SECTION 2: PRODUCT DESCRIPTION
connector and IN BAND connector. The IP address for the NMS port will now be
available through the radios DATA ports. This must be done on both ends of the
bridge link. Note: Multicasting with in-band connection may cause collisions in
the data stream.
2.3.2 Test Points / Power Indicator
ON This is an LED indication. When lit GREEN, Tsunami is powered.
The Tsunami radio products do not have an on/off switch.
GND This is a test point referenced to chassis ground. This is used in conjunction with the
next two test points to measure voltages related to radio performance.
Note: The ground lug on the Model 28010 ODU must be properly connected to earth
ground.
RSL This is a test point that relates to the Received Signal Level (RSL). The voltage is
measured with a voltmeter (using the GND test point for reference) which corresponds
to the actual power level of the incoming received signal. While the DISPLAY FAR
END button is pressed, this RSL voltage corresponds to the RSL of the far-end radio.
These measurements are used during installation, maintenance and troubleshooting.
Refer to Figure 3-6 in Section 3-20.
RSL is located on the Model 28010 ODU with a weather protected BNC connector.
LOCAL TX
PWR This is a test point which corresponds to the output transmit power of the radio. The
voltage is measured with a voltmeter (using the GND test point for reference) which
corresponds to the actual power level of the outgoing signal. This measurement is
used during installation, maintenance and troubleshooting (software controlled on
Model 28010 with ODU transceiver)
. This voltage only applies to the near-end and does not allow measurement of
the far-end output transmit power, even when the DISPLAY FAR END button
is pressed.
There is a receptacle on the front panel to the right of the LOCAL TX PWR test point
which is an installation adjustment allowing the output transmit power to be increased
or decreased within the radio's specified limits. Using a small screwdriver, this
adjustment is used to set the output power of the transmitter, in accordance to the
path planning. Not available on models with ODU component.
The Tsunami system requires professional installation. Transmitted output
power limits may apply when using this radio. Consult FCC, IC, Western
Multiplex or other regulatory authorities for limits which may apply. See
Section 3.13.1 for details on setting output power.
Do not adjust output power above factory settings.
![](/img.php?id=232292&img=bg21.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-11
2.3.3 Alarm and Status Indicators (models with IDU only)
Radio Fail Green = Radio hardware O.K.
Red = Hardware failure detected
RF Link Green = Error-free operation
Yellow = Bit errors occurring
Red = Excessive bit errors or radio link failure
Flashing Red = Link security ID mismatch
TXD Green = 100BaseT data transmit present
Yellow = 100BaseT port connected (no data present)
Off = No 100BaseT connection detected
RXD Green = 100BaseT data receive present
Yellow = 100BaseT port connected (no data present)
Off = No 100BaseT connection detected
Blinking = Security ID mismatch
COLL Yellow = Collisions occurring on 100BaseT (half-duplex mode)
FAR END Red = Alarm(s) present on the far-end radio**
NMS (10BaseT) Green = Tx or Rx data present on the NMS interface
Yellow = NMS interface connected (no data present)
Off = No NMS interface connection detected
T1/E1 INPUT
Note: there are
two T1s on the
27720 Model
Model 27710-52
has one full-time
E1 as well as an
additional E1 if
selected for 2xE1
Green = Alarm enabled and T1/E1 connection detected
Red = Alarm enabled and no T1/E1 connection detected
Yellow = Alarm disabled and T1/E1 connection detected
Off = Alarm disabled and no T1/E1 connection detected
** Radio Fail, RF Link (yellow or red), T1/E1 Input (yellow or red)
![](/img.php?id=232292&img=bg22.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-12 SECTION 2: PRODUCT DESCRIPTION
2.3.4 Alarm and Status Indicators (models with IDU and ODU)
IDU Green = Indoor Unit OK
Yellow = warning condition in IDU (over-temp and/or both fans failed)
Red = All fans failed, over-temp (>55°C), or NMU/IDU communication
failure
Cable Green = ODU Cable OK
Red = ODU Cable shorted
ODU Green = Outdoor Unit OK
Red = Over-temp (>60°C), IDU to ODU communication failure, DC power loss, or
Outdoor Unit detected hardware failure
Yellow = Over temperature alarm, exceeds 55 degrees C
RF Link Green = Link established with BER <10E-6
Yellow = BER 10E-6 ; any bit errors due to FEC overload
Red = BER >10E-3 or Loss of Sync
Blinking
Red = link ID does not match with far end radio
TXD Red = Links have loss of signal, both 100BaseT and 100BaseFX connectors
Yellow = Main Ethernet port is okay, but collision detected within the
last 5 seconds or set to half duplex
Green = Main Ethernet port is okay and valid data is passing thru
Off (Dark) = Main Ethernet port is okay, but no data passing thru
RXD
Red = Links have loss of signal, both 100BaseT and 100BaseFX connectors
Green = Main Ethernet port is okay and valid data is passing thru
Off (Dark) = Main Ethernet port is okay, but no data passing thru
Far End Red = Alarm(s) present on the far-end radio**
Green = No far end alarm(s) detected
NMS
(10/100BaseT)
Green = Tx or Rx data present on the NMS interface
Off = No NMS data, interface connection detected
E1 (or T1)
WAYSIDE
INPUT
Green = Wayside connection detected on enabled channels
(both waysides) or channel(s) disabled
Red = Wayside(s) input channel(s) enabled (either of the waysides) but either channe
has a LOS detected
Yellow = One or both channels in Loopback mode
** Radio Fail, RF Link (yellow or red), T1/E1 Input (yellow or red)
![](/img.php?id=232292&img=bg23.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-13
2.3.5 Controls
DISPLAY
FAR END This push-button provides the capability to determine alarms and status of the far-end
radio. When pressed and held, the alarm and status LEDs and the RSL test point
(except for the Model 28010 with ODU) correspond to the far-end radio’s status and
RSL value. This can be used for installation, maintenance and troubleshooting. When
the LED on this switch is flashing, no far-end information is available. This typically
indicates that there is no link between near-end and far-end radios.
![](/img.php?id=232292&img=bg24.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-14 SECTION 2: PRODUCT DESCRIPTION
2.3.6 Connections
RF CONNECTION
The RF port of the Tsunami radio is an N-type female connector that is an integral part of the filter
assembly. The filter assembly occupies nearly the entire top half of the front panel. The N-Type connector
is used to connect the antenna, typically using coaxial transmission line. In some cases, waveguide may
be used as the primary transmission line, in which case a waveguide-to-N adapter is required.
For the Tsunami, 1/2" or 5/8” coaxial cable (LDF4-50 or LDF4.5-50) is
recommended. Coaxial cable that is 7/8” or larger can exhibit moding
at 5.8 GHz and is not recommended for 5.8 GHz radios. For waveguide
transmission line at 5.8 GHz, EW-52 waveguide is recommended. EW-
63 will also work, but may exhibit more loss.
DATA CONNECTION
The connection for the Fast Ethernet interface that carries the signals in and out of the radio is an RJ45
100BaseT wire connection or ST 100BaseT fiber connection.
DC POWER CONNECTION
The input accepts positive or negative DC power at any voltage between 20 and 63 Volts. Optionally, an
AC power adapter can be used.
OPTIONAL CONNECTIONS
There are several connections that are not required for operation, but provide additional facilities to the
user.
EOW
VF
This connection is used to access the electronic orderwire function. This is a facility
for "telephone" style service from one radio to another. A standard electronic
telephone [one with a handset and DTMF (push-button tone) dialing] plugs into this
connector. The user can dial the orderwire address of the far-end radio (or any radio in
the Tsunami network) to establish telephone communication between sites. This
communication does not interrupt or interfere with the other radio communications.
The radio link must be operational to use this facility. The orderwire feature can be
very useful for installation, maintenance and troubleshooting.
This connector is used to link two Tsunami radios at a repeater site for Orderwire
operation. This would allow orderwire "telephone" calls to and from any point in the
Tsunami network. This circuit is 4-wire audio (2xTx and 2xRx)
The Tsunami orderwire circuit can also be connected to other existing
orderwire networks. See Section 3.14.1 for details.
ALARM This connector is used for monitoring alarms electrically. The Form C relays can be
connected to other transmission equipment for monitoring alarm status locally or
remotely.
![](/img.php?id=232292&img=bg25.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-15
CONFIG
This is a serial interface port (RS-232) to the Tsunami radio. This port provides
configuration and maintenance information about the Tsunami radio(s) to a connected
computer or terminal. Consult factory for operation.
AUX
DATA This is a serial interface port (RS-232, ≤9600 baud) which allows the user to connect
auxiliary serial data from one point in the radio network to another. It can be used for
separate data connection for serial devices.
10BaseT
NMS This is an Ethernet connection for access to the Tsunami NMS (SNMP or HTML). See
section 4.11 for more detail for operation.
Note: Multicasting with in-band connection may cause collisions in the data stream.
T1 This is a wayside data channel for T1 (DS-1) interface of auxiliary
traffic (2XXX0-51 Models).
E1 This is a wayside data channel for E1 (CEPT-1) interface of auxiliary
traffic (2XXX0-52 Models).
![](/img.php?id=232292&img=bg26.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 2-16 SECTION 2: PRODUCT DESCRIPTION
2.4 Installation Accessories
The Tsunami radio is shipped with several accessories commonly required for the radio as described
below:
Rack Mount
Brackets Two brackets (along with required mounting screws) are provided which allow 19-
inch rack mounting of the Tsunami radio.
Terminal
Connector This is a 6-pin mating connector used for DC power supply.
D
Connector
9-pin
Four of these mating connectors are provided. One is used for the VF port, one for
the CONFIG port, one for the ALARMS port and one for the AUX DATA port.
RF Power
Adjustment
Cover
A small plastic cap is provided which is placed over the RF output power adjustment
receptacle once output power has been set by professional installation personnel.
Do not adjust the power higher than the factory setting! Before setting the
power level lower, note the factory setting or keep the radio’s configuration
sheet attached for future reference.
Other accessories are available, such as orderwire handsets, connector adapters and special cables.
These can be ordered separately upon request.
![](/img.php?id=232292&img=bg27.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-1
3. Installation & Adjustments
3.1 Shipping Container
The equipment is shipped in boxes unless ordered as an integrated system and configured at the
factory, in which case the equipment may be racked and shipped in a crate. The equipment is
packaged so as to prevent damage in transit.
The boxes should be left intact and sheltered until arrival at the installation site.
If the shipping container shows signs of damage, the
transportation company should be notified immediately. Extra
care and inspection of the contents is advised immediately upon
receipt.
It is recommended that all the packaging materials be
retained. In the unlikely event that the equipment must be
returned to the factory, use the original packing materials for
return shipment. The original packaging materials are also
recommended for transporting the equipment from location
to location.
Inside the primary shipping containers, internal boxes may contain other items. These boxes should
also be saved for future use.
Also, save the Tsunami radio test data sheet that is provided.
The test data sheet can be placed where the Tsunami terminal
will be installed for future quick reference. All Tsunami units are
individually tested and the actual measured performance
recorded on the Factory Test Data Sheet. You will find this
information to be of use during installation, troubleshooting and
maintenance.
A set of “quick installation instructions” is also provided which can be useful for easy reference
during installation.
![](/img.php?id=232292&img=bg28.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-2 SECTION 3: INSTALLATION & ADJUSTMENTS
3.2 Packing Items Identification
The primary shipping container houses the radio along with other items including:
v This manual
v Installation accessory kit (see Section 2.5)
![](/img.php?id=232292&img=bg29.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-3
3.3 Before Installation Task List
There are several tasks that should be accomplished prior to installing the Tsunami radio system.
This section briefly describes the following:
- Site selection
- Line-of-Sight and Path Clearance determination
- Anticipated RSL calculation
- Fade margin calculation
- Availability calculation
- Frequency plan determination
- Power supply planning
- Antenna (and accessories) purchase
Only directional antennas should be used with Tsunami radios.
These are typically flat panel or solid parabolic antennas. Western
Multiplex recommends a maximum beamwidth of 10 degrees for
directional systems.
3.3.1 Site Selection Requirements
The radio site must have:
- access to the appropriate power
- close proximity to the telephone or computer system you wish to interconnect
- line-of-sight to the other radio location with adequate clearance
- location for mounting the antenna
![](/img.php?id=232292&img=bg2a.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-4 SECTION 3: INSTALLATION & ADJUSTMENTS
3.3.2 Line-of-Sight and Path Clearance Guidelines
The Tsunami radios will not operate properly unless they have line-of-sight between their
corresponding antennas. The Tsunami radio transmission will not pass through trees or other
obstacles. Factors to consider include:
- Earth curvature
- Future growth of trees
- Height of buildings
In addition to the line-of-sight requirement, a well-engineered path will also have additional path
clearance to allow for signal loss due to partial obstructions, atmospheric ducting and ground
reflections. To maximize radio reception, 0.6 times the first Fresnel zone should be calculated and
this distance added to the path clearance (in addition to trees or buildings).
![](/img.php?id=232292&img=bg2b.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-5
3.3.3 RSL Calculation and Link Budget
The received signal level (RSL) can be estimated using the following formula:
RSL (dBm) = Pout - FL1+ G1 + G2 - FL2 - Lp
where: Pout is the transmitter output power (in dBm)
FL1 is the feeder loss of the transmit side (in dB)
G1 is the gain of the transmit antenna (in dB)
G2 is the gain of the receive antenna (in dB)
FL2 is the feeder loss of the receive side (in dB)
Lp is the Path loss, defined by:
Lp (dB) = 96.6 + 20 log10F + 20 log10D
where: F = Frequency in GHz (2.4 or 5.8)
D = Distance of path in miles
This link budget is very important for determining any potential problems during installation. If you
have calculated the expected RSL, you can see if it has been achieved during installation, and
troubleshoot if necessary.
In the USA and Canada, Tsunami radios may be installed with any gain directional
antennas but with a total system limit of +30 dBm EIRP for the 5.3 GHz transmitter
channel frequencies. 5.8 GHz transmitters have an EIRP limit of +53 dBm. For the
equation above, replace the Pout - FL1+ G1 by the EIRP limit.
![](/img.php?id=232292&img=bg2c.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-6 SECTION 3: INSTALLATION & ADJUSTMENTS
3.3.4 Fade Margin Calculation
The fade margin is the difference between the actual received signal and the radio’s threshold. Using
the formula provided in Section 3.3.3, the anticipated RSL can be calculated. Compare this RSL to
the specified threshold of the Tsunami radio (shown in Section 2.2) and calculate the fade margin
as the difference between the two signal levels.
3.3.5 Availability Calculation
Availability of the microwave path is a measure of the percent of the time that the link will operate
without producing an excessive BER due to multipath fading. In the absence of direct interference,
availability is affected by the following:
- Path length
- Fade margin
- Frequency (5.3 or 5.8 GHz in the case of these Tsunami radios)
- Terrain (smooth, average, mountainous)
- Climate (dry, temperate, hot/humid)
Depending on the type of traffic carried over the link, the system designer may wish to design for a
specific availability. For example, if the data or voice traffic that is carried by the radio is critical then
it may be designed for a very high availability (e.g. 99.999% or 5.3 minutes of outage per year). To
improve availability, for example, the fade margin can be increased by making the path shorter, or
by using higher gain antennas in conjunction with lower loss feeders (by using high quality
transmission line or shortening feed length).
![](/img.php?id=232292&img=bg2d.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-7
3.3.6 Frequency Plan Determination
When configuring radios in a hub or repeater configuration, careful engineering of the Tsunami radio
frequency plans and antenna locations should be performed in order to minimize potential
interference between the nearby radios. As a rule of thumb, do not place identical frequency plan
radios (e.g. two “A” channel radios) at the same site. In most cases, it is desirable to use a different
frequency plan (e.g. A versus B). However, with careful engineering, placing more than one radio of
the same frequency channel plan at the same site is easily accomplished. In fact, the Tsunami
frequency plan is designed to allow complex hub configurations that may require re-using the same
frequency plan. When designing these types of configurations, antenna size and antenna location
are critical. If identical channel plans must be used at the same site, the same radio channel (e.g.
A1 and A1) should be used at a site to minimize interference. Using alternate channels (e.g. A1 and
A2) is less likely to be successful (and therefore not recommended) due to the high level of
transmitter to receiver isolation required from the antenna system.
Sometimes it is required to locate the Tsunami radio nearby a transmitter that is the same as, or
close to the Tsunami receive or transmit frequencies. In this case, the Tsunami terminal that should
be placed closest to this interfering transmitter should be the specific terminal with the receive
frequency which is furthest from this unwanted transmitted frequency. This approach minimizes the
potential of interference. While interference conditions are rare when using the Tsunami radios,
cases of interference may be overcome by exchanging the radios from end to end or simply
reinstalling a different filter unit (if applicable), as described in Section 4.2. In some cases, changing
frequency plans (e.g. from A to B) can also help mitigate any interference.
Section 4.8 of this manual describes interference
countermeasures in further detail.
![](/img.php?id=232292&img=bg2e.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-8 SECTION 3: INSTALLATION & ADJUSTMENTS
3.3.7 Power Supply Planning
The Tsunami radio must have access to a supply of appropriate power, either DC or AC (if the AC
adapter option has been ordered). The Tsunami can be powered from a DC battery system, or from
a solar or generator power plant, usually with battery reserves. Typically either a positive or negative
ground 24 or 48 volt supply is used. For DC, be sure the cable is of sufficient gauge to carry the
necessary current and it is less than three (3) meters (9.75 feet) in length.
Before installing the radio, plan for the continuous power consumption needs in accordance with the
specifications given in Section 2.2 of this manual. It is also wise to plan for backup power for critical
communication circuits (including the Tsunami radio). Backup power allows the radios and
associated equipment to continue operation when primary power is interrupted.
3.3.8 Antenna Planning
Using the path planning tools and equations presented in the Product Guide, proper antenna size
can be determined which will yield the desired path performance. In general, the larger the antenna
that is used with the radio, the better the link will perform. Larger antennas have narrower
beamwidth and higher gain, which will yield better link performance (higher fade margin, better
availability) and improve immunity to interference (due to the smaller beamwidths). However, larger
antennas are more costly to purchase and install than smaller antennas, in some cases requiring
special equipment for installation. All of these factors should be taken into consideration when
selecting an antenna. Consult the Product Guide for more details on selecting antennas.
Recommended Antenna
Size Gain / 3 dB Beam Width
2 ft 29 dB / 6°
4 ft 35 dB / 3°
6 ft 38 dB / 2°
8 ft 41 dB / 1.5°
10 ft 43 dB / 1.3°
In areas where transmitted output power restrictions apply, the
use of larger antennas will maintain the benefit of narrow
beamwidths and receive gain. However, output power may need to
be reduced to meet regulations. (See Section 3.13.1)
Prior to installation, the specific antenna location and mounting should be determined. This
advanced planning also yields the transmission line requirements.
Only directional antennas may be used with these radios.
![](/img.php?id=232292&img=bg2f.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-9
Antenna Type Manufacturer Model Number Mid-band Gain (dBi)
1 Foot Flat Panel Gabriel DFPD1-52 23.5
Andrew FPA5250D12-N 23.6
2 Foot Flat Panel Gabriel DFPD2-52 28.0
Andrew FPA5250D24-N 28.2
2 Foot Parabolic Gabriel SSP2-52B 28.5
Gabriel SSD2-52A 28.4
Gabriel HSSP2-52 28.1
Radio Waves SP2-5.2 28.3
Radio Waves SPD2-5.2 28.1
Andrew P2F-52 29.4
Andrew PX2F-52 29.4
3 Foot Parabolic Radio Waves SP3-5.2 31.4
Radio Waves SPD3-5.2 31.1
Andrew P3F-52 33.4
Andrew PX3F-52 33.4
4 Foot Parabolic Gabriel SSP4-52A 34.2
Gabriel SSD4-52 34.1
Gabriel HSSP4-52 33.9
Radio Waves SP4-5.2 34.6
Radio Waves SPD4-5.2 34.4
6 Foot Parabolic Gabriel SSP6-52A 37.5
Gabriel SSD6-52 37.4
Gabriel HSSP6-52 37.2
Radio Waves SP6-5.2 37.7
Radio Waves SPD6-5.2 37.5
8 Foot Parabolic Gabriel SSP8-52 39.8
Gabriel SSD8-52 39.7
Gabriel HSSP8-52 39.6
Feeder Loss Type
Manufacturer
Model Number
Loss/100' Notes
1/2" foam coax Andrew LDF 4-50 6.6 dB
add ~0.25 dB per connector
5/8" foam coax Andrew LDF 4.5-50 4.7 dB
add ~0.25 dB per connector
Waveguide Andrew EW-52 1.2 dB
does not include transitions
Formula for determining maximum output power setting for 5.25-5.35 GHz U-NII (LE-LAN)
Transmitters (@ EIRP=30dBm):
Max Tx (dBm) is the lesser of 23dBm and 30 - G + FL
where:
G = Antenna Gain
FL = Feeder Loss including connectors
Notes:
All Western Multiplex radios require professional installation.
Antennas with gain less than 23.5 dBi are not allowed
Antennas of other make may be used with the HZB-U53-45 device, but must be of the same type, dimensions and
gain as those listed.
![](/img.php?id=232292&img=bg30.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-10 SECTION 3: INSTALLATION & ADJUSTMENTS
3.4 Tools Required
The following tools may be required for the installation of the Tsunami radios:
- Phillips (cross tip) screwdrivers (for 19-inch rack mounting and attachment of brackets)
- Small blade standard screwdriver (for power supply connector and RF output power
adjust)
- Soldering iron (if using any D-type connectors)
- Wire strippers (for removing insulation from power supply and other wiring)
- Wire crimpers (if using any RJ-style connectors that aren’t pre-made)
- Digital Voltmeter (to measure RSL, Tx output power, Alarms)
The following tools are recommended for the installation of the Tsunami radios:
- RF power meter (to measure transmitter output power)
- Cellular phone or two-way radio (for talking with far-end crew and tower crew)
- Bit Error Rate test set (to test link after installation)
- Computer (for NMS access with 10BaseT interface and cable)
- Touch-tone Telephone* (to test orderwire circuits and for communication with far-end)
Additional tools will likely be needed for antenna and transmission line installation and antenna
alignment. Consult Sections 3.8 through 3.10 of this manual for more details.
*Telephone connection specifications:
REN (Ringer Equivalency Number) 1.0 B
DTMF tones within ±1.5% of nominal freq.
Ringing Voltage 48 VDC, typical
(Ringing voltage is adequate for modern solid state ringers,
NOT for the older mechanical type ringers)
![](/img.php?id=232292&img=bg31.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-11
3.5 Frequency Channel Plans
The Tsunami system offers non-overlapping channel plans. This channel plan arrangement allows
users to implement Tsunami systems in the proximity of other Tsunami radios (planned or
unplanned), hub and repeater applications, and can be used to mitigate interference. The channel
plans are illustrated below in Figures 3-1 through 3-2. Section 4.2 and 4.3 describe how to change
frequency channel assignments of a Tsunami radio.
Figure 3-1: Channel Plans, Dual-Band (45 Mbps)
Figure 3-2: Channel Plans, Single-Band (45 Mbps)
Figure 3-3: Channel Plans, Dual & Single-Band (100 Mbps)
Frequency (MHz)
5350
5316
5250
Tsuna
A1
B1
5825
5791
5725
5759
A2
B2
5.3GHz SB Frequency
5350
5325
5250 5275
A1
A2
Frequency (MHz)
5775
5300
A1
A2
5825
5.8GHz SB Frequency
5800
5725 5750
A1
A2
Frequency (MHz)
5803
5747
A1
A2
![](/img.php?id=232292&img=bg32.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-12 SECTION 3: INSTALLATION & ADJUSTMENTS
3.6 Mounting the Tsunami
The Tsunami radio can be mounted at any height in a standard 19-inch rack. Blank rack-mounting
spaces above and below the Tsunami are recommended, especially if the surrounding equipment
dissipates a considerable amount of heat (over 40W).
The Tsunami radio may be set up for mounting with the front edge projecting from the front face of a
standard 19-inch rack using the rack mounting brackets enclosed with the screws in the Accessory
Kit (4 per bracket). The rack mounting brackets may be reversed, in order to install for flush or
cabinet mounting if preferred. Depending on rack configuration, it may be necessary to remove the
four adhesive backed rubber feet on the bottom of the unit.
The Tsunami radio has internal fans which intake and exhaust
on the left and right sides of the chassis. When rack mounting,
it is important to leave a small gap between the outer edges of
the radio and the inside edge of the rack.
The Tsunami radio may alternatively be placed on a table or shelf
attached to a wall. Because of the low weight of the Tsunami, any
mounting option other than rack mounting will be less secure.
![](/img.php?id=232292&img=bg33.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-13
3.7 Power Connection and Wiring (Models w/o ODU)
There is no ON/OFF switch on the Tsunami. As soon as
power is applied, the equipment will be operational. This
means that there can be up to 1W of RF power present at
the antenna port. The antenna port should be terminated
before power is applied.
Power is connected using the DC power plug contained in the Accessory Kit. Use Table 3-A or 3-B
along with the associated diagram of Figure 3-4 or 3-5 to connect the DC power cables. For
example, for a negative DC power input, use Table 3-A and Figure 3-4.
NEGATIVE DC POWER INPUT
(–20 TO –63 VDC)
PIN FUNCTION
1 Power (–DC)
2 Ground (see figure 3-7)
3 Return (+DC)
4 Return (+DC)
5 Ground (see figure 3-7)
6 Power (–DC)
Table 3-A: DC Power Connection for Negative Supply
POSITIVE DC POWER INPUT
(+20 TO +63 VDC)
PIN FUNCTION
1 Return (–DC)
2 Ground (see figure 3-8)
3 Power (+DC)
4 Power (+DC)
5 Ground (see figure 3-8)
6 Return (–DC)
Table 3-B: DC Power Connection for Positive Supply
Pins 1 and 6 are connected together on the motherboard. Either
pin may be used to apply (-DC) DC power input. Similarly, pins 3
and 4 are connected together on the motherboard and may be
used to apply (+DC) DC power input.
For DC power return connection, connect to the opposite voltage
(either the -DC or the +DC Pin) and connect the return to ground
at the DC power plug on pins 2 and/or 5.
![](/img.php?id=232292&img=bg34.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-14 SECTION 3: INSTALLATION & ADJUSTMENTS
3.7.1 DC Power Wiring (Models w/o ODU)
Connect the power cable with adequate current rating (minimum of 20 AWG) to the terminals shown
on the removed (not plugged into the radio) DC power plug using the screw connections. The
recommended minimum current rating of external fuses and cables is 3 Amps. The Tsunami radios
consume less than 1 Amp at ±48V and less than 2 Amps at ±24V. Be sure the DC power cable is
less than 3 meters (9.75 feet) in length.
Each Tsunami terminal should be externally fused separately
with a 5 Amp maximum fuse. The DC power cable must be less
than three (3) meters in length.
If using negative power, connect the negative voltage to pins 1 or 6. Connect the ground return
connection to pins 3 or 4. See Figure 3-4.
If using positive power, connect the positive voltage to pins 3 or 4. Connect the ground return
connection to pins 1 or 6. See Figure 3-5.
The ground connection is available at pins 2 and 5. Either pin may be used to ground the return
side of the power supply. Do not ground both sides of the power supply.
Proper grounding, either through the chassis and/or the power
supply, can be very important for protection from lightning. A
grounding screw hole is provided on the rear panel.
The ground connection may be left floating if the power supply is
referenced to ground externally and to avoid ground loops in
some configurations. However, this may not provide adequate
grounding for lightning protection.
Use a DVM (digital voltmeter) to verify voltage and polarity on the DC power plug.
Do not connect the DC power plug to the rear of the Tsunami
terminal until a load is connected to the antenna port (either an
RF pad, or an RF cable and antenna).
![](/img.php?id=232292&img=bg35.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-15
Figure 3-4: Negative Voltage DC Connection
Figure 3-5: Positive Voltage DC Connection
Make sure that when connecting the mating plug that it is properly
oriented (terminal screws pointing up) and securely fastened.
![](/img.php?id=232292&img=bg36.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-16 SECTION 3: INSTALLATION & ADJUSTMENTS
3.7.2 AC Power Connection
The optional AC power supply operates from any AC voltage 100V - 250V and 50 Hz or 60 Hz. The
AC supply is equipped with a mating connector that plugs directly into the Tsunami radio and an
AC cord with a 3-pin AC plug. The AC cord color code is shown in Figure 3-5 in case users wish to
replace the AC plug supplied with a different type of plug.
Figure 3-6: AC Connection (Generic radio – IDU)
![](/img.php?id=232292&img=bg37.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-17
3.8 Mounting the Radio w/ODU
The ODU is mounted on a substantial mounting pole (minimum 2.5 inches O.D.) to accommodate
the supplied mounting bracket. In the figure below, the top connector is cabled to the antenna
feed.

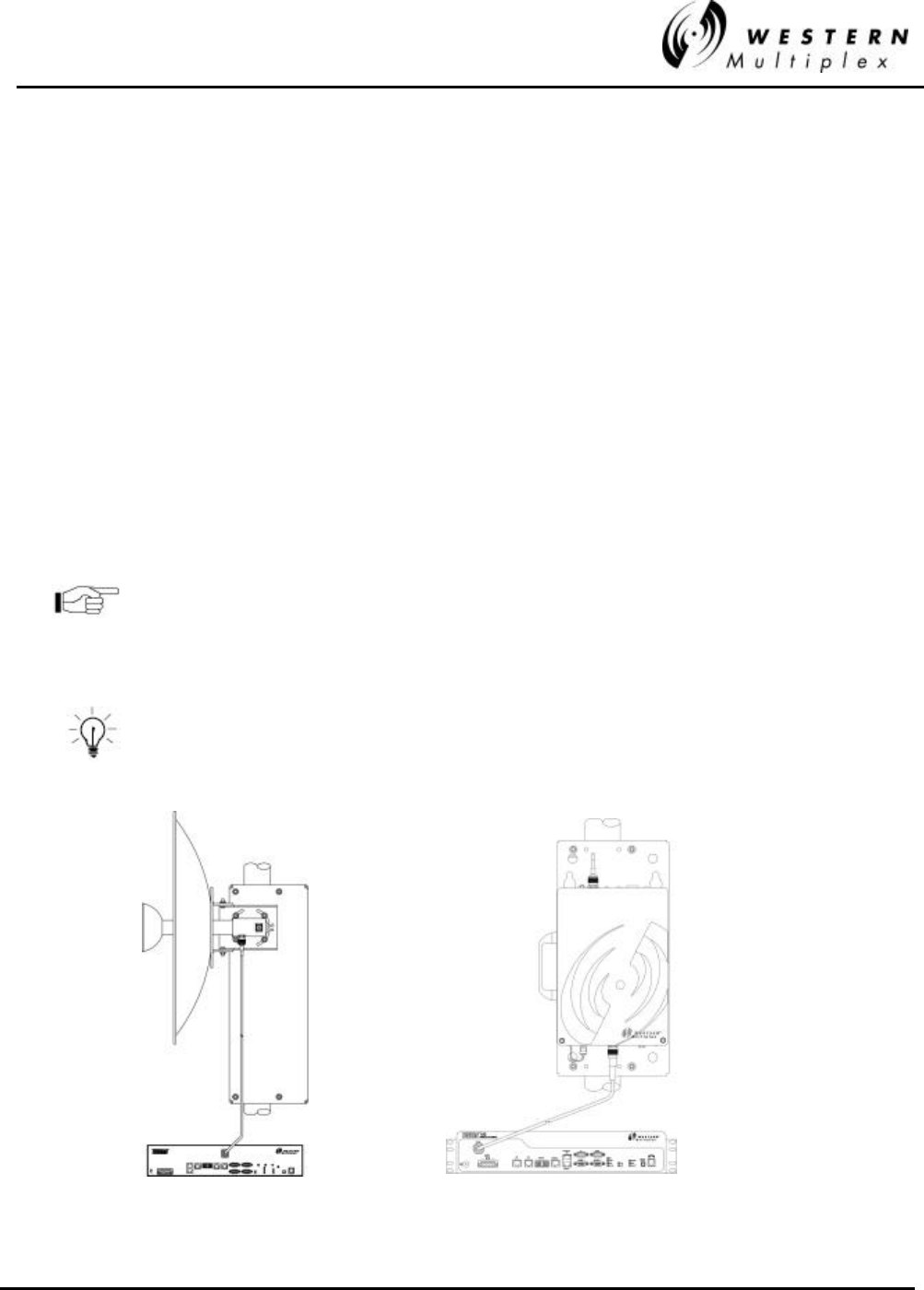

Figure 3-7: ODU Mounting Detail
Tsunami
Model ODU
shown
![](/img.php?id=232292&img=bg38.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-18 SECTION 3: INSTALLATION & ADJUSTMENTS

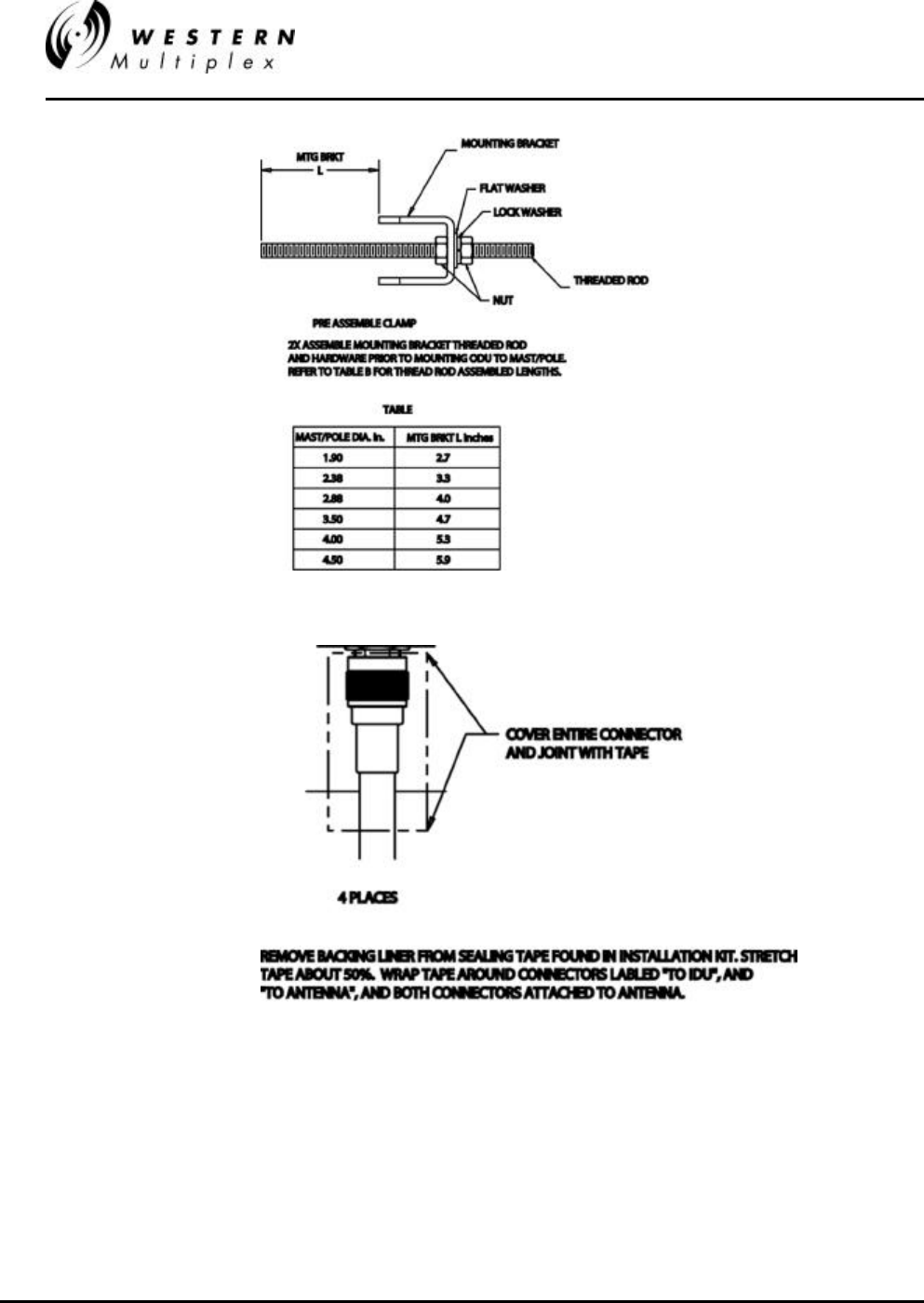

Figure 3-8: ODU Mount – Side Detail
![](/img.php?id=232292&img=bg39.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-19
3.9 Power Connection and Wiring IDU w/ODU Model(s)
There is no ON/OFF switch on the radio bridge. As soon as
power is applied, the equipment will be operational. This
means that there can be up to 1W of RF power present at
the antenna port. The antenna port should be terminated
before power is applied.
Power is connected using the DC power plug contained in the Accessory Kit. Use Table 3-C or 3-D
along with the associated diagram of Figure 3-9 or 3-10 to connect the DC power cables. For
example, for a negative DC power input, use Table 3-C and Figure 3-9. Use 14 gauge wire as the
minimum size.
NEGATIVE DC POWER INPUT
(–37 TO –63 VDC)
PIN FUNCTION
1 Power (–DC)
2 Power (–DC)
3 Ground
4 Ground
5 Return (+DC)
6 Return (+DC)
Table 3-C: DC Power Connection for Negative Supply
POSITIVE DC POWER INPUT
(+37 TO +63 VDC)
PIN FUNCTION
1 Return (–DC)
2 Return (–DC)
3 Ground
4 Ground
5 Power (+DC)
6 Power (+DC)
Table 3-D: DC Power Connection for Positive Supply
Pins 1 and 2 are connected together on the motherboard. Either
pin may be used to apply (+DC) DC power input. Similarly, pins 5
and 6 are connected together on the motherboard and may be
used to apply (-DC) DC power input.
![](/img.php?id=232292&img=bg3a.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-20 SECTION 3: INSTALLATION & ADJUSTMENTS
3.9.1 DC Power Wiring (Models w/ODU)
Connect the power cable with adequate current rating (minimum of 18 AWG, recommend 16 AWG)
to the terminals shown on the removed (not plugged into the radio) DC power plug using the screw
connections. The recommended minimum current rating of external fuses and cables is 5 Amps.
The radios consume less than 3.1 Amps at ±48V. Be sure the DC power cable is less than 3
meters (9.75 feet) in length and not less than stranded 14 gauge in size.
Each terminal should be externally fused separately with a 8
Amp maximum fuse. The DC power cable must be less than
three (3) meters in length. Use 14 gauge wire as the minimum
size.
If using negative power, connect the negative voltage to pins 5 or 6. Connect the ground return
connection to pin 1 and use an optional jumper - 2 to 3 for ground reference. See Figure 3-9.
If using positive power, connect the positive voltage to pins 1 or 2. Connect the ground return
connection to pin 6 and use an optional jumper - 4 to 5 for ground reference. See Figure 3-10.
The ground connection is available at pins 3 and 4. Either pin may be used to ground the return
side of the power supply. Do not ground both sides of the power supply.
Proper grounding, either through the chassis and/or the power
supply, can be very important for protection from lightning. A grounding
screw and nut (#4x40) is provided on the left front panel.
The ground connection may be left floating if the power supply is
referenced to ground externally and to avoid ground loops in some
configurations. However, this may not provide adequate grounding for
lightning protection. Be sure to use the local electrical code to
determine wire size and proper connection to the grounding screw.
Use a DVM (digital voltmeter) to verify voltage and polarity on the DC power plug.
Do not connect the DC power plug to the front of the IDU until the
ODU is connected via coax).
![](/img.php?id=232292&img=bg3b.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-21
Figure 3-9: Negative Voltage DC Connection
Figure 3-10: Positive Voltage DC Connection
Make sure that when connecting the mating plug that it is properly
oriented (terminal screws pointing up) and securely fastened.
Use 14 gauge wire for jumper if used.
1
1
-DC
+DC
+DC
-DC
Necessary ONLY if
power supply
needs to
be
referenced to
chassis ground
Necessary ONLY if
power supply
needs to be
referenced to
chassis ground
![](/img.php?id=232292&img=bg3c.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-22 SECTION 3: INSTALLATION & ADJUSTMENTS
3.10 Antenna Installation & Alignment (Models w/ODU)
The antenna installation consists of permanently mounting the antenna to the mast/pole/tower and
then attaching the ODU mounting plate and then the ODU itself to the mount. The antenna and
ODU assembly must be mounted outdoors on a tower, building roof, or other location that provides
line-of-sight path clearance to the far-end location. In general, antennas smaller than 2.0 feet
diameter are not recommended.
Antennas should be ordered with the suitable mounting kit specific to the site requirements. The
antenna must be very rigidly mounted, with adequate room for azimuth and elevation adjustment
from the rear. The antenna polarization must be the same at both ends of the link, either vertical or
horizontal. The mounting kit includes the details on how to mount and adjust azimuth and tilt. Here,
the details on how to mount the adapter plate and ODU are described. Be sure to have all the
necessary tools available (see section 3.4) before mounting the antenna and ODU.
In general, antenna mountings require a support pipe to which upper and lower support brackets are
attached with “U” bolts. The antenna and optional elevation and azimuth adjustment rods are then
mounted onto the support brackets. The whole structure must be adequately grounded for lightning
protection. The antenna system must always be installed according to the manufacturer’s
instructions.
Unless special test equipment is available, two operating radios are required to align the antennas.
The antenna is coarse aligned using visual sighting and then fine aligned using the receive signal
level (RSL) voltage of the radio. See figure 3-11.
The RSL voltage reading can still be used to peak antennas
even if the radios have not synchronized, however far-end RSL
cannot be measured from the near-end terminal until radios are
synchronized.
INSTALLER CAUTION: Antenna(s) used for this transmitter must be fixed-
mounted on outdoor permanent structures with a separation distance of at
least 1.5 meters from all persons during normal operation. Users and
installers must be provided with antenna install
ation instructions and
transmitter operating conditions, including antenna co-
location requirements
of 1.1307(b)(3), for satisfying RF exposure compliance.
![](/img.php?id=232292&img=bg3d.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-23
3.10.1 Mounting plate to pole mounting assembly:
Refer to the diagrams below and figures 3.7, 3.8, 3.11 and 3.12.
Note:
Be sure to mount the ODU with the antenna connector UP and the connection to the IDU DOWN.
Figure 3-11: ODU Mounting Detail
After attaching the antenna assembly per their enclosed
instructions, attach the ODU to the mounting plate as shown in
Figure 3-8.
After mounting the antenna, attach the coax cable that connects the ODU with the IDU.
![](/img.php?id=232292&img=bg3e.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-24 SECTION 3: INSTALLATION & ADJUSTMENTS
Figure 3-12: Bracket Assy. and Coaxial Connections
![](/img.php?id=232292&img=bg3f.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-25
3.10.2 Course Antenna Alignment
To coarse-align the antenna, first set it for flat elevation (no up or down tilt) using a spirit level. Then
point it at a heading marker obtained using a compass/GPS (magnetic corrected) back-bearing from
an adjacent location, (ideally, 100 feet or more away from the antenna).
If a heading marker cannot be set sufficiently far away (for example when on a city building roof or
looking through a window) then a rough azimuth setting can be obtained by sighting along the
antenna feed.
It should be verified that both antennas are on the same
polarization by using the manufacturer’s instructions. Otherwise
the RSL will be approximately 25 to 30 dB below the calculated
level.
Most antennas will also need fine alignment obtained using an operating link because it is very
important to maximize the receive RF signal level at each end of the radio link.
Read Section 3.9 before applying DC power to the radio.
Once the coarse alignment has been set-up at both ends, then the link can be powered and some
level of reliable communication established. The voltage at the ODU RSL test point (BNC connector)
should be measured with a DVM to determine the relative receive RF signal level.
For the fine alignment, adjusting first the azimuth and then the elevation of the local antenna will
maximize the RSL voltage. Then, the far antenna is aligned in the same way, using the RSL voltage
of its local radio ODU.
When aligning antennas it may be convenient to allow direct visibility to the technicians aligning the
antenna.
An orderwire telephone will provide end-to-end voice communications
once radios are synchronized. Synchronization usually can be
accomplished by coarse alignment only. After synchronization, the
orderwire phones can be used to communicate between radio sites for
antenna fine alignment. The phone interconnect cable can be
extended to the antenna when desired.
The larger the antenna size, the more critical alignment becomes: for example, with a 2 foot dish,
the antenna can be moved ±3 degrees off the correct heading before the receive signal level drops
by 3 dB. This compares with a 6-foot dish which may only be moved ±1 degree for the same
degradation.
The graph shown in Figure 3-13 shows the typical variation of RSL voltage as the receive signal level
is increased from threshold to a higher level. There is some variation between receivers, but an
approximate estimate of the potential RSL value may be made using this figure.
![](/img.php?id=232292&img=bg40.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-26 SECTION 3: INSTALLATION & ADJUSTMENTS
Use the Factory Test Data Sheet shipped with your terminal to obtain the
best estimate of your RSL.
Above 0 dBm RSL, the receiver may produce errors: however this level is rarely likely to be
exceeded. A link budget calculation should be made to calculate the anticipated RSL as described
in Section 3.3.3. During anomalous propagation conditions, the RSL may fade but will not increase
up more than 10 dB (except in unusual very long paths which may fade up by 15 dB).
Antenna alignment should enable the RSL to be peaked to the
level calculated in the link budget. If the RSL is peaked but is
approximately 20 dB below the calculated level, then it is likely
that the antennas are aligned on a sidelobe of the antenna's
radiated signal. In this case, the antennas should be rotated in a
wide arc until the main lobe is located. (Other possible causes of
low RSL are path obstructions, loss in connectors, adapters and
pigtail jumper cables or different antenna polarization at each end
of the link.)
Figure 3-13: Typical RSL Voltage versus Received Signal Level (RSL) - Model 28010
TYPICAL RSL VOLTAGE vs.
Rx RSL on Tsunami 100 w/E1s
0
1
2
3
4
-30-35-40-45-50-55-60-65-70-75
RSL
RSL VOLTAGE
![](/img.php?id=232292&img=bg41.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-27
3.11 Antenna Connection
The Tsunami radio is equipped with an N-type female connector at the antenna port located on the
rear panel. A short length (~6 feet) jumper cable such as RG-214 coax (or “pigtail”) fitted with two N-
type male connectors can be used to connect the antenna port to the antenna transmission line
(see Section 3.9). The recommended cable type for a jumper is RG-214.
A low loss 50-ohm cable (for example LDF4-50 1/2 inch coax) or EW-52 waveguide is
recommended for the antenna transmission line between the top of the rack and the antenna. The
return loss presented by the transmission line at the top of the rack should be as high as possible
(20 dB, minimum recommended). The length of the antenna transmission line should be kept as
short as possible (to minimize losses).
To minimize feeder losses, the use of elliptical waveguide is recommended (typical loss is 1.25
dB/100 ft) for feeder lengths in excess of 200 feet. Depending on path length and feeder length, 1/2
inch or 5/8 inch coax cable can be used.
For the Tsunami radio, 1/2” or 5/8” coaxial cable (LDF4-50 or
LDF4.5-50) is recommended. Coaxial cable 7/8” or larger can
exhibit moding at 5.8 GHz and is not recommended for 5.8 GHz
radios. For waveguide transmission line at 5.8 GHz, EW-52
waveguide is recommended. EW-63 will also work, but may
exhibit more loss.
Do not use right angle N-type connectors with the 5.8 GHz
Tsunami radios: they may present high loss at 5.8 GHz. Do not
use a low quality N-type jumper cable with the Tsunami. Some
cable types, such as RG-8, may have high loss at 5.8 GHz.
Radio w/o Outdoor Unit (ODU) Radio mounting with ODU
![](/img.php?id=232292&img=bg42.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-28 SECTION 3: INSTALLATION & ADJUSTMENTS
3.12 Transmission Line Connection
The transmission line feeder (such as LDF4-50 1/2 inch coax cable or EW-52 elliptical waveguide)
should be prepared first by cutting to the approximate length (allowing some excess) and installing
the appropriate connector on the antenna end.
The prepared transmission line is then pulled through the cable ducts, trays or conduit (as required)
to the antenna, while being careful not to kink or damage the transmission line in any way.
The transmission line should be supported in a tray on horizontal runs and by hangers on vertical
runs. Hangers should be spaced according to the manufacturer’s instructions (typically every 5 feet
under conditions of no ice and not greater than 85 mph winds).
The transmission line should be grounded using the manufacture’s recommended grounding kit.
Grounding kits attach to the outer copper conductor. Grounds must be installed at the antenna, at
the bottom of the tower (if applicable) and where the transmission line enters the building. Long
transmission line runs should be grounded every 100 feet. In areas of high incidence of lightning,
dissipaters should be attached to antennas. In addition, coaxial, in-line, spark-gap type, lightning
suppressors should be added at the bottom of the coax cable before entering the
building/enclosure.
Any in-line lightning protection device must be rated for the
operating frequency of the Tsunami (5.3/5.8 GHz).
After installation, the transmission line is terminated with an N-type male connector/adapter
attached at the equipment end. For waveguide, this typically requires a CPR-to-N adapter.
Prior to operation, the electrical integrity of the transmission line, including all connectors, can be
checked with a simple DC check between the center conductor and outer conductor. (This is
neither possible, nor required for waveguide).
The transmission line should ideally be connected directly to the antenna at one end and to the
Tsunami antenna port at the other end. However, short RG-214 type pigtail jumper cables may be
required to avoid sharp bends in the transmission line to limit stress on either connection.
7/8 inch coax cable or larger is not recommended for use at 5.3
GHz and higher frequencies.
Do not use right angle N-type connectors with the 5.3 or 5.8 GHz
Tsunami radios: they may present high loss at 5.3 or 5.8 GHz.
Do not use a low quality N-type jumper cable with the Tsunami.
Some cable types, such as RG-8, may have too high a loss at
5.3 and 5.8 GHz.
![](/img.php?id=232292&img=bg43.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-29
3.13 Antenna Installation & Alignment
The antenna installation consists of permanently mounting the antenna outdoors on a tower,
building roof, or other location that provides line-of-sight path clearance to the far-end location. In
general, antennas smaller than 2 feet diameter are not recommended for urban areas due to their
wider beamwidths, which results in higher interference susceptibility.
Antennas should be ordered with a suitable mounting kit specific to the site requirements. For
example, specifying round or angle tower leg adapters, or a roof tripod as necessary.
The antenna must be very rigidly mounted, with adequate room for azimuth and elevation
adjustment from the rear.
The antenna polarization must be the same at both ends of the link, either vertical or horizontal.
In general, antenna mountings require a support pipe to which upper and lower support brackets are
attached with “U” bolts. The antenna and optional elevation and azimuth adjustment rods are then
mounted onto the support brackets. The whole structure must be adequately grounded for lightning
protection. The antenna system must always be installed according to the manufacturer’s
instructions.
Unless special test equipment is available, two operating Tsunami terminals are required to align
the antennas. Alternatively, a CW generator may be used to transmit a signal toward the end under
alignment.
The antenna is coarse aligned using visual sighting and then fine aligned using the receive signal
level (RSL) voltage of the Tsunami.
The RSL voltage reading can still be used to peak antennas
even if the radios have not synchronized, however far-end RSL
cannot be measured from the near-end terminal until radios are
synchronized.
To coarse align the antenna, first set it for flat elevation (no up or down tilt) using a spirit level. Then
point it at a heading marker obtained using a compass back-bearing from an adjacent location,
(ideally, 100 feet or more away from the antenna).
If a heading marker cannot be set sufficiently far away (for example when on a city building roof or
looking through a window) then a rough azimuth setting can be obtained by sighting along the
antenna feed.
INSTALLER CAUTION: Antennas used for this device must be fix-
mounted
on permanent outdoor structures to provide 5 meter or more separation from
all persons during device operatio
n to comply with FCC and other regulatory
RF Exposure requirements. Installers should contact the manufacturer for
applicable antenna gain and type restrictions to ensure compliance.
![](/img.php?id=232292&img=bg44.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-30 SECTION 3: INSTALLATION & ADJUSTMENTS
It should be verified that both antennas are on the same
polarization by using the manufacturer’s instructions. Otherwise
the RSL will be approximately 25 to 30 dB below the calculated
level.
Most antennas will also need fine alignment obtained using an operating link because it is very
important to maximize the receive RF signal level at each end of the radio link.
Read Section 3.9 before applying DC power to the Tsunami radio.
Once the coarse alignment has been set-up at both ends, then the link can be powered and some
level of reliable communication established. The voltage at the Tsunami front panel RSL test point
should be measured with a DVM to determine the relative receive RF signal level.
For the fine alignment, adjusting first the azimuth and then the elevation of the local antenna will
maximize the RSL voltage. Then, the far antenna is aligned in the same way, using the RSL voltage
of its local Tsunami radio.
When aligning antennas it may be convenient to run two wires from the RSL and ground test points
to the antenna so that the voltmeter reading is directly visible to the technicians aligning the
antenna. Also, a cellular telephone or two-way radio may be useful for coordinating alignment
activities between both ends of the link. Once the radios are coarse aligned and synchronized, the
built-in orderwire phone service can also be used to coordinate alignment between both ends of the
link.
An orderwire telephone will provide end-to-end voice communications
once radios are synchronized. Synchronization usually can be
accomplished by coarse alignment only. After synchronization, the
orderwire phones can be used to communicate between radio sites for
antenna fine alignment. The phone interconnect cable can be
extended to the antenna when desired.
The larger the antenna size, the more critical alignment becomes: for example, with a 2 foot dish,
the antenna can be moved ±3 degrees off the correct heading before the receive signal level drops
by 3 dB. This compares with a 6-foot dish which may only be moved ±1 degree for the same
degradation.
The graph shown in Figure 3-14 shows the typical variation of RSL voltage as the receive signal level
is increased from threshold to a higher level. There is some variation between Tsunami receivers,
but an approximate estimate of the potential RSL value may be made using this figure.
Use the Factory Test Data Sheet shipped with your Tsunami terminal to
obtain the best estimate of your RSL.
Above 0 dBm RSL, the receiver may produce errors: however this level is rarely likely to be
exceeded. A link budget calculation should be made to calculate the anticipated RSL as described
![](/img.php?id=232292&img=bg45.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-31
in Section 3.3.3. During anomalous propagation conditions, the RSL may fade but will not increase
up more than 10 dB (except in unusual very long paths which may fade up by 15 dB).
Antenna alignment should enable the RSL to be peaked to the
level calculated in the link budget. If the RSL is peaked but is
approximately 20 dB below the calculated level, then it is likely
that the antennas are aligned on a sidelobe of the antenna's
radiated signal. In this case, the antennas should be rotated in a
wide arc until the main lobe is located. (Other possible causes of
low RSL are path obstructions, loss in connectors, adapters and
pigtail jumper cables or different antenna polarization at each end
of the link.)
Tsunami 100BaseT Dual & Single Models
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
-80 -75 -70 -65 -60 -55 -50 -45 -40
RSL (dB)
Volts
Figure 3-14: Typical ODU RSL Voltage versus Received Signal Level (all except 28010)
![](/img.php?id=232292&img=bg46.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-32 SECTION 3: INSTALLATION & ADJUSTMENTS
3.14 Ethernet Interface Connection
The radio link’s 100BaseT interface connection to the Tsunami radio is on the front panel.
Additional external lightning protection devices are recommended
for the connections if the radio is installed in an area prone to
lightning.
The 100BaseT connection to the Tsunami is at the data interface on the front of the shelf. Either
wire or fiber connections can be used.
![](/img.php?id=232292&img=bg47.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-33
3.15 System Turn-up to Service
1. Prior to installing the system, it may be desirable to perform a back-to-back test of the
Tsunami radio pair. Consult Section 4.9 for further details. Back-to-back testing is a simple
way to verify that the Tsunami radios are fully operational before they are installed. Installation
adds several variables (such as antenna alignment) which can lead to system turn-up delays.
Also, during back-to-back testing, the DIP switch settings and some connections can be
tested. This step can eliminate a majority of troubleshooting once the radios are installed.
A cellular phone or two-way radio system (walkie talkie, CB,
mobile radio) can be very useful during installation. These
can be used for temporary near-end and far-end
communications between the installation personnel at one
site and installation personnel at the other site while installing
the system. These can also be helpful for communication
between a person at the top of a very tall tower and ground
personnel.
The Tsunami radio incorporates an internal Orderwire feature
that provides end-to-end “telephone” style communications.
However, the link must be partially operational to use this
feature. In lieu of, or in addition to the use of cellular phones
or two-way radio, this Orderwire feature can also be very useful
for installation, but typically cannot be put into service until
step 8 or 9 of this procedure is completed.
2. Perform a general alignment of the antennas on both ends of the path using binoculars,
compass or other related tools. It is important to have the antennas aligned as accurately
as possible before putting radio traffic over the link. This will help in getting the system
running more rapidly.
3. Connect the transmission line to the antenna, and feed it to the Tsunami radio location.
Connect the opposite end of the transmission line to the N-type female connector located
on the filter assembly which occupies the top half of the Tsunami rear panel. The
connection must be terminated into an antenna or a load before DC power is applied to the
radio.
4. Verify that the same channel plan (e.g. A, B) as the near-end radio, and the opposite Tx
and Rx frequencies (e.g. A1 and A2 make up a matched pair of radios).
5. With the DC power source active, but not plugged into the Tsunami radio, using a
voltmeter, confirm that the DC mating connector has the proper power connections in
accordance with Section 3.7. Verify the polarity and the absolute voltage on all pins. Verify
ground connection for power.
6. Connect power to the Tsunami radio. Verify that the IDU’s Front Panel “ON” LED indication
is illuminated. This confirms that power has been properly applied.
Ensure that the RF Antenna port connection is properly
terminated before applying power to the Tsunami terminal, as in
![](/img.php?id=232292&img=bg48.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-34 SECTION 3: INSTALLATION & ADJUSTMENTS
step 3.
When the Tsunami radio is initially powered-on, some alarm
conditions may be present. This is normal and alarms can be
ignored at this time.
7. Place a voltmeter across the GND and PWR front panel test points. See Figure 3-15 for
voltage setting information and Table 3-E for typical output power levels for given cable
lengths where EIRP limits apply. If necessary, use a small screwdriver at the front panel
receptacle to adjust the output power of the local transmitter in accordance with the path
analysis calculations. The recessed potentiometer is rotated clockwise to increase transmit
output power and counter clockwise to decrease transmit output power. After verifying
correct setting of the transmit output power, disconnect the voltmeter. Place the cover cap
found in the installation accessory kit over the front panel receptacle.
The Tsunami radio requires professional installation. With some
Tsunami models, in certain countries, there may be Effective
Isotropic Radiated Power (EIRP) limits which dictate the
maximum output power that the Tsunami radio can transmit given
the transmission line loss and the gain of the antenna. Consult
with appropriate government agencies or Western Multiplex if
there is any question regarding maximum output power allowed.
Do not adjust output power above factory settings.
![](/img.php?id=232292&img=bg49.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-35
Tsunami 100BaseT Dual & Single Models
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
0510152025
Tx Power (dB)
Volts
5.8 GHz Tx
5.3 GHz Tx 5.3 GHz Tx
5.3 GHz Tx
Figure 3-15: Typical RF Output Power versus PWR Voltage (all Models except 28010)
Use the Tsunami Factory Test Data sheet that came with your
radio(s) to determine more precisely the voltage corresponding
to the RF output power.
![](/img.php?id=232292&img=bg4a.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-36 SECTION 3: INSTALLATION & ADJUSTMENTS
For precision measurement of transmit output power, it is best to
connect an RF power meter to the antenna port. The PWR port
voltage may not provide enough precision. This is especially
important where EIRP limits apply to the installation.
In cases of no EIRP limits, the radio transmitter output power
should be left at the factory setting, except for very short paths
using very high gain antennas, where excessive power may not
be advised.
Don’t forget that the RF output port should be terminated at all
times when power is applied to the Tsunami radio. Therefore,
disconnect power to the radio before connecting a power meter
and reapply power once connected. Often, an RF power meter
may have a limit to the input power that it can measure without
damage. It is advised to place a calibrated fixed value RF
attenuator (typically 20 dB or more) between the Tsunami radio
and the power meter to assure proper operation and safety for the
RF power meter. The value of this fixed attenuation can then be
added to the value of the RF power meter reading to obtain the
actual Tsunami radio transmitter output power.
8. Connect a voltmeter across the GND and RSL front panel test points. This voltage reading
corresponds to the Received Signal Level (RSL) of the near-end radio. In other words, RSL
is the “amount” of signal the near-end radio is receiving from the far-end radio. Since the
antennas have not been finely aligned, it is not expected at this time that the RSL will read
very high. However, at this point it can be verified that some communication is taking place
between the two Tsunami terminals. Use the RSL voltage reading to align the antennas.
Align one antenna at a time in accordance with Section 3.13. Complete alignment of both
ends of the radio link before going further.
The RSL voltage output on the radio's front panel will output a
voltage over the usable range of the radio. Refer to Figure 3-14.
The Tsunami radio has a unique feature of allowing measurement of the far-end RSL from
the near-end radio. This is only possible if the Tsunami radios are communicating (the RSL
is above threshold). The far-end RSL can be used to verify that adjustments to local
antenna alignment are corresponding to the far-end radio reception. Far-end RSL is
measured by pressing and holding the DISPLAY FAR END front panel button. While this
button is held, the RSL voltage indicates the RSL of the far-end radio. RSL of both ends
should be verified to be within approximately 2 dB of predicted value (see Section 3.3.3).
There are several factors that can contribute to low RSL:
- Incorrect antenna alignment (aligned on a lobe and not on the main signal)
- Improper polarization alignment of antennas (horizontal vs. vertical)
- Transmission line problems (loose connections, bent or damaged cables, lossy adapters)
- Path obstructions (trees, buildings, hills, etc.)
![](/img.php?id=232292&img=bg4b.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-37
- Path clearance (line-of-sight, earth curvature, Fresnel zone, diffraction and partial
obstruction)
- Weather (inversion layers, ducting and multipath)
- Antenna feed (coaxial/connector) problem
The Tsunami radio requires professional installation. Don’t
forget that the transmitter output power adjustment on the
Tsunami radio effects the RSL. Depending on EIRP limits (if
any), path distance, and antenna gain, you may need to adjust
the output transmit power to the proper level before putting the
radios in service.
If radio synchronization has been established, the radio link
may be able to provide some limited communications over the
link. It can be helpful to establish voice communications from
one end of the radio link to the other using the Orderwire
feature of the Tsunami radio.
If RSL is lower than anticipated, recheck the path clearance and transmission line as these are the
typical causes of low RSL. Radio operations can be verified by connecting radios back-to-back with
attenuators (40-60 dB), (see Section 4.9). If the problem remains, consult Section 4 of this manual
for troubleshooting techniques which will help determine the source of the problem.
9. Once radio performance is verified and acceptable, the Tsunami radios can now be put into
service with the intended Fast Ethernet traffic. Connect to the LAN or computer using the
RJ45 (wire) or ST (fiber) 100BaseT connector. With Fast Ethernet traffic applied in both
directions, all front panel LEDs, except for POWER and the data TXD/RXD lights should be
off. If any other LEDs are on, consult the trouble shooting sections of this manual.
10. Now that the link is operational, other services can be connected including T1 (DSX-1),
Orderwire, Diagnostics, Alarms and Aux Data (Service Channel). Consult Section 3.17 for
details on these connections.
![](/img.php?id=232292&img=bg4c.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-38 SECTION 3: INSTALLATION & ADJUSTMENTS
3.16 Output Power Adjustment
The Tsunami radio requires professional installation. In certain cases, it is necessary to adjust the
output power lower (never higher) from the factory setting, for example:
v to meet EIRP (effective isotropic radiated power) limits.
v to avoid exceeding the maximum far-end RSL of -30 dBm.
v to coordinate a hub or repeater location.
To ensure maximum protection of the radio circuits, always
ensure the antenna connector is terminated when power is
applied. Never adjust output power above factory settings.
For precise measurement of transmitter power, a calibrated RF power meter (such as the HP 435B
with Power Sensor HP8481) is recommended. This power sensor can be connected directly to the
output of the radio without exceeding the power rating. With some power meters, it may be
necessary to place a calibrated in-line fixed attenuator between the radio antenna port and the
power meter so as to not exceed the power meter’s maximum input level. Thruline power meters do
not operate at Tsunami RF frequencies.
If adjusting the output power to meet an EIRP limit, it will be first necessary to calculate the overall
system gains and losses, including feeder losses for the type of transmission line installed and the
antenna gain. Also refer to Table 3-E for transmitter output power settings where installed with
various transmission line lengths and antenna sizes. You may determine the radio transmit power
for EIRP limited installations by the following equation:
Tx Power (dBm) = EIRP Limit(dBm) + Feeder Loss(dB) - Antenna Gain(dB)
For the US and Canada, a +30 dBm EIRP limit applies for the
dual band (5.3/5.8 GHz) Tsunami radios and a +53 dBm EIRP
limit applies for the single band (5.8 GHz) Tsunami radios.
Output power may be adjusted using a small screwdriver and rotating the potentiometer which is
recessed behind the front panel. Clockwise rotation increases output power while counter-clockwise
rotation decreases output power.
In lieu of a calibrated RF power meter, the PWR test port voltage can be used to estimate the
output power. Figure 3-15 illustrates the voltage reading for various output power levels. The factory
test data sheet should be used to establish a more precise setting of this adjustment.
After setting the correct output power, place the cover cap
found in the installation accessory kit over the front panel
receptacle.
FCC EIRP limitations:
Models that have transmitters that use the 5.3 GHz band should not exceed a total of +30 dB
E.I.R.P.
Models that have transmitters that use the 5.8 GHz band should not exceed a total of +53 dB
![](/img.php?id=232292&img=bg4d.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-39
E.I.R.P.
![](/img.php?id=232292&img=bg4e.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-40 SECTION 3: INSTALLATION & ADJUSTMENTS
3.17 Additional Connections
There are additional customer connections which are optional and are not required to make the
Tsunami operational but may prove useful.
3.17.1 Orderwire Connection
Orderwire is a “telephone” type wayside service which allows users of the Tsunami radio to
establish voice communications from one radio to another, either directly to the companion far-end,
or through a repeater configuration, or several repeater configurations.
Telephone connection specifications:
REN (Ringer Equivalency Number) 1.0 B
DTMF tones within ±1.5% of nominal freq.
Ringing Voltage 48 VDC, typical
(Ringing voltage is adequate for modern solid state ringers,
NOT for the older mechanical type ringers)
This Orderwire service does not affect the normal radio transmission of traffic. Refer to Section 2.3.5
for the telephone specifications. For simple near-end to far-end communications, follow the steps
below:
1. Using a standard RJ-11 telephone cable, connect a standard electronic telephone (a touch
tone phone, complete with dialer; a handset by itself will not work) to the Orderwire
connector on the Tsunami front panel. This connector is wired identically to a standard two-
wire telephone jack, see Figure 3-16 for details.
2. With a telephone connected to each Tsunami terminal on opposite ends of the link, either
telephone can be used to “dial-up” the far-end location. The far-end terminal’s internal ringer
and the connected telephone will ring, and if answered, two-way full-duplex voice
communication is established.
If using the Orderwire or Network management functions, all
Tsunami radios connected must have unique address settings
(telephone numbers).
4. If the Tsunami radios are connected in a repeater configuration, Orderwire services can be
established to all Tsunami terminals in the network by implementing a connection of their rear-
panel connectors between repeater terminals. At the repeater site, a cable can be connected to
the two Tsunami terminals between their rear panel VF 9-pin connectors as shown in Figure 3-
16. With this cable in place, the Orderwire function will operate at terminals at each end of the
repeater and at the repeater site. This function can be continued through several repeater sites
if desired. For hub connections of 3 or more Tsunami radios at the same site, an external 4-wire
bridge is required to connect all radios to the orderwire.
The orderwire system can be integrated with orderwire equipment
supported by many other vendors. If your existing orderwire
![](/img.php?id=232292&img=bg4f.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-41
network uses 2 digit addressing, and 0 dBm VF interface, it can be
connected to a Tsunami as shown in Figure 3-16.
Dialing a V (star key) on the orderwire telephone implements an “all call”
feature which rings all connected radios. Also, if a phone anywhere in the
connected network has accidentally been left off-hook, the # (pound key)
key can be used to mute all off-hook handsets until they are placed on
and off hook again.
The orderwire operates like a “party line”. All telephones provide
communication to all other telephones in the connected network. Even if a
particular telephone does not ring, it can still be used to talk and listen to
any ongoing orderwire activity if the orderwire is in use at other terminal
locations.
Orderwire Connection
VF Port Connection
Figure 3-16: Orderwire & VF Port Connection
![](/img.php?id=232292&img=bg50.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-42 SECTION 3: INSTALLATION & ADJUSTMENTS
3.17.2 Alarm Connections
External alarm outputs are provided at the 9-pin, D-type subminiature ALARM connector. There are
two Form C summary alarm relays capable of switching 30 VDC at 1 A. See Table 3-E and Figure
3-17 for Alarm Connections.
The “summary” alarm (Form C relay) is activated by any near-end front panel LED alarm condition,
including if the internal test mode is enabled.
The “out-of-service summary” alarm (Form C relay) is activated by any of the following alarm
conditions:
v RF LINK
v Radio Fail
v Internal Test
Figure 3-17: Pin Connections, ALARM Interface
![](/img.php?id=232292&img=bg51.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-43
PIN 1 NO, SUMMARY ALARM, FORM C - normally
open connection on summary alarm relay.
Closed when in alarm.
PIN 4 NO, OUT OF SERVICE SUMMARY ALARM, FORM
C - normally open connection on out-of-service
summary alarm relay. Closed when in alarm.
PIN 6 C, SUMMARY ALARM, FORM C - common
connection on the summary alarm relay.
PIN 9 C, OUT OF SERVICE SUMMARY ALARM, FORM
C - common connection for the out-of-service
summary alarm relay.
PIN 2 NC, SUMMARY ALARM, FORM C - normally
closed connection on summary alarm relay.
PIN 5 NC, OUT OF SERVICE SUMMARY ALARM, FORM
C - normally closed connection on out-of-service
summary alarm relay. Open when in alarm.
PIN 7 RSL output DC voltage referenced to pin 3 PIN 8 Tx Power output DC voltage referenced to pin 3
Table 3-E: Alarm Interface Connections
All alarms are active for a minimum of one second, or as long
as the alarm condition persists, which ever is longer.
![](/img.php?id=232292&img=bg52.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-44 SECTION 3: INSTALLATION & ADJUSTMENTS
3.14.3 Configuration Port Operation
The “Config” Port is used to retrieve diagnostic information and to configure additional features within
the Tsunami radios by means of a computer connection via SERIAL interface. Also can be used as
an RS-232 port to download the latest revision radio operation software.
The config port allows connection of RS-232 devices to receive status of the Tsunami radio and
provide configuration.
For RS-232 diagnostics connection (Section 4.11) to the Tsunami radio, connect the serial device
(modem, computer, terminal) to the male 9-pin subminiature connector in accordance with Figure 3-
18.
Figure 3-18: RS-232 Config Port Connections
Pins 6 through 9 must not be connected for RS-232
communications to operate properly.
![](/img.php?id=232292&img=bg53.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-45
3.17.4 AUX DATA (Digital Service Channel) Connection
The AUX DATA port is a separate wayside serial port which can be configured to allow the
connection of any user serial data (to 9600 baud, 1 start/stop bits) through the radio network.
Connection to the AUX DATA port is an RS-232 serial interface, identical to the config port (see
Section 3.17.3). This port does not affect the Ethernet traffic on the Tsunami radio.
The following HELP screen will be presented. Type one of the listed commands.
In this example, the setIP command was initiated.
![](/img.php?id=232292&img=bg54.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
PAGE 3-46 SECTION 3: INSTALLATION & ADJUSTMENTS
3.17.5 T1 (DSX-1) Interface Connection
The Tsunami radio also provides a wayside T1 connection. This connection allows for standard DSX-
1 connect of voice circuits without affecting the Ethernet traffic. A standard RJ-48c connector is
provided for this connection.
3.17.6 CEPT-1 (E1) InterfaceConnection
The CEPT-1 interface connection provides a balanced (120 ohm) wayside E1 connection.
If an unbalanced 75 ohm connection (RJ45) is required, an optional
balun will provide this interface. If you can not locate these baluns
(balanced/unbalanced) devices, please consult the factory.
Additional external lightning protection devices are recommended for
all user connections if the radio is installed in an area prone to
lightning.
3.17.7 NMS Interface Connection
The NMS connection provides connection for the network management system. This allows an
HTML interface to the Tsunami radio for purposes of monitoring, configuration and security settings.
This connection is an RJ-45 style connection and complies to standard 10BaseT interface.
Typically, the installer or manager will connect to the NMS with a stand-alone computer to initially
configure the radio prior to installation. If IP addresses and security are set properly, the connection
can also be used as an out-of-band connection for radio management. Alternatively, if the 10BaseT
is connected to a network, or combined with the 100BaseT traffic on the link, via an external 10/100
switch, hub or router, full wireless NMS can be achieved for all radios in the network.
The factory default IP address is set to 10.0.0.1. To reset the radio back to the factory default, Hold
down the far-end test button while powering up the radio. Release the switch after 6 seconds.
More details on the NMS connection can be found in Section 4
of this manual. In the future, this connection will also allow
NMS via SNMP (Simple Network Management Protocol) in
addition to the HTML interface that is presently supplied.
Consult factory for details or assistance with NMS
connections, if required.
Note: Multicasting with in-band connection may cause collisions in the data stream.
![](/img.php?id=232292&img=bg55.png)
INSTALLATION AND MAINTENANCE MANUAL
Tsunami FAMILY
FAST ETHERNET WIRELESS BRIDGES
December 2001
SECTION 3: INSTALLATION & ADJUSTMENTS PAGE 3-47
Your Notes on the Tsunami Radio
