Quanta Computer CI2 Wearable ECG Monitoring Device User Manual CI2418 01 V1 0 20140718Wx
Quanta Computer Inc Wearable ECG Monitoring Device CI2418 01 V1 0 20140718Wx
User Manual
![](/img.php?id=2348568&img=bg1.png)
CI2418-01_2A
____________________________________________________________________________
QUANTA COMPUTER INC.
HUAYA PLANT
_________________________________________________________________
Wearable ECG Monitoring
Device
User Manual
Ver. 1.0
_________________________________________________________________
2014 Quanta Computer Inc. Huaya Plant
All rights reserved.
![](/img.php?id=2348568&img=bg2.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 1
INDEX
WARNINGS AND REMINDERS ............................................................................. 2
W
ARNINGS
: ........................................................................................................................................................ 2
R
EMINDERS
:....................................................................................................................................................... 3
YEAR OF MANUFACTURE ..................................................................................... 5
SUPPLIER'S DECLARATION ................................................................................. 7
REGULATORY MARKS ......................................................................................... 10
INTRODUCTION ....................................................................................................... 12
EQUIPMENT ............................................................................................................... 13
A.NB
/
PC ....................................................................................................................................................... 13
EQUIPMENT OPERATING INSTRUCTIONS................................................ 15
A.
P
ERSONAL
C
OMPUTER
(NB/
PC) ....................................................................................................... 15
B.
Q
UANTA
ECG
M
ONITOR APPLICATION
,
NYA-
D
ATA
-
CMD
[
FOR USE ON PERSONAL
COMPUTERS
(NB
/
PC)] ......................................................................................................................... 16
C. NYA
B
ODY
M
ONITOR
........................................................................................................................... 21
D. NYA
B
ODY
M
ONITOR
A
CCESSORY
.................................................................................................. 25
E. ECG
E
LECTRODES
.................................................................................................................................. 26
F. NYA
C
HARGER
........................................................................................................................................ 27
CLEANING OF THE WIRELESS HOME HEALTH MANAGEMENT
SYSTEM ........................................................................................................................ 29
PRODUCT SPECIFICATIONS ............................................................................. 29
PRODUCT LIST ......................................................................................................... 30
![](/img.php?id=2348568&img=bg3.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 2
Warnings and Reminders
Warnings:
The NYA Quanta Wireless Home Health Management System is to be used for
clinical assessment and reference only. The NYA Quanta Wireless Home Health
Management System is not intended for diagnostic use.
The NYA Quanta Wireless Home Health Management System consists entirely of
sophisticated medical electrical devices so maintenance can only be carried out by
professional technicians. Unauthorized disassembly of the device by the user is not
allowed.
The NYA Quanta Wireless Home Health Management System must be used with
the specified "accessories" and "electrodes". The use of accessories and electrodes
from other brands may lead to faulty readings.
Do not allow the metal connectors to come into contact with any kind of power
source during use.
Before using the NYA Quanta Wireless Home Health Management System. Please
make sure that all of the machine's indicator lights are clearly readable in the
current usage environment.
Damaged or faulty accessories and electrodes should not be used.
When the NYA Quanta Wireless Home Health Management System experiences an
error, it will automatically stop taking measurements and the corresponding
indicator lights will blink.
When the NYA Quanta Wireless Home Health Management System is low on
power, it will automatically stop taking measurements and the corresponding
indicator lights will be blink.
When the NYA Quanta Wireless Home Health Management System is taking
measurements, please try and avoid using any instruments or devices that may
affect the accuracy of the readings (e.g. the use of the blood pressure meter will
affect the measurement of the pulse).
When the NYA Quanta Wireless Home Health Management System is taking
measurements, please try and avoid using other electronic devices nearby. If it must
be used with other electronic devices simultaneously, please check to make sure
that the NYA Quanta Wireless Home Health Management System is continuing to
take measurements normally.
NYA-specific accessories are defined in this user guide. The use of accessories
from other brands may damage the device.
Do not use the NYA Quanta Wireless Home Health Management System in a
flammable environment.
![](/img.php?id=2348568&img=bg4.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 3
Reminders:
Please read through this user guide carefully before using the NYA Quanta
Wireless Home Health Management System.
If the NYA Quanta Wireless Home Health Management System must be used to
take measurements over an extended period of time, please inspect the contact point
of the electrodes at least once every 8 hours to make sure that the electrodes are in
the right position and there is no allergic skin reaction from the user.
Do not use medical electrical equipment such as "defibrillators" when using the
NYA Quanta Wireless Home Health Management System.
When the NYA Quanta Wireless Home Health Management System is taking
measurements, if a stable reading cannot be taken then stop taking the measurement
right away (not everyone is suitable for monitoring with the NYA Quanta Wireless
Home Health Management System).
The NYA Quanta Wireless Home Health Management System can only take
measurements when the subject is stationary (e.g. while sitting or lying down) or
engaging in ordinary exercise. Any activities not permitted by the attending
physician may affect the accuracy of the measurements.
Do not use the NYA Quanta Wireless Home Health Management System in an
excessively humid environment and never submerge it directly under water.
Do not clean or wipe the NYA Quanta Wireless Home Health Management System
with corrosive and abrasive cleaning agents.
The NYA Quanta Wireless Home Health Management System consists entirely of
sophisticated medical electrical devices so maintenance can only be carried out by
professional technicians. Unauthorized disassembly of the device by the user is not
allowed.
When the NYA Quanta Wireless Home Health Management System is low on
power, please insert it in the charger for re-charging as soon as possible.
The disposal of the NYA Quanta Wireless Home Health Management System and
its accessories should comply with the relevant local regulations.
The NYA Quanta Wireless Home Health Management System has been tested and
certified to international electro-magnetic compatibility (EMC) standards for
medical equipment (EN 60601-1 and EN 60601-1-2) for the user's peace of mind.
The NYA Quanta Wireless Home Health Management System and its accessories
should be disposed of properly. If you are uncertain about the proper disposal
method, please contact customer service at Quanta Computer Inc. Huaya Plant for
assistance.
The accuracy of the medical electrical equipment may be affected if used near
high-frequency communications equipment.
Battery Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
![](/img.php?id=2348568&img=bg5.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 4
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
.
![](/img.php?id=2348568&img=bg6.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 5

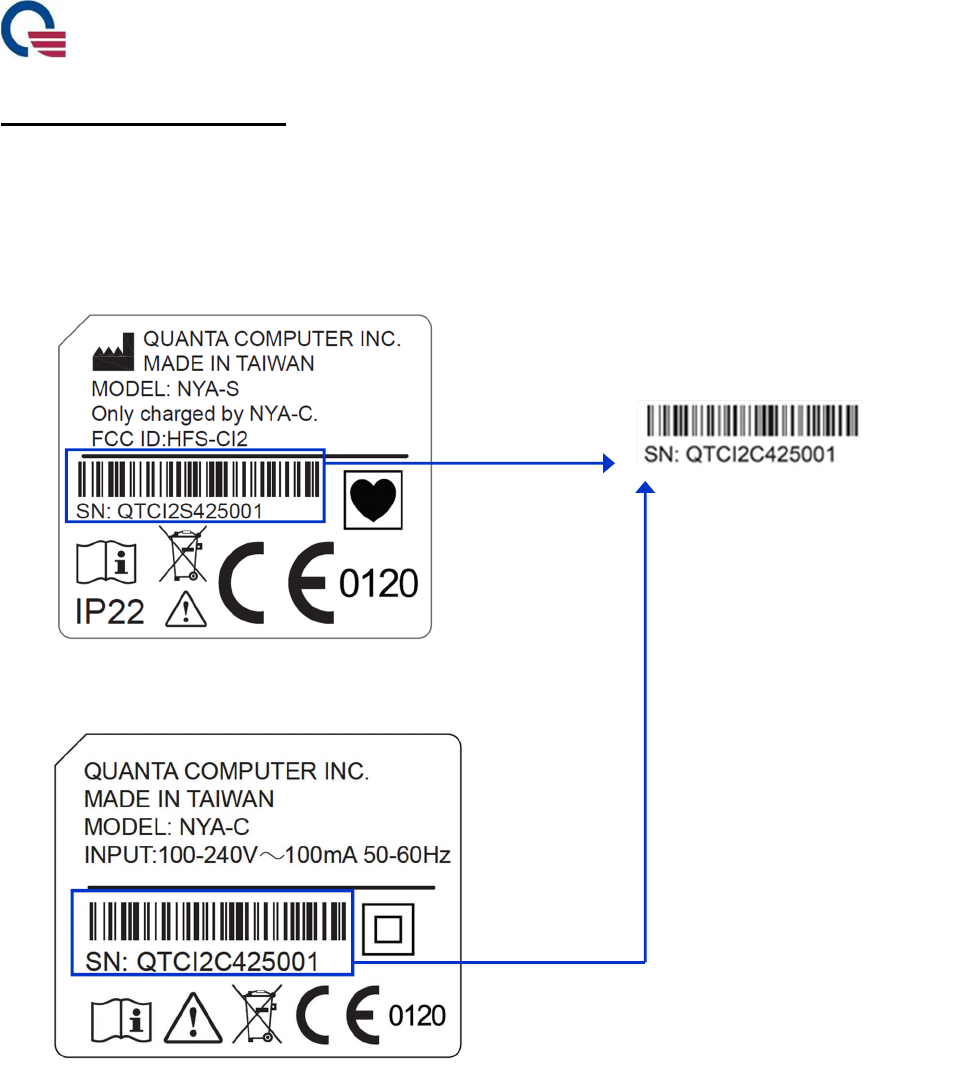

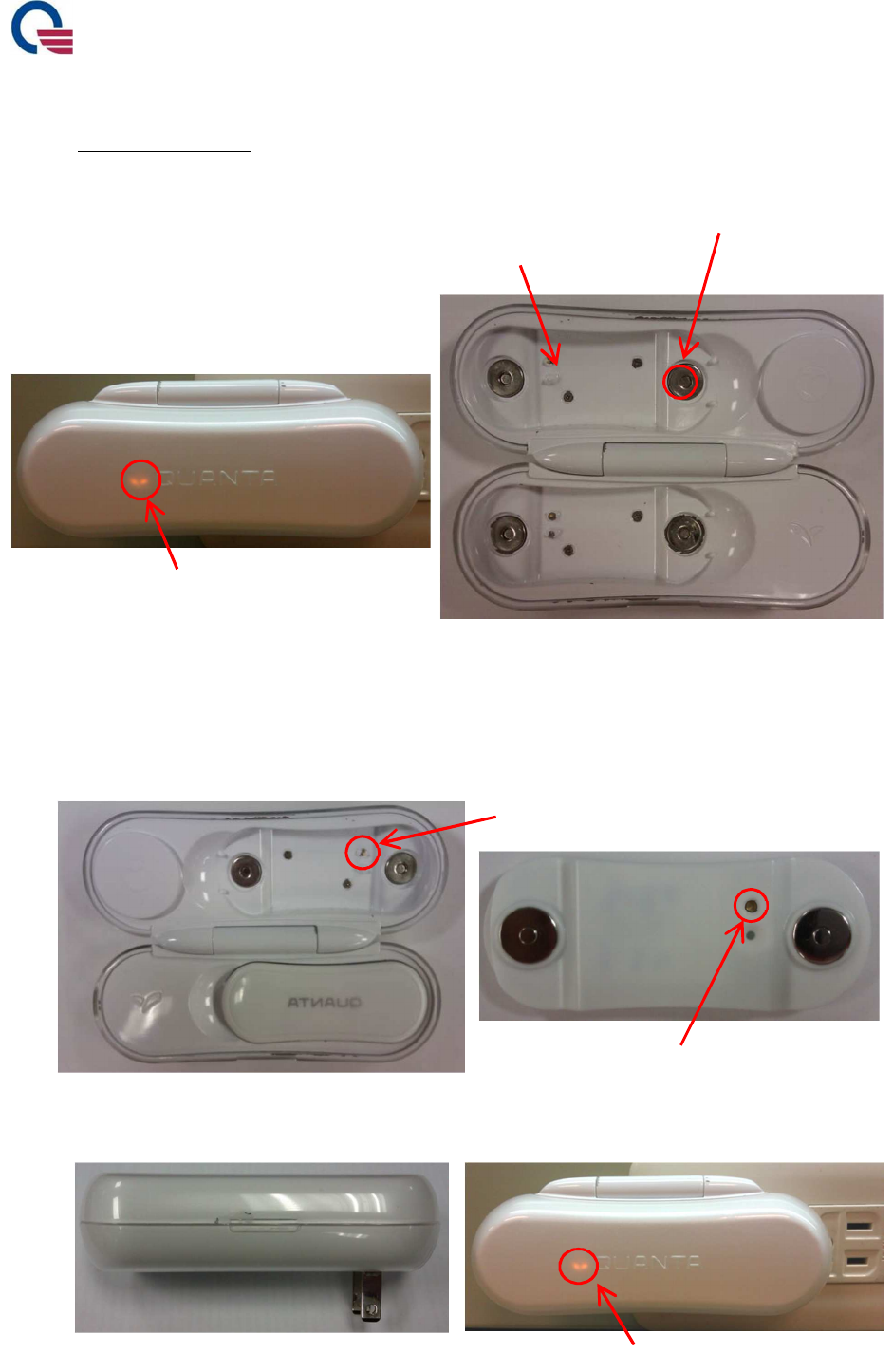

Year of Manufacture
The year of manufacture label and format of the wireless home health management
system's body monitor, charger and ECG electrodes are shown below:
Sensor
Charger
Example:
If the serial number is “QTCI2C425001”
The 7th characters is mean “14”
Then the year of manufacture is 2014 AD.
In the serial number on the
product label, the 7th
character starting from the
left (“14” in the shown
example) represents the
sensor and charger's year of
manufacture.
![](/img.php?id=2348568&img=bg7.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 6

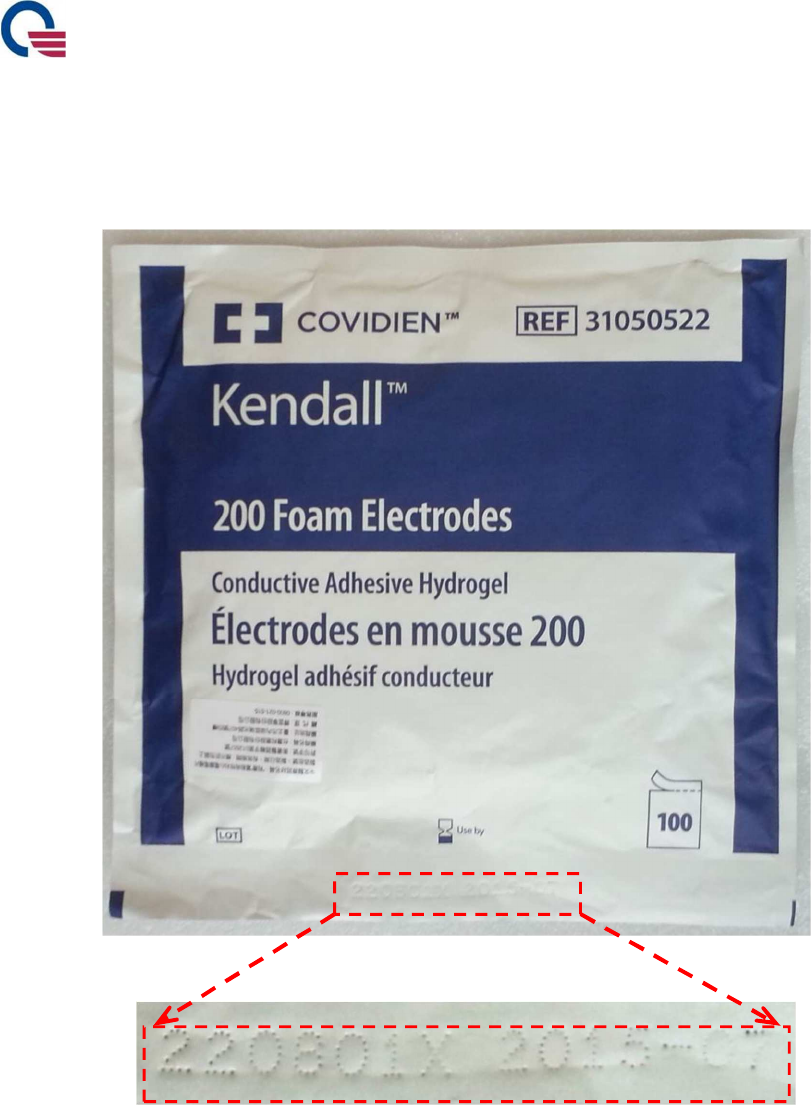

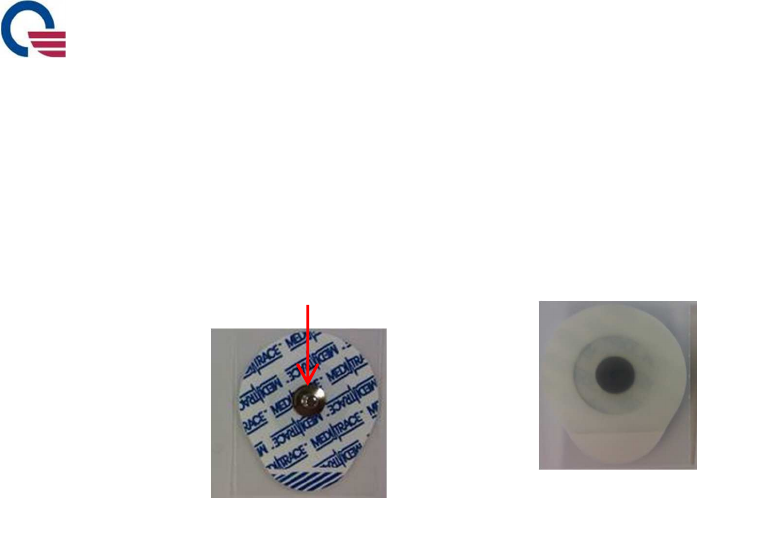

ECG Electrodes
The effective date of the ECG electrodes is labeled along the lower edge of the
packaging in impact type (not printed) as shown below:
Example: 220801X 2015-07
Explanation: 220801X Manufacturer lot number
2015-07 Valid before July 2015
![](/img.php?id=2348568&img=bg8.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 7
Supplier's Declaration
The NYA Quanta Home Health Management System conforms to the international EN
60601-1 and EN 60601-1-2 standards for electromagnetic compatibility with medical
electrical devices and systems.
Emission Testing
Compliant
Standard Electromagnetic Environment Guidelines
The recommended electromagnetic environment for this instrument is shown in the
table below. The customer or user should ensure that this instrument is used in the
described environment.
RF Emissions
CISPR 11 Group 1 Radio-frequency is only used by the internal
functions of this instrument. The emission
energy is also very low and does not interfere
with nearby electronic instruments.
RF Emissions
CISPR 11 Class B This instrument is suitable for home use
(including residential or other mixed
residential/public low-voltage power grids)
Harmonic
Emissions IEC 61000-3-2
Voltage
Fluctuations/
Flicker
Emissions
IEC 61000-3-3
Testing IEC 60601-1-2
testing Compliant
Standard
Electromagnetic
Environment
Guidelines
The recommended electromagnetic environment for this instrument is shown in the
table below. The customer or user should ensure that it is used in the described
environment.
Electrostatic
Discharge
(ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
The floor should be
timber, concrete or
ceramic tile. If the
floor is covered in a
synthetic material then
it should have a
relative humidity of at
least 30%.
Power Frequency
(50/60Hz)
Magnetic Field
IEC 61000-4-8
3 A/m 3 A/m Power frequency and
magnetic field in
representative
commercial or hospital
environments.
![](/img.php?id=2348568&img=bg9.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 8
Supplier's declaration and guidelines—Electromagnetic Immunity
Testing IEC 60601-1-2
testing Compliant
Standard Electromagnetic Environment
Guidelines
The recommended electromagnetic environment for this instrument is shown in the table
below. The customer or user should ensure that it is used in the described environment.
No part of the NYA Quanta Wireless Home health management System should be placed
near portable and mobile radio-frequency communications equipment. The recommended
safety distance can be calculated using the radio frequency and the following formula.
Radio-frequency
IEC 61000-4-6
Radio-frequency
IEC 61000-4-3
3 V/m
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
[3] V
[3] V/m
Recommended safety distance
d=1.17
P
d
=1.17
P
80 MHz to 800MHz
d
=2.33
P
800MHz to 2.5 GHz
P
is the maximum output of the
transmitter (Unit: Watt)
d
is the recommended safety
distance (Unit: Meter)
The field intensity of the fixed RF
transmitter (after an EM site
survey) should be lower than the
recommended values for the above
frequency ranges.
Interference may be produced near
instruments that have the
following symbol:
The field intensity of fixed RF transmitters (e.g. radio, mobile phone, ham radio, FM and AM
radio broadcasts and TV stations) cannot be predicted from the frequency alone. To evaluate
the EM field intensity of the environment, an EM site survey may be necessary. If the
measured field intensity for a region exceeds the above recommended range, the device
should be observed or checked to make sure it operates normally. If abnormal operation is
observed, further action such as adjusting the direction or re-positioning of the equipment
should be taken.
Attention: For frequencies between 80 MHz and 800 MHz, use the higher frequency range.
Attention: These guidelines may not be applicable to all situations. Electromagnetic waves
can be absorbed or reflected by buildings, objects and people.
![](/img.php?id=2348568&img=bga.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 9
Recommended safety distance
The following table lists the recommended safety distance between the device and mobile RF
communications equipment.
The recommended EM environment for the NYA Quanta Wireless Home Health Management
System is where RF interference is controlled. The user should maintain the recommended
safety distance with the devices and portable/mobile RF communications equipment listed in
the following table (corresponding to the maximum output of the RF transmitter).
Recommended Safety Distance (corresponding to RF transmitter
output)
Maximum output of
RF transmitter (Watt)
150 kHz to 80 MHz
d
=1.17
P
80 MHz to 800 MHz
d
=1.17
P
800 MHz to 2.5 GHz
d
=2.33
P
0.01 0.12 0.12 0.23
0.1 0.37 0.37 0.74
1 1.2 1.2 2.3
10 3.7 3.7 7.4
100 12 12 23
If the maximum output of the transmitter is not shown in the above table, use the formula to
derive the recommended safety distance
d
(Meter) with
P
(Watt) being the maximum output
of the transmitter.
Attention: For frequencies between 80 MHz and 800 MHz, use the higher frequency range.
Attention: These guidelines may not be applicable to all situations. Electromagnetic waves
can be absorbed or reflected by buildings, objects and people.
![](/img.php?id=2348568&img=bgb.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 10
Regulatory Marks
The Wireless Home Health Management System conforms to the following regulatory
requirements.
Administrative Regulations on Low Power Radio Waves Radiated Devices (930322)
Article 12
Without permission granted by the NCC, any company, enterprise, or user is not
allowed to change frequency, enhance transmitting power or alter original characteristic
as well as performance to an approved low power radio-frequency devices.
Article 14
The low power radio-frequency devices shall not influence aircraft security and
interfere with legal communications. If found, the user shall cease operation
immediately until no interference is achieved.
The said legal communications means radio communications is operated in compliance
with the Telecommunications Act. The low power radio-frequency devices must be
susceptible with the interference from legal communications or ISM radio wave
radiated devices.
CE Mark: Indicates that the body monitor has been certified and
conforms to EC Directive 93/42/EEC on medical devices.
Type CF applied part
Indicates that the body monitor is classified as electrical or electronic
equipment requiring proper disposal (WEEE Directive)
Indicates the manufacturer's catalogue number
Attention: Catalogue number may also be referred to as the
reference number or reorder number.
Indicates the manufacture's serial number.
Indicates the manufacturer's name and address
To indicate on the rating plate that the equipment is suitable for
alternating current only; to identify relevant terminals.
![](/img.php?id=2348568&img=bgc.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 11
Indicates the need for the user to consult the instructions for use for
important cautionary information such as warnings and precautions that
cannot, for a variety of reasons, be presented on the medical device
itself
Indicates the need for the user to consult the instructions for use.
Indicates the identification of CLASS II EQUIPMENT only
![](/img.php?id=2348568&img=bgd.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 12
Introduction
"Electrocardiogram" (ECG) Waveform
Required equipment
Remarks
Smart phone (E)+ NYA body monitor (G)
ECG electrode (I) +
Accessory (H)
Body Monitoring
Shirt(J)
Choose one of the two
measurement options on the
left based on the usage
requirements, nursing
personnel's requirements or
user's personal preference.
![](/img.php?id=2348568&img=bge.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 13

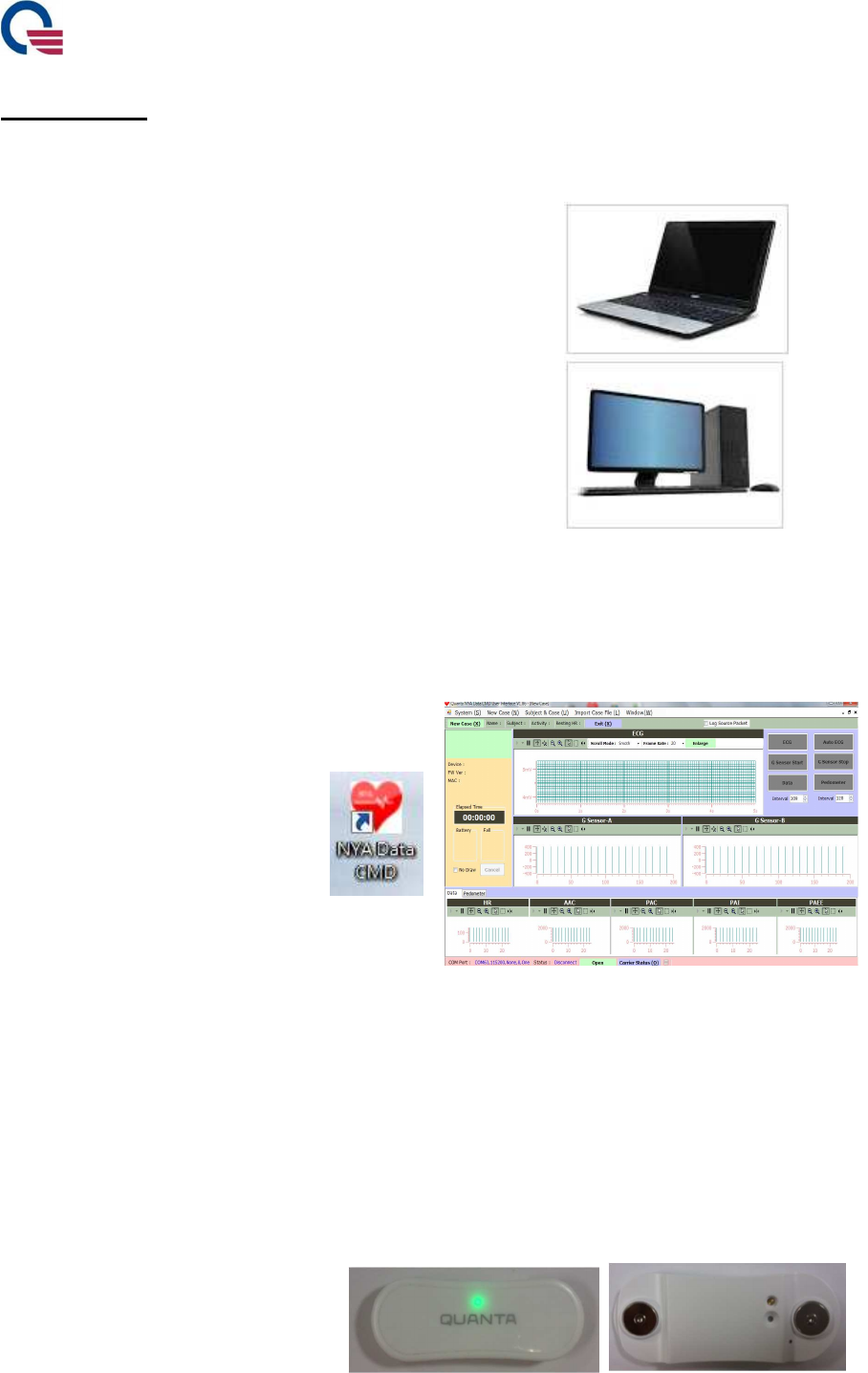

Equipment
A.NB / PC
Functions
The device requires a commercially
available personal computer (NB/PC) with
Bluetooth capabilities. In addition to the
basic functions of a computer, the
installation provides an exclusive
application (UI, as below) capable of
performing electrocardiogram (ECG)
measurements. Doctors and medical staff
can effectively monitor health information
by uploading the measurements to the main
server via Bluetooth.

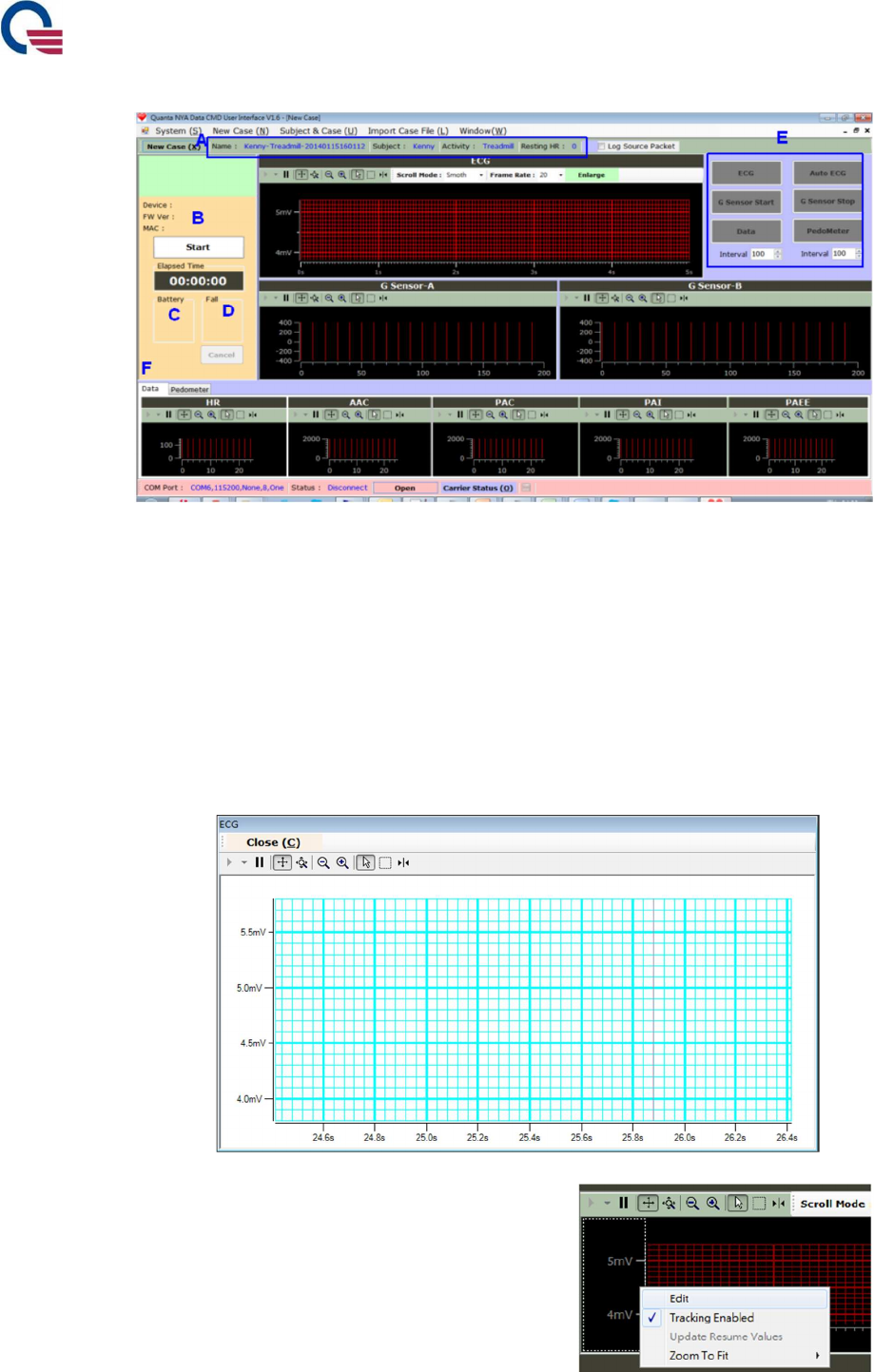

Quanta ECG Monitor Application UI (for use on NB / PC)
Functions
The application (UI) can
be installed on any
personal computer (NB
/PC) to provide ECG
data measurement
functions. With the
Quanta ECG Monitor
device (B), body
monitoring accessories
(D), ECG electrode
patches (C) , measured
data will be uploaded to
the server via Bluetooth
so doctors and medical
staff can conduct carry
out remote monitoring.
B.
NYA Body Monitor
Function
The ECG signal measured through this device is wirelessly transmitted using low-power
Bluetooth technology to the smart phone for processing. The data is then uploaded via 3G
wireless network to the cloud server.
This device require
s the ECG
Electrodes (C) in order to
take measurements.
![](/img.php?id=2348568&img=bgf.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 14

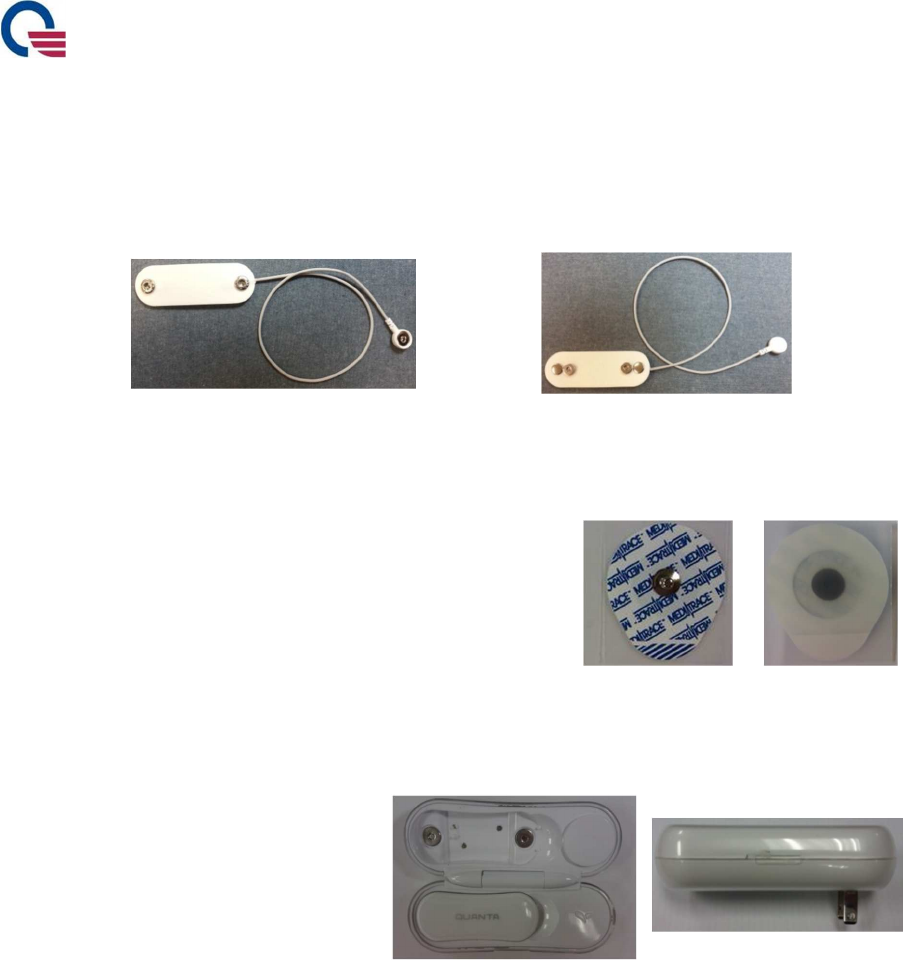

C.

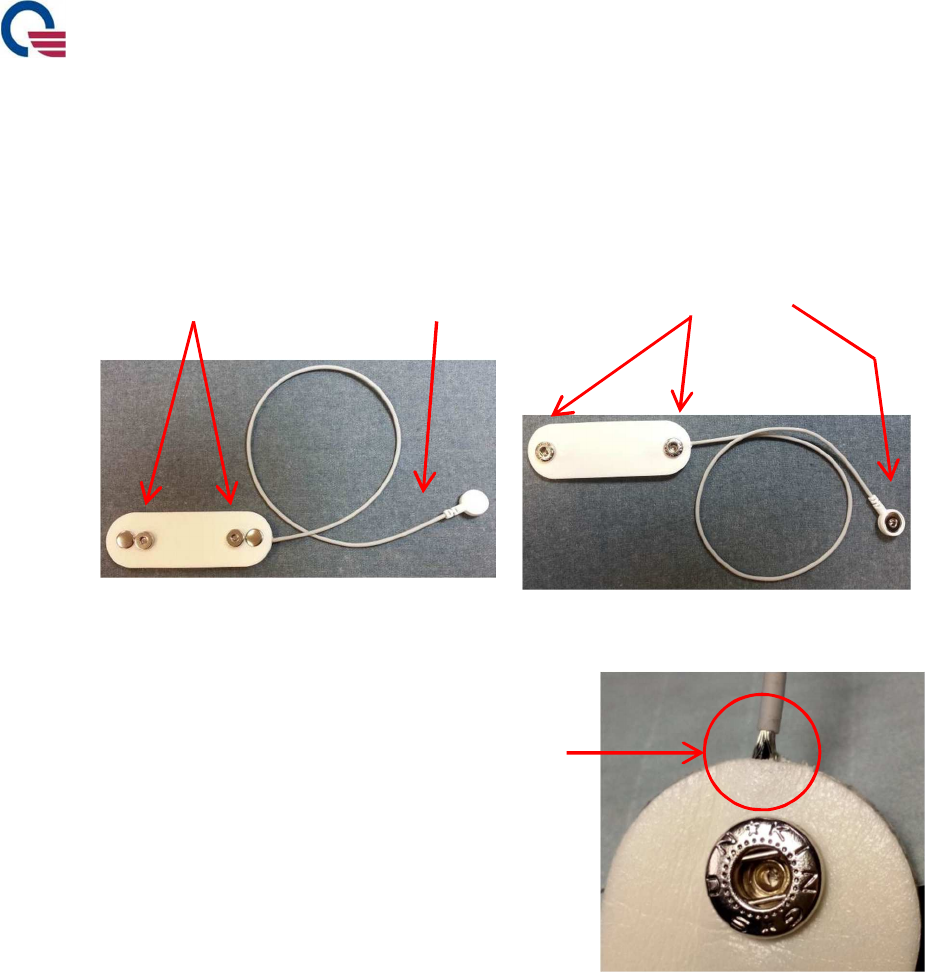

NYA Body Monitor Accessory
Function
When the electrodes are used, this accessory is used to attach the NYA Body Monitor (B) and
transmit the ECG signal between electrodes.
Back
Front
D.

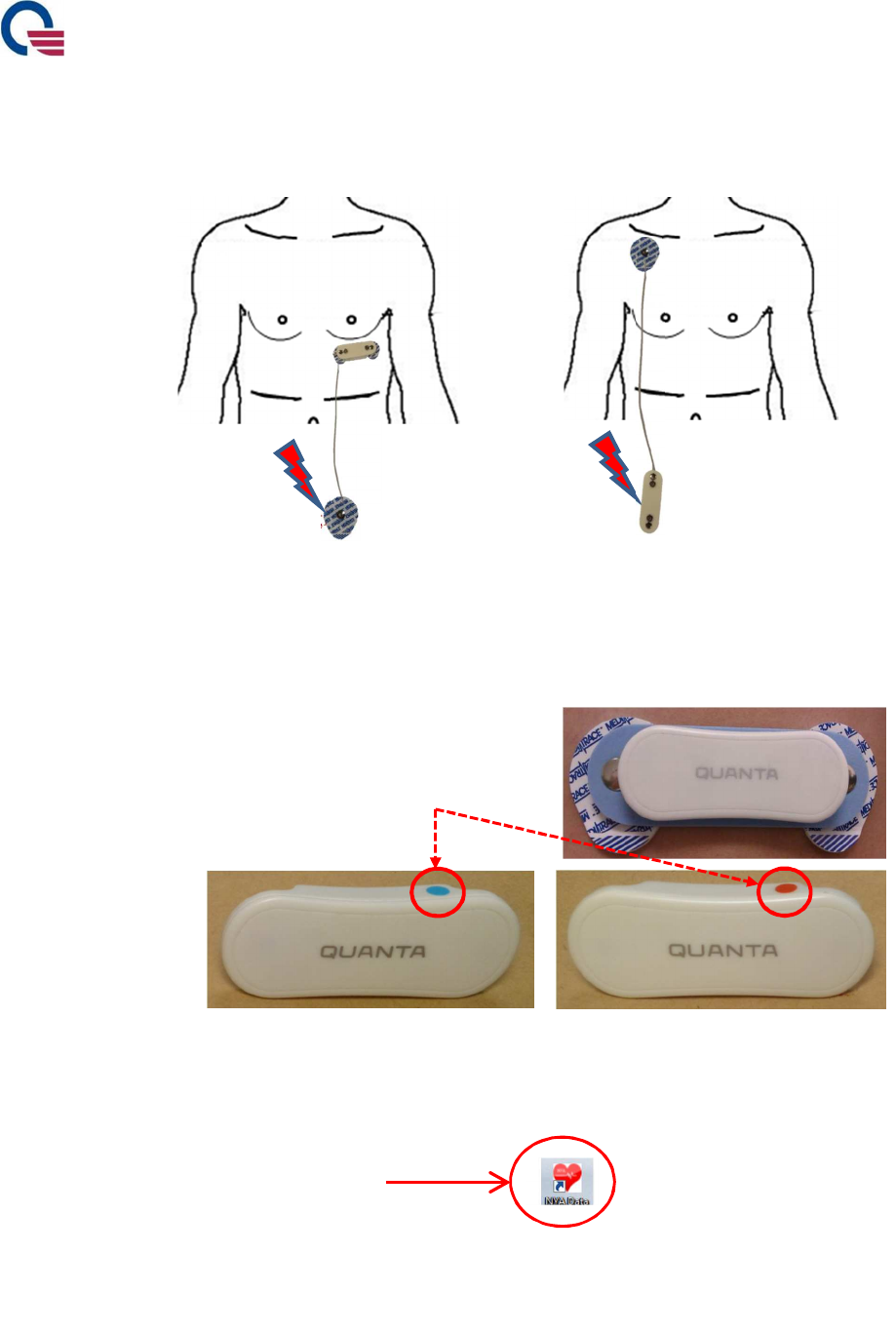

ECG Electrodes
Function
Attach to the designated location on the chest in
order to capture physiological ECG signal for
the NYA Body Monitor (B) for processing and
upload.
E.

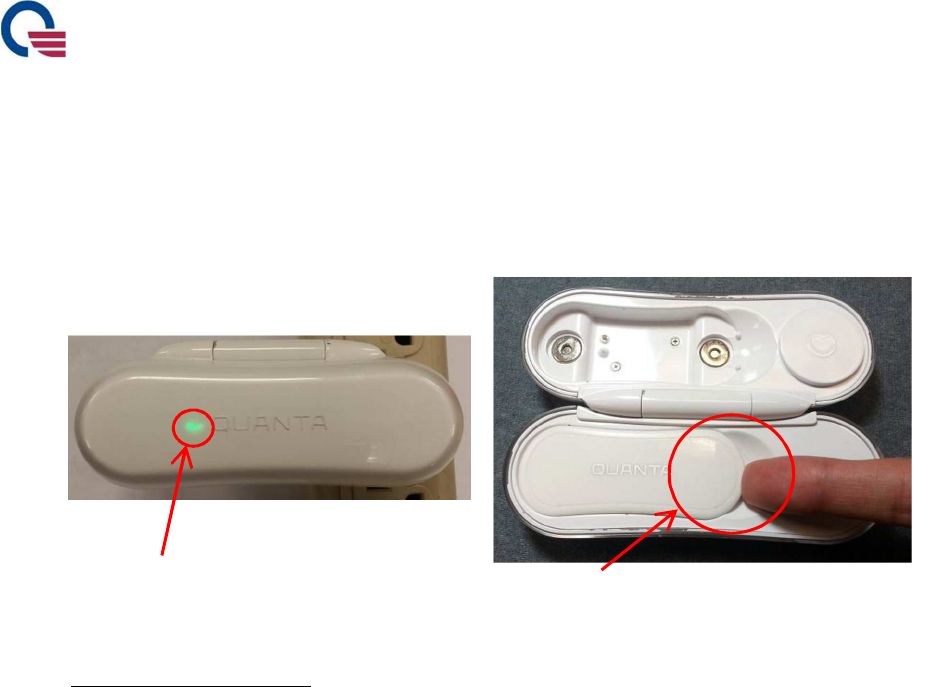

NYA Charger
Function
Used for charging the NYA Body
Monitor (B). The charger has two
slots that allow it to charge two
Body Monitor (B) units at the
same time.
![](/img.php?id=2348568&img=bg10.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 15
Equipment Operating Instructions
A. Personal Computer (NB/ PC)
According to the specifications of individual personal computers (NB / PC).
Operating Instructions:
Start up the computer
After starting up your personal computer (NB / PC), users can access the available
functions.
Shut down the computer
To shut down your personal computer (NB / PC), click Shut Down.
Bluetooth Functions
Install a Bluetooth dongle on your personal computer (NB / PC).
Plug in your Bluetooth dongle to the USB port to turn the Bluetooth
functions on or off.
Upon selecting and launching Bluetooth, the Bluetooth interface will be
displayed. Click to search for the device.
Your device name will be displayed in the Bluetooth selection field. Click on
your device name to add it to the system.
The configuration and connection status will be shown on top of the device
name in your list of Bluetooth devices.
![](/img.php?id=2348568&img=bg11.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 16

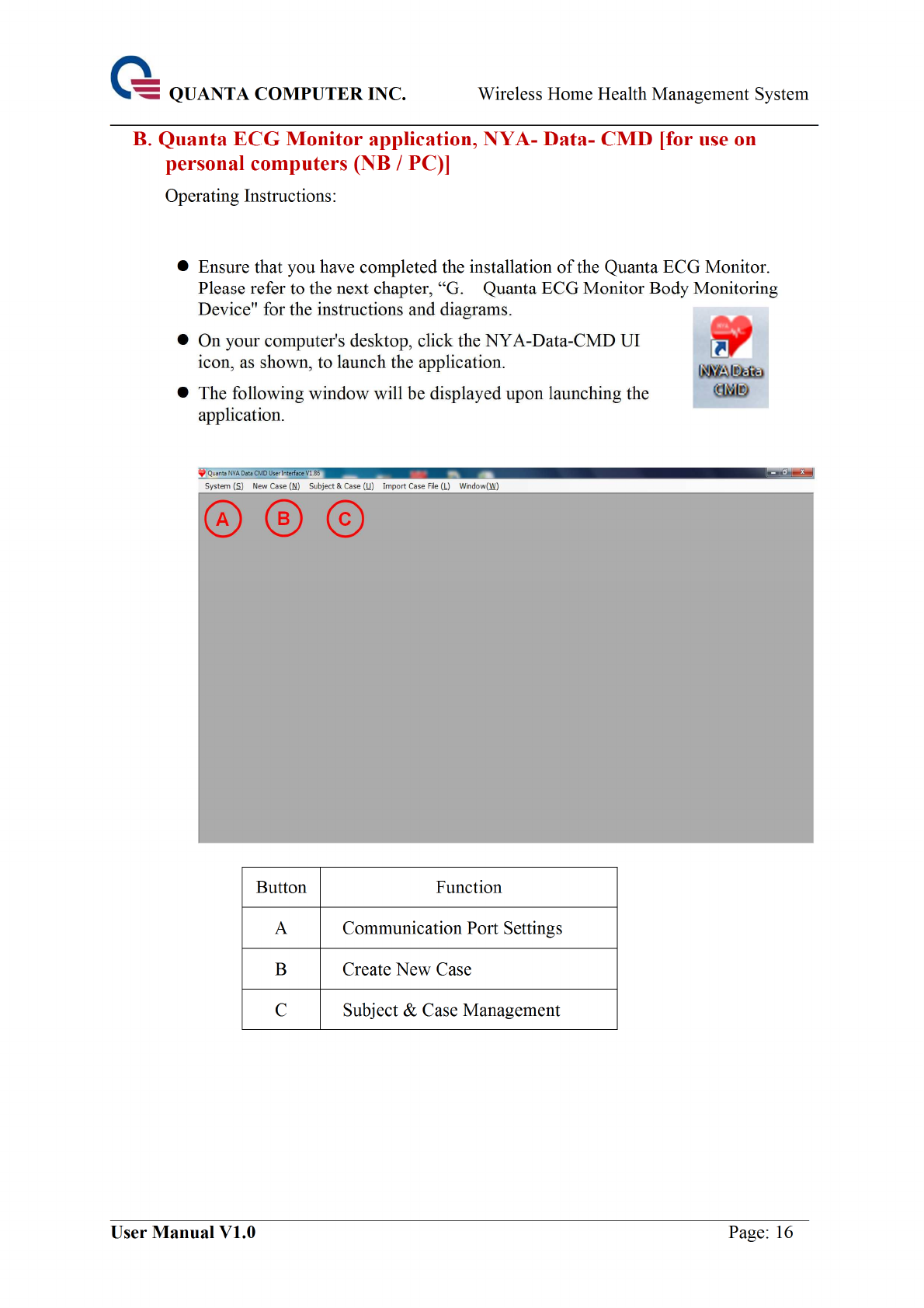

B. Quanta ECG Monitor application, NYA- Data- CMD [for use on
personal computers (NB / PC)]
Operating Instructions:
Ensure that you have completed the installation of the Quanta ECG Monitor.
Please refer to the next chapter, “G. Quanta ECG Monitor Body Monitoring
Device" for the instructions and diagrams.
On your computer's desktop, click the NYA-Data-CMD UI
icon, as shown, to launch the application.
The following window will be displayed upon launching the
application.
Button
Function
A Communication Port Settings
B Create New Case
C Subject & Case Management
A
B
![](/img.php?id=2348568&img=bg12.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 17
1. Communication Port Settings
Set up the com port to receive Vital Sign Sensor data.

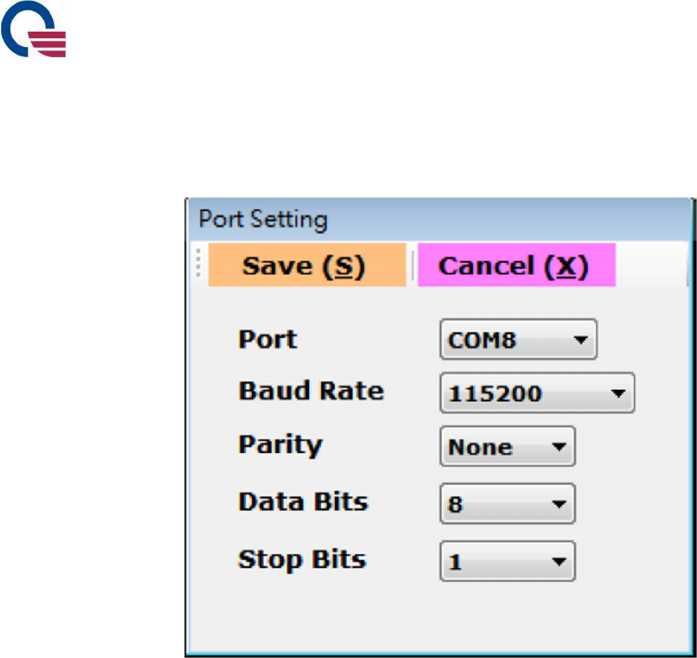

Click "System" "Com Port Setting" to open the following window.
Port
The system will automatically detect and list the current Com Ports on the
computer. Select the Port to connect to.
Baud Rate
Select 115200.
Parity
Select None.
Date Bits
Select 8.
Stop Bits
Select 1.
After making the changes, click "Save" to complete. The changes will
not take effect if you cancel and exit the screen.
![](/img.php?id=2348568&img=bg13.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 18
2. Create New Case

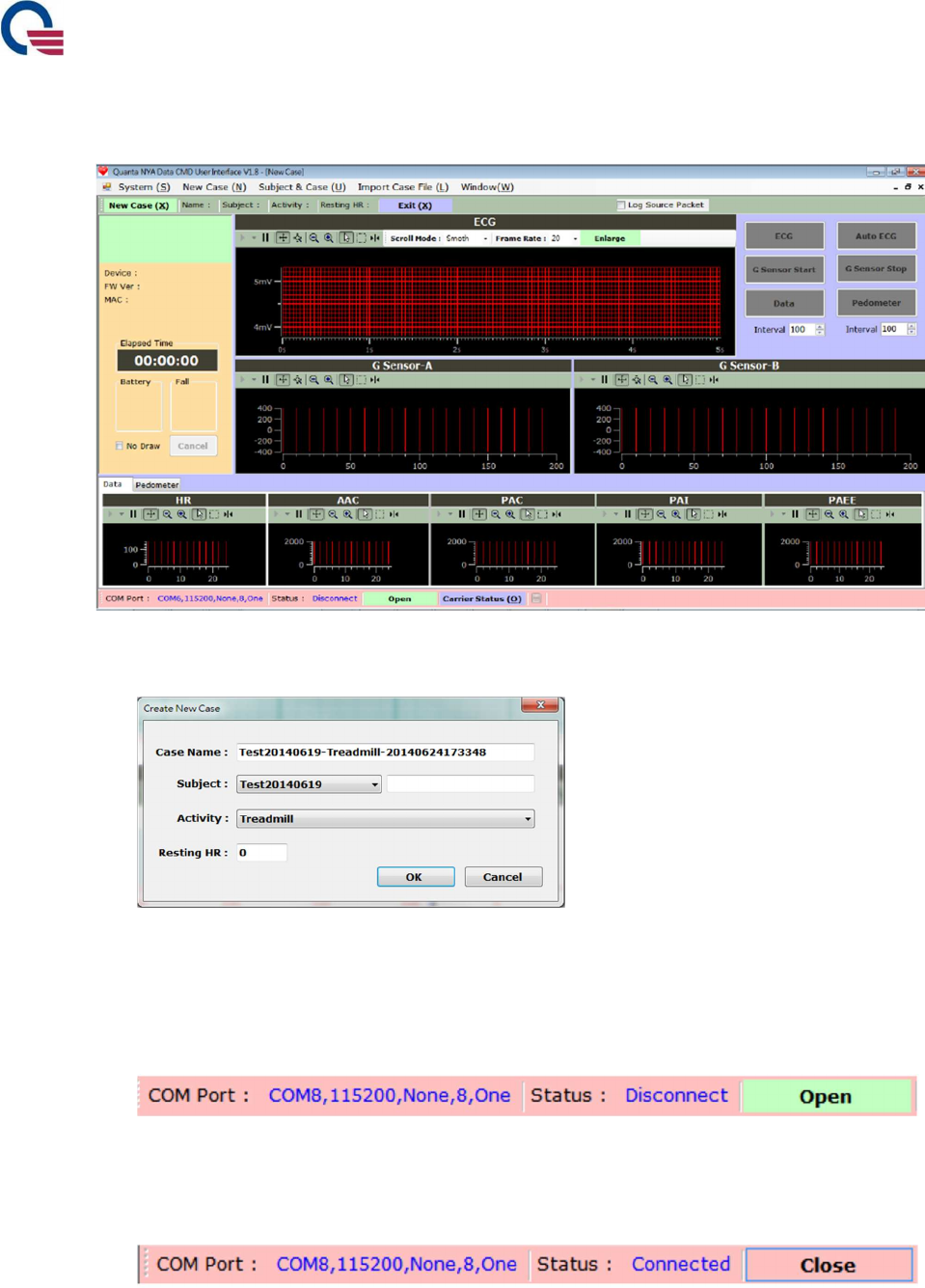

Clicking "New Case" will display the following window:
Create a New Case as follows:
a. Click "New Case" to display the following window.
Confirm the subject in the Subject field. Enter the Resting HR of the Subject
and click "OK".
b. Ensure Bluetooth has been properly connected to the Serial Port of the
hardware.
c. Click "Open" to open the Com Port as shown in the diagram below.
If correctly launched, the Status will change to Connected as shown in the
diagram below. To close the Com Port, click "Close". If during the
measurement process, the Com Port connection disconnects due to instability,
the system will close the Com Port automatically.
d. Click "Start" on the left of the screen to connect to the hardware, send out the
initializing data and prepare to receive the test data.
e. To end the test, click "Stop" on the right of the screen. Upon clicking "Stop",
the data automatically save to the database.
![](/img.php?id=2348568&img=bg14.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 19
f. Screen description:
A. Displays the basic information of the case.
B. Displays the time elapsed for the test.
C. Displays the battery life of the hardware.
D. Displays whether a Fall Event occurs. Click "Cancel" to execute Cancel
Fall Event command.
E. Auto ECG command. By clicking "Auto ECG", the ECG waveform will
update every 3 seconds; HR, AAC, PAC, PAI, PAEE and battery will
update every 15 seconds; and Steps, Stride, Speed, Calories, and
Distance will update every 60 seconds.
ECG waveform display
Enlarge will enlarge the ECG waveform measured.
Change Y-axis range of ECG display
On the Y-axis range, right-click to
display a selection list. Select Edit as
shown in the diagram right.
![](/img.php?id=2348568&img=bg15.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 20

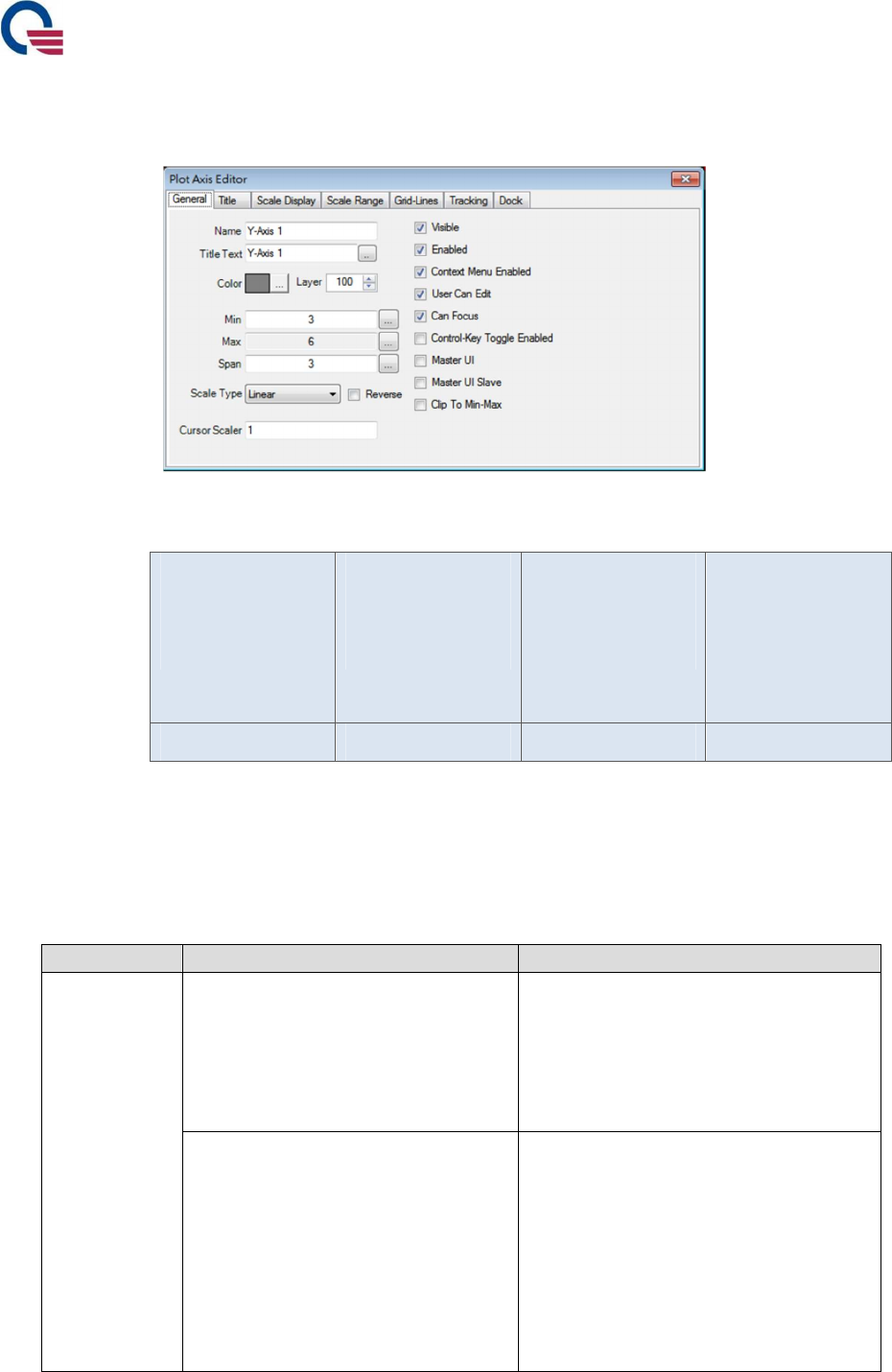

Correct the two values, Min and Span, on the General Tab. Min is the
starting value of Y-axis; Span is the length of Y-axis.
Battery life display of monitoring device
Under normal connection and usage, the battery life symbol will display as
follows. Different battery bars represent different battery life.
High battery life,
estimated usage
time of 12 to 16
hours.
Medium battery
life, estimated
usage time of 7
to 11 hours.
Low battery life,
estimated usage
time of 2 to 6
hours.
Critical battery
life, with less
than 1 hour of
battery life.
Please charge
immediately.
4 bars (full) 3 bars 2 bars 1 bar
Note: The above battery life display and usage time is for reference only, as
the data is obtained by testing on a new product. The actual usage time
will defer with different conditions such as charging conditions,
number of times used, environmental temperature, distance from base
station, connectivity, etc.
Condition Possible Reason Recommended Actions
Data
disconnected
or omitted
while
sleeping.
The subject turns over or sleeps
on one side causing the Quanta
ECG Monitor to detach from the
accessories or causing poor
connection due to pressure from
the body.
We recommend putting on the
physiological monitoring clothing
while sleeping.
The Quanta ECG Monitor
monitoring device is a safe and
low power Bluetooth device. The
electric wave emitted is weak. If
the subject sleeps on one side or
wraps one's arms around the body
while sleeping, the device may
easily become disconnected or
obstructed by the body.
While sleeping, put the handphone
on your headboard or within 1 to 2
meters of the bedside. We
recommended placing the
handphone at a position higher than
the bed. Do not put the handphone
on the floor. Refrain from placing
the handphone at a position lower
than or at the end of the bed.
![](/img.php?id=2348568&img=bg16.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 21
C Subject & Case Management

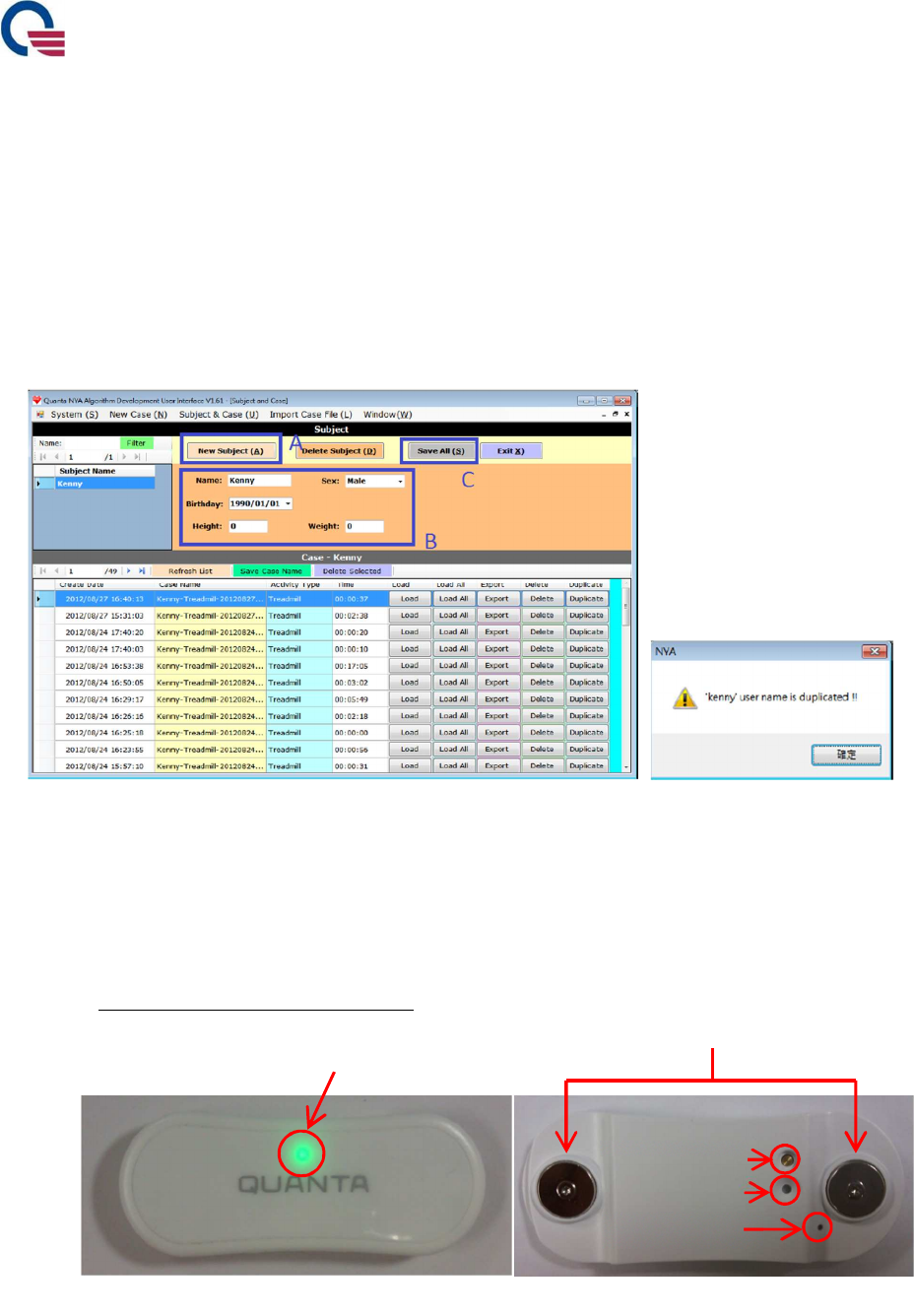

After executing "Subject & Case", the following screen will be displayed:
A. Click "New Subject" button.
B. Enter Name, Sex, Birthday, Height and Weight.
C. Click "Save All" to save into the database. If the Name entered already exists,
the system will display the following alert message as shown in the diagram.
D. Select the Subject Name in the "Subject Name" field. The subject's test cases
will display in the case list below.
C. NYA Body Monitor
External guide to body monitor:
LED status light
Front of Body Monitor
Male-end of magnetic clip
Back of Body Monitor
Waterproof vent
Bluetooth pairing button
Charger detection port
![](/img.php?id=2348568&img=bg17.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 22
Bluetooth matching (These settings will be set by the service representative)
(1) When the “Smart Phone” or “NYA Monitor” is used for the first time or
updated they must be paired.
(2) Open the smart phone and make sure that it has Bluetooth enabled (See E.
Smart Phone Instructions).
(3) Use the pin to press the Bluetooth pairing button on the “NYA Monitor” to
start pairing.
(4) During the pairing process, the LED status light will alternatively blink
green/orange for 1 minute.
(5) Once pairing is successful, the green LED will stay lit for 5 seconds and the
mobile phone will show that it is connected.
(6) If pairing fails, the LED status light on the monitor will alternatively blink
green/orange for 1 minute then stop pairing and searching. All lights will then
go out.
Instructions for the Body Monitor

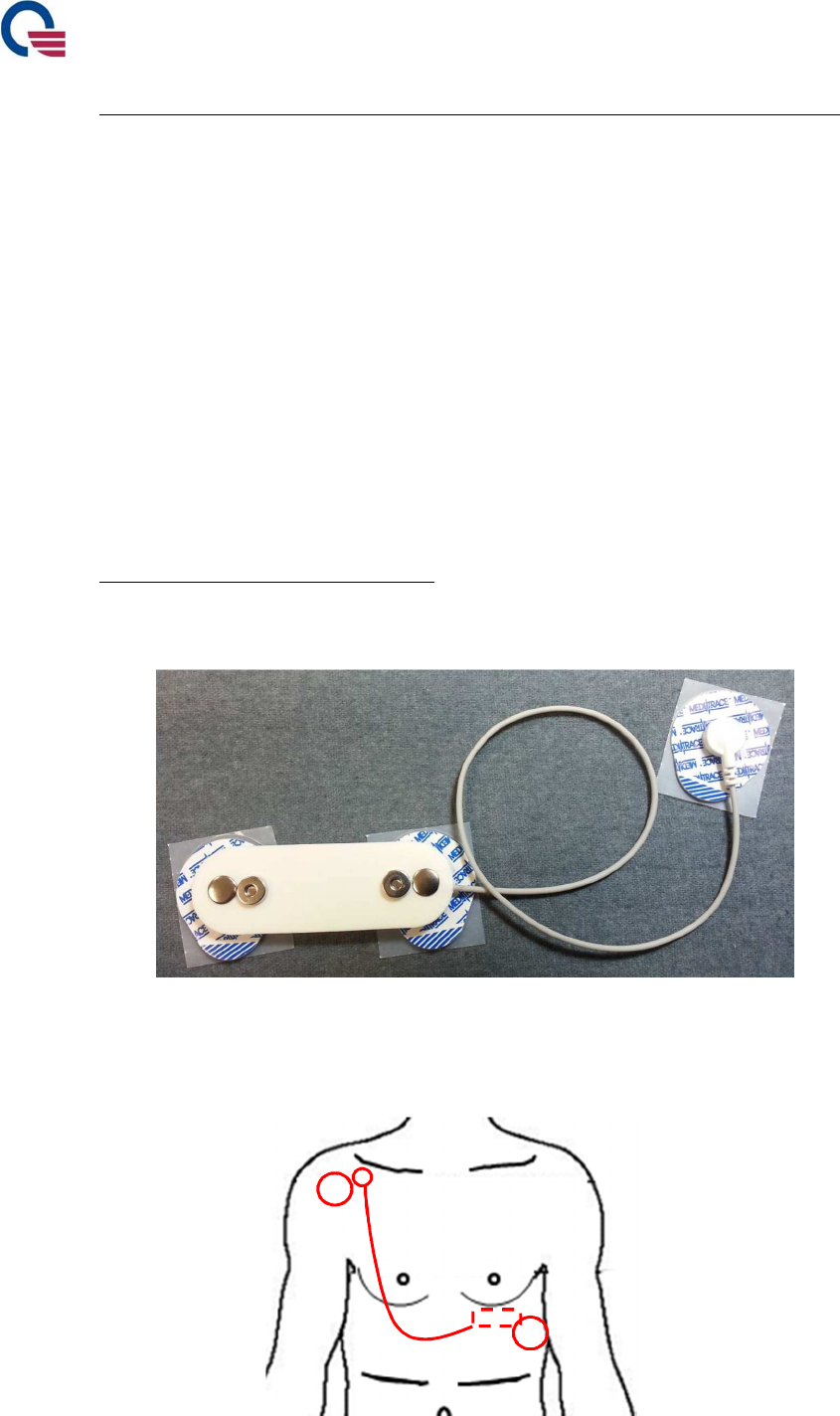

(1) Clip the ECG electrode's male connector to the female connector on the
accessory as shown below:
(2) Remove the paper strip from the ECG electrode. For step 1, attach the
device-side to the lower edge of the left chest. For step 2, attach the wire-side
to the lower edge of the right collarbone as shown below:
Device-side
Wire-side
![](/img.php?id=2348568&img=bg18.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 23
Attention: The ECG electrodes and accessory must not be worn in the following
manner for an extended period of time. This prevents the dangling end
from short-circuiting with any power supply.
Wire-side hanging loose
Device-side hanging
loose
(3) Clip the male magnetic male connector on the monitor to the female connector
on the accessory as shown below. Note: The circular red or blue mark on
the monitor must point upwards and must not be upside-down. Please see
below.
Circular mark pointing upwards
(4) Launch the NYA-Data-CMD Application” on the PC/NB (Please see the
previous section B. ) shown below:
NYA-Data-CMD
Application icon
Note: Before launching the application, only one body monitor can be
used/activated at any time. Using two monitors at the same time will
cause the App system to fail.
(5) Once the app is running, please see the instructions in section B.
![](/img.php?id=2348568&img=bg19.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 24
Other body monitor information:
(a) If the monitor has a low battery, the orange LED light will blink.
(b) When the monitor is placed on the accessory (or body monitoring shirt), the
green LED light on the monitor will blink for 5 seconds before going out.
(c) During standby and measurement, the monitor's status light will not be shown
except when power is blow.
(d) When the monitor is being charged in the charger, the status lights will
remain off.
(e) As long as the monitor is not on the accessory, tapping the monitor twice will
cause the green LED to come on. The monitor will then start transmitting data
(the smart phone app must be running and connected). Once the transmission
is complete, the green LED light goes out. If the smart phone does not have
the app running, the green LED will stay on for two minutes then go out.
(f) When the ECG electrode falls from the user or the monitor becomes detached
from the accessory, the green LED on the monitor blinks once every 3
seconds.
![](/img.php?id=2348568&img=bg1a.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 25
D. NYA Body Monitor Accessory
Used for connecting the body monitor and ECG electrodes so the best ECG signal can
be acquired. Please see the previous section "“G. NYA Body Monitor" for further
information and graphics.
Magnetic Clip Female Connector
ECG wiring
Pressure Clip Female Connector
Front of accessory Reverse of accessory
Attention:
If any wear or damage to the wire
cladding is found during use, replace
immediately.
![](/img.php?id=2348568&img=bg1b.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 26
E. ECG Electrodes
The ECG Electrodes are conductors placed on the skin of the chest for transmitting the
signal generated by the beating of the heart. The signal is transmitted to the body
monitor for amplification and processing into the ECG signal.
Pressure Clip Male
Connector
Front of electrodes
Back of electrodes
Attention:
Before attaching the ECG electrodes, make sure that the skin surface is clean.
It may necessary to wipe the skin clean with a wet towel or alcohol swabs then
wait for it to dry before attachment.
Electrodes are not re-usable.
If the skin at the attachment point shows signs of a rash/blisters/reddening or
other discomfort, please contact the medial personnel or physician.
![](/img.php?id=2348568&img=bg1c.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 27
F. NYA Charger
Charger function:
Magnetic clip
female connector
Charger detection
probe
LED status light
(1) The magnetic clip male-connector on the monitor and the magnetic clip female
connector of the charger clips with each other. Pay attention to the direction
when placing the monitor on the charger. The charger detection port on the
monitor must be aligned with the charger detection probe on the charger as
shown below.
Charger detection probe
Charger detection port
(2) When the charger is closed and plugged into power mains, the orange LED will
light up when it is charging normally as shown below.
During charging the orange LED stays on.
![](/img.php?id=2348568&img=bg1d.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 28
(3) Once the monitor is fully charged, the orange LED on the charger goes out and
the green LED comes on. Remove the charger from the socket, open the cover of
the charger and insert finger into the ventral groove to pick up the monitor for
use as shown below:
The green LED lights up after charging
Insert finger into ventral groove and pick up
monitor.
Other charger functions
(1) When the charger is plugged into the socket by itself (with no monitors), the orange
LED light lights up for two seconds.
(2) Place the monitor on the charger and connect the transformer to the power socket.
The orange LED light on the charger will now light up.
(3) Once the monitor has been fully charged, the orange LED is extinguished and the
green LED slights up.
![](/img.php?id=2348568&img=bg1e.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 29
Cleaning of the Wireless Home Health Management System
Item Model Name Cleaning Method
Body Monitor NYA Target Wipe with dry cloth
Charger NYA Charger Wipe with dry cloth
Accessory (S) NYA Patch S
Wipe with damp cloth
Accessory (M) NYA Patch M
Accessory (L) NYA Patch L
Product Specifications
HR Monitor
Measuring Lead : Lead I
HR Range : 30~240
Frequency response : 0.1~40Hz
Heart rate accuracy : ±3 or ±3%
Sampling rate : 256Hz
Activity
G-sensor (3 axis) : ±8g
G-sensor sampling rate : 52Hz
Radio
Bluetooth 3.0+EDR
Tx: 0 dbm
Transmission range : 10 meters
Battery
Lithium polymer battery 3.7V/140 mAh
Battery life : about 15 hours under measuring mode (Based on
link with iPhone and App on)
Operating
Temperature
5°C ~ 40°C
![](/img.php?id=2348568&img=bg1f.png)
QUANTA COMPUTER INC. Wireless Home Health Management System
____________________________________________________________________________
___________________________________________________________________________
User Manual V1.0 Page: 30
Product List
Part Name/Model Part Description
