RDI Technology UDRC58 Guardian UDRC58 Accessory Camera User Manual UDRC58HD
RDI Technology (Shenzhen) Co., Ltd. Guardian UDRC58 Accessory Camera UDRC58HD
User Manual
![](/img.php?id=3098596&img=bg1.png)
Guardian UDRC58 Accessory Camera
UDRC58HD
![](/img.php?id=3098596&img=bg2.png)
2
Wireless Camera

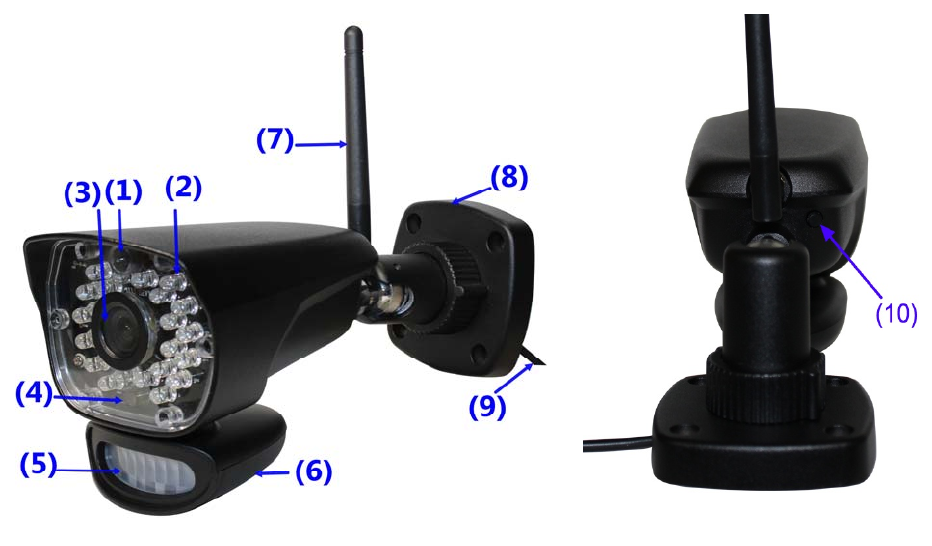

1.Microphone –Captures the sound on camera side and transmits the sound from camera to receiver.
2.Night vision lights –24 pcs Night vision lights
3. Camera Lens –Catches the video in front of the lens and transmits video from camera to receiver.
4. IR LEDs – Infrared LEDs provide viewing in no/low light conditions
5. PIR Sensor – Detects motion in front of the lens and emits detection signal to transmitter.
6. Speaker – Produces the sound transmitted from the receiver.
7. Camera Antenna – Sends & receives signals to or from the receiver.
8. Wall Mounting Bracket – Use the bracket to mount the camera on a wall or other flat surfaces.
9. AC Adaptor Jack – Plug the AC adaptor to the jack for camera’s power supply.
10. Pair Button – The pair button is located on the back of the camera, it is used to pair the camera with
receiver.
Note: This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between day
mode and night vision mode, an audible clicking noise may be heard coming from the camera. This
clicking is normal, and indicates that the camera filter is working.
![](/img.php?id=3098596&img=bg3.png)
3
Camera Installation
Before you install the camera, carefully plan where and how it will be positioned, and where you will
route the cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its performance by observing the image on the receiver
when camera is positioned in the same location/position where it will be permanently installed and the
receiver is placed in the location where it will be used most of the time.
Installation Warnings
Aim the camera(s) to best optimize the viewing area: Select a location for the camera that provides a
clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong
light source or direct sunlight.
Avoid installing the cameras where there are thick walls, or obstructions between the Cameras and the
Receiver.
Night Vision
This camera has built-in IR LEDs , which provides the camera with the ability to view images in no/low
light conditions.
Installing the Camera
1. Carefully unpack the camera.
NOTE: If you are installing cameras that did
not come with the system, please see the
pairing camera section of this manual for
details on installation.
2. Mount the camera to the wall.
Mark the position of the screw holes on the
wall, and drill holes and insert 3 screws, then
firmly attach the camera to the wall. Make
sure to strongly secure the screw the mounting bracket into the wall
NOTE: The camera can also be placed on a flat surface, such as a Table or Shelf, and no mounting
hardware is required.
3. Adjust the viewing angle of the camera. You can adjust camera angle to desired viewing area.
NOTE: You can install additional cameras (maximum of 4 cameras). When adding cameras that were not included
in the original box, you will need to pair up the cameras with the receiver. Refer to the camera pairing section of
this manual.
Connecting Camera Power
The camera can be powered by using the provided power adaptor
![](/img.php?id=3098596&img=bg4.png)
4
Power Adaptor
Connect the power adaptor to the camera.
Make sure is the DC 9V for camera, and DC 5V for Receiver
Make sure the power adaptor is placed into a grounded outlet or surge bar to
protect the camera from power fluctuations.
Set Up Cameras And Monitor
1 Attach power adapters to the cameras. Plug into power using 9V,2A adaptor
2 Attach power adapter to the monitor. Plug into power using 5V,2A adaptor
3 Turn on monitor. You should see General Settings, tap and come into Camera setup.
![](/img.php?id=3098596&img=bg5.png)
5
Main Screen Sub-Screen What it Does
Camera Setup

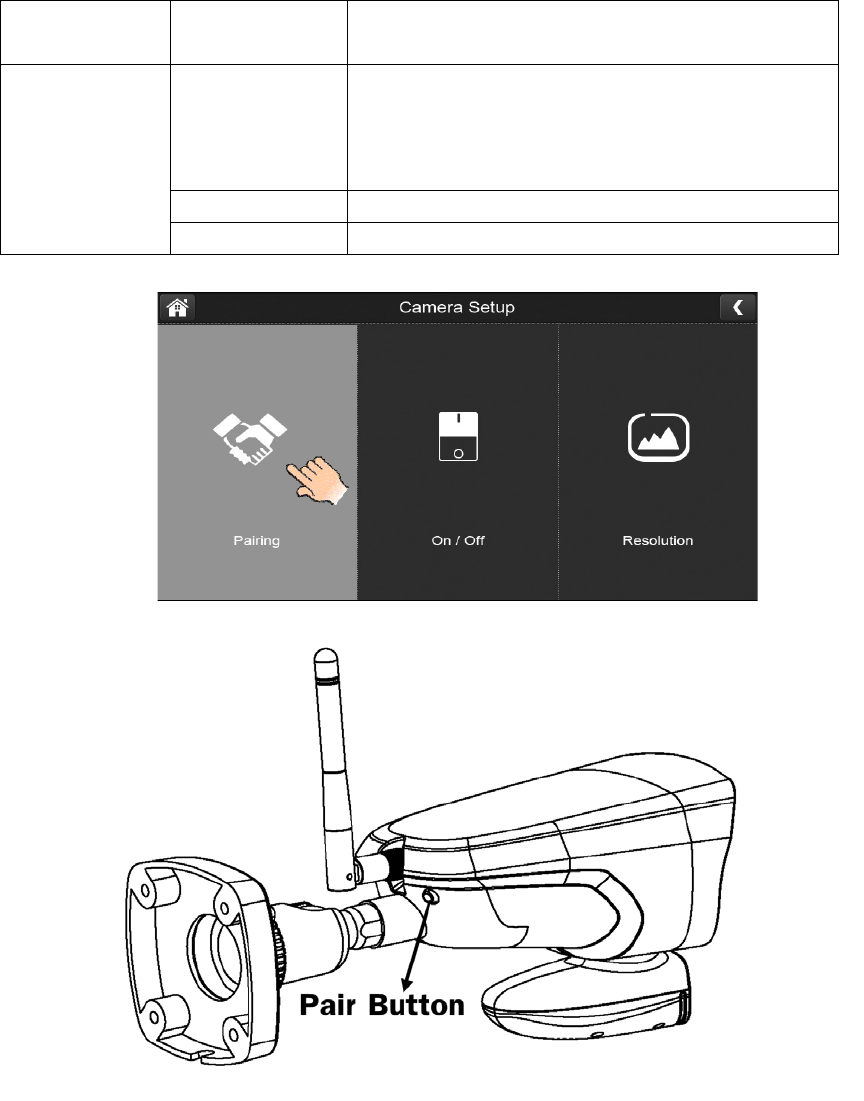

Paring
This system comes with cameras already paired.
Use Pairing to assign these cameras to different
channels or to pair additional new cameras to the
monitor.
ON/OFF Makes the cameras visible to the monitor.
Resolution Adjusts the video quality of each camera.
Pairing
Your cameras are paired to the monitor at the factory to channels 1 and 2. When you add a new camera
to your system, you have to “introduce” the camera and monitor to each other so they can communicate.
You can also use this procedure to move a camera from one channel to a different channel.
Some things to know about pairing cameras:
z If a camera is already assigned to the selected channel, the pairing operation overwrites that
camera link with the new one.
z Only pair one camera at a time! The monitor links to the first camera it detects. If two or more
cameras are in pairing mode, you can’t control which camera the monitor will detect first.
![](/img.php?id=3098596&img=bg6.png)
6
Electrical Parameter:
Camera(s)
Transmit Frequency Range 2408Mhz~2468Mhz
Data Rate 6 Mbps
Transmitting Distance 150m (Line of Sight)
Image Sensor Type PO2210N 1/2.7”FHD Cmos Image Sensor
Effective Pixels H: 1920 V: 1080
Light sensitivity 3.5 Lux (w/o IR-LEDs)
Image Processing H.264
Image Resolution / Frame Rate
Cam x 2 : 1080Px1 @ 10 fps
Cam x 2 : 720Px2 @ 25 fps
Cam x 4 : 720Px 4 @ 15 fps
Lens 3.6mm / F1.9 (ICR cut Filter)
Viewing Angle (Diagonal) 92° (FOV)
Daylight sensor <5 Lux (IR On), >30 Lux IR Off
IR LED / Night Vision Range 1 Led / 850nm, 12m (with IR Led )
Power Requirement 9V DC 600mA ±5%
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Protection class IP65
Operating Humidity 0% ~ 85%
