RSI VIDEOTECHNOLOGIES SE50 Outdoor Siren User Manual Installation sheet
RSI VIDEOTECHNOLOGIES Outdoor Siren Installation sheet
Installation sheet
![](/img.php?id=1678579&img=bg1.png)
www.videofied.com
Product Summary
The Outdoor Siren SE651 is a wireless siren designed for
use in Videofied security systems. The siren includes the
following features:
> Totally wireless, battery operated.
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing should
be done to check for good communication between the
control panel and all system devices before mounting
system devices. Install the siren and other system devices
in the order of the following steps:
> Programming/RF Testing - program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
> Mounting - mount siren at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.

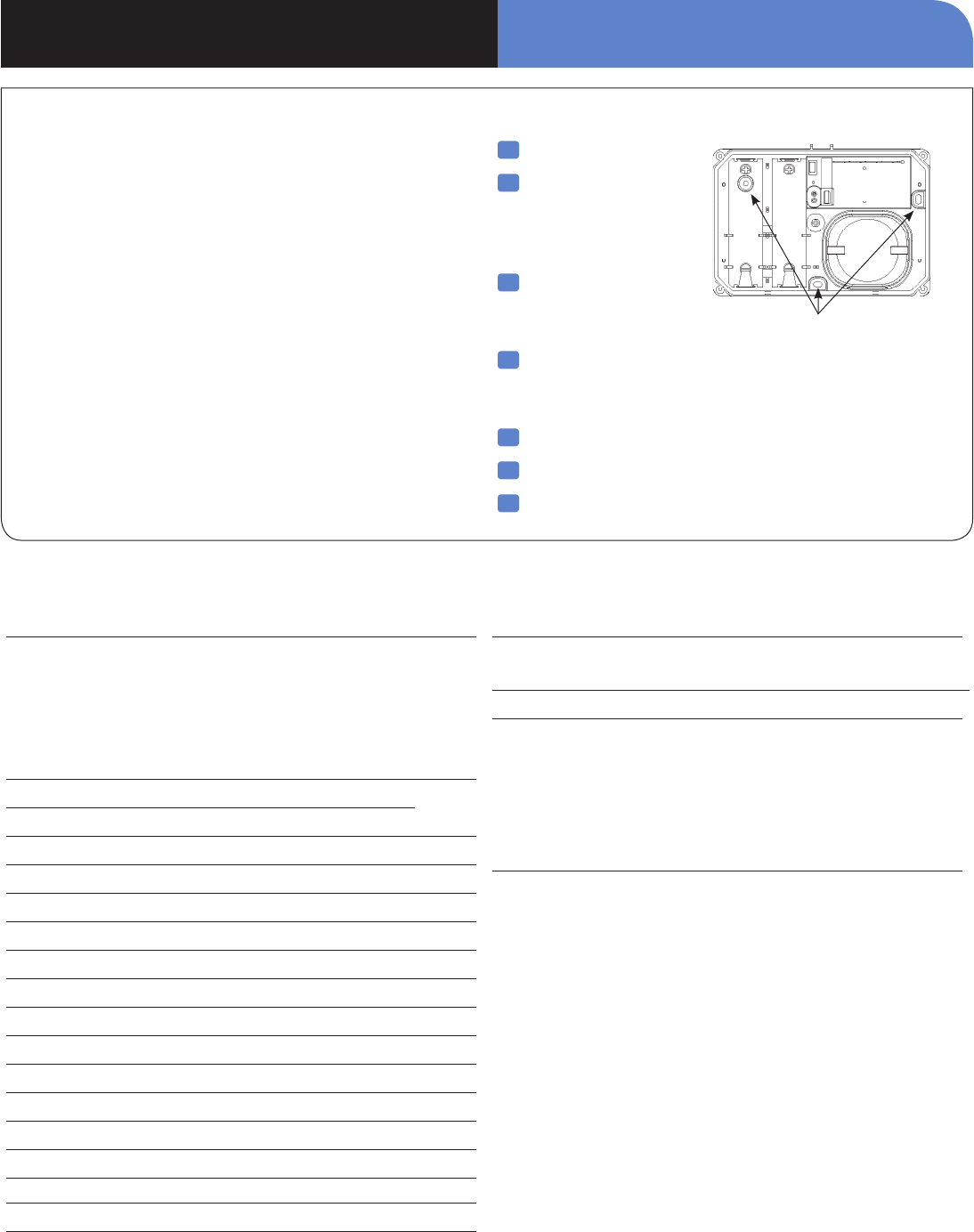

1 Remove four cover
screws, separate cover
from siren and install
batteries.
2 Put control panel
into programming/
configuration mode.
3 Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4 Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5 Press and release
program button on siren
using a paper clip end.
The siren LED flashes.
Wait for keypad display
to show SIREN (1 - 24)
RECORDED.
To the question “REMOTE CONTROLLED?” press:
No to be automatically controlled by the alarm panel
Yes if the siren is controlled by the monitoring station.
7 Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts flashing and
keypad display shows TEST IN PROGRESS.
8 Take the siren to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
9 Press Yes to end radio range test, then press Esc/No.
10 The display shows ADD A NEW DEVICES?
Repeat steps 4 - 8 for remaining sirens.
11 When finished, exit from configuration mode.
6
Screws
Program Button
PRODUCT INSTALLATION SHEET
Outdoor Siren SE651
2204-SEOIS February 2012Made by RSI VIDEO TECHNOLOGIES
![](/img.php?id=1678579&img=bg2.png)

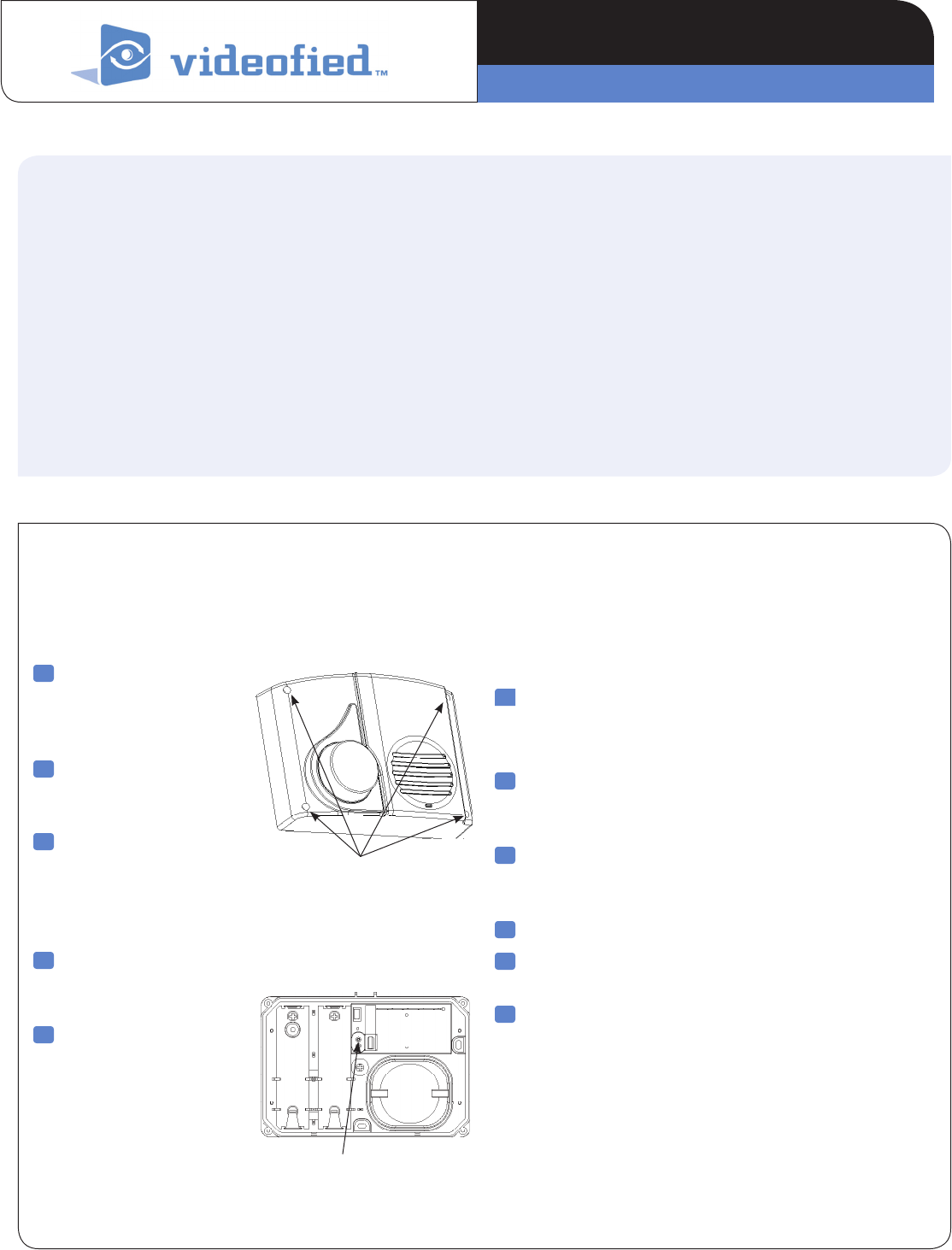

Mounting
> Use proper tools and hardware for mounting the unit.
> Mount outdoors under eves to help prevent direct contact
from elements.
> Mount on front of structure where strobe light is clearly
visible to responding authorities.
1 Remove batteries.
2 Hold unit up against
mounting surface and
mark the three
mounting holes.
3 Drill pilot holes
and install anchors
where needed.
4 Place unit on mouning surface so mounting holes
line up with pilot holes/anchors and secure unit with
appropriate screws.
5 Install batteries, observing correct polarity.
6 Place the flash wire of the cover to the siren.
7 Attach front cover.
Electrical Data
Panel Compatibility XL, Visio, XT, XTIP
Power requirements Four 1.5 V Alkaline Batteries
Nominal Voltage 6V
Low Battery Limit 4.8V
Battery type Energizer Alkaline D cell - LR20
Battery life Up to 4 years
RF technology S2View®
Radio type Spread Spectrum Bidirectional
Operating frequency 915 MHz
Transmission security AES encryption algorithm
Supervision Polled signal every 8 minutes
Antenna Integrated
Tamper detection Wall and cover tampered
Speaker impedance 4 ohms
Output level 105 dB @ 1 meter
Output duration Configured in Control Panel
Flash type Strobe light tube
Flash duration Matches Programmed Siren Length
Flash sequence Four flashes/sec
Operating temperature -30°/+60°C (-20°/+140°F)
Maximum relative humidity 90%, non-condensing
Approvals FCC Part 15C
Physical Data
Material ABS—ULV0
Dim ensions 227 mm x 166 mm x 80 mm
(LxWxD): 9 in. x 6-1/2 in. x 3 in.
Weight 880 g/31 oz. (without batteries)
Installation/Mounting
Unit/Base Four screws secure unit to base; three screws
secure unit base to mounting surface.
www.videofied.com
Mounting Holes
INSTALLATION DATA SHEETOutdoor Siren SE651
![](/img.php?id=1678579&img=bg3.png)
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
Hotline: +33 (0)820 846 620
Fax: +33 (0)1 82 69 80 10
© 2011 RSI VIDEO TECHNOLOGIES. VIDEOFIED® is a Registered Trademark of RSI VIDEO TECHNOLOGIES.
S2View® is a registered trademark of RSI VIDEO TECHNOLOGIES. Specications subject to change without notice.
USA SALES
4455 White Bear Parkway, Suite 700
White Bear Lake, MN 55110
USA
Hotline: +1 877 206 5800
Fax: +1 651 762 4693
www.videofied.com
Outdoor Siren SE651 PRODUCT INSTALLATION SHEET
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI VideoTechnologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
