T-LightTM LCU (Light Control Unit) NEMA
User Manual
Model: LCUN2GUS
Revision 1.02, June 21, 2016
Copyright © Telematics Wireless Ltd.
All rights reserved
The document contains proprietary information of Telematics Wireless, Ltd.; it is provided under a license agreement
containing restrictions on use and disclosure, and is also protected by copyright law.
Due to continued product development this information may change without notice. The information and intellectual property
contained herein is confidential between Telematics Wireless Ltd. and the client, and remains the exclusive property of
Telematics Wireless Ltd. If you find any problems in the documentation, please report them to us in writing. Telematics
Wireless Ltd. does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Telematics Wireless
Ltd.
![](/img.php?id=3645270&img=bg2.png)
2
Contents
About Telematics Wireless Products ................................................................................................... 3
LCU NEMA Description .............................................................................................................................. 3
Standard Features .................................................................................................................................. 4
Optional Features .................................................................................................................................. 4
Specifications ..................................................................................................................................... 5
Power and control Interface ............................................................................................................... 5
Wiring diagram for a NEMA receptacle with dimming pads ................................................................ 5
LCU NEMA Contacts ............................................................................................................................... 6
LCU NEMA Pin Options .......................................................................................................................... 7
Physical Specifications ....................................................................................................................... 8
Environment ...................................................................................................................................... 8
Standards Compliance ................................................................................................................................... 8
Regulation Information ...................................................................................................................... 9
Installation Requirements ................................................................................................................ 11
Mandatory Customer-Supplied Equipment............................................................................................. 11
Location
Post-Installation Commissioning ............................................................................................................. 11
Contact Details ................................................................................................................................ 12
List of Figures
Figure 1 – System Topology .......................................................................................................................... 3
Figure 1 - NEMA Receptacle Wiring Diagram for LCU NEMA …………………………………………………………....……5
![](/img.php?id=3645270&img=bg3.png)
3
About Telematics Wireless Products
Telematics Wireless products have been evaluated as Information Technology Equipment (ITE), which
may be installed in Central Offices, Telecommunication Centers, offices, computer rooms, and similar
commercial-type indoor or outdoor locations.
Telematics Wireless is an Associate Member of the TALQ Consortium, and its products are ELEXON-
approved.
LCU NEMA Description
LCU NEMA is a luminaire control unit, easily installed on top of the luminaire utilizing a standard (twist
and lock) NEMA socket. LCU NEMA is a unit of the T-Light Galaxy star network. Control features offer
On/Off and dimming level operations. Monitoring features include identification of lamp and
measurement of electrical parameters. The LCU NEMA is controlled by the Smart Lighting System
Control Management Software (CMS) via a Data Communication Unit (DCU) gateway.

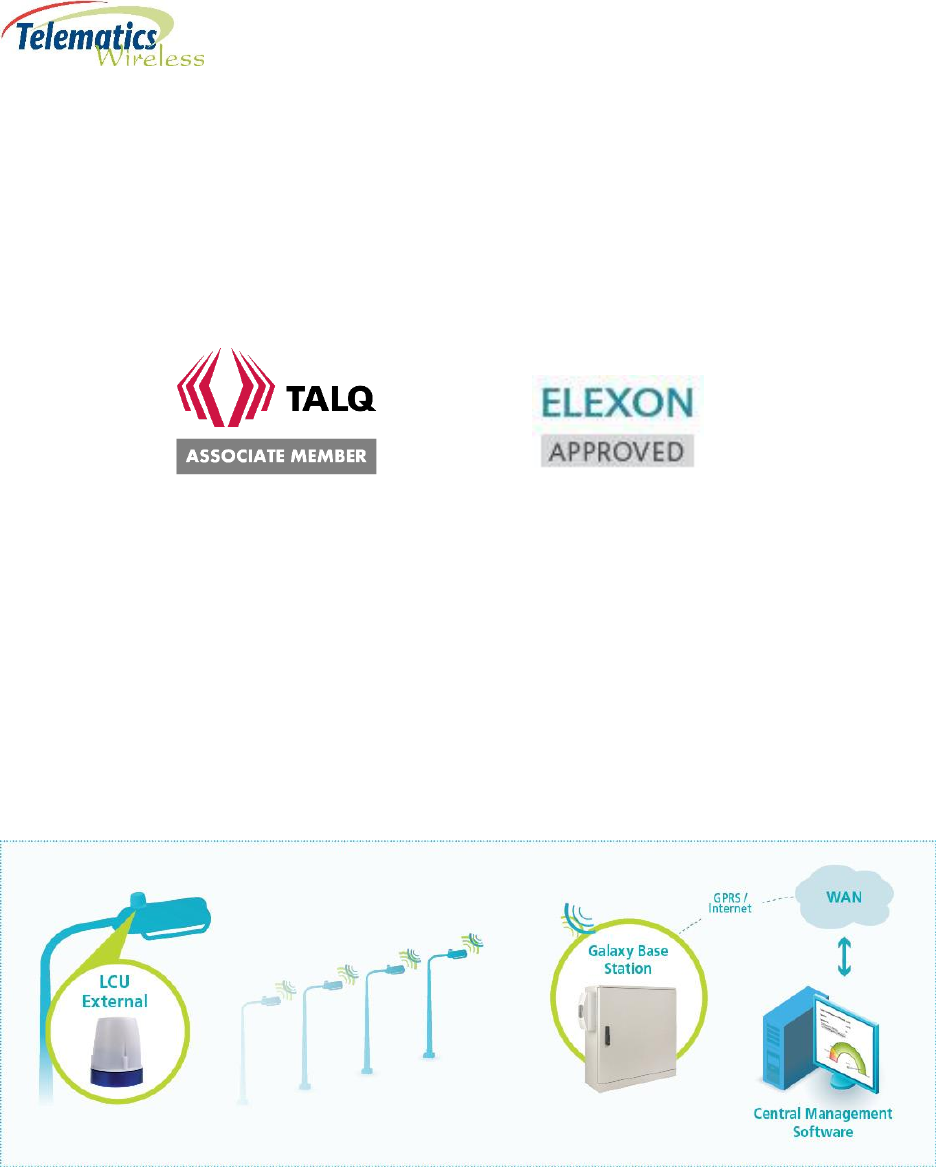

Figure 2 – System Topology
![](/img.php?id=3645270&img=bg4.png)
4
Standard Features
Light sensor - Operates as a photocell with the integrated microcontroller and is used as a backup
light control in the event of microcontroller failure.
Energy meter - Continuous measurement collection and aggregation with 1% accuracy.
Integrated RF antenna.
Over the air firmware updates.
Each unit is configurable as a repeater, resulting in one additional ‘hop’ from the DCU.
Real Time Clock.
Network data is protected by AES 128 encryption and, optionally, AES 256.
Relay Control for LED driver/ballast power.
Alarms for power extremes and maximum temperature.
“Auto Detection and Verification” Software
“Auto Detection and Verification” Software
The LCU NEMA includes the Telematics “Auto Detection and Verification” software that automatically
detects and stores the ballast type (1-10V or DALI) in the LCU. The ballast type is then retrieved during
the commissioning process, thereby eliminating the need to enter it manually into the CMS.
Optional Features
Built-in GPS receiver for full auto-commissioning.
Built-in NFC chip for data exchange with hand-held device.
LCU NEMA
![](/img.php?id=3645270&img=bg5.png)
5
Specifications
Radio
Power and control Interface
Parameter
Value
Operating Input Voltage
110-277V AC @50-60Hz
Load Current – NEMA 5-pin
3A
Load Current – NEMA 7-pin
10A
Internal Surge Protection
350J (10kA)
Dimming – Ballast/Driver
Communication Protocols
DALI
Analog 0-10V, PWM

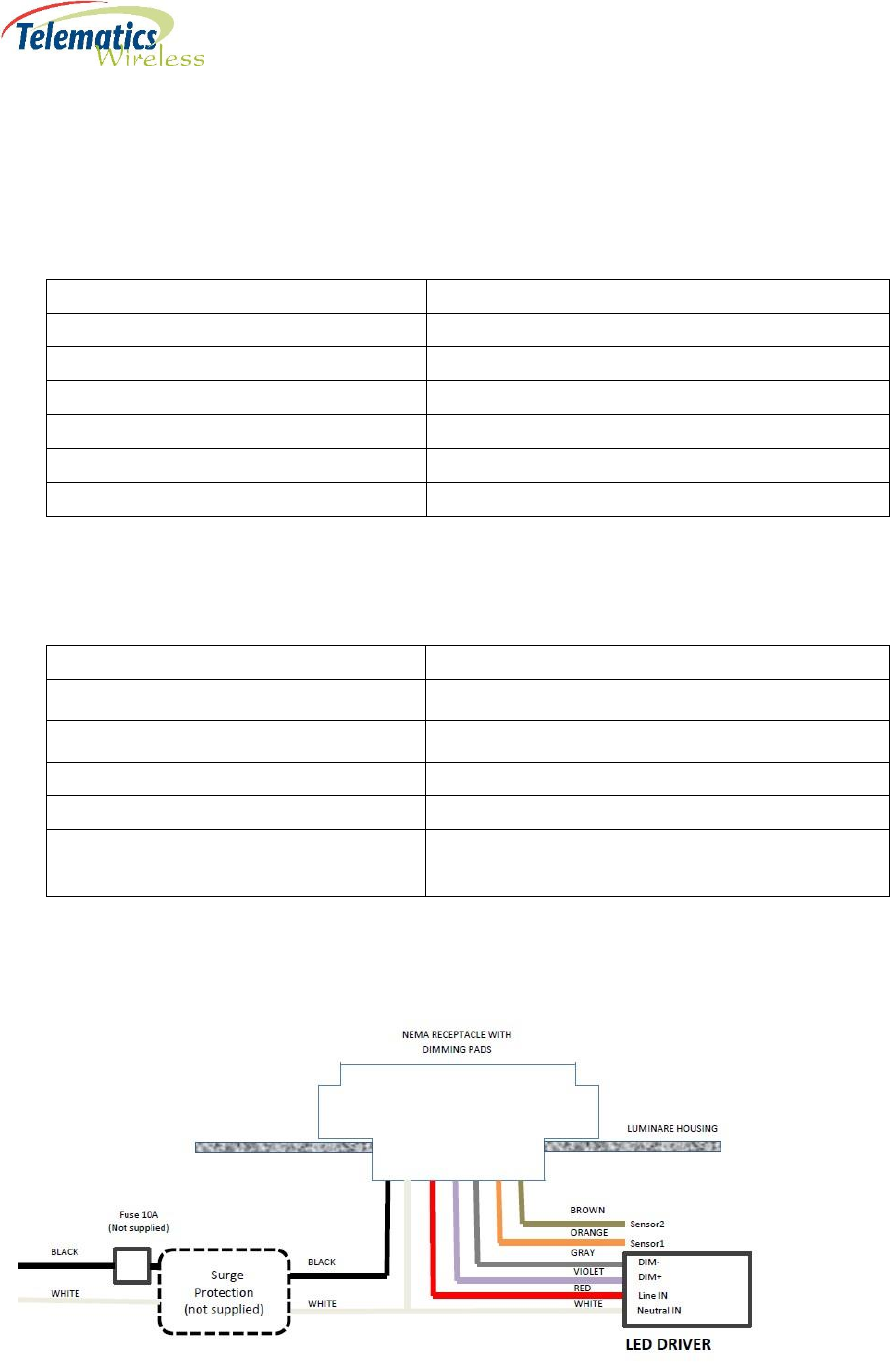

Wiring diagram for a NEMA receptacle with dimming pads
Figure 3 - NEMA Receptacle Wiring Diagram for LCU NEMA
Parameter
Value
Operating Frequency
450 - 470 MHz License band
Channel bandwidth
6.25KHz
Modulation
4GFSK
Data Rate
4.8 kbps
Output Transmission Power
Up to +36dBm/ 4Watt max.
Receiver Sensitivity
-118dBm@4.8 kbps
![](/img.php?id=3645270&img=bg6.png)
6
LCU NEMA Contacts
#
Wire Color
Name
Purpose
1
Black
Li
AC Line In
2
White
N
AC Neutral
3
Red
Lo
AC Line Out: Load
4
Violet
Dim+
DALI(+) or (+)0-10V or PWM or RS485-A
5
Gray
Dim-
Common GND: DALI(-) or (-) 0-10V or RS485-B
6
Brown
Reserved 1
Digital IO or Analog In or RS485-A
7
Orange
Reserved 2
Digital IO or RS485-B
![](/img.php?id=3645270&img=bg7.png)
7
LCU NEMA Pin Options
#
Wire Color
Name
Purpose
1
Black
Li
AC Line In
2
White
N
AC Neutral
3
Red
Lo
AC Line Out: Load
4
Violet
Dim+
DALI(+) or (+)0-10V or PWM or RS485-A
5
Gray
Dim-
Common GND: DALI(-) or (-) 0-10V or RS485-B
6
Brown
Reserved 1
Digital IO or Analog In or RS485-A
7
Orange
Reserved 2
Digital IO or RS485-B
LED Driver
Model
Pin 1-2
Black-White
Pins 3-2
Red-White
Pins 5-4
Gray-Violet
Pins 6-7
Brown-Orange
External NEMA
5-pin – Standard
Main AC Line IN
Main AC Neutral IN
AC for lamp Line
OUT
Neutral IN
Dimming – 0-10V
Analog, DALI, PWM,
Modbus RS485
N/A
External NEMA
7-pin - Optional
Main AC Line IN
Main AC Neutral IN
AC for lamp Line
OUT
Neutral IN
Dimming – 0-10V
Analog, DALI, PWM,
Modbus RS485
For user purposes,
for example,
sensors, Modbus
RS485, GPIO-digital
or analog
![](/img.php?id=3645270&img=bg8.png)
8
Physical Specifications
Parameter
Value
Dimension
3.467 in D x 4.173 in H
(88 mm D x 106 mm H)
Weight
225 g
Environment
Operation Temperature
-40 F to 161.6 F
(-40 C to +72 C)
IP Rating
IP 66 per IEC 60529-1
Standards Compliance
Radio
USA
FCC 47CFR part 90 (mask E)
Canada
RSS 119
Europe
ETSI EN 300-113-2
EMC
USA
FCC 47CFR part 15 subpart B
Canada
ICES-003
Europe
EN 301-489-1, EN 301-489-3
Safety
USA
UL 916
Canada
CSA C22.2 NO. 205.
Europe
IEC 61347-2-11:2001 (IEC 61347-1:2007)
![](/img.php?id=3645270&img=bg9.png)
9
Regulation Information
FCC Part 15 Regulation Class B device
The digital circuit of this device has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 90 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Class B Notice
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
![](/img.php?id=3645270&img=bga.png)
10
FCC interference Notice
This device complies with part 90 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
FCC and Industry Canada Radiation Hazard Warning
The antenna used for this transmitter must be installed to normally provide minimum
separation distance of at least 20 cm from all persons.
Le dispositif doit être placé à une distance d'au moins 20 cm à partir de toutes les
personnes au cours de son fonctionnement normal. Les antennes utilisées pour ce
produit ne doivent pas être situés ou exploités conjointement avec une autre antenne
ou transmetteur.
![](/img.php?id=3645270&img=bgb.png)
11

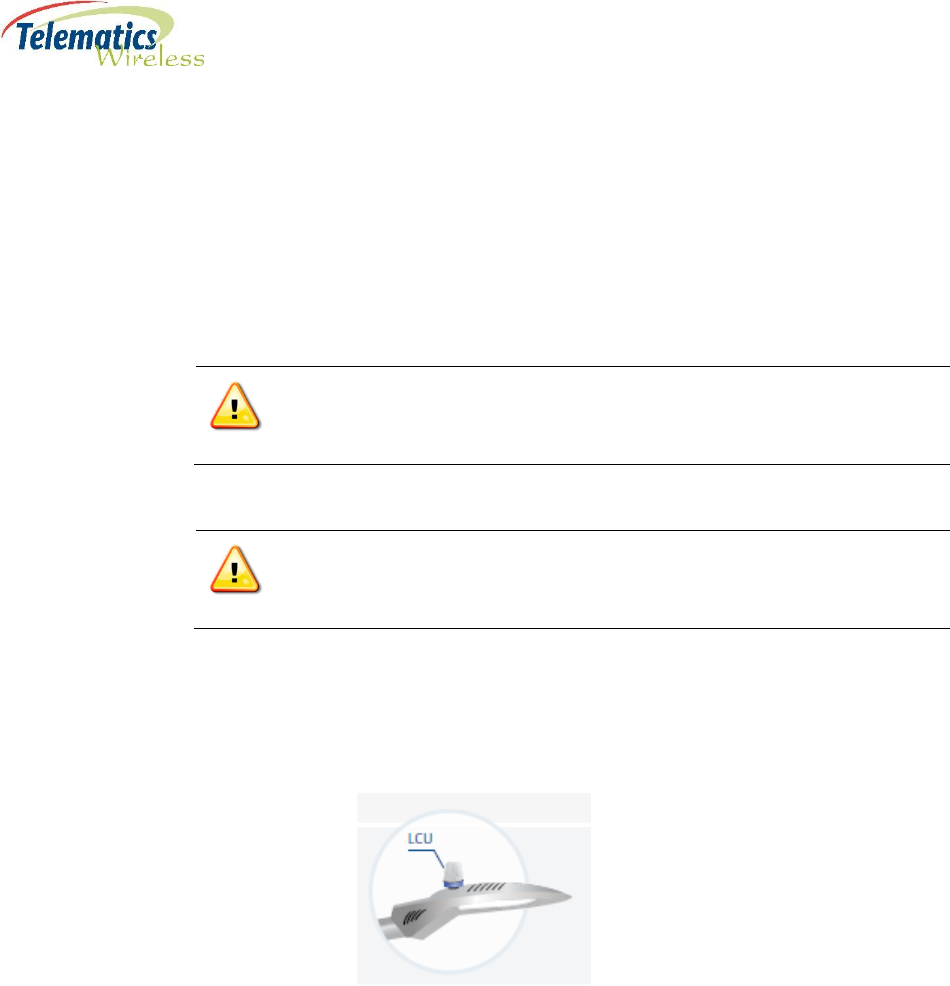

Installation Requirements
Mandatory Customer-Supplied Equipment
System integrity for the LCU NEMA is ensured with the mandatory installation of customer-
supplied voltage and current surge protection equipment.
Mandatory Voltage Surge Protection
Warning: To prevent damage due to power network voltage surges, it is
mandatory that you also provide and install a surge protection device to protect
the LCU and the luminaire driver.
Mandatory Current Surge Protection
Warning: To prevent damage due to power network current surges, it is
mandatory that you also provide and install a 10 amp slow-blow fuse or circuit
breaker to protect the LCU and the luminaire driver.
Location
The LCU NEMA is installed on the top surface of the luminaire cover utilizing a standard (twist
and lock) NEMA socket.
Post-Installation Commissioning
In order for the installed LCU NEMA units to be recognized in the Telematics Wireless Smart
Lighting System, the serial numbers and GPS coordinates of the LCU NEMA units must be added
to the CMS Equipment Inventory as part of the commissioning process. The level of automation
in the Commissioning process depends on the optional equipment installed in the LCU NEMA:
GPS – Commissioning is fully automated. Commissioning is complete after the CMS
Administrator executes the relevant command.
NFC – Commissioning is partially automated. The required serial number and GPS coordinates
are obtained at the installation site with an Android smartphone and a Telematics app.
Commissioning is complete after the CMS Administrator executes the relevant command.
No GPS or NFC – Commissioning is a partially manual process:
![](/img.php?id=3645270&img=bgc.png)
12
◦ Installer obtains the GPS coordinates of the LCU NEMA with a handheld GPS device.
◦ Installer records the serial number and GPS coordinates.
◦ CMS Administrator imports the recorded values into the CMS Equipment Inventory, one by
one or by batch.
Contact Details
Contact your local Telematics technical support representative, or contact us at:
Telematics Wireless, Ltd.
26 Hamelacha St., POB 1911
Holon 58117
ISRAEL
Phone: +972-3-557-5763
Fax: +972-3-557-5703
Sales: sales@tlmw.com
Support: support@tlmw.com
www.telematics-wireless.com
