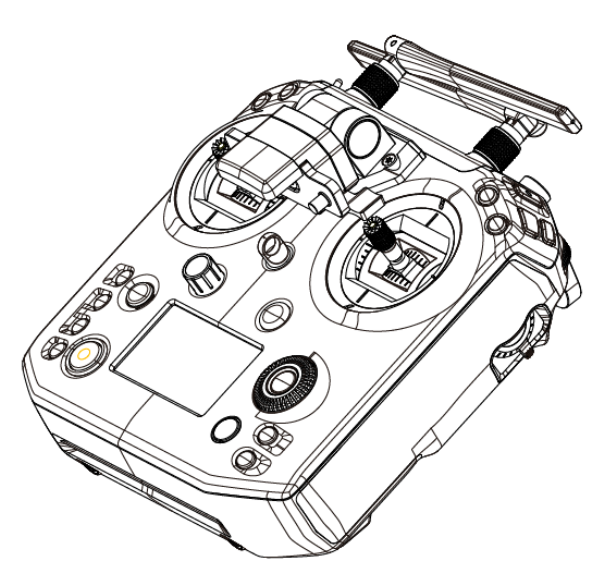

Cendence Remote Controller
The remote controller features DJI’s LIGHTBRIDGETM technology for a maximum transmission distance of up
to 4.3 mi (7km).* Dual frequency support makes the HD video downlink more stable. In Dual Remote Controllers,
each of the two remote controllers control the aircraft and camera separately. Users can even operate these
mechanisms up to 328 feet (100 m) apart. The remote controller works with a WB37 intelligent battery, which
can be charged via the charging port (about 2 hours and 24 minutes with an 180W charger) or by the intelligent
battery charging hub (about 1 hour and 11 minutes). The maximum run-time of the remote controller is approx.
four hours without supplying power to the monitor while master-and-slave function is disabled.*
It can be equipped with a DJI CrystalSkyTM monitor (DJI CrystalSky7.85inch is used as example in this guide),
you have a live HD view directly within the built-in DJI Pilot app or DJI GOTM 4 app for a precise and responsive
flying experience while flying the aircraft.

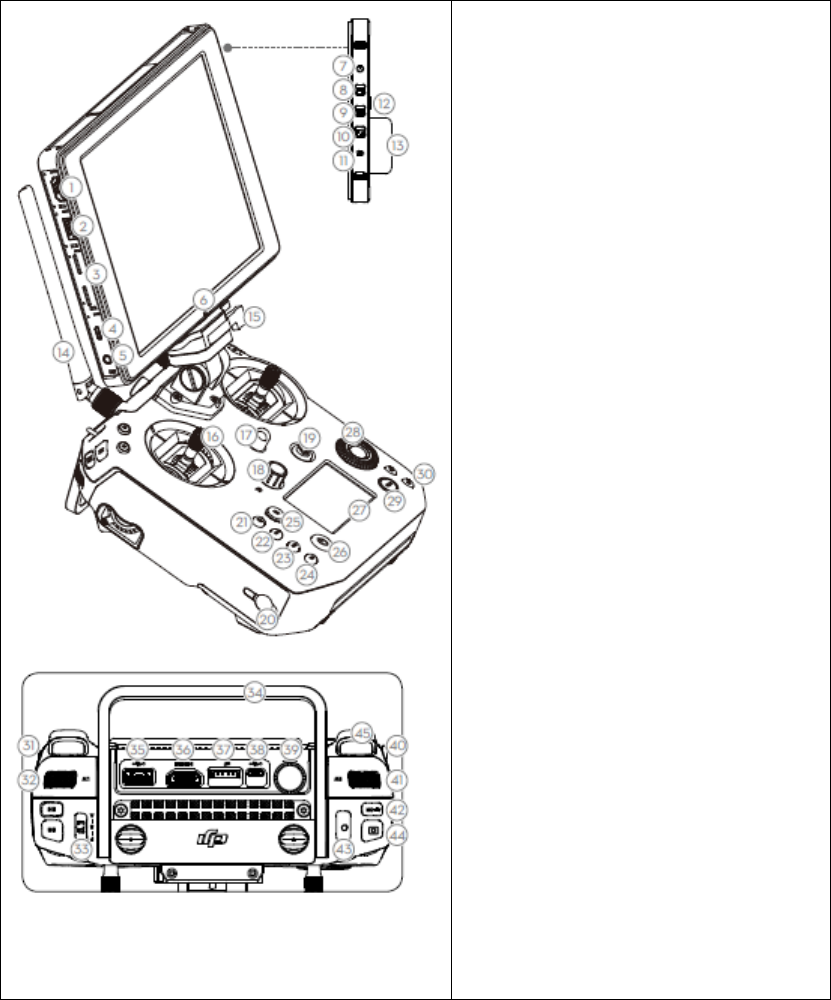

1. HDMI Port
2. USB Port
3. Micro SD Card Slot
4. Micro USB Port
5. Headphone Jack
6. Light-sensitive Port
7. Power Button
8. Custom Button
9. Setting Button
10. Custom Button
11. Playback Button
12. Battery Release Button
13. WB37 Intelligent Battery
14. Antennas
15. Monitor Mounting Bracket
16. Control Sticks
17. Strap Hook
18. Focus Adjustment Knob
19. Return-to-Home (RTH) Button
20. Power Port
21. Camera Settings Button
22. Shutter Setting Button
23. Aperture Setting Button
24. ISO Setting Button
25. Pause Button
26. Power Button
27. Remote Control Display
28. Shutter/Aperture/ISO Setting Dial
29. Menu
30. BA-BH Extended Buttons
31. Left Lever (Gimbal Gain)
32. Left Dial (Gimbal Pitch)
![](/img.php?id=3405496&img=bg3.png)
3
33. Flight Mode Switch
34. Handle Bar
35. USB Port (for Mobile Device Connection)
36. HDMI A Port (for Video Output)
37. CAN Bus (Extended Port)
38. Micro USB Port
39. SDI Port (for Video Output)
40. Right Lever (Flight Controller Gain)
41. Right Dial (Gimbal Pan)
42. Focus Button
43. Record Button
44. Photo Button
45. C1-C4 Extended Buttons
* The remote controller can reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic
interference at an altitude of about 400 feet (120 meters).
To comply with local regulations, the operation frequency of 5.8 GHz is not available in some countries.
The maximum run-time is tested without supplying power to a smart device.
![](/img.php?id=3405496&img=bg4.png)
4
Charge the Battery
Using IN2CH Charging Hub
Charging Time: 1 hour and 30 min
* DJI approved charger
When charging is complete, the display on the remote controller will show 100%.
Prepare the Remote Controller
Mounting the Monitor and Remote Controller’s Batteries
It’s the same to mount the Monitor and Remote Controller’s Batteries.
Put the battery into the Battery Slot, then slide it to the end until you hear a click.
Press the Battery Release Button before removing the battery.
Press the Battery Level Button once to check the battery level.
Mounting the Monitor to the Remote Controller
Ensure that Part B is
unlocked. Install Part
B into Part A.
Lock the Mounting
Bracket.
Use a coin to adjust the
tightness of the pitch axis.
![](/img.php?id=3405496&img=bg5.png)
5
Using the Remote Controller

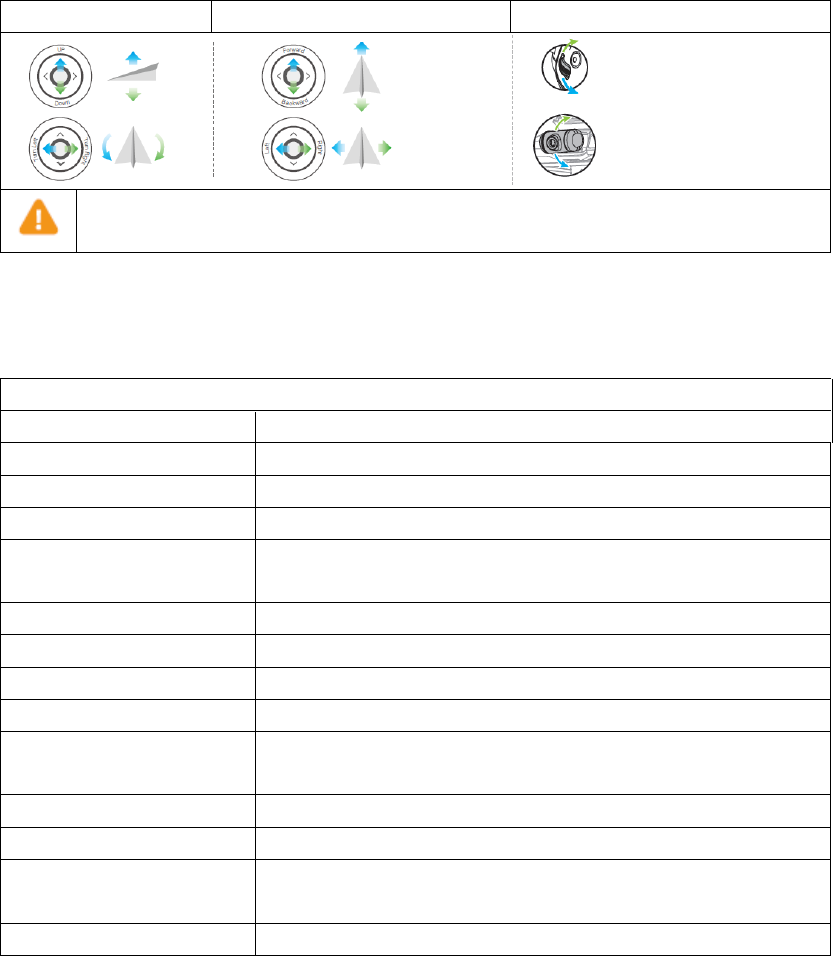

Stick mode is set to Mode 2 by default (left hand throttle). The left stick controls the aircraft’s elevation and heading. The
right stick controls the aircraft’s forward, backward, and lateral movements. To adjust the FPV camera, press and hold the
C2 Button and rotate the left dial.
Left Stick
Right Stick
FPV Camera
● You can change the stick mode, and mapping the C1-C4, BA-BH buttons function in the DJI GO app.
Specifications
Remote Controller(Cendence)
Model
GL800A
Power Supply
Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
Intelligent Battery
4923 mAh LiPo
Charging
DJI charger
Output Power
20 W (supplying power to DJI CS550 monitor);
12 W (without supplying power to monitor)
Video Output Ports
USB, HDMI, SDI
USB Power Supply
iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)
Dual User Capability
Host-and-Slave connection
Operating Temperature
-4° to 104° F (-20° to 40° C)
Storage Temperature
Less than 3 months: -4°to 113°F (-20°to 45°C)
More than 3 months: 72°to 82°F (22°to 28°C)
Charging Temperature
32°to 104°F (0°to 40°C)
Charging Time
About 2 hours and 24 minutes (using a 180W charger)
Supply Power Time
About 4 hours (only Master remote controller function enabled and
without supplying power to monitor)
Weight
1041 g
![](/img.php?id=3405496&img=bg6.png)
6

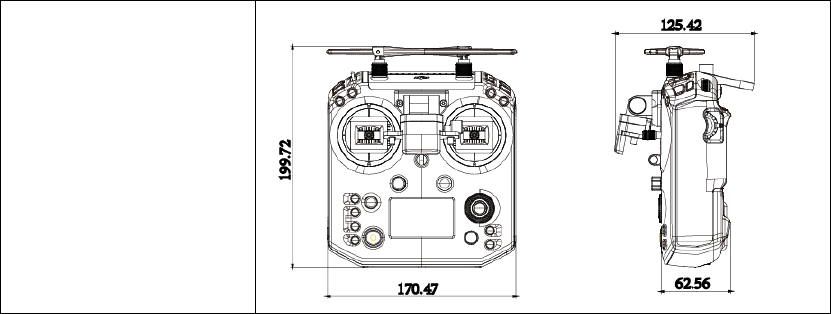

Dimensions
