SZ DJI TECHNOLOGY GL800A1703 Cendence User Manual

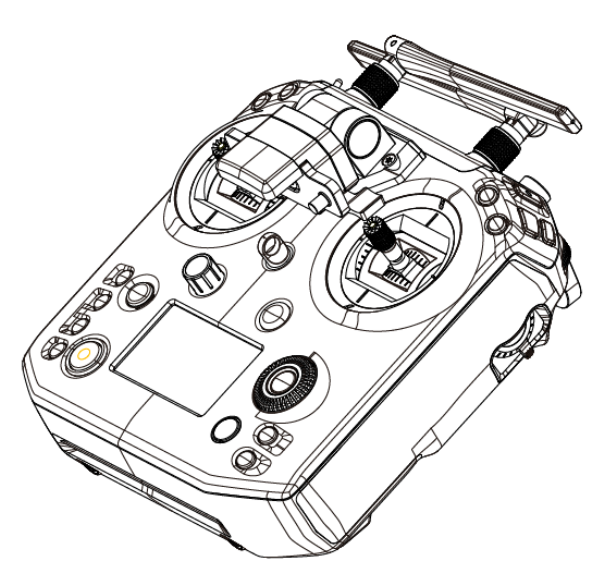

SZ DJI TECHNOLOGY CO., LTD Cendence

Contents

User Manual

1
Cendence User Guide
V1.0
2
Cendence Remote Controller
The remote controller features DJI’s LIGHTBRIDGETM technology for a maximum transmission distance of up
to 4.3 mi (7km).* Dual frequency support makes the HD video downlink more stable. In Dual Remote Controllers,
each of the two remote controllers control the aircraft and camera separately. Users can even operate these
mechanisms up to 328 feet (100 m) apart. The remote controller works with a WB37 intelligent battery, which
can be charged via the charging port (about 2 hours and 24 minutes with an 180W charger) or by the intelligent
battery charging hub (about 1 hour and 11 minutes). The maximum run-time of the remote controller is approx.
four hours without supplying power to the monitor while master-and-slave function is disabled.*
It can be equipped with a DJI CrystalSkyTM monitor (DJI CrystalSky7.85inch is used as example in this guide),
you have a live HD view directly within the built-in DJI Pilot app or DJI GOTM 4 app for a precise and responsive
flying experience while flying the aircraft.

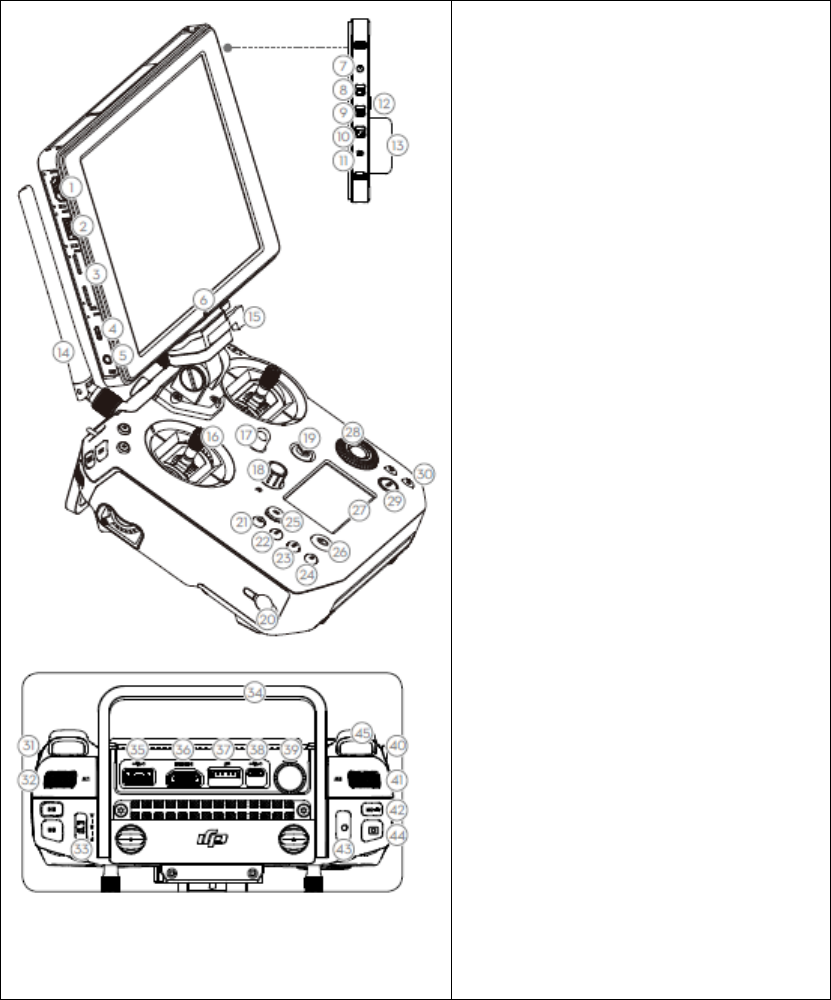

1. HDMI Port
2. USB Port
3. Micro SD Card Slot
4. Micro USB Port
5. Headphone Jack
6. Light-sensitive Port
7. Power Button
8. Custom Button
9. Setting Button
10. Custom Button
11. Playback Button
12. Battery Release Button
13. WB37 Intelligent Battery
14. Antennas
15. Monitor Mounting Bracket
16. Control Sticks
17. Strap Hook
18. Focus Adjustment Knob
19. Return-to-Home (RTH) Button
20. Power Port
21. Camera Settings Button
22. Shutter Setting Button
23. Aperture Setting Button
24. ISO Setting Button
25. Pause Button
26. Power Button
27. Remote Control Display
28. Shutter/Aperture/ISO Setting Dial
29. Menu
30. BA-BH Extended Buttons
31. Left Lever (Gimbal Gain)
32. Left Dial (Gimbal Pitch)
3
33. Flight Mode Switch
34. Handle Bar
35. USB Port (for Mobile Device Connection)
36. HDMI A Port (for Video Output)
37. CAN Bus (Extended Port)
38. Micro USB Port
39. SDI Port (for Video Output)
40. Right Lever (Flight Controller Gain)
41. Right Dial (Gimbal Pan)
42. Focus Button
43. Record Button
44. Photo Button
45. C1-C4 Extended Buttons
* The remote controller can reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic
interference at an altitude of about 400 feet (120 meters).
To comply with local regulations, the operation frequency of 5.8 GHz is not available in some countries.
The maximum run-time is tested without supplying power to a smart device.
4

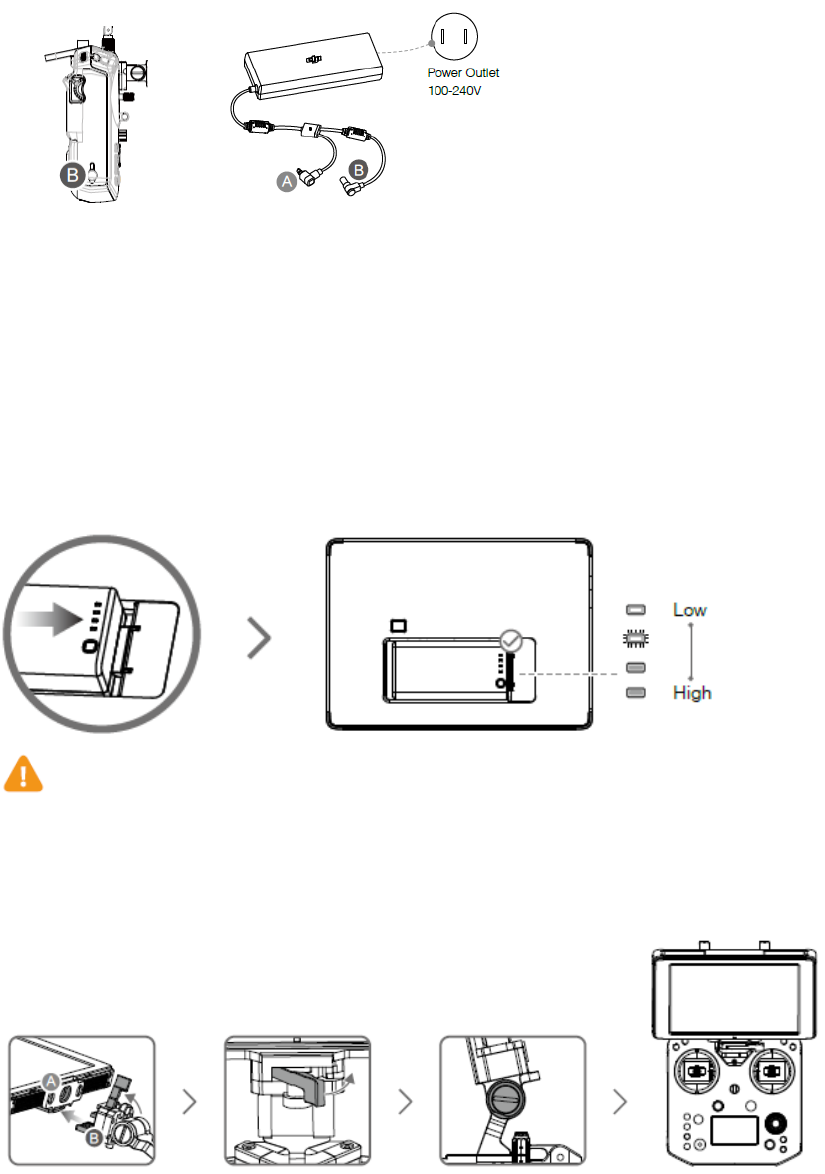

Charge the Battery
Using IN2CH Charging Hub
Charging Time: 1 hour and 30 min
* DJI approved charger
When charging is complete, the display on the remote controller will show 100%.
Prepare the Remote Controller
Mounting the Monitor and Remote Controller’s Batteries
It’s the same to mount the Monitor and Remote Controller’s Batteries.
Put the battery into the Battery Slot, then slide it to the end until you hear a click.
Press the Battery Release Button before removing the battery.
Press the Battery Level Button once to check the battery level.
Mounting the Monitor to the Remote Controller
Ensure that Part B is
unlocked. Install Part
B into Part A.
Lock the Mounting
Bracket.
Use a coin to adjust the
tightness of the pitch axis.
5

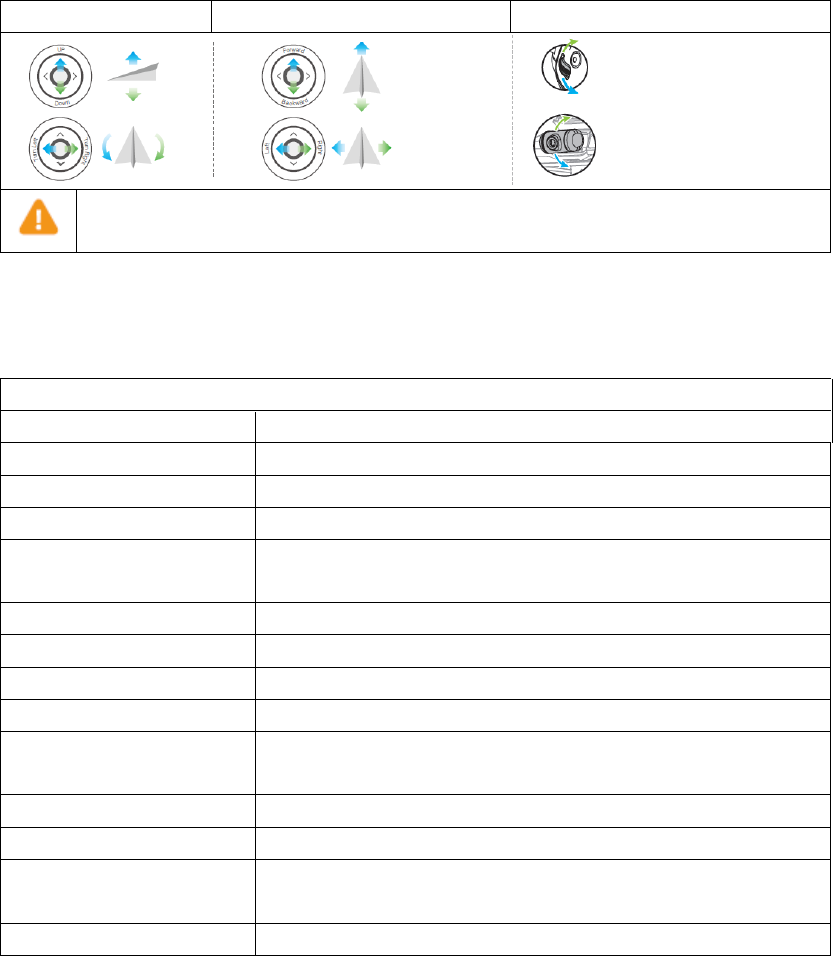

Using the Remote Controller
Stick mode is set to Mode 2 by default (left hand throttle). The left stick controls the aircraft’s elevation and heading. The
right stick controls the aircraft’s forward, backward, and lateral movements. To adjust the FPV camera, press and hold the
C2 Button and rotate the left dial.
Left Stick
Right Stick
FPV Camera
● You can change the stick mode, and mapping the C1-C4, BA-BH buttons function in the DJI GO app.
Specifications
Remote Controller（Cendence）
Model
GL800A
Power Supply
Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
Intelligent Battery
4923 mAh LiPo
Charging
DJI charger
Output Power
20 W (supplying power to DJI CS550 monitor);
12 W (without supplying power to monitor)
Video Output Ports
USB, HDMI, SDI
USB Power Supply
iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)
Dual User Capability
Host-and-Slave connection
Operating Temperature
-4° to 104° F (-20° to 40° C)
Storage Temperature
Less than 3 months: -4°to 113°F (-20°to 45°C)
More than 3 months: 72°to 82°F (22°to 28°C)
Charging Temperature
32°to 104°F (0°to 40°C)
Charging Time
About 2 hours and 24 minutes (using a 180W charger)
Supply Power Time
About 4 hours (only Master remote controller function enabled and
without supplying power to monitor)
Weight
1041 g
6

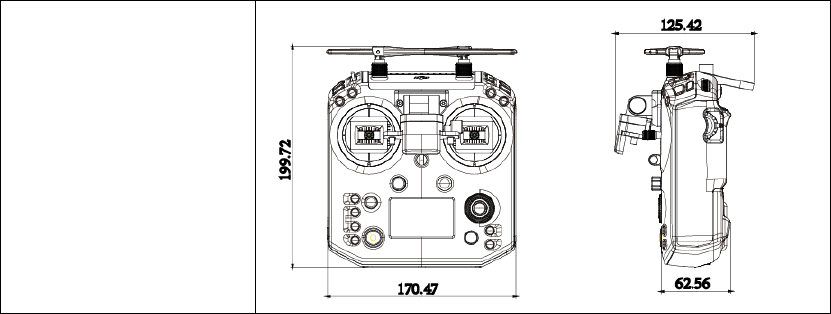

Dimensions
(mm)
FCC Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
complies with FCC radiation exposure limits set forth for an uncontrolled environment.
For model GL800A, SAR tests are conducted using standard operating positions accepted by the
FCC/IC with the device transmitting at its highest certified power level in all tested frequency
bands, although the SAR is determined at the highest certified power level, the actual SAR level
of the device while operating can be well below the maximum value. Before a new model is a
available for sale to the public, it must be tested and certified to the FCC/IC that it does not
exceed the exposure limit established by the FCC/IC, Tests for each product are performed in
positions and locations as required by the FCC/IC. For Handheld operation, this device has been
tested and meets the FCC RF exposure guidelines when used with an accessory designated for
this product.
The device
ISEDC RSS Warning
This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference,including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Cet appareil est
conforme aux limitesd'exposition de rayonnement RF ISEDC établiespour un environnement non
contrôlé.
Cetémetteur ne doit pas être co-implanté oufonctionner en conjonction avec toute autreantenne
ou transmetteur.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
