Innovative Fingerprint Terminal
User Guide (ver 1.0)
www.supremainc.com
BioLite solo
User guide( ver 1.0 )
CAUTION: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment
WAR NING
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limit of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
![](/img.php?id=958773&img=bg3.png)
2
ⒸCopyright 2008 Suprema Inc.

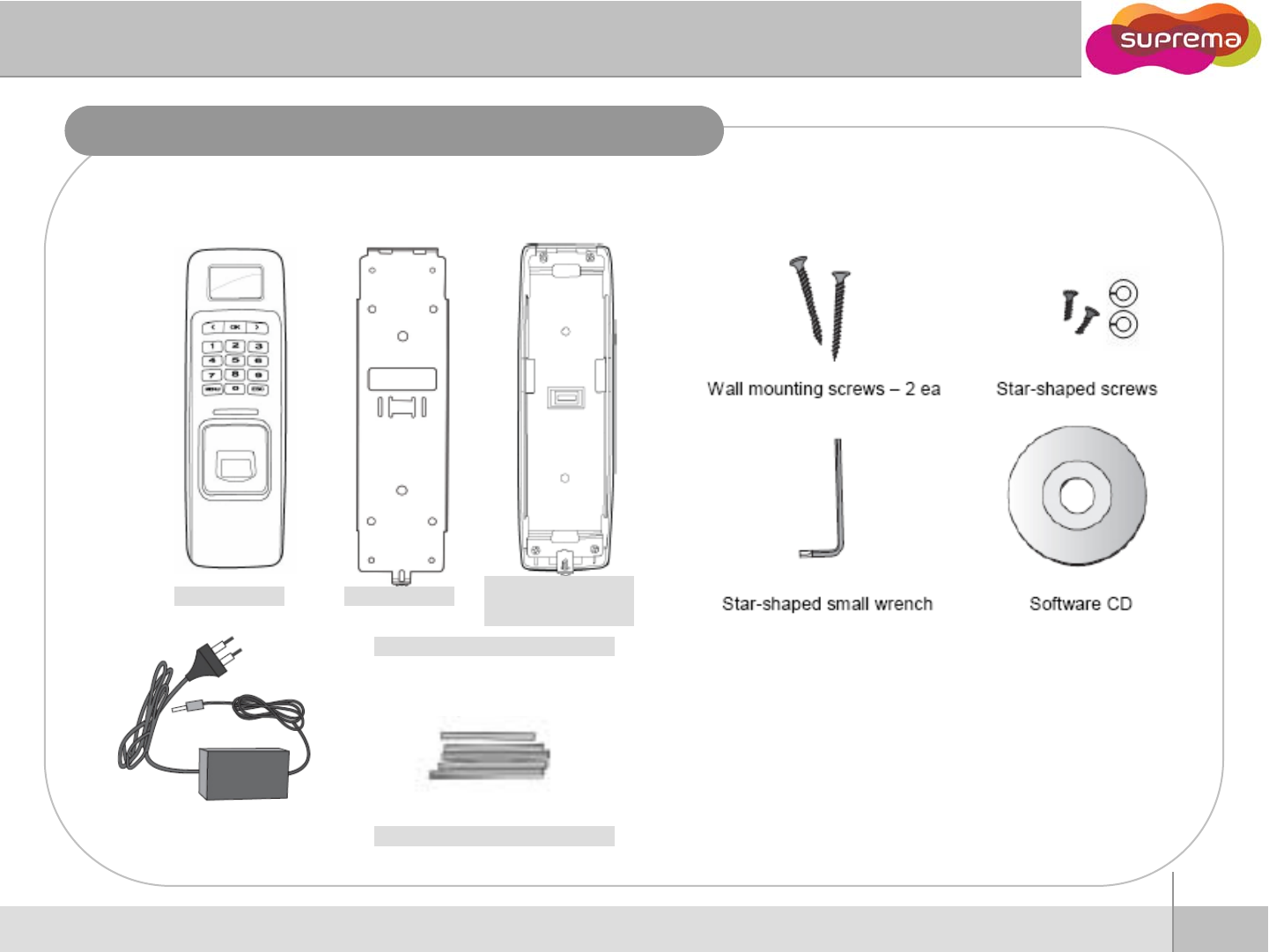

Product Contents
Basic Contents
Product Contents
Before Start
12V power adaptor
(optional)
Wall-mounting metal bracket
Main Body Sub bracket
(optional)
Default
Shrinking Tube
E
E-
-ring
ring
![](/img.php?id=958773&img=bg4.png)
3
ⒸCopyright 2008 Suprema Inc.

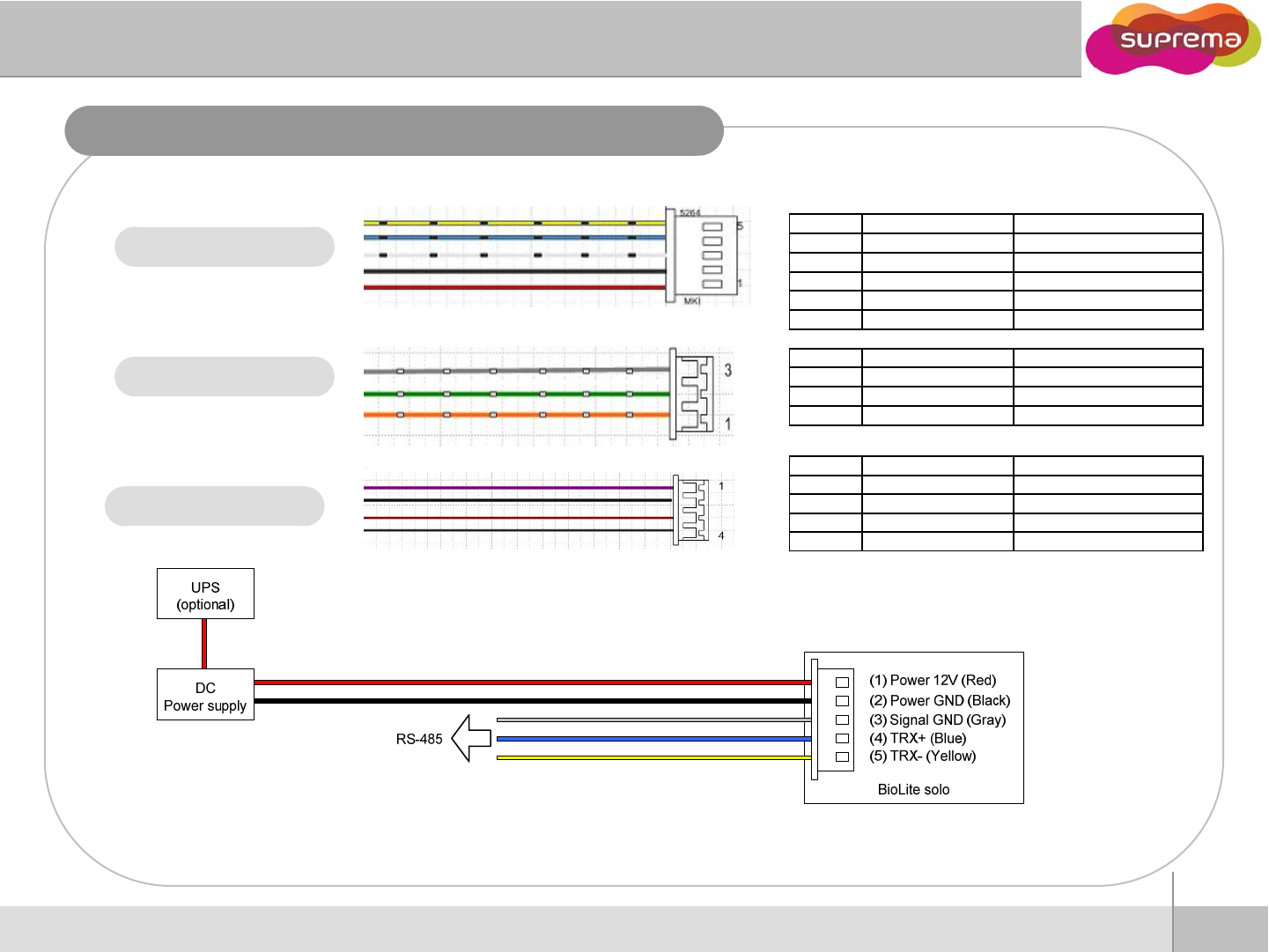

Cable spec.
YELLOW(Black String)485 -5
BLUE(Black String)485 +4WHITE(Black String)485 GND3BLACKPOWER GND2
REDPOWER + (12Vdc)1WIREPOWER + 485PIN
Power & 485
Relay
Switch
GRAY(White String)NORMAL OPEN3
GREEN(White String)COMMON2ORANGE(White String)NORMAL CLOSE1WIRERELAYPIN
BLACKGND4 BrownSWIN 13BLACKGND2 PURPLESWIN 01WIRESWITCHPIN
Before Start
Recommended power supply
z12V ±10%, at least 1000mA.
zTo share the power with other devices, use a power supply with higher current ratings.
![](/img.php?id=958773&img=bg5.png)
4
ⒸCopyright 2008 Suprema Inc.

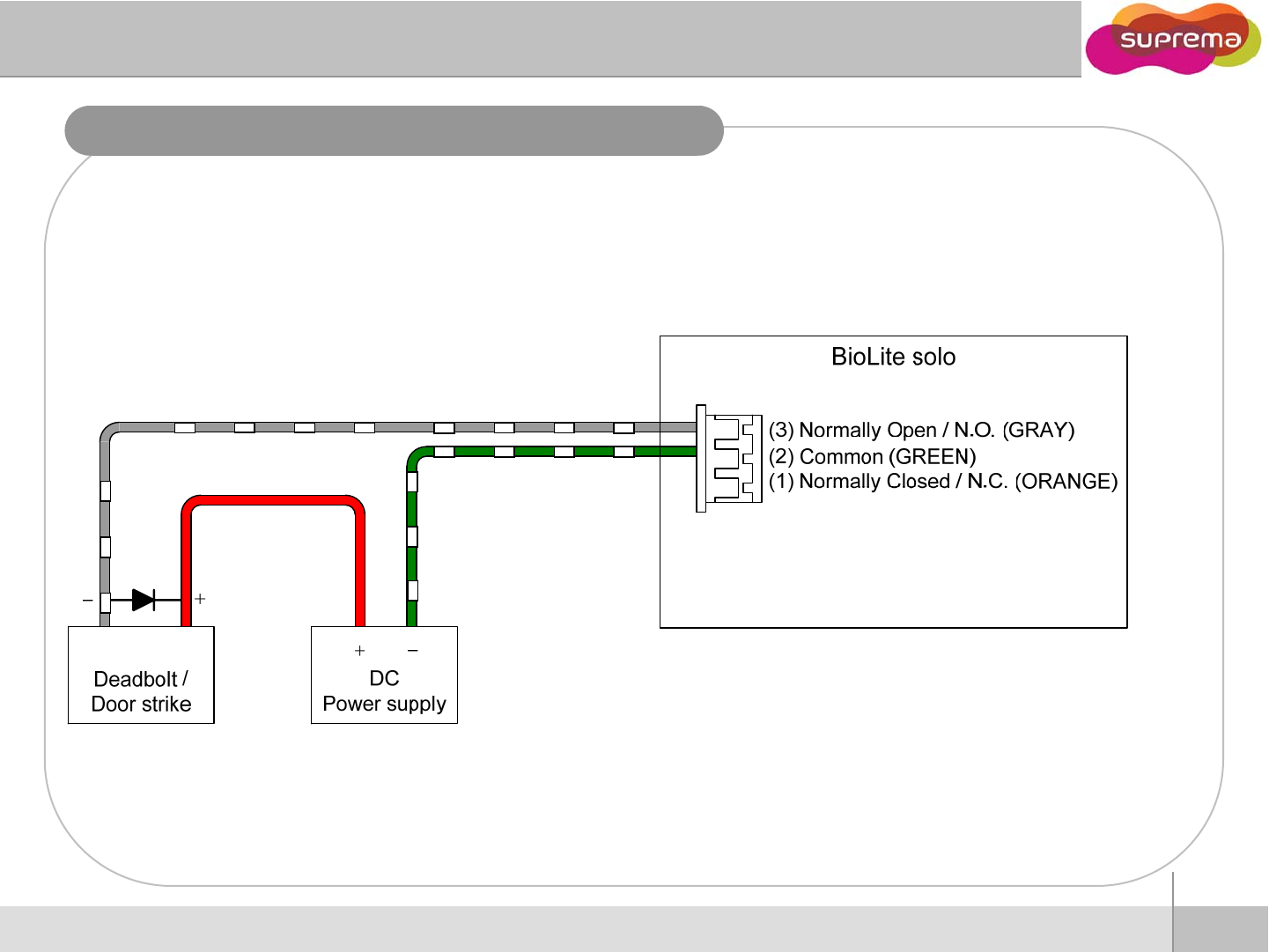

Relay Connection – Fail safe lock
![](/img.php?id=958773&img=bg6.png)
5
ⒸCopyright 2008 Suprema Inc.
Relay Connection – Fail secure lock
![](/img.php?id=958773&img=bg7.png)
6
ⒸCopyright 2008 Suprema Inc.

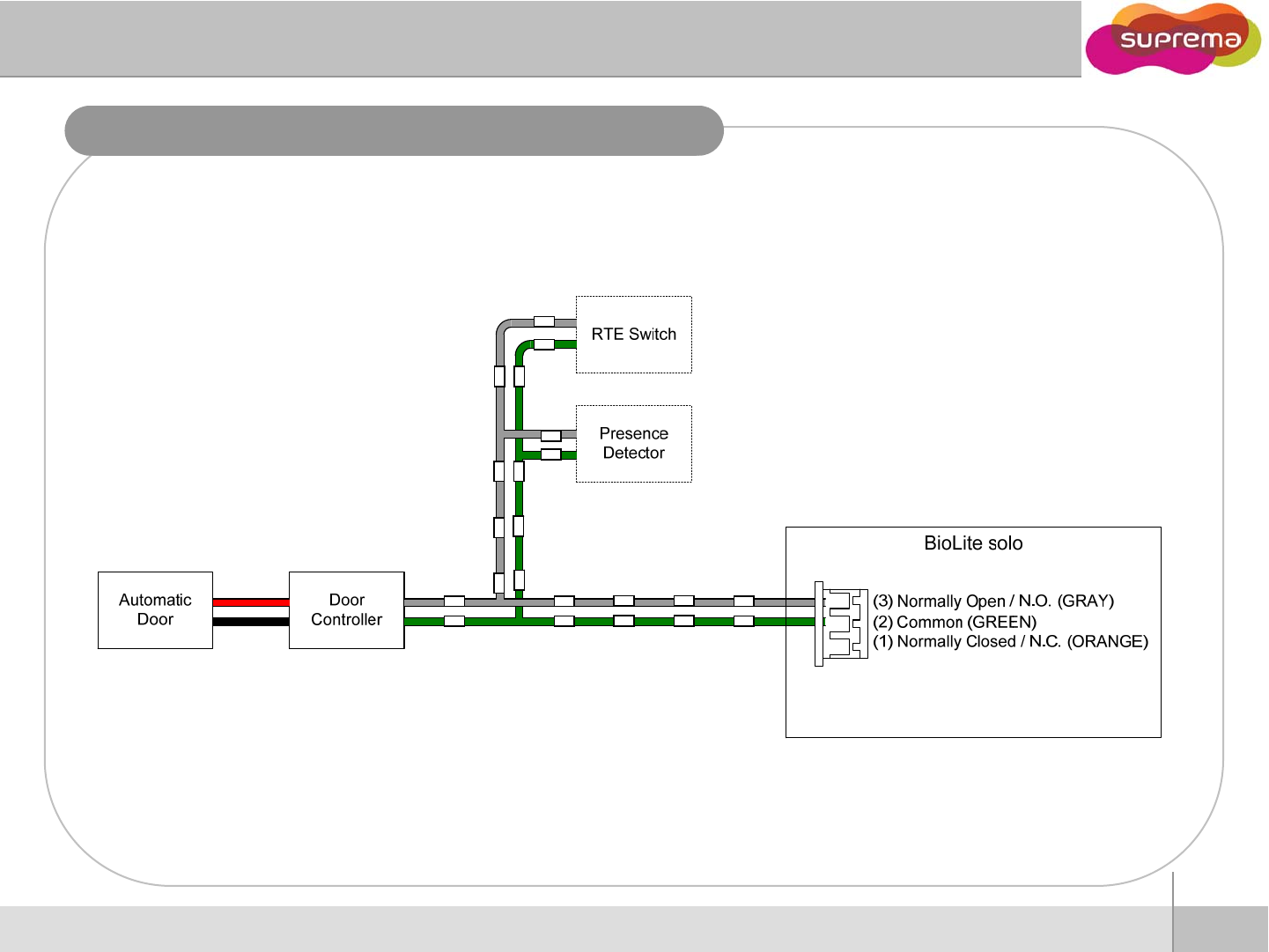

Relay Connection - Automatic door
![](/img.php?id=958773&img=bg8.png)
7
ⒸCopyright 2008 Suprema Inc.

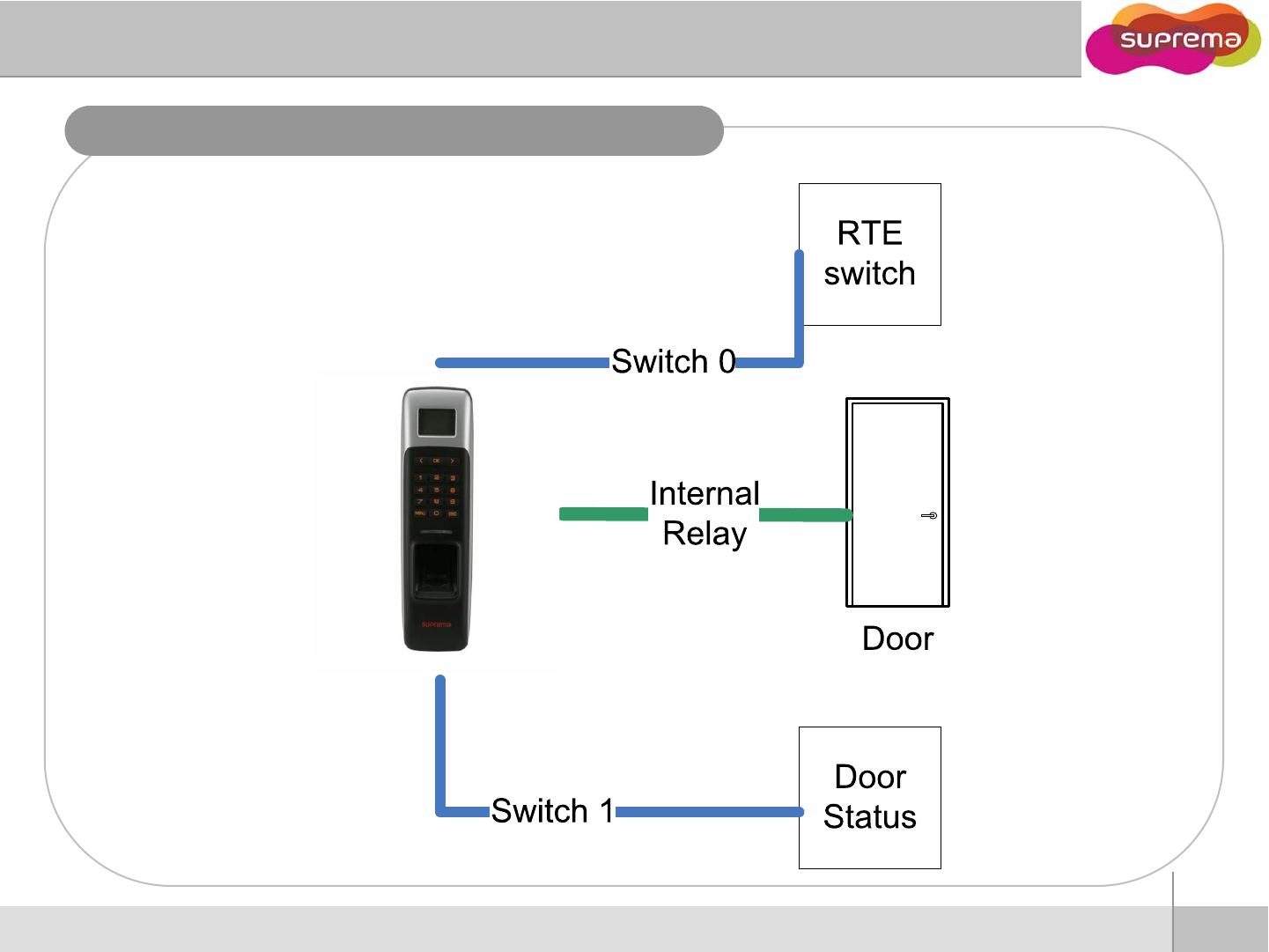

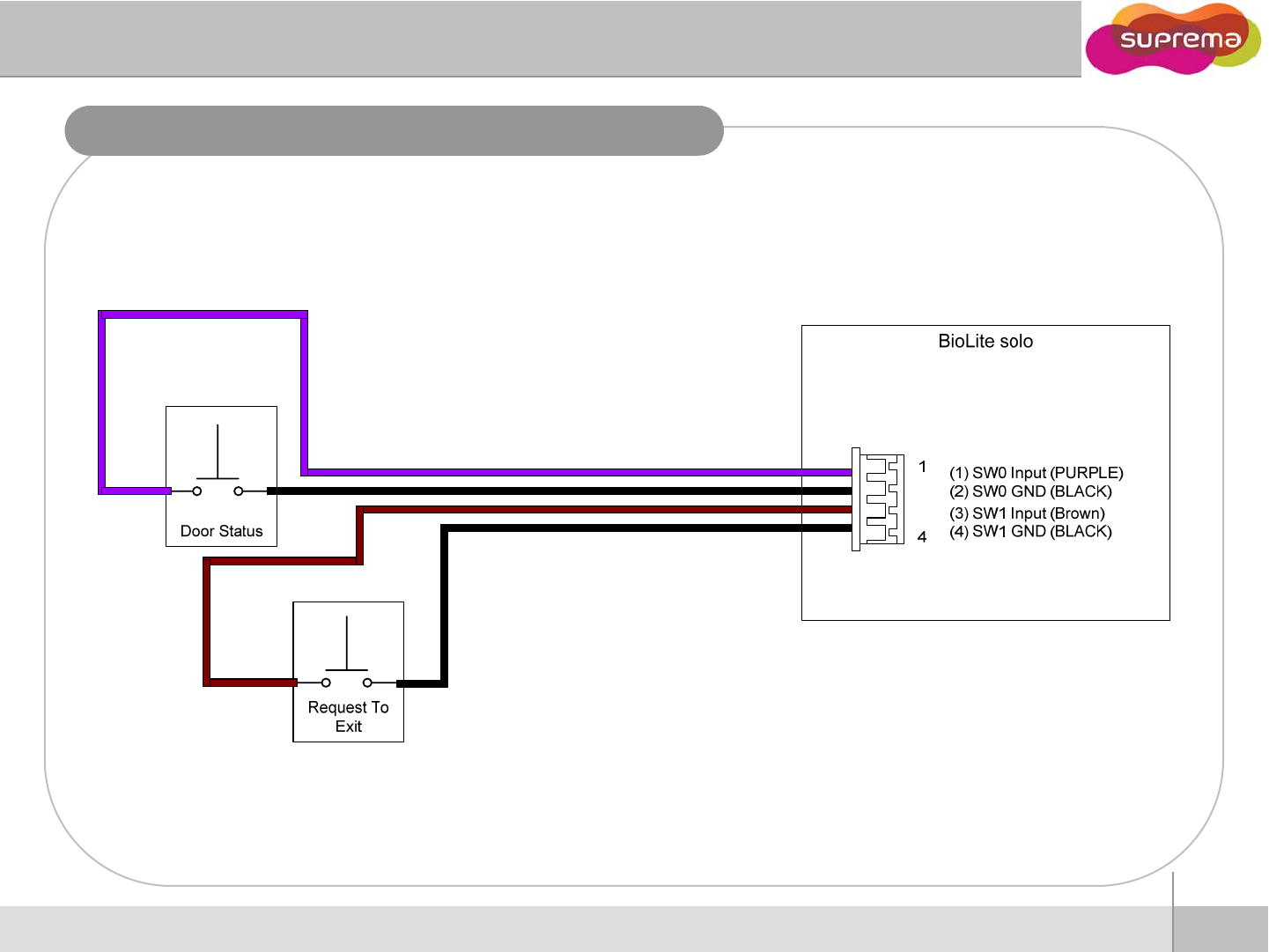

Door switch connection
![](/img.php?id=958773&img=bg9.png)
8
ⒸCopyright 2008 Suprema Inc.

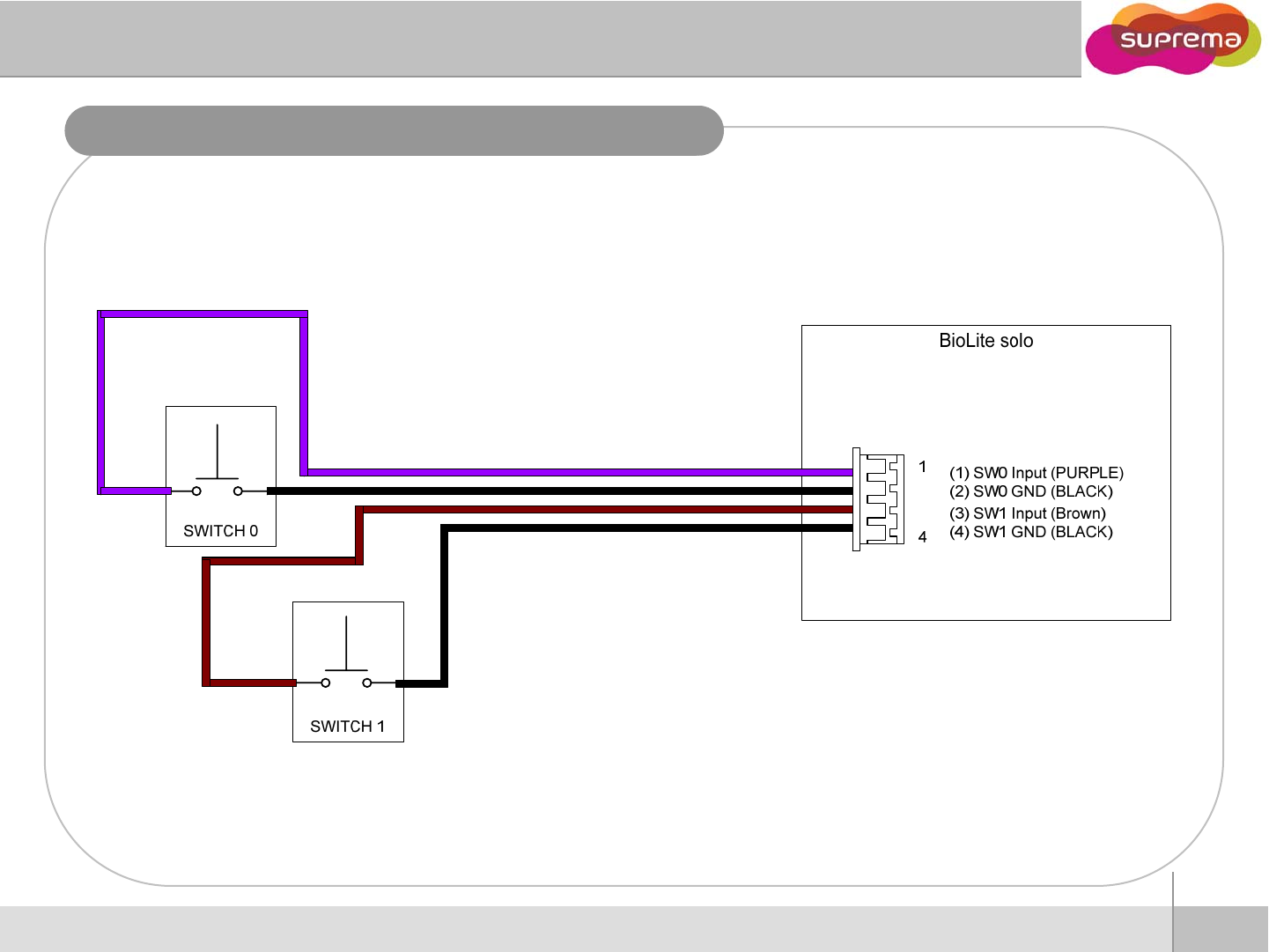

Switch connection (Alarm, Emergency switches)
![](/img.php?id=958773&img=bga.png)
9
ⒸCopyright 2008 Suprema Inc.

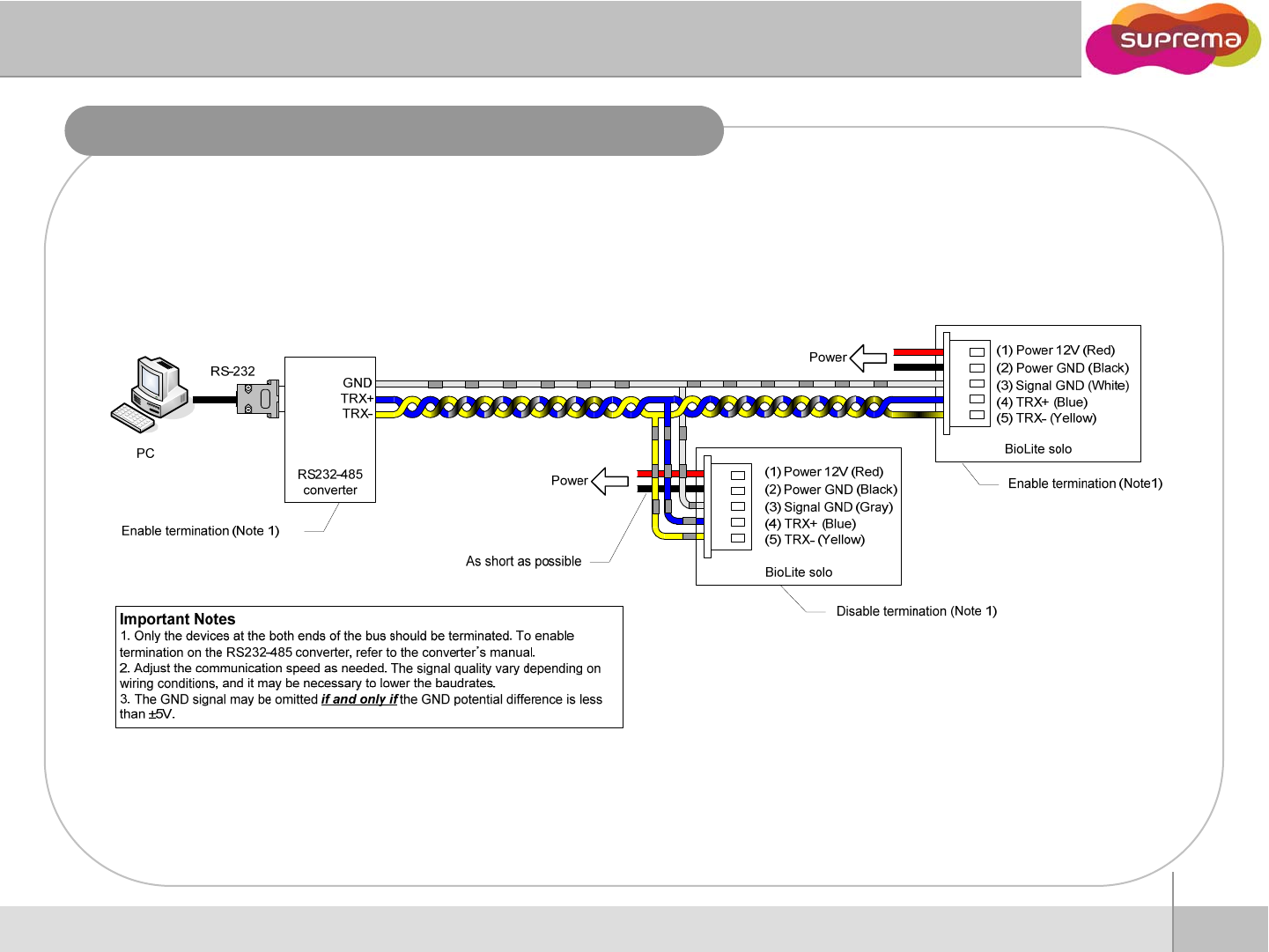

RS485 connection for host communication
Before Start
![](/img.php?id=958773&img=bgb.png)
10
ⒸCopyright 2008 Suprema Inc.

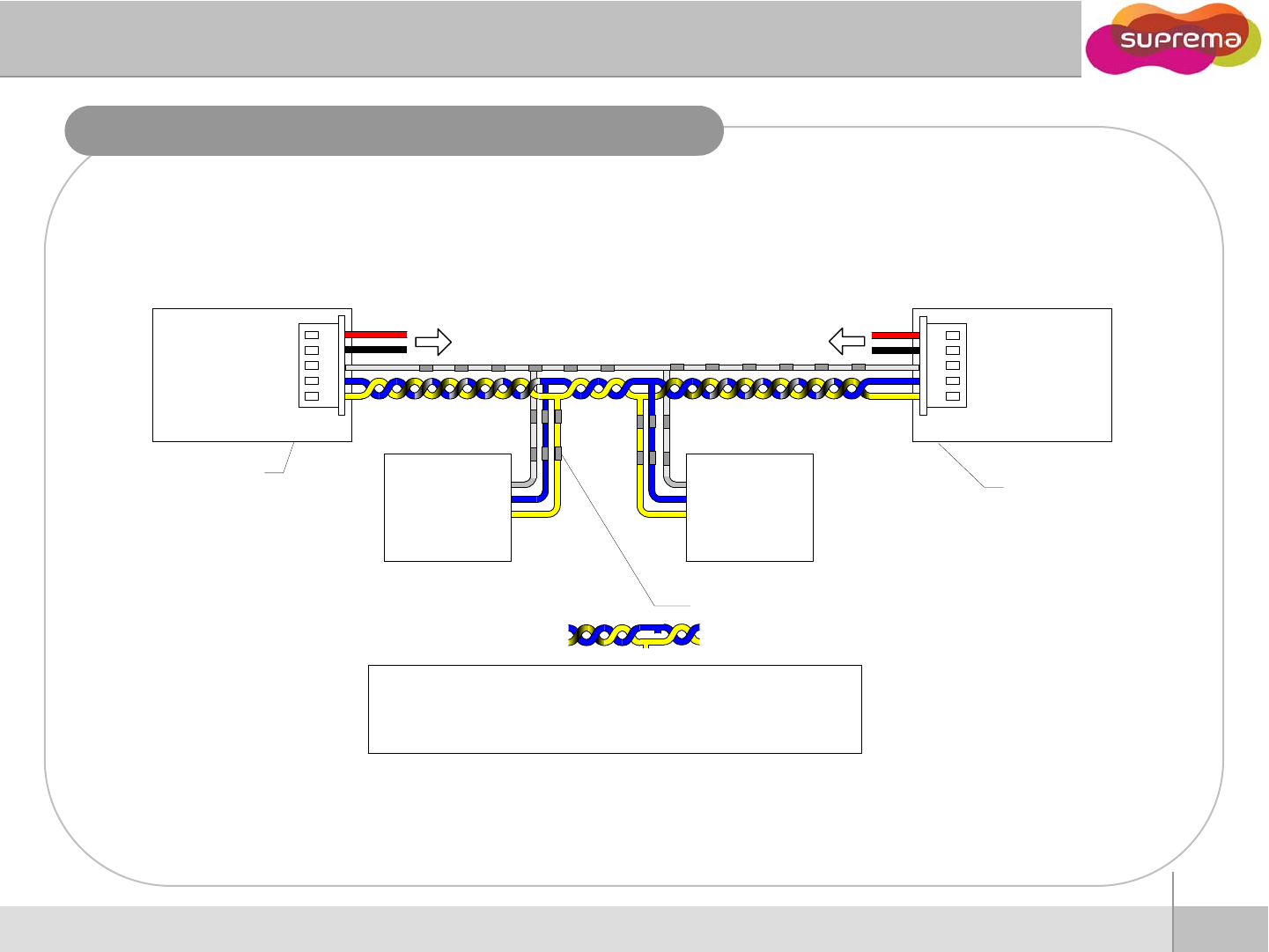

RS485 connection for Secure I/O
BioEntry Plus (Master) BioEntry Plus (Slave)
TRX-
TRX+
TRX GND
As short as possible (Note 2)
*Enable termination
(optional, see Note1)
(5) TRX- (Yellow)
(4) TRX+ (Blue)
(3) Signal GND (White)
(2) Power GND (Black)
(1) Power 12V (Red)
Power
(5) TRX- (Yellow)
(4) TRX+ (Blue)
(3) Signal GND (White)
(2) Power GND (Black)
(1) Power 12V (Red) Power
Secure I/O
TRX-
TRX+
TRX GND
Secure I/O
...
Important Notes
1. For bus termination, only the devices at both ends of the bus should be terminated.
To enable termination on the RS232-485 converter, refer to the converter’s manual.
2. The stubs should be as short as practical
*Enable termination
(optional, see Note1)
![](/img.php?id=958773&img=bgc.png)
11
ⒸCopyright 2008 Suprema Inc.

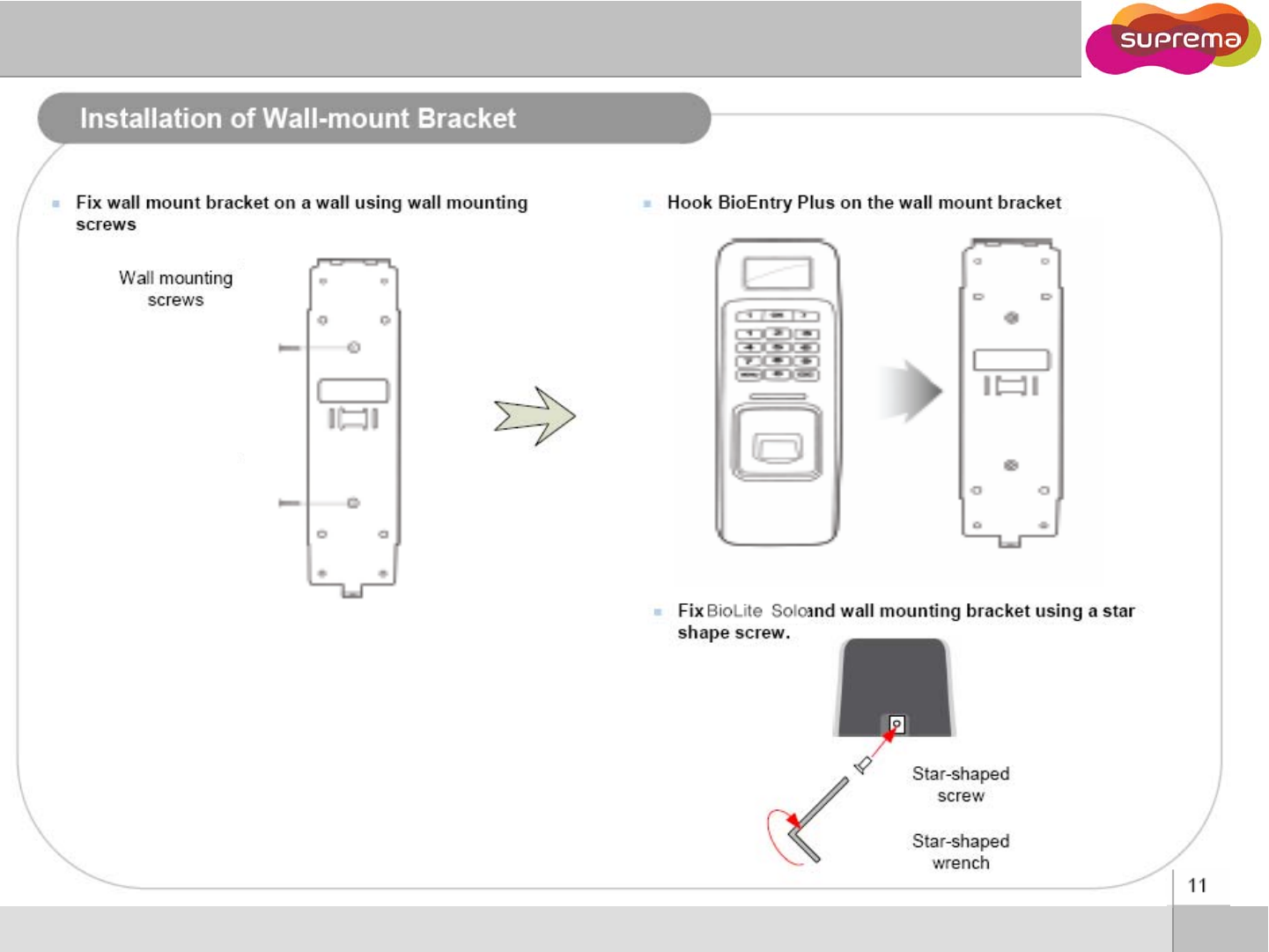

Installation of Wall-mount Bracket
![](/img.php?id=958773&img=bgd.png)
12
ⒸCopyright 2008 Suprema Inc.
Installation Reference - Stand alone
![](/img.php?id=958773&img=bge.png)
13
ⒸCopyright 2008 Suprema Inc.

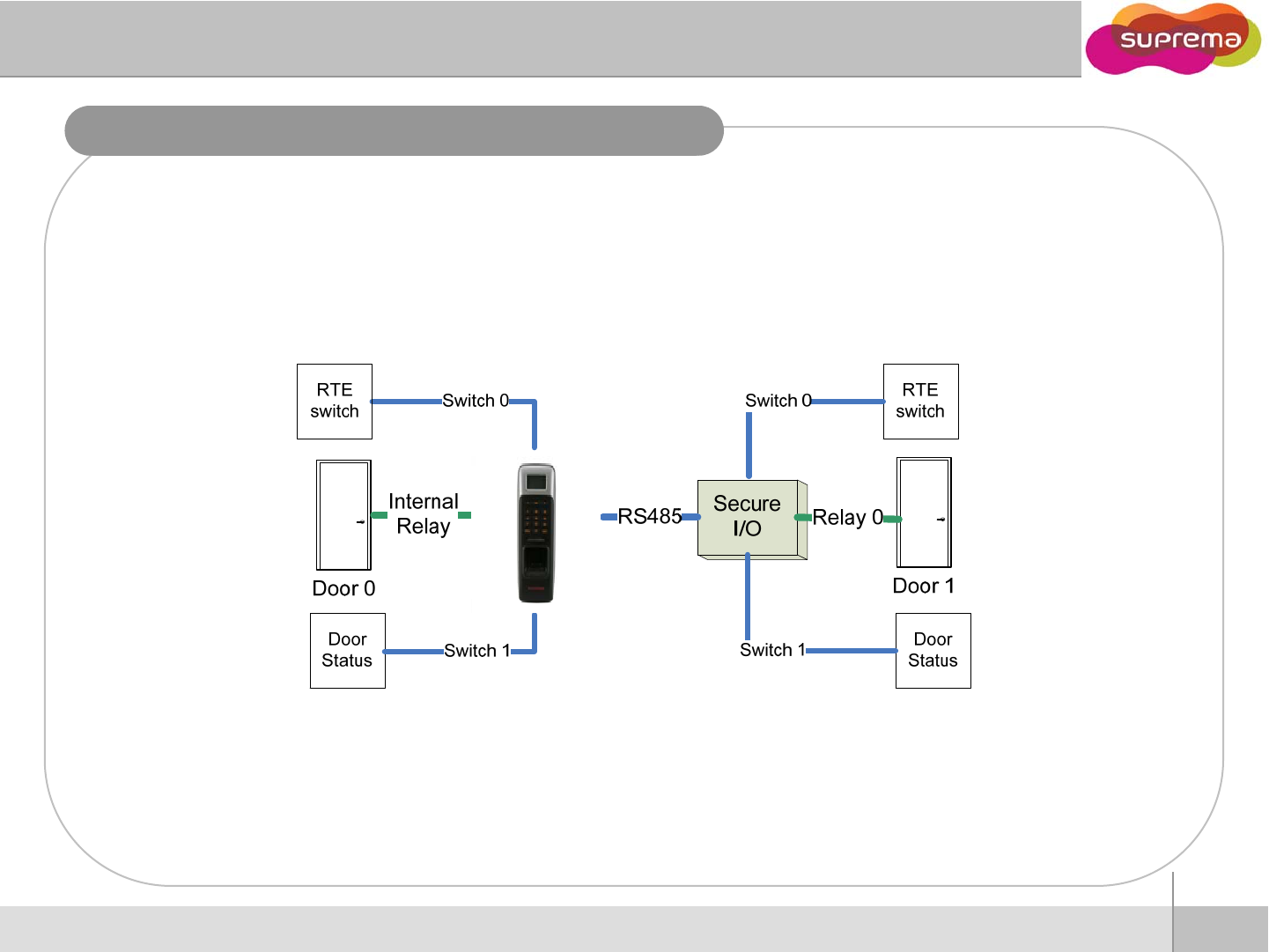

Installation Reference – Using Secure I/O, 2 door
![](/img.php?id=958773&img=bgf.png)
14
ⒸCopyright 2008 Suprema Inc.
Electrical Specification
30V DC
125V AC
1
0.3
--Switching capacity (A)
DC
AC
110
125
--Switching voltage (V)
DC
AC
30W
37.5VA
--
Switching power
(resistive)
Relay
The outputs ports are open drain type, pulled up with 4.7k resistors
internally
-4.7k-Pull-up resistance (Ω)
-0.8-VOL (V)
-5-VOH (V)
TTL/Wiegand Output
The input ports are pulled up with 4.7k resistors-4.7k-Pull-up resistance (Ω)
TBD-VIL (V)
-TBD-VIH (V)
Switch Input
250-Current (mA)
Use regulated DC power adaptor only13.21210.8Voltage (V)
Power
NotesMax.Typ.Min.

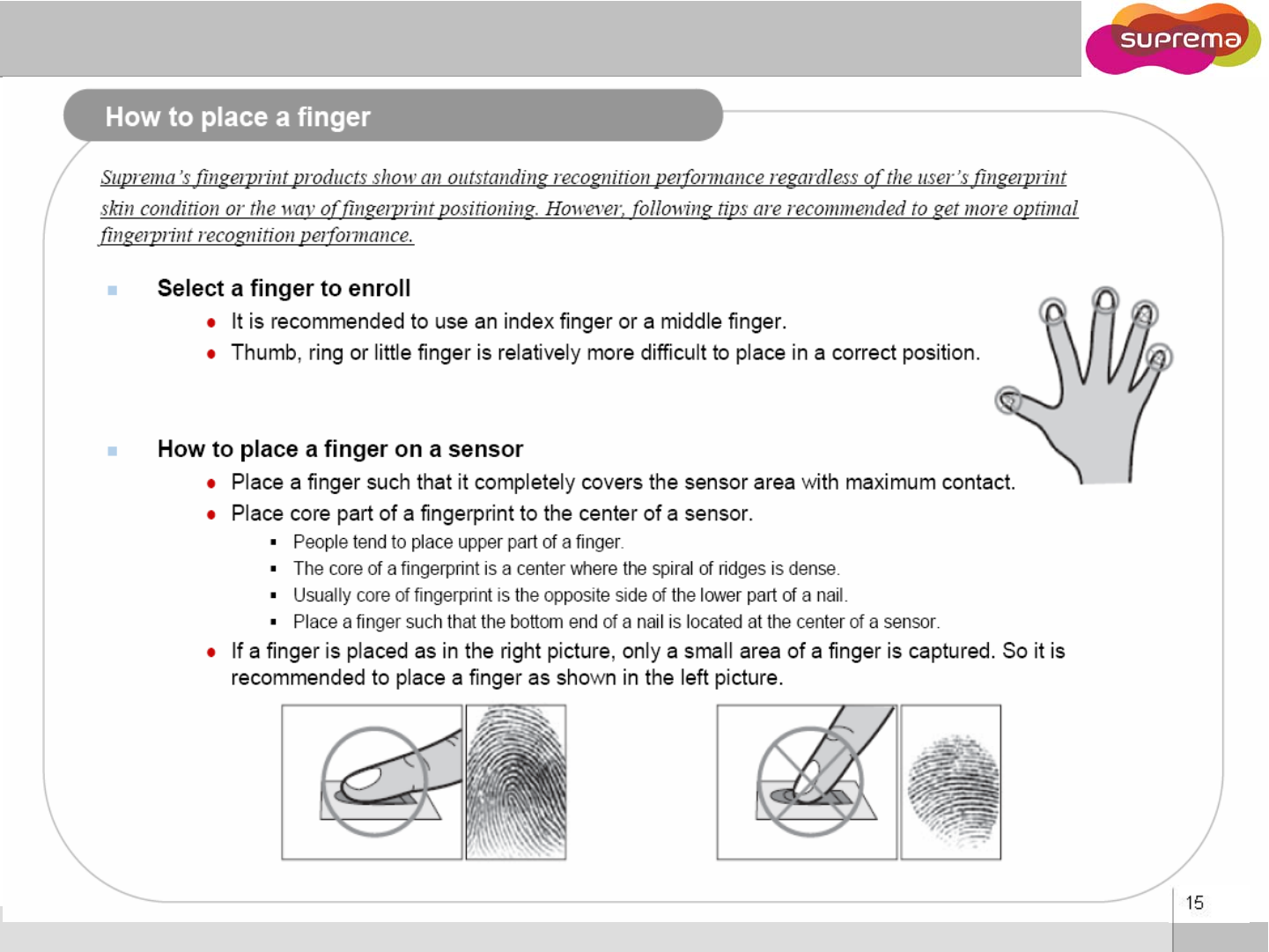

![](/img.php?id=958773&img=bg10.png)
15
ⒸCopyright 2008 Suprema Inc.

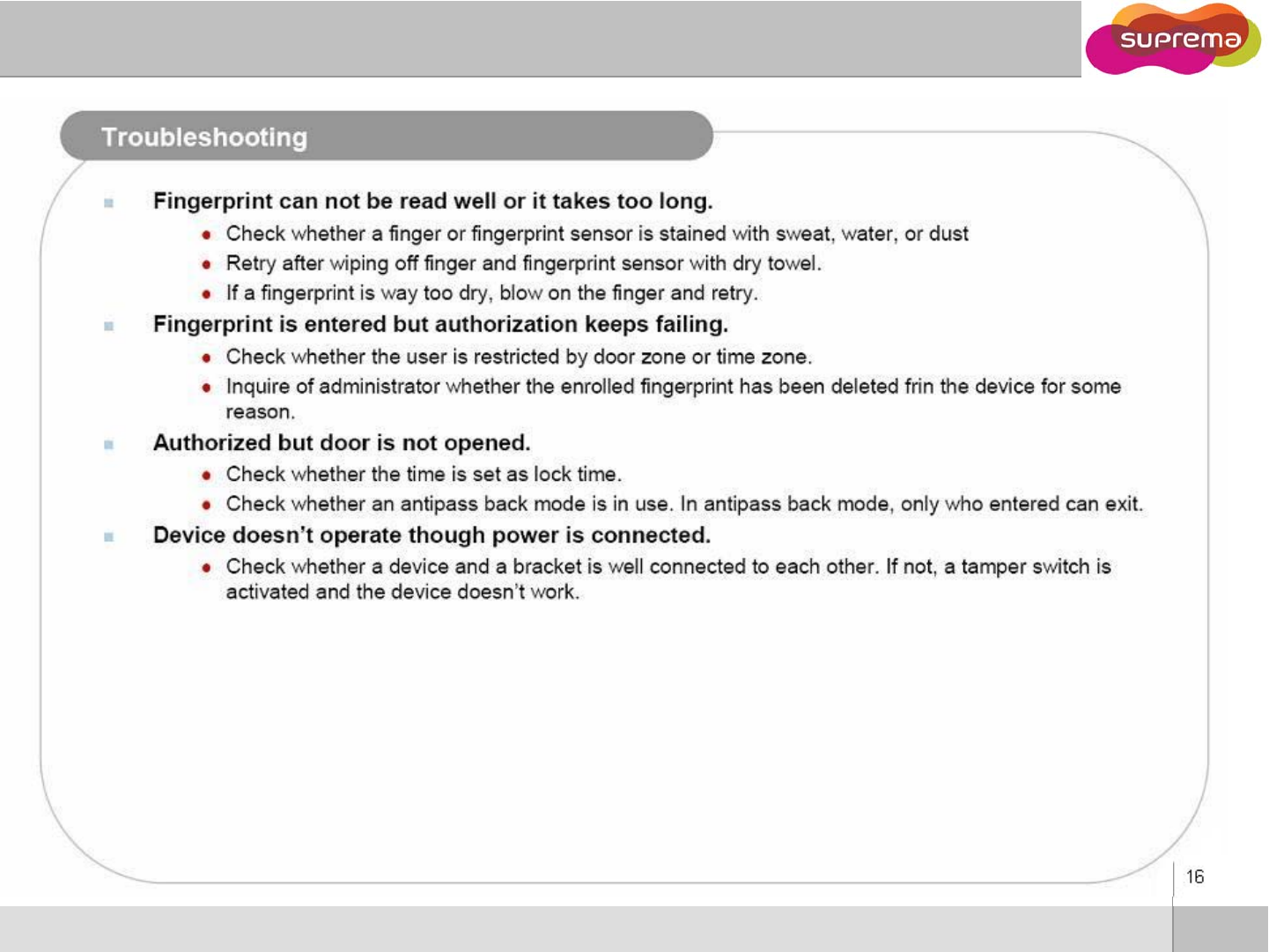

![](/img.php?id=958773&img=bg11.png)
16
ⒸCopyright 2008 Suprema Inc.
![](/img.php?id=958773&img=bg12.png)
17
ⒸCopyright 2008 Suprema Inc.
