M820-00 1
Copyright TEL 01/04/00
T820 Series II
Base Station Equipment
66-88MHz
Tuning & Adjustment Manual
July 2000
M820-00-2TA
![](/img.php?id=111477&img=bg2.png)
2M820-00
01/04/00 Copyright TEL
Head Office
New Zealand
Tait Electronics Ltd
558 Wairakei Road
P.O. Box 1645
Christchurch
New Zealand
Phone: 64 3 358 3399
Fax: 64 3 358 3903
Radio Systems Division
535 Wairakei Road
P.O. Box 1645
Christchurch
New Zealand
Phone: 64 3 358 3399
Fax: 64 3 358 6486
Australia
Tait Electronics (Aust) Pty Ltd
186 Granite Street
Geebung
Queensland 4034
P. O . B o x 6 7 9
Virginia
Queensland 4014
Australia
Phone: 61 7 3865 7799
Toll Free: 1 800 077 112
Fax: 61 7 3865 7990
Beijing
Tait Mobile Radio (HK) Ltd
Beijing Representative Office
Room 610, Tower 2
Beijing Henderson Centre
No. 18 Jianguomennei Da Jie
Doncheng District
Beijing
China 100005
Canada
Tait Mobile Radio Inc.
Unit 5, 158 Anderson Avenue
Markham
Ontario L6E 1A9
Canada
Phone: 1 905 472 1100
Toll Free: 1 800 890 8248
Fax: 1 905 472 5300
France
Ta i t France Sa rl
2 Avenue de la Cristallerie
92 316 Sèvres, Cedex
France
Phone: 33 1 41 14 05 50
Fax: 33 1 41 14 05 55
Germany
Tait Europe Limited
Geschäftsstelle Deutschland
Fürther Str. 27
D-90429 Nürnberg
Germany
Phone: 49 911 2870 7064
Fax: 49 911 2870 7160
Hong Kong
Tait Mobile Radio (HK) Ltd
Unit 2216, North Tower
Concordia Plaza
No. 1 Science Museum Road
Tsim Sha Tsui East
Kowloon
Phone: 852 2369 3040
Fax: 852 2369 3009
New Zealand
Tait Communications Ltd
Unit 4, 75 Blenheim Road
P. O . B o x 11 8 5
Christchurch
Phone: 64 3 348 3301
Fax: 64 3 343 0558
Singapore
Tait Electronics (Far East) Pte Ltd
4 Leng Kee Road
SIS Building #05-11A
Singapore 159088
Phone: 65 471 2688
Fax: 65 479 7778
Ta i w a n
Tait Mobile Radio (Taiwan) Ltd
5Fl., No. 159, Keelung Rd
Sec. 1
Taipei 110
Taiwan
Phone: 886 2 2768 6600
Fax: 886 2 2761 9970
Thailand
Tait Mobile Radio Ltd
14/1 Suwan Tower
Third Floor
North Sathorn Road
Soi Saladaeng 1
Bangrak
Bangkok 10500
Thailand
Phone: 662 267 6290
Fax: 662 267 6293
United Kingdom
Tait Europe Ltd
Ermine Business Park
Ermine Road
Huntingdon
Cambridgeshire PE18 6YA
United Kingdom
Phone: 44 1480 52 255
Fax: 44 1480 411 996
USA
Tait Electronics (USA) Inc.
9434 Old Katy Road
Suite 110
Houston
Texas 77055
USA
Phone: 1 713 984 8684
Toll Free: 1 800 222 1255
Fax: 1 713 468 6944
Internet
http://www.taitworld.com
T800
T800
![](/img.php?id=111477&img=bg3.png)
M820-00 3
Copyright TEL 01/04/00
About This Manual
Scope This manual contains general, technical, tuning and adjustment
information on T820 Series II 25W and 50W base stations which
comprise the following equipment:

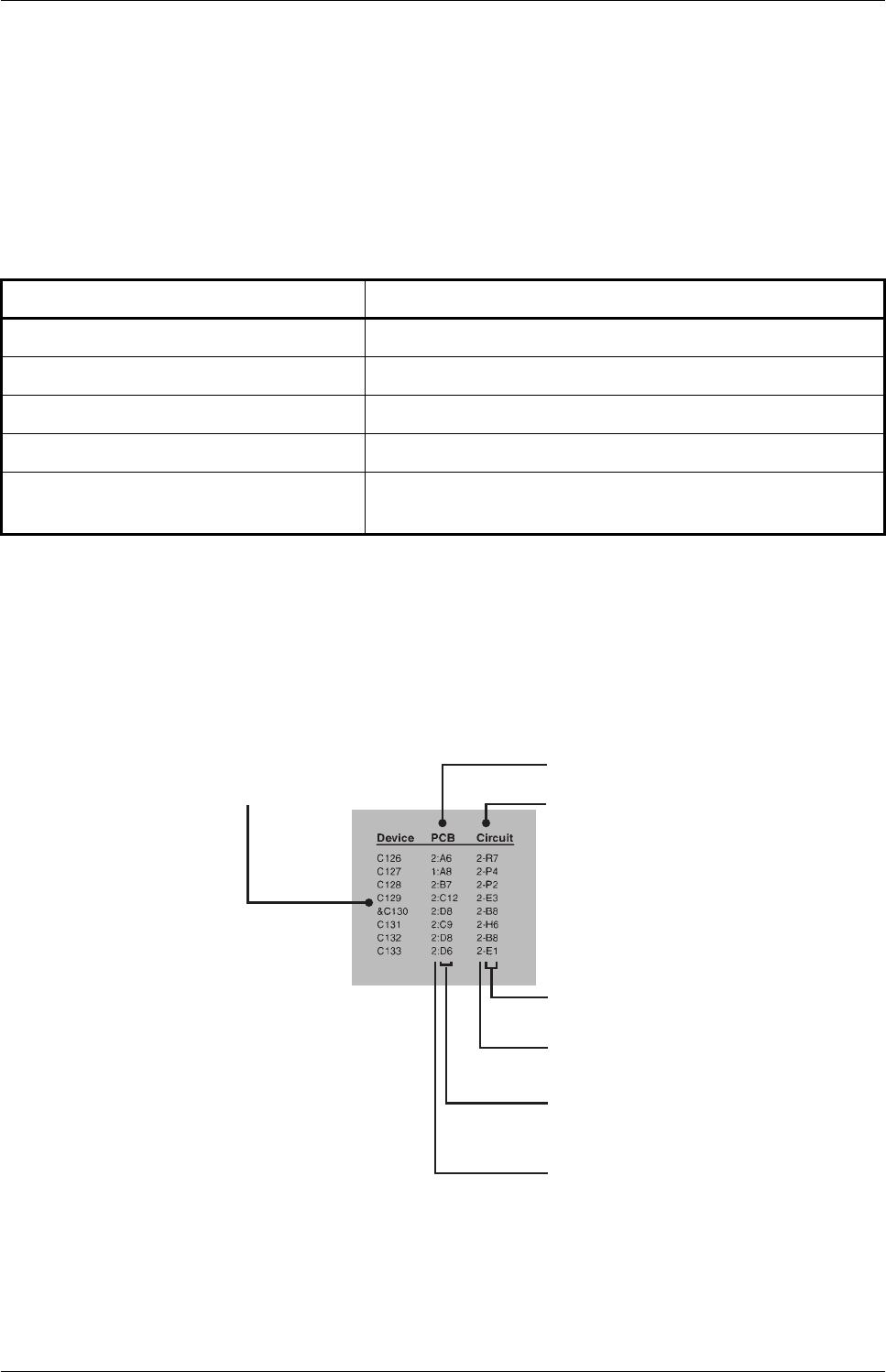

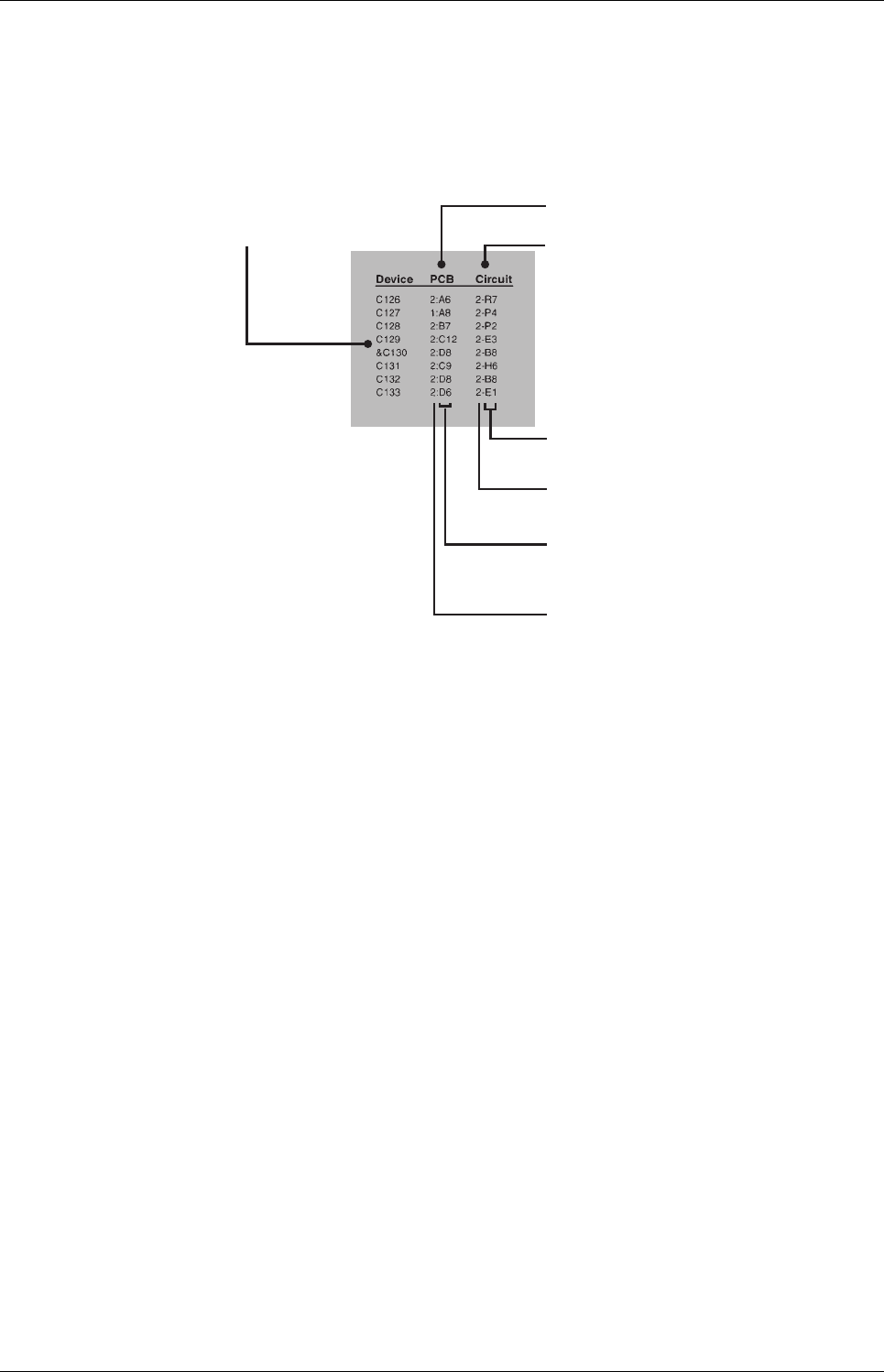

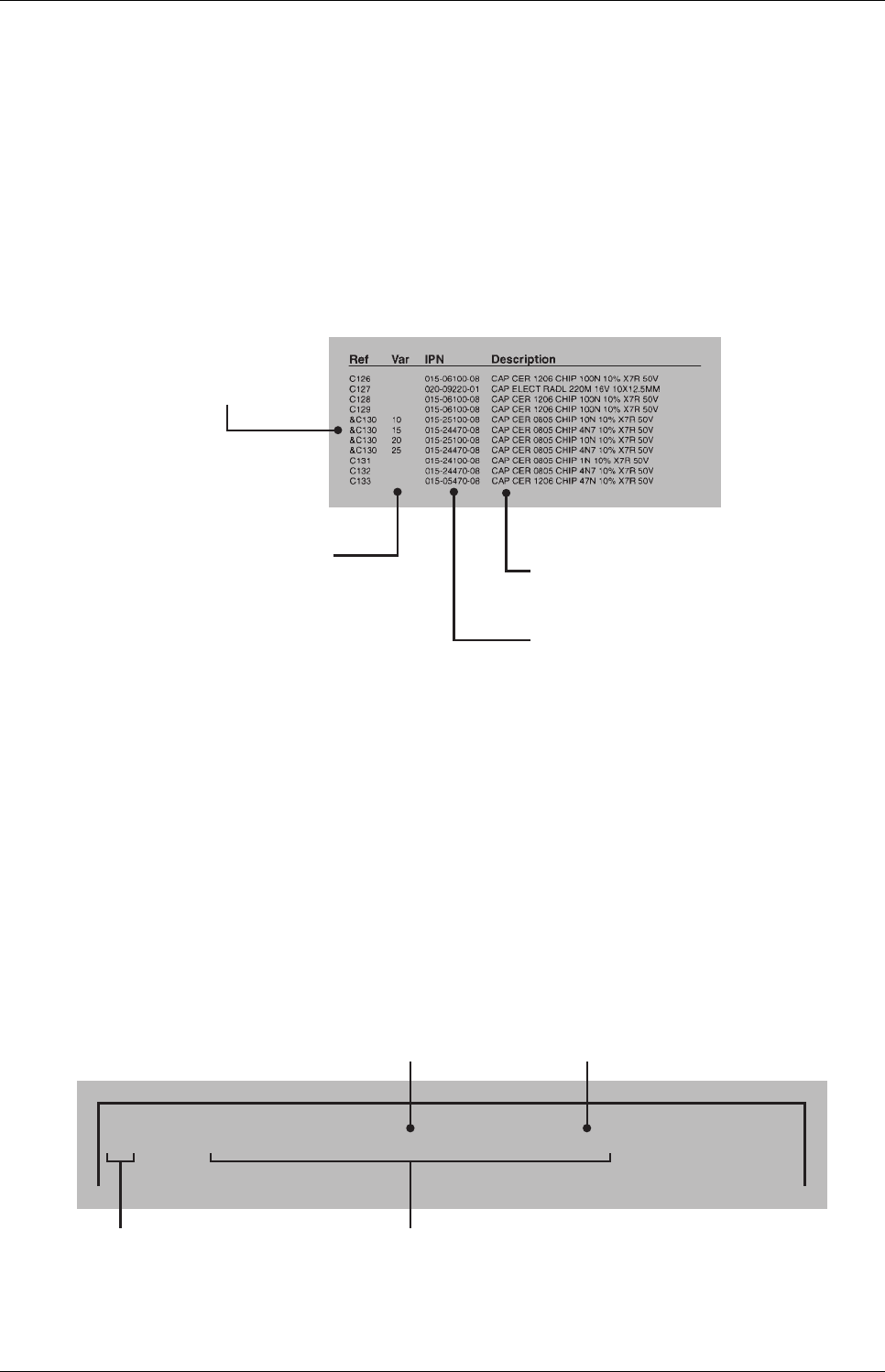

PCB Information PCB information is provided for all current issue PCBs, as well
as all previous issue PCBs manufactured in production quanti-
ties, and is grouped according to PCB. Thus, you will find the
parts list, grid reference index (if necessary), PCB layouts and
circuit diagram(s) for each individual PCB grouped together.
Errors If you find an error in this manual, or have a suggestion on how
it might be improved, please do not hesitate to contact Customer
Support, Tait Electronics Ltd, Christchurch, New Zealand (full
contact details are on page 2).
Updating Equipment And Manuals
In the interests of improving performance, reliability or servicing, Tait Electronics Ltd
reserve the right to update their equipment and/or manuals without prior notice.
Copyright
All information contained in this manual is the property of Tait Electronics Ltd. All
rights are reserved. This manual may not, in whole or part, be copied, photocopied,
reproduced, translated stored or reduced to any electronic medium or machine readable
form without prior written permission from Tait Electronics Ltd.
Ordering Tait Service Manuals
You can order additional copies of this manual from your nearest Tait Dealer or Cus-
tomer Service Organisation. When ordering, make sure you quote the correct Tait prod-
uct code ("M" number). Note that only the latest issue of the manual will be available
for order.
25W base station T825 receiver
T826 25W transmitter
50W base station T825 receiver
T827 exciter
T828 50W power amplifier
![](/img.php?id=111477&img=bg4.png)
4M820-00
01/04/00 Copyright TEL
Table Of Contents
This manual is divided into five parts as listed below, with each part being further sub-
divided into sections. There is a detailed table of contents at the start of each part and/
or section.
Part Title
A Introduction To Servicing
B T825 Receiver
C T826 Transmitter & T827 Exciter
D T828 Power Amplifier
E T820 VCO PCB Information
![](/img.php?id=111477&img=bg5.png)
M820-00 AI
Copyright TEL 01/04/00
Part A Introduction To Servicing
This part of the manual is divided into the sections listed below. These sections provide
some general and advisory information on servicing procedures, and a brief history of
PGM800Win programming software.
Section Title Page
1
1.1
1.2
1.3
1.4
General
Additional Technical Information
Caution: CMOS Devices
Caution: Aerial Load
Caution: Beryllium Oxide & Power Transistors
1.1
1.1
1.1
1.2
1.2
2
2.1
2.2
2.3
2.3.1
2.3.2
2.4
2.5
Mechanical
Torx Recess Head Screws
Pozidriv & Philips Recess Head Screws
Disassembly/Reassembly
Receivers/Exciters/Transmitters
Power Amplifiers
Cover Screw Torques
Chassis & Cover Compatibility
2.1
2.1
2.2
2.3
2.3
2.3
2.3
2.4
3
3.1
3.1.1
3.1.2
3.2
3.3
Component Replacement
Leaded Components
Desoldering Iron Method
Component Cutting Method
Surface Mount Devices
Cased Mica Capacitors
3.1
3.1
3.1
3.1
3.2
3.2
4
4.1
4.2
Software History
PGM800Win V1.0
PGM800Win V2.00
4.1
4.1
4.1
Figure Title Page
1.1
1.2
2.1
2.2
2.3
Typical Product Code & Serial Number Labels
Typical Anti-static Bench Set-up
Torx Screw Identification
Pozidriv & Philips Screw & Screwdriver Identification
Identification Of New-Design Chassis & Covers
1.1
1.2
2.1
2.2
2.4
![](/img.php?id=111477&img=bg6.png)
AII M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg7.png)
M820-00 General A1.1
Copyright TEL 01/04/00
1 General
1.1 Additional Technical Information
If you have any questions about this manual or the equipment it describes, please con-
tact your nearest Tait Dealer or Customer Service Organisation. If necessary, you can
get additional technical help from Customer Support, Radio Systems Division, Tait Elec-
tronics Ltd, Christchurch, New Zealand (full contact details are on page 2).
When requesting information, please quote either the manual product code (e.g.
M820-00-200), or the equipment product code and serial number which are printed on a
label on the back of the product (as shown in Figure 1.1).

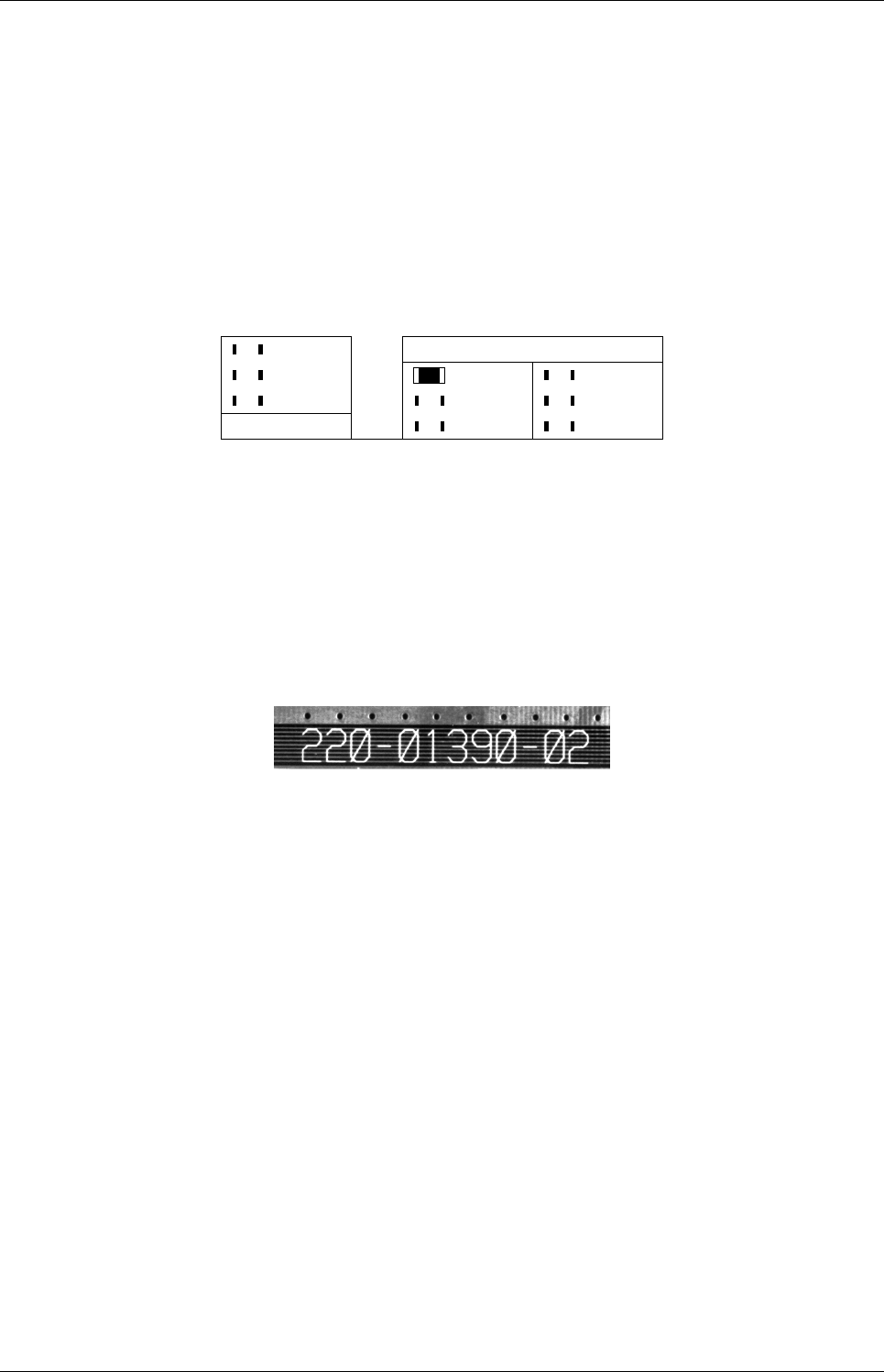

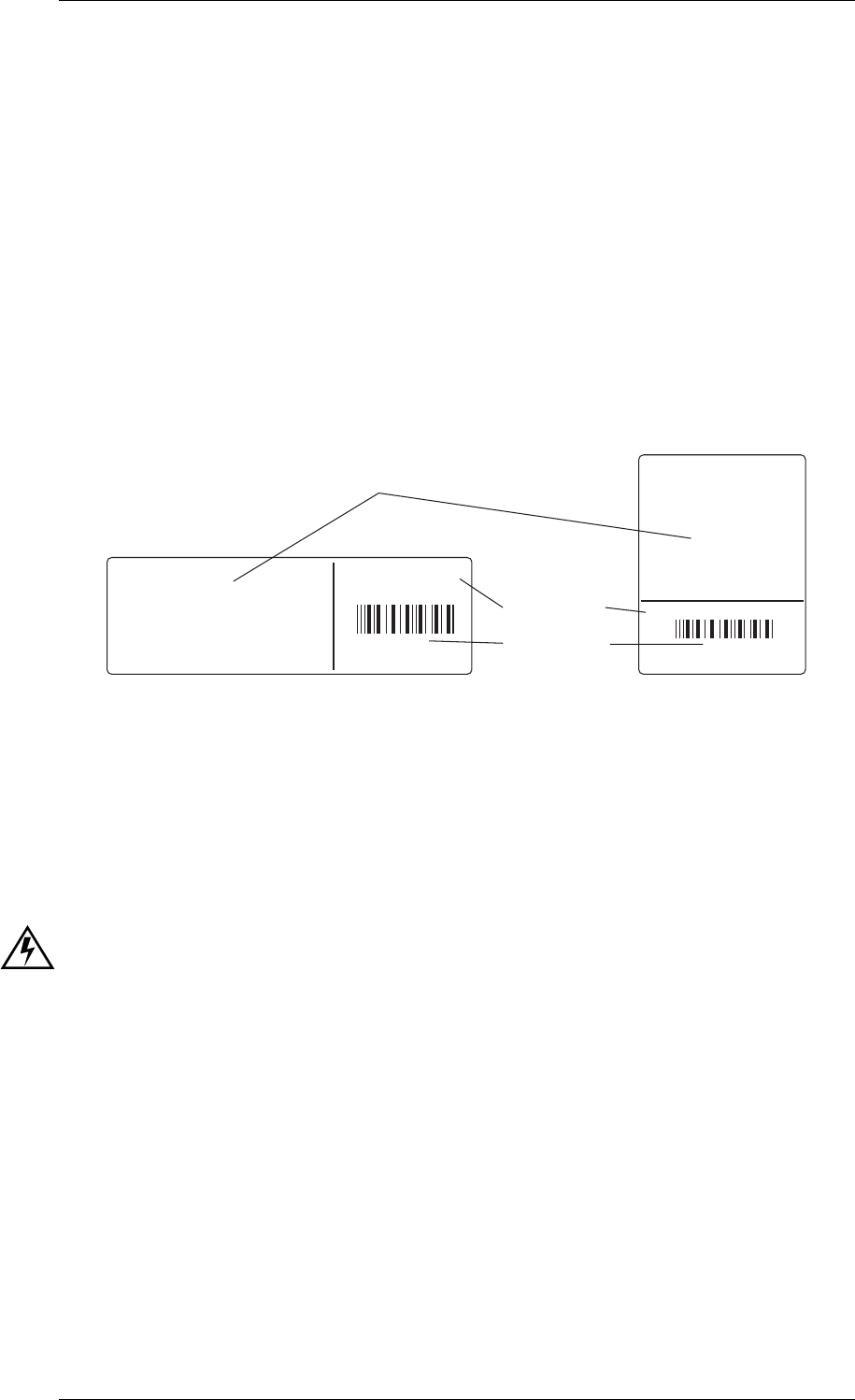

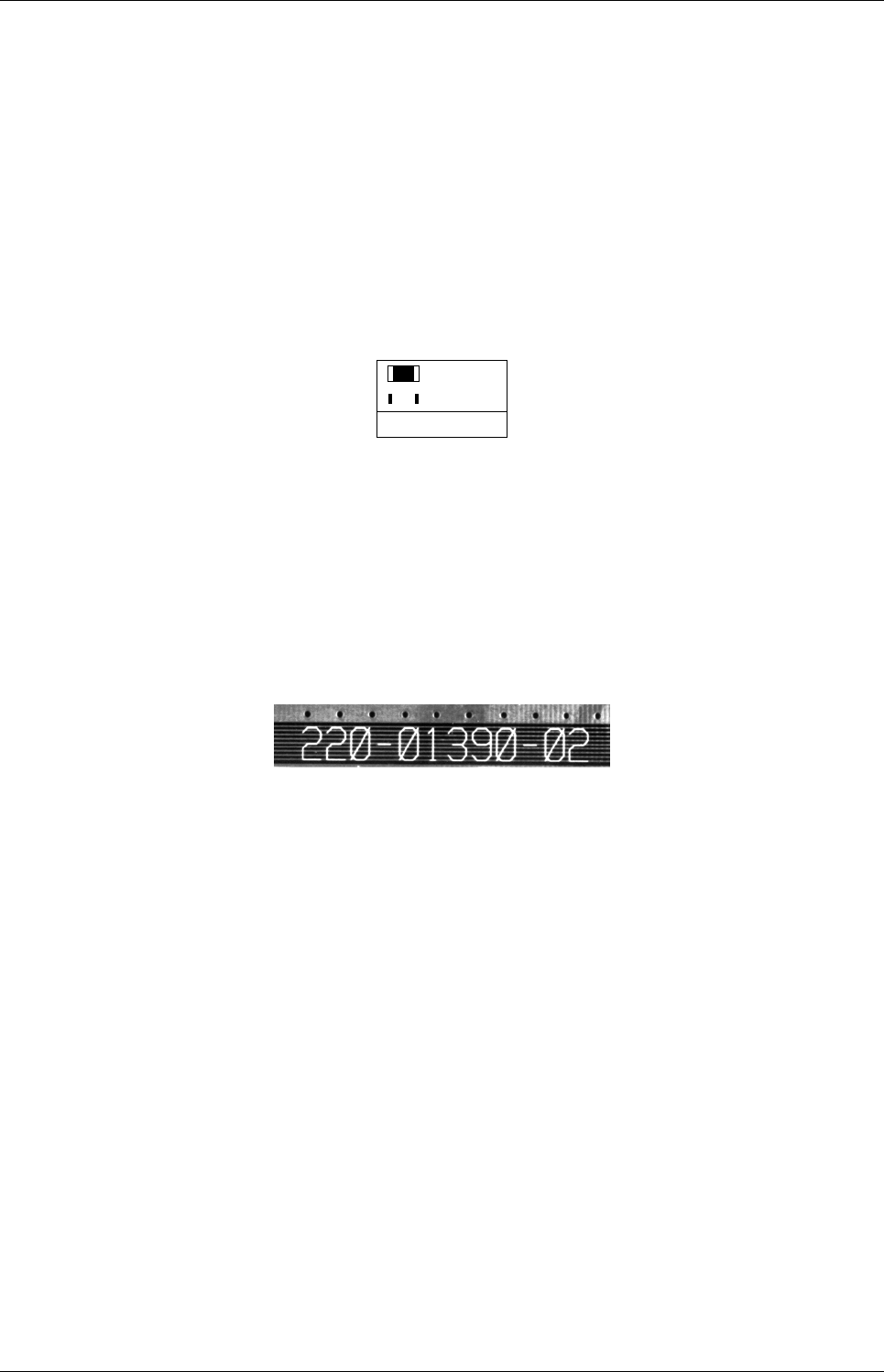

Figure 1.1 Typical Product Code & Serial Number Labels

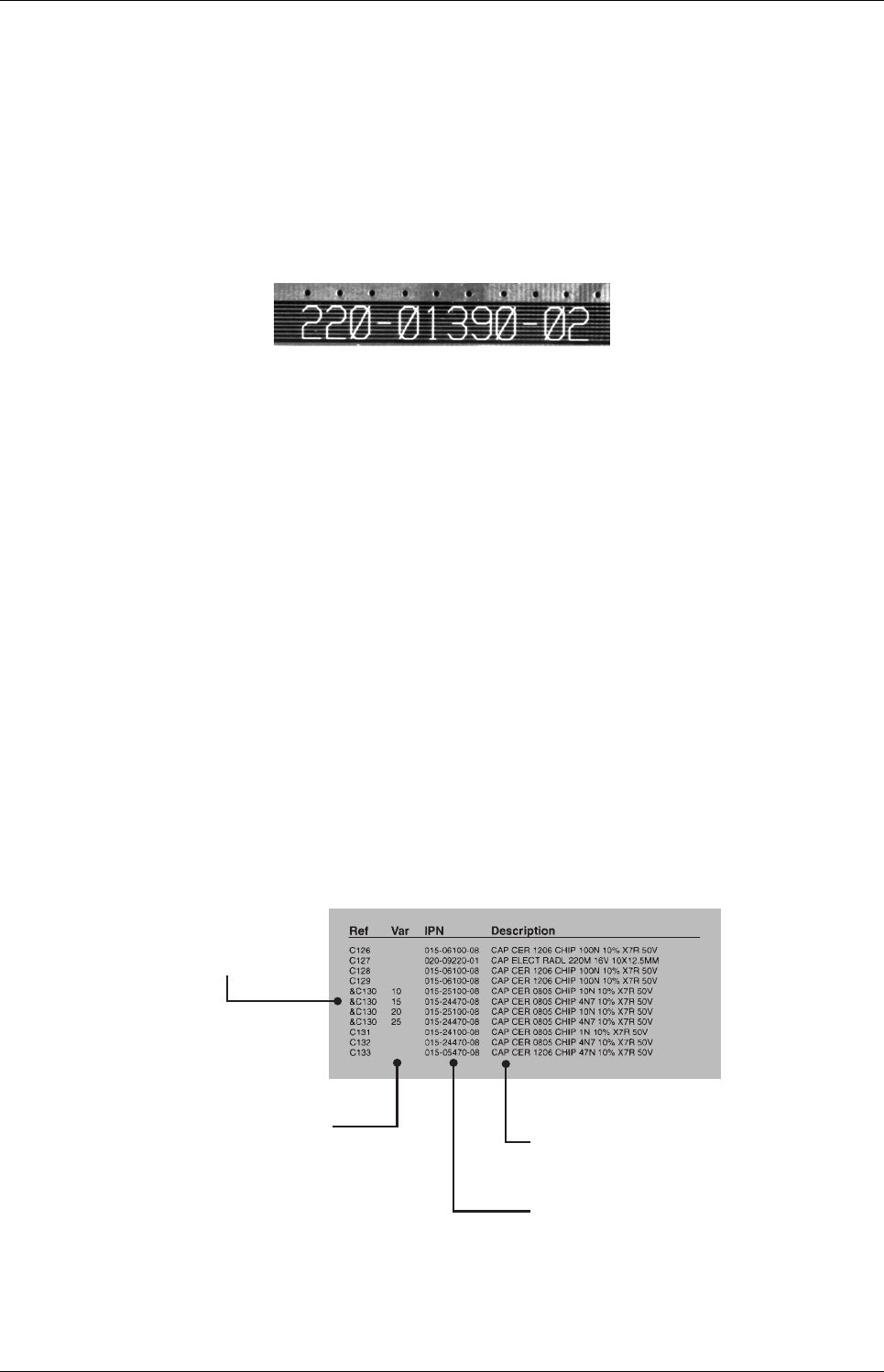

If you require information about a particular PCB, please quote the full PCB internal
part number (IPN) which is screen printed onto the top side of the board (refer to the
appropriate PCB Information section in this manual for more details).
1.2 Caution: CMOS Devices
This equipment contains CMOS Devices which are susceptible to damage from static
charges. Care when handling these devices is essential. For correct handling proce-
dures refer to the manufacturers' data books, e.g. Philips data books covering CMOS
devices, or Motorola CMOS data books, Section 5 'Handling', etc.
An anti-static bench kit (refer to Figure 1.2) is available from Tait Electronics Ltd under
the following product codes:
• KS0001 - 1 conductive rubber bench mat
- 1 earth lead to connect the mat to ground
• KS0004 - 1 wrist strap.
this area used for regional
Type Approval information
product code
serial number
T835-10-0000 Rev 1
900000
Tait Electronics Limited
Made in New Zealand
T838-10-0000
Rev 1
900000
Tait Electronics Limited
Made in New Zealand
![](/img.php?id=111477&img=bg8.png)
A1.2 General M820-00
01/04/00 Copyright TEL

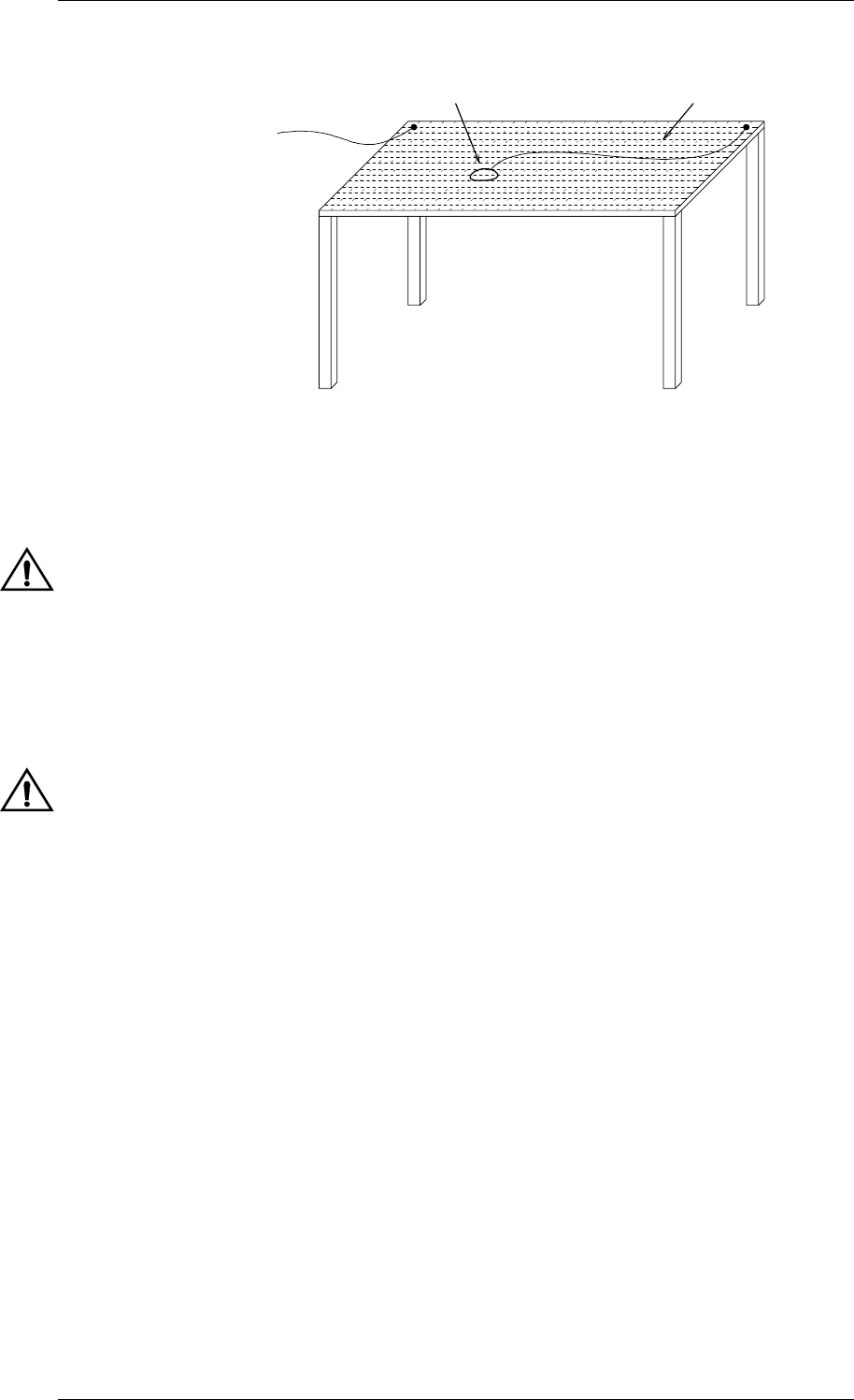

Figure 1.2 Typical Anti-static Bench Set-up
1.3 Caution: Aerial Load
The equipment has been designed to operate safely under a wide range of aerial loading
conditions. However, we strongly recommend that the transmitter should always be
operated with a suitable load to prevent damage to the transmitter output power stage.
1.4 Caution: Beryllium Oxide & Power Transistors
The RF power transistors in current use all contain some beryllium oxide. This sub-
stance, while perfectly harmless in its normal solid form, can become a severe health
hazard when it has been reduced to dust. For this reason the RF power transistors
should not be broken open, mutilated, filed, machined, or physically damaged in any
way that can produce dust particles.
to building earth
(not mains earth)
conductive
wrist strap conductive rubber
bench mat
![](/img.php?id=111477&img=bg9.png)
M820-00 Mechanical A2.1
Copyright TEL 01/04/00
2 Mechanical
2.1 Torx Recess Head Screws
Torx recess head screws are becoming the standard screw head type in all T800 Series II
equipment, with Pozidriv and Philips recess head screws being used in fewer applica-
tions.
The Torx recess head has the advantage of improved screwdriver tip location, reducing
the chances of screw head damage caused by the driver tip rotating within the recess. In
addition, using a ball-tip Torx screwdriver allows you to drive a Torx head screw with
the driver on a slight angle, which can be useful in situations where access is restricted.
It is important that you use the correct Torx screwdriver tip:
M3 screws - T10
M4 screws - T20.
Figure 2.1 below shows a typical Torx recess head screw (actual hardware may differ
slightly from this illustration due to variations in manufacturing techniques).

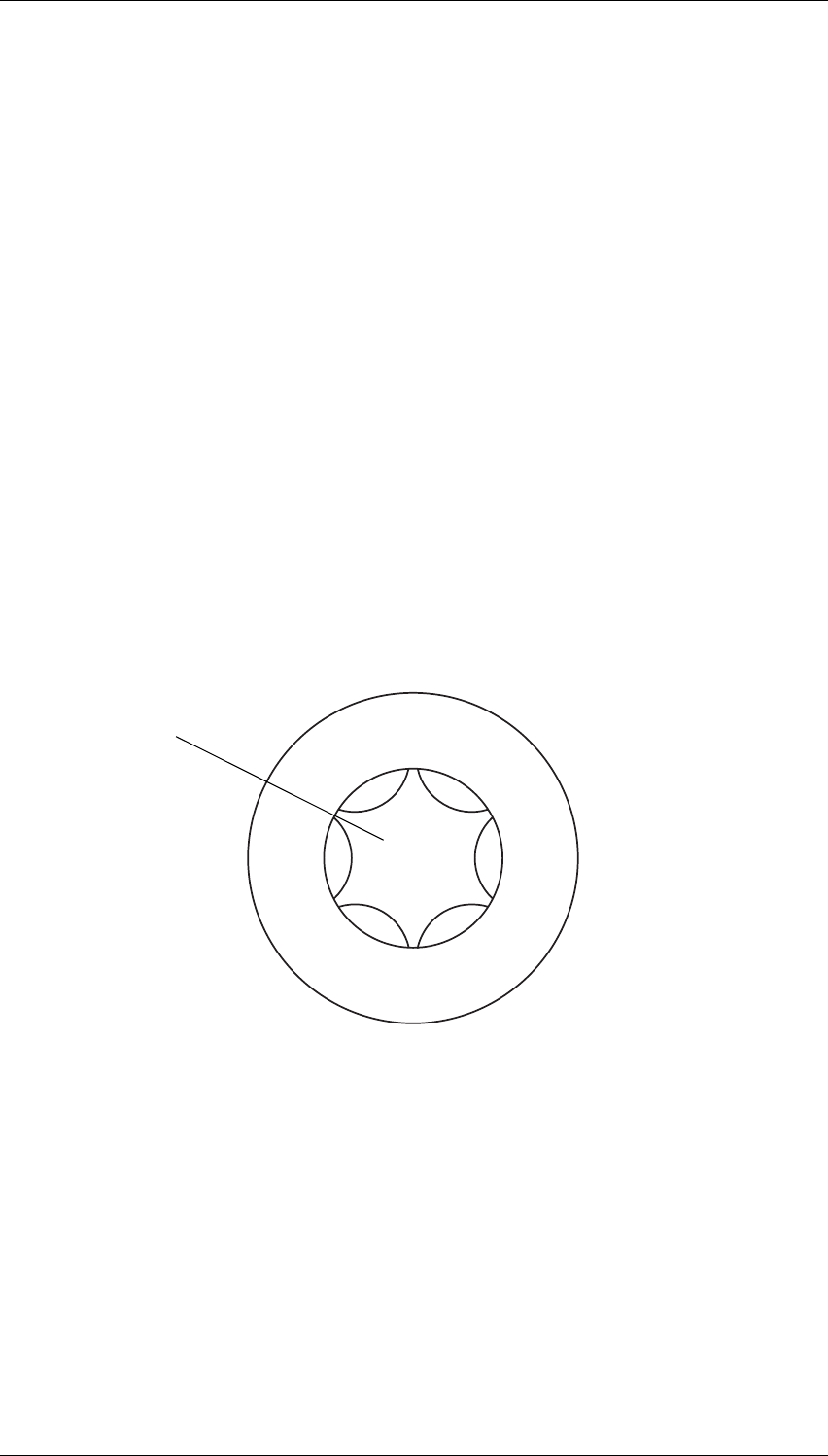

Figure 2.1 Torx Screw Identification
"star" shaped recess with
six internal notches
![](/img.php?id=111477&img=bga.png)
A2.2 Mechanical M820-00
01/04/00 Copyright TEL
2.2 Pozidriv & Philips Recess Head Screws
Pozidriv and Philips recess head screws will continue to be used in T800 Series II equip-
ment in a few special applications. It is important that you use the correct type and size
screwdriver for each screw type to avoid damaging the screw head.
It is particularly important that you do not use Philips screwdrivers on Pozidriv screw
heads as the tapered driving flutes of the Philips screwdriver do not engage correctly
with the parallel-sided slots in the Pozidriv screw head. This can result in considerable
damage to the screw head if the screwdriver tip turns inside the recess.
Note: If you find you need excessive downwards pressure to keep the screwdriver
tip in the Pozidriv screw head, you are probably using the wrong type and/
or size screwdriver.

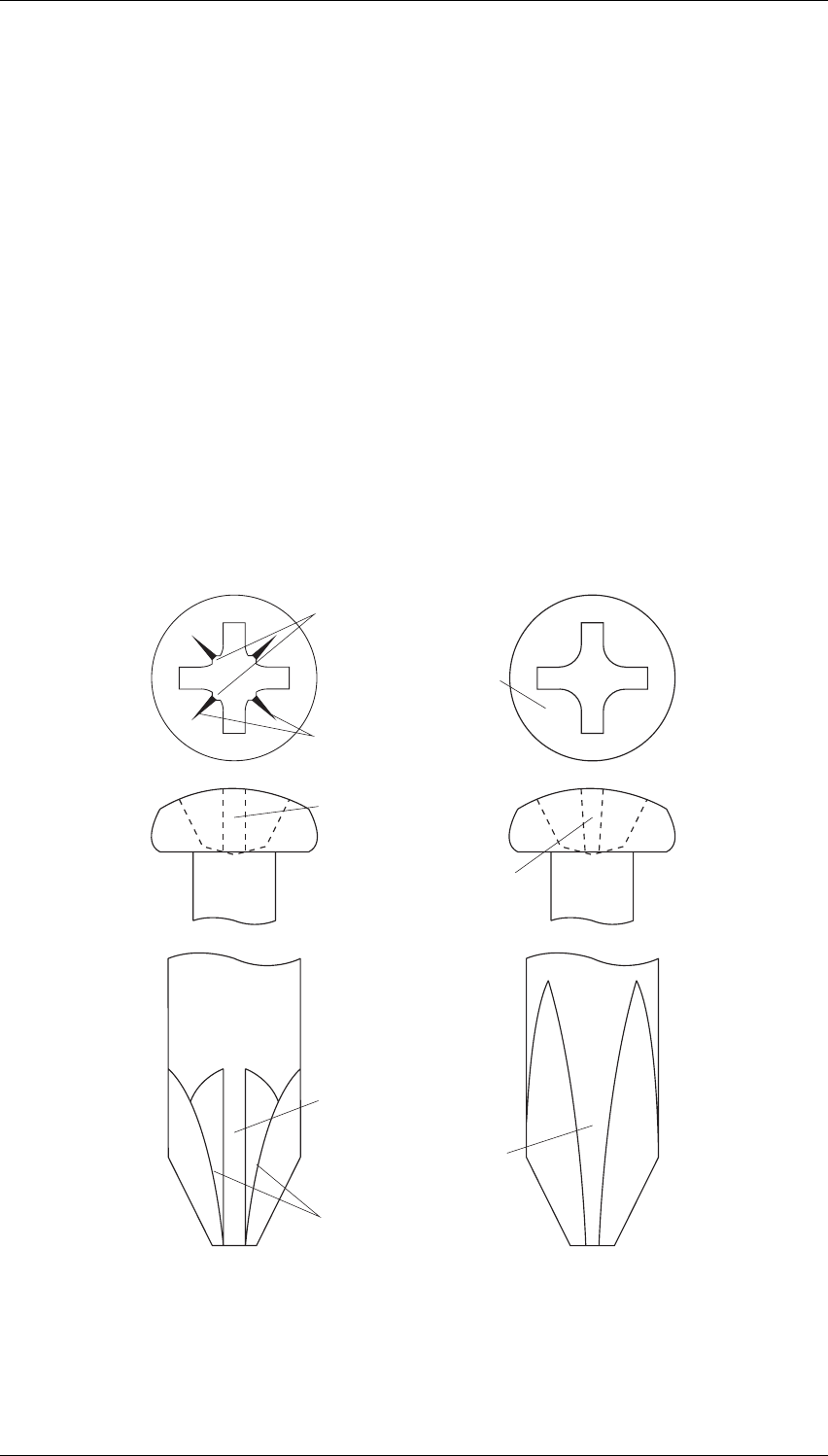

Figure 2.2 below shows the main differences between typical Pozidriv and Philips screw
heads and screwdriver tips (actual hardware may differ slightly from these illustrations
due to variations in manufacturing techniques).
Figure 2.2 Pozidriv & Philips Screw & Screwdriver Identification
driving flutes with
parallel sides
driving flutes with
tapered sides
Pozidriv Philips
internal notches
"star" markings
between slots
no special markings
slots with parallel sides
slots with tapered sides
ridges between
driving flutes
![](/img.php?id=111477&img=bgb.png)
M820-00 Mechanical A2.3
Copyright TEL 01/04/00
2.3 Disassembly/Reassembly
2.3.1 Receivers/Exciters/Transmitters
To carry out alignment or change option links, you need to remove only the top cover,
i.e. the one adjacent to the front panel handle and on the opposite side to the main
D-range connector (D-range 1/PL100).
You need to remove the bottom cover to:
• access transmitter RF power transistors and many SMD components
• change solder blob links
• fit test leads to circuit block access points.
2.3.2 Power Amplifiers
You should carry out the tuning and power output level setting procedures with the
cover on.
2.4 Cover Screw Torques
Receivers/Exciters/Transmitters .. 1.36Nm/12in.lbf.
Power Amplifiers .. 0.9Nm/8in.lbf.
![](/img.php?id=111477&img=bgc.png)
A2.4 Mechanical M820-00
01/04/00 Copyright TEL
2.5 Chassis & Cover Compatibility
The chassis and covers used in T800 Series II modules incorporate a number of design
changes to improve Electro-Magnetic Compatibility (EMC) performance. It is impor-
tant that only the new-design covers are fitted to the new chassis to ensure correct
mechanical fit and continued compliance with appropriate EMC Type Approval regula-
tions.
Figure 2.3 below shows some of the main features which can be used to identify the
new-design chassis and covers.

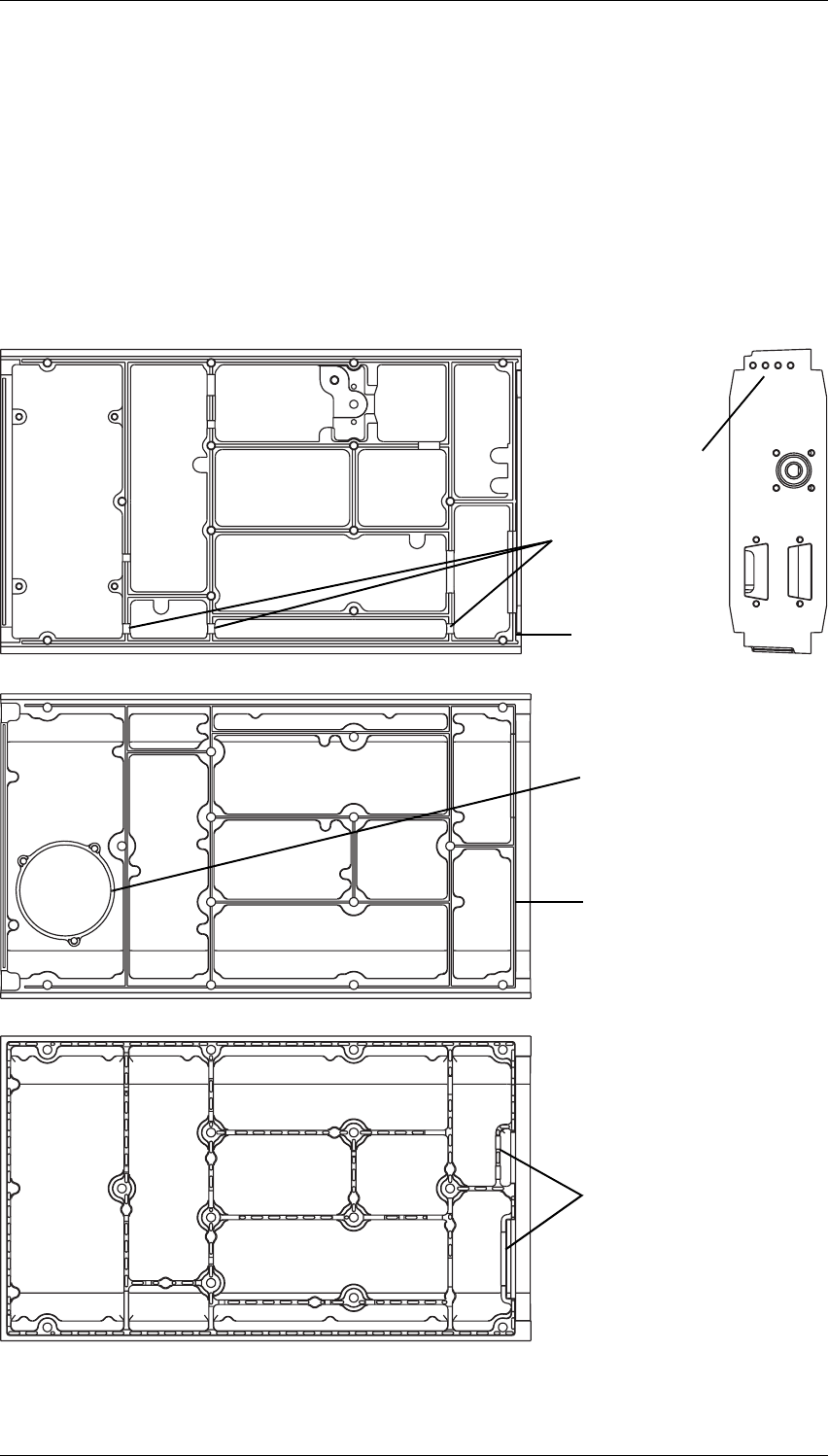

Figure 2.3 Identification Of New-Design Chassis & Covers
Top Cover
Bottom Cover
Chassis
4 holes in
rear panel
loom channel in
top of walls
groove in top
of rear wall
ridge on top
of rear wall
provision for mounting speaker
(future development)
additional walls
←To p V iew Rear View→
![](/img.php?id=111477&img=bgd.png)
M820-00 Component Replacement A3.1
Copyright TEL 01/04/00
3 Component Replacement
3.1 Leaded Components
Whenever you are doing any work on the PCB that involves removing or fitting compo-
nents, you must take care not to damage the copper tracks. The two satisfactory meth-
ods of removing components from plated-through hole (PTH) PCBs are detailed below.
Note: The first method requires the use of a desoldering station, e.g. Philips SBC
314 or Pace MBT-100E.
3.1.1 Desoldering Iron Method
Place the tip over the lead and, as the solder starts to melt, move the tip in a circu-
lar motion.
Start the suction and continue the movement until 3 or 4 circles have been com-
pleted.
Remove the tip while continuing suction to ensure that all solder is removed from
the joint, then stop the suction.
Before pulling the lead out, ensure it is not stuck to the plating.
If the lead is still not free, resolder the joint and try again.
Note: The desoldering iron does not usually have enough heat to desolder leads
from the ground plane. Additional heat may be applied by holding a sol-
dering iron on the tip of the desoldering iron (this may require some addi-
tional help).
3.1.2 Component Cutting Method
Cut the leads on the component side of the PCB.
Heat the solder joint sufficiently to allow easy removal of the lead by drawing it
out from the component side: do not use undue force.
Fill the hole with solder and then clear with solderwick.
![](/img.php?id=111477&img=bge.png)
A3.2 Component Replacement M820-00
01/04/00 Copyright TEL
3.2 Surface Mount Devices
Caution: Surface mount devices (SMDs) require special storage, handling,
removal and replacement techniques. This equipment should be serv-
iced only by an approved Tait Dealer or Customer Service Organisa-
tion equipped with the necessary facilities. Repairs attempted with
incorrect equipment or by untrained personnel may result in perma-
nent damage. If in doubt, contact your nearest Tait Dealer or Customer
Service Organisation.
3.3 Cased Mica Capacitors
Cased mica capacitors can be removed by heating the top with a heavy-duty soldering
iron and gently lifting the capacitor off the PCB with a solder-resistant spike or equiva-
lent.
![](/img.php?id=111477&img=bgf.png)
M820-00 Software History A4.1
Copyright TEL 01/07/00
4 Software History
28/06/96 PGM800Win Version 1.0
18/08/97 PGM800Win Version 2.00
4.1 PGM800Win V1.0
PGM800Win V1.0 is different in concept from DOS versions of PGM800 in that it is Win-
dows1 based. It also includes many new and improved features over DOS versions of
PGM800.
The major changes are outlined below:
• The Windows environment makes data entry and editing significantly easier.
• PGM800Win includes several new radio models which are not programmable
with DOS versions of PGM800.
• Out of range frequencies will result in warning messages and will not be accepted
for entry into the standard library module. User defined modules can be created,
however, allowing variation from the standard library module.
• Channel numbers default to 0-127 to match the EPROM memory locations. How-
ever, the user can change this setting so that the channel numbers run from 1-128
to suit his/her particular needs.
Note: The data files produced by BASEPROG V1.0 and all DOS versions of
PGM800 are still compatible with PGM800Win V1.0.
4.2 PGM800Win V2.00
PGM800Win V2.00 is an upgraded and expanded version of PGM800Win V1.0. It has
been developed specifically for T800 Series II base stations, but retains the ability to pro-
gram Series I equipment.
The major changes are outlined below:
• PGM800Win V2.0 will program T800 Series II base station modules via serial com-
munications.
• Deviation and reference modulation settings are written automatically to the
radio.
1. Windows is a registered trademark of the Microsoft Corporation.
![](/img.php?id=111477&img=bg10.png)
A4.2 Software History M820-00
01/07/00 Copyright TEL
• Extra information that is not stored in the radio (but which is still relevant to the
radio) can be saved to a file on disk (e.g. note field, auxiliary pin names, etc.).
Note: The data files produced by BASEPROG V1.0, all DOS versions of PGM800,
and PGM800Win V1.0 are still compatible with PGM800Win V2.00.
![](/img.php?id=111477&img=bg11.png)
M820-00 BI
Copyright TEL 01/07/00
Part B T825 Receiver
This part of the manual is divided into six sections, as listed below. There is a detailed
table of contents at the start of each section.
Section Title
1 General Information
2 Circuit Operation
3 Initial Tuning & Adjustment
4 Functional Testing (not available for Tuning & Adjustment manual)
5 Fault Finding (not available for Tuning & Adjustment manual)
6 PCB Information
![](/img.php?id=111477&img=bg12.png)
BII M820-00
01/07/00 Copyright TEL
![](/img.php?id=111477&img=bg13.png)
M820-00 T825 General Information B1.1
Copyright TEL 01/04/00
1 T825 General Information
This section provides a brief description of the T825 receiver, along with detailed speci-
fications and a list of types available.
The following topics are covered in this section.
Section Title Page
1.1 Introduction 1.3
1.2
1.2.1
1.2.2
1.2.3
1.2.4
1.2.4.1
1.2.4.2
1.2.4.3
1.2.5
1.2.6
1.2.6.1
1.2.6.2
1.2.6.3
Specifications
Introduction
General
RF Section
Audio Section
General
CTCSS
Mute Operation
Microcontroller
Test Sta nda rd s
European Telecommunication Standard (ETS)
DTI CEPT Recommendation T/R-24-01
Telecommunications Industry Association
1.4
1.4
1.5
1.5
1.7
1.7
1.7
1.8
1.8
1.8
1.8
1.9
1.9
1.3 Product Codes 1.10
1.4 Standard Product Range 1.11
![](/img.php?id=111477&img=bg14.png)
B1.2 T825 General Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg15.png)
M820-00 T825 General Information B1.3
Copyright TEL 01/04/00
1.1 Introduction
The T825 is a high performance microprocessor controlled FM base station receiver
designed for single or multichannel operation in the 66 to 88MHz frequency range1.
The receiver is a dual conversion superhet with a synthesised local oscillator. The first
IF is 10.7MHz, allowing exceptionally high spurious signal rejection to be achieved in
the receiver front end. The second IF section (455kHz) combines amplitude limiting,
detection and RSSI within a single integrated circuit. This IC also drives a noise level
detector for gating the audio output. RSSI can also be used to drive a carrier mute for
audio output gating (link selectable).
The audio section output can be adjusted to deliver >+10dBm to a 600 ohm balanced
output, and 1W to a local monitor speaker. A flat or de-emphasised audio response is
link selectable.
The synthesiser frequency is programmed via the serial communications port. Eight
channel select lines are accessible via an optional D-range connector (D-range 2 -
T800-03-0000) at the rear of the set.
All components except those on the VCO board are mounted on a single PCB. This is
secured to a die-cast chassis which is divided into compartments to individually shield
each section of circuitry. Access to both sides of the main PCB is obtained by removing
each of the two chassis covers. There is provision within the chassis to mount small
option PCBs.
The front panel controls include gating sensitivity, line level, monitor volume and a
monitor mute switch.
The T825 has a width of 60mm and occupies a single space in a Tait rack frame, which
has the ability to accommodate up to seven standard modules.
1. Although capable of operating over the 66-88MHz frequency range, the T825 has a
2MHz switching range (see Section 1.2.3 and Section 3.1).
![](/img.php?id=111477&img=bg16.png)
B1.4 T825 General Information M820-00
01/04/00 Copyright TEL
1.2 Specifications
1.2.1 Introduction
The performance figures given are minimum figures, unless otherwise indicated, for
equipment tuned with the maximum switching range and operating at standard room
temperature (+22°C to +28°C) and standard test voltage (13.8V DC).
Where applicable, the test methods used to obtain the following performance figures
are those described in the EIA and ETS specifications. However, there are several
parameters for which performance according to the CEPT specification is given. Refer
to Section 1.2.6 for details of test standards.
Details of test methods and the conditions which apply for Type Approval testing in all
countries can be obtained from Tait Electronics Ltd.
The terms "wide bandwidth" and "narrow bandwidth" used in this and following sec-
tions are defined in the following table.
Sensitivity and distortion figures are stated for both de-emphasised and flat audio
responses under standard operating conditions. Note that the sensitivity and distortion
figures will be degraded when flat audio is selected.
Channel Spacing Modulation
100% Deviation
Receiver
IF Bandwidth
Wide Bandwidth 25kHz ±5.0kHz 15.0kHz
Narrow Bandwidth 12.5kHz ±2.5kHz 7.5kHz
Link PL210 Link PL220
De-emphasised Audio 1-2 2-3
Flat Audio 2-3 1-2
![](/img.php?id=111477&img=bg17.png)
M820-00 T825 General Information B1.5
Copyright TEL 01/04/00
1.2.2 General
Number Of Channels .. 128 (standard)1
Supply Voltage:
Operating Voltage .. 10.8 to 16V DC
Standard Test Voltage .. 13.8V DC
Polarity .. negative earth only
Polarity Protection .. crowbar diode
Supply Current:
Standby .. 350mA
Full Audio .. 750mA
Operating Temperature Range .. -30°C to +60°C
Dimensions:
Height .. 183mm
Width .. 60mm
Length .. 322mm
Weight .. 2.13kg
1.2.3 RF Section
Frequency Range .. 66-88MHz
Type .. dual conversion superheterodyne
Frequency Increment .. 5 or 6.25kHz
Switching Range .. 2MHz (i.e. ±1MHz from the centre
frequency)
Input Impedance .. 50 ohms
Frequency Stability .. ±2.5ppm, -30°C to +60°C
(see also Section 1.4) (±1ppm available for special
applications)
Signal Strength Indicator .. -115dBm to -70dBm, 3.5 to 6.5V
(RSSI) at approx. 15dB/V
1. Additional channels may be factory programmed. Contact your nearest Tait Dealer or
Customer Service Organisation.
![](/img.php?id=111477&img=bg18.png)
B1.6 T825 General Information M820-00
01/04/00 Copyright TEL
IF Amplifiers:
Frequencies .. 10.7MHz and 455kHz
Bandwidths-
Narrow Bandwidth (NB) .. 7.5kHz
Wide Bandwidth (WB) .. 15kHz
Sensitivity (De-emphasised Response):
Single Channel .. -117dBm
Bandspread (12dB Sinad) .. -115dBm (across switching range)
Sensitivity (Flat Response):
Single Channel .. -111dBm
Bandspread (12dB Sinad) .. -109dBm (across switching range)
Signal+Noise To Noise Ratio (Typical):
De-emphasised Flat
RF Level -107dBm (CEPT) .. 30dB (WB) 25dB (WB)
25dB (NB) 20dB (NB)
RF Level -83dBm (CEPT) .. 50dB (NB) 45dB (NB)
RF Level -57dBm (EIA) .. 55dB (WB) 52dB (WB)
Selectivity:
Narrow Bandwidth (±12.5kHz) .. 90dB (CEPT)
Wide Bandwidth (±25kHz) .. 95dB (EIA)
Offset Selectivity (Canada only) .. 20dB
Spurious Response Attenuation .. 100dB EIA (typical)
Intermodulation Response Attenuation:
Narrow Bandwidth .. 80dB CEPT (typical)
Wide Bandwidth .. 85dB EIA (typical)
Blocking .. 100dB
Co-channel Rejection .. 6dB
Amplitude Characteristic .. 3dB
Spurious Emissions:
Conducted .. -90dBm to 4GHz
Radiated .. -57dBm to 1GHz
-47dBm to 4GHz
![](/img.php?id=111477&img=bg19.png)
M820-00 T825 General Information B1.7
Copyright TEL 01/04/00
1.2.4 Audio Section
1.2.4.1 General
Outputs Available .. line and monitor
Frequency Response .. flat or de-emphasised (750µs)
(link selectable)
Flat Response:
Bandwidth .. 67 to 3400Hz
Response .. within +1, -2dB of output level
at 1kHz
De-emphasised Response:
Bandwidth .. 300 to 3400Hz
Response .. within +1, -3dB of a 6dB/octave
de-emphasis characteristic (ref. 1kHz)
Line Output:
Power .. adjustable to >+10dBm
Load Impedance .. 600 ohms
Distortion (@ -70dBm signal level):
De-emphasised Flat
Wide Bandwidth .. ≤2% ≤2%
Narrow Bandwidth .. ≤2% ≤4%
Monitor Output:
Power .. 1W
Speaker Impedance .. 4 ohms
Distortion .. ≤3%
(@ -70dBm signal level, links set to de-emphasis)
1.2.4.2 CTCSS
Linkable High Pass Filter:
Bandwidth .. 350 to 3400Hz
Response .. within +1, -3dB of level at 1kHz
Hum And Noise .. 30dB min. at 250.3Hz
(1kHz at 60% system deviation 35dB typical (67 to 240Hz)
CTCSS at 10% system deviation)
Tone Det ec t:
Tone Squelch Opening .. better than 6dB sinad
3dB sinad at 250.3Hz (typical)
4dB sinad at 100Hz (typical)
Tone Detect Bandwidth .. ±2.1Hz accept (typical)
±3.0Hz reject (typical)
Response Time .. 150ms open and close (typical)
![](/img.php?id=111477&img=bg1a.png)
B1.8 T825 General Information M820-00
01/04/00 Copyright TEL
1.2.4.3 Mute Operation
Systems Available .. noise mute and carrier mute
Noise Mute:
Operating Range .. 6-20dB sinad
Hysteresis .. 1.5 to 6dB
Threshold .. adjustable to -105dBm
Opening Time .. 20ms
Closing Time .. 50ms
Carrier Mute (Optional):
Operating Range .. -115 to -80dBm
Hysteresis .. 2 to 10dB
Opening Time .. 5ms
Closing Time .. 50ms
Note: The opening and closing times given above are for the standard set-up
(SL210 linked and SL220 not linked - refer to Section 3.8).
1.2.5 Microcontroller
Auxiliary Ports:
Open Drain Type .. capable of sinking 2.25mA via 2k2Ω
Vds max. .. 5V
1.2.6 Test Standards
Where applicable, this equipment is tested in accordance with the following standards.
1.2.6.1 European Telecommunication Standard
ETS 300 086 January 1991
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment with an internal or external RF connector intended pri-
marily for analogue speech.
ETS 300 113 March 1996
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment intended for the transmission of data (and speech) and
having an antenna connector.
ETS 300 219 October 1993
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment transmitting signals to initiate a specific response in the
receiver.
![](/img.php?id=111477&img=bg1b.png)
M820-00 T825 General Information B1.9
Copyright TEL 01/04/00
ETS 300 279 February 1996
Radio equipment and systems; electromagnetic compatibility (EMC) standard for pri-
vate land mobile radio (PMR) and ancillary equipment (speech and/or non-speech).
1.2.6.2 DTI CEPT Recommendation T/R-24-01
Annex I: 1988
Technical characteristics and test conditions for radio equipment in the land mobile
service intended primarily for analogue speech.
Annex II: 1988
Technical characteristics of radio equipment in the land mobile service with regard to
quality and stability of transmission.
1.2.6.3 Telecommunications Industry Association
ANSI/TIA/EIA-603-1992
Land mobile FM or PM communications equipment measurement and performance
standards.
![](/img.php?id=111477&img=bg1c.png)
B1.10 T825 General Information M820-00
01/04/00 Copyright TEL
1.3 Product Codes
The three groups of digits in the T820 Series II product code provide information about
the model, type and options fitted, according to the conventions described below.
The following explanation of T820 Series II product codes is not intended to suggest that
any combination of features is necessarily available in any one product. Consult your
nearest Tait Dealer or Customer Service Organisation for more information regarding
the availability of specific models, types and options.
Model
The Model group indicates the basic function of the product, as follows:
T82X-XX-XXXX T825 receiver
T826 25W transmitter
T827 exciter
T828 50W power amplifier
Type
The Type group uses two digits to indicate the basic RF configuration of the product.
The first digit in the Type group designates the frequency range:
T82X-XX-XXXX ’1’ for 66-88MHz
The second digit in the Type group indicates the channel spacing:
T82X-XX-XXXX ’0’ for wide bandwidth (25kHz)
’5’ for narrow bandwidth (12.5kHz)
Options
T82X-XX-XXXX The Options group uses four digits and/or letters to indicate
any options that may be fitted to the product. This includes
standard options and special options for specific customers.
’0000’ indicates a standard Tait product with no options fitted.
The large number of options precludes listing them here.
![](/img.php?id=111477&img=bg1d.png)
M820-00 T825 General Information B1.11
Copyright TEL 01/04/00
1.4 Standard Product Range
The following table lists the range of standard T825 types (i.e. no options fitted) availa-
ble at the time this manual was published. Consult your nearest Tait Dealer or Cus-
tomer Service Organisation for more information.
You can identify the receiver type by checking the product code printed on a label on
the rear of the chassis (Figure 1.1 in Part A shows typical labels). You can further verify
the receiver type by checking the placement of an SMD resistor in the table that is screen
printed onto the PCB (refer to Section 6.1 for more details).
Frequency Range (MHz)a
a. Selectable by solder links - refer to Section 3.7.
66-88
IF Bandwidth (kHz) 7.5 15
TCXOb
b. A TCXO with a stability of ±1ppm (0°C to +60°C) is
available to suit specific requirements. Contact your
nearest authorised Tait Dealer or Customer Service
Organisation for further details.
±2.5ppm -30°C to +60°C ••
Receiver Type: T825- 15-0000 10-0000
![](/img.php?id=111477&img=bg1e.png)
B1.12 T825 General Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg1f.png)
M820-00 T825 Circuit Operation B2.1
Copyright TEL 01/04/00
2 T825 Circuit Operation
This section provides a basic description of the circuit operation of the T825 receiver.
Note: Unless otherwise specified, the term "PGM800Win" used in this and follow-
ing sections refers to version 2.00 and later of the software.
Refer to Section 6 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components and test points on the
main PCB. The parts list and diagrams for the VCO PCB are in Part E.
The following topics are covered in this section.
Section Title Page
2.1 Introduction 2.3
2.2 Receiver Front End 2.4
2.3 Mixer 2.5
2.4 IF Circuitry 2.5
2.5 Noise Mute (Squelch) 2.6
2.6 Carrier Mute 2.6
2.7 Audio Processor 2.7
2.8 Power Supply And Regulators 2.8
2.9 Microcontroller 2.9
2.10 Synthesised Local Oscillator 2.10
2.11 VCO 2.11
2.12 Received Signal Strength Indicator (RSSI) 2.11
Figure Title Page
2.1
2.2
2.3
2.4
2.5
2.6
T825 High Level Block Diagram
T825 Front End, IF and Mute Block Diagram
T825 Audio Processor Block Diagram
T825 Power Supply And Regulators Block Diagram
T825 Microcontroller Block Diagram
T825 Synthesiser Block Diagram
2.3
2.4
2.7
2.8
2.9
2.10
![](/img.php?id=111477&img=bg20.png)
B2.2 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg21.png)
M820-00 T825 Circuit Operation B2.3
Copyright TEL 01/04/00
2.1 Introduction

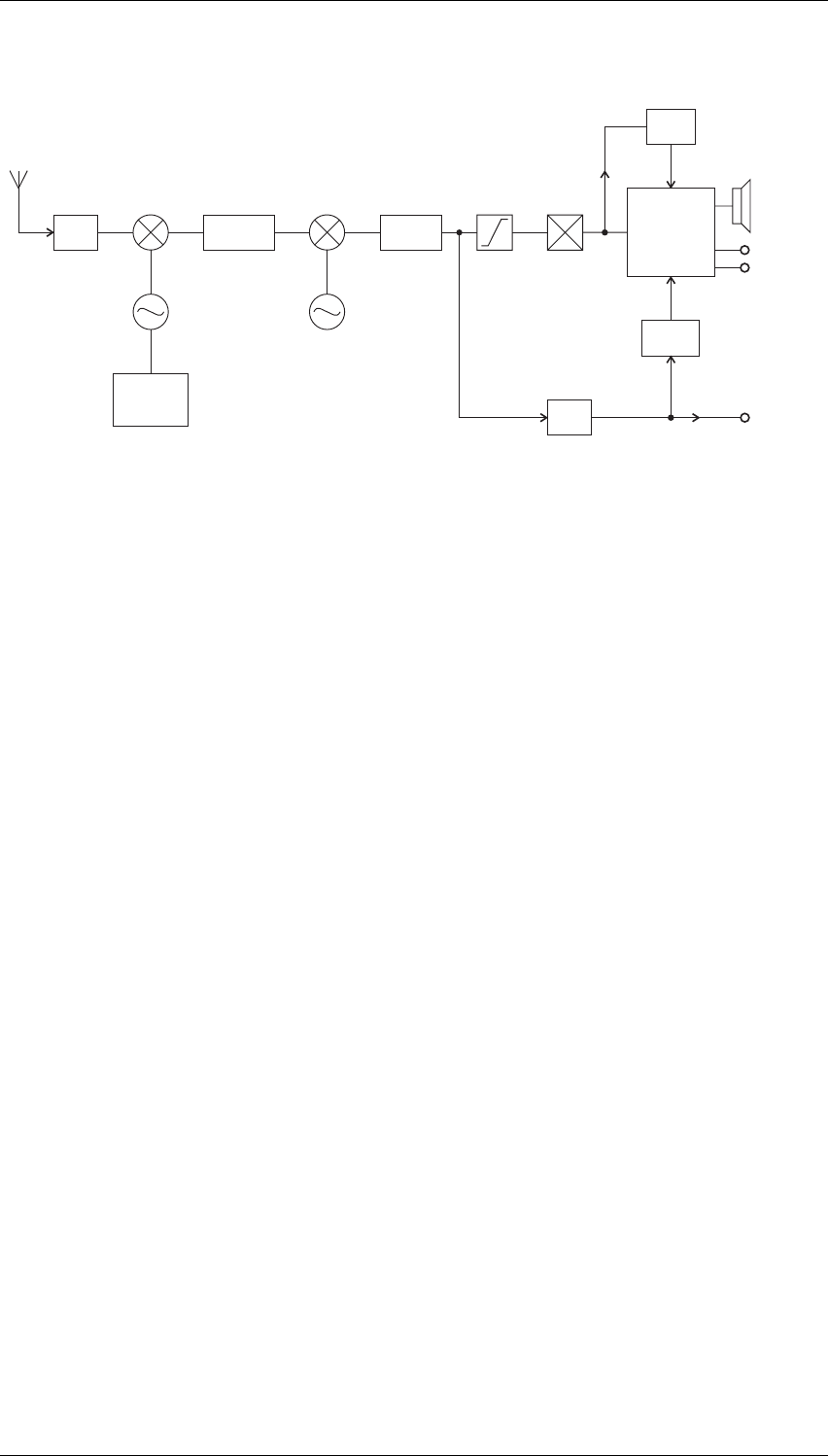

Figure 2.1 T825 High Level Block Diagram
The T825 receiver consists of a number of distinct stages:
•front end
•mixer
• synthesised local oscillator
•IF
• audio processor
• mute (squelch)
•regulator circuits
• received signal strength indicator (RSSI).
These stages are clearly identifiable in Figure 2.1. Refer to the circuit diagrams in Sec-
tion 6 for further detail.
10.7MHz
IF 455kHz
IF
Carrier
Mute
RSSI
Noise
Mute
Front
End
12.8MHz
Master
Oscillator
Audio
Processor
Mixer Mixer Limiter
FM
Detector
Synthesised
Local
Oscillator
Second
Local
Oscillator
Speaker
}
600Ω
Line
![](/img.php?id=111477&img=bg22.png)
B2.4 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
2.2 Receiver Front End
(Refer to the front end, IF section and audio processor circuit diagrams (sheets 4, 3 and 2
respectively) in Section 6.)

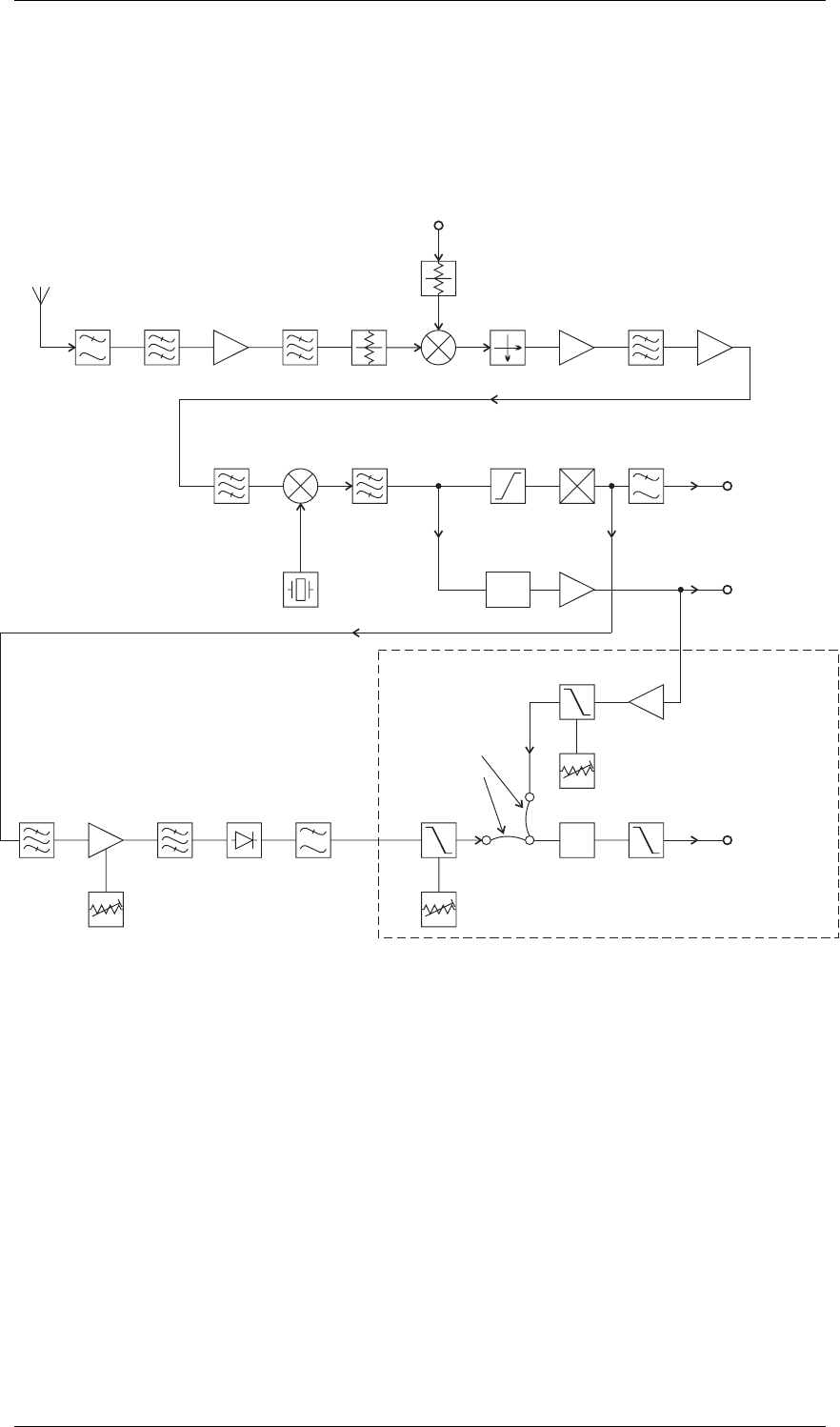

Figure 2.2 T825 Front End, IF and Mute Block Diagram
The incoming signal from the N-type antenna socket is fed through a 7-pole, low pass
filter with a cut frequency of approximately 100MHz. This low loss filter (typically less
than 0.5dB insertion loss over 66-88MHz) provides excellent immunity to interference
from high frequency signals.
The signal is then further filtered, using a notched doublet (L410, L409) which provides
exceptional image rejection, before being amplified by approximately 12dB (Q400). The
signal is then passed through a further doublet (L403, L402) before being presented to
the mixer via an attenuator pad (1dB for narrow bandwidth, 0dB for wide bandwidth).
Each sub-block within the front end has been designed with 50 ohm terminations for
ease of testing and fault finding.
t∆
2-Pole
Crystal
Filter
Buffer
Amp
RSSI
Comparator
Mixer
(MC3372) Ceramic
Filter Limiter
(MC3372)
FM
Detector
(MC3372)
Low
Pass
Filter
10.7MHz
2nd LO
10.245MHz
Active
Filter
Active
Filter LF
Amp Diode
Detector
Smoothing
Filter
Gain
Adjust Mute
Adjust
Gating
Delays Comparator
Comparator
Mute
Adjust
Buffer
Amp
Rx Gate Out
(To Audio
Processor)
Audio Section
Option 1
Option 2
Link
RSSI Output
Voltage
(To D-Range
Socket)
Audio
(To Audio
Processor)
Mixer
RF In
66-88MHz
Harmonic
Filter Doublet
Filter Doublet
Filter
RF
Amp
Local Oscillator
(From Synthesiser)
Diplexer
Post
Mixer
Amp
4-Pole
Crystal
Filter IF
Amp
4dB Pad
10.7MHz
1dB
Pad
![](/img.php?id=111477&img=bg23.png)
M820-00 T825 Circuit Operation B2.5
Copyright TEL 01/04/00
2.3 Mixer
(Refer to the front end circuit diagram (sheet 4) in Section 6 and Figure 2.2.)
IC410 is a high level mixer requiring a local oscillator (LO) drive level of +17dBm (nom-
inal). The voltage controlled oscillator (VCO) generates a level of +22dBm (typical) and
this is fed to the mixer via a 4dB attenuator pad. A diplexer terminates the IF port of the
mixer in a good 50 ohms, thus preventing unnecessary intermodulation distortion.
2.4 IF Circuitry
(Refer to the IF section circuit diagram (sheet 3) in Section 6 and Figure 2.2.)
Losses in the mixer are made up for in a tuned, common gate, post mixer amplifier
(Q302). Several stages of amplification and filtering are employed in the IF circuitry.
The first crystal filter is a 4-pole device (&XF300 and &XF301) which is matched into 50
ohms on both its input and output ports. This stage is followed by a two-stage amplifier
(designed as a 50 ohm block) and second crystal filter (2 pole, &XF302), after which the
signal is mixed down to 455kHz with the second local oscillator (10.245MHz) by IC330.
The 455kHz signal is filtered using a six-pole ceramic filter (&XF304) before being lim-
ited and detected.
The second IF mixer, limiter, detector and RSSI is in a 16-pin IC (IC330). Quadrature
detection is employed, using L330, and the recovered audio on pin 9 of IC330 is typi-
cally 1.0V p-p for 60% system deviation.
![](/img.php?id=111477&img=bg24.png)
B2.6 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
2.5 Noise Mute (Squelch)
(Refer to the audio processor and IF section circuit diagrams (sheets 2 and 3 respec-
tively) in Section 6 and Figure 2.2.)
The noise mute operates on the detected noise outside the audio bandwidth. An opera-
tional amplifier in IC340 is used as an active band pass filter centred on 70kHz to filter
out audio components. The noise spectrum is then further amplified in a variable gain,
operational amplifier (IC340), followed by another active band pass filter. The noise is
then rectified (D330) and filtered to produce a DC voltage proportional to the noise
amplitude. The lowest average DC voltage corresponds to a high RF signal strength
and the highest DC voltage corresponds to no signal at the RF input.
The rectified noise voltage is compared with a threshold voltage set up on RV230, the
front panel "Gating Sensitivity" potentiometer. Hysteresis is introduced by the feedback
resistor (R267) to prevent the received message from being chopped when the average
noise voltage is close to the threshold. R281 and R280 determine the mute opening and
closing times and, in combination with solder links SL210 and SL220, provide three time
delay options (SL210 is linked as standard - refer to Section 3.8). The mute control sig-
nal at pin 1 of IC270 is used to disable the speaker and line audio outputs. The speaker
output can be separately enabled for test purposes by operating the front panel mute
disable switch, SW201.
2.6 Carrier Mute
(Refer to the audio processor and IF section circuit diagrams (sheets 2 and 3 respec-
tively) in Section 6 and Figure 2.2.)
A high level carrier mute facility is also available. The RSSI (refer to Section 2.12) pro-
vides a DC voltage proportional to the signal strength. This voltage is compared with a
preset level, set up on RV235, and may be linked into the mute timing circuit using
PL250. PL250 selects either the noise mute or the carrier mute. From this point both the
noise and carrier mute circuits operate in the same manner, using common circuitry.
![](/img.php?id=111477&img=bg25.png)
M820-00 T825 Circuit Operation B2.7
Copyright TEL 01/04/00
2.7 Audio Processor
(Refer to the audio processor circuit diagram (sheet 2) in Section 6.)

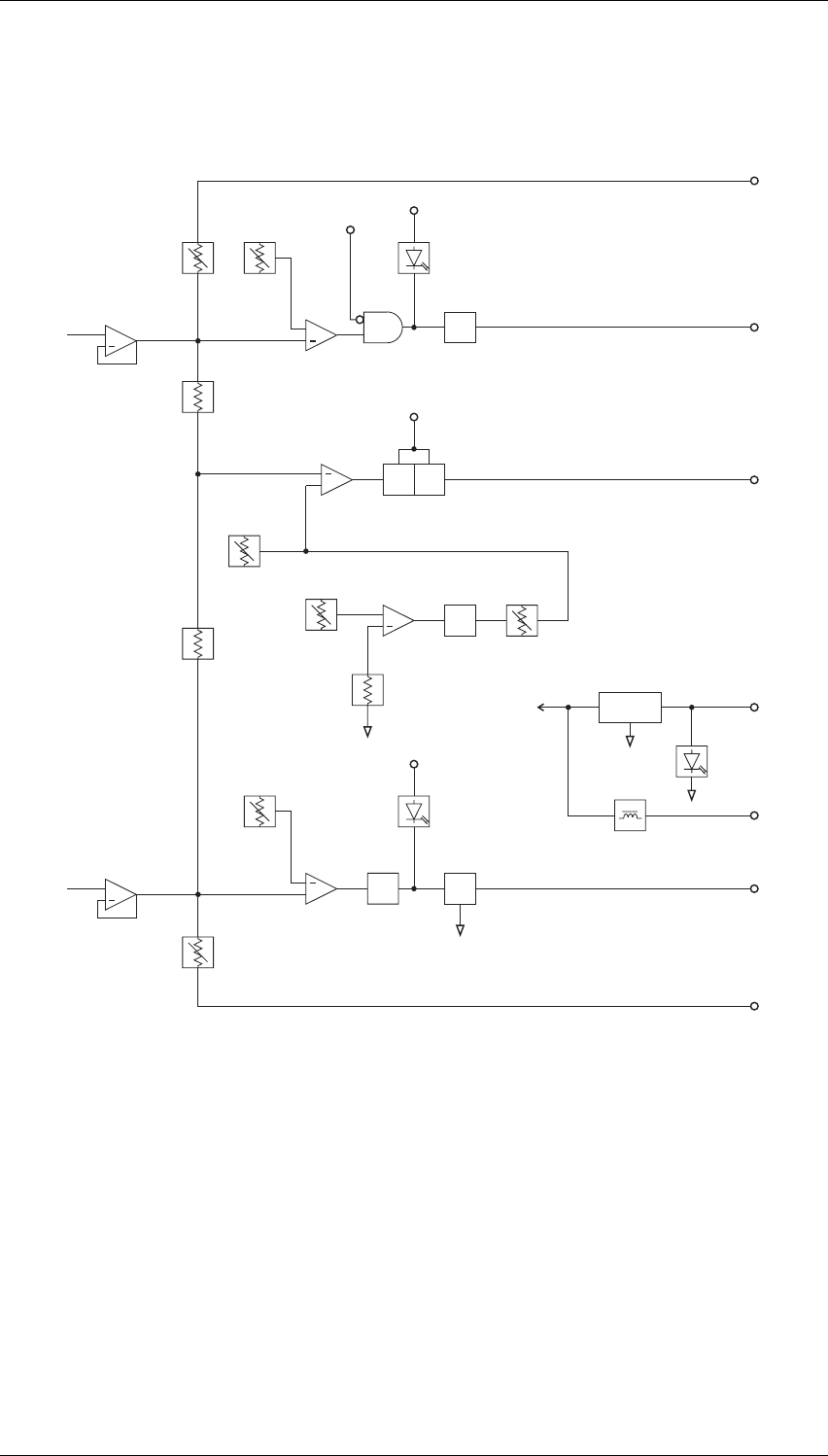

Figure 2.3 T825 Audio Processor Block Diagram
The recovered audio on pin 9 of IC330 is passed through a frequency compensation net-
work and a third order elliptic active filter (IC210) to give the required response. Link-
ing (PL220 & PL210) is available to give either a flat or de-emphasised audio response,
with de-emphasis giving a 6dB/octave roll off. The output of IC210 is split to provide
separate paths for the speaker and line outputs. The "Audio 1", Audio 2" and "Speech"
lines allow access to the receiver’s audio path for external signalling purposes (refer to
Section 3.5).
The signals are passed to audio drive amplifiers IC240 and IC260. Under muted condi-
tions the inputs of these amplifiers are shunted to ground via transistors Q230 and Q290
respectively. The audio output of IC240 has a DC component which is removed by
C249, and this then drives a speaker directly. The output of IC260 is fed into a line trans-
former to provide a balanced 2-wire or 4-wire, 600 ohm output.
The speaker volume is set using the front panel "Monitor Volume" knob (RV205) and the
line level is set using the recessed "Line Level" potentiometer (RV210).
The red front panel "Gate" LED (D250) indicates the status of the mute circuit. When a
signal above the mute threshold is received, the LED is illuminated. The "Monitor
Mute" switch (SW201) on the front panel opens the mute, allowing continuous monitor-
ing of the audio signal (on = audio muted; off = audio unmuted).
The mute control line is available on pads 234 and 231 ("RX GATE OUT") for control of
external circuitry. A high (9V) indicates that the audio is disabled and a low (0V) indi-
cates that a signal above the mute threshold level is being received.
From
IF Stage
Demodulated
Signal
(*IF Audio
Compensation
Circuit)
Driver Amp
Line Output
12V
Relay
Speech
Audio 1
Output Audio 2
Input
High Pass
Filter
Speaker
Mute
Line
Mute
Carrier
Mute
RSSI
(Optional)
Rx Disable
Timer
Noise
Mute
PL260
PL250
PL270
RSSI Output
Mute Relay
Gate Output
Rx Disable
(Optional Pad)
Mute Disable
Speaker Output
Line Monitor
12
1
2
2
1
3
1
5
2
2
3
3
4
1
PL240
PL230
Driver Amp
Flat/De-
emphasis
LPF
PL210
2
3
Flat/De-
emphasis
Amplifier
PL220
1
23
*IF
Comp
Monitor
Volume
Line
Level
![](/img.php?id=111477&img=bg26.png)
B2.8 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
The audio can also be disabled using the "RX-DISABLE" inputs, pads 225 or 228, having
connected the "RX-DISABLE" link between pins 1 & 2 of PL260. An adjustable time
delay (RV220) is provided on these lines. In order to disable the audio, either pad must
be pulled to 0V.
An undedicated relay is provided (RL210) for transmitter keying or other functions and
this can be operated from the mute line by linking pins 1 & 2 of PL270.
2.8 Power Supply And Regulators
(Refer to the regulators circuit diagram (sheet 6) in Section 6.)

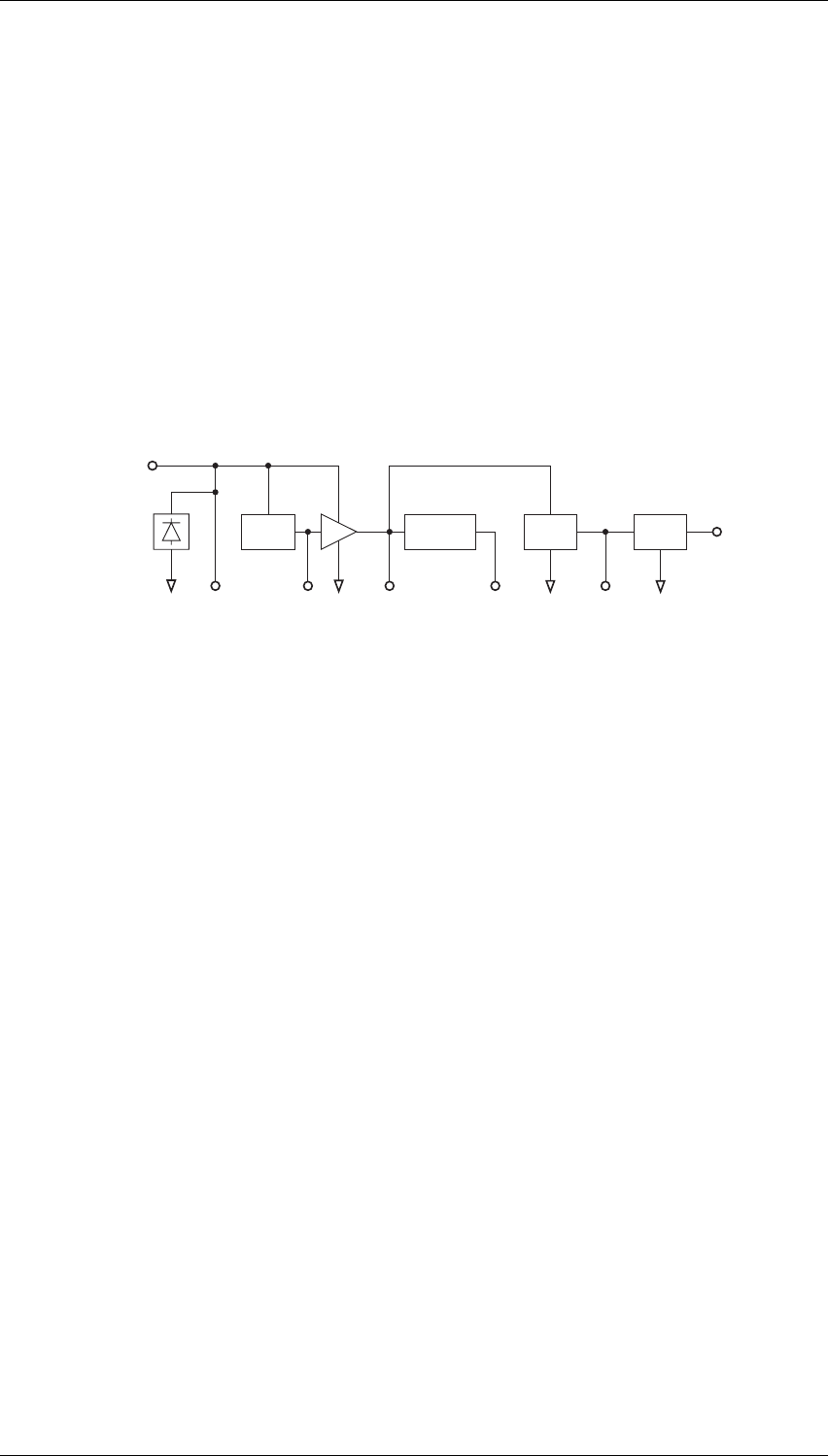

Figure 2.4 T825 Power Supply And Regulators Block Diagram
The T825 is designed to operate off a 10.8-16V DC supply (13.8V nominal). A 5.3V regu-
lator (IC630) runs directly from the 13.8V rail, driving much of the synthesiser circuitry.
It is also used as the reference for a DC amplifier (IC640, Q630 & Q620) which provides
a medium current capability 9V supply.
A switching power supply, based on Q670 and Q660, runs off the 9V supply and pro-
vides a low current capability +20V supply. This is used to drive the synthesiser loop
filter (IC740), giving a VCO control voltage of up to 20V.
The 13.8V supply drives both output audio amplifiers without additional regulation. A
separate 5V regulator (IC610) drives the microprocessor and associated digital circuitry.
The output of this regulator is monitored by the Low Voltage Interrupt (LVI) circuit
(IC650).
A crowbar diode is fitted for protection against connection to a power supply of incor-
rect polarity. It also provides transient overvoltage protection.
Note: A fuse must be fitted in the power supply line for the diode to provide effec-
tive protection.
LVI
LVI
5V
Reg
DC
Amp Switching
PS 5V Dig
Reg µP
Reset
13.8V
Nom. 5V 5V Dig9V 20V
13.8V Nom.
From Rear
D-Range 1
Crowbar
Diode
![](/img.php?id=111477&img=bg27.png)
M820-00 T825 Circuit Operation B2.9
Copyright TEL 01/04/00
2.9 Microcontroller
(Refer to the microcontroller circuit diagram (sheet 8) in Section 6.)

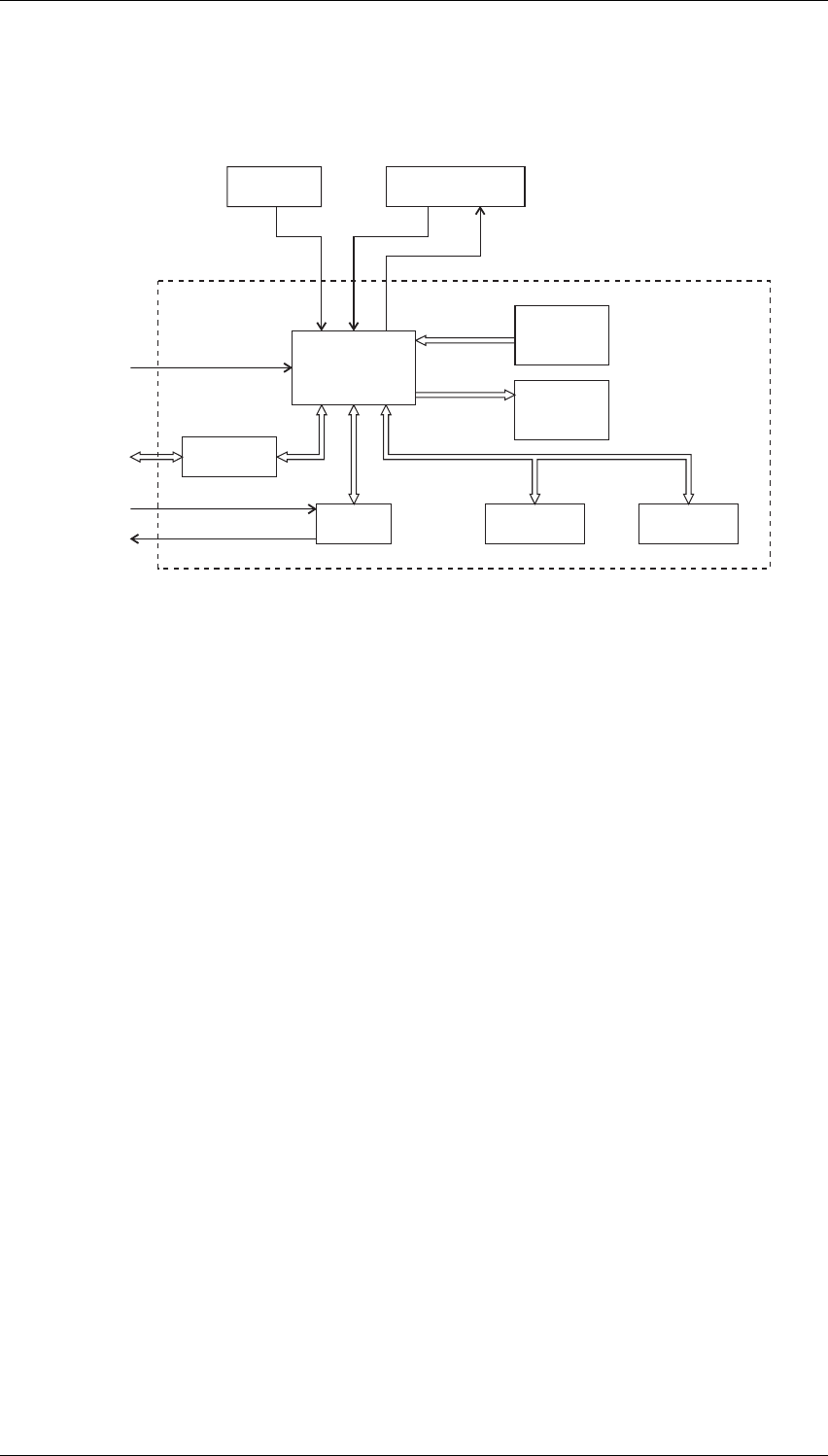

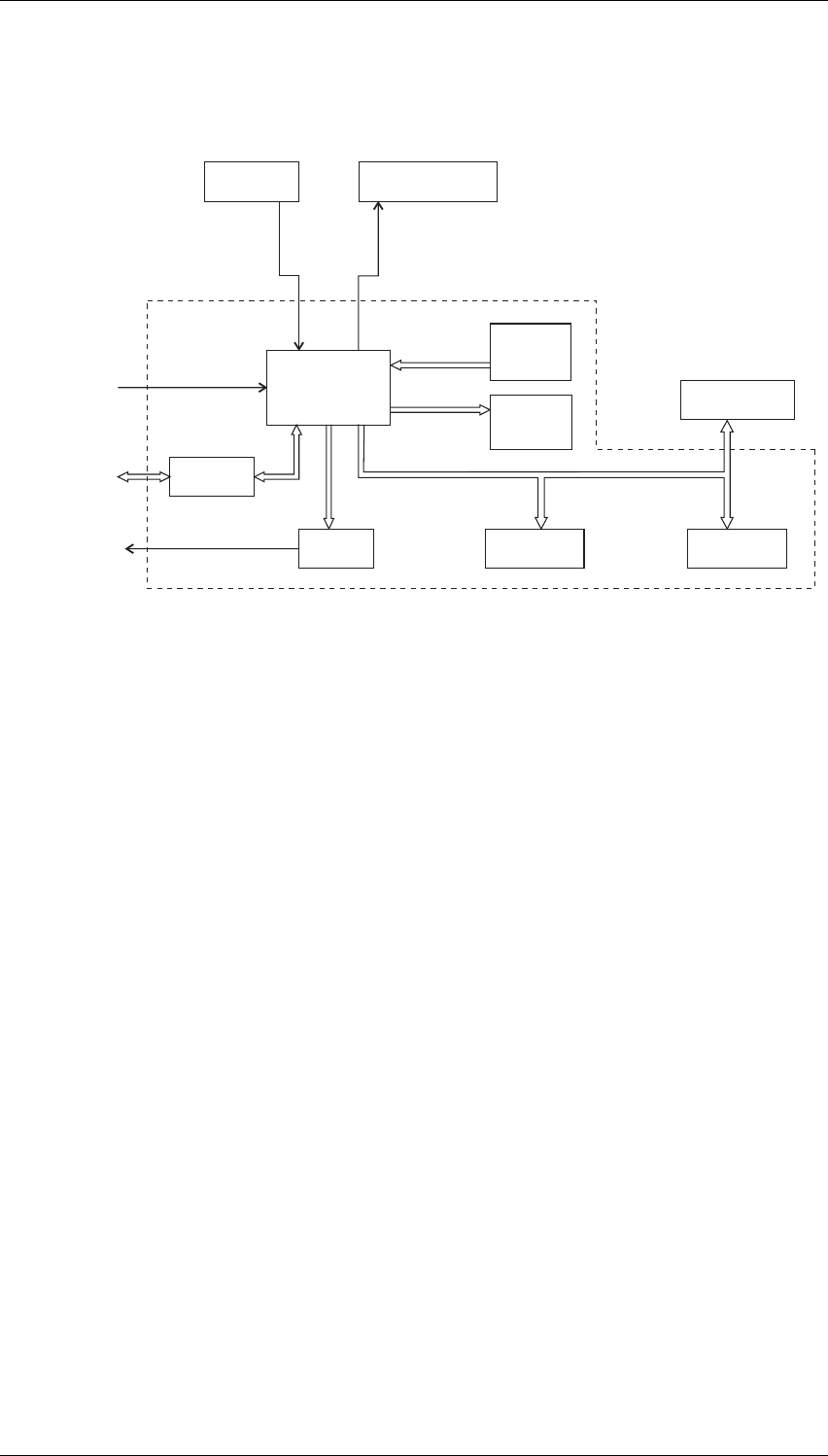

Figure 2.5 T825 Microcontroller Block Diagram
Overall system control of the T825 is accomplished by the use of a member of the 80C51
family of microcontrollers (IC810) which runs from internal ROM and RAM. Four ports
are available for input/output functions.
Non-volatile data storage is achieved by serial communication with a 16kBit EEPROM
(IC820). This serial bus is also used by the microcontroller to program the synthesiser
(IC740).
The main tasks of the microcontroller are as follows:
• program the synthesiser;
• interface with the PGM800Win programming software at 9600 baud via the
serial communication lines on D-range 1 (PL100) & D-range 2;
• monitor channel change inputs from D-range 2;
• generate timing waveforms for CTCSS detection;
• coordinate and implement timing control of the receiver;
• control the front panel "Supply" LED.
Channel
Select
Port
Auxiliary
Output
Port
Microcontroller
12.8MHz
Clock
Microcontroller Cavity
Audio In
Speech
External
Serial
Port
EEPROM Synthesiser
CTCSS
Decoder
Converter
5V Reset
5V Digital
Regulator Watchdog Timer
& LVI
Watchdog
![](/img.php?id=111477&img=bg28.png)
B2.10 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
2.10 Synthesised Local Oscillator
(Refer to the synthesiser circuit diagram (sheet 7) in Section 6 and the VCO circuit dia-
gram in Part E.)

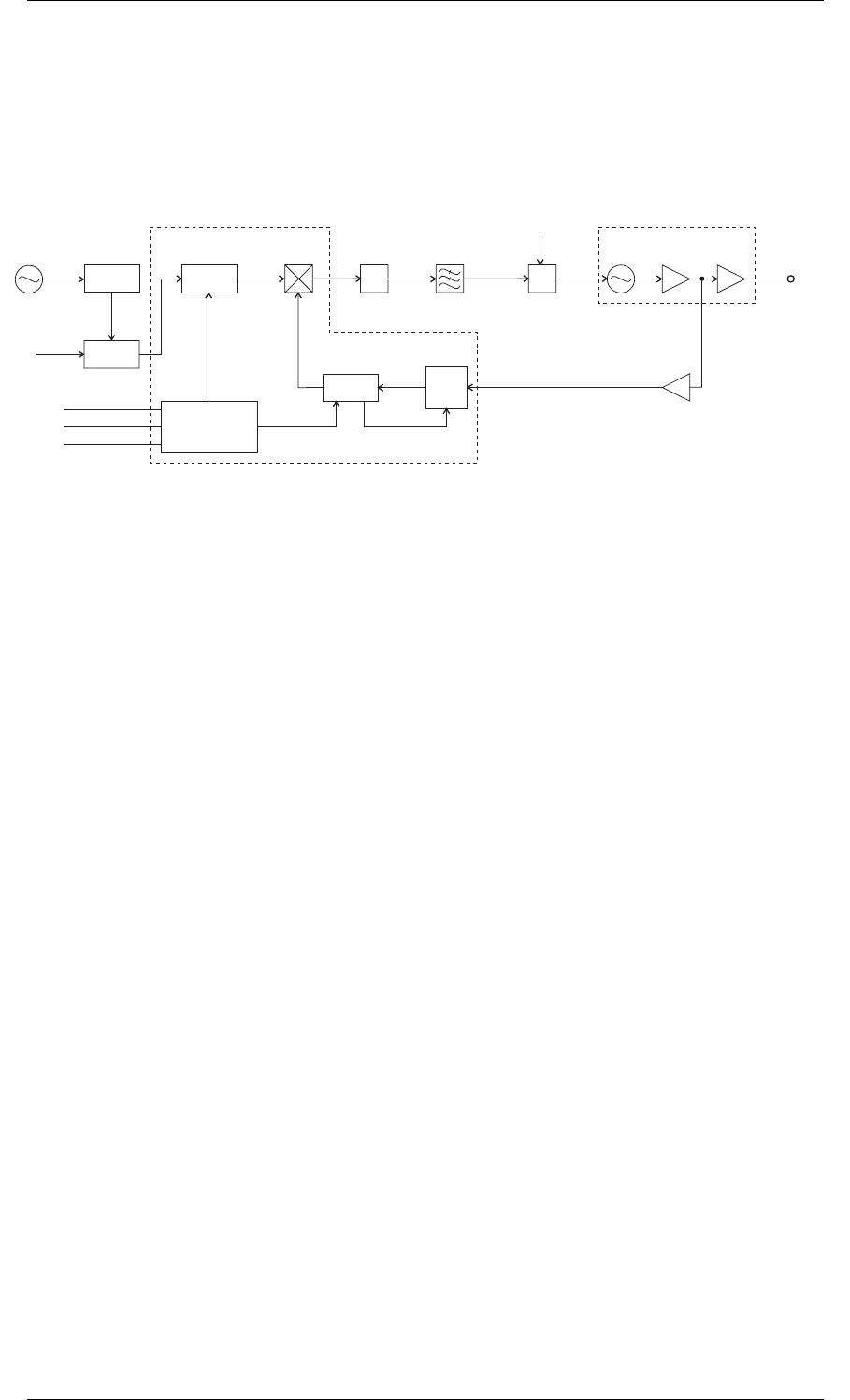

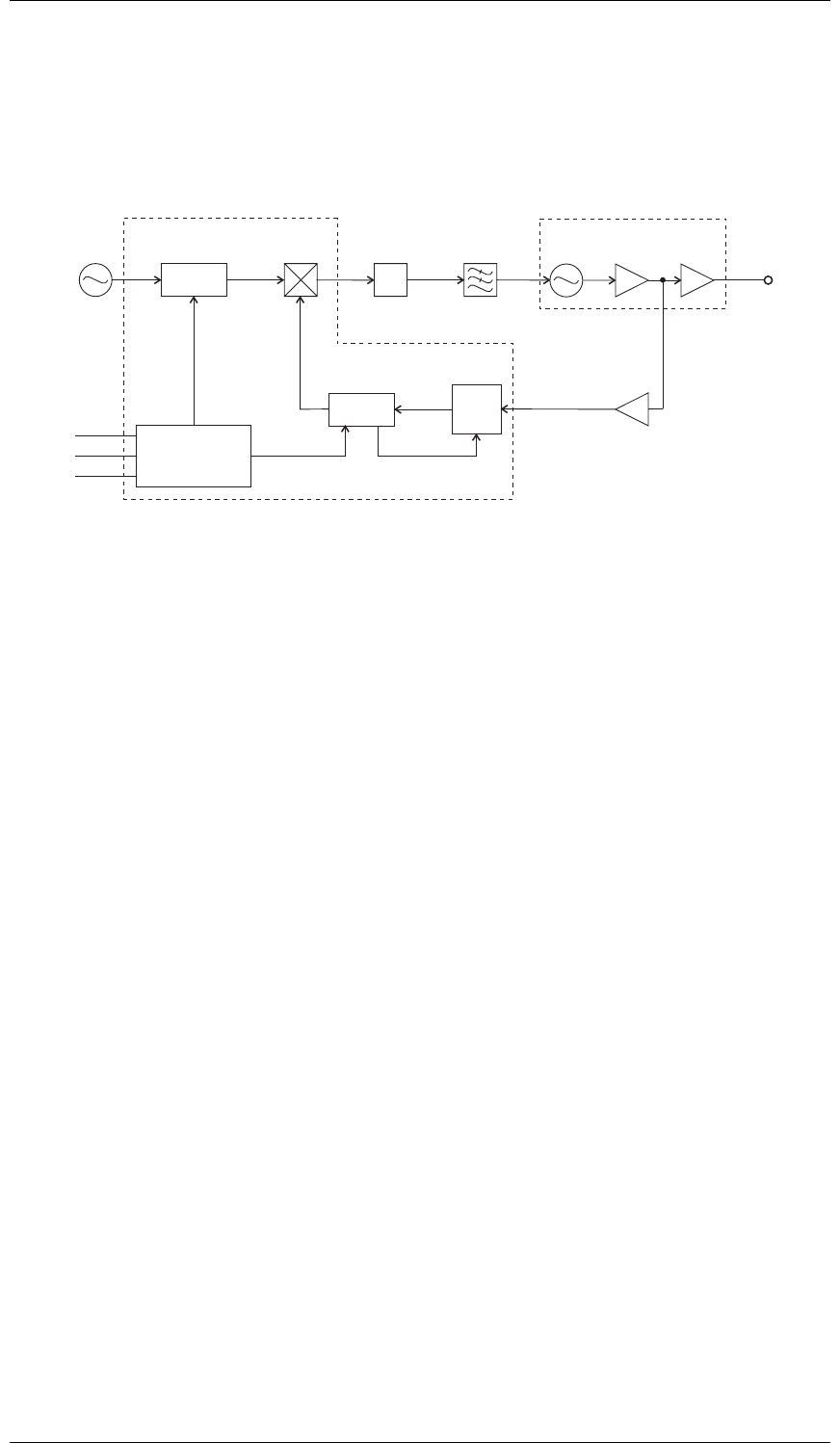

Figure 2.6 T825 Synthesiser Block Diagram
The synthesiser (IC740) employs a phase-locked loop (PLL) to lock a voltage controlled
oscillator (VCO) to a given reference frequency. The synthesiser receives the divider
information from the control microprocessor via a 3-wire serial bus (clock, data, enable).
When the data has been latched in, the synthesiser processes the incoming signals from
the VCO buffer (fin) and the reference oscillator (fref).
A reference oscillator at 12.8MHz (=IC700) is buffered (IC710) and divided down to
6.25kHz or 5kHz within the synthesiser IC (IC740).
A buffered output of the VCO is divided with a prescaler and programmable divider
which is incorporated into the synthesiser chip (IC740). This signal is compared with
the reference signal at the phase detector (also part of the synthesiser chip). The phase
detector outputs drive a balanced charge pump circuit (Q760, Q770, Q775, Q780, Q785)
and active loop filter (IC750, Q790) which produces a DC voltage between 0V and 20V
to tune the VCO. This VCO control line is further filtered (R510, C505) to attenuate
noise and other spurious signals. Note that the VCO frequency increases with increas-
ing control voltage.
12.8MHz
Reference
Oscillator
Serial
Bus
/R
Reference
Divider Phase
Detector Charge
Pump Loop
Filter
VCO PCB
FREQUENCY SYNTHESISER IC
VCO Buffer Output
Buffer
+22dBm
L.O.
Clk
Data
En Controller Buffer
fin
fref
/N
Programmable
Divider
64/65
Prescaler
![](/img.php?id=111477&img=bg29.png)
M820-00 T825 Circuit Operation B2.11
Copyright TEL 01/04/00
2.11 VCO
(Refer to the VCO circuit diagram in Part E.)
The VCO transistor (Q1) operates in a common source configuration, with an LC tank
circuit coupled between its gate and drain to provide the feedback necessary for oscilla-
tion. The VCO control voltage from the loop filter (IC750) is applied to the varicaps
(D1-D6) to facilitate tuning within a 2MHz band of frequencies. A trimcap (&VC1-RX)
is used for coarse tuning of the VCO. The output from the oscillator circuit drives a cas-
code amplifier stage (Q2, Q3) which supplies +10dBm (typically) to a further stage of
amplification, Q5. This is the final amplifier on the VCO PCB, and delivers +22dBm
(typically) to the receiver mixer input pad.
A low level "sniff" is taken from the input to Q5 and used to drive the divider buffer for
the synthesiser (IC740).
The VCO operates at the actual frequency required by the first mixer, i.e. there are no
multiplier stages.
The VCO frequency spans from 76.7-98.7MHz and is tuned to 10.7MHz above the
desired receive frequency (high side injection) to produce a 10.7MHz IF signal at the
output of the mixer.
2.12 Received Signal Strength Indicator (RSSI)
(Refer to the IF section circuit diagram (sheet 3) in Section 6.)
The RSSI provides a DC voltage proportional to the signal level at the receiver input and
is an on-chip function of IC330. RSSI level adjustment, temperature compensation and
buffering is provided by IC332 and IC333. The RSSI voltage is available at D-range 1
(PL100 pin 5).
The RSSI also provides the capability for high level signal strength muting, which may
be selected on PL250 (refer to Section 3.5). The mute threshold may be set between
-115dBm and -70dBm at RV235.
![](/img.php?id=111477&img=bg2a.png)
B2.12 T825 Circuit Operation M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg2b.png)
M820-00 T825 Initial Tuning & Adjustment B3.1
Copyright TEL 01/04/00
3 T825 Initial Tuning & Adjustment
Caution: This equipment contains CMOS devices which are susceptible to dam-
age from static charges. Refer to Section 1.2 in Part A for more infor-
mation on anti-static procedures when handling these devices.
The following section describes both short and full tuning and adjustment procedures
and provides information on:
• channel programming
• selecting the required audio links
• synthesiser alignment
• receiver front end and IF alignment
• noise and carrier level mute adjustment
• setting the line and monitor output levels
• setting up the RSSI.
Note: Unless otherwise specified, the term "PGM800Win" used in this and follow-
ing sections refers to version 2.00 and later of the software.
Refer to Section 6 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components and test points on the
main PCB. The parts list and diagrams for the VCO PCB are in Part E.
Section Title Page
3.1 Introduction 3.3
3.2 Channel Programming 3.3
3.3 Test Equipment Required 3.4
3.4
3.4.1
3.4.2
3.4.3
3.4.4
3.4.4.1
3.4.4.2
3.4.5
3.4.6
3.4.6.1
3.4.6.2
3.4.6.3
3.4.7
Short Tuning Procedure
Introduction
Synthesiser Alignment
Front End Alignment
Mute Adjustment
Noise Mute
Carrier Level Mute
Line Amplifier Output
CTCSS
Decoder Operation
Opening Sinad
High Pass Filter
RSSI (If Used)
3.5
3.5
3.5
3.5
3.6
3.6
3.6
3.6
3.7
3.7
3.7
3.7
3.8
![](/img.php?id=111477&img=bg2c.png)
B3.2 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.5
3.5.1
3.5.2
Audio Processor Links
General
Audio Processor Linking Details For CTCSS
3.8
3.8
3.9
3.6 Synthesiser Alignment 3.10
3.7 Alignment Of Receiver Front End And IF 3.10
3.8 Gating Delay 3.12
3.9 Noise Mute Adjustment 3.12
3.10 Carrier Level Mute 3.12
3.11
3.11.1
3.11.2
Audio Processor
Line Amplifier Output
Monitor Amplifier Output (Speaker Output)
3.13
3.13
3.13
3.12
3.12.1
3.12.2
3.12.3
CTCSS
Decoder Operation
Opening Sinad
High Pass Filter
3.13
3.13
3.13
3.14
3.13 RSSI 3.14
Figure Title Page
3.1
3.2
T825 Test Equipment Set-up For Short Tuning Procedure
T825 Test Equipment Set-up For Full Tuning & Adjustment
Procedure
3.4
3.4
Section Title Page
![](/img.php?id=111477&img=bg2d.png)
M820-00 T825 Initial Tuning & Adjustment B3.3
Copyright TEL 01/04/00
3.1 Introduction
When you receive your T825 receiver it will be run up and working on a particular fre-
quency (the "default channel")1. If you want to switch to a frequency that is within the
2MHz switching range (i.e. ±1MHz from the factory programmed frequency), you
should only need to reprogram the receiver with the PGM800Win software (refer to the
PGM800Win programming kit and Section 3.2 below).
However, if you want to switch to a frequency outside the 2MHz switching range, you
will have to reprogram and re-tune the receiver to ensure correct operation. In this case
you should carry out the short tuning procedure described in Section 3.4.
If you have carried out repairs or other major adjustments, you must carry out the full
tuning and adjustment procedure described in this section (except for Section 3.4).
3.2 Channel Programming
You can program up to 128 channel frequencies into the receiver’s EEPROM memory
(IC820) by using the PGM800Win software package and an IBM PC. You can also use
PGM800Win to select the receiver’s current operating frequency (or "default channel").
If the receiver is installed in a rack frame, you can program it via the programming port
in the speaker panel. However, you can also program the receiver before it is installed
in a rack frame as follows:
• by using a T800-01-0010 calibration test unit;
•via D-range 1;
• via D-range 2 (standard T800-03-0000 auxiliary D-range only);
• via SK805 (internal Micromatch connector).
If you do not use the T800-01-0010, you will have to connect the PC to the receiver via a
module programming interface (such as the T800-01-0004).
For a full description of the channel programming procedure, refer to the PGM800Win
programming software user’s manual.
Note: When an auxiliary D-range kit (D-range 2 - T800-03-0000) is fitted, you can
also select a channel with an external switch, such as the DIP switch on the
rack frame backplane PCB. Refer to Part C in the T800 Series Ancillary
Equipment Service Manual (M800-00-101 or later issue) or consult your
nearest Tait Dealer or Customer Service Organisation for further details.
1. Use the "Read Module" function in PGM800Win to find out what the default channel is.
![](/img.php?id=111477&img=bg2e.png)
B3.4 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.3 Test Equipment Required
You will need the following test equipment:
• computer with PGM800Win installed
• T800 programming kit
• module programming interface (e.g. T800-01-0004 - optional)
• 13.8V power supply
• digital multimeter
•audio signal generator
• RF signal generator
• audio voltmeter
•sinad meter
• oscilloscope
• distortion meter
• T800-01-0010 calibration test unit (optional)
•4Ω speaker (not needed if the calibration test unit is used)

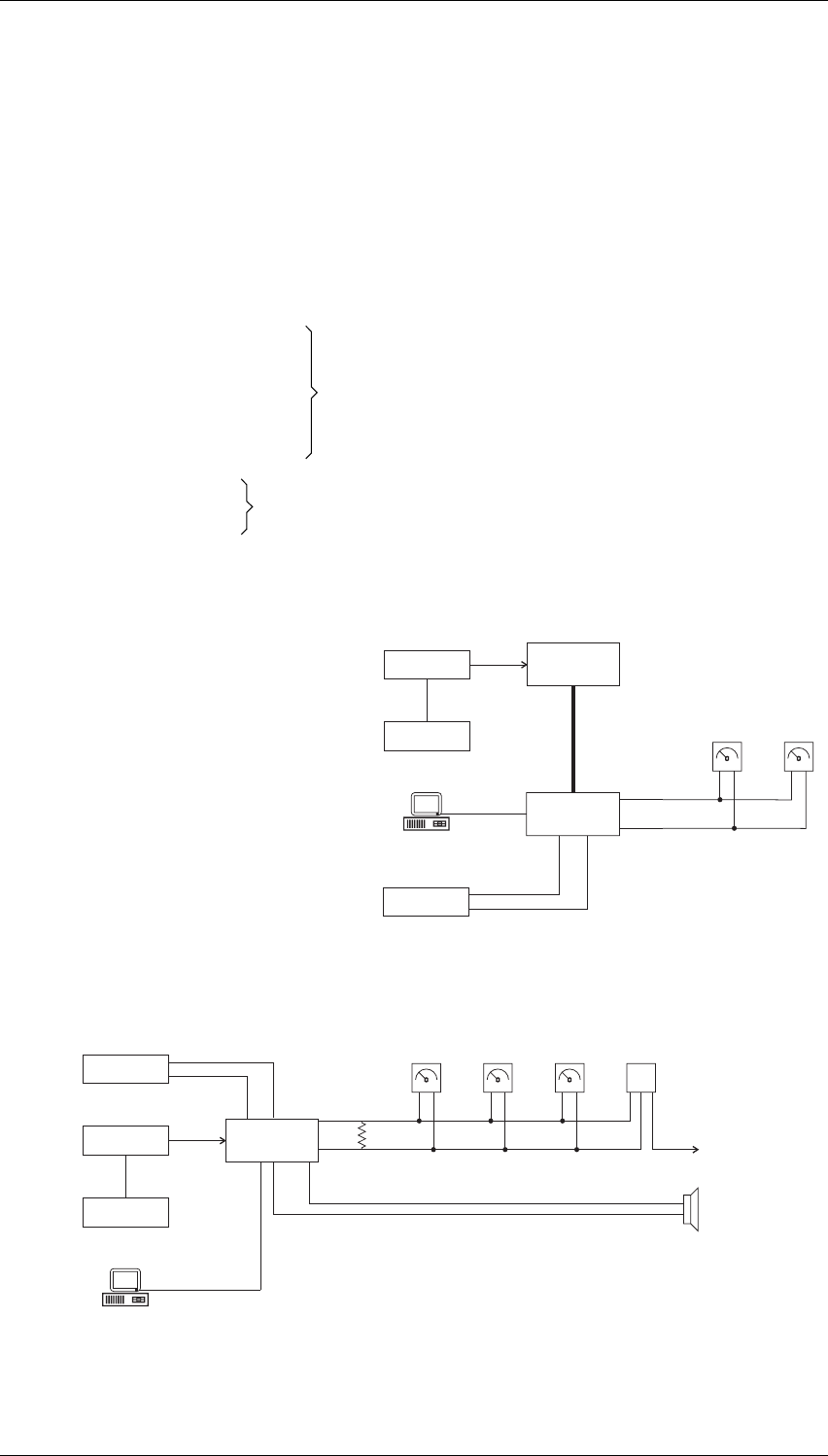

Figure 3.1 T825 Test Equipment Set-up For Short Tuning Procedure
Figure 3.2 T825 Test Equipment Set-up For Full Tuning & Adjustment Procedure
or RF test set (optional)
not needed for short tuning procedure
Receiver
RF In
RF Signal
Generator
Audio Signal
Generator
PSU
+13.8V
-Ve
External
Modulation Sinad
Meter Audio
Voltmeter
Line
Line
T800
Calibration
Test Unit
PGM800Win
Figure 3.1 and Figure 3.2 show
typical test equipment set-ups
(with and without a T800-01-0010
calibration test unit).
Receiver
RF In
RF Signal
Generator
Audio Signal
Generator
PSU
+13.8V
-Ve
External
Modulation GND
Distortion
Meter Sinad
Meter Audio
Voltmeter Oscilloscope
Line
Line 600Ω
Speaker
Output
Probe
4ΩSpeaker
(Or 4ΩResistor)
CH1
CH2
GND
PGM800Win
Serial
Com
via module programming interface
(e.g. T800-01-0004)
![](/img.php?id=111477&img=bg2f.png)
M820-00 T825 Initial Tuning & Adjustment B3.5
Copyright TEL 01/04/00
3.4 Short Tuning Procedure
Use this procedure only if you want to reprogram the receiver to a frequency outside the
2MHz switching range and do not intend to carry out any other major adjustments or
repairs.
3.4.1 Introduction
Reprogram the operating frequency as described in the PGM800Win program-
ming kit (refer to Section 3.2).
Remove the top cover (nearest the handle).
Set up the test equipment as described in Section 3.3.
Set the links in the audio processor section as required (refer to Section 3.5).
3.4.2 Synthesiser Alignment
• Connect a high impedance voltmeter to PL4-1 or the junction of L1 & R1 in the
VCO (this measures the synthesiser loop voltage).
•Single Channel Tune VCO trimmer &VC1-RX for a synthesiser loop volt-
age of 9V.
Multichannel Tune VCO trimmer &VC1-RX for a synthesiser loop volt-
age of 9V on the middle channel.
If there is no middle channel, tune &VC1-RX so that the
channels are symmetrically placed around a loop voltage
of 9V.
All channels should lie within the upper and lower limits
of 13V and 5V respectively.
Do not attempt to program channels with a greater fre-
quency separation than the specified switching range of
2MHz.
3.4.3 Front End Alignment
Note 1: In this and following sections deviation settings are given first for wide
bandwidth sets, followed by settings in brackets for narrow bandwidth sets
[ ].
Note 2: For multichannel operation align the receiver on a frequency in the middle
of the required band.
Set RV230 (front panel gating sensitivity) fully clockwise.
![](/img.php?id=111477&img=bg30.png)
B3.6 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
Inject a strong on-channel RF signal with ±3kHz deviation [±1.5kHz] at 1kHz into
the antenna socket and adjust front end doublets L410, L409, L403 & L402 to give
best sinad.
Continually decrease the RF level to maintain 12dB sinad.
Readjust L410, L409, L403 & L402 to give best sinad.
With PL210 and PL220 connected for de-emphasised audio response, the receiver
sensitivity should be better than -117dBm, assuming that the audio levels are not
being overdriven (refer to Section 3.4.5).
3.4.4 Mute Adjustment
Carry out the one of the following sets of instructions according to the mute option you
have selected.
3.4.4.1 Noise Mute
Connect pins 1 & 2 of PL250 to enable the noise mute.
Set the RF level to -105dBm with ±3kHz deviation [±1.5kHz] at 1kHz.
Set RV230 (front panel gating sensitivity) fully anticlockwise.
Adjust RV331 (noise mute gain) fully anticlockwise to close the mute (if necessary
turn off the RF signal and then turn it on again).
Rotate RV331 clockwise until the mute just opens.
Reset the signal generator for the required opening sinad and adjust RV230 clock-
wise until the mute just opens.
3.4.4.2 Carrier Level Mute
Connect pins 2 & 3 of PL250 to enable the carrier mute and disable the noise mute.
Apply an on-channel signal from the RF generator at the required mute opening
level with ±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV235 (carrier mute) clockwise to close the mute (if necessary, momentar-
ily turn off the RF), then slowly adjust it anticlockwise until the mute just opens.
The mute should now open at this preset level.
3.4.5 Line Amplifier Output
Apply an on-channel signal from the RF generator at a level of -70dBm with
±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV210 (front panel line level) to set the line level to the required output
level.
![](/img.php?id=111477&img=bg31.png)
M820-00 T825 Initial Tuning & Adjustment B3.7
Copyright TEL 01/04/00
3.4.6 CTCSS
3.4.6.1 Decoder Operation
Program a CTCSS tone on the default channel using PGM800Win.
Set the RF signal generator output to -70dBm.
Modulate the generator with both:
• a 1kHz tone at ±3kHz deviation [±1.5kHz];
• and a CTCSS tone at the programmed frequency at ±500Hz deviation
[±300Hz].
Check that the receiver gate opens and the front panel "Gate" LED is on.
3.4.6.2 Opening Sinad
Ensure a CTCSS tone is present (as described in Section 3.4.6.1).
Adjust RV230 (front panel gating sensitivity) fully clockwise.
Reduce the RF signal level to -110dBm.
Observe the sinad meter and reduce the RF level until the receiver mute closes.
Slowly increase the signal level until the receiver mute just opens and stays open.
With PL240 pins 1 & 2 linked (high pass filter bypassed), check that the sinad is
less than 6dB.
Reset the signal generator for the required opening sinad, adjust RV230 fully anti-
clockwise, then clockwise until the mute just opens.
3.4.6.3 High Pass Filter
Ensure a CTCSS tone is present (as described in Section 3.4.6.1).
Set the audio processor links as follows:
Reset the RF signal generator output to -70dBm and note the line level (measure-
ment A).
Plug Link Function
PL210 1 - 2 de-emphasised response
PL220 2 - 3
PL230 2 - 3 audio from internal CTCSS speech filter
PL240 4 - 5 audio input via PL230 or I/O pad
![](/img.php?id=111477&img=bg32.png)
B3.8 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
Reduce the 1kHz generator to zero output and measure the line level again (meas-
urement B).
Check that measurement B is at least 30dB below measurement A.
3.4.7 RSSI (If Used)
Align the receiver as instructed in Section 3.6 and Section 3.7.
Apply an on-channel signal from the RF generator at a level of -100dBm with
±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV330 (RSSI level) to give 4.5V RSSI output on pin 5 of D-range 1 (PL100)
when measured with a high impedance DMM.
3.5 Audio Processor Links
3.5.1 General
Use the following table to set up the audio processor to the configuration you require.
You should set the audio processor links before carrying out the receiver alignment.
The factory settings are shown in brackets [ ].
Plug Link Function
PL210 [1 - 2]
2 - 3
de-emphasised response
flat response
PL220 1 - 2
[2 - 3]
flat response
de-emphasised response
PL230a1 - 2
[2 - 3]
3 - 4
audio input via AUDIO-2 pad
audio from internal CTCSS speech filter
audio input via I/O pad P250
PL240a
1 - 2
[2 - 3]
or
3 - 4
4 - 5
bypass high pass filter
300Hz high pass filter in circuit
audio input via PL230 or I/O pad
PL250 [1 - 2]
2 - 3
noise mute
carrier mute
PL260 1 - 2
[2 - 3]
RX-DISABLE link
not connected
![](/img.php?id=111477&img=bg33.png)
M820-00 T825 Initial Tuning & Adjustment B3.9
Copyright TEL 01/04/00
3.5.2 Audio Processor Linking Details For CTCSS
You must connect the audio processor links correctly according to the CTCSS option
used, as shown in the table below.
The conditions stated in the above table are defined as follows:
• standard, no CTCSS - no CTCSS or other sub-audio signalling used
- audio bandwidth 300Hz to 3kHz
- hum & noise -55dB
• received CTCSS tone - tone and speech transmitted down 600 ohm line
+ speech to line output - audio bandwidth 10Hz to 3kHz
- hum & noise -45dB
• high pass filtered speech - 400Hz to 3kHz
+ internal CTCSS detection - hum & noise -30dB with 250.3Hz tone present
• external CTCSS detection - decoding performed through the receiver (but
externally)
- speech injected back into receiver via "AUDIO-2"
and sent down 600 ohm line
Note 1: AUDIO-2 is available on D-range 1 (PL100) pin 7 via the link resistor R160.
Although PL100 pin 7 is already assigned to SERIAL-COM, this can be disa-
bled by removing R808.
Note 2: External CTCSS units can connect in series with the audio chain via
AUDIO-1 and AUDIO-2.
Plug Link Function
PL270 [1 - 2]
2 - 3
relay link
not connected
a. Refer to Section 3.5.2 for further details.
CTCSS Option PL230 PL240
standard, no CTCSS 2 - 3 2 - 3
received CTCSS + speech
passed to line output 3 - 4 1 - 2
high pass filtered speech,
internal CTCSS detection 2 - 3 4 - 5
external CTCSS detection 1 - 2 4 - 5
![](/img.php?id=111477&img=bg34.png)
B3.10 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.6 Synthesiser Alignment
• Ensure that the receiver has been programmed with the required frequencies
using PGM800Win software.
• Connect a high impedance voltmeter to PL4-1 or the junction of L1 & R1 in the
VCO (this measures the synthesiser loop voltage).
•Single Channel Tune VCO trimmer &VC1-RX for a synthesiser loop volt-
age of 9V.
Multichannel Tune VCO trimmer &VC1-RX for a synthesiser loop volt-
age of 9V on the middle channel.
If there is no middle channel, tune &VC1-RX so that the
channels are symmetrically placed around a loop voltage
of 9V.
All channels should lie within the upper and lower limits
of 13V and 5V respectively.
Do not attempt to program channels with a greater fre-
quency separation than the specified switching range of
2MHz.
• The TCXO (=IC700) output frequency should be trimmed when the IF is tuned -
refer to Section 3.7.
3.7 Alignment Of Receiver Front End And IF
Note 1: In this and following sections deviation settings are given first for wide
bandwidth sets, followed by settings in brackets for narrow bandwidth sets
[ ].
Note 2: Before carrying out this alignment procedure, check that the solder links
in the receiver front end are set as described in the following table:
Align the synthesiser as instructed in Section 3.6. For multichannel operation
align the receiver on a frequency in the middle of the required band.
Frequency Range Linked Not Linked
66-76MHz #SL400
#SL402
#SL403
#SL405
#SL401
#SL404
76-88MHz #SL401
#SL404
#SL400
#SL402
#SL403
#SL405
![](/img.php?id=111477&img=bg35.png)
M820-00 T825 Initial Tuning & Adjustment B3.11
Copyright TEL 01/04/00
Set RV230 (front panel gating sensitivity) fully clockwise.
Inject a strong on-channel RF signal with ±3kHz deviation [±1.5kHz] at 1kHz into
the antenna socket and adjust front end doublets L410, L409, L403 & L402 to give
best sinad.
Continually decrease the RF level to maintain 12dB sinad.
Tune quad coil L330 for maximum audio level.
While maintaining a low level unmodulated RF input to the receiver, loosely cou-
ple into the first IF an additional high level signal at 10.7MHz - you will hear a
beat note.
Trim the synthesiser TCXO (=IC700) for zero beat.
Note: If a second oscillator is not available, you can connect a frequency counter to
IC710 pin 6 (i.e. after the TCXO buffer) via an oscilloscope probe to measure
the TCXO frequency directly (12.8MHz). At this point the voltage level is
approximately 4V p-p.
Readjust L410, L409, L403 & L402 to give best sinad.
Change the RF signal level to -70dBm and modulate with ±3kHz deviation
[±1.5kHz] at 1kHz.
Connect plugs PL210 and PL220 to give a flat audio response (refer to Section 3.5).
Adjust quad coil L330 and CV300 for minimum audio distortion.
Check that the distortion reading is:
wide bandwidth ≤2%
narrow bandwidth ≤4%.
If required, reconnect plugs PL210 and PL220 to give a de-emphasised audio
response and check that the distortion reading is ≤2% (both bandwidths).
Reduce the RF level until 12dB sinad is reached. The receiver sensitivity should
be better than -117dBm (de-emphasised) or -111dBm (flat), assuming that the
audio levels are not being overdriven (refer to Section 3.11).
![](/img.php?id=111477&img=bg36.png)
B3.12 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL

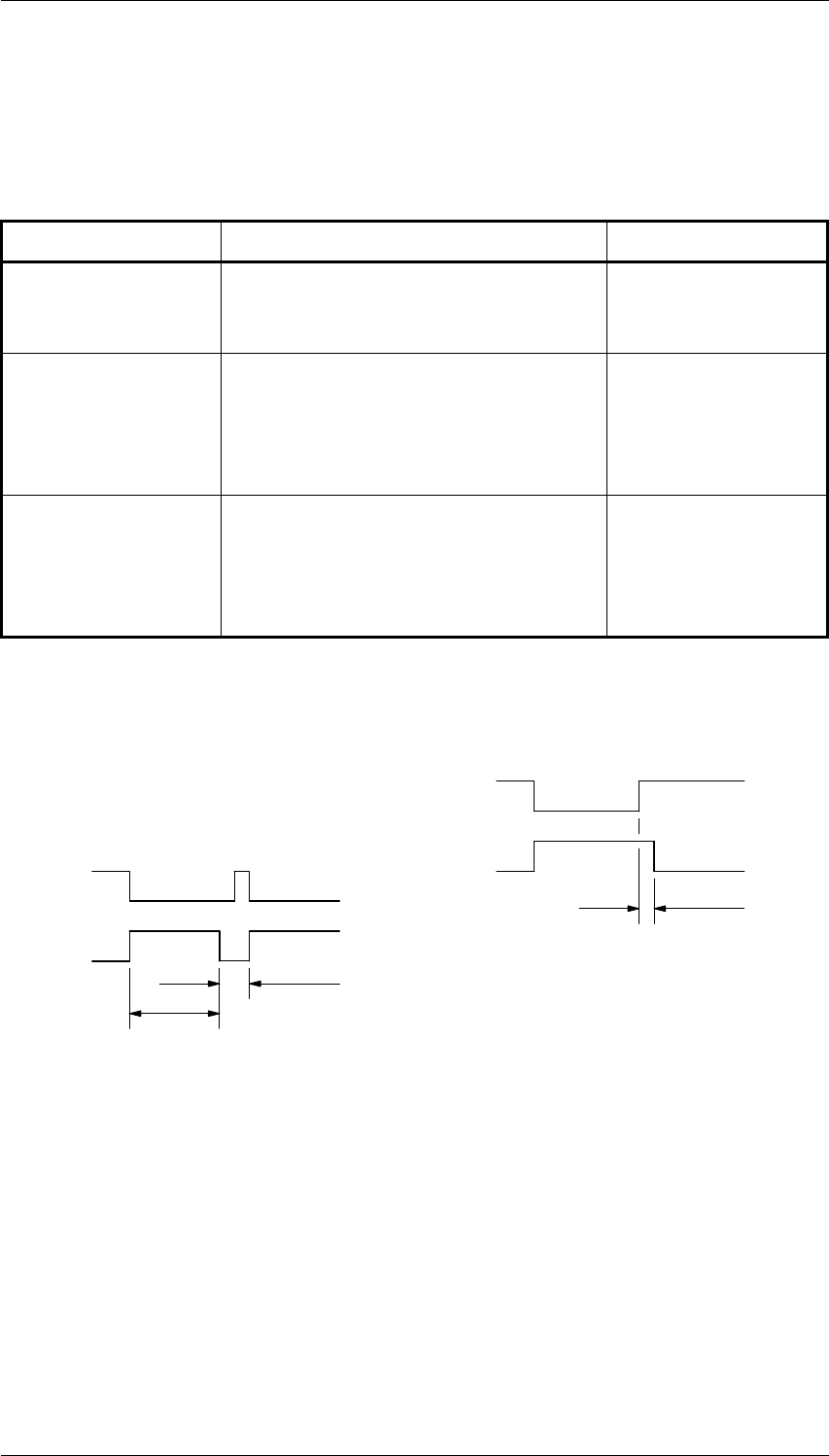

3.8 Gating Delay
Two solder links (SL210 & SL220) are provided on the top of the PCB to allow three gate
delay time options, as shown in the table below.
*Factory setting.
3.9 Noise Mute Adjustment
Connect pins 1 & 2 of PL250 to enable the noise mute.
Align the receiver as instructed in Section 3.6 and Section 3.7.
Set the RF level to -105dBm with ±3kHz deviation [±1.5kHz] at 1kHz.
Set RV230 (front panel gating sensitivity) fully anticlockwise.
Adjust RV331 (noise mute gain) fully anticlockwise to close the mute (if necessary
turn off the RF signal and then turn it on again).
Rotate RV331 clockwise until the mute just opens.
Reset the signal generator for the required opening sinad and adjust RV230 clock-
wise until the mute just opens.
3.10 Carrier Level Mute
Connect pins 2 & 3 of PL250 to enable the carrier mute and disable the noise mute.
Apply an on-channel signal from the RF generator at the required mute opening
level with ±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV235 (carrier mute) clockwise to close the mute (if necessary, momentar-
ily turn off the RF), then slowly adjust it anticlockwise until the mute just opens.
The mute should now open at this preset level.
SL210 SL220 Closing Delay
linked not linked <50ms*
not linked linked <25ms
not linked not linked <20ms
![](/img.php?id=111477&img=bg37.png)
M820-00 T825 Initial Tuning & Adjustment B3.13
Copyright TEL 01/04/00
3.11 Audio Processor
3.11.1 Line Amplifier Output
Apply an on-channel signal from the RF generator at a level of -70dBm with
±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV210 (front panel line level) to give an output of +10dBm on the 600 ohm
line.
Check for any clipping or distortion on the oscilloscope.
Set the line level to the required output level.
3.11.2 Monitor Amplifier Output (Speaker Output)
Adjust RV205 (front panel monitor volume) to give an output of 2V rms into a 4
ohm resistive load.
Check for any clipping or distortion on the oscilloscope.
Switch to a 4 ohm speaker and adjust RV205 to the required level.
3.12 CTCSS
3.12.1 Decoder Operation
Program a CTCSS tone on the default channel using PGM800Win.
Set the RF signal generator output to -70dBm.
Modulate the generator with both:
• a 1kHz tone at ±3kHz deviation [±1.5kHz];
• and a CTCSS tone at the programmed frequency at ±500Hz deviation
[±300Hz].
Check that the receiver gate opens and the front panel "Gate" LED is on.
3.12.2 Opening Sinad
Ensure a CTCSS tone is present (as described in Section 3.12.1).
Adjust RV230 (front panel gating sensitivity) fully clockwise.
![](/img.php?id=111477&img=bg38.png)
B3.14 T825 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
Reduce the RF signal level to -110dBm.
Observe the sinad meter and reduce the RF level until the receiver mute closes.
Slowly increase the signal level until the receiver mute just opens and stays open.
With PL240 pins 1 & 2 linked (high pass filter bypassed), check that the sinad is
less than 6dB.
Reset the signal generator for the required opening sinad, adjust RV230 fully anti-
clockwise, then clockwise until the mute just opens.
3.12.3 High Pass Filter
Ensure a CTCSS tone is present (as described in Section 3.12.1).
Set the audio processor links as follows:
Reset the RF signal generator output to -70dBm and note the line level (measure-
ment A).
Reduce the 1kHz generator to zero output and measure the line level again (meas-
urement B).
Check that measurement B is at least 30dB below measurement A.
3.13 RSSI
Align the receiver as instructed in Section 3.6 and Section 3.7.
Apply an on-channel signal from the RF generator at a level of -100dBm with
±3kHz deviation [±1.5kHz] at 1kHz.
Adjust RV320 (RSSI level) to give 4.5V RSSI output on pin 5 of D-range 1 (PL100)
when measured with a high impedance DMM.
Plug Link Function
PL210 1 - 2 de-emphasised response
PL230 2 - 3 audio from internal CTCSS speech filter
PL240 4 - 5 audio input via PL230 or I/O pad
![](/img.php?id=111477&img=bg39.png)
M820-00 T825 PCB Information B6.1.1
Copyright TEL 01/04/00
6 T825 PCB Information
Caution: This equipment contains CMOS devices which are susceptible to damage from
static charges. Refer to Section 1.2 in Part A for more information on anti-static
procedures when handling these devices.
This section provides the following information on the T825 receiver:
•parts lists
• grid reference index
•PCB layouts
• circuit diagrams.
Section Title IPN Page
6.1 Introduction 6.1.3
6.2 T825 Receiver PCB 220-01446-03 6.2.1
![](/img.php?id=111477&img=bg3a.png)
B6.1.2 T825 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg3b.png)
M820-00 T825 PCB Information B6.1.3
Copyright TEL 01/04/00
6.1 Introduction
Product Type Identification
You can identify the receiver type by checking the product code printed on a label on the rear of the
chassis (product codes are explained in Section 1.3 in this Part of the manual, and Figure 1.1 in Part
A shows typical labels). You can further verify the receiver type by checking the placement of an
SMD resistor in the table that is screen printed onto the top side of the PCB, similar to the example
drawn below. In this example, the resistor indicates that the product was built as a T825-10-XXXX.
Note: The only function of this resistor is to indicate the product type. It has no effect on the
circuitry or operation of the receiver.
PCB Identification
All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-12345-00, which
is screen printed onto the PCB (usually on the top side), as shown in the example below:
The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,
02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-
fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying
the PCB for service purposes.
Note: It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate set of PCB information.
825- PRODUCT TYPE
825- 825-10 825-
825- 825- 825-
PRODUCT TYPE 825-15 825-
![](/img.php?id=111477&img=bg3c.png)
B6.1.4 T825 PCB Information M820-00
01/04/00 Copyright TEL
Parts Lists
The 10 digit numbers (000-00000-00) in this Parts List are “internal part numbers” (IPNs). We can
process your spare parts orders more efficiently and accurately if you quote the IPN and provide a
brief description of the part.
The components listed in this parts list are divided into two main types: those with a circuit refer-
ence (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within
each group. Each component entry comprises three or four columns, as shown below:
The mechanical and miscellaneous section lists the variant and common parts in IPN order.
Parts List Amendments
At the front of the parts list is the Parts List Amendments box (an example of which is shown
below). This box contains a list of component changes which took place after the parts list and dia-
grams in this section were compiled. These changes (e.g. value changes, added/deleted compo-
nents, etc.) are listed by circuit reference in alphanumeric order and supersede the information
given in the parts list or diagrams. Components without circuit references are listed in IPN order.
The number in brackets at the end of each entry refers to the Tait internal Change Order document.
circuit reference -
lists components
in alphanumeric
order
variant column -
indicates that this is
a variant component
which is fitted only to
the product type listed
Internal Part Number -
order the component
b
y
this number
description -
gives a brief description
of the component
Parts List Amendments
R306 Changed from 180Ωto 560Ω(036-13560-00) to increase sensitivity (71003).
circuit reference
or IPN description
of change
IPN of new
component Change Order
number
![](/img.php?id=111477&img=bg3d.png)
M820-00 T825 PCB Information B6.1.5
Copyright TEL 01/04/00
Variant Components
A variant component is one that has the same circuit reference but different value or specification in
different product types. Where two products share the same PCB, the term “variant” is also used to
describe components unplaced in one product. Variant components have a character prefix, such as
“&”, “=” or “#”, before the circuit reference (e.g. &R100).
The table below explains the variant prefixes used in T800 Series II products:
Grid Reference Index
This section contains a component grid reference index to help you find components and labelled
pads on the PCB layouts and circuit diagrams. This index lists the components and pads in alpha-
numeric order, along with the appropriate alphanumeric grid references, as shown below:
If the variant prefix is. . . the component will. . .
& change according to channel spacing
= change according to frequency stability
# change according to frequency range
% change or be placed/unplaced for special applications
*be unplaced in one product
(where two products share the same PCB)
circuit diagram
reference
PCB layout
reference
components listed
in alphanumeric order
layer number -
1 = top side layer
2 = bottom side layer
component location
on the layer
sheet number
component location
on the sheet
![](/img.php?id=111477&img=bg3e.png)
B6.1.6 T825 PCB Information M820-00
01/04/00 Copyright TEL
Using CAD Circuit Diagrams
Reading a CAD circuit diagram is similar to reading a road map, in that both have an alphanumeric
border. The circuit diagrams in this manual use letters to represent the horizontal axis, and num-
bers for the vertical axis. These circuit diagram “grid references” are useful in following a circuit
that is spread over two or more sheets.
When a line representing part of the circuitry is discontinued, a reference will be given at the end of
the line to indicate where the rest of the circuitry is located, as shown below. The first digit refers to
the sheet number and the last two characters refer to the location on that sheet of the continuation of
the circuit (e.g. 1R3).
C301
4N7
R303
12
D
S
G
L310
33U
IF-SIG
4R4
C369
100P
C371
10U
R339
100K
%R338
100
DISCRIMINATOR
1R3
2R9
2R9
8A2
t
hese grid references
s
how where the circuit
is continued
![](/img.php?id=111477&img=bg3f.png)
M820-00 T825 PCB Information B6.2.1
Copyright TEL 01/04/00
6.2 T825 Receiver PCB
This section contains the following information.
IPN Section Page
220-01446-03 Parts List
Mechanical & Miscellaneous Parts
Grid Reference Index
PCB Layout - Top Side
PCB Layout - Bottom Side
Receiver Overview Diagram
Audio Processor Circuit Diagram
IF Section Circuit Diagram
Front End Circuit Diagram
VCO Section Circuit Diagram
Regulators Circuit Diagram
Synthesiser Circuit Diagram
Microcontroller Circuit Diagram
Harmonic Filter Circuit Diagram
6.2.3
6.2.9
6.2.11
6.2.15
6.2.16
6.2.17
6.2.18
6.2.19
6.2.20
6.2.21
6.2.22
6.2.23
6.2.24
6.2.25
![](/img.php?id=111477&img=bg40.png)
B6.2.2 T825 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg41.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.3
Copyright TEL 01/04/00
T825 Parts List (IPN 220-01446-03)
How To Use This Parts List
The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and
those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component
entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-
umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by
an (S) at the start of the description column.
The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend
column indicates their position in the mechanical assembly drawing.
The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were
compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order
and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.
Parts List Amendments
There were no amendments to the parts list at the time of publication.
![](/img.php?id=111477&img=bg42.png)
IPN 220-01446-03
B6.2.4 T825 PCB Information M820-00
01/04/00 Copyright TEL
Parts List Amendments - Continued
This page is provided for entering future amendments to the parts list.
![](/img.php?id=111477&img=bg43.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.5
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
C201 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C203 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C205 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C207 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C209 016-08470-03 CAP SMD ELEC 47mF 20% 25v 8.3m
C210 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C211 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C212 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C213 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C215 015-21220-01 CAP CER 0805 2P2+-1/4P NPO 50V
C217 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C219 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C221 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C222 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C223 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C225 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C227 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C229 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C231 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C233 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C235 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C237 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C238 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C239 016-09100-05 CAP SMD ELECT 100U 25V 20%
C240A 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C240B 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C240C 016-09220-01 CAP SMD ELECT 220U 35V 20%
C249 016-09470-01 L)CAP ELECT 470U 20% SMD
C251 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C253 016-09100-05 CAP SMD ELECT 100U 25V 20%
C255 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C257 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C259 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C260A 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C260B 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C260C 016-09220-01 CAP SMD ELECT 220U 35V 20%
C261 016-09100-05 CAP SMD ELECT 100U 25V 20%
C262 016-09100-05 CAP SMD ELECT 100U 25V 20%
C264 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C266 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C268 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C270 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C272 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C273 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C274 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C276 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C278 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C280 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C286 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C300 015-25100-08 CAP CER 0805 10N 10% X7R 50V
CV300 028-01500-01 CAP TRM 1.5/5P NPO TOP ADJ
C301 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C302 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C303 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C304 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C305 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C306 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C307 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C308 015-23100-01 CAP CER 0805 100P 5% NPO 50V
&C309 10 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C309 15 015-22220-01 CAP CER 0805 22P 5% NPO 50V
&C310 10 015-21180-01 CAP CER 0805 1P8+-1/4P NPO 50V
&C310 15 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C311 10 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C311 15 015-22220-01 CAP CER 0805 22P 5% NPO 50V
C312 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C313 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C314 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C315 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C316 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C317 015-25100-08 CAP CER 0805 10N 10% X7R 50V
&C318 10 015-23120-01 CAP CER 0805 120P 5% NPO 50V
&C318 15 015-23100-01 CAP CER 0805 100P 5% NPO 50V
&C319 10 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C319 15 015-22180-01 CAP CER 0805 18P 5% NPO 50V
C320 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C321 015-23330-08 CAP CER 0805 330P 10% X7R 50V
&C325 10 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C325 15 015-22270-01 CAP CER 0805 27P 5% NPO 50V
&C326 10 015-22220-01 CAP CER 0805 22P 5% NPO 50V
C327 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C329 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C330 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C331 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C332 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C333 014-07470-03 L) CAP TANT SMD 4U7 35V 20%
C334 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C335 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C336 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C337 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C338 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C339 015-22100-01 CAP CER 0805 10P+-1/2P NPO 50V
C340 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C341 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C342 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C343 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C344 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C345 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C348 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C349 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C350 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C351 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C352 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C353 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C354 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C355 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C357 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C358 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C359 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C360 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C361 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C362 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C363 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C364 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C365 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C366 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C367 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C400 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C401 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C402 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C403 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C404 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C405 015-23470-08 CAP CER 0805 470P 10% X7R 50V
C408 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C409 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C410 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C411 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C412 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C416 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C417 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C418 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C419 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C420 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C424 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C425 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C426 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C427 015-05470-08 CAP CER 1206 47N 10% X7R 50V
C428 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C432 015-22820-01 CAP CER 0805 82P 5% NPO 50V
C433 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C434 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C435 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C436 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C440 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C441 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C442 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C443 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C444 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C448 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C449 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C450 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C505 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C515 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C530 014-08220-01 (L)CAP TANT 22UF10V276MSER
C535 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C610A 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C610B 014-09100-00 CAP TANT SMD 100U 16V 20%
C611A 014-09100-00 CAP TANT SMD 100U 16V 20%
C611B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C623 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C625 020-09470-07 CAPEL470M16V20%V 8*20 3.5L.ESR
C626 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C628 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C630 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C631A 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C631B 014-08100-03 CAP TANT SMD 10U 35V 20%
C637 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C640 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C650 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C651 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C658 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C660 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C665 014-08100-03 CAP TANT SMD 10U 35V 20%
C670 014-07330-10 CAP TANT SMD 3U3 35V 10%
C673 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C677 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C681 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C684 014-08100-03 CAP TANT SMD 10U 35V 20%
C687 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C690 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C693 014-08100-03 CAP TANT SMD 10U 35V 20%
C700 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C702 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C703 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C705 015-21820-02 L)CAP 0805 8P2 15 NPO 50V
C707 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C708 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C709 015-22100-01 CAP CER 0805 10P+-1/2P NPO 50V
C710A 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C710B 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C710C 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C711 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C712 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C713 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C735 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C736 015-22470-01 CAP CER 0805 47P 5% NPO 50V
![](/img.php?id=111477&img=bg44.png)
IPN 220-01446-03
B6.2.6 T825 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
C740A 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C740B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C741A 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C741B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C742A 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C742B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C743 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C745 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C750 014-08100-03 CAP TANT SMD 10U 35V 20%
C757 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C759 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C761 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C762 014-08220-01 (L)CAP TANT 22UF10V276MSER
C764 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C765 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C767 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C769 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C770 014-08220-01 (L)CAP TANT 22UF10V276MSER
C772 014-08220-01 (L)CAP TANT 22UF10V276MSER
C774 022-07100-05 CAP METAL PPS 1U 20% 63V 5MM
C776 015-25330-08 CAP CER 0805 CHIP 33NF
C782 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C784 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C786 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C788 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C790 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C792 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C793 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C810 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C812 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C813 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C814 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C815 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C816 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C818 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C819 015-22330-01 CAP CER 0805 33P 5% NPO 50V
C820 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C822 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C824 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C826 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C828 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C830 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C832 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C833 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C834 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C836 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C837 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C838 015-05100-07 CAP 1206 CHIP NPO 10nF 25V
C840 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C842 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C844 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C846 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C848 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C850 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C873 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C876 014-09100-00 CAP TANT SMD 100U 16V 20%
C879 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C900 015-22330-01 CAP CER 0805 33P 5% NPO 50V
C901 015-22680-01 CAP CER 0805 68P 5% NPO 50V
C902 015-22680-01 CAP CER 0805 68P 5% NPO 50V
C903 015-22330-01 CAP CER 0805 33P 5% NPO 50V
%D111A 10 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
%D111A 15 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
D220 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D230 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D240 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D250 008-00014-79 S)LED 3MM RED WITH WIRE
D260 001-10084-33 S)DIODE ZENSMD BZX84C3V3 SOT23
D270 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D280 008-00014-80 S)LED 3MM GREEN WITH WIRE
D285 001-10011-73 DIODE SMD MRA4003T3 1A/300V SM
D289 001-10011-73 DIODE SMD MRA4003T3 1A/300V SM
D290 001-10011-73 DIODE SMD MRA4003T3 1A/300V SM
D295 001-10011-73 DIODE SMD MRA4003T3 1A/300V SM
D330 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D400 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D610 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D640 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D645 001-10010-40 DIODE SMD ZENER 33V BZG03-C33
D730 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D740 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D820 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D860 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D880 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
IC210 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC240 002-00014-05 S) IC TDA7231 1.6W AF PWR
IC260 002-00014-05 S) IC TDA7231 1.6W AF PWR
IC270 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC280 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC330 002-10337-20 S) IC MC3372D SMD IF DETECTOR
IC332 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC333 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC339 002-10078-05 S) IC SMD 78L05 5V REG
IC340 002-10008-40 S)IC SMD TL084CD 4X O-AMP JFET
IC410 002-10000-14 MIXER DBL BALANCE 2-500 MHZ
IC610 002-10078-05 S) IC SMD 78L05 5V REG
IC630 002-12523-17 (S)IC LM317L REG TO-252 0.5A
IC640 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC650 002-10012-32 SMD DS1232LPS-2 LP RESET&W-DOG
=IC700 10 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
=IC700 15 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
IC710 002-74900-04 S) IC SMD 74HC04D 6X INV BUFFD
IC740 002-14519-10 S) IC MC145191F SMD SYNTH
IC750 002-10330-78 S) IC MC33078D 2X AMP LO NOISE
IC820 002-12416-00 S)IC SMD AT24C16N-10SC EEPROM
IC830 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC840 002-10040-53 S)MC14053B SMD BREAK B4 MAKE
IC850 002-10003-24 S) IC SMD 324 4X O-AMP SO14
L230 057-10100-60 IND SHLD 100UH SMD 600MA
L300 056-10102-12 IND SMD 1u2 1812CS 5%
L301 056-10802-12 IND SMD 8u2 1812CS 5%
L302 056-10105-12 IND SMD 1u5 1812CS 5%
&L303 10 056-10102-12 IND SMD 1u2 1812CS 5%
&L303 15 056-10105-12 IND SMD 1u5 1812CS 5%
&L304 10 056-10010-12 IND SMD 10uH 1812CS 5%
&L304 15 056-10802-12 IND SMD 8u2 1812CS 5%
&L305 10 056-10010-12 IND SMD 10uH 1812CS 5%
&L305 15 056-10802-12 IND SMD 8u2 1812CS 5%
&L306 10 056-10102-12 IND SMD 1u2 1812CS 5%
&L306 15 056-10105-12 IND SMD 1u5 1812CS 5%
&L307 10 056-10102-12 IND SMD 1u2 1812CS 5%
&L307 15 056-10105-12 IND SMD 1u5 1812CS 5%
&L308 10 056-10010-12 IND SMD 10uH 1812CS 5%
&L308 15 056-10802-12 IND SMD 8u2 1812CS 5%
&L309 10 056-10010-12 IND SMD 10uH 1812CS 5%
&L310 10 056-10802-12 IND SMD 8u2 1812CS 5%
&L325 15 056-10010-12 IND SMD 10uH 1812CS 5%
L330 050-15119-75 COIL SMD 455KHz IF 5119-T075
L400 056-10001-10 IND SMD 1uH 1206CS 5%
L401 056-10001-10 IND SMD 1uH 1206CS 5%
L402 050-00016-54 COIL 654 10 CAN T720
L403 050-00016-54 COIL 654 10 CAN T720
L404 056-14150-02 (L) IND SMD 1.5UH
L405 056-14150-02 (L) IND SMD 1.5UH
L406 056-10105-12 IND SMD 1u5 1812CS 5%
L409 050-00016-54 COIL 654 10 CAN T720
L410 050-00016-54 COIL 654 10 CAN T720
L750 056-10330-02 (L) IND SMD 330NH
L900 056-10121-00 IND SMD 120NH 1812SMS 5%
L901 056-10121-00 IND SMD 120NH 1812SMS 5%
L902 056-10121-00 IND SMD 120NH 1812SMS 5%
PL100 070-01001-00 D-RANGE 15 WAY COMPL T800
PL200 240-10000-16 HEADER 4W PCB MTG SMD
PL210 240-10000-16 HEADER 4W PCB MTG SMD
PL220 240-10000-16 HEADER 4W PCB MTG SMD
PL230 240-10000-16 HEADER 4W PCB MTG SMD
PL240 240-10005-00 HEADER 5W PCB MTG SMD
PL250 240-10000-16 HEADER 4W PCB MTG SMD
PL260 240-10000-16 HEADER 4W PCB MTG SMD
PL270 240-10000-16 HEADER 4W PCB MTG SMD
Q210 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q220 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q230 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q240 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q245 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q250 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q255 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q260 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q270 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q280 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q290 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q300 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q301 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q302 000-10003-10 S) XSTR SMD BFJ310 JFET UHF
Q303 000-10095-10 S) XSTR SMD BR951 NPN UHF
Q304 000-10095-10 S) XSTR SMD BR951 NPN UHF
Q331 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q400 000-10054-00 XSTR SMD BFG540 NPNUHF SOT143B
Q401 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q540 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q620 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD
Q630 000-10003-00 S) XSTR BSR30 PNP AF SOT-89
Q660 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q670 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q750 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q760 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q770 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q775 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q780 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q785 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q790 000-10003-12 S) XSTR SMD BFR31 N JFET SOT23
Q795 000-10009-30 XSTR SMD BFR93A NPN SOT23
Q810 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q820 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q840 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q850 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q860 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q870 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q880 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q890 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q895 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
![](/img.php?id=111477&img=bg45.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.7
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
R160 036-12100-00 RES M/F 0805 10E 5%
R201 036-14470-10 RES M/F 0805 4K7 1%
R202 036-14470-10 RES M/F 0805 4K7 1%
R204 036-15100-10 RES M/F 0805 10K 1%
R205 036-16220-00 RES M/F 0805 220K 5%
RV205 040-05100-22 POT 10K LOG DUAL PCB 6 OD SFT
R207 036-14820-10 RES M/F 0805 8K2 1%
&R209 10 036-15220-00 RES M/F 0805 22K 5%
&R209 15 036-15180-10 RES M/F 0805 18K 1%
R210 036-15150-00 RES M/F 0805 15K 5%
RL210 237-10010-00 RELAY 12V DPDT 10PIN SMD
RV210 040-05100-23 POT 10K LOG PCB 15MM SLOT SFT
R211 036-15390-00 RES M/F 0805 39K 5%
R213 036-14270-00 RES M/F 0805 2K7 5%
R215 036-15150-00 RES M/F 0805 15K 5%
R218 036-14390-10 RES M/F 0805 3K9 1%
&R219 10 036-15100-10 RES M/F 0805 10K 1%
&R219 15 036-14820-10 RES M/F 0805 8K2 1%
RV220 042-05100-05 RES PRESET SMD 10K CER 4MM SQ
R221 036-15470-10 RES M/F 0805 47K 1%
R222 036-16100-00 RES M/F 0805 100K 5%
%R223 10 036-12100-00 RES M/F 0805 10E 5%
%R223 15 036-12100-00 RES M/F 0805 10E 5%
R224 036-14390-10 RES M/F 0805 3K9 1%
R225 036-13470-00 RES M/F 0805 470E 5%
R227 036-14270-00 RES M/F 0805 2K7 5%
R229 036-14470-10 RES M/F 0805 4K7 1%
R230 036-14470-10 RES M/F 0805 4K7 1%
RV230 040-05100-21 POT 10K LIN PCB 15MM SLOT SFT
R232 036-15470-10 RES M/F 0805 47K 1%
R233 036-14820-10 RES M/F 0805 8K2 1%
R234 036-15470-10 RES M/F 0805 47K 1%
RV235 042-05100-05 RES PRESET SMD 10K CER 4MM SQ
R236 036-15470-10 RES M/F 0805 47K 1%
R238 036-11470-00 RES M/F 0805 4E7 10%
R239 036-14100-10 RES M/F 0805 1K 1%
R241 036-14100-10 RES M/F 0805 1K 1%
R242 036-13100-10 RES M/F 0805 100E 1%
R244 036-14680-10 RES M/F 0805 6K8 1%
R245 036-14100-10 RES M/F 0805 1K 1%
R247 036-14220-00 RES M/F 0805 2K2 5%
R249 036-15100-10 RES M/F 0805 10K 1%
R251 036-15390-00 RES M/F 0805 39K 5%
R252 036-14470-10 RES M/F 0805 4K7 1%
R254 036-14820-10 RES M/F 0805 8K2 1%
R255 036-15470-10 RES M/F 0805 47K 1%
R256 036-14270-00 RES M/F 0805 2K7 5%
R258 036-15470-10 RES M/F 0805 47K 1%
R260 036-11470-00 RES M/F 0805 4E7 10%
R261 036-13150-10 RES M/F 0805 150E 1%
R262 036-14100-10 RES M/F 0805 1K 1%
R264 036-15100-10 RES M/F 0805 10K 1%
R265 036-13100-10 RES M/F 0805 100E 1%
R266 036-15270-10 RES M/F 0805 27K 1%
R267 036-16180-00 RES M/F 0805 180K 5%
R269 036-14220-00 RES M/F 0805 2K2 5%
R271 036-16100-00 RES M/F 0805 100K 5%
R272 036-15470-10 RES M/F 0805 47K 1%
R273 036-15150-00 RES M/F 0805 15K 5%
R274 036-13120-00 RES M/F 0805 120E 5%
R275 036-13100-10 RES M/F 0805 100E 1%
R276 036-13120-00 RES M/F 0805 120E 5%
R277 036-14560-00 RES M/F 0805 5K6 5%
R278 036-16220-00 RES M/F 0805 220K 5%
R279 036-12270-00 RES M/F 0805 27E 5%
R280 036-16100-00 RES M/F 0805 100K 5%
R281 036-14470-10 RES M/F 0805 4K7 1%
R282 036-16100-00 RES M/F 0805 100K 5%
R284 036-13100-10 RES M/F 0805 100E 1%
R285 036-15470-10 RES M/F 0805 47K 1%
R287 036-15100-10 RES M/F 0805 10K 1%
R288 036-14470-10 RES M/F 0805 4K7 1%
R289 036-14680-10 RES M/F 0805 6K8 1%
R290 036-14100-10 RES M/F 0805 1K 1%
R292 036-14680-10 RES M/F 0805 6K8 1%
R293 036-13560-00 RES M/F 0805 560E 5%
R294 036-14100-10 RES M/F 0805 1K 1%
R295 036-14680-10 RES M/F 0805 6K8 1%
R296 036-14120-00 RES M/F 0805 1K2 5%
R297 030-52100-20 RES FILM AI 10E 5% 0.4W 4X1.6
R298 036-15470-10 RES M/F 0805 47K 1%
R299 036-15470-10 RES M/F 0805 47K 1%
R300 036-14680-10 RES M/F 0805 6K8 1%
R301 036-12270-00 RES M/F 0805 27E 5%
R302 036-12120-00 RES M/F 0805 12E 5%
R303 036-12100-00 RES M/F 0805 10E 5%
R304 036-13820-00 RES M/F 0805 820E 5%
R307 036-14100-10 RES M/F 0805 1K 1%
R308 036-14330-10 RES M/F 0805 3K3 1%
R309 036-14100-10 RES M/F 0805 1K 1%
R310 036-11470-00 RES M/F 0805 4E7 10%
R311 036-12470-00 RES M/F 0805 47E 5%
R312 036-13100-10 RES M/F 0805 100E 1%
R313 036-12560-00 RES M/F 0805 56E 5%
R314 036-12390-00 RES M/F 0805 39E 5%
R315 036-13470-00 RES M/F 0805 470E 5%
R317 036-14330-10 RES M/F 0805 3K3 1%
R318 036-12560-00 RES M/F 0805 56E 5%
R319 036-12390-00 RES M/F 0805 39E 5%
R320 036-13150-10 RES M/F 0805 150E 1%
R321 036-13150-10 RES M/F 0805 150E 1%
&R323 15 036-10000-00 RES M/F 0805 ZERO OHM
&R324 15 036-10000-00 RES M/F 0805 ZERO OHM
R329 036-17100-10 RES M/F 0805 1M 1%
R330 036-10000-00 RES M/F 0805 ZERO OHM
RV330 042-04220-05 RES PRESET SMD 2K CER 4MM SQ
RV331 042-05100-05 RES PRESET SMD 10K CER 4MM SQ
R333 036-12220-00 RES M/F 0805 22E 5%
R336 036-14150-10 RES M/F 0805 1K5 1%
R337 036-14220-00 RES M/F 0805 2K2 5%
R338 036-14100-10 RES M/F 0805 1K 1%
R339 036-15470-10 RES M/F 0805 47K 1%
R340 036-16220-00 RES M/F 0805 220K 5%
R341 036-16120-00 RES M/F 0805 120K 5%
R342 036-15220-00 RES M/F 0805 22K 5%
R343 036-15100-10 RES M/F 0805 10K 1%
R344 036-15100-10 RES M/F 0805 10K 1%
&R346 10 036-15560-10 RES MF 0805 56K 1%
&R346 15 036-16100-00 RES M/F 0805 100K 5%
R347 036-15470-10 RES M/F 0805 47K 1%
R348 036-14820-10 RES M/F 0805 8K2 1%
R349 036-14560-00 RES M/F 0805 5K6 5%
R350 036-14100-10 RES M/F 0805 1K 1%
R351 036-14560-00 RES M/F 0805 5K6 5%
R352 036-14390-10 RES M/F 0805 3K9 1%
R353 036-16220-00 RES M/F 0805 220K 5%
R354 036-16220-00 RES M/F 0805 220K 5%
R355 036-14330-10 RES M/F 0805 3K3 1%
R356 036-14220-00 RES M/F 0805 2K2 5%
R357 036-15270-10 RES M/F 0805 27K 1%
R358 036-16220-00 RES M/F 0805 220K 5%
R359 045-15100-00 RES NTC SMD 10K 5%
R360 036-15100-10 RES M/F 0805 10K 1%
R361 036-16390-00 RES M/F 0805 390K 5%
R362 036-15470-10 RES M/F 0805 47K 1%
R363 036-14100-10 RES M/F 0805 1K 1%
R365 036-13220-10 RES 0805 220E 1%
R368 036-15100-10 RES M/F 0805 10K 1%
R369 036-14220-00 RES M/F 0805 2K2 5%
R370 036-14100-10 RES M/F 0805 1K 1%
R371 036-14820-10 RES M/F 0805 8K2 1%
R372 036-14560-00 RES M/F 0805 5K6 5%
R373 036-16390-00 RES M/F 0805 390K 5%
R374 036-15100-10 RES M/F 0805 10K 1%
R375 036-16390-00 RES M/F 0805 390K 5%
R376 036-15100-10 RES M/F 0805 10K 1%
R377 036-16390-00 RES M/F 0805 390K 5%
R378 036-16390-00 RES M/F 0805 390K 5%
R382 036-15100-10 RES M/F 0805 10K 1%
R383 036-15470-10 RES M/F 0805 47K 1%
R384 036-15470-10 RES M/F 0805 47K 1%
R400 036-13220-10 RES 0805 220E 1%
R401 036-12220-00 RES M/F 0805 22E 5%
R402 036-13220-10 RES 0805 220E 1%
R403 036-12820-00 RES M/F 0805 82E 5%
R404 036-12820-00 RES M/F 0805 82E 5%
R408 036-11470-00 RES M/F 0805 4E7 10%
R409 036-13820-00 RES M/F 0805 820E 5%
R410 036-13820-00 RES M/F 0805 820E 5%
R411 036-17100-10 RES M/F 0805 1M 1%
R412 036-10000-00 RES M/F 0805 ZERO OHM
R416 036-17100-10 RES M/F 0805 1M 1%
R417 036-13560-00 RES M/F 0805 560E 5%
R418 036-12390-00 RES M/F 0805 39E 5%
R419 036-12390-00 RES M/F 0805 39E 5%
R420 036-12100-00 RES M/F 0805 10E 5%
R424 036-13330-00 RES M/F 0805 330E 5%
R425 036-14220-00 RES M/F 0805 2K2 5%
R426 036-13470-00 RES M/F 0805 470E 5%
R427 036-14330-10 RES M/F 0805 3K3 1%
R510 036-14220-00 RES M/F 0805 2K2 5%
R515 036-12560-00 RES M/F 0805 56E 5%
R555 036-13470-00 RES M/F 0805 470E 5%
R615 036-13100-10 RES M/F 0805 100E 1%
R617 036-10000-00 RES M/F 0805 ZERO OHM
R619 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R621 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R625 036-14100-10 RES M/F 0805 1K 1%
R629 036-03270-10 RES 270 OHM 1 WATT 2512 CHIP
R633 036-14680-10 RES M/F 0805 6K8 1%
R636 036-12220-00 RES M/F 0805 22E 5%
R637 036-12220-00 RES M/F 0805 22E 5%
R640 036-12100-00 RES M/F 0805 10E 5%
R641 036-14150-10 RES M/F 0805 1K5 1%
R645 036-13470-00 RES M/F 0805 470E 5%
R649 036-14470-10 RES M/F 0805 4K7 1%
R653 036-15100-10 RES M/F 0805 10K 1%
R681 036-13100-10 RES M/F 0805 100E 1%
R685 036-15150-00 RES M/F 0805 15K 5%
R689 036-12100-00 RES M/F 0805 10E 5%
R693 036-16100-00 RES M/F 0805 100K 5%
R696 036-15560-10 RES MF 0805 56K 1%
R701 036-12220-00 RES M/F 0805 22E 5%
R702 036-17100-10 RES M/F 0805 1M 1%
R703 036-17100-10 RES M/F 0805 1M 1%
R706 036-15150-00 RES M/F 0805 15K 5%
![](/img.php?id=111477&img=bg46.png)
IPN 220-01446-03
B6.2.8 T825 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
R707 036-15470-10 RES M/F 0805 47K 1%
R708 036-13100-10 RES M/F 0805 100E 1%
R709 036-13100-10 RES M/F 0805 100E 1%
R710 036-13100-10 RES M/F 0805 100E 1%
R711 036-13100-10 RES M/F 0805 100E 1%
R712 036-12100-00 RES M/F 0805 10E 5%
R713 036-16470-00 RES M/F 0805 470K 5%
R730 036-13470-00 RES M/F 0805 470E 5%
R731 036-13470-00 RES M/F 0805 470E 5%
R732 036-13470-00 RES M/F 0805 470E 5%
R742 036-13150-10 RES M/F 0805 150E 1%
R743 036-13150-10 RES M/F 0805 150E 1%
R744 036-12220-00 RES M/F 0805 22E 5%
R746 036-12220-00 RES M/F 0805 22E 5%
R747 036-12220-00 RES M/F 0805 22E 5%
R748 036-15470-10 RES M/F 0805 47K 1%
R749 036-15470-10 RES M/F 0805 47K 1%
R750 036-12220-00 RES M/F 0805 22E 5%
R752 036-12220-00 RES M/F 0805 22E 5%
R753 036-17100-10 RES M/F 0805 1M 1%
R754 036-14100-10 RES M/F 0805 1K 1%
R756 036-16470-00 RES M/F 0805 470K 5%
R757 036-16470-00 RES M/F 0805 470K 5%
R758 036-14120-00 RES M/F 0805 1K2 5%
R759 036-13330-00 RES M/F 0805 330E 5%
R760 036-13180-00 RES M/F 0805 180E 5%
R762 036-13100-10 RES M/F 0805 100E 1%
R763 036-13100-10 RES M/F 0805 100E 1%
R765 036-13680-00 RES M/F 0805 680E 5%
R766 036-14100-10 RES M/F 0805 1K 1%
R767 036-13680-00 RES M/F 0805 680E 5%
R769 036-13180-00 RES M/F 0805 180E 5%
R771 036-14820-10 RES M/F 0805 8K2 1%
R772 036-15220-00 RES M/F 0805 22K 5%
R774 036-14820-10 RES M/F 0805 8K2 1%
R775 036-14270-00 RES M/F 0805 2K7 5%
R784 036-12680-00 RES M/F 0805 68E 5%
R785 036-14330-10 RES M/F 0805 3K3 1%
R786 036-12100-00 RES M/F 0805 10E 5%
R787 036-12100-00 RES M/F 0805 10E 5%
R790 036-13220-10 RES 0805 220E 1%
R793 036-13100-10 RES M/F 0805 100E 1%
R794 036-14100-10 RES M/F 0805 1K 1%
R804 036-15470-10 RES M/F 0805 47K 1%
R805 036-13470-00 RES M/F 0805 470E 5%
R808 036-12100-00 RES M/F 0805 10E 5%
R809 036-14470-10 RES M/F 0805 4K7 1%
R810 036-14470-10 RES M/F 0805 4K7 1%
R811 036-14470-10 RES M/F 0805 4K7 1%
R812 036-14470-10 RES M/F 0805 4K7 1%
R813 036-14470-10 RES M/F 0805 4K7 1%
R815 036-15470-10 RES M/F 0805 47K 1%
R816 036-16150-00 RES M/F 0805 150K 5%
R818 036-14470-10 RES M/F 0805 4K7 1%
R819 036-14470-10 RES M/F 0805 4K7 1%
R820 036-15470-10 RES M/F 0805 47K 1%
R821 036-15470-10 RES M/F 0805 47K 1%
R822 036-15470-10 RES M/F 0805 47K 1%
R823 036-15470-10 RES M/F 0805 47K 1%
R824 036-14220-00 RES M/F 0805 2K2 5%
R825 036-14220-00 RES M/F 0805 2K2 5%
R826 036-14220-00 RES M/F 0805 2K2 5%
R827 036-14220-00 RES M/F 0805 2K2 5%
R828 036-14220-00 RES M/F 0805 2K2 5%
R829 036-14220-00 RES M/F 0805 2K2 5%
R830 036-14220-00 RES M/F 0805 2K2 5%
R831 036-14220-00 RES M/F 0805 2K2 5%
R832 036-14220-00 RES M/F 0805 2K2 5%
R833 036-14220-00 RES M/F 0805 2K2 5%
R835 036-14220-00 RES M/F 0805 2K2 5%
R836 036-14220-00 RES M/F 0805 2K2 5%
R837 036-14220-00 RES M/F 0805 2K2 5%
R838 036-14470-10 RES M/F 0805 4K7 1%
R839 036-14470-10 RES M/F 0805 4K7 1%
R840 036-14220-00 RES M/F 0805 2K2 5%
R841 036-14220-00 RES M/F 0805 2K2 5%
R842 036-14220-00 RES M/F 0805 2K2 5%
R843 036-14220-00 RES M/F 0805 2K2 5%
R844 036-15470-10 RES M/F 0805 47K 1%
R845 036-16150-00 RES M/F 0805 150K 5%
R846 036-14470-10 RES M/F 0805 4K7 1%
R847 036-14470-10 RES M/F 0805 4K7 1%
R848 036-13470-00 RES M/F 0805 470E 5%
R852 036-14470-10 RES M/F 0805 4K7 1%
R853 036-13470-00 RES M/F 0805 470E 5%
R854 036-16330-00 RES M/F 0805 330K 5%
R855 036-15470-10 RES M/F 0805 47K 1%
R856 036-16150-00 RES M/F 0805 150K 5%
R857 036-16150-00 RES M/F 0805 150K 5%
R858 036-15270-10 RES M/F 0805 27K 1%
R859 036-17120-10 RES M/F 0805 1M2 1%
R860 036-16820-10 RES M/F 0805 820K 1%
R861 036-14510-10 RES M/F 0805 5K1 1%
R863 036-14470-10 RES M/F 0805 4K7 1%
R865 036-14270-00 RES M/F 0805 2K7 5%
R866 036-16820-10 RES M/F 0805 820K 1%
R867 036-16820-10 RES M/F 0805 820K 1%
R868 036-14470-10 RES M/F 0805 4K7 1%
R869 036-15270-10 RES M/F 0805 27K 1%
R870 036-17120-10 RES M/F 0805 1M2 1%
R871 036-16820-10 RES M/F 0805 820K 1%
R872 036-14510-10 RES M/F 0805 5K1 1%
R873 036-14220-00 RES M/F 0805 2K2 5%
R875 036-14470-10 RES M/F 0805 4K7 1%
R876 036-16100-00 RES M/F 0805 100K 5%
R877 036-16100-00 RES M/F 0805 100K 5%
R878 036-16100-00 RES M/F 0805 100K 5%
R879 036-16100-00 RES M/F 0805 100K 5%
R881 036-15470-10 RES M/F 0805 47K 1%
R882 036-15470-10 RES M/F 0805 47K 1%
R884 036-16150-00 RES M/F 0805 150K 5%
R885 036-16150-00 RES M/F 0805 150K 5%
R886 036-15100-10 RES M/F 0805 10K 1%
R887 036-14100-10 RES M/F 0805 1K 1%
R888 036-14820-10 RES M/F 0805 8K2 1%
R889 036-16100-00 RES M/F 0805 100K 5%
R890 036-16150-00 RES M/F 0805 150K 5%
R891 036-16100-00 RES M/F 0805 100K 5%
R892 036-16330-00 RES M/F 0805 330K 5%
R894 036-14470-10 RES M/F 0805 4K7 1%
R895 036-15100-10 RES M/F 0805 10K 1%
R897 036-15100-10 RES M/F 0805 10K 1%
R898 036-16470-00 RES M/F 0805 470K 5%
R900 036-15100-10 RES M/F 0805 10K 1%
SW201 230-00010-30 SWITCH TOG SPDT R-ANG PCB MTG
SHLD610 062-00010-13 CAN 10MM SQ X 11MM CAN A4M1017
SK805 240-10000-07 CONN SMD SKT 16W 2R M-MATCH
SK810 240-04020-42 SKT 44 PIN SMD PLCC
T210 053-00010-17 XFMR T4030 LINE MATCH POTCORE
T610 050-15119-52 COIL SMD 680uH XFMR 5119-T052
&XF300 10 276-00010-36 FLTR XTAL 10.7M 15KHZ PR 4POLE
&XF300 15 276-00010-37 FLTR XTL 10.7M 7.5KHZ PR 4POLE
&XF301 10 276-00010-36 FLTR XTAL 10.7M 15KHZ PR 4POLE
&XF301 15 276-00010-37 FLTR XTL 10.7M 7.5KHZ PR 4POLE
&XF302 10 276-00010-20 FLTR XTAL 10.7M 15KHZ 2 POLE
&XF302 15 276-00010-19 FLTR XTAL 10.7M 7.5KHZ 2 POLE
X330 274-00010-10 XTAL 10.245MHZ SPEC TE/4
&XF304 10 276-10010-14 FLTR CER SMD 455KHz E15KHz B/W
&XF304 15 276-10010-13 FLTR CER SMD 455KHz G 9KHz B/W
![](/img.php?id=111477&img=bg47.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.9
Copyright TEL 01/04/00
IPN Legend Description IPN Legend Description
T825 Mechanical & Miscellaneous Parts (220-01446-03)
002-08951-20 S) IC AT89C51 PLCC44 MIC 12MHZ
220-01446-03 PCB T825 RX SII
230-00010-31 SWITCH COVER FOR 230-00010-30
240-02100-06 SKT COAX N TYPE PNL MTG OP-TER
240-04020-62 SKT 2 W RECEP SHORTING LINK
240-04021-77 SKT JACK 1.3 PCB MT 64W
303-11169-04 CHASSIS PAINTED T800 SER II
303-23118-00 COVER A3M2247 D RANGE T855/7
303-50074-00 CLIP A3M2246 SPRING CLAMP T857
308-01007-01 HANDLE BS SII 2 WASHERS INC
311-01015-00 KNOB 15MM & SKIRT 6MM SFT
312-01052-02 LID TOP T800 SER II PTND
312-01053-02 LID BOTTOM T800 SER II PNTD
316-06622-00 PNL FRT RX T800 SERIES II
349-00020-36 SCREW TT M3X8m PANTORX BLK
349-00020-36 SCREW TT M3X8m PANTORX BLK
349-00020-43 SCRW T/T M4X12MM P/POZ BZ
349-00020-45 SCRW T/T M4X20MM P/POZ BZ
349-00020-55 SCRW M3*8 P/P T/T BLCKZNC CHRM
352-00010-08 NUT M3 COLD FORM HEX ST BZ
352-00010-29 NUT M4 NYLOC HEX
353-00010-13 WSHR M3 S/PROOF INT BZ
353-00010-24 WSHR M4x8mm Flat
356-00010-03 TAG SOLDER 3MM LONG M614/3.2
362-00010-33 GROMMET LED MTG 3MM
399-00010-51 BAG PLASTIC 75*100MM
![](/img.php?id=111477&img=bg48.png)
B6.2.10 T825 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg49.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.11
Copyright TEL 01/04/00
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
T825 Grid Reference Index (IPN 220-01446-03)
How To Use This Grid Reference Index
The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-
ters give the location of the component on that diagram.
The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on
that sheet.
C201 1:B5 2-B9
C203 1:C5 2-B8
C205 1:D5 2-B8
C207 1:C5 2-C8
C209 1:C6 2-D8
C210 1:C5 2-P0
C211 1:C4 2-D7
C212 1:C5 2-E8
C213 1:C5 2-E7
C215 1:C4 2-E7
C217 1:C4 2-E7
C219 1:C5 2-H6
C221 1:C5 2-H6
C222 1:B5 2-J9
C223 1:B5 2-H8
C225 1:B5 2-J8
C227 1:B5 2-J8
C229 1:B6 2-K8
C231 1:B6 2-K8
C233 1:B5 2-J7
C235 1:B6 2-M6
C237 1:B6 2-N5
C238 1:B6 2-N7
C239 1:C6 2-P6
C240A 1:D5 2-P8
C240B 1:D5 2-P8
C240C 1:D6 2-Q8
C249 1:D6 2-Q7
C251 1:C6 2-Q7
C253 1:D4 2-G4
C255 1:C7 2-L2
C257 1:C7 2-M2
C259 1:C7 2-M3
C260A 1:D7 2-N4
C260B 1:D7 2-M4
C260C 1:D8 2-M4
C261 1:C7 2-N2
C262 1:D7 2-P3
C264 1:C7 2-P3
C266 1:D2 2-R3
C268 1:D3 2-R3
C270 1:C8 2-E3
C272 1:C8 2-E1
C273 1:C9 2-E0
C274 1:C8 2-E1
C276 1:D8 2-B0
C278 1:D8 2-C0
C280 1:D9 2-E0
C286 1:B8 2-F2
C300 1:E9 3-B7
C301 1:F9 3-B6
C302 1:F8 3-C7
C303 1:E8 3-C8
C304 1:F9 3-C6
C305 1:E8 3-D8
C306 1:F8 3-D7
C307 1:F8 3-E7
C308 1:F8 3-F7
&C309 1:E7 3-F7
&C310 1:F7 3-G7
&C311 1:E7 3-H7
C312 1:F7 3-J7
C313 1:F6 3-J7
C314 1:E6 3-K8
C315 1:E6 3-K8
C316 1:E6 3-K7
C317 1:E6 3-L8
&C318 1:E5 3-M7
&C319 1:F5 3-N7
C320 1:F8 3-C7
C321 1:F8 3-C8
&C325 1:E5 3-P7
&C326 1:F5 3-Q7
C327 1:E5 3-Q8
C329 1:F4 3-D3
C330 1:E4 3-C3
C331 1:E4 3-C3
C332 1:E4 3-C3
C333 1:F4 3-E4
C334 1:F3 3-E4
C335 1:E3 3-G0
C336 1:E4 3-F4
C337 1:F4 3-F4
C338 1:E3 3-E1
C339 1:F4 3-F4
C340 1:E3 3-E2
C341 1:E3 3-G1
C342 1:F4 3-G3
C343 1:F3 3-H3
C344 1:E3 3-H3
C345 1:F3 3-J4
C348 1:D5 3-J2
C349 1:F3 3-K3
C350 1:F3 3-L4
C351 1:F3 3-L3
C352 1:E3 3-H4
C353 1:E3 3-J5
C354 1:E3 3-J4
C355 1:F3 3-L4
C357 1:F3 3-M4
C358 1:F3 3-N4
C359 1:E3 3-L0
C360 1:E4 3-N0
C361 1:E5 3-N4
C362 1:F6 3-P0
C363 1:E6 3-P4
C364 1:F5 3-P0
C365 1:F5 3-Q0
C366 1:F5 3-R0
C367 1:E3 3-M0
C400 1:G8 4-P3
C401 1:G8 4-P3
C402 1:H9 4-L3
C403 1:H9 4-L3
C404 1:H8 4-L4
C405 1:G8 4-Q3
C408 1:H8 4-L3
C409 1:H8 4-K3
C410 1:H8 4-K3
C411 1:J8 4-K3
C412 1:J9 4-K3
C416 1:J9 4-J3
C417 1:J8 4-J4
C418 1:J8 4-J3
C419 1:J8 4-J3
C420 1:J7 4-G5
C424 1:J8 4-G4
C425 1:K8 4-G3
C426 1:J8 4-G4
C427 1:J7 4-F4
C428 1:K7 4-F3
C432 1:K7 4-F3
C433 1:L9 4-E3
C434 1:M9 4-E3
C435 1:M8 4-E4
C436 1:M8 4-E3
C440 1:M8 4-D3
C441 1:M8 4-D3
C442 1:M8 4-D3
C443 1:M9 4-D3
C444 1:N9 4-C3
C448 1:N8 4-C4
C449 1:N8 4-C3
C450 1:N8 4-C3
C505 1:K6 5-H7
C515 1:H5 5-D5
C530 1:K5 5-G3
C535 1:K5 5-H3
C610A 1:M5 6-B6
C610B 1:M5 6-B6
C611A 1:M5 6-D6
C611B 1:M4 6-D6
C623 1:N6 6-N8
C625 1:M6 6-Q8
C626 1:M6 6-R8
C628 1:M6 6-R8
C630 1:N5 6-K4
C631A 1:M5 6-M6
C631B 1:N4 6-M6
C637 1:M6 6-P5
C640 1:M5 6-G0
C650 1:N5 6-L4
C651 1:M5 6-M4
C658 1:L5 6-K1
C660 1:L5 6-K1
C665 1:L5 6-L1
C670 1:L5 6-L1
C673 1:L5 6-N2
C677 1:L6 6-P1
C681 1:L6 6-Q2
C684 1:L6 6-Q2
C687 1:M6 6-P1
C690 1:L6 6-Q1
C693 1:L6 6-Q1
C700 1:J4 7-A8
C702 1:J4 7-B8
C703 1:J3 7-B8
C705 1:J3 7-C7
C707 1:J3 7-B5
C708 1:J3 7-C5
C709 1:H3 7-C5
C710A 1:H3 7-P7
C710B 1:J4 7-Q7
C710C 1:J3 7-P7
C711 1:J2 7-E7
C712 1:H2 7-E7
C713 1:H2 7-E7
C735 1:J2 7-A1
C736 1:J2 7-B1
C740A 1:H2 7-B4
C740B 1:H2 7-B3
C741A 1:H2 7-C4
C741B 1:G2 7-C3
C742A 1:H2 7-D4
C742B 1:H3 7-D3
C743 1:H2 7-B1
C745 1:G3 7-D1
C750 1:H4 7-R7
C757 1:G4 7-G5
C759 1:G4 7-G4
C761 1:H3 7-J4
C762 1:G3 7-K4
C764 1:H3 7-J2
C765 1:G3 7-J2
C767 1:H3 7-K3
C769 1:H3 7-M4
C770 1:H4 7-M4
C772 1:G3 7-M2
C774 1:H4 7-N2
C776 1:H4 7-M1
C782 1:G3 7-N0
C784 1:G3 7-Q1
C786 1:G3 7-Q1
C788 1:G3 7-P0
C790 1:G4 7-Q0
C792 1:G4 7-Q0
C793 1:G3 7-Q1
C810 1:L4 8-J8
C812 1:K2 8-F4
C813 1:J3 8-J5
C814 1:L2 8-F6
C815 1:N3 8-B1
C816 1:N3 8-B2
C818 1:N3 8-C1
C819 1:N3 8-C2
C820 1:N4 8-D1
C822 1:N3 8-C2
C824 1:N3 8-C2
C826 1:N3 8-D0
C828 1:N3 8-D0
C830 1:M4 8-K0
C832 1:M3 8-E2
C833 1:M4 8-E1
C834 1:M3 8-F2
C836 1:M3 8-E0
C837 1:M3 8-F0
![](/img.php?id=111477&img=bg4a.png)
IPN 220-01446-03
B6.2.12 T825 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
C838 1:N4 8-F0
C840 1:M2 8-K1
C842 1:N2 8-L0
C844 1:N3 8-L0
C846 1:N2 8-M0
C848 1:N2 8-M0
C850 1:M2 8-N0
C873 1:M3 8-P2
C876 1:M4 8-P2
C879 1:M4 8-Q0
C900 1:P8 9-E4
C901 1:P7 9-E4
C902 1:P7 9-F4
C903 1:P6 9-G4
CTP410 2:K7 4-E3
CTP420 1:K8 4-H3
CTP430 1:H8 4-M3
CTP440 2:G8 4-Q3
CTP900 2:P8 9-D4
CV300 1:F7 3-G7
%D111 1:P5 1-R1
%D111A 1:P5 1-Q1
D220 1:C4 2-F4
D220 1:C4 2-F4
D230 1:C6 2-J5
D230 1:C6 2-J5
D240 1:C8 2-E2
D240 1:C8 2-E2
D250 1:B7 2-H0
D260 1:B7 2-H0
D270 1:B7 2-J1
D270 1:B7 2-H1
D280 1:B7 2-K1
D285 1:D2 2-L1
D289 1:B2 2-L0
D290 1:B2 2-L0
D295 1:B2 2-L0
D330 1:F3 3-M4
D330 1:F3 3-M4
D400 1:J7 4-F4
D400 1:J7 4-F5
D610 1:N6 6-L6
D610 1:N6 6-M6
D640 1:L5 6-M2
D640 1:L5 6-M1
D645 1:M5 6-H0
D730 1:H3 7-H1
D740 1:H3 7-K2
D820 1:J3 8-B7
D860 1:M2 8-P0
D860 1:M2 8-P0
D880 1:M2 8-R2
D880 1:M2 8-R2
IC210 1:C5 2-F7
IC210 1:C5 2-G7
IC210 1:C5 2-N0
IC240 1:C6 2-P7
IC260 1:C7 2-N3
IC270 1:C8 2-B2
IC270 1:C8 2-E3
IC270 1:C8 2-F2
IC280 1:D8 2-E0
IC280 1:D8 2-B0
IC280 1:D8 2-C0
IC330 1:E4 3-P0
IC330 1:E4 3-E3
IC330 1:E4 3-N0
IC330 1:E4 3-B3
IC332 1:E3 3-N0
IC332 1:E3 3-H1
IC332 1:E3 3-F2
IC333 1:E4 3-G1
IC333 1:E4 3-M0
IC333 1:E4 3-H0
IC339 1:F5 3-P0
IC340 1:F3 3-L4
IC340 1:F3 3-L0
IC340 1:F3 3-K4
IC340 1:F3 3-H3
IC340 1:F3 3-K0
IC410 1:G8 4-N3
IC610 1:M5 6-C6
IC630 1:N5 6-K5
IC640 1:M5 6-N5
IC640 1:M5 6-J0
IC640 1:M5 6-G0
IC650 1:L5 6-C2
=IC700 1:J3 7-A8
IC710 1:H3 7-D7
IC710 1:H3 7-P7
IC710 1:H3 7-C6
IC710 1:H3 7-D6
IC710 1:H3 7-D6
IC710 1:H3 7-C6
IC710 1:H3 7-J0
IC740 1:H2 7-D1
IC750 1:H4 7-M3
IC750 1:H4 7-Q7
IC750 1:H4 7-H5
IC820 1:L4 8-N4
IC830 1:N4 8-G0
IC830 1:N4 8-D2
IC830 1:N4 8-D0
IC830 1:N4 8-F2
IC830 1:N4 8-K0
IC840 1:M2 8-L0
IC850 1:M3 8-P0
IC850 1:M3 8-Q2
IC850 1:M3 8-M2
IC850 1:M3 8-M2
IC850 1:M3 8-M0
L230 1:D2 2-L2
L300 1:F9 3-C7
L301 1:E8 3-D8
L302 1:E8 3-E7
&L303 1:E8 3-E7
&L304 1:E7 3-F7
&L305 1:E7 3-H7
&L306 1:F7 3-J7
&L307 1:E6 3-M8
&L308 1:E5 3-M8
&L309 1:E5 3-P8
&L310 1:E5 3-P8
&L325 1:E5 3-N7
L330 1:F4 3-F4
L400 1:G8 4-P3
L401 1:G8 4-P3
L402 1:H8 4-L3
L403 1:J8 4-J3
L404 1:J8 4-G4
L405 1:J7 4-G5
L406 1:G9 4-Q3
L408 1:K7 4-F3
L409 1:L8 4-E3
L410 1:M8 4-C3
L750 1:G3 7-Q0
L900 1:P7 9-E5
L901 1:P7 9-F5
L902 1:P7 9-G5
LINK1 1:B3 2-Q3
LINK2 1:A4 2-Q2
P100 1:Q6 1-R8
P160 1:P2 1-Q4
P170 1:P2 1-R4
P201 1:C8 2-A9
P204 1:D4 2-A9
P207 1:C5 2-A8
P210 1:D5 2-C7
P213 1:D3 2-P0
P216 1:D4 2-P0
P219 1:D3 2-P0
P222 1:B9 2-P0
P225 1:C4 2-F4
P228 1:C4 2-F3
P231 1:C9 2-G3
P234 1:C4 2-G3
P236 1:C8 2-A1
P238 1:D8 2-A1
P240 1:C7 2-G1
P242 1:C4 2-G1
P244 1:C4 2-G8
P246 1:B5 2-H9
P248 1:A5 2-H9
P249 1:A5 2-K9
P250 1:B2 2-K9
P252 1:B2 2-K9
P254 1:B2 2-K9
P256 1:B2 2-L8
P258 1:D3 2-P8
P260 1:D3 2-P7
P263 1:C2 2-R1
P266 1:C2 2-Q1
P268 1:C2 2-R1
P270 1:C1 2-R0
P280 1:C2 2-Q0
P282 1:C2 2-R0
P284 1:B4 2-P4
P287 1:B2 2-M0
P300 1:F5 3-Q7
P810 1:K2 8-A5
P815 1:L4 8-C4
P820 1:K4 8-L8
P825 1:K4 8-L8
P830 1:K4 8-L8
P835 1:K4 8-L7
P840 1:K4 8-L7
PIN4 1:J4 7-B8
PL100 1:P3 1-A0
PL200 1:C6 2-R7
PL210 1:C5 2-B8
PL220 1:B5 2-H7
PL230 1:B2 2-L8
PL240 1:B6 2-K7
PL250 1:C8 2-D2
PL260 1:C4 2-H2
PL270 1:C2 2-L1
Q210 1:B5 2-J8
Q220 1:B6 2-N7
Q230 1:B6 2-N6
Q240 1:C4 2-H4
Q245 1:B6 2-J4
Q250 1:C8 2-G2
Q255 1:C7 2-H1
Q260 1:B7 2-K1
Q270 1:B8 2-L0
Q280 1:B7 2-L3
Q290 1:B7 2-M3
Q300 1:E9 3-B7
Q301 1:F9 3-C7
Q302 1:F8 3-D7
Q303 1:E6 3-K7
Q304 1:F6 3-L8
Q331 1:E3 3-G0
Q400 1:K8 4-G3
Q401 1:J7 4-F4
Q540 1:K5 5-G4
Q620 1:N6 6-P8
Q630 1:M6 6-P5
Q660 1:L5 6-N1
Q670 1:L6 6-P2
Q750 1:G4 7-G3
Q760 1:G3 7-J3
Q770 1:H3 7-J1
Q775 1:H3 7-K3
Q780 1:H3 7-K3
Q785 1:H3 7-K2
Q790 1:H3 7-L3
Q795 1:G3 7-P0
Q810 1:K2 8-B6
Q820 1:K2 8-C6
Q840 1:K2 8-F5
Q850 1:L2 8-G5
Q860 1:K4 8-B4
Q870 1:L4 8-C4
Q880 1:L2 8-Q3
Q890 1:L4 8-H2
Q895 1:M3 8-P1
R160 1:P2 1-Q4
R201 1:C5 2-B8
R202 1:C5 2-B7
R204 1:C5 2-C9
R205 1:C5 2-C8
R207 1:C5 2-D8
&R209 1:C4 2-D8
R210 1:C5 2-D8
R211 1:C5 2-E8
R213 1:C5 2-G6
R215 1:B5 2-G9
R218 1:C5 2-G8
&R219 1:C5 2-G7
R221 1:C5 2-H7
R222 1:C5 2-H7
%R223 1:A5 2-J9
R224 1:B5 2-J8
R225 1:B5 2-J8
R227 1:B5 2-J7
R229 1:B6 2-M7
R230 1:C6 2-M5
R232 1:B5 2-M7
R233 1:B6 2-N7
R234 1:B6 2-N7
R236 1:B5 2-N7
R238 1:C6 2-Q6
R239 1:C6 2-Q7
R241 1:D4 2-G4
R242 1:C4 2-G4
R244 1:C4 2-G4
R245 1:C4 2-H4
R247 1:C7 2-J5
R249 1:C6 2-J4
R251 1:B7 2-L3
R252 1:C6 2-L4
R254 1:B7 2-L3
R255 1:B7 2-L3
R256 1:C6 2-M4
R258 1:C7 2-M3
R260 1:C7 2-P2
R261 1:C7 2-P3
R262 1:B4 2-P4
%R263 1:C4 2-Q3
R264 1:B8 2-B3
R265 1:B8 2-B2
R266 1:B8 2-B2
R267 1:C8 2-C3
%R268 1:C3 2-Q2
R269 1:C8 2-B1
R271 1:D8 2-A0
R272 1:D8 2-A1
R273 1:D8 2-C1
R274 1:B3 2-P3
R275 1:D8 2-E0
R276 1:B3 2-Q3
R277 1:D8 2-D0
![](/img.php?id=111477&img=bg4b.png)
IPN 220-01446-03
M820-00 T825 PCB Information B6.2.13
Copyright TEL 01/04/00
Device PCB Circuit Device PCB Circuit Device PCB CircuitDevice PCB Circuit
R278 1:D8 2-C1
R279 1:B3 2-Q3
R280 1:C8 2-D2
R281 1:C8 2-D2
R282 1:C8 2-E2
R284 1:C8 2-F3
R285 1:B8 2-E3
R287 1:C8 2-F2
R288 1:B8 2-F2
R289 1:C4 2-G2
R290 1:C4 2-H3
R292 1:C7 2-G1
R293 1:B7 2-H1
R294 1:B8 2-H0
R295 1:B6 2-J1
R296 1:B7 2-K1
R297 1:B2 2-M0
R298 1:B7 2-K1
R299 1:B7 2-K1
R300 1:E9 3-B7
R301 1:F9 3-C6
R302 1:F8 3-D7
R303 1:E8 3-D8
R304 1:F8 3-D8
R307 1:E6 3-K7
R308 1:F6 3-K8
R309 1:E6 3-K8
R310 1:E6 3-K7
R311 1:F6 3-K8
R312 1:E6 3-L9
R313 1:E6 3-L8
R314 1:E6 3-L7
R315 1:E6 3-L7
R317 1:F5 3-Q7
R318 1:F5 3-Q7
R319 1:F6 3-L8
R320 1:F6 3-L7
R321 1:F6 3-L7
&R323 1:E5 3-P8
&R324 1:E5 3-P8
R329 1:E4 3-D3
R330 1:E4 3-D3
R333 1:F3 3-E5
R336 1:F4 3-E4
R337 1:E3 3-G0
R338 1:E3 3-G0
R339 1:F4 3-F4
R340 1:E3 3-E2
R341 1:E3 3-F3
R342 1:E3 3-F3
R343 1:E3 3-G3
R344 1:D4 3-H1
&R346 1:F4 3-G5
R347 1:E3 3-H1
R348 1:F4 3-G3
R349 1:F4 3-H3
R350 1:E3 3-D2
R351 1:E3 3-E1
R352 1:E3 3-E1
R353 1:E3 3-E1
R354 1:E3 3-F2
R355 1:E3 3-D2
R356 1:E3 3-D2
R357 1:E4 3-G1
R358 1:E3 3-E2
R359 1:E3 3-E2
R360 1:E3 3-H1
R361 1:F3 3-H3
R362 1:E3 3-H1
R363 1:F3 3-J4
%R364 1:E4 3-J2
R365 1:E5 3-J2
R368 1:E3 3-J1
R369 1:E3 3-J1
R370 1:F3 3-K3
R371 1:F3 3-K4
R372 1:F3 3-L3
R373 1:F3 3-L3
R374 1:E3 3-H5
R375 1:E3 3-H4
R376 1:E3 3-J5
R377 1:E3 3-K4
R378 1:F3 3-L4
R382 1:F3 3-N4
R383 1:F3 3-N4
R384 1:E5 3-P4
R400 1:G7 4-Q4
R401 1:G7 4-P5
R402 1:H7 4-P4
R403 1:G8 4-P3
R404 1:G8 4-P3
R408 1:H9 4-M3
R409 1:G9 4-M3
R410 1:H9 4-M3
R411 1:J8 4-H3
R412 1:K8 4-H3
R416 1:K9 4-H3
R417 1:J8 4-G4
R418 1:J7 4-G5
R419 1:K8 4-G3
R420 1:K8 4-G3
R424 1:J7 4-G3
R425 1:J7 4-F4
R426 1:J8 4-F5
R427 1:J7 4-F4
R510 1:K6 5-H7
R515 1:H6 5-E5
R555 1:K5 5-G3
R615 1:M5 6-B6
R617 1:M5 6-D5
R619 1:N6 6-L8
R621 1:N6 6-L8
R625 1:N6 6-L7
R629 1:M6 6-P6
R633 1:M5 6-Q8
R636 1:M5 6-K6
R637 1:N5 6-K5
R640 1:M5 6-G0
R641 1:N5 6-L4
R645 1:N5 6-L5
R649 1:M5 6-M5
R653 1:M5 6-Q4
R681 1:L5 6-L2
R685 1:L5 6-N2
R689 1:L6 6-Q3
R693 1:L5 6-P1
R696 1:L6 6-P1
R701 1:J4 7-A9
R702 1:J4 7-B9
R703 1:J4 7-B8
R706 1:J3 7-C6
R707 1:J3 7-C7
R708 1:J2 7-D7
R709 1:H2 7-E7
R710 1:J3 7-B6
R711 1:H3 7-C6
R712 1:J4 7-P8
R713 1:J3 7-C6
R730 1:J2 7-A2
R731 1:J2 7-A2
R732 1:J2 7-A2
R742 1:H2 7-C4
R743 1:H2 7-C4
R744 1:G2 7-D4
R746 1:H3 7-D4
R747 1:H3 7-D4
R748 1:J2 7-A1
R749 1:J2 7-B1
R750 1:H4 7-Q8
R752 1:G4 7-F5
R753 1:G4 7-F3
R754 1:G3 7-F3
R756 1:G3 7-G5
R757 1:G4 7-H4
R758 1:H3 7-J4
R759 1:H3 7-J4
R760 1:H3 7-K4
R762 1:H3 7-K4
R763 1:H3 7-L4
R765 1:H3 7-J2
R766 1:G3 7-J3
R767 1:H3 7-K2
R769 1:H3 7-K3
R771 1:H4 7-L3
R772 1:G4 7-L2
R774 1:H3 7-L2
R775 1:H4 7-M2
R784 1:G3 7-P1
R785 1:G3 7-P1
R786 1:G3 7-Q2
R787 1:G2 7-Q2
R790 1:G3 7-P0
R793 1:G3 7-P1
R794 1:G3 7-Q1
R804 1:J3 8-B7
R805 1:J3 8-B7
R808 1:K2 8-B6
R809 1:K2 8-B6
R810 1:L2 8-C6
R811 1:L2 8-C6
R812 1:K2 8-C6
R813 1:K2 8-C5
R815 1:K2 8-F4
R816 1:K2 8-F4
R818 1:K2 8-G5
R819 1:L2 8-G5
R820 1:K4 8-B4
R821 1:L4 8-C4
R822 1:L4 8-C4
R823 1:L4 8-C4
R824 1:K4 8-K8
R825 1:K4 8-K8
R826 1:K4 8-K8
R827 1:K4 8-K7
R828 1:K4 8-K7
R829 1:K4 8-P9
R830 1:K3 8-P9
R831 1:K3 8-P9
R832 1:K3 8-P8
R833 1:K3 8-P8
R835 1:K3 8-P8
R836 1:K3 8-P8
R837 1:K3 8-P7
R838 1:L4 8-L6
R839 1:L4 8-L6
R840 1:K3 8-P7
R841 1:K3 8-P7
R842 1:K3 8-P6
R843 1:K3 8-P6
R844 1:L2 8-R3
R845 1:L2 8-R3
R846 1:L4 8-L6
R847 1:L4 8-M6
R848 1:L4 8-R5
R852 1:L2 8-G6
R853 1:L2 8-F6
R854 1:N3 8-C2
R855 1:N3 8-C2
R856 1:N3 8-C2
R857 1:N4 8-D2
R858 1:N3 8-C1
R859 1:N3 8-D0
R860 1:N3 8-D1
R861 1:M3 8-D0
R863 1:N3 8-E2
R865 1:M3 8-E2
R866 1:M3 8-F2
R867 1:M3 8-F1
R868 1:N4 8-E0
R869 1:M3 8-F0
R870 1:M3 8-F0
R871 1:N3 8-F0
R872 1:N4 8-F0
R873 1:N4 8-G0
R875 1:M4 8-F2
R876 1:M3 8-K1
R877 1:M2 8-K1
R878 1:M2 8-K0
R879 1:M2 8-K0
R881 1:L4 8-H2
R882 1:M4 8-H2
R884 1:M3 8-P3
R885 1:M3 8-P2
R886 1:M3 8-Q3
R887 1:M3 8-P3
R888 1:M3 8-P2
R889 1:M3 8-N1
R890 1:M3 8-P1
R891 1:M2 8-P0
R892 1:M2 8-P0
R894 1:M2 8-Q0
R895 1:M2 8-Q1
R897 1:M2 8-Q2
R898 1:M2 8-Q2
R900 1:P6 9-G4
RL210 1:C2 2-R0
RL210 1:C2 2-L1
RL210 1:C2 2-R1
RV205 1:B5 2-M7
RV210 1:B7 2-K3
RV220 1:D4 2-G4
RV230 1:B8 2-B2
RV235 1:D9 2-D0
RV330 1:E3 3-E1
RV331 1:F3 3-K3
SHLD610 1:L6 6-J3
SK501 1:G6 5-C6
SK502 1:G6 5-C6
SK503 1:G6 5-C5
SK504 1:G5 5-C4
SK505 1:G5 5-C4
SK513 1:H5 5-D4
SK522 1:H6 5-F6
SK531 1:K6 5-J6
SK532 1:K5 5-J6
SK533 1:K5 5-J5
SK534 1:K5 5-J4
SK535 1:K5 5-J4
SK805 1:K3 8-Q9
SK805 1:K3 8-Q9
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK805 1:K3 8-Q8
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q7
SK805 1:K3 8-Q5
SK805 1:K3 8-Q7
SK805 1:K3 8-Q6
SK805 1:K3 8-Q9
SK805 1:K3 8-Q6
SK810 1:L3 8-H5
SL210 1:C8 2-E1
SL220 1:C8 2-E1
#SL400 1:N8 4-C3
#SL401 1:M8 4-D3
![](/img.php?id=111477&img=bg4c.png)
IPN 220-01446-03
B6.2.14 T825 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
#SL402 1:M8 4-E3
#SL403 1:J8 4-J4
#SL404 1:H8 4-K3
#SL405 1:H8 4-L4
SW201 1:B4 2-L6
T210 1:C3 2-Q3
T610 1:L6 6-N2
TP202 1:C8 2-D9
TP211 1:D3 2-P8
TP300 1:E8 3-E7
TP301 1:F6 3-J7
TP302 1:F6 3-M8
TP305 1:E6 3-P4
TP601 1:N5 6-K9
TP602 1:L5 6-R9
TP603 1:L5 6-J2
TP604 1:L4 6-N6
TP607 1:M4 6-E6
TP710 1:G4 7-J5
&XF300 1:F7 3-G7
&XF301 1:F7 3-H7
&XF302 1:E5 3-N8
X330 1:E4 3-C3
&XF304 1:F4 3-E3
![](/img.php?id=111477&img=bg4d.png)
M820-00 CI
Copyright TEL 01/07/00
Part C T826 Transmitter & T827 Exciter
This part of the manual is divided into six sections, as listed below. There is a detailed
table of contents at the start of each section.
Section Title
1 General Information
2 Circuit Operation
3 Initial Tuning & Adjustment
4 Functional Testing (not available for Tuning & Adjustment manual)
5 Fault Finding (not available for Tuning & Adjustment manual)
6 PCB Information
![](/img.php?id=111477&img=bg4e.png)
CII M820-00
01/07/00 Copyright TEL
![](/img.php?id=111477&img=bg4f.png)
M820-00 T826/827 General Information C1.1
Copyright TEL 01/04/00
1 T826/827 General Information
This section provides a brief description of the T826 transmitter and T827 exciter, along
with detailed specifications and a list of types available.
The following topics are covered in this section.
Section Title Page
1.1 Introduction 1.3
1.2
1.2.1
1.2.2
1.2.3
1.2.4
1.2.4.1
1.2.4.2
1.2.4.3
1.2.5
1.2.6
Specifications
Introduction
General
RF Section
Audio Processor
Inputs
Modulation Characteristics
CTCSS
Microcontroller
Test Sta nda rd s
1.4
1.4
1.4
1.5
1.6
1.6
1.7
1.7
1.7
1.8
1.3 Product Codes 1.9
1.4 T826 Standard Product Range 1.10
1.5 T827 Standard Product Range 1.10
![](/img.php?id=111477&img=bg50.png)
C1.2 T826/827 General Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg51.png)
M820-00 T826/827 General Information C1.3
Copyright TEL 01/04/00
1.1 Introduction
The T826 is a synthesised, microprocessor controlled FM base station transmitter
designed for single or multichannel operation in the 66 to 88MHz frequency range1 with
a standard power output of 25W. The RF section of the transmitter comprises a fre-
quency synthesiser which provides 125mW of frequency modulated RF drive to a two
stage, wide band output driver followed by a 25W power amplifier. A thermal shut-
down feature is provided in the T826 in case operating temperatures exceed acceptable
levels.
The T827 is a synthesised, microprocessor controlled FM base station exciter designed
for single or multichannel operation in the 66 to 88MHz frequency range1. With a stand-
ard power output of only 1W, the exciter is designed for use with the T828 50W power
amplifier. The RF section of the exciter comprises a frequency synthesiser which pro-
vides 125mW of frequency modulated RF drive to a two stage, wide band output ampli-
fier.
A wide selection of audio characteristics may be obtained from the audio processor.
Optional circuit blocks are an audio compressor and a pre-emphasis stage. They can be
bypassed or linked to one or both audio inputs, and then back into the remaining audio
circuitry in almost any combination. All audio processor options are link selectable.
The synthesiser frequency is programmed via the serial communications port. Eight
channel select lines are accessible via an optional D-range connector (D-range 2 -
T800-03-0000) at the rear of the set.
All components except those of the VCO are mounted on a single PCB. This is secured
to a die-cast chassis which is divided into compartments to individually shield each sec-
tion of circuitry. Access to both sides of the main circuit board is obtained by removing
each of the chassis lids. There is provision within the chassis to mount small option
PCBs.
The front panel controls include line sensitivity, microphone socket and carrier switch.
This switch turns on the carrier (unmodulated) as an aid to servicing.
The T826 and T827 are both 60mm wide and each occupies a single space in a Tait rack
frame, which has the ability to accommodate up to seven standard modules.
1. Although capable of operating over the 66-88MHz frequency range, the T826 and T827
have an 8MHz switching range (see Section 1.2.3 and Section 3.1).
![](/img.php?id=111477&img=bg52.png)
C1.4 T826/827 General Information M820-00
01/04/00 Copyright TEL
1.2 Specifications
1.2.1 Introduction
The performance figures given are minimum figures, unless otherwise indicated, for
equipment tuned with the maximum switching range and operating at standard room
temperature (+22°C to +28°C) and standard test voltage (13.8V DC).
Where applicable, the test methods used to obtain the following performance figures
are those described in the EIA and ETS specifications. However, there are several
parameters for which performance according to the CEPT specification is given. Refer
to Section 1.2.6 for details of test standards.
Details of test methods and the conditions which apply for Type Approval testing in all
countries can be obtained from Tait Electronics Ltd.
The terms "wide bandwidth" and "narrow bandwidth" used in this and following sec-
tions are defined in the following table.
1.2.2 General
Number Of Channels .. 128 (standard)1
Supply Voltage:
Operating Voltage .. 10.8 to 16V DC
Standard Test Voltage .. 13.8V DC
Polarity .. negative earth only
Polarity Protection .. crowbar diode
Line Keying Supply (if required) .. -50V DC
Supply Current:
Transmit - T826 .. 4.5A (typical)
- T827 .. 650mA
Standby .. 160mA (typical)
Operating Temperature Range .. -30°C to +60°C
Channel Spacing Modulation
100% Deviation
Receiver
IF Bandwidth
Wide Bandwidth 25kHz ±5.0kHz 15.0kHz
Narrow Bandwidth 12.5kHz ±2.5kHz 7.5kHz
1. Additional channels may be factory programmed. Contact your nearest Tait Dealer or
Customer Service Organisation.
![](/img.php?id=111477&img=bg53.png)
M820-00 T826/827 General Information C1.5
Copyright TEL 01/04/00
Dimensions:
Height .. 183mm
Width .. 60mm
Length .. 322mm
Weig h t .. 2.1 kg
Time-Out Timer (optional) .. 0 to 5 minutes1 adjustable in 10 sec-
ond steps
Tail Timer .. 0 to 5 seconds adjustable in 100ms2
steps
Transmit Key Time .. <30ms
Transmit Lockout Timer .. 0 to 1 minute adjustable in 10 second
steps
1.2.3 RF Section
Frequency Range .. 66-88MHz (refer to Section 1.4 and
Section 1.5)
Modulation Type .. FM
Frequency Increment .. 5 or 6.25kHz
Switching Range .. 8MHz (i.e. ±4MHz from the centre
frequency)
Load Impedance .. 50 ohms
Frequency Stability .. ±2.5ppm, -30°C to +60°C
(see also Section 1.4 and Section 1.5)
Adjacent Channel Power (full deviation):
Wide Bandwidth (WB) .. -70dBc
(±25kHz/15kHz B/W)
Narrow Bandwidth (NB) .. -60dBc
(±12.5kHz/7.5kHz B/W)
Transmitter Switching .. complies with ETS 300 113
Transmitter Side Band Noise:
(no modulation, 15kHz bandwidth)
At ±25kHz .. -95dBc
At ±1MHz .. -105dBc
1. Adjustable from 0 to 10 minutes in PGM800Win version 2.12 and later.
2. Adjustable in 20ms steps in PGM800Win version 2.12 and later.
![](/img.php?id=111477&img=bg54.png)
C1.6 T826/827 General Information M820-00
01/04/00 Copyright TEL
Intermodulation .. -40dBc with interfering signal of
-30dBc
.. -70dBc with 25dB isolation
& interfering signal of -30dBc
(PA with output isolator)
T826 Mismatch Capability:
Ruggedness .. refer to your nearest Tait Dealer or
Customer Service Organisation
Stability .. 3:1 VSWR (all phase angles)
Radiated Spurious Emissions:
Transmit .. -36dBm to 1GHz
-30dBm 1GHz to 4GHz
Standby .. -57dBm to 1GHz
-47dBm 1GHz to 4GHz
Conducted Spurious Emissions: (T826 Only)
Transmit .. -36dBm to 1GHz
-30dBm 1GHz to 4GHz
Standby .. -57dBm to 1GHz
-47dBm 1GHz to 4GHz
Power Output:
T826 - Rated Power .. 25W
- Range Of Adjustment .. 5-25W
T827 .. 1W ±300mW
Duty Cycle (T826 Only) .. 100% @ 25W at +25°C
.. 30% @ 25W at +60°C
.. 100% @ 10W at +60°C
1.2.4 Audio Processor
1.2.4.1 Inputs
Inputs Available .. line, microphone and CTCSS
Line Input:
Impedance .. 600 ohms (balanced)
Sensitivity (60% modulation @ 1kHz)-
With Compressor .. -50dBm
Without Compressor .. -30dBm
Microphone Input:
Impedance .. 600 ohms
Sensitivity (60% modulation @ 1kHz)-
With Compressor .. -70dBm
Without Compressor .. -50dBm
![](/img.php?id=111477&img=bg55.png)
M820-00 T826/827 General Information C1.7
Copyright TEL 01/04/00
1.2.4.2 Modulation Characteristics
Frequency Response .. flat or pre-emphasised (optional)
(below limiting)
Line And Microphone Inputs:
Pre-emphasised Response-
Bandwidth .. 300Hz to 3kHz (WB)
.. 300Hz to 2.55kHz (NB)
Below Limiting .. within +1, -3dB of a 6dB/octave
pre-emphasis characteristic
Flat Response .. within +1, -2dB of output at 1kHz
Above Limiting Response .. within +1, -2dB of a flat response
(ref. 1kHz)
Distortion .. 2% max.
Hum And Noise:
Wide Bandwidth .. -55dB (300Hz to 3kHz [EIA]) typical
Narrow Bandwidth .. -50dB (CEPT)
Compressor (optional):
Attack Time .. 10ms
Decay Time .. 800ms
Range .. 50dB
1.2.4.3 CTCSS
Standard Tones .. all 37 EIA group A, B and C tones
plus 13 commonly used tones
Frequency Error .. 0.08% max.
(from EIA tones)
Generated Tone Distortion .. 1.2% max.
Generated Tone Flatness .. flat across 67 to 250.3Hz to within 1dB
Modulation Level .. adjustable
Modulated Distortion .. <5%
1.2.5 Microcontroller
Auxiliary Ports:
Open Drain Type .. capable of sinking 2.25mA via 2k2Ω
Vds max. .. 5V
![](/img.php?id=111477&img=bg56.png)
C1.8 T826/827 General Information M820-00
01/04/00 Copyright TEL
1.2.6 Test Standards
Where applicable, this equipment is tested in accordance with the following standards.
1.2.6.1 European Telecommunication Standard
ETS 300 086 January 1991
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment with an internal or external RF connector intended pri-
marily for analogue speech.
ETS 300 113 March 1996
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment intended for the transmission of data (and speech) and
having an antenna connector.
ETS 300 219 October 1993
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment transmitting signals to initiate a specific response in the
receiver.
ETS 300 279 February 1996
Radio equipment and systems; electromagnetic compatibility (EMC) standard for pri-
vate land mobile radio (PMR) and ancillary equipment (speech and/or non-speech).
1.2.6.2 DTI CEPT Recommendation T/R-24-01
Annex I: 1988
Technical characteristics and test conditions for radio equipment in the land mobile
service intended primarily for analogue speech.
Annex II: 1988
Technical characteristics of radio equipment in the land mobile service with regard to
quality and stability of transmission.
1.2.6.3 Telecommunications Industry Association
ANSI/TIA/EIA-603-1992
Land mobile FM or PM communications equipment measurement and performance
standards.
![](/img.php?id=111477&img=bg57.png)
M820-00 T826/827 General Information C1.9
Copyright TEL 01/04/00
1.3 Product Codes
The three groups of digits in the T820 Series II product code provide information about
the model, type and options fitted, according to the conventions described below.
The following explanation of T820 Series II product codes is not intended to suggest that
any combination of features is necessarily available in any one product. Consult your
nearest Tait Dealer or Customer Service Organisation for more information regarding
the availability of specific models, types and options.
Model
The Model group indicates the basic function of the product, as follows:
T82X-XX-XXXX T825 receiver
T826 25W transmitter
T827 exciter
T828 50W power amplifier
Type
The Type group uses two digits to indicate the basic RF configuration of the product.
The first digit in the Type group designates the frequency range:
T82X-XX-XXXX ’1’ for 66-88MHz
The second digit in the Type group indicates the channel spacing:
T82X-XX-XXXX ’0’ for wide bandwidth (25kHz)
’5’ for narrow bandwidth (12.5kHz)
Options
T82X-XX-XXXX The Options group uses four digits and/or letters to indicate
any options that may be fitted to the product. This includes
standard options and special options for specific customers.
’0000’ indicates a standard Tait product with no options fitted.
The large number of options precludes listing them here.
![](/img.php?id=111477&img=bg58.png)
C1.10 T826/827 General Information M820-00
01/04/00 Copyright TEL
1.4 T826 Standard Product Range
The following table lists the range of standard T826 types (i.e. no options fitted) availa-
ble at the time this manual was published. Consult your nearest Tait Dealer or Cus-
tomer Service Organisation for more information.
You can identify the transmitter type by checking the product code printed on a label on
the rear of the chassis (Figure 1.1 in Part A shows typical labels). You can further verify
the transmitter type by checking the placement of an SMD resistor in the table that is
screen printed onto the PCB (refer to Section 6.1 for more details).
1.5 T827 Standard Product Range
The following table lists the range of standard T827 types (i.e. no options fitted) availa-
ble at the time this manual was published. Consult your nearest Tait Dealer or Cus-
tomer Service Organisation for more information.
You can identify the exciter type by checking the product code printed on a label on the
rear of the chassis (Figure 1.1 in Part A shows typical labels). You can further verify the
exciter type by checking the placement of an SMD resistor in the table that is screen
printed onto the PCB (refer to Section 6.1 for more details).
Frequency Range (MHz) 66-88
Deviation (kHz) 2.5 5
TCXOa
a. A TCXO with a stability of ±1ppm (0°C to +60°C) is
available to suit specific requirements. Contact your
nearest authorised Tait Dealer or Customer Service
Organisation for further details.
±2.5ppm -30°C to +60°C ••
Transmitter Type: T826- 15-0000 10-0000
Frequency Range (MHz) 66-88
Deviation (kHz) 2.5 5
TCXOa
a. A TCXO with a stability of ±1ppm (0°C to +60°C) is
available to suit specific requirements. Contact your
nearest authorised Tait Dealer or Customer Service
Organisation for further details.
±2.5ppm -30°C to +60°C ••
Transmitter Type: T827- 15-0000 10-0000
![](/img.php?id=111477&img=bg59.png)
M820-00 T826/827 Circuit Operation C2.1
Copyright TEL 01/04/00
2 T826/827 Circuit Operation
This section provides a basic description of the circuit operation of the T826 transmitter
and T827 exciter.
Note: Unless otherwise specified, the term "PGM800Win" used in this and follow-
ing sections refers to version 2.00 and later of the software.
Refer to Section 6 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components and test points on the
main PCB. The parts list and diagrams for the VCO PCB are in Part E.
The following topics are covered in this section.
Section Title Page
2.1 Introduction 2.3
2.2 Microcontroller 2.4
2.3
2.3.1
Synthesised Local Oscillator
Two Point Modulation
2.5
2.6
2.4
2.4.1
VCO
VCO Supply
2.7
2.7
2.5
2.5.1
2.5.2
2.5.3
2.5.4
2.5.5
Audio Processor
General
Audio Inputs
Keying Inputs
Compressor (Automatic Level Control (ALC))
Outputs To Modulators
2.8
2.8
2.8
2.9
2.9
2.9
2.6 Power Supply & Regulator Circuits 2.10
2.7 Transmit Timers 2.11
2.8 T826 Drive Amplifier & PA 2.12
2.9 T827 Exciter Drive Amplifier 2.13
![](/img.php?id=111477&img=bg5a.png)
C2.2 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
Figure Title Page
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
T826 High Level Block Diagram
T827 High Level Block Diagram
T826/827 Microcontroller Block Diagram
T826/827 Synthesiser Block Diagram
T826/827 Two Point Modulation
T826/827 Audio Processor Block Diagram
T826/827 Power Supply & Regulators Block Diagram
T826/827 Transmit Timers
2.3
2.3
2.4
2.5
2.6
2.8
2.10
2.11
![](/img.php?id=111477&img=bg5b.png)
M820-00 T826/827 Circuit Operation C2.3
Copyright TEL 01/04/00
2.1 Introduction
The individual circuit blocks which make up the T826 and T827 are:
• synthesiser
•VCO
• audio processor
•drive amplifier
• power amplifier (T826 only)
• voltage regulators.
Each of these circuit blocks is set in its own shielded compartment, formed as an inte-
gral part of the main chassis.
The configuration of the circuit blocks may be seen on a functional level in Figure 2.1
and Figure 2.2. Refer to the circuit diagrams in Section 6.2 (T826) or 6.3 (T827) for more
detail.

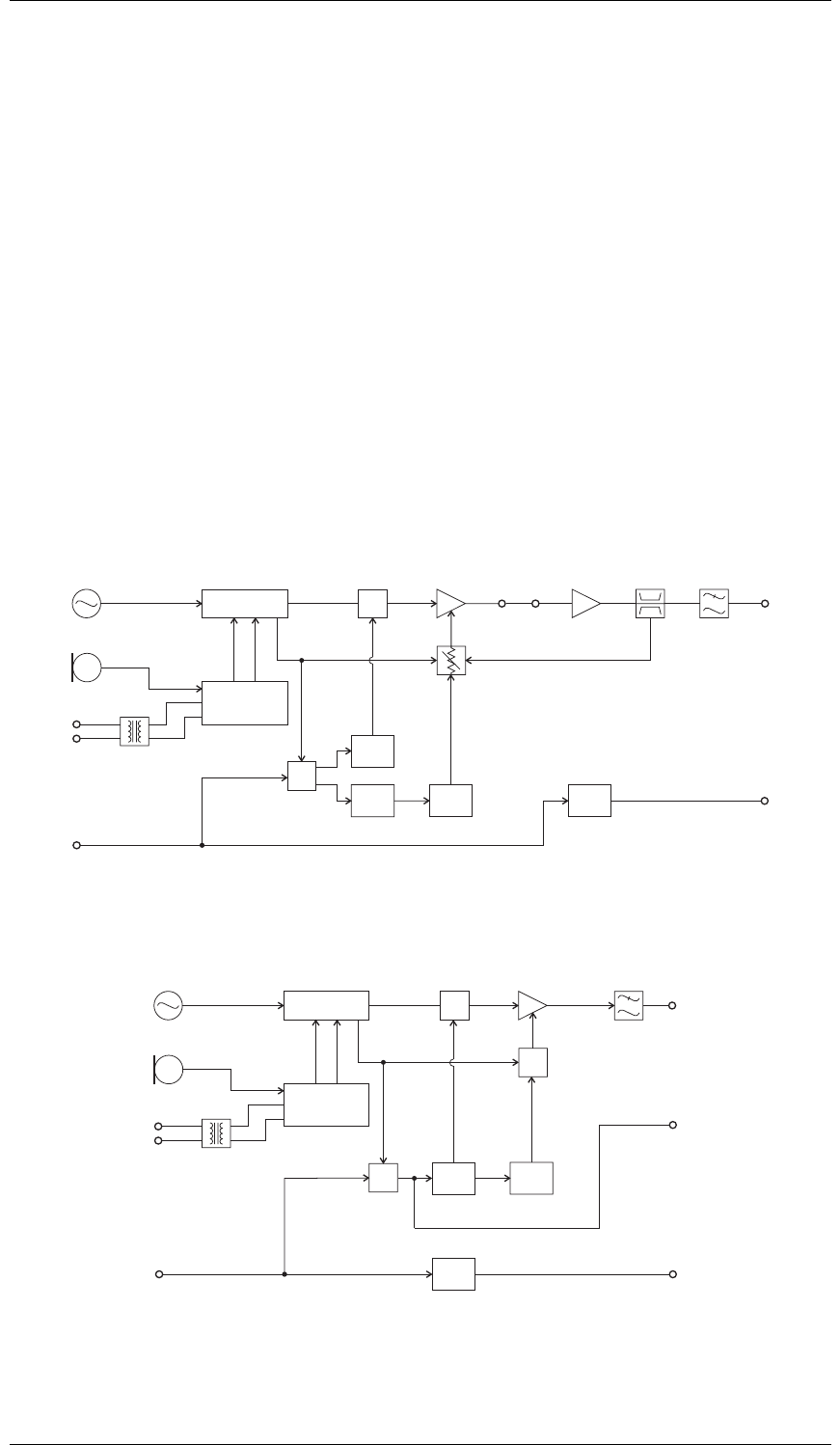

Figure 2.1 T826 High Level Block Diagram
Figure 2.2 T827 High Level Block Diagram
Ramp
Gen.
Time
Delay
Time
Delay
Time
Delay
Audio
Processor
Synthesiser +21dBm
Reference
Oscillator
12.8MHz
Microphone
Line
Transformer
Lock
Detect
PIN
Switch
Power
Control
Drive
Amp. PA
VCO
Gate
Directional
Coupler Low Pass
Filter
Exciter
Output
(+27dBm) Transmitter
Output
(25W)
Tx Reg
&
Audio
Processor
Synthesiser +21dBm
Reference
Oscillator
12.8MHz
Microphone
Line
Transformer
Lock
Detect
PIN
Switch
Switching
Control
Drive
Amp.
Gate
Exciter
Output
(1W)
&Ramp
Gen.
Tx Reg VCO
Time
Delay
Time
Delay
Low Pass
Filter
PA Control Signal
(via exciter RF coax)
![](/img.php?id=111477&img=bg5c.png)
C2.4 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
2.2 Microcontroller
(Refer to the microcontroller circuit diagram (sheet 8) in Section 6.2 or 6.3.)
Figure 2.3 T826/827 Microcontroller Block Diagram
Overall system control of the T826/827 is accomplished by the use of a member of the
80C51 family of microcontrollers (IC810). It runs from internal ROM and RAM, thus
leaving all four ports free for input/output functions.
Non-volatile data storage is achieved by serial communication with a 16kBit EEPROM
(IC820). This serial bus is also used by the microcontroller to program the synthesiser
(IC740) and deviation control EPOTS (IC220).
The main tasks of the microcontroller are as follows:
• program the synthesiser and EPOT;
• interface with the PGM800Win programming software at 9600 baud via the
serial communication lines on D-range 1 (PL100) & D-range 2;
• monitor channel change inputs from D-range 2;
• generate timing waveforms for CTCSS encoding;
• coordinate and implement timing control of the exciter/transmitter;
• control the front panel "Supply" LED.
5V Reset
5V Digital
Regulator Watchdog
Reset
Channel
Select
Port
Auxiliary
Output
Port
Microcontroller
12.8MHz
Clock
Microcontroller Cavity
CTCSS Tone
External
Serial
Port
EEPROM Synthesiser
Dual Digital
Potentiometer
CTCSS
Encoder
Converter
![](/img.php?id=111477&img=bg5d.png)
M820-00 T826/827 Circuit Operation C2.5
Copyright TEL 01/04/00
2.3 Synthesised Local Oscillator
(Refer to the synthesiser circuit diagram (sheet 7) in Section 6.2 or 6.3 and the VCO cir-
cuit diagram in Part E.)
Figure 2.4 T826/827 Synthesiser Block Diagram
The synthesiser (IC740) employs a phase-locked loop (PLL) to lock a voltage controlled
oscillator (VCO) to a given reference frequency. The synthesiser receives the divider
information from the control microprocessor via a 3 wire serial bus (clock, data, enable).
When the data has been latched in, the synthesiser processes the incoming signals from
the VCO buffer (fin) and the phase modulator (fref).
A reference oscillator at 12.8MHz (=IC700) is buffered (IC710 pins 5 & 6) and divided
down to 200kHz (IC730). This 200kHz square wave is then summed with the modulat-
ing audio and passed to an integrator (IC720 pins 9 & 8, Q710, Q720). This produces a
ramping waveform which is centred around a DC level determined by the incoming
audio. IC720 pins 5 & 6 perform as a comparator, ultimately producing a phase-modu-
lated 200kHz square wave. This is followed by another phase shifting stage (IC720 pins
3 & 4, Q730, Q740), before being divided down to 6.25kHz or 5kHz within the synthe-
siser IC (IC740).
A buffered output of the VCO (Q795) is divided with a prescaler and programmable
divider which is incorporated into the synthesiser chip (IC740). This signal is compared
with the phase modulated reference signal at the phase detector (also part of the synthe-
siser chip). The phase detector outputs drive a balanced charge pump circuit (Q760,
Q770, Q775, Q780, Q785) and active loop filter (IC750 pins 5, 6 & 7) which produces a
DC voltage between 0V and 20V to tune the VCO. This VCO control line is further fil-
tered to attenuate noise and other spurious signals. Note that the VCO frequency
increases with increasing control voltage.
If the synthesiser loop loses lock, a pulsed signal appears at LD (pin 2) of IC740. This
signal is filtered and buffered by IC750 pins 1, 2 & 3, producing the Lock-Detect signal
used to shut off the power supply to the drive amplifier. IC750 pin 1 is at 20V when the
synthesiser is out of lock.
/R
Reference
Divider
12.8MHz
Reference
Oscillator Fixed
Divider
/64
Phase
Modulator
Ref
Mod
Phase
Detector Charge
Pump Loop
Filter
FREQUENCY SYNTHESISER IC
Serial
Bus
Clk
Data
En Controller
/N
Programmable
Divider
64/65
Prescaler
VCO PCB
VCO
Modulation
VCO Buffer Output
Buffer
+21dB
m
L.O.
Divider Buffer
f
ref
f
in
Σ
![](/img.php?id=111477&img=bg5e.png)
C2.6 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
2.3.1 Two Point Modulation
Frequency modulation occurs by modulating both the VCO input and the synthesiser
reference input. This process is called two point modulation and ensures a flat modula-
tion response from 67Hz to 3kHz (2.55kHz for narrow bandwidth).
The PLL has a fast response time, allowing a Tx key-up time of <30ms. Because of this
fast response time the PLL sees lower modulation frequencies superimposed on the
VCO as an error and corrects for it, resulting in no modulation on the carrier. At modu-
lation frequencies greater than 300Hz the loop cannot correct fast enough and modula-
tion is seen on the carrier. The response of the loop to VCO modulation is shown by f2
in Figure 2.5 below.
To achieve low frequency modulation, the reference oscillator is also modulated so that
the phase detector of IC740 detects no frequency error under modulation. Thus, the
synthesiser loop will not attempt to correct for modulation and the audio frequency
response of the transmitter remains unaffected. The response of the loop to reference
frequency modulation is shown by f1 in Figure 2.5.
The reference modulation is controlled by a 256-step 10k electronic potentiometer
(EPOT) which is adjustable via PGM800Win. The EPOT is made up of 256 resistive sec-
tions (representing approximately 39Ω each) which can be individually addressed by
the microcontroller. Each section can be switched in or out of circuit to achieve the
required total resistance, thus giving control of the reference modulation.

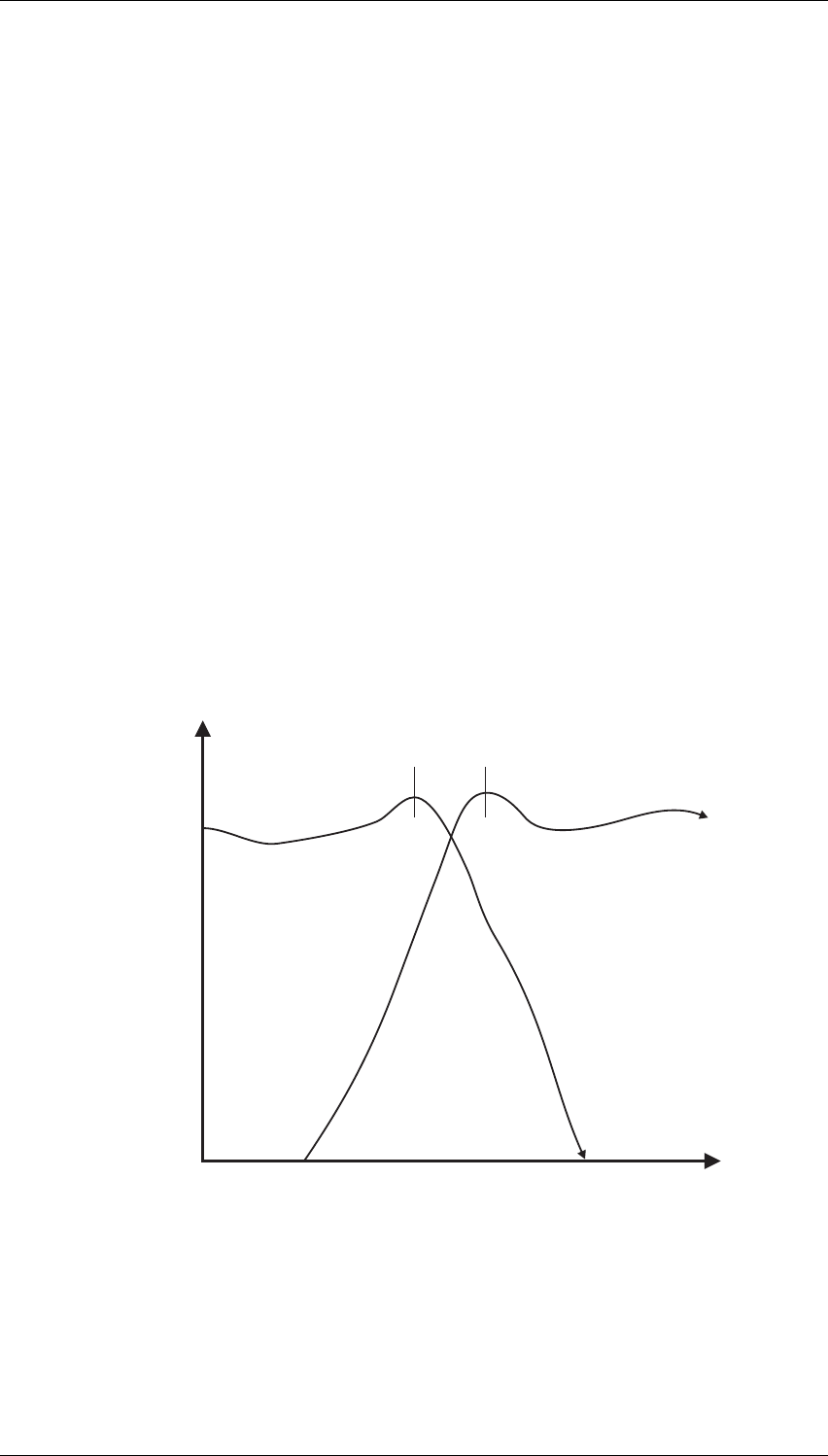

Figure 2.5 T826/827 Two Point Modulation
12
ff
TCXO VCO
Deviation
Frequency
![](/img.php?id=111477&img=bg5f.png)
M820-00 T826/827 Circuit Operation C2.7
Copyright TEL 01/04/00

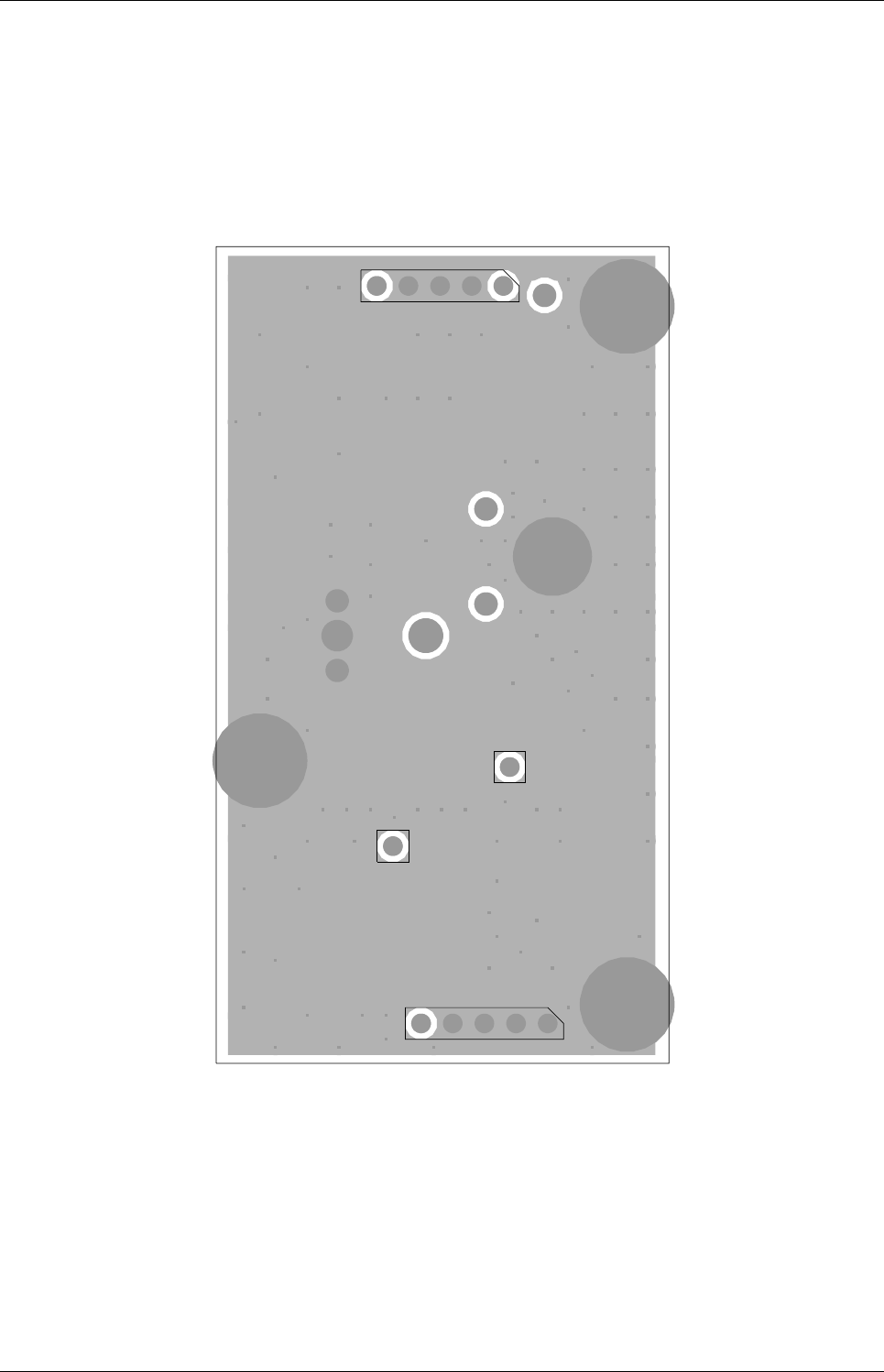

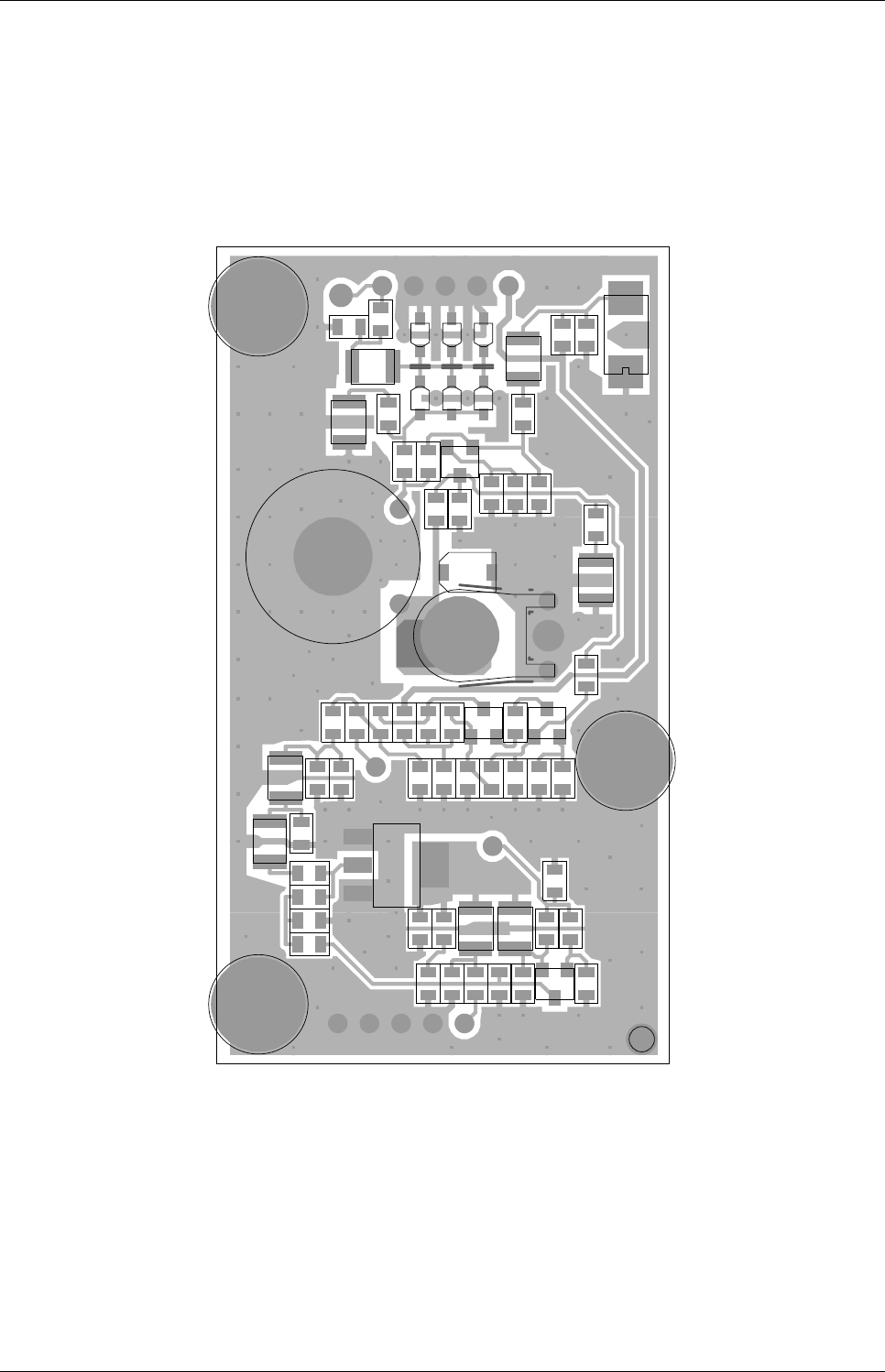

2.4 VCO
(Refer to the VCO circuit diagram in Part E.)
The VCO transistor (Q1) operates in a common source configuration, with an LC tank
circuit coupled between its gate and drain to provide the feedback necessary for oscilla-
tion. The VCO control voltage from the loop filter (IC750 pin 7) is applied to the vari-
caps (D1-D6) to facilitate tuning within an 8MHz band of frequencies. A trimcap
(&VC1-TX) is used for coarse tuning of the VCO. The output from the oscillator circuit
drives a cascode amplifier stage (Q2, Q3) which supplies +10dBm (typically) to a further
stage of amplification, Q5. This is the final amplifier on the VCO PCB, and delivers
+21dBm (typically) to the exciter drive amplifier.
A low level "sniff" is taken from the output of Q3 and used to drive the divider buffer
(Q795) for the synthesiser (IC740).
The VCO operates at the actual output frequency of the exciter, i.e. there are no multi-
plier stages. The VCO is modulated by superimposing the audio signal onto the control
voltage and by phase modulating the reference signal.
2.4.1 VCO Supply
The VCO is supplied from two switched +9V supplies under the control of the Tx-Reg.
supply.
The VCO (Q1) and buffer amplifier (Q2 & Q3) are supplied from one +9V switched sup-
ply by Q540 via the capacitor multiplier (Q550, C550).
The output amplifier is supplied from the other +9V supply by Q520, Q530, and Q510.
A delay circuit holds the VCO on for a short time after the Tx-Reg. supply has been
switched off. This is to allow the RF power circuits (both exciter and PA) to ramp down
in the correct manner before the VCO is switched off.
![](/img.php?id=111477&img=bg60.png)
C2.8 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
2.5 Audio Processor
(Refer to the audio processor circuit diagram (sheet 2) in Section 6.2 or 6.3.)
Figure 2.6 T826/827 Audio Processor Block Diagram
2.5.1 General
The audio processor comprises several link selectable circuit blocks which may be con-
figured in a variety of combinations to suit individual requirements. The pre-emphasis
network and compressor may be linked individually or cascaded between either or both
audio inputs and the limiter.
Refer to Section 3.5.1 for linking details.
2.5.2 Audio Inputs
Two audio inputs are available: one from a 600 ohm balanced (or unbalanced) line, and
the other from a local microphone. The microphone signal is passed first to a pre-ampli-
fier (Q210) and ultimately to a multiplexer (IC240), but in between may pass through
the compressor (depending on the linking details). The line transformer is also con-
nected to the multiplexer and is disabled by the microphone PTT switch.
A third input for external CTCSS tones is also provided.
Pre-
emphasis
34
6
B
C
5
6
4
34
2
5
3
3
5
7
12
8
N
H
M
I
E
L
J
D
4
6
1
mic.
line
Multiplexer
Inputs
Output
Output
Inhibit
Audio 1 Audio 2
Compressor
Link
Link
Link
Tx Enable
Σ
Carrier
Opto-Key
Tx Key
PTT
Microphone
Input
Line Input
Microphone
Pre-amp.
Opto-coupler
Link
PL205
PL215
PL220
PL210
Limiter
Set Deviation
CTCSS
Low Pass
Filter
Ref. Mod. Adjust
Integrator
Digital Pot. (EPOT)
Digital Pot. (EPOT)
Buffer
Output
To VCO Ref.
Mod.
Constant Current Sink
+
_
![](/img.php?id=111477&img=bg61.png)
M820-00 T826/827 Circuit Operation C2.9
Copyright TEL 01/04/00
2.5.3 Keying Inputs
There are four ways to key the exciter:
• pulling the Tx-Key line low (pin 13 on D-range 1 [PL100]) at the rear of the set);
• pushing the "Carrier" button on the front panel - this will inhibit all audio;
• using the PTT button on the local microphone, disabling audio from the line;
• via the opto-key inputs (pins 11 and 12 on D-range 1 [PL100]) when electrical
isolation is required. This features a constant current sink (Q270) to ensure reli-
able activation of the opto-coupler (IC250) at low keying voltages.
2.5.4 Compressor (Automatic Level Control (ALC))
The input signal is fed via a current controlled attenuator (Q230, Q220) to a high gain
stage (IC230) from which the output signal is taken. This signal is passed to a compara-
tor (IC230) which toggles whenever the audio signal exceeds a DC threshold deter-
mined by RV220. Thus, the comparator produces a square wave whose mark-space
ratio is determined by the amplitude of the audio signal. This square wave pumps up
the reservoir capacitor (C233) which controls the attenuator (Q230, Q220), thus complet-
ing the feedback loop.
The compression level is set by adjustment of the comparator threshold (RV220).
Note: Although the high dynamic range of the compressor allows the use of very
low audio signal levels, such conditions will be accompanied by a degrada-
tion of the signal-to-noise ratio. Very low audio input levels should there-
fore be avoided where possible.
2.5.5 Outputs To Modulators
The output signal from the limiter (IC210, IC230) is added with a CTCSS tone at a sum-
ming amplifier (IC260). The signal is then low pass filtered (IC260) and split to supply
the two modulators.
Since the VCO modulator is a true frequency modulator, its audio is simply buffered
(IC260). The reference modulator, however, is a phase modulator and its audio must
first be integrated (IC210).
It is vital that the audio levels to the modulators are accurately set, relative to each
other. Hence the inclusion of level adjustment in the reference modulator path. Once
set, adjustments to absolute deviation may be made only by IC220, a 256-step 10k elec-
tronic potentiometer (EPOT), which is controlled via PGM800Win. The EPOT is made
up of 256 resistive sections (representing approximately 39Ω each) which can be indi-
vidually addressed by the microcontroller. Each section can be switched in or out of cir-
cuit to achieve the required total resistance, thus adjusting the absolute deviation level.
![](/img.php?id=111477&img=bg62.png)
C2.10 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
2.6 Power Supply & Regulator Circuits
(Refer to the regulators circuit diagram (sheet 6) in Section 6.2 or 6.3.)
Figure 2.7 T826/827 Power Supply & Regulators Block Diagram
The T826 and T827 are designed to operate from a 10.8-16V DC supply (13.8V nominal).
A 5.3V regulator (IC630) runs directly from the 13.8V rail, driving much of the synthe-
siser circuitry. It is also used as the reference for a DC amplifier (IC640, Q630, Q620)
which provides a medium current capability 9V supply.
A switching power supply (Q660, Q670) runs from the 9V supply and provides a low
current capability +20V supply. This is used to drive the synthesiser loop filter (IC750),
giving a VCO control voltage range of up to 20V, and the Lock-Detect amplifiers.
Ultimate control of the transmitter is via the Tx-Reg. supply, switched from 9V by Q610.
This is enabled via the Tx-Enable signal from the audio processor, and microprocessor.
A crowbar diode is fitted for protection against connection to a power supply of incor-
rect polarity. It also provides transient overvoltage protection.
Note: A fuse must be fitted in the power supply line for the diode to provide effec-
tive protection.
Crowbar
Diode LVI
5V
Reg
DC
Amp Switching
PS 5V Dig
Reg
Power
Switch
13.8V
Nom. 5V 5V Dig9V 20V
13.8V Nom.
From Rear
D-Range
Tx Enable
Buffer
Tx Reg.
+9V
µP
Watchdog
Timer
Micro-
controller
µP
Reset
![](/img.php?id=111477&img=bg63.png)
M820-00 T826/827 Circuit Operation C2.11
Copyright TEL 01/04/00
2.7 Transmit Timers
The transmit tail timer, transmit timeout timer and transmit lockout timer can all be set
from PGM800Win. The fields for setting these are found on the system information
page. These three timers operate as follows (refer also to Figure 2.8):
Figure 2.8 T826/827 Transmit Timers
Timer Function Adjustment
Transmit Tail Sets the tail time during which the
transmitter stays keyed after the exter-
nal key source has been removed.
0-5 seconds in 100ms
stepsa
a. Adjustable in 20ms steps in PGM800Win version 2.12 and later.
Transmit Timeout Sets the maximum continuous trans-
mission time. Once the timer has
timed out, the transmitter must be
keyed again, unless prevented by the
transmit lockout timer.
0-300 secondsb in 10
second steps
b. Adjustable from 0 to 600 seconds in PGM800Win version 2.12 and later.
Transmit Lockout Sets the period of time that must
elapse after a timeout before the trans-
mitter can re-transmit. Once the timer
has timed out, the transmitter can be
keyed again.
0-60 seconds in 10
second steps
On
Lockout Time
Timeout
Time
On
Tail Time
Tx-Enable
Tx-Reg.
Tx-Enable
Tx-Reg.
![](/img.php?id=111477&img=bg64.png)
C2.12 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL

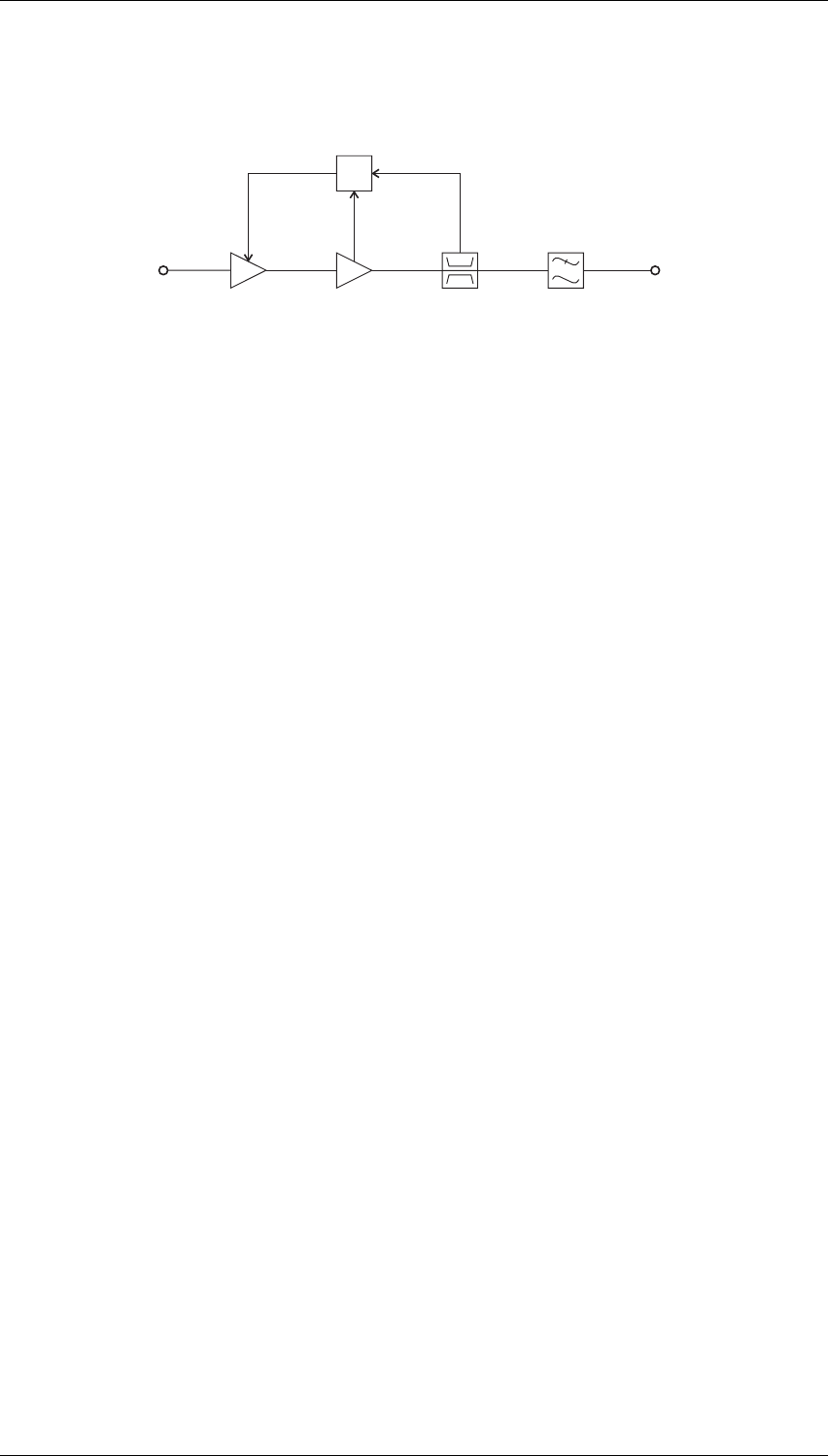

2.8 T826 Drive Amplifier & PA
(Refer to Figure 2.1 and the exciter and PA circuit diagrams (sheets 3 & 4) in Section 6.2.)
The output power of the PA is maintained at a constant level via a power control loop
applied to the two-stage, wide band exciter amplifier (Q307, Q312). The forward and
reverse RF power levels are sensed via a dual directional coupler and detector diodes
(D440, D441 in the PA cavity). The detected DC signals are summed with the "power
set" level and fed to the control integrator (IC310 pins 1, 2 & 3). The output control volt-
age is buffered by Q309 and Q315, and applied to the collectors of the wide band exciter
amplifiers.
Note: Forward and reflected power signals are summed so that, under high
VSWR, the power control will turn the output RF level down.
The maximum output power of the transmitter is limited by a voltage clamp circuit
(consisting of a potential divider formed by R369//R374 and R375//R359//R360) which
turns on Q308, clamping the control voltage to approximately 7.8V. When the maxi-
mum operating temperature is exceeded, the clamp voltage is reduced to approximately
5.7V by removing R359//R360 from the circuit (see below).
To reduce the spurious output level when the synthesiser is out-of-lock, the Tx-Reg. and
Lock-Detect signals are gated to inhibit the PA control circuit and to switch off the RF
signal at the input to the drive amplifier. The RF input signal is switched by a PIN
switch attenuator (D300, D301, D302).
Cyclic keying control is provided by additional circuitry consisting of several time
delay, ramp and gate stages:
• Q305, IC310 power ramping
• Q304, Q305 Tx-Reg. and Lock-Detect gate
• Q300, Q301, Q302 delay and PIN switch drive.
This is to allow the RF power circuits (both exciter and PA) to ramp up and down in a
controlled manner so that minimal adjacent channel interference is generated during
the transition.
The output of the wide band amplifier is approximately 550mW (+27.5dBm) for an
input of 65mW (+18dBm) when the power control is set to maximum.
Note: The VCO output level of 125mW (+21dBm) is attenuated by a 3dB attenua-
tor (R517, R518 & R519) in the VCO cavity. This provides good VCO/exciter
isolation as well as the correct exciter drive level.
A temperature sensor (R480) is provided so that the RF output power can be reduced to
a preset level when a set temperature is exceeded. This is a protection circuit (IC310
pins 5, 6 & 7, Q311) to prevent overheating, as the unit is not rated for continuous oper-
ation at high temperatures (refer to Section 1.2.3 for duty cycle specifications). RV302
sets the PA output power while under high temperature fold-back conditions.
The output of the temperature-sense comparator (IC310 pin 7) also feeds to a secondary
shutdown clamp circuit (Q303, Q360, Q308). The clamp voltage is set to approximately
![](/img.php?id=111477&img=bg65.png)
M820-00 T826/827 Circuit Operation C2.13
Copyright TEL 01/04/00
5.7V by the potential divider R369//R374 and R375 when the maximum operating tem-
perature is exceeded. This ensures that the temperature shutdown will reduce the out-
put power even if the power control circuit is in an open loop condition.
The attenuator (R410, R411 & R412) aids in reducing exciter/PA interaction while also
ensuring a reasonable match for Q312.
The RF output from the exciter is fed to the driver stage (Q415) and then to the final
(Q425). The DC supply is fed to the final via a low pass filter with special low frequency
decoupling.
The directional coupler provides the required feedback for the power control loop while
the harmonics are attenuated by the low pass filter.
2.9 T827 Exciter Drive Amplifier
(Refer to Figure 2.2 and the exciter circuit diagram (sheet 3) in Section 6.3.)
A two-stage, wide band amplifier (Q320, Q321) provides an output level of approxi-
mately 1W (+30dBm) for an input of 125mW (+21dBm) from the VCO. IC300 pins 5, 6 &
7, Q301 and Q302 provide a 10.5V regulated supply for the exciter.
To reduce the spurious output level when the synthesiser is out-of-lock, the Tx-Reg. and
Lock-Detect signals are gated to inhibit the exciter control circuit and to switch off the
RF signal at the input to the drive amplifier. This is achieved by a PIN switch attenuator
(D320, D321, D322).
Cyclic keying control is provided by additional circuitry consisting of several time
delay, ramp and gate stages:
• Q300, IC300 pins 5, 6 & 7 power ramping
• Q380, Q381 Tx-Reg. and Lock-Detect gate
• Q365, Q366, Q367, Q368 delay and PIN switch drive.
This is to allow the RF power circuits (both exciter and PA) to ramp up and down in a
controlled manner so that minimal adjacent channel interference is generated during
the transition.
R517, R518 and R519 form a 3dB attenuator to provide good VCO/drive amplifier isola-
tion.
The output attenuator (R337, R338, R339) assists in reducing exciter/PA interaction
while also ensuring a good match for Q321.
Note: The exciter provides a DC control signal to the PA via the RF coax. This is
injected via %L382.
![](/img.php?id=111477&img=bg66.png)
C2.14 T826/827 Circuit Operation M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg67.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.1
Copyright TEL 01/04/00
3 T826/827 Initial Tuning & Adjustment
Caution: This equipment contains CMOS devices which are susceptible to dam-
age from static charges. Refer to Section 1.2 in Part A for more infor-
mation on anti-static procedures when handling these devices.
The following section describes both short and full tuning and adjustment procedures
and provides information on:
• channel programming
• selecting required audio links
• synthesiser alignment
• PA alignment (T826 only)
• modulator adjustment
•limiter adjustment
• setting line level
• compressor adjustment
•timer adjustment.
Note: Unless otherwise specified, the term "PGM800Win" used in this and follow-
ing sections refers to version 2.00 and later of the software.
Refer to Section 6 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components and test points on the
main PCB. The parts list and diagrams for the VCO PCB are in Part E.
Section Title Page
3.1 Introduction 3.3
3.2 Channel Programming 3.3
3.3 Test Equipment Required 3.4
3.4
3.4.1
3.4.2
3.4.3
3.4.4
3.4.5
3.4.6
3.4.7
Short Tuning Procedure
Introduction
Synthesiser Alignment
Output Power Adjustment (T826 Only)
Two Point Modulation Adjustment
CTCSS Encoder (If Used)
FM Deviation (Limiter) Adjustment
Line-in Level Adjustment
3.5
3.5
3.5
3.5
3.6
3.7
3.7
3.7
![](/img.php?id=111477&img=bg68.png)
C3.2 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.5
3.5.1
3.5.2
Audio Processor Links
Link Details
Typi cal Op tio ns
3.8
3.8
3.8
3.6 Synthesiser Alignment 3.9
3.7 Output Power Adjustment (T826 Only) 3.10
3.8
3.8.1
3.8.2
Thermal Shutdown (T826 Only)
Normal Operation
Continuous Operation
3.10
3.10
3.10
3.9
3.9.1
3.9.2
3.9.3
3.9.4
3.9.5
3.9.6
3.9.6.1
3.9.6.2
3.9.6.3
Audio Processor & CTCSS
Two Point Modulation
Modulator Adjustment
CTCSS Encoder (If Used)
Limiter Adjustment
Line Level Without Compressor
Compressor
Compressor On Line Input Only
Compressor On Microphone Input Only
Compressor On Both Line & Microphone Inputs
3.11
3.11
3.11
3.12
3.12
3.13
3.13
3.13
3.13
3.14
Figure Title Page
3.1
3.2
T826/827 Test Equipment Set-up With T800-01-0010
T826/827 Test Equipment Set-up Without T800-01-0010
3.4
3.4
Section Title Page
![](/img.php?id=111477&img=bg69.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.3
Copyright TEL 01/04/00
3.1 Introduction
When you receive your T826 transmitter or T827 exciter it will be run up and working
on a particular frequency (the "default channel")1. If you want to switch to a frequency
that is within the 8MHz switching range (i.e. ±4MHz from the factory programmed fre-
quency), you should only need to reprogram the transmitter/exciter with the
PGM800Win software (refer to the PGM800Win programming kit and Section 3.2
below).
However, if you want to switch to a frequency outside the 8MHz switching range, you
will have to reprogram and re-tune the transmitter/exciter to ensure correct operation.
In this case you should carry out the short tuning procedure described in Section 3.4.
If you have carried out repairs or other major adjustments, you must carry out the full
tuning and adjustment procedure described in this section (except for Section 3.4).
3.2 Channel Programming
You can program up to 128 channel frequencies into the transmitter/exciter’s EEPROM
memory (IC820) by using the PGM800Win software package and an IBM PC. You can
also use PGM800Win to select the transmitter/exciter’s current operating frequency (or
"default channel").
If the transmitter/exciter is installed in a rack frame, you can program it via the pro-
gramming port in the speaker panel. However, you can also program the transmitter/
exciter before it is installed in a rack frame as follows:
• by using a T800-01-0010 calibration test unit;
•via D-range 1;
• via D-range 2 (standard T800-03-0000 auxiliary D-range only);
• via SK805 (internal Micromatch connector).
If you do not use the T800-01-0010, you will have to connect the PC to the transmitter/
exciter via a module programming interface (such as the T800-01-0004).
For a full description of the channel programming procedure, refer to the PGM800Win
programming software user’s manual.
Note: When an auxiliary D-range kit (D-range 2 - T800-03-0000) is fitted, you can
also select a channel with an external switch, such as the DIP switch on the
rack frame backplane PCB. Refer to Part C in the T800 Series Ancillary
Equipment Service Manual (M800-00-101 or later issue) or consult your
nearest Tait Dealer or Customer Service Organisation for further details.
1. Use the "Read Module" function in PGM800Win to find out what the default channel is.
![](/img.php?id=111477&img=bg6a.png)
C3.4 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.3 Test Equipment Required
You will need the following test equipment:
• computer with PGM800Win installed
• T800 programming kit
• module programming interface (e.g. T800-01-0004 - optional)
• 13.8V power supply
• digital multimeter
•audio signal generator
•RF power meter
• audio voltmeter x 2
•modulation meter
• oscilloscope (digital preferred)
• 20dB or 40dB pad
• T800-01-0010 calibration test unit (optional)
Figure 3.1 and Figure 3.2 show typical test equipment set-ups.

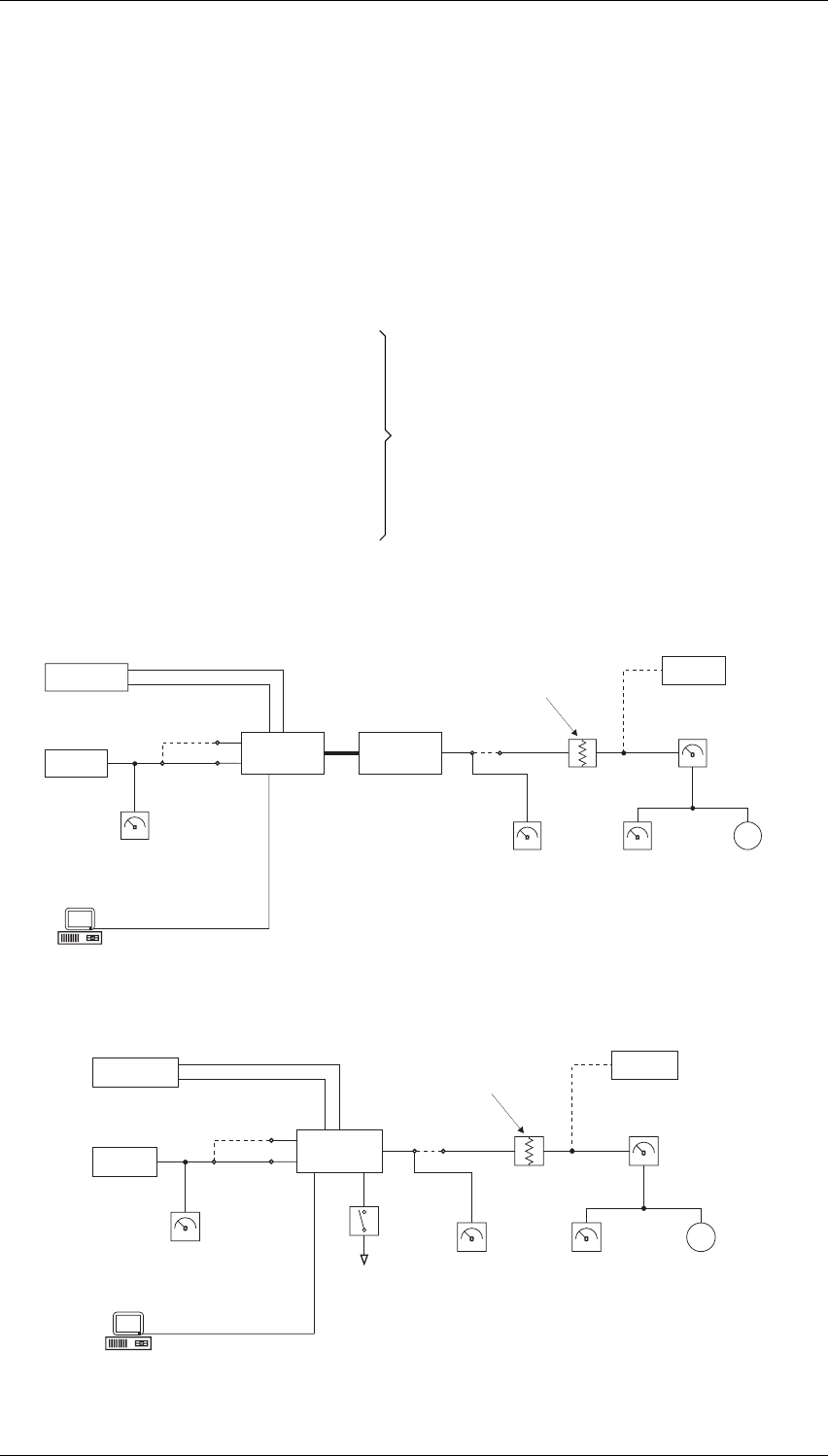

Figure 3.1 T826/827 Test Equipment Set-up With T800-01-0010
Figure 3.2 T826/827 Test Equipment Set-up Without T800-01-0010
or RF test set (optional)
Frequency
Counter
Audio
Voltmeter
RF Power
Meter Oscilloscope
AF O/P
Modulation
Meter
20dB pad: exciter
40dB pad: transmitter
RF O/P
PGM800Win
PSU
+13.8V
-Ve
Audio
Generator
Line I/P
CTCSS I/P
Ω600
Audio
Voltmeter
Exciter/
Transmitter
T800
Calibration
Test Unit
PGM800Win
Serial
Com
PSU
+13.8V
-Ve
Frequency
Counter
Audio
Voltmeter
RF Power
Meter Oscilloscope
AF O/P
Modulation
Meter
20dB pad: exciter
40dB pad: transmitter
Audio
Generator
Line I/P
CTCSS I/P
Ω600
Audio
Voltmeter
Key
RF O/P
Exciter/
Transmitter
via module programming interface
(e.g. T800-01-0004)
![](/img.php?id=111477&img=bg6b.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.5
Copyright TEL 01/04/00
3.4 Short Tuning Procedure
Use this procedure only if you want to reprogram the T826/827 to a frequency outside
the 8MHz switching range and do not intend to carry out any other major adjustments
or repairs.
3.4.1 Introduction
Reprogram the operating frequency as described in the PGM800Win program-
ming kit (refer to Section 3.2).
Remove the top cover (nearest the handle).
Set up the test equipment as described in Section 3.3.
Set the links in the audio processor section as required (refer to Section 3.5).
3.4.2 Synthesiser Alignment
• Connect a high impedance voltmeter to PL4-1 or the junction of L1 & R1 in the
VCO (this measures the synthesiser loop voltage).
• Key the transmitter by earthing the Tx-Key line.
•Single Channel Tune VCO trimmer &VC1-TX for a synthesiser loop volt-
age of 9V.
Multichannel Tune VCO trimmer &VC1-TX for a synthesiser loop volt-
age of 9V on the middle channel.
If there is no middle channel, tune &VC1-TX so that the
channels are symmetrically placed around a loop voltage
of 9V.
All channels should lie within the upper and lower limits
of 13V and 5V respectively.
Do not attempt to program channels with a greater fre-
quency separation than the specified switching range of
8MHz.
3.4.3 Output Power Adjustment (T826 Only)
Connect an RF power meter with suitable attenuation to the output socket and
key the transmitter.
Adjust RV301 for the required output power (between 5 and 25W).
![](/img.php?id=111477&img=bg6c.png)
C3.6 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.4.4 Two Point Modulation Adjustment
Note 1: In this and following sections deviation settings are given first for wide
bandwidth sets, followed by settings in brackets for narrow bandwidth sets
[ ].
Note 2: The reference modulation and limiter adjustments are controlled by 256-
step electronic potentiometers (EPOTs), which are adjusted via the “Refer-
ence Modulation” and “Deviation” settings in PGM800Win. This allows the
two point modulation and deviation settings to be adjusted for each chan-
nel.
Note 3: To optimise the modulation response across the switching range, repeat
steps 1-4 below for each channel that will be used (usually needed only for
data applications). In applications where the modulation response is less
critical (e.g. voice use only), carry out steps 1-4 below on the middle channel
and use the “EPOT Fill” option1 in PGM800Win to copy the value to the
other channels.
Note 4: If you are using an RF test set, turn the low pass filter off and set the high
pass filter to 15kHz before beginning this procedure.
1. Inject an audio signal of 450Hz 1.5V rms (+5dBm) into the CTCSS input (D-range
1 (PL100) pin 8).
Key the transmitter by earthing the Tx-Key line.
2. Adjust the output from the audio generator to obtain ±3kHz [±1.5kHz] deviation
at 450Hz.
3. Change the input frequency to 100Hz and, using PGM800Win, adjust the value of
the “Reference Modulation” EPOT setting for the current channel to obtain ±3kHz
[±1.5kHz] deviation (you can use either the mouse or up and down arrow keys).
4. Change the input frequency back to 450Hz.
Repeat steps 2 and 3 above until the deviations achieved at the two input frequen-
cies are within 0.2dB of each other. You will need to do this at least four times.
5. Sweep the audio between 50 and 300Hz for peaks.
Note: A peak between 50 and 300Hz will indicate a fault condition, i.e:
- incorrect set-up
or - modulation circuitry fault.
The specification window is ±1dB relative to 150Hz from 65 to 260Hz.
1. Use the “EDIT FILL” button on the tool bar or go to “Edit”, “Fill”, “Epot Settings” on
the menu bar.
![](/img.php?id=111477&img=bg6d.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.7
Copyright TEL 01/04/00
3.4.5 CTCSS Encoder (If Used)
Program a CTCSS tone on the default channel using PGM800Win.
If you are using an RF test set, turn off the 300Hz high pass filter.
Key the T826/827 with the front panel "Carrier" switch.
Adjust RV805 (CTCSS level adjust) to give ±500Hz [±250Hz] deviation.
Set the maximum deviation as per Section 3.4.6.
3.4.6 FM Deviation (Limiter) Adjustment
Note: If the T826/827 will be used over the whole 8MHz switching range, you
must set the deviation for each channel. However, if the module will be
used on frequencies that cover only a 1MHz (or less) switching range, you
can set the deviation on the middle channel and use this value for all other
channels with the “EPOT Fill” option in PGM800Win.
Inject 1kHz at -10dBm into the line input (D-range 1 (PL100) pins 1 & 4; pins 2 & 3
shorted).
Adjust RV210 (line sensitivity) fully clockwise and key the transmitter by earthing
the Tx-Key line. Using PGM800Win, adjust the value of the “Deviation” EPOT
setting for the current channel to obtain a deviation limit of ±4.7kHz [±2.3kHz]
(you can use either the mouse or up and down arrow keys).
Sweep the audio frequency from 100Hz to 4kHz and ensure that the maximum
deviation does not exceed ±4.7kHz [±2.3kHz]. Readjust “Deviation” if necessary
via PGM800Win.
3.4.7 Line-in Level Adjustment
Remove the CTCSS signal (if used).
Set the injected signal at the line input to the required line level (typically -10 to
-20dBm).
Adjust RV210 (line sensitivity) to provide ±3kHz [±1.5kHz] deviation.
Reapply the CTCSS signal (if required).
![](/img.php?id=111477&img=bg6e.png)
C3.8 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.5 Audio Processor Links
3.5.1 Link Details
Use the following table to set up the audio processor to the configuration you require.
You should set the audio processor links before carrying out any of the tuning and
adjustment procedures. The factory settings are shown in brackets [ ].
3.5.2 Typical Options
Plug Linka
a. The letters in this column and in the table in Section 3.5.2 below refer to the identification
letters screen printed onto the PCB beside each pair of pins.
Function
PL205
1-2
[3-4]
5-6
A
B
C
not connected
microphone pre-amp. output to compressor input
microphone pre-amp. output to multiplexer input
PL210
[1-2]
3-4
5-6
L
M
N
multiplexer output to pre-emphasis input
multiplexer output to limiter input
multiplexer output to compressor input
PL215
1-2
[3-4]
5-6
7-8
9-10
G
H
I
J
K
not connected
compressor output to multiplexer input
compressor output to limiter input
compressor output to pre-emphasis input
not connected
PL220
1-2
[3-4]
5-6
D
E
F
pre-emphasis output to multiplexer input
pre-emphasis output to limiter input
not connected
PL205 PL210 PL215 PL220
microphone pre-amp. compressed
and pre-emphasised;
line input pre-emphasised
(standard set-up)
[3-4]
B
[1-2]
L
[3-4]
H
[3-4]
E
microphone pre-amp. compressed
and pre-emphasised;
line input unprocessed
3-4
B
3-4
M
7-8
J
1-2
D
line and microphone compressed
and pre-emphasised
5-6
C
5-6
N
7-8
J
3-4
E
microphone pre-amp. compressed;
line and microphone flat response
3-4
B
3-4
M
3-4
H
5-6
F
![](/img.php?id=111477&img=bg6f.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.9
Copyright TEL 01/04/00
3.6 Synthesiser Alignment
• Ensure that the T826/827 has been programmed with the required frequencies
using PGM800Win software.
•Single Channel Select a channel using PGM800Win.
Multichannel Select the middle channel via PGM800Win.
• Connect a high impedance voltmeter to PL4-1 or the junction of L1 and R1 in the
VCO (this measures the synthesiser loop voltage).
• Key the transmitter by earthing the Tx-Key line.
Single Channel Tune VCO trimmer &VC1-TX for a synthesiser loop volt-
age of 9V.
Multichannel Tune VCO trimmer &VC1-TX for a synthesiser loop volt-
age of 9V on the middle channel.
If there is no middle channel, tune &VC1-TX so that the
channels are symmetrically placed around a loop voltage
of 9V.
All channels should lie within the upper and lower limits
of 13V and 5V respectively.
Do not attempt to program channels with a greater fre-
quency separation than the specified switching range
(8MHz).
• Measure the T826/827 output frequency (at the rear panel N-type connector) and
adjust the TCXO (=IC700) trimmer if required.
•T827 Only Check that the exciter output power is 1W ±300mW
(measured at the rear panel N-type connector).
Caution: This trimmer is susceptible to physical damage. Do not exert a down-
ward force of more than 500g (1lb) when adjusting.
![](/img.php?id=111477&img=bg70.png)
C3.10 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
3.7 Output Power Adjustment (T826 Only)
Connect an RF power meter to the PA output.
Key the transmitter by earthing the Tx-Key line.
Adjust RV301 for 25W output power and check that the total current drawn is
<4.5A.
Adjust RV301 for the required output power (between 5 and 25W).
3.8 Thermal Shutdown (T826 Only)
3.8.1 Normal Operation
Key the transmitter by earthing the Tx-Key line and set the output power to 25W
as described in Section 3.7.
Short L480 to ground by connecting solder link SL480.
Set RV302 (high temperature power adjust) for an output power of 5W.
Remove the solder link on SL480.
Note: The thermal shutdown temperature is factory set (%R320 and %R328) to
88°C for 25W continuous operation at 25°C ambient temperature1.
3.8.2 Continuous Operation
If you want to operate the transmitter continuously at 60°C ambient temperature,
you must:
• reduce the output power to 10W;
• increase the thermal shutdown temperature to 105°C by changing the resistor
values to those shown in the following table:
1. Ambient temperature is defined as the temperature of the air immediately surrounding
the heatsink.
Operating Conditions/
Ambient Temperature %R320 %R328
25W continuous @ 25°C 18k 18k
10W continuous @ 60°C 1k5 8k2
![](/img.php?id=111477&img=bg71.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.11
Copyright TEL 01/04/00
3.9 Audio Processor & CTCSS
3.9.1 Two Point Modulation
The T826 and T827 utilise two point modulation to obtain a wide audio bandwidth
independent of the synthesiser loop filter response. This is achieved by simultaneously
frequency modulating the VCO and phase modulating the synthesiser reference fre-
quency. The relative signal levels fed to the two modulators are quite critical and cause
interaction when setting up.
Both modulating signals require readjustment when the exciter is shifted in frequency
greater than the switching range (i.e. ∆F>±4MHz).
Note 1: In this and following sections deviation settings are given first for wide
bandwidth sets, followed by settings in brackets for narrow bandwidth sets
[ ].
Note 2: The reference modulation and limiter adjustments are controlled by 256-
step electronic potentiometers (EPOTs), which are adjusted via the “Refer-
ence Modulation” and “Deviation” settings in PGM800Win. This allows the
two point modulation and deviation settings to be adjusted for each chan-
nel.
Note 3: To optimise the modulation response across the switching range, repeat
steps 1-4 below for each channel that will be used (usually needed only for
data applications). In applications where the modulation response is less
critical (e.g. voice use only), carry out steps 1-4 below on the middle channel
and use the “EPOT Fill” option1 in PGM800Win to copy the value to the
other channels.
Note 4: If you are using an RF test set, turn the low pass filter off and set the high
pass filter to 15kHz before beginning this procedure.
3.9.2 Modulator Adjustment
1. Inject an audio signal of 450Hz 1.5V rms (+5dBm) into the CTCSS input (D-range
1 (PL100) pin 8).
Key the transmitter by earthing the Tx-Key line.
2. Adjust the output from the audio generator to obtain ±3kHz [±1.5kHz] deviation
at 450Hz.
3. Change the input frequency to 100Hz and, using PGM800Win, adjust the value of
the “Reference Modulation” EPOT setting for the current channel to obtain ±3kHz
[±1.5kHz] deviation (you can use either the mouse or up and down arrow keys).
1. Use the “EDIT FILL” button on the tool bar or go to “Edit”, “Fill”, “Epot Settings” on
the menu bar.
![](/img.php?id=111477&img=bg72.png)
C3.12 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
4. Change the input frequency back to 450Hz.
Repeat steps 2 and 3 above until the deviations achieved at the two input frequen-
cies are within 0.2dB of each other. You will need to do this at least four times.
5. Sweep the audio between 50 and 300Hz for peaks.
Note: A peak between 50 and 300Hz will indicate a fault condition, i.e:
- incorrect set-up
or - modulation circuitry fault.
The specification window is ±1dB relative to 150Hz from 65 to 260Hz.
3.9.3 CTCSS Encoder (If Used)
Program a CTCSS tone on the default channel using PGM800Win.
If you are using an RF test set, turn off the 300Hz high pass filter.
Key the T826/827 with the front panel "Carrier" switch.
Adjust RV805 (CTCSS level adjust) to give ±500Hz [±250Hz] deviation.
Set the maximum deviation as per Section 3.9.4.
3.9.4 Limiter Adjustment
Note: If the T826/827 will be used over the whole 8MHz switching range, you
must set the deviation for each channel. However, if the module will be
used on frequencies that cover only a 1MHz (or less) switching range, you
can set the deviation on the middle channel and use this value for all other
channels with the “EPOT Fill” option in PGM800Win.
Set the links in the audio processor section as required (refer to Section 3.5).
Inject 1kHz at -10dBm into the line input (D-range 1 (PL100) pins 1 & 4; and pins 2
& 3 shorted).
Adjust RV210 (line sensitivity) fully clockwise and key the transmitter by earthing
the Tx-Key line. Using PGM800Win, adjust the value of the “Deviation” EPOT
setting for the current channel to obtain a deviation limit of ±4.7kHz [±2.3kHz]
(you can use either the mouse or up and down arrow keys).
Sweep the audio frequency from 100Hz to 4kHz and ensure that the maximum
deviation does not exceed ±4.7kHz [±2.3kHz]. Readjust “Deviation” if necessary
via PGM800Win.
![](/img.php?id=111477&img=bg73.png)
M820-00 T826/827 Initial Tuning & Adjustment C3.13
Copyright TEL 01/04/00
3.9.5 Line Level Without Compressor
This section assumes that the compressor is not used. If the compressor is required,
refer to Section 3.9.6.
Remove the CTCSS signal (if used).
Adjust the line sensitivity as follows:
• set the injected signal at the line input to the required line level (typically -10 to
-20dBm);
• adjust RV210 (line sensitivity) to provide ±3kHz [±1.5kHz] deviation.
Reapply the CTCSS signal (if required).
3.9.6 Compressor
The compressor may be used on the line input only, the microphone input only, or on
both the line and microphone inputs. If the compressor is used, refer to one of the fol-
lowing sections as appropriate.
3.9.6.1 Compressor On Line Input Only
Set RV210 (line sensitivity) fully clockwise and key the transmitter by earthing the
Tx-Key line.
Reduce the line level to -50dBm at 1kHz and set RV220 (compression level) fully
clockwise.
Check that ±3kHz [±1.5kHz] deviation is still available.
Slowly increase the audio input level until the demodulated waveform shows sig-
nificant signs of clipping (approximately ±4.5kHz [±2.3kHz] deviation).
Adjust RV220 anticlockwise until the demodulated waveform is just clipping
(approximately ±4kHz [±2kHz] deviation).
Increase the input level to -10dBm and check that the test tone is still held just into
clipping. The input line level should be typically -10 to -20dBm.
3.9.6.2 Compressor On Microphone Input Only
Key the transmitter by earthing the Tx-Key line and plug a microphone jack into
the front panel socket.
Adjust RV220 (compression level) fully clockwise.
Acoustically couple the microphone to a tone box (1kHz) and close the PTT
switch.
![](/img.php?id=111477&img=bg74.png)
C3.14 T826/827 Initial Tuning & Adjustment M820-00
01/04/00 Copyright TEL
Increase the audio level until the demodulated waveform shows significant signs
of clipping (approximately ±4.5kHz [±2.3kHz] deviation).
Adjust RV220 anticlockwise until the demodulated waveform is just clipping
(approximately ±4kHz [±2kHz] deviation).
Increase the audio level by 10dB and verify that the test tone is held just into clip-
ping.
Whistle steadily into the microphone, checking that approximately ±4kHz
[±2kHz] deviation is produced. The modulated waveform should be basically
sinusoidal.
Speak into the microphone, checking that the modulation peaks reach about
±5kHz [±2.5kHz] deviation.
As the line is to be used without compression, set RV210 (line sensitivity) as
described in Section 3.9.5.
3.9.6.3 Compressor On Both Line & Microphone Inputs
Set up as described in Section 3.9.6.1.
![](/img.php?id=111477&img=bg75.png)
M820-00 T826/827 PCB Information C6.1.1
Copyright TEL 01/04/00
6 T826/827 PCB Information
Caution: This equipment contains CMOS devices which are susceptible to damage from
static charges. Refer to Section 1.2 in Part A for more information on anti-static
procedures when handling these devices.
This section provides the following information on the T826 transmitter and T827 exciter:
•parts lists
• grid reference indexes
•PCB layouts
• circuit diagrams.
Section Title IPN Page
6.1 Introduction 6.1.3
6.2 T826 Transmitter PCB 220-01443-04 6.2.1
6.3 T827 Exciter PCB 220-01447-04 6.3.1
![](/img.php?id=111477&img=bg76.png)
C6.1.2 T826/827 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg77.png)
M820-00 T826/827 PCB Information C6.1.3
Copyright TEL 01/04/00
6.1 Introduction
Product Type Identification
You can identify the transmitter or exciter type by checking the product code printed on a label on
the rear of the chassis (product codes are explained in Section 1.3 in this Part of the manual, and Fig-
ure 1.1 in Part A shows typical labels). You can further verify the product type by checking the
placement of an SMD resistor in the table that is screen printed onto the top side of the PCB, similar
to the example drawn below. In this example, the resistor indicates that the product was built as a
T826-10-XXXX.
Note: The only function of this resistor is to indicate the product type. It has no effect on the
circuitry or operation of the transmitter or exciter.
PCB Identification
All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-01390-02, which
is screen printed onto the PCB (usually on the top side), as shown in the example below:
The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,
02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-
fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying
the PCB for service purposes.
Note: It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate set of PCB information.
T82610
T82615
PRODUCT TYPE
![](/img.php?id=111477&img=bg78.png)
C6.1.4 T826/827 PCB Information M820-00
01/04/00 Copyright TEL
Parts Lists
The 10 digit numbers (000-00000-00) in this Parts List are “internal part numbers” (IPNs). We can
process your spare parts orders more efficiently and accurately if you quote the IPN and provide a
brief description of the part.
The components listed in this parts list are divided into two main types: those with a circuit refer-
ence (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within
each group. Each component entry comprises three or four columns, as shown below:
The miscellaneous and mechanical section lists the variant and common parts in IPN order.
Parts List Amendments
At the front of the parts list is the Parts List Amendments box (an example of which is shown
below). This box contains a list of component changes which took place after the parts list and dia-
grams in this section were compiled. These changes (e.g. value changes, added/deleted compo-
nents, etc.) are listed by circuit reference in alphanumeric order and supersede the information
given in the parts list or diagrams. Components without circuit references are listed in IPN order.
The number in brackets at the end of each entry refers to the Tait internal Change Order document.
circuit reference -
lists components
in alphanumeric
order
variant column -
indicates that this is
a variant component
which is fitted only to
the product type listed
Internal Part Number -
order the component
b
y
this number
description -
gives a brief description
of the component
Parts List Amendments
R306 Changed from 180Ωto 560Ω(036-13560-00) to increase sensitivity (71003).
circuit reference
or IPN description
of change
IPN of new
component Change Order
number
![](/img.php?id=111477&img=bg79.png)
M820-00 T826/827 PCB Information C6.1.5
Copyright TEL 01/04/00
Variant Components
A variant component is one that has the same circuit reference but different value or specification in
different product types. Where two products share the same PCB, the term “variant” is also used to
describe components unplaced in one product. Variant components have a character prefix, such as
“&”, “=” or “#”, before the circuit reference (e.g. &R100).
The table below explains the variant prefixes used in T800 Series II products:
Grid Reference Index
This section contains a component grid reference index to help you find components and labelled
pads on the PCB layouts and circuit diagrams. This index lists the components and pads in alpha-
numeric order, along with the appropriate alphanumeric grid references, as shown below:
If the variant prefix is. . . the component will. . .
& change according to channel spacing
= change according to frequency stability
# change according to frequency range
% change or be placed/unplaced for special applications
*be unplaced in one product
(where two products share the same PCB)
circuit diagram
reference
PCB layout
reference
components listed
in alphanumeric order
layer number -
1 = top side layer
2 = bottom side layer
component location
on the layer
sheet number
component location
on the sheet
![](/img.php?id=111477&img=bg7a.png)
C6.1.6 T826/827 PCB Information M820-00
01/04/00 Copyright TEL
Using CAD Circuit Diagrams
Reading a CAD circuit diagram is similar to reading a road map, in that both have an alphanumeric
border. The circuit diagrams in this manual use letters to represent the horizontal axis, and num-
bers for the vertical axis. These circuit diagram “grid references” are useful in following a circuit
that is spread over two or more sheets.
When a line representing part of the circuitry is discontinued, a reference will be given at the end of
the line to indicate where the rest of the circuitry is located, as shown below. The first digit refers to
the sheet number and the last two characters refer to the location on that sheet of the continuation of
the circuit (e.g. 1R3).
C301
4N7
R303
12
D
S
G
L310
33U
IF-SIG
4R4
C369
100P
C371
10U
R339
100K
%R338
100
DISCRIMINATOR
1R3
2R9
2R9
8A2
t
hese grid references
s
how where the circuit
is continued
![](/img.php?id=111477&img=bg7b.png)
M820-00 T826 PCB Information C6.2.1
Copyright TEL 01/04/00
6.2 T826 Transmitter PCB
This section contains the following information.
IPN Section Page
220-01443-04 Parts List
Mechanical & Miscellaneous Parts
Grid Reference Index
PCB Layout - Top Side
PCB Layout - Bottom Side
Transmitter Overview Diagram
Audio Processor Circuit Diagram
Exciter Circuit Diagram
PA Circu it D iagr am
VCO Section Circuit Diagram
Regulators Circuit Diagram
Synthesiser Circuit Diagram
Microcontroller Circuit Diagram
Harmonic Filter Circuit Diagram
6.2.3
6.2.10
6.2.11
6.2.15
6.2.16
6.2.17
6.2.18
6.2.19
6.2.20
6.2.21
6.2.22
6.2.23
6.2.24
6.2.25
![](/img.php?id=111477&img=bg7c.png)
C6.2.2 T826 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg7d.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.3
Copyright TEL 01/04/00
T826 Parts List (IPN 220-01443-04)
How To Use This Parts List
The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and
those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component
entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-
umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by
an (S) at the start of the description column.
The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend
column indicates their position in the mechanical assembly drawing.
The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were
compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order
and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.
Parts List Amendments
There were no amendments to the parts list at the time of publication.
![](/img.php?id=111477&img=bg7e.png)
IPN 220-01443-04
C6.2.4 T826 PCB Information M820-00
01/04/00 Copyright TEL
Parts List Amendments - Continued
This page is provided for entering future amendments to the parts list.
![](/img.php?id=111477&img=bg7f.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.5
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
C201 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C202 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C204 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C205 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C207 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C209 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C210 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C211 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C213 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C215 014-08220-01 (L)CAP TANT 22UF10V276MSER
C217 015-24220-08 CAP CER 0805 2N2 10% X7R 50V
C219 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C221 014-08220-01 (L)CAP TANT 22UF10V276MSER
C223 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C225 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C227 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C229 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C230 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C232 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C233 016-08470-03 CAP SMD ELEC 47mF 20% 25v 8.3m
C235 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C237 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C239 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C241 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C242 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C243 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C245 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C247 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C249 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C251 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C253 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C255 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C257 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C259 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C260 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C261 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C263 016-09100-05 CAP SMD ELECT 100U 25V 20%
C265 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C267 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
&C269 10 015-21150-01 CAP CER 0805 1P5+-1/4P NPO 50V
&C269 15 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
&C271 10 015-22470-01 CAP CER 0805 47P 5% NPO 50V
&C271 15 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C273 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C275 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C277 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C279 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C281 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C283 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
C285 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
C287 016-09100-05 CAP SMD ELECT 100U 25V 20%
&C289 10 015-25470-08 CAP CER 0805 47N 10% X7R 50V
&C289 15 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C291 014-08220-01 (L)CAP TANT 22UF10V276MSER
C293 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V
%C294 10 015-22470-01 CAP CER 0805 47P 5% NPO 50V
%C294 15 015-22470-01 CAP CER 0805 47P 5% NPO 50V
%C295 10 013-06470-00 CAP SMD POLYESTER 470N 63V 10%
%C295 15 013-06470-00 CAP SMD POLYESTER 470N 63V 10%
C300 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C301 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C302 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C303 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C304 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C305 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C306 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C307 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C308 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C309 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C310 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C311 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C312 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C313 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C314 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C315 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C316 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C317 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C318 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C319 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C320 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C323 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C324 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C326 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C327 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C328 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C329 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C330 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C331 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C332 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C333 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C334 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C335 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C336 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C337 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C338 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C339 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C340 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C341 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C342 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C344 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C346 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C347 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C348 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C349 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C350 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C351 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C352 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C353 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C354 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C355 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C356 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C357 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C358 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C359 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C360 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C361 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C362 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C363 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C364 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C365 014-18220-02 L)CAP TANT SMD 22U 20% 35V
C366 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C367 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C369 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C370 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C371 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C372 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C373 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C374 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C375 015-22100-01 CAP CER 0805 10P+-1/2P NPO 50V
C376 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C377 015-22220-01 CAP CER 0805 22P 5% NPO 50V
C378 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C379 014-07470-04 CAP TANT SMD 4U7 50V 20%
C380 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C381 015-04100-06 CAP CER 1210 1NF NPO200V GRM42
C385 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C386 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C387 014-07470-01 CAP 4U7 ’B’CASE 25V +-10% 267
C388 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C389 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C390 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C393 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C395 014-07470-01 CAP 4U7 ’B’CASE 25V +-10% 267
C396 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C397 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C400 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C401 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C402 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C403 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C410 015-22820-01 CAP CER 0805 82P 5% NPO 50V
C411 015-03100-06 CAP CER 1210 100P NPO500VGRM42
C412 014-07470-04 CAP TANT SMD 4U7 50V 20%
C413 015-02680-06 CAP CER 1210 68P NPO500VGRM42
C414 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C415 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C416 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C425 015-03120-06 CAP CER 1210 120P NPO500VGRM42
C426 015-03680-06 CAP CER 1210 680P NPO200VGRM42
C427 014-07470-04 CAP TANT SMD 4U7 50V 20%
C428 015-03470-03 CAP CER 470P 5% NPO200V GRH111
C429 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C430 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C431 015-05470-08 CAP CER 1206 47N 10% X7R 50V
C440 015-02470-06 CAP CER 1210 47P NPO500VGRM42
C441 015-02470-06 CAP CER 1210 47P NPO500VGRM42
C442 015-03120-06 CAP CER 1210 120P NPO500VGRM42
C443 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C444 015-03150-06 CAP CER 1210 150P NPO500VGRM42
C445 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C446 015-02390-06 CAP CER 1210 39P NPO500VGRM42
C447 015-02390-06 CAP CER 1210 39P NPO500VGRM42
C448 015-03680-06 CAP CER 1210 680P NPO200VGRM42
C449 015-21560-01 CAP CER 0805 5P6+-1/4P NPO 50V
C450 015-21560-01 CAP CER 0805 5P6+-1/4P NPO 50V
C451 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C452 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C480 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C503 015-24220-08 CAP CER 0805 2N2 10% X7R 50V
C505 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C510 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C514 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C515 015-24100-08 CAP CER 0805 1N 10% X7R 50V
Note: %D205 and %D210 are optional level limiting diodes for
special applications.
=R705 (47 ohm) and =SK710 are fitted in place of
=IC700 when an external frequency reference is used.
These two components are supplied with the auxiliary
D-range kits (T800-06-0000 & T800-06-0001).
![](/img.php?id=111477&img=bg80.png)
IPN 220-01443-04
C6.2.6 T826 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
C516 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C520 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C522 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C530 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C535 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C536 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C537 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C545 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C546 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C550 014-08220-01 (L)CAP TANT 22UF10V276MSER
C600 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C601 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C605 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C610A 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C610B 014-09100-00 CAP TANT SMD 100U 16V 20%
C611A 014-09100-00 CAP TANT SMD 100U 16V 20%
C611B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C615 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C616 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C623 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C625 020-09470-07 CAPEL470M16V20%V 8*20 3.5L.ESR
C626 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C628 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C630 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C631A 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C634 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C636 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C638 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C640 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C655 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C660 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C665 014-08100-03 CAP TANT SMD 10U 35V 20%
C670 014-07330-10 CAP TANT SMD 3U3 35V 10%
C673 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C677 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C681 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C684 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C687 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C690 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C693 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C700 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C703 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C706 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C708 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C709 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C710 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C712 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C714 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C719 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C720 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C722 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C724 014-08220-01 (L)CAP TANT 22UF10V276MSER
C725 014-08220-01 (L)CAP TANT 22UF10V276MSER
C726 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C727 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C729 015-23220-01 CAP CER 0805 220P 5% NPO 50V
%C733 10 015-23470-08 CAP CER 0805 470P 10% X7R 50V
%C733 15 015-23470-08 CAP CER 0805 470P 10% X7R 50V
C735 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C736 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C740A 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C740B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C741A 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C741B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C742A 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C742B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C743 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C745 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C750 014-08100-03 CAP TANT SMD 10U 35V 20%
C757 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C759 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C761 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C762 014-08220-01 (L)CAP TANT 22UF10V276MSER
C764 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C765 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C767 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C769 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C770 014-08220-01 (L)CAP TANT 22UF10V276MSER
C772 014-08220-01 (L)CAP TANT 22UF10V276MSER
C776 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C778 022-07100-05 CAP METAL PPS 1U 20% 63V 5MM
C780 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C781 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C782 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C783 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C784 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C785 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C786 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C810 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C812 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C813 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C822 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C823 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C824 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C826 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C827 015-22330-01 CAP CER 0805 33P 5% NPO 50V
C828 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C830 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C838 014-09100-00 CAP TANT SMD 100U 16V 20%
C841 014-09100-00 CAP TANT SMD 100U 16V 20%
C844 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C900 015-02330-06 CAP CER 1210 33P 500V GRM42
C901 015-02330-06 CAP CER 1210 33P 500V GRM42
C902 015-02330-06 CAP CER 1210 33P 500V GRM42
C903 015-02220-06 CAP CER 1210 22P 5% 500V GRM42
C904 015-02270-06 CAP CER 1210 27P NPO500VGRM42
C905 015-02330-06 CAP CER 1210 33P 500V GRM42
C906 015-02330-06 CAP CER 1210 33P 500V GRM42
C907 015-02330-06 CAP CER 1210 33P 500V GRM42
%D111A 10 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
%D111A 15 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
D220 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D230 001-10010-40 DIODE SMD ZENER 33V BZG03-C33
D240 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D250 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D260 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D270 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D300 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D301 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D302 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D303 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D440 001-10066-00 DIODE SCHOTTKY HSMS2815
D441 001-10066-00 DIODE SCHOTTKY HSMS2815
D610 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D620 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D630 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D635 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D640 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D645 001-10010-40 DIODE SMD ZENER 33V BZG03-C33
D710 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D720 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D730 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D740 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D810 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
IC210 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC220 002-10126-70 S) IC SMD DS1267S10K 2XDIG POT
IC230 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC240 002-10040-53 S)MC14053B SMD BREAK B4 MAKE
IC250 002-10020-50 IC SMD 4N25A OPTOCOUPLER
IC260 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC300 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC310 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC385 002-12951-00 IC SMD LP2951CM ADJ VLTGE REG
IC610 002-10078-05 S) IC SMD 78L05 5V REG
IC630 002-12523-17 (S)IC LM317L REG TO-252 0.5A
IC640 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC650 002-10012-32 SMD DS1232LPS-2 LP RESET&W-DOG
=IC700 10 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
=IC700 15 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
IC710 002-74900-04 S) IC SMD 74HC04D 6X INV BUFFD
IC720 002-74910-04 S) IC SMD 74HCU04 6X INV
IC730 002-10045-20 S) IC SMD 74HC4520T 2XCTR 4BIT
IC740 002-14519-10 S) IC MC145191F SMD SYNTH
IC750 002-10330-78 S) IC MC33078D 2X AMP LO NOISE
IC820 002-12416-00 S)IC SMD AT24C16N-10SC EEPROM
IC830 002-10003-24 S) IC SMD 324 4X O-AMP SO14
L300 056-10820-02 (L) IND SMD 820NH
L301 056-10820-02 (L) IND SMD 820NH
L302 056-10820-02 (L) IND SMD 820NH
L303 052-08355-40 COIL A/W 4T/5.5mm SMD 0.8mm
L304 052-08350-20 COIL A/W 2T/5.0MM SMD 0.8MM
L305 052-08330-50 COIL A/W 5T/3.0MM SMD 0.8MM
L306 056-10820-02 (L) IND SMD 820NH
L307 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2
L308 056-10102-12 IND SMD 1u2 1812CS 5%
L309 052-08340-50 COIL A/W 5T/4.0MM SMD 0.8MM
L310 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L330 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L385 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L400 056-00021-00 IND FXD 3.3UH AX
L401 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2
L410 052-08135-55 COIL A/W 5.5T/3.5MM HOR 0.8MM
L411 052-08140-15 COIL A/W 1.5T/4.0MM HOR 0.8MM
L412 065-00010-01 BEAD FERR 3B 6 HOLE
L413 052-08140-65 COIL A/W 6.5T/4.0MM HOR 0.8MM
L414 065-00010-01 BEAD FERR 3B 6 HOLE
L415 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2
L416 056-00021-04 IND FXD 330NH AX (uH33)
L425 052-08130-25 COIL A/W 2.5T/3.0MM HOR 0.8MM
L426 052-08320-10 COIL A/W 1T/2.0MM SMD 0.8MM
L427 065-00010-01 BEAD FERR 3B 6 HOLE
L428 052-08150-55 COIL A/W 5.5T/5.0MM HOR 0.8MM
L440 052-08130-15 COIL A/W 1.5T/3.0MM HOR 0.8MM
L441 052-08140-35 COIL A/W 3.5T/4.0MM HOR 0.8MM
L442 056-14330-02 (L) IND SMD 3.3UH
L443 056-10820-02 (L) IND SMD 820NH
L444 056-10820-02 (L) IND SMD 820NH
L445 056-14330-02 (L) IND SMD 3.3UH
L480 056-10820-02 (L) IND SMD 820NH
L520 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L535 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L600 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L615 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
![](/img.php?id=111477&img=bg81.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.7
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
L780 056-10330-02 (L) IND SMD 330NH
L900 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM
L901 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM
L902 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM
L903 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM
L904 052-08155-15 COIL A/W 1.5T/5.5MM HOR 0.8MM
PL100 070-01001-00 D-RANGE 15 WAY COMPL T800
PL205 240-00020-67 HEADER 6W 2X3 PCB MTG STD
PL210 240-00020-67 HEADER 6W 2X3 PCB MTG STD
PL215 240-00020-44 HEADER 10W X2R PCB MTG 5*2
PL220 240-00020-67 HEADER 6W 2X3 PCB MTG STD
Q210 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q220 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q230 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q240 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q250 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q260 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q270 000-10004-10 S) XSTR SMD MJD41C NPN SW DPAK
Q300 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q301 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q302 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q303 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q304 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q305 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q307 000-10095-10 S) XSTR SMD BR951 NPN UHF
Q308 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q309 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q310 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q311 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q312 000-10938-20 L)XSTR MRF9382TI HI FRQ PWRFET
Q315 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD
Q360 000-10017-00 LS) XSTR SMD BF170LT1 SOT23
Q415 000-00026-27 S) XSTR 2SC2627 NPN 5W VHF STD
Q425 000-00000-60 S) XSTR BLW60C 45W 175MHZ RF
Q510 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q520 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q530 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q540 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q550 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q610 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q620 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD
Q630 000-10003-00 S) XSTR BSR30 PNP AF SOT-89
Q660 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q670 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q710 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q720 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q730 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q740 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q750 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q760 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q770 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q775 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q780 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q785 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q790 000-10003-12 S) XSTR SMD BFR31 N JFET SOT23
Q795 000-10057-10 S) XSTR SMD BR571 NPN SOT23
Q810 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q820 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q830 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q840 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q850 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q860 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
R160 036-12100-00 RES M/F 0805 10E 5%
R201 036-13560-00 RES M/F 0805 560E 5%
R202 036-14100-10 RES M/F 0805 1K 1%
R204 036-14220-00 RES M/F 0805 2K2 5%
R205 036-13220-10 RES 0805 220E 1%
R206 036-14100-10 RES M/F 0805 1K 1%
R207 036-14390-10 RES M/F 0805 3K9 1%
R208 036-13560-00 RES M/F 0805 560E 5%
R209 036-15100-10 RES M/F 0805 10K 1%
R210 036-14220-00 RES M/F 0805 2K2 5%
RV210 040-05100-23 POT 10K LOG PCB 15MM SLOT SFT
R211 036-13470-00 RES M/F 0805 470E 5%
R212 036-16100-00 RES M/F 0805 100K 5%
R213 036-15100-10 RES M/F 0805 10K 1%
R214 036-14820-10 RES M/F 0805 8K2 1%
R215 036-16100-00 RES M/F 0805 100K 5%
R216 036-16100-00 RES M/F 0805 100K 5%
R217 036-14100-10 RES M/F 0805 1K 1%
R218 036-16150-00 RES M/F 0805 150K 5%
R219 036-14220-00 RES M/F 0805 2K2 5%
R220 036-13470-00 RES M/F 0805 470E 5%
RV220 042-05500-05 RES PRESET SMD 50K CER 4MM SQ
R221 036-14150-10 RES M/F 0805 1K5 1%
R223 036-17100-10 RES M/F 0805 1M 1%
R224 036-14680-10 RES M/F 0805 6K8 1%
R225 036-17100-10 RES M/F 0805 1M 1%
R226 036-15100-10 RES M/F 0805 10K 1%
R227 036-14220-00 RES M/F 0805 2K2 5%
R228 036-13120-00 RES M/F 0805 120E 5%
R229 036-16470-00 RES M/F 0805 470K 5%
R230 036-16100-00 RES M/F 0805 100K 5%
R231 036-15100-10 RES M/F 0805 10K 1%
R232 036-16330-00 RES M/F 0805 330K 5%
R233 036-16100-00 RES M/F 0805 100K 5%
R235 036-14470-10 RES M/F 0805 4K7 1%
R237 036-15470-10 RES M/F 0805 47K 1%
R238 036-15470-10 RES M/F 0805 47K 1%
R239 036-14150-10 RES M/F 0805 1K5 1%
R241 036-14470-10 RES M/F 0805 4K7 1%
R242 036-14220-00 RES M/F 0805 2K2 5%
R244 036-15100-10 RES M/F 0805 10K 1%
R245 036-16100-00 RES M/F 0805 100K 5%
R247 036-15100-10 RES M/F 0805 10K 1%
R248 036-16100-00 RES M/F 0805 100K 5%
R249 036-16100-00 RES M/F 0805 100K 5%
R251 036-16100-00 RES M/F 0805 100K 5%
R253 036-16100-00 RES M/F 0805 100K 5%
R254 036-16100-00 RES M/F 0805 100K 5%
R255 036-15100-10 RES M/F 0805 10K 1%
R256 036-15470-10 RES M/F 0805 47K 1%
R257 036-16560-00 RES M/F 0805 560K 5%
R258 036-16150-00 RES M/F 0805 150K 5%
R259 036-15220-00 RES M/F 0805 22K 5%
R260 036-15470-10 RES M/F 0805 47K 1%
R262 036-15470-10 RES M/F 0805 47K 1%
R263 036-14470-10 RES M/F 0805 4K7 1%
&R264 10 036-15220-00 RES M/F 0805 22K 5%
&R264 15 036-15270-10 RES M/F 0805 27K 1%
&R265 10 036-15150-00 RES M/F 0805 15K 5%
&R265 15 036-15180-00 RES M/F 0805 18K 5%
&R266 10 036-15470-10 RES M/F 0805 47K 1%
&R266 15 036-15560-10 RES MF 0805 56K 1%
R267 036-14220-00 RES M/F 0805 2K2 5%
R268 036-13100-10 RES M/F 0805 100E 1%
R269 036-15100-10 RES M/F 0805 10K 1%
R270 036-14120-00 RES M/F 0805 1K2 5%
R271 036-17100-10 RES M/F 0805 1M 1%
R272 036-13560-00 RES M/F 0805 560E 5%
R273 036-15120-00 RES M/F 0805 12K 5%
R274 036-15150-00 RES M/F 0805 15K 5%
R275 036-14270-00 RES M/F 0805 2K7 5%
R277 036-16100-00 RES M/F 0805 100K 5%
R278 036-16120-00 RES M/F 0805 120K 5%
R279 036-17100-10 RES M/F 0805 1M 1%
R280 036-15100-10 RES M/F 0805 10K 1%
R282 036-15560-10 RES MF 0805 56K 1%
R283 036-15560-10 RES MF 0805 56K 1%
R284 036-17100-10 RES M/F 0805 1M 1%
R285 036-10000-00 RES M/F 0805 ZERO OHM
R286 036-14220-00 RES M/F 0805 2K2 5%
R287 036-15100-10 RES M/F 0805 10K 1%
R288 036-15120-00 RES M/F 0805 12K 5%
R289 036-16100-00 RES M/F 0805 100K 5%
&R290 10 036-13560-00 RES M/F 0805 560E 5%
&R290 15 036-13560-00 RES M/F 0805 560E 5%
R291 036-10000-00 RES M/F 0805 ZERO OHM
R292 036-14470-10 RES M/F 0805 4K7 1%
R293 036-15470-10 RES M/F 0805 47K 1%
R294 036-14470-10 RES M/F 0805 4K7 1%
R295 036-14270-00 RES M/F 0805 2K7 5%
R296 036-14100-10 RES M/F 0805 1K 1%
R297 036-14560-00 RES M/F 0805 5K6 5%
%R298 10 036-16100-00 RES M/F 0805 100K 5%
%R298 15 036-16100-00 RES M/F 0805 100K 5%
R299 036-14270-00 RES M/F 0805 2K7 5%
R300 036-15100-10 RES M/F 0805 10K 1%
R301 036-14100-10 RES M/F 0805 1K 1%
RV301 042-04220-05 RES PRESET SMD 2K CER 4MM SQ
R302 036-14100-10 RES M/F 0805 1K 1%
RV302 042-06500-05 RES PRESET SMD 500K CER 4MM SQ
R303 036-15220-00 RES M/F 0805 22K 5%
R304 036-14150-10 RES M/F 0805 1K5 1%
R305 036-15330-00 RES M/F 0805 33K 5%
R306 036-14470-10 RES M/F 0805 4K7 1%
R307 036-15100-10 RES M/F 0805 10K 1%
R308 036-15100-10 RES M/F 0805 10K 1%
R309 036-12470-00 RES M/F 0805 47E 5%
R310 036-15100-10 RES M/F 0805 10K 1%
R311 036-13100-10 RES M/F 0805 100E 1%
R312 036-14470-10 RES M/F 0805 4K7 1%
R313 036-13560-00 RES M/F 0805 560E 5%
R314 036-13560-00 RES M/F 0805 560E 5%
R315 036-11330-00 RES M/F 0805 3E3 5%
R316 036-14150-10 RES M/F 0805 1K5 1%
R317 036-14560-00 RES M/F 0805 5K6 5%
R318 036-14270-00 RES M/F 0805 2K7 5%
R319 036-15100-10 RES M/F 0805 10K 1%
%R320 10 036-15180-00 RES M/F 0805 18K 5%
%R320 15 036-15180-00 RES M/F 0805 18K 5%
R321 036-15100-10 RES M/F 0805 10K 1%
R322 036-14220-00 RES M/F 0805 2K2 5%
R323 036-15470-10 RES M/F 0805 47K 1%
R324 036-15220-00 RES M/F 0805 22K 5%
R325 036-15470-10 RES M/F 0805 47K 1%
R326 036-15470-10 RES M/F 0805 47K 1%
R327 036-15470-10 RES M/F 0805 47K 1%
%R328 10 036-15180-00 RES M/F 0805 18K 5%
%R328 15 036-15180-00 RES M/F 0805 18K 5%
R329 036-14150-10 RES M/F 0805 1K5 1%
R330 036-16100-00 RES M/F 0805 100K 5%
R331 036-15100-10 RES M/F 0805 10K 1%
![](/img.php?id=111477&img=bg82.png)
IPN 220-01443-04
C6.2.8 T826 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
R332 036-14220-00 RES M/F 0805 2K2 5%
R333 036-12680-00 RES M/F 0805 68E 5%
R334 036-15220-00 RES M/F 0805 22K 5%
R335 036-12680-00 RES M/F 0805 68E 5%
R336 036-15100-10 RES M/F 0805 10K 1%
R337 036-16100-00 RES M/F 0805 100K 5%
R338 036-16100-00 RES M/F 0805 100K 5%
R339 036-15150-00 RES M/F 0805 15K 5%
R340 036-16100-00 RES M/F 0805 100K 5%
R341 036-15150-00 RES M/F 0805 15K 5%
R342 036-15100-10 RES M/F 0805 10K 1%
R343 036-15470-10 RES M/F 0805 47K 1%
R344 036-16470-00 RES M/F 0805 470K 5%
R345 036-03150-02 RES RC-01 1206 150E 200V 250MW
R346 036-12220-00 RES M/F 0805 22E 5%
R347 036-12270-00 RES M/F 0805 27E 5%
R348 036-16330-00 RES M/F 0805 330K 5%
R349 036-14100-10 RES M/F 0805 1K 1%
R350 036-13330-00 RES M/F 0805 330E 5%
R351 036-14100-10 RES M/F 0805 1K 1%
R352 036-14100-10 RES M/F 0805 1K 1%
R353 036-10000-00 RES M/F 0805 ZERO OHM
R354 036-13100-10 RES M/F 0805 100E 1%
R355 036-03150-02 RES RC-01 1206 150E 200V 250MW
R356 036-14220-00 RES M/F 0805 2K2 5%
R358 036-16150-00 RES M/F 0805 150K 5%
R359 036-16470-00 RES M/F 0805 470K 5%
R360 036-14150-10 RES M/F 0805 1K5 1%
R361 036-16150-00 RES M/F 0805 150K 5%
R362 036-15470-10 RES M/F 0805 47K 1%
R363 036-15560-10 RES MF 0805 56K 1%
R364 036-13100-10 RES M/F 0805 100E 1%
R365 036-13100-10 RES M/F 0805 100E 1%
R369 036-14470-10 RES M/F 0805 4K7 1%
R370 036-11330-00 RES M/F 0805 3E3 5%
R371 036-15180-00 RES M/F 0805 18K 5%
R372 036-14330-10 RES M/F 0805 3K3 1%
R373 036-12270-00 RES M/F 0805 27E 5%
R374 036-16100-00 RES M/F 0805 100K 5%
R375 036-13560-00 RES M/F 0805 560E 5%
R376 036-14220-00 RES M/F 0805 2K2 5%
R377 036-14100-10 RES M/F 0805 1K 1%
R378 036-12470-00 RES M/F 0805 47E 5%
R380 036-03033-10 RES 3E3 1W SMD 2512
R385 036-11330-00 RES M/F 0805 3E3 5%
R386 036-16100-00 RES M/F 0805 100K 5%
R387 036-14150-10 RES M/F 0805 1K5 1%
R388 036-14680-10 RES M/F 0805 6K8 1%
R389 036-14270-00 RES M/F 0805 2K7 5%
R392 036-12220-00 RES M/F 0805 22E 5%
R395 036-12220-00 RES M/F 0805 22E 5%
R410 036-13270-00 RES M/F 0805 270E 5%
R411 036-03118-10 RES 18R 1W SMD 2512
R412 036-13270-00 RES M/F 0805 270E 5%
R413 036-11330-00 RES M/F 0805 3E3 5%
R414 036-03180-10 RES 180R 1W SMD 2512
R415 036-03180-10 RES 180R 1W SMD 2512
R416 036-03110-10 RES 10R 1W SMD 2512
R425 036-11330-00 RES M/F 0805 3E3 5%
R426 036-03110-10 RES 10R 1W SMD 2512
R427 036-03110-10 RES 10R 1W SMD 2512
R428 036-03180-10 RES 180R 1W SMD 2512
R429 036-03180-10 RES 180R 1W SMD 2512
R440 036-15470-10 RES M/F 0805 47K 1%
R441 036-13270-00 RES M/F 0805 270E 5%
R442 036-13100-10 RES M/F 0805 100E 1%
R443 036-13100-10 RES M/F 0805 100E 1%
R444 036-13270-00 RES M/F 0805 270E 5%
R445 036-15470-10 RES M/F 0805 47K 1%
R480 045-04470-01 RES NTC 4K7 5% 5MM DISC
R504 036-13330-00 RES M/F 0805 330E 5%
R505 036-15270-10 RES M/F 0805 27K 1%
R510 036-14150-10 RES M/F 0805 1K5 1%
R514 036-12180-00 RES M/F 0805 18E 5%
R515 036-12560-00 RES M/F 0805 56E 5%
R517 036-13330-00 RES M/F 0805 330E 5%
R518 036-12180-00 RES M/F 0805 18E 5%
R519 036-13330-00 RES M/F 0805 330E 5%
R520 036-16120-00 RES M/F 0805 120K 5%
R522 036-12680-00 RES M/F 0805 68E 5%
R525 036-15470-10 RES M/F 0805 47K 1%
R530 036-15220-00 RES M/F 0805 22K 5%
R533 036-12680-00 RES M/F 0805 68E 5%
R535 036-15100-10 RES M/F 0805 10K 1%
R540 036-14220-00 RES M/F 0805 2K2 5%
R545 036-14470-10 RES M/F 0805 4K7 1%
%R550 10 036-14470-10 RES M/F 0805 4K7 1%
%R550 15 036-14470-10 RES M/F 0805 4K7 1%
R555 036-14470-10 RES M/F 0805 4K7 1%
R560 036-13470-00 RES M/F 0805 470E 5%
R609 036-14100-10 RES M/F 0805 1K 1%
R613 036-13560-00 RES M/F 0805 560E 5%
R615 036-13100-10 RES M/F 0805 100E 1%
R617 036-10000-00 RES M/F 0805 ZERO OHM
R619 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R621 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R625 036-14100-10 RES M/F 0805 1K 1%
R629 036-03270-10 RES 270 OHM 1 WATT 2512 CHIP
R633 036-14680-10 RES M/F 0805 6K8 1%
R637 036-12220-00 RES M/F 0805 22E 5%
R638 036-12220-00 RES M/F 0805 22E 5%
R640 036-12100-00 RES M/F 0805 10E 5%
R641 036-14150-10 RES M/F 0805 1K5 1%
R645 036-13470-00 RES M/F 0805 470E 5%
R649 036-14470-10 RES M/F 0805 4K7 1%
R653 036-15100-10 RES M/F 0805 10K 1%
R655 036-10000-00 RES M/F 0805 ZERO OHM
R656 036-10000-00 RES M/F 0805 ZERO OHM
R657 036-15100-10 RES M/F 0805 10K 1%
R661 036-15100-10 RES M/F 0805 10K 1%
R665 036-16100-00 RES M/F 0805 100K 5%
R669 036-15470-10 RES M/F 0805 47K 1%
R673 036-16100-00 RES M/F 0805 100K 5%
R677 036-15470-10 RES M/F 0805 47K 1%
R681 036-13100-10 RES M/F 0805 100E 1%
R685 036-15150-00 RES M/F 0805 15K 5%
R689 036-12100-00 RES M/F 0805 10E 5%
R693 036-16100-00 RES M/F 0805 100K 5%
R696 036-15560-10 RES MF 0805 56K 1%
R701 036-12220-00 RES M/F 0805 22E 5%
R702 036-17100-10 RES M/F 0805 1M 1%
R703 036-17100-10 RES M/F 0805 1M 1%
R705 036-15100-10 RES M/F 0805 10K 1%
R706 036-12100-00 RES M/F 0805 10E 5%
R708 036-17100-10 RES M/F 0805 1M 1%
R710 036-13100-10 RES M/F 0805 100E 1%
R711 036-13100-10 RES M/F 0805 100E 1%
R712 036-12100-00 RES M/F 0805 10E 5%
R713 036-10000-00 RES M/F 0805 ZERO OHM
R714 036-12100-00 RES M/F 0805 10E 5%
%R715 10 036-14100-10 RES M/F 0805 1K 1%
%R715 15 036-14100-10 RES M/F 0805 1K 1%
R717 036-14270-00 RES M/F 0805 2K7 5%
R718 036-15150-00 RES M/F 0805 15K 5%
R719 036-15150-00 RES M/F 0805 15K 5%
R720 036-15390-00 RES M/F 0805 39K 5%
R721 036-15100-10 RES M/F 0805 10K 1%
R722 036-15100-10 RES M/F 0805 10K 1%
R723 036-14270-00 RES M/F 0805 2K7 5%
R725 036-15390-00 RES M/F 0805 39K 5%
%R726 10 036-13100-10 RES M/F 0805 100E 1%
%R726 15 036-13100-10 RES M/F 0805 100E 1%
R727 036-15100-10 RES M/F 0805 10K 1%
R728 036-15100-10 RES M/F 0805 10K 1%
R734 036-13470-00 RES M/F 0805 470E 5%
R735 036-13470-00 RES M/F 0805 470E 5%
R736 036-13470-00 RES M/F 0805 470E 5%
R742 036-13150-00 RES M/F 0805 150E 5%
R743 036-13150-00 RES M/F 0805 150E 5%
R744 036-12220-00 RES M/F 0805 22E 5%
R746 036-12220-00 RES M/F 0805 22E 5%
R747 036-12220-00 RES M/F 0805 22E 5%
R748 036-15470-10 RES M/F 0805 47K 1%
R749 036-15470-10 RES M/F 0805 47K 1%
R750 036-12220-00 RES M/F 0805 22E 5%
R752 036-12220-00 RES M/F 0805 22E 5%
R753 036-17100-10 RES M/F 0805 1M 1%
R754 036-14100-10 RES M/F 0805 1K 1%
R756 036-15120-00 RES M/F 0805 12K 5%
R757 036-15120-00 RES M/F 0805 12K 5%
R758 036-14120-00 RES M/F 0805 1K2 5%
R759 036-13330-00 RES M/F 0805 330E 5%
R760 036-13180-00 RES M/F 0805 180E 5%
R762 036-13100-10 RES M/F 0805 100E 1%
R763 036-13100-10 RES M/F 0805 100E 1%
R765 036-13680-00 RES M/F 0805 680E 5%
R766 036-14100-10 RES M/F 0805 1K 1%
R767 036-13680-00 RES M/F 0805 680E 5%
R769 036-13180-00 RES M/F 0805 180E 5%
R771 036-14820-10 RES M/F 0805 8K2 1%
R772 036-15220-00 RES M/F 0805 22K 5%
R774 036-14820-10 RES M/F 0805 8K2 1%
R775 036-14270-00 RES M/F 0805 2K7 5%
R777 036-14220-00 RES M/F 0805 2K2 5%
R780 036-12100-00 RES M/F 0805 10E 5%
R781 036-12100-00 RES M/F 0805 10E 5%
R782 036-12680-00 RES M/F 0805 68E 5%
R783 036-13220-10 RES 0805 220E 1%
R784 036-14330-10 RES M/F 0805 3K3 1%
R785 036-13100-10 RES M/F 0805 100E 1%
R786 036-14100-10 RES M/F 0805 1K 1%
R787 036-12560-00 RES M/F 0805 56E 5%
R801 036-16150-00 RES M/F 0805 150K 5%
R802 036-15470-10 RES M/F 0805 47K 1%
RV805 042-05200-05 RES PRESET SMD 20K CER 4MM SQ
R808 036-12100-00 RES M/F 0805 10E 5%
R809 036-14470-10 RES M/F 0805 4K7 1%
R810 036-14470-10 RES M/F 0805 4K7 1%
R811 036-14470-10 RES M/F 0805 4K7 1%
R812 036-14470-10 RES M/F 0805 4K7 1%
R813 036-14470-10 RES M/F 0805 4K7 1%
R815 036-15470-10 RES M/F 0805 47K 1%
R816 036-16150-00 RES M/F 0805 150K 5%
R818 036-14470-10 RES M/F 0805 4K7 1%
R819 036-14470-10 RES M/F 0805 4K7 1%
R821 036-15470-10 RES M/F 0805 47K 1%
![](/img.php?id=111477&img=bg83.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.9
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
R822 036-15470-10 RES M/F 0805 47K 1%
R824 036-14220-00 RES M/F 0805 2K2 5%
R825 036-14220-00 RES M/F 0805 2K2 5%
R826 036-14220-00 RES M/F 0805 2K2 5%
R827 036-14220-00 RES M/F 0805 2K2 5%
R828 036-14220-00 RES M/F 0805 2K2 5%
R829 036-14220-00 RES M/F 0805 2K2 5%
R830 036-14220-00 RES M/F 0805 2K2 5%
R831 036-14220-00 RES M/F 0805 2K2 5%
R832 036-14220-00 RES M/F 0805 2K2 5%
R833 036-14220-00 RES M/F 0805 2K2 5%
R835 036-14220-00 RES M/F 0805 2K2 5%
R836 036-14220-00 RES M/F 0805 2K2 5%
R837 036-14220-00 RES M/F 0805 2K2 5%
R840 036-14220-00 RES M/F 0805 2K2 5%
R841 036-14220-00 RES M/F 0805 2K2 5%
R842 036-14220-00 RES M/F 0805 2K2 5%
R843 036-14220-00 RES M/F 0805 2K2 5%
R845 036-13470-00 RES M/F 0805 470E 5%
R847 036-13470-00 RES M/F 0805 470E 5%
R848 036-14470-10 RES M/F 0805 4K7 1%
R849 036-13470-00 RES M/F 0805 470E 5%
R850 036-13470-00 RES M/F 0805 470E 5%
R853 036-14470-10 RES M/F 0805 4K7 1%
R854 036-14470-10 RES M/F 0805 4K7 1%
R855 036-14470-10 RES M/F 0805 4K7 1%
R859 036-16150-00 RES M/F 0805 150K 5%
R861 036-16150-00 RES M/F 0805 150K 5%
R863 036-16150-00 RES M/F 0805 150K 5%
R865 036-16100-00 RES M/F 0805 100K 5%
R867 036-16100-00 RES M/F 0805 100K 5%
R871 036-15470-10 RES M/F 0805 47K 1%
R872 036-14470-10 RES M/F 0805 4K7 1%
R873 036-15330-00 RES M/F 0805 33K 5%
R874 036-14470-10 RES M/F 0805 4K7 1%
R875 036-15470-10 RES M/F 0805 47K 1%
R876 036-14470-10 RES M/F 0805 4K7 1%
R877 036-14470-10 RES M/F 0805 4K7 1%
R879 036-15100-10 RES M/F 0805 10K 1%
SK200 240-10000-05 CONN SMD SKT 8W 2R M-MATCH
SK205 240-02020-05 SKT STEREO PHONE JACK PCB MTG
SK805 240-10000-07 CONN SMD SKT 16W 2R M-MATCH
SK810 240-04020-42 SKT 44 PIN SMD PLCC
SW230 232-00010-26 SWITCH PUSH SPDT R-ANG PCB MTG
T210 053-00010-17 XFMR T4030 LINE MATCH POTCORE
T610 050-15119-52 COIL SMD 680uH XFMR 5119-T052
![](/img.php?id=111477&img=bg84.png)
IPN 220-01443-04
C6.2.10 T826 PCB Information M820-00
01/04/00 Copyright TEL
IPN Legend Description IPN Legend Description
T826 Mechanical & Miscellaneous Parts (220-01443-04)
002-08951-20 S) IC AT89C51 PLCC44 MIC 12MHZ
008-00014-79 S)LED 3MM RED WITH WIRE
008-00014-80 S)LED 3MM GREEN WITH WIRE
220-01443-04 PCB T826 TX SII
232-00020-26 BUTTON 232-00010-26 SWITCH
240-02100-06 SKT COAX N TYPE PNL MTG OP-TER
240-04020-62 SKT 2 W RECEP SHORTING LINK
240-04021-77 SKT JACK 1.3 PCB MT 64W
303-11169-04 CHASSIS PAINTED T800 SER II
303-23118-00 COVER A3M2247 D RANGE T855/7
303-50074-00 CLIP A3M2246 SPRING CLAMP T857
308-01007-01 HANDLE BS SII 2 WASHERS INC
308-13090-00 HSINK A4M2361 BRKT COPPER T856
312-01052-02 LID TOP T800 SER II PTND
312-01053-02 LID BOTTOM T800 SER II PNTD
316-06621-00 PNL FRT TX T800 SERIES II
349-00020-36 SCREW TT M3X8m PANTORX BLK
349-00020-43 SCRW T/T M4X12MM P/POZ BZ
349-00020-45 SCRW T/T M4X20MM P/POZ BZ
349-00020-55 SCRW M3*8 P/P T/T BLCKZNC CHRM
352-00010-08 NUT M3 COLD FORM HEX ST BZ
352-00010-29 NUT M4 NYLOC HEX
352-00010-35 NUT 8-32 UNC HEX XSTR MTG
353-00010-13 WSHR M3 S/PROOF INT BZ
353-00010-24 WSHR M4x8mm Flat
362-00010-23 GASKET SIL TO-220 CLIP MTG.
362-00010-33 GROMMET LED MTG 3MM
399-00010-51 BAG PLASTIC 75*100MM
![](/img.php?id=111477&img=bg85.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.11
Copyright TEL 01/04/00
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
T826 Grid Reference Index (IPN 220-01443-04)
How To Use This Grid Reference Index
The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-
ters give the location of the component on that diagram.
The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on
that sheet.
C201 1:C1 2-B8
C202 1:C1 2-C8
C204 1:B3 2-E8
C205 1:A3 2-E8
C207 1:C7 2-B6
C209 1:C6 2-D6
C210 1:C7 2-K0
C211 1:B7 2-F8
C213 1:B6 2-G8
C215 1:B6 2-G8
C217 1:C6 2-H8
C219 1:C6 2-H7
C221 1:D5 2-G6
C223 1:C5 2-J6
C225 1:C3 2-K7
C227 1:B4 2-K7
C229 1:B3 2-L7
C230 1:B4 2-J0
C232 1:A4 2-M7
C233 1:B5 2-N7
C235 1:B5 2-K5
C237 1:C4 2-K5
C239 1:C4 2-L4
C241 1:B4 2-M6
C242 1:B4 2-L6
C243 1:B4 2-P6
C245 1:C5 2-A4
C247 1:C6 2-B4
C249 1:D4 2-C4
C251 1:C3 2-E4
C253 1:D3 2-E3
C255 1:D3 2-D2
C257 1:D3 2-F2
C259 1:C6 2-J2
C260 1:D8 2-H0
C261 1:C6 2-K2
C263 1:D6 2-L3
C265 1:D6 2-N4
C267 1:C8 2-P3
&C269 1:C8 2-P3
&C271 1:C8 2-Q3
C273 1:C8 2-Q4
C275 1:C3 2-E1
C277 1:C4 2-G1
C279 1:B4 2-G1
C281 1:B5 2-J1
C283 1:B5 2-K0
C285 1:D7 2-L0
C287 1:C6 2-M1
&C289 1:C8 2-N1
C291 1:D7 2-P1
C293 1:D7 2-Q1
%C294 1:D7 2-Q0
%C295 1:C7 2-Q0
C300 1:F5 3-B0
C301 1:F8 3-C6
C302 1:F8 3-B8
C303 1:F9 3-B7
C304 1:F8 3-C6
C305 1:F5 3-B4
C306 1:F4 3-B0
C307 1:F3 3-C2
C308 1:F8 3-C8
C309 1:F9 3-C7
C310 1:F8 3-B6
C311 1:F5 3-C4
C312 1:F4 3-C0
C313 1:E8 3-E6
C314 1:F8 3-B6
C315 1:F3 3-C2
C316 1:F4 3-C1
C317 1:F4 3-C0
C318 1:F8 3-C5
C319 1:F3 3-D2
C320 1:E7 3-D7
C323 1:F5 3-D4
C324 1:E8 3-F6
C326 1:F5 3-D4
C327 1:F5 3-E4
C328 1:F3 3-E2
C329 1:E7 3-F4
C330 1:F3 3-F2
C331 1:E7 3-G3
C332 1:E7 3-G4
C333 1:E8 3-G6
C334 1:F4 3-G0
C335 1:E8 3-G3
C336 1:E7 3-G3
C337 1:E8 3-G6
C338 1:F4 3-H0
C339 1:E4 3-H3
C340 1:E8 3-H7
C341 1:E8 3-H7
C342 1:F7 3-F4
C344 1:F7 3-J5
C346 1:E4 3-J1
C347 1:E7 3-H5
C348 1:E4 3-J0
C349 1:E4 3-J0
C350 1:E4 3-K0
C351 1:E5 3-K1
C352 1:E5 3-K0
C353 1:F8 3-L5
C354 1:E5 3-K0
C355 1:F8 3-M7
C356 1:F7 3-M6
C357 1:E5 3-L1
C358 1:E5 3-L1
C359 1:E5 3-L2
C360 1:E5 3-L1
C361 1:F8 3-M7
C362 1:F5 3-L0
C363 1:F7 3-L6
C364 1:F8 3-M7
C365 1:F7 3-L7
C366 1:E5 3-P3
C367 1:E5 3-L2
C369 1:F8 3-N7
C370 1:F7 3-N5
C371 1:F7 3-M5
C372 1:E5 3-M1
C373 1:F5 3-N1
C374 1:F5 3-N0
C375 1:F6 3-N0
C376 1:E6 3-P1
C377 1:F6 3-P0
C378 1:E6 3-P2
C379 1:F6 3-Q1
C380 1:F7 3-Q0
C381 1:F7 3-Q0
C385 1:E8 3-H8
C386 1:E8 3-H8
C387 1:E8 3-J8
C388 1:E9 3-L8
C389 1:E9 3-L8
C390 1:E9 3-M8
C393 1:F8 3-R5
C395 1:F8 3-R3
C396 1:F8 3-R3
C397 1:F8 3-R3
C400 1:G7 4-C7
C401 1:G8 4-C7
C402 1:G8 4-D7
C403 1:G7 4-B7
C410 1:H8 4-D3
C411 1:H8 4-D2
C412 1:H7 4-D5
C413 2:H8 4-E2
C414 1:H7 4-E5
C415 1:J7 4-E5
C416 1:J9 4-E4
C425 2:J8 4-G2
C426 2:J8 4-G3
C427 1:L7 4-G5
C428 2:K8 4-G2
C429 1:L7 4-G5
C430 1:L7 4-H5
C431 1:L7 4-J4
C440 2:L8 4-J2
C441 2:L7 4-K2
C442 1:L8 4-L2
C443 1:G9 4-M5
C444 1:L8 4-L2
C445 1:M9 4-M4
C446 1:M8 4-M2
C447 1:M8 4-M2
C448 2:M8 4-N4
C449 1:M8 4-M4
C450 1:N7 4-N2
C451 1:N7 4-P2
C452 1:G8 4-Q2
C480 1:J8 4-P6
C503 1:K6 5-L9
C505 1:K5 5-M6
C510 1:H5 5-C0
C514 1:H5 5-H3
C515 1:J5 5-F1
C516 1:J5 5-H4
C520 1:J5 5-H0
C522 1:H5 5-H3
C530 1:J5 5-K2
C535 1:K5 5-M2
C536 1:K5 5-L2
C537 1:J5 5-L2
C545 1:J5 5-K2
C546 1:K5 5-J3
C550 1:K5 5-K3
C600 1:L6 6-D8
C601 1:L6 6-D8
C605 1:L6 6-C8
C610A 1:M5 6-F8
C610B 1:L5 6-F8
C611A 1:M6 6-H8
C611B 1:M5 6-H8
C615 1:M6 6-R8
C616 1:M6 6-R8
C623 1:N6 6-M8
C625 1:M6 6-Q8
C626 1:M6 6-Q8
C628 1:M6 6-Q8
C630 1:M5 6-J5
C631A 1:N5 6-L6
C634 1:N5 6-L5
C636 1:M5 6-M5
C638 1:M5 6-N6
C640 1:M5 6-Q6
C655 1:M4 6-C1
C660 1:L5 6-K1
C665 1:L5 6-K1
C670 1:L5 6-L1
C673 1:L5 6-P2
C677 1:L6 6-P1
C681 1:L6 6-R3
C684 1:L6 6-R3
C687 1:L6 6-Q1
C690 1:L6 6-R1
C693 1:L6 6-R1
C700 1:K3 7-A8
C703 1:J3 7-B7
C706 1:J2 7-B5
#C707 1:K4 7-C8
C708 1:J2 7-C9
C709 1:K4 7-D9
C710 1:J3 7-D8
C711 1:J3 7-C5
C712 1:H2 7-E7
%C713 1:H2 7-E6
C714 1:J3 7-E8
C719 1:J3 7-F8
C720 1:J3 7-F8
C722 1:J4 7-G8
C724 1:J4 7-H6
C725 1:J4 7-J6
C726 1:K4 7-J6
C727 1:J3 7-J8
C729 1:H3 7-M8
![](/img.php?id=111477&img=bg86.png)
IPN 220-01443-04
C6.2.12 T826 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
%C733 1:H2 7-E3
C735 1:J2 7-A1
C736 1:J2 7-B1
C740A 1:H2 7-B4
C740B 1:H2 7-B3
C741A 1:H2 7-C4
C741B 1:G2 7-C3
C742A 1:H2 7-D4
C742B 1:H3 7-D3
C743 1:H2 7-B1
C745 1:G3 7-D1
C750 1:H4 7-Q7
C757 1:G4 7-F5
C759 1:G4 7-G4
C761 1:G3 7-J4
C762 1:G3 7-J4
C764 1:H3 7-H2
C765 1:G3 7-J2
C767 1:H3 7-K3
C769 1:J3 7-M4
C770 1:H4 7-N4
C772 1:G4 7-M2
C776 1:H3 7-L1
C778 1:H4 7-M1
C780 1:G2 7-N1
C781 1:G2 7-P1
C782 1:G2 7-P1
C783 1:G3 7-P0
C784 1:G4 7-Q0
C785 1:G3 7-Q1
C786 1:G4 7-Q0
C810 1:L3 8-K8
C812 1:L2 8-F5
C813 1:K2 8-J5
C822 1:M2 8-B2
C823 1:M3 8-C2
C824 1:M2 8-C1
C826 1:N3 8-C0
C827 1:N3 8-D0
C828 1:N3 8-E0
C830 1:N3 8-R1
C838 1:N4 8-F0
C841 1:N2 8-L2
C844 1:M2 8-L2
C900 1:N8 9-D4
C901 1:P7 9-E4
C902 1:P8 9-E4
C903 1:P7 9-F4
C904 1:P7 9-F4
C905 1:P6 9-G4
C906 1:P7 9-H4
C907 1:P6 9-H4
%D111 1:P5 1-R1
%D111A 1:P5 1-Q1
%D205 1:B2 2-D9
%D210 1:B2 2-D9
D220 1:B4 2-P7
D220 1:B4 2-P6
D230 1:B7 2-R5
D240 1:D4 2-C4
D240 1:D4 2-B2
D250 1:D3 2-E2
D250 1:D3 2-D3
D260 1:C3 2-C2
D260 1:C3 2-C2
D270 1:C2 2-C1
D270 1:C2 2-C1
D300 1:F4 3-B0
D301 1:F4 3-C0
D302 1:F4 3-C0
D303 1:E6 3-M0
D303 1:E6 3-L0
D440 1:M8 4-M5
D441 1:N7 4-P3
D610 1:N6 6-K6
D610 1:N6 6-L6
D620 1:N4 6-B2
D620 1:N4 6-B1
D630 1:M5 6-G2
D630 1:M5 6-G3
D635 1:M4 6-G3
D640 1:L5 6-M1
D640 1:L5 6-M2
D645 1:M5 6-R6
D710 1:J3 7-L8
D710 1:J3 7-L8
D720 1:H3 7-P8
D720 1:H3 7-P8
D730 1:H3 7-H1
D740 1:H3 7-J2
D810 1:M2 8-B7
IC210 1:C7 2-C6
IC210 1:C7 2-J0
IC210 1:C7 2-L1
IC210 1:C7 2-K2
IC210 1:C7 2-Q0
IC220 1:C6 2-D5
IC220 1:C6 2-P0
IC220 1:C6 2-M3
IC230 1:B4 2-J0
IC230 1:B4 2-J0
IC230 1:B4 2-L5
IC230 1:B4 2-N6
IC230 1:B4 2-G1
IC240 1:D4 2-F3
IC250 1:D3 2-E1
IC260 1:D8 2-N0
IC260 1:D8 2-H0
IC260 1:D8 2-Q2
IC260 1:D8 2-Q3
IC260 1:D8 2-N3
IC300 1:F9 3-C7
IC300 1:F9 3-Q5
IC300 1:F9 3-C8
IC310 1:E8 3-D6
IC310 1:E8 3-Q3
IC310 1:E8 3-H7
IC385 1:E9 3-J8
IC610 1:L5 6-G8
IC630 1:N5 6-K5
IC640 1:M5 6-M5
IC640 1:M5 6-Q6
IC640 1:M5 6-F1
IC650 1:L5 6-F4
=IC700 1:K3 7-A8
IC710 1:J2 7-D8
IC710 1:J2 7-C6
IC710 1:J2 7-C5
IC710 1:J2 7-D6
IC710 1:J2 7-D7
IC710 1:J2 7-D6
IC710 1:J2 7-C6
IC720 1:J3 7-P6
IC720 1:J3 7-G0
IC720 1:J3 7-N7
IC720 1:J3 7-M7
IC720 1:J3 7-K7
IC720 1:J3 7-E8
IC720 1:J3 7-G0
IC730 1:J4 7-H8
IC730 1:J4 7-G7
IC740 1:H2 7-D1
IC750 1:H4 7-M3
IC750 1:H4 7-H5
IC750 1:H4 7-Q7
IC820 1:L4 8-N2
IC830 1:N3 8-J0
IC830 1:N3 8-Q1
IC830 1:N3 8-J0
IC830 1:N3 8-J1
IC830 1:N3 8-C0
L300 1:F4 3-C0
L301 1:F4 3-D0
L302 1:E4 3-J2
L303 1:E4 3-J0
L304 1:E5 3-K0
L305 1:F5 3-L0
L306 1:F5 3-L0
L307 1:E6 3-P3
L308 1:E6 3-P1
L309 1:F6 3-P0
L310 1:F8 3-B6
L330 1:F5 3-E5
L385 1:E8 3-G9
L400 1:G7 4-C7
L401 1:G8 4-C7
L410 1:H8 4-D2
L411 1:H8 4-E3
L412 1:H8 4-E2
L413 1:H9 4-E3
L414 1:J7 4-F5
L415 1:J7 4-F5
L416 1:J7 4-F4
L425 1:J8 4-G3
L426 2:K8 4-H3
L427 1:J7 4-H2
L428 1:M7 4-J5
L440 1:L8 4-K4
L441 1:L8 4-L4
L442 1:G9 4-M5
L443 1:M8 4-N4
L444 1:N7 4-N3
L445 1:G8 4-P3
L480 1:J9 4-P6
L520 1:H5 5-G3
L535 1:K5 5-L2
L600 1:L6 6-D8
L615 1:M6 6-R8
L780 1:G3 7-Q0
L900 1:P8 9-D6
L901 1:P7 9-E6
L902 1:P7 9-F6
L903 1:P6 9-H6
L904 1:P7 9-F5
LINK1 2:B2 2-E9
LINK2 2:A2 2-E8
P100 1:Q6 1-R8
P150 1:P2 1-Q4
P160 1:P2 1-Q4
P170 1:P2 1-Q3
P204 1:D1 2-A8
P208 1:D1 2-A8
P210 1:D3 2-A3
P215 1:D4 2-A2
P217 1:D4 2-A2
P219 1:D2 2-A1
P225 1:D2 2-A0
P230 1:C5 2-B0
P231 1:D8 2-B0
P233 1:C1 2-R9
P235 1:C1 2-R9
P237 1:B7 2-R8
P239 1:C7 2-R8
P240 1:C7 2-R8
P243 1:B7 2-R7
P244 1:B7 2-R7
P245 1:B8 2-R6
P247 1:B8 2-R6
P248 1:B7 2-R6
P249 1:C7 2-R5
P251 1:C7 2-R5
P255 1:D4 2-R4
P257 1:C2 2-R4
P259 1:B8 2-R3
P261 1:B8 2-R3
P263 1:B1 2-R2
P267 1:C8 2-N2
P269 1:D8 2-P2
P271 1:C9 2-N1
P273 1:D9 2-P0
P275 1:D7 2-Q0
P290 1:D5 2-E0
P291 1:D5 2-G0
P805 1:M2 8-A7
P810 1:L3 8-A5
P820 1:L4 8-M8
P825 1:L4 8-M8
P830 1:L4 8-M8
P835 1:L4 8-M7
P840 1:L4 8-M7
PL100 1:P3 1-M0
PL205 1:C5 2-J8
PL210 1:C3 2-H4
PL215 1:C4 2-K3
PL220 1:C4 2-H2
Q210 1:C6 2-J8
Q220 1:B3 2-L7
Q230 1:A4 2-M8
Q240 1:B7 2-Q7
Q250 1:B7 2-R6
Q260 1:C4 2-F3
Q270 1:D2 2-D1
Q300 1:F5 3-B3
Q301 1:F4 3-C1
Q302 1:F5 3-C4
Q303 1:E7 3-J5
Q304 1:E7 3-F3
Q305 1:E8 3-H3
Q307 1:F4 3-J0
Q308 1:F7 3-K6
Q309 1:F8 3-M6
Q310 1:E5 3-L2
Q311 1:F7 3-G5
Q312 1:F6 3-P0
Q315 1:F8 3-N6
Q360 1:E7 3-K5
Q415 2:J8 4-F3
Q425 2:K8 4-J3
Q510 1:J5 5-D1
Q520 1:J5 5-G3
Q530 1:J5 5-G0
Q540 1:J5 5-L2
Q550 1:K5 5-L4
Q610 1:L6 6-D8
Q620 1:N6 6-P8
Q630 1:M6 6-P5
Q660 1:L5 6-N1
Q670 1:L6 6-Q2
Q710 1:J3 7-K8
Q720 1:J3 7-K8
Q730 1:H3 7-N8
Q740 1:H3 7-N8
Q750 1:G4 7-F3
Q760 1:H3 7-H3
Q770 1:H3 7-H1
Q775 1:H3 7-K3
Q780 1:H3 7-K3
Q785 1:H3 7-K2
Q790 1:H3 7-L3
Q795 1:G3 7-P0
Q810 1:M2 8-E7
Q820 1:L2 8-D5
Q830 1:L2 8-D5
Q840 1:L2 8-F5
Q850 1:M2 8-G5
Q860 1:L4 8-B3
![](/img.php?id=111477&img=bg87.png)
IPN 220-01443-04
M820-00 T826 PCB Information C6.2.13
Copyright TEL 01/04/00
Device PCB Circuit Device PCB Circuit Device PCB CircuitDevice PCB Circuit
%R150 1:P2 1-R4
R160 1:P2 1-R3
%R200 1:B2 2-C9
R201 1:B3 2-E9
R202 1:C1 2-F9
%R203 1:B3 2-C8
R204 1:C7 2-B6
R205 1:C7 2-D6
R206 1:B7 2-G8
R207 1:B6 2-G8
R208 1:B6 2-G8
R209 1:C6 2-H8
R210 1:B6 2-H7
R211 1:B2 2-D9
R212 1:D4 2-F6
R213 1:C4 2-G6
R214 1:D4 2-G6
R215 1:C4 2-H6
R216 1:C3 2-K7
R217 1:A4 2-M8
R218 1:A5 2-N7
R219 1:B4 2-N8
R220 1:B2 2-E9
R221 1:B7 2-R7
R223 1:B4 2-K6
R224 1:C4 2-K5
R225 1:B4 2-L5
R226 1:B4 2-L4
R227 1:B4 2-M4
R228 1:A2 2-E9
R229 1:B4 2-M7
R230 1:B4 2-M6
R231 1:B4 2-M6
R232 1:B4 2-M5
R233 1:B4 2-M6
R235 1:B4 2-P6
R237 1:B7 2-Q7
R238 1:B7 2-R7
R239 1:B8 2-R6
R241 1:B8 2-Q6
R242 1:B7 2-Q5
R244 1:C6 2-A5
R245 1:D4 2-D4
R247 1:D3 2-E4
R248 1:C3 2-E3
R249 1:D4 2-F3
R251 1:C4 2-G4
R253 1:C6 2-J2
R254 1:C7 2-K3
R255 1:C7 2-K2
R256 1:D8 2-M3
R257 1:D8 2-N5
R258 1:D8 2-N4
R259 1:D6 2-P4
R260 1:D8 2-N4
R262 1:D8 2-N3
R263 1:C8 2-P3
&R264 1:C8 2-P3
&R265 1:C8 2-P3
&R266 1:C8 2-P3
R267 1:C8 2-R2
R268 1:D2 2-C0
R269 1:D3 2-C1
R270 1:D3 2-D1
R271 1:C3 2-E1
R272 1:C4 2-F2
R273 1:B5 2-G2
R274 1:C4 2-G1
R275 1:C4 2-H0
R277 1:B5 2-J1
R278 1:B5 2-J0
R279 1:B5 2-K0
R280 1:B5 2-K0
R282 1:D7 2-K1
R283 1:D7 2-L1
R284 1:D7 2-L0
R285 1:C8 2-M0
R286 1:C7 2-M0
R287 1:D9 2-M0
R288 1:C6 2-M2
R289 1:D9 2-M0
&R290 1:C8 2-N2
R291 1:C8 2-N1
R292 1:D8 2-Q2
R293 1:D9 2-Q2
R294 1:D9 2-Q1
R295 1:D8 2-R1
R296 1:D6 2-P0
R297 1:D7 2-P1
%R298 1:D7 2-Q0
R299 1:C7 2-R0
R300 1:F4 3-B0
R301 1:F9 3-B9
R302 1:F9 3-B8
R303 1:F4 3-B1
R304 1:F5 3-B0
R305 1:F3 3-B2
R306 1:F8 3-C6
R307 1:F8 3-B8
R308 1:F9 3-B7
R309 1:F4 3-B0
R310 1:F5 3-B4
R311 1:F8 3-B6
R312 1:F8 3-B6
R313 1:F8 3-C5
R314 1:F4 3-C0
R315 1:E7 3-E7
R316 1:F4 3-C1
R317 1:E8 3-E7
R318 1:E8 3-E6
R319 1:E8 3-E6
%R320 1:F8 3-C5
R321 1:F7 3-F5
R322 1:F7 3-F4
R323 1:F5 3-D4
R324 1:F5 3-C3
R325 1:E8 3-F6
R326 1:F8 3-D8
R327 1:F8 3-D7
%R328 1:E8 3-D5
R329 1:F5 3-D3
R330 1:F5 3-D4
R331 1:E7 3-H5
R332 1:E7 3-H5
R333 1:F5 3-E5
R334 1:E7 3-E3
R335 1:F3 3-F2
R336 1:E7 3-F4
R337 1:E7 3-F2
R338 1:E7 3-F3
R339 1:E7 3-F3
R340 1:E8 3-G6
R341 1:E7 3-G3
R342 1:E8 3-G4
R343 1:E7 3-J5
R344 1:E8 3-G5
R345 1:E4 3-H1
R346 1:F4 3-G0
R347 1:F4 3-H0
R348 1:E8 3-H4
R349 1:E7 3-J5
R350 1:F4 3-H0
R351 1:E4 3-H0
R352 1:F4 3-H0
R353 1:E4 3-H1
R354 1:E8 3-H6
R355 1:E4 3-H1
R356 1:E8 3-J6
R358 1:E4 3-J0
R359 1:E7 3-K5
R360 1:E7 3-K5
R361 1:E4 3-J0
R362 1:E5 3-K2
R363 1:E5 3-K1
R364 1:F8 3-M7
R365 1:F7 3-M6
R369 1:F7 3-M5
R370 1:E5 3-L1
R371 1:E5 3-L1
R372 1:E6 3-L1
R373 1:F5 3-M0
R374 1:F7 3-N5
R375 1:F7 3-N5
R376 1:E6 3-M1
R377 1:F6 3-N1
R378 1:F6 3-N0
R380 1:E6 3-P2
R385 1:E8 3-G9
R386 1:E9 3-K8
R387 1:E9 3-L7
R388 1:E8 3-L8
R389 1:E8 3-L8
R392 1:F8 3-Q5
R395 1:F8 3-Q4
R410 1:G8 4-C2
R411 1:G8 4-C3
R412 1:G8 4-C2
R413 1:H7 4-E5
R414 1:J9 4-F4
R415 1:J7 4-F5
R416 1:H8 4-F2
R425 1:L7 4-H5
R426 1:K7 4-H3
R427 1:J7 4-H2
R428 1:L7 4-H5
R429 1:K7 4-H4
R440 1:M9 4-L4
R441 1:M8 4-N4
R442 1:M7 4-N3
R443 1:N8 4-N4
R444 1:N7 4-P3
R445 1:N7 4-P2
R480 1:J8 4-N6
R504 1:K6 5-K9
R505 1:K6 5-L8
R510 1:K6 5-L7
R514 1:K5 5-M5
R515 1:H6 5-J5
R517 1:G5 5-E2
R518 1:G5 5-F2
R519 1:G5 5-F2
R520 1:H5 5-C1
R522 1:H5 5-H3
R525 1:H5 5-D1
R530 1:J5 5-D0
R533 1:K5 5-L2
R535 1:J5 5-F1
R540 1:J5 5-H3
R545 1:J5 5-H0
%R550 1:J5 5-J2
%R553 1:J5 5-J2
R555 1:J5 5-K3
R560 1:K5 5-K4
R609 1:L6 6-B8
R613 1:L6 6-C8
R615 1:M5 6-F9
R617 1:M5 6-J8
R619 1:N6 6-K8
R621 1:N6 6-K8
R625 1:N6 6-K7
R629 1:M6 6-P6
R633 1:M5 6-P8
R637 1:M5 6-J6
R638 1:M5 6-J6
R640 1:M5 6-Q6
R641 1:N5 6-K5
R645 1:N5 6-L5
R649 1:M5 6-M5
R653 1:M5 6-P5
R655 1:L4 6-D4
R656 1:L4 6-D4
R657 1:M5 6-D1
R661 1:M5 6-E3
R665 1:M5 6-E2
R669 1:M5 6-E2
R673 1:M5 6-E0
R677 1:M4 6-F4
R681 1:L5 6-L2
R685 1:L5 6-N2
R689 1:L6 6-Q3
R693 1:L5 6-Q1
R696 1:L5 6-Q1
R701 1:K4 7-A9
R702 1:K4 7-C9
R703 1:J3 7-C8
=R705 1:K3 7-A7
R705 1:J3 7-C5
R706 1:H3 7-C5
R708 1:J3 7-B5
R710 1:H2 7-E7
R711 1:J2 7-B6
R712 1:J2 7-D8
R713 1:J3 7-F8
R714 1:J3 7-D9
%R715 1:K4 7-H6
R717 1:J4 7-H7
R718 1:J4 7-H7
R719 1:J4 7-J6
R720 1:J3 7-K7
R721 1:J3 7-K9
R722 1:J3 7-K8
R723 1:H3 7-M7
R725 1:J4 7-N7
%R726 1:J3 7-N6
R727 1:H3 7-N9
R728 1:H3 7-N8
R734 1:K2 7-A2
R735 1:K2 7-A2
R736 1:K2 7-A2
R742 1:H2 7-B4
R743 1:H2 7-C5
R744 1:G2 7-D4
R746 1:H3 7-E4
R747 1:H3 7-E5
R748 1:J2 7-A1
R749 1:J2 7-B1
R750 1:H4 7-Q7
R752 1:G4 7-F5
R753 1:G4 7-F3
R754 1:G3 7-F3
R756 1:G3 7-G5
R757 1:G4 7-G4
R758 1:H3 7-H4
R759 1:H3 7-H4
R760 1:H3 7-K4
R762 1:H3 7-K4
R763 1:H3 7-L4
R765 1:H3 7-H2
R766 1:G3 7-J3
R767 1:H3 7-K2
R769 1:H3 7-K3
R771 1:H4 7-L3
R772 1:G4 7-M2
R774 1:H4 7-M3
R775 1:H3 7-L2
R777 1:H4 7-R2
R780 1:G2 7-N2
R781 1:G2 7-N2
R782 1:G3 7-P1
R783 1:G3 7-P0
R784 1:G3 7-Q2
R785 1:G3 7-Q1
R786 1:G3 7-R1
R787 1:G4 7-R0
![](/img.php?id=111477&img=bg88.png)
IPN 220-01443-04
C6.2.14 T826 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
R801 1:M2 8-D7
R802 1:M2 8-D7
R808 1:L2 8-B4
R809 1:L2 8-D5
R810 1:L3 8-D6
R811 1:L2 8-E6
R812 1:L2 8-D5
R813 1:L2 8-D4
R815 1:L2 8-F4
R816 1:L2 8-F4
R818 1:M2 8-F5
R819 1:M2 8-F5
R821 1:M4 8-B3
R822 1:M4 8-E3
R824 1:L4 8-L8
R825 1:L4 8-L8
R826 1:L4 8-L8
R827 1:L4 8-L7
R828 1:L4 8-L7
R829 1:L4 8-P9
R830 1:L3 8-P9
R831 1:L3 8-P9
R832 1:L3 8-P8
R833 1:L3 8-P8
R835 1:L3 8-P8
R836 1:L3 8-P8
R837 1:L3 8-P7
R840 1:L3 8-P7
R841 1:L3 8-P7
R842 1:L3 8-P6
R843 1:L3 8-P6
R845 1:M4 8-Q5
R847 1:L2 8-Q4
R848 1:L2 8-J4
R849 1:L2 8-Q4
R850 1:K2 8-Q4
R853 1:M4 8-N3
R854 1:M4 8-N3
R855 1:M2 8-B0
R859 1:N2 8-C1
R861 1:N2 8-D1
R863 1:N3 8-E1
R865 1:N4 8-E0
R867 1:N3 8-E1
R871 1:N3 8-G2
R872 1:M4 8-H1
R873 1:N3 8-G1
R874 1:N3 8-H0
R875 1:N3 8-G0
R876 1:N3 8-H0
R877 1:M2 8-K2
R879 1:N2 8-L3
RV210 1:B7 2-F9
RV220 1:A4 2-M6
RV301 1:E8 3-E6
RV302 1:F7 3-G5
RV805 1:N4 8-F1
SK200 1:D5 2-F0
SK205 1:B5 2-A5
SK501 1:G6 5-D6
SK502 1:G6 5-D5
SK503 1:G6 5-D4
SK504 1:G5 5-D3
SK505 1:G5 5-D2
SK513 1:H5 5-G3
SK522 1:H6 5-K5
SK531 1:K6 5-N6
SK532 1:K5 5-N5
SK533 1:K5 5-N4
SK534 1:K5 5-N3
SK535 1:K5 5-N2
=SK710 1:K3 7-A7
SK805 1:K3 8-Q9
SK805 1:K3 8-Q7
SK805 1:K3 8-Q6
SK805 1:K3 8-Q9
SK805 1:K3 8-Q6
SK805 1:K3 8-Q9
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK805 1:K3 8-Q5
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK805 1:K3 8-Q8
SK810 1:M3 8-H5
SL201 2:D1 2-B9
SL202 2:D1 2-B8
SL203 2:D2 2-B1
SL204 2:D2 2-B1
SL480 1:H9 4-P6
SL501 2:J5 5-E0
SL810 1:M2 8-C7
SW230 1:B8 2-A3
T210 1:B2 2-C8
T610 1:L6 6-N2
TP206 1:C5 2-H7
TP300 1:F5 3-A5
TP301 1:F3 3-A2
TP303 1:F7 3-P3
TP310 1:F5 3-B3
TP315 1:F3 3-D1
TP601 1:N5 6-K9
TP602 1:M6 6-Q9
TP603 1:L5 6-J2
TP604 1:L4 6-L6
TP607 1:L5 6-J9
TP710 1:G4 7-H5
TP715 1:J2 7-C6
![](/img.php?id=111477&img=bg89.png)
M820-00 T827 PCB Information C6.3.1
Copyright TEL 01/04/00
6.3 T827 Exciter PCB
This section contains the following information.
IPN Section Page
220-01447-04 Parts List
Mechanical & Miscellaneous Parts
Grid Reference Index
PCB Layout - Top Side
PCB Layout - Bottom Side
Exciter Overview Diagram
Audio Processor Circuit Diagram
Exciter Circuit Diagram
13.8V Supply Filter Circuit Diagram (PA Cavity)
VCO Section Circuit Diagram
Regulators Circuit Diagram
Synthesiser Circuit Diagram
Microcontroller Circuit Diagram
Harmonic Filter Circuit Diagram
6.3.3
6.3.9
6.3.11
6.3.15
6.3.16
6.3.17
6.3.18
6.3.19
6.3.20
6.3.21
6.3.22
6.3.23
6.3.24
6.3.25
![](/img.php?id=111477&img=bg8a.png)
C6.3.2 T827 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg8b.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.3
Copyright TEL 01/04/00
T827 Parts List (IPN 220-01447-04)
How To Use This Parts List
The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and
those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component
entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-
umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by
an (S) at the start of the description column.
The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend
column indicates their position in the mechanical assembly drawing.
The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were
compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order
and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.
Parts List Amendments
There were no amendments to the parts list at the time of publication.
![](/img.php?id=111477&img=bg8c.png)
IPN 220-01447-04
C6.3.4 T827 PCB Information M820-00
01/04/00 Copyright TEL
Parts List Amendments - Continued
This page is provided for entering future amendments to the parts list.
![](/img.php?id=111477&img=bg8d.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.5
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
C201 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C202 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C204 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C205 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C207 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C209 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C210 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C211 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C213 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C215 014-08220-01 (L)CAP TANT 22UF10V276MSER
C217 015-24220-08 CAP CER 0805 2N2 10% X7R 50V
C219 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C221 014-08220-01 (L)CAP TANT 22UF10V276MSER
C223 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C225 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C227 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C229 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C230 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C232 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C233 016-08470-03 CAP SMD ELEC 47mF 20% 25v 8.3m
C235 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C237 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C239 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C241 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C242 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C243 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C245 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C247 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C249 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C251 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C253 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C255 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C257 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C259 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C260 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C261 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C263 016-09100-05 CAP SMD ELECT 100U 25V 20%
C265 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%
C267 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
&C269 10 015-21150-01 CAP CER 0805 1P5+-1/4P NPO 50V
&C269 15 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
&C271 10 015-22470-01 CAP CER 0805 47P 5% NPO 50V
&C271 15 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C273 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C275 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C277 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C279 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C281 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C283 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
C285 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
C287 016-09100-05 CAP SMD ELECT 100U 25V 20%
&C289 10 015-25470-08 CAP CER 0805 47N 10% X7R 50V
&C289 15 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C291 014-08220-01 (L)CAP TANT 22UF10V276MSER
C293 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V
%C294 10 015-22470-01 CAP CER 0805 47P 5% NPO 50V
%C294 15 015-22470-01 CAP CER 0805 47P 5% NPO 50V
%C295 10 013-06470-00 CAP SMD POLYESTER 470N 63V 10%
%C295 15 013-06470-00 CAP SMD POLYESTER 470N 63V 10%
C300 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C301 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C302 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C303 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C304 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C305 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C306 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C307 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C320 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C321 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C322 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C323 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C324 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C325 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C326 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C327 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C328 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C329 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C330 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C331 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C332 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C333 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C334 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C335 015-22100-01 CAP CER 0805 10P+-1/2P NPO 50V
C336 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C337 015-22220-01 CAP CER 0805 22P 5% NPO 50V
C338 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C339 014-07470-01 CAP 4U7 ’B’CASE 25V +-10% 267
C340 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C341 015-04100-06 CAP CER 1210 1NF NPO200V GRM42
C342 015-04100-06 CAP CER 1210 1NF NPO200V GRM42
C343 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C344 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C350 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C351 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C352 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C353 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C354 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C355 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C356 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C357 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C365 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C366 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C367 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C368 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C369 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C370 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C380 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C381 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C382 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C383 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C384 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C385 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C386 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C390 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C391 014-08100-03 CAP TANT SMD 10U 35V 20%
C392 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C393 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C394 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C395 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C396 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C397 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C400 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C401 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C402 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C403 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C503 015-24220-08 CAP CER 0805 2N2 10% X7R 50V
C505 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C510 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C513 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C515 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C516 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C517 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C520 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C535 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C536 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C537 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C542 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C545 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C546 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C550 014-08220-01 (L)CAP TANT 22UF10V276MSER
C600 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C601 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C605 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C610A 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C610B 014-09100-00 CAP TANT SMD 100U 16V 20%
C611A 014-09100-00 CAP TANT SMD 100U 16V 20%
C611B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C615 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C616 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C623 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C625 020-09470-07 CAPEL470M16V20%V 8*20 3.5L.ESR
C626 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C628 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C630 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C631A 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C634 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C636 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C638 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C640 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C655 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C660 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C665 014-08100-03 CAP TANT SMD 10U 35V 20%
C670 014-07330-10 CAP TANT SMD 3U3 35V 10%
C673 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C677 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM
C681 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C684 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C687 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C690 015-26100-08 CAP CER 0805 100N 10% X7R 50V
C693 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
C700 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C703 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C706 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C708 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C709 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C710 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C711 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C712 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C714 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C719 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C720 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C722 015-06100-08 CAP CER 1206 100N 10% X7R 50V
Note: %D205 and %D210 are optional level limiting diodes for
special applications.
=R705 (47 ohm) and =SK710 are fitted in place of
=IC700 when an external frequency reference is used.
These two components are supplied with the auxiliary
D-range kits (T800-06-0000 & T800-06-0001).
![](/img.php?id=111477&img=bg8e.png)
IPN 220-01447-04
C6.3.6 T827 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
C724 014-08220-01 (L)CAP TANT 22UF10V276MSER
C725 014-08220-01 (L)CAP TANT 22UF10V276MSER
C726 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C727 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C729 015-23220-01 CAP CER 0805 220P 5% NPO 50V
%C733 10 015-23470-08 CAP CER 0805 470P 10% X7R 50V
%C733 15 015-23470-08 CAP CER 0805 470P 10% X7R 50V
C735 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C736 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C740A 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C740B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C741A 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C741B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C742A 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C742B 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C743 015-22470-01 CAP CER 0805 47P 5% NPO 50V
C745 015-23120-01 CAP CER 0805 120P 5% NPO 50V
C750 014-08100-03 CAP TANT SMD 10U 35V 20%
C757 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C759 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C761 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C762 014-08220-01 (L)CAP TANT 22UF10V276MSER
C764 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C765 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C767 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C769 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C770 014-08220-01 (L)CAP TANT 22UF10V276MSER
C772 014-08220-01 (L)CAP TANT 22UF10V276MSER
C776 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C778 022-07100-05 CAP METAL PPS 1U 20% 63V 5MM
C780 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C781 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C782 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C783 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C784 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C785 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C786 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C810 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C812 015-23100-01 CAP CER 0805 100P 5% NPO 50V
C813 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C822 014-07470-00 CAP TANT CHIP 4U7 3.5 X 2.8MM
C823 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C824 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C826 015-23220-01 CAP CER 0805 220P 5% NPO 50V
C827 015-22330-01 CAP CER 0805 33P 5% NPO 50V
C828 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C830 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C838 014-09100-00 CAP TANT SMD 100U 16V 20%
C841 014-09100-00 CAP TANT SMD 100U 16V 20%
C844 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C900 015-02330-06 CAP CER 1210 33P 500V GRM42
C901 015-02330-06 CAP CER 1210 33P 500V GRM42
C902 015-02330-06 CAP CER 1210 33P 500V GRM42
C903 015-02220-06 CAP CER 1210 22P 5% 500V GRM42
C904 015-02270-06 CAP CER 1210 27P NPO500VGRM42
C905 015-02330-06 CAP CER 1210 33P 500V GRM42
C906 015-02330-06 CAP CER 1210 33P 500V GRM42
C907 015-02330-06 CAP CER 1210 33P 500V GRM42
%D111A 10 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
%D111A 15 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3
D220 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D230 001-10010-40 DIODE SMD ZENER 33V BZG03-C33
D240 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D250 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D260 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23
D270 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D320 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D321 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D322 001-10000-18 S) DIODE SMD BAT18 S-SW SOT23
D351 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D610 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D620 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D630 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D635 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D640 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23
D645 001-10010-40 DIODE SMD ZENER 33V BZG03-C33
D710 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D720 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23
D730 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D740 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
D810 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323
IC210 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC220 002-10126-70 S) IC SMD DS1267S10K 2XDIG POT
IC230 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC240 002-10040-53 S)MC14053B SMD BREAK B4 MAKE
IC250 002-10020-50 IC SMD 4N25A OPTOCOUPLER
IC260 002-10003-24 S) IC SMD 324 4X O-AMP SO14
IC300 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC310 002-12951-00 IC SMD LP2951CM ADJ VLTGE REG
IC610 002-10078-05 S) IC SMD 78L05 5V REG
IC630 002-12523-17 (S)IC LM317L REG TO-252 0.5A
IC640 002-10003-58 S) IC SMD LM358 DUAL O-AMP
IC650 002-10012-32 SMD DS1232LPS-2 LP RESET&W-DOG
=IC700 10 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
=IC700 15 539-00010-41 TCXO 12.8MHZ +-2.5PPM -30 +70C
IC710 002-74900-04 S) IC SMD 74HC04D 6X INV BUFFD
IC720 002-74910-04 S) IC SMD 74HCU04 6X INV
IC730 002-10045-20 S) IC SMD 74HC4520T 2XCTR 4BIT
IC740 002-14519-10 S) IC MC145191F SMD SYNTH
IC750 002-10330-78 S) IC MC33078D 2X AMP LO NOISE
IC820 002-12416-00 S)IC SMD AT24C16N-10SC EEPROM
IC830 002-10003-24 S) IC SMD 324 4X O-AMP SO14
L320 056-10820-02 (L) IND SMD 820NH
L321 056-10820-02 (L) IND SMD 820NH
L322 056-10820-02 (L) IND SMD 820NH
L323 052-08345-60 COIL A/W 6T/4.5mm SMD 0.8mm
L324 052-08340-50 COIL A/W 5T/4.0MM SMD 0.8MM
L325 052-08330-50 COIL A/W 5T/3.0MM SMD 0.8MM
L326 056-10820-02 (L) IND SMD 820NH
L327 065-10009-20 BEAD FER SMD BDS 3/3/8.9-4S2
L328 056-10102-12 IND SMD 1u2 1812CS 5%
L329 052-08340-50 COIL A/W 5T/4.0MM SMD 0.8MM
L380 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L381 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L390 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L400 065-10009-20 BEAD FER SMD BDS 3/3/8.9-4S2
L510 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L535 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L600 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L615 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A
L780 056-10330-02 (L) IND SMD 330NH
L900 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM
L901 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM
L902 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM
L903 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM
L904 052-08155-15 COIL A/W 1.5T/5.5MM HOR 0.8MM
PL100 070-01001-00 D-RANGE 15 WAY COMPL T800
PL205 240-00020-67 HEADER 6W 2X3 PCB MTG STD
PL210 240-00020-67 HEADER 6W 2X3 PCB MTG STD
PL215 240-00020-44 HEADER 10W X2R PCB MTG 5*2
PL220 240-00020-67 HEADER 6W 2X3 PCB MTG STD
Q210 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q220 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q230 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q240 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q250 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q260 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q270 000-10004-10 S) XSTR SMD MJD41C NPN SW DPAK
Q300 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q301 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q302 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD
Q320 000-10095-10 S) XSTR SMD BR951 NPN UHF
Q321 000-10938-20 L)XSTR MRF9382TI HI FRQ PWRFET
Q350 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q351 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q365 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q366 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q367 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q368 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q380 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q381 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q510 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q520 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q530 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q540 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q550 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q610 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q620 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD
Q630 000-10003-00 S) XSTR BSR30 PNP AF SOT-89
Q660 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q670 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q710 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q720 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q730 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q740 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q750 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF
Q760 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q770 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q775 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q780 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q785 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q790 000-10003-12 S) XSTR SMD BFR31 N JFET SOT23
Q795 000-10057-10 S) XSTR SMD BR571 NPN SOT23
Q810 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q820 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23
Q830 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q840 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q850 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
Q860 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS
R160 036-12100-00 RES M/F 0805 10E 5%
R201 036-13560-00 RES M/F 0805 560E 5%
R202 036-14100-10 RES M/F 0805 1K 1%
R204 036-14220-00 RES M/F 0805 2K2 5%
R205 036-13220-10 RES 0805 220E 1%
R206 036-14100-10 RES M/F 0805 1K 1%
R207 036-14390-10 RES M/F 0805 3K9 1%
R208 036-13560-00 RES M/F 0805 560E 5%
R209 036-15100-10 RES M/F 0805 10K 1%
R210 036-14220-00 RES M/F 0805 2K2 5%
RV210 040-05100-23 POT 10K LOG PCB 15MM SLOT SFT
![](/img.php?id=111477&img=bg8f.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.7
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
R211 036-13470-00 RES M/F 0805 470E 5%
R212 036-16100-00 RES M/F 0805 100K 5%
R213 036-15100-10 RES M/F 0805 10K 1%
R214 036-14820-10 RES M/F 0805 8K2 1%
R215 036-16100-00 RES M/F 0805 100K 5%
R216 036-16100-00 RES M/F 0805 100K 5%
R217 036-14100-10 RES M/F 0805 1K 1%
R218 036-16150-00 RES M/F 0805 150K 5%
R219 036-14220-00 RES M/F 0805 2K2 5%
R220 036-13470-00 RES M/F 0805 470E 5%
RV220 042-05500-05 RES PRESET SMD 50K CER 4MM SQ
R221 036-14150-10 RES M/F 0805 1K5 1%
R223 036-17100-10 RES M/F 0805 1M 1%
R224 036-14680-10 RES M/F 0805 6K8 1%
R225 036-17100-10 RES M/F 0805 1M 1%
R226 036-15100-10 RES M/F 0805 10K 1%
R227 036-14220-00 RES M/F 0805 2K2 5%
R228 036-13120-00 RES M/F 0805 120E 5%
R229 036-16470-00 RES M/F 0805 470K 5%
R230 036-16100-00 RES M/F 0805 100K 5%
R231 036-15100-10 RES M/F 0805 10K 1%
R232 036-16330-00 RES M/F 0805 330K 5%
R233 036-16100-00 RES M/F 0805 100K 5%
R235 036-14470-10 RES M/F 0805 4K7 1%
R237 036-15470-10 RES M/F 0805 47K 1%
R238 036-15470-10 RES M/F 0805 47K 1%
R239 036-14150-10 RES M/F 0805 1K5 1%
R241 036-14470-10 RES M/F 0805 4K7 1%
R242 036-14220-00 RES M/F 0805 2K2 5%
R244 036-15100-10 RES M/F 0805 10K 1%
R245 036-16100-00 RES M/F 0805 100K 5%
R247 036-15100-10 RES M/F 0805 10K 1%
R248 036-16100-00 RES M/F 0805 100K 5%
R249 036-16100-00 RES M/F 0805 100K 5%
R251 036-16100-00 RES M/F 0805 100K 5%
R253 036-16100-00 RES M/F 0805 100K 5%
R254 036-16100-00 RES M/F 0805 100K 5%
R255 036-15100-10 RES M/F 0805 10K 1%
R256 036-15470-10 RES M/F 0805 47K 1%
R257 036-16560-00 RES M/F 0805 560K 5%
R258 036-16150-00 RES M/F 0805 150K 5%
R259 036-15220-00 RES M/F 0805 22K 5%
R260 036-15470-10 RES M/F 0805 47K 1%
R262 036-15470-10 RES M/F 0805 47K 1%
R263 036-14470-10 RES M/F 0805 4K7 1%
&R264 10 036-15220-00 RES M/F 0805 22K 5%
&R264 15 036-15270-10 RES M/F 0805 27K 1%
&R265 10 036-15150-00 RES M/F 0805 15K 5%
&R265 15 036-15180-00 RES M/F 0805 18K 5%
&R266 10 036-15470-10 RES M/F 0805 47K 1%
&R266 15 036-15560-10 RES MF 0805 56K 1%
R267 036-14220-00 RES M/F 0805 2K2 5%
R268 036-13100-10 RES M/F 0805 100E 1%
R269 036-15100-10 RES M/F 0805 10K 1%
R270 036-14120-00 RES M/F 0805 1K2 5%
R271 036-17100-10 RES M/F 0805 1M 1%
R272 036-13560-00 RES M/F 0805 560E 5%
R273 036-15120-00 RES M/F 0805 12K 5%
R274 036-15150-00 RES M/F 0805 15K 5%
R275 036-14270-00 RES M/F 0805 2K7 5%
R277 036-16100-00 RES M/F 0805 100K 5%
R278 036-16120-00 RES M/F 0805 120K 5%
R279 036-17100-10 RES M/F 0805 1M 1%
R280 036-15100-10 RES M/F 0805 10K 1%
R282 036-15560-10 RES MF 0805 56K 1%
R283 036-15560-10 RES MF 0805 56K 1%
R284 036-17100-10 RES M/F 0805 1M 1%
R285 036-10000-00 RES M/F 0805 ZERO OHM
R286 036-14220-00 RES M/F 0805 2K2 5%
R287 036-15100-10 RES M/F 0805 10K 1%
R288 036-15120-00 RES M/F 0805 12K 5%
R289 036-16100-00 RES M/F 0805 100K 5%
&R290 10 036-13560-00 RES M/F 0805 560E 5%
&R290 15 036-13560-00 RES M/F 0805 560E 5%
R291 036-10000-00 RES M/F 0805 ZERO OHM
R292 036-14470-10 RES M/F 0805 4K7 1%
R293 036-15470-10 RES M/F 0805 47K 1%
R294 036-14470-10 RES M/F 0805 4K7 1%
R295 036-14270-00 RES M/F 0805 2K7 5%
R296 036-14100-10 RES M/F 0805 1K 1%
R297 036-14560-00 RES M/F 0805 5K6 5%
%R298 10 036-16100-00 RES M/F 0805 100K 5%
%R298 15 036-16100-00 RES M/F 0805 100K 5%
R299 036-14270-00 RES M/F 0805 2K7 5%
R300 036-15220-00 RES M/F 0805 22K 5%
RV300 042-04220-05 RES PRESET SMD 2K CER 4MM SQ
R301 036-14270-00 RES M/F 0805 2K7 5%
R302 036-15100-10 RES M/F 0805 10K 1%
R303 036-16100-00 RES M/F 0805 100K 5%
R304 036-15220-00 RES M/F 0805 22K 5%
R305 036-14150-10 RES M/F 0805 1K5 1%
R306 036-13150-00 RES M/F 0805 150E 5%
R307 036-15100-10 RES M/F 0805 10K 1%
R308 036-14220-00 RES M/F 0805 2K2 5%
R309 036-14100-10 RES M/F 0805 1K 1%
R310 036-12220-00 RES M/F 0805 22E 5%
R311 036-13680-00 RES M/F 0805 680E 5%
R312 036-13680-00 RES M/F 0805 680E 5%
R313 036-15100-10 RES M/F 0805 10K 1%
R319 036-12100-00 RES M/F 0805 10E 5%
R320 036-15100-10 RES M/F 0805 10K 1%
R321 036-14150-10 RES M/F 0805 1K5 1%
R322 036-12470-00 RES M/F 0805 47E 5%
R323 036-13560-00 RES M/F 0805 560E 5%
R324 036-12220-00 RES M/F 0805 22E 5%
R325 036-12270-00 RES M/F 0805 27E 5%
R326 036-13330-00 RES M/F 0805 330E 5%
R327 036-14100-10 RES M/F 0805 1K 1%
R328 036-14100-10 RES M/F 0805 1K 1%
R329 036-03150-07 L)RES 150E 0.5W 5% 2010 PWRCHP
R330 036-03150-07 L)RES 150E 0.5W 5% 2010 PWRCHP
R331 036-16150-00 RES M/F 0805 150K 5%
R332 036-16150-00 RES M/F 0805 150K 5%
R333 036-12270-00 RES M/F 0805 27E 5%
R334 036-12470-00 RES M/F 0805 47E 5%
R335 036-03130-10 RES 30E 1W SMD 2512
R336 036-03130-10 RES 30E 1W SMD 2512
R337 036-14150-10 RES M/F 0805 1K5 1%
R338 036-03033-10 RES 3E3 1W SMD 2512
R339 036-14150-10 RES M/F 0805 1K5 1%
R350 036-14150-10 RES M/F 0805 1K5 1%
R351 036-15470-10 RES M/F 0805 47K 1%
R352 036-15150-00 RES M/F 0805 15K 5%
R353 036-15150-00 RES M/F 0805 15K 5%
R354 036-11330-00 RES M/F 0805 3E3 5%
R355 036-15180-00 RES M/F 0805 18K 5%
R356 036-14330-10 RES M/F 0805 3K3 1%
R357 036-14220-00 RES M/F 0805 2K2 5%
R358 036-14100-10 RES M/F 0805 1K 1%
R359 036-16100-00 RES M/F 0805 100K 5%
R365 036-15470-10 RES M/F 0805 47K 1%
R367 036-13100-10 RES M/F 0805 100E 1%
R368 036-15100-10 RES M/F 0805 10K 1%
R369 036-16100-00 RES M/F 0805 100K 5%
R371 036-15470-10 RES M/F 0805 47K 1%
R372 036-15150-00 RES M/F 0805 15K 5%
R373 036-16100-00 RES M/F 0805 100K 5%
R374 036-14470-10 RES M/F 0805 4K7 1%
R380 036-14100-10 RES M/F 0805 1K 1%
R381 036-15150-00 RES M/F 0805 15K 5%
R382 036-14100-10 RES M/F 0805 1K 1%
R383 036-15150-00 RES M/F 0805 15K 5%
R384 036-12680-00 RES M/F 0805 68E 5%
R385 036-12680-00 RES M/F 0805 68E 5%
R390 036-12220-00 RES M/F 0805 22E 5%
R391 036-13100-10 RES M/F 0805 100E 1%
R392 036-16100-00 RES M/F 0805 100K 5%
R393 036-14150-10 RES M/F 0805 1K5 1%
R394 036-14680-10 RES M/F 0805 6K8 1%
R395 036-14270-00 RES M/F 0805 2K7 5%
R504 036-13330-00 RES M/F 0805 330E 5%
R505 036-15270-10 RES M/F 0805 27K 1%
R510 036-14150-10 RES M/F 0805 1K5 1%
R514 036-12180-00 RES M/F 0805 18E 5%
R515 036-12560-00 RES M/F 0805 56E 5%
R517 036-13330-00 RES M/F 0805 330E 5%
R518 036-12180-00 RES M/F 0805 18E 5%
R519 036-13330-00 RES M/F 0805 330E 5%
R520 036-16120-00 RES M/F 0805 120K 5%
R525 036-15470-10 RES M/F 0805 47K 1%
R530 036-15220-00 RES M/F 0805 22K 5%
R535 036-15100-10 RES M/F 0805 10K 1%
R537 036-12680-00 RES M/F 0805 68E 5%
R540 036-14220-00 RES M/F 0805 2K2 5%
R545 036-14470-10 RES M/F 0805 4K7 1%
%R550 10 036-14470-10 RES M/F 0805 4K7 1%
%R550 15 036-14470-10 RES M/F 0805 4K7 1%
R555 036-14470-10 RES M/F 0805 4K7 1%
R560 036-13470-00 RES M/F 0805 470E 5%
R565 036-12680-00 RES M/F 0805 68E 5%
R609 036-14100-10 RES M/F 0805 1K 1%
R613 036-13560-00 RES M/F 0805 560E 5%
R615 036-13100-10 RES M/F 0805 100E 1%
R617 036-10000-00 RES M/F 0805 ZERO OHM
R619 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R621 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP
R625 036-14100-10 RES M/F 0805 1K 1%
R629 036-03270-10 RES 270 OHM 1 WATT 2512 CHIP
R633 036-14680-10 RES M/F 0805 6K8 1%
R637 036-12220-00 RES M/F 0805 22E 5%
R638 036-12220-00 RES M/F 0805 22E 5%
R640 036-12100-00 RES M/F 0805 10E 5%
R641 036-14150-10 RES M/F 0805 1K5 1%
R645 036-13470-00 RES M/F 0805 470E 5%
R649 036-14470-10 RES M/F 0805 4K7 1%
R653 036-15100-10 RES M/F 0805 10K 1%
R655 036-10000-00 RES M/F 0805 ZERO OHM
R656 036-10000-00 RES M/F 0805 ZERO OHM
R657 036-15100-10 RES M/F 0805 10K 1%
R661 036-15100-10 RES M/F 0805 10K 1%
R665 036-16100-00 RES M/F 0805 100K 5%
R669 036-15470-10 RES M/F 0805 47K 1%
R673 036-16100-00 RES M/F 0805 100K 5%
R677 036-15470-10 RES M/F 0805 47K 1%
R681 036-13100-10 RES M/F 0805 100E 1%
R685 036-15150-00 RES M/F 0805 15K 5%
![](/img.php?id=111477&img=bg90.png)
IPN 220-01447-04
C6.3.8 T827 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
R689 036-12100-00 RES M/F 0805 10E 5%
R693 036-16100-00 RES M/F 0805 100K 5%
R696 036-15560-10 RES MF 0805 56K 1%
R701 036-12220-00 RES M/F 0805 22E 5%
R702 036-17100-10 RES M/F 0805 1M 1%
R703 036-17100-10 RES M/F 0805 1M 1%
R705 036-15100-10 RES M/F 0805 10K 1%
R706 036-12100-00 RES M/F 0805 10E 5%
R708 036-17100-10 RES M/F 0805 1M 1%
R710 036-13100-10 RES M/F 0805 100E 1%
R711 036-13100-10 RES M/F 0805 100E 1%
R712 036-12100-00 RES M/F 0805 10E 5%
R713 036-10000-00 RES M/F 0805 ZERO OHM
R714 036-12100-00 RES M/F 0805 10E 5%
%R715 10 036-14100-10 RES M/F 0805 1K 1%
%R715 15 036-14100-10 RES M/F 0805 1K 1%
R717 036-14270-00 RES M/F 0805 2K7 5%
R718 036-15150-00 RES M/F 0805 15K 5%
R719 036-15150-00 RES M/F 0805 15K 5%
R720 036-15390-00 RES M/F 0805 39K 5%
R721 036-15100-10 RES M/F 0805 10K 1%
R722 036-15100-10 RES M/F 0805 10K 1%
R723 036-14270-00 RES M/F 0805 2K7 5%
R725 036-15390-00 RES M/F 0805 39K 5%
%R726 10 036-13100-10 RES M/F 0805 100E 1%
%R726 15 036-13100-10 RES M/F 0805 100E 1%
R727 036-15100-10 RES M/F 0805 10K 1%
R728 036-15100-10 RES M/F 0805 10K 1%
R734 036-13470-00 RES M/F 0805 470E 5%
R735 036-13470-00 RES M/F 0805 470E 5%
R736 036-13470-00 RES M/F 0805 470E 5%
R742 036-13150-00 RES M/F 0805 150E 5%
R743 036-13150-00 RES M/F 0805 150E 5%
R744 036-12220-00 RES M/F 0805 22E 5%
R746 036-12220-00 RES M/F 0805 22E 5%
R747 036-12220-00 RES M/F 0805 22E 5%
R748 036-15470-10 RES M/F 0805 47K 1%
R749 036-15470-10 RES M/F 0805 47K 1%
R750 036-12220-00 RES M/F 0805 22E 5%
R752 036-12220-00 RES M/F 0805 22E 5%
R753 036-17100-10 RES M/F 0805 1M 1%
R754 036-14100-10 RES M/F 0805 1K 1%
R756 036-15120-00 RES M/F 0805 12K 5%
R757 036-15120-00 RES M/F 0805 12K 5%
R758 036-14120-00 RES M/F 0805 1K2 5%
R759 036-13330-00 RES M/F 0805 330E 5%
R760 036-13180-00 RES M/F 0805 180E 5%
R762 036-13100-10 RES M/F 0805 100E 1%
R763 036-13100-10 RES M/F 0805 100E 1%
R765 036-13680-00 RES M/F 0805 680E 5%
R766 036-14100-10 RES M/F 0805 1K 1%
R767 036-13680-00 RES M/F 0805 680E 5%
R769 036-13180-00 RES M/F 0805 180E 5%
R771 036-14820-10 RES M/F 0805 8K2 1%
R772 036-15220-00 RES M/F 0805 22K 5%
R774 036-14820-10 RES M/F 0805 8K2 1%
R775 036-14270-00 RES M/F 0805 2K7 5%
R777 036-14220-00 RES M/F 0805 2K2 5%
R780 036-12100-00 RES M/F 0805 10E 5%
R781 036-12100-00 RES M/F 0805 10E 5%
R782 036-12680-00 RES M/F 0805 68E 5%
R783 036-13220-10 RES 0805 220E 1%
R784 036-14330-10 RES M/F 0805 3K3 1%
R785 036-13100-10 RES M/F 0805 100E 1%
R786 036-14100-10 RES M/F 0805 1K 1%
R787 036-12560-00 RES M/F 0805 56E 5%
R801 036-16150-00 RES M/F 0805 150K 5%
R802 036-15470-10 RES M/F 0805 47K 1%
RV805 042-05200-05 RES PRESET SMD 20K CER 4MM SQ
R808 036-12100-00 RES M/F 0805 10E 5%
R809 036-14470-10 RES M/F 0805 4K7 1%
R810 036-14470-10 RES M/F 0805 4K7 1%
R811 036-14470-10 RES M/F 0805 4K7 1%
R812 036-14470-10 RES M/F 0805 4K7 1%
R813 036-14470-10 RES M/F 0805 4K7 1%
R815 036-15470-10 RES M/F 0805 47K 1%
R816 036-16150-00 RES M/F 0805 150K 5%
R818 036-14470-10 RES M/F 0805 4K7 1%
R819 036-14470-10 RES M/F 0805 4K7 1%
R821 036-15470-10 RES M/F 0805 47K 1%
R822 036-15470-10 RES M/F 0805 47K 1%
R824 036-14220-00 RES M/F 0805 2K2 5%
R825 036-14220-00 RES M/F 0805 2K2 5%
R826 036-14220-00 RES M/F 0805 2K2 5%
R827 036-14220-00 RES M/F 0805 2K2 5%
R828 036-14220-00 RES M/F 0805 2K2 5%
R829 036-14220-00 RES M/F 0805 2K2 5%
R830 036-14220-00 RES M/F 0805 2K2 5%
R831 036-14220-00 RES M/F 0805 2K2 5%
R832 036-14220-00 RES M/F 0805 2K2 5%
R833 036-14220-00 RES M/F 0805 2K2 5%
R835 036-14220-00 RES M/F 0805 2K2 5%
R836 036-14220-00 RES M/F 0805 2K2 5%
R837 036-14220-00 RES M/F 0805 2K2 5%
R840 036-14220-00 RES M/F 0805 2K2 5%
R841 036-14220-00 RES M/F 0805 2K2 5%
R842 036-14220-00 RES M/F 0805 2K2 5%
R843 036-14220-00 RES M/F 0805 2K2 5%
R845 036-13470-00 RES M/F 0805 470E 5%
R847 036-13470-00 RES M/F 0805 470E 5%
R848 036-14470-10 RES M/F 0805 4K7 1%
R849 036-13470-00 RES M/F 0805 470E 5%
R850 036-13470-00 RES M/F 0805 470E 5%
R853 036-14470-10 RES M/F 0805 4K7 1%
R854 036-14470-10 RES M/F 0805 4K7 1%
R855 036-14470-10 RES M/F 0805 4K7 1%
R859 036-16150-00 RES M/F 0805 150K 5%
R861 036-16150-00 RES M/F 0805 150K 5%
R863 036-16150-00 RES M/F 0805 150K 5%
R865 036-16100-00 RES M/F 0805 100K 5%
R867 036-16100-00 RES M/F 0805 100K 5%
R871 036-15470-10 RES M/F 0805 47K 1%
R872 036-14470-10 RES M/F 0805 4K7 1%
R873 036-15330-00 RES M/F 0805 33K 5%
R874 036-14470-10 RES M/F 0805 4K7 1%
R875 036-15470-10 RES M/F 0805 47K 1%
R876 036-14470-10 RES M/F 0805 4K7 1%
R877 036-14470-10 RES M/F 0805 4K7 1%
R879 036-15100-10 RES M/F 0805 10K 1%
SK200 240-10000-05 CONN SMD SKT 8W 2R M-MATCH
SK205 240-02020-05 SKT STEREO PHONE JACK PCB MTG
SK805 240-10000-07 CONN SMD SKT 16W 2R M-MATCH
SK810 240-04020-42 SKT 44 PIN SMD PLCC
SW230 232-00010-26 SWITCH PUSH SPDT R-ANG PCB MTG
T210 053-00010-17 XFMR T4030 LINE MATCH POTCORE
T610 050-15119-52 COIL SMD 680uH XFMR 5119-T052
![](/img.php?id=111477&img=bg91.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.9
Copyright TEL 01/04/00
IPN Legend Description IPN Legend Description
T827 Mechanical & Miscellaneous Parts (220-01447-04)
002-08951-20 S) IC AT89C51 PLCC44 MIC 12MHZ
008-00014-79 S)LED 3MM RED WITH WIRE
008-00014-80 S)LED 3MM GREEN WITH WIRE
220-01447-04 PCB T827 EX SII
240-02100-06 SKT COAX N TYPE PNL MTG OP-TER
240-04020-62 SKT 2 W RECEP SHORTING LINK
240-04021-77 SKT JACK 1.3 PCB MT 64W
240-10000-05 CONN SMD SKT 8W 2R M-MATCH
303-11169-04 CHASSIS PAINTED T800 SER II
303-23118-00 COVER A3M2247 D RANGE T855/7
303-50074-00 CLIP A3M2246 SPRING CLAMP T857
308-01007-01 HANDLE BS SII 2 WASHERS INC
312-01052-02 LID TOP T800 SER II PTND
312-01053-02 LID BOTTOM T800 SER II PNTD
316-06619-00 PNL FRT EX, NO EX OUT SER II
349-00020-36 SCREW TT M3X8m PANTORX BLK
349-00020-36 SCREW TT M3X8m PANTORX BLK
349-00020-43 SCRW T/T M4X12MM P/POZ BZ
349-00020-45 SCRW T/T M4X20MM P/POZ BZ
349-00020-55 SCRW M3*8 P/P T/T BLCKZNC CHRM
352-00010-08 NUT M3 COLD FORM HEX ST BZ
352-00010-29 NUT M4 NYLOC HEX
353-00010-13 WSHR M3 S/PROOF INT BZ
353-00010-24 WSHR M4x8mm Flat
362-00010-33 GROMMET LED MTG 3MM
365-00100-20 LABEL WHITE S/A 28X11MM
![](/img.php?id=111477&img=bg92.png)
IPN 220-01447-04
C6.3.10 T827 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg93.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.11
Copyright TEL 01/04/00
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
T827 Grid Reference Index (IPN 220-01447-04)
How To Use This Grid Reference Index
The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-
ters give the location of the component on that diagram.
The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on
that sheet.
C201 1:C1 2-B8
C202 1:C1 2-C8
C204 1:B3 2-E8
C205 1:A3 2-E8
C207 1:C7 2-B6
C209 1:C6 2-D6
C210 1:C7 2-K0
C211 1:B7 2-F8
C213 1:B6 2-G8
C215 1:B6 2-G8
C217 1:C6 2-H8
C219 1:B6 2-H7
C221 1:D5 2-G6
C223 1:C5 2-J6
C225 1:C3 2-K7
C227 1:B4 2-K7
C229 1:B3 2-L7
C230 1:B4 2-J0
C232 1:A4 2-M7
C233 1:B5 2-N7
C235 1:B5 2-K5
C237 1:C4 2-K5
C239 1:C4 2-L4
C241 1:B4 2-M6
C242 1:B4 2-L6
C243 1:B4 2-P6
C245 1:C5 2-A4
C247 1:C6 2-B4
C249 1:D4 2-C4
C251 1:C3 2-E4
C253 1:D3 2-E3
C255 1:D3 2-D2
C257 1:D3 2-F2
C259 1:C6 2-J2
C260 1:D8 2-H0
C261 1:C6 2-K2
C263 1:D6 2-L3
C265 1:D6 2-N4
C267 1:C8 2-P3
&C269 1:C8 2-P3
&C271 1:C8 2-Q3
C273 1:C8 2-Q4
C275 1:C3 2-E1
C277 1:C4 2-G1
C279 1:B4 2-G1
C281 1:B5 2-J1
C283 1:B5 2-K0
C285 1:D7 2-L0
C287 1:C6 2-M1
&C289 1:C8 2-N1
C291 1:D7 2-P1
C293 1:D7 2-Q1
%C294 1:D7 2-Q0
%C295 1:C6 2-Q0
C300 1:E8 3-A8
C301 1:E7 3-B8
C302 1:E8 3-B8
C303 1:E8 3-C8
C304 1:F8 3-D7
C305 1:F8 3-D8
C306 1:F8 3-E8
C307 1:F8 3-E8
C320 1:F5 3-C4
C321 1:F4 3-C5
C322 1:F5 3-D4
C323 1:F4 3-E5
C324 1:F4 3-F4
C325 1:F4 3-G4
C326 1:E4 3-H6
C327 1:F4 3-H6
C328 1:F3 3-H5
C329 1:F4 3-J4
C330 1:F4 3-J4
C331 1:E5 3-J4
C332 1:F5 3-K4
C333 1:F5 3-L4
C334 1:F5 3-M4
C335 1:F6 3-M4
C336 1:E6 3-N5
C337 1:F6 3-N4
C338 1:E6 3-P6
C339 1:F7 3-P5
C340 1:F7 3-P4
C341 1:F7 3-P5
C342 1:F7 3-Q5
C343 1:E7 3-M7
C344 1:E7 3-M6
C350 1:F4 3-E3
C351 1:E5 3-F3
C352 1:E6 3-J3
C353 1:E6 3-K2
C354 1:E5 3-K3
C355 1:E6 3-K2
C356 1:E6 3-L2
C357 1:F6 3-M2
C365 1:E5 3-B1
C366 1:E4 3-C1
C367 1:E3 3-C0
C368 1:E4 3-D1
C369 1:E4 3-D1
C370 1:E4 3-E2
C380 1:E3 3-P2
C381 1:E3 3-P1
C382 1:F5 3-Q2
C383 1:F3 3-Q1
C384 1:F5 3-Q2
C385 1:F3 3-Q1
C386 1:F7 3-R1
C390 1:F8 3-J8
C391 1:F8 3-J8
C392 1:E9 3-K8
C393 1:E8 3-K8
C394 1:E8 3-L8
C395 1:E9 3-N8
C396 1:E8 3-P8
C397 1:E8 3-P8
C400 1:H8 4-D4
C401 1:H8 4-D4
C402 1:H8 4-E4
C403 1:H7 4-F4
C503 1:K6 5-L9
C505 1:K5 5-M6
C510 1:H5 5-C0
C513 1:H5 5-G2
C515 1:H5 5-G2
C516 1:J5 5-H1
C517 1:J5 5-F1
C520 1:J5 5-H0
C535 1:K5 5-M2
C536 1:K5 5-L2
C537 1:J5 5-L2
C542 1:J5 5-J1
C545 1:J5 5-K1
C546 1:K5 5-K0
C550 1:K5 5-L0
C600 1:L6 6-D8
C601 1:L6 6-D8
C605 1:L6 6-C8
C610A 1:M5 6-F8
C610B 1:L5 6-F8
C611A 1:M6 6-H8
C611B 1:M5 6-H8
C615 1:M6 6-R8
C616 1:M6 6-R8
C623 1:N6 6-M8
C625 1:M6 6-Q8
C626 1:M6 6-Q8
C628 1:M6 6-Q8
C630 1:M5 6-J5
C631A 1:N5 6-L6
C634 1:N5 6-L5
C636 1:M5 6-M5
C638 1:M5 6-N6
C640 1:M5 6-Q6
C655 1:M4 6-C1
C660 1:L5 6-K1
C665 1:L5 6-K1
C670 1:L5 6-L1
C673 1:L5 6-P2
C677 1:L6 6-P1
C681 1:L6 6-R3
C684 1:L6 6-R3
C687 1:L6 6-Q1
C690 1:L6 6-R1
C693 1:L6 6-R1
C700 1:K4 7-A8
C703 1:J3 7-B7
C706 1:J2 7-B5
#C707 1:K4 7-C8
C708 1:J2 7-C9
C709 1:K4 7-D9
C710 1:J3 7-D8
C711 1:J3 7-C5
C712 1:H2 7-E7
%C713 1:H2 7-E6
C714 1:J3 7-E8
C719 1:J3 7-F8
C720 1:J3 7-F8
C722 1:J4 7-G8
C724 1:J4 7-H6
C725 1:J4 7-J6
C726 1:K4 7-J6
C727 1:J3 7-J8
C729 1:H3 7-M8
%C733 1:H2 7-E3
C735 1:J2 7-A1
C736 1:J2 7-B1
C740A 1:H2 7-B4
C740B 1:H2 7-B3
C741A 1:H2 7-C4
C741B 1:G2 7-C3
C742A 1:H2 7-D4
C742B 1:H3 7-D3
C743 1:H2 7-B1
C745 1:G3 7-D1
C750 1:H4 7-Q7
C757 1:G4 7-F5
C759 1:G4 7-G4
C761 1:G3 7-J4
C762 1:G3 7-J4
C764 1:H3 7-H2
C765 1:G3 7-J2
C767 1:H3 7-K3
C769 1:J3 7-M4
C770 1:H4 7-N4
C772 1:G4 7-M2
C776 1:H3 7-L1
C778 1:H4 7-M1
C780 1:G2 7-N1
C781 1:G2 7-P1
C782 1:G2 7-P1
C783 1:G3 7-P0
C784 1:G4 7-Q0
C785 1:G3 7-Q1
C786 1:G4 7-Q0
C810 1:L3 8-K8
C812 1:L2 8-F5
C813 1:K2 8-J5
C822 1:M2 8-B2
C823 1:M3 8-C2
C824 1:M2 8-C1
C826 1:N3 8-C0
C827 1:N3 8-D0
C828 1:N3 8-E0
C830 1:N3 8-R1
C838 1:N4 8-F0
C841 1:N2 8-L2
C844 1:M2 8-L2
C900 1:N8 9-D4
C901 1:P8 9-E4
C902 1:P7 9-E4
C903 1:P7 9-F4
C904 1:P7 9-F4
C905 1:P7 9-G4
C906 1:P6 9-H4
C907 1:P6 9-H4
![](/img.php?id=111477&img=bg94.png)
IPN 220-01447-04
C6.3.12 T827 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
%D111 1:P5 1-R1
%D111A 1:P5 1-Q1
%D205 1:B2 2-D9
%D210 1:B2 2-D9
D220 1:B4 2-P7
D220 1:B4 2-P6
D230 1:B7 2-R5
D240 1:D4 2-C4
D240 1:D4 2-B2
D250 1:D3 2-E2
D250 1:D3 2-D3
D260 1:C3 2-C2
D260 1:C3 2-C2
D270 1:C2 2-C1
D270 1:C2 2-C1
D320 1:F5 3-D4
D321 1:F5 3-D4
D322 1:F5 3-D4
D351 1:E6 3-L1
D351 1:E6 3-L2
D610 1:N6 6-L6
D610 1:N6 6-K6
D620 1:N4 6-B2
D620 1:N4 6-B1
D630 1:M5 6-G3
D630 1:M5 6-G2
D635 1:M4 6-G3
D640 1:L5 6-M1
D640 1:L5 6-M2
D645 1:M5 6-R6
D710 1:J3 7-L8
D710 1:J3 7-L8
D720 1:H3 7-P8
D720 1:H3 7-P8
D730 1:H3 7-H1
D740 1:H3 7-J2
D810 1:M2 8-B7
IC210 1:C7 2-C6
IC210 1:C7 2-J0
IC210 1:C7 2-L1
IC210 1:C7 2-K2
IC210 1:C7 2-Q0
IC220 1:C6 2-D5
IC220 1:C6 2-P0
IC220 1:C6 2-M3
IC230 1:B4 2-J0
IC230 1:B4 2-J0
IC230 1:B4 2-L5
IC230 1:B4 2-N6
IC230 1:B4 2-G1
IC240 1:D4 2-F3
IC250 1:D3 2-E1
IC260 1:D8 2-N0
IC260 1:D8 2-H0
IC260 1:D8 2-Q2
IC260 1:D8 2-Q3
IC260 1:D8 2-N3
IC300 1:E8 3-H8
IC300 1:E8 3-E0
IC300 1:E8 3-C8
IC310 1:E8 3-L8
IC610 1:L5 6-G8
IC630 1:N5 6-K5
IC640 1:M5 6-M5
IC640 1:M5 6-Q6
IC640 1:M5 6-F1
IC650 1:L5 6-F4
=IC700 1:K3 7-A8
IC710 1:J2 7-D8
IC710 1:J2 7-C6
IC710 1:J2 7-C5
IC710 1:J2 7-D6
IC710 1:J2 7-D7
IC710 1:J2 7-D6
IC710 1:J2 7-C6
IC720 1:J3 7-P6
IC720 1:J3 7-G0
IC720 1:J3 7-N7
IC720 1:J3 7-M7
IC720 1:J3 7-K7
IC720 1:J3 7-E8
IC720 1:J3 7-G0
IC730 1:J4 7-H8
IC730 1:J4 7-G7
IC740 1:H2 7-D1
IC750 1:H4 7-M3
IC750 1:H4 7-H5
IC750 1:H4 7-Q7
IC820 1:L4 8-N2
IC830 1:N3 8-J0
IC830 1:N3 8-Q1
IC830 1:N3 8-J0
IC830 1:N3 8-J1
IC830 1:N3 8-C0
L320 1:F5 3-D4
L321 1:F4 3-E4
L322 1:E4 3-H7
L323 1:F3 3-H5
L324 1:F4 3-J4
L325 1:F5 3-K4
L326 1:F5 3-L4
L327 1:E7 3-N7
L328 1:E6 3-N5
L329 1:F6 3-P5
L380 1:F5 3-Q2
L381 1:F3 3-Q1
%L382 1:F7 3-R1
L390 1:E9 3-K9
L400 1:H8 4-E5
L510 1:H5 5-H2
L535 1:K5 5-L2
L600 1:L6 6-D8
L615 1:M6 6-R8
L780 1:G3 7-Q0
L900 1:P8 9-D6
L901 1:P7 9-E6
L902 1:P7 9-F6
L903 1:P6 9-H6
L904 1:P7 9-F5
LINK1 2:B2 2-E9
LINK2 2:A2 2-E8
P100 1:Q6 1-R8
P150 1:P2 1-Q4
P160 1:P2 1-Q4
P170 1:P2 1-Q3
P204 1:D1 2-A8
P208 1:D1 2-A8
P210 1:D3 2-A3
P215 1:D4 2-A2
P217 1:D4 2-A2
P219 1:D2 2-A1
P225 1:D2 2-A0
P230 1:C5 2-B0
P231 1:D8 2-B0
P233 1:C1 2-R9
P235 1:C1 2-R9
P237 1:B7 2-R8
P239 1:C7 2-R8
P240 1:C7 2-R8
P243 1:B7 2-R7
P244 1:B7 2-R7
P245 1:B8 2-R6
P247 1:B8 2-R6
P248 1:B7 2-R6
P249 1:C7 2-R5
P251 1:C7 2-R5
P255 1:D4 2-R4
P257 1:C2 2-R4
P259 1:B8 2-R3
P261 1:B8 2-R3
P263 1:B1 2-R2
P267 1:C8 2-N2
P269 1:D8 2-P2
P271 1:C9 2-N1
P273 1:D9 2-P0
P275 1:D7 2-Q0
P290 1:D5 2-E0
P291 1:D5 2-G0
P805 1:M2 8-A7
P810 1:L3 8-A5
P820 1:L4 8-M8
P825 1:L4 8-M8
P830 1:L4 8-M8
P835 1:L4 8-M7
P840 1:L4 8-M7
PL100 1:P3 1-M0
PL205 1:C5 2-J8
PL210 1:C3 2-H4
PL215 1:C4 2-K3
PL220 1:C4 2-H2
Q210 1:C6 2-J8
Q220 1:B3 2-L7
Q230 1:A4 2-M8
Q240 1:B7 2-Q7
Q250 1:B7 2-R6
Q260 1:C4 2-F3
Q270 1:D2 2-D1
Q300 1:E8 3-B7
Q301 1:F8 3-E8
Q302 1:F8 3-F8
Q320 1:F4 3-H4
Q321 1:F6 3-N4
Q350 1:E5 3-K3
Q351 1:E5 3-L3
Q365 1:E5 3-B1
Q366 1:E5 3-C1
Q367 1:E4 3-C0
Q368 1:E4 3-D1
Q380 1:E3 3-P3
Q381 1:E3 3-P2
Q510 1:J5 5-D1
Q520 1:J5 5-H2
Q530 1:J5 5-H0
Q540 1:J5 5-L2
Q550 1:K5 5-L0
Q610 1:L6 6-D8
Q620 1:N6 6-P8
Q630 1:M6 6-P5
Q660 1:L5 6-N1
Q670 1:L6 6-Q2
Q710 1:J3 7-K8
Q720 1:J3 7-K8
Q730 1:H3 7-N8
Q740 1:H3 7-N8
Q750 1:G4 7-F3
Q760 1:H3 7-H3
Q770 1:H3 7-H1
Q775 1:H3 7-K3
Q780 1:H3 7-K3
Q785 1:H3 7-K2
Q790 1:H3 7-L3
Q795 1:G3 7-P0
Q810 1:M2 8-E7
Q820 1:L2 8-D5
Q830 1:L2 8-D5
Q840 1:L2 8-F5
Q850 1:M2 8-G5
Q860 1:L4 8-B3
%R150 1:P2 1-R4
R160 1:P2 1-R3
%R200 1:B2 2-C9
R201 1:B3 2-E9
R202 1:C1 2-F9
%R203 1:B3 2-C8
R204 1:C7 2-B6
R205 1:C7 2-D6
R206 1:B7 2-G8
R207 1:B6 2-G8
R208 1:B6 2-G8
R209 1:C6 2-H8
R210 1:B6 2-H7
R211 1:B2 2-D9
R212 1:D4 2-F6
R213 1:C4 2-G6
R214 1:D4 2-G6
R215 1:C4 2-H6
R216 1:C3 2-K7
R217 1:A4 2-M8
R218 1:A5 2-N7
R219 1:B4 2-N8
R220 1:B2 2-E9
R221 1:B7 2-R7
R223 1:B4 2-K6
R224 1:C4 2-K5
R225 1:B4 2-L5
R226 1:B4 2-L4
R227 1:B4 2-M4
R228 1:A2 2-E9
R229 1:B4 2-M7
R230 1:B4 2-M6
R231 1:B4 2-M6
R232 1:B4 2-M5
R233 1:B4 2-M6
R235 1:B4 2-P6
R237 1:B7 2-Q7
R238 1:B7 2-R7
R239 1:B8 2-R6
R241 1:B8 2-Q6
R242 1:B7 2-Q5
R244 1:C6 2-A5
R245 1:D4 2-D4
R247 1:D3 2-E4
R248 1:C3 2-E3
R249 1:D4 2-F3
R251 1:C4 2-G4
R253 1:C6 2-J2
R254 1:C7 2-K3
R255 1:C7 2-K2
R256 1:D8 2-M3
R257 1:D8 2-N5
R258 1:D8 2-N4
R259 1:D6 2-P4
R260 1:D8 2-N4
R262 1:D8 2-N3
R263 1:C8 2-P3
&R264 1:C8 2-P3
&R265 1:C8 2-P3
&R266 1:C8 2-P3
R267 1:C8 2-R2
R268 1:D2 2-C0
R269 1:D3 2-C1
R270 1:D3 2-D1
R271 1:C3 2-E1
R272 1:C4 2-F2
R273 1:B5 2-G2
R274 1:C4 2-G1
R275 1:C4 2-H0
R277 1:B5 2-J1
R278 1:B5 2-J0
R279 1:B5 2-K0
R280 1:B5 2-K0
R282 1:D7 2-K1
R283 1:D7 2-L1
R284 1:D7 2-L0
R285 1:C8 2-M0
R286 1:C7 2-M0
R287 1:D9 2-M0
![](/img.php?id=111477&img=bg95.png)
IPN 220-01447-04
M820-00 T827 PCB Information C6.3.13
Copyright TEL 01/04/00
Device PCB Circuit Device PCB Circuit Device PCB CircuitDevice PCB Circuit
R288 1:C6 2-M2
R289 1:D9 2-M0
&R290 1:C8 2-N2
R291 1:C8 2-N1
R292 1:D8 2-Q2
R293 1:D9 2-Q2
R294 1:D9 2-Q1
R295 1:D8 2-R1
R296 1:D6 2-P0
R297 1:D7 2-P1
%R298 1:D7 2-Q0
R299 1:C7 2-R0
R300 1:E8 3-A7
R301 1:E8 3-A7
R302 1:E8 3-A8
R303 1:E8 3-B8
R304 1:F8 3-B8
R305 1:E8 3-C7
R306 1:E8 3-C6
R307 1:F8 3-D7
R308 1:F8 3-D8
R309 1:F8 3-E8
R310 1:F8 3-E8
R311 1:F8 3-F8
R312 1:F8 3-F7
R313 1:F8 3-F8
R319 1:E4 3-H6
R320 1:F4 3-C5
R321 1:F5 3-C4
R322 1:F5 3-D5
R323 1:F4 3-D5
R324 1:F4 3-F4
R325 1:F4 3-G4
R326 1:F4 3-G4
R327 1:F3 3-G5
R328 1:F4 3-G4
R329 1:E3 3-G6
R330 1:F3 3-H6
R331 1:F4 3-H4
R332 1:F4 3-H4
R333 1:F5 3-L4
R334 1:F6 3-M4
R335 1:E7 3-N6
R336 1:E7 3-N6
R337 1:F7 3-P4
R338 1:F7 3-Q5
R339 1:F7 3-Q4
R350 1:F4 3-F3
R351 1:E5 3-J3
R352 1:E5 3-K3
R353 1:E5 3-K3
R354 1:E5 3-L2
R355 1:E6 3-L2
R356 1:E6 3-L2
R357 1:E6 3-M2
R358 1:F6 3-M2
R359 1:E6 3-L2
R365 1:E5 3-B1
%R366 1:E4 3-C0
R367 1:E3 3-C0
R368 1:E4 3-C1
R369 1:E3 3-C0
R371 1:E4 3-D1
R372 1:E4 3-D1
R373 1:E4 3-D2
R374 1:E4 3-E1
R380 1:E3 3-P1
R381 1:E3 3-P3
R382 1:E3 3-Q2
R383 1:F3 3-Q2
R384 1:F5 3-Q3
R385 1:F3 3-Q2
R390 1:E8 3-H9
R391 1:E9 3-K9
R392 1:E8 3-M8
R393 1:E9 3-N7
R394 1:E9 3-N8
R395 1:E9 3-N8
R504 1:K6 5-K9
R505 1:K6 5-L8
R510 1:K6 5-L7
R514 1:K5 5-M5
R515 1:H6 5-J5
R517 1:G5 5-E2
R518 1:G5 5-F2
R519 1:G5 5-F2
R520 1:H5 5-C1
R525 1:H5 5-D1
R530 1:J5 5-D0
R535 1:J5 5-E1
R537 1:H5 5-G2
R540 1:J5 5-H2
R545 1:J5 5-J1
%R550 1:J5 5-J2
%R553 1:J5 5-J1
R555 1:J5 5-K1
R560 1:K5 5-M0
R565 1:K5 5-L2
R609 1:L6 6-B8
R613 1:L6 6-C8
R615 1:M5 6-F9
R617 1:M5 6-J8
R619 1:N6 6-K8
R621 1:N6 6-K8
R625 1:N6 6-K7
R629 1:M6 6-P6
R633 1:M5 6-P8
R637 1:M5 6-J6
R638 1:M5 6-J6
R640 1:M5 6-Q6
R641 1:N5 6-K5
R645 1:N5 6-L5
R649 1:M5 6-M5
R653 1:M5 6-P5
R655 1:L4 6-D4
R656 1:L4 6-D4
R657 1:M5 6-D1
R661 1:M5 6-E3
R665 1:M5 6-E2
R669 1:M5 6-E2
R673 1:M5 6-E0
R677 1:M4 6-F4
R681 1:L5 6-L2
R685 1:L5 6-N2
R689 1:L6 6-Q3
R693 1:L5 6-Q1
R696 1:L5 6-Q1
R701 1:K4 7-A9
R702 1:K4 7-C9
R703 1:J3 7-C8
=R705 1:K3 7-A7
R705 1:J3 7-C5
R706 1:H3 7-C5
R708 1:J3 7-B5
R710 1:H2 7-E7
R711 1:J2 7-B6
R712 1:J2 7-D8
R713 1:J3 7-F8
R714 1:J3 7-D9
%R715 1:K4 7-H6
R717 1:J4 7-H7
R718 1:J4 7-H7
R719 1:J4 7-J6
R720 1:J3 7-K7
R721 1:J3 7-K9
R722 1:J3 7-K8
R723 1:H3 7-M7
R725 1:J4 7-N7
%R726 1:J3 7-N6
R727 1:H3 7-N9
R728 1:H3 7-N8
R734 1:K2 7-A2
R735 1:K2 7-A2
R736 1:K2 7-A2
R742 1:H2 7-B4
R743 1:H2 7-C5
R744 1:G2 7-D4
R746 1:H3 7-E4
R747 1:H3 7-E5
R748 1:J2 7-A1
R749 1:J2 7-B1
R750 1:H4 7-Q7
R752 1:G4 7-F5
R753 1:G4 7-F3
R754 1:G3 7-F3
R756 1:G3 7-G5
R757 1:G4 7-G4
R758 1:H3 7-H4
R759 1:H3 7-H4
R760 1:H3 7-K4
R762 1:H3 7-K4
R763 1:H3 7-L4
R765 1:H3 7-H2
R766 1:G3 7-J3
R767 1:H3 7-K2
R769 1:H3 7-K3
R771 1:H4 7-L3
R772 1:G4 7-M2
R774 1:H4 7-M3
R775 1:H3 7-L2
R777 1:H4 7-R2
R780 1:G2 7-N2
R781 1:G2 7-N2
R782 1:G3 7-P1
R783 1:G3 7-P0
R784 1:G3 7-Q2
R785 1:G3 7-Q1
R786 1:G3 7-R1
R787 1:G4 7-R0
R801 1:M2 8-D7
R802 1:M2 8-D7
R808 1:L2 8-B4
R809 1:L2 8-D5
R810 1:L3 8-D6
R811 1:L2 8-E6
R812 1:L2 8-D5
R813 1:L2 8-D4
R815 1:L2 8-F4
R816 1:L2 8-F4
R818 1:M2 8-F5
R819 1:M2 8-F5
R821 1:M4 8-B3
R822 1:M4 8-E3
R824 1:L4 8-L8
R825 1:L4 8-L8
R826 1:L4 8-L8
R827 1:L4 8-L7
R828 1:L4 8-L7
R829 1:L4 8-P9
R830 1:L3 8-P9
R831 1:L3 8-P9
R832 1:L3 8-P8
R833 1:L3 8-P8
R835 1:L3 8-P8
R836 1:L3 8-P8
R837 1:L3 8-P7
R840 1:L3 8-P7
R841 1:L3 8-P7
R842 1:L3 8-P6
R843 1:L3 8-P6
R845 1:M4 8-Q5
R847 1:L2 8-Q4
R848 1:L2 8-J4
R849 1:L2 8-Q4
R850 1:K2 8-Q4
R853 1:M4 8-N3
R854 1:M4 8-N3
R855 1:M2 8-B0
R859 1:N2 8-C1
R861 1:N2 8-D1
R863 1:N3 8-E1
R865 1:N4 8-E0
R867 1:N3 8-E1
R871 1:N3 8-G2
R872 1:M4 8-H1
R873 1:N3 8-G1
R874 1:N3 8-H0
R875 1:N3 8-G0
R876 1:N3 8-H0
R877 1:M2 8-K2
R879 1:N2 8-L3
RV210 1:B7 2-F9
RV220 1:A4 2-M6
RV300 1:E8 3-C6
RV805 1:N4 8-F1
SK200 1:D5 2-F0
SK205 1:B5 2-A5
SK501 1:G6 5-D6
SK502 1:G6 5-D5
SK503 1:G6 5-D4
SK504 1:G5 5-D3
SK505 1:G5 5-D2
SK513 1:H5 5-H3
SK522 1:H6 5-K5
SK531 1:K6 5-N6
SK532 1:K5 5-N5
SK533 1:K5 5-N4
SK534 1:K5 5-N3
SK535 1:K5 5-N2
=SK710 1:K3 7-A7
SK805 1:K3 8-Q9
SK805 1:K3 8-Q7
SK805 1:K3 8-Q6
SK805 1:K3 8-Q9
SK805 1:K3 8-Q6
SK805 1:K3 8-Q9
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK805 1:K3 8-Q8
SK805 1:K3 8-Q5
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q7
SK805 1:K3 8-Q8
SK805 1:K3 8-Q6
SK810 1:M3 8-H5
SL201 2:D1 2-B9
SL202 2:D1 2-B8
SL203 2:D2 2-B1
SL204 2:D2 2-B1
SL360 1:E3 3-C0
SL501 2:J5 5-F0
SL810 1:M2 8-C7
SW230 1:B8 2-A3
T210 1:B2 2-C8
T610 1:L6 6-N2
TP206 1:C5 2-H7
TP310 1:F8 3-G8
TP320 1:E4 3-C5
TP340 1:E5 3-E3
TP380 1:E3 3-P1
TP381 1:E3 3-P3
TP382 1:F3 3-Q2
TP601 1:N5 6-K9
TP602 1:M6 6-Q9
TP603 1:L5 6-J2
TP604 1:L4 6-L6
![](/img.php?id=111477&img=bg96.png)
IPN 220-01447-04
C6.3.14 T827 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
TP607 1:L5 6-J9
TP710 1:G4 7-H5
TP715 1:J2 7-C6
![](/img.php?id=111477&img=bg97.png)
M820-00 DI
Copyright TEL 01/04/00
Part D T828 Power Amplifier
Caution: There are no user serviceable components in these power amplifiers.
Refer all servicing to your nearest Tait Dealer or Customer Service
Organisation.
This part of the manual is divided into five sections, as listed below. There is a detailed
table of contents at the start of each section.
Section Title
1 General Information
2 Circuit Operation
3 Initial Adjustment
4 Fault Finding
5 PCB Information
![](/img.php?id=111477&img=bg98.png)
DII M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg99.png)
M820-00 T828 General Information D1.1
Copyright TEL 01/04/00
1 T828 General Information
This section provides a brief description of the T828 power amplifier, along with
detailed specifications and a list of types available.
The following topics are covered in this section.
Section Title Page
1.1 Introduction 1.3
1.2
1.2.1
1.2.2
1.2.3
1.2.3.1
1.2.3.2
1.2.3.3
Specifications
Introduction
General
Test Sta nda rd s
European Telecommunication Standard
DTI CEPT Recommendation T/R-24-01
Telecommunications Industry Association
1.4
1.4
1.4
1.5
1.5
1.6
1.6
1.3 Product Codes 1.7
1.4 Standard Product Range 1.8
![](/img.php?id=111477&img=bg9a.png)
D1.2 T828 General Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bg9b.png)
M820-00 T828 General Information D1.3
Copyright TEL 01/04/00
1.1 Introduction
The T828 is an FM base station power amplifier designed for single or multichannel
operation within the frequency range 66 to 88MHz. The output power capability is 10
to 60W.
The PA comprises a broad band, two stage drive amplifier whose output is split to drive
two separate output stages. The outputs from these final stages are then recombined
and filtered before being fed to the output socket. This type of balanced output stage
offers two advantages over single ended types:
• improved intermodulation performance in the presence of high signal levels
from adjacent transmitters;
• enhanced reliability: if one of the two output stages fails, the transmitter can
still produce one quarter of its rated power.
VSWR and thermal protection are incorporated into the basic design, while monitoring
and alarm signals are available for both forward and reverse power. The output power
is adjustable from the front panel.
The circuitry is built on a single PCB which is mounted directly on a die-cast chassis/
heatsink. Extensive use is made of surface mount technology.
The T828 has a width of 60mm and occupies a single space in a Tait rack frame, which
has the ability to accommodate up to seven standard modules.
![](/img.php?id=111477&img=bg9c.png)
D1.4 T828 General Information M820-00
01/04/00 Copyright TEL
1.2 Specifications
1.2.1 Introduction
The performance figures given are minimum figures, unless otherwise indicated, for
equipment operating at standard room temperature (+22°C to +28°C) and standard test
voltage (13.8V DC).
Where applicable, the test methods used to obtain the following performance figures
are those described in the ETS specification. Refer to Section 1.2.3 for details of test
standards.
Details of test methods and the conditions which apply for Type Approval testing in all
countries can be obtained from Tait Electronics Ltd.
1.2.2 General
Power Output:
Rated Power .. 50W
Maximum Power .. 60W
Range Of Adjustment .. 10 to 60W (typical)
Note: Actual power used will depend on regulatory requirements.
Input Power .. 1W ±300mW
Duty Cycle Rating .. 50W continuous to +60°C without
(@ 13.8V supply) fan1
.. 60W continuous to +40°C without
fan1
Intermodulation .. -70dBc or -40dBi2 with 25dB isolation
(PA with output isolator) & interfering signal of -30dBc
Mismatch Capability:
Ruggedness .. refer to your nearest Tait Dealer or
Customer Service Organisation
Stability .. 5:1 VSWR (all phase angles)
Supply Voltage:
Operating Voltage .. 10.8 to 16V DC
Standard Test Voltage .. 13.8V DC
Polarity .. negative earth only
Polarity Protection .. crowbar diode
1. The use of a fan is to be preferred at high temperatures. Adequate ventilation must
always be provided through base station equipment cabinets.
2. dBi denotes the level of intermodulation product relative to the interfering signal.
![](/img.php?id=111477&img=bg9d.png)
M820-00 T828 General Information D1.5
Copyright TEL 01/04/00
Maximum Supply Current (@ 50W):
Standby .. 50mA
Tran sm it .. 11 A
Spurious Emissions:
Conducted - Transmit .. -36dBm to 1GHz
-30dBm to 4GHz
- Standby .. -57dBm to 1GHz
-47dBm to 4GHz
Radiated - Transmit .. -36dBm to 1GHz
-30dBm to 4GHz
- Standby .. -57dBm to 1GHz
-47dBm to 4GHz
Operating Temperature Range .. -30°C to +60°C
Dimensions:
Height .. 183mm
Width .. 60mm
Length .. 340mm
Weight .. 3.1kg
1.2.3 Test Standards
Where applicable, this equipment is tested in accordance with the following standards.
1.2.3.1 European Telecommunication Standard
ETS 300 086 January 1991
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment with an internal or external RF connector intended pri-
marily for analogue speech.
ETS 300 113 March 1996
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment intended for the transmission of data (and speech) and
having an antenna connector.
ETS 300 219 October 1993
Radio equipment and systems; land mobile service; technical characteristics and test
conditions for radio equipment transmitting signals to initiate a specific response in the
receiver.
ETS 300 279 February 1996
Radio equipment and systems; electromagnetic compatibility (EMC) standard for pri-
vate land mobile radio (PMR) and ancillary equipment (speech and/or non-speech).
![](/img.php?id=111477&img=bg9e.png)
D1.6 T828 General Information M820-00
01/04/00 Copyright TEL
1.2.3.2 DTI CEPT Recommendation T/R-24-01
Annex I: 1988
Technical characteristics and test conditions for radio equipment in the land mobile
service intended primarily for analogue speech.
Annex II: 1988
Technical characteristics of radio equipment in the land mobile service with regard to
quality and stability of transmission.
1.2.3.3 Telecommunications Industry Association
ANSI/TIA/EIA-603-1992
Land mobile FM or PM communications equipment measurement and performance
standards.
![](/img.php?id=111477&img=bg9f.png)
M820-00 T828 General Information D1.7
Copyright TEL 01/04/00
1.3 Product Codes
The three groups of digits in the T820 Series II product code provide information about
the model, type and options fitted, according to the conventions described below.
The following explanation of T820 Series II product codes is not intended to suggest that
any combination of features is necessarily available in any one product. Consult your
nearest Tait Dealer or Customer Service Organisation for more information regarding
the availability of specific models, types and options.
Model
The Model group indicates the basic function of the product, as follows:
T82X-XX-XXXX T825 receiver
T826 25W transmitter
T827 exciter
T828 50W power amplifier
Type
The Type group uses two digits to indicate the basic RF configuration of the product.
The first digit in the Type group designates the frequency range:
T82X-XX-XXXX ’1’ for 66-88MHz
The second digit in the Type group indicates the channel spacing:
T82X-XX-XXXX ’0’ for wide bandwidth (25kHz)
’5’ for narrow bandwidth (12.5kHz)
Options
T82X-XX-XXXX The Options group uses four digits and/or letters to indicate
any options that may be fitted to the product. This includes
standard options and special options for specific customers.
’0000’ indicates a standard Tait product with no options fitted.
The large number of options precludes listing them here.
![](/img.php?id=111477&img=bga0.png)
D1.8 T828 General Information M820-00
01/04/00 Copyright TEL
1.4 Standard Product Range
The following table lists the range of standard T828 types (i.e. no options fitted and no
cyclic keying) available at the time this manual was published. Consult your nearest
Tait Dealer or Customer Service Organisation for more information.
You can identify the PA type by checking the product code printed on a label on the rear
of the heatsink (Figure 1.1 in Part A shows typical labels).
Frequency Range (MHz) 66-88
PA Type: T828- 10-0500
![](/img.php?id=111477&img=bga1.png)
M820-00 T828 Circuit Operation D2.1
Copyright TEL 01/04/00
2 T828 Circuit Operation
This section provides a basic description of the circuit operation of the T828 power
amplifier.
Refer to Section 5 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components.
The following topics are covered in this section.
Section Title Page
2.1 Introduction 2.3
2.2 RF Circuitry 2.4
2.3
2.3.1
2.3.2
2.3.3
2.3.4
Control Circuitry
Power Control
Thermal Protection
Forward And Reverse Power Alarms
Forward And Reverse Power Metering
2.5
2.5
2.6
2.6
2.6
Figure Title Page
2.1
2.2
2.3
T828 High Level Block Diagram
T828 RF Circuitry Block Diagram
T828 Control Circuitry Block Diagram
2.3
2.4
2.5
![](/img.php?id=111477&img=bga2.png)
D2.2 T828 Circuit Operation M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bga3.png)
M820-00 T828 Circuit Operation D2.3
Copyright TEL 01/04/00
2.1 Introduction
Figure 2.1 T828 High Level Block Diagram
The T828 comprises a four-stage RF power amplifier, the final two stages of which are
combined, and extensive control circuitry.
The configuration of each of the main circuit blocks may be seen on a functional level in
Figure 2.1.
Power Control
Temp.
Sense
Driver
(Q1/Q2) PA
(Q3/Q4) Directional
Coupler Low Pass
Filter
Power
Control
Voltage
RF In RF Out
![](/img.php?id=111477&img=bga4.png)
D2.4 T828 Circuit Operation M820-00
01/04/00 Copyright TEL
2.2 RF Circuitry
(Refer to the RF section circuit diagram in Section 5.)
Figure 2.2 T828 RF Circuitry Block Diagram
The driver stage of the T828 consists of a two-stage transistor amplifier (Q1, Q2) which
delivers 20W. This signal is split via a hybrid Wilkinson splitter (L220, L221) and used
to drive the two final amplifiers (Q3, Q4). The outputs from the finals are combined
with a hybrid Wilkinson combiner (L250, L251) and passed to the antenna socket via a
directional coupler and a low pass filter.
The directional coupler senses forward and reflected power, which is rectified (D201,
D200) and passed to the control circuitry for metering, alarm and power control pur-
poses.
Power control is via a series pass transistor (Q16), which controls the supply voltage on
the collector of the driver transistor (Q1).
Hybrid
Wilkinson
Splitter
Tuned 90°
Phase Line
Tuned 90°
Phase Line
Hybrid
Wilkinson
Combiner
SK1
RF In
Q1 Q2
Directional
Coupler
Low Pass
Filter
SK2
RF Out
Power
Control
Q4
Q3
Reverse
Power
Forward
Power
![](/img.php?id=111477&img=bga5.png)
M820-00 T828 Circuit Operation D2.5
Copyright TEL 01/04/00
2.3 Control Circuitry
(Refer to the control section circuit diagram in Section 5.)
Figure 2.3 T828 Control Circuitry Block Diagram
2.3.1 Power Control
The DC voltages from the directional coupler representing forward and reflected power
are buffered by the voltage followers IC3b and IC3a respectively. Their outputs are
summed at an integrator (IC1c), which drives the series pass control element (Q16).
Forward and reflected power are summed so that, under high output VSWR, the power
control turns the PA down. This is because the control loop adjusts for the same DC
voltage from the directional coupler that would have been present if there were no
reflected power.
+
Comparator
Q13 Q12
FET
Switch
+
+
+
Comparator
FET
Switch
Q11
IC1B
RV52
LED
LED
Reverse
Power
Meter
Reverse
Power
Alarm
Forward
Power
Meter
Forward
Power
Alarm
+7V
+7V
Tx
Key
IC1A
RV48
RV43
+
+
Q16Q15
Q10
Q14
+13.8V
Filtered
Integrator
IC1C
Control
Supply
-t° R300
NTC
RV63
Power
Control
Temperature
Shutdown Shutdown
Power Level
RV69
Comparator
IC1D RV74
R58
RV57
R44
Reverse
Power
Sense
Buffer
IC3A
Buffer
IC3B
Forward
Power
Sense
LED
IC2
Voltage
Regulator
L11
7V
Supply
13.8V
Supply
13.8V
Filtered
![](/img.php?id=111477&img=bga6.png)
D2.6 T828 Circuit Operation M820-00
01/04/00 Copyright TEL
2.3.2 Thermal Protection
At excessively high temperatures, the output power will automatically reduce to a pre-
set level, thus preventing the PA from overheating.
A thermistor controlled voltage divider (R68, R300) applies a voltage to a comparator
with hysteresis (IC1d). The threshold of the comparator is independently set by RV69.
This sets the shutdown temperature.
The output from the comparator and driver Q14 is summed into the power control net-
work via RV74 so that the power level to which the PA must turn down may be set.
2.3.3 Forward And Reverse Power Alarms
If forward power drops below, or reverse power rises above, presettable limits, alarms
may be triggered.
The alarm outputs are open drain configuration and are low under normal conditions
(i.e. forward and reverse power levels are normal).
IC1a and IC1b form comparators with thresholds adjusted via RV48 (forward power)
and RV52 (reverse power) respectively. The inputs are from the forward and reverse
power signals from the directional coupler, buffered by IC3b and IC3a. Thus, the power
levels at which the forward and reverse power alarms are triggered are defined by RV48
and RV52 respectively.
2.3.4 Forward And Reverse Power Metering
Forward and reverse power signals from buffers IC3b and IC3a are available for meter-
ing purposes. The output currents are adjustable via RV43 (forward power) and RV57
(reverse power).
![](/img.php?id=111477&img=bga7.png)
M820-00 T828 Initial Adjustment D3.1
Copyright TEL 01/04/00
3 T828 Initial Adjustment
Caution: This equipment contains CMOS devices which are susceptible to dam-
age from static charges. Refer to Section 1.2 in Part A for more infor-
mation on anti-static procedures when handling these devices.
The following section describes the full adjustment procedure to be carried out before
operating the T828.
Note: The T828 requires no RF tuning or alignment.
Refer to Section 5 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components.
The following topics are covered in this section.
Section Title Page
3.1 Test Equipment Required 3.3
3.2
3.2.1
3.2.2
Optimising Intermodulation Performance
Trimming
Fitting
3.4
3.4
3.4
3.3 Preliminary Checks 3.6
3.4 Setting The Output Power 3.6
3.5 High Temperature Shutdown Power Level 3.7
3.6 Remote Forward Power Meter Calibration 3.7
3.7 Remote Reverse Power Meter Calibration 3.8
3.8
3.8.1
3.8.2
Setting Alarm Levels
Forward Power
Reverse Power
3.8
3.8
3.8
Figure Title Page
3.1
3.2
3.3
3.4
T828 Test Equipment Set-up
T828 Phasing Section Trimming Detail
T828 Phasing Section Location
T828 Phasing Section Soldering Detail
3.3
3.4
3.5
3.5
![](/img.php?id=111477&img=bga8.png)
D3.2 T828 Initial Adjustment M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bga9.png)
M820-00 T828 Initial Adjustment D3.3
Copyright TEL 01/04/00
3.1 Test Equipment Required
• DC power supply capable of delivering 15A at 13.8V (e.g. Tait T807).
• Multimeter or DMM (e.g. Fluke 77).
• RF power meter usable 66-88MHz (e.g. HP 435 series or Bird Wattmeter).
• Thru-line wattmeter with 5W element.
• 150W 30dB 50 ohm attenuator.
• 150W 3dB 50 ohm pad.
• 'BNC' to 'N' type adaptors (e.g. Amphenol, Greenpar).
• Appropriate trimming tools.
Figure 3.1 T828 Test Equipment Set-up
Exciter PA
Tx Key
RF Power
Meter
Tx Enable
30db
Attenuator
(HP 435)
![](/img.php?id=111477&img=bgaa.png)
D3.4 T828 Initial Adjustment M820-00
01/04/00 Copyright TEL
3.2 Optimising Intermodulation Performance
Note: If the T828 is to be used in countries where intermodulation performance is
a Type Approval requirement (e.g. Europe, UK), or if intermodulation per-
formance is of particular concern, the two 50 ohm Teflon coax phasing
sections provided must be fitted.
3.2.1 Trimming
The Teflon phasing sections supplied are cut for 66MHz. If the required operating
frequency is greater than 66MHz, you must trim both sections to the correct
length according to the following formula:
length of centre conductor (cm) =
Note: If the T828 is to be used over a band of frequencies, trim both sections for the
centre operating frequency.
Trim the ends of the Teflon coax as shown in Figure 3.2 (dimensions shown in
mm).
Figure 3.2 T828 Phasing Section Trimming Detail
3.2.2 Fitting
Note: If the Teflon phasing sections have been unbound for trimming, they must
be rebound in the same way as the original components.
Remove the wire links fitted in locations TL1 and TL2 (refer to Figure 3.3).
Fit the Teflon phasing sections as shown in Figure 3.3 and solder the terminations
as shown in Figure 3.4.
5250
frequency (MHz)
3 3
6 6
9 9
Centre Conductor Length
Centre Core Centre CoreBraid Braid
![](/img.php?id=111477&img=bgab.png)
M820-00 T828 Initial Adjustment D3.5
Copyright TEL 01/04/00
Figure 3.3 T828 Phasing Section Location
Figure 3.4 T828 Phasing Section Soldering Detail
TL1
Phasing Sections
TL2
solder braid
to ground
plane pads
solder centre core
to TL1/ TL2 pads
![](/img.php?id=111477&img=bgac.png)
D3.6 T828 Initial Adjustment M820-00
01/04/00 Copyright TEL
3.3 Preliminary Checks
Check for short circuits between the positive rail and earth.
Set up the test equipment as in Figure 3.1.
Connect the T828 to a 13.8V DC supply.
Check that the quiescent current is approximately 45mA.
To key the transmitter, earth the key line (D-range 1 pin 13) on the exciter.
Check that the power supply is still at 13.8V under load.
Check that the regulated power control supply is approximately 7V.
Note: The output power and alarm levels should be set with the cover shield on.
If the cover is removed for other adjustment procedures, make a final check
of the output power and alarm levels with the cover shield on.
3.4 Setting The Output Power
Caution: If the temperature shutdown power level has not yet been set or is
unknown, check that the unit does not overheat while setting the out-
put power.
Note 1: Cables and connectors can easily cause a power loss of several watts if either
too long or poorly terminated. Always use the shortest possible lead
between the T828 and power meter.
Note 2: You will need appropriate extension leads if you wish to carry out the
adjustment procedures with the T828 withdrawn from the rack in the
latched position. Alternatively, disconnect and withdraw the T828 and
reconnect it behind the rack.
Note 3: The actual power used may be limited by regulatory requirements.
Connect the exciter output to the PA input via a thru-line wattmeter with a 5W
full scale reading. Special SMC/BNC leads will be required.
Connect an RF power meter to the PA output. Set the front panel power control
preset (RV63) fully clockwise.
Key on the drive source.
Check that the power output exceeds 60W.
Adjust RV63 to reduce the power output to the required level (e.g. 50W).
![](/img.php?id=111477&img=bgad.png)
M820-00 T828 Initial Adjustment D3.7
Copyright TEL 01/04/00
3.5 High Temperature Shutdown Power Level
Note: The temperature shutdown circuit is factory set to approximately 130°C and
20W. RV69 and RV74 should not be readjusted if normal operation is
required.
Power up the T828 and adjust the power control pot. (RV63) for the normal oper-
ating power level.
Turn the temperature set pot. (RV69) fully anticlockwise to avoid RF power
cycling between the levels set by RV63 and RV74.
Apply heat to the NTC (R300) with the tip of a soldering iron.
Adjust the shutdown power level pot. (RV74) to the desired level. For continuous
operation during fault conditions, set the shutdown power in the range 10 to 20W.
For normal operation, i.e. shutdown under extreme PA internal temperatures
(approx. 130°C) or excessive dissipation in the splitter balance resistor (R220),
adjust the temperature set pot. (RV69) for a voltage reading of 150mV at TP1 (pin
12 of the LM324D [IC1]).
3.6 Remote Forward Power Meter Calibration
If a remote meter is connected, adjust the forward power meter calibration control
(RV43) for the remote reading to agree with the RF power meter reading.
3.7 Remote Reverse Power Meter Calibration
If a remote meter is connected, connect a 50 ohm 3dB pad (with the output open
circuit) to the PA output.
Apply RF drive and Tx key.
Adjust the reverse power meter calibration control (RV57) for a quarter of the for-
ward power reading.
![](/img.php?id=111477&img=bgae.png)
D3.8 T828 Initial Adjustment M820-00
01/04/00 Copyright TEL
3.8 Setting Alarm Levels
Note: If forward and reverse power metering is being used, set up their calibration
(Section 3.6 and Section 3.7) before setting the alarm levels.
3.8.1 Forward Power
Power up the T828 and adjust the front panel power control (RV63) so that the
output power is at the alarm level required (e.g. 40W if the PA normally operates
at 50W).
Adjust the forward power alarm set control (RV48) so that the forward power
alarm LED lights.
Check the alarm level setting by adjusting the power up and down and observing
the alarm LED. A few watts hysteresis can be expected.
Readjust RV63 for the normal operating level.
Note: Remote indication is available at D-range pin 3.
3.8.2 Reverse Power
Power up the T828 and adjust the front panel power control (RV63) for the normal
operating power level.
Place a known mismatch of the required value (e.g. 3:1 VSWR) and adjust the
reverse power alarm set control (RV52) so that the reverse power alarm LED
lights.
Example: A VSWR of 3:1 can be simulated by connecting an unterminated 3dB pad
(100W) to the PA output. This will result in a return loss of 6dB.
Note: Remote indication is available at D-range pin 4.
![](/img.php?id=111477&img=bgaf.png)
M820-00 T828 Fault Finding D4.1
Copyright TEL 01/04/00
4 T828 Fault Finding
Caution: This equipment contains CMOS devices which are susceptible to dam-
age from static charges. Refer to Section 1.2 in Part A for more infor-
mation on anti-static procedures when handling these devices.
The following test procedures and fault finding flow charts may be used to help locate a
hardware problem, however they are by no means a complete fault finding procedure.
If you still cannot trace the fault after progressing through them in a logical manner,
contact your nearest Tait Dealer or Customer Service Organisation. If necessary, you
can get additional technical help from Customer Support, Radio Systems Division, Tait
Electronics Ltd, Christchurch, New Zealand (full contact details are on page 2).
Refer to Section 5 where the parts lists, grid reference index and diagrams will provide
detailed information on identifying and locating components.
The following topics are covered in this section.
Section Title Page
4.1 Visual Checks 4.3
4.2 Component Checks 4.3
4.3 DC Checks 4.3
4.4
4.4.1
4.4.2
RF Checks
General
PA F ault s
4.4
4.4
4.4
4.5 Voltage Chart 4.5
4.6
4.6.1
4.6.2
Fault Finding Charts
PA
Power Control
4.6
4.6
4.7
4.7 Replacing RF Power Transistors 4.8
4.8 Removing The PCB From The Heatsink 4.9
Figure Title Page
4.1 T828 Test Break Point Location 4.4
![](/img.php?id=111477&img=bgb0.png)
D4.2 T828 Fault Finding M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgb1.png)
M820-00 T828 Fault Finding D4.3
Copyright TEL 01/04/00
4.1 Visual Checks
Remove the side cover from the T828 and inspect the PCB for damaged or broken
components, paying particular attention to the surface mounted devices (SMDs).
Also check for defective solder joints.
Refer to Section 4.7, Section 4.8 and Section 3 of Part A for more details on repair
and replacement of components.
4.2 Component Checks
If you suspect a transistor is faulty, you can assess its performance by measuring the for-
ward and reverse resistance of the junctions. Unless the device is completely desol-
dered, first make sure that the transistor is not shunted by some circuit resistance. Use a
good quality EVM (e.g. Fluke 75) for taking the measurements (or a 20k ohm/V or bet-
ter multimeter, using only the medium or low resistance ranges).
The collector current drawn by multi-junction transistors is a further guide to their per-
formance.
If an IC is suspect, the most reliable check is to measure the DC operating voltages. Due
to the catastrophic nature of most IC failures, the pin voltages will usually be markedly
different from the recommended values in the presence of a fault. The recommended
values can be obtained from either the circuit diagram or the component data catalogue.
4.3 DC Checks
Note: No RF power is to be applied during these checks.
Check that +13.8V is present on the collectors of Q1, Q2, Q3 and Q4. Make this
measurement when the transmitter is not keyed.
Check that +13.8V is present at pin 4 of IC1 and pin 8 of IC3.
Check that 7.0V is present at the output of regulator IC2.
![](/img.php?id=111477&img=bgb2.png)
D4.4 T828 Fault Finding M820-00
01/04/00 Copyright TEL
4.4 RF Checks
4.4.1 General
You can measure in-circuit RF levels around Q1 and Q2 with an RF probe on which the
earth lead has been shortened to a minimum (i.e. 13mm); refer to the PA Fault Finding
Chart (Section 4.6.1). You must measure all other stages with a power meter at the 50Ω
points in the circuit.
For problems with the power control circuitry, refer to the Power Control Fault Finding
Chart (Section 4.6.2).
4.4.2 PA Faults
If a PA fault has occurred, or is suspected, it is easier to find if the various stages are iso-
lated by use of the test breaks (refer to Figure 4.1) and each stage analysed individually.
Eight 50 ohm test break points have been included throughout the RF circuitry to enable
individual transistor stages to be tested.
Testing may be performed by removing the solder short across the test break and sol-
dering a 50 ohm test lead to the appropriate signal and earth pads.
Note 1: Use good quality 50Ω coax for the "flying" test leads.
Note 2: Ensure each output is terminated in a 50Ω load of the correct power rating.
Figure 4.1 T828 Test Break Point Location
TB6
TB7
TB3
TB5
TB4
TB2
TB1
TB8
![](/img.php?id=111477&img=bgb3.png)
M820-00 T828 Fault Finding D4.5
Copyright TEL 01/04/00
4.5 Voltage Chart
Test conditions:
• typical DC voltages measured with Fluke 77 DVM
• supply voltage 13.8V at socket
• transmitter unkeyed
• allow ±20% for spread of transistor characteristics.
Device Emitter Base Collector
Q1
Q2
Q3
Q4
Q11
Q13
Q15
Q16
0.0V
0.0V
0.0V
0.0V
1.8V
0.0V
13.0V
13.8V
0.0V
0.0V
0.0V
0.0V
2.2V
0.0V
13.6V
13.6V
13.0V
13.8V
13.8V
13.8V
5.9V
5.9V
13.6V
13.0V
![](/img.php?id=111477&img=bgb4.png)
D4.6 T828 Fault Finding M820-00
01/04/00 Copyright TEL
4.6 Fault Finding Charts
4.6.1 PA
Repair exciter.
Check for shorts
on base of Q1,
around resistors
on base, chips,
input matching
components,
& input pad.
Check >13V present
at collector of Q1.
Check for shorts
around resistors
& chips on base.
Check for shorts on
base of Q3 & Q4.
Check collector
voltage of Q2.
Check power output
of driver amp.
Check for shorts on
base of Q3 & Q4
"split amplifiers".
Check output of each stage.
Check output filter.
N
N
N
Check power control
transistors Q16 & Q15.
IC1 pin 8 high (>13V)?
Check input voltages
at pin 10.
Q2 faulty (MRF234).
Q3 & Q4 faulty
(SD1019).
Y
Key exciter.
Input power to PA 0.8W?
>0.7V RF present
at base of Q1?
>0.9V RF present
at base of Q2?
>1.0V RF present
at base of Q3 & Q4?
>60W RF output
at "N" connector?
Y
N
PA OK.
Y
Y
Y
N
N
N
N
Y
![](/img.php?id=111477&img=bgb5.png)
M820-00 T828 Fault Finding D4.7
Copyright TEL 01/04/00
4.6.2 Power Control
Normal operating conditions:
Measurement Output Power
10W 50W
forward power at "FWD-PWR" pad (beside IC3)
reverse power at "REV-PWR" pad (beside IC3)
IC1 pin 8
RV63/R64 (RV63 wiper)
L202
1V
<10mV
4.8V
7V
4.13V
2.6V
50mV
6.8V
7V
6.2V
Does forward
power alarm
output function?
Check Q10 & Q11.
Check IC1 pin 1 >13V DC.
Does reverse
power alarm
output function?
Check Q12 & Q13.
Check IC1 pin 7 >13V DC.
Check temperature
shutdown setting
voltage at TP1 is
approx. 150mV DC.
Check IC1 pin 14 is 0V
at room temperature.
Does temperature
shutdown function?
Check IC1 pin 14 is 0V DC.
Check sense voltages
from directional coupler.
Check IC3 pins 7 & 1.
Does power
control function?
Power control OK.
N
N
N
N
Y
Y
Y
Y
![](/img.php?id=111477&img=bgb6.png)
D4.8 T828 Fault Finding M820-00
01/04/00 Copyright TEL
4.7 Replacing RF Power Transistors
Caution: Failure to comply with the following procedure can result in failure of
the device due to poor heatsinking, or worse, can endanger the health
of the assembler if the beryllium oxide die carrier is smashed during
assembly.
Caution: As the location of certain components in the PA is critical to perform-
ance, it is important that any components removed or disturbed are
refitted in exactly the same position. Before attempting to remove a
transistor, note the location of any other components that will also
need to be removed. Replacing each component in its original location
will help to maintain the performance of the PA.
Caution: Do not apply too much heat or pressure to the PCB pads and tracks as
you may damage them or lift them from the PCB, causing permanent
damage to the PA.
Desolder and remove the components from around the transistor.
Desolder the transistor tabs by heating with a soldering iron and lifting away
from the PCB with a screwdriver or thin stainless steel spike. Unscrew the transis-
tor stud nut and remove the device.
Remove any excess solder from the PCB pads with solder wick.
Trim the tabs of the replacement transistor so that the device sits neatly on the
PCB pads provided.
Lightly tin the underside of the transistor tabs.
Apply a small amount of heatsink compound (Dow-Corning 340 or equivalent) to
the transistor mounting surface. Sufficient compound should be used to ensure
an even film over the entire mounting surface.
Place the transistor on the PCB in the correct orientation and ensure the tabs are
flush to the surface.
Lightly solder one tab to the PCB, then torque down the retaining nut to the cor-
rect torque (0.7Nm/6in.lbf.).
Caution: Do not solder all the tabs before torquing down otherwise the device
may be broken.
Solder all transistor tabs to the PCB.
Replace each component in exactly the same position as noted previously.
![](/img.php?id=111477&img=bgb7.png)
M820-00 T828 Fault Finding D4.9
Copyright TEL 01/04/00
4.8 Removing The PCB From The Heatsink
Note: This is a lengthy procedure and should be considered only after all other
checks have been carried out. There are no components on the bottom of the
PCB.
Remove the harmonic filter shield lid.
Remove the 50 ohm output N-type connector by unscrewing it from the heatsink
casting and desoldering it from the PCB.
Unplug the 50 ohm input coaxial cable from the PCB, unscrew the BNC connector
from the heatsink, and remove the connector and cable (cutting cable ties as
required).
Desolder the positive and negative power feed wires from the PCB.
Desolder the alarm and metering wires from the PCB.
Remove the 2 screws securing the D-range connector and PCB to the heatsink and
withdraw the assembly and wires from the heatsink (cutting cable ties as
required).
Remove the transistor stud nuts.
Remove the mounting screws for the TO-220 devices: R230, R231 and Q16.
Remove the 10 PCB retaining screws.
Push the three LEDs out of their front panel grommets.
Lift the PCB gently from the heatsink to gain access to the underside of the board.
Note: R230/231 and Q1-Q4 may be stuck down with heatsink compound. You
may need to carefully prise them away from the heatsink with a small
screwdriver.
Caution: Keep the heatsink compound clean while the PCB is detached. Any
objects caught in the heatsink compound underneath the device which
prevent effective earthing and/or heatsinking may cause the device to
fail.
Caution: Do not operate the PA with the PCB detached as the heatsink is used
for earthing and heat dissipation.
To replace the PCB, reverse the order of removal, taking care that the wiring is cor-
rectly positioned and not 'pinched'.
Q1-Q4: Torque down the retaining nut to the correct torque (0.7Nm/
6in.lbf.).
![](/img.php?id=111477&img=bgb8.png)
D4.10 T828 Fault Finding M820-00
01/04/00 Copyright TEL
Make sure that the heatsink compound has stayed clean, and that the insulating
pad for Q16 is not damaged.
If you have difficulty refitting the LEDs, try pushing the body of the LED back
into the grommet with a thin screwdriver or spike.
![](/img.php?id=111477&img=bgb9.png)
M820-00 T828 PCB Information D5.1.1
Copyright TEL 01/04/00
5 T828 PCB Information
Caution: This equipment contains CMOS devices which are susceptible to damage from
static charges. Refer to Section 1.2 in Part A for more information on anti-static
procedures when handling these devices.
This section provides the following information on the T828 power amplifier:
•parts lists
• grid reference index
•PCB layouts
• circuit diagrams.
Section Title IPN Page
5.1 Introduction 5.1.3
5.2 T828 PA PCB 220-01197-02 5.2.1
![](/img.php?id=111477&img=bgba.png)
D5.1.2 T828 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgbb.png)
M820-00 T828 PCB Information D5.1.3
Copyright TEL 01/04/00
5.1 Introduction
Product Type Identification
You can identify the PA type by checking the product code printed on a label on the rear of the chas-
sis/heatsink (product codes are explained in Section 1.3 in this Part of the manual, and Figure 1.1 in
Part A shows typical labels).
PCB Identification
All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-01390-02, which
is screen printed onto the PCB (usually on the top side), as shown in the example below:
The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,
02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-
fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying
the PCB for service purposes.
Note: It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate set of PCB information.
![](/img.php?id=111477&img=bgbc.png)
D5.1.4 T828 PCB Information M820-00
01/04/00 Copyright TEL
Parts Lists
The 10 digit numbers (000-00000-00) in this Parts List are “internal part numbers” (IPNs). We can
process your spare parts orders more efficiently and accurately if you quote the IPN and provide a
brief description of the part.
The components listed in this parts list are divided into two main types: those with a circuit refer-
ence (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within
each group. Each component entry comprises three or four columns, as shown below:
The miscellaneous and mechanical section lists the variant and common parts in IPN order.
Parts List Amendments
At the front of the parts list is the Parts List Amendments box (an example of which is shown
below). This box contains a list of component changes which took place after the parts list and dia-
grams in this section were compiled. These changes (e.g. value changes, added/deleted compo-
nents, etc.) are listed by circuit reference in alphanumeric order and supersede the information
given in the parts list or diagrams. Components without circuit references are listed in IPN order.
The number in brackets at the end of each entry refers to the Tait internal Change Order document.
circuit reference -
lists components
in alphanumeric
order
variant column -
indicates that this is
a variant component
which is fitted only to
the product type listed
Internal Part Number -
order the component
b
y
this number
description -
gives a brief description
of the component
Parts List Amendments
R306 Changed from 180Ωto 560Ω(036-13560-00) to increase sensitivity (71003).
circuit reference
or IPN description
of change
IPN of new
component Change Order
number
![](/img.php?id=111477&img=bgbd.png)
M820-00 T828 PCB Information D5.1.5
Copyright TEL 01/04/00
Variant Components
A variant component is one that has the same circuit reference but different value or specification in
different product types. Where two products share the same PCB, the term “variant” is also used to
describe components unplaced in one product. Variant components have a character prefix, such as
“&”, “=” or “#”, before the circuit reference (e.g. &R100).
Grid Reference Index
This section contains a component grid reference index to help you find components and labelled
pads on the PCB layouts and circuit diagrams. This index lists the components and pads in alpha-
numeric order, along with the appropriate alphanumeric grid references, as shown below:
circuit diagram
reference
PCB layout
reference
components listed
in alphanumeric order
layer number -
1 = top side layer
2 = bottom side layer
component location
on the layer
sheet number
component location
on the sheet
![](/img.php?id=111477&img=bgbe.png)
D5.1.6 T828 PCB Information M820-00
01/04/00 Copyright TEL
Using CAD Circuit Diagrams
Reading a CAD circuit diagram is similar to reading a road map, in that both have an alphanumeric
border. The circuit diagrams in this manual use letters to represent the horizontal axis, and num-
bers for the vertical axis. These circuit diagram “grid references” are useful in following a circuit
that is spread over two or more sheets.
When a line representing part of the circuitry is discontinued, a reference will be given at the end of
the line to indicate where the rest of the circuitry is located, as shown below. The first digit refers to
the sheet number and the last two characters refer to the location on that sheet of the continuation of
the circuit (e.g. 1R3).
C301
4N7
R303
12
D
S
G
L310
33U
IF-SIG
4R4
C369
100P
C371
10U
R339
100K
%R338
100
DISCRIMINATOR
1R3
2R9
2R9
8A2
t
hese grid references
s
how where the circuit
is continued
![](/img.php?id=111477&img=bgbf.png)
M820-00 T828 PCB Information D5.2.1
Copyright TEL 01/04/00
5.2 T828 Power Amplifier PCB
This section contains the following information.
IPN Section Page
220-01197-02 Parts List
Mechanical & Miscellaneous Parts
Grid Reference Index
PCB Layout - Bottom Side
PCB Layout - Top Side
RF Section Circuit Diagram
Control Section Circuit Diagram
5.2.3
5.2.6
5.2.7
5.2.9
5.2.10
5.2.11
5.2.12
![](/img.php?id=111477&img=bgc0.png)
D5.2.2 T828 PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgc1.png)
IPN 220-01197-02
M820-00 T828 PCB Information D5.2.3
Copyright TEL 01/04/00
T828 Parts List (IPN 220-01197-02)
How To Use This Parts List
The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and
those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component
entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-
umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by
an (S) at the start of the description column.
The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend
column indicates their position in the mechanical assembly drawing.
The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were
compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order
and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.
Parts List Amendments
RV63 2k 10 turn pot (IPN 044-04200-03) replaced with better quality 2k 15 turn pot (IPN 044-04200-06) and pot cover
(IPN 044-04200-07) (710800).
![](/img.php?id=111477&img=bgc2.png)
IPN 220-01197-02
D5.2.4 T828 PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
C76 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C77 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C78 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C80 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C81 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C84 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C85 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C86 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C87 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C90 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C91 025-08100-02 CAP TANT BEAD 10M 10% 16V
C92 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C93 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C95 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C96 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C99 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C100 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C101 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C103 015-25100-08 CAP CER 0805 CHIP 10N 10% X7R 50V
C104 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C105 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C107 015-06100-08 CAP CER 1206 CHIP 100N 10% X7R 50V
C108 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C109 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C111 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C112 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C200 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C201 015-22560-01 CAP CER 0805 CHIP 56P 5% NPO 50V
C202 020-07470-04 CAP ELECT RADL 4M7 25V 20% 8X13MM SOLID
C203 011-54100-01 CAP CER AI 1N 10% T/C B 63V
C204 011-54470-03 CAP CER AI 4N7 10% T/C B 50V
C205 015-23120-01 CAP CER 0805 CHIP 120P 5% NPO 50V
C206 015-22270-01 CAP CER 0805 CHIP 27P 5% NPO 50V
C207 015-24470-08 CAP CER 0805 CHIP 4N7 10% X7R 50V
C208 011-54100-01 CAP CER AI 1N 10% T/C B 63V
C209 011-52390-01 CAP CER AI 39P 5% N150 50/63V
C210 011-52390-01 CAP CER AI 39P 5% N150 50/63V
C211 011-53120-01 CAP CER AI 120P 5% N150 50/63V
C213 015-03470-03 CAP CER CHIP 470P 5% NPO 200V HIQ GRH11
C214 011-54100-01 CAP CER AI 1N 10% T/C B 63V
C215 011-54470-03 CAP CER AI 4N7 10% T/C B 50V
C216 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C217 020-07470-04 CAP ELECT RADL 4M7 25V 20% 8X13MM SOLID
C218 010-03150-01 CAP CER 150P 5% NPO 500V
C219 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C220 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C220A 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C221 011-54100-01 CAP CER AI 1N 10% T/C B 63V
C223 010-03150-01 CAP CER 150P 5% NPO 500V
C229 010-02820-00 CAP CER 82P 5% NPO 500V 9.5MM OD DD09
C230 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C231 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C232 010-02560-00 CAP CER 56P 5% NPO 500V 8.0MM OD DD08
C234 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C235 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C236 015-03470-03 CAP CER CHIP 470P 5% NPO 200V HIQ GRH11
C237 017-15470-01 CAP CER SURFACE BARRIER 47N 20% 50V
C238 010-02560-00 CAP CER 56P 5% NPO 500V 8.0MM OD DD08
C239 015-03150-03 CAP CER CHIP 150P 5% NPO 300V HIQ GRH11
C240 015-03150-03 CAP CER CHIP 150P 5% NPO 300V HIQ GRH11
C241 015-02680-03 CAP CER CHIP 68P 5% NPO 500V HIQ GRH111
C242 010-04100-01 CAP CER 1N 10% T/C B 500V
C243 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C244 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C245 010-04100-01 CAP CER 1N 10% T/C B 500V
C250 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C251 010-02560-00 CAP CER 56P 5% NPO 500V 8.0MM OD DD08
C252 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C253 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C254 015-03470-03 CAP CER CHIP 470P 5% NPO 200V HIQ GRH11
C255 017-15470-01 CAP CER SURFACE BARRIER 47N 20% 50V
C256 020-07470-04 CAP ELECT RADL 4M7 25V 20% 8X13MM SOLID
C257 017-15470-01 CAP CER SURFACE BARRIER 47N 20% 50V
C258 010-02560-00 CAP CER 56P 5% NPO 500V 8.0MM OD DD08
C259 015-03150-03 CAP CER CHIP 150P 5% NPO 300V HIQ GRH11
C260 015-03150-03 CAP CER CHIP 150P 5% NPO 300V HIQ GRH11
C261 015-02680-03 CAP CER CHIP 68P 5% NPO 500V HIQ GRH111
C262 010-04100-01 CAP CER 1N 10% T/C B 500V
C263 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C264 010-04100-01 CAP CER 1N 10% T/C B 500V
C265 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C269 010-02390-00 CAP CER 39P 5% NPO 500V 7.5MM OD DD07
C270 010-02820-00 CAP CER 82P 5% NPO 500V 9.5MM OD DD09
C271 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C271A 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C272 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C273 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C274 015-23150-01 CAP CER 0805 CHIP 150P 5% NPO 50V
C275 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
C276 015-02470-03 CAP CER CHIP 47P 5% NPO 500V HIQ GRH111
C277 015-02220-03 CAP CER CHIP 22P 5% NPO 500V HIQ GRH111
C278 015-02470-03 CAP CER CHIP 47P 5% NPO 500V HIQ GRH111
C279 015-02220-03 CAP CER CHIP 22P 5% NPO 500V HIQ GRH111
C280 015-02470-03 CAP CER CHIP 47P 5% NPO 500V HIQ GRH111
C281 015-02330-03 CAP CER CHIP 33P 5% NPO 500V HIQ GRH111
C282 015-22680-01 CAP CER 0805 CHIP 68P 5% NPO 50V
C283 015-21680-01 CAP CER 0805 CHIP 6P8 +/-0.25P NPO 50V
C286 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C287 010-02680-00 CAP CER 68P 5% NPO 500V 9.5MM OD DD09
C288 015-03560-03 CAP CER CHIP 560P 5% NPO 100V HIQ GRH11
C289 015-03560-03 CAP CER CHIP 560P 5% NPO 100V HIQ GRH11
C290 015-03560-03 CAP CER CHIP 560P 5% NPO 100V HIQ GRH11
C291 015-03560-03 CAP CER CHIP 560P 5% NPO 100V HIQ GRH11
C292 015-03560-03 CAP CER CHIP 560P 5% NPO 100V HIQ GRH11
C300 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
C301 015-24100-08 CAP CER 0805 CHIP 1N 10% X7R 50V
D3 001-00011-60 (S) DIODE SR2607 6A/30V
D5 008-00013-32 (S) LED 3MM RED LO CURRENT NO MTG
D6 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 CO
D10 008-00013-35 (S) LED 3MM GREEN LO CURRENT NO MTG
D11 008-00013-32 (S) LED 3MM RED LO CURRENT NO MTG
D13 001-10000-70 (S) DIODE SMD BAV70 DUAL SWITCH SOT-23 C
D200 001-00013-45 (S) DIODE SCHOTTKY 1SS97/2
D201 001-00013-45 (S) DIODE SCHOTTKY 1SS97/2
IC1 002-10003-24 (S) IC SMD 324 QUAD OP AMP SO14
IC2 002-00014-62 (S) IC 317L 100MA REG 3 TERMINAL TO-92
IC3 002-10003-58 (S) IC SMD LM358 DUAL OP AMP
L11 065-00010-04 BEAD FERRITE F8 4X2X5MM
L200 052-08135-55 COIL A/W 5.5T/3.5MM HOR 0.8MM WIRE
L201 052-08135-25 COIL A/W 2.5T/3.5MM HOR 0.8MM WIRE
L202 065-00010-08 BEAD FERRITE 4S3 3*0.7*10MM RED
L203 052-08145-45 COIL A/W 4.5T/4.5MM HOR 0.8MM WIRE
L204 065-00010-01 BEAD FERRITE 3B 6 HOLE
L205 052-08140-35 COIL A/W 3.5T/4.0MM HOR 0.8MM WIRE
L206 052-08160-35 COIL A/W 3.5T/6.0MM HOR 0.8MM WIRE
L207 052-08130-45 COIL A/W 4.5T/3.0MM HOR 0.8MM WIRE
L209 065-00010-01 BEAD FERRITE 3B 6 HOLE
L210 052-08130-35 COIL A/W 3.5T/3.0MM HOR 0.8MM WIRE
L211 065-00010-11 BEAD FERRITE 4S3 3*1*4MM RED
L212 052-08130-15 COIL A/W 1.5T/3.0MM HOR 0.8MM WIRE
L213 052-08140-35 COIL A/W 3.5T/4.0MM HOR 0.8MM WIRE
L213A 052-08145-55 COIL A/W 5.5T/4.5MM HOR 0.8MM WIRE
L219 052-08131-05 COIL A/W 10.5T/3.0MM HOR 0.8MM WIRE
L220 052-08140-65 COIL A/W 6.5T/4.0MM HOR 0.8MM WIRE
L221 052-08140-65 COIL A/W 6.5T/4.0MM HOR 0.8MM WIRE
L222 052-08145-45 COIL A/W 4.5T/4.5MM HOR 0.8MM WIRE
L223 052-08140-15 COIL A/W 1.5T/4.0MM HOR 0.8MM WIRE
L224 065-00010-01 BEAD FERRITE 3B 6 HOLE
L225 065-00010-11 BEAD FERRITE 4S3 3*1*4MM RED
L226 052-08140-45 COIL A/W 4.5T/4.0MM HOR 0.8MM WIRE
L229 052-08335-10 COIL A/W 1T/3.5MM SMD 0.8MM WIRE
L230 052-08125-15 COIL A/W 1.5T/2.5MM HOR 0.8MM WIRE
L240 052-08145-45 COIL A/W 4.5T/4.5MM HOR 0.8MM WIRE
L241 052-08140-15 COIL A/W 1.5T/4.0MM HOR 0.8MM WIRE
L242 065-00010-01 BEAD FERRITE 3B 6 HOLE
L243 065-00010-11 BEAD FERRITE 4S3 3*1*4MM RED
L244 052-08140-45 COIL A/W 4.5T/4.0MM HOR 0.8MM WIRE
L245 052-08335-10 COIL A/W 1T/3.5MM SMD 0.8MM WIRE
L246 052-08125-15 COIL A/W 1.5T/2.5MM HOR 0.8MM WIRE
L249 052-08131-15 COIL A/W 11.5T/3.0MM HOR 0.8MM WIRE
L250 052-08140-65 COIL A/W 6.5T/4.0MM HOR 0.8MM WIRE
L251 052-08140-65 COIL A/W 6.5T/4.0MM HOR 0.8MM WIRE
L254 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM WIRE
L255 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM WIRE
L256 052-08140-25 COIL A/W 2.5T/4.0MM HOR 0.8MM WIRE
L257 052-08155-45 COIL A/W 4.5T/5.5MM HOR 0.8MM WIRE
L258 052-08135-85 COIL A/W 8.5T/3.5MM HOR 0.8MM WIRE
L259 052-08130-45 COIL A/W 4.5T/3.0MM HOR 0.8MM WIRE
L260 056-00021-52 IND FXD 820NH 10% NON MAGNETIC
L260A 056-00021-60 IND FXD 330NH 6.6X2.7MM AXIAL NON MAGN
L261 052-08130-45 COIL A/W 4.5T/3.0MM HOR 0.8MM WIRE
L300 056-00021-00 IND FXD 3.3UH AXIAL
Q1 000-00021-65 (S) XSTR SD1012-9 NPN STUD MTG VHF PWR
Q2 000-00030-74 (S) XSTR MRF234 STUD MTG RF PWR 25W 90MH
Q3 000-00022-66 (S) XSTR SD1019-18 VHF PWR 40W STUD MTD
Q4 000-00022-66 (S) XSTR SD1019-18 VHF PWR 40W STUD MTD
Q10 000-00020-70 (S) XSTR BS170 JFET TO-92 SMALL SIG
Q11 000-10008-17 (S) XSTR SMD BC817-25 NPN SOT-23 AF LO P
Q12 000-00020-70 (S) XSTR BS170 JFET TO-92 SMALL SIG
Q13 000-10008-17 (S) XSTR SMD BC817-25 NPN SOT-23 AF LO P
Q14 000-10008-48 (S) XSTR SMD BCW60/BC848B215 NPN SOT23 A
Q15 000-10008-17 (S) XSTR SMD BC817-25 NPN SOT-23 AF LO P
Q16 000-00030-95 (S) XSTR 2N6107 PNP TO-220 AF PWR
R36 036-13680-00 RES M/F 0805 CHIP 680E 5%
R38 036-17100-00 RES M/F 0805 CHIP 1M 5%
R39 036-16100-00 RES M/F 0805 CHIP 100K 5%
R42 036-15100-00 RES M/F 0805 CHIP 10K 5%
R44 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R47 036-15270-00 RES M/F 0805 CHIP 27K 5%
R49 036-13680-00 RES M/F 0805 CHIP 680E 5%
R50 036-13680-00 RES M/F 0805 CHIP 680E 5%
R55 036-17100-00 RES M/F 0805 CHIP 1M 5%
R56 036-15100-00 RES M/F 0805 CHIP 10K 5%
R58 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R61 036-13220-00 RES M/F 0805 CHIP 220E 5%
R62 036-14100-00 RES M/F 0805 CHIP 1K 5%
R64 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R67 036-15100-00 RES M/F 0805 CHIP 10K 5%
R68 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R73 036-16220-00 RES M/F 0805 CHIP 220K 5%
R74 036-14470-00 RES M/F 0805 CHIP 4K7 5%
![](/img.php?id=111477&img=bgc3.png)
IPN 220-01197-02
M820-00 T828 PCB Information D5.2.5
Copyright TEL 01/04/00
Ref Var IPN Description Ref Var IPN Description
R75 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R76 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R77 036-14220-00 RES M/F 0805 CHIP 2K2 5%
R78 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R79 036-13220-00 RES M/F 0805 CHIP 220E 5%
R80 036-13100-00 RES M/F 0805 CHIP 100E 5%
R81 036-14100-00 RES M/F 0805 CHIP 1K 5%
R82 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R83 036-14100-00 RES M/F 0805 CHIP 1K 5%
R84 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R85 036-14100-00 RES M/F 0805 CHIP 1K 5%
R86 036-14100-00 RES M/F 0805 CHIP 1K 5%
R87 036-12100-00 RES M/F 0805 CHIP 10E 5%
R89 036-13100-00 RES M/F 0805 CHIP 100E 5%
R90 036-15100-00 RES M/F 0805 CHIP 10K 5%
R92 036-14100-00 RES M/F 0805 CHIP 1K 5%
R93 036-14560-00 RES M/F 0805 CHIP 5K6 5%
R94 036-14100-00 RES M/F 0805 CHIP 1K 5%
R95 036-14100-00 RES M/F 0805 CHIP 1K 5%
R96 036-14100-00 RES M/F 0805 CHIP 1K 5%
R97 036-14100-00 RES M/F 0805 CHIP 1K 5%
R98 036-12100-00 RES M/F 0805 CHIP 10E 5%
R99 036-14270-00 RES M/F 0805 CHIP 2K7 5%
R100 036-14470-00 RES M/F 0805 CHIP 4K7 5%
R200 030-02120-20 RES FILM 12E 5% 0.4W 4X1.6MM
R201 030-02120-20 RES FILM 12E 5% 0.4W 4X1.6MM
R202 030-53820-20 RES FILM AI 820E 5% 0.4W 4X1.6MM
R203 030-53820-20 RES FILM AI 820E 5% 0.4W 4X1.6MM
R204 030-03270-10 RES FILM 270E 5% 0.5W 7X2.5MM
R205 032-33180-00 RES M/F PWR 180E 5% 1W 12X4.5MM
R206 030-52100-20 RES FILM AI 10E 5% 0.4W 4X1.6MM
R207 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R208 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R209 032-32220-00 RES M/F PWR 22E 5% 1W 12X4.5MM
R210 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R211 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R212 032-32100-00 RES M/F PWR 10E 5% 1W 10X4MM
R213 030-01100-00 RES FILM 1E 5% 0.25W 7X2.5MM
R214 030-52180-20 RES FILM AI 18E 5% 0.4W 4X1.6MM
R215 030-52180-20 RES FILM AI 18E 5% 0.4W 4X1.6MM
R216 030-52180-20 RES FILM AI 18E 5% 0.4W 4X1.6MM
R217 030-01100-10 RES FILM 1E 5% 0.5W 7X2.5MM
R218 030-01100-10 RES FILM 1E 5% 0.5W 7X2.5MM
R219 030-01100-10 RES FILM 1E 5% 0.5W 7X2.5MM
R219A 030-01100-10 RES FILM 1E 5% 0.5W 7X2.5MM
R220 032-33100-02 RES M/F PWR 100E 5% 6W 33X9MM
R221 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R222 032-32220-00 RES M/F PWR 22E 5% 1W 12X4.5MM
R223 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R224 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R225 032-32220-00 RES M/F PWR 22E 5% 1W 12X4.5MM
R226 032-33180-01 RES M/F PWR 180E 5% 2.5W 17X5MM
R227 032-32100-00 RES M/F PWR 10E 5% 1W 10X4MM
R228 032-32100-00 RES M/F PWR 10E 5% 1W 10X4MM
R230 039-02500-01 RES DUMP LOAD 50E 1% 10W TO-220 NIKKOHM
R231 039-02500-01 RES DUMP LOAD 50E 1% 10W TO-220 NIKKOHM
R232 036-13100-00 RES M/F 0805 CHIP 100E 5%
R233 036-13100-00 RES M/F 0805 CHIP 100E 5%
R250 032-32100-00 RES M/F PWR 10E 5% 1W 10X4MM
R260 036-13270-00 RES M/F 0805 CHIP 270E 5%
R290 036-14100-00 RES M/F 0805 CHIP 1K 5%
R291 036-15470-00 RES M/F 0805 CHIP 47K 5%
R292 036-14100-00 RES M/F 0805 CHIP 1K 5%
R293 036-14100-00 RES M/F 0805 CHIP 1K 5%
R294 036-15470-00 RES M/F 0805 CHIP 47K 5%
R295 036-14100-00 RES M/F 0805 CHIP 1K 5%
R300 045-04470-01 RES NTC 4K7 5% 5MM DISC
RV43 042-05470-09 RES PRESET 50K CERMET 9.5MM SQ FLAT
RV48 042-04500-08 RES PRESET 5K CERMET 9.5MM SQ FLAT
RV52 042-04500-08 RES PRESET 5K CERMET 9.5MM SQ FLAT
RV57 042-05470-09 RES PRESET 50K CERMET 9.5MM SQ FLAT
RV63 044-04200-03 RES PRESET MULTITURN 2K 10T PNL MTG
RV69 042-04220-02 RES PRESET 2K CERMET 9.5MM SQ FLAT TOP
RV74 042-05470-09 RES PRESET 50K CERMET 9.5MM SQ FLAT
SK1 240-02100-44 SKT COAX MINI JACK PCB MTG ANGLED
![](/img.php?id=111477&img=bgc4.png)
IPN 220-01197-02
D5.2.6 T828 PCB Information M820-00
01/04/00 Copyright TEL
IPN Description IPN Description
T828 Mechanical & Miscellaneous Parts (220-01197-02)
008-00014-79 S)LED 3MM RED WITH WIRE
008-00014-80 S)LED 3MM GREEN WITH WIRE
065-00010-08 BEAD FERR 4S3 3*0.7*10MM RED
065-00010-20 BEAD FERRITE BALUN 4B1 PHILIPS
070-01001-00 D-RANGE 15 WAY COMPL T800
201-00030-01 WIRE #1 T/C WIRE 7/0.2MM PVC BROWN
1x 410mm
201-00030-02 WIRE #1 T/C WIRE 7/0.2MM PVC RED
3x 20mm
201-00030-03 WIRE #1 T/C WIRE 7/0.2MM PVC ORANGE
1x 235mm
201-00030-04 WIRE #1 T/C WIRE 7/0.2MM PVC YELLOW
1x 325mm
201-00030-05 WIRE #1 T/C WIRE 7/0.2MM PVC GREEN
1x 265mm
201-00030-06 WIRE #1 T/C WIRE 7/0.2MM PVC BLUE
1x 410mm
201-00030-07 WIRE #1 T/C WIRE 7/0.2MM PVC VIOLET
1x 410mm
201-00030-09 WIRE #1 T/C WIRE 7/0.2MM PVC WHITE
1x 285mm
201-00030-10 WIRE #1 T/C WIRE 7/0.2MM PVC BLACK
1x 310mm, 3x 25mm-FOR LEDS
201-00050-12 CABLE AUTO 152 RED 28/0.3MM PVC
1x 290mm, 1x 220mm
201-00050-20 CABLE AUTO 152 BLACK 28/0.3MM PVC
1x 40mm
206-00010-11 CABLE COAX 50 OHM RG316-U PTFE
2x 790mm (90 deg phase section
209-00010-25 STRIP CU 3*0.35 SLOT CAR TRACK
219-02609-00 COAX 190MM 1 MINI PIN 1 PNL JK
220-01197-02 PCB T828 PA
240-02010-54 SKT 15W DRANGE PNL MTG 125 C
240-02100-06 SKT COAX N TYPE PNL MTG OPEN TERMN
240-06010-14 CLAMP LATCHING 15 W D RANGE
240-06010-15 BLOCK LATCHING 15W D RANGE
303-23117-00 COVER SIDE COMPL A2M2223
303-50005-00 CONTACT A4M2311 SPRING EARTH
308-01007-01 HANDLE BASE STATION SERIES II
308-13068-01 HSINK DIECAST A1M2274
316-06617-00 PNL PA NO INP DRV SER II SNGL
316-85018-00 PIN A4M1397 COAX CONDUCTOR
N-type connector extension
319-01147-00 SHIELD A3M2224 WALL T859 PA
319-01148-00 SHIELD A3M2225 LID T859 PA
345-00040-06 SCRW M3*8MM P/POZ ST BZ
345-00040-16 SCRW M3X20MM P/POZ ST BZ
349-00020-07 SCRW 4-40 X 5/16 P/POZ T/T BLK
349-00020-09 SCRW T/T 4-40X3/8 IN P/POZ BLK
349-00020-36 SCREW TT M3X8m PANTORX BLK
352-00010-29 NUT M4 NYLOC HEX
352-00010-35 NUT 8-32 UNC HEX XSTR MTG
Q1 & Q2
352-00010-36 NUT 10-32 UNF LARGE STUD
Q3 & Q4
353-00010-10 WSHR M3 FLAT 7MM*0.6MM ST BZ
Q16
356-00010-03 TAG SOLDER 3MM LONG M614/3.2
360-00010-41 BUSH SHORTY BLK
362-00010-07 GASKET SIL INSULATING TO-220
Q16
362-00010-13 BUSH INSULATING 1.1MM TOP HAT
Q16
362-00010-33 GROMMET LED MTG 3MM
365-00011-53 LABEL 104*37MM
365-01540-00 LABEL PA TYPE APPL/SERIAL NO
369-00010-14 TIE CABLE NYLON 100*2.6MM
399-00010-56 BAG PLASTIC 200*250MM
400-00020-69 HEATSHRINK 12.7MM
410-01081-00 CRTN T800 PRNTD 402X192X66MM
![](/img.php?id=111477&img=bgc5.png)
IPN 220-01197-02
M820-00 T828 PCB Information D5.2.7
Copyright TEL 01/04/00
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
T828 Grid Reference Index (IPN 220-01197-02)
How To Use This Grid Reference Index
The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-
ters give the location of the component on that diagram.
The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on
that sheet.
C76 1:N7 2-B6
C77 1:N7 2-C6
C78 1:N7 2-D5
C80 1:N3 2-F6
C81 1:N2 2-G5
C84 1:N6 2-C4
C85 1:N6 2-C4
C86 1:N4 2-E3
C87 1:L2 2-G3
C90 1:N5 2-K4
C91 1:P6 2-N4
C92 1:N3 2-P5
C93 1:M3 2-N5
C95 1:N3 2-H0
C96 1:N3 2-N2
C99 1:N3 2-M0
C100 1:N3 2-N4
C101 1:P3 2-P1
C103 1:M6 2-Q4
C104 1:N5 2-R5
C105 1:M6 2-R5
C107 1:N4 2-H7
C108 1:M3 2-J6
C109 1:N4 2-J4
C111 1:N7 2-A7
C112 1:N6 2-B4
C200 1:K7 1-B7
C201 1:L7 1-B7
C202 1:M6 1-C9
C203 1:L6 1-D9
C204 1:L6 1-D8
C205 1:K6 1-C7
C206 1:K5 1-E7
C207 1:K5 1-E8
C208 1:L6 1-E9
C209 1:L5 1-G8
C210 1:L4 1-G8
C211 1:L4 1-J8
C213 1:K4 1-J7
C214 1:L2 1-L9
C215 1:L3 1-L8
C216 1:K2 1-M7
C217 1:L3 1-M8
C218 1:K2 1-M7
C219 1:K2 1-N7
C220 1:K2 1-N8
C220A 1:J2 1-P8
C221 1:L3 1-M8
C223 1:K2 1-M7
C229 1:K4 1-A2
C230 1:J5 1-A2
C231 1:J3 1-B1
C232 1:H3 1-C1
C234 1:H3 1-D1
C235 1:H3 1-D1
C236 1:H3 1-E1
C237 1:G2 1-F2
C238 1:F3 1-G1
C239 1:F3 1-G1
C240 1:E3 1-G1
C241 1:E3 1-H1
C242 1:E3 1-H2
C243 1:D4 1-J1
C244 1:J4 1-A2
C245 1:F4 1-F2
C250 1:J5 1-B3
C251 1:H6 1-C3
C252 1:H6 1-D3
C253 1:H5 1-D3
C254 1:H6 1-E3
C255 1:G4 1-E4
C256 1:G4 1-F4
C257 1:G6 1-F3
C258 1:F6 1-G3
C259 1:F6 1-G3
C260 1:E6 1-H3
C261 1:E5 1-H3
C262 1:D5 1-J4
C263 1:D5 1-J3
C264 1:F5 1-G4
C265 1:D5 1-L2
C269 1:D4 1-L2
C270 1:D5 1-L3
C271 1:C5 1-N3
C271A 1:C5 1-M3
C272 1:D6 1-P3
C273 1:D7 1-M1
C274 1:D7 1-N1
C275 1:C4 1-N2
C276 1:B4 1-P2
C277 1:B4 1-P2
C278 1:B5 1-P2
C279 1:B5 1-Q2
C280 1:B5 1-Q2
C281 1:B6 1-R2
C282 1:K5 1-E7
C283 1:D7 1-M2
C286 1:E3 1-H1
C287 1:E5 1-H3
C288 1:G5 1-E3
C289 1:G6 1-F3
C290 1:G3 1-E1
C291 1:G3 1-F1
C292 1:K3 1-L7
C300 1:H4 1-C2
C301 1:H4 1-D2
D3 1:M2 2-A1
D5 1:P7 2-C6
D6 1:M2 2-G5
2-G5
D10 1:P7 2-C4
D11 1:P6 2-D4
D13 1:L2 2-F2
2-F2
D200 1:C5 1-N3
D201 1:D7 1-M2
IC1 1:N3 2-H0
2-F7
2-E4
2-N4
2-N1
IC2 1:N6 2-K4
IC3 1:M4 2-J7
2-H6
2-H3
L11 1:N4 1-N9
L200 1:K7 1-C7
L201 1:K6 1-C7
L202 1:L6 1-D9
L203 1:L5 1-D9
L204 1:J6 1-D7
L205 1:K5 1-E8
L206 1:L5 1-G7
L207 1:L4 1-J7
L209 1:L4 1-L7
L210 1:K2 1-L8
L211 1:L2 1-L9
L212 1:K2 1-M8
L213 1:K2 1-N8
L213A 1:J2 1-P7
L219 1:K4 1-A2
L220 1:J5 1-B3
L221 1:J4 1-B2
L222 1:J3 1-C1
L223 1:H3 1-D1
L224 1:H2 1-F1
L225 1:G4 1-F2
L226 1:F3 1-F2
L229 1:F3 1-G2
L230 1:E3 1-H2
L240 1:J6 1-C3
L241 1:H6 1-D3
L242 1:H6 1-F3
L243 1:G4 1-F4
L244 1:F5 1-F4
L245 1:F6 1-G4
L246 1:E5 1-H4
L249 1:D5 1-L2
L250 1:D4 1-K3
L251 1:D4 1-K2
L254 1:C4 1-N3
L255 1:B4 1-P3
L256 1:B4 1-P2
L257 1:B5 1-Q3
L258 1:B6 1-R3
L259 1:E3 1-H2
L260 1:D6 1-M2
L260A 1:C5 1-N3
L261 1:E5 1-H4
L300 1:H4 1-C2
PL1 1:E5 2-B0
Q1 1:K6 1-D7
Q2 1:K3 1-L8
Q3 1:G6 1-F3
Q4 1:G3 1-F1
Q10 1:N7 2-B7
Q11 1:N7 2-D6
Q12 1:N6 2-C4
Q13 1:N6 2-D4
Q14 1:P3 2-P1
Q15 1:M6 2-Q4
Q16 1:M7 2-R4
R36 1:P6 2-C5
R38 1:N4 2-E6
R39 1:N4 2-E5
R42 1:N3 2-G6
R44 1:M3 2-H6
R47 1:N4 2-F5
R49 1:P7 2-C5
R50 1:P6 2-D5
R55 1:N4 2-E3
R56 1:N4 2-F4
R58 1:N4 2-H5
R61 1:N6 2-L4
R62 1:N5 2-L4
R64 1:N3 2-N4
R67 1:N3 2-M2
R68 1:N3 2-L2
R73 1:N3 2-N2
R74 1:N3 2-N1
R75 1:N3 2-P1
R76 1:P3 2-P1
R77 1:N3 2-P5
R78 1:N6 2-Q4
R79 1:N3 2-N5
R80 1:M6 2-Q5
R81 1:N4 2-D6
R82 1:N4 2-D6
R83 1:N4 2-D3
R84 1:N4 2-D4
R85 1:M4 2-F3
R86 1:M3 2-G6
R87 1:N3 2-P5
R89 1:M6 2-R4
R90 1:M6 2-Q3
R92 1:L2 2-D3
R93 1:M2 2-F5
R94 1:N2 2-F7
R95 1:N3 2-M1
R96 1:M3 2-K7
R97 1:M4 2-K4
R98 1:N5 2-M5
R99 1:N5 2-M4
R100 1:N5 2-M4
R200 1:K7 1-B7
R201 1:K7 1-B7
R202 1:K7 1-B7
R203 1:L7 1-B7
R204 1:L6 1-D8
R205 1:L6 1-D9
![](/img.php?id=111477&img=bgc6.png)
IPN 220-01197-02
D5.2.8 T828 PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
R206 1:K6 1-D7
R207 1:L5 1-G7
R208 1:M5 1-G7
R209 1:L3 1-L7
R210 1:L3 1-L8
R211 1:L2 1-L8
R212 1:L3 1-L9
R213 1:L5 1-C8
R214 1:K6 1-D8
R215 1:K6 1-D7
R216 1:K6 1-D7
R217 1:K4 1-K8
R218 1:K4 1-K8
R219 1:K4 1-K8
R219A 1:K4 1-K7
R220 1:J5 1-B2
R221 1:G2 1-F2
R222 1:H3 1-F1
R223 1:F4 1-G2
R224 1:G7 1-F4
R225 1:H6 1-F3
R226 1:F5 1-G4
R227 1:F4 1-G4
R228 1:F4 1-G2
R230 1:E4 1-K3
R231 1:E4 1-K2
R232 1:C6 1-N2
R233 1:D6 1-M3
R250 1:G4 1-E4
R260 1:D6 1-M2
R290 1:D7 1-M2
R291 1:D7 1-N1
R292 1:D7 1-N2
R293 1:D7 1-N4
R294 1:D7 1-P3
R295 1:D6 1-P4
R300 1:H4 1-C2
RV43 1:N1 2-G6
RV48 1:P1 2-F5
RV52 1:M1 2-F5
RV57 1:L1 2-F3
RV63 1:N5 2-M4
RV69 1:N2 2-M2
RV74 1:P2 2-P2
SK1 1:L7 1-A7
TL1 1:J5 1-C3
TL2 1:D3 1-J2
TP1 1:N2 2-N2
TP2 1:N3 2-P1
![](/img.php?id=111477&img=bgc7.png)
M820-00 EI
Copyright TEL 01/07/00
Part E T820 VCO PCB Information
This part of the manual provides the parts list, grid reference index, PCB layouts and circuit dia-
gram for the T820 VCO PCB. There is a detailed table of contents at the start of Section 2.
Section Title IPN Page
1 Introduction 1.1
2 T820 VCO PCB 220-01180-05 2.1
![](/img.php?id=111477&img=bgc8.png)
EII M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgc9.png)
M820-00 Introduction E1.1
Copyright TEL 01/04/00
1Introduction
PCB Identification
All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-12345-00, which
is screen printed onto the PCB (usually on the top side), as shown in the example below:
The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,
02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-
fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying
the PCB for service purposes.
Note: It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate set of PCB information.
Parts Lists
The 10 digit numbers (000-00000-00) in this Parts List are “internal part numbers” (IPNs). We can
process your spare parts orders more efficiently and accurately if you quote the IPN and provide a
brief description of the part.
The components listed in this parts list are divided into two main types: those with a circuit refer-
ence (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within
each group. Each component entry comprises three or four columns, as shown below:
The mechanical and miscellaneous section lists the variant and common parts in IPN order.
circuit reference -
lists components
in alphanumeric
order
variant column -
indicates that this is
a variant component
which is fitted only to
the product type listed
Internal Part Number -
order the component
b
y
this number
description -
gives a brief description
of the component
![](/img.php?id=111477&img=bgca.png)
E1.2 Introduction M820-00
01/04/00 Copyright TEL
Parts List Amendments
At the front of the parts list is the Parts List Amendments box (an example of which is shown
below). This box contains a list of component changes which took place after the parts list and dia-
grams in this section were compiled. These changes (e.g. value changes, added/deleted compo-
nents, etc.) are listed by circuit reference in alphanumeric order and supersede the information
given in the parts list or diagrams. Components without circuit references are listed in IPN order.
The number in brackets at the end of each entry refers to the Tait internal Change Order document.
Variant Components
A variant component is one that has the same circuit reference but different value or specification in
different product types. Variant components have a character prefix, such as “&”, “=” or “#”, before
the circuit reference (e.g. &R100).
Parts List Amendments
R306 Changed from 180Ωto 560Ω(036-13560-00) to increase sensitivity (71003).
circuit reference
or IPN description
of change
IPN of new
component Change Order
number
![](/img.php?id=111477&img=bgcb.png)
M820-00 Introduction E1.3
Copyright TEL 01/04/00
Grid Reference Index
This section contains a component grid reference index to help you find components and labelled
pads on the PCB layouts and circuit diagrams. This index lists the components and pads in alpha-
numeric order, along with the appropriate alphanumeric grid references, as shown below:
circuit diagram
reference
PCB layout
reference
components listed
in alphanumeric order
layer number -
1 = top side layer
2 = bottom side layer
component location
on the layer
sheet number
component location
on the sheet
![](/img.php?id=111477&img=bgcc.png)
E1.4 Introduction M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgcd.png)
M820-00 T820 VCO PCB Information E2.1
Copyright TEL 01/04/00
2 T820 VCO PCB
This section contains the following information.
IPN Section Page
220-01180-05 Parts List
Mechanical & Miscellaneous Parts
Grid Reference Index
PCB Layout - Bottom Side
PCB Layout - Top Side
Circuit Diagram
2.3
2.5
2.6
2.7
2.8
2.9
![](/img.php?id=111477&img=bgce.png)
E2.2 T820 VCO PCB Information M820-00
01/04/00 Copyright TEL
![](/img.php?id=111477&img=bgcf.png)
IPN 220-01180-05
M820-00 T820 VCO PCB Information E2.3
Copyright TEL 01/04/00
T820 VCO Parts List (IPN 220-01180-05)
How To Use This Parts List
The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and
those without (miscellaneous and mechanical).
Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component
entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A letter in the variant column
indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by an (S)
at the start of the description column.
The mechanical and miscellaneous section lists the variant and common parts in IPN order.
The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were
compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order
and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.
Parts List Amendments
There were no amendments to the parts list at the time of publication.
![](/img.php?id=111477&img=bgd0.png)
IPN 220-01180-05
E2.4 T820 VCO PCB Information M820-00
01/04/00 Copyright TEL
Ref Var IPN Description Ref Var IPN Description
C1 015-24100-08 CAP CER 0805 1N 10% X7R 50V
&C2 RX 015-22560-01 CAP CER 0805 56P 5% NPO 50V
&C2 TX 015-23100-01 CAP CER 0805 100P 5% NPO 50V
&C3 RX 015-22100-01 CAP CER 0805 10P+-1/2P NPO 50V
&C3 TX 015-21820-02 L)CAP 0805 8P2 15 NPO 50V
&C4 RX 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C4 TX 015-22120-01 CAP CER 0805 12P 5% NPO 50V
C5 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C6 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C8 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C9 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C10 015-21100-01 CAP CER 0805 1PO+-1/4P NPO 50V
C11 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C12 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C13 015-22390-01 CAP CER 0805 39P 5% NPO 50V
C14 015-22820-01 CAP CER 0805 82P 5% NPO 50V
C15 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C16 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C17 015-25470-08 CAP CER 0805 47N 10% X7R 50V
C18 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C19 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C20 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C21 RX 015-21330-01 CAP CER 0805 3P3+-1/4P NPO 50V
C21 TX 015-22560-01 CAP CER 0805 56P 5% NPO 50V
C22 RX 015-21470-01 CAP CER 0805 4P7+-1/4P NPO 50V
C22 TX 015-22270-01 CAP CER 0805 27P 5% NPO 50V
C23 RX 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C23 TX 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C24 014-08100-00 CAP TANT CHIP 10M 16VW +-20%
&C25 RX 015-22180-01 CAP CER 0805 18P 5% NPO 50V
&C25 TX 015-22270-01 CAP CER 0805 27P 5% NPO 50V
&C26 RX 015-22270-01 CAP CER 0805 27P 5% NPO 50V
&C26 TX 015-22390-01 CAP CER 0805 39P 5% NPO 50V
D1 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
D2 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
D3 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
D4 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
D5 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
D6 001-10043-90 S) DIODE SMD BB439 VCAP SOD323
L1 056-14330-02 (L) IND SMD 3.3UH
L2 056-14330-02 (L) IND SMD 3.3UH
L3 056-14330-02 (L) IND SMD 3.3UH
L4 056-14330-02 (L) IND SMD 3.3UH
L5 056-10100-02 (L) IND SMD 100NH
L6 056-10033-00 IND FXD SMD 33NH 3.2*2.5*1.6
L7 RX 056-10330-02 (L) IND SMD 330NH
L7 TX 056-10100-02 (L) IND SMD 100NH
L8 RX 056-10068-02 (L) IND SMD 68NH
L8 TX 056-10100-02 (L) IND SMD 100NH
&L9 RX 055-01005-00 COIL TROID 280NH 22P 18T T82X
&L9 TX 055-01005-00 COIL TROID 280NH 22P 18T T82X
Q1 000-10003-10 S) XSTR SMD BFJ310 JFET UHF
Q2 000-10057-10 S) XSTR SMD BR571 NPN SOT23
Q3 000-10057-10 S) XSTR SMD BR571 NPN SOT23
Q4 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS
Q5 000-10050-00 S) XSTR SMD BLT50 UHF SOT22
R1 036-12220-00 RES M/F 0805 22E 5%
R2 036-12560-00 RES M/F 0805 56E 5%
R3 036-13560-00 RES M/F 0805 560E 5%
R4 036-14270-00 RES M/F 0805 2K7 5%
R5 036-14100-10 RES M/F 0805 1K 1%
R6 036-14100-10 RES M/F 0805 1K 1%
R7 036-12220-00 RES M/F 0805 22E 5%
R8 036-12220-00 RES M/F 0805 22E 5%
R9 036-13180-00 RES M/F 0805 180E 5%
R10 036-12100-00 RES M/F 0805 10E 5%
R11 036-12560-00 RES M/F 0805 56E 5%
R12 036-13180-00 RES M/F 0805 180E 5%
R13 036-12270-00 RES M/F 0805 27E 5%
R14 036-13180-00 RES M/F 0805 180E 5%
R15 RX 036-14560-00 RES M/F 0805 5K6 5%
R15 TX 036-14680-10 RES M/F 0805 6K8 1%
R16 036-14120-00 RES M/F 0805 1K2 5%
R17 036-14100-10 RES M/F 0805 1K 1%
R18 036-12100-00 RES M/F 0805 10E 5%
R19 036-12100-00 RES M/F 0805 10E 5%
R20 036-13330-00 RES M/F 0805 330E 5%
R21 036-12560-00 RES M/F 0805 56E 5%
R22 036-13470-00 RES M/F 0805 470E 5%
R23 036-12560-00 RES M/F 0805 56E 5%
&VC1-RX RX 028-02341-08 CAP TRIM 1-30P PISTON TRONSER
&VC1-TX TX 028-02400-02 CAP TRM SMD 5/40P JZ400
![](/img.php?id=111477&img=bgd1.png)
IPN 220-01180-05
M820-00 T820 VCO PCB Information E2.5
Copyright TEL 01/04/00
IPN Description IPN Legend Description
T820 VCO Mechanical & Miscellaneous Parts (220-01180-05)
220-01180-05 PCB T820 VCO SI/SII
240-00026-32 PLUG 32WAY 1ROW PC MTG HARWIN
345-00040-10 SCRW M3*6MM P/POZ ST BZ
345-00060-08 SCRW M5 X 16 CH SLOT PLASTIC
350-00016-42 SPACER 5MM HI 8MM ST 2.5MM HO
352-00010-14 NUT M5 HEX PLASTIC T800 TOROID
353-00010-10 WSHR M3 FLAT 7MM*0.6MM ST BZ
353-00010-13 WSHR M3 S/PROOF INT BZ
353-00010-41 WSHR M6 NYLON BULTE LOCK
![](/img.php?id=111477&img=bgd2.png)
IPN 220-01180-05
E2.6 T820 VCO PCB Information M820-00
01/04/00 Copyright TEL
Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit
T820 VCO Grid Reference Index (IPN 220-01180-05)
How To Use This Grid Reference Index
The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-
ters give the location of the component on that diagram.
The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on
that sheet.
C1 1:B7 1-B2
&C2 1:C6 1-D3
&C3 1:C6 1-D3
&C4 1:D6 1-D2
C5 1:D6 1-F3
C6 1:C3 1-G3
C8 1:C3 1-G5
C9 1:D7 1-F5
C10 1:D4 1-G2
C11 1:D3 1-H2
C12 1:B4 1-H4
C13 1:B3 1-J3
C14 1:B3 1-J3
C15 1:B2 1-J4
C16 1:B2 1-J5
C17 1:D1 1-J5
C18 1:D2 1-J6
C19 1:C2 1-K5
C20 1:D1 1-K5
C21 1:C2 1-K3
C22 1:C1 1-L3
C23 1:C1 1-L4
C24 1:E7 1-G5
C25 1:C6 1-E3
&C26 1:C6 1-E3
D1 1:C7 1-B3
D2 1:C7 1-C3
D3 1:C7 1-C3
D4 1:C7 1-B2
D5 1:C7 1-C2
D6 1:C7 1-C2
L1 1:B7 1-B2
L2 1:B6 1-C2
L3 1:D5 1-E2
L4 1:D7 1-F5
L5 1:B3 1-J4
L6 1:A3 1-J4
L7 1:D2 1-K5
L8 1:C2 1-L4
&L9 1:B5 1-D3
PL-1 2:C8 2-G4
PL-2 2:C1 2-G4
PL-3 2:B3 2-G3
PL-4 2:C3 2-H3
Q1 1:C6 1-F3
Q2 1:D4 1-G3
Q3 1:C4 1-G4
Q4 1:D1 1-K6
Q5 1:C2 1-K4
R1 1:B7 1-B2
R2 1:C6 1-C3
R3 1:C6 1-F3
R4 1:C4 1-G5
R5 1:C3 1-G3
R6 1:D3 1-G2
R7 1:D7 1-F6
R8 1:C4 1-G5
R9 1:C4 1-G5
R10 1:D4 1-G3
R11 1:D3 1-G2
R12 1:C3 1-H3
R13 1:B4 1-H4
R14 1:B3 1-H3
R15 1:D1 1-J5
R16 1:D2 1-J6
R17 1:B2 1-K5
R18 1:B2 1-K5
R19 1:D2 1-K6
R20 1:C1 1-K5
R21 1:D6 1-F5
R22 1:B4 1-H5
R23 1:D5 1-E3
&VC1-RX 1:D4 1-D2
&VC1-TX 1:C5 1-E2
![](/img.php?id=111477&img=bgd3.png)
T820 VCO PCB (IPN 220-01180-05) - Bottom Side
Copyright TEL 01/04/00
IPN 220-01180-05
M820-00 T820 VCO PCB Information E2.7
PL-1
PL-2
PL-3
PL-4
![](/img.php?id=111477&img=bgd4.png)
IPN 220-01180-05
E2.8 T820 VCO PCB Information M820-00
01/04/00 Copyright TEL
T820 VCO PCB (IPN 220-01180-05) - Top Side
ABCDE
1
2
3
4
5
6
7
8
1
L4
L1
L6
C24
220-01180-05
Q1
L3
L5
L7
1
PL-4
IPN:
PL-3
T820 VCO
L2
5
Q4 5
&L9
+
L8
BADMARK
Q5
HOT &VC1-TX
&VC1-RX
&C2
&C26
&C3
&C4
&L9
&VC1-RX
&VC1-TX
C1
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22 C23
C24
C25
C5
C6C8
C9
D1 D2 D3
D4 D5 D6
L1
L2
L3
L4
L5
L6
L7L8
Q1
Q2Q3
Q4
Q5
R1
R10
R11R12
R13
R14
R15
R16
R17
R18
R19
R2
R20
R21
R22
R23
R3
R4
R5R6
R7
R8R9
SCREW1
SCREW2
SCREW3
TBADMARK
