IROAM
WIRELESS MUSIC REMOTE FOR IPOD
USER MANUAL
ARWR1
![](/img.php?id=937086&img=bg2.png)
Important InformatIon
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION Caution: To reduce the risk of electric shock, do not
remove cover (or back). No user serviceable parts
inside. Refer servicing to qualied service personnel.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase.
Attach it here and record the model number in case you need it. These numbers are
located on the product.
Model No.: ______________________________________________________________________
Purchase Date: __________________________________________________________________
Dealer/Address/Phone: ___________________________________________________________
WARNING: To reduce the risk of re or
electric shock, do not expose this product to
rain or moisture. The apparatus shall not be
exposed to dripping or splashing. No objects
lled with liquids, such as vases, shall be
placed on the apparatus.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
9. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
10. Unplug this apparatus during lightning storms
or when unused for long periods of time.
11. Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
FCC Information
FCC Regulations state that unauthorized
changes or modications to this equipment may
void the user’s authority to operate it.
This device complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
RF Exposure Warning: This equipment must
be installed and operated in accordance with
provided instructions and the antenna(s)
used for this transmitter must be installed
to provide a separation distance of at least
20 cm from all persons and must not be
co-located or operating in conjunction with
any other antenna or transmitter. End-users
and installers must be provide with antenna
installation instructions and transmitter
operating conditions for satisfying RF
exposure compliance.
Industry Canada Regulatory Information
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference
that may cause undesired operation.
The user is cautioned that this device should be
used only as specied within this manual to meet
RF exposure requirements. Use of this device in a
manner inconsistent with this manual could lead
to excessive RF exposure conditions.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
![](/img.php?id=937086&img=bg3.png)
GettInG Started
3

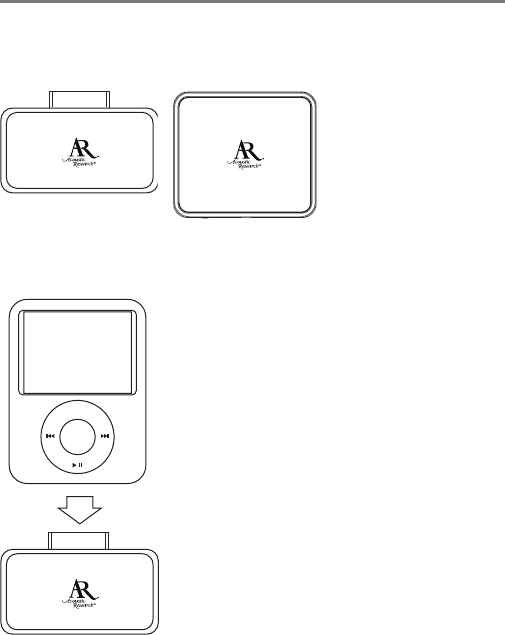

Step 1: UnpackInG
Make sure you nd the following pieces in your iRoam package:
the iRoam transmitter
the iRoam
receiver
Plus:
• Combo USB/standard power
adapter cable
• 3.5mm stereo audio cable
Step 2: dockInG
Plug the iRoam transmitter’s dock connector
into your iPod’s 30-pin connector.
iPod is a registered trademark of Apple Inc.
ME N U
![](/img.php?id=937086&img=bg4.png)
GettInG Started
4

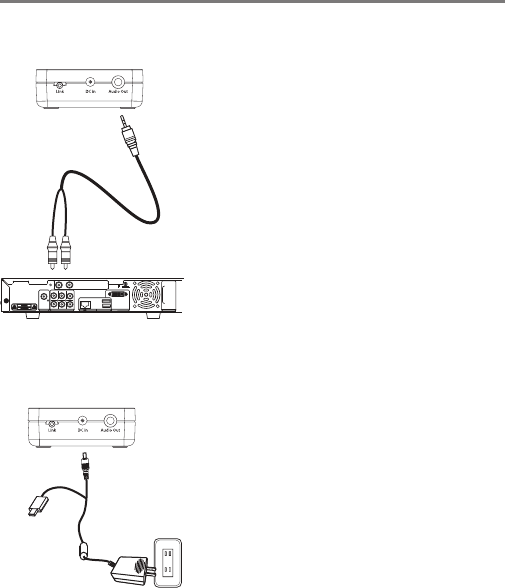

Step 3: connectInG to YoUr Stereo
RCA stereo input jacks
3.5mm
cable
AC
power
adapter
1. Connect the provided 3.5mm stereo
cable to the Audio Out jack on the
iRoam receiver.
2. Connect the red and white plugs on
the other end of the 3.5mm stereo
cable to your stereo’s audio input
jacks—make sure you match the plug
colors with the jack colors (red to
red, white to white).
Step 4: powerInG the receIver
1. Connect the AC power adapter to
the DC IN power supply jack on the
receiver’s back panel.
2. Plug the adapter into an electrical
outlet.
Important: This power unit is intended to be
correctly oriented in a vertical or oor mount
position.
![](/img.php?id=937086&img=bg5.png)
GettInG Started
5
Step 5: LInkInG
The iRoam dock and receiver usually link automatically once you’ve
docked your iPod and plugged in the receiver. A solid blue LED on the
dock and the receiver indicates that the two pieces are linked.
If you get a blinking blue LED on the dock and/or receiver, try the
following steps to link the two manually:
1. Take the iRoam dock and iPod next to the receiver—keep the dock
and iPod connected.

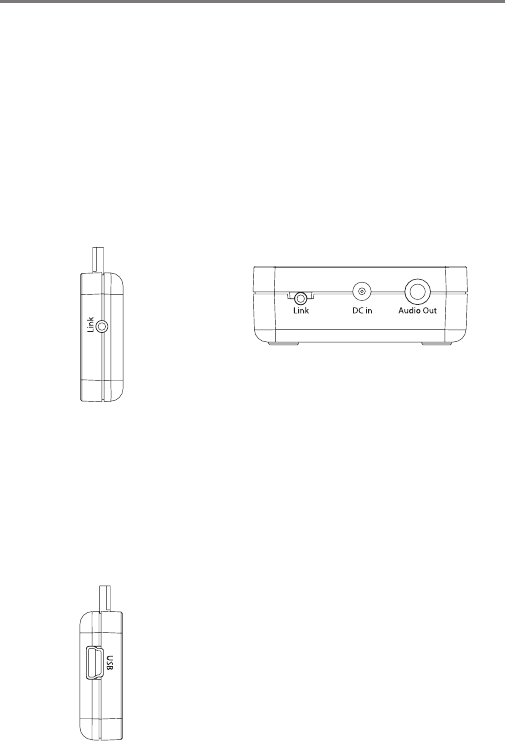

2. Find the LINK buttons on the back panel of the receiver and on the
side of the dock.
iRoam dock, side view
iRoam receiver, back panel
3. Press and hold the LINK buttons on the receiver and dock for 5
seconds. The blue LEDs on each blink while the two pieces are
linking. These LEDs stay solid blue when the two have linked.
Now you’re ready to enjoy music from your iPod over your home stereo
with no wires attached! Just use your iPod like you normally would to
select songs, playlists, etc. And enjoy!
Step 6: powerInG YoUr Ipod (optIonaL)
You can use the iRoam’s transmitter to charge
your iPod. Just connect the USB mini-connector
end of the provided USB adapter cable to the
USB jack on the side of the dock. Connect the
other end of the cable to a USB power adapter
(not provided). Then, plug the USB power
adapter into a wall outlet.
![](/img.php?id=937086&img=bg6.png)

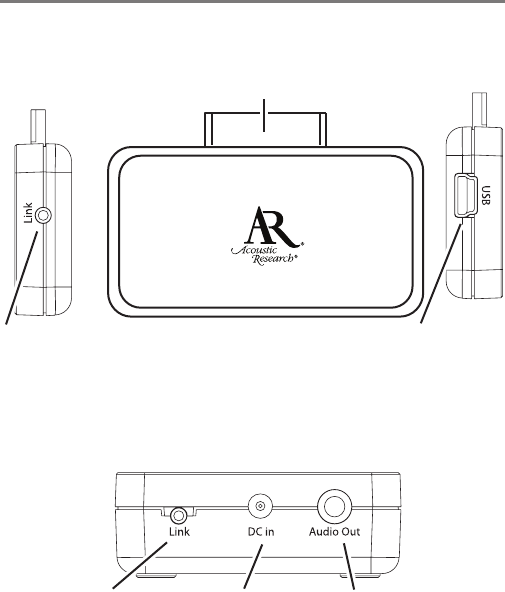

Iroam BUttonS and JackS
6
dock BUttonS and JackS
receIver BUttonS and JackS
iRoam dock: connects to iPod models with 30-pin dock connector
Link button: manually
links the dock to the
receiver
USB jack: connects to
a USB power adapter
to charge your iPod
Link button: manually
links the receiver to
the dock
DC In jack: connects
to the provided AC
adapter to power the
receiver
Audio Out jack: connects to the
provided 3.5mm stereo audio
cable to output audio from your
iPod to your stereo
![](/img.php?id=937086&img=bg7.png)
addItIonaL InformatIon
7
care and maIntenance
Do not open the dock or receiver. There are no user-servicable
parts inside. Do not allow moisture to enter either unit. Moisture will
corrode the inner electronics. To clean the dock or receiver, wipe
gently with a dry cloth.
troUBLeShootInG
The following troubleshooting guide takes you through some of the
more common problems associated with installation and/or operation.
If a problem persists, please call toll-free 1-800-732-6866 or visit www.
araccessories.com.
No sound • Make sure the iRoam receiver’s AC adapter is fully inserted into
the wall outlet and the power cord from the AC adapter is rmly
connected to the receiver’s power input jack.
• Check that your iPod is playing music as it normally should—plug in
your headphones to make sure.
• Conrm that the receiver LED is solid blue. If the receiver LED is
ashing blue, the receiver is not tuned to the dock. Press the link key
on the dock and on the receiver’s back panel to link them.
• Check that your stereo’s volume is turned up.
• Make sure your iPod’s volume is set high enough for the dock to
detect.
Interrupted
sound
• Move closer to the receiver with the dock and iPod in your hand.
Sending the signal through certain materials, such as glass, tile,
and metal, can decrease the effective transmitting distance of the
system.
LEDs fail to
light up
• Make sure the dock is properly connected to your iPod. Then, move
closer to the receiver and see if the dock and receiver link. If they
don’t, press the link key on both simultaneously.
Sound stops
automatically
• Check the LED the dock. If it’s blinking, the receiver has lost the
dock’s signal. Move closer to the receiver. If you don’t see the LED,
you need to charge your iPod using the USB power adapter.
![](/img.php?id=937086&img=bg8.png)
12 month LImIted warrantY
Audiovox Electronics Corporation (the “Company”) warrants to the original retail
purchaser of this product that should this product or any part thereof, under normal
use and conditions, be proven defective in material or workmanship within 12 months
from the date of original purchase, such defect(s) will be repaired or replaced (at
the Company’s option) without charge for parts and repair labor. To obtain repair or
replacement within the terms of this Warranty, the product along with any accessories
included in the original packaging is to be delivered with proof of warranty coverage (e.g.
dated bill of sale), specication of defect(s), transportation prepaid, to the Company at
the address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used
outside the United States or Canada. The warranty does not extend to the elimination
of externally generated static or noise, to costs incurred for the installation, removal or
reinstallation of the product. The warranty does not apply to any product or part thereof
which, in the opinion of the company, has suffered or been damaged through alteration,
improper installation, mishandling, misuse, neglect, accident or exposure to moisture.
This warranty does not apply to damage caused by an AC adapter not provided with the
product, or by leaving non-rechargeable batteries in the product while plugged into an
AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE
PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO DURATION OF THIS WARRANTY.
ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER, INCLUDING ANY IMPLIED
WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No person or representative
is authorized to assume for the Company any liability other than expressed herein in
connection with the sale of this product. Some states/provinces do not allow limitations
on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This
Warranty gives you specic legal rights and you may also have other rights which vary
from state/province to state/province.
USA.: Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788
C A N A D A : Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit 3, Door 16,
Mississauga, Ontario L5T 3A5
© 2008 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032 USA
www.araccessories.com
ARWR1_US_IB_00
Trademark(s) Registered
All other brands and product names are
trademarks or registered trademarks of
their respective owners.
