In t r o d u c t I o n
3
Welcome
Congratulations on your purchase of the 2.4GHz Wireless Stereo
Headphones with True 2.1 Sound. The AWD209 uses the latest in
wireless transmission, 2.4GHz digital technology, that lets you enjoy
crystal clear, uncompressed digital audio up to 100 feet away from
the transmitter. The headphones also offer a true 2.1 stereo listening
experience, with a patented dual-speaker design in each ear cup. The
headphones' compact design and comfortable ear cups let you enjoy
music and TV sound just about anywhere inside or outside your home.
Easy, push-button pairing makes it simple to get started, wirelessly.
This manual covers various connection options and detailed operating
instructions for setup and use of the AR wireless headphones. If, after
having reviewed the instructions, you have any questions, please call
toll-free 1-800-732-6866 or visit www.araccessories.com.
2.4GHz Digital technology lets you enjoy crystal clear audio wirelessly
up to 100 feet away from the transmitter, with no line-of-sight
limitations*
True 2.1 stereo, with patented dual-speaker design in each cup
Convenient power, volume and tuning controls located on headphones
Easy pairing of transmitter and headphones
*Range may vary according to environment.
Features
![](/img.php?id=986474&img=bg4.png)
Ge t t I n G St a r t e d
4

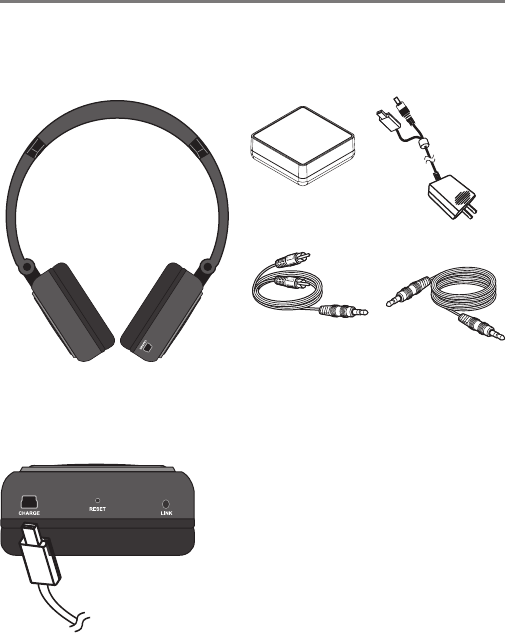

Supplied Accessories
This headphone system includes accessories that enable you to use
your wireless headphone set in a number of ways.
Stereo Y adapter cable
(RCA/3.5 mm plugsv)
AC power
adapter
Stereo cable
(3.5 mm plugs)
Wireless headphones
2.4GHz wireless transmitter
To charge the headset unit:
1. Plug the at end of the AC adapter
into the power jack on the bottom of
the right headphone.
2. Plug the other end of the AC adapter
into a wall outlet.
Important: This power unit is intended to
be correctly oriented in a vertical or oor
mount position.
Charging the Headset
Before using your headphones for the rst time, charge them for 3.5
hours using the supplied AC power adapter.
While the headphones are charging, the LED on the right headphone
remains red. This LED and the headphones turn off when the
headphones are fully charged.
![](/img.php?id=986474&img=bg5.png)
Ge t t I n G St a r t e d
5
Hooking Up the Transmitter
The 2.4GHz wireless transmitter works with a wide variety of audio
sources, from portable MP3 players to A/V receivers to DVD players
or gaming systems. The way you hook it up depends on the kind of
output you want to use on your audio source.
LINK DC IN LINE IN
Transmitter
(back panel)
Audio source:
MP3 player,
CD player, others.
3.5mm cable

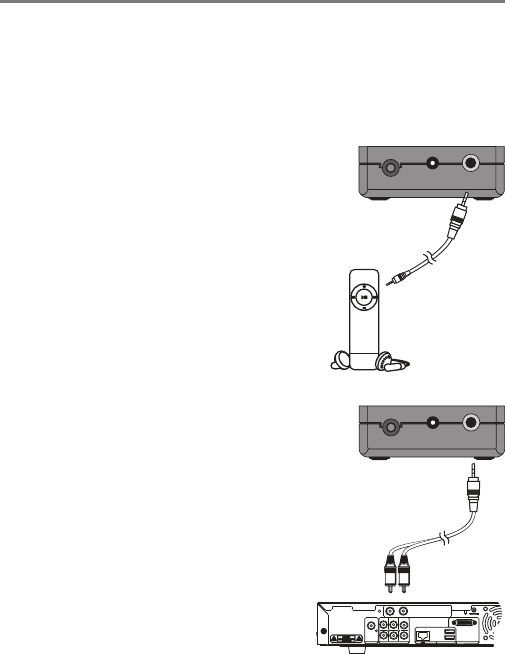

Connecting to a 3.5mm mini-jack
output
1. Plug the 3.5mm cable into the
headphone jack on your audio source.
2. Connect the other end of the 3.5mm
cable to the LINE IN jack on the
transmitter’s back panel.
Connecting to stereo RCA outputs
1. Connect the red and white plugs of
the stereo Y adapter cable to the
audio source's line out jacks—make
sure you match the plug colors with
the jack colors (red to red, white to
white).
2. Connect the other end of the stereo
Y adapter cable to the LINE IN jack on
the transmitter's back panel.
LINK DC IN LINE IN
Transmitter
(back panel)
Y-adapter cable
![](/img.php?id=986474&img=bg6.png)
Ge t t I n G St a r t e d
6

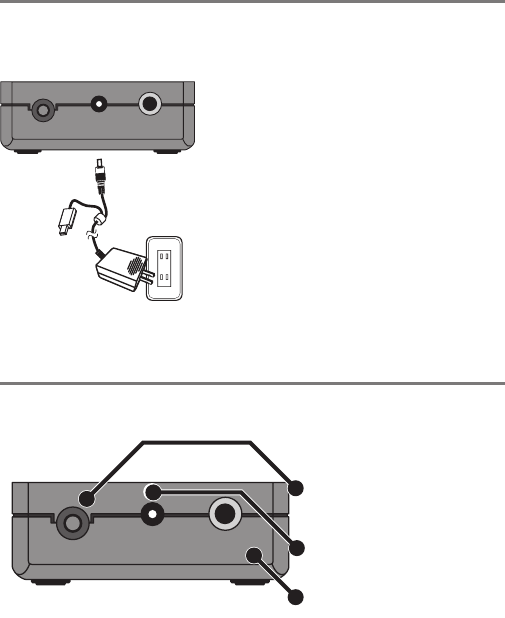

To plug in the transmitter:
1. Connect the round end of the AC
power adapter to the DC IN power
supply jack on the transmitter’s back
panel.
2. Plug the adapter into an electrical
outlet.
Important: This power unit is intended to
be correctly oriented in a vertical or oor
mount position.
LINK DC IN LINE IN
Transmitter
(back panel)
AC power
adapter
LINK DC IN LINE IN
Transmitter (back panel)
LINE IN jack connects to
your audio source
DC IN jack connects to the
AC power adapter
LINK button tunes
the transmitter and
headphones
Powering the Transmitter
The 2.4GHz wireless transmitter runs on regular AC power.

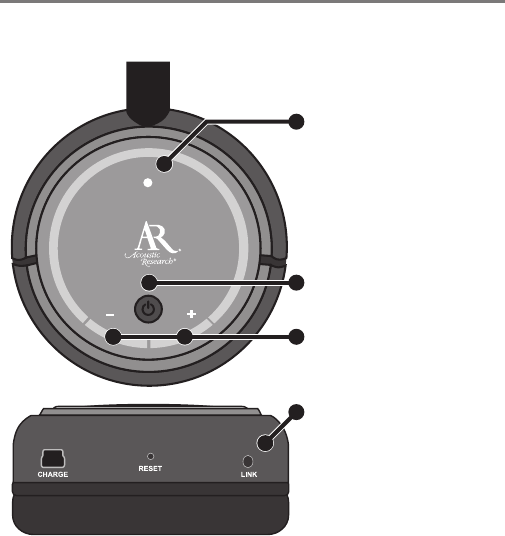

Bu t t o n S & Ja c k S
![](/img.php?id=986474&img=bg7.png)
Bu t t o n S & Ja c k S
7
Volume up/down buttons
increase or decrease the
headphone volume
Link button tunes the
headphones to the
transmitter
Right headphone
LED indicates charging
(red) and communication
with transmitter (blue)
Power button turns the
headphones on and off
![](/img.php?id=986474&img=bg8.png)
uS I n G Y o u r H e a d p H o n e S
8

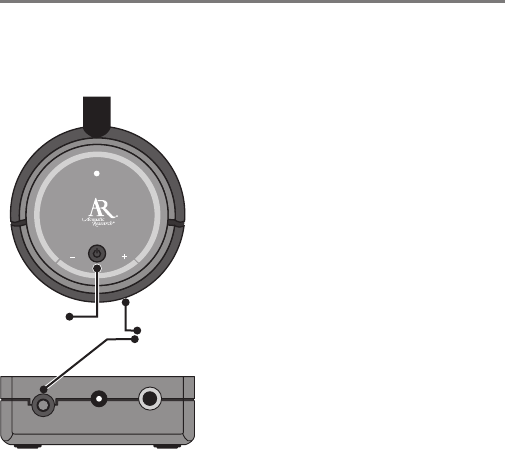

Turning the Headphones On
1. Make sure the transmitter is plugged in and connected to an audio
source.
LINK DC IN LINE IN
Power
button
2. Press the power button on the right
headphone to turn the headphones
on.
3. Switch on the audio source (TV, DVD,
CD player, etc.) the transmitter is
connected to. If your audio source is a
DVD or CD player, start a disc.
4. Simultaneously press the link buttons
on the headphones and on the back
of the transmitter. The headphones
and transmitter lock onto each other
for wireless transmission. The LED
on the headphones ashes while the
devices are tuning; it stays on once
the devices are tuned.
5. Adjust the volume using the volume
up and down buttons on the right
earphone.
Link
buttons
Turning the Headphones Off
To turn the headphones off: Press and hold the power button on the
headphones for 3 seconds. Don't forget to unplug the transmitter too!
To make sure that your headphones are ready to use at all times, plug
them in when you're not using them so that they can recharge.
![](/img.php?id=986474&img=bg9.png)
uS I n G Y o u r H e a d p H o n e S
9

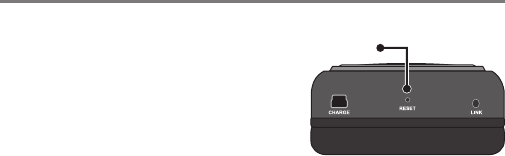

Reset
button
Resetting the
Headphones
If you ever want to return the
headphones to their factory presets,
simply reset the headphones by
triggering the reset button on the
right headphone with a paper clip.
Important Note About Audio Outputs
If possible, use a xed-level (or line-level) audio output from your
audio source. This kind of output provides a consistent level of audio
that doesn’t change when you adjust the source’s volume control.
Fixed-level audio outputs from stereo receivers/amps are typically
designated as tape or VCR audio output connections, sometimes
marked on the component as ‘TAPE OUTPUT,’ ‘TAPE OUT,’ ‘TAPE REC,
or ‘TAPE RECORD or REC OUT.’
Fixed-level outputs from TVs are usually marked as ‘Constant,’ ‘Fixed,’
or ‘Select.’ If they are not marked as such, they are probably variable
outputs (see “About Variable-Level Audio Outputs” below). Outputs
from DVD players are almost always xed.
Important: Jacks labeled CD, DVD/DVR, PHONO, or tape playback
(PB) are INPUTS and will not work with the transmitter.
Variable‑Level Audio Outputs
A variable-level output, such as a headphone jack or certain RCA-type
outputs, provides an audio signal that changes with the volume level
set on the audio source. As the volume of the audio source is adjusted
up and down, so is the audio signal strength sent to the transmitter.
This can affect the quality of sound generated by the headphones, and
may require an adjustment of the volume level of the audio source to
produce a signal strong enough for the transmitter.
Hints:
• On most bookshelf-type or compact stereo systems, inserting a
headphone plug into the headphone jack results in automatic cutoff of
the regular, or hard-wired speakers.
![](/img.php?id=986474&img=bga.png)
10
• Most TVs, regardless of age or price, have variable outputs. If you
are unsure which of your TV audio outputs is xed, refer to the TV
instruction manual. Some TVs have outputs that can switch between
variable and xed. When given a choice, xed is always recommended.
Listen safely!
Enjoy your headphones at a safe volume. Avoid or limit the amount of
time you listen at higher volumes—permanent hearing loss may occur if
the headphone is used at too high a volume. If you experience a ringing
in your ears, or your own voice and other sounds seem mufed, stop
using the headphones and consult a hearing professional.
Battery life
Due to the chemistry of the headphones’ rechargeable battery,
required charging time may increase while the actual capacity of
the battery may decrease. If you have any questions regarding
the replacement of the built-in battery, please call toll-free
1-800-732-6866 or visit www.araccessories.com.
The following troubleshooting guide takes you through some of the more common
problems associated with the installation and/or operation of a wireless system. If the
problem persists, please call toll-free 1-800-732-6866 or visit www.araccessories.com.
The headphones can be reset as well. If you experience persistent problems with the
headphones, see page 9 for reset instructions.
• Make sure the transmitter’s power adapter is fully inserted into the wall outlet and
the power cord from the AC adapter is rmly connected to the transmitter power
input jack.
• Check that the audio source component (stereo, TV, etc.) is turned on and
transmitting sound as it normally should. If you’re using a PC or DVD player, make
sure you’ve selected the correct audio output and that the sound is not muted.
No sound
uS I n G Y o u r H e a d p H o n e S
tr o u B l e S H o o t I n G
![](/img.php?id=986474&img=bgb.png)
tr o u B l e S H o o t I n G
11
• Conrm that the headphones are turned on (the LED is blue) and tuned to the
transmitter. If the LED on the right headphone is ashing blue, the headphones
are not tuned to the transmitter. Press the link key on the headphones and on the
transmitter’s back panel to tune the headphones.
• Check that the headphone volume is turned up.
• If you’re using a variable output audio source (like a headphone jack or variable
output on a TV set), make sure the source component’s volume is set high enough
for the transmitter to detect.
• If you are using a Tape 2 Monitor output from your receiver/amp as the audio output,
check that you have pressed the Tape Monitor/Tape 2 button on the front of the
receiver. This will turn on the Tape 2 outputs, which may not have been active.
Interrupted sound
• Move closer to the transmitter with the headphones on. Sending the signal
through certain materials, such as glass, tile, and metal, can decrease the effective
transmitting distance of the system.
• Make sure the headphones are charged and that the transmitter is properly
connected to the audio source. Then, move the headphones close to the transmitter
and press the headphone power button again.
LEDs fail to light up
• Check the LED on the right headphone. If it’s blinking, you’ve lost the transmitter’s
signal. Move closer to the transmitter. If you don’t see the LED, the headphones’
rechargeable battery needs to be recharged. Use the AC adapter to recharge the
headphones.
Headphones shut off automatically
![](/img.php?id=986474&img=bgc.png)
12 Month Limited Warranty
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this
product that should this product or any part thereof, under normal use and conditions, be proven
defective in material or workmanship within 12 months from the date of original purchase, such
defect(s) will be repaired or replaced (at the Company’s option) without charge for parts and repair
labor. To obtain repair or replacement within the terms of this Warranty, the product along with any
accessories included in the original packaging is to be delivered with proof of warranty coverage
(e.g. dated bill of sale), specication of defect(s), transportation prepaid, to the Company at the
address shown below. Do not return this product to the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside
the United States or Canada. The warranty does not extend to the elimination of externally
generated static or noise, to costs incurred for the installation, removal or reinstallation of the
product. The warranty does not apply to any product or part thereof which, in the opinion of the
company, has suffered or been damaged through alteration, improper installation, mishandling,
misuse, neglect, accident or exposure to moisture. This warranty does not apply to damage caused
by an AC adapter not provided with the product, or by leaving non-rechargeable batteries in the
product while plugged into an AC outlet.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY
HEREUNDER, INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS
FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized
to assume for the Company any liability other than expressed herein in connection with the sale
of this product. Some states/provinces do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damage so the above limitations
or exclusions may not apply to you. This Warranty gives you specic legal rights and you may also
have other rights which vary from state/province to state/province.
USA: Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit 3, Door 16,
Mississauga, Ontario L5T 3A5
© 2008 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032 USA
www.araccessories.com
AWD209_US_IB_00
Trademark(s) Registered
All other brands and product names are trademarks
or registered trademarks of their respective owners.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
