Video Baby Monitor
System
with 1.5” Mini Monitor
User Guide
What’s inside
Welcome! ................................................................ 2
Getting started ...................................................... 3
Tour of the system ............................................... 7
Everyday use .........................................................13
Cameras ...................................................... 14
Motion/Alerts ............................................ 18
Recording ................................................... 21
Playing Back Pictures and Videos ......22
Sleep Mode ................................................23
Lullabies ..................................................... 24
Contrast ......................................................25
Settings ...................................................... 26
Troubleshooting / FAQs ..................................28
![](/img.php?id=3055331&img=bg2.png)
Getting Started
2
Step 1: Unpack
WELCOME!
This baby monitoring system
makes it simple to keep your
eyes and ears on your little
one! This guide takes you
through the steps to get
started!
See our setup videos
Go to ProjectNursery.com/
Electronics or scan the QR code
here.
Before you start...
Make sure you read the Important Information
sheet included in this package.

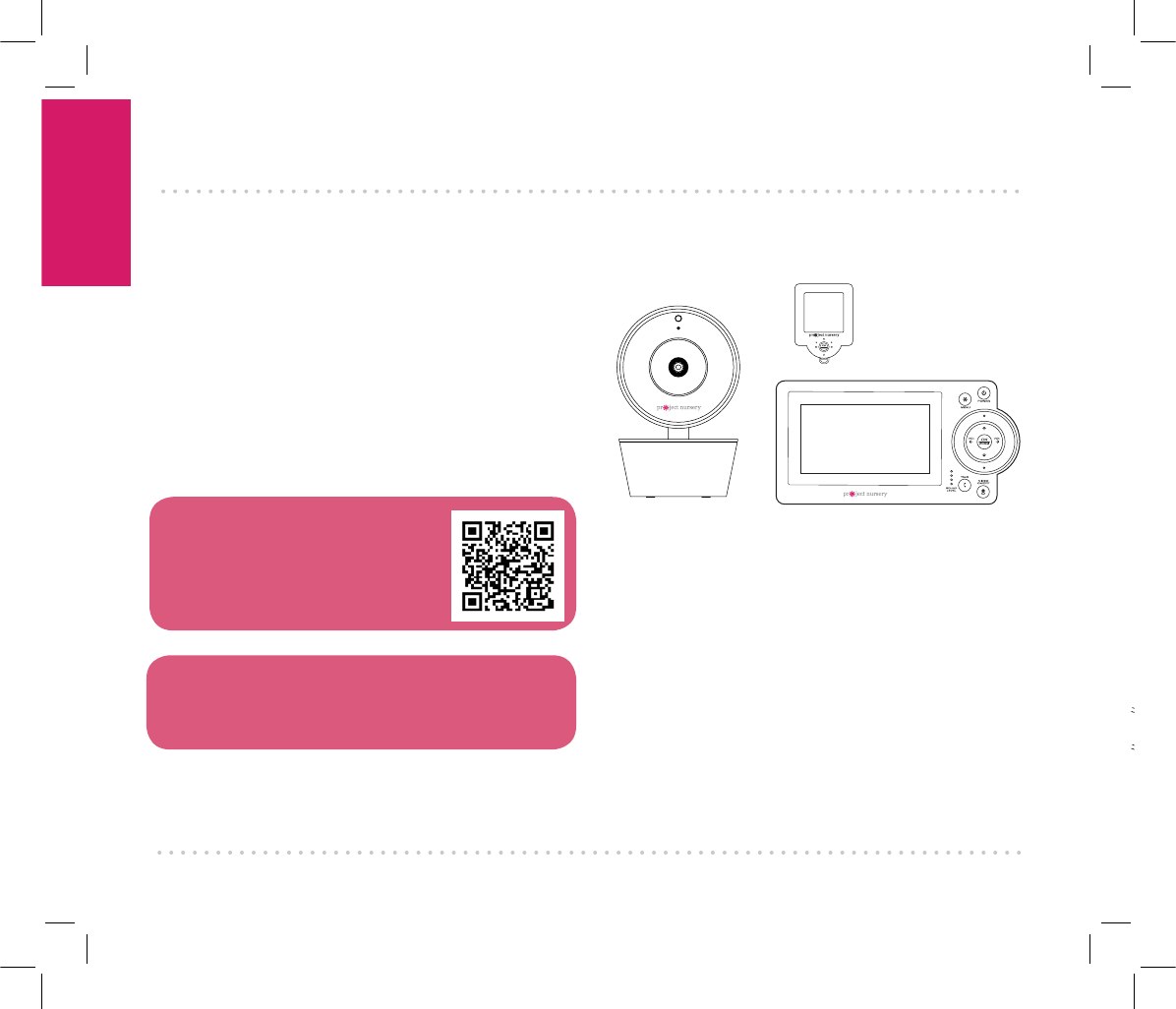

Wireless camera Parent monitor
Mini monitor
The accessories:
(2) 10-foot charging cables
(1) 3-foot charging cable (for the mini monitor)
(1) dual power adapter (for the monitors)
(1) single power adapter (for the camera)
(1) wristband
(1) lanyard
(1) carabiner
(1) clip
Note: Micro SD card included in model PNM5W01S.
![](/img.php?id=3055331&img=bg3.png)
Getting Started
3
GETTING STARTED

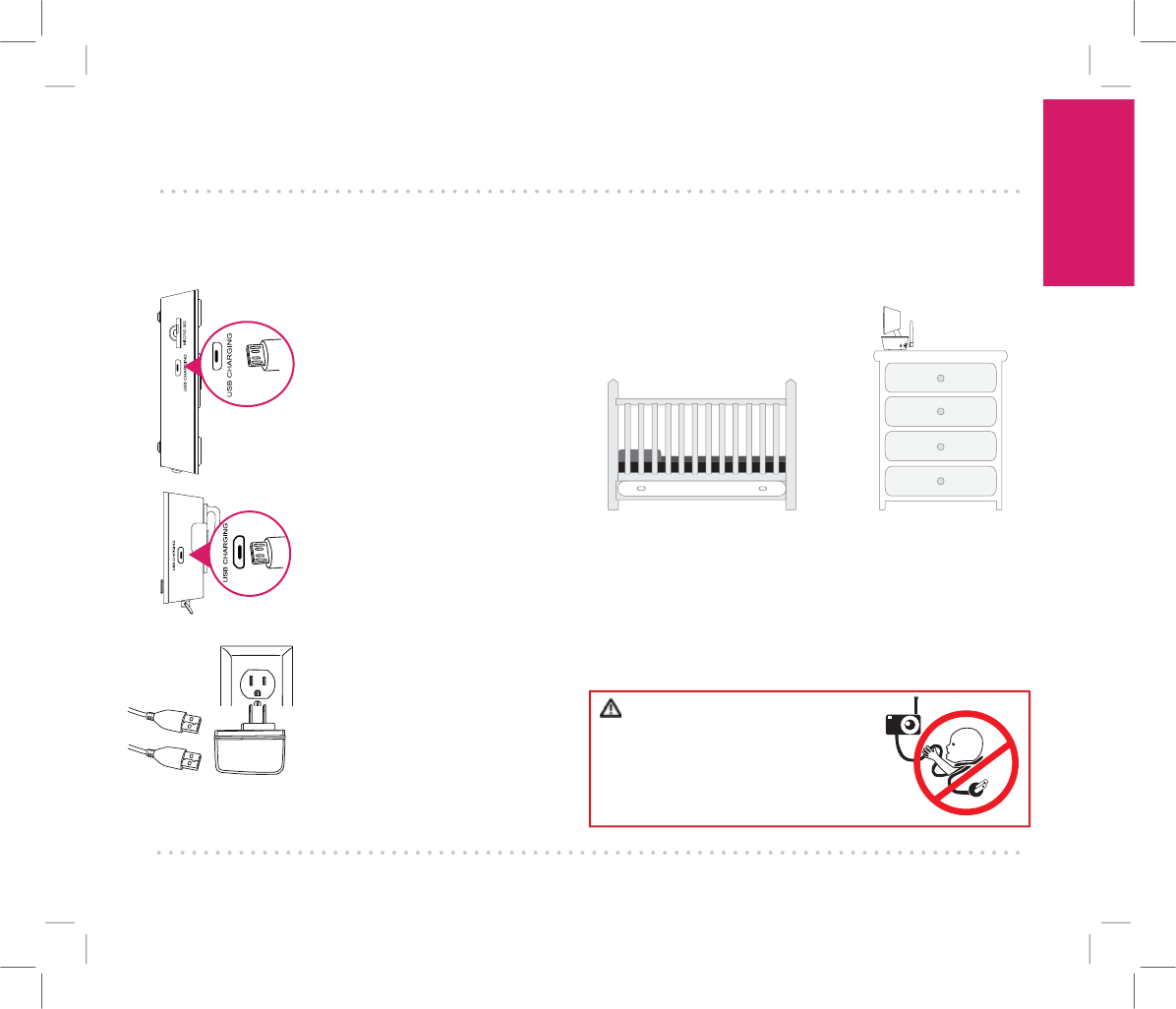

Find the short charging cable
included in this package.
Plug one end of this cable into
the USB CHARGING jack on
the side of the mini monitor.
Find one of the long charging
cables included in this
package.
Plug one end of this cable into
the USB CHARGING jack on
the side of the parent monitor.
Plug the other ends of the
charging cables into the
double charging adapter. Then
plug the adapter into an outlet
or surge protector.
Step 2: Charge the monitors
Find a location for the
camera that gives you the
best view of your baby in his
or her crib.
Place the camera on a flat surface, like a
dresser or shelf, or mount the camera to a wall
using the keyhole slots on its bottom.
IMPORTANT: NEVER place the camera or cords
of any kind inside the crib. NEVER place the
camera or cords within reach of the baby.
Step 3: Position the camera
WARNING
Strangulation Hazard: Children have
STRANGLED in cords. Keep this cord
out of the reach of children (more than
3ft (0.9m) away). Never use extension
cords with AC Adapters. Only use the AC
Adapters provided.
![](/img.php?id=3055331&img=bg4.png)
Getting Started
4

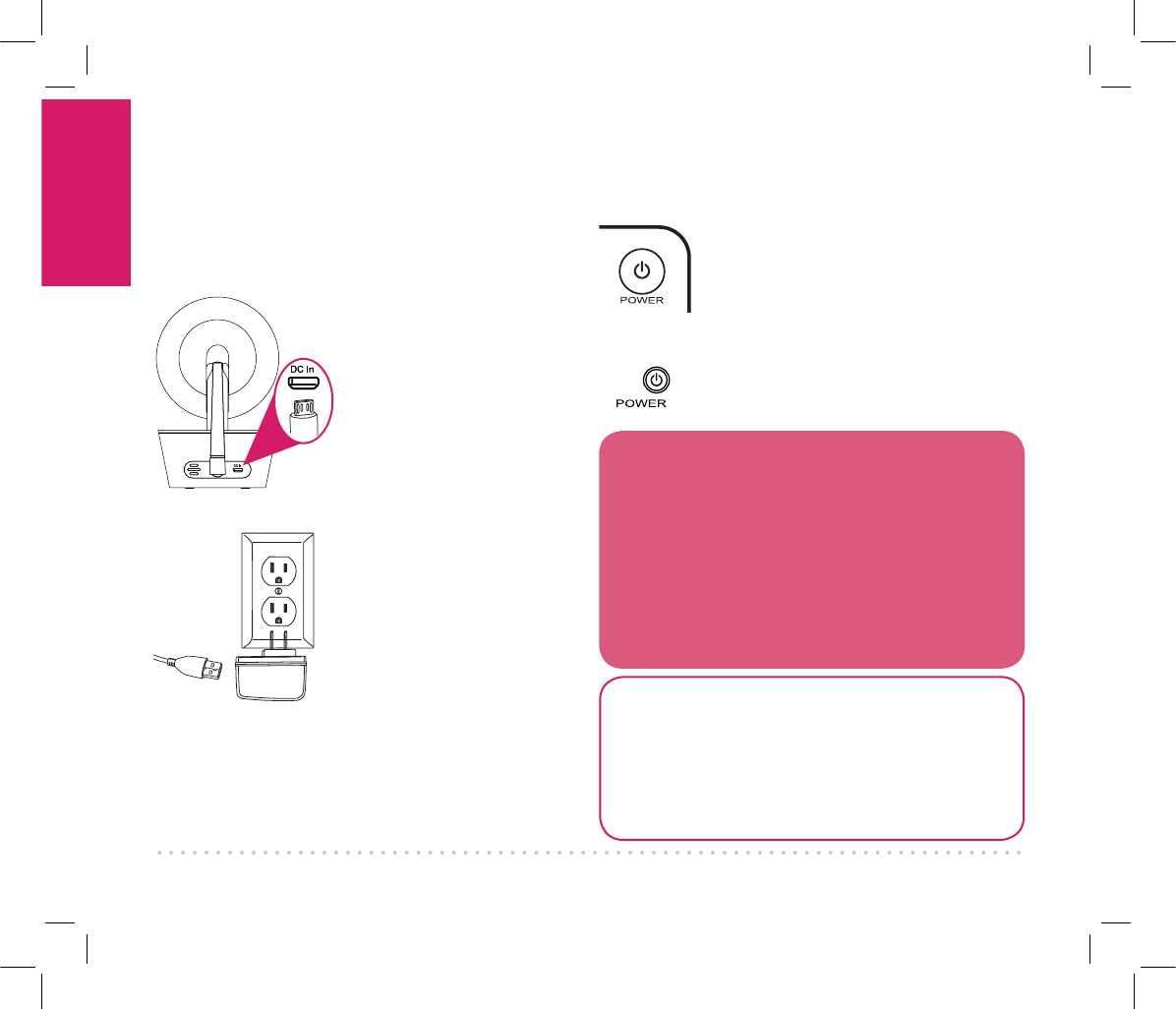

Find the other long charging cable included in
this package.
Plug one end into the DC
In jack on the back of the
camera.
Plug the other end into
the single charging
adapter. Then plug the
adapter into an outlet or
surge protector.
The camera turns on
automatically when it’s
plugged in (the indicator
light on the base below
the camera lens turns
blue).
Step 4: Plug in the camera
Press and hold the POWER
button on the parent monitor to
turn it on.
Press and hold the POWER
button on the top of the mini
monitor to turn it on.
Step 5: Turn everything on
Congratulations!
Your system is ready to use! The camera comes
pre-paired with your parent and mini monitors.
However, it’s a good idea to go ahead and set
the time on both your parent and mini monitors
now, before you start using them.
For information on how to use your new
system, see the next chapter of this owner’s
manual.
IMPORTANT!
To keep this baby monitoring system as
secure as possible, only one monitor can view
video at a time. If you want to use the mini
monitor, for example, make sure you power
the parent monitor off (and vice-versa).
![](/img.php?id=3055331&img=bg5.png)
Getting Started
5
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Date: 01/01/16
Time: 12:00 AM
Use the up/down arrow buttons to set the
month, day, and year.
4
After setting the year, press the right arrow
to adjust the time.
Use the up/down arrows to set the hours,
minutes, and AM/PM. Press OK/ZOOM
when you’re finished.

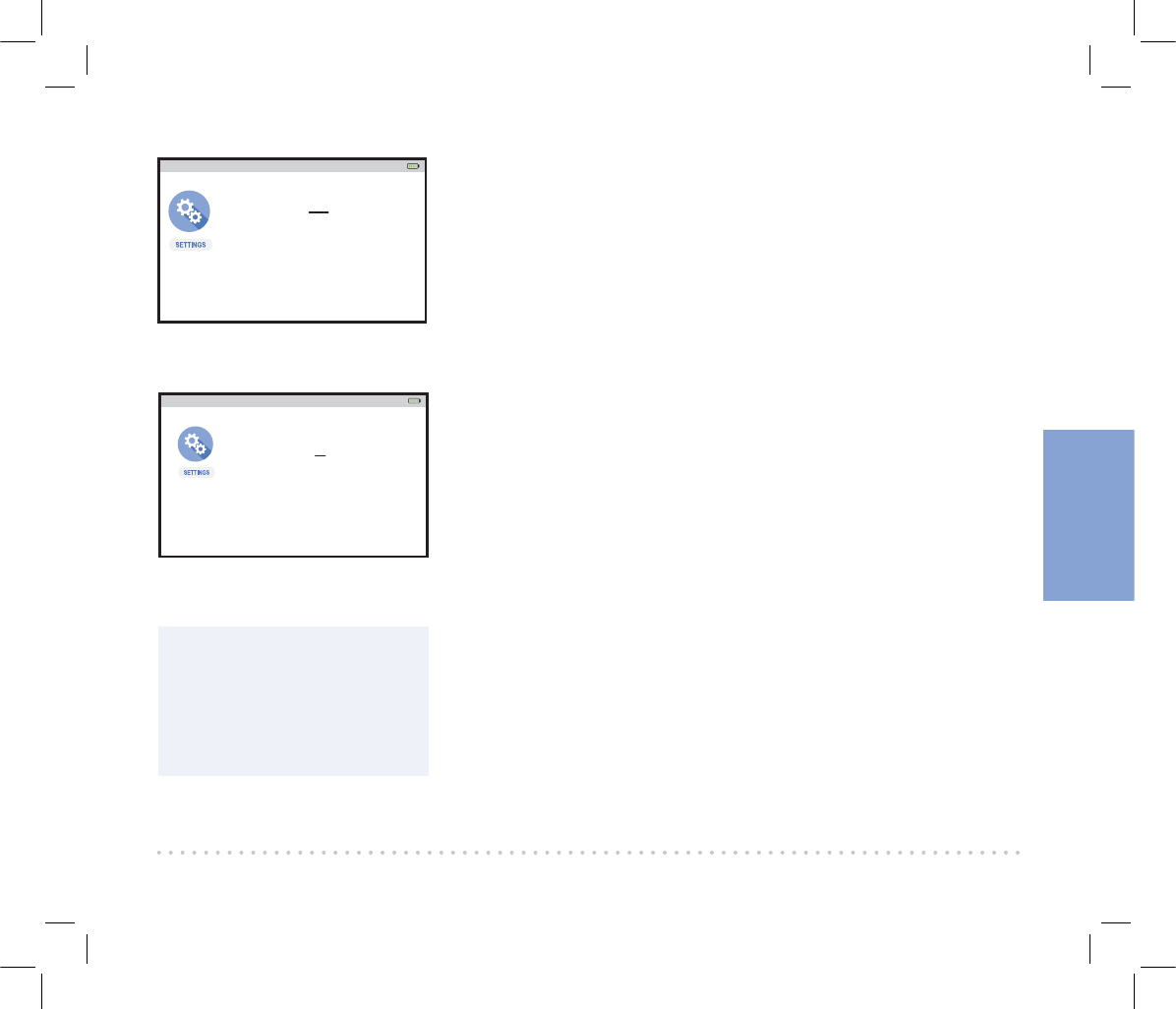

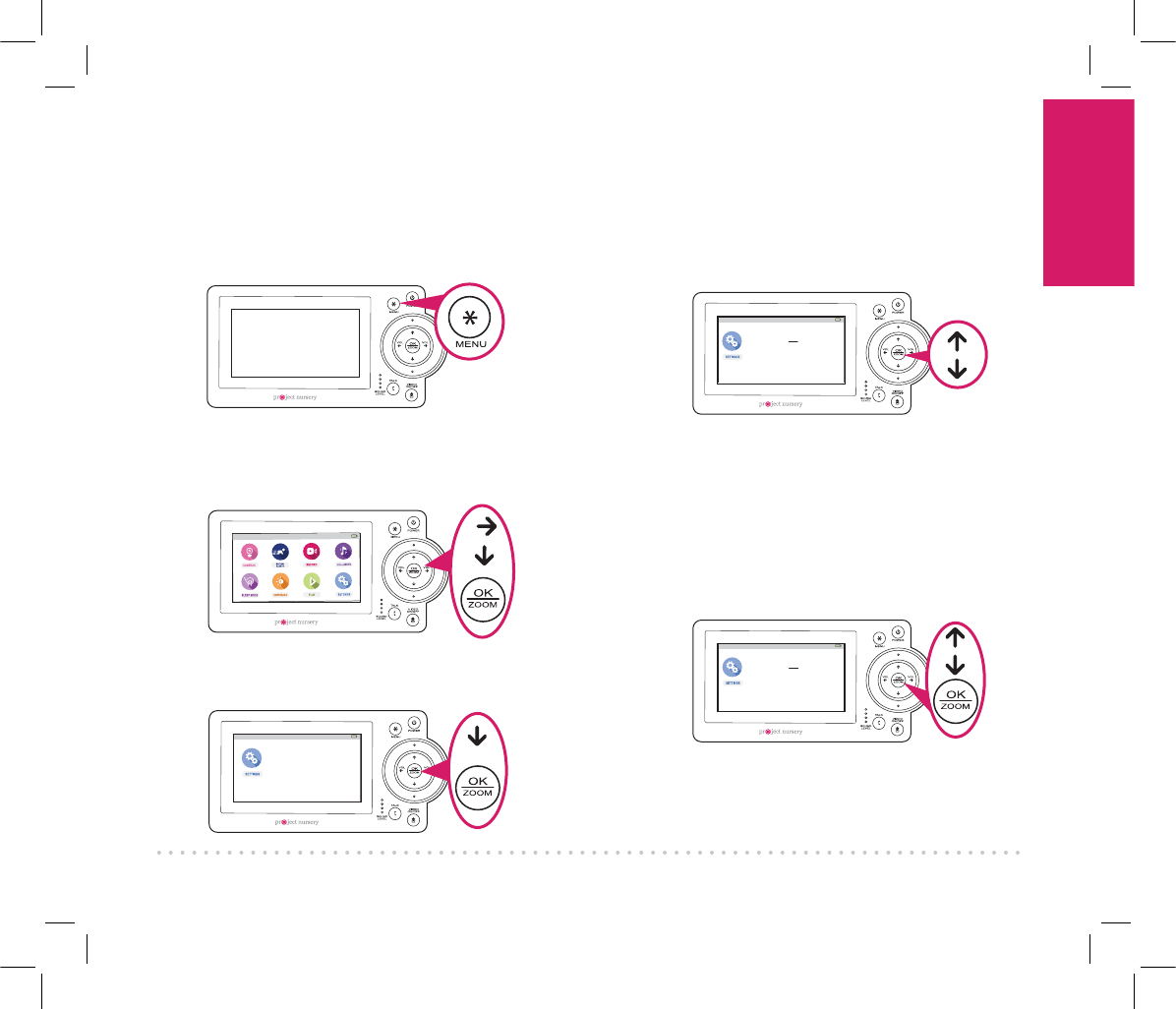

Step 6: Set the date and time on the parent monitor
Use the arrows to highlight SETTINGS. Press
OK/ZOOM to select it. The Settings menu
appears on screen.
Press the down arrow to highlight Time Set.
Press OK/ZOOM to select it.
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Press the MENU button on the parent
monitor. The menu appears on screen.
12:00AM
1
2
3
5
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Date: 01/01/16
Time: 12:00 AM
![](/img.php?id=3055331&img=bg6.png)
Getting Started
6
72º 12:00AM
Temperature C/F
Time Set
Factory Reset
Support
Product Information
Button Information
72º 12:00AM
Temperature C/F
Time Set
Factory Reset
Support
Product Information
Button Information
72º 12:00AM

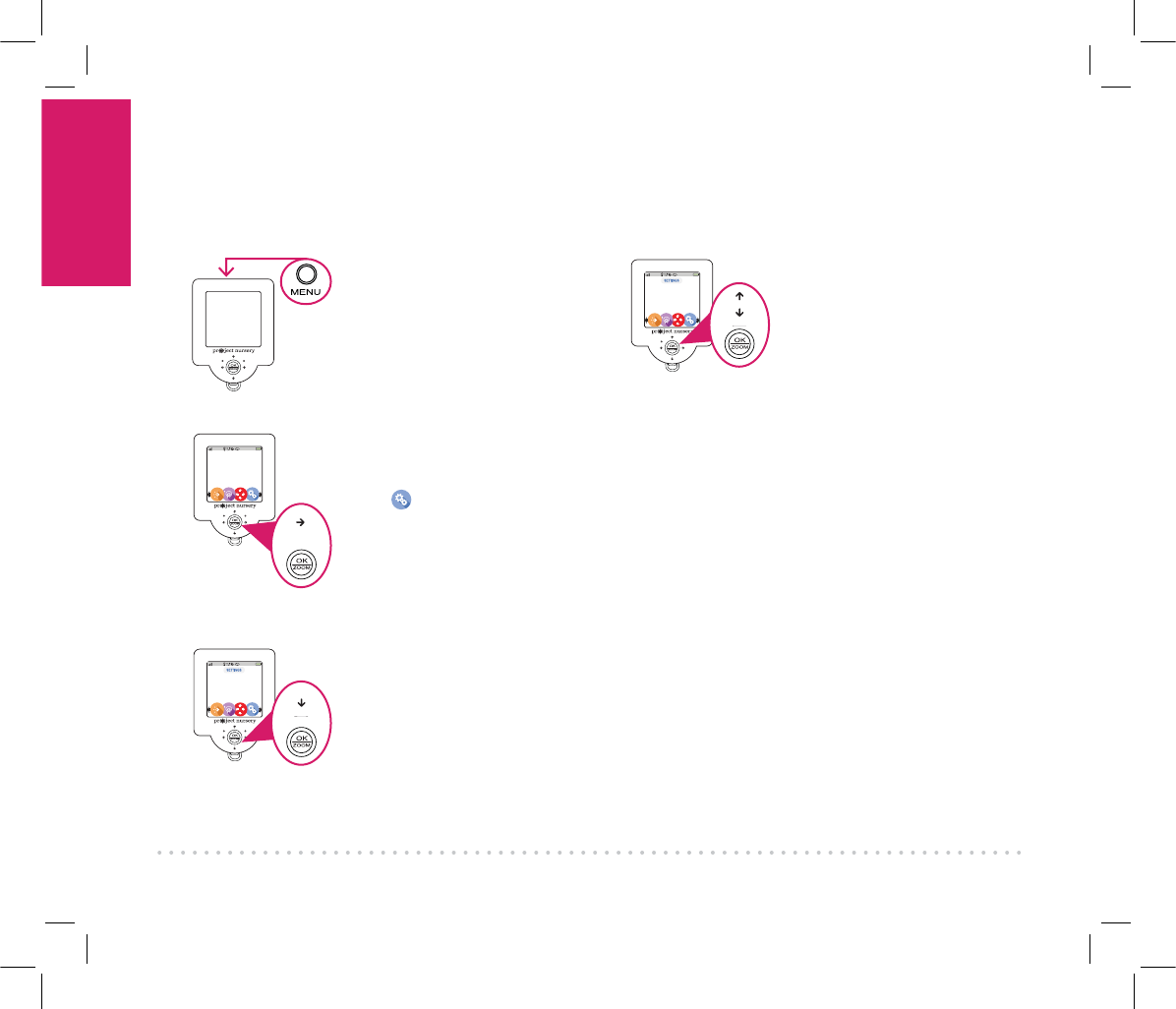

Press the MENU button
on the top of the mini
monitor.
The menu appears on
screen.
Move the joystick on the
front of the mini monitor
to the right to highlight
the (Settings) icon.
Press OK/ZOOM to
select it. The Settings
menu appears.
Move the joystick down
to highlight Time Set.
Press OK/ZOOM to
select it.
Use the up/down joystick
to set the month, day,
and year.
After setting the year,
press the right joystick to
adjust the time. Use the
up/down joystick to set
the hours, minutes, and
AM/PM. Press OK/ZOOM
when you’re finished.
1
2
3
4
Step 7: Set the date and time on the mini monitor
![](/img.php?id=3055331&img=bg7.png)
Tour of the system
7

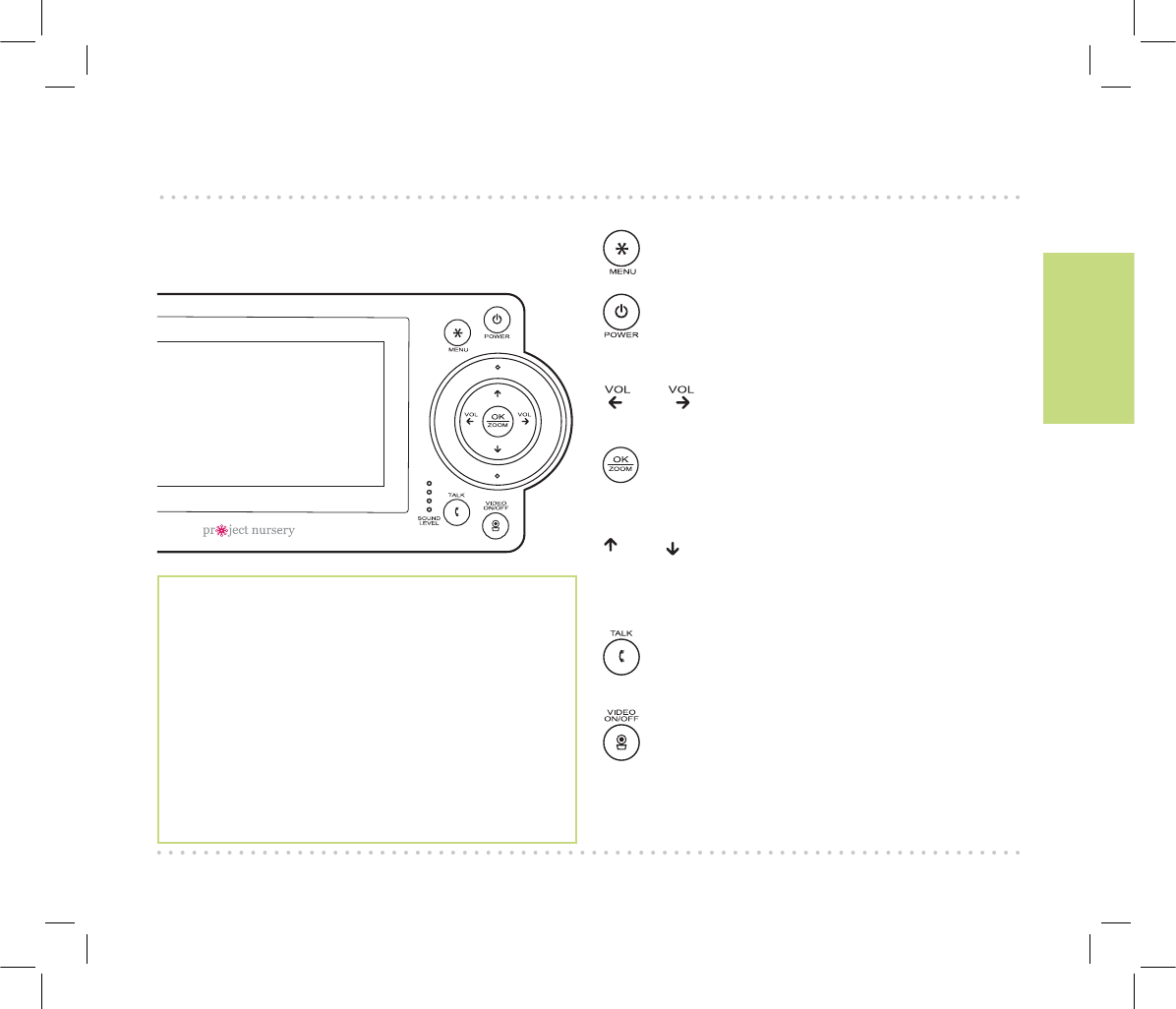

Parent Monitor accesses the system’s menu screens.
turns the monitor on and off (press and
hold).
and turn the volume down/up. In menu
screens, these navigate left/right.
zooms the camera in/out. Press and hold
to start pan/tilt of the camera, then use the
arrows to pan and tilt.
and navigate up/down in menu screens.
SOUND LEVEL indicators show you the level of
sound from your baby’s room.
lets you talk through the camera’s
speaker. Press and hold while talking.
turns the screen on and off. Press and
hold to switch cameras if you have more than
one paired to this monitor.
TOUR OF THE SYSTEM
Watching baby
You can turn the display on and off without
turning the monitor off. You’ll still hear your
baby, but the display will be asleep until you
awaken it.
To turn the display on or off: Press the
VIDEO ON/OFF button on the parent
monitor.
IMPORTANT: To see video on the parent
monitor, make sure the mini monitor is
powered off.
![](/img.php?id=3055331&img=bg8.png)
Tour of the system
8
Parent monitor side and back panels

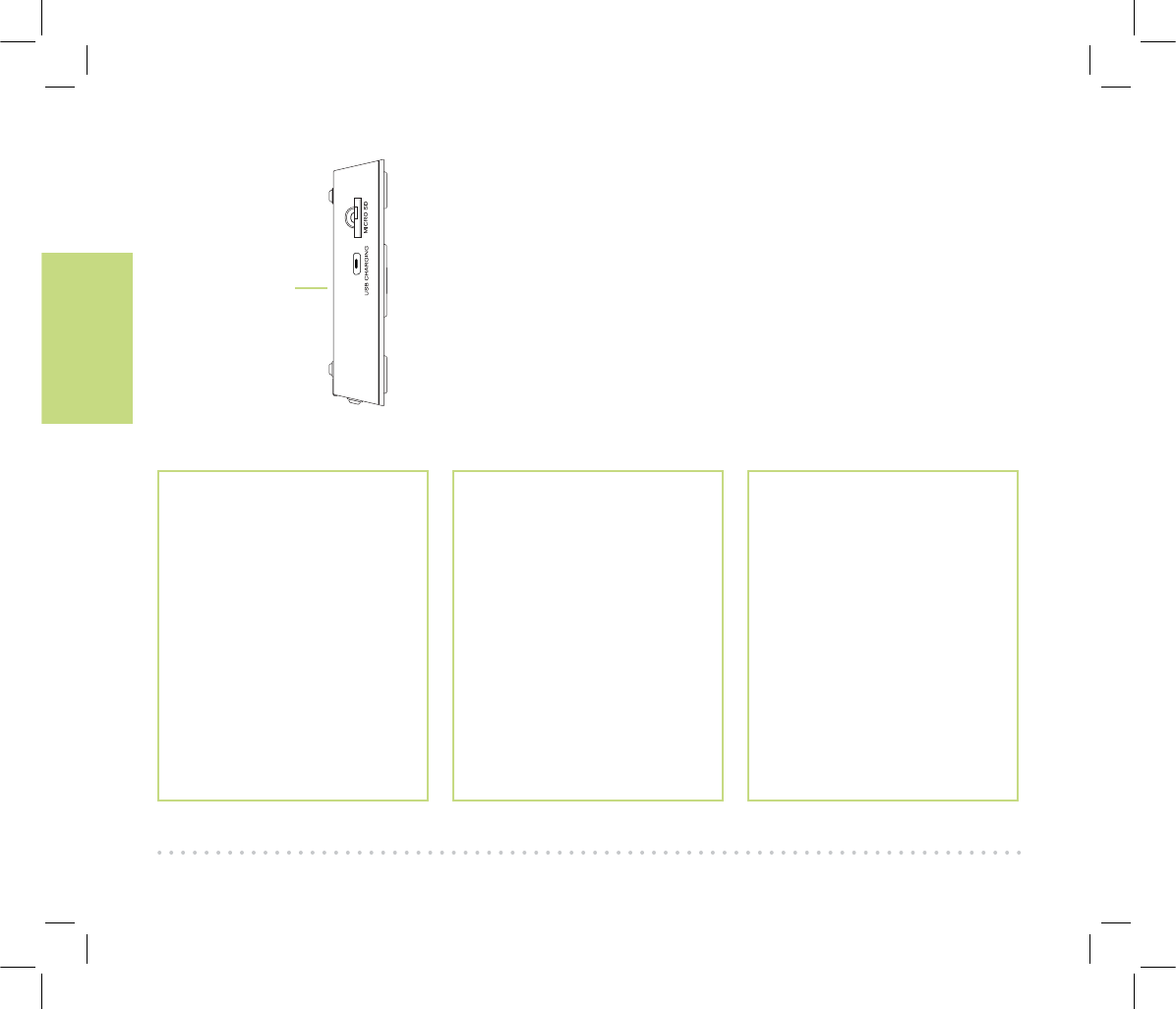

MICRO SD slot holds the memory card (included with model
PNM5W01S; not included with other models) for video or still
image recording.
USB CHARGING jack plugs into your charging cable to recharge
or power the parent monitor.
Built-in easel stand lets you stand the unit on a flat surface.
Pan, Tilt, and Zoom
To zoom the active camera:
Press the OK/ZOOM button
on the parent monitor.
To pan or tilt the active
camera: Press and hold the
OK/ZOOM button until the
pan/tilt arrows appear on
the screen. Then use the
arrow buttons to pan and tilt
the camera.
Talking to baby
To talk through the speaker
on the active camera: Press
and hold the TALK button on
the parent monitor.
Talk normally to the parent
monitor while you’re
pressing the TALK button—
your voice will come out on
the camera’s speaker.
Release the TALK button
when you’re done talking.
Built-in easel
stand
Listening to baby
The SOUND LEVEL
indicators on the parent
monitor show you at a
glance the sound level in
your baby’s room, regardless
of how loud the audio is on
the parent monitor.
To increase or decrease
the volume of the audio
monitor: Press the VOL+ or
VOL– buttons on the parent
monitor.
![](/img.php?id=3055331&img=bg9.png)
Tour of the system
9
Mini monitor
POWER turns the mini monitor on and off (press and hold).
MENU accesses the system’s menu screens.
TALK lets you talk through the camera’s speaker. Press and hold while
talking.
VIDEO turns the screen on and off. Press and hold to switch cameras if you
have more than one paired to this monitor.
Left/Right arrows navigate left/right in menu screens.
OK/ZOOM zooms the camera in/out. Press and hold to start pan/tilt of the
camera, then use the arrows to pan and tilt.
Up/Down arrows turn the volume down/up. In menu screens, these navigate
up/down.
USB CHARGING jack (right side) plugs into your charging cable to recharge
or power the mini monitor.
To turn the display on or off:
Press the VIDEO button on
the mini monitor.
IMPORTANT: To see video
on the mini monitor, make
sure the parent monitor is
powered off.
To zoom the active camera:
Press the OK/ZOOM button
on the mini monitor.
To pan or tilt the active
camera: Press and hold the
OK/ZOOM button until the
pan/tilt arrows appear on
the screen. Use the arrow
buttons to pan and tilt the
camera.
To talk through the speaker
on the active camera: Press
and hold the TALK button
on the mini monitor, then
speak normally while you’re
pressing the TALK button.
Release the TALK button
when you’re done talking.
![](/img.php?id=3055331&img=bga.png)
Tour of the system
10

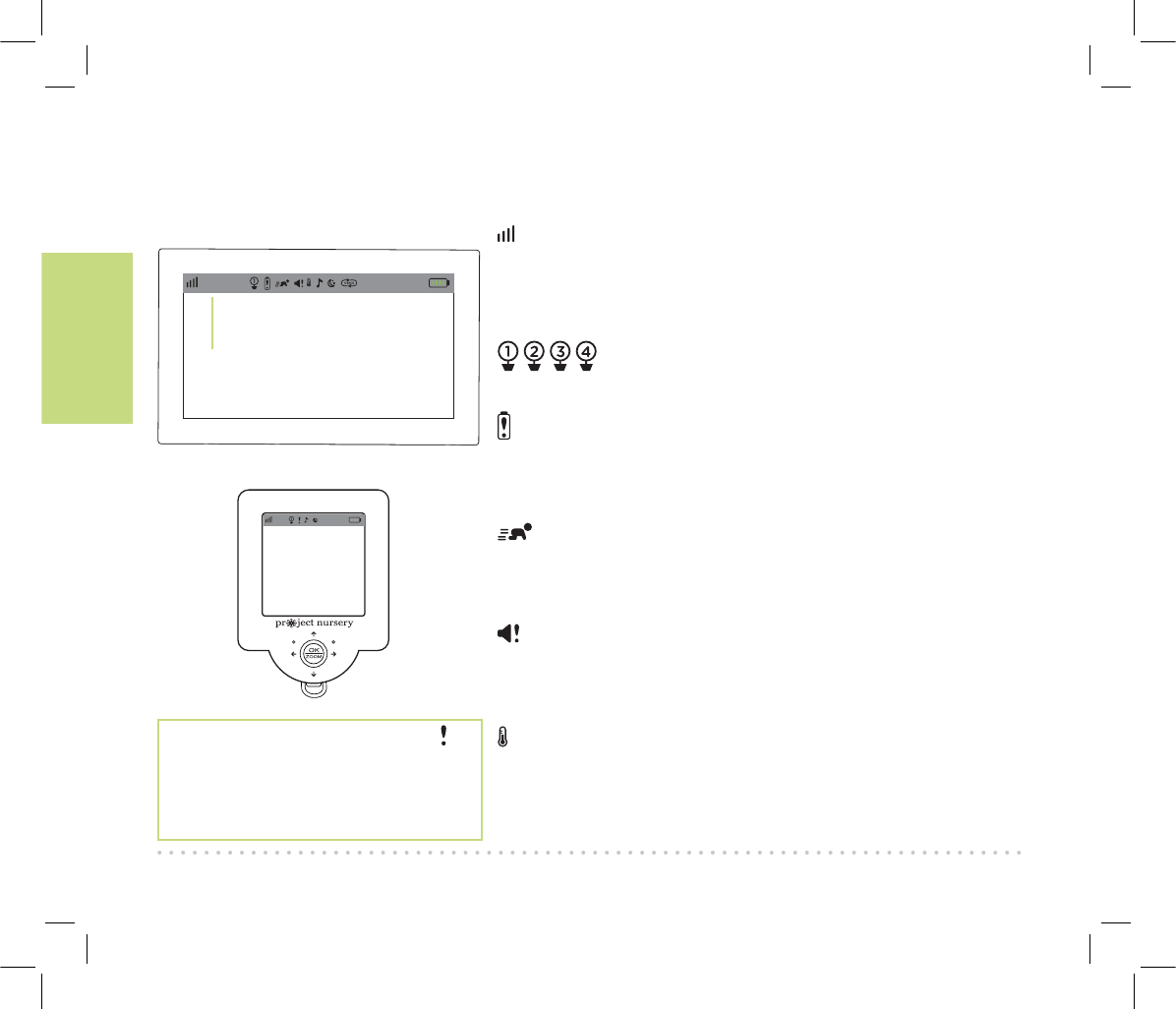

Status Bar Indicators
shows the strength of the current camera’s signal.
Temperature reading shows the temperature in Fahrenheit
at the active camera. If you want to change this to Celsius,
see page 27 for instructions.
shows the camera that the monitor is currently
displaying.
(parent unit only) indicates that the Low Battery Noise
alert is on. This means the monitor gives an audio signal
when it needs to be recharged. See page 18 for instructions
on turning this on and off.
(parent unit only) indicates that Motion Activated
Video Alert is on. This means the monitor automatically
switches on whenever the camera detects motion. See
page 18 for instructions on turning this on and off.
(parent unit only) indicates that Sound Activated Video
Alert is on. This means the monitor automatically switches
on whenever the camera detects sound. See page 18 for
instructions on turning this on and off.

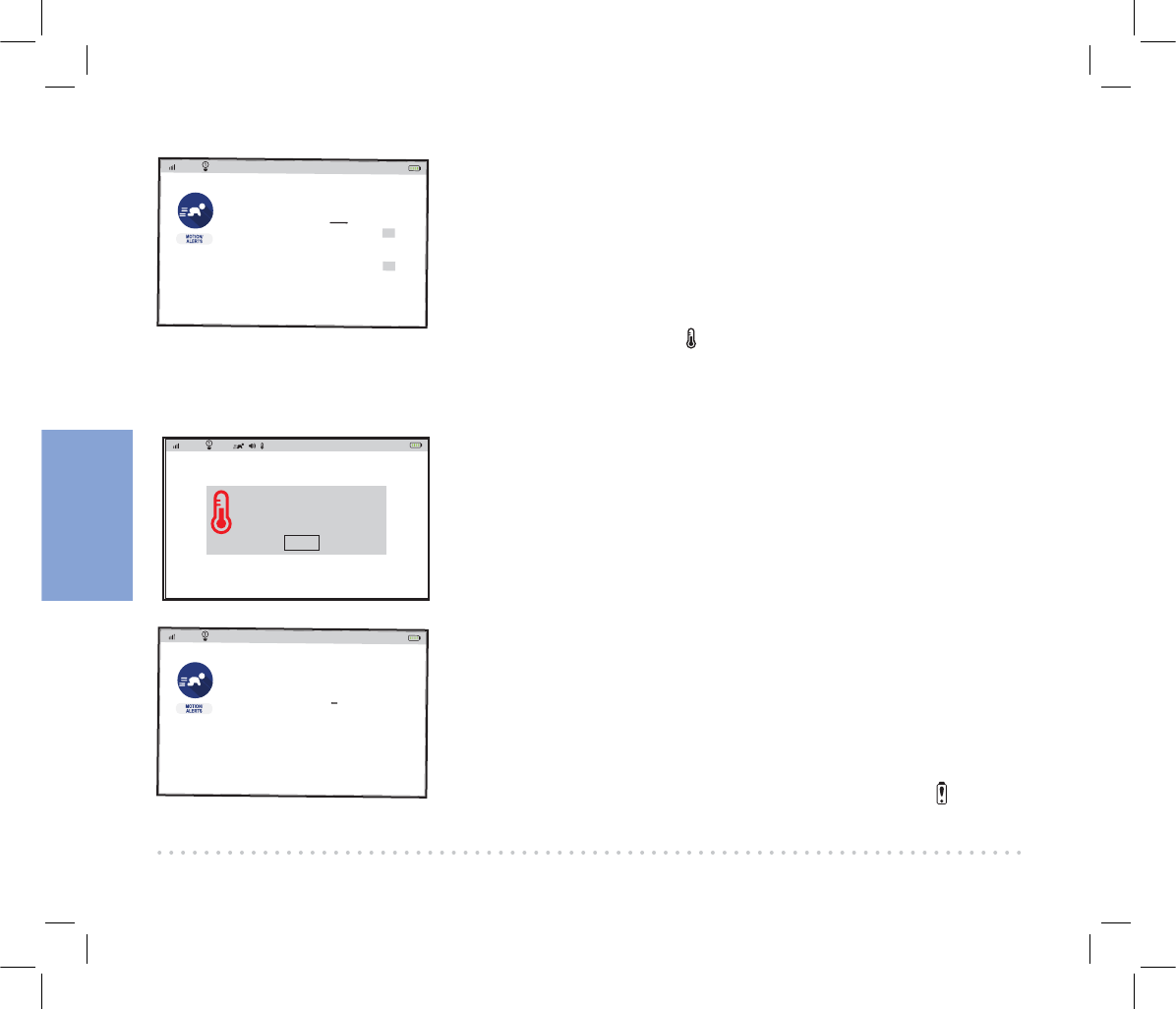

(parent unit only) indicates that Temperature Alert is
on. This means the monitor shows an alert message if the
temperature at a camera gets too high or too low. See
page 19 for instructions on setting temperature alerts.
72º 2:35 PM
Temperature
reading
72º 2:35 PM
Parent monitor
Mini monitor
Note: On the mini monitor, the
icon indicates that one or more
alerts (low battery, motion, sound
activated video, or temperature)
are active.
![](/img.php?id=3055331&img=bgb.png)
Tour of the system
11
indicates the Lullabies are playing through one of the cameras. See page 24 for instructions on
playing lullabies.
indicates that the camera is using night vision. The cameras automatically switch to night vision
when they detect that the room has gotten dark.
indicate that the monitor is scanning through the available cameras. The number
indicates how quickly the monitor switches cameras. See page 17 for information on turning
camera scanning on and off.
indicates the level of the monitor’s rechargeable battery. If you see or in this space,
it’s time to recharge. See page 3 for more information.

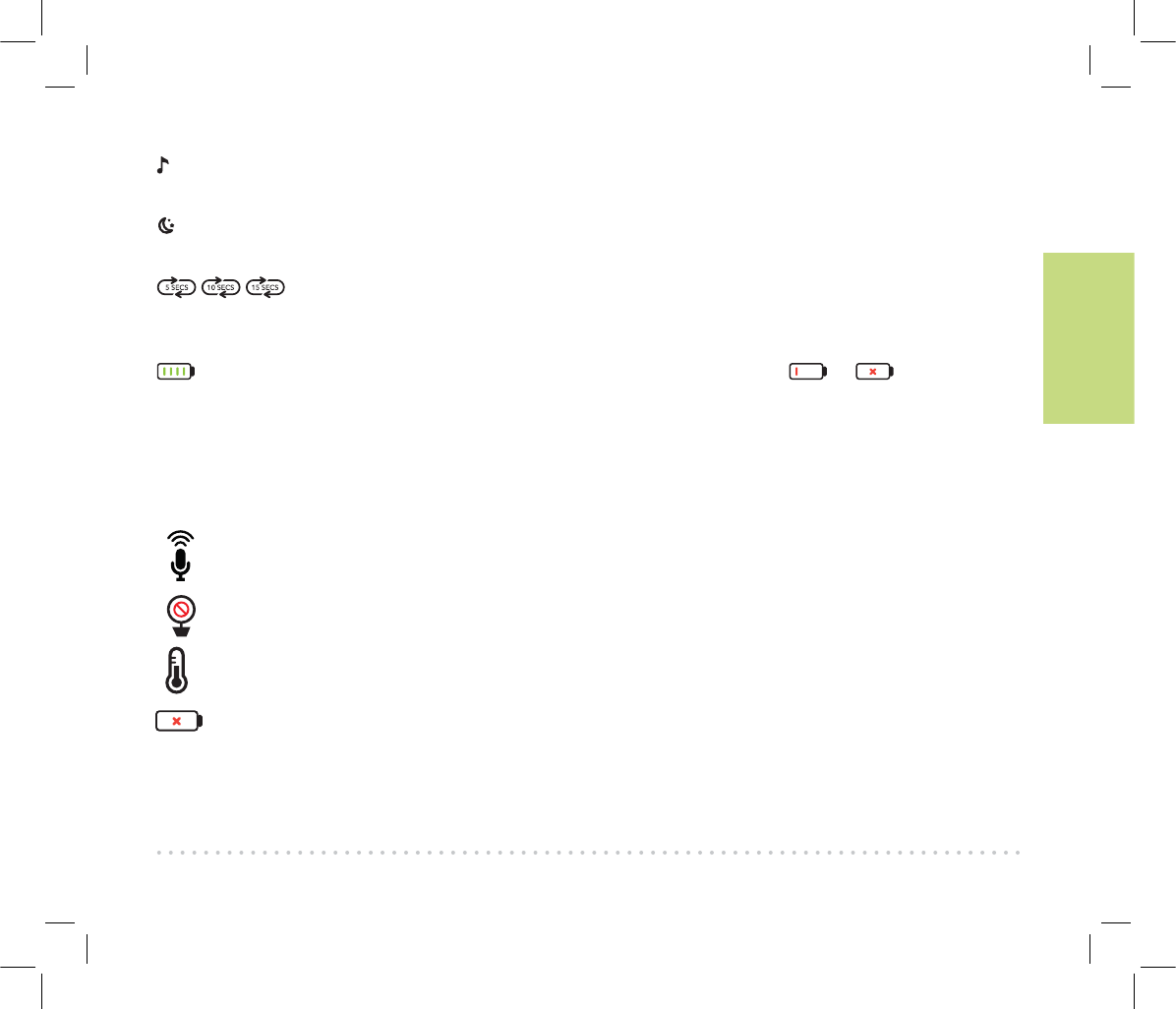

On-Screen Indicators
appears when you’ve pressed the TALK button and are talking through the camera’s
speaker. See page 8 for more information.
appears when the monitor cannot get the signal from the active camera or when another
monitor is in use. See page 27 for more information.
appears when a Temperature Alert has been triggered because your baby’s room is too hot
or cold.
appears when the monitor’s rechargeable battery has less than 10% charge.
![](/img.php?id=3055331&img=bgc.png)
Tour of the system
12

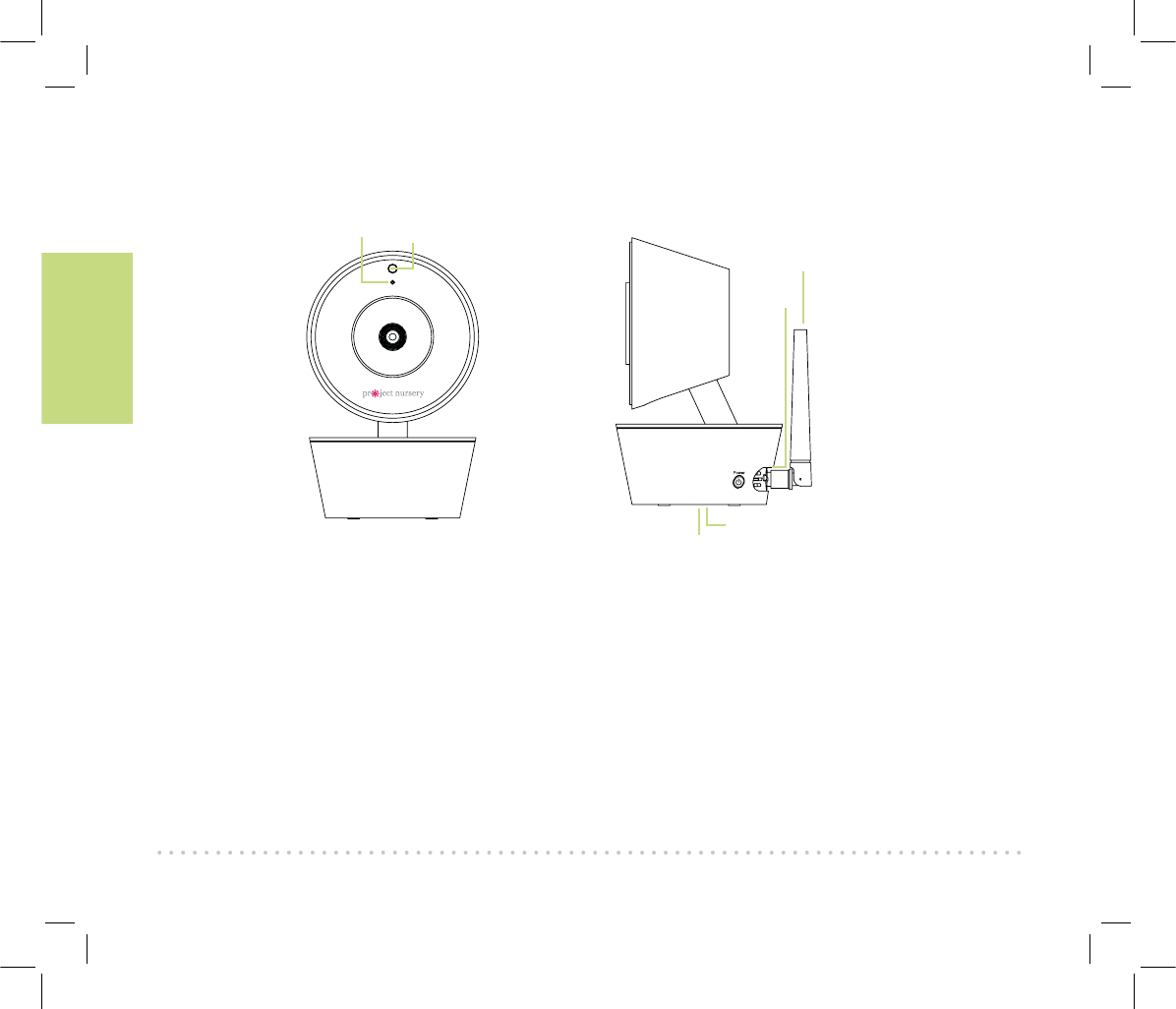

Camera
Nighttime sensor
Power (right side) turns the camera on and off (press and hold).
Pair (bottom) links the camera securely with the monitors (press and hold).
DC In (back) plugs into your charging cable to recharge or power the camera.
Mounting keyholes (bottom) let you mount the camera on a wall (mounting hardware not
included).
Adjustable antenna communicates wirelessly with the parent and mini monitors.
Microphone
Pair button
Mounting keyholes
DC In
Adjustable
antenna
![](/img.php?id=3055331&img=bgd.png)
Everyday use
13
3. EVERYDAY USE
This system’s menus
let you set up more
cameras, set motion and
temperature alerts, and
much more. This section
takes you through each
menu.
12:00AM
72º 12:00AM
Parent Monitor Menu
Mini Monitor
Menu

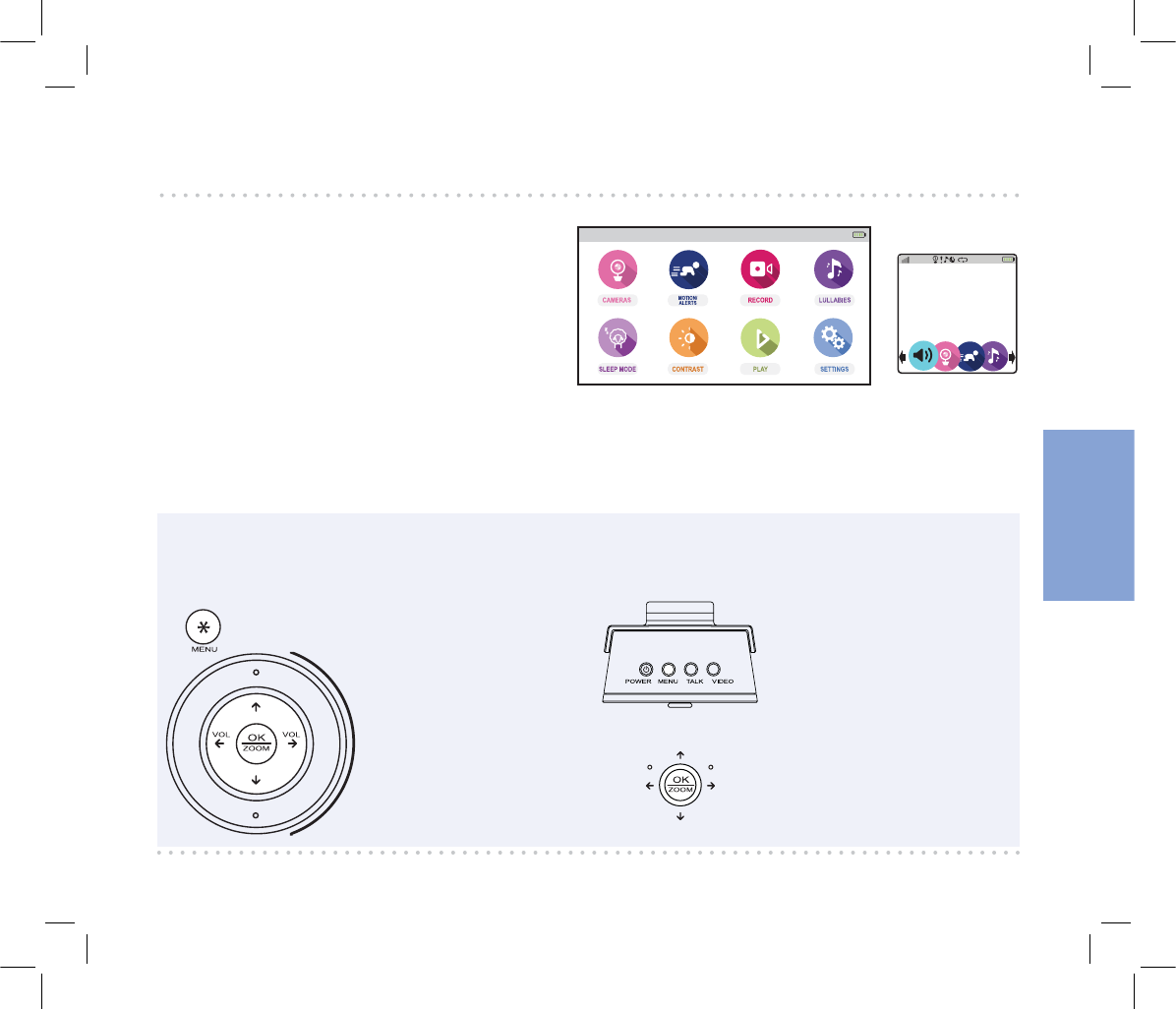

GETTING AROUND IN THE MENUS
Press MENU to access the menus.
Use the arrows to
highlight items.
Press OK/ZOOM to
select.
On the Parent Monitor On the Mini Monitor
Press MENU to access
the menus.
Use the joystick to
highlight items.
Press OK/ZOOM to
select.
![](/img.php?id=3055331&img=bge.png)
Everyday use
14

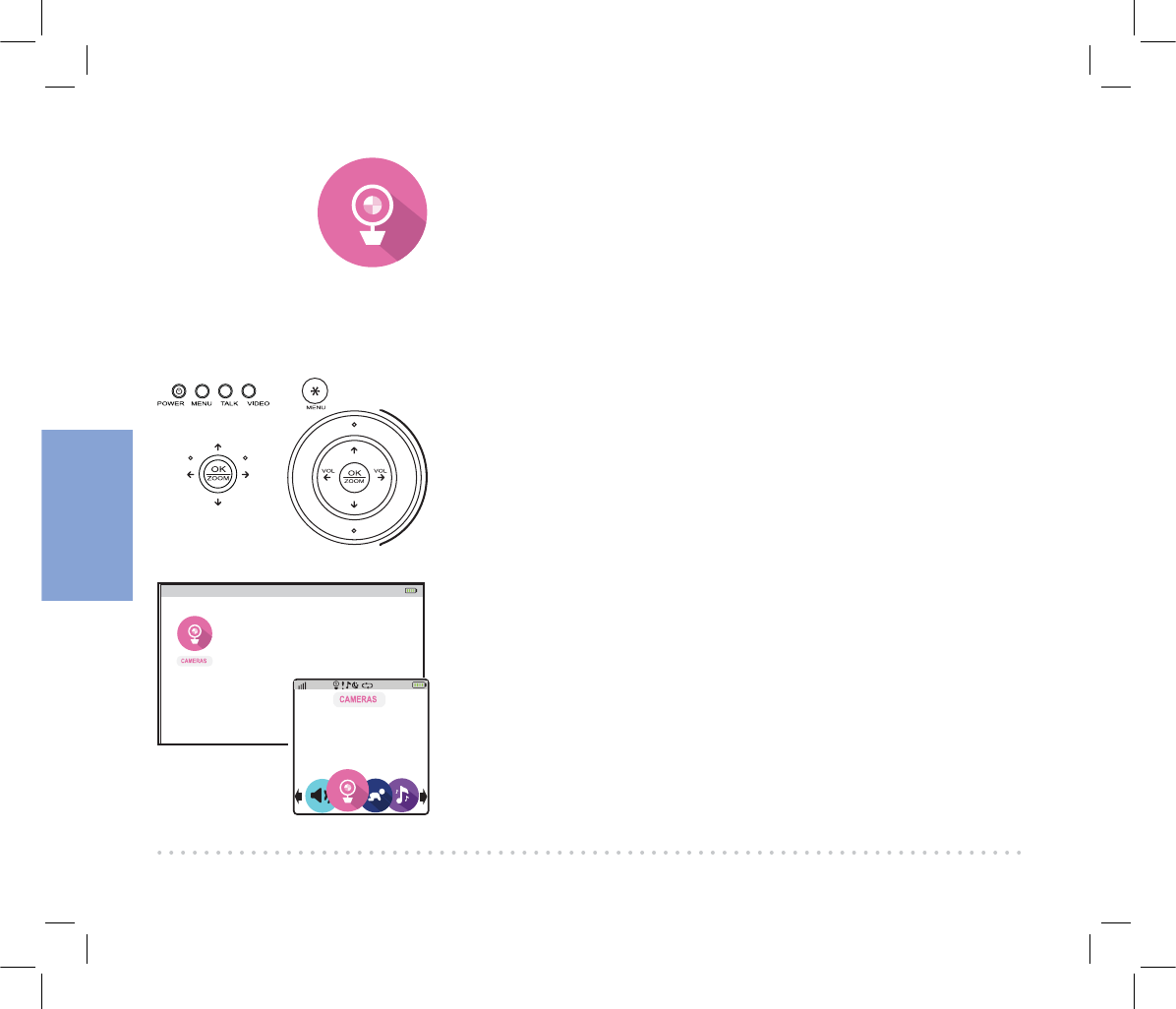

Cameras
The Cameras menu lets you pair additional cameras or remove
them from your list of cameras. It also lets you change the
volume of the audio coming from the camera speaker, or view
several cameras at once, using multi-view on your monitor or
scanning through them one by one.
Parent Monitor
Mini Monitor ACCESSING THE CAMERAS MENU
1 Press MENU on the parent monitor or mini monitor.
2 Use the arrow buttons or joystick to highlight the Cameras
icon, and press OK/ZOOM to select it.
PAIRING AN ADDITIONAL CAMERA
Note: Before you start pairing the monitors with your new
camera, bring the camera into the same room so that you have
it handy. You can put it back in the baby’s room once you’ve
finished pairing. Make sure the camera is plugged in and turned
on before you start.
IMPORTANT: Pair the parent monitor FIRST, before you pair
the mini monitor.

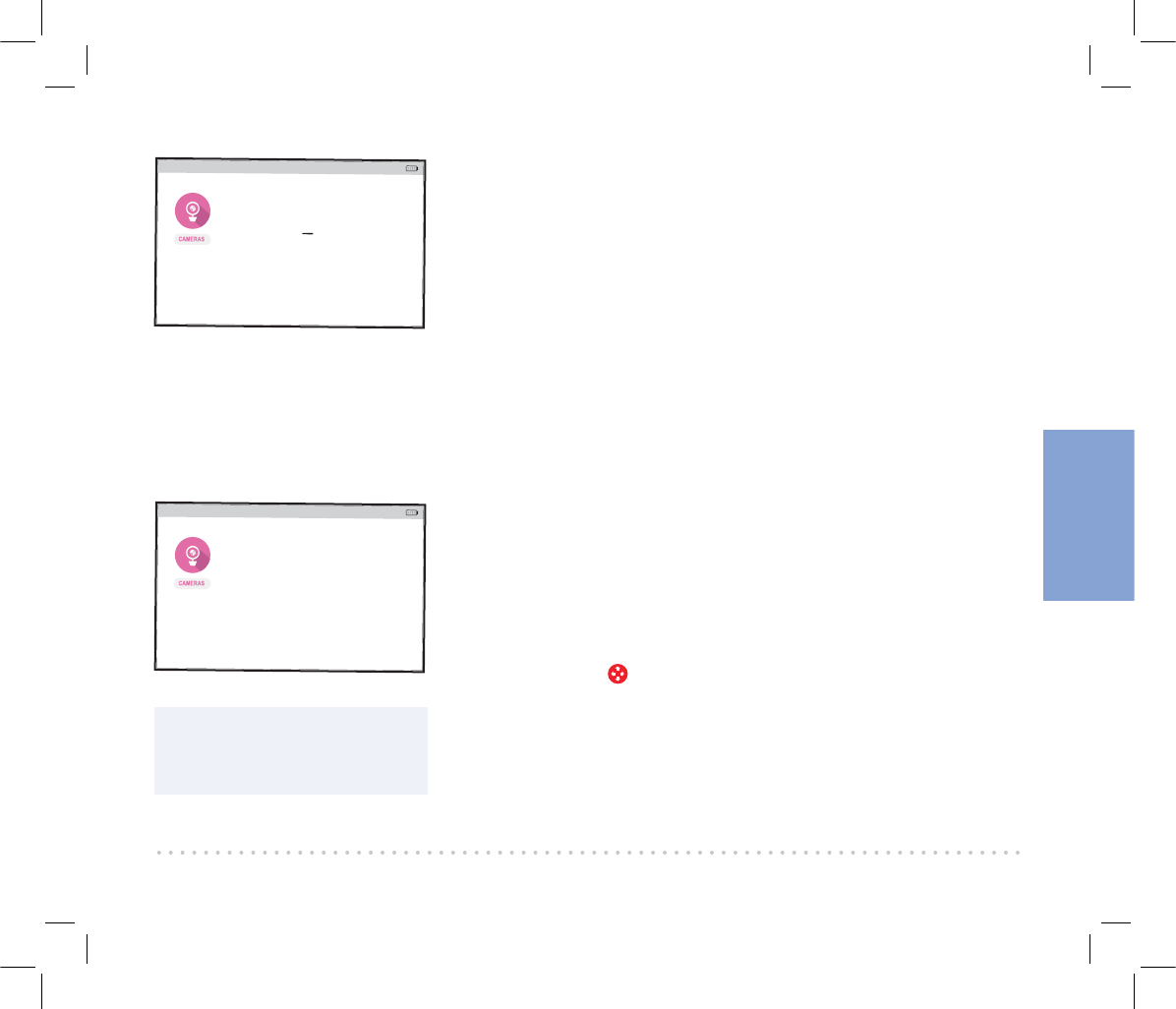

1 In the Cameras menu, press the down arrow to highlight Pair
Camera. Press OK/ZOOM to select it.
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
Parent Monitor
Mini Monitor
Top
Front
Front
72º 12:00AM
View Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
![](/img.php?id=3055331&img=bgf.png)
Everyday use
15
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
Pair: Camera 1
Pair: Camera 2
Pair: Camera 3
Pair: Camera 4
2 Press the Pair button on the bottom of the new camera.
3 Use the up/down arrows to select Pair: Camera 2, Pair:
Camera 3, or Pair: Camera 4. Press OK/ZOOM to select it.
4 If the monitor screen shows a green checkmark next to Pair:
Camera, you’re all set to use the monitor and the camera! (If
it shows a red X, put the camera closer to the monitor and
try again.)
5 Once you’ve paired your new camera with the parent
monitor, repeat steps 1 and 2 to pair the new camera to the
mini monitor. Press OK when the mini monitor asks you if
you want to pair.
PANNING AND TILTING THE CAMERA
There are two ways of accessing the remote pan and tilt
function on the parent and mini monitors: by pressing and
holding the OK/ZOOM button or through the menu system.
Note: On the parent monitor, camera pan/tilt is in the Cameras
menu. On the mini monitor, there’s a separate pan/tilt menu,
accessible by the icon in the main menu.
1 In the Cameras menu, press the down arrow to highlight
Pan/Tilt Camera. Press OK/ZOOM to select it.
2 Use the arrow buttons (or joystick on the mini monitor) to
pan and tilt the active camera. Press MENU to return to the
Cameras menu.
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
TIP: You can also access pan and
tilt by pressing and holding the
OK/ZOOM button on the parent
monitor or mini.
![](/img.php?id=3055331&img=bg10.png)
Everyday use
16
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
VIEWING AND SCANNING CAMERAS
If you have more than one camera set up, you can customize
how you view them.
To view a dierent camera:
1 In the Cameras menu, highlight View Camera. Press OK/
ZOOM to select it.
2 Use the up/down arrows to select the camera you want to
view. Press OK/ZOOM to select it. The screen switches to
that camera, and the status bar at the top of the screen
indicates the camera you’re viewing: , , , or .
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
View: Camera 1
View: Camera 2
View: Camera 3
View: Camera 4
Multi-view
72º
TIP: You can also switch cameras
by pressing and holding the
VIDEO ON/OFF button on the
parent monitor (VIDEO on the
mini).
To display multiple cameras:
1 In the Cameras menu, highlight View Camera. Press OK/
ZOOM to select it.
2 Use the up/down arrows to select Multi-view. Press OK/
ZOOM to select it.
To go back to viewing a single camera, select View Camera
from the Cameras menu again. Then highlight the camera
you want to view and press OK/ZOOM to select it.
TIP: To return to viewing a
single camera by highlighting
the camera image you want and
pressing OK/ZOOM.
![](/img.php?id=3055331&img=bg11.png)
Everyday use
17

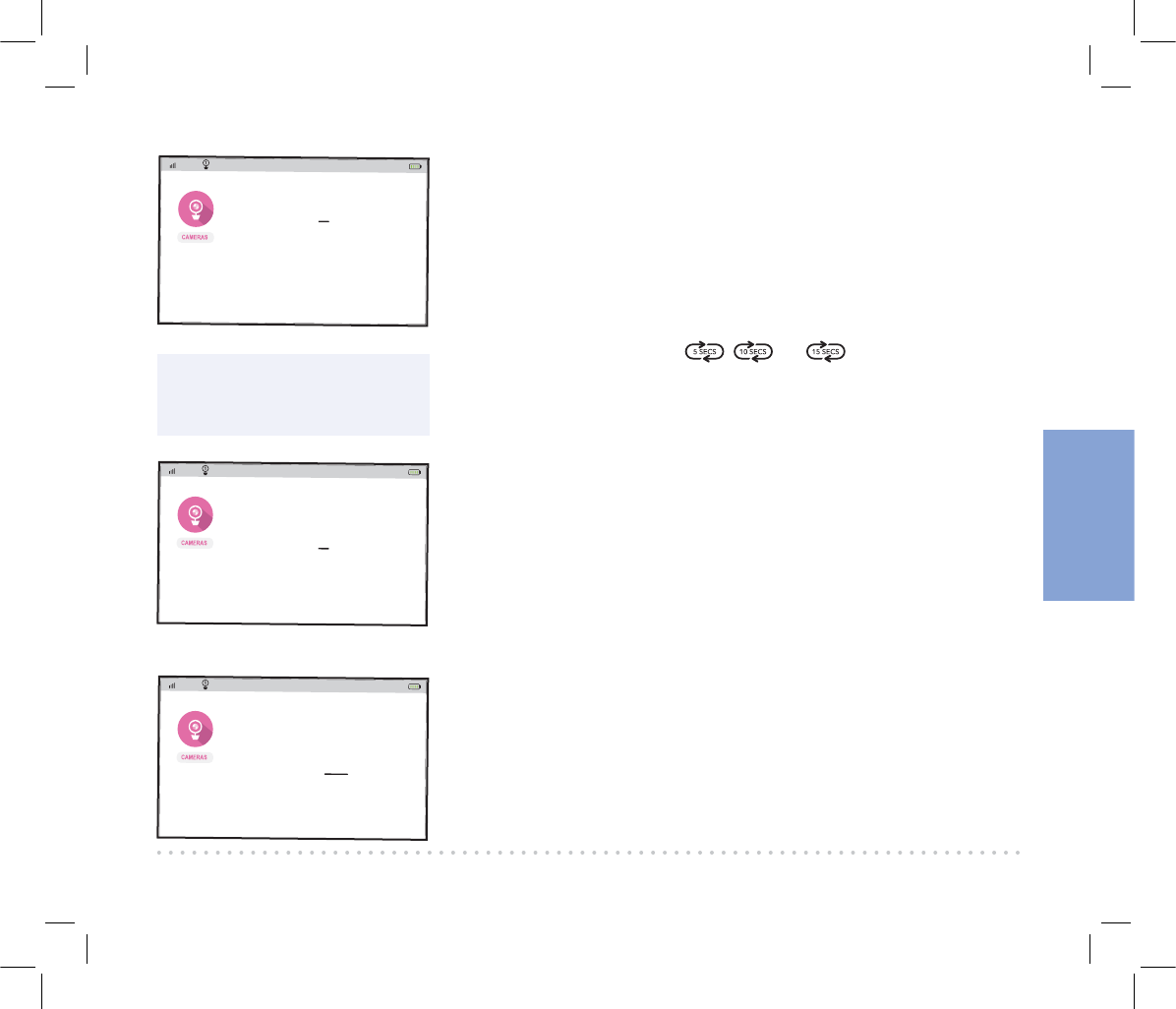

To scan through the cameras automatically:
1 In the Cameras menu, highlight Scan Cameras. Press OK/
ZOOM to select it.
2 Use the up/down arrows to select how quickly you want
to switch cameras: every 5, 10, or 15 seconds. Press OK/
ZOOM to select that option. The screen switches to the first
camera, and the status bar at the top of the screen shows an
indicator for scanning: , , or . It also shows the
camera you’re viewing.
To stop scanning cameras: select Scan Cameras in the
Cameras menu. Then select Scan: Off.
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
Scan: Off
Scan: 5 Secs
Scan: 10 Secs
Scan: 15 Secs
72º
REMOVING A CAMERA FROM THE LIST
1 In the Cameras menu, highlight Delete Camera. Press OK/
ZOOM to select it.
2 Use the up/down arrows to select the camera you want to
remove from the list. Press OK/ZOOM to select it. The screen
confirms that the camera has been deleted.
IMPORTANT: In order to use this camera with the system,
you’ll need to pair it with both monitors again.
ADJUSTING CAMERA VOLUME
1 In the Cameras menu, highlight Camera Volume. Press OK/
ZOOM to select it.
2 Use the up/down arrows to select the volume level you want
for the audio from the camera’s speaker. Press OK/ZOOM to
select it.
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
Delete: Camera 1
Delete: Camera 2
Delete: Camera 3
Delete: Camera 4
72º
NOTE: You must have more
than one camera paired with
a monitor in order to scan
cameras.
12:00AM
View Camera
Pan/Tilt Camera
Scan Cameras
Pair Camera
Delete Camera
Camera Volume
Low
Med
High
72º
![](/img.php?id=3055331&img=bg12.png)
Everyday use
18

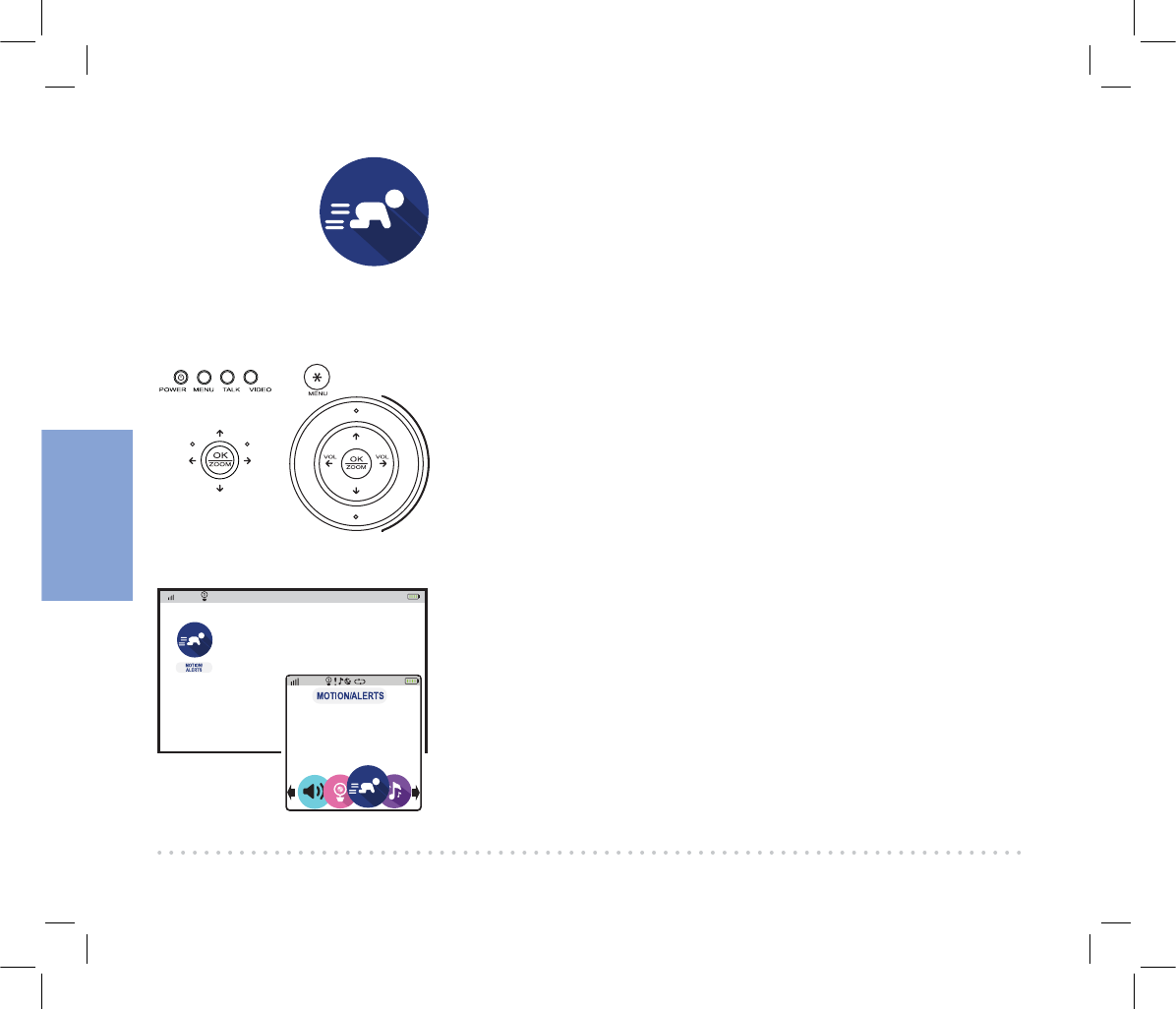

SETTING UP MOTION ACTIVATION
You can set up the monitor so that it automatically shows video
when the camera detects that your baby is moving.

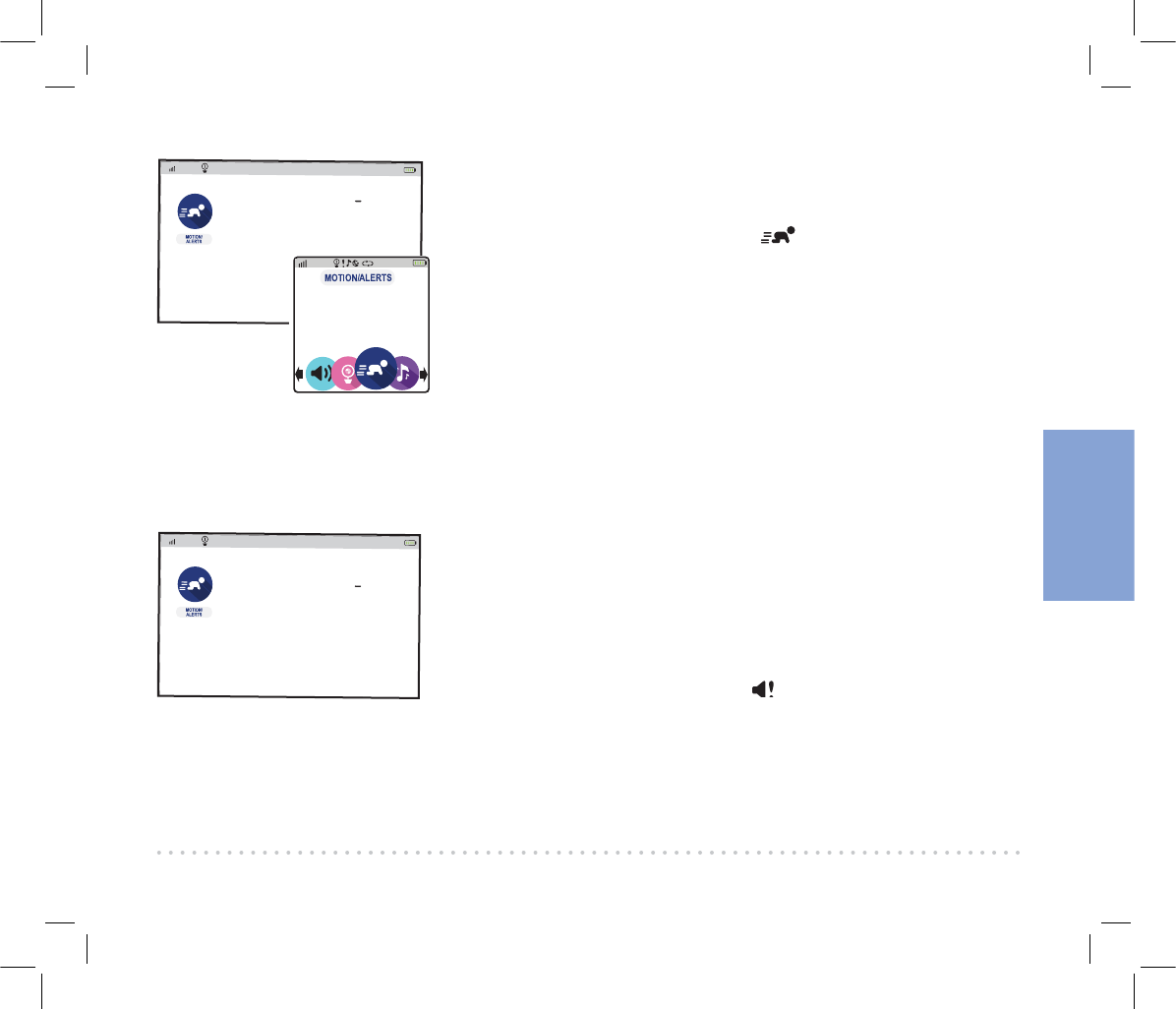

1 In the Motion/Alerts menu, press OK/ZOOM to select
Motion Activated Video.
12:00AM
Motion Activated Video: OFF
Sound Activated Video: OFF
Temperature Alert: OFF
Low Battery Noise Alert: OFF
72º
Motion/Alerts
The Motion/Alerts menu lets you set up alerts that are activated
by motion, sound, or temperature in your baby’s room. It also
lets you set up an alert for when the monitor’s rechargeable
battery needs to be recharged.
ACCESSING THE MOTION/ALERTS MENU
1 Press MENU on the parent monitor or mini monitor.
2 Use the arrow buttons or joystick to highlight the Motion/
Alerts icon, and press OK/ZOOM to select it.
Parent Monitor
72º 12:00AM
Motion Activated Video: OFF
Sound Activated Video: OFF
Temperature Alert: OFF
Low Battery Noise Alert: OFF
Mini Monitor
Parent Monitor
Mini Monitor
Top
Front
Front
![](/img.php?id=3055331&img=bg13.png)
Everyday use
19
SETTING UP SOUND ACTIVATION
You can set up the monitor so that it automatically shows video
when the camera detects sound from your baby.
1 In the Motion/Alerts menu, press OK/ZOOM to select Sound
Activated Video.
2 Use the up/down arrows to select the amount of sensitivity
you want for the sound sensor: ON: Low, ON: Medium, or
ON: High. The status bar at the top of the screen shows an
indicator for sound activation: .
Note: You might want to test different levels of sensitivity
for this alert, to find the best fit for your environment and
preference.
12:00AM
Motion Activated Video
Sound Activated Video
Temperature Alert
Low Battery Noise Alert
72º
OFF
ON: LOW
ON: Medium
ON: High
2 Use the up/down arrows to select the amount of sensitivity
you want for the motion sensor: ON: Low, ON: Medium, or
ON: High. The status bar at the top of the screen shows an
indicator for motion activation: .
Note: You might want to test different levels of sensitivity
for this alert, to find the best fit for your environment and
preference.
12:00AM
Motion Activated Video
Sound Activated Video: OFF
Temperature Alert: OFF
Low Battery Noise Alert: OFF
72º
OFF
ON: LOW
ON: Medium
ON: High
Parent Monitor
72º 12:00AM
Motion Activated Video
OFF
ON: Low
ON: Medium
ON: High
Mini Monitor
![](/img.php?id=3055331&img=bg14.png)
Everyday use
20
SETTING TEMPERATURE ALERTS
These alerts tell you when your baby’s room is too hot or too
cold.
1 In the Motion/Alerts menu, select Temperature Alert.
2 Activate the temperature alert you want to use, then set it.
The status bar at the top of the screen will show an indicator
for temperature alerts: .
To set a high temperature alert: Highlight High Temp: ON
and press OK/ZOOM. Use the up/down arrows to set the
temperature you want to set for the high temperature alert.
Press OK/ZOOM to set it.
To set a low temperature alert: Highlight Low Temp: ON
and press OK/ZOOM. Use the up/down arrows to set the
temperature you want to set for the high temperature alert.
Press OK/ZOOM to set it.
If the temperature in your baby’s room goes beyond the limit(s)
you set, the parent monitor displays an alert.
SETTING A LOW-BATTERY ALERT
This alert tells you when the monitor needs to be recharged.
1 In the Motion/Alerts menu, highlight Low Battery Noise and
press OK/ZOOM to select it.
2 Use the up/down arrows to select how loud you want this
alert: ON: Low or ON: High. The status bar at the top of the
screen shows an indicator for the low-battery alert: .
12:00AM
Motion Activated Video: OFF
Sound Activated Video: OFF
Temperature Alert: OFF
Low Battery Noise
72º
OFF
ON: Low
ON: High
12:00AM
72º
High Temperature level
has been detected
Camera 1: 81º F
OK
12:00AM
Motion Activated Video: OFF
Sound Activated Video: OFF
Temperature Alert
Low Battery Noise Alert: OFF
72º
High Temp:
ON: 81
OFF
Low Temp:
ON: 63
OFF
![](/img.php?id=3055331&img=bg15.png)
Everyday use
21
12:00AM
Take Picture
Record Video
72º RECORDING AN IMAGE OR VIDEO
1 In the Record menu, highlight Take Picture or Record Video.
Press OK/ZOOM to select that option.
2 Follow the on-screen instructions to take the picture or make
the video.
See the instructions on the next page to display your picture
or video on the parent monitor.
Recording
The Recording menu lets you record video or take a picture of
your baby.

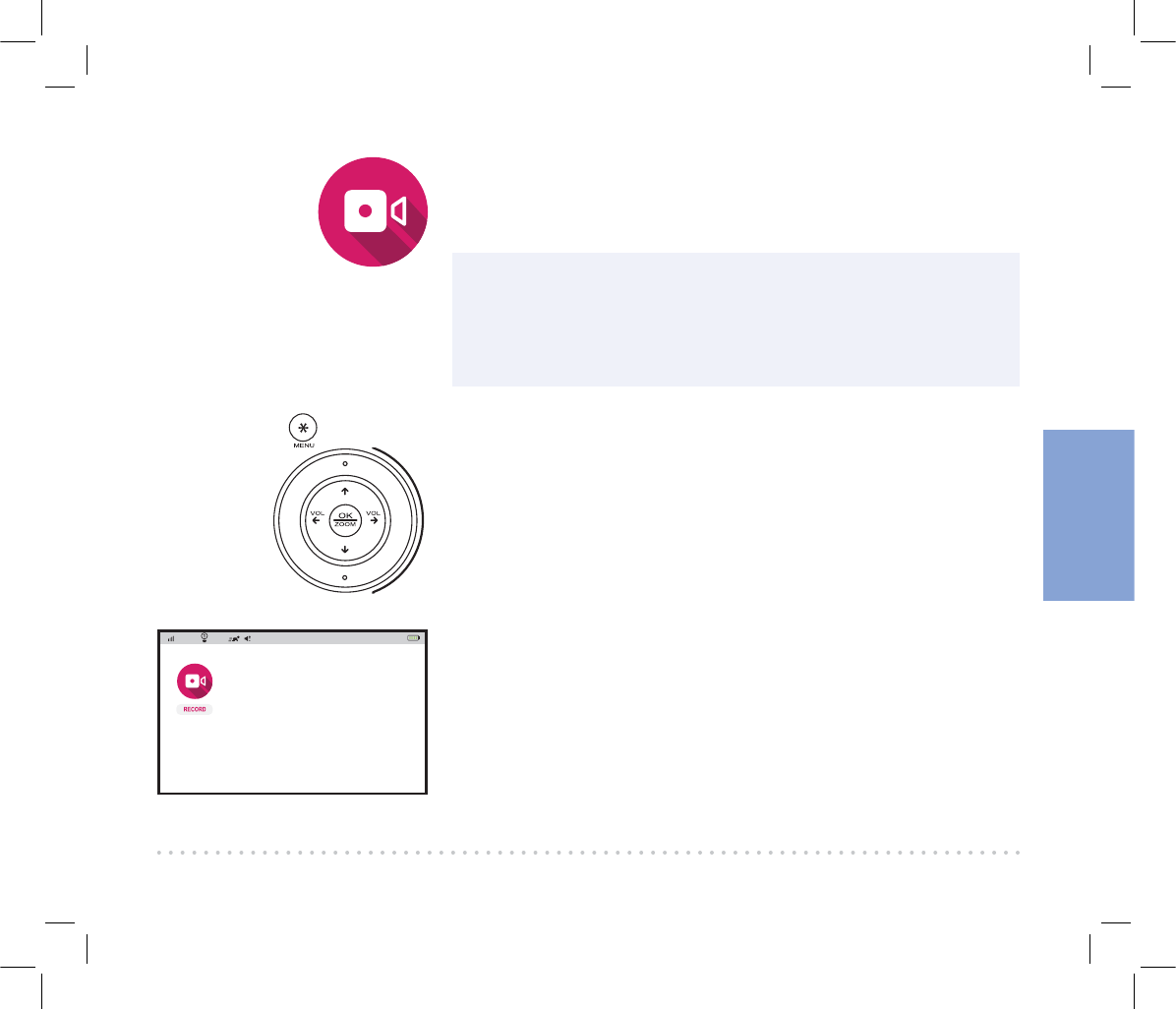

ACCESSING THE RECORDING MENU
1 Press MENU on the parent monitor.
2 Use the arrow buttons to highlight the Recording icon, and
press OK/ZOOM to select it.
IMPORTANT: You must have a Micro SD card (included in model
PNM5W01S; not included with other models) inserted in the MICRO
SD slot on the side of the parent unit in order to record images or
video. See page 8 for more information.
Only the parent monitor can record. The Mini Monitor does not have
this capability.
![](/img.php?id=3055331&img=bg16.png)
Everyday use
22
12:00AM
View Saved Pictures
View Saved Videos
72º
PLAYING BACK IMAGE OR VIDEO
1 In the Play menu, select View Saved Pictures or View Saved
Videos.
2 Select the image or video you want to see on the display.
Press OK/ZOOM to select it.
3 Use the on-screen controls to stop, play/pause, and exit the
screen.
Playing Back Pictures and Videos
The Play menu lets you access the videos or pictures you’ve
taken with the system.
ACCESSING THE PLAY MENU
1 Press MENU on the parent monitor.
2 Use the arrow buttons to highlight the Play icon, and press
OK/ZOOM to select it.
IMPORTANT: You must have a Micro SD card (included in model
PNM5W01S; not included with other models) inserted in the MICRO
SD slot on the side of the parent unit in order to record images or
video. See page 8 for more information.
Only the parent monitor can record. The Mini Monitor does not have
this capability.
To delete a video: Highlight the video you want to delete. Then press
the left arrow and press OK/ZOOM to confirm. The screen will display
the video file name with an X.
![](/img.php?id=3055331&img=bg17.png)
Everyday use
23
12:00AM
Sleep Mode (video off, sound on)
72º
OFF
ON: 5 mins
ON: 30 mins
ON: 60 mins
SETTING SLEEP MODE
1 In the Sleep Mode menu, press OK/ZOOM to turn sleep
mode on.
2 Use the up and down arrows to select the delay before the
display turns off automatically: 5, 30, or 60 minutes. (The
audio from your camera will stay on even when the display is
off.)
Sleep Mode
You can set up your monitors to turn off the display
automatically after a set amount of time.
Parent Monitor
72º 12:00AM
Video Off, Sound On
OFF
ON: 5 mins
ON: 30 mins
ON: 60 mins
Mini Monitor
ACCESSING THE SLEEP MODE MENU
1 Press MENU on the parent monitor or mini monitor.
2 Use the arrow buttons or joystick to highlight the Sleep
Mode icon, and press OK/ZOOM to select it.
Parent Monitor
Mini Monitor
Top
Front
Front
![](/img.php?id=3055331&img=bg18.png)
Everyday use
24
Lullabies
This Project Nursery system comes with 3 lullabies, 2 nature
sounds, and white noise ready to play—simply choose the one
you want, and the camera you’re on will play it back.

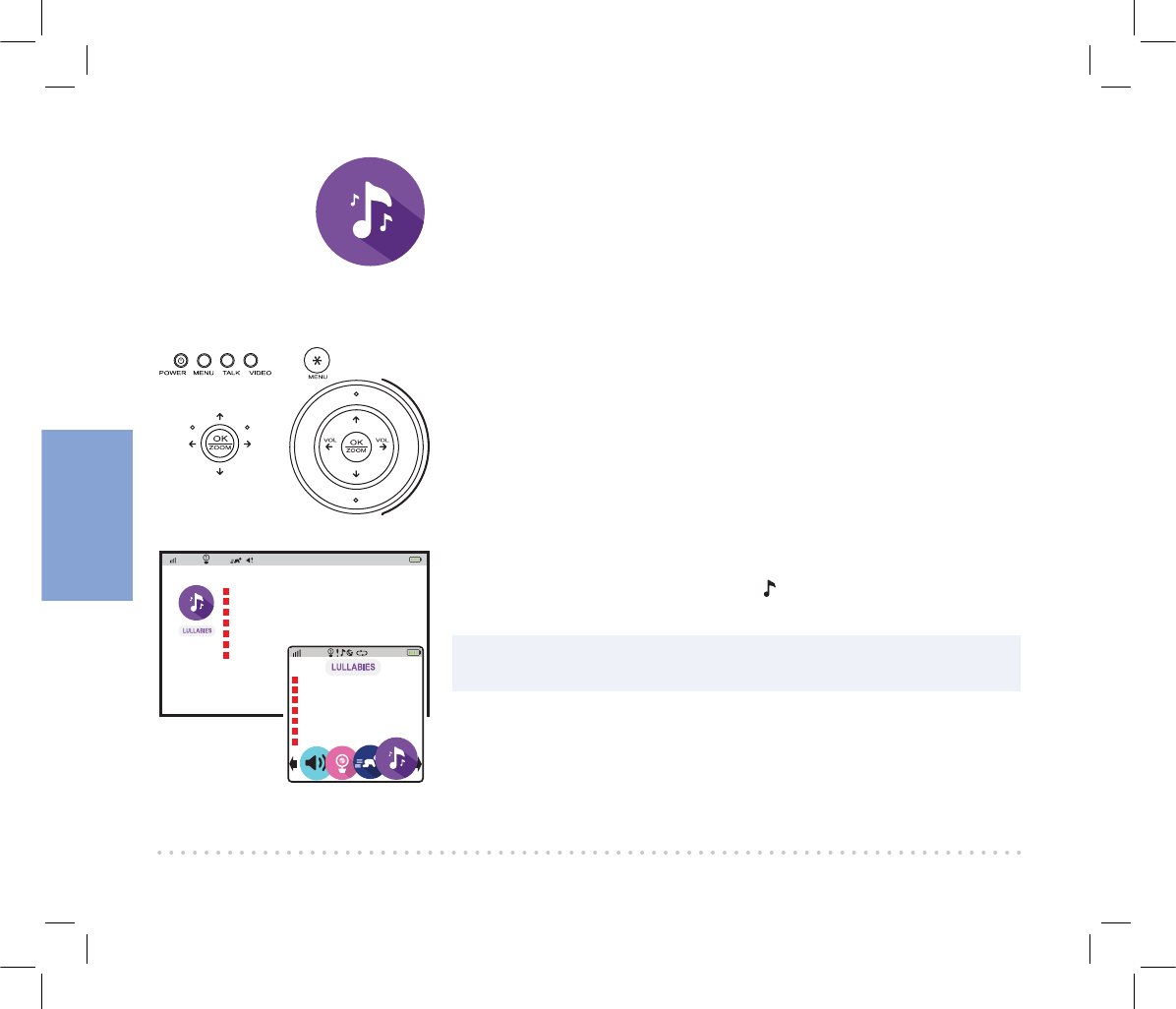

PLAYING LULLABIES OR WHITE NOISE
1 Make sure the monitor is displaying the camera you want to
play the lullaby on. If you want to play on a different camera,
press the MENU button and select CAMERAS. Then press
OK/ZOOM to select View Camera and choose the camera
you want.
2 Press the MENU button to access the main menu.
3 Highlight LULLABIES and press OK/ZOOM to choose it.
4 Highlight the option you want to play and press OK/ZOOM
to start playing it. The status bar at the top of the screen
shows an indicator for lullabies: .
12:00AM
72º
“I Don’t Want to Miss a Thing”
“Holiday”
“Jolene”
Waves
Rain
White Noise
Play All
Parent Monitor
72º 12:00AM
“I Don’t Want to Miss a Thing”
“Holiday”
“Jolene”
Waves
Rain
White Noise
Play All
Mini Monitor
NOTE: If there’s a lullaby currently playing on a camera, a green
arrow icon appears next to it.
Parent Monitor
Mini Monitor
Top
Front
Front
![](/img.php?id=3055331&img=bg19.png)
Everyday use
25
Contrast
You can adjust the contrast and brightness of the display, and
set it to automatically dim after a set amount of time.
12:00AM
Adjust Contrast
Adjust Brightness
Auto Dimming
72º
Parent Monitor
Mini Monitor
72º 12:00AM
Adjust Contrast
Adjust Brightness
Auto Dimming

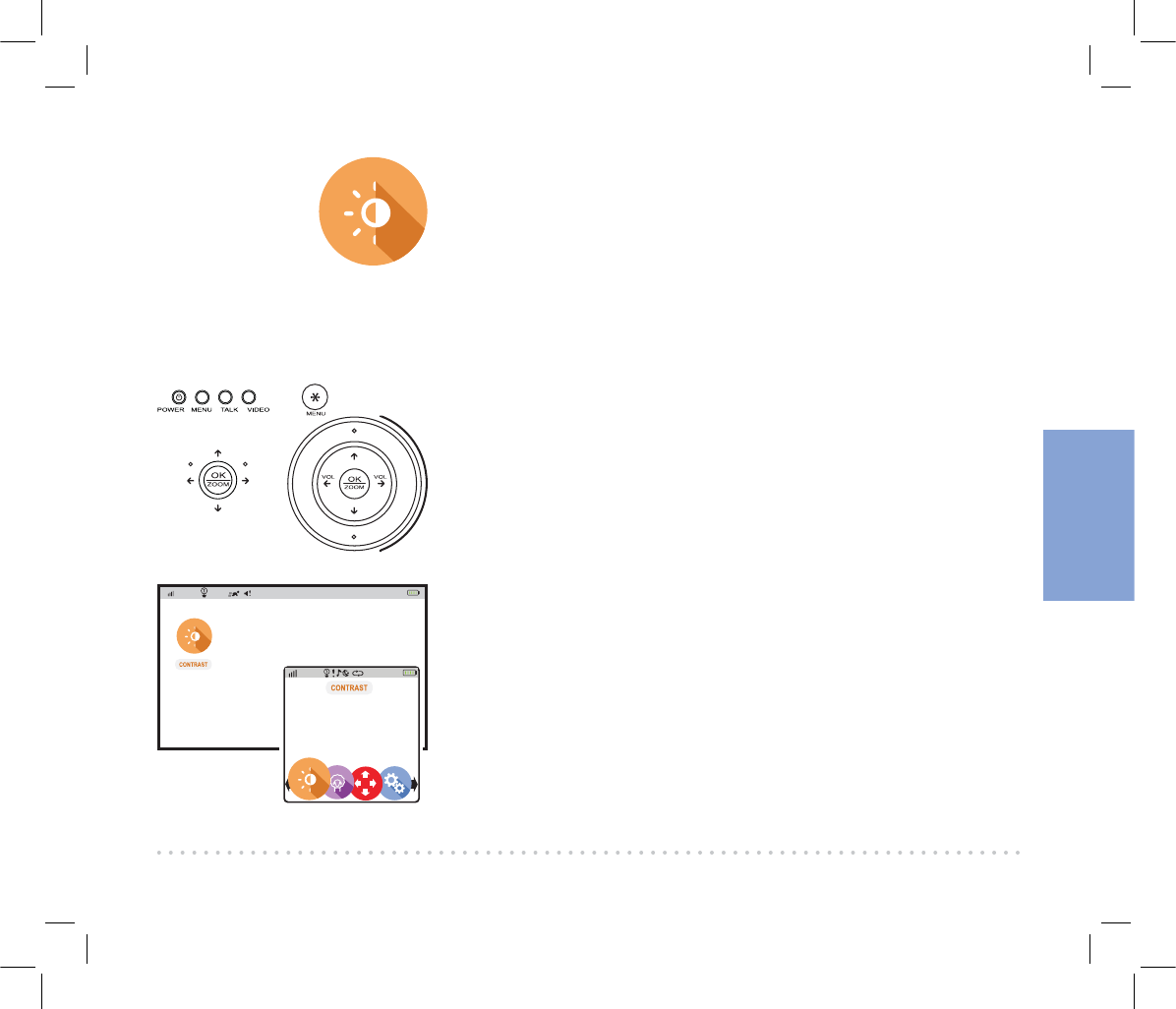

ADJUSTING CONTRAST OR BRIGHTNESS
1 Press MENU on the parent monitor or mini monitor.
2 Use the arrow buttons or joystick to highlight the Contrast
icon, and press OK/ZOOM to select it.
3 In the Contrast menu, highlight the option you want to
adjust, Adjust Contrast or Adjust Brightness, and press
OK/ZOOM to select it.
4 Use the up and down arrows to adjust the option you
chose. Press OK/ZOOM when you’ve finished.
SETTING AUTO DIMMING
1 In the Contrast menu, highlight Auto Dimming. Press OK/
ZOOM to select it.
2 Use the up and down arrows to choose the delay for auto
dimming the display: 5, 10, or 30 minutes. Press OK/ZOOM
to select.
Parent Monitor
Mini Monitor
Top
Front
Front
![](/img.php?id=3055331&img=bg1a.png)
Everyday use
26
Settings
The Settings menu lets you customize the monitors to match
your preferences. It also gives you technical information about
the monitor and support.

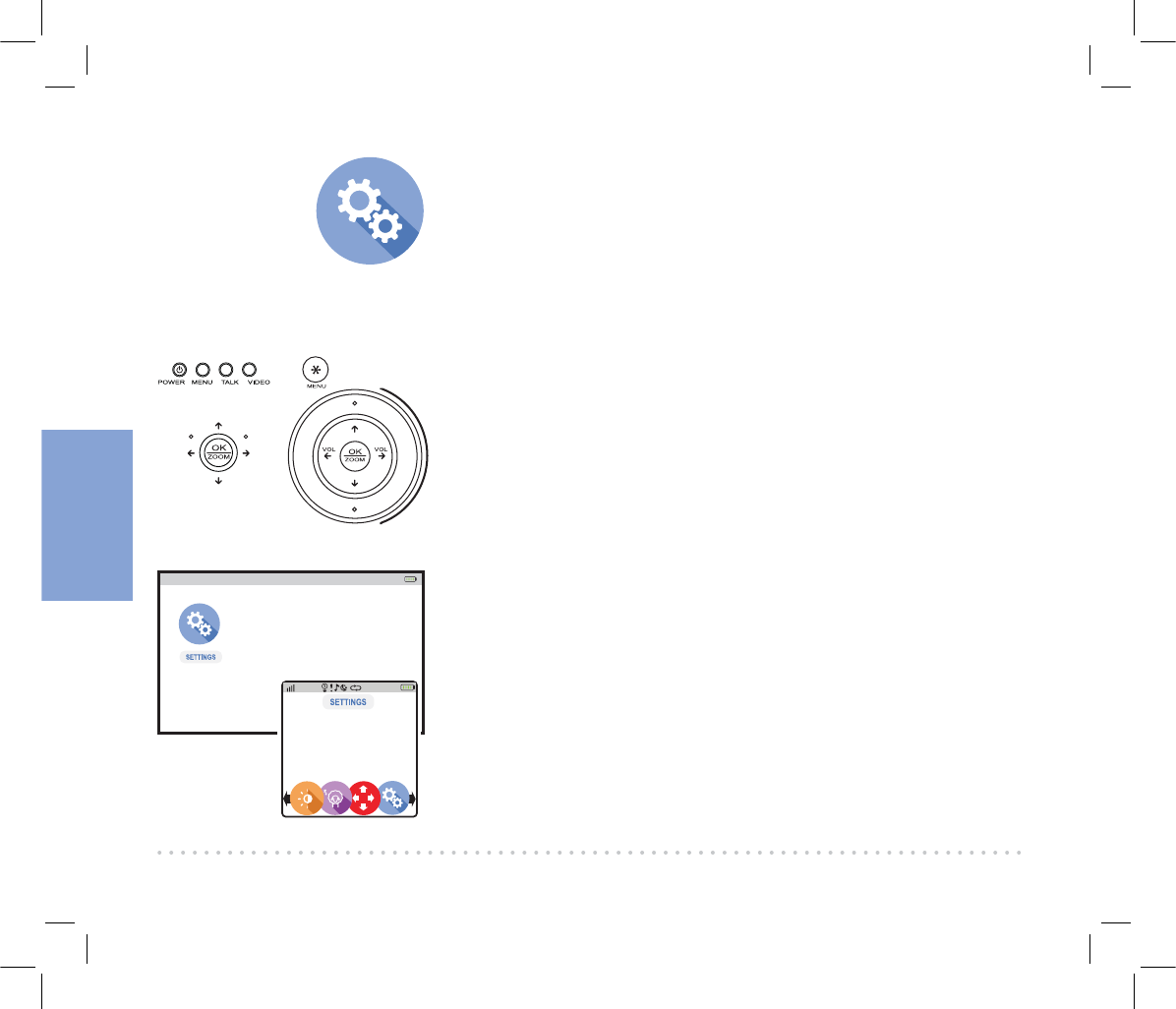

ACCESSING THE SETTINGS MENU
1 Press MENU on the parent monitor or mini monitor.
2 Use the arrow buttons or joystick to highlight the Settings
icon, and press OK/ZOOM to select it.
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Parent Monitor
Mini Monitor
72º 12:00AM
Temperature C/F
Time Set
Factory Reset
Support
Product Information
Button Information
SETTING YOUR TEMPERATURE PREFERENCE
1 In the Settings menu, press OK/ZOOM to select
Temperature.
2 Use the up and down arrows to select how you’d like
temperature to be displayed: in degrees Fahrenheit or
Celsius. Press OK/ZOOM when you’ve finished.
Parent Monitor
Mini Monitor
Top
Front
Front
![](/img.php?id=3055331&img=bg1b.png)
Everyday use
27
SETTING THE TIME AND DATE
1 In the Settings menu, press the down arrow to highlight
Time Set. Press OK/ZOOM to select it.
2 Use the up/down arrow buttons to set the date.
3 After setting the year, press the right arrow to adjust the
time. Then use the up/down arrows to set the time. Press
OK/ZOOM when you’re finished.
RESETTING TO FACTORY SETTINGS
If you’ve tried all of the troubleshooting solutions to solve
a problem, and nothing seems to work, you might need to
reset the monitor to its factory settings and start setup again.
WARNING: Resetting to factory settings erases all of your
custom settings. You will have to set up the monitor from
scratch.
GETTING SUPPORT AND TECHNICAL
INFORMATION
1 In the Settings menu, press the down arrow to highlight one
of the support or technical information options: Support,
Product Information, or SD Card Information. Press OK/
ZOOM to select it.
2 Press OK/ZOOM to exit.
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Date: 01/01/16
Time: 12:00 AM
12:00AM
Temperature
Time Set
Factory Reset
Support
Product Information
SD Card Information
Reset all settings
to default?
NOTE: The mini monitor
offers an additional Button
Information option in the
Settings menu, with shortcut
info for adjusting pan/tilt/zoom
and volume, and switching
cameras.
![](/img.php?id=3055331&img=bg1c.png)
Troubleshooting
28
4. TROUBLESHOOTING / FAQS
Most issues with the Project Nursery baby monitoring system can be solved by following one of
the troubleshooting tips below. For additional assistance, please call 1-844-393-7338.
I don’t see video from the camera on my monitor.
+ Make sure your monitor is turned on (press the Power button). If it is, press the VIDEO ON/
OFF button (VIDEO on the mini monitor) to make sure the monitor’s display is awake. Make
sure the camera is plugged in to a working outlet and turned on.
I see the icon on the screen.
+ Make sure the camera you’re trying to view is plugged in to a working outlet and turned on.
+ Make sure the monitor is within range (maximum 800 ft) of the camera you’re trying to display
(certain kinds of signal obstacles, like large metal objects, might shorten the range somewhat).
+ If the other monitor is on, power it off. To keep this baby monitoring system as secure as
possible, only one monitor can view video at a time. If you want to use the mini monitor, for
example, make sure you power the parent monitor off (and vice-versa).
+ The monitor you’re using might have become un-paired with the camera. See page 15 for
instructions on pairing a monitor and camera.
I can’t record video or pictures.
+ Make sure you have an Micro SD card (included with the PNM5W01S; not included with other
models) inserted in the MICRO SD card slot on the side of the parent monitor.
I can’t pan/tilt the camera from my monitor.
+ Make sure you’re in pan mode—press and hold OK/ZOOM until you see arrows on the monitor
display. Then use the arrows or joystick to pan the camera.
+ Make sure you’re not zoomed in on the image—press OK/ZOOM to zoom out if you are. Then
press and hold OK/ZOOM to enter pan mode.
![](/img.php?id=3055331&img=bg1d.png)
Troubleshooting
29
Continues on the next page...
+ Make sure the camera is moving freely. In certain positions, the camera might bump into stand
neck. If the neck is in the way, pan or tilt the camera in the other direction so that you have a
free range of movement.
I can’t hear sounds from baby’s room.
+ Make sure the monitor is turned up. Press the VOL+ button until you hear sounds from your
baby’s room.
+ Make sure the microphone on the camera is not blocked. The microphone is just above the
lens.
The lullabies aren’t playing.
+ If you have multiple cameras, make sure you’ve chosen the one you want the lullabies to play
on before you start the lullaby. Go to Cameras > Select Camera and choose the camera you
want. Then go to Lullabies and select an option to play.
The temperature alerts don’t work.
+ Make sure you’ve set the temperature preference to the system you use, Fahrenheit (standard
in the US) or Celsius (standard outside the US). To switch your temperature preference, go to
Settings > Temperature.
+ Make sure you’ve set the right kind of temperature alert—for example, if you want to make sure
your baby’s room does not get below 68 degrees Fahrenheit, set the Low Temp Temperature
Alert to 68. If you want to make sure your baby’s room doesn’t get above a certain
temperature, set the High Temp Temperature Alert to that temperature.
Motion alerts don’t work.
+ You might need to adjust the sensitivity of the alerts—for example, if Motion Activated Video
is set to ON: Low, the monitor will not come on as often as when Motion Activated Video is
set to ON: Medium or ON: High. To adjust this setting, go to Motion/Alerts > Motion Activated
Video.
+ If you have multiple cameras, you might need to change the active camera—motion alerts work
for the active camera only. Press VIDEO ON/OFF (VIDEO on the mini monitor) to make sure
the camera you want to use for motion alerts—the one with the clearest view of your baby, for
example—is the one displayed.
![](/img.php?id=3055331&img=bg1e.png)
Troubleshooting
30
Sound alerts don’t work.
+ You might need to adjust the sensitivity of the alerts—for example, if Sound Activated Video is
set to ON: Low, the monitor will not come on as often as when Sound Activated Video is set to
ON: Medium or ON: High. To adjust this setting, go to Motion/Alerts > Sound Activated Video.
+ If you have multiple cameras, you might need to change the active camera—sound alerts work
for the active camera only. Press VIDEO ON/OFF (VIDEO on the mini monitor) to make sure
the camera you want to use for sound alerts—the one closest to your baby, for example—is the
one displayed.
![](/img.php?id=3055331&img=bg1f.png)
![](/img.php?id=3055331&img=bg20.png)
©2016 Voxx Accessories Corp.
3502 Woodview Trace, Suite 220
Indianapolis, IN 46268 PNM4-5W01-S UG 01
