WizFi630A User Manual
(Version 1.0)
© 2015 WIZnet Co., Ltd. All Rights Reserved.
For more information, please visit our website at http://www.wiznet.co.kr
![](/img.php?id=2849469&img=bg2.png)
FCC Statement
1. NOTICE;
A. The RF module is limited to OEM installation ONLY.
The OEM integrator is responsible for the compliance to all the rules that apply to the product
into which this certified RF module is integrated.
B. This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
C. This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer, integrator, installer, manufacturer or an experienced radio/TV
technician for help.
2. FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment. This RF module must not be co-located
or operating in conjunction with any other equipment, including but not limited to, module, antenna
or any other transmitter which is not approved or intended for use by the manufacturer,.
3. Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
The RF module is designed and intended to installation in mobile or fixed applications according
to Part 2.11091(b).
![](/img.php?id=2849469&img=bg3.png)
4. This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that minimum 20 cm is maintained between the antenna and
users, and the RF module may not be co-located with any other transmitter or antenna. As long as
2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
5. IMPORTANT NOTE:
In the event that these conditions cannot be met, then the FCC authorization is no longer considered
valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
6. End Product Labeling
This RFID Reader module is authorized only for use in device where the antenna may be installed
such that minimum 20 cm may be maintained between the antenna and users. The final end product
must be labeled in a visible area with the following:
“Contains FCC ID: XR2WIZFI630A”.
The grantee's FCC ID can be used only when all FCC/ IC compliance requirements are met.
7. Guidance to the Host Manufacturer
The host manufacturer is responsible for ensuring that after the module is installed and operational
the host manufacturer continues to be compliant with the Part 15B unintentional radiator
requirements. Since this may depend on the details of how the module is integrated with the host,
the grantee (the party responsible for the module grant) shall provide guidance to the host
manufacturer for compliance with the Part 15B requirement.
8. Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user's manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show in
this manual.
9. Antenna List
No. Model Type Gain[dBi] Impedance
1 W5I–BO-07-F245 UFL type antenna 2.5 50
![](/img.php?id=2849469&img=bg4.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 2
Document Revision History
Date Revision Changes
2015-03-02 1.0 Release
-
![](/img.php?id=2849469&img=bg5.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 3
<Contents>
1. Introduction ............................................................................. 5
1.1. Features .............................................................................................................................................. 6
1.2. Wireless Specifications ................................................................................................................. 7
1.3. Hardware Specifications ............................................................................................................... 8
1.4. Software Specifications ................................................................................................................ 9
1.5. EVB Construction ............................................................................................................................ 9
1.5.1. Contents ......................................................................................................... 9
1.6. Block Diagram ............................................................................................................................... 11
2. Operation Mode and Description of Menu .......................... 12
2.1. Operation Mode .......................................................................................................................... 12
2.1.1. Access Point ................................................................................................ 12
2.1.2. Gateway ....................................................................................................... 13
2.1.3. Client (Station) ............................................................................................. 13
2.1.4. AP-Client Mode ........................................................................................... 14
2.2. Menu List by Operation Mode .............................................................................................. 15
2.2.1. Access Point (Bridge) Mode ....................................................................... 15
2.2.2. Gateway (Router) Mode .............................................................................. 16
2.2.3. Client (Station) Mode ................................................................................... 17
2.2.4. AP-Client Mode ........................................................................................... 18
2.3. Internet Setting ............................................................................................................................. 20
2.3.1. Internet connection setting......................................................................... 20
2.3.2. Local network setting ................................................................................. 20
2.3.3. DHCP Client Information ............................................................................. 21
2.3.4. VPN setting .................................................................................................. 21
2.3.5. Static Routing Setting ................................................................................. 22
2.3.6. QoS(802.1p) Setting ..................................................................................... 22
2.3.7. VLAN(802.1p) ................................................................................................ 22
2.4. Wireless setting ............................................................................................................................ 23
2.4.1. Basic settings .............................................................................................. 23
2.4.2. Advanced Wireless Settings ....................................................................... 24
2.4.3. Wireless Security ........................................................................................ 26
2.4.4. WDS(Wireless Distribution System) Setting ............................................... 28
2.4.5. WPS Setting ................................................................................................. 29
2.4.6. Wireless network status .............................................................................. 30
2.4.7. AP Wireless Statistics ................................................................................. 31
2.4.8. Station QoS/DLS(Direct Link Setup) Configurations .................................. 32
2.4.9. Profile ........................................................................................................... 33
2.4.10. Link Status ................................................................................................... 34
2.4.11. Site Survey ................................................................................................... 35
2.4.12. WIFI Multi-Bridge settings .......................................................................... 36
2.5. Serial to LAN(Wired and Wireless) ....................................................................................... 37
2.5.1. Main Connection settings ............................................................................ 37
2.5.2. Aux Connection Settings ............................................................................. 37
2.5.3. Packing Condition (Incoming serial data packing condition) ...................... 38
![](/img.php?id=2849469&img=bg6.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 4
2.5.4. Ethernet Data Tagging Option ..................................................................... 38
2.6. Firewall settings ............................................................................................................................ 39
2.6.1. DMZ .............................................................................................................. 39
2.6.2. Port forwarding ............................................................................................ 40
2.6.3. Packet filtering............................................................................................. 41
2.6.4. Contents filtering ......................................................................................... 42
2.6.5. System Security ........................................................................................... 43
2.7. Managements ............................................................................................................................... 44
2.7.1. System Management .................................................................................... 44
2.7.2. Firmware ...................................................................................................... 44
2.7.3. Config Settings ............................................................................................. 44
2.7.4. Port Setting .................................................................................................. 45
2.7.5. Packet Statistics .......................................................................................... 45
2.7.6. System Status .............................................................................................. 45
2.7.7. System Log .................................................................................................. 46
3. Hardware Information ........................................................... 47
3.1. WizFi630A Pin Map ..................................................................................................................... 47
3.2. Dimensions ..................................................................................................................................... 49
4. Important Notice .................................................................... 50
![](/img.php?id=2849469&img=bg7.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 5
1. Introduction
WizFi630A is a gateway module that transforms the RS-232 protocol and TCP/IP protocol into
IEEE802.11 b/g/n wireless LAN protocol. WizFi630A enables a device with RS-232 serial interface to
connect to LAN or WLAN for remotely control, measuring, and administration. WizFi630A can also
work as an IP router because of its internally embedded switch.
WizFi630A uses interfaces like Serial(UART), LAN, Wi-Fi(WLAN) to perform functions such as
Serial(UART)-To-Wi-Fi, Serial-To-Ethernet, Ethernet-To-Wi-Fi. Users can connect to WizFi630A’s internal
web server or use serial commands for simple Wi-Fi settings; not only serial devices but 8/16/32 bit
micro controllers can also use UART for simple Wi-Fi settings.
WizFi630A can significantly reduce the processes for wireless module design, testing, and certification.
Therefore, WizFi630A can be the best solution for users who lack wireless network experience.
WizFi630A follows the 802.11b/g/n standard and support up to 150Mbps speed in wireless interface.
WizFi630A provides a test board, pc software, and documents so that anyone can develop a wireless
solution.
![](/img.php?id=2849469&img=bg8.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 6
1.1. Features
Complies with IEEE802.11b/g/n.
Gateway/AP(Bridge)/AP-Client/Client(Station)/Ad-hoc Mode , WDS/Repeater supports
1T1R RF Interface
Physical link rate up to 150Mpbs
Built-in 3 Ethernet Ports
2 Serial Ports supports
Working as Wi-Fi Router
WEP 64/128bit, WPA/WPA2-PSK TKIP, AES
802.1x (Only in AP mode)
802.11e and WMM (Wi-Fi Multimedia)
Router and Firewall function supports
![](/img.php?id=2849469&img=bg9.png)
u.FL (EVB : 1T1R 2.5dBi)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 7

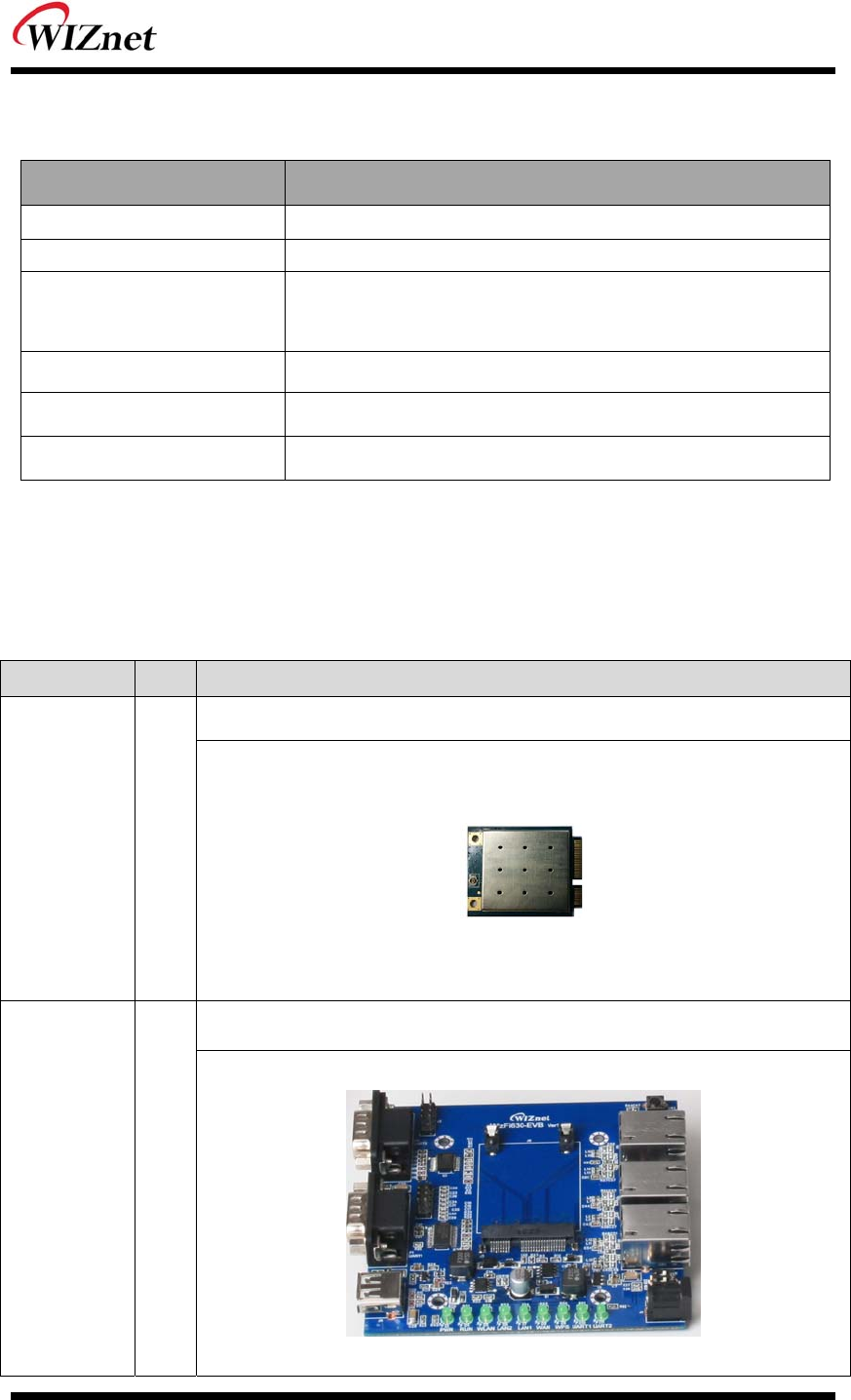

1.2. Wireless Specifications
Type Description
Wireless Standard IEEE802.11b/g/n
Frequency Range
USA: 2.400 ~ 2.483GHz
Europe: 2.400 ~ 2.483GHz
Japan: 2.400 ~ 2.497GHz
China: 2.400 ~ 2.483GHz
Operating Channels
USA/Canada: 11(1 ~ 11)
Major Europe Countries: 13(1 ~ 13)
France: 4(10 ~ 13)
Japan: 14 for 802.11b(1 ~ 14), 13 for 802.11g(1 ~ 13)
Korea/China: 13(1 ~ 13)
Receive Sensitivity
802.11b: -89dBm@11Mbps
802.11g: -74dBm@54Mbps
802.11n(40MHz): -66dBm@150Mbps
802.11n(20MHz): -70dBm@72Mbps
Data Rates
802.11b: 1,2,5.5,11Mbps
802.11g: 6,9,12,18,24,36,48,54Mbps
802.11n(20MHz): 7,14.5,21.5,28.5,43.5,57.5,65,72Mbps
802.11n(40MHz): 29.5,86.5,115,130,144,150Mbps
Modulation Type 11g: OFDM(64QAM, 16QAM, QPSK, BPSK)
11b: DSS(CCK, DQPSK, DBPSK)
Antenna
Table 1. Wi-Fi Specifications
![](/img.php?id=2849469&img=bga.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 8
1.3. Hardware Specifications
Type Description
Interface
Serial port : 2 EA
LAN port : 3EA
USB port : 1 USB Host Port ( Reserved )
U.FL(wireless)
Temperature Operation: -10℃~70℃
Humidity Operation: 10% to 90%, Non-Condensing
Storage: 5% to 90%, Non-Condensing
Serial
Baud Rate : 1200 ~ 921,600bps
Stop bits: 1, 2
Parity: None, Odd, Even
Flow Control:
UART1: XON/XOFF(software), CTS/RTS(hardware), none
UART2: XON/XOFF, none
Input Power DC 3.3V / 1A
Power Consumption Max : 3.3V / 600mA
Dimension 33mm X 43mm X 4.5mm
Weight 6g
Table 2. WizFi630A Module Specifications
![](/img.php?id=2849469&img=bgb.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 9
1.4. Software Specifications
Type Description
Operation Mode Access Point(Bridge), Client(Station), Gateway, AP-Client, ad-hoc
Protocol TCP, UDP, ARP, ICMP, DHCP, PPPoE, HTTP
Security
WEP 64/128bit
WPA/WPA2-PSK AES/TKIP
802.1x ( Only in AP Mode )
Configuration Web Configuration, Serial Command, Configuration Tool
Notification Event Logging
Serial To Wi-Fi 2 Serial Port supports
Table 3. SW Specifications
1.5. EVB Construction
1.5.1. Contents
Section Qnt. Contents
WizFi630A 1ea
WizFi630A
WizFi630A-
EVB 1ea
WizFi630A-EVB
![](/img.php?id=2849469&img=bgc.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 10

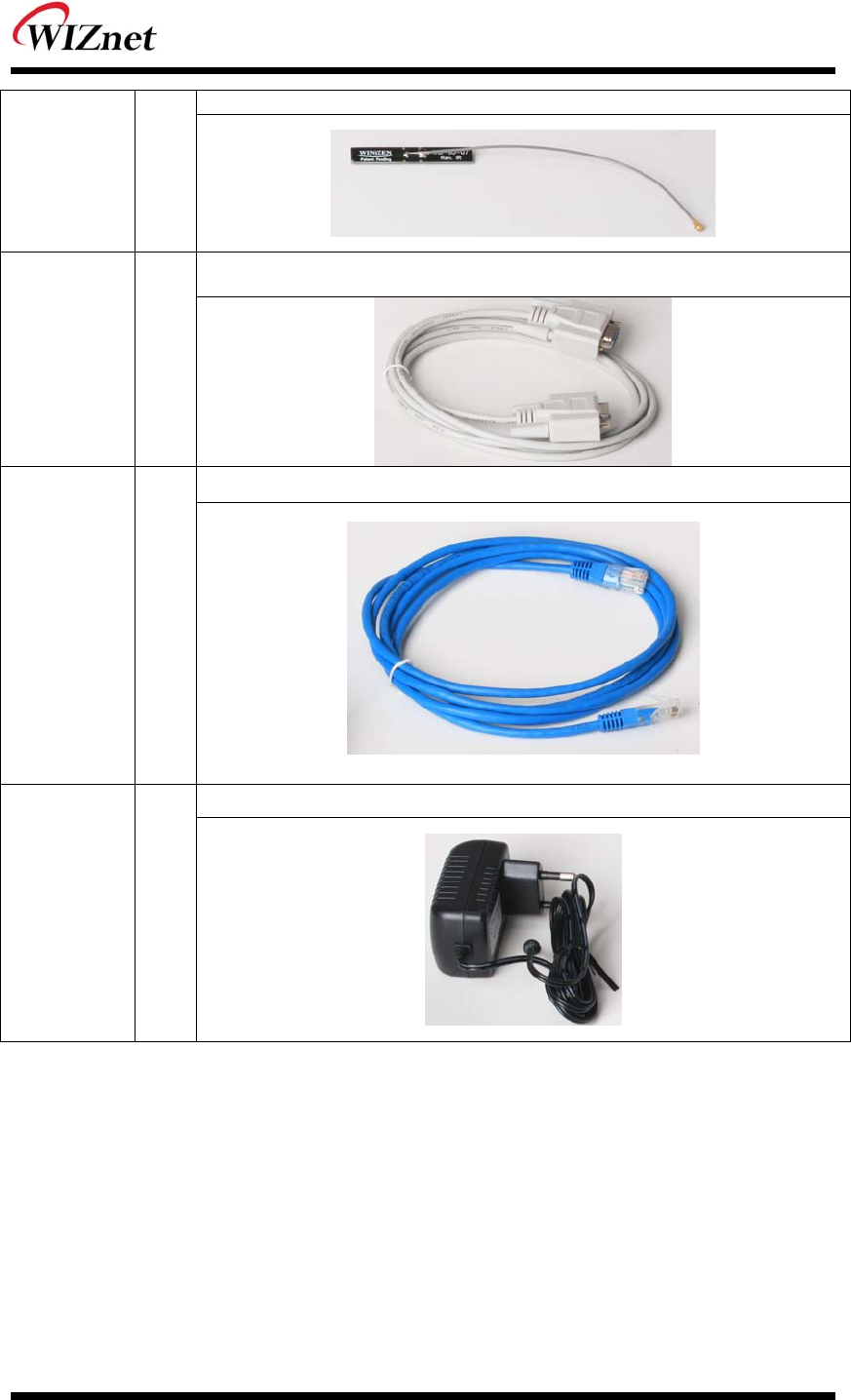

Antenna 1 ea
2dBi WI-FI Antenna (Model : W5I-B0-08)
Serial Cable 1 ea
Serial Cable
LAN Cable 1 ea
LAN Cable
Adapter 1ea
DC 5V/2A Adapter
Table 4. WizFi630A-EVB Contents
![](/img.php?id=2849469&img=bgd.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 11
1.6. Block Diagram

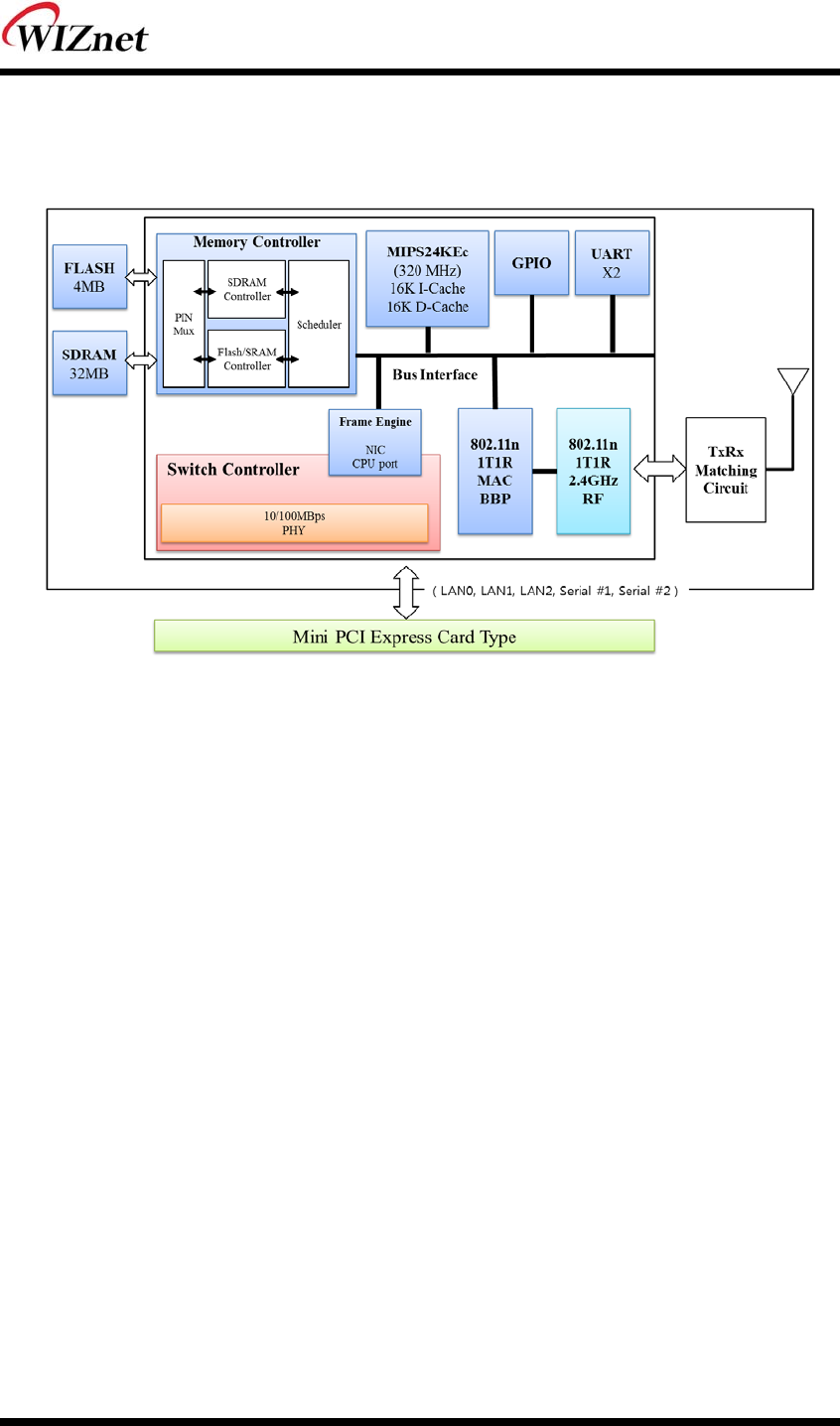

Figure 1. WizFi630A Block Diagram
![](/img.php?id=2849469&img=bge.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 12
2. Operation Mode and Description of Menu
2.1. Operation Mode
User can select the operation mode.
The default setting of WizFi630A is AP Mode. (DHCP Server Enabled)
DHCP Server is usually disabled in AP mode, but for the user’s convenience, DHCP Sever will be
enabled.

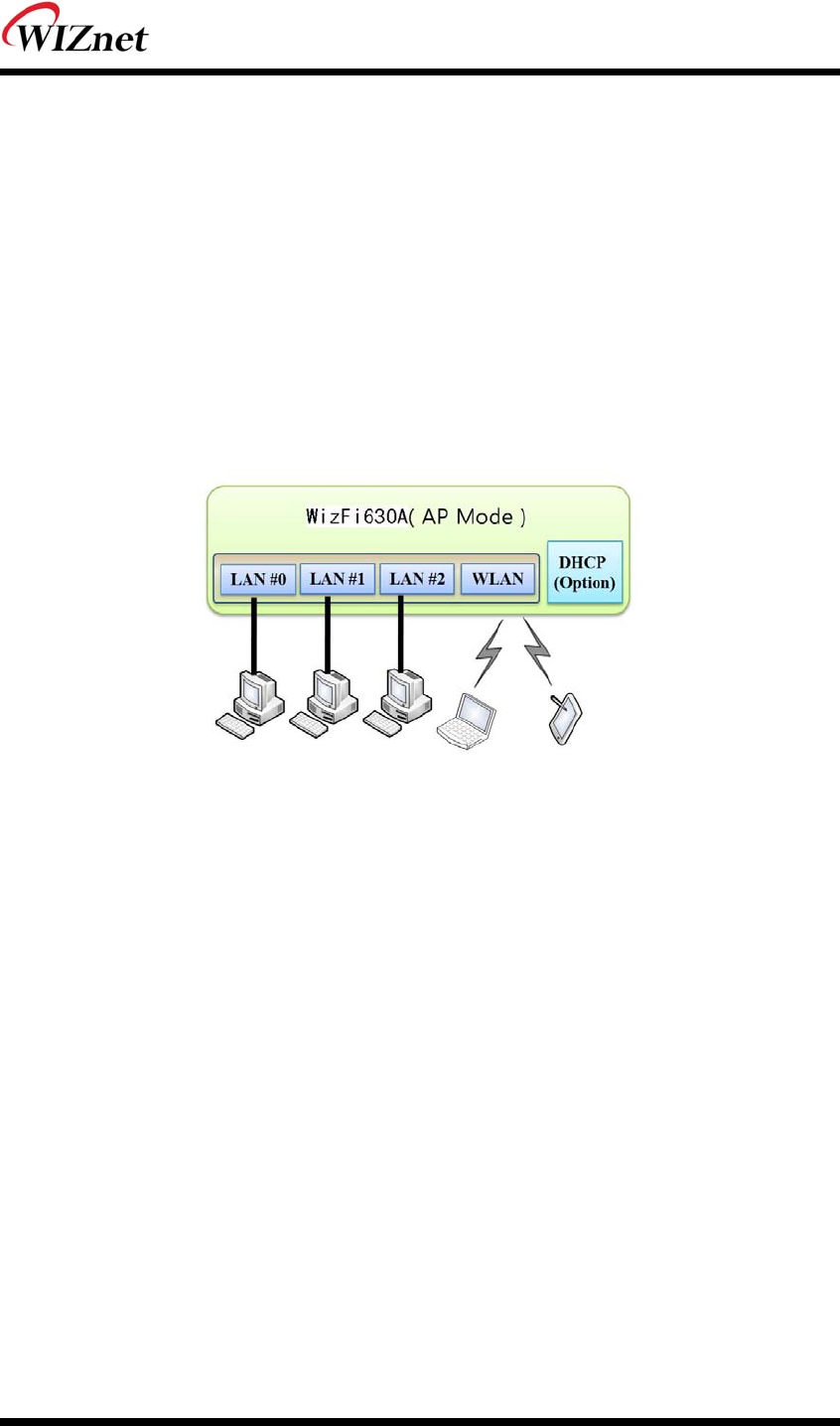

2.1.1. Access Point
In this mode, all Ethernet ports and the wireless interface are bridged together. Wired/Wireless
interface has the same IP address space with its top mesh. DHCP Server function is disabled and
WizFi630A does not assign an IP. Wireless (LAN Port included) sending periodic Broadcast Packet to
Station and maintains a connection with Station.
![](/img.php?id=2849469&img=bgf.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 13

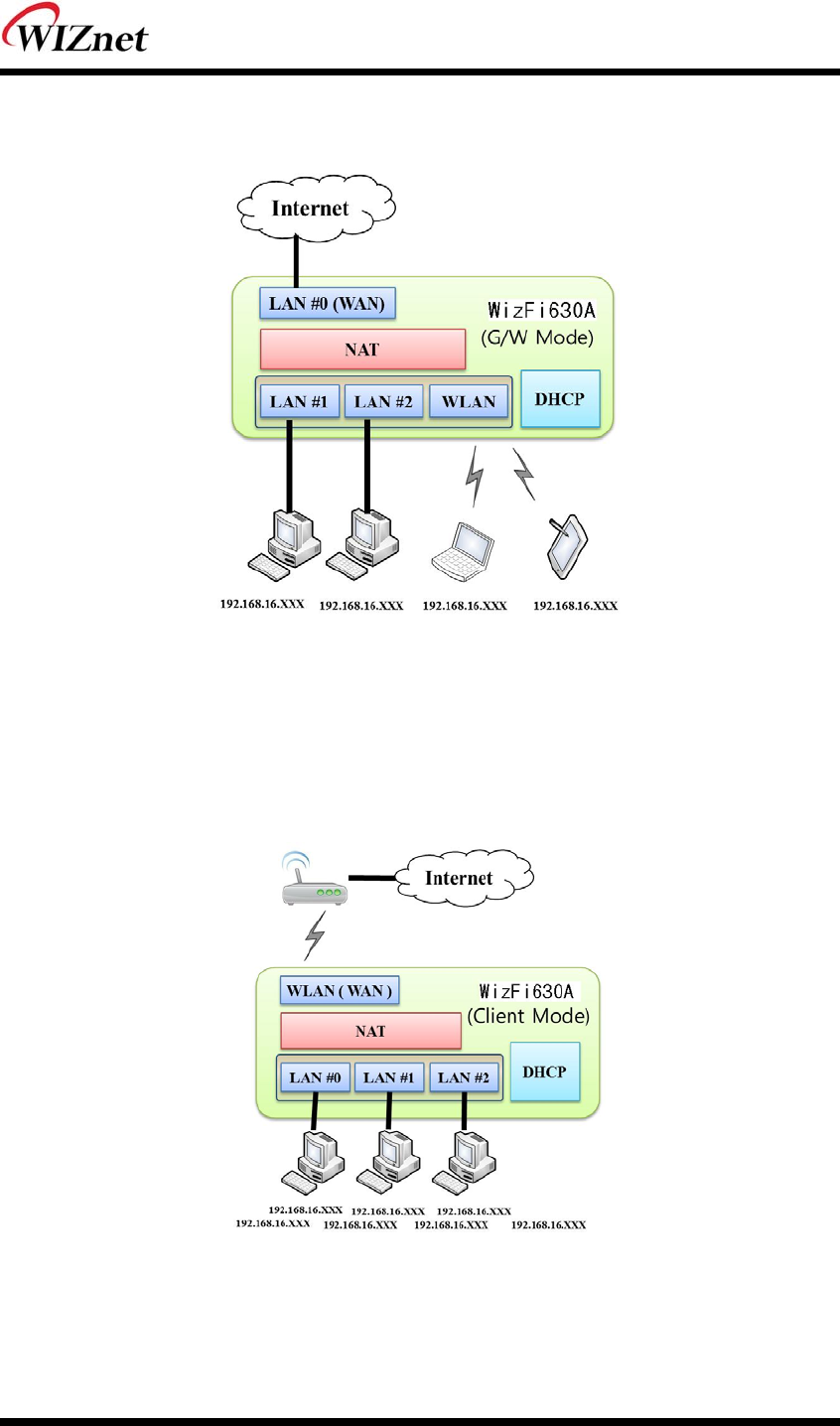

2.1.2. Gateway
When operating in router mode, interfaces are separated into WAN I/F (Top Internet Business
Network), LAN I/F (Sub Private Network: 192.168.16.xxx), and Wireless I/F (Sub Private Network:
192.168.16.xxx). Port # 0 will be assigned to the WAN Port. WizFi630A periodically sends Broadcast
Packet to Sub-LAN (LAN Port included) and maintains connection with Station.
2.1.3. Client (Station)
Wireless I/F is assigned as WAN Port and all Ethernet Ports are bound to LAN Port. Set the profile and
the WizFi630A is automatically connected to the AP when re-booting in the future. Devices that are
connected through the LAN port are assigned a private IP. WizFi630A periodically sends PING Packet
to AP Gateway and maintains connection with AP.
![](/img.php?id=2849469&img=bg10.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 14

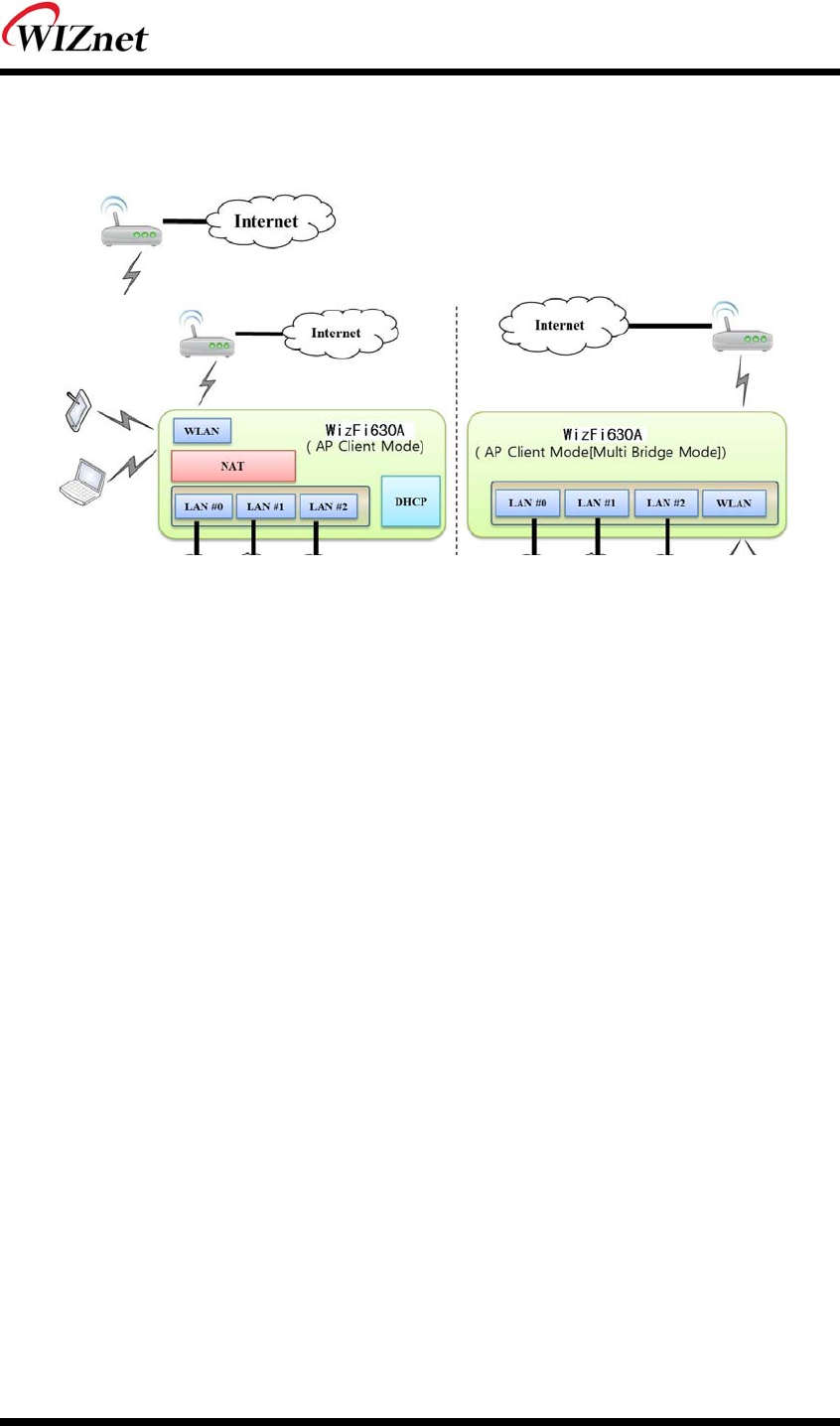

2.1.4. AP-Client Mode
Wireless I/F is assigned as WAN Port and all Ethernet Ports are bound to LAN Port. This mode is
similar to Station mode, however the difference is that the Wireless I/F will operate as client with AP
simultaneously. WizFi630A periodically sends Broadcast Packet to Sub-LAN (LAN Port included) and
maintains connection with Station.
![](/img.php?id=2849469&img=bg11.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 15
2.2. Menu List by Operation Mode
2.2.1. Access Point (Bridge) Mode
Menu Detailed Menu Description ( Link ) List Number
Internet
Setting
System IP Internet connection setting 2.3.1
LAN Local network setting 2.3.2
DHCP Clients DHCP Client Information 2.3.3
VPN Config VPN setting 2.3.4
QoS(802.1p) QoS(802.1p) Setting 2.3.6
Wireless
Setting
Basic Basic settings 2.4.1
Advanced Advanced Wireless Settings ( AP Mode ) 2.4.2.1
Security Wireless Security setting 2.4.3
WDS WDS Setting 2.4.4
WPS WPS Setting ( AP Mode ) 2.4.5.1
Station List Wireless network status 2.4.6
Packet Statistics AP Wireless Statistics ( AP Mode ) 2.4.7.1
Serial
Setting
Serial Port #1
Serial to LAN(Wired and Wireless) 2.5
Serial Port #2
Managements
System Mgmt System Management 2.7.1
Firmware Mgmt Firmware 2.7.2
Config Mgmt Config Settings 2.7.3
Port Mgmt Port Setting 2.7.4
Packet Statistics Packet Statistics 2.7.5
System Status System Status 2.7.6
System Log System Log 2.7.7
![](/img.php?id=2849469&img=bg12.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 16
2.2.2. Gateway (Router) Mode
Menu Detailed Menu Description ( Link ) List Number
Internet
Setting
WAN Internet connection setting 2.3.1
LAN Local network setting 2.3.2
DHCP Clients DHCP Client Information 2.3.3
VPN Config VPN setting 2.3.4
Routing Static Routing Setting 2.3.5
Qos(802.1p) QoS(802.1p) Setting 2.3.6
VLAN(802.1q) VLAN(802.1p) 2.3.7
Wireless
Setting
Basic Basic settings 2.4.1
Advanced Advanced Wireless Settings ( AP Mode ) 2.4.2.1
Security Wireless Security setting 2.4.3
WDS WDS Setting 2.4.4
WPS WPS Setting ( AP Mode ) 2.4.5.1
Station List Wireless network status 2.4.6
Packet Statistics AP Wireless Statistics ( AP Mode ) 2.4.7.1
Serial
Setting
Serial Port #1
Serial to LAN(Wired and Wireless) 2.5
Serial Port #2
Firewall
DMZ DMZ 2.6.1
Port Forwarding Port forwarding 2.6.2
Packet Filtering Packet filtering 2.6.3
Contents
Filtering Contents filtering 2.6.4
System Security System Security 2.6.5
Managements
System Mgmt System Management 2.7.1
Firmware Mgmt Firmware 2.7.2
Config Mgmt Config Settings 2.7.3
Port Mgmt Port Setting 2.7.4
Packet Statistics Packet Statistics 2.7.5
System Status System Status 2.7.6
System Log System Log 2.7.7
![](/img.php?id=2849469&img=bg13.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 17
2.2.3. Client (Station) Mode
WizFi630A works as a Wi-Fi client(station) which is always paired with a Wi-Fi AP.
Users can take Client Mode as an opposite of Gateway Mode
Menu Detailed Menu Description ( Link ) List Number
Internet
Setting
WAN Internet connection setting 2.3.1
LAN Local network setting 2.3.2
DHCP Clients DHCP Client Information 2.3.3
VPN Config VPN setting 2.3.4
Routing Static Routing Setting 2.3.5
Qos(802.1p) QoS(802.1p) Setting 2.3.6
VLAN(802.1q) VLAN(802.1p) 2.3.7
Wireless
Setting
Profile Profile 2.4.9
Link Status Link Status 2.4.10
Site Survey Site Survey 2.4.11
Packet Statistics AP Wireless Statistics ( Client Mode ) 2.4.7.2
Advance Advanced Wireless Settings(Client Mode) 2.4.2.2
QoS Station QoS/DLS(Direct Link Setup)
Configurations
2.4.8
WPS WPS Settings ( Client Mode ) 2.4.5.2
Serial
Setting
Serial Port #1
Serial to LAN(Wired and Wireless) 2.5
Serial Port #2
Firewall
DMZ DMZ 2.6.1
Port Forwarding Port forwarding 2.6.2
Packet Filtering Packet filtering 2.6.3
Contents
Filtering Contents filtering 2.6.4
System Security System Security 2.6.5
Managements
System Mgmt System Management 2.7.1
Firmware Mgmt Firmware 2.7.2
Config Mgmt Config Settings 2.7.3
Port Mgmt Port Setting 2.7.4
Packet Statistics Packet Statistics 2.7.5
System Status System Status 2.7.6
System Log System Log 2.7.7
![](/img.php?id=2849469&img=bg14.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 18
2.2.4. AP-Client Mode
AP-Client Mode Settings are very similar to the Gateway Mode Settings.
The table below shows the added features of AP-Client mode.
One module can operate as both AP and Station.
The wireless module connects to a different AP and functions as WAN port.
The channel of WizFi630A must be identical to the channel of AP to be connected
Support wireless bridge.
Menu Detailed Menu Description ( Link ) List Number
Internet
Setting
WAN Internet connection setting 2.3.1
LAN Local network setting 2.3.2
DHCP Clients DHCP Client Information 2.3.3
VPN Config VPN setting 2.3.4
Routing Static Routing Setting 2.3.5
Qos(802.1p) QoS(802.1p) Setting 2.3.6
Wireless
Setting
Basic Basic settings 2.4.1
Advanced Advanced Wireless Settings ( AP Mode ) 2.4.2.1
Security Wireless Security setting 2.4.3
WDS WDS Setting 2.4.4
WPS WPS Setting ( AP Mode ) 2.4.5.1
WIFI Multi Bridge WIFI Multi-Bridge settings 2.4.12
Station List Wireless network status 2.4.6
Packet Statistics AP Wireless Statistics ( AP Mode ) 2.4.7.1
Serial
Setting
Serial Port #1
Serial to LAN(Wired and Wireless) 2.5
Serial Port #2
Firewall
DMZ DMZ 2.6.1
Port Forwarding Port forwarding 2.6.2
Packet Filtering Packet filtering 2.6.3
Contents Filtering Contents filtering 2.6.4
System Security System Security 2.6.5
Managements
System Mgmt System Management 2.7.1
Firmware Mgmt Firmware 2.7.2
Config Mgmt Config Settings 2.7.3
Port Mgmt Port Setting 2.7.4
Packet Statistics Packet Statistics 2.7.5
![](/img.php?id=2849469&img=bg15.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 19
System Status System Status 2.7.6
System Log System Log 2.7.7
![](/img.php?id=2849469&img=bg16.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 20
2.3. Internet Setting
2.3.1. Internet connection setting
Select the internet service type and WizFi630A can connect to the internet
If users would like access to Internet, Gateway Mode should be selected.
Type Description
WAN Connection
Type
Select the communication ways for Internet’s connection
- Static(Fixed IP)
- DHCP (Auto config)
- PPPoE
Host Name Settings about module’s host name
Mac Clone Some ISPs require that you register a MAC address. Users can directly enter MAC address
or use the MAC Clone function
2.3.2. Local network setting
WizFi630A internal IP setting, DHCP server setting and DHCP.
Type Description
DHCP(Auto
config)
User should choose DHCP Mode when the user connects to the internet service such
as FTTH, cable modems, VDSL, or IP-ADSL
Static(Fixed IP)
Static IP setting window. If user receives static IP from ISP, user should set the Fixed IP
Input the network information that got from ISP
(such as IP, Subnet, Gateway, DNS)
PPPoE(ADSL)
-. User Name: Setting the User Name received from ISP
-. Password: Password assigned by ISP
-. Operation Mode: This mode is used for re-connecting when connection is bad
Type Description
IP Address Enter the module’s IP. (Default Value : 192.168.16.254)
Subnet Mask Enter the module’s subnet mask.
MAC Address MAC Address of module’s LAN port (Wireless included). (Read Only)
DHCP Server Decide whether the module’s DHCP server will be used.
Start IP Address Set the start IP address that will be assigned from the DHCP server
End IP Address Set the end IP address that will be assigned from the DHCP server.
Subnet Mask Enter the value of subnet mask.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address.
Lease Time Enter the lease time when IP address is assigned.
Statically Assigned Maximum of three IP can be statically assigned when IP address is
assigned.
![](/img.php?id=2849469&img=bg17.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 21
2.3.3. DHCP Client Information
The IP information that is assigned from the DHCP server is shown.
Type Description
Host name Client’s host name is shown
Mac Address Client’s MAC address is shown.
IP Address Client’s IP address is shown.
Expires in The usable time of client’s IP address is shown.
2.3.4. VPN setting
This section will explain on VPN packet settings.
Type Description
L2TP Pass-through Enable : VPN L2TP packet is passed through WAN.
Disable : VPN L2TP packet is not passed through WAN. (Default value)
IPSec Pass-through Enable : VPN IPSec packet is passed through WAN.
Disable : VPN IPSec packet is not passed through WAN. (Default value)
PPTP Pass-through Enable : VPN PPTP packet is passed through WAN.
Disable : VPN PPTP packet is not passed through WAN. (Default value)
![](/img.php?id=2849469&img=bg18.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 22
2.3.5. Static Routing Setting
User can modify the routing table at static routing settings.
We do not recommend any modification.
Type Description
Destination Enter the Target IP address or network address.
Range Select whether the routing table is HOST or NETWORK
Netmask If Range is NETWORK, enter subnet mask.
Gateway Enter the gateway address to be passed when communicating with target.
Interface Select whether the target is LAN or WAN.
2.3.6. QoS(802.1p) Setting
Settings for QoS / DLS in Station mode.
Type Description
Port #0 ~ Port#5 Set a QoS value from 0~7
Port #6(WLAN) Set a QoS value from 0~7
2.3.7. VLAN(802.1p)
Settings for VLAN ID value and Tag/Untag.
Type Description
VLANID ID for connection with VLAN.
Tagging Select to add information related to VLAN.
![](/img.php?id=2849469&img=bg19.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 23
2.4. Wireless setting
2.4.1. Basic settings
This chapter is about basic setting for wireless LAN.
Type Description
Radio On/Off Decide radio on/off of wireless AP function.
Network Mode
11b/g/n mixed mode: 802.11b/g/n are supported.
11b/g mixed mode: 802.11b/g are supported.
11b only: only 802.11b is supported.
11g only: only 802.11g is supported.
11n only: only 802.11n is supported
SSID Enter the name of the wireless network.
Broadcast Network
Name
AP or Wireless network status can be checked by notifying the SSID to the wireless
device. AP cannot be searched if this function is disabled.
Frequency(Channel) Select the channel of wireless network.
Channel Bandwidth
Fix bandwidth channel to 20MHz.
Use 40MHz as bandwidth in case connection with wireless station that supports 11n
channel bonding..
Reverse Direction
Grant(RDG)
The wireless performance can be improved using Reverse Direct Grant, 11n’s RDG
technology.
Type Description
Extension Channel Setting for the other 20MHz area when channel bandwidth is set to 40MHz
HT TxStream Setting for number of Tx antennas of 2T2R system.
HT RxStream Setting for number of Rx antennas of 2T2R system.
![](/img.php?id=2849469&img=bg1a.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 24
2.4.2. Advanced Wireless Settings
2.4.2.1. Advanced Wireless Settings ( AP Mode )
Only works at the AP Mode, Gateway Mode, and AP-Client Mode
This chapter is about higher-level setting for wireless LAN.
Type Description
Tx Power Controls the range of wireless radio being sent. The range of wireless radio being sent
gets larger as the value is larger.
Tx Burst
The wireless speed can be maximized by enabling this function. However, it is
recommended to disable this function for stable connection when numerous stations
are connected together..
Packet Aggregate Numerous packets can be transmitted in one MPDU by enabling this function
Short Slot
The performance of wireless station connected to 11g can be improved by enabling
Short Slot. However, it is recommended to disable Short Slot if there is a wireless
station with unstable connection.
Short Preamble
If user enables Short Preamble, performance might slightly improve. However, the
compatibility with wireless LAN card when connecting could decrease. It is
recommended to disable Short Preamble for best compatibility.
RTS Threshold
When a data is larger than the threshold size, it can be sent RTS/CTS. Smaller
threshold size may enable more stable wireless communication; however the maximum
speed is lower. Smaller threshold size is recommended in case of more wireless
stations are connected at the same time. The setting range is 1~2347.
Fragmentation
Threshold
When a data is larger than the threshold size, it is fragmented and sent. Smaller
threshold size may enable more stable wireless communication; however the maximum
speed is lower. Smaller threshold size is recommended in case of many interruptions
from surrounding signals. The setting range is 256~2346.
BG Protection Setting for wireless communication when using both 11b and 11g LAN cards.
Recommended for automatic settings in general.
Beacon Interval Controls the interval of sending beacon.
The setting range is 20~999 and 100ms is usually used.
Country Code
Setting for country code.
Example: KR(Republic of Korea), US(United State), FCC(Europe), JP(Japan), FR(France),
ES(Spain)
WMM
(Wi-Fi Multimedia) Decide whether or not to use WMM function.
DLS Decide whether or not to use DLS (Direct Link Setup) function.
2.4.2.2. Advanced Wireless Settings ( Client Mode )
Set Station advanced configurations in station mode.
Type Description
RADIO OFF Enable / Disable wireless LAN..
![](/img.php?id=2849469&img=bg1b.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 25
User cannot use wireless LAN if user clicks RADIO OFF.
Wireless Mode Selects wireless mode.
Country
Region Code Selects the country / regional code.
B/G Protection Setting for better wireless communication when both 11b and 11g LAN cards are used.
We recommend Auto.
HT Select whether the PHY Mode of wireless to be Mixed Mode or GreenField Mode.
BW Fix the channel bandwidth to 20MHz: 20MHz.
20/40MHz: Use 40MHz when wireless station that supports 11n channel bonding.
GI Long: 800nsec, short: 400nsec
MCS Controls link rate.
Tx Antenna Select number of Tx antenna in 2T2R system.
Rx Antenna Select number of Rx antenna in 2T2R system.
MPDU
Aggregation Aggregates multiple MPDU to a single MPDU.
MPDU density MPDU Variable Factor
Aggregation
MSDU
(A-MSDU)
Aggregates multiple MPDU to a single MPDU.
![](/img.php?id=2849469&img=bg1c.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 26
2.4.3. Wireless Security
This chapter is about settings for wireless network security
Type Description
SSID choice If multiple SSID are in use, choose the corresponding SSID for security.
Security Mode Select security mode.
Access Policy
Disable : Access Control function will be disabled..
Allow Listed : allows communication with listed MAC client.
Reject Listed: blocks communication with listed MAC client.
Add a station MAC Enter the client’s MAC address for controlling.
2.4.3.1. Wireless Security setting
Authentication settings
Type Description
OPENWEP All users are authorized.
SHAREDWEP Users only with correct network key are authorized.
WEPAUTO OPEN/SHARED Mode is selected automatically.
WPA-PSK WPA certified standard with improved security.
WPA2-PSK Improved WPA certified standard
WPAPSKWPA2PSK Both WPZ-PSK and WPZ2-PSK are supported.
WPA WPA certified standard including 802.1x.
WPA2 Improved WPA certified standard.
WPA1WPA2 Both WPA and WPA2 are supported.
802.1x Radius authentication through WEP Key.
2.4.3.2. Wireless Authentication Setting
Encryption Type Description
None OPEN Encryption algorithm is not used.
WEP64 SHARED/
WEPAUTO/802.1x
WEP encryption algorithm is used with 64bit key.
WEP128 WEP encryption algorithm is used with 128 bit key.
TKIP WPA/WPA2/
WPA-PSK/
WPA2-PSK/
WPA1WPA2/
WPAPSKWPA2PSK
More complex encryption algorithm than WEP Is used.
AES New encryption algorithm is used.
TKIP/AES Support TKIP/AES simultaneously
![](/img.php?id=2849469&img=bg1d.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 27
2.4.3.2.1. WEP
Enter key for WEP64 or WEP128 network.
Use either character string or hex character when entering key.
Select 1~4 for ‘Default Key..
Enter at least one WEP Key.
The entered WEP key is used for connection from wireless terminal.
2.4.3.2.2. TKIP/AES authentication
Enter at least 8 characters of character string for the network key value.
2.4.3.2.3. Wireless 802.1x authentication
Enter the value for linking with the Radius Server.
The values related to the Radius Server are provided by the internet service company.
![](/img.php?id=2849469&img=bg1e.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 28
2.4.4. WDS(Wireless Distribution System) Setting
Connection with different AP is possible with WDS (Wireless Distribution System) function.
Maximum of four APs can connect through WDS function.
2 APs must use the same channel and authentication / encryption method
Type Description
Disable WDS function is not used. (Default disable)
Lazy Mode
Do not register the MAC of AP to be connected.
Connect the AP’s MAC to the registered AP.
AP function is provided.
Bridge Mode
Register the MAC of AP to be connected.
Connect the registered MAC to the AP.
AP function is not provided.
Repeater Mode
Register the MAC of AP to be connected.
Connect the registered MAC to the AP.
AP function is provided.
(The performance of WDS is best in Repeater Mode.)
![](/img.php?id=2849469&img=bg1f.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 29
2.4.5. WPS Setting
2.4.5.1. WPS Setting ( AP Mode )
Only work at the AP Mode, Gateway Mode and AP-Client Mode
The WPS function enables easier wireless network setting.
2.4.5.2. WPS Settings ( Client Mode )
WPS settings in Station Mode.
Type Description
Refresh Searches for WPS function activated AP.
PIN Start Attempts connection with AP using PIN value.
PBC Start Attempts connection with AP by virtually clicking the PBC button.
Cancel Cancels the AP connection attempt.
Renew PIN Renews the PIN value of WizFi630A.
Type Description
WPS Enable / Disable WPS.
WPS Current Status Shows whether WPS is used or not for the connection with station.
WPS Configured Shows whether WPS is configured or not.
WPS SSID Shows the SSID connected to the station.
WPS Auth Mode Shows the authentication used with WPS.
WPS Encrypt Type Shows the Encryption used with WPS.
WPS Default Key Index Shows the default key ID used with WPS.
WPS Key(ASCII) Shows the WPS Key.
AP PIN Shows the PIN value used when connecting to station.
WPS Mode Select PIN or PBC.
![](/img.php?id=2849469&img=bg20.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 30
2.4.6. Wireless network status
The status of the station that is connected to WizFi630A is shown.
The surrounding wireless AP’s status are shown.
Type Description
Channel Channel information of AP
SSID SSID of AP
BSSID MAC address of AP
Security Encryption method of AP
Signal Signal strength with AP
W-Mode Wireless mode of AP
Type Network Type of finding AP
In: Infrastructure, Ad: ad-hoc
![](/img.php?id=2849469&img=bg21.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 31
2.4.7. AP Wireless Statistics
The Statistics of wireless communication is shown.
2.4.7.1. AP Wireless Statistics ( AP Mode )
Only work at the AP Mode, Gateway Mode and AP-Client Mode
Type Description
Tx Success Number of successfully transmitted frames
Tx Retry Count Number of retransmitted frames
Tx Fail after retry Number of failed frames
RTS Successfully Receive CTS Number of frames that successfully received CTS
RTS Fail To Receive CTS Number of frames that failed to receive CTS
Frames Receive Successfully Number of frames successfully received
Frames Received With CRC Error Number of frames that failed due to CRC error
SNR Receiving signal strength
2.4.7.2. AP Wireless Statistics ( Client Mode )
Station statistics shows the information of wireless data packet in station mode.
Type Description
Frames Transmitted Successfully Number of frames successfully transmitted.
Frames Transmitted Successfully Without Retry Number of frames successfully transmitted without
a retry.
Frames Transmitted Successfully After Retry(s) Number of frames transmitted successfully after
retry.
Frames Fail To Receive ACK After All Retries Number of frames failed to receive ACK after all
retries.
RTS Frames Successfully Receive CTS Number of RTS frames that successfully received
CTS
RTS Frames Fail To Receive CTS Number of RTS frames failed to receive CTS.
Frames Received Successfully Number of frames successfully received.
Frames Received With CRC Error Number of frames received with CRC error.
Frames Dropped Due To Out-of-Resources Number of frames dropped due to out of resources.
Duplicate Frames Received Number of duplicate frames received.
![](/img.php?id=2849469&img=bg22.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 32
2.4.8. Station QoS/DLS(Direct Link Setup) Configurations
Set Station QoS / DLS configurations in station mode
Type Description
WMM(Wi-Fi
Multimedia) Enable WMM function or not.
WMM Power Saving Enable Power Saving function or not.
Direct Link Setup
Enable Direct Link function or not.
In order to use Direct Link function, the AP connected to WizFi630A and the
Station to be connected must support Direct Link function.
MAC Address Enter the MAC Address of the station to be connected using direct link function.
Timeout Value Cancels the link if there are no traffic between stations for a period of time.
![](/img.php?id=2849469&img=bg23.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 33
2.4.9. Profile
Shows the profile of the connected AP.
The profile information can be modified.
By using “Site Survey”, it is very convenient to find and connect with an AP.
Administration of maximum of two AP is possible after adding to profile.
The module automatically connects to the active AP (selected AP) upon booting.
Type Description
Profile Profile Name
SSID SSID of AP to be connected
Channel Channel information of AP to be connected. Channel information is needed only when
connecting with ad-hoc.
Authentication Authentication method of AP to be connected.
Encryption Encryption method of AP to be connected.
Network Type Select AP / ad-hoc.
![](/img.php?id=2849469&img=bg24.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 34
2.4.10. Link Status
Shows the link status between wireless LAN and AP.
Type Description
Status SSID and BSSID of connected AP.
Extra Info Link status.
Channel Channel information of connected AP.
Link Speed Link speed rate of connected AP.
Throughput Real performance through communication.
Link Quality Link quality of connected AP.
Signal Strength Signal strength of connected AP.
Noise Level Noise level of connected AP.
The HT section only appears when connected with 802.11n AP.
Type Description
BW Channel Bandwidth. 20MHz or 40MHz.
GI Guard Interval
Long: 800nsec, Short: 400nsec
STBC Supported only when value of MCS is 0-7.
MCS Shows link rate.
SNR Shows the receiving signal strength.
![](/img.php?id=2849469&img=bg25.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 35
2.4.11. Site Survey
Site Survey searches for AP surrounding WizFi630A.
Select an AP and click the connect button (If the module is rebooted, the module will connect to
the previous profile).
Click “Add Profile” if user wishes to add to profile.
Type Description
SSID SSID of searched AP
BSSID Wireless MAC Address of searched AP.
RSSI Signal strength of searched AP.
Channel Channel of searched AP.
Encryption Encryption method of searched AP.
Authentication Authentication method of searched AP.
Network Type Network type of searched AP.
In: Infrastructure, Ad: ad-hoc
Connected SSID of AP connected with WizFi630A.
Connect Connects with AP.
Rescan Rescans for surrounding AP.
Add Profile Adds to profile.
![](/img.php?id=2849469&img=bg26.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 36
2.4.12. WIFI Multi-Bridge settings
Set WI-FI Multi Bridge Mode in AP-Client mode.
Type Description
Operation Mode
Select Gateway or Bridge Mode.
Wi-Fi is WAN: operates in Gateway Mode.
Multi-Bridge Mode: operates in Bridge Mode.
SSID SSID of AP to be connected.
Frequency
(Channel) Channel of AP to be connected.
MAC Address MAC Address of AP to be connected. (optional)
Security Select the same security option with AP to be connected.
![](/img.php?id=2849469&img=bg27.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 37
2.5. Serial to LAN(Wired and Wireless)
Individual settings for serial #1 and serial #2 are possible.
Set the serial parameters for serial to wireless (Ethernet) function.
Set two channels (Main connection, Aux connection) for each serial port
Setting management of Serial #1 and #2 (Main connection, Aux connection)
2.5.1. Main Connection settings
Type Description
Status Enable checked : Serial to LAN is used.
Enable un-check: Serial to LAN is not used.
Protocol
Protocol used in Serial to LAN communication
-TCP
-UDP
Mode
Serial to LAN operation mode. ( Client Mode recommended)
- Server : waits for connection.
- Client : connected to the remote server of WizFi630A
- Mixed : not recommended
Server IP Enter the IP address for WizFi630A setting.
Server Port Enter the port number for remote serial data server host PC.
Reconnect Interval Interval of TCP reconnection.
Connection
Connection Type of WizFi630A’s Serial LAN. ( TCP Only )
System Bootup : connected to the remote server upon bootup.
Serial Data In : once serial data comes in, connect to remote server.
(end connection after inactive time)
Baud rate Select the serial communication speed.
Databits Select the databits.
Parity Select the method for parity check.
Stopbits Select the stopbits.
FlowControl Select the method for flow control. (Option: none, Xon/Xoff, RTS/CTS)
2.5.2. Aux Connection Settings
Type Description
Status Select whether to enable serial port or not.
Protocol Protocol used in Serial to LAN communication.
Mode Select Server or Client Mode.
Server IP Enter the IP address for WizFi630A setting.
Server Port Enter the port number for remote serial data server host PC.
![](/img.php?id=2849469&img=bg28.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 38
2.5.3. Packing Condition (Incoming serial data packing condition)
Type Description
Time Data packing until the set time and then sent to server after the set time.
Size Data packing until the set size and then sent to the server.
Character Data packing until the set character and then sent to the server.
Inactivity Time: TCP/IP connection is discontinued if there is neither serial data nor network
data during the set time.
H/W CMD switch
-. Enable/Disable the H/W CMD switch pin.
-. H/W CMD switch pin is the switch for sending commands from CPU to
WizFi630A.
2.5.4. Ethernet Data Tagging Option
This option is used to help serial device to identify who is the received serial data’s source; the
received serial data comes from Main Port or Aux Port.
Type Description
Status Enable or disable this option (Checked : Enable, Un-Check : Disable)
Main Port
Before sending data from Main port to serial port, WizFi630A added a TAG
in the front of payload.
For example:
In-come LAN Data : “abcdegf”
Output data to Serial Port : “!MAIN!abcdegf”
Aux Port
Before sending data from Aux port to serial port, WizFi630A added a TAG
in the front of payload.
For example:
In-come LAN Data : “abcdegf”
Output data to Serial Port : “!AUX!abcdegf”
![](/img.php?id=2849469&img=bg29.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 39
2.6. Firewall settings
2.6.1. DMZ
Enable/Disable DMZ function.
A DMZ allows a single computer on your LAN to expose ALL of its unused ports to the Internet.
When doing this, the exposed computer is no longer behind the firewall.
Sometimes TCP/IP applications require very specialized IP configurations that are difficult to set up
or not supported by your router. In this case, placing your computer in the DMZ is the only way to
get the application working.
Type Description
DMZ Settings Disable/Enable DMZ
DMZ IP Address Input the IP address that you would like to expose all of its unused ports to the Internet
![](/img.php?id=2849469&img=bg2a.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 40
2.6.2. Port forwarding
When a computer on the internet sends data to the external IP address of the router (WizFi630A), the
router (WizFi630A) needs to know what to do with the data. Port Forwarding simply tells the
WizFi630A which computer on the local area network to send the data to. When you have port
forwarding rules set up, your router takes the data off of the external IP address:port number and
sends that data to an internal IP address:port number. Port Forwarding rules are created per port. Thus,
a rule set up for port 53 will only work for port 53.
Type Description
Port Forwarding Disable/Enable Port Forwarding
IP Address Internal IP address
Service Port External ports range
Protocol Supports TCP and UDP
Internal Port Internal port
![](/img.php?id=2849469&img=bg2b.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 41
2.6.3. Packet filtering
WizFi630A can accept or block Internet packets according to pre-defined MAC or IP address
First, please do the basic settings
Type Description
Source MAC Pre-defined source MAC address for MAC filtering function
Dest IP Address Destination IP address
Source IP Address Source IP address
Protocol Supports TCP, UDP, ICMP
Dest Port Range Destination port range
Source Port Range Source port range
Action Enable/Disable MAC/IP/Port filtering function
![](/img.php?id=2849469&img=bg2c.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 42
2.6.4. Contents filtering
Used to block certain websites (IP or domain names).
Type Description
URL Filter
Block all the websites whose domain is the input text
For example, if you input “sex”, the websites like www.sex.com is blocked. But
www.sexgood.com is not blocked. If you would like to block all the websites whose
domain name contains the input text, please use Host Filter function
Host Filter
Block all the websites whose domain name contains the input text.
For example, if you input “game”, the websites like www.hangame.com,
www.hangame.co.kr are blocked
![](/img.php?id=2849469&img=bg2d.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 43
2.6.5. System Security
Defense from external attack.
Type Description
Remote management Settings about accessing methods from WAN to WizFi630A’s embedded web server
Telnet management Settings about accessing methods from WAN to WizFi630A’s telnet
Ping from WAN Filter Disable/Enable the WizFi630A’s Ping response
Broadcast Storm filter Block/Accept the Broadcast packets
Block Port Scan Block WizFi630A’s port-scan function
Block SYN Flood Block SYN flood
![](/img.php?id=2849469&img=bg2e.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 44
2.7. Managements
2.7.1. System Management
2.7.2. Firmware
Upgrade firmware and bootloader.
WizFi630A do not support upgrading by Remote URL..
2.7.3. Config Settings
Save the setting value of WizFi630A to the PC.
Type Description
Export Settings The setting files from the PC file are applied to the module.
Import Settings The system’s setting information is saved as a file in the PC.
Logo Export Settings User’s company logo file is saved in the PC.
Logo Import Settings User’s company logo from the PC is applied to the system.
( GIF file size : 10K , 126x42)
Load Factory Defaults Change the module’s setting to default setting.
Reboot Reboots the system.
Type Description
Language Select language in the list
Administrator Pre-defined ID/Password for webpage or Telnet login
NTP
(Network Time
Protocol)
Set NTP server
Green AP Low power consumptive AP
DDNS
Once the DDNS server registers yours MAC address, your device can connect to the internet
regardless of your address. DDNS service can be provided by DynDNS, freeDNS, zoneedit,
no-ip.
To use DynDNS, users should go to www.dyndns.org to create user name and domain name.
And then, set related configurations by using WizFi630A’s webpage. Similarly, to use freeDNS
zoneedit, or no-ip,users should go to their homepage first to create user name and domain
name. And then, set related configurations by using WizFi630A’s webpage.
DDNS
Provider DynDNS, freeDNS, zoneedit, no-ip
Account ID for DDNS.
Password Password for DDNS
DDNS Host name for DDNS
![](/img.php?id=2849469&img=bg2f.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 45
2.7.4. Port Setting
Settings about wired port. In case of Gateway Mode, WAN port is set here
In case of Gateway Mode, it is better to use the default WAN port number (Port #0)
If you are not the administrator, we do not recommend changing this.
Type Description
WAN Port Select the WAN Port in case of Gateway Mode.
Port #0 Enable / Disable Port #0.
Port #1 Enable / Disable Port #1.
Port #2 Enable / Disable Port #2.
Port #3 Enable / Disable Port #3.
Port #4 Enable / Disable Port #4.
2.7.5. Packet Statistics
System Statistics shows the system’s memory information and system’s data transmission size.
Type Description
Memory Total System Memory Size
Memory left System Free Memory
Rx Packet Rx Packets counts
Rx Byte Rx Bytes Counts
Tx Packet Tx Packet Counts
Tx Byte Tx Bytes Counts
2.7.6. System Status
System Status shows the status of the system, status of the system’s network information, and the link
status of LAN port.
Type Description
F/W Version Shows the firmware version.
System Up Time Shows the system up time.
Operation Mode Shows the operation mode currently being used.
Internet Configuration Shows the internet configuration information.
Local Network Shows the local network information.
![](/img.php?id=2849469&img=bg30.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 46
2.7.7. System Log
The operation history of WizFi630A can be checked by using System Log.
If the system log exceeds 24Kbyte, more recent log record is added.
![](/img.php?id=2849469&img=bg31.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 47
3. Hardware Information
3.1. WizFi630A Pin Map
No T Name Shared Description
1 GND
2 3.3V
3 GND
4 3.3V
5 I/O, IPD CTS_N GPIO9 UART1 CTS-N
6 I/O, IPD RTS_N GPIO7 UART1 RTS-N
7 I/O, IPD RIN GPIO14 UART1 RIN
8 I/O, IPD DTR_N GPIO11 UART1 DTR-N
9 I/O, IPD RxD GPIO10 UART1 RXD
10 I/O, IPD TxD GPIO8 UART1 TXD
11 I/O, IPD DSR_N GPIO13 UART1 DSR-N
12 I/O, IPD DCD_N GPIO12 UART1 DCD-N
13 O WLAN_LED Wireless Init On/ Active Data:blinking
14 NC
15 I/O VBUS USB OTG VBUS pin;Connect VBUS pin of the USB
16 NC
17 I/O PADP USB OTG data pin Data+
18 I/O, IPD UART_RX UART2 RxD
19 I/O PADM USB OTG data pin Data-
20 I/O, IPD UART_TX UART2 TxD
21 O TXOP0 10/100 PHY Port #0 TXP
22 I RXIM0 10/100 PHY Port #0 RXN
23 O TXOM0 10/100 PHY Port #0 TXN
24 I RXIP0 10/100 PHY Port #0 RXP
25 I RXIM1 10/100 PHY Port #1 RXN
26 O TXOP1 10/100 PHY Port #1 TXP
27 I RXIP1 10/100 PHY Port #1 RXP
28 O TXOM1 10/100 PHY Port #1 TXN
29 I RXIP2 10/100 PHY Port #2 RXP
30 O TXOM2 10/100 PHY Port #2 TXN
31 I RXIM2 10/100 PHY Port #2 RXN
32 O TXOP2 10/100 PHY Port #2 TXP
33 O LINK_LED_0 LAN port 0 Link LED
34 O LINK_LED_2 LAN port 2 Link LED
35 O LINK_LED_1 LAN port 1 Link LED
36 I/O, IPD GPIO0 WPS Button Push
37 I, IPU CPURST_N
38 I/O, IPD EJT_TDO Reset Button Push(GPIO17)
![](/img.php?id=2849469&img=bg32.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 48
39 I/O, IPD EJT_TRSTN GPIO21 UART2 Tx/Rx LED
40 I/O, IPD EJT_TMS Serial Command Mode #1(GPIO19)
41 I/O, IPD EJT_TDI GPIO18 UART1 Tx/Rx LED
42 I/O, IPD EJT_TCK WPS LED(GPIO20)
43 NC
44 NC
45 NC
46 NC
47 I/O, IPD I2C_SCLK Serial Command Mode #2(GPIO2)
48 I/O, IPD I2C_SD RUN LED(GPIO1)
49 GND
50 3.3V
51 GND
52 3.3V
Table 1. WizFi630A Pin Map
![](/img.php?id=2849469&img=bg33.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 49

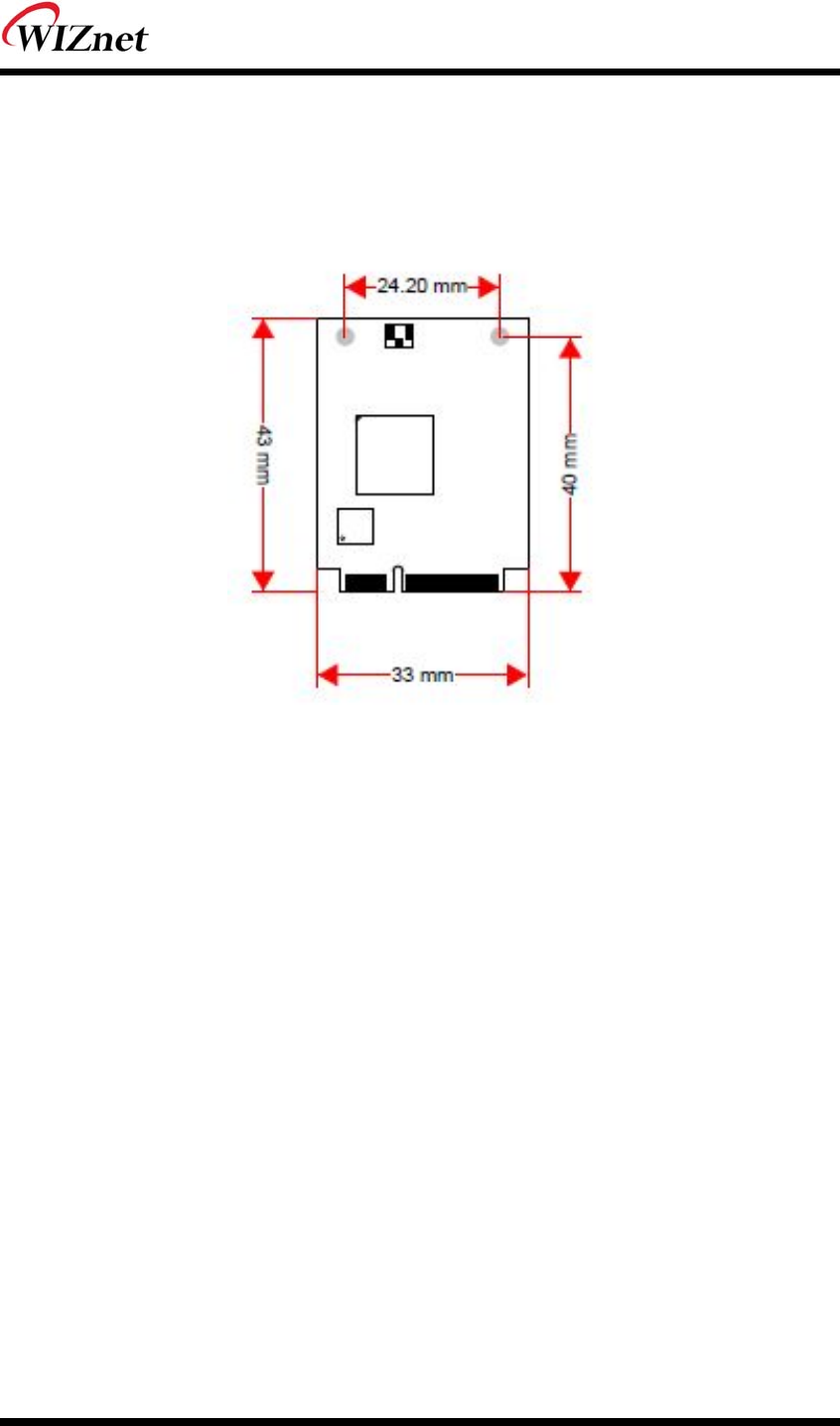

3.2. Dimensions
![](/img.php?id=2849469&img=bg34.png)
© Copyright 2015 WIZnet Co., Ltd. All rights reserved. 50
4. Important Notice
WIZnet reserves the right to make corrections, modifications, enhancements, improvements and other
changes to its products and services at any time, and to discontinue any product or service without
notice. Customers should obtain the latest relevant information before placing orders, and should
verify that such information is current and complete. All products are sold subject to WIZnet’s terms
and conditions of sale, supplied at the time of order acknowledgment. Information relating to device
applications, and the like, is intended as suggestion only and may be superseded by updates. It is the
customer’s responsibility to ensure that their application meets their own specifications. WIZnet makes
no representation and gives no warranty relating to advice, support or customer product design.
WIZnet assumes no responsibilities or liabilities for the use of any of its products, conveys no license
or title under any patent, copyright or mask work rights to these products, and makes no
representations or warranties that these products are free from patent, copyright or mask work
infringement, unless otherwise specified.
WIZnet products are not intended for use in life support systems/appliances or any systems where
product malfunction can reasonably be expected to result in personal injury, death, severe property
damage or environmental damage. WIZnet customers using or selling WIZnet products for use in such
applications do so at their own risk and agree to fully indemnify WIZnet for any damages resulting
from such use.
All trademarks are the property of their respective owners.
