Copyright © 2005 Westell, Inc. 030-300459 Rev. A
ULTRALINE II (MODEL 800015)
USER GUIDE
![](/img.php?id=590706&img=bg2.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 2 July 2005
User Guide
UltraLine II (Model 800015)
TABLE OF CONTENTS
1. PRODUCT DESCRIPTION..................................................................................................................................5
2. SAFETY INSTRUCTIONS ..................................................................................................................................5
3. REGULATORY INFORMATION .......................................................................................................................6
3.1 FCC Compliance Note................................................................................................................................6
3.2 Canada Certification Notice .......................................................................................................................7
4. NETWORKING REQUIREMENTS ....................................................................................................................9
5. HARDWARE FEATURES.................................................................................................................................10
5.1 LED Indicators .........................................................................................................................................10
5.2 Cable Connectors and Switch Locations ..................................................................................................11
5.3 Connector Descriptions ............................................................................................................................11
5.4 Pin-out Descriptions .................................................................................................................................12
6. INSTALLING THE HARDWARE.....................................................................................................................13
6.1 Installation Requirements.........................................................................................................................13
6.2 Before you begin ......................................................................................................................................13
6.3 Hardware Installations..............................................................................................................................13
6.3.1 Installation via Ethernet WAN Uplink.....................................................................................................13
6.3.2 Connecting PCs via Wireless...................................................................................................................14
6.3.3 Connecting via Coax................................................................................................................................15

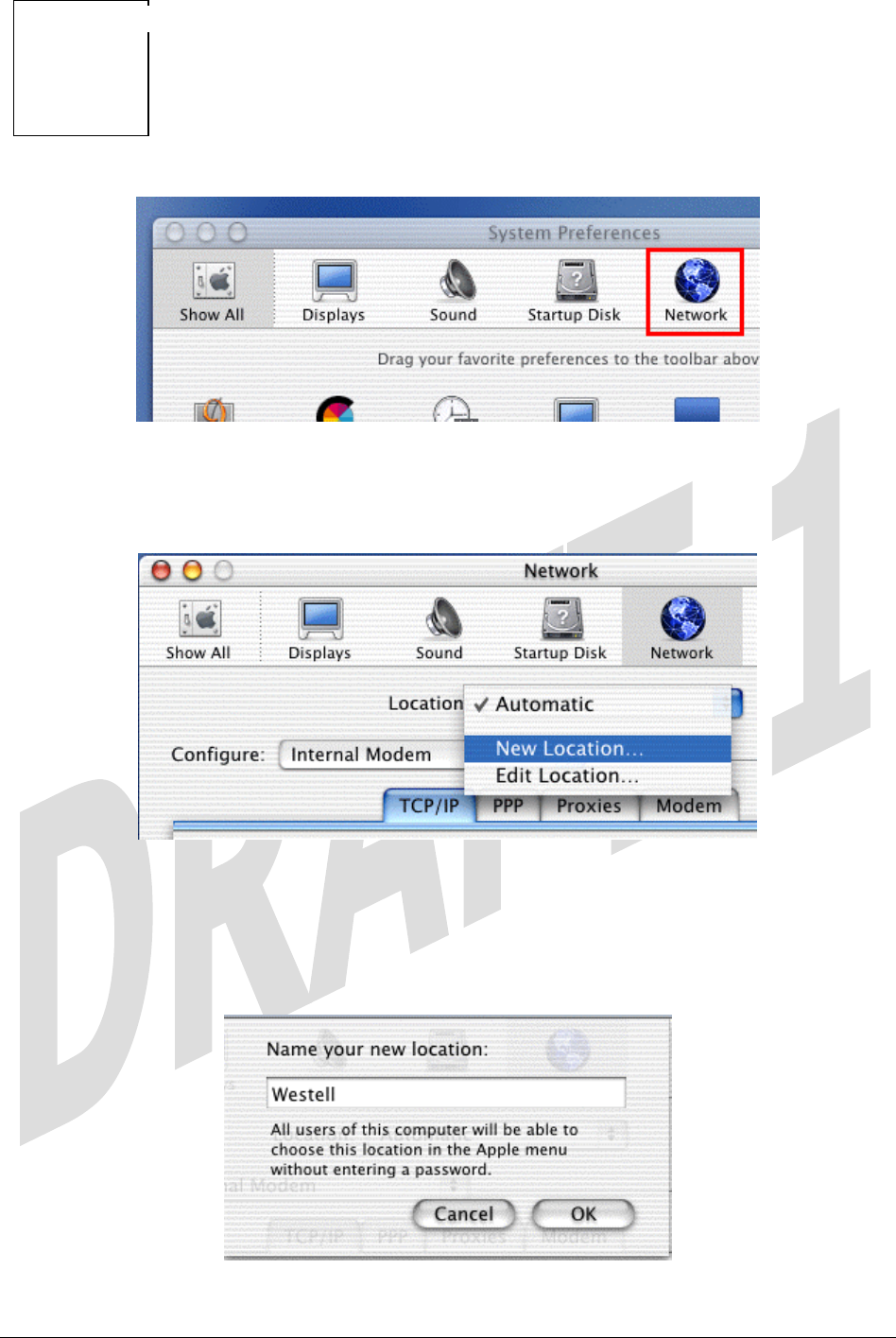

7. SETTING UP Macintosh OS X...........................................................................................................................17
7.1 Opening the System Preference Screen....................................................................................................17
7.2 Choosing the Network Preferences ..........................................................................................................17
7.3 Creating a New Location..........................................................................................................................18
7.4 Naming the New Location........................................................................................................................18
7.5 Selecting the Ethernet Configuration........................................................................................................19
7.6 Checking the IP Connection.....................................................................................................................19
7.7 Accessing the Modem’s User Interface....................................................................................................20
8. ACCESSING THE UltraLine II..........................................................................................................................21
8.1 Establishing a WAN Connection..............................................................................................................21
8.2 Setting Up Connection Profiles ................................................................................................................21
8.3 Establishing a PPP Session.......................................................................................................................24
8.4 Disconnecting a PPP Session ...................................................................................................................25
9. BASIC MODE.....................................................................................................................................................26
10. HOME .............................................................................................................................................................27
10.1 Connection................................................................................................................................................27
10.2 Connection Summary ...............................................................................................................................27
11. STATUS..........................................................................................................................................................29
![](/img.php?id=590706&img=bg3.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 3 July 2005
User Guide
UltraLine II (Model 800015)
11.1 About........................................................................................................................................................29
11.2 LAN Devices............................................................................................................................................29
11.3 Wireless Stations ......................................................................................................................................30
12. DIAGNOSTICS...............................................................................................................................................31
13. RESTART .......................................................................................................................................................33
14. ADVANCED MODE......................................................................................................................................35
15. CONFIGURATION ........................................................................................................................................36
15.1 Firewall Configuration .............................................................................................................................36
15.2 Port Forwarding Configuration.................................................................................................................37
15.3 Port Triggering .........................................................................................................................................39
15.4 ALG Configuration ..................................................................................................................................40
15.5 IGMP Service...........................................................................................................................................41
15.6 MoCA Service..........................................................................................................................................42
15.7 LAN Configuration ..................................................................................................................................43
15.7.1 DHCP.......................................................................................................................................................43
15.7.2 DNS .........................................................................................................................................................44
15.7.3 Alternate LAN .........................................................................................................................................44
15.7.4 IP Passthrough – Single IP Address Passthrough ....................................................................................50
15.7.5 Static NAT...............................................................................................................................................52
15.7.6 Port Mapping ...........................................................................................................................................53
15.8 Spanning Tree...........................................................................................................................................54
15.9 WAN Configuration .................................................................................................................................55
15.9.1 WAN Port Configuration.........................................................................................................................55
15.9.2 QOS .........................................................................................................................................................58
15.9.3 VPN .........................................................................................................................................................59
15.9.4 Routing Table ..........................................................................................................................................60
15.10 Wireless Configuration ............................................................................................................................61
15.10.1 Basic................................................................................................................................................61
15.10.2 Wireless Security ............................................................................................................................63
15.10.3 MAC Filter......................................................................................................................................65
15.10.4 Advanced Wireless Settings............................................................................................................67
16. MAINTENANCE............................................................................................................................................69
16.1 Login Administration ...............................................................................................................................69
16.2 Event Log .................................................................................................................................................69
16.3 Firewall Log .............................................................................................................................................70
16.4 Update Device ..........................................................................................................................................71
![](/img.php?id=590706&img=bg4.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 4 July 2005
User Guide
UltraLine II (Model 800015)
16.5 Remote Access .........................................................................................................................................71
16.6 Statistics....................................................................................................................................................72
16.6.1 Ethernet Port Statistics.............................................................................................................................72
16.6.2 Switch Ports Statistics..............................................................................................................................73
16.6.3 Wireless Statistics....................................................................................................................................73
17. NAT SERVICES .............................................................................................................................................75
18. PRODUCT SPECIFICATIONS......................................................................................................................79
19. TECHNICAL SUPPORT INFORMATION ...................................................................................................81
20. WARRANTY AND REPAIRS .......................................................................................................................81
21. PUBLICATION INFORMATION..................................................................................................................83
![](/img.php?id=590706&img=bg5.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 5 July 2005
User Guide
UltraLine II (Model 800015)
1. PRODUCT DESCRIPTION
Your Westell® UltraLine II gateway is designed to deliver high speed data tand high-quality, multicast IP video
delivery over a variety of WAN access methods. The UltraLine II supports wireless 802.11b/g, Ethernet, and Coax
networking interfaces and functions as a modem enabling you to connect multiple PCs on your LAN to the Internet.
The WAN interface on the UltraLine II allows you to uplink to ADSL networking devices. The 802.11 wireless
interface allows you to establish a secure wireless connection with mobile computing devices, and the digital Coax
interface allows you to connect the UltraLine II directly to your existing in-home coaxial cabling. To experience the
Internet using your UltraLine II, simply connect the hardware, apply power, and perform the simple software
configuration for your Gateway.
Hereafter, the Westell® UltraLine II will be referred to as the “Gateway” or the “Modem.”
2. SAFETY INSTRUCTIONS
The following important safety instructions should be applied when using your telephone equipment.
WARNING: Please save these instructions.
Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk
of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Do not connect this equipment in an environment that is unsuitable.
Never install any telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
Never touch non-insulated telephone wires or terminals unless the telephone line has been disconnected at
the network interface.
Use caution when installing or modifying telephone lines.
The Ultraline2 coaxial interface is intended only for connection to indoor wiring within the home. The
coaxial connector must not be connected to coaxial cable leading to an external antenna or to an external
cable distribution system.
WARNING
Risk of electric shock. Voltages up to 140 Vdc (with reference to ground) may
be present on telecommunications circuits.
![](/img.php?id=590706&img=bg6.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 6 July 2005
User Guide
UltraLine II (Model 800015)
3. REGULATORY INFORMATION
3.1 FCC Compliance Note
(FCC ID: CH8A9080YYXX-07)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the Federal Communication Commission (FCC) Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to a different circuit from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by Westell Inc., could void the users’ right to
operate the equipment.
RF EXPOSURE
The antennas used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
PART 68 – COMPLIANCE REGISTRATION
This equipment is designated to connect to the telephone network or premises wiring using a compatible modular
jack that is Part 68 compliant. An FCC compliant telephone cord and modular plug is provided with the equipment.
Refer to the installations instructions in this User Guide for details.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug
is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant.
Refer to the installation instructions in this User Guide for details.
If this terminal equipment (Model 800015) causes harm to the telephone network, the telephone company may
request you to disconnect the equipment until the problem is resolved. The telephone company will notify you in
advance if temporary discontinuance of service is required. If advance notification is not practical, the telephone
company will notify you as soon as possible. You will be advised of your right to file a complaint with the FCC if
you believe such action is necessary. If you experience trouble with this equipment (Model 800015), do not try to
repair the equipment yourself. The equipment cannot be repaired in the field. Contact your ISP, or contact the
original provider of your equipment.
![](/img.php?id=590706&img=bg7.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 7 July 2005
User Guide
UltraLine II (Model 800015)
The telephone company may make changes to their facilities, equipment, operations, or procedures that could affect
the operation of this equipment. If this happens, the telephone company will provide advance notice in order for you
to make the modifications necessary to maintain uninterrupted service.
If your home has specially wired alarm equipment connected to the telephone line, ensure that the installation of this
equipment (Model 800015) does not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer. This equipment cannot be used on public
coin phone service provided by the telephone company. Connection of this equipment to party line service is subject
to state tariffs.
3.2 Canada Certification Notice
The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain
telecommunications network protective, operations and safety requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements document(s). The department does not guarantee the equipment will
operate to the user’s satisfaction.
This equipment meets the applicable Industry Canada Terminal Equipment Technical Specification. This is
confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration
was performed based on a Declaration of Conformity indicating that Industry Canada technical specification were
met. It does not imply that Industry Canada approved the equipment. The Ringer Equivalence Number (REN) is 0.0.
The Ringer Equivalence Number that is assigned to each piece of terminal equipment provides an indication of the
maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface
may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed five.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the
local Telecommunication Company. The equipment must also be installed using an acceptable method of
connection. The customer should be aware that compliance with the above conditions may not prevent degradation
of service in some situations. Connection to a party line service is subject to state tariffs. Contact the state public
utility commission, public service commission, or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure that the installation of this
equipment (Model 800015) does not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
If you experience trouble with this equipment (Model 800015) do not try to repair the equipment yourself. The
equipment cannot be repaired in the field and must be returned to the manufacturer. Repairs to certified equipment
should be coordinated by a representative, and designated by the supplier. Refer to section 20 in this User Guide for
further details. The termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.
Operation of this equipment (Model 800015) is subject to the following conditions: (1) This device may not cause
harmful interference, and (2) This equipment must accept any interference received, including interference that may
cause undesired operation.
To reduce potential radio interference to users when a detachable antenna is used with this equipment the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that
required for successful communication.”
Users should ensure, for their own protection, that the electrical ground connections of the power utility, telephone
lines, and internal, metallic water pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
![](/img.php?id=590706&img=bg8.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 8 July 2005
User Guide
UltraLine II (Model 800015)
CAUTION
Users should not attempt to make such connections themselves, but should contact the appropriate
electrical inspection authority, or electrician, as appropriate.
![](/img.php?id=590706&img=bg9.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 9 July 2005
User Guide
UltraLine II (Model 800015)
4. NETWORKING REQUIREMENTS
The following system specifications are required for optimum performance of the Modem via 10/100 Base-T
Ethernet or Wireless.
CONNECTION
TYPE MINIMUM SYSTEM REQUIREMENTS
ETHERNET
(E1,E2,E3,E4)
• Pentium® or equivalent class machines
• Microsoft® Windows® (98 SE, ME, 2000, NT 4.0, or XP)
Macintosh® OS X, or Linux installed
• 64 MB RAM (128 MB recommended)
• 10 MB of free hard drive space
• TCP/IP Protocol stack installed
• 10/100 Base-T Network Interface Card (NIC)
• Computer Operating System CD-ROM on hand
WAN
Ethernet (E5)
• Pentium® or equivalent class machines
• Microsoft® Windows® (98 SE, ME, 2000, NT 4.0, or XP)
Macintosh® OS X, or Linux installed
• 64 MB RAM (128 MB recommended)
• 10 MB of free hard drive space
• TCP/IP Protocol stack installed
• 10/100 Base-T Network Interface Card (NIC)
• Computer Operating System CD-ROM on hand
WIRELESS
IEEE 802.11g
• Pentium® or equivalent class machines
• Microsoft® Windows® (98 SE, ME, 2000, or XP) or
Macintosh® OS X installed
• Computer Operating System CD-ROM on hand
• Internet Explorer 4.x or Netscape Navigator 4.x or higher
• 64 MB RAM (128 MB recommended)
• 10 MB of free hard drive space
• An available IEEE 802.11b/g PC adapter
![](/img.php?id=590706&img=bga.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 10 July 2005
User Guide
UltraLine II (Model 800015)
5. HARDWARE FEATURES
5.1 LED Indicators
This section explains the LED States and Descriptions of your Modem. LED indicators are used to verify the unit’s
operation and status.
LED States and Descriptions
LED State Description
Solid Green Modem power is ON.
Solid Red Modem is in reset mode.
POWER
OFF Modem power is OFF.
Solid Yellow MoCA list impaired less than 30 Mbs
Solid Green Ethernet Link
Flashing Green or
Yellow Ethernet or MoCA activity present ( traffic in either direction).
WAN
(Ethernet or MoCA)
Off Modem power is OFF, no cable, or no powered device is
connected to the associated port.
Solid Green Internet link established.
Flashing Green
IP connection established and IP Traffic is passing through
device (in either direction).
Note: If the IP or PPP session is dropped due to an idle timeout,
the light will remain solid green, if an ADSL connection is still
present.
If the session is dropped for any other reason, the light is turned
OFF. The light will turn red when it attempts to reconnect and
DHCP or PPP fails).
Yellow
Device attempted to become IP connected and failed (no DHCP
response, no PPP response, PPP authentication failed, no IP
address from IPCP, etc.).
INTERNET
OFF Modem power is OFF, Modem is in Bridge Mode, or the
connection is not present.
Solid Green
Powered device is connected to the associated port (includes
devices with wake-on LAN capability where slight voltage is
supplied to an Ethernet connection).
Flashing Green 10/100 Base-T Ethernet LAN activity is present (LAN traffic in
either direction).
ETHERNET
(LAN)
E1, E2, E3, E4
OFF Modem power is OFF, no cable or no powered device is
connected to the associated port.
Solid Yellow MoCA link impaired less than 30 Mbs.
Solid Green Ethernet Link.
Flashing Green or
Yellow Ethernet or MoCA activity is present (traffic in either direction).
MoCA
OFF Modem power is OFF, no cable or no powered device is
connected to the associated port.
Solid Green Wireless is enabled and functioning.
WIRELESS
Flashing Green Wireless LAN activity present (traffic in either direction).
![](/img.php?id=590706&img=bgb.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 11 July 2005
User Guide
UltraLine II (Model 800015)
Off
Wireless is disabled or not functioning.
NOTE: Safe Boot is reflected when the Power and Internet LED’s are both Red and all other LED’s are off.
5.2 Cable Connectors and Switch Locations
• Reset switch
• 4 Ethernet connectors (RJ-45)
• WAN connector (RJ-45) yellow
• Power connector (barrel)
• On/Off power switch
• Coax connector
• Wireless IEEE 802.11b/g SMA connector and antenna
Figure 1. Rear View of UltraLine II
5.3 Connector Descriptions
The following chart displays the connector types for the UltraLine II.
SYMBOL NAME TYPE FUNCTION
ETHERNET
(E1, E2, E3, E4) RJ-45 10/100 Base-T Ethernet Connection to PC or Hub.
WAN RJ-45
WAN can function as a 10/100 Base-T Ethernet
connection to a WAN-side networking device. (e.g.,
xDSL, etc.), a DMZ LAN Port, or a fifth Ethernet
LAN Port, depending on the configuration.
12VDC
POWER Barrel connector Connection to DC (12V) Power Connector.
ETHERNET
(
E1
,
E2
,
E3
,
E4
)
12 VDC POWE
R
RESET COA
X
WIRELESS
WAN
![](/img.php?id=590706&img=bgc.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 12 July 2005
User Guide
UltraLine II (Model 800015)
SYMBOL NAME TYPE FUNCTION
Wireless ANTENNA SMA connector Connects to wireless IEEE 802.11b/g device.
5.4 Pin-out Descriptions
The following table lists the Modem’s port pin-outs and descriptions.
Port Pin-out Description
1 Rx+
2 Rx-
3 Tx+
4,5,7,8 Not Used
WAN
(Ethernet E5)
6 Tx-
1 Rx+
2 Rx-
3 Tx+
4,5,7,8 Not Used
ETHERNET
E1, E2, E3, E4
6 Tx-
![](/img.php?id=590706&img=bgd.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 13 July 2005
User Guide
UltraLine II (Model 800015)
6. INSTALLING THE HARDWARE
6.1 Installation Requirements
To install your UltraLine II, you will need one of the following:
• A Network Interface Card (NIC) installed in your PC
• An IEEE 802.11b/g adapter
NOTE: Internet service provider subscriber software and connection requirements may vary. Consult your ISP for
installation instructions. If you are using this Modem with an ADSL device, Please wait until you have received
notification from your ISP that your DSL line has been activated before installing this Modem and the software.
6.2 Before you begin
Make sure your kit contains the following items:
• Westell® UltraLine II
• Power Supply
• RJ-45 Ethernet cable (straight-through) (yellow)
• SMA Antenna
• Westell CD-ROM containing User Guide in PDF format
• Quick Start Guide
6.3 Hardware Installations
WARNING: Westell recommends the use of a surge suppressor to protect equipment attached to the power
supply. Use only the power supply provided with your kit.
NOTE: An additional Ethernet cable may be required depending on the installation method you are using. Ethernet
cables can be purchased at your local computer hardware retailer.
6.3.1 Installation via Ethernet WAN Uplink
1. Connect the yellow Ethernet cable (provided with your kit) from the Ethernet jack marked WAN on the rear
panel of the UltraLine II to the Ethernet port on the attached ADSL device, and then power up the attached
ADSL device.
2. Connect the attached ADSL device to the ADSL-equipped jack on the wall. IMPORTANT: If the attached
ADSL device is a Modem, do not use a DSL filter on this connection. You must use the phone cord that was
provided with your kit.
3. Connect an Ethernet cable from any one of the four Ethernet jacks marked ETHERNET on the rear panel of the
Modem to the Ethernet port on your computer. Repeat this step to connect up to three additional PCs to the
UltraLine II.
![](/img.php?id=590706&img=bge.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 14 July 2005
User Guide
UltraLine II (Model 800015)
NOTE: You may connect to any of the four Ethernet jacks on the rear panel of the UltraLine II because they
serve as an Ethernet switch.
4. Connect the power supply cord to the power connector marked 12 VDC on the rear panel of the UltraLine II.
Plug the other end of the power supply into a wall socket, and then turn on the power switch (if it is not already
turned on).
5. Check to see if the UltraLine’s POWER LED is solid green. This indicates that the UltraLine II is powered on.
6. Check to see if the UltraLine’s WAN LED is solid green. Solid green indicates that the WAN connection is
functioning properly. (The UltraLine’s LAN and WAN traffic will be uplinked to the attached ADSL device.)
NOTE: You may need to set the UltraLine II to uplink mode. Refer to section 15.9 “WAN Configuration,” for
instructions.
7. Check to see if the UltraLine’s ETHERNET LED is solid green. Solid green indicates that the Ethernet
connection is functioning properly.
8. Check to see if the UltraLine’s INTERNET LED is solid green. Solid green indicates that the Internet link has
been established.
Congratulations! You have completed the WAN installation for your Modem. Next, you must now proceed to section 8,
“Accessing the UltraLine II,” for instructions on configuring the Modem for Internet connection.
6.3.2 Connecting PCs via Wireless
IMPORTANT: If you are connecting to the Modem via a wireless network adapter, the SSID must be the same for
both the Modem and your PC’s wireless network adapter. The default SSID for the Modem is the serial number of
the unit (located below the bar code on the bottom of the unit and also on the Westell shipping carton). Locate and
run the utility software provided with your PC’s Wireless network adapter and enter the SSID value. The PC’s
wireless network adapter must be configured with the SSID (in order to communicate with the Modem) before you
begin the account setup and configuration procedures. Later, for privacy you can change the SSID by following the
procedures outlined in section 15.10 (Wireless Configuration).
Client PCs can use any Wireless Fidelity (Wi-Fi) 802.11b/g/g+ certified card to communicate with the Modem. The
Wireless card and Modem must use the same security code type. If you use WPA-PSK or WEP wireless security,
you must configure your computer’s wireless adapter for the security code that you use. You can access the
settings in the advanced properties of your wireless network adapter.
To network the Modem to additional computers in your home or office using a wireless installation, you will need to
confirm the following:
1. Ensure that an 802.11b/g wireless network adapter has been installed in each PC on your wireless network.
2. Install the appropriate drivers for your Wireless IEEE802.11b or IEEE802.11g adapter.
3. Make sure the SMA antenna connector is loose. Orient the antenna in the proper configuration. Then, tighten the
antenna knob to lock it into place.
9. Connect the yellow Ethernet cable (provided with your kit) from the Ethernet jack marked WAN on the rear
panel of the UltraLine II to the Ethernet port on the attached ADSL device, and then power up the attached
ADSL device.
![](/img.php?id=590706&img=bgf.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 15 July 2005
User Guide
UltraLine II (Model 800015)
10. Connect the attached ADSL device to the ADSL-equipped jack on the wall. IMPORTANT: If the attached
ADSL device is a Modem, do not use a DSL filter on this connection. You must use the phone cord that was
provided with your kit.
11. Connect an Ethernet cable from any one of the four Ethernet jacks marked ETHERNET on the rear panel of the
Modem to the Ethernet port on your computer. Repeat this step to connect up to three additional PCs to the
UltraLine II.
NOTE: You may connect to any of the four Ethernet jacks on the rear panel of the UltraLine II because they
serve as an Ethernet switch.
4. Connect the power supply cord to the power connector marked 12 VDC on the rear panel of the UltraLine II.
Plug the other end of the power supply into a wall socket, and then turn on the power switch (if it is not already
turned on).
5. Check to see if the UltraLine’s POWER LED is solid green. This indicates that the UltraLine II is powered on.
6. Check to see if the UltraLine’s Ethernet LED is solid green. Solid green indicates that the Ethernet connection is
functioning properly.
7. Check to see if the UltraLine’s WAN LED is solid green. Solid green indicates that the WAN connection is
functioning properly. (The UltraLine’s LAN and WAN traffic will be uplinked to the attached ADSL device.)
NOTE: You may need to set the UltraLine II to uplink mode. Refer to section 15.9 “WAN Configuration,” for
instructions.
8. Check to see if the UltraLine’ WIRELESS LED is solid green. This means that the Wireless interface is
functioning properly.
9. Check to see if the UltraLine’s INTERNET LED is solid green. Solid green indicates that an Internet link as
been established.
Congratulations! You have completed the Wireless installation for your Modem. You must now proceed to section 8,
“Accessing the UltraLine II,” for instructions on configuring the Modem for Internet connection.
6.3.3 Connecting via Coax
1. Connect the Coax cable from the wall to the jack labeled Coax on the rear panel of the UltraLine II.
2. Connect an Ethernet cable from any one of the four Ethernet jacks marked ETHERNET on the rear panel of the
UltraLine II to the Ethernet port on your computer. Repeat this step to connect up to three additional PCs to the
Modem.
NOTE: You may connect to any of the four Ethernet jacks on the rear panel of the UltraLine II because they
serve as an Ethernet switch.
3. Connect the power supply cord to the power connector marked 12 VDC on the rear panel of the UltraLine II.
Plug the other end of the power supply into a wall socket, and then turn on the power switch (if it is not already
turned on). Check to see if the Modem’s Wireless LED is solid green. This means that the Wireless interface is
functioning properly.
4. Check to see if the UltraLine’s POWER LED is solid green. This indicates that the UltraLine II is powered on.
5. Check to see if the UltraLine’s WAN LED is solid green. Solid green indicates that the WAN connection is
functioning properly.
![](/img.php?id=590706&img=bg10.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 16 July 2005
User Guide
UltraLine II (Model 800015)
6. Check to see if the UltraLine’s MoCA LED is solid green. Solid green indicates that a MoCA link as been
established.
7. Check to see if the UltraLine’s ETHERNET LED is solid green. Solid green indicates that the Ethernet
connection is functioning properly.
Congratulations! You have completed the Coax installation for your Modem. You must now proceed to section 8,
“Accessing the UltraLine II,” for instructions on configuring the Modem for Internet connection.
![](/img.php?id=590706&img=bg11.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 17 July 2005
User Guide
UltraLine II (Model 800015)
7. SETTING UP MACINTOSH OS X
This section provides instructions on how to use Macintosh Operating System 10 with the Modem. Follow the
instructions in this section to create a new network configuration for Macintosh OS X.
NOTE: Macintosh computers must use the Modem Ethernet installation. Refer to section 6 (INSTALLING
THE HARDWARE).
7.1 Opening the System Preference Screen
After you have connected the Westell Modem to the Ethernet port of your Macintosh, the screen below will appear.
Click on the “Apple” icon in the upper-right corner of the screen and select System Preferences.
7.2 Choosing the Network Preferences
After selecting System Preferences…, from the previous screen, the System Preferences screen will be displayed.
From the System Preferences screen, click on the Network icon.
!
![](/img.php?id=590706&img=bg12.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 18 July 2005
User Guide
UltraLine II (Model 800015)
7.3 Creating a New Location
After selecting the Network icon at the System Preferences screen, the Network screen will be displayed. Select
New Location from the Location field.
7.4 Naming the New Location
After selecting New Location from the Network screen, the following screen will be displayed. In the field labeled
Name your new location:, change the text from “Untitled” to “Westell.” Click OK.
![](/img.php?id=590706&img=bg13.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 19 July 2005
User Guide
UltraLine II (Model 800015)
7.5 Selecting the Ethernet Configuration
After clicking on OK in the preceding screen, the Network screen will be displayed. The Network screen shows the
settings for the newly created location. From the Configure field in the Network screen, select Built-in Ethernet.
Click on Save.
NOTE: Default settings for the Built-in Ethernet configuration are sufficient to operate the Modem.

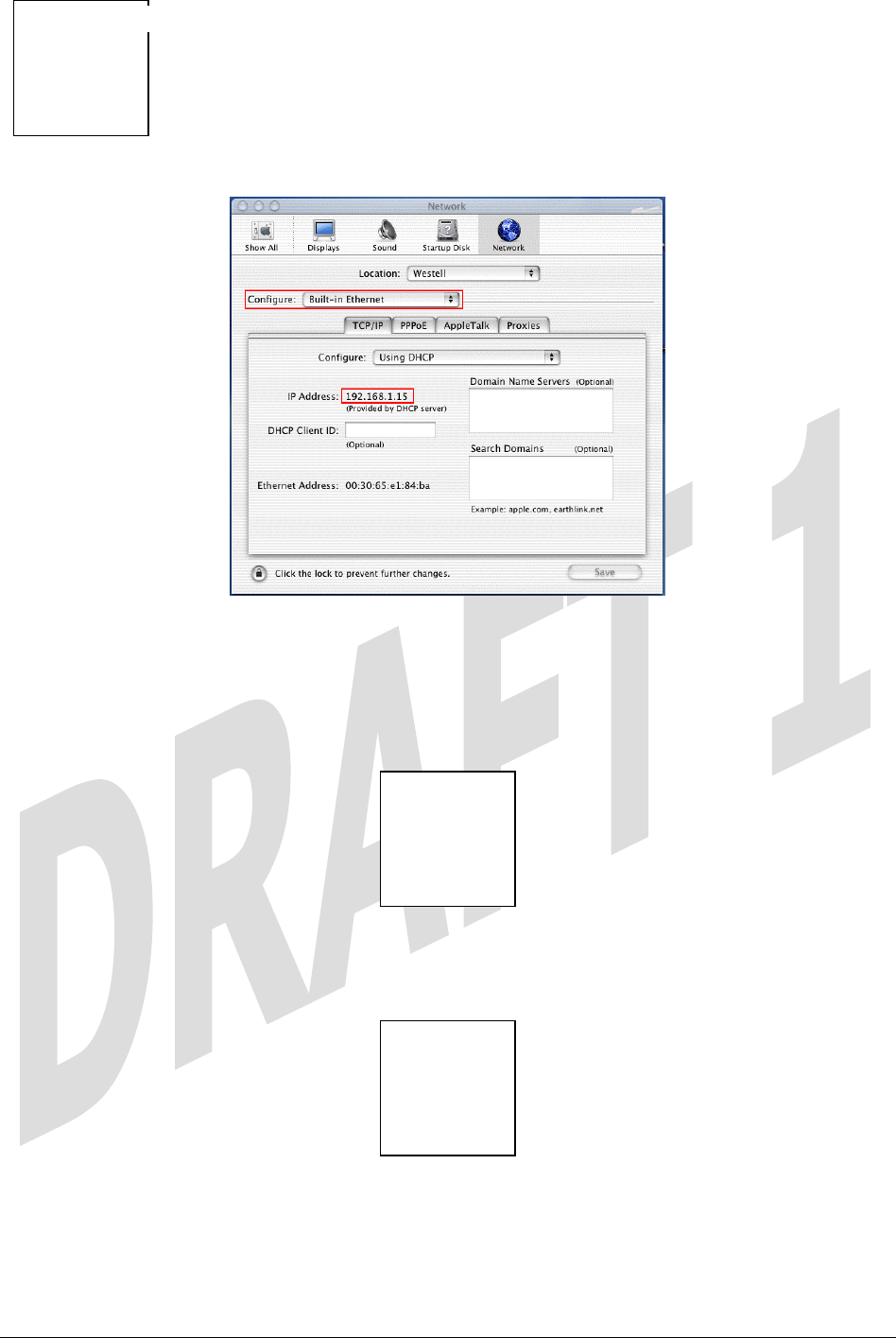

7.6 Checking the IP Connection
To verify that the computer is communicating with the Modem, follow the instructions below.
1. Go to the “Apple” icon in the upper-right corner of the screen and select System Preferences.
2. From the System Preferences screen, click on the Network icon. The Network screen will be displayed.
3. From the Configure field in the Network screen, select Built-in Ethernet.
4. View the IP address field. An IP address that begins with 192.168.1 should be displayed.
NOTE: The DHCP server provides this IP address. If this IP address is not displayed, check the Modem’s wiring
connection to the PC. If necessary, refer to section 5 for hardware installation instructions.
![](/img.php?id=590706&img=bg14.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 20 July 2005
User Guide
UltraLine II (Model 800015)
7.7 Accessing the Modem’s User Interface
To access your Modem’s user interface from your Macintosh, first launch your web browser. Next, type
http://dslrouter/ in the browser’s address bar and press “Enter” on your keyboard.
Once you have accessed the Modem’s user interface, the following screen will be displayed. You must proceed to
section 8.1, “Establishing a WAN Connection.”
![](/img.php?id=590706&img=bg15.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 21 July 2005
User Guide
UltraLine II (Model 800015)
8. ACCESSING THE ULTRALINE II
To access the UltraLine’s user interface from your PC, launch your web browser. Next, type http://192.168.1.1 in
the browser’s address bar and press “Enter” on you keyboard. The following Connection screen will be displayed.
8.1 Establishing a WAN Connection
To browse the Internet using your UltraLine II, you must first establish a WAN connection. View the Connection
screen. If the WAN Connection field displays Down, you do not have a WAN connection. Check to see that you
have connected your UltraLine II to the appropriate WAN device and that the WAN Connection field displays Up
before proceeding with your Modem’s configuration. (Refer to section 6, “Installing the Hardware,” for installation
instructions.)
IMPORTANT: Ensure that your WAN Connection is Up before proceeding with the Modem’s configuration.
After you have established a WAN connection, you are ready to set up your account profile. Click Edit to continue.
Connection
Connection Overview Displays your WAN Connection status.
Connection Name The Connection Name is from the connection profile that you set up.
PPP Status UP = PPP session established
DOWN = No PPP session established.
Connect/Disconnect Click Connect to establish a PPP session.
Click Disconnect to disconnect a PPP session
Edit Click Edit to edit or add a connection profile.
8.2 Setting Up Connection Profiles
If you clicked Edit in the preceding Connection screen, the following screen will be displayed. This screen enables
you to add new connection profiles to or to edit existing connection profiles in your account. Connection profiles can
be associated with specific service settings, such as connection settings or NAT services, enabling you to customize
your Modem for specific users. The Connection Name field enables you to enter the desired name that you wish to
use for each profile that you set up. You may create and store up to eight unique connection profiles in your Modem,
which you can use once you establish a PPP session with your ISP.
Important: Before you set up a connection profile, you must obtain your Account ID, Account Password, from your
Internet service provider. You will use information when you set up your account parameters. If you are at a screen and
need help, refer to the Help section located at the right of the screen.
![](/img.php?id=590706&img=bg16.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 22 July 2005
User Guide
UltraLine II (Model 800015)
Profile Parameters include:
● Connection Name-the Connection Name is a word or phrase that you use to identify your account.
(You may enter up 64 characters in this field.)
● Account ID-the Account ID is provided by your Internet Service Provider.
(You may enter up 255 characters in this field.)
● Account Password-the Account Password is provided by your Internet Service Provider.
(You may enter up 255 characters in this field.)
Connection
Edit Connection Factory Default = MainPPP
The name of the default connection profile. Westell recommends that you use the
Default parameter.
Connection Name This field allows you to enter a new connection name of your choice (up to 64
characters).
Account ID The account ID (provided by your Internet service provider ).
Account Password The account password that you are using to connect to your Internet service
provider (provided by your Internet service provider ).
Connection Factory default = Always On
Manual: Selecting this feature allows you to manually establish your PPP
session.
On Demand: Selecting this feature allows the Modem to automatically re-
establish your PPP session on demand anytime your PC requests Internet activity
(for example, browsing the Internet, email, etc.). When you have traffic, it may
cause a delay.
Always On: Selecting this feature allows the Modem to automatically establish a
PPP session when you log on or if the PPP session goes down.
MRU Negotiation Factory Default = Enabled
When Enabled, the Maximum Received Unit (MRU) will enforce MRU
negotiations.
If Disabled, this function will not be activated.
LCP Echo Factory Default = Enable
If ‘Disabled’ is selected, this option will disable the Modem LCP Echo
transmissions.
LCP Echo Failures Factory Default = 6
Indicates number of continuous LCP echo non-responses received before the PPP
session is terminated. This value must be between 1 and 30 inclusive.
LCP Echo Duration Factory Default = 30
The interval between LCP Echo transmissions with responses. This value must
b
e between 5 and 300 seconds inclusive and
g
reater than or e
q
ual to the Retr
y
![](/img.php?id=590706&img=bg17.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 23 July 2005
User Guide
UltraLine II (Model 800015)
Duration.
LCP Echo Retry Duration Factory Default = 5
The interval between LCP. Echo after no response.
This value must be between 5 and 300 seconds inclusive.
At the Edit Connection screen, type your Connection Name, Account ID and Account Password (the Account
Password will be masked for security). The Connection Name is the name that you will use for this connection
profile. The Account ID and Account Password are provided by your Internet service provider. At the field labeled
Connection, select the connection type (i.e., Manual, On Demand, Always On) that you want to use with this
Connection Name. The factory default Connection Name is “MainPPP,” and the factory default connection setting is
“Always On.” If you change any settings in this screen, you must click Save to save the settings. Click Back if you
do not want to add or edit a connection profile.
NOTE: If you click Back before you click Save, the previously saved settings will remain active, and any recent
changes that you have made to this screen will not take effect. You must click Save to save the settings.
![](/img.php?id=590706&img=bg18.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 24 July 2005
User Guide
UltraLine II (Model 800015)
8.3 Establishing a PPP Session
After you have saved your connection profile and clicked Back in the preceding screen, the following screen will be
displayed. Confirm that the PPP Status field displays Up. When PPP Status displays Up, this means that you have
established a PPP session with your Internet service provider (ISP). If the PPP Status displays Down, first ensure that
the WAN Connection field displays Up, and then click the Connect button to establish a PPP session. (Note: The
WAN Connection status must be Up to establish PPP connectivity.)
IMPORTANT: Whenever the PPP Status displays Down, you do not have a PPP session established. If your
Modem’s connection profile is set to “Always On” or “On Demand,” after a brief delay, the PPP session will be
established automatically and the PPP Status will display Up. If the connection setting is set to “Manual,” you must
click on the Connect button to establish a PPP session. Once the PPP session has been established (PPP Status
displays UP), you may proceed with your Modem’s configuration. (Refer to the preceding Edit Connection screen if
you desire to change your connection settings.) The factory default connection setting is “Always On.”
The following screen displays Up in the PPP Status field. This indicates that MainPPP is the active account profile
and that you have established a PPP session with your ISP. If you have set up multiple account profiles, they will
also be displayed in the Connection Name field, and then you must select the option button adjacent to the
connection name you want to use. Refer to section 8.2 for details on setting up connection profiles.
NOTE: If you experience problems establishing a PPP session, contact your ISP for further instructions.
After a PPP session has been established, you may browse the Internet. For example, to visit Westell’s home page,
type http://www.westell.com in your browser’s address bar and then press ‘Enter’ on your keyboard.
When you are ready to return to the Modem’s interface, type http://192.168.1.1 in your browser’s address bar, and
then press ‘Enter’ on your keyboard. Next, proceed to section 9, “Basic Mode,” to begin the basic configurations of
your Modem.
![](/img.php?id=590706&img=bg19.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 25 July 2005
User Guide
UltraLine II (Model 800015)
8.4 Disconnecting a PPP Session
If you have finished browsing the Internet and want to disconnect from your Internet service provider, click the
Disconnect button in the Connection Overview screen. A pop-up screen will appear. Click OK to disconnect the
PPP session.
CAUTION: If you disconnect the PPP session, this means that your Modem no longer has an Internet connection
with your ISP. Thus, the Internet connection for all PCs connected to the Modem will also be disconnected until the
PPP session is re-established. However, your WAN connection will not be affected and it should remain Up. When
you are ready to end your WAN connection, simply power down the Modem via the power switch on the Modem’s
rear panel.
If you disconnected your PPP session, the PPP Status field will display Down. When you are ready to establish a
PPP session, click Connect. (If you powered down the Modem, you must first power up the Modem, and then log on
to your account profile to establish a PPP session.)
NOTE: When you are ready to exit the Modem’s interface, click the X (close) in the upper-right corner of the screen.
Closing the screen will not affect your PPP Status or your WAN connection. When you are ready to restore the
Modem’s interface, you must launch your Internet browser and type http://192.168.1.1/ in the browser’s address bar,
and then press ‘Enter’ on your keyboard.
![](/img.php?id=590706&img=bg1a.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 26 July 2005
User Guide
UltraLine II (Model 800015)
9. BASIC MODE
The following sections explain the basic configurations of your Modem. The Modem’s web pages contain a main
navigation menu, displayed at the top of the screens. As you navigate through the various pages of the Modem, the
active page that you have selected from the Main menu will appear in the left corner of the screen. The submenu
options for that page will appear in the left-side navigation menu, as shown below. A red arrow will be displayed
adjacent to the active submenu option. Please note that the values displayed in the screens might differ from the
actual values reported by your Modem. If you are at a screen and need help, refer to the Help section, displayed on
the right side of the screen. Additional details are displayed in the tables below the screens.
Some screens require that you save your settings. To save your settings, click the Save button. To discard changes
that you have made to the screen, click the Discard button. If you click the Discard button, the previously saved
settings will be displayed in the screen.
Main Menu
Help Section
Active Page Submenu Options
![](/img.php?id=590706&img=bg1b.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 27 July 2005
User Guide
UltraLine II (Model 800015)
10. HOME
10.1 Connection
The following screen will be displayed if you select Connection at the Home main menu. The Connection screen
enables you to view your WAN connection status, set up connection profiles (via the Edit button), and establish your
PPP session.
NOTE: The following screen displays MainPPP as the active connection name for this profile. However, if you have
created multiple connection profiles, they will also be displayed in the Connection Name field, and then you must
click the option button adjacent to the connection name you want to use. Refer to section 8.2, “Setting Up Connection
Profiles,” for details. You may store up to eight unique connection profiles in your Modem.
WAN Connection Displays status of your WAN connection.
Connection Name The Connection Name is from the connection profile that you set up in section 8.2.
PPP Status UP = PPP session established
DOWN = No PPP session established.
Connect/Disconnect Click Connect to establish a PPP session.
Click Disconnect to disconnect a PPP session
Edit Click Edit to edit or add a connection profile. Refer to section 8.2. for details on
connections profiles.
10.2 Connection Summary
The following screen will be displayed if you select Connection Summary at the Home main menu. Refer to this
screen for information about your Modem’s connections.
Internet IP Address The WAN side or Gateway’s IP address to the Internet. Provided by your Internet
service provider.
![](/img.php?id=590706&img=bg1c.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 28 July 2005
User Guide
UltraLine II (Model 800015)
Internet IP Gateway The IP address of your ISP’s server to the Internet. Provided by your Internet
service provider.
Primary DNS The IP address of your ISP’s primary DNS server. Provided by your Internet
service provider.
Secondary DNS The IP address of your ISP’s secondary DNS server. Provided by your Internet
service provider.
User ID The same as your Account ID. Provided by your Internet service provider.
Connection Mode The Gateway’s mode of connection to your ISP. This can be PPPoE or Routed IP.
Connection State The Gateway’s PPP connectivity status to the Internet. The WAN status must be
Up in order for the PPP connectivity to be Up.
Connection Up Time The duration of your PPP time status. This time field tell how long the UltraLine
II has had a PPP connection established, displayed in the format of
(hours:minutes:seconds).
Device’s IP Address The IP Address on the LAN side of your UltraLine II.
WAN Status The status of the WAN connection.
![](/img.php?id=590706&img=bg1d.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 29 July 2005
User Guide
UltraLine II (Model 800015)
11. STATUS
11.1 About
The following screen will be displayed if you select About at the Status menu. This screen displays the
manufacturer’s information for this device.
About
Gateway Type The manufacturer’s description for this device.
Model Number The manufacturer’s model number.
Serial Number The manufacturer’s serial number.
Software Version The version of the application software and the build date.
Boot Loader The manufacturer’s boot loader software version number.
INI File The manufacturer’s INI information for the device.
MAC Address Media Access Controller (MAC) i.e., hardware address.
Warranty Date The warranty start date for this device.
11.2 LAN Devices
The following screen will be displayed if you select LAN Devices at the Status menu. This screen displays all the
devices on your LAN.
LAN Devices
IP Address The assigned IP address of the networking devices on your LAN.
MAC Address The assigned Ethernet MAC (i.e., hardware) address of the networking devices on
your LAN.
Name The computer’s assigned name provided to the Gateway through DNS lookup. (The
computer name or the IP address may be displayed in this field.)
![](/img.php?id=590706&img=bg1e.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 30 July 2005
User Guide
UltraLine II (Model 800015)

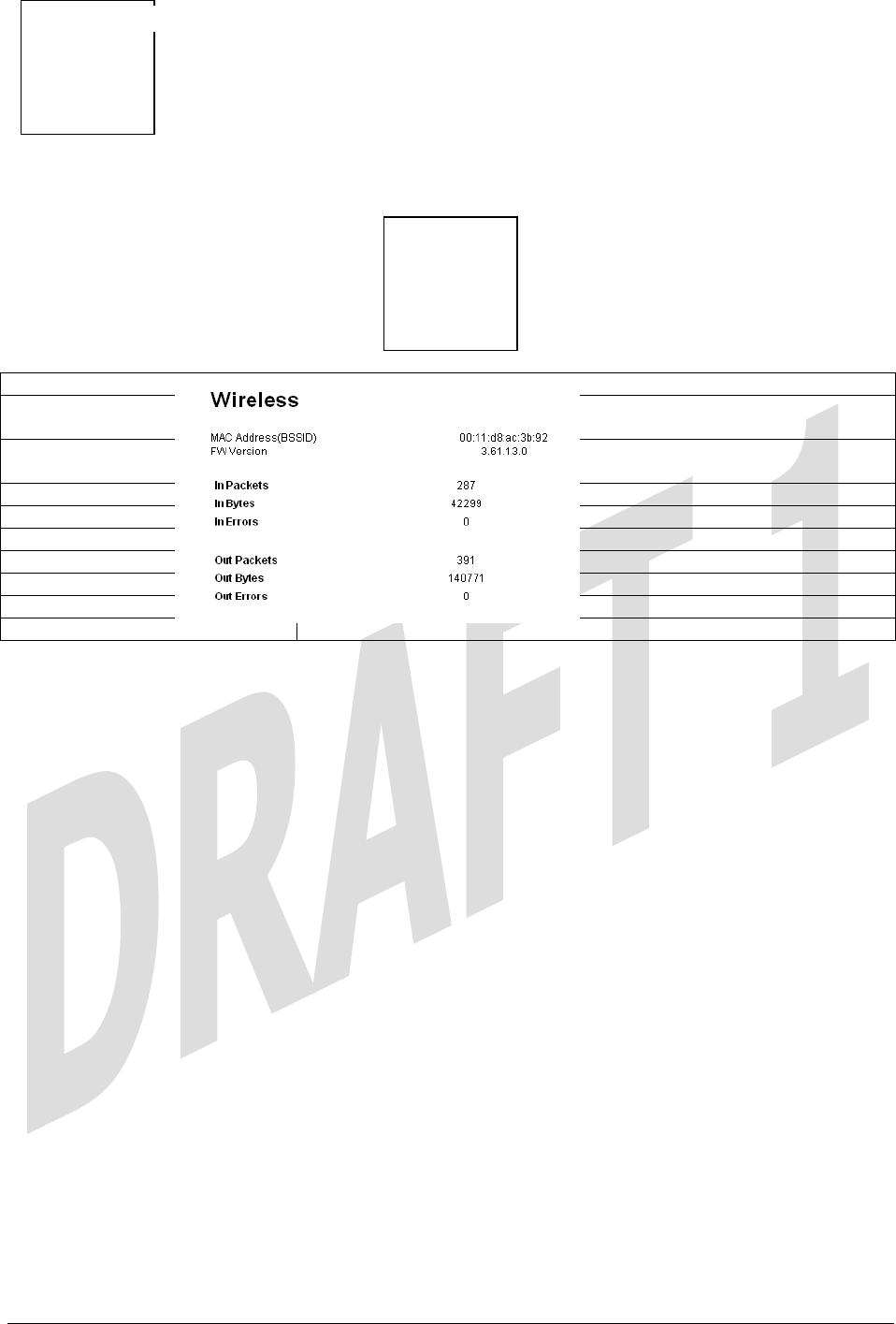

11.3 Wireless Stations
The following screen will be displayed if you select Wireless Stations at the Status menu. This screen displays the
information about the wireless stations that are associated with your Modem.
Note: The Station and MAC Address fields in this screen will be blank if no stations are associated with your Modem.
Wireless Stations
Station A number indicating the order in which the stations first access the AP.
This list can contain a maximum of 10 stations.
MAC Address The Media Access Controller (MAC) address (i.e., the hardware address
of the associated station). This is a unique number entered into the WLAN
device’s permanent memory during production. A station’s MAC address
is typically printed on the card or can be viewed using the card’s
configuration utility.
![](/img.php?id=590706&img=bg1f.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 31 July 2005
User Guide
UltraLine II (Model 800015)
12. DIAGNOSTICS
The following screen will be displayed if you select Diagnostics at the main menu. This screen allows you to run
diagnostic tests on your Modem.
• To run a DNS test, type the appropriate host name in the field provided, and then click Test.
• To run a PING test, type the appropriate IP address or host name in the field provided, and then click Test.
• To run a Trace Route, type the appropriate IP address or host name in the field provided, and then click Trace.
If you click Test All, the following screen will be displayed, and the results will be displayed in the window labeled
Test Results.
Connection/Status
Connection
The first line displays the physical interface used.
Possible Responses:
DSL
Ethernet WAN
![](/img.php?id=590706&img=bg20.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 32 July 2005
User Guide
UltraLine II (Model 800015)
The second line displays the Protocol used to establish the session.
Possible Responses:
PPPoE
PPPoATM
RoutedBridge
Bridge
The first line displays the status of the physical interface connection
Possible Responses:
UP – The interface connection is Up.
Down – The interface connection is Down.
Status The second line indicates the status of the Protocol.
Possible Responses:
Connected – The protocol is connected.
Disconnected – The protocol is disconnected.
Test Description / Test Results
DNS Performs a test to try to resolve the name of a particular host. The host name is
entered in the input box.
Possible responses are:
Success: The Router has successfully obtained the resolved address. The IP
address is shown below the host name input box.
No Response: The Router has failed to obtain the resolved address.
Host not found: The DNS Server was unable to find an address for the given
host name.
No data, enter host name: No host name is specified.
Could not test: The test could not be executed due to the Router’s settings.
Check your DSL sync or your PPP session. You must have both a DSL sync
and a PPP connection established to execute a PING.
IP Address IP Address of the Host Name.
PING
(via IP Address or Host Name)
Performs an IP connectivity check to a remote computer either within or beyond
the Service Provider’s network. You can PING a remote computer via the IP
address or the DNS address. If your PING fails, try a different IP or DNS
address.
Possible responses are:
Success: The Remote Host computer was detected.
No Response: There was no response to the Ping from the remote computer.
No name or address to PING: No host name or IP address was specified.
Could not test: The test could not be executed due to the Router settings. Check
your DSL sync or your PPP session. You must have both a DSL sync and a PPP
connection established to execute a PING.
Trace Route
Determines the route taken to destination by sending Internet Control Message
Protocol (ICMP) echo packets with varying IP Time-To-Live (TTL) values to
the destination. Trace Route is used to determine where the packet is stopped on
the network.
Max hops The number of hops from the Router to the specified destination.
Test All Allows you to run a full diagnostic test.
![](/img.php?id=590706&img=bg21.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 33 July 2005
User Guide
UltraLine II (Model 800015)
13. RESTART
The following screen will be displayed if you select Restart at the main menu. If you want to erase the stored
configuration, click the check box labeled Reset device to configuration to factory defaults (a check mark will
appear in the box). Next, click the Restart button to restart the Modem.
CAUTION: To reset the Modem to factory default configuration, you must click the check box prior to clicking the
Restart button. If the box is checked, when you click Restart, all custom configuration information will be erased.
To retain the Modem’s present configuration, leave the box unchecked and click Restart button.
After you click the Restart button, the following pop-up screen will be displayed. Click OK to continue. Click
Cancel if you do not want to restart the Modem.
If you clicked OK in the preceding pop-up screen, the following screen will be displayed. Please wait for your
Modem to restart. After your Modem has restarted, the Edit Connection screen will be displayed.
At the Edit Connection screen, confirm that the PPP Status field displays “Up” before proceeding with your
Modem’s configuration.
NOTE: If you have chosen to reset the Modem to the factory default configuration, you must set up your account
profile and establish your connection as previously explained in section 8.2 “Setting Up Connection Profiles.”
![](/img.php?id=590706&img=bg22.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 34 July 2005
User Guide
UltraLine II (Model 800015)
![](/img.php?id=590706&img=bg23.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 35 July 2005
User Guide
UltraLine II (Model 800015)
14. ADVANCED MODE
To configure the advanced operations of your Modem, select Advanced Mode (if you are in Basic Mode) at the
main menu. The following screen will be displayed.
NOTE: The basic operations of your Modem were discussed earlier in this User Guide and provided details on the
Home, Status, Diagnostics, and Restart features. For instructions on configuring any of these features, refer to the
Basic Mode sections (beginning with section 9).
The advanced operations of your Modem will be discussed in sections 15, 16, and 17.
![](/img.php?id=590706&img=bg24.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 36 July 2005
User Guide
UltraLine II (Model 800015)
15. CONFIGURATION
15.1 Firewall Configuration
The following screen will be displayed if you select Firewall from the Configuration menu. If you configure any
settings in this screen, you must click Save to save the settings.
Security Level
High High security level only allows basic Internet functionality. Only Mail,
News, Web, FTP, and IPSEC are allowed. All other traffic is prohibited.
Medium Like High security, Medium security only allows basic Internet
functionality by default. However, Medium security allows
customization through NAT configuration so that you can enable the
traffic that you want to pass.
Low Factory Default = Low
The Low security setting will allow all traffic except for known attacks.
If security is set to Low, the Modem will be visible to other computers on
the Internet.
Off Firewall is disabled. (All traffic is passed)
Firewall Logging
Log all permitted inbound traffic Factory Default = Disabled
If Enabled (box is checked), this function will be activated.
Log all permitted outbound traffic Factory Default = Disabled
If Enabled (box is checked), this function will be activated.
Log all blocked inbound traffic Factory Default = Disabled
If Enabled (box is checked), this function will be activated.
Log all blocked outbound traffic Factory Default = Disabled
If Enabled (box is unchecked), this function will be activated.
Log traffic specified in rules Factory Default = Disabled
If Enabled (box is checked), this function will be activated.
Log administrative access Factory Default = Disabled
If Enabled (box is checked), this function will be activated.
Remote Logging
Enable Factory Default = Disable
If Enabled (box is checked), the Modem will send firewall logs to a
syslog server.
Remote IP Address The IP address of the syslog server machine to which the diagnostics logs
will be sent.
![](/img.php?id=590706&img=bg25.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 37 July 2005
User Guide
UltraLine II (Model 800015)
15.2 Port Forwarding Configuration
The following screen will be displayed if you select Port Forwarding from the Configuration menu. Port
Forwarding enables you to set up the Modem’s port forwarding attributes for the services that you want to add to
your profile.
To set up port forwarding, select a service from the Service Name drop-down menu.
NOTE: You may add an unlimited numbers of services to your profile.
After you have selected a service name from the Service Name drop-down menu, the following Port Forwarding –
Add an Application Service screen will be displayed. Enter the appropriate IP address or machine name in the fields
provided and then click Add Service. Repeat these steps to add additional services to your profile.
Application Protocol The IP Protocol type that is assigned to this service.
Start Port The start port that is assigned to the service
End Port The end port that is assigned to the service
LAN Port The LAN port that is assigned to the service.
Direction The traffic direction assigned to the service.
IP Address The LAN IP address or the machine name assigned to your service
Dynamic Application Factory Default = Disabled
If Enabled (box is checked), this will only allow outgoing connections
from any local PC.
If Disabled, packets will be forwarded to the designated local PC.
![](/img.php?id=590706&img=bg26.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 38 July 2005
User Guide
UltraLine II (Model 800015)
If you clicked Add Service, the following screen will be displayed. To view the details of a service that you have
added, click the Details button adjacent to the service you want to view.
If you clicked the Details button, the following screen will be displayed. After viewing the details, click Back to
return to the preceding Port Forwarding screen.
To delete a service that you have added, click the Delete button adjacent to the service you want to remove.
If you clicked Delete in the preceding screen, the following pop-up screen will be displayed. Click OK in the pop-
up screen; the service will be removed from the list of selected services. Click Cancel if you do not want to delete
the service.
![](/img.php?id=590706&img=bg27.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 39 July 2005
User Guide
UltraLine II (Model 800015)
15.3 Port Triggering
The following screen will be displayed if you select Port Triggering from the Configuration menu. To create a
trigger port, click New.
If you clicked New, the following screen will be displayed. Select the desired options from the drop-down menus,
and then enter the appropriate values in the fields provide. Click Save to save your settings.
Port Triggering Configuration
Outgoing Protocol Factory Default = TCP
The outgoing protocol for the triggered ports.
Possible Responses:
TCP – Transmission Control Protocol
UDP – User Datagram Protocol
Outgoing Port Start The WAN-side TCP/UDP starting port
Outgoing Port End The WAN-side TCP/UDP ending port
Incoming Protocol Factory Default = TCP
The incoming protocol for the triggered ports.
Possible Responses:
TCP- Transmission Control Protocol
UDP- User Datagram Protocol
Both – TCP and UDP
Incoming Port Start The local LAN-side starting port.
Incoming Port End The local LAN-side ending port.
![](/img.php?id=590706&img=bg28.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 40 July 2005
User Guide
UltraLine II (Model 800015)
15.4 ALG Configuration
The following screen will be displayed if you select ALG from the Configuration menu. This screen enables you to
configure the application level gateway (ALG) services for your Modem. Click on the box of each service that you
want to enable (a check mark will appear in the box). Then, click Save to save the settings. To edit your SIP ALG
settings, click Edit.
NOTE: When the firewall level is set to “High,” some services may not be configurable.
ALG
Name The name of the ALG service.
Enabled To enable the service, click on the adjacent box (a check mark will appear in the box).
To disable the service, click to uncheck the box.
If you clicked Edit, the following page will be displayed. To enabled SIP ALG service configuration, click on the
box labeled Enable (a check mark will appear in the box). Next, enter the appropriate values in the fields provided
and click Save to save your settings.
SIP ALG Service Configuration
Enabled Factory Default = Disabled
When enabled (box is checked), SIP ALG service will be activated.
If disabled, SIP ALG service will be deactivated.
SIP Port The SIP port to proxy.
RTP Port Low The lowest port for incoming RTP connections.
RTP Port High The hi
g
hest
p
ort for incomin
g
RTP connection. The hi
g
hest
p
ort must be
g
reater
![](/img.php?id=590706&img=bg29.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 41 July 2005
User Guide
UltraLine II (Model 800015)
than the lowest port.
RTP Timeout (in seconds) The number of seconds until a stream will time out.
15.5 IGMP Service
The following screen will be displayed if you select IGMP from the Configuration menu. This screen enables you
to configure the IGMP services for your Modem. Enter the appropriate settings and then click Save Settings to save
the settings. To view the status of the settings, click Show Status.
IGMP
Internet Group Management Protocol (IGMP) enables you to configure IGMP services for your Modem.
Enabled Factory Default = Enabled
When this box is checked, IGMP service will be activated.
To disable IGMP service, click to uncheck the box.
MulticastFilter Factory Default = Disable
When enabled (box is checked), MulticastFilter is activated.
If disabled, MulticastFilter will be deactivated.
Multicast Address Range 1 The first multicast address for IGMP.
Multicast Address Mask Range 1 The network address mask for Multicast Address Range 1.
Multicast Address Range 2 The second multicast address for IGMP.
Multicast Address Mask Range 2 The network address mask for Multicast Address Range 2.
General Query (seconds) The value in seconds (5 through 300) for doing queries.
If you clicked Show Status in the preceding screen, the following screen will be displayed.
[Need Screen w/ info.]
![](/img.php?id=590706&img=bg2a.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 42 July 2005
User Guide
UltraLine II (Model 800015)
15.6 MoCA Service
The following screen will be displayed if you select MoCA from the Configuration menu. This screen enables you
to configure the multimedia over coax alliance (MoCA) services for your Modem. Enter the appropriate settings and
then click Save to save the settings.
MoCA Service
MoCA port Select the MoCA Port that you want to configure.
Possible Responses:
WAN – The WAN MoCA port
LAN – The LAN MoCA port
Channel Index The channel index selects the operating frequency.
CM Ratio The CM Ratio is a values between 0 – 100 that defines the ration of time spent during
network acquisition that a node will spend a network coordinator.
Tx Power The transmit power level.
Phy Margin This function controls the number of dB margin.
![](/img.php?id=590706&img=bg2b.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 43 July 2005
User Guide
UltraLine II (Model 800015)
Phy MBit Mask This function sets the upper limit for the modulation density.
15.7 LAN Configuration
15.7.1 DHCP
The following screen will be displayed if you select LAN > DHCP from the Configuration menu. This screen
enables you to control how the Modem interacts with local devices to which it is connected. Enter the appropriate
values, and then click Save to save your settings.
NOTE: It is recommended that you do not change these settings unless instructed by your service provider.
DHCP Configuration for Private LAN
Enable DHCP Server Factory Default = Enable
This setting allows the Modem to automatically assign IP addresses to local devices
connected on the LAN. Westell advises setting this to enabled for the private LAN.
Private LAN = DHCP addresses will be saved into the Private LAN configuration.
Public LAN = DHCP addresses will be saved into the Public LAN configuration.
(These options are available only if the DHCP server is enabled.)
Possible Responses:
If this box is checked, the DHCP server will be turned On.
If this box is unchecked, the DHCP server will be turned Off.
Note: These addresses will be overwritten if the Internet Service Provider supports
dynamic setting of these values.
Modem IP Address The IP Address of the Modem.
Subnet Mask The Subnet Mask of the Modem.
Address Range
DHCP Start Address Factory Default = 192.168.1.10
This field displays the first IP address that the DHCP server will provide. The DHCP
Start Address must be within the Modem’s IP subnet and lower than the DHCP End
Address. You may use any number from 0 to 254 in this address.
DHCP End Address Factory Default = 192.168.1.20
This field displays the last IP address that the DHCP server will provide. The DHCP
End Address must be within the Modem’s IP subnet and higher than the DHCP Start
Address. You may use any number from 0 to 254 in this address.
![](/img.php?id=590706&img=bg2c.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 44 July 2005
User Guide
UltraLine II (Model 800015)
DHCP Lease Time Factory Default = 01:00:00:00
Displays the amount of time the provided addresses will be valid, after which the
DHCP client will usually re-submit a request.
Note: DHCP Lease Time is displayed in the format (day:hour:min:sec)*. This value
must be greater than 10 seconds. Seconds must be between 0 and 59, minutes must be
between 0 and 59, and hours must be between 0 and 23.
15.7.2 DNS
The following screen will be displayed if you select LAN > DNS from the Configuration menu.
DNS
Domain Name
Note: Some ISP’s may require the
name for identification purposes.
This field allows you to enter a Domain Name for the Modem.
To add a Domain Name, in the field under User Assigned DNS, type in
your new domain name and click Set.
Static Host Assignment
Host Name This field allows you to enter a HOST name for the Modem.
To add a new Host name, in the field under Static Host Assignment, type
in the Host Name and the associated IP address and then click Add.
To delete a Host name, click the Delete button adjacent to the Host Name
and IP Address you want to delete.
IP Address Displays the IP address that is assigned to the Host Name.
Discovered Local Devices
This field displays a list of the computers on the LAN that have been assigned a DHCP Address. The DNS name
and IP address entry of each discovered device is displayed. (Note: The values in this field will be displayed
barring any propagation delays. If ‘No Discovered Devices’ is displayed, manually refresh the screen.)
15.7.3 Alternate LAN
The following screen will be displayed if you select LAN > Alternate LAN from the Configuration menu. This
screen contains the settings that control how the Modem interacts with the local devices to which it is connected.
NOTE: It is recommended that you do not change these settings unless instructed by your service provider.
![](/img.php?id=590706&img=bg2d.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 45 July 2005
User Guide
UltraLine II (Model 800015)
Alternate LAN
Select DHCP Network Factory Default = Private LAN2
Factory Default = Enable
This setting allows the Modem to automatically assign IP addresses to local devices
connected on the LAN. It is advised that this is enabled for Public LAN. Note: These
addresses will be overwritten if the Internet service provider supports dynamic
setting of these values.
(These options are available only if the DHCP server is enabled.)
Possible Responses:
Public LAN = DHCP addresses will be saved into the Public LAN configuration.
Private LAN2 = DHCP addresses will be saved into the Private LAN configuration.
Private LAN3 = DHCP addresses will be saved into the Private LAN configuration.
Enable DHCP Server Factory Default = Enable
If this box is checked, the DHCP server will be turned On.
If this box is unchecked, the DHCP server will be turned Off.
IP Address Displays the IP address that is assigned to the Host.
Subnet Mask Displays the subnet mask that is assigned to the Host.
Address Range
DHCP Start Address Factory Default = 192.168.1.10
This field displays the first IP address that the DHCP server will provide. The
DHCP Start Address must be within the IP address and lower than the DHCP End
Address. You may use any number from 0 to 254 in this address.
DHCP End Address Factory Default = 192.168.1.20
This field displays the last IP address that the DHCP server will provide. The DHCP
End Address must be within the IP address and higher than the DHCP Start Address.
You may use any number from 0 to 254 in this address.
DHCP Lease Time Factory Default = 01:00:00:00
Displays the amount of time the provided addresses will be valid, after which the
DHCP client will usually re-submit a request.
Note: DHCP Lease Time is displayed in the format (day:hour:min:sec)*. This value
must be greater than 10 seconds. Seconds must be between 0 and 59, minutes must
be between 0 and 59, and hours must be between 0 and 23.
![](/img.php?id=590706&img=bg2e.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 46 July 2005
User Guide
UltraLine II (Model 800015)
15.7.3.1 Public LAN – Multiple IP Address Passthrough
If you selected Public LAN from the Select DHCP Network drop-down menu, the following screen will be
displayed. Enter the appropriate values and click Save to save the settings.
NOTE: Selecting Public LAN will enable your computer to have global address ability. To use the Public LAN
feature, your ISP must support Public LAN and Static IP. Contact your ISP for details.
Alternate LAN - Public LAN Settings
Select DHCP Network Displays the DHCP Network that you have selected.
Enable DHCP Server Factory Default = Disable
Possible Responses:
If Enabled (box is checked), this will enable the Public LAN DHCP server and
allow IP address to be server from the DHCP Public LAN pool.
If Disabled (box is unchecked), this will disable the Public LAN DHCP server.
Modem’s Public IP Address The Modem’s public IP address
Subnet Mask The Subnet Mask, which determines what portion of an IP address is controlled
by the network and which portion is controlled by the host.
Address Range
DHCP Start Address Displays the first IP address that the Public LAN DHCP Server will provide.
The DHCP Start Address must be within the IP address and lower than the
DHCP End Address.
DHCP End Address Displays the last IP address that the Public LAN DHCP Server will provide.
The DHCP End Address must be within the IP address and higher than the
DHCP Start Address.
DHCP Lease Time Factory Default = 01:00:00:00
Displays the amount of time the provided addresses will be valid, after which
time the Public LAN DHCP client will usually re-submit a request.
Note: DHCP Lease Time is displayed in the format (day:hour:min:sec)*. This
value must be greater than 10 seconds. Seconds must be between 0 and 59,
minutes must be between 0 and 59, and hours must be between 0 and 23.
If the settings you have entered in the Public LAN Settings fields are incorrect, the following warnings messages
may be displayed via pop-up screens. If this occurs, check the Public LAN settings.
Warning Message Check Public LAN DHCP Settings
![](/img.php?id=590706&img=bg2f.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 47 July 2005
User Guide
UltraLine II (Model 800015)
Start Address is not part of the Subnet Check the value in the DHCP Start Address field
End Address is not part of the Subnet Check the value in the DHCP End Address field
End Address is below the Start Address Check the value in the DHCP End Address field
Lease time must be greater than 10 seconds Check the values in the DHCP Lease Time fields
Seconds must be between 0 and 59 Check the Seconds field at DHCP Lease Time
Minutes must be between 0 and 59 Check the Minutes field at DHCP Lease Time
Hours must be between 0 and 23 Check the Hours field at DHCP Lease Time
15.7.3.2 Private LAN2 – Multiple IP Address Passthrough
If you selected Private LAN2 from the Select DHCP Network drop-down menu, the following screen will be
displayed. Enter the appropriate values and click Save to save the settings.
![](/img.php?id=590706&img=bg30.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 48 July 2005
User Guide
UltraLine II (Model 800015)
Alternate LAN - Private LAN2 Settings
Select DHCP Network Displays the DHCP Network that you have selected.
Enable DHCP Server Factory Default = Disable
Possible Responses:
If Enabled (box is checked), this will enable the Private LAN DHCP server and
allow IP address to be server from the DHCP Private LAN pool.
If Disabled (box is unchecked), this will disable the Private LAN DHCP server.
Modem’s Public IP Address The Modem’s public IP address
Subnet Mask The Subnet Mask, which determines what portion of an IP address is controlled
by the network and which portion is controlled by the host.
Address Range
DHCP Start Address Displays the first IP address that the Public LAN DHCP Server will provide.
The DHCP Start Address must be within the IP address and lower than the
DHCP End Address.
DHCP End Address Displays the last IP address that the Public LAN DHCP Server will provide.
The DHCP End Address must be within the IP address and higher than the
DHCP Start Address.
DHCP Lease Time Factory Default = 01:00:00:00
Displays the amount of time the provided addresses will be valid, after which
time the Public LAN DHCP client will usually re-submit a request.
Note: DHCP Lease Time is displayed in the format (day:hour:min:sec)*. This
value must be greater than 10 seconds. Seconds must be between 0 and 59,
minutes must be between 0 and 59, and hours must be between 0 and 23.
If the settings you have entered in the Private LAN2 Settings fields are incorrect, the following warnings messages
may be displayed via pop-up screens. If this occurs, check the Private LAN settings.
Warning Message Check Public LAN DHCP Settings
Start Address is not part of the Subnet Check the value in the DHCP Start Address field
End Address is not part of the Subnet Check the value in the DHCP End Address field
End Address is below the Start Address Check the value in the DHCP End Address field
Lease time must be greater than 10 seconds Check the values in the DHCP Lease Time fields
Seconds must be between 0 and 59 Check the Seconds field at DHCP Lease Time
Minutes must be between 0 and 59 Check the Minutes field at DHCP Lease Time
Hours must be between 0 and 23 Check the Hours field at DHCP Lease Time
15.7.3.3 Private LAN3 – Multiple IP Address Passthrough
If you selected Private LAN3 from the Select DHCP Network drop-down menu, the following screen will be
displayed. Enter the appropriate values and click Save to save the settings.
![](/img.php?id=590706&img=bg31.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 49 July 2005
User Guide
UltraLine II (Model 800015)
Alternate LAN - Private LAN3 Settings
Select DHCP Network Displays the DHCP Network that you have selected.
Enable DHCP Server Factory Default = Disable
Possible Responses:
If Enabled (box is checked), this will enable the Private LAN DHCP server and
allow IP address to be server from the DHCP Private LAN pool.
If Disabled (box is unchecked), this will disable the Private LAN DHCP server.
Modem’s Public IP Address The Modem’s public IP address
Subnet Mask The Subnet Mask, which determines what portion of an IP address is controlled
by the network and which portion is controlled by the host.
Address Range
DHCP Start Address Displays the first IP address that the Public LAN DHCP Server will provide.
The DHCP Start Address must be within the IP address and lower than the
DHCP End Address.
DHCP End Address Displays the last IP address that the Public LAN DHCP Server will provide.
The DHCP End Address must be within the IP address and higher than the
DHCP Start Address.
DHCP Lease Time Factory Default = 01:00:00:00
Displays the amount of time the provided addresses will be valid, after which
time the Public LAN DHCP client will usually re-submit a request.
Note: DHCP Lease Time is displayed in the format (day:hour:min:sec)*. This
value must be greater than 10 seconds. Seconds must be between 0 and 59,
minutes must be between 0 and 59, and hours must be between 0 and 23.
If the settings you have entered in the Private LAN3 Settings fields are incorrect, the following warnings messages
may be displayed via pop-up screens. If this occurs, check the Private LAN settings.
Warning Message Check Public LAN DHCP Settings
Start Address is not part of the Subnet Check the value in the DHCP Start Address field
End Address is not part of the Subnet Check the value in the DHCP End Address field
End Address is below the Start Address Check the value in the DHCP End Address field
Lease time must be greater than 10 seconds Check the values in the DHCP Lease Time fields
Seconds must be between 0 and 59 Check the Seconds field at DHCP Lease Time
Minutes must be between 0 and 59 Check the Minutes field at DHCP Lease Time
Hours must be between 0 and 23 Check the Hours field at DHCP Lease Time
![](/img.php?id=590706&img=bg32.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 50 July 2005
User Guide
UltraLine II (Model 800015)
15.7.4 IP Passthrough – Single IP Address Passthrough
IP Passthrough enables you to select the device on your LAN that will share your Single Static IP address. Before
you begin this section, configure your PC settings to obtain an IP address from your Modem automatically. (Refer to
your computer’s Windows® Help screen for instructions.)
NOTE: IP Passthrough enables the user to share the WAN assigned IP address with one device on the LAN. By
doing this, the device with the single static IP address becomes visible on the Internet. Network Address Translation
(NAT) and Firewall rules do not apply to the device configured for IP Passthrough. If you are using Routed IP
protocol, IP Passthrough configuration will not be available.
15.7.4.1 Enabling IP Passthrough – Single IP Address PassThrough
(Applicable for PPPoE Connections Only)
To enable IP Passthrough, select a device that will share your Single Static IP from the options listed in the window..
Click on enable.
NOTE: The actual device name may differ from the name displayed in this screen.
If you clicked Enable, the following pop-up screen will be displayed. Click OK to continue.
WARNING: Enabling IP Passthrough severely increases the vulnerability of the selected computer.
![](/img.php?id=590706&img=bg33.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 51 July 2005
User Guide
UltraLine II (Model 800015)
If you clicked OK in the preceding pop-up screen, the Modem will be reset and the new configuration will take
effect, as shown in the following screen.
STOP! After you enable IP Passthrough, you must reboot your computer.
IMPORTANT: If you chose to enable User Configured PC, wait for the Modem to reset and then manually enter
the WAN IP, Gateway, and Subnet mask addresses you obtained from your Internet service provider into a PC.
15.7.4.2 Disabling IP Passthrough – Single IP Address PassThrough
To disable IP Passthrough (if it has previously been enabled), select IP Passthrough from the Configuration>LAN
menu. Click on Disable.
If you clicked Disable following pop-up screen will be displayed. Click OK to continue.
![](/img.php?id=590706&img=bg34.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 52 July 2005
User Guide
UltraLine II (Model 800015)
If you clicked OK in the preceding pop-up screen, the following screen will be displayed. The Modem will be reset
and the new configuration will take effect.
STOP! After you disable IP Passthrough, you must reboot your computer.
IMPORTANT: If you chose to enable User Configured PC, wait for the Modem to reset and then manually enter
the WAN IP, Gateway, and Subnet mask addresses you obtained from your Internet service provider into a PC.
15.7.5 Static NAT
The following screen will be displayed if you select LAN > Static NAT from the Configuration menu. This screen
enables you to configure your Modem to work with the special NAT services.
NOTE: When your Modem is configured for Static NAT, any unsolicited packets arriving at the WAN would be
forwarded to this device. This feature is used in cases where the user wants to host a server for a specific application.
![](/img.php?id=590706&img=bg35.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 53 July 2005
User Guide
UltraLine II (Model 800015)
IMPORTANT: IP Passthough must be disabled (if it has been previously enabled) before you enable static NAT.
Refer to section 15.7.4.2 for instructions on disabling IP Passthrough.
15.7.5.1 Enabling Static NAT
To enable Static NAT, select an IP address or device name from the options listed in the Static NAT screen and then
click Enable.
NOTE: The actual IP addresses or device names may differ from the those displayed in the following screen.
If you clicked Enable, the following screen will be displayed, with Static NAT enabled for the IP address or device
name you selected.
15.7.5.2 Disabling Static NAT
To disable Static NAT, click Disable in the Static NAT screen. The following screen will be displayed.
15.7.6 Port Mapping
The following screen will be displayed if you select LAN > Port Mapping from the Configuration menu. This
screen enables you to assign the physical ports to software groups. Select the appropriate options from the drop-down
menus, and then click Save to save your settings.
![](/img.php?id=590706&img=bg36.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 54 July 2005
User Guide
UltraLine II (Model 800015)
Interface The physical ports available for mapping
Group Factory Default: Private LAN
The software defined virtual LAN group to which the port should be assigned:
Possible Responses:
Private LAN – The selected port will appear as a member of the Private LAN group.
Private LAN2 – The selected port will appear as a member of the Private LAN2 group
Public LAN – The selected port will appear as a member of the Public LAN Group.
Private LAN3 – The selected port will appear as a member of the Private LAN3 group
15.8 Spanning Tree
The following screen will be displayed if you select LAN > Spanning Tree from the Configuration menu. This
screen enables you to assign the Modem’s physical ports to software groups. To enable Spanning Tree functionality
for your Modem, click the box adjacent to Enable (a check mark will appear in the box). Next, click Save to save
your settings. Note: By factory default, Spanning Tree is disabled.
Spanning Tree
Enable When this box is checked Spanning Tree is activated.
If the box is unchecked, Spanning Tree is deactivated.
![](/img.php?id=590706&img=bg37.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 55 July 2005
User Guide
UltraLine II (Model 800015)
15.9 WAN Configuration
15.9.1 WAN Port Configuration
The following screen will be displayed if you select WAN Port from the Configuration menu. This function will
enable you to configure the Uplink Port settings for your Modem. From the options provided, select how the Uplink
port will be used (Ethernet or MoCA). Click Save to save your settings.
NOTE: Tunneling enables you to use a PPPoE shim on the host computer to connect to the Internet service provider,
by bypassing the Modem’s capability to do this. Tunneling is available in PPPoE mode only.
UPLINK Port Configuration
Select UpLink Port Select WAN Uplink port that you will use.
Possible Responses:
Ethernet –The Ethernet port
MoCA – The Multimedia over Coax Alliance port.
Ethernet Settings
Protocol Select the protocol you will use.
Possible Respones:
PPPoE – Point-to-Point Protocol over Ethernet
Routed IP – IP over ATM
Tunneling Tunneling enables you to use a PPPoE shim on the host computer to connect to the
Internet service provider, by bypassing the Modem’s capability to do this. Tunneling
is available in PPPoE mode only.
To activate tunneling, click Disable.
To deactivate tunneling, click Enable.
15.9.1.1 Configuring Ethernet as the WAN UpLink Port
If you select Ethernet from the Select UpLink Port drop-down menu, the following screen will be displayed. Next,
select the protocol that you will use from Protocol drop-down menu.
![](/img.php?id=590706&img=bg38.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 56 July 2005
User Guide
UltraLine II (Model 800015)
If you selected PPPoE as the protocol, the following screen will be displayed. Click Save to save your settings.
If you selected Routed IP as the Protocol, the following screen will be displayed. Enter the appropriate values and
click Save to save your settings.
Routed IP Settings for Ethernet Uplink Port
Tunneling Factory Default = Disable
If Enabled, this option enables PPP traffic from the LAN to be
bridged to the WAN. This feature enables you to use a PPP shim on
the host computer to connect to the Internet service provider, by
bypassing the Modem’s capability to do this.
Note: Tunneling is available in PPPoE mode only.
Obtain IP address automatically
(enable DHCP client) Factory Default = Enabled
Select this option if you want the Modem to obtain its IP address
from the ISP’s DHCP server.
Use the following static addresses
(disable DHCP client) Factory Default = Disabled
Select this o
p
tion if
y
ou want to manuall
y
enter static IP addresses in
![](/img.php?id=590706&img=bg39.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 57 July 2005
User Guide
UltraLine II (Model 800015)
your Modem. The following addresses are provided by your Internet
service:
IP Address Enter the Modem’s IP network address, provided by your ISP.
Subnet Enter the Modem’s subnet mask settings, provided by your ISP.
Gateway Enter the Modem’s IP gateway address, provided by your ISP.
DNS Primary Enter the IP address of primary Domain Name Service (DNS) server
your Modem is using, provided by your ISP.
DNS Secondary Enter the IP address of secondary DNS server your Modem is using,
provided by your ISP.
15.9.1.2 Configuring MoCA as the WAN UpLink Port
If you select MoCA from the Select UpLink Port drop-down menu, the following screen will be displayed. Next,
select the protocol that you will use from Protocol drop-down menu.
If you selected PPPoE as the protocol, the following screen will be displayed. Click Save to save your settings.
If you selected Routed IP as the Protocol, the following screen will be displayed. Enter the appropriate values and
click Save to save your settings.
Routed IP Settings for MoCA Uplink Port
Tunneling Factory Default = Disable
If Enabled, this option enables PPP traffic from the LAN to be
bridged to the WAN. This feature enables you to use a PPP shim on
the host computer to connect to the Internet service provider, by
bypassing the Modem’s capability to do this.
![](/img.php?id=590706&img=bg3a.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 58 July 2005
User Guide
UltraLine II (Model 800015)
Note: Tunneling is available in PPPoE mode only.
Obtain IP address automatically
(enable DHCP client) Factory Default = Enabled
Select this option if you want the Modem to obtain its IP address
from the ISP’s DHCP server.
Use the following static addresses
(disable DHCP client) Factory Default = Disabled
Select this option if you want to manually enter static IP addresses in
your Modem. The following addresses are provided by your Internet
service:
IP Address Enter the Modem’s IP network address, provided by your ISP.
Subnet Enter the Modem’s subnet mask settings, provided by your ISP.
Gateway Enter the Modem’s IP gateway address, provided by your ISP.
DNS Primary Enter the IP address of primary Domain Name Service (DNS) server
your Modem is using, provided by your ISP.
DNS Secondary Enter the IP address of secondary DNS server your Modem is using,
provided by your ISP.
15.9.2 QOS
![](/img.php?id=590706&img=bg3b.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 59 July 2005
User Guide
UltraLine II (Model 800015)
The following screen will be displayed if you select WAN > QOS from the Configuration menu. This screen
enables you to configure the QOS services for your Modem. If you change the settings in this screen, you must click
Save Config to save the settings.
CAUTION: Changing the parameters on this screen could cause severe disruption of your service. It is recommended
that you do not change any settings in this screen unless instructed by your service provider.
QOS
Enable QOS Services Factory Default = Enabled
If Enabled (box is checked) this function will be activated.
If Disabled, this function will be deactivated.
Class of Service This enables you to partition network traffic into multiple priority
levels or classes or service.
Peak Info Rate The maximum allow rate for this priority.
QOS Services Committed Info Rate The committed rate for this priority.
Max Queue Size The number of packets that can be queued for this priority.
15.9.3 VPN
The following screen will be displayed if you select WAN > VPN from the Configuration menu. This screen
enables you to configure the VPN services for your Modem. If you change the settings in this screen, you must click
Save Config to save the settings.
![](/img.php?id=590706&img=bg3c.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 60 July 2005
User Guide
UltraLine II (Model 800015)

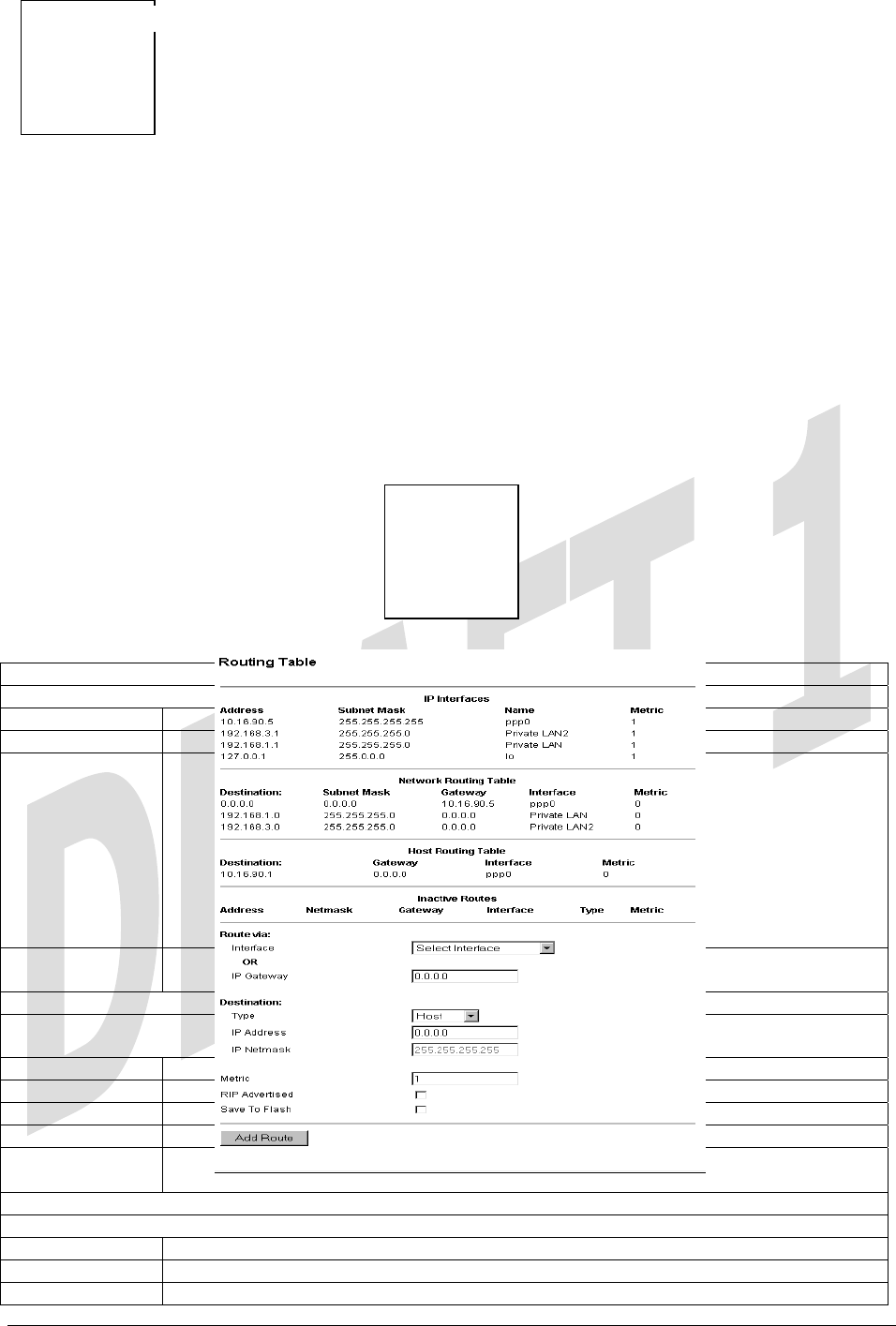

15.9.4 Routing Table
The following settings will be displayed if you select WAN > Routing Table from the Configuration menu. To add
a route to the Network Routing Table, select the desired options from the drop-down menus, and then enter the
appropriate values in the fields provided. Next, click Add Route.
IP Interfaces
The list of active interfaces on the Modem, their IP addresses and subnet masks.
Address The IP interface address of the interface.
Subnet Mask The subnet mask of the interface.
Name The name assigned to the interface.
Possible Names are:
ppp0 – The WAN interface when the router is in PPP mode.
WAN– The WAN interface when the router is in Uplink Routed IP mode.
Private LAN – The main Ethernet interface.
Private LAN2 – The interface for Private LAN2 mode.
Private LAN3 – The interface for Private LAN3 mode.
Public LAN – The interface for Private LAN mode.
l0 – The local loopback interface.
Metric The numeric value assigned to this interface, used to calculate the best route to a destination
address.
Networking Routing Table
The list of the network routes. These can be either routes for directly connected networks, or static routes that have
been entered.
Destination The IP subnet of the destination network.
Subnet Mask The subnet mask of the destination network.
Gateway The IP address of the default gateway for this route.
Interface Indicates the name of the router’s interface to use for this route.
Metric The numeric value assigned to this route, used to calculate the best route to a destination
network.
Host Routing Table
The list of host routes. A host route is an IP route with a 32-bit mask.
Destination The IP address of the destination host.
Gateway The IP address of the default gateway for this route.
Interface Indicates the name of the router’s interface to use for this route.
![](/img.php?id=590706&img=bg3d.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 61 July 2005
User Guide
UltraLine II (Model 800015)
Metric The numeric value assigned to this route, used to calculate the best route to a destination
network.
Inactive Routes
The list of routes whose interface is currently not in service.
Address The IP address of the destination network.
Netmask The subnet mask of the destination network.
Gateway The IP address of the default gateway for this route.
Interface The name of the router’s interface associated with this route.
Type Indicates if this route is a network route, a host route, or a default route.
Metric The numeric value assigned to this route used to calculate the best route to a destination
network.
The following sections allow you to add static routes to the gateway’s routing table.
Route Via
Allows you to specify either the interface or the default gateway that the router should use for this static route. If an
interface is not specified, the correct interface will be automatically chosen, based on the gateway addresses.
Interface Select the interface that will be used for this static route. If you enter an interface, you cannot
specify a default gateway.
IP Gateway Enter the IP address of the default gateway used for this static route. The specified gateway
must be reachable; this means that the Modem must have a route to the gateway. You must
specify either an interface or a gateway for each static route.
Destination
Allows you to specify the destination network or host.
Type Factory Default = Host
Possible Responses:
Host – The static route is assigned to a single IP host.
Network – The static route is assigned to a network.
Default – The static route is assigned to a default route.
IP Address The IP subnet of the destination network or host.
IP Netmask The subnet mask of the destination network. If the route type was a host, a 32-bit subnet
mask will be automatically populated.
Metric The numeric value assigned to this route, used to calculate the best route to a destination
network.
RIP Advertised This determines whether or not to advertise the static route using RIP. (RIP must also be
enabled before the route will be advertised.)
If Enabled (box is checked), RIP Advertised will be activated.
If Disabled, RIP Advertised will not be activated.
Save to Flash If Enabled (box is checked), the route will be made permanent by saving it to flash memory.
If Disabled, the route will disappear the next time the Modem restarts.
Add Route This button enables you to add a new static route in the Modem. Note: When adding a route,
you may need to reload the page for the route to appear in the “active” Routes.
15.10 Wireless Configuration
15.10.1 Basic
The following settings will be displayed if you select Wireless > Basic from the Configuration menu. Enter the
appropriate values, and then click Save to save your settings.
![](/img.php?id=590706&img=bg3e.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 62 July 2005
User Guide
UltraLine II (Model 800015)
Wireless Basic Configuration
Wireless Operation Displays the current setting of the Modem’s wireless operation.
Factory Default = Enabled
When disabled, no wireless stations will be able to connect to the Modem.
Network Name (SSID) This string (32 characters or less) is the name associated with the Modem. To
connect to the Modem, the SSID on a Station card must match the SSID on the
Modem card or be set to “ANY.” (Note: If the SSID on a Modem is hidden, at the
station card you must manually type the SSID of the Modem to which you are
trying to connect.)
Channel The AP transmits and receives data on this channel. The number of channels to
choose from is pre-programmed into the AP card. The Modem transmits and
receives data on this channel. Station cards do not have to be set to the same
channel as the AP; the station cards scan all channels and look for the Modem
with the correct SSID.
Possible Responses:
1 through 11
Mode This setting allows station to communicate with the Modem.
Possible Responses:
Mixed: Station using any of the 802.11b, 802.11b+, and 802.11g rates can
communicate with the Modem.
Legacy Mixed: Same as Mixed, but also allows older 802.11b cards to
communicate with the Modem.
11b only: Communication with the Modem is limited to 802.11b
11g only: Communication with the Modem is limited to 802.11g
Frameburst Mode If enabled, additional algorithms are used for increased throughput.
If Disabled, this feature will not be activated.
Hide SSID If enabled, the Modem will not broadcast the SSID. To connect to the Modem,
each Station must configure its SSIDs so that it matches the Modem’s Network
Name (SSID).
If Disabled, this function will not be activated.
![](/img.php?id=590706&img=bg3f.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 63 July 2005
User Guide
UltraLine II (Model 800015)
15.10.2 Wireless Security
The following screen will be displayed if you select Wireless > Security from the Configuration menu. Select the
desired security option from the Wireless Security drop-down menu. After you configured your wireless security
settings, click Save to save the settings.
IMPORTANT: Client PCs can use any Wireless Fidelity (Wi-Fi) 802.11b/g/g+ certified card to communicate with
the Modem. The Wireless card and Modem must use the same security code type. If you use WPA-PSK or WEP
wireless security, you must configure your computer’s wireless adapter for the security code that you use. You
can access the settings in the advanced properties of the wireless network adapter.
Wireless Security
![](/img.php?id=590706&img=bg40.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 64 July 2005
User Guide
UltraLine II (Model 800015)
Wireless Security Factory Default = Disable
Possible Responses:
Disabled: No security is used.
WEP: WEP encryption used to secure the data being sent to and from the Modem;
when WEP is enabled, the risk of someone nearby accessing the Modem is
minimized.
WPA-PSK: WPA encryption methods are used to encrypt and secure the
connection and the data being sent to and from the Modem.
This string (8 to 63 characters of 64 hex characters) is the key used for encrypting
packets being sent to and from the Modem. This key must be the same in both the
Modem and the station.
15.10.2.1 Enabling WEP Security
If you select WEP from the Wireless Security drop-down menu, the following screen will be displayed. Enter the
appropriate values, and then click Save to save the settings.
Wireless Security (WEP)
Wireless Security WEP has been selected as the wireless security method used.
Authentication Type Factory Default = Open System
Possible Responses:
Open System: Open System authentication allows any station to associate with the
wireless network but only stations with the valid WEP key can send or receive data
from the Modem. Open System authentication is considered to be more secure than
Shared Key authentication.
Shared Key: Shared Key authentication requires the station to authenticate with the
Modem using the WEP key before it can associate with the wireless network.
Key Select Factory Default = Key 1
Select Key 1 to Key 4 as the WEP key to be used. Note: The key position must be the
same in both the Modem and the wireless station.
Key n
(where n is 1 - 4 for WEP and is
blank for WPA-PSK)
The WEP key is treated as either text or hexadecimal (hex) characters. The number of
characters is based on the key size selected. The key size 64 bit is either 5 text or 10
hex characters, 128 bit is either 13 text or 26 hex characters, and 256 bit is either 29
text or 58 hex characters. Hexadecimal characters are 0-9 and A-F (or a-f). This key
must be the same in both the Modem and the station. Some station cards use a “Pass
Phrase.” This is not the same as “text” and should not be used.
15.10.2.2 Enabling WPA-PSK Security
If you select WPA-PSK from the Wireless Security drop-down menu, the following screen will be displayed. Enter
the appropriate values, and then click Save to save the settings.
![](/img.php?id=590706&img=bg41.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 65 July 2005
User Guide
UltraLine II (Model 800015)
NOTE: The WPA key must be 8 to 63 characters or 64 hexadecimal digits in length.
Wireless Security (WPA-PSK)
Wireless Security WPA-PSK has been selected as the wireless security method used.
WPA Shared
Key This string (8 to 63 characters of 64 hex characters) is the key used for encrypting packets being
sent to and from the Modem. This is a passphrase (also called a shared secret) that must be
entered in both the wireless Modem and the wireless station. The more random your WPA
Shared Key, the more secure it is.
WPA Group
Rekey Interval The number of seconds between rekeying the WPA group key. A value of “0” means that
rekeying is disabled. The Shared Key is the initial key and new keys are created and used, based
on that key, at each Rekey Interval.
Data Encryption Factory Default = TKIP
Possible Responses:
TKIP- Selecting this option enables the Temporal Key Integrity Protocol for data encryption.
AES- Selecting this option enables the Advanced Encryption Standard for data encryption.
TKIP/AES- Selecting this option enables the Modem to accept either TKIP or AES encryption
15.10.3 MAC Filter
The following settings will be displayed if you select Wireless > MAC Filter from the Configuration menu. This
screen enables you to configure the MAC filter settings for your Modem.
After you have finished adding, editing or deleting MAC addresses from the MAC Filter table (as explained in the
following paragraphs), click the box adjacent to Enable MAC Address Filtering (a check mark will appear in the
box). Next, click Save to save your settings.
NOTE: When the MAC address Filter is enabled (box is checked), only the stations that are in the MAC Filter table
and that are set to Allowed will be accepted by the Modem. All other stations will be blocked.
![](/img.php?id=590706&img=bg42.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 66 July 2005
User Guide
UltraLine II (Model 800015)
To add stations to the MAC Address table, click the Add button.
If you clicked Add, the following screen will be displayed. Enter the appropriate values in the fields provided, and
then click Save to save the settings.
MAC Address Settings
Traffic Factory Default = Allowed
If Blocked is selected, the station will be blocked (it cannot access the Modem).
MAC Address Factory Default = 00:00:00:00:00:00
The MAC address of the wireless station you want to add.
Station Name The name of the wireless station you want to add.
If you clicked Save, the following pop-up screen will be displayed. Click OK to continue.
NOTE: Wireless access will be interrupted and the wireless stations may require reconfiguration.
![](/img.php?id=590706&img=bg43.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 67 July 2005
User Guide
UltraLine II (Model 800015)
If you clicked OK, in the preceding pop-up screen, the following screen will be displayed. The screen displays the list
of MAC addresses added to the MAC Address Filter Table. You may now add, edit, or delete MAC addresses from
the table by clicking on the desired MAC address (displayed in the window) and then by clicking either Add, Edit, or
Delete. Next, click OK in the pop-up screen.
After you have finished adding, editing or deleting MAC addresses in the MAC Filter table, click the box adjacent to
Enable MAC Address Filtering (a check mark will appear in the box). Click Save to save your settings.
NOTE: When the MAC address Filter is enabled (box is checked), only the stations that are in MAC Filter table and
that are set to Allowed will be accepted by the Modem. All other stations will be blocked.
15.10.4 Advanced Wireless Settings
The following settings will be displayed if you select Wireless > Advanced from the Configuration menu. Enter the
appropriate values, and then click Save to save the settings.
Wireless Advanced Configuration
Beacon Period The time interval between beacon frame transmissions. Beacons contain rate and
capability information. Beacons received by stations can be used to identify the access
points in the area.
RTS Threshold RTS/CTS handshaking will be performed for any data or management MPDU
containing a number of bytes greater than the threshold. If this value is larger than the
MSDU size (typically set by the fragmentation threshold), no handshaking will be
performed. A value of zero will enable handshaking for all MPDUs.
Fragmented Threshold Any MSDU or MPDU larger than this value will be fragmented into an MPDU of the
specified size.
DTIM Interval The number of Beacon intervals between DTIM transmissions. Multicast and broadcast
frames are delivered after every DTIM
![](/img.php?id=590706&img=bg44.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 68 July 2005
User Guide
UltraLine II (Model 800015)
Supported Rates
802.11b Rates (Mbps)
802.11g Rates (Mbps)
These are the allowable communication rates that the Modem will attempt to use. The
rates are also broadcast within the connection protocol as the rates supported by the
Modem.
If you clicked save, the following pop-up screen will be displayed. Click OK to continue.
![](/img.php?id=590706&img=bg45.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 69 July 2005
User Guide
UltraLine II (Model 800015)
16. MAINTENANCE
16.1 Login Administration
The following screen will be displayed if you select Login Administration from the Maintenance menu. Enter the
appropriate values, and then click Save to save the settings.
NOTE: Password must be at least 6 characters and must not exceed 12 characters long. Alphanumeric values are
permitted. The Password and Confirm Password fields are masked with “*” for security measures.
Login Administration
Username The administrator’s username. This is a free-format character string between 5 and 12
characters long, no spaces.
Password The administrator’s password. This is a free-format character string between 6 and 12
characters long, no spaces.
Confirm Password The identical value that was entered in the password field.
16.2 Event Log
The following screen will be displayed if you select Event Log from the Maintenance menu. The Remote Logging
function enables event logs to be sent to a machine running a syslog server. To enable Remote Logging, click the box
adjacent to Enable (a check mark will appear in the box). Then, enter an IP address in the Remote IP Address field.
Click Save to save your settings.
Event Log
User ID The name of your connection.
![](/img.php?id=590706&img=bg46.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 70 July 2005
User Guide
UltraLine II (Model 800015)
Connection Mode The mode of connection used to connect to your ISP.
Connection State The state of the PPP connection.
Ethernet WAN The state of the Ethernet WAN connection.
Remote Logging
Enable Enables remote logging of Event Logs
Remote IP Address The IP address of the syslog server machine on the local area network to which the
Event Logs are sent.
To view logged events, select an option from the Available LOGS drop-down menu.
If you select All, the following screen will be displayed. To obtain a printable version of the Event logs, click on
Printable.
16.3 Firewall Log
The following screen will be displayed if you select Firewall Log from the Maintenance menu. To obtain a
printable version of the firewall logs, click on Printable. Click on Refresh to refresh the screen. To enable Remote
Logging, click the box adjacent to Enable (a check mark will appear in the box) and then enter an IP address in the
Remote IP Address field. Click Save to save your settings.
Remote Logging
![](/img.php?id=590706&img=bg47.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 71 July 2005
User Guide
UltraLine II (Model 800015)
Enable Factory Default = Disable
If enabled (a check mark will appear in the box), the Modem will send
firewall logs to a syslog server.
Remote IP Address The IP address of the syslog server machine to which the diagnostics logs
to be sent.
16.4 Update Device
The following screen will be displayed if you select Update Device from the Maintenance menu. This screen
enables you to identify the version of software in your device. You can also update the software in your device to the
latest version supported.
To update your Modem to the latest software version supported, perform the following steps:
1. Download the update file and store it to a location on your PC.
2. Click the Browse button in the Update Modem screen, and then navigate to the update file stored on your PC.
3. Click on the update file and then click Open. The path to the update file will appear in the Browse bar.
4. Click Begin upgrade process to begin the software update for your Modem.
5. After your Modem has been updated, wait a brief moment for the Modem to reset and establish a WAN
connection and a PPP session.
6. Confirm that the WAN LED on your Modem is solid green before continuing your Modem’s configuration.
16.5 Remote Access
![](/img.php?id=590706&img=bg48.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 72 July 2005
User Guide
UltraLine II (Model 800015)
The following screen will be displayed if you select Remote Access from the Maintenance menu. This screen
enables you to configure Remote Access on your Modem. Enter the appropriates values in the fields provided and
then click Save to save the settings.
Remote Access
User Name The name used for Remote Access session. The only valid characters are
(a-z, A-Z, 0-9). The User Name must be at least 6 characters and must
not exceed 12 characters long.
Password The password used for Remote Access session. Do not use spaces or
double-quotes in the password. The password must be at least 6
characters and must not exceed 12 characters long.
Confirm Password Enter the same values as the password.
Timeout The interval (in minutes) after which the Remote Access session will
disconnect, if it is idle.
Enable Timeout Factory Default = Enable
If Enabled (box is checked) this will activate the Remote Access timeout
function.
If Disabled, the Remote Access timeout function will be deactivated.
Enable Remote Access Factory Default = Disable
If Enabled (box is checked), Remote Access will be activated.
If Disabled, Remote Access will be deactivated.
Remote URL Displays the URL for the Remote Access session.
16.6 Statistics
16.6.1 Ethernet Port Statistics
The following settings will be displayed if you select Ethernet from the Statistics menu.
Ethernet Port Statistics
Interface Description The description of the Ethernet interface on the Modem.
In Errors The number of error packets received on the Ethernet interface.
In Discard Packets The number of discarded packets received.
In Unicast Packets The number of Unicast packets received on the Ethernet interface.
In Octets The number of bytes received on the Ethernet interface.
Out Errors The number of outbound packets that could not be transmitted due to errors.
![](/img.php?id=590706&img=bg49.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 73 July 2005
User Guide
UltraLine II (Model 800015)
Out Discard Packets The number of outbound packets discarded.
Out Unicast Packets The number of Unicast packets transmitted on the Ethernet interface.
Out Octets The number of bytes transmitted on the Ethernet interface.
16.6.2 Switch Ports Statistics
The following settings will be displayed if you select Switch Ports from the Statistics menu.
Switch Ports Statistics
Link State The status of the switch port.
Speed The negotiated speed of the Ethernet link.
Duplex The communication mode of the switch port.
Transmit Packets The number of Ethernet packets transmitted from this port
Receive Packets The number of Ethernet packets received on this port.
16.6.3 Wireless Statistics
The following settings will be displayed if you select Wireless from the Statistics menu.
NOTE: The fields in this screen will be blank if no stations are associated with the Modem.
![](/img.php?id=590706&img=bg4a.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 74 July 2005
User Guide
UltraLine II (Model 800015)
Wireless Statistics
NOTE: Data listed in the OUT column pertains to transmissions from the Modem to a station; the Modem is the
source. Data listed in the IN column pertains to data received by the Modem; the Modem is the destination.
MAC Address (BSSID) This is the Media Access Controller (the hardware address of the Modem). It
is also the Basic Service Set Identifier (BSSID) for your Modem.
FW Version The version of application firmware.
In-Packets The number of successfully received packets.
In-Bytes The number of successfully received bytes.
In-Errors The number of received packets with an error.
Out-Packets The number of successfully transmitted packets.
Out-Bytes The number of successfully transmitted bytes.
Out-Errors The number of packets that did not transmit due to an error.
![](/img.php?id=590706&img=bg4b.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 75 July 2005
User Guide
UltraLine II (Model 800015)
17. NAT SERVICES
For your convenience, the Modem supports protocols for Applications, Games, and VPN-specific programs. The
following chart provides protocol information for the services supported by the Modem.
NOTE: To configure the Modem for a service or application, follow the steps in section 15.2, “Port Forwarding
Configuration.”
Applications/Games/VPN Support
Application/Game Port/Protocol
Aliens vs. Predator 80 UDP, 2300 UDP, 8000-8999 UDP
Age of Empires II: The
Conquerors 6073 UDP, 47624 TCP, 2300-2400 TCP/UDP
This service will open up port’s for both traffic directions
Americas Army TCP - 20045
UDP - 1716 to 1718, 8777, 27900
America Online 5190 TCP/UDP
Anarchy Online TCP/UDP – 7012,7013, 7500 -7505
AOL Instant Messenger 4099 TCP, 5190 TCP
Asheron's Call 9000-9013 UDP, 28800-29000 TCP
Battlecom 2300-2400 TCP/UDP, 47624 TCP/UDP
Battlefield 1942 UDP - 14567, 22000, 23000 to 23009, 27900, 28900
Black and White 2611-2612 TCP, 6667 TCP, 6500 UDP, 27900 UDP
Blizzard Battle.net (Diablo II) 4000 TCP, 6112 TCP/UDP
Buddy Phone 700, 701 UDP
Bungie.net, Myth, Myth II
Server 3453 TCP
Calista IP Phone 3000 UDP, 5190 TCP
Citrix Metaframe 1494 TCP
Client POP/IMAP 110 TCP
Client SMTP 25 TCP
Counter Strike 27015 TCP/UDP, 27016 TCP/UDP
Dark Reign 2 26214 TCP/UDP
Delta Force (Client and Server ) 3568 UDP, 3100-3999 TCP/UDP
Delta Force 2 3568-3569 UDP
DeltaForce: Land Warrior UDP 53
TCP 21
TCP 7430
TCP 80
UDP 1029
UDP 1144
UDP 65436
UDP 17478
DNS 53 UDP
Elite Force 2600 UDP, 27500 UDP, 27910 UDP, 27960 UDP
Everquest 1024-7000 TCP/UDP
F-16, Mig 29 3863 UDP
F-22 Lightning 3 4660-4670 TCP/UDP, 3875 UDP, 4533-4534 UDP, 4660-4670 UDP
F-22 Raptor 3874-3875 UDP
![](/img.php?id=590706&img=bg4c.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 76 July 2005
User Guide
UltraLine II (Model 800015)
Application/Game Port/Protocol
Fighter Ace II 50000-50100 TCP/UDP
Fighter Ace II for DX play 50000-50100 TCP/UDP, 47624 TCP, 2300-2400 TCP/UDP
FTP 20 TCP, 21 TCP
GameSpy Online UDP 3783
UDP 6515
TCP 6667
UDP 12203
TCP/UDP 13139UDP 27900
UDP 28900
UDP 29900
UDP 29901
Ghost Recon TCP 80
UDP 1038
UDP 1032
UDP 53
UDP 2347
UDP 2346
GNUtella 6346 TCP/UDP, 1214 TCP
Half Life Server 27005 UDP(client only)
27015 UDP
Heretic II Server 28910 TCP
Hexen II 26900 (+1) each player needs their own port. Increment by one for
each person
Hotline Server 5500, 5503 TCP 5499 UDP
HTTPS 443 TCP/UDP
ICMP Echo 4 ICMP
ICQ OLD 4000 UDP, 20000-20019 TCP
ICQ 2001b 4099 TCP, 5190 TCP
ICUII Client 2000-2038 TCP, 2050-2051 TCP, 2069 TCP, 2085 TCP, 3010-3030
TCP
ICUII Client Version 4.xx 1024-5000 TCP, 2050-2051 TCP, 2069 TCP, 2085 TCP, 3010-3030
TCP, 2000-2038 TCP6700-6702 TCP, 6880 TCP, 1200-16090 TCP
IMAP 119 TCP/UDP
IMAP v.3 220 TCP/UDP
Internet Phone 22555 UDP
IPSEC ALG ENABLES ALG
IPSEC ESP PROTOCOL 50
IPSEC IKE 500 UDP
Ivisit 9943 UDP, 56768 UDP
JKII:JO (Jedi Knight II: Jedi
Outcast) UDP - 28070 (default)
UDP- 27000 to 29000
KALI, Doom & Doom II 2213 UDP, 6666 UDP (EACH PC USING KALI MUST USE A
DIFFERENT PORT NUMBER STARTING WITH 2213 + 1
KaZaA 1214 TCP/UDP
Limewire 6346 TCP/UDP, 1214 TCP
Medal Of Honor: Allied Assault TCP 80
UDP 53
UDP 2093
UDP 12201
TCP 12300
![](/img.php?id=590706&img=bg4d.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 77 July 2005
User Guide
UltraLine II (Model 800015)
Application/Game Port/Protocol
UDP 2135
UDP 2139
TCP/UDP 28900
mIRC Chat 6660-6669 TCP
Motorhead Server 16000 TCP/UDP, 16010-16030 TCP/UDP
MSN Game Zone 6667 TCP, 28800-29000 TCP
MSN Game Zone (DX 7 & 8
play) 6667 TCP, 6073 TCP, 28800-29000 TCP, 47624 TCP, 2300-2400
TCP/UDP
This service will open up port’s for both traffic directions.
MSN Messenger 6891-6900 TCP, 1863 TCP/UDP, 5190 UDP, 6901 TCP/UDP
Napster 6699 TCP
Need for Speed 3, Hot Pursuit 1030 TCP
Need for Speed, Porsche 9442 UDP
Net2Phone 6801 UDP
NNTP 119 TCP/UDP
Operation FlashPoint 47624 UDP, 6073 UDP, 2300-2400 TCP/UDP, 2234 TCP
Outlaws 5310 TCP/UDP
Pal Talk 2090-2091 TCP/UDP, 2095 TCP, 5001 TCP, 8200-8700 TCP/UDP,
1025-2500 UDP
pcAnywhere host 5631 TCP, 5632 UDP, 22 UDP
Phone Free 1034-1035 TCP/UDP, 9900-9901 UDP, 2644 TCP, 8000 TCP
Quake 2 27910 UDP
Quake 3 27660 UDP
Each computer playing QuakeIII must use a different port number,
starting at 27660 and incrementing by 1. You'll also need to do the
following:
1. Right click on the QIII icon
2. Choose "Properties"
3. In the Target field you'll see a line like "C:\Program Files\Quake III
Arena\quake3.exe"
4. Add the Quake III net_port command to specify a unique
communication port for each system. The complete field should look
like this: "C:\Program Files\Quake III Arena\quake3.exe" +set
net_port 27660
5. Click OK.
6. Repeat for each system behind the NAT, adding one to the net_port
selected (27660,27661,27662)
Quicktime 4/Real Audio 6970-32000 UDP, 554 TCP/UDP
Rainbow Six & Rogue Spear 2346 TCP
RealOne Player TCP - 554, 7070 to 7071
UDP - 6970 to 7170
Real Audio 6970-7170 UDP
Return To Castle Wolfenstein Default -27960 TCP/UDP
UDP - 27950 to 27980
Roger Wilco TCP/UDP 3782
UDP 3783 (BaseStation)
ShoutCast Server 8000-8005 TCP
Spinner Radio/Netscape Music TCP - 554
SSH Secure Shell 22 TCP/UDP
Starcraft 2346 TCP
![](/img.php?id=590706&img=bg4e.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 78 July 2005
User Guide
UltraLine II (Model 800015)
Application/Game Port/Protocol
Starfleet Command 2300-2400 TCP/UDP, 47624 TCP/UDP
SOF/SOFII (Soldier of Fortune /
Soldier of Fortune II) UDP - 28910 to 28915
Telnet 23 TCP
Tiberian Sun & Dune 2000 1140-1234, 4000 TCP/UDP
Tribes2 TCP - 15104, 15204, 15206, 6660 to 6699
UDP - 27999 to 28002
Ultima Online 5001-5010 TCP, 7775-7777 TCP, 8800-8900 TCP, 9999 UDP, 7875
UDP
Unreal Tournament server 7777 (default gameplay port)
7778 (server query port
7779,7779+ are allocated dynamically for each helper UdpLink
objects, including UdpServerUplin objects. Try starting with 7779-
7781 and add
ports if needed
27900 server query, if master server uplink is enabled. Home master
servers use other ports like 27500
Port 8080 is for UT Server Admin. In the [UWeb.WebServer] section
of the server.ini file, set the ListenPort to 8080 and ServerName to the
IP assigned to the Modem from your ISP.
USENET News Service 143 TCP
VNC, Virtual Network
Computing 5500 TCP, 5800 TCP, 5900 TCP
Westwood Online, C&C 4000 TCP/UDP, 1140-1234 TCP/UDP
World Wide Web (HTTP) 80 TCP
443 TCP (SSL)
8008 OR 8080 TCP (PROXY)
Yahoo Messenger Chat 5000-5001 TCP
Yahoo Messenger Phone 5055 UDP
IPSec Encryption IPSec using AH can not be supported through NAT. IPSec using ESP
and L2TP can be supported via an ALG
L2TP IPSec using ESP and L2TP can be supported via an ALG.
PPTP Works through NAT.
![](/img.php?id=590706&img=bg4f.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 79 July 2005
User Guide
UltraLine II (Model 800015)
18. PRODUCT SPECIFICATIONS
Data Features
• Network Address Port Translation
• DHCP client/server
• DNS server/relay
• Static Routes
• Dynamic Routing with RIP v1 and v2
• PPTP/L2TP/IPSEC VPN NAPT passthrough
• NAT ALG support for common applications
• Stateful Inspection Firewall with logging
• Diffserv IP QOS
WAN Protocol Features
• Bridge Encapsulation per RFC 1483
• Routed IP over ATM per RFC 2684
• PPP over Ethernet per RFC 2516
• PPP over ATM per RFC 2364
• Auto Protocol Detect
ATM Features
• Multi PVC support
• Auto PVC detect
• CBR, VBR-rt, VBR-nrt and UBR traffic
shaping
• OAM F4/F5 Loop-back
WAN/LAN
• Single 10/100 Base-T Ethernet
• Auto MDI/MDI-X detection
• Operates as an uplink, public LAN (DMZ) or
as a fifth LAN port
Uplink Features
• PPP over Ethernet per RFC 2516
• DHCP client
• Static IP address
Public LAN Features
• Dedicated DMZ port
• DHCP server
• Bridge mode mapped to a separate PVC
Ethernet LAN
• Four port 10/100 Base-T Ethernet switch
• Auto MDI/MDI-X detection
• VLAN tagging
Wireless LAN
• IEEE 802.11b/g with frame bursting
• WEP and WPA-PSK security
• MAC address filtering
• Upgradeable to 802.11i, 802.11e, WME
• High gain removable external antenna
Management
• Web-based GUI
• Remote management via TR-069 or WT-087
System Requirements
Ethernet
• Pentium® or equivalent and above machines
• Microsoft Windows (98 SE, 2000, ME, NT
4.0, or XP), Macintosh OS X, or Linux
installed
• Internet Explorer 4.x or Netscape Navigator
4.x or higher
• Ethernet 10/100 Base-T interface
• TCP/IP Protocol stack installed
Wireless
• Pentium® or equivalent and above class
machines
• Microsoft® Windows® (98 ME, 2000, or XP)
or Macintosh® OS X installed
• Operating System CD on hand
• Internet Explorer 4.x or Netscape Navigator
4.x or higher
• 64 MB RAM (128 MB recommended)
• 10 MB of free hard drive space
• IEEE 802.11b/g/g+ PC adapter
Physical Specifications
Dimensions/Weight
• Height: 1.5 in (3.81 cm)
• Width: 10.0 in (25.4 cm)
• Depth: 6.50 in (16.5 cm)
• Weight: Approx. 1.26 lbs. (0.57 kg)
![](/img.php?id=590706&img=bg50.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 80 July 2005
User Guide
UltraLine II (Model 800015)
Environmental
• Ambient Operating Temperature: +32° to
+104° F (0° to +40° C)
• Relative Humidity: 5 to 95%, non-condensing
Network Interface
• WAN: 10/100 Base-T RJ-45 port
• LAN: 10/100 Base-T RJ-45 port (to PC or Hub)
Power
• Power Adapter:
Input: AC 120V/
Output: DC +12V
• Power Consumption: Less than 14W typical
from 120 VAC
LED Indicators
• Power
• WAN
• Internet
• Ethernet
• MoCA
• Wireless
Connectors
• WAN: Ethernet 8-pin RJ-45
• Four Ethernet: 8-pin RJ-45
• Power: Barrel connector
• Wireless IEEE 802.11b/g SMA connector and
antenna
• Coax
Compliance
EMC
• FCC Part 15 Class B
Safety
• ANSI/UL 60950-1
• CAN/CSA C22.2 No. 60950-1 First Edition
dated April 1, 2003 with revisions through
November 26, 2003
Regulatory Approval
• UL, CSA, FCC Part 68, ACTA 968-A-3
Industry Canada CS03
![](/img.php?id=590706&img=bg51.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 81 July 2005
User Guide
UltraLine II (Model 800015)
19. TECHNICAL SUPPORT INFORMATION
Westell Technical Support
If technical assistance is required, contact your Internet service provider for support. By using one of the following
options:
North America U.K./Europe
Phone: 1-630-375-4500 Phone: (44) 01256 843311
Visit Westell at www.Westell.com to view frequently asked questions and enter on-line service requests, or send
email to global_support@westell.com to obtain additional information.
20. WARRANTY AND REPAIRS
Warranty
Westell warrants this product free from defects at the time of shipment. Westell also warrants this product fully
functional for the period specified by the terms of the warranty. Any attempt to repair or modify the equipment by
anyone other than an authorized representative will void the warranty.
Repairs
Westell will repair any defective Westell equipment without cost during the warranty period if the unit is defective
for any reason other than abuse, improper use, or improper installation, or acts of nature. Before returning the
defective equipment, request a Return Material Authorization (RMA) number from Westell. An RMA number
must be quoted on all returns. When requesting an RMA, please provide the following information:
• Product model number (on product base)
• Product serial number (on product base)
• Customer ship-to address
• Contact name
• Problem description
• Purchase date
After an RMA number is obtained, return the defective unit, freight prepaid, along with a brief description of the
problem to one of the following options:
North America U.K./Europe
Westell, Inc. Westell, Ltd.
ATTN: R.G.M Department Ringway House
750 N. Commons Drive Bell Road
Aurora, IL 60504-7940 USA Daneshill
Basingstoke
RG24 8FB
United Kingdom
![](/img.php?id=590706&img=bg52.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 82 July 2005
User Guide
UltraLine II (Model 800015)
Westell will continue to repair faulty equipment beyond the warranty period for a nominal charge. Contact a Westell
Technical Support Representative for details.
![](/img.php?id=590706&img=bg53.png)
UltraLine II – Draft 1
030-300459 Rev. A
7/12/05
030-300459 Rev. A 83 July 2005
User Guide
UltraLine II (Model 800015)
21. PUBLICATION INFORMATION
Westell® UltraLineII (Model 800015)
User Guide Part Number 030-300459 Rev. A
Copyright © 2005 Westell, Inc.
All rights reserved.
Westell, Inc.
750 North Commons Drive
Aurora, Illinois 60504 USA
www.westell.com
All trademarks and registered trademarks are the property of their respective owners.
