Welcome to use this Bluetooth FM transmitter, BTC008. Pleaser read this user
manual carefully before using it.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio communication
technology that was drawn up by Ericsson, IBM, Internet, Nokia and
Toshiba. Through Bluetooth technology, we can achieve the highest
transmission rate among mobile phone, computer, printer, PDA and other
devices. The max transmit range of class 2 is 10 meters while the max
transmit range of class 1 can reach up to 100 meters.
2. About BTC008
BTC008 has three functions of Bluetooth handsfree, Bluetooth stereo
receiver and FM transmitter. At the same time, it has DC 5V USB Charging
socket. By using BTC008, you can not only make handsfree call, but also
enjoy music wirelessly. The product has the following features:
1) Bluetooth handsfree—pairing with Bluetooth mobile phone and PDA
which support HFP:
Answer call, end call and reject call
Redial last call
Adjust volume
2) Bluetooth stereo receiver—pairing with Bluetooth music device and
Bluetooth transmitter which support A2DP:
Enjoy music wirelessly
Adjust volume
Remote control the function of pause/revert to play
Remote control last/next song
3) FM transmitter—transmit call or music to car FM radio through the FM
transmit function:
Transmit call or music to the car FM radio
Adjust the transmit frequency
Adjust volume
4) The sockets of Line in and Line out
Line in—Transmit stereo music to BTC008 from iPod or MP3 with
wire
Line out—Transmit call or stereo music to car stereo system from
BTC008
![](/img.php?id=1139325&img=bg3.png)
5) USB charging socket
BTC008 has a USB charging socket which provides DC 5V voltage.
You can power and charge other devices through using it.
Remark: If you want to charge other devices, it requires the cigerette
socket of your car can provide 400mA or above current.
Before using
1. Overview
Main body Cigarette adaptor
![](/img.php?id=1139325&img=bg4.png)

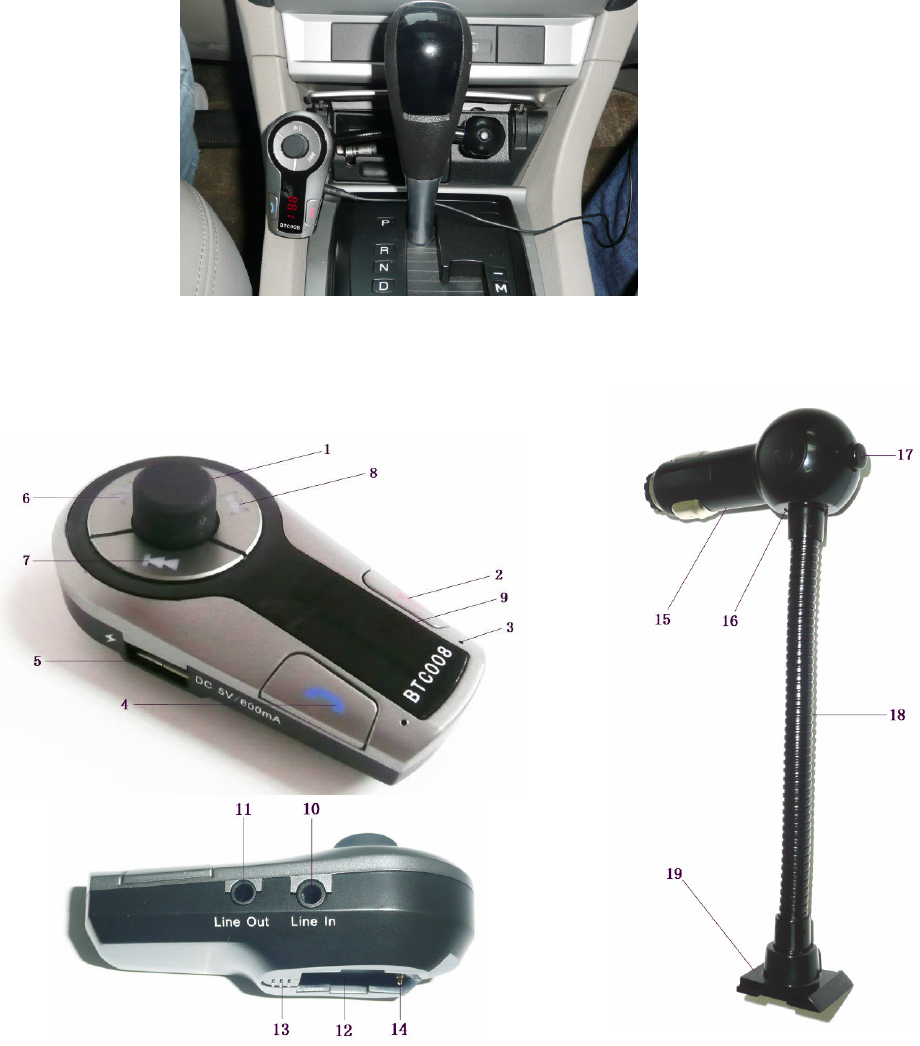

1 MFB—Adjust frequency, adjust volume and frequency tuning
automatically
2 button—End call and reject call
3 Microphone
4 button—Enter into pairing mode, redial last call and
answer call
5 USB socket—Power and charge other devices
6 button—Pause/revert
7 button—Last song
8 button—Next song
9 Display screen—Display the frequency and volume
10
Line In—3.5mm audio input
11 Line Out—3.5mm audio output
12
Connecting slot
13
Spring button
14
Connecting thimble
15
Cigarette adaptor
16
Power indicator light
17
button——Power switch
18
Flexible neck
19
Connecting buckle
Basic operation
1. Installing BTC008

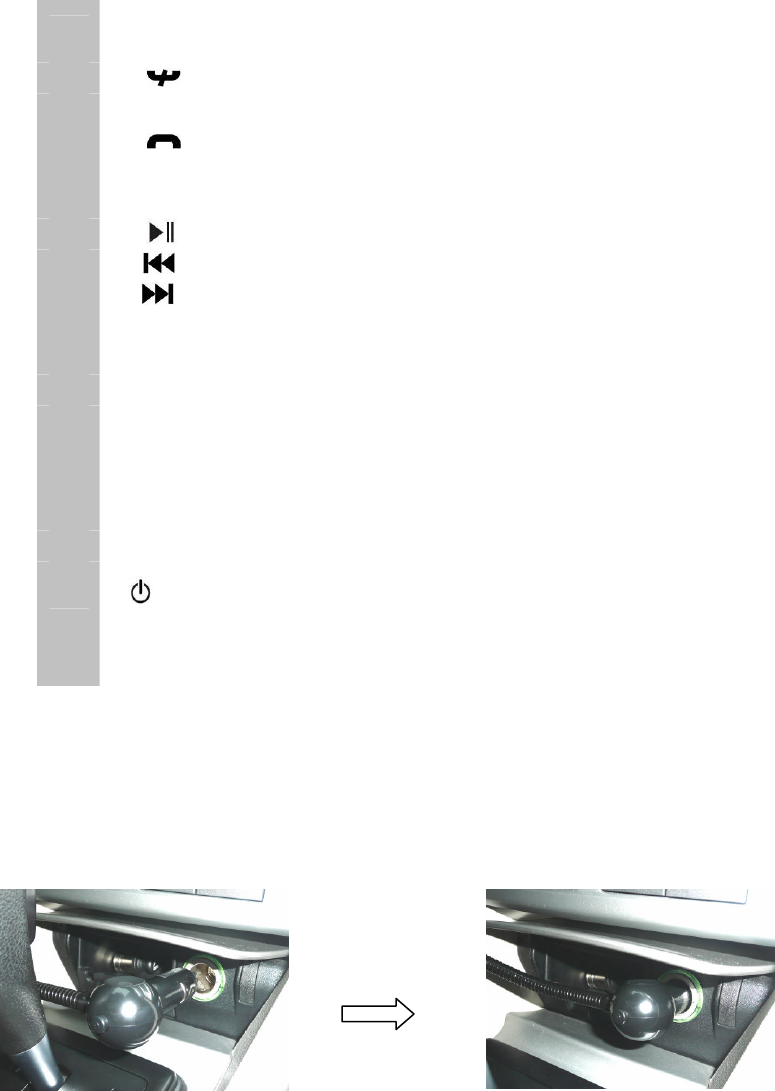

1) Connect cigrette adaptor to car cigarette socket
Before connection Already connected
Remark:
The output voltage of car cigrette socket provided power for
BTC008 must be DC 12V, the biggest voltage must not exceed
DC 13.5 V.
The product is not compliant with some cigarette socket whose
output voltage is DC 24V.
![](/img.php?id=1139325&img=bg5.png)

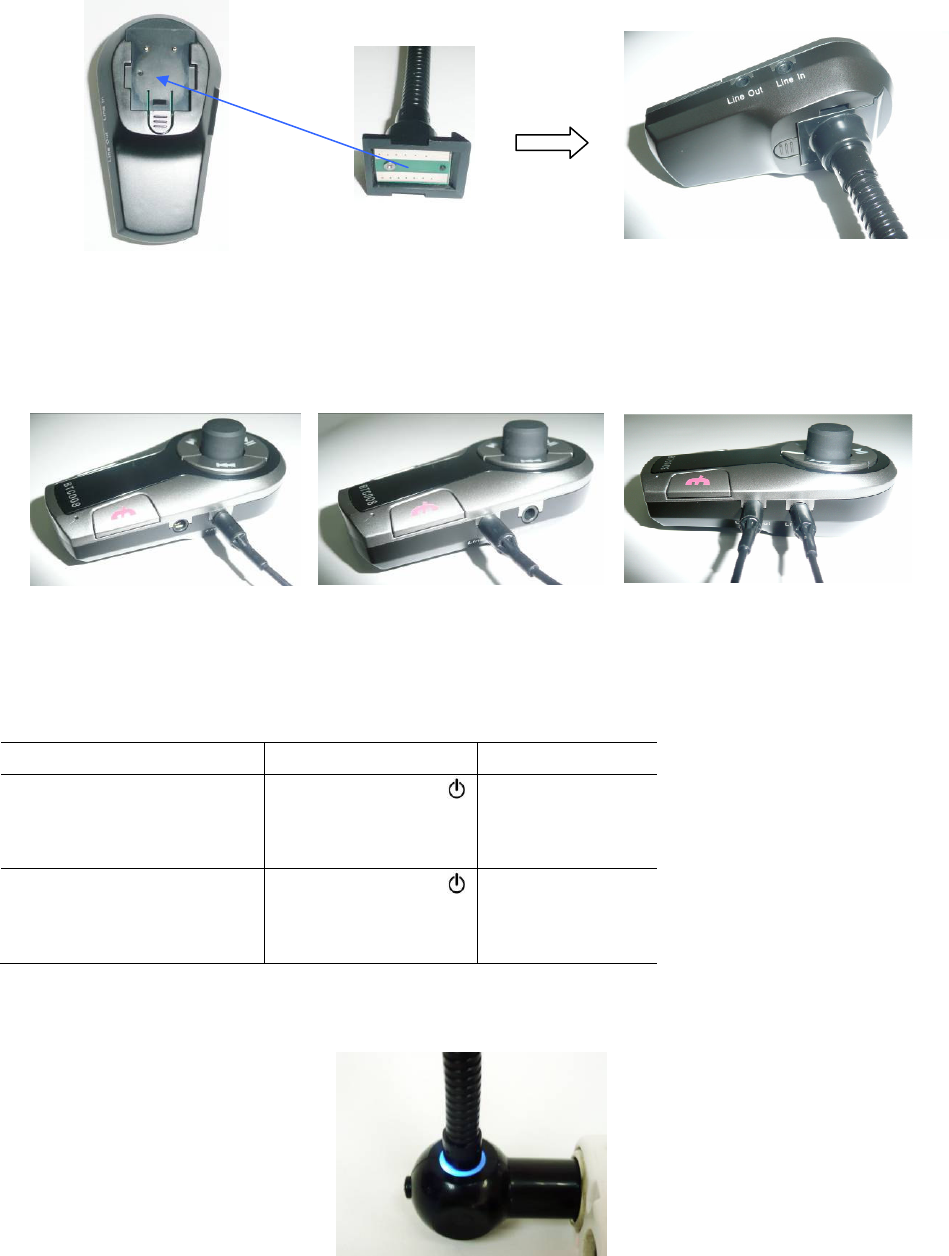

2) Connect cigarette adaptor with main body
Press down spring button, as shown below, connect connecting buckle to
the connecting slot of main body, and then release the spring button, that is
a successful connection.
Connect to
Before connection Already connected
3) 3.5mm audio cable connection
Line in Line out Line in & Line out
2. Switching on/off BTC008
Function Operation Indicator light
Switch on BTC008 Light press
button
Power
indicator light
is on
Switch off BTC008 Light press
button
Power
indicator light
is off
Remark: BTC008 will enter into pairing mode automaticallwhen turn on ii
every time.
![](/img.php?id=1139325&img=bg6.png)
3. Adjusting frequency
Before using BTC008, you have to adjust the frequency of BTC008 to be
same as the frequency on the car FM radio.
1) Adjust the frequency of car FM radio to a frequency that is not
broadcasting radio station;
2) Rotate MFB of BTC008 to adjust its frequency to be same as the
frequency of car FM radio.
4. Pairing BTC008 with Bluetooth devices
1) Pairing with Bluetooth mobile phone
Please make sure your mobile phone has bluetooth function that is available.
Specific pairing steps may vary with different mobile phones. Please refer to
your mobile phone user manual for further information. The steps are as
follows:
A. Keep BTC008 and your Bluetooth mobile phone within 1 meter when
pairing.
B. Make BTC008 enter into pairing mode (red and blue indicator lights
flashes alternately)ˈ
C. Switch on Bluetooth function of mobile phone and search the Bluetooth
device. After searched, select “BTC008” in the Bluetooth device list.
D. According to indication, enter password or PIN No:”0000”, and press the
key of ” Yes” or “confirm”.
E. After successful pairing, select “BTC008” in the Bluetooth device list, and
press “connect”. After successful connecting, the red indicator light of
button will be on. If your Bluetooth mobile phone supports A2DP, the
blue indicator light of button will be also on.
2) Pairing with stereo Bluetooth transmitter
The pairing ways of Bluetooth transmitter depends on Bluetooth transmitteri
tself, please refer to user manual of your Bluetooth transmitter for further
information. The steps are as follows:
A. Keep BTC008 and Bluetooth transmitter within 1 meter when pairing.
B. Make BTC008 enter into pairing mode (red and blue indicator lights
flashes alternately).
C. Switch on your Bluetooth transmitter and make it enter into pairing mode.
D. The Bluetooth transmitter will search and connect with BTC008
automatically. After successful connecting, the blue indicator light of
button will be on.
Remark:
BTC008 will connect with last connected Bluetooth device
automatically when switch it on every time, if you want it enter into
![](/img.php?id=1139325&img=bg7.png)
pairing mode, you can press and hold button for about 2 seconds
(red and blue indicator lights flash alternately).
The pairing mode will last 3 minutes. BTC008 will exit pairing mode
automatically if it can’t be connected with any devices after 3 minutes. If
you want to continue to pair BTC008 with Bluetooth device, please
switch off BTC008 firstly, and then re-pair according to steps above
mentioned.
If red or blue indicator light is on, which means BTC008 has already
connected with some device, at this time, BTC008 can’t connect with
other devices. If you want to connect BTC008 with other devices,
please switch off the Bluetooth function of current device paired with
BTC008, and then restart BTC008 to pair with new device.
5. Playing music
1) Connect with Bluetooth A2DP mobile phone or Bluetooth
transmitter
A. Adjust the frequency of BTC008 to be same as the frequency on the
car FM radio;
B. Make sure your mobile phone or Bluetooth transmitter has already set
up A2DP connection with BTC008 (Blue indicator light is on);
C. Play music on your mobile phone or other music players, at this time,
you can listen to music from car FM radio.
D. Adjust volume: Short press MFB of BTC008 to enter into the mode of
adjusting volume, and then rotate MFB to adjust volume..
E. Pause/revert: Light press button of BTC008 to pause music,
press once more to play music again.
F. Last/next song: Light press button of BTC008 to play last song,
Light press. button of BTC008 to play next song.
2) 3.5mm audio input
A. You have to use a 3.5mm to 3.5mm audio cable, one end inserts into
Line-in socket of BTC008, and the other end inserts into your music
player.
B. Play music on the music player, at this time, you can listen to music
from car FM radio
Remark:
When play music through Line-in socket, you can’t adjust volume,
pause/revert, play last /next song from BTC008
When you use wireless and wire to play music at the same time, it
will switch to last input type.
For example, BTC008 is playing music from Bluetooth A2DP device,
at this time, if you use Line-in socket to play music, it will play music
![](/img.php?id=1139325&img=bg8.png)
through Line-in socket.
6. Making handsfree call with BTC008
As long as your mobile phone has Bluetooth function and set up HFP
connection with BTC008, you can make handsfree call with BTC008, and
remote control the call.
1) Adjust the frequency of BTC008 to be same as the frequency on the
car FM radio.
2) Pair your mobile phone with BTC008, after successful HFP connecting
(red indicator light of button is on, you can make handsfree call
with BTC008.
3) Redial last call: Long press button for 3 seconds, you can call the
last number.
4) Cancel calling: When it is calling, short press button to cancel
calling.
5) Answer call: When it is ringing, short press button to answer call.
6) Reject call: When it is ringing, Long press button for about 2
seconds to reject call.
7) End call: When it is in conversation, short press button to end call.
7. The operation of BTC008
Function The status of
BTC008 Operation
Basic function˖
Enter into
pairing mode Switch on
Press and hold button for about 2
seconds (red and blue indicator lights
flash alternately)
Adjust
frequency
Adjust
frequency
Rotate MFB once right, the frequency
will increase 0.1MHZ˗
Rotate MFB once lefe, the frequency
will reduce 0.1MHZ
Frequency
tuning
automatically
Switch off
Long press MFB for 3 seconds, after
searched, the screen will display the
frequency that is not used
Adjust volume Conversation/
Playing music
Light press MFB to enter into adjusting
volume mode, and then rotate MFB
right to increase volume, rotate MFB left
to reduce volume
The function of making call˖
Redial last call
Standby mode Long press button for about 3
seconds
![](/img.php?id=1139325&img=bg9.png)
Cancel calling Callling Short press button
Answer call Ringing Short press button
Reject call Ringing Long press button for about 2
seconds
End call Conversation
mode Short press button
The function of playing music˖
Pause/revert Playing music Light press button
Last song Playing music Light press button
Next song Playing music Light press button
8. The function of Line-out
If your car stereo system has stereo audio input socket, you can also
transmit stereo music to your car stereo system with wire. Around this socket,
it often has remark of “AUX” or “Auxiliary”.
The methods: You have to use a 3.5mm to 3.5mm audio cable, one end
inserts into Line-out socket of BTC008, and the other end inserts into stereo
audio input socket of car stereo system.
9. LED indicators
LED indicator light The status of BTC008
Blue indicator light of
button flashes slowly
Search last connected device
Red and blue indicator lights
flash alternately
Pairing mode
Red indicator light of
button is on
Successful HFP connecting
Blue indicator light of
button is on
Successful A2DP connecting
The indicator lights of
button is on
Switched on
The indicator lights of
Adjusting volume mode
![](/img.php?id=1139325&img=bga.png)
button flash
Remark
When switch on BTC008ూred indicator lights of button
is on. The red indicator light only flashes in adjusting volume mode..
Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill
any warranty obligations and enjoy this product for many years.
Keep dry and don’t put it in the dump place, so as not to affecting the
interior circuit of product.
Don’t put the product under the sunlight or place in the hot areas. High
temperature will shorten the life of electronic device, destroy the battery,
or distort certain plastic.
Don’t expose the product in the cold areas. It may damage the internal
circuit board.
Don’t try to take apart the product. It may damage the product if you are
not professional.
Don’t fall off on the floor or knock the hard substance. It may damage
interior circuit.
Don’t use intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things.
If the product can’t work normally, please send it to the regularly asserted
store. The staff will help you to solve the problem warmly.
FAQ
1. Why is red indicator light of button on?
Because BTC008 has already connected with Bluetooth HFP device, you
can make handsfree call.
2. Why is blue indicator light of button on?
Because BTC008 has already connected with Bluetooth A2DP device, you
can play music.
3. Why is not sound clearly?
![](/img.php?id=1139325&img=bgb.png)
a) Please make sure car FM radio has already been adjusted to a clean
channel;
b) Please make sure the frequency of BTC008 is same as the frequency
of car FM radio;
c) Please make sure BTC008 is in the effective working range.
4. Why can not BTC008 pair with Bluetooth device?
a) Please make sure BTC008 is in pairing mode;
b) Please make sure BTC008 is in the effective working range.
5. Why can not play music when connect with Bluetooth mobile phone?
a) Pleaser make sure your Bluetooth mobile phone support A2DP;
b) Please make sure BTC008 is in the effective working range.
6. When play music, why can not pause, revert, play last song and next
song from BTC008?
a) BTC008 can not remote control when play music through 3.5mm
Line-in socket;
b) This function needs Bluetooth device paired with BTC008 to support
AVRCP (Audio/Video Remote Control Profile). Please make sure your
mobile phone or Bluetooth transmitter support AVRCP.
7. How far is Bluetooth effective range and FM transmit range?
a) According to the Bluetooth standard, the max. controllable range of
Class 2 handsfree kit is 10 meters. But it varies with different
environment and paired mobile phone
b) FM transmit range is up to 4 meters.
Specification
Bluetooth version Bluetooth V2.1
Bluetooth profiles HSP, HFP, A2DP and AVRCP
Frequency response 2.4GHz-2.4835GHz
FM frequency 88.1-107.9MHz
Bluetooth range 10M
FM range 5M
Max. undistorted audio Input 395mV p-p
Input DC 12V 400mA
USB output DC 5.0V 600mA
Dimension 84×46×32mm
Weight Main body: 42.9g
Cigarette adaptor: 75.5g
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
