The good news is that most biological safety cabinet
manufacturers build their cabinets to NSF* International
specifications and have NSF listing. Biosafety cabinets, by their NSF
definition, are designed to be safe:
“A ventilated cabinet for personnel, product, and environmental
protection having an open front with inward airflow for personnel
protection, downward HEPA filtered laminar airflow for product protec-
tion, and HEPA filtered exhaust air for environmental protection.”
The news gets better. Labconco has added features to its newest
generation of Purifier Logic+ Biosafety
Cabinets that resets the bar for not
only safety but also comfort. Unlike
other cabinets, the Purifier Logic+
was designed for the human body and
habits that goes beyond ergonomics.
We call it Inclination™ Technology—
design that caters to human behavior.
You experience less fatigue, fewer
distractions and a more comfortable
working environment. Your work
demands precision, attention to
details and constant vigilance to safe
practices. We believe the more com-
fortable you are, the safer you will be.
For total comfort, effortless
operation and maximum safety, the
Purifier Logic+ Biosafety Cabinet is
your logical choice. Read more about
the difference a human-designed bio-
safety cabinet makes.
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Designed for the HUMAN Experience
Performance
Nothing enhances the human experience more than a biosafety
cabinet that allows you to work confidently and with peace of
mind. Unique to the Purifier Logic+ Biosafety Cabinet is its built-in
intelligence to accurately maintain proper airflow, even as the
HEPA filters load. Accuracy is achieved with an Electronically
Commutated Motor (ECM) coupled with Labconco’s exclusive
Constant Airflow Profile™ (CAP) Technology.
The benefits of ECM:
• Energy efficiency (see Table 1). The ECM consumes 60% less
energy than conventional motors.
• Comfortable working temperature. The ECM generates less heat
than conventional motors for cooler
working conditions.
• Quiet (< 63 dBA). The ECM
operates as much as 50% quieter
than conventional motors.
• Reliable. The time-tested ECM
has a long life (50,000 hour
average motor life) and reliable
operation.
• More power for longer lasting
filters. Because it has greater
torque than conventional motors,
the ECM overcomes more resistance
as HEPA filters load so filters
last longer.
• Performance of Constant Airflow Profile™
• Safety of MyLogic™
• Comfort of Inclination™ Technology
* NSF® is a registered trademark of NSF International, Ann Arbor, MI.
3
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Designed for the HUMAN Experience
Constant Airflow Profile™ (CAP) Technology is built-in in-
telligence that works with the ECM to precisely control airflow
without the need for airflow sensors. During operation, the ECM is
constantly adjusting its speed and torque to accurately maintain
its programmed airflow. Tests confirm that airflow is maintained
within 1%.
Using CAP Technology to monitor and provide accurate airflow has
advantages over relying on differential pressure gauges or airflow
sensors. Biosafety cabinets that solely rely on pressure gauges
require manual adjustment by a certifier when readings indicate
a decline in airflow performance. Likewise, airflow sensors have a
known standard of deviation exceeding safe airflow requirements in
Class II cabinets. A certifier can verify safe airflow for a single mo-
ment in time. CAP Technology maintains safe airflow all the time.
Sustainable Design
As a member of the U.S. Green Building Council (USGBC), Labconco
is committed to designing environmentally-responsible products. The
Logic+ is one example. Since Logic+ uses less energy and lowers the
heat load compared to cabinets with conventional motors, it contrib-
utes toward satisfying EA Credit 1 under LEED. New construction build-
ings with the Logic+ cabinets installed can earn from one to 19 LEED
points for energy use reduction. The 8.5% pre-consumer and 54.5%
post-consumer recycled content of the Logic+ can contribute towards
satisfying MR Credit 4. Buildings that incorporate recycled materials
may be awarded from one to two LEED points. When it is time to
remove a Logic+ from service, its recyclable content is 94.9%, another
measure of its contribution toward preserving our environment.
Performance Features & Benefits:
•
Reliable ECM provides energy-efficient operation.
•
CAP Technology assures consistent delivery of precise air
volume, even as filters load. No sensors are needed.
•
Low lifetime cost (see Table 1). Energy efficiency and lower
maintenance costs add up to a lower total lifetime cost.
•
Air-Wave™ Entry System, consisting of aerodynamic angles
surrounding the access opening, provides less airflow resis-
tance for better containment.
•
Contain-Air™ Negative Pressure Channel draws air in,
preventing loss of containment at the top of the sash.
•
Smart-Start™ System automates routine start up and shut
down functions, assuring consistent operation regardless of
the user and saves time.
•
Night-Smart™ System idles the blower at 30% speed when
the sash is fully closed to help maintain a clean environment
inside the cabinet during periods of non-use while saving
energy. When the sash is raised, the blower automatically
resumes normal operation.
•
5 year warranty
* LEED® is a registered trademark owned by the U.S. Green Building Council and is used with permission.
Logic+ Other Cabinet A Other Cabinet B Other Cabinet C
Motor Type/Technology DC ECM AC PSC AC-3Ø DC
8 hrs/day (2,080 hrs/year)*
Energy Used (kWh/yr) 603 1206 861 339
Annual Cost - Commercial $60 $121 $86 $34
Annual Cost - Industrial $41 $81 $58 $23
24 hrs/day (8,736 hrs/year)*
Energy Used (kWh/yr) 2533 (803**) 5067 3617 1424
Annual Cost - Commercial $253 ($80**) $507 $362 $142
Annual Cost - Industrial $170 ($54**) $341 $243 $96
15-Year Life Cycle Costs
†
Operational Costs
Annual Certification $2,250 $2,250 $2,250 $2,250
Energy Cost - 8 hrs/day (Industrial) $609 $1,217 $869 $342
Energy Cost - 24 hrs/day (Industrial) $2,557 ($811**) $5,115 $3,651 $1,438
Total Operational Cost (8 hr/day) $2,859 $3,467 $3,119 $2,592
Total Operational Cost (24 hr/day) $4,807 ($3,061**) $7,365 $5,901 $3,688
Maintenance Costs
HEPA Filter Costs $800 $1,600 $1,600 $2,400
Service Cost†† $3,000 $3,450 $3,450 $4,350
Replacement Parts $700 $1,100 $1,100 $2,500
Total Maintenance Cost $2,250 $3,900 $3,900 $7,000
Total Lifetime Cost (8 hr/day) $5,109 $7,367 $7,019 $9,592
Total Lifetime Cost (24 hr/day) $7,057 ($5,311**) $11,265 $9,801 $10,688
* Using a Commercial Business Energy use cost of $0.0988/kWh and an Industrial Energy use cost of $0.0673/kWh. ** Continuous operation of cabinet utilizing Night-Smart™ reduced flow setback mode. Calculations based
on using Night-Smart™ idle setback 16hr/day for 5 days/wk and 24 hr/day for 2 days/week, 52 week calendar year. † Costs of HEPA filters, service and replacement parts are approximations, not an estimate or guarantee
of any kind. †† Service cost includes annual certification ($150/yr), decontamination ($450/incident), and incidentals.
Table 1. 4' Purifier Logic+ Biosafety Cabinet Energy Usage and Operating Costs & Comparison
Safety
The most important reason to choose the Purifier Logic+ is safety.
You simply won’t find another biosafety cabinet with a more
comprehensive safety package than the Logic+. Purifier Logic+
Biosafety Cabinets meet or exceed all minimum requirements set
by NSF International including 99.99% efficient HEPA filters and
nominal inflow of 105 fpm. The Logic+ goes well beyond the NSF
Standard by providing the user with peace of mind that airflow is
within normal limits and the HEPA filters are working properly. A full
color, line-of-sight LCD information center, which is in constant
communication with the ECM, continuously monitors and displays
the cabinet’s performance.
The benefits of the LCD information center:
•
Easy readability with MyLogic™ OS. The large full color display
runs on MyLogic™ OS that provides user-friendly programming
and feedback. Mounted on the interior right side wall of the
user’s line of sight while seated, the display shows cabinet
function, filter loading and systems in use.
•
Descriptive feedback in easy-to-understand full sentences
leaves nothing to interpretation. Step-by-step instruction
guides you when programming features such as Smart-Start and
Night-Smart.
•
“Filter Remaining” bar graph. A bar graph depicts
percent of HEPA filter life remaining to provide assurance and
allow you to accurately and confidently plan for future filter
replacement. Alerts warn when the filter life diminishes to 20%
and 0%.
•

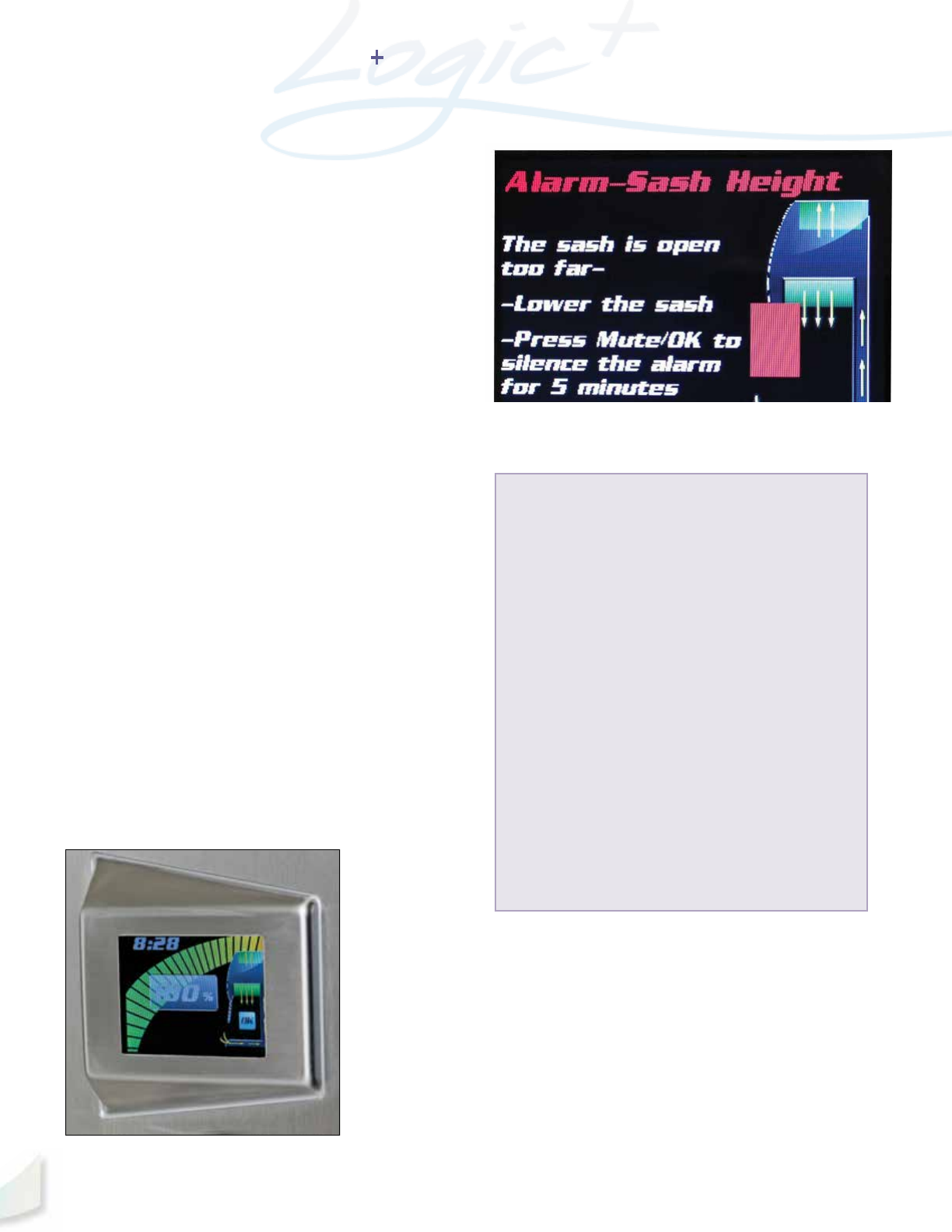

Alerts and Alarms. Visual and audible alarms warn users of
cabinet errors, explain the meaning of the alarm, diagram where
the cabinet has been affected, and provide intuitive trouble-
shooting tips.
•
Durable construction. The display is constructed of UV-opaque
safety glass and stainless steel for easy decontamination.
4
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Designed for the HUMAN Experience
Safety Features & Benefits:
• Line-of-sight Information Center with MyLogic™ OS
provides at-a-glance assurance that your cabinet is
operating safely.
• Fully-closing, tempered safety glass sash. An audible/
visual alarm indicates when the sash is opened above its
working height.
• Reserve-Air™ Inflow Slots on the inlet grille draw air into
the cabinet to maintain safe airflow should the user inad-
vertently block portions of the grille while resting arms.
• NSF-approved Vacu-Pass™ Cord & Cable Portal, avail-
able on some models, safely allows passage of electrical
cords and tubing through the side of the cabinet without
air leakage or airflow disruption. See page 9 for more
information.
• Electronic security lock, when enabled, prevents operation
of the cabinet by unauthorized users.
• NSF listed*
* Applies to Purifier Logic+ Class II, Type A2 and B2 Biosafety Cabinets
Various alert and alarm messages may be displayed and provide clear feedback and instruction.
Bar graph displays
percent of
HEPA filter life
remaining
Comfort
Labconco’s Inclination™ Technology—features that reinforce what
humans are inclined to do—is nothing new to us. We’ve been at
the forefront of designing ergonomics and comfort features into our
biosafety cabinets for decades. For example, in 1983, we pioneered
the use of an angled sash, which allows closer, more comfortable
viewing without glare. We thoughtfully design every feature to
ensure that form follows function and the shape of the human body.
5
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Designed for the HUMAN Experience
Inclination Technology has been applied throughout the cabinet. While seated, the LCD information center is within sight and the touchpad controls are within reach. Greater comfort lessens
the risk of accidents and personal injury.
The electrical outlet cover may be opened with one finger and then gently and slowly
self closes. It mounts flush and flat against the side wall for easy cleaning.
Scan this code to view a
brief video showing some of
the Inclination Technology
features in action.

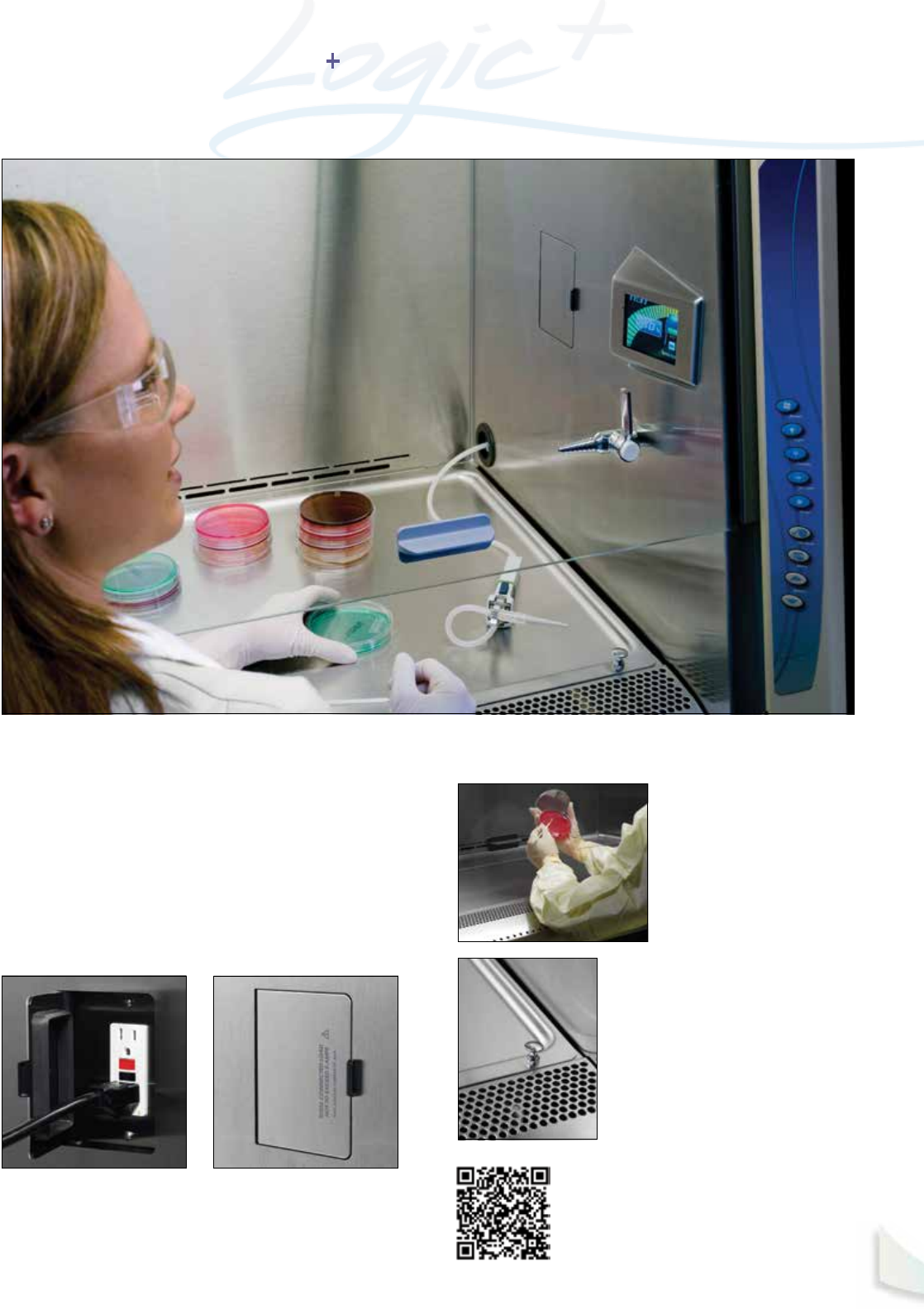

The curved inlet grille provides a comfortable
surface for forearms resting on it. No addi-
tional armrest is needed. Reserve-Air™ Inflow
Slots
draw air into the cabinet should the opera-
tor inadvertently block portions of the inlet grille,
maintaining safe airflow.
Unobtrusive lift knobs on the front corners of the dished
stainless steel work surface allow it to be quickly lifted
for cleaning.
Ergonomic principles were applied to the design of the Purifier Logic+ Biosafety Cabinet to ensure

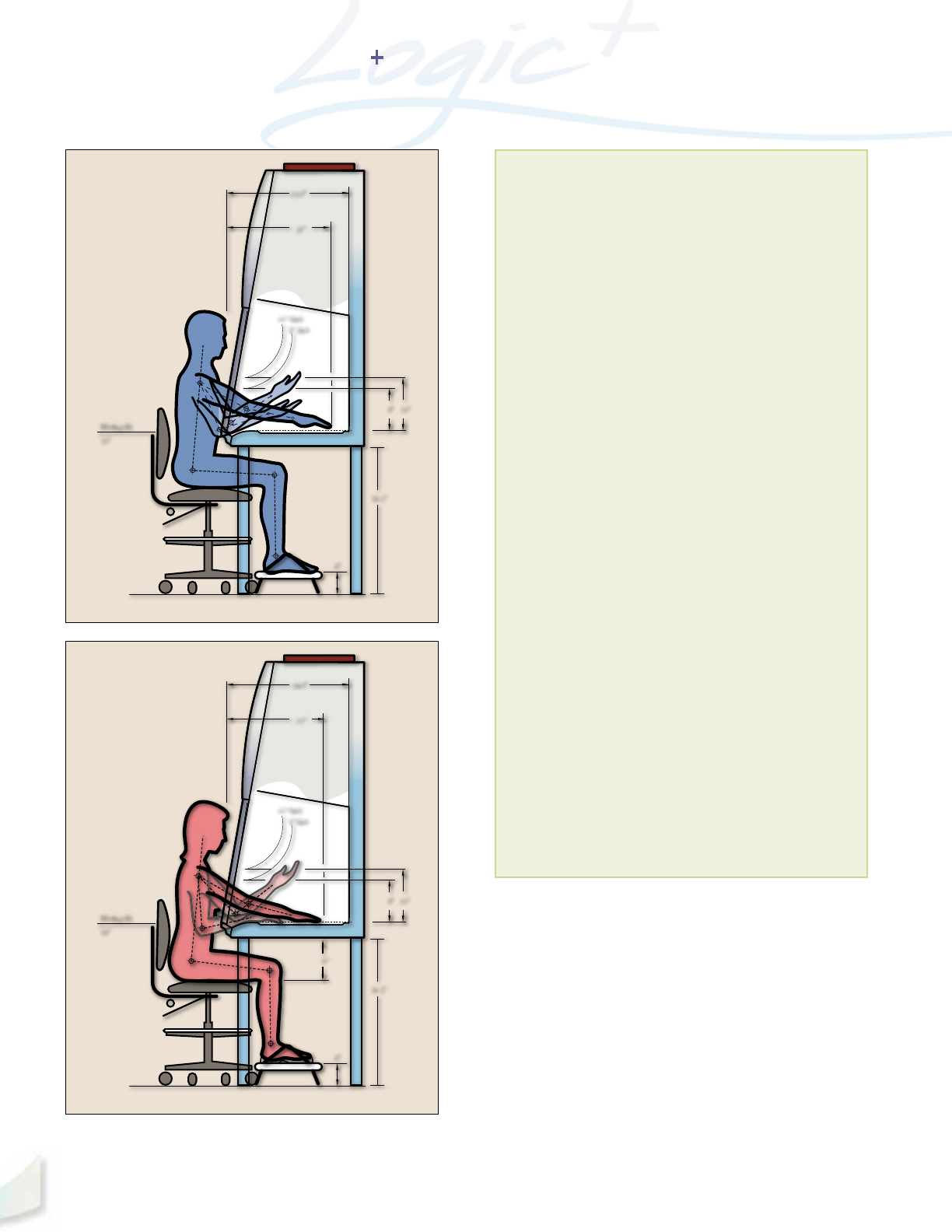

that humans of all sizes maintain a healthy posture, and have good visibility and range of motion
while using the cabinet. The illustrations above show an adult male of an average height of 5' 9.1"
and an adult female of an average height of 5' 3". The accessory base stand, chair and footrest
work together to achieve the proper height for individuals using the cabinet.
6
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Designed for the HUMAN Experience
Comfort Features & Benefits:
•
ECM is quieter and cooler than comparable PSC motors.
•
Line-of-sight, full color LCD information center is visible
to the user while seated at the cabinet.
• ADA-compliant, easy-to-clean touchpad controls allow
manual activation of blower, timer, audible alarm mute and
menu selection.
•
ADA-compliant service fixtures, available factory- or
user-installed, are mounted within easy reach on the side
walls, 8.5" (20 cm) above the work surface to maximize
usable surface area, permit free arm movement and
allow easy removal of the work surface. See page 9 for
more information.
•
Curved inlet grille gently supports the user’s forearms
without the need for uncomfortable, hard-to-clean armrests.
•
Flush-mounted electrical duplex covers have dampened
hinges that close slowly rather than snapping shut
on fingers. Surfaces are easy-to-clean stainless steel.
•
Counterweighted sliding sash with anti-racking
mechanism may be raised and lowered with minimal effort.
•
Large interior work area offers more cubic feet than any
other brand.
•
Inclined sash is sloped at 10° for closer, more
comfortable viewing than vertical sashes offer. Two small,
sculptured sash handles on the outside surface of the sash
do not obstruct the view of the interior.
•
Over 27" (69 cm) of viewing height gives greater visual
accessibility.
•
Bright, glare-free fluorescent lighting with timer pro-
vides 90-100 footcandles at the work surface, exceeding
NSF requirements.
10" Sash
8" Sash
10"8"
25.6"
21"
32.5"
6"
Worktop Ht.
35"
10" Sash
8" Sash
10"8"
8"
24.6"
19"
30.5"
6"
Worktop Ht.
33"
Select the right Purifier Logic Biosafety
Cabinet for your application
Purifier Logic+ Class II Biosafety Cabinets come in Type
A2 and Type B2 configurations. The airflow diagrams below
illustrate the differences between the two Types. Which configu-
ration you choose is determined by your application. Both Type
A2 and B2 cabinets are suitable for work with agents that require
Biosafety Level 1, 2 or 3 containment. Other appropriate applica-
tions include work with antioneoplastic drugs, genetic material,
carcinogens, allergens and additional substances that generate
hazardous airborne particulates.
Purifier Logic+ Class II, Type A2 Biosafety Cabinets are
designed to discharge HEPA-filtered exhaust air directly into the

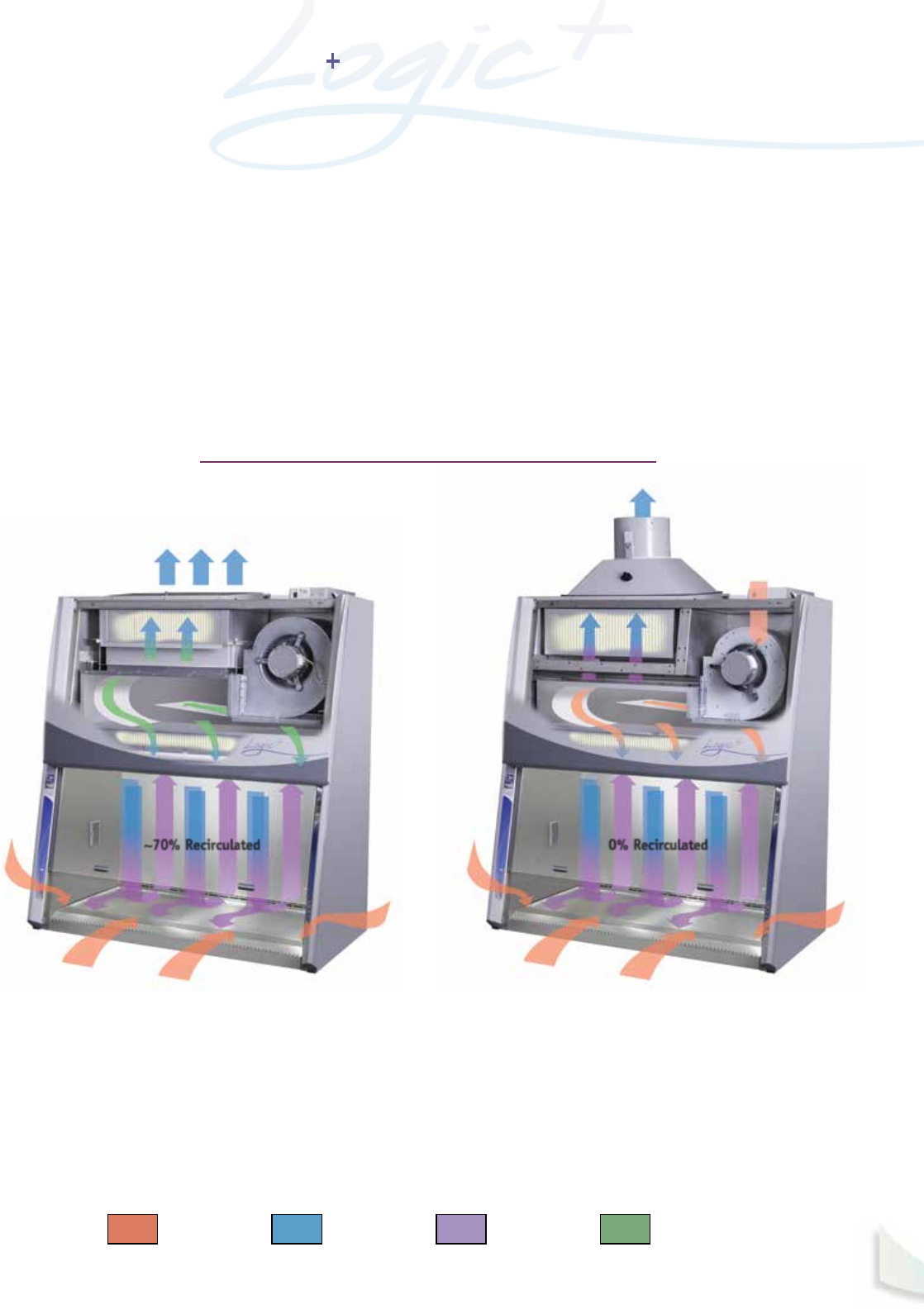

Class II, Type A2 Airflow
During operation, room air is drawn into the inlet grille. The air in
the plenum beneath the work surface is a mixture of unfiltered room
air, and air that has just passed through the work area. This contam-
inated air is drawn by the blower through the back plenum of the
cabinet, where approximately 70% of the air is recirculated through
the supply HEPA filter and back over the work area. The balance of
the contaminated air is discharged to the environment after passing
through the exhaust HEPA filter.
Class II, Type B2 Airflow
During operation, room air is drawn through the top of the cabinet.
This air is HEPA filtered, and then flows downward through the work
area. Room air is also drawn into the inlet grille. All of the contami-
nated air is drawn under the work surface or through the rear grille,
then up the rear plenum, and through the exhaust HEPA filter.
A dedicated exhaust system and remote blower draw 100% of the
filtered exhaust air out of the laboratory. The ductwork and remote
blower are required for operation and sold separately.
7
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Type A2 & B2 — Which do you Choose?
~70% Recirculated
laboratory, or into an exhaust system through the optional Canopy
Connection. When canopy-connected, the biosafety cabinets may
be used for applications involving volatile toxic chemicals and
radionuclides as an adjunct to microbiological research. These
benchtop cabinets are available in 3', 4', 5' and 6' nominal widths.
See pages 10-11 for ordering information.
Purifier Logic+ Class II, Type B2 Biosafety Cabinets are
designed to be hard ducted to the outside. Since none of the air
is recirculated, these cabinets may be used for work with agents
treated with volatile toxic chemicals and radionuclides. These
benchtop cabinets are available in 4' and 6' nominal widths.
See pages 12-13 for ordering information.
~30% Exhausted 100% Exhausted
0% Recirculated
Room Air HEPA-Filtered Air Unfiltered Air under
Negative Pressure Unfiltered Air under
Positive Pressure
Specialized work requires special features
Cell research often involves using a microscope, keeping the cells
at the proper temperature for viability, or both. At the same time,
the work must be conducted in a biological safety cabinet to pro-
tect the cells, researcher and environment. The Purifier Cell Logic+
Biosafety Cabinet has special features that address the unique
needs of cell research.
8
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Optional Features & Benefits
The accessory Pure-Vu Seal and Stand-Still XL Isolation
Platform accommodate forward-mounted microscopes such
as stereo scopes.

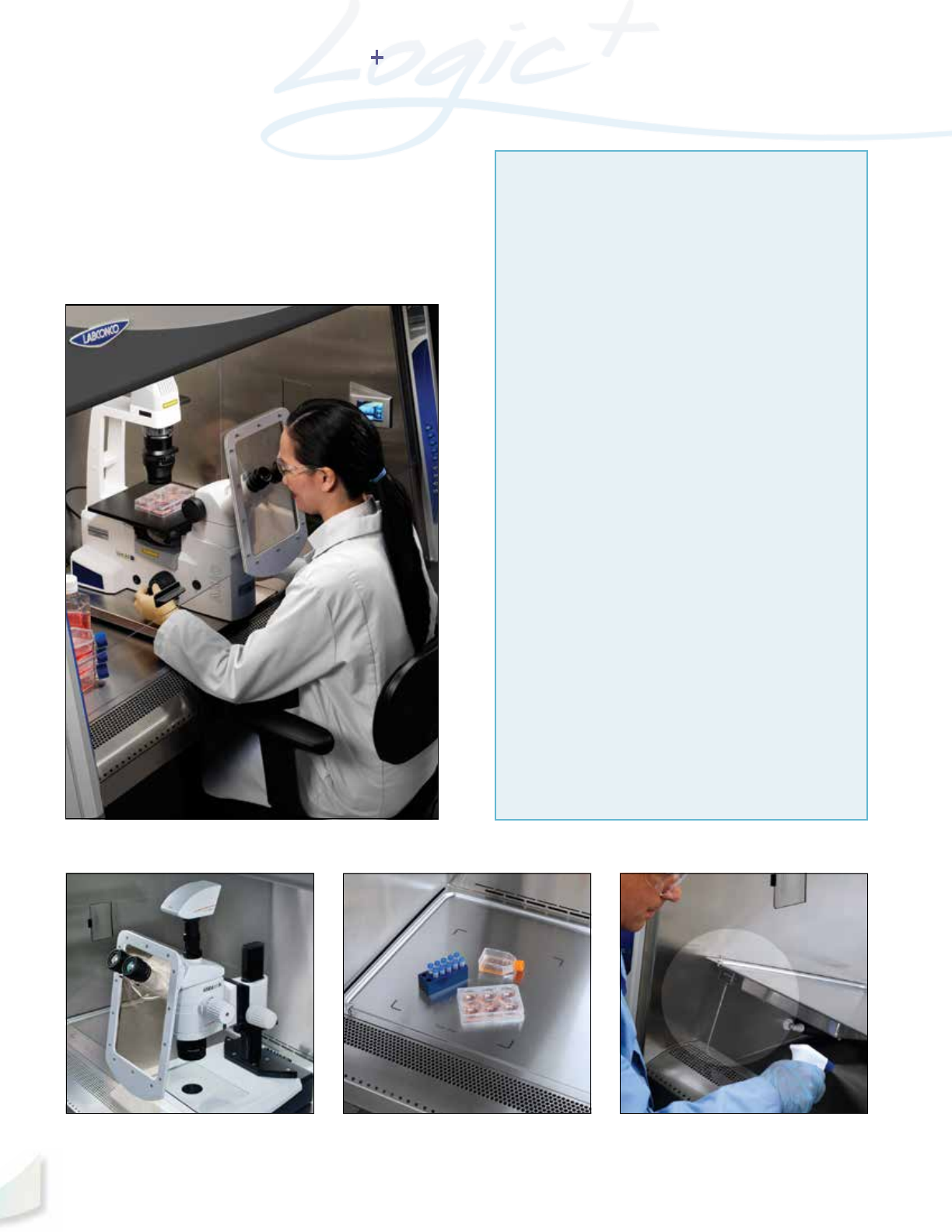

The Temp-Zone package option includes the temperature-controlled area of the work surface (shown above left) and
the Easy-Clean Prop Rods (shown above right).
Cell Logic+ Features & Benefits:
• Scope-Ready™ package option. Models are available that
allow a customer-supplied microscope to be integrated into
the cabinet. The sash has a 7.0" wide x 10.5" high (18 x27cm)
cutout that accommodates most microscopes’ eyepieces.
• The Pure-Vu™ Seal, made of flexible and clear material,
surrounds the cutout preventing contaminants from
escaping while providing ergonomic visibility into the
cabinet. Modified ASHRAE 110 and NSF 49 testing confirms
that this unique teardrop collar design keeps contaminants
contained. An accessory Pure-Vu™ XL Seal is available to
accommodate forward-mounted microscopes.
• The Stand-Still™ Isolation Platform completes the
Scope-Ready™ package and is sold separately. The platform
supports the microscope on the cabinet’s work surface and
reduces vibration threefold. Modified ASHRAE 110 and NSF
49 testing confirms this elevated aerodynamic base
maintains safe airflow. Constructed of seamless Type 304
stainless steel, the non-porous platform is easy to clean
and autoclavable. The platform is available in two sizes
and is sold separately.
• Temp-Zone™ package option. Models are available that
include a temperature-controlled area on the work surface,
10.5" wide x 12.0" deep (7.0" wide x 12.0" deep on 3'
models). Warmed or chilled samples may be transferred to
the Temp-Zone and kept at optimum temperature. Quick
connection fittings on the left side of the cabinet attach to
a user-supplied circulator that continually delivers chilled or
heated liquid to the Temp-Zone area. Uniform temperature
distribution is maintained on the surface. Easy-Clean™ Prop
Rods allow for hands-free elevation of the work surface for
ease of cleaning and access to the channels and drain.
* American Society of Heating, Refrigerating and Air-Conditioning Engineers, Atlanta, GA
Accessory Package adds functionality to
your biosafety cabinet
The optional Accessory Package caters to your unique biosafety
cabinet wants and needs. Three features are factory-installed so
that you can put them to immediate use: UV lamp, service fixture
and Vacu-Pass Cord & Cable Portal.

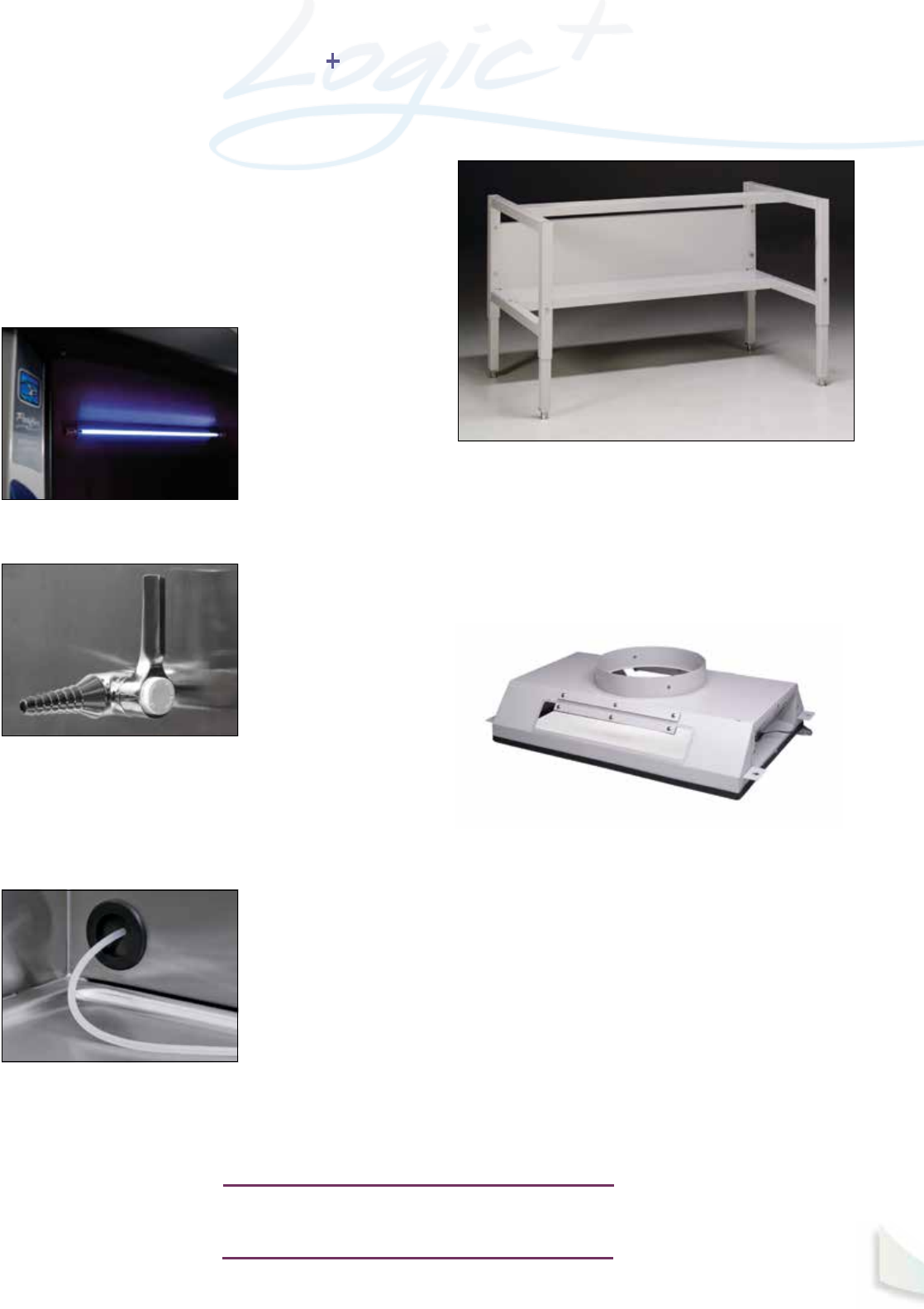

The 254 nm UV lamp
provides secondary de-
contamination while the
cabinet is not in use.
An interlocked switch
permits the UV light
to operate only when
the sash is completely
closed.
9
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Optional Features, Benefits & Accessories
The service fixture
supplies water, vacuum,
air or noble gases to the
cabinet interior. It has
a ball-type valve that
provides smooth oper-
ation at pressures up to
40 psi. The serrated
hose tip valve with
quarter turn control handle is mounted 8.5" (20 cm) above the
work surface to maximize usable surface area. One service fixture is
mounted on the right-hand side on 3', 4' and 5' models with
Accessory Package. Two service fixtures, one on each side, come
with 6' models with Accessory Package.
The Vacu-Pass™ Cord &
Cable Portal combines
safety and convenience.
The portal allows pas-
sage of cords through
the side wall of the
cabinet so that cords
are kept out of the way
of the user’s work area.
The NSF-approved port does not disrupt the cabinet’s airflow or
allow leakage to occur. One portal comes mounted on the right-
hand side interior on models with Accessory Package. A plug seals
the opening when not in use.
Ventus™ Canopy Connection provides
ducting for your Class II, Type A2 cabinet
Certain applications, such as working with malodorous samples, small
amounts of volatile toxic chemicals and tracer quantities of radionu-
clides, require the connection of your Class II, Type A2 cabinet to an
exhaust system. The NSF-approved Ventus Canopy Connection
mounts above the biosafety cabinet to allow thimble ducting to the
outside. Unlike canopies that rely on imprecise pressure or airflow
sensors, the Ventus has an uncomplicated mechanical design that
ensures safe and reliable operation. In less than one second after a
low flow event is detected, the alarm on the LCD alerts the user while
the blower speeds to full capacity to maximize personal safety. The
low profile Ventus adds only 1.25" to the overall height of the cabinet.
These accessories and more are also available
for on-site installation. See Accessories and Base Cabinets
Ordering Information starting on page 15.

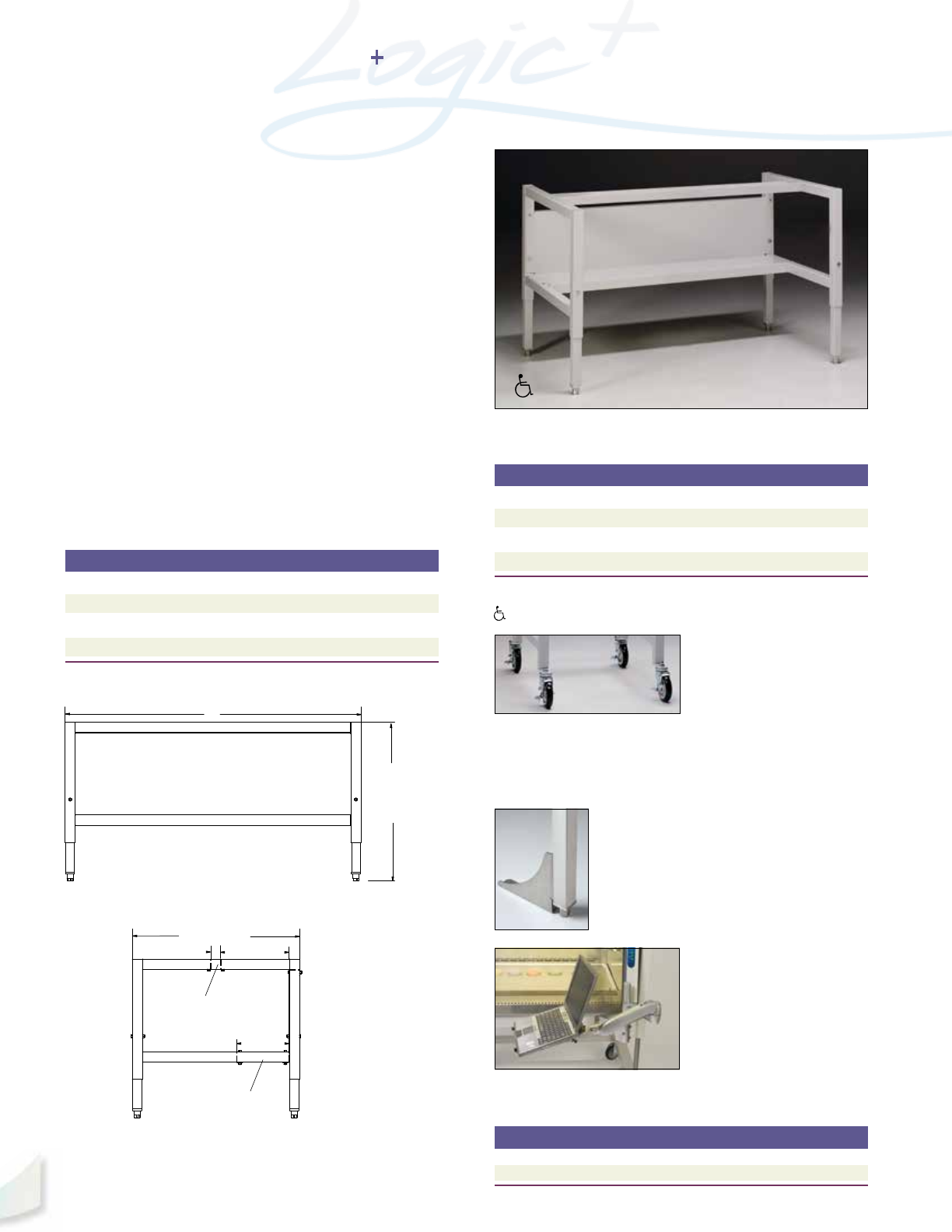

Telescoping Base Stand (non-welded)
For ease of ordering, some models of the Purifier Logic+ and
Cell Logic+ Biosafety Cabinets include the Telescoping Base
Stand. The stand is shipped unassembled allowing it to be sent
in the same package with the biosafety cabinet. The base stand
includes a free shelf and has telescoping legs so that the appropri-
ate height for your application and user can be selected during
installation.
10
Purifier
®
Logic
®
+ Class II, Type A2 Biosafety Cabinets

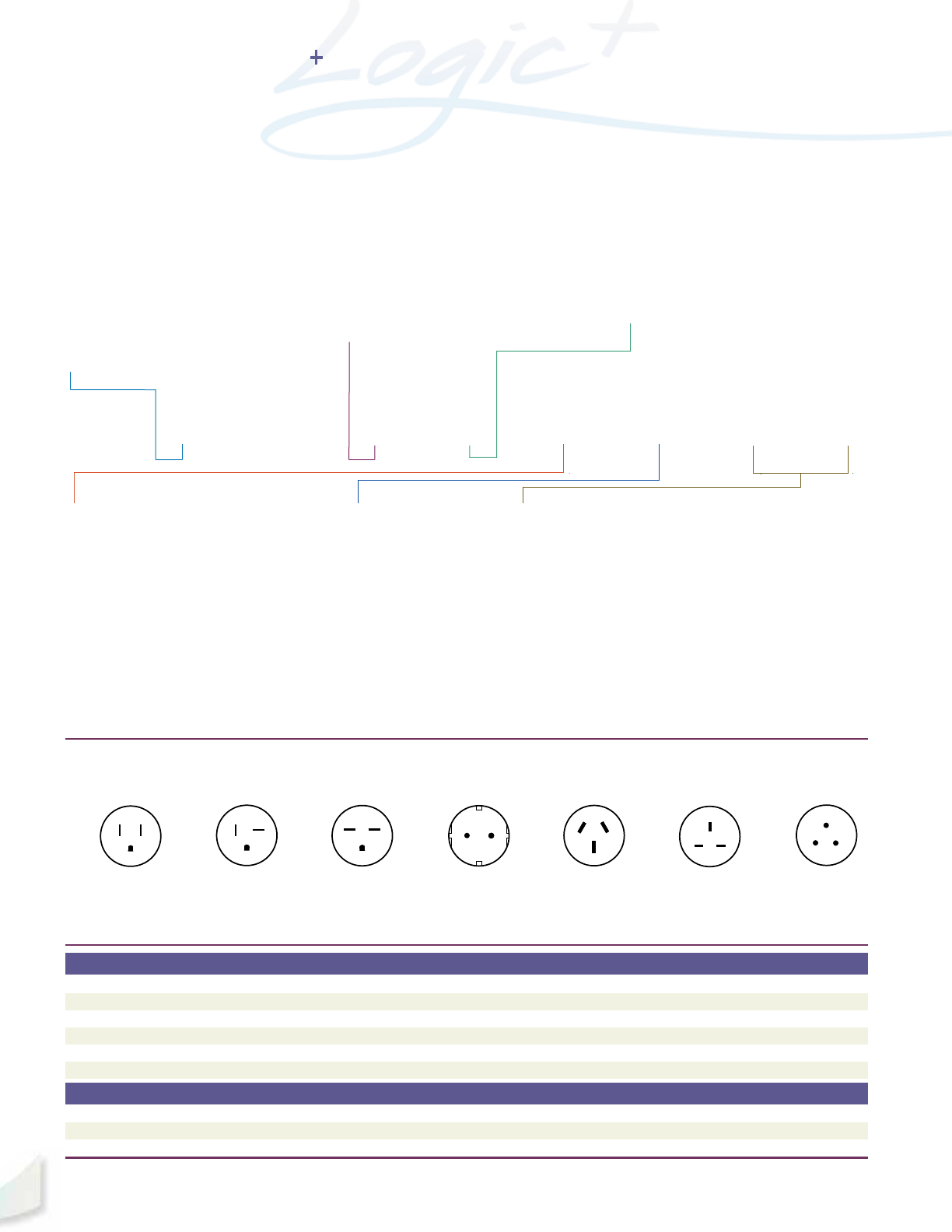

Catalog Number Configurator
Use this key to configure the nine digit catalog number to order your Purifier Logic+ or Cell Logic+ Class II, Type A2 Biosafety
Cabinet. For example, a 302311100 is a 3' Purifier Logic+ Class II, Type A2 Biosafety Cabinet with 10" sash opening, service
fixture, UV lamp, Vacu-Pass Portal, non-welded base stand and North America, 115 volt electrical receptacle and plug.
STEP 1: Select the Cell Logic+ package(s)
option. This number is the second digit of
your catalog number.
0 = None. Logic+ only.
2 = Temp-Zone Package. Fifth digit is
9
and sixth digit is 1.
3 = Scope-Ready Package. Fifth digit is
9
and sixth digit is 1.
4 = Temp-Zone & Scope-Ready Packages.
Fifth digit is
9
and sixth digit is 1.
STEP 2: Select the width of your cabinet.
This number is the fourth digit of your
catalog number.
3 = 3' (Actual width = 42.3"/107.4 cm)
4 = 4' (Actual width = 54.3"/137.9 cm)
5 = 5' (Actual width = 66.3"/168.4 cm)
6 = 6' (Actual width = 78.3"/198.9 cm)
STEP 3: Select the sash opening height.
This number is the fifth digit of your
catalog number.
1 = 10" (25.4 cm). Logic+ only.
8 = 8" (20.3 cm). Logic+ only.
9 = 9" (22.9 cm). Cell Logic+ only.
STEP 4: Select the Accessory Package
option: service fixture(s), UV lamp and
Vacu-Pass™ Cord & Cable Portal. This num-
ber is the sixth digit of your catalog number.
0 = None. Logic+ only.
1 = Includes a right-side mounted
factory-installed service fixture (two on
6' models, one on each side), UV lamp
with timer (UV lamp not included with
Scope-Ready), and right-side wall
Vacu-Pass Portal. Comes standard on
all Cell Logic+ models.
STEP 5: Select non-
welded telescoping
base stand option.
This number is the
seventh digit of your
catalog number.
0 = None
1 = Includes an
non-welded tele-
scoping base stand
shipped with the
cabinet.
STEP 6: Select the electrical receptacle and plug type.
This number is the eighth and ninth digits of your
catalog number.
00 = North America, 115 volts (15 amps for 3' and 4'
models. 20 amps for 5' and 6' models)
10 = North America, 230 volts
20 = Japan, 100 volts (15 amps for 3' and 4' models.
20 amps for 5' and 6' models)
30 = Schuko, 230 volts
40 = China/Australia, 230 volts
50 = British (UK), 230 volts
70 = India, 230 volts
3 _ 2 _ _ _ _ _ _
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers ending
in 00 & 20

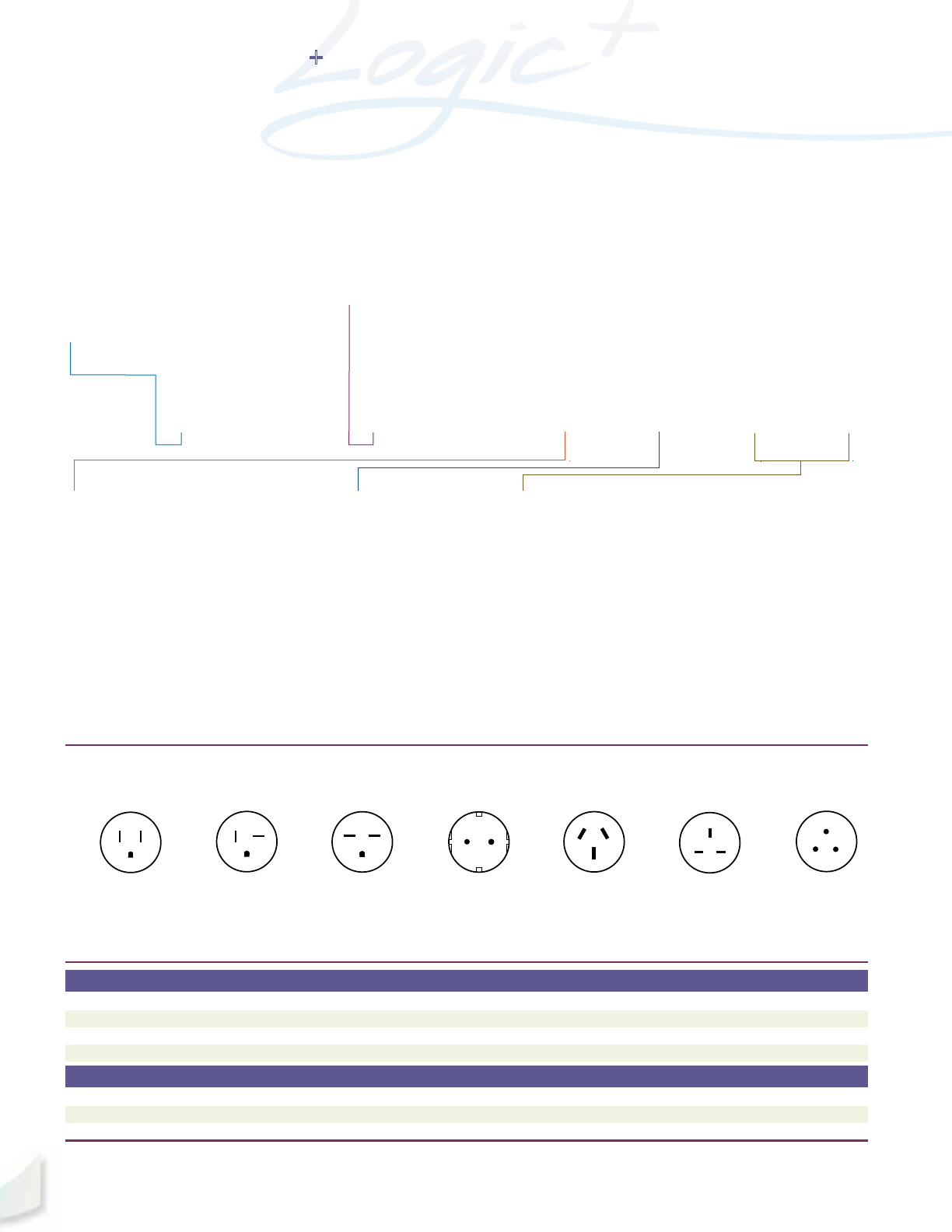

Electrical Receptacle & Plug Configurations
North America,
115 volts, 15 amps
Japan, 100 volts,
15 amps
North America,
115 volts, 20 amps
Japan, 100 volts,
20 amps*
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 50
British (UK),
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers ending
in 00 & 20
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 30
Schuko,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 40
China/Australia,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 10
North America,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 70
India, 230 volts
Technical Specifications
Nominal Width 3' 4' 5' 6'
Actual Width 42.3" (107.4 cm) 54.3" (137.9 cm) 66.3" (168.4 cm) 78.3" (198.9 cm)
Shipping Weight 510 lbs. (231 kg) 585 lbs. (265 kg) 715 lbs. (324 kg) 805 lbs. (365 kg)
Shipping Weight including stand 585 lbs. (265 kg) 670 lbs. (304 kg) 810 lbs. (367 kg) 905 lbs. (411 kg)
Exhaust Volume, 10" Sash Opening 253-279 CFM 339-370 CFM 420-462 CFM 503-554 CFM
Exhaust Volume, 8" Sash Opening 203-223 CFM 269-296 CFM 336-370 CFM 403-443 CFM
Exhaust Volume, 9" Sash Opening 228-251 CFM 304-333 CFM 378-416 CFM 453-498 CFM
Electrical Configuration Amperage
115 volts, 60 Hz 12 12 16 16
100 volts, 50/60 Hz 12 12 16 16
230 volts, 50/60 Hz 6 6 8 8
Contact Labconco for ordering information on models that are EN 12469 compliant.
* Plug is 20 amps. Receptacle is 15 amps.
11

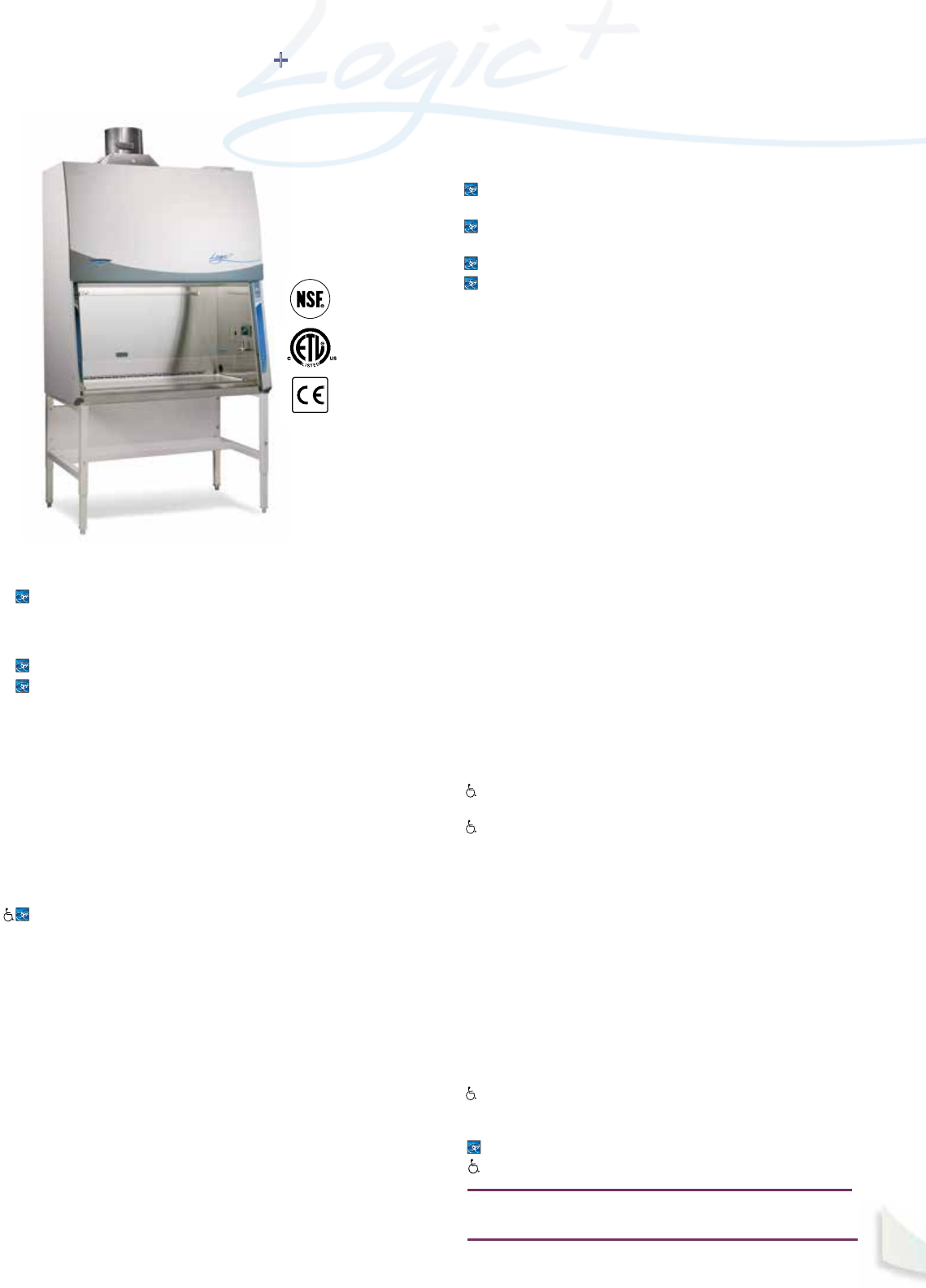

Purifier
®
Logic
®
+ Class II, Type A2 Biosafety Cabinets
Specifications
Performance Features
• Electronically Commutated Motor (ECM)
• Constant Airflow Profile™ (CAP) Technology airflow monitoring
system that communicates with the ECM to deliver the precise
volume of air as required and automatically adjust as filters load
without relying on airflow sensors
• Air-Wave™ Entry System*
• Contain-Air™ Negative Pressure Channel*
• Smart-Start™ System that allows the user to program start up
and shut down operations
• Night-Smart™ System that idles the blower when the sash is
fully closed
• Built-in interval or elapsed timer for experiment monitoring,
fluorescent light or UV light control (on models with UV light)
• Digital clock
• Removable towel catch located under work surface
• Bright, 90-100 footcandle, glare-free fluorescent lighting located
outside the contaminated work area
• Five year warranty
Safety Features
• LCD information center with “Filter Life Remaining” bar graph,
status line for alarm conditions and alerts to warn when filter life
diminishes to 20% and 0%
• Electronic security lock (optional activation) that requires code
to operate the cabinet
• Two electrical duplex receptacles, (single outlets on 230 volt
models), located one on each side, with ground fault interrup-
tion (115 volt models)
• Intrinsically safe negative pressure design
• Fully-closing, clear 1/4" tempered safety glass sash
• Stainless steel inlet grille with Reserve-Air™ Secondary Airflow
Slots*
• Supply and exhaust 99.99% efficient HEPA filters. Contact
Labconco for optional 99.999% efficient ULPA filters.
• Leak-tight stainless steel interior
Comfort Features
• Interior-mounted, line-of-sight, full color LCD information center
with easy-to-understand MyLogic™ OS
• 21.7" (54 cm) maximum sash opening height and 27.0" (69 cm)
viewing height
• Curved inlet grille for forearm support
• Flush-mounted stainless steel electrical receptacle covers with
dampened hinges
• Removable, seamless type 304 stainless steel, dished work surface
with lift out knobs
• 10° Angled sash with counterbalanced, anti-racking mechanism
for ease of lifting
• ADA-compliant touchpad control on right-hand side post for
manual activation of blower, light(s), timer, electrical recepta-
cles, audible alarm mute and menu selection
• Noise level < 63 dBA
• Heat load 990 BTU/hour (4' models)
Specifications
• Nominal inflow velocity of 105 feet per minute (fpm) (0.5 m/sec)
• Nominal downflow velocity of 55 fpm (0.3 m/sec)
• Approximately 70% air recirculation
• Powder-coated steel exterior
• NSF International listed (Logic+ models). NSF International and
modified ASHRAE 110 compliant (Cell Logic+ models).
• ETL listed
• CE conformity marking (230 volt models)
• Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)
• Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
• 10' (3 m) power cord with plug
Options
• Non-welded, NSF-Approved, powder-coated steel telescoping base
stand with fixed feet
• Accessory Package: 254 nm UV lamp, ADA-compliant service
fixture(s) with ball-type valve(s), and NSF-Approved Vacu-Pass™
Cord & Cable Portal
• Cell Logic+ Packages: Scope-Ready™ Package consisting of 7.0"
wide x 10.5" high (18 x 27 cm) sash cutout and Pure-Vu™ Seal
with powder-coated steel collar. Stand-Still™ Isolation Platform
is required and sold separately. See page 16. Temp-Zone™
Package consisting of temperature-controlled work area, 10.5"
(27 cm) wide x 12.0" (30 cm) deep (7.0" x 12.0" on 3' models)
located on the left side of the work surface. Circulator is
required (not included). Circulator requirements: minimum flow
rate of 0.4-0.5 GPM (1.5-1.9 LPM), typical volume of 6 liters, and
temperature of 0-50° C (chiller/heater).
• Ventus™ Canopy Connection, NSF-Approved, with low flow design
and audio/visual alarms (adds 1.25" to overall cabinet height)
Required Accessory
•
Supporting base if non-welded stand option is not selected
Purifier Logic+ Class II, Type A2
Biosafety Cabinet 302411100
Exclusive Labconco feature *U.S. Patent No. 6,368,206
Complies with Americans with Disabilities Act Standard for height of controls and receptacles
See Dimensional Data on page 14, Accessories on pages 15-17,
and Base Stands on pages 18-20.
12
Purifier
®
Logic
®
+ Class II, Type B2 Biosafety Cabinets
Catalog Number Configurator
Use this key to configure the nine digit catalog number to order your Purifier Logic+ or Cell Logic+ Class II, Type B2 Biosafety
Cabinet. For example, a 303481100 is a 4' Purifier Logic+ Class II, Type B2 Biosafety Cabinet with service fixture, UV lamp,
Vacu-Pass Portal, non-welded base stand and North America, 115 volt electrical receptacle and plug.
STEP 1: Select the Cell Logic+ package(s)
option. This number is the second digit of
your catalog number.
0 = None. Logic+ only.
2 = Temp-Zone Package. Sixth digit is 1.
3 = Scope-Ready Package. Sixth digit is 1.
4 = Temp-Zone & Scope-Ready Packages.
Sixth digit is 1.
STEP 2: Select the width of your cabinet.
This number is the fourth digit of your
catalog number.
4 = 4' (Actual width = 54.3"/137.9 cm)
6 = 6' (Actual width = 78.3"/198.9 cm)
STEP 3: Select the Accessory Package
option: service fixture(s), UV lamp and
Vacu-Pass™ Cord & Cable Portal. This num-
ber is the sixth digit of your catalog number.
0 = None. Logic+ only.
1 = Includes a right-side mounted
factory-installed service fixture (two on
6' models, one on each side), UV lamp
with timer (UV lamp not included with
Scope-Ready), and right-side wall
Vacu-Pass Portal. Comes standard on
all Cell Logic+ models.
STEP 4: Select non-
welded telescoping
base stand option.
This number is the
seventh digit of your
catalog number.
0 = None
1 = Includes an
non-welded tele-
scoping base
stand shipped
with the cabinet.
STEP 5: Select the electrical receptacle and plug type.
This number is the eighth and ninth digits of your
catalog number.
00 = North America, 115 volts (15 amps for 4'
models. 20 amps for 6' models)
10 = North America, 230 volts
20 = Japan, 100 volts (15 amps for 3' and 4' models.
20 amps for 5' and 6' models)
30 = Schuko, 230 volts
40 = China/Australia, 230 volts
50 = British (UK), 230 volts
70 = India, 230 volts
3 _ 3 _ 8 _ _ _ _
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers ending
in 00 & 20
Electrical Receptacle & Plug Configurations
North America,
115 volts, 15 amps
Japan, 100 volts,
15 amps
North America,
115 volts, 20 amps
Japan, 100 volts,
20 amps*
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 50
British (UK),
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers ending
in 00 & 20
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 30
Schuko,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 40
China/Australia,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 10
North America,
230 volts
115 volt, 15 amp
British (UK)
Schuko
China/Australia
North America 230 volt
115 volt, 20 amp
India
For Catalog
Numbers
ending in 70
India, 230 volts
Technical Specifications
Nominal Width 4' 6'
Exhaust Volume** 665 CFM 998 CFM
CBV† 810 CFM @ 1.9" 1218 CFM @ 2.2"
Shipping Weight 650 lbs. (295 kg) 840 lbs. (381 kg)
Shipping Weight including stand 730 lbs. (331 kg) 940 lbs. (426 kg)
Electrical Configuration Amperage
115 volts, 60 Hz 12 12
100 volts, 50/60 Hz 12 12
230 volts, 50/60 Hz 6 8
* Plug is 20 amps. Receptacle is 15 amps. ** Exhaust Volume values are obtained using a Direct Inflow Measurement (DIM) meter sealed to the front of the cabinet.
† Concurrent Balance Values (CBV) are obtained using a Pitot or thermal anemometer traverse of the exhaust duct.
Static pressure is the amount of vacuum required at the cabinet connection when the HEPA filters are new.
13
Purifier
®
Logic
®
+ Class II, Type B2 Biosafety Cabinets
Specifications
Performance Features
• Electronically Commutated Motor (ECM)
• Constant Airflow Profile™ (CAP) Technology airflow monitoring
system that communicates with the ECM to deliver the precise
volume of air as required and automatically adjust as filters load
without relying on airflow sensors
• Air-Wave™ Entry System*
• Contain-Air™ Negative Pressure Channel*
• Smart-Start™ System that allows the user to program start up and
shut down operations
• Built-in interval or elapsed timer for experiment monitoring,
fluorescent light or UV light control (on models with UV light)
• Digital clock
• Removable towel catch located under work surface
• Bright, 90-100 footcandle, glare-free fluorescent lighting located
outside the contaminated work area
• Five year warranty
Safety Features
• LCD information center with “Filter Life Remaining” bar graph,
status line for alarm conditions and alerts to warn when filter life
diminishes to 20% and 0%
• Electronic security lock (optional activation) that requires code to
operate the cabinet
• Two electrical duplex receptacles, (single outlets on 230 volt
models), located one on each side, with ground fault interruption
(115 volt models)
• Intrinsically safe negative pressure design
• Fully-closing, clear 1/4" tempered safety glass sash with 8" (20 cm)
working height opening
• Stainless steel inlet grille with Reserve-Air™ Secondary Airflow
Slots*
• Supply and exhaust 99.99% efficient HEPA filters. Contact
Labconco for optional 99.999% efficient ULPA filters.
• Leak-tight stainless steel interior
Comfort Features
• Interior-mounted, line-of-sight, full color LCD information center
with easy-to-understand MyLogic™ OS
• 21.7" (54 cm) maximum sash opening height and 27.0" (69 cm)
viewing height
• Curved inlet grille for forearm support
• Flush-mounted stainless steel electrical receptacle covers with
dampened hinges
• Removable, seamless type 304 stainless steel, dished work surface
with lift out knobs
• 10° Angled sash with counterbalanced, anti-racking mechanism
for ease of lifting
• ADA-compliant touchpad control on right-hand side post for
manual activation of blower, light(s), timer, electrical recepta-
cles, audible alarm mute and menu selection
• Noise level < 63 dBA
• Heat load 990 BTU/hour (4' models)
Specifications
• Nominal inflow velocity of 105 feet per minute (fpm) (0.5 m/sec)
• Nominal downflow velocity of 55 fpm (0.3 m/sec)
• 0% air recirculation
• Powder-coated steel exterior
• NSF International listed (Logic+ models). NSF International and
modified ASHRAE 110 compliant (Cell Logic+ models).
• ETL listed
• CE conformity marking (230 volt models)
• Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)
• Overall depth x height: 31.2" x 61.7" (79.2 x 156.7 cm)
• 10" diameter exhaust outlet with air-tight damper
• 10' (3 m) power cord with plug
Options
• Non-welded, NSF-Approved, powder-coated steel telescoping
base stand with fixed feet
• Accessory Package: 254 nm UV lamp, ADA-compliant service
fixture(s) with ball-type valve(s), and NSF-Approved Vacu-Pass™
Cord & Cable Portal
• Cell Logic+ Packages: Scope-Ready™ Package consisting of
7.0" wide x 10.5" high (18 x 27 cm) sash cutout and Pure-Vu™
Seal with powder-coated steel collar. Stand-Still™ Isolation
Platform is required and sold separately. See page 16.
Temp-Zone™ Package consisting of temperature-controlled work
area, 10.5" wide x 12.0" deep (27 x 30 cm) located on the left
side of the work surface. Circulator is required (not included).
Circulator requirements: minimum flow rate of 0.4-0.5 GPM
(1.5-1.9 LPM), typical volume of 6 liters, and temperature of
0-50° C (chiller/heater).
Required Accessory
•
Supporting base if non-welded stand option is not selected

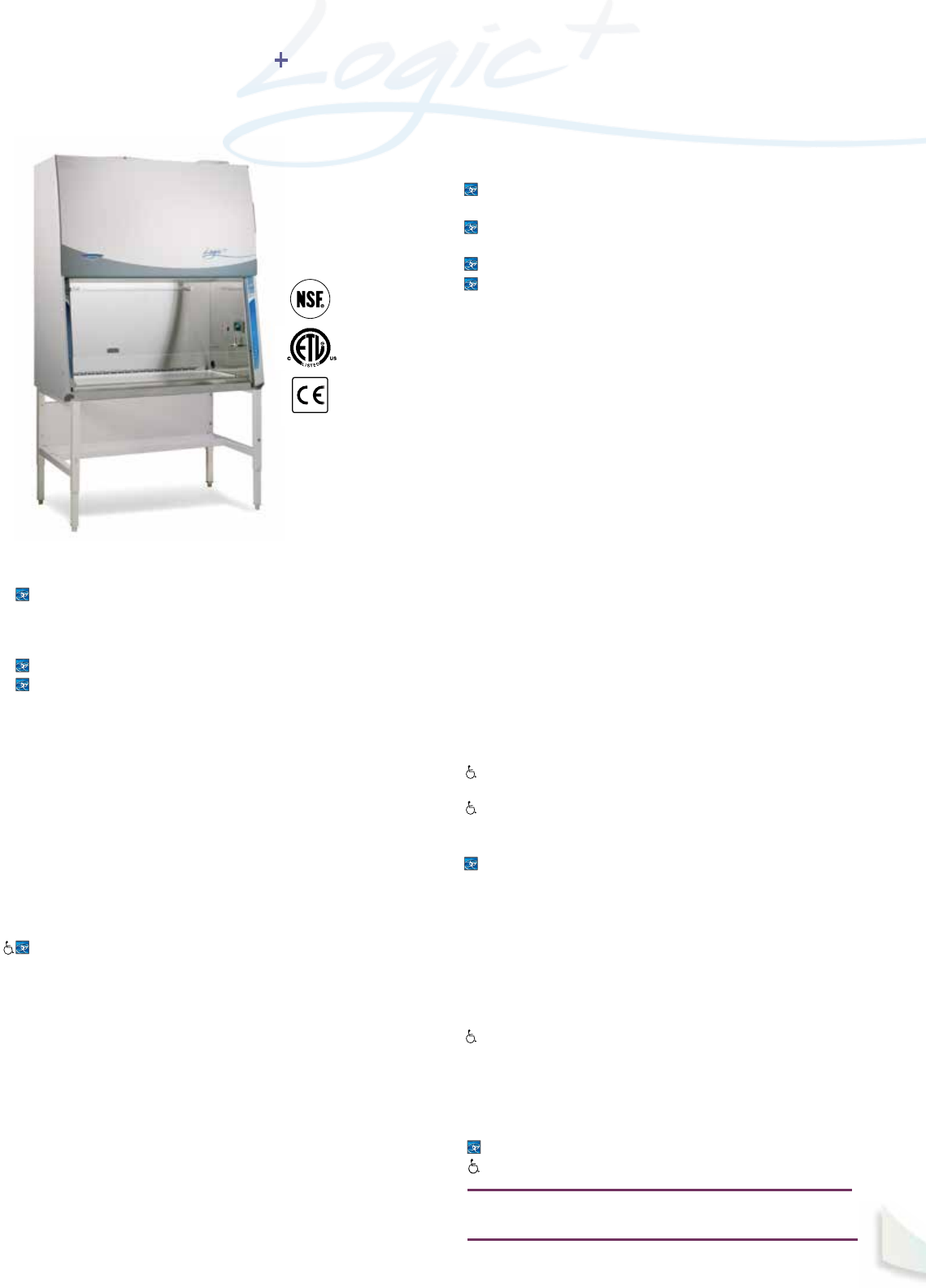

Purifier Logic+ Class II, Type B2
Biosafety Cabinet 303481100
Exclusive Labconco feature *U.S. Patent No. 6,368,206
Complies with Americans with Disabilities Act Standard for height of controls and receptacles
See Dimensional Data on page 14, Accessories on pages 15-17,
and Base Stands on pages 18-20.
14
Purifier
®
Logic
®
+ Class II, Biosafety Cabinets

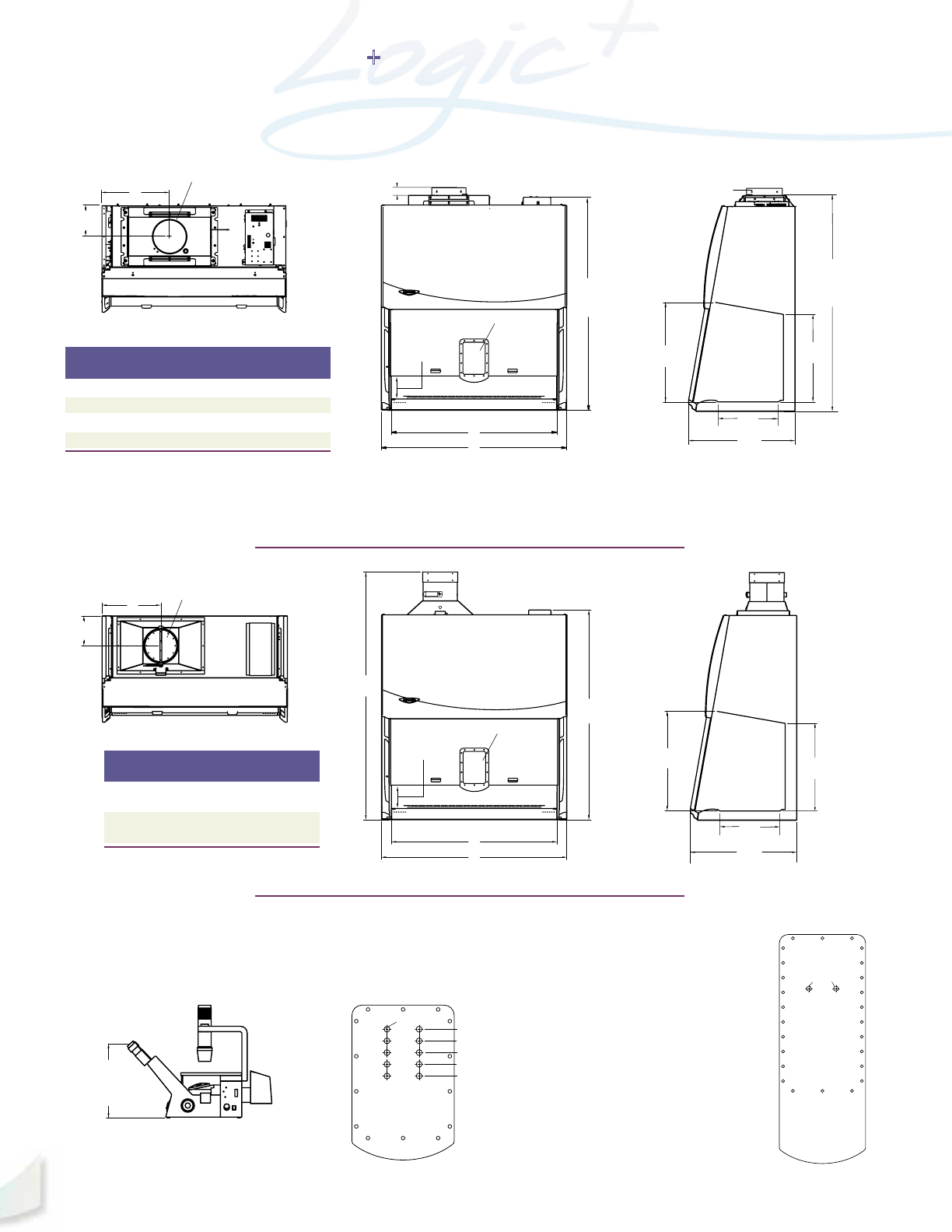

Dimensional Data
B
A
C
72.6"
(184.4 cm)
8.8"
(22.4 cm)
61.6"
(156.0 cm)
25.7"
(65.3 cm)
8" (20 cm)
Working Height
21.7" (55.1 cm)
MAX
Exhaust Outlet 10.0" (25.4 cm) OD
29.2"
(74.2 cm)
17.6"
(44.7 cm)
31.2"
(79.2 cm)
Optional
Scope-Ready™
Package
B
A
C
72.6"
(184.4 cm)
8.8"
(22.4 cm)
61.6"
(156.0 cm)
25.7"
(65.3 cm)
8" (20 cm)
Working Height
21.7" (55.1 cm)
MAX
Exhaust Outlet 10.0" (25.4 cm) OD
29.2"
(74.2 cm)
17.6"
(44.7 cm)
31.2"
(79.2 cm)
Optional
Scope-Ready™
Package
B
A
C
72.6"
(184.4 cm)
8.8"
(22.4 cm)
61.6"
(156.0 cm)
25.7"
(65.3 cm)
8" (20 cm)
Working Height
21.7" (55.1 cm)
MAX
Exhaust Outlet 10.0" (25.4 cm) OD
29.2"
(74.2 cm)
17.6"
(44.7 cm)
31.2"
(79.2 cm)
Optional
Scope-Ready™
Package
Nominal A B C
Width
4' 54.3" 48.5" 17.2"
(137.9 cm) (123.2 cm) (43.7 cm)
6' 78.3" 72.5" 28.9"
(198.9 cm) (184.2 cm) (73.4 cm)
Sash opening working height varies. All Purifier Cell Logic+ Class II, Type A2 Biosafety Cabinets have a 9.0" working height.
Remaining cabinets have either an 8.0" or 10.0" working height depending on the model.
*Exhaust collar is 2.0" high (5.0 cm).
63.3" (160.8 cm)
with Optional
Ventus™ Canopy
Connection
61.7"*
(156.7 cm)
Overall
B
A
25.7"
(65.3 cm)
29.2"
(74.2 cm)
8.0", 9.0" or 10.0"
(20.3, 22.9 or 25.4 cm)
Working Height
21.7" (55.1 cm)
MAX
Canopy Connection
31.2"
(79.2 cm)
17.6"
(44.7 cm)
Optional Ventus™
Optional
Scope-Ready™
Package
C
9.1"
(23.1 cm)
Exhaust Outlet 10.0" (25.4 cm) ID
2.0" (5.1 cm)
FRONT
65.4" (166.1 cm)
with Optional
Ventus™ Canopy
Connection
61.7"*
(156.7 cm)
Overall
B
A
25.7"
(65.3 cm)
29.2"
(74.2 cm)
8.0", 10.0" or 9.0"
(20.3, 25.4 or 22.9 cm)
Working Height
21.7" (55.1 cm)
MAX
Canopy Connection
31.2"
(79.2 cm)
17.6"
(44.7 cm)
Optional Ventus™
Optional
Scope-Ready™
Package
C
9.1"
(23.1 cm)
Exhaust Outlet 10.0" (25.4 cm) OD
SIDE
SIDEFRONT
Class II, Type B2
Dimensions shown indicate
distance from base of
microscope to centerline
of eyepiece. Blank Pure-Vu
Seal Catalog #4027800
is not shown.
17.00"
16.00"
15.00"
14.00"
13.00"
Catalog #4027817
Catalog #4027816
Catalog #4027815
Catalog #4027814
Catalog #4027813
All
0.5" Dia.
(E)
(D)
(C)
(B)
(A)
0.5" Dia.
Catalog #4027811
includes hole cutouts.
Blank Pure-Vu XL
Seal Catalog
#4027810
is not shown.
(F) 16.00"
(+/-2.00" )
Select the Pure-Vu™ Seal that’s right for you.
Center line of
eyepiece
Nominal
eyepiece
height
3. For stereo scopes or inverted scopes
requiring frequent eyepiece height
adjustment, select a Pure-Vu XL Seal
(shown at right). Pure-Vu XL Seals are
designed to be pleated when installed
to allow for eyepiece height flexibility
of +/-2.0" (5 cm). The Pure-Vu XL Seals
extend 5.5" (14 cm) below the collar.
4. Refer to the ordering information
on page 16 for Pure-Vu and Pure-Vu XL
Seals recommended for specific micro-
scope models.
1. To determine placement of the cutouts,
measure from the centerline of the eye-
pieces to the base of your microscope.
2. For inverted scopes with relatively
stationary eyepiece height, select a Pure-
Vu Seal corresponding with the nominal
eyepiece height in the drawing below.
Pure-Vu™ Seal Pure-Vu™
XL Seal
63.3" (160.8 cm)
with Optional
Ventus™ Canopy
Connection
61.7"*
(156.7 cm)
Overall
B
A
25.7"
(65.3 cm)
29.2"
(74.2 cm)
8.0", 9.0" or 10.0"
(20.3, 22.9 or 25.4 cm)
Working Height
21.7" (55.1 cm)
MAX
Canopy Connection
31.2"
(79.2 cm)
17.6"
(44.7 cm)
Optional Ventus™
Optional
Scope-Ready™
Package
C
9.1"
(23.1 cm)
Exhaust Outlet 10.0" (25.4 cm) ID
2.0" (5.1 cm)
TOP
TOP
Nominal A B C
Width Inches/cm Inches/cm Inches/cm
3' 42.3/107.4 36.5/92.7 13.6/34.5
4' 54.3/137.9 48.5/123.2 19.9/50.5
5' 66.3/168.4 60.5/153.7 26.9/68.3
6' 78.3/198.9 72.5/184.2 32.9/83.6
Class II, Type A2
IV Bar Kits
Include IV bar, mounting hardware and four
hangers. Installation is required.
15
Purifier
®
Logic
®
+ Class II, Biosafety Cabinets

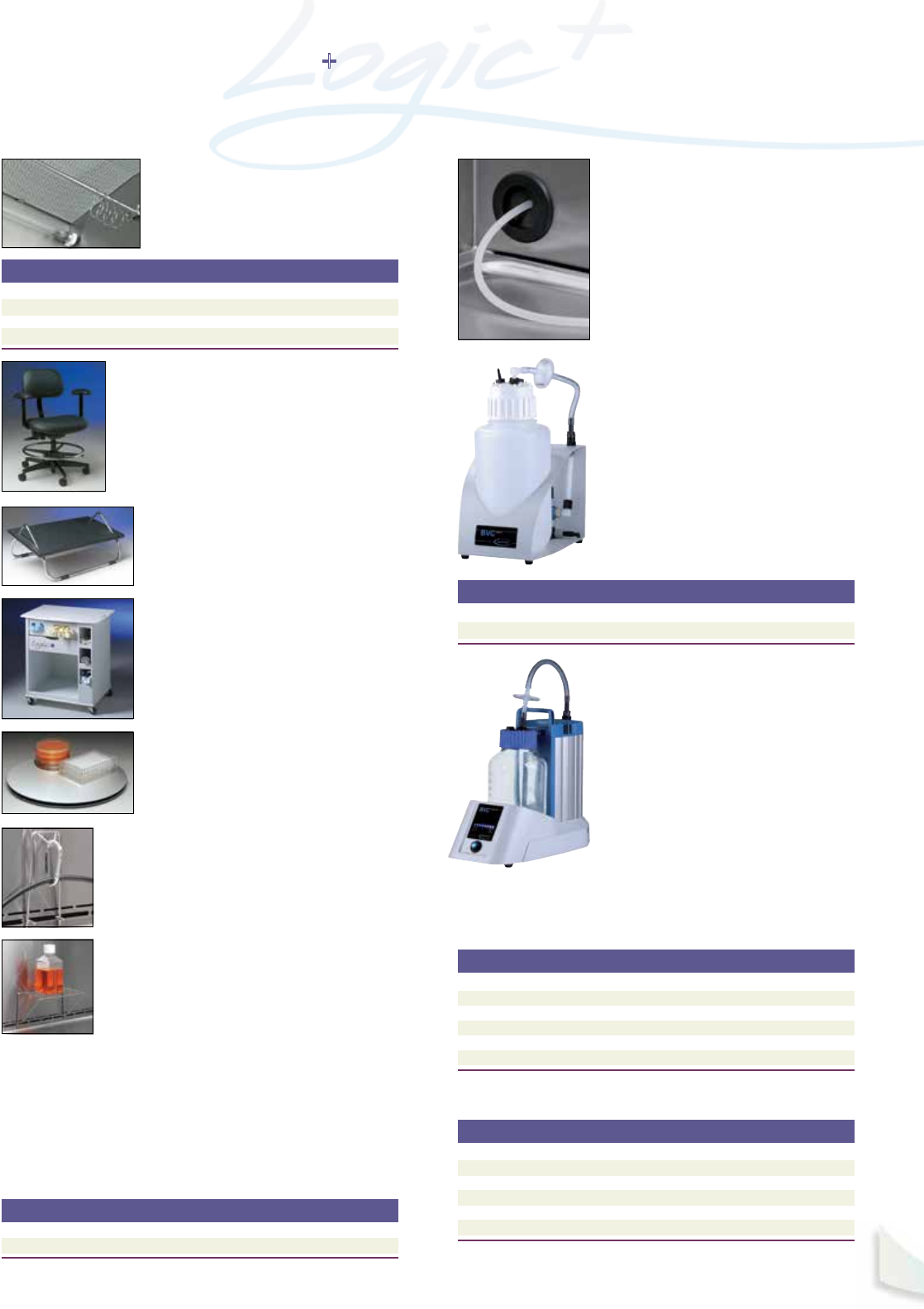

Accessories for All Models
3746000 Adjustable Footrest
Elevates feet and permits angle repositioning
while in use. 18.5" w x 11.5" d x 8.0" (47 x
29 x 20 cm). Shipping weight 6 lbs. (3 kg)
8022000 Logic Cart
Drawer and compartments provide convenient
storage. Top left side compartment with cutouts
and hinged panel that pivots down for loading.
High density polyethylene and ABS construction.
Overall dimensions: 25.0" w x 19.0" d x 27.0" h
(64 x 48 x 69 cm). Shipping weight 50 lbs. (23 kg)
3852000 Turntable
“Lazy Susan” rotates 360° to bring items
within easy reach. Stainless steel surface
and ball bearings. 12" (30 cm) diameter.
Autoclavable. Shipping weight 5 lbs. (2 kg)
3859100 Cord Management System
Includes three stainless steel mounting hooks and
three carabiners. The hooks mount to the rear grille
and the carabiners secure power cords and tubing
along the rear wall to keep them contained and away
from the work area. Shipping weight 3 lbs. (1 kg)
3859000 Interior Shelf
Stainless steel shelf, 8.0" x 5.0" (20 x 13 cm), mounts
to rear grille. Weight capacity: 2.2 lbs. (1 kg). Shipping
weight 3 lbs. (1 kg)
3744000 Ergonomic Chair with Armrests
6-way articulating seat and back control for person-
alized adjustment. Pneumatic mechanism adjusts
seat height from 18.25" to 25.75" (46 x 64 cm).
Five-leg reinforced composite base with 2" (5 cm)
diameter ball-bearing casters. Aluminum support
ring. Removable armrests. Black vinyl upholstery.
Shipping weight 35 lbs. (16 kg)
3405500 Inflow and Downflow Sensor Kit
Allows display of inflow and downflow velocities on the LCD information
center. Includes sensor, wiring harness and hardware. Not for use on Class II,
Type B2 cabinets. Installation and certifier calibration are required. Contact
Labconco about factory-installed sensors. Shipping weight 3 lbs. (1 kg)
RS 232 Connection Kits
For connecting the biosafety cabinet to a data recorder or building moni-
toring system. Include the PC board, cable and hardware.
3402800 Vacu-Pass™ Cord &
Cable Port Kit
Allows passage of a cord or cable through the
right-side interior wall to the exterior. Cabinets
are factory-prepared for easy on-site installa-
tion. Includes a set of 4 closed-cell neoprene
plugs with holes for cords/cables with diame-
ters of 1/8", 1/4", 3/8" and 1/2". Also includes
a blank plug for sealing the port during non-
use. NSF-approved port does not disrupt airflow
or cause leakage. Shipping weight 2 lbs. (1 kg)
VACUUBRAND
*
BVC Basic Fluid
Aspiration Systems
Designed for connection to an external vacuum
source such as a diaphragm pump. Mechanical
vacuum controller opens when needed to limit
gas consumption from the vacuum source.
Each system includes a coated steel base, an
autoclavable collection bottle, aspiration hand
set with flow-through suction tube and PTFE
0.2 micron filter to help prevent contaminants
from entering the vacuum source. Shipping
weight 6.2 lbs. (3 kg)
Catalog # For use with Shipping Wt.
3858600 3-Ft Class II, Type A2 & B2 3 lbs. (1 kg)
3858601 4-Ft Class II, Type A2 & B2 4 lbs. (2 kg)
3858602 5-Ft Class II, Type A2 & B2 5 lbs. (2 kg)
3858603 6-Ft Class II, Type A2 & B2 6 lbs. (3 kg)
Catalog # For use with Shipping Wt.
3858310 Kit contains cable with 9-pin connection 1
lb. (0.5 kg)
3858311 Kit contains cable with 25-pin connection
1 lb. (0.5 kg)
Catalog # Aspiration System includes: Dimensions (L x W X H)
3850310 4 Liter Polypropylene Collection Bottle 9.9 x 7.9 x 19.3"
3850320 2 Liter Borosilicate Glass Collection Bottle 9.1 x 7.1 x 17.0"
Systems with 4 Liter Polypropylene Collection Bottle
Dimensions (L x W x H): 16.1" x 7.6" x 19.7" (41 x 19 x 50 cm)
Catalog # Electrical Requirements Plug Type
3850330 115 volts, 50/60 Hz 115 volts, 15 amps
3850331 230 volts, 50/60 Hz North America, 230 volts
3850332 230 volts, 50/60 Hz Schuko
3850333 230 volts, 50/60 Hz China/Australia
3850334 230 volts, 50/60 Hz British (UK)
3850335 230 volts, 50/60 Hz India
Systems with 2 Liter Borosilicate Glass Collection Bottle
Dimensions (L x W x H): 16.1" x 7.6" x 16.9" (41 x 19 x 43 cm)
Catalog # Electrical Requirements Plug Type
3850340 115 volts, 50/60 Hz 115 volts, 15 amps
3850341 230 volts, 50/60 Hz North America, 230 volts
3850342 230 volts, 50/60 Hz Schuko
3850343 230 volts, 50/60 Hz China/Australia
3850344 230 volts, 50/60 Hz British (UK)
3850345 230 volts, 50/60 Hz India
VACUUBRAND
*
BVC Control Fluid
Aspiration Systems
Chemical-resistant PTFE diaphragm pump,
capable of drawing 12 L/minute and achieving
ultimate vacuum of 150 mBar/112 Torr, is
included. Mechanical vacuum controller opens
when needed to limit gas consumption from the
vacuum source. Each system includes a coated
steel base, adjustable suction power control via
touch panel from 150 to 850 mBar, an auto-
clavable collection bottle, aspiration hand set
with flow-through suction tube and PTFE 0.2
micron filter to help prevent contaminants from
entering the vacuum source. Shipping weight
17 lbs. (8 kg)
*VACUUBRAND® is a registered trademark of VACUUBRAND GMBH + CO KG
3747500 Service Fixture Kit
Includes serrated hose tip valve with ball valve,
quarter turn control handle and hardware. Mounts
on left or right side interior. Cabinets are factory-
prepared for up to four fixtures: two forward
mounted 8.5" above surface and two back mounted
10" above surface. Installation is required.
Shipping weight 4 lbs. (2 kg)
16
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Accessories for All Models
Purifier
®
Logic
®
+ Class II Biosafety Cabinets

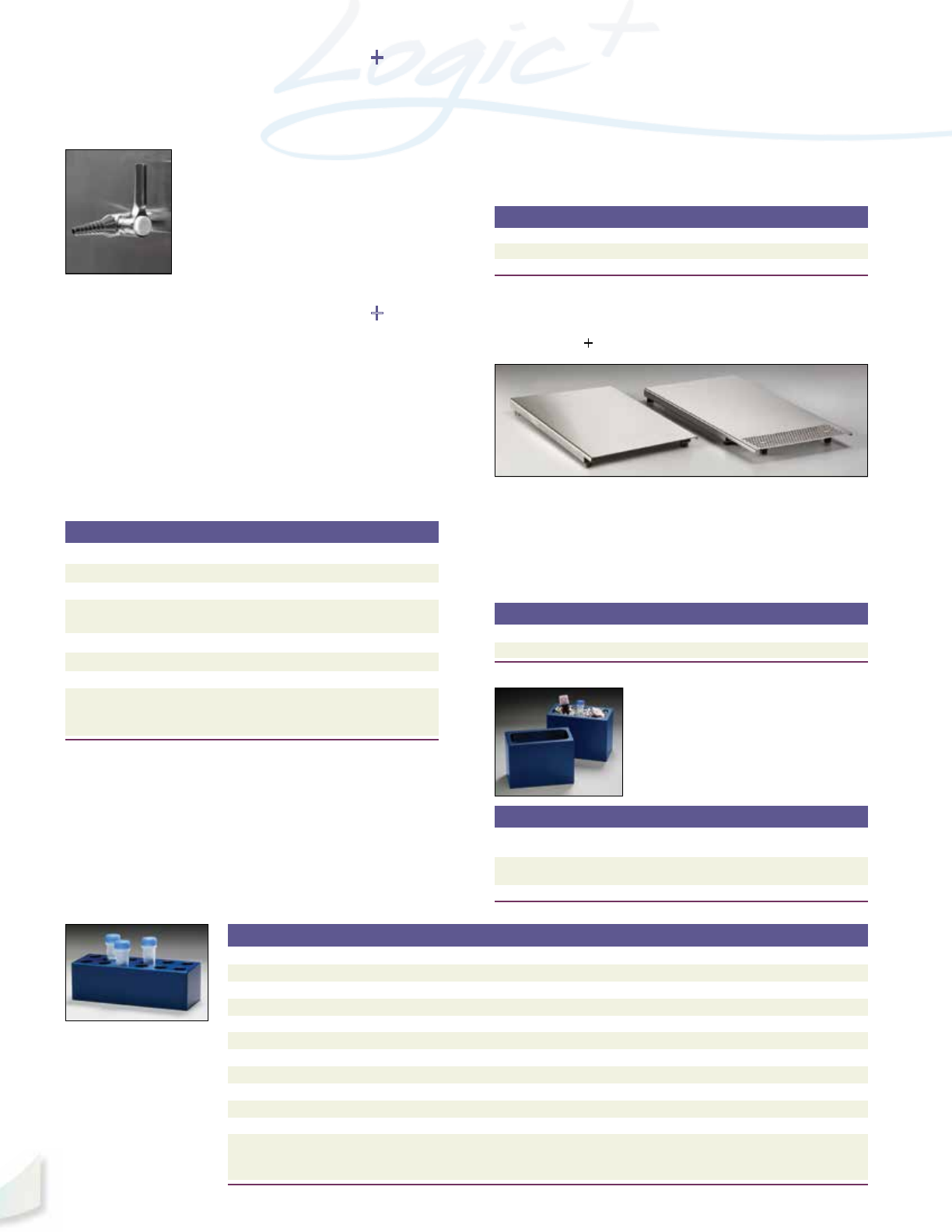

Accessories for Cell Logic+ Models
Ultraviolet Lamp Kits
Include 254 nm UV lamp and ballast. Not recommended for Cell Logic+
Biosafety Cabinets with Scope-Ready package. Installation is required.
Catalog # For use with Shipping Wt.
3858500
115 Volt Class II, Type A2 & B2
5 lbs. (2 kg)
3858501
100 Volt Class II, Type A2 & B2
5 lbs. (2 kg)
3858502
230 Volt Class II, Type A2 & B2
5 lbs. (2 kg)
Reference Catalog # Nominal Eye Piece Height* Fits Microscope:
not shown 4027800 Universal Pure-Vu. Blank.
(A) 4027813 13.0" (33.0 cm)
(B) 4027814 14.0" (35.6 cm) Zeiss
†
Axiovert
†
40
(C) 4027815 15.0" (38.1 cm) Nikon
†
Eclipse
†
TS 100,
Olympus
†
CKX31
(D) 4027816 16.0" (40.6 cm) Leica
†
DM IL LED
(E) 4027817 17.0" (43.2 cm) Leica
†
DM 6000 B
not shown 4027810 Universal Pure-Vu XL. Blank.
(F) 4027811 16.0" (+/-2.0") Leica
†
MZ95
(40.6 cm, +/- 5.1 cm) Nikon
†
SMZ 1500
Olympus
†
SZX 16
Pure-Vu™ Seals
Each Cell Logic+ Biosafety Cabinet with Scope-Ready Package comes with
two clear blank membranes (one each 4027800 and one each 4027810),
which may be cut with 0.5" diameter holes or punched with Pure-Vu Punch
Kit 4027801 to fit your microscope’s eyepieces. Convenient, pre-punched
seals may be ordered separately. See instructions and drawings on page 14
for reference. Microscope examples are provided below. Please contact
Labconco for ordering assistance for seals to fit microscopes not listed.
Shipping weight 0.5 lb. (0.2 kg)
4027801 Pure-Vu™ Punch Kit
For punching accurate eyepiece holes in blank Pure-Vu seals. Includes
1/2" (12.7 mm) diameter hole punch, cutting pad and instructions.
Shipping weight 1 lb. (0.5 kg)
Aluminum
Tube Racks
Blue anodized aluminum
blocks hold tubes upright
and promote conduction
of heat or cold from the
Temp-Zone™ area to help
maintain sample
temperature.
* When selecting a seal for a Cell Logic+ Class II, Type B2 Biosafety Cabinet, add one inch to your
eyepiece height and use the chart above.
† Zeiss® and Axiovert® are registered trademarks Carl-Zeiss-Stiftung DBA Carl Zeiss Corporation.
Nikon® and Eclipse® are registered trademarks of Nikon, Inc. Olympus® is a registered trademark
of Olympus Corporation. Leica® is a registered trademark of Leica Technology.
Universal Tube Baths
Blue anodized aluminum blocks hold tubes
of various sizes in an aluminum bead bath.
Aluminum promotes the conduction of heat or
cold from the Temp-Zone™ area to help main-
tain sample temperature. Thermally-conductive
beads are sold separately.
Stand-Still™
Isolation Platforms
Required for supporting microscopes on Cell Logic Biosafety Cabinets
with Scope-Ready™ package. Designed to promote proper airflow through the
cabinet. Reduces vertical and horizontal vibrations threefold. Constructed of
seamless, non-porous, autoclavable Type 304 stainless steel base with isolation
pads. 1.5" high (0.4 cm). Select the platform that best fits your microscope’s
dimensions.
**Requires use of Pure-Vu XL Seal 4027810 or 4027811.
Catalog # Description Shipping Wt.
4028200 Stand-Still Platform, 12.0 x 18.75" (30.5 x 47.6 cm) 8 lbs. (4 kg)
4028100** Stand-Still XL Platform, 14.0 x 22.75" (35.6 x 57.8 cm) 10 lbs. (5 kg)
Catalog # Description Shipping Wt.
4026600
Small Bath, 0.25 L capacity 2 lbs. (1 kg)
2.0" w x 4.0" d x 3.0" h (50.8 x 101.6 x 76.2 mm)
4026601
Large Bath, 0.5 L capacity 2 lbs. (1 kg)
4.0" w x 4.0" d x 3.0" h (101.6 x 101.6 x 76.2 mm)
4026602
Lab Armor
††
Beads, 0.75 liter
5 lbs. (2 kg)
Catalog # Tube Size/Description Tube Capacity Dimensions (w x d x h) Shipping Weight
4026400 0.5 ml microcentrifuge, 7.5 mm 18 1.5 x 6.0 x 1.3" (38 x 152 x 32 mm) 2 lbs. (1 kg)
4026401 0.5 ml microcentrifuge, 7.5 mm 96 6.0 x 8.0 x 1.5" (152 x 203 x 38 mm) 8 lbs. (3 kg)
4026402 1.5 ml microcentrifuge, 10.5 mm 18 2.0 x 6.0 x 1.5" (51 x 152 x 38 mm) 2 lbs. (1 kg)
4026403 1.5 ml microcentrifuge, 10.5 mm 96 8.0 x 8.0 x 1.5" (203 x 203 x 38 mm) 9 lbs. (4 kg)
4026404 1.5 ml flat bottom, 10 mm 12 1.5 x 4.0 x 1.3" (38 x 102 x 32 mm) 1 lb. (0.5 kg)
4026405 5 ml flat bottom, 12 mm 12 2.0 x 5.0 x 2.5" (51 x 127 x 64 mm) 3 lbs. (1 kg)
4026406 6 ml flat bottom, 13 mm 12 2.0 x 5.0 x 2.5" (51 x 127 x 64 mm) 3 lbs. (1 kg)
4026407 15 ml round, 16-17 mm 12 2.0 x 6.0 x 3.0" (51 x 152 x 76 mm) 4 lbs. (2 kg)
4026408 15 ml conical, 16-17 mm 12 2.0 x 6.0 x 4.0" (51 x 152 x 102 mm) 5 lbs. (2 kg)
4026409 50 ml round, 28 mm 4 1.5 x 6.0 x 4.0" (38 x 152 x 102 mm) 3 lbs. (1 kg)
4026410 50 ml conical, 28 mm 4 1.5 x 6.0 x 4.0" (38 x 152 x 102 mm) 3 lbs. (1 kg)
4026411 microtiter well plate, 3.4" x 5.0" (86 x 127 mm) 1 6.0 x 8.0 x 1.5" (152 x 203 x 38 mm) 5 lbs. (2 kg)
1.5 ml microcentrifuge 12
0.5 ml microcentrifuge 12
17
Purifier
®
Logic
®
+ Class II Biosafety Cabinets

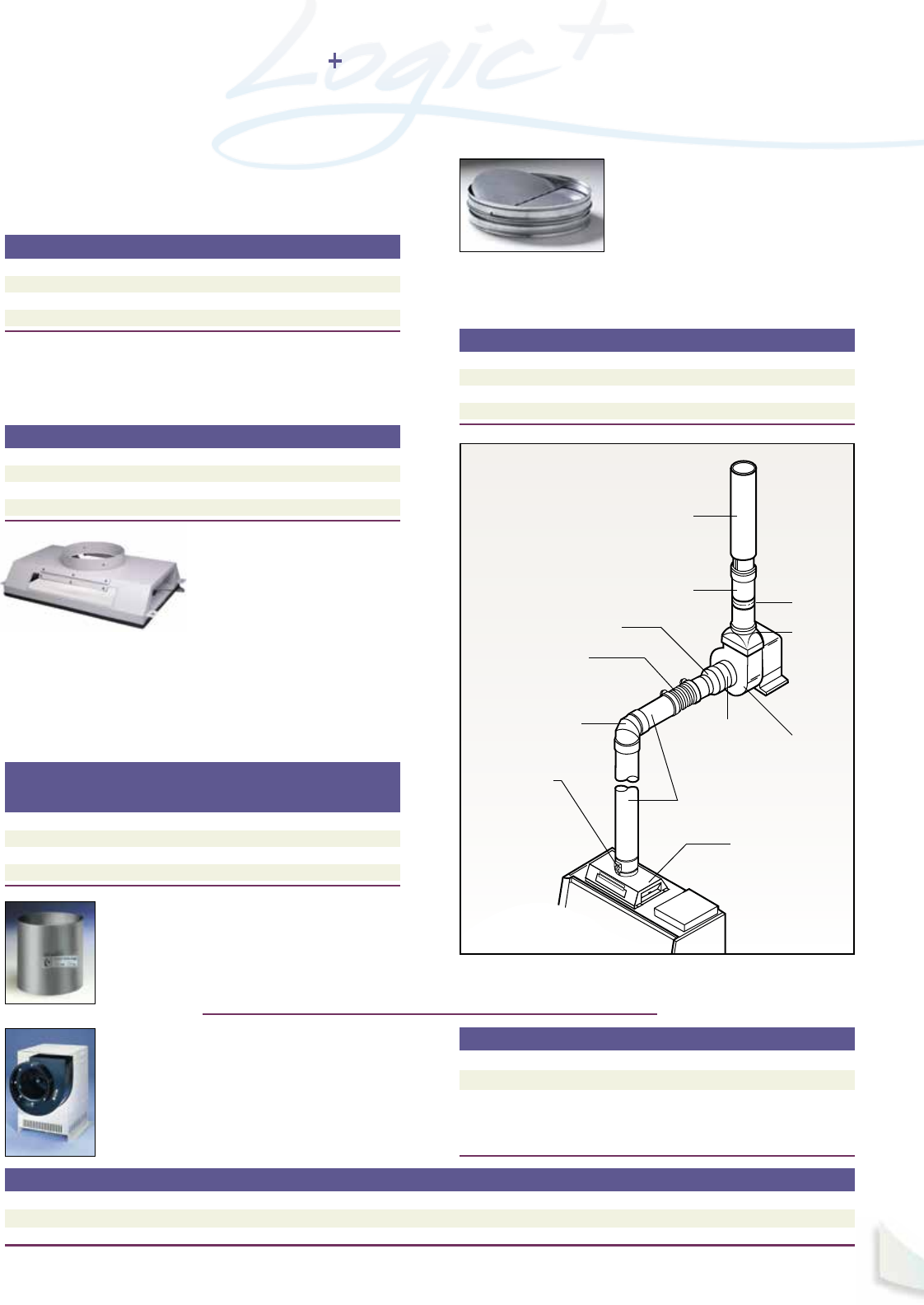

Filters, Ductwork & Blowers
Remote Blowers
Required for Type B2 cabinets and recommended
for canopy-ducted Type A2 cabinets. Phenolic-coated
impeller and housing, powder-coated steel base and
weather cover, belt-drive motor with adjustable sheave
and self-adjusting gravity belt tightener. Contact
Labconco for dimensions and blowers of other sizes
and electrical configurations.
3776800 Air-Tight Damper
Mounts atop the Canopy Connection to adjust exhaust
airflow and closes for decontamination procedures.
Manually adjustable. Type 304 stainless steel. 10"
(25.4 cm) high with 10" (25.4 cm) diameter OD inlet and
outlet. Shipping weight 13 lbs. (6 kg)
3858800 Backdraft Damper
Mounts in vertical duct run to prevent reverse
pressurization of the exhaust system. 3.0"
(8 cm) high with 10" (25.4 cm) diameter OD
inlet and outlet. Shipping weight 5 lbs. (2 kg)
Contact Labconco at 800-821-5525 or 816-333-8811 for ordering information and
technical assistance in selecting the right ductwork for your installation.
†
Air volume at static pressure in inches H2O
Ventus™
Canopy Connection
For thimble ducting Class II, Type A2
Biosafety Cabinets. Canopy provides an
air gap to allow room air to enter the
ductwork and mix with the filtered air
being exhausted to the outside. Inadequate exhaust activates the switch in
less than one second and signals the LCD to display an alarm and the motor
to increase to maximum speed for personal safety. Adds only 1.25" to the
overall height of the cabinet. Powder-coated steel. Outlet is 10" (25.4 cm) ID.
Exhaust connection is required. Damper 3776800 and Remote Blower
7068000 or 7068200 are recommended (not included). Contact Labconco
for information on factory installation. Shipping weight 15 lbs. (7 kg)
G4 Prefilter Starter Kits & Replacement Prefilters
Pleated disposable filter with Merv 8 rating. Kits include prefilter,
hardware and bracket for installing on the towel catch. Installation
is required.
Screen Prefilter Starter Kits
Each kit consists of a washable/reusable, metal screen-type prefilter
and hardware including bracket for installing on the towel catch.
Installation is required.
Flexible Hose Kits
For connection between the Ventus™ and exhaust ductwork.
10" nominal diameter. Include spiral flexible tubing and clamps.
Catalog # For use with Shipping Wt.
3406100 3-Ft Biosafety Cabinet 4 lbs. (2 kg)
3406101 4-Ft Biosafety Cabinet 5 lbs. (2 kg)
3406102 5-Ft Biosafety Cabinet 6 lbs. (3 kg)
3406103 6-Ft Biosafety Cabinet 7 lbs. (3 kg)
Catalog # Hose Length Shipping Wt.
7034200 1' (30.5 cm) 2 lbs. (1 kg)
7034201 3' (91.4 cm) 5 lbs. (2 kg)
7034202 6' (182.9 cm) 10 lbs. (5 kg)
7034203 10' (304.8 cm) 20 lbs. (9 kg)
Catalog # For use with Total Exhaust Volume
(Safety Cabinet and Room Air)
8" Sash Opening 9" Sash Opening 10" Sash Opening
3889200 3-Ft Class II, Type A2 223-353 248-351 273-379
3889201 4-Ft Class II, Type A2 289-369 324-433 359-470
3889202 5-Ft Class II, Type A2 356-470 398-516 440-562
3889203 6-Ft Class II, Type A2 423-543 473-598 523-654
Kit Catalog # Repl. Prefilter Catalog # For use with
3406000 3406200 3-Ft Biosafety Cabinet
3406001 3406201 4-Ft Biosafety Cabinet
3406002 3406202 5-Ft Biosafety Cabinet
3406003 3406203 6-Ft Biosafety Cabinet
7068000 & 7068200 7071900
Inlet 10.87" (27.6 cm) ID 12.25" (31.1 cm) OD
Outlet 5.5" d x 10.0" w (14 x 25 cm) 7.0" x 13.5" (18 x 34 cm)
Blower
Transition 4722401 7003400
Adapter
Required
Catalog # For use with Electrical Requirements HP CFM Range† Shipping Weight
7068000 3-Ft & 4-Ft Type A2 Cabinets 115 volts, 60 Hz, 1 phase, 4.0 amps 1/6 370 @ .12" to 410 @ .38" 92 lbs. (42 kg)
7068200 5-Ft & 6-Ft Type A2 Cabinets 115 volts, 60 Hz, 1 phase, 4.4 amps 1/4 540 @ .25" to 430 @ .75" 92 lbs. (42 kg)
7071900 4-Ft & 6-Ft Type B2 Cabinets 230/460 volts, 60 Hz, 3 phase, 5.8/2.9 amps 2 977 @ 3.4" to 1161 @ 4.7" 100 lbs. (45 kg)
Canopy
Connection
(Type A2 only)
or Sealed
Connection
(Type B2 only)
Air-Tight
Damper
(included with
Type B2 and
accessory for
Canopy-ducted
Type A2)
90
°
Elbow
7027300, 10" dia.
Thermoplastic Duct
7027200, 10" dia.
Remote
Blower
Flexible Duct Connection
7034200, 11" dia.
Duct Reducer
5606100, 10" x 12" dia.
Thermoplastic Duct
7027200, 10" dia.
5602000, 12" dia.
Male Duct
Coupling 12" dia.
7067300
Backdraft
Damper
3858800,
10" dia.
Blower
Transition
Adapter,
4722401,
10" dia.
7003400,
12" dia.
Zero Pressure Weathercap
7095100, 10" dia.
5622100, 12" dia.
Typical Class II
Cabinet Exhaust System
18
Purifier
®
Logic
®
+ Class II Biosafety Cabinets
Telescoping Base Stands (Non-Welded)
3730500 Caster Kit
For converting Telescoping Base
Stands with Fixed Feet to mobile
stands. Kit includes four 5" diam-
eter, non-marking polyurethane
casters with toe locks. Load rating for each caster is 250 pounds. Casters have
bearings for quiet operation. Casters replace the fixed feet included with
Telescoping Base Stands. Casters add 11" (28 cm) to the overall depth of the
base stand. Installation is required. Not for use with stands that support
Purifier Logic Class II, Type B2 Safety Cabinets. Shipping weight 10 lbs. (5 kg)
Telescoping Base Stand (non-welded) 3401004
These stands have telescoping legs so that they may be adjusted to
eight height positions.*
Standard Features
• NSF-approved. Meet NSF Standard for stability and construction.
• Support Purifier Logic Biosafety Cabinets.
• Support loads up to 1000 pounds.
• ADA-compliant.
• Durable 1.75" tubular, powder-coated steel frame with back
panel support.
• Telescoping legs are adjustable to eight height positions at
installation in 1" (2.5 cm) increments to provide a working
height from 30" (76 cm) to 37" (94 cm).*
• 9" (23 cm) shelf is included.
• Four fixed leveling feet are provided.
• Unassembled. May be easily assembled with simple hand tools.
* Height selection and adjustment are required before the enclosure is installed
on the stand.
A
27.5"
(69.9 cm)
min.
34.5"
(87.6 cm)
max.
29.0" (73.7 cm)
11.8" (30.1 cm)
1.8" (4.6 cm)
9.1"
(22.9 cm)
Shelf
Crossbar
A
27.5"
(69.9 cm)
min.
34.5"
(87.6 cm)
max.
29.0" (73.7 cm)
11.8" (30.1 cm)
1.8" (4.6 cm)
9.1"
(22.9 cm)
Shelf
Crossbar
FRONT
SIDE
3857000 Seismic Bracket Kit
For securing the Telescoping Base Stand to the floor
in earthquake-prone regions. Includes four stainless
steel seismic brackets and hardware for attachment
to the stand. Hardware to attach to the floor and
installation are required. Shipping weight 10 lbs.
(5 kg)
Laptop Computer Arms
Securely support a laptop computer
within easy view of an operator at
the Cell Logic+. Mount to front leg
of front leg of Telescoping Base
Stands or front of SoLo Base Stands
(see back cover). Articulating arm
raises, lowers and pivots to a
steady position. Include powder-coated steel arm and support surface with
cloth loop fasteners and mounting hardware. Not for use with other
Hydraulic Lift Base Stands. Installation is required.
Catalog # Nominal Width A
3401003 3-Ft 38.5" (97.8 cm)
3401004 4-Ft 50.5" (128.3 cm)
3401005 5-Ft 62.5" (158.8 cm)
3401006 6-Ft 74.5" (189.2 cm)
Telescoping Base Stands (non-welded)
** Enclosures supported by mobile Base Stands will require special modifications to incorporate
flexible ducting, wiring and plumbing when applied.
Comply with height and knee clearance guidelines outlined in ADA Standards for Accessible Design.
Nominal Width Catalog # Shipping Weight
3-Ft 3401003 117 lbs. (53 kg)
4-Ft 3401004 125 lbs. (57 kg)
5-Ft 3401005 133 lbs. (60 kg)
6-Ft 3401006 149 lbs. (68 kg)
Catalog # For use with Shipping
3869300
Telescoping Base Stand 12
lbs. (5 kg)
3869200 Solo
Hydraulic Lift Base Stand
12 lbs. (5 kg)
Contact Labconco for ordering information on welded telescoping base stands.
Caster Kit
3784000
Includes four 5" (13 cm)
diameter, non-marking
polyurethane casters with
toe locks and bearings.
Load rating for each caster is 250 pounds. Casters replace the fixed feet and
add 11" (28 cm) to the overall depth of the base stand. Installation is
required.** Not for use with stands that support Type B2 Safety Cabinets.
Shipping weight 10 lbs. (5 kg)
19
Purifier
®
Logic
®
+ Class II Biosafety Cabinets

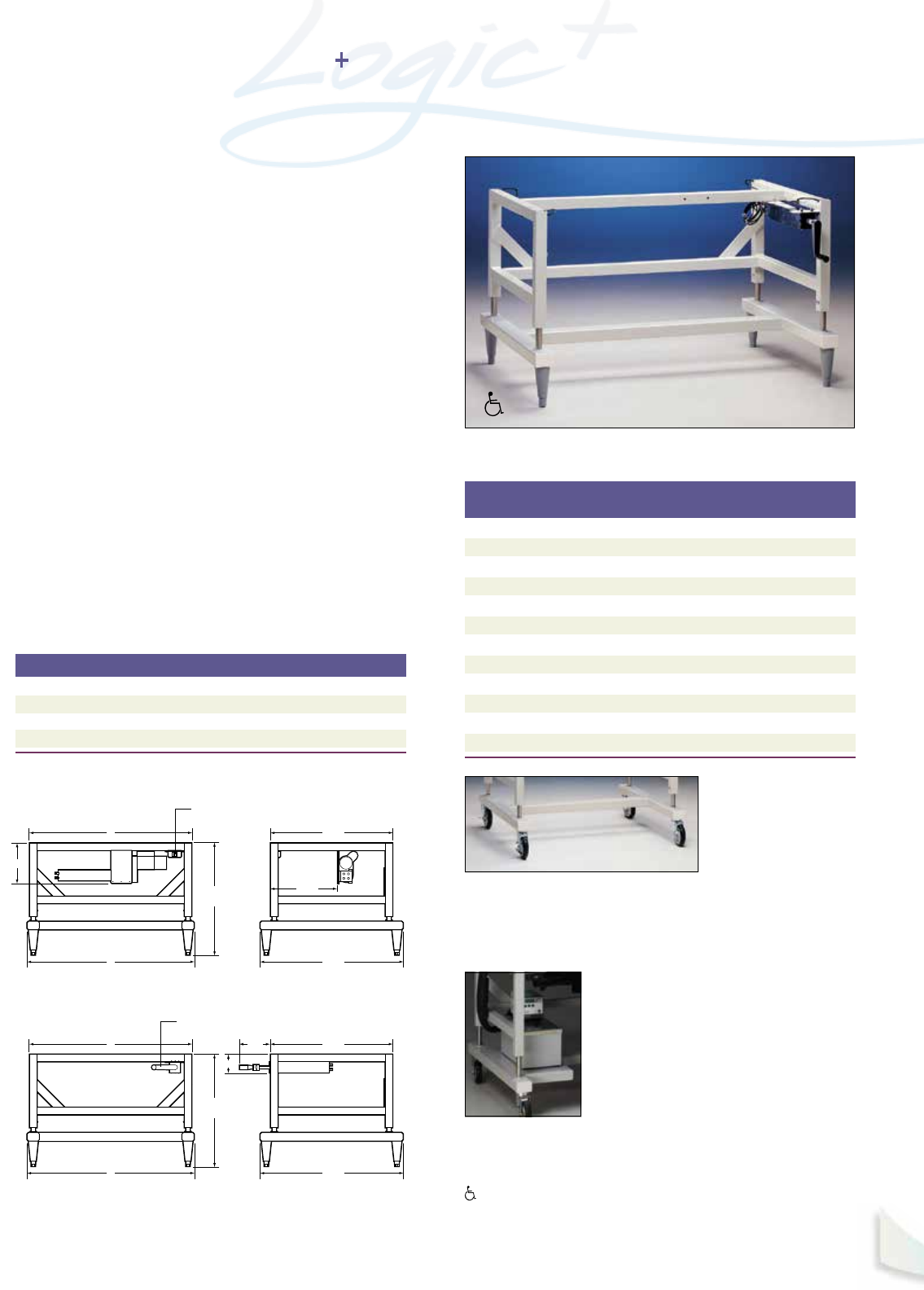

Hydraulic Lift Base Stands
Catalog Numbers Nominal Width A B
3780100, 3780103, 3780200 3-Ft 38.5" 39.7"
3780101, 3780104, 3780201 4-Ft 50.5" 51.7"
3780106, 3780107, 3780203 5-Ft 62.5" 63.9"
3780102, 3780105, 3780202 6-Ft 74.5" 75.7"
9.5"
B
A
34.3"
29.0"
16.0"
FRONT SIDE
ELECTRIC LIFT
B
A
34.3"
29.0"
4.4"
7.4"
FRONT
MANUAL LIFT
SIDE
25.5" min.
33.5" max.
25.5" min.
33.5" max.
Up/Down Switch
Hand Crank
FRONT
FRONT
SIDE
SIDE
Electric Lift
Manual Lift
These stands have a built-in hydraulic lift so that height may be
adjusted at any time. They allow the user to position the stand
and the safety cabinet it supports to accommodate persons
of different heights and wheelchair-bound users, to transport
equipment through doorways, and for easier access to services.
Standard Features
• Meet NSF Standard for stability and construction.
• Support Purifier Logic Biosafety Cabinets.
• Support loads up to 1000 pounds.
• ADA-compliant.
• Durable 1.75" (4.4 cm) tubular, epoxy-coated steel frame with rear
crossbar supports. Sub-frame has 2.0" (5.1 cm) x 3.0" (7.6 cm)
rectangular tubing.
• Height is infinitely adjustable from 25.5" (64.8 cm) to
33.5" (85.1 cm) high.
• Include four powder-coated, die-cast feet with levelers.
• Include front-accessible up/down switch (Electric Lift models)
• Include front-accessible hand crank. Turning the crank clock-
wise raises the stand; counterclockwise lowers it. The handle
may be disengaged and folded under, out of the way, when
not in use. (Manual Lift models)
• Shipped fully assembled.
Hydraulic Lift Base Stand 3780201.
** Enclosures supported by mobile Base Stands will require special modifications to incorporate
flexible ducting, wiring and plumbing when applied.
† International electrical configuration
4028600 Support Shelf
Provide a work surface to support remote
equipment. Powder-coated steel shelf mounts to
left-side tubular frame of base stand. 12.0" w x
22.0" deep (26 x 30 cm). Installation is required.
Shipping weight 23 lbs. (10 kg)
Nominal Shipping
Width Catalog # Description Weight
3-Ft 3780100 Electric. 115 volts, 60 Hz, 2.4 amps 170 lbs. (77 kg)
3-Ft 3780103† Electric. 230 volts, 50/60 Hz, 0.8 amp 170 lbs. (77 kg)
3-Ft 3780200 Manual 170 lbs. (77 kg)
4-Ft 3780101 Electric. 115 volts, 60 Hz, 2.4 amps 185 lbs. (84 kg)
4-Ft 3780104† Electric. 230 volts, 50/60 Hz, 0.8 amp 185 lbs. (84 kg)
4-Ft 3780201 Manual 185 lbs. (84 kg)
5-Ft 3780106 Electric. 115 volts, 60 Hz, 2.4 amps 215 lbs. (98 kg)
5-Ft 3780107† Electric. 230 volts, 50/60 Hz, 0.8 amp 215 lbs. (98 kg)
5-Ft 3780203 Manual 215 lbs. (98 kg)
6-Ft 3780102 Electric. 115 volts, 60 Hz, 2.4 amps 225 lbs. (102 kg)
6-Ft 3780105
†
Electric. 230 volts, 50/60 Hz, 0.8 amp 225 lbs. (102 kg)
6-Ft 3780202 Manual 225 lbs. (102 kg)
Complies with Americans with Disabilities Act Standard for height of controls and receptacles
Purifier
®
Logic
®
+ Class II Biosafety Cabinets

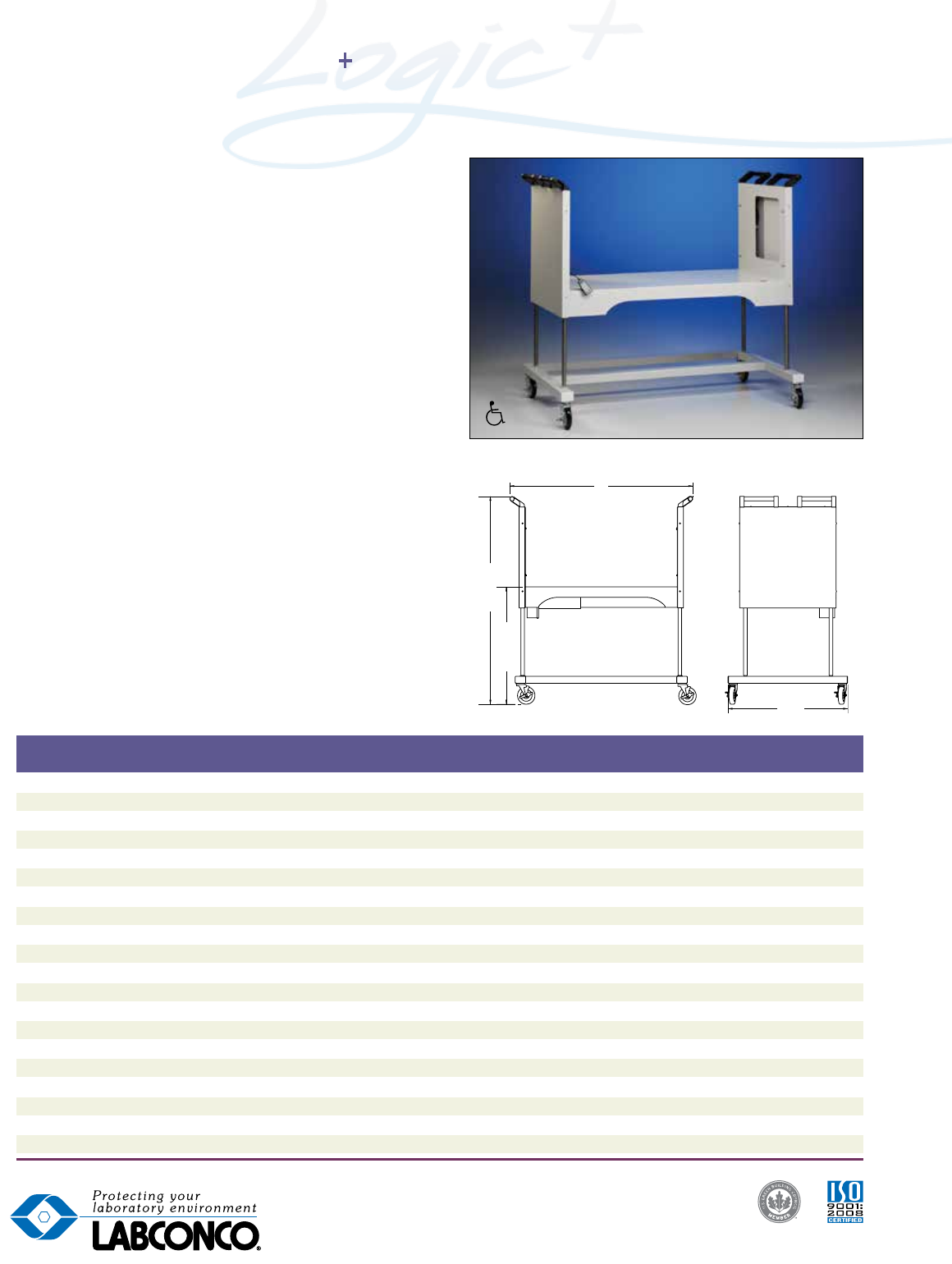

Solo
™
Base Stands
SoLo™ Hydraulic Lift Base Stands are specifically designed to
support Purifier Logic+ and Cell Logic+ Class II, Type A2 Biosafety
Cabinets. The hydraulic lift system permits the stand to be lowered
allowing the safety cabinet to be rolled through standard doorways
as low as 78" (198 cm) high. Casters provide mobility and lock in
place for stability.
Standard Features
• Meet NSF Standard for stability and construction.
• Support any Purifier Logic+ or Cell Logic+ Class II,
Type A2 Safety Cabinet.
• ADA-compliant.
• Durable powder-coated steel construction.
• Support loads up to 1300 pounds (590 kg).
• Built-in hydraulic lift is operated by a remote control with
buttons for upward and downward movement. Height adjust-
ment positions the enclosure for persons of different statures,
wheel-chair bound users, transport through doorways, and
easier service access to upper components.
• Infinitely adjustable height provides work surface heights from
17.2" (43.7 cm) to 36.8" (93.5 cm) and overall enclosure height
as low as 76.2" (193.5 cm).
• 5" (13 cm) diameter, toe-locking, non-marking polyurethane
casters with bearings for quiet operation.
• Two handle bars on each side facilitate transport. Bars are
durable PVC-coated steel tubes with polyamide brackets.
• Accommodate Laptop Computer Arm 3869200, sold separately.
See page 18.
• Shipped fully assembled.
A
14.0"
MIN
33.6"
MAX
39.9"
MIN
59.5"
MAX
34.3"
SoLo Hydraulic Lift Base Stand 3780311.
Labconco Corporation
8811 Prospect Avenue • Kansas City, MO 64132-2696
816-333-8811 or 800-821-5525 • FAX: 816-363-0130
E-MAIL: labconco@labconco.com • HOME PAGE: www.labconco.com © 2013byLabconcoCorporation•PrintedintheU.S.A.
Productdesignsubjecttochangewithoutnotice•2-04-GC-3/13-4M-R1
Nominal Actual Electrical Plug Additional Shipping
Width Width (A) Catalog # Requirements Type Load Capacity* Weight
3-Ft. 53.5" 3780310 115 volts, 60 Hz, 2 amps 115 volts, 15 amps 700 lbs. (318 kg) 395 lbs. (179 kg)
3-Ft. 53.5" 3780314 230 volts, 50/60 Hz, 3 amps North America, 230 volts 700 lbs. (318 kg) 395 lbs. (179 kg)
3-Ft. 53.5" 3780330 230 volts, 50/60 Hz, 3 amps British (UK), 230 volts 700 lbs. (318 kg) 395 lbs. (179 kg)
3-Ft. 53.5" 3780334 230 volts, 50/60 Hz, 3 amps Schuko, 230 volts 700 lbs. (318 kg) 395 lbs. (179 kg)
3-Ft. 53.5" 3780338 230 volts, 50/60 Hz, 3 amps China/Australia, 230 volts 700 lbs. (318 kg) 395 lbs. (179 kg)
4-Ft. 65.5" 3780311 115 volts, 60 Hz, 2 amps 115 volts, 15 amps 600 lbs. (272 kg) 435 lbs. (197 kg)
4-Ft. 65.5" 3780315 230 volts, 50/60 Hz, 3 amps North America, 230 volts 600 lbs. (272 kg) 435 lbs. (197 kg)
4-Ft. 65.5" 3780331 230 volts, 50/60 Hz, 3 amps British (UK), 230 volts 600 lbs. (272 kg) 435 lbs. (197 kg)
4-Ft. 65.5" 3780335 230 volts, 50/60 Hz, 3 amps Schuko, 230 volts 600 lbs. (272 kg) 435 lbs. (197 kg)
4-Ft. 65.5" 3780339 230 volts, 50/60 Hz, 3 amps China/Australia, 230 volts 600 lbs. (272 kg) 435 lbs. (197 kg)
5-Ft. 77.5" 3780312 115 volts, 60 Hz, 2 amps 115 volts, 15 amps 500 lbs. (227 kg) 460 lbs. (209 kg)
5-Ft. 77.5" 3780316 230 volts, 50/60 Hz, 3 amps North America, 230 volts 500 lbs. (227 kg) 460 lbs. (209 kg)
5-Ft. 77.5" 3780332 230 volts, 50/60 Hz, 3 amps British (UK), 230 volts 500 lbs. (227 kg) 460 lbs. (209 kg)
5-Ft. 77.5" 3780336† 230 volts, 50/60 Hz, 3 amps Schuko, 230 volts 500 lbs. (227 kg) 460 lbs. (209 kg)
5-Ft. 77.5" 3780340 230 volts, 50/60 Hz, 3 amps China/Australia, 230 volts 500 lbs. (227 kg) 460 lbs. (209 kg)
6-Ft. 89.5" 3780313 115 volts, 60 Hz, 2 amps 115 volts, 15 amps 350 lbs. (159 kg) 600 lbs. (272 kg)
6-Ft. 89.5" 3780317 230 volts, 50/60 Hz, 3 amps North America, 230 volts 350 lbs. (159 kg) 600 lbs. (272 kg)
6-Ft. 89.5" 3780333 230 volts, 50/60 Hz, 3 amps British (UK), 230 volts 350 lbs. (159 kg) 600 lbs. (272 kg)
6-Ft. 89.5" 3780337 230 volts, 50/60 Hz, 3 amps Schuko, 230 volts 350 lbs. (159 kg) 600 lbs. (272 kg)
6-Ft. 89.5" 3780341 230 volts, 50/60 Hz, 3 amps China/Australia, 230 volts 350 lbs. (159 kg) 600 lbs. (272 kg)
