Preface
IDentity 5100 User’s Guide
i
Preface
Intended audience
This document is intended for professional installers setting up and
installing the IDentity 5100 Radio Frequency Identification system. Before
attempting to install, configure, and operate this product, you should be
familiar with the following:
h Microsoft® Windows® based software installation and operation
h Device communication parameters including Ethernet and serial
communications
h RFID reader configuration including antenna placement
h Basic digital input/output control
What’s in this guide
The information in this guide is presented as follows:
Reader Overview – This chapter provides a brief overview of the IDentity
5100 hardware and software.
Reader Equipment Installation – This chapter describes how to
mechanically and electrically install the reader.
Reader Startup Tool (RST) Software Installation – This chapter describes
how to install the Microsoft Windows based RST application.
Reader Operation – This chapter describes how to initially test a reader and
how to operate deployed readers.
Reader Startup Tool (RST) – This chapter describes the RST and the various
functions you can perform with this Microsoft Windows based application.
Embedded Reader Configuration Tool (RCT) – This chapter describes the
RCT and the various functions you can perform with this embedded reader
application.
Configuring Digital Inputs and Outputs – This chapter describes how to
setup the reader’s digital inputs and outputs.
Specifications – This chapter detailed mechanical, electrical, and
environmental specifications for the IDentity 5100.
Safety Instructions – This chapter provides important safety information
about the IDentity 5100. All users must read this section before installing or
operating this reader.
Preface
ii
IDentity 5100 User’s Guide
What’s New in this Version
Version 1.0 is the initial release of this document.
Conventions used in this manual
The following conventions are used in this manual:
Bold courier font indicates code entered by the user
(values) within parentheses indicate parameters
(values)
in italics indicate user defined variables.
<n> indicates a variable number used in a function that can apply to
several different devices such as antennas or I/O ports.
WARNING:
Warnings advise the reader that a hazardous condition can be created by a
particular action that can cause bodily injury or extreme damage to equipment
ATTENTION:
This warning indicates that the device is susceptible to Electro Static
Discharge and appropriate precautions must be taken to avoid
equipment damage.
Caution:
Cautions advise the reader that a condition can be created by a particular action
that can cause equipment damage or result in equipment operation that violates
regulatory requirements.
NOTES
Important information
and other tips are
presented in light
blue boxes to the left
of the applicable
section.
Contents
IDentity 5100 User’s Guide
iii
Table of Contents
Chapter 1 – Reader Overview..................................................................................................................1
Reader Hardware...................................................................................................................................1
Reader Software....................................................................................................................................2
Chapter 2 – Reader Equipment Installation ..........................................................................................3
Mechanical Installation .........................................................................................................................3
Mounting the Reader.........................................................................................................................3
Electrical Installation.........................................................................................................................5
Connecting the Serial Port.................................................................................................................6
Connecting and Configuring the Ethernet Port.................................................................................6
Connecting the External Antenna .....................................................................................................7
Connecting Digital Inputs/Outputs....................................................................................................7
Connecting the Power .......................................................................................................................7
Chapter 3 – Reader Startup Tool (RST) Software Installation.............................................................8
Installing RST Software........................................................................................................................8
Reader Startup.....................................................................................................................................10
Initial Reader Setup.............................................................................................................................11
Chapter 4 – Reader Operation...............................................................................................................14
Basic Operation with RST...................................................................................................................14
Deployed Reader Operation with RCT...............................................................................................16
Chapter 5 – Reader Startup Tool (RST).................................................................................................18
View Readers on the Network ............................................................................................................18
Configure Reader with the Setup Wizard ...........................................................................................19
View or Change the Reader’s Network Settings.................................................................................20
Reader Test Tool (RTT)......................................................................................................................21
General Page ...................................................................................................................................21
Tag Performance Page ....................................................................................................................22
Tag Management Page....................................................................................................................24
Macros Page....................................................................................................................................25
Event Handling Page.......................................................................................................................27
Reader Diagnostics Tool (RDT) .........................................................................................................28
Channel Statistics............................................................................................................................28
Alarms .............................................................................................................................................29
Tag Report.......................................................................................................................................30
Spectrum Analyzer..........................................................................................................................31
Contents
iv
IDentity 5100 User’s Guide
Chapter 6 – Embedded Reader Configuration Tool (RCT)..................................................................32
Basic Configuration ............................................................................................................................33
Configuration Page Header.............................................................................................................33
Manage Profiles ..............................................................................................................................34
Set Tag Protocol..............................................................................................................................35
Setup Ethernet/LAN........................................................................................................................36
Setup Serial Port..............................................................................................................................37
Setup Digital Accessories ...............................................................................................................38
Setup Antenna/Cables.....................................................................................................................39
Set Regulatory Mode (Region) .......................................................................................................40
Advanced Functions............................................................................................................................41
Firmware Management ...................................................................................................................41
Import/Export Configuration (Upload/Download).........................................................................42
Command Line................................................................................................................................43
Expert Configuration...........................................................................................................................44
Expert Configuration – Setup .........................................................................................................44
Expert Configuration – Tag ............................................................................................................45
Expert Configuration – Version......................................................................................................46
Expert Configuration – Information ...............................................................................................46
Expert Configuration – Communication.........................................................................................47
Expert Configuration – Antennas....................................................................................................48
Expert Configuration – Digital I/O.................................................................................................49
Expert Configuration – Modem ......................................................................................................50
User Application Management ...........................................................................................................51
Change Operating Mode .....................................................................................................................52
View Tags ...........................................................................................................................................53
Check Reader Status ...........................................................................................................................54
Review Logs .......................................................................................................................................54
Chapter 7 – Configuring Digital Inputs and Outputs...........................................................................55
Digital Inputs.......................................................................................................................................55
Digital Outputs....................................................................................................................................55
Digital I/O Monitoring and Control Scripts........................................................................................55
Digital Input Alarm Generation..........................................................................................................58
Digital I/O Hardware Connection.......................................................................................................59
Contents
IDentity 5100 User’s Guide
v
Chapter 8 – Specifications.....................................................................................................................60
Reader Specifications..........................................................................................................................60
Environmental Specifications .............................................................................................................61
Battery Specifications (Optional)........................................................................................................61
Power Supply Specifications...............................................................................................................61
RS-232 Specifications.........................................................................................................................62
Ethernet LAN Specifications ..............................................................................................................62
Antenna Cable Specifications .............................................................................................................62
Internal Antenna Specifications ..........................................................................................................63
External Antenna Specifications.........................................................................................................63
Bulkhead Connector/Interface Cable Pinout.......................................................................................64
Chapter 9 – Safety Instructions.............................................................................................................65
Power Disconnect Device ...................................................................................................................65
RF Safety.............................................................................................................................................65
Electrostatic Discharge........................................................................................................................66
Regulatory Compliance.......................................................................................................................66
Contents
vi
IDentity 5100 User’s Guide
1
2 3 4 5 6 7 8 9
Reader Overview
IDentity 5100 User’s Guide
1
Reader Overview
Reader Hardware
The IDentity 5100 is a multi-protocol, multi-regional Radio Frequency
Identification (RFID) System that operates in the 860 – 960 MHz UHF band.
The reader is configured at the factory to operate within a specific
regulatory region (for example: FCC in the 902-928 MHz ISM band).
Figure 1
IDentity 5100 UHF Reader with Universal Mount
As shown in the following figure, the IDentity 5100 reader contains one
integrated antenna and supports one additional Tx/Rx antenna. The reader
is equipped with both RS-232 serial and Ethernet interfaces.
Figure 2
IDentity 5100 Power and I/O Connections
1
2 3 4 5 6 7 8 9
Reader Overview
2
IDentity 5100 User’s Guide
Reader Software
The IDentity 5100 is shipped with two software applications that you can
use to configure and control the reader.
Reader Startup Tool (RST)
The RST is a Microsoft Windows based application you install on your
computer. With RST, you can view all readers on your network. After
selecting a reader, you can modify its communication, network, and
operational parameters. You can also read tags, review tag data, perform
diagnostics, and upload new software. This RST is primarily intended for
initially configuring a reader prior to deployment. After deployment, use the
Embedded Reader Configuration Tool (RCT). Detailed information on the
RST is provided in Chapter 5.
Embedded Reader Configuration Tool (RCT)
This RCT is an embedded reader application that allows you to access your
readers across a LAN or WAN. Enter the IP address of the reader into your
Web browser and the RCT allows you to fully modify and operate the reader.
With the same functionality as the RST, this application allows you to modify
the reader’s communication, network, and operational parameters. You can
also read tags, review tag data, perform diagnostics, and upload new
software. This application is primarily intended for configuring and
managing deployed readers. Detailed information on the RCT is provided in
Chapter 6.
1
2
3 4 5 6 7 8 9
Reader Equipment Installation
IDentity 5100 User’s Guide
3
Reader Equipment Installation
Mechanical Installation
Mounting the Reader
The IDentity 5100 is available with a universal mount suitable for most pole
mount applications. Any mounting surface must be able to support a
minimum static load of 15.0 pounds (6.8 kg) plus any additional live load
due to environmental conditions.
Figure 3
IDentity 5100 Universal Reader Mount
Installation Notice
Installation of the
IDentity 5100 is only to
be performed by
trained, Sirit approved
personnel.
1
2
3 4 5 6 7 8 9
Reader Equipment Installation
4
IDentity 5100 User’s Guide

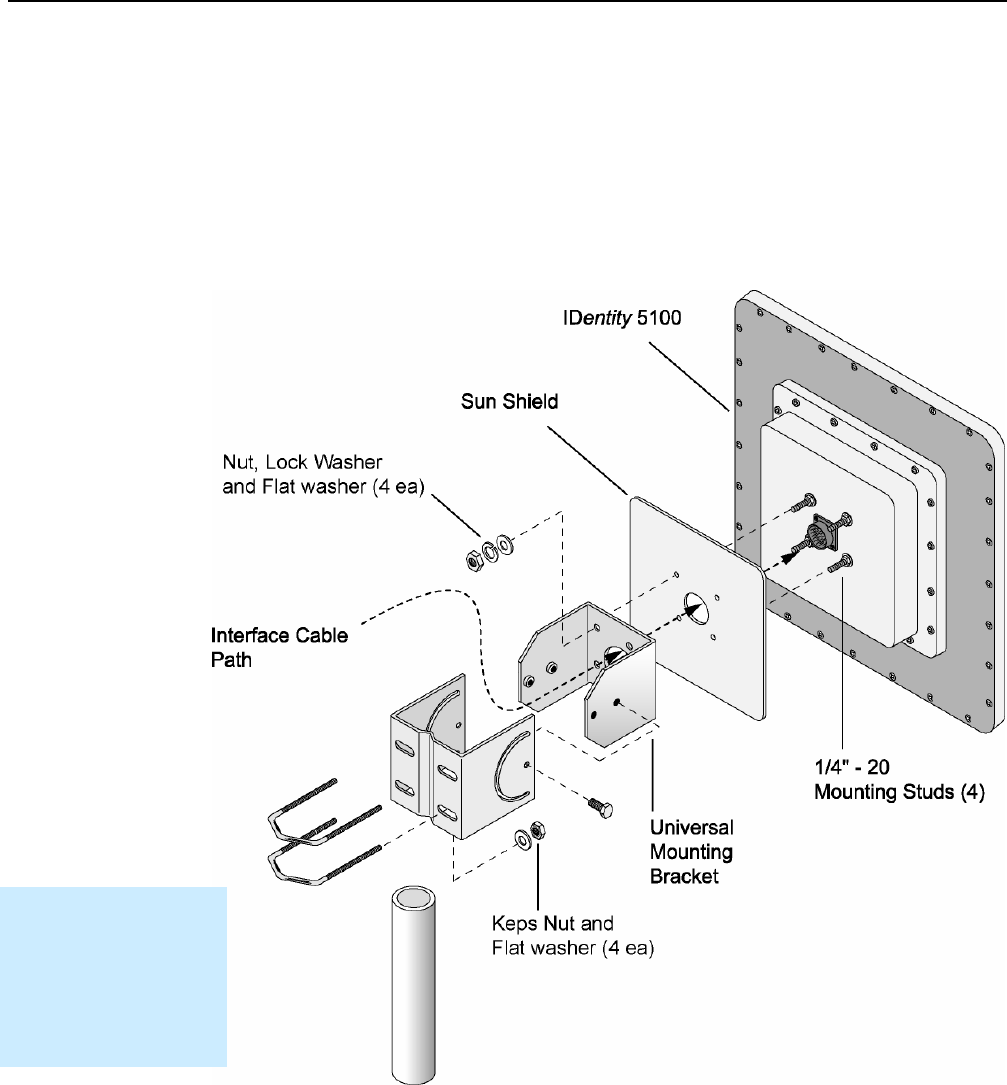

To mount the IDentity 5100 reader assembly, refer to Figure 3 and perform
the following:
1 Locate the Universal Mounting Bracket assembly and the Sun Shield.
2 Disassemble the Universal Mounting bracket. Retain all hardware.
3 Locate the Interface Cable.
4 Snake the bulkhead connector end of the Interface Cable through the
Universal Mounting Bracket and then through the Sun Shield.
5 Connect the cable to the reader’s bulk head connector and twist to lock
in place.
6 Install the Sun Shield on the four ¼”-20 studs located on the rear of
the reader. The Sun Shield will be spaced off the rear approximately
1/2” to allow for air flow.
7 Install the Universal Mounting Bracket on the four ¼”-20 studs.
8 Secure the Universal Mounting Bracket and Sun Shield to the reader
with the four ¼”-20 nuts, lock washers, and flat washers.
9 Install the Pole Mount Bracket to the Mounting Pole using the two U-
Bolts, four Keps Nuts, and four Flat Washers.
10 Adjust the Pole Mount to the proper height and tighten the hardware.
11 Assemble the Universal Mounting Bracket/reader assembly to the Pole
Mount.
12 Adjust the angle of the reader and tighten the hardware.
WARNING:
FCC Radiation Exposure Statement. The antennas used for this transmitter
must be installed to provide a separation distance of at least 1 meter from all
persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
1
2
3 4 5 6 7 8 9
Reader Equipment Installation
IDentity 5100 User’s Guide
5
Electrical Installation
A general installation diagram is shown in the following figure. Refer to
Chapter 7 – Specifications for specific information.
Figure 4
IDentity 5100 Electrical Connections
Caution:
The IDentity 5100 is designed to meet the regulatory requirements in those
jurisdictions in which it is offered. Changes or modifications not expressly
approved by Sirit Technologies for compliance could void the user's authority
to operate the equipment.
ATTENTION
IDentity 5100 antenna ports may be susceptible to damage from static
discharge or other high voltage. Use proper Electrostatic Discharge
(ESD) precautions to avoid static discharge when handling or making
connections to the IDentity 5100 reader antenna or communication ports.
Equipment failure can result if the antenna or communication ports are
subjected to ESD.
Installation Notice
Installation of the
IDentity 5100 is only
to be performed by
trained, Sirit
approved personnel.
1
2
3 4 5 6 7 8 9
Reader Equipment Installation
6
IDentity 5100 User’s Guide
Connecting the Serial Port
The IDentity 5100 RS-232 serial port provides communication up to
115200 Baud. This port is accessed through the bulkhead connector
located on the rear of the reader. If you are using the serial port for reader
communication, connect a serial cable from the COM port on your PC to the
serial port on the reader. See Figure 2 for location of the connector.

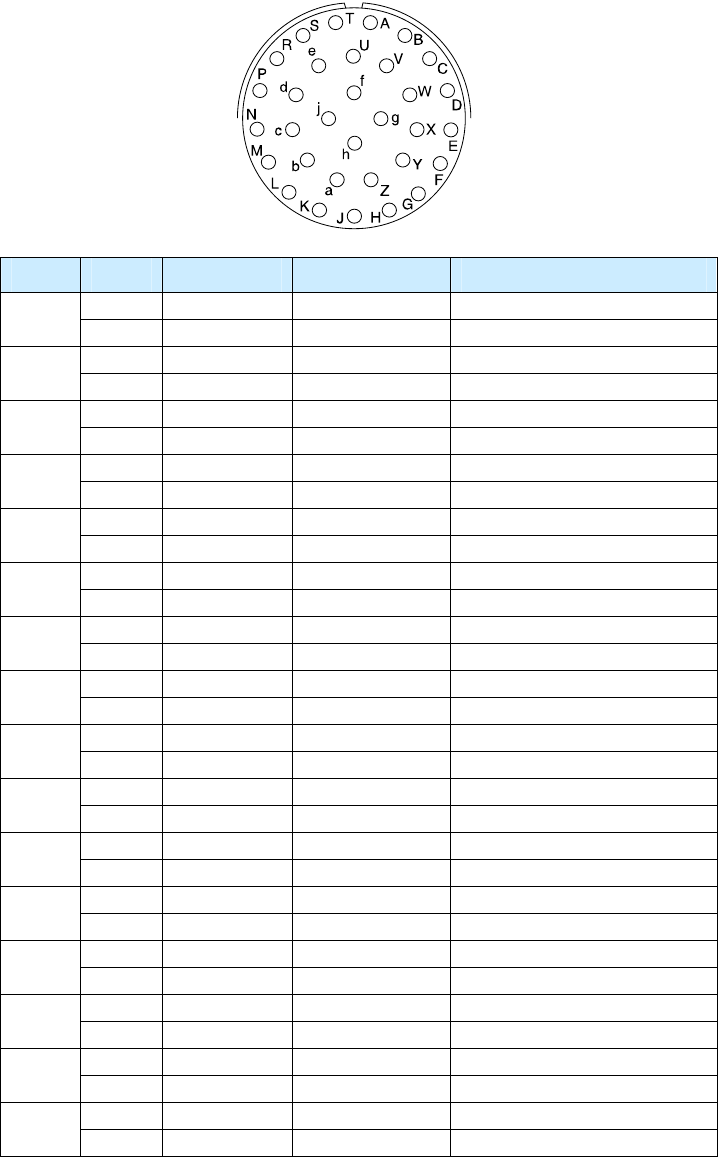

Refer to the Chapter 8 – Specifications for details on the bulkhead
connector.
Connecting and Configuring the Ethernet Port
The IDentity 5100 Ethernet port is accessed through the bulkhead
connector located on the rear of the reader. If you are communicating with
your reader across a Local Area Network (LAN), connect an Ethernet cable
from your hub or router to the bulkhead connector. If you are connecting the
reader directly to a PC, you must use a crossover cable. See Note to the left.
By default, the reader is configured to use a DHCP server to obtain its IP
address and related information. In the event a DHCP server is unavailable,
the reader will boot with an IP address in the 169.254.x.x subnet.
In the absence of other readers on the same network, and if no other
network traffic is observed which references 169.254.1.1, the reader will
select that address; otherwise, it will select a random address on the
169.254.x.x subnet.

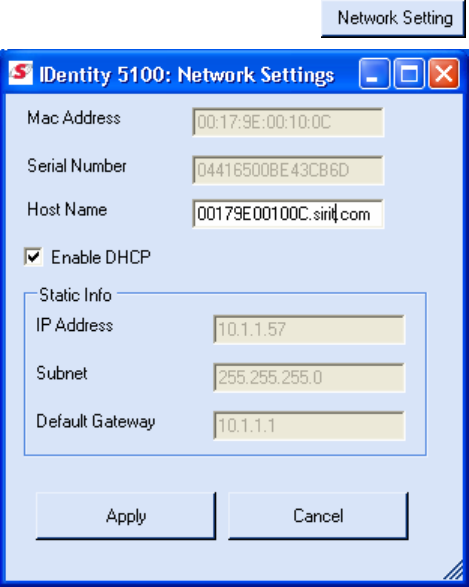

IP address settings can be changed using RST. Refer to the View or Change
the Reader’s Network Settings section in Chapter 5.
Refer to the Chapter 8 – Specifications for details on the bulkhead
connector.
Ethernet Cables
In most cases, you
will connect the
IDentity 5100 to a
network hub or
router. However, if
you are connecting
directly to a PC or
other computer,
you will need a
Crossover Cable
that swaps the Tx
and Rx signals.
1
2
3 4 5 6 7 8 9
Reader Equipment Installation
IDentity 5100 User’s Guide
7
Connecting the External Antenna
The IDentity 5100 supports one auxiliary external Tx/Rx antenna. The
maximum antenna cable length is 10 meters. Connect the antenna to the
antenna port located on the bottom of the reader.
Refer to Chapter 7 – Specifications for specific information regarding the
external antenna and antenna cable.
Caution:
The IDentity 5100 is equipped with one (1) auxiliary RF port which is inactive
when shipped from the factory. If activated, this RF port must be properly
terminated with a 50 ohm load or a functional UHF antenna before power up.
Always power down the reader before removing an antenna or load from an RF
port.
The maximum antenna cable length is 10 meters.
ATTENTION
The IDentity 5100 antenna port may be susceptible to damage from
static discharge or other high voltage. Use proper Electrostatic
Discharge (ESD) precautions to avoid static discharge when handling or
making connections to the IDentity 5100 reader antenna or
communication ports. Equipment failure can result if the antenna or
communication ports are subjected to ESD.

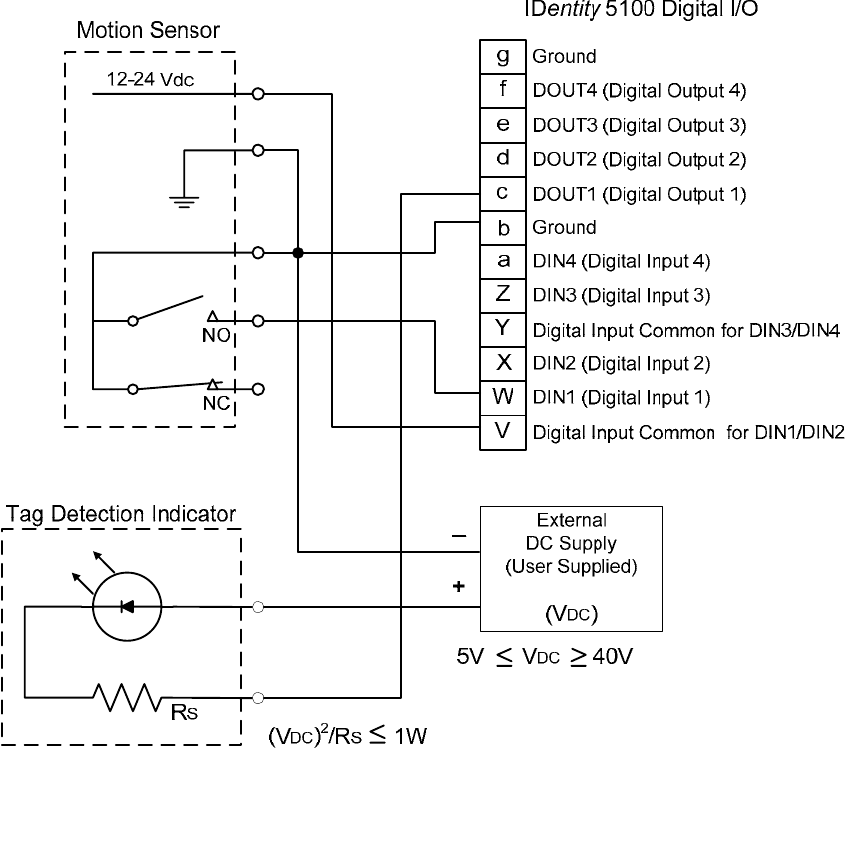

Connecting Digital Inputs/Outputs
The IDentity 5100 is equipped with a general purpose digital input/output
(I/O) port that provides four optically isolated 5-24 Vdc input signals and
four open-collector output signals. The digital inputs can be used as general
purpose inputs or to trigger the reader for tag reading. These inputs can be
configured to provide an external read trigger from proximity sensors, photo
switches, or other devices.
The digital outputs can be used as general purpose outputs, to indicate tag
reading activity, or to indicate the reader is transmitting (RF On). The
outputs can also be configured to trigger gates or other access control
devices.
Connecting the Power
The IDentity 5100 operates on 24 Vdc provided through the bulkhead
connector on the rear of the reader. Connect the power supply to the reader
and connect the power supply to your 100–240 Vac, 50-60 Hz power
source. Allow 30 seconds for the reader to initialize.
Refer to the Chapter 8 – Specifications for details on the bulkhead
connector.
1 2
3
4 5 6 7 8 9
RST Software Installation
8
IDentity 5100 User’s Guide
Reader Startup Tool (RST) Software Installation
Installing RST Software
The IDentity 5100 is delivered with a Microsoft Windows based application
called Reader Startup Tool (RST). You can use this application to initially
configure your reader as well as read and display tag data.
NOTE: The product CD provided with your reader contains two setup files: setup.exe and
IDentity_5100_RSTInstaller.msi. The first file, setup.exe, will fully check your system
configuration and load all required software including Microsoft .Net 2.0. If you only
want to load the RST application, use the IDentity_5100_RSTInstaller.msi installation
file. Note, however, the installation may abort if the required files are not found on your
system.

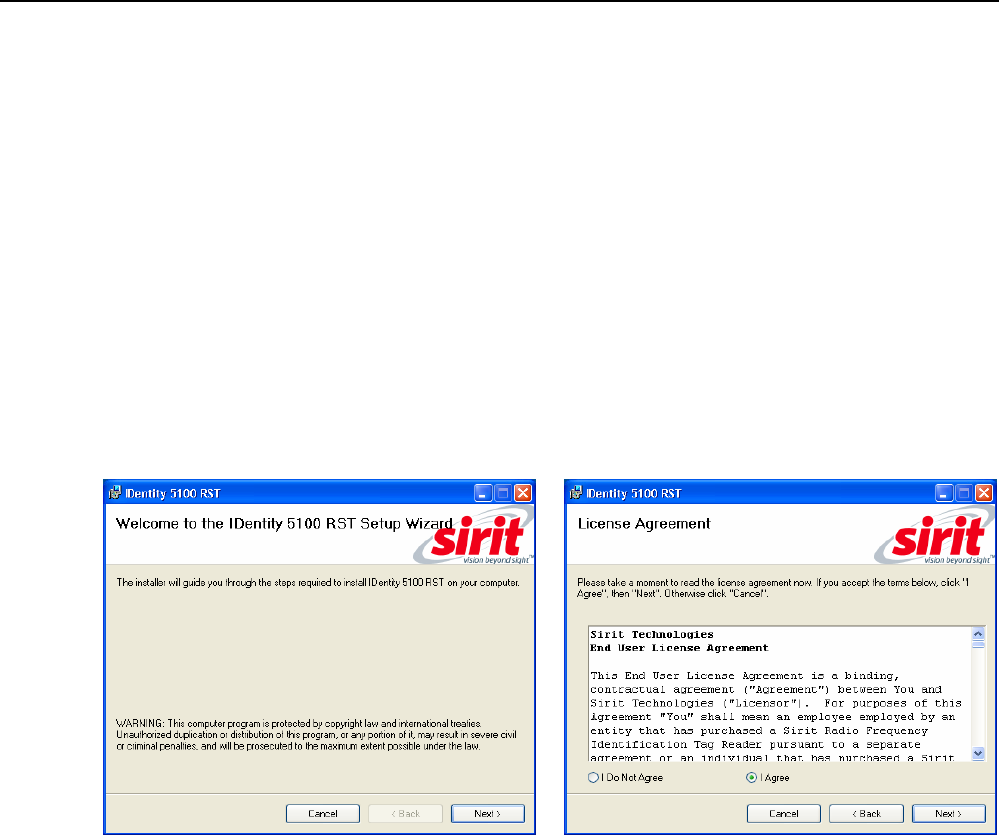

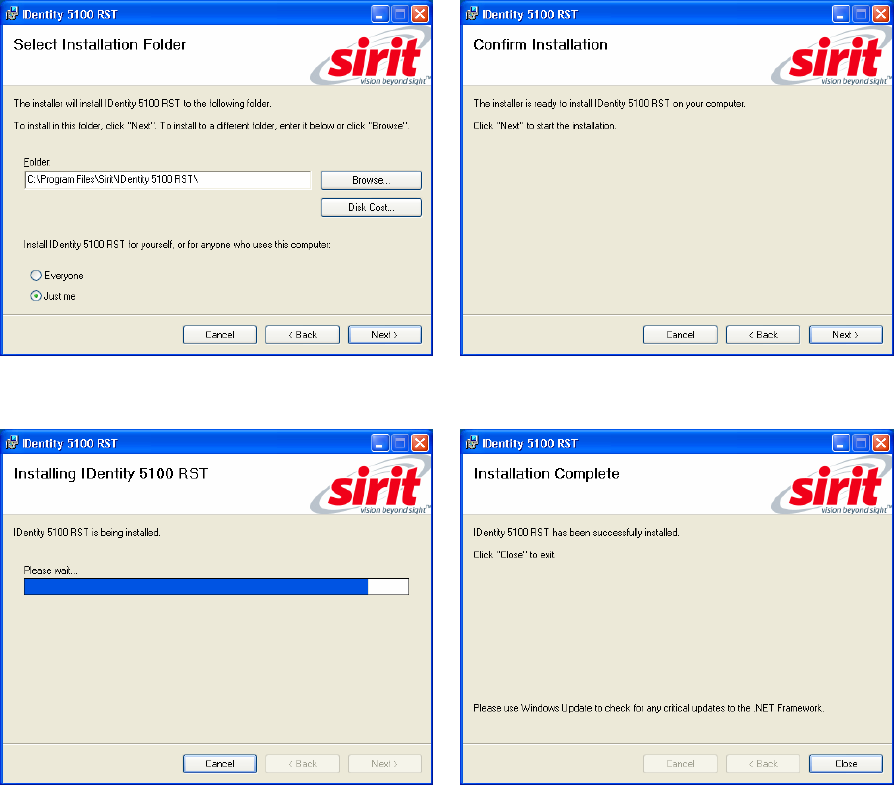

Install RST
1 To install RST, load your product CD and double-click the setup.exe or
IDentity_5100_RSTInstaller.msi file:
2 Press
Next>
3 Read the License Agreement. Select
I Agree
and press
Next>
1 2
3
4 5 6 7 8 9
RST Software Installation
IDentity 5100 User’s Guide
9
4 Verify the path and folder where RST will
be installed. Press
Next>
.
5 Press
Next>
5 The installation begins. 6 After the installation completes, press
Close.
1 2
3
4 5 6 7 8 9
RST Software Installation
10
IDentity 5100 User’s Guide
Reader Startup
To begin using your reader, open the RST application.
Open RST
1 From your Windows desktop, select:
Start→Programs→Sirit→IDentity5100→Reader Startup Tool (RST)

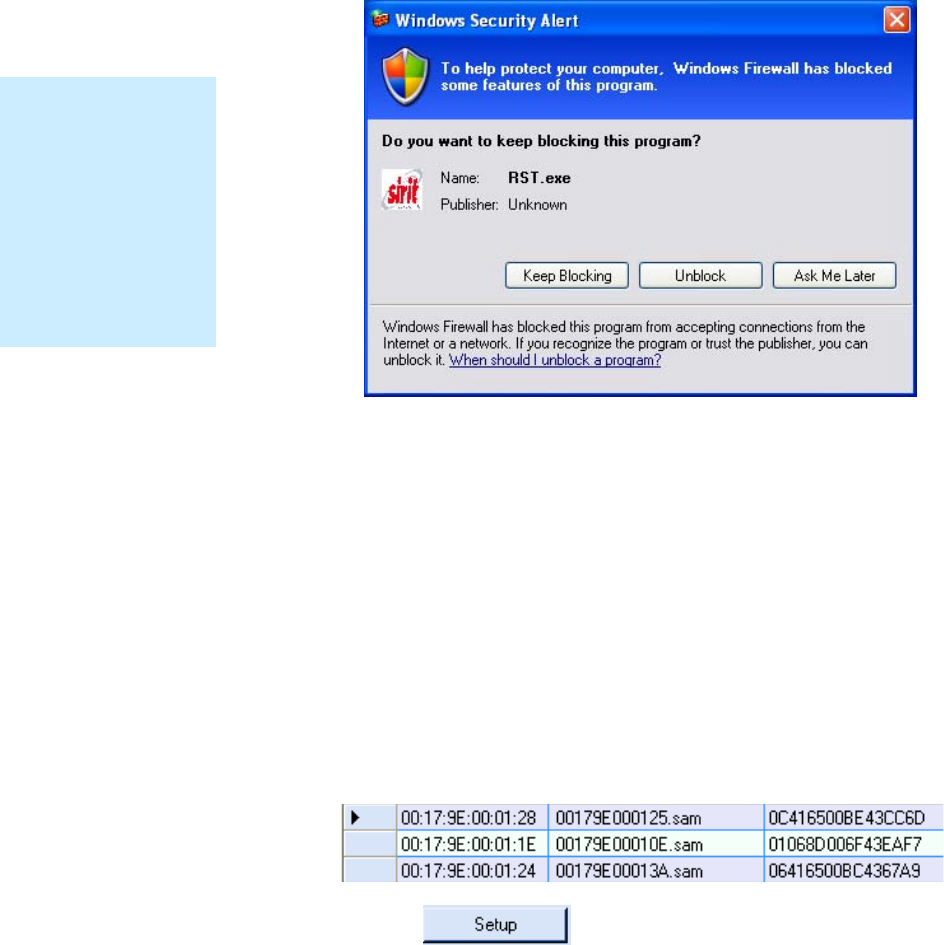

2 If this is the first time starting the RST application, you may receive a
Windows Security Alert. This warning indicates that the firewall is
blocking the RST application.
3 If the warning window is hidden under the RST windows, collapse the
RST window.
1 2
3
4 5 6 7 8 9
RST Software Installation
IDentity 5100 User’s Guide
11
4 Press Unblock.
5 Press Refresh on the RST

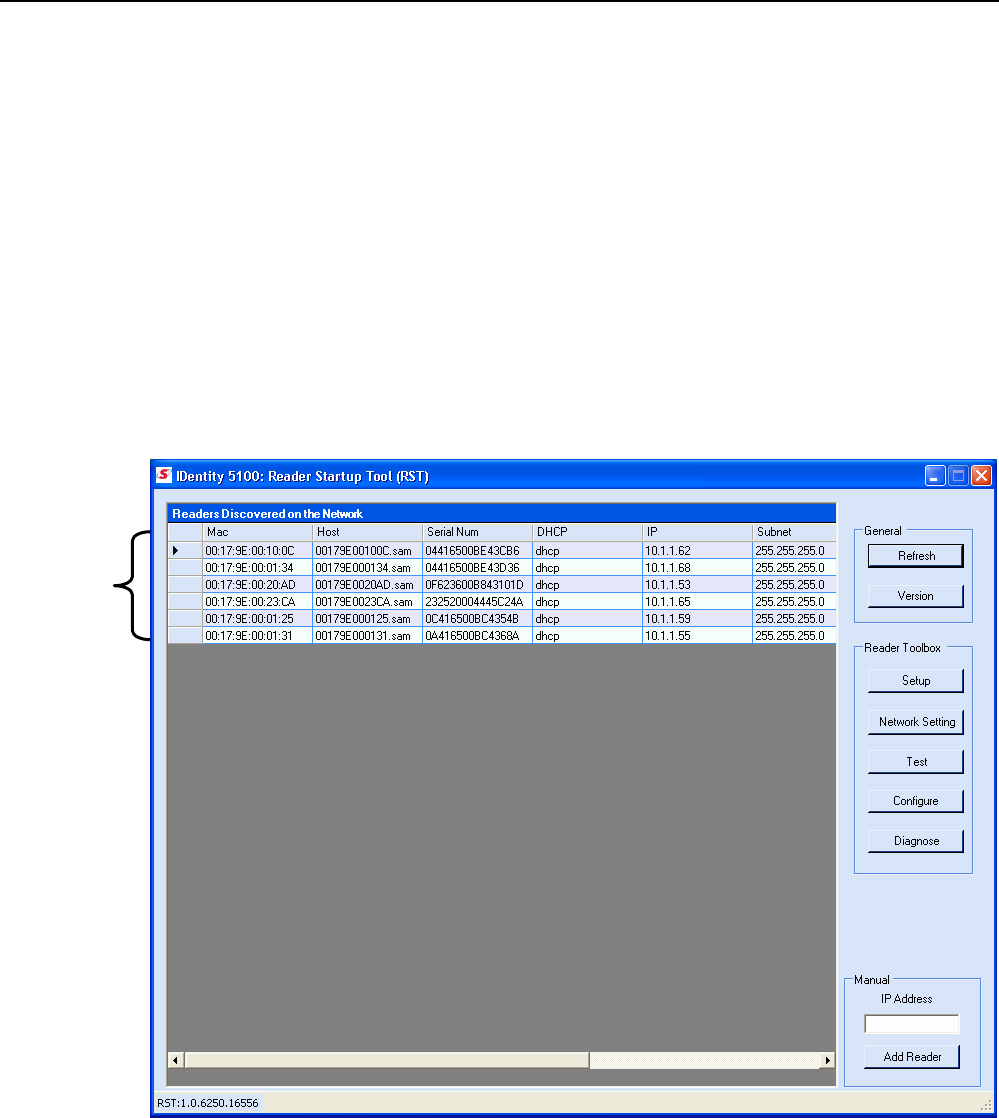

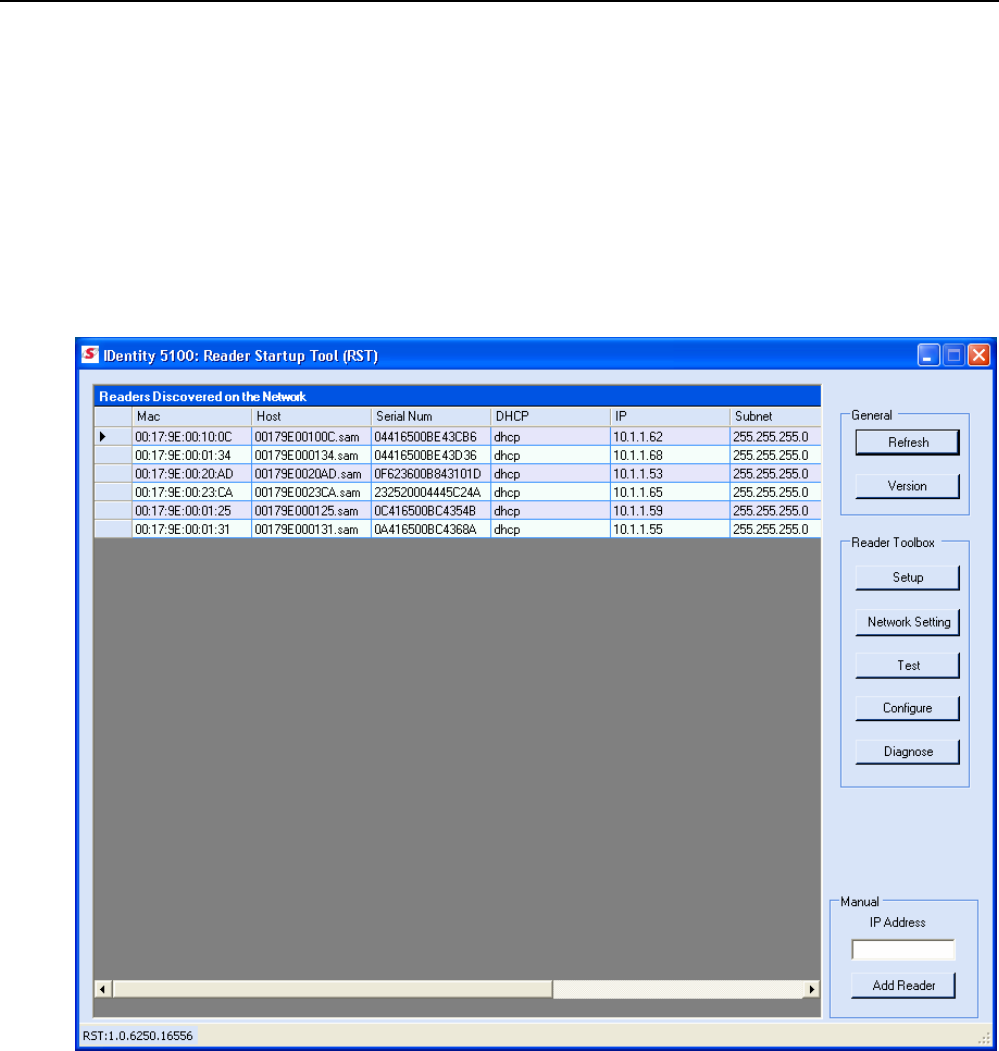

6 The RST main page will display any readers currently connected to the
network.
Initial Reader Setup
To configure a specific reader, perform the following:
Reader Setup
1 Select the reader on the main RST page by clicking the button to the
left of the reader Mac address.

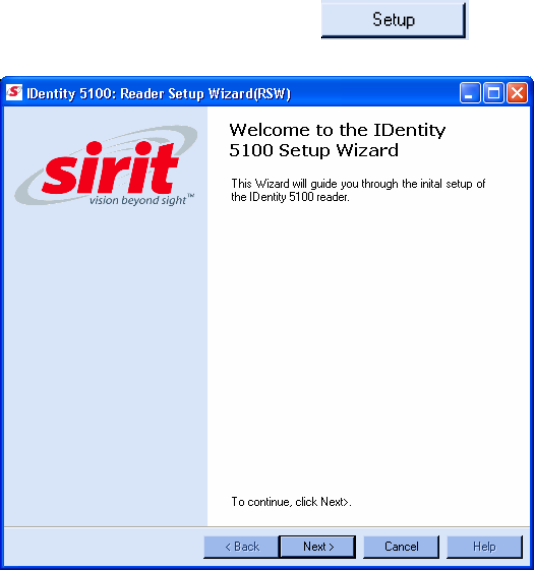

2 Press the button on the RST window.

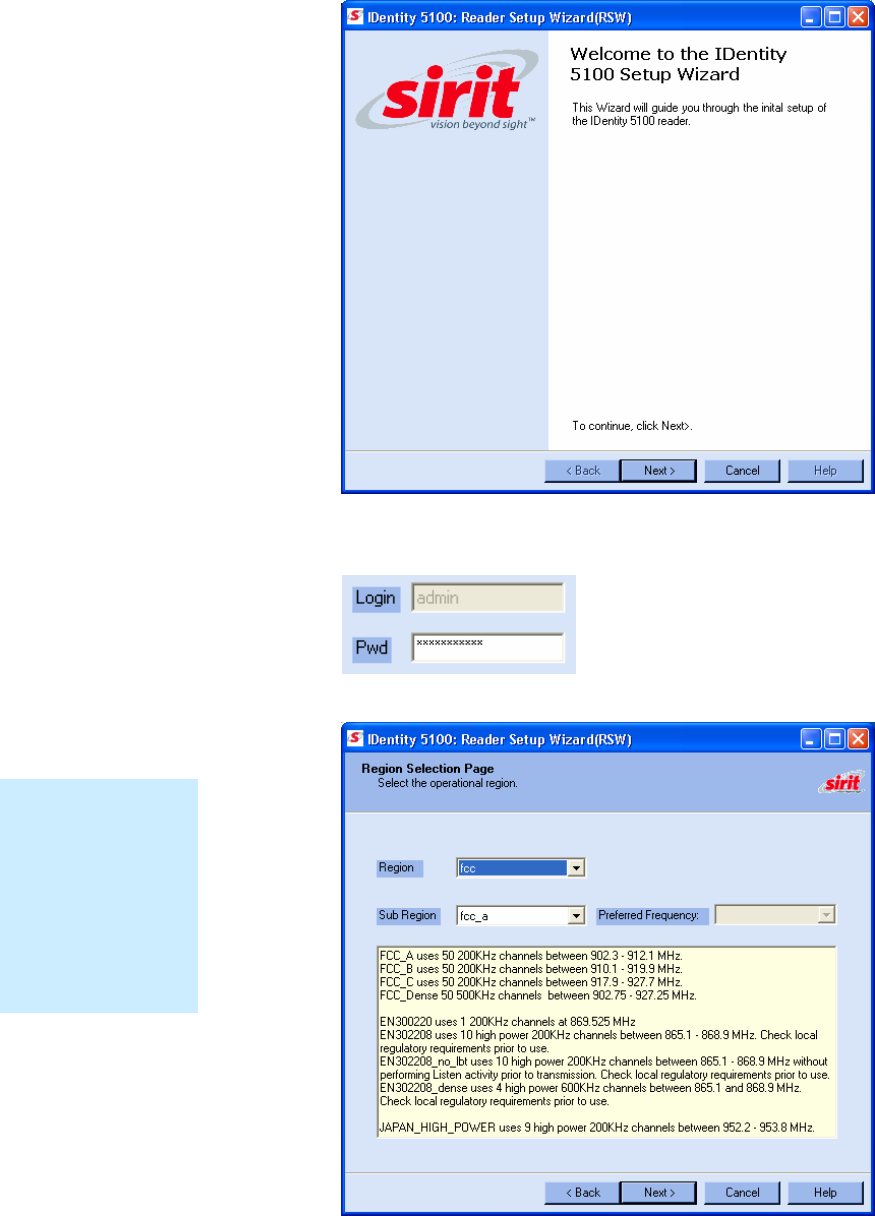

3 The IDentity 5100 Reader Setup Wizard (RSW) is displayed.
NOTE:
Earlier versions of
Microsoft Windows™
may not provide the
Security Alert popup.
IF RST does not
discover your reader,
check your Windows
Firewall/Security
settings.
1 2
3
4 5 6 7 8 9
RST Software Installation
12
IDentity 5100 User’s Guide
4 Press Next> and enter the Login (admin) and Password. If this is the
first time configuring your reader, enter: readeradmin.
5 After entering your Login and Password, press Next>.
Region Selection
The reader is
configured at the
factory to operate
within a specific
regulatory region. As
a result Region
Selection is not user
configurable.
1 2
3
4 5 6 7 8 9
RST Software Installation
IDentity 5100 User’s Guide
13

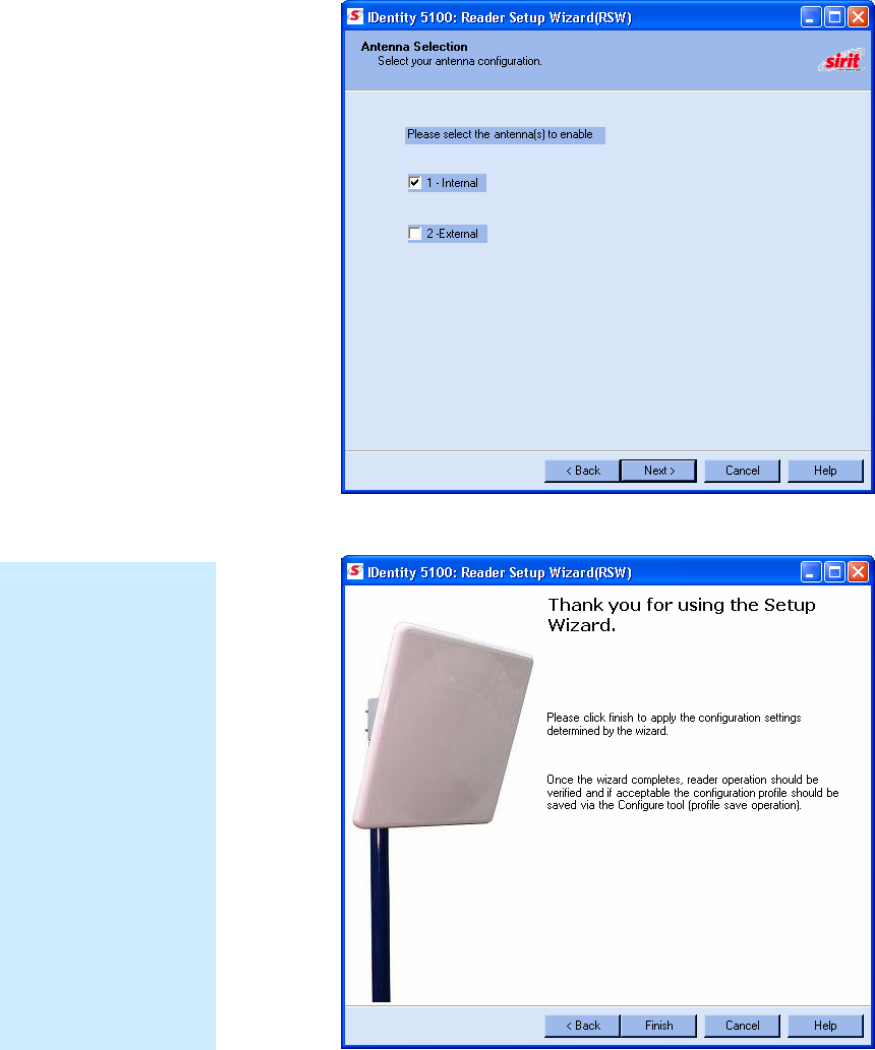

6 Select your Region and Sub Region and press Next>.
7 Select the antennas you will be using and press Next>.

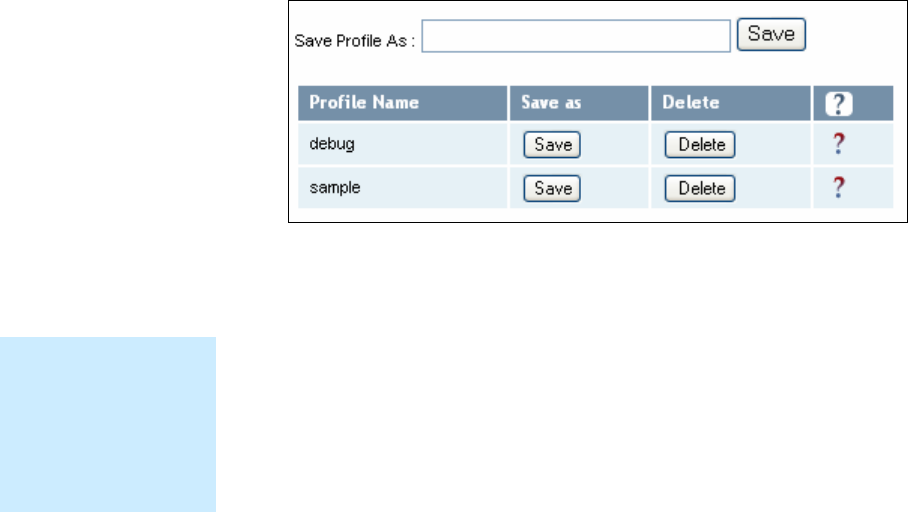

8 It is recommended that you save the reader setup as a profile.
9 Using the Reader Configuration Tool (RCT), select
Save changes to a
profile…
, enter a
Profile Name
, and press
Finish
to complete the initial
reader setup. See Manage Profiles in Chapter 6.
Saving Reader Setup
Reader setup
information should be
saved as a profile. In
the event that you
need to reboot or
power down a reader,
the reader setup can
be quickly reloaded
by loading the profile.
If you don’t save the
reader setup, you can
loose the information
if the reader is
rebooted.
Refer to the Manage
Profiles section in
Chapter 6 –
Embedded Reader
Configuration Tool.
1 2 3
4
5 6 7 8 9
Reader Operation
14
IDentity 5100 User’s Guide
Reader Operation
Basic Operation with RST
The IDentity 5100 can be operated either from the RST application or by
logging directly into the reader’s embedded Reader Configuration Tool
(RCT). To operate the reader from RST, perform the following:
Open RST
1 From your Windows desktop, select:
Start
→
Programs
→
Sirit
→
IDentity5100
→
Reader Startup Tool (RST)
2 Select a specific reader and press Test.
3 The Reader Test Tool (RTT) is displayed.
1 2 3
4
5 6 7 8 9
Reader Operation
IDentity 5100 User’s Guide
15
4 Login to the reader. The initial password (Pwd) is readeradmin. See
the Advanced Setup section for details on changing the password.
5 Verify the Operating Mode is set to Polled Mode.
6 Select the Tag Performance tab and press Start.
7 Place your tags in front of the antenna and verify the tags are read and
displayed as shown in the following figure.
1 2 3
4
5 6 7 8 9
Reader Operation
16
IDentity 5100 User’s Guide
Deployed Reader Operation with RCT
Once your readers are deployed, you can access them directly using the
embedded Reader Configuration Tool (RCT). To access a particular reader,
perform the following:
1 Enter the reader’s IP address into your Web browser or press the
button on the main RST page.

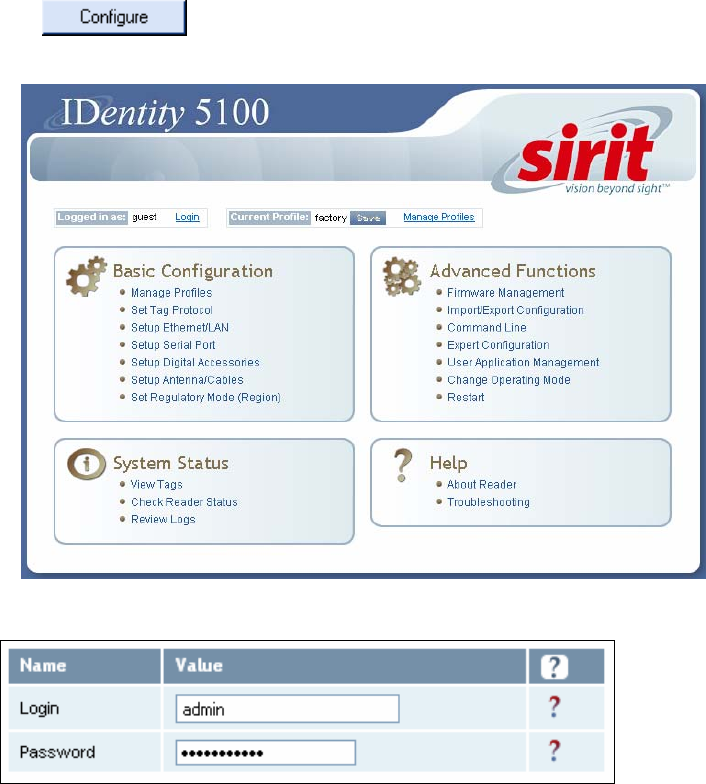

2 The reader’s RCT interface is displayed.
3 Log into the reader. Press Login for the login screen.
4 The default login is guest. If you need administrator privileges, login as
admin and enter readeradmin as the password.
5 Press Submit.
6 Select Basic Configuration
→
Setup Antenna/Cables to configure
the antennas, gain, and power settings.
1 2 3
4
5 6 7 8 9
Reader Operation
IDentity 5100 User’s Guide
17
7 Select Advanced Functions
→
Change Operating Mode to verify
the reader is in the proper mode.
8 Select Basic Configuration
→
Set Tag Protocol to verify the reader
is configured for the proper tag protocol.

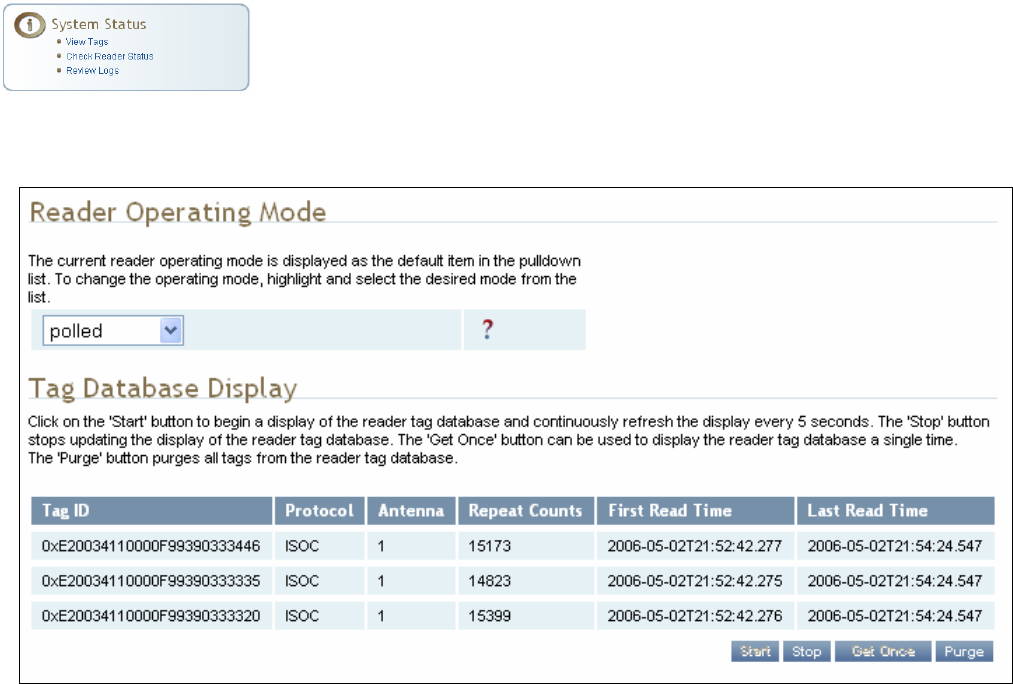

9 Press System Status
→
View Tags to view tag data.
10 If you need to configure your reader, refer to Chapter 7 – Reader
Configuration Tool for information on using RCT to adjust configuration
variables and parameters.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
18
IDentity 5100 User’s Guide
Reader Startup Tool (RST)
The Reader Startup Tool (RST) provides an easy-to-use interface for the
IDentity 5100 configuration and operation functions. This Microsoft
Windows based application allows you to perform the following:
h View all readers on the network
h Launch the Reader Setup Wizard to configure a reader
h View and change a reader’s network settings
h Add a new reader to the network
h Launch Reader Test Tool to perform basic reader/tag operations
h Launch Reader Diagnostic Tool to view statistics, alarms, and
reports
View Readers on the Network
When RST starts up, all readers currently connected to the network and
powered up are displayed.
Readers
On
Network
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
19
Configure Reader with the Setup Wizard
The Reader Setup Wizard is used to initially configure your reader for
operation. With this application, you can select the following:
h Regulatory region (fixed at factory) and sub-region
h Preferred Frequency (depending on regulatory settings)
h Number of antennas
To initially configure your reader perform the following:
1 From the RST main page, press the button. The Setup
Wizard is launched as shown.
2 Refer to Chapter 2 – Reader Configuration for detailed instructions on
using the Reader Setup Wizard.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
20
IDentity 5100 User’s Guide
View or Change the Reader’s Network Settings
1 From the RST main page, press the button.
2 Verify the IP Address, Subnet, and Default Gateway are correct.
3 If Enable DHCP is selected these fields will be locked.
4 If required, change the values and press Apply.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
21
Reader Test Tool (RTT)
The Reader Test Tool (RTT) is primarily designed for new users to test
reader operation and perform a few basic reader functions. With RTT, you
can perform the following:
h Read tags
h Issue commands to the reader and view the responses
h Run macros
h Observe reader events
To access the Reader Test Tool, press the button on the
main RST page.
General Page

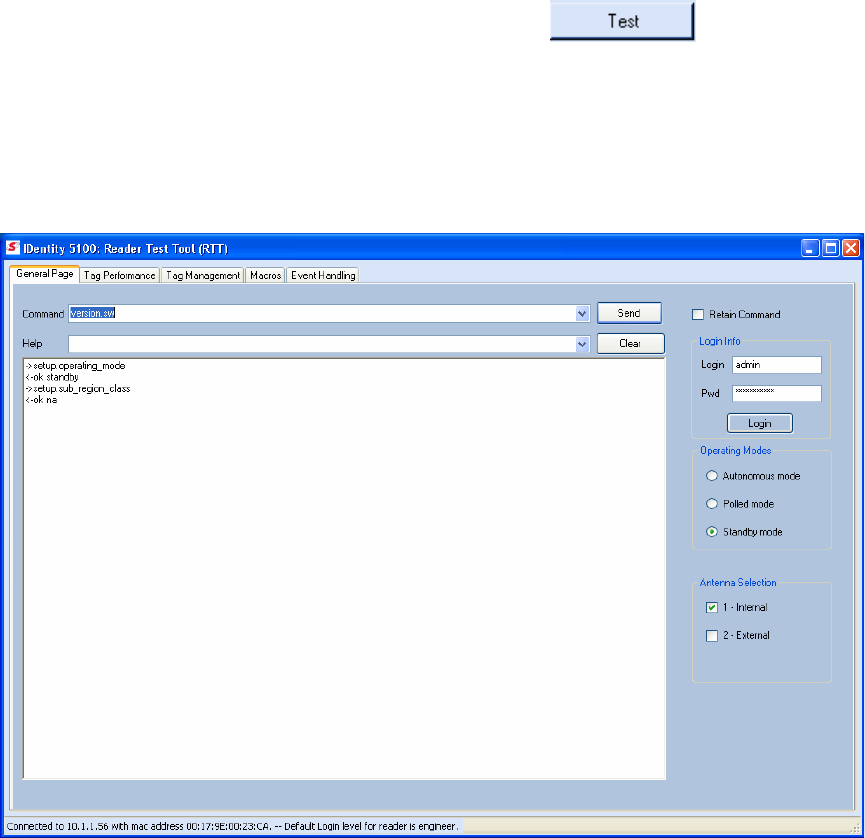

The General Page allows you to issue commands to the reader and view
any responses. You can also change the operating mode and select
antennas.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
22
IDentity 5100 User’s Guide
Tag Performance Page

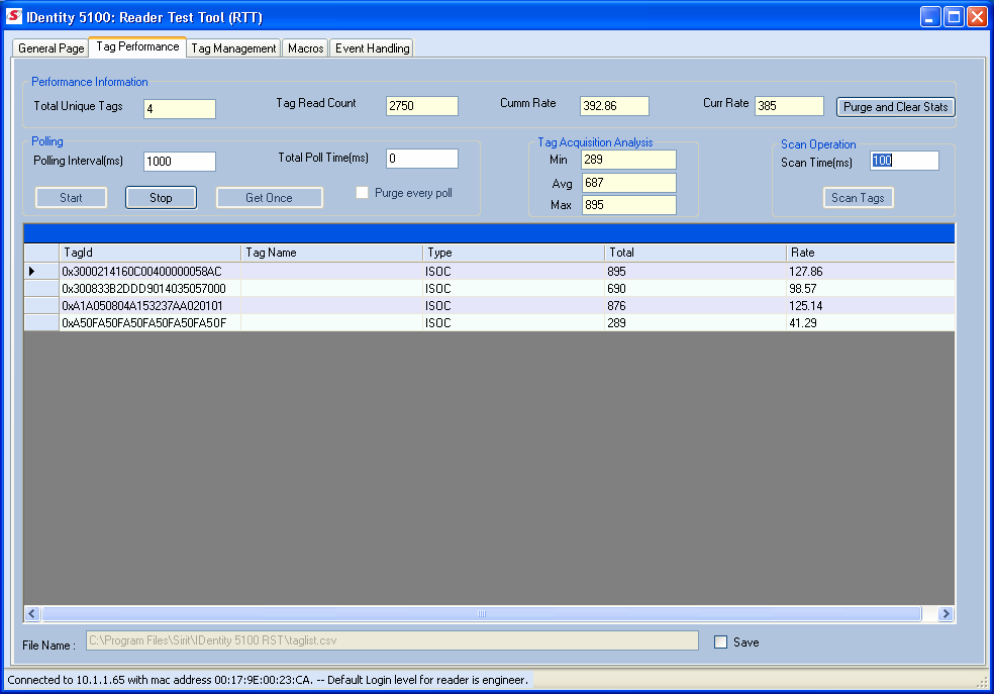

The Tag Performance page is used to test the reader performance. This
page is useful for range (distance) testing and to verify the RF field size.
To initiate a timed test, enter the length of test (in ms) into the Total Poll
Time field. For example, to verify to number of tags read in a 30-second
interval, enter 30000 and press the Start button. The test will complete
after 30 seconds and the output statistics are updated for the poll time.
Output statistics are read-only and include: Total Unique Tags, Tag Read
Count, Cumulative Rate, Current Rate.
Detailed descriptions of the various Tag Performance fields and functions
are provided in the following sections.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
23
Tag read controls are provided by the Polling and Scan Operation blocks.
Use the Polling controls when the reader is in polled mode. Use the Scan
Operation controls when the reader is in standby mode.
Tag and reader performance data is provided in the Performance
Information and Tag Acquisition Analysis blocks.
Polling
Get Once – Click this button to retrieve the current information from the
reader’s tag database.
Start – Click this button to poll the tag database every Polling Interval
(ms) for a total time of Total Polled Time (ms). Do not set the interval
less than 500. If Total Polled Time is set to 0, polling continues indefinitely.
Stop – Click this button to stop automatic polling.
Purge every poll – Check this option to purge the reader’s tag database
after each poll. Refer to the IDentity 5100 Protocol Reference Guide for
more information on the tag database.
Scan Operation
Scan time (ms) – Enter the duration of reader operation in milliseconds.
After this time expires, the tag information is displayed.
Scan Tags – Press this button to activate the reader.
Performance Information
Total Unique Tags – Number of unique tags in the tag database.
Tag Read Count – Total number of tags reader (including repeat reads).
Cumm rate – Cumulative read rate in tags/second since the Start button
was pressed.
Curr rate – Current read rate in tags/second.
Tag Acquisition Analysis
The Tag Acquisition Analysis fields provide the minimum, maximum,
and average number of times each tag was read. For example, assume five
tags (A, B, C, D, and E) are read 107, 59, 223, 187, and 94 times
respectively. The displayed values are as follows:
Min = 59
Avg = 134
Max = 223
1 2 3 4
5
6 7 8 9
Reader Startup Tool
24
IDentity 5100 User’s Guide

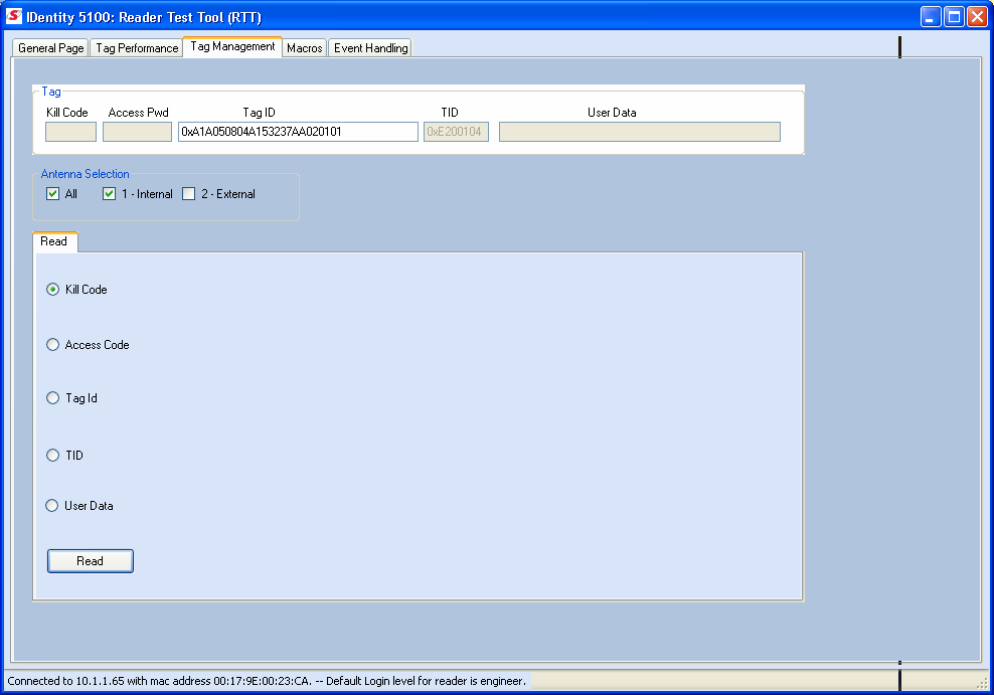

Tag Management Page
The Tag Management page is used for reading individual fields on a single
tag. The Read button will cause the reader to singulate and read a tag in
the selected antennas' RF field.
Specific fields you can read include:
h Kill Code
h Access Password
h Tag ID
h TID
h User Data
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
25
Macros Page
The Macros page allows the reader to manage macro files. The macros are
provided by Sirit or can be written by the end user. Some of the macros
provided are dependent on the operating region of the reader.
A macro (script or command file) is a text file that contains one or more
reader commands. These commands are used to configure the reader to a
known configuration. The Macros can contain variables. These variables are
resolved by a dialog box (FrmVariables) that appears when the Send to
Reader button is selected. The syntax of a variable is:
[$variable_name]
During execution, the variable is replaced with user entries into the
"FrmVariables" dialog box. Macros can be edited with any text editor
including Windows Notepad.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
26
IDentity 5100 User’s Guide
Macro Input sub-window
The Macro Input window shows the current script that will be sent to the
reader when the Send to Reader button is selected. The text in the Macro
Input window can be edited prior to being sent to the reader. The Save
Macro File button will prompt you for a filename to save the text to a file.
Macro Output sub-window
The Macro Output window is updated after the Send to Reader button is
selected. Look at this window to verify that each command line in a script
executed correctly. Look for the -- >> response from the reader for each
command line.

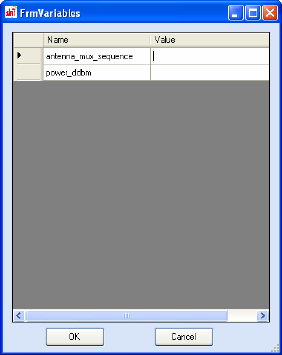

FrmVariable Dialog box
When a macro is sent to the reader, the
values for variables must be resolved via this
Windows Dialog box. You can [tab] to each
value field and enter the desired value.
For example, one macro can be used for two
different applications by using variables for
antenna selection and transmit power.
Macro Example
To configure the reader for single antenna FCC operation, send the
following macro (fcc_12tari_lf256_PR_M2.mcr):
# configure region
setup.region=fcc
setup.sub_region=fcc_dense
antennas.mux_sequence=[$antenna_mux_sequence]
antennas.1.conducted_power=[$power_ddbm]
# configure protocol
modem.protocol.isoc.physical.set(tari=tari_12_50,
return_link_freq=LF256, data_1_length=d1_len_20,
rt_modulation=rt_mod_pr,
tr_encoding=tr_enc_miller_2,interrogator_mode=dense)
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
27
Event Handling Page
The Event Handling page allows you to register for Reader Events. After
registration, events will be displayed as they occur in the window. Individual
events or a group of events can be registered. Events are displayed with the
newest event on the top line of the window. The least recent event will scroll
to the bottom of the window.
For detailed information on individual events, refer to Chapter 18 – Events
Namespace of the IDentity 5100 Protocol Reference Guide.
Registering for an individual event
To register for an individual event, either type the event name or select an
event from a pull-down list.
Registering for a group of events
Registering for event.error events will cause the reader to autonomously
send all events in the event.error namespace to the RTT program and be
displayed in the window of this page. Enter event.error in the Events: field
and press the Register button. The Clear button can be selected at any
time to clear the window.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
28
IDentity 5100 User’s Guide
Reader Diagnostics Tool (RDT)
The Reader Diagnostic Tool (RDT) is to be used by Sirit trained technicians
to troubleshoot and diagnose various reader issues.
Channel Statistics
The Channel Stats page shows details of channel changes. This page is
typically used to observe ETSI 302-208 Listen before Talk (LBT) behavior. It
can also be used to observe FCC and other regional behavior.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
29
Alarms
The Alarms page is used to capture autonomous alarms generated by the
reader during normal operation. The alarms are defined as autonomous
reader events for the following namespaces:
event.error
event.warning
1 2 3 4
5
6 7 8 9
Reader Startup Tool
30
IDentity 5100 User’s Guide

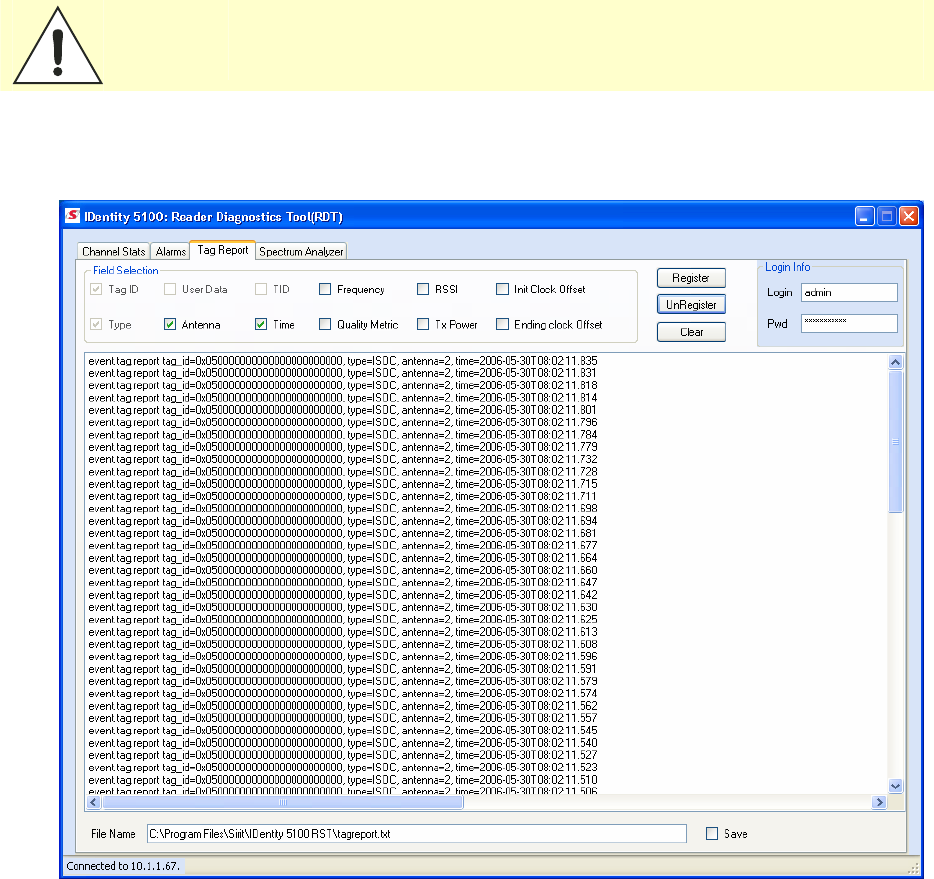

Tag Report
The Tag Report page is used to view specific information for each tag
singulation. This feature provides detailed attributes of tag singulations
such as tag power (RSSI) and on which antenna that tag singulated.
Caution:
Use of this tool can adversely affect tag reader performance, particularly if many
tag fields are enabled. Use the RTT->Tag Performance page for normal tag
performance testing.
1 2 3 4
5
6 7 8 9
Reader Startup Tool
IDentity 5100 User’s Guide
31
Spectrum Analyzer

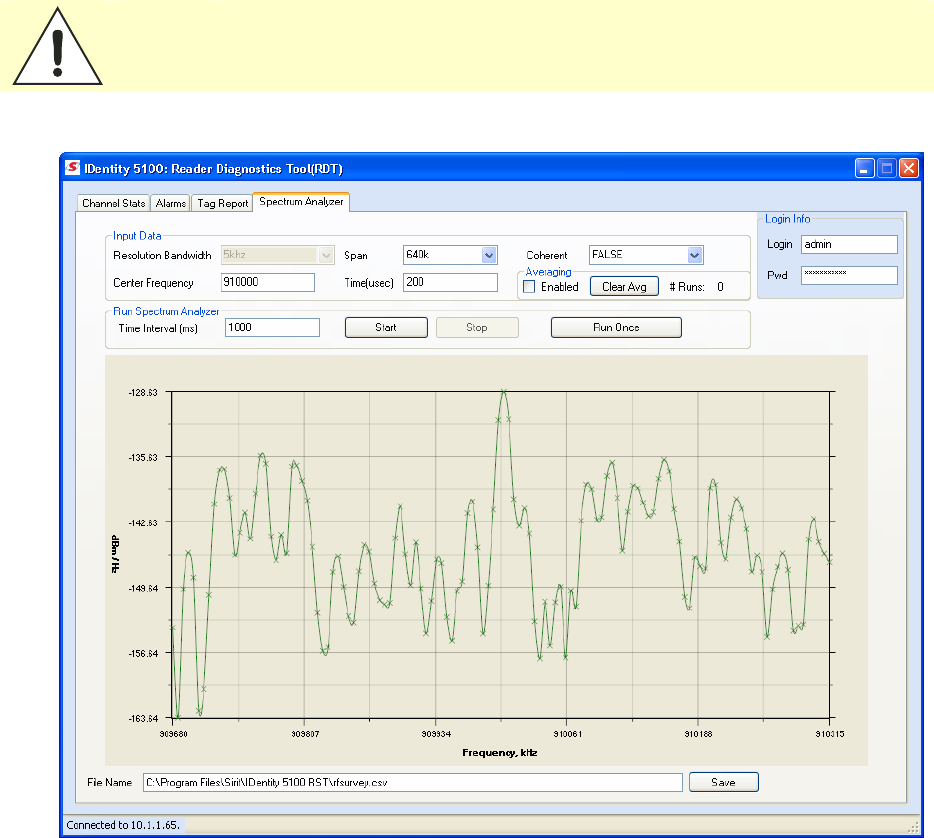

The Spectrum Analyzer allows you to examine the spectral composition of
the radio waves in your surrounding environment. This feature provides a
graphical representation of the current spectral RF noise in units of dBm
with a range of 0 to -120 dBm. This feature is intended for expert users to
verify RF environmental conditions during an installation.
Set the Center Frequency and Span fields to view the desired range of
frequencies. Leave the Coherent and Time fields at the default values.
Caution:
Using this feature during normal reader operation can significantly degrade tag
reading performance.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
32
IDentity 5100 User’s Guide
Embedded Reader Configuration Tool (RCT)
The Embedded Reader Configuration Tool (RCT) allows you to access your
reader across a LAN or WAN by entering the reader’s IP address into your
web browser. With the RCT, you can fully configure your reader for operation
in a variety of applications and environments. With this application, you can
perform the following:
h Basic Configurations
h Advanced Configurations
h Check System Status
h Access the online Help
To access the RCT, press the button on the main RST page.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
33
Basic Configuration
With the Basic Configuration functions you can perform the following:
h Manage reader profiles
h Set tag protocols
h Setup the Ethernet/LAN configuration
h Setup the serial port
h Setup digital accessories
h Setup antennas
h Set regulatory modes
Configuration Page Header
Each page displayed by the RCT has the following header.
This header provides pull-down menus for each of the configuration
function categories. Additional functions include the user login and the
currently loaded reader profile.
Login
The reader’s default user level is guest. However, a user can login as
admin. If not logged in as admin, the default level is always guest.
The guest login level provides read-only access to the reader. Clients that
login in at the guest level can read the settings of the reader and can
access the tags that the reader has inventoried. Clients at this level cannot
change the configuration of the reader.
The admin login level provides read-write access to the reader. Clients that
login in at the admin level can read and write the settings of the reader and
can access the tags that the reader has inventoried.
Logout
After logging in as admin, the Logout button logs you out of the reader.
Logging out automatically sets the login level to guest.
Profile:
Profile is the currently active profile in the reader. Refer to the Manage
Profiles section for detailed information on reader profiles.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
34
IDentity 5100 User’s Guide
Save
The Save button saves the reader's current configuration to the specified
profile. Refer to the Manage Profiles section for detailed information on
reader profiles.
Manage Profiles
This link allows you to list, save, and delete profiles. Refer to the Manage
Profiles section for detailed information on reader profiles.
Manage Profiles
The reader’s configuration is stored in a profile. A profile contains the
setting of all the configuration variables in the reader. The reader can
support up to 8 unique profiles. Detailed information about reader profiles
is provided in Chapter 4 – Reader Behavior of the IDentity 5100 Protocol
Reference Guide.
The Manage Profiles page provides a list of all profiles stored in the
reader.
Save Profile As:
To save your current reader configuration as under a new profile, enter a
profile name and press Save. The new profile will appear in the Profile
Name list. Profile names must consist of the characters A - Z, a - z, 0 - 9, '-'
or '_' and must be between 1 and 32 characters in length. The reader can
store up to 8 different profiles.
Save Profile
To save your current configuration to an existing profile, press the Save
button beside the profile name. After the next refresh the profile name will
appear as the Current profile.
Delete Profile
This Delete button deletes the specified profile from the reader. This is a
destructive operation. Once a profile is deleted, it cannot be recovered.
Profile Names
The profile name
factory is reserved
and cannot be used.
This profile is a read
only profile.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
35
Set Tag Protocol
This Set Tag Protocol page consists of two forms. The first form (top)
allows you to select which type of tags the reader will acquire or the type of
protocol(s) to utilize on the air interface. Currently, the reader operates on
ISO18000-6C tags.
The second form (bottom) allows you to configure various protocol level
parameters. The protocol level parameters are divided into two categories:
control and physical. Control parameters configure the protocol control.
Physical parameters configure the physical air interface for the protocol.
For detailed information on each of the Control and Physical parameters,
refer to Chapter 15 – Modem Namespace of the IDentity 5100 Protocol
Reference Guide. Parameter descriptions are provided in the
modem.protocol.isoc.control
and
modem.protocol.isoc.physical
configuration variable sections.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
36
IDentity 5100 User’s Guide
Setup Ethernet/LAN
The Setup Ethernet/LAN page allows you to configure the network interface
of the reader.
General Settings allow you to specify the host and domain name of the
reader. The Command and Event Ports are also shown and are read-only.
Ethernet Settings allow you to configure the reader’s IP address. If the
reader is to automatically acquire its IP address, subnet mask and default
gateway from a DHCP server, select Enable DHCP. To manually specify
this information, deselect Enable DHCP and fill in the desired IP address,
subnet mask and default gateway.
Other Settings allow you to configure the NTP servers the reader can
contact to obtain the current time, DNS servers the reader can contact for
domain name resolution, and the Domain list to resolve names to IP
addresses.
Enter all the required information and press Submit.
NOTE:
Always record the
IP, Mac subnet, and
default gateway
addresses for your
readers and keep
this data in a safe
location. You can
use this data to
reconfigure the
network in the
event of application
failure or data loss.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
37
Setup Serial Port
The Setup Serial Port function allows you to configure the serial port
parameters. These parameters include:
h Baud rate
h Data bits
h Parity
h Echo
h Stop bits
Use the pull-down menus to select a value and press Submit to update the
reader.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
38
IDentity 5100 User’s Guide
Setup Digital Accessories
The Setup Digital Accessories function allows you to configure the Digital
Inputs and Outputs on the reader.
Digital Input
The status of the four digital input values (1–4) can be seen in this window.
The Current Value is not configurable and is shown as true or false. The
Debounce value can be set and is in milliseconds.
Digital Output
The output value for each digital output can be set to true or false. Press
the Submit button to send the appropriate commands to the reader to
update the digital inputs and outputs.
Refer to the IDentity 5100 Protocol Reference Guide for more information
on configuring the digital inputs and outputs.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
39

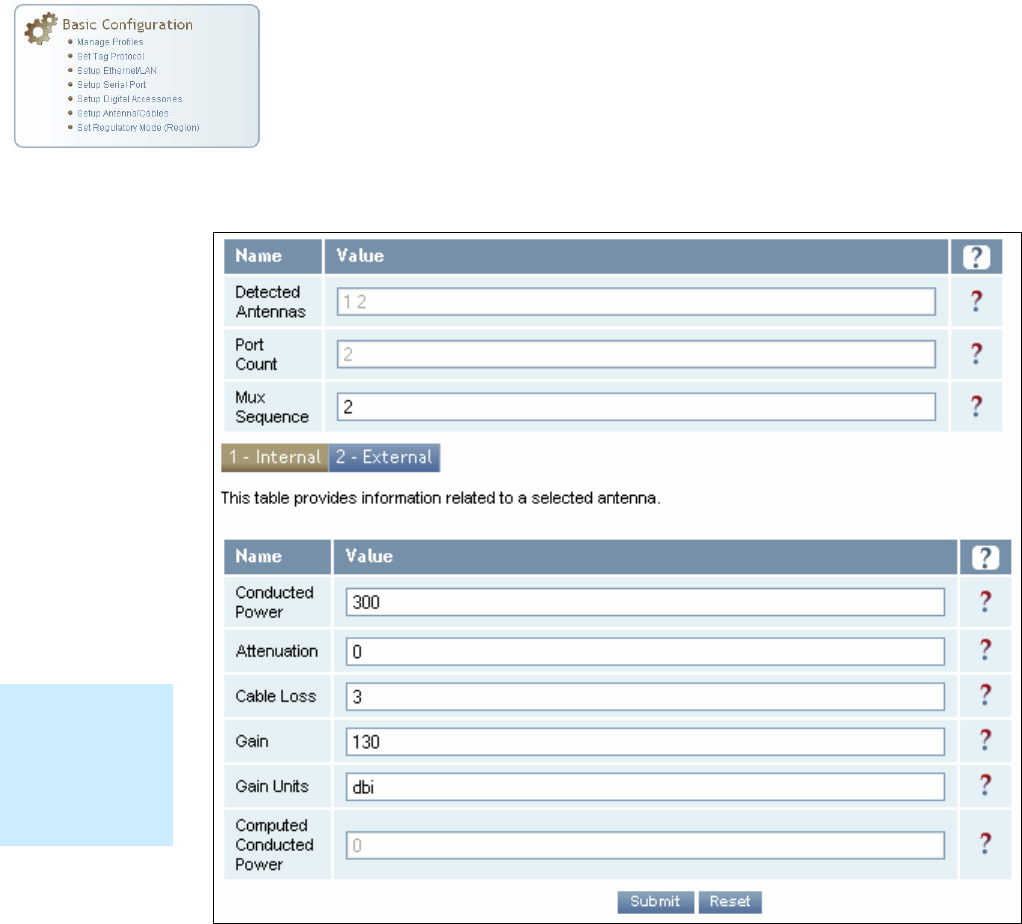

Setup Antenna/Cables
This page allows you to configure the properties of the reader’s antenna
configuration. For detailed description of each of the antenna and cable
variables, refer to Antenna Configuration in Chapter 4 – Reader Behavior of
the IDentity 5100 Protocol Reference Guide.
Enter the appropriate values for each antenna parameter and press the
Submit button to update the antenna and cable configuration.
Antenna Setup
The reader is
configured at the
factory to operate
with specific
antennas.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
40
IDentity 5100 User’s Guide

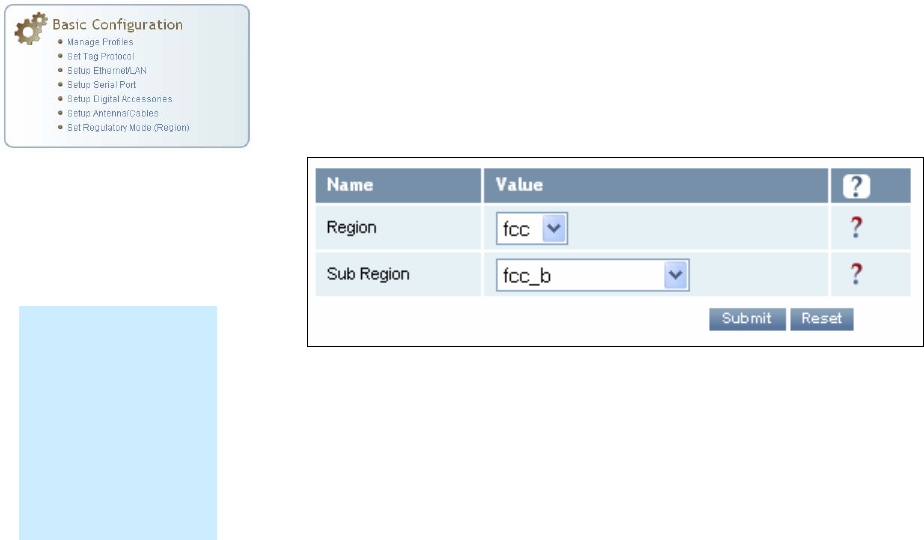

Set Regulatory Mode (Region)
This page allows the user to configure the reader to meet the regulatory
requirements for the geographic region where the reader is deployed. The
sub-region sets the secondary regulatory mode for the geographic region
where the reader is deployed.
For detailed information on each of these parameters, refer to the IDentity
5100 Protocol Reference Guide. Descriptions are provided in the
setup.region and setup.sub_region configuration variable
sections.
Region Selection
The reader is
configured at the
factory to operate
within a specific
regulatory region. As
a result Region
Selection is not user
configurable.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
41
Advanced Functions
With the Advanced Functions you can perform the following:
h Firmware Management
h Import/Export Configuration
h Command Line operations
h Expert Configuration
h User Application Management
h Change Operating Mode
h Restart

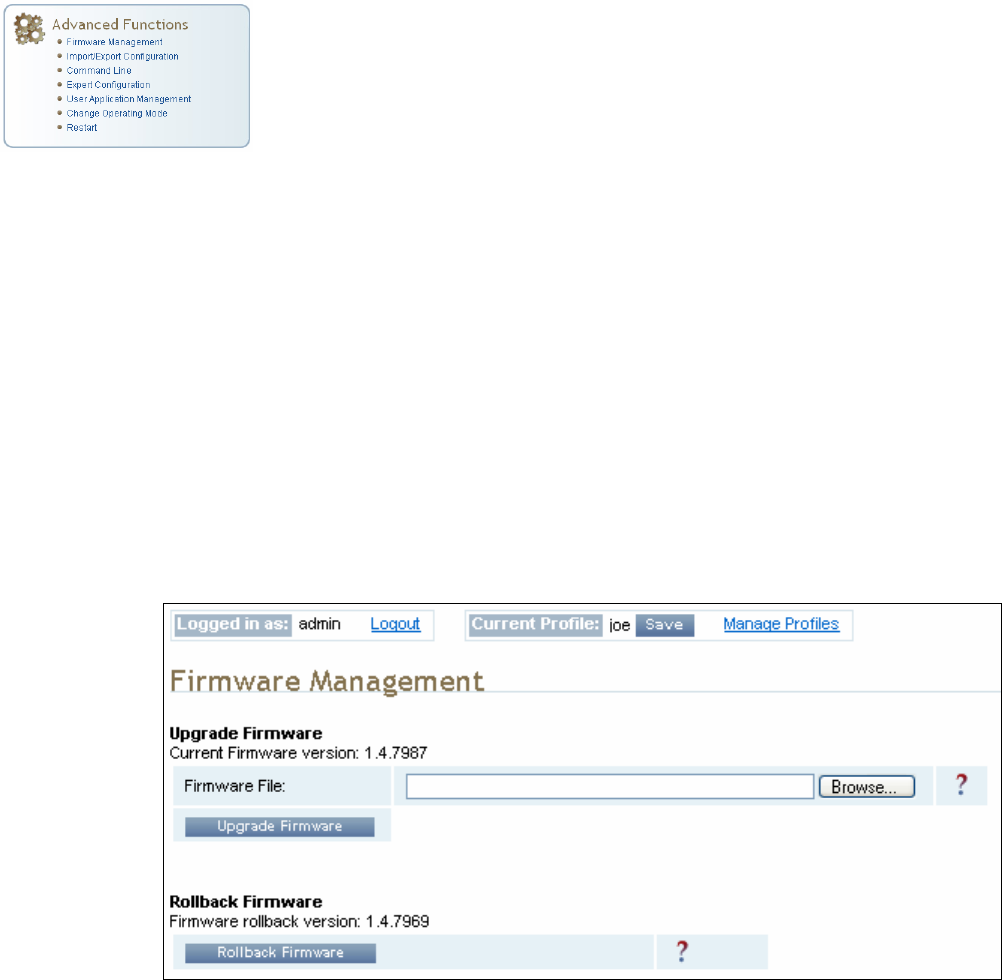

Firmware Management
This page allows you to read the current firmware version, upgrade the
reader firmware files, or rollback to the previous firmware version. Enter
the name of the Sirit provided firmware file in the Firmware File field. Use
the Browse button to help locate the file.
The Rollback Firmware button will roll back the firmware to the previous
version.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
42
IDentity 5100 User’s Guide

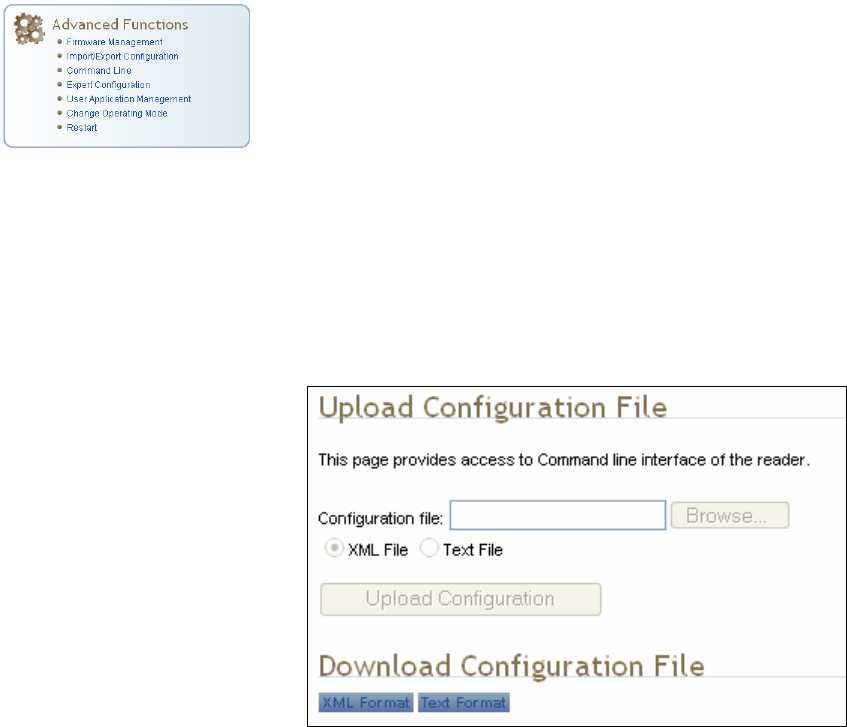

Import/Export Configuration (Upload/Download)
This page allows you to transfer a reader configuration to or from your host
computer. This is useful for configuring a reader to a known state.
Upload a Configuration File
Enter the name of a saved configuration file in the Configuration file field.
Select the XML File option and press the Upload Configuration button
to send the profile to the reader.
Download a Configuration File
This function is used to retrieve the reader settings for later uploading.
Press the XML Format button to view the XML file. If you wish to view the
current configuration parameters for a reader, press Text Format button.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
43

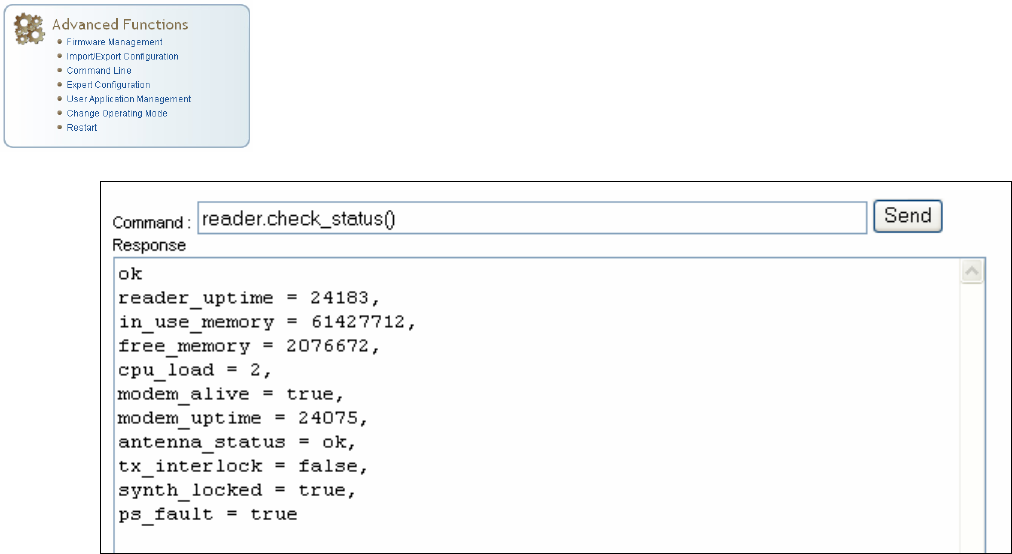

Command Line
This page allows you to directly enter reader commands from your web
browser.To directly enter commands from the Command Line Interface
(CLI), refer to the IDentity 5100 Protocol Reference Guide.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
44
IDentity 5100 User’s Guide
Expert Configuration
The Expert Configuration functions allow you to configure low-level functions
within the reader. These functions should only be accessed by expert users.
Expert configurations include:
h Setup
h Tag
h Version
h Information
h Communication
h Antennas
h Digital I/O
h Modem
Expert Configuration – Setup
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
45

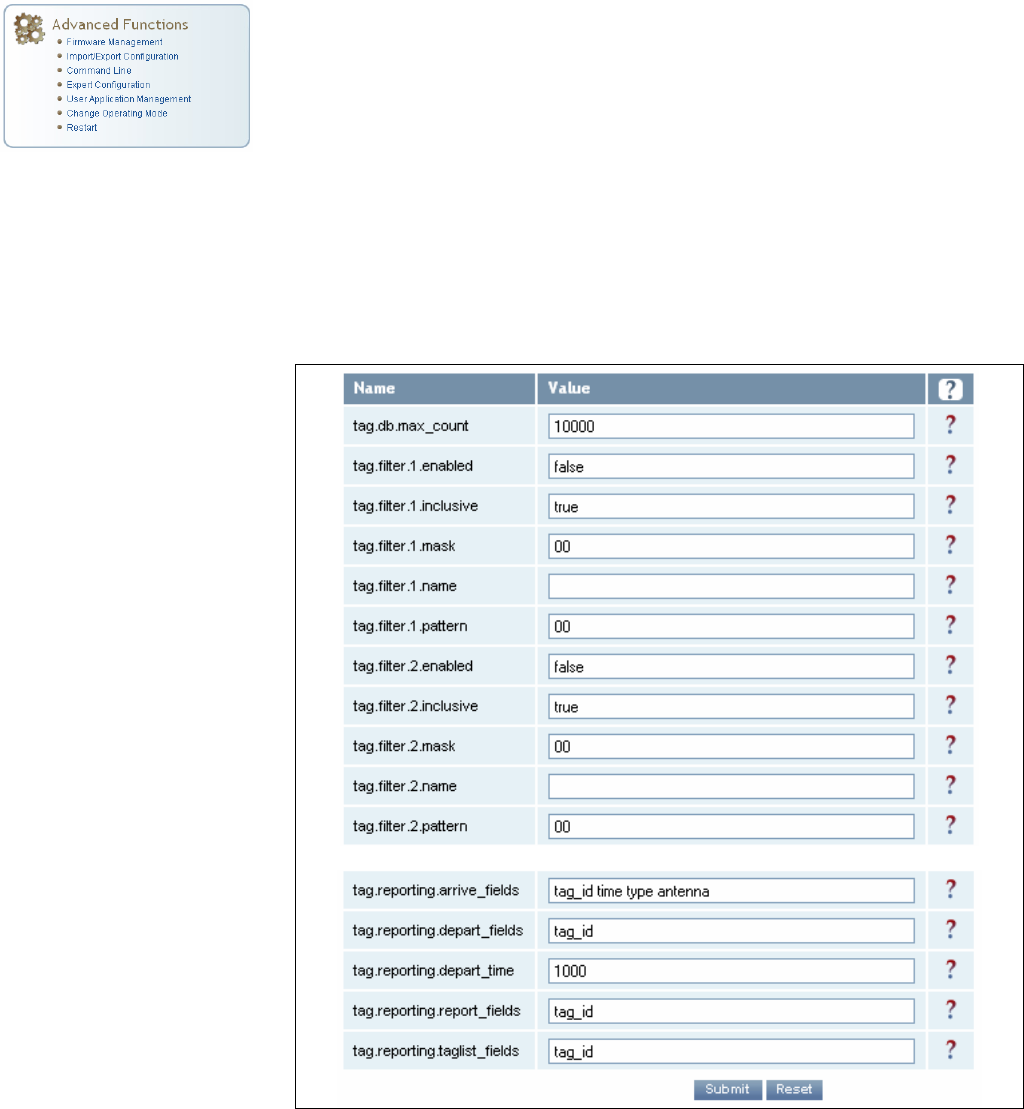

Expert Configuration – Tag
This page allows you to configure how the reader reports tags.
The IDentity 5100 supports the ability to filter tags. Filtering tags means to
eliminate tags from being reported based on the conditions specified in the
filter configuration variables. The reader supports eight filters and each
filter is specified by the following configuration variables:
h
enabled – Enables or disables the filter.
h inclusive – Indicates to either include tags that match (Inclusive) or
include tags that do not match (Exclusive) the tag filter.
h mask – Mask (as an array of hex bytes) for the tag filter.
h name – Name given to the tag filter
h pattern – Pattern (as an array of hex bytes) for the tag filter
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
46
IDentity 5100 User’s Guide
Expert Configuration – Version
This page displays the version of reader hardware and reader software
within the reader. The version numbers are read-only and will be needed if
you contact Sirit for technical support.
Expert Configuration – Information
This page allows you to customize the reader’s identity. You can assign
each reader a name, description, location, and zone. You can also set how
the reader reports timestamps.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
47

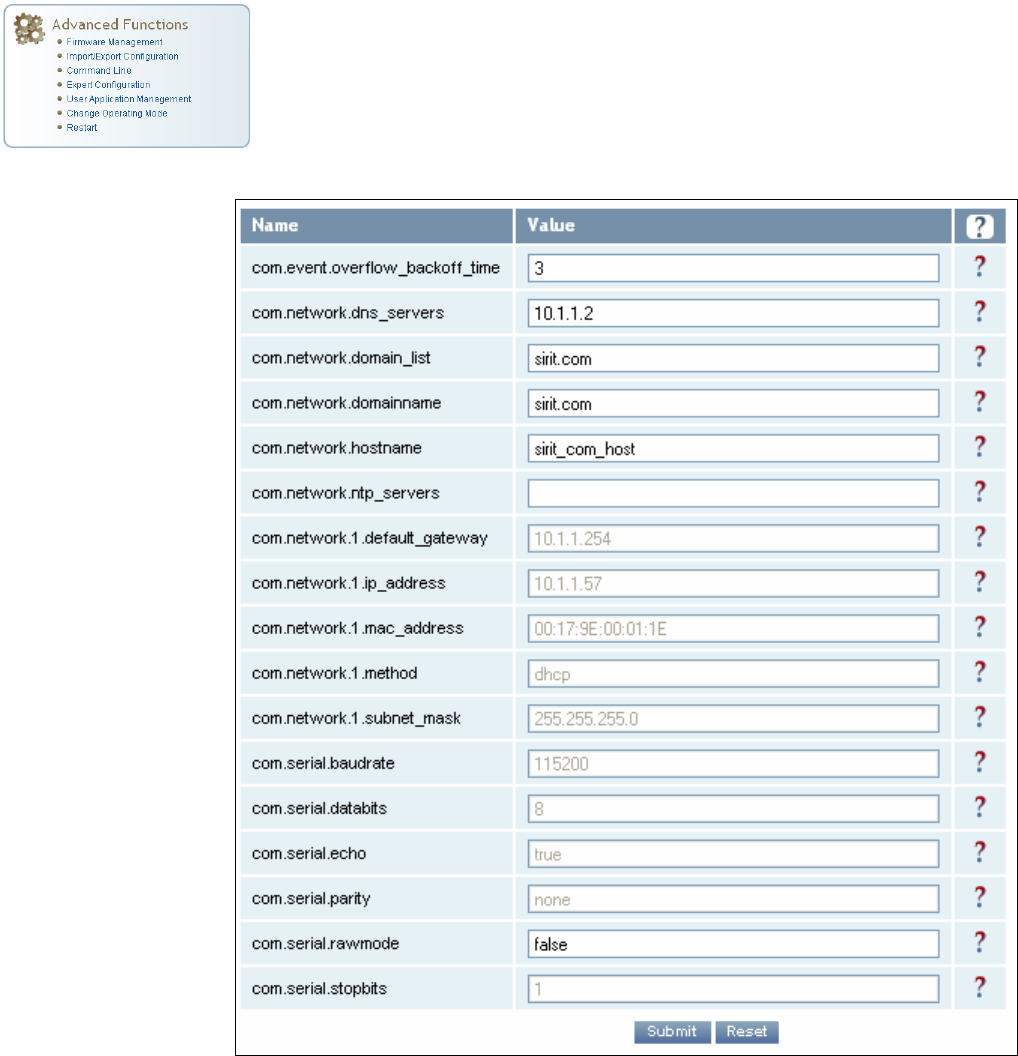

Expert Configuration – Communication
This page allows you to customize the reader’s communication parameters.
Refer to the Setup Ethernet/LAN and Setup Serial Port sections for
additional information.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
48
IDentity 5100 User’s Guide

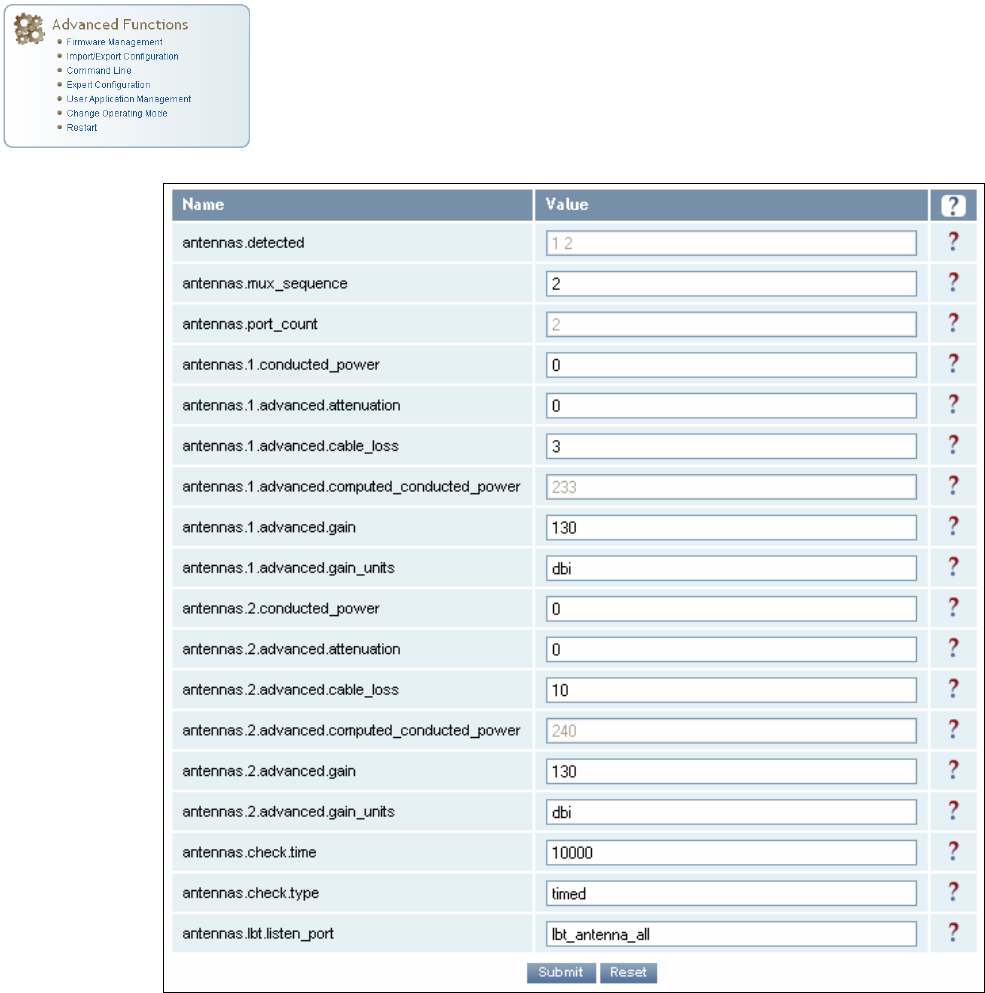

Expert Configuration – Antennas
This page allows you to configure the properties of the reader’s antenna
configuration. For detailed description of each of the antenna and cable
variables, refer to the Antenna Configuration section in Chapter 4 – Reader
Behavior of the IDentity 5100 Protocol Reference Guide.
Enter the appropriate values for each antenna parameter and press the
Submit button to update the antenna and cable configuration.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
49
Expert Configuration – Digital I/O
If the reader is equipped with digital inputs and outputs, this page allows
you to configure the digital inputs and output behavior. You can set the
digital input debounce time (in milliseconds), as well as the input and
output pin values. Refer to the IDentity 5100 Protocol Reference Guide for
detailed information on each of these variables.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
50
IDentity 5100 User’s Guide

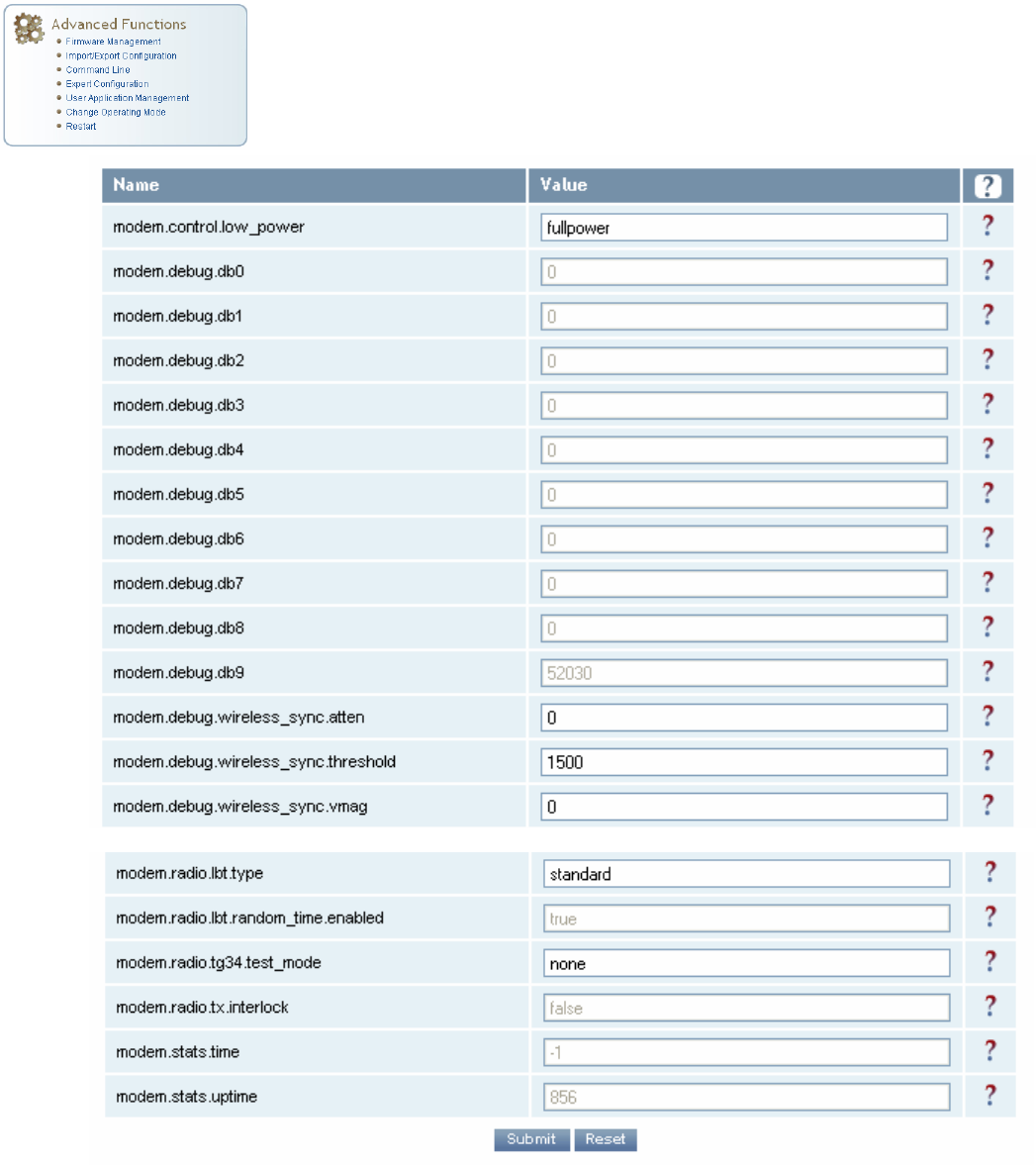

Expert Configuration – Modem
This page allows you to set the reader’s modem control variables. These
variables control functions such as EPC link, modulation depth, return link
frequency, and others. Refer to the IDentity 5100 Protocol Reference Guide
for detailed information on each of these variables.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
51
User Application Management
This page lists any user applications currently available on the reader and if
any applications are running. This page also allows you to upload scripts to
the reader.
h
Running User Applications – Lists any user applications currently
running on the reader. The application name, process ID, configuration,
and status are provided. Controls are provided to view the application
file and stop the application.
h
Application Transfer – This function allows you to load custom user
applications onto the reader.
h
Applications available on the reader – This function allows you to view a
list of all user applications stored on the reader. Controls are provided
to view the application and delete it from the reader.
h
Start Applications – This function allows you to start Python and Java
applications.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
52
IDentity 5100 User’s Guide
Change Operating Mode
This page allows you to configure the operational mode of the reader.
The reader supports the following operational modes:
h
autonomous - Reader is continuously attempting to singulate tags and
automatically reports any singulated tag via an asynchronous event
notification on the event channel.
h
polled - Reader is continuously attempting to singulate tags. The reader
stores the singulated tags in the tag database and a single entry is
maintained for each unique tag.
h
standby - Reader is not transmitting any energy, unless processing a tag
related command. The RF transmitter is enabled at the beginning of the
command processing, any protocol operations required for the
command are performed, and then the RF transmitter is turned back
off.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
IDentity 5100 User’s Guide
53
View Tags
All tags read by the reader are stored in a database on the reader. This
page allows you to view the tags in the database as well as change the
current Operating Mode (standby, autonomous, or polled).
Press Start to begin displaying the tag database. This page is automatically
refreshed every five seconds. Press Get Once to update the database one
time (refresh is off). Press Purge to purge all tags from the database.
1 2 3 4 5
6
7 8 9
Reader Configuration Tool
54
IDentity 5100 User’s Guide
Check Reader Status
This page allows you to view the reader status. This information can be
used by Sirit Technical Support to verify reader operation.
Review Logs
This page allows you to view the reader logs. These logs can be used by Sirit
Technical Support to verify reader operation. The reader logs include:
h Reader level Logs – System level reader operation
h System Level Logs – Linux logs
h Firmware Update Log – System level
h Reader Applications Log – User application logs
1 2 3 4 5 6
7
8 9
Specifications
IDentity 5100 User’s Guide
55
Configuring Digital Inputs and Outputs
Digital Inputs
The digital inputs (DIN1 – DIN4) can be used as general purpose inputs or
to trigger the reader for tag reading. Unused or open digital inputs are
floating inside the reader.
To activate the input, pull it low (0 Vdc) with an external device or
connection to ground that can sink 2.5 mA. No voltage higher than +24 Vdc
or lower than 0 Vdc should ever be connected to the input. See Figure 5 for
an example of a typical motion sensor installed as a tag read trigger device.
Digital Outputs
The digital outputs (DOUT1 – DOUT4) can be used as general purpose
outputs, to indicate tag reading activity, or to indicate the reader is
transmitting (RF On). Digital outputs can be pulled high.
No voltage higher than +40 Vdc or lower than 0 Vdc should ever be
connected to a digital output. The reader activates the output by pulling it
low (0 Vdc) and can sink current such that power dissipation is ≤ 1W.
Digital I/O Monitoring and Control Scripts
Several digital I/O monitoring and control scripts are provided with the
reader to allow you to monitor the digital I/Os and take specific actions.
These Python application scripts can be used as is or modified to suit your
particular application. For detailed information on loading Python scripts,
refer to Chapter 5 – Embedded Reader Applications of the IDentity 5100
Protocol Reference Guide.
scan_trigger.py
This routine monitors the state of the digital input pin specified as the input
parameter. If the state of the pin is low, the operating mode is set to standby. If
the I/O pin state changes to high, the operating mode is set to polled.
Inputs: <pin> – (optional) Input pin number (1–4). Default is digital in 1.
<trigger logic level> –(optional) 0 or 1. Default is trigger on 1.
Examples:
scan_trigger.py Monitors digital input pin 1
scan_trigger.py 1 Monitors digital input pin 1
scan_trigger.py 4 Monitors digital input pin 4
scan_trigger.py 3 0 Monitors digital input pin 3, trigger on 0
1 2 3 4 5 6
7
8 9
Specifications
56
IDentity 5100 User’s Guide
scan_trigger_timer.py
This routine monitors the I/O pin. When the pen goes high, the timer is started
and the operating mode is set to polled. While the timer is running, I/O pin state
changes are ignored. When the timer expires, the operating mode is set to
standby. The minimum value for the timer is 10 milliseconds (ms).
Inputs: <pin> – (optional) Output pin number (1–4). Default is output 1.
<time> – (optional) Time, in ms for timer to run. Default is 1000 ms.
<trigger logic level> –(optional) 0 or 1. Default is trigger on 1.
Examples:
scan_trigger_timer.py Monitors input 1, timer 1000 ms,
trigger on 1
scan_trigger_timer.py 2 Monitors input 2, timer 1000 ms,
trigger on 1
scan_trigger_timer.py 4 2000 Monitors input 4, timer 2000 ms,
trigger on 1
scan_trigger_timer.py 3 4000 0 Monitors digital input 3, timer 4000 ms,
trigger on 0
signal_read.py
This routine will activate a digital output if a tag is successfully read. The
optional output pin number can be specified on the command line. If not
specified, output pin 1 is selected and a default value of 1000 milliseconds is
used. The output will remain high for n ms, where n is either the default of 1000
ms, or the value supplied on the command line. Minimum value for n is 10 ms.
Inputs: <pin> – (optional) Output pin number (1–4). Default is output 1.
<time> – (optional) Time, in ms, to keep the output high. Default is
1000 ms (1 sec).
<logic level> – (optional) Logic level for digital out On. 0 or 1. Default
is 1 (On).
Examples:
signal_read.py Turns on output 1 for 1000 ms on tag reads
signal_read.py 2 Turns on output 2 for 1000 ms on tag reads
signal_read.py 1 5000 Turns on output 1 for 5000 ms on tag reads
signal_read.py 1 500 Turns on output 1 for 500 ms on tag reads
signal_read.py 1 800 0 Turns on digital output 1,logic level 0, for
800 ms on tag reads
1 2 3 4 5 6
7
8 9
Specifications
IDentity 5100 User’s Guide
57
signal_read_crc_error.py
This routine will turn on a digital output if a tag read CRC error is detected. The
output pin number can be specified on the command line. If not specified,
output pin 1 is used. The output pin will remain high for n ms, where n is either
the default of 1000 ms or the value supplied on the command line. Minimum
value for n is 10 ms.
Inputs: <pin> – (optional) Output pin number (1–4). Default is output 1.
<time> – (optional) Time, in ms, to keep the output high. Default is
1000 ms.
<logic level> – (optional) Logic level for digital out On. 0 or 1.
Default is 1 (On).
Examples:
signal_read_crc_error.py
Turns on output 1, logic level 1 for on
for 1000 ms on tag read CRC error.
signal_read_crc_error.py 2
Turns on output 2, logic level 1 for on
for 1000 ms on tag read CRC error.
signal_read_crc_error.py 1 5000
Turns on output 1, logic level 1 for
on for 5000 ms on tag read CRC
error.
signal_read_crc_error.py 1 500
Turns on output 1, logic level 1 for
on for 500 ms on tag read CRC
error.
signal_read_crc_error.py 1 800 0
Turns on output 1, logic level 0 for
on, for 800 ms on tag CRC error.
rf_mon.py
This routine will monitor the state of the transmitter. If the transmitter is on, it
sets the appropriate output pin high. If low, it sets the output pin low.
Inputs: <pin> – (optional) Output pin number (1–4). Default is output 1.
<logic level> – (optional) Logic level for digital out On. 0 or 1.
Default is 1 (On).
Examples:
rf_mon.py Monitors RF status, set/clear output 1 on change, logic
level 1 for on
rf_mon.py 1 Monitors RF status, set/clear output 1 on change, logic
level 1 for on
rf_mon.py 2 Monitors RF status, set/clear output 2 on change, logic
level 1 for on
rf_mon.py 3 0 Monitors RF status, set/clear output 3 on change, logic
level 0 for on
1 2 3 4 5 6
7
8 9
Specifications
58
IDentity 5100 User’s Guide
Digital Input Alarm Generation
The IDentity 5100 can be configured to generate an alarm when a digital
input is disconnected or sensor failure is detected. The alarm is triggered
when the signal level on the digital input stays in the specified state longer
than the specified alarm timeout. This behavior can be configured
independently for each digital input.
The configuration variable dio.in.alarm.logic_level.<N> (where <N> is
1,2,3,4) sets whether the alarm is coupled to a input logic level of 0 (low) or
1 (high).
The configuration variable dio.in.alarm.timeout.<N> (where <N> is
1,2,3,4) sets the amount of time, in seconds, to wait for a signal state
change. A value of 0 (default) disables alarm generation.
The digital input logic level is used along with the corresponding digital input
pin timeout value to determine if an alarm (in the form of an event) should
be generated. If a timeout value is set, the input pin is monitored. If the
input pin value does not change during the timeout period AND the input
pin value matches the alarm logic level, the event
event.dio.in.alarm.timeout.n (where n is the pin number) is generated.
This alarm event generation can be helpful in alerting to the loss of digital
inputs to the reader.
1 2 3 4 5 6
7
8 9
Specifications
IDentity 5100 User’s Guide
59
Digital I/O Hardware Connection
Figure 5 shows a typical sensor/indicator connection to the digital I/Os.
Figure 5 Example Motion Detector and Indicator connected to the Digital I/O
1 2 3 4 5 6 7
8
9
Specifications
60
IDentity 5100 User’s Guide
Specifications
Reader Specifications
Frequency Range 860–960 MHz (Factory configured for specific region)
FCC Part 15 902–928 MHz
FCC Part 90 910.950 911.200 911.450 911.700 911.950 912.200
912.450 912.700 912.950 913.200 913.450 913.700
913.950 914.200 914.450 914.700 914.950 915.200
915.450 915.700 915.950 916.200 916.450 916.700
916.950 917.200 917.450 917.700 917.950 918.200
918.450 918.700 918.950 919.200 919.450 919.700
919.950 920.200 920.450 MHz
RF Power 10 mW – 1W conducted (30 dBm)
Power
Consumption
13W (typical while idle)
34W (typical at 1W conducted output power)
40W (maximum at 1W conducted output power)
Connections RS-232, Digital I/O, Ethernet LAN, and
WiFi 802.11 (optional)
Input Voltage 12 to 24 Vdc, 60W
Input Current 2.5A maximum at 24 Vdc
5.0A maximum at 12 Vdc
Size 17.7 x 17.7 x 4.1 in (450 x 450 x 105 mm)
Weight 15.0 pounds (6.8 kg)

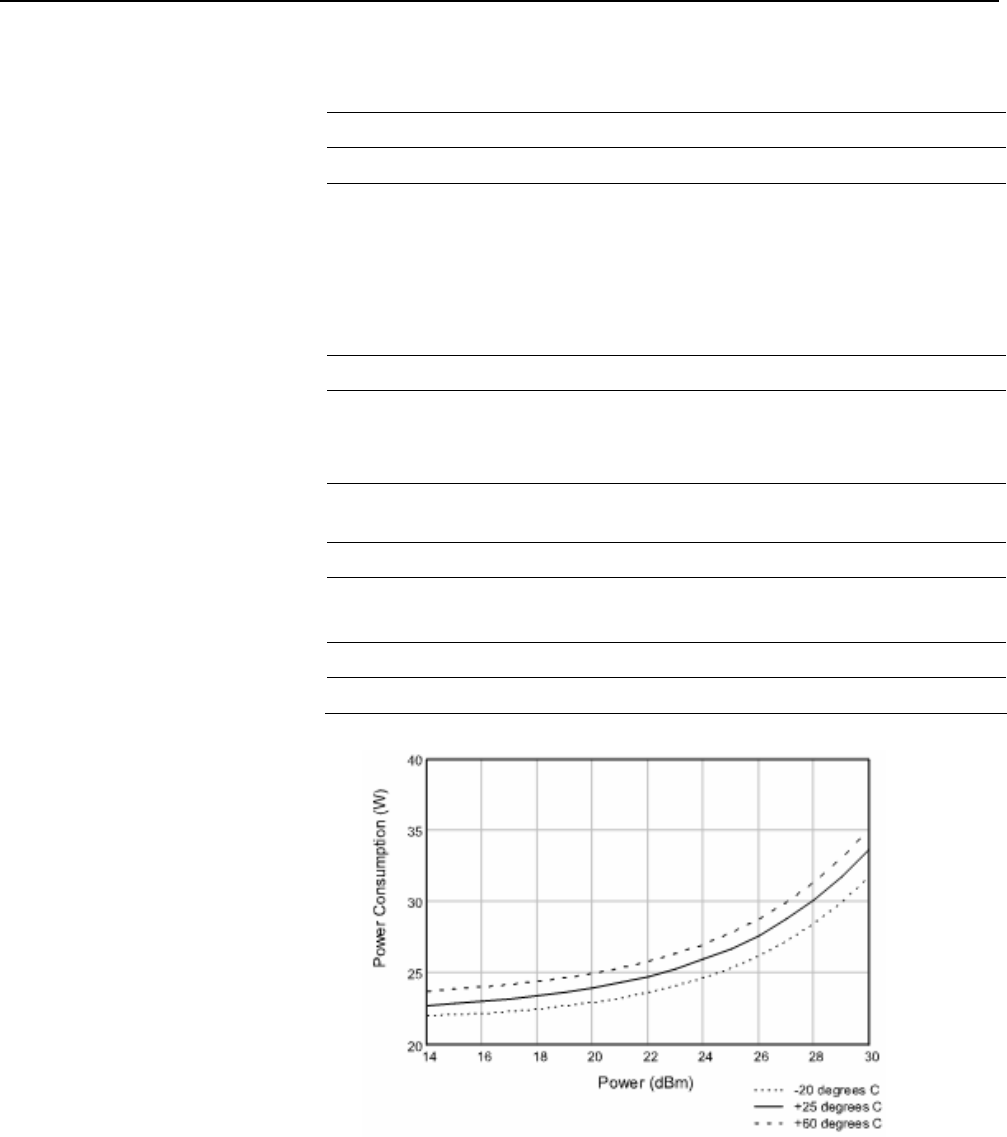

Figure 6
Typical Power Consumption versus Conducted Output Power at 910 MHz
1 2 3 4 5 6 7
8
9
Specifications
IDentity 5100 User’s Guide
61
Environmental Specifications
Operating Temperature -4 °F to 131 °F (-20 °C to 55 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Maximum Shock 1 foot (0.3 meter) drop to any corner
Relative Humidity 100%, condensing
International Protection
Rating
IP65
Battery Specifications (Optional)
Battery Lithium/Manganese Dioxide
Designation ANSI/NEDA 5012LC / IEC-CR1220
Voltage 3.0 volts
Average capacity 40 mAh to 2.0 volts
Power Supply Specifications
Model Lambda DSP100-24
Input Voltage 90 – 264 Vac,
Input Frequency 47 to 63 Hz
Power 100.8W
Holdup Time 10 ms (115 Vac)
Output Voltage 24 VDC
Output Current 4.2A
1 2 3 4 5 6 7
8
9
Specifications
62
IDentity 5100 User’s Guide
RS-232 Specifications
Connector DB-9S
Baud rate 9600 - 115200 (Default = 115200)
Parity None
Data bits 8
Stop bits 1
Signals Pin 1 - NC
Pin 2 - TXD
Pin 3 - RXD
Pin 4 - Connected to Pin 6
Pin 5 - GND
Pin 6 - Connected to Pin 4
Pin 7 - CTS
Pin 8 - RTSA
Pin 9 - NC
Ethernet LAN Specifications
Connector RJ-45
Ethernet 10/100 BaseT
Indicators Yellow - Indicates link is operational
Green - Indicates network traffic detected.
Signals Pin 1 – TXD+ (Transmit Data +)
Pin 2 – TXD- (Transmit Data -)
Pin 3 – RXD+ (Receive Data +)
Pin 4 – NC
Pin 5 – NC
Pin 6 – RXD- (Receive Data -)
Pin 7 – NC
Pin 8 – NC
Antenna Cable Specifications
Manufacturer Time Microwave Systems
Part No. LMR-400 (replacement for RG-8/9913)
Connector Type RP-TNC
Impedance 50 ohms
Attenuation 3.9 dB/100 ft (12.8 dB/100m)
1 2 3 4 5 6 7
8
9
Specifications
IDentity 5100 User’s Guide
63
Internal Antenna Specifications
Type PATCH
Frequency (FCC) 902 – 928 MHz
Polarization Linear (Horizontal)
Gain 13 (minimum)
VSWR, maximum 1.7:1 or less
Input impedance 50 ohm (nominal)
Power Handling 6 W
Size 17.1 in x 17.7 in x 1.4 in
(450 mm x 450 mm x 36 mm)
Weight 16.6 oz (470 g)
External Antenna Specifications
Manufacturer MTI Wireless MTI Wireless
Part No. MT-263006/N MT-263006/N
Type PATCH PATCH
Frequency
(FCC)
902 – 928 MHz 902 – 928 MHz
Polarization Linear (Horizontal) Linear (Horizontal)
Gain 12.5 dBi (minimum) 10 dBi (minimum)
VSWR,
maximum
1.7:1 or less 1.5:1 or less
Input
impedance
50 ohm (nominal) 50 ohm (nominal)
Input Power 6 W 6 W
Size 17.1 in x 17.7 in x 1.4 in
(450 mm x 450 mm x 36 mm)
12 in x 12 in x 1 in
(305 mm x 305 mm x 25 mm)
Caution:
This device is designed to operate with a 13 dBi gain internal antenna and
conducted power is factory set to 23 dBm (200 mW). When conducted power is
set to 1W, the antenna gain cannot exceed 6 dBi. Antenna having a higher gain is
strictly prohibited per regulations of Industry Canada when utilizing maximum
power. Power into the antenna must decreased to compensate for any increased
antenna gain. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (EIRP) is
not more than that required for successful communication.
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit an RF field in excess of Health Canada limits for
the general population; consult Safety Code 6, obtainable from Health Canada’s
website.
1 2 3 4 5 6 7
8
9
Specifications
64
IDentity 5100 User’s Guide
Bulkhead Connector/Interface Cable Pinout
Pair Pin Color Pin Name Function
A Black Tx+ Ethernet 1
B Green Tx- Ethernet
C Black Rx+ Ethernet 2
D Orange Rx- Ethernet
E Blue VC2+ Ethernet 3
F Black VC2- Ethernet
G Black VC2+ Ethernet 4
H Brown VC2- Ethernet
J Black RS-232 TXD Serial Port 5
K Red RS-232 RXD Serial Port
L Black 6
M White RS-232 GND Serial Port
N Black 7
P Yellow RS-232 CTS Serial Port
R Red RS-232 RTS Serial Port 8
S White No Connect
T Red +24 Vdc Power 9
U Green 24 Vdc GND Ground
V Red DIN Ref 1 Digital Input Common 10
W Blue DIN1 Digital Input 1
X Red DIN2 Digital Input 2 11
Y Yellow DIN Ref 2 Digital Input Common
Z Red DIN3 Digital Input 3
12
a Brown DIN4 Digital Input 4
b Red GND Ground (Reader) 13
c Orange DOUT1 Digital Output 1
d Green DOUT2
Digital Output 2
14
e White DOUT3
Digital Output 3
f Green DOUT4
Digital Output 4
15
g Blue GND Ground (Reader)
h n/a n/a n/a 16
j n/a n/a n/a
1 2 3 4 5 6 7 8
9
Safety Instructions
IDentity 5100 User’s Guide
65
Safety Instructions
Power Disconnect Device
The plug on the power supply cord is intended to be the power disconnect
device. As a result, the power source (socket or outlet) shall be located near
the equipment and shall be easily accessible.
RF Safety
WARNING:
FCC Radiation Exposure Statement. The antennas used for this transmitter
must be installed to provide a separation distance of at least 1 meter from all
persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
Caution:
The IDentity 5100 UHF Reader is equipped with two (2) RF ports and is
factory configured to operate on the internal RF port (1). To prevent reader
damage, the external RF Port (2) must be properly terminated with a 50 ohm
load or a functional UHF antenna before power up if the reader has been
configured to use this port. Never power up the reader unless the appropriate
loads or antennas are connected. Always power down the reader before
removing an antenna or load from an RF port.
The maximum antenna cable length is 10 meters.
1 2 3 4 5 6 7 8
9
Safety Instructions
66
IDentity 5100 User’s Guide
Electrostatic Discharge
ATTENTION
IDentity 5100 antenna ports may be susceptible to damage from static
discharge or other high voltage. Use proper Electrostatic Discharge
(ESD) precautions to avoid static discharge when handling or making
connections to the IDentity 5100 reader antenna or communication
ports. Equipment failure can result if the antenna or communication
ports are subjected to ESD.
Regulatory Compliance
Caution:
The IDentity 5100 is designed to meet the regulatory requirements in those
jurisdictions in which it is offered. Changes or modifications not expressly
approved by Sirit Technologies for compliance could void the user's authority
to operate the equipment.
IDentity 5100 User’s Guide
IDentity 5100 User’s Guide
