ISFM2202
Steering Wheel Controlled
SmartPhone Integration Interface
Page 1 Page 1
Introduction
Thank you for choosing the iSimple ISFM2202 for use with the InSeam Pro App as your mobile media and hands-free integration
solution. The ISFM2202 is designed to provide the connecting link between your Bluetooth enabled Apple iOS or Android powered
device and your vehicle.
The InSeam Pro is more than a simple car kit, going far beyond hands-free and streaming audio by allowing the user to fully pilot
their smartphone or Tablet via Voice Recognition (VR). The InSeam Pro is fully integrated into the vehicle steering wheel control
buttons providing a seamless transition between controlling your radio and controlling your smartphone. The InSeam Pro allows
the user to open and control supported applications installed on their smartphone by simply pushing a button on the steering
wheel then saying the name of the application aloud.
Additionally when using a compatible Bluetooth mobile device it is now possible to hear the text messages on the car audio
system and see them on the radio’s RDS display feed. You can even reply by using your voice. You can even launch and control
Navigation features using voice recognition, all with verbal conrmation and audio prompts. InSeam Pro also has integrated
parental controls/safety features, which are available on android devices To avoid driver distractions parents can congure the
system disable notications (SMS text messages) via the RDS display if the vehicle’s current speed exceeds a preset speed-limit.

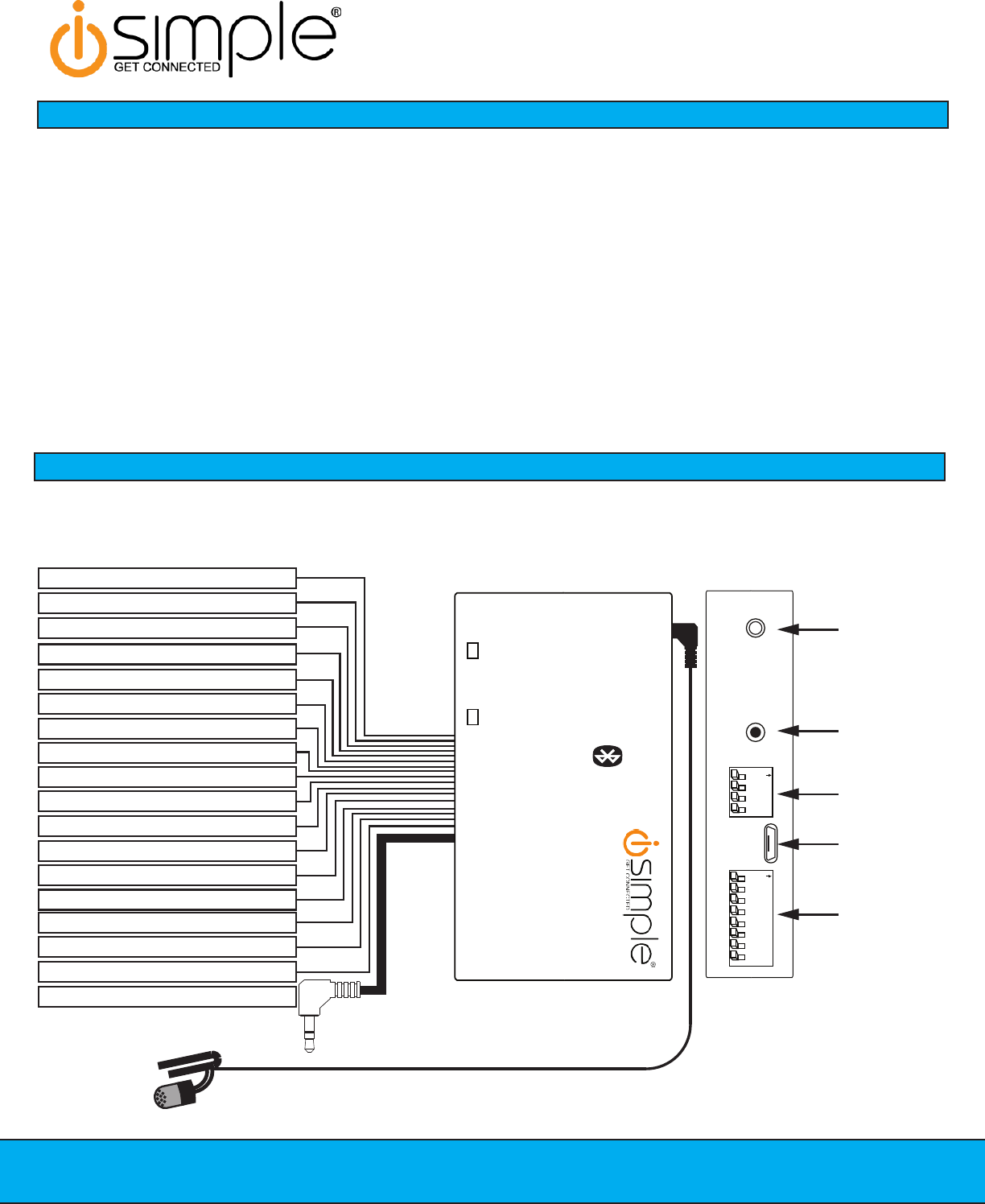

Interface & Wiring Overview
Please visit www.isimplesolutions.com/InSeamPro/App to download the smartphone or PC application that provides
vehicle specic wiring and vehicle conguration processes. The smartphone apps are also available by accessing
iTunes from your iPhone or Google Play from your Android device.
(+) Constant 12v Input
Grey/Black
Green
Pink
White/Black
Red
(-) Chassis GroundBlack
Yellow
(-) Analog 2 SWC Vehicle Side
Grey (-) Analog 2 SWC Radio Side
(+) Dual Wire CAN Hi Vehicle Side
(-) Analog 1 SWC Vehicle Side
(+) Accessory 12v Input
Purple
White
Pink/Black
Blue
Class II Data Radio Side
Purple/Black Class II Data Vehicle Side
(-) Analog 1 SWC Radio Side
(-) Dual Wire CAN Low Vehicle Side
Orange (+) Dual Wire CAN Hi Radio Side
Orange/Black (-) Dual Wire CAN Low Radio Side
(-) Analog 3 SWC Radio Side
Blue/Black (-) Analog 3 SWC Vehicle Side
SW CAN Radio Side
Green/Black SW CAN Vehicle Side
3.5mm Jack
ISFM2202
INSEAM PROTM
Steering Wheel Controlled
Smartphone Integration Interface
Bluetooth
Status LED Vehicle Control
Status LED
Aux Audio Output
1
DIP DIPON
234 1 2 3 4
5678
ON
Vehicle Dipswitches
USB Port
Bluetooth Dipswitches
Programming Button
Microphone Input
![](/img.php?id=2379161&img=bg2.png)
iSimple a Division of AAMP of America® | Clearwater, Florida 33760 | Ph. 866-788-4237
support@isimplesolutions.com | www.iSimpleSolutions.com
©2014 AAMP of Florida, Inc.
Rev. 072814
Page 2
ISFM2202
Steering Wheel Controlled
SmartPhone Integration Interface
App Mode
With this method the InSeam Pro can be connected to a smartphone, tablet, or PC in which the application assigns SWC button
functionality. The dipswitches on the side of the interface must all be set to down (ON) which is the default position.
1. Visit www.isimplesolutions.com/InSeamPro/app to download your device specic application.
2. The vehicle control dipswitches on the side of the interface must be set to down (ON) which is the default position. The
Bluetooth dipswitches can be left in the default position.
3. Connect the InSeam Pro to your device. If you are using a phone or tablet the supplied USB adapter must be connected to
the InSeam Pro. If you are using a PC the supplied adapter is not required.
4. Launch the application or software and follow the on screen prompts
Conguring/Programming
Installation
Please visit www.isimplesolutions.com/InSeamPro/App to download the smartphone or PC application that
provides vehicle specic wiring and conguration processes. The smartphone apps are also available by accessing
iTunes from your iPhone or Google Play from your Android device. We recommend that all wiring connections be
soldered to ensure a sturdy and reliable connection.
Features
Voice-Recognition - Using the steering wheel control functions users can remotely launch their preferred VR application on
their mobile device. The extent of the VR capabilities available depend upon the specic application being used on the mobile
device. The VR function is also available while actively streaming music.
Streaming Music - If a paired mobile device is already playing music upon rst starting your vehicle the ISFM2202 will auto-
matically enter streaming music mode and begin transmitting the audio signal through your vehicle’s radio on the designated FM
station or through the 3.5mm audio output. Music streaming may also be initiated from the steering wheel. Using the vehicle’s
steering wheel controls operators can change tracks, pause, play, or stop the music on a paired iOS or Android mobile device. The
available features of the InSeam Pro have been tailored to your vehicles specic steering wheel controls. Your vehicles specic
button conguration can be found by downloading your device specic app from www.isimplesolutions.com/InSeamPro/app. The
smartphone apps are also available by accessing iTunes from your iPhone or Google Play from your Android device.
Hands-Free Calling - Using the vehicle’s steering wheel controls users can answer calls, end calls, switch to privacy mode,
or mute the devices microphone on a paired iOS or Android mobile device.
RDS Text Display - With a compatible mobile device actively connected the ISFM2202 module, in conjunction with the In-
Seam Pro application, allows vehicle radios equipped with RDS text readouts to display custom information such as caller ID,
SMS text messages, and music info right on the vehicle’s stereo display. By relaying this information to the vehicle’s entertainment
system via RDS users can safely see who’s calling, sending a text message or what song is playing, without distracting the driver.
(Not all devices support this feature.) This feature is not applicable when using the auxiliary output.
Caller ID - When a call is received on a connected mobile device the caller ID information is transmitted
through the vehicle’s radio system using the RDS protocol, allowing RDS equipped radios to display the num-
ber of the caller right on your vehicle’s stereo system display. (Caller ID transmission via RDS is not supported
by all devices.)
Music Info - When a connected mobile device is being used to stream music to the vehicle’s stereo details
such as song title, artist, or album are relayed to the vehicle stereo’s RDS display. Each time the track chang-
es the RDS readout should update with the new song’s relevant information.
SMS Text Messages - When an SMS text message is received on a connected Android mobile device any
notications generated can be relayed to the stereo display for easy reading. To ensure driver safety the
InSeam Pro application installed on a connected mobile device can be used to implement speed-limit safety
restrictions designed to disable transmission of any SMS notications via RDS anytime the vehicle’s current
speed exceeds a pre-determined value.
*Note: Not all mobile devices are capable of forwarding SMS notications using the FM RDS feature. Currently, this product does not
offer support for SMS text message notications via RDS on iOS devices, however support for compatible iOS devices should be avail-
able through future rmware releases.
![](/img.php?id=2379161&img=bg3.png)
iSimple a Division of AAMP of America® | Clearwater, Florida 33760 | Ph. 866-788-4237
support@isimplesolutions.com | www.iSimpleSolutions.com
©2014 AAMP of Florida, Inc.
Rev. 072814
ISFM2202
Steering Wheel Controlled
SmartPhone Integration Interface
Page 2 Page 3
Conguring/Programming (cont.)
Manual Conguration Mode

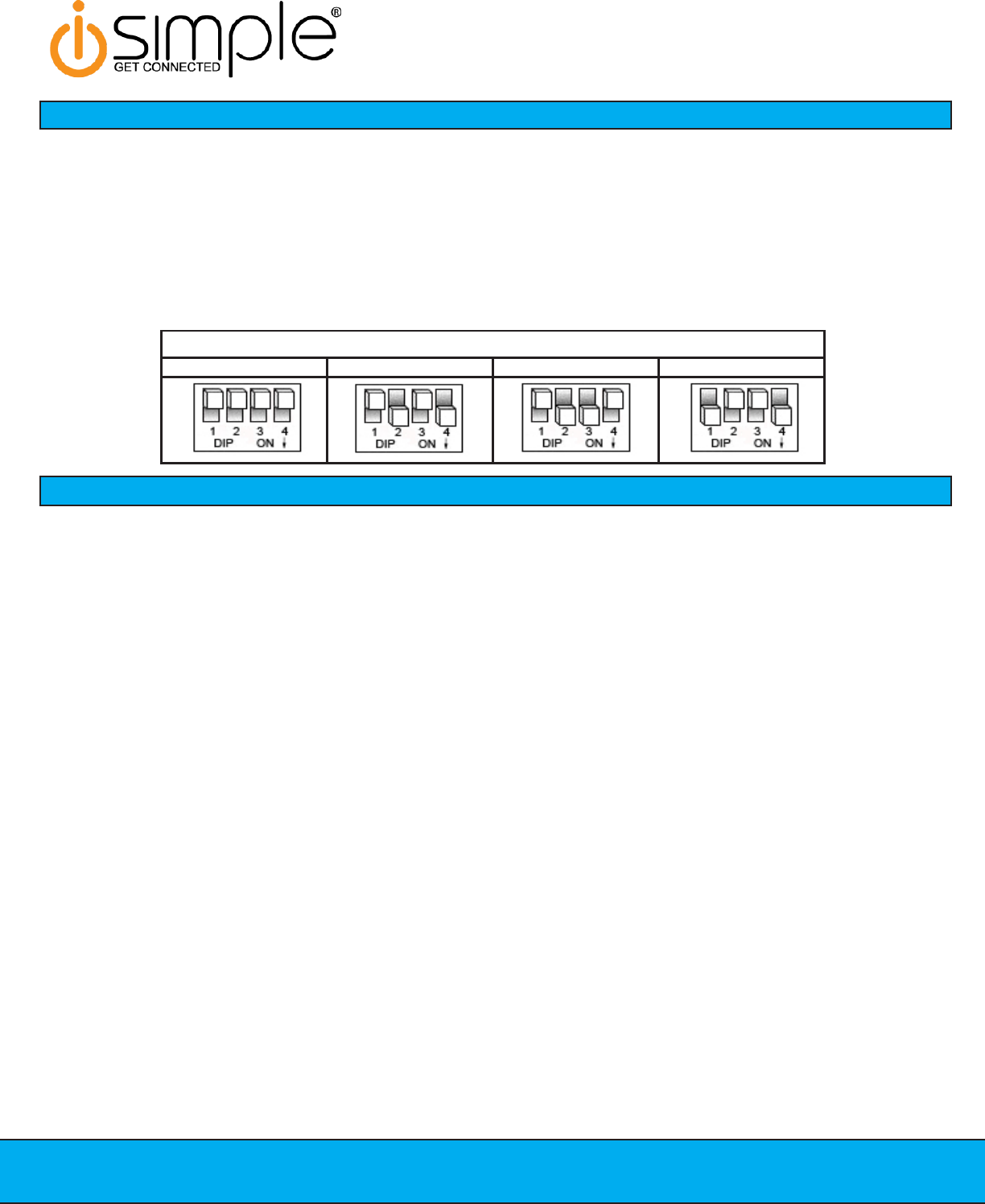

With this method the InSeam Pro uses a pre-determined dipswitch conguration to assign SWC button functionality. The dipswitches
on the side of the interface must be manually set to the proper conguration by the user. These vehicle specic dipswitch settings
can be found by downloading your device specic application from www.isimplesolutions.com/InSeamPro/app.
1. Please Visit www.isimplesolutions.com/InSeamPro/app to download your device specic application.
2. Launch the application or software and nd your vehicle.
3. Set the vehicle dipswitches according to the application.
4. Set the radio dipswitches according to the chart below.
5. Wire up the interface according to the installation instructions in the application.
Operation
Activating the InSeam Pro
To activate the ISFM2202 unit’s transmitting function and engage the steering wheel control interface press and hold the button
corresponding to “Mode” on your vehicle’s steering wheel for approximately 1-2 seconds. Keep in mind that some vehicles may
not have a dedicated Mode/Source button. In these vehicles a sequence of buttons may be needed to activate the InSeam Pro
(ie. Vol+, Vol-, Vol+, Vol-). Similarly, if the unit is already active and/or functioning it can be deactivated by pressing and holding
the same button/switch (sequence) for the same extended duration of time. While active the vehicles specic steering wheel
mounted radio control buttons that are identied via the InSeam Pro App are repurposed for Bluetooth function control. Volume
Up and Down will continue to function via the factory radio even when the InSeam Pro is activated. Any additional unmapped/un-
used steering wheel stereo controls will cease to function until the unit is de-activated, at which time they revert to standard radio
control functions. These features have been customized to the users specic steering wheel control buttons. Please reference the
InSeam Pro App for button assignment.
Hands-Free Calling
With the ISFM2202 in active mode, the user can control the mobile device’s hands-free calling functions directly from their steer-
ing wheel controls allowing users to make, answer, end, and reject calls on their mobile device without taking their hands off the
wheel. While in a call the user will also be able to use the vehicles steering wheel controls to switch the call to and from Privacy
Mode (switching from the headset to the phone itself) and Mute the interface’s Microphone input. While muted you will still be able
to hear the incoming caller, they, however, will not be able to hear you. These features have been customized to the users specic
steering wheel control buttons. Please reference the InSeam Pro App for button assignment.
Streaming Music
With the ISFM2202 in active mode the user can start music playing on the paired device by pressing the button that corresponds
to “Play/Pause” on your vehicle’s steering wheel. If a paired mobile device is already playing music upon rst starting your vehicle,
it will automatically begin transmitting through the vehicle’s radio on the designated FM station once the module connects to the
Bluetooth device. While streaming music users can also pause and change the tracks by pressing the corresponding buttons for
those functions via the steering wheel controls. These features have been customized to the users specic steering wheel control
buttons. Please reference the InSeam Pro App for button assignment.
Voice-Recognition
With the ISFM2202 in active or streaming mode users can remotely launch/close the Voice Recognition application on their mobile
device by pressing the corresponding buttons for the function via the steering wheel controls. These features have been custom-
ized to the users specic steering wheel control buttons. Please reference the InSeam Pro App for button assignment.
** All of the above mentioned functions can also be performed from the phone directly without use of the steering
wheel when operated by the passenger.**
DefaultOperatingMode FirmwareUpdate ClearPairedDevices FactoryReset
BluetoothDipswitchSettings
![](/img.php?id=2379161&img=bg4.png)
iSimple a Division of AAMP of America® | Clearwater, Florida 33760 | Ph. 866-788-4237
support@isimplesolutions.com | www.iSimpleSolutions.com
©2014 AAMP of Florida, Inc.
Rev. 072814
Page 4
ISFM2202
Steering Wheel Controlled
SmartPhone Integration Interface
Troubleshooting and FAQ
Color DuringNormalOperation
SolidRed Accessoryon
FlashingGreen SWCButtonisbeingpressed
FlashingRed/Amber ErrorState
Color DuringNormalOperation
FlashingRed Searchingforrecentlypaireddevice
FlashingGreen Moduleisconnectedtoapaireddevice
FlashingRed/Green Moduleisindiscoverablemode
AllLED'sOff StreamingAudio
VehicleControlLEDLegend
BluetoothLEDLegend
Product Updates (Firmware)
The InSeam Pro can be updated with new rmware as it becomes available using the device specic application or a USB ash drive. If using the
application to update, please follow the procedures outlined there to update your interface. If using a USB ash drive, follow the procedure below.
1. Visit www.isimplesolutions.com/rmware to download the rmware le
2. Place the rmware le on the root directory of a USB ash drive (formatted to FAT32, it is best that this le be the only thing on the ash
drive)
3. Connect the ash drive to the supplied USB adapter
4. Connect the supplied USB adapter (with the USB drive connected) to the InSeam Pro
5. LED will ash amber while updating. If the le on the ash drive is the same the green LED will only ash once.
6. LED will turn solid red once update is complete
Q. Where can I nd the wiring info to connect the InSeam Pro to my vehicle?
A. The wiring info can be found within our Android, Apple or PC application.
Q. Where can I nd info on setting the vehicle dipswitches on the side of the module?
A. The vehicle dipswitch settings can be found within our Android, Apple or PC application.
Q. The module’s LED is ashing between Red and Amber and the module is emitting a series of tones every few seconds.
A. Please reference the LED and Error Chime legend above for your specic case.
Q. Is there a way to perform a master reset to the module?
A. The Vehicle control portion of the interface can be reset, when not connected via USB, by pressing and holding the programming button on
the side of the interface for seven seconds until the LED turns amber and a familiar tone is heard. The Bluetooth portion of the module can
be reset by setting the Bluetooth dipswitches to the factory reset position and removing/reapplying power to the module. To resume normal
operation,remove power from the module, set the Bluetooth dipswitches back to the default position, reapply power to the module.
Q. I want to clear all devices from the InSeam Pro, how do I do this?
A. To clear devices via the application you will click the “Clear InSeam Paired Devices” button in the settings menu. If you wish to clear it without
using the app you can set the Bluetooth dipswitches according to the table above, remove and reapply power to the module. To resume
normal operation,remove power from the module, set the Bluetooth dipswitches back to the default position, reapply power to the module.
NumberofChimesDescriptionofError Fix
TwoChimes InvalidConfiguration
Pleasecheckthedipswitchesandset
themtotheproperconfigurationfor
yourvehicle.
ThreeChime CANInputandOutput
Reversed
DisconnecttheCANwiresandensure
theproperwiresaregoingtothe
radiosideandvehicleside.
ErrorChimeLegend
Testing & Verication
1. Turn the ignition on. The red LED on the interface will turn on.
2. Verify that all SWC are functioning properly. The green LED will ash each time it sees a steering wheel button pressed.
3. Turn off the vehicle & remove the key. In vehicles equipped with retained accessory power (RAP) the red LED will remain
active. In vehicles that do not support RAP the LED and shut off when the key is switched off or removed from the ignition.
![](/img.php?id=2379161&img=bg5.png)
iSimple a Division of AAMP of America® | Clearwater, Florida 33760 | Ph. 866-788-4237
support@isimplesolutions.com | www.iSimpleSolutions.com
©2014 AAMP of Florida, Inc.
Rev. 072814
ISFM2202
Steering Wheel Controlled
SmartPhone Integration Interface
Page 4 Page 5
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. The provided USB cable with a ferrite bead must be used with this device to ensure compliance.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
The quality controls used in the manufacture of this product will ensure your satisfaction. This warranty applies only to the original purchaser of
this product from an authorized iSimple® dealer. This warranty covers any supplied or manufactured parts of this product that, upon inspection
by iSimple® authorized personnel, is found to have failed in normal use due to defects in material or workmanship. This warranty does not ap-
ply to installation expenses. Attempting to service or modify this unit, operating this unit under conditions other than the recommended voltage
will render this WARRANTY VOID. Unless otherwise prescribed by law, iSimple® shall not be liable for any personal injury, prop erty damage
and or any incidental or consequential damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper
installation or alteration of this product. All parts of this iSimple® product are guaranteed for a period of 1 year as follows:
Within the rst 12 months from date of purchase, subject to the conditions above, iSimple® will repair or replace the product at our discretion,
if it is defective in material or workmanship providing it is returned to an Authorized iSimple®’ dealer, with PROOF OF PURCHASE from an
authorized iSimple® dealer.
WARNING: You are responsible for taking appropriate caution when operating a motor vehicle. The vehicle driver should maintain their atten-
tion on the road at all times. You agree to use this product in compliance with these instructions, terms of use, and all federal and state laws.
DISCLAIMER: Under no circumstance shall the manufacturer or the distributor of the ISFM2202 be liability for any claims, losses or damages
associated with use of the ISFM2202 in connection with a motor vehicle, in noncompliance with these instructions, terms of use, warnings, or
any misuse of the product. The manufacturer’s and distributor’s sole liability associated with the sale and use of the ISFM2202 is the replace-
ment of the product.
Warranty Information: One Year Limited Warranty
