AAMP of Florida AAMP Global RM1802 1-Din Audio Mechless User Manual
AAMP of Florida, Inc. dba AAMP Global 1-Din Audio Mechless
User Manual
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0
User Instruction Manual
RM19xx Series with CD Player
FM / MW / LW & DAB receiver, USB, BT audio media
player, four channel audio amplifier, fixed front panel.
CD and non-CD (Deckless) Models
RM18xx Series Deckless
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 2
Table of Contents
Front Panel Layout 3
General Operaon 4
Bluetooth Operaon 5
Radio FM/MW/LW 5
Radio RDS Notes 6
Radio Preset Notes 6
Radio DAB/DAB+ 7
Radio DAB/DAB+ Notes 7
Media USB / CD-ROM 8
Reset - Soware / Hardware 8
Power O Timer 9
Menu Reference 9
Context Sensive 9
Wiring Notes 10
Mounng Notes 11
Technical 12
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 3

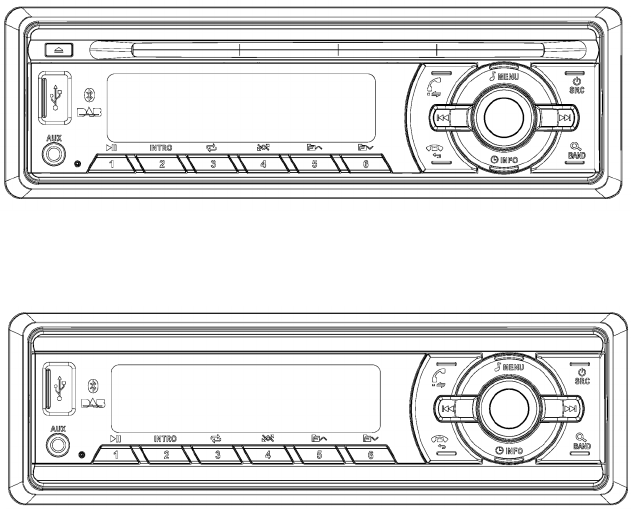

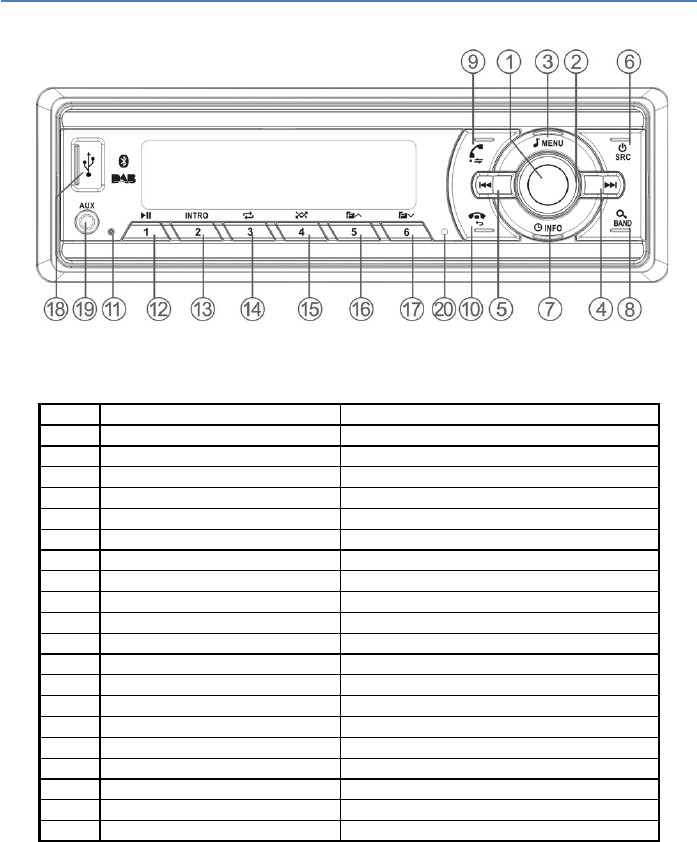

Front Panel Layout
Item Button Name Comments
1 Mute / Select (center switch)
2 Volume Control / Rotary browse
3 Menu Audio and System menus
4 Up >>I / Next
5 Down I<< / Previous
6 Source / Power Radio / DAB / BT / USB /AUX / CD - On/Off
7 INFO (information) / Clock Select info to view or display clock
8 Band / Browse FM/MW/LW band select or Browse function
9 Call Pick Up Transfer or last number re-dial
10 Call Hang Up Return from menu or selection
11 Reset
12 Preset 1 (Play / Pause) Play/Pause media control
13 Preset 2 (INTRO)
14 Preset 3 (RPT - Repeat)
15 Preset 4 (RDM - Random Play)
16 Preset 5 (Folder - Next)
17 Preset 6 (Folder - Previous)
18 USB
19 AUX-IN 3.5mm Stereo Socket
20 Built-In Mic (if fitted) Optional. (Ext Mic. is Standard)
RM1802 shown - RM19xx CD Models have and addional Eject Buon and CD slot.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 4
General Operation
Powering On/Off
To switch the unit on press the power button. To turn the unit off,
press and hold the power button for 2 seconds.
In a similar manner many of the buttons on the front panel have
two modes of activation: “Short press” and “Long press” to direct-
ly select different functions.
Buttons to navigate through Menus
In the menu system certain controls have some common functions to help you move through
the menus:
1) Volume control centre switch = select
2) Volume control rotary = “choose”
3) Hang Up (Return on non BT models) = return or move back up a
menu level

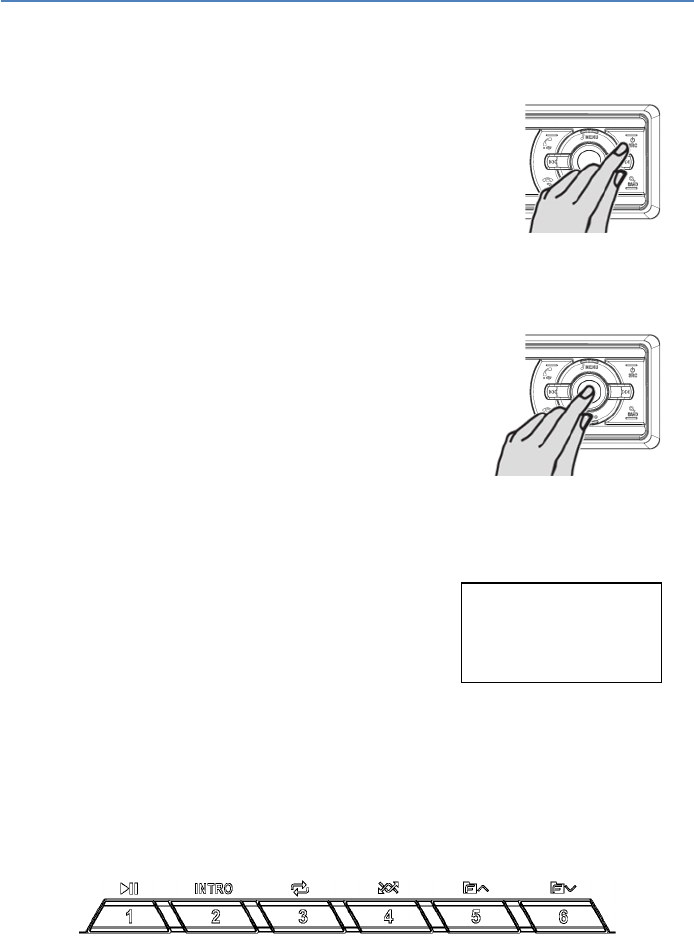

The ‘Volume’ Knob
Audio volume is adjusted when the rotary knob is turned, and
MUTE is toggled on/off when the knob is pressed briefly - short
press.
In the SYSTEM or AUDIO menus volume adjustment is tempo-
rarily disabled, and the rotation of the knob adjusts the value of
the menu item. In this mode pressing the volume knob will select
the item you have chosen. The menu list may also be cycled
through with the >>| and |<< buttons.
Example: short press (push and let go) the MENU button to ac-
cess the AUDIO menu – EQ, loudness, bass, treble, balance,
and fader.
TURN for Volume
adjustment /
PRESS to MUTE
TURN to choose /
PRESS to select
Radio Operating Region
When the radio is first powered up or after a reset it will ask
you to select the geographical radio operating region, use the
rotary control to choose your region and press the knob to
select.
This can also be set using the Radio Mode menu – all menus
are context sensitive i.e. radio only functions can only be
accessed in radio mode.
REGIONS AVAILABLE
EUROPE / ASIA / MID-EAST /
AUST / USA / LATIN (America) /
JAPAN / RUSSIA
Button Functions
The function of some controls depends on context. For example, the “1” button is used to
recall (short press) or store (long press) radio station preset 1. However, when playing media
(USB, CD or BT), pressing this button will toggle play / pause.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 5
Bluetooth Operation (not available on RM1800 and RM1900 non-BT models)
General Operation
When paired to a mobile phone Bluetooth-enabled radio models,
allow the user to perform handsfree calling via the radio. The radio
has “Answer” and “Hang-Up” buttons to accept or reject an incom-
ing call.
When no call is active the “Answer” button can be used to re-dial
the last number - pressing once asks if you want to re-dial, pressing
again dials the number, pressing the “Hang-Up” button cancels the
request.
The external microphone should be fitted in a position close to the
operator.

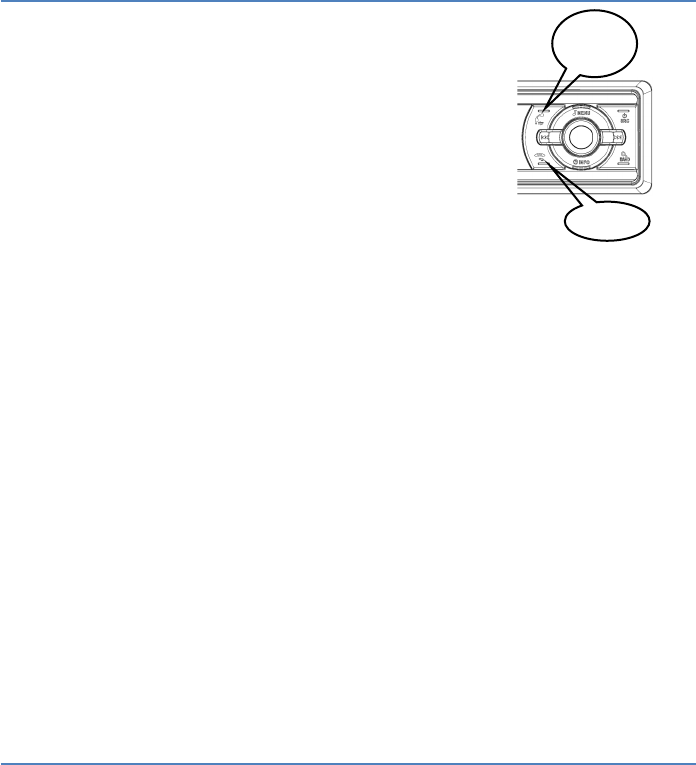

ANSWER
REDIAL
HANG UP
Bluetooth Profiles
Bluetooth enabled units can wirelessly link to Bluetooth devices such as mobile phones. The
modes of Bluetooth connection are referred to as “profiles”. This radio supports the following
profiles:
1) A2DP: Advanced Audio Distribution Profile – Playing (Streaming) music using Bluetooth.
Devices that have A2DP functionality can stream music into the radio to be played
through the vehicles loudspeaker system.
2) AVRCP: In addition, if supported by the device, the AVRCP profile (Remote Control Pro-
file), allowing functions like ‘next track’ and ‘previous track’ to be controlled from the radio.
3) HFP: Handsfree Profile – Making or receiving telephone calls using Bluetooth.
4) SSP: Secure Simple Pairing - this method is based on a random number generator and
the user does not need to enter a PIN number on the phone.
Pairing
To use the Bluetooth handsfree function a mobile phone needs to be “paired” to the radio. To
“pair” the mobile phone with the radio ensure that the radio is turned on. On the mobile phone
search for Bluetooth devices and select the radio model number. Check for a successful pair-
ing notification on the mobile phone.
Once paired it is the mobile phone that determines automatic reconnection to the radio. (e.g.
on re-entry to the vehicle with the ignition on).
To disconnect a Bluetooth device temporarily use the “DISCONN” (disconnect) menu func-
tion. To permanently remove a pairing, use the “UNPAIR” menu function.
Radio FM/MW/LW
Searching for Radio Stations
Use the >>| and |<< buttons to search for radio stations: short press to automatically seek the
next available frequency (jump to the next seek stop).
Manual Tuning
Long press either the >>| or |<< button to change to manual-seek mode. In this mode a short
press of one of these seek buttons changes frequency one step at a time whereas a long
press will scroll until the button is released. The radio will revert to auto-seek mode if either
button is not operated for 3 seconds.
AutoStore Radio Stations
Long press the BAND button will start an “auto store” sequence to scan the whole band and
store the strongest stations found.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 6
Radio FM/MW/LW - Continued

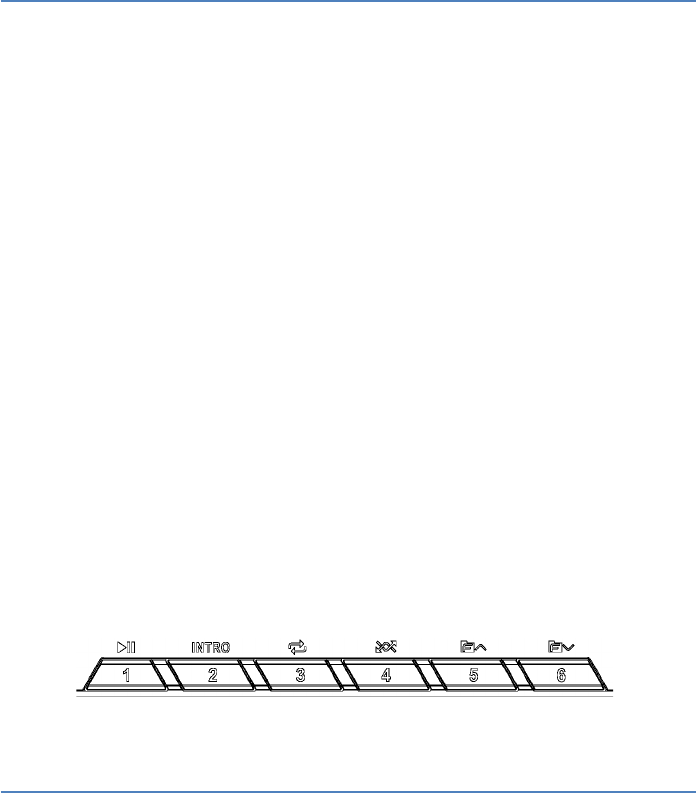

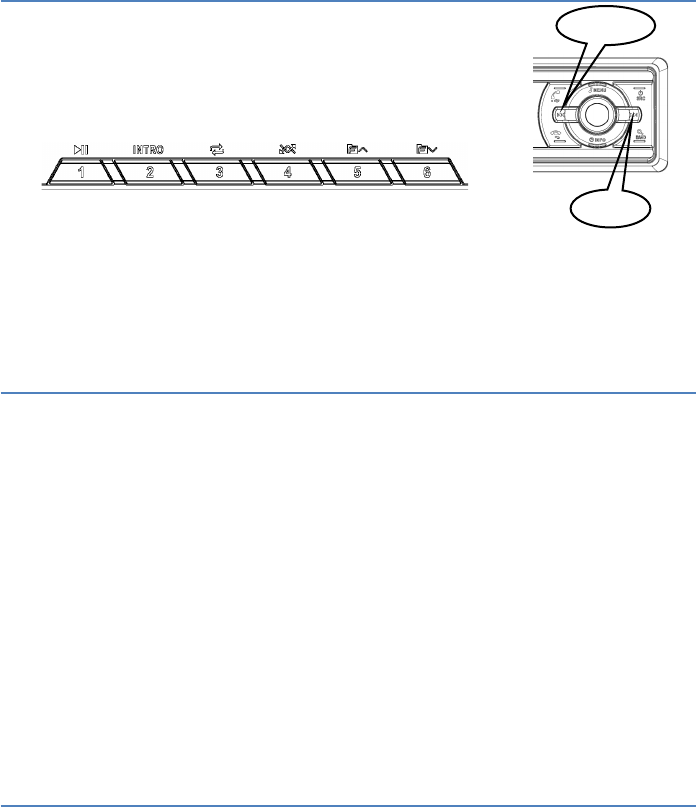

Storing and Recalling Radio Stations
When listening to a radio station a long press on one of the radio
preset buttons will store it permanently. The current station will be
saved. A stored radio station can be recalled by a short press of
one of these buttons. The stored radio station can be updated by
tuning to a different station and performing a long press.
Long press: Store your favorite radio stations using radio station presets.
Short press: Recall the stored station.
PREVIOUS
NEXT
FM Radio
Radio Data System (RDS) is available in many countries. If an
RDS broadcast is present, RDS functions such as AF and TA can
be enabled or disabled. RDS is only available in the FM bands.
RDS (see also “Radio RDS Notes” )
AF: Alternave Frequency
TA: Trac Announcement
TP: Trac Program
PTY: Program type
When RDS (Radio Data System) is operating the radio will show the station name e.g. “BBC
R1” rather than the frequency. RDS is only available on the FM band. If RDS service is not
available, the radio operates in conventional FM radio mode.
AF: Alternative Frequencies. When this feature is enabled, the radio can stay tuned to
BBC R1 by automatically retuning the reception frequency when the first signal be-
comes weak such as when the vehicle has moved out of range, providing that a
stronger signal on the alternative frequency is available. Channel switching to the
same radio station is performed automatically. In fringe reception areas the user may
switch off AF if silent frequency seek is experienced frequently. Choose the AF menu
item and select OFF.
TA: Traffic Announcement. When switched on, if a traffic announcement is available the
radio will automatically switch to the station broadcasting the announcement until it is
complete. The TA menu item toggles between TA ON and TA OFF.
TP: Traffic Program – An indicator is displayed if the currently tuned station is a traffic
announcement capable station.
PTY: Program type. RDS broadcasting services categorizes the type of programs for the
listener. Examples are NEWS, AFFAIRS, INFO, SPORT, EDUCATION, DRAMA,
CULTURE, SCIENCE, POP M, ROCK.
Radio RDS Notes
Radio Preset Notes
FM has 3 bands, FM1, FM2 and FM3 bands each band has 6 radio presets. In total there are
18 FM radio presets for the user to store pre-tuned radio stations.
MW has one band with 6 radio presets, as does LW. There are 12 AM (MW & LW) radio pre-
sets.
DAB mode also has 3 “bands”, DAB1, DAB2 and DAB3 each with 6 presets to store your
favorite stations.
In total there are 5 x 6 = 30 radio presets and 18 DAB presets available to the user. The radio
stores these permanently on an EEPROM memory device, that does not require external
power to retain the radio station preset memory.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 7
Radio DAB/DAB+
Digital Audio Broadcasting - DAB/DAB+ Mode
DAB is a terrestrial digital transmission system. DAB stations bundle radio programs
(“services”) into an ensemble. Each ensemble contains one or more radio services. The same
service can sometimes be received on different frequencies.
DAB/DAB+
To listen to DAB radio press SRC to select “DAB/DAB+”.
When the DAB band is selected for the first time an initial scan is needed. The radio will ask
for confirmation to do this – press the volume control knob to start scanning. Allow the initial
scan to finish. (If interrupted, the initial scan will be requested again the next time you select
the DAB mode)
Tuning DAB Stations
Enter the DAB system menu with a long press on the MENU button, select SCAN to perform a
full scan of the DAB band.
To update the station list (usually because you have moved to a different geographical region)
enter the DAB system menu and select PRUNE to clean up the stored list of DAB stations.
Selecting a DAB Station
Method 1: Use the >>| and |<< buttons to select the next (or previous) DAB station in the al-
phabetically sorted list of stations.
Method 2: PREFERRED - Long press the BAND/BROWSE button to select the BROWSE
feature. This will allow you to use the rotary volume control knob to scroll through the DAB
station list. Press the volume knob to select the station name you want.
Storing and Recalling DAB Stations
To store a favourite station press and hold down one of the user preset buttons 1 – 6 until a
beep is heard or “SAVED” is displayed. To recall any one of your preferred stations, briefly
press the desired preset button.
Radio DAB/DAB+ Notes
When there is no reception, “NO STATION FOUND” scrolling text is shown on the display.
Use “seek up” () or “seek down” () button to search for the next available DAB radio broad-
cast.
When reception is lost for approximately 15 seconds “NO SIGNAL” is displayed.
DAB is a digital system and as such it either works and clear audio is heard or it does not
work and the audio is muted. This is unlike a traditional FM broadcast that becomes increas-
ingly noisy but may still be intelligible.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 8
Media USB / CD-ROM
One single media device can easily fit thousands of songs (audio tracks). These tracks are
often referred to as MP3 and WMA. Without any specific metadata, the radio uses the track
filename as the title. Tracks can be put into folders and sub-folders.
For media carriers such as USB sticks, the unit can play files inside sub-folders.
Avoid having too many levels of depth in the sub-folders.
Do not carry too many audio files on a media to avoid difficulty in finding the desired song /
track.
Media software and hardware are updated at a fast pace, so although the radio is shipped
with the latest media compatibility; newer USB sticks and/or new file formats may not be com-
patible.
Listed below are the alternative functions of various keys on the front panel for media play-
back.
>>| Next track (short press), fast forward (press and hold down)
|<< Previous track (short press), rewind (press and hold down)
>|| Play and Pause playback.
Repeat play mode. RPT TRK repeats the current track when it has reached the end. RPT FLD
repeats playing of all the tracks in the current folder. RPT ALL repeats all the tracks in the
entire media library.
INTRO Intro-play INT indicator will be shown on the LCD display. When in this mode the radio
will play the first 10 seconds of each track (intro) then skip to the next track. When at the de-
sired track, press the INTRO button again to cancel intro-play and listen to the whole track.
RDM Random-play, RDM ALL randomly plays from all tracks, RDM FLD plays tracks ran-
domly from the current folder. RDM OFF plays tracks in the order they appear in the folder.
FLV / FLɅ Previous folder and next folder.
There is a BROWSE feature that allows the user to cycle through the available media by fold-
ers and files to select a track. Press the BAND button to select this mode. Rotate the volume
knob to scroll through the folder / filename / track list. Press the volume knob to select.
Reset - Software / Hardware
Soft Reset – MENU – RESET: If the user is not sure if settings on the radio have been altered
inadvertently, restoring the factory default settings may help. On a reset factory settings will
be reloaded, overwriting the current data selections with their default values. This includes
such items as BT pairing, station presets, tone settings, etc.
Hard Reset - A hardware reset button is located on the front panel (see “Front Panel Layout”)
and can be activated by a paper clip or pen. This is only necessary if the radio refuses to react
to any button input.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 9
Power Off Timer
This radio has a power-off-timer enhancement feature. The setting for this is accessed by a
long press on the MENU button (system menu), in any mode, and using the >>| or |<< buttons
to select the timer menu. Settings are OFF, AUTO, 30 min, 60 min and 90 min. OFF is the
factory default value where the radio powers off immediately when the ignition key is switched
off. This is the same as conventional radios.
AUTO mode will switch off the radio with the ignition, but you can turn the radio back on (or
off) for a 30-minute period.
30, 60 or 90 minutes will keep the radio playing for this time after the ignition is switched off.
Turning the radio off manually will cancel the timer and the radio will not switch on until the
ignition is also turned on.
This count-down timer is shown on the display using the small secondary line of characters.
In the last 5 minutes of the count-down time the main display will warn the user that the radio
is about to shut down.
This feature extends listening time and allows the ignition key to be removed for safety rea-
sons. It also prevents the battery from being drained if the radio is left turned on for an extend-
ed period. Exact availability of this feature depends on the type of the vehicle since both a
switched ignition “ACC” wire and a permanent battery “B+” wire are used to control this func-
tion and must be connected to the radio.
Menu Reference
SYSTEM MENU
DIS-CON Disconnect current BT device
UNPAIR Forget current BT device
CLK (SET) Set - Hours (down) Minutes (up)
CLK (12/24H) Select 12/24 hour display
BEEP Audible feedback (on/off)
RESET Reset radio to default settings
MANUAL Auto-play USB media on/off
TIMER Off timer setting (off / AUTO /
30 / 60 / 90min.)
AUDIO MENU
EQ Equalisation presets
LOUD Equal loudness contour on/off
BASS Bass tone control
TREBLE Treble tone control
BALANCE Left/Right balance
FADER Front/Rear fader
DAB/DAB+ (context sensitive items)
SCAN Scan the whole DAB band for
stations
12V Switch phantom power to DAB
antenna on/off
PRUNE Scan and clean up DAB station
list
RADIO (context sensitive items)
LOC Local or DX seek setting
AREA Operating region
RDS Radio Data System
PTY Select and choose available
content type
AF Alternate Frequencies
TA Traffic Announcement
CT Clock Time & Date
SOFT Soft mute on/off (*)
Menu Reference - Context Sensitive
(*) Soft mute is a noise reduction technique used in FM receivers to
lower the volume when the signal to noise ratio decreases. If you are
in a weak signal area we recommend that you keep this function
OFF to get the maximum received signal even if more background
noise or “hiss” is heard.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 10
Wiring Notes
Connections to be made at the rear of the unit during installation.
Connector A pins:
A4. B+ or BATT +12V
When the radio is turned on electrical power is supplied to the internal electronics of the unit
through this pin. Main consuming blocks such as audio power amplifier and backlights draw
power from this pin. Ensure the connecting wire has minimum AWG14 wire gauge to carry the
current.
A5. AUTO ANTENNA OUTPUT +12V
The voltage state on this output pin is a direct indicator of whether this unit is powered on or
off. It can be used to control ancillary equipment such as an automatic electric antenna or an
audio power amplifier. When connected properly such ancillary equipment will power on and
off automatically in sync with the radio.
A7. ACCESSORY (ACC) or IGNITION +12V (key position)
Normally connects to the ignition or accessory circuit. By sensing the voltage on this pin, the
unit is able to automatically power on and off when the ignition key switch is turned on or off.
A8. CHASSIS GROUND (EARTH)
All electrical current from this pin is combined to complete the power supply circuit. Ensure the
connecting wire has minimum AWG14 wire gauge to carry the current. The metal enclosure of
this unit is grounded to this pin. The unit is only suitable for "negative earth" vehicles.

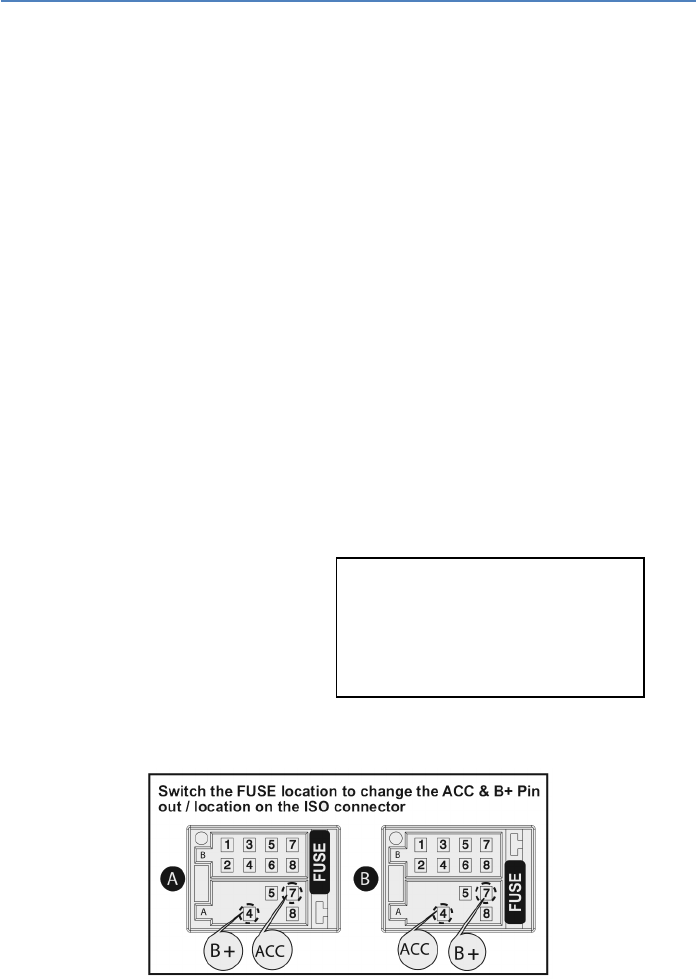

PINS A4 and A7 B+ (BATT) and ACC (IGNITION) CAN BE SWAPPED
BY CHANGING THE POSITION OF THE FUSE - SEE DIAGRAM BELOW
Connector B pins (loudspeakers pins):
B1. REAR RIGHT (+)
B2. REAR RIGHT (-)
B3. FRONT RIGHT (+)
B4. FRONT RIGHT (-)
B5. FRONT LEFT (+)
B6. FRONT LEFT (-)
B7. REAR LEFT (+)
B8. REAR LEFT (-)
IMPORTANT NOTE: Always replace the fuse with
the same type and rang. A blown fuse usually
indicates a problem in the circuit. Do not rely
completely on replacing the fuse to x a prob-
lem. An over-rated fuse will compromise protec-
on against over-current. Under-rated fuses can
blow even if a fault condion does not exist.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 11

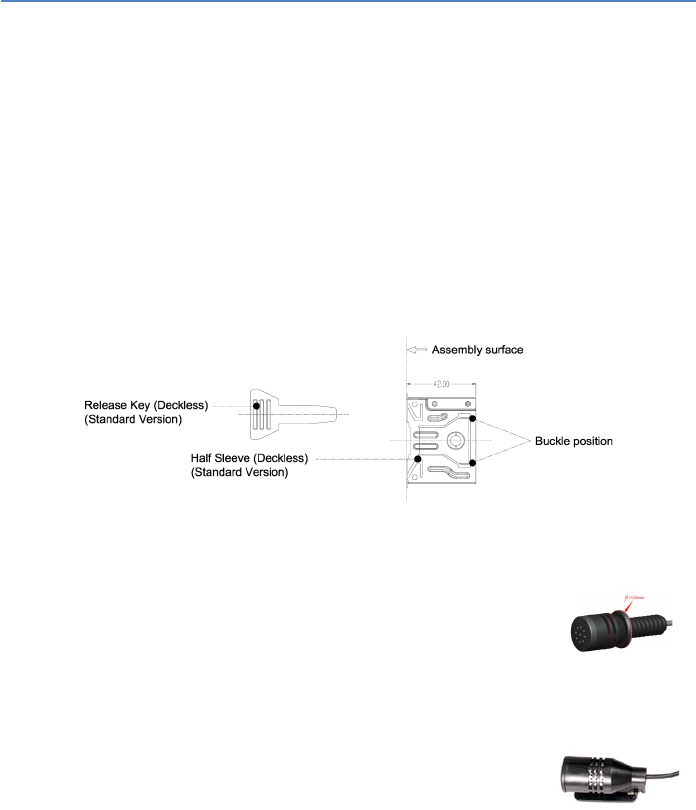

Mounting Notes
Fitting the Radio
Fit the mounting cage (sleeve) into the vehicles’ ISO / DIN slot and bend the fixing tangs to lock
it in place.
Connect the wiring to the rear of the radio.
Slide the radio into the cage until it “clicks” into place on the locking clips.
Fit the bezel (trim ring) on the front of the radio.
Check correct operation of the radio.
Removing the Radio
Slide the Release Keys centrally along the two sides of the radio to release the locking clips.
Slide the radio out, keeping the Release Keys in place.
Once the radio is out disconnect all the wiring and remove the radio completely.
If necessary bend the fixing tangs inward to remove the mounting cage as well.
Fitting the External Microphone
The Bluetooth radio models may be supplied with an external microphone this will be either a
panel mounted unit with a M8 stud or a visor clip.
Panel mounted M8 stud:
Find a suitable location as close to the front of the user as possible (30
to 45cm).
Drill a 8.5 to 9mm hole for the mounting stud, run the cable through this and route it to
the radio.
Fit the star washer and the M8 nut to hold the microphone in place.
Visor mounted:
Find a suitable location as close to the front of the user as possible
(30 to 45cm).
Clip, or use an adhesive pad to mount the microphone, and route the cable to the rear of
the radio.
When routing the cable back to the radio be careful of sharp edges and pinch points that may
damage the cable.
Make sure the cable and microphone do not interfere with any control operation or compromise
the drivers view.
ENGLISH
RM18xx/RM19xx User Instrucon Manual Version 1.0 12
Instructions on Disposal and Environmental Protection
Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic
appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important
contribution to protecting our environment.
Please inquire at the community administration for the authorized disposal location.
Technical
TUNER (FM)
Frequency range See World Bands below
Channel step See World Bands below
Sensitivity <= 10 dBµV
Stereo separation >= 30 dB
SNR >= 50 dB
Auto Stop Sens. LOC on 38 dBµV +/- 6dB (LO)
Auto Stop Sens. LOC off 18 dBµV +/- 6dB (DX)
TUNER (DAB/DAB+)
Frequency range VHF Band III
174 - 240MHz
Sensitivity <= 12 dBµV
SNR >= 65 dB
Scan Sensitivity <= 12 dBµV
AUDIO
Audio Power 40W max. / Channel,
4 Ohms @ 10% THD
Speaker Impedance 4 to 8 Ohm
Line Output Level 1.7V nominal
Line Output SNR >= 70 dB
MEDIA (USB, CD)
Stereo separation >= 50 dB
SNR >= 65 dB
Media Codecs WAV, FLAC,
MP3, WMA
GENERAL
Power Supply 12V DC (9 to 18V)
Fuse Rating 15A
Permanent Memory EEPROM
Mounting DIN / ISO Cage
TUNER (AM)
Frequency range See World Bands below
Channel step See World Bands below
Sensitivity <= 40 dBµV
SNR >= 40 dB
Auto Stop Sens. LOC on 55 dBµV +/- 6dB (LO)
Auto Stop Sens. LOC off 33 dBµV +/- 6dB (DX)
Industry Canada (IC) Warning
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
This device may not cause interference, and
This device must accept any interference, including interference that
may cause undesired operation of the device.
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
a) This device may not cause harmful interference, and
b) This device must accept any interference received, including interference that may cause undesired operation.
2. any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CD Player Models contain a CLASS 1 LASER PRODUCT
Complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between
the radiator & your body
World Bands FM Frequency [MHz] AM MW Frequency [kHz] AM LW Frequency [kHz]
Start End Step [kHz] Start End Step [kHz] Start End Step [kHz]
EUROPE 87.5 108.0 50 522 1620 9 144 288 1
USA 87.5 107.9 200 530 1710 10 --- --- ---
LATIN 87.5 108.0 100 530 1710 10 --- --- ---
M-EAST 87.5 108.0 100 522 1620 9 144 288 1
AUST-LIA 87.5 108.0 100 522 1710 9 144 288 1
ASIA 87.5 108.0 100 522 1620 9 144 288 1
JAPAN 76.0 90.0 100 522 1629 9 --- --- ---
RUSSIA 87.5 108.0 50 522 1620 9 144 288 1
RUSSIA (FM3) 65.0 74.0 10 522 1620 9 144 288 1
Bluetooth Models
Bluetooth Frequency : 2.402 -
2.480 GHz
Output Power : +4dBm (max.), 0dBm (Ave.), Power Class2
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
