aaxaTECHNOLOGIESUser GuideP2A

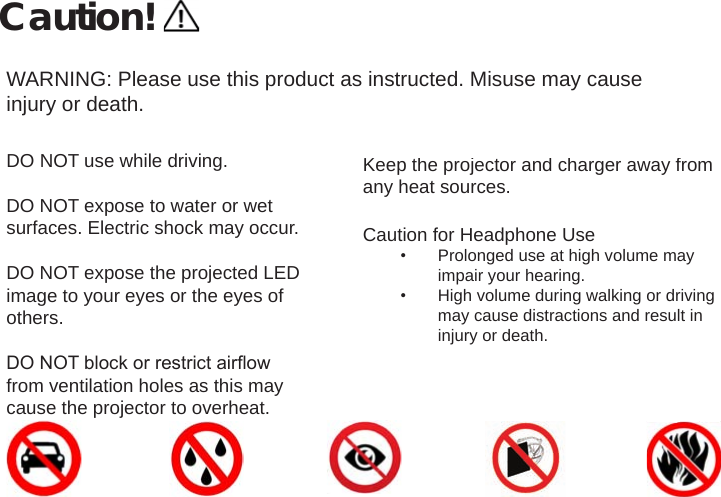

Caution!WARNING: Please use this product as instructed. Misuse may cause injury or death.DO NOT use while driving.DO NOT expose to water or wet surfaces. Electric shock may occur.DO NOT expose the projected LED image to your eyes or the eyes of others. DO NOT block or restrict airow from ventilation holes as this may cause the projector to overheat.Keep the projector and charger away from any heat sources.Caution for Headphone Use• Prolonged use at high volume may impair your hearing.• High volume during walking or driving may cause distractions and result in injury or death.

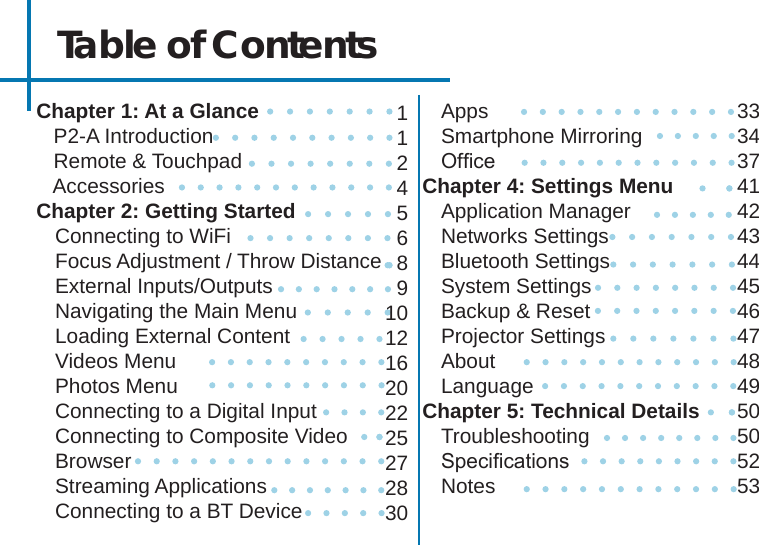

Table of ContentsChapter 1: At a Glance P2-A Introduction Remote & Touchpad Accessories Chapter 2: Getting StartedConnecting to WiFiFocus Adjustment / Throw DistanceExternal Inputs/OutputsNavigating the Main MenuLoading External ContentVideos Menu Photos MenuConnecting to a Digital InputConnecting to Composite VideoBrowserStreaming ApplicationsConnecting to a BT DeviceAppsSmartphone MirroringOfceChapter 4: Settings MenuApplication ManagerNetworks SettingsBluetooth SettingsSystem SettingsBackup & ResetProjector SettingsAboutLanguageChapter 5: Technical DetailsTroubleshootingSpecicationsNotes1124568910121620222527283033343741424344454647484950505253
P2-A at a Glance Chapter 1Digital InputUSB PortMain Unit Front/BackPower ButtonAV PortHeadphone Out Power Port1Focus AdjustmentTouchpadTF Card Slot

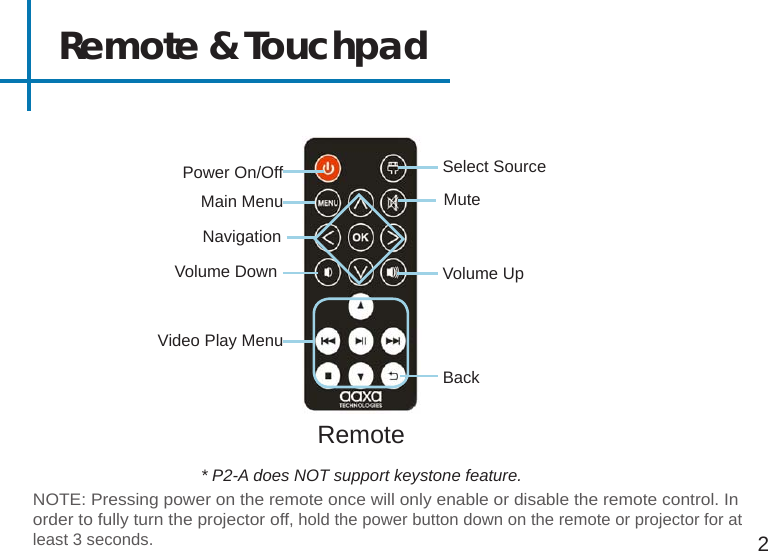

Remote & Touchpad2NOTE: Pressing power on the remote once will only enable or disable the remote control. In order to fully turn the projector off, hold the power button down on the remote or projector for at least 3 seconds. Power On/OffSelect Source NavigationVolume UpVolume DownRemoteBackMuteMain MenuVideo Play Menu* P2-A does NOT support keystone feature.

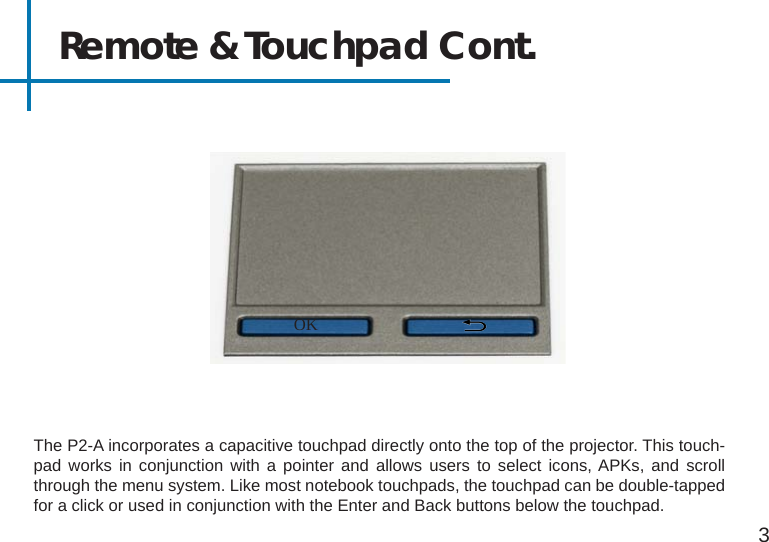

Remote & Touchpad Cont.The P2-A incorporates a capacitive touchpad directly onto the top of the projector. This touch-pad works in conjunction with a pointer and allows users to select icons, APKs, and scroll through the menu system. Like most notebook touchpads, the touchpad can be double-tapped for a click or used in conjunction with the Enter and Back buttons below the touchpad.3OK

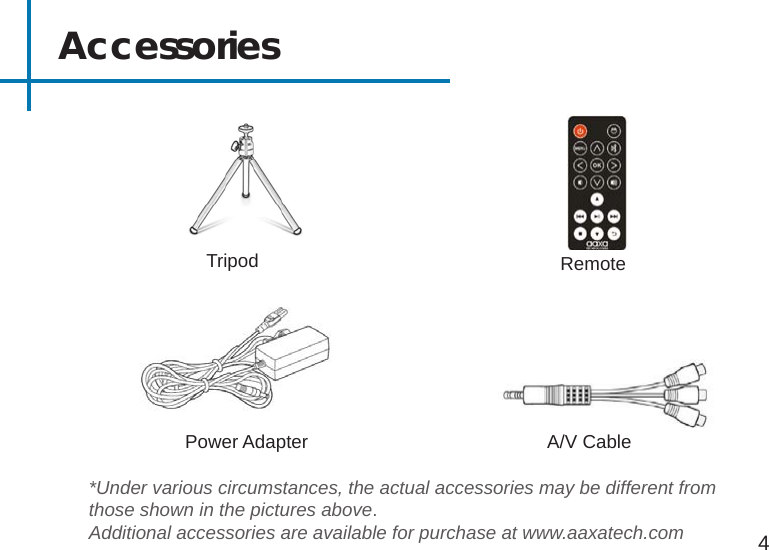

Accessories4*Under various circumstances, the actual accessories may be different from those shown in the pictures above.Additional accessories are available for purchase at www.aaxatech.comTripod RemotePower Adapter A/V Cable

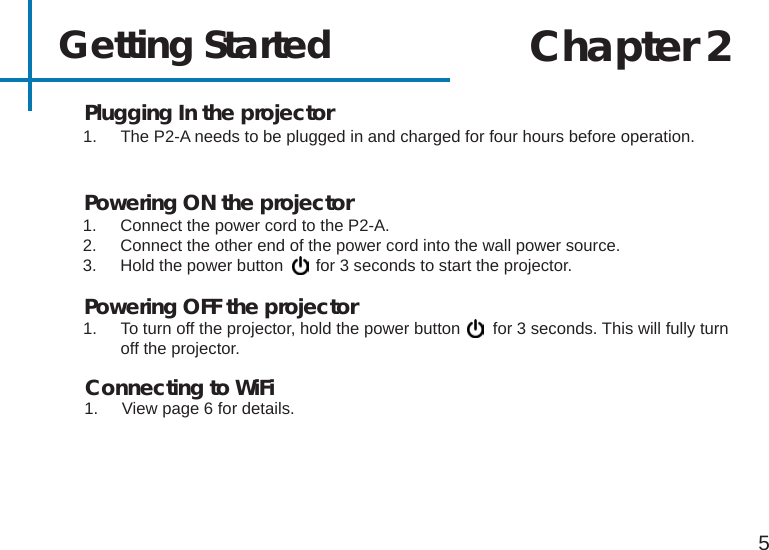

Getting Started1. Connect the power cord to the P2-A.2. Connect the other end of the power cord into the wall power source.3. Hold the power button for 3 seconds to start the projector.5Powering ON the projectorChapter 2Powering OFF the projector1. To turn off the projector, hold the power button for 3 seconds. This will fully turn off the projector. 1. The P2-A needs to be plugged in and charged for four hours before operation.Plugging In the projectorConnecting to WiFi1. View page 6 for details.

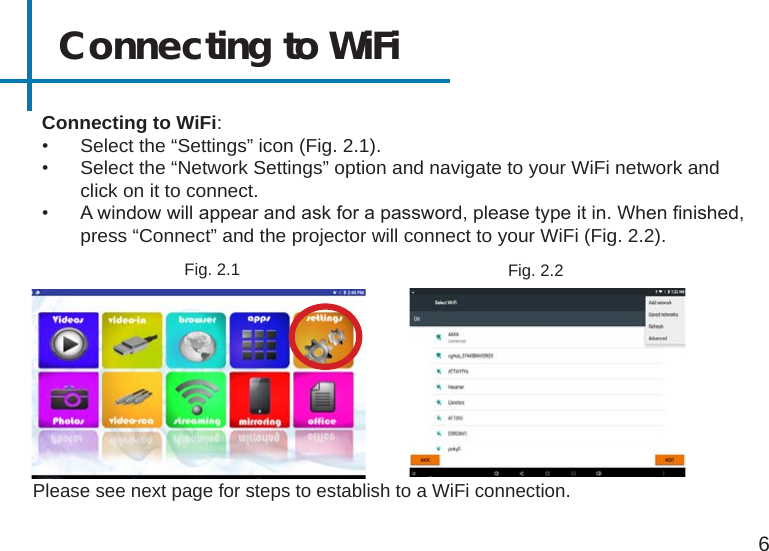

Connecting to WiFi6Please see next page for steps to establish to a WiFi connection. Connecting to WiFi:• Select the “Settings” icon (Fig. 2.1). • Select the “Network Settings” option and navigate to your WiFi network and click on it to connect.• A window will appear and ask for a password, please type it in. When nished, press “Connect” and the projector will connect to your WiFi (Fig. 2.2).Fig. 2.1 Fig. 2.2
Connecting to WiFi FAQ7Connecting to WiFi:P2-A features a WiFi chipset capable of 802.11 b/g/n connection. This means it is compatible with most WiFi routers. To connect to a WiFi router, follow the following steps: Step 1: Access the Network Settings Submenu: Settings -> Network Settings Step 2: Turn WiFi radio to “On” by highlighting and toggling the WiFi Button under WiFi settings Step 3: Select the appropriate Router Step 4: Enter the router password in the password selection (by pressing “OK”). It is recommended that the automatic IP address acquisition be turned onTroubleshooting 1. Unable to connect a. Check Security Settings – WPA/WPA2 PSK b. Check if Router is in range

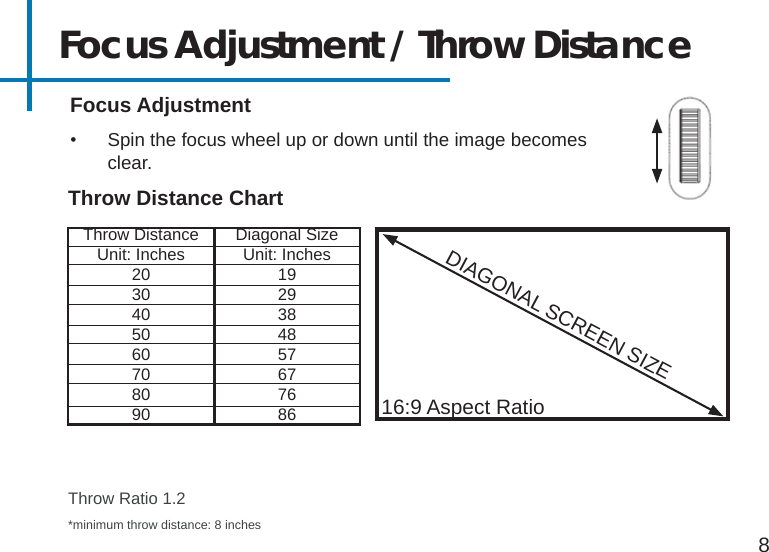

Focus Adjustment / Throw Distance8DIAGONAL SCREEN SIZE16:9 Aspect RatioThrow Distance Unit: Inches2030405060708090Diagonal SizeUnit: Inches1929384857677686• Spin the focus wheel up or down until the image becomes clear.Focus AdjustmentThrow Distance ChartThrow Ratio 1.2*minimum throw distance: 8 inches

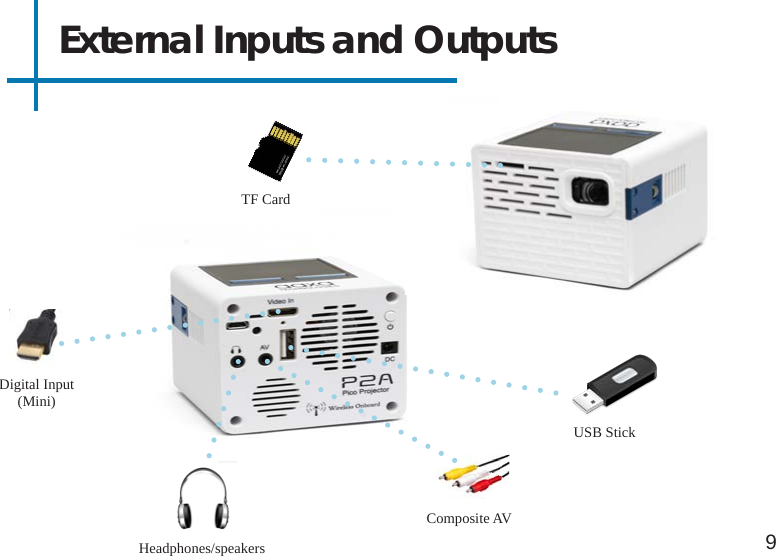

9External Inputs and OutputsHeadphones/speakersComposite AVDigital Input (Mini)USB StickTF Card

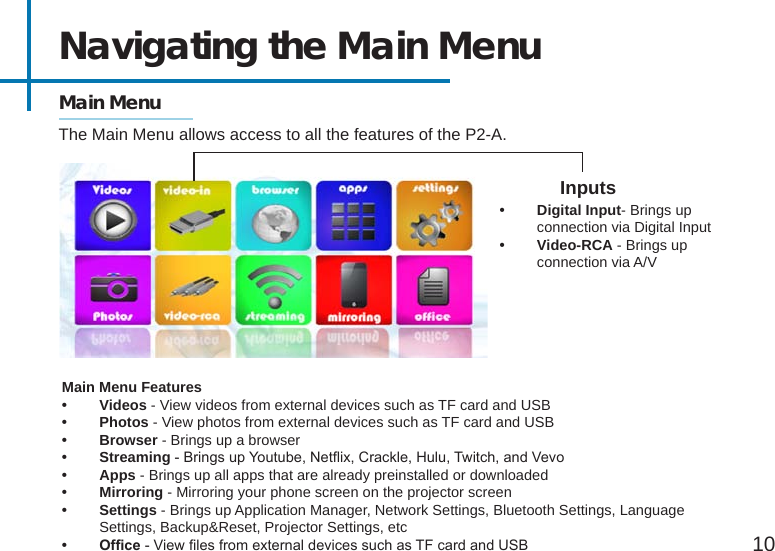

Navigating the Main Menu 10Main MenuThe Main Menu allows access to all the features of the P2-A.Main Menu Features• Videos - View videos from external devices such as TF card and USB• Photos - View photos from external devices such as TF card and USB• Browser - Brings up a browser• Streaming - Brings up Youtube, Netix, Crackle, Hulu, Twitch, and Vevo• Apps - Brings up all apps that are already preinstalled or downloaded• Mirroring - Mirroring your phone screen on the projector screen• Settings - Brings up Application Manager, Network Settings, Bluetooth Settings, Language Settings, Backup&Reset, Projector Settings, etc• Ofce- View les from external devices such as TF card and USB• Digital Input- Brings up connection via Digital Input• Video-RCA - Brings up connection via A/VInputs

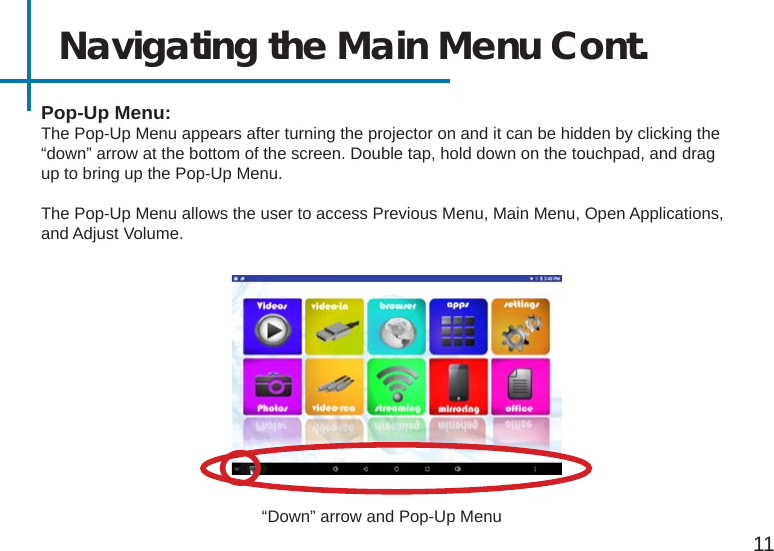

Navigating the Main Menu Cont.11Pop-Up Menu:The Pop-Up Menu appears after turning the projector on and it can be hidden by clicking the “down” arrow at the bottom of the screen. Double tap, hold down on the touchpad, and drag up to bring up the Pop-Up Menu.The Pop-Up Menu allows the user to access Previous Menu, Main Menu, Open Applications, and Adjust Volume.“Down” arrow and Pop-Up Menu

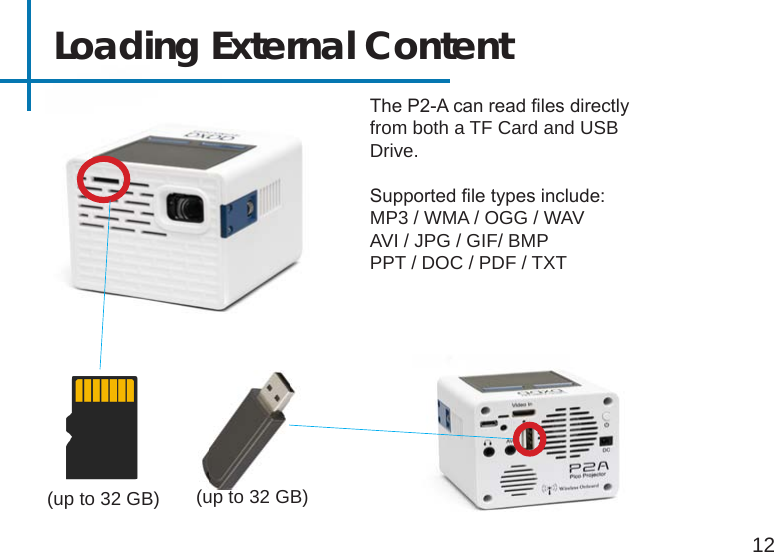

11Loading External Content12The P2-A can read les directly from both a TF Card and USB Drive.Supported le types include: MP3 / WMA / OGG / WAV AVI / JPG / GIF/ BMP PPT / DOC / PDF / TXT(up to 32 GB) (up to 32 GB)
Loading External Content Cont.How to insert your USB Drive• Slide your USB Drive into the USB port.• Gently slide the drive until it cannot go in any further.(up to 32 GB)*Review the “Specications” section of this manual to read about the sup-ported le formats.13
Loading External Content Cont.14*Review the “Specications” sec-tion of this manual to read about the supported le formats. (up to 32 GB)How to insert your TF Card• Slide in your TF card into the TF card slot on the side of the P2-A (as shown in picture).• Gently slide the TF card until it clicks into place.13

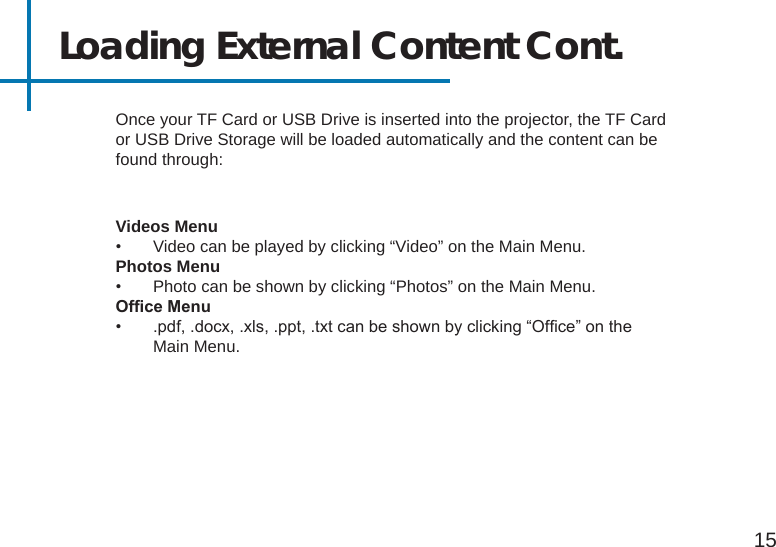

15Loading External Content Cont.Videos Menu• Video can be played by clicking “Video” on the Main Menu.Photos Menu• Photo can be shown by clicking “Photos” on the Main Menu.OfceMenu• .pdf, .docx, .xls, .ppt, .txt can be shown by clicking “Ofce” on the Main Menu.Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB Drive Storage will be loaded automatically and the content can be found through:

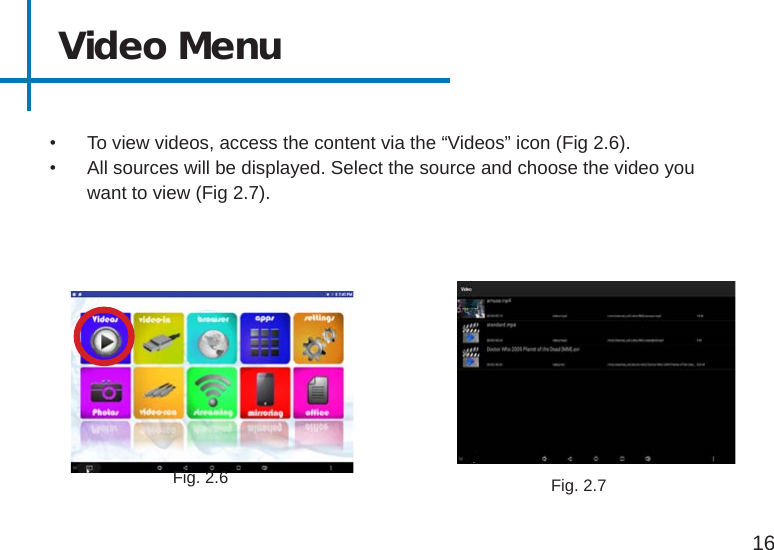

15Video Menu• To view videos, access the content via the “Videos” icon (Fig 2.6).• All sources will be displayed. Select the source and choose the video you want to view (Fig 2.7).16Fig. 2.6 Fig. 2.7

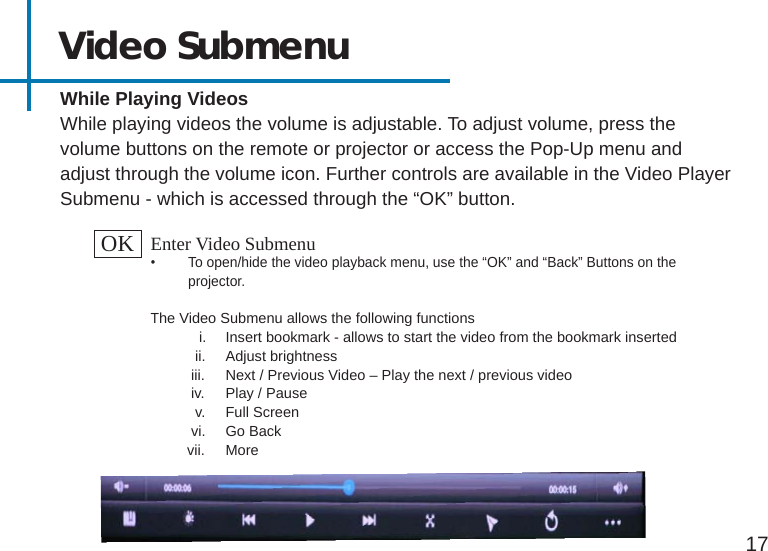

17Video Submenu While Playing VideosWhile playing videos the volume is adjustable. To adjust volume, press the volume buttons on the remote or projector or access the Pop-Up menu and adjust through the volume icon. Further controls are available in the Video Player Submenu - which is accessed through the “OK” button. OK Enter Video Submenu• To open/hide the video playback menu, use the “OK” and “Back” Buttons on the projector. The Video Submenu allows the following functions i. Insert bookmark - allows to start the video from the bookmark inserted ii. Adjust brightness iii. Next / Previous Video – Play the next / previous video iv. Play / Pause v. Full Screen vi. Go Back vii. More

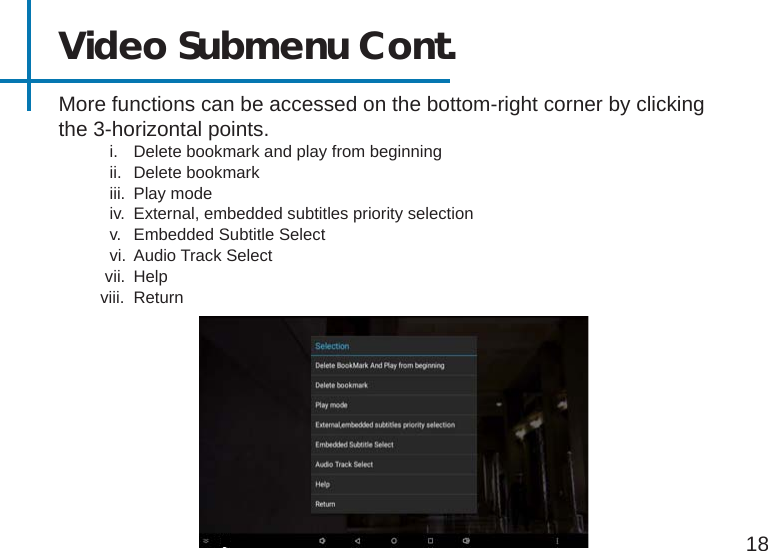

18Video Submenu Cont.More functions can be accessed on the bottom-right corner by clicking the 3-horizontal points. i. Delete bookmark and play from beginning ii. Delete bookmark iii. Play mode iv. External, embedded subtitles priority selection v. Embedded Subtitle Select vi. Audio Track Select vii. Help viii. Return

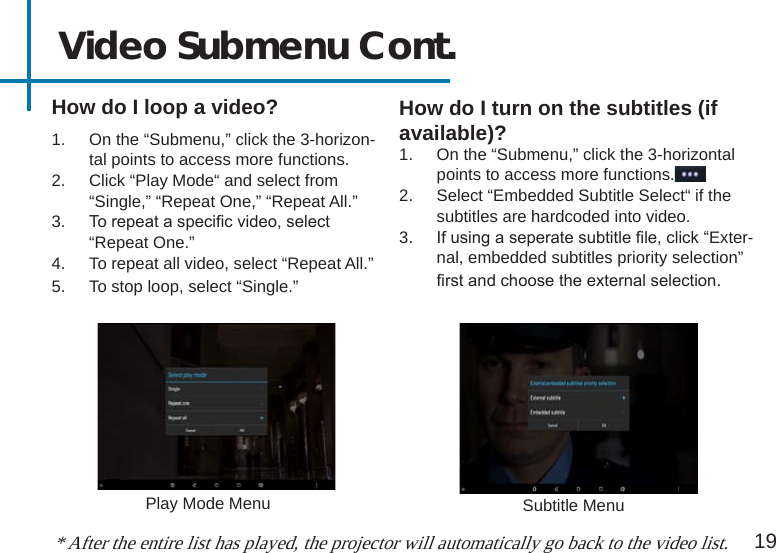

How do I loop a video?19Video Submenu Cont.How do I turn on the subtitles (if available)?1. On the “Submenu,” click the 3-horizontal points to access more functions.2. Select “Embedded Subtitle Select“ if the subtitles are hardcoded into video.3. If using a seperate subtitle le, click “Exter-nal, embedded subtitles priority selection” rst and choose the external selection.* After the entire list has played, the projector will automatically go back to the video list.1. On the “Submenu,” click the 3-horizon-tal points to access more functions.2. Click “Play Mode“ and select from “Single,” “Repeat One,” “Repeat All.”3. To repeat a specic video, select “Repeat One.”4. To repeat all video, select “Repeat All.”5. To stop loop, select “Single.” Play Mode Menu Subtitle Menu

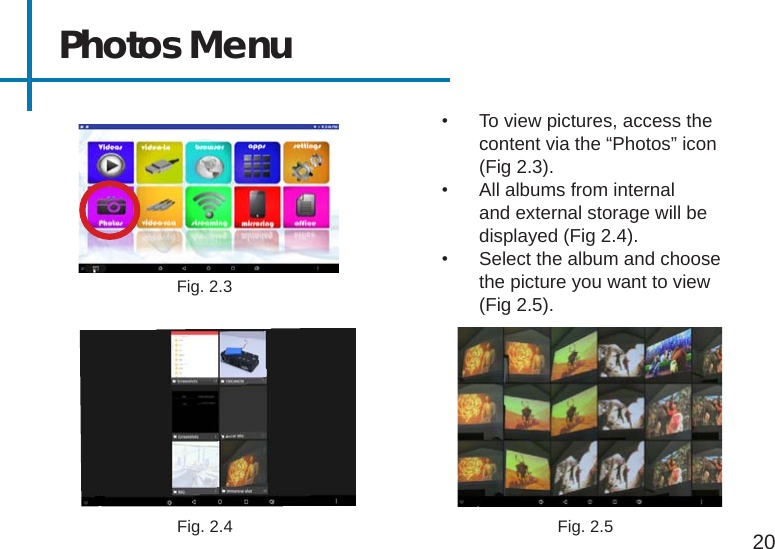

Photos Menu• To view pictures, access the content via the “Photos” icon (Fig 2.3).• All albums from internal and external storage will be displayed (Fig 2.4).• Select the album and choose the picture you want to view (Fig 2.5).20Fig. 2.3Fig. 2.4 Fig. 2.5

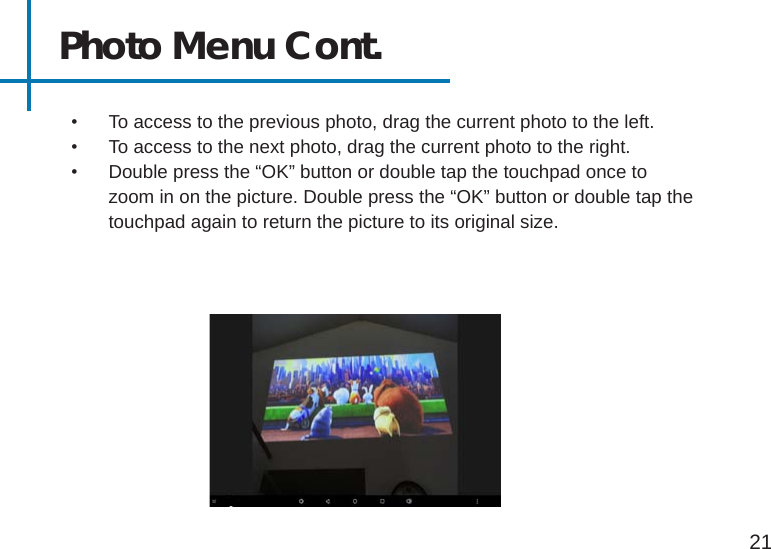

21Photo Menu Cont.• To access to the previous photo, drag the current photo to the left.• To access to the next photo, drag the current photo to the right.• Double press the “OK” button or double tap the touchpad once to zoom in on the picture. Double press the “OK” button or double tap the touchpad again to return the picture to its original size.

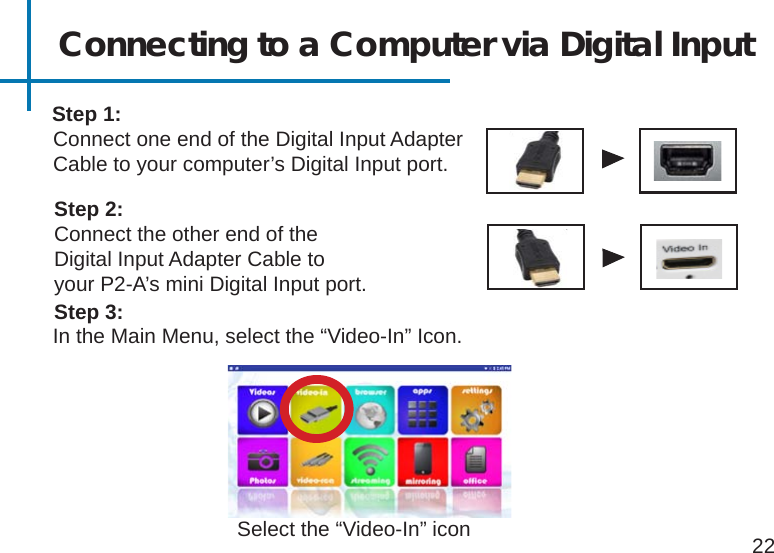

Connecting to a Computer via Digital Input22Connect one end of the Digital Input Adapter Cable to your computer’s Digital Input port. Step 1:Step 2:Step 3:In the Main Menu, select the “Video-In” Icon.Connect the other end of the Digital Input Adapter Cable to your P2-A’s mini Digital Input port. Select the “Video-In” icon

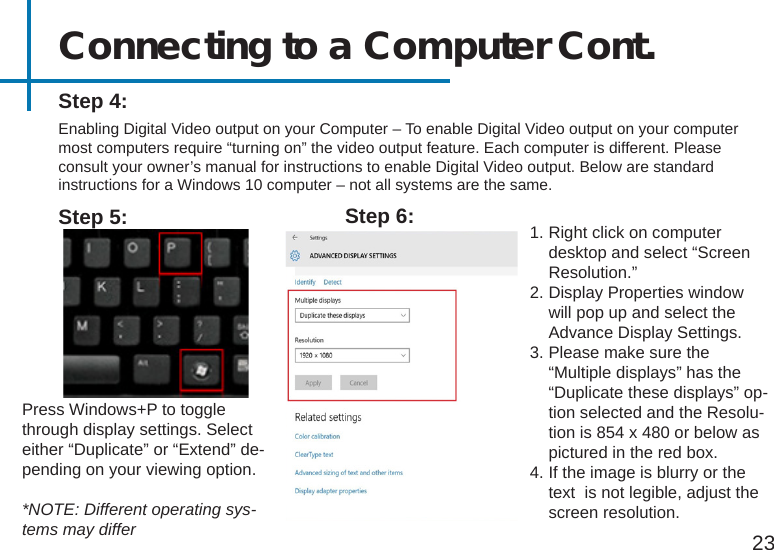

Connecting to a Computer Cont.Step 4:Enabling Digital Video output on your Computer – To enable Digital Video output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not all systems are the same.Press Windows+P to toggle through display settings. Select either “Duplicate” or “Extend” de-pending on your viewing option.*NOTE: Different operating sys-tems may differStep 5: 1. Right click on computer desktop and select “Screen Resolution.”2. Display Properties window will pop up and select the Advance Display Settings.3. Please make sure the “Multiple displays” has the “Duplicate these displays” op-tion selected and the Resolu-tion is 854 x 480 or below as pictured in the red box.4. If the image is blurry or the text is not legible, adjust the screen resolution. Step 6:23

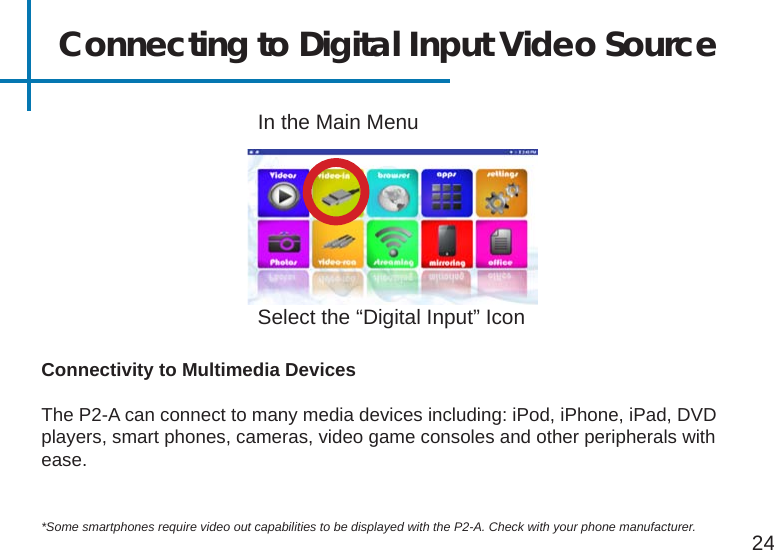

Connecting to Digital Input Video SourceConnectivity to Multimedia DevicesThe P2-A can connect to many media devices including: iPod, iPhone, iPad, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.*Some smartphones require video out capabilities to be displayed with the P2-A. Check with your phone manufacturer. 24In the Main Menu Select the “Digital Input” Icon
Connecting to Composite Video25Connect the 3.5mm Composite A/V Cable to the side of the P2-A. Connect the composite end of the AV Cable (Red, White,Yellow) to your own male AV cable. Step 1:Step 2:

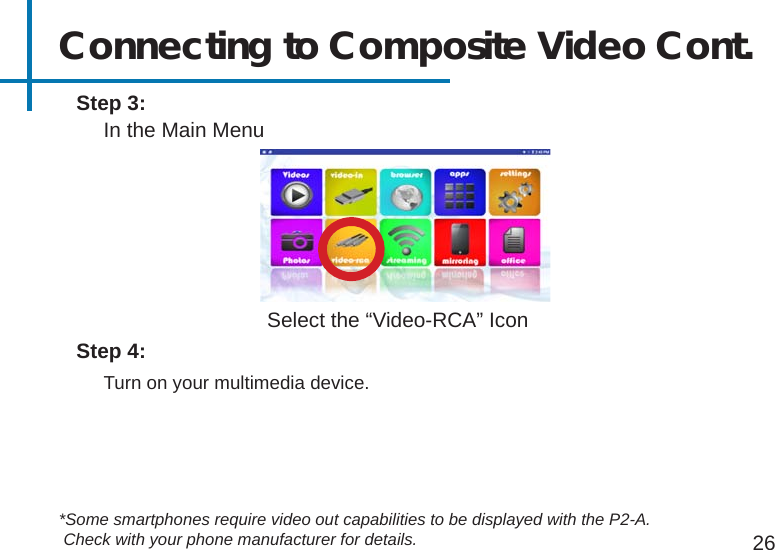

Connecting to Composite Video Cont.*Some smartphones require video out capabilities to be displayed with the P2-A. Check with your phone manufacturer for details. 26In the Main Menu Turn on your multimedia device.Select the “Video-RCA” IconStep 3:Step 4:

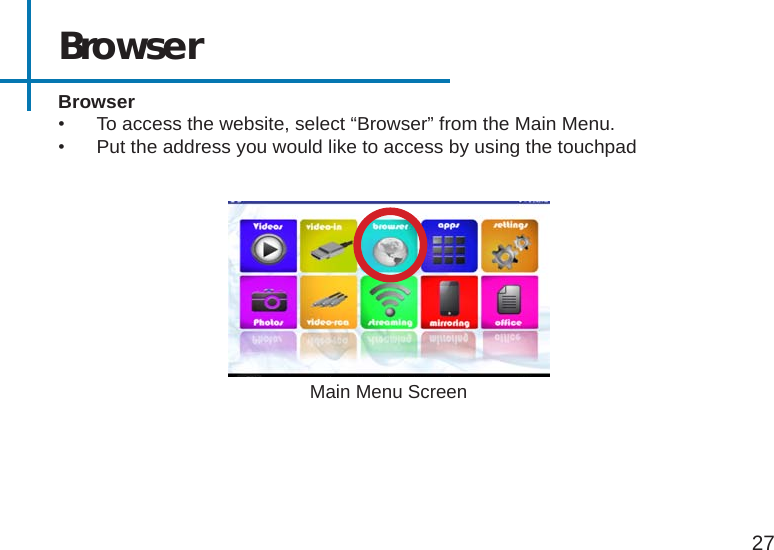

Browser• To access the website, select “Browser” from the Main Menu.• Put the address you would like to access by using the touchpadBrowser27Main Menu Screen

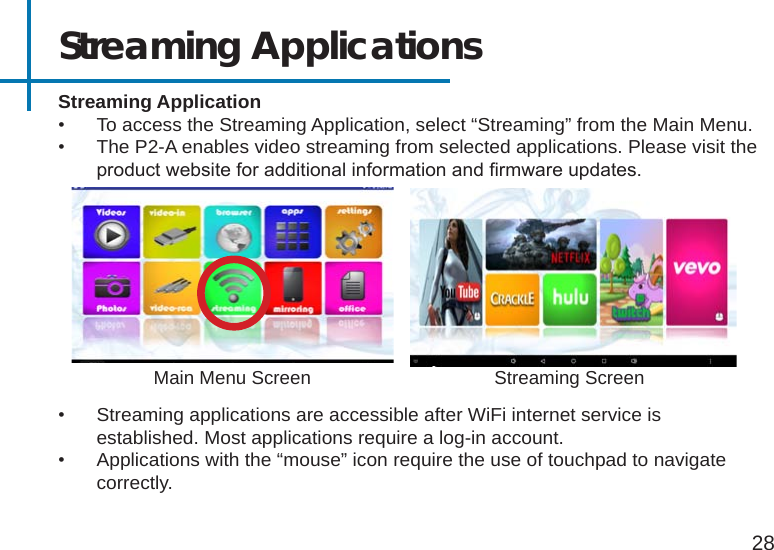

Streaming Application• To access the Streaming Application, select “Streaming” from the Main Menu.• The P2-A enables video streaming from selected applications. Please visit the product website for additional information and rmware updates.Streaming Applications28Main Menu Screen• Streaming applications are accessible after WiFi internet service is established. Most applications require a log-in account.• Applications with the “mouse” icon require the use of touchpad to navigate correctly.Streaming Screen
29Streaming Applications Cont.TroubleshootingApplication Hangs or Freezes• Try clearing the cache (see Settings - Application Manager)Update Required• If an update is required, you may be able to obtain it from the product website (through “Browser” in the “Apps”)Poor Video Playback• Possible Causes: Poor WiFi Connection Too many open applications More than one Bluetooth device connected

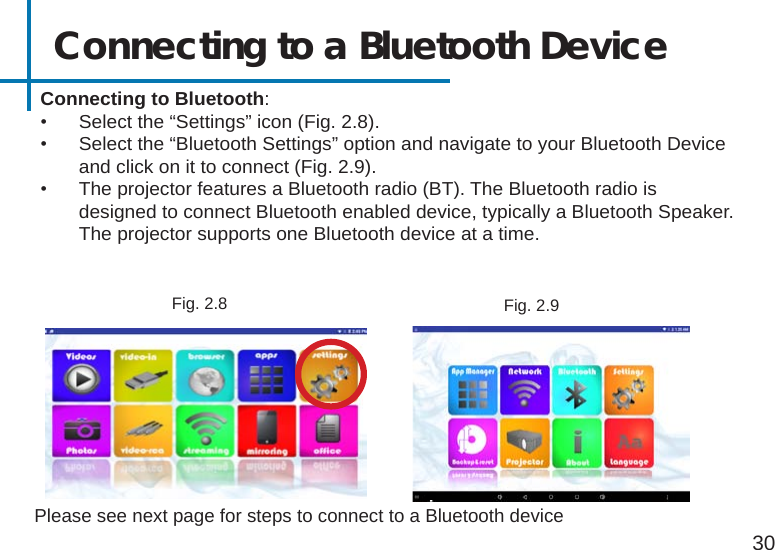

Connecting to a Bluetooth Device 30Please see next page for steps to connect to a Bluetooth device Connecting to Bluetooth:• Select the “Settings” icon (Fig. 2.8).• Select the “Bluetooth Settings” option and navigate to your Bluetooth Device and click on it to connect (Fig. 2.9).• The projector features a Bluetooth radio (BT). The Bluetooth radio is designed to connect Bluetooth enabled device, typically a Bluetooth Speaker. The projector supports one Bluetooth device at a time.Fig. 2.8 Fig. 2.9

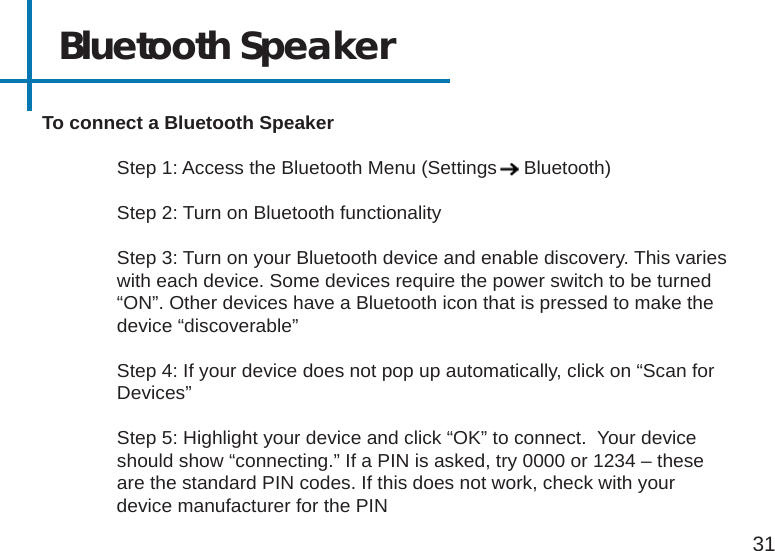

Bluetooth Speaker31To connect a Bluetooth Speaker Step 1: Access the Bluetooth Menu (Settings Bluetooth) Step 2: Turn on Bluetooth functionality Step 3: Turn on your Bluetooth device and enable discovery. This varies with each device. Some devices require the power switch to be turned “ON”. Other devices have a Bluetooth icon that is pressed to make the device “discoverable” Step 4: If your device does not pop up automatically, click on “Scan for Devices” Step 5: Highlight your device and click “OK” to connect. Your device should show “connecting.” If a PIN is asked, try 0000 or 1234 – these are the standard PIN codes. If this does not work, check with your device manufacturer for the PIN

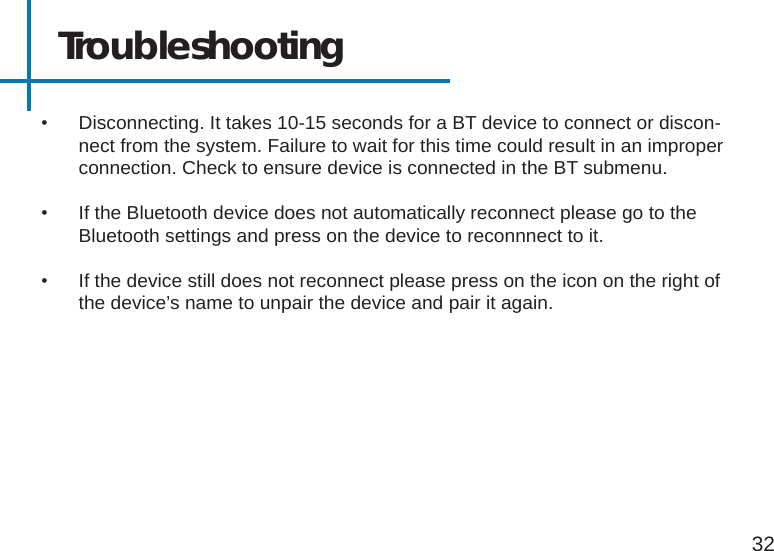

Troubleshooting32• Disconnecting. It takes 10-15 seconds for a BT device to connect or discon-nect from the system. Failure to wait for this time could result in an improper connection. Check to ensure device is connected in the BT submenu. • If the Bluetooth device does not automatically reconnect please go to the Bluetooth settings and press on the device to reconnnect to it. • If the device still does not reconnect please press on the icon on the right of the device’s name to unpair the device and pair it again.

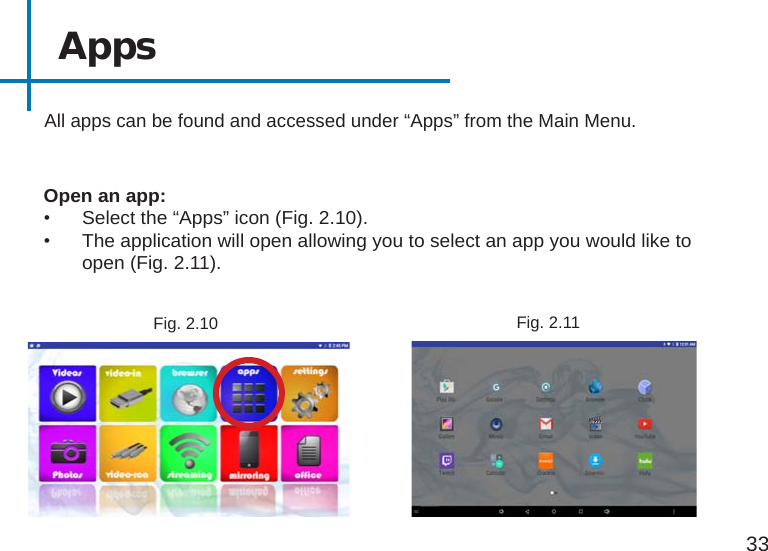

AppsAll apps can be found and accessed under “Apps” from the Main Menu.Open an app:• Select the “Apps” icon (Fig. 2.10). • The application will open allowing you to select an app you would like to open (Fig. 2.11).Fig. 2.1033Fig. 2.11

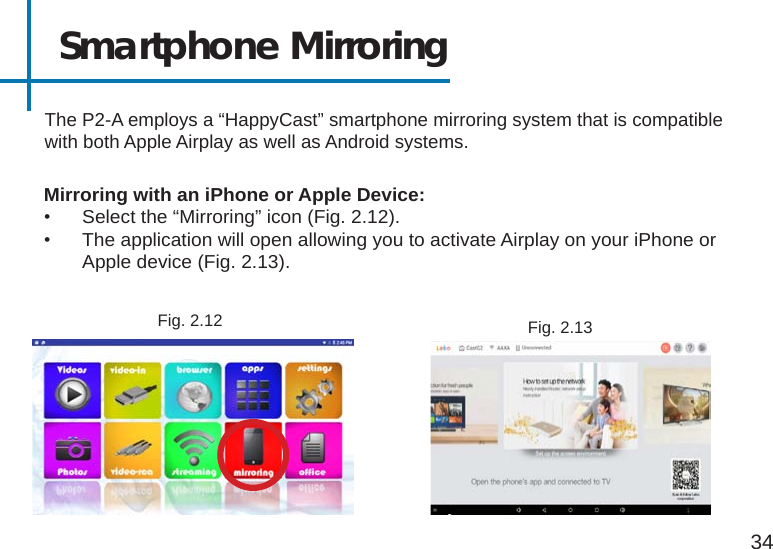

Smartphone MirroringThe P2-A employs a “HappyCast” smartphone mirroring system that is compatible with both Apple Airplay as well as Android systems.Mirroring with an iPhone or Apple Device:• Select the “Mirroring” icon (Fig. 2.12).• The application will open allowing you to activate Airplay on your iPhone or Apple device (Fig. 2.13).Fig. 2.1234Fig. 2.13

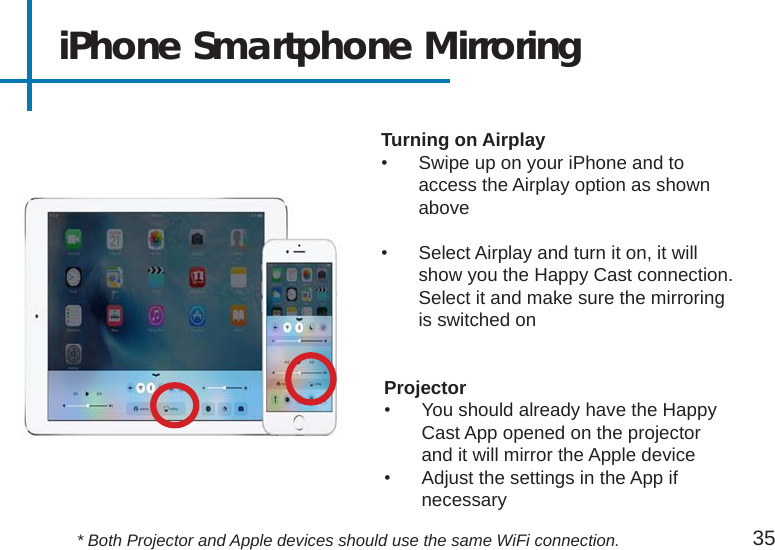

iPhone Smartphone Mirroring Projector• You should already have the Happy Cast App opened on the projector and it will mirror the Apple device• Adjust the settings in the App if necessaryTurning on Airplay• Swipe up on your iPhone and to access the Airplay option as shown above• Select Airplay and turn it on, it will show you the Happy Cast connection. Select it and make sure the mirroring is switched on35* Both Projector and Apple devices should use the same WiFi connection.

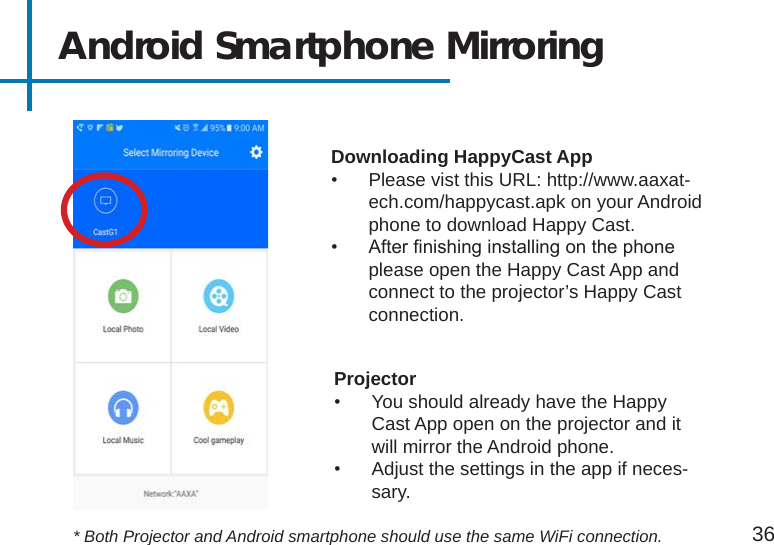

Android Smartphone Mirroring Projector• You should already have the Happy Cast App open on the projector and it will mirror the Android phone.• Adjust the settings in the app if neces-sary.Downloading HappyCast App• Please vist this URL: http://www.aaxat-ech.com/happycast.apk on your Android phone to download Happy Cast.• After nishing installing on the phone please open the Happy Cast App and connect to the projector’s Happy Cast connection.36* Both Projector and Android smartphone should use the same WiFi connection.

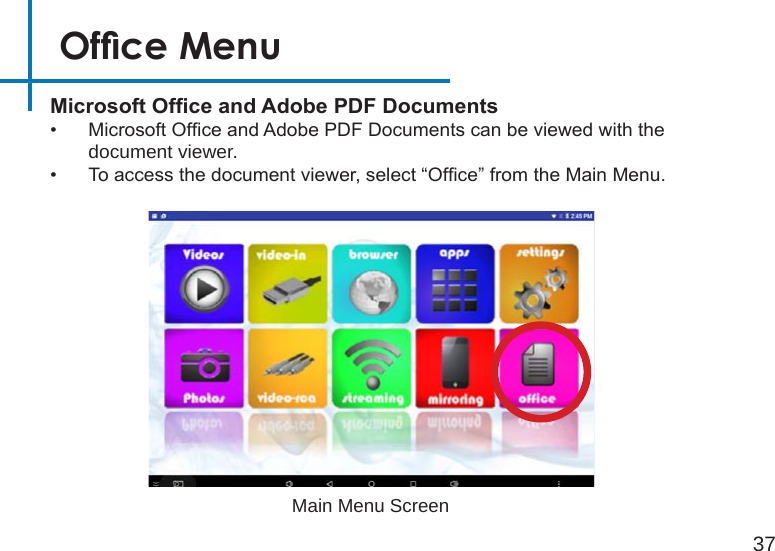

Ofce Menu37MicrosoftOfceandAdobePDFDocuments• Microsoft Ofce and Adobe PDF Documents can be viewed with the document viewer.• To access the document viewer, select “Ofce” from the Main Menu.Main Menu Screen

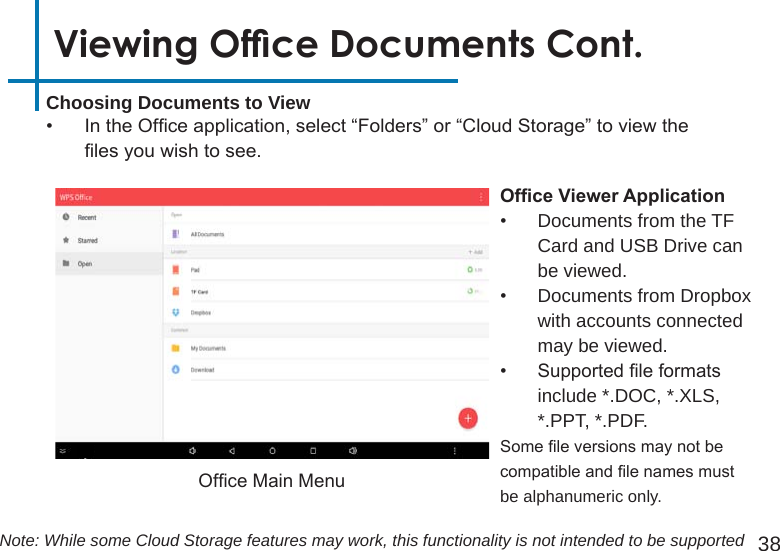

38Choosing Documents to View• In the Ofce application, select “Folders” or “Cloud Storage” to view the les you wish to see.Viewing Ofce Documents Cont.Ofce Main MenuOfceViewerApplication• Documents from the TF Card and USB Drive can be viewed. • Documents from Dropbox with accounts connected may be viewed.• Supported le formats include *.DOC, *.XLS, *.PPT, *.PDF.Some le versions may not be compatible and le names must be alphanumeric only.Note: While some Cloud Storage features may work, this functionality is not intended to be supported

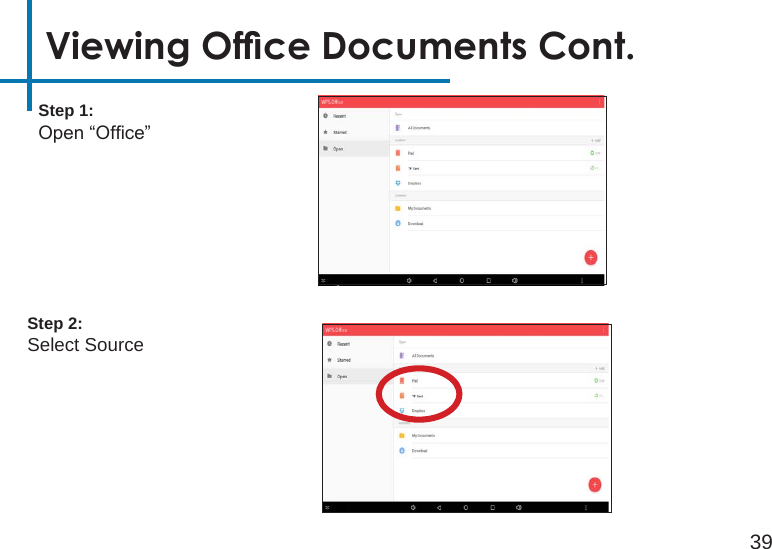

39Step 1: Open “Ofce”Viewing Ofce Documents Cont.Step 2:Select Source
Viewing Productivity Documents Cont.40Note: For a more comprehensive user guide please visit our FAQ section or search online for Kingsoft WPS Ofce Viewer user guideNeed help with the document viewer? Please e-mail us at pro_support@aaxatech.comStep 3:Highlight the Ofce File and click “OK”Step 4:The le should display automatically

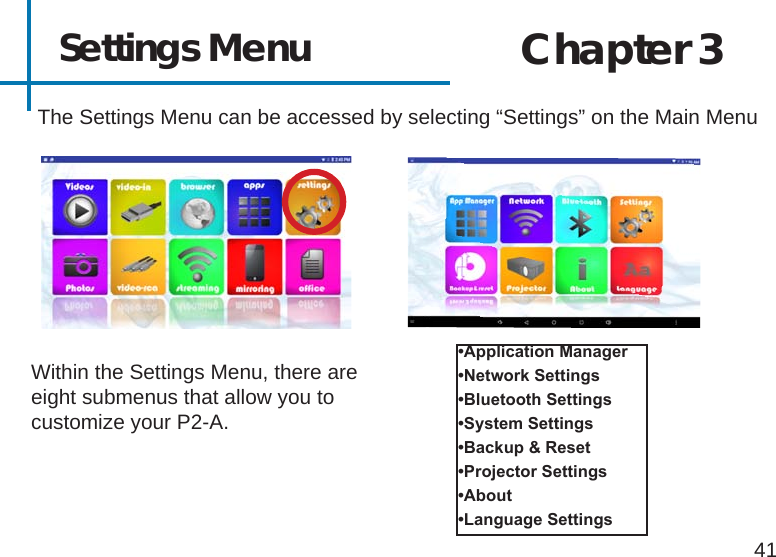

Settings Menu41The Settings Menu can be accessed by selecting “Settings” on the Main Menu•ApplicationManager•NetworkSettings•BluetoothSettings•SystemSettings•Backup&Reset•ProjectorSettings•About•LanguageSettingsWithin the Settings Menu, there are eight submenus that allow you to customize your P2-A.Chapter 3

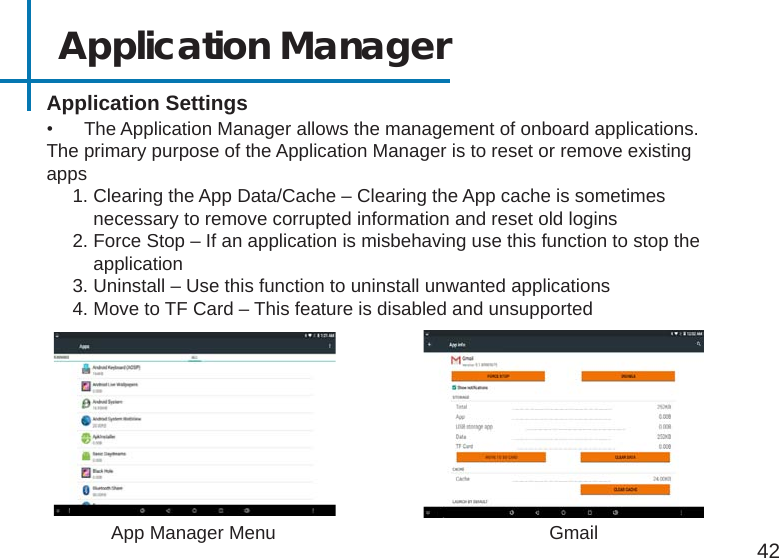

42Application Manager Application Settings• The Application Manager allows the management of onboard applications.The primary purpose of the Application Manager is to reset or remove existing apps 1. Clearing the App Data/Cache – Clearing the App cache is sometimes necessary to remove corrupted information and reset old logins 2. Force Stop – If an application is misbehaving use this function to stop the application 3. Uninstall – Use this function to uninstall unwanted applications 4. Move to TF Card – This feature is disabled and unsupportedApp Manager Menu Gmail

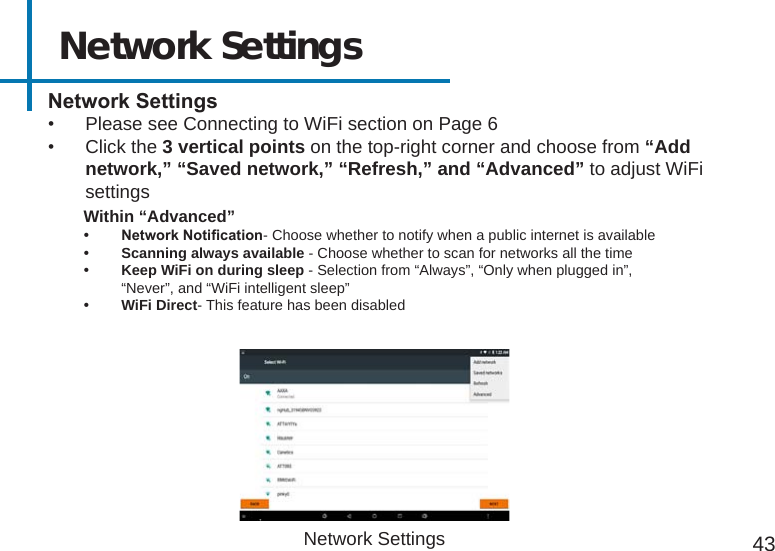

Network Settings43NetworkSettings• Please see Connecting to WiFi section on Page 6• Click the 3 vertical points on the top-right corner and choose from “Add network,” “Saved network,” “Refresh,” and “Advanced” to adjust WiFi settings • NetworkNotication- Choose whether to notify when a public internet is available• Scanning always available - Choose whether to scan for networks all the time• Keep WiFi on during sleep - Selection from “Always”, “Only when plugged in”, “Never”, and “WiFi intelligent sleep”• WiFi Direct- This feature has been disabledWithin “Advanced”Network Settings

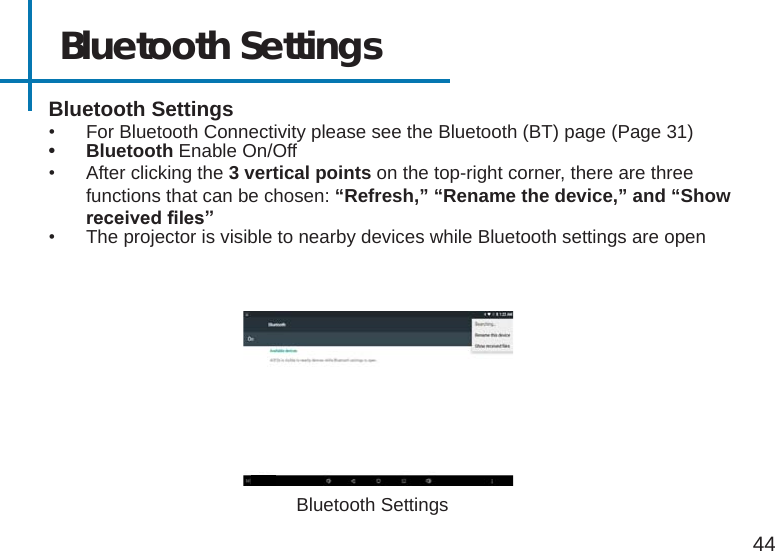

Bluetooth Settings44Bluetooth Settings• For Bluetooth Connectivity please see the Bluetooth (BT) page (Page 31)• Bluetooth Enable On/Off• After clicking the 3 vertical points on the top-right corner, there are three functions that can be chosen: “Refresh,” “Rename the device,” and “Show receivedles”• The projector is visible to nearby devices while Bluetooth settings are openBluetooth Settings

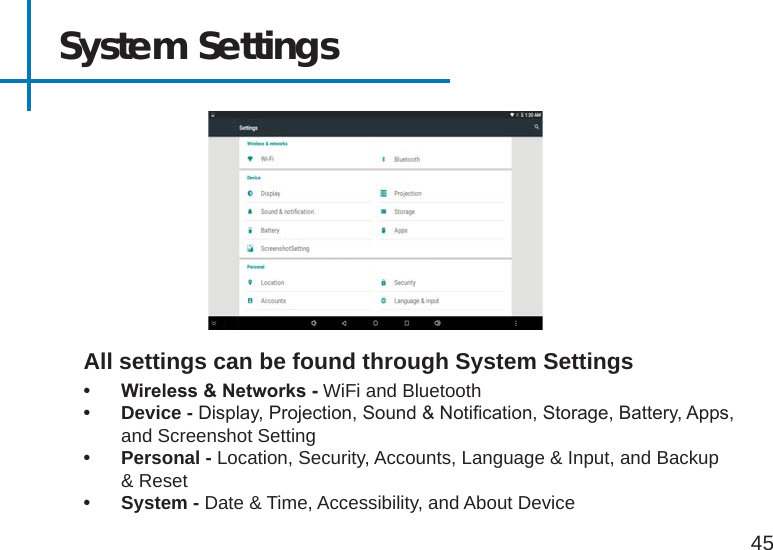

System Settings• Wireless&Networks-WiFi and Bluetooth• Device - Display, Projection, Sound & Notication, Storage, Battery, Apps, and Screenshot Setting• Personal - Location, Security, Accounts, Language & Input, and Backup & Reset• System - Date & Time, Accessibility, and About DeviceAll settings can be found through System Settings45

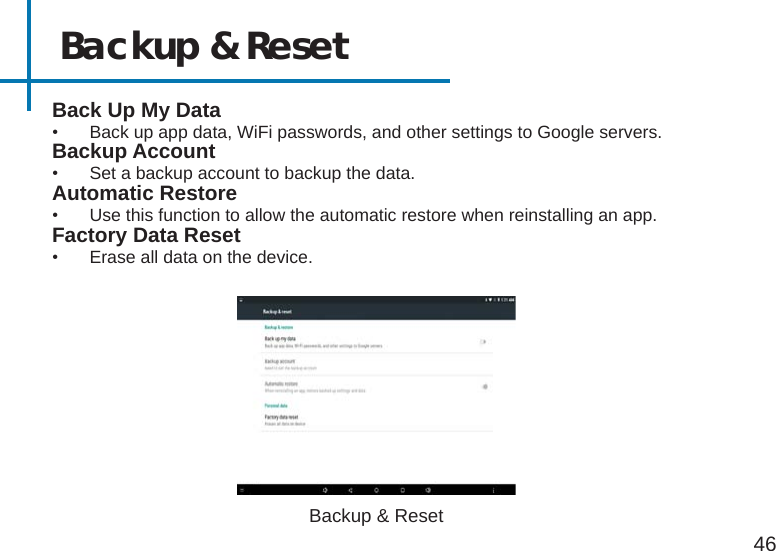

Backup & Reset46Back Up My Data• Back up app data, WiFi passwords, and other settings to Google servers.Backup Account• Set a backup account to backup the data.Automatic Restore• Use this function to allow the automatic restore when reinstalling an app.Factory Data Reset• Erase all data on the device.Backup & Reset

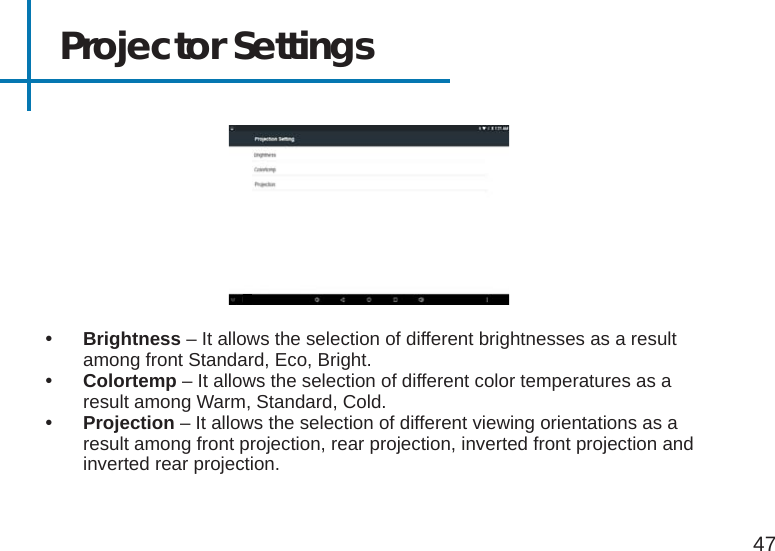

Projector Settings 47• Brightness – It allows the selection of different brightnesses as a result among front Standard, Eco, Bright.• Colortemp – It allows the selection of different color temperatures as a result among Warm, Standard, Cold.• Projection – It allows the selection of different viewing orientations as a result among front projection, rear projection, inverted front projection and inverted rear projection.

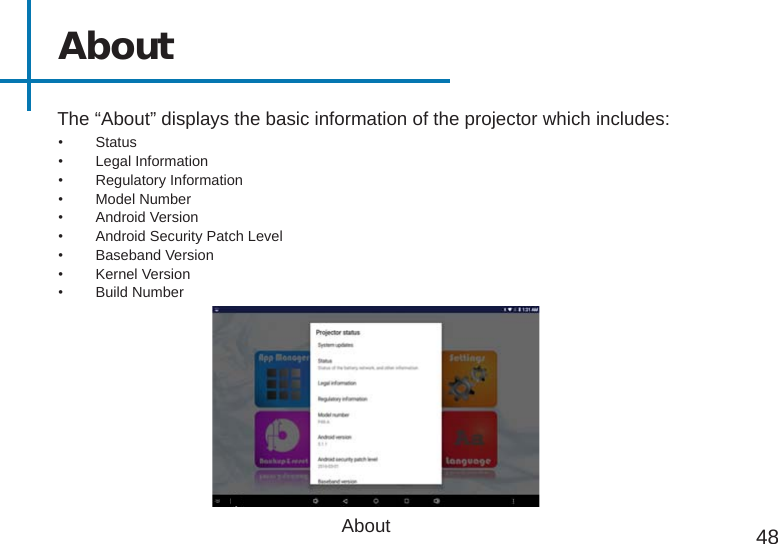

AboutThe “About” displays the basic information of the projector which includes:About 48• Status• Legal Information• Regulatory Information• Model Number• Android Version• Android Security Patch Level• Baseband Version• Kernel Version• Build Number

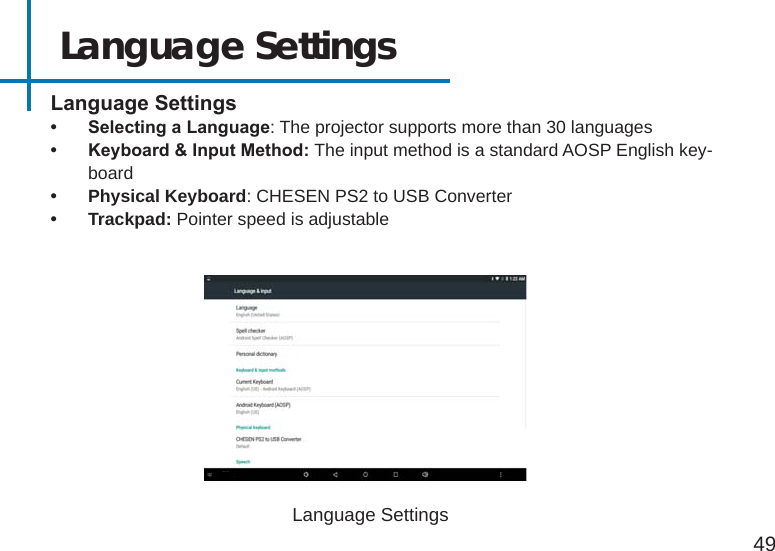

Language Settings49LanguageSettings• SelectingaLanguage: The projector supports more than 30 languages • Keyboard&InputMethod:The input method is a standard AOSP English key-board • Physical Keyboard: CHESEN PS2 to USB Converter• Trackpad: Pointer speed is adjustableLanguage Settings

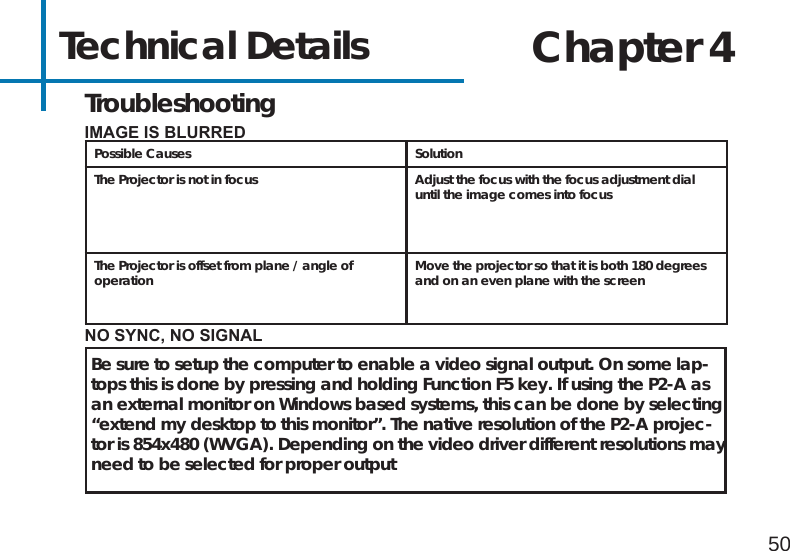

49Technical Details Chapter 4IMAGEISBLURREDPossible Causes SolutionThe Projector is not in focus Adjust the focus with the focus adjustment dial until the image comes into focusThe Projector is offset from plane / angle of operation Move the projector so that it is both 180 degrees and on an even plane with the screenNOSYNC,NOSIGNALTroubleshootingBe sure to setup the computer to enable a video signal output. On some lap-tops this is done by pressing and holding Function F5 key. If using the P2-A as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. The native resolution of the P2-A projec-tor is 854x480 (WVGA). Depending on the video driver different resolutions may need to be selected for proper output50

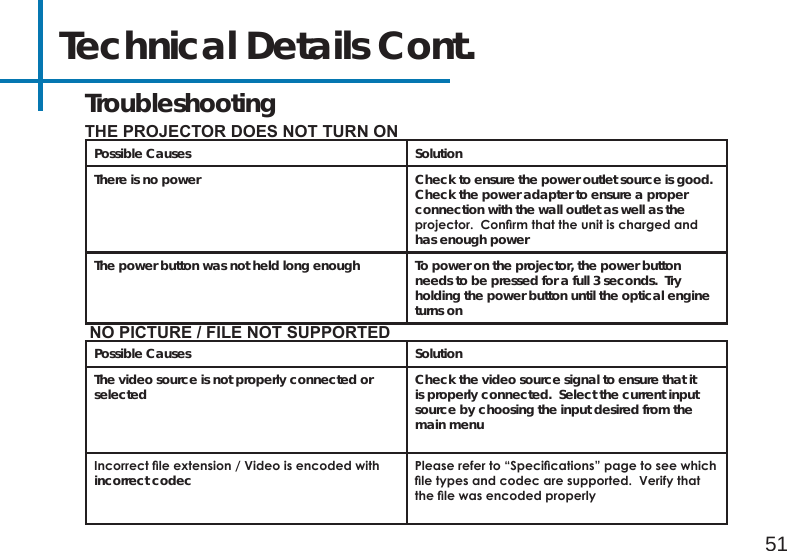

51Technical Details Cont.THEPROJECTORDOESNOTTURNONPossible Causes SolutionThere is no power Check to ensure the power outlet source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. Conrm that the unit is charged and has enough powerThe power button was not held long enough To power on the projector, the power button needs to be pressed for a full 3 seconds. Try holding the power button until the optical engine turns onNOPICTURE/FILENOTSUPPORTEDPossible Causes SolutionThe video source is not properly connected or selected Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menuIncorrect le extension / Video is encoded with incorrect codec Please refer to “Specications” page to see which le types and codec are supported. Verify that the le was encoded properlyTroubleshooting
52SpecicationsBrightness:Max Resolution: NativeResolution:Contrast Ratio:Aspect Ratio:ProjectionLens:Image Size: Lamp: Video in:Audio Out:Color:TF Card:USB:Dimensions: Weight:Power Consumption:BatteryLife:Supported File Formats:Conformances:Android Operating System:Processor:RAM:Onboard Storage:WiFi:Bluetooth:130Lumens1920x1080 (1080P) 854x480 (WXGA)1000:116:9Manual Focus8~100 inches TripleRGBLEDswithVibrantColorTechnologyLife20,000hrs CompositeA/V(3.5mmJack)Digital Input (Mini) (compatible)3.5mmaudiojackWhite/Gray(specialorderonly)TF Card Slot (32GB maximum) FullSizeUSB2.0(32GBmaximum)2.8”x2.8”x2.3” 8.8oz11 W150MinuteLi-IonRechargeableBatteryMP3, WMA, OGG, WAV, AVI, BMP,JPG,TXT,GIF,XLS,PPT, DOC, PDFCE, FCC Class A5.1.1LollipopQuad-CoreARMCortex1.3ghz1GB8GB802.11b/g/n2.0

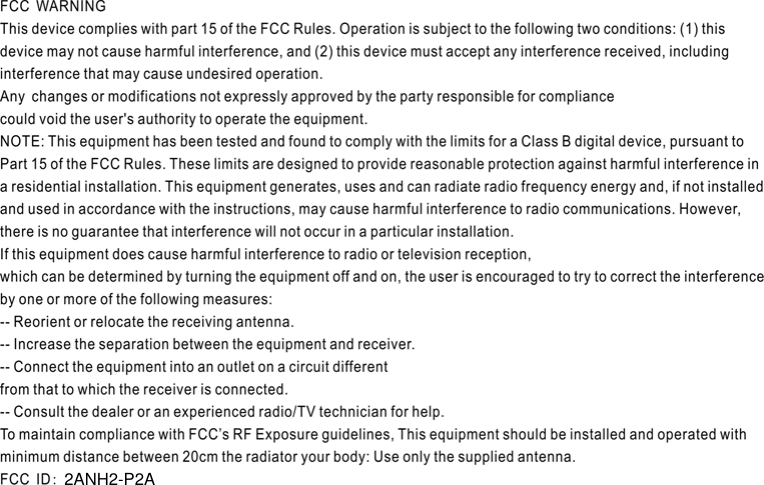

2ANH2-P2A
Notes

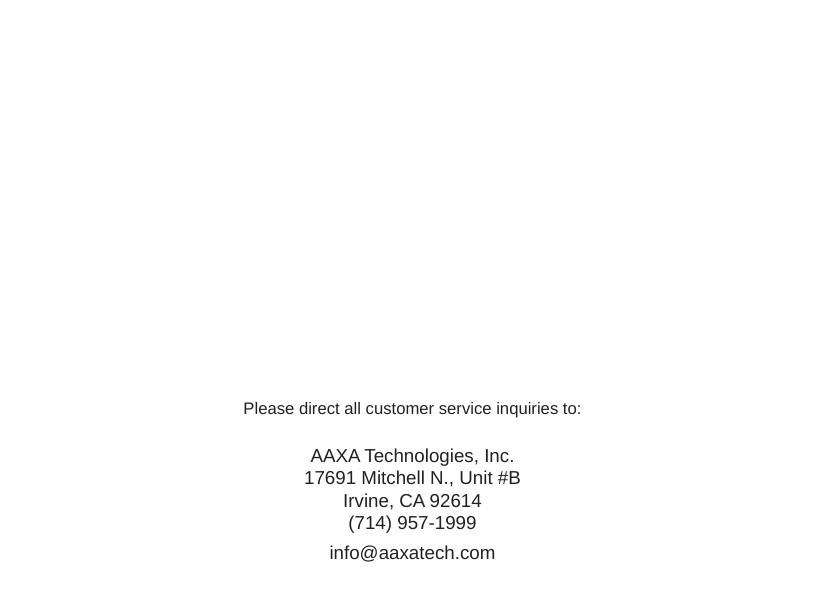

Please direct all customer service inquiries to:AAXA Technologies, Inc.17691 Mitchell N., Unit #BIrvine, CA 92614(714) 957-1999info@aaxatech.com
