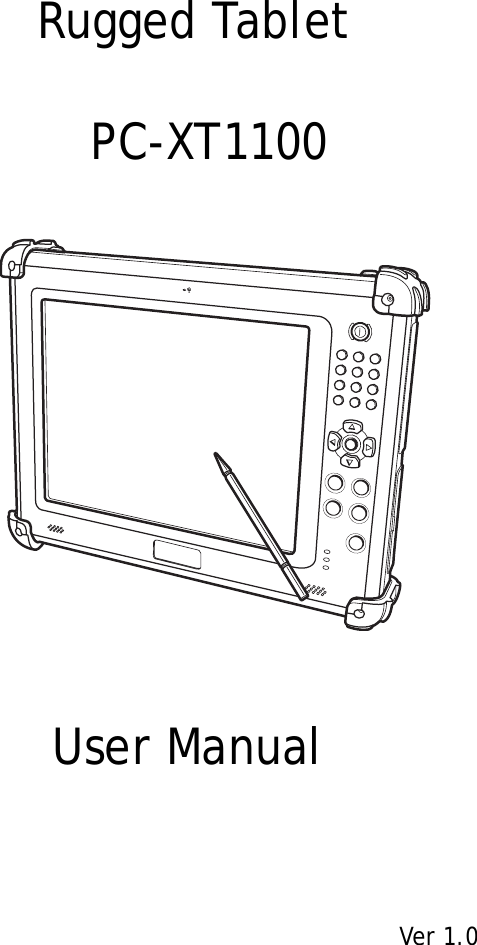

Rugged Tablet PC-XT1100User ManualVer 1.0

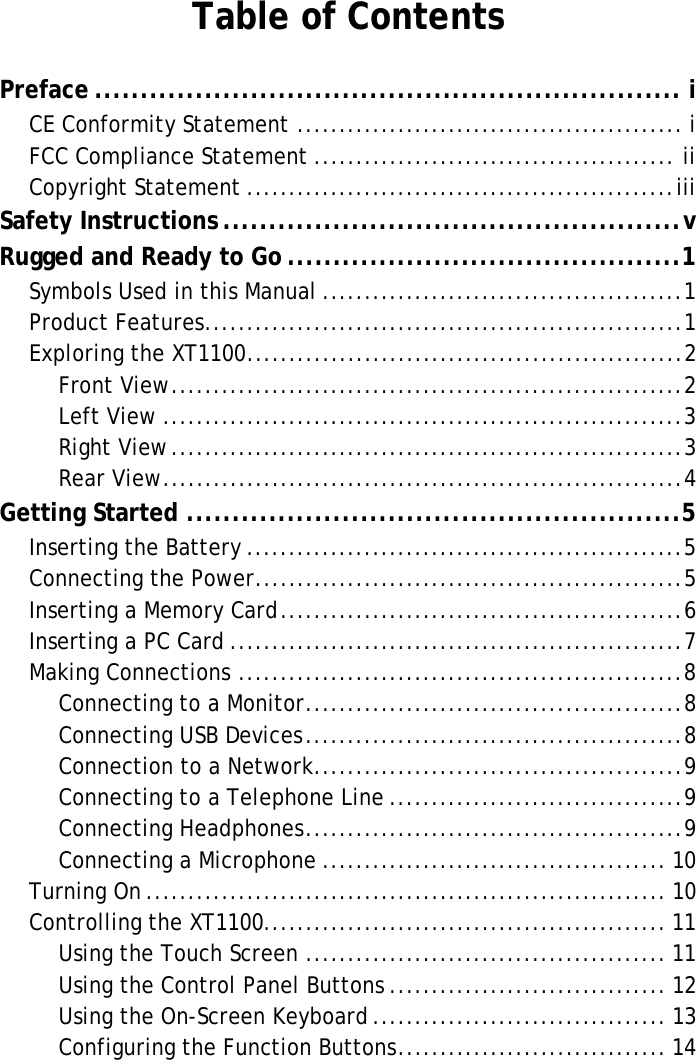

XT1100 User ManualTable of ContentsPreface ................................................................ iCE Conformity Statement .............................................. iFCC Compliance Statement ........................................... iiCopyright Statement ...................................................iiiSafety Instructions ..................................................vRugged and Ready to Go ...........................................1Symbols Used in this Manual ...........................................1Product Features.........................................................1Exploring the XT1100....................................................2Front View.............................................................2Left View ..............................................................3Right View.............................................................3Rear View..............................................................4Getting Started ......................................................5Inserting the Battery ....................................................5Connecting the Power...................................................5Inserting a Memory Card................................................6Inserting a PC Card ......................................................7Making Connections .....................................................8Connecting to a Monitor.............................................8Connecting USB Devices.............................................8Connection to a Network............................................9Connecting to a Telephone Line ...................................9Connecting Headphones.............................................9Connecting a Microphone ......................................... 10Turning On.............................................................. 10Controlling the XT1100................................................ 11Using the Touch Screen ........................................... 11Using the Control Panel Buttons ................................. 12Using the On-Screen Keyboard................................... 13Configuring the Function Buttons................................ 14

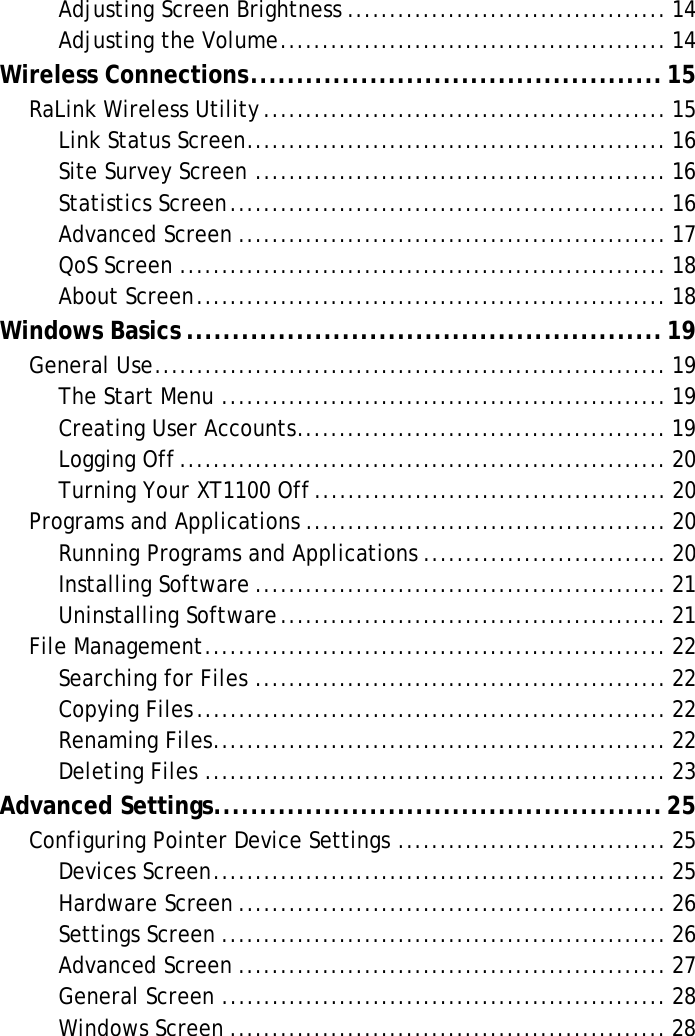

XT1100 User ManualAdjusting Screen Brightness ...................................... 14Adjusting the Volume.............................................. 14Wireless Connections.............................................15RaLink Wireless Utility................................................ 15Link Status Screen.................................................. 16Site Survey Screen ................................................. 16Statistics Screen.................................................... 16Advanced Screen ................................................... 17QoS Screen .......................................................... 18About Screen........................................................ 18Windows Basics ....................................................19General Use............................................................. 19The Start Menu ..................................................... 19Creating User Accounts............................................ 19Logging Off.......................................................... 20Turning Your XT1100 Off.......................................... 20Programs and Applications ........................................... 20Running Programs and Applications ............................. 20Installing Software ................................................. 21Uninstalling Software.............................................. 21File Management....................................................... 22Searching for Files ................................................. 22Copying Files........................................................ 22Renaming Files...................................................... 22Deleting Files ....................................................... 23Advanced Settings.................................................25Configuring Pointer Device Settings ................................ 25Devices Screen...................................................... 25Hardware Screen ................................................... 26Settings Screen ..................................................... 26Advanced Screen ................................................... 27General Screen ..................................................... 28Windows Screen .................................................... 28
XT1100 User ManualCalibration Screen ................................................. 29Status Screen ....................................................... 30About Screen........................................................ 30Specifications ......................................................31
XT1100 User Manual

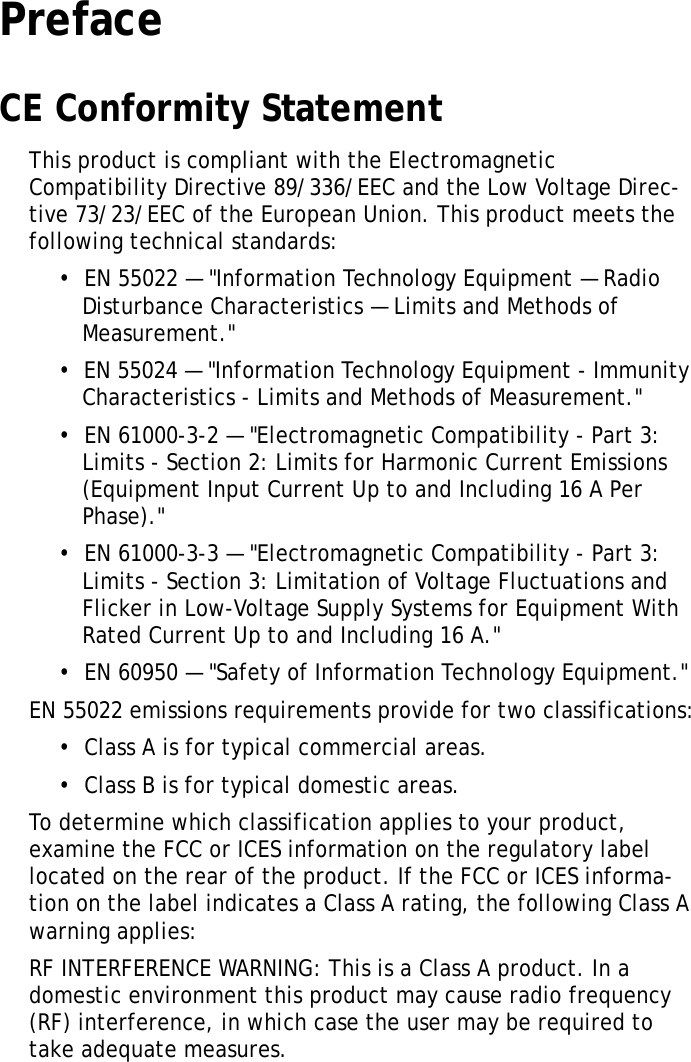

XT1100 User ManualiPrefaceCE Conformity StatementThis product is compliant with the Electromagnetic Compatibility Directive 89/336/EEC and the Low Voltage Direc-tive 73/23/EEC of the European Union. This product meets the following technical standards:• EN 55022 — "Information Technology Equipment — Radio Disturbance Characteristics — Limits and Methods of Measurement."• EN 55024 — "Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement."• EN 61000-3-2 — "Electromagnetic Compatibility - Part 3: Limits - Section 2: Limits for Harmonic Current Emissions (Equipment Input Current Up to and Including 16 A Per Phase)."• EN 61000-3-3 — "Electromagnetic Compatibility - Part 3: Limits - Section 3: Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment With Rated Current Up to and Including 16 A."• EN 60950 — "Safety of Information Technology Equipment."EN 55022 emissions requirements provide for two classifications:• Class A is for typical commercial areas.• Class B is for typical domestic areas.To determine which classification applies to your product, examine the FCC or ICES information on the regulatory label located on the rear of the product. If the FCC or ICES informa-tion on the label indicates a Class A rating, the following Class A warning applies:RF INTERFERENCE WARNING: This is a Class A product. In a domestic environment this product may cause radio frequency (RF) interference, in which case the user may be required to take adequate measures.

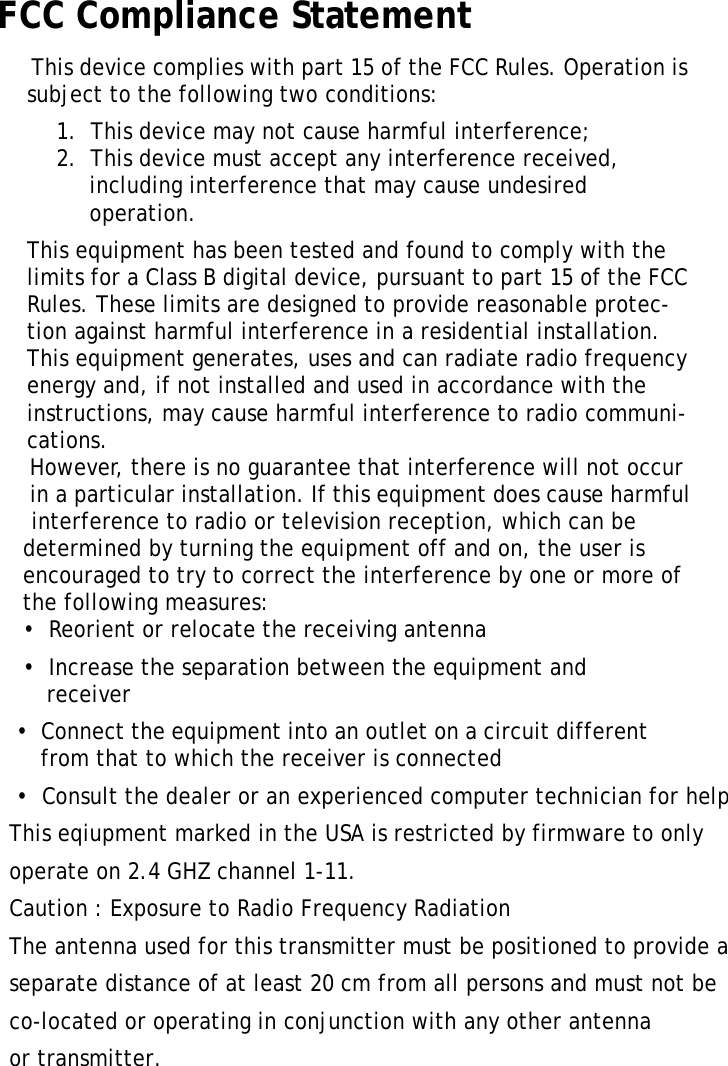

XT1100 User ManualiiFCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference;2. This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi-cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced computer technician for help This eqiupment marked in the USA is restricted by firmware to only operate on 2.4 GHZ channel 1-11. Caution : Exposure to Radio Frequency Radiation The antenna used for this transmitter must be positioned to provide a separate distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
XT1100 User ManualiiiCopyright Statement© Copyright 2007 aca-digital ADVANCED CONVERGENCE ALLIANCE, All Rights Reserved.All rights reserved. This manual is protected by copyright anddistributed under licenses restricting its use, copying and distri-bution. No part of this manual may be reproduced in any form, electronic or otherwise, without the express permission of Advanced Convergence Alliance. This product features software manufactured by Advanced Con-vergence Alliance, along with other third party software. All described herein shall not be distributed, modified, reverse engineered, or reproduced in any manner without the prior per-mission of Advanced Convergence Alliance or of the other third parties, to whom the software rights belong.All other product names, trademarks or logos mentioned herein and are the property of their respective owners.
XT1100 User Manualiv
XT1100 User ManualvSafety InstructionsPay careful attention to the following safety instructions when setting up and using the XT1100.
XT1100 User Manualvi

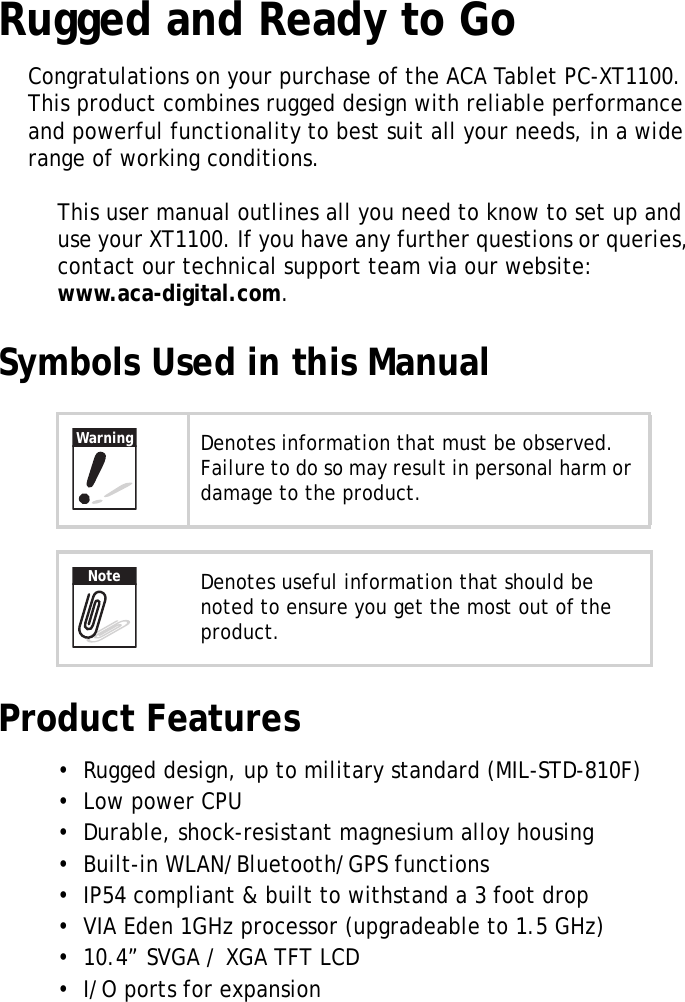

XT1100 User Manual1Rugged and Ready to GoCongratulations on your purchase of the ACA Tablet PC-XT1100. This product combines rugged design with reliable performance and powerful functionality to best suit all your needs, in a wide range of working conditions.This user manual outlines all you need to know to set up and use your XT1100. If you have any further questions or queries, contact our technical support team via our website: www.aca-digital.com.Symbols Used in this ManualProduct Features• Rugged design, up to military standard (MIL-STD-810F)• Low power CPU• Durable, shock-resistant magnesium alloy housing• Built-in WLAN/Bluetooth/GPS functions• IP54 compliant & built to withstand a 3 foot drop• VIA Eden 1GHz processor (upgradeable to 1.5 GHz)• 10.4” SVGA / XGA TFT LCD• I/O ports for expansionDenotes information that must be observed. Failure to do so may result in personal harm or damage to the product.Denotes useful information that should be noted to ensure you get the most out of the product.WarningNote

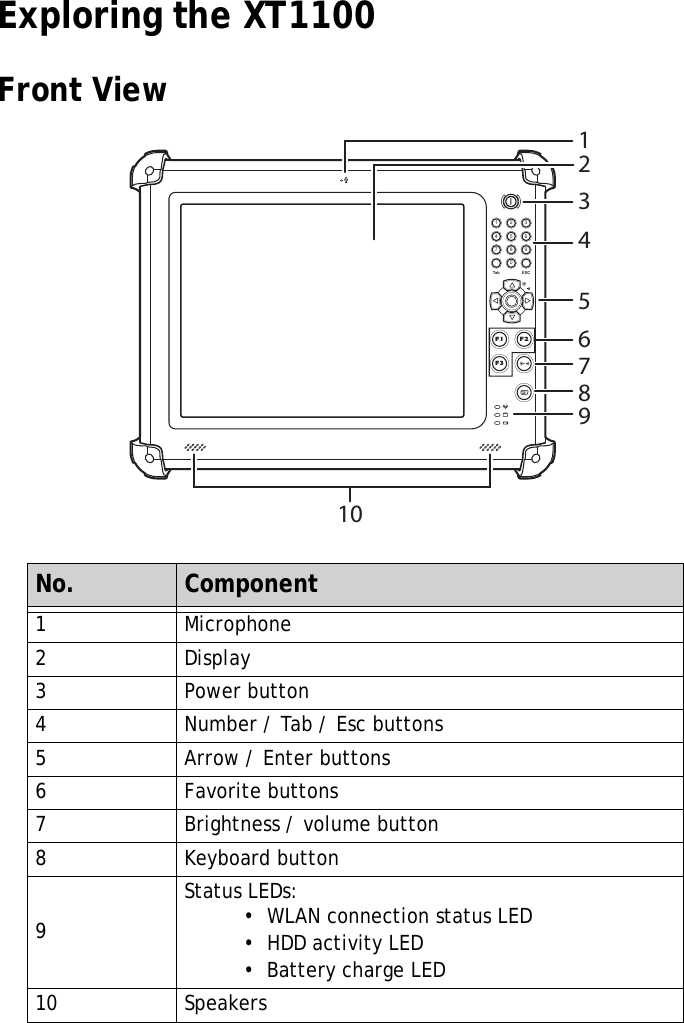

XT1100 User Manual2Exploring the XT1100Front ViewNo. Component1Microphone2Display3 Power button4 Number / Tab / Esc buttons5 Arrow / Enter buttons6 Favorite buttons7 Brightness / volume button8 Keyboard button9Status LEDs:• WLAN connection status LED• HDD activity LED• Battery charge LED10 Speakers1 324 657 980Tab ESCF1 F2F312345678109

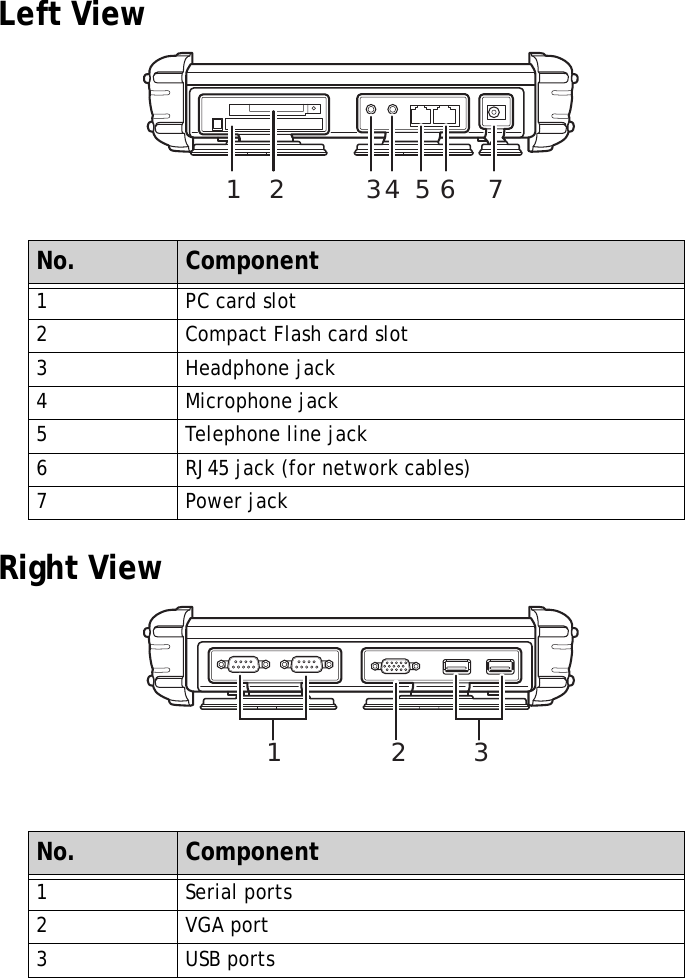

XT1100 User Manual3Left ViewRight ViewNo. Component1PC card slot2 Compact Flash card slot3 Headphone jack4Microphone jack5 Telephone line jack6 RJ45 jack (for network cables)7 Power jackNo. Component1Serial ports2VGA port3USB ports12 34567123

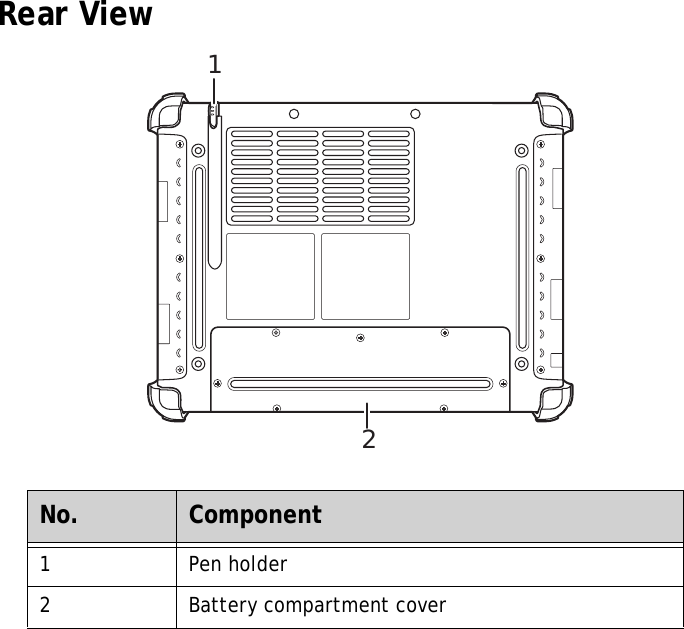

XT1100 User Manual4Rear ViewNo. Component1Pen holder2 Battery compartment cover12

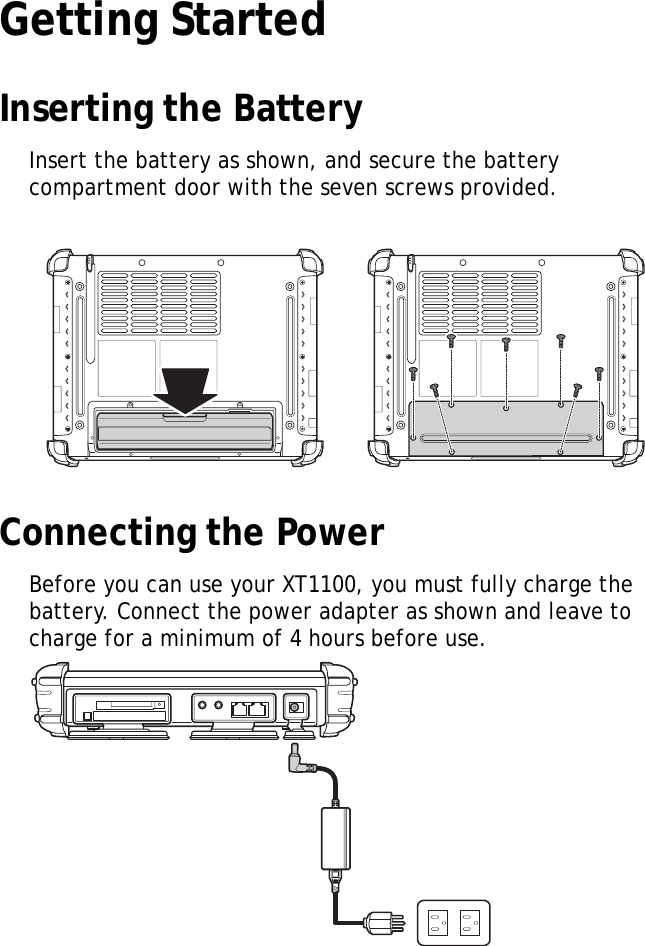

XT1100 User Manual5Getting StartedInserting the BatteryInsert the battery as shown, and secure the battery compartment door with the seven screws provided.Connecting the PowerBefore you can use your XT1100, you must fully charge the battery. Connect the power adapter as shown and leave to charge for a minimum of 4 hours before use.

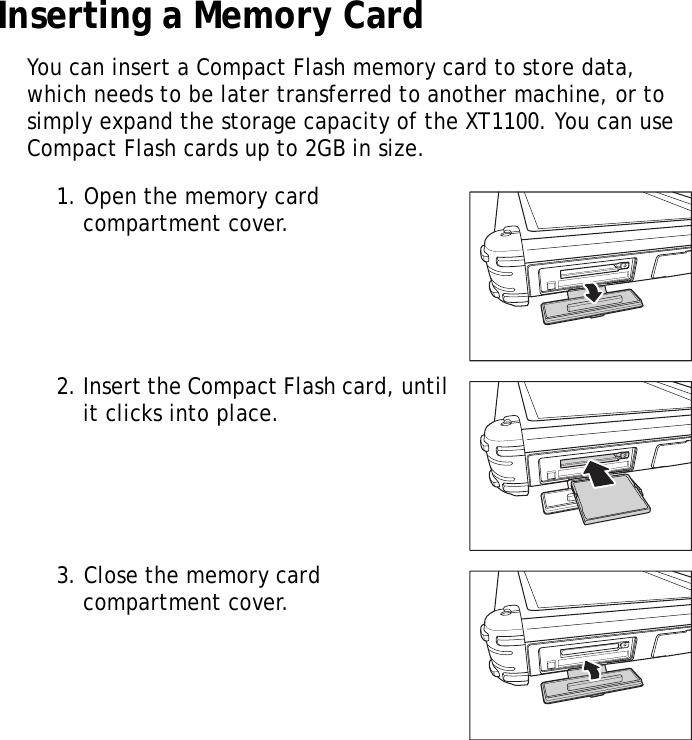

XT1100 User Manual6Inserting a Memory CardYou can insert a Compact Flash memory card to store data, which needs to be later transferred to another machine, or to simply expand the storage capacity of the XT1100. You can use Compact Flash cards up to 2GB in size.1. Open the memory card compartment cover.2. Insert the Compact Flash card, until it clicks into place.3. Close the memory card compartment cover.

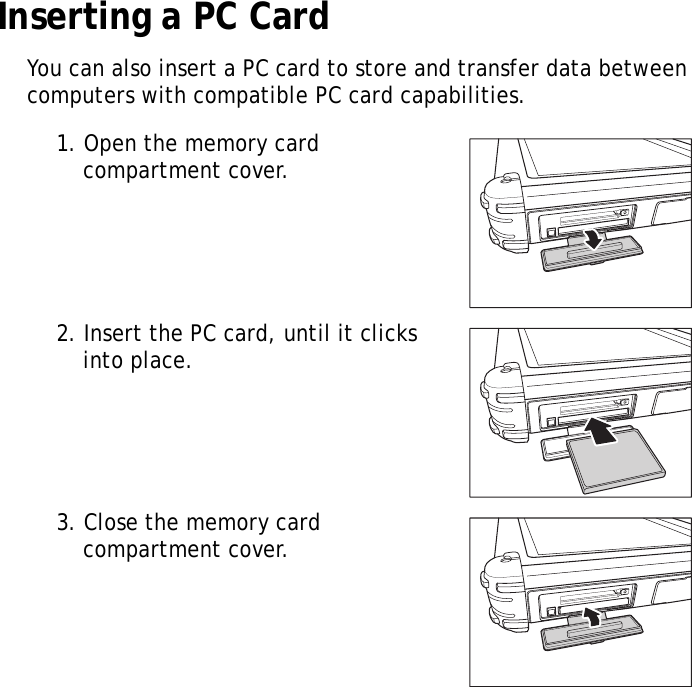

XT1100 User Manual7Inserting a PC CardYou can also insert a PC card to store and transfer data between computers with compatible PC card capabilities.1. Open the memory card compartment cover.2. Insert the PC card, until it clicks into place.3. Close the memory card compartment cover.

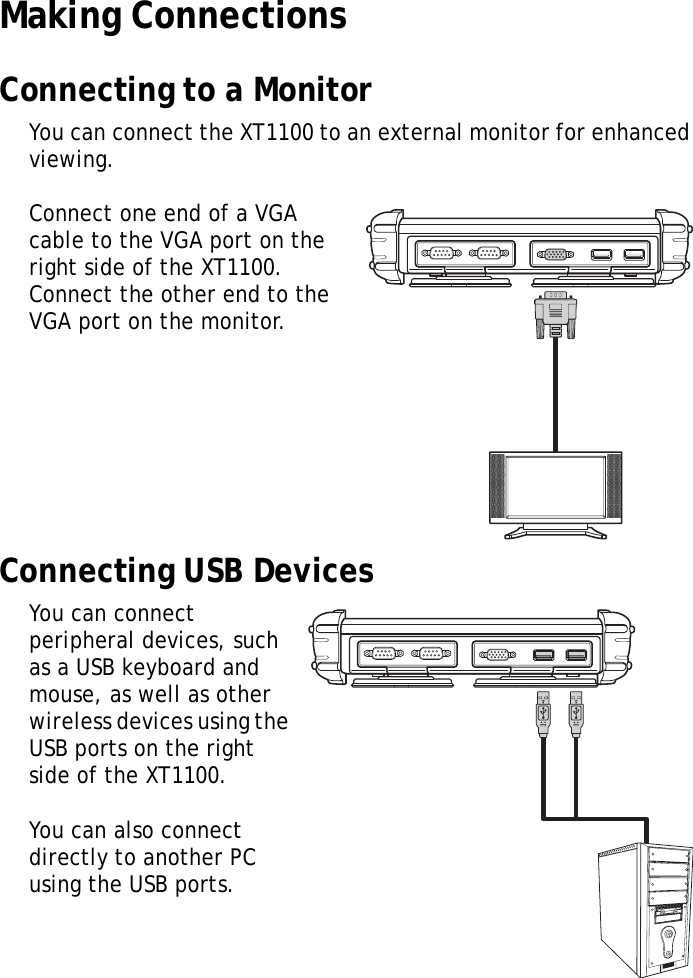

XT1100 User Manual8Making ConnectionsConnecting to a MonitorYou can connect the XT1100 to an external monitor for enhanced viewing.Connect one end of a VGA cable to the VGA port on the right side of the XT1100. Connect the other end to the VGA port on the monitor.Connecting USB DevicesYou can connect peripheral devices, such as a USB keyboard and mouse, as well as other wireless devices using the USB ports on the right side of the XT1100. You can also connect directly to another PC using the USB ports.MOLEX MOLEX

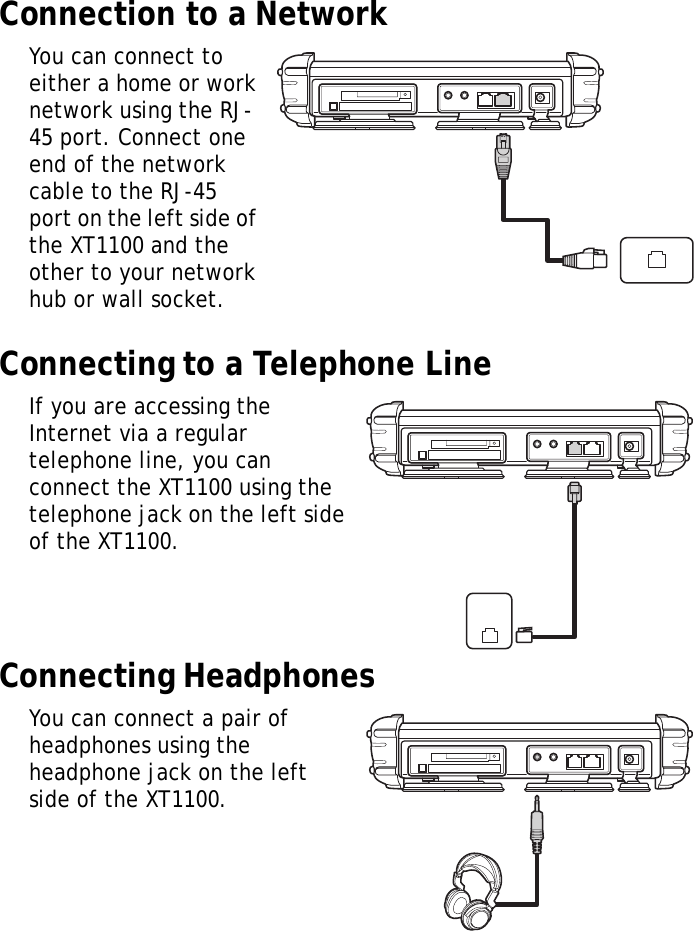

XT1100 User Manual9Connection to a NetworkYou can connect to either a home or work network using the RJ-45 port. Connect one end of the network cable to the RJ-45 port on the left side of the XT1100 and the other to your network hub or wall socket.Connecting to a Telephone LineIf you are accessing the Internet via a regular telephone line, you can connect the XT1100 using the telephone jack on the left side of the XT1100.Connecting HeadphonesYou can connect a pair of headphones using the headphone jack on the left side of the XT1100.

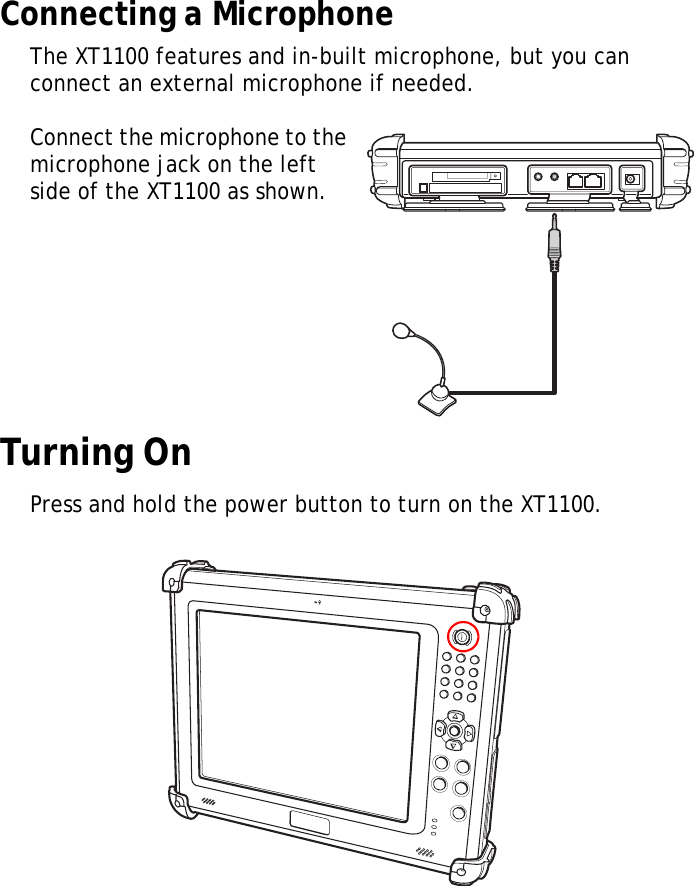

XT1100 User Manual10Connecting a MicrophoneThe XT1100 features and in-built microphone, but you can connect an external microphone if needed.Connect the microphone to the microphone jack on the left side of the XT1100 as shown.Turning OnPress and hold the power button to turn on the XT1100.

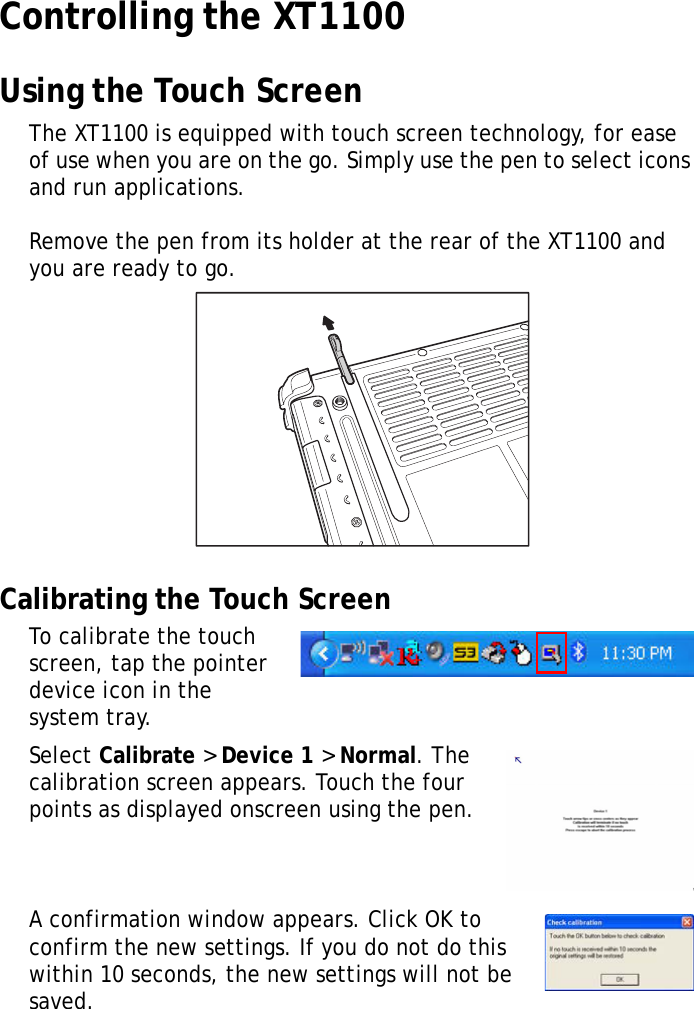

XT1100 User Manual11Controlling the XT1100Using the Touch ScreenThe XT1100 is equipped with touch screen technology, for ease of use when you are on the go. Simply use the pen to select icons and run applications.Remove the pen from its holder at the rear of the XT1100 and you are ready to go.Calibrating the Touch ScreenTo calibrate the touch screen, tap the pointer device icon in the system tray.Select Calibrate > Device 1 > Normal. The calibration screen appears. Touch the four points as displayed onscreen using the pen.A confirmation window appears. Click OK to confirm the new settings. If you do not do this within 10 seconds, the new settings will not be saved.

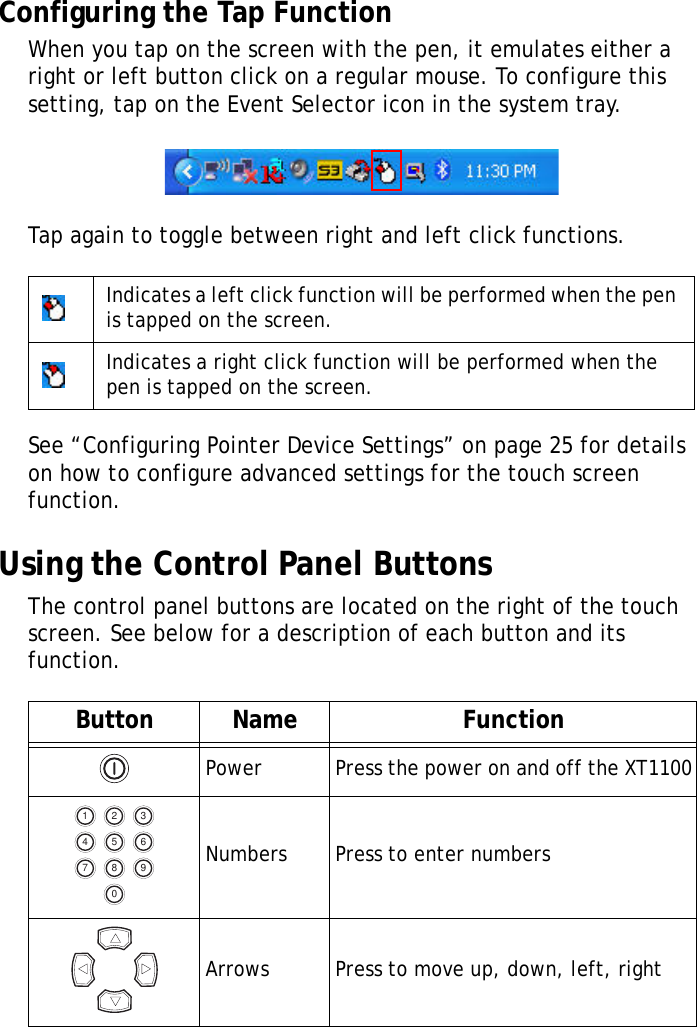

XT1100 User Manual12Configuring the Tap FunctionWhen you tap on the screen with the pen, it emulates either a right or left button click on a regular mouse. To configure this setting, tap on the Event Selector icon in the system tray.Tap again to toggle between right and left click functions.See “Configuring Pointer Device Settings” on page 25 for details on how to configure advanced settings for the touch screen function.Using the Control Panel ButtonsThe control panel buttons are located on the right of the touch screen. See below for a description of each button and its function.Indicates a left click function will be performed when the pen is tapped on the screen.Indicates a right click function will be performed when the pen is tapped on the screen.Button Name FunctionPower Press the power on and off the XT1100Numbers Press to enter numbersArrows Press to move up, down, left, right1 324 657 980

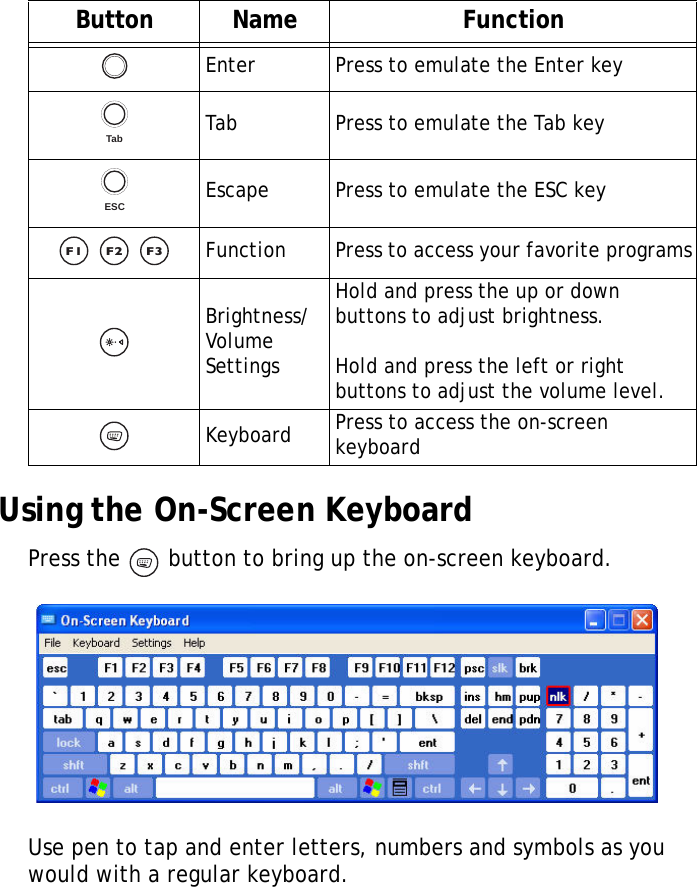

XT1100 User Manual13Using the On-Screen KeyboardPress the button to bring up the on-screen keyboard.Use pen to tap and enter letters, numbers and symbols as you would with a regular keyboard.Enter Press to emulate the Enter keyTab Press to emulate the Tab keyEscape Press to emulate the ESC key Function Press to access your favorite programsBrightness/Volume SettingsHold and press the up or down buttons to adjust brightness.Hold and press the left or right buttons to adjust the volume level.Keyboard Press to access the on-screen keyboardButton Name FunctionTabESCF1 F2 F3

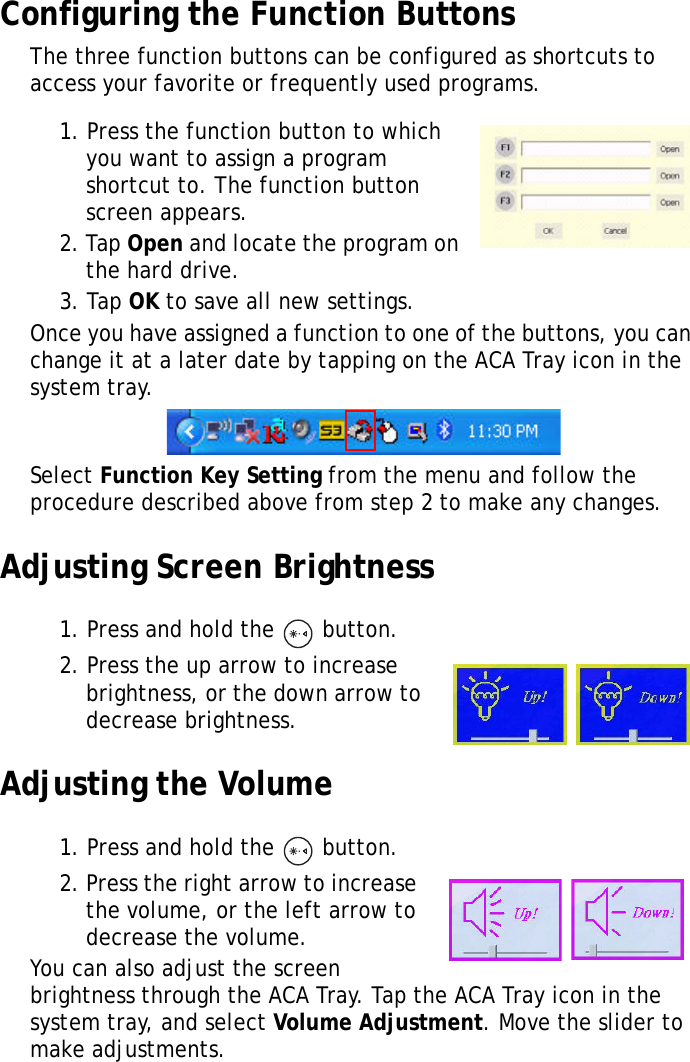

XT1100 User Manual14Configuring the Function ButtonsThe three function buttons can be configured as shortcuts to access your favorite or frequently used programs.1. Press the function button to which you want to assign a program shortcut to. The function button screen appears.2. Tap Open and locate the program on the hard drive. 3. Tap OK to save all new settings.Once you have assigned a function to one of the buttons, you can change it at a later date by tapping on the ACA Tray icon in the system tray. Select Function Key Setting from the menu and follow the procedure described above from step 2 to make any changes.Adjusting Screen Brightness1. Press and hold the button.2. Press the up arrow to increase brightness, or the down arrow to decrease brightness.Adjusting the Volume1. Press and hold the button.2. Press the right arrow to increase the volume, or the left arrow to decrease the volume.You can also adjust the screen brightness through the ACA Tray. Tap the ACA Tray icon in the system tray, and select Volume Adjustment. Move the slider to make adjustments.

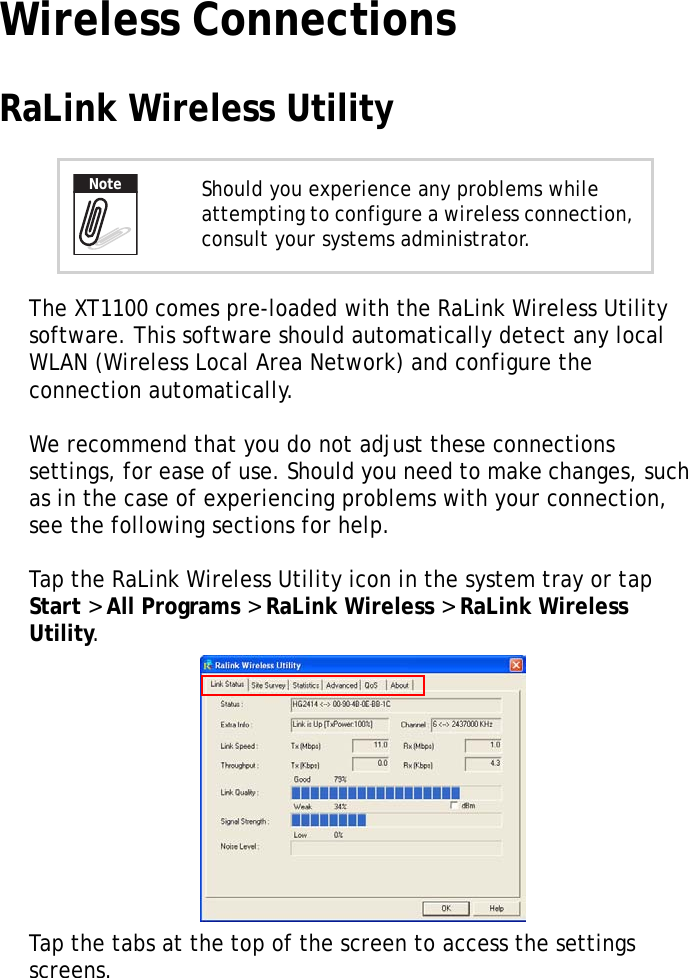

XT1100 User Manual15Wireless ConnectionsRaLink Wireless UtilityThe XT1100 comes pre-loaded with the RaLink Wireless Utility software. This software should automatically detect any local WLAN (Wireless Local Area Network) and configure the connection automatically.We recommend that you do not adjust these connections settings, for ease of use. Should you need to make changes, such as in the case of experiencing problems with your connection, see the following sections for help.Tap the RaLink Wireless Utility icon in the system tray or tap Start > All Programs > RaLink Wireless > RaLink Wireless Utility.Tap the tabs at the top of the screen to access the settings screens.Should you experience any problems while attempting to configure a wireless connection, consult your systems administrator.Note

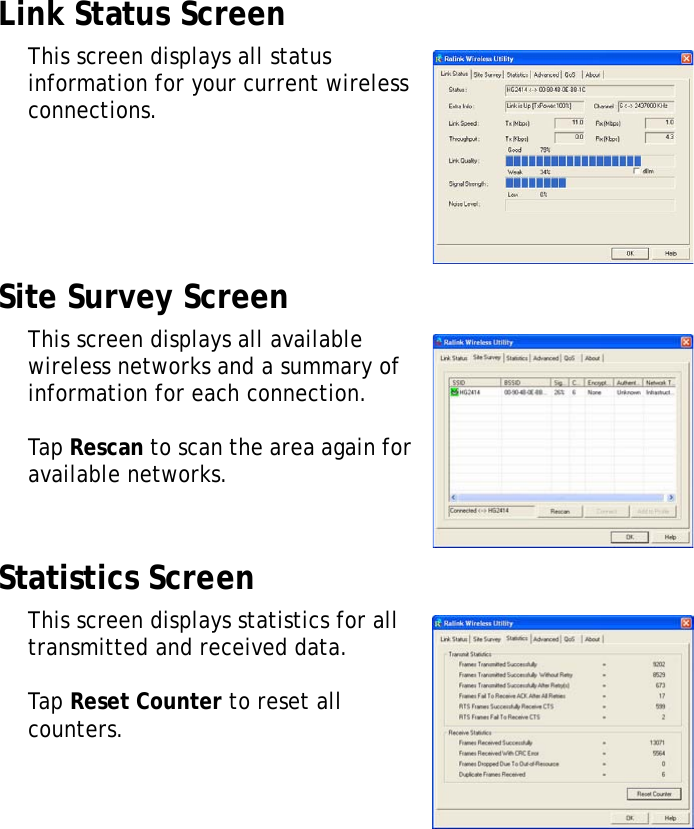

XT1100 User Manual16Link Status ScreenThis screen displays all status information for your current wireless connections.Site Survey ScreenThis screen displays all available wireless networks and a summary of information for each connection.Tap Rescan to scan the area again for available networks.Statistics ScreenThis screen displays statistics for all transmitted and received data.Tap Reset Counter to reset all counters.

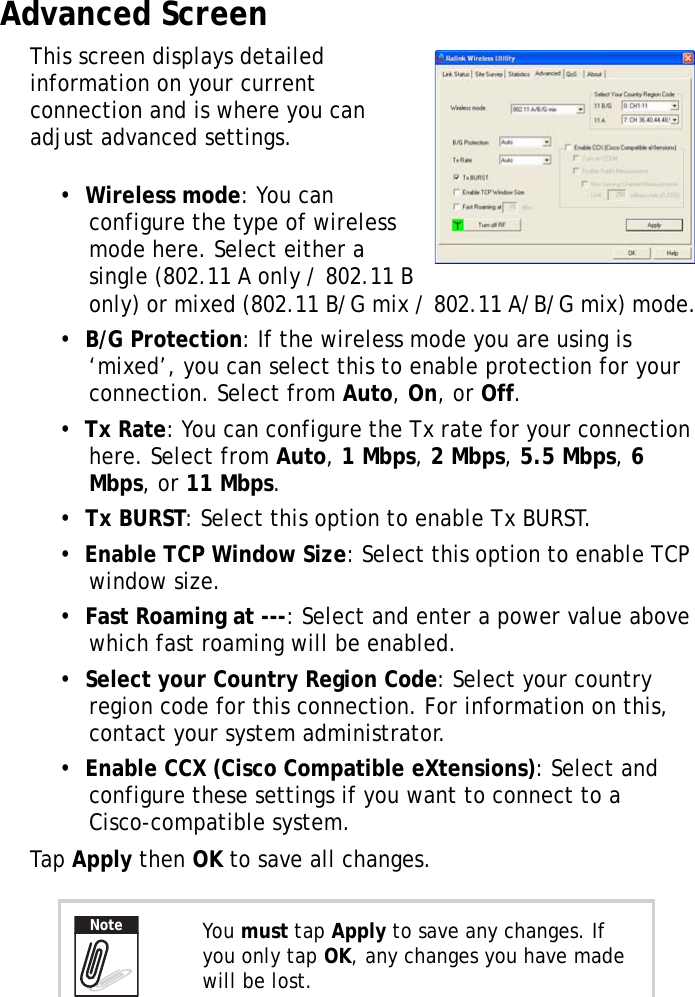

XT1100 User Manual17Advanced ScreenThis screen displays detailed information on your current connection and is where you can adjust advanced settings.• Wireless mode: You can configure the type of wireless mode here. Select either a single (802.11 A only / 802.11 B only) or mixed (802.11 B/G mix / 802.11 A/B/G mix) mode.• B/G Protection: If the wireless mode you are using is ‘mixed’, you can select this to enable protection for your connection. Select from Auto, On, or Off.• Tx Rate: You can configure the Tx rate for your connection here. Select from Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, 6 Mbps, or 11 Mbps.• Tx BURST: Select this option to enable Tx BURST.• Enable TCP Window Size: Select this option to enable TCP window size.• Fast Roaming at ---: Select and enter a power value above which fast roaming will be enabled.• Select your Country Region Code: Select your country region code for this connection. For information on this, contact your system administrator.• Enable CCX (Cisco Compatible eXtensions): Select and configure these settings if you want to connect to a Cisco-compatible system.Tap Apply then OK to save all changes.You must tap Apply to save any changes. If you only tap OK, any changes you have made will be lost.Note

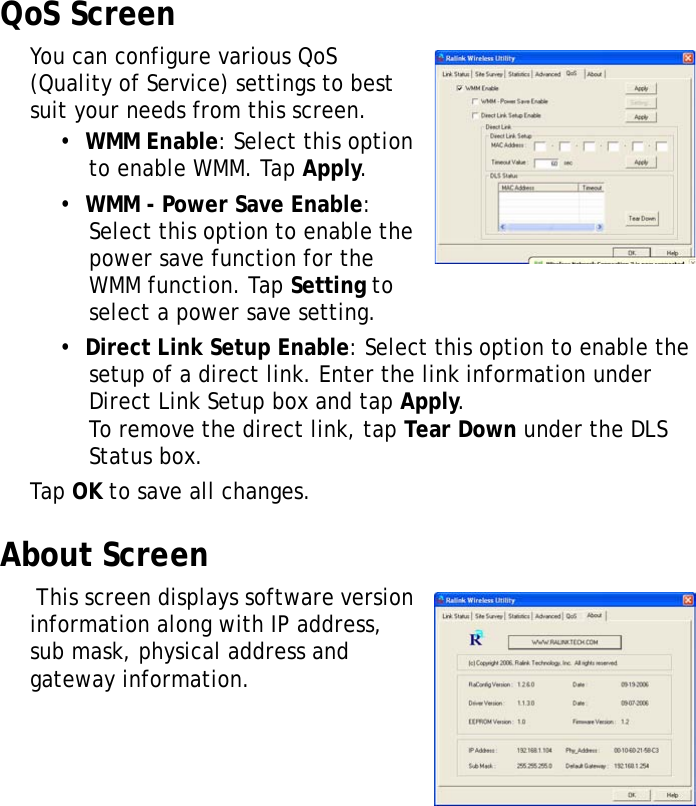

XT1100 User Manual18QoS ScreenYou can configure various QoS (Quality of Service) settings to best suit your needs from this screen.• WMM Enable: Select this option to enable WMM. Tap Apply.• WMM - Power Save Enable: Select this option to enable the power save function for the WMM function. Tap Setting to select a power save setting.• Direct Link Setup Enable: Select this option to enable the setup of a direct link. Enter the link information under Direct Link Setup box and tap Apply.To remove the direct link, tap Tear Down under the DLS Status box.Tap OK to save all changes.About Screen This screen displays software version information along with IP address, sub mask, physical address and gateway information.

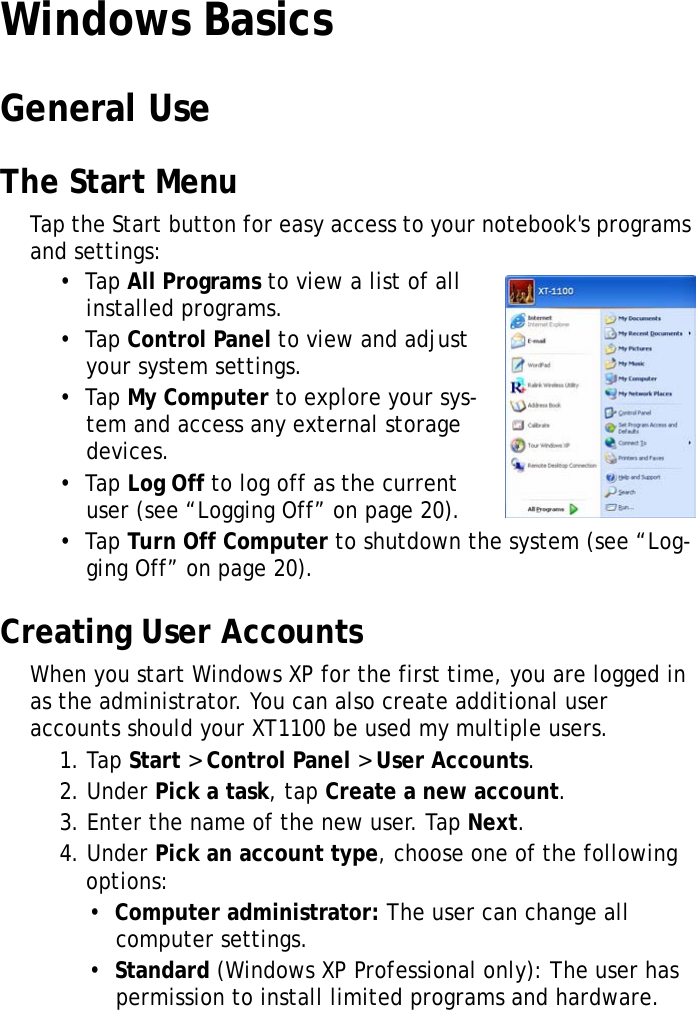

XT1100 User Manual19Windows BasicsGeneral UseThe Start MenuTap the Start button for easy access to your notebook's programs and settings:• Tap All Programs to view a list of all installed programs.• Tap Control Panel to view and adjust your system settings.• Tap My Computer to explore your sys-tem and access any external storage devices.• Tap Log Off to log off as the current user (see “Logging Off” on page 20).• Tap Turn Off Computer to shutdown the system (see “Log-ging Off” on page 20).Creating User AccountsWhen you start Windows XP for the first time, you are logged in as the administrator. You can also create additional user accounts should your XT1100 be used my multiple users.1. Tap Start > Control Panel > User Accounts.2. Under Pick a task, tap Create a new account.3. Enter the name of the new user. Tap Next.4. Under Pick an account type, choose one of the following options:• Computer administrator: The user can change all computer settings.• Standard (Windows XP Professional only): The user has permission to install limited programs and hardware.
XT1100 User Manual20• Limited: The user can only change their own personal settings. Limited users cannot install any programs, hardware, or access the Internet.5. Tap Create Account to create the new user.Logging OffYou can switch users easily without turning off the computer.1. Tap Start > Log Off > Log Off.2. The Welcome screen will appear. To log on again, tap the user you wish to log in as.Turning Your XT1100 OffTo turn off your XT1100 safely, save any files you are working on, exit all open programs and tap Start > Turn Off Computer > Turn Off.Programs and ApplicationsRunning Programs and ApplicationsYou can run a wide range of programs and applications on your XT1100, the majority of which will be accessible via the Start menu.1. Tap Start > All Programs.2. Tap to run a program from the list.Turning off the computer by pressing and holding the power button is not recommended. You will lose unsaved files and risk corrupting other programs.Warning

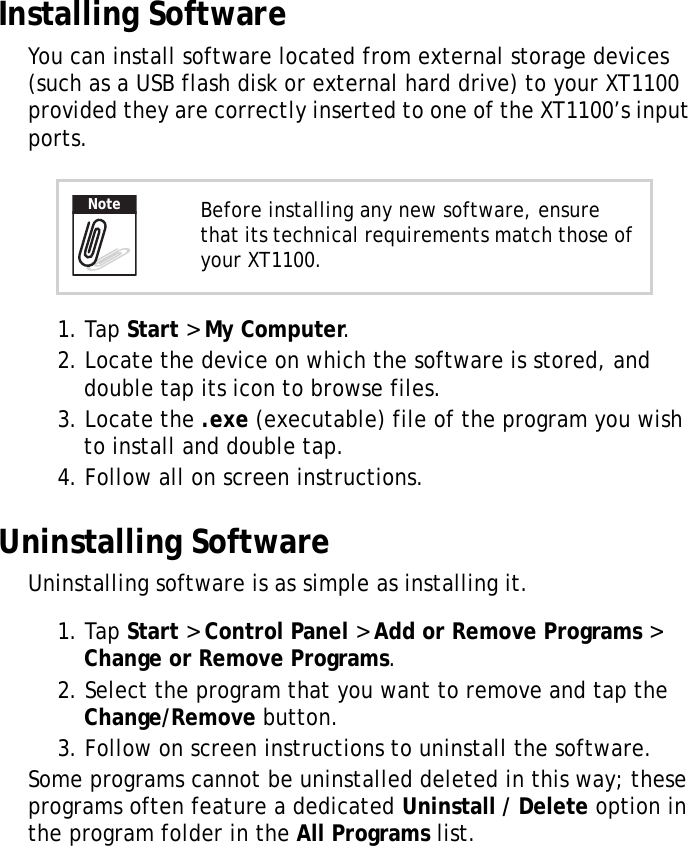

XT1100 User Manual21Installing SoftwareYou can install software located from external storage devices (such as a USB flash disk or external hard drive) to your XT1100 provided they are correctly inserted to one of the XT1100’s input ports.1. Tap Start > My Computer.2. Locate the device on which the software is stored, and double tap its icon to browse files.3. Locate the .exe (executable) file of the program you wish to install and double tap.4. Follow all on screen instructions.Uninstalling SoftwareUninstalling software is as simple as installing it.1. Tap Start > Control Panel > Add or Remove Programs > Change or Remove Programs.2. Select the program that you want to remove and tap the Change/Remove button. 3. Follow on screen instructions to uninstall the software.Some programs cannot be uninstalled deleted in this way; these programs often feature a dedicated Uninstall / Delete option in the program folder in the All Programs list.Before installing any new software, ensure that its technical requirements match those of your XT1100.Note

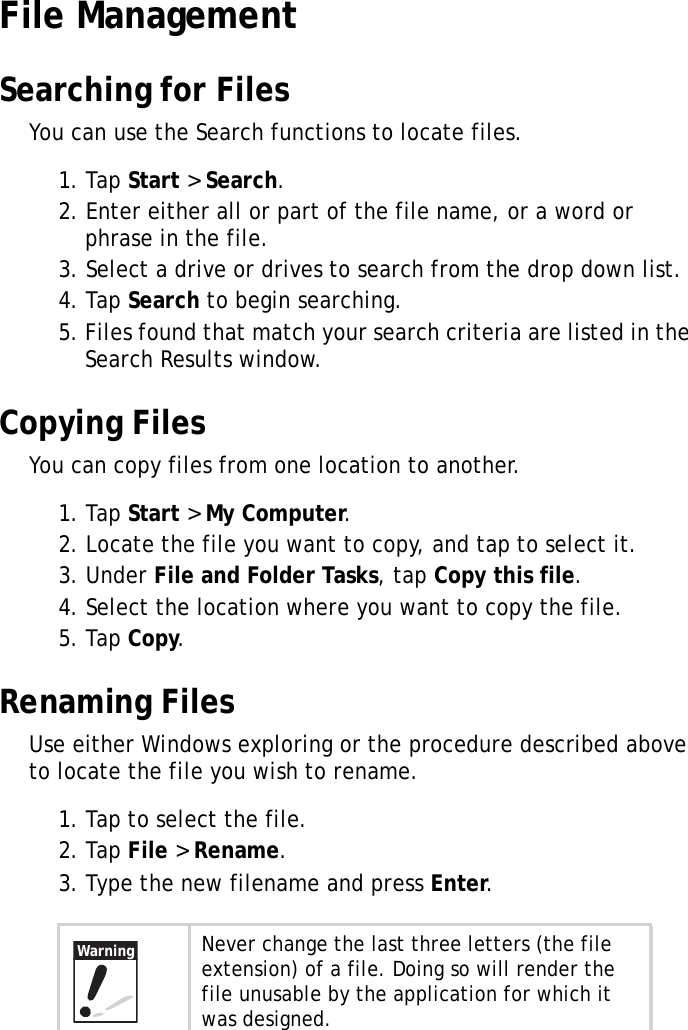

XT1100 User Manual22File ManagementSearching for FilesYou can use the Search functions to locate files.1. Tap Start > Search.2. Enter either all or part of the file name, or a word or phrase in the file.3. Select a drive or drives to search from the drop down list.4. Tap Search to begin searching.5. Files found that match your search criteria are listed in the Search Results window.Copying FilesYou can copy files from one location to another.1. Tap Start > My Computer.2. Locate the file you want to copy, and tap to select it.3. Under File and Folder Tasks, tap Copy this file.4. Select the location where you want to copy the file.5. Tap Copy.Renaming FilesUse either Windows exploring or the procedure described above to locate the file you wish to rename.1. Tap to select the file.2. Tap File > Rename.3. Type the new filename and press Enter.Never change the last three letters (the file extension) of a file. Doing so will render the file unusable by the application for which it was designed.Warning

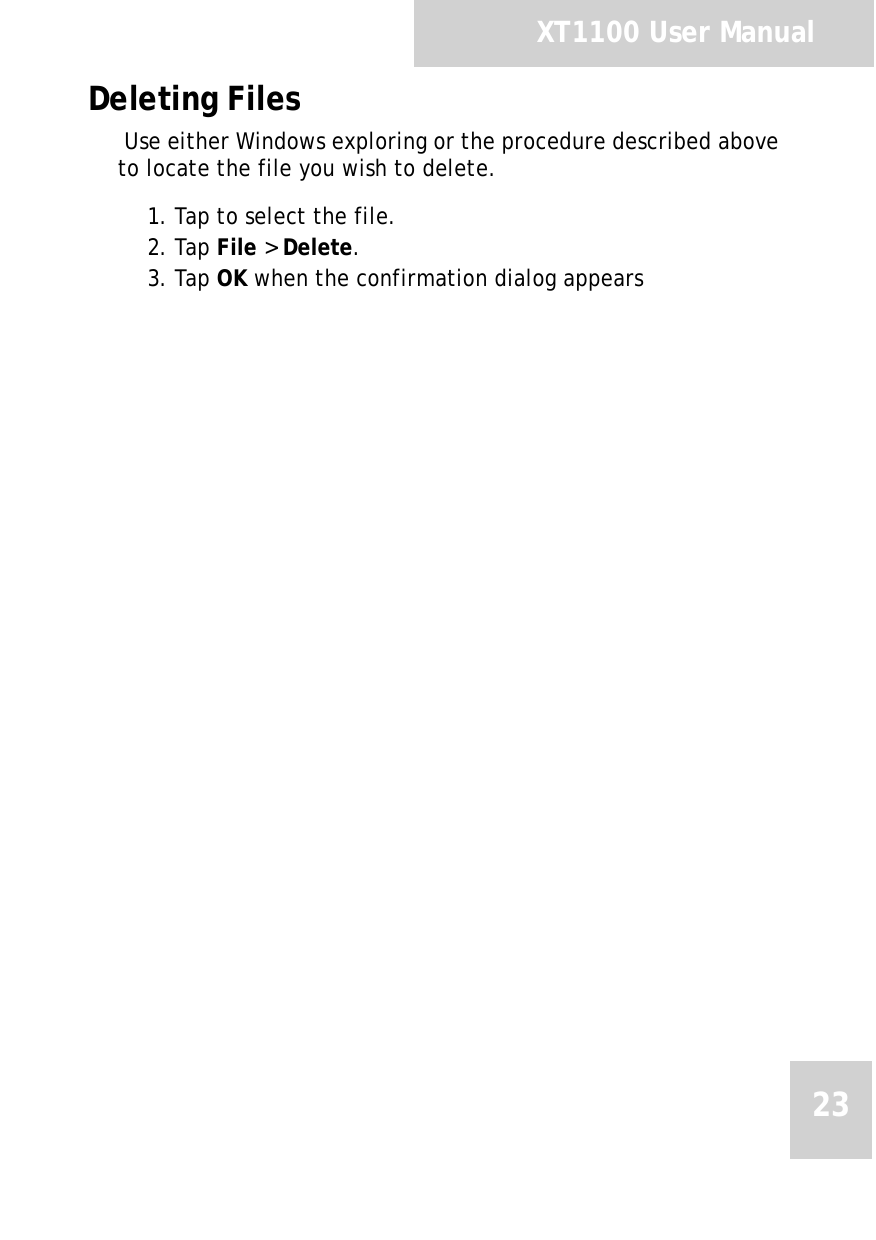

XT1100 User Manual23Deleting Files Use either Windows exploring or the procedure described above to locate the file you wish to delete.1. Tap to select the file.2. Tap File > Delete.3. Tap OK when the confirmation dialog appears
XT1100 User Manual24

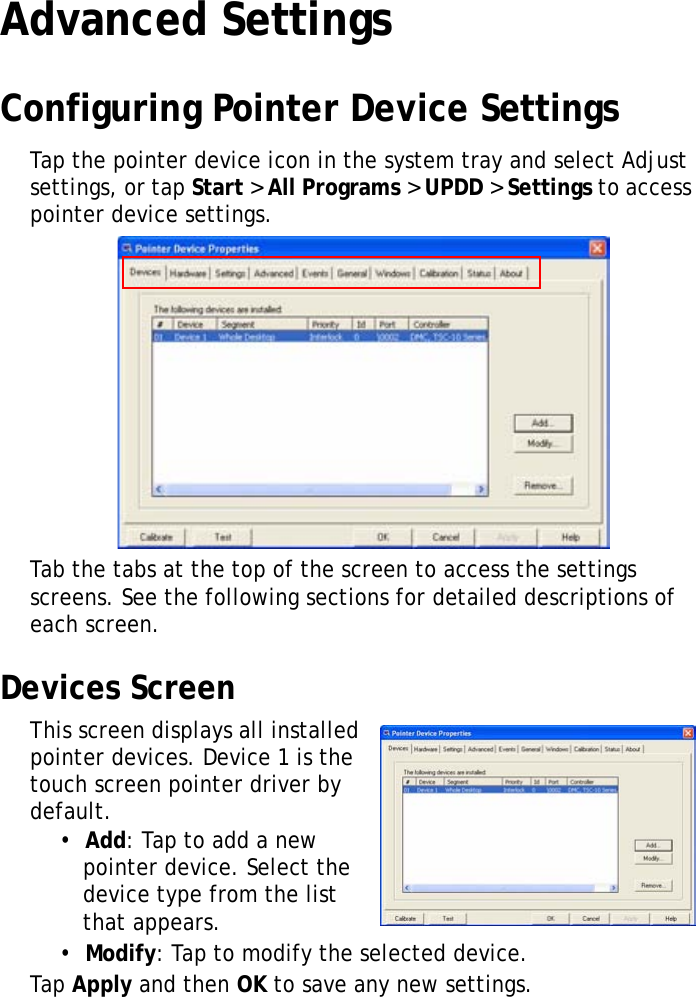

XT1100 User Manual25Advanced SettingsConfiguring Pointer Device SettingsTap the pointer device icon in the system tray and select Adjust settings, or tap Start > All Programs > UPDD > Settings to access pointer device settings.Tab the tabs at the top of the screen to access the settings screens. See the following sections for detailed descriptions of each screen.Devices ScreenThis screen displays all installed pointer devices. Device 1 is the touch screen pointer driver by default.• Add: Tap to add a new pointer device. Select the device type from the list that appears.• Modify: Tap to modify the selected device.Tap Apply and then OK to save any new settings.

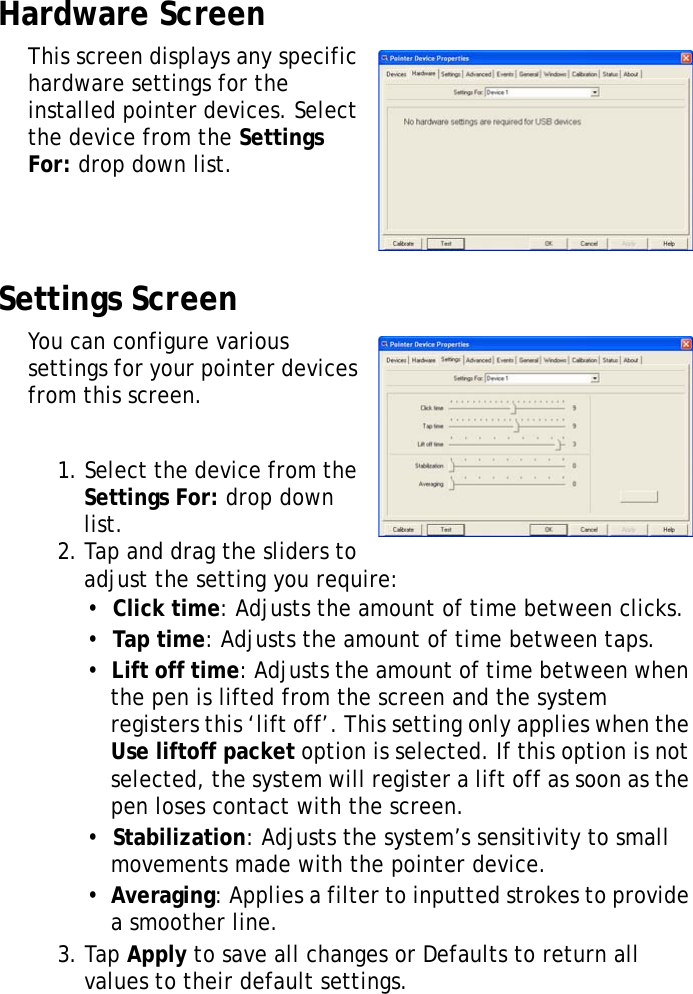

XT1100 User Manual26Hardware ScreenThis screen displays any specific hardware settings for the installed pointer devices. Select the device from the Settings For: drop down list.Settings ScreenYou can configure various settings for your pointer devices from this screen.1. Select the device from the Settings For: drop down list.2. Tap and drag the sliders to adjust the setting you require:• Click time: Adjusts the amount of time between clicks.• Tap time: Adjusts the amount of time between taps.• Lift off time: Adjusts the amount of time between when the pen is lifted from the screen and the system registers this ‘lift off’. This setting only applies when the Use liftoff packet option is selected. If this option is not selected, the system will register a lift off as soon as the pen loses contact with the screen.• Stabilization: Adjusts the system’s sensitivity to small movements made with the pointer device.• Averaging: Applies a filter to inputted strokes to provide a smoother line.3. Tap Apply to save all changes or Defaults to return all values to their default settings.

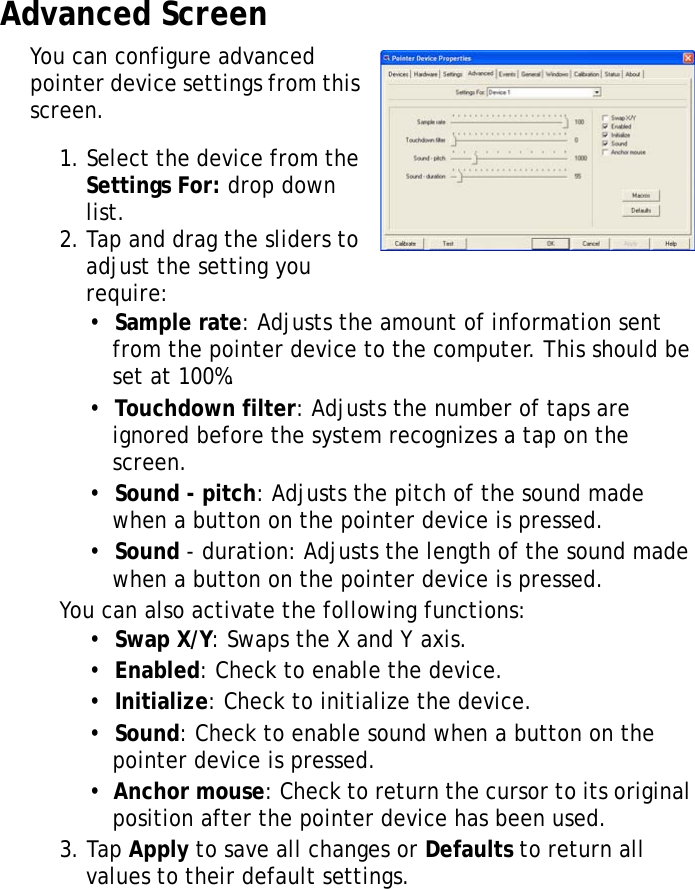

XT1100 User Manual27Advanced ScreenYou can configure advanced pointer device settings from this screen.1. Select the device from the Settings For: drop down list.2. Tap and drag the sliders to adjust the setting you require:• Sample rate: Adjusts the amount of information sent from the pointer device to the computer. This should be set at 100%.• Touchdown filter: Adjusts the number of taps are ignored before the system recognizes a tap on the screen.• Sound - pitch: Adjusts the pitch of the sound made when a button on the pointer device is pressed.• Sound - duration: Adjusts the length of the sound made when a button on the pointer device is pressed.You can also activate the following functions:• Swap X/Y: Swaps the X and Y axis.• Enabled: Check to enable the device.• Initialize: Check to initialize the device.• Sound: Check to enable sound when a button on the pointer device is pressed.• Anchor mouse: Check to return the cursor to its original position after the pointer device has been used.3. Tap Apply to save all changes or Defaults to return all values to their default settings.

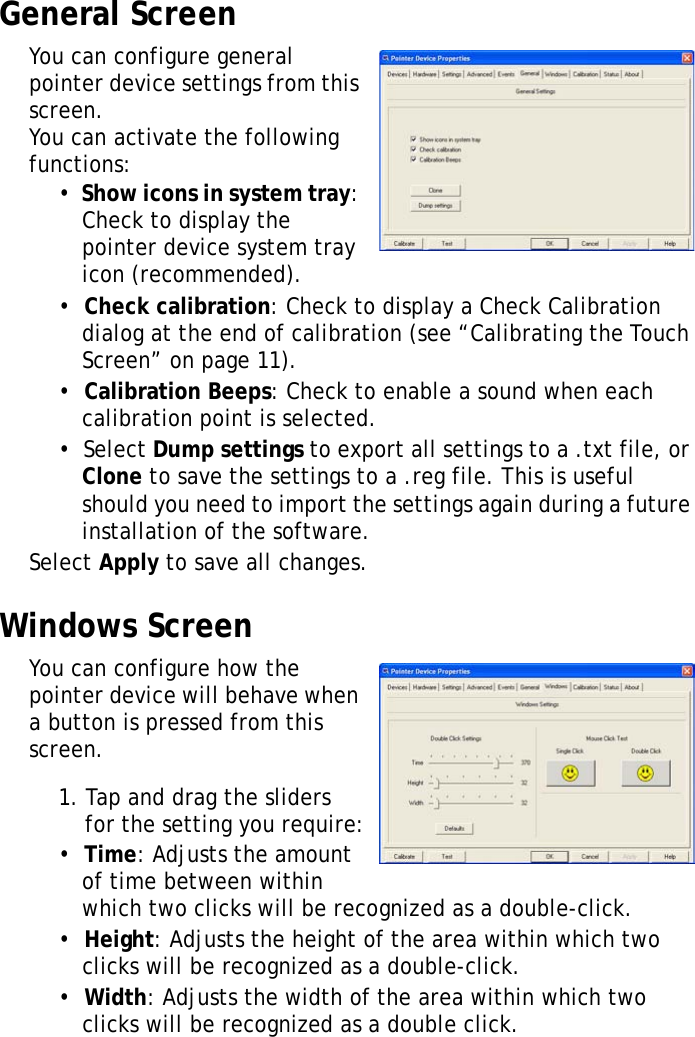

XT1100 User Manual28General ScreenYou can configure general pointer device settings from this screen. You can activate the following functions:• Show icons in system tray: Check to display the pointer device system tray icon (recommended).• Check calibration: Check to display a Check Calibration dialog at the end of calibration (see “Calibrating the Touch Screen” on page 11).• Calibration Beeps: Check to enable a sound when each calibration point is selected.• Select Dump settings to export all settings to a .txt file, or Clone to save the settings to a .reg file. This is useful should you need to import the settings again during a future installation of the software.Select Apply to save all changes.Windows ScreenYou can configure how the pointer device will behave when a button is pressed from this screen.1. Tap and drag the sliders for the setting you require:• Time: Adjusts the amount of time between within which two clicks will be recognized as a double-click.• Height: Adjusts the height of the area within which two clicks will be recognized as a double-click.• Width: Adjusts the width of the area within which two clicks will be recognized as a double click.

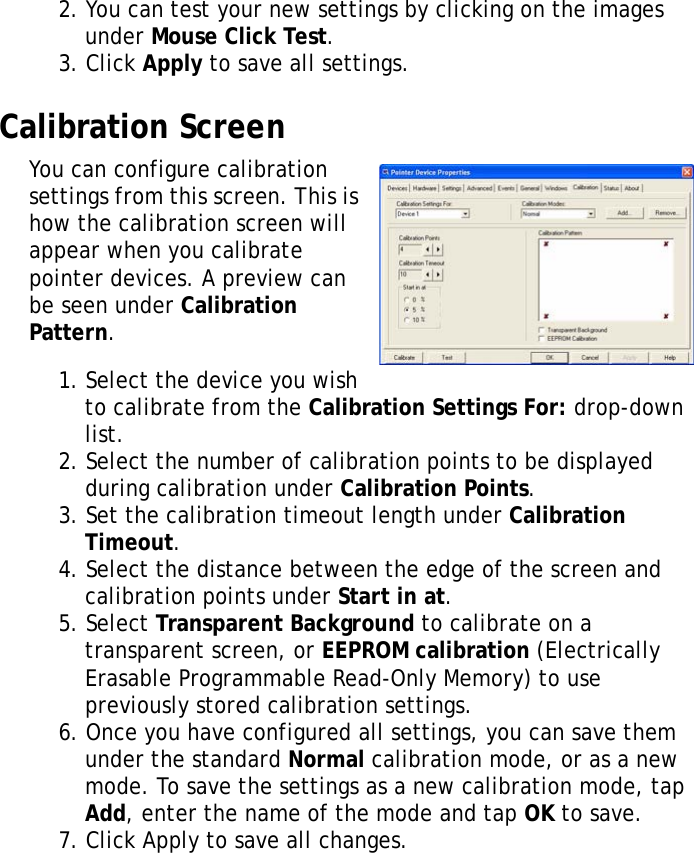

XT1100 User Manual292. You can test your new settings by clicking on the images under Mouse Click Test.3. Click Apply to save all settings.Calibration ScreenYou can configure calibration settings from this screen. This is how the calibration screen will appear when you calibrate pointer devices. A preview can be seen under Calibration Pattern.1. Select the device you wish to calibrate from the Calibration Settings For: drop-down list.2. Select the number of calibration points to be displayed during calibration under Calibration Points.3. Set the calibration timeout length under Calibration Timeout.4. Select the distance between the edge of the screen and calibration points under Start in at.5. Select Transparent Background to calibrate on a transparent screen, or EEPROM calibration (Electrically Erasable Programmable Read-Only Memory) to use previously stored calibration settings.6. Once you have configured all settings, you can save them under the standard Normal calibration mode, or as a new mode. To save the settings as a new calibration mode, tap Add, enter the name of the mode and tap OK to save.7. Click Apply to save all changes.

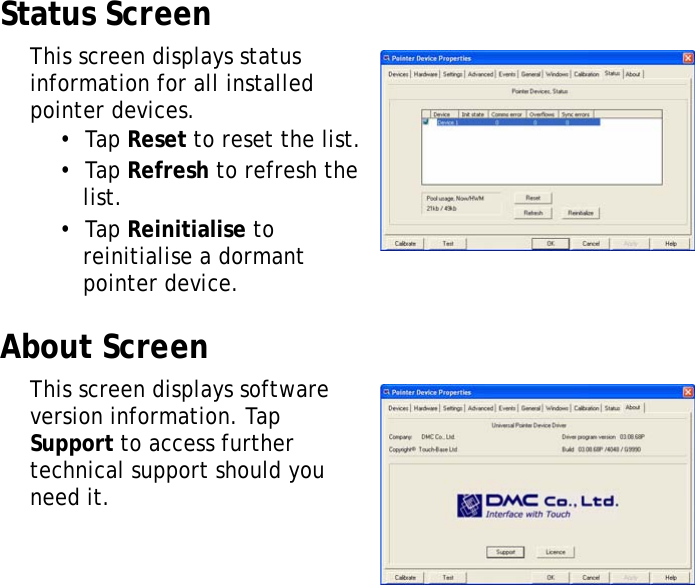

XT1100 User Manual30Status ScreenThis screen displays status information for all installed pointer devices.• Tap Reset to reset the list.• Tap Refresh to refresh the list.• Tap Reinitialise to reinitialise a dormant pointer device.About ScreenThis screen displays software version information. Tap Support to access further technical support should you need it.

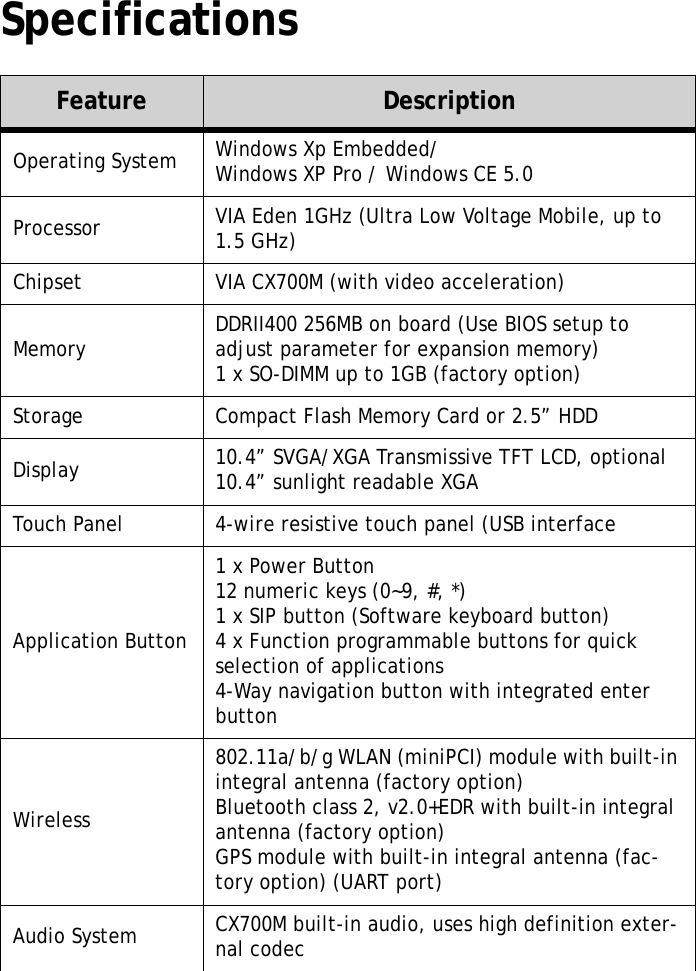

XT1100 User Manual31SpecificationsFeature DescriptionOperating System Windows Xp Embedded/Windows XP Pro / Windows CE 5.0Processor VIA Eden 1GHz (Ultra Low Voltage Mobile, up to 1.5 GHz)Chipset VIA CX700M (with video acceleration)Memory DDRII400 256MB on board (Use BIOS setup to adjust parameter for expansion memory)1 x SO-DIMM up to 1GB (factory option)Storage Compact Flash Memory Card or 2.5” HDDDisplay 10.4” SVGA/XGA Transmissive TFT LCD, optional 10.4” sunlight readable XGATouch Panel 4-wire resistive touch panel (USB interfaceApplication Button1 x Power Button12 numeric keys (0~9, #, *)1 x SIP button (Software keyboard button)4 x Function programmable buttons for quick selection of applications4-Way navigation button with integrated enter buttonWireless802.11a/b/g WLAN (miniPCI) module with built-in integral antenna (factory option)Bluetooth class 2, v2.0+EDR with built-in integral antenna (factory option)GPS module with built-in integral antenna (fac-tory option) (UART port)Audio System CX700M built-in audio, uses high definition exter-nal codec

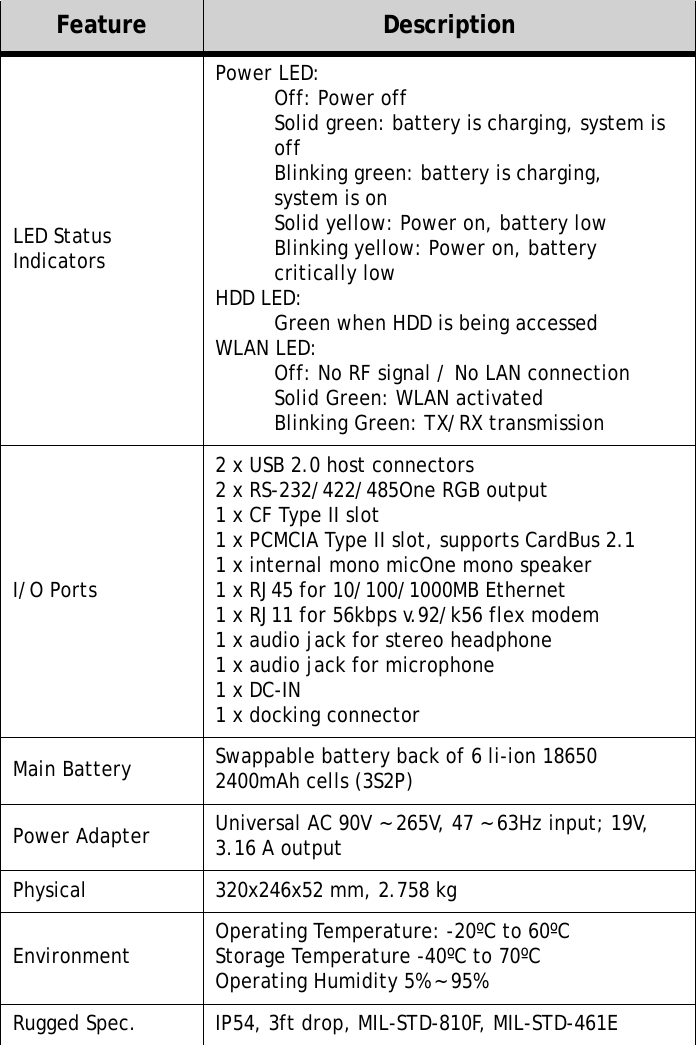

XT1100 User Manual32LED Status IndicatorsPower LED:Off: Power offSolid green: battery is charging, system is offBlinking green: battery is charging, system is onSolid yellow: Power on, battery lowBlinking yellow: Power on, battery critically lowHDD LED:Green when HDD is being accessedWLAN LED:Off: No RF signal / No LAN connectionSolid Green: WLAN activatedBlinking Green: TX/RX transmissionI/O Ports2 x USB 2.0 host connectors2 x RS-232/422/485One RGB output1 x CF Type II slot1 x PCMCIA Type II slot, supports CardBus 2.11 x internal mono micOne mono speaker1 x RJ45 for 10/100/1000MB Ethernet1 x RJ11 for 56kbps v.92/k56 flex modem1 x audio jack for stereo headphone1 x audio jack for microphone1 x DC-IN1 x docking connectorMain Battery Swappable battery back of 6 li-ion 18650 2400mAh cells (3S2P)Power Adapter Universal AC 90V ~ 265V, 47 ~ 63Hz input; 19V, 3.16 A outputPhysical 320x246x52 mm, 2.758 kgEnvironment Operating Temperature: -20ºC to 60ºCStorage Temperature -40ºC to 70ºCOperating Humidity 5% ~ 95%Rugged Spec. IP54, 3ft drop, MIL-STD-810F, MIL-STD-461EFeature Description

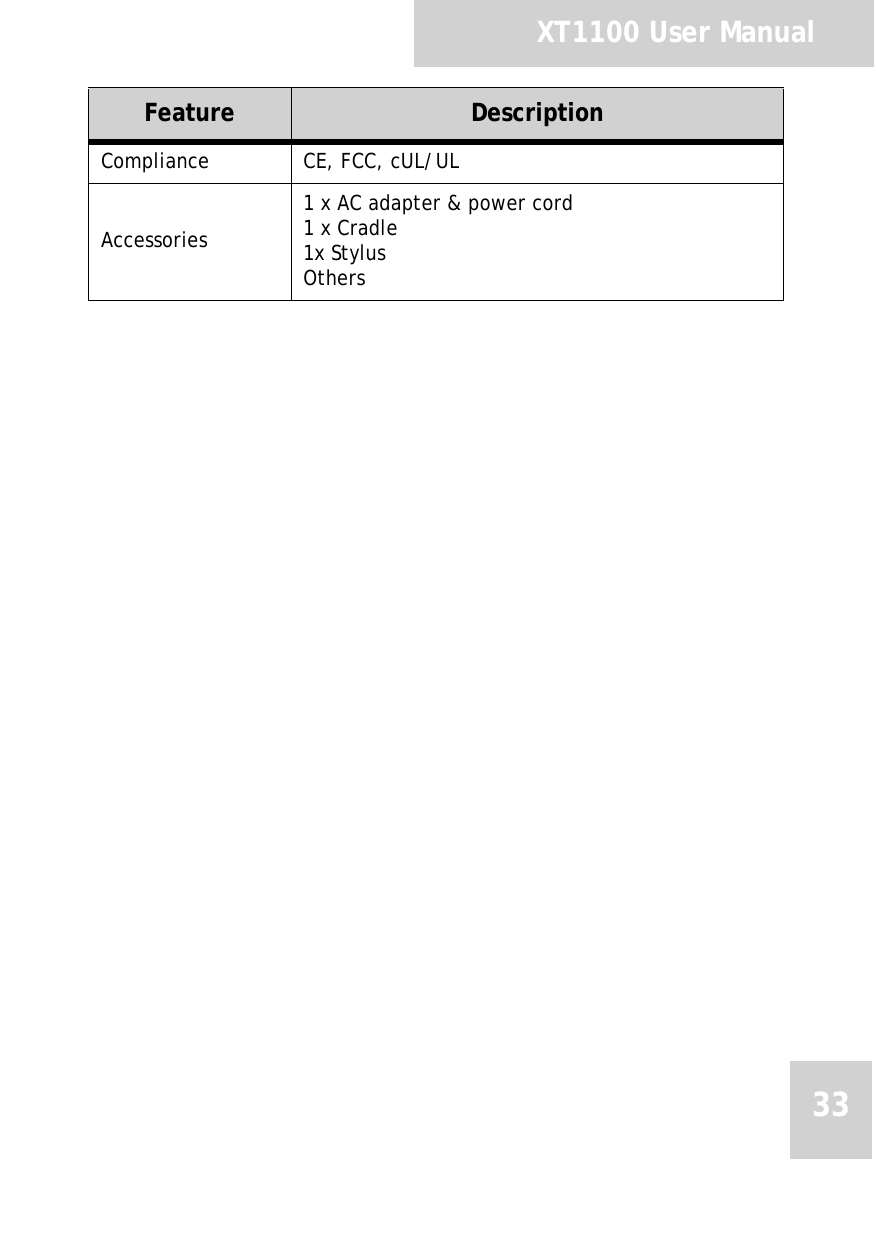

XT1100 User Manual33Compliance CE, FCC, cUL/ULAccessories1 x AC adapter & power cord1 x Cradle1x StylusOthersFeature Description
