ACE BAYOU 5172301 X ROCKER GAMING CHAIR, X-ROCKER VIBE User Manual
ACE BAYOU CORP. X ROCKER GAMING CHAIR, X-ROCKER VIBE
User Manual
1
2
FEATURES
A-Control Panel
A1-Vibration adjustment
A2-Bass Volume Adjustment
A3-Volume Adjustment
A4-Audio Input Jack
A5-Audio Output Jack for linking multiple chairs
A6-Wire mode / Bluetooth mode Switch
A7-Power On/Off Switch
A8-12V DC Power Input Jack
A9-Power Indicator Light
A10-MP3 Input Jack
A11-Headphone Jack
A12-USB Power Port
A13-Bluetooth indicator light
A10
A2 A3 A4 A5
A7 A8 A11A9
A1
3062.969.668:enohP:beWmoc.uoyabeca@ecivres:liamE?pleHdeemoc.rekcorxeht.wwwN
A12
A6
A13
B4
*SOME PARTS MAY VARY SLIGHTLY
9.84ft/3m
B2
B1
B5
B3
B-Accessories Supplied
B1-3m RCA Stereo to RCA stereo plug cable(1 PC)
B4-1m 3.5mm stereo male to 3.5mm stereo male cable (1PC)
B3-RCA female to female barrel adapter (2 PCS)
B5-0.15m RCA stereo male to 3.5mm stereo male cable (1PC)
C-Audio Specifications
.The unit specifications:
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB
Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer: 4% (F=100Hz)
Satellite: 1% (F=1kHz)
Input: DC 12V/2A
/
B2-Use only power supply listed as below,
Manufacturer: BLUE IRON HOLDINGS LIMITED,
model name: BI30-120200-AdB. Input: 100-240 V~,
50/60 Hz, 1,2 A; Output: 12 VDC, 2 A
3
Play your iPhone, iPod touch, iPad or other device enabled with Bluetooth technology wirelessly through your X Rocker
Control your music directly from your iPhone, iPod touch or iPad.
Connect device without ever going near X Rocker
ATTENTIONS:
USB port only can be used to charge electronic devices.
Bluetooth connection has a 30ft. range of virtually unlimited wireless listening in your home.
When using in wire mode, Please keep the band to “LINE IN” (A6)
When using in Bluetooth mode, Please keep the band to “ ”
79
4
Bluetooth Please keep the
band to “ ”
8
(A6)
(A6), slow flashing(A13).
4
MP3/CD/DVD/GAMES/PSP

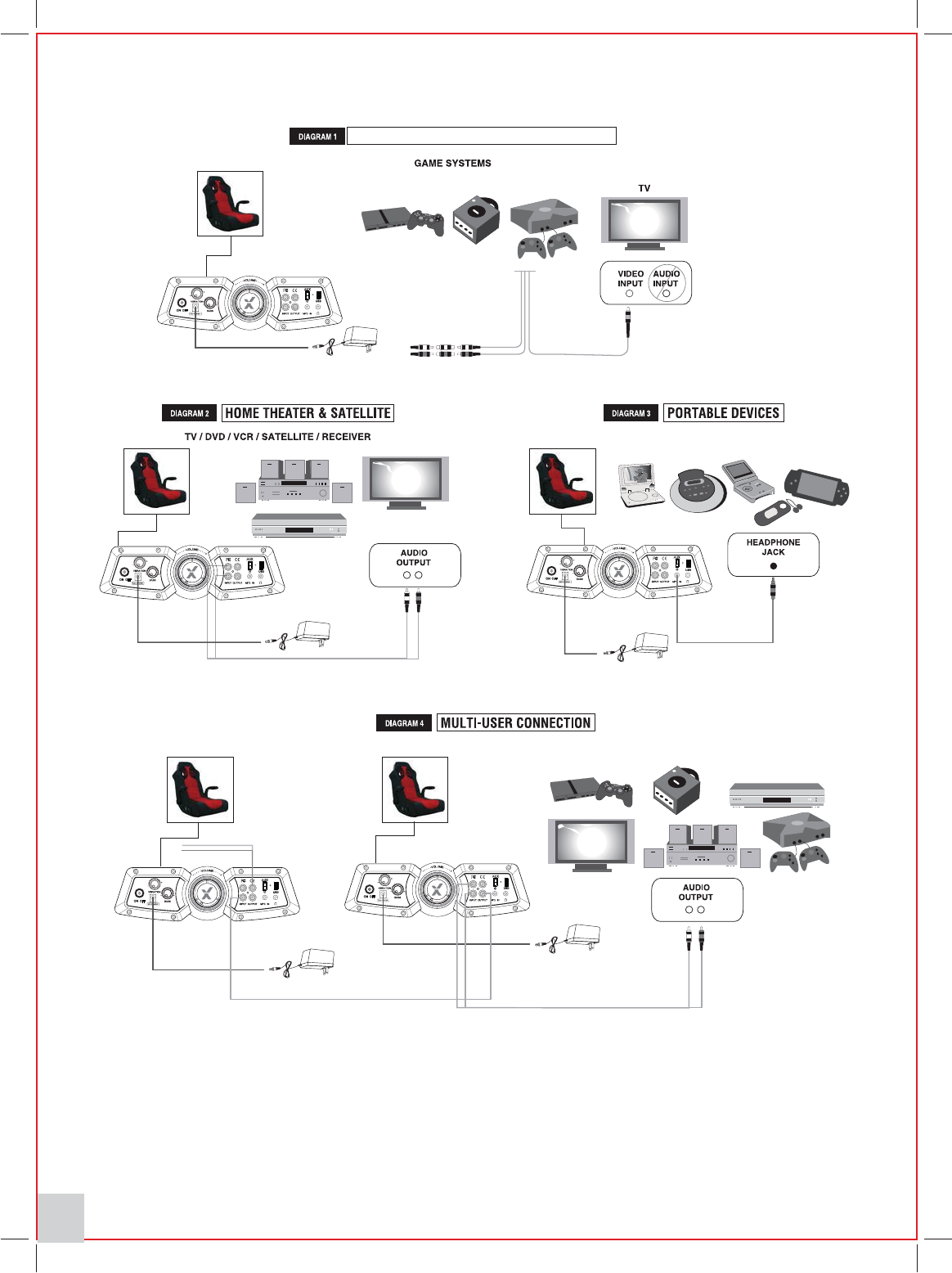

WIRE MODE CONNECTION GUIDE
red
white
XBOX , XBOX360 ,PLAYSTATION 3 &Wii
MTMTMT
red
white
green
green
3062.969.668:enohP:beWmoc.uoyabeca@ecivres:liamE?pleHdeemoc.rekcorxeht.wwwN
X Rocker
rekcoRXrekcoRX
rekcoRXrekcoRX
To next chair
white
red
yellow
/
//
/
/
5

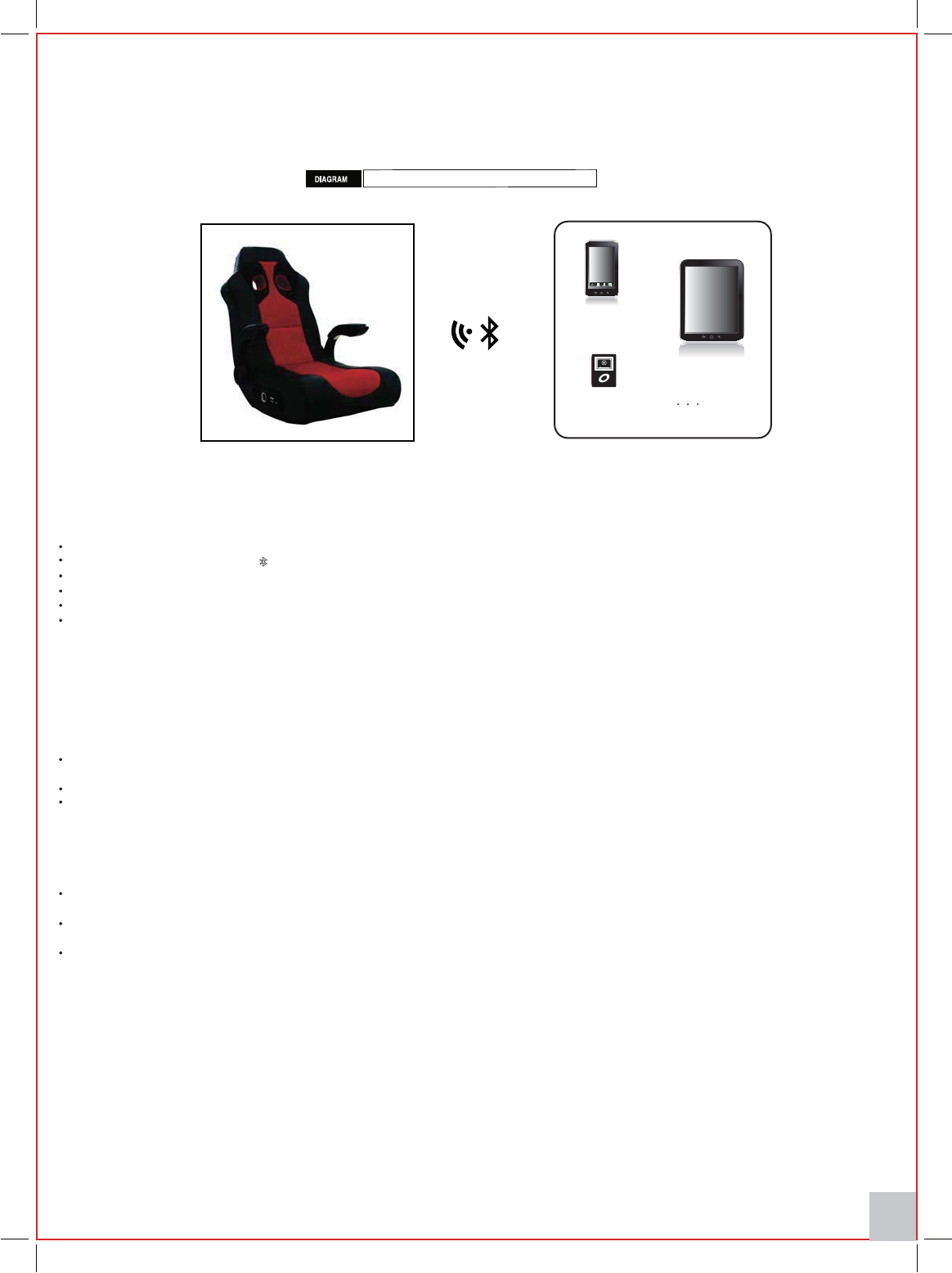

BLUETOOTH MODE CONNECTION GUIDE
3062.969.668:enohP:beWmoc.uoyabeca@ecivres:liamE?pleHdeemoc.rekcorxeht.wwwN
Bluetooth Device
Call
Pairing Your X Rocker:
Only 1 device can be paired to X Rocker at a time, to pair X Rocker with a mobile device, refer to the Bluetooth paring pr ocedures
in corresponding mobile phone or music player user manual and follow the steps below:
Make sure the band(A6) is on “ ” position, and blue Bluetooth indicator light is flashing.
Select the device name “X Rocker” on the screen of your device, add the unit to the your device’s paired device list.
When pairing is successful, the blue LED indicator(A13) will stay on, if you play music, the indicator (A13) will be slow flashing.
Confirm the connection on your device.
Your X ROCKER is now connected and ready to play music! Just play music on your device as you normally would and the sound will
come out of your X Rocker!
Keep in mind that X Rocker has a 30 feet / 10 meters range.
Make sure that there is no wired line that insert in your device before using bluetooth.
Reconnecting Your Device
If you move out of range, or turn off the Bluetooth feature on your mobile device, X Rocker will disconnect from your device.
To reconnect, simply access the Bluetooth Manager on your device and select “X Rocker” device listed.
Changing Connected Device
If you want to switch from one device to another, follow the steps below:
End the existing Bluetooth connection with the connected device, access the Bluetooth Manager and disable the Bluetooth
function of the device.
The X Rocker can now be connected to a different device.
Follow the directions in “PAIRING YOUR X ROCKER” to connect a different device.
Out of Range or Lost Signal
If the music device is out of range(beyond 30 feet / 10 meters) of the X Rocker, or there is somthing blocking the Bluetooth
signal, the LED light will turn off to indicate that the Bluetooth connection with the music device has been lost.
To avoid a lost connection:
Move the music device back into the range(within 30 feet / 10 meters), and/or make sure there is a clear line of sight and that there
are no obstructions between the X Rocker and the music device.
Within 30 seconds, the connection will automatically be re-established and the blue LED light will turn on.
For your own device, you need to re-start your music player .
If the connection is lost for more than 30 seconds, the connection will need to be re-established, follow the directions in
“Reconnecting Your Device”.
Bluetooth License
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Ace Bayou
Corporation is under license. Other trademarks and trade names are those of their respective owners.
6

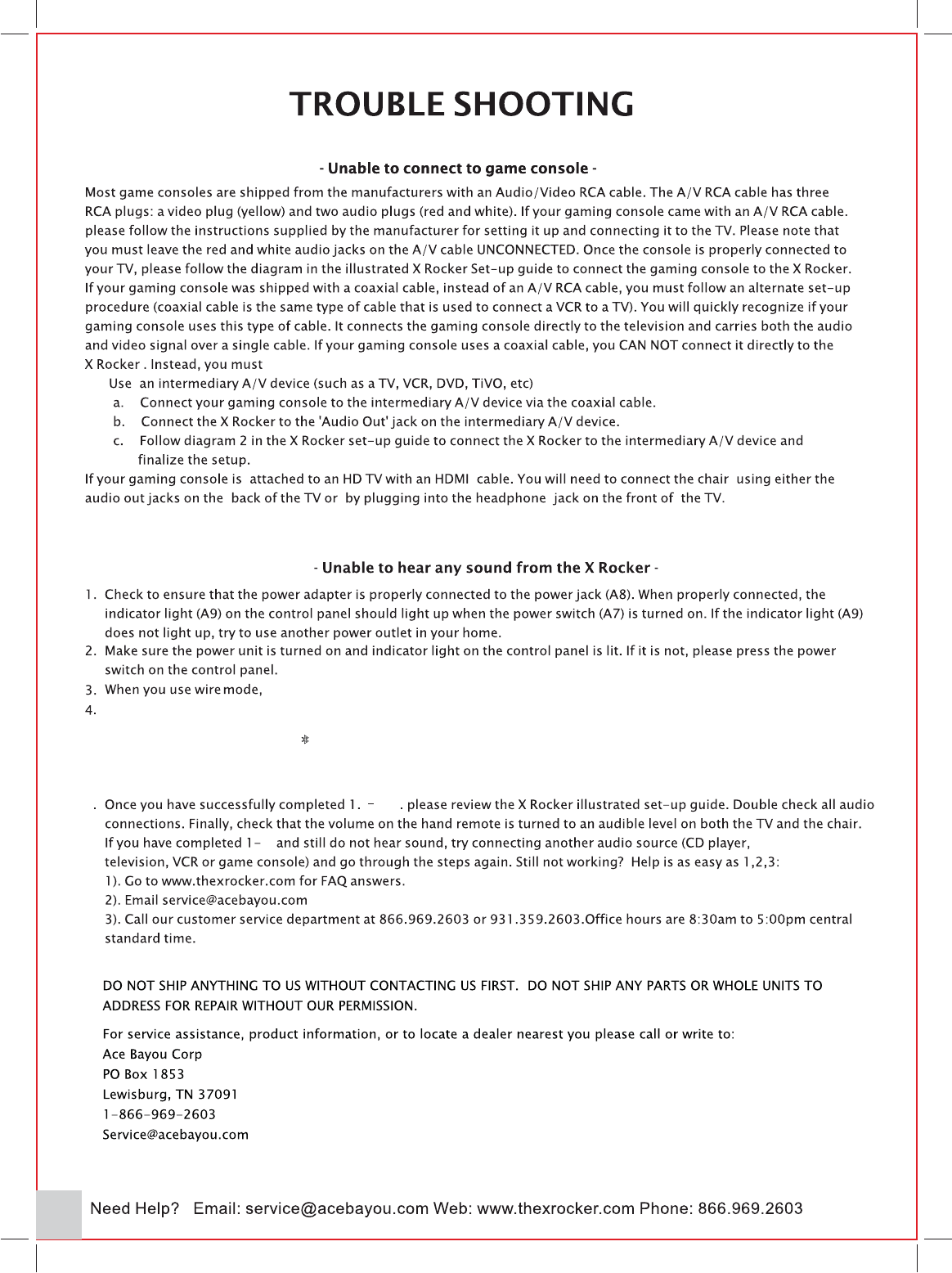

make sure the band(A6) is on “LINE IN”position.
When you use Bluetooth mode:
Make sure the band(A6) is on “ ” postion,
Make sure the volume of X Rocker and the volume of mobile music device is set to a comfortable listening level.
Make sure you are within range of the X Rocker and your mobile music device is connected via Bluetooth technology
with the X Rocker.
・
・
・
Make sure that there is no wired line that insert in your device before using bluetooth.
・
54
5
THIS
7
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
