Users Manual
WirelessCardInstallationGuide
Cardname:XW325EH2.4GRadioDaughtercard
Model/PN:33500008x‐E(x=0~9,a~z,A~Z,blank,“‐”or“+”)
Description:
802.11b/g/nsupporton2.4GHzradiowith2x2MIMOantennadesign
The2.4GHzradioSHALLsupportthefrequencybandspecifiedin802.11b/g/n.
The2.4GHzradioSHALLincorporatea2x2MIMOantennaarrangementwith2
spatialstreams
The2.4GHzradioSHALLsupport20and40MHzchannelsonthe2.4GHzradio
1.Installationway
Step1:Findtheboardandmakesurethequality

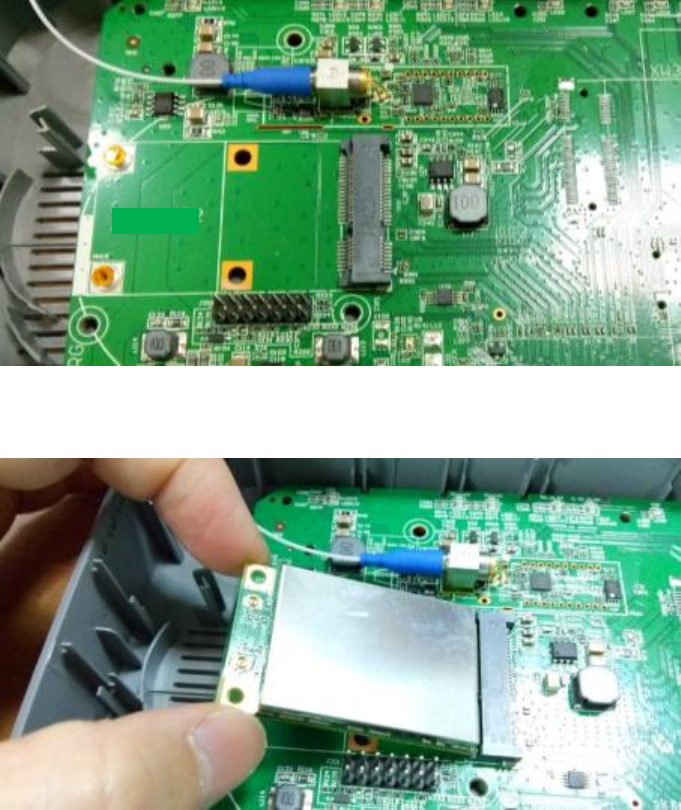

Step2:AssembleXW325EGintheminiPCIesocket.
Step3:Assemblewithnecessaryscrews.2pcsperunit.
Step4:Assembletheantenna,2pcsperunit
Step5Assemblethetopcover

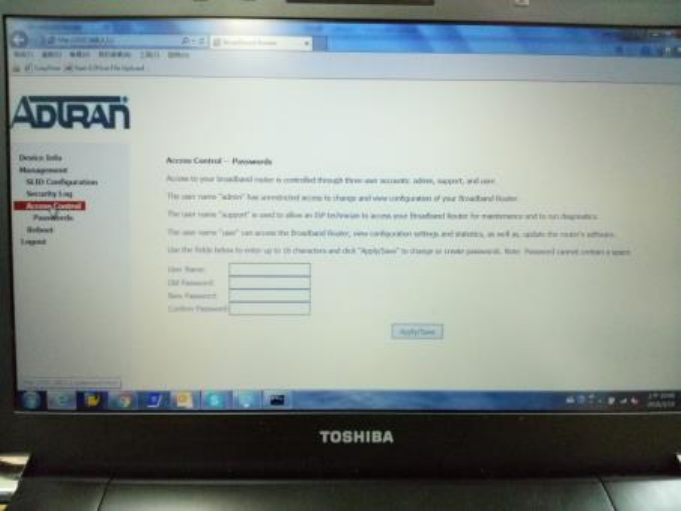

Step6:Logintheunittosetuptheconfiguration,IP:192.168.1.1
