User Manual Module
WirelessCardInstallationGuide
Cardname:XW866G4T4R5GRadioDaughtercard
Model/PN:33500006x‐E(x=0~9,a~z,A~Z,blank,“‐”or“+”)
Description:
802.11 a/an/ac support on 5 GHz radio with 4X4 MIMO antenna design
The 5GHz radio SHALL support the frequency band specified in
802.11b/g/n.
The 5GHz radio SHALL incorporate a 4x4 MIMO antenna arrangement with
4 spatial streams
The 5GHz radio SHALL support 20 and 40 MHz channels on the 5GHz
radio
1.Installationway

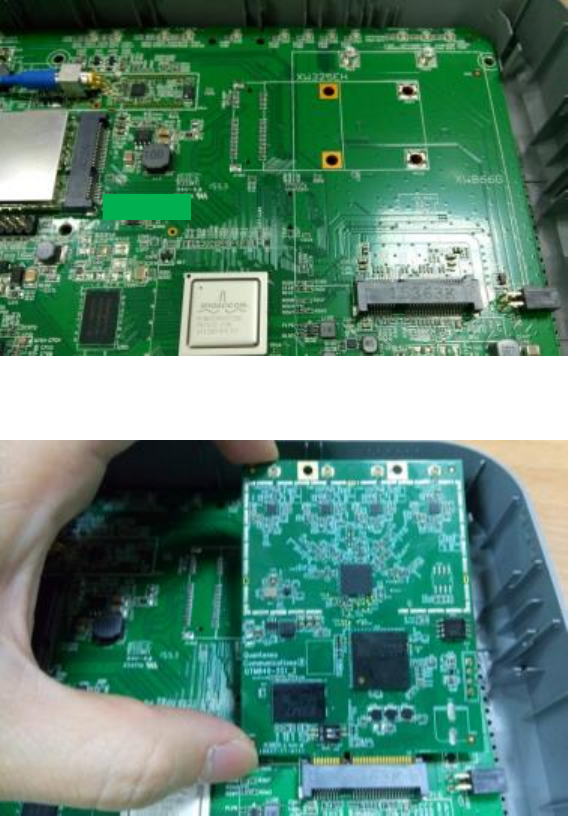

Step1:Findtheboardandmakesurethequality
Step2:AssembleXW866GintheminiPCIesocket.

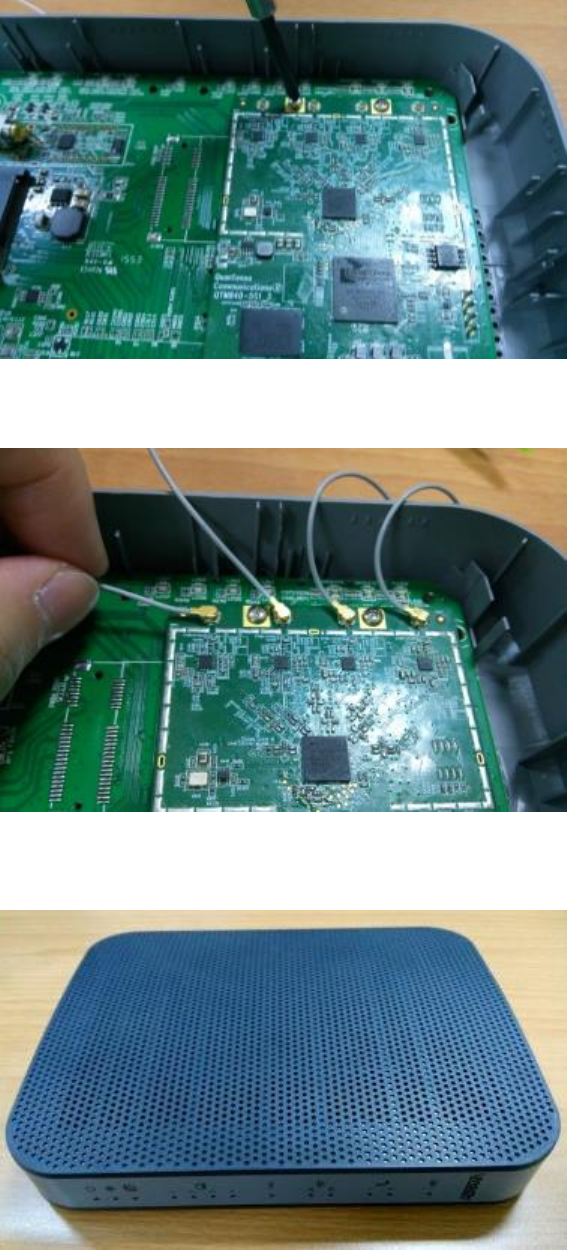

Step3:Assemblewithnecessaryscrews.2pcsperunit.
Step4:Assembletheantenna,2pcsperunit
Step5Assemblethetopcover

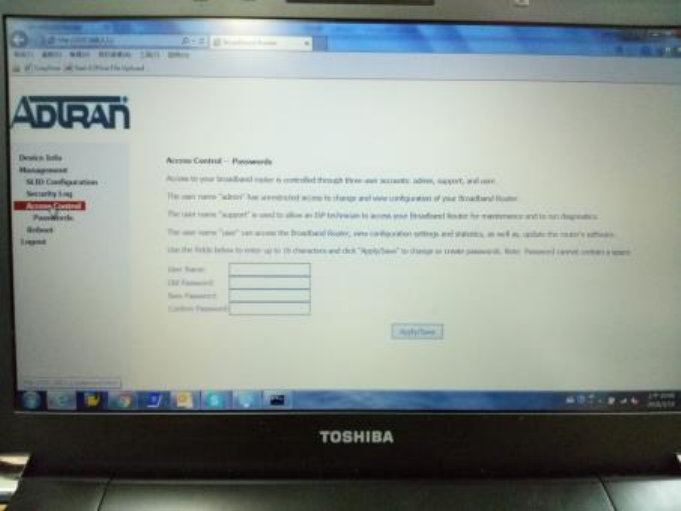

Step6:Logintheunittosetuptheconfiguration,IP:192.168.1.1
2.SafetyandRegulatoryComplianceNotice
Module FCC ID： FCC: HDC424RG50X
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
RSS-GEN 8.4 Notice for Canada
This device complies with Industry Canada’s licence-exempt RSSs. Operation
is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
IC RSS-102 Notice for Canada
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Cetéquipementestconformeauxlimitesd’expositionauxrayonnementsICétablies
pourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavec
unminimumde20cmdedistanceentrelasourcederayonnementetvotrecorps
Digital apparatus (ICES003)
CAN ICES-3 (B)/NMB-3(B)
“Contains transmitter module IC: 2250A-424RG50X.
Contientlemoduled'émissionIC:2250A‐424RG50X
