AEE Wireless Technology AT202 Weatherproof Wireless Color Camera User Manual 202AC OM

Shenzhen AEE Wireless Technology Co., Ltd. Weatherproof Wireless Color Camera 202AC OM

Manual

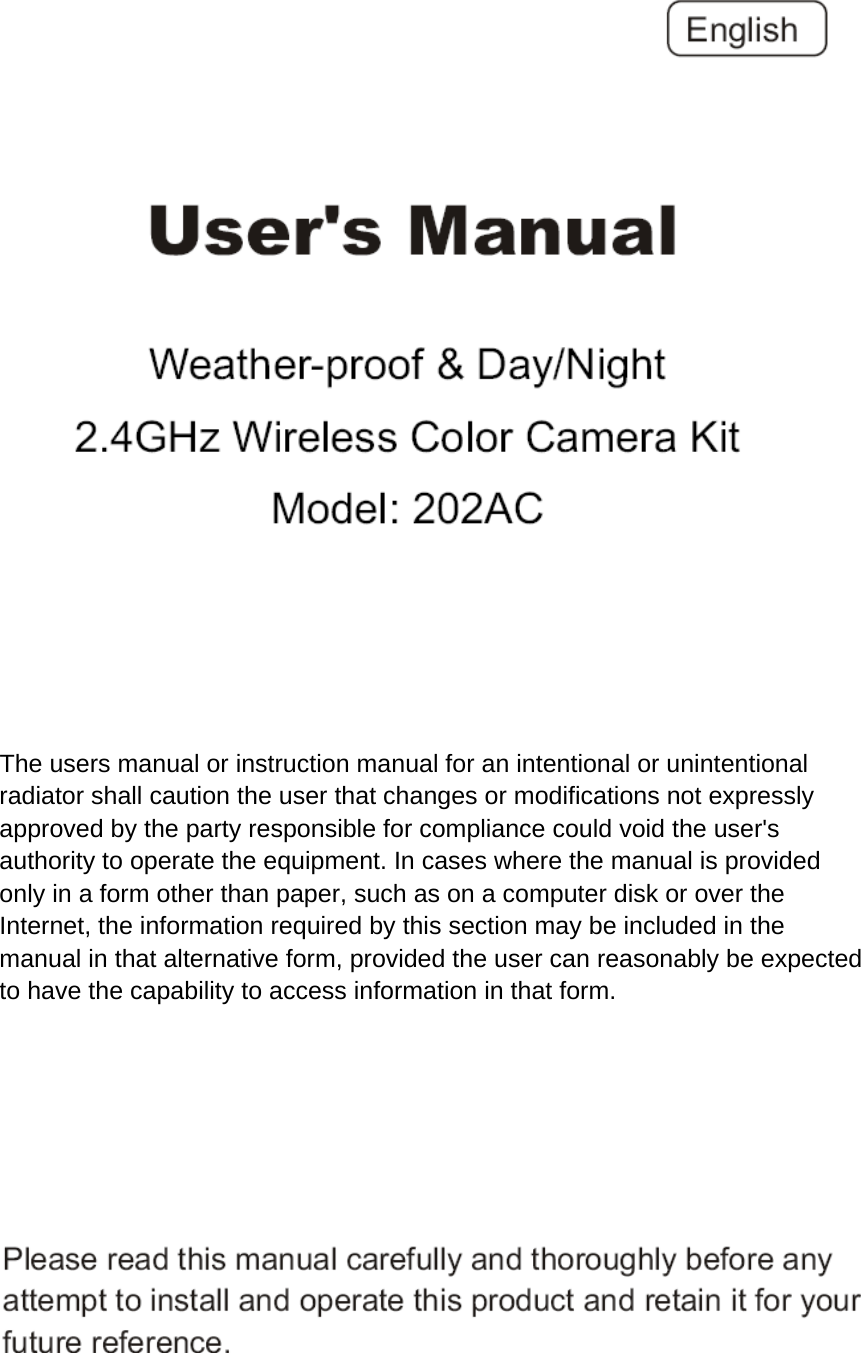

       The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form.

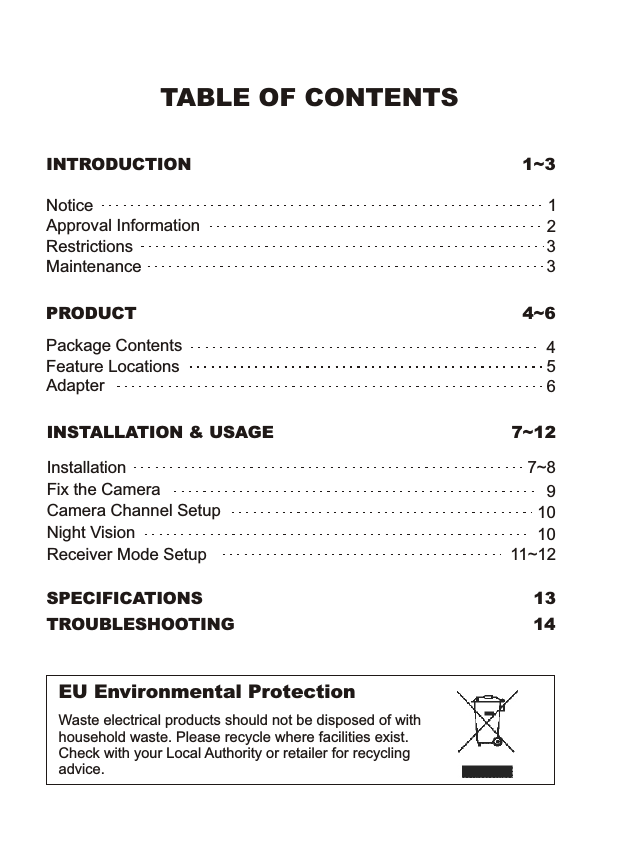

TABLE OF CONTENTSINTRODUCTION 1~3EU Environmental ProtectionWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.PRODUCT 4~6Package ContentsFeature LocationsAdapter456SPECIFICATIONS 13TROUBLESHOOTING 14INSTALLATION & USAGE 7~12InstallationCamera Channel SetupFix the Camera7~89Night Vision1010Receiver Mode Setup 11~12NoticeRestrictionsMaintenanceApproval Information1332

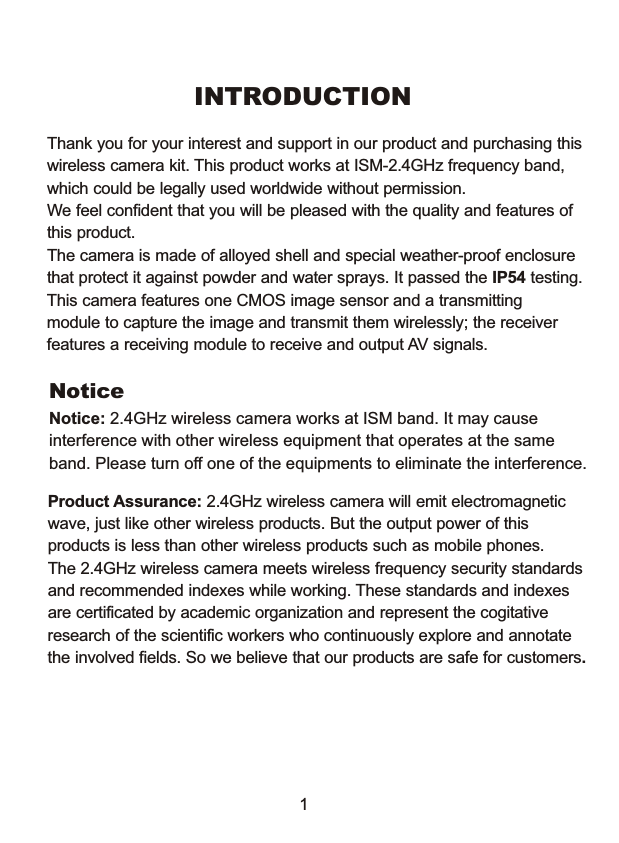

INTRODUCTIONThank you for your interest and support in our product and purchasing thiswireless camera kit. This product works at ISM-2.4GHz frequency band, which could be legally used worldwide without permission.We feel confident that you will be pleased with the quality and features of this product. The camera is made of alloyed shell and special weather-proof enclosure that protect it against powder and water sprays. It passed the IP54 testing. This camera features one CMOS image sensor and a transmitting module to capture the image and transmit them wirelessly; the receiverfeatures a receiving module to receive and output AV signals. NoticeNotice: 2.4GHz wireless camera works at ISM band. It may cause interference with other wireless equipment that operates at the same band. Please turn off one of the equipments to eliminate the interference. Product Assurance: 2.4GHz wireless camera will emit electromagnetic wave, just like other wireless products. But the output power of this products is less than other wireless products such as mobile phones. The 2.4GHz wireless camera meets wireless frequency security standardsand recommended indexes while working. These standards and indexes are certificated by academic organization and represent the cogitativeresearch of the scientific workers who continuously explore and annotatethe involved fields. So we believe that our products are safe for customers.1

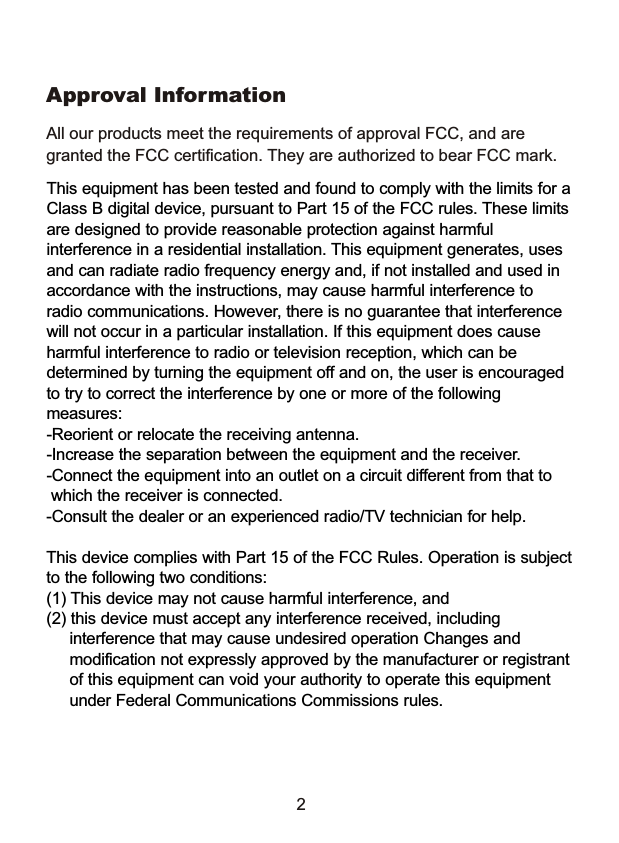

2This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and the receiver.-Connect the equipment into an outlet on a circuit different from that to    which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including      interference that may cause undesired operation Changes and      modification not expressly approved by the manufacturer or registrant      of this equipment can void your authority to operate this equipment      under Federal Communications Commissions rules.All our products meet the requirements of approval FCC, and are granted the FCC certification. They are authorized to bear FCC mark. Approval Information

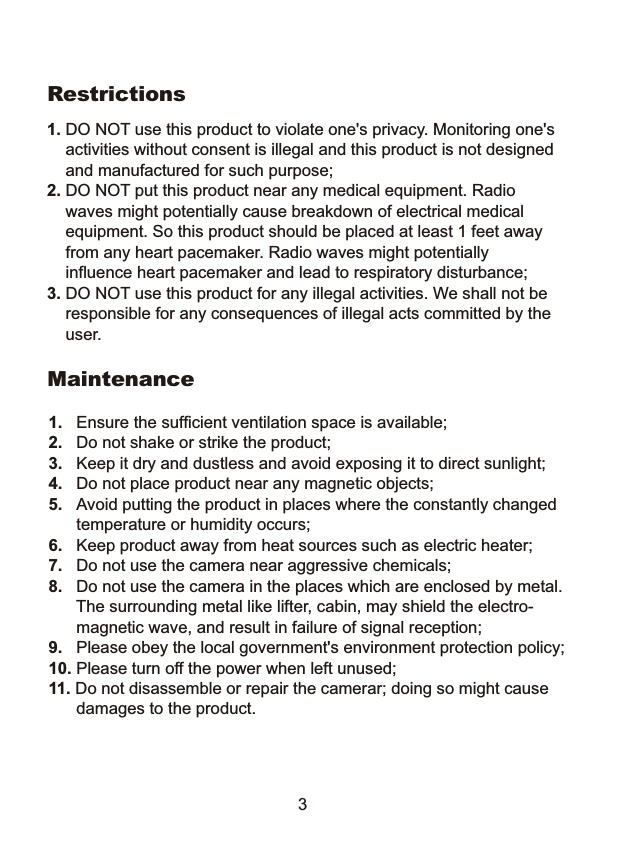

 1. DO NOT use this product to violate one's privacy. Monitoring one's     activities without consent is illegal and this product is not designed     and manufactured for such purpose; 2. DO NOT put this product near any medical equipment. Radio     waves might potentially cause breakdown of electrical medical     equipment. So this product should be placed at least 1 feet away     from any heart pacemaker. Radio waves might potentially     influence heart pacemaker and lead to respiratory disturbance;3. DO NOT use this product for any illegal activities. We shall not be    responsible for any consequences of illegal acts committed by the    user.Restrictions1.   Ensure the sufficient ventilation space is available;2.   Do not shake or strike the product;3.   Keep it dry and dustless and avoid exposing it to direct sunlight;4.   Do not place product near any magnetic objects; 5.   Avoid putting the product in places where the constantly changed      temperature or humidity occurs;6.   Keep product away from heat sources such as electric heater;7.   Do not use the camera near aggressive chemicals;8.   Do not use the camera in the places which are enclosed by metal.      The surrounding metal like lifter, cabin, may shield the electro-      magnetic wave, and result in failure of signal reception;9.   Please obey the local government's environment protection policy;10. Please turn off the power when left unused;11. Do not disassemble or repair the camerar; doing so might cause       damages to the product.Maintenance3

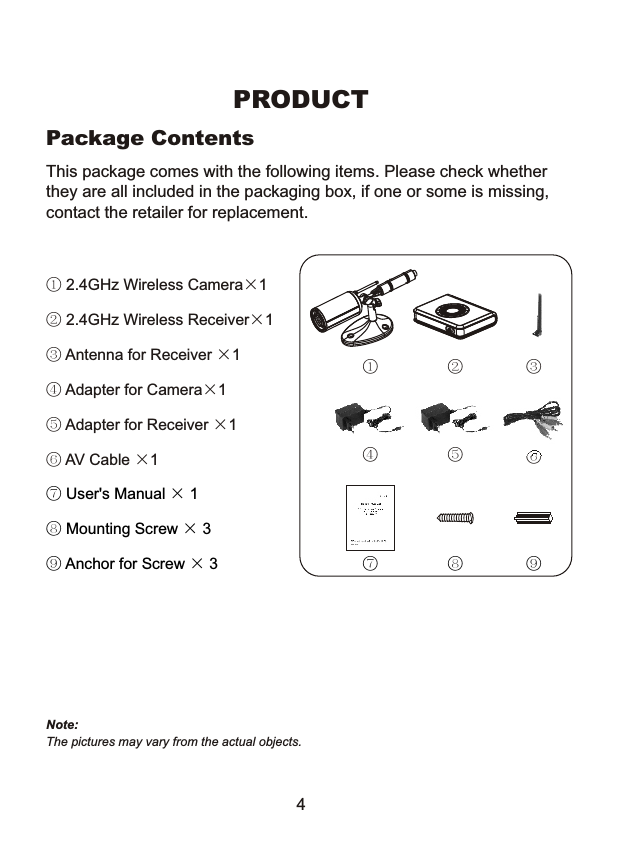

① 2.4GHz Wireless Camera×1② 2.4GHz Wireless Receiver×1③ Antenna for Receiver ×1           ④ Adapter for Camera×1⑤ Adapter for Receiver ×1            ⑥ AV Cable ×1⑦ User's Manual × 1⑧ Mounting Screw × 3⑨ Anchor for Screw × 3① ② ③④ ⑤ ⑥This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement.Package ContentsPRODUCTNote: The pictures may vary from the actual objects.⑦4⑧ ⑨

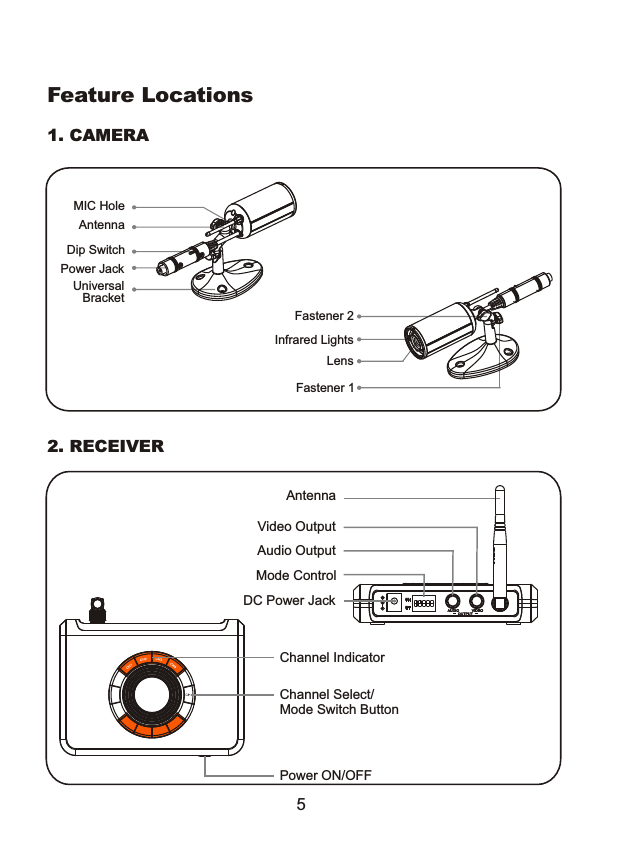

Feature Locations1. CAMERA2. RECEIVER5Power JackUniversal BracketAntennaDip SwitchMIC Hole        Power ON/OFF        Channel IndicatorChannel Select/Mode Switch Button        AntennaMode ControlDC Power JackAudio OutputVideo OutputLensInfrared LightsFastener 1Fastener 2

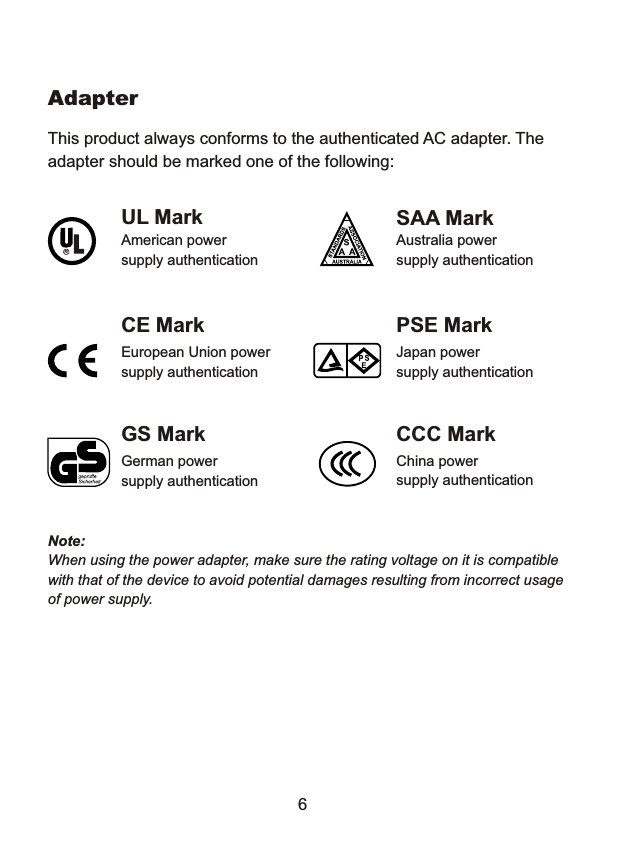

6This product always conforms to the authenticated AC adapter. Theadapter should be marked one of the following:Note:When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply.   UL MarkAmerican powersupply authenticationSAA MarkAustralia powersupply authenticationGS MarkGerman powersupply authenticationCCC MarkChina powersupply authenticationEuropean Union powersupply authenticationCE Mark PSE MarkJapan powersupply authenticationAdapter

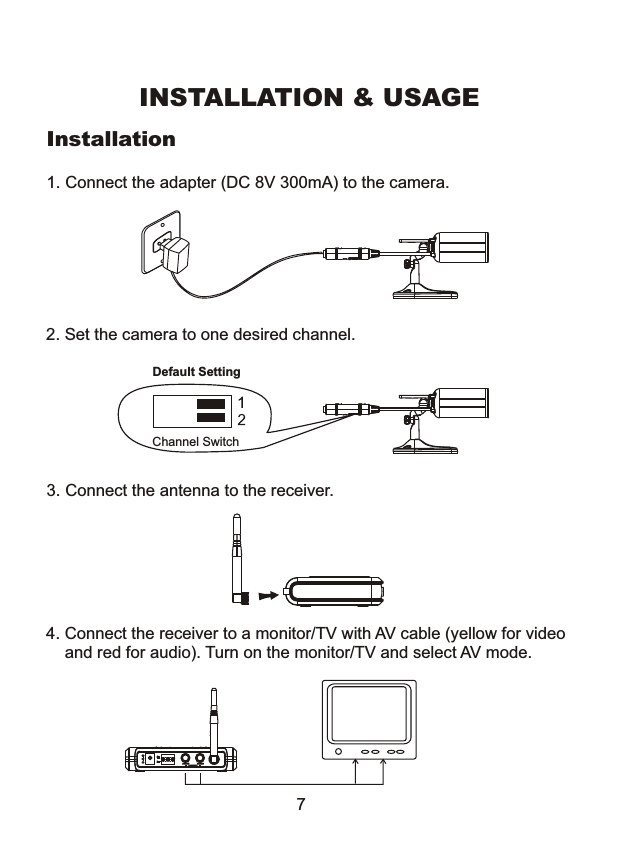

Installation3. Connect the antenna to the receiver.1. Connect the adapter (DC 8V 300mA) to the camera.4. Connect the receiver to a monitor/TV with AV cable (yellow for video     and red for audio). Turn on the monitor/TV and select AV mode. INSTALLATION & USAGE72. Set the camera to one desired channel.Channel SwitchDefault Setting

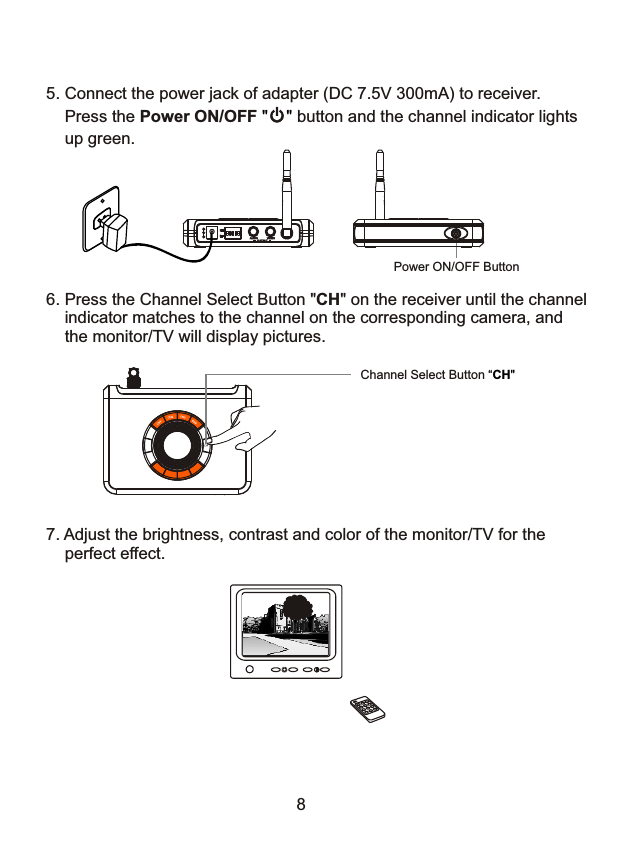

6. Press the Channel Select Button "CH" on the receiver until the channel    indicator matches to the channel on the corresponding camera, and     the monitor/TV will display pictures.8Channel Select Button “CH" 7. Adjust the brightness, contrast and color of the monitor/TV for the     perfect effect. 5. Connect the power jack of adapter (DC 7.5V 300mA) to receiver.    Press the Power ON/OFF        button and the channel indicator lights     up green." "Power ON/OFF Button
Fix the CameraScrew anchorsPlease follow the steps below if you want to fix the camera to wall or ceiling.  1.1 Secure the three screw anchors into wall (or ceiling) according holes      in the camera bracket;1.2 Align holes in the camera bracket and the anchors, and locate the       camera on the wall with three screws. 2. Adjust the angle1. Locate the camera2.1 Unscrew Fastener 1, adjust the camera to an appropriate angle,        and then fasten it. 2.2 Unscrew Fastener 2 to adjust the camera to an appropriate angle,        and then fasten it. 91.1 1.2Fastener 1Fastener 2180°180°

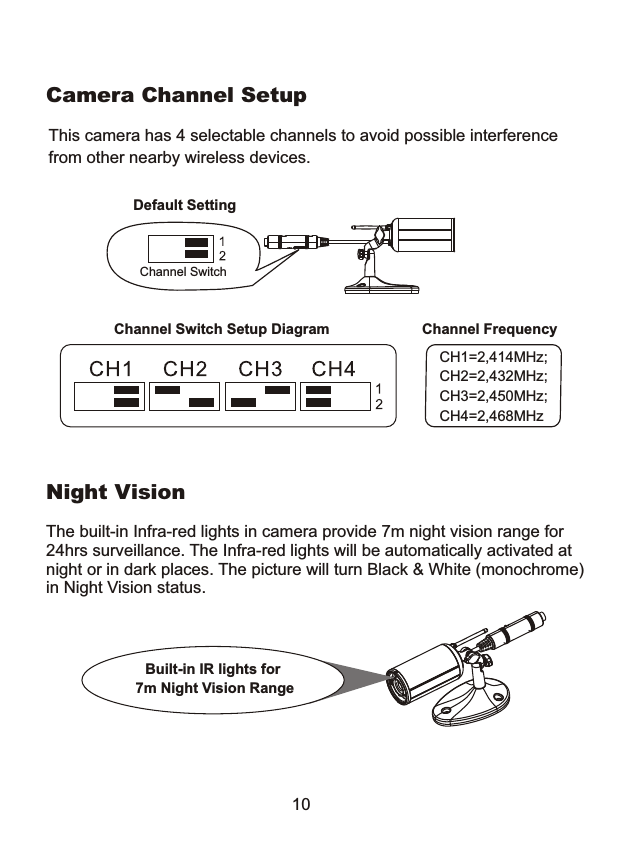

Camera Channel SetupNight VisionThe built-in Infra-red lights in camera provide 7m night vision range for 24hrs surveillance. The Infra-red lights will be automatically activated atnight or in dark places. The picture will turn Black & White (monochrome) in Night Vision status.Built-in IR lights for  7m Night Vision Range10This camera has 4 selectable channels to avoid possible interferencefrom other nearby wireless devices.Channel SwitchDefault SettingChannel FrequencyCH1=2,414MHz;CH2=2,432MHz;CH3=2,450MHz;CH4=2,468MHzChannel Switch Setup Diagram

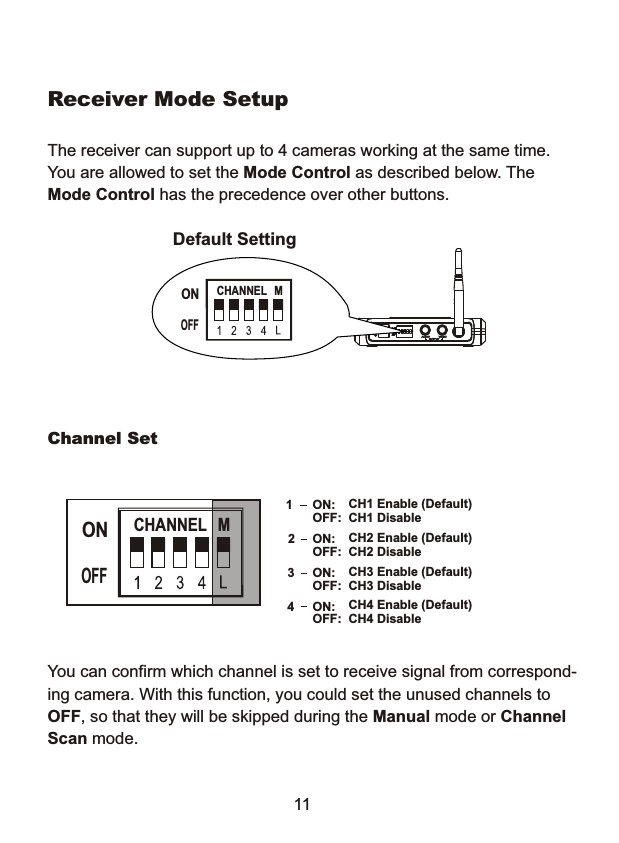

The receiver can support up to 4 cameras working at the same time.You are allowed to set the Mode Control as described below. The Mode Control has the precedence over other buttons.Default SettingReceiver Mode Setup1CH1 Enable (Default)CH1 DisableON:OFF:2CH2 Enable (Default) CH2 Disable ON:OFF:3CH3 Enable (Default) CH3 DisableON:OFF:4CH4 Enable (Default) CH4 DisableON:OFF:You can confirm which channel is set to receive signal from correspond-ing camera. With this function, you could set the unused channels to OFF, so that they will be skipped during the Manual mode or Channel Scan mode.Channel SetCHANNEL  MONOFFCHANNEL  MONOFF11

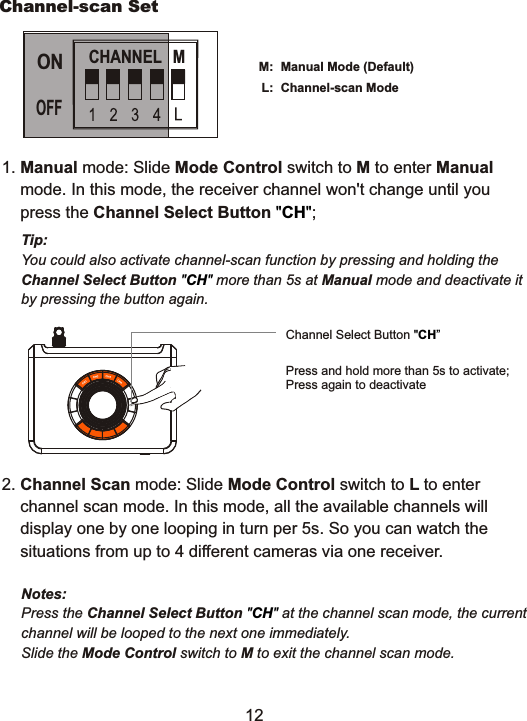

Channel-scan SetManual Mode (Default) Channel-scan Mode M:L:Notes: Press the Channel Select Button  at the channel scan mode, the current channel will be looped to the next one immediately.Slide the Mode Control switch to M to exit the channel scan mode. "CH" Tip: You could also activate channel-scan function by pressing and holding theChannel Select Button   more than 5s at Manual mode and deactivate it  by pressing the button again."CH"Channel Select Button "CH”Press and hold more than 5s to activate;Press again to deactivateCHANNEL  MONOFF1. Manual mode: Slide Mode Control switch to M to enter Manual     mode. In this mode, the receiver channel won't change until you    press the Channel Select Button  ;"CH"2. Channel Scan mode: Slide Mode Control switch to L to enter     channel scan mode. In this mode, all the available channels will     display one by one looping in turn per 5s. So you can watch the     situations from up to 4 different cameras via one receiver.12

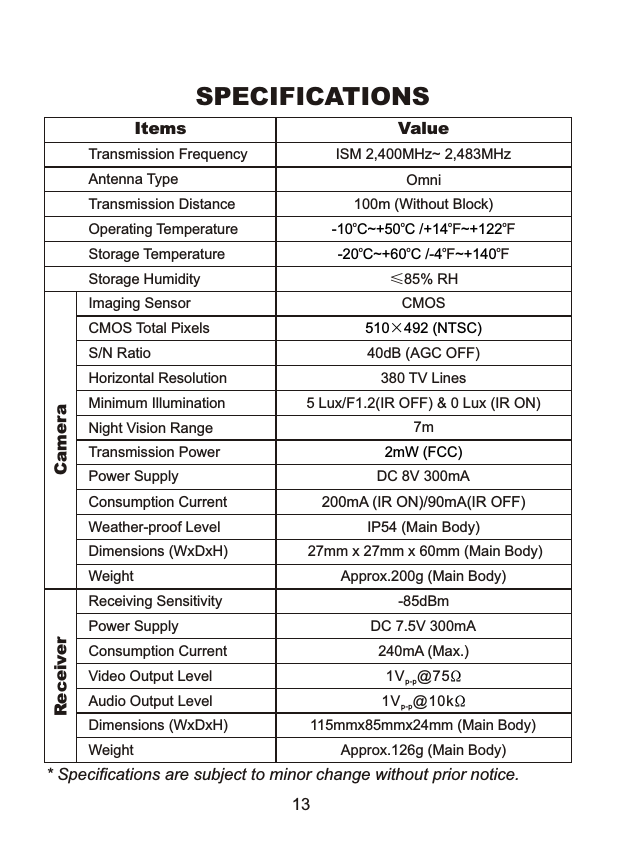

SPECIFICATIONS* Specifications are subject to minor change without prior notice.Items ValueTransmission Frequency ISM 2,400MHz~ 2,483MHzAntenna Type OmniPower Supply   DC 8V 300mAStorage Humidity ≤85% RHStorage Temperature   Imaging Sensor CMOSCMOS Total Pixels  510 492 (NTSC)×S/N Ratio 40dB (AGC OFF)Horizontal Resolution  380 TV Lines Minimum Illumination  5 Lux/F1.2(IR OFF) & 0 Lux (IR ON)Transmission Power 2mW (FCC)Transmission Distance 100m (Without Block) Consumption Current 200mA (IR ON)/90mA(IR OFF)Dimensions (WxDxH)  27mm x 27mm x 60mm (Main Body)Weight  Approx.200g (Main Body)Receiving Sensitivity  -85dBmConsumption Current 240mA (Max.)Video Output Level Audio Output Level Dimensions (WxDxH) Weight  Approx.126g (Main Body)Operating Temperature115mmx85mmx24mm (Main Body) Ca eramReceiver-20 C~+60 C /-4 ~+140o o o oF F-10 C~+50 C /+14 ~+122o o o oF FPower Supply   DC 7.5V 300mANight Vision Range 7mWeather-proof Level IP54 (Main Body)1V @75   p-p Ω1V @10kp-p Ω13
TROUBLESHOOTINGWhen you experience the operation problems, please check and try the following yourself before claiming that it is the defective product or consulting the experienced technician. Abnormal Phenomena Possible Reasons/SolutionsCheck whether the camera/receiveris connected to power supply and powered on.1. Check if the channel of receiver is    the same as that of camera;2. Check the distance & blocks.No imageSnowflakeson imageNo soundNoisy1. Interfered with other devices;2. Check the distance & blocks.Ghost imageInterfered with other devices nearby; Remove or turn off such devices. Normal image NoisyNormal sound
