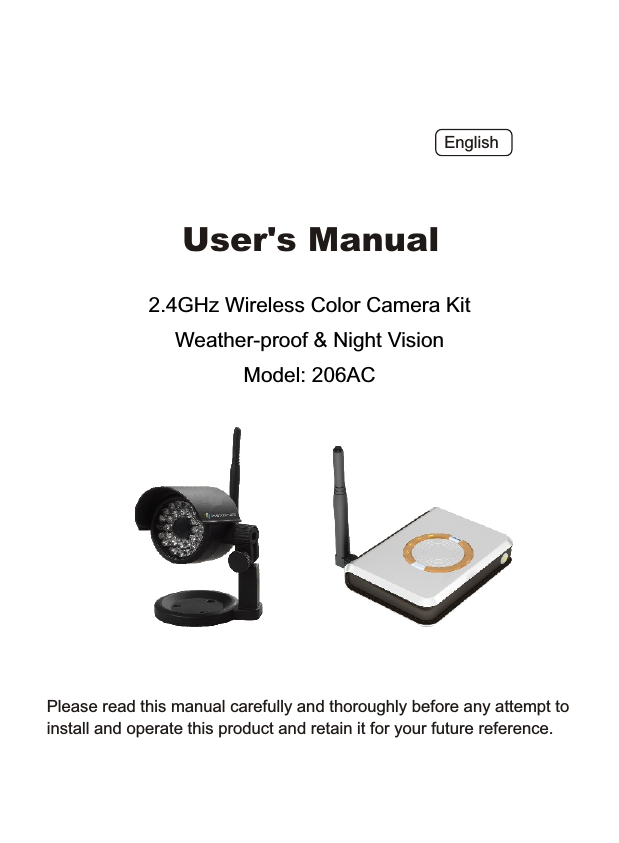

2.4GHz Wireless Color Camera KitWeather-proof & Night Vision Model: 206ACPlease read this manual carefully and thoroughly before any attempt to install and operate this product and retain it for your future reference.User's ManualEnglish

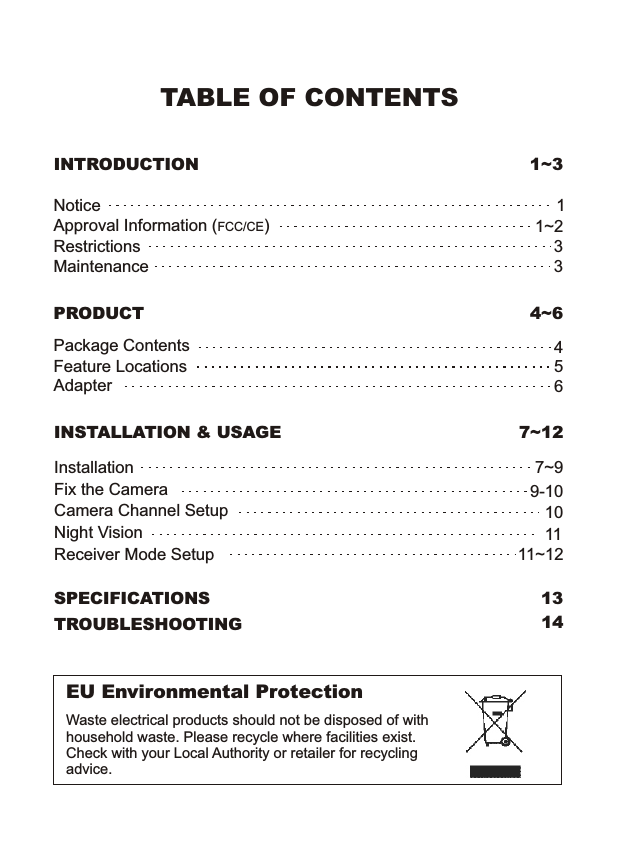

TABLE OF CONTENTSINTRODUCTION 1~3NoticeRestrictionsMaintenanceApproval Information (FCC/CE)1331~2EU Environmental ProtectionWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.PRODUCT 4~6Package ContentsFeature LocationsAdapter456SPECIFICATIONS 13TROUBLESHOOTINGINSTALLATION & USAGE 7~12InstallationCamera Channel SetupFix the Camera7~99-10Night Vision1011Receiver Mode Setup 11~1214

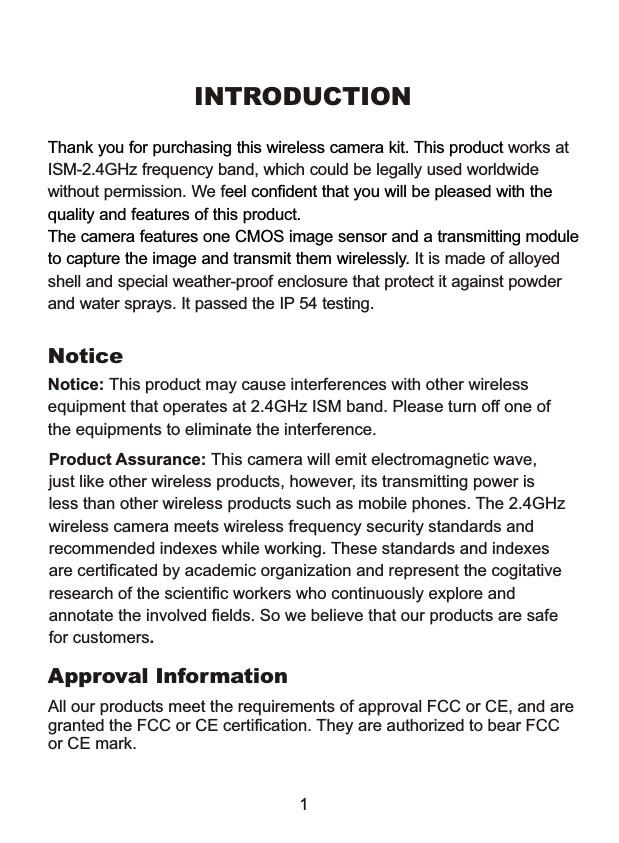

INTRODUCTIONThank you for purchasing this wireless camera kit. This product eel confident that you will be pleased with thequality and features of this product. The camera features one CMOS image sensor and a transmitting moduleto capture the image and transmit them wirelessly. works atISM-2.4GHz frequency band, which could be legally used worldwidewithout permission. We f It is made of alloyed shell and special weather-proof enclosure that protect it against powderand water sprays. It passed the IP 54 testing.NoticeProduct Assurance: This camera will emit electromagnetic wave, just like other wireless products, however, its transmitting power isless than other wireless products such as mobile phones. The 2.4GHzwireless camera meets wireless frequency security standards and recommended indexes while working. These standards and indexes are certificated by academic organization and represent the cogitativeresearch of the scientific workers who continuously explore and annotate the involved fields. So we believe that our products are safefor customers.1Approval InformationAll our products meet the requirements of approval FCC or CE, and aregranted the FCC or CE certification. They are authorized to bear FCCor CE mark.Notice: This product may cause interferences with other wireless equipment that operates at 2.4GHz ISM band. Please turn off one ofthe equipments to eliminate the interference.

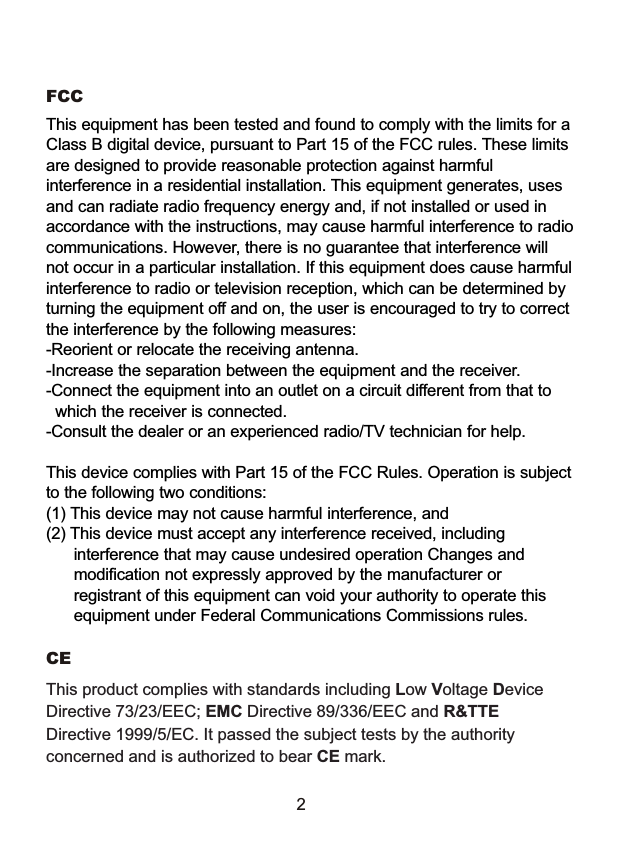

This product complies with standards including Low Voltage Device Directive 73/23/EEC; EMC Directive 89/336/EEC and R&TTE Directive 1999/5/EC. It passed the subject tests by the authority concerned and is authorized to bear CE mark.CE 2FCC This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC rules. These limitsare designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed or used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference willnot occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correctthe interference by the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and the receiver.-Connect the equipment into an outlet on a circuit different from that to  which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including      interference that may cause undesired operation Changes and      modification not expressly approved by the manufacturer or      registrant of this equipment can void your authority to operate this      equipment under Federal Communications Commissions rules.

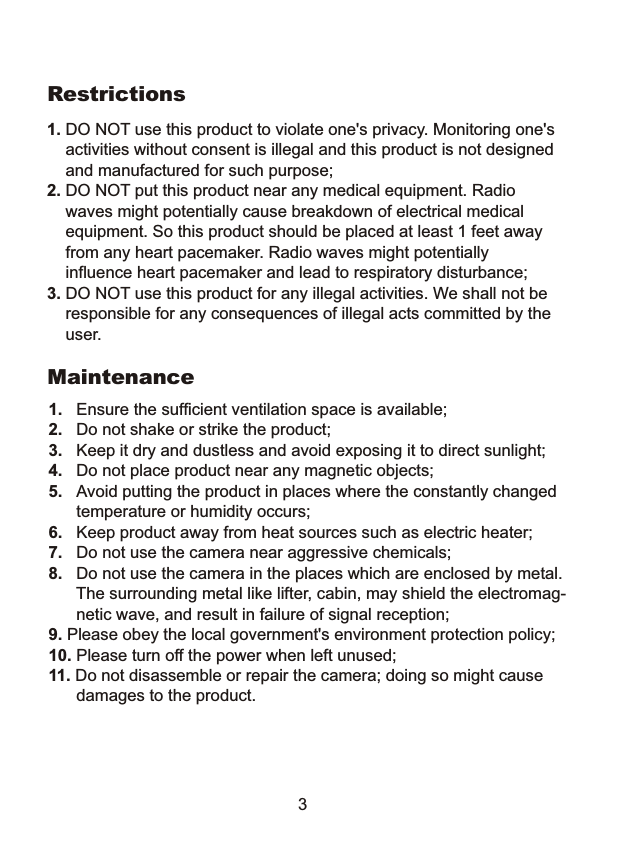

 1. DO NOT use this product to violate one's privacy. Monitoring one's     activities without consent is illegal and this product is not designed     and manufactured for such purpose; 2. DO NOT put this product near any medical equipment. Radio     waves might potentially cause breakdown of electrical medical     equipment. So this product should be placed at least 1 feet away     from any heart pacemaker. Radio waves might potentially     influence heart pacemaker and lead to respiratory disturbance;3. DO NOT use this product for any illegal activities. We shall not be    responsible for any consequences of illegal acts committed by the    user.Restrictions1.   Ensure the sufficient ventilation space is available;2.   Do not shake or strike the product;3.   Keep it dry and dustless and avoid exposing it to direct sunlight;4.   Do not place product near any magnetic objects;       5.   Avoid putting the product in places where the constantly changed      temperature or humidity occurs;6.   Keep product away from heat sources such as electric heater;7.   Do not use the camera near aggressive chemicals;8.   Do not use the camera in the places which are enclosed by metal.      The surrounding metal like lifter, cabin, may shield the electromag-      netic wave, and result in failure of signal reception;9. Please obey the local government's environment protection policy;10. Please turn off the power when left unused;11. Do not disassemble or repair the camera; doing so might cause       damages to the product.Maintenance3

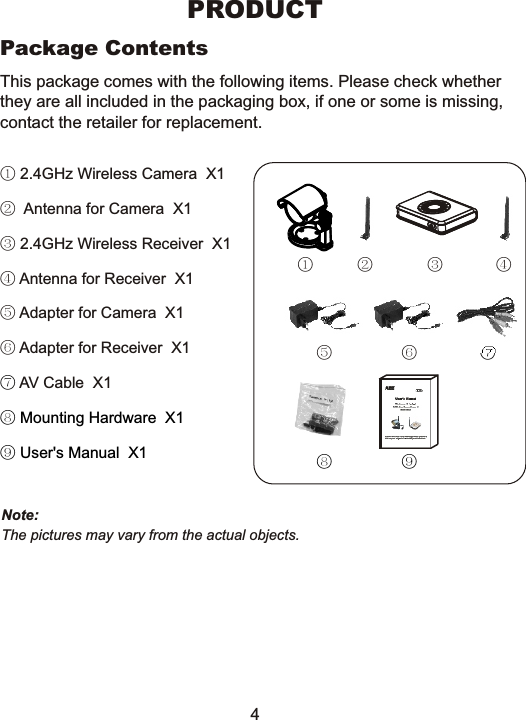

① 2.4GHz Wireless Camera  X1② Antenna for Camera  X1③ 2.4GHz Wireless Receiver  X1④ Antenna for Receiver  X1           ⑤ Adapter for Camera  X1⑥ Adapter for Receiver  X1             AV Cable  X1⑦⑧ Mounting Hardware  X1⑨ User's Manual  X1 This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement.Package ContentsPRODUCTNote: The pictures may vary from the actual objects.4① ② ③⑤ ⑥ ⑦⑧ ⑨④

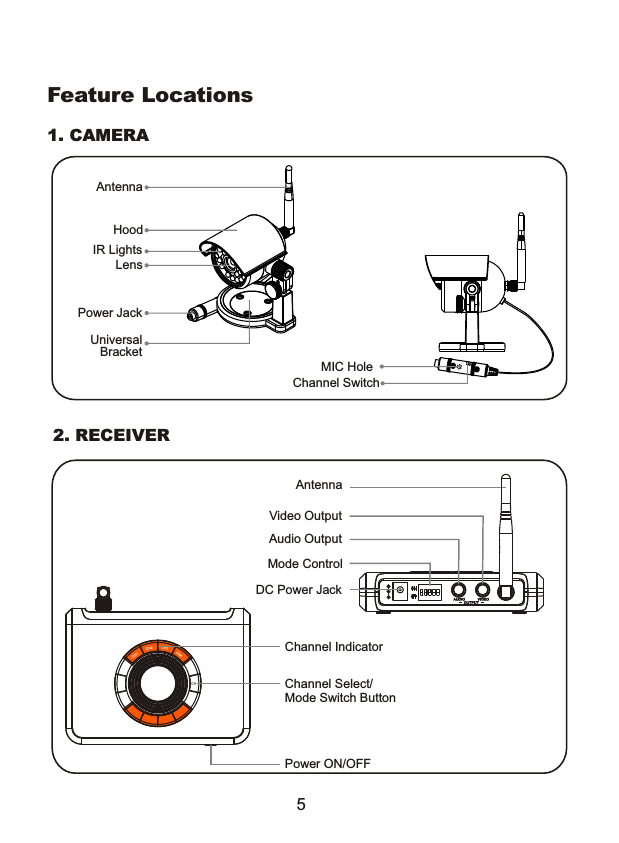

Feature Locations1. CAMERA2. RECEIVER5Power JackUniversal BracketAntennaHoodChannel SwitchMIC HoleLensIR Lights        Power ON/OFF        Channel IndicatorChannel Select/Mode Switch Button        AntennaMode ControlDC Power JackAudio OutputVideo Output

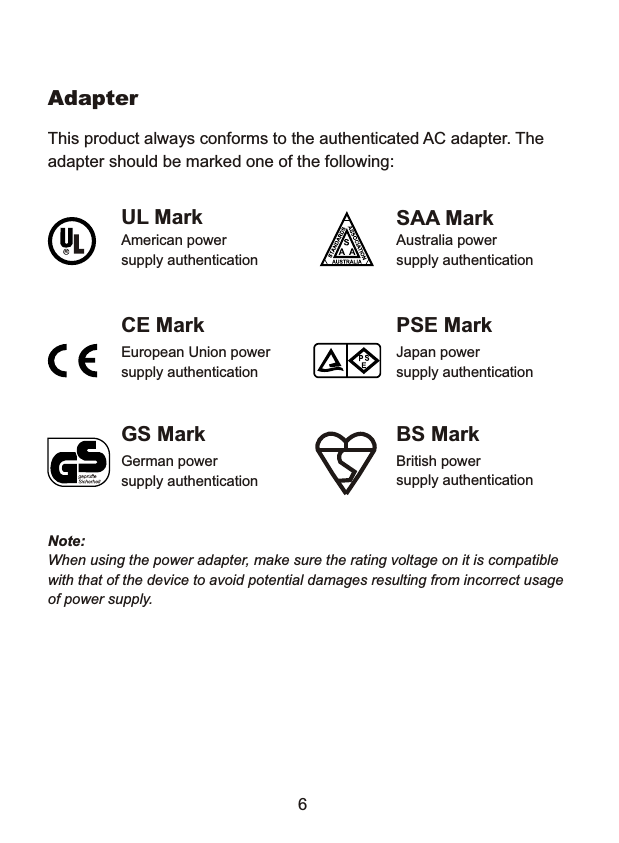

6This product always conforms to the authenticated AC adapter. Theadapter should be marked one of the following:Note:When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply.   UL MarkAmerican powersupply authenticationSAA MarkAustralia powersupply authenticationGS MarkGerman powersupply authenticationBS MarkBritish powersupply authenticationEuropean Union powersupply authenticationCE Mark PSE MarkJapan powersupply authenticationAdapter

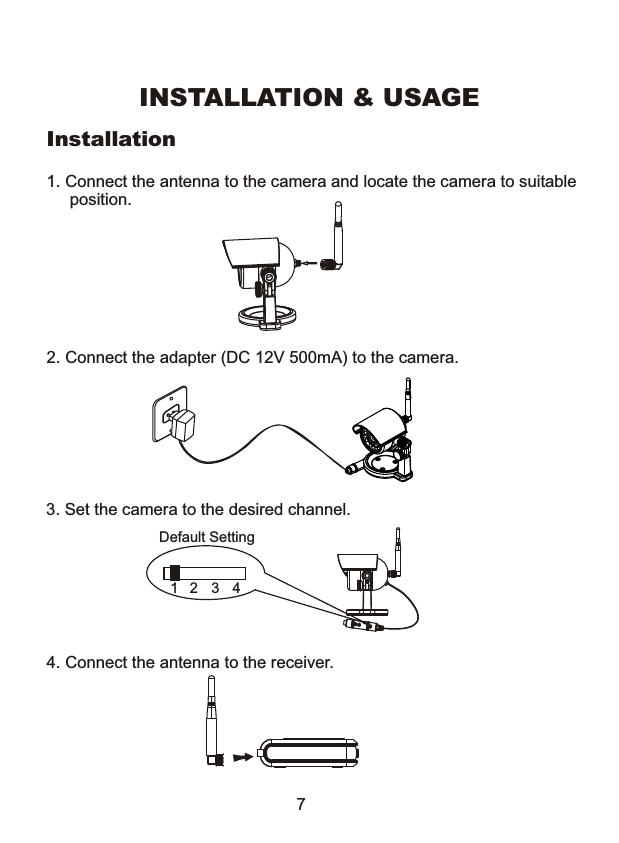

Installation4. Connect the antenna to the receiver.2. Connect the adapter (DC 12V 500mA) to the camera.INSTALLATION & USAGE73. Set the camera to the desired channel.Default Setting1 2 3 41. Connect the antenna to the camera and locate the camera to suitable     position.

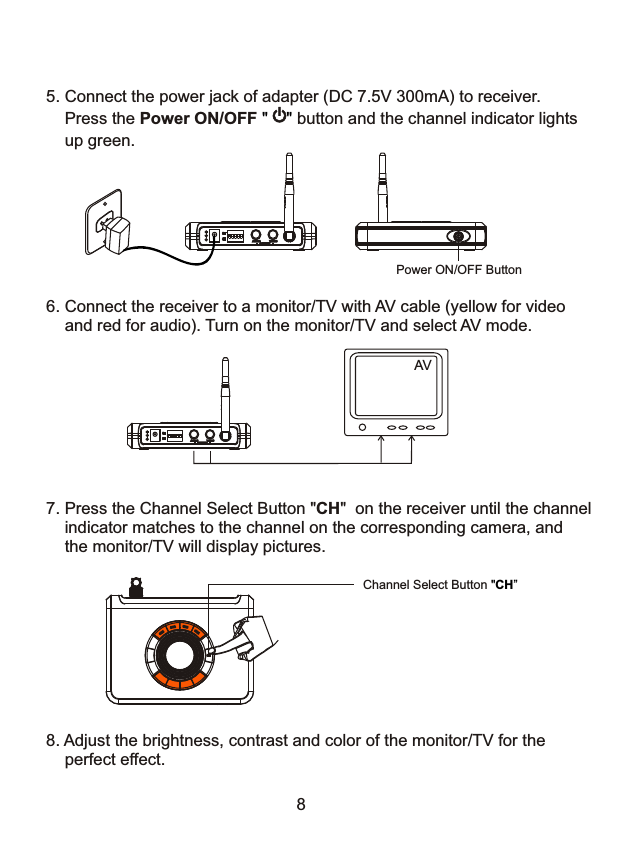

7. Press the Channel Select Button "CH"  on the receiver until the channel    indicator matches to the channel on the corresponding camera, and     the monitor/TV will display pictures.8Channel Select Button "CH”5. Connect the power jack of adapter (DC 7.5V 300mA) to receiver.    Press the Power ON/OFF        button and the channel indicator lights     up green." "Power ON/OFF ButtonAV6. Connect the receiver to a monitor/TV with AV cable (yellow for video     and red for audio). Turn on the monitor/TV and select AV mode. 8. Adjust the brightness, contrast and color of the monitor/TV for the     perfect effect.

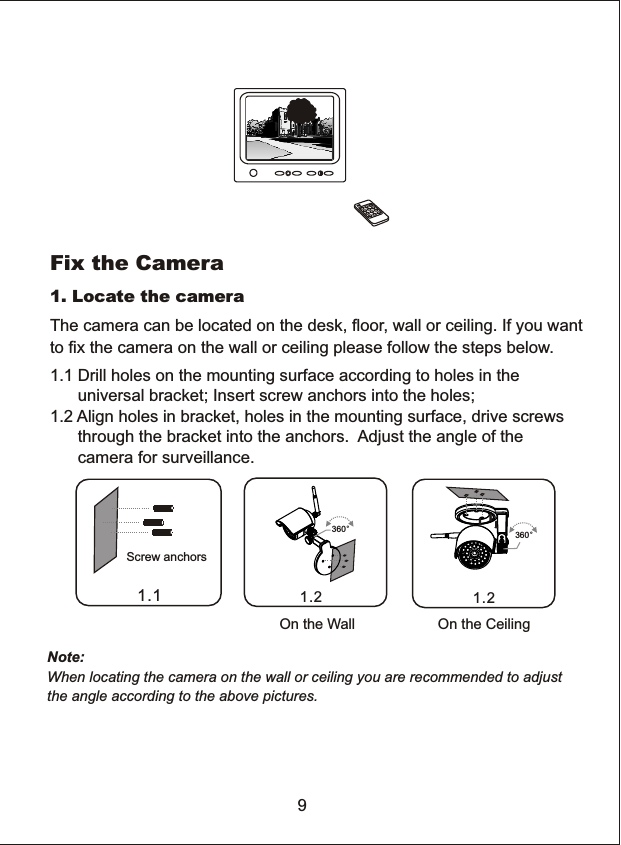

Fix the Camera1.1 Drill holes on the mounting surface according to holes in the       universal bracket; Insert screw anchors into the holes;1.2 Align holes in bracket, holes in the mounting surface, drive screws      through the bracket into the anchors.  Adjust the angle of the       camera for surveillance.1. Locate the camera9The camera can be located on the desk, floor, wall or ceiling. If you wantto fix the camera on the wall or ceiling please follow the steps below.Note: When locating the camera on the wall or ceiling you are recommended to adjust the angle according to the above pictures. Screw anchors1.1 1.2360°1.2On the CeilingOn the Wall360°

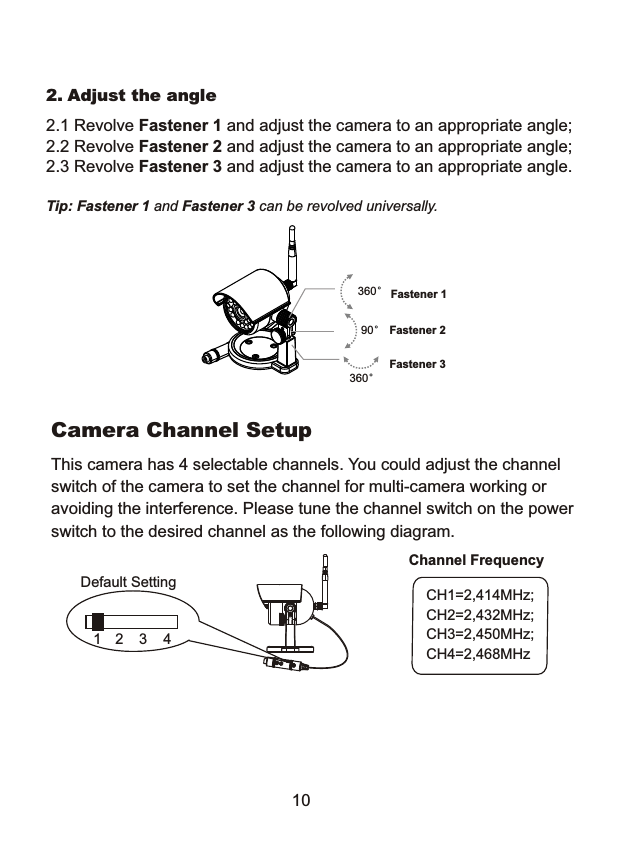

Camera Channel SetupThis camera has 4 selectable channels. You could adjust the channelswitch of the camera to set the channel for multi-camera working oravoiding the interference. Please tune the channel switch on the powerswitch to the desired channel as the following diagram.CH1=2,414MHz;CH2=2,432MHz;CH3=2,450MHz;CH4=2,468MHzChannel FrequencyDefault Setting1 2 3 410Fastener 1360°Fastener 3360°Fastener 290°2. Adjust the angle2.1 Revolve Fastener 1 and adjust the camera to an appropriate angle;2.2 Revolve Fastener 2 and adjust the camera to an appropriate angle;2.3 Revolve Fastener 3 and adjust the camera to an appropriate angle.Tip: Fastener 1 and Fastener 3 can be revolved universally.

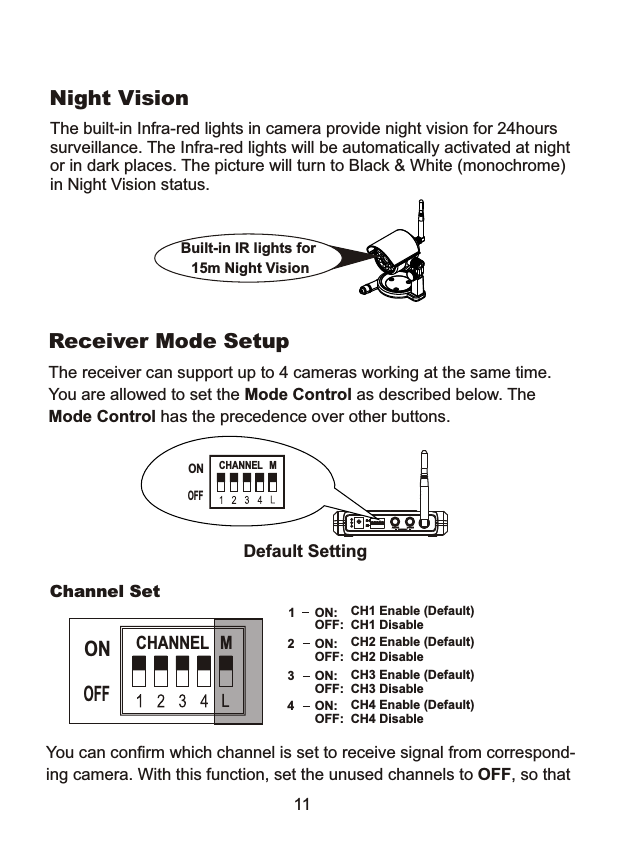

The receiver can support up to 4 cameras working at the same time.You are allowed to set the Mode Control as described below. The Mode Control has the precedence over other buttons.Default SettingReceiver Mode SetupCHANNEL  MONOFF11Built-in IR lights for  15m Night Vision The built-in Infra-red lights in camera provide night vision for 24hours surveillance. The Infra-red lights will be automatically activated at nightor in dark places. The picture will turn to Black & White (monochrome)in Night Vision status.1CH1 Enable (Default)CH1 DisableON:OFF:2CH2 Enable (Default) CH2 Disable ON:OFF:3CH3 Enable (Default) CH3 DisableON:OFF:4CH4 Enable (Default) CH4 DisableON:OFF:Channel SetCHANNEL  MONOFFYou can confirm which channel is set to receive signal from correspond-ing camera. With this function, set the unused channels to OFF, so thatNight Vision

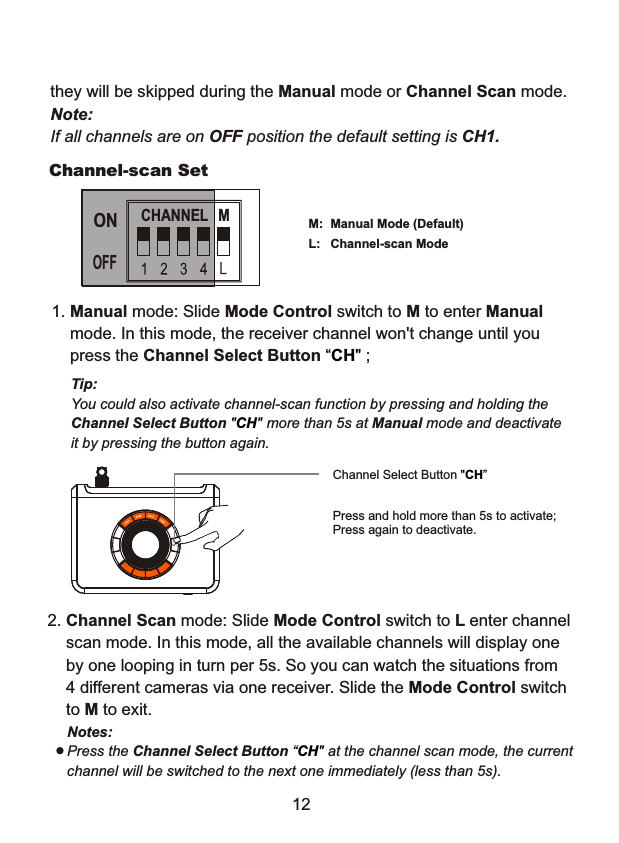

Channel-scan SetManual Mode (Default) Channel-scan Mode M:L:Tip: You could also activate channel-scan function by pressing and holding theChannel Select Button  more than 5s at Manual mode and deactivate  it by pressing the button again."CH" CHANNEL  MONOFF1. Manual mode: Slide Mode Control switch to M to enter Manual     mode. In this mode, the receiver channel won't change until you    press the Channel Select Button  ;“CH" 12they will be skipped during the Manual mode or Channel Scan mode.Note:If all channels are on OFF position the default setting is CH1.2. Channel Scan mode: Slide Mode Control switch to L enter channel    scan mode. In this mode, all the available channels will display one    by one looping in turn per 5s. So you can watch the situations from    4 different cameras via one receiver. Slide the Mode Control switch    to M to exit.Channel Select Button "CH”Notes: Press the Channel Select Button  at the channel scan mode, the current channel will be switched to the next one immediately (less than 5s).“CH" Press and hold more than 5s to activate;Press again to deactivate.

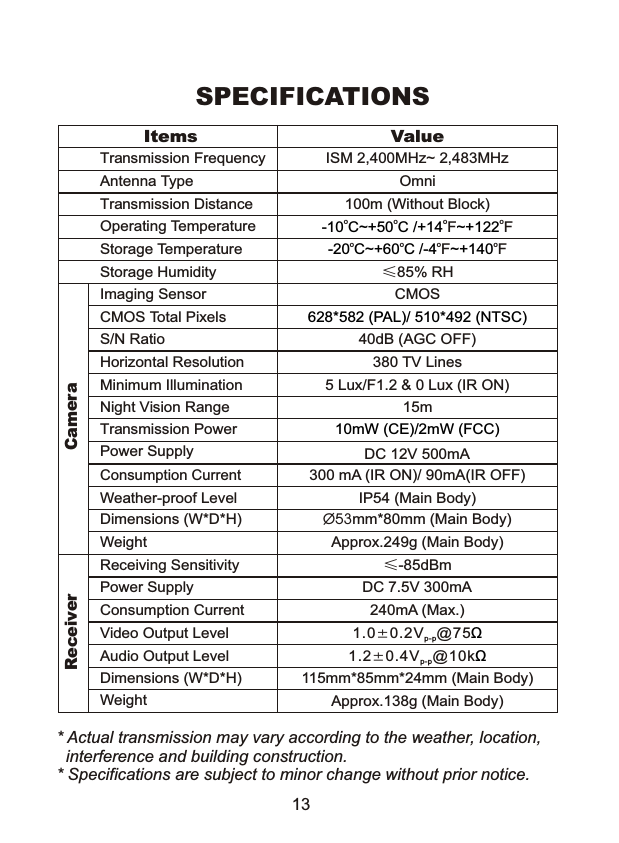

SPECIFICATIONS* Actual transmission may vary according to the weather, location,  interference and building construction.* Specifications are subject to minor change without prior notice.Items ValueTransmission Frequency ISM 2,400MHz~ 2,483MHzAntenna Type OmniPower Supply   DC 12V 500mAStorage Humidity ≤85% RHStorage Temperature   Imaging Sensor CMOSCMOS Total Pixels  628*582 (PAL)/ 510*492 (NTSC)S/N Ratio 40dB (AGC OFF)Horizontal Resolution  380 TV Lines Minimum Illumination  5 Lux/F1.2 & 0 Lux (IR ON)Transmission Power 10mW (CE)/2mW (FCC)Transmission Distance 100m (Without Block) Consumption Current 300 mA (IR ON)/ 90mA(IR OFF)Dimensions (W*D*H)  Ø53mm*80mm (Main Body)Weight  Approx.249g (Main Body)Receiving Sensitivity  ≤-85dBmConsumption Current 240mA (Max.)Video Output Level Audio Output Level Dimensions (W*D*H) Weight  Approx.138g (Main Body)Operating Temperature115mm*85mm*24mm (Main Body) erCamaReceiver-20 C~+60 C /-4 ~+140o o o oF F-10 C~+50 C /+14 ~+122o o o oF FPower Supply   DC 7.5V 300mANight Vision Range 15mWeather-proof LevelIP54 (Main Body)1.2±0.4V @10kp-p Ω131.0±0.2V @75p-p Ω

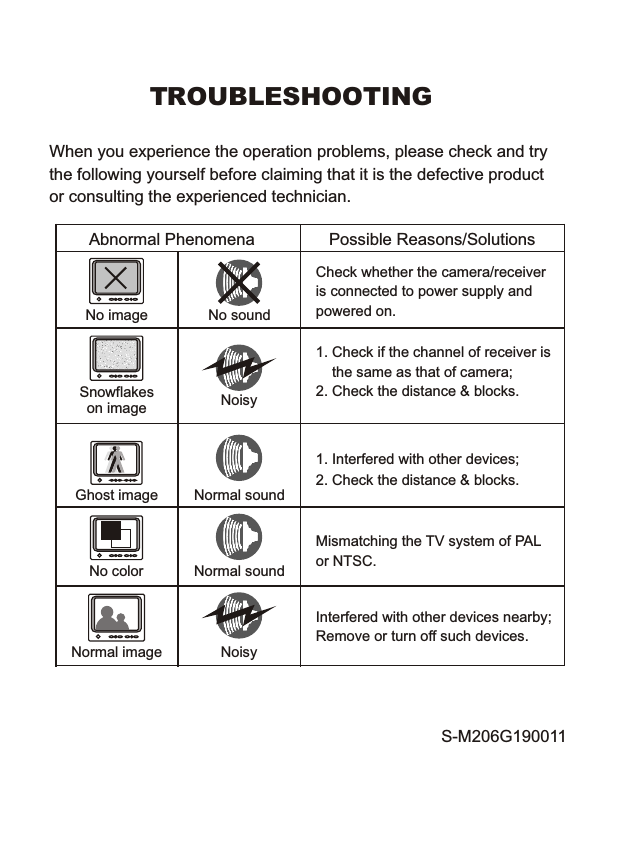

TROUBLESHOOTINGWhen you experience the operation problems, please check and try the following yourself before claiming that it is the defective product or consulting the experienced technician. Possible Reasons/SolutionsCheck whether the camera/receiveris connected to power supply and powered on.1. Check if the channel of receiver is    the same as that of camera;2. Check the distance & blocks.Mismatching the TV system of PAL or NTSC.1. Interfered with other devices;2. Check the distance & blocks.Interfered with other devices nearby; Remove or turn off such devices. Abnormal PhenomenaNo imageSnowflakeson imageNormal imageNo colorGhost imageNo soundNoisyNoisyNormal soundNormal soundS-M206G190011
