AEE Wireless Technology BT501 2.4 Ghz Wireless Camera User Manual S M501G190011 501LA OM
Shenzhen AEE Wireless Technology Co., Ltd. 2.4 Ghz Wireless Camera S M501G190011 501LA OM
User Manual
Please read this manual carefully and thoroughly before any attempt to
install and operate this product and retain it for your future reference.
User's Manual
2.4GHz Color Wireless Camera Kit
Night Vision
MODEL:501LA
English
TABLE OF CONTENTS
INTRODUCTION 1~3
Notice
Restrictions
Maintenance
Approval Information (FCC/CE)
1
3
3
1~2
PRODUCT 4~7
Package Contents
Feature Locations
Adapter
4
5-6
7
SPECIFICATIONS 17

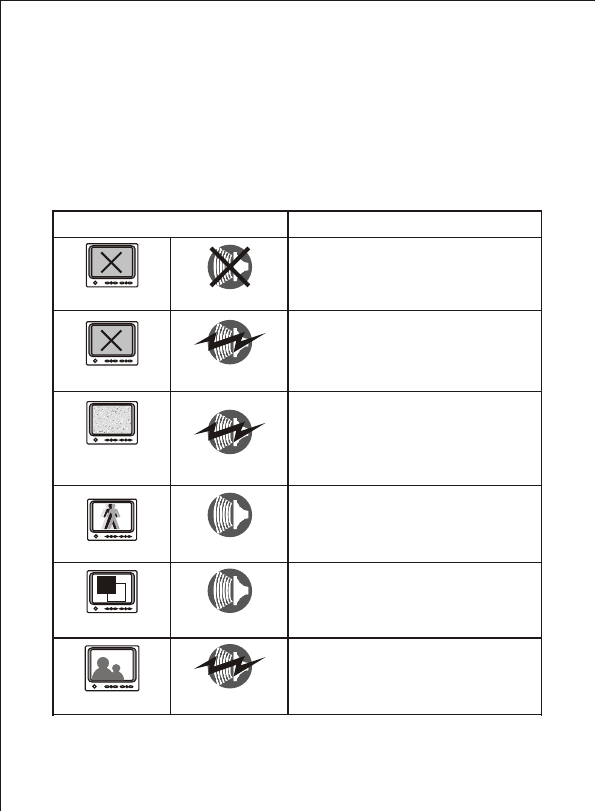

TROUBLESHOOTING 18
INSTALLATION & USAGE 8~16
Installation
Locate the Receiver
Fix the Camera
8~10
Camera Channel Setup
Night Vision
11
12
12

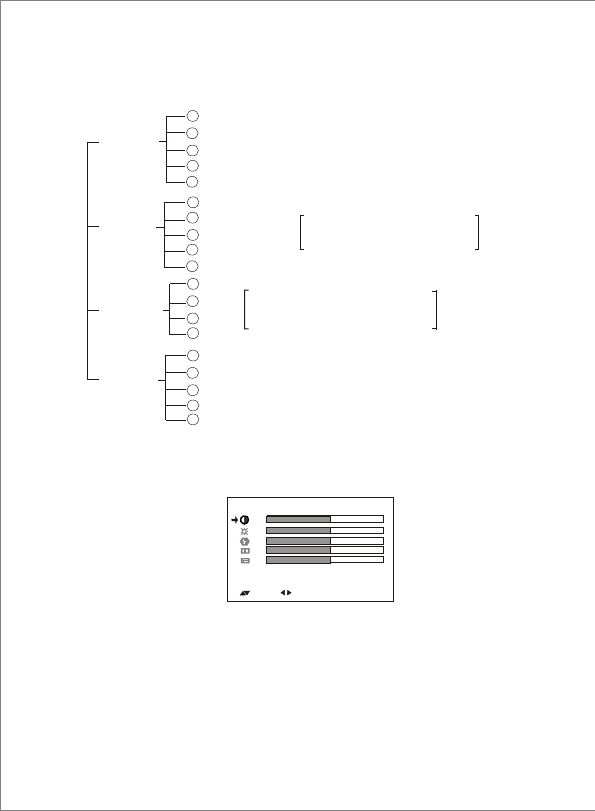

Receiver Mode Setup 13~16
EU Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.
10-11
INTRODUCTION
Thank you for purchase this wireless camera kit. This product
eel confident that you will be pleased with the
quality and features of this product.
The camera builds in one CMOS image sensor and one transmitting
module transmits the captured image wirelessly.
works at
ISM-2.4GHz frequency band, which could be legally used worldwide
without permission. We f
Notice: This product may cause interferences with other wireless
equipment that operates at 2.4GHz ISM band. Please turn off one of
the equipments to eliminate the interference.
Product Assurance: This camera will emit electromagnetic wave, just
like other wireless products, however, its transmitting power is less than
other wireless products such as mobile phones. The 2.4GHz wireless
camera meets wireless frequency security standards and recommended
indexes while working. These standards and indexes are certificated by
academic organization and represent the cogitative research of the
scientific workers who continuously explore and annotate the involved
fields. So we believe that our products are safe for customers.
1
All our products meet the requirements of approval FCC or CE, and
obtained the FCC or CE certification. They are authorized to bear FCC
or CE mark.
Approval Information
Notice
FCC
This product complies with standards including Low Voltage Device
Directive 73/23/EEC; EMC Directive 89/336/EEC and R&TTE
Directive 1999/5/EC. It passed the subject tests by the authority
concerned and is authorized to bear CE mark.
CE
2
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation changes and
modification not expressly approved by the manufacturer or registrant
of this equipment can void your authority to operate this equipment
under Federal Communications Commissions rules.
1. DO NOT use this product to violate one's privacy. Monitoring one's
activities without consent is illegal and this product is not designed
and manufactured for such purpose;
2. DO NOT put this product near any medical equipment. Radio
waves might potentially cause breakdown of electrical medical
equipment. So this product should be placed at least 1 feet away
from any heart pacemaker. Radio waves might potentially
influence heart pacemaker and lead to respiratory disturbance;
3. DO NOT use this product for any illegal activities. We will not be
responsible for any consequences of illegal acts committed by the
user.
Restrictions
1. Ensure the sufficient ventilation space is available;
2. Do not shake or strike the product;
3. Keep it dry and dustless and avoid exposing it to direct sunlight;
4. Do not place product near any magnetic objects;
5. Avoid putting the product in places where the constantly changed
temperature or humidity occurs;
6. Keep product away from heat sources such as electric heater;
7. Do not use the camera near aggressive chemicals;
8. Do not use this camera near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near
a swimming pool and the like;
9. Do not use the camera in the places which are enclosed by metal.
The surrounding metal like lifter, cabin, may shield the
electromagnetic wave, and result in failure of signal reception;
10. Please obey the local government's environment protection policy;
11. Please turn off the power when left unused;
12. Do not disassemble or repair the camera or receiver; doing so
might cause damages to the product.
Maintenance
3
① 2.4GHz Wireless Camera ×1
② 2.4GHz Wireless Receiver ×1
③ ×1
④ Adapter for Camera (DC 8V) ×1
⑤ Adapter for Receiver (DC 5V) ×1
⑥ AV Cable
Base Charger
× 1
⑦ Mounting Hardware × 1
⑧ Earphone × 1
⑨ Li-battery × 2
User’s Manual × 1

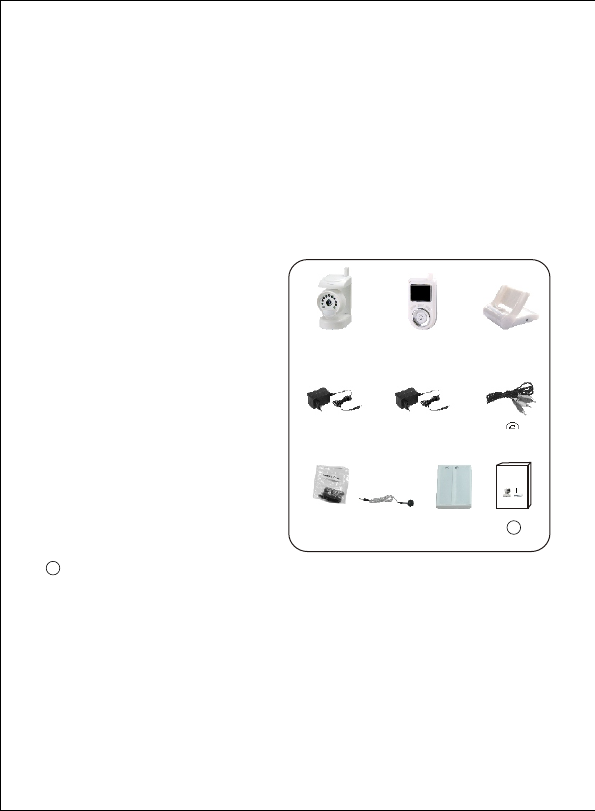

This package comes with the following items. Please check whether
they are all included in the packaging box, if any item is missing,
contact the retailer for replacement.
Package Contents
PRODUCT
Note:
The pictures may vary from the actual objects.
4
① ② ③
⑤⑥
⑧⑦
④
Please read this manual carefully and thoroughly before any attempt to
install and operate this product and retain it for your future reference.
User's Manual
2.4GHz Color Wireless Camera Kit
MODEL: 502UA
⑨10
10
Feature Locations

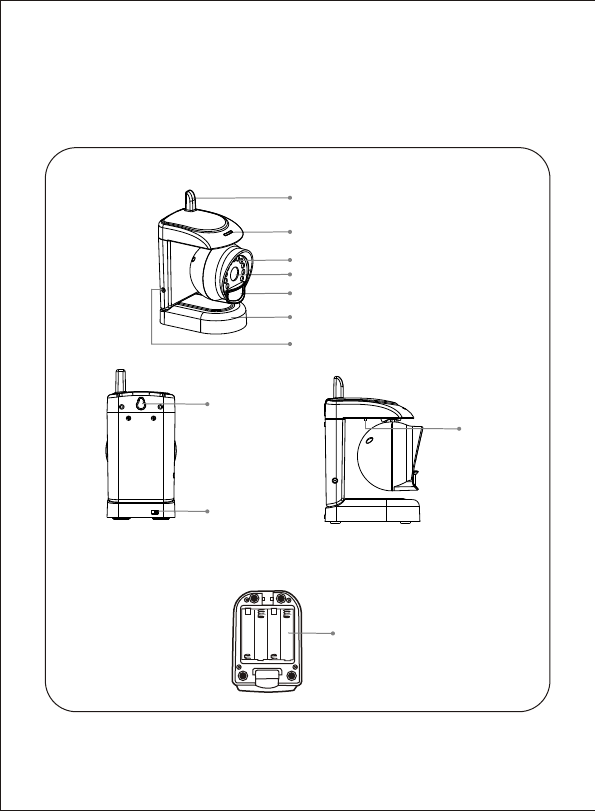

1. Camera
5
Feature Locations
Channel
Switch
Power Switch
(Only for dry batteries)
Hanging Hole
Base
DC Power Jack
Motion Detection Sensor
Power Indicator
Lens
Infrared Lights
Antenna
Battery
Compartment

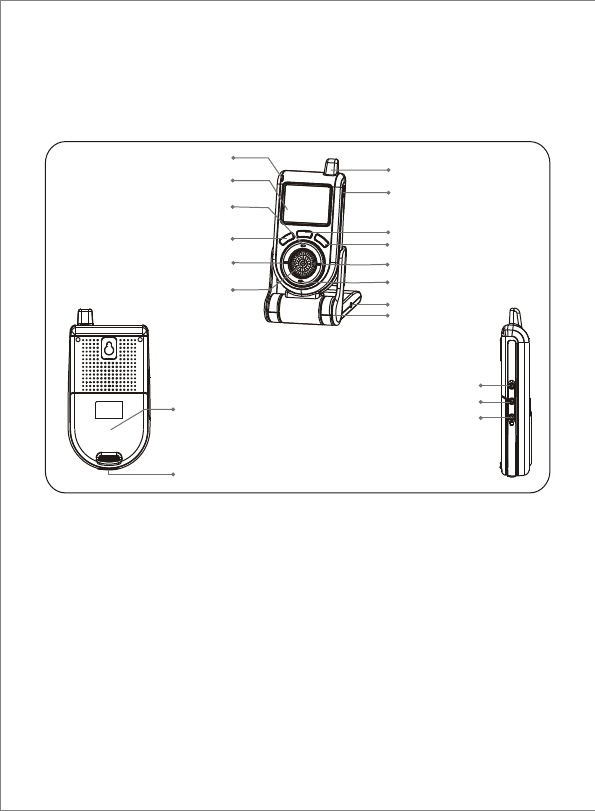

2. Receiver
Bracket
DC Power Jack
Speaker
ALARM Button
Power Indicator
LCD Screen
VOL- Button
CH+ Button
Antenna
Power ON/OFF
MENU Button
SCAN Button
VOL+ Button
CH- Button
Battery Compartment
DC Power Jack
AV Output
Earphone
Battery Box Socket
6
This product always conforms to the authenticated AC adapter. The
adapter should be marked one of the following:
Note: When using the power adapter, make sure the rating voltage is compatible
with that of the device to avoid potential damages resulting from incorrect
usage of power supply.
UL Mark
American power
supply authentication
SAA Mark
Australia power
supply authentication
GS Mark
German power
supply authentication
European Union power
supply authentication
CE Mark PSE Mark
Japan power
supply authentication
Adapter
7
BS Mark
British power
supply authentication

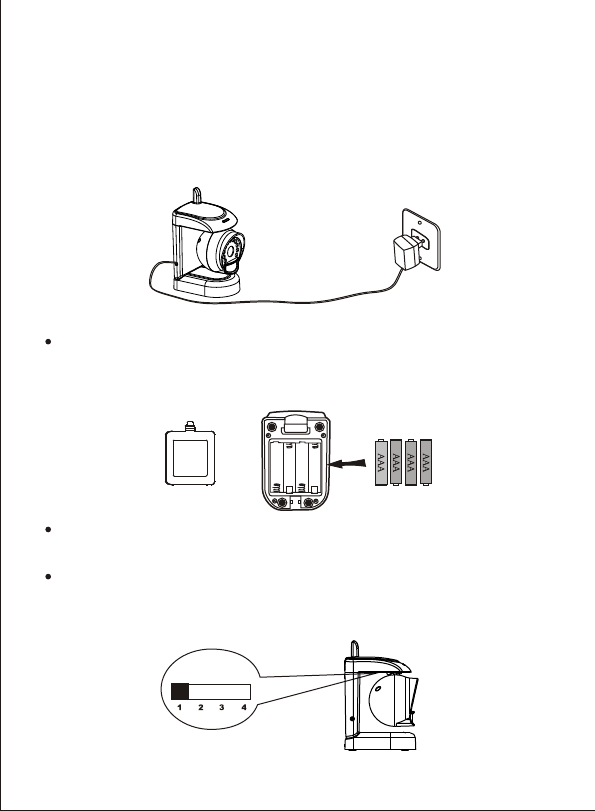

1. Connect the camera to the adapter (DC 8V 300mA). The power
indicator lights up.
Notes:
This camera can also work on dry battery ; please load 4 AAA batteries to the
battery compartment at the bottom of camera with their polarities matched.
And then slide the power switch to ON position, the power indicator lights up.
(Not suitable for wall installation)
INSTALLATION & USAGE
The AC adapter will work instead of batteries after it is plugged. If the camera is
left unused for a long period of time, please unplug the adapter and remove the
batteries.
The camera doesn’t have the charge function on the AAA batteries.
Installation
2. Set the camera to one desired channel (Please refer to Camera
Channel Setup section on page 12 for more detail).
Channel
8

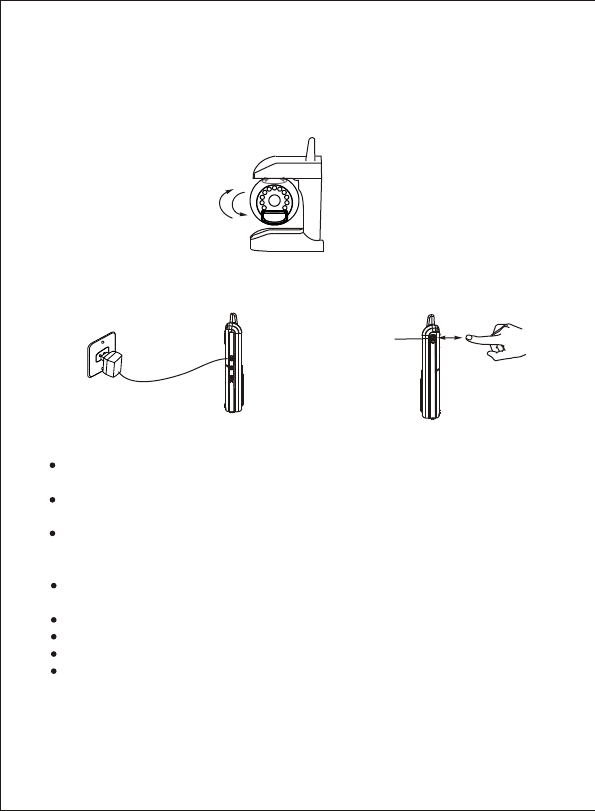

4. Connect the adapter (DC 5V 2A) to the receiver and slide the
power switch to ON position. The power indicator lights up green.
Power ON/OFF

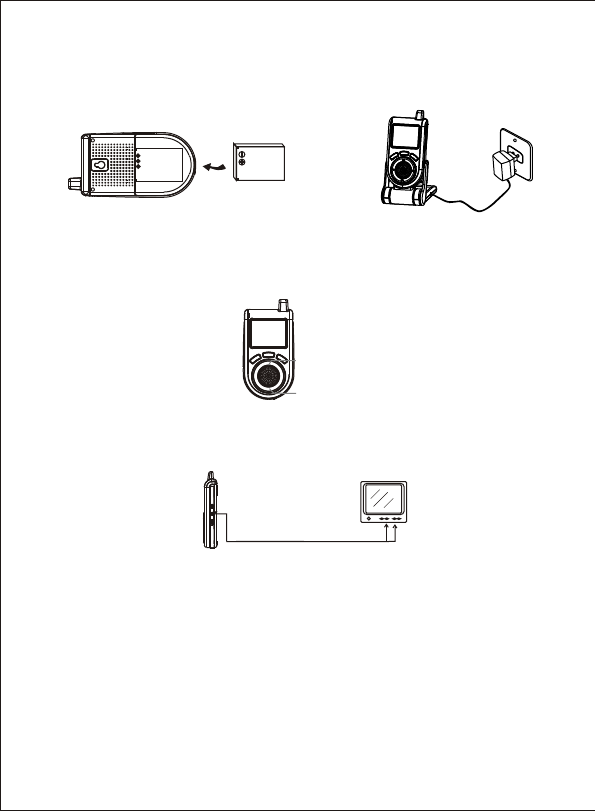

The receiver also can work with Li-battery; load Li-battery to the compartment
with their polarities matched.
You are recommended to fully charge the li-battery before its first installation
to optimize its life.
The Li-battery will be charged after the adapter (DC 5V 2A) is plugged in. The
charge indicator will light up red during charging and will turn green after a full
charge.
A full charge will take about 220 minutes hours, which can power the receiver
for about 180 minutes continuously.
Charge the li-battery once you see a red icon bickers on the LCD.
Do not burn or disassemble the Li-battery.
Do not short-circuit the battery, it may cause fire or electric shock.
You also can charge the receiver by base charger. Please locate the receiver
to the base charger, then connect it with the adapter (DC 5V 2A). The receiver
will be charged. (Optional)
3. Rotate the camera to a suitable angle for surveillance.
180°
Note:
9
10
Note: For bigger size pictures, please connect the receiver to a monitor/TV with
AV cable. In this case, the LCD display will be disabled and turns black;
the speaker of the receiver or the earphone will be deactivated at the
same time.
Tip: Press and hold MENU button will turn off the LCD. Receiver will go to STAND
BY mode. If alarm is triggered, the LCD will turn on automatically.
5. Set the receiver channel same as that of camera by pressing CH+/CH-
continuously, and the pictures are displayed on the LCD screen.
CH+
CH-
Li-battery
Install the Battery Charge by Base Chareger
AV

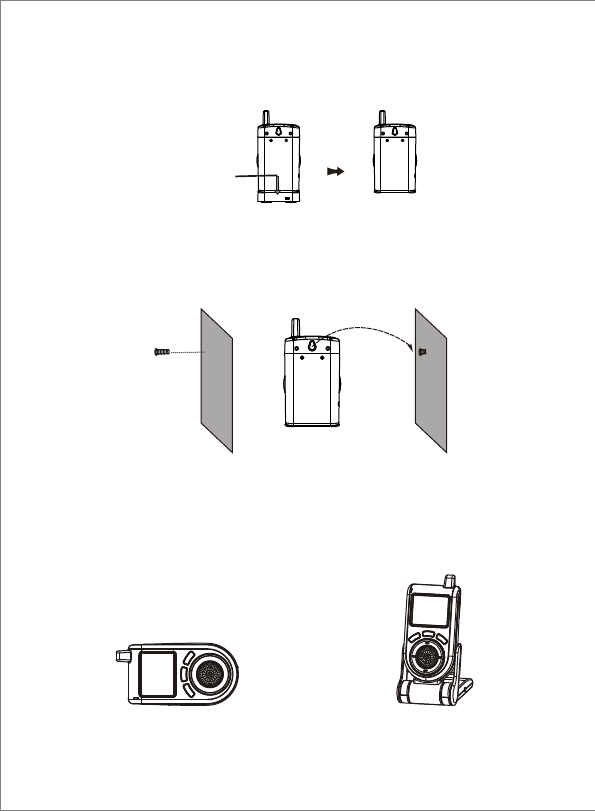

1. Press and hold the back side of the camera firmly and then pull the
base downwards to remove it.
The camera can stand on desktop, it also can be mounted onto the wall.
The steps of installation are as follows:
Fix the Camera
2. Drive one hole in the wall. Insert one mounting anchor firmly then
insert a screw into the mounting anchor. Hang your camera on the
screw.
Press,
hold and
Pull
Locate the Receiver
The receiver can be located horizontally or stand upright. If standing
upright the base charge will be needed.
Horizontally Stand Upright
11
Night Vision
The built-in Infra-red lights in camera provide night vision for 24hours
surveillance. The Infra-red lights will be automatically activated in dark
places. The picture will turn to Black & White (monochrome) in Night
Vision status.
12

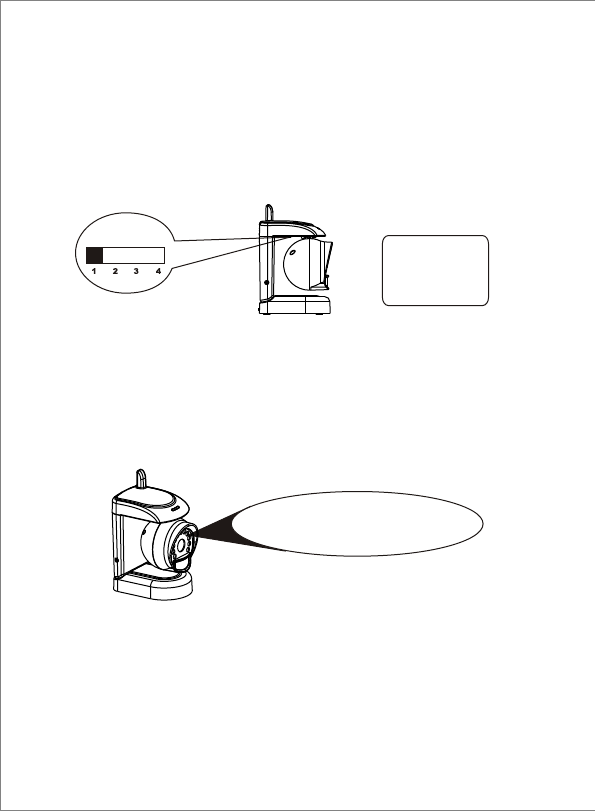

The camera has 4 selectable channels. You could adjust the channel
switch of camera to set the channel for multi-camera working or
avoiding the interference. Please tune the channel switch to the desired
channel as the following diagram.
Camera Channel Setup
CH1=2,414MHz
CH2=2,432MHz
CH3=2,450MHz
CH4=2,468MHz
Channel
Built-in IR lights for
5m Night Vision
ALARM
CHANNEL
SYSTEM
: SEL : OK MENU: EXIT
13
The OSD interface of this receiver facilitates your operation to achieve
the optimized effect.
1. Volume adjustment
Press VOL+/VOL- button to adjust the volume of the receiver.
2. Channel selection
Press the CH+/CH- button to select the matched channel.
3. Alarm mute ON/OFF
When abnormal situation occurs, the alarm sounds; press ALARM
button once to mute the alarm sound, it will not sound for the next
abnormal case detection unless you press the ALARM button again.
4. SCAN
In the multi-camera working mode, press the SCAN button once, all
the available channels will be displayed one by one (default interval
is 3s); press one more time to resume normal display.
5. MENU setup
Press the MENU button once, the main menu pops up.
Receiver Mode Setup
You are allowed to adjust the contrast, brightness, color, sharpness
and white balance in this page.
You should press CH+/CH- button to select one item and press VOL+/
VOL- button to adjust its value.
Press MENU button once to return to the main menu; twice to exit the
menu setting screen.
A. PICTURE SETUP--Select the item PICTURE by pressing CH+/CH-
button and press VOL+/VOL- button to enter picture setup page as
below:
33
33
33
33
CONTRAST
: SEL MENU: EXIT: ADJ
0
14
CONTRAST (Adjust the contrast of picture.)
BRIGHTNESS (Adjust the brightness of picture.)
COLOR (Adjust the color of picture.)
SHARPNESS (Adjust the sharpness of picture.)
WHITE BALANCE (Adjust the white balance mode of picture.)
MENU ALARM
ALARM CH 1
ALARM CH 2
ALARM CH 3
ALARM CH 4
ALARM RING
SYSTEM
COL SYS. (Set the col system mode of picture.)
SCAN TIME (Set the channel scan time in multi-camera working.)
WELCOME (Set the welcome screen of receiver.)
INITIALIZE (Initialize all settings.)
VERSION (Show the version of picture.)
1
2
3
4
1
2
3Set the alarm status of channels.
1
2
3
4
5
CHANNEL
CH 1
CH 2
CH 3
CH 4
1
2
3
4
Set the channel status of receiver.
4
5
5
You are allowed to adjust the channel status in this page. You should
press CH+/CH- button to select one item and press VOL+/ VOL- button
to choose one desired option.
Press MENU button once to return to the main menu; twice to exit the
menu setting screen.
Note: If the channel is set to OFF, it will not be available for your selection by
pressing CH+/CH-button.
: SEL MENU: EXIT
: A DJ
C. CHANNEL SETUP---Select the item CHANNEL by pressing CH+/CH-
button and press VOL+/VOL- button to enter channel setup page as
below:
CH 1
CH 2
CH 3
CH 4
ON
ON
ON
ON
15
You are allowed to set the alarm status of channels in this page. The
choice of MOTION or VOICE will activate the alarm while OFF will
deactivate it. You can choose the euphonious ring, RING 1-8 selectable.
You should press CH+/CH- button to select one item and press VOL+/
VOL- button to choose one desired option.
Press MENU button once to return to the main menu; twice to exit the
menu setting screen.
: SEL MENU: EXIT
: A DJ
ALARM CH 3
ALARM CH 2
ALARM CH 1 V & M
ALARM CH 4 V & M
V & M
V & M
B. ALARM SETUP---Select the item ALARM by pressing CH+/CH-
button and press VOL+/VOL- button to enter alarm setup page as
below:
ALARM RING RING 1
16
D. SYSTEM SETUP---Select the item SYSTEM by pressing CH+/CH-
button and press VOL+/VOL- button to enter special setup page as
below:
You are allowed to adjust col system, scan time, welcome screen,
initialization and version for the receiver in this page.
COL SYS.: You can choose PAL, NTSC or AUTO col in this page.
SCAN TIME: You are allowed to set scan time from 3s to 60s for channel
looping function.
WELCOME: When ON is selected, the word "WELCOME" appears after
the receiver is powered on; otherwise, when OFF, it will not.
INITIALIZE: Select INITIALIZE through CH+/CH- button; press VOL+/
VOL- button once and "YES?" appears; if you are sure to
resume the factory initial settings, press VOL+/VOL- button
again and "YES”appears, the settings are initialized.
Version: You can see the version in this page.
Press CH+/CH- button to select one item and press VOL+/VOL- button
to choose one desired option or adjust its value.
Press MENU button once to return to the main menu; twice to exit the
menu setting screen.
: SEL MENU: EXIT
: A DJ
COL SYS.
SCAN TIME
WELCOME
INITIALIZE
VERSION
AUTO
3S
ON
NO
SPECIFICATION
* Actual transmission range may vary according to weather, location, interference
and building construction.
* All the specifications are subject to minor change without prior notice.
CAMERA
Imaging Sensor CMOS
CMOS Total Pixels 628*582(PAL);510*492(NTSC)
View Angle
Minimum Illumination 5Lux/F1.2(IR OFF) & 0Lux(IR ON)
Transmission Frequency ISM 2,400MHz~2,483MHz
Transmission Power 10mW/CE; 2mW/FCC
Modulation Type FM
Bandwidth 18MHz
Power Supply DC 8V 300mA
Motion Detection Angle o o
Horizontal:+180 ; Vertical:+180 (Approx.)
Sound Control Sensitivity 40dB(AGC OFF)
Consumption Current 180mA & 230mA(IR ON)
Unobstructed Effective Range 100m
Night Vision Range 5m
Dimensions(W*D*H) 85*109*111(mm)
Weight Appro. 185g(Main Body)
o
55
17
LCD 2.5 Inch
LCD Resolution 480*234
Receiving Frequency ISM 2,400MHz~2,483MHz
Intermediate Frequency 480MHz
Demodulation Type FM
Receiving Sensitivity
Power Supply
Dimensions(W*D*H) 148*75*27*(mm)
Weight Appro.140g(Main body)
Operating Temperature
Storage Temperature
Operating Humidity 85%RH
o o o o
-30 C~+85 C/-22 F~+185 F
RECEIVER
≤-85dBm
o o o o
-10 C~+50 C/+14 F~+122 F
5V 2A
TROUBLESHOOTING
When you experience the operation problems, please check and try
the following yourself before claiming that it is the defective product
or consulting the experienced technician.
Abnormal Phenomena Possible Reasons/Solutions
Check whether the camera/receiver
is connected to power supply and
powered on.
1. Check if the channel of receiver is
the same as that of camera;
2. Check the distance & blocks.
Mismatching the TV system of PAL
or NTSC.
1. Interfered with other devices;
2. Check the distance & blocks.
Interfered with other devices nearby;
Remove or turn off such devices.
No image
Snowflakes
on image
Normal image
No color
Ghost image
No sound
Noisy
Noisy
Normal sound
Normal sound
No image Noisy
Check wether the li-battery runs out
S-M501G190011
