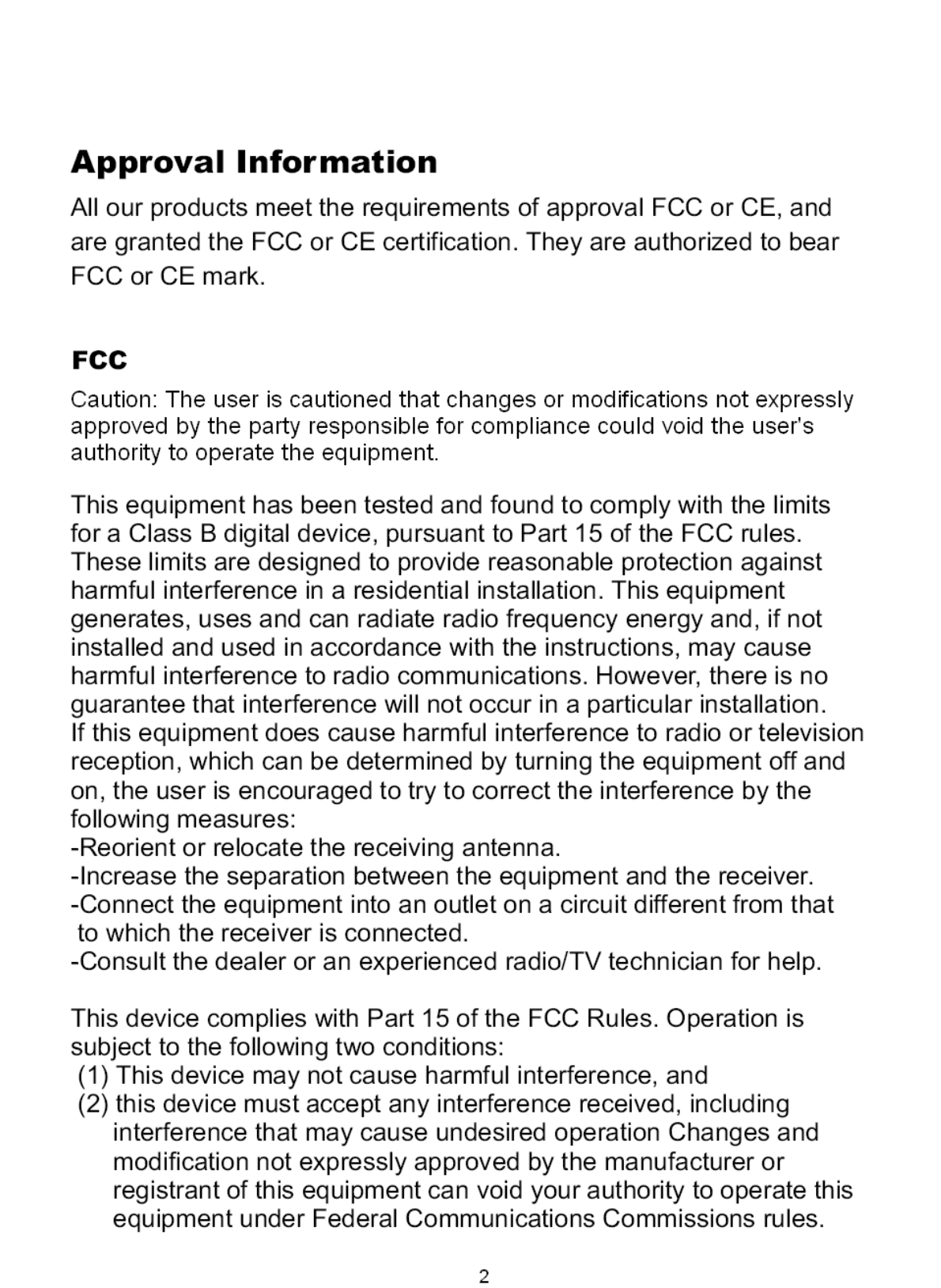

Approval Information (FCC/CE)
1
2~3
7
EU Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.
9
6~9
PRODUCT 4~5
Package Contents
Feature Locations
4
4
5
Features
Maintenace
INTRODUCTION
Thank you for purchasing our car back view monitor. This product
eel confident that you will be pleased with
the quality and features of this product.
The product is made of alloyed shell and special weather-proof enclosure
that protect it against power and water sprays. It passed the IP67 testing.
The product offers a new solution and experience for drivers. Drivers
can check the back situations through the camera mounted on the rear
car, and does not need to look back and forth.
This product is only for accessorial reminding tool, thus we will not take
any responsibility for resulting accident.
Please read the manual thoroughly before using, and following the
instruction accordingly.
works
at ISM-2.4GHz frequency band, which could be legally used worldwide
without permission. We f
Notice
Notice: This product may cause interferences with other wireless
equipment that operates at 2.4GHz ISM band. Please turn off one of
the equipments to eliminate the interference.
Product Assurance: This camera will emit electromagnetic wave,
just like other wireless products, however, its transmitting power is
less than other wireless products such as mobile phones. The 2.4GHz
wireless camera meets wireless frequency security standards and
recommended indexes while working. These standards and indexes
are certificated by academic organization and represent the cogitative
research of the scientific workers who continuously explore and
annotate the involved fields. So we believe that our products are safe
for customers.
1
3
This product complies with standards including Low Voltage Device
Directive 2006/95/EC; EMC Directive 2004/108/EC and R&TTE
Directive 1999/5/EC. It passed the subject tests by the authority
concerned and is authorized to bear CE mark.
CE
This package comes with the following items. Please check whether
they are all included in the packaging box, if one or some is missing,
contact the retailer for replacement.
Package Contents
PRODUCT
4

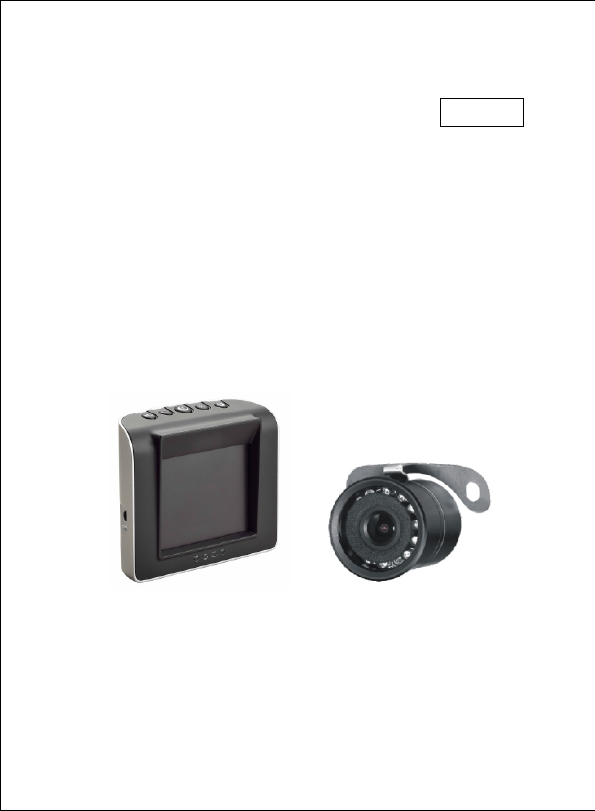

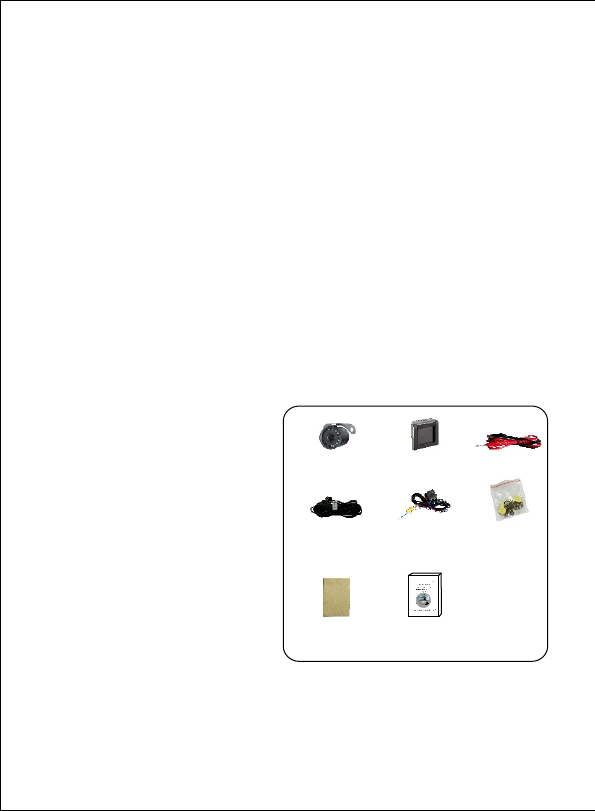

① Camera x1
② LCD Monitor x1
③ Detector x1
④ Power Cable for Camera x1
⑤ Video Cable for LCD Monitor x1
⑥ Mounting Hardware x1
⑦ Double Face Tape x1
⑧ User’s Manual x1
① ② ③
④ ⑤ ⑥
⑦ ⑧
Note:
The picture may vary from the actual object.
Features
»
»
»
»
»
Special optical lens substituting the original rear-view mirror
120° view angle for wide eyeshot
Water resistance design for outdoor usage
Easy installation, suitable for cars, small and medium buses
Automatically start up the rear view images while reversing
Camera
5
LCD Monitor

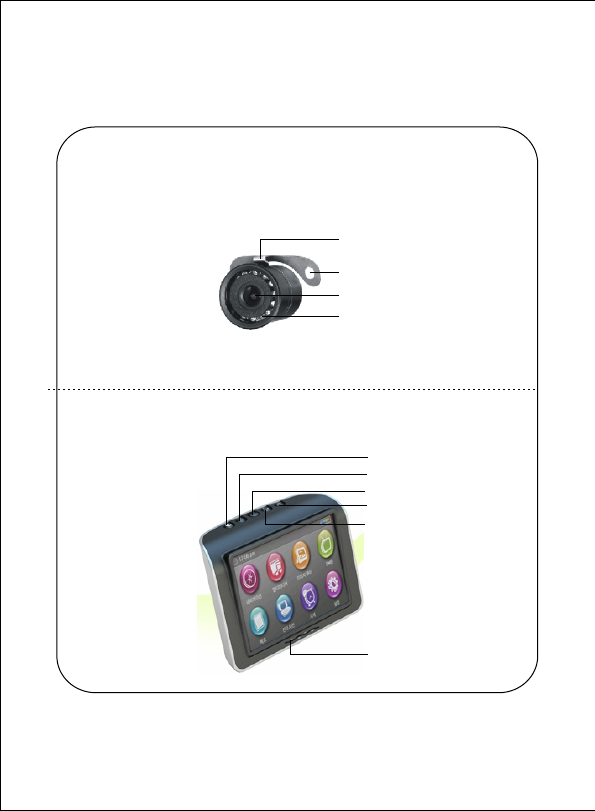

Feature Locations
Installing Hole
Lens
IR Lights
Installing Bracket
Brightness
Contrastness
Power ON/OFF
Reverse Image
Channel Button
Channel Indicator
INSTALLATION
We strongly recommend you ask qualified technician or maintenance
engineer to install this device. Improper installation of this monitor may
cause battery leakage or short circuit. Please follow steps below to
install the product.
6

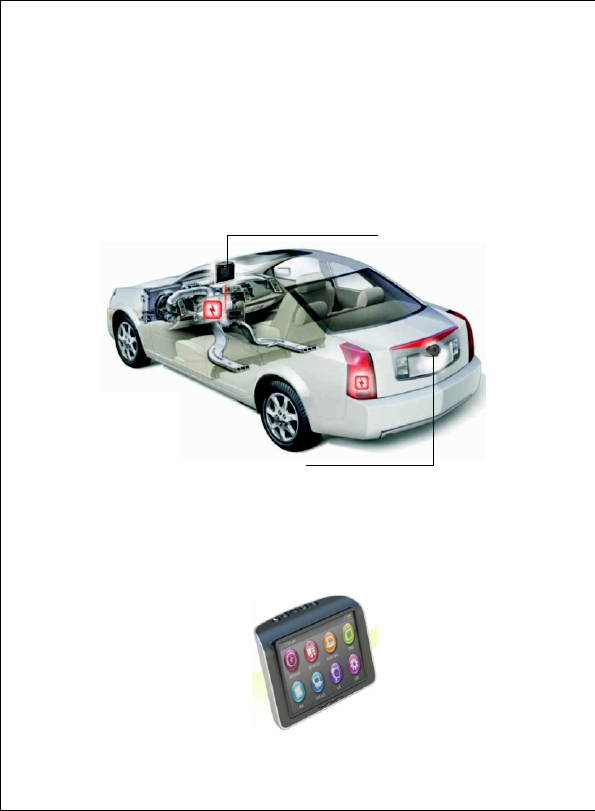

LCD Installation
1. Install the LCD monitor to the bracket then stick it on the even place
in the front of the car tightly. And adjust the angle for perfect viewing
effect.
LCD Monitor Installation
Camera Installation
7
2. Connect the power to the +12V correctly.
Camera Installation

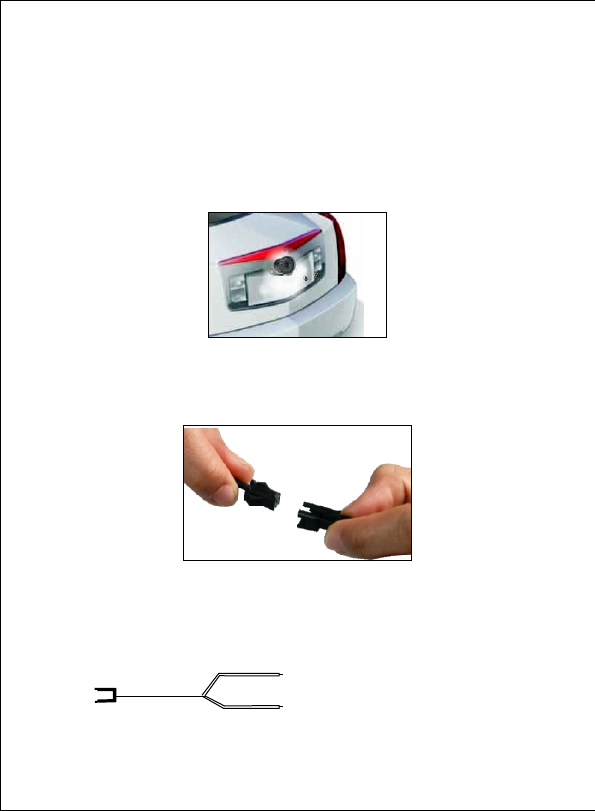

1. Remove the screws from the license bracket, locate the camera on
the license bracket then screw them tightly.
2. Connect the black pin of the camera to the black pin of the power
cable.
3. Use the detector to detect the wire near reversing lights on the rear
car body to find reversing power then connect the wire correctly.
(Refer to Find Reversing Power section on Page8-9)
Red wire connects to reversing power
Black wire grounded
Power Jack
Find Reversing Power
How to use the detector to find the power from the reverse power?

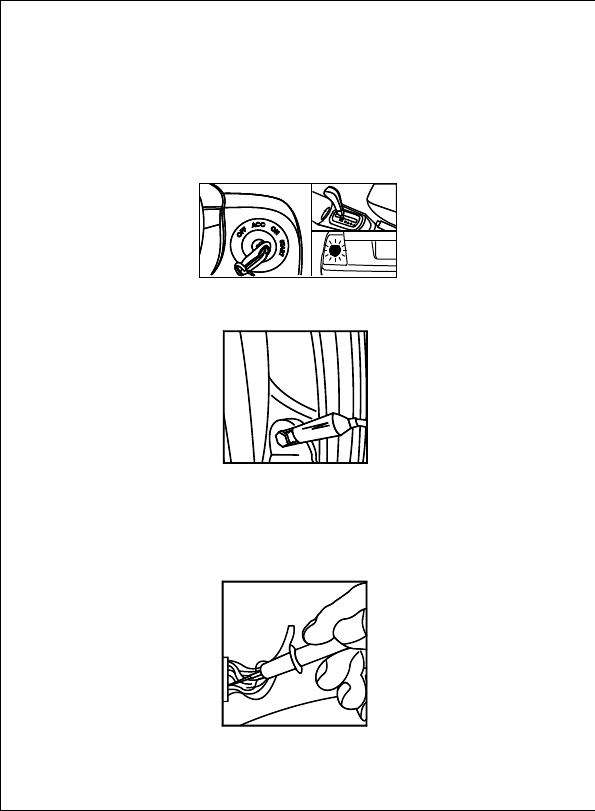

1. Tweak the key to the right side of the cigarette lighter, step on the
reverse gear, the power from the reverse light will be on at once.
8
2. Clip the pincers to the metal of the car body.
3. Use the red pen to find the power from the wire until the LED light is
on. Find out the light wire, then push the switch to the parking and
use the red pen to detect it, if the light turns off, then the wire is the
reverse power; if the light is still on, the wire is anode +12V.
Black wire
Blue wire
Reversing power
Ground
4. Red wire connects to anode +12V; blue wire connects to reversing
power 12V; black wire connects ground.
9

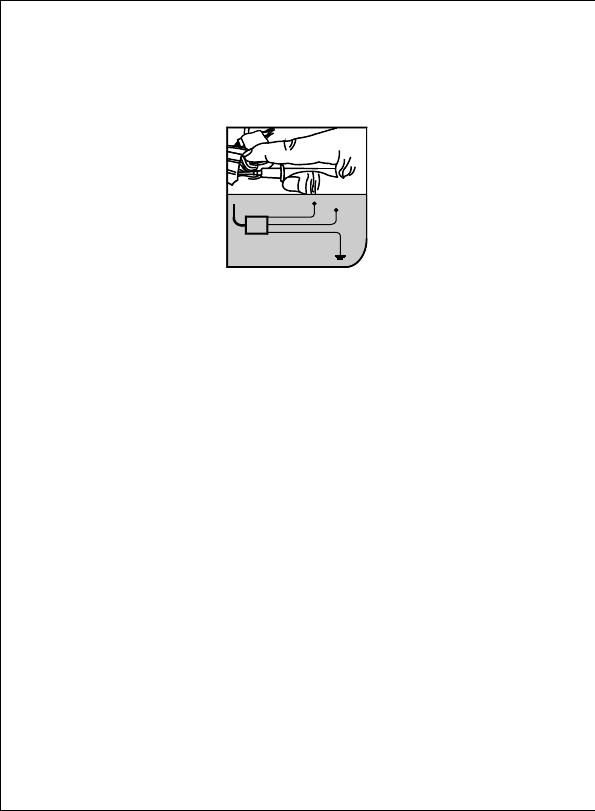

Red wire
Anode +12V
3P
◆ Do not shake or strike the product;
◆ Do not disassemble or repair the camera; doing so may cause
damages to the product.
◆ The product can connect to the VCD/DVD and play program,
however, please don’t watch the program while driving.
◆ Do not use solvent such as gasoline, cleaner or antistatic spray to
clean the screen.
◆ Keep the battery out of children’s reach.
◆ Make sure the polarity are fit properly while installing battery.
◆ Never charge the battery, disassemble it or put it into fire.
Maintenance
System
am raC e
Dplay
is
SPECIFICATIONS
* Specifications are subject to minor change without prior notice.
10
Transmission Frequency
Transmission Power
Transmission Distance
Modulation Mode
Operating Temperature
Storage Temperature
Operating Humidity
Operating Condition
Imaging Sensor Type
Picture Total Pixels
Horizontal Resolution
View Angle
Minimum Illumination
Night Vision Range
Weatherproof Grade
Power Supply
Dimensions
Weight
Display Type
LCD Resolution
LCD Contrast Ratio
Power Supply
Dimension
Weight
ISM 2,400~2,483MHz
10mW/CE; 2mW/FCC
20m Without Block (min)
FM
-10℃~+50℃/+14℉~+122℉
-20℃~+60℃/-4℉~+140℉
≦85%
Car, Bus and Truck
CMOS
628*582 (PAL)/510*492(NTSC)
380TV Lines
130
0Lux/F1.2(IR ON)
Min. 5m
IP67
DC 12V
31*32*28mm
56g
°
2.36’’TFT
1200*234(DOT)
150:1
DC12V
83*70*23mm
508g
TROUBLESHOOTING
When you experience the operation problems, please check and try
the following yourself before claiming that it is the defective product
or consulting the experienced technician.
Abnormal Phenomena Possible Reasons/Solutions
Check whether the camera/LCD monitor
connected to power supply and powered on.
Mismatching the TV system of PAL or NTSC.
Check the distance & blocks.
Interfered with other devices nearby;
Remove or turn off such devices.
Monitor does not
work
Check if the fuse is connected well.
The video is unclear
Check if the polarity of the battery is fit
properly.
The temperature in the car may be too cold
or too hot.
