AHOKU ELECTRONIC EEC230WIFI WiFi Travel Router User Manual EEC 230 DM 130315 P ai

AHOKU ELECTRONIC COMPANY WiFi Travel Router EEC 230 DM 130315 P ai

User manual

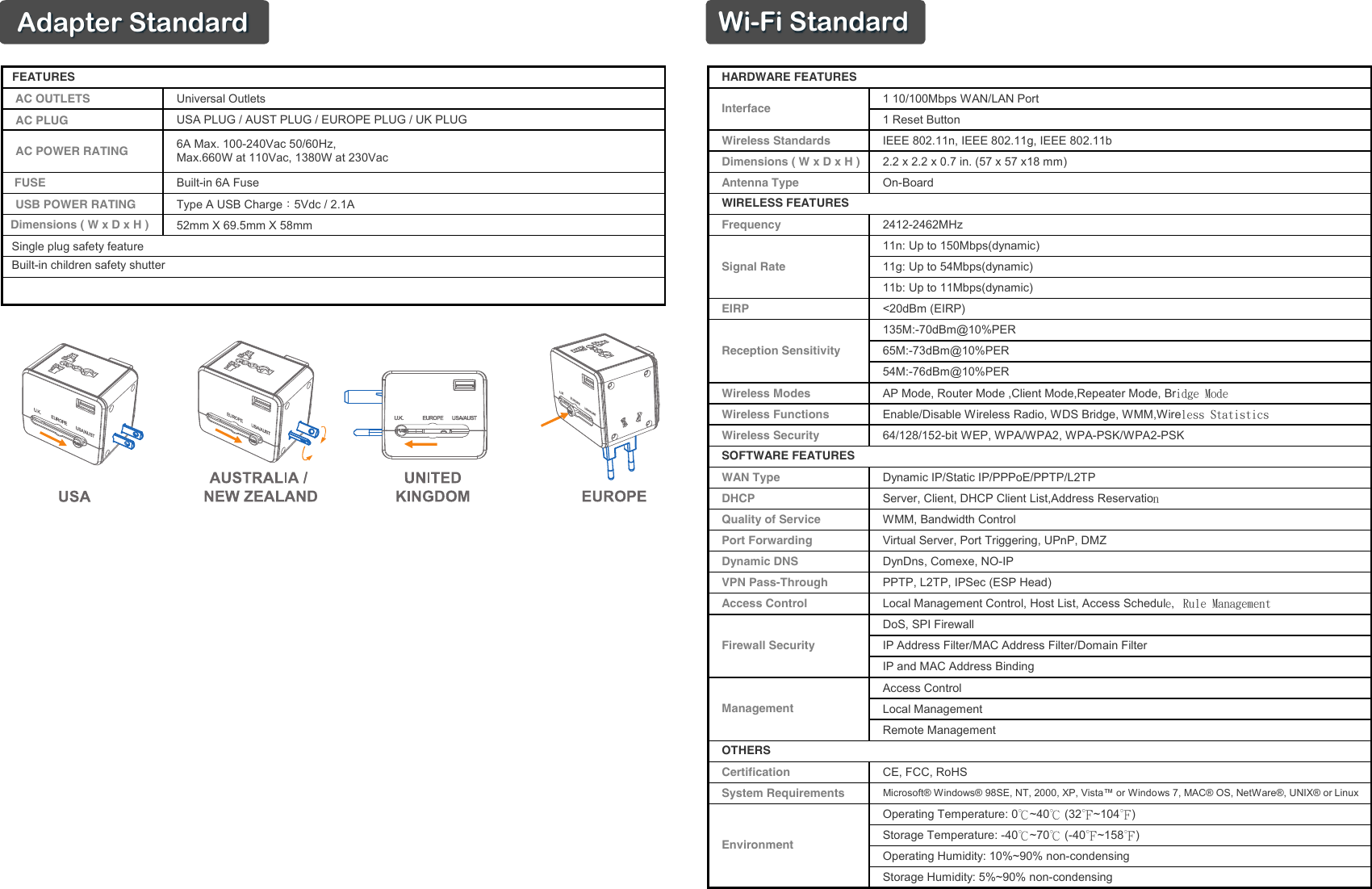

Wi-Fi Standard 1 10/100Mbps WAN/LAN Port1 Reset ButtonWireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11bDimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)Antenna Type On-BoardFrequency2412-2462MHz11n: Up to 150Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic)EIRP <20dBm (EIRP)135M:-70dBm@10%PER65M:-73dBm@10%PER54M:-76dBm@10%PERWireless Modes AP Mode, Router Mode ,Client Mode,Repeater Mode, Bridge ModeWireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless StatisticsWireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSKWAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TPDHCP Server, Client, DHCP Client List,Address ReservationQuality of Service WMM, Bandwidth ControlPort Forwarding Virtual Server, Port Triggering, UPnP, DMZDynamic DNS DynDns, Comexe, NO-IPVPN Pass-Through PPTP, L2TP, IPSec (ESP Head)Access Control Local Management Control, Host List, Access Schedule, Rule ManagementDoS, SPI FirewallIP Address Filter/MAC Address Filter/Domain FilterIP and MAC Address BindingAccess ControlLocal ManagementRemote ManagementCertification CE, FCC, RoHSSystem RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® orLinuxOperating Temperature: 0 ~40 (32 ~104 )Storage Temperature: -40 ~70 (-40 ~158 )Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensingReception SensitivitySOFTWARE FEATURESHARDWARE FEATURESInterfaceWIRELESS FEATURESSignal RateOTHERSEnvironmentFirewall SecurityManagementAdapter Standard Universal OutletsUSA PLUG / AUST PLUG / EUROPE PLUG / UK PLUG 6A Max. 100-240Vac 50/60Hz, Max.660W at 110Vac, 1380W at 230VacDimensions ( W x D x H )Built-in 6A FuseType A USB Charge：5Vdc / 2.1A52mm X 69.5mm X 58mmFEATURESAC OUTLETSAC PLUGAC POWER RATINGUSB POWER RATINGFUSESingle plug safety featureBuilt-in children safety shutter
Function of multi-national plug adapter1. Plug EEC-230 WiFi into the power socket with corresponding plugs.2. EEC-230 WiFi do NOT convert the power voltage.Function of charging1. Plug the 3C device to USB port on the EEC-230 WiFi for charging 3C device.Wi-Fi StandardEEC-230by AHOKU DESIGN1. RJ-45 to WiFi2. Enhance the WiFi signal3. Share internet with multiple4. USB Charger 2.1A5. Universal plug6. Universal socket7. Universal voltage (100-240Vac)8. Suitable for different application scenariosFunction of WiFi Router1. Plug EEC-230 WiFi into the power socket with corresponding plugs.2. It takes about 30 seconds for EEC-230 WiFi booting the system.a. Cable Connection Connect the network cable to RJ45 port on the EEC-230 WiFi Search the wireless device on your computer or smart phone and choose the SSID of EEC-230 WiFi by AHOKUWiFi-XXXX. (XXXX is four digital number assign by manufacturer) Input password of “12345678” and then confirm to start to access the network.<< Next page >>b. Wireless Connection Search the wireless device on your computer or smart phone and choose the SSID of EEC-230 WiFi by AHOKUWiFi-XXXX. (XXXX is four digital number assign by manufacturer) Input password of “12345678” then confirm. Type the URL of “http://192.168.16.254/” on IE or other web browser. Input the username “admin” and password “admin” under the system prompt.WiFi System will search the available wireless SSID automaticaly. Choose the SSID you want to connect and click “next” Check the information of the SSID which want to connect and input password then click “next”. Click “next” while the connecting message appears. System will takes about 60 seconds to change the setting and reboot. Do not turn off the web browser during the setting time. You can access the network while completed message appears.1 10/100Mbps WAN/LAN Port1 Reset ButtonWireless Standards IEEE 802.11n/g/bWireless Modes AP Mode, Router Mode ,Client Mode,Repeater Mode, Bridge ModeWireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless StatisticsWireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSKInterfaceHARDWARE FEATURESWIRELESS FEATURESBuilt-in 6A Fuse

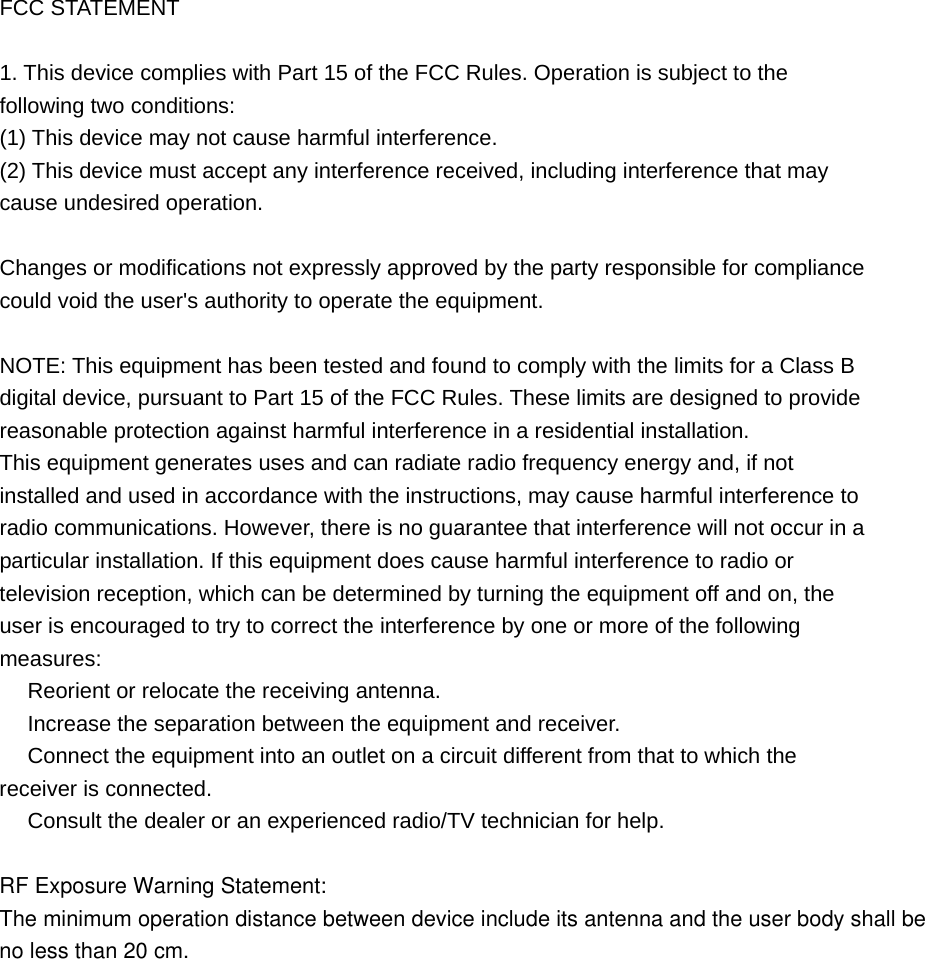

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.　 Increase the separation between the equipment and receiver.　 Connect the equipment into an outlet on a circuit different from that to which the 　receiver is connected. Consult the dealer or an e　xperienced radio/TV technician for help. RF Exposure Warning Statement:The minimum operation distance between device include its antenna and the user body shall be no less than 20 cm.
