ADVANCED FUNCTIONS
101
V689_E

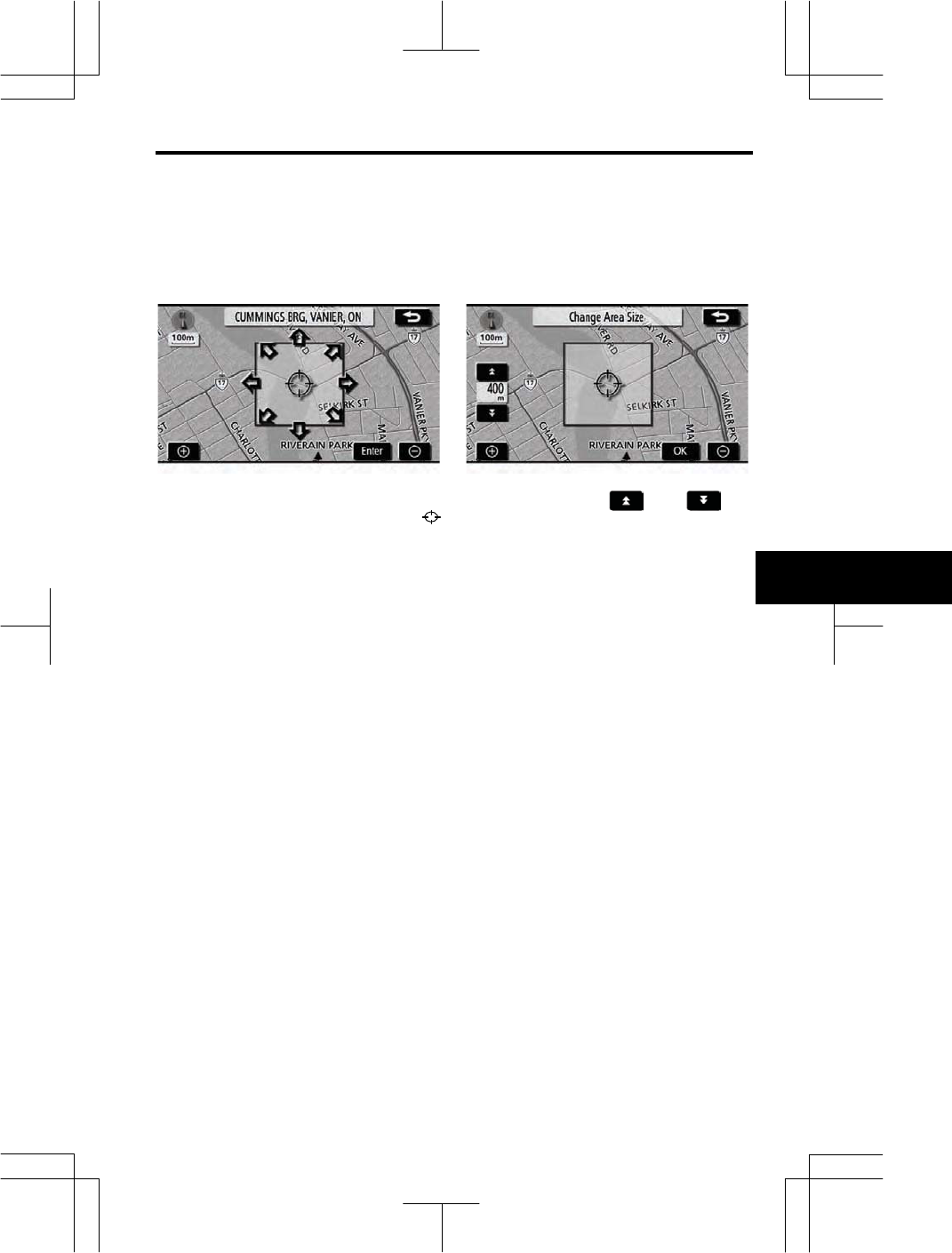

z To change “Location”
1. Touch “Location” on the “Edit
Area to Avoid” screen.
2. Touch the eight directional touch
screen button to move the cursor
to the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
z To change “Area Size”
1. Touch “Area Size” on the “Edit
Area to Avoid” screen.
2. Touch either or to
change the size of the area to be
avoided.
3. Touch “OK”.
The previous screen will be displayed.
![](/img.php?id=1116362&img=bg2.png)
ADVANCED FUNCTIONS
102
V689_E

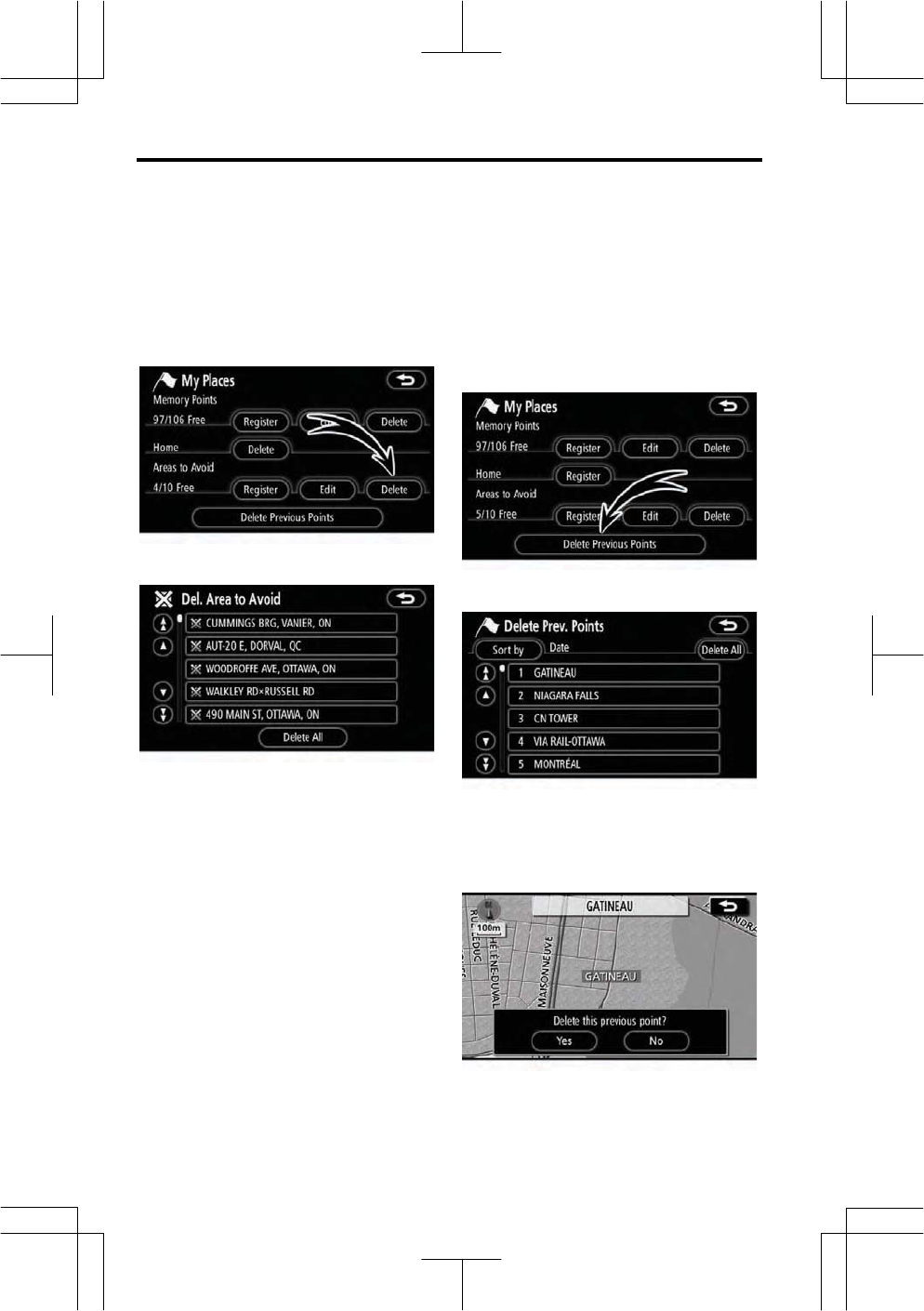

1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “My Places” on the “Navi-
gation” screen.
4. Touch “Delete”.
5. Touch the touch screen button to
be deleted.
“Delete All”: To delete all registered
areas to avoid in the system.
6. To delete the area, touch “Yes”.
To cancel the deletion, touch “No”.
The previous destination can be deleted.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “My Places” on the “Navi-
gation” screen.
4. Touch “Delete Previous Points”.
5. Touch the touch screen button to
be deleted.
“Delete All”: To delete all previous
points in the system.
6. To delete the point, touch “Yes”.
To cancel the deletion, touch “No”.
— Deletin
g
area to avoid
—
Deletin
gp
revious
p
oints
![](/img.php?id=1116362&img=bg3.png)
ADVANCED FUNCTIONS
103
V689_E

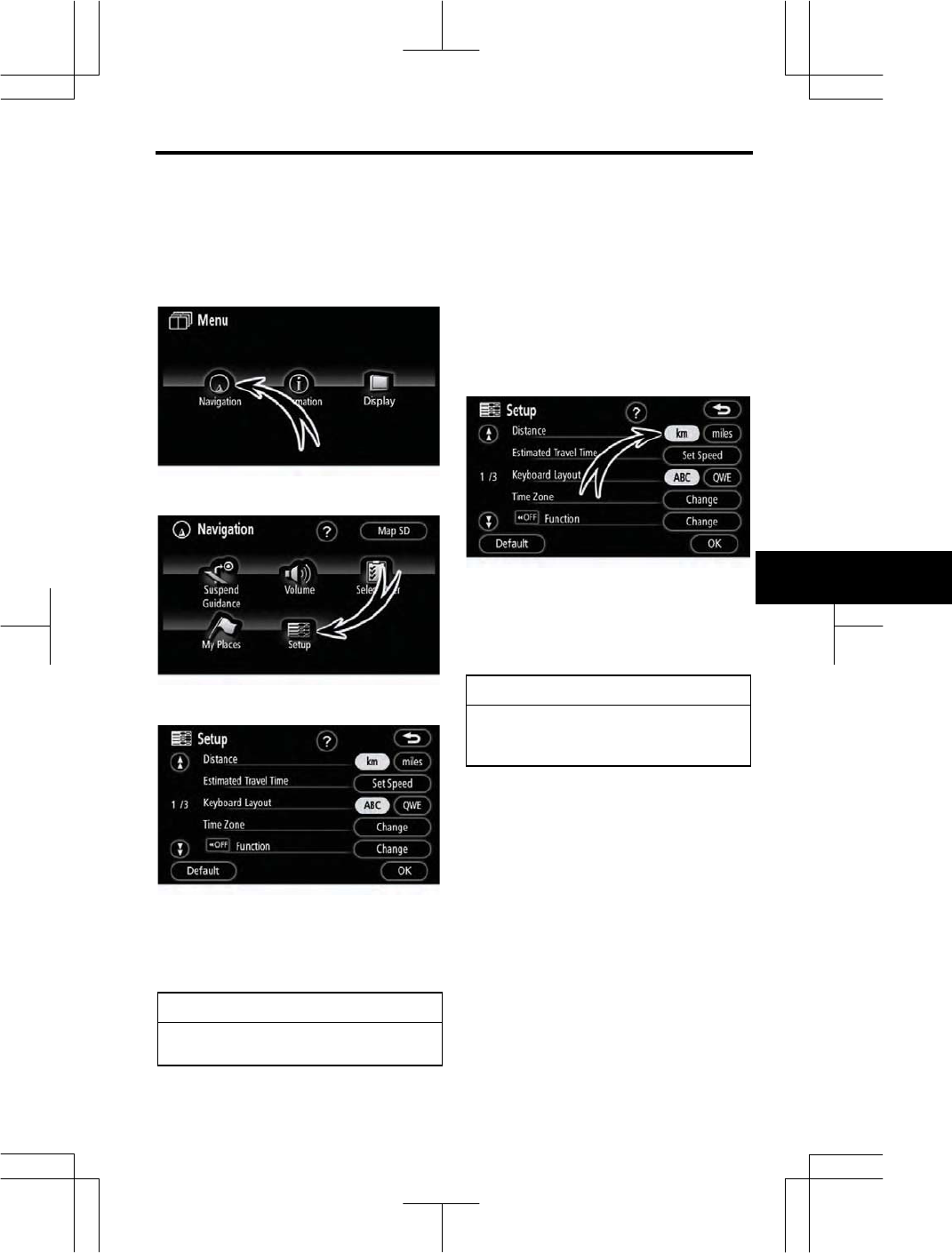

Setting the items shown on the “Setup”
screen can be done.
1. Push the “MENU” button.
2. Touch “Navigation”.
3. Touch “Setup”.
4. Touch the items to be set.
5. Touch “OK” on the screen.
The previous screen will be displayed.
INFORMATION
To reset all setup items, touch “De-
fault”.
z Distance unit
Distance unit can be changed.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
4. Touch “km” or “miles” of “Dis-
tance” to choose the distance unit.
The selected button is highlighted.
5. Touch “OK”.
INFORMATION
This function is available only in
English. To switch language, see
“Selecting a language” on page 172.
Setu
p
![](/img.php?id=1116362&img=bg4.png)
ADVANCED FUNCTIONS
104
V689_E

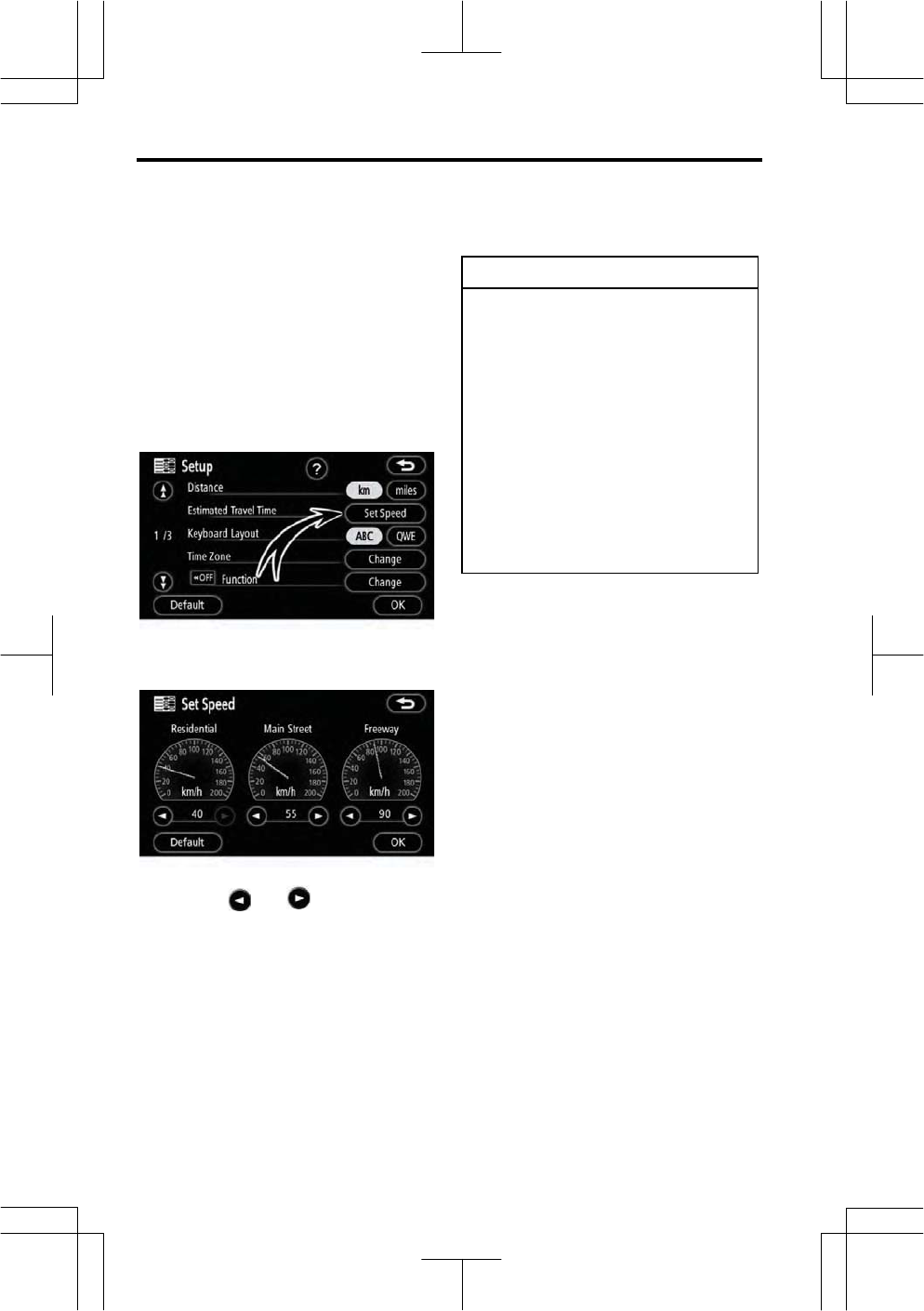

z Estimated travel time
The speed that is used for the calculation
of the estimated travel time and the es-
timated arrival time can be set.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
4. Touch “Set Speed” of the “Esti-
mated Travel Time”.
5. Touch or to set the av-
erage vehicle speeds for “Residen-
tial”, “Main Street”, and “Freeway”.
To set the default speeds, touch “De-
fault”.
6. After setting of the desired
speeds is completed, touch “OK”.
INFORMATION
zThe displayed time to the destina-
tion is the approximate driving
time that is calculated based on
the selected speeds and the ac-
tual position along the guidance
route.
zThe time shown on the screen
may vary greatly depending on
progress along the route, which
may be affected by conditions
such as traffic jams and, con-
struction work.
zIt is possible to display up to 99
hours 59 minutes.
![](/img.php?id=1116362&img=bg5.png)
ADVANCED FUNCTIONS
105
V689_E

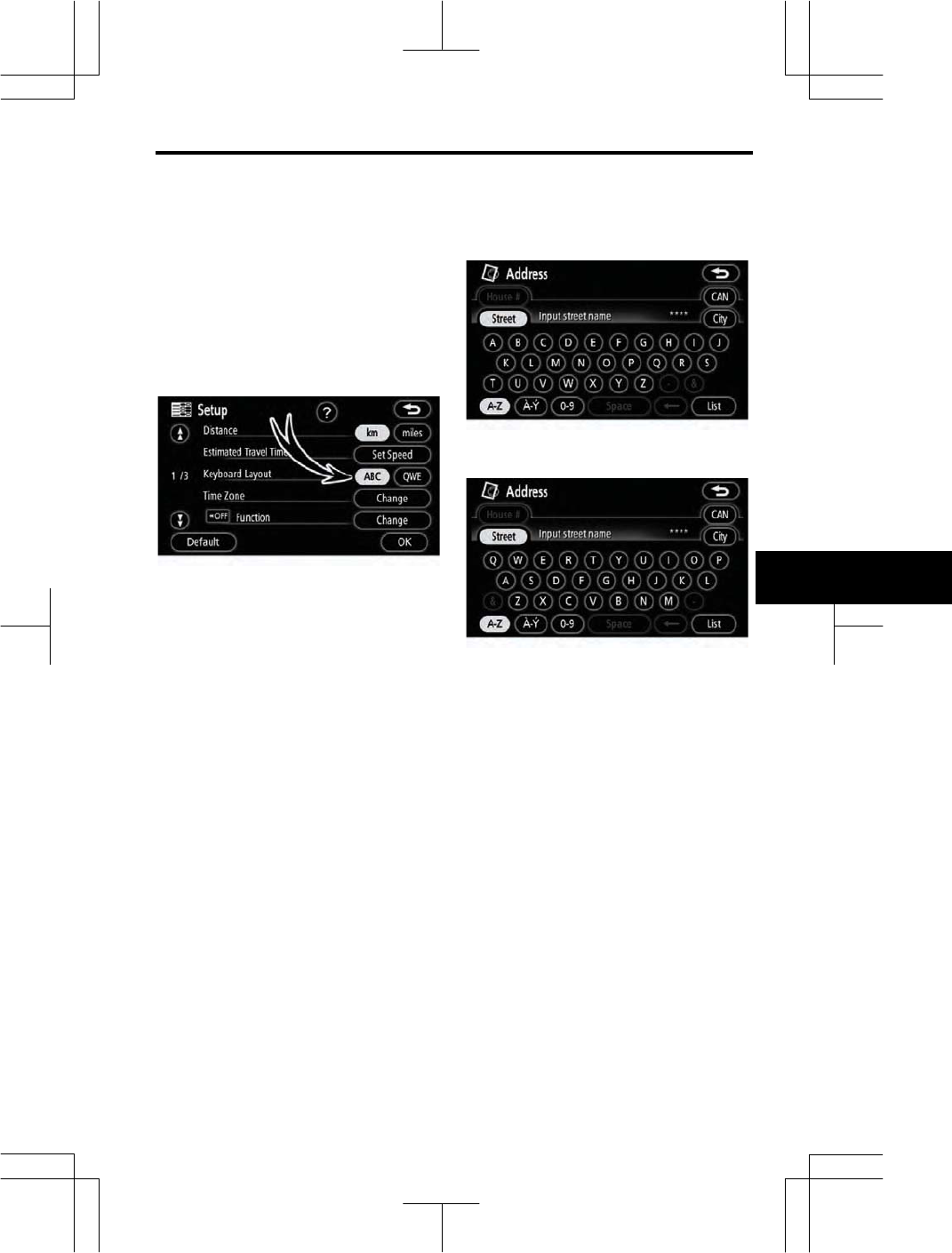

z Input keyboard layout
Keyboard layout can be changed.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
4. Touch “ABC” or “QWE” of “Key-
board Layout” to choose the key-
board layout.
LAYOUT TYPE
Ź“ABC” type
Ź“QWE” type
The selected button is highlighted.
5. Touch “OK”.
![](/img.php?id=1116362&img=bg6.png)
ADVANCED FUNCTIONS
106
V689_E

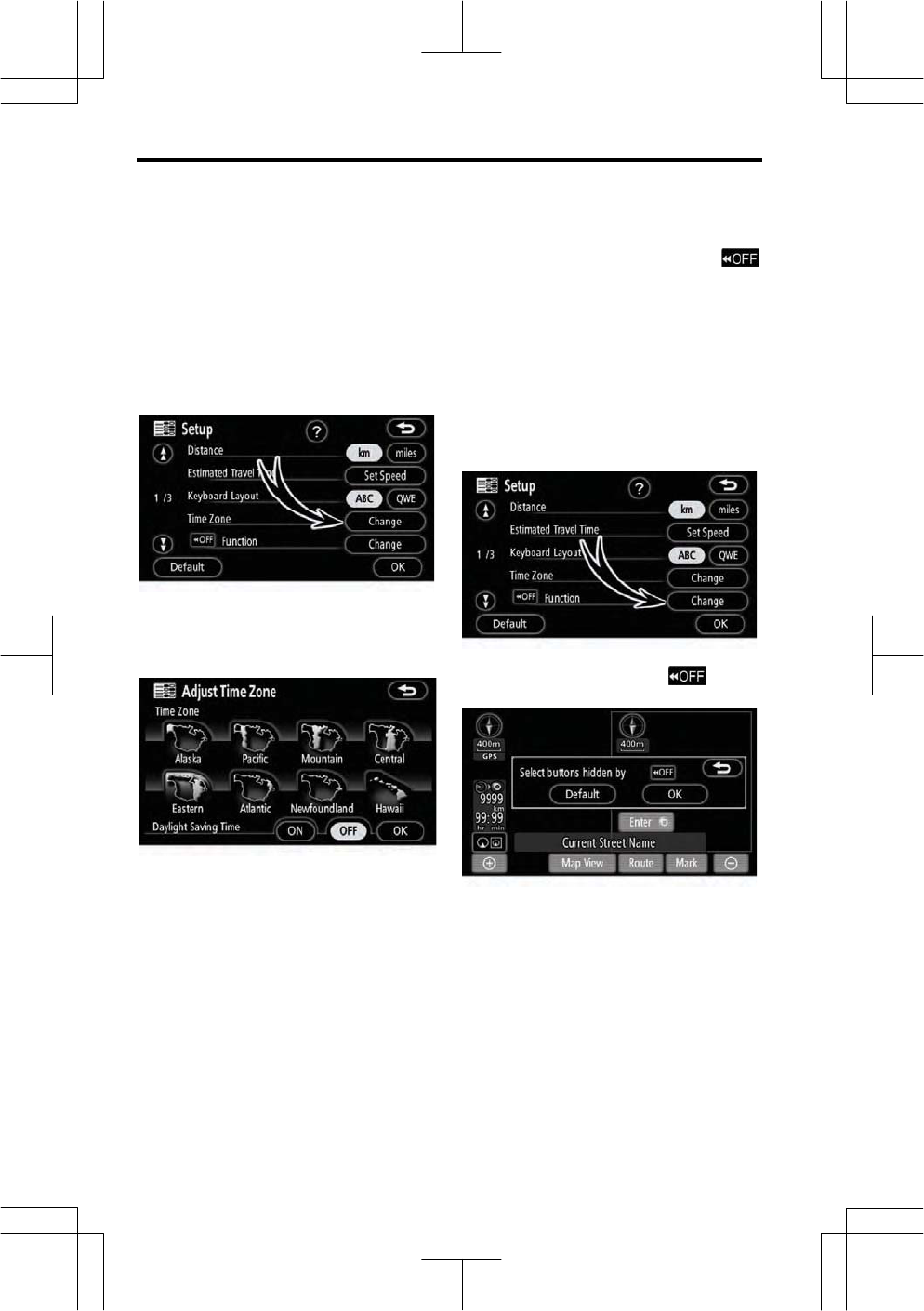

z Time zone
Time zone can be changed.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
4. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be
displayed on the display.
5. Touch the desired time zone.
The selected button is highlighted.
“Daylight Saving Time”: Daylight sav-
ing time can be set or cancelled.
To set daylight saving time, touch “ON”,
and to cancel it, touch “OFF”.
6. Touch “OK”.
z Screen layout function (
Function)
Each touch screen button and current
street name on the map screen can be
displayed or hidden.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
4. Touch “Change” of “ Func-
tion”.
5. Touch the touch screen button to
be turned off. The button becomes
dimmed.
To set the default, touch “Default”.
6. Touch “OK”.
![](/img.php?id=1116362&img=bg7.png)
ADVANCED FUNCTIONS
107
V689_E

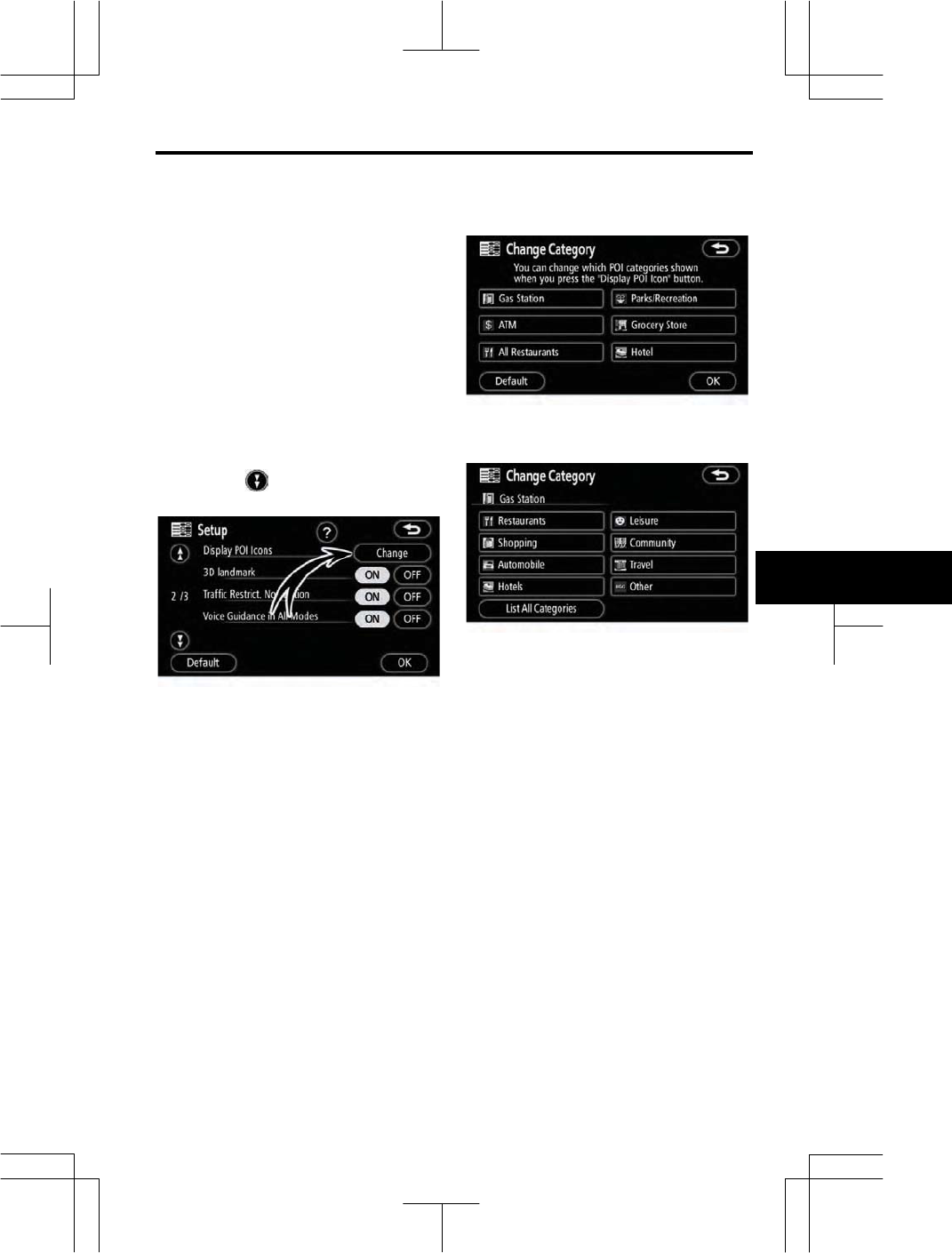

z POI category change
(Display POI Icons)
Select from among the 6 icons displayed
on the “Display POI Icons” top screen, so
that setting of the icons to be displayed
on the map screen can be done easily.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch to display page 2 of the
“Setup” screen.
4. Touch “Change” of “Display POI
Icons”.
5. Touch the category button to be
changed.
6. Touch the category button to be
displayed on the “Display POI Icons”
top screen.
7. Touch “OK”.
![](/img.php?id=1116362&img=bg8.png)
ADVANCED FUNCTIONS
108
V689_E

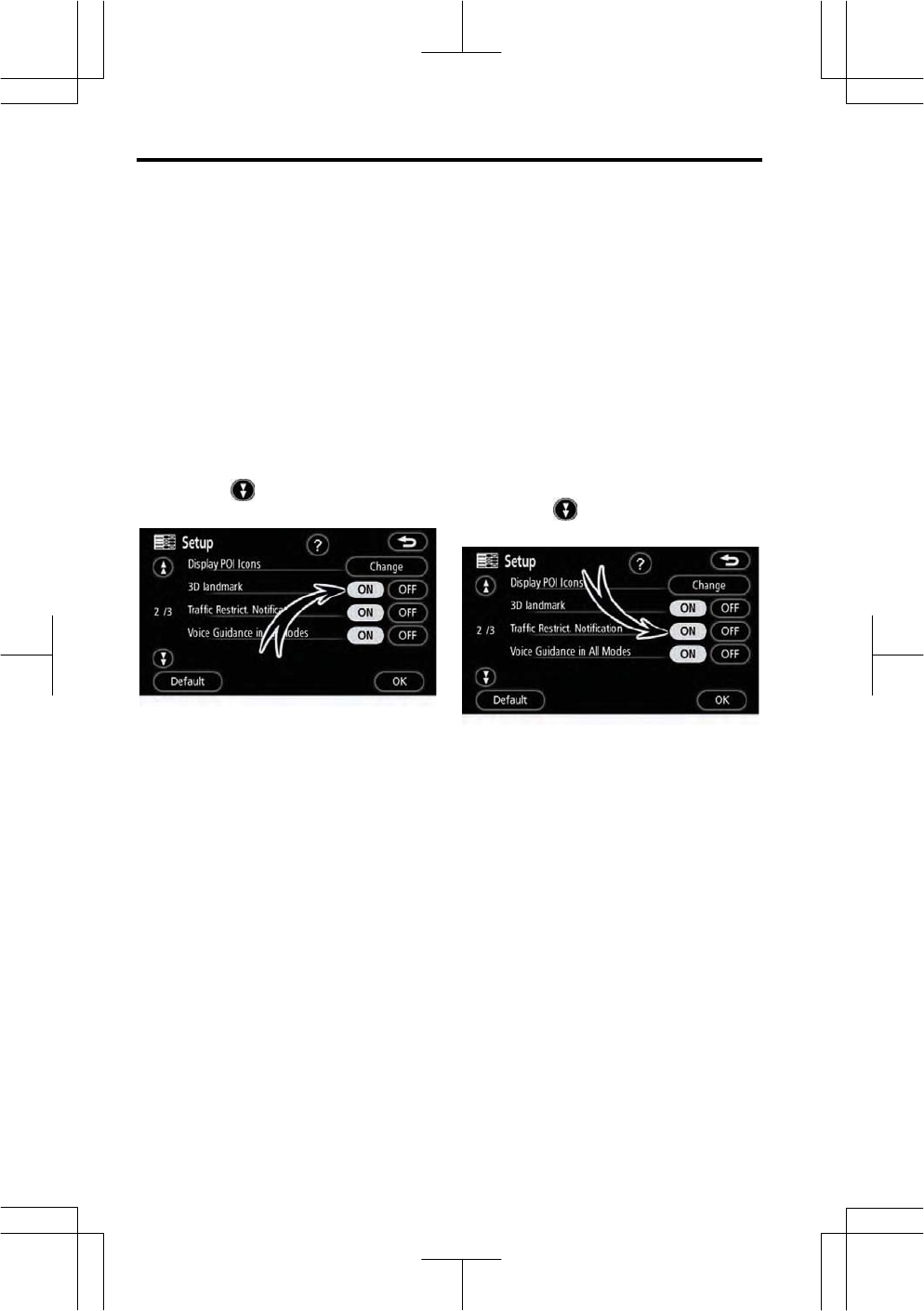

z 3D landmark
When the “3D landmark” feature is
turned on, the system will display the 3D
landmark on the map.
To turn the “3D landmark” mode on:
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch to display page 2 of the
“Setup” screen.
4. Touch “ON” of “3D landmark”.
The selected button is highlighted.
5. Touch “OK”.
z Notifying traffic restriction
When the “Traffic Restrict. Notification”
feature is turned on, the system notifies
you of traffic or seasonal restrictions.
To turn the “Traffic Restrict. Notification”
on:
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Menu”
screen.
Then touch to display page 2 of the
“Setup” screen.
4. Touch “ON” of “Traffic Restrict.
Notification”.
The selected button is highlighted.
5. Touch “OK”.
![](/img.php?id=1116362&img=bg9.png)
ADVANCED FUNCTIONS
109
V689_E

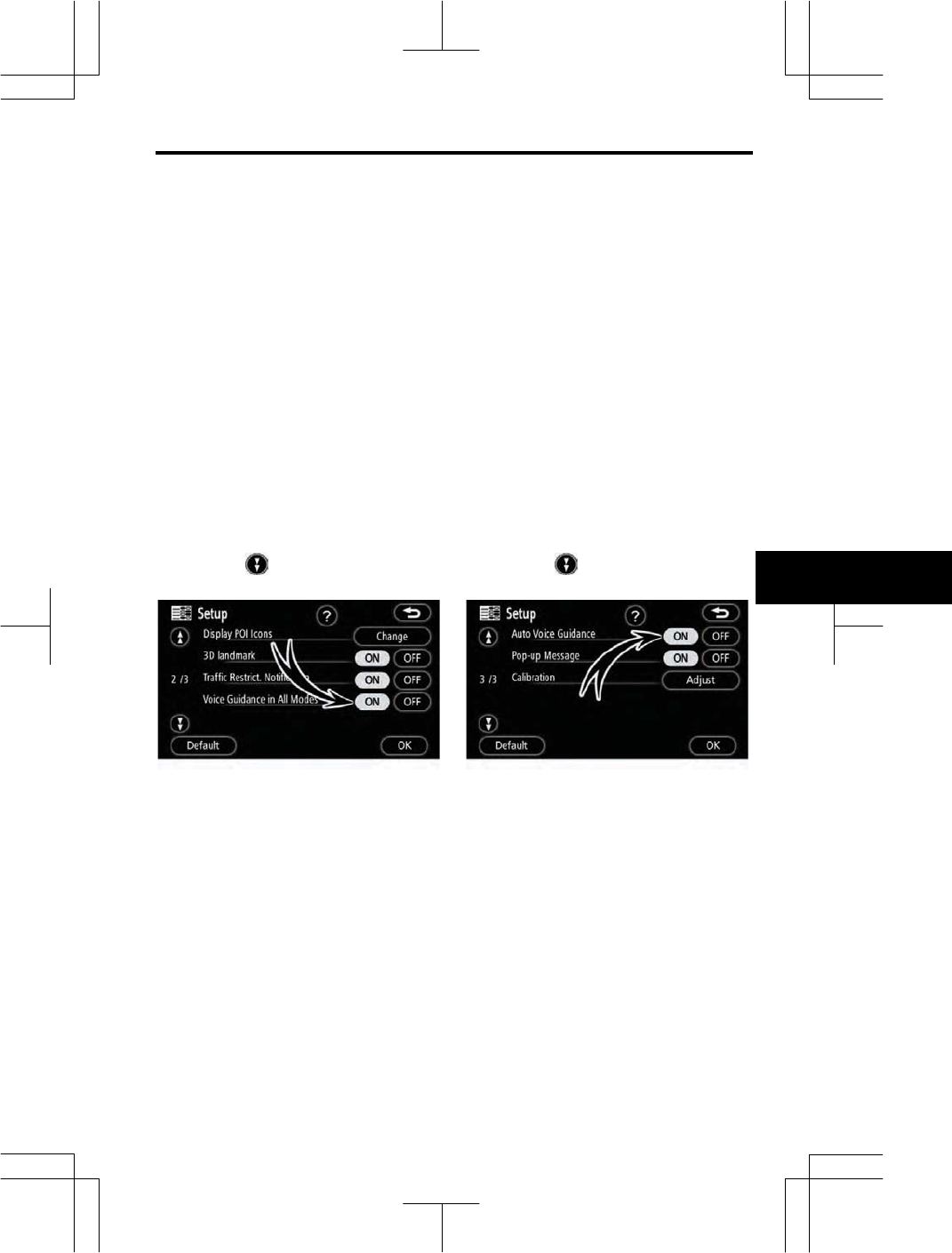

z Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, the voice guidance
in all modes can be heard.
When the “Voice Guidance in All Modes”
feature is turned off, the voice guidance
cannot be heard when using the audio
system.
To turn the “Voice Guidance in All
Modes” on:
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch to display page 2 of the
“Setup” screen.
4. Touch “ON” of “Voice Guidance
in All Modes”.
The selected button is highlighted.
5. Touch “OK”.
z Auto voice guidance
When the “Auto Voice Guidance” feature
is turned on, the voice guidance can be
heard automatically.
When the “Auto Voice Guidance” feature
is turned off, the voice guidance can be
heard only if the “MAP/VOICE” button is
pushed.
To turn the “Auto Voice Guidance” mode
on:
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch twice to display page 3
of the “Setup” screen.
4. Touch “ON” of “Auto Voice Guid-
ance”.
The selected button is highlighted.
5. Touch “OK”.
![](/img.php?id=1116362&img=bga.png)
ADVANCED FUNCTIONS
110
V689_E

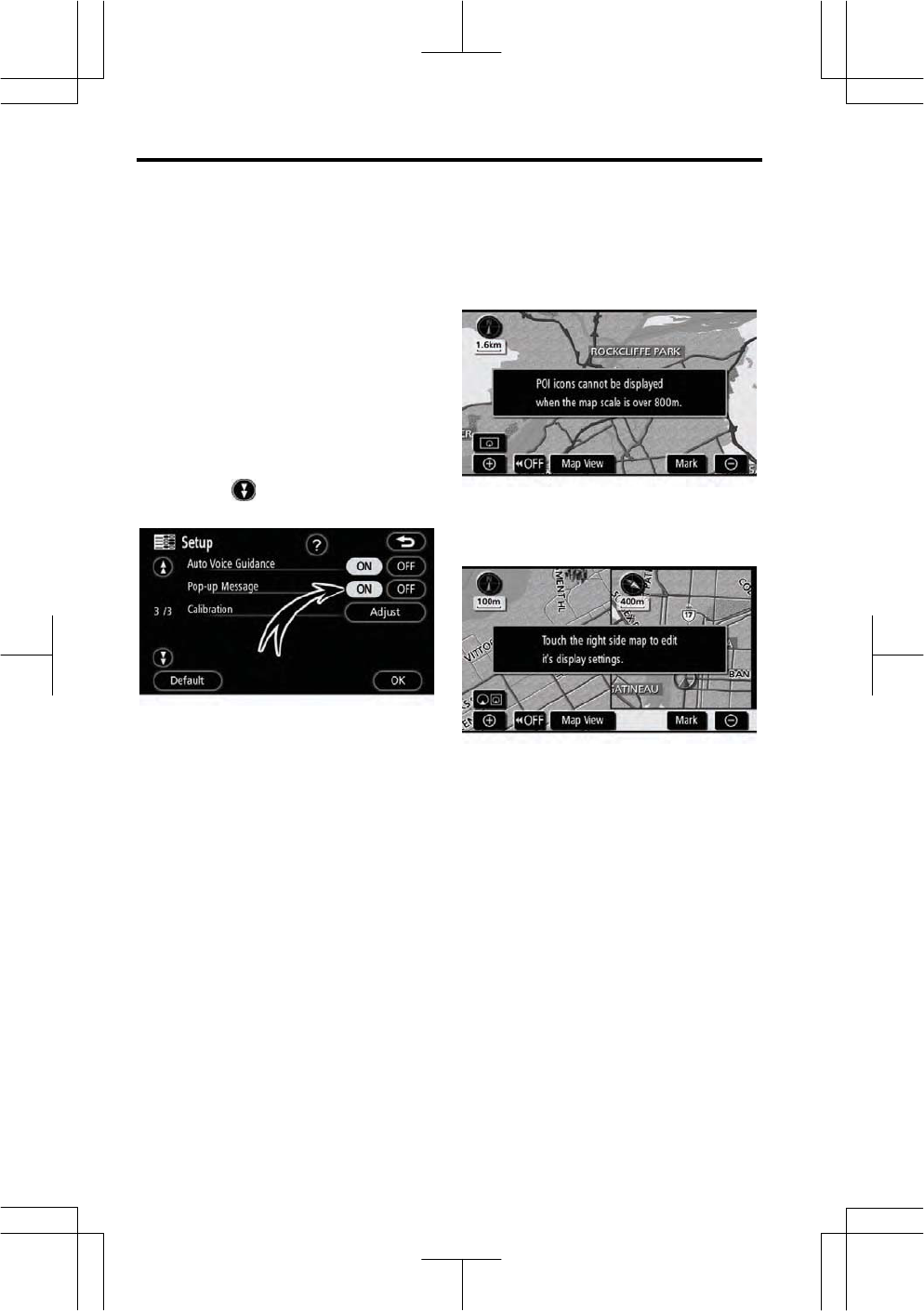

z Pop-up message
When the “Pop-up Message” is turned
on, the pop-up message will be dis-
played.
To turn the “Pop-up Message” on:
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch twice to display page 3
of the “Setup” screen.
4. Touch “ON” of “Pop-up Mes-
sage”.
The selected button is highlighted.
5. Touch “OK”.
When the “Pop-up Message” is turned
off, the following messages will not be
displayed.
This message appears when the system
is in the POI mode and the map scale is
over 800m (0.5 mile) or greater.
The message appears when the map is
switched to the dual map screen mode.
![](/img.php?id=1116362&img=bgb.png)
ADVANCED FUNCTIONS
111
V689_E

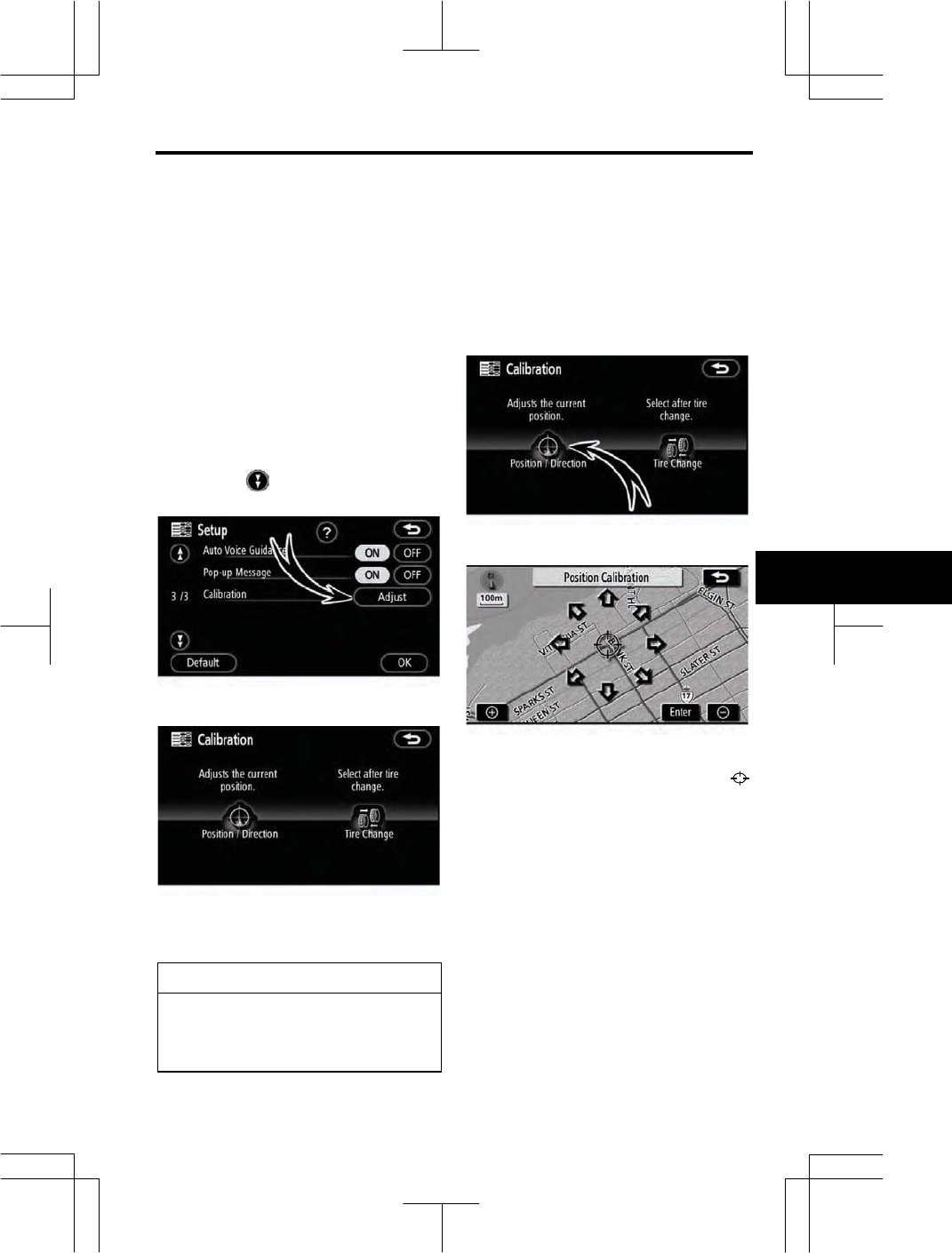

z Current position/tire change cali-
bration
The current vehicle position mark can be
adjusted manually. Miscalculation of
the distance caused by tire replacement
can also be adjusted.
1. Push the “MENU” button.
2. Touch “Navigation” on the
“Menu” screen.
3. Touch “Setup” on the “Naviga-
tion” screen.
Then touch twice to display page 3
of the “Setup” screen.
4. Touch “Adjust” of “Calibration”.
5. Touch the desired touch screen
button.
INFORMATION
For additional information on the
accuracy of a current vehicle posi-
tion, see “Limitations of the naviga-
tion system” on page 248.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle posi-
tion mark will be automatically corrected
by GPS signals. If GPS reception is
poor due to location, you can manually
adjust the current vehicle position mark.
1. Touch “Position / Direction”.
2. Touch the eight directional touch
screen button to move the cursor
to the desired point on the map.
3. Touch “Enter”.
![](/img.php?id=1116362&img=bgc.png)
ADVANCED FUNCTIONS
112
V689_E

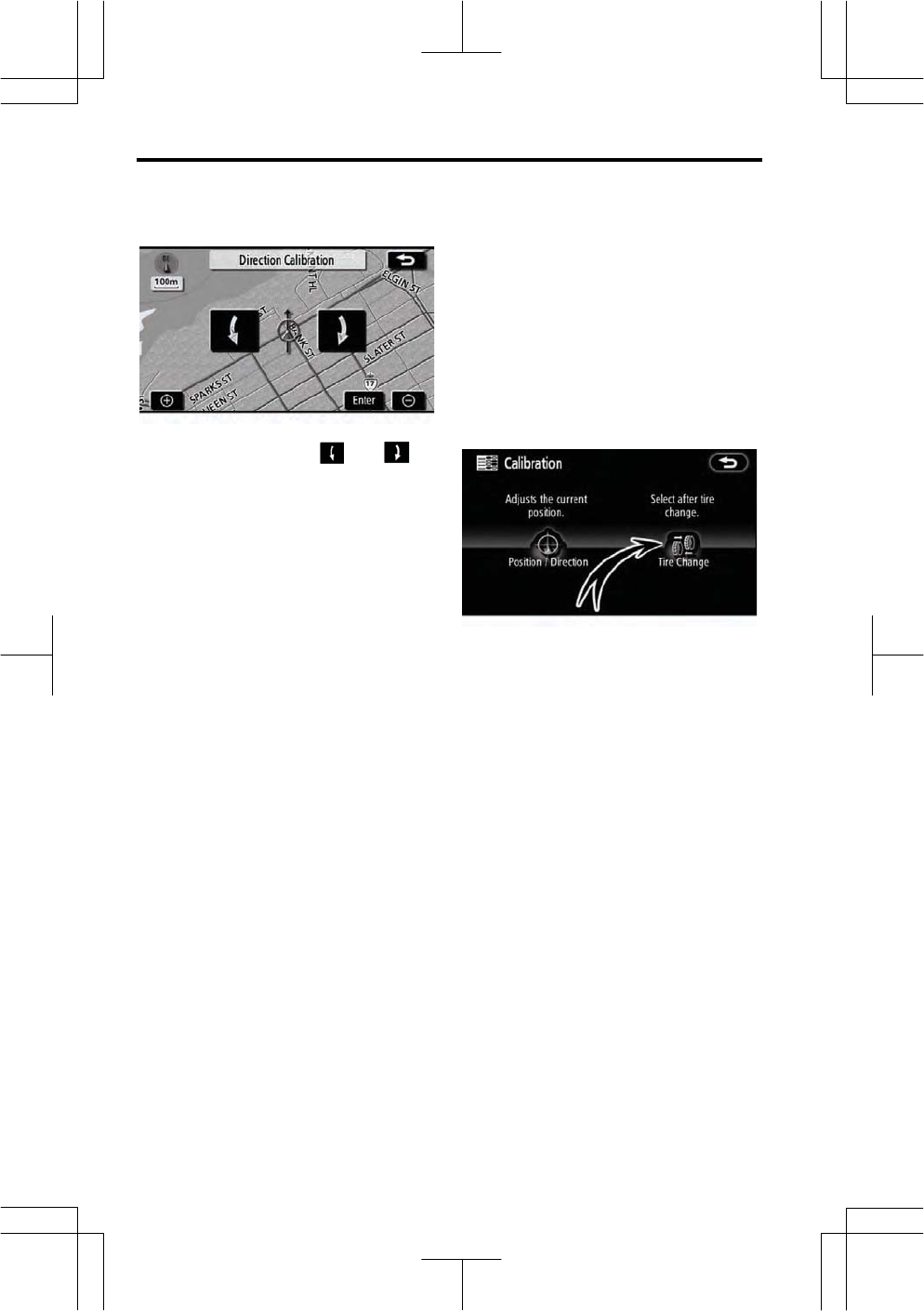

4. Touch either the or to
adjust the direction of the current ve-
hicle position mark.
5. Touch “Enter”.
The map screen will be displayed.
TIRE CHANGE CALIBRATION
The tire change calibration function will
be used when replacing the tires. This
function will adjust the miscalculation
caused by the circumference difference
between the old and new tires. If this
procedure is not performed when the
tires are replaced, the current vehicle
position mark may be incorrectly dis-
played.
To perform a distance calibration
procedure, touch “Tire Change” on
the “Calibration” screen.
The message appears and the quick
distance calibration is automatically
started. A few seconds later, a map
screen will be displayed.
![](/img.php?id=1116362&img=bgd.png)
OTHER FUNCTIONS
113
V689_E
SECTION 5
OTHER FUNCTIONS
z Maintenance information································································114
Maintenance information setting·····················································114
Dealer setting··················································································116

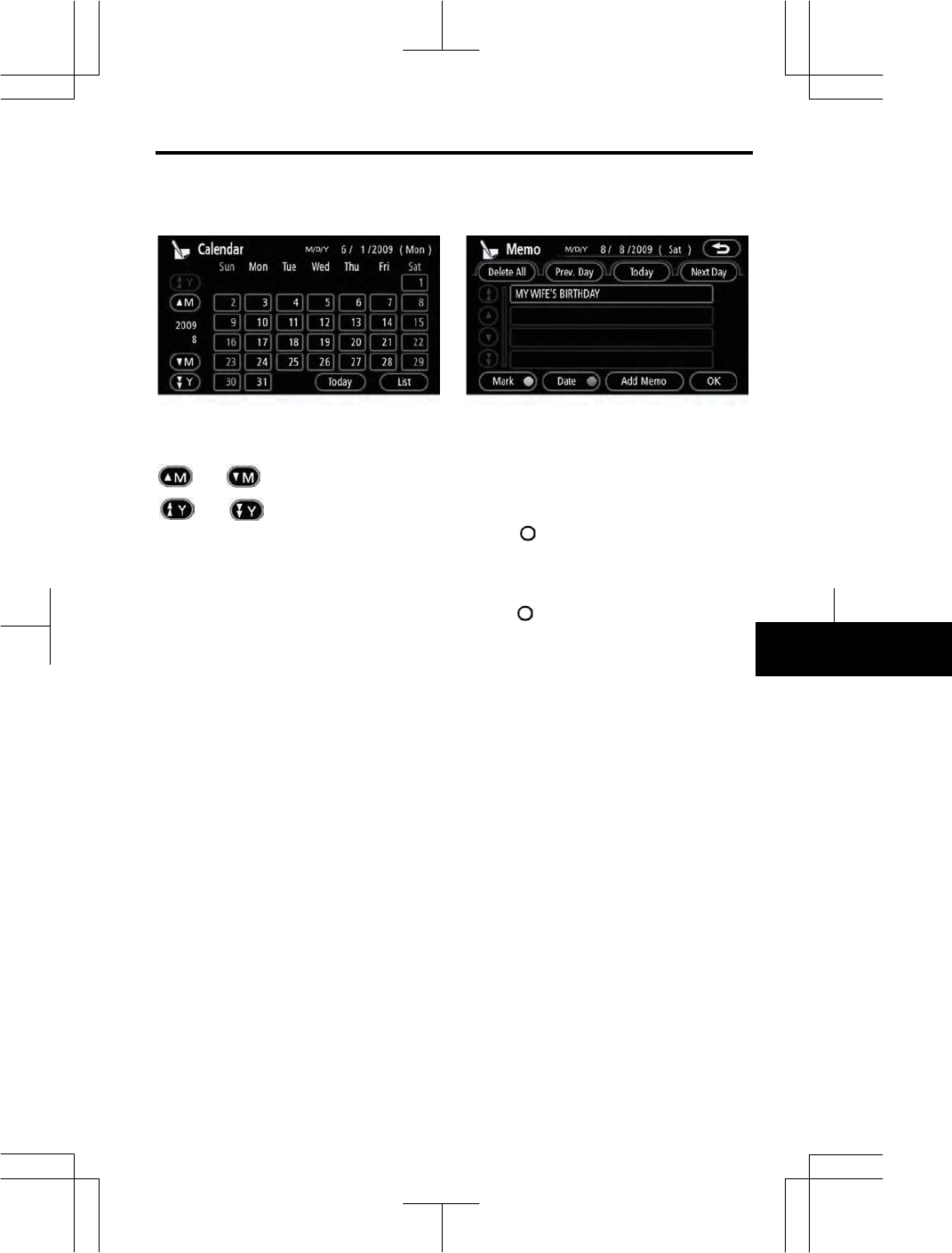

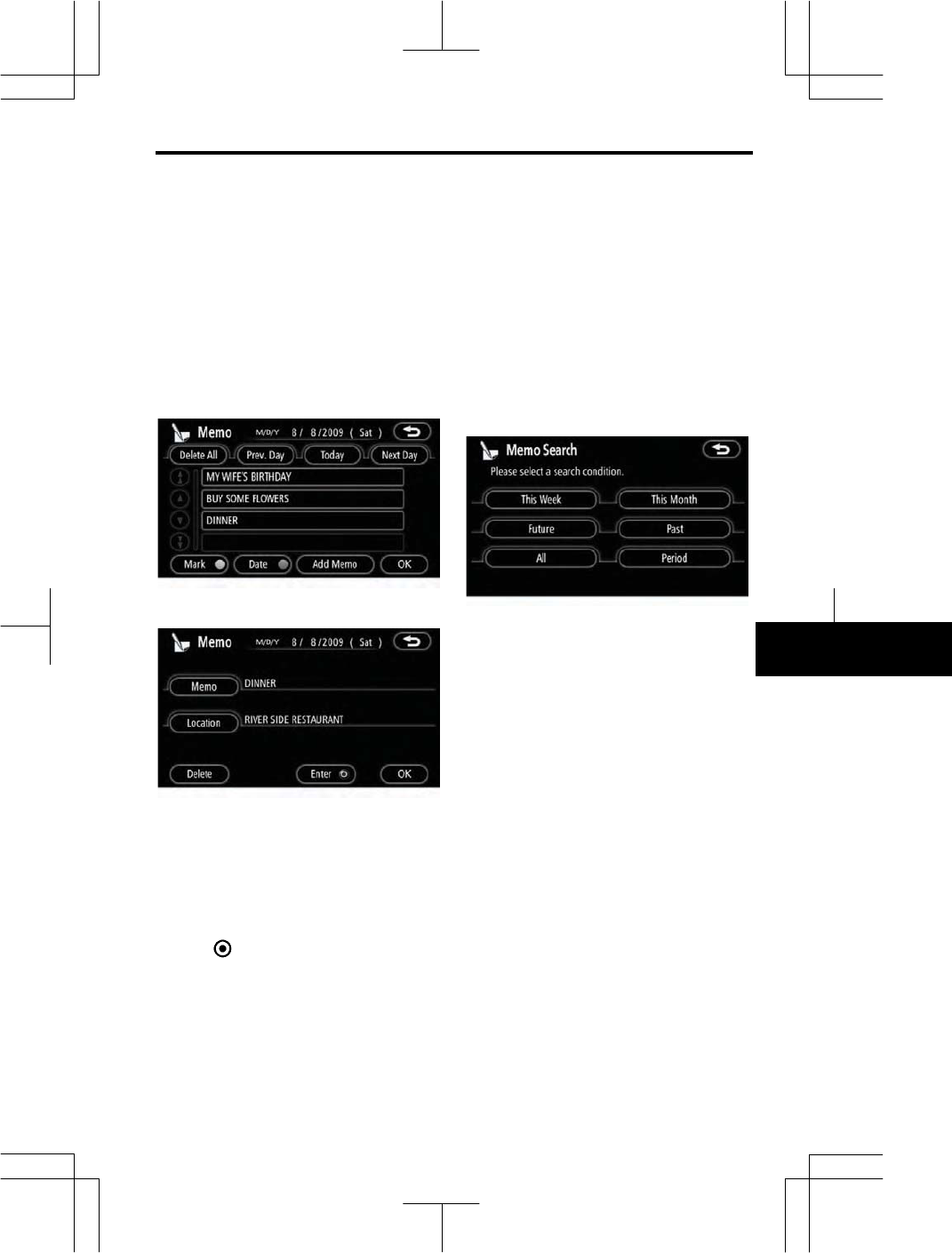

z Calendar with memo ·······································································118
Adding a memo ··············································································120
Editing a memo···············································································121
Memo list ························································································121
z Hands-free system (for cellular phone) ········································123
Enter a Bluetooth® phone ·······························································127

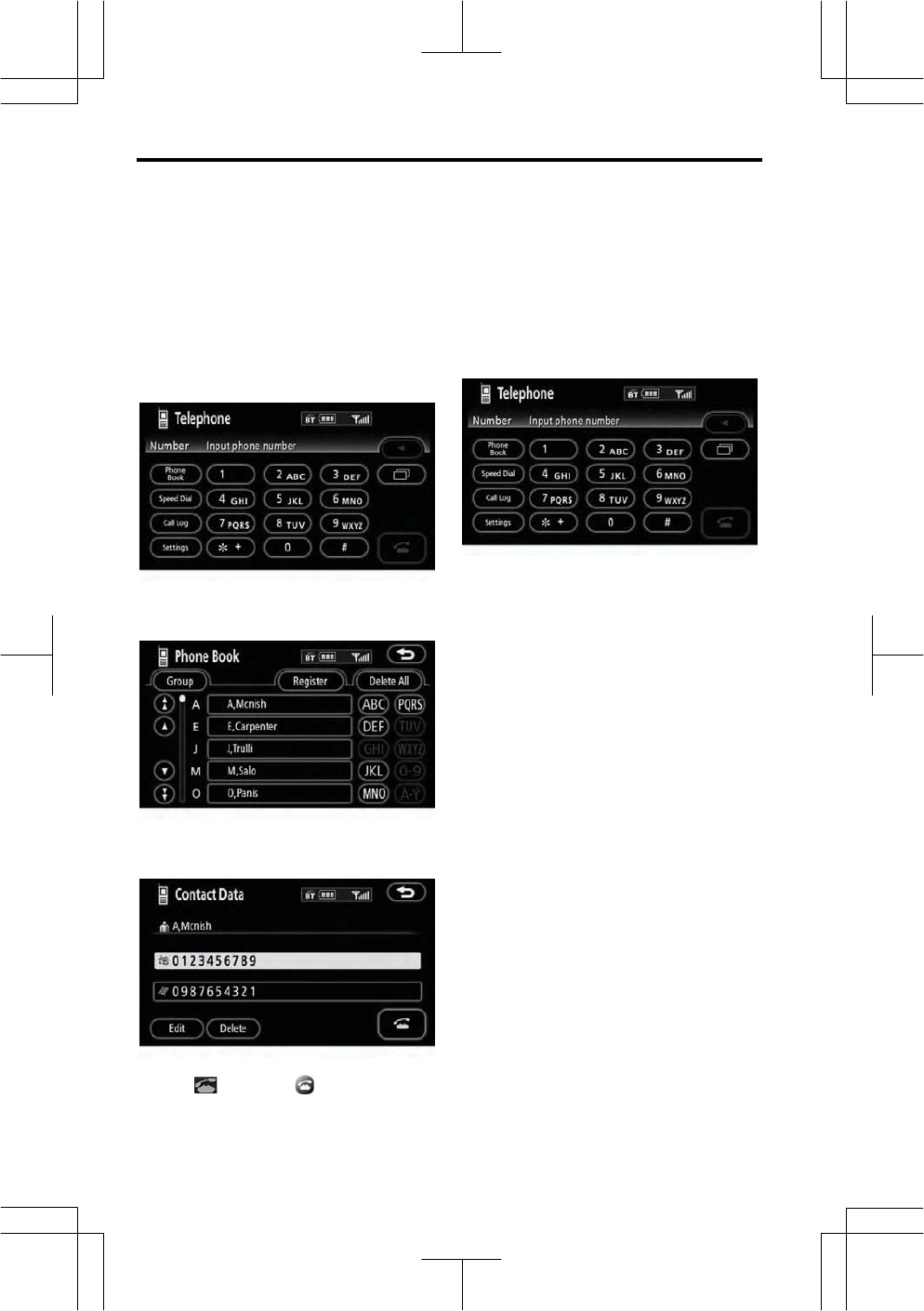

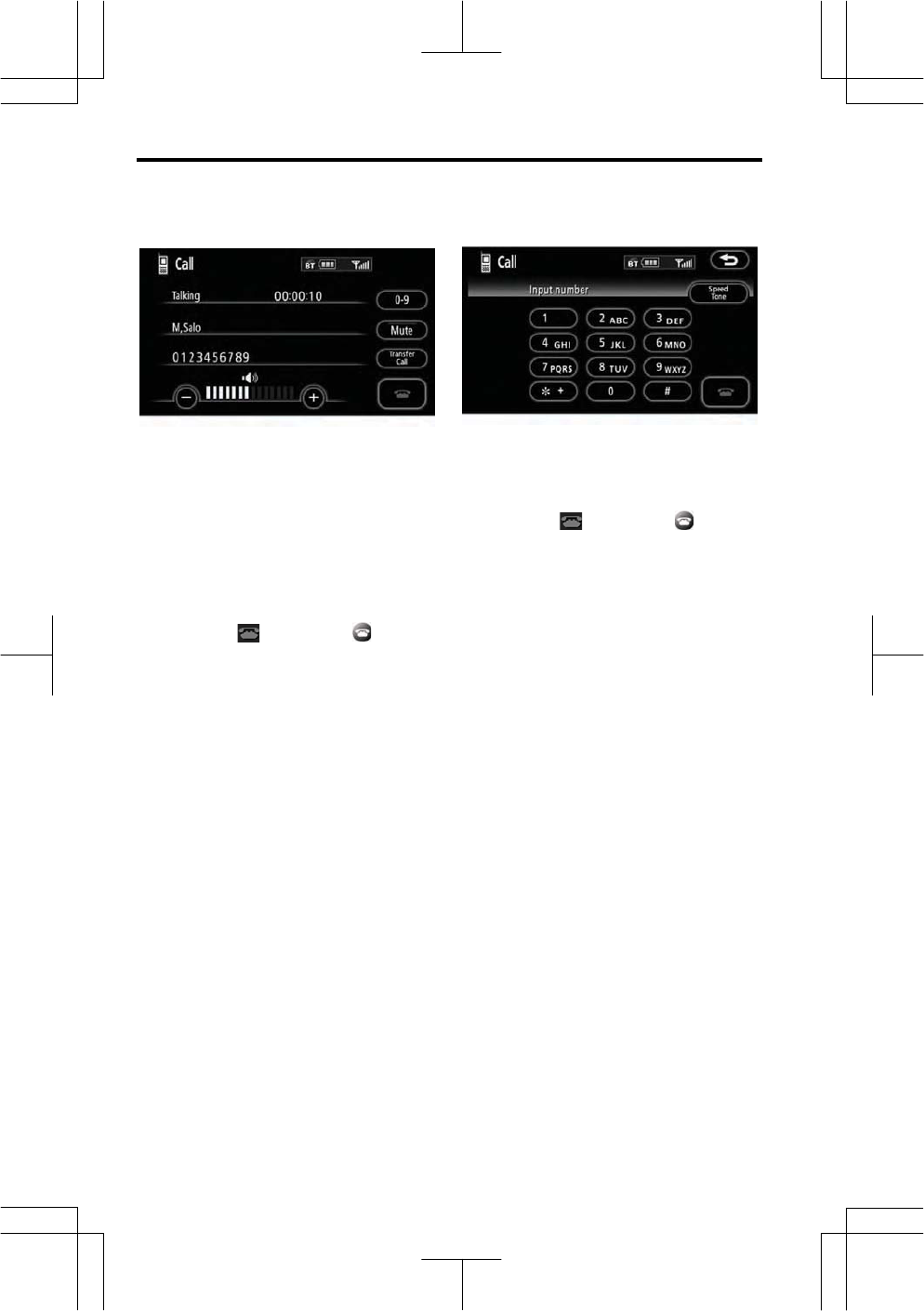

Call on the Bluetooth® phone ·························································130
Receive on the Bluetooth® phone···················································135
Talk on the Bluetooth® phone·························································136

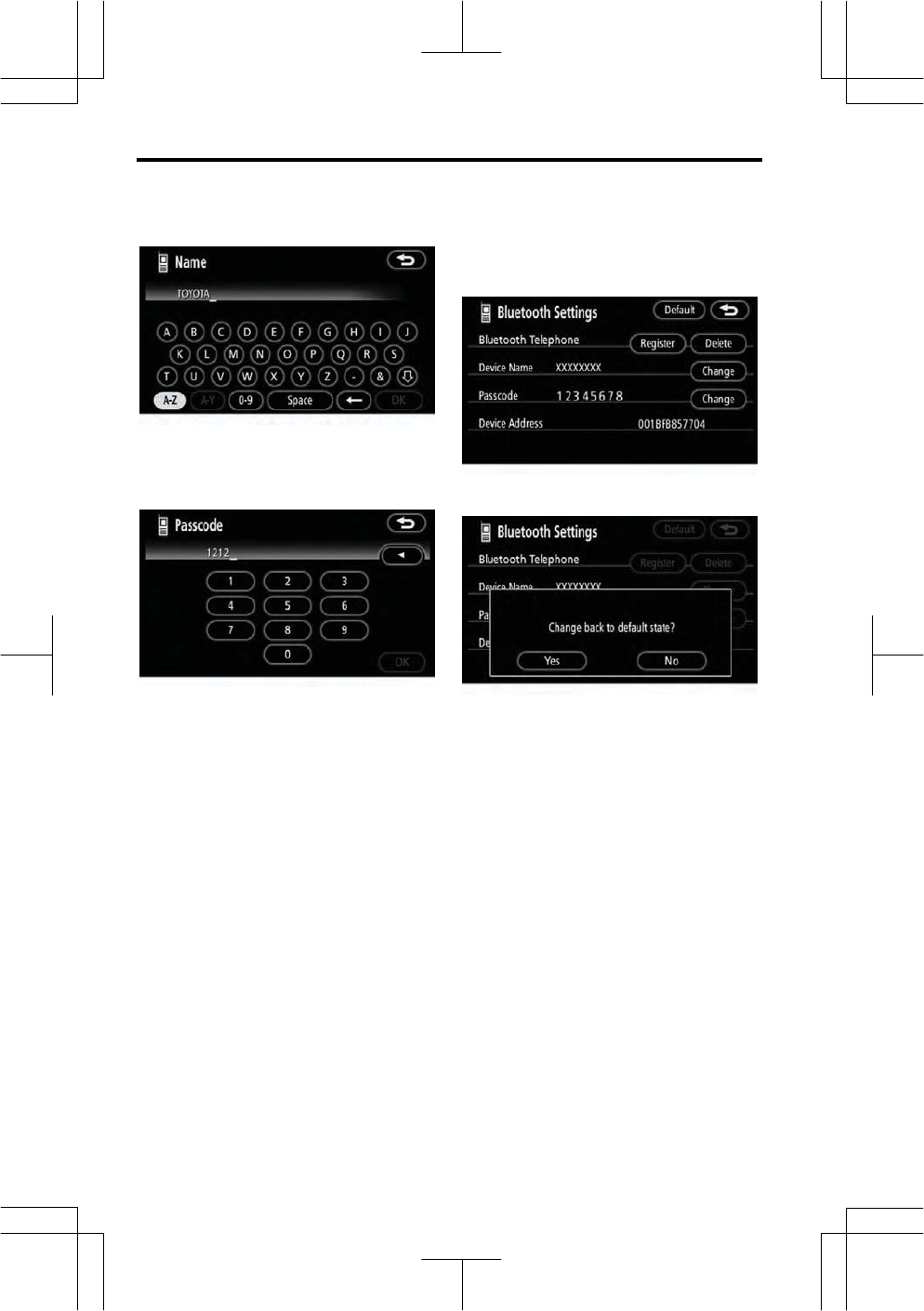

Change the settings of the Bluetooth® phone ································138

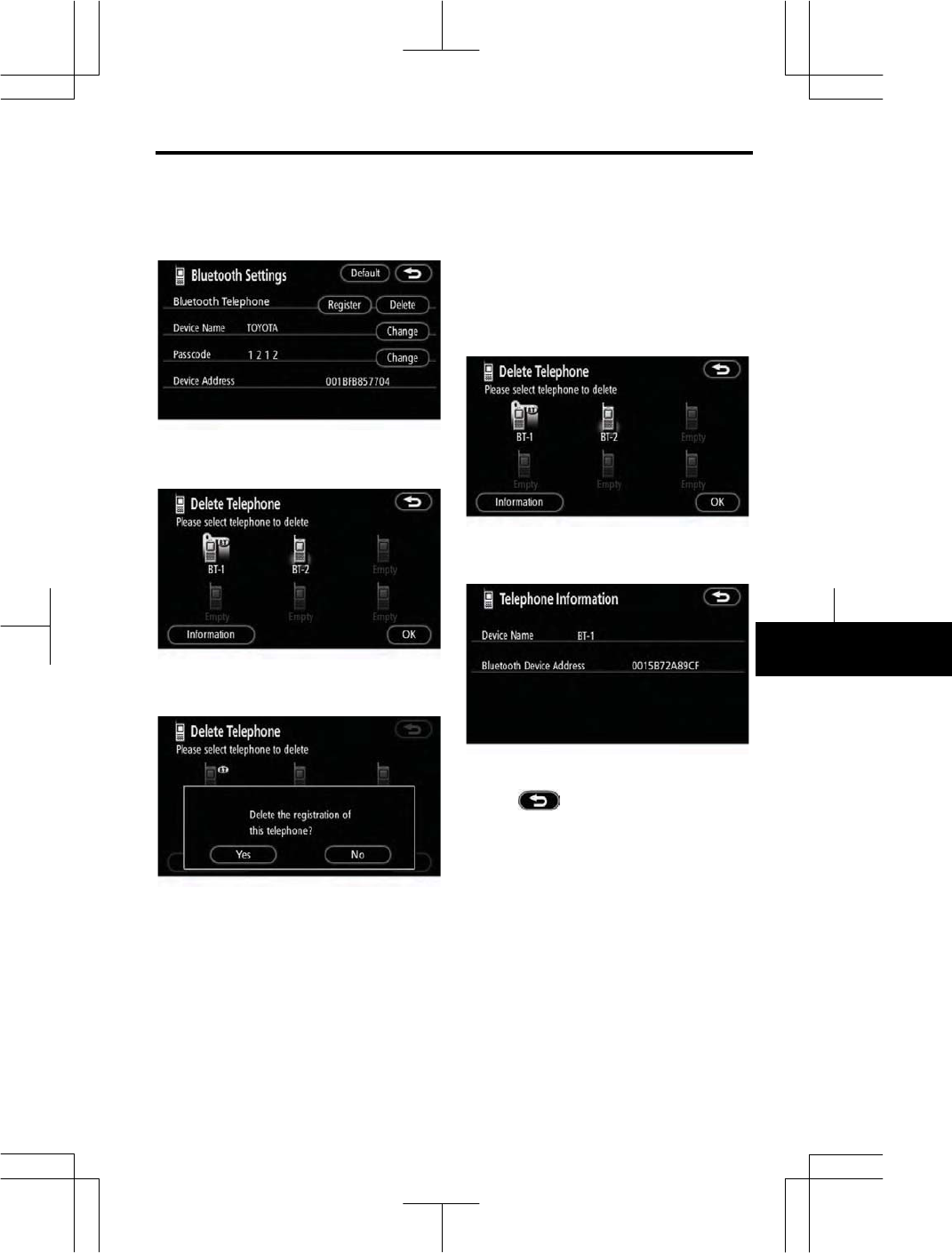

Set a Bluetooth® phone ··································································162
z Screen adjustment ············································································168

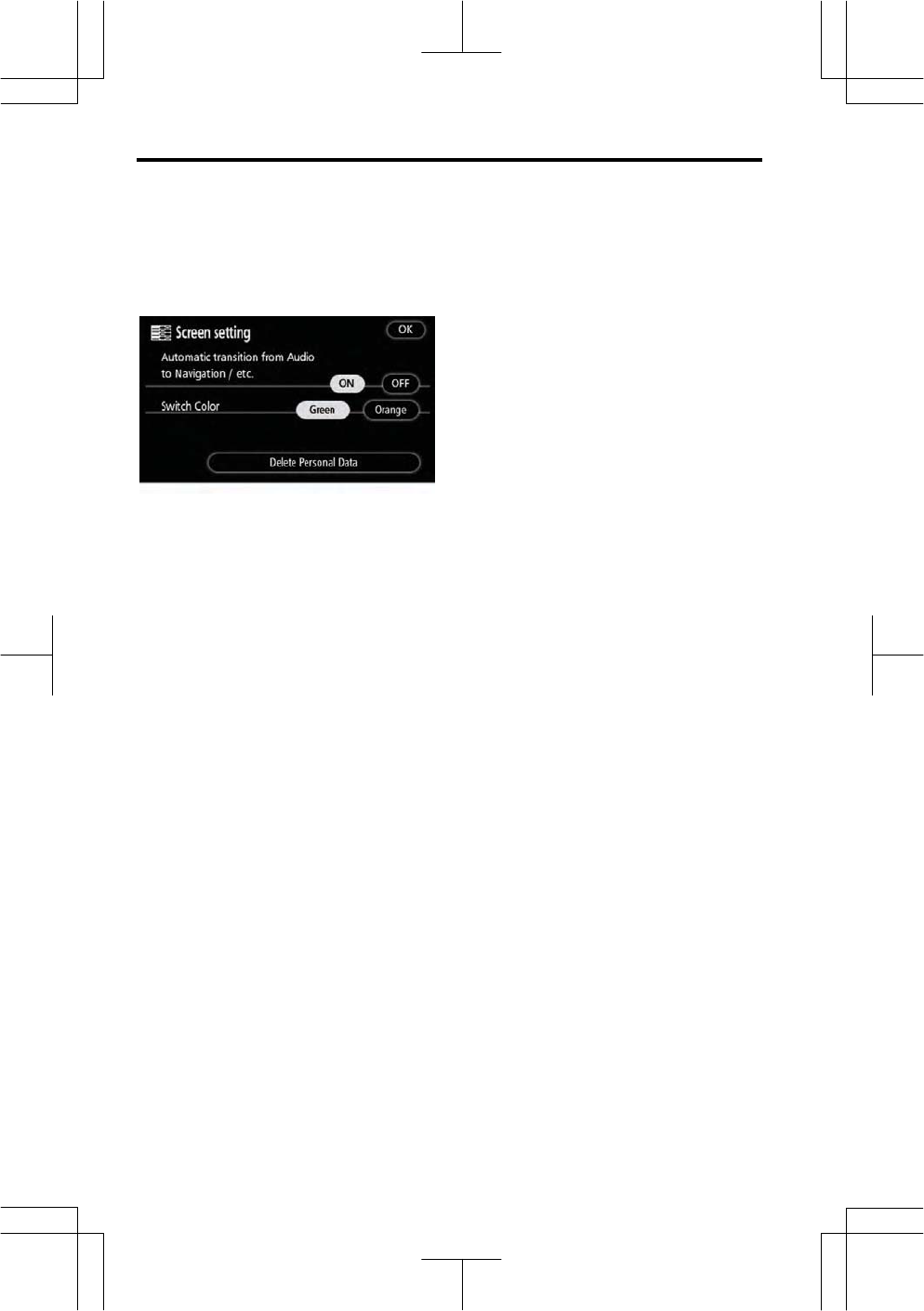

z Screen setting ···················································································169
z Beep setting ······················································································171

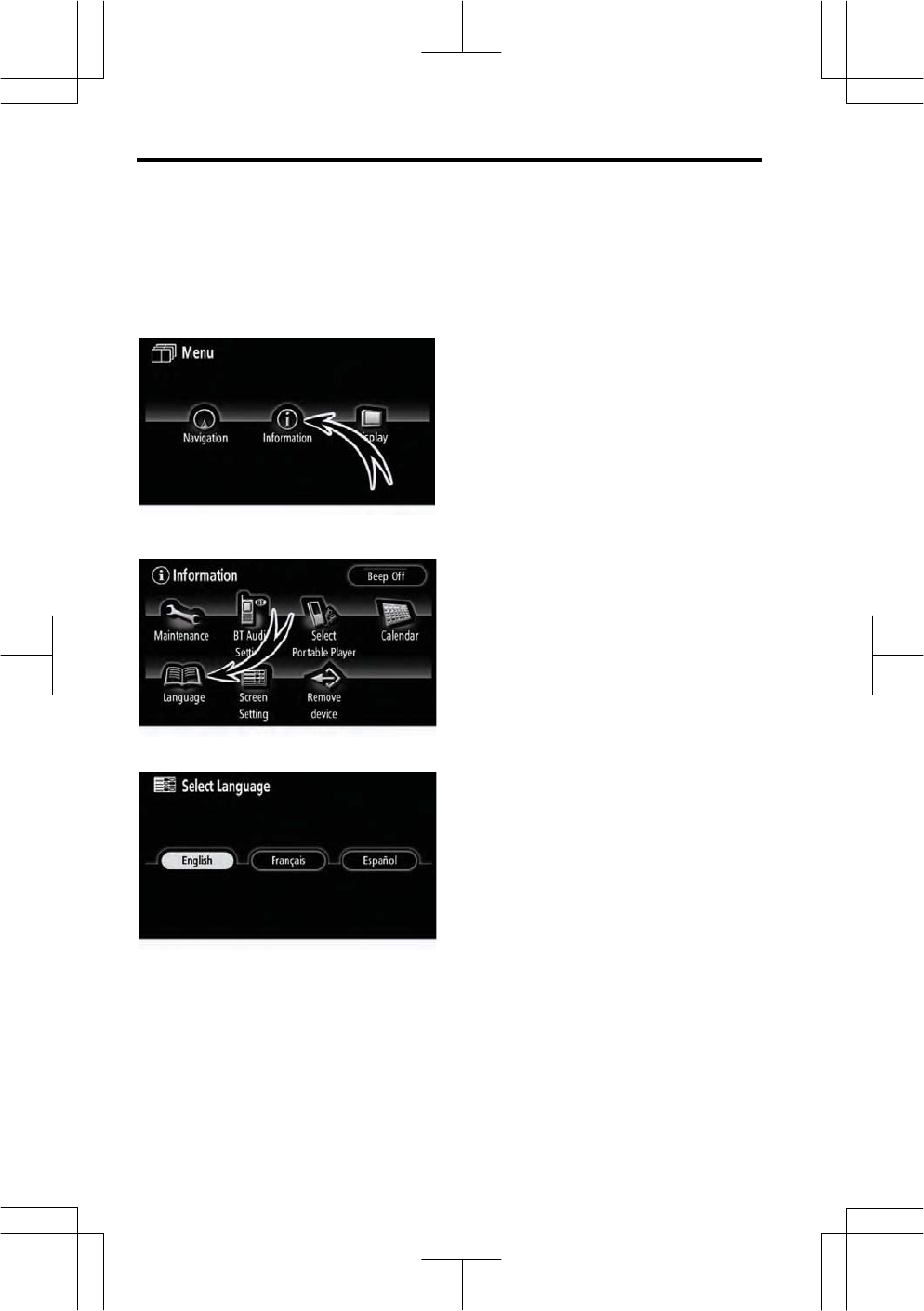

z Select language·················································································172
![](/img.php?id=1116362&img=bge.png)
OTHER FUNCTIONS
114
V689_E
When the navigation system is turned on,
the “Information” screen displays when it
is time to replace a part or certain com-
ponents. (See page 22.)
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Maintenance”.
4. Touch the desired touch screen
button.
For details of each touch screen button,
see “INFORMATION ITEMS” on page
115.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer
information. (See “ — Dealer setting”
on page 116.)
If “ON” is selected, the system gives
maintenance information with the “In-
formation” screen and voice sound when
the system is turned on. (See page 22.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced,
the touch screen button color will change
to orange.
Maintenance information —
—Maintenance information
settin
g
![](/img.php?id=1116362&img=bgf.png)
OTHER FUNCTIONS
115
V689_E
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF (Automatic Trans-
mission Fluid)
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones

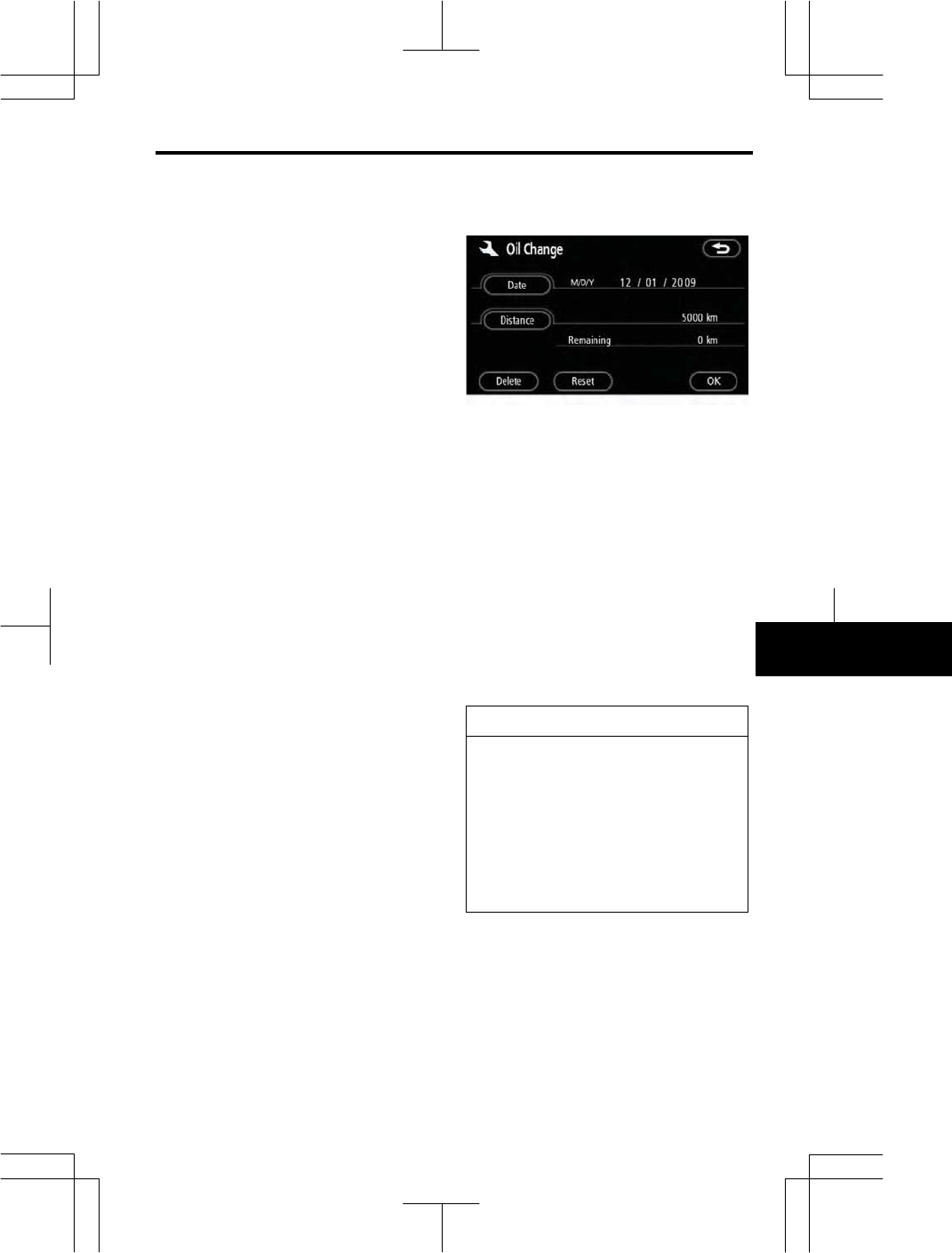

5. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and dis-
tance conditions.
“Reset”: To reset the date and distance
conditions.
6. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
zFor scheduled maintenance in-
formation, please refer to the
“Schedule Maintenance Guide” or
“Owner’s Manual supplement”.
zDepending on driving or road
conditions, the actual date and
distance may differ from the
stored date and distance in the
system.
![](/img.php?id=1116362&img=bg10.png)
OTHER FUNCTIONS
116
V689_E

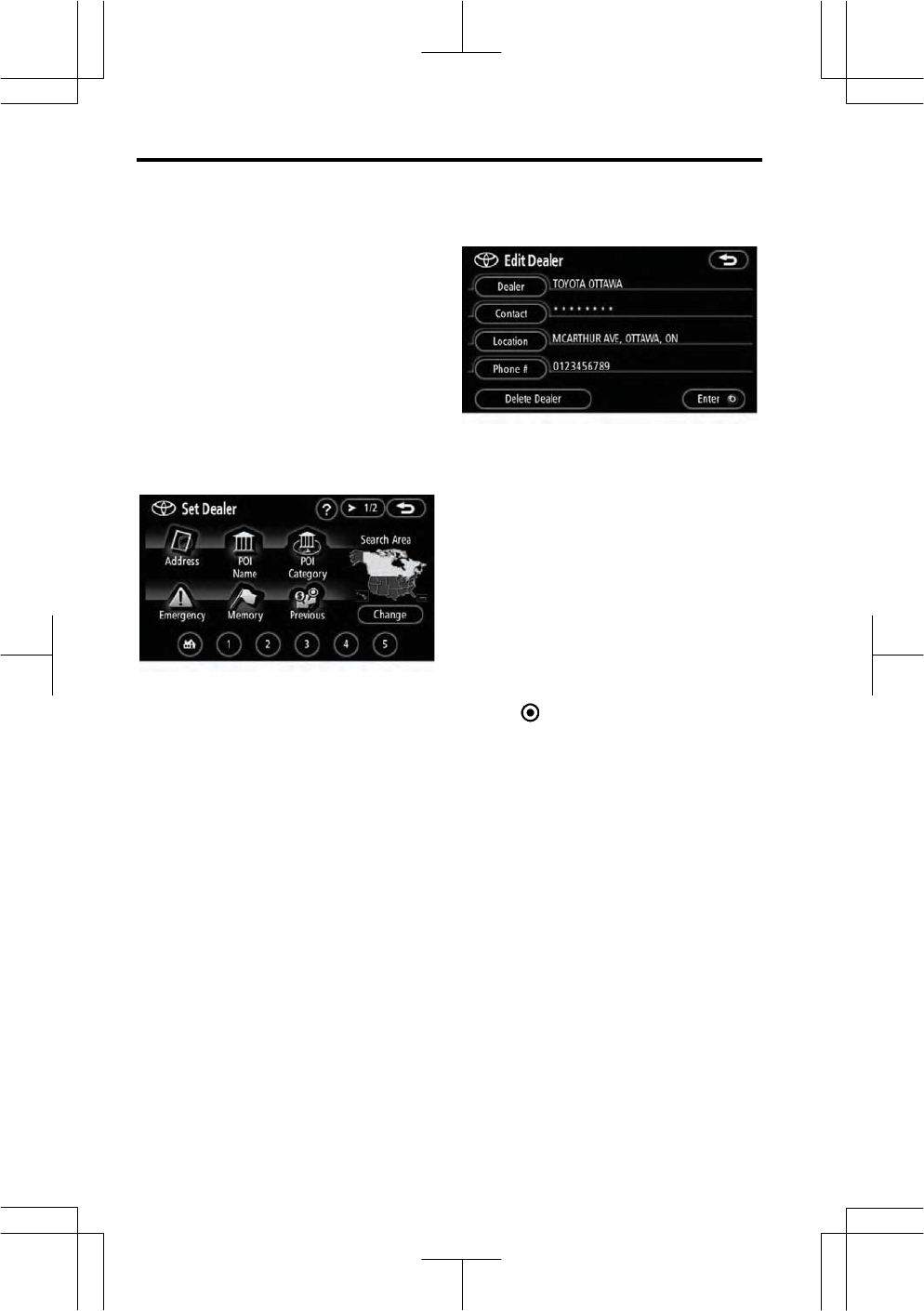

It is possible to register a dealer in the
system. With dealer information regis-
tered, route guidance to the dealer is
available.
1. Push the “MENU” button.
2. Touch “Information” on the
“Menu” screen.
3. Touch “Maintenance” on the “In-
formation” screen.
4. Touch “Set Dealer” on the “Main-
tenance” screen.
5. If the dealer has not been regis-
tered, enter the location of the dealer
in the same way as for a destination
search. (See “Destination search” on
page 42.)
When “Set Dealer” registration is finished,
the “Edit Dealer” screen will be dis-
played.
6. Touch the touch screen button to
be edited.
“Dealer”: To enter the name of a dealer.
(See page 117.)
“Contact”: To enter the name of a
dealer member. (See page 117.)
“Location”: To set a location. (See
page 117.)
“Phone #”: To set a telephone number.
(See page 118.)
“Delete Dealer”: To delete the dealer
information displayed on the screen.
“Enter ”: To set the displayed dealer
as a destination. (See “Starting route
guidance” on page 61.)
— Dealer settin
g
![](/img.php?id=1116362&img=bg11.png)
OTHER FUNCTIONS
117
V689_E

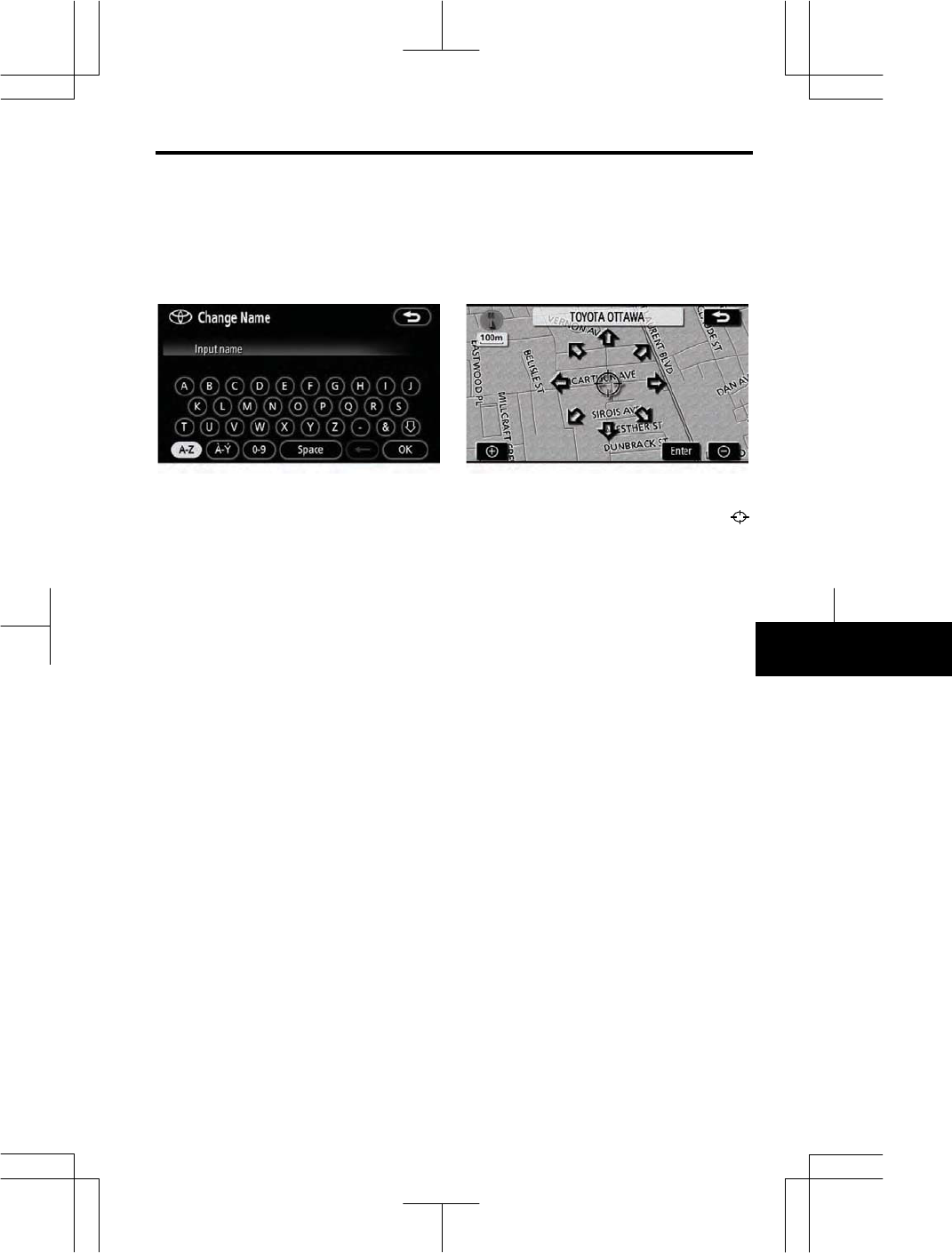

z To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on
the “Edit Dealer” screen.
2. Enter the name using the alpha-
numeric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
z To edit “Location”
1. Touch “Location” on the “Edit
Dealer” screen.
2. Touch the eight directional touch
screen button to move the cursor
to the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
![](/img.php?id=1116362&img=bg12.png)
OTHER FUNCTIONS
118
V689_E

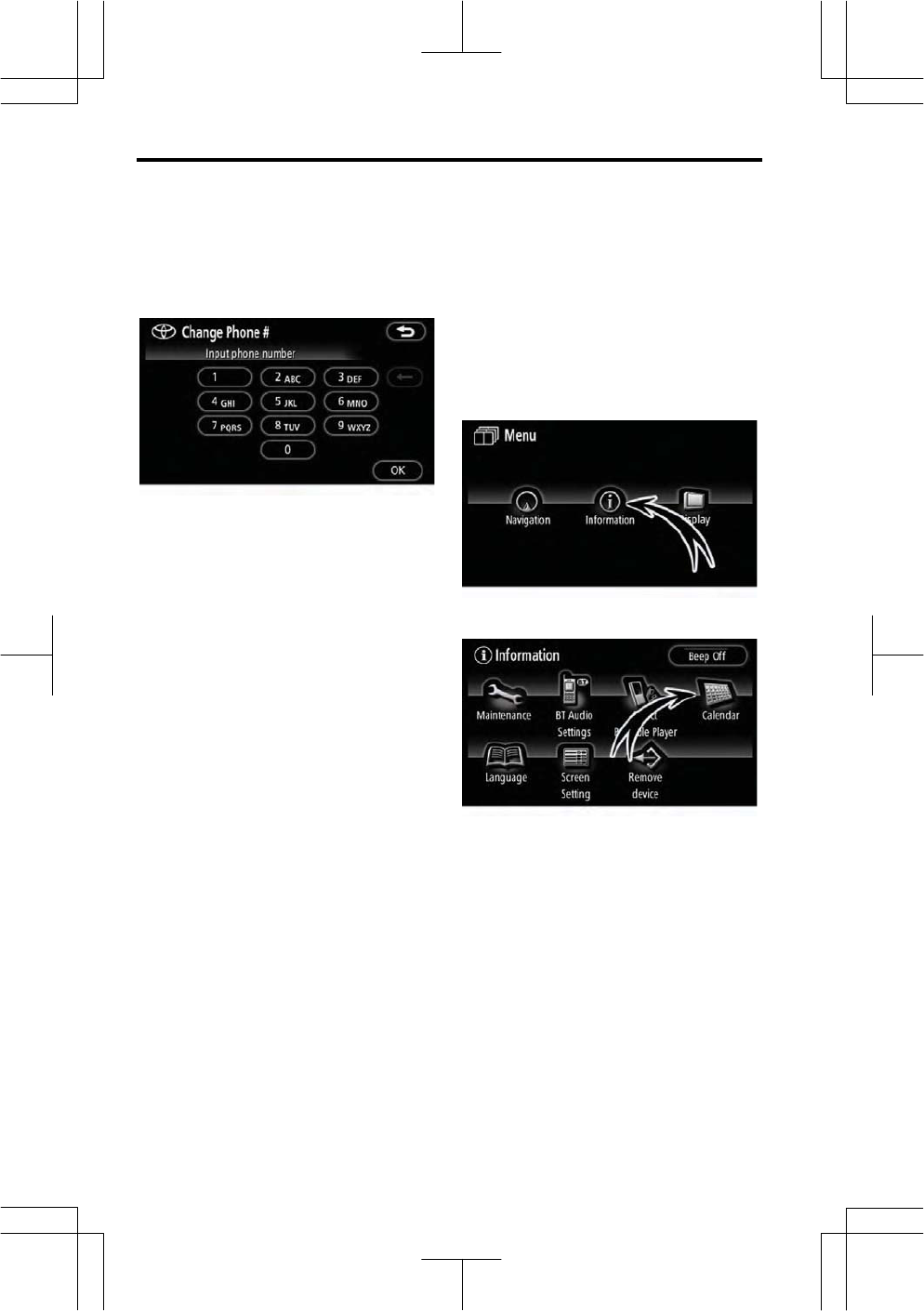

z To edit “Phone #”
1. Touch “Phone #” on the “Edit
Dealer” screen.
2. Enter the number using numeral
keys.
3. Touch “OK”.
The previous screen will be displayed.
It is possible to enter memos for particu-
lar dates on the calendar. The system
informs you of the memo entry when the
system is turned on. (See page 23.)
Memos can also be used for route guid-
ance if the memo has been registered
with location information.
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Calendar”.
Calendar with memo
—
![](/img.php?id=1116362&img=bg13.png)
OTHER FUNCTIONS
119
V689_E
On this screen, the current date is high-
lighted in yellow.
or :To change month.
or :To change year.
“Today”: To display the current month
calendar (if another month will be dis-
played).
“List”: To display the list of registered
memos. (See “ — Memo list” on page
121.)
Touching a date button on the “Calen-
dar” screen displays the “Memo” screen.
Memos can be edited by touching the list
button. (See “ — Editing a memo” on
page 121.)
“Add Memo”: To add a memo. (See
“ — Adding a memo” on page 120.)
“Mark ”: To change the color of the
mark displayed next to the date. To
default the mark color, touch “Delete”
on the “Mark Color” screen.
“Date ”: To change the color of the
date. To default the date color, touch
“Delete” on the “Date Color” screen.
“Prev. Day”: To go to the “Memo”
screen of the previous date.
“Today”: To go to the “Memo” screen
for the current day.
“Next Day”: To go to the “Memo” screen
of the next date.
![](/img.php?id=1116362&img=bg14.png)
OTHER FUNCTIONS
120
V689_E
If a memo is added, the system informs
of the memo entry when the system is
started on the memo date. (See page
23.)
1. Push the “MENU” button.
2. Touch “Information” on the
“Menu” screen.
3. Touch “Calendar” on the “Infor-
mation” screen.
4. Touch the date you want to add a
memo on the “Calendar” screen.
5. Touch “Add Memo”.
Up to 100 memos can be added.
6. Touch “Memo”.
7. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the
bottom right of the screen.
8. When registering information on
the memo, touch “Location”.
A screen similar to the destination
search screen appears. Search the
same way as searching a destination.
(See “Destination search” on page 42.)
— Addin
g
a memo
![](/img.php?id=1116362&img=bg15.png)
OTHER FUNCTIONS
121
V689_E
The registered memo can be edited.
1. Push the “MENU” button.
2. Touch “Information” on the
“Menu” screen.
3. Touch “Calendar” on the “Infor-
mation” screen.
4. Touch the day you want to edit a
memo on the “Calendar” screen.
5. Touch the memo to be edited.
6. Touch the item to be edited.
“Memo”: To edit a memo. (See “ —
Adding a memo” on page 120.)
“Location”: To change a registered
location. (See “ — Adding a memo” on
page 120.)
“Enter ”: To set the registered loca-
tion as a destination. (See “Starting
route guidance” on page 61.)
“Delete”: To delete the memo.
It is possible to display a memo list by
setting a condition.
1. Push the “MENU” button.
2. Touch “Information” on the
“Menu” screen.
3. Touch “Calendar” on the “Infor-
mation” screen.
4. Touch “List” on the “Calendar”
screen.
5. Touch the desired search condi-
tion to list the memos.
“This Week”: To display the list of
memos for the current week.
“This Month”: To display the list of
memos for the current month.
“Future”: To display a list of future
memos.
“Past”: To display the list of past
memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos
for a specified period. (See page 122.)
— Editin
g
a memo
—
Memo list
![](/img.php?id=1116362&img=bg16.png)
OTHER FUNCTIONS
122
V689_E

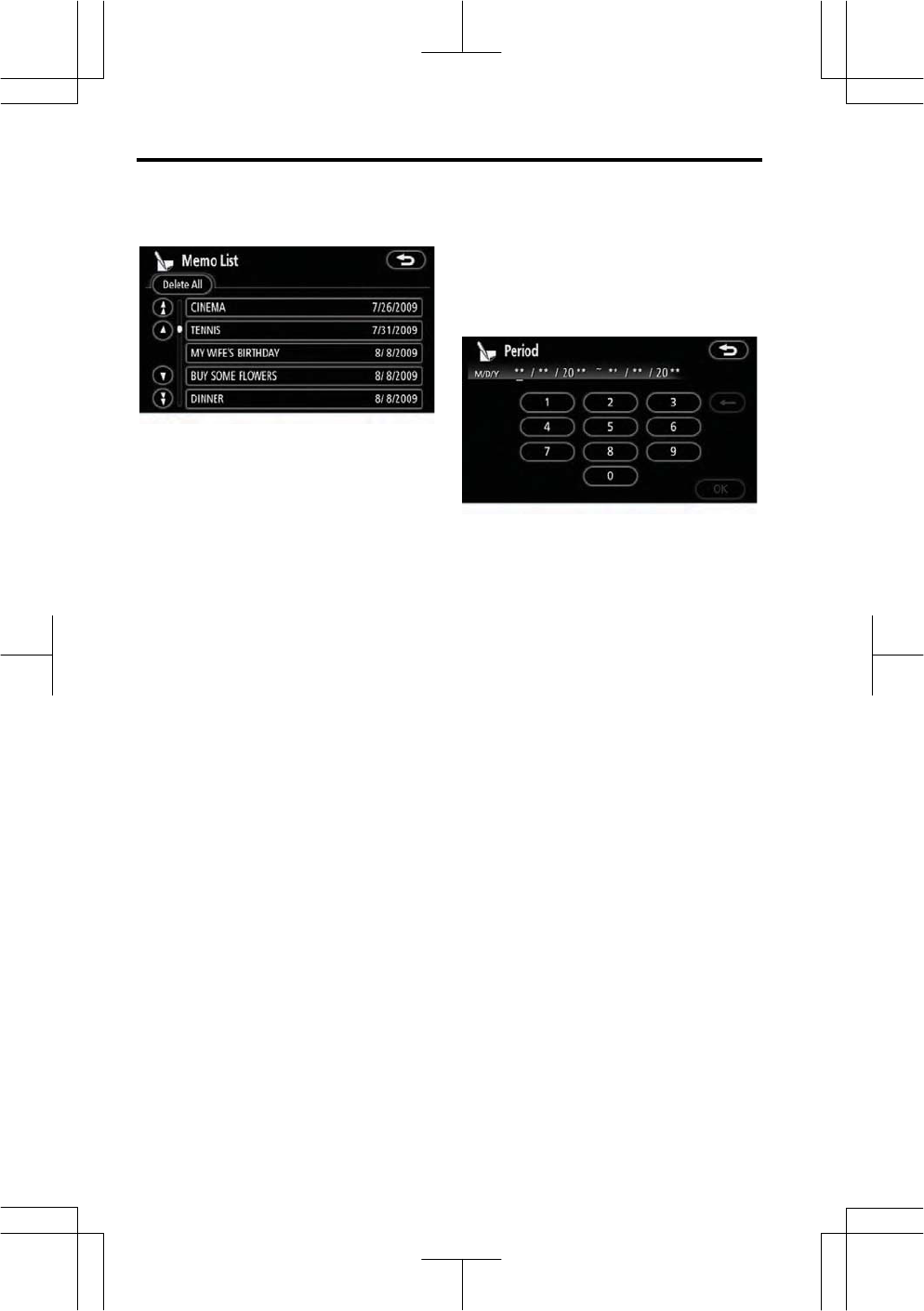

6. To delete and/or edit the memo,
touch the desired memo button.
“Delete All”: To delete all the displayed
memos.
A message will be displayed.
7. To delete, touch “Yes”. To cancel
the deletion, touch “No”.
z To display memos for a specified
period of time
1. Touch “Period” on the “Memo
search” screen.
2. Enter the period using the nu-
meral keys.
The period from January 1, 2009 through
December 31, 2028 can be set for
searching.
3. After setting the period, touch
“OK”.
The “Memo List” screen will be dis-
played.
![](/img.php?id=1116362&img=bg17.png)
OTHER FUNCTIONS
123
V689_E
Hands-free system allows you to
make or receive a call without taking
your hands off the steering wheel by
connecting your cellular phone.
This system supports Bluetooth®. Blue-
tooth® is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth®, this system can not function.
CAUTION
Use a cellular phone or connect the
Bluetooth® phone only when safe
and legal to do so.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor
may be high and damage the phone.
INFORMATION
zIn the following conditions, the
system may not function.
zThe cellular phone is turned off.
zThe current position is outside
the communication area.
zThe cellular phone is not con-
nected.
zThe cellular phone has a low
battery.
zIf Bluetooth® devices are used for
hands-free phone and Bluetooth®
audio connections at the same
time, the following may occur.
zThe Bluetooth® connection may
be cut off.
zNoise may occur in the audio
played from the portable player.
zEven if using a cellular phone that
is capable of both hands-free
phone and Bluetooth® audio
connections, simultaneous con-
nection may not be possible in
some cases.
Handsífree system
(
for cellular
p
hone
)
—
![](/img.php?id=1116362&img=bg18.png)
OTHER FUNCTIONS
124
V689_E

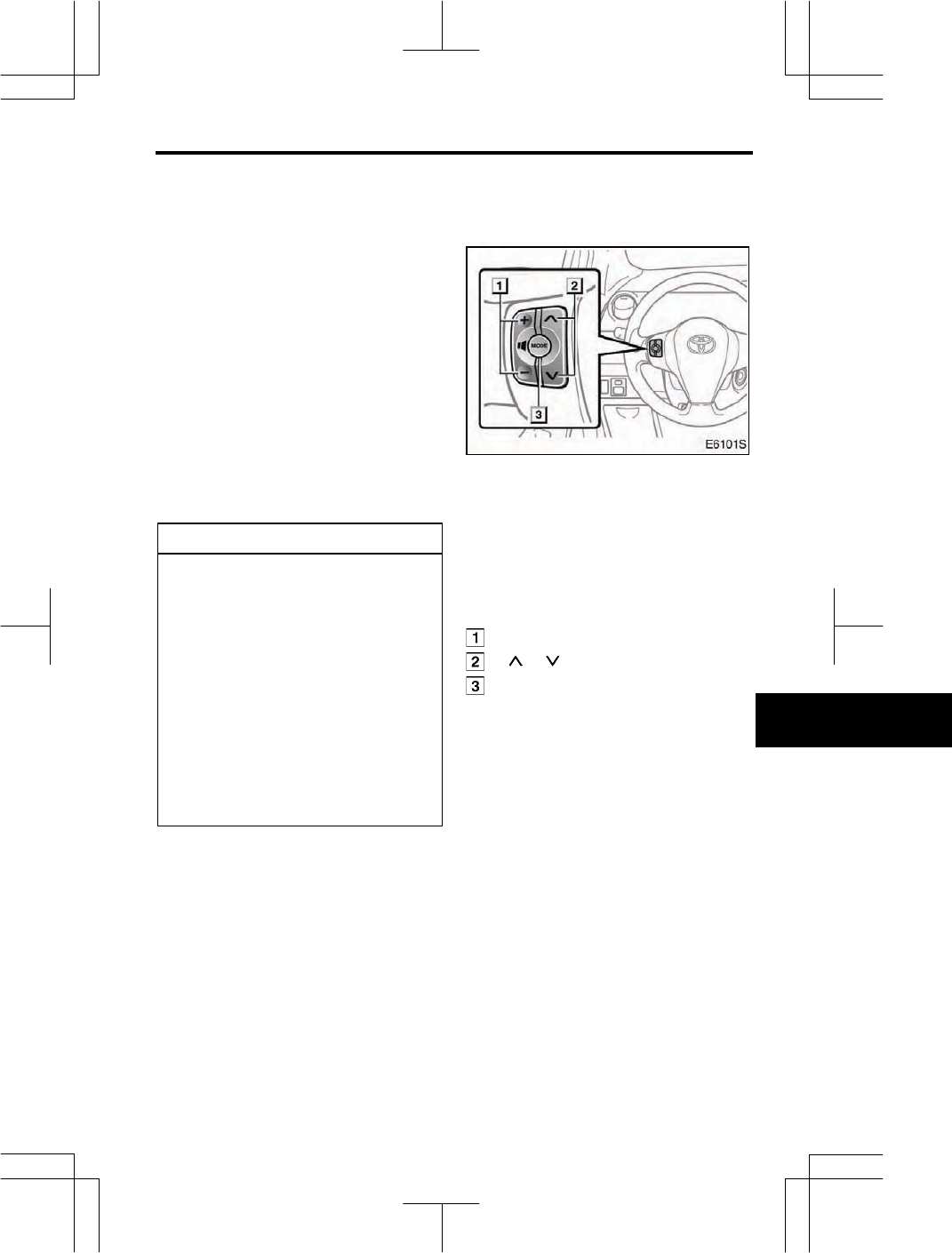

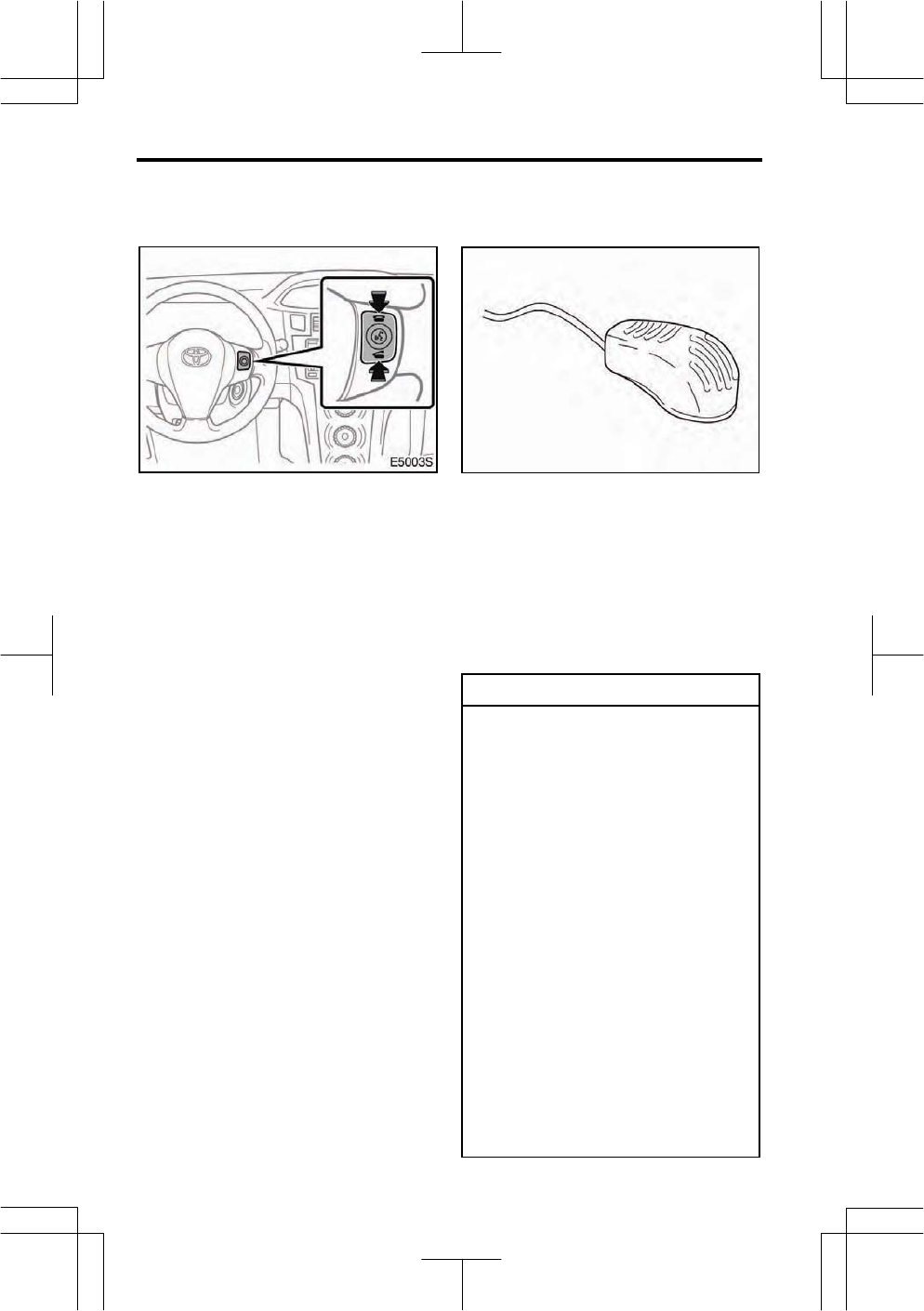

By pushing the telephone switch
above, you can receive a call or hang
up without taking your hands off the
steering wheel.
Depending on the model or grade,
steering wheel switches may not be
available.
Ź Microphone
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
driver’s speaker. When the received
calls or received voice outputs, the audio
from the Audio system or voice guidance
from the navigation system will be
muted.
INFORMATION
zTalk alternately with the other party
on the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
zKeep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
zIn the following situations, your
voice may not reach the other party.
zDriving on unpaved road. (Mak-
ing a traffic noise.)
zDriving at the high speed.
zThe window is open.
zTurning the air-conditioning vents
towards the microphone.
zThe sound of the air-conditioning
fan is loud.
zThe cellular phone network has a
problem.
![](/img.php?id=1116362&img=bg19.png)
OTHER FUNCTIONS
125
V689_E

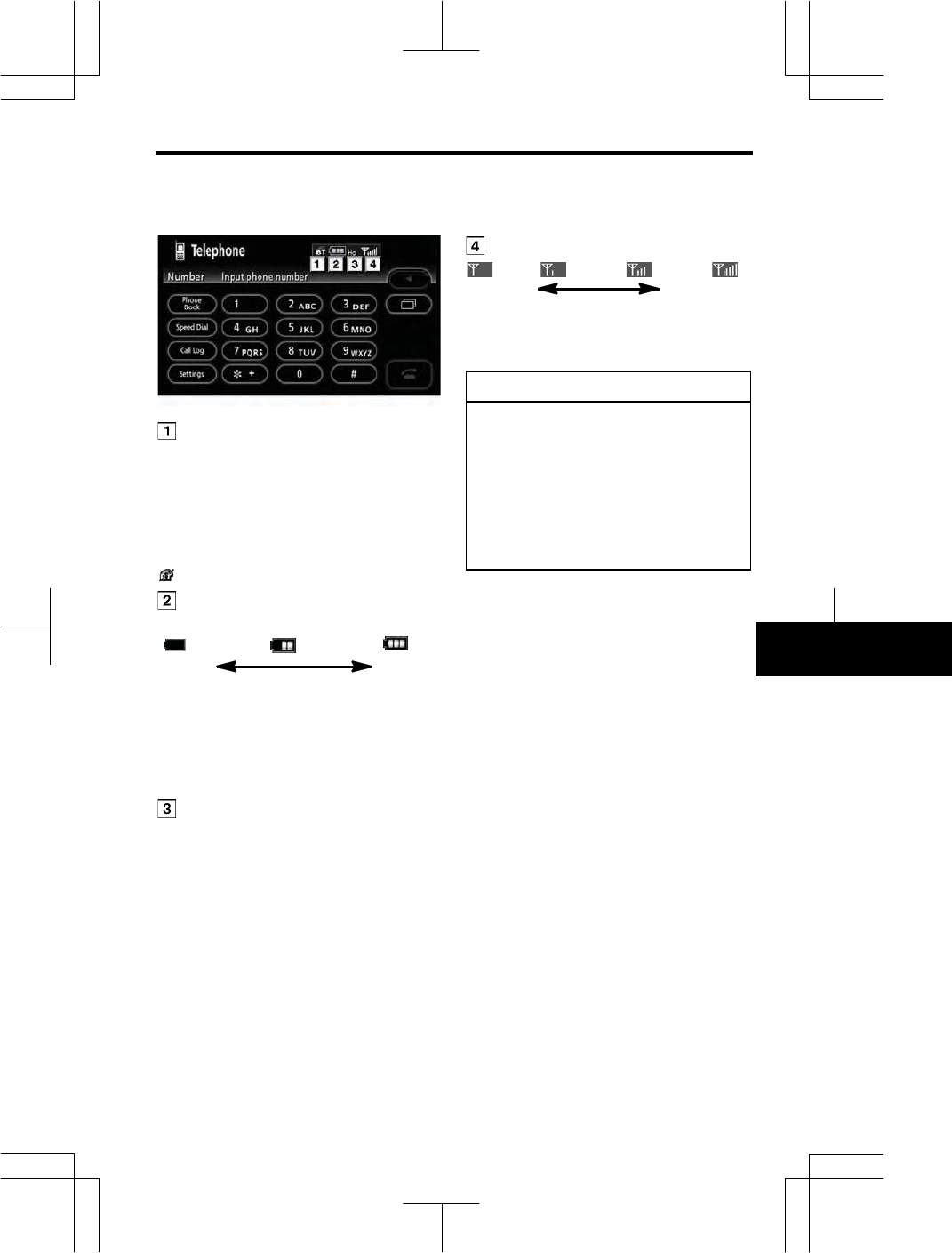

Indicates the condition of the
Bluetooth® connection.
“Blue” indicates an excellent connection
to Bluetooth®.
“Yellow” indicates a bad connection to
Bluetooth®, resulting in possible deterio-
ration of voice quality.
: No connection to Bluetooth®.
Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth®
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
This system doesn’t have a charging
function.
Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Ho” is displayed when receiving in
Home area.
Indicates the level of reception.
Too bad Excellent
The level of reception does not always
correspond with the one of your cellular
phone.
INFORMATION
This system supports the following
service.
zHFP (Hands Free Profile) Ver. 1.0
zOPP (Object Push Profile) Ver. 1.1
If your cellular phone does not sup-
port HFP, you cannot enter the
Bluetooth® phone, and take OPP
service individually.
![](/img.php?id=1116362&img=bg1a.png)
OTHER FUNCTIONS
126
V689_E
An antenna for the Bluetooth® con-
nection is built into the display. The
indication of the Bluetooth® connec-
tion may turn yellow and the system
may not function when you use the
Bluetooth® phone in the following
conditions:
z Your cellular phone is hidden behind
the display (behind the seat or in the
glove box or console box).
z Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth® phone in a place
where the “Blue” indication is displayed.
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
When you release your car:
A lot of personal data is registered
when you use the Hands-free system.

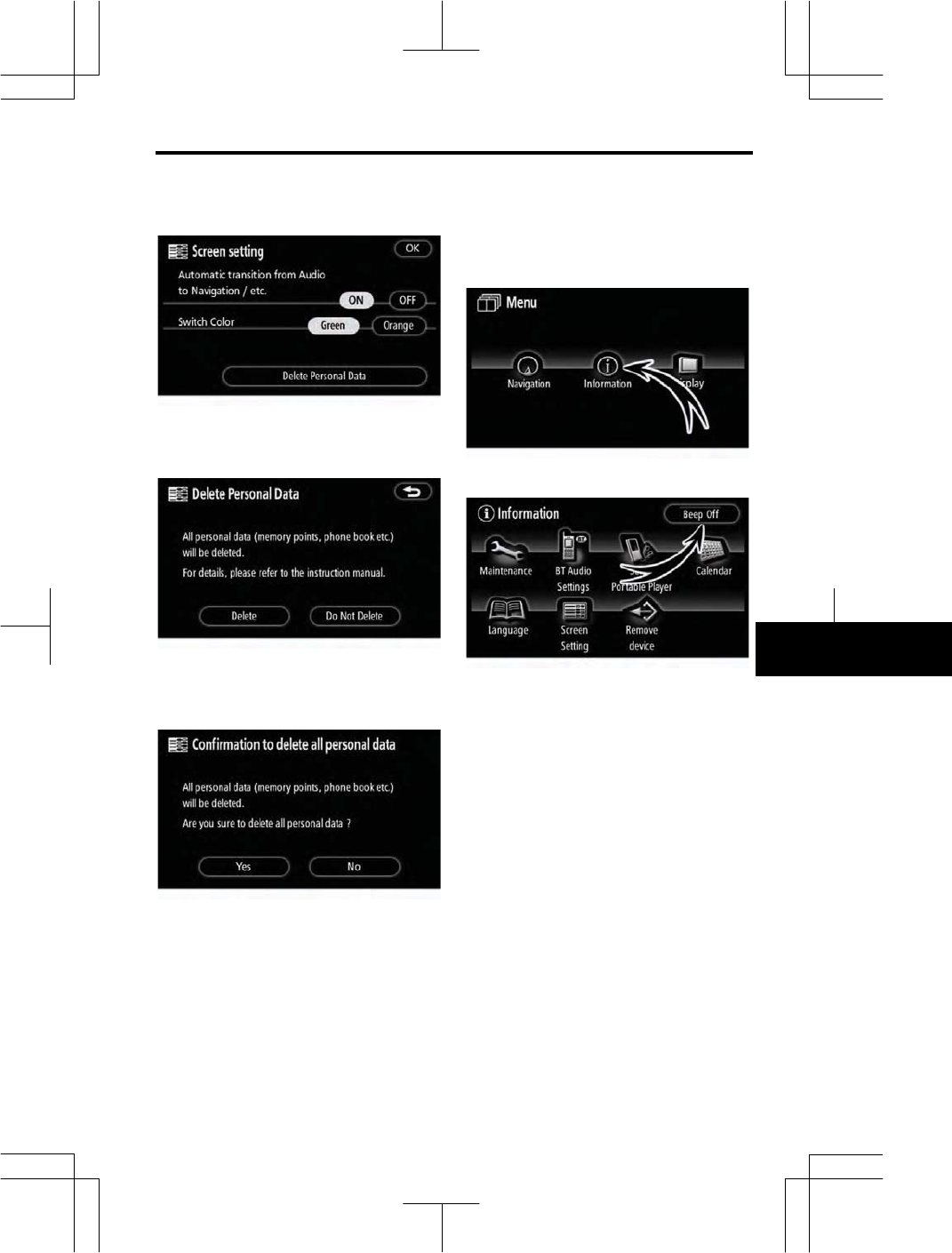

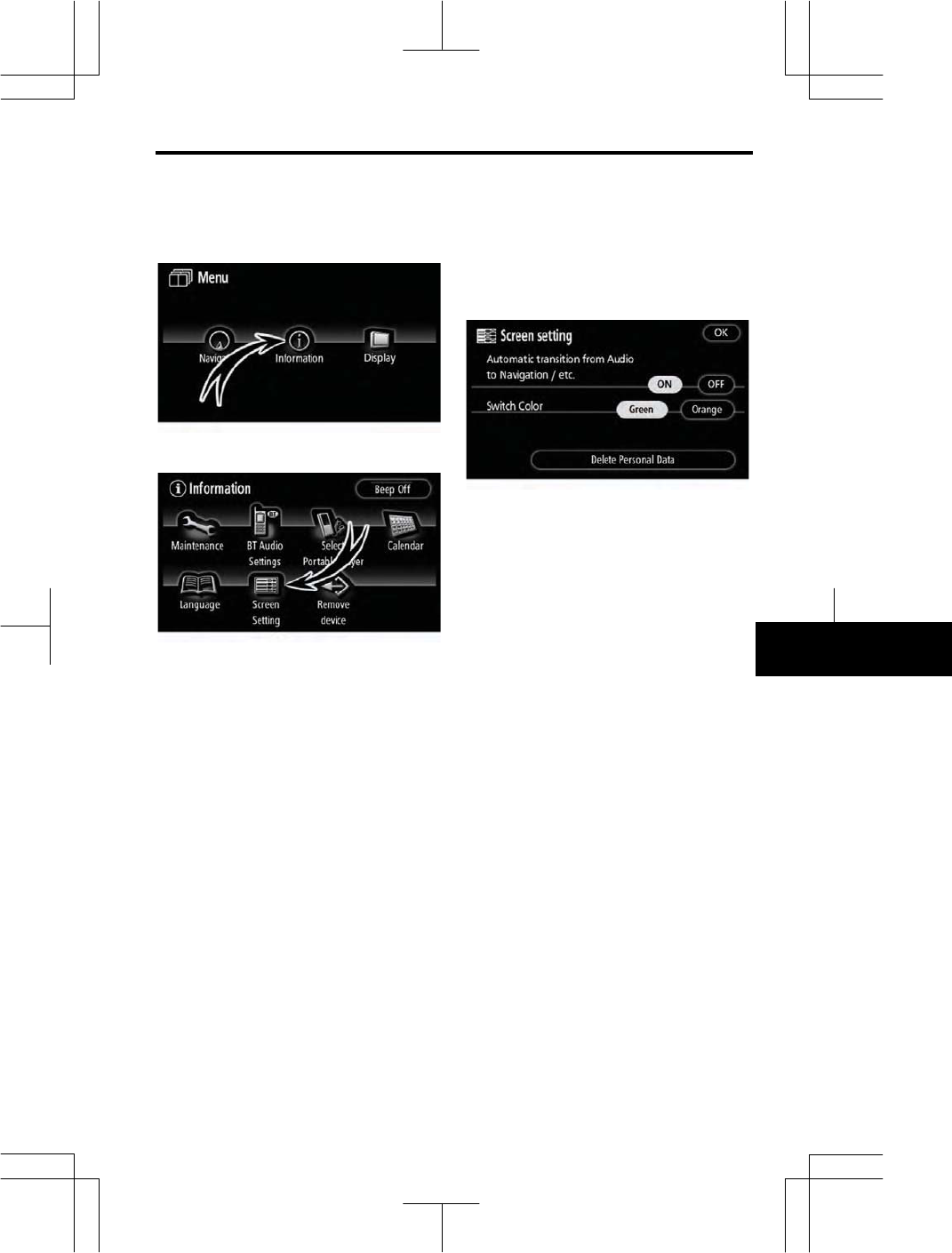

When you release your car, initialize
your data. (See “(c) Delete personal
data” on page 170.)
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in
the system.
z Phone book data
z Dialed numbers and received calls
z Speed dial
z Bluetooth® phone data
z Security code
FCC ID: XEMNA08A01
IC ID: 8192A-NA08A01
MADE IN JAPAN
This device complies with Part 15
of the FCC Rules and RSSí210 of
industry Canada. Operation is sub-
ject to the following two condi-
tions: (1) This device may not
cause harmful interference, and (2)
This device must accept any inter-
ference received, including inter-
ference that may cause undesired
operation.
CAUTION
FCC Warning:
Changes or modifications not ex-
pressly approved by AISIN AW Co.,
Ltd for compliance could void the
user’s authority to operate the
equipment.
![](/img.php?id=1116362&img=bg1b.png)
OTHER FUNCTIONS
127
V689_E
NOTE: This equipment has been
tested and found to comply with the
limits for a Class B digital device, pur-
suant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in accor-
dance with the instructions, may cause
harmful interference to radio commu-
nications. However, there is no guar-
antee that interference will not occur in
a particular installation. If this equip-
ment does cause harmful interference
to radio or television reception, which
can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
íReorient or relocate the receiving an-
tenna.
íIncrease the separation between the
equipment and receiver.
íConnect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
íConsult the dealer or an experienced
radio/TV technician for help.
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and operated
with at least 20 cm and more between
the radiator and person’s body (ex-
cluding extremities: hands, wrists, feet
and legs).
Coílocation: This transmitter must not
be coílocated or operated in conjunc-
tion with any other antenna or trans-
mitter.
![](/img.php?id=1116362&img=bg1c.png)
OTHER FUNCTIONS
128
V689_E

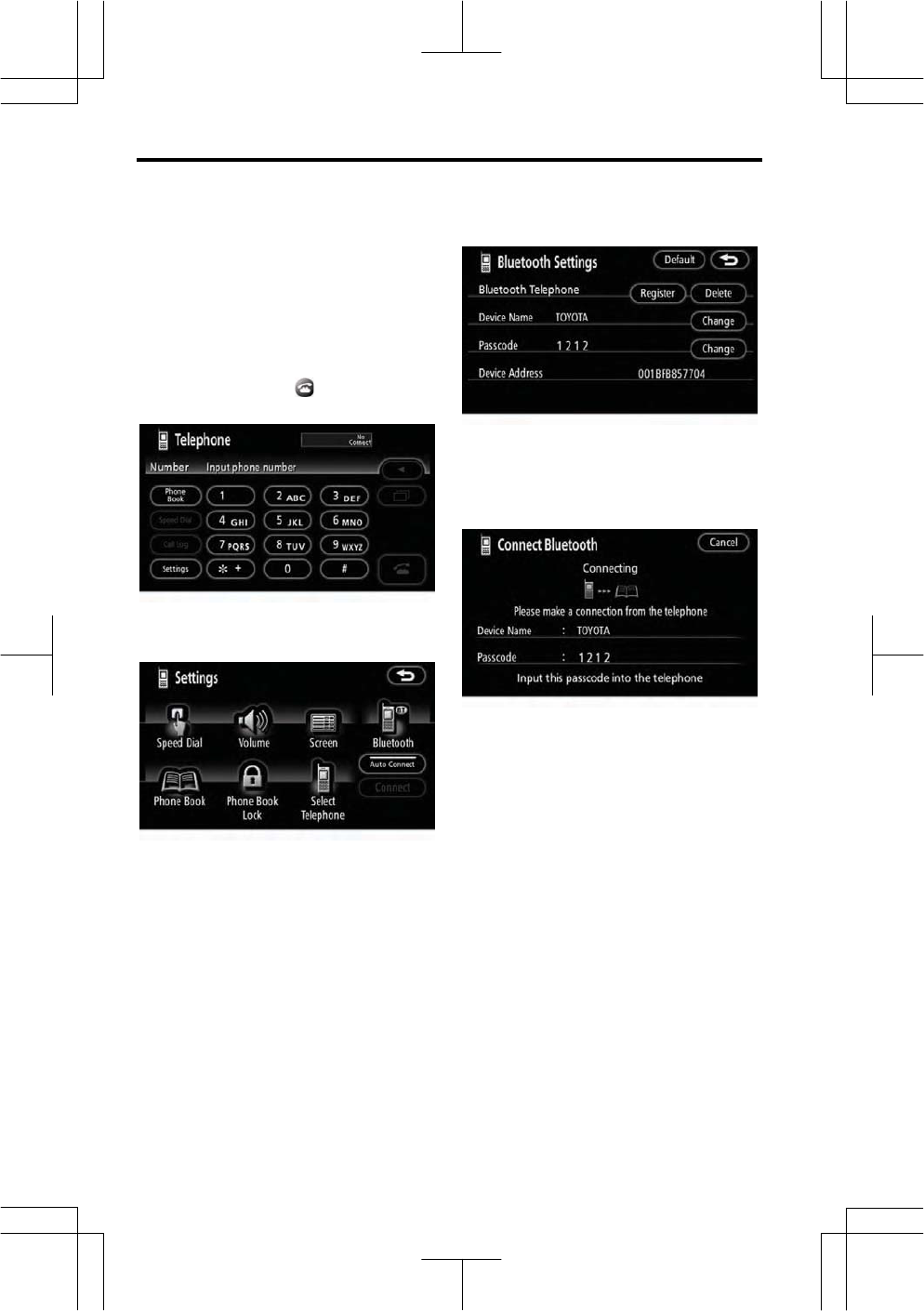

To use the hands-free system, you
need to enter your phone into the
system. Once you have registered it,
you can make a hands-free call.

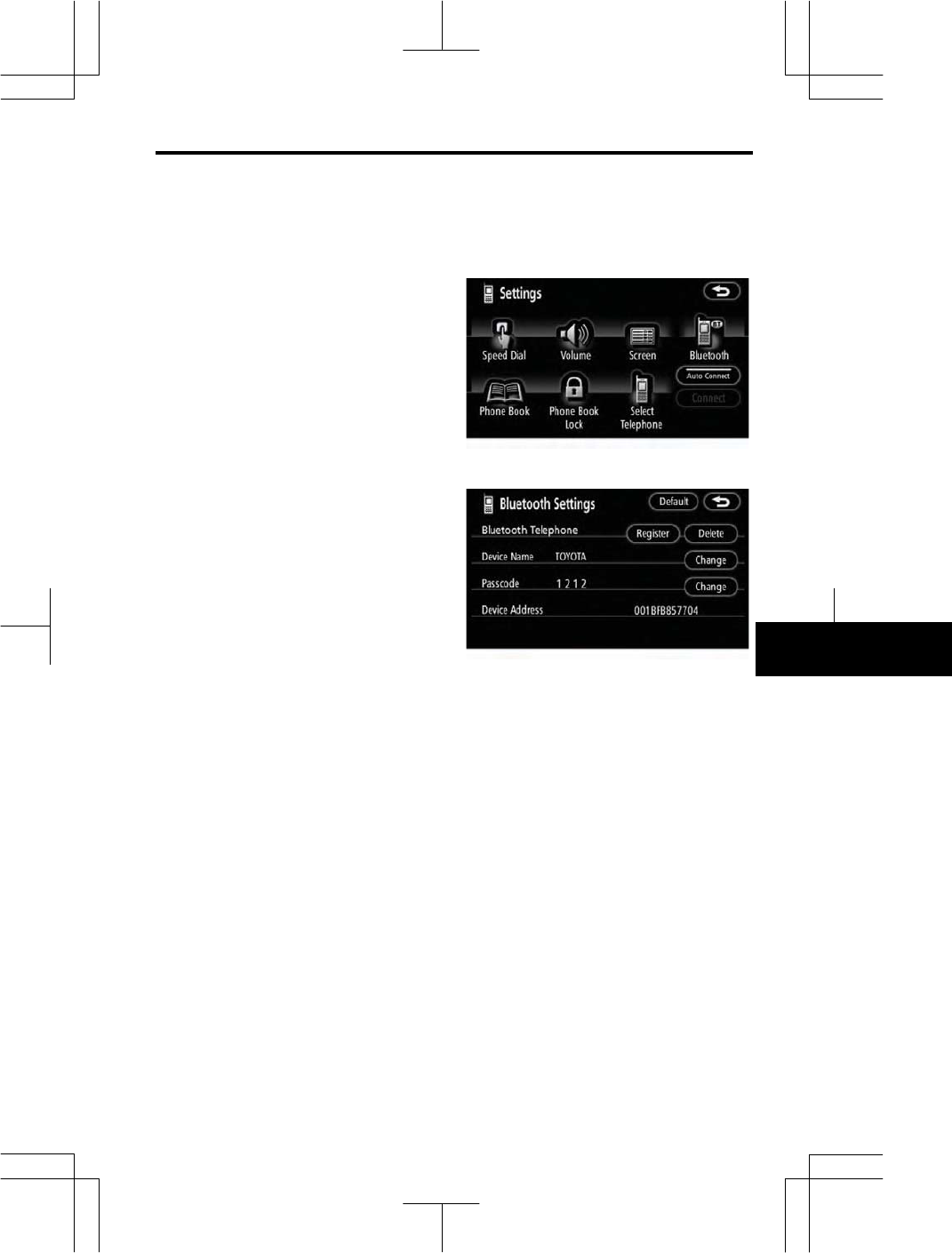

1. Push the “TEL” button to display
the “Telephone” screen.
You can also push of the steering
wheel to display this screen.
2. Touch “Settings” to display “Set-
tings” screen.
3. Touch “Bluetooth” to display the
“Bluetooth Settings” screen.
4. Touch “Register” to connect your
cellular phone to the system.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
5. When this screen is displayed,
input the passcode displayed on the
screen into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
— Enter a Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg1d.png)
OTHER FUNCTIONS
129
V689_E

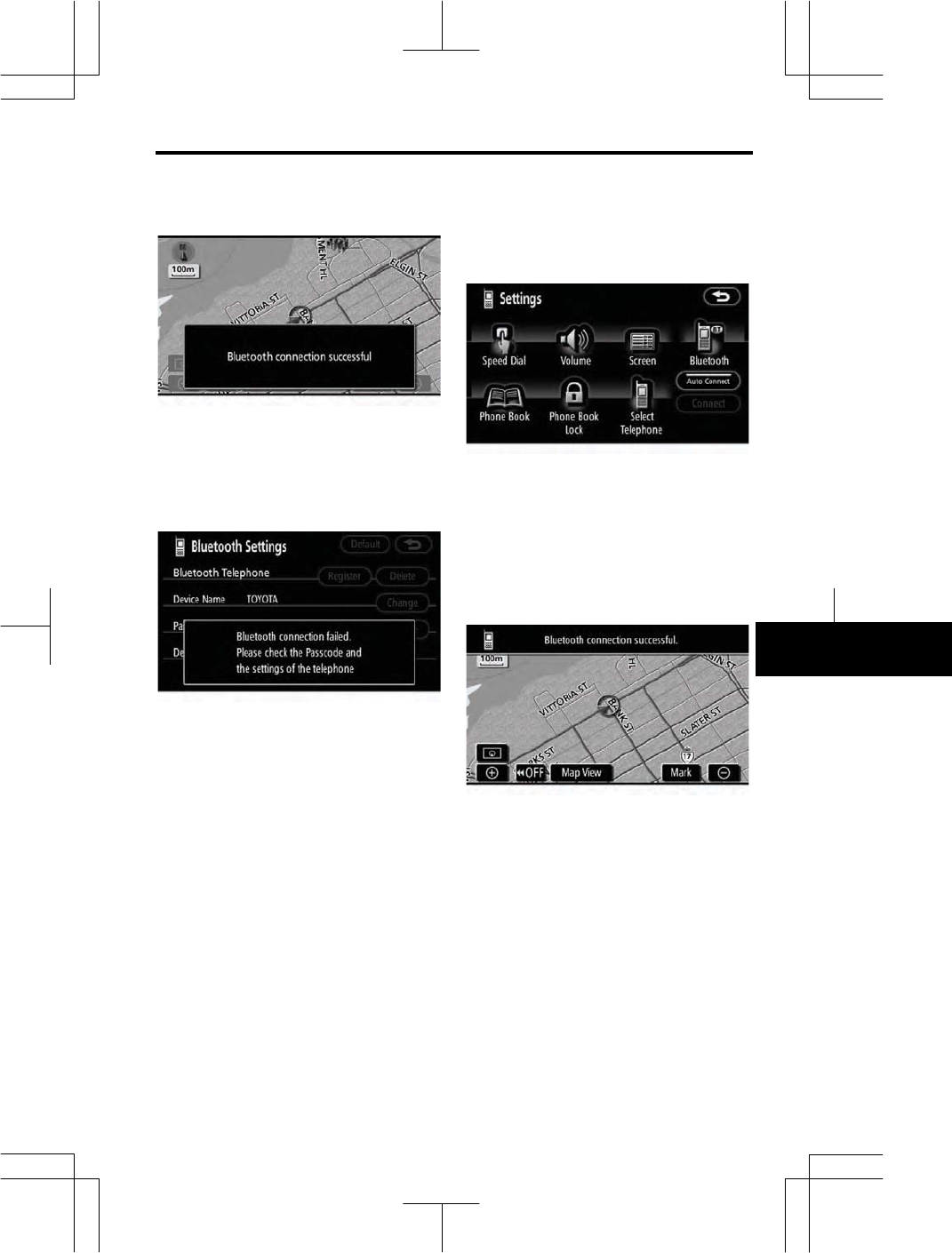

6. When the connection is com-
pleted, this screen is displayed.
You do not need to enter the phone in
case of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.
z Connecting a Bluetooth® phone
AUTOMATICALLY
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth® phone in a condition
where connection can be established.

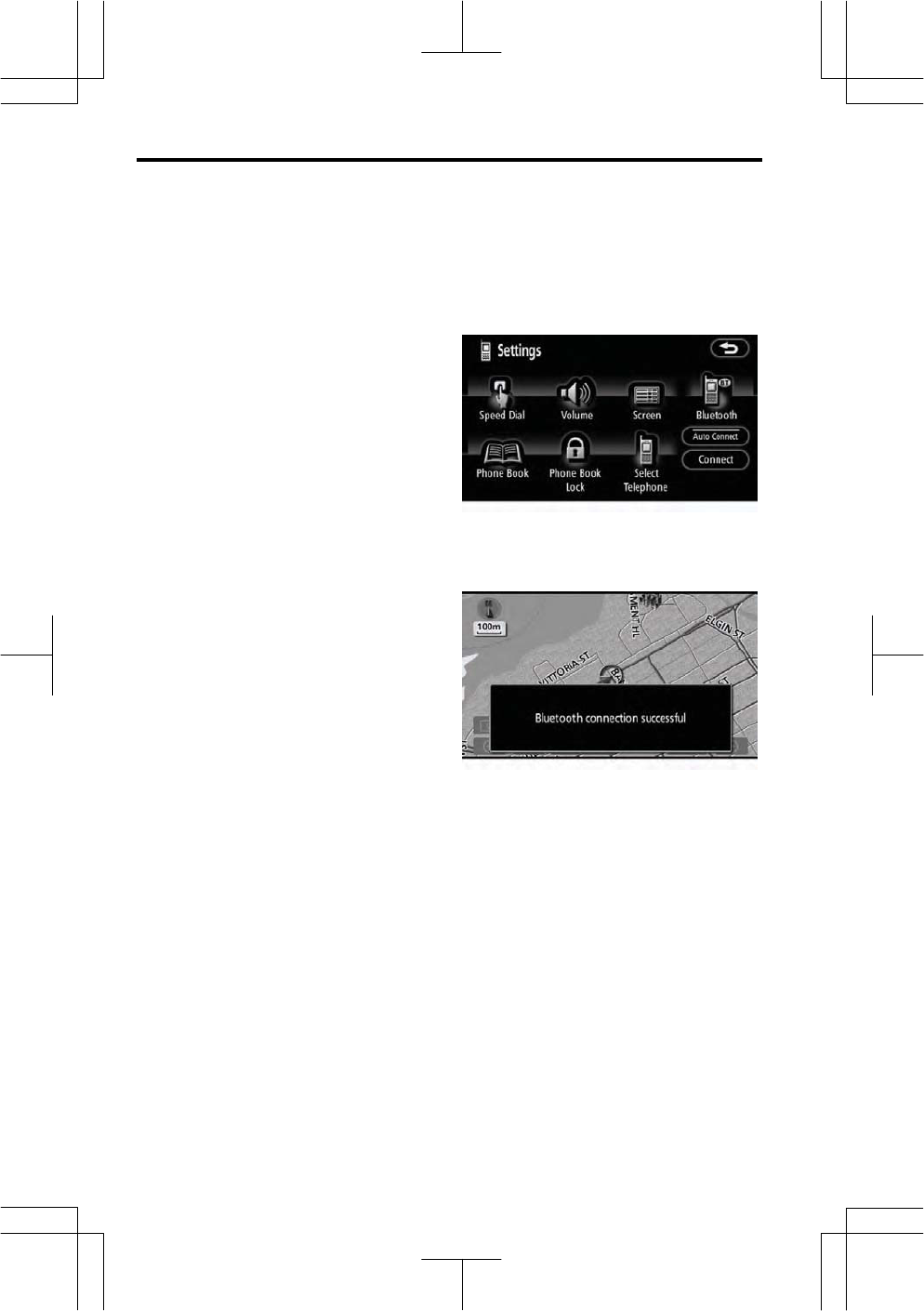

Each time you touch “Auto Connect”,
auto connection will be switched on or
off.
Vehicles with smart entry and start sys-
tem—
When the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode, the selected
Bluetooth® phone will be automati-
cally connected and the connection
result is displayed.
This screen appears when the Blue-
tooth® phone is first connected after the
“ENGINE START STOP” switch is turned
to the ACCESSORY or IGNITION ON
mode.
![](/img.php?id=1116362&img=bg1e.png)
OTHER FUNCTIONS
130
V689_E
Vehicles without smart entry and start
system—
When the engine switch is in ACC or
ON position, the selected Bluetooth®
phone will be automatically con-
nected and the connection result is
displayed.
This screen appears when the Blue-
tooth®phone is first connected after the
engine switch is in ACC or ON position.
MANUALLY
When the auto connection failed or
turned off, you have to connect Blue-
tooth® manually.
Touch “Connect” after having en-
abled the Bluetooth® connection on
the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth® phone.
![](/img.php?id=1116362&img=bg1f.png)
OTHER FUNCTIONS
131
V689_E
z Reconnecting the Bluetooth®
phone
Vehicles with smart entry and start sys-
tem—
If the Bluetooth® phone is discon-
nected with a poor reception from the
Bluetooth® network when the
“ENGINE START STOP” switch is in
the ACCESSORY or IGNITION ON
mode, the system automatically re-
connects the Bluetooth® phone. In
this case, the connection result is not
displayed.
If the Bluetooth® is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Re-
connect it by the following methods.
z Select the Bluetooth® phone again.
z Enter the Bluetooth® phone.
Vehicles without smart entry and start
system—
If the Bluetooth®phone is discon-
nected with a poor reception from the
Bluetooth®network when the engine
switch is in ACC or ON position, the
system automatically reconnects the
Bluetooth® phone. In this case, the
connection result is not displayed.
If the Bluetooth®is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Re-
connect it by the following methods.
z Select the Bluetooth® phone again.
z Enter the Bluetooth® phone.
After you enter the Bluetooth® phone,
you can call by using hands-free sys-
tem. You can call using the 6 meth-
ods described below.

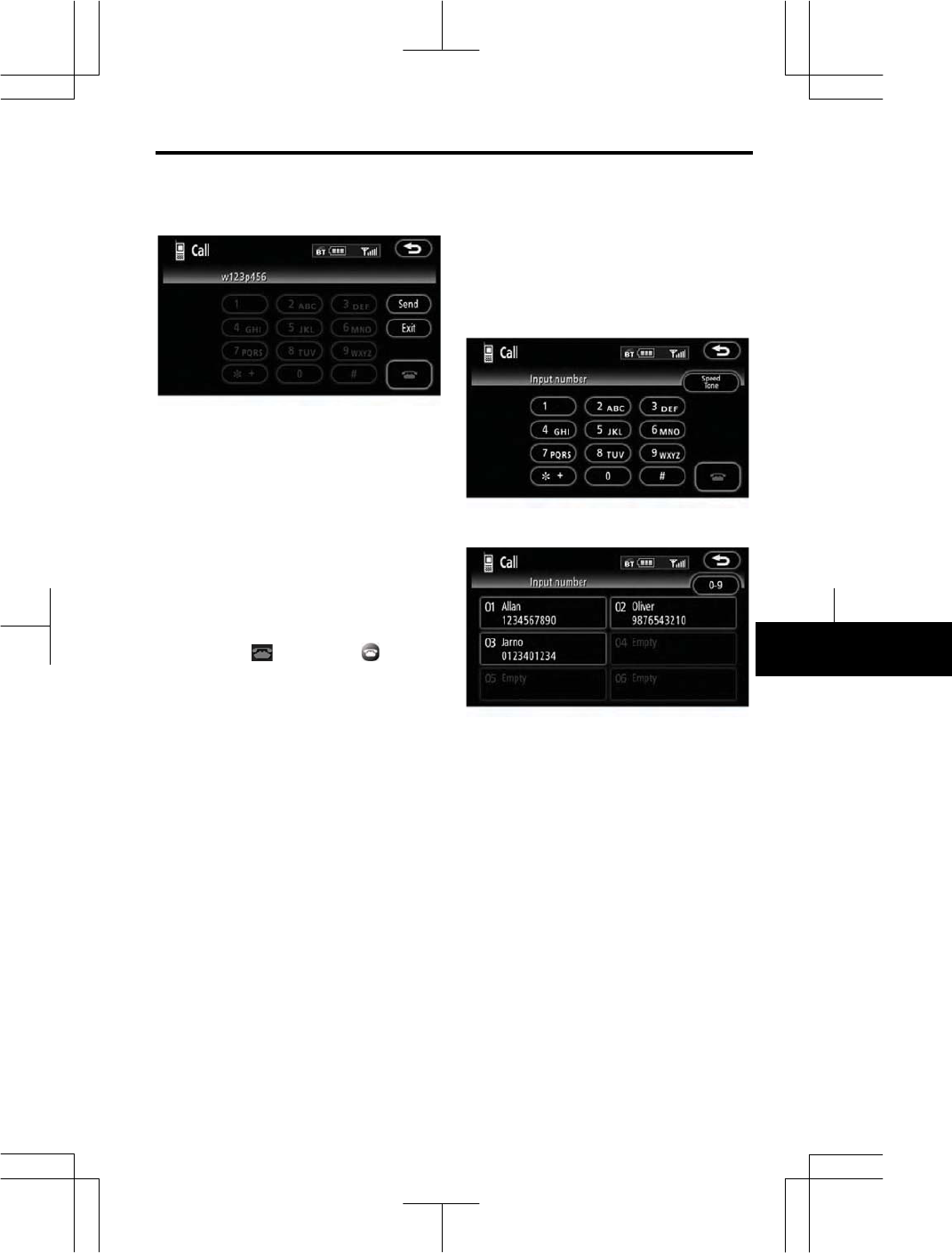

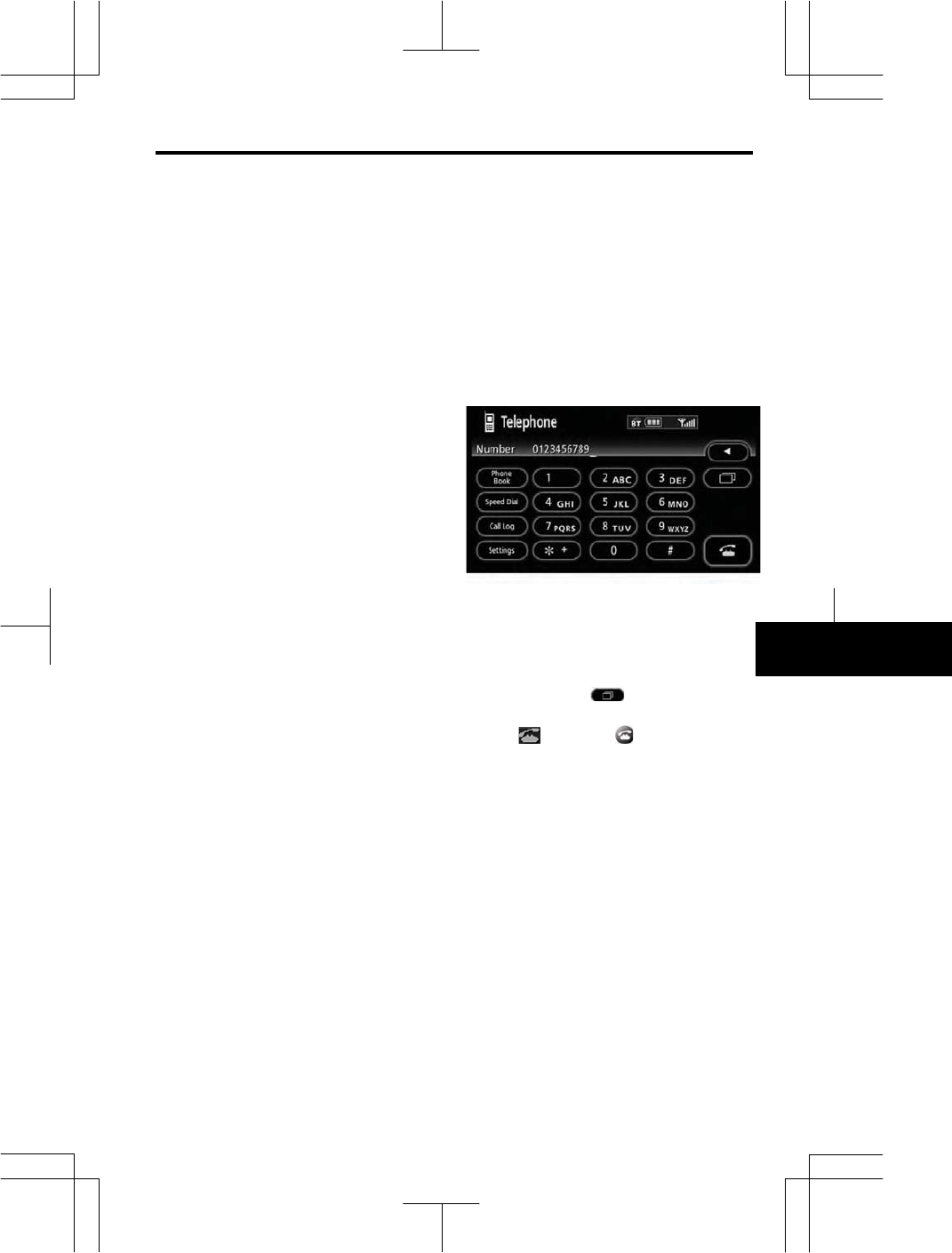

z By dial
You can call by inputting the tele-
phone number.
This cannot be operated while driving.
Touch the desired key to input the
telephone number.
Each time you touch Ż, an inputted digit
is deleted.
When you touch , the number you
called last is inputted.
Touch or push of the steering
wheel.
— Call on the Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg20.png)
OTHER FUNCTIONS
132
V689_E

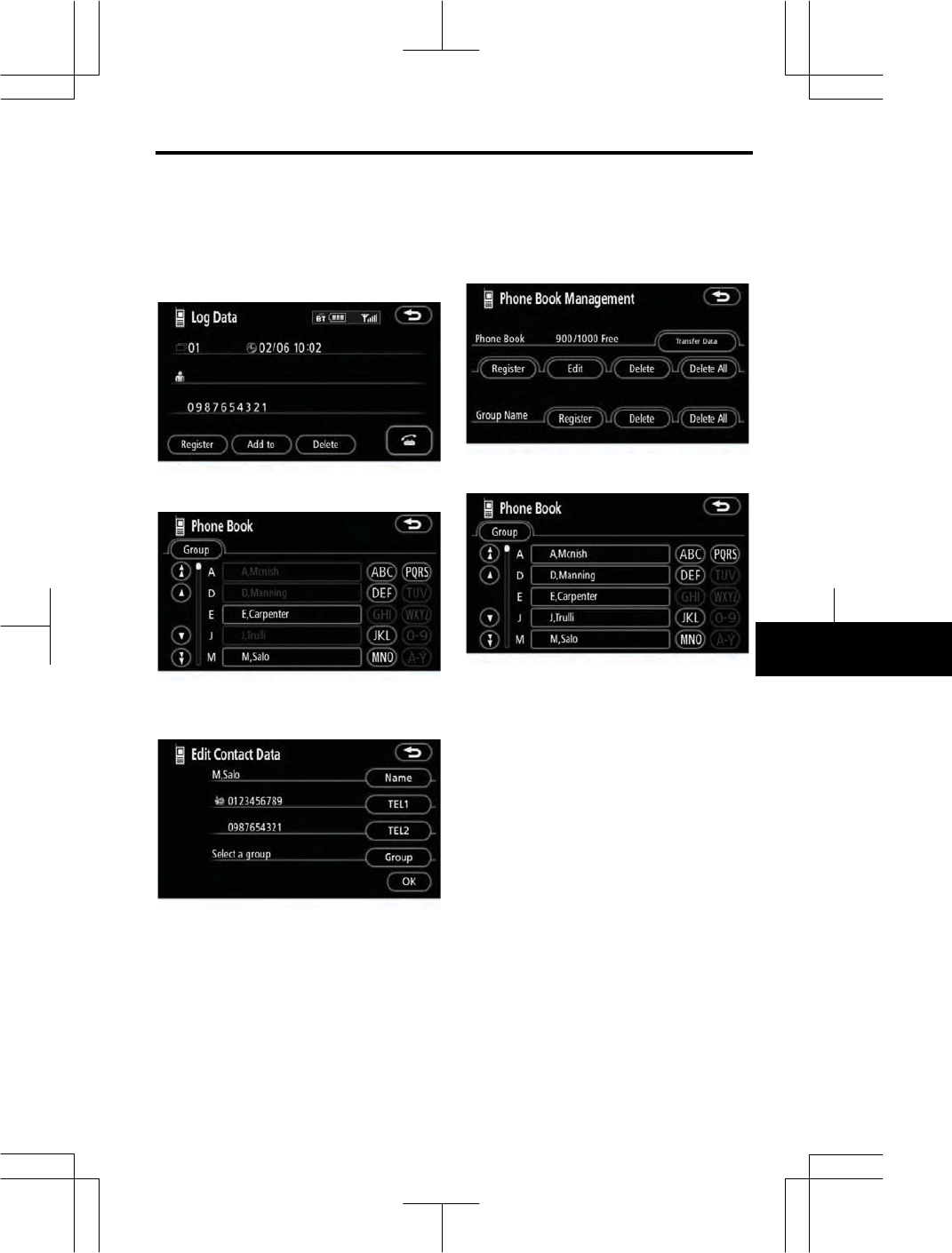

z By phone book
You can call by phone book data
which is transferred from your cellular
phone.
The system has one phone book.
You can register up to 1000 numbers.
This cannot be operated while driving.
1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select the desired number from
the list.
Touch or push of the steering
wheel.

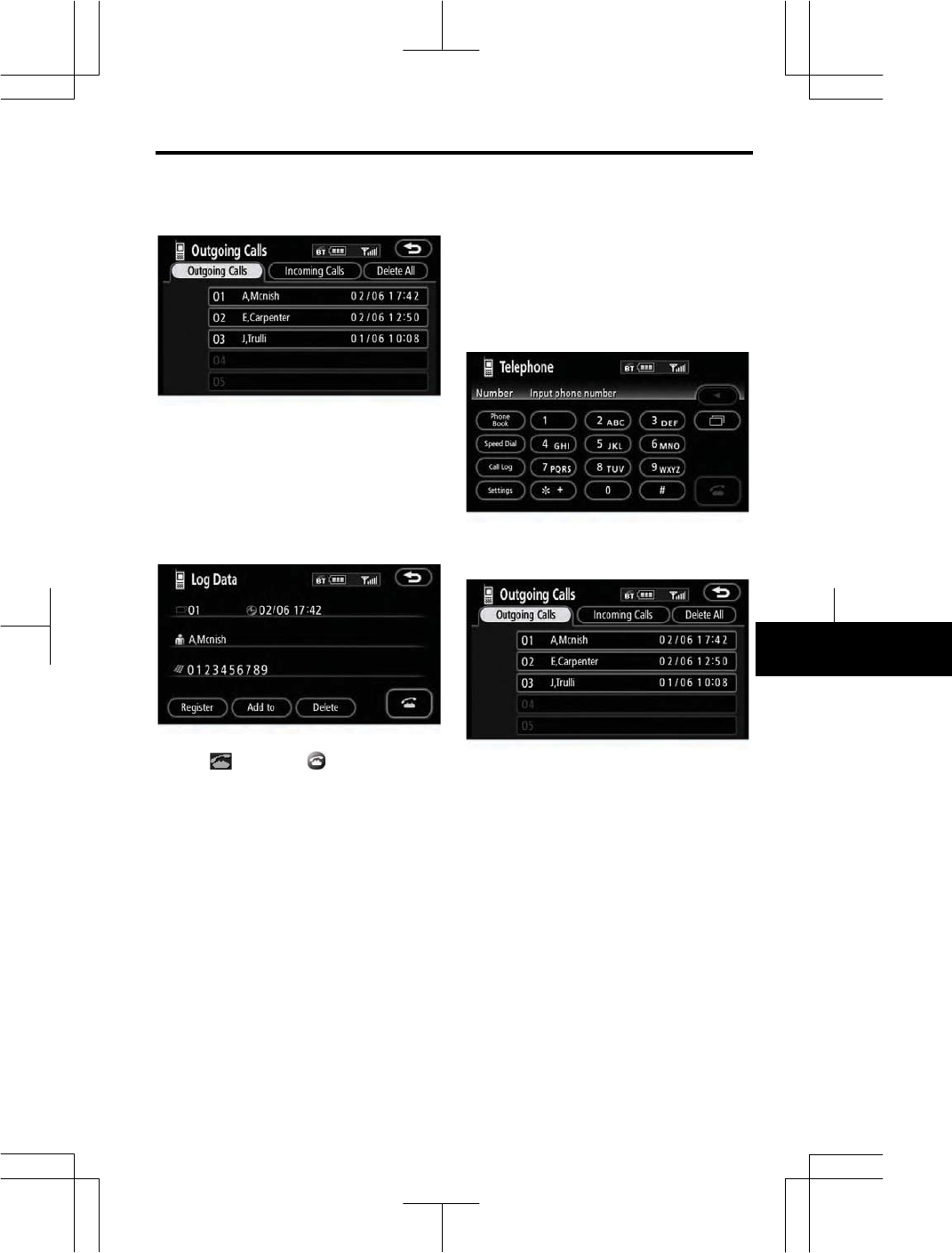

z By dialed numbers
You can call by dialed number. The
system memorizes up to 5 dialed
numbers. If it is more than 5, the
oldest number is deleted.
This cannot be operated while driving.

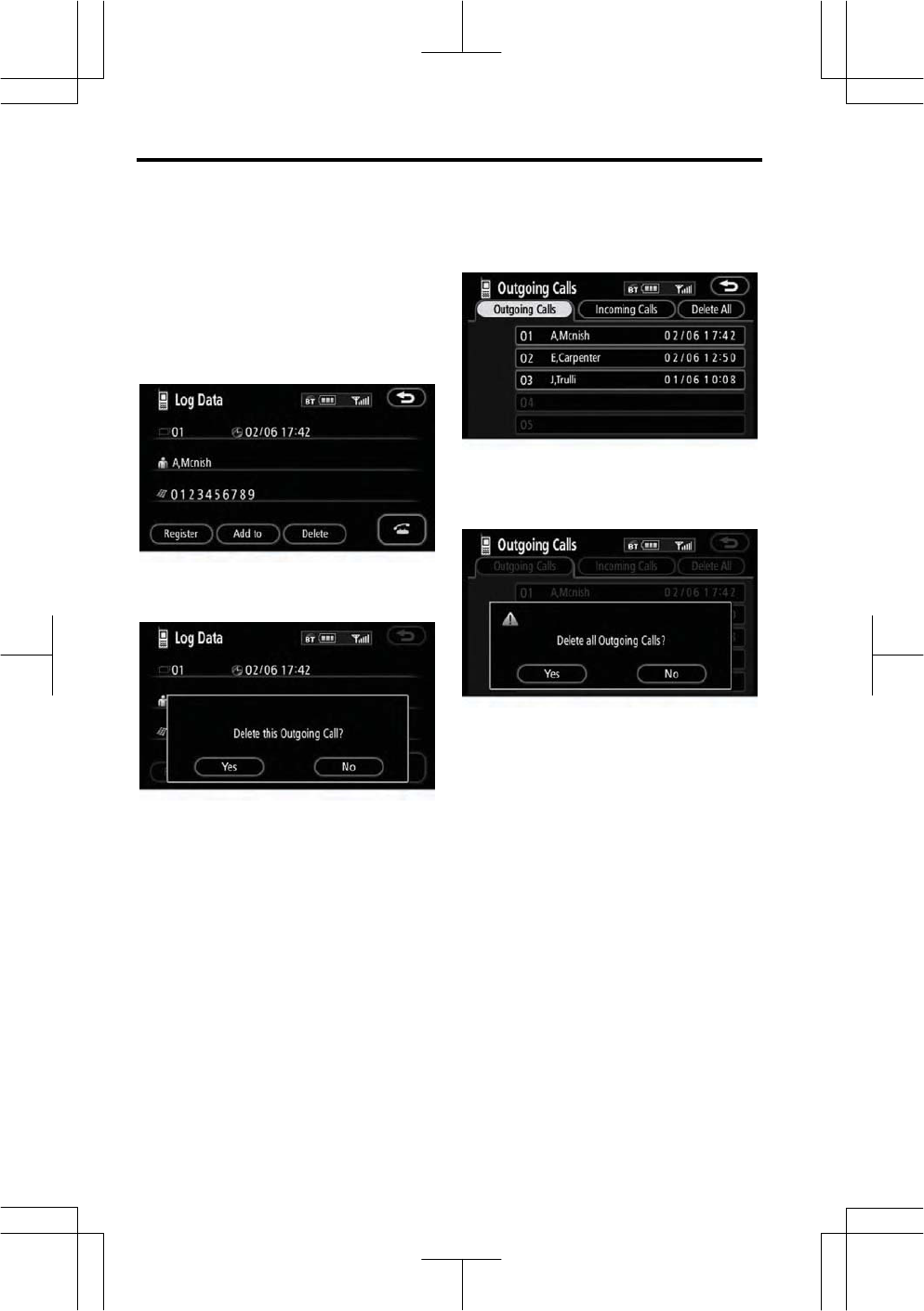

1. Touch “Call Log” to display
“Outgoing Calls” screen.
![](/img.php?id=1116362&img=bg21.png)
OTHER FUNCTIONS
133
V689_E
z When you call by phone book, the
name (if registered) is displayed.
z When you call the same number
continuously, only the newest num-
ber is registered.
2. Select the desired number from
the list.
Touch or push of the steering
wheel.

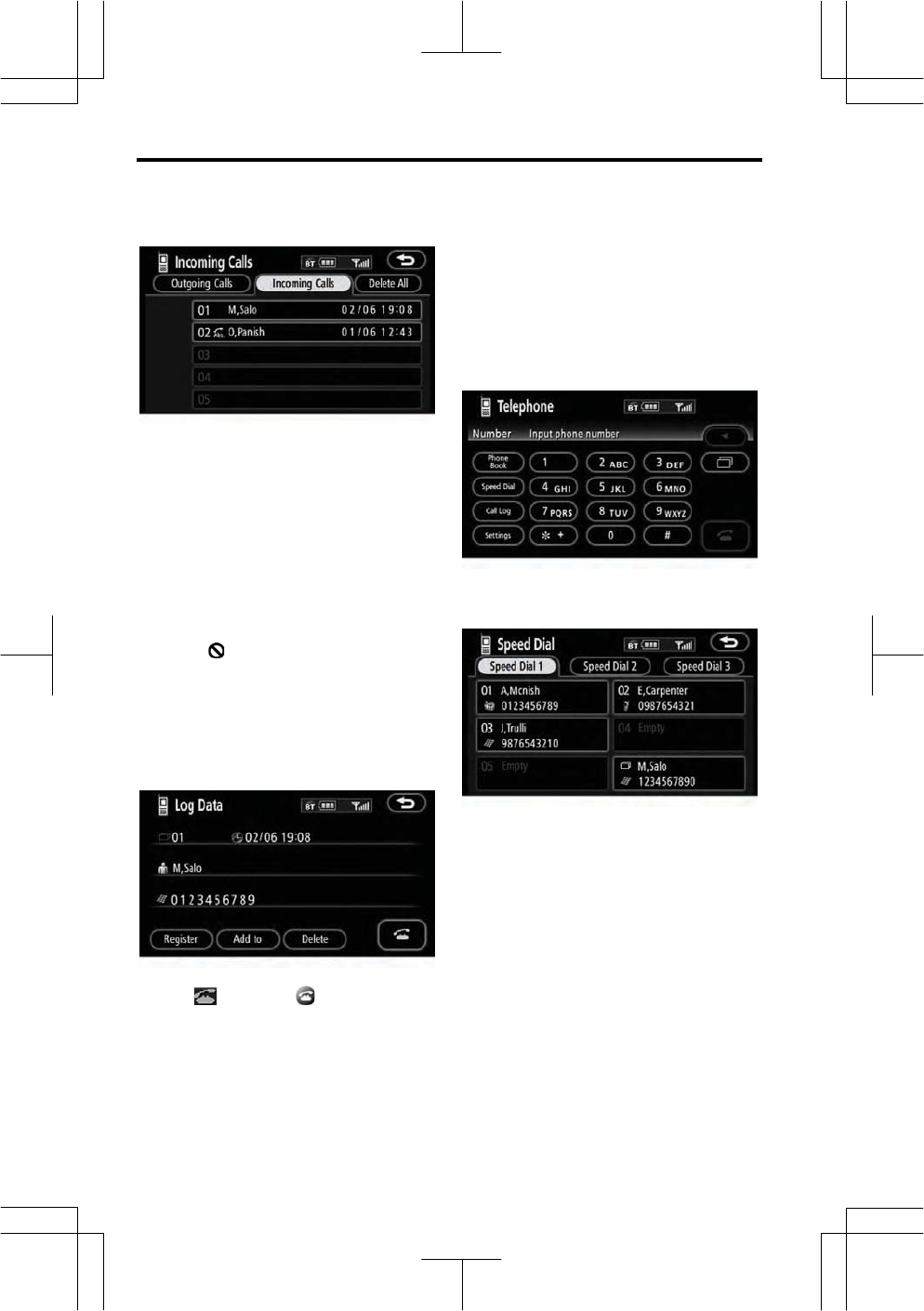

z By received calls
You can call by received calls. When
a call is received, the system memo-
rizes up to 5 numbers. If it is more
than 5, the oldest number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display the
“Outgoing Calls” screen.
2. Touch “Incoming Calls” to display
the “Incoming Calls” screen.
![](/img.php?id=1116362&img=bg22.png)
OTHER FUNCTIONS
134
V689_E
z When a telephone number regis-
tered in the phone book is received,
the name and the number are dis-
played.
z Received calls which you did not
answer are also memorized in the
system and “Abs.” is displayed on
the left side of the number.
z Received calls which you refused
are also memorized in the system
and “ ” is displayed on the left side
of the number.
z Unnoticed telephone number such
as a public telephone is not memo-
rized in the system.
3. Select the desired number from
the list.
Touch or push of the steering
wheel.
z An international phone call may not
be made depending on the cellular
phone which you have.
z By speed dial
You can call by registered telephone
number which you selected from a
phone book, dialed numbers and re-
ceived calls. (See “(a) Registering
the speed dial” on page 134 for regis-
tering the speed dial.)
1. Touch “Speed Dial” to display
“Speed Dial” screen.
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3”.
When you push the telephone button
while driving, the screen above appears.
Touch the desired name to call. (The
telephone number is not displayed.)
![](/img.php?id=1116362&img=bg23.png)
OTHER FUNCTIONS
135
V689_E

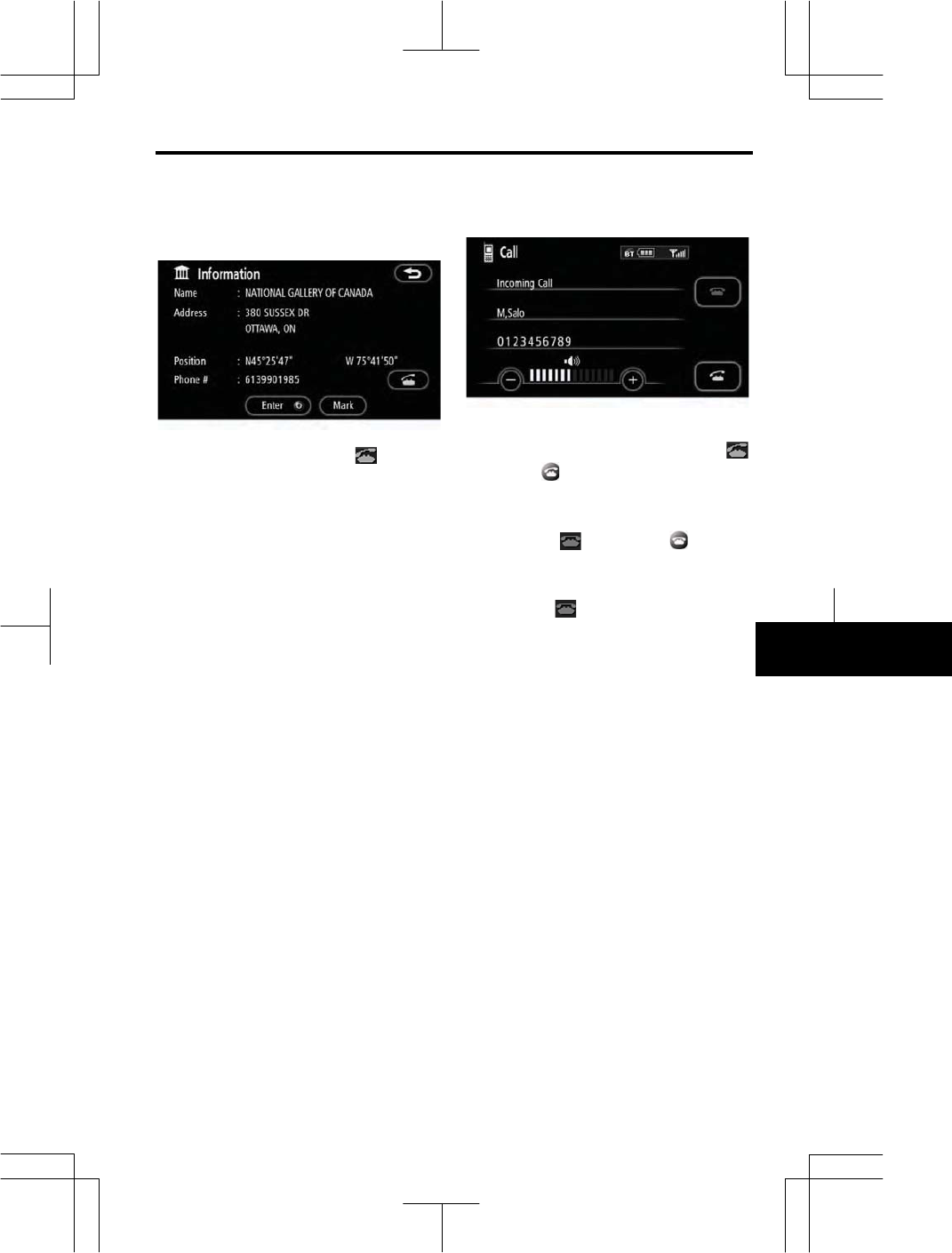

z By POI call
You can call by touching when it
is displayed on the screen from navi-
gation system. (See page 31 for de-
tails.)
When a call is received, this screen is
displayed with a sound. Touch
or push of the steering wheel to
talk on the phone.
To hang up the phone:
Touch or push of the
steering wheel again.
To refuse to receive the call:
Touch and hold it.
To adjust the volume of received call:
Touch “–” or “+” or use the vol-
ume switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
— Receive on the
Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg24.png)
OTHER FUNCTIONS
136
V689_E
While you are talking on the phone,
this screen is displayed. You can do
the operation below on the screen.
To adjust the volume of the other party’s
voice:
Touch “–” or “+” or use the vol-
ume switch of the steering wheel.
To hang up the phone:
Touch or push of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “0-9”.
To transfer the call:
Touch “Transfer Call”.
You cannot change from Handsífree call
to cellular phone call while driving.
When you change from cellular phone
call to Hands-free call, the Hands-free
screen will be displayed and you can
operate it on the screen.
Transferring method and behavior are
different depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone.
Touch the desired number to input the
key.
To hang up the phone:
Touch or push of the
steering wheel.
This cannot be operated while driving.
— Talk on the Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg25.png)
OTHER FUNCTIONS
137
V689_E
If the continuous tone signal is regis-
tered in a phone book, this screen
appears. (If not registered, “Send”
and “Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The num-
ber before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch or push of the
steering wheel.
The continuous tone signal is the marked
sign (p or w) and the number following
telephone number.
(ex. 056133w0123p#1
You can do this operation when you
want to operate an answering machine
or use a telephone service in bank for
example. You can register the phone
number and the code number in the
phone book.
z Sending a tone by the speed tone
You can send a tone by the speed
tone. (For registering the speed tone,
see “(b) Registering the speed tone”
on page 140.)
1. Touch “Speed Tone”.
2. Touch the desired touch screen
button to send a tone.
![](/img.php?id=1116362&img=bg26.png)
OTHER FUNCTIONS
138
V689_E

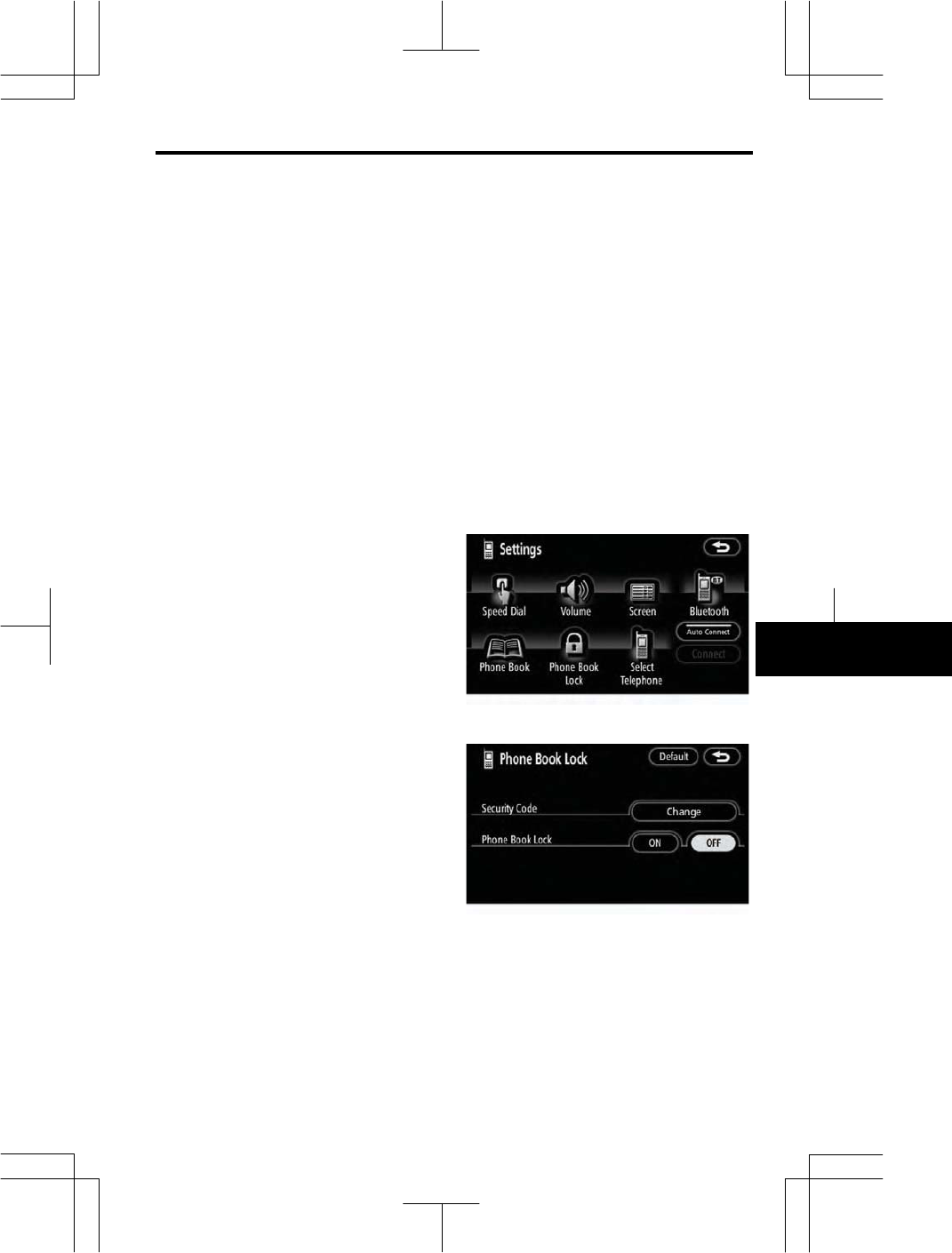

Touch “Settings” to display “Set-
tings” screen.
You can change the settings of the
phone.

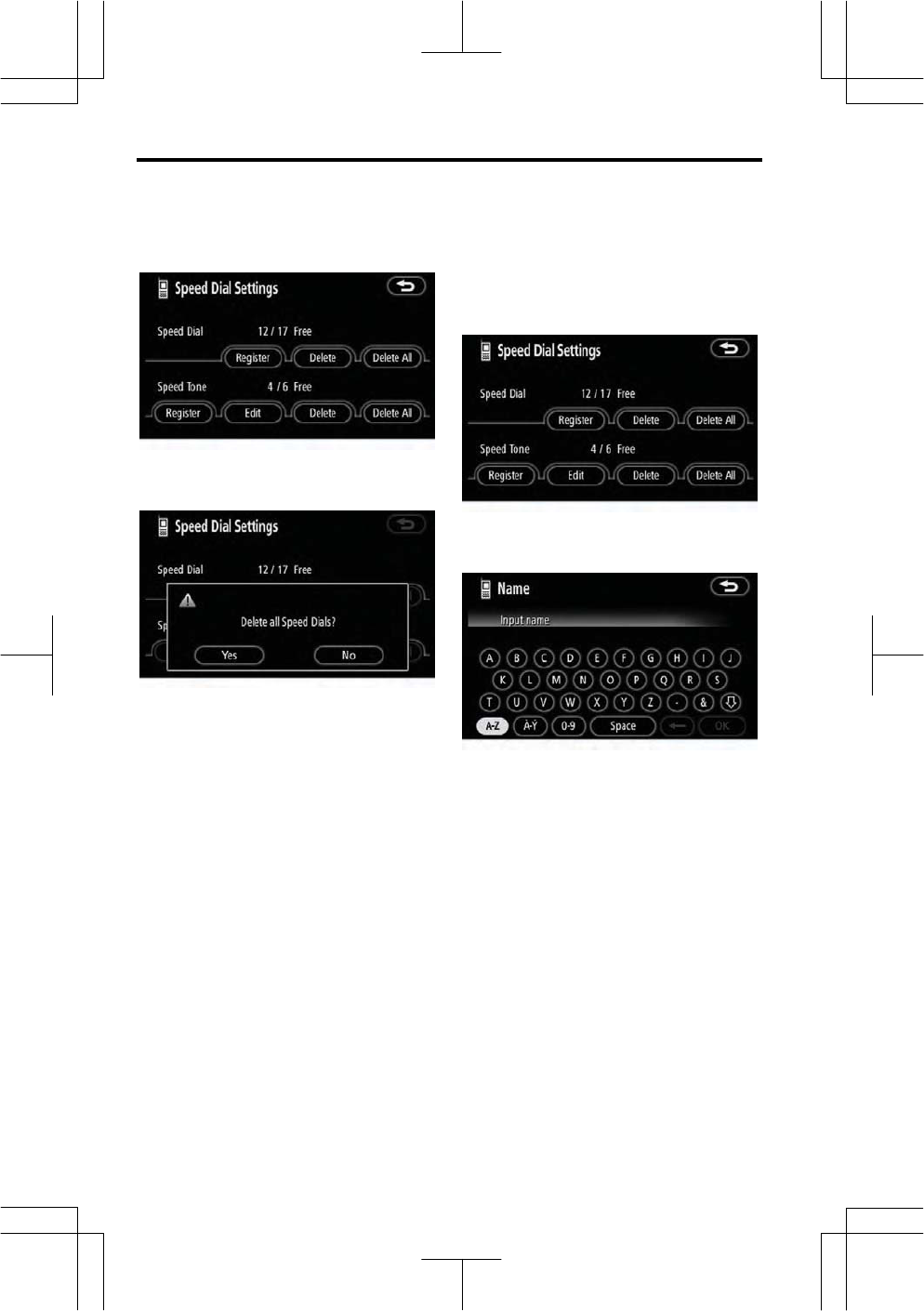

(a) Registering the speed dial
You can register the desired tele-
phone number from phone book, di-
aled numbers and received calls. Up
to 17 speed dial numbers can be reg-
istered.
The 6th entry is the speed dial for redial-
ing.
1. Touch “Speed Dial” to display the
“Speed Dial Settings” screen.
2. Touch “Register” of “Speed Dial”.
3. Select the data you want to regis-
ter.
— Change the settings of
the Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg27.png)
OTHER FUNCTIONS
139
V689_E

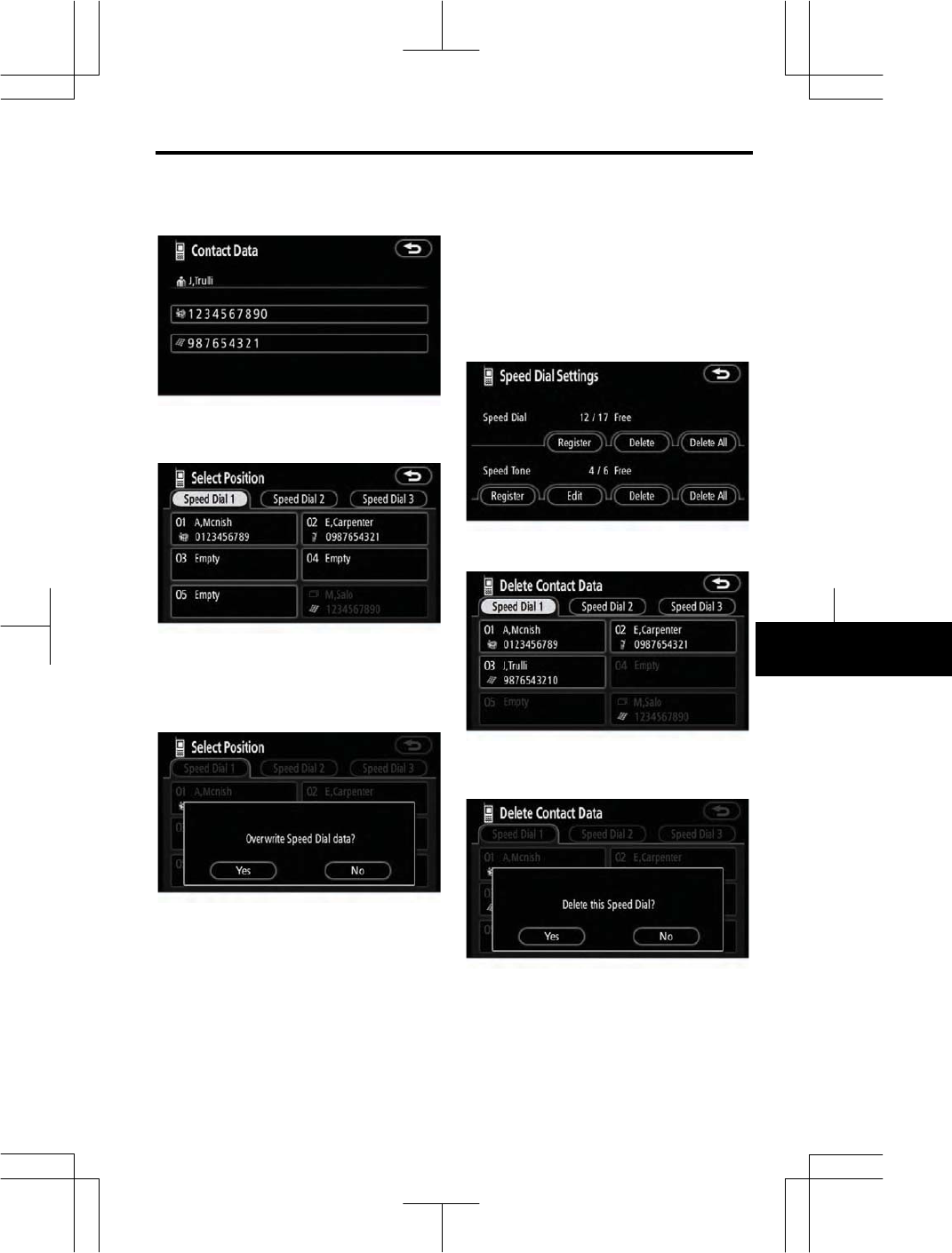

4. Touch the desired telephone
number.
5. Touch the touch screen button
you want to register in.
The latest dialed number is registered in
the 6th item (speed redial).
If you select a touch screen button
you registered before, this screen is
displayed.
6. Touch “Yes” if you want to over-
write it.
z Deleting the speed dial individu-
ally
You can delete “01” - “17” of the
speed dial individually.
If you delete them all at once, all of 17
numbers are deleted.
1. Touch “Delete” of “Speed Dial”.
2. Touch the touch screen button
you want to delete.
3. Touch “Yes”.
![](/img.php?id=1116362&img=bg28.png)
OTHER FUNCTIONS
140
V689_E

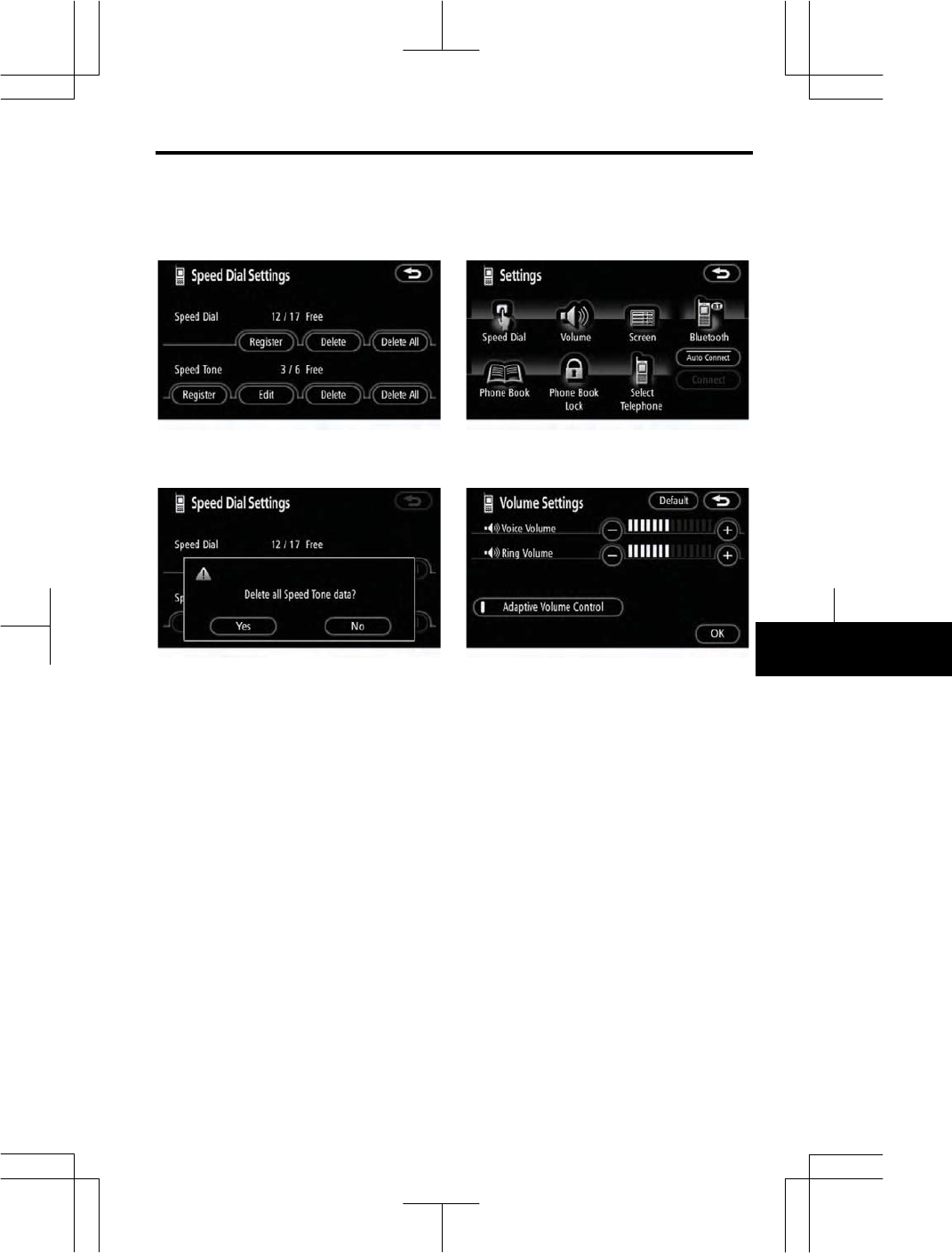

z Deleting all of the speed dial
1. Touch “Delete All” of “Speed
Dial”.
2. Touch “Yes”.
(b) Registering the speed tone
You can register the desired tone
number. Up to 6 speed tone numbers
can be registered.
1. Touch “Register” of “Speed
Tone”.
2. Use the software keyboard to in-
put the name.
![](/img.php?id=1116362&img=bg29.png)
OTHER FUNCTIONS
141
V689_E

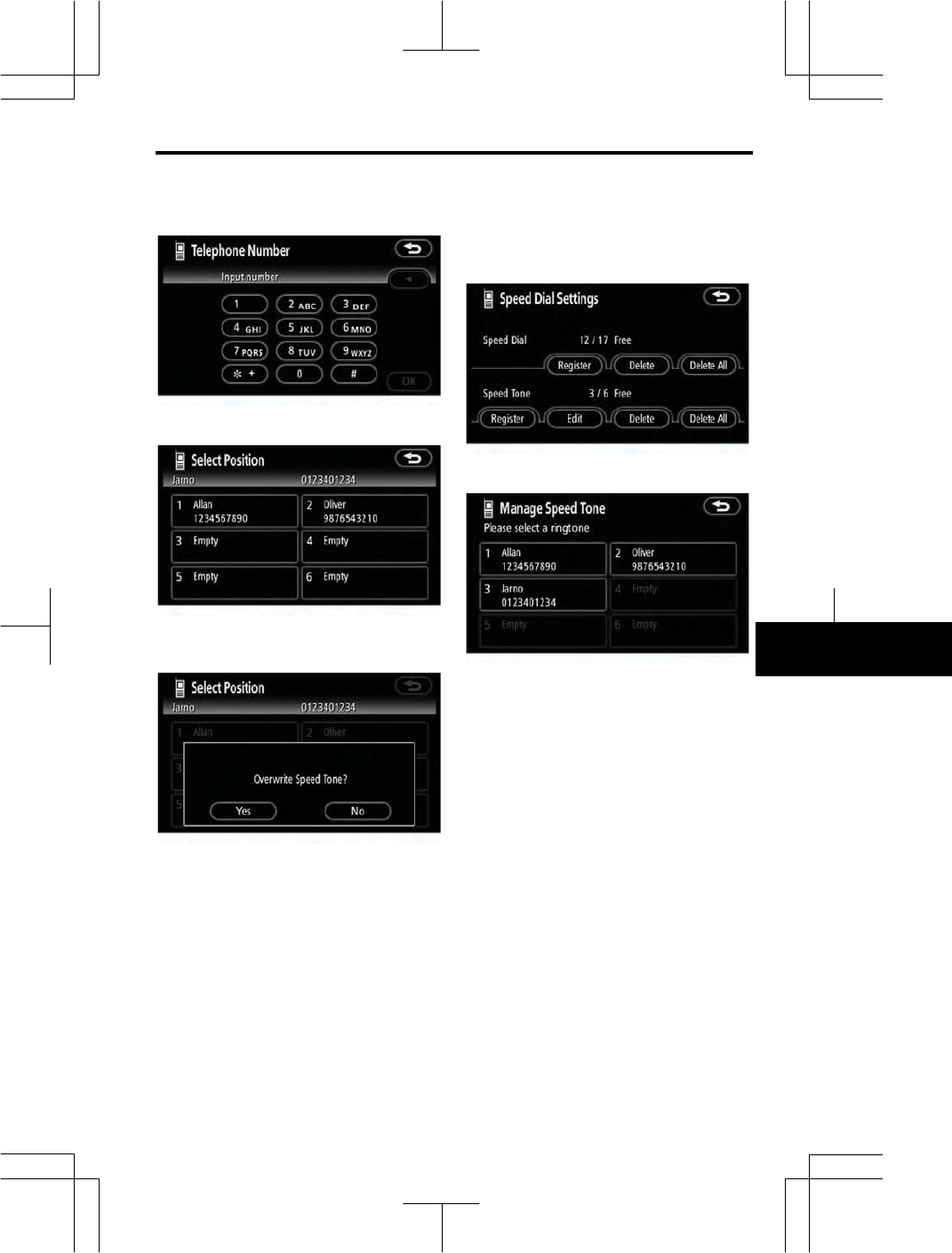

3. Input the number and touch “OK”.
4. Touch the desired touch screen
button you want to register in.
If you select a touch screen button
you registered before, this screen is
displayed.
5. Touch “Yes” if you want to over-
write it.
z Editing the speed tone
You can edit the speed tone.
1. Touch “Edit” of “Speed Tone”.
2. Touch the touch screen button
you want to edit.
![](/img.php?id=1116362&img=bg2a.png)
OTHER FUNCTIONS
142
V689_E

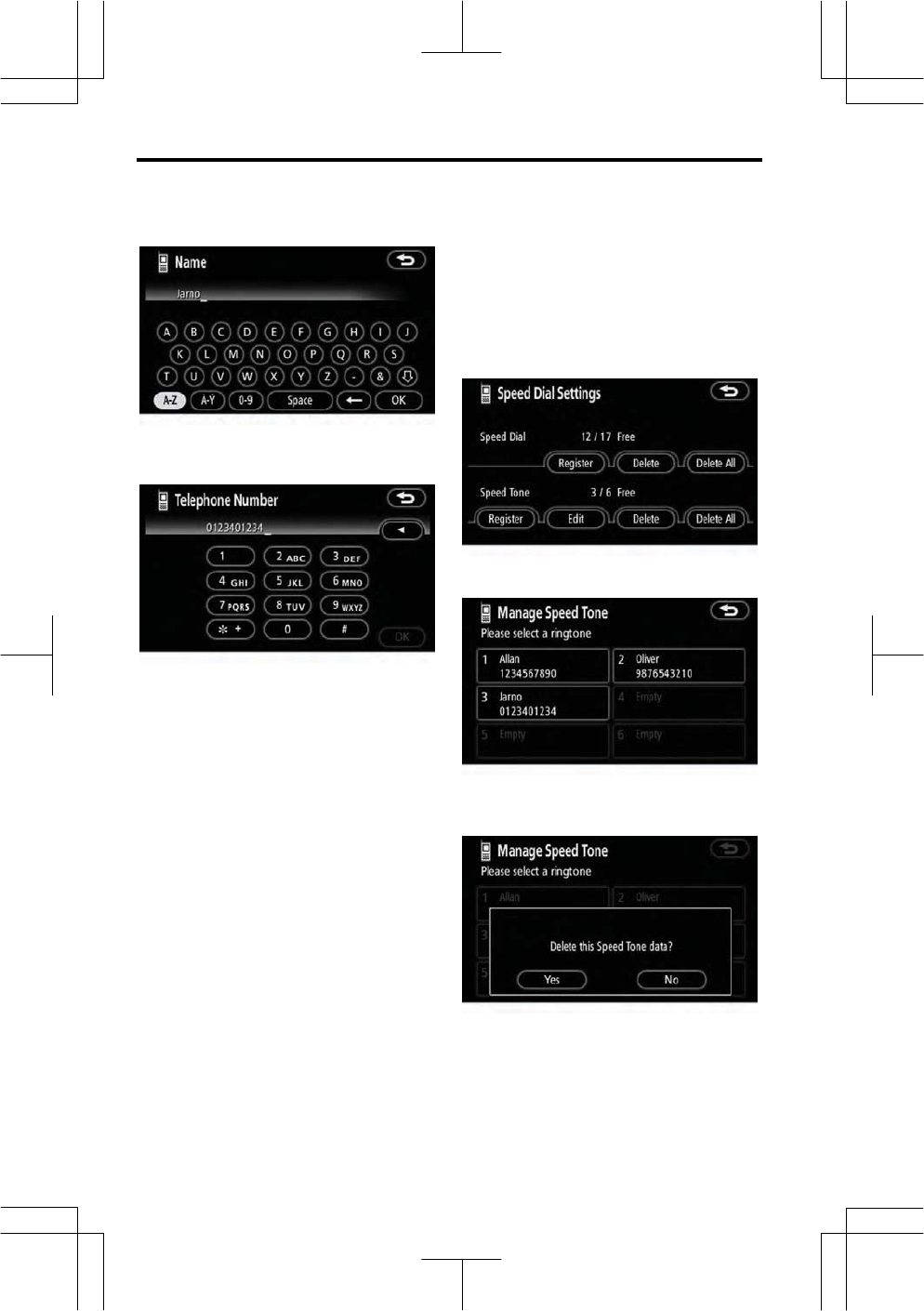

3. Use the software keyboard to in-
put the name.
4. Input the number and touch “OK”.
z Deleting the speed tone individu-
ally
You can delete “1” to “6” of the speed
tone.
If you delete them all at once, all of 6
numbers are deleted.
1. Touch “Delete” of “Speed Tone”.
2. Touch the touch screen button
you want to delete.
3. Touch “Yes”.
![](/img.php?id=1116362&img=bg2b.png)
OTHER FUNCTIONS
143
V689_E
z Deleting all the speed tone
1. Touch “Delete All” of “Speed
Tone”.
2. Touch “Yes”.
(c) Setting the volume
1. Touch “Volume” to display the
“Volume Settings” screen.
2. Touch “-” or “+” to adjust the
“Voice Volume” or “Ring Volume”.
“Voice Volume” ......Adjusting the other
party’s voice.
“Ring Volume”........Adjusting the ring
volume.
![](/img.php?id=1116362&img=bg2c.png)
OTHER FUNCTIONS
144
V689_E

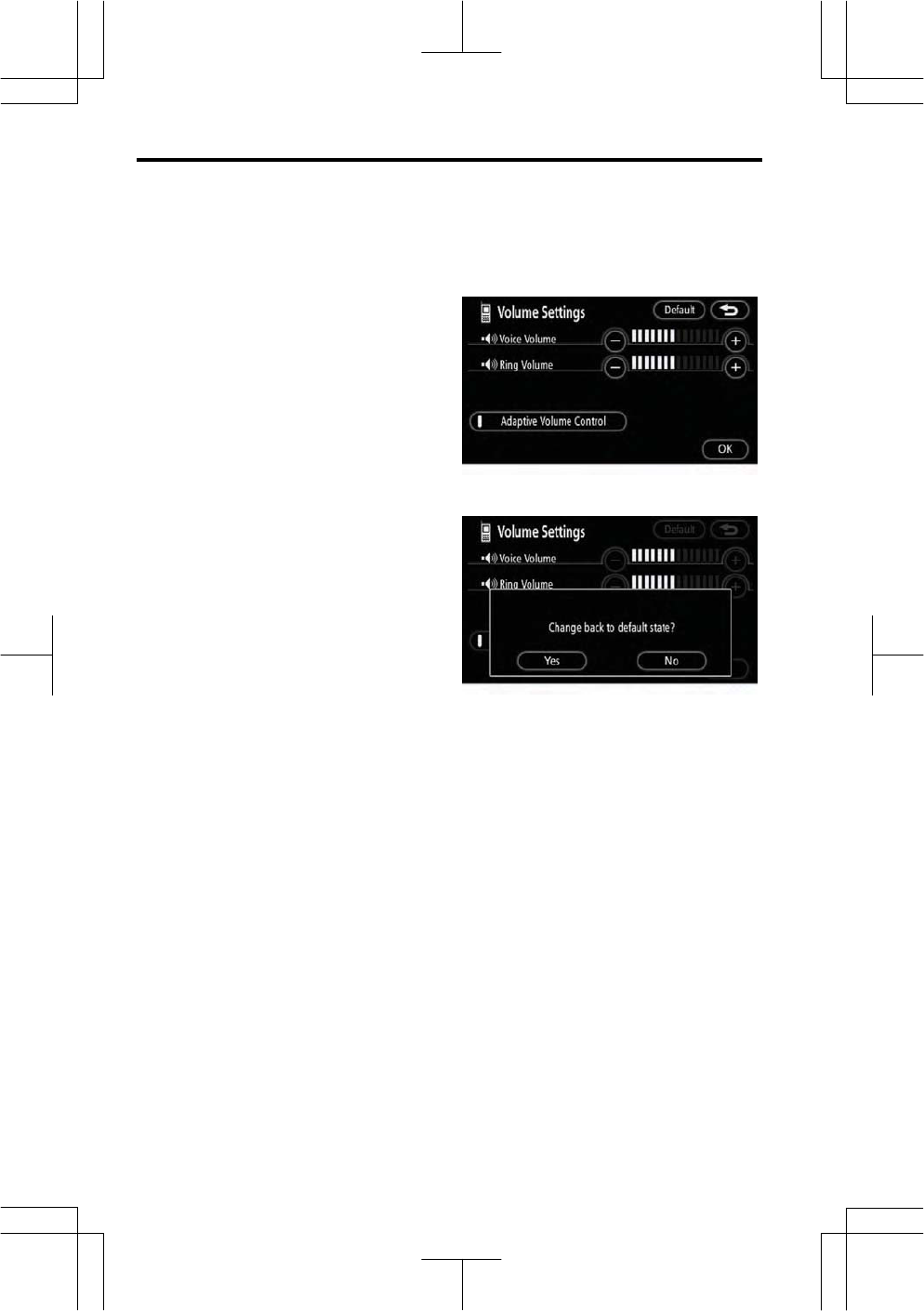

z Automatic volume settings for
high speed
You can set the volume one step up
when the speed is over 80 km/h (50
mph). (When it is under 70 km/h (43
mph), previous volume is back.)
Each time you touch “Adaptive Volume
Control”, you can switch on or off.
z Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.
![](/img.php?id=1116362&img=bg2d.png)
OTHER FUNCTIONS
145
V689_E

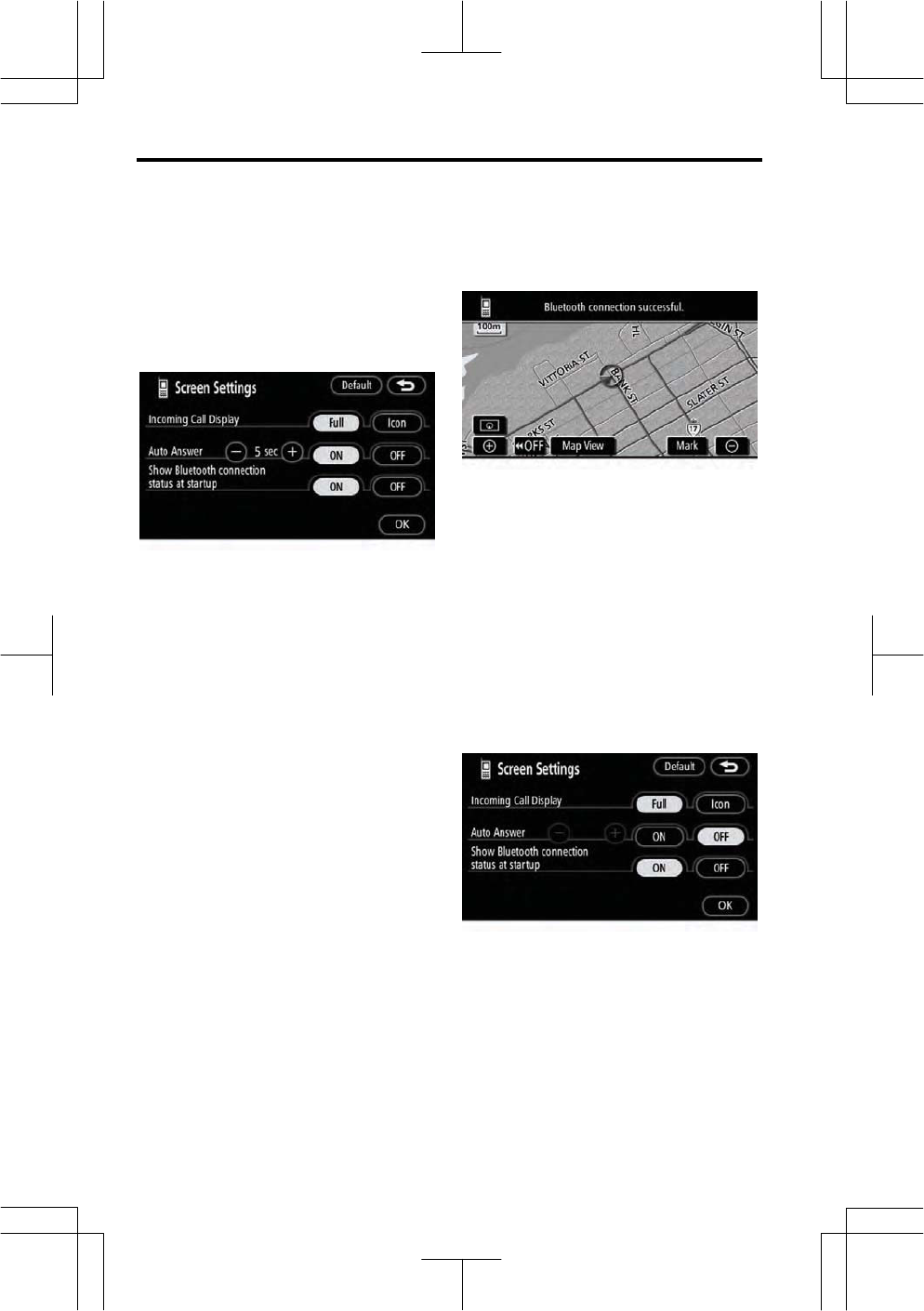

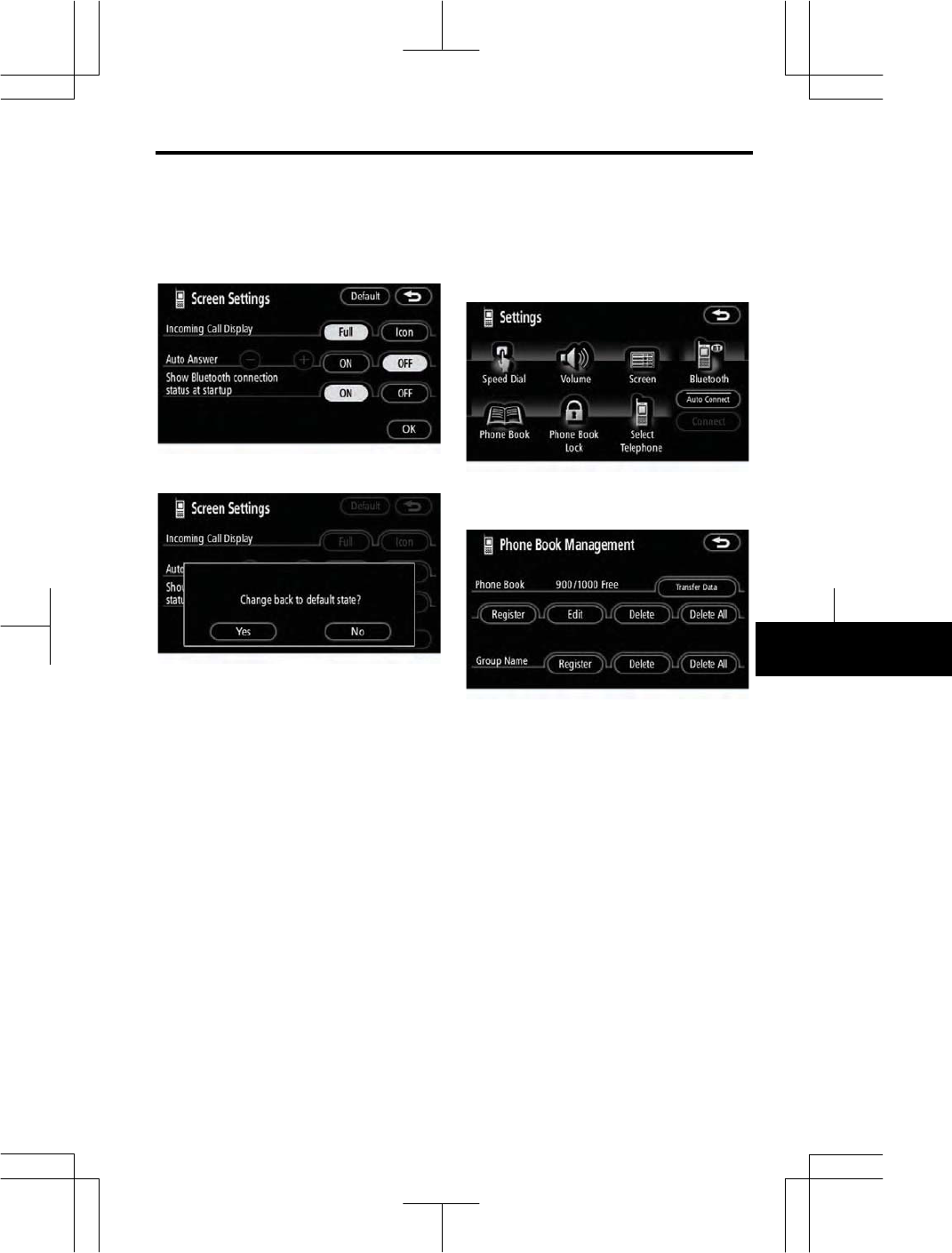

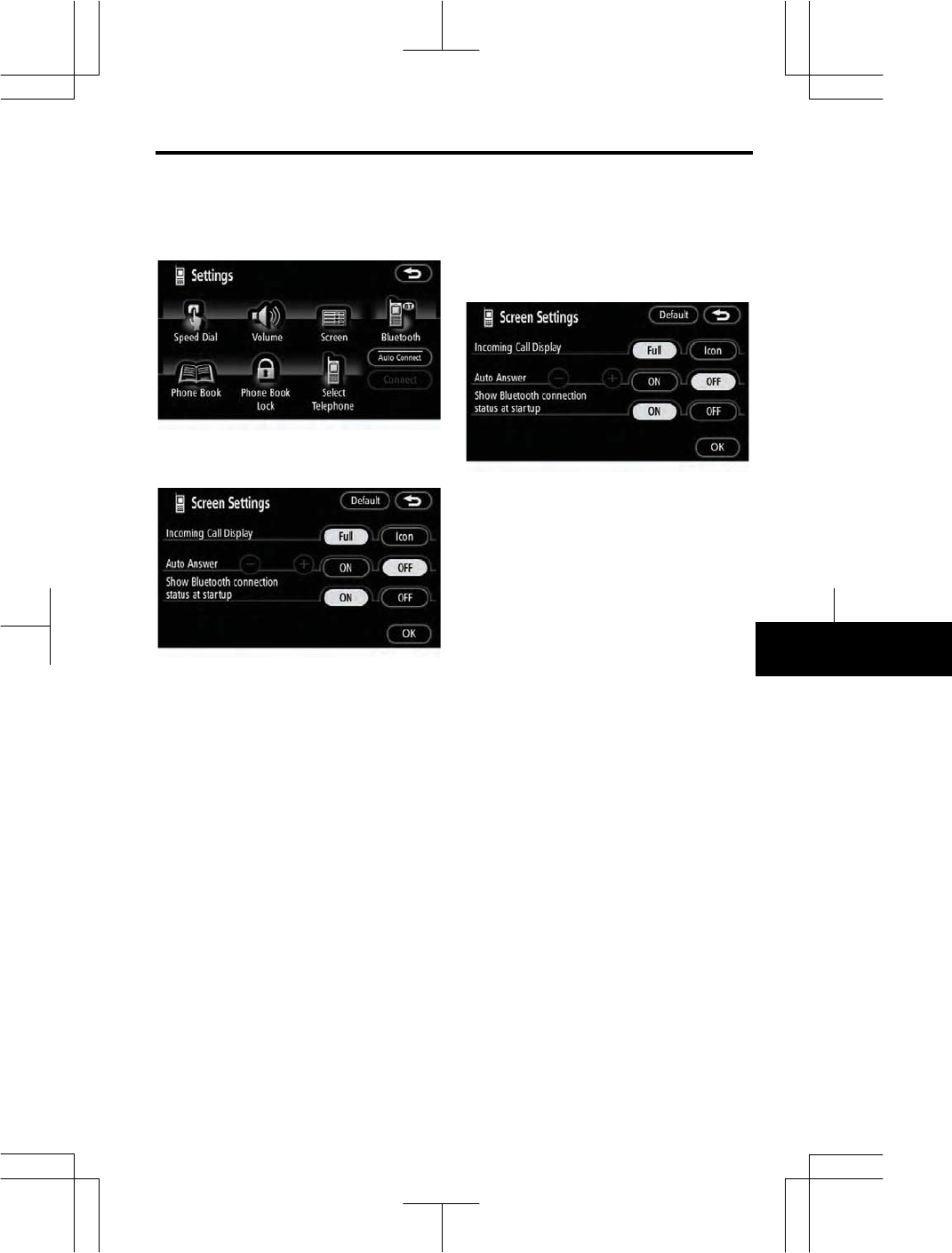

(d) Setting the screen
1. Touch “Screen” to display the
“Screen Settings” screen.
2. Do the detail settings of the
screen and touch “OK”.
z Receiving call display
You can select the method of the re-
ceiving call display.
Touch “Full” or “Icon”.
“Full” mode ...... When a call is received,
the Hands-free screen is
displayed and you can
operate it on the screen.
“Icon” mode .....The message is dis-
played on the upper side
of the screen. You can
only operate the steering
switch.
![](/img.php?id=1116362&img=bg2e.png)
OTHER FUNCTIONS
146
V689_E
z Auto answer
When a call is received, the display
automatically changes to the talking
screen and you can start to talk on
the phone (without touching any but-
ton) after the preset time.
Touch “ON” of “Auto Answer” and “-”
or “+” to adjust the waiting time of
auto answer within 1 - 60 seconds.
z The Bluetooth® connection status
at startup
Vehicles with smart entry and start sys-
tem—
When the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode and the Blue-
tooth® is automatically connected, the
connection check is displayed.
Vehicles without smart entry and start
system—
When the engine switch is in ACC or
ON position and the Bluetooth®is
automatically connected, the connec-
tion check is displayed.
Touch “ON” or “OFF” of “Show Blue-
tooth connection status at startup”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg2f.png)
OTHER FUNCTIONS
147
V689_E
z Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.

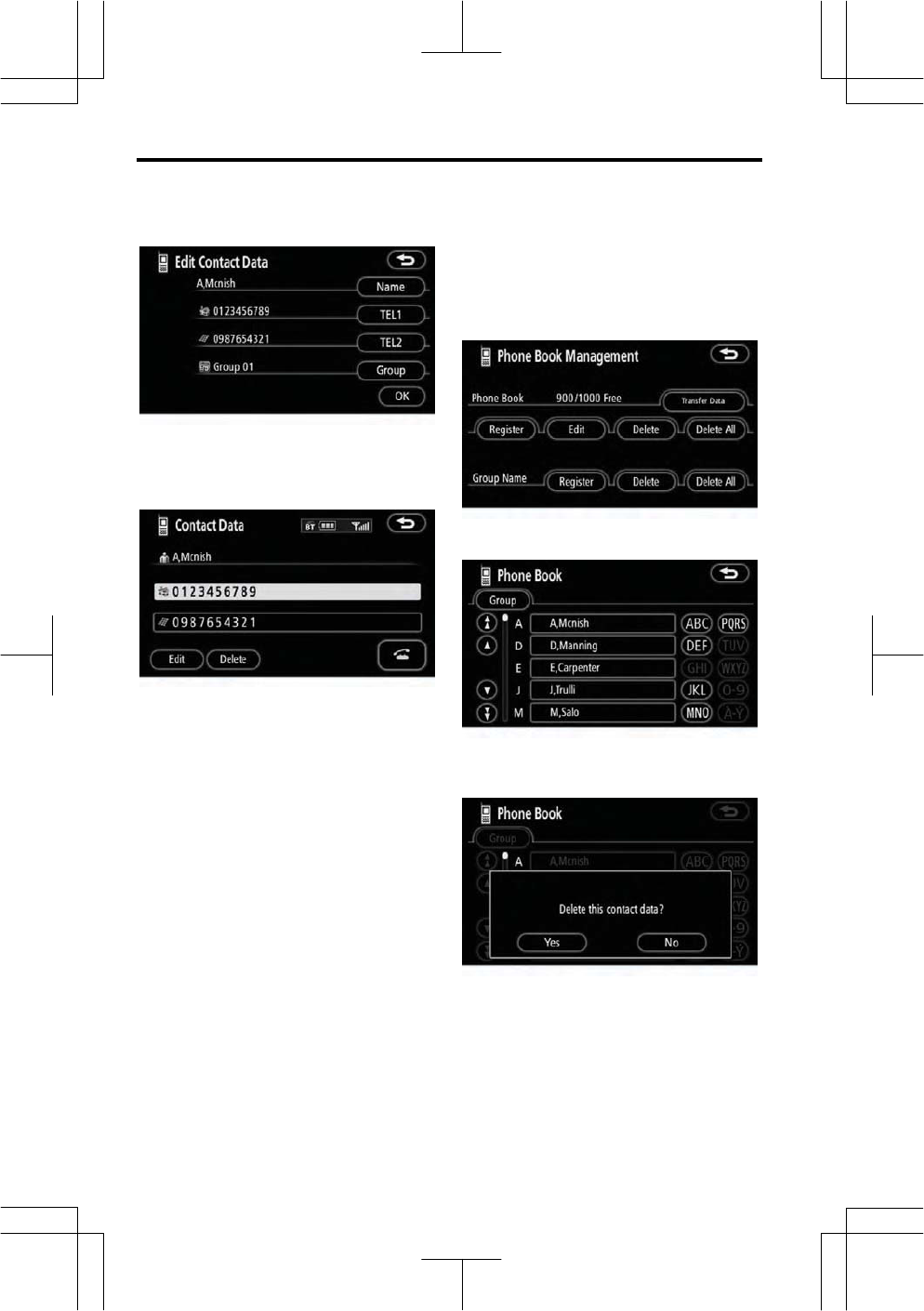

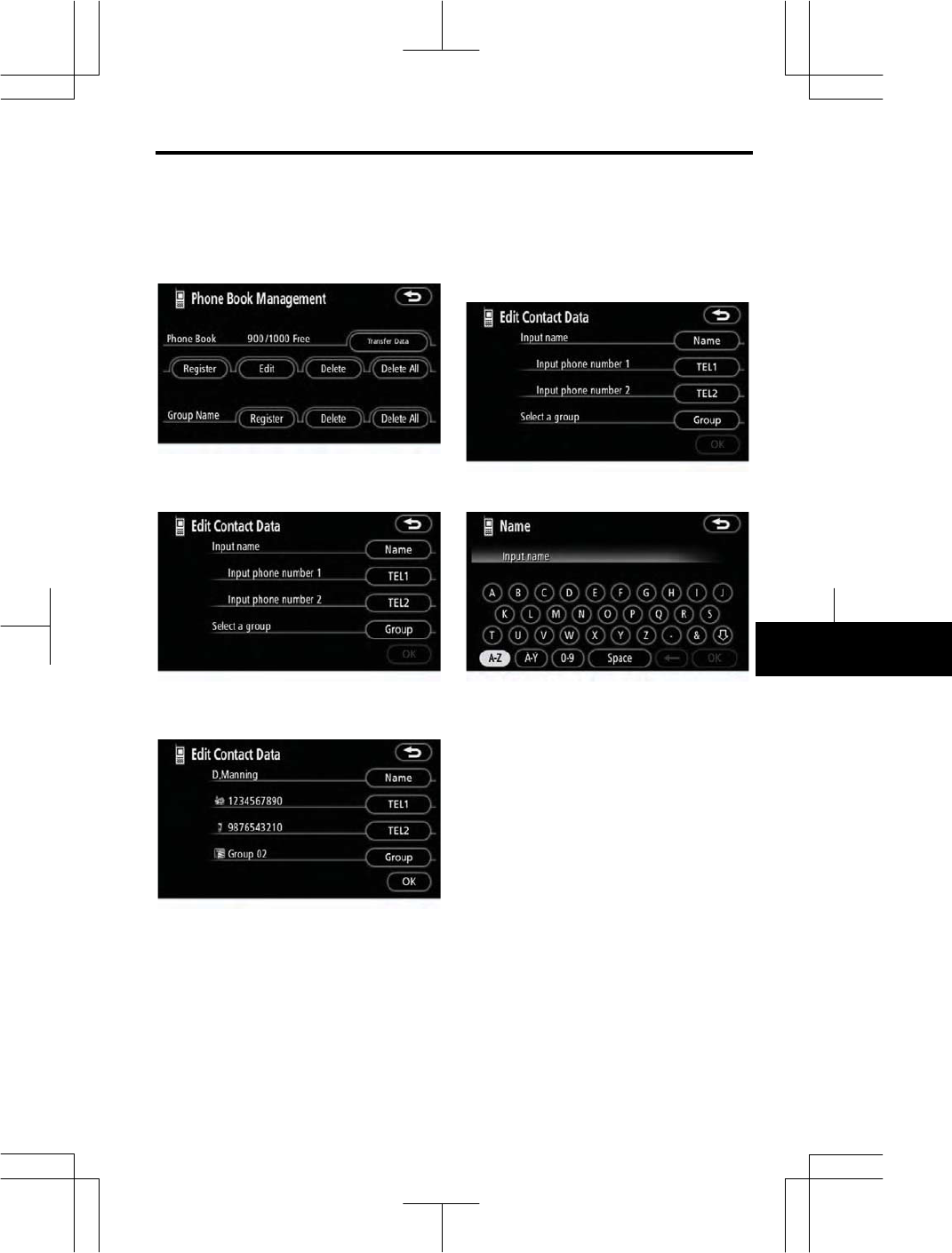

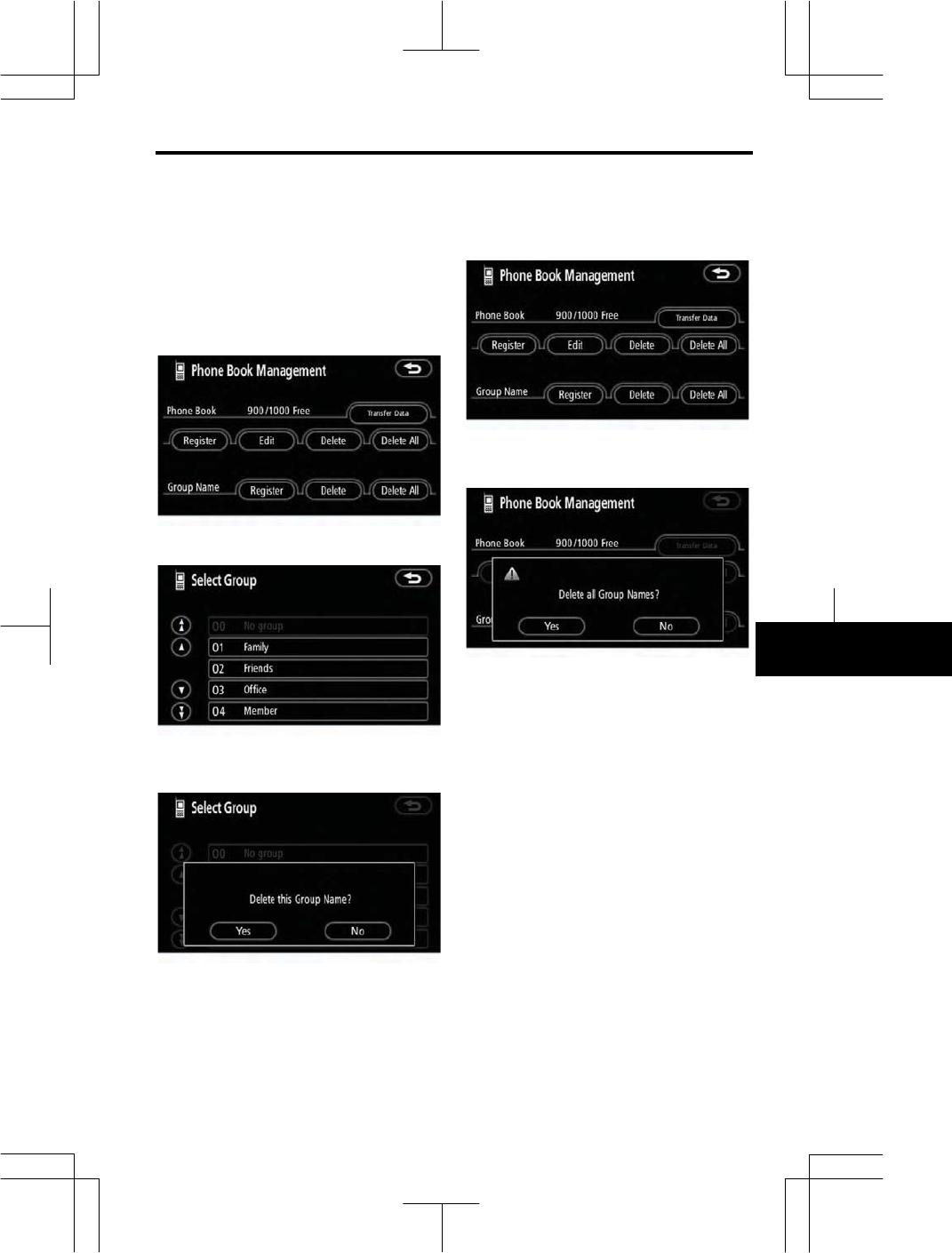

(e) Setting the phone book
You can register phone numbers in
the phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of
phone book.
![](/img.php?id=1116362&img=bg30.png)
OTHER FUNCTIONS
148
V689_E

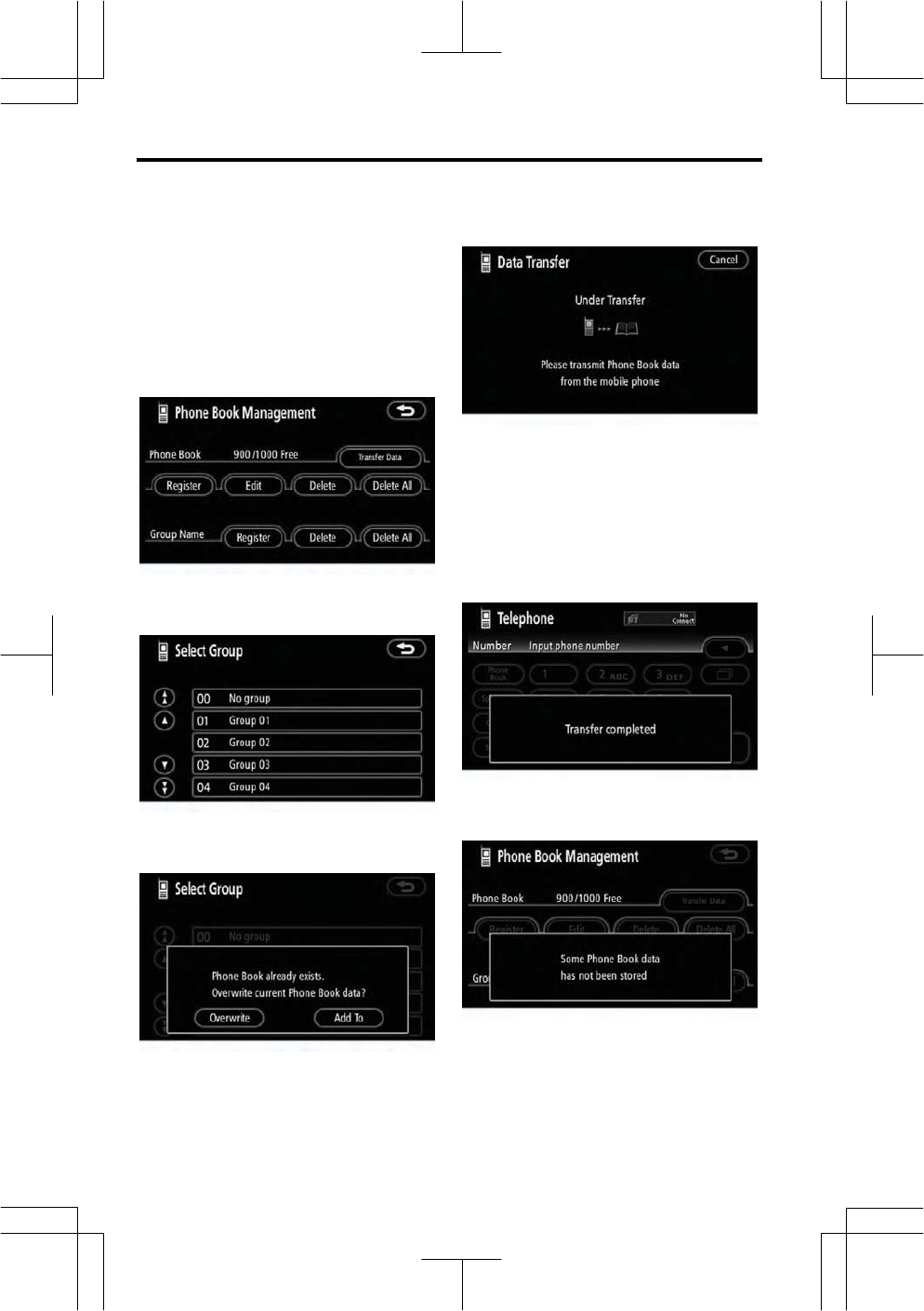

z Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth® phone to the
system. Up to 1000 person’s data
(up to 2 numbers a person) can be
registered in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to
transfer to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to
the system using the Bluetooth®
phone.
This screen appears while transferring.
To cancel it, touch “Cancel”. If the
transferring is interrupted on the way, the
phone book data transferred until then
can be memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.
![](/img.php?id=1116362&img=bg31.png)
OTHER FUNCTIONS
149
V689_E
z Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone
Book”.
2. Touch the desired touch screen
button to edit the phone book.
3. When you complete the edit,
touch “OK”.
z Editing the name
When you don’t input the name, the
number is displayed.
1. Touch “Name”.
2. Use the software keyboard to in-
put the name.
![](/img.php?id=1116362&img=bg32.png)
OTHER FUNCTIONS
150
V689_E

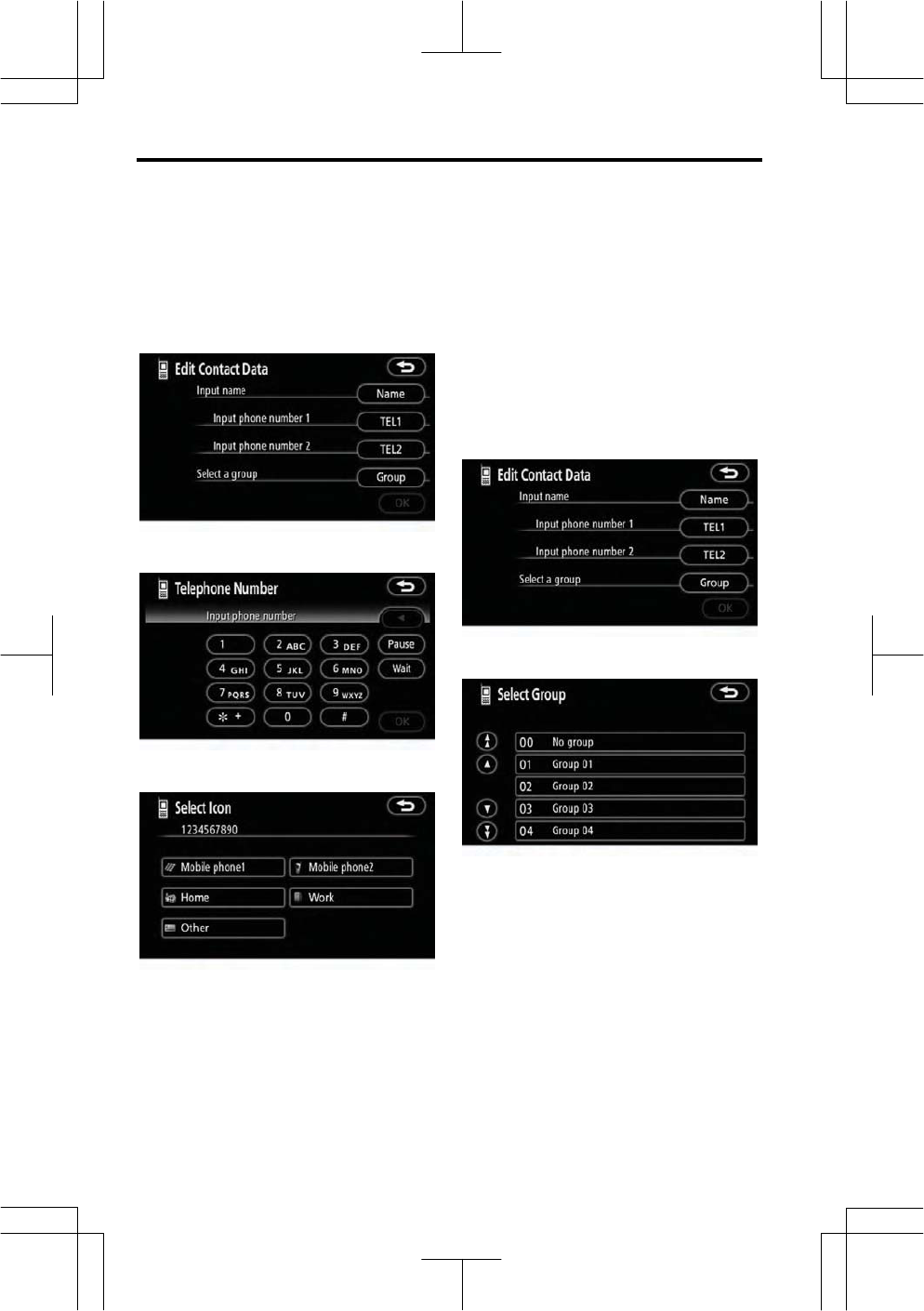

z Editing the phone number
You can register the phone number in
“TEL1” and “TEL2” separately. Up to
2 numbers a person can be regis-
tered.
1. Touch “TEL1” or “TEL2”.
2. Input the number and touch “OK”.
3. Select the desired icon.
z Selecting the group
You can set a group for a contact (for
example: “Family”, “Friends”, “Of-
fice”...). It will then be easier for you
to find this contact when needed, by
using the group display.
You can select “No group” or “Group
01” to “Group 19”.
“No group” is displayed if you don’t set
the group.
1. Touch “Group”.
2. Select the desired group.
![](/img.php?id=1116362&img=bg33.png)
OTHER FUNCTIONS
151
V689_E
z Adding the data to the phone
book
You can add data to the phone book.
1. Touch “Add to”.
2. Select the data you want to add
log data to.
3. Confirm the added data on the
screen and touch “OK”.
z Editing the data
You can edit the registered data.
1. Touch “Edit”.
2. Select the data you want to edit.
![](/img.php?id=1116362&img=bg34.png)
OTHER FUNCTIONS
152
V689_E
3. Touch the desired touch screen
button.
When you edit the data, touch “OK”.
When you also touch “Edit” on this
screen, you can edit it.
z Deleting the data
You can delete the data.
When you release your car, delete all
your data on the system.
1. Touch “Delete” of “Phone Book”.
2. Touch the desired touch screen
button.
3. Touch “Yes”.
![](/img.php?id=1116362&img=bg35.png)
OTHER FUNCTIONS
153
V689_E

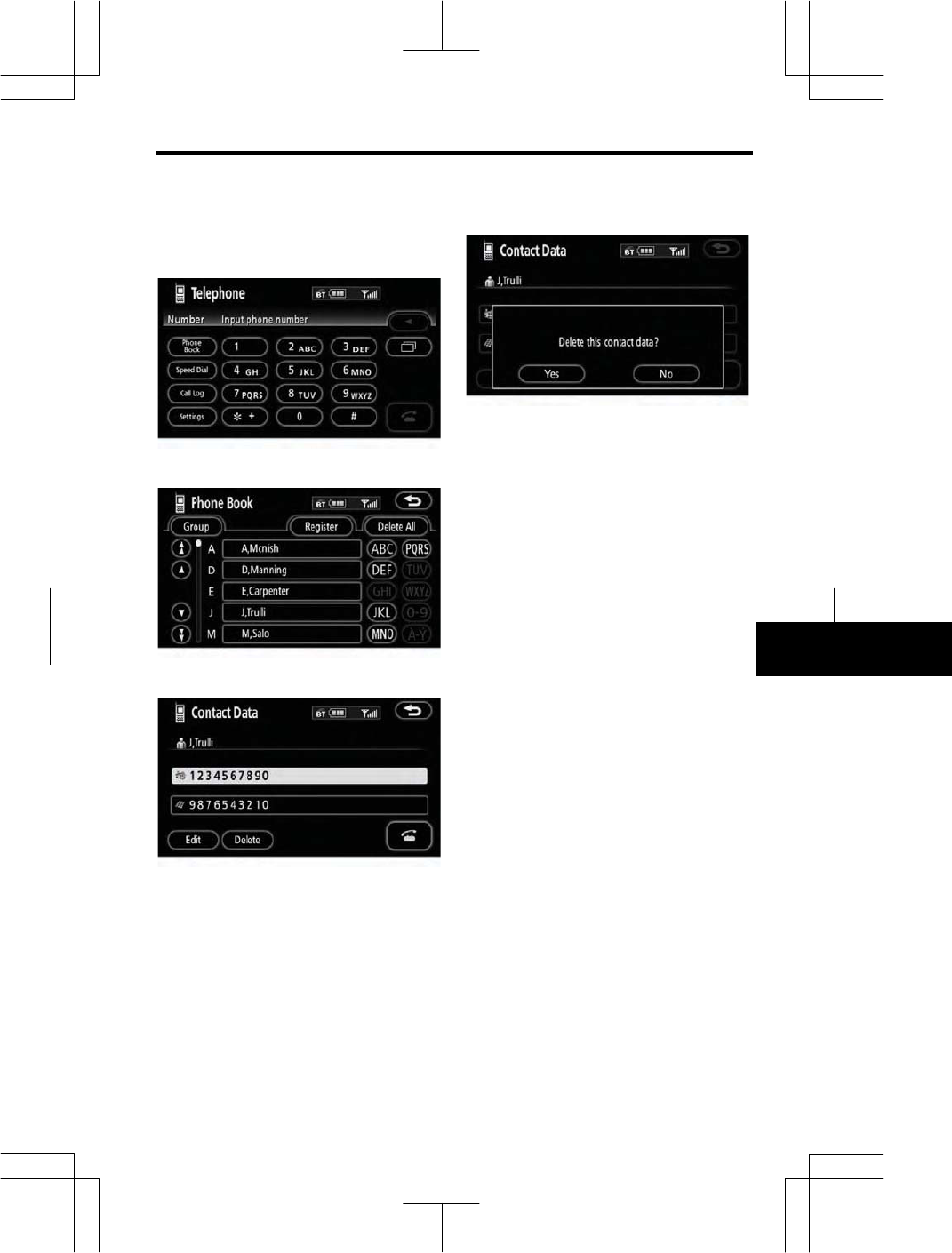

You can also delete it in the following
way.
1. Touch “Phone Book”.
2. Select the desired data.
3. Touch “Delete”.
4. Touch “Yes”.
![](/img.php?id=1116362&img=bg36.png)
OTHER FUNCTIONS
154
V689_E

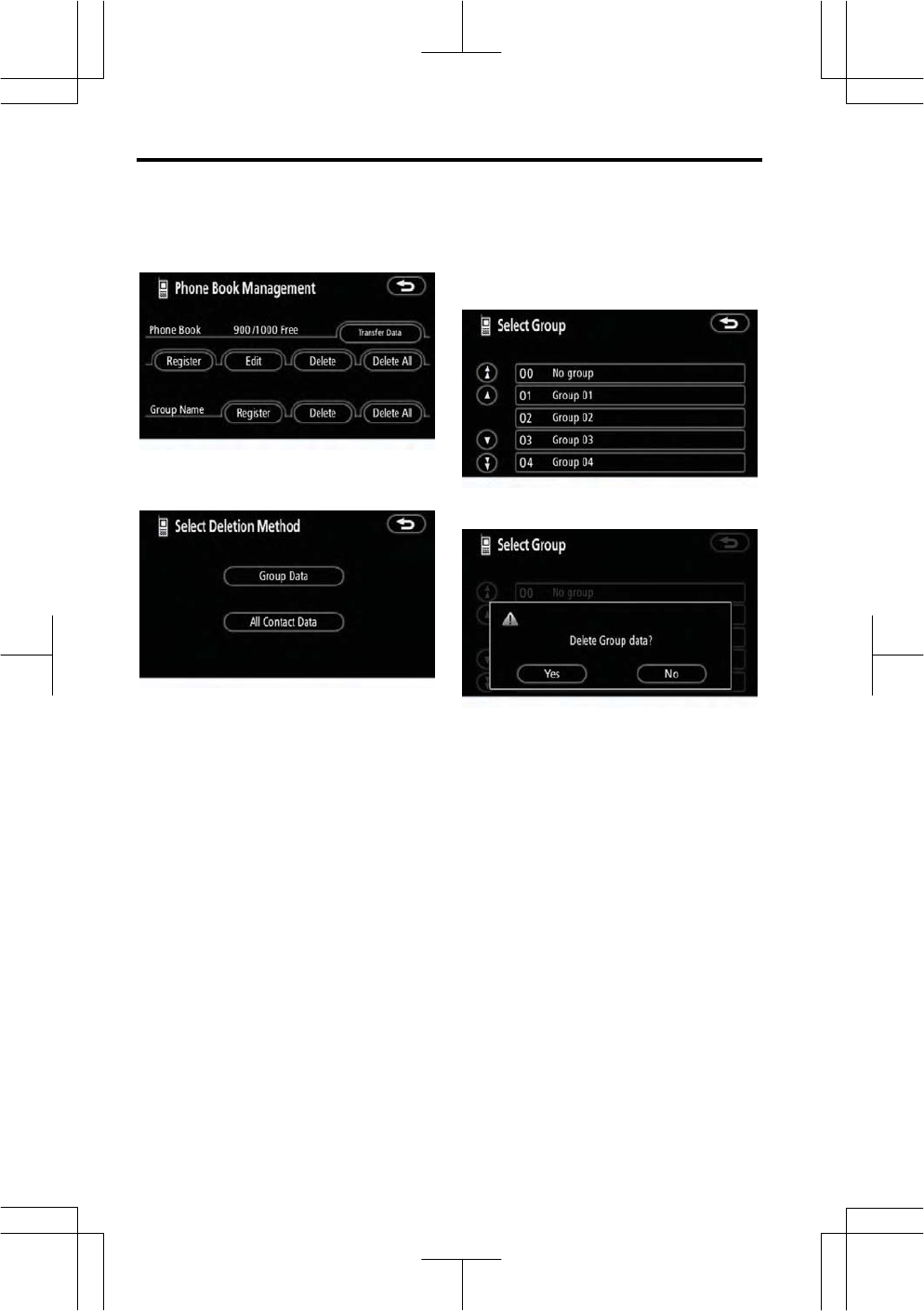

z Deleting all the phone data
1. Touch “Delete All” of “Phone
Book”.
2. Select the deleting method.
“Group Data”
....... Deleting all the phone data in
group.
“All Contact Data”
....... Deleting all the phone data.
3. When you select “Group Data”,
the “Select Group” screen is dis-
played.
4. Select the desired group.
5. Touch “Yes”.
![](/img.php?id=1116362&img=bg37.png)
OTHER FUNCTIONS
155
V689_E

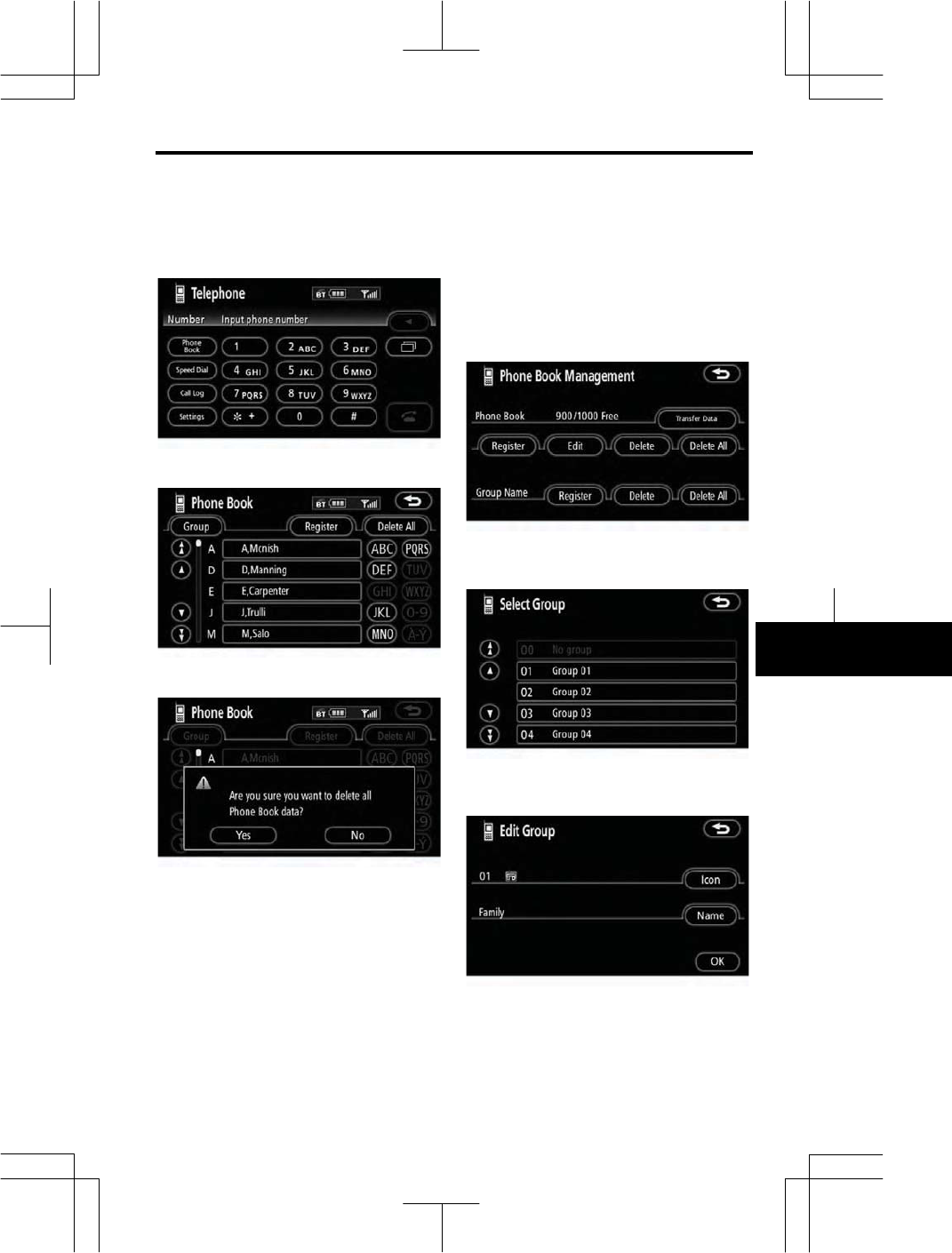

You can also delete it in the following
way.
1. Touch “Phone Book”.
2. Touch “Delete All”.
3. Touch “Yes”.
z Registering a group name
You can register 20 groups. “No
group”, “Group 01” - “Group 19” is
registered by default.
You can change “Group 01” - “Group
19” into desired names.
1. Touch “Register” of “Group
Name”.
2. Select the group you want to reg-
ister.
3. When you complete all the edit,
touch “OK”.
![](/img.php?id=1116362&img=bg38.png)
OTHER FUNCTIONS
156
V689_E

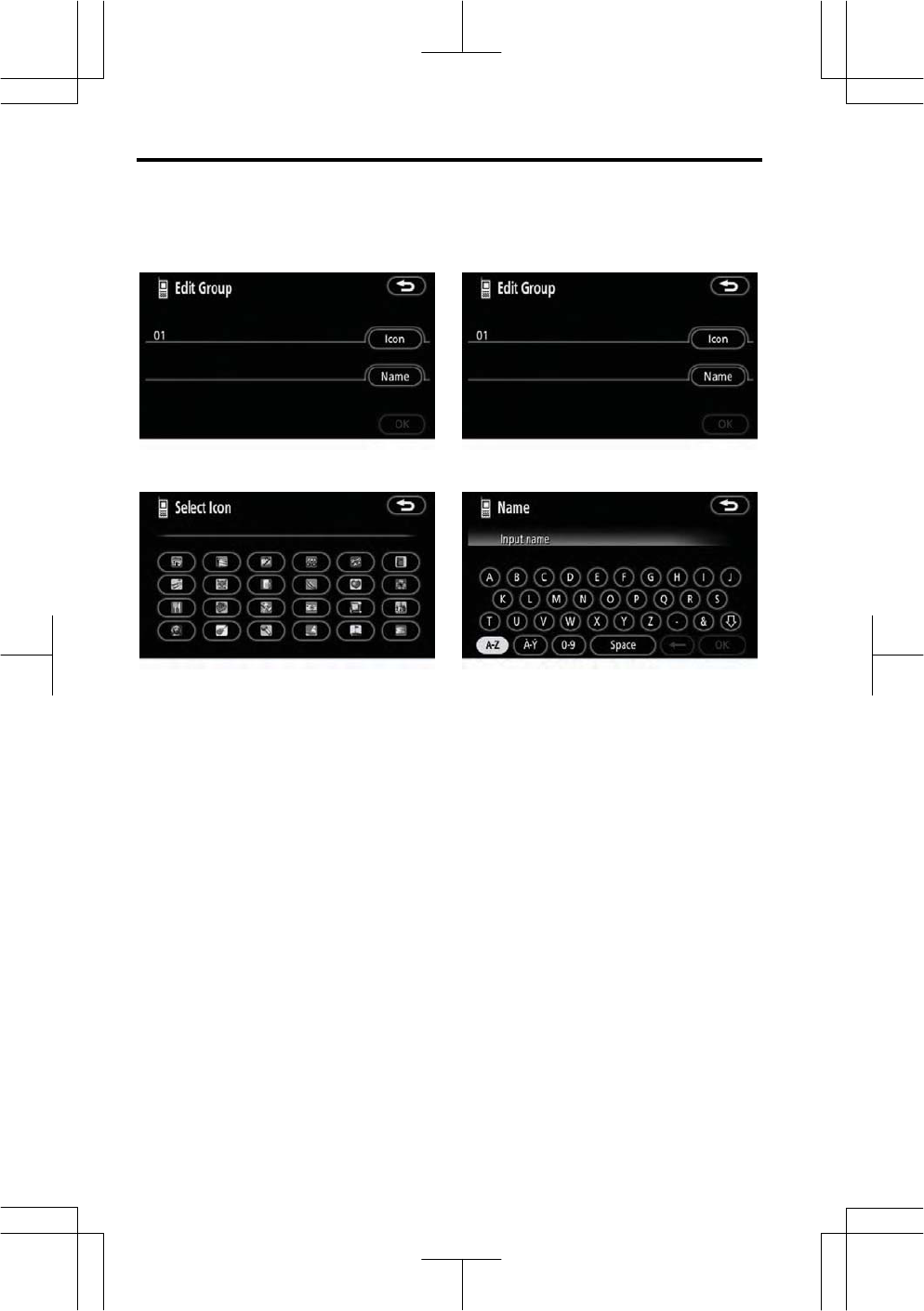

z Selecting a group icon
1. Touch “Icon”.
2. Select the desired icon.
z Editing a group name
1. Touch “Name”.
2. Use the software keyboard to in-
put the name.
![](/img.php?id=1116362&img=bg39.png)
OTHER FUNCTIONS
157
V689_E
z Deleting a group name
You can delete the group names indi-
vidually or all at once. If you delete a
group name, that group will return to
the default setting (excluding “No
Group”).
1. Touch “Delete” of “Group Name”.
2. Select the group you want to de-
lete the name of.
3. Touch “Yes”.
z Deleting all the group name
1. Touch “Delete All” of “Group
Name”.
2. Touch “Yes”.
![](/img.php?id=1116362&img=bg3a.png)
OTHER FUNCTIONS
158
V689_E
z Deleting the log data
You can delete the log data individu-
ally or all at once.
When you release your car, delete all
the data on the system.
INDIVIDUALLY
1. Touch “Delete” on the “Log Data”
screen.
2. Touch “Yes”.
ALL AT ONCE
1. Touch “Delete All” on the “Out-
going Calls” or “Incoming Calls”
screen.
2. Touch “Yes”.
![](/img.php?id=1116362&img=bg3b.png)
OTHER FUNCTIONS
159
V689_E
(f) Setting the security
When you set the security, you can
prevent people from using some
functions of the Hands-free system. It
is useful when you leave your car with
the hotel or you don’t want others to
see the data you registered.
When you set or unlock the security, you
have to input the security code. Be sure
to change the default code when you use
the security for the first time.
z Changing the security code
The security code is 4 digits and the
default is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code,
don’t forget the code. The dealers cannot
unlock the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize
it, not only the phone book data but also
the memory points in the navigation
system, etc. will be deleted. (See “Ɣ
Initializing the security code” on page
161.)
1. Touch “Phone Book Lock”.
2. Touch “Change”.
![](/img.php?id=1116362&img=bg3c.png)
OTHER FUNCTIONS
160
V689_E

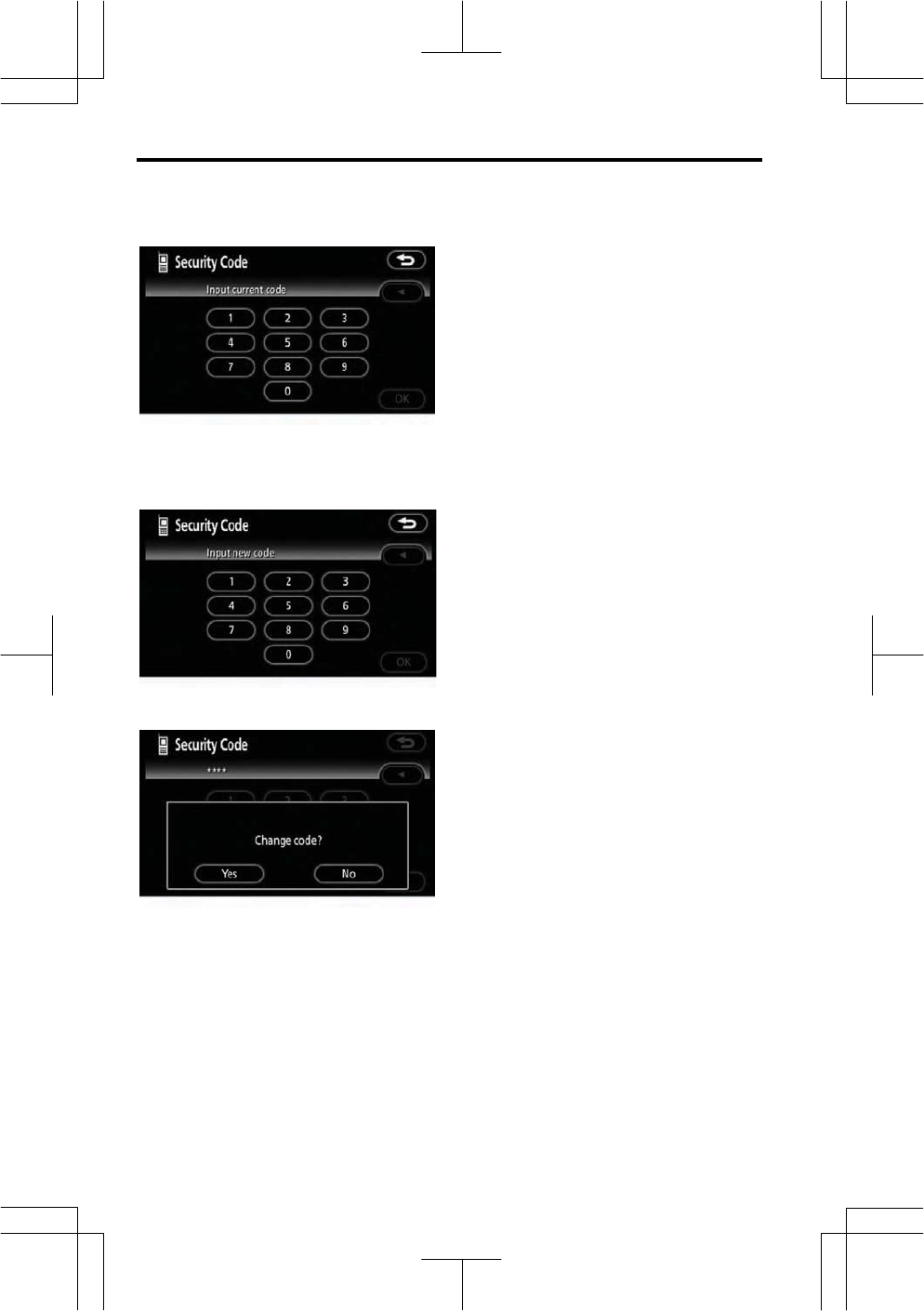

3. Input the current code.
Each time you touchŻ, an inputted digit
is deleted.
4. Input a new code.
5. Touch “Yes”.
z Phone book Lock
When you set the phone book lock,
you can have the following functions
locked.
z Display of the phone book screen
and transferring, registering, editing,
deleting the phone book data.
z Display of speed dial screen, regis-
tering, deleting the speed dial and
speed dialing.
z Display of the other party’s name for
calls being received or made.
z Display of dialed numbers screen
and received calls screen, deleting
dialed numbers and received num-
bers.
z Display of phone information screen.
z Changing the security code.
When you set this function, the speed
dial screen is not displayed while you are
driving.
![](/img.php?id=1116362&img=bg3d.png)
OTHER FUNCTIONS
161
V689_E

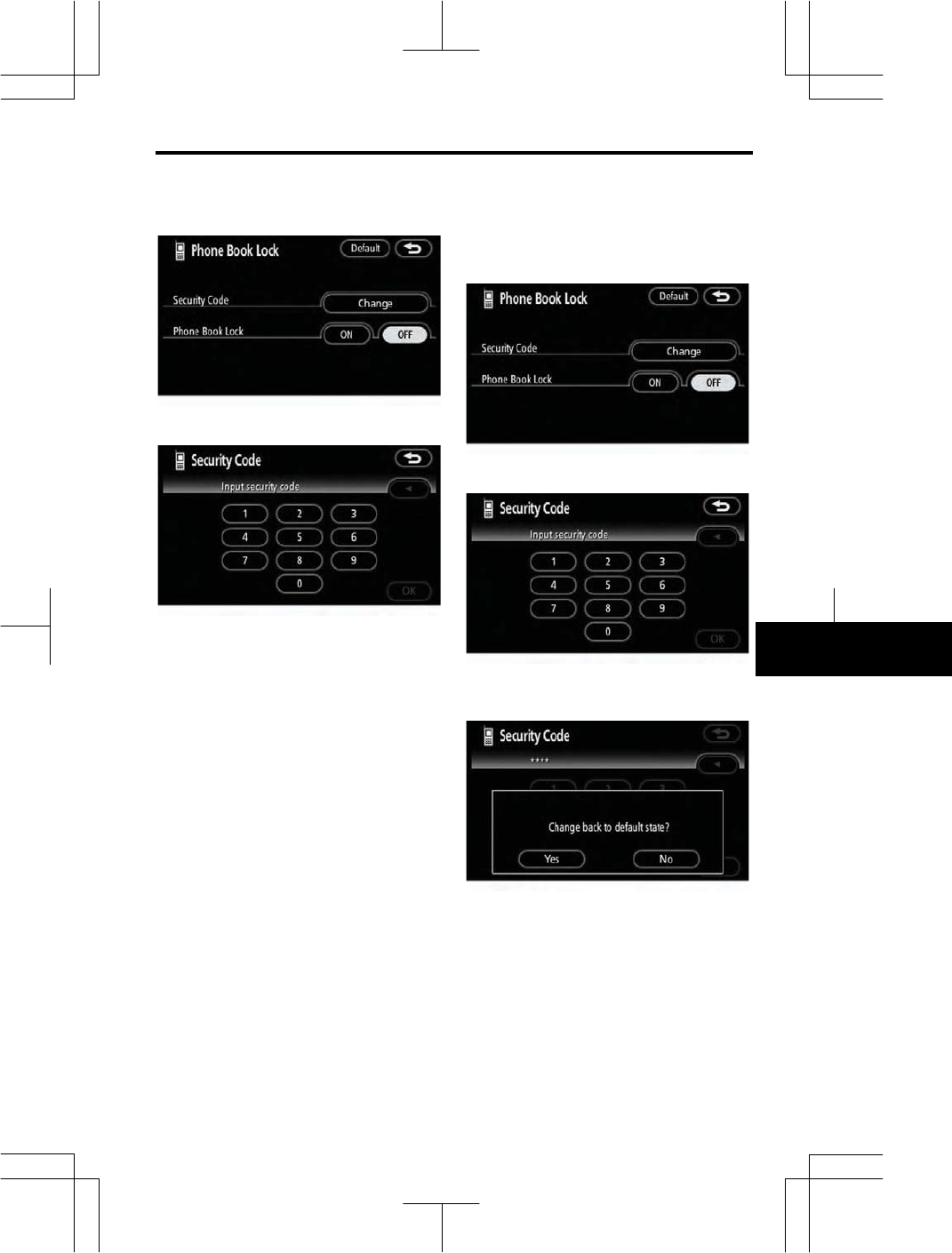

1. Touch “ON”.
2. Input the security code and touch
“OK”.
z Initializing the security code
You can initialize the settings.
1. Touch “Default”.
2. Input the security code and touch
“OK”.
3. Touch “Yes”.
![](/img.php?id=1116362&img=bg3e.png)
OTHER FUNCTIONS
162
V689_E
z Selecting a Bluetooth® phone
In case you register more than one
Bluetooth® phone, you need to
choose a favorite one.
1. Touch “Settings” to display “Set-
tings” screen.
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.
You can select the Bluetooth® phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth® phone yet.
Bluetooth® mark is displayed when you
choose the phone.
Although you can register up to 6 Blue-
tooth® phones in the system, only one
Bluetooth® phone can function at a time.
3. Touch “OK”.
When the result message is displayed,
you can use the Bluetooth® phone.
— Set a Bluetooth®
p
hone
![](/img.php?id=1116362&img=bg3f.png)
OTHER FUNCTIONS
163
V689_E

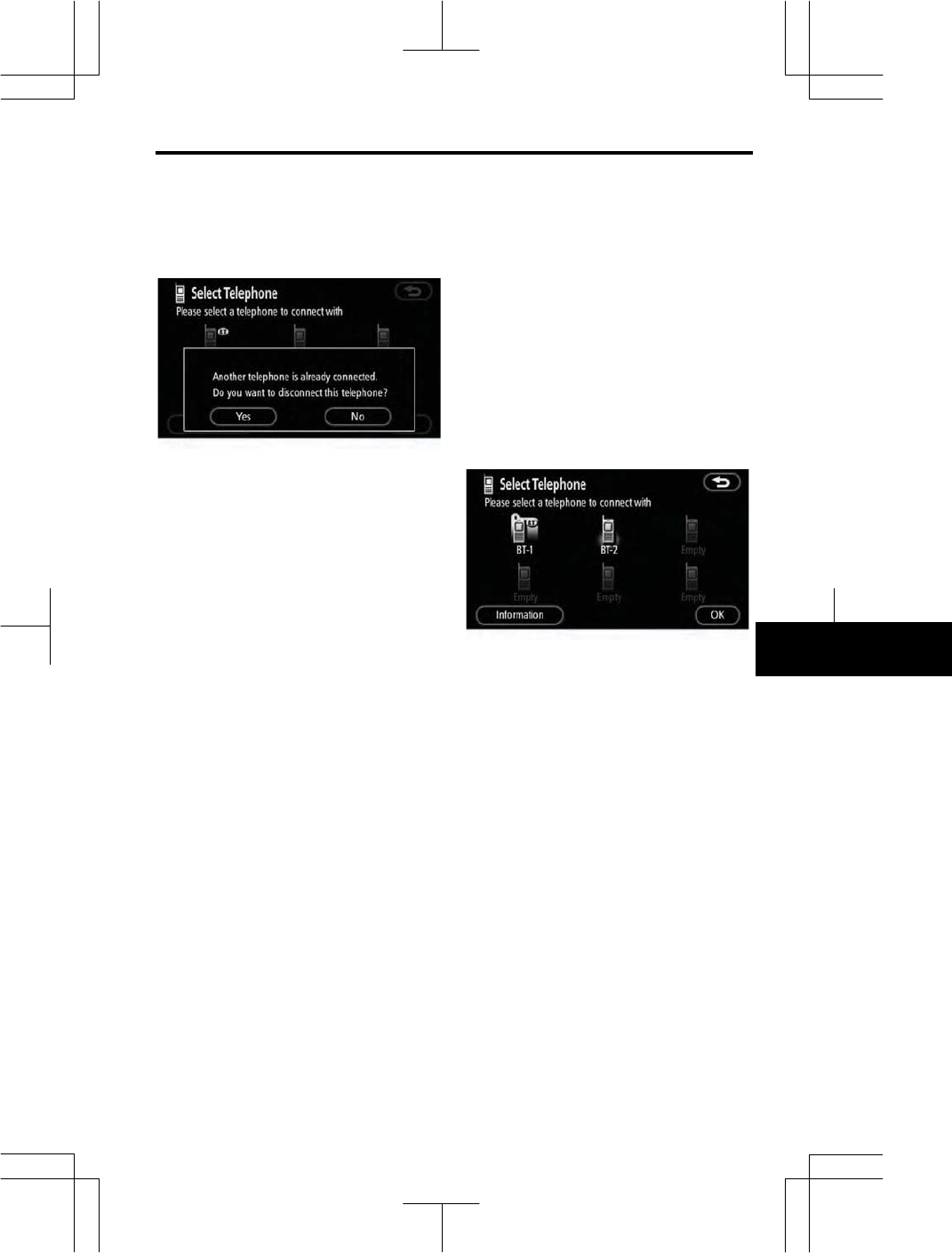

When another Bluetooth® phone is trying
to connect, this screen is displayed.
Touch “Yes” or “No”.
z Displaying Bluetooth® information
You can see or set the information of
the Bluetooth® phone on the system.
“Device Name”
........The name of Bluetooth® phone
which is displayed on the
screen. You can change it into a
desired name.
“Bluetooth Device Address”
........The address peculiar to the
system. You cannot change it.
1. Select the desired phone and
touch “Information”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg40.png)
OTHER FUNCTIONS
164
V689_E

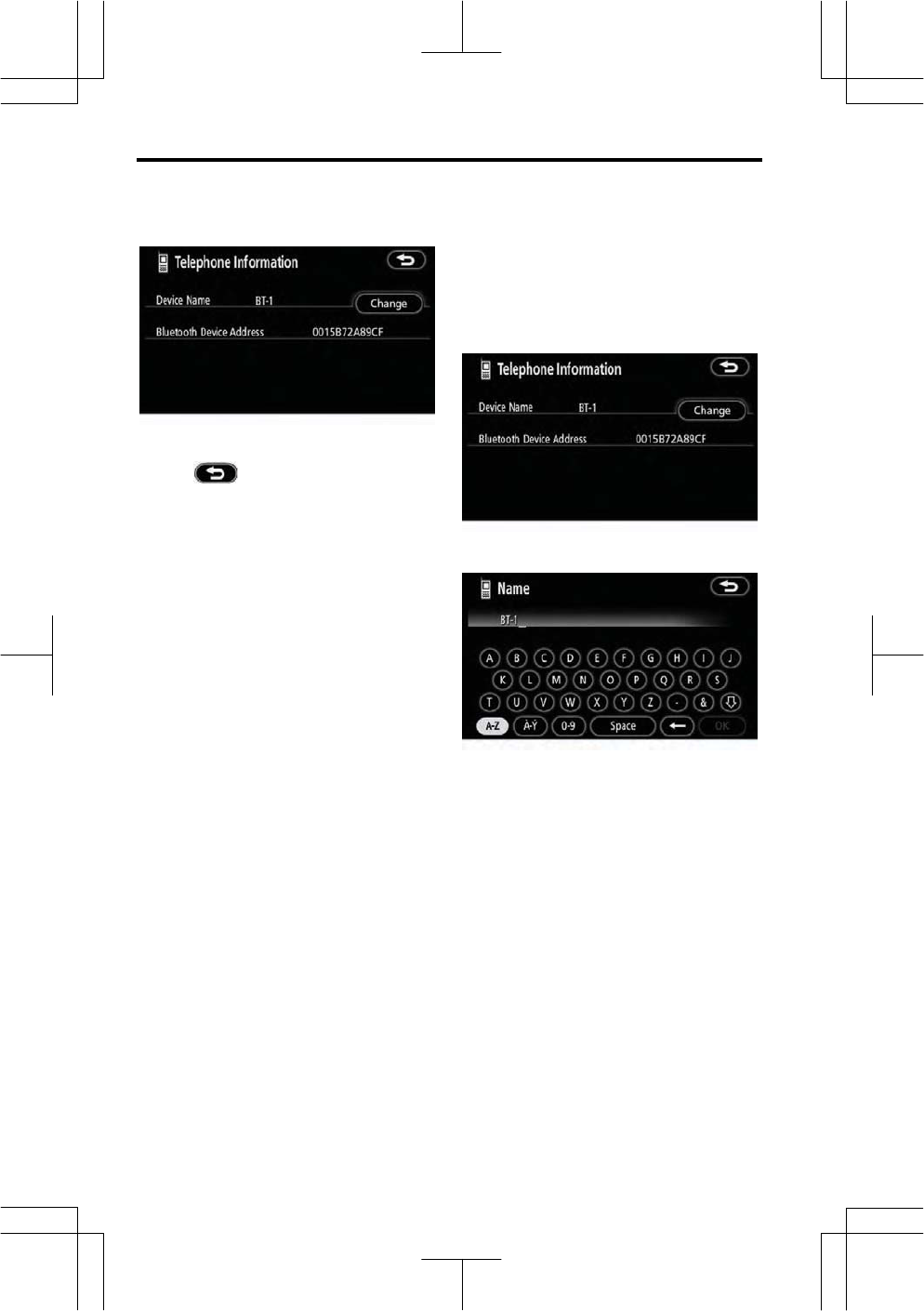

2. When you complete confirming it,
touch .
z Changing a device name
You can change a device name. If you
change a device name, the name reg-
istered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to in-
put the device name.
![](/img.php?id=1116362&img=bg41.png)
OTHER FUNCTIONS
165
V689_E
z Changing the Bluetooth® settings
You can change the display and settings
of Bluetooth® information on the system.
The information displays the following
items.
“Device Name”
........The name in the Bluetooth®
network. You can change it.
“Passcode”
........The password when you regis-
ter your cellular phone in the
system. You can change it into
the figure of 4-8 digits.
“Device Address”
........The address peculiar to the
system. You can not change it.
If you have registered two
Bluetooth® phones with the
same device name or passcode
and you cannot distinguish one
from the other, refer to it.
When you change the device name or
passcode, do the followings.
1. Touch “Bluetooth”.
2. Touch “Change” of “Device
Name” or “Passcode”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg42.png)
OTHER FUNCTIONS
166
V689_E
3. Use the software keyboard to in-
put the device name.
You can input up to 20 characters.
4. Input a passcode with 4 - 8 digits.
When you touch Ż, the input number is
deleted.
z Initializing the Bluetooth® settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
![](/img.php?id=1116362&img=bg43.png)
OTHER FUNCTIONS
167
V689_E
z Deleting a Bluetooth® phone
1. Touch “Delete” of “Bluetooth
Telephone”.
2. Select the telephone you want to
delete and touch “OK”.
3. Touch “Yes”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
z Displaying the information of the
Bluetooth® phone you delete
You can display the information of the
Bluetooth® phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch .
![](/img.php?id=1116362&img=bg44.png)
OTHER FUNCTIONS
168
V689_E
The brightness of the screen can be ad-
justed depending on the brightness of
your surroundings. You can also turn the
display off.
Push the “MENU” button to display
the “Menu” screen and touch “Dis-
play”.
Brightness adjustment
“Brightness” “+”: Brightens the screen.
“Brightness” “–”: Darkens the screen.
After adjusting the screen, touch
“OK”.
The screen goes off when “Screen Off”
is touched. To turn the display screen
back on, push any button such as
“MENU”, etc. The selected screen
appears.
INFORMATION
When you do not touch any touch
screen button on the “Display”
screen for 20 seconds, the previous
screen will be displayed.
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode
even with the headlight switch on, touch
“Day Mode” on the adjustment screen
for brightness control.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system
even with the engine turned off.
Screen ad
j
ustment
![](/img.php?id=1116362&img=bg45.png)
OTHER FUNCTIONS
169
V689_E
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Screen Setting”.
(a) Automatic transition
You can select a function that enables
automatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The navigation screen automati-
cally returns from the audio screen 20
seconds after the end of audio screen
operation.
“OFF”: The audio screen remains on.
Screen settin
g
![](/img.php?id=1116362&img=bg46.png)
OTHER FUNCTIONS
170
V689_E
(b) Switch color
You can select the color of the touch
screen buttons.
Select “Green” or “Orange” and then
touch “OK”.
(c) Delete personal data
The following personal data can be de-
leted or returned to their default settings:
z Maintenance conditions
z Maintenance information “off”
setting
z Memory points
z Areas to avoid
z Previous points
z Route trace
z User selection settings
z Phone book data
z Dialed numbers and received
calls
z Speed dial
z Bluetooth® phone data
z Security code
This function is available only when the
vehicle is not moving.
![](/img.php?id=1116362&img=bg47.png)
OTHER FUNCTIONS
171
V689_E
1. Touch “Delete Personal Data”.
The “Delete Personal Data” screen ap-
pears.
2. Touch “Delete”.
The “Confirmation to delete all personal
data” screen appears.
3. Touch “Yes”.
You can set a beep sound off.
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Beep Off”.
“Beep Off” is highlighted.
To switch the beep sound on, touch
“Beep Off” again.
Bee
p
settin
g
![](/img.php?id=1116362&img=bg48.png)
OTHER FUNCTIONS
172
V689_E
The language of the touch screen
buttons, popíup messages and the
voice guidance can be changed.
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Language”.
4. Touch “English”, “Français” or
“Español” to select a language.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen
by pushing the “MAP/VOICE”, “DEST”
or “MENU” button.
Select lan
g
ua
g
e
![](/img.php?id=1116362&img=bg49.png)
AUDIO SYSTEM
173
V689_E
SECTION 6
AUDIO SYSTEM
z Quick reference ·················································································174
z Using your audio system ·······························································175
Some basics ···················································································175
Radio operation ··············································································182
CD player operation········································································194
SD/USB player operation ·······························································204
Bluetooth® audio operation·····························································213
AUX operation ················································································227
z Audio remote controls ·······································································237
z Audio system operating hints ····························································238
![](/img.php?id=1116362&img=bg4a.png)
AUDIO SYSTEM
174
V689_E

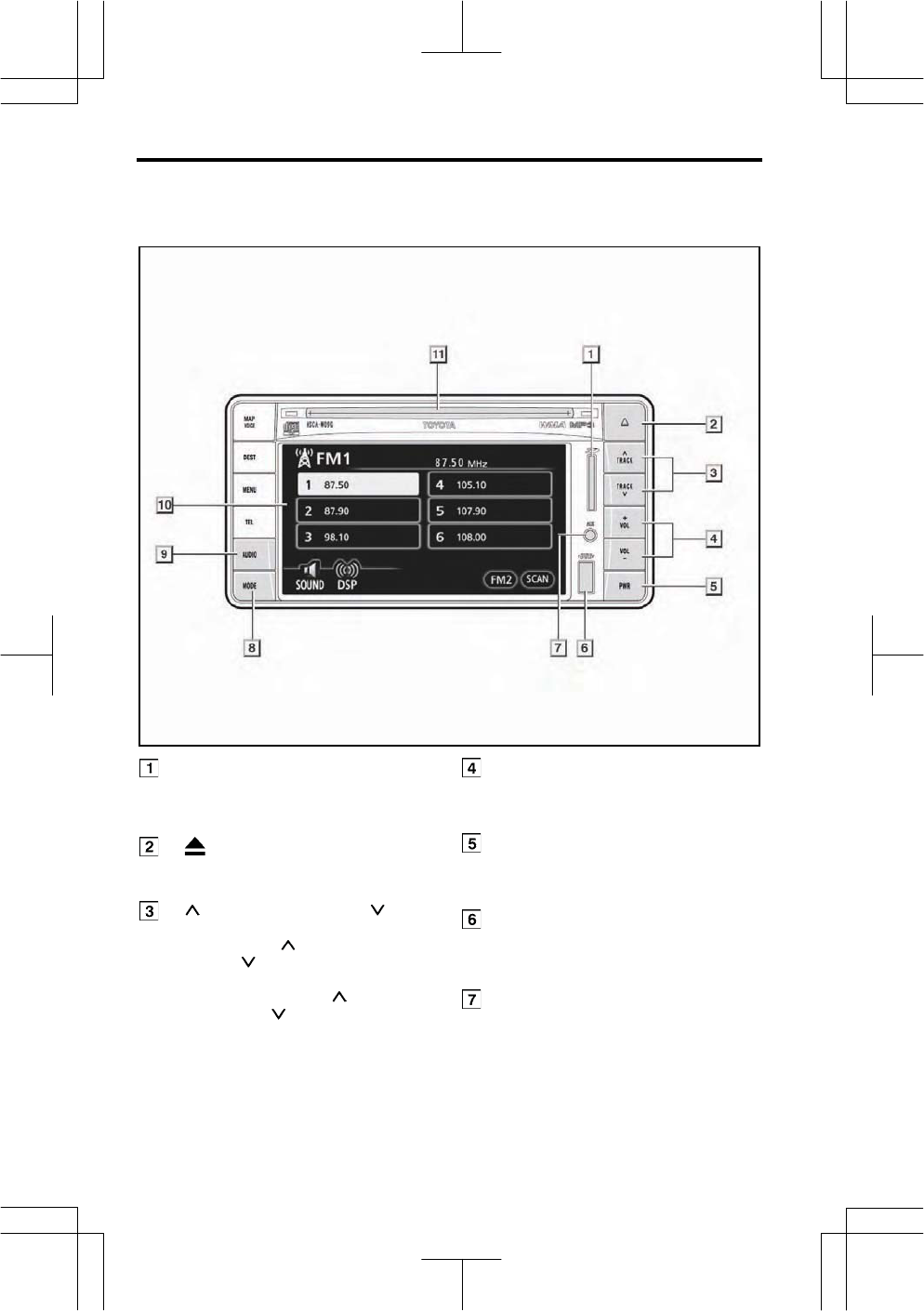

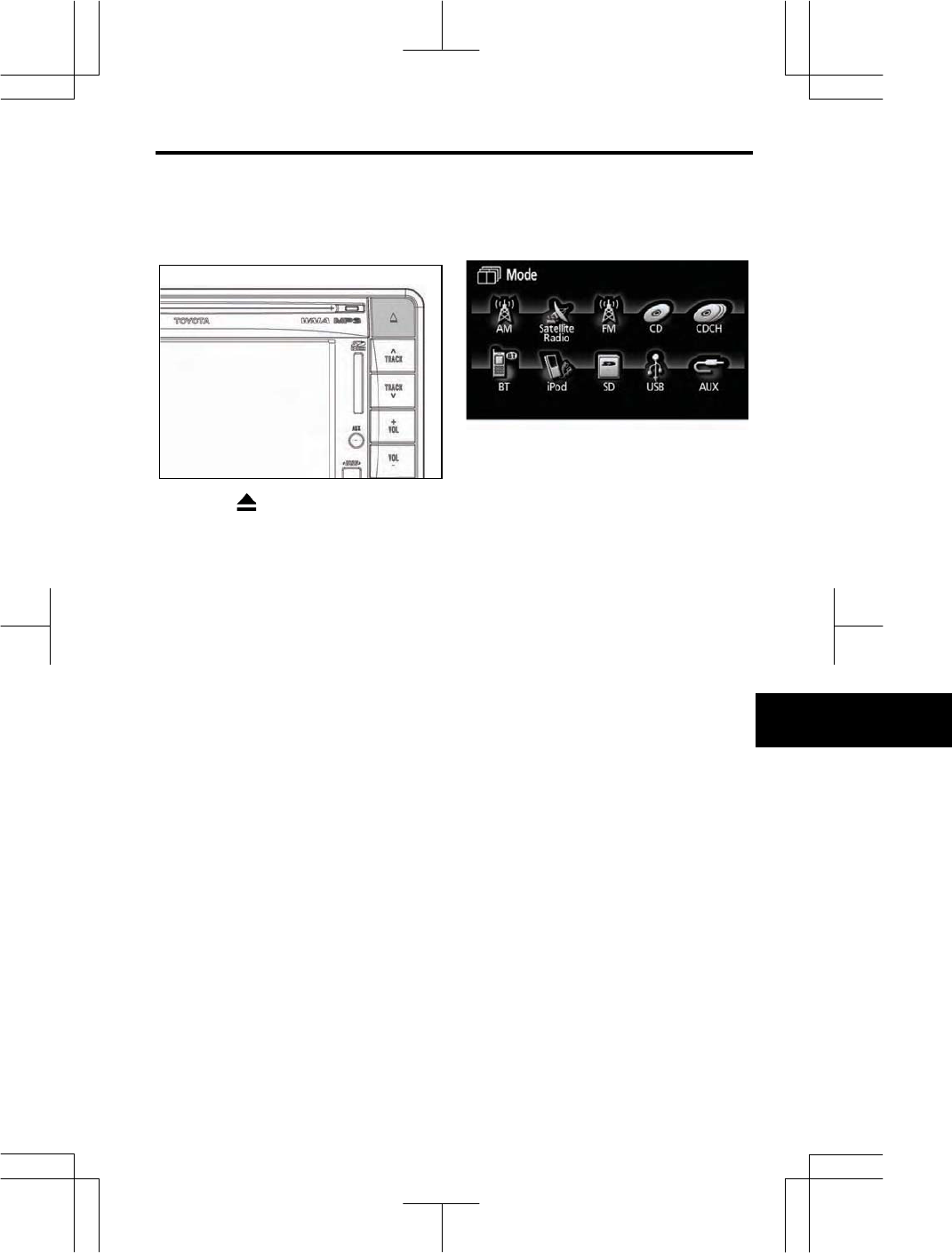

SD memory card slot
Insert an SD memory card for the
SD player into this slot. For details,
see page 204.
“ ” button
Push this button to eject a disc.
For details, see page 195.
“ TRACK” or “TRACK ” but-
ton
Push the “TRACK” or the
“TRACK ” button to move up or
down the frequency, track or file.
Push and hold the “TRACK” or
the “TRACK ” button to seek up
or down for a station.
For details, see pages 183, 196,
200, 209, 220 and 233.
“+ VOL” or “VOL –” button
Push “+ VOL” or “VOL –” button to
adjust the volume. For details, see
page 177.
“PWR” button
Push this button to turn the audio
system on and off. For details, see
page 177.
USB port
Plug a USB memory device for the
USB player into this port. For de-
tails, see page 206.
AUX port
Plug a portable audio device into
this port to play in AUX mode. For
details, see page 227.
Quick reference
![](/img.php?id=1116362&img=bg4b.png)
AUDIO SYSTEM
175
V689_E
“MODE” button
Push this button to display the au-
dio selection screen. For details,
see page 177.
“AUDIO” button
Push this button to display the au-
dio control screen. For details, see
page 177.
Function button display screen
Touch the touch screen buttons dis-
played on the screen to control the
radio, CD player, SD/USB player,
Bluetooth®audio, AUX or iPod.
For details, see page 177.
CD slot
Insert a disc for the CD player into
this slot. For details, see page
194.
Vehicles with smart entry and start sys-
tem—
Your audio system works when the
“ENGINE START STOP” switch is in the
ACCESSORY or IGNITION ON mode.
Vehicles without smart entry and start
system—
Your audio system works when the en-
gine switch is in ACC or ON position.
NOTICE
To prevent the battery from being
discharged, do not leave the audio
system on longer than necessary
when the engine is not running.
FCC ID: XEMNA08A01
IC ID: 8192A-NA08A01
MADE IN JAPAN
This device complies with Part 15 of
the FCC Rules and RSSí210 of in-
dustry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must
accept any interference received, in-
cluding interference that may cause
undesired operation.
Using your audio system —
—
Some basics
![](/img.php?id=1116362&img=bg4c.png)
AUDIO SYSTEM
176
V689_E
CAUTION
zPart 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved
by AISIN AW Co., Ltd for compli-
ance could void the user’s au-
thority to operate the equipment.
Radio frequency exposure. This
device is approved for Mobile Ap-
plication only and, to comply with
applicable FCC radio frequency
exposure regulations, must be
used with a distance of at least
7.9 in. (20 cm) between the an-
tenna and the body of any person
at all time during use.
zLaser products
zDo not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The laser
is carefully shielded so that its
rays remain inside the cabinet.
Therefore, never try to disas-
semble the player or alter any of
its parts since you may be ex-
posed to laser rays and dan-
gerous voltages.
zThis product utilizes a laser. Use
of controls or adjustments or
performance of procedures
other than those specified
herein may result in hazardous
radiation exposure.
![](/img.php?id=1116362&img=bg4d.png)
AUDIO SYSTEM
177
V689_E
z Turning the system on and off,
and adjusting the volume
“PWR” button: Push this button to turn
the audio system on and off. The sys-
tem turns on in the last mode used.
“AUDIO” button: Push this button to
display touch screen buttons for audio
system (audio control mode).
“+ VOL” or “VOL –” button: Push this
button to adjust the volume.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See “(a) Auto-
matic transition” on page 169 for details.

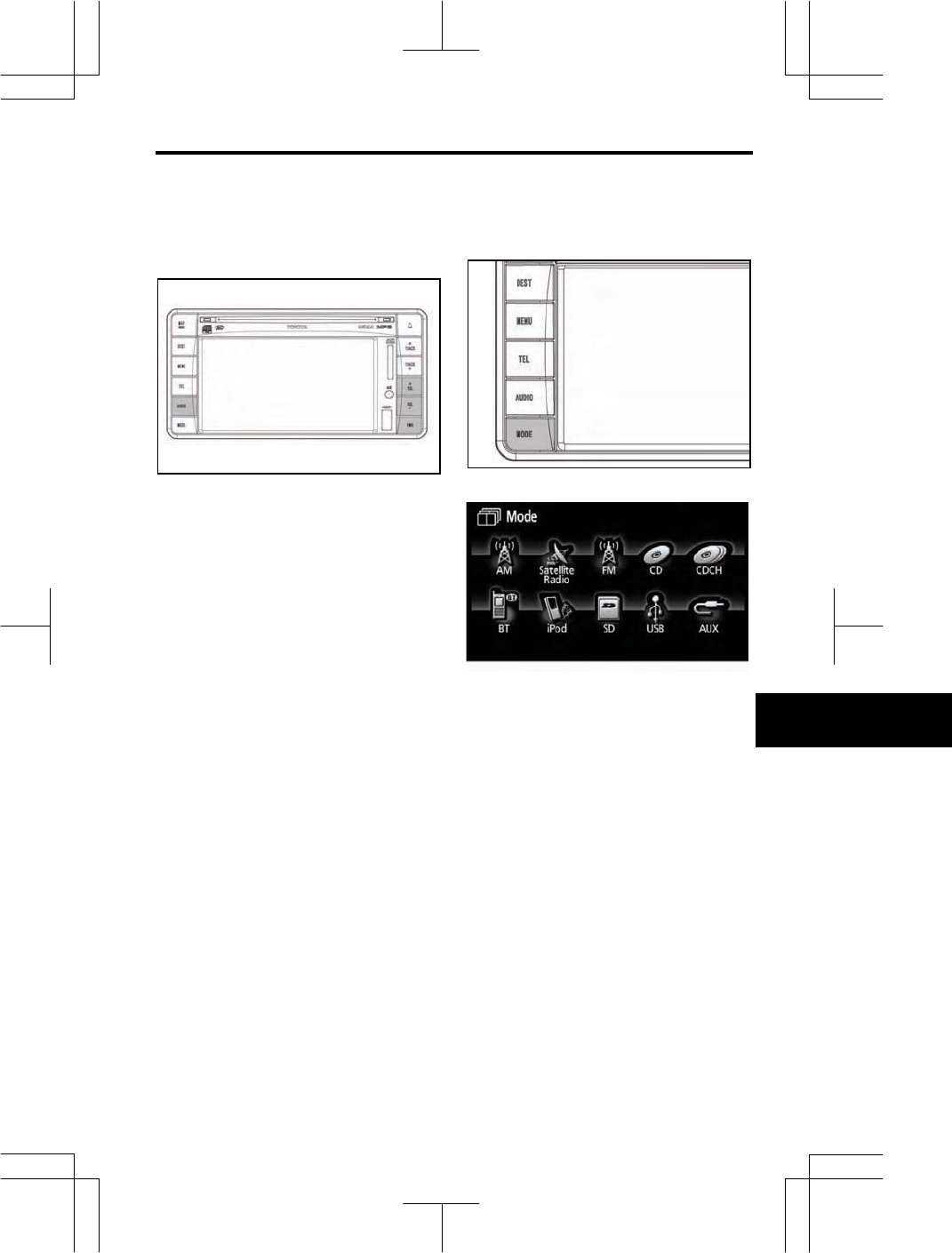

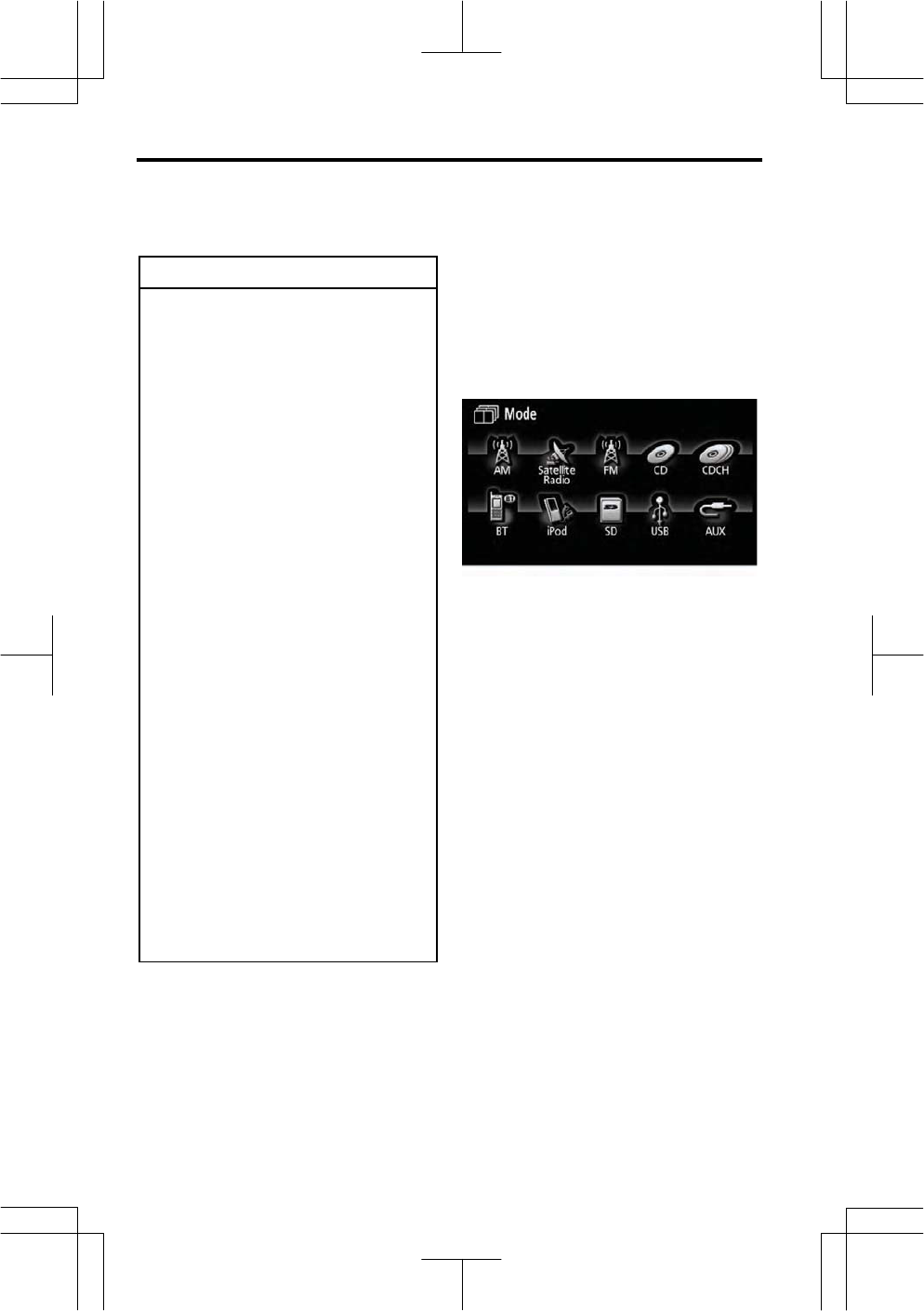

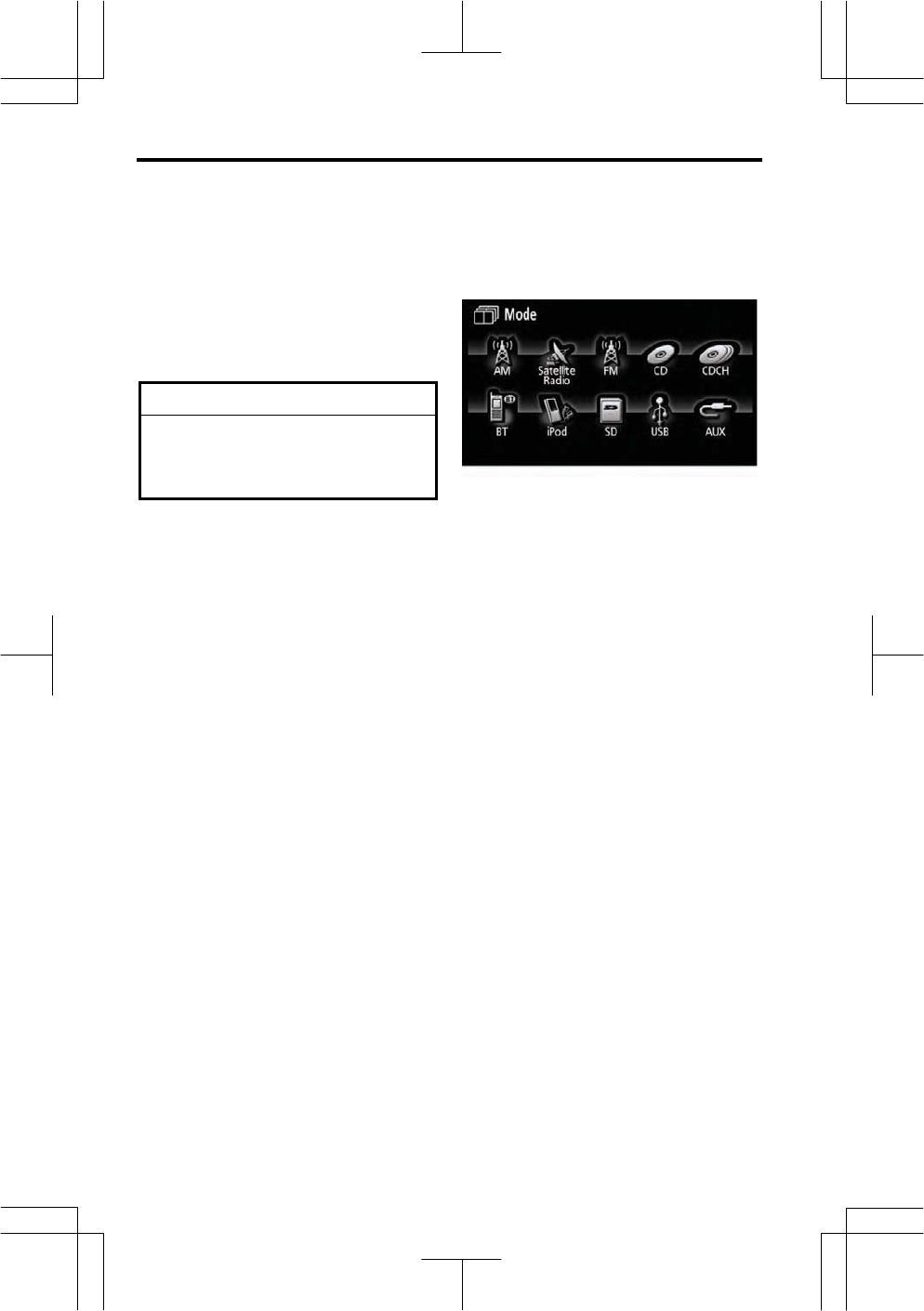

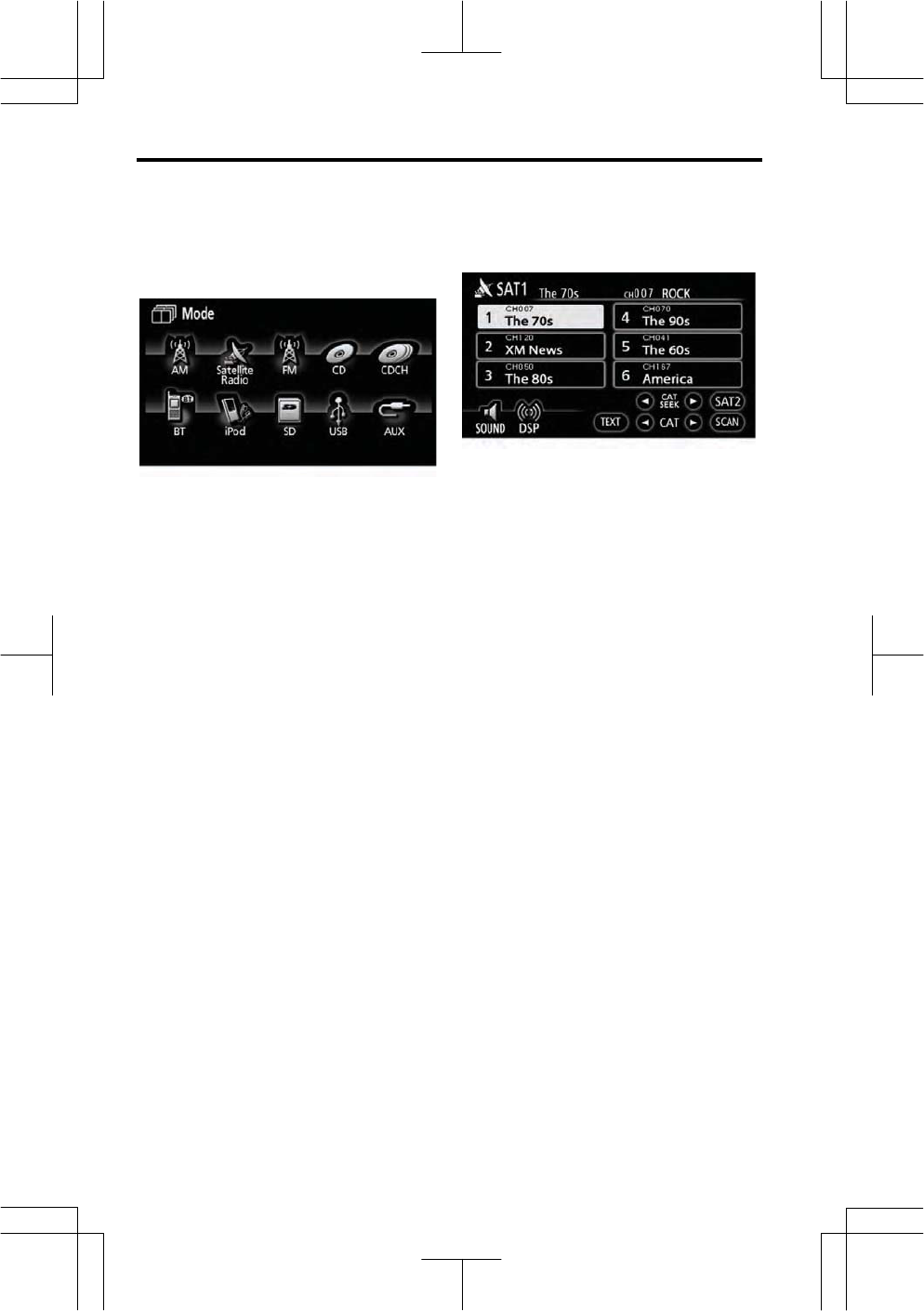

z Switching between functions
1. Push the “MODE” button.
2. Touch the desired mode touch
screen button. The screen of the
selected mode is displayed.
Touch these touch screen buttons if you
want to switch from one mode to an-
other.
Changing modes to Satellite Radio,
CDCH, Bluetooth® audio, iPod, SD, USB,
or AUX is not possible unless they are
connected.
If the disc is not set, the “CD” screen will
not appear.
![](/img.php?id=1116362&img=bg4e.png)

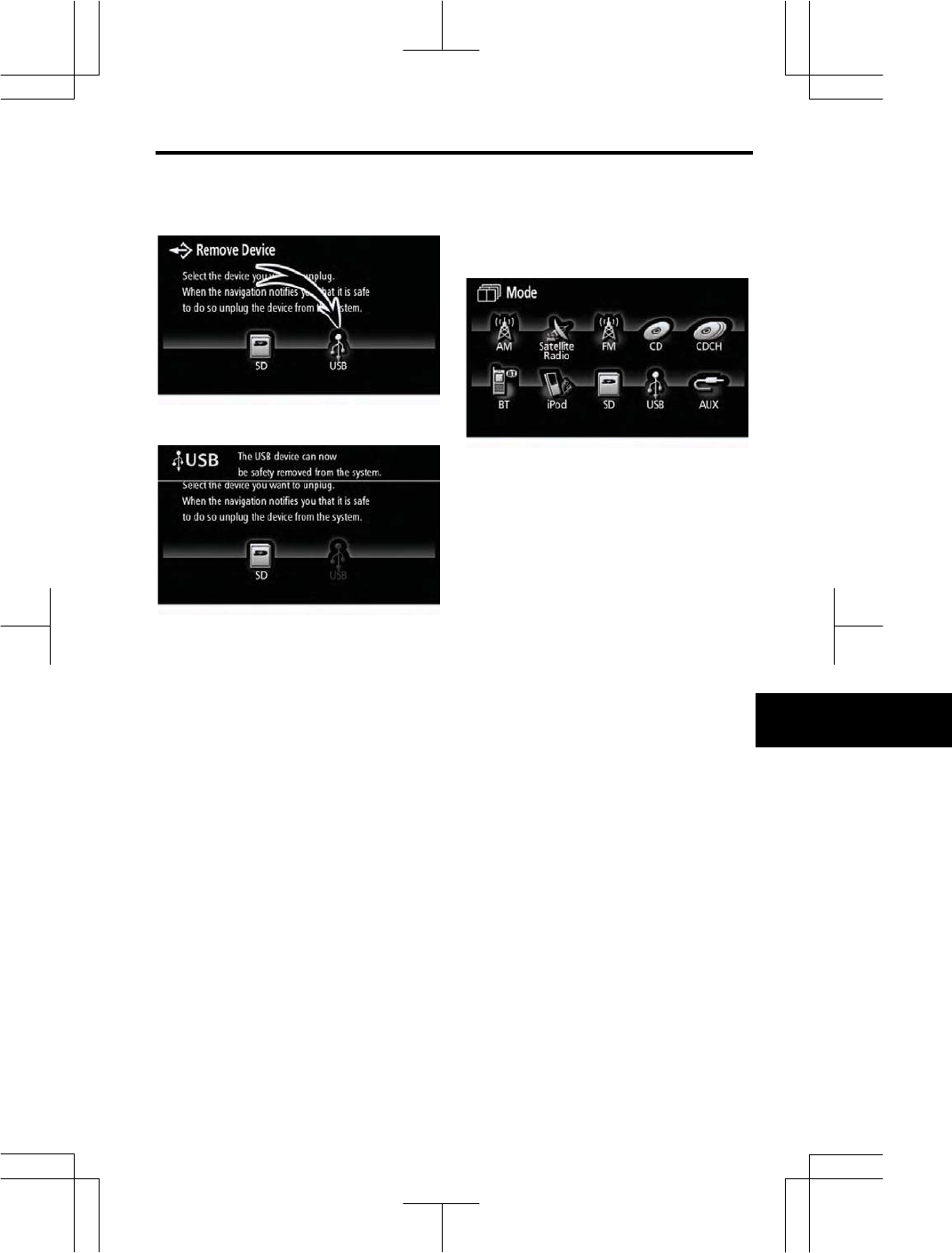

AUDIO SYSTEM
178
V689_E

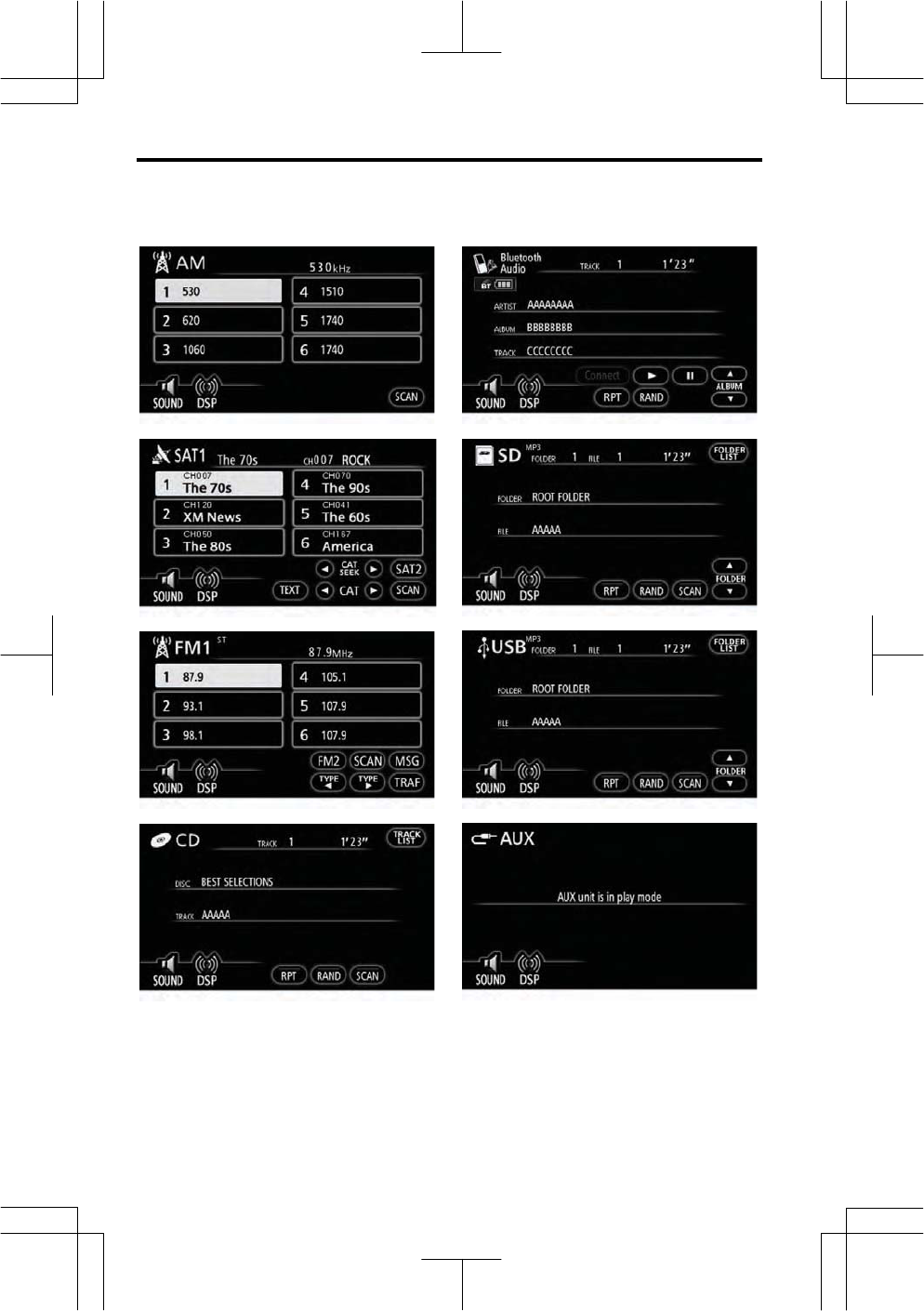

![](/img.php?id=1116362&img=bg4f.png)
AUDIO SYSTEM
179
V689_E
*if the iPod connecting cable is con-
nected
![](/img.php?id=1116362&img=bg50.png)
AUDIO SYSTEM
180
V689_E
The touch screen buttons for radio, CD
player, SD/USB player, Bluetooth® audio,
AUX and iPod operation are displayed
on the function button display screen
when the audio control mode is selected.
Touch them lightly and directly on the
screen.
The selected touch screen button is
highlighted.
INFORMATION
zIf the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
zYou cannot operate dimmed
touch screen buttons.
zWipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
z Tone and balance
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels.
In fact, different kinds of music and vocal
programs usually sound better with dif-
ferent levels of treble, midrange, and
bass.
Balance
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the
volume of one group of sounds while
decreasing the volume of another.
1. Push the “AUDIO” button.
2. Touch “SOUND”.
![](/img.php?id=1116362&img=bg51.png)
AUDIO SYSTEM
181
V689_E

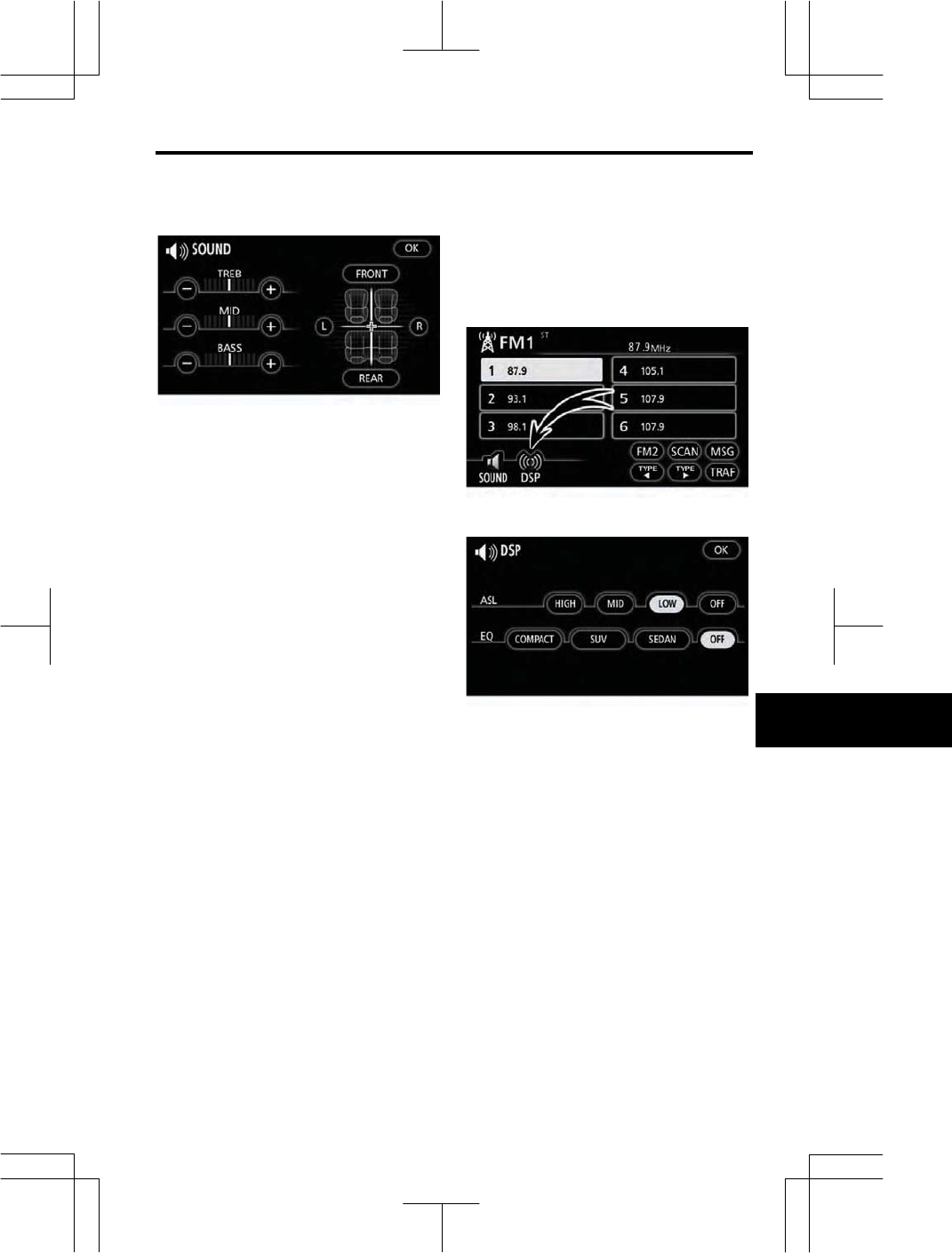

3. Touch the desired touch screen
button.
“TREB” “+” or “–”: Adjusts
high-pitched tones.
“MID” “+” or “–”: Adjusts mid-pitched
tones.
“BASS” “+” or “–”: Adjusts low-pitched
tones.
“FRONT” or “REAR”: Adjusts sound
balance between the front and rear
speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM and CD player) can be adjusted.
z DSP control
You can change the automatic sound
levelizer and the equalizer system.
1. Push the “AUDIO” button.
2. Touch “DSP”.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult
to hear due to road noise, wind noise or
other noises while driving, touch “HIGH”,
“MID” or “LOW”. The system adjusts
to the optimum volume and tone quality
according to the noise level.
When the system is on, the sound ad-
justment level is displayed on the screen.
To turn off the system, touch the “OFF”.
Equalizer system (EQ):
The equalizer system consists of three
different preset equalizer modes. You
can select from “COMPACT”,“SUV” or
“SEDAN” depending on your vehicle
body type.
To turn off the system, touch the “OFF”.
![](/img.php?id=1116362&img=bg52.png)
AUDIO SYSTEM
182
V689_E
z Your CD player
When you insert a disc, insert it with the
label side up. The CD player will play
from track 1 through to the end of the
disc. Then it will play from track 1
again.
NOTICE
Never try to disassemble or oil any
part of the CD player. Do not insert
anything other than discs into the
slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
zCD changer
If an optional CD changer is installed,
CDs can be played continuously with no
need of changing CDs. Push the
“MODE” button and then touch “CDCH”
to select CDCH mode.
For details, refer to the CD changer
owner’s manual.
ziPod connecting cable
If an optional iPod connecting cable is
installed, an iPod can be used by con-
necting the cable. For details, see page
229.

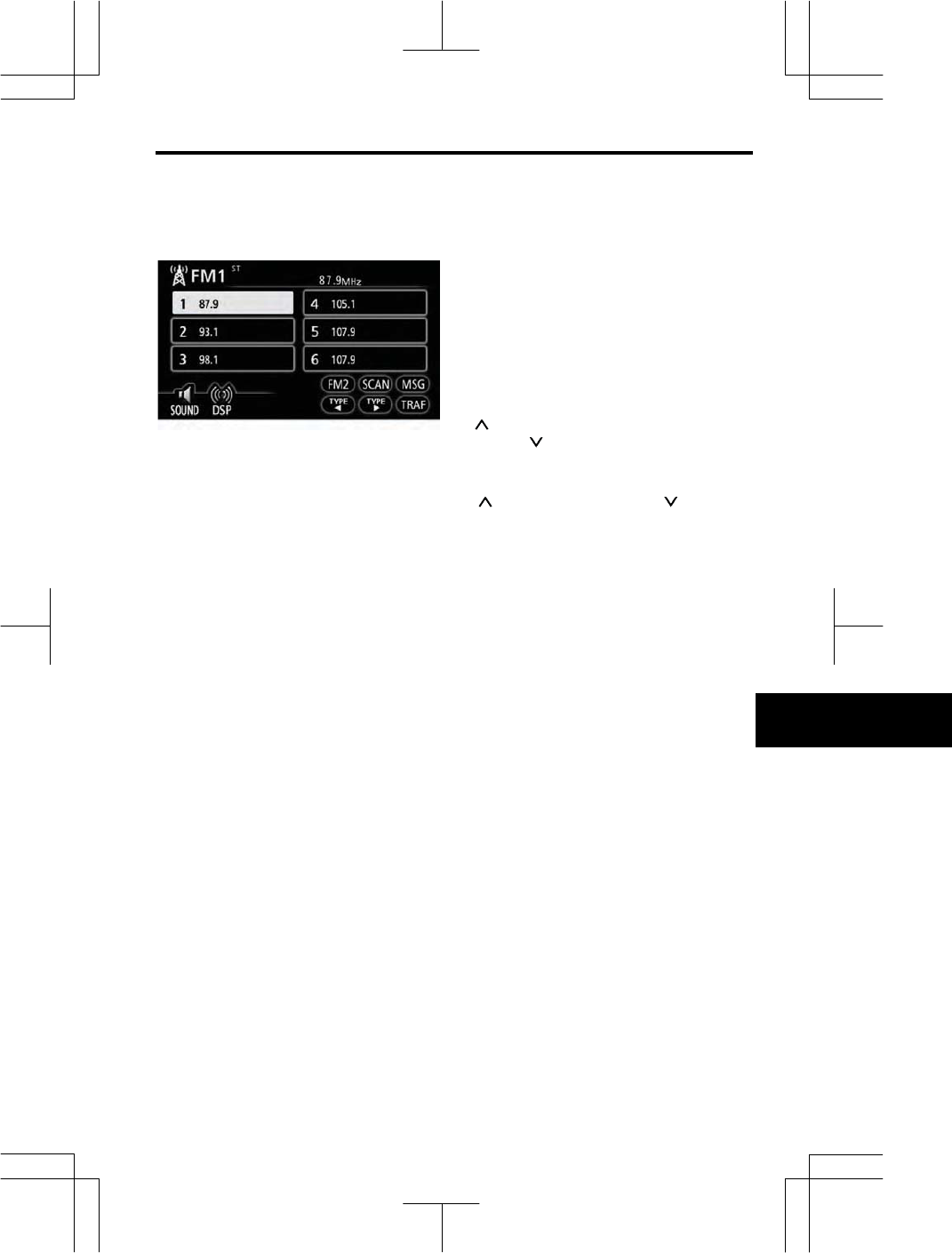

z Listening to the radio
1. Push the “MODE” button.
2. Touch these touch screen buttons
to choose either an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
Changing between FM1 and FM2: Touch
“FM1” or “FM2” on the screen.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “ST” appears on the screen.
If the signal becomes weak, the radio
reduces the amount of channel separa-
tion to prevent the weak signal from cre-
ating noise. If the signal becomes ex-
tremely weak, the radio switches from
stereo to mono reception. In this case,
“ST” disappears from the screen.
—
Radio o
p
eration
![](/img.php?id=1116362&img=bg53.png)
AUDIO SYSTEM
183
V689_E

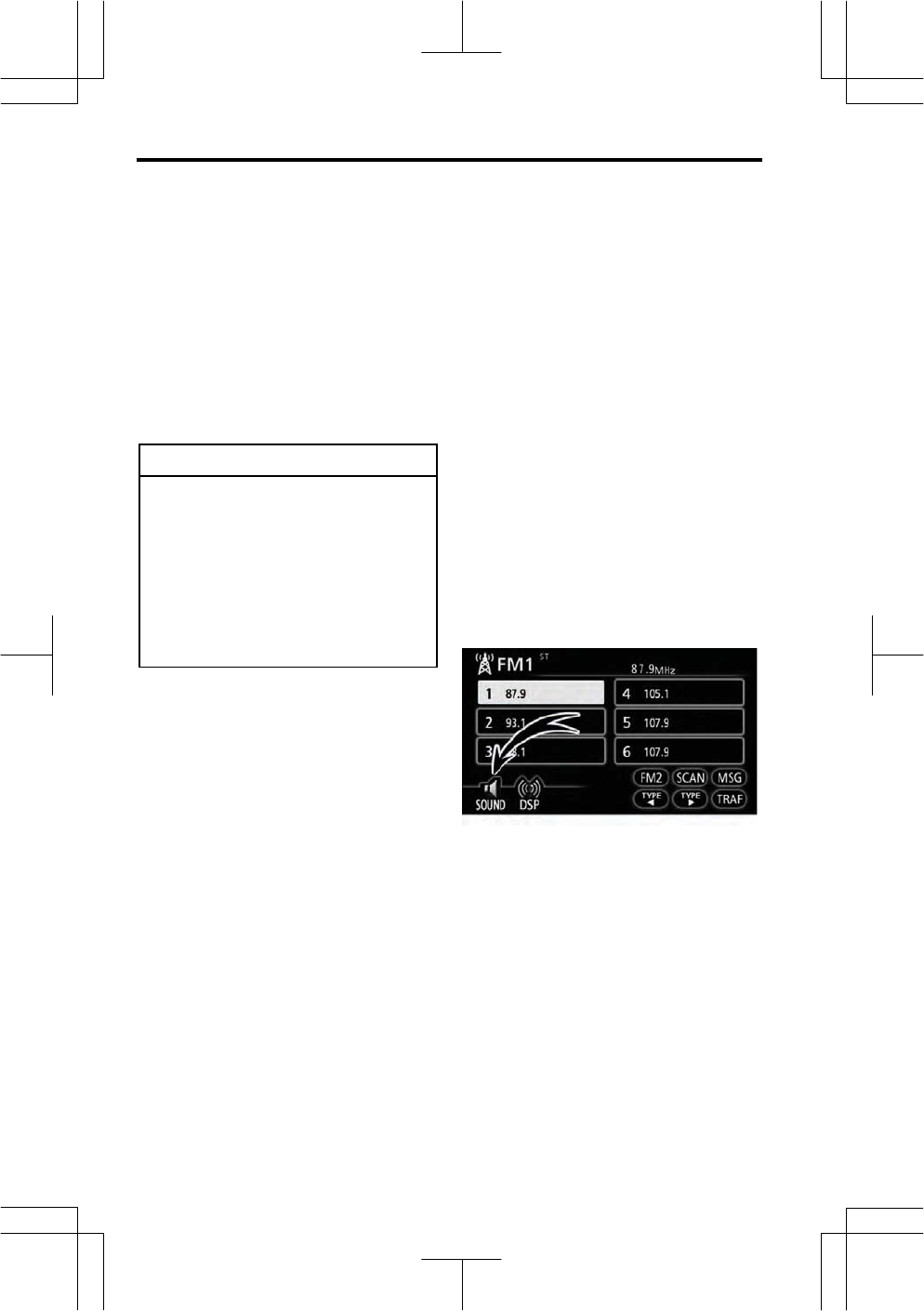

z Presetting a station
1. Tune in the desired station.
2. Touch one of the channel selector
touch screen buttons (1 — 6) you
want and hold it until a beep is heard.
This sets the station to the touch screen
button and the frequency appears on the
touch screen button.
Each radio mode can store up to 6 sta-
tions. To change the preset station to a
different one, follow the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
z Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Touch the channel se-
lector (1 — 6) for the station you want.
The touch screen button is highlighted
and the station frequency appears on the
screen.
Frequency adjustment: Push the
“TRACK” button to increase and the
“TRACK ” button to decrease the fre-
quency.
Seek tuning: Push and hold the
“TRACK” or “TRACK ” button.
The radio will begin seeking up or down
for a station of the nearest frequency and
will stop when a station is received.
Each time the button is pushed, the next
available station will be played.
To scan all the frequencies: Touch
“SCAN” on the screen briefly. “SCAN”
appears on the screen. The radio will
find the next station and stay there for a
few seconds, and then scan again. To
select a station, touch “SCAN” again.
To scan the preset stations: Touch
“SCAN” on the screen for longer than a
second. “P. SCAN” appears on the
screen. The radio will tune in the next
preset station, stay there for a few sec-
onds, and then move to the next preset
station. To select a station, touch
“SCAN” again.
![](/img.php?id=1116362&img=bg54.png)
AUDIO SYSTEM
184
V689_E

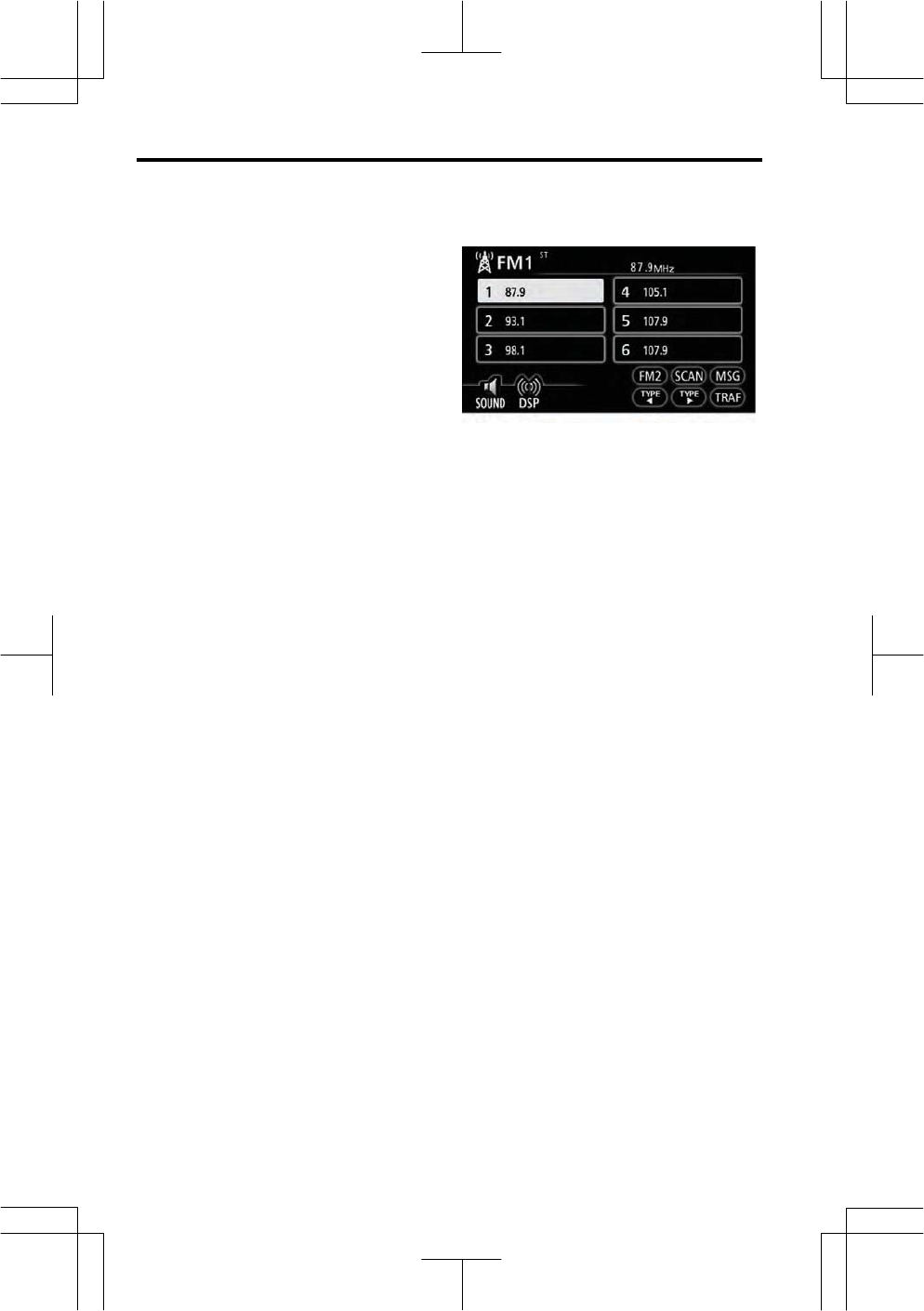

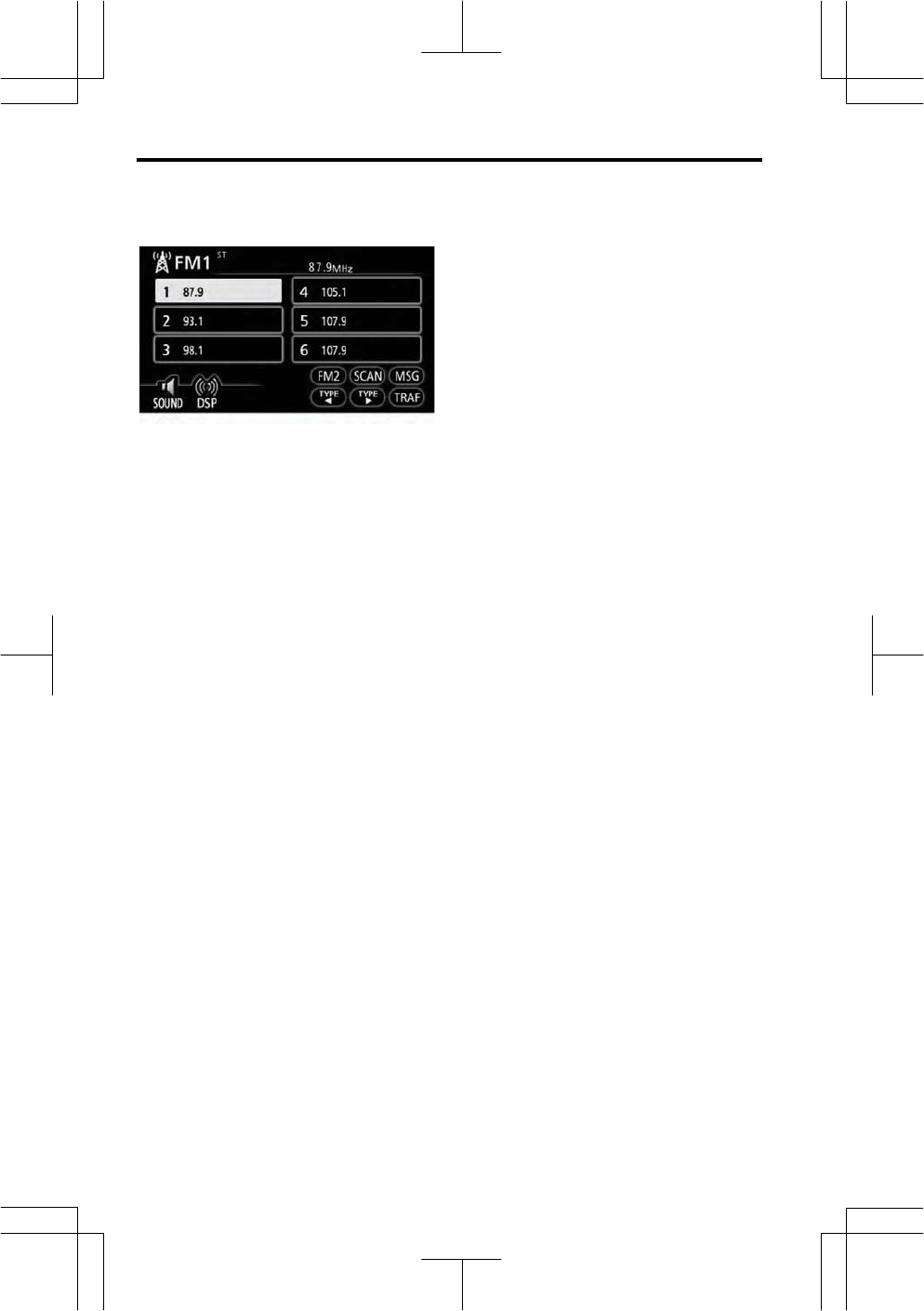

z Radio Data System
Your audio system is equipped with Ra-
dio Data Systems (RDS). RDS mode
provides you to receive text messages
from radio stations that utilize RDS
transmitters.
When RDS is on, the radio can
— only select stations of a particular
program type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use
only on FM stations which broadcast
RDS information.
“TYPEŻŹ”
Each time you touch “TYPEŻ” or
“TYPEŹ”, the program type changes as
in the following:
z ROCK
z EASY LIS (Easy listening)
z CLS/JAZZ (Classical music and
Jazz)
z R & B (Rhythm and Blues)
z INFORM (Information)
z RELIGION
z MISC (Miscellaneous)
z ALERT (Emergency message)
![](/img.php?id=1116362&img=bg55.png)
AUDIO SYSTEM
185
V689_E

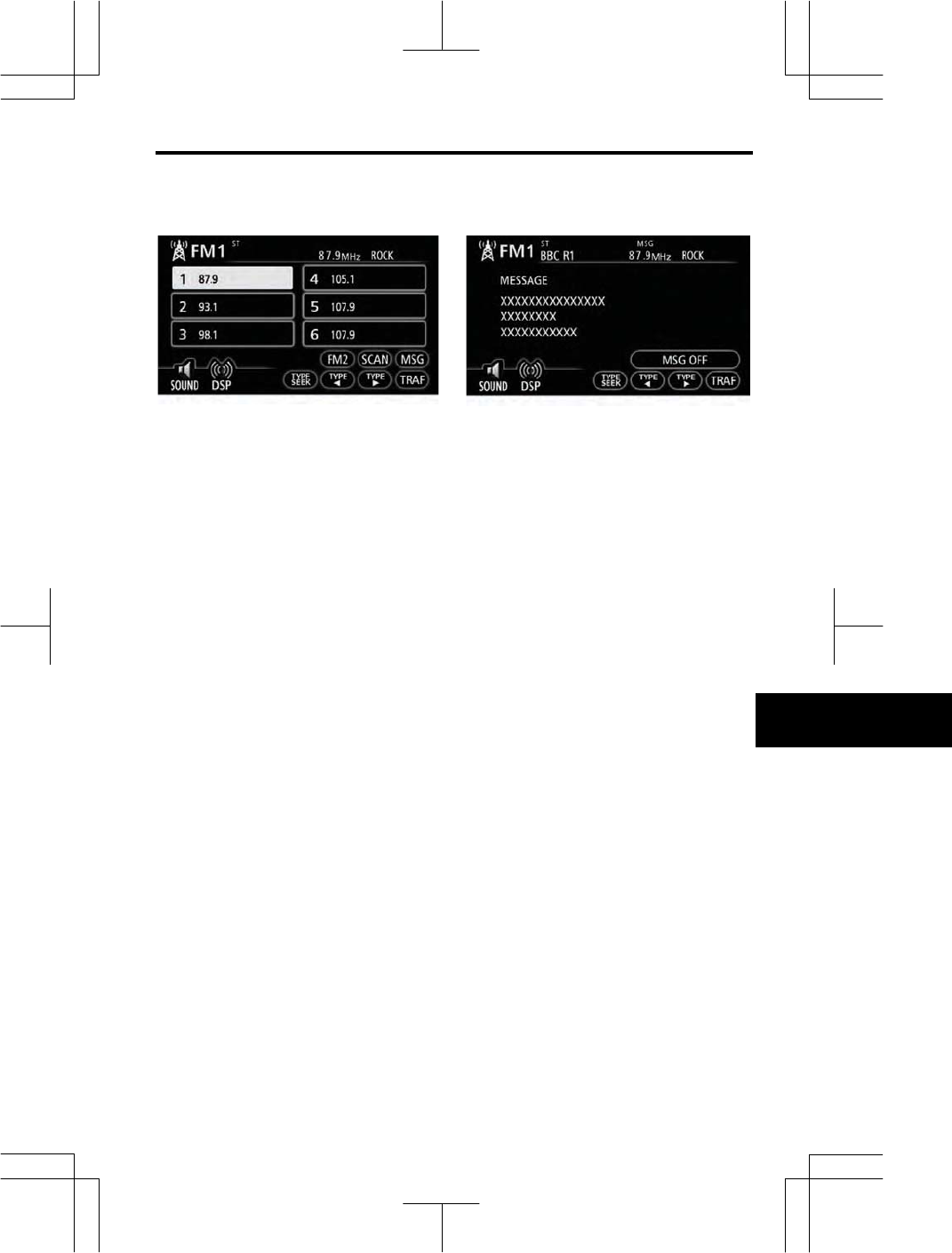

“TYPE SEEK”
When a program is set, “TYPE SEEK”
appears. Touch the touch screen button
and the system starts to seek the station
in the relevant program type.
If any type program station is not found,
“Nothing” appears on the screen.
“MSG” (MESSAGE)
If the system receives a radio text from
an RDS station, “MSG” appears on the
screen. Touch “MSG”, and a text mes-
sage is displayed on the screen. This
function is available only when the vehi-
cle is not moving.
When you touch “MSG OFF”, the dis-
play returns.
![](/img.php?id=1116362&img=bg56.png)
AUDIO SYSTEM
186
V689_E
z Traffic announcement
“TRAF”
A station that regularly broadcasts traffic
information is automatically located.
When you touch “TRAF”, “TRAF SEEK”
appears on the screen and the radio will
start seeking any traffic program station.
If no traffic program station is found, “NO
TRAFINFO” appears on the screen.
If a traffic program station is found, the
name for traffic program station is dis-
played for a while until a traffic an-
nouncement is received.
![](/img.php?id=1116362&img=bg57.png)
AUDIO SYSTEM
187
V689_E
To listen to a satellite radio broadcast in
your vehicle, an additional genuine
Toyota satellite receiver and antenna
must be purchased and installed, and
the subscription to the XM® Satellite
Radio is necessary.
z How to subscribe to an XM® Satel-
lite Radio
An XM® Satellite Radio is a tuner de-
signed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contiguous
states and 10 Canadian provinces.
How to subscribe:
You must enter into a separate service
agreement with the XM® Satellite Radio
in order to receive satellite broadcast
programming in the vehicle. Additional
activation and service subscription fees
apply that are not included in the pur-
chase price of the vehicle and optional
digital satellite tuner.
For detailed information about XM® Sat-
ellite Radio or to subscribe:
U.S.A.—
Visit on the web at www.xmradio.com or
call 1í800í967í2346.
Canada—
Visit on the web at www.xmradio.ca or
call 1í877í438í9677.
The XM®Satellite Radio is solely re-
sponsible for the quality, availability and
content of the satellite radio services
provided, which are subject to the terms
and conditions of the XM® Satellite Radio
customer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by se-
lecting “channel 000” on the radio. For
details, see the “Displaying the radio ID”
that follows.
All fees and programming are the re-
sponsibility of the XM® Satellite Radio
and are subject to change.
Satellite tuner technology notice:
Toyota’s satellite radio tuners are
awarded Type Approval Certificates from
XM® Satellite Radio Inc. as proof of
compatibility with the services offered by
the XM® Satellite Radio.
z Displaying the radio ID
Each XM® tuner is identified with a
unique radio ID. You will need the radio
ID when activating XM® service or when
reporting a problem.
If you select the “CH 000” using the
“TRACK” or “TRACK ” button, the
ID code of 8 alphanumeric characters
appears. If you select another channel,
display of the ID code is canceled. The
channel (000) alternates the display be-
tween the radio ID and the specific radio
ID code.
INFORMATION
Cargo loaded on the roof luggage
carrier, especially metal objects,
may adversely affect the reception
of XM® Satellite Radio.
— Radio operation
(XM® Satellite Radio
broadcast
)
![](/img.php?id=1116362&img=bg58.png)
AUDIO SYSTEM
188
V689_E
z Listening to satellite radio
(1) Push the “Mode” button.
(2) Touch “Satellite Radio”.
Push the “AUDIO” button to display the
satellite radio operation screen.
z Changing the band
The band changes each time “SAT2”
is touched.
The band changes sequentially between
“SAT1”,“SAT2”, and “SAT3”.
![](/img.php?id=1116362&img=bg59.png)
AUDIO SYSTEM
189
V689_E

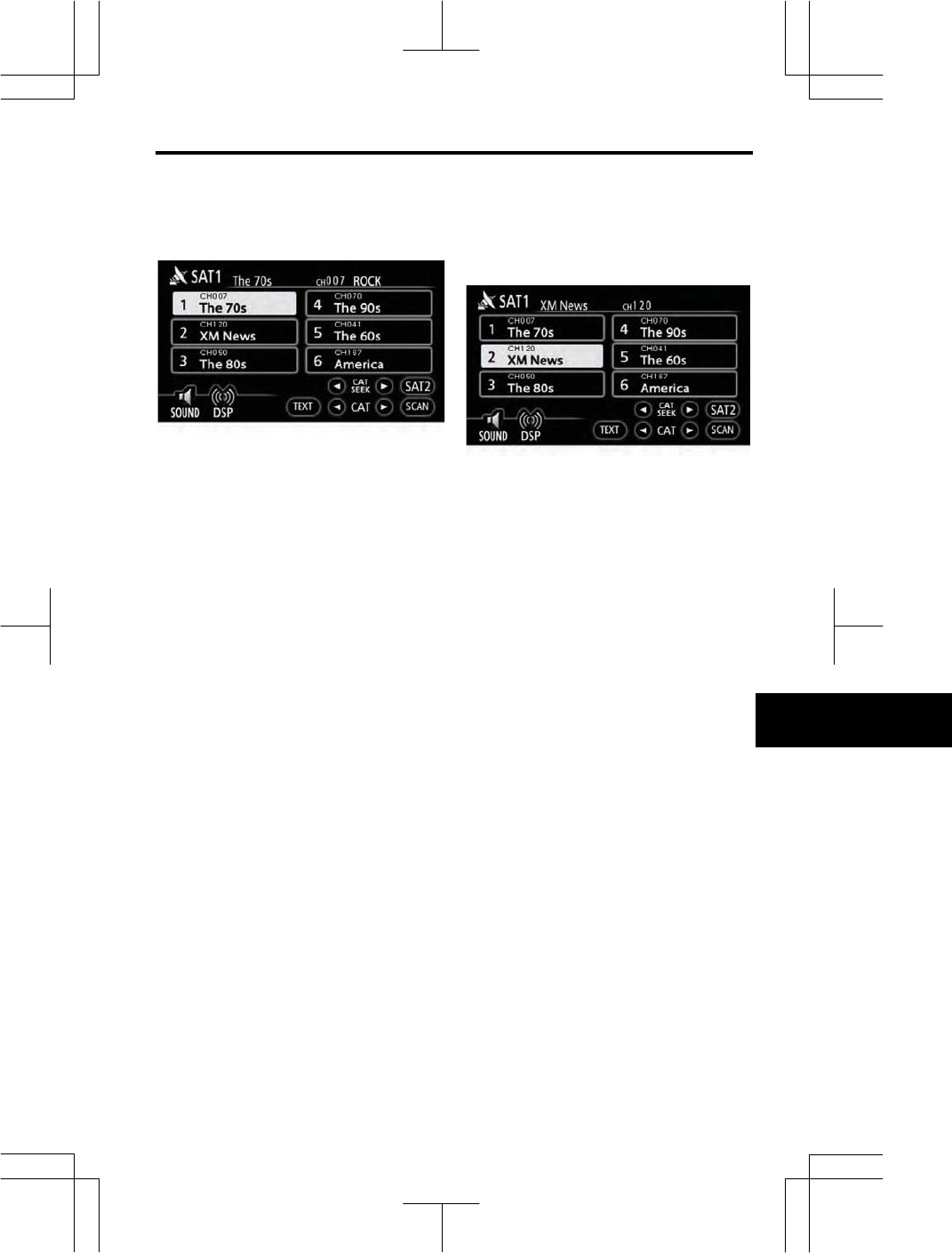

z Channel category
Touch either “CATŻ” or “CATŹ” to go
to the next or previous category.
z Presetting a channel
1. Tune in the desired channel.
2. Touch one of the channel selector
touch screen buttons (1 — 6) and hold
it until a beep is heard.
This sets the channel to the touch screen
button and the name and number of the
channel appears on the touch screen
button.
Each touch screen button can store
three SAT channels. To change the pre-
set channel to a different one, follow the
same procedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
![](/img.php?id=1116362&img=bg5a.png)
AUDIO SYSTEM
190
V689_E

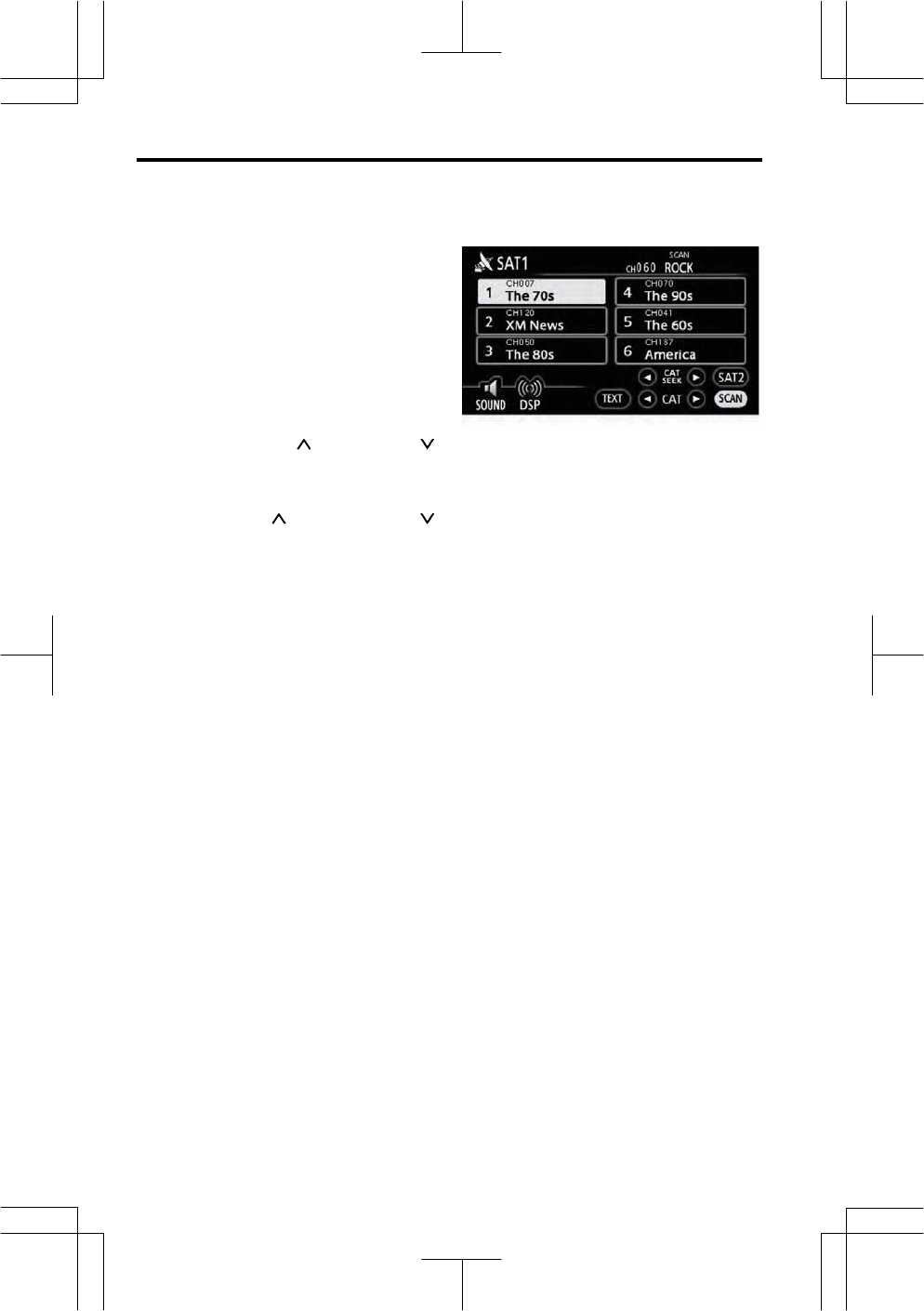

z Selecting a channel
Tune in the desired channel using one of
the following methods.
Preset tuning: Touch the channel se-
lector button (1—6) for the channel you
want. The touch screen button (1—6) is
highlighted and channel number appears
on the screen.
To select channel within the current
category: Push the “ TRACK” or “
TRACK” button. The radio will step up or
down the receivable channel within the
current channel category. If you push
and hold the “ TRACK” or “
TRACK” button, the radio will begin
seeking up or down for the next receiv-
able channel and will stop when the but-
ton is released. Touch either “CAT
SEEKŻ” or “CAT SEEKŹ”. The radio
will step up or down the channel within
the current channel category.
To scan the currently selected chan-
nel category: Touch “SCAN” on the
screen briefly. “SCAN” appears on the
screen. The radio will find the next
channel in the same channel category,
stay there for a few seconds, and then
scan again. To select a channel, touch
“SCAN” again.
To scan the preset channels: Touch
“SCAN” on the screen for longer than a
second. “P.SCAN” appears on the
screen. The radio will find the next preset
channel, stay there for a few seconds,
and then move to the next preset chan-
nel. To select a channel, touch “SCAN”
again.
![](/img.php?id=1116362&img=bg5b.png)
AUDIO SYSTEM
191
V689_E
z Displaying the title and name
When you touch “TEXT”, the
song/program title and the artist
name/feature are displayed.
When you touch “TEXT” again, the dis-
play returns.
![](/img.php?id=1116362&img=bg5c.png)
AUDIO SYSTEM
192
V689_E
z If the satellite radio tuner malfunctions
When problems occur with the XM® tuner, a message will appear on the display. Re-
ferring to the table below to identify the problem, take the suggested corrective action.
The XM® antenna is not connected. Check whether the XM® an-
tenna cable is attached securely.
ANTENNA
A short circuit occurs in the antenna or the surrounding antenna
cable. See a Toyota certified dealer for assistance.
You have not subscribed to the XM® Satellite Radio. The radio is
being updated with the latest encryption code. Contact the XM®
Satellite Radio for subscription information. When a contract is
canceled, you can choose the “CH000” and all freeítoíair chan-
nels.
UPDATING
The premium channel you selected is not authorized. Wait for
about 2 seconds until the radio returns to the previous channel or
“CH001”. If it does not change automatically, select another
channel. If you want to listen to the premium channel, contact the
XM® Satellite Radio.
NO SIGNAL The XM® signal is too weak at the current location. Wait until your
vehicle reaches a location with a stronger signal.
LOADING The unit is acquiring audio or program information. Wait until the
unit has received the information.
OFF AIR The channel you selected is not broadcasting any programming.
Select another channel.
ííííí There is no song/program title or artist name/feature associated
with the channel at that time. No action needed.
ííí
The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or
“CH001”. If it does not change automatically, select another
channel.
Contact the XM® Listener Care Center at 1í800í967í2346 (U.S.A.) or
1í877í438í9677 (Canada).
![](/img.php?id=1116362&img=bg5d.png)
AUDIO SYSTEM
193
V689_E
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reason-
able protection against harmful in-
terference in a residential installa-
tion. This equipment generates,
uses and can radiate radio fre-
quency energy and, if not installed
and used in accordance with the
instructions, may cause harmful in-
terference to radio communications.
However, there is no guarantee that
interference will not occur in a par-
ticular installation.
If this equipment does cause harm-
ful interference to radio or television
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to cor-
rect the interference by one or more
of the following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
— Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user’s right
to operate the equipment.
INFORMATION
This XM® tuner supports “Audio
Services” (Music and Talk) of only
XM® Satellite Radio and “Text In-
formation”* linked to the respective
“Audio Services”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title
and Category Name.
![](/img.php?id=1116362&img=bg5e.png)
AUDIO SYSTEM
194
V689_E
The CD player can play audio CDs, CD
text, WMA discs, MP3 discs.
zAudio CD, CD text ................. 196
zMP3/WMA disc ...................... 199
For appropriate discs for this paper, see
“Audio system operating hints” on page
214.
(a) Inserting or ejecting disc
Vehicles with smart entry and start sys-
tem—
The “ENGINE START STOP” switch
must be in the ACCESSORY or
IGNITION ON mode.
Vehicles without smart entry and start
system—
The engine switch must be set at ACC or
ON position.

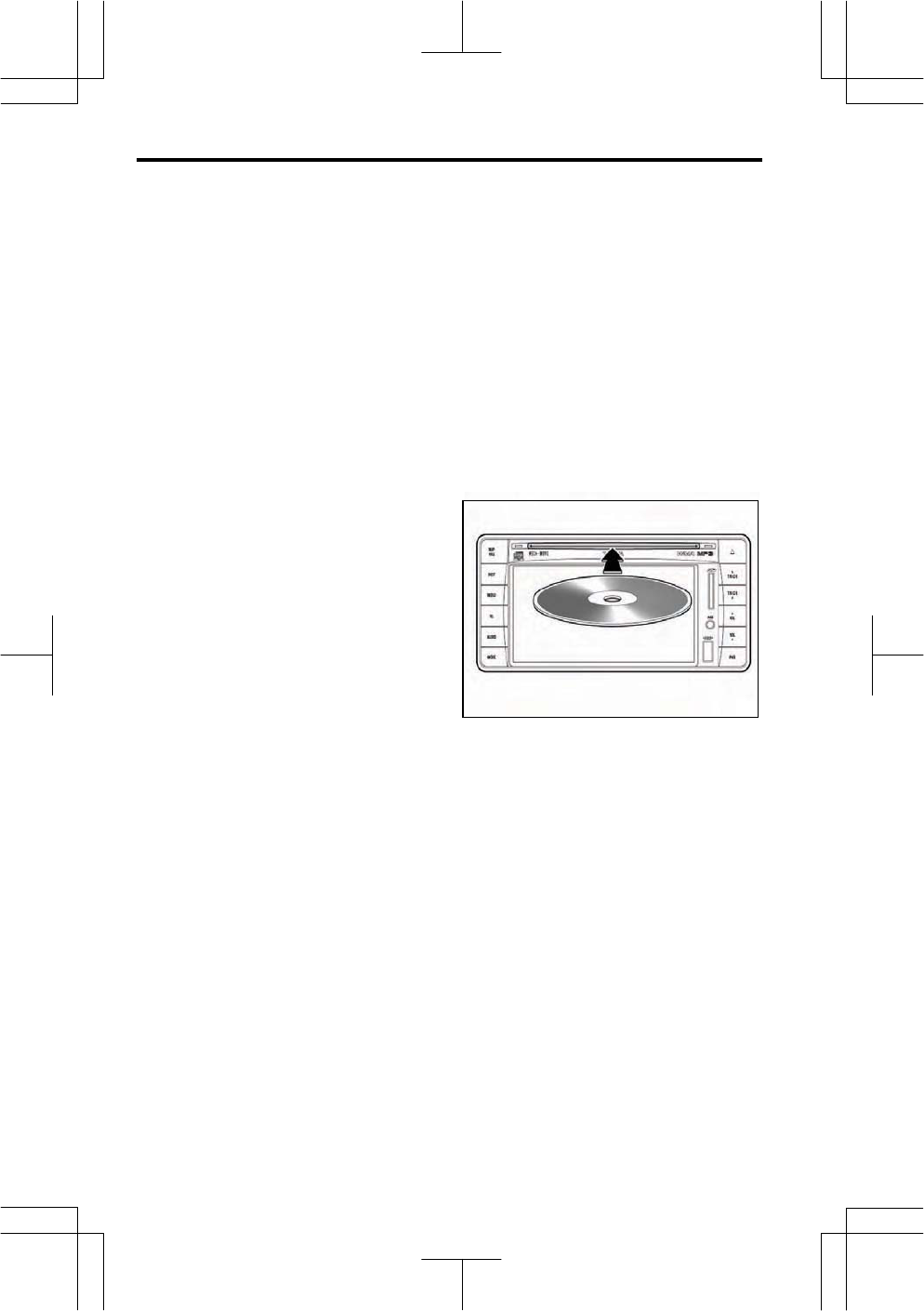

z Setting a disc
Insert a disc.
After insertion, the set disc is automati-
cally loaded.
If the label faces down, the disc cannot
be played. In this case, “Check CD”
appears on the screen.
— CD
p
la
y
er o
p
eration
![](/img.php?id=1116362&img=bg5f.png)
AUDIO SYSTEM
195
V689_E
z Ejecting a disc
Push the “ ” button.
The disc will be ejected. A disc can then
be inserted.
(b) Playing a disc
Push the “MODE” button and touch
“CD” if the disc are already loaded in
the CD player.
The “CD” screen will be displayed.
![](/img.php?id=1116362&img=bg60.png)
AUDIO SYSTEM
196
V689_E

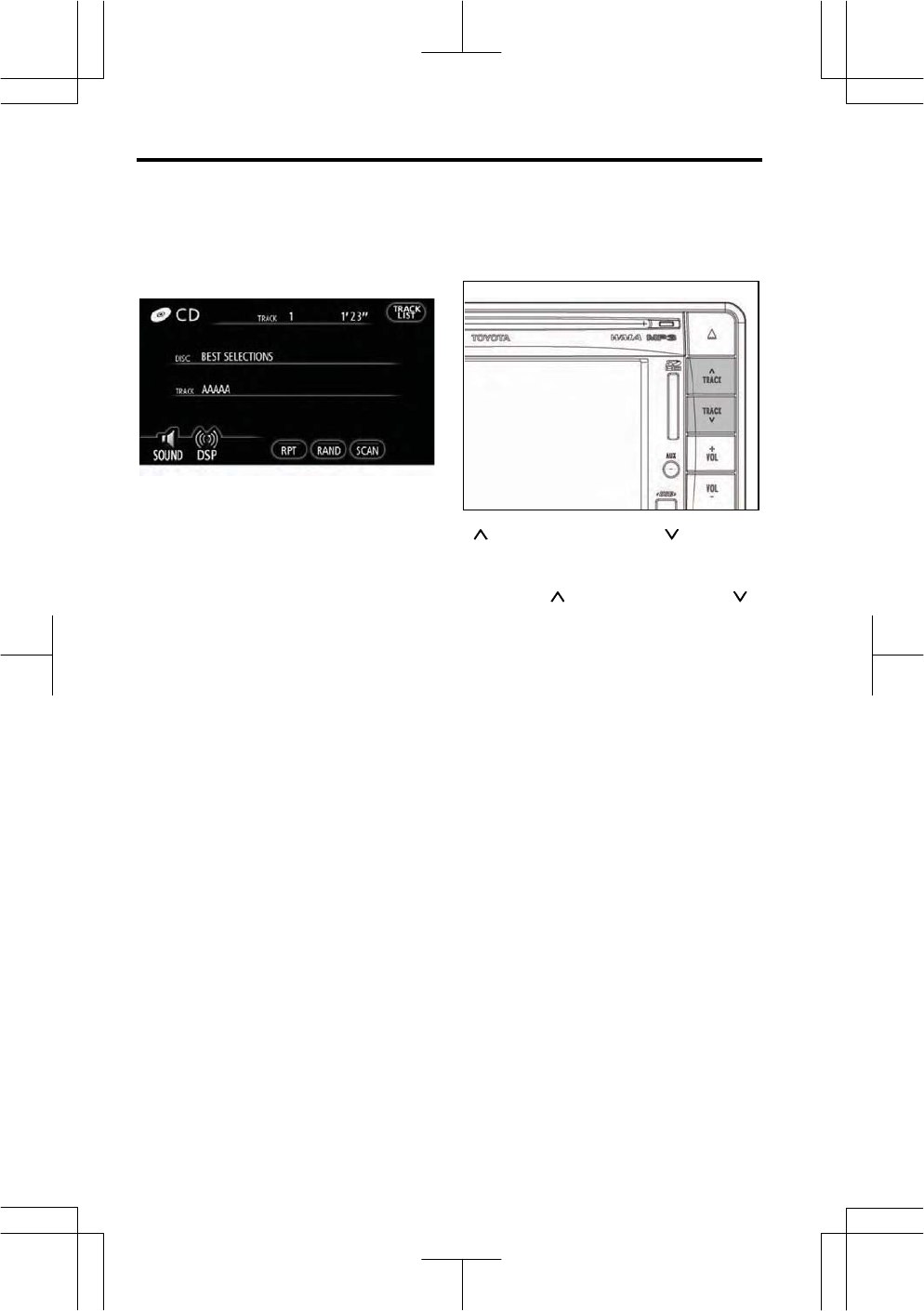

(c) Operating an audio CD

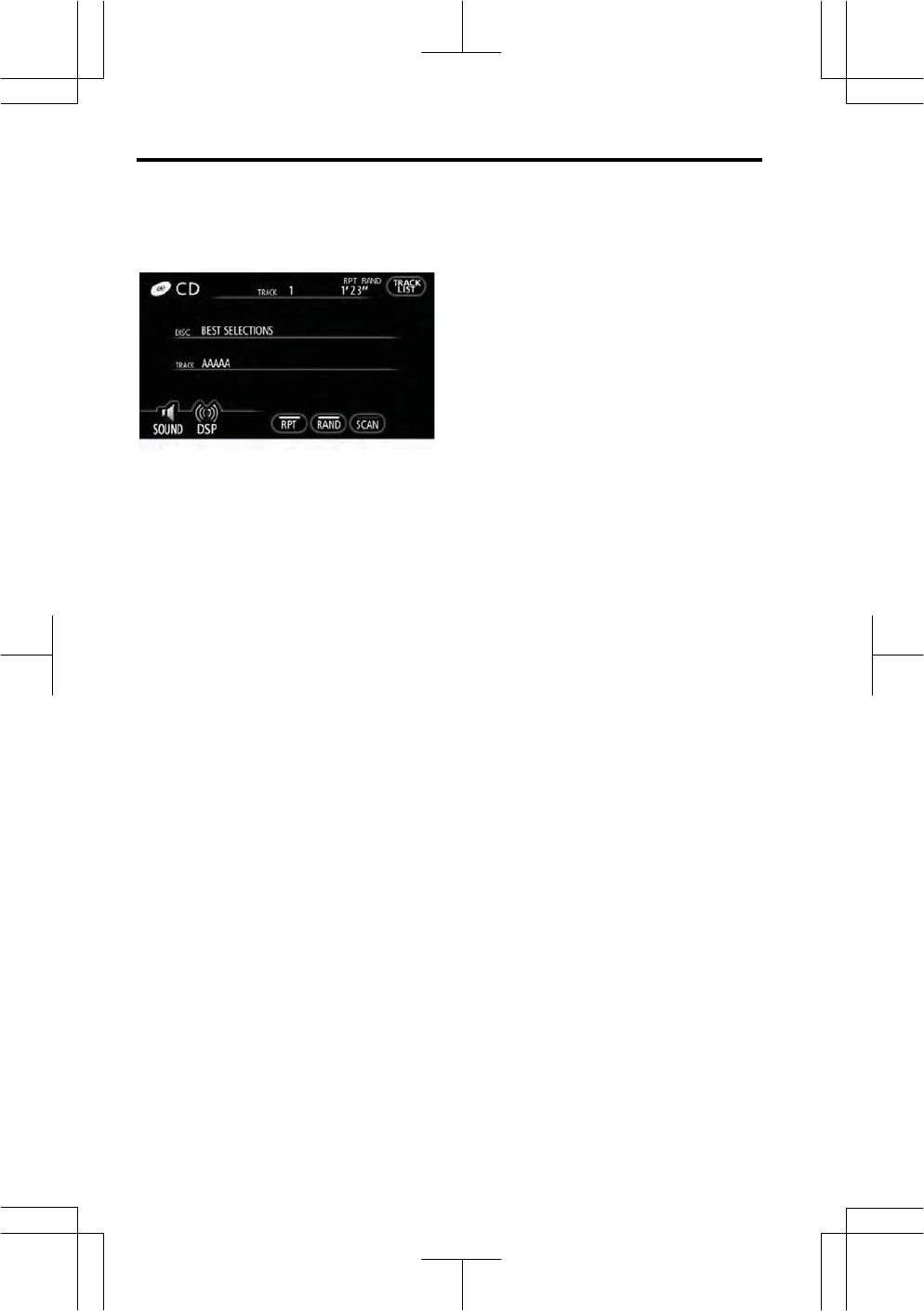

z Playing an audio CD
Push the “AUDIO” button to display
this screen.
CD text only — The disc title and track
title will appear on the screen when
pushing the “MODE” button and touch
“CD”.
z Selecting a desired track
“TRACK” or “TRACK ” button:
Use for a direct access to a desired
track.
Push the “TRACK” or “TRACK ”
button until the desired track number
appears on the screen. As you release
the button, the CD player will start play-
ing the selected track from the begin-
ning.
“TRACK LIST”: The desired track can
be selected from a list.
Touch “TRACK LIST”. The track list is
displayed.
![](/img.php?id=1116362&img=bg61.png)
AUDIO SYSTEM
197
V689_E

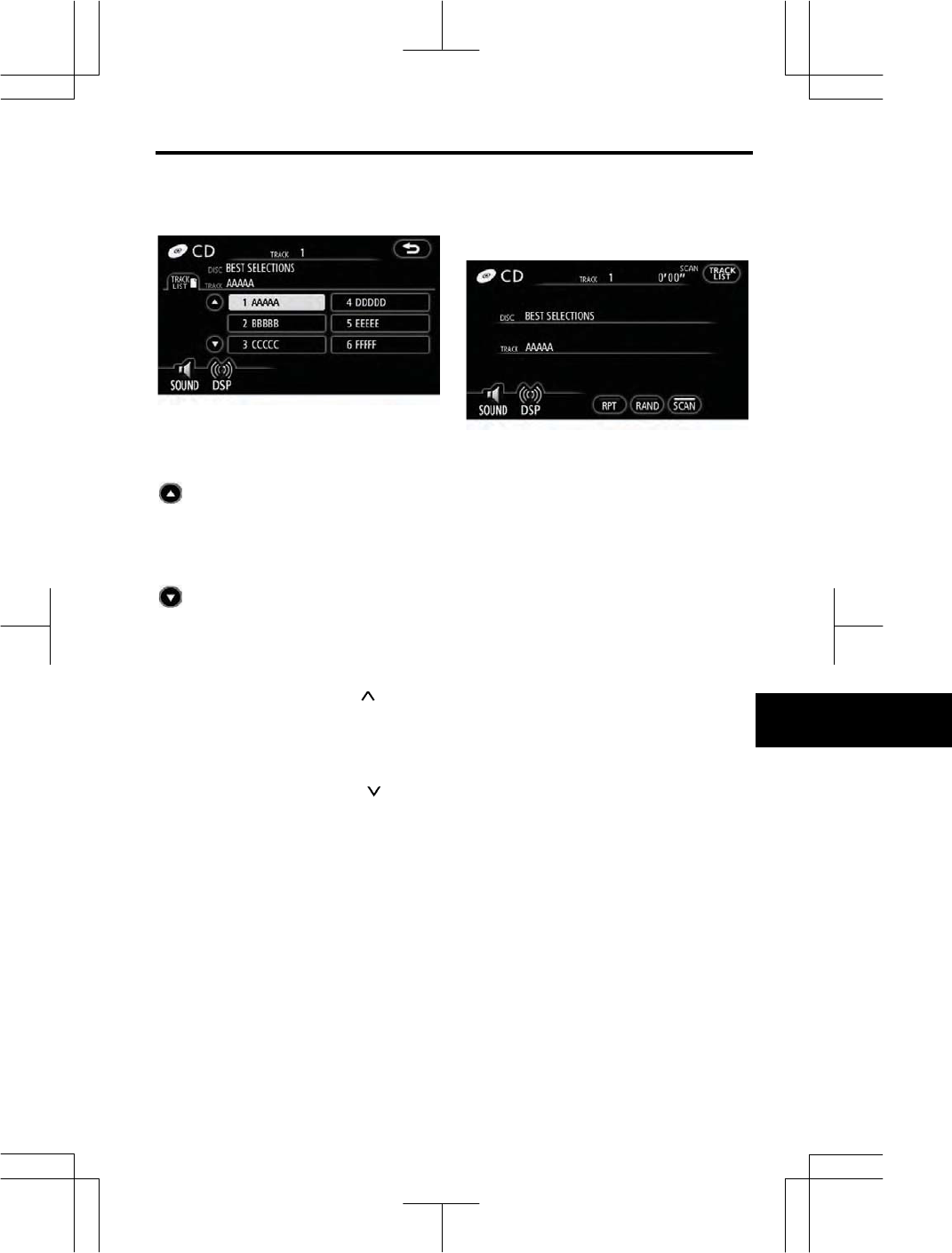

Touch the desired track number.
The CD player will start playing the
selected track from the beginning.
: By touching this touch screen but-
ton, the list moves up by 6 track groups.
If this button is touched when the top
page of the list is displayed, the last
page is displayed.
: By touching this touch screen but-
ton, the list moves down by 6 track
groups. If this touch screen button is
touched when the last page of the list is
displayed, the top page is displayed.
Fast forward: Push the “TRACK”
button and hold it to fast forward the disc.
When you release the button, the CD
player will resume playing from that posi-
tion.
Reverse: Push the “TRACK ” button
and hold it to reverse the disc. When
you release the button, the CD player will
resume playing.
z Searching for a desired track
While the disc is playing, touch
“SCAN” briefly.
“SCAN” appears on the screen. The
CD player will play the next track for 10
seconds, then scan again. To select a
track, touch “SCAN” once again. If the
CD player reaches the end of the disc, it
will continue scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
![](/img.php?id=1116362&img=bg62.png)
AUDIO SYSTEM
198
V689_E
z Other functions
“RPT”: Use it for automatic repeat of the
track you are currently listening to.
While the track is playing, touch
“RPT” briefly.
“RPT” appears on the screen. When
the track is finished, the CD player will
automatically go back to the beginning of
the track and play the track again. To
cancel it, touch the “RPT” once again.
“RAND”: Use it for automatic and ran-
dom selection.
While the disc is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The
system selects a track on the disc being
listened to in random order. To cancel
it, touch “RAND” once again.
If a CD-TEXT disc is inserted, the title of
the disc and track will be displayed.
![](/img.php?id=1116362&img=bg63.png)
AUDIO SYSTEM
199
V689_E

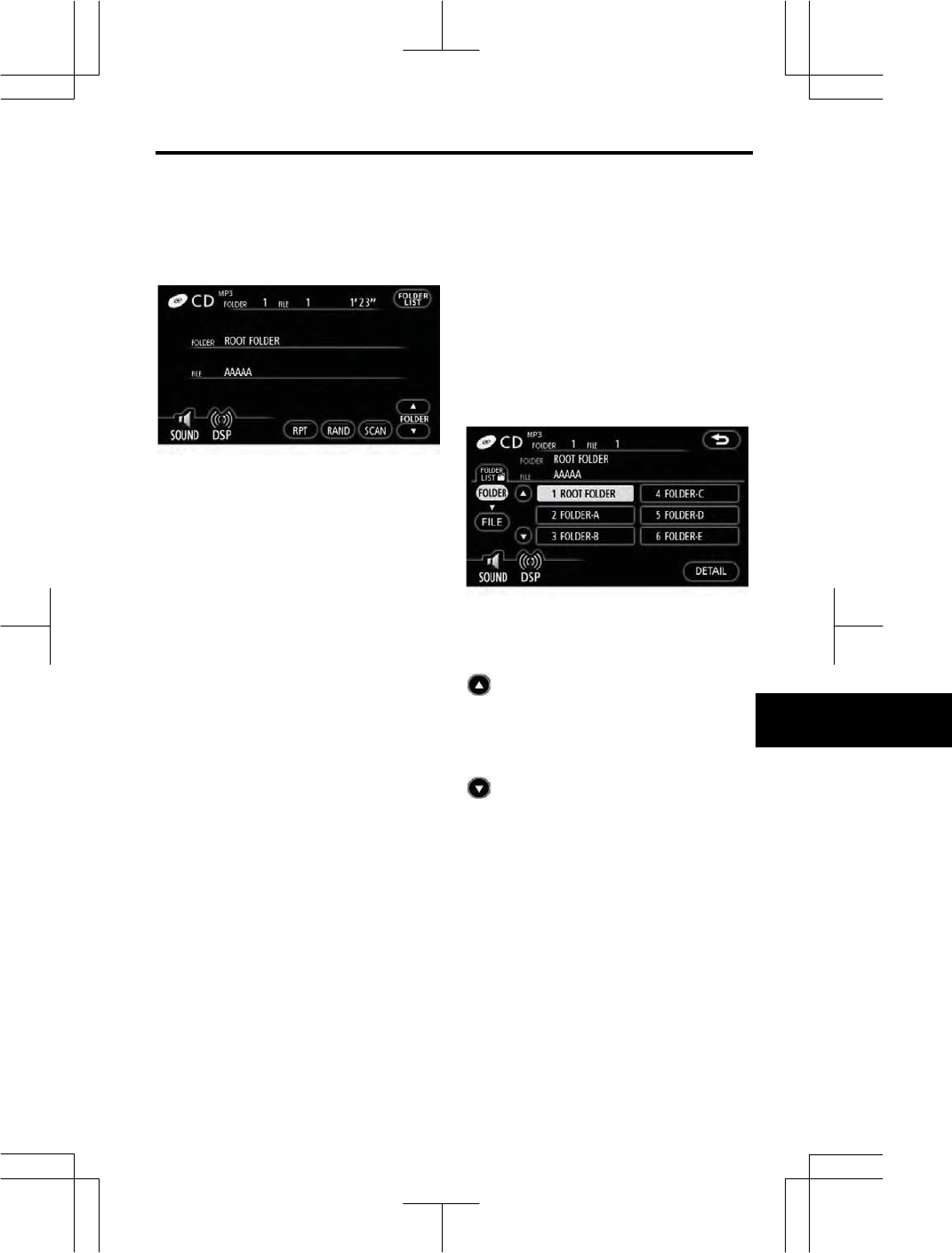

(d) Operating a MP3/WMA DISC
z Playing a MP3/WMA disc
Push the “AUDIO” button to display
this screen.
z Selecting a desired folder
“FOLDERŸ”: Touch this touch screen
button to go to the next folder.
“FOLDERź”: Touch this touch screen
button to go to the previous folder.
“FOLDER LIST”: The desired folder can
be selected in a list.
Touch “FOLDER LIST”. The folder list is
displayed.
Touch the desired folder number. The
CD player will start playing the first file of
the selected folder.
: By touching this touch screen but-
ton, the list moves up by 6 folder groups.
If this button is touched when the top
page of the list is displayed, the last
page is displayed.
: By touching this touch screen but-
ton, the list moves down by 6 folder
groups. If this touch screen button is
touched when the last page of the list is
displayed, the top page is displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently
playing is displayed.
![](/img.php?id=1116362&img=bg64.png)
AUDIO SYSTEM
200
V689_E

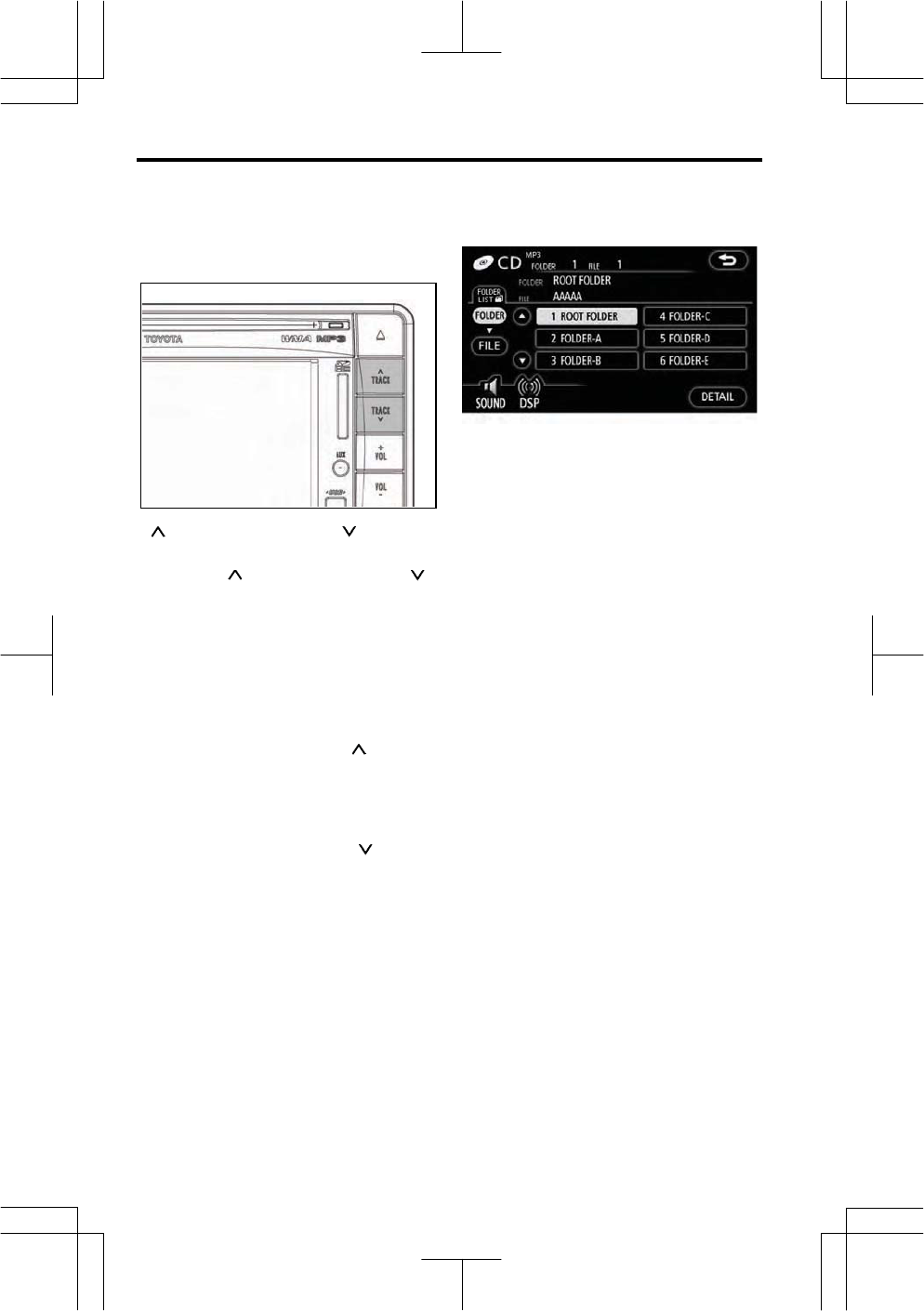

z Selecting a desired file
“TRACK” or “TRACK ” button:
Use for direct access to a desired file.
Push the “TRACK” or “TRACK ”
button and repeat until the desired file
number appears on the display. As you
release the button, the CD player will
start playing the selected file from the
beginning. When “RAND” or
“FLD·RPT” is on, the file number within
the folder you are currently listening to
appears.
Fast forward: Push the “TRACK”
button and hold it to fast forward the disc.
When you release the button, the CD
player will resume playing from that posi-
tion.
Reverse: Push the “TRACK ” button
and hold it to reverse the disc. When
you release the button, the CD player will
resume playing.
“FILE”: The desired file can be selected
in a list.
Touch “FILE”. The file list is displayed.
![](/img.php?id=1116362&img=bg65.png)
AUDIO SYSTEM
201
V689_E
Touch the desired file number. The
CD player will start playing the se-
lected file from the beginning.
: By touching this touch screen but-
ton, the list moves up by 6 file groups.
If this button is touched when the top
page of the list is displayed, the last
page is displayed.
: By touching this touch screen but-
ton, the list moves down by 6 file groups.
If this touch screen button is touched
when the last page of the list is displayed,
the top page is displayed.
“FOLDER”: The folder list is displayed.
“DETAIL”: Details of the file currently
playing is displayed.
z Searching for a desired file
While the disc is playing, touch
“SCAN” briefly.
“SCAN” appears on the screen. The
CD player will play the next file in the
folder for 10 seconds, then scan again.
To select a file, touch “SCAN” once
again. If the CD player reaches the end
of the folder, it will continue scanning
from file 1.
After all the files are scanned in one
pass, normal play resumes.
![](/img.php?id=1116362&img=bg66.png)
AUDIO SYSTEM
202
V689_E
z Searching for a desired folder
While the disc is playing, touch
“SCAN” and hold it until the
“FLD.SCAN” appears on the screen.
The program at the beginning of each
folder will be played for 10 seconds. To
continue listening to the program of your
choice, touch “SCAN” once again.
After all the folders are scanned in one
pass, normal play resumes.
z Other functions
“RPT”: Use it for automatic repeat of the
file or folder you are currently listening
to.
Repeating a file —
While the file is playing, touch “RPT”
briefly.
“RPT” appears on the screen. When
the file is finished, the CD player will
automatically go back to the beginning of
the file and play the file again. To can-
cel it, touch “RPT” once again.
Repeating a folder —
While the folder is playing, touch
“RPT” and hold it until the “FLD.RPT”
appears on the screen.
When the folder is finished, the CD
player will automatically go back to the
beginning of the folder and play the
folder again. To cancel it, touch “RPT”
once again.
![](/img.php?id=1116362&img=bg67.png)
AUDIO SYSTEM
203
V689_E
“RAND”: Use it for automatic and ran-
dom selection of the folder or the disc
which you are currently listening to.
Playing the files in one folder in ran-
dom order —
While the disc is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The
system selects a file in the folder you are
currently listening to. To cancel it,
touch “RAND” once again.
Playing the files in all the folders on
one disc in random order —
While the disc is playing touch
“RAND” and hold it until the
“FLD.RAND” appears on the screen.
The system selects a file in all the folders.
To cancel it, touch the touch screen but-
ton once again.
When a file is skipped or the system is
inoperative, touch “RAND” to reset.
(e) If the player malfunctions
If the player malfunctions, your audio
system will display following messages.
If “No CD” appears on the display: It
indicates that there is no disc in the CD
player.
If “Check CD” appears on the display:
It indicates that the disc dirty, damaged,
or it was inserted upside down. Clean
the disc or insert it correctly. If a disc
which is not playable is inserted, “Check
CD” will also appear on the screen. For
appropriate discs for this player, see
“Audio system operating hints” on page
214.
If “CD error” appears on the display:
The following causes are possible.
z There is a trouble inside the system.
Eject the disc.
z It indicates that the inside of the
player unit may be too hot due to the
very high ambient temperature.
Remove the disc from the player al-
low the player to cool down.
If “NO MUSIC FILE” appears on the
display: It indicates that the disc has no
playable data.
If the malfunction is not rectified:
Take your vehicle to your Toyota dealer.
If an MP3/WMA disc contains CD-DA
files, only CD-DA files are played. If an
MP3/WMA disc contains files other than
CD-DA, only MP3/WMA files are played.
![](/img.php?id=1116362&img=bg68.png)
AUDIO SYSTEM
204
V689_E
The SD/USB player can play SD
memory cards and USB memory de-
vices.
Some SD memory cards and USB
memory devices may not operate prop-
erly.
For appropriate SD memory cards and
USB memory devices for this paper, see
“Audio system operating hints” on page
238.
CAUTION
Do not insert or eject the SD mem-
ory card or USB memory device
while driving.
NOTICE
Do not insert foreign objects into the
port as this may damage the SD
memory card or USB memory device
or their terminals.
(a) Inserting or ejecting an SD mem-
ory card

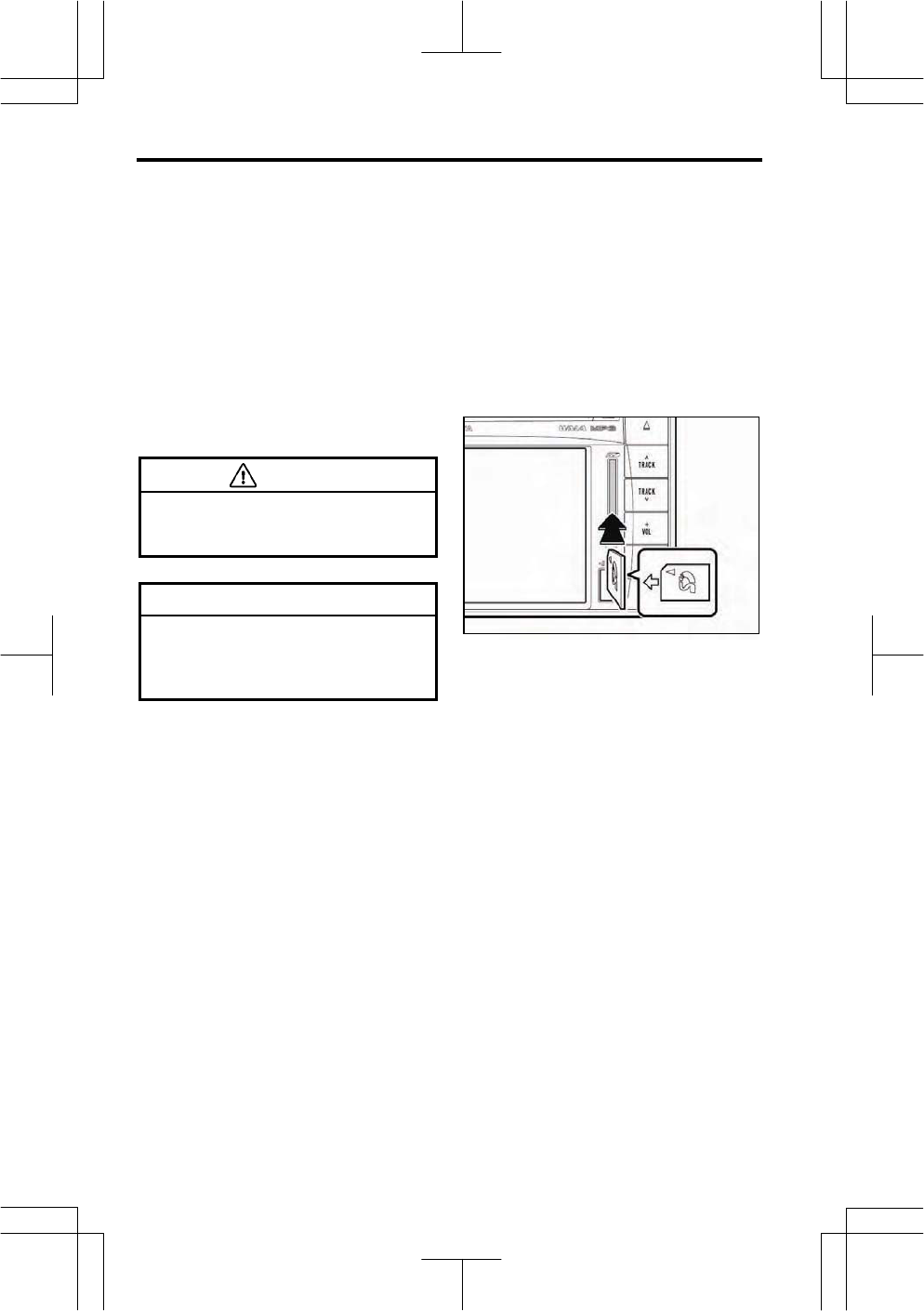

z Setting an SD memory card
Remove the map SD memory card be-
fore inserting another SD memory card.
For details, see page 205. While the
map SD memory card is removed, the
navigation system cannot be used.
Insert an SD memory card.
After insertion, the set SD memory card
is automatically loaded.
— SD/USB
p
la
y
er o
p
eration
![](/img.php?id=1116362&img=bg69.png)
AUDIO SYSTEM
205
V689_E

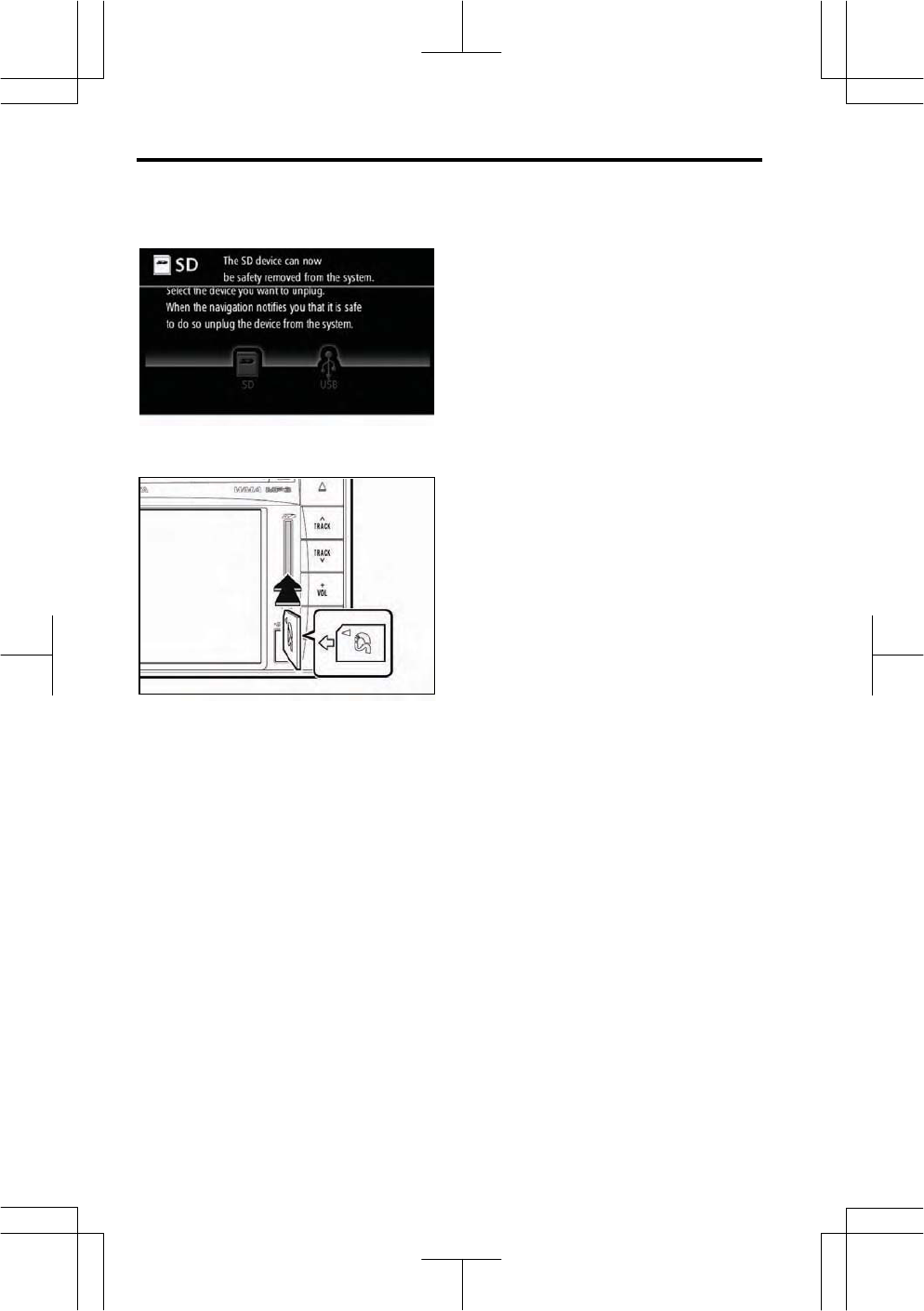

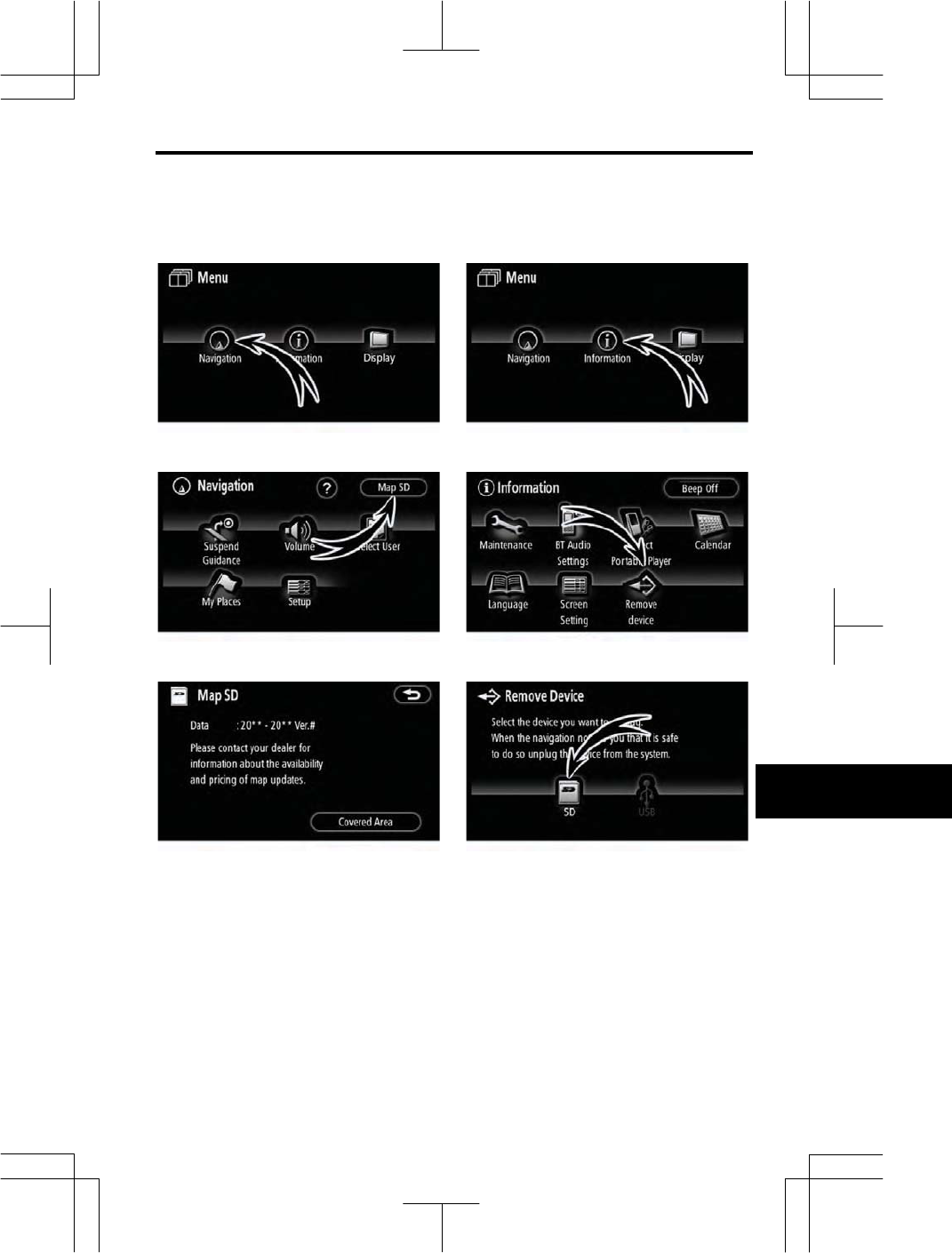

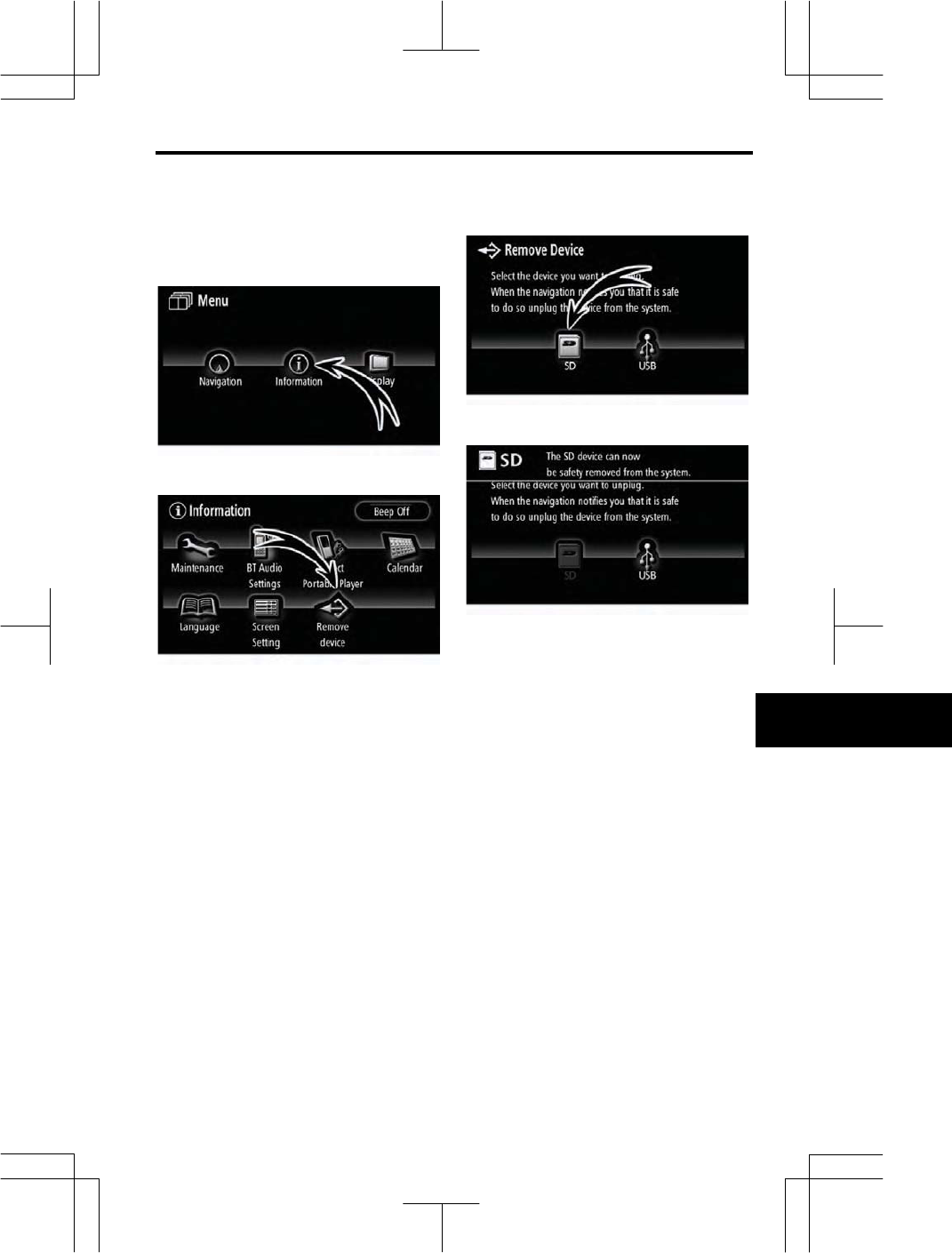

z Ejecting an SD memory card
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Remove device”.
4. Touch “SD”.
5. Push the SD memory card lightly
to remove it.
The SD memory card will be ejected. An
SD memory card can then be inserted.
![](/img.php?id=1116362&img=bg6a.png)
AUDIO SYSTEM
206
V689_E

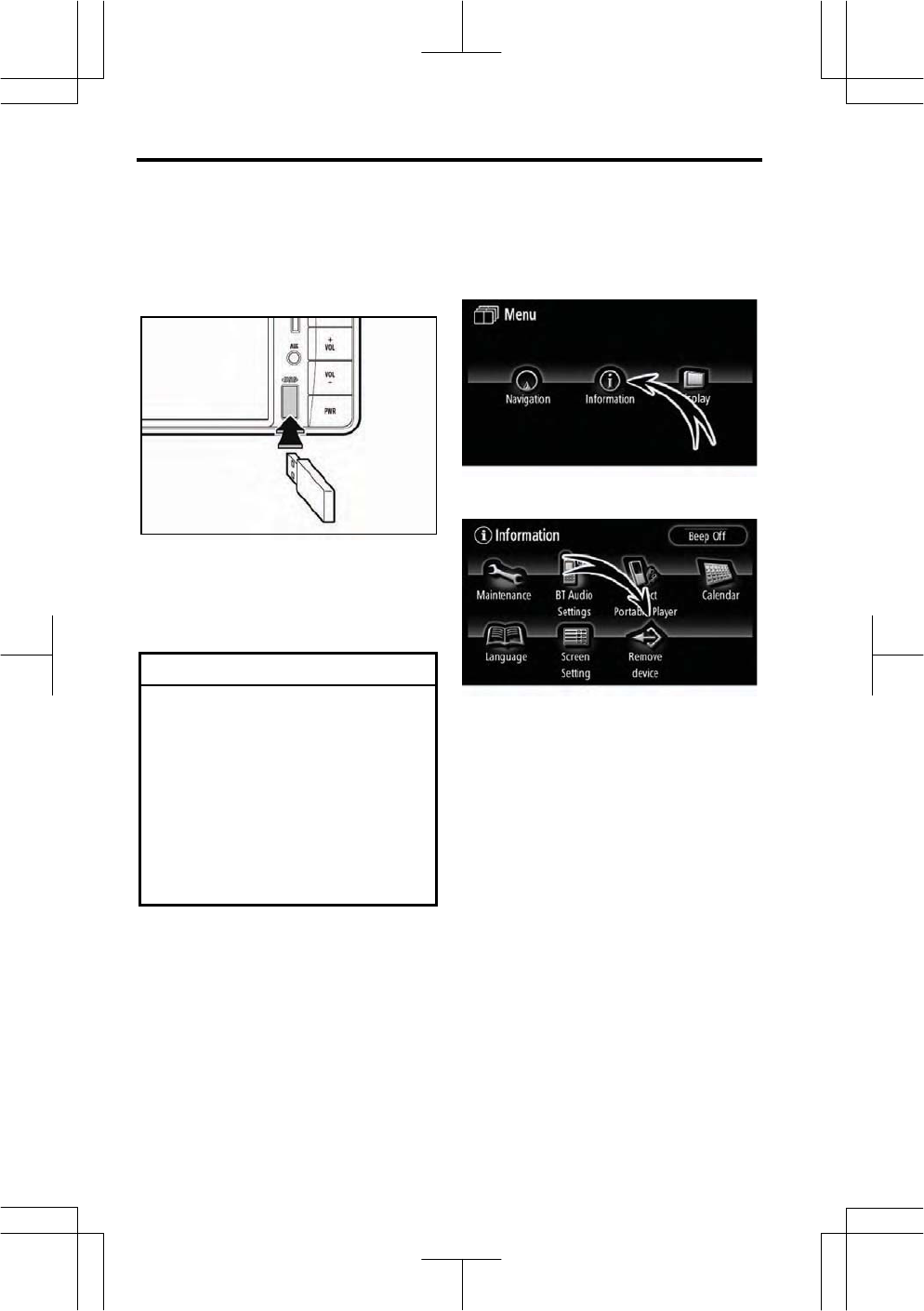

(b) Plugging or unplugging a USB
memory device
z Setting a USB memory device
Plug a USB memory device into the
port.
After insertion, the set USB memory de-
vice is automatically loaded.
NOTICE
zDo not leave your USB memory
device in the car. In particular,
high temperatures inside the ve-
hicle may damage the USB mem-
ory device.
zDo not push down on or apply
unnecessary pressure to the USB
memory device while it is con-
nected as this may damage the
USB memory device or its termi-
nal.
z Unplugging a USB memory device
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Remove device”.
![](/img.php?id=1116362&img=bg6b.png)
AUDIO SYSTEM
207
V689_E
4. Touch “USB”.
5. Unplug the USB memory device.
A USB memory device can then be in-
serted.
(c) Playing an SD memory card/USB
memory device
Push the “MODE” button and touch
“SD” or “USB” if the SD memory
card/USB memory device are already
loaded in the SD/USB player.
The “SD” or “USB” screen will be dis-
played.
![](/img.php?id=1116362&img=bg6c.png)
AUDIO SYSTEM
208
V689_E

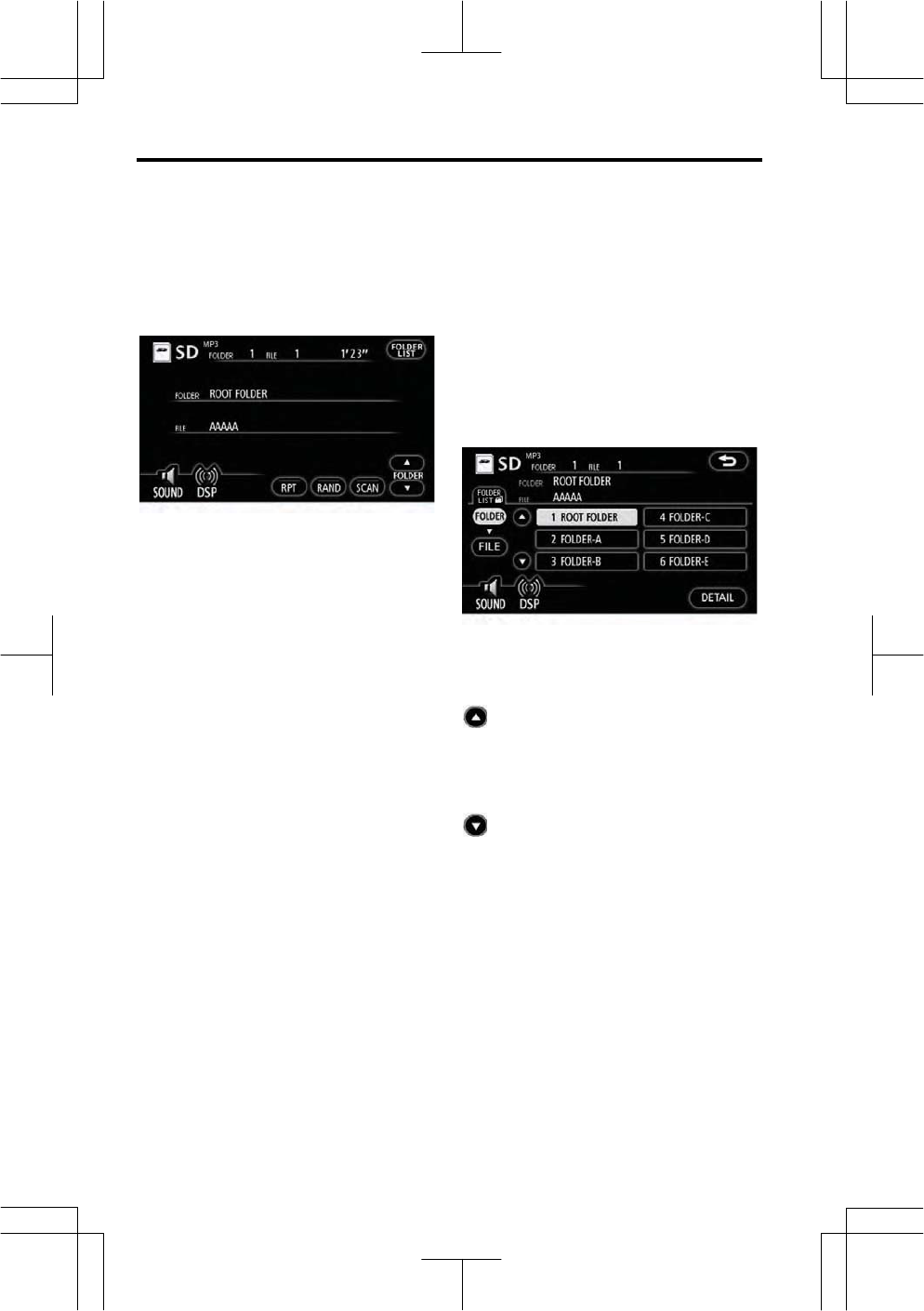

(d) Operating an SD memory
card/USB memory device
z Playing an SD memory card/USB
memory device
Push the “AUDIO” button to display
this screen.
z Selecting a desired folder
“FOLDERŸ”: Touch this touch screen
button to go to the next folder.
“FOLDERź”: Touch this touch screen
button to go to the previous folder.
“FOLDER LIST”: The desired folder can
be selected in a list.
Touch “FOLDER LIST”. The folder list is
displayed.
Touch the desired folder number. The
SD/USB player will start playing the first
file of the selected folder.
: By touching this touch screen but-
ton, the list moves up by 6 folder groups.
If this button is touched when the top
page of the list is displayed, the last
page is displayed.
: By touching this touch screen but-
ton, the list moves down by 6 folder
groups. If this touch screen button is
touched when the last page of the list is
displayed, the top page is displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently
playing is displayed.
![](/img.php?id=1116362&img=bg6d.png)
AUDIO SYSTEM
209
V689_E

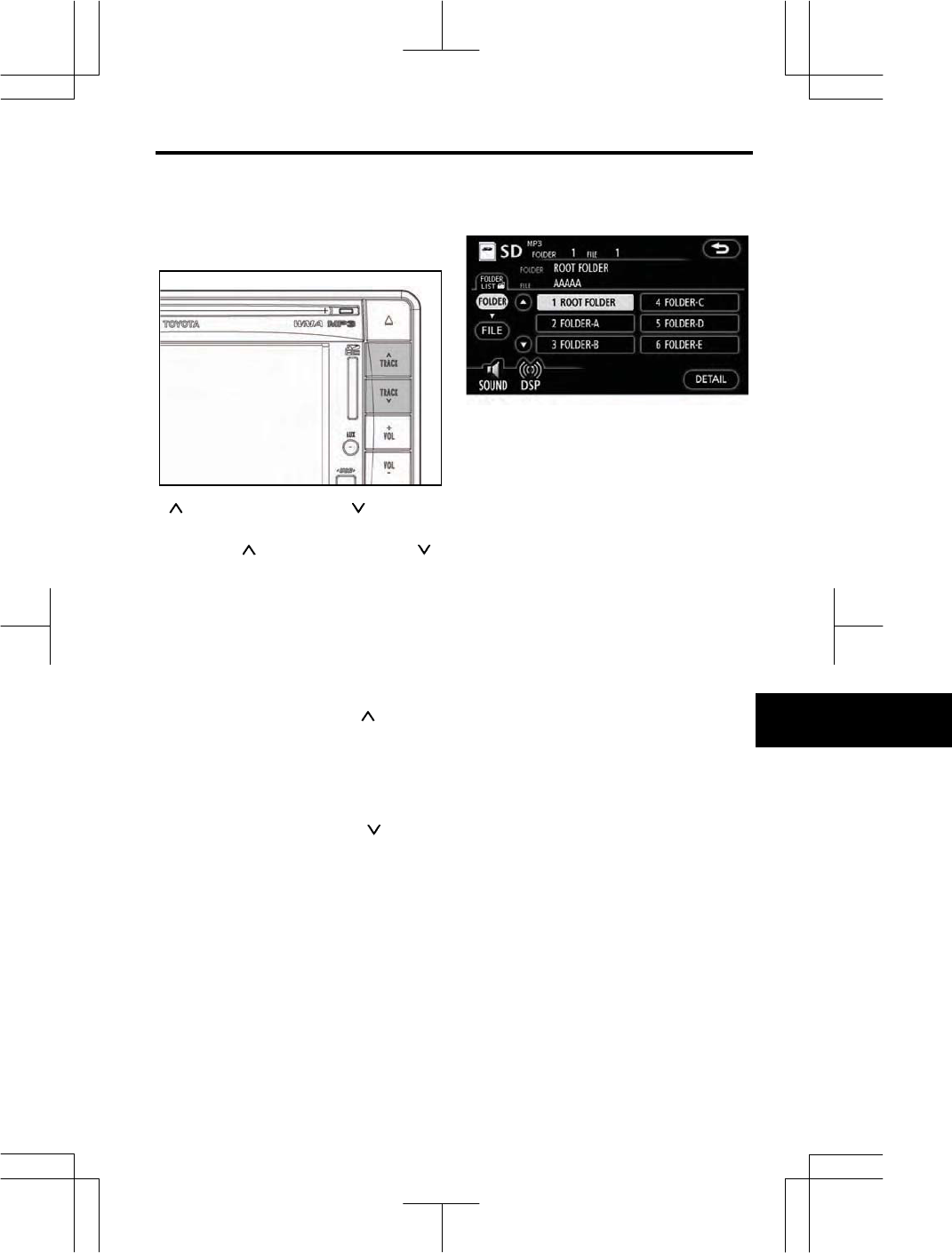

z Selecting a desired file
“TRACK” or “TRACK ” button:
Use for direct access to a desired file.
Push the “TRACK” or “TRACK ”
button and repeat until the desired file
number appears on the display. As you
release the button, the SD/USB player
will start playing the selected file from the
beginning. When “RAND” or
“FLD·RPT” is on, the file number within
the folder you are currently listening to
appears.
Fast forward: Push the “TRACK”
button and hold it to fast forward the SD
memory card/USB memory device.
When you release the button, the
SD/USB player will resume playing from
that position.
Reverse: Push the “TRACK ” button
and hold it to reverse the SD memory
card/USB memory device. When you
release the button, the SD/USB player
will resume playing.
“FILE”: The desired file can be selected
in a list.
Touch “FILE”. The file list is displayed.
![](/img.php?id=1116362&img=bg6e.png)
AUDIO SYSTEM
210
V689_E

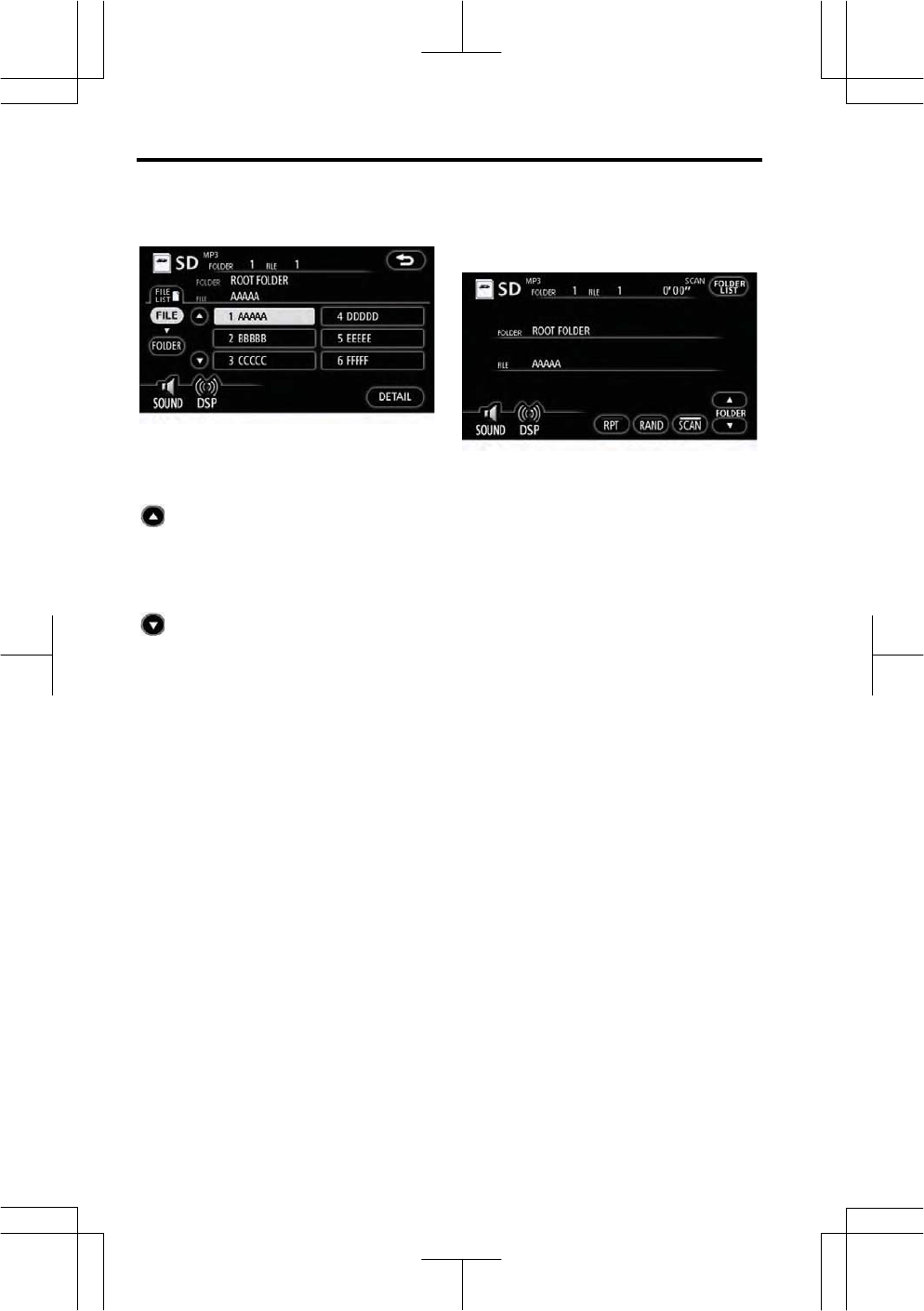

Touch the desired file number. The
SD/USB player will start playing the
selected file from the beginning.
: By touching this touch screen but-
ton, the list moves up by 6 file groups.
If this button is touched when the top
page of the list is displayed, the last
page is displayed.
: By touching this touch screen but-
ton, the list moves down by 6 file groups.
If this touch screen button is touched
when the last page of the list is displayed,
the top page is displayed.
“FOLDER”: The folder list is displayed.
“DETAIL”: Details of the file currently
playing is displayed.
z Searching for a desired file
While the SD memory card/USB
memory device is playing, touch
“SCAN” briefly.
“SCAN” appears on the screen. The
SD/USB player will play the next file in
the folder for 10 seconds, then scan
again. To select a file, touch “SCAN”
once again. If the SD/USB player
reaches the end of the folder, it will con-
tinue scanning from file 1.
After all the files are scanned in one
pass, normal play resumes.
![](/img.php?id=1116362&img=bg6f.png)
AUDIO SYSTEM
211
V689_E

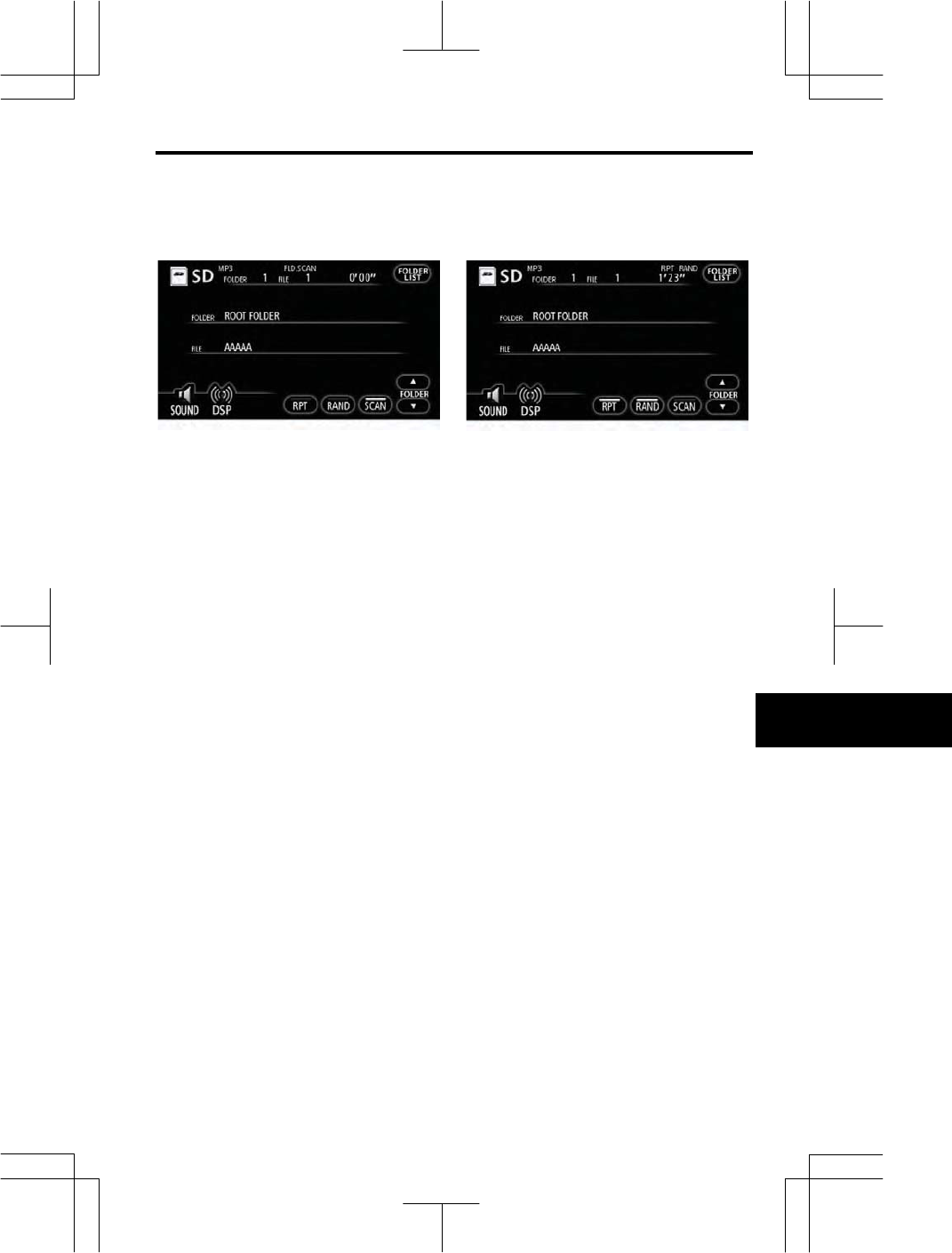

z Searching for a desired folder
While the SD memory card/USB
memory device is playing, touch
“SCAN” and hold it until the
“FLD.SCAN” appears on the screen.
The program at the beginning of each
folder will be played for 10 seconds. To
continue listening to the program of your
choice, touch “SCAN” once again.
After all the folders are scanned in one
pass, normal play resumes.
z Other functions
“RPT”: Use it for automatic repeat of the
file or folder you are currently listening
to.
Repeating a file —
While the file is playing, touch “RPT”
briefly.
“RPT” appears on the screen. When
the file is finished, the SD/USB player
will automatically go back to the begin-
ning of the file and play the file again.
To cancel it, touch “RPT” once again.
Repeating a folder —
While the folder is playing, touch
“RPT” and hold it until the “FLD.RPT”
appears on the screen.
When the folder is finished, the SD/USB
player will automatically go back to the
beginning of the folder and play the
folder again. To cancel it, touch “RPT”
once again.
![](/img.php?id=1116362&img=bg70.png)
AUDIO SYSTEM
212
V689_E
“RAND”: Use it for automatic and ran-
dom selection of the folder or the SD
memory card/USB memory device which
you are currently listening to.
Playing the files in one folder in ran-
dom order —
While the SD memory card/USB
memory device is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The
system selects a file in the folder you are
currently listening to. To cancel it,
touch “RAND” once again.
Playing the files in all the folders on
one SD memory card/USB memory
device in random order —
While the SD memory card/USB
memory device is playing touch
“RAND” and hold it until the
“FLD.RAND” appears on the screen.
The system selects a file in all the folders.
To cancel it, touch the touch screen but-
ton once again.
When a file is skipped or the system is
inoperative, touch “RAND” to reset.
(e) If the player malfunctions
If the player malfunctions, your audio
system will display following messages.
If “No SD Card” or “USB memory is
not connected.” appears on the dis-
play: It indicates that there is no SD
memory cards or USB memory device in
the SD/USB player.
If “Please check SD Card.” or “Please
check USB memory.” appears on the
display: This comes on in such cases as
when the SD memory card/USB memory
device is damaged. Replace the SD
memory card/USB memory device with
one that works properly. If an SD
memory card or USB memory device not
playable is inserted, “Please check SD
Card.” or “Please check USB memory.”
will also appear on the screen. For an
appropriate SD memory card/USB
memory device for this player, see “Au-
dio system operating hints” on page 238.
If “No SD Card.” or “USB memory is
not connected.” appears on the dis-
play: The following causes are possible.
z There is a trouble inside the system.
Eject the SD memory card or unplug
the USB memory device.
z It indicates that the inside of the
player unit may be too hot due to the
very high ambient temperature.
Eject the SD memory card or unplug
the USB memory device from the
player allow the player to cool down.
If “No playable music data in SD
Card.” or “No playable music data in
USB memory.” appears on the dis-
play: It indicates that the SD memory
card/USB memory device has no play-
able data.
If the malfunction is not rectified:
Take your vehicle to your Toyota dealer.
![](/img.php?id=1116362&img=bg71.png)
AUDIO SYSTEM
213
V689_E

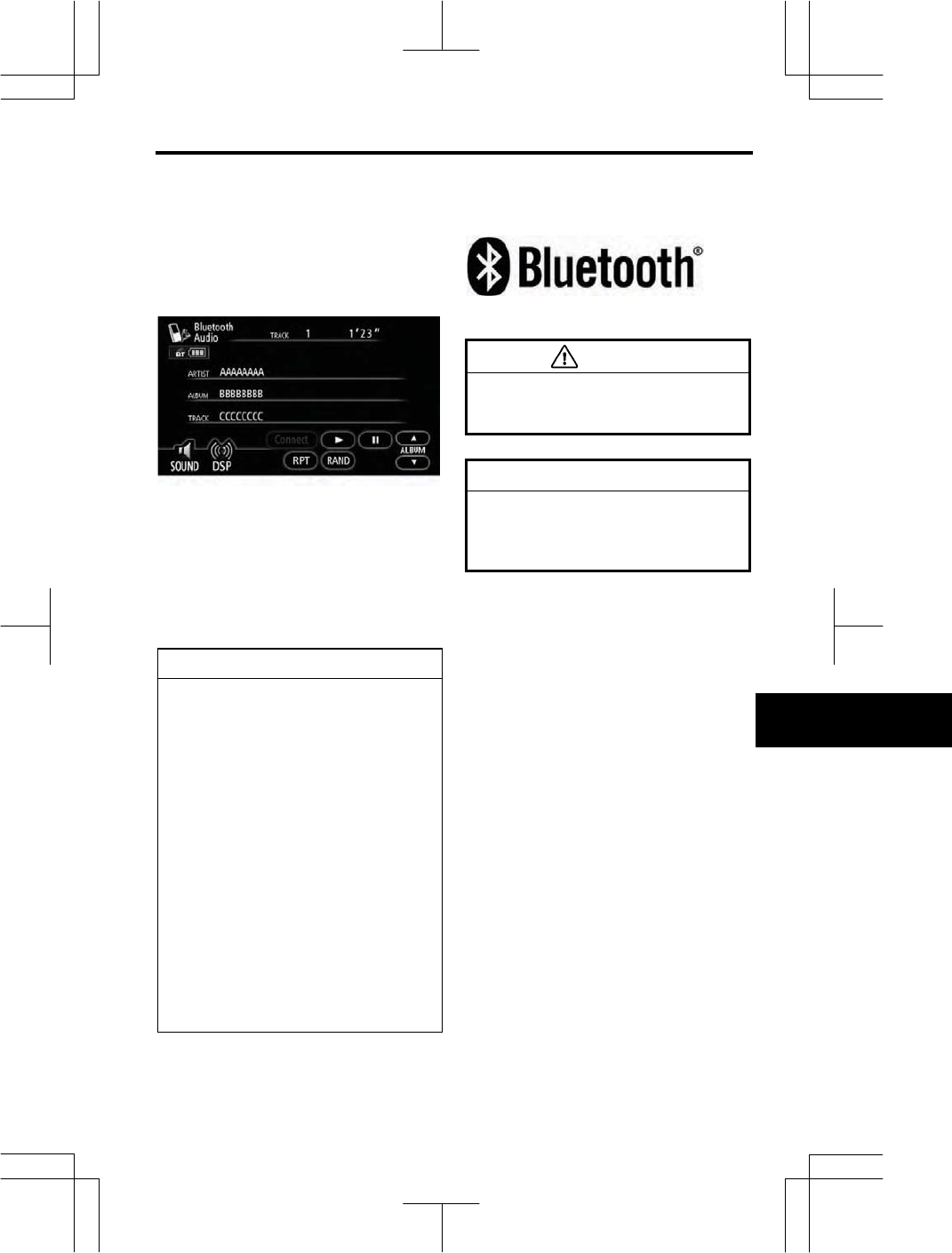

The Bluetooth® audio system enables
users to enjoy music played on a
portable player from the vehicle
speakers via wireless communication.
This audio system supports Blue-
tooth®, a wireless data system capa-
ble of playing portable audio music
without cables.
If your portable player does not sup-
port Bluetooth®, the Bluetooth® audio
system will not function.
INFORMATION
Portable players must correspond to
the following specifications in order
to be connected to the Bluetooth®
audio system. However, please note
that some functions may be limited
depending on the type of portable
player.
zBluetooth®specifications:
Version: 1.1 or higher (Recom-
mended: Version. 2.0 + EDR or
higher)
zFollowing Profiles:
ƒA2DP (Advanced Audio Distri-
bution Profile) Ver.1.0
ƒAVRCP (Audio/Video Remote
Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.3 or
higher)
Bluetooth is a trademark owned by
Bluetooth SIG. Inc.
CAUTION
Use a portable player or connect the
Bluetooth®audio only when safe
and legal to do so.
NOTICE
Do not leave your portable player in
the car. In particular, high tempera-
tures inside the vehicle may damage
the portable player.
—Bluetooth® audio
o
p
eration
![](/img.php?id=1116362&img=bg72.png)
AUDIO SYSTEM
214
V689_E
INFORMATION
zIn the following conditions, the
system may not function.
zThe portable player is turned off.
zThe portable player is not con-
nected.
zThe portable player has a low
battery.
zDepending on the portable player
that is connected to the system,
certain functions may not be
available.
zIf Bluetooth® devices are used for
hands-free phone and Bluetooth®
audio connections at the same
time, the following may occur.
zThe Bluetooth® connection may
be cut off.
zNoise may occur in the audio
played from the portable player.
zEven if using a cellular phone that
is capable of both hands-free
phone and Bluetooth® audio con-
nections, simultaneous connec-
tion may not be possible in some
cases.

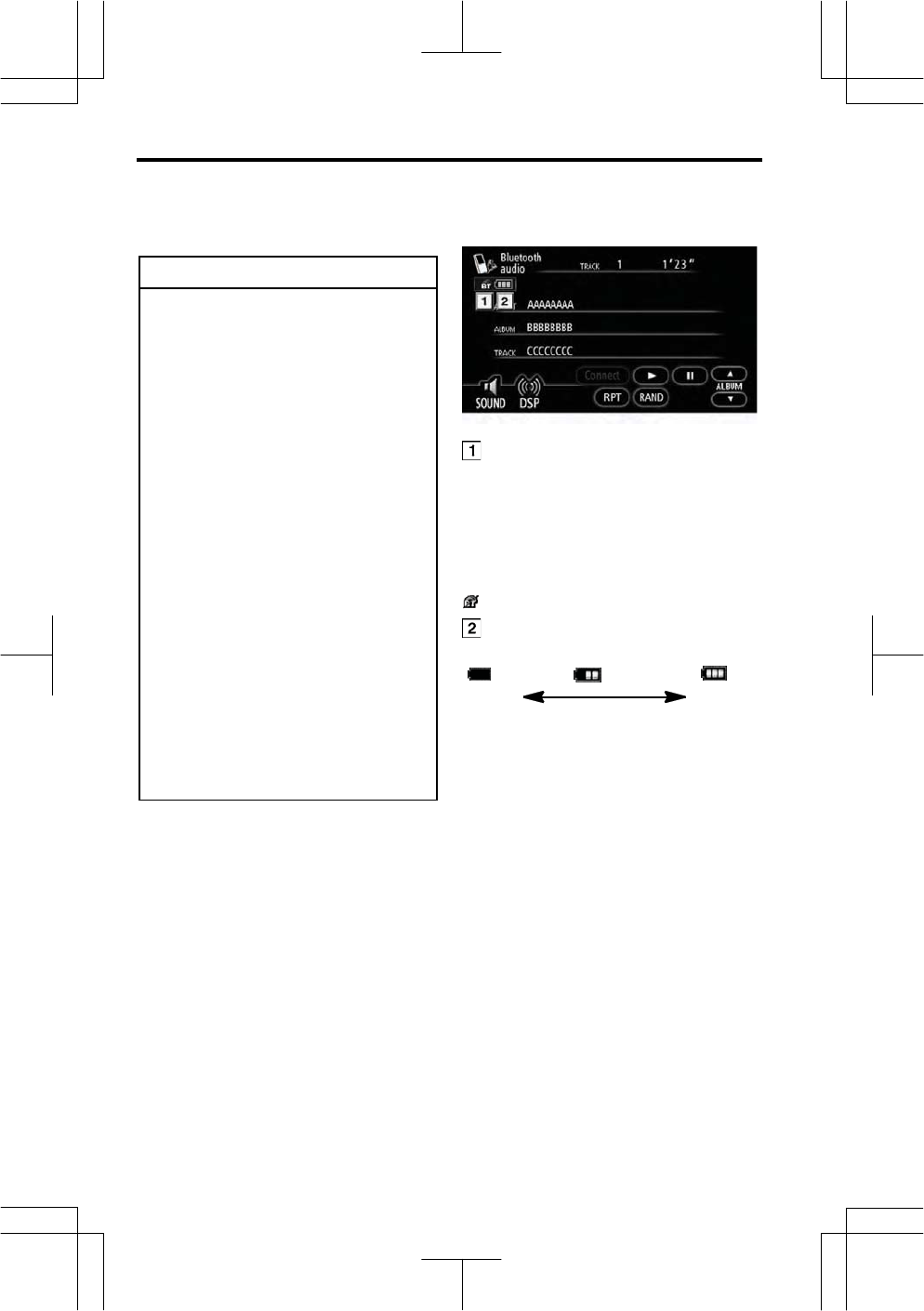

Indicates the condition of the
Bluetooth® connection.
“Blue” indicates an excellent connection
to Bluetooth®.
“Yellow” indicates a bad connection to
Bluetooth®, resulting in possible deterio-
ration of audio quality.
: No connection to Bluetooth®.
Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth®
is not connected.
The amount left does not always corre-
spond with the one on your portable
player. This system does not have a
charging function.
![](/img.php?id=1116362&img=bg73.png)
AUDIO SYSTEM
215
V689_E
An antenna for the Bluetooth® con-
nection is built into the display. The
indication of the Bluetooth® connec-
tion may turn yellow and the system
may not function when you use the
Bluetooth® portable player in the fol-
lowing conditions:
z Your portable player is hidden be-
hind the display (behind the seat or
in the glove box or console box).
z Your portable player touches or is
covered with metal materials.
Leave the Bluetooth® portable player in a
place where the “Blue” indication is dis-
played.
The portable player information is regis-
tered when the Bluetooth® audio system
is connected. When you release posses-
sion of your vehicle, remove your port-
able player. (See “Deleting a portable
player” on page 226.)
(a) Enter a Bluetooth® audio player
To use the Bluetooth® audio system,
you need to enter your portable player
into the system. Once you have reg-
istered it, you can enjoy your music
on the vehicle’s audio system.
A maximum of two portable players can
be registered.
Please refer to the manual that comes
with your portable player for operation of
the portable player.

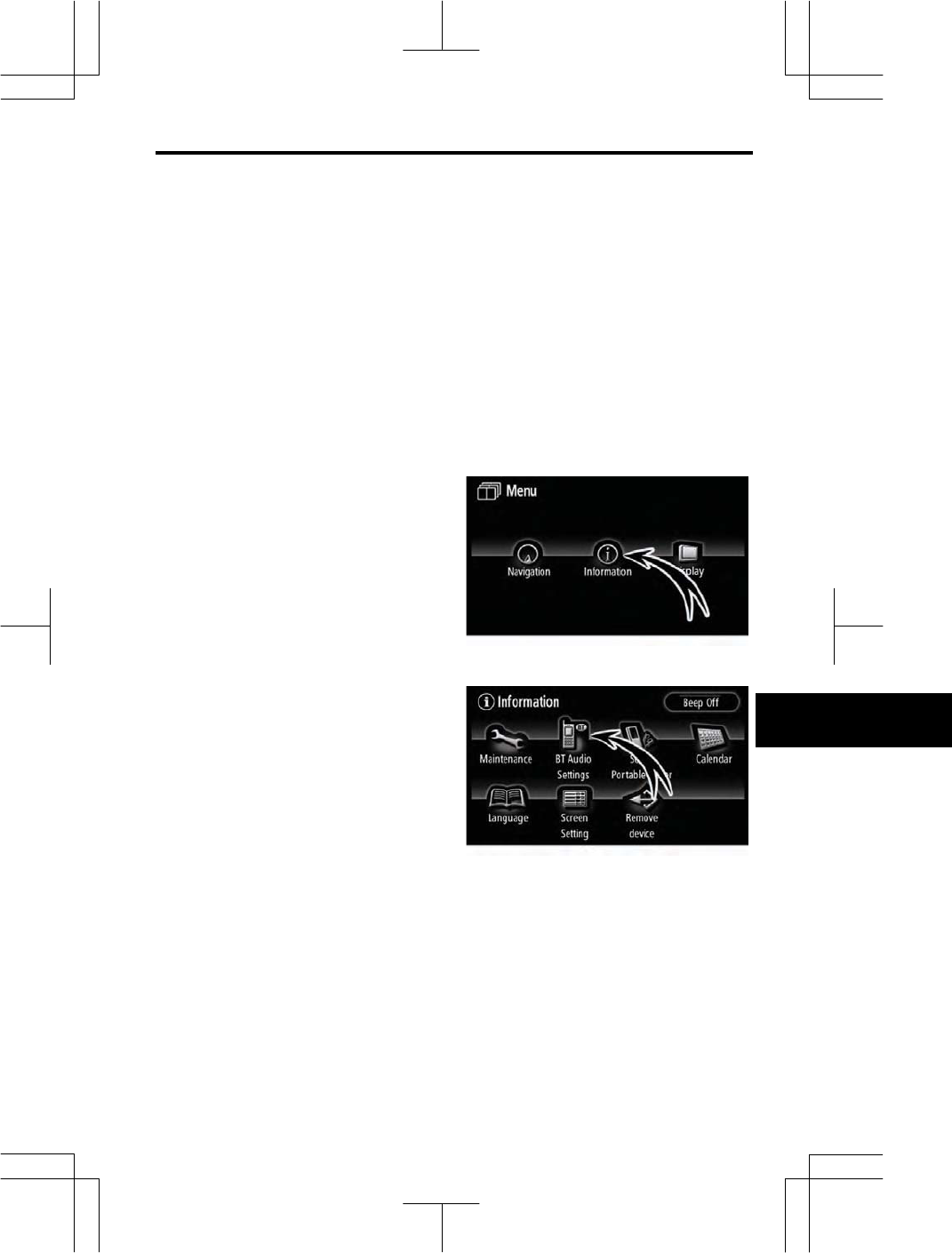

1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “BT Audio Settings” to
display the “BT Audio Settings”
screen.
![](/img.php?id=1116362&img=bg74.png)
AUDIO SYSTEM
216
V689_E

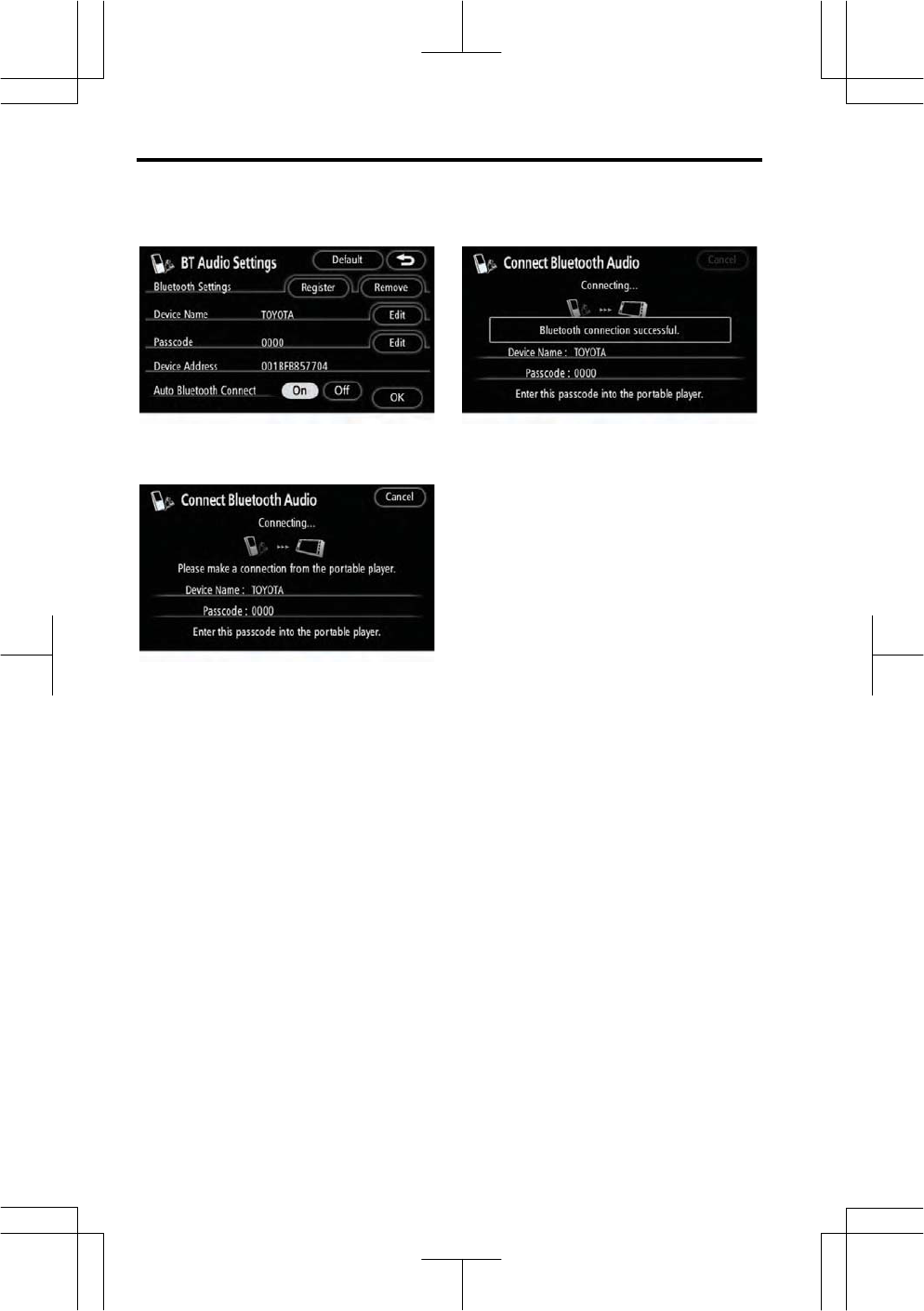

4. Touch “Register” to connect your
portable player to the system.
5. When this screen is displayed,
enter the passcode displayed on the
screen into the portable player.
For the operation of the portable player,
see the manual that comes with your
portable player.
If you want to cancel the entry, touch
“Cancel”.
6. When the connection is complete,
this screen is displayed.
You do not need to enter the portable
player in case of using the same one.
![](/img.php?id=1116362&img=bg75.png)
AUDIO SYSTEM
217
V689_E

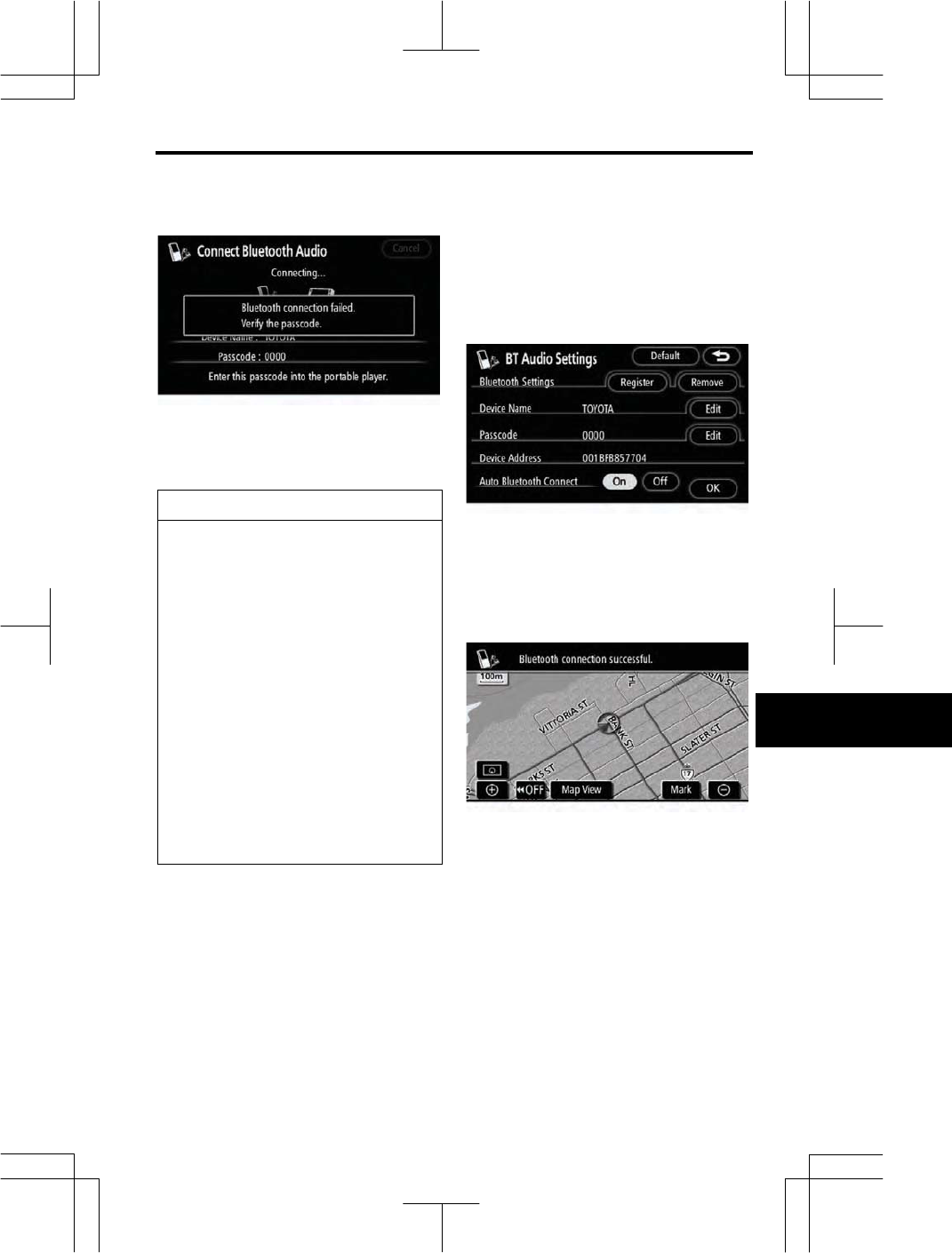

When this screen is displayed, follow the
guidance on the screen to try connecting
again.
INFORMATION
zThe passcode is used to register
the portable player in the vehi-
cle’s audio system. You can cre-
ate a password of your choice.
(See “Changing the Bluetooth®
audio settings” on page 222)
zFor portable players lacking
passcode entry capability, such
as those without operation
switches, change the audio sys-
tem’s passcode to that of the
portable player.
(See “Changing the Bluetooth®
audio settings” on page 222)
zRefer to the manual that comes
with the portable player for infor-
mation about the portable player’s
passcode.
z Connecting a portable player
The portable player can be connected
to the audio system either automati-
cally or manually.
AUTOMATICALLY
When you register your portable
player, auto connection will be turned
on. Always set it to this mode and
leave the Bluetooth® portable player
in a condition where connection can
be established.
Vehicles with smart entry and start sys-
tem—
When the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode, the selected
Bluetooth® portable player will be
automatically connected and the
connection result is displayed.
This screen appears when the Blue-
tooth® portable player is first connected
after the “ENGINE START STOP” switch
is turned to the ACCESSORY or
IGNITION ON mode.
![](/img.php?id=1116362&img=bg76.png)
AUDIO SYSTEM
218
V689_E
Vehicles without smart entry and start
system—
When the engine switch is in the ACC
or ON position, the selected Blue-
tooth® portable player will be auto-
matically connected and the connec-
tion result is displayed.
This screen appears when the Blue-
tooth® portable player is first connected
after the engine switch is turned to the
ACC or ON position.

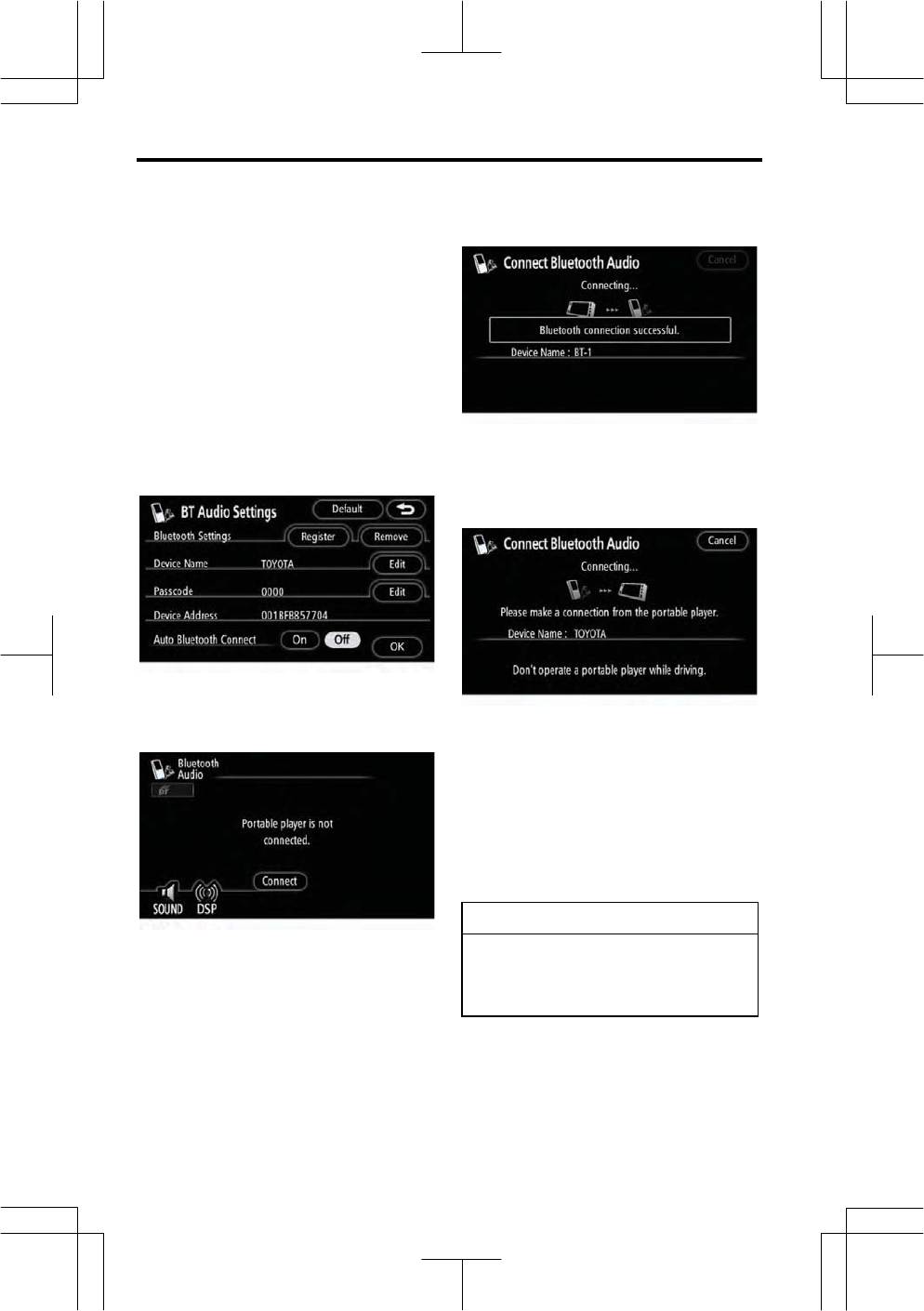

MANUALLY
When the auto Bluetooth® connection
is “Off”, you have to connect Blue-
tooth® manually.
Touch “Connect” after having en-
abled the Bluetooth® connection on
the portable player.
When the connection is complete, this
screen is displayed. Now you can use
the Bluetooth® portable player.
From portable player
When making a connection from the
portable player, operate the portable
player controls to connect.
To make a connection from the portable
player, first display this “Connect Blue-
tooth Audio” screen.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
INFORMATION
Auto Bluetooth® connect may not be
available for certain portable play-
ers, which must be connected
manually.
![](/img.php?id=1116362&img=bg77.png)
AUDIO SYSTEM
219
V689_E
z Reconnecting the Bluetooth® au-
dio player
Vehicles with smart entry and start sys-
tem—
If the Bluetooth® audio system is dis-
connected with a poor reception from
the Bluetooth® network when the
“ENGINE START STOP” switch is in
the ACCESSORY or IGNITION ON
mode, the system automatically re-
connects the Bluetooth® audio player.
In this case, the connection result is
not displayed.
Vehicles without smart entry and start
system—
If the Bluetooth® audio system is dis-
connected with a poor reception from
the Bluetooth® network when the en-
gine switch is in the ACC or ON posi-
tion, the system automatically recon-
nects the Bluetooth® audio player. In
this case, the connection result is not
displayed.
If the Bluetooth® is disconnected on
purpose, such as when you turn off your
portable player, this does not happen.
Reconnect it by the following methods.
z Select the portable player again.
z Enter the portable player.

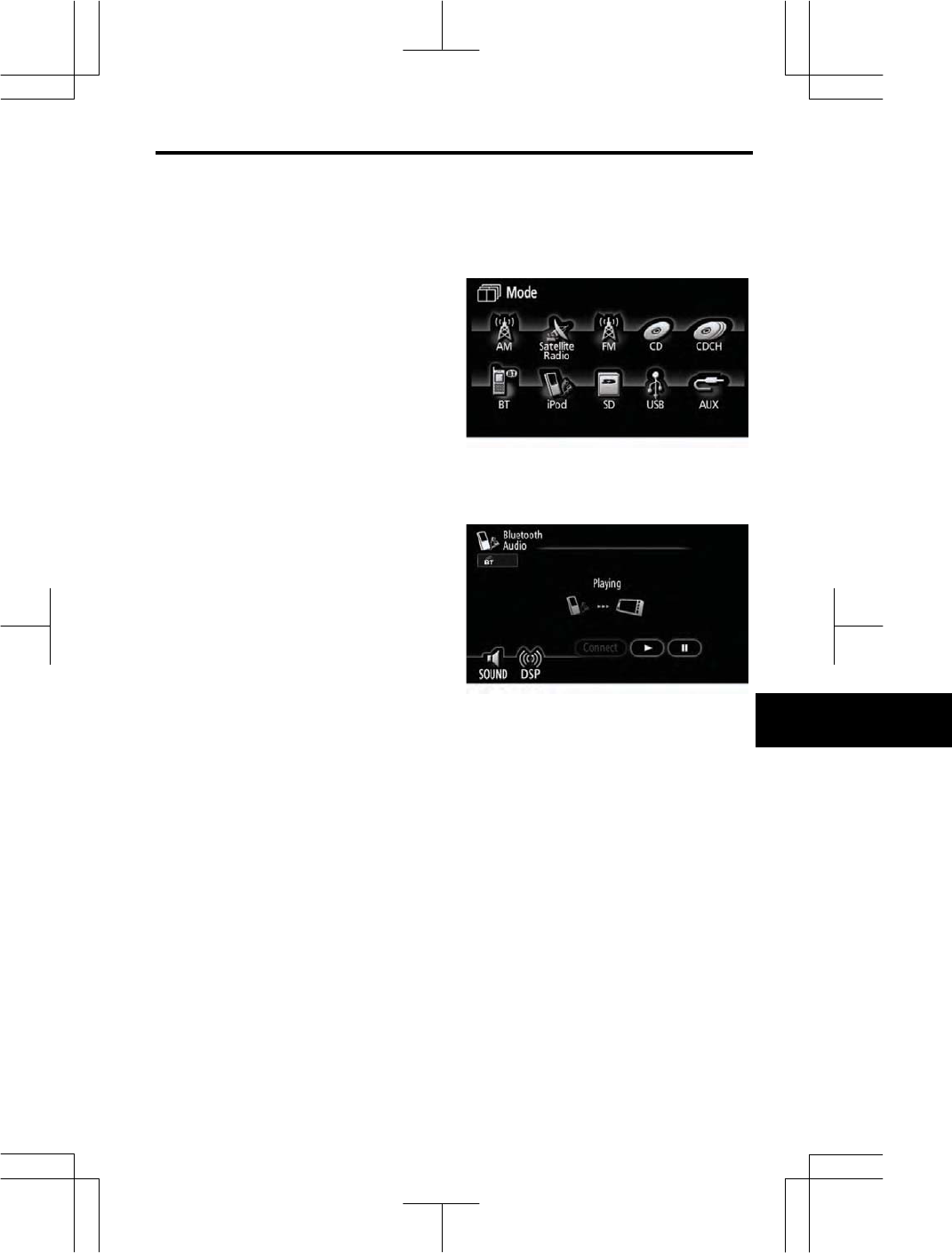

(b) Operating a Bluetooth® audio
player
Push the “MODE” button and touch
“BT”. The “BluetoothAudio” screen
will be displayed.
Depending on the portable player that is
connected to the system, functions such
as display of the artist name or control
touch screen buttons shown here may
not be available.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg78.png)
AUDIO SYSTEM
220
V689_E

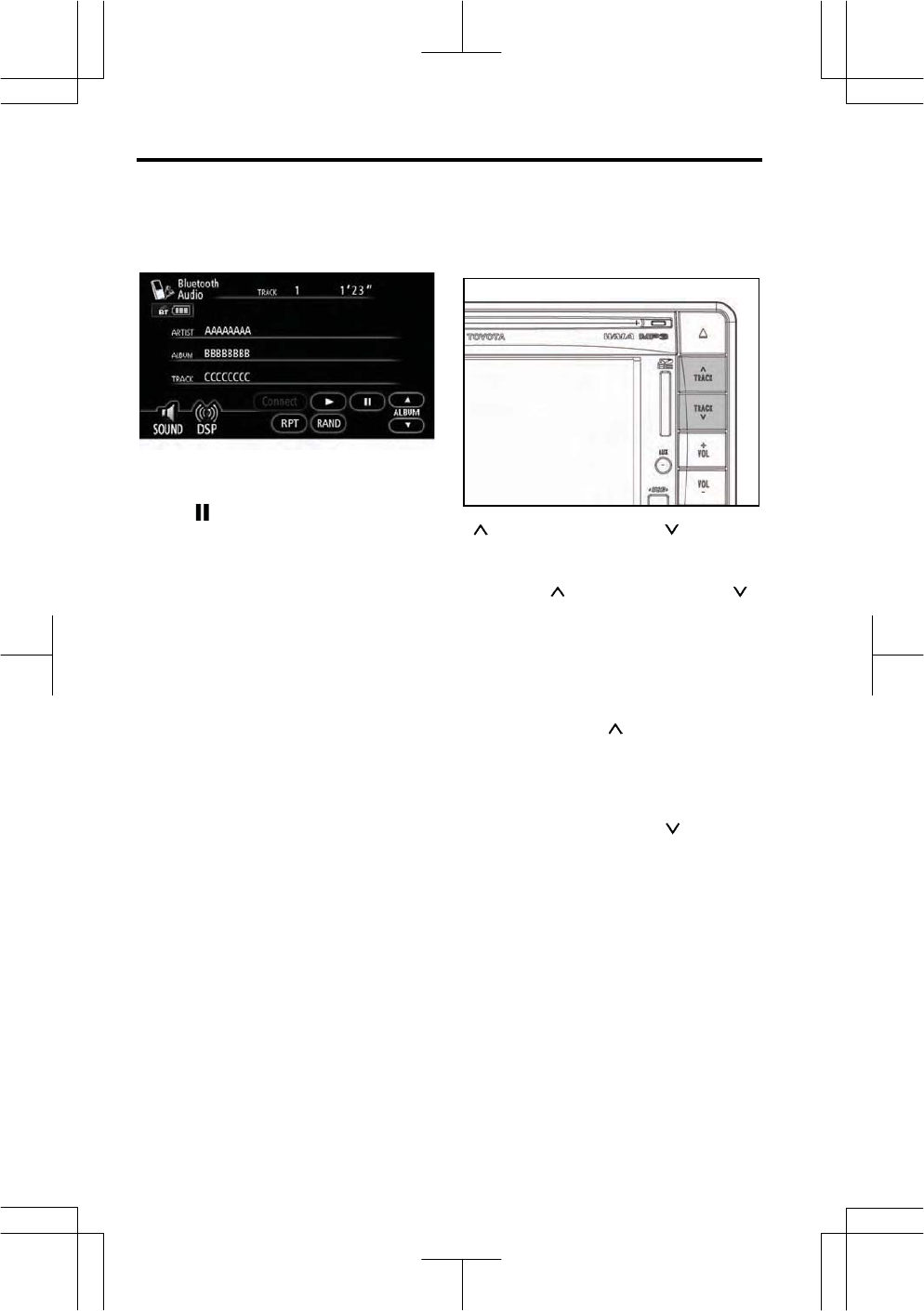

z Playing a Bluetooth® audio
Touch “Ź” and the music will start play-
ing.
Touch “ ” and the music will pause.
z Selecting a desired track
“TRACK” or “TRACK ” button:
Use for direct access to a desired au-
dio track.
Push the “TRACK” or “TRACK ”
button and repeat until the desired track
number appears on the screen. As you
release the button, the player will start
playing the selected track from the be-
ginning.
Fast forward:
Push and hold the “TRACK” button to
fast forward the player. When you re-
lease the button, the player will resume
playing from that position.
Reverse:
Push and hold the “TRACK ” button to
reverse the player. When you release
the button, the player will resume play-
ing.
![](/img.php?id=1116362&img=bg79.png)
AUDIO SYSTEM
221
V689_E
z Selecting a desired album
“ALBUMŸ”: Touch this touch screen
button to select the next album.
“ALBUMź”: Touch this touch screen
button to select the previous album.
z Other functions
“RPT”: Use this control to automatically
replay the track you are currently listen-
ing to.
Repeating a track —
While the track is playing, touch
“RPT” briefly.
“RPT” appears on the screen. When the
track is finished, the player will auto-
matically play it again. To cancel the
repeat, touch “RPT” once again.
“RAND”: Use this for automatic and
random selection of tracks on the album
that you are currently listening to.
While a track is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The
system selects a track in the album you
are currently listening to. To cancel this
function, touch “RAND” once again.
INFORMATION
Depending on the portable player
that is connected to the system,
certain functions may not be avail-
able.
![](/img.php?id=1116362&img=bg7a.png)
AUDIO SYSTEM
222
V689_E

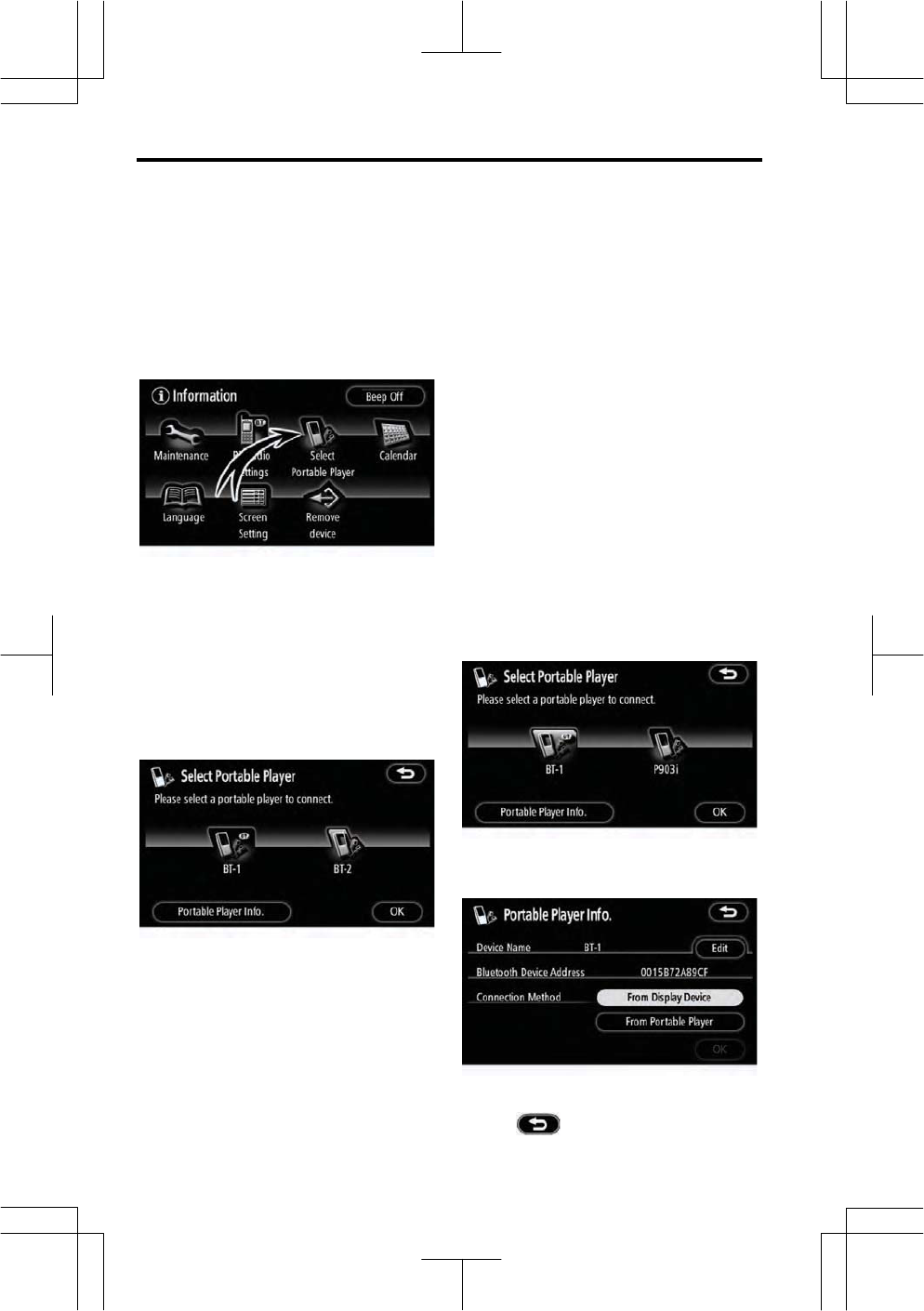

(c) Change the Bluetooth® audio set-
tings
z Selecting a portable player
If you register a second portable
player, either one can be selected for
connection.
1. Touch “Select Portable Player” to
display the “Select Portable Player”
screen.
You can select from a maximum of
two Bluetooth® portable players.
“empty” is displayed when you have not
registered a Bluetooth® portable player.
The Bluetooth® mark is displayed when
you choose the portable player.
2. Select desired portable player and
then touch “OK”.
Although you can register up to two
portable players in the system, only one
portable player can function at a time.
z Displaying portable player infor-
mation
You can see the information of the
portable player on the system.
“Device Name”
.......... The name of Bluetooth® portable
player which is displayed on the
screen. You can change it into a
desired name.
“BluetoothDevice Address”
.......... The address peculiar to the sys-
tem. You cannot change it.
“Connection Method”
.......... The connection method can be
switched between “From Display
Device” and “From Portable
Player”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
1. Select desired portable player and
then touch “Portable Player Info”.
2. When you complete confirming it,
touch .
![](/img.php?id=1116362&img=bg7b.png)
AUDIO SYSTEM
223
V689_E

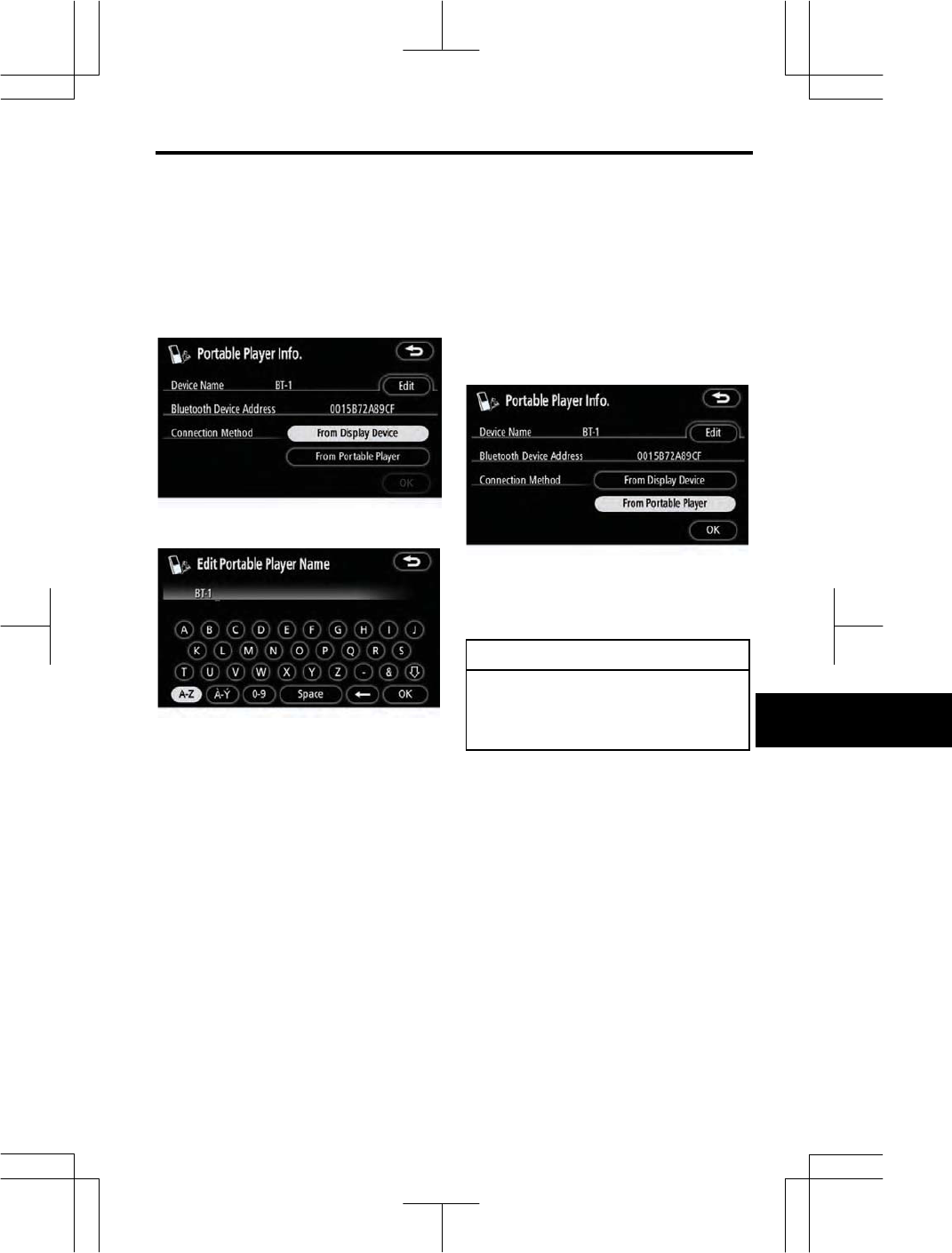

z Changing the device name
You can change a device name. If you
change a device name, the name reg-
istered in your portable player is not
changed.
1. Touch “Edit”.
2. Use the software keyboard to in-
put the device name and then touch
“OK”.
z Changing the connection method
The connection method can be se-
lected.
From Display Device: Connect the
audio system to the portable player.
From Portable Player: Connect the
portable player to the audio system.
Select desired connection method
“From Display Device” or “From Port-
able Player” and then touch “OK”.
INFORMATION
If the connection method is set to
“From Portable Player”, “Auto
Bluetoothconnect” (see page 217)
cannot be selected.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg7c.png)
AUDIO SYSTEM
224
V689_E
z Displaying the Bluetooth® audio
settings
You can see the Bluetooth® audio
information settings on the system.
“Device Name”
.......... The name in the Bluetooth® net-
work. You can change it.
“Passcode”
.......... The password when you register
your portable audio player in the
system. You can change it into
the figure of 4-8 digits.
“Device Address”
.......... The address peculiar to the sys-
tem. You can not change it. If you
have registered two Bluetooth®
portable players with the same
device name or passcode and
you cannot distinguish one from
the other, refer to it.

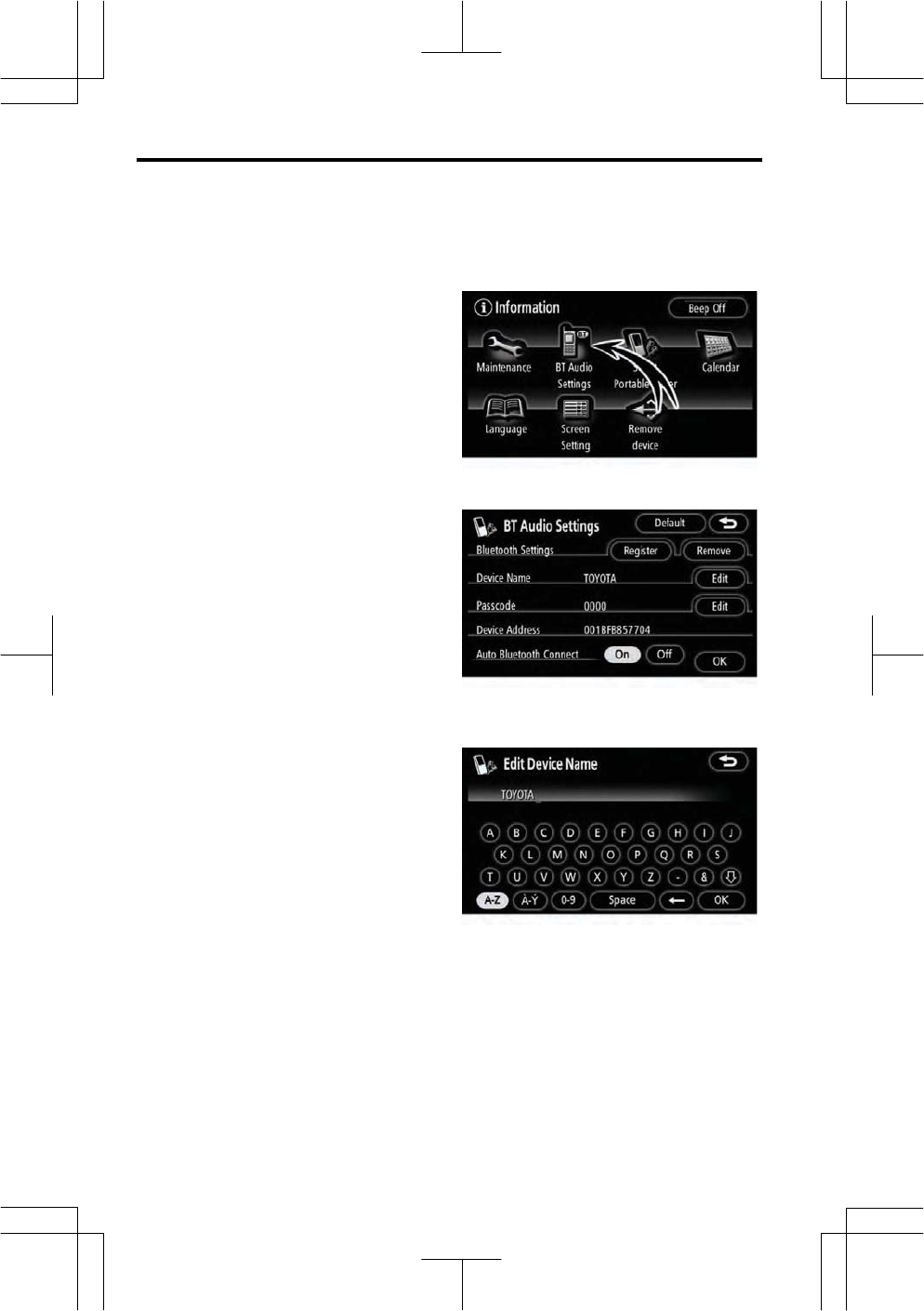

z Changing the device name or
passcode
1. Touch “BT Audio Settings”.
2. Touch “Edit” at “Device Name” or
“Passcode”.
3. Use the software keyboard to in-
put the device name.
You can input up to 20 characters.
![](/img.php?id=1116362&img=bg7d.png)
AUDIO SYSTEM
225
V689_E

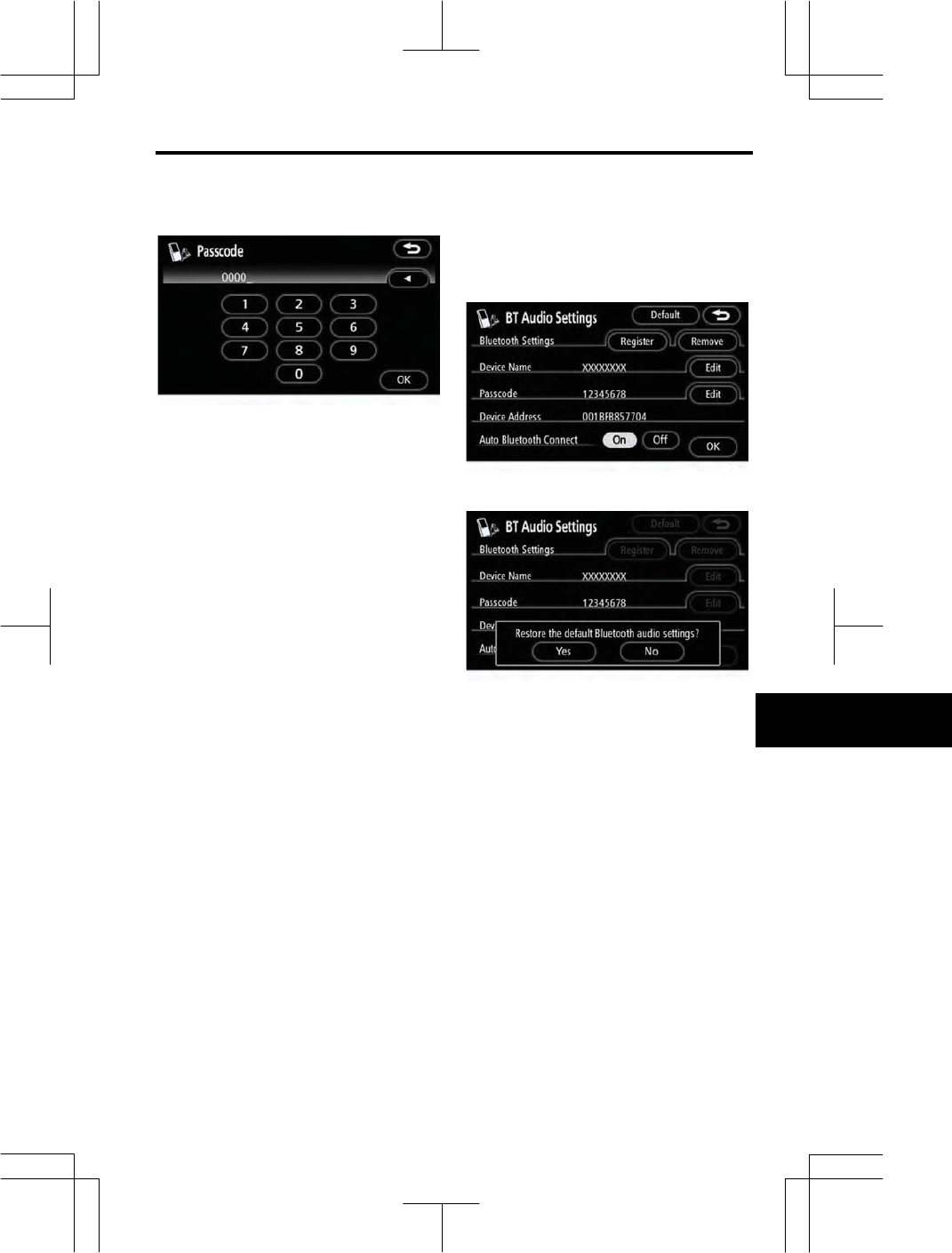

4. Input a Passcode with 4-8 digits.
When you touch “Ż”, the input num-
ber is deleted.
z Initializing the Bluetooth® audio
settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
![](/img.php?id=1116362&img=bg7e.png)
AUDIO SYSTEM
226
V689_E

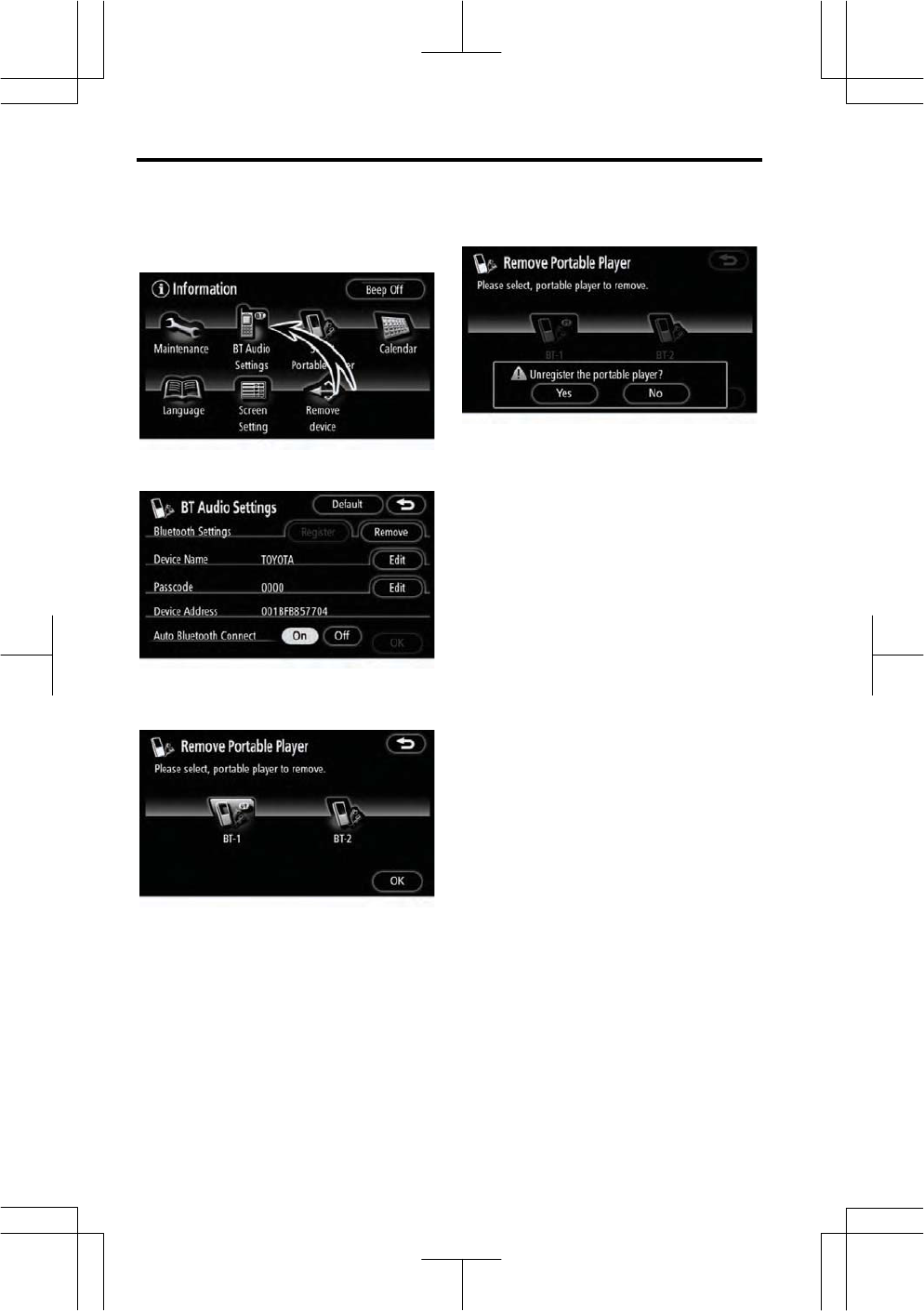

z Deleting a portable player
1. Touch “BT Audio Settings”.
2. Touch “Remove” at “Bluetooth
Settings”.
3. Select the portable player you
want to delete and touch “OK”.
4. Touch “Yes”.
: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.
![](/img.php?id=1116362&img=bg7f.png)
AUDIO SYSTEM
227
V689_E
Music stored on commercially available
portable audio devices can be played
back by connecting the devices to the
audio system.
When using portable audio devices with
the audio system, please read over the
portable audio device instruction manual
carefully and ensure that the device is
fully compatible prior to use.
CAUTION
zPlace the portable audio device in
a location that will not interfere
with SRS airbag deployment.
Failure to do so may result in
death or serious injury due to the
inability of the airbag to function
properly or if the portable audio
device is thrown during SRS air-
bag deployment.
Refer to the vehicle instruction
manual for details of the SRS air-
bag deployment location.
zAvoid placing the portable audio
device in a location that will in-
terfere with driving, or temporarily
secure in a location that will not
interfere with driving.
This may hinder driving or lead to
traffic accidents.

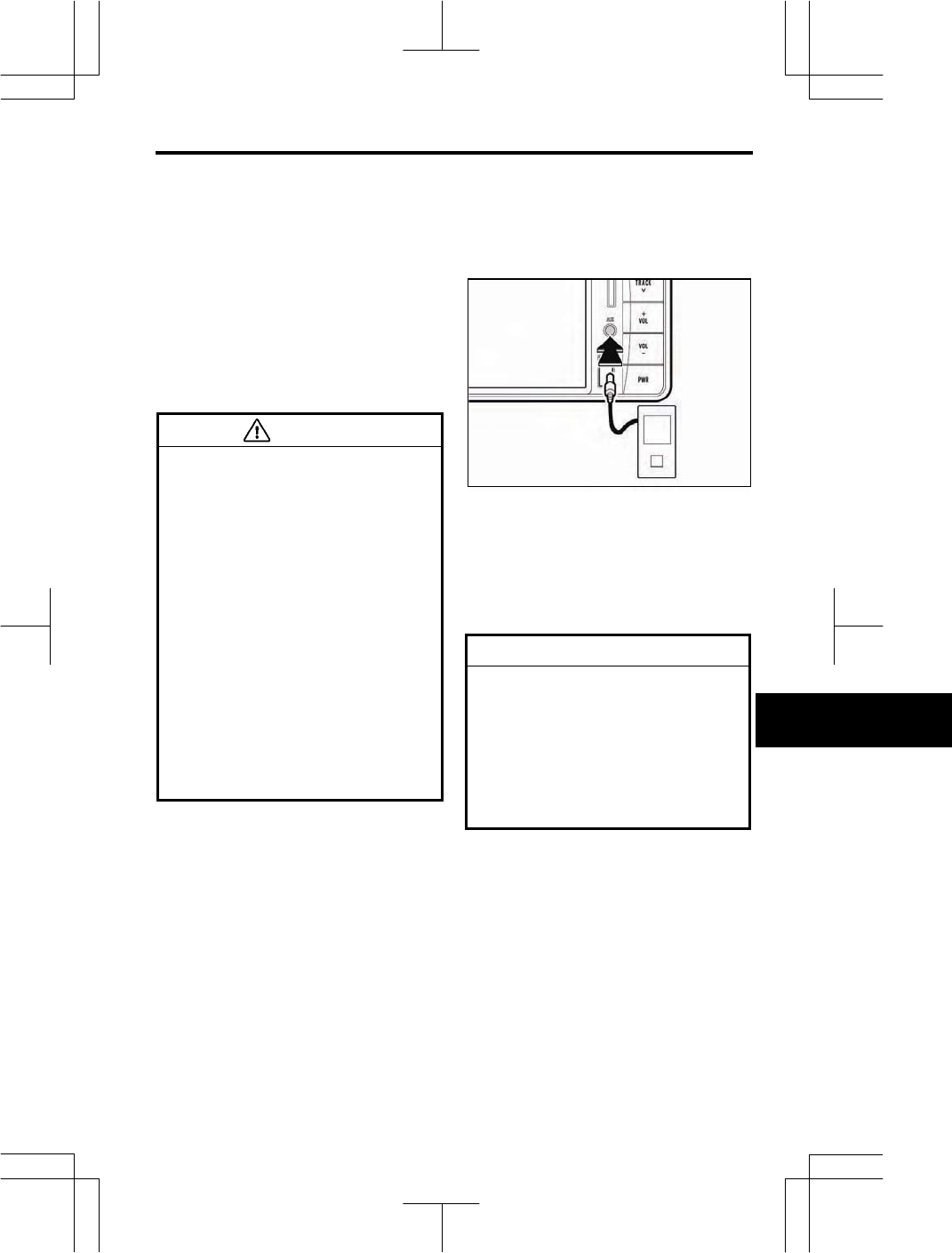

(a) Connecting (disconnecting) port-
able audio devices
Ensure that the portable audio device
power is turned OFF.
Ensure that the audio mode is set to a
mode other than AUX, or that the au-
dio system power is turned OFF.
Connect (or disconnect) the AUX port.
NOTICE
zAvoid getting hands caught in the
AUX port.
zDo not connect, operate, or dis-
connect the portable audio device
while driving.
zStore portable audio devices
away from direct sunlight when
not in use.
— AUX o
p
eration
![](/img.php?id=1116362&img=bg80.png)
AUDIO SYSTEM
228
V689_E
INFORMATION
zDisconnecting or connecting the
portable audio device while in
AUX mode may lead to distortion
and speaker damage. Always
ensure to turn off the audio sys-
tem power or switch to another
mode prior to disconnecting or
connecting.
zChanging the portable audio de-
vice power supply while in AUX
mode may lead to distortion and
speaker damage. Always ensure
to turn off the audio system
power or switch to another mode
prior to changing the portable au-
dio device power supply.
zPlease note that the volume level
will vary due to differing output
levels depending on the con-
nected device.
zIf the volume is adjusted while in
AUX mode, the volume can be
stored as the volume level for
AUX mode. This stored volume
level will be returned to its default
setting if the portable audio de-
vice is disconnected.
zWhen using a portable audio de-
vice connected to the power out-
let or cigarette lighter, noise may
occur during playback.
If this happens, use the power
source (battery) of the portable
audio device.
(b) Operating a portable audio de-
vices
1. Turn ON the portable audio device
power and playback music.
Refer to the manual provided with the
portable audio device for details of op-
eration.
2. Push the “MODE” button and
touch “AUX”. The “AUX” screen will
be displayed.
Played back audio from the portable
audio device is output from the speakers.
![](/img.php?id=1116362&img=bg81.png)
AUDIO SYSTEM
229
V689_E
This function can be operated only when
an optional iPod connecting cable is
connected.
iPod music files can be played by con-
necting your iPod to the audio system.
Furthermore, it is also possible to per-
form such operations as selecting tracks
from the play list and changing the shuf-
fle mode at the audio system.
This system supports only an iPod fea-
turing the dock connector port.
For details, refer to your iPod Owner’s
Manual.

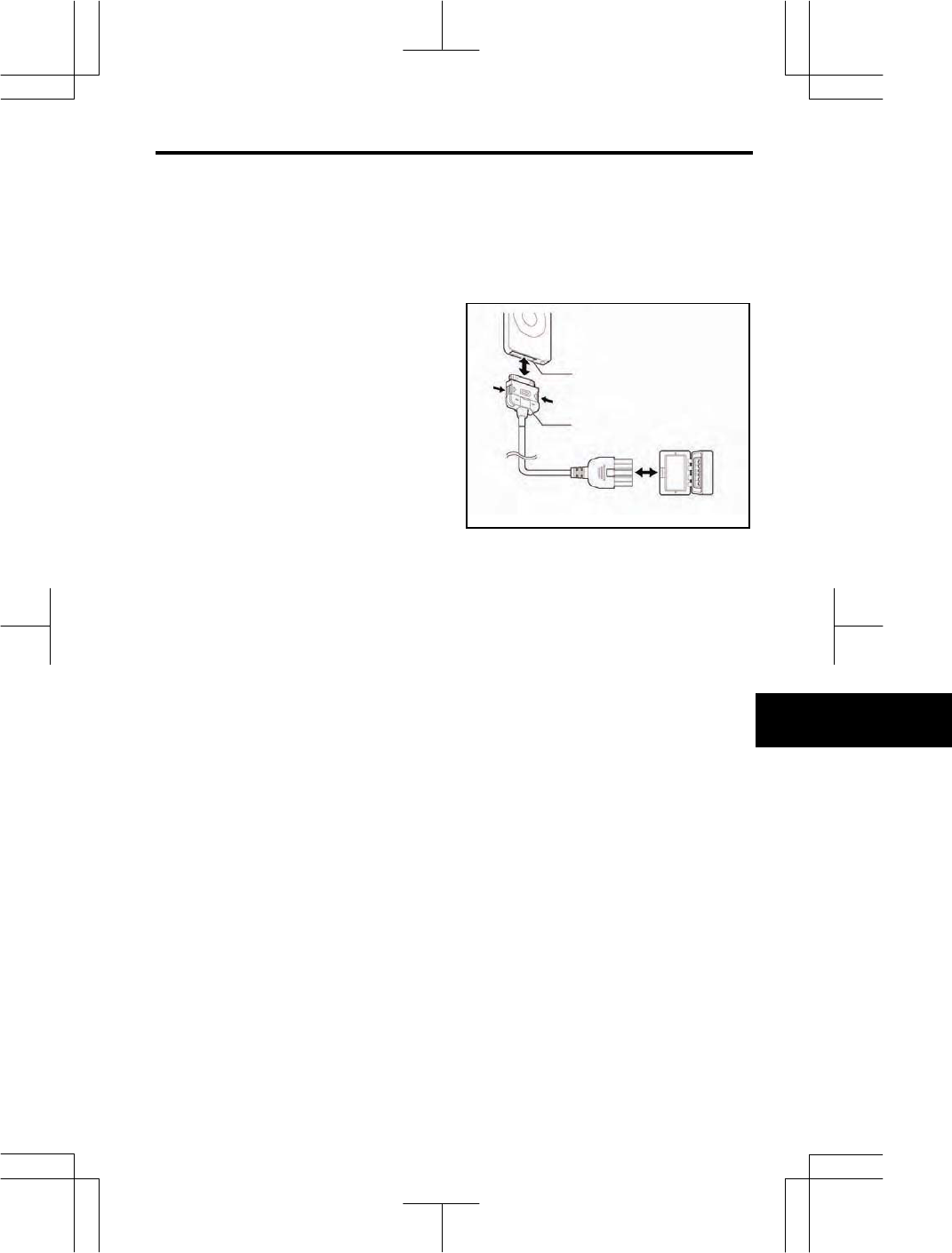

(a) Connecting or disconnecting your
iPod
z Connecting your iPod
Connect your iPod with the dock con-
nector.
Disconnect all iPod accessories with the
exception of the remote control.
As soon as the iPod is connected, its
power is automatically turned on.
— iPod o
p
eration
Dock connector port
Dock connector
iPod
connecting cable iPod adapter
![](/img.php?id=1116362&img=bg82.png)
AUDIO SYSTEM
230
V689_E

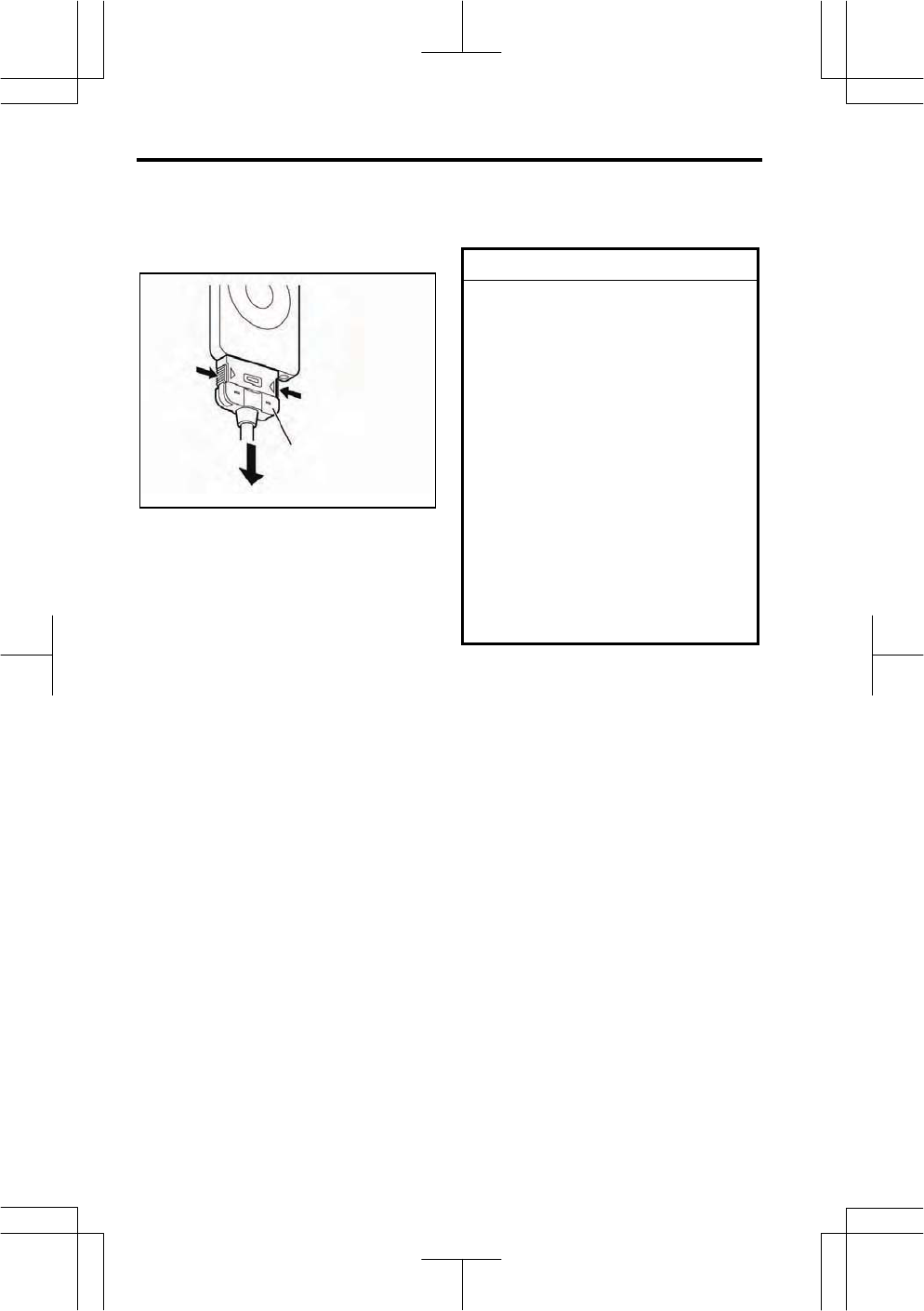

z Disconnecting your iPod
Press the sides of the dock connector
in the direction shown by the arrows
above to disconnect your iPod.
NOTICE
zPlease understand that no com-
pensation can be awarded for lost
data, even if iPod data is lost
when connected to the audio
system.
zThe iPod may become deformed,
discolored, or damaged due to
heat if left exposed to direct
sunlight for long periods of time.
Store away from direct sunlight
when not in use.
zFix the iPod securely when using
with this unit. Do not let the iPod
fall onto the floor, where it may
become jammed under the brake
or accelerator pedal.
zYou may hear noise if you dis-
connect during iPod playback.
Dock connector
![](/img.php?id=1116362&img=bg83.png)
AUDIO SYSTEM
231
V689_E
INFORMATION
zCheck that your iPod is supported
by the audio system. Refer to
“Supported iPods” (page 237) for a
list of supported iPods.
zThe system will not automatically
switch to iPod mode when the au-
dio system and iPod are connected.
z“TOYOTA” displays at the iPod
when connected to the audio sys-
tem. Please note that operation
cannot be performed using your
iPod while “TOYOTA” is displayed.
zIf your iPod is connected to the
audio system with the iPod power
OFF, “TOYOTA” will not display,
and the “Charging complete” mark
may display. If this happens, push
any button on your iPod to display
“TOYOTA”.
zVehicles with smart entry and start
system—
While the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode, the battery of
the connected iPod will be charged.
Vehicles without smart entry and
start system—
While the engine switch is in the
ACC or ON position, the battery of
the connected iPod will be charged.
zThe track order in the play list dis-
played at the audio system may
differ from that at your iPod when
connected to the system.
zIf your iPod becomes inoperable,
disconnect and then reconnect af-
ter resetting. Refer to the iPod in-
struction manual for details of the
reset method.
zThere are times when video file
names display in the track play list,
however, no support is available for
playback of video files.
zWhile the iPod is connected to this
audio system, the iPod itself cannot
be turned on or off.
zVehicles with smart entry and start
system—
The connected iPod will be turned
off about two minutes after the
“ENGINE START STOP” switch is
turned off.
Vehicles without smart entry and
start system—
The connected iPod will be turned
off about two minutes after the en-
gine switch is turned to the LOCK
position.
![](/img.php?id=1116362&img=bg84.png)
AUDIO SYSTEM
232
V689_E

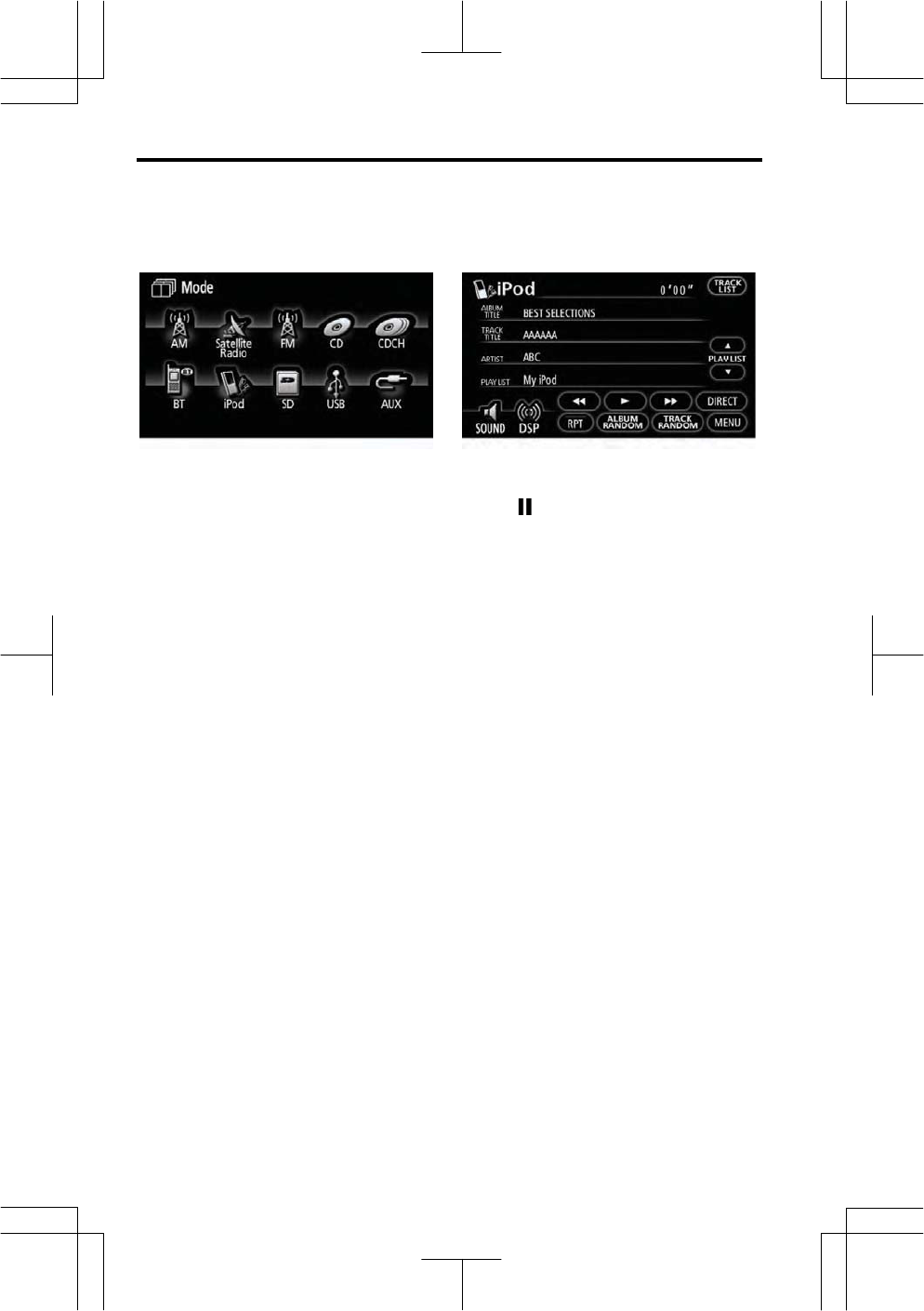

(b) Operating to your iPod
Push the “MODE” button and touch
“iPod”. The “iPod” screen will dis-
played.
z Playing to your iPod
Touch “Ź” and the music will start play-
ing.
Touch “ ” and the music will pause.
![](/img.php?id=1116362&img=bg85.png)
AUDIO SYSTEM
233
V689_E
INFORMATION
zDepending on the number of mu-
sic files stored on your iPod, and
the software version, there may
be times when the system does
not respond immediately or func-
tion properly when performing
operations at the operation
screen.
z“Ok to disconnect.”, displays on
the iPod unit. However, in order to
protect your iPod, it is recom-
mended that the dock connector
not be disconnected during music
playback.
zVehicles with smart entry and
start system—
If the system does not function
properly, disconnect your iPod
from the dock connector and then
turn the “ENGINE START STOP”
switch off. Turn the iPod off then
back on. Turn the “ENGINE
START STOP” switch back to the
ACCESSORY or IGNITION ON
mode and then connect the iPod
to the dock connector again.
Vehicles without smart entry and
start system—
If the system does not function
properly, disconnect your iPod
from the dock connector then turn
the engine switch off. Turn the
iPod off then back on. Turn the
engine switch back to the ACC or
ON position and then connect the
iPod to the dock connector again.
zYou cannot operate the iPod
Equalizer on products. We rec-
ommend that you set the iPod
Equalizer to off, before connect-
ing the iPod to this unit.

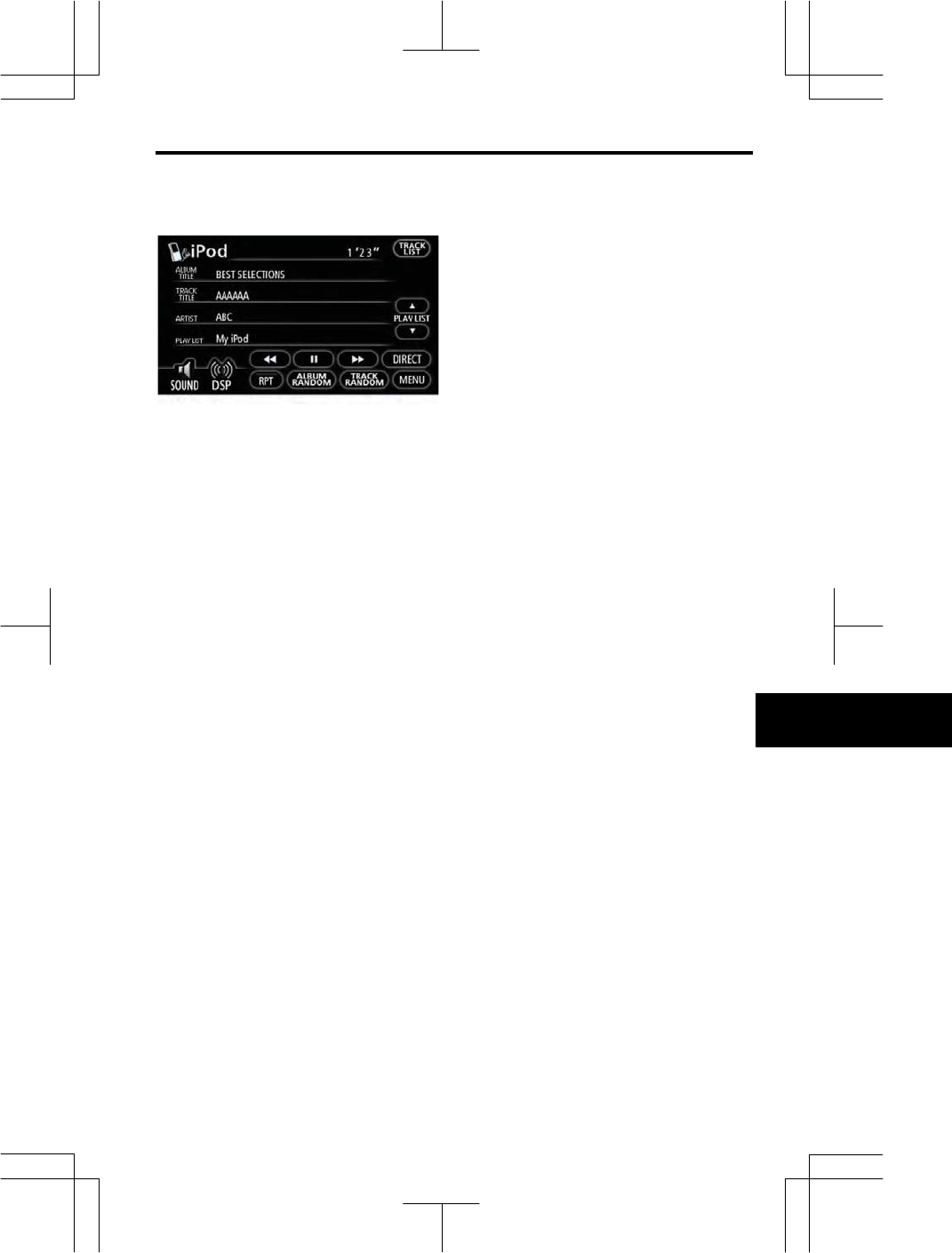

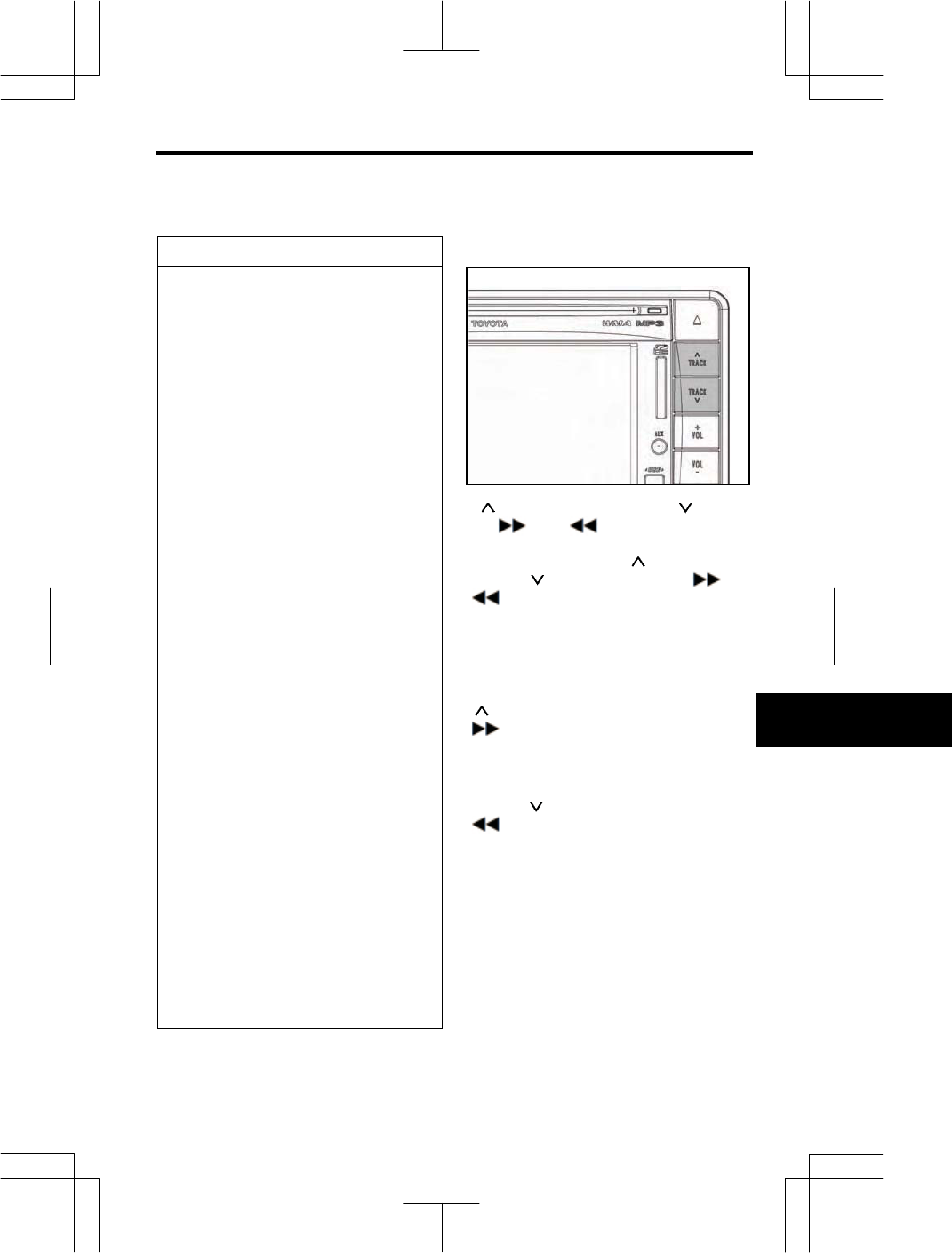

z Selecting a desired music file
“TRACK” or “TRACK ” but-
ton/“ ” or “ ”: These buttons are
used for direct access to a desired audio
track. Push the “TRACK” or
“TRACK ” button or touch “ ” or
“” until the desired track number ap-
pears on the screen. When operation of
the button or the screen is complete, the
player will start playing the selected track
from the beginning.
Fast forward: Push and hold the
“TRACK” button or continue touching
“” to fast forward the player. When
you release the button, the player will
resume playing from that position.
Reverse: Push and hold the
“TRACK ” button or continue touching
“” to reverse the player. When you
release the button, the player will resume
playing.
![](/img.php?id=1116362&img=bg86.png)
AUDIO SYSTEM
234
V689_E

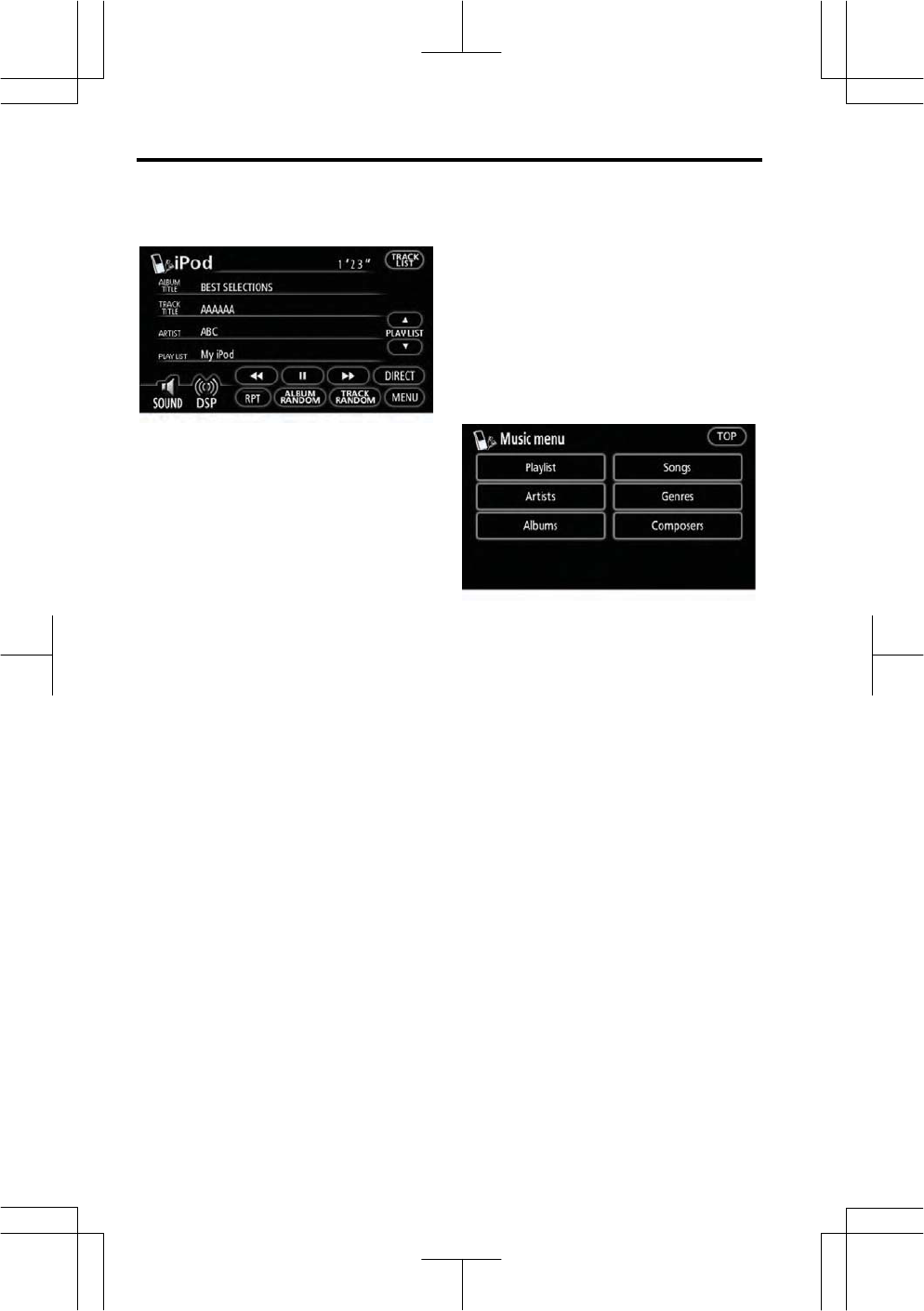

“TRACK LIST”: When “TRACK LIST”
is touched, the list of files in which the
music files currently being played back is
displayed. The music file currently being
played back displays at the top.
Touch a music file to play back the se-
lected file.
z Searching for the desired music
file from the Music menu
The desired music file can be searched
for by displaying the track play list from
the Music menu.
1. Touch “MENU”.
Touch “TOP” to return to the iPod op-
eration screen.
2. Touch the desired mode on the
Music
OGPWUETGGP
The screen shown at step “4.” displays
when “Songs” is selected.
![](/img.php?id=1116362&img=bg87.png)
AUDIO SYSTEM
235
V689_E

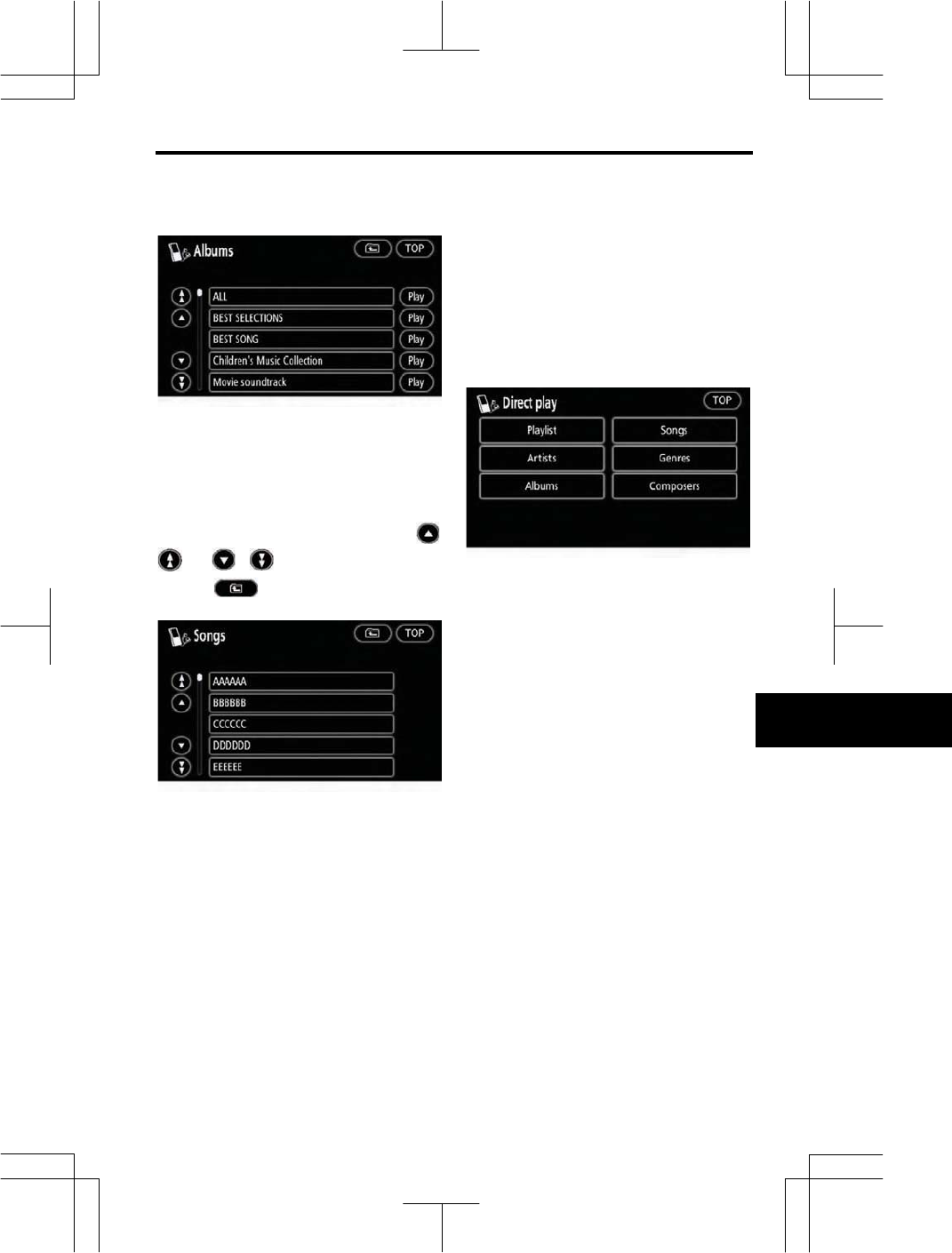

3. Touch the desired list on the
mode list screen.
Touch “Play” to playback the first music
file in the selected list.
Touch “ALL” to select all displayed lists.
When there are 5 lists or more, touch ,
or , to change the list.
Touch to return to the level
above.
4. Touch the applicable touch
screen button to select the music file
to be played back.
Commence playback.
z Searching for the desired music
files from direct mode
Played back music files can be changed
in various individual modes.
1. Touch “DIRECT”.
Touch “TOP” to return to the iPod op-
eration screen.
2. Touch the mode to be selected at
the “Direct play” screen.
The iPod operation screen displays.
The mode changes to the selected mode
and the first music file is played.
“Playlist”: Plays back the iPod Playlist.
“Songs”: Plays back all songs.
“Artists”: Plays back the Artists list.
“Genres”: Plays back the Genres list.
“Albums”: Plays back the Albums list.
“Composers”: Plays back the Compos-
ers list.
![](/img.php?id=1116362&img=bg88.png)
AUDIO SYSTEM
236
V689_E

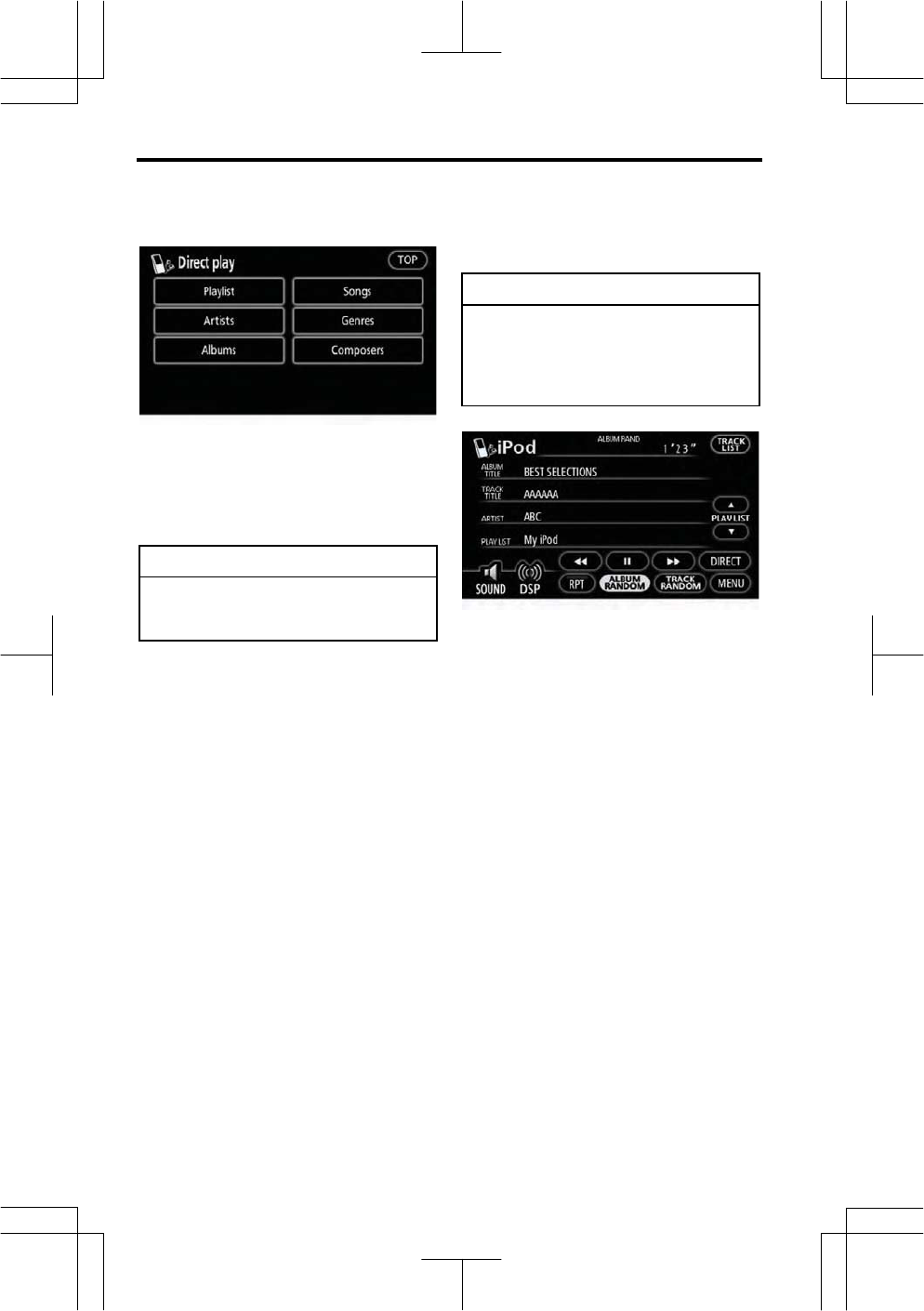

3. Touch “Ÿ” or “ź”.
“Ÿ”: Touch to select the next list (music
files in Songs mode).
“ź”: Touch to select the previous list
(music files in Songs mode).
INFORMATION
When music files are played back
from the “Music menu” screen, the
system exits direct mode.
z Other functions
INFORMATION
If your iPod is disconnected while
“RPT”, “TRACK RANDOM”, or
“ALBUM RANDOM” is set, the iPod
will switch to the repeat or shuffle
setting.
“RPT”: Repeats playback of the current
track.
When the current track is finished, play-
back will begin again automatically from
the beginning of that track. Touch “RPT”
again to cancel.
Listening to tracks in the current play
list randomly —
Touch “TRACK RANDOM”.
The system selects a music file in the
play list you are currently listening to. To
cancel it, touch “TRACK RANDOM”
once again.
Listening to albums randomly —
Touch “ALBUM RANDOM”.
Albums can be listened to randomly.
However music files in albums are
played back from the first music file.
To cancel it, touch “ALBUMRANDOM”
once again.
![](/img.php?id=1116362&img=bg89.png)
AUDIO SYSTEM
237
V689_E
z Supported iPods
The following iPods can be used with the
audio system. However, operation may
not be possible depending on the condi-
tion of the iPod.
iPodí
4th generation, 5th generation
iPod photoí
iPod nanoí
1st generation, 2nd generation, 3rd gen-
eration
iPod classicí
iPod touchí
INFORMATION
ziPod® is a trademark of Apple
Computer, Inc., registered in the
U.S. and other countries.
zThe use of iPods is authorized for
the copying and playback of
nonícopyrighted material or ma-
terial for which legal copying and
playback is authorized for per-
sonal use by individuals. Copy-
right infringements are prohibited
by law.
zSupport is not available for the
iPod photo display function or
video footage display function.
Some parts of the audio system can be
adjusted with the switches on the steer-
ing wheel.
Depending on the model or grade,
steering wheel switches may not be
available.
Details of the specific switches, controls,
and features are described below.
Volume control switches
“ ” “ ” switches
“MODE” switch
Audio remote controls —
—
Steerin
g
switches
![](/img.php?id=1116362&img=bg8a.png)
AUDIO SYSTEM
238
V689_E
Volume control switch
Push “+” side to increase the volume.
The volume continues to increase while
the switch is being pressed.
Push “–” side to decrease the volume.
The volume continues to decrease while
the switch is being pressed.
“ ” “ ” switches
Radio
To select a preset station:
Quickly push and release the “” or
“” switch. Do this again to select the
next preset station.
To seek a station:
Push and hold the “ ”or “ ” switch
until you hear a beep. Do this again to
find the next station. If you push either
the “” or “ ” switch in seek mode,
the seek mode will cancel.
CD player, Bluetooth® audio and
SD/USB player
Use this switch to skip up or down to a
different track or file in either direction.
To select a desired track or file:
Quickly push and release the “ ”or
“” switch until the track or file you
want to play is set. If you want to return
to the beginning of the current track or
file, push the “” switch once, quickly.
MP3/WMA disc, SD memory card and
USB memory device
To select a desired folder:
Push and hold the “” or “ ” side of the
switch until you hear a beep. Repeat this
until the folder you want to listen to is set.
“MODE” switch
Each time you push the “MODE” switch,
the system changed the audio mode.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until you hear a
beep.
NOTICE
To ensure correct audio system op-
erations:
zBe careful not to spill beverages
over the audio system.
zDo not put anything other than an
appropriate disc into the CD
player slot.
zThe use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the
audio system which you are lis-
tening to. However, this does
not indicate a malfunction.
Radio reception
Usually, the problem with radio reception
does not mean there is a problem with
your radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or telephone wires can in-
terfere with AM signals. And of course,
radio signals have a limited range, and
the farther you are from a station, the
weaker its signal will be. In addition,
reception conditions change constantly
as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
Audio system operating
hints
![](/img.php?id=1116362&img=bg8b.png)
AUDIO SYSTEM
239
V689_E
FM
Fading and drifting stations — Gener-
ally, the effective range of FM is about
40 km (25 miles). Once outside this
range, you may notice fading and drifting,
which increase with the distance from
the radio transmitter. They are often
accompanied by distortion.
Multi-path — FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel
each other out, causing a momentary
flutter or loss of reception.
Static and fluttering — These occur
when signals are blocked by buildings,
trees, or other large objects. Increasing
the bass level may reduce static and
fluttering.
AM
Fading — AM broadcasts are reflected
by the upper atmosphere — especially at
night. These reflected signals can in-
terfere with those received directly from
the radio station, causing the radio sta-
tion to sound alternately strong and
weak.
Station interference — When a re-
flected signal and a signal received di-
rectly from a radio station are very nearly
the same frequency, they can interfere
with each other, making it difficult to hear
the broadcast.
Static — AM is easily affected by exter-
nal sources of electrical noise, such as
high tension power lines, lightening, or
electrical motors. This results in static.
MP3/WMA files
z MP3 (MPEG Audio Layer 3) and
WMA (Windows Media Audio) are
audio compression standards.
z The MP3/WMA player can play MP3
and WMA files on CD-ROM, CD-R
and CD-RW discs.
The unit can play disc recordings
compatible with ISO 9660 level 1
and level 2 and with the Romeo and
Joliet file system.
z The SD/USB player can play MP3
and WMA files on SD memory card
and USB memory device.
z When naming an MP3 or WMA file,
add the appropriate file extension
(.mp3 or .wma).
z The MP3/WMA player and SD/USB
player play back files with .mp3
or .wma file extensions as MP3 or
WMA files. To prevent noise and
playback errors, use the appropriate
file extensions.
z The player can play only the first
session using multi-session com-
patible CDs.
z MP3 files are compatible with the
ID3 Tag Ver. 1.0, Ver. 1.1, Ver. 2.2,
and Ver. 2.3 formats. The unit
cannot display disc title, track title,
artist name, and so on in other for-
mats.
z WMA files can contain a WMA tag
that is used in the same way as an
ID3 tag. WMA tags carry informa-
tion such as track title, artist name.
z The emphasis function is available
only when playing MP3/WMA files
recorded at 32, 44.1 and 48 kHz.
(The system can play MP3 files with
sampling frequencies of 16, 22.05,
and 24 kHz. However, the empha-
sis function is not available for files
recorded at these frequencies.)
z The sound quality of MP3/WMA files
generally improves with higher bit
rates. In order to achieve a rea-
sonable level of sound quality, discs,
SD memory card and USB memory
device recorded with a bit rate of at
least 128 kbps are recommended.
![](/img.php?id=1116362&img=bg8c.png)
AUDIO SYSTEM
240
V689_E
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160
kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
z The MP3/WMA player does not play
back MP3/WMA files from discs re-
corder using packet write data
transfer (UDF format). Discs
should be recorded using
“pre-mastering” software rather than
packet-write software.
z The m3u playlists are not compatible
with the audio player.
z MP3i (MP3 interactive) and
MP3PRO formats are not compatible
with the audio player.
z The MP3 player is compatible with
VBR (Variable Bit Rate).
z When playing back files recorded as
VBR (Variable Bit Rate) files, the
play time will not be correctly dis-
played if fast-forward or reverse op-
erations are used.
z It is not possible to check folders
that do not include MP3/WMA files.
z MP3/WMA files in folders up to 8
levels deep can be played. How-
ever, the start of playback may be
delayed when using discs containing
numerous levels of folders. For this
reason, we recommend creating
discs, SD memory card and USB
memory device with no more than
two levels of folders.
z It is possible to play up to 255 fold-
ers or 999 files on one disc, SD
memory card and USB memory de-
vice.

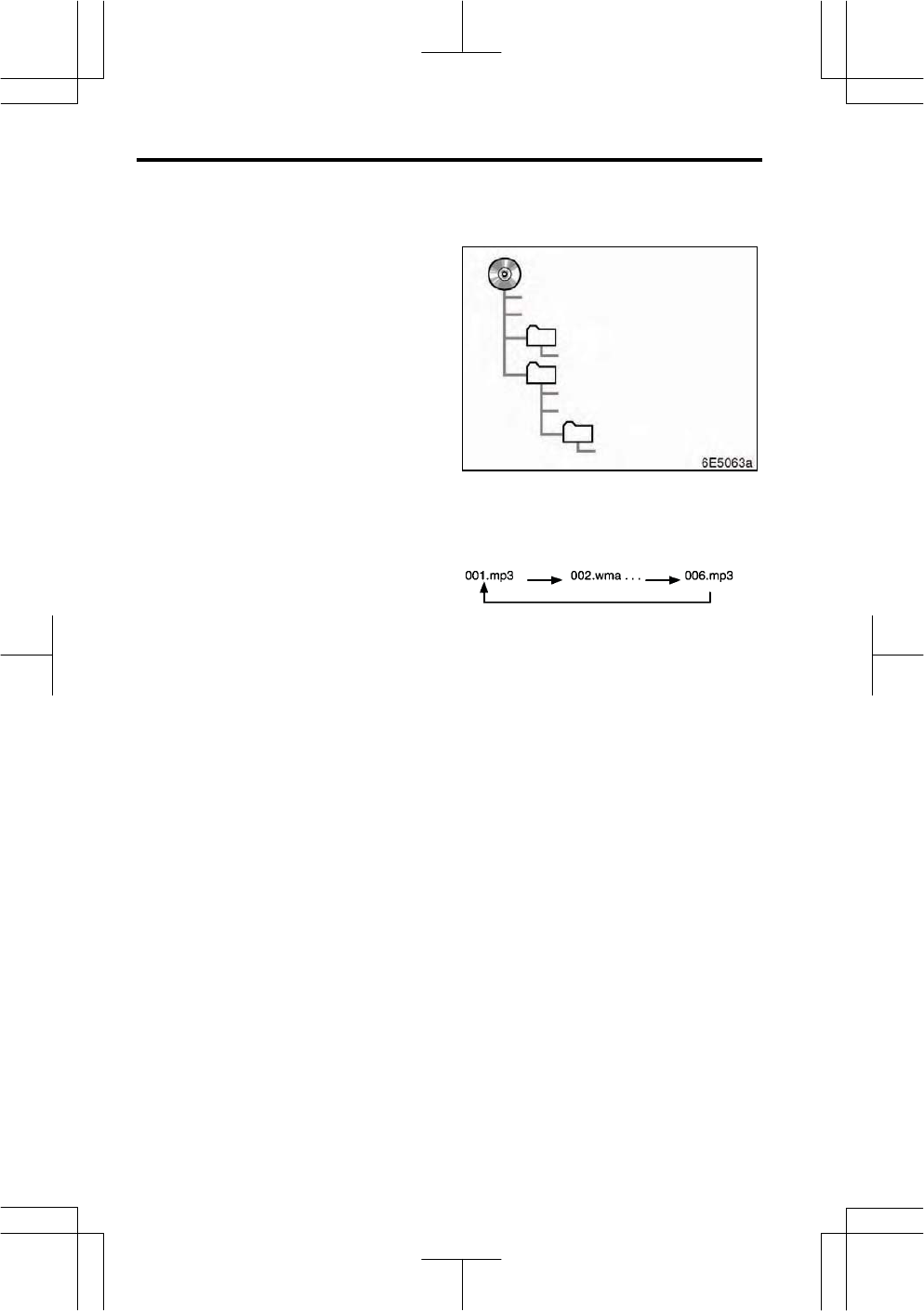

z The play order of the compact disc,
SD memory card and USB memory
device with the structure shown
above is as follows:
001.mp3
002.wma
Folder 1
003.mp3
Folder 2
004.mp3
005.wma
Folder 3
006.mp3
![](/img.php?id=1116362&img=bg8d.png)
AUDIO SYSTEM
241
V689_E
CD-R and CD-RW discs
z CD-R/CD-RW discs that have not
been subject to the “finalizing proc-
ess” (a process that allows discs to
be played on a conventional CD
player) cannot be played.
z It may not be possible to play
CD-R/CD-RW discs recorded on a
music CD recorder or a personal
computer because of disc charac-
teristics, scratches or dirt on the disc,
or dirt, condensation, etc. on the
lens of the unit.
z It may not be possible to play discs
recorded on a personal computer
depending on the application set-
tings and the environment. Record
with the correct format. (For details,
contact the appropriate application
manufacturers of the applications.)
z CD-R/CD-RW discs may be dam-
aged by direct exposure to sunlight,
high temperatures or other storage
conditions. The unit may be unable
to play some damaged discs.
z If you insert a CD-RW disc into the
MP3/WMA player, playback will be-
gin more slowly than with a conven-
tional CD or CD-R disc.
z Recordings on CD-R/CD-RW cannot
be played using the DDCD (Double
Density CD) system.
Caring for your CD player and discs
z Your CD player is intended for use
with 12 cm (4.7 in.) discs only.
z Extremely high temperature can
keep your CD player from working.
On hot days, use air conditioning to
cool the vehicle interior before you
listen to a disc.
z Bumpy roads or other vibrations may
make your CD player skip.
z If moisture gets into your CD player,
you may not hear any sound even
though your CD player appears to
be working. Remove the discs from
the CD player and wait until it dries.
CAUTION
CD player uses an invisible laser
beam which could cause hazardous
radiation exposure if directed out-
side the unit. Be sure to operate
the player correctly.
![](/img.php?id=1116362&img=bg8e.png)
AUDIO SYSTEM
242
V689_E
CD player

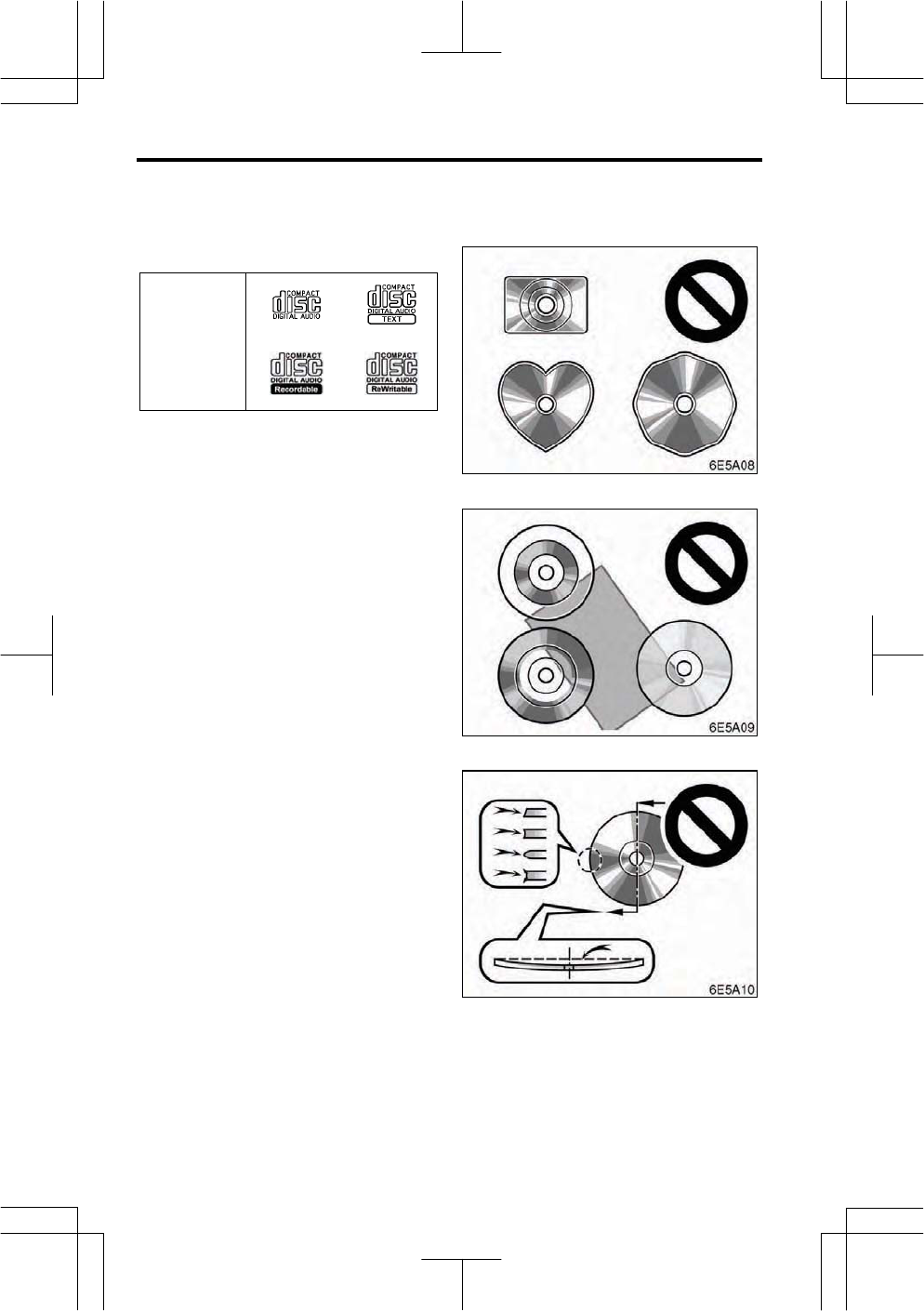

Audio CDs
z Use only discs marked as shown
above. The following products may
not be playable on your CD player.
SACDs
dts CDs
Copy-protected CDs
ŹSpecial shaped discs
ŹTransparent / translucent discs
ŹLow quality discs
![](/img.php?id=1116362&img=bg8f.png)
AUDIO SYSTEM
243
V689_E

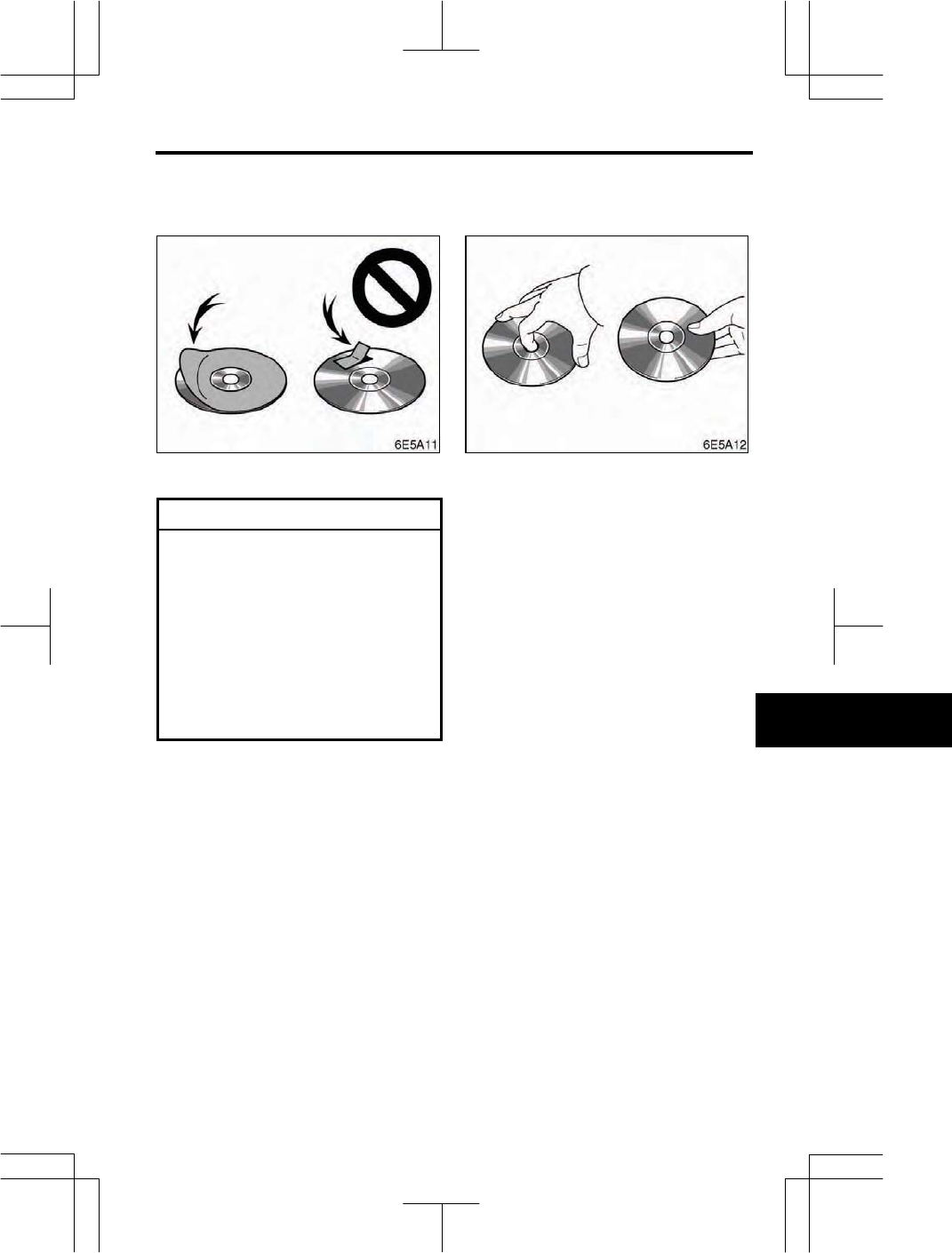

ŹLabeled discs
NOTICE
zDo not use special shaped,
transparent/translucent, low qual-
ity or labeled discs such as those
shown in the illustrations. The
use of such discs may damage
the player, or it may be impossi-
ble to eject the disc.
zThis system is not designed for
use of Dual Disc. Do not use
Dual Disc because it may cause
damage to the player.
ŹCorrect ŹWrong
z Handle discs carefully, especially
when you are inserting them. Hold
them on the edge and do not bend
them. Avoid getting fingerprints on
them, particularly on the shiny side.
z Dirt, scratches, warping, pin holes,
or other disc damage could cause
the player to skip or to repeat a sec-
tion of a track. (To see a pin hole,
hold the disc up to the light.)
z Remove discs from the player when
you are not using them. Store them
in their plastic cases away from
moisture, heat, and direct sunlight.
![](/img.php?id=1116362&img=bg90.png)
AUDIO SYSTEM
244
V689_E

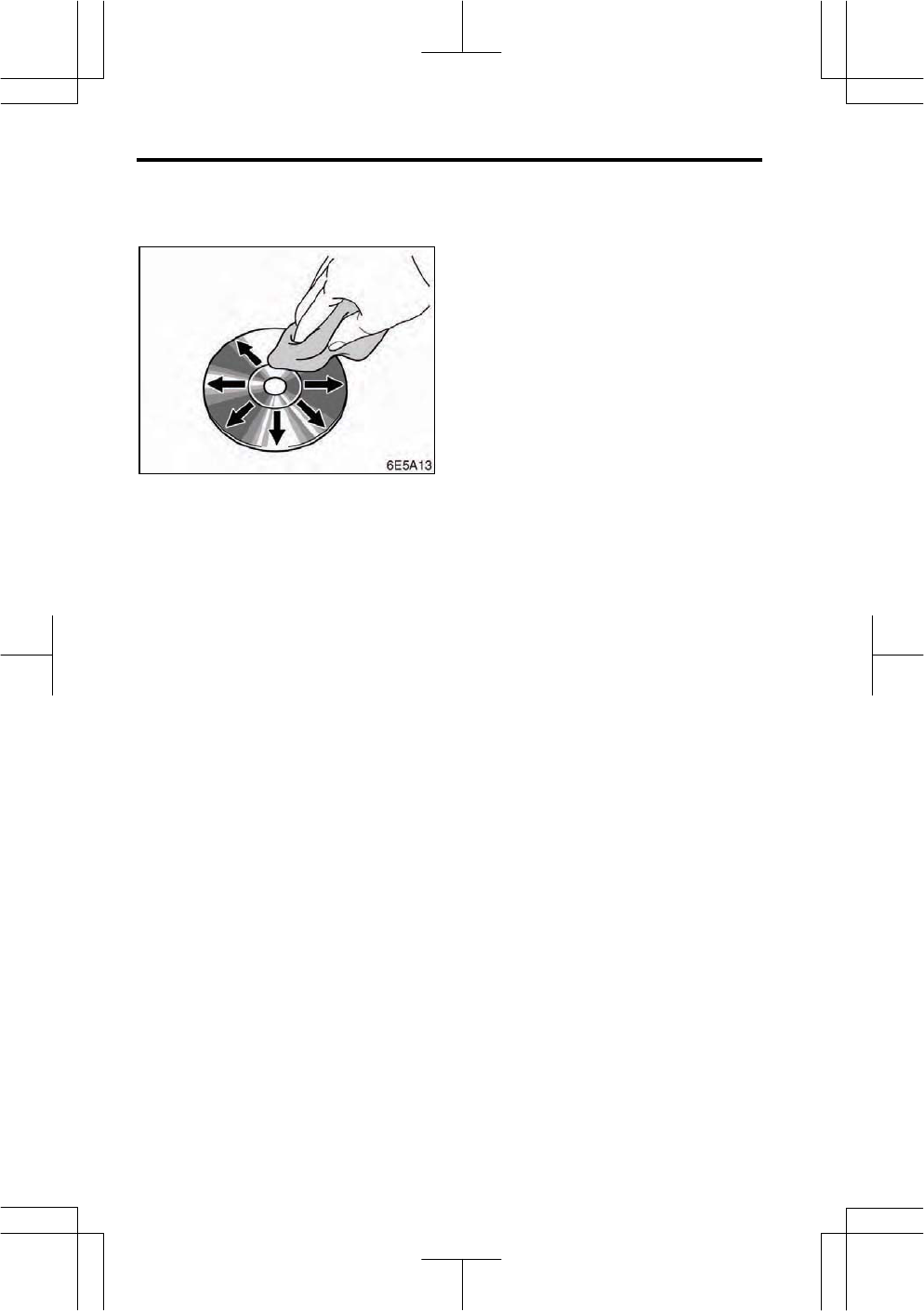

To clean a disc: Wipe it with a soft,
lint-free cloth that has been dampened
with water. Wipe in a straight line from
the center to the edge of the disc (not in
a circle). Do not use a conventional
record cleaner or anti-static device.
Files in a USB memory device/SD
memory card
If there are many files other than MP3 or
WMA files in the USB memory de-
vice/SD memory card, it may take time to
search for an MP3 or WMA file, ad-
versely affecting the smooth operation of
the device. (It is recommended that
files other than .mp3 or .wma are not
stored in these memory devices.)
USB memory devices with external
power sources
Vehicles with smart entry and start sys-
tem —
USB memory devices with external
power sources such as USB audio de-
vices may not be recognized correctly
even if the “ENGINE START STOP”
switch is turned to ACCESSORY or
IGNITION ON mode. In this case, turn
the “ENGINE START STOP” switch to
ACCESSORY or IGNITION ON mode
again, or remove the USB memory de-
vice and then plug it in again.
Vehicles without smart entry and start-
system —
USB memory devices with external
power sources such as USB audio de-
vices may not be recognized correctly
even if the engine switch is turned to the
“ACC” or “ON” position. In this case,
turn the engine switch to the “ACC” or
“ON” position again, or remove the USB
memory device and then plug it in again.
![](/img.php?id=1116362&img=bg91.png)
AUDIO SYSTEM
245
V689_E
USB memory device
The table below shows the tested USB memory devices. Depending on its condition,
the USB memory device may not operate properly.
Model Manufacturer Serial No. Capacity
JetFlash V30 1GB Transcend 505024-2172 1GB
JetFlash V10 8GB Transcend 201061-2998 8GB
DataTraveler 1GB Kingston EC08610-3475122 1GB
DataTraveler 8GB Kingston CC12823-00039574 8GB
attache 2GB PNY TECHNOLOGIES 8E80-0009 2GB
POCKETBIT MINI 1GB SONY 07718BBCB 1GB
POCKETBIT MINI
512MB SONY 08214BCCV 512MB
USB FLASH MEMORY
1GB TOSHIBA 7441H910168NM8N 1GB
Swivel Flash Drive 8GB Imation 8E80-0014 8GB
Swivel Flash Drive
256MB Imation 8E80-0016 256MB
USB Drive 4GB Verbatim 07070406604G088058AA 4GB
Cruzer Contour 8GB San Disk 8E80-0020 8GB
CruzerMicro512MB
(White) San Disk 8E80-0021 512MB
USB Drive 2GB Verbatim 07071706602G030669AA 2GB
USB 2GB extrememory 8E80-0024 2GB
POCKETBIT 16GB SONY 08529EDCB 16GB
USB Drive 2GB CORSAIR 8E80-0027 8GB
JumpDrive Lightning
2GB Lexar 8E80-0029 2GB
Flash Drive 1GB EMTEC 8E80-0031 1GB
![](/img.php?id=1116362&img=bg92.png)
AUDIO SYSTEM
246
V689_E
TERMS
Packet write—
This is a general term that describes the
process of writing data on-demand to
CD-R, etc., in the same way that data is
written to floppy or hard discs.
ID3 Tag—
This is a method of embedding
track-related information in an MP3 file.
This embedded information can include the
track title, the artist’s name, the album title,
the music genre, the year of production,
comments and other data. The contents
can be freely edited using software with
ID3 tag editing functions. Although the
tags are restricted to the number of char-
acters, the information can be viewed
when the track is played back.
WMA Tag—
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag.
WMA tags carry information such as track
title, artist name.
ISO 9660 format—
This is the international standard for the
formatting of CD-ROM folders and files.
For the ISO 9660 format, there are two
levels of regulations.
Level 1:
The file name is in 8.3 format (8 character
file names, with a 3 character file extension.
File names must be composed of one-byte
capital letters and numbers. The “_”
symbol may also be included.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.” and
file extension). Each folder must contain
fewer than 8 hierarchies.
m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u).
MP3—
MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on conventional
discs.
WMA—
WMA (Windows Media Audio) is an audio
compression format developed by Micro-
soft. It compresses files into a size
smaller than that of MP3 files. The de-
coding formats for WMA files are Ver. 7, 8,
and 9.
![](/img.php?id=1116362&img=bg93.png)
APPENDIX
247
V689_E
SECTION 7
APPENDIX
z Limitations of the navigation system ·················································248
z Map database information and updates ·······································250
Confirming the database version and
SD memory card coverage area·························································· 251
Changing the map SD memory card··················································· 251
z Specifications ····················································································253
![](/img.php?id=1116362&img=bg94.png)
APPENDIX
248
V689_E
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate po-
sition may not be shown depending
on the satellite condition, road con-
figuration, vehicle condition or other
circumstances.
The Global Positioning System (GPS)
developed and operated by the U.S.
Department of Defense provides an ac-
curate current vehicle position, normally
using 4 or more satellites, and in some
cases 3 satellites. The GPS system
has a certain level of inaccuracy. While
the navigation system will compensate
for this most of the time, occasional posi-
tioning errors of up to 100 m (300 feet)
can and should be expected. Generally,
position errors will be corrected within a
few seconds.

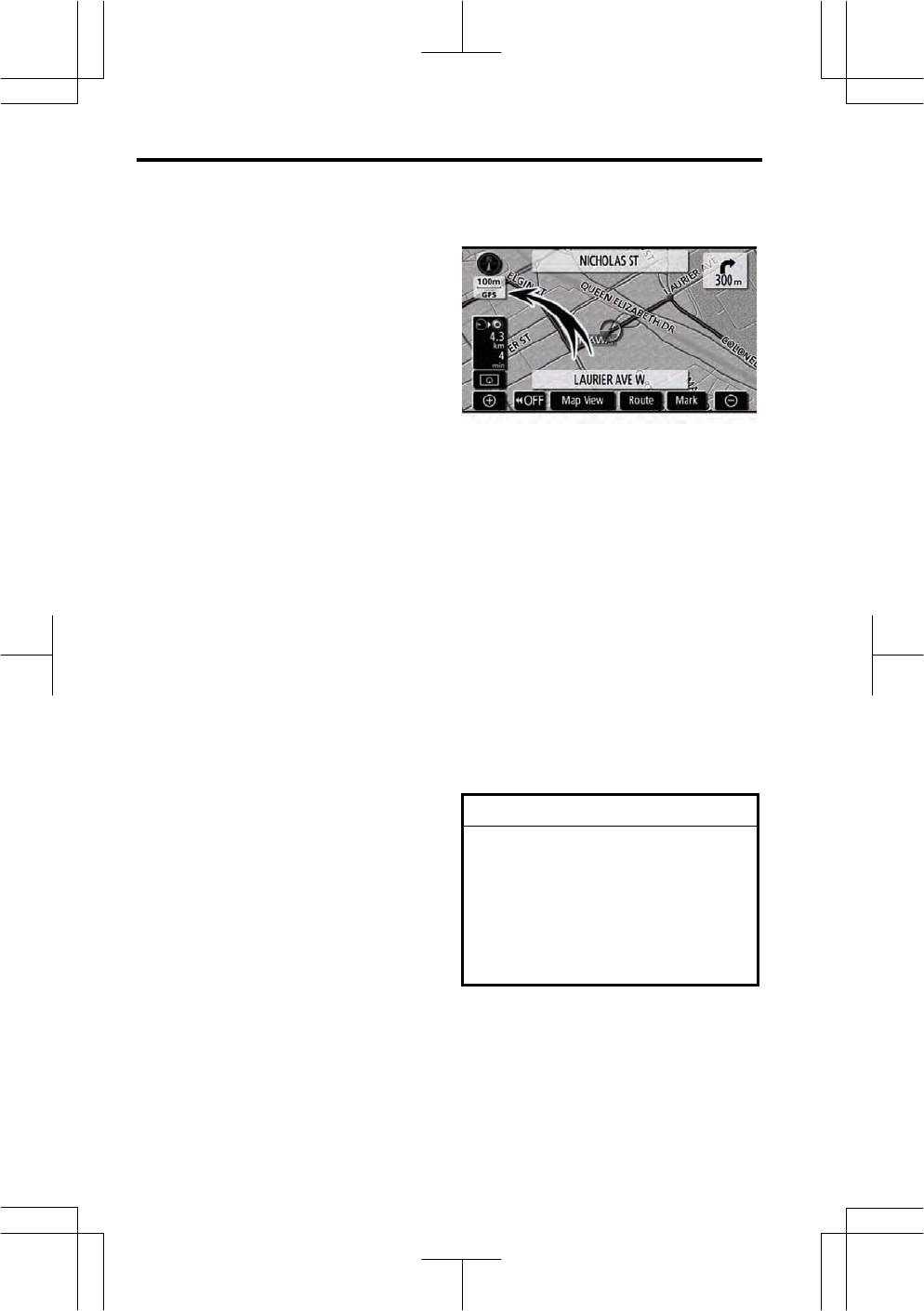

When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels,
tall buildings, trucks, or even the place-
ment of objects on the instrument panel
may obstruct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur
in some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals.
Most window tinting contains some
metallic content that will interfere
with GPS signal reception. We ad-
vise against the use of window tint-
ing on vehicles equipped with navi-
gation systems.
Limitations of the
navi
g
ation s
y
stem
![](/img.php?id=1116362&img=bg95.png)
APPENDIX
249
V689_E
(a) Accurate current vehicle position
may not be shown in the following
cases:
z When driving on a small angled
Y-shaped road.
z When driving on a winding road.
z When driving on a slippery road
such as in sand, gravel, snow, etc.
z When driving on a long straight road.
z When freeway and surface streets
run in parallel.
z After moving by ferry or vehicle car-
rier.
z When a long route is searched dur-
ing high speed driving.
z When driving without setting the
current position calibration correctly.
z After repeating a change of direction
by going forward and backward, or
turning on a turntable in the parking
lot.
z When leaving a covered parking lot
or parking garage.
z When a roof carrier is installed.
z When driving with tire chains in-
stalled.
z When the tires are worn.
z After replacing a tire or tires.
z When using tires that are smaller or
larger than the factory specifications.
z When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cali-
bration, see page 111.
(b) Inappropriate route guidance may
occur in the following cases:
z When turning at an intersection off
the designated route guidance.
z If you set more than one destination
but skip any of them, auto reroute
will display a route returning to the
destination on the previous route.
z When turning at an intersection for
which there is no route guidance.
z When passing through an intersec-
tion for which there is no route
guidance.
z During auto reroute, the route guid-
ance may not be available for the
next turn to the right or left.
z It may take a long time to operate
auto reroute during high speed driv-
ing. In auto reroute, a detour route
may be shown.
z After auto reroute, the route may not
be changed.
z An unnecessary U-turn may be
shown or announced.
z A location may have multiple names
and the system will announce one or
more.
z Some routes may not be searched.
z If the route to your destination in-
cludes gravel, unpaved roads or al-
leys, the route guidance may not be
shown.
z Your destination point might be
shown on the opposite side of the
street.
z When a portion of the route has
regulations prohibiting the entry of
the vehicle that vary by time or sea-
son or other reasons.
z The road and map data stored in
your navigation system may not be
complete or may not be the latest
version.
![](/img.php?id=1116362&img=bg96.png)
APPENDIX
250
V689_E
After replacing a tire, implement the
operation described in the “TIRE
CHANGE CALIBRATION”. (See page
112.)
This navigation system uses tire turning
data and is designed to work with fac-
tory-specified tires for your vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter
may cause inaccurate display of the ve-
hicle’s position. The tire pressure also
affects the diameter of the tires so
please make sure the tire pressure of all
four tires are correct.
In order to provide you with as accurate
map information as possible, we are
always gathering information such as on
road repairs and carrying out on-site
investigations. However, the names of
roads, streets, facilities, and their loca-
tions frequently change. In some
places, construction on roads may be in
progress. For that reason, information
on some areas in this system might be
different from the actual location.
The map database is normally updated
once a year. Contact any your dealer
for information about the availability and
pricing of an update.
INFORMATION
Do not attempt to store audio or
other data files in the map SD mem-
ory card.
Map database information
and u
p
dates
—
![](/img.php?id=1116362&img=bg97.png)
APPENDIX
251
V689_E
1. Push the “MENU” button.
2. Touch “Navigation”.
3. Touch “Map SD”.
Confirm the database version on this
screen.
To display the SD memory card cover-
age area, touch “Covered Area”. Con-
firm the covered area on the screen.
Contact any your Toyota dealer to find
out if there is a more recent update
available.
1. Push the “MENU” button.
2. Touch “Information”.
3. Touch “Remove Device”.
4. Touch “SD”.
— Confirming the database
version and SD memory
card covera
g
e area
— Changing the map SD
memor
y
card
![](/img.php?id=1116362&img=bg98.png)
APPENDIX
252
V689_E
5. Push the map SD memory card
lightly to remove it.
6. Insert the new map SD memory
card.
The map database is normally updated
once a year. Contact any your Toyota
dealer for information about the availabil-
ity and pricing of an update.
![](/img.php?id=1116362&img=bg99.png)
APPENDIX
253
V689_E
<GPS antenna>
Dimensions 26.0 x 26.0 x 12.9 (mm)
Weight 14 (g)
Power supply voltage 4.0 to 5.0 (V)
Power consumption 10 to 30 (mA)
Usage temperature -30 to +90 (°C)
Storage temperature -40 to +110 (°C)
<Display>
Liquid crystal panel 5.8 wide
Screen dimensions Active Area: 130.2 mm x 68.88 mm
Pixel count 400 (width) x 240 (height) x RGB
Drive system TFT (thin membrane transistor) active matrix format
Usage temperature range -30 to +85 (°C)
Storage temperature range -40 to +85 (°C)
<Radio tuner>
Reception frequency Ɣ AM 531 to 1,602 kHz
Ɣ FM 87.5 to 108.0 MHz
Noise limited sensitivity Ɣ Less than AM 34 dBμ (S/N = 20 dB)
Ɣ Less than FM 14 dBμ (S/N = 30 dB)
Stereo separation More than 25 dB
<CD>
Distortion Less than 0.3%
Frequency characteristic 20 to 20,000 Hz
S/N ratio More than 65 dB (1 kHz)
Stereo separation More than 60 dB
S
p
ecifications
![](/img.php?id=1116362&img=bg9a.png)
APPENDIX
254
V689_E
<Common component>
Rated output More than 11 W x 4 (test voltage 14.4V)
Maximum output More than 20 W x 4 (test voltage 14.4V)
Suitable load impedance 4 (each channel)
Power consumption Ɣ 1 W x 4 output time about 4 A
Ɣ About 15 A max
Exterior dimensions 205 mm (width), 104 mm (height), 161 mm (depth)
Weight About 2.4 kg
z Please note that due to changes in specifications and external appearance, the
content of this manual may not correspond exactly with the actual device.
z The number of parts and circuits may be changed to improve functionality without
prior notice.
![](/img.php?id=1116362&img=bg9b.png)
INDEX
255
V689_E
INDEX
For navigation system function, please also refer to the
“Navigation system function index” on page 10.
![](/img.php?id=1116362&img=bg9c.png)
INDEX
256
V689_E
Numbers/Symbols
? button..........................................14,17,18
3 Routes selection ...................................63
3D landmark ............................................18
3D map ...............................................12,36
3D map symbol...................................12,36
A
Adaptive volume control ...................87,143
Adding a memo......................................120
Adding destinations .................................72
Adding the data to the phone book .......150
Address button.........................................14
Alphabet keys ..........................................24
Area to avoid..............................98,101,102
Arrow screen.......................................33,68
ASL ........................................................181
AUDIO button ........................................174
Audio remote controls............................237
Auto answer...........................................146
Auto voice guidance .........................18,109
Automatic sound levelizer......................181
Automatic transition ...............................169
Automatic volume settings for
high speed..........................................144
AUX operation .......................................227
AUX port .........................................174,227
B
BASS .....................................................180
Beep setting...........................................171
Bluetooth®.......................................123,213
Bluetooth® audio system .......................213
Bluetooth® information...........................167
Brightness..............................................168
C
Calendar with memo..............................118
Calibration.........................................18,111
Call by dial .............................................130
Call by dialed numbers ..........................132
Call by phone book................................131
Call by POI.............................................135
Call by received calls.............................133
Call by speed dial ..................................134
Call on the Bluetooth® phone ................130
Categories ................................52,54,79,80
CAUTION screen.....................................22
CD player operation...............................194
CD slot...................................................174
Cellular phone ....................................... 123
Change “Area Size”...............................101
Change “Icon”.......................................... 93
Change “Location”............................95,101
Change “Name”................................95,100
Change “Phone #” ................................... 96
Change “Quick Access”...........................94
Change button...............................14,42,43
Change the route..................................... 62
Change the settings of the
Bluetooth® phone............................... 138
Changing a device name................164,223
Changing the Bluetooth®
settings........................................165,224
Changing the map SD memory card..... 252
Changing the security code...................159
City center ...............................................53
City name ...........................................47,50
City to search...........................................50
Compass mode ....................................... 35
Compass mode screen ........................... 33
Connecting a Bluetooth® phone ............130
Connecting a portable player ................ 217
Connecting (disconnecting) portable
audio devices.....................................227
Coordinates button .................................. 14
Current position as the search point ....... 53
Current position display........................... 28
Current position/tire change
calibration...........................................111
Cursor position as a destination..............29
Cursor position as a memory point ......... 29
D
Database version ..................................252
Dealer setting ........................................ 116
Default ..................18,144,147,161,166,225
Delete personal data ............................. 170
Deleting “Quick Access”.......................... 94
Deleting a Bluetooth® phone .................167
Deleting a portable player ..................... 224
Deleting a group name.......................... 157
Deleting all of the speed dial ................. 140
Deleting all the group name .................. 157
Deleting all the phone data....................154
Deleting all the speed tone.................... 143
Deleting area to avoid ...........................102
Deleting destinations ...............................74
Deleting home ......................................... 98
Deleting memory points........................... 96
Deleting previous points ........................102
Deleting the data ...................................152
Deleting the log data ............................. 158
Deleting the speed dial individually .......139
![](/img.php?id=1116362&img=bg9d.png)
INDEX
257
V689_E
Deleting the speed tone
individually..........................................143
DEST button ..................................12,14,42
Destination information............................32
Destination screen...................................14
Destination search...................................42
Destination search by “Address” .............46
Destination search by “Coordinates” .......60
Destination search by “Intersection”........58
Destination search by “Map”....................57
Destination search by “Memory” .............56
Destination search by “Phone #” .............60
Destination search by
“POI Category”.....................................52
Destination search by “POI Name”..........49
Destination search by “Previous” ............57
Destination search by home....................45
Destination search by quick access ........45
Detour setting ..........................................76
Display POI icons ........................18,78,107
Distance unit ............................................18
Distance and time to destination ........12,71
DSP control............................................181
Dual map .................................................34
Dual map screen .....................................33
E
Edit “Dealer” or “Contact” ......................117
Edit “Location”........................................117
Edit “Phone #”........................................118
Editing a group name ............................156
Editing a memo......................................121
Editing area to avoid................................99
Editing memory points .............................92
Editing the data......................................151
Editing the name....................................149
Editing the phone number .....................150
Editing the speed tone...........................141
Eject button............................................195
Emergency button ..............................14,58
Enter a Bluetooth® audio player ............214
Enter a Bluetooth® phone ......................128
Equalizer system ...................................181
Estimated arrival time ..............................71
Estimated travel time ...................18,71,104
F
FOLDER LIST button ............................ 199
Freeway information screen...............33,66
Function button display screen ............. 174
Function help........................................... 27
G
GPS ....................................................... 247
GPS mark................................................ 12
Guidance screen on the freeway ....... 33,67
Guiding the route..................................... 37
H
Hands-free system ................................ 123
Heading-up.........................................12,36
Heading-up symbol ............................ 12,36
HFP (Hands Free Profile)...................... 125
Home .............................................38,97,98
Home touch-screen button...................... 14
House number....................................38,46
I
Information about the icon....................... 30
Information items...................................115
Initial screen ............................................ 22
Initializing the Bluetooth®
settings........................................166,225
Initializing the security code .................. 161
Inputting letters and numbers.................. 24
Inserting or ejecting an SD
memory card...................................... 204
Inserting or ejecting disc .......................192
Intersection button...................................14
Intersection guidance screen ............. 33,67
iPod operation ....................................... 228
K
Keyboard layout ...............................18,105
![](/img.php?id=1116362&img=bg9e.png)
INDEX
258
V689_E
L
Last 5 cities.........................................48,51
Limitations of the navigation system .....249
List ...........................................................25
List all categories button................52,55,79
List screen operation ...............................24
Listening to the radio .............................182
Local POI list............................................80
M
Maintenance information ..................22,114
Maintenance information setting ...........114
Map button...............................................14
Map database information and
updates ..............................................251
Map scale ................................................35
Map screen operation..............................28
Map SD button.........................................17
Map view..................................................78
Map View button......................................12
MAP/VOICE button.............................12,28
Mark button..............................................12
Memo information ....................................23
Memo list ...............................................121
Memory button.........................................14
Memory point information ........................32
Memory point names ...............................95
Memory points screen .............................91
Memos for a specified period of time ....122
MENU button .................................12,17,18
Menu screen ............................................16
Microphone ............................................124
MID .................................................180,181
MP3/WMA.......................................199,239
MSG button............................................199
My place ..................................................90
My place button .......................................17
N
Names of areas to be avoided...............100
Navigation screen ....................................17
Nearest 5 cities ...................................47,50
North-up..............................................12,36
North-up symbol .................................12,36
Numbers and symbols.............................25
O
OFF function................................12,18,106
On route button ..................................55,80
One-touch scroll ...................................... 28
Operating a Bluetooth® audio player.....219
Operating a MP3/WMA disc.................. 199
Operating an audio CD.......................... 196
Operating an SD memory card/
USB memory device ..........................206
Operating a portable audio devices ...... 228
OPP (Object Push Profile).....................125
Changing map orientation and
configuration ........................................36
P
Phone book ........................................... 147
Phone book lock....................................160
Phone # button ........................................14
Playing a Bluetooth® audio.................... 220
Playing a disc ........................................195
Playing a MP3/WMA disc...................... 199
Playing an audio CD..............................196
Playing an SD memory card/
USB memory device ..........................207
Plugging or unplugging a USB
memory device ..................................206
POI as a destination ................................ 81
POI button ............................................... 14
POI category button ................................14
POI category change............................. 107
POI information ....................................... 31
POIs near the search point...................... 54
POIs to be displayed ............................... 79
Pop-up message ..............................18,110
Position/direction calibration ................. 111
Presetting a station................................ 183
Previous button .......................................14
PWR button ...........................................177
Q
Quick access touch-screen button ..........14
![](/img.php?id=1116362&img=bg9f.png)
INDEX
259
V689_E
R
Radio operation .....................................182
RAND button.....................198,203,212,221
RDS .......................................................184
Receive on the Bluetooth® phone..........135
Receiving call display ............................145
Registering a group name .....................155
Registering area to avoid.........................98
Registering home ...............................38,97
Registering memory points......................91
Registering the phone book data ..........149
Registering the speed dial.....................138
Registering the speed tone....................140
Reordering destinations...........................73
Resume guidance....................................86
Resume guidance button.........................17
Route guidance screen............................66
Route overview........................................81
Route preference................................62,77
Route preview..........................................82
Route button ............................................12
Route trace ..............................................83
RPT button................ 198,202,211,221,236
S
Satellite radio channel category ............188
Satellite tuner.........................................186
Scale indicator .........................................12
SCAN button..........................................189
Screen adjustment.................................168
Screen configuration button.....................12
Screen layout function ...........................106
Screen off ..............................................168
Screen scroll operation............................28
Screen setting........................................169
SD memory card coverage area ...........252
SD memory card slot .............................174
SD/USB player operation ......................204
Search condition......................................75
Search point from destinations................54
Search point via the map screen.............53
Searching for a desired file.............201,210
Searching for a desired folder ........202,211
Searching for a desired track ................199
Security code.........................................159
Select user button....................................17
Selecting a desired file ...................200,209
Selecting a desired folder...............199,208
Selecting a desired track ................196,220
Selecting a group icon...........................156
Selecting a language .............................172
Selecting a station ................................. 183
Selecting the group ............................... 150
Selecting the search area .......................42
Sending a tone by the speed tone ........ 137
Set a Bluetooth® phone ......................... 162
Setting and deleting destination.............. 72
Setting route ............................................ 75
Setting the phone book ......................... 147
Setup ..................................................... 103
Setup button ............................................ 17
Setup screen ........................................... 18
Single map .............................................. 34
Single map screen................................... 33
Sort .......................................................... 26
Sound icons............................................. 93
Specifications ........................................ 253
Speed dial.......................................134,138
Speed tone .....................................137,140
Starting route from adjacent road............ 78
Starting route guidance ........................... 61
Steering switches .................................. 237
Street name............................................. 66
Suspend guidance................................... 86
Suspend guidance button ....................... 17
Suspending and resuming guidance....... 86
Switch color ........................................... 170
Switching the screens ............................. 33
T
Talk on the Bluetooth® phone ...............136
TEL button........................................ 12,128
Telephone switch .................................. 124
Time zone.........................................18,106
Tire change calibration.......................... 112
Tone and balance.................................. 180
Touch screen operation........................... 23
TRACK LIST button........................ 196,234
Traffic Restrict. Notification ..............18,108
Transfer data ......................................... 148
Transferring a telephone number.......... 148
TREB ..................................................... 180
Turn list screen..............................33,68,82
Turning the system on and off............... 177
TYPE SEEK button ...............................185
Typical voice guidance prompts.............. 69
![](/img.php?id=1116362&img=bga0.png)
INDEX
260
V689_E
U
USB port ................................................174
User selection ..........................................88
V
Voice guidance in all modes.............18,109
VOL button......................................174,177
Volume........................ 87,135,143,177,237
Volume button..........................................17
X
XM® Satellite Radio broadcast ..............186
Z
Zoom in button.........................................12
Zoom out button.......................................12
