User Manual Part 1
1
V573_E
Introduction
Thank you for your purchase of the Navigation System. Please
read this manual carefully to ensure proper use. Keep this
manual in your vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite
signals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also de-
signed to direct you to a destination that is unfamiliar to you in an effi-
cient manner. Map database is made based on AISIN AW maps,
whose information source comes from NAVTEQ maps. The calcu-
lated routes may not be the shortest nor the least traffic congested.
Your own personal local knowledge or “short cut” may at times be
faster than the calculated routes.
The navigation system’s database includes about 110 Point of Interest
categories to allow you to easily select destinations such as restau-
rants and hotels. If a destination is not in the database, you can enter
the street address or a major intersection close to it and the system will
guide you there.
The system will provide both a visual map and audio instructions.
The audio instructions will announce the distance remaining and the
direction to turn in approaching a fork or intersection. These voice in-
structions will help you keep your eyes on the road and are timed to
provide enough time to allow you to maneuver, change lanes or slow
down.
2
V573_E
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite
condition, road configuration, vehicle condition or other circum-
stances. For more information on the limitations of the system,
refer to pages 246 through 247.
3
V573_E
For safety reasons, this manual indicates
items requiring particular attention with
the following marks.

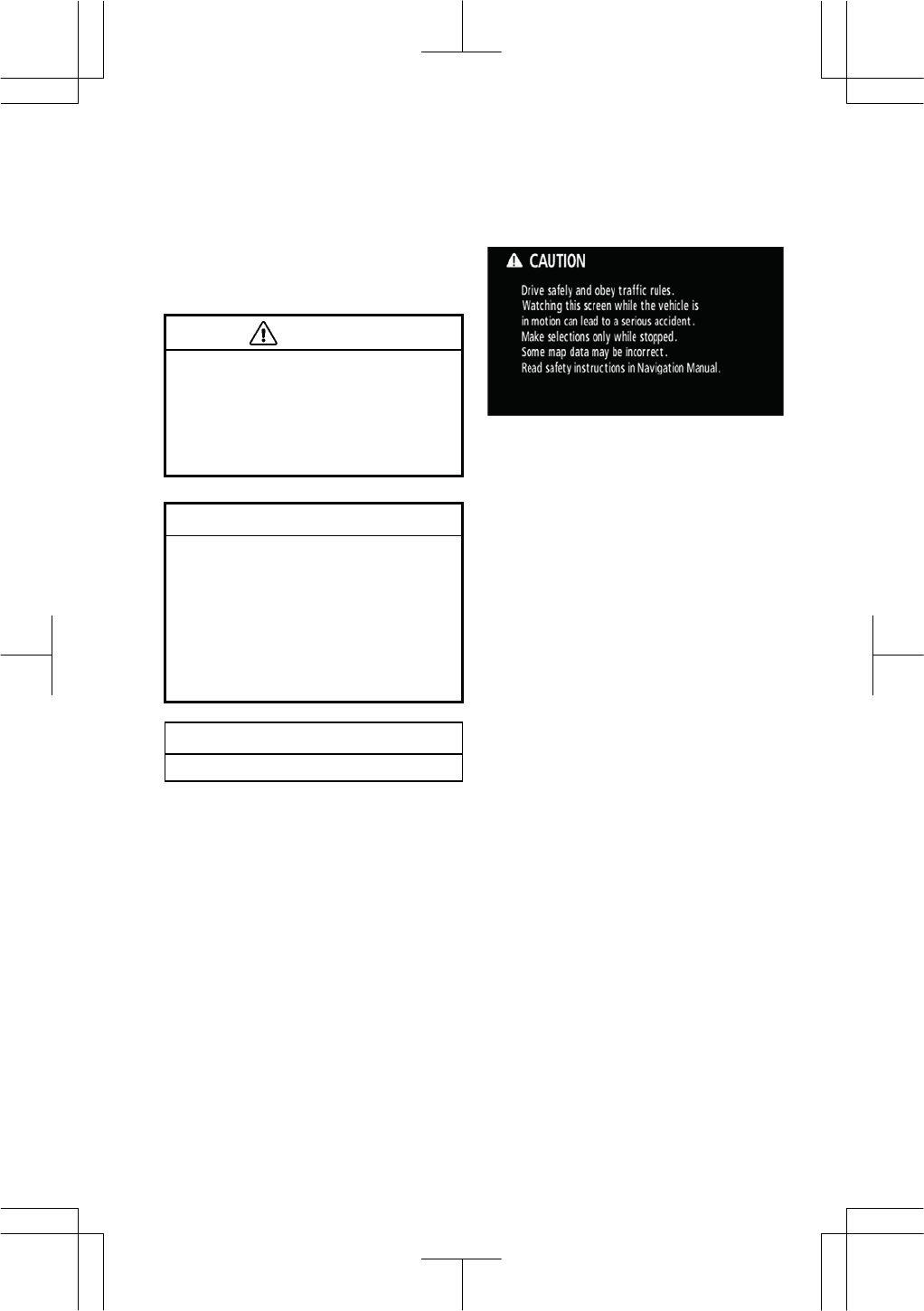

CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are
informed about what you must or
must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its
equipment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown
below.
This system is intended to assist in
reaching the destination and, if used
properly, can do so. The driver is solely
responsible for the safe operation of your
vehicle and the safety of your passen-
gers.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe
operation of the vehicle. While driving,
be sure to observe all traffic regulations.
Prior to the actual use of this system,
learn how to use it and become thor-
oughly familiar with it. Read the entire
Navigation System Owner’s Manual to
make sure you understand the system.
Do not allow other people to use this
system until they have read and under-
stood the instructions in this manual.
For your safety, some functions may
become inoperable when driving. Un-
available touch screen buttons are
dimmed. Only when the vehicle is not
moving, can the destination and route
selection be done.
Important information about
this manual Safet
y
Instruction
4
V573_E
CAUTION
zFor safety, the driver should not
operate the navigation system
while he/she is driving. Insuffi-
cient attention to the road and
traffic may cause an accident.
zWhile you are driving, be sure to
obey the traffic regulations and
maintain awareness of the road
conditions. If a traffic sign on
the road has been changed, route
guidance may provide wrong in-
formation such as the direction of
a one way street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is
safe. However, do not totally rely on
voice guidance. Use it just for refer-
ence. If the system cannot determine
the current vehicle position correctly,
there is a possibility of incorrect, late, or
non-voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, in-
cluding driving restrictions (no left turns,
street closures, etc.) frequently change.
Therefore, before following any instruc-
tion from the system, look to see whether
the instruction can be done safely and
legally.
This system cannot warn about such
things as the safety of an area, condition
of streets, and availability of emergency
services. If unsure about the safety of
an area, do not drive into it. Under no
circumstances is this system a sub-
stitute for the driver’s personal
judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of
video and navigation screens next to the
driver.
5
V573_E
Table of Contents
Your navigation system —
— Navigation system function index ····························10
— Quick reference··························································12
— “Destination” screen ·················································14
— “Menu” screen ···························································17
— “Setup” screen···························································18
1 Basic Functions
<Basic information before operation>
Display operation ········································································· XX
Initial screen·················································································· 22
Touch screen operation ································································ 23
Inputting letters and numbers/List screen operation ····················· 24
Function help ················································································ 27
Map screen operation································································· 28
Current position display ···························································· 28
Screen scroll operation····························································· 28
Switching the screens······························································· 33
Map scale ················································································· 35
Changing map orientation and configuration ···························· 36
Example of navigation system operation ································· 37
Guiding the route······································································ 37
Registering home ····································································· 38
INDEX
Quick
Guide
1
2
3
4
5
6
7
6
V573_E
2 Destination Search
Destination search······································································ 42
Selecting the search area························································· 42
Destination search by Home ···················································· 45
Destination search by Quick access ········································ 45
Destination search by “Address” ·············································· 46
Destination search by “POI Name” ········································· 49
Destination search by “POI Category” ···································· 52
Destination search by “Emergency” ········································· 55
Destination search by “Memory” ·············································· 56
Destination search by “Previous” ············································· 57
Destination search by “Map” ···················································· 57
Destination search by “Intersection”········································· 58
Destination search by “Freeway Ent./Exit” ······························· 59
Destination search by “Coordinates”········································ 60
Destination search by “Phone #”·············································· 60
Starting route guidance································································· 61
3 Route Guidance
Route guidance screen································································· 66
Typical voice guidance prompts ··················································· 69
Distance and time to destination··················································· 71
Setting and deleting destination ··············································· 72
Adding destinations·································································· 72
Reordering destinations ··························································· 73
Deleting destinations································································ 74
Setting route ··············································································· 75
Search condition ······································································ 75
Detour setting··········································································· 76
Route preference ····································································· 77
Starting route from adjacent road············································· 78
Map view······················································································ 78
Display POI icons···································································· 78
Route overview ········································································ 81
Route preview ·········································································· 82
Route trace··············································································· 83
Point of Interest
7
V573_E
4 Advanced Functions
<Descriptions of functions for more effective use>
Suspending and resuming guidance············································· 86
Volume·························································································· 87
User selection ··············································································· 88
XM® NavTraffic ············································································ XX
My Places····················································································· 90
Registering memory points······················································· 91
Editing memory points ······························································ 92
Deleting memory points···························································· 96
Registering home ····································································· 97
Deleting home ·········································································· 98
Registering area to avoid·························································· 98
Editing area to avoid································································· 99
Deleting area to avoid····························································· 102
Deleting previous points ························································· 102
Setup··························································································· 103
5 Other Functions
Maintenance information·························································· 114
Maintenance information setting············································· 114
Dealer setting ········································································· 116
Calendar with memo································································· 118
Adding a memo ······································································ 120
Editing a memo······································································· 121
Memo list ················································································ 121
Hands-free system (for cellular phone)··································· 123
Enter a Bluetooth® phone ······················································· 128
Call on the Bluetooth® phone·················································· 131
Receive on the Bluetooth® phone··········································· 135
Talk on the Bluetooth® phone················································· 136
Change the settings of the Bluetooth® phone························· 138
Set a Bluetooth® phone ·························································· 162
Screen adjustment ······································································ 168
Settings······················································································· 169
Select language ·········································································· 172
Rear view camera system···························································· XX
8
V573_E
6 Audio/video System
Quick reference ·········································································· 174
Using your audio/video system··············································· 175
Some basics··········································································· 175
Screen adjustment ···································································XX
Radio operation······································································ 181
CD player operation ······························································· 192
DVD player operation·······························································XX
USB player operation ····························································· 202
Bluetooth® audio operation····················································· 211
AUX operation········································································ 225
iPod operation········································································ 227
Video operation········································································XX
Audio/video remote controls ······················································· 235
Audio/video system operating hints ············································ 236
7 Appendix
Limitations of the navigation system··········································· 246
Map database information and updates ································· 248
Confirming the database version and
SD memory card coverage area ············································ 249
Changing the map SD memory card ······································ 249
Specifications ············································································· 251
INDEX············································································ 253
9
V573_E
10
V573_E
<Map>
Displaying maps Page
Viewing the map screen 12
Displaying the current vehicle position 28
Viewing the current position vicinity map 28
Changing the scale 35
Changing the map orientation and configuration 36
Displaying POIs78
Displaying the estimated travel/arrival time to the destination 71

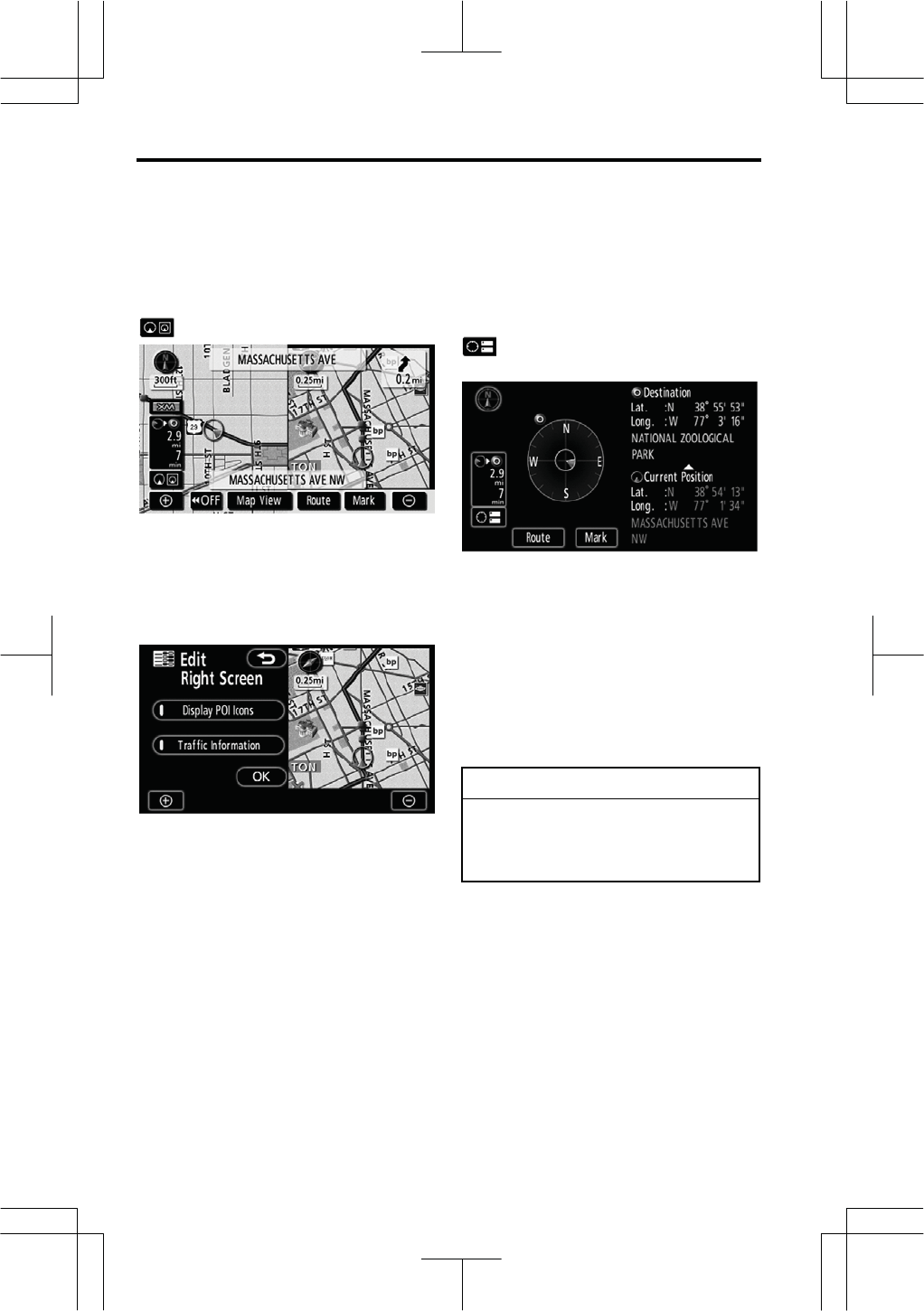

Selecting the dual map screen 33
Deleting map screen touch screen buttons 106
Displaying the traffic information (XM® NavTraffic) XX
Searching destination Page
Searching the destination (by home, POI, phone #, etc.) 42
Changing the search area 42
Operating the map location of the selected destination 61
<Route guidance>
Before starting route guidance Page
Setting the destination 61

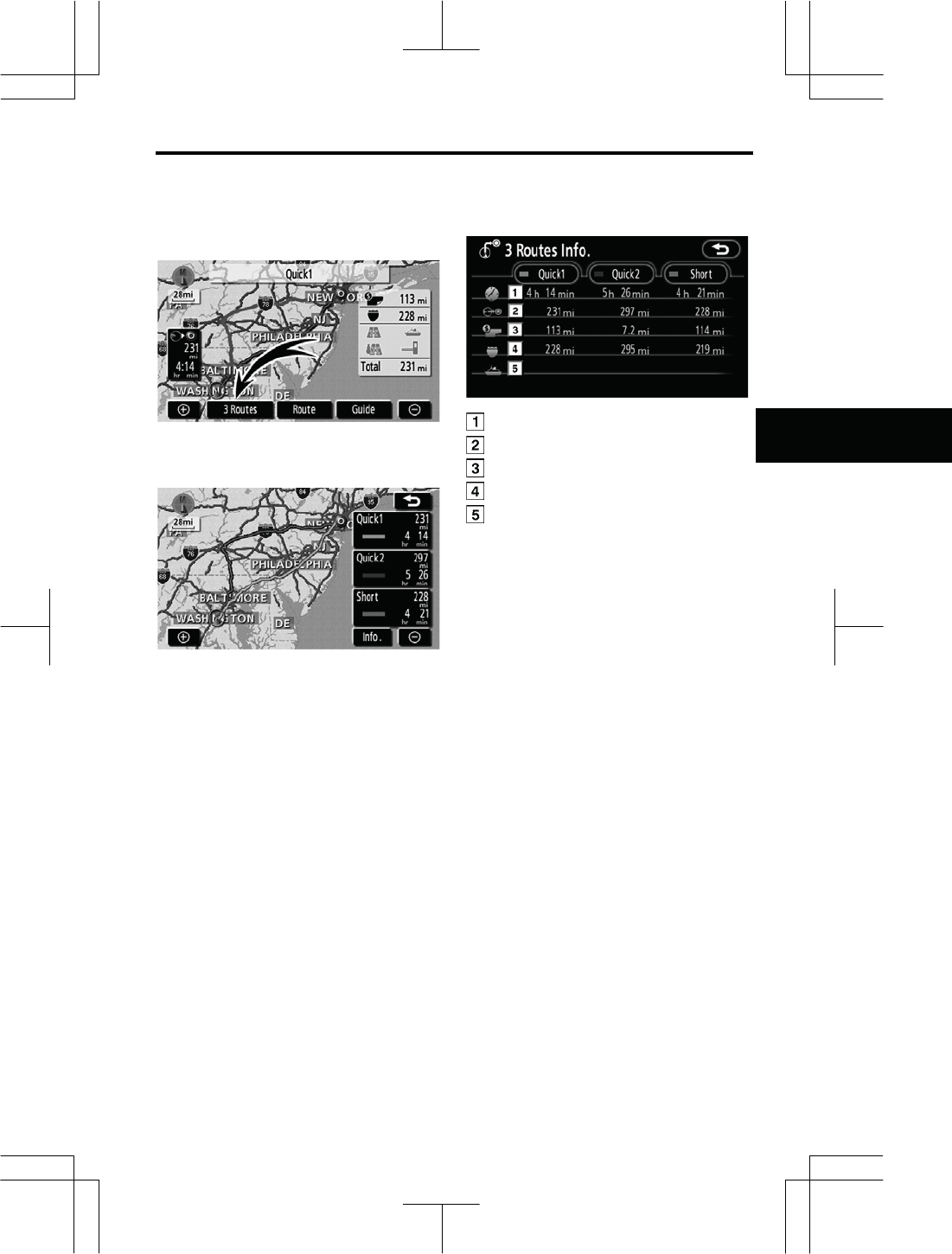

Viewing alternative routes 61
Starting route guidance 61
Before starting or during route guidance Page
Viewing the route 61

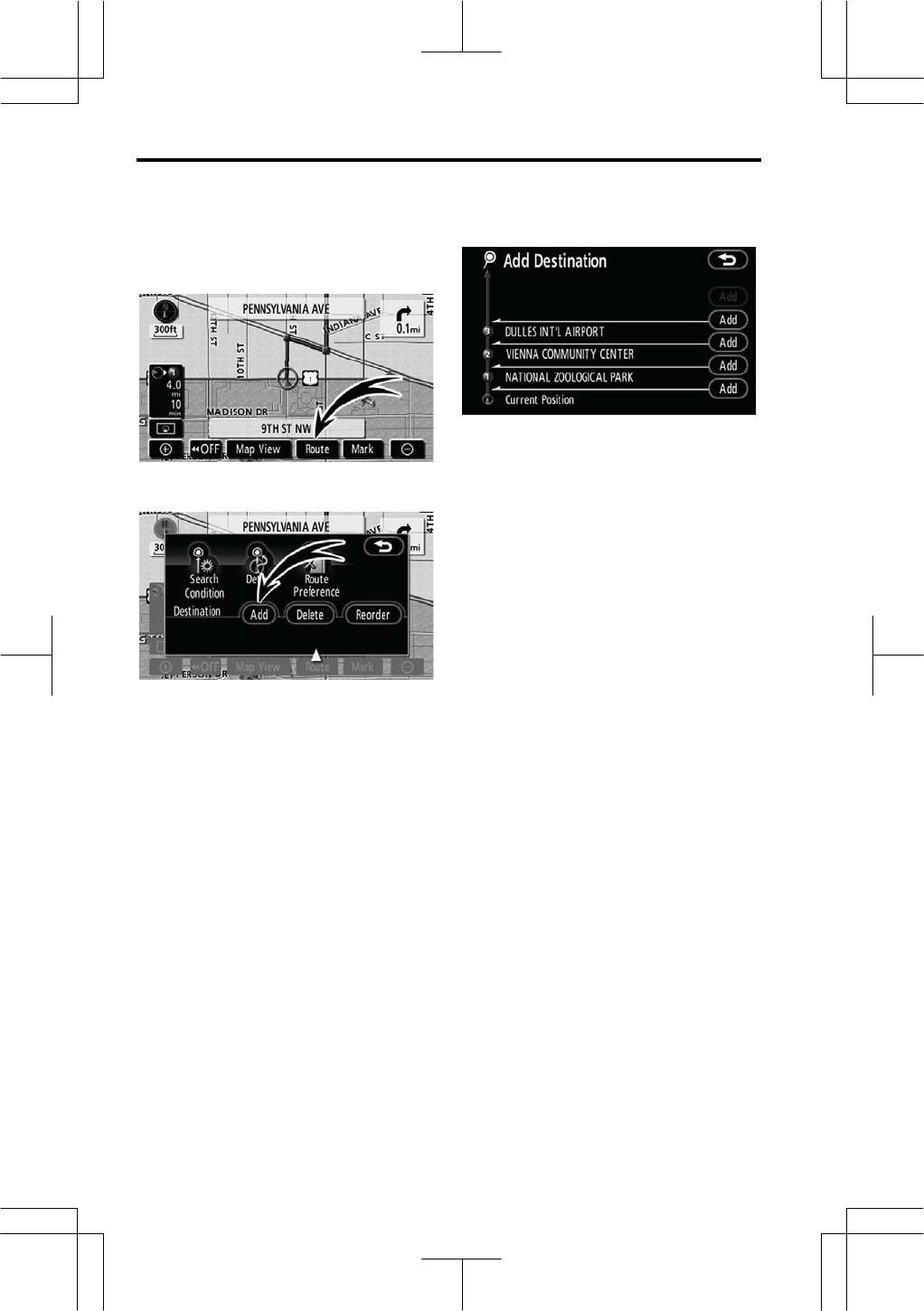

Adding destinations 72

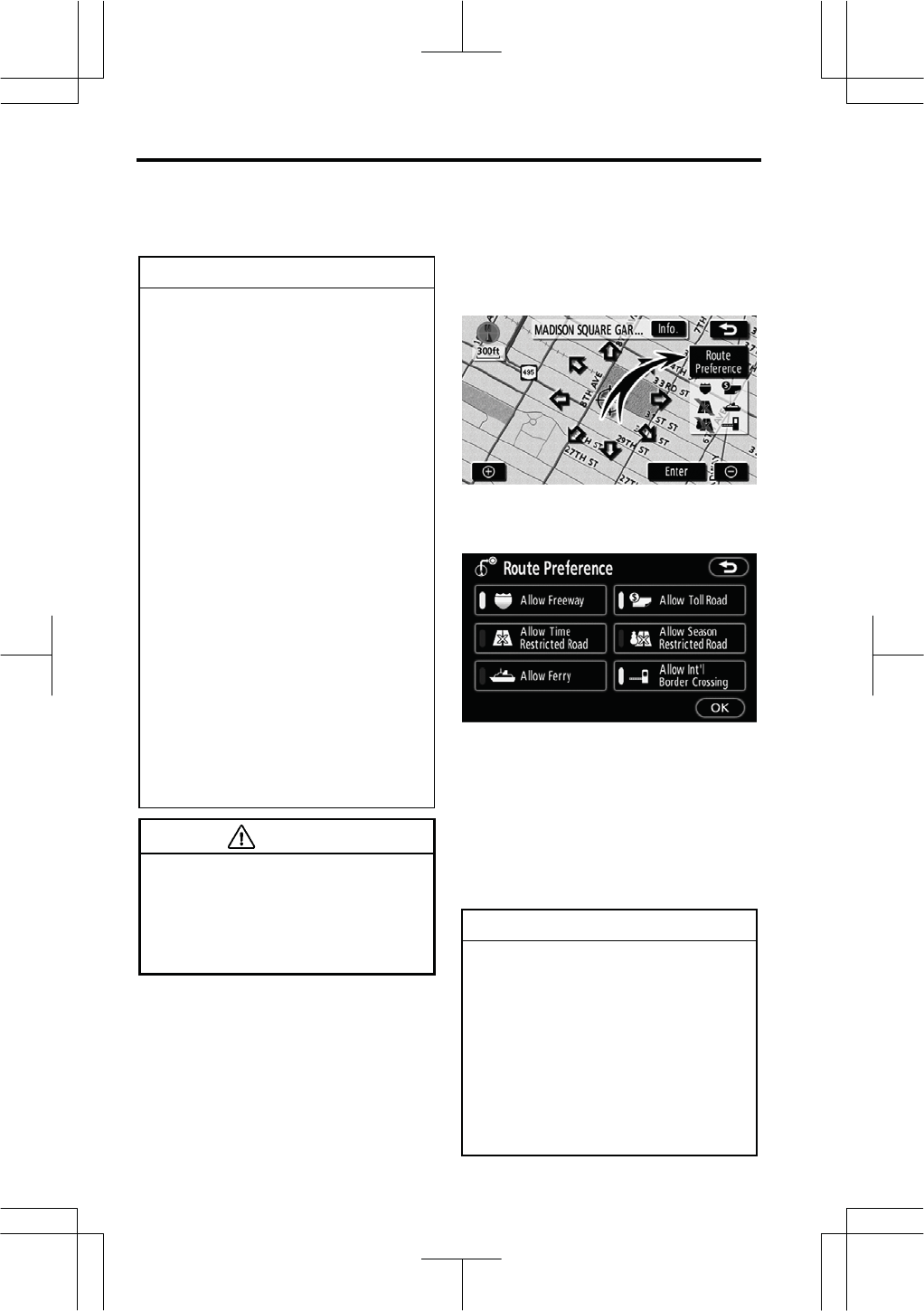

Changing the route 75
Displaying the estimated travel/arrival time to the destination 71
: Point(s) of Interest
Your navigation system —
— Navigation system function index
11
V573_E
During route guidance Page
Suspending route guidance 86
Adjusting route guidance volume 87

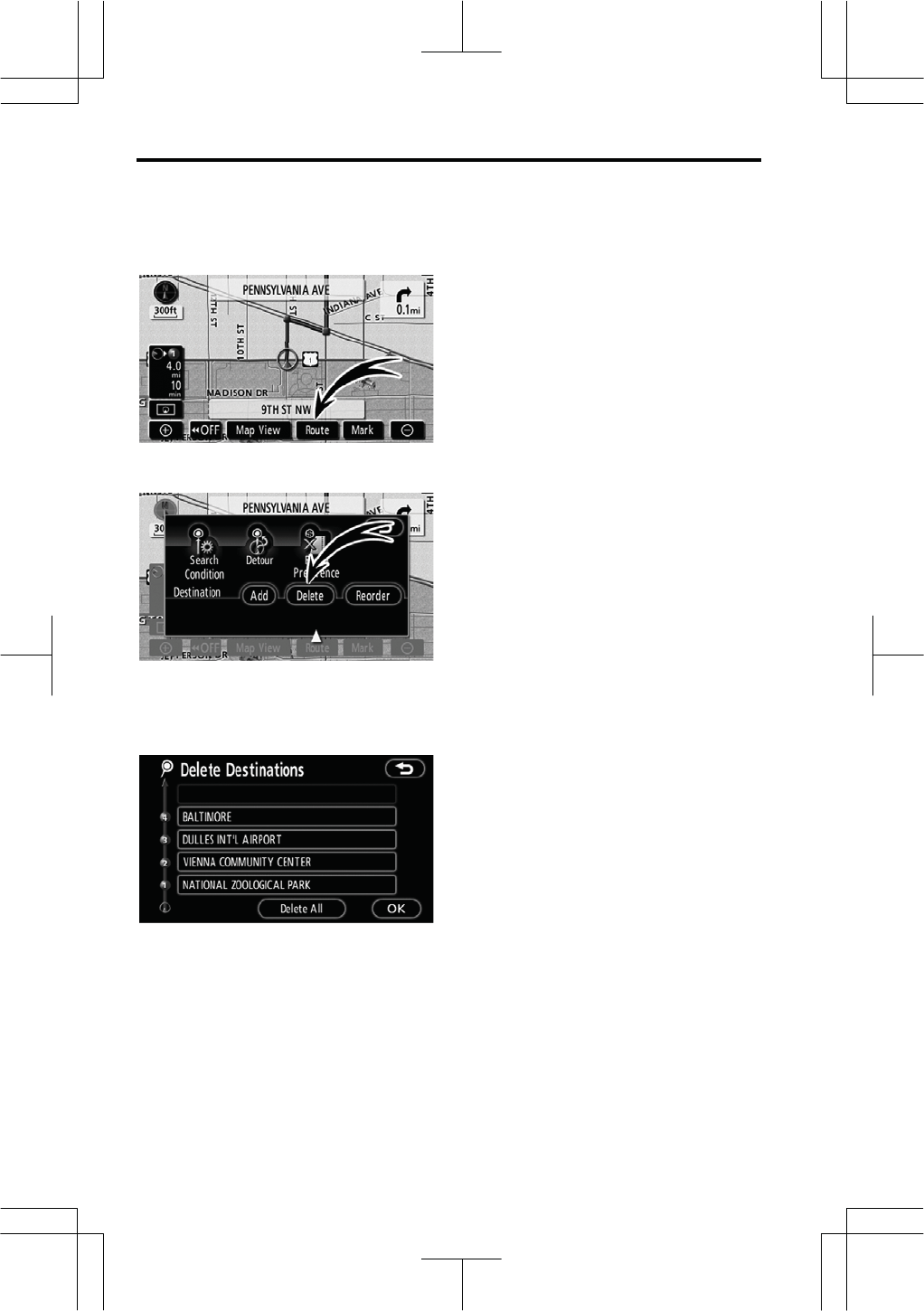

Deleting the destination 74
Displaying the entire route map 81
<Useful functions>
Memory points Page
Registering memory points 91
Marking icons on the map 90
Information Page

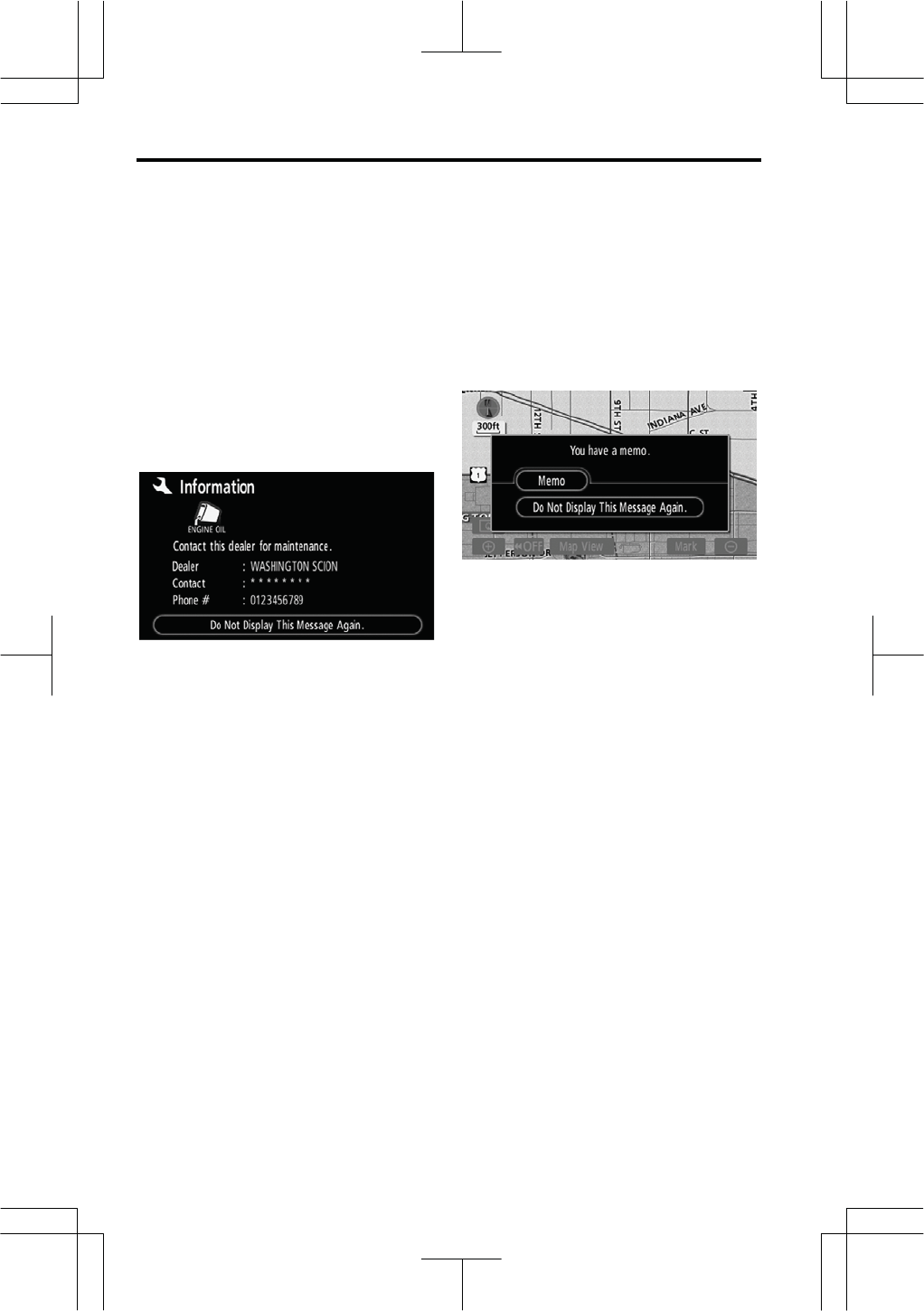

Displaying vehicle maintenance 114
Displaying the calendar 118
Hands-free system (for cellular phone) Page
Initiating Bluetooth® 128
Making a call on the Bluetooth® phone 131
Receiving a call on the Bluetooth® phone 135
12
V573_E

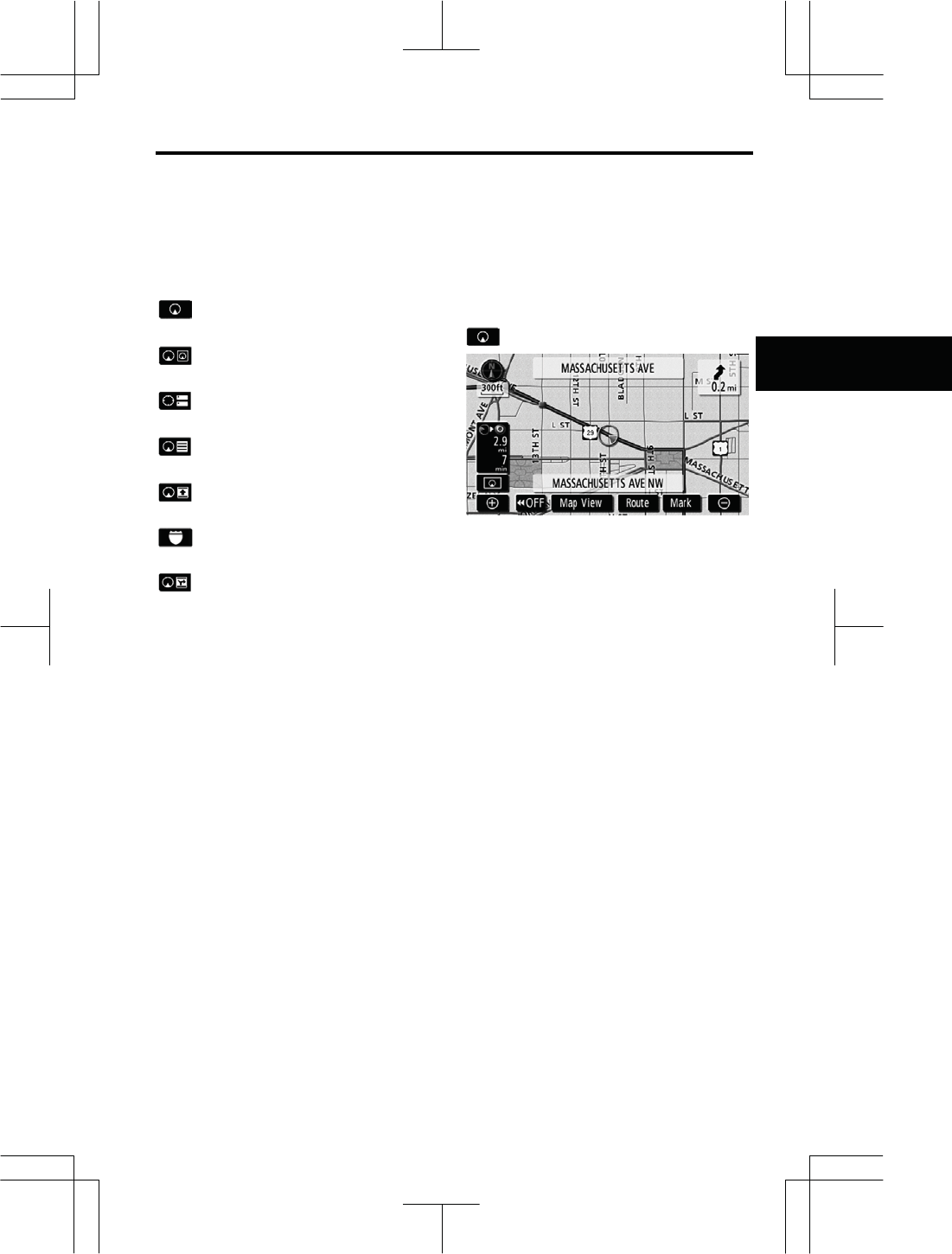

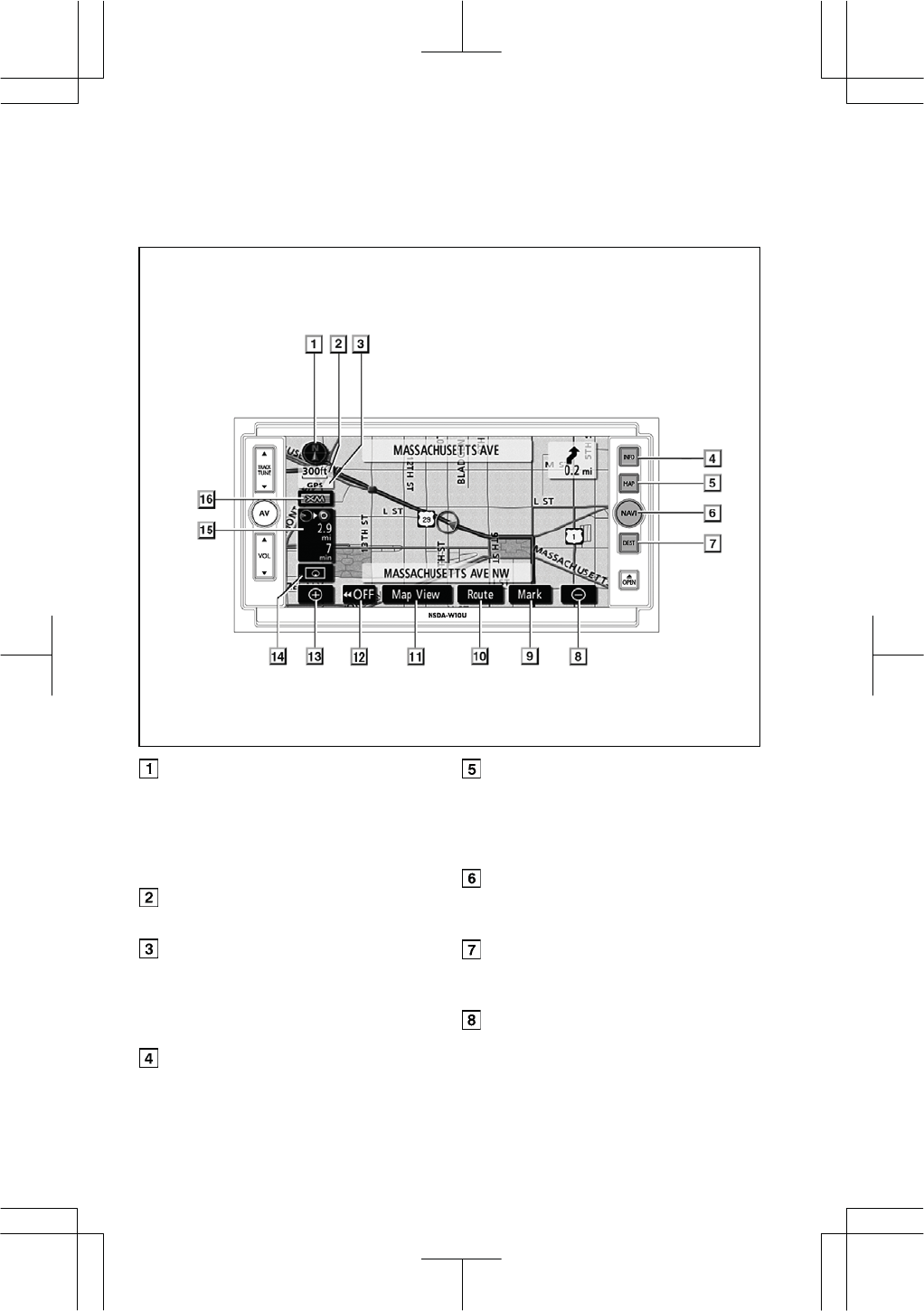

North-up, heading-up or 3D map
symbol
This symbol indicates a map view with
north-up or heading-up orientation, or 3D.
Touching this symbol changes the map
orientation and configuration. ..............36

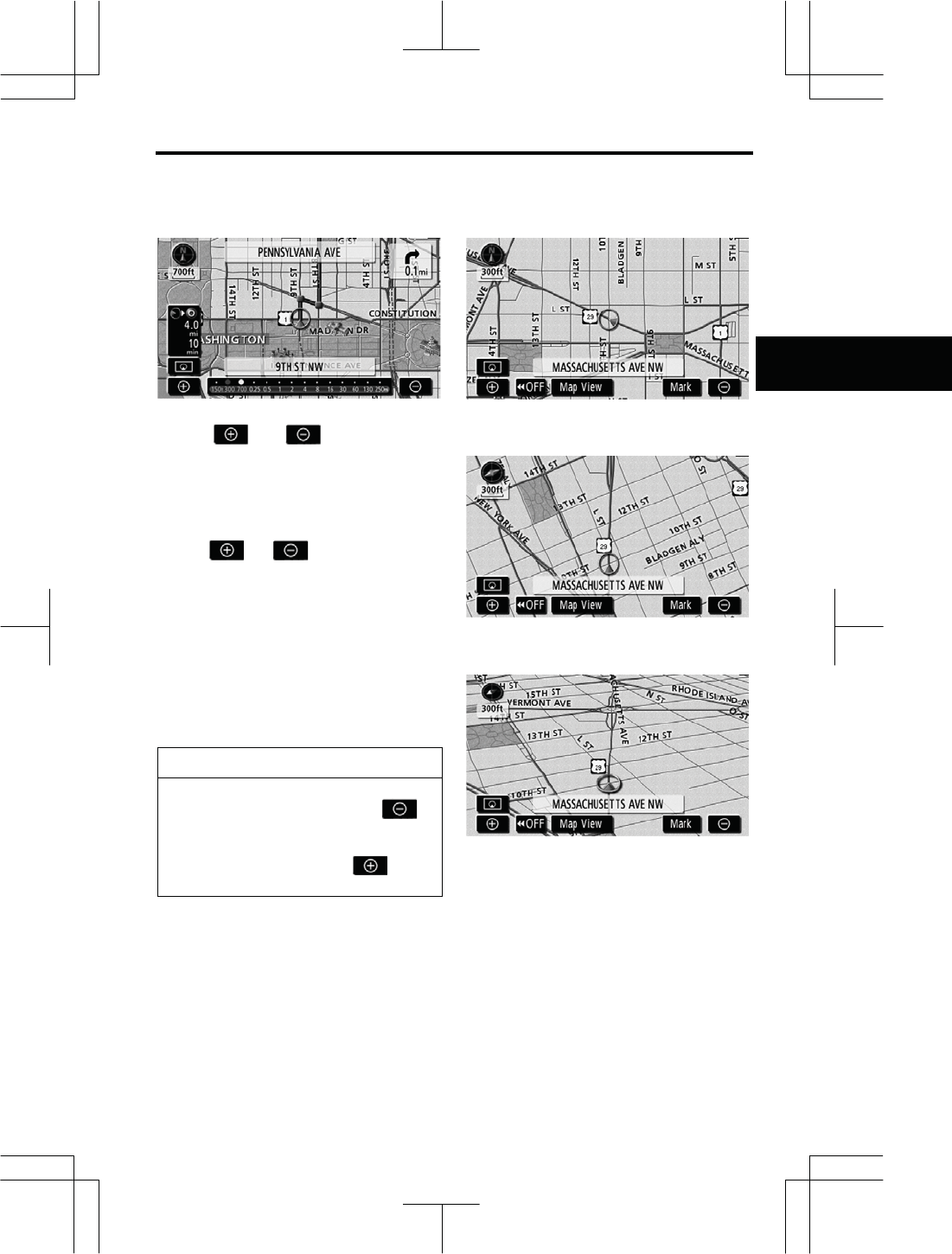

Scale indicator
This figure indicates the map scale......35
“GPS” mark
(Global Positioning System)
Whenever your vehicle is receiving sig-
nals from the GPS, this mark is dis-
played................................................246
“INFO” button
Push this button to display the “Informa-
tion” screen..........................................12
“MAP” button
Push this button to repeat a voice guid-
ance, cancel one touch scroll, start guid-
ance and display the current position.
.......................................................28, 69
“NAVI” button
Push this button to display the “Menu”
screen..................................................16
“DEST” button
Push this button to display the “Destina-
tion” screen. .............................14, 37, 42
Zoom out touch screen button
Touch this touch screen button to reduce
the map scale. .....................................35
— Quick reference
13
V573_E

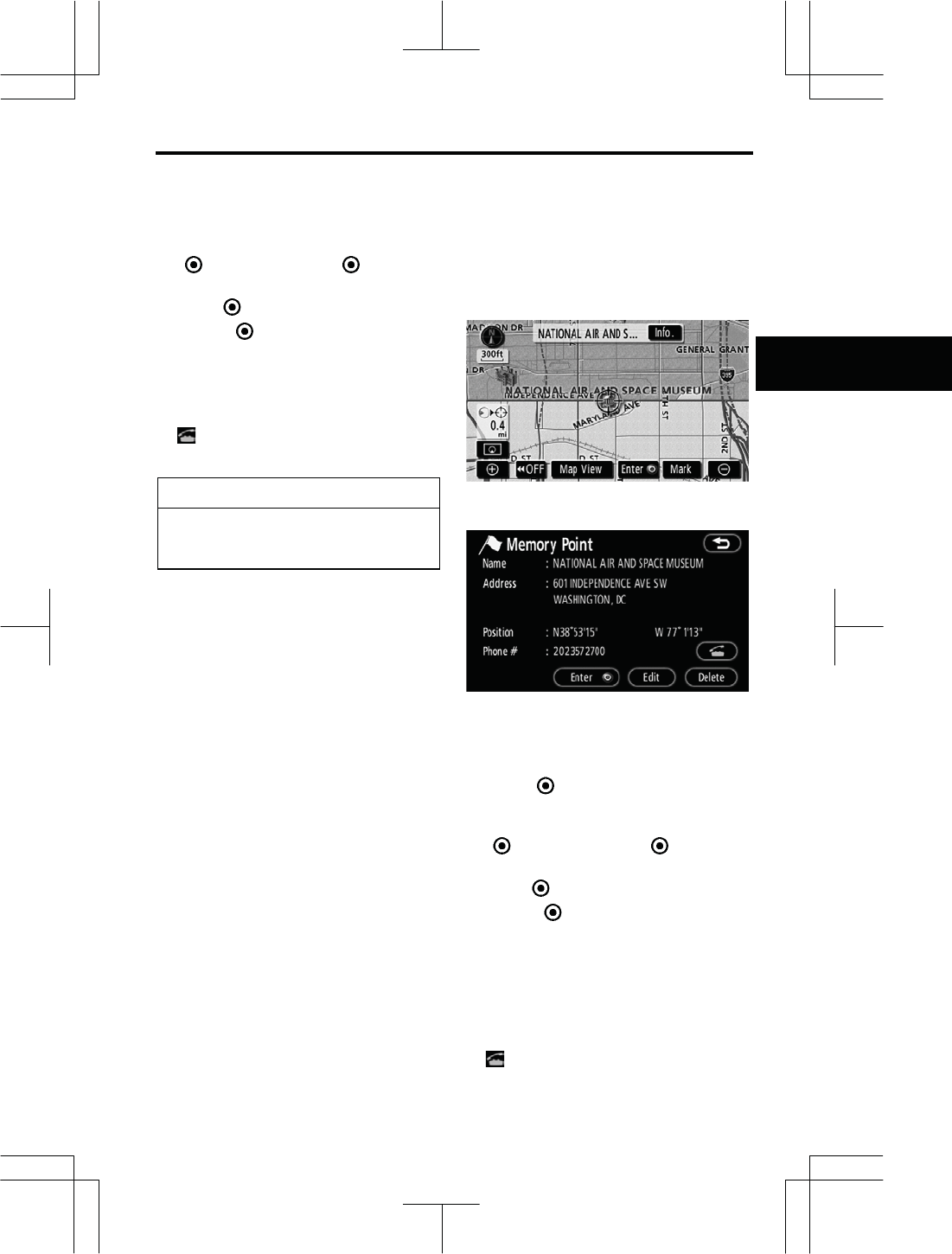

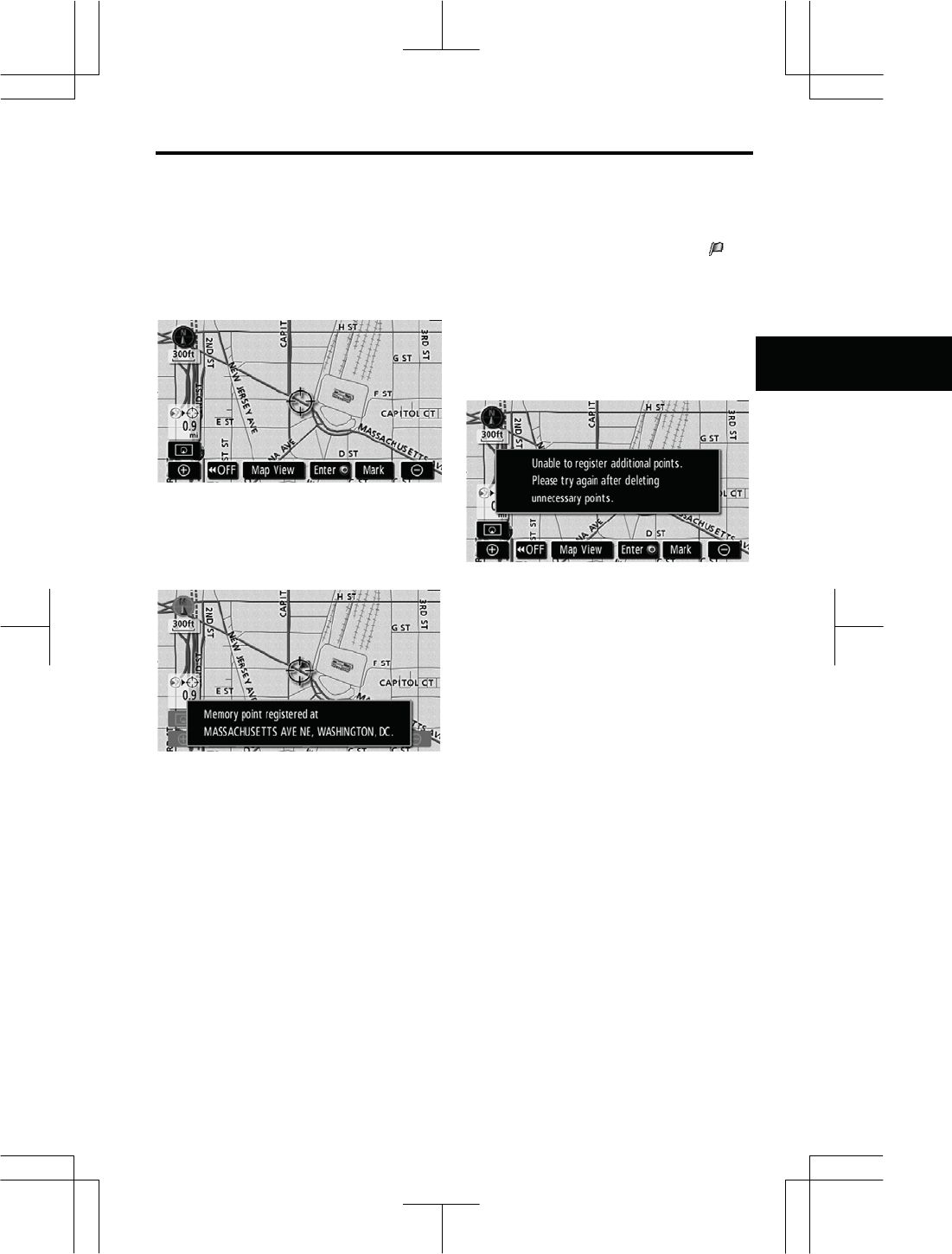

“Mark”
Touch this touch screen button to regis-
ter the current position or the cursor po-
sition as a memory point. .................... 29

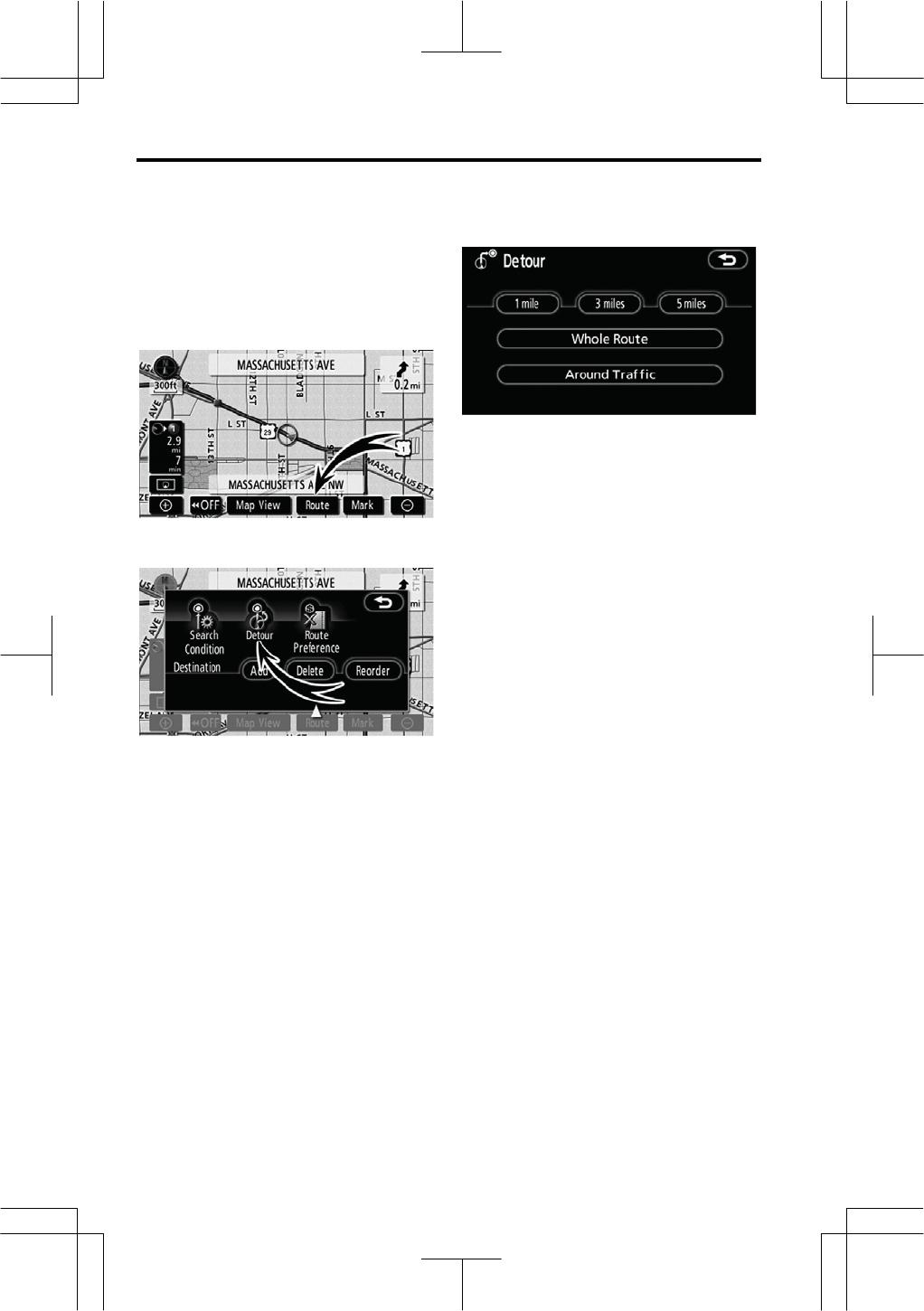

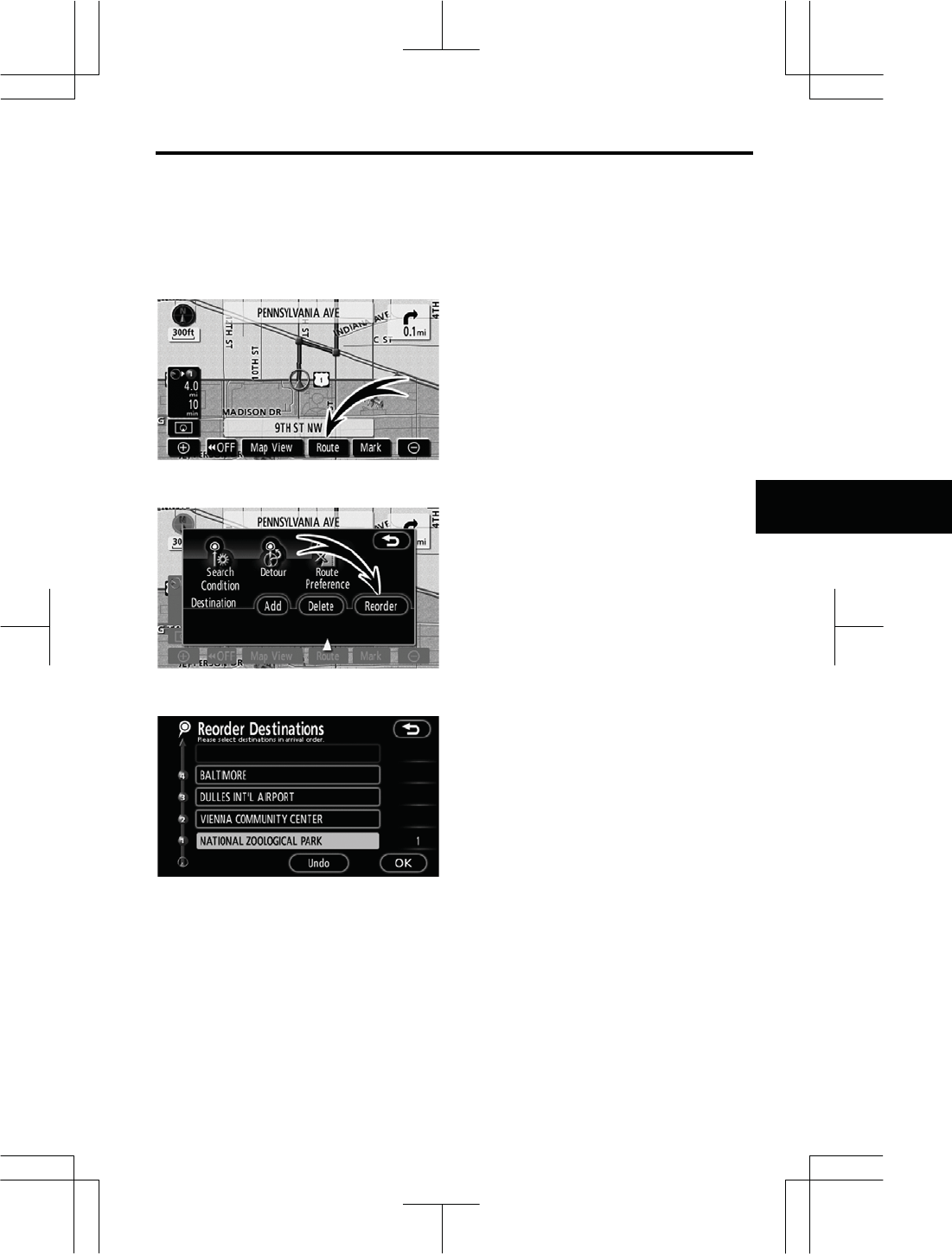

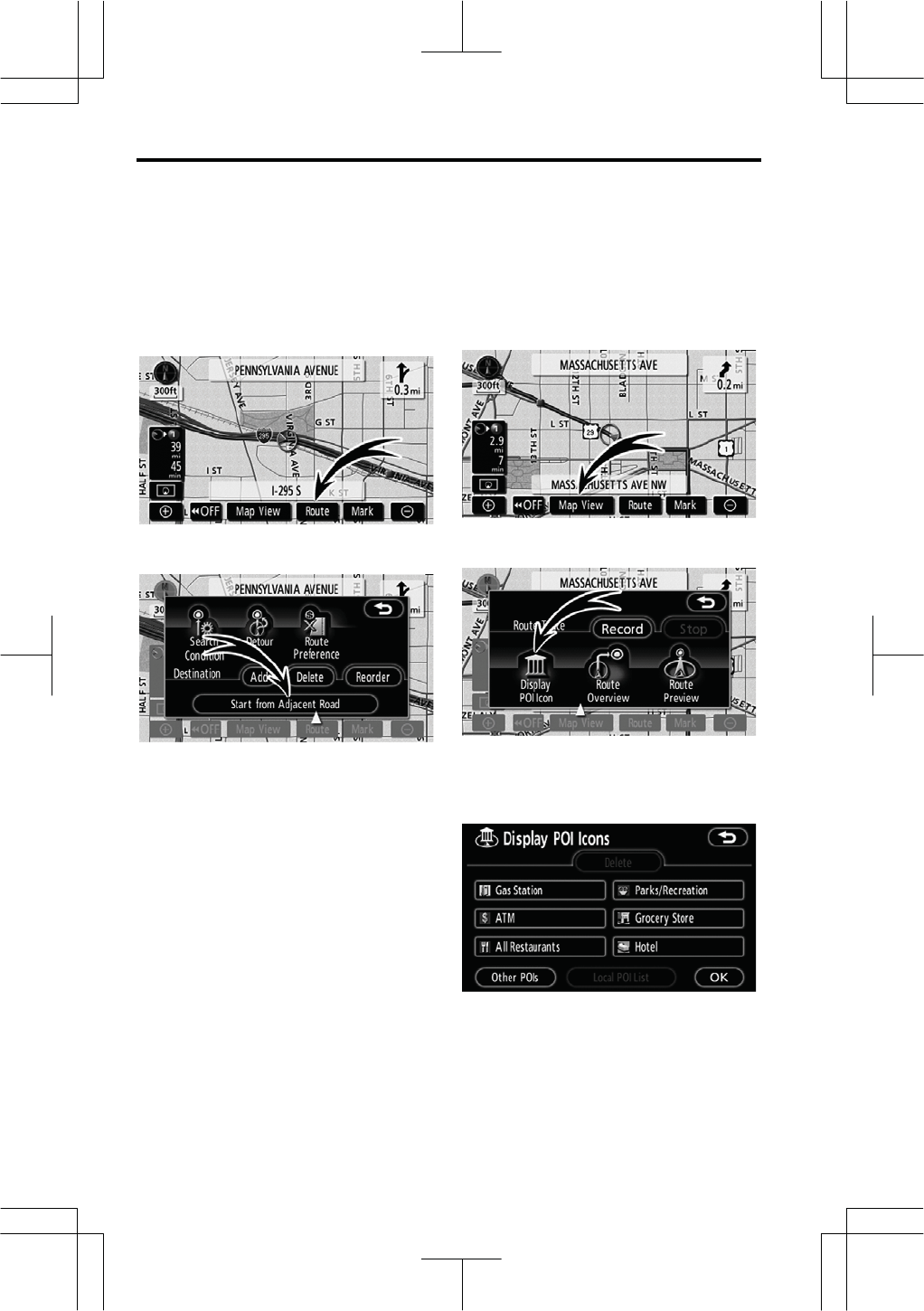

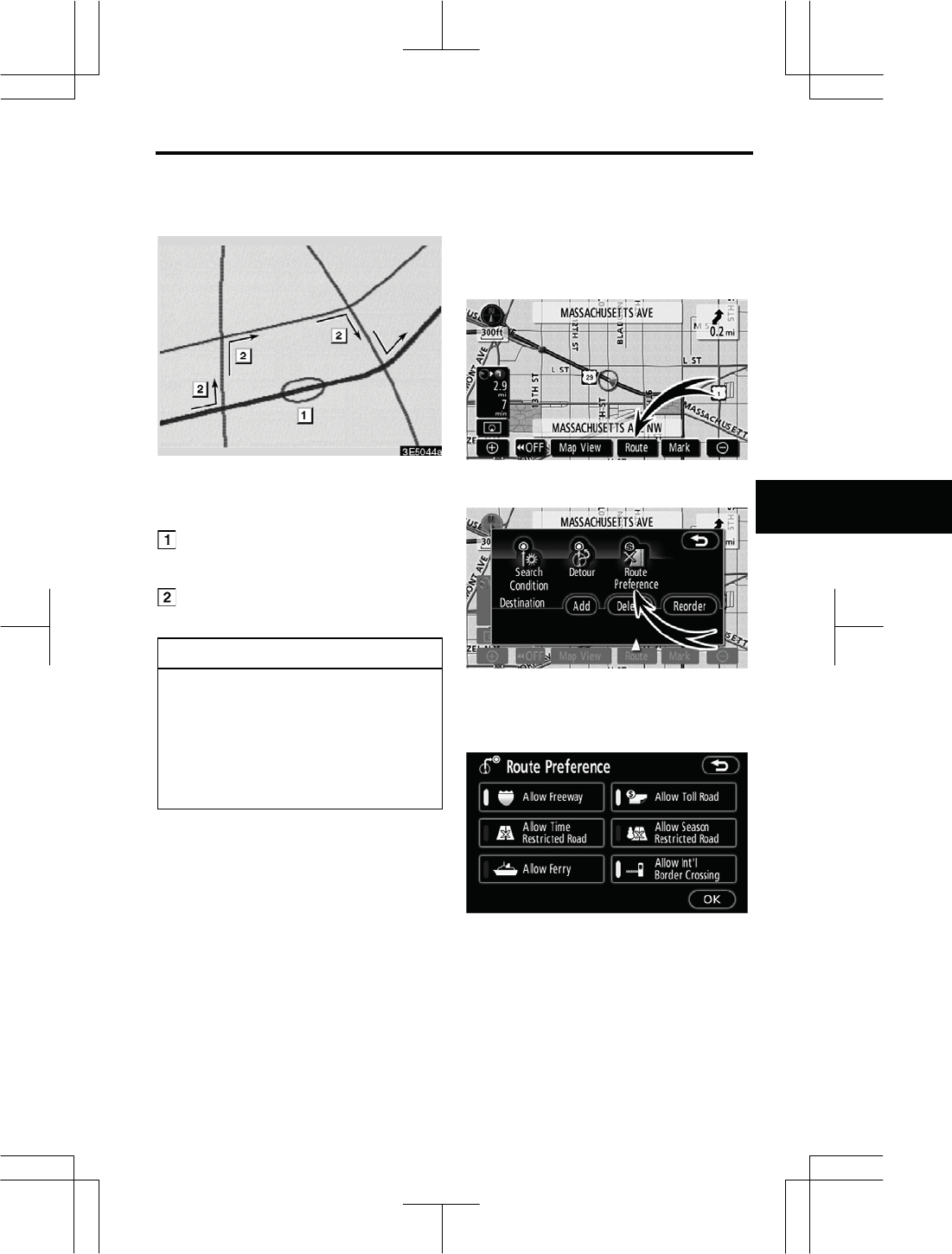

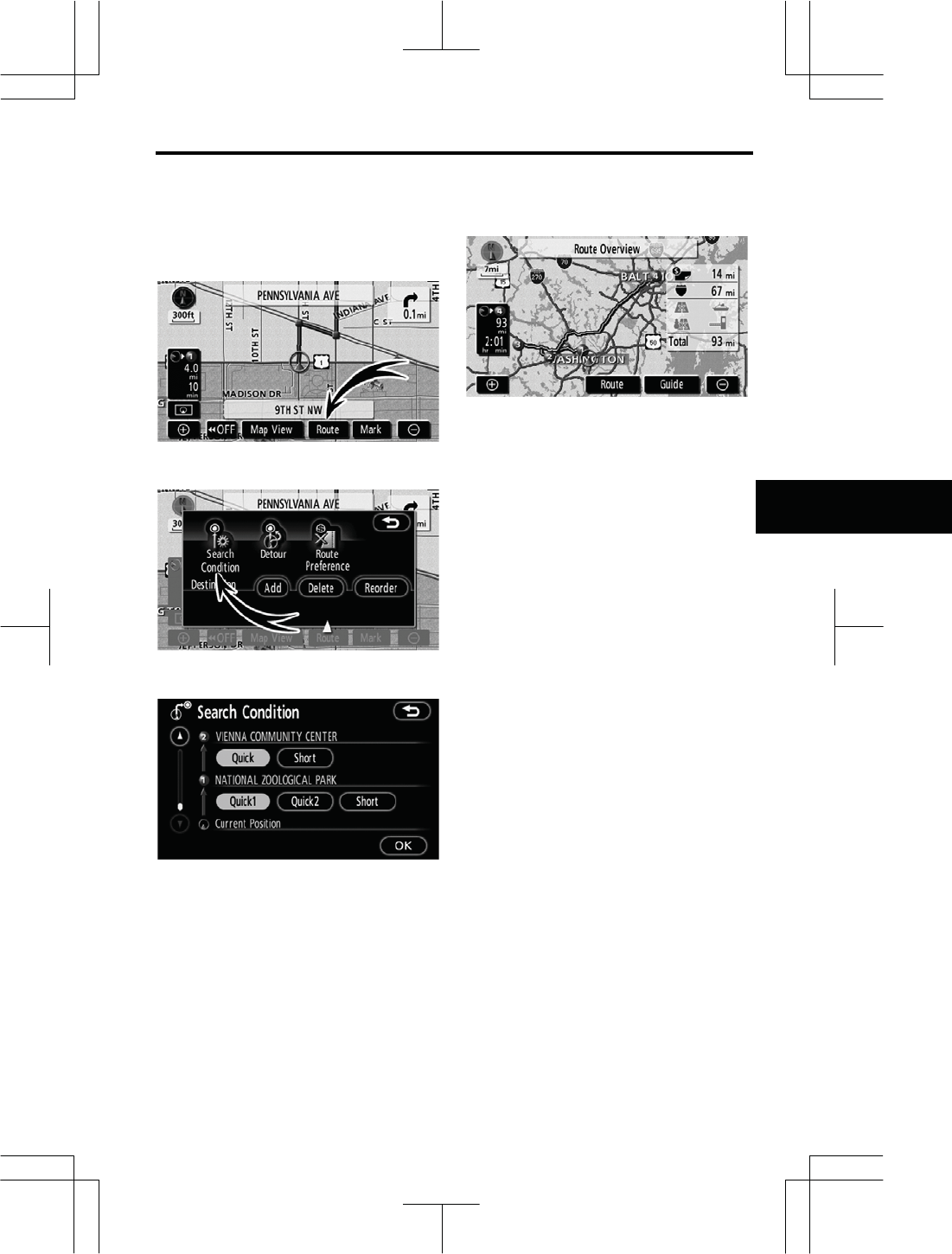

“Route”
Touch this touch screen button to
change the route. .......................... 72, 75
“Map View”
Touch this touch screen button to obtain
information regarding the route to the
destination and information about the
POI (Points of Interest) on the map
screen. ...............................78, 81, 82, 83
“ OFF”
Touch this touch screen button to obtain
a broader view. Some of the buttons on
the screen are not displayed. They
reappear by touching the “ON ”.
.......................................................... 106
Zoom in touch screen button
Touch this touch screen button to mag-
nify the map scale. .............................. 35
Screen configuration touch
screen button
Touch this touch screen button to
change the screen mode..................... 33

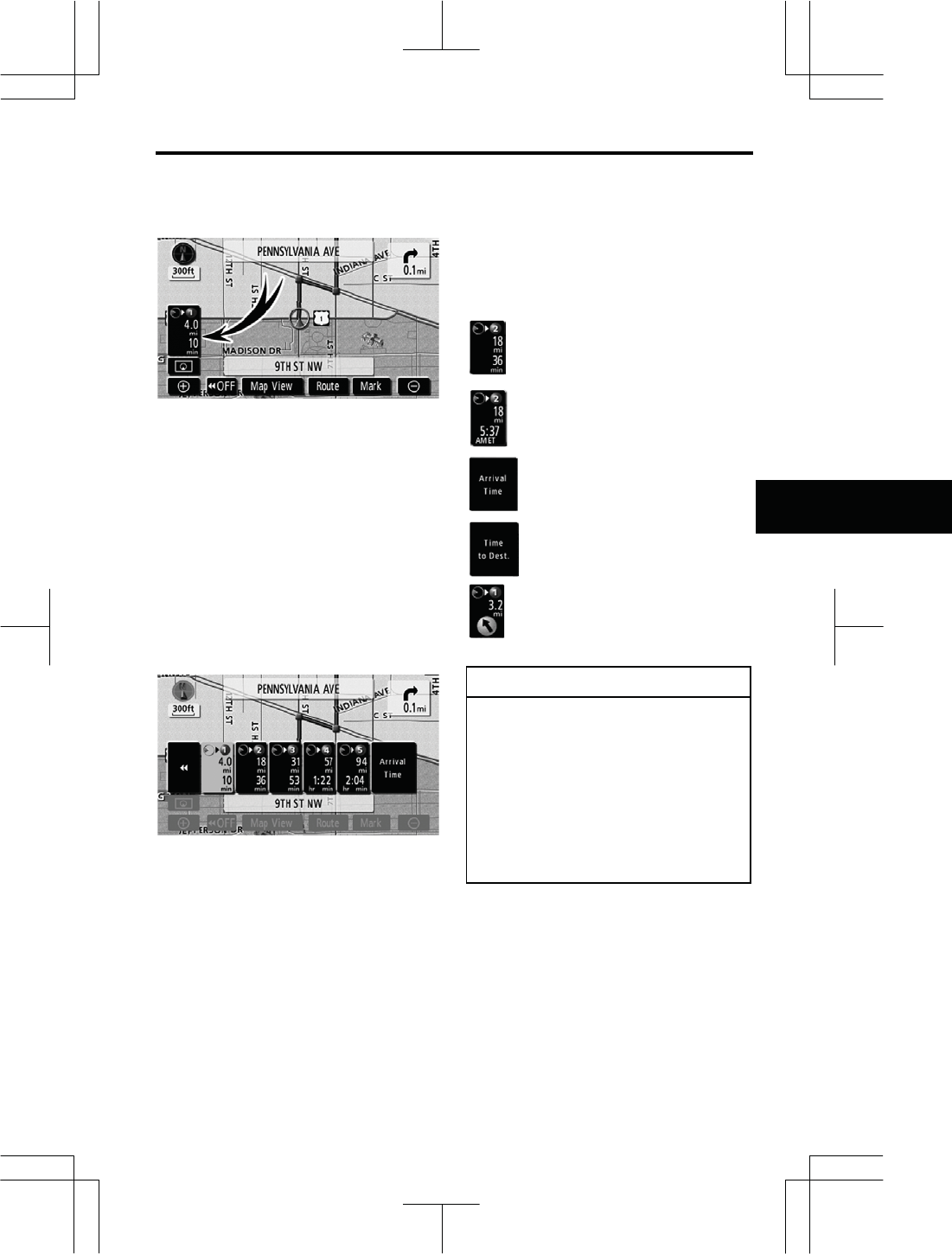

Distance and time to destination
Displays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
............................................................ 71
XM® NavTraffic indicator
This indicator is displayed when XM®
NavTraffic info. is received..................XX
14
V573_E

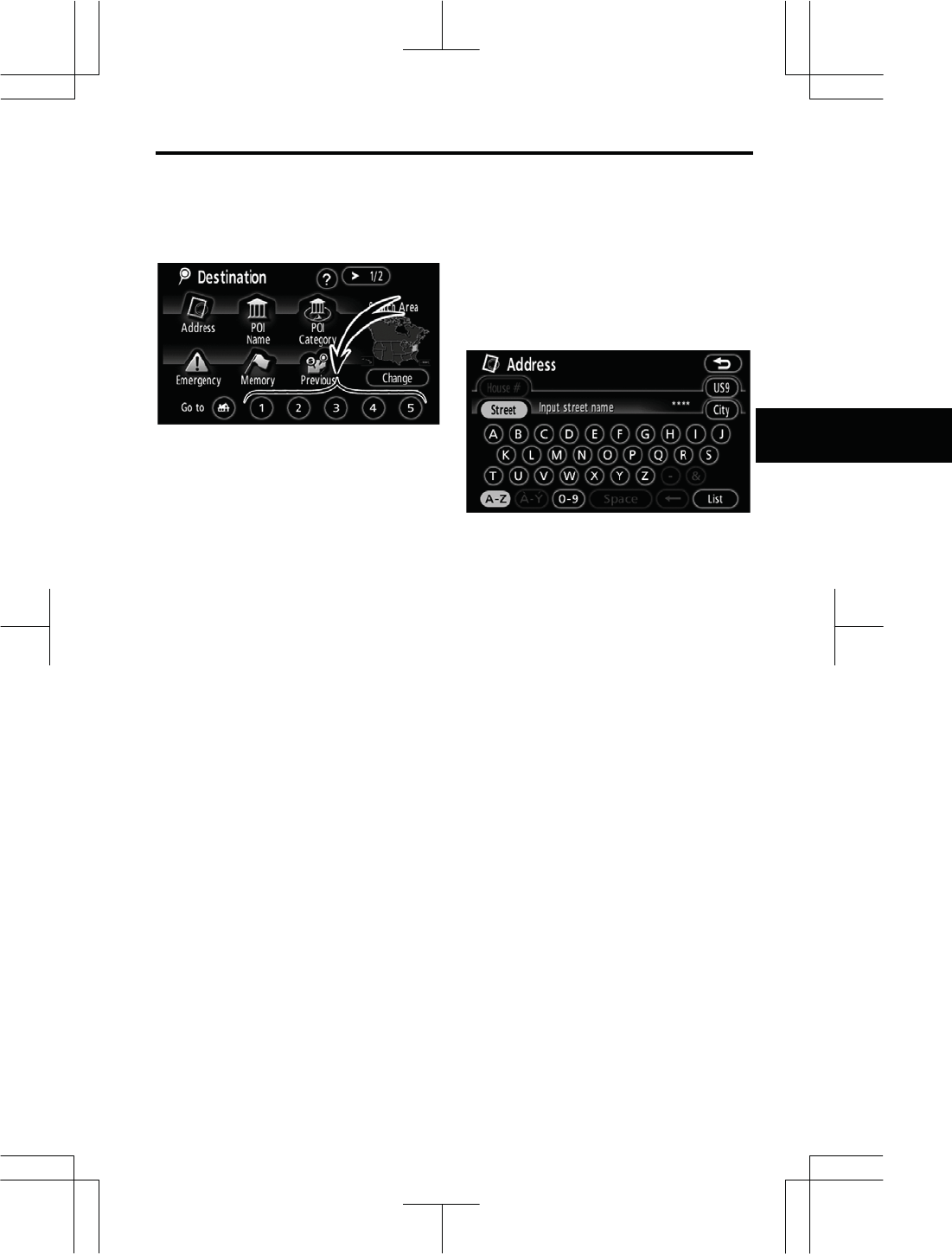

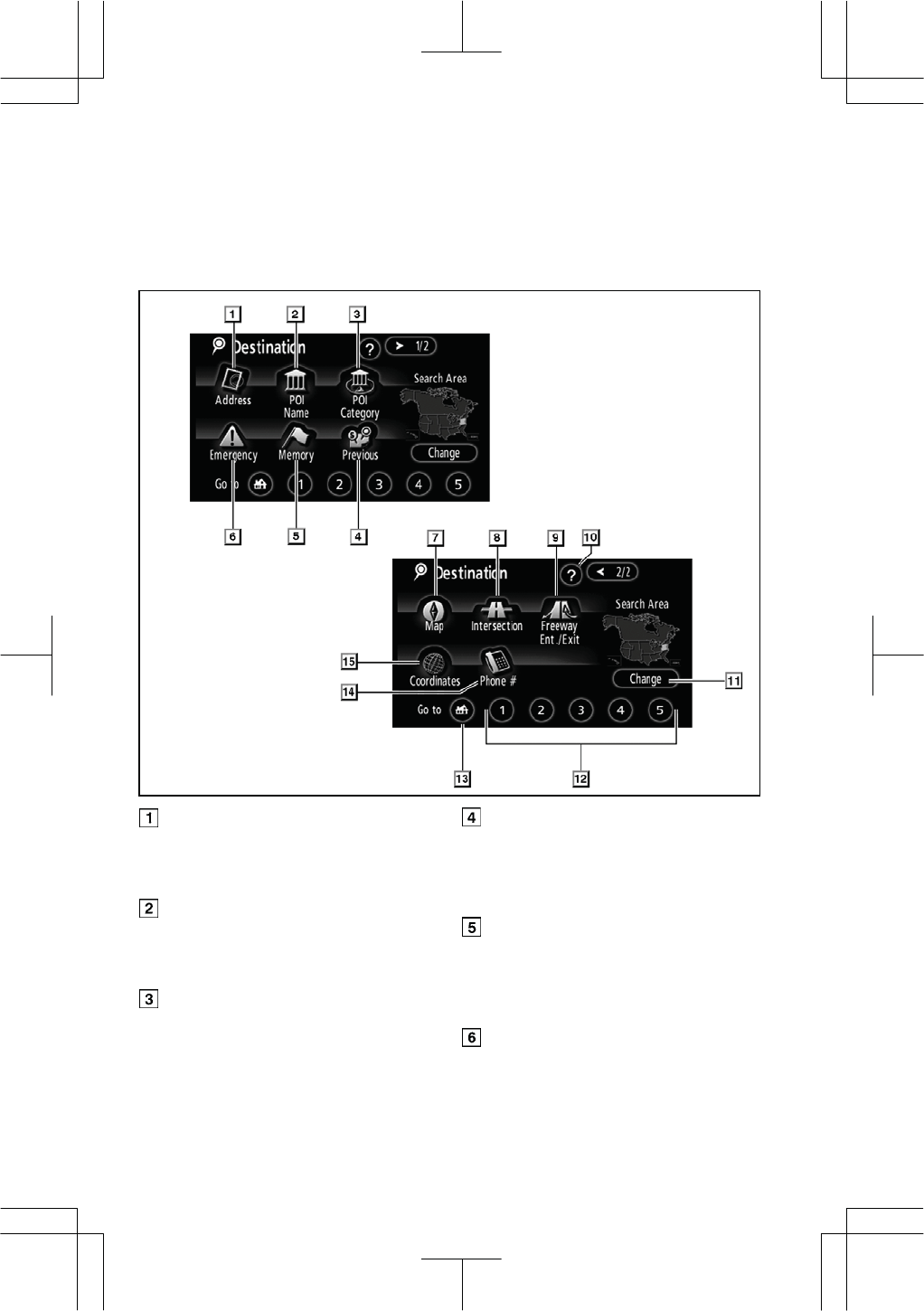

The “Destination” screen allows you to search for a destination. To display the “Des-
tination” screen, push the “DEST” button.

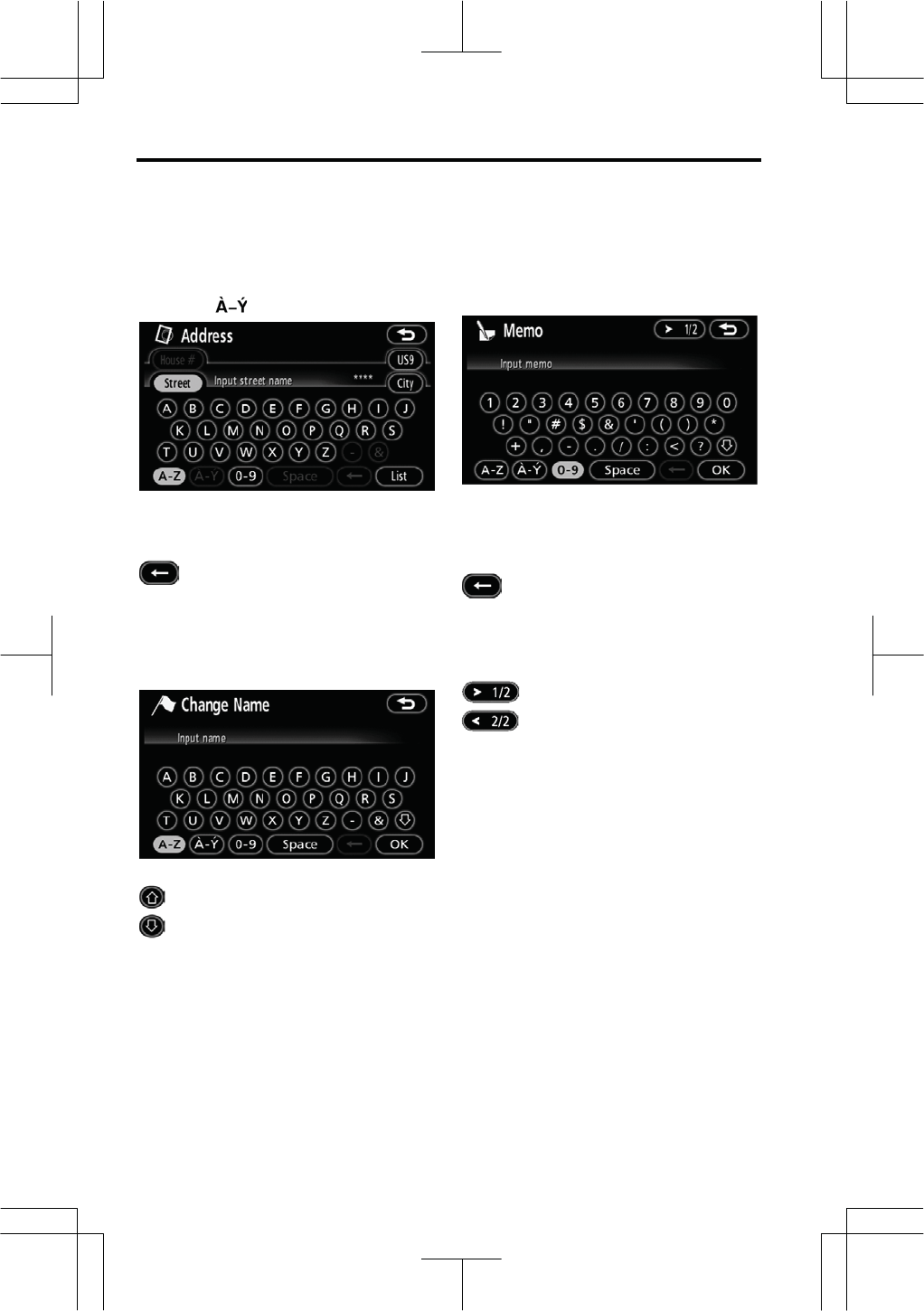

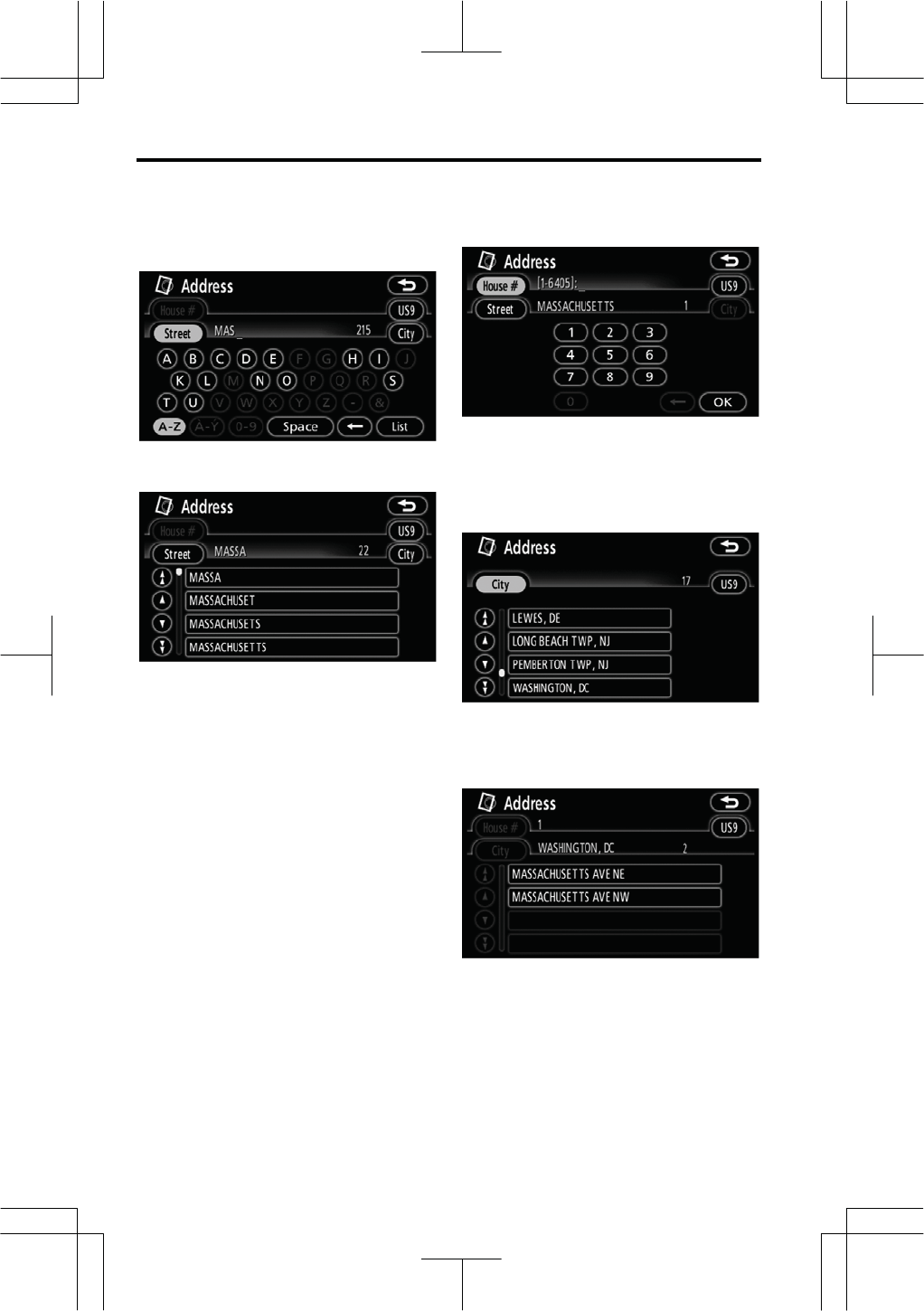

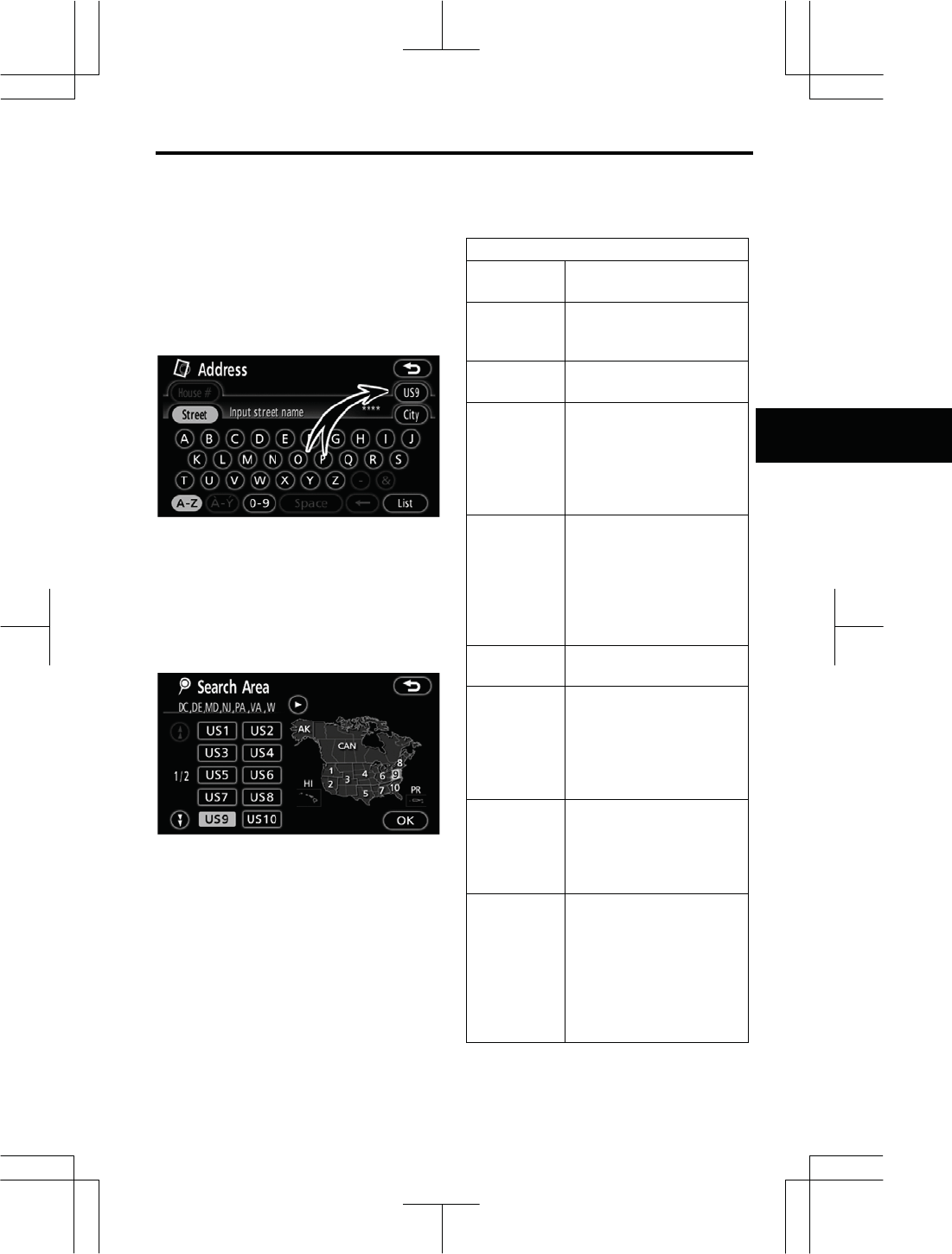

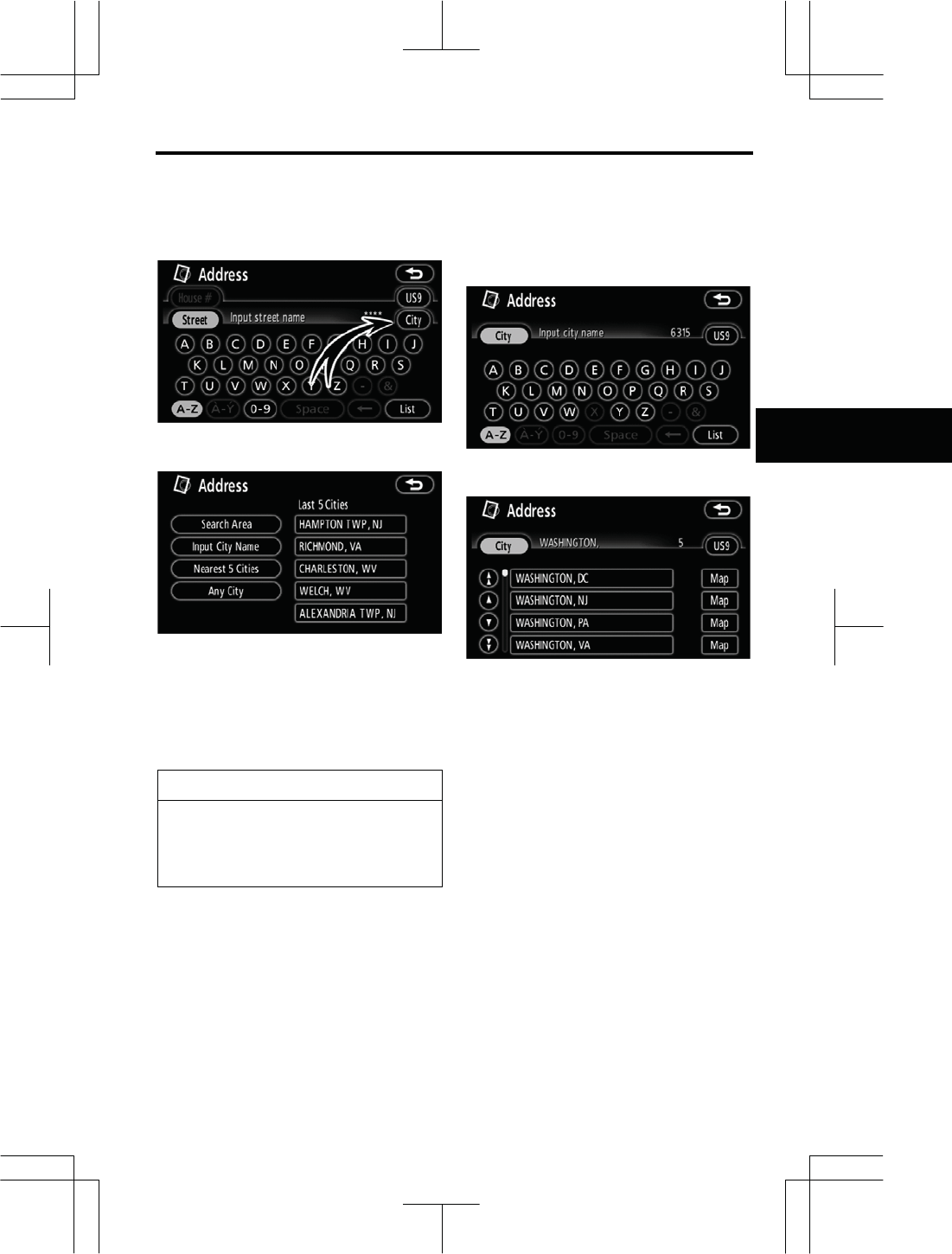

“Address”
A street address and a house number
can be input by using the input keys.
............................................................46

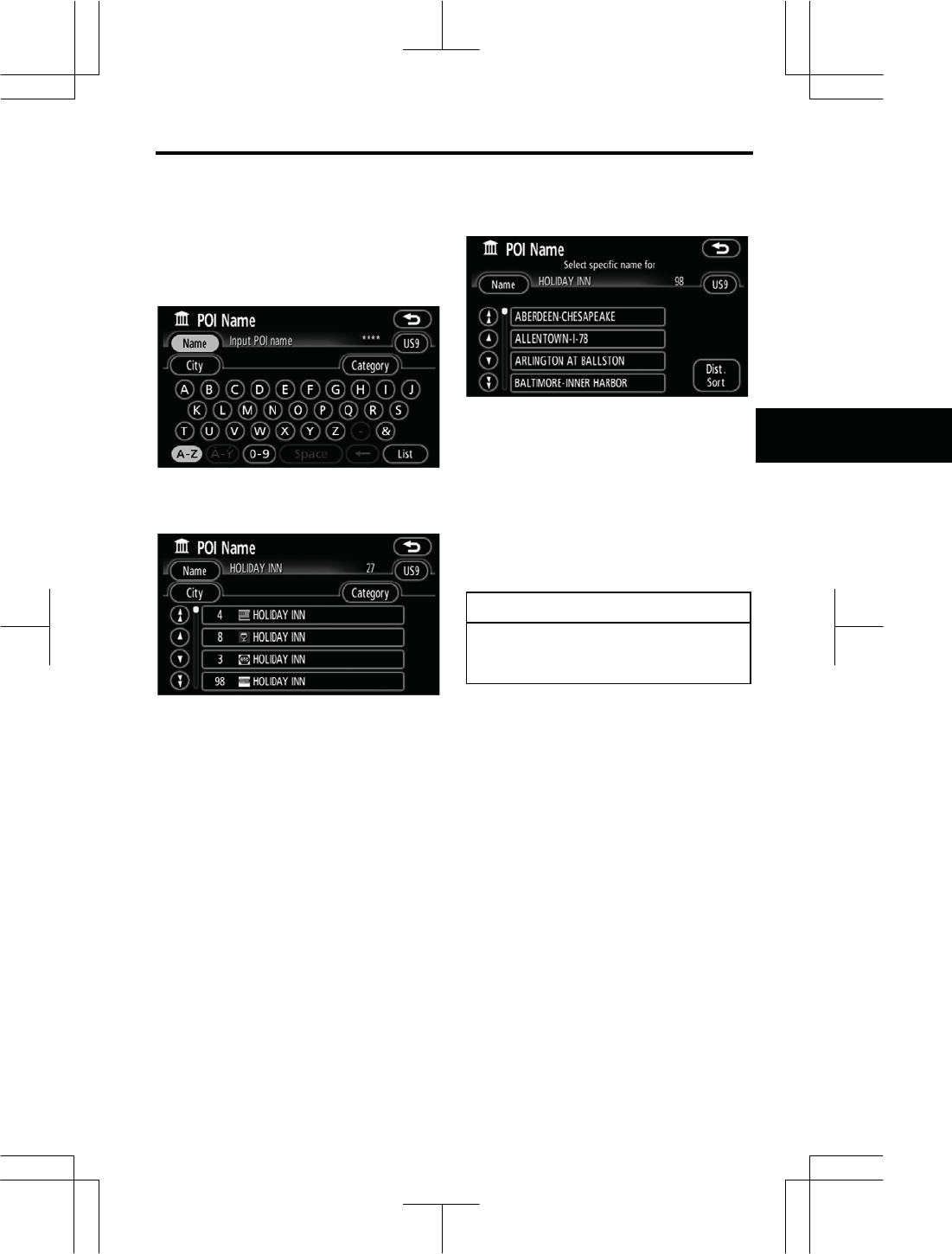

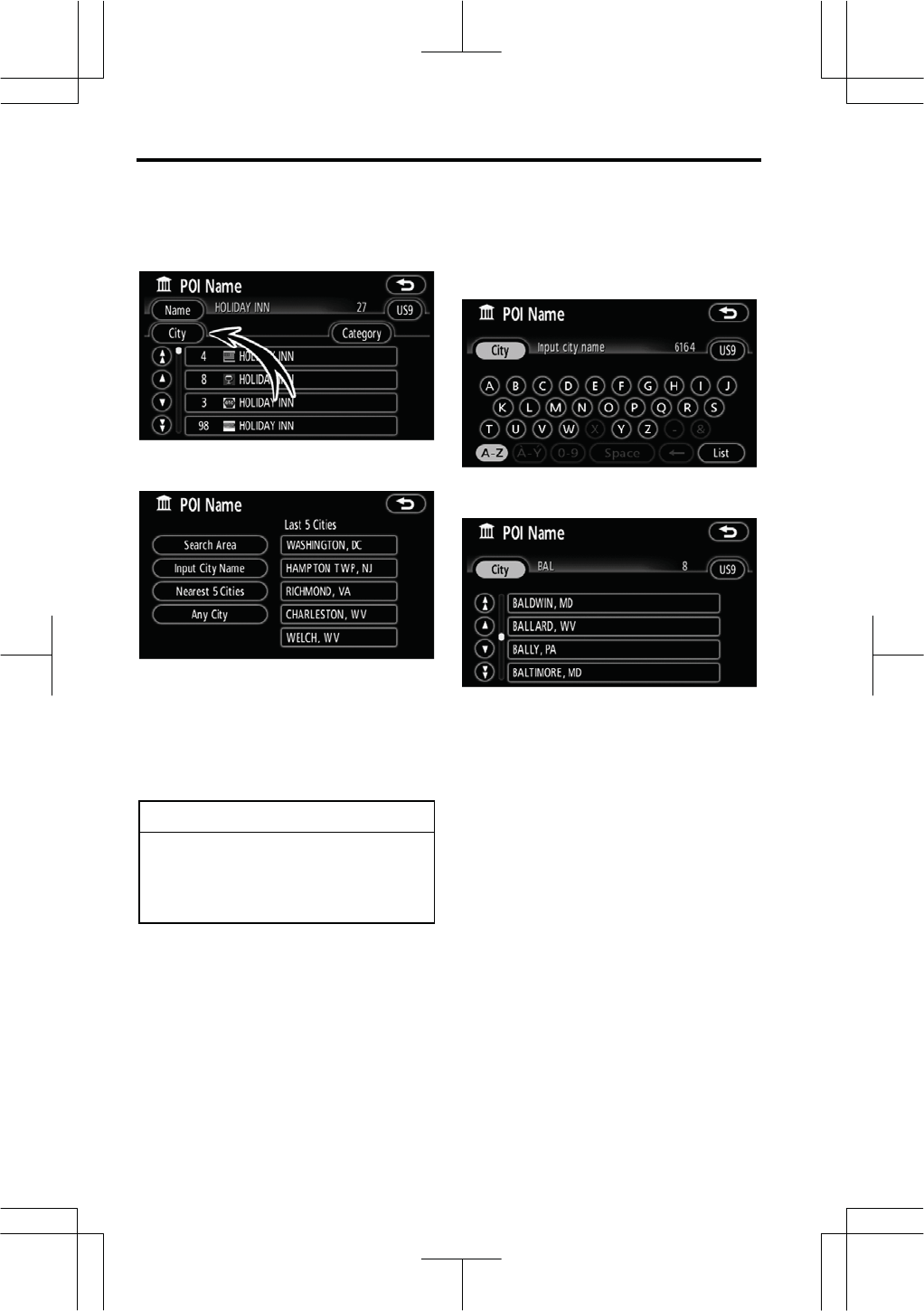

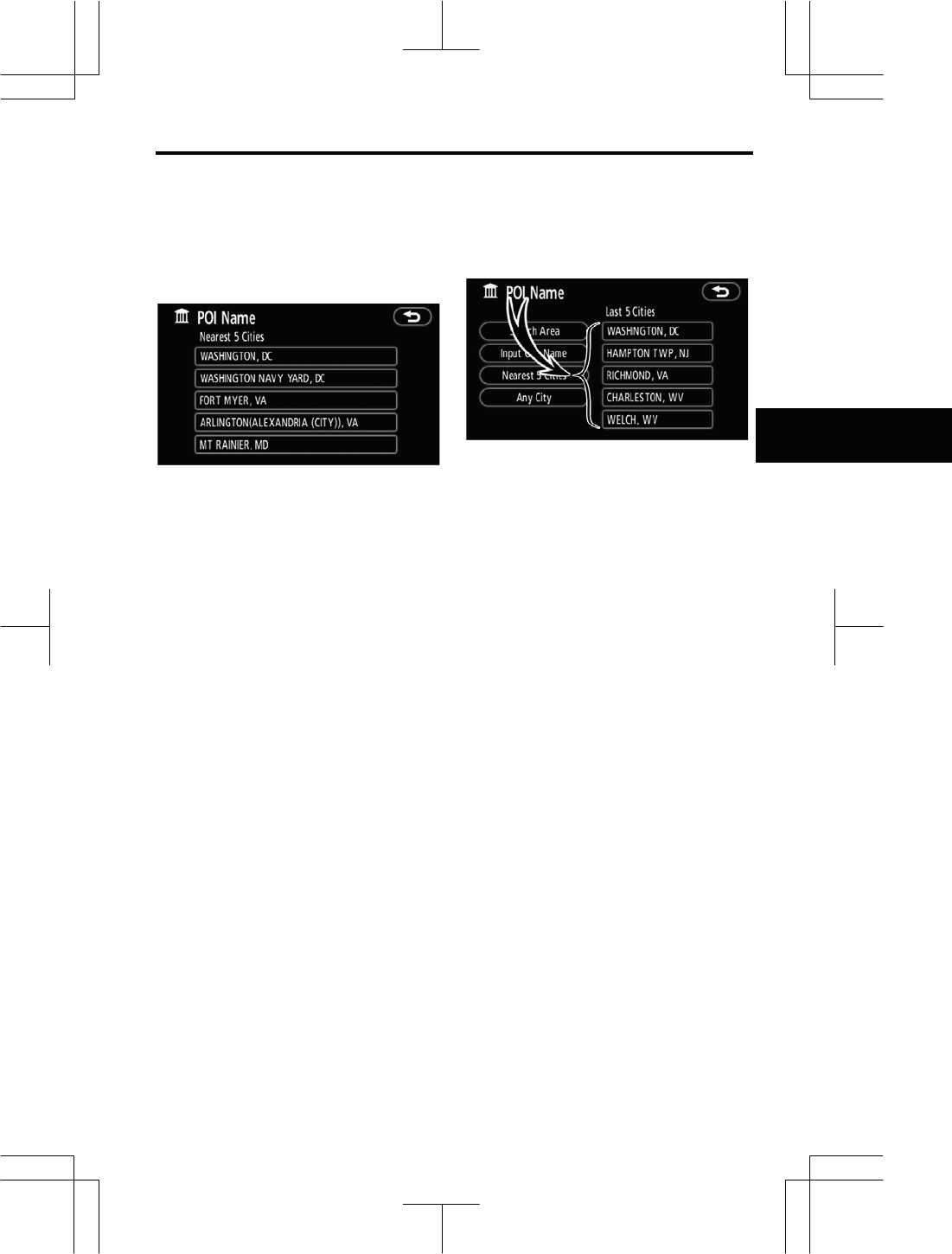

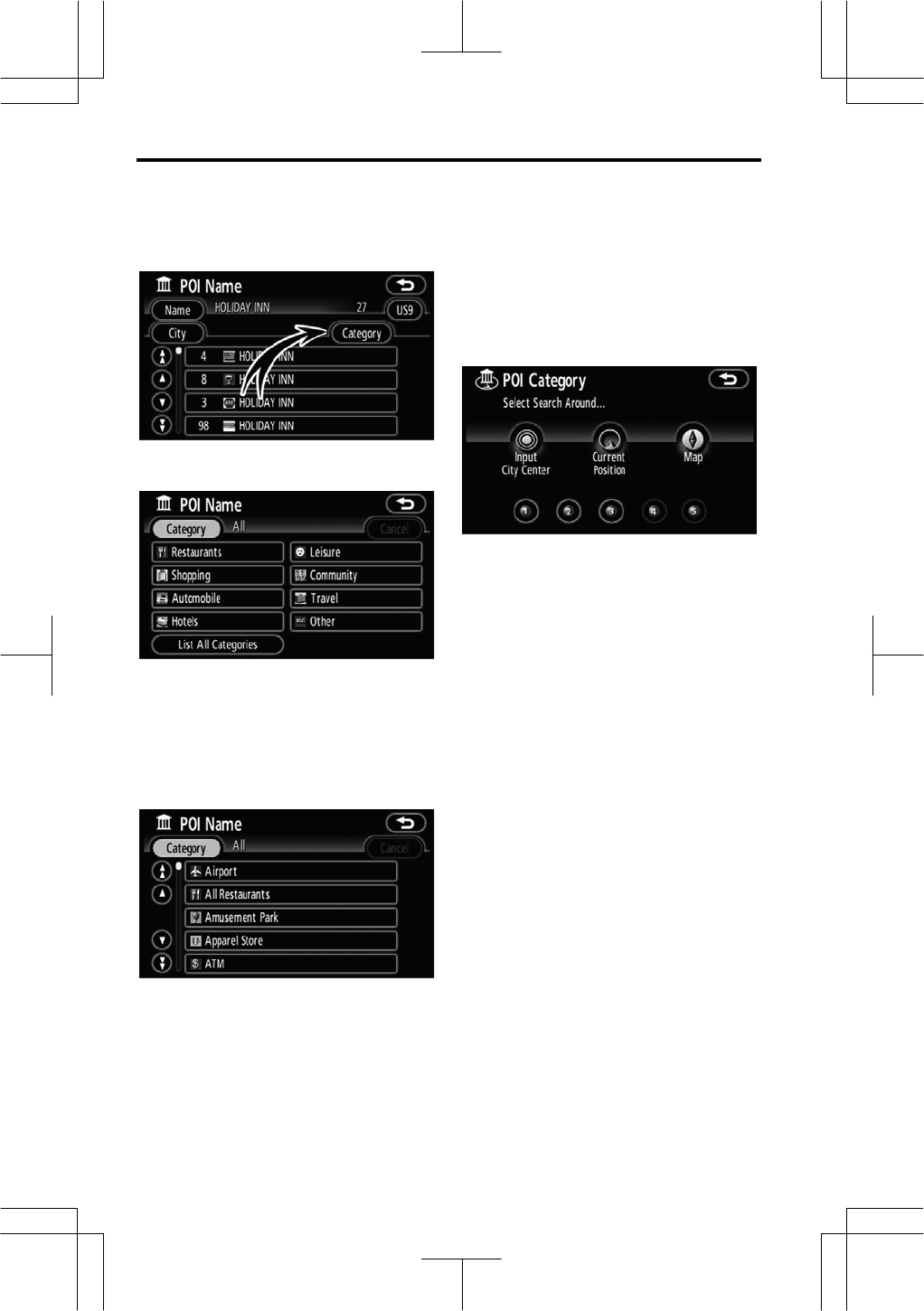

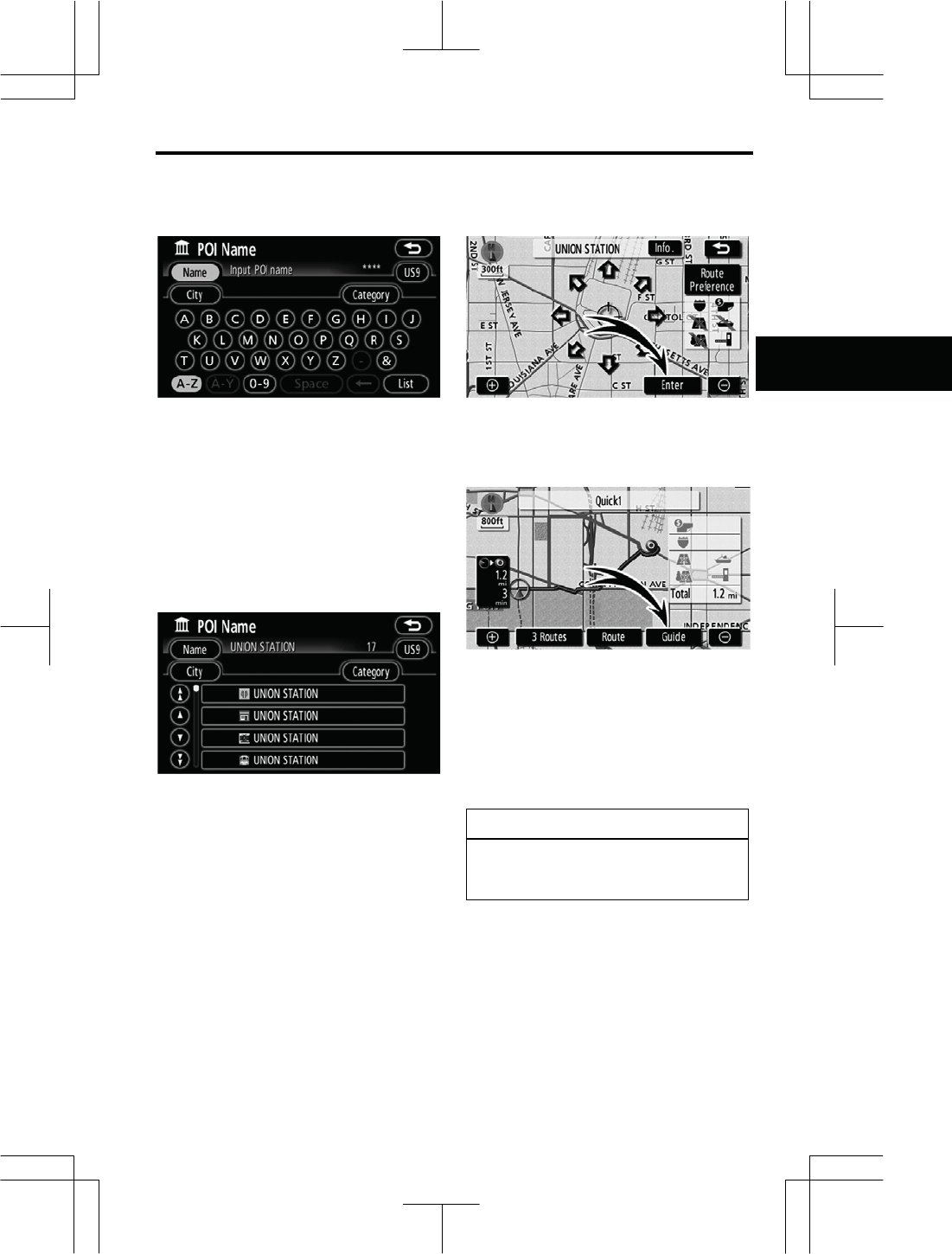

“POI Name”
Select one of the many POIs (Points of
Interest) that have already been stored in
the system’s database.........................49

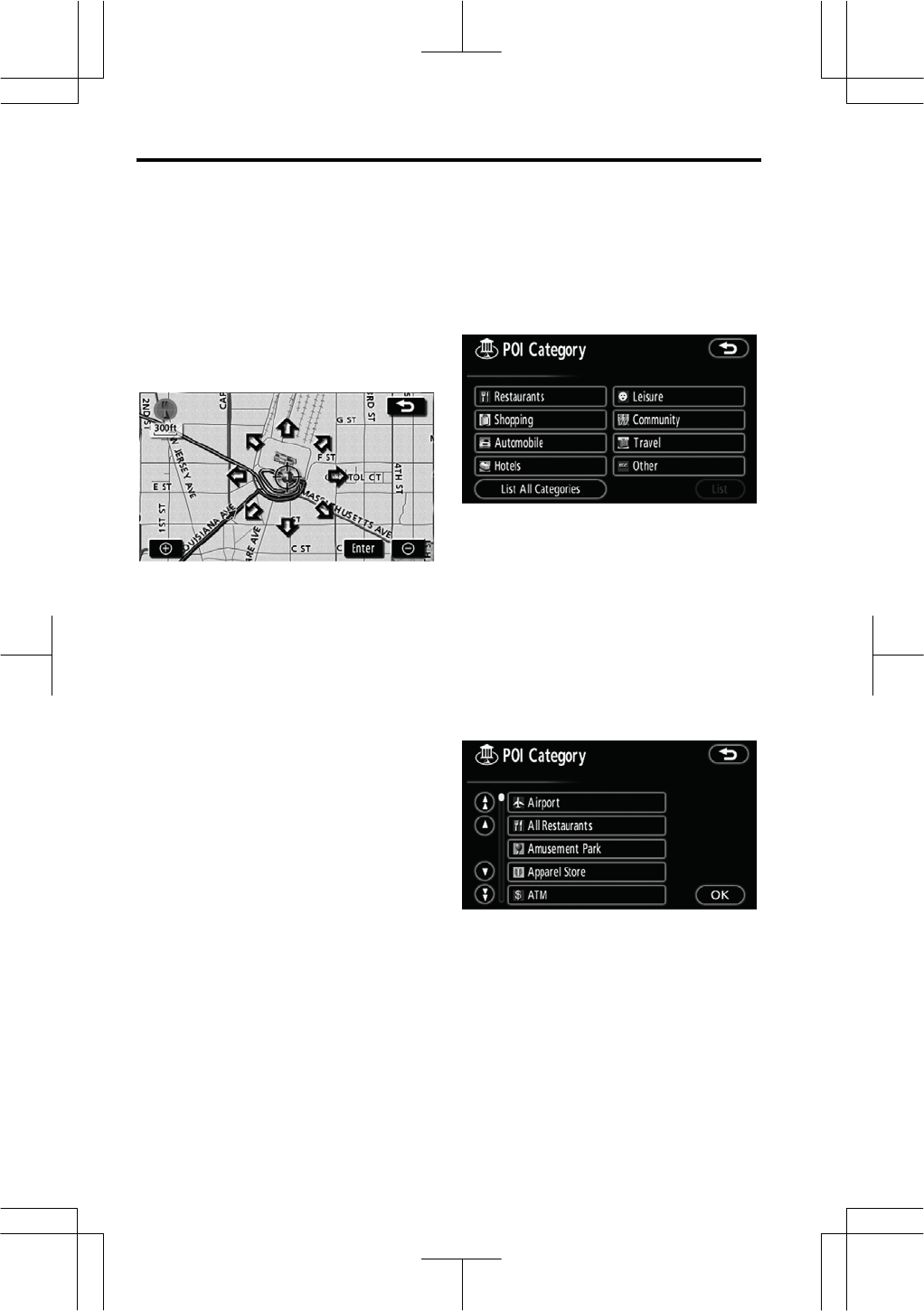

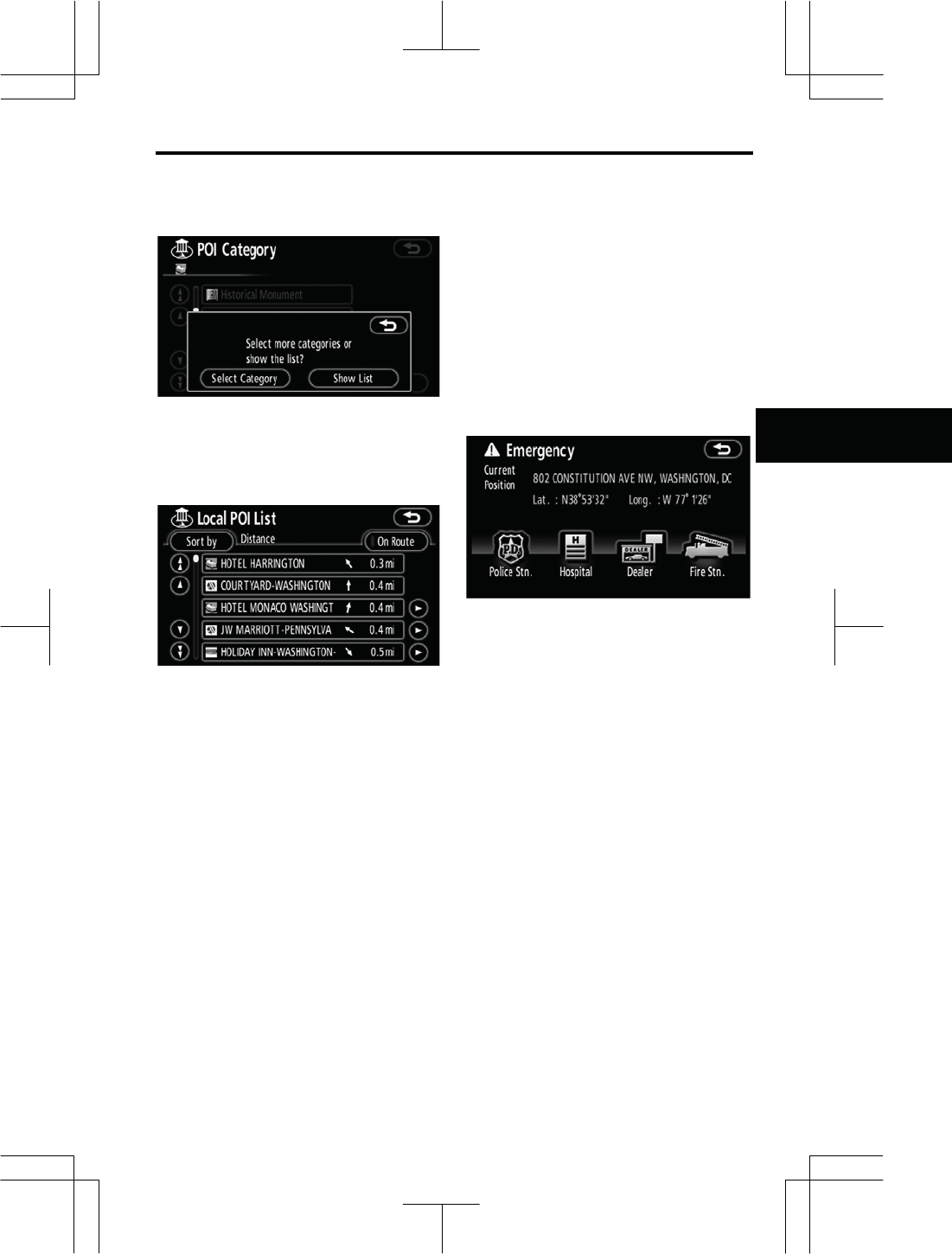

“POI Category”
A destination can be selected from the
POI category........................................52
“Previous”
A destination can be selected from any
of the last 100 previously set destina-
tions and from the previous starting point.
.............................................................57
“Memory”
The location can be selected from the
registered “Memory points”. (To regis-
ter memory points, see “ — Registering
memory points” on page 91.) ...............56
“Emergency”
One of the four categories of emergency
service points that are already stored in
the system’s database can be selected.
.............................................................55
— “Destination” screen
15
V573_E
“Map”
A destination can be selected simply by
touching the location on the displayed
map..................................................... 57

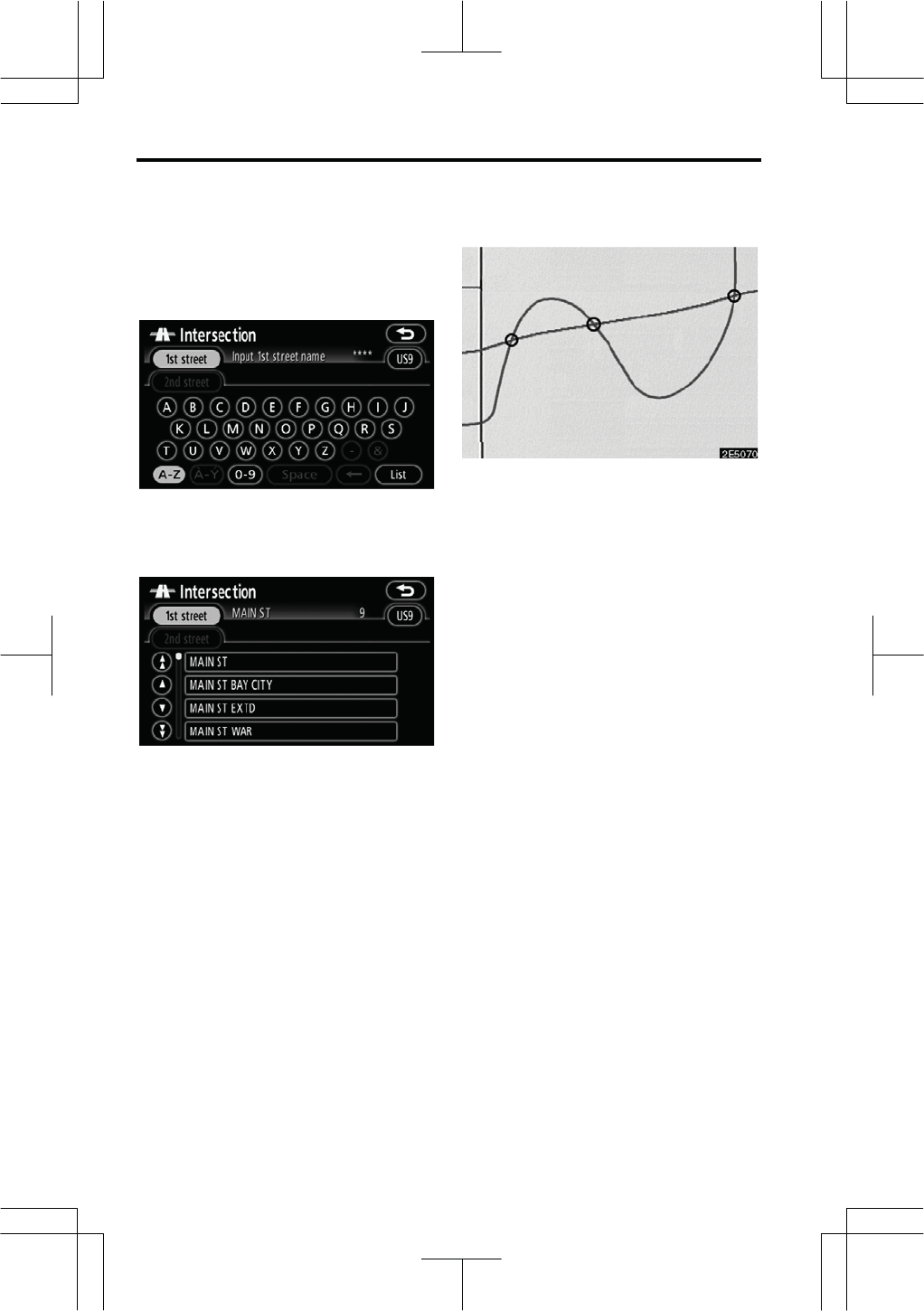

“Intersection”
The names of two intersecting streets
can be entered. This is helpful if only
the general vicinity, not the specific ad-
dress, is known. .................................. 58

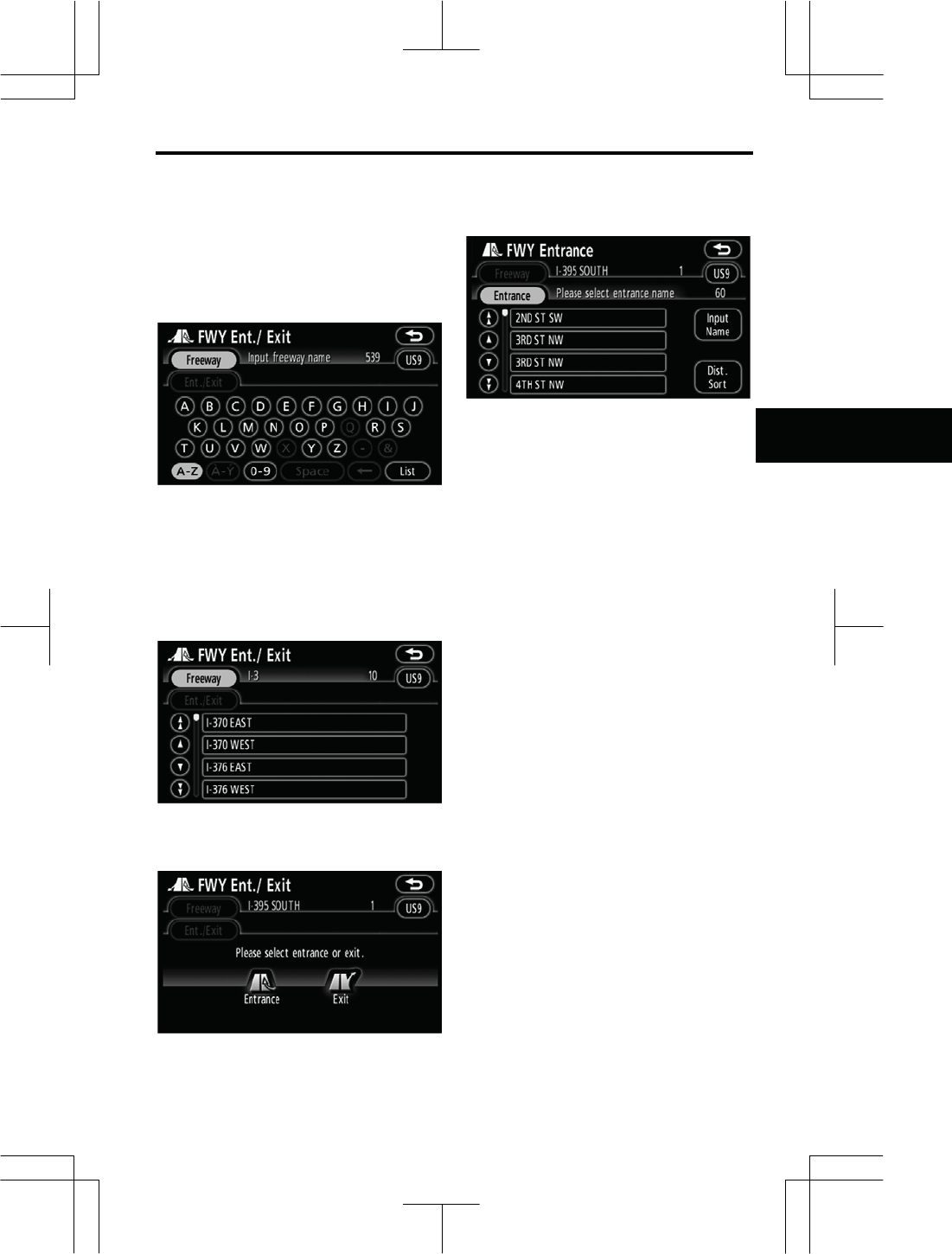

“Freeway Ent./Exit”
The name of a freeway (interstate) en-
trance or exit can be entered .............. 59
“?”

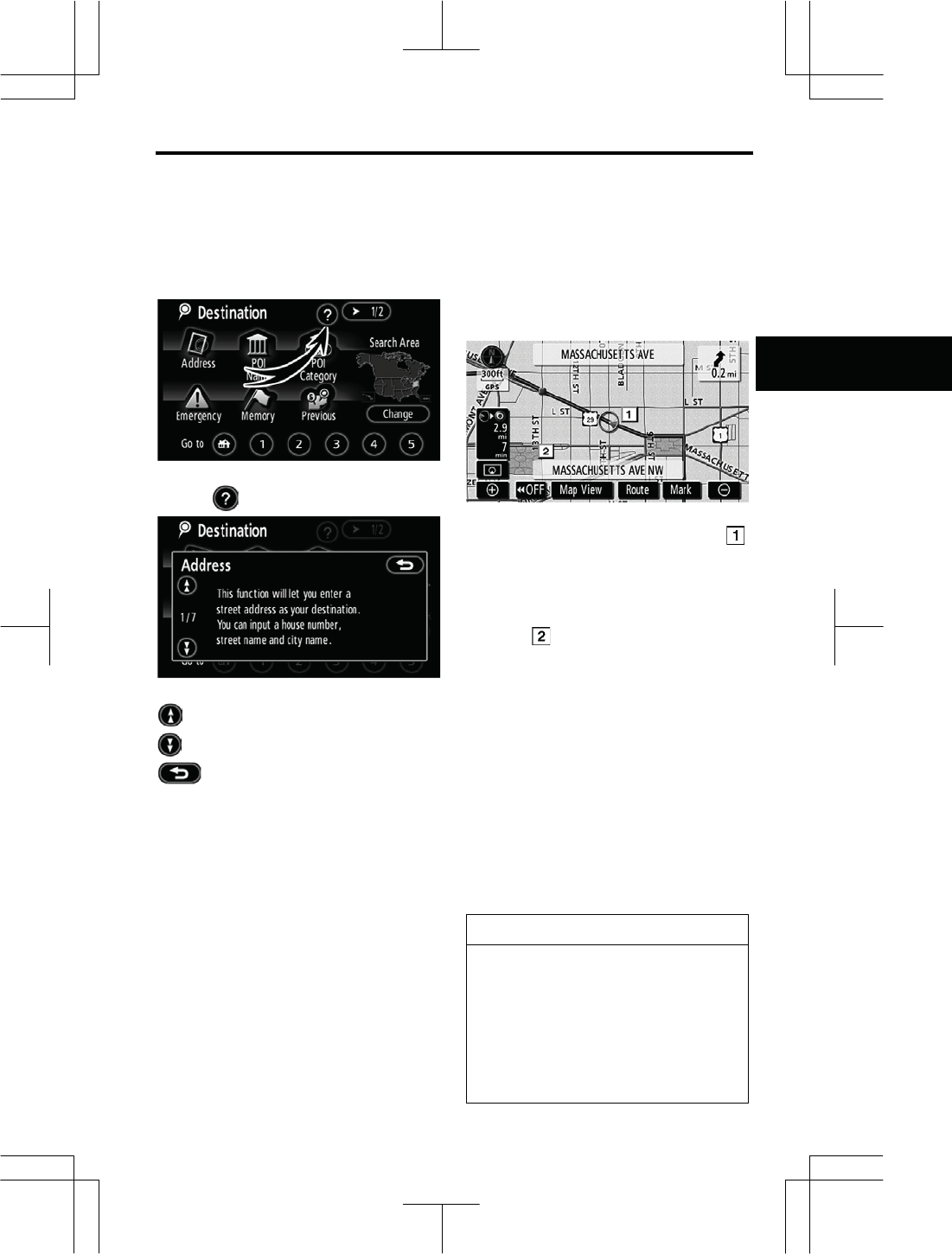

Function help for the “Destination”
screen can be viewed on this screen.
............................................................ 27

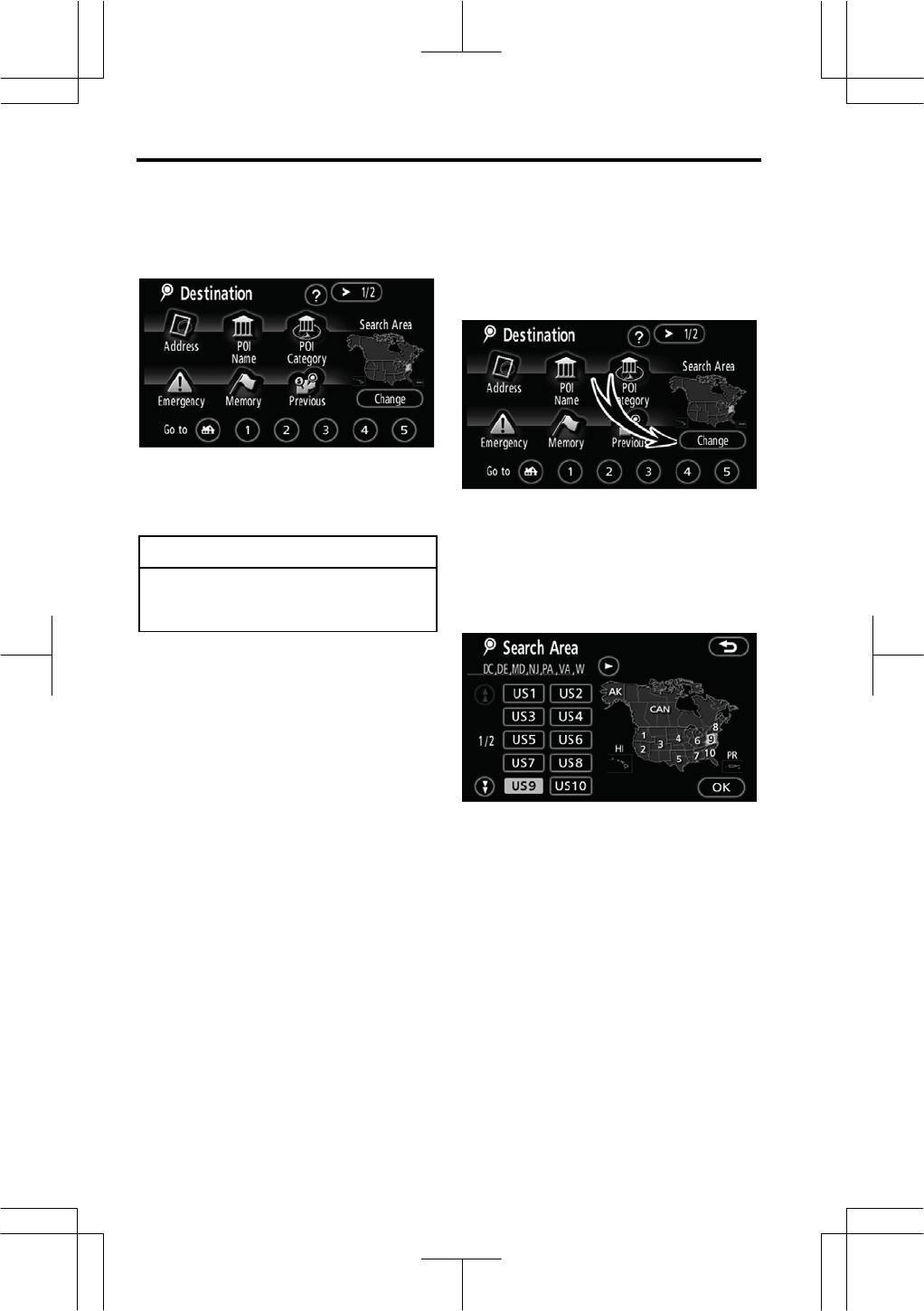

“Change”
To change the search area, touch this
touch screen button. ........................... 42
Quick access touch screen but-
tons
One of 5 preset destinations can be se-
lected by touching the screen directly.
To use this function, it is necessary to
set the “Quick Access” for each memory
point. (To register a “Quick Access”,
see “ — Editing memory points” on page
92.)...................................................... 45

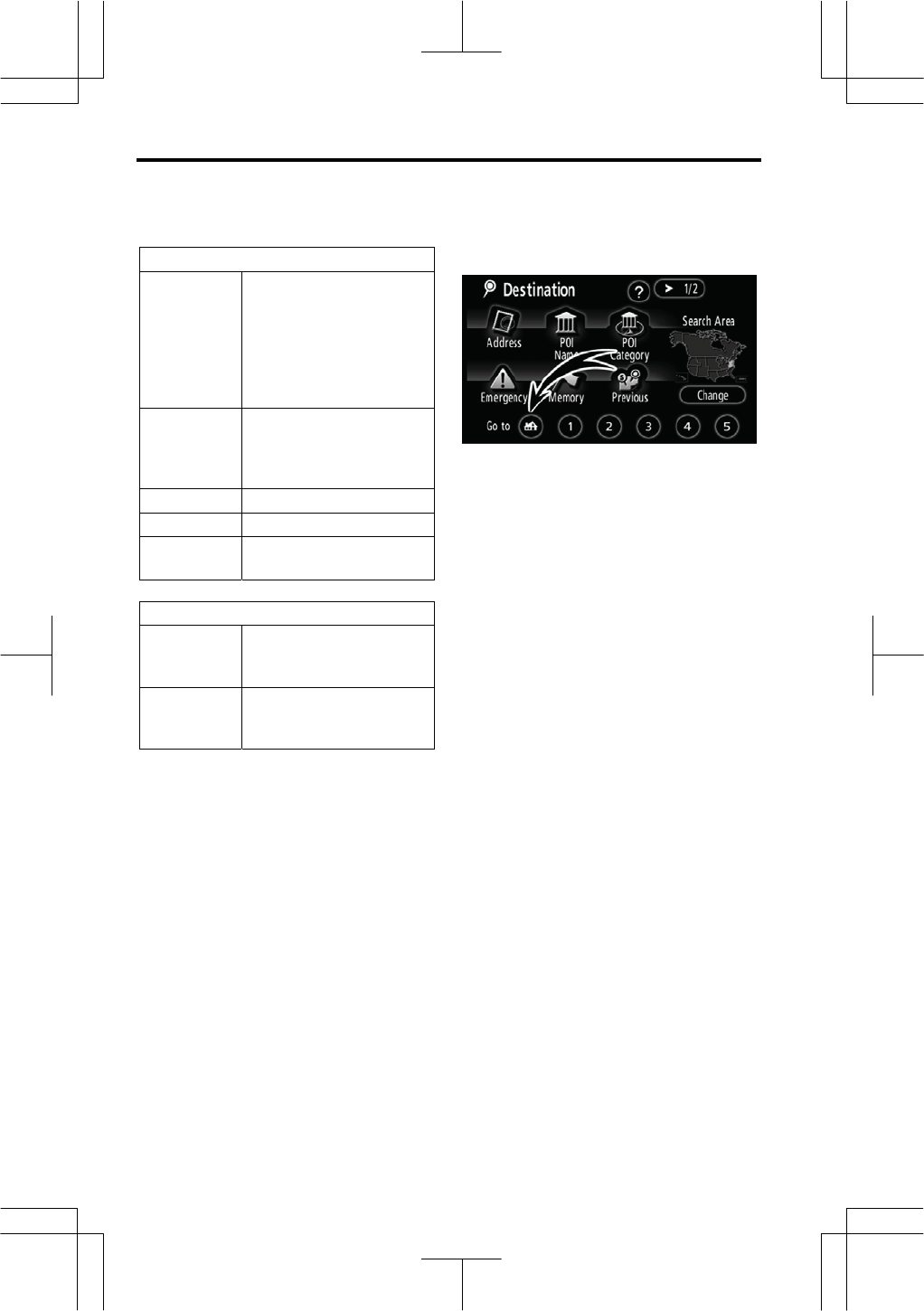

Home touch screen button
A personal home address can be se-
lected without entering the address each
time. To use this function, it is neces-
sary to set “Home” for the memory point.
(To register “Home”, see “ — Registering
home” on page 97.)............................. 45
“Phone #”
A destination can be entered by the tele-
phone number..................................... 60
“Coordinates”
A destination can be set by using latitude
and longitude as coordinates. ............. 60
16
V573_E

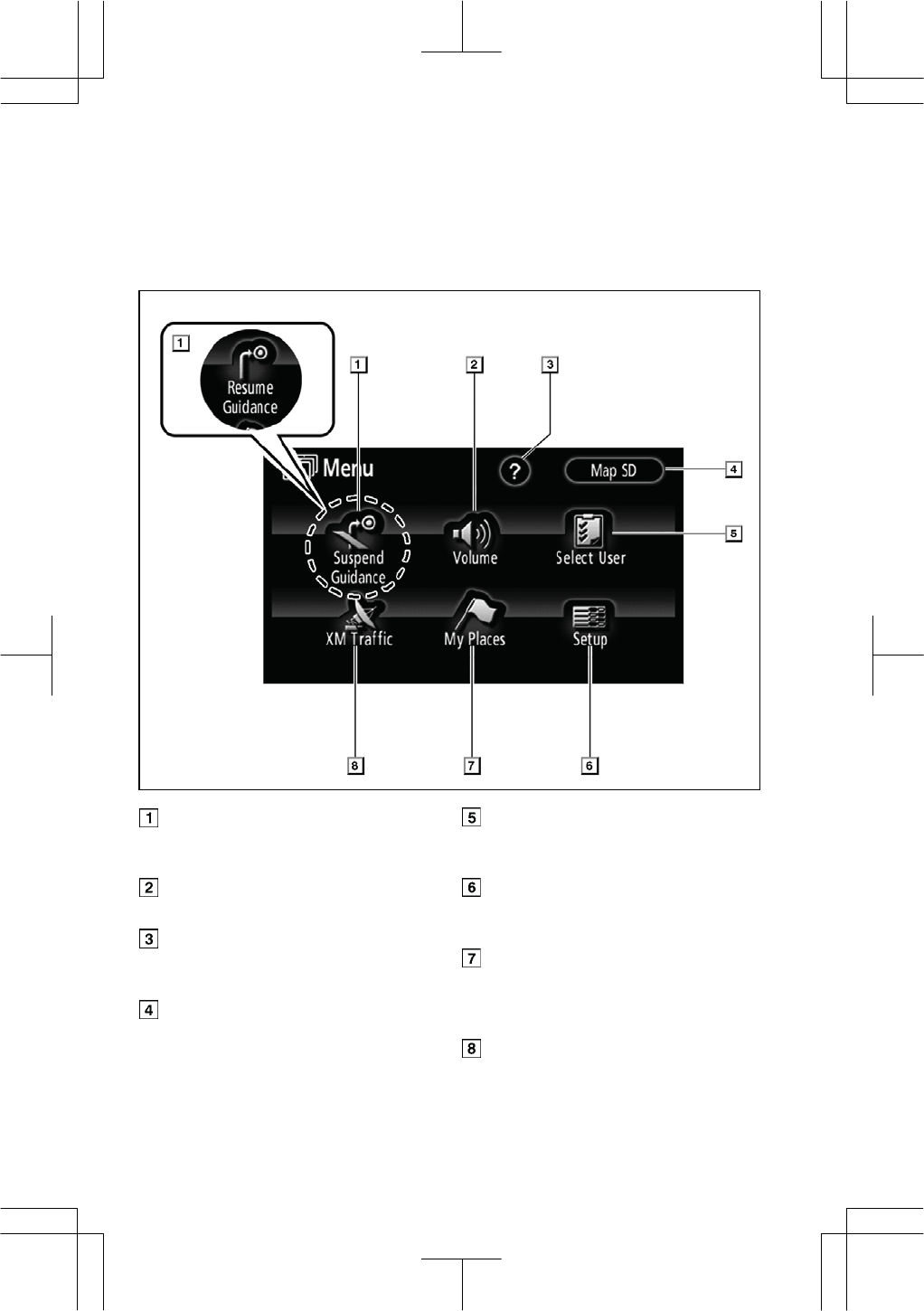

The “Menu” screen allows effective use of the navigation system. To display the
“Menu” screen, push the “NAVI” button.
“Suspend Guidance” and “Re-
sume Guidance”
Suspends or resumes guidance. .........86
“Volume”
Sets the volume of voice guidance. .....87
“?”
Function help for the “Menu” screen can
be viewed on this screen. ....................27
“Map SD”
Displays information regarding the SD
memory card version or covered area.
..........................................................249
“Select User”
Up to 3 different settings for different
users can be memorized......................88
“Setup”
Enables various settings of the naviga-
tion system...................................18, 103

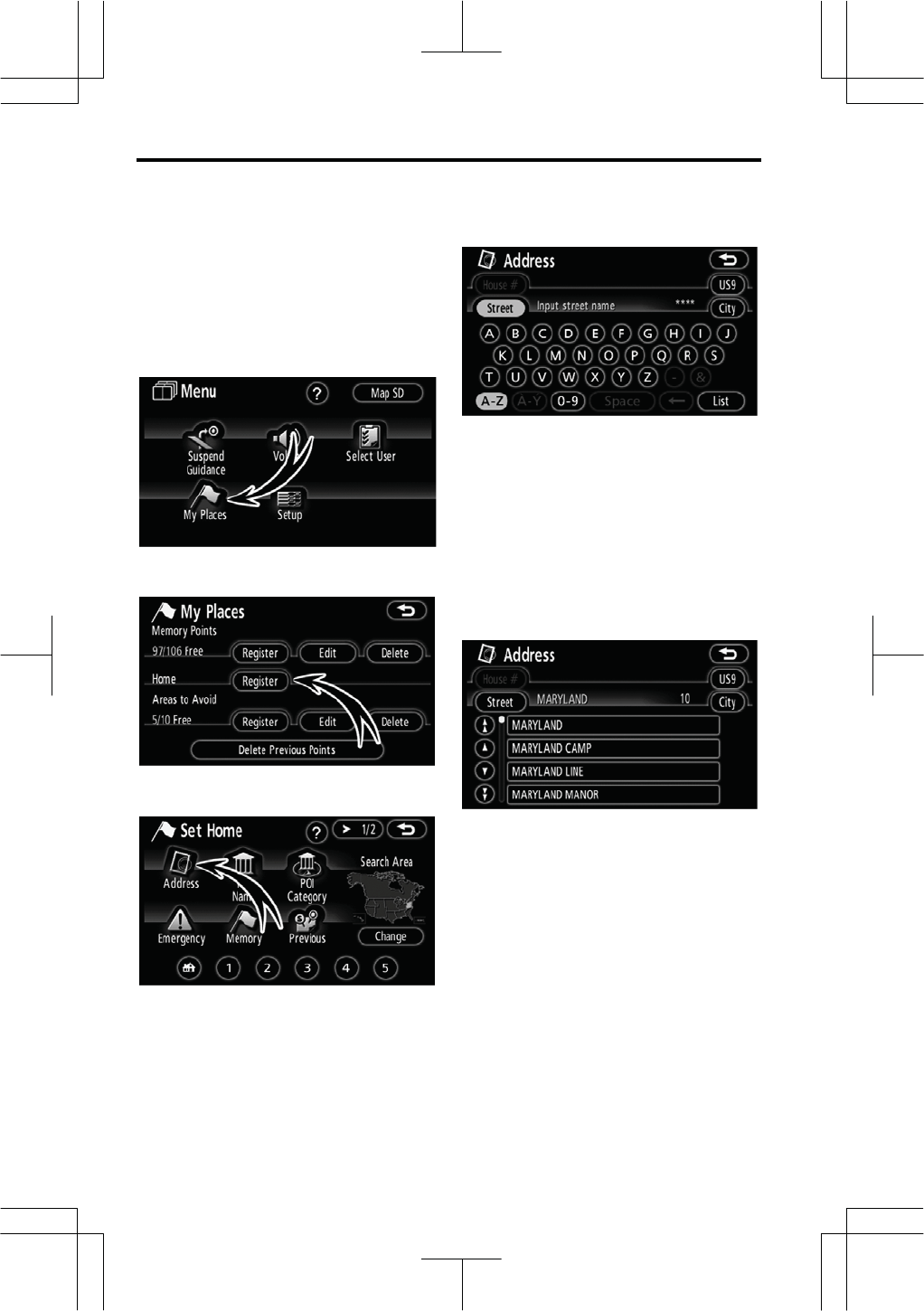

“My Places”
Enables changes to “Memory Points”,
“Home” and “Areas to Avoid”. Enables
deletion of the previous point...............90
“XM Traffic”
Set XM® NavTraffic information. .........XX
— “Menu” screen
17
V573_E

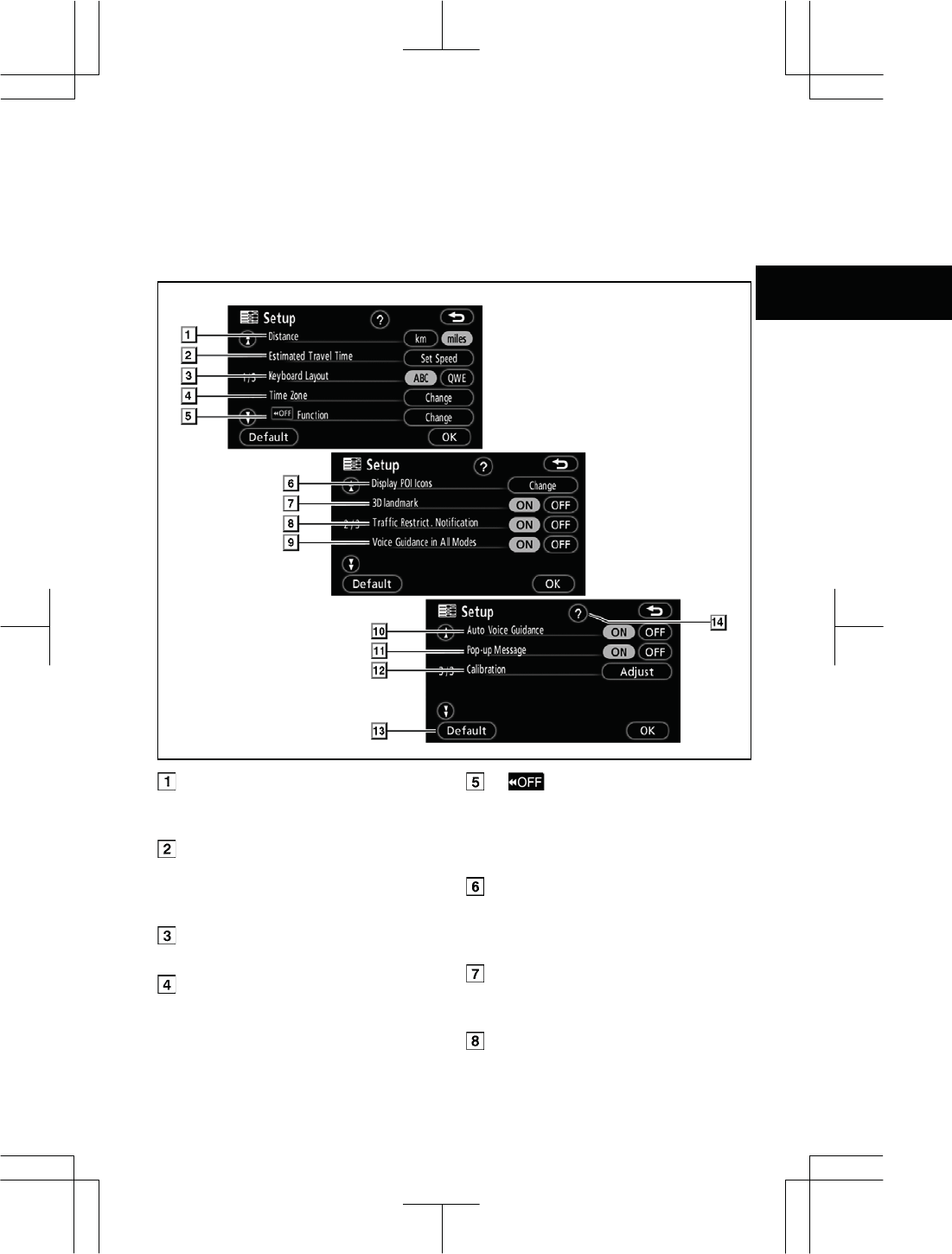

The items shown on the “Setup” screen can be set. To display the “Setup” screen,
push the “NAVI” button and touch “Setup”.
“Distance”
The distance units “km” or “miles” can
be selected........................................ 103
“Estimated Travel Time”
The system to display the travel time and
the arrival time to the destination on the
route guidance screen can be set. .... 104
“Keyboard Layout”
Key layout can be changed............... 105
“Time Zone”
The desired time zone can be selected.
.......................................................... 106
“ Function”
The choice whether to display each
touch screen button and current street
name on the map screen can be set.
.......................................................... 106

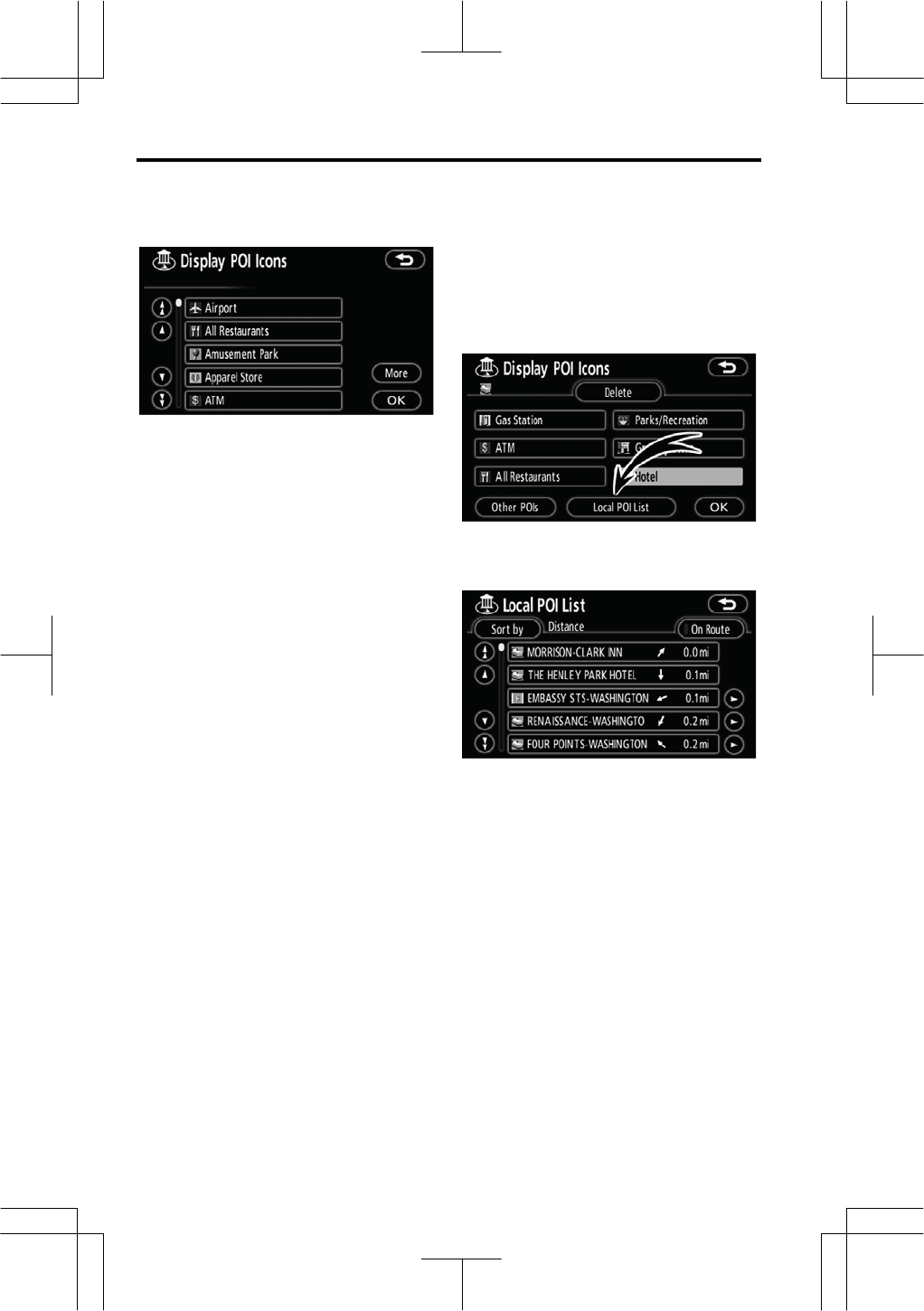

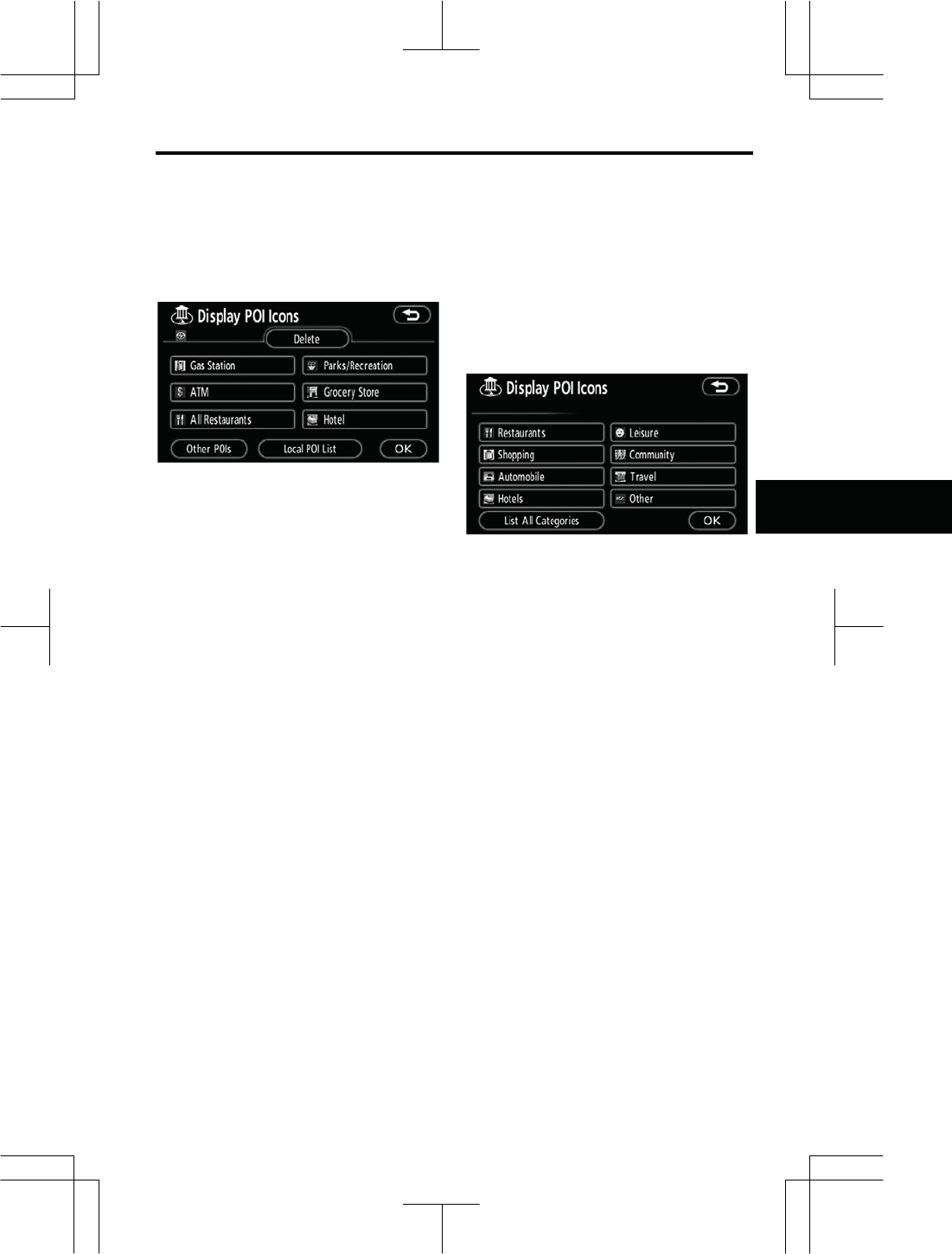

“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possi-
ble. .................................................... 107
“3D landmark”
Selection of either “ON” or “OFF” to dis-
play the 3D landmark is possible. ........108
“Traffic Restrict. Notification”
Notification of seasonal restrictions can
be selected........................................ 108
— “Setup” screen
18
V573_E
“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
..........................................................109
“Auto Voice Guidance”
Automatic voice guidance can be set.
..........................................................109
“Pop-up Message”
Selection of either “ON” or “OFF” to
display the pop-up message is possible.
..........................................................110
“Calibration”
Adjustment of the current vehicle posi-
tion mark can be done manually, or
mis-calculation by changing tire will be
adjusted.............................................111
“Default”
This touch screen button initializes all of
the settings. .......................................103
“?”
Function help for the “Setup” screen can
be viewed. ...........................................27
BASIC FUNCTION
19
V573_E
SECTION 1
BASIC FUNCTIONS
Basic information before operation
z Display operation··············································································· XX
z Initial screen ······················································································· 22
z Touch screen operation······································································ 23
z Inputting letters and numbers/List screen operation ·························· 24
z Function help ······················································································ 27
z Map screen operation ······································································ 28
Current position display ··································································· 28
Screen scroll operation ···································································· 28
Switching the screens ······································································ 33
Map scale························································································· 35
Changing map orientation and configuration ··································· 36
z Example of navigation system operation ······································ 37
Guiding the route ············································································· 37
Registering home············································································· 38
BASIC FUNCTION
20
V573_E
When visibility is affected by light from
outside the vehicle, the screen can be
adjusted to three different angles.
1. Push the “ OPEN” button.
2. Touch “Tilt Down” or “Tilt Up”.
The display tilts one step (10°) down-
wards or upwards.
Each touch of “Tilt Down” or “Tilt Up” tilts
the display downwards or upwards one
step.
When the display is tilted to the maxi-
mum angle (30°), “Tilt Down” is dimmed.
When the display is tilted to the minimum
angle (0°), “Tilt Up” is dimmed.
CAUTION
Injury may result from placing a
hand or any fingers on the display
while it is moving.
NOTICE
zDo not obstruct the display while
it is moving. It could damage your
navigation system.
zDo not place any foreign objects
on the display while it is moving.
It could damage your navigation
system.
INFORMATION
zThe display can still be opened
when tilted. When the display is
closed it returns to its previous
tilted position.
zVehicles with smart entry and
start system-
The display returns to its initial
position (0°) if the “ENGINE
START STOP” switch is turned off
when the display is tilted. The
display then returns to its previ-
ous tilted position when the
“ENGINE START STOP” switch is
next turned to ACCESSORY or
IGNITION ON mode.
Vehicles without smart entry and
start system-
The display returns to its initial
position (0°) if the engine switch
is turned to the “LOCK” position
when the display is tilted. The
display then returns to its previ-
ous tilted position when the en-
gine switch is next turned to the
“ACC” or “IG-ON” position.
zUnder extremely cold conditions,
the display may react slowly or
operation sound may become
louder.
Dis
p
la
y
o
p
eration
BASIC FUNCTION
21
V573_E
Vehicles with smart entry and start sys-
tem—
When the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode, the initial screen
will be displayed and the system will
begin operating.
Vehicles without smart entry and start
system—
When the engine switch is in ACC or ON
position, the initial screen will be dis-
played and the system will begin operat-
ing.
CAUTION
When the vehicle is stopped with
the engine running, always apply
the parking brake for safety.
After a few seconds, the “CAUTION”
screen will be displayed.
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP” button is also
pushed, the map screen is displayed.
While the “CAUTION” screen is dis-
played, the “DEST” or “NAVI” button
cannot be operated. And if the “Lan-
guage”,“Calendar” or “Maintenance”
button on the “Information” screen are
touched, the screen will show the
“CAUTION” screen first, followed by the
corresponding screen.
Initial screen
BASIC FUNCTION
22
V573_E
z Maintenance information
This system informs about when to re-
place certain parts or components and
shows dealer information (if registered)
on the screen.
When the vehicle reaches a previously
set driving distance or date specified for
a scheduled maintenance check, the
“Information” screen will be displayed
when the navigation system is in opera-
tion.
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not
operated for several seconds.
To prevent this information screen from
being displayed again, touch “Do Not
Display This Message Again.”.
To register “Maintenance information”,
see “Maintenance information” on page
114.
z Memo information
This system notifies about a memo entry.
At the specified date, the memo informa-
tion will be displayed when the naviga-
tion system is in operation. The memo
information screen will be displayed
every time the system is turned on.
The memo of the current date can be
viewed by touching “Memo”. (See
“ — Editing a memo” on page 121.)
To disable this screen, touch “Do Not
Display This Message Again”. This
screen goes off if the screen is not
operated for several seconds.
To prevent this information screen from
being displayed again, touch “Do Not
Display This Message Again”.
To register a memo information, see
“Calendar with memo” on page 118.
BASIC FUNCTION
23
V573_E
This system is operated mainly by the
touch screen buttons on the screen.
To prevent damage to the screen,
lightly touch the touch screen buttons
on the screen with the finger. When
a touch screen button on the screen
is touched, a beep sounds.
Do not use objects other than your
finger to touch the screen.
INFORMATION
zIf the system does not respond to
a touch on a touch screen button,
move the finger away from the
screen and then touch it again.
zDimmed touch screen buttons
cannot be operated.
zWipe off fingerprints using a
glass cleaning cloth. Do not use
chemical cleaners to clean the
touch screen.
zThe displayed image may become
darker and moving images may
be slightly distorted when the
display is cold.
zUnder extremely cold conditions,
the map may not be displayed and
the data input by a user may be
deleted. Also, the touch screen
buttons may be harder than usual
to depress.
zWhen you look at the screen
through polarized material such
as polarized sunglasses, the
screen may be dark and hard to
see. If so, change the angle of the
screen, look at the screen from
different angles, adjust the screen
settings on the “Display” screen,
or take off your sunglasses.
When searching for an address or a
name, or entering a memo, letters and
numbers can be input via the touch
screen.
INFORMATION
Keyboard layout can be changed.
(See page 105).
Touch screen o
p
eration
Inputting letters and
numbers/List screen
o
p
eration
BASIC FUNCTION
24
V573_E

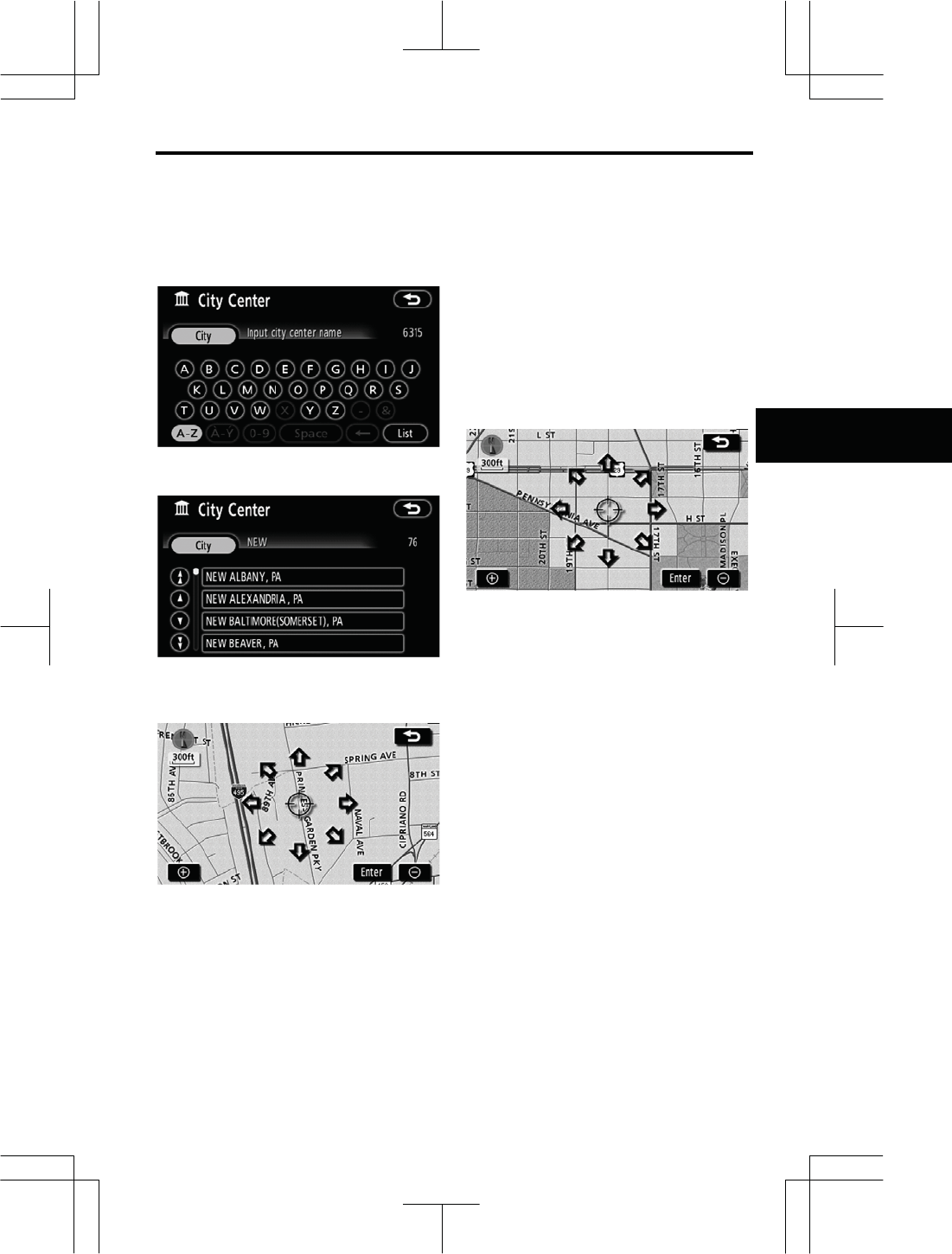

z To input letters
To display the alphabet keys, touch
“A-Z” or “”.
Enter letters by touching the alphabet
keys directly.
:Touching this touch screen
button erases one letter. By
holding this touch screen button,
letters will continue to be erase.
On certain letter entry screens, letters
can be entered in upper or lower case.
:To enter in upper case.
:To enter in lower case.
z To input numbers and symbols
To display the number keys and symbol
keys, touch “0-9”.
Enter numbers and symbols by touching
the number keys and symbol keys di-
rectly.
: Touching this touch screen
button erases one letter. By
holding this touch screen button,
letters will continue to be
erased.
: Touching this touch screen
button displays other symbols.
BASIC FUNCTION
25
V573_E
z To display the list
To search for an address or a name,
touch “List”. Matching items from the
database are listed even if the entered
address or name is incomplete.
If the number of matches is four or less,
the list is displayed without touching
“List”.
INFORMATION
The number of matching items is
shown to the right side of the
screen. If the number of matching
items is more than 9,999, the system
displays “” on the screen.
z List screen operation
When a list is displayed, use the appro-
priate touch screen button to scroll
through the list.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed screen
position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to move to the begin-
ning of the name.
BASIC FUNCTION
26
V573_E

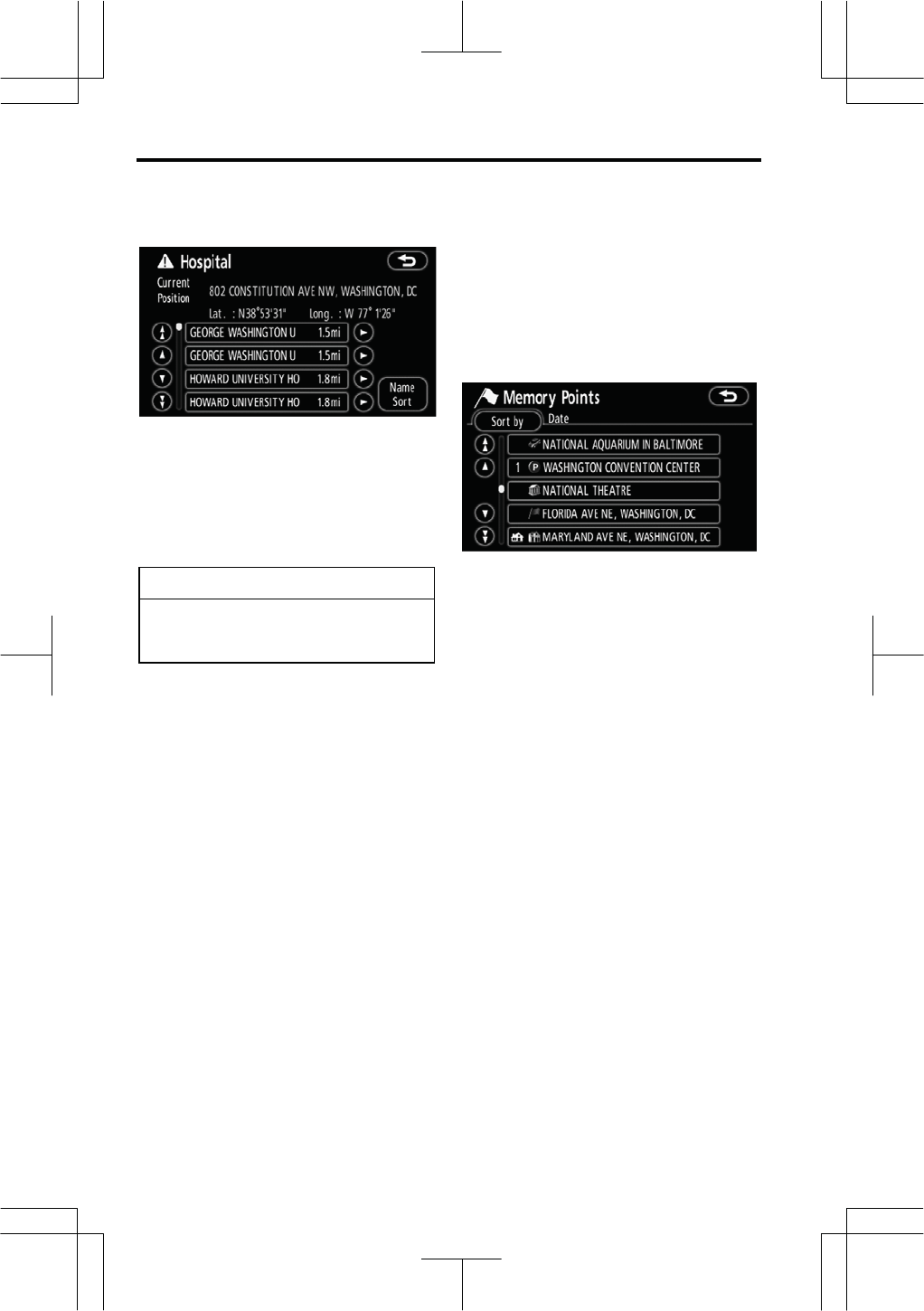

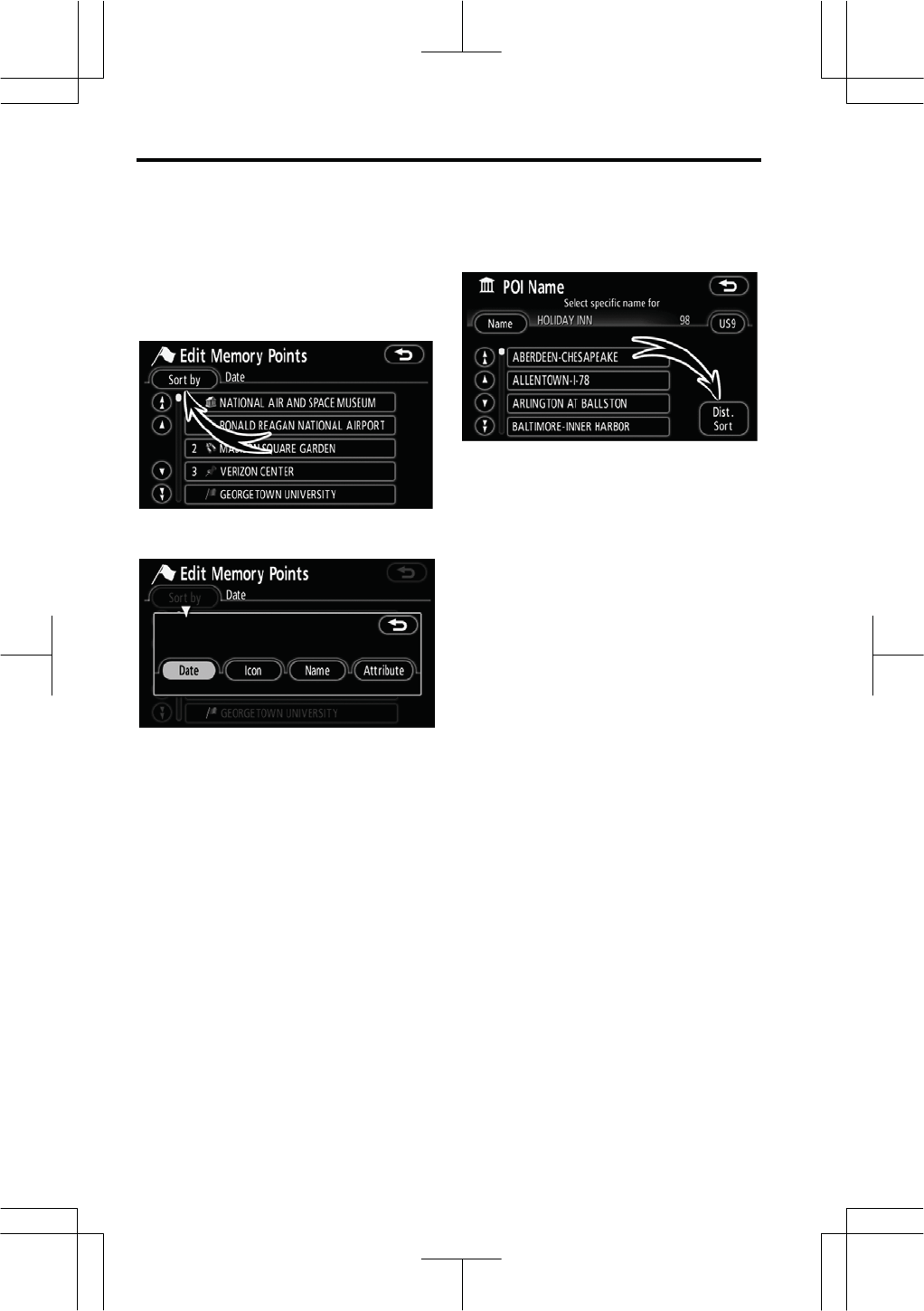

z Sorting
The order of a list displayed on the
screen can be rearranged.
TYPE A
1. Touch “Sort by”.
2. Select the desired sorting criteria.
Sorting criteria are as follows:
“Distance”: To sort in the order of dis-
tance from your current location.
“Date”: To sort in the order of the date.
“Category”: To sort in the order of the
category.
“Icon”: To sort in the order of the icons.
“Name”: To sort in the order by name.
“Attribute”: To sort in the order by at-
tribute.
TYPE B
“Dist. Sort”: To sort in the order of dis-
tance from the current vehicle location.
The distance from current vehicle posi-
tion up to the destination is displayed to
the right of the name.
“Name Sort”: To sort in alphabetical
order by name.
BASIC FUNCTION
27
V573_E
Explanations for the functions of the
“Destination”, “Setup” and “Menu”
screens can be viewed.
Touch .
:To view the previous page.
:To view the next page.
:To return to the previous screen.

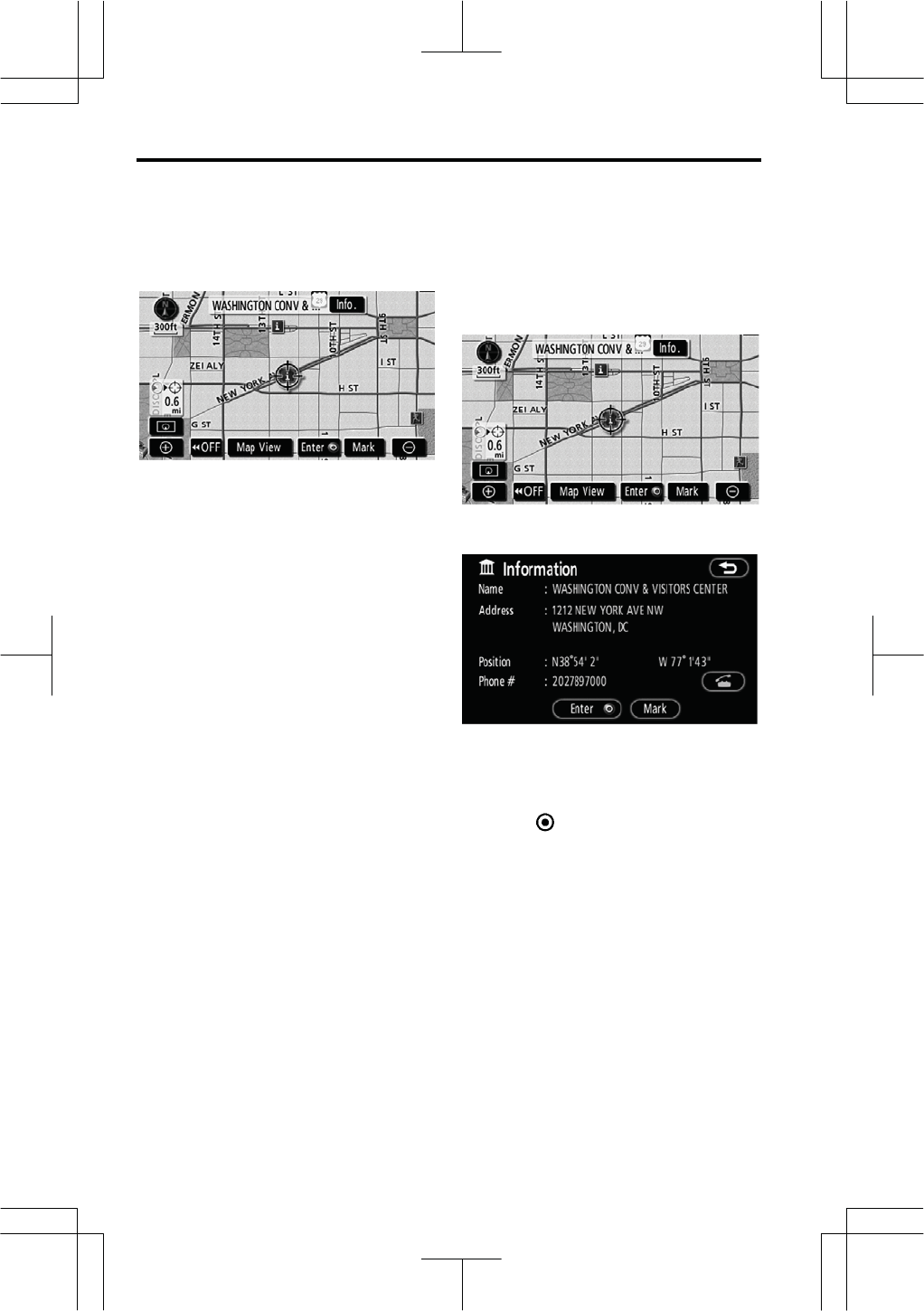

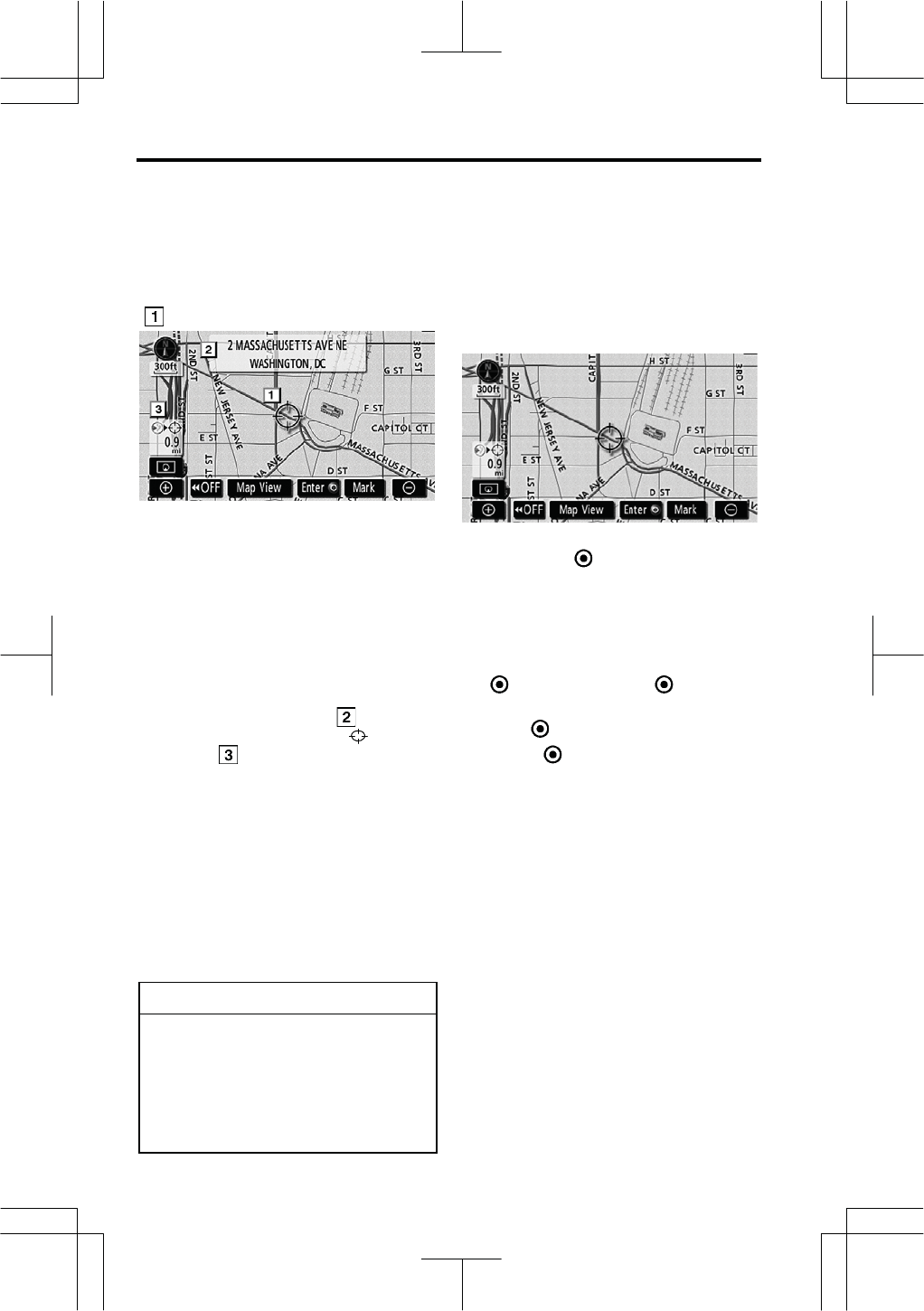

When starting the navigation system, the
current position is displayed first.
This screen displays the current vehicle
position and a map of the surrounding
local area.
The current vehicle position mark ( )
appears in the center or bottom center of
the map screen.
A street name will appear on the bottom
of the screen, depending on the scale of
the map ( ).
You can return to this map screen that
shows your current position at any time
from any screen by pushing the “MAP”
button.
While driving, the current vehicle position
mark is fixed on the screen and the map
moves.
The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle re-
ceives signals from the GPS.
INFORMATION
zAfter battery disconnection, or on
a new vehicle, the current posi-
tion may not be correct. As
soon as the system receives sig-
nals from the GPS, the correct
current position is displayed.
zTo correct the current position
manually, see page 111.
Function hel
p
Map screen operation —
— Current
p
osition dis
p
la
y
BASIC FUNCTION
28
V573_E
When any point on the map is touched,
that point moves to the center of the
screen and is shown by the cursor mark
().
Use the scroll feature to move the desired
point to the center of the screen for look-
ing at a point on the map that is different
from the current position of the vehicle.
If the finger is continuously held on the
screen, the map will continue scrolling in
that direction until the finger is removed.
A street name, city name, etc. of the
touched point will be shown, depending
on the scale of the map ( ). Distance
from the current position to will also
be shown ( ).
After the screen is scrolled, the map re-
mains centered at the selected location
until another function is activated. The
current vehicle position mark will con-
tinue to move along your actual route
and may move off the screen. When the
“MAP” button is pushed, the current
vehicle position mark returns to the cen-
ter of the screen and the map moves as
the vehicle proceeds along the desig-
nated route.
INFORMATION
When the one-touch scroll feature is
used, the current vehicle position
mark may disappear from the screen.
Move the map with a one-touch scroll
again or push the “MAP” button to
return to the current vehicle position
map location display.
z To set the cursor position as a
destination
A specific point on the map can be set as
a destination using the one-touch scroll
function.
Touch “Enter ”.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Start-
ing route guidance” on page 61.)
If there is already a set destination, “Add
to ” and “Replace ” are dis-
played.
“Add to ”: To add a destination.
“Replace ”: To delete the existing
destinations and set a new one.
— Screen scroll operation
(
oneítouch scroll
)
BASIC FUNCTION
29
V573_E
z To register the cursor position as
a memory point
Memory point registration enables easy
access to a specific point.
Touch “Mark”.
When you touch “Mark”, the following
screen appears for a few seconds, and
then the map screen returns.
The registered point is shown by on
the map.
To change the icon or name, etc., see
“ — Editing memory points” on page 92.
Up to 106 memory points can be regis-
tered. If there is an attempt to register
more than 106, a message appears for
confirmation.
BASIC FUNCTION
30
V573_E
z To see information about the icon
where the cursor is set
To display information about an icon, set
the cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and “Info.” are displayed on the
top of the screen.
Touch “Info.”.
Information such as the name, address,
position and phone number are dis-
played.
If “Enter ” is touched, the position of
the cursor is set as a destination.
BASIC FUNCTION
31
V573_E
If there is already a set destination, “Add
to ” and “Replace ” are dis-
played.
“Add to ”: To add a destination.
“Replace ”: To delete the existing
destinations and set a new one.
To register this POI as a memory point,
touch “Mark”. (See “ — Registering
memory points” on page 91.)
If is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See
“ — Display POI icons” on page 78.)
MEMORY POINT INFORMATION
When the cursor is set on a memory
point icon, the name and “Info.” are
displayed on the top of the screen.
Touch “Info.”.
Information such as the name, address,
position and phone number are dis-
played.
If “Enter ” is touched, the position of
the cursor is set as a destination.
If there is already a set destination, “Add
to ” and “Replace ” are dis-
played.
“Add to ”: To add a destination.
“Replace ”: To delete the existing
destinations and set a new one.
To edit a memory point, touch “Edit”.
(See “ — Editing memory points” on
page 92.)
To delete a memory point, touch “De-
lete”.
If is touched, the registered tele-
phone number can be called.
BASIC FUNCTION
32
V573_E

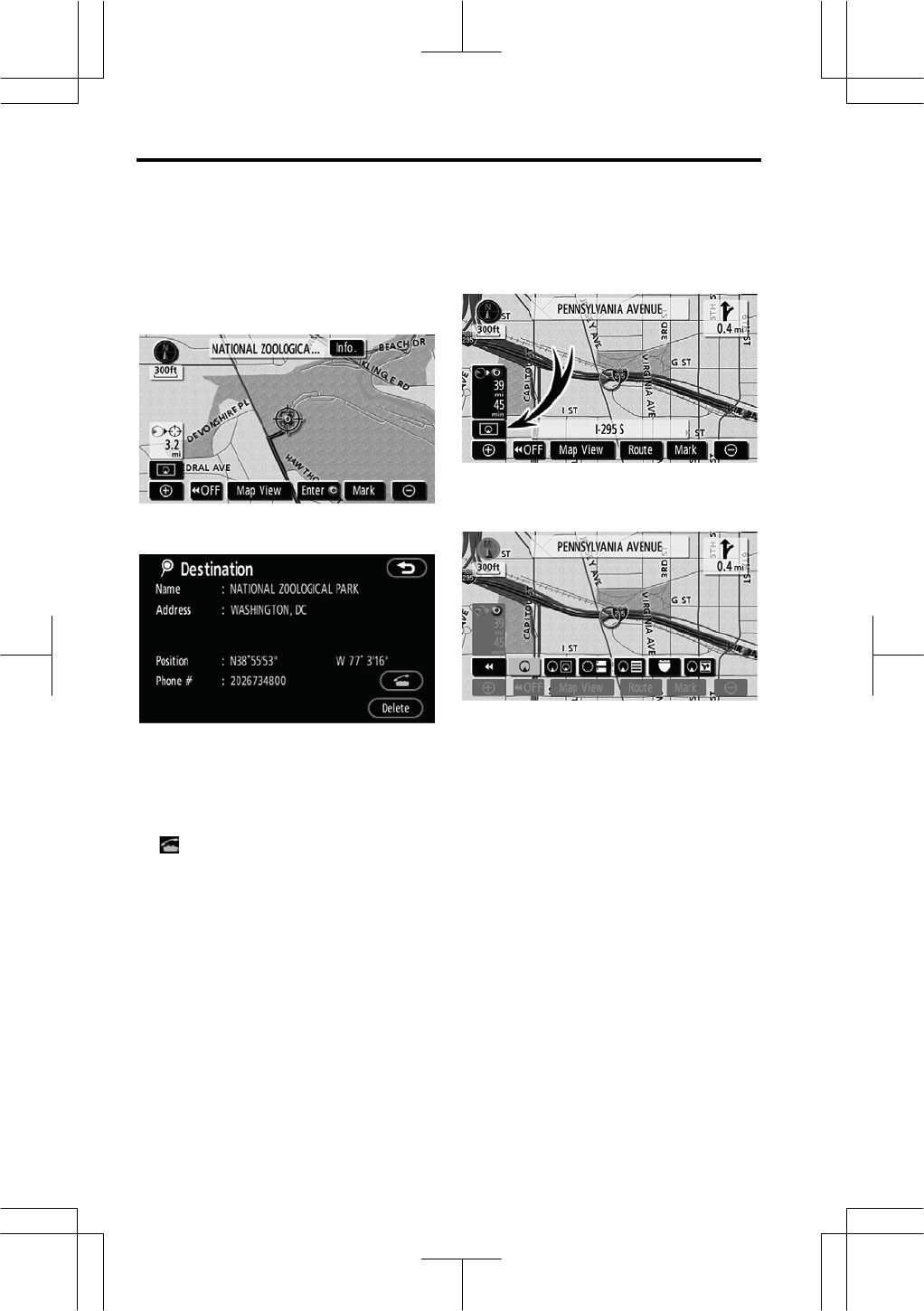

DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
position and phone number are dis-
played.
To delete a destination, touch “Delete”.
If is touched, the registered tele-
phone number can be called.
Any one of the screen configurations can
be selected.
1. Touch this touch screen button to
display the following screen.
2. To select the desired screen con-
figuration, touch one of the following
touch screen buttons.
— Switchin
g
the screens
BASIC FUNCTION
33
V573_E
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
: To display the single map screen.
(See page 34.)
: To display the dual map screen.
(See page 34.)
: To display the compass mode
screen. (See page 35.)
: To display the turn list screen.
(See page 68.)
: To display the arrow screen. (See
page 68.)
: To display the freeway informa-
tion screen. (See page 66.)

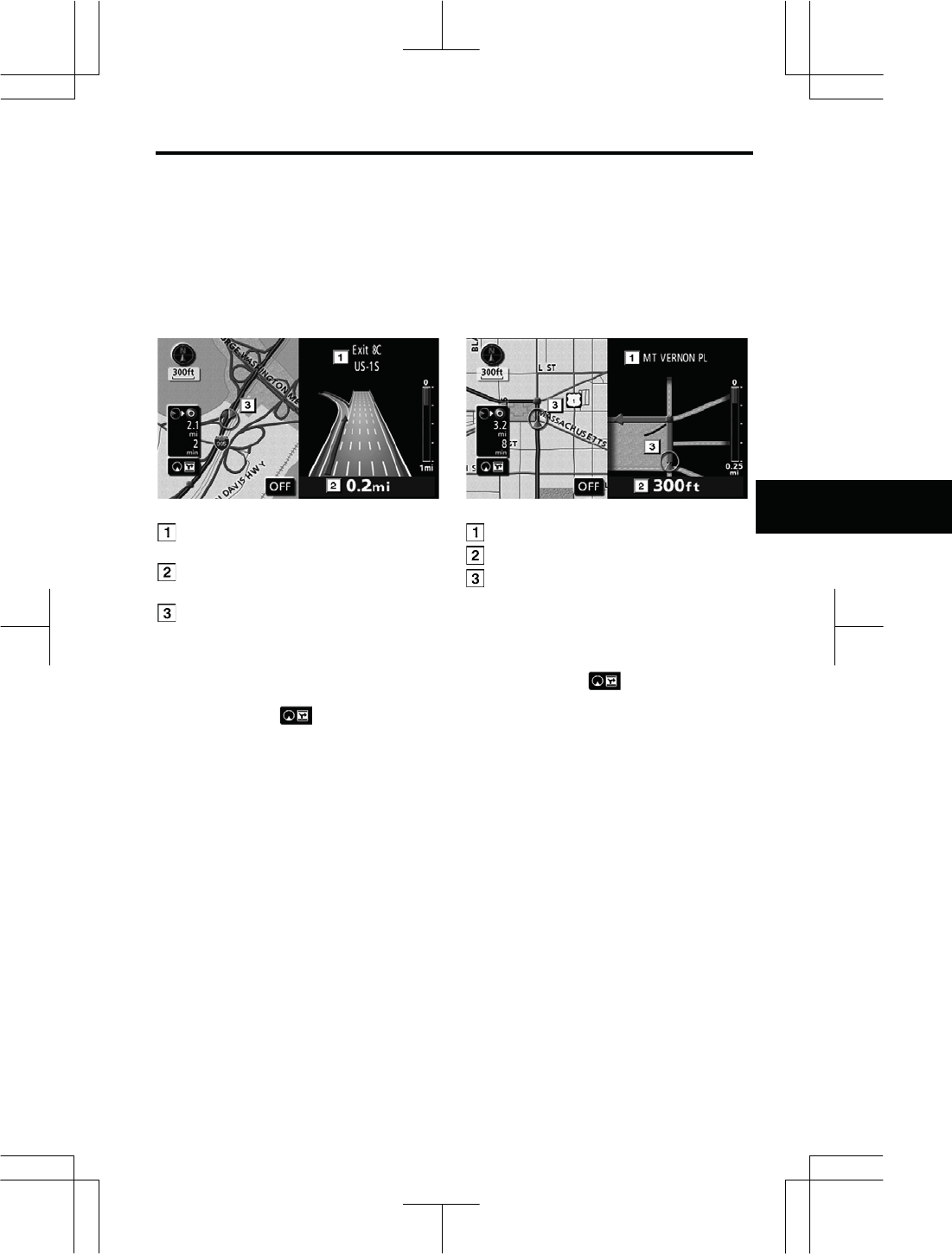

: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
67.)
z Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.
BASIC FUNCTION
34
V573_E
DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The
map on the left is the main map.
The right side map can be edited by
touching any specific point on the right
side map.
This screen can perform the following
procedures.
1. Changing the map scale
2. Displaying the POI icons
3. Show XM® NavTraffic info. (See page
XX.)
4. Changing the orientation of the map
Touch “OK” when you complete edit-
ing.
The screen returns to the dual map
screen.
COMPASS MODE
Current vehicle position is indicated with
a compass, not with a map.
While on a different screen, touching
will display the compass mode
screen.
Information about the destination and
current position, as well as a compass, is
displayed on the screen.
The destination mark is displayed in the
direction of the destination. When driv-
ing refer to the longitude and latitude
coordinates, and the compass, to make
sure that your vehicle is headed in the
direction of the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.
BASIC FUNCTION
35
V573_E
Touch or to change the
scale of the map display. The scale bar
and indicator at the bottom of the screen
indicates the map scale menu. The
scale range is 150 feet (50 m) to 250
miles (400 km).
Touch or until the scale bar
changes normally. By continuing to
touch the touch screen button, the scale
bar changes smoothly.
The scale of the map display can be
changed by touching the scale bar di-
rectly. It is not available while driving.
The map scale is displayed under the
North-up symbol or Heading-up symbol
at the top left of the screen.
INFORMATION
When the map scale is at the maximum
range of 250 miles (400 km), is
not shown.
When the map scale is at the minimum
range of 150 feet (50 m), is not
shown.
ŹNorth-up screen
ŹHeading-up screen
Ź3D map
Touching the orientation symbol at the
top left of the screen changes the orien-
tation from North-up to Heading-up ori-
entation, and the configuration from 2D
to 3D.
— Ma
p
scale
— Changing map
orientation and confi
g
u
r
ation
BASIC FUNCTION
36
V573_E
Northíup symbol
Regardless of the direction of vehicle
travel, North is always up.
Headingíup symbol
The direction of vehicle travel is always
up. A red arrow indicates North.
3D map symbol
The screen appears in 3D Heading up
orientation.
Guidance to a destination occurs by
specifying the destination using the “POI
Name”.
1. Push the “DEST” button.
2. Touch “POI Name”.
INFORMATION
There are 14 different methods to
search destinations. (See “Destina-
tion search” on page 42.)
Example of navigation
system operation —
— Guidin
g
the route
BASIC FUNCTION
37
V573_E
3. Enter the name of the destination.
Every touch on a letter key narrows the
selection.
Letters that cannot be selected in the
database are dimmed out.
When there are four or fewer database
items, these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
4. Select the destination from the
displayed list.

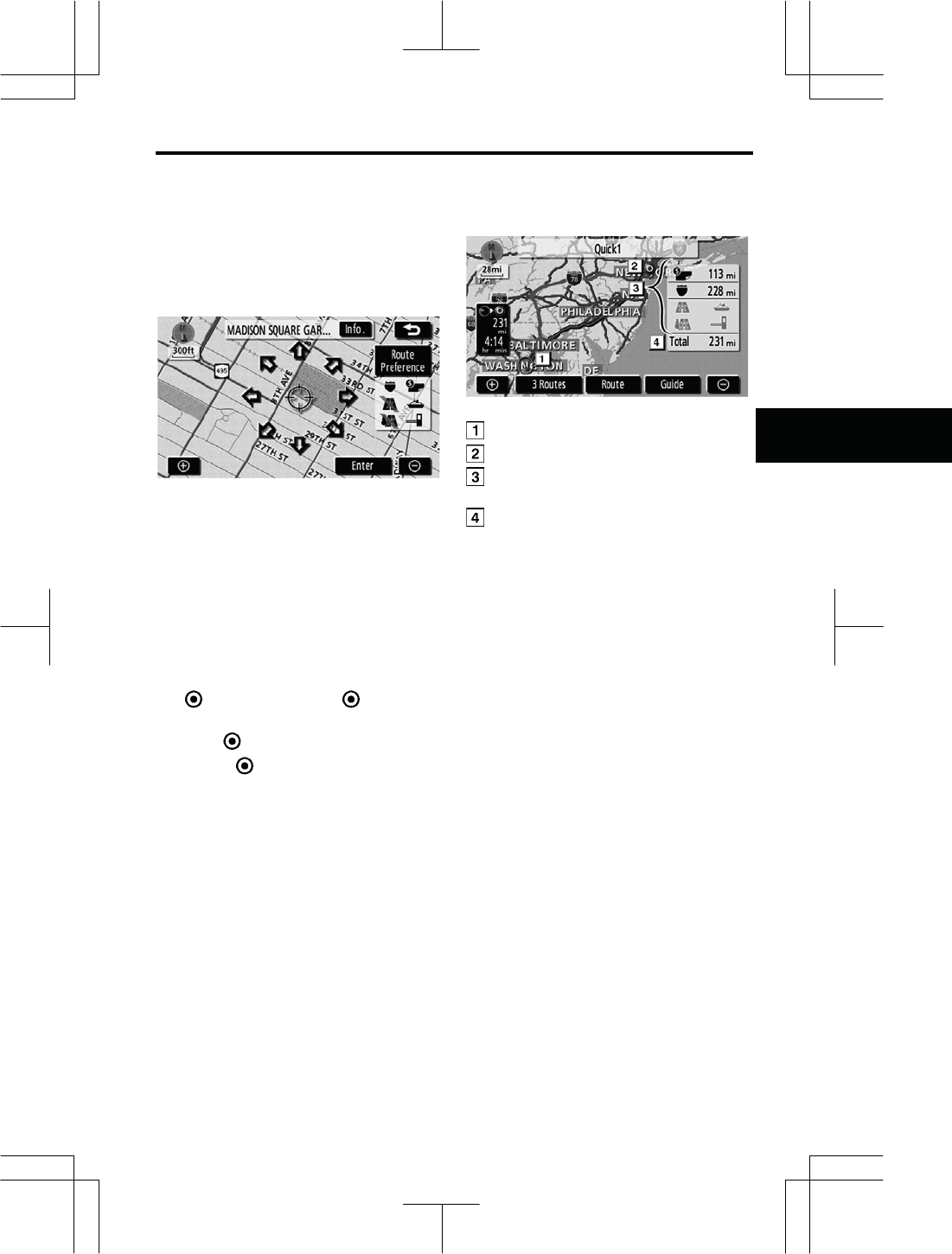

5. Touch “Enter”.
The system starts route search and dis-
plays recommended routes.
6. Touch “Guide”.
Route guidance starts.
Guidance is done by both the screen and
voice. (See “Route guidance screen”
and “Typical voice guidance prompts” on
pages 66 and 69.)
INFORMATION
It is possible to change the route.
(See “Starting route guidance” on
page 61.)
BASIC FUNCTION
38
V573_E
The home touch screen button on the
“Destination” screen can be used if your
home has been registered. (See “ —
Destination search by Home” on page
45.)
1. Push the “NAVI” button.
2. Touch “My Places”.
3. Touch “Register”.
4. Touch “Address”.
5. Enter the street name.
Every touch on a letter key narrows the
selection.
Letters that cannot be selected in the
database are dimmed out.
When there are four or fewer database
items, these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
6. Select the street name from the
displayed list.
— Re
g
isterin
g
home
BASIC FUNCTION
39
V573_E

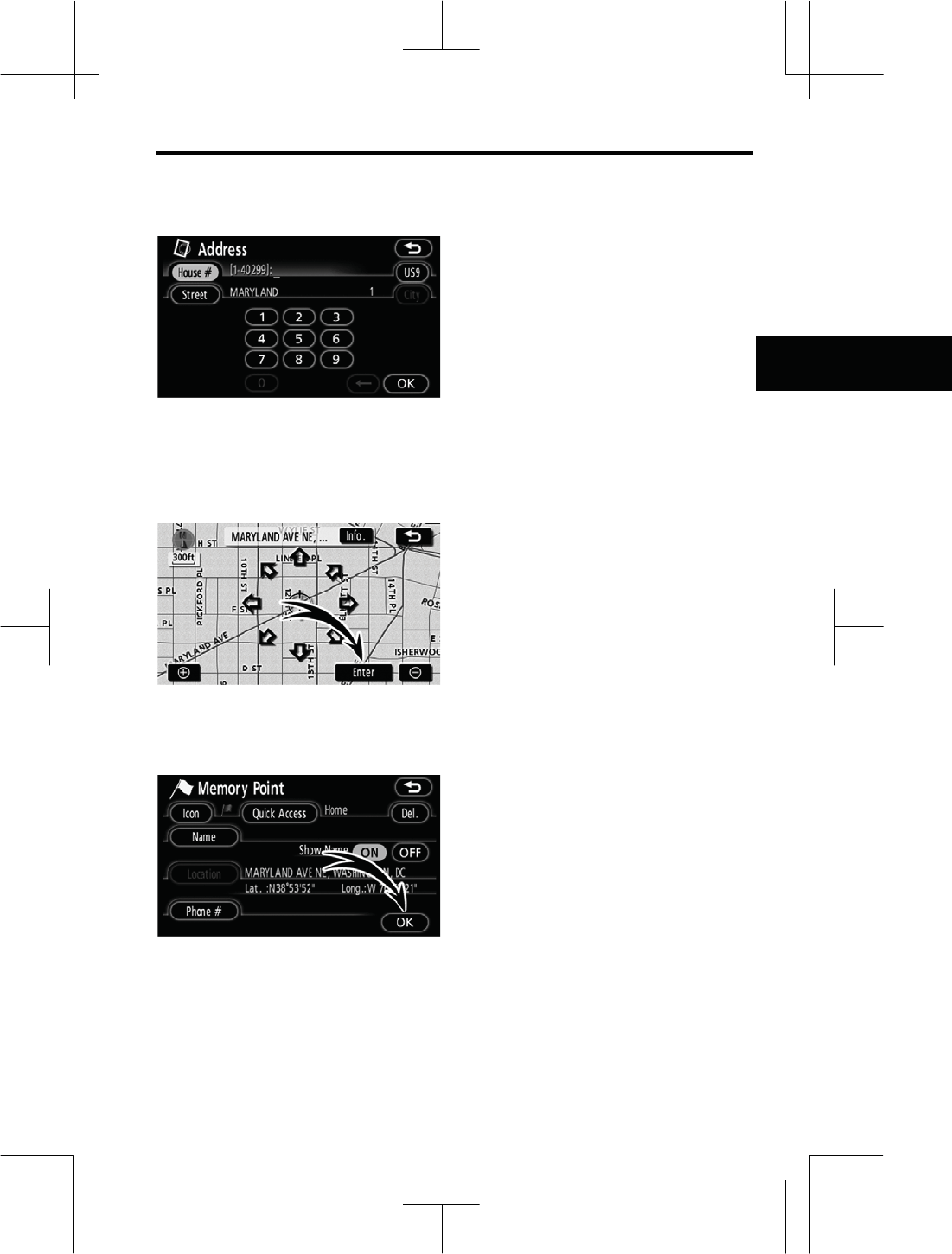

7. Enter the house number.
If the same street exists in more than
one city, the current screen changes to
the city list screen. Select the city
name.
8. Touch “Enter”.
Registration of home is complete and the
“Memory Point” screen is displayed.
Registered “Home” information will
be displayed.
The icon, quick access, name, location,
and phone number can be changed.
(See “ — Editing memory points” on
page 92.)
BASIC FUNCTION
40
V573_E
DESTINATION SEARCH
41
V573_E
SECTION 2
DESTINATION SEARCH
z Destination search ··········································································· 42
Selecting the search area ································································ 42
Destination search by Home···························································· 45
Destination search by Quick access················································ 45
Destination search by “Address”······················································ 46
Destination search by “POI Name”················································· 49
Destination search by “POI Category”············································ 52
Destination search by “Emergency”················································· 55
Destination search by “Memory”······················································ 56
Destination search by “Previous”····················································· 57
Destination search by “Map” ···························································· 57
Destination search by “Intersection” ················································ 58
Destination search by “Freeway Ent./Exit”······································· 59
Destination search by “Coordinates” ··············································· 60
Destination search by “Phone #” ····················································· 60
z Starting route guidance ······································································ 61
: Point of Interest
DESTINATION SEARCH
42
V573_E
Push the “DEST” button.
You can use one of 13 different methods
to search your destination. (See pages
45 through 60.)
INFORMATION
When searching the destination, the
response to the touch screen button
may be slow.
SELECTING THE SEARCH AREA ON
THE DESTINATION SCREEN
1. Push the “DEST” button.
2. Touch “Change” on the “Destina-
tion” screen to display a map of the
United States and Canada divided into
14 areas. (For map database informa-
tion and updates, see “Map database
information and updates” on page 248.)
3. Touch one of “US1” through “PR”
to select a search area.
4. Touch “OK” and the “Destination”
screen returns.
Destination search— —Selectin
g
the search area
DESTINATION SEARCH
43
V573_E
SELECTING THE SEARCH AREA ON
THE INPUT SCREEN
Change the search area in order to set a
destination from a different area by using
“Address”, “POI Name”, “Intersection” or
“Freeway Ent./Exit”.
1. Touch the search area button like
“US9” on the input screen to display a
map of the United States and Canada
divided into 14 areas. (For map data-
base information and updates, see “Map
database information and updates” on
page 248.)
2. Touch one of “US1” through “PR”
to select a search area.
3. Touch “OK” and the previous
screen returns.
U.S.A.
Button States included in the
search area
“US1”
Idaho
Oregon
Washington
“US2” California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5” Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
DESTINATION SEARCH
44
V573_E
U.S.A.
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
“HI” Hawaii
“AK” Alaska
“PR” Puerto Rico
Virgin Islands
Canada
Button
Provinces and regions
included in the search
area
“CAN”
All provinces and re-
gions in Canada in-
cluded in this button.
1. Push the “DEST” button.
2. Touch the home touch screen
button on the “Destination” screen.
The screen changes and displays the
map location for home and the route
preference. (See “Starting route guid-
ance” on page 61.)
To use this function, it is necessary to
set “Home” for the memory point. (To
register “Home”, see page 97.)
— Destination search by
Home
DESTINATION SEARCH
45
V573_E
1. Push the “DEST” button.
2. Touch any of the quick access
touch screen buttons on the “Desti-
nation” screen.
The screen changes and displays the
map location of the quick access point
and route preference. (See “Starting
route guidance” on page 61.)
To use this function, it is necessary to
set “Quick Access” for each memory
point. (To register “Quick Access”, see
page 94.)
There are 2 ways to input a destination
by address.
1. Push the “DEST” button.
2. Touch “Address” on the “Desti-
nation” screen.
— Destination search by
Quick access
—Destination search by
“Address”
DESTINATION SEARCH
46
V573_E
(a) Inputting a street name
1. Input the street name.
2. Touch the touch screen button of
the desired street name.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Starting
route guidance” on page 61.)
3. Input the house number.
If the house number list screen appears,
an address range on that screen can be
selected.
If the same street exists in more than
one city, the current screen changes to
the city list screen.
If more than one street of the same
name exist in a city, the current screen
changes to the street list screen.
DESTINATION SEARCH
47
V573_E
(b) Selecting a city to search
Touch “City”.
To search by city, the following three
methods are possible.
1. Input the city name
2. Select from the nearest 5 cities
3. Select from the last 5 cities
INFORMATION
zTo change the search area, touch
“Search Area”.
zTo cancel the city setting, touch
“Any City”.
INPUTTING THE CITY NAME
1. Touch “Input City Name”.
2. Input the city name.
3. Touch the touch screen button of
the desired city name from the dis-
played list.
“Map”: To display the selected destina-
tion and the route preference. (See
“Starting route guidance” on page 61.)
The current screen changes to the
screen for inputting a street name. After
inputting a street name, the screen may
change to the screen for inputting a
house number or a street map.
DESTINATION SEARCH
48
V573_E
SELECTING FROM THE NEAREST 5
CITIES
1. Touch “Nearest 5 Cities”.
2. Touch the touch screen button of
the desired city name from the dis-
played list.
The current screen changes to the
screen for inputting a street name. After
inputting a street name, the screen may
change to the screen for inputting a
house number or a street map.
SELECTING FROM THE LAST 5
CITIES
Touch the touch screen button of the
desired city name.
If the navigation has never been used,
no cities will be displayed on the screen.
The current screen changes to the
screen for inputting a street name. After
inputting a street name, the screen may
change to the screen for inputting a
house number or a street map.
DESTINATION SEARCH
49
V573_E
1. Push the “DEST” button.
2. Touch “POI Name” on the “Des-
tination” screen.
3. Input the name of the Point of
Interest.
4. Touch the touch screen button of
the desired destination.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Start-
ing route guidance” on page 61.)
When inputting the name of a specific
Point of Interest, and there are two or
more sites with the same name, the list
screen is displayed.
Touch the touch screen button of the
desired destination.
If the same name exists in more than
one city, a search can be performed
more easily with “City” and “Category”.
(See “(a) Selecting a city to search” on
page 50 and “(b) Selecting from the
categories” on page 52.)
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See
“ — Display POI icons” on page 78.)
— Destination search by
“POI Name”
DESTINATION SEARCH
50
V573_E
(a) Selecting a city to search
Touch “City”.
To search by city, the following three
methods are possible.
1. Input the city name
2. Select from the nearest 5 cities
3. Select from the last 5 cities
INFORMATION
zTo change the search area, touch
“Search Area”.
zTo cancel the city setting, touch
“Any City”.
INPUTTING THE CITY NAME
1. Touch “Input City Name”.
2. Input the city name.
3. Touch the touch screen button of
the desired city name from the dis-
played list.
DESTINATION SEARCH
51
V573_E
SELECTING FROM THE NEAREST 5
CITIES
1. Touch “Nearest 5 Cities”.
2. Touch the touch screen button of
the desired city name.
SELECTING FROM THE LAST 5
CITIES
Touch the touch screen button of the
desired city name.
If the navigation has never been used,
no cities will be displayed on the screen.
DESTINATION SEARCH
52
V573_E
(b) Selecting from the categories
Touch “Category”.
If the desired POI category is on the
screen, touch the name to display a de-
tailed list of the POI category.
If the desired POI category is not on the
screen, touch “List All Categories” to
list all POI categories.
When the desired category is touched,
the POI name list or POI name input
screen is displayed.
The destination can be set by selecting
the search point and the POI category.
1. Push the “DEST” button.
2. Touch “POI Category” on the
“Destination” screen.
3. Set the search point by the fol-
lowing method:
1. Input the city center
2. Set the current position as the search
point
3. Set the search point via the map
screen
4. Set the search point from any desti-
nation
It is possible to display the names of
POIs located within approximately 20
miles (32 km) from the selected search
point.
— Destination search by
“POI Cate
g
or
y
”
DESTINATION SEARCH
53
V573_E
INPUTTING THE CITY CENTER
1. Touch “Input City Center”.
2. Input the city center name.
3. Touch the touch screen button of
the desired city center name.
When an arrow facing the desired point
is touched, the map scrolls in that direc-
tion. Releasing the finger from the arrow
will stop the scrolling.
4. Touch “Enter”.
The search point is set and the “POI
Category” screen will be displayed.
SETTING THE CURRENT POSITION
AS THE SEARCH POINT
Touch “Current Position”.
The search point is set at the current
position, and the “POI Category” screen
will be displayed.
SETTING THE SEARCH POINT VIA
THE MAP SCREEN
1. Touch “Map”.
When an arrow facing the desired point
is touched, the map scrolls in that direc-
tion. Releasing the finger from the arrow
will stop the scrolling.
2. Touch “Enter”.
The search point is set and the “POI
Category” screen will be displayed.
DESTINATION SEARCH
54
V573_E
SETTING THE SEARCH POINT FROM
DESTINATIONS
1. Touch the destination buttons,
numbered 1 through 5, at the bottom
of the screen. (This function is only
available when you already have at
least one destination set.)
When an arrow facing the desired point
is touched, the map scrolls in that direc-
tion. Releasing the finger from the arrow
will stop the scrolling.
2. Touch “Enter”.
The search point is set and the “POI
Category” screen will be displayed.
z To search POIs near the search
point
When the search point is set, the “POI
Category” screen will be displayed.
Select the desired POI categories.
“List”: If the desired POI categories
have already been selected, a list of POI
will be displayed from among the se-
lected categories.
The selected category icon appears on
the top left of the screen.
If the desired POI category is not on the
screen, touch “List All Categories” to
list all POI categories.
Select the desired POI categories
from the list and touch “OK”.
The selected category icon appears on
the top left of the screen.
DESTINATION SEARCH
55
V573_E
“Select Category”: To return to the POI
category selection screen.
“Show List”: To display the list of POIs
in the selected categories.
By touching the touch screen button of
the desired item, the screen changes
and displays the map location of the se-
lected destination and the route prefer-
ence. (See “Starting route guidance” on
page 61.)
The direction arrows of POIs are dis-
played only when the current position is
set as the search point.
“On Route”: When the indicator is illu-
minated by touching this touch screen
button, the list of the items searched
along the route is displayed.
1. Push the “DEST” button.
2. Touch “Emergency” on the “Des-
tination” screen.
The display changes to a screen to select
police stations, dealers, hospitals or fire
stations. While driving, only nearby police
stations, dealers, hospitals, or fire stations
are shown. The current position is shown
with an address, and the latitude and the
longitude at the top of the screen.
3. Touch the desired emergency
category.
The selected emergency category list is
displayed.
— Destination search by
“Emer
g
enc
y
”
DESTINATION SEARCH
56
V573_E
4. Touch the touch screen button of
the desired destination.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Starting
route guidance” on page 61.)
INFORMATION
The navigation system does not
guide in areas where route guidance
is unavailable. (See page 247.)
1. Push the “DEST” button.
2. Touch “Memory” on the “Destina-
tion” screen.
To displays your list of registered mem-
ory points. (To register or edit memory
points, see “My Places” on page 90.)
3. Touch the touch screen button of
the desired memory point.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Start-
ing route guidance” on page 61.)
— Destination search by
“Memo
r
y
”
DESTINATION SEARCH
57
V573_E

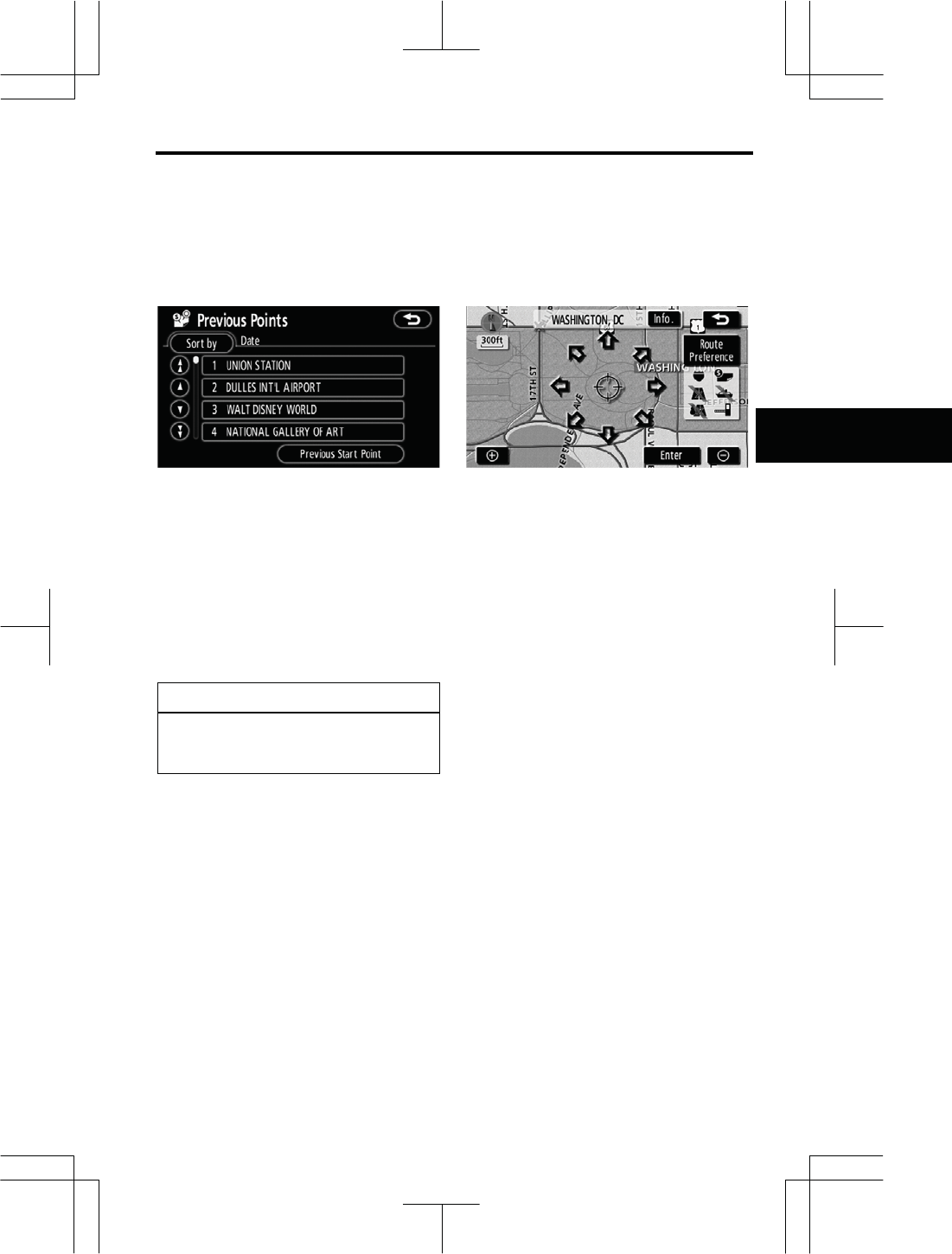

1. Push the “DEST” button.
2. Touch “Previous” on the “Desti-
nation” screen.
The previous starting point and up to 100
previously set destinations are displayed
on the screen.
3. Touch the touch screen button of
the desired destination.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Start-
ing route guidance” on page 61.)
INFORMATION
The list of previous destinations can
be deleted. (See “ — Deleting pre-
vious points” on page 102.)
1. Push the “DEST” button.
2. Touch “Map” on the second page
of the “Destination” screen.
The screen changes and displays the
map location that was previously dis-
played just before the destination input
operation and the route preference.
(See “Starting route guidance” on page
61.)
— Destination search by
“Previous”
— Destination search by
“Ma
p
”
DESTINATION SEARCH
58
V573_E
1. Push the “DEST” button.
2. Touch “Intersection” on the sec-
ond page of the “Destination” screen.
3. Input the name of the two inter-
secting streets which are located near
the destination to be set.
4. Touch the touch screen button of
the desired item.
After inputting the two intersecting
streets, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See
“Starting route guidance” on page 61.)
If the same two streets cross at more
than one intersection, the screen
changes and displays the menu to select
the city name where the streets intersect.
Select the city, and the map location of
the selected destination and the route
preference. (See “Starting route guid-
ance” on page 61.)
— Destination search by
“Intersection”
DESTINATION SEARCH
59
V573_E
1. Push the “DEST” button.
2. Touch “Freeway Ent./Exit” on the
second page of the “Destination”
screen.
Be sure to use the complete name of the
freeway or highway, including the hy-
phen, when entering the destination.
Freeways and interstates use an “I” (i.e.,
Ií405). US Highways use the state des-
ignation before the number (i.e.,
CAí118).
3. Select the desired freeway by
touching the touch screen button.
4. Either a freeway “Entrance” or
“Exit” can be selected.
5. Touch the touch screen button of
the desired entrance or exit name.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Starting
route guidance” on page 61.)
“Input Name”: An applicable list is dis-
played by touching this touch screen
button and inputting the name.
— Destination search b
y
“Freewa
y
Ent./Exit”
DESTINATION SEARCH
60
V573_E

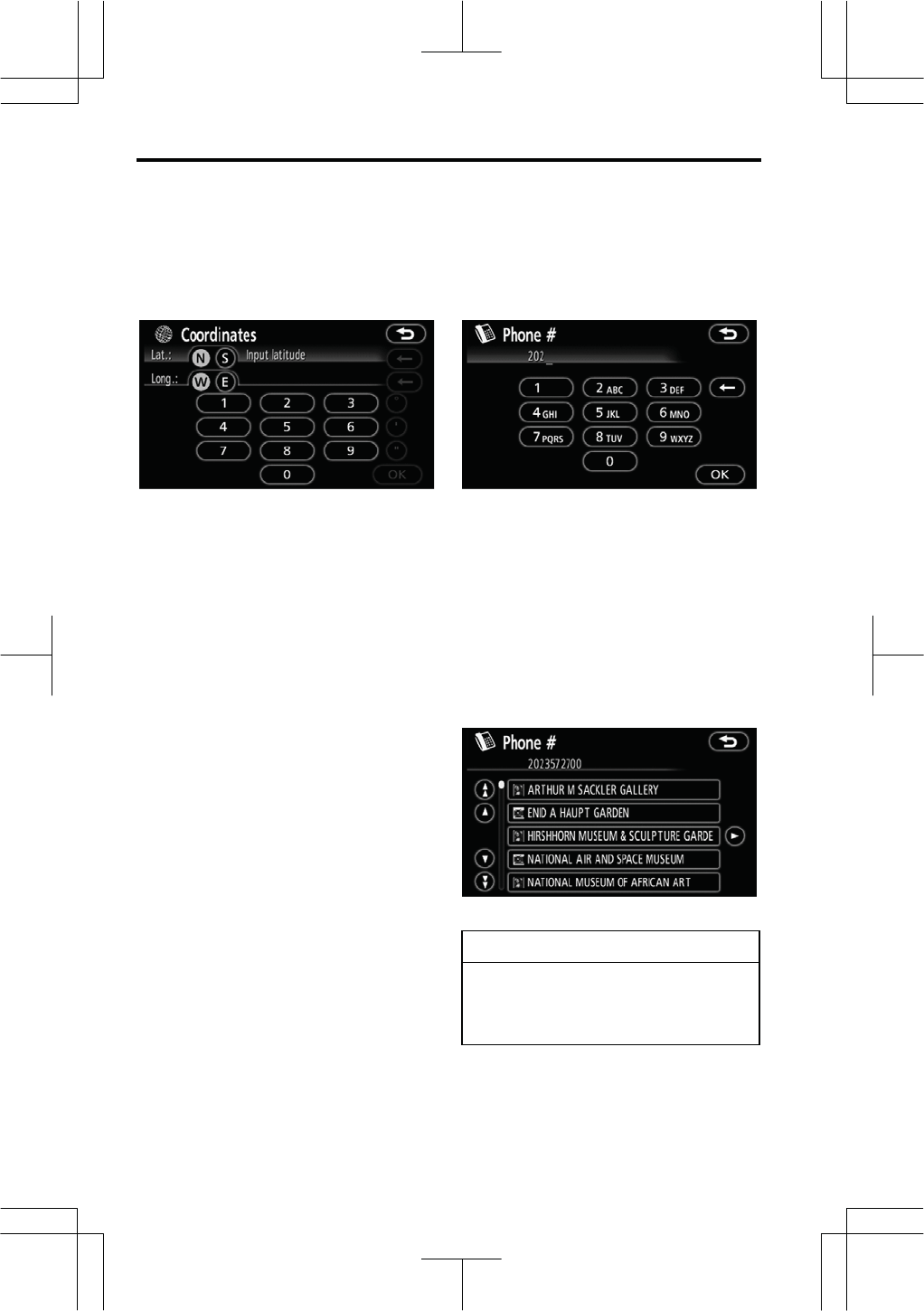

1. Push the “DEST” button.
2. Touch “Coordinates” on the sec-
ond page of the “Destination” screen.
3. Input the latitude and the longi-
tude.
4. When the input is finished, touch
“OK”.
By touching the touch screen button of
the desired point, the screen changes
and displays the map location of the se-
lected destination and the route prefer-
ence. (See “Starting route guidance” on
page 61.)
1. Push the “DEST” button.
2. Touch “Phone #” on the second
page of the “Destination” screen.
3. Input a telephone number.
4. After inputting a telephone num-
ber, touch “OK”.
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Start-
ing route guidance” on page 61.)
If there is more than one site having the
same number, the following screen will
be displayed.
INFORMATION
To set a memory point as a destina-
tion using the phone number, the
number must be registered previ-
ously. (See page 96.)
— Destination search by
“Coordinates”
— Destination search by
“Phone #”
DESTINATION SEARCH
61
V573_E
After inputting the destination, the screen
changes and displays the map location
of the selected destination and the route
preference.
1. When an arrow facing the desired
point is touched, the map scrolls in
that direction.
Releasing the finger from the arrow will
stop the scrolling.
2. Touch “Enter”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Add
to ” and “Replace ” are dis-
played.
“Add to ”: To add a destination.
“Replace ”: To delete the existing
destinations and set a new one.
“Route Preference”: To change the
route preference. (See page 62.)
“Info.”: If this touch screen button is
displayed on the top of the screen, touch
it to view items such as name, address,
and phone number.
Current position
Destination point
Type of the route and the dis-
tance
Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route
from three possible routes. (See page
63.)
“Route”: To change the route. (See
pages 72 and 75.)
Startin
g
route
g
uidance
DESTINATION SEARCH
62
V573_E
INFORMATION
zGuidance can be suspended or
resumed. (See “Suspending and
resuming guidance” on page 86.)
zIf “Guide” is touched until a beep
sounds, demo mode will start.
Push the “MAP” button to finish
demo mode.
zThe route for returning may not
be the same as that for going.
zThe route guidance to the desti-
nation may not be the shortest
route nor a route without traffic
congestion.
zRoute guidance may not be avail-
able if there is no road data for
the specified location.
zWhen setting the destination on a
map with a scale larger than 0.5
miles (800 m), the map scale
changes to 0.5 miles (800 m)
automatically. Set the destina-
tion again.
zIf a destination is entered, the
road nearest to the point you se-
lected is set as the destination.
CAUTION
Be sure to obey traffic regulations
and keep road conditions in mind
while driving. If a traffic sign on
the road has been changed, the
route guidance may provide wrong
information.
z To change the route before start-
ing guidance
ROUTE PREFERENCE
1. You can change route preference
by touching “Route Preference”.
2. Select the desired route prefer-
ence by touching the touch screen
button.
When searching for a route, the system
will avoid routes when the indicator is off.
3. After choosing the desired route
preference, touch “OK”.
INFORMATION
zEven if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in
some cases.
zIf the calculated route includes a
trip by ferry, the route guidance
shows a sea route. After you
travel by ferry, the current vehicle
position may be incorrect. Upon
reception of GPS signals, it is
automatically corrected.
DESTINATION SEARCH
63
V573_E
3 ROUTES SELECTION
1. To select the desired route from
three routes, touch “3 Routes”.
2. Touch “Quick1”, “Quick2” or
“Short” to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Alternative route.
This route is indicated by a purple line.
“Short”: A route by which you can reach
the destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following informa-
tion about each of the 3 routes.
Time necessary for the entire trip
Distance of the entire trip
Toll road
Freeway
Ferry
DESTINATION SEARCH
64
V573_E
ROUTE GUIDANCE
65
V573_E
SECTION 3
ROUTE GUIDANCE
z Route guidance screen······································································· 66

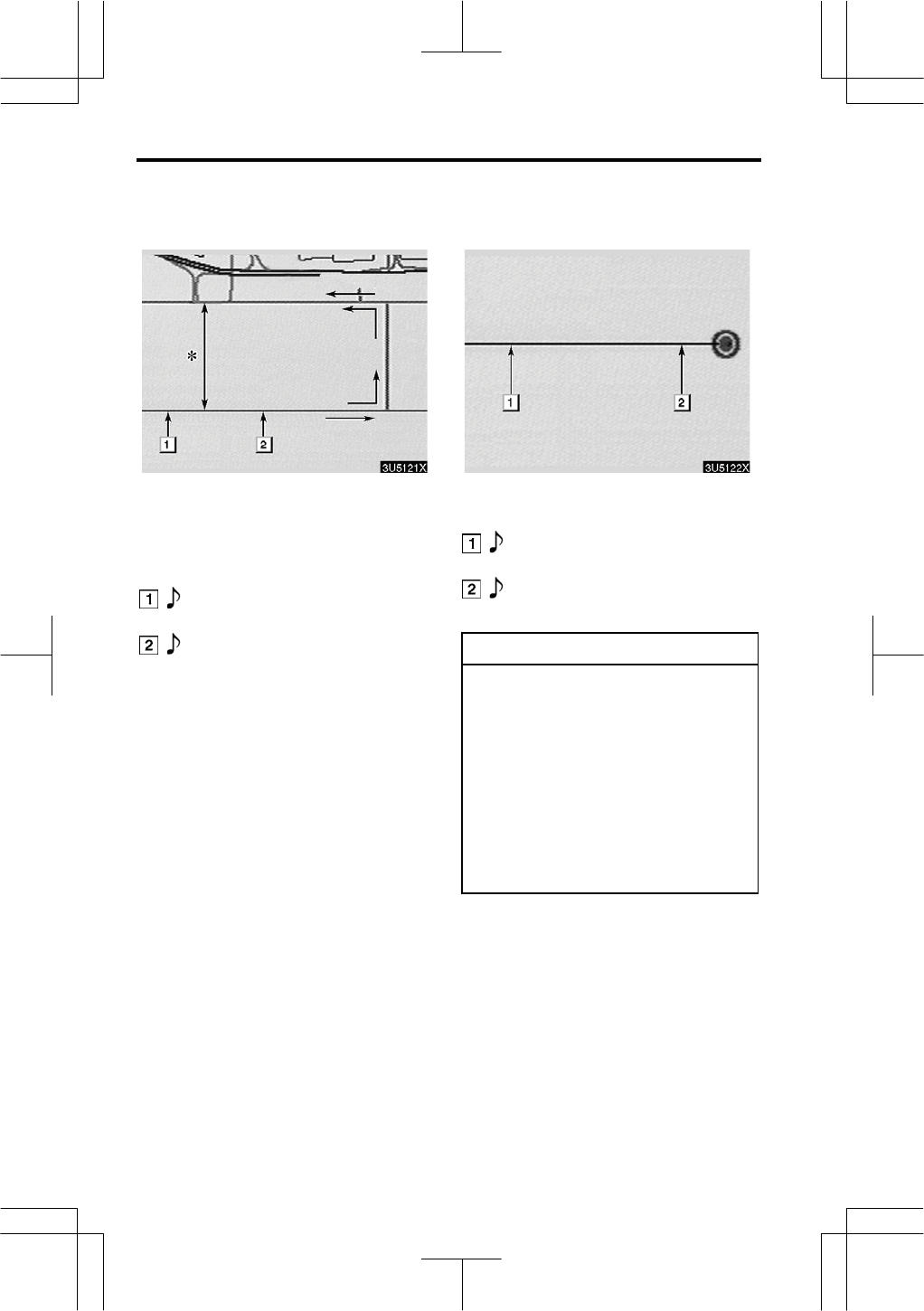

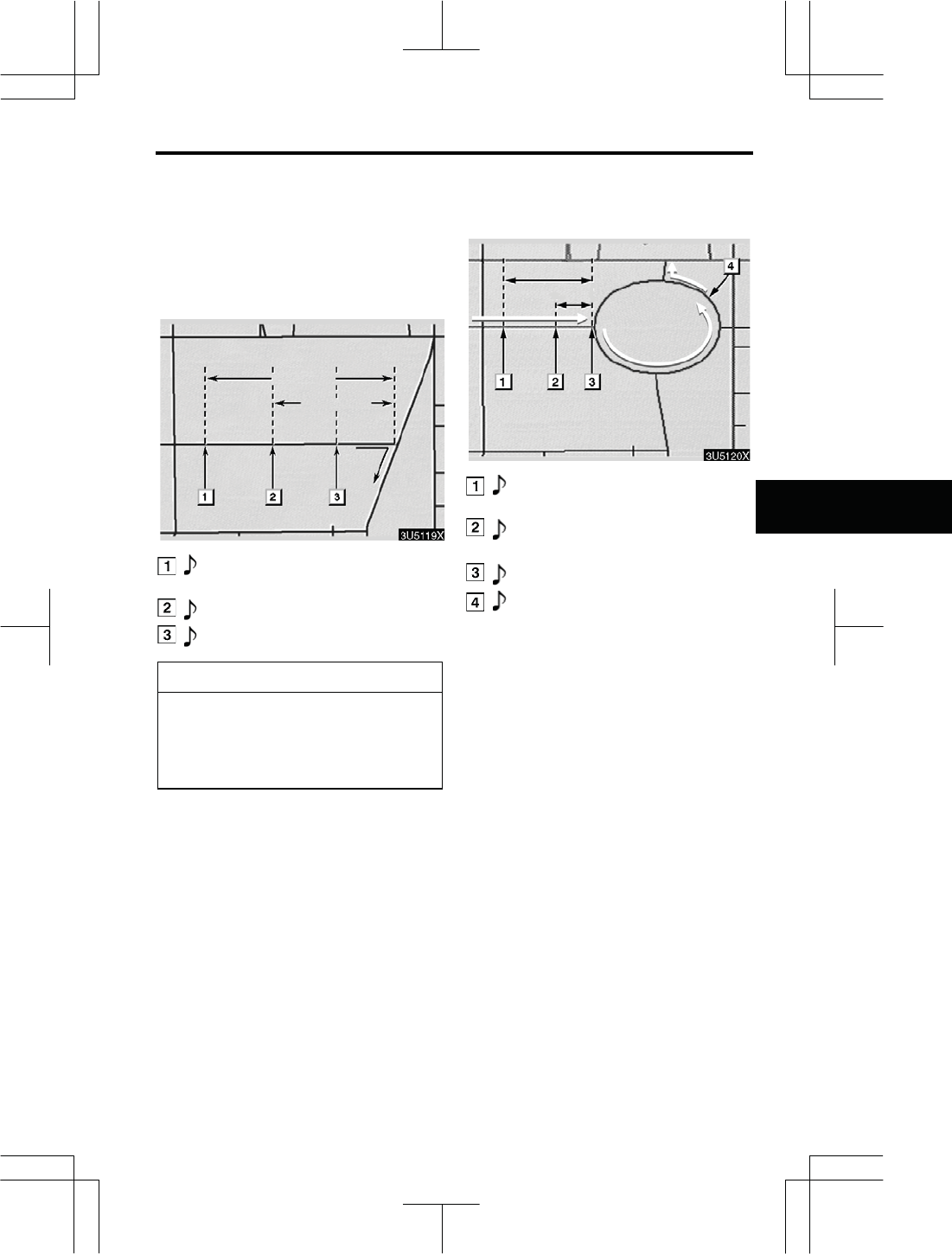

z Typical voice guidance prompts ························································· 69
z Distance and time to destination ························································ 71
z Setting and deleting destination····················································· 72
Adding destinations·········································································· 72
Reordering destinations ··································································· 73
Deleting destinations········································································ 74
z Setting route ····················································································· 75
Search condition ·············································································· 75
Detour setting··················································································· 76
Route preference ············································································· 77
Starting route from adjacent road ···················································· 78
z Map view···························································································· 78
Display POI icons ··········································································· 78
Route overview ················································································ 81
Route preview ·················································································· 82
Route trace ······················································································ 83
: Point of Interest
ROUTE GUIDANCE
66
V573_E
During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
z Screen layout
Distance to the next turn and the
arrow indicating turning direction
Current street name
Distance and travel/arrival time to
the destination
Current position
Guidance route
INFORMATION
zIf the vehicle goes off the guid-
ance route, the route is searched
again.
zFor some areas, the roads have
not been completely digitized in
our database. For this reason, the
route guidance may select road
that should not be traveled on.
zWhen you arrive at your destina-
tion, the destination name will be
displayed on the top of the
screen. Touching “OFF” clears
the display.
z During freeway driving
During freeway driving, this screen dis-
plays the distance to the next junction
and exit, or POIs in the vicinity of the
freeway exit.
Current position
Points of Interest that are close
to a freeway exit
Exit number and junction name
Distance from the current posi-
tion to the exit or junction
Current street name
:To display the selected map of the
exit vicinity.
:To scroll for farther junctions or
exits.
: To scroll for closer junctions or
exits.
: To scroll for the closest three junc-
tions or exits.
Route
g
uidance screen
ROUTE GUIDANCE
67
V573_E
z When approaching a freeway exit
or junction
When the vehicle approaches the exit or
junction, the guidance screen on the
freeway will be displayed.
Exit number and next street
name
Distance from the current posi-
tion to the exit or junction
Current position
“OFF”: Turns off freeway exit or junction
guidance screen.
To view this screen again, push the
“MAP” button or touch the screen con-
figuration button ( ).
z When approaching an intersec-
tion
When the vehicle approaches an inter-
section, the intersection guidance screen
will be displayed.
Next street name
Distance to the intersection
Current position
“OFF”: Turns off intersection guidance
screen.
To view this screen again, push the
“MAP” button or touch the screen con-
figuration button ( ).
ROUTE GUIDANCE
68
V573_E
z Other screens
TURN LIST SCREEN
On this screen, the list of turns on the
guidance route can be viewed.
Touching during guidance dis-
plays the turn list.
Next street name or destination
name
Turn direction
Distance to the next turn
Current street name
ARROW SCREEN
On this screen, information about next
turns on the guidance route can be
viewed.
Touching during guidance dis-
plays the arrow screen.
Exit number, street name con-
taining number or next street
name
Turn direction
Distance to the next turn
Current street name
ROUTE GUIDANCE
69
V573_E
The voice guidance provides various
messages as you approach an
intersection, or other point where you
need to maneuver the vehicle.
“Proceed about 5 miles on the
current road.”
“In a quarter of a mile right turn.”
“Next right.”
INFORMATION
On freeways, interstates or other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
“Proceed about 4 miles to the
traffic circle.”
“In a quarter of a mile traffic
circle ahead, then 3rd exit.”
“The 3rd exit ahead.”
“The exit ahead.”
Typical voice guidance
p
rom
p
ts
4.7 miles
0.25 miles+D
4.2 miles
0.25 miles
ROUTE GUIDANCE
70
V573_E
*: The system indicates a U-turn if the
distance between two one-way roads (of
opposite directions) is less than 50 feet
(15 m) in residential areas or 164 feet
(50 m) in non-residential areas.
“In a quarter of a mile make a
legal U-turn.”
“Make a legal U-turn ahead.”
The system announces the approach to
the final destination.
“In a quarter of a mile your des-
tination is ahead.”
“Your destination is ahead, your
route guidance is now finished.”
INFORMATION
zIf the system cannot determine
the current vehicle position cor-
rectly (in cases of poor GPS sig-
nal reception), the voice guidance
may be made early or delayed.
zIf you did not hear the voice
guidance command, push the
“MAP” button to hear it again.
zTo adjust the voice guidance
volume, see “Volume” on page
87.
One-way road
One-way road
ROUTE GUIDANCE
71
V573_E
When the vehicle is on the guidance
route, the distance and the estimated
travel/arrival time to the destination are
displayed. When the vehicle is not on
the guidance route, the distance and the
direction of the destination are displayed.
When driving on the guidance route and
more than one destination is set, the
distance and the estimated travel/arrival
time from the current position to each
destination are displayed.
1. Touch this touch screen button to
display the following screen.
2. Touch the number button to dis-
play the desired destination.
The distance, the estimated travel time
and the estimated arrival time from the
current position to the selected destina-
tion are displayed.
Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel
time.
Displayed while driving off the
guidance route. The destination
direction is indicated by an ar-
row.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along
the route is displayed. Travel time
and arrival time is calculated based
on the set vehicle speed informa-
tion. (See page 104.) However,
when the vehicle is not on the guid-
ance route, the distance is the linear
distance between the current posi-
tion and the destination.
Distance and time to
destination
ROUTE GUIDANCE
72
V573_E
Adding destinations and searching again
for the routes can be done.
1. Touch “Route”.
2. Touch “Add” of “Destination”.
3. Input an additional destination in
the same way as the destination input.
(See “Destination search” on page 42.)
4. Touch the desired “Add” to de-
termine the arrival order of the addi-
tional destination.
Setting and deleting
destination —
— Addin
g
destinations
ROUTE GUIDANCE
73
V573_E
When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch “Route”.
2. Touch “Reorder” of “Destination”.
3. Select the destination in the order
of arrival by touching the destination
button.
Reordered number of arrival is displayed
on the right side of the screen.
Touching “Undo” will cancel each se-
lected order number from the previously
input number.
4. After selecting the destinations,
touch “OK”.
The system searches for the guidance
route again, and displays the entire route.
Even if “OK” is not touched, the entire
route is displayed automatically within a
few seconds when the order is fixed.
— Reorderin
g
destinations
ROUTE GUIDANCE
74
V573_E
A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete” of “Destination”.
When more than one destination is set, a
list will be displayed on the screen.
3. Touch the destination for dele-
tion.
“Delete All”: To delete all destinations
on the list.
A message appears to confirm the re-
quest to delete.
4. To delete the destination(s), touch
“Yes”.
If “Yes” is touched, the data cannot be
recovered.
If “No” is touched, the previous screen
will return.
5. If more than one destination is set,
touch “OK” after deleting the destina-
tions.
The system searches for the guidance
route again, and displays the entire
route.
— Deletin
g
destinations
ROUTE GUIDANCE
75
V573_E
You can designate the road conditions of
the route to the destination.
1. Touch “Route”.
2. Touch “Search Condition”.
3. Touch “Quick”, “Quick1”,
“Quick2” or “Short” and touch “OK”.
The entire route from the starting point to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change a route. (See
pages 72 and 75.)
Setting route —
— Search condition
ROUTE GUIDANCE
76
V573_E
While the route guidance is operating,
you can change the route to detour
around a section of the route where a
delay is caused by road repairs, or an
accident, etc.
1. Touch “Route”.
2. Touch “Detour”.
3. Select the touch screen button
below to select the desired detour
distance.
“1 mile (km)”, “3 miles (km)” or “5
miles (km)”: Touch one of these touch
screen buttons to start the detour proc-
ess. After detouring, the system returns
to the original guidance route.
“Whole Route”: By touching this touch
screen button, the system will calculate
an entire new route to the destination.
“Around Traffic”: If you touch this but-
ton, the system will search for the route
based on the traffic congestion informa-
tion received.
— Detour settin
g
ROUTE GUIDANCE
77
V573_E
This picture shows an example of how
the system would guide around a delay
caused by a traffic jam.
This position indicates the location
of a traffic jam caused by road re-
pairs or an accident.
This route indicates the detour
suggested by the system.
INFORMATION
zWhen your vehicle is on a free-
way, the detour distance selec-
tions are 5, 15, and 25 miles (km).
zThe system may not be able to
calculate a detour route depend-
ing on the selected distance and
surrounding road conditions.
A number of choices are provided on the
conditions which the system uses to de-
termine the route to the destination.
1. Touch “Route”.
2. Touch “Route Preference” to
change the conditions that determine
the route to the destination.
3. Select the desired route prefer-
ence by touching the touch screen
button.
When searching for a route, the system
will avoid routes when the indicator is off.
4. After choosing the desired route
preference, touch “OK”.
— Route
p
reference
ROUTE GUIDANCE
78
V573_E
You can start the route guidance from
the adjacent road.
(ex. When route guidance is set on the
freeway, but the vehicle is driven parallel
along the freeway.)
1. Touch “Route”.
2. Touch “Start from Adjacent
Road”.
When there is no adjacent road, this
button will not be displayed.
Points of Interest such as gas stations
and restaurants can be displayed on the
map screen. You can also set their
location as a destination and use them
for route guidance.
1. Touch “Map View”.
2. Touch “Display POI Icon” to dis-
play a particular type of Point of In-
terest on the screen.
A screen with a limited choice of Points
of Interest will be displayed. (To
change the displayed POI, see page
107.)
— Starting route from
ad
j
acent road
Map view —
— Dis
p
la
y
POI icons
ROUTE GUIDANCE
79
V573_E
z Selecting POIs to be displayed
Up to 5 categories of icons can be dis-
played on the screen.
Touch the desired Point of Interest
category to display POI location
symbols on the map screen.
By selecting the desired POI category
and then touching “OK”, the selected
POI icons are displayed on the map
screen.
To turn off the Points of Interest icon on
the map screen, touch “Delete”.
“Other POIs”: If the desired Point of
Interest can not be found on the limited
choice screen, touch this button. The
screen then displays the complete POI
listing screen.
“Local POI List”: When searching for
the nearest Point of Interest, touch this
touch screen button. The system will list
the points within 20 miles (32 km). (See
page 80.)
Touch “Other POIs” on the “Display
POI Icons” screen.
When a Point of Interest category is se-
lected from either the limited list or the
complete list, the screen will display
symbols of those locations on the map
screen.
Select the desired POI categories.
The selected category icon appears on
the top left of the screen.
By selecting the desired POI category
and then touching “OK”, the selected
POI icons are displayed on the map
screen.
If the desired POI category is not on the
screen, touch “List All Categories” to
list all POI categories.
ROUTE GUIDANCE
80
V573_E
Select the desired POI categories
from the list.
The selected category icon appears on
the top left of the screen.
By selecting the desired POI category
and then touching “OK”, the selected
POI icons are displayed on the map
screen.
To return to the POI category selection
screen, touch “More”.
z To display the local POI list
Points of Interest that are within 20 miles
(32 km) of the current position will be
listed from among the selected catego-
ries.
1. Touch “Local POI List” on the
“Display POI Icons” screen.
2. Touch the touch screen button of
the desired Point of Interest.
The selected Points of Interest are dis-
played on the map screen.
“On Route”: When the indicator is illu-
minated by touching this touch screen
button, the list of the items searched
along the route is displayed.
