ALCON Telecommunications 24005G03 Indoor 802.11b/g AP User Manual Manual
ALCON Telecommunications Co., Ltd. Indoor 802.11b/g AP Manual
Manual
1
802.11g Wireless High Power
Ceiling Access Point
Revision 1.3
User Guide
2
U
Revision History
Version
Date Notes
1.0 June 9, 2008 Initial Version
1.1 July 22, 2008 Update screen captures of status,
advanced wireless, and firmware upgrade
based on new firmware version.
1.2 September 22, 2008
Output power spec adjustment
1.3 April 24,2009 Add Spanning Tree Settings, AP detection
site survey in AP mode, Diagnostics
3
Introduction
This is a smoke detector looking Wireless ceiling Access Point / Repeater /
WDS that operates seamlessly in the 2.4 GHz frequency spectrum
supporting the 802.11b (2.4GHz, 11Mbps) and faster 802.11g (2.4GHz,
54Mbps) wireless standards. It's the best way to add wireless capability to
your existing wired network, or to add bandwidth to your wireless
installation.
This device features high transmitted output power and high receivable
sensitivity along with antenna diversity. High output power and high
sensitivity can extend range and coverage to reduce the roaming between
Access Points to get more stable wireless connection. It also reduces the
expense of equipment in the same environment.
To protect your wireless connectivity, it can encrypt all wireless
transmissions through 64/128/152-bit WEP data encryption and also
supports WPA/WPA2. The MAC address filter lets you select exactly which
stations should have access to your network. In addition, the User Isolation
function can protect the private network between client users.
The attractive design, high performance, and array of features make this a
suitable wireless solution for your residence or office.
This chapter describes the features & benefits, package contents,
applications, and network configuration
.
Features & Benefits
Features Benefits
High Speed Data Rate Up to 54Mbps Capable of handling heavy data payloads
such as MPEG video streaming
High Output Power up to 28 dBm Extended excellent Range and Coverage
(fewer APs)
IEEE 802.11b/g Compliant Fully Interoperable with IEEE
802.11b/IEEE802.11g compliant devices
Embedded Antenna Users won’t see antenna in your building
environment
WDS (Wireless Distributed System) Make wireless AP and Bridge mode
simultaneously as a wireless repeater up to
8 links
Universal Repeater The easiest way to expand your wireless
network's coverage
Support Multi-SSID function (4 SSIDs) in
AP mode Allow clients to access different networks
through a single access point and assign
different policies and functions for each
SSID by manager
Diversity support Enhance the traffic signal
WPA2/WPA/ IEEE 802.1x support Powerful data security
4
MAC address filtering in AP mode(up to
50) Ensures secure network connection
User isolation support (AP mode) Protect the private network between client
users.

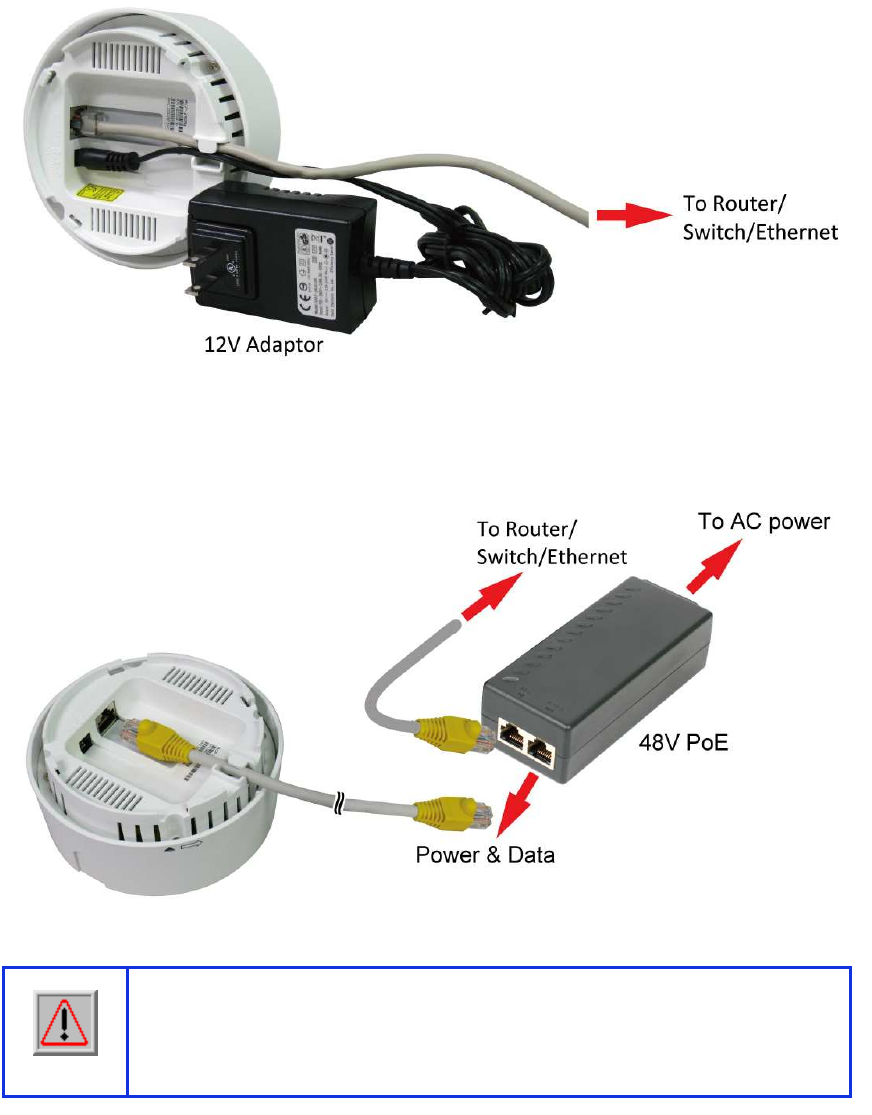

Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and cost
savings
Keep personal setting Keep the latest setting when firmware
upgrade

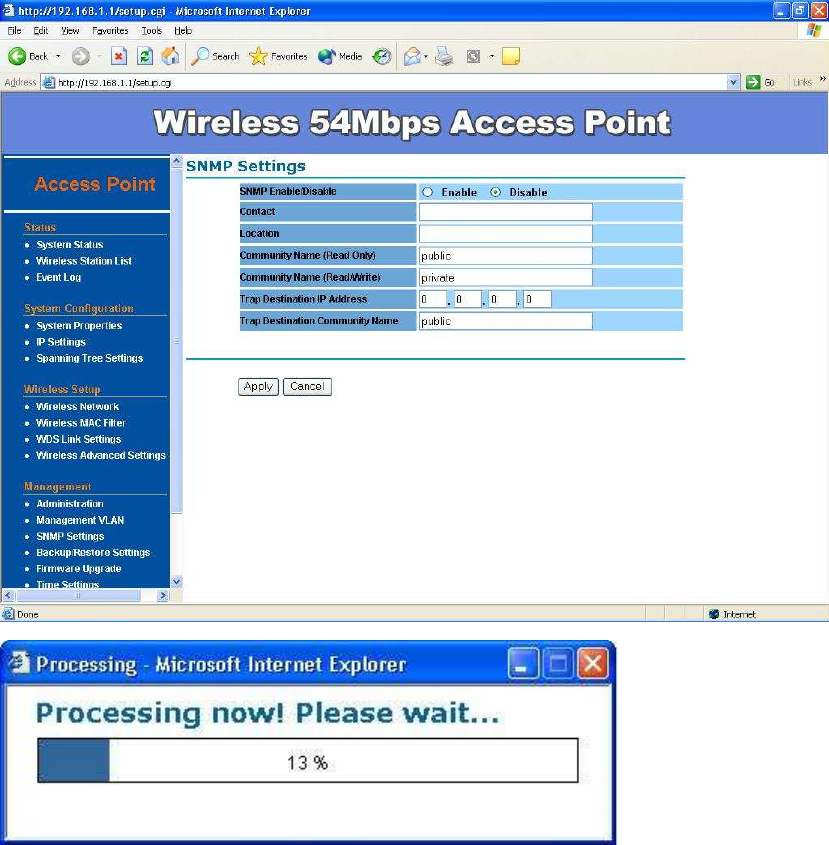

SNMP Remote Configuration
Management Help administrators to remotely configure or
manage the Access Point easily.
QoS (WMM) support Enhance user performance and density

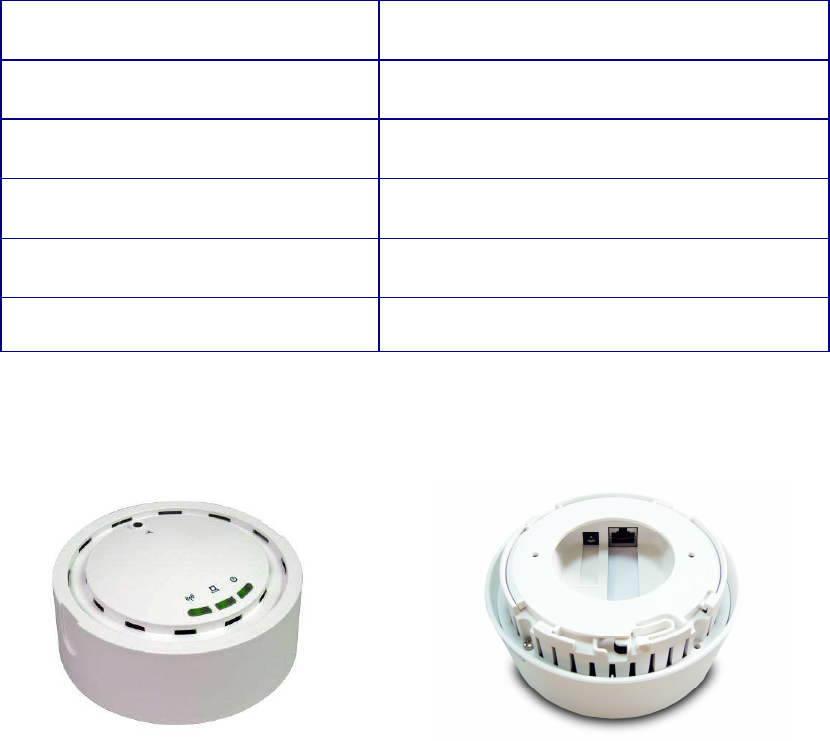

Access Point Description
Front Panel Real Panel
System Requirements
The following are the minimum system requirements in order configure the
device.
PC/AT compatible computer with an Ethernet interface.
Operating system that supports HTTP web-browser
Applications
The wireless LAN products are easy to install and highly efficient. The
following list describes some of the many applications made possible
through the power and flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be laid easily.
Historic buildings, older buildings, open areas and across busy
streets make the installation of LANs either impossible or very
expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers,
5
disaster-recovery, temporary offices and construction sites where
one wants a temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse
workers can access real-time information while dealing with
patients, serving customers and processing information.
d) Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing
sites where frequently rearrange the workplace.
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy and quick installation of
a small network.
f) Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the
overhead caused by moves, extensions to networks, and other
changes with wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup
for mission-critical applications running on wired networks.
h) Training/Educational facilities
Training sites at corporations and students at universities use
wireless connectivity to ease access to information, information
exchanges, and learning.
6
FCC Notice
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The manufacture is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
7
The Wireless Technology
Standard
The Wireless Access Point utilizes the 802.11b and the 802.11g standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It
increases the data rate up to 54 Mbps (108Mbps in Super G mode) within the
2.4GHz band, utilizing OFDM technology. This means that in most
environments, within the specified range of this device, you will be able to
transfer large files quickly or even watch a movie in MPEG format you’re your
network without noticeable delays. This technology works by transmitting
high-speed digital data over a radio wave utilizing OFDM (Orthogonal
Frequency Division Multiplexing) technology. OFDM works by splitting the
radio signal into multiple smaller sub-signals that are then transmitted
simultaneously at different frequencies to the receiver. OFDM reduces the
amount of cross talk (interference) in signal transmissions. The AP will
automatically sense the best possible connection speed to ensure the greatest
speed and range possible. 802.11g offers the most advanced network security
features available today, including: WPA, WPA2, TKIP, AES and Pre-Shared
Key mode.
U
Planning Your Wireless Network

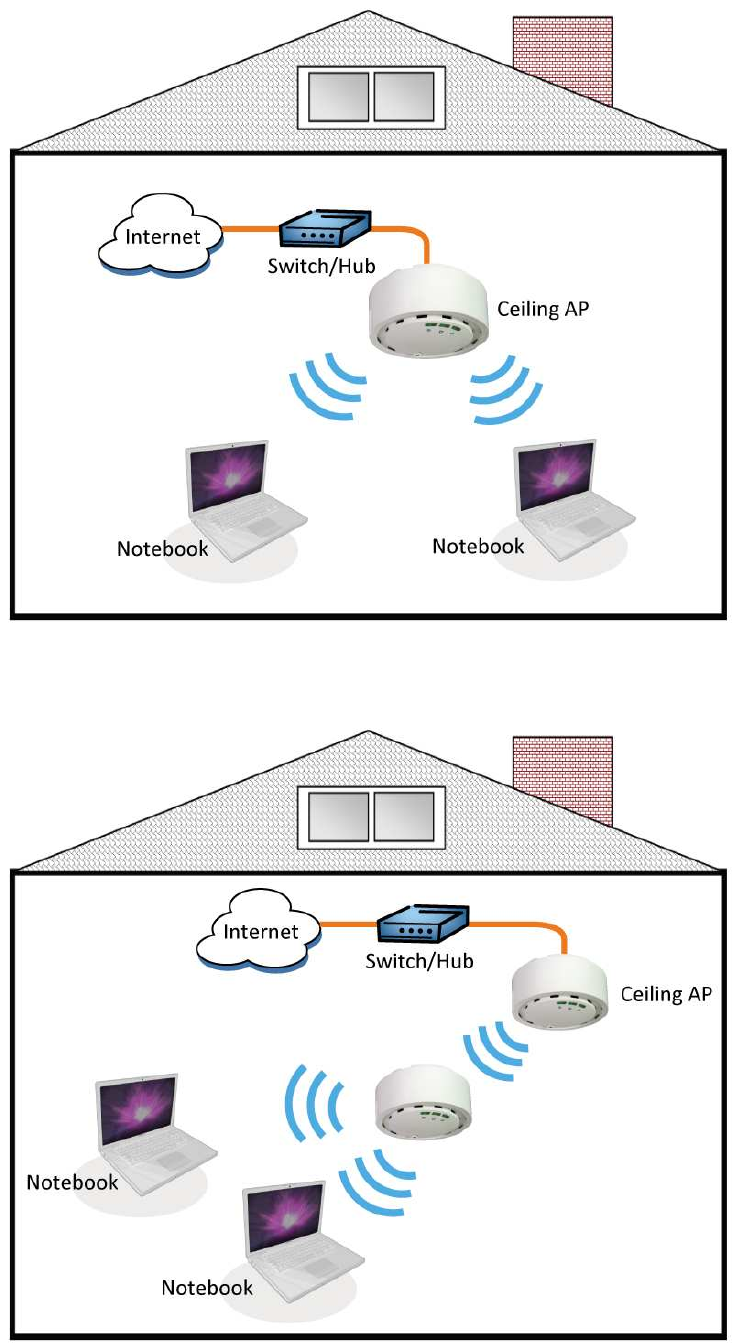

Network Topology
A wireless network is a group of computers, each equipped with one wireless
adapter. Computers in a wireless network must be configured to share the
same radio channel. Several PCs equipped with wireless cards or adapters
can communicate with one another to form an ad-hoc network. The wireless
adapters also provide users access to a wired network when using an access
point or wireless router. An integrated wireless and wired network is called an
infrastructure network. Each wireless PC in an infrastructure network can talk
to any computer in a wired network infrastructure via the access point or
wireless router. An infrastructure configuration extends the accessibility of a
wireless PC to a wired network, and may double the effective wireless
transmission range for two wireless adapter PCs. Since an access point is
able to forward data within a network, the effective transmission range in an
infrastructure network may be doubled.
8
Roaming
Infrastructure mode also supports roaming capabilities for mobile users.
Roaming means that you can move your wireless PC within your network and
the access points will pick up the wireless PC's signal, providing that they both
share the same channel and SSID. Before enabling you consider roaming,
choose a feasible radio channel and optimum access point position. Proper
access point positioning combined with a clear radio signal will greatly
enhance performance.
Network Layout
The AP Access Point has been designed for use with 802.11g and 802.11b
products. With 802.11g products communicating with the 802.11b standard,
products using these standards can communicate with each other. The
Access point is compatible with 802.11g and 802.11b adapters, such at the
PC Cards for your laptop computers, PCI Card for your desktop PC, and USB
Adapters for when you want to enjoy USB connectivity. These wireless
products can also communicate with an 802.11g or 802.11b wireless Print
Server. When you wish to connect your wired network with your wireless
network, the Access Point’s network port can be used to connect to any of
switches or routers.
Installation Considerations
The AP lets you access your network, using a wireless connection, from
virtually anywhere within its operating range. Keep in mind, however, that the
number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency)
noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.
Keep the number of walls and ceilings between the AP and other network
devices to a minimum - each wall or ceiling can reduce your AP’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of
walls or ceilings is minimized.
Be aware of the direct line between network devices. A wall that is 1.5 feet
thick(.5 meters), at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
9
Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
Building materials can impede the wireless signal - a solid metal door or
aluminum studs may have a negative effect on range. Try to position
wireless devices and computers with wireless adapters so that the signal
passes through drywall or open doorways and not other materials.
Applications
The wireless LAN products are easy to install and highly efficient. The
following list describes some of the many applications made possible
through the power and flexibility of wireless LANs:
Difficult-to-wire environments
There are many situations where wires cannot be laid easily. Historic
buildings, older buildings, open areas and across busy streets make the
installation of LANs either impossible or very expensive.
Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers,
disaster-recovery, temporary offices and construction sites where one
wants a temporary WLAN established and removed.
The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can
access real-time information while dealing with patients, serving
customers and processing information.
Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where
frequently rearrange the workplace.
Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy and quick installation of a small
network.
Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead
caused by moves, extensions to networks, and other changes with
wireless LANs.
Wired LAN backup
Network managers implement wireless LANs to provide backup for
mission-critical applications running on wired networks.
10
Network Topology – AP Mode
Network Topology – Repeater Mode
Repeat
er
11
Installation Diagram for Power & Cable
1. For 12V / 2A Adaptor
2. For 48V / 0.4A PoE
Note
2M RJ-45 cable is an optional accessory.
12

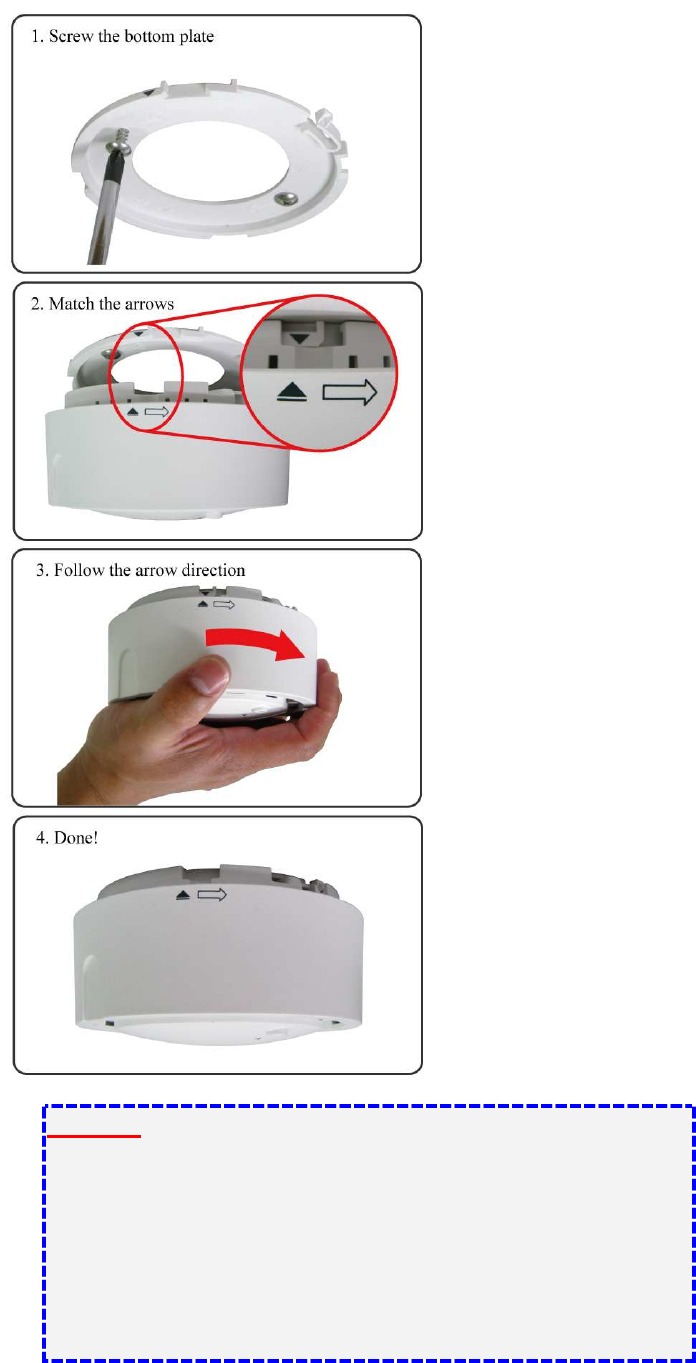

Ceiling AP Installation Diagram
Attention:
The cable distance between the Router and PC/hub/Switch
should not exceed 100 meters.
Make sure the wiring is correct. In 10Mbps operation, Category
3/4/5 cable can be used for connection. To reliably operate your
network at 100Mbps, you must use Category 5 cable, or better
Data Grade.
13

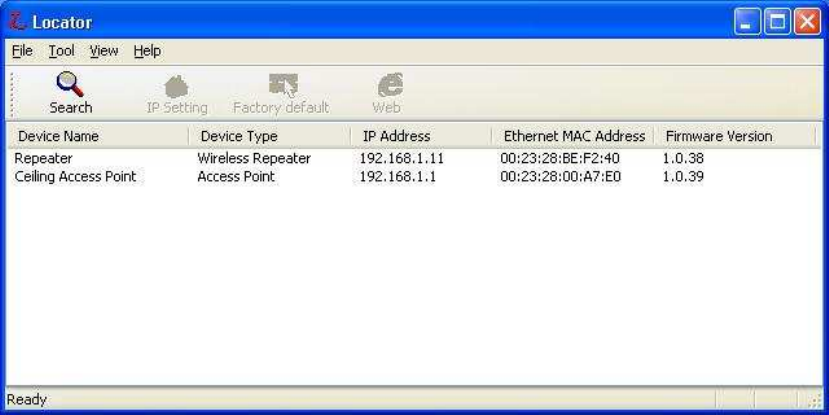

AP Configuration Using Locator
While entering the Locator utility, the Locator will automatically search the AP
available on the same network. Locator will show the Device Name, Device
Type, IP Address, Ethernet MAC Address and Firmware Version in first page.
Before start using Locator, make sure you disable personal firewall installed in
you PC. (Ex. Windows XP personal firewall)
If you have 2 Fast Ethernet Adapter or more, you can choose enable one Fast
Ethernet Adapter for enter with Locator utility.
AP Configuration Using Web User Interface
Before Setup…
Verify the IP address setting
You need to configure your PC’s network settings to obtain an IP address.
Computer use IP addresses to communicate with each other across a network,
such as the Internet.
1. From the taskbar, click the Start button, select Settings > Control
Panel. From there, double-click the Network connections icon.
2. Right click the Local Area Connection icon Properties; select the
TCP/IP line for the applicable Ethernet adapter. Then, click the
Properties button.
3. Click the IP Address tab page, select USE the following IP address,
type 192.168.254.254 (but, 192.168.x.x for the device use) in the IP
Address field and 255.255.0.0 in the Subnet Mask field, then click
OK button.
Start Setup by Browser...
1. After getting the correct connection, start the web browser (make
sure you disable the proxy) and type 192.168.x.x (x is outdoor unit IP
Address) in the Address field. Press Enter.
14
2. Enter the factory default User name and Password fields:
User Name: Admin
Password: (leave blank)
then click OK button.
3. You will enter the Utility homepage.
Start Setup by Locator...
1. You just need to click on the “Web” icon in Locator main page. The
Locator will launch a default browser for you and lead you into web UI
directly
15
Wireless Configuration - AP Mode
System Status –

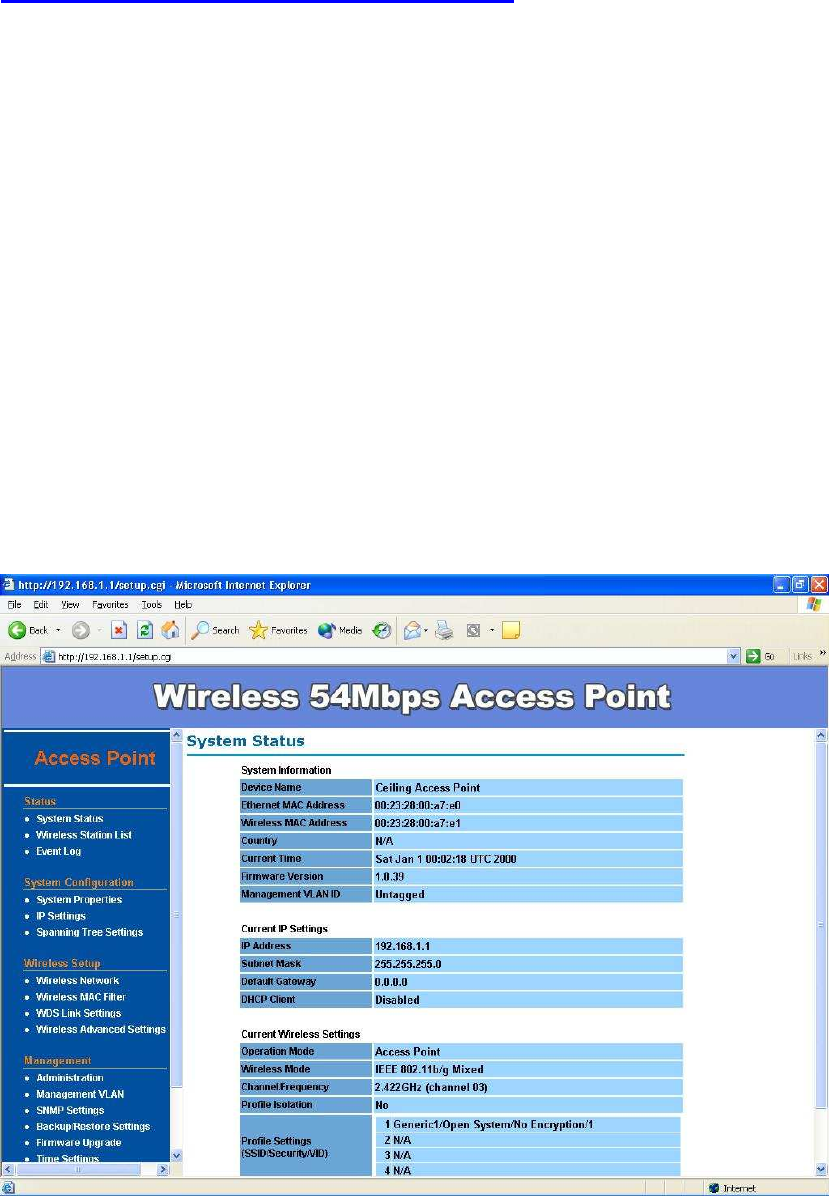

The first page appears in main page will show “System Status -> System
Summary” automatically, you can find detail system configuration in this page
including
System Information – This will display system name and both Ethernet
MAC address and Wireless MAC address. Current country setting and
Current time. firmware version and Management VLAN ID
Current IP Settings – This section show current IP address setting
including IP address, Subnet Mask, Default Gateway and DHCP status.
Current Wireless Settings – This area show current wireless setting
including operation mode, wireless mode, Channel/Frequency, profile
isolation, profile settings (SSID/Security/VID), Spanning Tree Protocol.
16

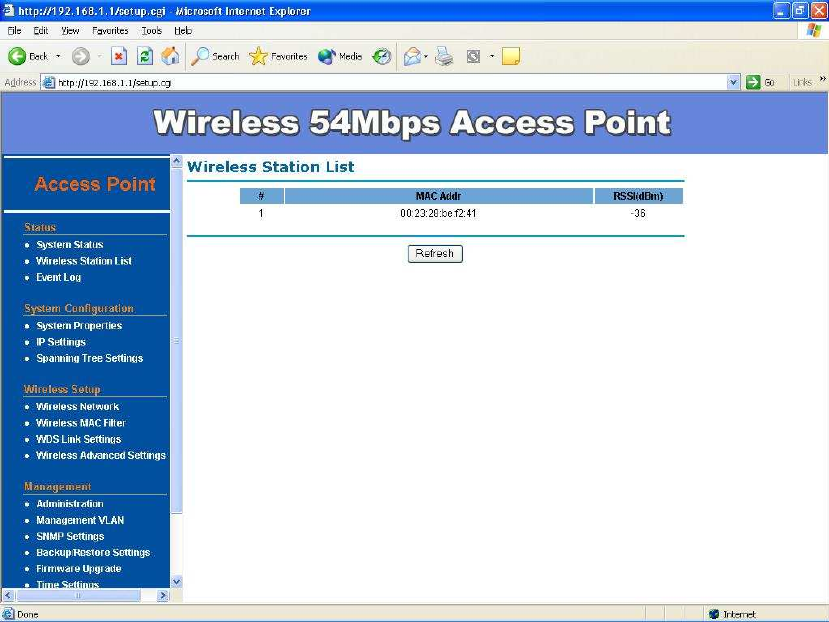

The first page appears in main page will show “System Status -> Wireless
Station List” automatically, this page can help user identify current devices
who already associated to the AP.
The MAC addresses and signal strength for each client is displayed. Click on
the Refresh button to refresh the client list
17

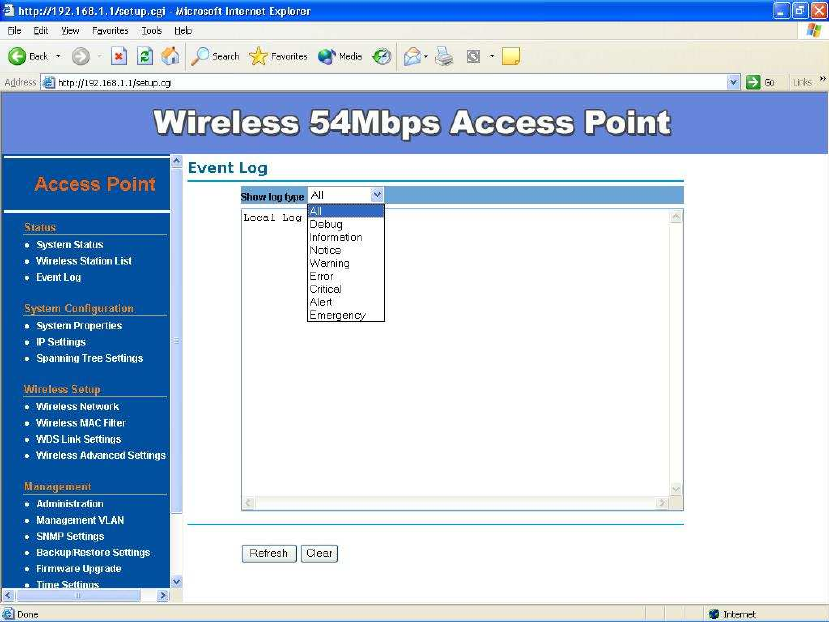

Event Log –
Click on the Event Log link under the Status drop-down menu. The device
automatically logs (records) events of possible interest in its internal memory. If
there is not enough internal memory for all events, logs of older events are
deleted, but logs of the latest events are retained.

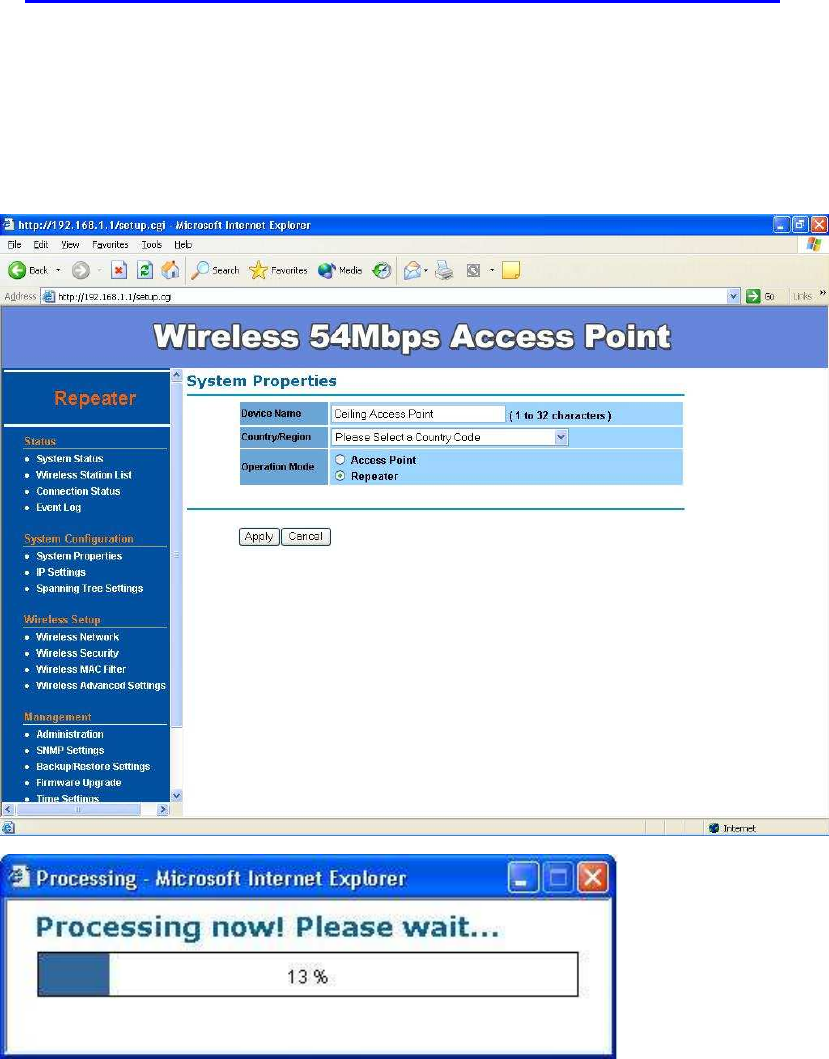

System Configuration –

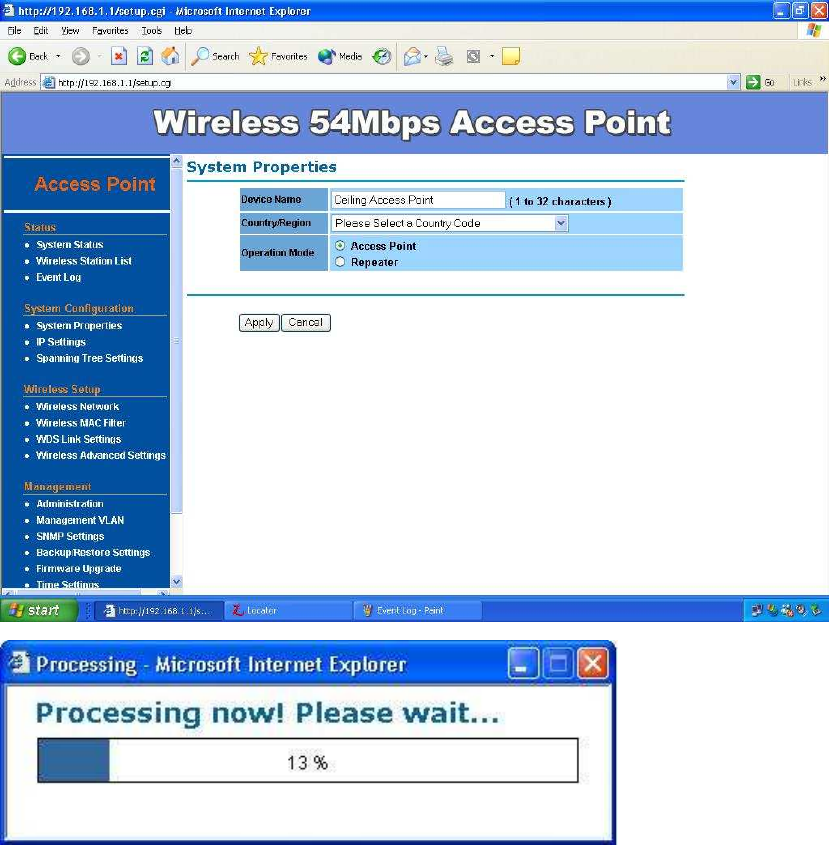

Now you can start to configure the system. In System Properties page, you
can config
Device Name – You may assign any name to the Access Point.
Memorable, Unique names are helpful especially if you are employing
multiple access points on the same network. The device name needs to
be less than 32 characters. After verify the name you input and click
“Apply” to save the setting.
Operation Mode - The default operation mode is Access Point, this
connects your wireless PCs and devices to a wired network. In most
cases, no change is necessary. You can switch operation mode to
Wireless Repeater depends on your application. Repeater is able to talk
18
with one remote access point within its range and retransmit its signal.
Choose repeater mode if you want to extend the range of your original AP.

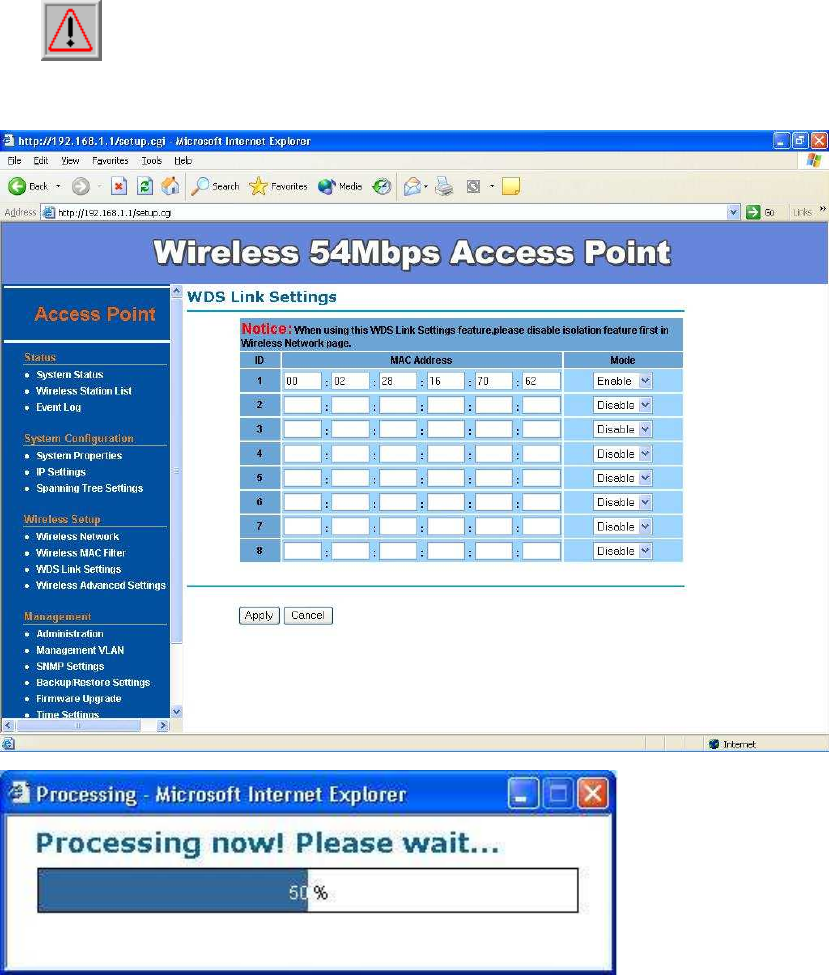

Wireless Bridge (WDS) can allow Bridge point to point or point to
multi-point network architecture, In order to establish the wireless link
between bridge radios, the MAC address of remotes bridge(s) need to be
registered in the address table. Type the MAC address with format
xx:xx:xx:xx:xx:xx (x is the hexadecimal digit) and use “Add” and “Delete”
button to edit the address table. A Master Bridge Radio may
accommodate up to 8 remote MAC addresses.
19

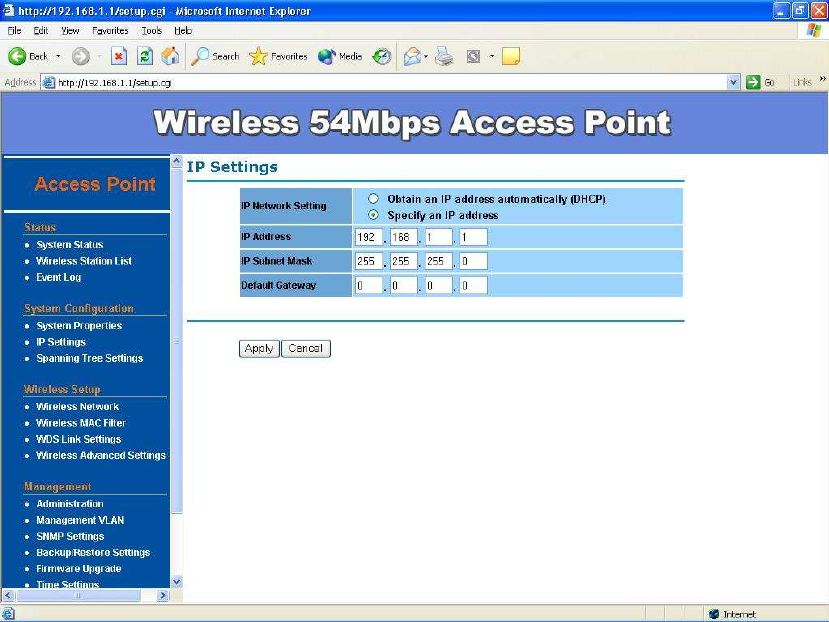

IP Settings –
IP Setting page can configure system IP address. Default IP address is
192.168.1.1 and Subnet Mask is 255.255.255.0. You can manually input IP
address setting or get an IP from a DHCP server.
IP Network Setting – Here you can choose to get IP from a DHCP server
or specify IP address manually. Choose to obtain an IP address from
DHCP server if your environment or ISP provide DHCP server. Otherwise,
you can manually setup IP address.
IP Address – The IP address need to be unique to your network. We
would like to recommend you stay with default IP address 192.168.x.x.
This is private address and should work well with your original
environment.
IP Subnet Mask – The Subnet Mask must be the same as that set on
your Ethernet network.
Default Gateway – If you have assigned a static IP address to the Access
Point, then enter the IP address of your network’s Gateway, such as a
router, in the Gateway field. If your network does not have a Gateway,
then leave this field blank.
20

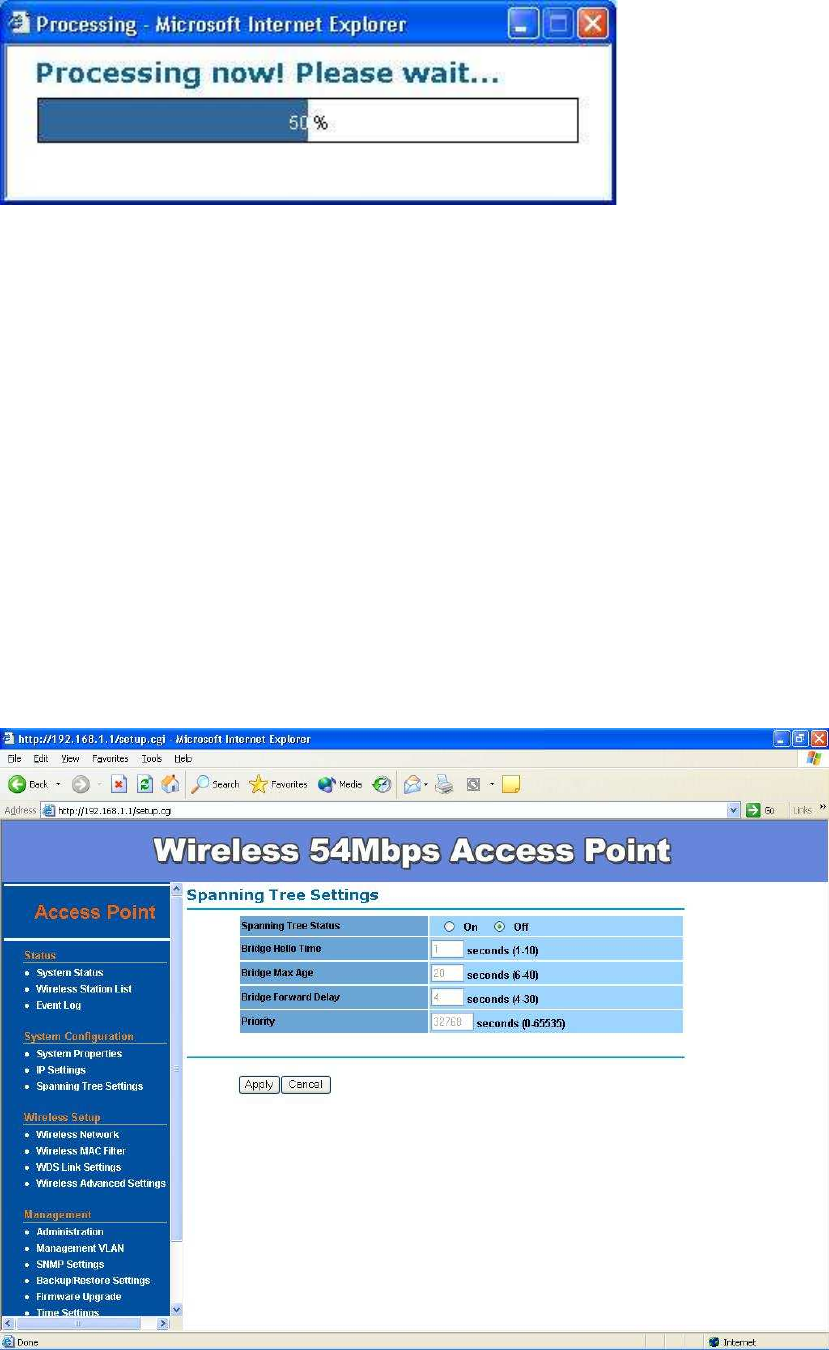

Spanning Tree Settings –
Click on the Spanning Tree link under the System Configuration drop-down
menu Spanning-Tree Protocol is a link management protocol that provides
path redundancy while preventing undesirable loops in the network.
Spanning Tree Status: Choose to enable or disable the spanning tree feature.
Bridge Hello Time: Specify the number of seconds for the hello time.
Bridge Max Age: Specify the number of seconds for the max age.
Bridge Forward Delay: Specify the number of seconds for the bridge forward
delay.
Priority: Specify the number of seconds for the priority.
Click on the Apply button to save the changes.
21
In Wireless Setup page,
each option is described below
Wireless Network -
At Wireless Network page allows you to configure the “Wireless Mode”,
“Channel/Frequency”, “SSID” and “Security”.
Wireless Mode – Default setting is “802.11g Only (2.4GHz/54Mbps)”.
This will support all 802.11g clients connect to the AP. You can choose
“802.11b (2.4GHz/11Mbps)” in wireless mode column if your
environment only have 802.11b clients.
If you are not sure about which
clients will be accessing the wireless networks, it is recommended that you
select “802.11b/g Mixed (2.4GHz/54Mbps)” for the best performance.
Channel / Frequency –The channels available are based on the country’s
regulation and select the appropriate channel from the list provided to
correspond with your network settings.

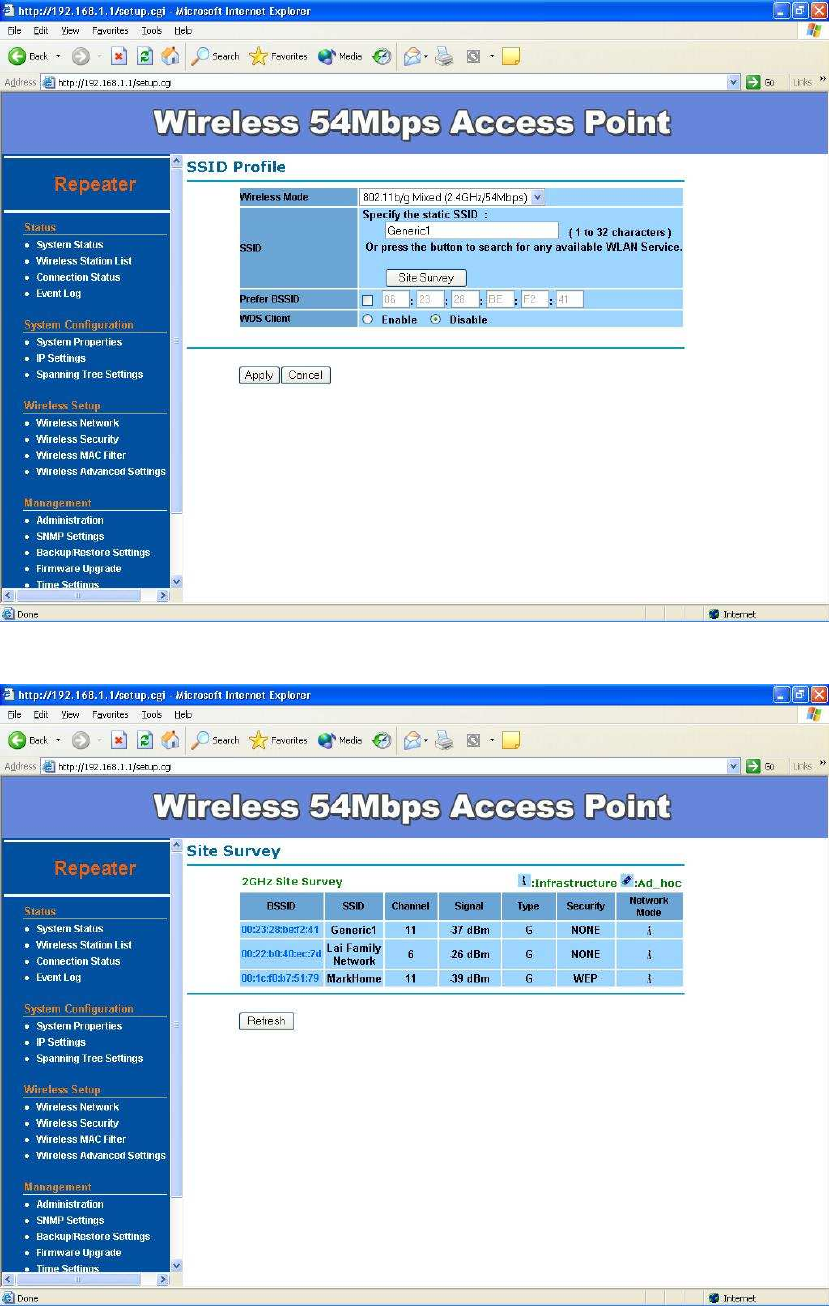

AP Detection – Click ”Scan” to pick one of the SSIDs you would like to
retransmit its signal. You select channel for the best performance in your
environment.
Current Profiles – You may configure up to four different wireless profiles.
Click on the Edit button to modify the profile and place a check in the
Enable box to activate the profile
Profile (SSID) Isolation – Stations connected to different profiles cannot
access each other. Choose from “No Isolation” (Full access), or to
Isolate all profiles (SSIDs) from each other, check use VLAN (802.1Q)
standard

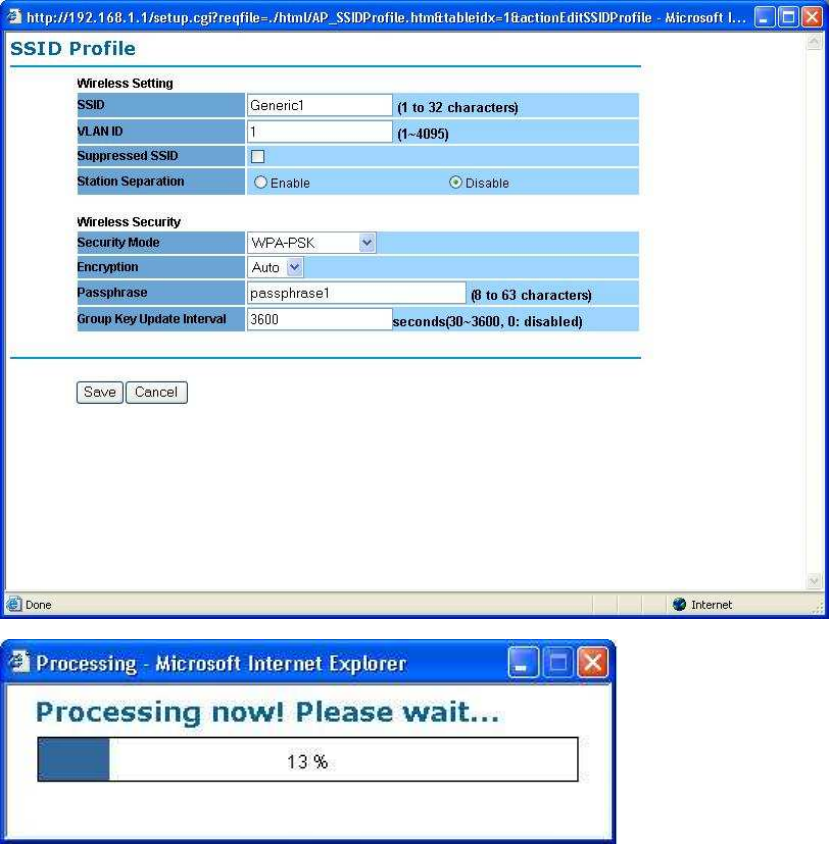

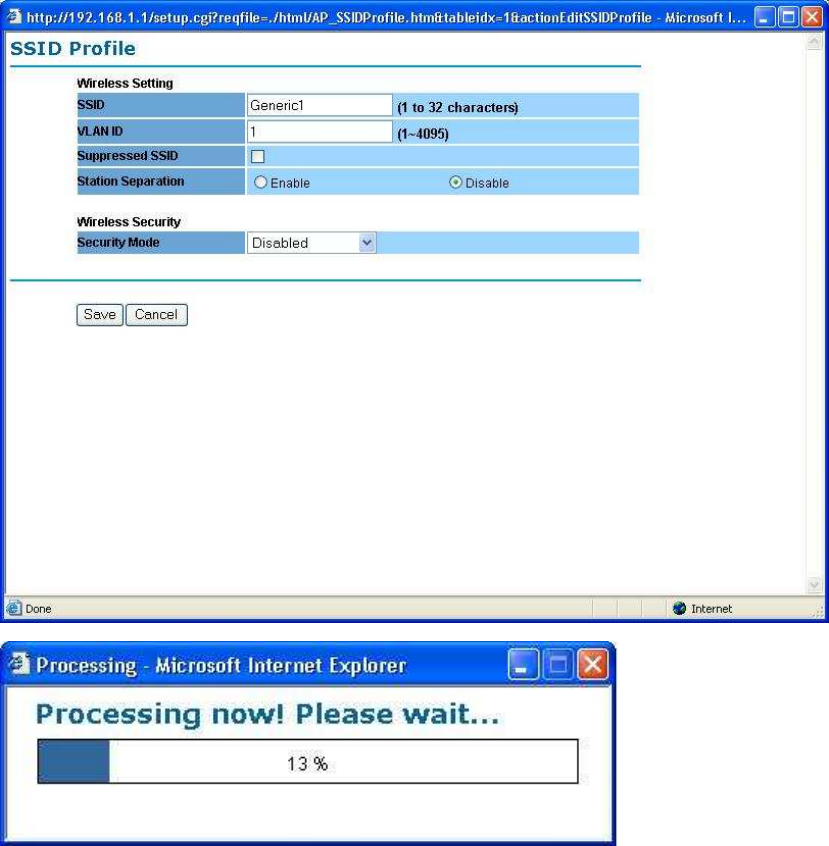

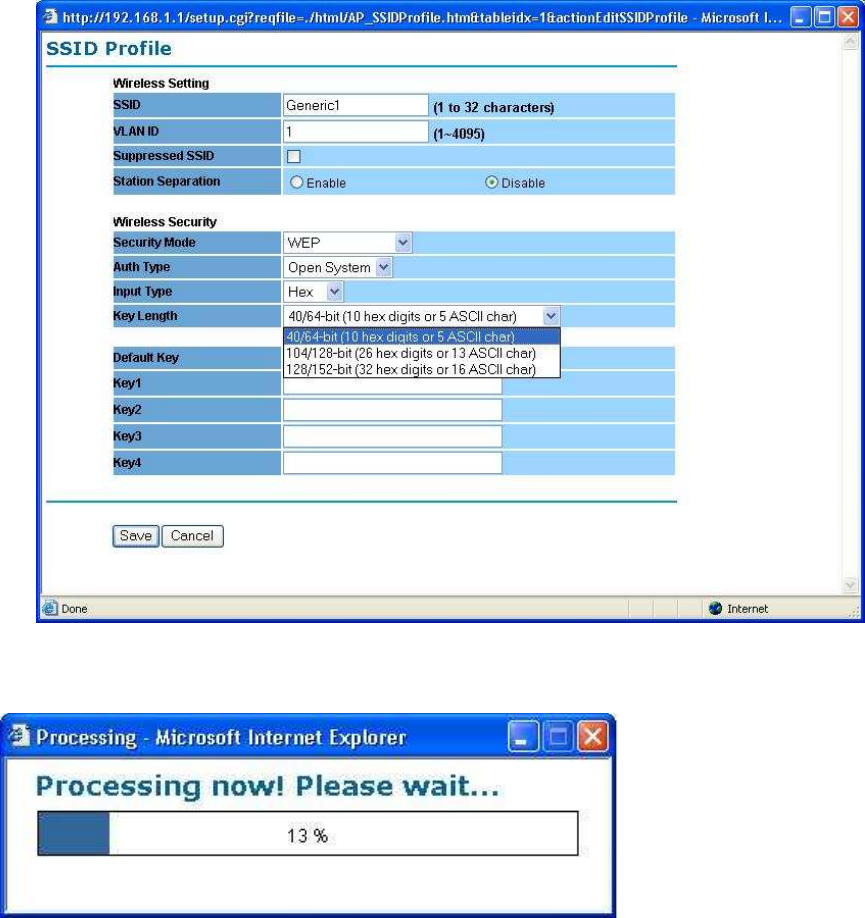

SSID – The SSID is the unique name shared among all points in a
wireless network. The SSID must be identical for all points in the wireless
network. It is case-sensitive and must not exceed 32 alphanumeric
characters, which may be any keyboard character. Make sure this setting
is the same for all points in your wireless network. For added security, you
should change the SSID from the default name Generic1, to a unique
22
name
VLAN ID – If you have enabled VLAN tagging on your network, specify the
VLAN tag ID 1 to 4095. You can assign an SSID to a VLAN. Client
devices using the SSID are grouped in that VLAN
Suppressed SSID – This option can hide the SSID not available from site
survey tool. Enable this function only if you do not want the Access Point
to be found by others.
Stations Separation – Default setting is “Disable”. This option can
disallow the client devices connected to this AP could not access each
other.
Security Mode: By default, the security is disabled. Refer to the next
section to configure the security features such as WEP, WPA, WPA-PSK,
WPA2, WPA2-PSK and WPA-Mixed
Click on the Apply button to save the changes.
23

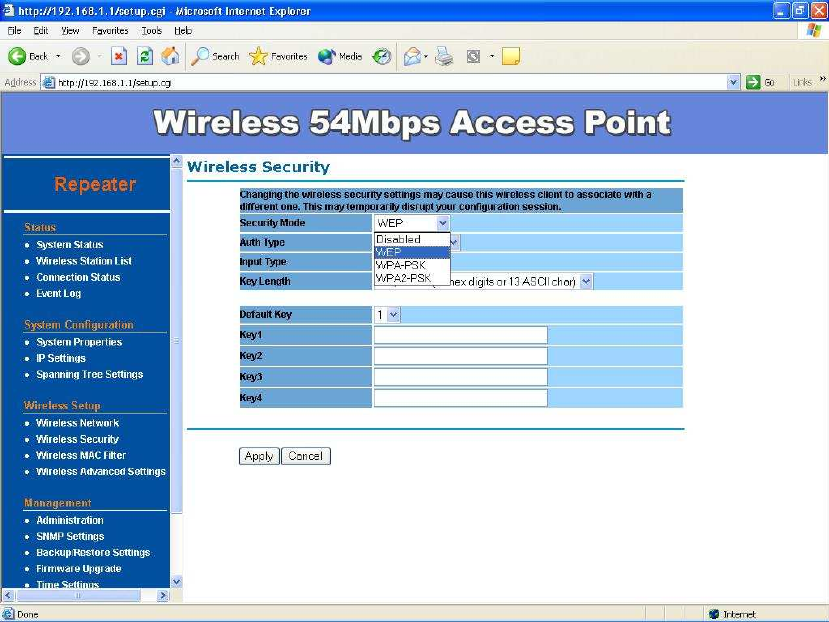

Wireless Security -
The wireless security settings configure the security of your wireless network.
There are three wireless security mode options supported by the Access Point:
WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA
Mixed. (WPA stands for Wi-Fi Protected Access, which is a security standard
stronger than WEP encryption. WEP stands for Wired Equivalent Privacy.)
In Wireless Security page, you can configure the AP to work with Disabled is
no Security, WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2
and WPA Mixed security mode. Once you setup the AP to work in security
mode, all wireless stations will also need to have corresponding settings.
System default setting is “Disabled”.
24
WEP is a basic encryption method, which is not as secure as WPA. To use
WEP, you will need to select a default transmit key and a level of WEP
encryption,
Authentication Type: Select an authentication method. Options
available are Open Key, Shared Key or Auto. An open system allows
any client to authenticate as long as it conforms to any MAC address
filter policies that may have been set. All authentication packets are
transmitted without encryption. Shared Key sends an unencrypted
challenge text string to any device attempting to communicate with the
Access Point. The device requesting authentication encrypts the
challenge text and sends it back to the Access Point. If the challenge
text is encrypted correctly, the Access Point allows the requesting
device to authenticate. It is recommended to select Auto if you are not
sure which authentication type is used.
Input Type: Select Hex or ASCII from the drop-down list
Key Length: Select a key format from the drop-down list. 40/64bit-hex
keys require 10 characters or ASCII keys require 5 characters, where as
104/128-bit-hex keys require 26 characters or ASCII keys require 13
characters, as 128/152-bit-hex keys require 32 characters or ASCII
25
keys require 16 characters. A hex key is defined as a number between 0
through 9 and letter between A through F.
Default Key: You may use up to four different keys for four different
networks. Select the current key that will be used.
Key table – You can input 4 different WEP encryption keys into the
table and by choosing the radio button to decide which one is valid now.
The AP supports 64, 128 and 152bit key length. The longer key we
choose usually means the encryption is stronger.
After all changes are made, be sure to click on “Save” to make sure all
changes are saved into system.
WPA-PSK stands for Wi-Fi Protected Access – Pre-Shared Key. WPA-PSK is
design for home users who do not have RADIUS server in their network
environment. WPA can provide better security level than WEP without difficult
setting procedure.
26
PassPhrase - Enter a WPA Shared Key of 8-63 characters. The Shared
Key should be also applying the clients work in the same wireless
network.
Encryption - WPA gives you two encryption methods, TKIP and AES,
with dynamic encryption keys. Select the type of algorithm, TKIP or AES.
Group Key Update Interval - Enter a number of seconds which instructs
the Access point how often it should change the encryption keys. Usually
the security level will be higher if you set the period shorter to change
encryption keys more often. Default value is 3600 seconds, set 0 in Group
Key Update Interval to disable key renewal.
Remember to click on “Save” to make sure all changes are made before
leaving this page.
WPA option features WPA used in coordination with a RADIUS server. (This
27
should only be used when a RADIUS server is connected to the Access Point.)
RADIUS Server – Here enter the IP address of your RADIUS server.
RADIUS Port – Port number for RADIUS service, default value is 1812
RADIUS Secret – RADIUS secret is the key shared between Access
Point and RADIUS server.
Encryption – WPA gives you two encryption methods, TKIP and AES,
with dynamic encryption keys. Select the type of algorithm, TKIP or AES.
Group Key Update Interval – This column indicate how often should the
Access Point change the encryption key. Default value is 3600 seconds,
set 0 in Group Key Update Interval to disable key renewal.
Wireless MAC Filter –
28
On this page you can filter the MAC address by allowing or blocking access the
network.
ACL (Access Control) Mode: You may choose to Disable, Allow Listed,
or Deny Listed MAC addresses from associating with the network. By
selecting Allow MAC in the List, only the address listed in the table will
have access to the network; all other clients will be blocked. On the other
hand, selected Deny MAC in the List, only the listed MAC addresses will
be blocked from accessing the network; all other clients will have access to
the network.
MAC Address: Enter the MAC address.
This table lists the blocked or allowed MAC addresses; you may delete
selected MAC address or delete all the addresses from the table by
clicking on the Delete button.
Click on the Apply button to save the changes.
29
WDS Link Settings –
On this page you can configure the AP WDS (Wireless Distribution System)
which allows the Access Point to function as a repeater, up to 8 links.
WDS MAC Address: Specify the Wireless MAC address of the Access
Points that will join the WDS network and then select Enable or Disable
from the drop-down list.
Click on the Apply button to save the changes.
Note: When enabling isolation, WDS function will be disabled
automatically.

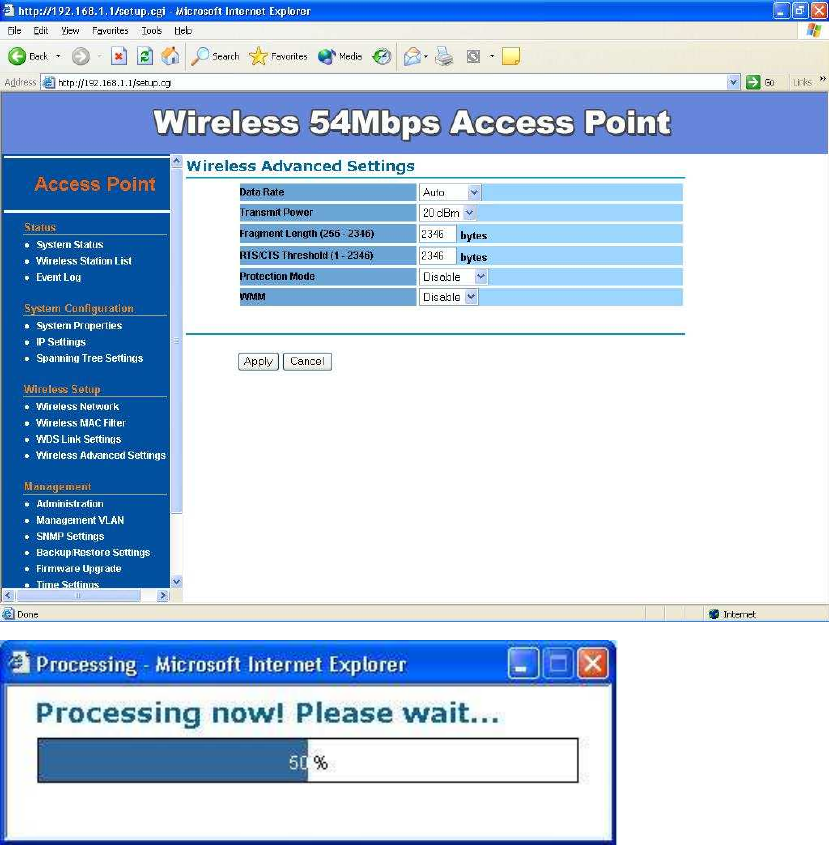

Wireless Advance Settings -
30
The page below can help users to configure advanced wireless setting. Before
making any changes at this page, please check your wireless settings on other
system as well, as these changes will alter the effectiveness of the Access
Point. In most cases, these settings do not need to be changed.
Data Rate – In data rate column you can select all bit rate supported in
current operation mode. Default value is “best” means the system will
automatically adjust the connection speed dynamically according to your
current link status.
Fragment Length (256-2346) – This specifies the maximum size a data
packet will be before splitting and creating a new packet and should
remain at its default setting of 2,346. A smaller setting means smaller
packets, which will create more packets for each transmission. If you have
decreased this value and experience high packet error rates, you can
increase it again, but it will likely decrease overall network performance.
Only minor modifications of this value are recommended.
RTS/CTS Threshold (256-2346) – This setting determines how large a
packet can be before the Access Point coordinates transmission and
reception to ensure efficient communication. This value should remain at
its default setting of 2,346. Should you encounter inconsistent data flow,
only minor modifications are recommended.
Protection Mode – Protection Mode should remain default value (Auto)
unless you are having severe problems with your 11g Wireless LAN
products not being able to transmit to the Access Point in an environment
with heavy 802.11b traffic. To enable this function boosts the Access
Point’s ability to catch all 11g Wireless transmissions but will severely
decrease performance.
WMM – Choose to enable or disable wireless multimedia mode.
Remember to click on “Apply” to make sure all changes are made before
leaving this page.
31
32
Management –

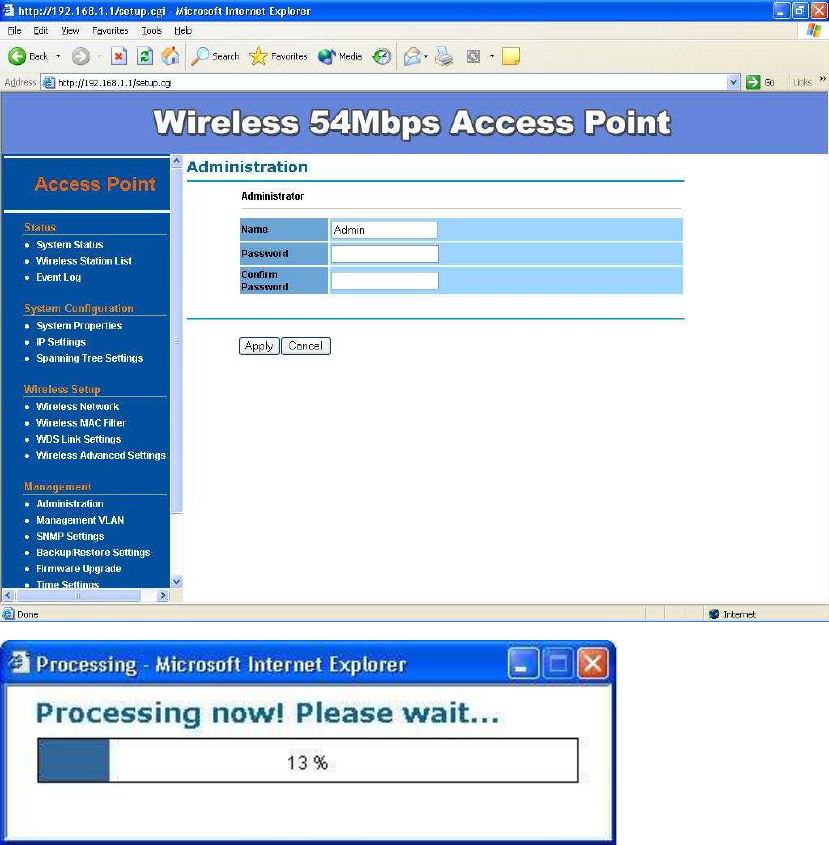

Administration –
In the administration page, you can modify “Administrator Name” and
“Password”. Changing the sign-on user name and password is as easy as
typing the string you wish in the column. Then, type the password into second
column to confirm. This option allows you to create a user name and password
for the device. By default, this device is configured with a user name is “Admin”
and password is “leave blank”. For security reasons it is highly recommended
that you create a new user name and password.
Click “Apply” to finish the procedure. Be sure you noted the modification
before apply all changes.
33

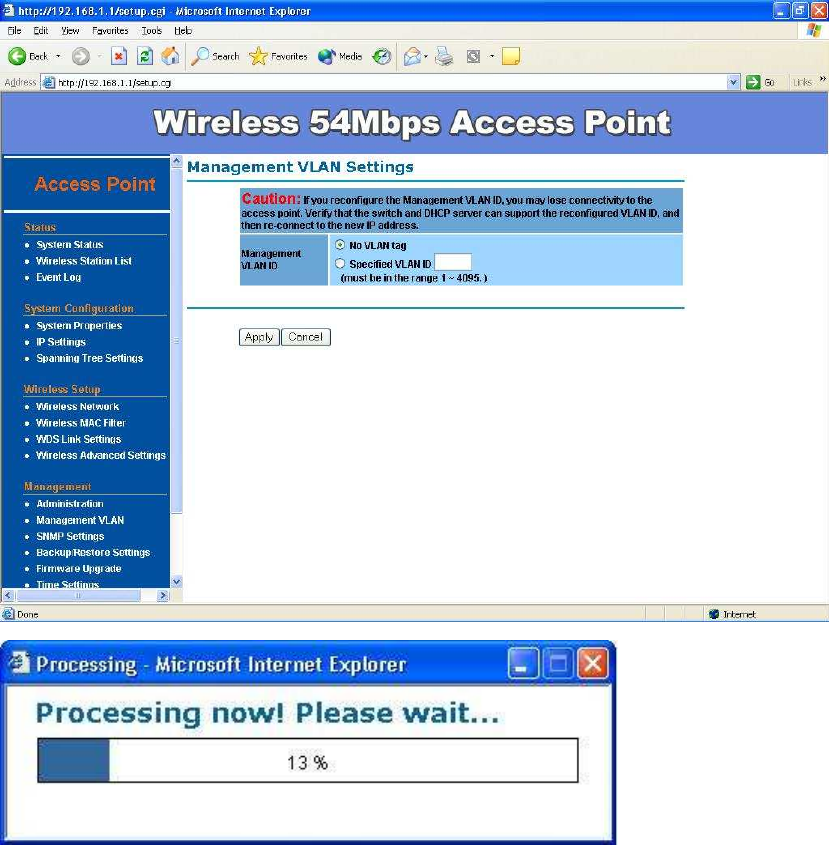

Management VLAN–
This option allows you to assign a VLAN tag to the packets. A VLAN is a group
of computers on a network whose software has been configured so that they
behave as if they were on a separate Local Area Network (LAN). Computers on
VLAN do not have to be physically located next to one another on the LAN
Management VLAN ID: If your network includes VLANs and if tagged
packets need to pass through the Access Point, specify the VLAN ID
into this field. If not, select the No VLAN tag radio button.
Note: If your reconfigure the Management VLAN ID, you may lose
connectivity to the Access Point. Verify that the switch and DHCP server
can support the reconfigured VLAN ID, and then re-connect to the new
IP address.
Click on the Apply button to save the changes.
34
SNMP Settings–
Under System Configuration, click SNMP to display and change settings for
the Simple Network Management Protocol.
To communicate with the access point, the SNMP agent must first be enabled
and the Network Management Station must submit a valid community string
for authentication. Select SNMP Enable and enter data into the fields as
described below. When you are finished, click “Apply”
Setting Description
SNMP Enables or disables SNMP.
Contact
Location
Sets the location string that describes the system location.
Maximum length is 255 characters.
Community
Name (Read
Only)
Specifies a community string with read-only access.
Authorized management stations are able to retrieve MIB
objects. Maximum length is 32 characters. Default is
“public”
Community
Name (Read
Write)
Specifies a community string with read-write access.
Authorized management stations are able to both retrieve
and modify MIB objects. Maximum length is 32 characters.
Default is “private”
Trap
Destination
IP Address
Enter the IP address of the trap manager that will receive
these messages.
Trap
Destination
Community
Name
Enter the community name of the trap manager that will
receive these messages. Default is “public”
35
36

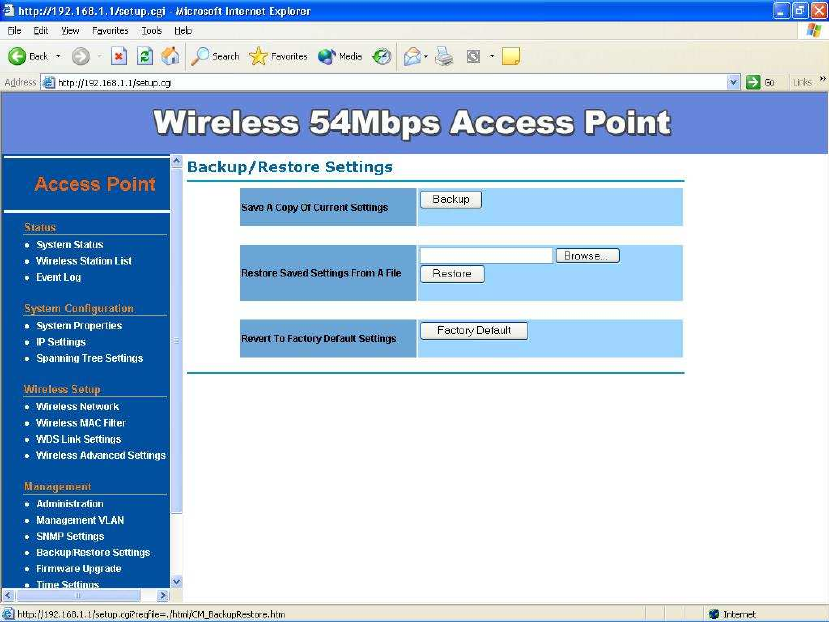

Backup/Restore and Reset to factory default Settings–
In Management section, you can Backup/Restore Setting and Revert to
Factory Default Settings the system in following pages.
Backup the current settings to a file – Click on the “Backup” button,
system will prompt you where to save the backup file. You can choose the
directory to save your configuration file.
Restore settings from a backup file – Here you can restore the
configuration file from where you previous saved.
Revert to factory default settings – Be very carefully before restore
system back to default since you will lose all current settings immediately.
If you act the function, the IP address will restore the establishing value
situation.
192.168.1.1 in the IP Address field and 255.255.255.0 in the Subnet
Mask field,
37
Firmware Upgrade –
Enter the location of the firmware upgrade file in the file path field, or click the
“Browse” button to find the firmware upgrade file. Then click on the
“Upgrade” button, and follow the on-screen instructions. The whole firmware
upgrade process will take around 60 seconds. Before upgrade, make sure you
are using correct version. Please check with your technical support service if
new firmware available.
38

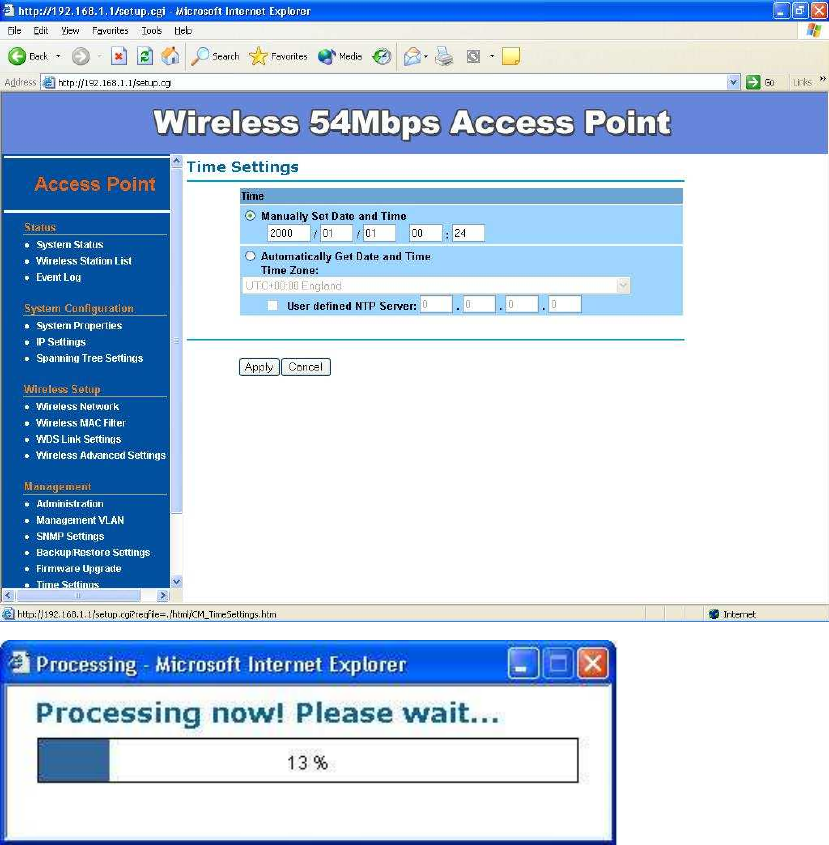

Time Settings –
This page allows you to configure the time on the device. You may do this
manually or by connecting to a NTP server.
Manually Set Date and Time: Specify the date and time
Automatically Get Date and Time: Select the time zone from the drop
down list and then specify the IP address of the NTP server.
Click on the Apply button to save the changes.
39

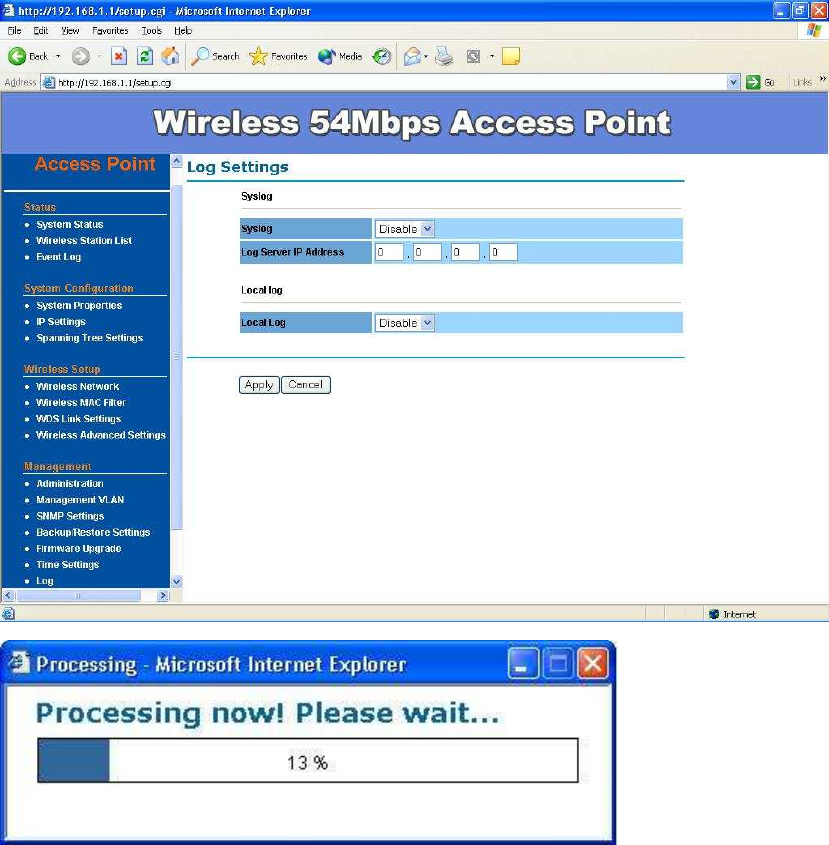

Log –
The Log page displays a list of events that are triggered on the Ethernet and
Wireless interface. This log can be referred when an unknown error occurs on
the system or when a report needs to be sent to the technical support
department for debugging purposes.
Syslog: Choose to enable or disable the system log.
Log Server IP Address: Specify the IP address of the server that will
receive the system log.
Local Log: Choose to enable or disable the local log.
Click on the Apply button to save the changes.
40
Diagnostics –The Ping Test is used to send Ping packets to test if a computer
is on the Internet. Enter the IP Address that you wish to Ping, and click “Ping”.
The Traceroute is trace path to show the packets in IP network of router’s IP
address.

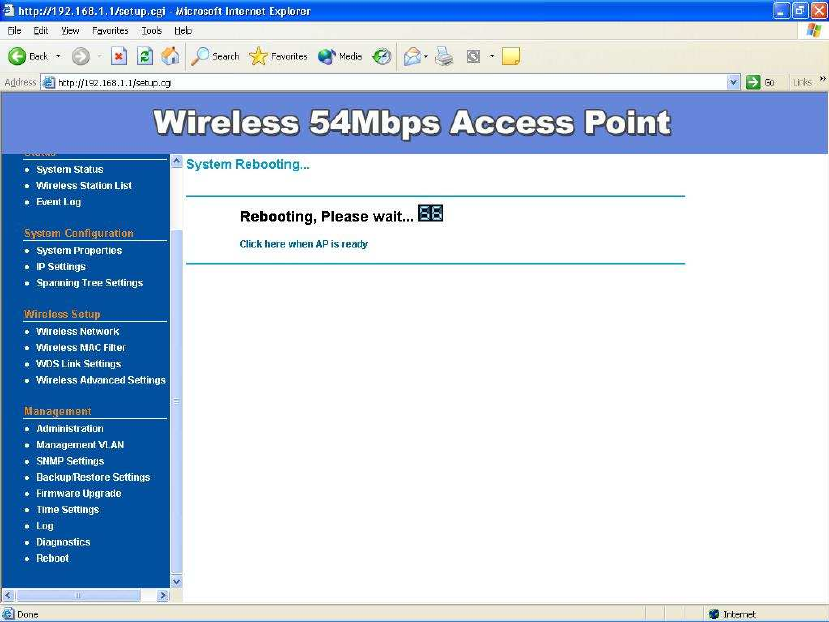

Reboot – Click on “Reboot” button to restart Access Point.
41
42
Wireless Configuration – Wireless Repeater Mode
When set the Access Point to Repeater mode, the AP is able to talk with one
remote access point within its range and retransmit its signal. In order to setup
the AP to work in Ethernet bridge mode, you need to choose “Repeater” mode
and click “Apply” at System Properties page. After need to reboot the AP to
make sure the AP work in repeater mode.
After enable the repeater mode, you can click on “Wireless Network” and
choose “Site Survey” to pick one of the SSIDs you would like to retransmit its
signal. (Please be awarded that while using the repeater mode, the throughput
performance maybe nearly only half compare with access point mode.
Because the repeater needs to communicate with original AP and also the
clients associate to the repeater at the same time.)
WDS Support – Default setting is “Enable” , “Disable” support
43
interoperability with APs
44
After click on the “Site Survey” button, you can choose the Access Point you
need to extend its range by clicking on “BSSID” column. Then “Apply” the
change to make sure system working properly with new setting.
After all the changes are made, you can check the “Connect Status” page to
check current SSID and link quality / signal strength. Some more information
are all available at this page.
Wireless Security –
WEP is a basic encryption method, which is not as secure as WPA. To use
WEP as a client, you will need to input a transmit key and a level of WEP
encryption exactly the same as the Access Point.
Authentication Type: Select an authentication method. Options
available are Open Key, Shared Key. An open system allows any client
to authenticate as long as it conforms to any MAC address filter policies
that may have been set. All authentication packets are transmitted
without encryption. Shared Key sends an unencrypted challenge text
string to any device attempting to communicate with the Access Point.
The device requesting authentication encrypts the challenge text and
sends it back to the Access Point. If the challenge text is encrypted
45
correctly, the Access Point allows the requesting device to authenticate.
It is recommended to select Auto if you are not sure which authentication
type is used.
Security Mode: Select WEP from the drop-down list
Input Type: Select Hex or ASCII from the drop-down list
Key Length: Select a key format from the drop-down list. 40/64bit-hex
keys require 10 characters or ASCII keys require 5 characters, where as
104/128-bit-hex keys require 26 characters or ASCII keys require 13
characters, as 128/152-bit-hex keys require 32 characters or ASCII keys
require 16 characters. A hex key is defined as a number between 0
through 9 and letter between A through F.
Default Key: You may use up to four different keys for four different
networks. Select the current key that will be used.
Key table – You can input 4 different WEP encryption keys into the table
and by choosing the radio button to decide which one is valid now. The AP
supports 64, 128 and 152bit key length. The longer key we choose
usually means the encryption is stronger..
After all changes are made, be sure to click on “Apply” to make sure all
changes are saved into system.
46
Appendix A: Glossary
802.11b - An IEEE wireless networking standard that specifies a maximum data transfer rate
of 11Mbps and an operating frequency of 2.4GHz.
802.11g - An IEEE wireless networking standard that specifies a maximum data transfer rate
of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b
devices.
Adapter - This is a device that adds network functionality to your PC.
Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer)
without the use of an access point.
Backbone - The part of a network that connects most of the systems and networks together,
and handles the most data.
Bandwidth - The transmission capacity of a given device or network.
Beacon Interval - Data transmitted on your wireless network that keeps the network
synchronized.
Bit - A binary digit.
Browser - An application program that provides a way to look at and interact with all the
information on the World Wide Web.
CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - A method of data transfer
that is used to prevent data collisions.
CTS (Clear To Send) - A signal sent by a wireless device, signifying that it is ready to receive
data.
Database - A collection of data that is organized so that its contents can easily be accessed,
managed, and updated.
DHCP (Dynamic Host Configuration Protocol) - A networking protocol that allows
administrators to assign temporary IP addresses to network computers by "leasing" an IP
address to a user for a limited amount of time, instead of assigning permanent IP addresses.
Download - To receive a file transmitted over a network.
DSSS (Direct-Sequence Spread-Spectrum) - Frequency transmission with a redundant bit
pattern resulting in a lower probability of information being lost in transit.
DTIM (Delivery Traffic Indication Message) - A message included in data packets that can
increase wireless efficiency.
Encryption - Encoding data transmitted in a network.
Ethernet - IEEE standard network protocol that specifies how data is placed on and retrieved
from a common transmission medium.
Firmware - The programming code that runs a networking device.
Fragmentation -Breaking a packet into smaller units when transmitting over a network
medium that cannot support the original size of the packet.
Gateway - A device that interconnects networks with different, incompatible communications
47
protocols.
Hardware - The physical aspect of computers, telecommunications, and other information
technology devices.
IEEE (The Institute of Electrical and Electronics Engineers) - An independent institute that
develops networking standards.
Infrastructure - A wireless network that is bridged to a wired network via an access point.
IP (Internet Protocol) - A protocol used to send data over a network.
IP Address - The address used to identify a computer or device on a network.
ISM band - Radio bandwidth utilized in wireless transmissions.
ISP (Internet Service Provider) - A company that provides access to the Internet.
LAN - The computers and networking products that make up your local network.
MAC (Media Access Control) Address - The unique address that a manufacturer assigns to
each networking device.
Network - A series of computers or devices connected for the purpose of data sharing,
storage, and/or transmission between users.
Node - A network junction or connection point, typically a computer or work station.
Packet - A unit of data sent over a network.
Passphrase - Used much like a password, a passphrase simplifies the WEP encryption
process by automatically generating the WEP encryption keys for Linksys products.
Port - The connection point on a computer or networking device used for plugging in cables or
adapters.
Roaming - The ability to take a wireless device from one access point's range to another
without losing the connection.
Router - A networking device that connects multiple networks together.
RTS (Request To Send) - A networking method of coordinating large packets through the RTS
Threshold setting.
Server - Any computer whose function in a network is to provide user access to files, printing,
communications, and other services.
SNMP (Simple Network Management Protocol) - A widely used network monitoring and
control protocol.
Software - Instructions for the computer. A series of instructions that performs a particular
task is called a "program".
SOHO (Small Office/Home Office) - Market segment of professionals who work at home or in
small offices.
Spread Spectrum - Wideband radio frequency technique used for more reliable and secure
data transmission.
SSID (Service Set IDentifier) - Your wireless network's name.
Static IP Address - A fixed address assigned to a computer or device that is connected to a
network.
48
Subnet Mask - An address code that determines the size of the network.
Switch - 1. A data switch that connects computing devices to host computers, allowing a large
number of devices to share a limited number of ports. 2. A device for making, breaking, or
changing the connections in an electrical circuit.
TCP (Transmission Control Protocol) - A network protocol for transmitting data that requires
acknowledgement from the recipient of data sent.
TCP/IP (Transmission Control Protocol/Internet Protocol) - A set of instructions PCs use to
communicate over a network.
TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic
encryption keys for each packet transmitted.
Topology - The physical layout of a network.
Upgrade - To replace existing software or firmware with a newer version.
WEP (Wired Equivalent Privacy) - An optional cryptographic confidentiality algorithm specified
by IEEE 802.11 that may be used to provide data confidentiality that is subjectively equivalent
to the confidentiality of a wired local area network (LAN) medium that does not employ
cryptographic techniques to enhance privacy confidentiality.
WPA (Wi-Fi Protected Access) - a wireless security protocol using TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
49
Appendix B: Specification
Standard support IEEE802.11b
IEEE802.11g
IEEE802.3
IEEE802.3u
IEEE802.3af (Mid-span)
Interface Wireless IEEE802.11b/g
One 10/100 RJ-45 port
SDRAM 16Mbyte
Flash 4Mbyte
Max. Bandwidth Ethernet
Wireless
Full Duplex: 200Mbps (for 100BASETX), 20Mbps (for 10BaseT)
Half Duplex: 100Mbps (for 100BaseTX), 10Mbps (for 10BaseT)
1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54 Auto Fall-Back
Wireless Radio Data Rate
1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, and 54
Signal Frequency
OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
2Channel (Setting varies by Country)
America/FCC：2.412~2.462 GHz (11 channels)
Europe CE/ETSI：2.412~2.472 GHz (13 channels)
RF Power Output: 28dBm at 11Mbps / 22dBm at 54Mbps (typical)
Receiver Sensitivity: 54Mbps OFDM, 10% PER, -75dBm
11Mbps CCK, 8% PER, -93dBm
Wireless Setting
−
Operation Mode – AP / Repeater
−
SSID
−
Channel Selection (Setting varies by Country)
−
Transmission Rate (Auto,
54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1)
in Mbps
−
Adjustable transmit power by 1dBm step
−
Fragment Length (256-2346): 2346
−
RTS Threshold (1-2346): 2346
−
Protection Mode: Disable / Enable
Wireless Security WEP setting
−
Authentication type: Open System / Shared Key
−
Shared keys input type: HEX / ASCII
−
Shared keys length: (64-bit, 128-bit, 152-bit)
−
Default WEP Key to use (1-4)
WPA-PSK / WPA2-PSK setting
50
−
PassPhrase
−
WPA Cipher Type (Auto, TKIP, AES)
−
Group Key Update Interval: 30~3600 seconds (0:disable)
WPA / WPA2 setting
−
Radius Server IP Address
−
Radius Port: 1812
−
Radius Secret
−
WPA Cipher Type (Auto, TKIP, AES)
−
Group Key Update Interval: 30~3600 seconds (0:disable)
WPA Mixed / WPA2 Mixed setting
−
Radius Server IP Address
−
Radius Port: 1812
−
Radius Secret
−
WPA Cipher Type (Auto, TKIP, AES)
−
Group Key Update Interval: 30~3600 seconds (0:disable)
Software / Firmware
−
Site Survey
−
DHCP Client
−
Suppressed SSID
−
Station Separation
−
Wireless access control by MAC address filter (up to 50)
−
Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)
−
Web-based configuration via popular browser (MS IE, Netscape,
Mozilla Firefox…)
−
Windows “Locator” program to help find IP in DHCP client mode
−
Firmware upgrade and configuration backup via Web
−
Reset to default by WebUI
−
VPN pass-through (PPTP, L2TP, IPSEC)
−
SysLog
−
SNMP v1/v2c
−
MIB support: MIB I, MIB II (RFC-1213) and Private MIB
−
Support QoS(WMM)
−
Support Time settings
Forwarding Mode Store and Forward
