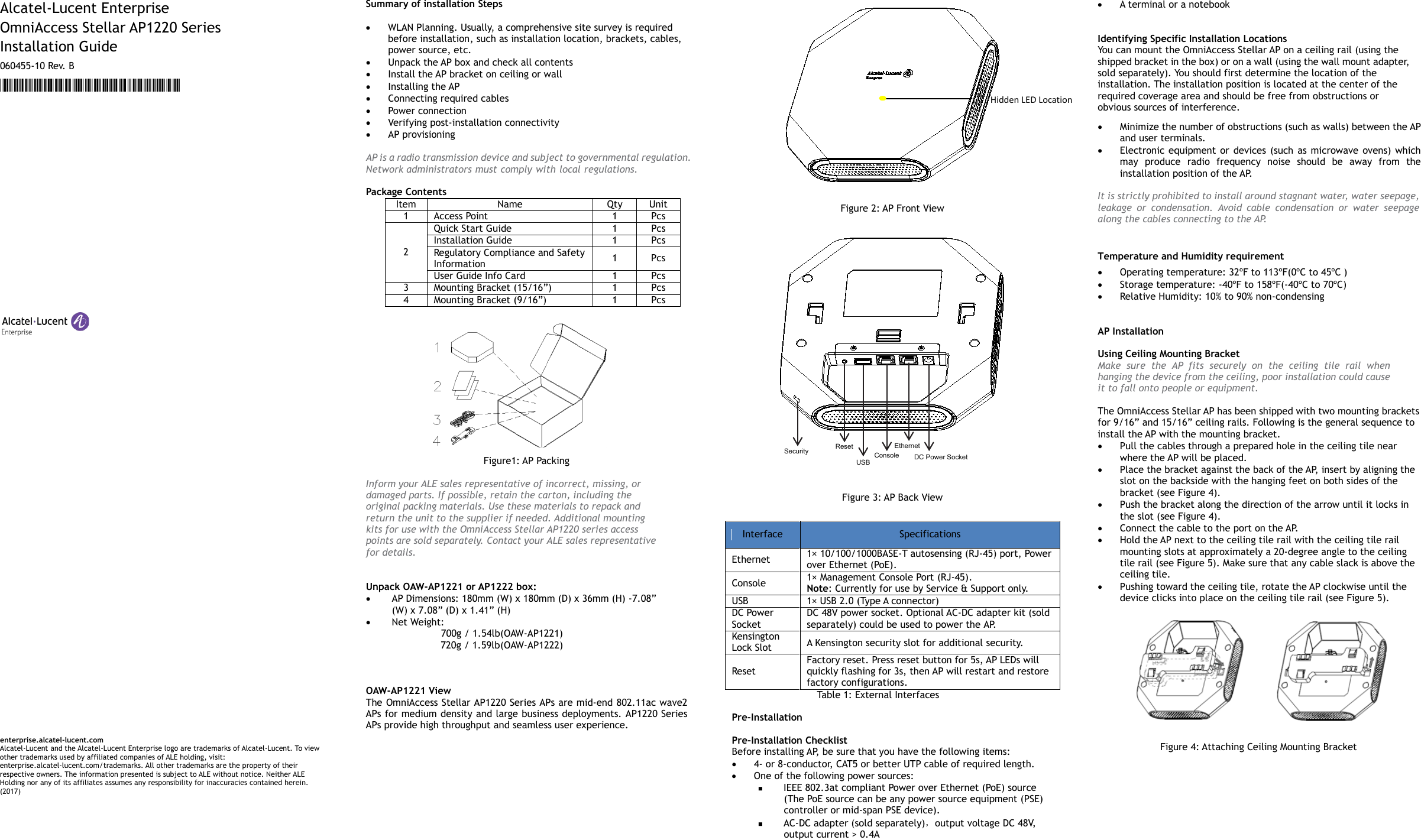

Alcatel-Lucent Enterprise OmniAccess Stellar AP1220 Series Installation Guide 060455-10 Re v. B *060455-10 Rev. B* enterprise.alcatel-lucent.com Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of Alcatel-Lucent. To view other trademarks used by affiliated companies of ALE holding, visit: enterprise.alcatel-lucent.com/trademarks. All other trademarks are the property of their respective owners. The information presented is subject to ALE without notice. Neither ALE Holding nor any of its affiliates assumes any responsibility for inaccuracies contained herein. (2017) Summary of installation Steps • WLAN Planning. Usually, a comprehensive site survey is required before installation, such as installation location, brackets, cables, power source, etc. • Unpack the AP box and check all contents • Install the AP bracket on ceiling or wall • Installing the AP • Connecting required cables • Power connection • Verifying post-installation connectivity • AP provisioning AP is a radio transmission device and subject to governmental regulation. Network administrators must comply with local regulations. Package Contents Item Name Qty Unit 1 Access Point 1 Pcs 2 Quick Start Guide 1 Pcs Installation Guide 1 Pcs Regulatory Compliance and Safety Information 1 Pcs User Guide Info Card 1 Pcs 3 Mounting Bracket (15/16”) 1 Pcs 4 Mounting Bracket (9/16”) 1 Pcs Figure1: AP Packing Inform your ALE sales representative of incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed. Additional mounting kits for use with the OmniAccess Stellar AP1220 series access points are sold separately. Contact your ALE sales representative for details. Unpack OAW-AP1221 or AP1222 box: • AP Dimensions: 180mm (W) x 180mm (D) x 36mm (H) -7.08” (W) x 7.08” (D) x 1.41” (H) • Net Weight: 700g / 1.54lb(OAW-AP1221) 720g / 1.59lb(OAW-AP1222) OAW-AP1221 View The OmniAccess Stellar AP1220 Series APs are mid-end 802.11ac wave2 APs for medium density and large business deployments. AP1220 Series APs provide high throughput and seamless user experience. Figure 2: AP Front View Figure 3: AP Back View Interface Specifications Ethernet 1× 10/100/1000BASE-T autosensing (RJ-45) port, Power over Ethernet (PoE). Console 1× Management Console Port (RJ-45). Note: Currently for use by Service & Support only. USB 1× USB 2.0 (Type A connector) DC Power Socket DC 48V power socket. Optional AC-DC adapter kit (sold separately) could be used to power the A P. Kensington Lock Slot A Kensington security slot for additional security. Reset Factory reset. Press reset button for 5s, AP LEDs will quickly flashing for 3s, then AP will restart and restore factory configurations. Tabl e 1 : External Interfaces Pre-Installation Pre-Installation Checklist Before installing AP, be sure that you have the following items: • 4- or 8-conductor, CAT5 or better UTP cable of required length. • One of the following power sources:  IEEE 802.3at compliant Power over Ethernet (PoE) source (The PoE source can be any power source equipment (PSE) controller or mid-span PSE device).  AC-DC adapter (sold separately)，output voltage DC 48V, output current > 0.4A • A terminal or a notebook Identifying Specific Installation Locations You can mount the OmniAccess Stellar AP on a ceiling rail (using the shipped bracket in the box) or on a wall (using the wall mount adapter, sold separately). You should first determine the location of the installation. The installation position is located at the center of the required coverage area and should be free from obstructions or obvious sources of interference. • Minimize the number of obstructions (such as walls) between the AP and user terminals. • Electronic equipment or devices (such as microwave ovens) which may produce radio frequency noise should be away from the installation position of the AP. It is strictly prohibited to install around stagnant water, water seepage, leakage or condensation. Avoid cable condensation or water seepage along the cables connecting to t h e A P. Temperature and Humidity requirement • Operating temperature: 32ºF to 113ºF(0ºC to 45ºC ) • Storage temperature: -40ºF to 158ºF(-40ºC to 70ºC) • Relative Humidity: 10% to 90% non-condensing AP Installation Using Ceiling Mounting Bracket Make sure the AP fits securely on the ceiling tile rail when hanging the device from the ceiling, poor installation could cause it to fall onto people or equipment. The OmniAccess Stellar AP has been shipped with two mounting brackets for 9/16” and 15/16” ceiling rails. Following is the general sequence to install the AP with the mounting bracket. • Pull the cables through a prepared hole in the ceiling tile near where the AP will be placed. • Place the bracket against the back of the AP, insert by aligning the slot on the backside with the hanging feet on both sides of the bracket (see Figure 4). • Push the bracket along the direction of the arrow until it locks in the slot (see Figure 4). • Connect the cable to the port on the AP. • Hold the AP next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 20-degree angle to the ceiling tile rail (see Figure 5). Make sure that any cable slack is above the ceiling tile. • Pushing toward the ceiling tile, rotate the AP clockwise until the device clicks into place on the ceiling tile rail (see Figure 5). Figure 4: Attaching Ceiling Mounting Bracket Hidden LED Location Security Console Ethernet DC Power Socket Reset USB

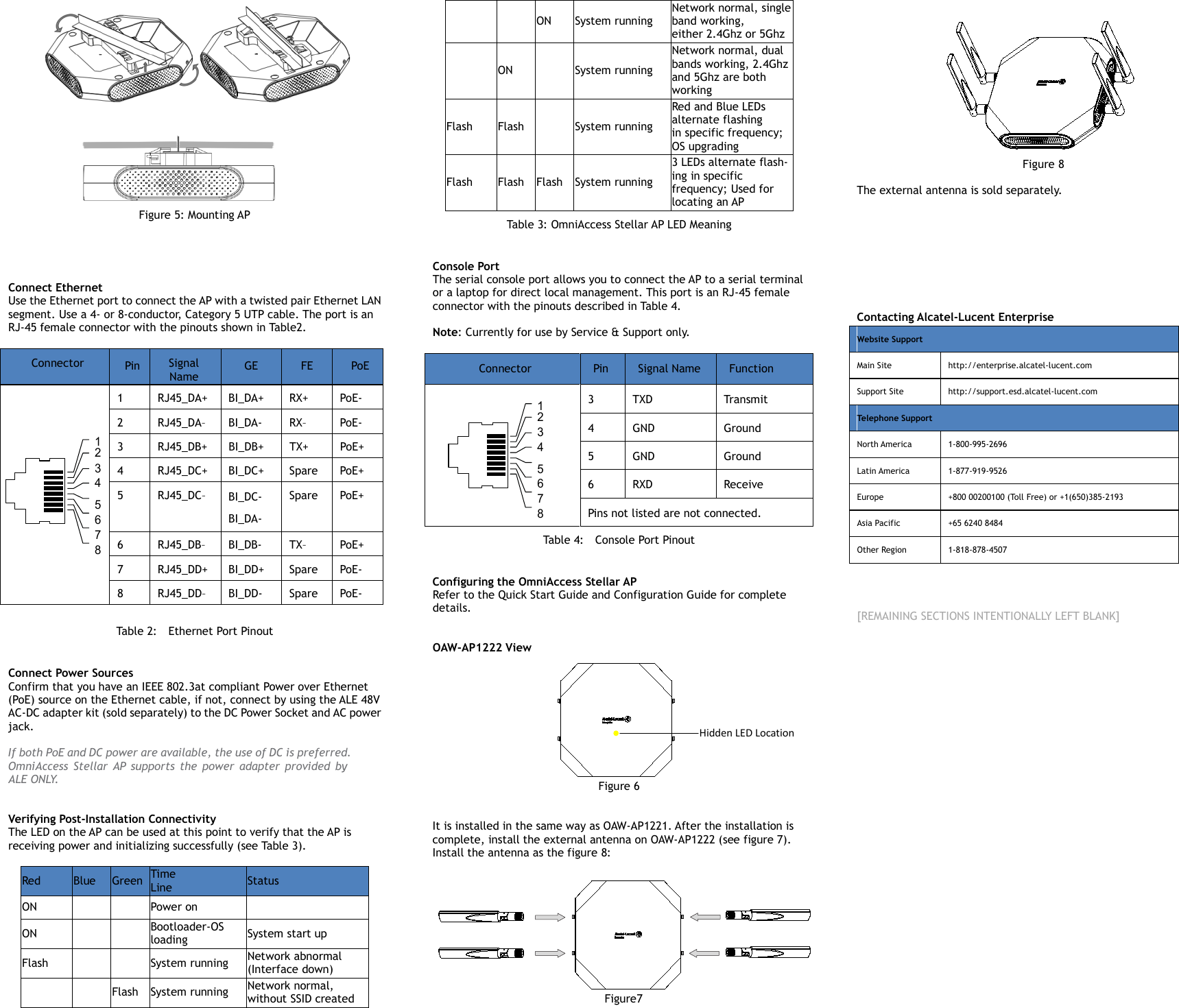

Figure 5: Mounting AP Connect Ethernet Use the Ethernet port to connect the AP with a twisted pair Ethernet LAN segment. Use a 4- or 8-conductor, Category 5 UTP cable. The port is an RJ-45 female connector with the pinouts shown in Ta b l e 2. Connector Pin Signal Name GE FE PoE 1 2 3 4 5 6 7 8 1 RJ45_DA+ BI_DA+ RX+ PoE- 2 RJ45_DA– BI_DA- RX– PoE- 3 RJ45_DB+ BI_DB+ TX+ PoE+ 4 RJ45_DC+ BI_DC+ Spare PoE+ 5 RJ45_DC– BI_DC- BI_DA- Spare PoE+ 6 RJ45_DB– BI_DB- TX– PoE+ 7 RJ45_DD+ BI_DD+ Spare PoE- 8 RJ45_DD– BI_DD- Spare PoE- Tabl e 2: Ethernet Port Pinout Connect Power Sources Confirm that you have an IEEE 802.3at compliant Power over Ethernet (PoE) source on the Ethernet cable, if not, connect by using the ALE 48V AC-DC adapter kit (sold separately) to the DC Power Socket and AC power jack. If both PoE and DC power are available, the use of DC is preferred. OmniAccess Stellar AP supports the power adapter provided by ALE ONLY. Verifying Post-Installation Connectivity The LED on the AP can be used at this point to verify that the AP is receiving power and initializing successfully (see Table 3). Red Blue Green Time Line Status ON Power on ON Bootloader-OS loading System start up Flash System running Network abnormal (Interface down) Flash System running Network normal, without SSID created ON System running Network normal, singleband working, either 2.4Ghz or 5Ghz ON System running Network normal, dual bands working, 2.4Ghz and 5Ghz are both working Flash Flash System running Red and Blue LEDs alternate flashing in specific frequency; OS upgrading Flash Flash Flash System running 3 LEDs alternate flash- ing in specific frequency; Used for locating an AP Tabl e 3: OmniAccess Stellar AP LED Meaning Console Port The serial console port allows you to connect the AP to a serial terminal or a laptop for direct local management. This port is an RJ-45 female connector with the pinouts described in Table 4. Note: Currently for use by Service & Support only. Connector Pin Signal Name Function 1 2 3 4 5 6 7 8 3 TXD Transmit 4 GND Ground 5 GND Ground 6 RXD Receive Pins not listed are not connected. Table 4: Console Port Pinout Configuring the OmniAccess Stellar AP Refer to the Quick Start Guide and Configuration Guide for complete details. OAW-AP1222 View Figure 6 It is installed in the same way as OAW-AP1221. After the installation is complete, install the external antenna on OAW-AP1222 (see figure 7). Install the antenna as the figure 8: Figure7 Figure 8 The external antenna is sold separately. Contacting Alcatel-Lucent Enterprise Website Support Main Site http://enterprise.alcatel-lucent.com Support Site http://support.esd.alcatel-lucent.com Telephone Support North America 1-800-995-2696 Latin America 1-877-919-9526 Europe +800 00200100 (Toll Free) or +1(650)385-2193 Asia Pacific +65 6240 8484 Other Region 1-818-878-4507 [REMAINING SECTIONS INTENTIONALLY LEFT BLANK] Hidden LED Location
