1

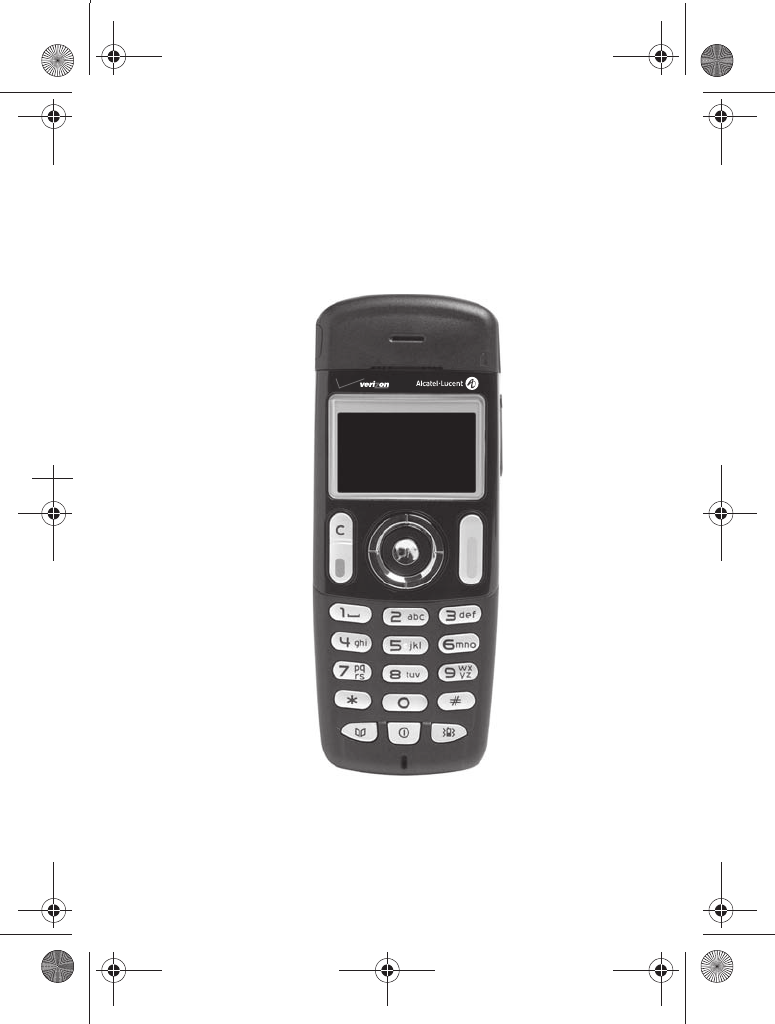

Alcatel-Lucent 400 DECT Handset
Alcatel-Lucent 300 DECT Handset
![](/img.php?id=860953&img=bg2.png)
Your telephone
2
Telephone
(1) if the system allows this
123
MARTIN Paul
Wed 24 May 16:30
Headset
ATIMU000-008
Status icons
Battery charge level: Ringer active
Message(s) waiting (flashing) Ringer deactivated
Programmed callback time Radio reception quality:
Call forwarding activated Vibrator active
Call icons
Making a call
Answering a call
In conversation
Call on hold
Access the directory feature
Transferring a call
Switching to DTMF signals
Setting up a conference
Place a call on hold
Parking an external
communication (1)
Additional options (1)
Switch the screen on again
Erase a character
Return to previous menu
Delete an entire field (long press)
Switch on / off (long press)
Rapid access to ringer adjustment
Hang up
Return to first screen
Switch off ringer
Lock/unlock keypad (long press)
Company directory
Customizing your telephone (1) /
Telephone ID (1) (long press)
3BN60370USAAed01.fm Page 2 Jeudi, 14. juin 2007 4:38 16
![](/img.php?id=860953&img=bg3.png)
3
Telephone
/
Microphone
English (US)
Light
•Green steady: handset charging
•Green fast flashing: outside the radio field
•Red slow flashing: message present
Adjust audio volume
Access MENU
Confirm
Display next selection of a list (up, down,
left, right)
Headset jack (400 DECT)
Back-lit screen (in colour for the 400 DECT)
The screen switches off automatically after a few seconds of inactivity.
To turn it back on, press the key
C
1
2
1
OK
Lift the receiver
Redial (long press)
Broker call (during consultation call)
Activate/deactivate loudspeaker
(400 DECT)
Activate/Deactivate the vibrating
ringer (long press)
3BN60370USAAed01.fm Page 3 Jeudi, 14. juin 2007 4:38 16
![](/img.php?id=860953&img=bg4.png)
4
Using your telephone
4
1
Other
Access MENU
For the description of the other menu icons, please refer to your phone set manual.
Making a call
Answering a call
All features described here below can be accessed by a long press on specific keys
It provides access to all the features available on your system.
Directories: manage your personal directory and access the company directory.
Redial: auto call back
Forward: forward your calls to another number.
Mailbox: consult and send voice and text messages.
Appointment: program a callback time.
System lock: prohibit outgoing calls and modification of the programming.
Adjustment: adjust the basic features of your telephone (preferences)
Language: selecting language (if the system allows this).
Dial the number
required
Send the call Speak Hang up
To make an external call, dial the outside line access code (9) before
dialing your party's number.
123
John
inconversation
You are answering a call Lift the receiver Speak Hang up
Disabling the ringer: Press the hang up key when your telephone
rings: it is still possible to answer by pressing the unhook key.
123
Sophie
iscalling
123
Sophie
inconversation
ATIGR010-020
ATIMU030-010
3BN60370USAAed01.fm Page 4 Jeudi, 14. juin 2007 4:38 16
![](/img.php?id=860953&img=bg5.png)
5
Using your telephone
1
5
Calling your party by name (company directory)
Redial
Access your personal
directory.
Select the Directory feature
Select the party you wish to call Send the call
Refer to the user manual of your telephone to program an entry in
the personal directory. Quick access (if the system allows this) :
123
123
1-JOHN
2-PAUL
3-
follow informations
displayed on the
screen
Enter the first letters of the last
name
Confirm if the name
of the person you are
calling is not
displayed
Select the name from the
displayed list
Send the call
123
Paul
Redial Select a name or a
number
Send the call
Quick access (if the system allows this) : long press.
123
ATIMU030-040
ATIMU030-020
ATIMU030-030
3BN60370USAAed01.fm Page 5 Jeudi, 14. juin 2007 4:38 16
To call your personal directory (Individual number)
![](/img.php?id=860953&img=bg6.png)
6
During a call
6
2
Other
Making a second call
Answering a second call
You are on call and a party is trying to contact you:
Switching between two calls (Broker call)
During a call, to recover the party on hold:
You are on a call with
the destination
number
The first call is placed on hold Calling a second
person during a call
Send the call
You can also call a second party by selecting the icon or 2nd call text,
or else by using your personal directory or the company directory.
123
Paul
inconversation
The caller’s name is displayed
for 3 seconds, and a beep is
sent
Lift the receiver The first call is placed on hold
Over 3 seconds, move with the navigate-left-right key to the
receiving a second call icon, to see the identity of the second caller
(and off-hook if necessary)
123
Paul
iscalling
123
Paul
inconversation
Switching between two calls (Broker call)-
Single-line terminal only.
your telephone
rings
Hang up the
ongoing call
Press the line key with icon to
recover the call on hold
123
Paul
inconversation
123
John
inconversation
OR OR
ATIGR030-050
ATIMU040-010
ATIMU040-020
ATIMU040-030
3BN60370USAAed01.fm Page 6 Jeudi, 14. juin 2007 4:38 16
![](/img.php?id=860953&img=bg7.png)
7
During a call
2
7
Transferring a call
After dialing the destination number, you can transfer the call directly without waiting for your
party's reply by validating the 'Transfer' option.You can initiate the transfer by using the icon or the
'Transfer' text.The transfer between two external parties and the transfer by pressing the hang-up
key depend on the system configuration.
Three-way conference with internal and/or external parties
(conference)
During a call, a second call is on hold.
To cancel the conference, press the OK key. This will put you back to the other party.
You are on call Select the 'transfer' function
Select 'transfer'
Calling a second
person
Select the 'transfer'
function Select 'transfer'
You can also transfer your call immediately, without waiting for your
party to answer.
123
Paul
inconversation
Select the 'conference'
feature
Number of second
party
Select the
'conference'
feature
123
Paul
inconversation
ATIMU040-040
ATIMU040-050
ATIMU060-005
3BN60370USAAed01.fm Page 7 Jeudi, 14. juin 2007 4:38 16
![](/img.php?id=860953&img=bg8.png)
8
Forward your calls to another number
8
3
Other
Formarding calls to another number (immediate forwarding)
Immediate forwarding to your voice mailbox
Cancelling all forwardings
Select the 'Forward' feature
Follow informations
displayed on the
screen
Select the feature associated
with 'Immediate forwarding'
Select the 'Forward' feature Select the 'Forwarding
to your voice
mailbox' icon
Select the 'Forward' feature Select the 'Forward
cancellation' icon
Confirm
ATIMU060-020
ATIMU060-080
3BN60370USAAed01.fm Page 8 Jeudi, 14. juin 2007 4:38 16
123
123
123
![](/img.php?id=860953&img=bg9.png)
9
Precautions for use / Declaration of compliance
4
9
Other
Precautions for use
This terminal and the supporting radio equipment have been designed for use with an Alcatel-
Lucent OmniPCX Office system and have been officially approved for private use between wireless
telephones via the associated private exchange The following conditions must be respected, notably
concerning the use of radioelectric frequencies:
•DECT equipment can only be used to establish links between fixed points if these links are
temporary and the equivalent isotropically radiated power at the antenna is less than
250 mW.
•The conditions of access to a DECT equipment telepoint network shall be stipulated by
contract with the attendant of the authorized telepoint network concerned.
•The power outlet used must be close to the charger/holder and easily accessible, so that it
can be used as a way to turn power on or off.
•Switch off the telephone before changing the battery.
• Do not expose your telephone to severe conditions (rain, sea air, dust, etc.).
• Correct operation of your telephone is not guaranteed at temperatures outside the range -
10°C to +45°C.
• You must not switch on or use your telephone near gas or inflammable liquids.
•A volume level that is too high can cause irreparable loss of hearing. Adjust the sound
volume of your handset to a reasonable level.
Declaration of compliance
We, Alcatel-Lucent Enterprise, hereby declare that we assume the Alcatel-Lucent 300 DECT
Handset and Alcatel-Lucent 400 DECT Handset to be compliant with the essential
requirements of Directive 1999/5/CE of the European Parliament and Council.
This equipment uses the DECT harmonised frequency spectrum and can be used in all the countries
of the European Community, Switzerland and Norway.No guarantee is given concerning possible
interference affecting DECT equipment, due to other authorised utilisation of the radio frequencies
concerned.
This device has been designed and manufactured not to exceed the SAR (Specific Absorption Rate)
radio frequency power transmission limits established by the different countries concerned. The
SAR value measured is equal to 0.061 W/kg (the globally accepted maximum limit being 1.6 W/kg).
Consumption in standby: 20 mW.
The labels and icons presented in this document are not contractually binding and may be modified
without prior warning.
The labels and icons displayed on your phone depend on the system to which you are connected
and may differ from those specified in this document.
Any unauthorised modification to the product shall render this declaration of compliance null and
void. A copy of the original of this declaration of compliance can be obtained by post from :
Alcatel-Lucent Enterprise - Technical Services - Approvals Manager
1, route du Dr. Albert Schweitzer
F 67408 Illkirch Cedex - France
Information relative to the environment
This symbol indicates that at the end of its life, this product should be subject to
special collection and disposal in member countries of the European Union, as well as
in Norway and Switzerland. By ensuring this product is disposed of correctly, you will
help to conserve natural resources and help prevent potential negative consequences
to the environment and human health which could otherwise be caused by
inappropriate disposal of this product. For further details about recycling this product,
please contact the supplier who sold you the product.
ATIGR060-004
3BN60370USAAed01.fm Page 9 Jeudi, 14. juin 2007 4:38 16
