ALPS ALPINE UGPZ4 Modular Bluetooth Transmitter User Manual

Alps Electric Co., Ltd. Modular Bluetooth Transmitter

Users Manual

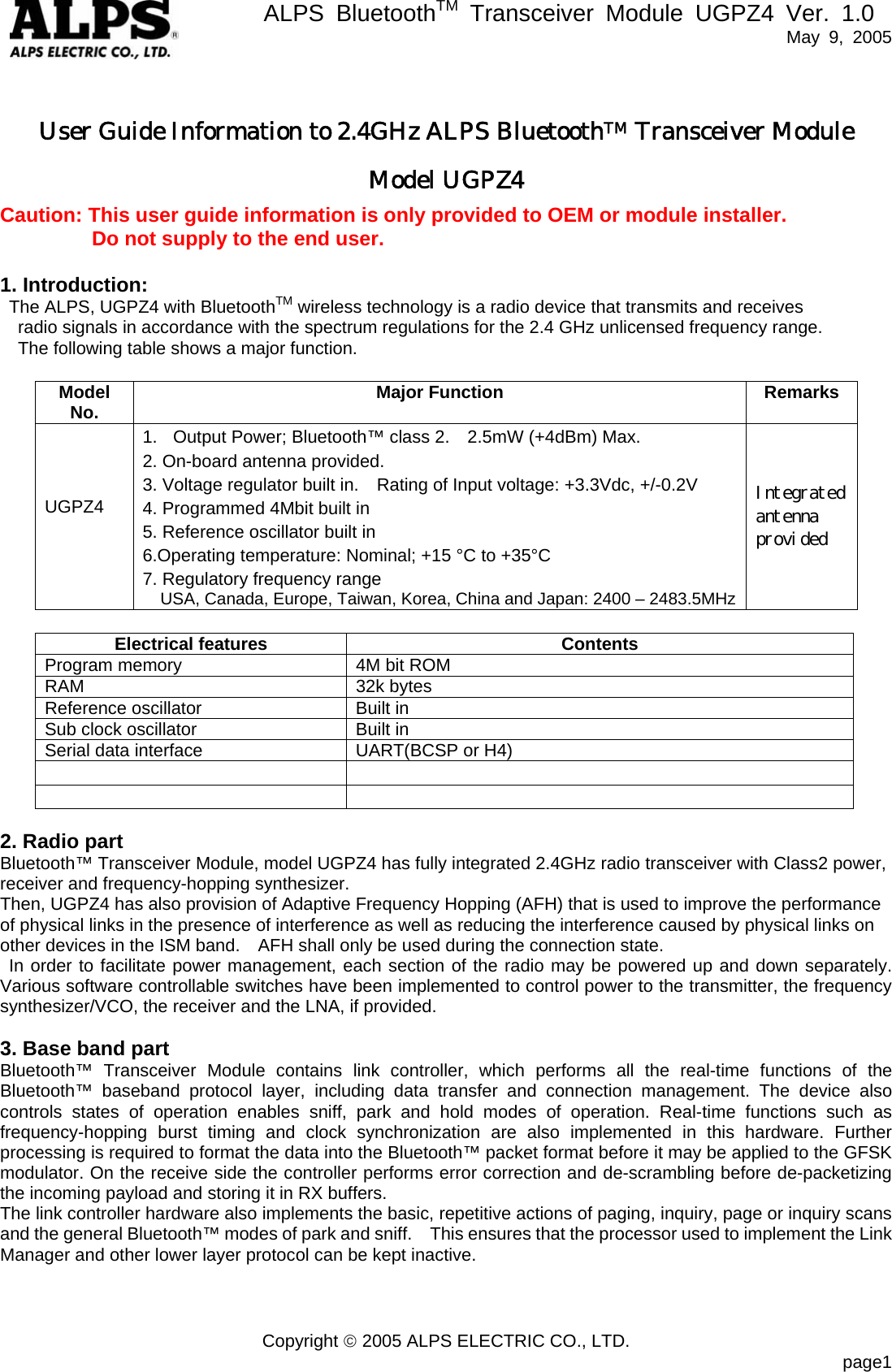

ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page1 User Guide Information to 2.4GHz ALPS BluetoothTM Transceiver Module Model UGPZ4 Caution: This user guide information is only provided to OEM or module installer. Do not supply to the end user. 1. Introduction: The ALPS, UGPZ4 with BluetoothTM wireless technology is a radio device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4 GHz unlicensed frequency range. The following table shows a major function. Model No. Major Function Remarks UGPZ4 1. Output Power; Bluetooth™ class 2. 2.5mW (+4dBm) Max. 2. On-board antenna provided. 3. Voltage regulator built in. Rating of Input voltage: +3.3Vdc, +/-0.2V 4. Programmed 4Mbit built in 5. Reference oscillator built in 6.Operating temperature: Nominal; +15 °C to +35°C 7. Regulatory frequency range USA, Canada, Europe, Taiwan, Korea, China and Japan: 2400 – 2483.5MHz Integrated antenna provided Electrical features Contents Program memory 4M bit ROM RAM 32k bytes Reference oscillator Built in Sub clock oscillator Built in Serial data interface UART(BCSP or H4) 2. Radio part Bluetooth™ Transceiver Module, model UGPZ4 has fully integrated 2.4GHz radio transceiver with Class2 power, receiver and frequency-hopping synthesizer. Then, UGPZ4 has also provision of Adaptive Frequency Hopping (AFH) that is used to improve the performance of physical links in the presence of interference as well as reducing the interference caused by physical links on other devices in the ISM band. AFH shall only be used during the connection state. In order to facilitate power management, each section of the radio may be powered up and down separately. Various software controllable switches have been implemented to control power to the transmitter, the frequency synthesizer/VCO, the receiver and the LNA, if provided. 3. Base band part Bluetooth™ Transceiver Module contains link controller, which performs all the real-time functions of the Bluetooth™ baseband protocol layer, including data transfer and connection management. The device also controls states of operation enables sniff, park and hold modes of operation. Real-time functions such as frequency-hopping burst timing and clock synchronization are also implemented in this hardware. Further processing is required to format the data into the Bluetooth™ packet format before it may be applied to the GFSK modulator. On the receive side the controller performs error correction and de-scrambling before de-packetizing the incoming payload and storing it in RX buffers. The link controller hardware also implements the basic, repetitive actions of paging, inquiry, page or inquiry scans and the general Bluetooth™ modes of park and sniff. This ensures that the processor used to implement the Link Manager and other lower layer protocol can be kept inactive.

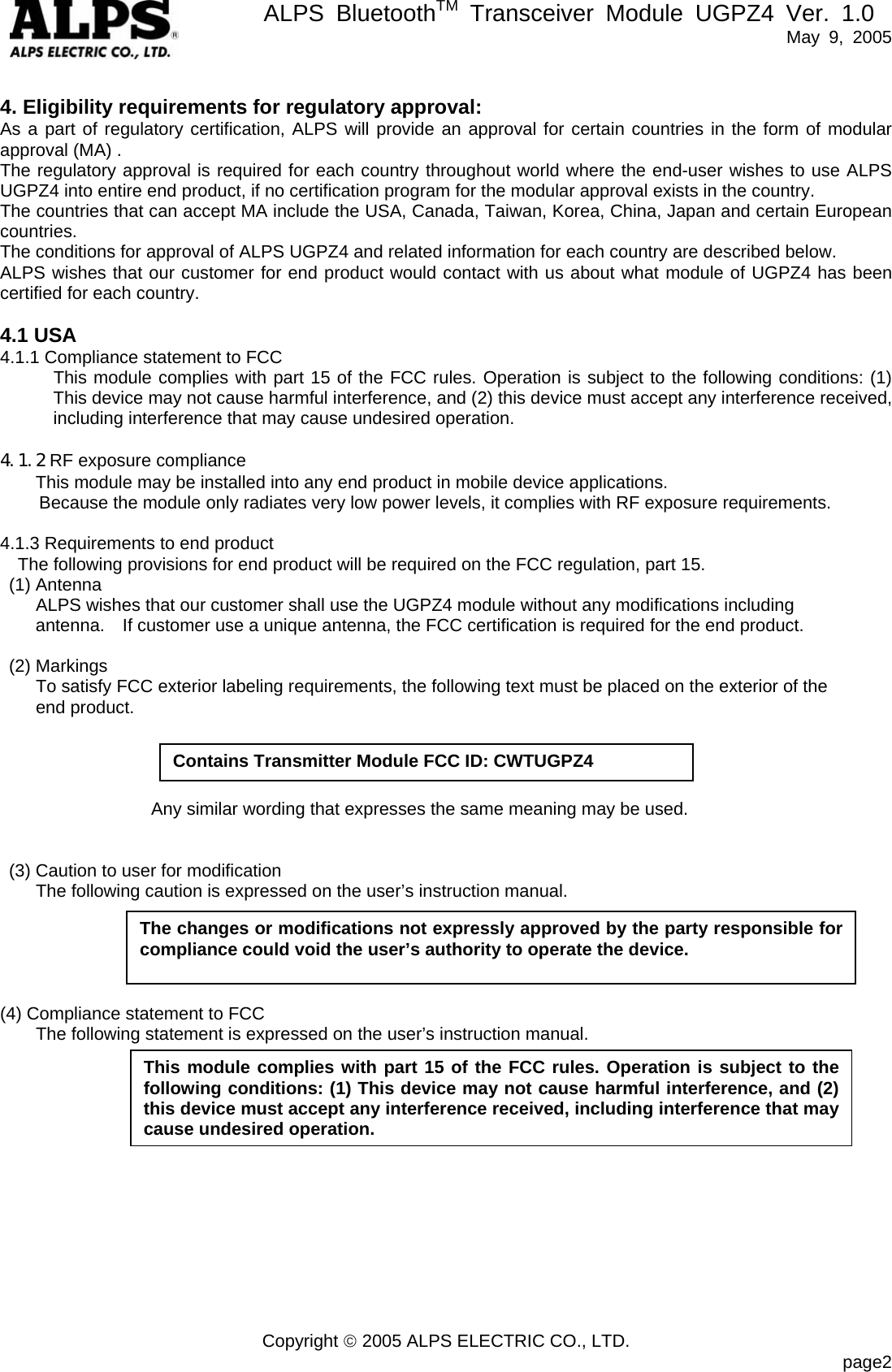

ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page2 4. Eligibility requirements for regulatory approval: As a part of regulatory certification, ALPS will provide an approval for certain countries in the form of modular approval (MA) . The regulatory approval is required for each country throughout world where the end-user wishes to use ALPS UGPZ4 into entire end product, if no certification program for the modular approval exists in the country. The countries that can accept MA include the USA, Canada, Taiwan, Korea, China, Japan and certain European countries. The conditions for approval of ALPS UGPZ4 and related information for each country are described below. ALPS wishes that our customer for end product would contact with us about what module of UGPZ4 has been certified for each country. 4.1 USA 4.1.1 Compliance statement to FCC This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.1.2 RF exposure compliance This module may be installed into any end product in mobile device applications. Because the module only radiates very low power levels, it complies with RF exposure requirements. 4.1.3 Requirements to end product The following provisions for end product will be required on the FCC regulation, part 15. (1) Antenna ALPS wishes that our customer shall use the UGPZ4 module without any modifications including antenna. If customer use a unique antenna, the FCC certification is required for the end product. (2) Markings To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Any similar wording that expresses the same meaning may be used. (3) Caution to user for modification The following caution is expressed on the user’s instruction manual. (4) Compliance statement to FCC The following statement is expressed on the user’s instruction manual. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device. This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains Transmitter Module FCC ID: CWTUGPZ4

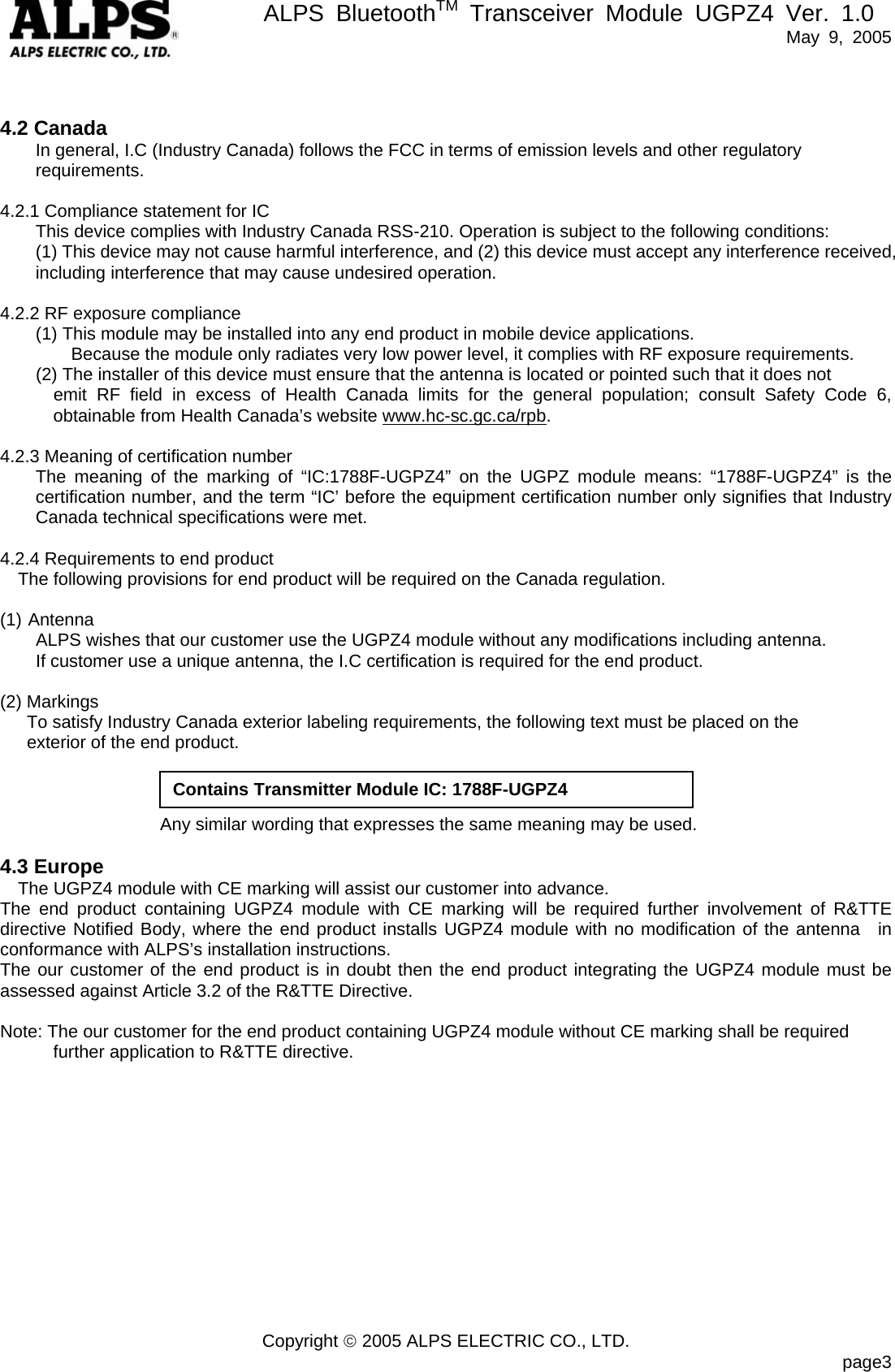

ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page3 4.2 Canada In general, I.C (Industry Canada) follows the FCC in terms of emission levels and other regulatory requirements. 4.2.1 Compliance statement for IC This device complies with Industry Canada RSS-210. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.2.2 RF exposure compliance (1) This module may be installed into any end product in mobile device applications. Because the module only radiates very low power level, it complies with RF exposure requirements. (2) The installer of this device must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb. 4.2.3 Meaning of certification number The meaning of the marking of “IC:1788F-UGPZ4” on the UGPZ module means: “1788F-UGPZ4” is the certification number, and the term “IC’ before the equipment certification number only signifies that Industry Canada technical specifications were met. 4.2.4 Requirements to end product The following provisions for end product will be required on the Canada regulation. (1) Antenna ALPS wishes that our customer use the UGPZ4 module without any modifications including antenna. If customer use a unique antenna, the I.C certification is required for the end product. (2) Markings To satisfy Industry Canada exterior labeling requirements, the following text must be placed on the exterior of the end product. Any similar wording that expresses the same meaning may be used. 4.3 Europe The UGPZ4 module with CE marking will assist our customer into advance. The end product containing UGPZ4 module with CE marking will be required further involvement of R&TTE directive Notified Body, where the end product installs UGPZ4 module with no modification of the antenna in conformance with ALPS’s installation instructions. The our customer of the end product is in doubt then the end product integrating the UGPZ4 module must be assessed against Article 3.2 of the R&TTE Directive. Note: The our customer for the end product containing UGPZ4 module without CE marking shall be required further application to R&TTE directive. Contains Transmitter Module IC: 1788F-UGPZ4
ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page4 4.4 Japan 4.4.1 Radio law (TELEC or other registered testing house) The our customer for the end product will not require the certification of TELEC or other registered testing house for the end product, where UGPZ4 module with TELEC or other registered testing house certification shall be incorporated in the following applications. (1) Antenna ALPS wishes that our customer shall use the UGPZ4 module without any modifications including antenna. If customer use a unique antenna, the re-certification to TELEC or other registered testing house will be required for the UGPZ4 module. Thus, our customer would be required to contact with ALPS before the modification of the antenna. (2) The outer cabinet of the end product shall be fixed by easily access method, such fixing with plus / minus screws to open the outer cabinet by general public. The permanently fixing method, such using security screws are not allowed for mounting method. The labeling to exterior of the end product has a meaning of “Contains transmitter device certified under Japanese radio law ”, or similar wording. (see below) (3) Where outer cabinet of the end product containing UGPZ4 module is secured by the permanently securing method, such using security screws, the our customer for the end product shall obtain TELEC or other registered testing house certification by themselves for the end product, even if UGPZ4 module has been certified by TELEC or other registered testing house. 4.4.2 Telecommunications law (JATE or other registered testing house) (1) The end product containing UGPZ4 module shall be certified by JATE, where the end product is directly or indirectly connected to telecommunication line, such public telephone, even if UGPZ4 module has been certified by JATE or other registered testing house, or not. (2) Since the UGPZ4 module is not certified by JATE or other registered testing house, our customer for the end product containing UGPZ4 module would be required as that; a) In case of that outer cabinet is fixed by easily access method, such fixing with plus / minus screws to open the outer cabinet by general public, the user manual for the end product has a caution to the end user about the meaning of “Easily removable wireless transmitter is integrated”, or similar wording. (see below) Any similar wording that expresses the same meaning may be used. b) Where outer cabinet is secured by the permanently securing method, such using security screws, the our customer for the end product shall obtain JATE or other registered testing house certification by themselves for the end product, even if UGPZ4 module has been certified by JATE or other registered testing house, or not. 「容易に取り外せる無線設備が内蔵されています。」 （“Easily removable wireless transmitter is integrated”） 「電波法適合無線設備を内蔵」 （“Contains transmitter device certified under Japanese radio law ” ）

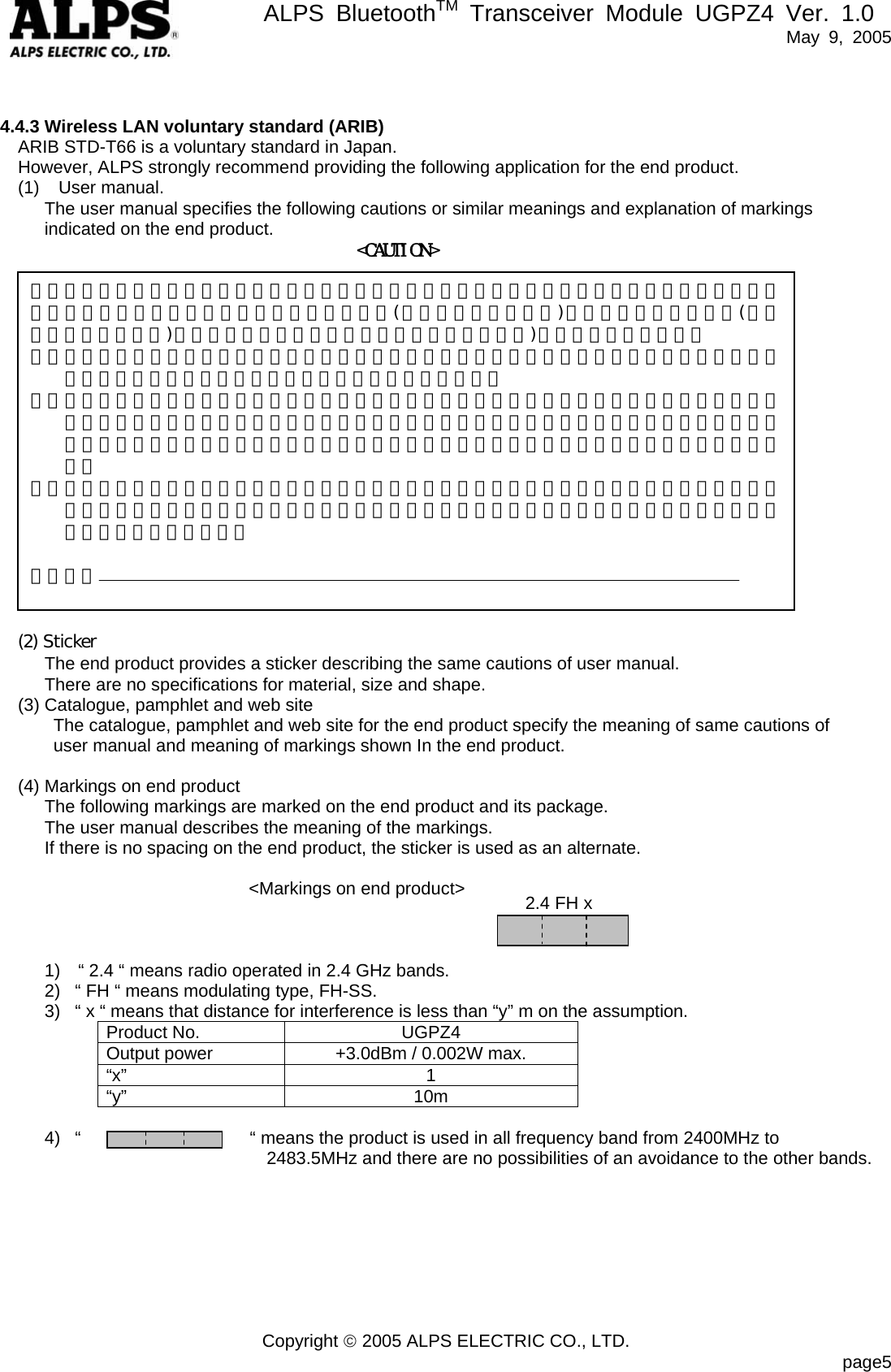

ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page5 4.4.3 Wireless LAN voluntary standard (ARIB) ARIB STD-T66 is a voluntary standard in Japan. However, ALPS strongly recommend providing the following application for the end product. (1) User manual. The user manual specifies the following cautions or similar meanings and explanation of markings indicated on the end product. <CAUTION> (2) Sticker The end product provides a sticker describing the same cautions of user manual. There are no specifications for material, size and shape. (3) Catalogue, pamphlet and web site The catalogue, pamphlet and web site for the end product specify the meaning of same cautions of user manual and meaning of markings shown In the end product. (4) Markings on end product The following markings are marked on the end product and its package. The user manual describes the meaning of the markings. If there is no spacing on the end product, the sticker is used as an alternate. <Markings on end product> 1) “ 2.4 “ means radio operated in 2.4 GHz bands. 2) “ FH “ means modulating type, FH-SS. 3) “ x “ means that distance for interference is less than “y” m on the assumption. Product No. UGPZ4 Output power +3.0dBm / 0.002W max. “x” 1 “y” 10m 4) “ “ means the product is used in all frequency band from 2400MHz to 2483.5MHz and there are no possibilities of an avoidance to the other bands. この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか、工場の製造ライン等で使用されている移動体識別用の構内無線局(免許を要する無線局)及び特定小電力無線局(免許を要しない無線局)並びにアマチュア無線局（免許を要する無線局)が運用されています。 １． この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマチュア無線局が運用されていないことを確認して下さい。 ２． 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、速やかに使用周波数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混信回避のための処置等（例えば、パーティションの設置など）についてご相談して下さい。 ３． その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して、有害な電波干渉の事例が発生した場合などの何かお困りのことが起きたときは、次の連絡先へお問い合わせください。 連絡先： 2.4 FH x

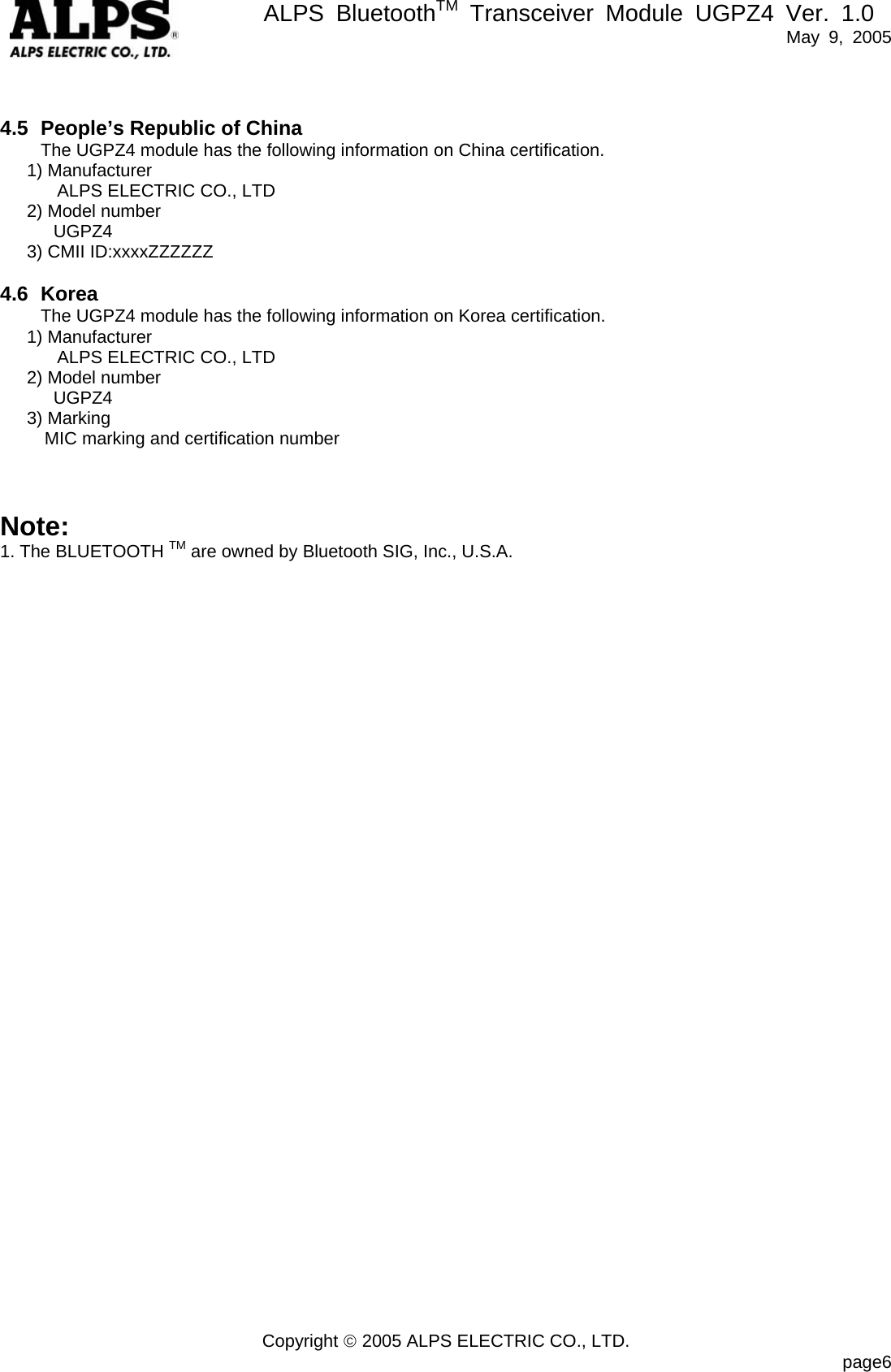

ALPS BluetoothTM Transceiver Module UGPZ4 Ver. 1.0 May 9, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page6 4.5 People’s Republic of China The UGPZ4 module has the following information on China certification. 1) Manufacturer ALPS ELECTRIC CO., LTD 2) Model number UGPZ4 3) CMII ID:xxxxZZZZZZ 4.6 Korea The UGPZ4 module has the following information on Korea certification. 1) Manufacturer ALPS ELECTRIC CO., LTD 2) Model number UGPZ4 3) Marking MIC marking and certification number Note: 1. The BLUETOOTH TM are owned by Bluetooth SIG, Inc., U.S.A.
